# A Comparison of Methods to Measure the Coupling Coefficient of Electromagnetic Vibration Energy Harvesters

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Electromagnetic Coupling

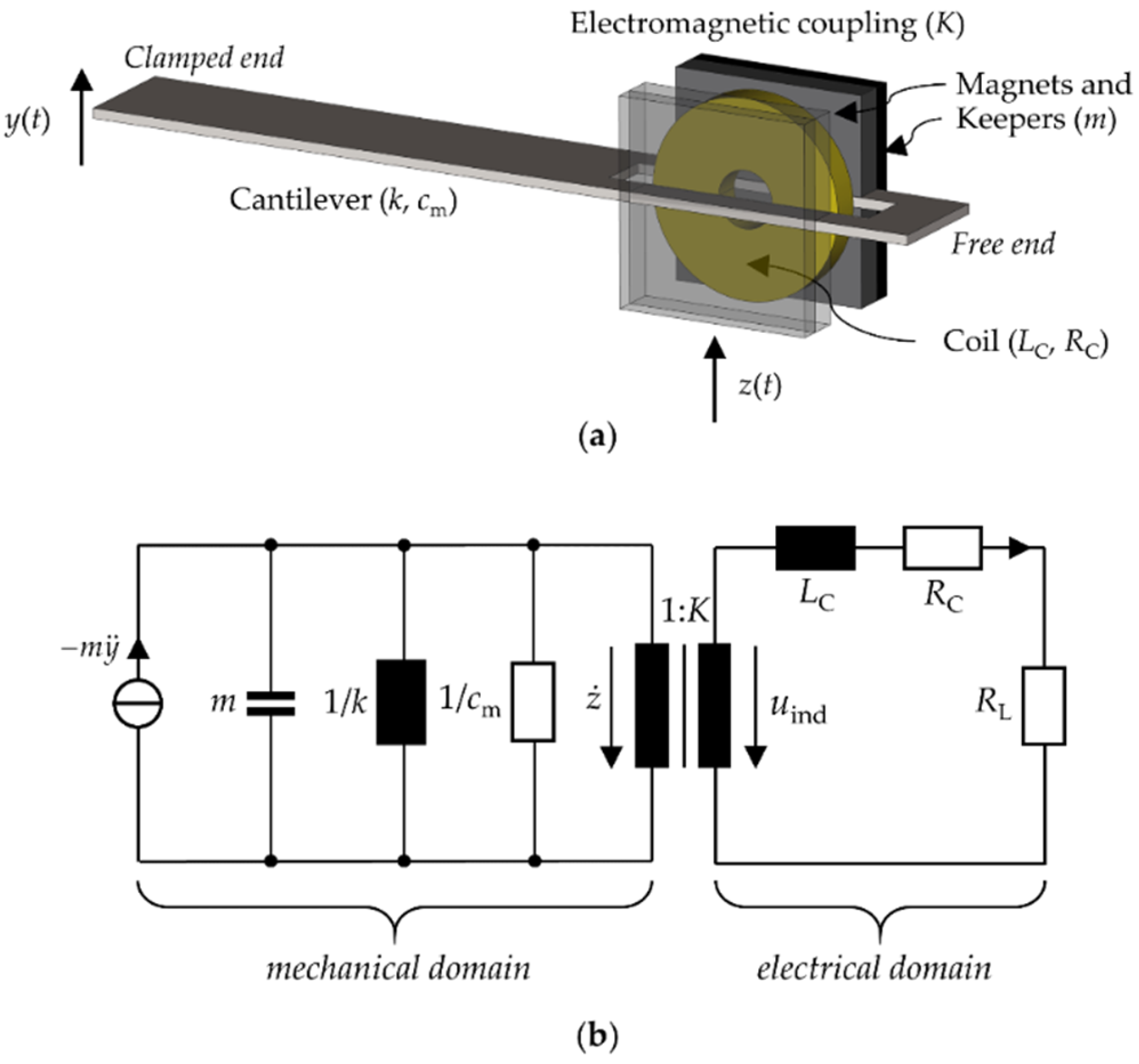

#### 2.1. Theory

#### 2.2. Four Methods of Measuring the Electromagnetic Coupling Coefficient

## 3. Experimental and Simulative Validation

#### 3.1. Energy Harvester Implementation

#### 3.2. Finite Element Simulation

#### 3.3. Measurement Details

#### 3.4. Propagation of Uncertainty

## 4. Results and Discussion

#### 4.1. Damping Influence and Optimum Load

#### 4.2. Measuring ${K}_{\mathrm{i}}$

#### 4.3. Comparison and Discussion

## 5. Summary

## Supplementary Materials

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A

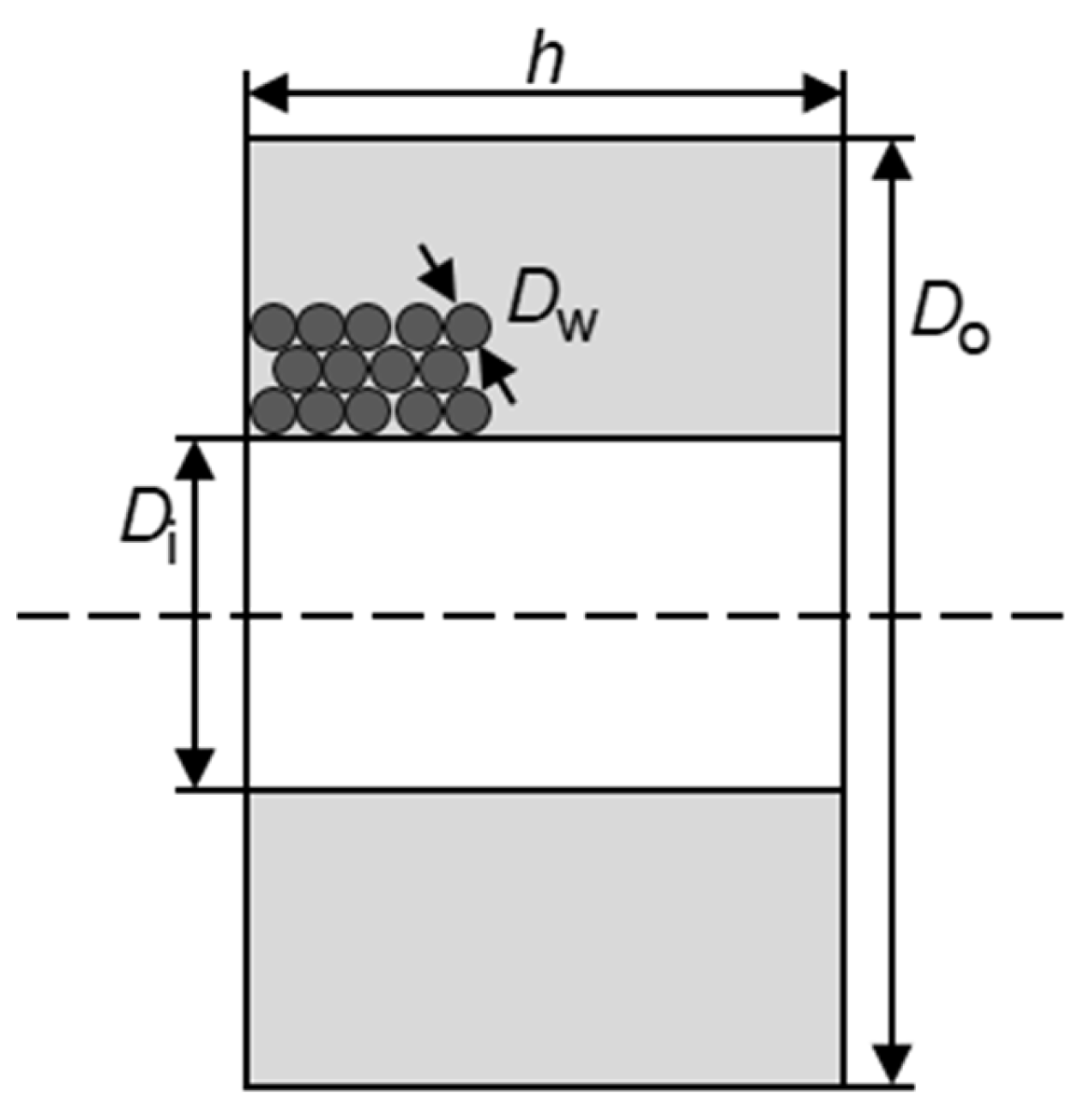

**Figure A1.**Cross-section of an air coil. The grey area is filled with windings (some wire cross-sections are shown as examples).

## References

- Basagni, S.; Naderi, M.Y.; Petrioli, C.; Spenza, D. Wireless sensor networks with energy harvesting. In Mobile Ad Hoc Networking, 2nd ed.; IEEE Press: Piscataway, NJ, USA, 2013. [Google Scholar]
- Cook-Chenault, K.A.; Thambi, N.; Sastry, A.M. Powering MEMS portable devices—a review of non-regenerative and regenerative power supply systems with special emphasis on piezoelectric energy harvesting systems. Smart Mater. Struct.
**2008**, 17, 043001. [Google Scholar] [CrossRef] - Matiko, J.W.; Grabham, N.J.; Beeby, S.P.; Tudor, M.J. Review of the application of energy harvesting in buildings. Meas. Sci. Technol.
**2014**, 25, 012002. [Google Scholar] [CrossRef] - Beeby, S.P.; Tudor, M.J.; White, N.M. Energy harvesting vibration sources for microsystems applications. Meas. Sci. Technol.
**2006**, 17, R175–R195. [Google Scholar] [CrossRef] - Zhu, D.B.; Tudor, M.J.; Beeby, S.P. Strategies for increasing the operating frequency range of vibration energy harvesters: A review. Meas. Sci. Technol.
**2010**, 21, 022001. [Google Scholar] [CrossRef] - Tang, L.H.; Yang, Y.W.; Soh, C.K. Toward Broadband Vibration-based Energy Harvesting. J. Intell. Mater. Struct.
**2010**, 21, 1867–1897. [Google Scholar] [CrossRef] - Mösch, M.; Fischerauer, G. A Theory for Energy-Optimized Operation of Self-Adaptive Vibration Energy Harvesting Systems with Passive Frequency Adjustment. Micromachines
**2019**, 10, 44. [Google Scholar] [CrossRef] [PubMed] - Friswell, M.I.; Ali, S.F.; Bilgen, O.; Adhikari, S.; Lees, A.W.; Litak, G. Non-linear piezoelectric vibration energy harvesting from a vertical cantilever beam with tip mass. J. Intell. Mater. Syst. Struct.
**2012**, 23, 1505–1521. [Google Scholar] [CrossRef] - Hoffmann, D.; Folkmer, B.; Manoli, Y. Experimental Analysis of a Coupled Energy Harvesting System with Monostable and Bistable Configuration. In Proceedings of the 14th International Conference on Micro- and Nano-Technology for Power Generation and Energy Conversion Applications (PowerMEMS), Hyogo, Japan, 18–21 November 2014. [Google Scholar]
- Roundy, S.; Wright, P.K. A piezoelectric vibration based generator for wireless electronics. Smart Mater. Struct.
**2004**, 13, 1131–1142. [Google Scholar] [CrossRef] - Caliò, R.; Rongala, U.B.; Camboni, D.; Milazzo, M.; Stefanini, C.; de Petris, G.; Oddo, C.M. Piezoelectric Energy Harvesting Solutions. Sensors
**2014**, 14, 4755–4790. [Google Scholar] [CrossRef] [PubMed] - Stephen, N.G. On energy harvesting from ambient vibration. J. Sound Vibr.
**2006**, 293, 409–425. [Google Scholar] [CrossRef] - O’Donnell, T.; Saha, C.; Beeby, S.; Tudor, J. Scaling effects for electromagnetic vibrational power generators. Microsyst. Technol.
**2007**, 13, 1637–1645. [Google Scholar] [CrossRef] - Glynne-Jones, P.; Tudor, M.J.; Beeby, S.P.; White, N.M. An electromagnetic, vibration-powered generator for intelligent sensor systems. Sens. Actuator A Phys.
**2004**, 110, 344–349. [Google Scholar] [CrossRef] - Cheng, S.; Wang, N.; Arnold, D.P. Modeling of magnetic vibrational energy harvesters using equivalent circuit representations. J. Micromech. Microeng.
**2007**, 17, 2328. [Google Scholar] [CrossRef] - Spreemann, D.; Hoffmann, D.; Folkmer, B.; Manoli, Y. Numerical optimization approach for resonant electromagnetic vibration transducer designed for random vibration. J. Micromech. Microeng.
**2008**, 18, 104001. [Google Scholar] [CrossRef] - Mann, B.P.; Owens, B.A. Investigations of a nonlinear energy harvester with a bistable potential well. J. Sound Vibr.
**2010**, 329, 1215–1226. [Google Scholar] [CrossRef] - Cepnik, C.; Radler, O.; Rosenbaum, S.; Ströhla, T.; Wallrabe, U. Effective optimization of electromagnetic energy harvesters through direct computation of the electromagnetic coupling. Sens. Actuator A Phys.
**2011**, 167, 416–421. [Google Scholar] [CrossRef] - Szarka, G.D.; Burrow, S.G.; Proynov, P.P.; Stark, B.H. Maximum Power Transfer Tracking for Ultralow-Power Electromagnetic Energy Harvesters. IEEE Trans. Power Electron.
**2014**, 29, 201–212. [Google Scholar] [CrossRef] - Rao, S.S. Mechanical Vibrations, 5th ed.; Prentice Hall: Upper Saddle River, NJ, USA, 2011. [Google Scholar]
- Maurath, D.; Becker, P.F.; Spreemann, D.; Manoli, Y. Efficient Energy Harvesting with Electromagnetic Energy Transducers Using Active Low-Voltage Rectification and Maximum Power Point Tracking. IEEE J. Solid-State Circuits
**2012**, 47, 1369–1380. [Google Scholar] [CrossRef] - Leicht, J.; Amayreh, M.; Moranz, C.; Maurath, D.; Hehn, T.; Manoli, Y. Electromagnetic Vibration Energy Harvester Interface IC with Conduction-Angle-Controlled Maximum-Power-Point Tracking and Harvesting Efficiencies of up to 90%. In Proceedings of the 62nd IEEE International Solid-State Circuits Conference (ISSCC), San Francisco, CA, USA, 22–26 February 2015; pp. 368–369. [Google Scholar]
- Kirkup, L.; Frenkel, R.B. An Introduction to Uncertainty in Measurement Using the GUM (Guide to the Expression of Uncertainty in Measurement); Cambridge University Press: Cambridge, UK, 2006. [Google Scholar]
- Cepnik, C.; Wallrabe, U. On the comparison, scaling and benchmarking of electromagnetic vibration energy harvesters. In Proceedings of the PowerMEMS 2011, Seoul, Korea, 15–18 November 2011. [Google Scholar]
- Leicht, J.; Hehn, T.; Maurath, D.; Moranz, C.; Manoli, Y. Physical insight into electromagnetic kinetic energy transducers and appropriate energy conditioning for enhanced micro energy harvesting. In Proceedings of the 13th International Conference on Micro and Nano Technology for Power Generation and Energy Conversion Applications (PowerMEMS), London, UK, 3–6 December 2013. [Google Scholar]

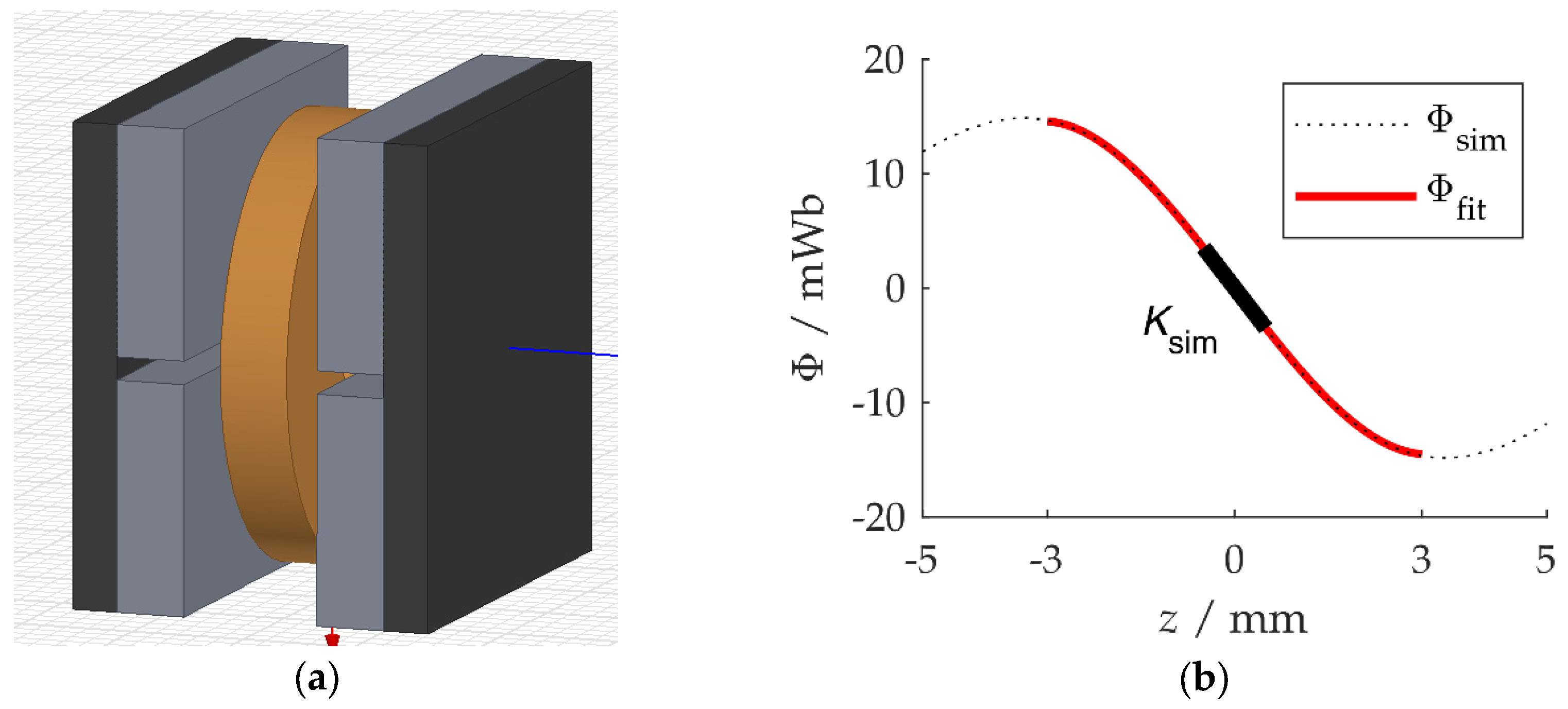

**Figure 2.**(

**a**) Model of a magnetic circuit with coil (copper), magnets (grey), and iron (dark). (

**b**) FE simulation result of the magnetic flux with Ansys Electromagnetics.

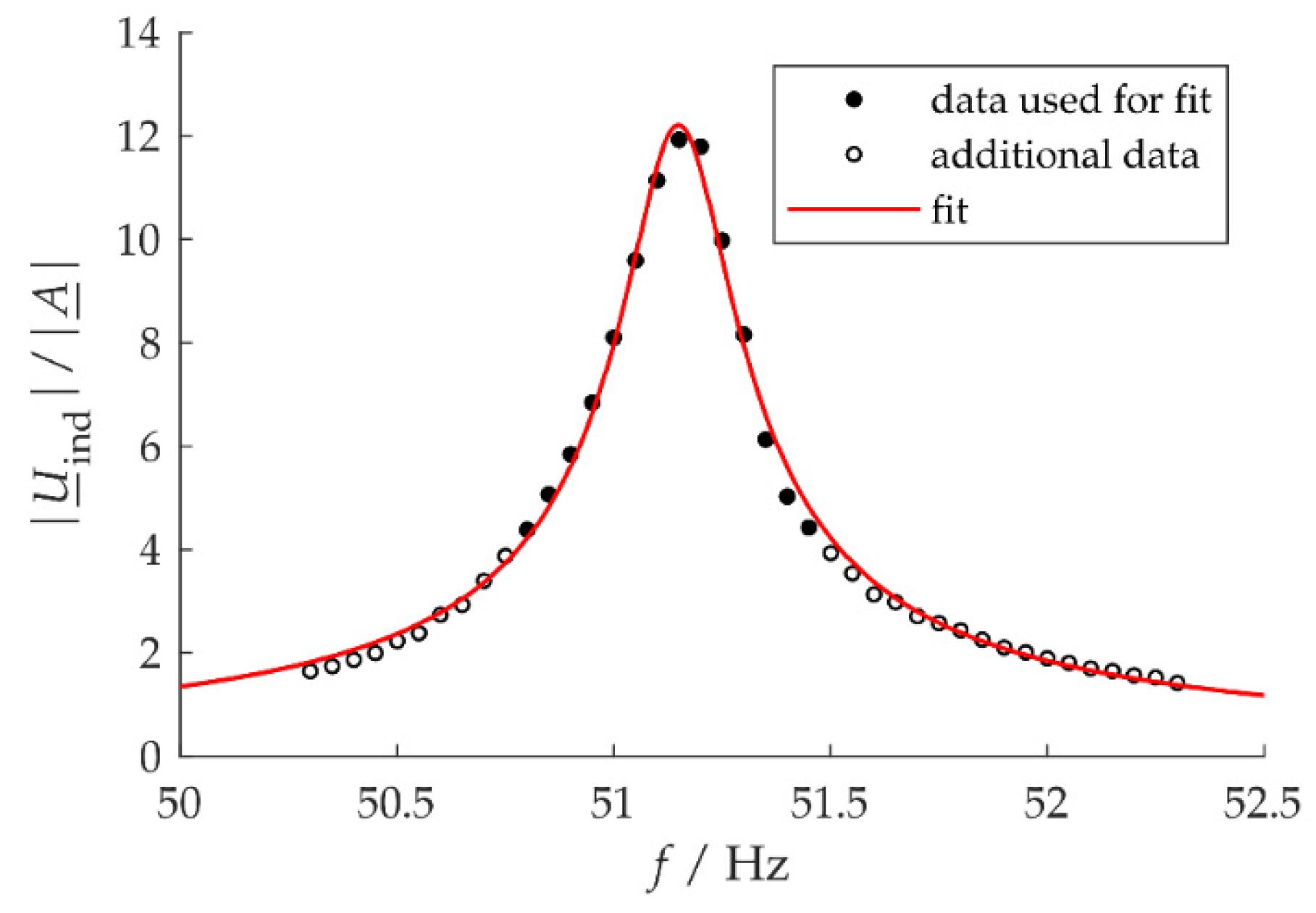

**Figure 3.**Measured resonance curve of the induced voltage in an electromagnetic energy harvester and best fit by a curve of the type given in Equation (6) for setup 1L from Section 3.3 below.

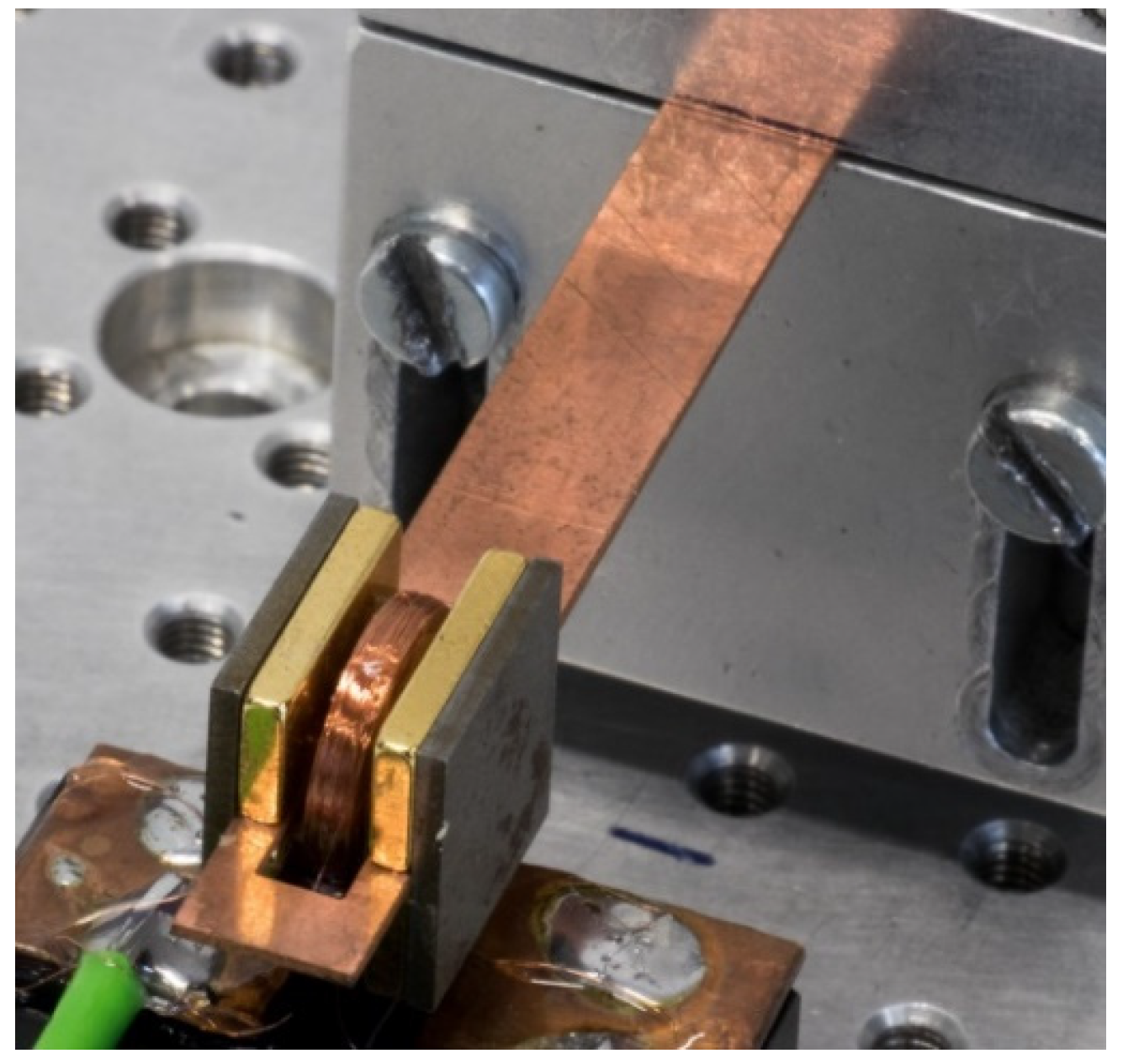

**Figure 4.**Photograph of the cantilever energy harvester used for experimental tests. The reader sees the clamped copper beam, two magnets with golden coating, the iron legs of the magnetic circuit, and the copper coil in the gap between the magnets (connected to the base).

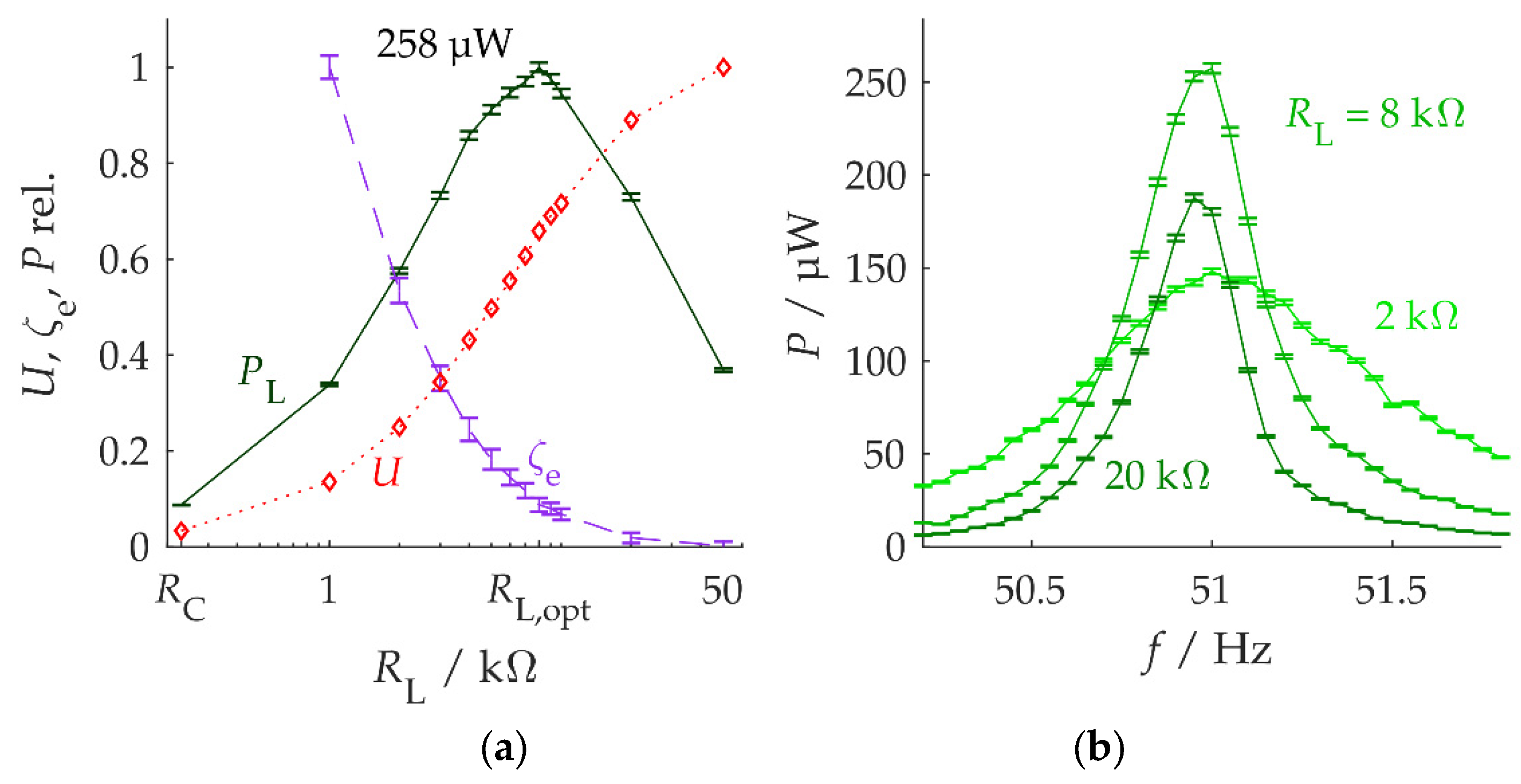

**Figure 5.**Measured load-resistance influence in harvester setup 1L. (

**a**) Voltage amplitude, electrical damping factor, and maximum load power as functions of the load resistance. All quantities have been normalized for unity. The voltage uncertainties are negligible, and therefore have not been indicated. (

**b**) Frequency dependence of the power delivered to the load for different load resistances. The optimum load resistance for harvester excitement at its resonance frequency of about 51 Hz is 8 kΩ.

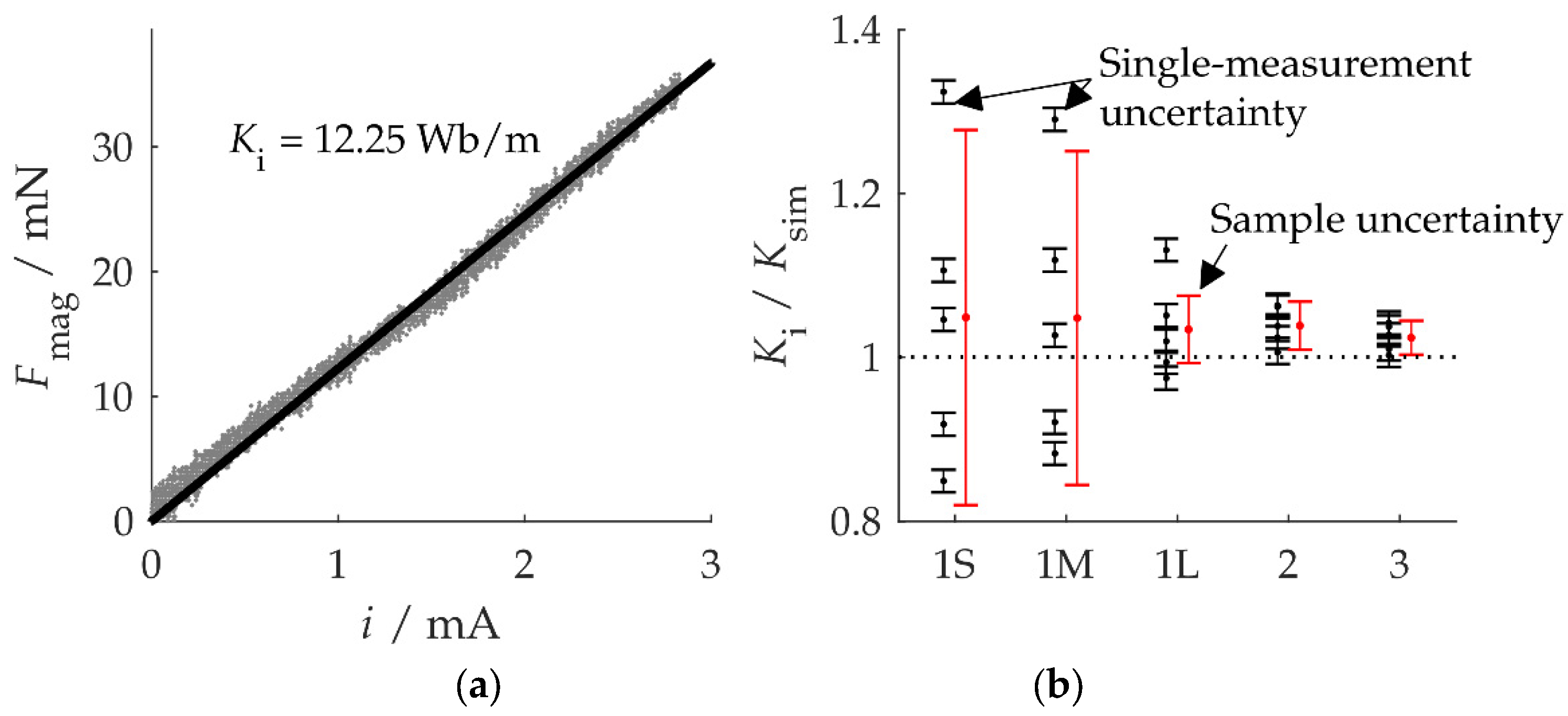

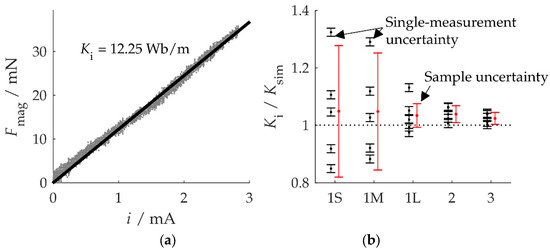

**Figure 6.**Identification of the coupling coefficient by way of a magnetic-force measurement: (

**a**) Magnetic force for setup 2 as a function of the coil current and identified coupling coefficient K

_{i}; (

**b**) results for K

_{i}in five subsequent measurements for every setup. The sample uncertainty (red error bar) is much bigger for small clamping lengths, which indicates effects not included in the single-measurement uncertainty Equation (10).

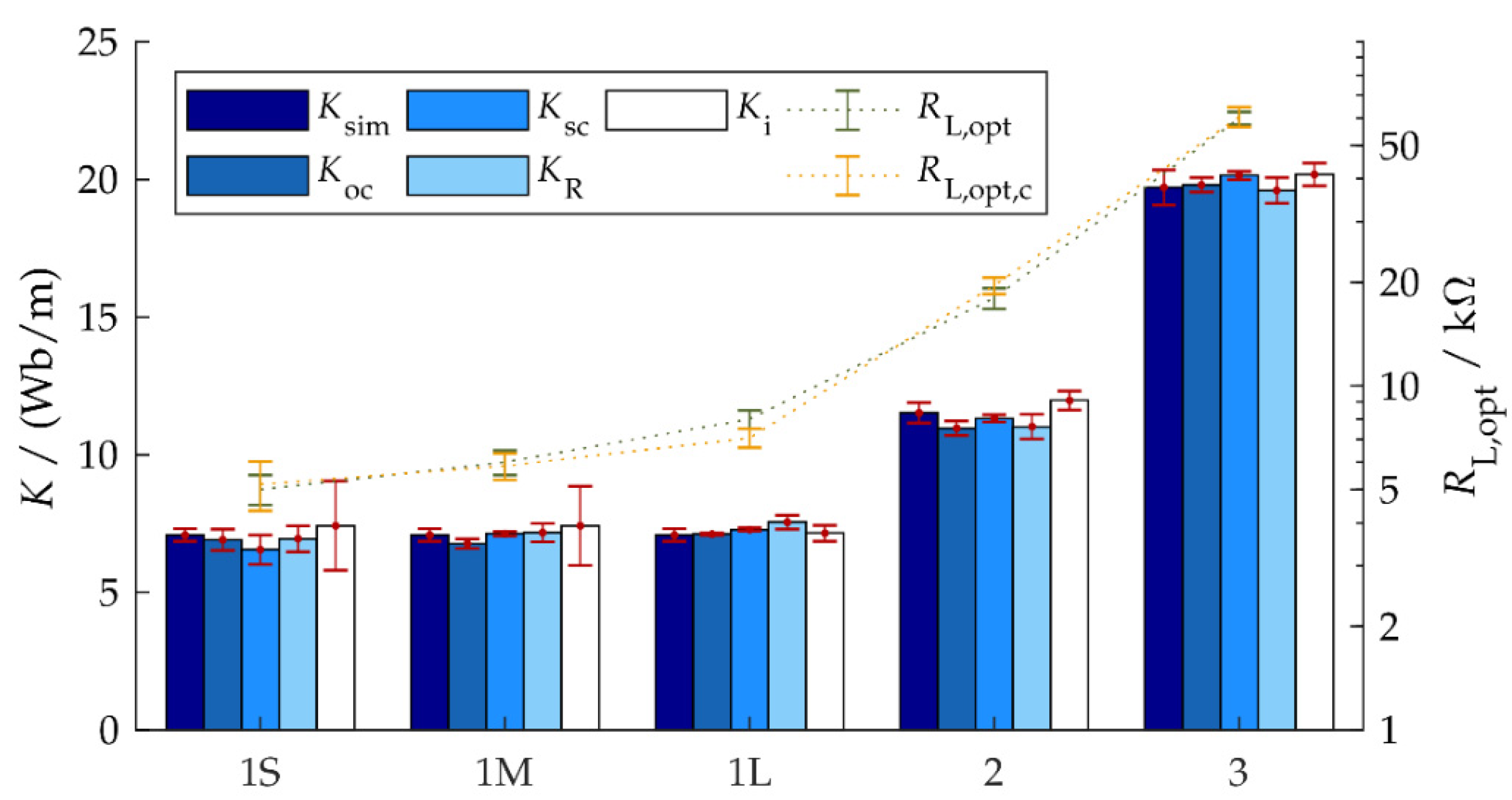

**Figure 7.**Comparison of the simulated and measured coupling coefficients of five harvester implementations and the measured and predicted optimum load resistance.

Setup No. | Description | ℓ/mm | f_{r}/Hz | N | D_{w}/µm | R_{C}/Ω | â/m/s^{2} |
---|---|---|---|---|---|---|---|

1L | Coil 1, long | 27 | 51.2 | 1300 | 50 | 226 | 0.75 |

1M | Coil 1, medium | 22 | 65.3 | 1300 | 50 | 226 | 1 |

1S | Coil 1, short | 18 | 81.2 | 1300 | 50 | 226 | 1 |

2 | Coil 2 | 27 | 51.2 | 2115 | 40 | 880 | 0.75 |

3 | Coil 3 | 27 | 51.2 | 3620 | 30 | 1707 | 0.75 |

**Table 2.**Measured and calculated optimum load resistances and measured maximum load power at an acceleration amplitude of â = 0.75 m/s

^{2}. Setups 1M and 1S were characterized at higher amplitudes (â = 1 m/s²), but the results were scaled to â = 0.75 m/s

^{2}.

Setup No. | R_{C}/kΩ | R_{L,opt}/kΩ | R_{L,opt,c}/kΩ | P_{max}/µW |
---|---|---|---|---|

1L | 0.23 | 8 | 7.1 | 257 |

1M | 0.23 | 6 | 5.9 | 179 |

1S | 0.23 | 5 | 5.2 | 94 |

2 | 0.88 | 18 | 19.6 | 223 |

3 | 1.7 | 60 | 60.6 | 253 |

**Table 3.**Simulated and measured coupling coefficients. The data are visualized in Figure 7.

Setup No. | Coupling Coefficient in Wb/m | ||||
---|---|---|---|---|---|

K_{sim} | K_{oc} | K_{sc} | K_{R} | K_{i} | |

1L | 7.1 | 7.1 | 7.3 | 7.6 | 7.2 |

1M | 7.1 | 6.8 | 7.1 | 7.2 | 7.4 |

1S | 7.1 | 6.9 | 6.6 | 7.0 | 7.4 |

2 | 11.5 | 11.0 | 11.3 | 11.0 | 12.0 |

3 | 19.7 | 19.8 | 20.2 | 19.6 | 20.2 |
