Open AccessEditor’s ChoiceArticle

Coagulating Colubrids: Evolutionary, Pathophysiological and Biodiscovery Implications of Venom Variations between Boomslang (Dispholidus typus) and Twig Snake (Thelotornis mossambicanus)

1
Venom Evolution Lab, School of Biological Sciences, University of Queensland, St. Lucia, QLD 4072, Australia
2
Alistair Reid Venom Research Unit, Parasitology Department, Liverpool School of Tropical Medicine, Pembroke Place, Liverpool L3 5QA, UK
3
Vertebrate Palaeontology and Biomechanics Laboratory, School of Biological Sciences, The University of Queensland, St. Lucia, QLD 4072, Australia
4
Faculty of Health Sciences, University of Macau, Avenida da Universidade, Taipa, Macau SAR
5
Centre for Advanced Imaging, University of Queensland, St. Lucia, QLD 4072, Australia
6
School of Chemistry and Molecular Biosciences, University of Queensland, St. Lucia, QLD 4072, Australia
*
Author to whom correspondence should be addressed.
Academic Editor: Anita Malhotra
Toxins 2017, 9(5), 171; https://doi.org/10.3390/toxins9050171
Received: 16 January 2017 / Revised: 15 May 2017 / Accepted: 15 May 2017 / Published: 19 May 2017
(This article belongs to the Section Animal Venoms)

Abstract

Venoms can deleteriously affect any physiological system reachable by the bloodstream, including directly interfering with the coagulation cascade. Such coagulopathic toxins may be anticoagulants or procoagulants. Snake venoms are unique in their use of procoagulant toxins for predatory purposes. The boomslang (Dispholidus typus) and the twig snakes (Thelotornis species) are iconic African snakes belonging to the family Colubridae. Both species produce strikingly similar lethal procoagulant pathologies. Despite these similarities, antivenom is only produced for treating bites by D. typus, and the mechanisms of action of both venoms have been understudied. In this study, we investigated the venom of D. typus and T. mossambicanus utilising a range of proteomic and bioactivity approaches, including determining the procoagulant properties of both venoms in relation to the human coagulation pathways. In doing so, we developed a novel procoagulant assay, utilising a Stago STA-R Max analyser, to accurately detect real time clotting in plasma at varying concentrations of venom. This approach was used to assess the clotting capabilities of the two venoms both with and without calcium and phospholipid co-factors. We found that T. mossambicanus produced a significantly stronger coagulation response compared to D. typus. Functional enzyme assays showed that T. mossambicanus also exhibited a higher metalloprotease and phospholipase activity but had a much lower serine protease activity relative to D. typus venom. The neutralising capability of the available boomslang antivenom was also investigated on both species, with it being 11.3 times more effective upon D. typus venom than T. mossambicanus. In addition to being a faster clotting venom, T. mossambicanus was revealed to be a much more complex venom composition than D. typus. This is consistent with patterns seen for other snakes with venom complexity linked to dietary complexity. Consistent with the external morphological differences in head shape between the two species, CT and MRI analyses revealed significant internal structural differences in skull architecture and venom gland anatomy. This study increases our understanding of not only the biodiscovery potential of these medically important species but also increases our knowledge of the pathological relationship between venom and the human coagulation cascade.
Keywords: procoagulant; boomslang; Dispholidus typus; Thelotornis mossambicanus; colubridae; enzyme activity; biodiscovery; evolution procoagulant; boomslang; Dispholidus typus; Thelotornis mossambicanus; colubridae; enzyme activity; biodiscovery; evolution

1. Introduction

Venoms are used for competitor deterrence, defence, and prey capture. These chemical cocktails use myriad protein types as starting substrates for the evolution of their toxic arsenals. Many of these protein families have been convergently recruited into the secretions of various venomous animal classes [1]. Novel expression of a normal body protein in the venom gland is followed by fixation and diversification of the proteins, with duplication and diversification leading to neofunctionalisation. In reptiles, such compounds have been recruited for use at different times in the diverse history of venom in this lineage with relative expression levels rising and falling for a particular toxin type along the evolutionary continuum [2]. As venoms evolve through the birth-and-death model of protein evolution [3], there are many instances of toxins also being lost from within a lineage [4].
Rather than prey death, prey immobilization is the driving selection pressure upon the venom, as there is no functional difference between a prey item that is physically unable to flee or defend itself and one that is dead [5,6]. Prey capture involving chemicals will produce a different form of injury than one involving mechanical subjugation techniques such as claws or cutting teeth. Interactions among toxins are selected for a combined function, which facilitates prey subjugation in a time dependent manner. Evolutionary pressures from other variables such as post-envenomation prey detectability and prey escape potential also shape venoms. The evolutionary pressures acting upon predatory venoms select specific actions that facilitate prey capture via target sites reachable by the blood. Actions upon nerve action potentials and the blood clotting cascade are two particularly important areas. Venoms that act on the nerves are typically used by species that include reptiles as major prey items in their diet. The specific function selected for the case of elapid snakes, which feed on sleeping lizards, is caused by alpha-neurotoxins, which antagonistically bind to the post-synaptic nicotinic acetylcholine receptor to produce flaccid paralysis [7]. Conversely, the long-glanded blue coral snake (Calliophis bivirgatus) and mambas (Dendroaspis species), which feed on active prey items with a high escape potential, have presynaptic-acting venoms that produce excitatory neurotoxicity, resulting in uncontrollable, uncoordinated spastic paralysis [6]. In the case of C. bivirgatus, there is an additional selection pressure for rapid acting venom due to specialisation upon other venomous snakes, which in turn have a high chance of prey retaliation.
Toxins that target the blood coagulation cascade do so in one of two mutually exclusive functional mechanisms; overall net anticoagulation or procoagulation. Anticoagulant venoms, such as those found in most pit-vipers, participate in the formation of haemorrhagic shock through a combined chemical assault, which may include the use of procoagulant pathways as part of the net anticoagulant function. Targets ranging from the cleavage of fibrinogen (whether outright destruction or the use of procoagulant pathways to produce weak, unnatural clots that are readily broken down by the abundant plasmin produced by synergistic toxins, which activate plasminogen) through to platelets (aggregation inhibition or unnatural clumping effects, which disrupt the normal role platelets serve in clotting), with these toxic effects accompanied by other toxins that increase the permeability of the vascular bed [1,2,8,9,10,11,12]. These venoms are often employed by ambush feeding vipers, which specialise upon warm-blooded prey items, and are able to be efficiently tracked post-bite using chemoreception and heat detection sensory arrays [13,14]. In contrast, strong clot forming procoagulant venoms are selected for lineages that feed upon prey with fast moving blood circulation rates. Such prey lineages are vulnerable to toxins that produce blood clots that rapidly subjugate through stroke induction, such as taipans (Oxyuranus species) feeding upon rodents [15].
The African boomslang (Dispholidus typus) and the twig snakes (Thelotornis species) are closely related iconic African snakes belonging to the family Colubridae, and both inhabit arboreal, predatory niches that include prey items with a high potential for escape [16,17]. The limited work that has been undertaken upon them has revealed that both have clot-forming, procoagulant venoms [17,18,19,20,21,22]. While the venoms appear to be functionally similar in their potent action upon blood chemistry, the relative complexity of the venoms is unknown. While Dispholidus has been shown to have a venom dominated by P-III snake venom metalloprotease (SVMP) [22,23,24], other toxin types are present in the venom in lower amounts [3,23]. In vipers, certain procoagulant P-III SVMPs have been shown to activate prothrombin [25,26,27,28] or Factor X [27,28,29]. Strong clot forming procoagulant function has convergently evolved in the venom of D. typus and similar activities are suggested for T. capensis [30]. The venom composition for any Thelotornis species is unknown so the toxin type responsible for procoagulation can only be inferred as likely being a P-III SVMP like its related genera Dispholidus. From a functional perspective, these two related but very divergent snakes share a coagulotoxic action with their last common ancestor [3,23]. These snakes have evolved procoagulant venoms convergently in relation to vipers in the Daboia genus [31,32] or elapids in the Oxyuranus or Pseudonaja genera [33,34]. Daboia use serine proteases to activate factor X, while Oxyuranus and Pseudonaja use a mutated factor Xa:factor Va complex to escape hemostatic control [35].
Dispholidus is genetically close to the genus Thrasops. Dispholidus and Thrasops are in turn sister to Thelotornis. The two genera studied here differ in their occupied niches and morphology. Dispholidus is a monotypic genus consisting of the boomslang (D. typus), which is an active foraging snake with very large eyes with circular pupils and acute vision, a large round head, and variable colour, ranging from uniform brown to green with darkened scale edges [17,20]. The large head is quite similar to the tree cobras (e.g., Naja goldii), including enlarged eyes. In contrast, Thelotornis is a genus of ambush feeding, highly cryptically and intricately patterned snakes with large eyes, horizontal pupils, and near binocular vision [17,20,36]. Their elongate heads are convergently similar to other Colubridae, particularly the Ahaetulla genus from Asia and the Oxybelis genus of the southern U.S. and Central America.
Birds account for the majority of Dispholidus prey items as it hunts in the canopy. The fast-moving, endothermic blood circulatory system of avians is similar to mammals in being vulnerable to rapid prey subjugation by stroke formation, thus neutralising the high escape potential posed by prey items with flight ability. While lizards such as chameleons form a percentage of the Dispholidus diet [16,17], they are non-dangerous and slow moving and are also taken during their diurnal activity period when blood circulation is at its maximum. Thelotornis may have a more complex diet than D. typus as it occupies a niche located near or on the forest floor and snakes of this genus are perhaps also more likely to be sensitive to prey escape potentials due to their slower movements relative to the fast moving Dispholidus [16,17,36].
Neither genus of snakes was thought to be of significant medical consequence until each killed an eminent herpetologist (Robert Mertens and Karl Patterson Schmidt, respectively) [24]. However, the ability for D. typus to cause serious harm to humans, and even death, had previously been reported by F.W. Fitzsimons as early as 1909 [17,20,21,37,38,39,40]. Strikingly, T. capensis has been shown to produce nearly identical human clinical symptoms as reported for D. typus, with death the result of internal bleeding such as cerebral haemorrhage [19,30,41]. However, the existing antivenom manufactured to treat bites caused by D. typus is said to be ineffective in cases of T. capensis envenomation [17,21,30]. While prey injected with significant concentrations of procoagulant venoms items succumb to stroke [42], human deaths from these venoms are due to internal haemorrhage due to the dilution of the procoagulant venom into a volume of blood much larger than the concentrated effects in prey animals, resulting in defibrinogenation due to venom induced consumptive coagulopathy [2,15,28,41,43].
Despite a monovalent antivenom existing and routinely administered to bite victims [17,22], limited research has been conducted on the function of D. typus venom, with the literature being dominated by bite case reports or proteomics in the absence of bioactivity testing. Even less is known about Thelotornis venoms, with limited previous publications having mainly dealt only with T. capensis, while the rest of the genus is unknown in its venom composition. We aimed to investigate the key similarities and differences between the two genera utilising a range of proteomic and bioactivity approaches to reconstruct their functional evolution in response to prey preference and ecological niche occupied. It is hypothesised that T. mossambicanus has a greater diversity of venom toxin components, reflective of its diverse diet and their associated heighted potential for prey escape, than the more specialised feeder D. typus.

2. Results

2.1. Skull and Venom Gland Anatomical Comparisons

Both species displayed enlarged rear-fangs, consistent with their demonstrated efficient venom delivery in predation and also defensive bites. Reflective of their difference in head shape, the T. mossambicanus venom gland was more elongate than that of D. typus due to contributions by both hard and soft tissue (Figure 1).

2.2. Proteomics

Shotgun mass spectrometry analysis recovered the same toxin types from each venom; CRiSP, PLA2 Type IIE, 3FTx, and SVMP. However, 1D and 2D gels showed significantly different relative abundances and complexity levels. While both 1D and 2D gels indicate that both species are dominated by P-III SVMP (Figure 2 and Figure 3, Supplementary Data), T. mossambicanus also contained phospholipase A2 (PLA2 Type IIE) in high amounts. The presence of PLA2 Type IIE is a significant discovery as it is the third type of PLA2 to be characterised in snake venoms [44]. The molecular weights of identified P-III SVMP correspond to previous transcriptome and proteome data for D. typus [24].

2.3. Enzymatic Assays

Fluorescent Determination of Matrix Metalloprotease and Kallikrein Activity

Despite T. mossambicanus having a more complex venom profile than D. typus, and thus lower relative amounts of P-III SVMP (Supplementary Data), it actually displayed a higher rate of cleavage of a matrix metalloprotease specific substrate (Figure 4). A two-way (RM) ANOVA (α = 0.05) indicates that there is a significant difference in Column Factor (species and concentration), accounting for 78.6% of the total variance (after adjusting for matching); F(3, 8) = 45.2, p < 0.001. Tukey’s post-hoc test indicated that there is a significant difference in activity between D. typus and T. mossambicanus at a concentration of 0.5 µg/100 µL (p ≤ 0.04). The levels of T. mossambicanus were of a high level, similar to that of the viperid snake Gloydius saxitilis included for comparison.
Contrastingly, D. typus venom demonstrated a much higher kallikrein activity compared to that of T. mossambicanus. D. typus had an active concentration of 0.1 µg/100 µL and 0.5 µg/100 µL, compared to T. mossambicanus, which was only slightly active at 0.5 µg/100 µL (Figure 5). A two-way (RM) ANOVA (α = 0.05) indicates that there is a significant difference within the test, with Column Factor (species and concentration) accounting for 80.1% of the total variance (after adjusting for matching); F(3, 7) = 136.6, p ≤ 0.001. Tukey’s post-hoc test indicated that there is a highly significant difference in activity between D. typus and T. mossambicanus at both concentrations (p ≤ 0.001). This is indicated by the increased presence of kallikrein-like serine proteases in D. typus’ venom profile (Figure 2). However, even the proportionally higher D. typus activity levels were insignificant in relation to the representative viperid Trimeresurus vogeli included for comparison, thus indicating that this function is a trivial aspect of the venom, consistent with the non-detection in our proteomics and low-levels in the published D. typus venom gland transcriptome [24].

2.4. Fluorescent Determination of sPLA2 Activity

We tested for continuous secretory phospholipase A2 (sPLA2) enzymatic activity over 100 measurement cycles using and following the EnzChek® Phospholipase A2 Assay Kit (Cat#E10217). T. mossambicanus showed increased levels of sPLA2 activity compared to D. typus at a concentration of 50 ng/µL (Figure 6). This increase in activity by T. mossambicanus is also mimicked in the venom profiling of both venoms via 1D SDS PAGE (Figure 2). A two-way RM ANOVA (α = 0.05) indicates that there is a significant difference within the assay, with Column Factor (species and concentration) accounting for 63.41% of total variance (after adjusting for matching); F(2, 6) = 78.75, p ≤ 0.001. Tukey’s post-hoc test indicated there is a highly significant difference in activity between D. typus from the positive control and between D. typus and T. mossambicanus (p ≤ 0.001). Tukey’s post-hoc test also indicates a significant difference of T. mossambicanus from the positive control (p ≤ 0.01). The T. mossambicanus levels were similar to that of the representative viperid snake Azemiops feae included for comparison.

2.5. Procoagulation Analysis

While both venoms were potently procoagulant, we find that the venom of T. mossambicanus coagulates plasma much faster that that of D. typus (Figure 7 and Figure 8). At a 20 µg/mL concentration, T. mossambicanus venom clots the plasma on average in 7.5 s (SD 0.15 s), compared to D. typus, which clots the plasma on average in 11.2 s (SD 0.06 s) (Table 1). The T. mossambicanus venom is amongst the most potently coagulotoxic of any we have tested, being on par with Oxyuranus and Pseudonaja venoms tested under identical conditions (unpublished results). At a 0.05 µg/mL concentration, T. mossambicanus venom clots the plasma on average in 80.4 s (SD 0.52 s), compared to D. typus, which clots the plasma on average in 146.6 s (SD 5.23 s) (Table 1). Figure 6 demonstrates the relative potency of T. mossambicanus venom against human plasma, compared to D. typus, in the reduced variation in clotting times between dilutions. The distance between the first vertical line and the second vertical line is longer in T. mossambicanus than in D. typus, illustrating that there is a longer rise in clotting times, depicting that T. mossambicanus venom holds its potency between dilutions more so than D. typus (Figure 7, Table 2). This is also demonstrated by the point where the curve crosses the x axis, which is higher in D. typus than in T. mossambicanus (R0 ϕ2 = 37.83 and 23.17 s respectively) (Table 2). The additional investigation with and without cofactors CaCl2 and phospholipid had no impact on the clotting times of either species, with clotting times remaining the same at all dilutions (data not shown). This is indicative of both venoms being calcium and phospholipid independent in exerting their procoagulant coagulotoxic actions.
With the addition of diluted boomslang monovalent antivenom to the dilution series, it is evident that the antivenom neutralises D. typus remarkably well, in contrast to having little neutralising effect on T. mossambicanus (Figure 8). At 20 µg/mL venom concentration with the antivenom at a final concentration in the 250 µL cuvette volume of 1% of that of the original vial concentration, T. mossambicanus clotted the plasma in 9.6 s (SD 0.17 s) instead of the 7.5 s without antivenom, compared to D. typus, which clotted the plasma at 20.7 s (SD 1.07 s) instead of the 11.2 s without antivenom (Table 1). At a 0.05 µg/mL venom concentration, the added antivenom had some effect on T. mossambicanus, which clotted in 381.2 s (SD 4.71 s) instead of 80.4 s without antivenom (Table 1). D. typus however reached maximum clotting time of 999.9 s (Table 1) at a venom concentration of 0.05 µg/mL with the addition of antivenom, demonstrating a significantly greater effective neutralising ability against this species.
Comparing EC50 outputs, it is evident that, despite the variation in clotting times between the species (Figure 8), half-maximal concentration is reached at a similar point by both species. This is due to the dilution series following the same trajectory regardless of time (Figure 8). When transformed, this trajectory becomes more evident, as there is little x-axis difference between T. mossambicanus with and without antivenom (0.24 µg/mL: 95% CI 0.22–0.26 µg/mL, and 0.23 µg/mL: 95% CI 0.20–0.26 µg/mL respectively) and T. mossambicanus and D. typus without antivenom (0.24 µg/mL and 0.20 µg/mL: 95% CI 0.18–0.23 µg/mL respectively) (Figure 9). However, when antivenom is introduced with D. typus, the EC50 x-axis shifts significantly to the right (1.62 µg/mL: 95% CI 1.49–1.76 µg/mL) (Figure 9). Due to each sub data set being transformed, first by log concentration and then the normalisation of clotting time, each final data point reaches 100% (Figure 9). Taking into account the y-axis shift in addition to the x-axis shift (Figure 8), the T. mossambicanus venom has an antivenom induced relative shift in the clotting curve of 4.69, while the D. typus venom has an antivenom induced relative shift in the clotting curve of 53.12. Thus the antivenom is 11.3 times more effective at neutralizing D. typus venom than T. mossambicanus venom. Thus if the antivenom had no significant effect upon T. mossambicanus under such ideal circumstances as conducted in this study, then there is little chance of it having an therapeutic effect in a clinical scenario without the use of extreme amounts of antivenom.

3. Discussion

Both venoms tested here were found to be highly procoagulant without requiring calcium or phospholipid as co-factors. However T. mossambicanus is notably more potent than D. typus, as well as being extremely poorly neutralised by SAIMR boomslang antivenom (Table 2, Figure 7, Figure 8 and Figure 9). The decoupling from co-factors is a notable discovery as this lack of shift between tests with or without co-factors had only been well-documented for Echis carinatus. This is the first extensive antivenom comparison of both species marking the relative effectiveness of the available boomslang monovalent antivenom.
Previous reports have described these two species as exhibiting strikingly similar lethal envenomations [17,19,20,21,30,37,38,39,40] that can be attributed to their venoms being dominated by P-III SVMPs (Figure 2 and Figure 3). It is notable that, despite T. mossambicanus having a lower concentration of SVMP due to its greater venom complexity, it displayed a higher relative rate of metalloprotease activity in addition to being more potently coagulotoxic (Figure 4, Figure 7 and Figure 8). Further, T. mossambicanus possesses two distinct molecular weight classes of SVMP as opposed to the single band present in D. typus venom (Figure 2). Thus the differential proteomics profile is mirrored by differential coagulotoxic activity. This key difference between the species’ venom profiles may also shed light as to why the available antivenom for D. typus has only a small neutralising effect on T. mossambicanus venom (Figure 8 and Figure 9, Table 1).
Calcium-independent prothrombin activation is a rare feature in snake venoms, with most venoms typically requiring calcium for such a coagulotoxic activity. A previously documented notable exception is the ecarin-type P-III SVMP from Echis carinatus, which does not have a marked shift between tests with or without co-factors [25,45]. Thus, the presence of such an activity in the venoms of these two colubrid snakes points towards a remarkable case of functional convergence within the same toxin class.
Procoagulation accompanied by plasmin inhibition is an effective way to potentiate the coagulotoxic effects as the blood clots formed would have a longer half-life since the role of plasmin is to break blood clots down. This synergistic activity has been documented in viper venoms (e.g., Daboia) and elapid venoms (e.g., Pseudonaja), where the procoagulation is accomplished by very different toxin types (SVMP and fXa:fVa, respectively), but the plasmin inhibition is exerted by the same toxin type (kunitz peptide) [46,47]. However, neither D. typus or T. mossambicanus venoms displayed this synergistic action.
Despite having the same procoagulant mechanism, it appears evident that additional external evolutionary pressures are driving the variation between these two species. In addition to differential complexity, the venoms were functionally variable relative to each other in non-procoagulant activities, with D. typus having serine protease activity (Figure 5), while conversely T. mossambicanus had strong PLA2 activity (Figure 6). It is known that evolution among arboreal specialists further influences venom composition of toxins’ families [48]. This is usually in the form of prey ecology, dependent on niche occupation. Even though both species occupy an arboreal habitat, their differential morphology and behaviour allow for varying prey interactions, thus potentially further contributing to venom variation and punctuated evolution. As D. typus is an agile and fast-moving snake, it is able to pursue prey, thus minimising escape potential. T. mossambicanus however is a slower moving cryptic snake that ambush feeds, and thus the prey escape potential may be significantly higher. Thus, there may be a stronger selection pressure operating upon T. mossambicanus for a venom which rapidly immobilises prey. This is consistent with what has been observed in other lineages of venomous animals in which prey escape potential is a significant shaping factor and thus the venom is under extreme selection pressure for rapid immobilising action [2,5,6,15,49,50,51,52,53,54,55,56,57,58,59].
This investigation not only has revealed the differential evolution of D. typus and T. mossambicanus venoms and the poor performance of boomslang antivenom against T. mossambicanus venom, but it has also reinforced that there are commonalities to venom evolution such that there may be levels of predictability in regards to niche occupation and prey escape potential shaping venom relative rates of action. The differences in ecological niches occupied were also reflected in differential skull morphology (Figure 1). This reinforces that, in addition to the applied application of venom research in regards to biodiscovery and clinical effects, research such as this contributes to the growing body of venom evolutionary theory.

4. Materials and Methods

4.1. Venom Supplies

Pooled venoms from Dispholidus typus (South African origin) and Thelotornis mossambicanus (Mozambique) were supplied by Latoxan (Portes-lès-Valence, France).

4.2. Micro-Computed Tomography (CT)

We scanned representative boomslang (Dispholidus typus) and the twig snakes (Thelotornis mossambicanus) with a Siemens Inveon micro-CT scanner. The scanner was operated at 80 KV energy, 250 µA intensity with 360 projections per 360°, and 2300 ms exposure time. The samples were scanned at a nominal isotropic resolution of 27.8 um. The data were reconstructed using a Feldkamp conebeam back-projection algorithm provided by an Inveon Acquisition Workstation from Siemens. The images in 3D were visualized and processed with ImageJ v1.51f [60], Materialise Mimics v19.0 (Materialise, Leuven, Belgium), and MeshLab v1.3.3 (Institute of the National Research Council of Italy, Pisa, Italy).

4.3. Magnetic Resonance Imaging

MRI was used to obtain a three-dimensional (3D) shape of the venom glands without intrusive dissection or sectioning techniques. For fixation, neutral buffered formalin (NBF) preserved specimens had the formalin removed by four individual hours of washing steps in phosphate buffered saline (PBS) and incubated overnight in 0.1% Magnevist® (Bayer, Leverkusen, Germany) in PBS. After the removal of NBF, the sample was submersed in perfluoro-ether Fomblin (Solvay Solexis, Alessandria, Italy) and placed under vacuum to prevent air artifacts. Imaging was performed on a 16.4 T (700 MHz) vertical 89-mm-bore system (Bruker BioSpin, Rheinstetten, Germany) using a Bruker Micro 2.5 gradient system (2.5 G/cm A), transmit/receive radiofrequency coils with diameters of 10 mm, and a quadrature birdcage resonator (M2M Imaging, Brisbane, Australia). Bruker ParaVision 6.0.1 software was used for image acquisition and anatomical images were acquired using a 3D FLASH (Fast Low Angle Shot) gradient echo sequence. The imaging parameters were: TR/TE = 50/8 ms, flip angle 30 °C, two excitations. The field-of-view and matrix sized to fit the sample with the resulting voxels having 50–62.5 μm isotropic resolution. Total scan time was approximately 1 h per sample. MRI data was processed using Medical Imaging Processing, Analysis, and Visualization v6.0.0 (MIPAV, Centre for Information Technology, National Institutes of Health, Bethesda, MD, USA), and 3D image segmentation, surface rendering, and volumetric measurements of the glands were performed manually using ITK-SNAP [61].

4.4. Proteomics

Our proteomic investigations including using 1D and 2D SDS-PAGE, protein band purification and crude venom Shotgun analysis. They were performed as previously described by us [48] with the exception of additional LC-MS/MS analysis, following protein extraction from isolated 1D gel bands (described below in Section 4.4.1 and Section 4.4.2). Shotgun samples were analyzed using the methods described below (Section 4.4.3).

4.4.1. Nano HPLC-ESI-Triple Time of Flight (TOF) Mass Spectral Analysis

Protein extracts from gel bands were analysed by LC-MS/MS using a Q Exactive™ Hybrid Quadrupole-Orbitrap Mass Spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) equipped with a nano electrospray ion source. An aliquot (8 μL) of each extract was injected onto a C18 trap column (75 μm × 2 cm, Thermo Scientific, Waltham, MA, USA) at 6 µL/min. Samples were de-salted on the trap column for 5 min using 0.1% formic acid at 6 µL/min. The trap column was then placed in-line with the analytical nano HPLC column (15 cm × 75 μm C18, 3.5 μm, Thermo Fisher Scientific, Waltham, MA, USA) for mass spectrometry analysis. Solvent A consisted of 2% ACN/0.1% formic acid, and solvent B contained 100% ACN, 2% LC-MS water, and 0.1% formic acid. Peptide elution was made possible via linear gradients of 1 to 40% solvent B over 32 min at 300 nL/min flow rate, followed by a steeper gradient from 40 to 95% solvent B over 3 min. Solvent B was held at 95% for 2.5 min to allow for washing of the column and returned to 1% solvent B for equilibration prior to the next sample injection. The ion spray voltage was set to 1.8 kV, and the temperature of capillary was 300 °C. The mass spectrometer acquired 3 × 106 ion count with the max injection time of 20 ms for a full scan TOF-MS data followed by 106 ions count with the max injection time of 110 ms for a full scan product ion data in an Information Dependant Acquisition (IDA) mode. Full scan TOF-MS data was acquired over the mass range of 300–1800 m/z, while the product ion ms/ms was 100–1800 m/z. Ions observed in the TOF-MS scan exceeding a threshold of 1.8 × 105 for the precursor selection with a charge state of +1 to +8 were set to trigger the acquisition of the product ion, with ms/ms spectra of the resultant 20 most intense ions. The data was acquired and processed using Xcalibur™ software (Thermo Fisher Scientific, Waltham, MA, USA).

4.4.2. Protein Identification

Protein database searches were conducted against Uniprot for broad protein identification. A composite target decoy database was built with the forward and reverse sequences for calculating the FDR. Proteins were identified by database searching using PEAKS v7.5 (Bioinformatics Solutions Inc., Waterloo, ON, Canada) against the protein database. The search parameters were as follows: precursor ion mass tolerance, 10 ppm; fragment ion mass tolerance, 0.05 Da; fully tryptic enzyme specificity; one missed cleavage; monoisotopic precursor mass a fixed modification of cysteine carbamidomethylation; and variable modifications, including methionine oxidation, conversion of glutamine and glutamic acid to pyroglutamic acid, deamidation of asparagine, phosphorylation, acetylation, and sulfation. For PEAKS, de novo sequencing, database search, and characterising unspecific post-translational modifications (PTMs) were used to maximise the identifications; false discovery rate (FDR) was set to ≤1%; and the individual peptide ion score [−10·Log(p)] was calculated accordingly, where p is the probability that the observed match is a random event.

4.4.3. Orbitap Elite Mass Spectrometer for SHOTGUNS

For LC-MS/MS analysis, the parameters are as follows; the samples were separated using RP-chromatography on a Dionex Ultimate 3000 RSLC nano-system (Lifetech, Carlsbad, CA, USA). The samples were desalted on a Thermo PepMap 100 C18 trap (Lifetech, Carlsbad, CA, USA) (0.3 × 5 mm, 5 µm) for 5 min with a flow rate of 30 µL/min. This was followed by separation on an Acclaim PepMap RSLC C18 (Lifetech, Carlsbad, CA, USA) (150 mm × 75 µm) column at a flow rate of 300 nL/min. A gradient of 10–70% was applied buffer B over 7 min, where buffer A (1% ACN/0.1% FA) and buffer B (80% ACN/0.1% FA) were used to separate peptides. The eluted peptides were directly analysed on an Orbitap Elite mass spectrometer (Thermo Scientific, Carlsbad, CA, USA) using an NSI electrospray interface. The source parameters included a capillary temperature of 275 °C; S-Lens RF level at 60%, source voltage of 2 kV, and maximum injection times of 200 ms for MS and 150 ms for MS2. The instrument parameters included an FTMS scan across m/z range 350–1800 at 60,000 resolution followed by information dependent acquisition of the top 10 peptides across m/z 40–1800. Dynamic ion exclusion was employed using a 15 s interval. Charge state screening was enabled with the rejection of +1 charged ions, and monoisotopic was precursor selection enabled. Data was converted to mascot generic format (mgf) using the msConvert software (ProteoWizard v3.0.9576, SCIEX, Concord, ON, Canada) and searched using Protein Pilot™ v5.0 (SCIEX, Concord, ON, Canada) via the Uniprot database “metazoan”.

4.5. Enzymatic Activity Assays

4.5.1. Fluorescent Determination of Matrix Metalloprotease and Kallikrein Activity

A working stock solution of freeze dried venom was reconstituted in a buffer containing 50% MilliQ/50% glycerol (>99.9%, Sigma, St. Louis, MO, USA) at a 1:1 ratio to preserve enzymatic activity and reduce enzyme degradation. Varying concentrations of crude venom (10 ng/µL and 50 ng/µL) were plated out in triplicates on a 384-well plate (black, Lot#1171125, nunc™ Thermo Scientific, Rochester, NY, USA) and measured by adding 90 µL quenched fluorescent substrate per well (total volume 100 µL/well, 10 µL/5mL enzyme buffer, 150 mM NaCl, and 50 mM Tri-HCl (pH 7.3), Fluorogenic Peptide Substrate, R&D systems, Cat#ES001 & ES011, Minneapolis, MI, USA). Fluorescence was monitored by a Fluoroskan Ascent™ (Thermo Scientific, Vantaa, Finland) Microplate Fluorometer (Cat#1506450, Thermo Scientific, Vantaa, Finland) (Cat#ES001 for Matrix Metalloprotease at an excitation of 320 nm, emission at 405 nm; Cat#ES011 for Kallikrein at an excitation of 390 nm, emission at 460 nm) over 400 mins or until activity had ceased. Data was collected using Ascent® Software v2.6 (Thermo Scientific, Vantaa, Finland).

4.5.2. Fluorescent Determination of PLA2 Activity

We assessed the continuous Phospholipase A2 (PLA2) activity of the venoms using a fluorescence substrate assay (EnzChek® Phospholipase A2 Assay Kit, Cat#E10217, Thermo Scientific, Rochester, NY, USA), measured on a Fluoroskan Ascent® Microplate Fluorometer (Cat#1506450, Thermo Scientific, Vantaa, Finland). As above, we used a working stock solution of freeze dried venom reconstituted in a buffer containing 50% MilliQ/50% glycerol (>99.9%, Sigma) at a 1:1 ratio. A concentration of enzyme activity in venom (50 ng/µL) was brought up in 12.5 µL 1× PLA2 reaction buffer (50 mM Tris-HCL, 100 mM NaCl, 1 mM CaCl2, pH 8.9) and plated out in triplicates on a 384-well plate (black, Lot#1171125, nunc™ Thermo Scientific, Rochester, NY, USA). The triplicates were measured by dispensing 12.5 µL quenched 1 mM EnzChek® (Thermo Scientific, Rochester, NY, USA) Phospholipase A2 Substrate per well (total volume 25 µL/well) over 100 min or until activity had ceased (at an excitation of 485 nm, emission 538 nm). Purified PLA2 from bee venom (1 U/mL) was used as a positive control and data was collected using Ascent® Software v2.6 (Thermo Scientific, Vantaa, Finland).

4.5.3. Enzymatic Statistical Analysis

For each of the methods performed on the Fluoroskan Ascent™ (Thermo Scientific, Vantaa, Finland) Microplate Fluorometer (Cat#1506450, Thermo Scientific, Vantaa, Finland), data was collected using Ascent® Software v2.6 (Thermo Scientific, Vantaa, Finland). All raw data were firstly blank corrected using the Ascent® software (v2.6, Thermo Scientific, Vantaa, Finland) package and then exported for further analysis using Windows Excel 2016 and GraphPad PRISM 7.0 (GraphPad Prism Inc., La Jolla, CA, USA).
Graphs: Using Excel, averages of blank corrected data triplicates were calculated. From these averages, maximum absorbance was calculated and absorbance value plotted in a column graph for relative percentages.
Two-way (RM) ANOVA and Tukey’s Post-hoc test: the blank corrected data was transformed, setting the top value as 100 and lowest as 0 across sub columns within a data set. A two-way repeated measures (RM) ANOVA was performed, followed by a Tukey’s post-hoc multiple comparison test, comparing every mean with every other mean.

4.6. Procoagulation Analysis

4.6.1. Whole Plasma Clotting

Healthy human plasma (citrate 3.2%, Lot#1690252, approval # 16-04QLD-10) was obtained from the Australian Red Cross (44 Musk Street, Kelvin Grove, Queensland 4059). Coagulopathic toxin effects were measured by a modified procoagulant protocol on a Stago STA-R Max coagulation robot (France) using Stago Analyser software v0.00.04 (Stago, Asniéres sur Seine, France). Plasma clotting baseline parameters were determined by performing the standardised activated Partial Thromboplastin Time (aPTT) test (Stago Cat# T1203 TriniCLOT APTT HS). This was used as a control to determine the health of normal clotting plasma according to the universal standard range of between 27–35 s. Plasma aliquots of 2 mL, which had been flash frozen in liquid nitrogen and stored in a −80 °C freezer, were defrosted in an Arctic refrigerated circulator SC150-A40 at 37 °C. In order to determine clotting times effected by the addition of varying venom concentrations, a modified aPTT test was developed. A starting volume of 50 µL of crude venom (5 µg/50 µL) was diluted with STA Owren Koller Buffer (Stago Cat# 00360). A 14-dilution series of 1 (20 µg/mL), 1/2 (10 µg/mL), 1/3 (6.66 µg/mL), 1/4 (5 µg/mL), 1/6 (3.33 µg/mL), 1/8 (2.5 µg/mL), 1/10 (2 µg/mL), 1/15 (1.33 µg/mL), 1/20 (1 µg/mL), 1/30 (0.66 µg/mL), 1/50 (0.4 µg/mL), 1/80 (0.25 µg/mL), 1/160 (0.125 µg/mL), and 1/400 (0.05 µg/mL) was performed in triplicate. CaCl2 (50 µL; 25 mM stock solution Stago Cat# 00367 STA CaCl2 0.025M) was added with 50 µL phospholipid (solubilized in Owren Koller Buffer adapted from STA C.K Prest standard kit, Stago Cat# 00597). An additional 25 µL of Owren Koller Buffer was added to the cuvette and incubated for 30 s at 37 °C before adding 75 µL of human plasma. Relative clotting was then monitored for 999 s or until plasma clotted (whichever was sooner). Additional tests were run, both with and without CaCl2 and phospholipid, respectively, to test for CaCl2 or phospholipid dependency. STA Owren Koller Buffer was used as a substitute, using the same volumes to allow for consistency in the final volumes (250 µL).

4.6.2. Antivenom Studies

The monovalent antivenom effects on both D. typus and T. mossambicanus crude venoms was investigated. Previously established whole plasma clotting times against both venoms were measured and used as a guide for antivenom effects. The South African Institute for Medical Research Boomslang Antivenom (refined equine immunoglobulins, Lot M03852) was purchased from South African Vaccine Producers Pty Ltd (1 Modderfontein Rd Edenvale, Gauteng, South Africa). One vial of antivenom (10 mL) was centrifuged at 12,000 rpm on an Allegra™ X-22R Centrifuge (Lot#982501, Beckman Coulter, Brea, CA, USA) for 10 min at 4 °C, supernatant extracted, filtered (0.45 µm Econofltr PES, Lot#131127028, Agilent Technologies, Beijing, China) and stored at 4 °C. A final stock solution of 10% antivenom and 90% Owren Koller Buffer was produced. Modifying the Section 4.4.1 protocol, 25 µL of antivenom stock was used in place of 25 µL of OK buffer, with the venom, Ca2+, phospholipid, and antivenom mixture being incubated for 120 s at 37 °C before adding 75 µL of human plasma and monitoring clotting for 999 s or until plasma clotted (whichever was sooner). Experiments were conducted in triplicate. Note that antivenom does not clot plasma and that a control was performed to rule out any additional effects antivenom has on the plasma. Antivenom was substituted into the above outlined protocol in replacement of a venom sample.

4.6.3. Statistical Analysis

Whole Plasma Clotting EC50 Concentration and Asymptotic Time

Venom dilutions in triplicates were mapped over time using GraphPad PRISM 7.0 to produce concentration curves. The statistical program R [62] was used to calculate asymptotic clotting times using the Asymptotic Regression Model. This can be written as y(x) = ϕ1 + (ϕ2ϕ1) exp[−exp(ϕ3)x], using the nlme package [63]. This asymptotic regression model was used to model the response of y (time) when approaching a horizontal asymptote, when x (concentration) approaches ∞ [64]. In this example, ϕ1 is the asymptote as x (concentration) approaches ∞, ϕ2 is the response at x = 0, and t0.5 is the half-life. Parameter ϕ3 is the logarithm of the rate constant that is used to enforce positivity so that an asymptote is reached in the model. The corresponding half-life is written as t0.5 = log2/exp(ϕ3). The EC50 can be explained as the half-maximal Effective Concentration, or the concentration at which 50% of the maximal effect is observed. To calculate this, the EC50 function in GraphPad PRISM 7.0 was used for each data set. Each data set was transformed by the log of the concentration, and the values were normalised by individual sub data sets. A non-linear regression curve fit was then modelled, and a log-reversed EC50 value was produced.

Antivenom EC50 Concentration

Venom dilutions in triplicates were mapped over time using GraphPad PRISM 7.0 to produce concentration curves. The EC50 function in GraphPad PRISM 7.0 was used to calculate the EC50 for each data set. Each data set was transformed by the log of the concentration, and the values were normalised by individual sub data sets. A non-linear regression curve fit was then modelled, and a log-reversed EC50 value was produced.

Supplementary Materials

The following are available online at www.mdpi.com/2072-6651/9/5/171/s1, Supplementary data: MS/MS data.

Acknowledgments

Jordan Debono was funded by an Australian Postgraduate Award PhD Scholarship, Nicholas R. Casewell was supported by a Sir Henry Dale Fellowship (200517/Z/16/Z) jointly funded by the Welcome Trust and the Royal Society, and Bryan G. Fry was funded by a University of Queensland Major Equipment and Infrastructure grant. Bin Li was in receipt of a PhD studentship from the Faculty of Health Sciences, University of Macau, and Hang Fai Kwok was supported by a University of Macau Multi-Year Research Grant (MYRG2015-00025-FHS). We thank the Queensland state government for supporting the operation of the 16.4T through the Queensland NMR Network.

Author Contributions

J. Debono conceived, designed, and performed the experiments and analysed data. N.R.C. contributed materials and substantial edits to the manuscript. J. Dobson, A.R. B.L, H.F.K. N.K., K.M., V.W., and A.N. performed the experiments and analyzed data. B.G.F. conceived and designed the experiments. All authors contributed to the writing of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Abbreviations

The following abbreviations are used in this manuscript:
CIconfidence interval
aPTTactivated partial thromboplastin time
SVMPsnake venom metalloprotease
SDS-PAGEsodium dodecyl sulfate polyacrylamide gel electrophoresis
CRiSPcysteine rich secretory protein
HPLChigh pressure liquid chromatography
SDstandard deviations
ACNacetonitrile
1Done dimensional
2Dtwo dimensional
3FTxthree finger toxin
PLA2phospholipase A2

References

  1. Fry, B.G.; Roelants, K.; Champagne, D.E.; Scheib, H.; Tyndall, J.D.; King, G.F.; Nevalainen, T.J.; Norman, J.A.; Lewis, R.J.; Norton, R.S.; et al. The toxicogenomic multiverse: Convergent recruitment of proteins into animal venoms. Annu. Rev. Genom. Hum. Genet. 2009, 10, 483–511. [Google Scholar] [CrossRef] [PubMed]
  2. Fry, B. Venomous Reptiles and Their Toxins: Evolution, Pathophysiology and Biodiscovery; Oxford University Press: New York, NY, USA, 2015. [Google Scholar]
  3. Fry, B.G.; Wüster, W.; Ramjan, R.; Fadil, S.; Jackson, T.; Martelli, P.; Kini, R.M. Analysis of Colubroidea snake venoms by liquid chromatography with mass spectrometry: Evolutionary and toxinological implications. Rapid Commun. Mass Spectrom. 2003, 17, 2047–2062. [Google Scholar] [CrossRef] [PubMed]
  4. Dowell, N.L.; Giorgianni, M.W.; Kassner, V.A.; Selegue, J.E.; Sanchez, E.E.; Carroll, S.B. The deep origin and recent loss of venom toxin genes in rattlesnakes. Curr. Biol. 2016, 26, 2434–2445. [Google Scholar] [CrossRef] [PubMed]
  5. Jackson, T.N.W.; Sunagar, K.; Undheim, E.A.; Koludarov, I.; Chan, A.H.; Sanders, K.; Ali, S.A.; Hendrikx, I.; Dunstan, N.; Fry, B.G. Venom down under: Dynamic evolution of Australian elapid snake toxins. Toxins 2013, 5, 2621–2655. [Google Scholar] [CrossRef] [PubMed]
  6. Yang, D.C.; Deuis, J.R.; Dashevsky, D.; Dobson, J.; Jackson, T.N.; Brust, A.; Xie, B.; Koludarov, I.; Debono, J.; Hendrikx, I.; et al. The snake with the scorpion’s sting: Novel three-finger toxin sodium channel activators from the venom of the long-glanded blue coral snake (Calliophis bivirgatus). Toxins 2016, 8. [Google Scholar] [CrossRef] [PubMed]
  7. Jackson, T.N.; Koludarov, I.; Ali, S.A.; Dobson, J.; Zdenek, C.N.; Dashevsky, D.; Masci, P.P.; Nouwens, A.; Josh, P.; Goldenberg, J. Rapid radiations and the race to redundancy: An investigation of the evolution of Australian elapid snake venoms. Toxins 2016, 8. [Google Scholar] [CrossRef] [PubMed]
  8. Gan, Z.; Gould, R.; Jacobs, J.; Friedman, P.; Polokoff, M. Echistatin. A potent platelet aggregation inhibitor from the venom of the viper, Echis carinatus. J. Biol. Chem. 1988, 263, 19827–19832. [Google Scholar] [PubMed]
  9. Gould, R.J.; Polokoff, M.A.; Friedman, P.A.; Huang, T.F.; Holt, J.C.; Cook, J.J.; Niewiarowski, S. Disintegrins: A family of integrin inhibitory proteins from viper venoms. Exp. Biol. Med. 1990, 195, 168–171. [Google Scholar] [CrossRef]
  10. Calvete, J.J.; Schaefer, W.; Soszka, T.; Lu, W.; Cook, J.; Jameson, B.A.; Niewiarowski, S. Identification of the disulfide bond pattern in albolabrin, an RGD-containing peptide from the venom of Trimeresurus albolabris: Significance for the express of platelet aggregation inhibitory activity. Biochemistry 1991, 30, 5225–5229. [Google Scholar] [CrossRef] [PubMed]
  11. Assafim, M.; Frattani, F.S.; Ferreira, M.S.; Silva, D.M.; Monteiro, R.Q.; Zingali, R.B. Exploiting the antithrombotic effect of the (pro) thrombin inhibitor bothrojaracin. Toxicon 2016, 119, 46–51. [Google Scholar] [CrossRef] [PubMed]
  12. Samel, M.; Vija, H.; Rönnholm, G.; Siigur, J.; Kalkkinen, N.; Siigur, E. Isolation and characterization of an apoptotic and platelet aggregation inhibiting l-amino acid oxidase from Vipera berus berus (common viper) venom. Biochim. Biophys. Acta 2006, 1764, 707–714. [Google Scholar] [CrossRef] [PubMed]
  13. Gracheva, E.O.; Ingolia, N.T.; Kelly, Y.M.; Cordero-Morales, J.F.; Hollopeter, G.; Chesler, A.T.; Sánchez, E.E.; Perez, J.C.; Weissman, J.S.; Julius, D. Molecular basis of infrared detection by snakes. Nature 2010, 464, 1006–1011. [Google Scholar] [CrossRef] [PubMed]
  14. Panzano, V.C.; Kang, K.; Garrity, P.A. Infrared snake eyes: Trpa1 and the thermal sensitivity of the snake pit organ. Sci. Signal. 2010, 3. [Google Scholar] [CrossRef] [PubMed]
  15. Herrera, M.; Fernández, J.; Vargas, M.; Villalta, M.; Segura, Á.; León, G.; Angulo, Y.; Paiva, O.; Matainaho, T.; Jensen, S.D. Comparative proteomic analysis of the venom of the taipan snake, Oxyuranus scutellatus, from Papua New Guinea and Australia: Role of neurotoxic and procoagulant effects in venom toxicity. J. Proteom. 2012, 75, 2128–2140. [Google Scholar] [CrossRef] [PubMed]
  16. Visser, J.; Chapman, D. Snakes and Snakebite: Venomous Snakes and Management of Snakebite in Southern Africa; Purnell and Sons: Cape Town, South Africa, 1978. [Google Scholar]
  17. Weinstein, S.A.; Warrell, D.A.; White, J.; Keyler, D.E. Medically significant bites by ‘colubrid’ snakes. In ‘Venomous’ Bites from Non-Venomous Snakes: A Critical Analysis of Risk and Management of Colubrid Snake Bites; Elsevier: London, UK, 2011. [Google Scholar]
  18. Grasset, E.; Schaafsma, A. Studies on the venom of the “boom-slang” (Dispholidus typus). S. Afr. Med. J. 1940, 14, 236–241. [Google Scholar]
  19. Smith, H.M.; FitzSimons, D.C. Another rear-fanged South African snake lethal to humans. Herpetologica 1958, 14, 198–202. [Google Scholar]
  20. Chapman, D.S. Treatment of bites of snakes of africa. In Venomous Animals and Their Venoms: Venomous Vertebrates; Bucherl, W., Buckley, E.E., Deulofeu, V., Eds.; Academic Press Inc.: New York, NY, USA, 1968; Volume 1, pp. 463–527. [Google Scholar]
  21. Weinstein, S.A.; White, J.; Keyler, D.E.; Warrell, D.A. Non-front-fanged colubroid snakes: A current evidence-based analysis of medical significance. Toxicon 2013, 69, 103–113. [Google Scholar] [CrossRef] [PubMed]
  22. Kamiguti, A.S.; Theakston, R.D.G.; Sherman, N.; Fox, J.W. Mass spectrophotometric evidence for P-III/P-IV metalloproteinases in the venom of the boomslang (Dispholidus typus). Toxicon 2000, 38, 1613–1620. [Google Scholar] [CrossRef]
  23. Fry, B.G.; Scheib, H.; van der Weerd, L.; Young, B.; McNaughtan, J.; Ramjan, S.R.; Vidal, N.; Poelmann, R.E.; Norman, J.A. Evolution of an arsenal structural and functional diversification of the venom system in the advanced snakes (caenophidia). Mol. Cell. Proteom. 2008, 7, 215–246. [Google Scholar] [CrossRef] [PubMed]
  24. Pla, D.; Sanz, L.; Whiteley, G.; Wagstaff, S.C.; Harrison, R.A.; Casewell, N.R.; Calvete, J.J. What killed Karl Patterson Schmidt? Combined venom gland transcriptomic, venomic and antivenomic analysis of the South African green tree snake (the boomslang), Dispholidus typus. Biochim. Biophys. Acta 2017, 1861, 814–823. [Google Scholar] [CrossRef] [PubMed]
  25. Rosing, J.; Tans, G. Structural and functional properties of snake venom prothrombin activators. Toxicon 1992, 30, 1515–1527. [Google Scholar] [CrossRef]
  26. Joseph, J.S.; Kini, R.M. Snake venom prothrombin activators homologous to blood coagulation factor Xa. Pathophysiol. Haemost. Thromb. 2002, 31, 234–240. [Google Scholar] [CrossRef]
  27. Bernardoni, J.L.; Sousa, L.F.; Wermelinger, L.S.; Lopes, A.S.; Prezoto, B.C.; Serrano, S.M.; Zingali, R.B.; Moura-da-Silva, A.M. Functional variability of snake venom metalloproteinases: Adaptive advantages in targeting different prey and implications for human envenomation. PLoS ONE 2014, 9, e109651. [Google Scholar] [CrossRef] [PubMed]
  28. Isbister, G.K. Seminars in Thrombosis and Hemostasis. In Procoagulant Snake Toxins: Laboratory Studies, Diagnosis, and Understanding Snakebite Coagulopathy; Thieme Medical Publishers: Stuttgart, Germany, 2009; pp. 093–103. [Google Scholar]
  29. Tans, G.; Rosing, J. Snake venom activators of factor X: An overview. Pathophysiol. Haemost. Thromb. 2002, 31, 225–233. [Google Scholar] [CrossRef]
  30. Atkinson, P.; Bradlow, B.; White, J.; Greig, H.; Gaillard, M. Clinical features of twig snake (Thelotornis capensis) envenomation. S. Afr. Med. J. 1980, 58, 1007–1011. [Google Scholar] [PubMed]
  31. Mukherjee, A.K. Characterization of a novel pro-coagulant metalloprotease (RVBCMP) possessing α-fibrinogenase and tissue haemorrhagic activity from venom of Daboia russelli russelli (Russell’s viper): Evidence of distinct coagulant and haemorrhagic sites in RVBCMP. Toxicon 2008, 51, 923–933. [Google Scholar] [CrossRef] [PubMed]
  32. Mukherjee, A.K. The pro-coagulant fibrinogenolytic serine protease isoenzymes purified from Daboia russelii russelii venom coagulate the blood through factor V activation: Role of glycosylation on enzymatic activity. PLoS ONE 2014, 9, e86823. [Google Scholar] [CrossRef] [PubMed]
  33. Marshall, L.; Herrmann, R. Coagulant and anticoagulant actions of Australian snake venoms. Thromb. Aemost. 1983, 50, 707–711. [Google Scholar]
  34. Isbister, G.K.; Scorgie, F.; O’Leary, M.; Seldon, M.; Brown, S.G.; Lincz, L. Factor deficiencies in venom-induced consumption coagulopathy resulting from Australian elapid envenomation: Australian snakebite project (asp-10). J. Thromb. Haemost. 2010, 8, 2504–2513. [Google Scholar] [CrossRef] [PubMed]
  35. Bos, M.H.; Camire, R.M. Procoagulant adaptation of a blood coagulation prothrombinase-like enzyme complex in Australian elapid venom. Toxins 2010, 2, 1554–1567. [Google Scholar] [CrossRef] [PubMed]
  36. Shine, R.; Harlow, P.S.; Branch, W.R.; Webb, J.K. Life on the lowest branch: Sexual dimorphism, diet, and reproductive biology of an African twig snake, Thelotornis capensis (serpentes, Colubridae). Copeia 1996, 1996, 290–299. [Google Scholar] [CrossRef]
  37. FitzSimons, V.F.M. Snakes of Southern Africa; Purnell: Cape Town, South Africa, 1962. [Google Scholar]
  38. Pope, C.H. Fatal bite of captive African rear-fanged snake (Dispholidus). Copeia 1958, 1958, 280–282. [Google Scholar] [CrossRef]
  39. FitzSimons, F.W. XXXIV.—On the toxic action of the bite of the boomslang or South-African tree-snake (Dispholidus typus). J. Nat. Hist. 1909, 3, 271–278. [Google Scholar] [CrossRef]
  40. FitzSimons, F.W. The Snakes of South Africa: Their Venom and the Treatment of Snake Bite; TM Miller: Cape Town, South Africa, 1919. [Google Scholar]
  41. White, J. Snake venoms and coagulopathy. Toxicon 2005, 45, 951–967. [Google Scholar] [CrossRef] [PubMed]
  42. Martin, C. On some effects upon the blood produced by the injection of the venom of the Australian black snake (Pseudechis porphyriacus). J. Physiol. 1893, 15, 380. [Google Scholar] [CrossRef] [PubMed]
  43. Isbister, G.K.; Woods, D.; Alley, S.; O’Leary, M.A.; Seldon, M.; Lincz, L.F. Endogenous thrombin potential as a novel method for the characterization of procoagulant snake venoms and the efficacy of antivenom. Toxicon 2010, 56, 75–85. [Google Scholar] [CrossRef] [PubMed]
  44. Fry, B.G.; Scheib, H.; de Azevedo, I.D.L.J.; Silva, D.A.; Casewell, N.R. Novel transcripts in the maxillary venom glands of advanced snakes. Toxicon 2012, 59, 696–708. [Google Scholar] [CrossRef] [PubMed]
  45. Kornalik, F.; Blombäck, B. Prothrombin activation induced by Ecarin-a prothrombin converting enzyme from Echis carinatus venom. Thromb. Res. 1975, 6, 53–63. [Google Scholar] [CrossRef]
  46. Cheng, A.C.; Tsai, I.H. Functional characterization of a slow and tight-binding inhibitor of plasmin isolated from Russell’s viper venom. Biochim. Biophys. Acta 2014, 1840, 153–159. [Google Scholar] [CrossRef] [PubMed]
  47. Masci, P.; Whitaker, A.; Sparrow, L.; De Jersey, J.; Winzor, D.; Watters, D.; Lavin, M.; Gaffney, P. Textilinins from Pseudonaja textilis textilis. Characterization of two plasmin inhibitors that reduce bleeding in an animal model. Blood Coagul. Fibrinolysis 2000, 11, 385–393. [Google Scholar] [CrossRef] [PubMed]
  48. Debono, J.; Cochran, C.; Kuruppu, S.; Nouwens, A.; Rajapakse, N.W.; Kawasaki, M.; Wood, K.; Dobson, J.; Baumann, K.; Jouiaei, M.; et al. Canopy venom: Proteomic comparison among new world arboreal pit-viper venoms. Toxins 2016, 8. [Google Scholar] [CrossRef] [PubMed]
  49. Aman, J.W.; Imperial, J.S.; Ueberheide, B.; Zhang, M.M.; Aguilar, M.; Taylor, D.; Watkins, M.; Yoshikami, D.; Showers-Corneli, P.; Safavi-Hemami, H. Insights into the origins of fish hunting in venomous cone snails from studies of Conus tessulatus. Proc. Natl. Acad. Sci. USA 2015, 112, 5087–5092. [Google Scholar] [CrossRef] [PubMed]
  50. Dutertre, S.; Jin, A.H.; Vetter, I.; Hamilton, B.; Sunagar, K.; Lavergne, V.; Dutertre, V.; Fry, B.G.; Antunes, A.; Venter, D.J. Evolution of separate predation-and defence-evoked venoms in carnivorous cone snails. Nat. Commun. 2014, 5. [Google Scholar] [CrossRef] [PubMed]
  51. Jin, A.H.; Israel, M.R.; Inserra, M.C.; Smith, J.J.; Lewis, R.J.; Alewood, P.F.; Vetter, I.; Dutertre, S. α-conotoxin suvia suggests an evolutionary link between ancestral predator defence and the origin of fish-hunting behaviour in carnivorous cone snails. Proc. Biol. Sci. 2015, 282, 20150817. [Google Scholar] [CrossRef] [PubMed]
  52. Fry, B.; Sunagar, K.; Casewell, N.; Kochva, E.; Roelants, K.; Scheib, H.; Wüster, W.; Vidal, N.; Young, B.; Burbrink, F. The origin and evolution of the toxicofera reptile venom system. In Venomous Reptiles and Their Toxins: Evolution, Pathophysiology and Biodiscovery; Oxford University Press: Oxford, UK, 2015; pp. 1–13. [Google Scholar]
  53. Harvey, A.; Anderson, A. Dendrotoxins: Snake toxins that block potassium channels and facilitate neurotransmitter release. Pharmacol. Ther. 1985, 31, 33–55. [Google Scholar] [CrossRef]
  54. Harvey, A.; Karlsson, E. Dendrotoxin from the venom of the green mamba, Dendroaspis angusticeps. Naunyn-Schmiedeberg’s Arch. Pharmacol. 1980, 312, 1–6. [Google Scholar] [CrossRef]
  55. Karlsson, E.; Mbugua, P.; Rodriguez-Ithurralde, D. Fasciculins, anticholinesterase toxins from the venom of the green mamba Dendroaspis angusticeps. J. Physiol. 1983, 79, 232–240. [Google Scholar]
  56. Osman, O.; Ismail, M.; El-Asmar, M. Pharmacological studies of snake (Dendroaspis angusticeps) venom. Toxicon 1973, 11, 185–192. [Google Scholar] [CrossRef]
  57. Utkin, Y.; Sunagar, K.; Jackson, T.N.W.; Reeks, T.; Fry, B.G. Three-finger toxins (3FTXs). In Venomous Reptiles and Their Toxins: Evolution, Pathophysiology and Biodiscovery; Fry, B.G., Ed.; Oxford University Press: New York, NY, USA, 2015; pp. 215–227. [Google Scholar]
  58. Fry, B.G.; Jackson, T.N.W.; Takacs, Z.; Reeks, T.; Sunagar, K. C-type natriuretic peptides. In Venomous Reptiles and Their Toxins: Evolution, Pathophysiology and Biodiscovery; Fry, B.G., Ed.; Oxford University Press: New York, NY, USA, 2015; pp. 318–326. [Google Scholar]
  59. Eng, W.S.; Fry, B.G.; Sunagar, K.; Takacs, Z.; Jackson, T.N.W.; Guddat, L.W. Kunitz peptides. In Venomous Reptiles and Their Toxins: Evolution, Pathophysiology and Biodiscovery; Fry, B.G., Ed.; Oxford University Press: New York, NY, USA, 2015; pp. 281–290. [Google Scholar]
  60. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
  61. Yushkevich, P.A.; Piven, J.; Hazlett, H.C.; Smith, R.G.; Ho, S.; Gee, J.C.; Gerig, G. User-guided 3D active contour segmentation of anatomical structures: Significantly improved efficiency and reliability. Neuroimage 2006, 31, 1116–1128. [Google Scholar] [CrossRef] [PubMed]
  62. Team, R.C. R: A Language and Environment for Statistical Computing, 3.3.1; R Foundation for Statistical Computing: Vienna, Austria, 2016. [Google Scholar]
  63. Pinheiro, J.; DebRoy, S.; Sarkar, D.; R Core Team. Nlme: Linear and Nonlinear Mixed Effects Models, 3.1-128; R Core Team: Vienna, Austria, 2016. [Google Scholar]
  64. Pinheiro, J.; Bates, D. Mixed-Effects Models in S and S-Plus; Springer Science & Business Media Verlag: New York, NY, USA, 2000. [Google Scholar]
Figure 1. Contrast tomography (left column) and magnetic resonance imaging (right column) comparison of D. typus (top row) and T. mossambicanus (bottom row) venom delivery systems.
Figure 1. Contrast tomography (left column) and magnetic resonance imaging (right column) comparison of D. typus (top row) and T. mossambicanus (bottom row) venom delivery systems.
Toxins 09 00171 g001
Figure 2. 1D SDS PAGE with identified groups of proteins. D.t = Dispholidus typus, T.m = Thelotornis mossambicanus. Reduced conditions on the left, Non-reduced conditions on the right. Molecular weight marker indicated by centered numbers (kDa). Annotations (right) refer to bands identified (white numbers) within the reduced column.
Figure 2. 1D SDS PAGE with identified groups of proteins. D.t = Dispholidus typus, T.m = Thelotornis mossambicanus. Reduced conditions on the left, Non-reduced conditions on the right. Molecular weight marker indicated by centered numbers (kDa). Annotations (right) refer to bands identified (white numbers) within the reduced column.
Toxins 09 00171 g002

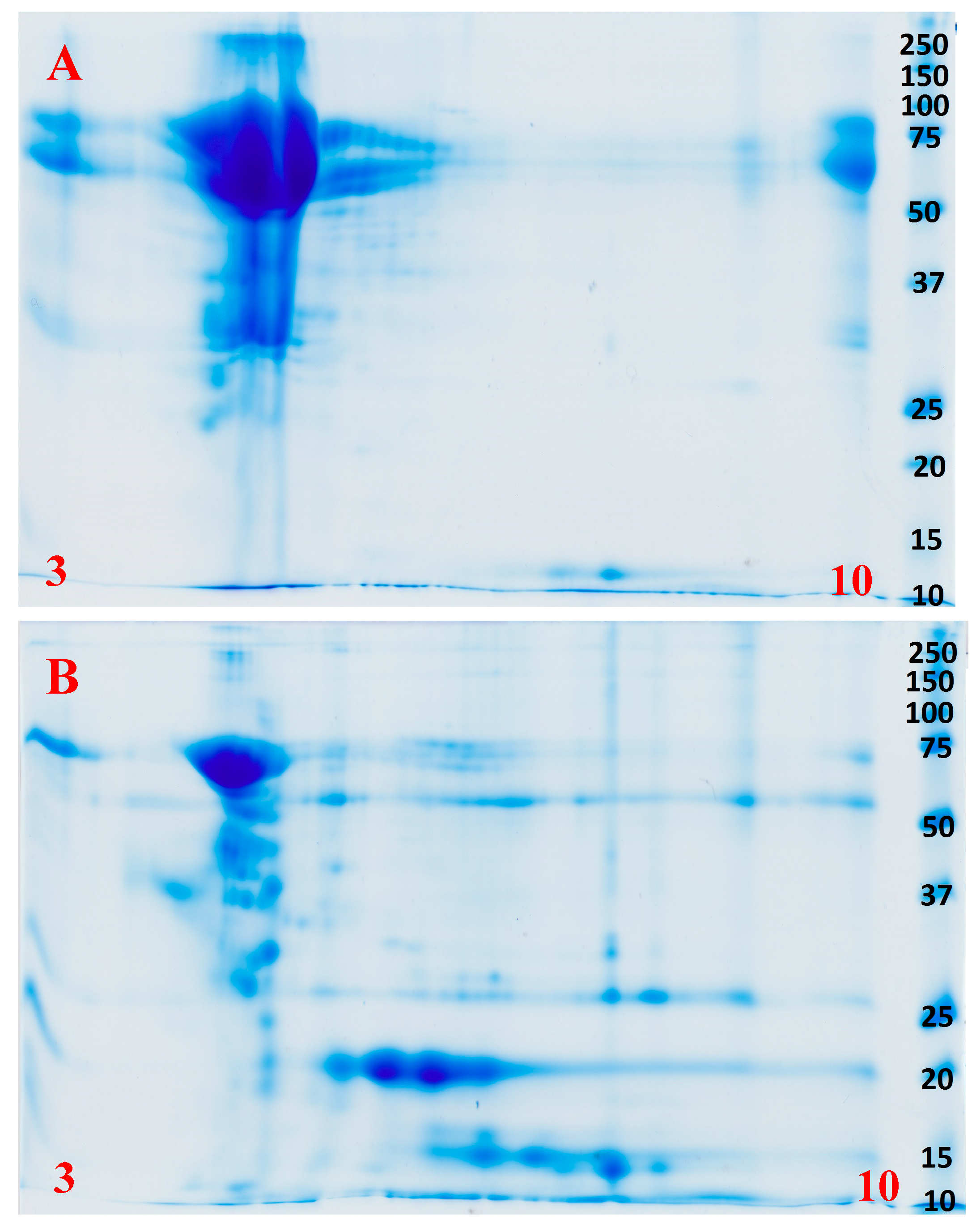

Figure 3. (A) 2D SDS PAGE of Dispholidus typus under reducing conditions; (B) 2D SDS PAGE of Thelotornis mossambicanus under reducing conditions. Molecular weight markers (kDa) are as for Figure 1. pI range is 3–10 (left to right) in red.
Figure 3. (A) 2D SDS PAGE of Dispholidus typus under reducing conditions; (B) 2D SDS PAGE of Thelotornis mossambicanus under reducing conditions. Molecular weight markers (kDa) are as for Figure 1. pI range is 3–10 (left to right) in red.
Toxins 09 00171 g003

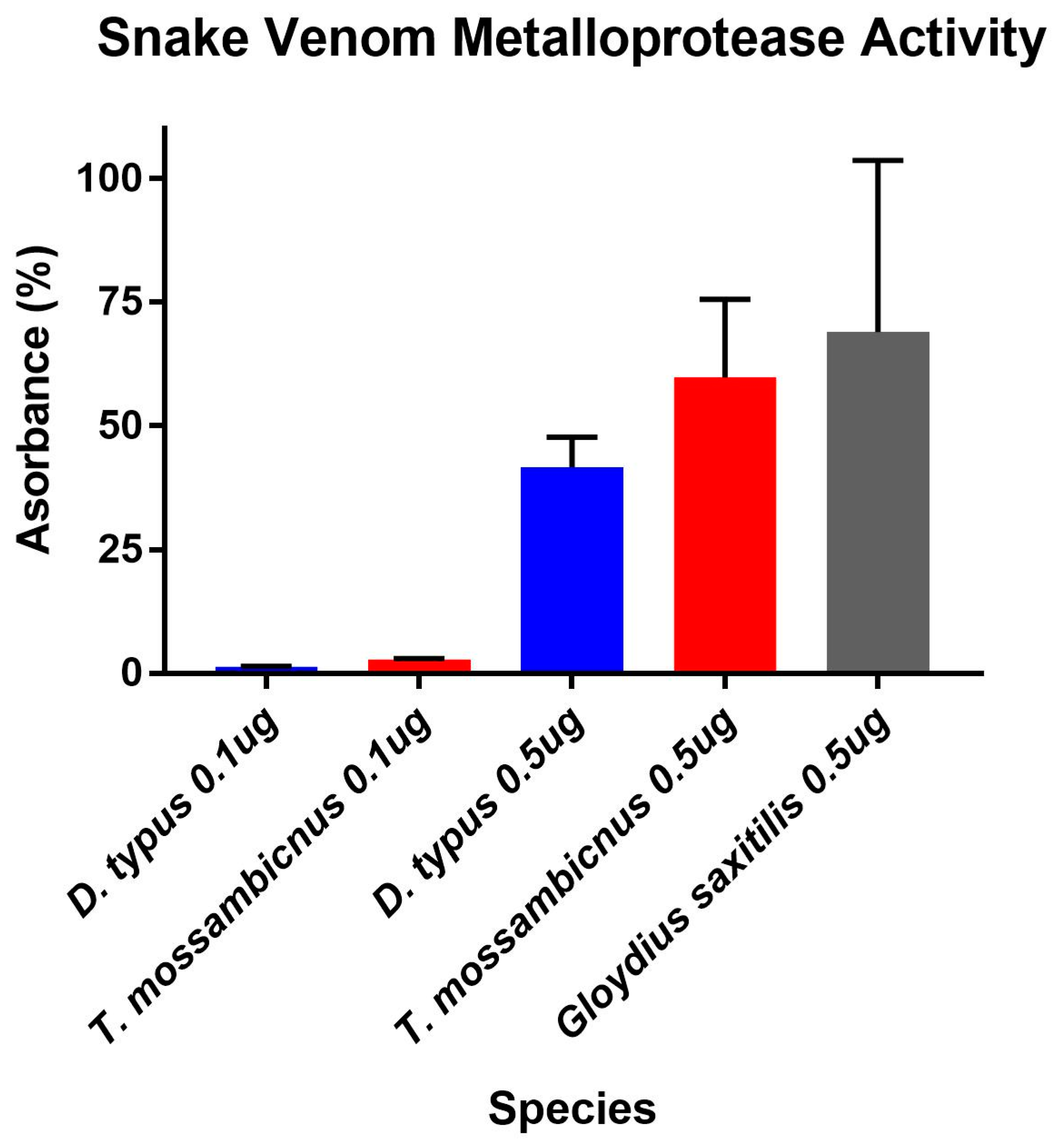

Figure 4. Snake Venom Metalloprotease Activity of venom (10 ng/µL and 50 ng/µL) was measured based on its ability to cleave a fluorogenic peptide substrate (Mca-PLGL-Dpa-AR-NH2 Fluorogenic MMP Substrate, Cat#ES001). Column graph of Matrix Metalloprotease activity assay of D. typus and T. mossambicanus obtained from normalisation of slope values. X axis: species name and concentration; Y axis: absorbance percentage. Analysis of triplicates was conducted on GraphPad PRISM 7.0 and error bars indicate standard deviation.
Figure 4. Snake Venom Metalloprotease Activity of venom (10 ng/µL and 50 ng/µL) was measured based on its ability to cleave a fluorogenic peptide substrate (Mca-PLGL-Dpa-AR-NH2 Fluorogenic MMP Substrate, Cat#ES001). Column graph of Matrix Metalloprotease activity assay of D. typus and T. mossambicanus obtained from normalisation of slope values. X axis: species name and concentration; Y axis: absorbance percentage. Analysis of triplicates was conducted on GraphPad PRISM 7.0 and error bars indicate standard deviation.
Toxins 09 00171 g004

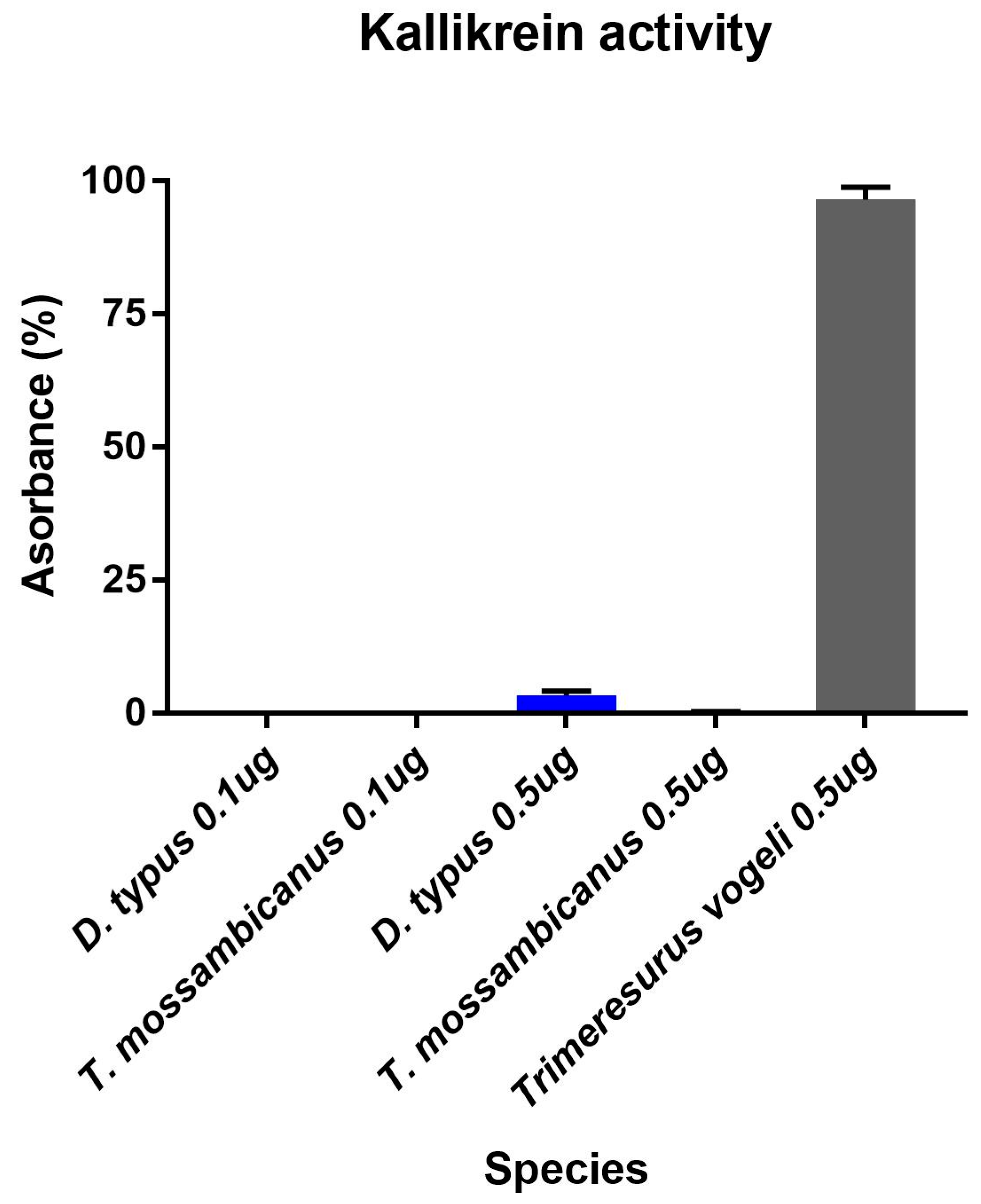

Figure 5. The kallikrein activity of venom (10 ng/µL and 50 ng/µL) was measured based on its ability to cleave a fluorogenic peptide substrate (Boc-VPR-AMC Fluorogenic Peptide Substrate, Cat#ES011). Column graph of Kallikerin activity assay of D. typus and T. mossambicanus obtained from normalisation of slope values. There is a highly significant difference in activity between D. typus and T. mossambicanus at both concentrations (p ≤ 0.001). X axis: species name and concentration; Y axis: absorbance as a percentage. Analysis of triplicates was conducted on GraphPad PRISM 7.0 and error bars indicate standard deviation.
Figure 5. The kallikrein activity of venom (10 ng/µL and 50 ng/µL) was measured based on its ability to cleave a fluorogenic peptide substrate (Boc-VPR-AMC Fluorogenic Peptide Substrate, Cat#ES011). Column graph of Kallikerin activity assay of D. typus and T. mossambicanus obtained from normalisation of slope values. There is a highly significant difference in activity between D. typus and T. mossambicanus at both concentrations (p ≤ 0.001). X axis: species name and concentration; Y axis: absorbance as a percentage. Analysis of triplicates was conducted on GraphPad PRISM 7.0 and error bars indicate standard deviation.
Toxins 09 00171 g005

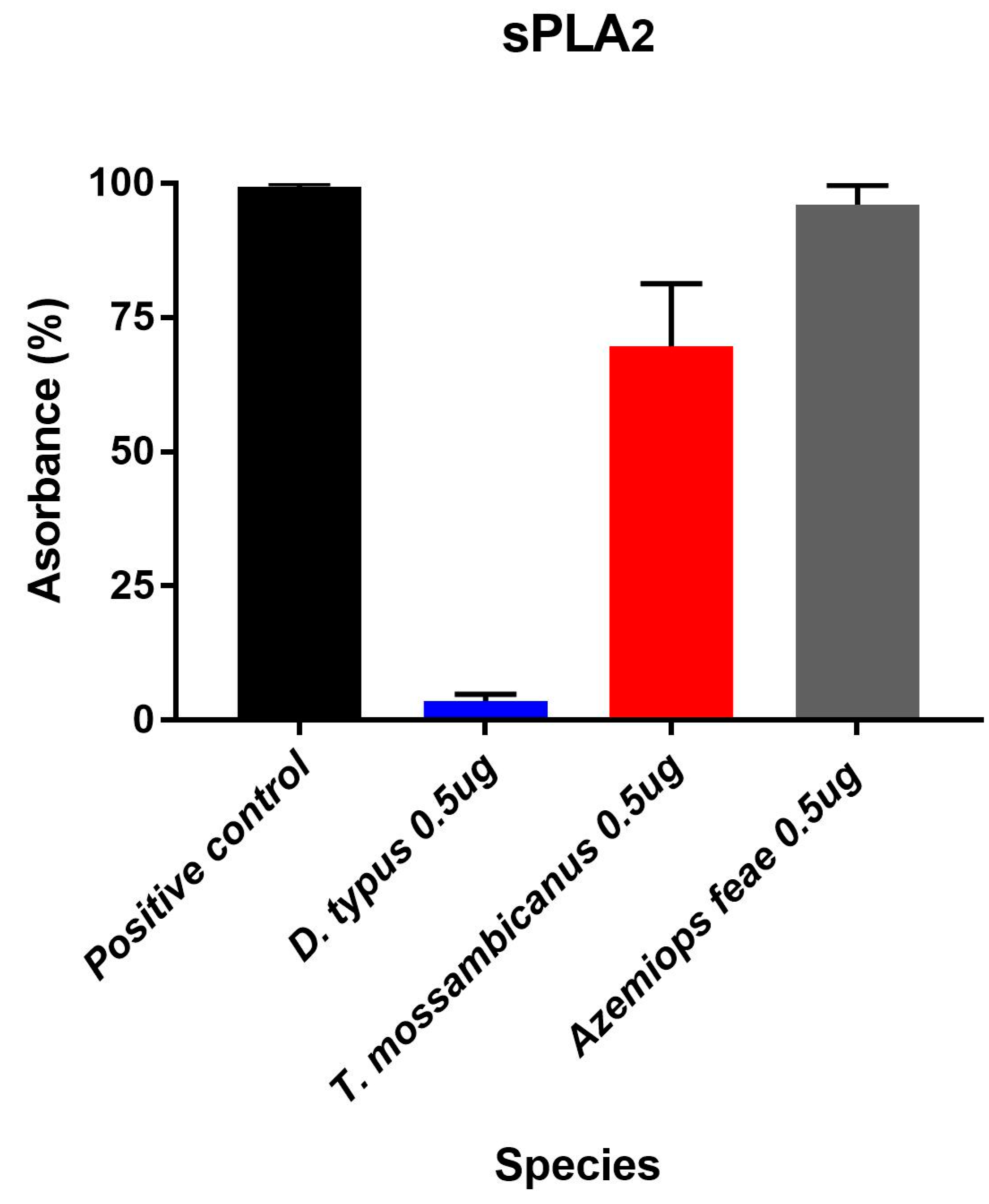

Figure 6. Secretory Phospholipase A2 was measured by its ability to cleave a fluorogenic peptide substrate EnzChek® (Cat# E10217). Column graph of sPLA2 activity assay of D. typus and T. mossambicanus obtained from normalisation of slope values. There is a highly significant difference in activity between D. typus from the positive control and between D. typus and T. mossambicanus (p ≤ 0.001). There is also a significant difference of T. mossambicanus from the positive control (p ≤ 0.01). X axis: species name and concentration; Y axis: slope as a relative percentage. Analysis of triplicates was conducted on GraphPad PRISM 7.0 and error bars indicate standard deviation.
Figure 6. Secretory Phospholipase A2 was measured by its ability to cleave a fluorogenic peptide substrate EnzChek® (Cat# E10217). Column graph of sPLA2 activity assay of D. typus and T. mossambicanus obtained from normalisation of slope values. There is a highly significant difference in activity between D. typus from the positive control and between D. typus and T. mossambicanus (p ≤ 0.001). There is also a significant difference of T. mossambicanus from the positive control (p ≤ 0.01). X axis: species name and concentration; Y axis: slope as a relative percentage. Analysis of triplicates was conducted on GraphPad PRISM 7.0 and error bars indicate standard deviation.
Toxins 09 00171 g006
Figure 7. Asymptotic plots of D. typus and T. mossambicanus procoagulation clotting against human plasma. Asymptotic time depicted by horizontal line, D. typus asymptote 9.09 (s), T. mossambicanus asymptote 2.06 (s). X axis: log concentration (µg/mL). Y axis: Time in seconds. Analysis and plots created in R Studio.
Figure 7. Asymptotic plots of D. typus and T. mossambicanus procoagulation clotting against human plasma. Asymptotic time depicted by horizontal line, D. typus asymptote 9.09 (s), T. mossambicanus asymptote 2.06 (s). X axis: log concentration (µg/mL). Y axis: Time in seconds. Analysis and plots created in R Studio.
Toxins 09 00171 g007

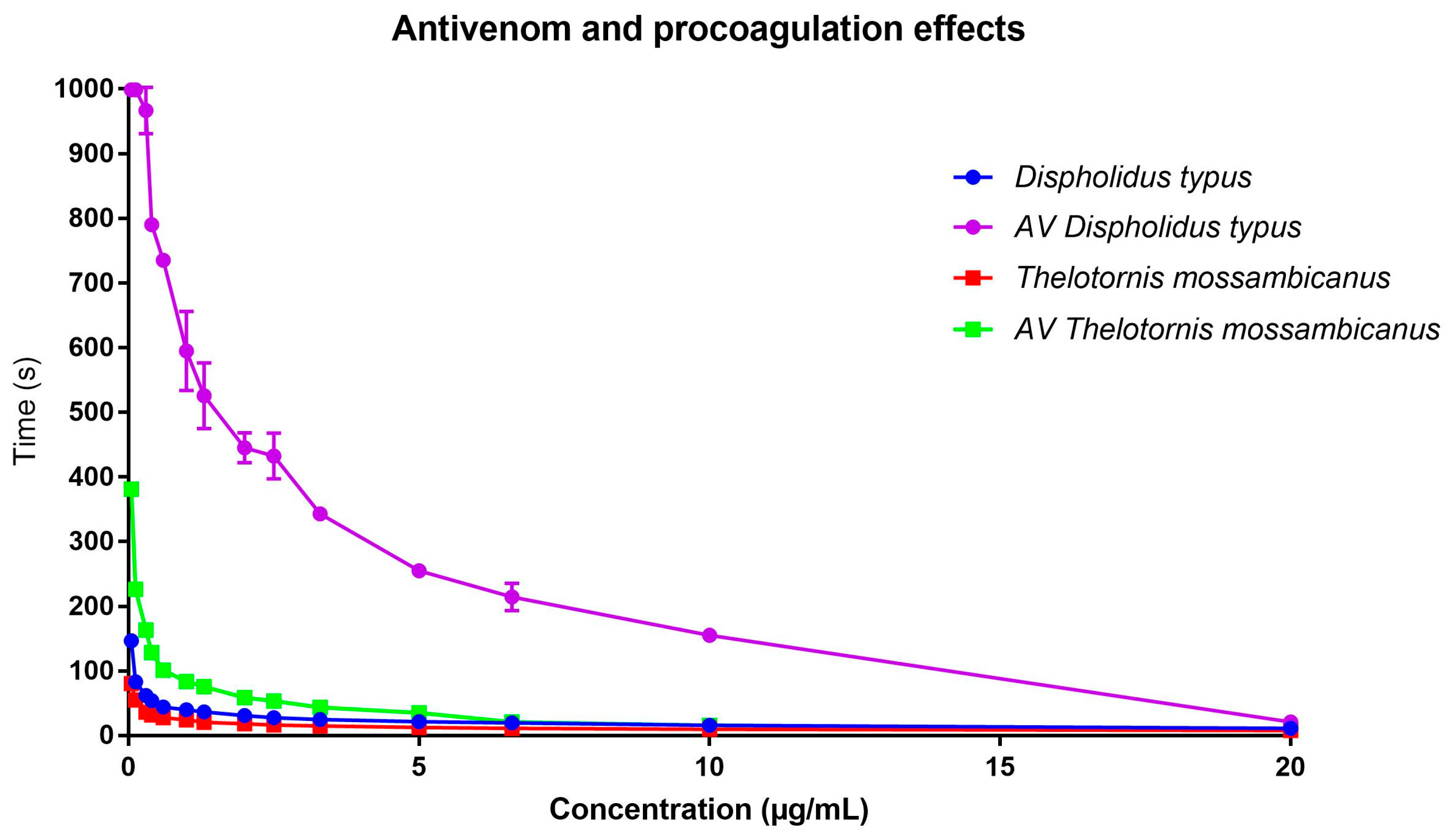

Figure 8. Comparison of procoagulation clotting curves of D. typus and T. mossambicanus, with and without the addition of antivenom. D. typus clotting curve given in blue circles, AV D. typus = antivenom response curve given in purple circles, T. mossambicanus clotting curve given in red squares, AV T. mossambicanus = antivenom response curve given in green squares. X axis: final venom concentration (µg/mL), Y axis: clotting time in seconds. Values are averages of triplicates (single dilution measured three times) and standard deviation error bars are shown for each, although for most the error range is smaller than the line icon.
Figure 8. Comparison of procoagulation clotting curves of D. typus and T. mossambicanus, with and without the addition of antivenom. D. typus clotting curve given in blue circles, AV D. typus = antivenom response curve given in purple circles, T. mossambicanus clotting curve given in red squares, AV T. mossambicanus = antivenom response curve given in green squares. X axis: final venom concentration (µg/mL), Y axis: clotting time in seconds. Values are averages of triplicates (single dilution measured three times) and standard deviation error bars are shown for each, although for most the error range is smaller than the line icon.
Toxins 09 00171 g008

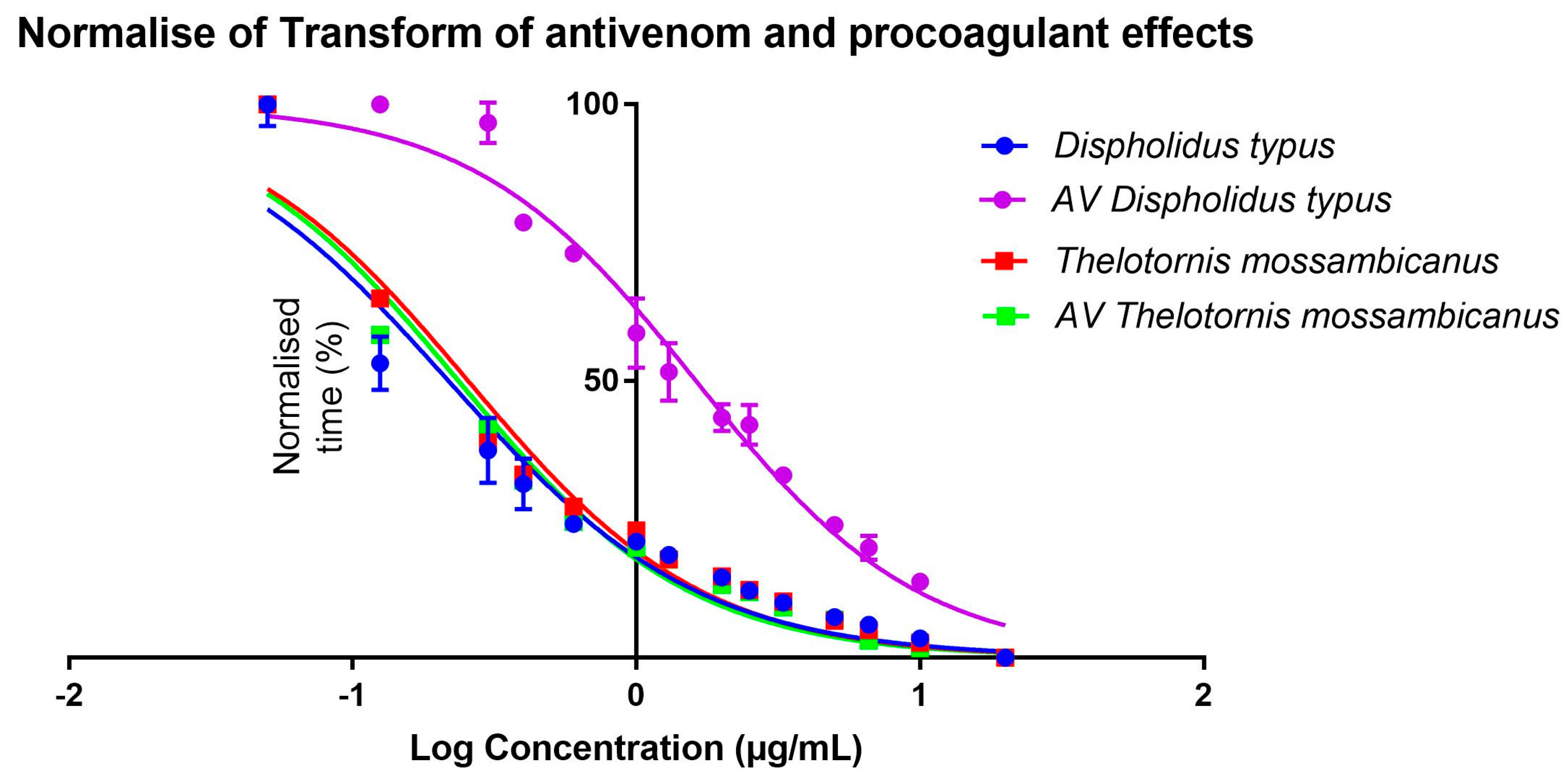

Figure 9. Normalisation of transformed data; antivenom and procoagulant effects of D. typus and T. mossambicanus. D. typus clotting curve given in blue circles, AV D. typus = antivenom response curve given in purple circles, T. mossambicanus clotting curve given in red squares, AV T. mossambicanus = antivenom response curve given in green squares. X axis: log concentration, Y axis: Normalised time (%) (for sub data sets). Analysis performed in GraphPad PRISM 7.0. Values are averages of triplicates (single dilution measured three times), and standard deviation error bars are shown for each, although for most the error range is smaller than the line icon.
Figure 9. Normalisation of transformed data; antivenom and procoagulant effects of D. typus and T. mossambicanus. D. typus clotting curve given in blue circles, AV D. typus = antivenom response curve given in purple circles, T. mossambicanus clotting curve given in red squares, AV T. mossambicanus = antivenom response curve given in green squares. X axis: log concentration, Y axis: Normalised time (%) (for sub data sets). Analysis performed in GraphPad PRISM 7.0. Values are averages of triplicates (single dilution measured three times), and standard deviation error bars are shown for each, although for most the error range is smaller than the line icon.
Toxins 09 00171 g009
Table 1. Average clotting times with standard deviations (SD) (in seconds) of D. typus and T. mossambicanus at varying dilutions with and without the addition of boomslang antivenom.
Table 1. Average clotting times with standard deviations (SD) (in seconds) of D. typus and T. mossambicanus at varying dilutions with and without the addition of boomslang antivenom.
ConcentrationWithout AntivenomWith Antivenom
D. typusT. mossambicanusD. typusT. mossambicanus
MeanSDMeanSDMeanSDMeanSD
20 µg/mL11.270.067.570.1520.731.079.60.17
10 µg/mL15.951.889.550.171555.2160.17
6.66 µg/mL19.340.2111.200.34214.5621.2821.160.23
5 µg/mL21.220.2212.430.0825510.5635.131.32
3.33 µg/mL24.720.2214.950.65343.28.9743.331.86
2.5 µg/mL27.630.1416.450.18432.335.3253.430.11
2 µg/mL30.910.4718.270.13444.9323.4358.461.29
1.33 µg/mL36.321.6120.500.58525.8651.1975.432.15
1 µg/mL39.600.5424.300.74594.8661.1583.333.86
0.66 µg/mL43.910.5627.441.03735.36.94100.81.97
0.4 µg/mL53.776.2131.670.19790.369.41128.40.52
0.25 µg/mL61.957.9535.910.64966.7635.88163.232.6
0.125 µg/mL83.316.5154.890.149990226.332.6
0.05 µg/mL146.655.2380.440.529990381.234.71
Table 2. Asymptotic regression model coefficient estimates for D. typus and T. mossambicanus normal plasma clotting times. In this example, ϕ1 is the asymptote as x (concentration) approaches ∞, ϕ2 is the response at x = 0, and t0.5 is the half-life. Parameter ϕ3 is the logarithm of the rate constant which is used to enforce positivity so that an asymptote is reached in the model. The corresponding half-life is written t0.5 = log2/exp(ϕ3). Analysis and output performed in R Studio (refer to methodology 4.4.3 Coagulation Statistical analysis).
Table 2. Asymptotic regression model coefficient estimates for D. typus and T. mossambicanus normal plasma clotting times. In this example, ϕ1 is the asymptote as x (concentration) approaches ∞, ϕ2 is the response at x = 0, and t0.5 is the half-life. Parameter ϕ3 is the logarithm of the rate constant which is used to enforce positivity so that an asymptote is reached in the model. The corresponding half-life is written t0.5 = log2/exp(ϕ3). Analysis and output performed in R Studio (refer to methodology 4.4.3 Coagulation Statistical analysis).
SpeciesCoefficient Estimates
Aym ϕ1R0 ϕ2lrc ϕ3
D. typus9.095161 (s)37.83835 (s)−0.6711807
T. mossambicanus2.068652 (s)23.17609 (s)−0.8289048
Back to TopTop
