Microbial Detoxification of Deoxynivalenol (DON), Assessed via a Lemna minor L. Bioassay, through Biotransformation to 3-epi-DON and 3-epi-DOM-1

Laboratory of Environmental Biotechnology, Department of Applied Biosciences, Faculty of Bioscience Engineering, Ghent University, 9000 Ghent, Belgium
Laboratory of Food Analysis, Department of Bioanalysis, Faculty of Pharmaceutical Sciences, Ghent University, 9000 Ghent, Belgium
Laboratory of Applied Mycology and Phenomics, Department of Applied Biosciences, Faculty of Bioscience Engineering, Ghent University, 9000 Ghent, Belgium
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Toxins 2017, 9(2), 63;
Submission received: 31 August 2016 / Revised: 31 January 2017 / Accepted: 4 February 2017 / Published: 13 February 2017


Mycotoxins are toxic metabolites produced by fungi. To mitigate mycotoxins in food or feed, biotransformation is an emerging technology in which microorganisms degrade toxins into non-toxic metabolites. To monitor deoxynivalenol (DON) biotransformation, analytical tools such as ELISA and liquid chromatography coupled to tandem mass spectrometry (LC-MS/MS) are typically used. However, these techniques do not give a decisive answer about the remaining toxicity of possible biotransformation products. Hence, a bioassay using Lemna minor L. was developed. A dose–response analysis revealed significant inhibition in the growth of L. minor exposed to DON concentrations of 0.25 mg/L and higher. Concentrations above 1 mg/L were lethal for the plant. This bioassay is far more sensitive than previously described systems. The bioassay was implemented to screen microbial enrichment cultures, originating from rumen fluid, soil, digestate and activated sludge, on their biotransformation and detoxification capability of DON. The enrichment cultures originating from soil and activated sludge were capable of detoxifying and degrading 5 and 50 mg/L DON. In addition, the metabolites 3-epi-DON and the epimer of de-epoxy-DON (3-epi-DOM-1) were found as biotransformation products of both consortia. Our work provides a new valuable tool to screen microbial cultures for their detoxification capacity.

1. Introduction

Mycotoxins are secondary metabolites produced by fungi, posing serious risks to health and economy when present in food or feed products. In order to reduce these risks, pre-harvest crop management strategies have been introduced. Fungicides, well-considered crop rotation, turning tillage techniques, resistant varieties and biocontrol all contribute to reducing mycotoxins in the crop [1,2]. In addition, methods of downstream post-harvest processing such as sorting, dehulling and milling amongst others help to reduce the mycotoxin level in agricultural commodities [3]. Although implementing good agricultural and processing practices may diminish fungal infestation and mycotoxin production, full prevention of mycotoxin contamination is impossible to achieve. Therefore, detoxification strategies have been introduced as remediation tools for contaminated food and feed batches. Mycotoxin binders can be used. However, these can interact with other molecules in the gastro-intestinal tract of animals (e.g., medicines and antibiotics) [4]. Microbial and enzymatic degradation in which the mycotoxin molecules are effectively altered and thereby detoxified, pose a more attractive alternative [2,5].
The mycotoxin deoxynivalenol (DON), occurring worldwide, is produced by Fusarium culmorum and Fusarium graminearum in cereals (e.g., maize, wheat and barley) [6,7]. DON is a sesquiterpenoid trichothecene containing a 12,13-epoxide group, which is responsible for its toxicity by inhibiting protein synthesis [8,9]. Acute exposure can cause vomiting, nausea and diarrhea. Effects of chronic low-dose exposure are decreased weight gain, anorexia, decreased nutritional efficiency and altered immune function [10,11]. The European Commission has set a maximum level of DON for humans in unprocessed grains at 1.25 mg/kg; the guidance level for animals in feed is in general 8 mg/kg (dependent of type of feed or animal) [12,13]. DON is a recalcitrant molecule, resisting most downstream processing operations [14], and is not effectively removed from the matrix by binders [15]. Therefore, elimination of DON and other mycotoxins from contaminated matrices via microbial biotransformation might be a valuable emerging technology [16].
Biotransformation of DON by mixed cultures or isolates originating from different environmental sources has been reported. A large number of DON-degrading bacteria are found in rumen fluid or intestines, where DON is anaerobically transformed into de-epoxy-deoxynivalenol (DOM-1) [17,18,19,20,21,22,23]. Soil is also a promising source of DON-degrading organisms [24,25,26,27,28,29]. Bacterium E3-39, classified in the Agrobacterium-Rhizobium group, can transform DON into 3-keto-DON [29]. Nocardioides WSN05-2 and Devosia mutans 17-2-E-8 convert DON into 3-epi-DON in aerobic conditions [24,25], whereas Citrobacter freundii degrades DON into DOM-1 aerobically and anaerobically [26]. Besides soil, other microbial communities capable of DON biotransformation have been reported [28,30].
However, modification of a compound does not automatically entail detoxification [16,31], which is of course the ultimate goal. Metabolites can have residual or even heightened toxicity, which is often overlooked in biotransformation studies when using solely analytical tools [16]. For DON, some known derivatives have been tested on toxicity. In acetylated trichothecenes, loss of side groups on C4, C15 or C8 resulted in reduced protein synthesis inhibition [32]. However, 15-acetyl-deoxynivalenol (15-ADON) had a similar toxicity as the parent toxin DON, whereas 3-acetyl-deoxynivalenol (3-ADON) was less toxic than DON [33]. Toxicity tests have also been performed on metabolites of DON. It seems that 3-keto-DON is three to ten times less toxic than DON [29,34] and DOM-1 and 3-epi-DON are at least 50 times less toxic than DON [33,34,35]. When studying detoxification of mycotoxins, toxicity assays are crucial to assess toxicology. Animal trials can be performed but are expensive, time consuming and hampered by ethical issues. Cell culture-based systems [10,19,32,33,36,37,38] provide information about the metabolism of mycotoxins, but require a high workload (e.g., acquirement of cell lines, sterile work environment, long preparations and expensive reagents). Therefore, researchers have looked for alternative assays to estimate toxicity. Mycotoxins are known to induce adverse effects in many other organisms including birds, amphibians, arthropods, crustaceans, unicellular organisms, microorganisms and plants [39]. DON has been tested on (phyto)toxicity and relative toxicity towards other mycotoxins with several bioassays (e.g., Arabidopsis thaliana, wheat, Lemna pausicostata, Chlamydomonas reinhardtii, Artemia salina L (brine shrimp larvae), Tetrahymena pyriformis (ciliated protozoa) and (engineered) yeasts [40,41,42,43,44,45,46,47]. These bioassays are inexpensive, fast and require a lower workload.
In this work, a highly sensitive DON bioassay was developed and implemented to screen bacterial cultures for their detoxification capacity of DON and other trichothecenes using the aquatic macrophyte Lemna minor L. as an indicator organism. The goal was to develop a robust, inexpensive, highly sensitive and readily applicable high-throughput method to screen bacterial strains or enrichment cultures for their ability to biotransform and detoxify DON. The trichothecene DON is, in addition to being a mycotoxin, also a phytotoxin, and due to this feature, a plant-based bioassay can be used. Lemna minor L. is a well-known plant for use in bioassays and has been previously used to evaluate the biodegradation of herbicides [48] and to determine the toxicity of fumonisins [49,50,51]. To our knowledge, it was never used as an indicator organism for the toxicity of DON or trichothecenes. After development of the bioassay, a diverse set of matrices comprising rumen fluid, soil, digestate from an anaerobic digester and activated sludge from a water treatment plant, were used as inoculum for DON-degrading enrichment cultures. These cultures were analyzed on their detoxification capabilities with the bioassay and on their biotransformation capabilities with analytical tools.

2. Results

2.1. Developing the Bioassay Using Lemna Minor

2.1.1. Linearity

In order to assess the sensitivity of Lemna minor to DON, a wide concentration range was tested (0 (control)–0.1–0.5–1–5–10–50–100 mg/L DON). After 7 days, DON caused a reduction of 41% ± 12% in growth of Lemna minor at a concentration of 0.5 mg/L DON. Growth was completely inhibited at concentrations of 1 to 100 mg/L DON. In addition, an increase of bleached fronds was observed at 0.1 to 10 mg/L DON, while at concentrations of 10, 50 and 100 mg/L, 100% of the fronds were bleached. A correlation between the presence of DON and growth inhibition was further investigated for lower concentrations between 0 and 1 mg/L DON.
A calibration curve was set up with concentrations of 0, 0.0625, 0.125, 0.25, 0.5 and 1 mg/L DON starting from six fronds to assess the sensitivity of the bioassay (Figure 1e). The number of fronds (Figure 1a,b) and frond area (Figure 1c,d) are observed as growth parameters. For each parameter, a sigmoid correlation was found between the frond growth (Figure 1a,c) and the concentration of DON, confirming the conventional response of Lemna minor to growth-inhibiting compounds [52]. A log/logit transformation was carried out to obtain a linear relationship (Figure 1b,d). This transformation resulted in a good correlation between log(DON), and logit(growthnumber of fronds) and logit(growthfrond area) with an R² of 0.996 (p-value < 0.001) and 0.947 (p-value = 0.005) respectively.
From this tight correlation between Lemna growth reduction and DON concentration, it can be concluded that this bioassay is suitable as a tool to assess the toxicity mediated by DON. Next to frond growth and frond area, pulse amplitude-modulated chlorophyll fluorescence was also used to evaluate the impact of the toxin on the plant. After 12 h, a decrease in the quantum yield of Photosystem II (φPSII) was observed, indicating that DON interferes with photosynthesis (Figure S1).

2.1.2. Repeatability and Sensitivity

To determine the variability of the impact of DON on plant growth, calibration curves (ranging from 0, 0.125, 0.25, 0.5 to 1 mg/L DON) were tested in triplicate on different days, performed by two people. The 95% confidence intervals were calculated for the main calibration curve. The results are shown in Figure 2.
As seen in Figure 2, there is a high variation in response of the concentration at 0.125 mg/L DON. Some data points are located outside the 95% confidence interval. However, at higher concentrations, the variation within all three independent experiments is lower. The plant is significantly sensitive to DON at 0.250 mg/L: from a non-parametric Kruskal–Wallis test followed by a one-sided post-hoc Dunn’s test (α: 0.05) it could be concluded that a concentration of 0.250 mg/L DON (n = 9) significantly differs from the control. This result is in concordance with the chlorophyll fluorescence measurements carried out at 24 h after DON application (Figure S1).

2.1.3. Sensitivity of Lemna Minor towards Other Fusarium Mycotoxins

In order to assess the applicability of this bioassay to other trichothecenes and to zearalenone (ZEN), the bioassay was performed in triplicate on diacetoxyscirpenol (DAS), fusarenon X (FUS-X), T-2 toxin, HT-2 toxin, and nivalenol (NIV), which are trichothecene mycotoxins, and on the estrogenic mycotoxin ZEN at concentration level 1 mg/L. The plant Lemna minor was sensitive to DAS, FUS-X, T-2 and HT-2, but not to NIV and ZEN (Table 1).

2.2. Implementing the Bioassay to Screen for DON Detoxification by the Enrichment Cultures

The obtained enrichment cultures (originating from a 6-week enrichment of rumen fluid, soil, digestate and activated sludge) were inoculated in “minimal incubation medium” (MMO) with 5 and 50 mg/L DON and incubated for four weeks at 30 °C and 100 rpm. The samples taken at four weeks of incubation were analyzed for the detoxification potential of the enrichment cultures (Figure S2). Sterilized culture filtrates were analyzed with the bioassay with a previous dilution step to an estimated 1 mg/L based on the amended DON-concentrations (5 and 50 mg/L) (Table 2). If a microbial community present in an enrichment culture was able to detoxify DON, we would expect the Lemna plants to show a better growth compared to the Lemna plants in control wells effectively exposed to 1 mg/L of DON.
A high growth reduction is observed when Lemna plants are incubated with culture filtrate originating from enrichment cultures of rumen fluid and digestate. The growth reduction is similar to Lemna plants incubated with 1 mg/L of DON, indicating that no detoxification occurred. Lemna plants incubated with culture filtrate of the enrichment cultures of soil or activated sludge showed a similar growth compared to the control where no DON was added. These findings indicate that the enrichment cultures originating from soil and activated sludge contain some promising microorganisms capable of detoxifying DON aerobically within four weeks.
These data were also confirmed with LC-MS/MS. No modification of DON occurred with digestate and rumen fluid cultures within four weeks, whereas soil and activated sludge cultures fully converted 50 mg/L DON. The same trend is observed for 5 mg/L. The cultures originated from soil and activated sludge could convert 100% ± 0% of 5 mg/L DON, whereas the cultures of digestate and rumen fluid only converted 11% ± 3% and 9% ± 9% of 5 mg/L DON, respectively. These findings have been statistically evaluated using a one-way ANOVA test followed by a Dunnett T3 test for pairwise multiple comparisons (α: 0.05). The samples of the control, digestate and rumen fluid are significantly different from the samples of activated sludge and soil. In addition, a quantitative determination was performed of known derivatives or metabolites of DON: 3-ADON, 15-ADON, deoxynivalenol-3-glucoside (DON-3G) and DOM-1. However, none of these molecules were found.
Subsequently, a more detailed investigation of the samples at 50 mg/L DON was performed by LC-high resolution MS (LC-HRMS) (Figure 3). The samples of digestate and rumen fluid showed a metabolite profile that was similar to the control (medium and DON). DON was still present and no novel entities could be detected. In contrast, investigation of the chromatograms of soil and activated sludge revealed two additional compounds, which were eluted before DON, i.e., at retention time (RT) 2.4 min and at RT 3.9 min. The compound at RT 2.4 min, with [M + H+] = 297.1333, was putatively assigned as 3-epi-DON (C15H21O6, mass error = −1.68 ppm), while the other biotransformation compound (RT 3.9 min, [M + H+] = 281.1392) was tentatively identified as 3-epi-DOM-1 (C15H21O5, mass error = 1.06 ppm). The identification of these compounds was confirmed by close examination of their chromatographic retention and fragmentation pattern (Figures S3 and S4) in light of data acquired for authentic standards of DON and DOM-1. The same fragment ions can be seen in the MS/MS spectra of each pair of the parent- and the epi-compounds. Interestingly, the intensities of the ions are different, as commonly observed with these types of isomers [53]. Our data corroborate previous studies that identified 3-epi-DON as biotransformation product of DON, and which showed that the former is eluted before the latter in reversed-phase chromatography [53,54,55]. Similarly, those studies also support our identification of 3-epi-DOM-1, in that this epimer was also eluted before the main compound DOM-1 (authentic standard).

2.3. Monitoring Detoxification (Bioassay) and Biotransformation (LC-MS/MS) by the Enrichment Cultures Soil and Activated Sludge through Time

In order to get a sense of DON detoxification and biotransformation kinetics exhibited by enrichment cultures of soil and activated sludge, we analyzed the supernatant of the intermediate samples taken at weeks 1, 2 and 3 of incubation (Figure S2). For DON detoxification, results from the bioassay are shown in Table 3, expressed as % growth, directly related to % detoxification. For DON biotransformation, results from the LC-MS/MS are shown in Table 4, expressed as % biotransformation.
A stable concentration of DON is observed over time for the controls 5 mg/L (respectively 5 ± 1 mg/L, 5 ± 3 mg/L and 4 ± 1 mg/L for weeks 1, 2 and 3) and 50 mg/L DON (respectively 51 ± 11 mg/L, 48 ± 16 mg/L and 45 ± 6 mg/L for weeks 1, 2 and 3), indicating no abiotic influences on DON during the experiment. Analysis with the bioassay shows that exposure of each control supernatant (originating from the 5 mg/L and 50 mg/L control experiments, diluted to 1 mg/L) resulted in approximately 30% growth of Lemna minor (Table 3), which is in agreement with other experiments at 1 mg/L DON (Figure 1).
Supernatant for soil enrichment culture starting at 5 mg/L DON results after one week in the same growth reduction as in the sterile DON control. However, after two and three weeks, 93% ± 3% and 86% ± 21% growth was detected, respectively (compared to the control without DON). This is in agreement with the LC-MS/MS analysis where DON was no longer detected after two weeks. Similar results were obtained starting from 50 mg/L DON. The activated sludge enrichment cultures displays other kinetics. At low concentrations (5 mg/L DON), DON was no longer detected with LC-MS/MS after week two and three. However, in week two and three, a slightly phytotoxic effect is still observed. At higher concentrations (50 mg/L DON), DON was again fully biotransformed after week two and three, whereas detoxification already occurred in week one.

3. Discussion

In this study, we have developed and implemented a highly sensitive bioassay using Lemna minor L. for screening bacterial cultures on their DON detoxification capacities. To assess the sensitivity of Lemna minor L. to DON, a dose–response curve was established and a linear relation was found between logit (Lemna growth) and log (DON concentration). It should be mentioned that for the low concentrations 0.0625 and 0.125 mg/L DON, the variation in replicates was fairly high. Although we do not have any evidence, this might be due to small differences in the physiological fitness of the Lemna plants where some plants are inhibited by such low DON doses while others are not. This is in contrast to higher DON concentrations, for which plants are equally sensitive, resulting in very reproducible results. Therefore, the bioassay should be used to detect loss of toxicity starting from 0.25 mg/L DON. Growth of Lemna minor L. in response to DON was assessed by frond area and number of fronds. In the future, other response parameters might be included in the bioassay. We provide evidence that chlorophyll fluorescence might be a fast alternative and a sensitive parameter to implement in detoxification studies as previously shown for herbicides [48]. Measuring the conductivity of the medium might be a fourth parameter to determine the electrolyte release [40]. Subsequently, the usability of the Lemna bioassay was tested for other trichothecenes and for the estrogenic mycotoxin ZEN. ZEN and NIV seemed to be non-toxic for Lemna minor, in contrast to DON, T-2 toxin, HT-2 toxin, DAS and FUS-X. Therefore, the bioassay can be used as a cheap bio-tool for screening the phytotoxicity of DON, other tricothecenes and DON derivatives.
The sensitivity of the bioassay was statistically evaluated, where a concentration of 0.25 mg/L DON was found to be significantly different from the control. Between 1 and 100 mg/L DON, complete growth inhibition and leaf necrosis occurred, whereas at 0.25 until 1 mg/L growth reduction occurred. In our bioassay, 34% ± 6% growth was observed at 1 mg/L DON after 7 days resulting in a highly sensitive bioassay. In Table 5, our assay is compared to other existing bioassays, including information about advantages, drawbacks and limitations, as well as the workload, time requirements and applicability of the bioassays. The various bioassays are ranged from lowest to highest sensitivity for DON.
As seen in Table 5, the sensitivity of most bioassays ranged from a concentration of 30 down to 3 mg/L DON. Only the ciliated protozoa Tetrahymena pyriformis was also reported as a very sensitive organism for DON with 0.6 mg/L DON as minimum active dose. However, our bioassay can detect analyte concentrations as low as 0.25 mg/L DON, which to our knowledge has not been reported before.
Implementing bioassays in biotransformation experiments is of great importance because the toxicity of metabolites is often overlooked in screening assays for new promising microbial strains. Several examples in literature are available showing that mycotoxin modification does not always result in mycotoxin detoxification, which illustrates the necessity and benefits of bioassays as developed in this study. For aflatoxin B1, the metabolite aflatoxin M1 is a commonly known metabolite which is categorized as possibly carcinogenic to humans (Group 2B) by the International Agency for Research on Cancer [57]. The same accounts for ZEN, for which several metabolites have been found with similar or even more estrogenic activity [16,58]. Furthermore, this problem is nicely illustrated by the following ‘detoxification’ reaction of 3-ADON which is first converted to DON as an initial step which leads to an increased toxicity, subsequently followed by de-epoxidation into the non-toxic metabolite DOM-1 [44].
Enrichment cultures were evaluated for their DON detoxification capacity through the Lemna minor bioassay. The microbial communities originating from digestate and rumen fluid did not show this capability, which is not entirely surprising as they are adapted to an anaerobic environment, whereas the enrichment and the biotransformation experiment were performed in the presence of oxygen. The cultures obtained from soil and activated sludge showed a clear detoxification through time with the total disappearance of 5 and 50 mg/L DON after two weeks, as assessed by LC-MS/MS. Soil has already been reported as a source for DON-transforming microorganisms [24,25,26,27,28,29], but to our knowledge, this is not the case for activated sludge from a water treatment plant.
LC-HRMS analysis of the soil and activated sludge cultures after 4 weeks of biotransformation revealed two DON metabolites, namely 3-epi-DON and 3-epi-DOM-1. It has been shown that 3-epi-DON is less toxic than DON [34,35] and has been reported to be formed by several bacteria belonging to the genera Devosia and Nocardioides [25,28,59]. It has been shown that de-epoxidation of DON to DOM-1 already lowers toxicity [33,35], so although toxicological studies for 3-epi-DOM-1 are not available yet, one can assume that this compound is also less toxic than the parent mycotoxin DON as it is its de-epoxidized and epimerized form. To date, 3-epi-DOM-1 has never been reported as a microbial transformation product of DON.
The observation that the disappearance of DON, as detected by LC-MS/MS, after two weeks in soil and activated sludge cultures, does not completely match the detoxification data obtained via the Lemna minor bioassay, points to differences in kinetics of DON transformation between soil and activated sludge cultures and/or small differences in toxicity between the detoxification products 3-epi-DON and 3-epi-DOM-1. Therefore, an in-depth study on the kinetics of DON transformation by these enrichment cultures will be a very interesting step in further research. Thereby, the bioassay presented here will be an indispensable tool in assessing detoxification and therefore complement purely analytical tools in this and other biotransformation studies.

4. Materials and Methods

4.1. Sources

Rumen fluid was sampled via a rumen fistula of three sheep at the experimental farm of Ghent University. Soil originated from a monoculture corn field in Nazareth, Belgium. Digestate came from an anaerobic digester provided by Innolab (Ghent, Belgium). Activated sludge originated from a municipal water treatment plant (Gavere, Belgium). The aquatic plant Lemna minor was maintained in an aquarium at room temperature under a light regime of 16 h/8 h (light/dark) illuminated with a Solar Lux 26 Watt lamp (Aquatic nature, Ghent, Belgium). The aquarium contained 40 L of tap water each week supplemented with 1 mL of macro elements stock solution containing 60 g/L KNO3, 12 g/L KH2PO4 and 32 g/L K2SO4.

4.2. Source Material Preparation

Before use as inoculants for the enrichment experiments, the microbial community sources were prepared. Rumen fluid was directly used as inoculum. A soil sample weighing 20 g was suspended in 25 mL physiological water (8.5 g/L NaCl in distilled water) and added to a stomacher for 1 minute at low speed in order to homogenize the sample and separate the liquid phase. Digestate (30 mL) was transferred into a stomacher for 2 min at normal speed to homogenize the sample and separate the liquid phase. An aliquot of activated sludge sample was mixed homogeneously and added to a 1.5-mL recipient. The floc structure of activated sludge was broken down through pipetting up and down with a sterile syringe and needle releasing the bacteria into suspension.

4.3. Standards

The individual mycotoxin solid calibration standards (1 mg) of DON, 3-ADON, 15-ADON, DOM-1, NIV and zearalanone (ZAN, internal standard) were purchased from Sigma-Aldrich (Bornem, Belgium). DON-3G (50.2 ng/µL, in acetonitrile) was purchased from Biopure Referenzsubstanzen (Tulln, Austria).
All mycotoxin solid standards for LC-MS/MS analysis were dissolved in methanol (1 mg/mL), and were storable for a minimum of 1 year at −18 °C [60]. DON-3G was kept at 4 °C. The working solutions of DON, 3-ADON, 15-ADON, DOM-1 and NIV (10 ng/µL) were prepared in methanol, and stored at −18 °C, while DON-3G (10 ng/µL) was dissolved in acetonitrile (4 °C, monthly renewed).
DON standard for the bioassay and the enrichment protocol was dissolved in dimethyl sulfoxide (DMSO) at a concentration of 1 mg/mL and stored at −18 °C. Working solutions of 100 and 10 mg/L DON were prepared in “Lemna medium” or “minimal incubation medium” (MMO) and stored at −18 °C.

4.4. Enrichment for DON-Degrading Microorganisms

Screening of microorganisms with respect to DON biotransformation capacity was performed by adding the four inoculants at 0.1% in 50 mL sterile MMO. This medium is based on Stanier medium [61] and contained 1.4 g/L Na2HPO4, 1.4 g/L KH2PO4, 0.3 g/L (NH4)2SO4, 98.5 mg/L MgSO4, 5.9 mg/L CaCl2.H2O, 3.2 mg/L Na2EDTA, 2.8 mg/L FeSO4.7H2O, 1.2 mg/L ZnSO4.7H2O, 1.7 mg/L MnSO4.H20, 0.4 mg/L CuSO4.5H2O, 0.2 mg/L CoCl2.6H2O and 0.1 mg/L (NH4)6Mo24.4H2O. The liquid medium was supplemented with 50 mg/L DON as the only carbon source. The enrichment was incubated for 6 weeks at 100 rpm and 30 °C. Controls without bacteria and without DON were included. After the incubation period, enrichment cultures were obtained and archived at −80 °C in 20% v/v glycerol.

4.5. Biotransformation Experiment

For the biotransformation experiment, precultures were made in MMO medium. The obtained enrichment cultures (stored at −80 °C) were added into 10 mL MMO medium at 1% with 5 or 50 mg/L DON. The aliquots were incubated at 30 °C and 100 rpm. Microorganism growth of the precultures was monitored with a spectrophotometer, measuring the optical density at 600 nm. The precultures were used as an inoculum for the biotransformation experiment at an optical density value of 1. Subsequently, 2% of each preculture inoculum was added with 5 or 50 mg/L DON into 10 mL MMO medium. The experiment was performed in triplicate. Controls are included (MMO medium with 5 or 50 mg/L DON without addition of microbial source and MMO medium with microbial sources without DON). The enrichment cultures were incubated for four weeks at 30 °C and 100 rpm. Samples were taken weekly and stored at −18 °C.

4.6. Bioassay Protocol

A mineral growth medium for Lemna minor was prepared according to Megateli et al. [62]. A sterile 24-well plate was used to grow Lemna minor in “Lemna medium”, in a total volume of 2 mL per well. Starting from six fronds, the plants were incubated in triplicate for 7 days in a growth chamber (16 h light exposure, 22 °C). For each analysis of samples, a calibration curve was included (0, 0.0625, 0.125, 0.25, 0.5 and 1 mg/L DON). Samples were filter sterilized using a sterile filter and syringe. Each sample was diluted to the range of calibration curves. Samples starting from 5 mg/L DON were diluted 5 times; samples starting from 50 mg/L DON were diluted 50 times resulting in a final concentration of 1 mg/L in the Lemna bioassay. After 7 days of incubation, the plates were analyzed based on frond growth. The number of fronds are counted with a microscope (Stereo IX). Photos are made of each well with the microscope and frond area is calculated with the program APS Assess.

4.7. Detection of DON and Its Possible Metabolites by LC-MS/MS

4.7.1. Sample Preparation

One milliliter of MMO medium was weighed in a glass tube (10 mL). A calibration curve was set up by spiking three blank medium samples with DON, NIV, 3-ADON, 15-ADON, DOM-1 and DON-3G (10 ng/µL, range 100 µg/L–200 µg/L–400 µg/L). The stock solution (25 µL) of the internal standard ZAN (10 ng/µL, 250 ng on sample) was added to both calibrators as unknowns. Samples were vortexed (Labinco BV, Breda, The Netherlands) for 2 min. The medium samples were evaporated until dryness under nitrogen at 60 °C using the TurboVap® LV (Biotage, Dusseldorf, Germany), and redissolved in 100 µL of injection solvent (methanol/water/acetic acid (41.8/57.2/1, v/v/v) with 5 mM of ammonium acetate). Finally, the redissolved sample was vortexed for 3 min. Prior to LC-MS/MS analysis, the samples were collected in an Ultrafree-MC centrifugal device (0.22 µm, Millipore, Bedford, MA, USA) and centrifuged for 10 min at 10,000 g.

4.7.2. LC-MS/MS Analysis

LC-MS/MS analysis was performed using a Waters Acquity HPLC system coupled to a Quattro Micro mass spectrometer (Waters, Milford, MA, USA) equipped with an electrospray interface (ESI) by injecting a volume of 20 µL. Chromatographic separation was performed using an Acquity HPLC Symmetry C18 column (5 µm, 150 mm × 2.1 mm) and a guard column of the same material (10 mm × 2.1 mm i.d.) (Waters, Milford, MA, USA). The column was kept at 60 °C, and the temperature of the autosampler was set at 10 °C. A mobile phase consisting of variable mixtures of mobile phase A (water/methanol/acetic acid, 94/5/1 (v/v/v), 5 mM ammonium acetate) and mobile phase B (methanol/water/acetic acid, 97/2/1 (v/v/v), 5 mM ammonium acetate) was used at a flow rate of 0.3 mL/min with a gradient elution program. The gradient elution started at 99% mobile phase A with a linear decrease to 35% in 7 min. The next 4-min mobile phase A decreased to 25%. An isocratic period of 100% mobile phase B started at 11 min for 2 min. Initial column conditions were reached at 23 min using a linear decrease of mobile phase B, and over 5 min mobile phase A was used to recondition the column. The duration of each HPLC run was 28 min. The mass spectrometer was operated in the positive electrospray ionization (ESI+) mode. MS parameters were as follows: ESI source block and desolvation temperatures: 150 and 350 °C, respectively; capillary voltage: 3.2 kV; argon collision gas: 1.15 × 10−2 mbar; cone nitrogen and gas flow: 50 L/h and 800 L/h, respectively. The data acquisition was performed using selected reaction monitoring (SRM, Table 6). MasslynxTM version 4.1 and Quanlynx® version 4.1. software (Waters, Milford, MA, USA) were used for data acquisition and processing.
The analytical method was validated according to Commission Decision 2002/657/EC [63], and all validation parameters met the criteria mentioned. Validation data for DON is shown in Table S1. Limit of detection (LOD) and limit of quantification (LOQ) ranged from 30 µg/L to 45 µg/L, and 61 µg/L to 89 µg/L, respectively.

4.7.3. LC-HRMS Analysis

Chromatographic separation was achieved on an ACQUITY UPLC I-class FTN system (Waters, Manchester, UK), using a ZORBAX RRHD Eclipse Plus C18 (1.8 µm, 2.1 mm × 100 mm). The mobile phase consisted of H2O:MeOH (99:1, v/v) containing 0.05% HCOOH and 5 mM HCOONH4 (solvent A) and MeOH (solvent B). A gradient elution program was applied as follows: 0–0.5 min: 5% B, 0.5–20 min: 5%–95% B, 20–21 min: 95% B, 21–24 min: 95%–5% B, 24–28 min: 5% B. The flow rate was 0.3 mL/min. The column temperature was set at 40 °C and the temperature of the autosampler was 10 °C. Five microliters of the sample was injected.
HRMS analyses were performed using a hybrid quadrupole (Q) orthogonal acceleration time-of-flight (TOF) high-definition mass spectrometer, the Synapt G2-Si HDMS (Waters), equipped with an electrospray ionization (ESI) source. Data were acquired as positive ion (ESI+) polarity runs in resolution mode (> 20000 FWHM). The MS parameters were as follows: capillary voltage 2.8 kV; sample cone voltage 30 V; source temperature 150 °C; desolvation gas flow 800 L/h at a temperature of 550 °C and cone gas flow 50 L/h. Nitrogen was used as the desolvation and cone gases. Argon was employed as the collision gas at a pressure of 9.28 × 10−3 mbar. The instrument was calibrated using sodium formate clusters. During the MS analysis, a leucine-enkephalin solution (200 pg/µL) was continuously infused into the mass spectrometer at a flow rate of 20 μL/min via the lockspray interface, generating the reference ion ([M + H]+ = 556.2771) used for mass correction. Mass spectra were collected in continuum mode from m/z 50 to 1200 with a scan time of 0.1 s, an inter-scan delay of 0.01 s and a lockspray frequency of 20 s. A data-dependent acquisition (DDA) mode was implemented to obtain the simultaneous acquisition of exact mass data for the precursor and fragment ions. The top five ions were selected for MS/MS from a single MS survey scan. The scan time for MS/MS was 0.2 s. The collision energy in the trap cell was ramped from 10/15 V (low mass, start/end) up to 60/150 V (high mass, start/end). Instrument control and data processing were carried out using Masslynx 4.1 software (Waters).

4.8. Data Processing

For developing the bioassay, data was processed for the number of fronds, as well as for frond area. For each calibration curve, the growth was calculated with formula (1) and (2). Growth is plotted as function of concentration DON (mg/L). Subsequently, logit of growth was calculated (3) and plotted in function of logarithm of concentration DON (mg/L) to obtain a linear correlation. In every step, standard deviations were determined. These data were plotted with Sigmaplot 13. The regression coefficients and corresponding p-values were calculated with Sigmaplot 13 with linear regression.
G r o w t h n u m b e r   o f   f r o n d s = n u m b e r   o f   f r o n d s n u m b e r   o f   f r o n d s c o n t r o l ,
G r o w t h f r o n d   a r e a = f r o n d   a r e a f r o n d   a r e a c o n t r o l ,
L o g i t   g r o w t h = L o g g r o w t h 1 g r o w t h ,
The three calibration curves used for evaluating the repeatability were also plotted in Sigmaplot 13, together with the 95% confidence intervals.
For processing data of the bioassay samples, growth was calculated and expressed in % relative to the control. For processing data of LC-MS/MS, % biotransformation of treatments was calculated relative to the corresponding control at the same time point when the sample was taken. Data was statistically analyzed via a one-way ANOVA test or a non-parametric Kruskal–Wallis test followed by a Dunnett T3 test or Dunn’s test for pairwise multiple comparisons (α: 0.05) in SPSS Statistics 23. Standard errors were given as ±.

Supplementary Materials

The following are available online at, Figure S1: A dose–response curve of chlorophyll fluorescence in Lemna minor at 12 h after exposure to different DON concentrations, Figure S2: Scheme of experimental setup of enrichment and biotransformation experiment, Figure S3: MS/MS spectra of DON and 3-epi-DON, Figure S4: MS/MS spectra of DOM-1 and 3-epi-DOM-1, Table S1: Validation parameters for DON.


We would like to acknowledge the financial support received for this study from MYCOKEY, a project funded within the Horizon2020 Research and Innovation program of the European Commission (project number 678781) and from the Agency for Innovation by Science and Technology (IWT-LA, project 110776) (Brussels, Belgium). The authors also acknowledge the Hercules infrastructure funding AUGE/13/13.

Author Contributions

K.A. and L.D.G. conceived the experiments. K.A., L.D.G., M.D.B. and J.D.D.M. designed the experiments. I.V., L.D.M. and V.U. performed the experiments. I.V., V.U. and J.D.D.M. analyzed the data. S.D.S. contributed reagents, materials and analysis for the LC-MS/MS analysis. I.V., K.A., L.D.G., V.U., J.D.D.M. and M.D.B. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Jouany, J.P. Methods for preventing, decontaminating and minimizing the toxicity of mycotoxins in feeds. Anim. Feed Sci. Technol. 2007, 137, 342–362. [Google Scholar] [CrossRef]
  2. Wambacq, E.; Vanhoutte, I.; Audenaert, K.; De Gelder, L.; Haesaert, G. Occurrence, prevention and remediation of toxigenic fungi and mycotoxins in silage: A review. J. Sci. Food Agric. 2016, 96, 2284–2302. [Google Scholar] [CrossRef] [PubMed]
  3. Grenier, B.; Loureiro-Bracarense, A.-P.; Leslie, J.F.; Oswald, I.P. Physical and chemical methods for mycotoxin decontamination in maize. In Mycotoxin Reduction in Grain Chains; Leslie, J.F., Logrieco, A., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2014. [Google Scholar]
  4. Goossens, J.; Vandenbroucke, V.; Pasmans, F.; De Baere, S.; Devreese, M.; Osselaere, A.; Verbrugghe, E.; Haesebrouck, F.; De Saeger, S.; Eeckhout, M.; et al. Influence of mycotoxins and a mycotoxin adsorbing agent on the oral bioavailability of commonly used antibiotics in pigs. Toxins 2012, 4, 281–295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Schatzmayr, G.; Zehner, F.; Taubel, M.; Schatzmayr, D.; Klimitsch, A.; Loibner, A.P.; Binder, E.M. Microbiologicals for deactivating mycotoxins. Mol. Nutr. Food Res. 2006, 50, 543–551. [Google Scholar] [CrossRef] [PubMed]
  6. Hope, R.; Aldred, D.; Magan, N. Comparison of environmental profiles for growth and deoxynivalenol production by fusarium culmorum and f-graminearum on wheat grain. Lett. Appl. Microbiol. 2005, 40, 295–300. [Google Scholar] [CrossRef] [PubMed]
  7. Magan, N.; Hope, R.; Colleate, A.; Baxter, E.S. Relationship between growth and mycotoxin production by fusarium species, biocides and environment. Eur. J. Plant Pathol. 2002, 108, 685–690. [Google Scholar] [CrossRef]
  8. Ehrlich, K.C.; Daigle, K.W. Protein-synthesis inhibition by 8-oxo-12,13-epoxytrichothecenes. Biochim. Biophys. Acta 1987, 923, 206–213. [Google Scholar] [CrossRef]
  9. Sobrova, P.; Adam, V.; Vasatkova, A.; Beklova, M.; Zeman, L.; Kizek, R. Deoxynivalenol and its toxicity. Interdiscip. Toxicol. 2010, 3, 94–99. [Google Scholar] [CrossRef] [PubMed]
  10. Pestka, J.J. Deoxynivalenol: Toxicity, mechanisms and animal health risks. Anim. Feed Sci. Technol. 2007, 137, 283–298. [Google Scholar] [CrossRef]
  11. Pestka, J.J. Deoxynivalenol: Mechanisms of action, human exposure, and toxicological relevance. Arch. Toxicol. 2010, 84, 663–679. [Google Scholar] [CrossRef] [PubMed]
  12. European Commission. Commission recommendation of 17 august 2006 on the presence of deoxynivalenol, zearalenone, ochratoxin a, t-2 and ht-2 and fumonisins in products intended for animal feeding. Off. J. Eur. Union 2006, L 229, 7–9. [Google Scholar]
  13. European Commission. Commission regulation no 1881/2006 of 19 december 2006 setting maximum levels for certain contaminants in foodstuffs. Off. J. Eur. Union 2006, L 364, 5–24. [Google Scholar]
  14. Lauren, D.R.; Smith, W.A. Stability of the fusarium mycotoxins nivalenol, deoxynivalenol and zearalenone in ground maize under typical cooking environments. Food Addit. Contam. 2001, 18, 1011–1016. [Google Scholar] [CrossRef] [PubMed]
  15. De Mil, T. Safety of Mycotoxin Binders Regarding Their Use with Veterinary Medicinal Products in Poultry and pigs: An In Vitro and Pharmacokinetic Approach. Ph.D. Thesis, Ghent University, Ghent, Belgium, 2016. [Google Scholar]
  16. Vanhoutte, I.; Audenaert, K.; De Gelder, L. Biodegradation of mycotoxins: Tales from known and unexplored worlds. Front. Microbiol. 2016, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Binder, E.M.; Binder, J. Strain of Eubacterium That Detoxyfies Trichothenes. U.S. Patent No. 6,794,175, 21 September 2004. [Google Scholar]
  18. King, R.R.; Mcqueen, R.E.; Levesque, D.; Greenhalgh, R. Transformation of deoxynivalenol (vomitoxin) by rumen microorganisms. J. Agric. Food Chem. 1984, 32, 1181–1183. [Google Scholar] [CrossRef]
  19. Kollarczik, B.; Gareis, M.; Hanelt, M. In vitro transformation of the fusarium mycotoxins deoxynivalenol and zearalenone by the normal gut microflora of pigs. Nat. Toxins 1994, 2, 105–110. [Google Scholar] [CrossRef] [PubMed]
  20. Yu, H.; Zhou, T.; Gong, J.H.; Young, C.; Su, X.J.; Li, X.Z.; Zhu, H.H.; Tsao, R.; Yang, R. Isolation of deoxynivalenol-transforming bacteria from the chicken intestines using the approach of PCR-DGGE guided microbial selection. BMC Microbiol. 2010, 10, 182. [Google Scholar] [CrossRef] [PubMed]
  21. Guan, S.; He, J.W.; Young, J.C.; Zhu, H.H.; Li, X.Z.; Ji, C.; Zhou, T. Transformation of trichothecene mycotoxins by microorganisms from fish digesta. Aquaculture 2009, 290, 290–295. [Google Scholar] [CrossRef]
  22. Young, J.C.; Zhou, T.; Yu, H.; Zhu, H.H.; Gong, J.H. Degradation of trichothecene mycotoxins by chicken intestinal microbes. Food Chem. Toxicol. 2007, 45, 136–143. [Google Scholar] [CrossRef] [PubMed]
  23. Zhou, T.; Gong, J.; Young, J.C.; Yu, H.; Li, X.Z.; Zhu, H.; Hill, A.; Yang, R.; de Lange, C.F.M.; Du, W.; et al. Microorganisms isolated from chicken gut can effectively detoxify don and other trichothecene mycotoxins. Available online: (accessed on 8 February 2017).
  24. He, J.W.; Hassan, Y.I.; Perilla, N.; Li, X.Z.; Boland, G.J.; Zhou, T. Bacterial epimerization as a route for deoxynivalenol detoxification: The influence of growth and environmental conditions. Front. Microbiol. 2016, 7. [Google Scholar] [CrossRef] [PubMed]
  25. Ikunaga, Y.; Sato, I.; Grond, S.; Numaziri, N.; Yoshida, S.; Yamaya, H.; Hiradate, S.; Hasegawa, M.; Toshima, H.; Koitabashi, M.; et al. Nocardioides sp. Strain wsn05-2, isolated from a wheat field, degrades deoxynivalenol, producing the novel intermediate 3-epi-deoxynivalenol. Appl. Microbiol. Biot. 2011, 89, 419–427. [Google Scholar] [CrossRef] [PubMed]
  26. Islam, R. Isolation, Characterization and Genome Sequencing of a Soil-Borne Citrobacter Freundii Strain Capable of Detoxifying Trichothecene Mycotoxins. Ph.D. Thesis, University of Guelph, Guelph, ON, Canada, 2012. [Google Scholar]
  27. Islam, R.; Zhou, T.; Young, J.C.; Goodwin, P.H.; Pauls, K.P. Aerobic and anaerobic de-epoxydation of mycotoxin deoxynivalenol by bacteria originating from agricultural soil. World J. Microb. Biot. 2012, 28, 7–13. [Google Scholar] [CrossRef] [PubMed]
  28. Sato, I.; Ito, M.; Ishizaka, M.; Ikunaga, Y.; Sato, Y.; Yoshida, S.; Koitabashi, M.; Tsushima, S. Thirteen novel deoxynivalenol-degrading bacteria are classified within two genera with distinct degradation mechanisms. FEMS Microbiol. Lett. 2012, 327, 110–117. [Google Scholar] [CrossRef] [PubMed]
  29. Shima, J.; Takase, S.; Takahashi, Y.; Iwai, Y.; Fujimoto, H.; Yamazaki, M.; Ochi, K. Novel detoxification of the trichothecene mycotoxin deoxynivalenol by a soil bacterium isolated by enrichment culture. Appl. Environ. Microb. 1997, 63, 3825–3830. [Google Scholar]
  30. Volkl, A.; Vogler, B.; Schollenberger, M.; Karlovsky, P. Microbial detoxification of mycotoxin deoxynivalenol. J. Basic Microb. 2004, 44, 147–156. [Google Scholar] [CrossRef] [PubMed]
  31. Sinclair, C.J.; Boxall, A.B.A. Ecotoxicity of transformation products. In Transformation Products of Synthetic Chemicals in the Environment; Boxall, A.B.A., Ed.; Springer: Heidelberg, Germany, 2009; Volume 2. [Google Scholar]
  32. Thompson, W.L.; Wannemacher, R.W. Structure-function-relationships of 12,13-epoxytrichothecene mycotoxins in cell-culture—Comparison to whole animal lethality. Toxicon 1986, 24, 985–994. [Google Scholar] [CrossRef]
  33. Eriksen, G.S.; Pettersson, H.; Lundh, T. Comparative cytotoxicity of deoxynivalenol, nivalenol, their acetylated derivatives and de-epoxy metabolites. Food Chem. Toxicol. 2004, 42, 619–624. [Google Scholar] [CrossRef] [PubMed]
  34. He, J.W.; Bondy, G.S.; Zhou, T.; Caldwell, D.; Boland, G.J.; Scott, P.M. Toxicology of 3-epi-deoxynivalenol, a deoxynivalenol-transformation product by devosia mutans 17-2-e-8. Food Chem Toxicol. 2015, 84, 250–259. [Google Scholar] [CrossRef] [PubMed]
  35. Pierron, A.; Mimoun, S.; Murate, L.S.; Loiseau, N.; Lippi, Y.; Bracarense, A.P.F.L.; Schatzmayr, G.; He, J.W.; Zhou, T.; Moll, W.D.; et al. Microbial biotransformation of don: Molecular basis for reduced toxicity. Sci. Rep.-UK 2016, 6. [Google Scholar] [CrossRef] [PubMed]
  36. Hanelt, M.; Gareis, M.; Kollarczik, B. Cytotoxicity of mycotoxins evaluated by the mtt-cell culture assay. Mycopathologia 1994, 128, 167–174. [Google Scholar] [CrossRef] [PubMed]
  37. Kouadio, J.H.; Mobio, T.A.; Baudrimont, I.; Moukha, S.; Dano, S.D.; Creppy, E.E. Comparative study of cytotoxicity and oxidative stress induced by deoxynivalenol, zearalenone or fumonisin b1 in human intestinal cell line caco-2. Toxicology 2005, 213, 56–65. [Google Scholar] [CrossRef] [PubMed]
  38. Rocha, O.; Ansari, K.; Doohan, F.M. Effects of trichothecene mycotoxins on eukaryotic cells: A review. Food Addit. Contam. A 2005, 22, 369–378. [Google Scholar] [CrossRef] [PubMed]
  39. Panigrahi, S. Bioassay of mycotoxins using terrestrial and aquatic, animal and plant-species. Food Chem. Toxicol. 1993, 31, 767–790. [Google Scholar] [CrossRef]
  40. Abbas, H.K.; Yoshizawa, T.; Shier, W.T. Cytotoxicity and phytotoxicity of trichothecene mycotoxins produced by fusarium spp. Toxicon 2013, 74, 68–75. [Google Scholar] [CrossRef] [PubMed]
  41. Abolmaali, S.; Mitterbauer, R.; Spadiut, O.; Peruci, M.; Weindorfer, H.; Lucyshyn, D.; Ellersdorfer, G.; LemmenS, M.; Moll, W.D.; Adarn, G. Engineered bakers yeast as a sensitive bioassay indicator organism for the trichothecene toxin deoxynivalenol. J. Microbiol. Meth. 2008, 72, 306–312. [Google Scholar] [CrossRef] [PubMed]
  42. Alexander, N.J.; McCormick, S.P.; Ziegenhorn, S.L. Phytotoxicity of selected trichothecenes using chlamydomonas reinhardtii as a model system. Nat. Toxins 1999, 7, 265–269. [Google Scholar] [CrossRef]
  43. Bijl, J.P.; Rousseau, D.M.; Dive, D.G.; Vanpeteghem, C.H. Potentials of a synchronized culture of tetrahymena-pyriformis for toxicity studies of mycotoxins. J. Assoc. Off. Anal. Chem. 1988, 71, 282–285. [Google Scholar]
  44. Binder, J.; Horvath, E.M.; Heidegger, J.; Ellend, N.; Danner, H.; Krska, R.; Braun, R. A bioassay for comparison of the toxicity of trichothecenes and their microbial metabolites. Cereal Res. Commun. 1997, 25, 489–491. [Google Scholar]
  45. Desjardins, A.E.; McCormick, S.P.; Appell, M. Structure-activity relationships of trichothecene toxins in an arabidopsis thaliana leaf assay. J. Agric. Food Chem. 2007, 55, 6487–6492. [Google Scholar] [CrossRef] [PubMed]
  46. Masuda, D.; Ishida, M.; Yamaguchi, K.; Yamaguchi, I.; Kimura, M.; Nishiuchi, T. Phytotoxic effects of trichothecenes on the growth and morphology of arabidopsis thaliana. J. Exp. Bot. 2007, 58, 1617–1626. [Google Scholar] [CrossRef] [PubMed]
  47. Scott, P.M.; Harwig, J.; Blanchfield, B.J. Screening fusarium strains isolated from overwintered canadian grains for trichothecenes. Mycopathologia 1980, 72, 175–180. [Google Scholar] [CrossRef] [PubMed]
  48. Hulsen, K.; Minne, V.; Lootens, P.; Vandecasteele, P.; Hofte, M. A chlorophyll a fluorescence-based lemna minor bioassay to monitor microbial degradation of nanomolar to micromolar concentrations of linuron. Environ. Microbiol. 2002, 4, 327–337. [Google Scholar] [CrossRef] [PubMed]
  49. Burgess, K.M.; Renaud, J.B.; McDowell, T.; Sumarah, M.W. Mechanistic insight into the biosynthesis and detoxification of fumonisin mycotoxins. ACS Chem. Biol. 2016, 9, 2618–2625. [Google Scholar] [CrossRef] [PubMed]
  50. Tanaka, T.; Abbas, H.K.; Duke, S.O. Structure-dependent phytotoxicity of fumonisins and related-compounds in a duckweed bioassay. Phytochemistry 1993, 33, 779–785. [Google Scholar] [CrossRef]
  51. Vesonder, R.F.; Wu, W.; Weisleder, D.; Gordon, S.H.; Krick, T.; Xie, W.; Abbas, H.K.; McAlpin, C.E. Toxigenic strains of fusarium moniliforme and fusarium proliferatum isolated from dairy cattle feed produce fumonisins, moniliformin and a new c21h38n2o6 metabolite phytotoxic to lemna minor l. J. Nat. Toxins 2000, 9, 103–112. [Google Scholar] [PubMed]
  52. Wang, W.C. Toxicity tests of aquatic pollutants by using common duckweed. Environ. Pollut. B 1986, 11, 1–14. [Google Scholar] [CrossRef]
  53. Diana Di Mavungu, J.; Malysheva, S.V.; Sanders, M.; Larionova, D.; Robbens, J.; Dubruel, P.; Van Peteghem, C.; De Saeger, S. Development and validation of a new LC-MS/MS method for the simultaneous determination of six major ergot alkaloids and their corresponding epimers. Application to some food and feed commodities. Food Chem. 2012, 135, 292–303. [Google Scholar] [CrossRef]
  54. Hassan, Y.I.; Zhu, H.; Zhu, Y.; Zhou, T. Beyond ribosomal binding: The increased polarity and aberrant molecular interactions of 3-epi-deoxynivalenol. Toxins (Basel) 2016. [Google Scholar] [CrossRef] [PubMed]
  55. He, J.W.; Yang, R.; Zhou, T.; Boland, G.J.; Scott, P.M.; Bondy, G.S. An epimer of deoxynivalenol: Purification and structure identification of 3-epi-deoxynivalenol. Food Addit. Contam. Part A Chem. Anal. Control Expo. Risk Assess. 2015, 32, 1523–1530. [Google Scholar] [CrossRef] [PubMed]
  56. Harwig, J.; Scott, P.M. Brine shrimp (artemia salina L.) larvae as a screening system for fungal toxins. Appl. Microbiol. 1971, 21, 1011–1016. [Google Scholar] [PubMed]
  57. IARC. Iarc Monographs on the Evaluation of Carcinogenic Risks to Humans: Aflatoxins; IARC Press: Lyon, France, 2002; Volume 82. [Google Scholar]
  58. Shier, W.T.; Shier, A.C.; Xie, W.; Mirocha, C.J. Structure-activity relationships for human estrogenic activity in zearalenone mycotoxins. Toxicon 2001, 39, 1435–1438. [Google Scholar] [CrossRef]
  59. He, J.W. Detoxification of Deoxynivalenol by a Soil Bacterium Devosia Mutans 17-2-e-8. Ph.D. Thesis, The University of Guelph, Guelph, ON, Canada, 2015. [Google Scholar]
  60. Spanjer, M.C.; Rensen, P.M.; Scholten, J.M. Lc-ms/ms multi-method for mycotoxins after single extraction, with validation data for peanut, pistachio, wheat, maize, cornflakes, raisins and figs. Food Addit. Contam. A 2008, 25, 472–489. [Google Scholar] [CrossRef] [PubMed]
  61. Stanier, R.Y.; Palleroni, N.J.; Doudoroff, M. The aerobic pseudomonads: A taxonomic study. J. Gen. Microbiol. 1966, 43, 159–271. [Google Scholar] [CrossRef] [PubMed]
  62. Megateli, S.; Dosnon-Olette, R.; Trotel-Aziz, P.; Geffard, A.; Semsari, S.; Couderchet, M. Simultaneous effects of two fungicides (copper and dimethomorph) on their phytoremediation using lemna minor. Ecotoxicology 2013, 22, 683–692. [Google Scholar] [CrossRef] [PubMed]
  63. European Commission. Commission decision 2002/657/ec implementing council directive 96/23/ec concerning the performance of analytical methods and the interpretation of results. Off. J. Eur. Communities 2002, L 221, 8–36. [Google Scholar]

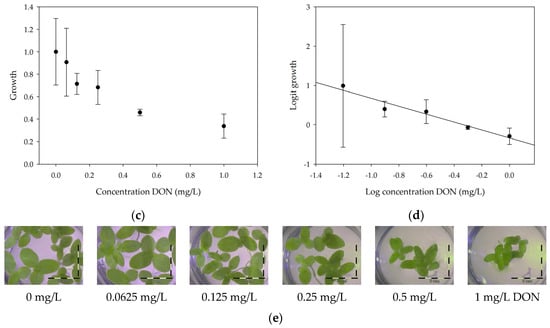

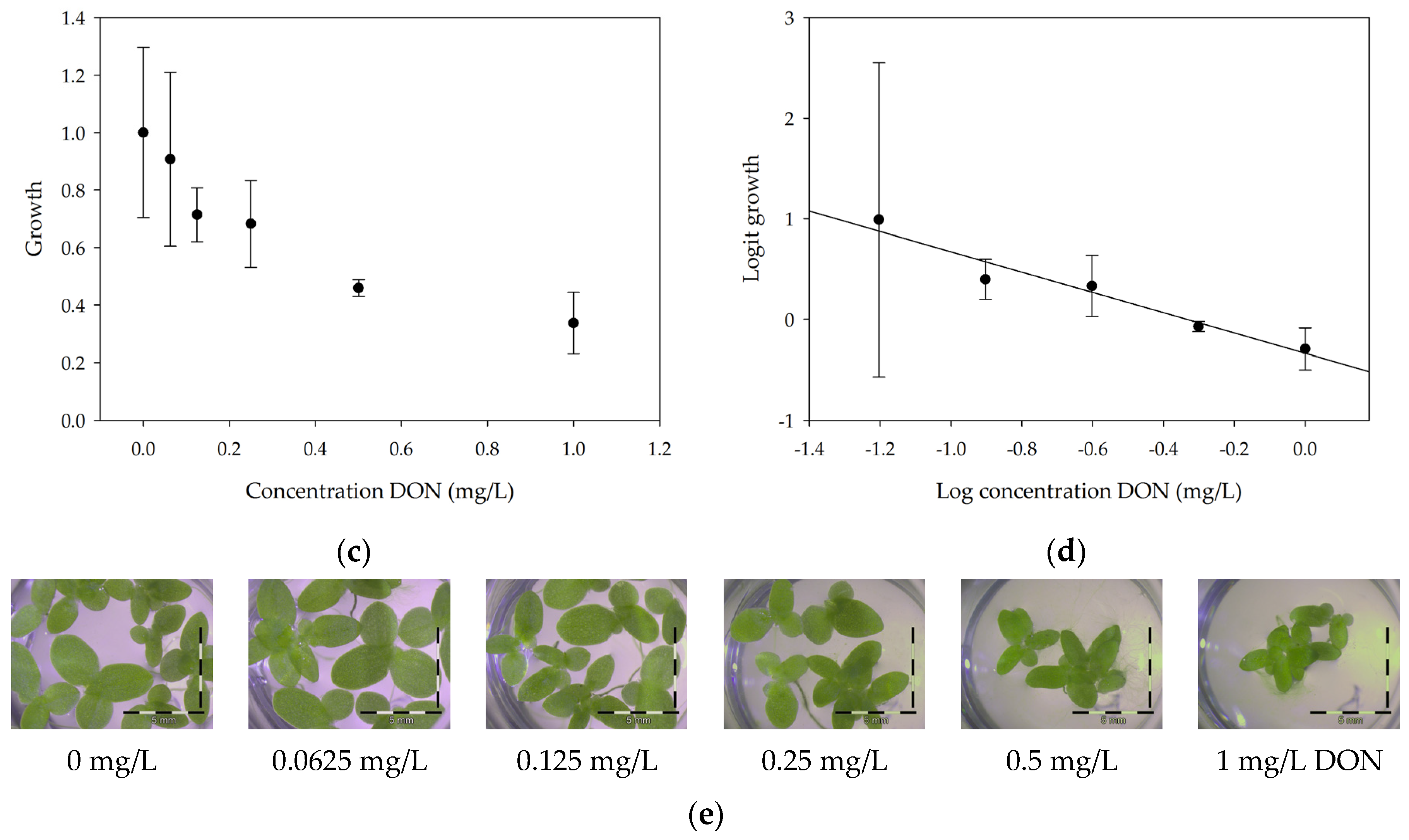

Figure 1. Growth of Lemna minor in response to deoxynivalenol (DON): (a) Data calculated based on number of fronds: correlation of growth and concentration DON (0–1 mg/L DON); (b) Data calculated based on number of fronds: correlation of logit growth and log concentration DON (0.0625–1 mg/L DON); (c) Data calculated based on frond area: correlation of growth and concentration DON (0–1 mg/L DON); (d) Data calculated based on frond area: correlation of logit growth and log concentration DON (0.0625–1 mg/L DON); (e) Response of Lemna minor after 7 days to increasing DON concentrations. Legend: black-white bar = 5 mm.
Figure 1. Growth of Lemna minor in response to deoxynivalenol (DON): (a) Data calculated based on number of fronds: correlation of growth and concentration DON (0–1 mg/L DON); (b) Data calculated based on number of fronds: correlation of logit growth and log concentration DON (0.0625–1 mg/L DON); (c) Data calculated based on frond area: correlation of growth and concentration DON (0–1 mg/L DON); (d) Data calculated based on frond area: correlation of logit growth and log concentration DON (0.0625–1 mg/L DON); (e) Response of Lemna minor after 7 days to increasing DON concentrations. Legend: black-white bar = 5 mm.
Toxins 09 00063 g001aToxins 09 00063 g001b

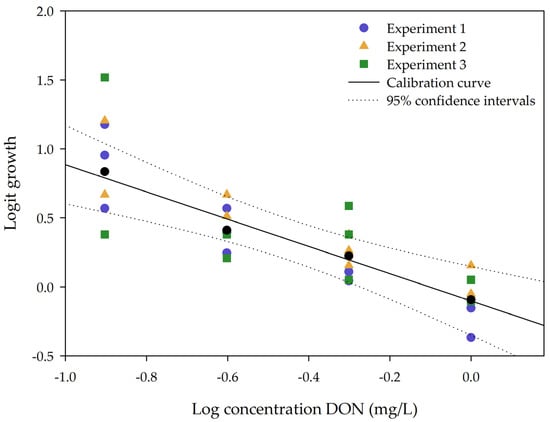

Figure 2. The calibration curve is expressed as the logit growth of number of fronds in function of the log concentration DON (mg/L). Data is shown from 0.125 to 1 mg/L DON. Triplicates of each experiment are illustrated in the same color.
Figure 2. The calibration curve is expressed as the logit growth of number of fronds in function of the log concentration DON (mg/L). Data is shown from 0.125 to 1 mg/L DON. Triplicates of each experiment are illustrated in the same color.
Toxins 09 00063 g002

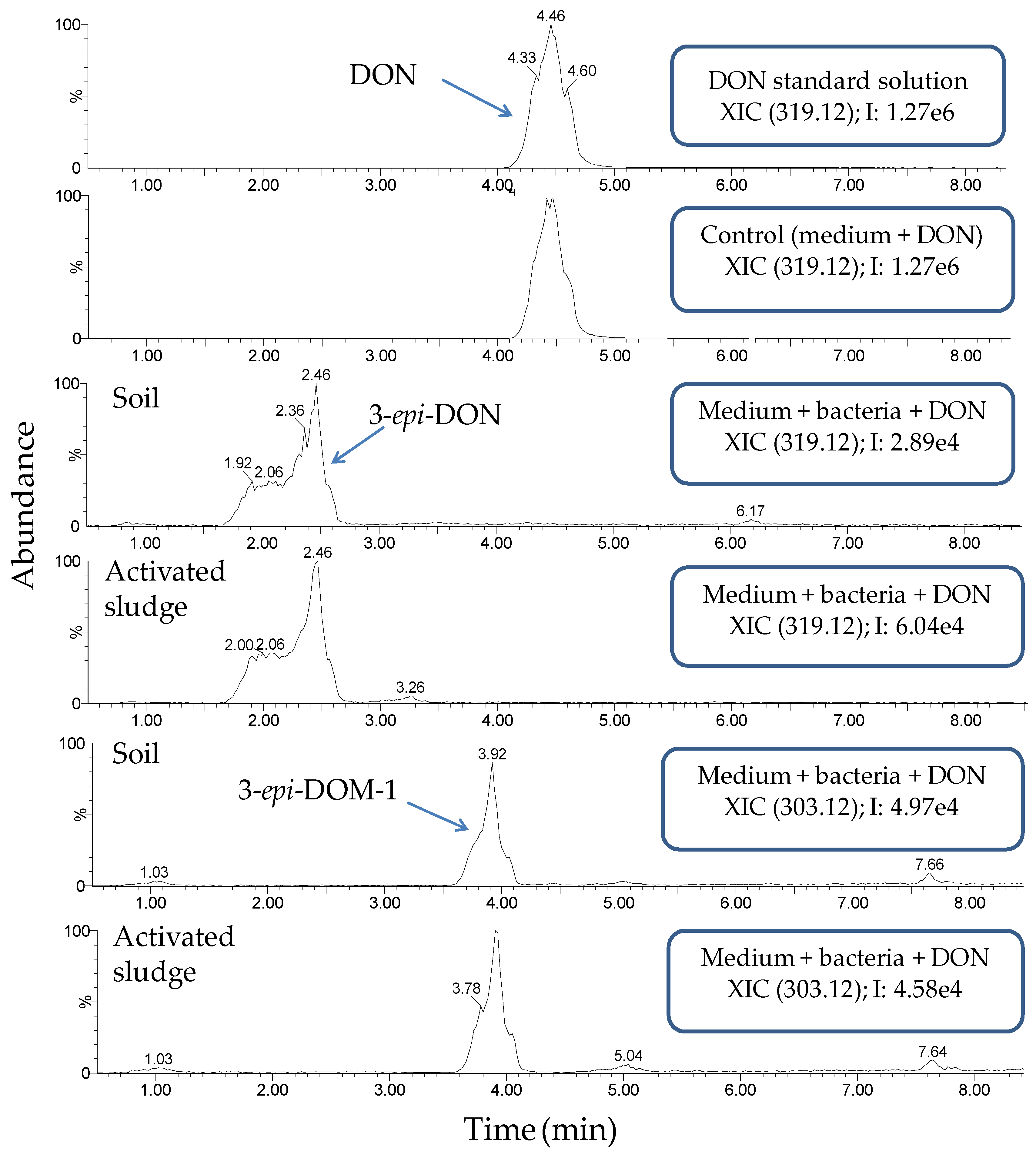

Figure 3. Extracted ion chromatograms (XICs) of the samples at 50 mg/L DON soil and activated sludge after four weeks, including the control (medium and DON). DON and 3-epi-DON were detected as both the protonated molecules and sodium adducts. Only the XICs for the sodium adducts are shown.
Figure 3. Extracted ion chromatograms (XICs) of the samples at 50 mg/L DON soil and activated sludge after four weeks, including the control (medium and DON). DON and 3-epi-DON were detected as both the protonated molecules and sodium adducts. Only the XICs for the sodium adducts are shown.
Toxins 09 00063 g003
Table 1. Sensitivity of Lemna minor towards other Fusarium mycotoxins.
Table 1. Sensitivity of Lemna minor towards other Fusarium mycotoxins.
Mycotoxin% Growth at 1 mg/L Mycotoxin
DAS26 ± 4 b
DON34 ± 6 b
FUS-X44 ± 12 b
T-2 toxin52 ± 12 b
HT-2 toxin54 ± 15 b
ZEN90 ± 42 a
NIV92 ± 11 a
Control100 ± 7 a
a,b Statistically analyzed via a non-parametric Kruskal–Wallis test followed by a one sided post-hoc Dunnett’s test (α: 0.05). DAS: diacetoxyscirpenol; FUS-X: fusarenon X; ZEN: zearalenone; NIV: nivalenol.
Table 2. Screening of enrichment cultures (rumen fluid, soil, digestate and activated sludge) after four weeks of incubation at 0, 5 and 50 mg/L DON, analyzed with the bioassay.
Table 2. Screening of enrichment cultures (rumen fluid, soil, digestate and activated sludge) after four weeks of incubation at 0, 5 and 50 mg/L DON, analyzed with the bioassay.
Concentration DON (mg/L)Rumen fluidSoilDigestateActivated sludge
0 mg/L DON Toxins 09 00063 i001
101 ± 9% a
Toxins 09 00063 i002
93 ± 6% a
Toxins 09 00063 i003
96 ± 4% a
Toxins 09 00063 i004
104 ± 10% a
5 mg/L DON 1 Toxins 09 00063 i005 Toxins 09 00063 i006
28 ± 0% b
Toxins 09 00063 i007
83 ± 6% a
Toxins 09 00063 i008
34 ± 5% b
Toxins 09 00063 i009
99 ± 13% a
50 mg/L DON 1 Toxins 09 00063 i010 Toxins 09 00063 i011
36 ± 2% b
Toxins 09 00063 i012
87 ± 10% a
Toxins 09 00063 i013
43 ± 4% b
Toxins 09 00063 i014
83 ± 4% a
Growth (%) is mentioned below each figure. Legend: black-white bar = 5 mm. a,b Statistically analyzed via a non-parametric Kruskal–Wallis test followed by a one sided post-hoc Dunn’s test (α: 0.05). 1 Controls 5 and 50 mg/L DON diluted to 1 mg/L DON (5 and 50 times respectively), as well as the samples.
Table 3. Detoxification kinetics of 5 and 50 mg/L DON by enrichment cultures (soil and activated sludge) assessed through the Lemna minor bioassay.
Table 3. Detoxification kinetics of 5 and 50 mg/L DON by enrichment cultures (soil and activated sludge) assessed through the Lemna minor bioassay.
MatrixGrowth of Lemna minor (%) after exposure to culture supernatant from the DON detoxification experiment after x weeks assessed by the bioassay
After 1 week of detoxificationAfter 2 weeks of detoxificationAfter 3 weeks of detoxification
0 mg/L DON
Sterile control Toxins 09 00063 i015
100 ± 4 a
5 mg/L DON
Sterile control 1 Toxins 09 00063 i016
30 ± 2 b
Toxins 09 00063 i017
32 ± 1 b
Toxins 09 00063 i018
30 ± 2 b
Soil Toxins 09 00063 i019
32 ± 6 b
Toxins 09 00063 i020
93 ± 3 a
Toxins 09 00063 i021
86 ± 21 a
Activated sludge Toxins 09 00063 i022
33 2
Toxins 09 00063 i023
53 ± 4 b
Toxins 09 00063 i024
69 ± 4 b
50 mg/L DON
Sterile control 1 Toxins 09 00063 i025
35 ± 5 b
Toxins 09 00063 i026
31 ± 4 b
Toxins 09 00063 i027
32 ± 3 b
Soil Toxins 09 00063 i028
47 ± 1 b
Toxins 09 00063 i029
88 ± 4 a
Toxins 09 00063 i030
90 ± 3 a
Activated sludge Toxins 09 00063 i031
99 ± 1 a
Toxins 09 00063 i032
78 ± 15 a
Toxins 09 00063 i033
83 ± 3 a
Legend: black-white bar = 5 mm. a,b Statistically analyzed via a non-parametric Kruskal–Wallis test followed by a one sided post-hoc Dunn’s test (α: 0.05). 1 Controls 5 and 50 mg/L DON diluted to 1 mg/L DON (5 and 50 times respectively), as well as the samples. 2 Sample activated sludge at 5 mg/L DON in week one exceptionally not in triplicate.
Table 4. Biotransformation kinetics of 5 and 50 mg/L DON by soil and activated sludge enrichment cultures assessed by LC-MS/MS.
Table 4. Biotransformation kinetics of 5 and 50 mg/L DON by soil and activated sludge enrichment cultures assessed by LC-MS/MS.
MatrixDON Biotransformation (%) in the Culture Supernatant from the DON Biotransformation Experiment after x Weeks Assessed by LC-MS/MS Analysis
After 1 Week of BiotransformationAfter 2 Weeks of BiotransformationAfter 3 Weeks of Biotransformation
5 mg/L DON
Sterile control0 ± 27 b0 ± 63 1,b0 ± 20 b
Soil56 ± 15 b100 ± 0 a100 ± 0 a
Activated sludge72 ± 2 a100 ± 0 a100 ± 0 a
50 mg/L DON
Sterile control0 ± 22 b0 ± 32 b0 ± 14 b
Soil28 ± 6 b100 ± 0 a100 ± 0 a
Activated sludge68 ± 14 a100 ± 0 a100 ± 0 a
a,b Statistically analyzed via a non-parametric Kruskal–Wallis test followed by a one-sided post-hoc Dunn’s test (α: 0.05). 1 Sample control 5 mg/L DON in week two exceptionally in duplicate.
Table 5. Comparison of bioassays used for assessing DON toxicity.
Table 5. Comparison of bioassays used for assessing DON toxicity.
Organism [Reference]ApplicationCharacteristics
Brine shrimp larvae Artemia salina L. [47,56]General screening for trichothecenes in grains600–1200 ng/disc (~30–60 mg/L) DON → 50% of mortality30 h of preparation,
30 h of incubation
Preparation of larvae (including separation eggs)
* Disc screening method: addition of 20 µL/disc toxin in a well with addition of 2 drops (±100 µL) of a suspension of larvae
* Measuring mortality (counting immobile larvae under microscope, killing larvae, counting total number)
Unicellular algae Chlamydomonas reinhardtii [42]* Testing cloned genes (resistance to trichothecenes)
* Comparing trichothecenes with C3-OH group with their acetylated derivatives
25 mg/L DON → clear toxic effect8 daysPreparation of preculture
Measuring growth (haemocytometer), cell viability (plating), calculating number of culture doublings
Yeast Klyveromyces marxianus [44]Screening DON-degrading organisms23 mg/L DON → 50% growth inhibition
300 mg/L DOM-1 → no growth inhibition
Overnight preparation,
22 h of incubation
Preparation of preculture
Incubation of sterile supernatants
Measuring optical density at 650 nm
Engineered baker’s yeast [41]* Use as a bioassay indicator organism
* Screening for DON-detoxifying bacteria
5 mg/L DON → 50% growth inhibition16 hPreparation yeast culture
* Agar diffusion test
* Measuring optical density at 620 nm
Arabidopsis thaliana [45,46]Studying the phytotoxic action of trichothecenes* 10 µM (~3 mg/L) DON → no inhibition of seed germination, inhibition of root growth
* 23.0 ± 6.8 µM (~6,8 ± 2 mg/L) DON → mortality of 50% of leaves
* 3 days of preparation, 3 days of incubation
* 3 weeks of preparation, 7 days of incubation
* Preparation of seeds
Investigation of growth and morphology
* Preparation of 3-week-old plants
Leave protocol: investigation of shriveling, chlorosis, death
Wheat plants [46]Studying the phytotoxic action of trichothecenes>15 µM (~4.5 mg/L) DON → inhibition of root elongation of wheat plants3 days of preparation,
3 days of incubation
Preparation of seeds
Investigation of growth and morphology
Lemna pausicostata [40]Screening trichothecenes for bioherbicides10 µM (~3 mg/L DON) → 56.0% ± 5.7% growth72 hNo need for preparation
Measuring electrolyte release (conductivity), growth inhibition, chlorophyll reduction
Ciliated protozoa Tetrahymena pyriformis [43]* Testing toxicity of mycotoxins
* Screening of cereals
0.6 mg/L DON → minimum active dosePreparation of heat shocks,
150 min incubation
Preparation heat shocks for good division synchrony, requires good heating and cooling devices
Measuring delay between start of division in control and toxin-treated culture, counting number of cells
Lemna minor L.* Screening for phytotoxicity of DON and other trichothecenes
* Screening for DON-degrading organisms
1 mg/L DON → 34% ± 6% growth
0.250 mg/L → minimum active dose (significantly different)
* 7 days
* 12 h with chlorophyll fluorescence
No need for preparation
Measuring number of fronds, frond area, chlorophyll fluorescence
Table 6. Selected reaction monitoring (SRM) transitions for the analyzed mycotoxins in liquid medium.
Table 6. Selected reaction monitoring (SRM) transitions for the analyzed mycotoxins in liquid medium.
AnalytePrecursor Ion (m/z)Molecular IonConeVoltage (V)Product Ions (m/z)Collision Energy (eV)
NIV313.1[M + H]+26125.0 *13
DON297.1[M + H]+26231.2 *15
DOM-1281.0[M + H]+26109.1 *19
3-ADON339.0[M + H]+28203.2 *12
15-ADON339.0[M + H]+26261.0 *10
DON-3G476.1[M + NH4]+15248.6 *18
ZAN (IS)321.0[M + H]+26189.2 *19
* quantifier ion. DOM-1: de-epoxy-deoxynivalenol; 3-ADON: 3-acetyl-deoxynivalenol; 15-ADON: 15-acetyl-deoxynivalenol; DON-3G: deoxynivalenol-3-glucoside; ZAN: zearalanone.

Share and Cite

MDPI and ACS Style

Vanhoutte, I.; De Mets, L.; De Boevre, M.; Uka, V.; Di Mavungu, J.D.; De Saeger, S.; De Gelder, L.; Audenaert, K. Microbial Detoxification of Deoxynivalenol (DON), Assessed via a Lemna minor L. Bioassay, through Biotransformation to 3-epi-DON and 3-epi-DOM-1. Toxins 2017, 9, 63.

AMA Style

Vanhoutte I, De Mets L, De Boevre M, Uka V, Di Mavungu JD, De Saeger S, De Gelder L, Audenaert K. Microbial Detoxification of Deoxynivalenol (DON), Assessed via a Lemna minor L. Bioassay, through Biotransformation to 3-epi-DON and 3-epi-DOM-1. Toxins. 2017; 9(2):63.

Chicago/Turabian Style

Vanhoutte, Ilse, Laura De Mets, Marthe De Boevre, Valdet Uka, José Diana Di Mavungu, Sarah De Saeger, Leen De Gelder, and Kris Audenaert. 2017. "Microbial Detoxification of Deoxynivalenol (DON), Assessed via a Lemna minor L. Bioassay, through Biotransformation to 3-epi-DON and 3-epi-DOM-1" Toxins 9, no. 2: 63.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
