Review

Potential for Bacillus thuringiensis and Other Bacterial Toxins as Biological Control Agents to Combat Dipteran Pests of Medical and Agronomic Importance

by
Daniel Valtierra-de-Luis
1,
Maite Villanueva
1,2,
Colin Berry
3 and
Primitivo Caballero
1,2,4,*
1
Departamento de Agronomía, Biotecnología y Alimentación, Universidad Pública de Navarra, 31006 Pamplona, Spain
2
Bioinsectis SL, Avda Pamplona 123, Mutilva, 31192 Navarra, Spain
3
Cardiff School of Biosciences, Cardiff University, Cardiff CF10 3AX, UK
4
Institute for Multidisciplinary Research in Applied Biology-IMAB, Universidad Pública de Navarra, Mutilva, 31192 Navarra, Spain
*
Author to whom correspondence should be addressed.
Toxins 2020, 12(12), 773; https://doi.org/10.3390/toxins12120773
Submission received: 25 October 2020 / Revised: 24 November 2020 / Accepted: 3 December 2020 / Published: 5 December 2020
(This article belongs to the Special Issue The Pivotal Role of Toxins in Insects-Bacteria Interactions)
Browse Figures
Versions Notes

Abstract

:
The control of dipteran pests is highly relevant to humans due to their involvement in the transmission of serious diseases including malaria, dengue fever, Chikungunya, yellow fever, zika, and filariasis; as well as their agronomic impact on numerous crops. Many bacteria are able to produce proteins that are active against insect species. These bacteria include Bacillus thuringiensis, the most widely-studied pesticidal bacterium, which synthesizes proteins that accumulate in crystals with insecticidal properties and which has been widely used in the biological control of insects from different orders, including Lepidoptera, Coleoptera, and Diptera. In this review, we summarize all the bacterial proteins, from B. thuringiensis and other entomopathogenic bacteria, which have described insecticidal activity against dipteran pests, including species of medical and agronomic importance.
Keywords:
dipteran pests; Bacillus thuringiensis; insecticidal activity; mosquito control; disease vectors; biological control; agronomic importance
Key Contribution: This review provides an update on the activity of Bacillus thuringiensis and other bacterial toxins against dipteran pests of medical and agronomic importance.

1. Introduction

Bacillus thuringiensis (Bt) has been isolated from the most diverse habitats of our planet [1,2], since its discovery, in 1901, and correct scientific description, in 1915. This has led to the characterization of a large number of Bt strains that, as a whole, have revealed an enormous genetic diversity of this bacterium. This genetic diversity corresponds in good measure to the multiple functions that this bacterium plays in natural and transformed ecosystems (agricultural and forestry). Some of the most relevant functions attributed to Bt from the applied point of view are: plant growth-promoting activities, bioremediation of different heavy metals and other pollutants, biosynthesis of metal nanoparticles, production of polyhydroxy alkanoate biopolymer, and anticancer activities [3]. In agriculture it is, without a doubt, the most widely-used bacterium because of its usefulness as a biological pest control agent and as the most important source of insecticidal genes for the construction of resistant transgenic plants (also known as Bt plants) to some of the most important agricultural and forestry pests [4]. Bt is also an efficient biological control agent for insect vectors (mainly mosquitoes) of diseases of importance in the fields of both human and veterinary health [5].
In this review, we give an overview of dipteran-active pesticidal proteins from a range of bacteria with notes on the major source bacteria, and the activity of individual proteins. The nomenclature of these proteins has undergone a recent revision in order to rationalize the proteins into families based on their structures [6]. In this review we will refer to the proteins by their revised names, with reference to their previous designations also given (Table 1 and text).

2. The Entomopathogenic Bacterium Bacillus thuringiensis

Bt is a Gram-positive, rod-shaped bacterium with the capacity to form resistant spores, classified in the family Bacillaceae [7]. Bt cells, while sporulating, characteristically form a parasporal crystal composed of proteins which are active against a number of insect species from different orders such as Lepidoptera, Diptera, Coleoptera, Hymenoptera, Hemiptera, Orthoptera, as well as other organisms such as mites [7] and nematodes [8]. When a Bt crystal reaches the insect’s gut, it is solubilized to release one or more protoxins. These protoxins are then proteolyzed and activated by midgut proteases and the toxins can bind to and disrupt cell membranes. The binding and insertion of toxins in the membrane triggers the formation of pores and, consequently, the death of the insect [9,10]. The crystal or inclusion body, which is formed by a combination of delta-endotoxins (historically designated as Cry and/or Cyt proteins, with Cry toxins now divided into structural groups in the new nomenclature), can exhibit different forms (bipyramidal, spherical, etc.) and sizes (smaller, equal to, or greater than the size of the spore), which are usually characteristic for each wild Bt strain [7]. The genes that code for these proteins are usually located in native mega plasmids (>100 kb) [11]. The size and number of plasmids harbouring these genes is highly variable for each strain and some of them (the conjugative plasmids) can be transferred from one Bt strain to another [12]. The synthesis of the crystal entails a huge metabolic investment from the cell [13]. Moreover, the high protein expression levels that occur in the stationary growth phase are controlled at the transcriptional, post-transcriptional, and post-translational levels [12].
Based on its molecular structure and its homology, the largest group of crystal proteins is formed by the 3-domain Cry proteins. Domain I consists of a bundle of seven antiparallel α-helices and is the pore-forming domain. Domain II consists of three antiparallel β-sheets (a β-prism structure) and is involved in toxin-receptor interactions. Domain III consists of two twisted, antiparallel β-sheets forming a β-sandwich and has roles in receptor binding and pore formation [14,15]. Three-domain Cry toxins are divided into two main types, those with large protoxin forms of ~120–140 kDa and those with smaller 65–70 kDa protoxins that lack the C-terminal region seen in the larger forms. The larval midgut proteases convert these protoxins into an active fragment through proteolytic processing [16,17]. Although this group of Cry proteins share a remarkably similar and conserved three-domain structure, they vary significantly in their amino acid sequences [9,14,18,19]. There are many other proteins previously designated as Cry proteins that do not have the three-domain structure and these include: Etx_Mtx2 proteins, Toxin_10 proteins, and alpha helical toxins [20].
In contrast to Cry proteins, Cyt proteins exhibit a general cytolytic (haemolytic) activity in vitro and dipteran specificity in vivo [14,21]. Their three-dimensional structure shows that Cyt proteins are formed by a single domain with a β-sheet surrounded by two α-helical layers [22,23].

3. Importance of Dipteran Control

The larvae of dipteran flies can cause serious damage in agriculture. Adults need to feed on liquid food since they do not have the ability to chew but have licking or sucking mouthparts. However, their larvae do have jaws and are able to feed on solid materials. Today there are more than 150,000 species of dipterans described. Among them there are a number of species that have great economic importance for agriculture by affecting numerous crops. Such insects include species of the Tephritidae, Uidiidae, Agromyzidae, Anthomyiidae, and Drosophilidae. Damage to crops is produced by adults when they feed or when they lay eggs because they produce holes in the leaves/fruits, but especially by the larvae because, e.g., when feeding on the foliar parenchyma, they can make galleries that later necrotize. This damage reduces the photosynthetic capacity of the plant. In the Tephritidae family, commonly known as fruit flies, the females lay eggs inside ripe fruits, flowers, leaves or stems, where the larvae will develop. All the members of this family are phytophagous, varying their larval feeding substrates according to the species, among flowers, fruits, seeds, buds, and other plant organs. However, adults feed on sugars and proteins obtained from wild yeast, secretions from Homoptera, and other environmental substances [24]. The Drosophilidae family includes over 3000 described species that are distributed all over the world [25]. Drosophilids are usually abundant in all situations where rotting fruits or vegetable matter is found. Direct damage occurs on fruits when females select ripe fruits or fruits that change colour, to lay eggs. The insect produces a small hole in the fruit surface that triggers a necrotic reaction around itself, manifesting in the form of a yellow stain in the case of citrus fruits. The wound can then be infected by microorganisms (fungi, bacteria, etc.) that cause fruit rots. The larvae feed on the pulp, forming galleries, causing softening and discolouration of the fruit, indicating the start of putrefaction. Finally, these circumstances cause a series of reactions that promote oxidation processes and premature ripening, leading to fruit fall [26].
Individuals of species within the dipteran order are usually controlled by their own natural enemies, so that although they may appear in crops, they can exist at low levels that may not be of economic importance. However, when they appear in high numbers in the larval stage and, in the case of Agromyzidae (leaf miners), when this coincides with the seeding period of a crop, they can become pests with very severe effects. In the case of Tephritids and Drosophilids, the greatest damage to the crop occurs when the fruits are ripe, often precluding the spraying with phytosanitary products due to the proximity of the harvest of the fruits. In addition, if there is any condition that reduces the predators or natural parasitoids of the dipteran pest, there is an increase in its prevalence, and this can result in population explosions that are repeated cyclically. For instance, in certain areas, due to the indiscriminate use of pesticides that has interrupted the natural control by parasitoids, some species of miner insects (such as Liriomyza sativae (Agromyzidae)) that were not previously considered as pests, are now threatening crops [27,28]. Another example of a dipteran pest causing economically relevant damage to agricultural production is Ceratitis capitata (Tephritidae), which is a polyphagous fly affecting more than 250 species of fruits and vegetables [29]. C. capitata can survive across a wide range of hosts and climatic conditions and has become established in the Mediterranean region, Africa, the Middle East, Latin America, and Western Australia [30].
Besides the agricultural importance of dipteran pests, mosquitoes, and other biting flies transmit deadly diseases that seriously threaten human health. Approximately 30 of the 400 known mosquito species are able to transmit pathogens to humans. The three most important genera of mosquito vectors are Anopheles spp. from the Anophelinae subfamily and Culex spp. and Aedes spp. from the Culicidae subfamily. Maladies vectored by these mosquitoes include malaria, filariasis, dengue fever, yellow fever, Chikungunya, Zika, and West Nile Virus. Malaria represents the most significant transmissible health threat to humans with an estimated 214 million people worldwide infected in 2015, of whom 438,000 are estimated to have died [31] (http://www.who.int/malaria). From 1999 to 2013, the West Nile Virus was stated to infect 39,557 people in the United States with 1668 deaths reported and many others becoming severely ill [32,33].

4. Dipteran-Active Insecticidal Bacterial Toxins

A range of Gram-positive and Gram-negative bacteria have reported activities against dipteran insects. In many cases, the content of genes within these bacteria is known and, for some of these, individual toxins have been expressed and assayed to allow us to evaluate their contributions to toxicity. Data on these individual proteins are summarised in Figure 1 and Table 1, and will be discussed in detail below.

4.1. Bt Toxins Active against Diptera

Within Bt, there are a number of serovars (including israelensis, jegathesan, darmstadiensis, kyushensis, medellin, fukuokaensis, higo), each comprising a large number of individual Bt strains that contain proteins with known insecticidal activity against an increasing number of dipteran species. An updated list of Bt genes encoding proteins with demonstrated anti-dipteran activity encompasses cry1, cry2, cry4, cry10, cry11, cry19, cry20, cry24, cry27, cry30, cry39, cry44, cry47, cry50, cry54, cry56, mpp60, tpp80, cyt1, and cyt2 (Table 1), and the proteins are described below.
Table
Table 1. Summary of LC50 values (µg mL−1) of pesticidal proteins from Bt and other bacteria against larvae of dipteran species.
Table 1. Summary of LC50 values (µg mL−1) of pesticidal proteins from Bt and other bacteria against larvae of dipteran species.
FamilyName
(Former Name)		Insect TargetActivity Range LC50 (µg/mL)References
FamilySpecies
Cry1Cry1Ab7CulicidaeAedes aegyptiND a[34]
Cry1Ac8GlossinidaeGlossina morsitans0.42–0.74 a[35]
Cry1Ba1MuscidaeMusca domestica20 a[36]
CalliphoridaeLucilia cuprinaND a,b[37,38]
Cry1Bc1MuscidaeMusca domestica79.4 a[37]
CalliphoridaeLucilia cuprina308 a[37]
Chrysomya albiceps807 a[37]
Cry1Ca1CulicidaeAedes aegypti39.3–141 a[39,40]
Anopheles gambiae143–283 a[39]
Culex quinquefasciatus126 a[39]
Cry2Cry2Aa1CulicidaeAedes aegypti37.06–79.46 a,b[41,42,43,44]
Anopheles quadrimaculatus0.37 a[44]
Aedes triseriatus (Ochlerotatus triseriatus)2.84 a[44]
Culex quinquefasciatus0.53 a[45]
Cry2Aa2CulicidaeCulex quinquefasciatus1.63 a[46]
Cry2Aa4CulicidaeAedes aegyptiND a[47]
Anopheles stephensiND a[47]
Culex quinquefasciatus (Culex fatigans)ND a[47]
Cry2Aa14CulicidaeCulex quinquefasciatus0.894 a[48]
Cry2AaCulicidaeAnopheles gambiae0.11 a[49]
Cry2Ab1CulicidaeAedes aegypti23.42–35.80 a,b[6,43,50,51,52]
Cry2Ab2CulicidaeAnopheles gambiae0.54 a[49]
Cry2Ab25TephritidaeRhagoletis cerasiND b[53]
Cry2Ac11CulicidaeAedes aegypti [6]
Cry2AgCulicidaeAedes aegypti2.54 b[51]
Cry2Am1CulicidaeAedes aegypti [6]
Cry4Cry4Aa1CulicidaeAedes aegypti0.03–13 a,b[54,55,56,57,58,59,60,61,62,63]
Anopheles gambiae1.07–1.17 a[55]
Anopheles stephensi0.52–7.4 a,b[59,60,61,64]
Culex pipiens0.25–0.97 a[54,59,60,61,65]
Culex quinquefasciatus0.05–5.04 a,b[33,54,55,66]
SimuliidaeSimulium spp.ND b[67]
Cry4Ba1ChironomidaeChironomus tepperi0.94 b[68]
CulicidaeAedes aegypti0.12–0.94 a,b[54,55,57,58,59,61,64,69]
Anopheles albimanus1.3 b[70]
Anopheles gambiae0.79 a[55]
Anopheles quadrimaculatus0.25 a[54]
Anopheles stephensi0.55–17 a,b[59,61,64]
Culex quinquefasciatus24.5 a[55]
CulicidaeCulex pipiensND b[64]
TipulidaeTipula oleraceaND a[71]
SimuliidaeSimulium spp.ND b[67]
Cry4Ba2CulicidaeAedes aegyptiND a[72]
Cry4Cb1CulicidaeAedes aegypti0.083 b[73]
Cry10Cry10AaCulicidaeAedes aegypti0.3–20.61 a,b[62,74]
Cry11Cry11Aa1ChironomidaeChironomus tepperi0.56 b[68]
CulicidaeAedes aegypti0.01-1.35 a,b[41,42,57,58,61,75,76,77,78,79]
Anopheles albimanus0.9 b[70]
Anopheles stephensi0.13-0.45 a,b[60,75,78,80,81]
Anopheles albimanus6.759 a[77]
Culex pipiens0.009-0.27 a[75,78]
Culex quinquefasciatus0.01-0.13 a,b[45,66,76,77,82,83]
TipulidaeTipula oleraceaND b[81]
SimuliidaeSimulium spp.ND b[67]
Cry11Ba1CulicidaeAedes aegypti0.02–0.03 a,b[75,77,84]
Anopheles albimanus0.10 a[77]
Anopheles stephensi0.04 a[75]
Culex pipiens0.01–0.11 a[61,65]
Culex quinquefasciatus0.006–0.02 a,b[77,83,84]
Cry11Bb1CulicidaeAedes aegypti0.02–0.85 a,b[76,77,85,86]
Anopheles albimanus0.17 a[77]
Anopheles stephensi0.07 a[85]
Culex pipiens0.04 a[85]
Culex quinquefasciatus0.01–0.13 a,b[76,77,86]
Cry16-Cry17-Cbm17.1-Cbm17.2Cry16-Cry17-Cbm17.1-Cbm17.2CulicidaeAedes aegyptiND b[87]
Cry19Cry19AaCulicidaeAnopheles stephensi1.04 a[88]
Culex pipiens0.19 a[88]
Cry19BCulicidaeCulex pipiens molestus5.93 a[89]
Cry20Cry20Aa1CulicidaeAedes aegypti648 b[90]
Culex quinquefasciatus700 b[90]
Cry24Cry24Ca1CulicidaeAedes aegypti0.48 b[91]
Cry27Cry27Aa1CulicidaeAnopheles stephensi94.3 a[92]
Cry30Cry30Fa1CulicidaeAedes aegypti15.4 a[93]
Cry30Ga1CulicidaeAedes aegypti7.10 b[73]
Cry39Cry39Aa1CulicidaeAnopheles stephensi0.75 b[94]
Culex pipiens41.94 b[95]
Cry44Cry44Aa1CulicidaeAedes aegypti0.01 a[60]
Anopheles stephensi1.26 a[60]
Culex pipiens0.006 a[60]
Mpp46Mpp46Ab (Cry46Ab)CulicidaeCulex pipiens1.02 a[96]
Cry47Cry47Aa1CalliphoridaeLucilia cuprinaND a[97,98]
Cry50Cry50BaCulicidaeCulex quinquefasciatus0.07 a[99]
Cry54Cry54Aa1CulicidaeAedes aegypti9.02 a[100]
Cry56Cry56Aa1CulicidaeAedes aegypti0.15 a[101]
Mpp60Mpp60Aa (Cry60Aa)CulicidaeCulex quinquefasciatus7.9 b[102]
Mpp60Ba (Cry60Ba)CulicidaeCulex quinquefasciatus5.5 b[102]
Mpp60Aa+Mpp60Ba (Cry60Aa+Cry60Ba)CulicidaeCulex quinquefasciatus2.9 b[102]
Tpp80Tpp80Aa1 (Cry80Aa1)CulicidaeCulex pipiens pallens71.9 a[103]
Cyt1Cyt1Aa1CalliphoridaeCalliphora stygia305 a[104]
Lucilia cuprina296 a[104]
Lucilia sericata236 a[104]
ChironomidaeChironomus tepperi31 b[68]
CulicidaeAedes aegypti0.15–1.86 a,b[74,105,106,107,108,109]
Anopheles stephensi2.7–6.3 a[105,108]
Culex pipiens0.6–1.2 a[105,108]
Culex quinquefasciatus0.4 a[108]
TephritidaeCeratitis capitataND a[26]
TipulidaeTipula paludosaND a[110]
Cyt1Aa2CulicidaeAedes aegypti0.12–1.21 a,b[58,63,111]
Anopheles gambiae1–2 a,b[111]
Culex pipiens0.5–2 a,b[111]
Cyt1Aa4CulicidaeAedes aegypti0.06 a[79]
Culex quinquefasciatus>10 a[112]
Cyt1Ab1CulicidaeAedes aegypti32.6–59 a,b[105,113]
Anopheles stephensi20 a[105]
Culex pipiens5.7 a[105]
Culex quinquefasciatus32.9–114.5 b[113]
Cyt1Ba1AgromyzidaeLiriomyza trifoliiND a[114]
Cyt2Cyt2Aa1CulicidaeAedes aegypti1–4 a,b[111]
Anopheles gambiae1–2 a,b[111]
Culex pipiens0.5–4 a,b[111]
Cyt2Aa2CulicidaeAedes aegypti0.35–0.5 a[69,115]
Culex quinquefasciatus0.25–0.5 a[69,115]
Cyt2Aa3ChironomidaeChironomus tepperi36 a[116]
CulicidaeCulex quinquefasciatus0.53 a[116]
Cyt2Ba1CulicidaeAedes aegypti0.28–33 a,b[62,108,113,117]
Anopheles stephensi5.5 a[108]
Culex pipiens5 a[108]
Culex quinquefasciatus1.8–31.5 a,b[108,113]
Cyt2Bb1CulicidaeAedes aegypti6.8 b[106]
Cyt2Bc1CulicidaeAedes aegypti7 a[108]
Anopheles stephensi11 a[108]
Culex pipiens7.3 a[108]
Culex quinquefasciatus1.8 a[108]
MtxMtx1Aa1CulicidaeCulex quinquefasciatus0.01 a[118]
Aedes aegypti0.05 a[118]
ChironomidaeChironomus riparius4.06 a[119]
Mpp2Mpp2Aa1 (Mtx2)CulicidaeCulex quinquefasciatus4.13–107 b[66]
Mpp2Aa1 (Mtx2 strain SSII-1)CulicidaeCulex quinquefasciatus0.93 a[120]
Aedes aegypti14.5 a[120]
Mpp2Aa2 Mtx2 (31-2)CulicidaeCulex quinquefasciatus3.90 a[120]
Aedes aegypti3.91 a[120]
Mpp3Mpp3Aa1 (Mtx3)CulicidaeCulex quinquefasciatusND a[121]
Aedes aegyptiND a[121]
MonalysinMonalysinDrosophilidaeDrosophila melanogasterND a[122]
CpbACpbAMuscidaeMusca domesticaND a[123]
CpbBCpbBMuscidaeMusca domesticaND a[123]
CHRDCHRDMuscidaeMusca domesticaND a[123]
ExsCExsCMuscidaeMusca domesticaND a[123]
Pmp1Pmp1CulicidaeAnopheles coluzziiND a[124]
Two part toxinsCry48Aa/Tpp49 (Cry49Aa)CulicidaeCulex quinquefasciatus0.02/0.006 a[125]
Tpp1/Tpp2 (BinA/BinB)CulicidaeAedes aegypti42 a[126,127]
Aedes atropalpusND a[126]
Anopheles gambiae0.36 a[127]
Anopheles stephensi0.39 a[127]
Anopheles albimanus1 a[127]
Anopheles quadrimaculatus4.6 a[127]
Culex pipiens0.1 a[127]
CulicidaeCulex quinquefasciatus0.013–0.03 a,b[126,128]
Pra/Prb (PirA/PirB)CulicidaeAedes aegyptiND a[84,129]
SynergyCry1Ca/Cyt1AaCulicidaeAedes aegypti0.61 a[130]
Cry2Aa/Cry2AbCulicidaeAedes aegypti51.3 b[43]
Cry2Aa/Cry50BaCulicidaeCulex quinquefasciatus0.05 a[99]
Cry4Aa/Cry4BaCulicidaeAedes aegypti0.05 a[61]
Anopheles stephensi0.02 a[61]
Culex pipiens0.04 a[61]
Culex quinquefasciatus1.49–315 b[66]
SimuliidaeSimulium spp.ND b[67]
Cry4Aa/Cyt1AaCulicidaeAedes aegypti0.07 a[58]
ChironomidaeChironomus tepperi44 b[68]
TipulidaeTipula paludosaND a[110]
Cry4Aa/Cyt2BaCulicidaeAedes aegypti0.013 b[62,131]
Cry4Aa/Cry11BaCulicidaeCulex pipiens0.04 a[65]
Cry4Aa/Cry46AbCulicidaeCulex pipiens0.18 a[96]
Cry4A/Mtx1Aa1CulicidaeCulex quinquefasciatus1.06–2.37 b[66]
Cry4A/Mpp2Aa1 (Mtx2)CulicidaeCulex quinquefasciatus0.27–1.21 b[66]
Cry4Ba/Cry11AaCulicidaeAnopheles albimanus0.567 b[70]
SimuliidaeSimulium spp.ND b[67]
Cry4Ba/Cyt1AaCulicidaeAedes aegypti0.62 a[58]
CulicidaeAnopheles albimanus0.33–0.77 b[70]
Cry4Ba/Cyt2Aa2CulicidaeAedes aegypti0.007 a[69]
Culex quinquefasciatus0.02 a[69]
Cry4B/Mtx1Aa1CulicidaeCulex quinquefasciatus18.2–29.0 b[66]
Cry4B/Mpp2Aa1 (Mtx2)CulicidaeCulex quinquefasciatus85.7 b[66]
Cry10Aa/Cyt1AaCulicidaeAedes aegypti0.03–0.08 a,b[74]
Cry10Aa/Cyt2BaCulicidaeAedes aegypti0.004 b[62]
Cry11Aa/Cyt1AaCulicidaeAedes aegypti0.01–0.12 a[58,79]
CulicidaeAnopheles albimanus0.28–0.37 b[70]
Cry11/Mtx1Aa1CulicidaeCulex quinquefasciatus0.66–3.03 b[66]
Cry11/Mpp2Aa1 (Mtx2) Culex quinquefasciatus0.90 b[66]
Cry11Bb/Cry29AaCulicidaeAedes aegypti3.94 a[85]
Anopheles stephensi2.13 a[85]
Culex pipiens0.73 a[85]
Cry11Bb/Cry30AaCulicidaeAedes aegypti16.96 a[85]
Anopheles stephensi1.43 a[85]
Culex pipiens1.13 a[85]
Cry4A/Cry4B/Cry11ACulicidaeAedes aegypti0.12 a[58]
Culex quinquefasciatus0.008–0.59 b[66]
Cry4A/Cry4B/Cyt1ACulicidaeAedes aegypti0.08 a[58]
Cry4A/Cry4B/Mtx1Aa1CulicidaeCulex quinquefasciatus0.18–0.77 b[66]
Cry4A/Cry4B/Mpp2Aa1 (Mtx2)CulicidaeCulex quinquefasciatus0.11–0.32 b[66]
Cry4A/Cry4B/Cry11A/Cyt1ACulicidaeAedes aegypti0.08 a[58]
Culex quinquefasciatus0.02–0.07 b[66]
Cry4A/Cry4B/Cry11A/Mtx1Aa1CulicidaeCulex quinquefasciatus0.02–0.24 b[66]
Cry4A/Cry4B/Cry11A/Mpp2Aa1
(Mtx2)		CulicidaeCulex quinquefasciatus0.03–0.06 b[66]
Cry4A/Cry4B/Cry11A/Cyt1A/Mtx1Aa1CulicidaeCulex quinquefasciatus0.02–0.06 b[66]
Cry4A/Cry4B/Cry11A/Cyt1A/Mpp2Aa1(Mtx2)CulicidaeCulex quinquefasciatus0.30–1.09 b[66]
Cry4Ba/Cry11Aa/Cyt1AaCulicidaeAnopheles albimanus0.7–8.33 b[70]
Cry11Bb/Cry29Aa/Cry30AaCulicidaeAedes aegypti5.43 a[85]
Anopheles stephensi1.31 a[85]
Culex pipiens0.85 a[85]
a. Purified proteins. b. Powders of recombinant Bt containing spore/crystal mixtures. ND, toxicity reported but LC50 not determined.

4.1.1. Cry Toxins from Bt ser. israelensis

Bt ser. israelensis (Bti) was the first Bt serotype found to be toxic against dipteran larvae [132]. Bti is a highly potent and environmentally friendly biological alternative component in integrated programs to control disease vectors [133,134]. Bti was much more effective against many species of mosquito and black fly larvae than any previously known bio-control agent [135]. The Bti crystal is potentially composed of up to six crystal proteins (Cry4Aa, Cry4Ba, Cry10Aa, Cry11Aa, and Mpp60A/Mpp60B (formerly Cry60A/Cry60B)) although strains may lack mpp60 genes [136] and three Cyt proteins (Cyt1Aa, Cyt2Ba, and Cyt1Ca). Most of the genes encoding these toxins are present in the 128 kb plasmid pBtoxis [136]; however, some Bti strains contain another plasmid named pBtic100, which carries two additional pesticidal protein genes, encoding Mpp60Aa and Mpp60Ba toxins [137,138] (Figure 2a). Bti has been the most studied serovar over the years and most of the Bt products marketed are based on strains in this serovar. Pesticidal proteins from Bti (Cry4A, Cry4B, Cry11A, and Cyt1A) have also been extensively studied; however, the other proteins, which may have lower expression, have been much less studied (Cry10Aa, Cyt2Ba, Mpp60Aa, and Mpp60Ba). Their activity, as well as the possible interactions between them, opens new study possibilities in the search for alternatives for dipteran control.

Cry4 Proteins

Bti strains may produce two members of the large protoxin 3-domain Cry family: Cry4Aa (135 kDa) and Cry4Ba (128 kDa). These 3-domain protoxins form crystals spontaneously via inter- and intra-molecular disulphide bonds by their conserved C-terminal halves [140,141].
The Cry4Aa target range covers the following mosquito species: Aedes aegypti, Anopheles stephensi, Anopheles gambiae, Culex pipiens, and Culex quinquefasciatus. Several studies have provided evidence that the Culex species are the most susceptible to these proteins while the species of the Anopheles and Aedes genera are less susceptible [55,57,59,61,142,143].
Cry4Ba is another of the major crystal proteins produced by Bti. This protein showed high toxic activity against A. aegypti and An. stephensi larvae but it was totally inactive against larvae in the genus Culex [54,55,59,61,69]. The toxicity of Cry4Ba toxin toward A. aegypti and An. stephensi larvae is higher than that of Cry4A [59]. The putative loops 1 and 2 of domain II of the protein are responsible for its activity and mutations in putative loop 3 produce an increase in toxicity against Culex [54]. Cry4Ba also has toxicity against Chironomus tepperi (Diptera; Chironomidae) [68] and is the most effective Bti toxin against Simulium spp. (lower activity seen for Cry4Aa) [67].

Cry10Aa Protein

The Cry10Aa protein is a minor component of the crystal produced by the Bt strains of ser. israelensis [144,145,146] and, unlike Cry4Aa and Cry4Ba, is a short protoxin 3-domain protein. However, the 2025 bp cry10Aa gene (orf1) is followed (after a 66 nt gap) by a second gene (orf2) that encodes a sequence that is similar to the carboxyl end of the Cry4Aa and Cry4Ba proteins [136]. The orf2 codes for a 56 kDa protein and, therefore, when the complete operon is cloned, two proteins of 68 (orf1) and 56 (orf2) kDa are expressed [62,74]. Parasporal bodies formed by the complete Cry10Aa (Orf1-Orf2) are as active to A. aegypti as the Cry4 toxins [62,74].

Cry11 Proteins

The Cry11 family also belongs to the large group of δ-endotoxins comprising three structural domains and is composed of proteins active against dipteran targets [61,76,147]. Cry11Aa from Bti is a 72 kDa protoxin that is located in an operon where the main gene (1941 bp) is flanked by two other small genes known as p19 and p20 [148,149]. Among individual toxins from Bti, Cry11Aa, together with Cry4Ba, are the second most abundantly produced toxins, after Cyt1Aa (Figure 2b) [139]. Cry11Aa proteins have a high toxicity against both Aedes and Culex genera while their insecticidal activity is lower against larvae of Anopheles species [41,61,80,82,150]. This protein is activated in the insect midgut by proteolytic cleavage resulting in two fragments of 38 and 30 kDa with the capacity to bind the midgut microvilli [57,78,151].
In the case of A. aegypti, Cry11Aa may interact with different midgut brush border membrane receptors; a GPI anchored alkaline phosphatase (GPI-ALP) [152], an aminopeptidase N [153] and a cadherin [154]. The protein also binds to Cyt1Aa as a membrane-bound receptor, increasing its activity [155]. In Anopheles albimanus, an alpha-amylase has been described as a putative binding receptor for Cry11Aa [70]. There are other midgut proteins, such as ATP binding protein, that increase the toxicity of this protein against C. quinquefasciatus third instar larvae [33]. Cry11Aa is also toxic against other dipterans such as Chironomus tepperi (Diptera; Chironomidae), Tipula oleracea and Simulium species [67,68,81].
Two other Cry11 proteins, Cry11Bb (94 kDa) produced by Bt ser. medellin and Cry11Ba (81 kDa) produced by Bt ser. jegathesan, share similar insect specificity and their activity is higher than that of Cry11Aa [75,77]. Three different A. aegypti midgut proteins, cadherin, AaeALP1, and AaeAPN1, are involved in Cry11Ba binding to A. aegypti midgut brush border membranes [156].

Mpp60A/Mpp60B Proteins (Formerly Cry60A/Cry60B)

In Bt ser. jegathesan, the mpp60A (960 bp) and mpp60B (912 bp) genes form an operon. These two ORFs have also been detected in Bt ser. malayensis 4AV1 [102] and Bt ser. israelensis ATCC 35646 [157]. Interestingly, the operon that contains the mpp60A and mpp60B genes has exactly the same structure in these three Bt strains, classified in three different serovars. Both proteins belong to the Etx/Mtx2 protein family. Individual or joint expression of the mpp60A and mpp60B genes in a Bt strain (acrystalliferous) produces crystal components (33 and 35 kDa, respectively) that show moderate insecticidal activity against fourth instar C. quinquefasciatus larvae. Despite being part of the same operon, Mpp60Aa and Mpp60Ba should not be considered binary toxins because neither of them depends on the other to be expressed or to exert its insecticidal activity on the target insect [102].

4.1.2. Other Toxins Specific to Diptera

In addition to the Bt ser. israelensis toxins, there are a number of other 3-domain Cry proteins from different Bt serovars with toxicity against several species of Diptera. For example, Cry19Aa, identified in a Bt ser. jegathesan strain, together with ORF2 (encoded in a similar operon structure to the cry10-orf2 format of Bti), exhibited toxic activity against C. pipiens and An. stephensi [88]. Cry19Ba, a close member of this family derived from Bt ser. higo, showed activity against Culex molestus larvae, but not against An. stephensi [89]. Cry20Aa is another mosquitocidal protein that has been shown to be toxic to larvae of A. aegypti and C. quinquefasciatus and is produced by a strain of Bt ser. fukuokaensis. Nevertheless, the toxicity was not high, perhaps due to the rapid degradation of the protein [90]. Cry24Ca protein also exhibited larvicidal activity against A. aegypti [91]. Within the Cry27 family, it has been reported that the Cry27Aa protein produced by a strain of Bt ser. higo shows activity against An. stephensi but is not toxic to species classified in the genera Culex or Aedes [92]. The Cry39Aa protein has also been found to be highly toxic against An. stephensi larvae [60,95]. In contrast, Cry44Aa from Bt ser. entomocidus, showed high toxic activity against Culex pipiens and A. aegypti, although the activity against An. stephensi was lower [60]. The aerolysin-like Mpp46Ab (previously known as Cry46Ab and also designated parasporin-2Ab) and Cry50Ba have been described as highly active against C. pipiens and C. quinquefasciatus larvae, respectively [65,99]. Tpp80Aa (previously known as Cry80Aa) also showed toxicity against C. pipiens [103]. Finally, Cry47Aa, has also been described as active against dipteran species, such as the sheep blowfly Lucilia cuprina (Diptera; Calliphoridae) [97,98].

4.1.3. Anti-Dipteran Toxins with Cross-Order Activity

Cry1 Protein

The Cry1 family is typically active against species of the lepidopteran order [158]. However, several proteins belonging to this family also display insecticidal activity against species in the Nematocera and Brachycera suborders of Diptera. For example, Cry1Ab7 protein, was active against A. aegypti larvae [34] and Cry1Ca showed toxic activity against larvae of different mosquito species such as A. aegypti, C. quinquefasciatus and An. gambiae [39,40]. Other Cry1 proteins show activity against different species of flies. Cry1Ac, for example, was active against Glossina morsitans adults (Diptera; Glossinidae) [35] and Cry1Ba had toxicity against Musca domestica larvae (Diptera; Muscidae) [36] and also Lucilia cuprina larvae (Diptera; Calliphoridae), when it was applied in high concentrations [38].

Cry2A Protein

Within the Cry2 family, it has been described that the Cry2A proteins have a wide activity that can include species of the orders Lepidoptera and Diptera [50,159]. Some Cry2Aa variants are toxic against the dipteran order, with activities demonstrated mostly using A. aegypti [42,44,47,52,160,161], but targets include C. quinquefasciatus (Culex fatigans), An. stephensi and An gambiae [44,46,47,49]. Cry2Ab2, was reported to have a much narrower target range with high-level activity against An. gambiae but no activity against A. aegypti or C. pipiens [49]. Cry2Ag has also been reported as active against the larvae of A. aegypti [51], while Cry2Ab25 has shown high mortality against Rhagoletis cerasi larvae (Diptera; Tephritidae) [53]. An assessment of a number of Cry2A variants and their activity against A. aegypti has recently been published [161]. The role of a region at the N-terminus of Cry2 proteins in activity against A. aegypti has also been described [162].

Other Cry Proteins

There are a number of proteins that are simultaneously active against larvae of several dipteran and lepidopteran species. This is the case for two proteins from the Cry30 family. Both, Cry30Fa and Cry30Ga1, had remarkable insecticidal effects against A. aegypti and Plutella xylostella [73,93]. In addition, Cry54Aa protein has shown activity against A. aegypti larvae, as well as against the Lepidoptera Spodoptera exigua (Laphygma exigua) and Helicoverpa armigera [100]. Finally, Cry56Aa was toxic to both dipteran (A. aegypti) and lepidopteran (P. xylostella and H. armigera) pests [101].
For all of the Cry proteins above, with cross-order activity, future work to elucidate the basis of specificity will be of great interest (for instance, whether different regions of the toxins are involved in receptor recognition for different targets) and exploration of their structures, in combination with receptor structures, may yield an increased understanding of their molecular interactions and activity. This, in turn, may allow future expansion of the battery of toxins available to combat dipteran pests.

4.1.4. Anti-Dipteran Cyt Toxins

Cyt1 Proteins

The proteins of the Cyt1 family do not bear any similarity with any of the Cry families currently described (including those recently renamed into other structural classes) [6]. Of all the proteins described in the Cyt1 family, the Cyt1Aa protein has undoubtedly been the most widely studied. Cyt1Aa is the main component of Bti crystals (Figure 2b) and it adopts a typical cytolysin fold containing a β-sheet held by two surrounding alpha-helical layers [22]. The insecticidal activity of Cyt1Aa for the larvae of various dipteran species has been reported by several authors [71,79,143,163]. Efficient expression of the Cyt1Aa (molecular mass of 27 kDa) protein requires the presence of a 20 kDa “helper” polypeptide [164]. Proteolytic digestion of Cyt1Aa protein produces fragments of 22–25 kDa that are more effective than the native protoxin in vitro [165]. This toxin shows haemolytic and cytolytic in vitro activity to cells of vertebrates and invertebrates [63,142,166], apparently due to the interaction between its hydrophobic segment and membrane phospholipids from the midgut epithelial cells [167,168,169,170]. However, differences in activity against insects and red blood cells have been described [171]. Cyt1Aa has been tested as a full-length solubilised protein, mixed with diet, against a number of species of the Brachycera suborder and has been found to be toxic against first-instar Lucilia sericata (Diptera; Calliphoridae), Lucilia cuprina (Diptera; Calliphoridae) and Calliphora stygia (Diptera; Calliphoridae) [104]. In these experiments, trypsin treatment of the solubilised toxin increased activity 4–6-fold but non solubilised purified Cyt1Aa crystals were not toxic. Cyt1Aa has also shown toxic activity against Tipula paludosa larvae [110].
To date, no highly toxic Bt toxins have been found against Ceratitis capitata (Diptera; Tephritidae) in the field. However, some authors showed that, under controlled laboratory conditions, solubilized Cyt1A protoxin showed moderate toxicity against C. capitata larvae [26]. Bti crystals do not appear to be solubilized efficiently below pH 9 and the pH of C. capitata third instar larvae and adult midgut has been calculated as 8 and 7.5, respectively [172]. The development of more accurate and reproducible quantitative methods may help in the determination of toxic properties for insecticidal pathogens that act by ingestion in adult Diptera [173].
Cyt1Ab, a protein that shares 86% identity with Cyt1Aa, is also active, although to a lesser extent than Cyt1Aa, against Aedes, Anopheles, and Culex larvae [105]. The ability of Cyt1Ba to induce mortality and reduce the damage caused by Liriomyza trifolii (Diptera; Agromyzidae) mining larvae has also been described [114]. Cyt1Ca is approximately twice the size of the other Cyt proteins and, in addition to the Cyt-like region, it has an extra C-terminal lectin-like domain. No activity or haemolytic effect has been observed for this protein encoded in the pBtoxis plasmid of Bti [131].

Cyt2 Proteins

Proteins of the Cyt2 family have been identified and characterized in several Bt serovars: Cyt2Aa from Bt ser. kyushensis [111] and darmstadiensis [115], Cyt2Ba from Bti [174], Cyt2Bb from Bt ser. jegathesan [106] and Cyt2Bc from Bt ser. medellin [108].
Cyt2Aa1 from Bt ser. kyushensis displays low identity (39%) with Cyt1Aa from Bti, but the similarity is 70% [174]. Moreover, both are processed in similar domains [111] probably because they share a high degree of structural similarity [111,175]. Cyt2Aa1 is a 29.2 kDa protein and its crystal structure has been solved [175]. It consists of a single α-β domain comprising two outer layers of α-helix hairpins and a β-sheet in between. The protein does not show haemolytic activity as a protoxin; however, N- and C- terminal segments are cleaved by proteolysis leading to dimer dissociation and toxin activation. Cyt2Aa1 showed LC50 values in a range of 0.5 and 4 µg/mL against Culex, Anopheles, and Aedes larvae [111]. Cyt2Aa2 produced by Bt ser. darmstadiensis exhibited moderate activity against Culex and Aedes larvae and haemolytic activity against sheep erythrocytes [115]. Cyt2Aa3, from Bt strain MC28, exhibited toxic activity against Ch. tepperi (Diptera; Chironomidae) and C. quinquefasciatus larvae [116].
The Cyt2Ba1 protein (30.1 kDa) from Bti shows a 41% identity with Cyt1Aa1 and 67% with Cyt2Aa1 [174]. It was less active than Cyt1Aa against A. aegypti, C. pipiens, C. quinquefasciatus and An. stephensi larvae [108,113]. Moreover, solubilisation or trypsin activation was essential for its haemolytic activity [108]. The crystal structure of the proteolytically cleaved active form of Cyt2Ba has been described [23] and resembles that of the protoxin form of Cyt2Aa and also the fungal volvatoxin A2. Cyt2Bb, from Bt ser. jegathesan (30.1 kDa) displayed mosquitocidal activity against A. aegypti larvae. The toxicity was lower than that of Cyt1Aa; however, the two proteins shared similar haemolytic activity [106]. Cyt2Bc from Bt ser. medellin (29.7 kDa) showed mosquitocidal activities against A. aegypti, An. stephensi, C. pipiens and C. quinquefasciatus. However, the toxicity was lower than Cyt1Aa and Cyt2Ba and trypsin treatment was needed for its haemolytic activity [108].
Dickeya dadantii plant pathogenic bacteria contain Cyt-like proteins that are active against the pea aphid Acyrthosiphon pisum (Hemiptera; Aphididae), but no anti-dipteran activity has been reported [176].

4.2. Anti-Dipteran Toxins from Other Microorganisms

4.2.1. Toxins from Lysinibacillus sphaericus

The bacterium L. sphaericus produces a range of proteins that display toxicity against C. quinquefasciatus and other mosquitoes. The Mtx1Aa (formerly Mtx1) protein was first identified in strain SSII-1 [177] and is highly active against C. quinquefasciatus and also displays activity against A. aegypti larvae and its cells in culture [118]. This protein is a member of the ADP-ribosyl transferase class of toxin and the Mtx1Aa protein (~100 kDa) is cleaved within the mosquito gut to produce an ~70 kDa binding component and the ~27 kDa enzymatic portion of the toxin [118,178]. Mtx1Aa also shows a lower level of activity against Chironomus riparius (Diptera; Chironomidae) larvae but no activity against Drosophila melanogaster (Diptera; Drosophilidae), Simulium (Diptera; Simuliidae) species or the predatory mosquito Toxorhynchites splendens (Diptera; Culicidae) [118,119].
The Mpp2 (formerly Mtx2) protein was also identified in L. sphaericus SSII-1 [179] and, as a member of the Etx/Mtx2 structural class, is unrelated to the Mtx1Aa protein [179] and is somewhat less toxic to C. quinquefasciatus larvae [66]. L. sphaericus strains also encode further members of this structural class: Mpp3 (formerly Mtx3) [121] and Mpp4 (formerly Mtx4), in addition to the presence of a further related pseudogene [180]. The activity of Mpp4 has not been tested but Mpp3 is toxic to C. quinquefasciatus and weakly active against A. aegypti [121]. The relative activity of Mpp2 proteins to these two target insects is different for natural variants of the toxin, and the amino acid residue 224 has been shown to be critical in determining the optimal target; threonine favours activity against A. aegypti, whereas lysine favours activity against C. quinquefasciatus [120].
Highly larvicidal strains of L. sphaericus also produce a binary toxin composed of two members of the Toxin_10 structural class, Tpp1Aa (formerly BinA, 42 kDa) and Tpp2Aa (formerly BinB, 51 kDa), where the Tpp2Aa protein is the primary binding component of the toxin and mediates the regional binding and internalization of the Tpp1Aa protein in the C. quinquefasciatus midgut [128]. This two component toxin is highly active against C. quinquefasciatus, C. pipiens, Aedes atropalpus, An. gambiae, An. stephensi, less active against An. albimanus, and Anopheles quadrimaculatus, and shows very low to zero activity against A. aegypti [126,127].
Some strains of L. sphaericus also contain another two component toxin named Cry48/Tpp49 (formerly Cry49), [125]. Cry48Aa is a three-domain Cry toxin, and is closely related to the Cry4 toxins, while Tpp49Aa is a member of the Toxin_10 family, like the Tpp1Aa and Tpp2Aa proteins described above. Neither Cry48Aa nor Tpp49Aa were toxic when assayed individually to C. quinquefasciatus, but when the proteins were co-administered at the optimum 1:1 ratio, high levels of toxicity against this mosquito species were observed. No activity was detected against other Diptera (A. aegypti, An. gambiae, Ch. riparius) or a range of other insects in the orders Coleoptera and Lepidoptera [181].
The toxicity of L. sphaericus strains to a wide range of mosquito species and to a Phlebotomus patatasi (Diptera: Psychodidae) has been reported [182,183] but, since individual toxins were not assessed, the contribution of particular proteins to this activity is unclear.

4.2.2. Toxins from Paraclostridium bifermentans

The toxicity of P. bifermentans ser. malaysia (formerly Clostridium bifermentans ser. malaysia) strains to mosquito larvae has been demonstrated [184,185]; however, information on the activity of individual toxins is conflicting. Barloy et al. reported the mosquitocidal activity of the 3-domain protein Cry16Aa1 against A. aegypti, C. pipiens and An. stephensi [186]. However, a later report tested Cry16Aa1, a combination of Cry16Aa1 co-expressed with another 3-domain protein (Cry17Aa1) and two haemolysin-like proteins (Cbm17.1 and Cbm17.2) from this bacterium and showed no toxicity, alone or in combination, to C. pipiens, A. aegypti or An. gambiae [187]. A further study also indicated that all four proteins were non-toxic to A. aegypti and An. gambiae but that when the operon co-expressing all four proteins was used, a high level toxicity to A. aegypti was observed [87]. Even with the use of this whole operon, no activity against An. gambiae was seen in this work despite the fact that the parental P. bifermentans strain has a high toxicity to this mosquito, implying that other factors are involved in this activity.
Recently, an unrelated protein from P. bifermentans, PMP1 (paraclostridial mosquitocidal protein 1) has been described [124]. This clostridial BoNT-like neurotoxin acts through its metalloprotease activity on a neuronal SNARE protein, syntaxin1A. Recombinant PMP1 showed injection toxicity against both larvae and adults of Anopheles coluzzii and A. aegypti, and to adult D. melanogaster (Diptera; Drosophilidae). However, oral toxicity was only observed against An. coluzzii and only when PMP1 was co-expressed with one other protein from its operon (NTNH -30% mortality) or with the whole operon including ntnh and three orfX genes (70% mortality). NTNH may protect the PMP1 protein while the role of the OrfX proteins is not clear [124].

4.2.3. Other Dipteran-Active Proteins

Monalysin from Pseudomonas entomophila is a pore forming toxin which contributes to the virulence of the bacterium against Drosophila (and insects in a range of other orders) by inducing intestinal cell damage [122]. This protein appears to share the fold of aerolysin-like toxins but lacks a putative receptor binding domain.
Several proteins associated with the canoe-shaped parasporal body of Brevibacillus laterosporus are toxins acting against Musca domestica (Diptera; Muscidae). Specifically, four highly conserved proteins (ExsC, CHRD, CpbA and CpbB) function as fly virulence factors [123].
The Pra and Prb (formerly PirA and PirB) proteins from Photorhabdus asymbiotica showed larvicidal activity against both A. aegypti and A. albopictus. The activity of clones containing the pra/prb operon (co-expressing the proteins) was the most toxic compared to Pra alone, Prb alone, or the mixture of Pra plus Prb [129]. Structural analysis of homologs from Vibrio haemolyticus that is active against shrimps, indicates that Prb proteins have structural homology to domains 1 and 2 of the 3-domain Cry toxins while Pra proteins have structural homology to domain 3 of the 3-domain Cry toxins [188].

5. Toxins with Synergistic Activity against Diptera

For a number of insecticidal bacteria, including Bti, the high toxicity of the complete crystal compared to what would be expected, in the event of an additive effect of the toxicity of each of the proteins that compose it, has been attributed to the synergistic activity of its components. This has been studied in more detail in Bti than in any other Bt serovar.
Combinations of Cry4Aa+Cry4Ba, Cry11Aa+Cry4Aa, and Cry11Aa+Cry4Aa+Cry4Ba have been shown to interact synergistically for a large number of species classified in the mosquito genera Aedes, Anopheles, and Culex [43,55,58,59,61,189]. Moreover, Cry4Ba had synergistic effect with Cry10Aa against C. pipiens [64] and with Cry11Aa against A. aegypti and An. albimanus larvae [58,70]. Although Cyt1A is the least toxic, it is the strongest synergist among the δ-endotoxins against A. aegypti [58,74,79,130]. Cyt1A interacts synergistically with Cry11A against C. quinquefasciatus [112] and An. albimanus [70], and with Cry4Ba against An. albimanus [70]. In addition to significantly reducing the lethal concentration, the synergistic effect of Cyt1A also plays an important role in retarding the appearance of resistance to Cry proteins in the case of C. quinquefasciatus [190,191,192]. Furthermore, Cyt2Ba, which is present in very low quantities in Bti crystals, has some synergistic effect with Cry4A [62,131] and shows one of the strongest synergistic interactions described so far with Cry10Aa against A. aegypti [62]. Another Cyt protein from Bt ser. darmstadiensis, Cyt2Aa2, has highly synergistic activity with Cry4Ba from Bti against A. aegypti and C. quinquefasciatus larvae [69].
The Cyt synergy mechanism has been proposed to be because the Cyt1A protein can function as a membrane-bound receptor for Cry4Ba and Cry11A [193,194]. In relation to Cry11Aa protein, it is suggested that Cyt1Aa inserts its β-sheet into the membrane and two of its components (loop β6-αE and part of β7) bind with high affinity to Cry11Aa, which subsequently is inserted into the larval epithelial membranes [194] (Figure 3). Cyt1Aa seems to facilitate the formation of a pre-pore oligomeric structure that is able to form pores in synthetic lipid membrane vesicles [195,196]. However, oligomerization and membrane insertion of Cyt1A are not essential for its synergistic activity [197]. In the same way, Cyt2Aa2 has been proposed to act as an alternative membrane receptor able to bind specifically to Cry4Ba [198].
Synergies have also been described between Cyt proteins and L. sphaericus factors and Cyt1Aa, Cyt1Ab and Cyt2Ba combined with L. sphaericus binary toxins Tpp1Aa and Tpp2Aa show an increase in toxic activity against A. aegypti and C. quinquefasciatus [66,107,113,199]. Moreover, Cyt1Aa is also capable of suppressing resistance to L. sphaericus toxins in C. quinquefasciatus [107,113].
Bti Cry toxins can also synergize with proteins from other serovars. For example, Cry11Ba from Bt ser. jegathesan and Mpp46Ab (formerly Cry46Ab) from Bt TK-E6 present synergistic activity in combination with Cry4Aa from Bti against C. pipiens larvae [65]. Mtx1 and Mpp2 (formerly Mtx2) proteins from L. sphaericus were also found to interact synergistically with a variety of Cry-toxins from Bti against C. quinquefasciatus [66]. As a result, exploitation of the synergy between different kinds of toxins of Bt or L. sphaericus is an excellent strategy to increase the virulence of these microorganisms against relevant dipteran species [84].

6. Bacterial Insecticides against Mosquitoes

Currently, the major biological control alternatives for mosquito and blackfly larvae are based on bacterial toxins produced by Bti and L. sphaericus. Products based on Bti and L. sphaericus are marketed and are widely used in the US and Europe, and several different formulations have been developed. The main commercial products are suspension concentrates, followed by wettable powders and, to a lesser extent, large-grained formulations. L. sphaericus, because of its better residual activity in polluted waters, has been broadly used against Culex species in the US, Central America, Brazil, India, Thailand, and China [200]. For control of mosquito larvae, formulated bacteria are sprayed or spread over the surface of static or slow-moving water into which they sink at a rate determined by the design of the formulation. An innovative formulation of Bti incorporated into ice granules has been used in a mosquito control programme on the Rhine in Germany [201]. Different feeding habits of larvae of different species influence the effectiveness of the bacteria against mosquitoes. Culex larvae filter-feed up and down the column of water and they are often termed column feeders, while Aedes larvae tend to scavenge along substrate surfaces, particularly on the bottom. Anopheles larvae feed on buoyant material trapped at or just below the water surface. In comparable conditions, two Anopheles species filtered water at the rate of 33–34 and 49–55 µL/larva/h, respectively, while C. quinquefasciatus filtered 490–590 and A. aegypti 590–690 µL/larva/h [202]. Larval feeding habits partly explain why species of Anopheles have consistently appeared less susceptible to Bt suspensions than the column- and bottom-feeding Culex and Aedes larvae in laboratory assays and field tests [203]. Thus, differently formulated products are required for mosquito larvae of different feeding types. Buoyant products are required for anophelines, but products should stay in suspension below the surface for column and bottom-feeders. In natural waters, rapid sinking should be avoided because steady deposit of debris would soon cover the particles [204]. Blackfly larvae live in fast-moving water courses and are controlled by pouring bacterial suspensions into the water at consecutive points, from which they are carried downstream [204].
The effectiveness of many bacterial formulations against both mosquitoes and blackflies is short-lived in the field, often only 1–2 days. This is due to rapid settling, adsorption to plants and other substrates (which also filter particles out of the water), denaturing of the crystal by sunlight and engulfment by filter feeding fauna [203,205]. A major goal of the formulation process is to extend the effective period. However, UV radiation inside the water is not as important as particle settling, which is the key factor in determining the effectiveness of a given formulation, since water filters out much of the UV radiation. With Bt, only the effect of sunlight on the crystal reduces larval mortality since the spore is unimportant in mosquito and blackfly larvae. L. sphaericus is more susceptible to sunlight, being inactivated in clear water a few centimetres deep in full sun [206], while strong sunlight reduces its effectiveness several-fold [207]. A sunscreen might be beneficial with L. sphaericus, particularly in formulations designed to float.
To increase the effectiveness of active Cry proteins against Diptera, they have been transferred to alternative hosts to increase their persistence in aquatic feeding areas. An improved biopesticide for mosquitoes was developed by inserting cry genes from Bti, which is highly toxic to mosquitoes, into the chromosome of L. sphaericus, which has longer environmental persistence [208]. The chromosomally integrated cry genes were maintained through several generations in the absence of selective pressure. The recombinant L. sphaericus producing high levels of cry11A gene product from Bti was toxic to Aedes, Culex and Anopheles larvae [209]. A variety of other recombinants have also been produced and tested as reviewed by Federici et al. [84].

7. Concluding Remarks and Future Perspectives

The control of dipteran pests is highly relevant as some species in this order are a source of enormous damage in diverse crops, whereas others have potential to transmit serious human diseases.
As the preceding sections show, a number of bacterial species are capable of producing bioinsecticidal proteins that are toxic against this insect order. These bacteria include Bt, the most well-known entomopathogenic bacterium, but also others including B. laterosporus, L. sphaericus and P. bifermentans. To date, the use of bacteria in the field has been limited to the control of Diptera in the nematoceran suborder and the use of Bt and L. sphaericus strains. The use of these bacteria in control programs has often seen great success [210,211]. Specific applications have included control of malaria vectors [212], blackflies as a part of the highly successful onchocerciasis control program [213] and against nuisance mosquitoes in developed countries, for instance in the Upper Rhine, where innovative application techniques were developed [201,214]. Because L. sphaericus strains used in the field tend to only produce one spore associated toxin (the binary toxin comprising Tpp1/Tpp2), resistance can arise [215] through mutation of its receptor. Significant resistance to Bti has not been reported in the field and this is likely to be due to its multiple toxins [216] and, particularly, to the role of the Cyt proteins [190,191]. Attempts have been made to combine the activities of Bti and L. sphaericus toxins in single strains [217,218] but no recombinant strains have yet been commercialized. Alternative strategies for the deployment of dipteran-active toxins against Nematocera have been explored, including the incorporation of the pesticidal protein genes into a range of other organisms including cyanobacteria [72,219,220], Caulobacter [118], gas vacuolated Ancylobacter [221] and mosquito gut colonizing B. cereus [222], or bioencapsulation in Tetrahymena [223] but, again, no product has resulted and the use of naturally-occurring Bt and L. sphaericus strains remains the control method of choice.
When considering the other dipteran suborder the Brachycera, as shown above, there are a more limited number of active pesticidal proteins. To the best of the authors’ knowledge, no bacterial pesticides are used specifically for their control and nor have genes encoding pesticidal proteins active against brachyceran insects been incorporated into transgenic plants, targeted at their control. This remains a possibility for the future.
A better understanding of the mode of action for individual proteins against their targets, as well as the molecular interactions occurring between them, including synergism, will help to develop a greater range of tools in the fight against dipteran pests, and help us overcome the appearance of resistance in the future.

Funding

This research was funded by the Spanish Ministry of Science and Innovation (TI2018-095204-B-C22). Daniel Valtierra de Luis received a doctoral grant from Universidad Pública de Navarra, Pamplona, Spain. This material is based upon work supported by the National Science Foundation Industry/University Cooperate Research CentersI/UCRC, the Center for Arthropod Management Technologies under Grant No. IIP-1821914 and by industry partners (for CB).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Martin, P.A.W.; Travers, R.S. Worldwide abundance and distribution of Bacillus thuringiensis isolates. Appl. Environ. Microbiol. 1989, 55, 2437–2442. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Iriarte, J.; Bel, Y.; Ferrandis, M.D.; Andrew, R.; Murillo, J.; Ferré, J.; Caballero, P. Environmental distribution and diversity of Bacillus thuringiensis in Spain. Syst. Appl. Microbiol. 1998, 21, 97–106. [Google Scholar] [CrossRef]
  3. Jouzani, G.S.; Valijanian, E.; Sharafi, R. Bacillus thuringiensis: A successful insecticide with new environmental features and tidings. Appl. Microbiol. Biotechnol. 2017, 101, 2691–2711. [Google Scholar] [CrossRef]
  4. Caballero, P.; Ferré, J. Bioinsecticidas: Fundamentos y Aplicaciones de Bacillus Thuringiensis en el Control Integrado de Plagas; PHYTOMA-España en colaboración con la, Universidad Pública de Navarra, Ed.; Phytoma: Valencia, Spain, 2001. [Google Scholar]
  5. Federici, B.A. Bacillus thuringiensis. In Handbook of Biological Control; Bellows, T., Gordh, G., Fisher, T., Eds.; Academic Press: San Diego, CA, USA, 1999. [Google Scholar]
  6. Crickmore, N.; Berry, C.; Panneerselvam, S.; Mishra, R.; Connor, T.R.; Bonning, B.C. A structure-based nomenclature for Bacillus thuringiensis and other bacteria-derived pesticidal proteins. J. Invertebr. Pathol. 2020, 107438. [Google Scholar] [CrossRef] [PubMed]
  7. Schnepf, E.; Crickmore, N.; Van Rie, J.; Lereclus, D.; Baum, J.; Feitelson, J.; Zeigler, D.R.; Dean, D.H. Bacillus thuringiensis and its pesticidal crystal proteins. Microbiol. Mol. Biol. Rev. 1998, 62, 775–806. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Wei, J.-Z.; Hale, K.; Carta, L.; Platzer, E.; Wong, C.; Fang, S.-C.; Aroian, R. Bacillus thuringiensis crystal proteins that target nematodes. Proc. Natl. Acad. Sci. USA 2003, 100, 2760–2765. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Bravo, A.; Sarjeet, G.; Mario, S. Mode of action of Bacillus thuringiensis Cry and Cyt toxins and their potential for insect control. Natl. Inst. Acess 2007, 49, 423–435. [Google Scholar] [CrossRef] [Green Version]
  10. Bravo, A.; Likitvivatanavong, S.; Gill, S.S.; Soberon, M. Bacillus thuringiensis: A story of a successful bioinsecticide. Insect Biochem. Mol. Biol. 2011, 41, 423–431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Gonzalez, J.J.; Dulmage, H.T.; Carlton, B. Correlation between specific plasmids and delta-endotoxin production in Bacillus thuringiensis. Plasmid 1981, 5, 352–365. [Google Scholar] [CrossRef]
  12. Jurat-Fuentes, J.L.; Jackson, T.A. Bacterial entomopathogens; Academic Press: Cambridge, MA, USA, 2012; ISBN 9780123849847. [Google Scholar]
  13. Agaisse, H.; Lereclus, D. How does Bacillus thuringiensis produce so much insecticidal crystal protein? J. Bacteriol. 1995, 177, 6027–6032. [Google Scholar] [CrossRef] [Green Version]
  14. De Maagd, R.A.; Bravo, A.; Berry, C.; Crickmore, N.; Schnepf, H.E. Structure, diversity, and evolution of protein toxins from spore-forming entomopathogenic bacteria. Annu. Rev. Genet. 2003, 37, 409–433. [Google Scholar] [CrossRef] [PubMed]
  15. Xu, C.; Wang, B.C.; Yu, Z.; Sun, M. Structural Insights into Bacillus thuringiensis Cry, Cyt and Parasporin Toxins. Toxins 2014, 6, 2732–2770. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. De Maagd, R.A.; Bosch, D.; Stiekema, W. Bacillus thuringiensis toxin-mediated insect resistance in plants. Trends Plant Sci. 1999, 4, 9–13. [Google Scholar] [CrossRef]
  17. Bravo, A.; Gómez, I.; Porta, H.; García-Gómez, B.I.; Rodriguez-Almazan, C.; Pardo, L.; Soberón, M. Evolution of Bacillus thuringiensis Cry toxins insecticidal activity. Microb. Biotechnol. 2013, 6, 17–26. [Google Scholar] [CrossRef]
  18. De Maagd, R.A.; Bravo, A.; Crickmore, N. How Bacillus thuringiensis has evolved specific toxins to colonize the insect world. Trends Genet. 2001, 17, 193–199. [Google Scholar] [CrossRef]
  19. Pardo-López, L.; Soberón, M.; Bravo, A. Bacillus thuringiensis insecticidal three-domain Cry toxins: Mode of action, insect resistance and consequences for crop protection. FEMS Microbiol. Rev. 2013, 37, 3–22. [Google Scholar] [CrossRef] [Green Version]
  20. Berry, C.; Crickmore, N. Structural classification of insecticidal proteins—Towards an in silico characterisation of novel toxins. J. Invertebr. Pathol. 2017, 142, 16–22. [Google Scholar] [CrossRef]
  21. Butko, P. Cytolytic toxin Cyt1A and its mechanism of membrane damage: Data and hypotheses. Appl. Environ. Microbiol. 2003, 69, 2415–2422. [Google Scholar] [CrossRef] [Green Version]
  22. Cohen, S.; Albeck, S.; Ben-Dov, E.; Cahan, R.; Firer, M.; Zaritsky, A.; Dym, O. Cyt1Aa toxin: Crystal structure reveals implications for its membrane-perforating function. J. Mol. Biol. 2011, 413, 804–814. [Google Scholar] [CrossRef]
  23. Cohen, S.; Dym, O.; Albeck, S.; Ben-Dov, E.; Cahan, R.; Firer, M.; Zaritsky, A. High-Resolution crystal structure of activated Cyt2Ba monomer from Bacillus thuringiensis subsp. Isr. J. Mol. Biol. 2008, 380, 820–827. [Google Scholar] [CrossRef]
  24. White, I.M.; Elson-Harris, M.M. Fruit Flies of Economic Significance: Their Identifiction and Bionomics; CAB Intern.: Wallingford, UK, 1992. [Google Scholar]
  25. Wheeler, M.R. Additions to the catalog of the world’s Drosophilidae. In The Genetics and Biology of Drosophila; Ashburner, M., Thompson, J.N., Carson, H.L., Eds.; Academic Press: London, UK, 1986; pp. 1–105. [Google Scholar]
  26. Vidal-Quist, J.C.; Castañera, P.; González-Cabrera, J. Cyt1Aa protein from Bacillus thuringiensis (Berliner) serovar israelensis is active against the Mediterranean fruit fly, Ceratitis capitata (Wiedemann). Pest Manag. Sci. 2010, 66, 949–955. [Google Scholar] [CrossRef] [PubMed]
  27. Leibee, G.L. Influence of temperature on development and fecundity of Liriomyza trifolii (Burgess) (Diptera: Agromyzidae) on Celery. Environ. Entomol. 1984, 13, 497–501. [Google Scholar] [CrossRef]
  28. Minkenberg, O.P.J.M. Dispersal of Liriomyza trifolii. EPPO Bull. 1988, 18, 173–182. [Google Scholar] [CrossRef]
  29. McPheron, B.A.; Steck, G.J. Fruit Fly Pests: A World Assessment of Their Biology and Management; Taylor & Francis Inc., Ed.; CRC Press Inc.: Boca Raton, FL, USA, 1996; ISBN 1574440144. [Google Scholar]
  30. EPPO A2 List EPPO. European and Mediterranean Plant Protection Organization, A2 List of pests recommended for regulation as quarantine pests. Available online: https://www.eppo.int/ACTIVITIES/plant_quarantine/A2_list (accessed on 1 December 2020).
  31. WHO. Available online: http://www.who.int/malaria (accessed on 4 December 2020).
  32. CDC. Available online: https://www.cdc.gov/ (accessed on 4 December 2020).
  33. Zhang, Q.; Hua, G.; Adang, M.J. Effects and mechanisms of Bacillus thuringiensis crystal toxins for mosquito larvae. Insect Sci. 2017, 24, 714–729. [Google Scholar] [CrossRef]
  34. Haider, M.; Ward, E.S.; Ellar, D.J. Cloning and heterologous expression of an insecticidal delta-endotoxin gene from Bacillus thuringiensis var. aizawai ICI toxic to both lepidoptera and diptera. Gene 1987, 52, 285–290. [Google Scholar] [CrossRef]
  35. Omolo, E.O.; James, M.D.; Osir, E.O.; Thomson, J.A. Cloning and expression of a Bacillus thuringiensis (L1-2) gene encoding a crystal protein active against Glossina morsitans morsitans and Chilo partellus. Curr. Microbiol. 1997, 34, 118–121. [Google Scholar] [CrossRef]
  36. Zhong, C.; Ellar, D.J.; Bishop, A.; Johnson, C.; Lin, S.; Hart, E.R. Characterization of a Bacillus thuringiensis δ-endotoxin which is toxic to insects in three orders. J. Invertebr. Pathol. 2000, 76, 131–139. [Google Scholar] [CrossRef]
  37. Johnson, C.; Bishop, A.H.; Turner, C.L. Isolation and activity of strains of Bacillus thuringiensis toxic to larvae of the housefly (Diptera: Muscidae) and tropical blowflies (Diptera: Calliphoridae). J. Invertebr. Pathol. 1998, 71, 138–144. [Google Scholar] [CrossRef]
  38. Heath, A.C.G.; Wigley, P.J.; Shoemaker, C.B.; Chilcott, C.N.; Broadwell, A.H. Efficacy of native and recombinant Cry1B protein against experimentally induced and naturally acquired ovine myiasis (fly strike) in sheep. J. Econ. Entomol. 2004, 97, 1797–1804. [Google Scholar] [CrossRef]
  39. Smith, G.P.; Merrick, J.D.; Bone, E.J.; Ellar, D.J. Mosquitocidal activity of the CryIC δ-endotoxin from Bacillus thuringiensis subsp. aizawai. Appl. Environ. Microbiol. 1996, 62, 680–684. [Google Scholar] [CrossRef] [Green Version]
  40. Abdul-Rauf, M.; Ellar, D.J. Toxicity and receptor binding properties of a Bacillus thuringiensis CryIC toxin active against both Lepidoptera and Diptera. J. Invertebr. Pathol. 1999, 73, 52–58. [Google Scholar] [CrossRef] [PubMed]
  41. Donovan, W.P.; Dankocsik, C.; Gilbert, M.P. Molecular characterization of a gene encoding a 72-kilodalton mosquito-toxic crystal protein from Bacillus thuringiensis subsp. israelensis. J. Bacteriol. 1988, 170, 4732–4738. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Park, H.W.; Bideshi, D.K.; Johnson, J.J.; Federici, B.A. Differential enhancement of Cry2A versus Cry11A yields in Bacillus thuringiensis by use of the cry3A STAB mRNA sequence. FEMS Microbiol. Lett. 1999, 181, 319–327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Ricoldi, M.C.; Soares Figueiredo, C.; Apparecida Desiderio, J. Toxicity of Cry2 proteins from Bacillus thuringiensis subsp. thuringiensis strain T01-328 against Aedes aegypti (Diptera: Culicidae). Toxicology 2018, 85, 1–7. [Google Scholar] [CrossRef]
  44. Sims, S.R. Host activity spectrum of the CryIIA Bacillus thuringiensis subsp. kurstaki protein: Effects on Lepidoptera, Diptera, and non-target arthropods. Southwest. Entomol. 1997, 22, 395–404. [Google Scholar]
  45. Zhang, L.; Zhao, G.; Hu, X.; Liu, J.; Li, M.; Batool, K.; Chen, M.; Wang, J.; Xu, J.; Huang, T.; et al. Cry11Aa interacts with the ATP-Binding protein from Culex quinquefasciatus to improve the toxicity. J. Agric. Food Chem. 2017, 65, 10884–10890. [Google Scholar] [CrossRef]
  46. Moar, W.J.; Trumble, J.T.; Hice, R.H.; Backman, P.A. Insecticidal activity of the CryIIA protein from the NRD-12 isolate of Bacillus thuringiensis subsp. kurstaki expressed in Escherichia coli and Bacillus thuringiensis and in a leaf-colonizing strain of Bacillus cereus. Appl. Environ. Microbiol. 1994, 60, 896–902. [Google Scholar] [CrossRef] [Green Version]
  47. Misra, H.S.; Hire, R.S.; Mahajan, S.K. Cloning and characterization of an insecticidal crystal protein gene from Bacillus thuringiensis subspecies kenyae. J. Genet. 2002, 81, 5–11. [Google Scholar] [CrossRef]
  48. Hire, R.S.; Makde, R.D.; Dongre, T.K.; Souza, S.F.D. Expression, purification and characterization of the Cry2Aa14 toxin from Bacillus thuringiensis subsp. kenyae. Toxicon 2009, 54, 519–524. [Google Scholar] [CrossRef]
  49. Mcneil, B.C.; Dean, D.H. Bacillus thuringiensis Cry2Ab is active on Anopheles mosquitoes: Single D block exchanges reveal critical residues involved in activity. FEMS Microbiol. Lett. 2011, 325, 16–21. [Google Scholar] [CrossRef] [Green Version]
  50. Ahmad, W.; Nicholls, C.; Ellar, D.J. Cloning and expression of an entomocidal protein gene from Bacillus thuringiensis galleriae toxic to both lepidoptera and diptera. FEMS Microbiol. Lett. 1989, 59, 197–201. [Google Scholar] [CrossRef]
  51. Liang, H.; Liu, Y.; Zhu, J.; Guan, P.; Li, S.; Wang, S.; Zheng, A.; Liu, H.; Li, P. Characterization of Cry2-type genes of Bacillus thuringiensis strains from soil-isolated of sichuan basin, China. Braz. J. Microbiol. 2011, 42, 140–146. [Google Scholar] [CrossRef] [PubMed]
  52. Widner, W.R.; Whiteley, H.R. Two highly related insecticidal crystal proteins of Bacillus thuringiensis subsp. kurstaki possess different host range specificities. J. Bacteriol. 1989, 171, 965–974. [Google Scholar] [CrossRef] [Green Version]
  53. Sevim, A.; Eryüzlü, E.; Demirba, Z.; Demir, I. A novel cry2Ab gene from the indigenous isolate Bacillus thuringiensis subsp. kurstaki. J. Microbiol. Biotechnol. 2012, 22, 133–140. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Abdullah, M.A.F.; Alzate, O.; Mohammad, M.; McNall, R.J.; Adang, M.J.; Dean, D.H. Introduction of Culex toxicity into Bacillus thuringiensis Cry4Ba by protein engineering. Appl. Environ. Microbiol. 2003, 69, 5343–5353. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Angsuthanasombat, C.; Crickmore, N.; Ellar, D.J. Comparison of Bacillus thuringiensis subsp. israelensis CryIVA and CryIVB cloned toxins reveals synergism in vivo. FEMS Microbiol. Lett. 1992, 94, 63–68. [Google Scholar] [CrossRef]
  56. Angsuthanasombat, C.; Crickmore, N.; Ellar, D.J. Cytotoxicity of a cloned Bacillus thuringiensis subsp. israelensis CryIVB toxin to an Aedes aegypti cell line. FEMS Microbiol. Lett. 1991, 67, 273–276. [Google Scholar] [CrossRef]
  57. Beltrão, H.; Silva-Filha, M.H.N.L. Interaction of Bacillus thuringiensis svar. israelensis Cry toxins with binding sites from Aedes aegypti (Diptera: Culicidae) larvae midgut. FEMS Microbiol. Lett. 2007, 266, 163–169. [Google Scholar]
  58. Crickmore, N.; Bone, E.J.; Williams, J.A.; Ellar, D.J. Contribution of the individual components of the δ-endotoxin crystal to the mosquitocidal activity of Bacillus thuringiensis subsp. israelensis. FEMS Microbiol. Lett. 1995, 131, 249–254. [Google Scholar] [CrossRef]
  59. Delecluse, A.; Poncet, S.; Klier, A.; Rapoport, G. Expression of cryIVA and cryIVB genes, independently or in combination, in a crystal-negative strain of Bacillus thuningiensis subsp. israelensis. Appl. Environ. Microbiol. 1993, 59, 3922–3927. [Google Scholar] [CrossRef] [Green Version]
  60. Ito, T.; Ikeya, T.; Sahara, K.; Bando, H.; Asano, S.I. Cloning and expression of two crystal protein genes, cry30Ba1 and cry44Aa1, obtained from a highly mosquitocidal strain, Bacillus thuringiensis subsp. entomocidus INA288. Appl. Environ. Microbiol. 2006, 72, 5673–5676. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Poncet, S.; Delecluse, A.; Klier, A.; Rapoport, G. Evaluation of synergistic interactions among CryIVA, CryIVB, and CryIVD toxic components of B. thuringiensis subsp. israelensis crystals. J. Invertebr. Pathol. 1995, 66, 131–135. [Google Scholar] [CrossRef]
  62. Valtierra-de-Luis, D.; Villanueva, M.; Lai, L.; Williams, T.; Caballero, P. Potential of Cry10Aa and Cyt2Ba, two minority δ-endotoxins produced by Bacillus thuringiensis ser. israelensis, for the control of Aedes aegypti larvae. Toxins 2020, 12, 355. [Google Scholar] [CrossRef] [PubMed]
  63. Ward, E.S.; Ridley, A.R.; Ellar, D.J.; Todd, J.A. Bacillus thuringiensis var. israelensis δ-endotoxin. Cloning and expression of the toxin in sporogenic and asporogenic strains of Bacillus subtilis. J. Mol. Biol. 1986, 191, 13–22. [Google Scholar] [PubMed]
  64. Delécluse, A.; Bourgouin, C.; Klier, A.; Rapoport, G. Specificity of action on mosquito larvae of Bacillus thuringiensis israelensis toxins encoded by two different genes. MGG Mol. Gen. Genet. 1988, 214, 42–47. [Google Scholar] [CrossRef] [PubMed]
  65. Hayakawa, T.; Yoneda, N.; Okada, K.; Higaki, A.; Howlader, M.T.H.; Ide, T. Bacillus thuringiensis Cry11Ba works synergistically with Cry4Aa but not with Cry11Aa for toxicity against mosquito Culex pipiens (Diptera: Culicidae) larvae. Appl. Entomol. Zool. 2017. [Google Scholar] [CrossRef] [Green Version]
  66. Wirth, M.C.; Berry, C.; Walton, W.E.; Federici, B.A. Mtx toxins from Lysinibacillus sphaericus enhance mosquitocidal cry-toxin activity and suppress cry-resistance in Culex quinquefasciatus. J. Invertebr. Pathol. 2014, 115, 62–67. [Google Scholar] [CrossRef] [Green Version]
  67. Monnerat, R.; Pereira, E.; Teles, B.; Martins, E.; Praça, L.; Queiroz, P.; Soberon, M.; Bravo, A.; Ramos, F.; Soares, C.M. Synergistic activity of Bacillus thuringiensis toxins against Simulium spp. larvae. J. Invertebr. Pathol. 2014, 121, 70–73. [Google Scholar] [CrossRef]
  68. Hughes, P.A.; Stevens, M.M.; Park, H.W.; Federici, B.A.; Dennis, E.S.; Akhurst, R. Response of larval Chironomus tepperi (Diptera: Chironomidae) to individual Bacillus thuringiensis var. israelensis toxins and toxin mixtures. J. Invertebr. Pathol. 2005, 88, 34–39. [Google Scholar] [CrossRef]
  69. Promdonkoy, B.; Promdonkoy, P.; Panyim, S. Co-expression of Bacillus thuringiensis Cry4Ba and Cyt2Aa2 in Escherichia coli revealed high synergism against Aedes aegypti and Culex quinquefasciatus larvae. FEMS Microbiol. Lett. 2005, 252, 121–126. [Google Scholar] [CrossRef]
  70. Fernandez-Luna, M.T.; Lanz-mendoza, H.; Gill, S.S.; Bravo, A.; Soberon, M.; Miranda-rios, J. An α-amylase is a novel receptor for Bacillus thuringiensis ssp. israelensis Cry4Ba and Cry11Aa toxins in the malaria vector mosquito Anopheles albimanus (Diptera: Culicidae). Environ. Microbiol. 2010, 12, 746–757. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Waalwijk, C.; Dullemans, A.; Wiegers, G.; Smits, P. Toxicity of Bacillus thuringiensis variety israelensis against tipulid larvae. J. Appl. Entomol. 1992, 114, 415–420. [Google Scholar] [CrossRef]
  72. Angsuthanasombat, C.; Panyim, S. Biosynthesis of 130-kilodalton mosquito larvicide in the cyanobacterium Agmenellum quadruplicatum PR-6. Appl. Environ. Microbiol. 1989, 55, 2428–2430. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Zhu, J.; Zheng, A.; Wang, S.; Liu, H.; Li, P. Characterization and expression of cry4Cb1 and cry30Ga1 from Bacillus thuringiensis strain HS18-1. J. Invertebr. Pathol. 2010, 103, 200–202. [Google Scholar] [CrossRef]
  74. Hernández-Soto, A.; Del Rincón-Castro, M.C.; Espinoza, A.M.; Ibarra, J.E. Parasporal body formation via overexpression of the Cry10Aa toxin of Bacillus thuringiensis subsp. israelensis, and Cry10Aa-Cyt1Aa synergism. Appl. Environ. Microbiol. 2009, 75, 4661–4667. [Google Scholar]
  75. Delecluse, A.; Rosso, M.L.; Ragni, A. Cloning and expression of a novel toxin gene from Bacillus thuringiensis subsp. jegathesan encoding a highly mosquitocidal protein. Appl. Environ. Microbiol. 1995, 61, 4230–4235. [Google Scholar] [CrossRef] [Green Version]
  76. Florez, A.M.; Suarez-Barrera, M.O.; Morales, G.M.; Rivera, K.V.; Orduz, S.; Ochoa, R.; Guerra, D.; Muskus, C. Toxic activity, molecular modeling and docking simulations of Bacillus thuringiensis Cry11 toxin variants obtained via DNA shuffling. Front. Microbiol. 2018, 9, 1–14. [Google Scholar] [CrossRef] [PubMed]
  77. Orduz, S.; Realpe, M.; Arango, R.; Murillo, L.A.; Delecluse, A. Sequence of the cry11Bb11 gene from Bacillus thuringiensis subsp. medellin and toxicity analysis of its encoded protein. Biochim. Biophys. Acta 1998, 54, 267–272. [Google Scholar] [CrossRef]
  78. Revina, L.P.; Kostina, L.I.; Ganushkina, L.A.; Mikhailova, A.L.; Zalunin, I.A.; Chestukhina, G.G. Reconstruction of Bacillus thuringiensis ssp. israelensis Cry11A endotoxin from fragments corresponding to its N- and C-moieties restores its original biological activity. Biochemistry 2004, 69, 181–187. [Google Scholar] [CrossRef]
  79. Wu, D.; Johnson, J.J.; Federici, B.A. Synergism of mosquitocidal toxicity between CytA and CrylVD proteins using inclusions produced from cloned genes of Bacillus thuringiensis. Mol. Microbiol. 1994, 13, 965–972. [Google Scholar] [CrossRef]
  80. Bukhari, D.A.A.; Shakoori, A.R. Cloning and expression of Bacillus thuringiensis cry11 crystal protein gene in Escherichia coli. Mol. Biol. Rep. 2009, 36, 1661–1670. [Google Scholar] [CrossRef]
  81. Feldmann, F.; Dullemans, A.; Waalwijk, C. Binding of the CryIVD toxin of Bacillus thuringiensis subsp. israelensis to larval dipteran midgut proteins. Appl. Environ. Microbiol. 1995, 61, 2601–2605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Chang, C.; Dai, S.M.; Frutos, R.; Federici, B.A.; Gill, S.S. Properties of a 72-kilodalton mosquitocidal protein from Bacillus thuringiensis subsp. morrisoni PG-14 expressed in B. thuringiensis subsp. kurstaki by using the shuttle vector pHT3101. Appl. Environ. Microbiol. 1992, 58, 507–512. [Google Scholar] [CrossRef] [Green Version]
  83. Cheong, H.; Dhesi, R.K.; Gill, S.S. Marginal cross-resistance to mosquitocidal Bacillus thuringiensis strains in Cry11A-resistant larvae: Presence of Cry11A-like toxins in these strains. FEMS Microbiol. Lett. 1997, 153, 419–424. [Google Scholar] [CrossRef]
  84. Federici, B.A.; Park, H.W.; Bideshi, D.K.; Wirth, M.C.; Johnson, J.J. Recombinant bacteria for mosquito control. J. Exp. Biol. 2003, 206, 3877–3885. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Juárez-pérez, V.; Porcar, M.; Orduz, S.; Delécluse, A. Cry29A and Cry30A two novel delta-endotoxins isolated from Bacillus thuringiensis serovar medellin. Syst. Appl. Microbiol. 2003, 504, 502–504. [Google Scholar] [CrossRef] [PubMed]
  86. Restrepo, N.; Gutierrez, D.; Patiño, M.M.; Thiéry, I.; Delécluse, A.; Orduz, S. Cloning, expression and toxicity of a mosquitocidal toxin gene of Bacillus thuringiensis subsp. medellin. Mem. Inst. Oswaldo Cruz 1997, 92, 257–262. [Google Scholar] [CrossRef] [Green Version]
  87. Qureshi, N.; Chawla, S.; Likitvivatanavong, S.; Lee, H.L.; Gill, S.S. The cry toxin operon of Clostridium bifermentans subsp. Malaysia is highly toxic to Aedes larval mosquitoes. Appl. Environ. Microbiol. 2014, 80, 5689–5697. [Google Scholar] [CrossRef] [Green Version]
  88. Rosso, M.L.; Delécluse, A. Contribution of the 65-kilodalton protein encoded by the cloned gene cry19A to the mosquitocidal activity of Bacillus thuringiensis subsp. jegathesan. Appl. Environ. Microbiol. 1997, 63, 4449–4455. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  89. Hwang, S.H.; Saitoh, H.; Mizuki, E.; Higuchi, K.; Ohba, M. A novel class of mosquitocidal δ-endotoxin, Cry19B, encoded by a Bacillus thuringiensis serovar higo gene. Syst. Appl. Microbiol. 1998, 21, 179–184. [Google Scholar] [CrossRef]
  90. Lee, H.; Gill, S.S. Molecular cloning and characterization of a novel mosquitocidal protein gene from Bacillus thuringiensis subsp. fukuokaensis. Appl. Environ. Microbiol. 1997, 63, 4664–4670. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  91. Berón, C.M.; Salerno, G.L. Cloning and characterization of a novel crystal protein from a native Bacillus thuringiensis isolate highly active against Aedes aegypti. Curr. Microbiol. 2007, 54, 271–276. [Google Scholar] [CrossRef] [PubMed]
  92. Saitoh, H.; Hwang, S.H.; Park, Y.S.; Higuchi, K.; Mizuki, E.; Ohba, M. Cloning and characterization of a Bacillus thuringiensis serovar higo gene encoding a novel class of the δ-endotoxin protein, Cry27A, specifically active on the anopheles mosquito. Syst. Appl. Microbiol. 2000, 23, 25–30. [Google Scholar] [CrossRef]
  93. Tan, F.; Zheng, A.; Zhu, J.; Wang, L.; Li, S.; Deng, Q.; Wang, S.; Li, P.; Tang, X. Rapid cloning, identification, and application of one novel crystal protein gene cry30Fa1 from Bacillus thuringiensis. FEMS Microbiol. Lett. 2010, 302, 46–51. [Google Scholar] [CrossRef] [Green Version]
  94. Ito, T.; Bando, H.; Asano, S. ichiro Activation process of the mosquitocidal δ-endotoxin Cry39A produced by Bacillus thuringiensis subsp. aizawai BUN1-14 and binding property to Anopheles stephensi BBMV. J. Invertebr. Pathol. 2006, 93, 29–35. [Google Scholar] [CrossRef] [Green Version]
  95. Ito, T.; Sahara, K.; Bando, H.; Asano, S. Cloning and expression of novel crystal protein genes cry39A and 39orf2 from Bacillus thuringiensis subsp. aizawai Bun1-14 encoding mosquitocidal proteins. J. Insect Biotechnol. Sericology 2002, 71, 123–128. [Google Scholar]
  96. Hayakawa, T.; Sakakibara, A.; Ueda, S.; Azuma, Y.; Ide, T.; Takebe, S. Cry46Ab from Bacillus thuringiensis TK-E6 is a new mosquitocidal toxin with aerolysin-type architecture. Insect Biochem. Mol. Biol. 2017, 87, 100–106. [Google Scholar] [CrossRef]
  97. Gough, J.M.; Kemp, D.H.; Akhurst, R.J.; Pearson, R.D.; Kongsuwan, K. Identification and characterization of proteins from Bacillus thuringiensis with high toxic activity against the sheep blowfly, Lucilia cuprina. J. Invertebr. Pathol. 2005, 90, 39–46. [Google Scholar] [CrossRef]
  98. Kongsuwan, K.; Gough, J.; Kemp, D.; McDevitt, A.; Akhurst, R. Characterization of a new Bacillus thuringiensis endotoxin, Cry47Aa, from strains that are toxic to the australian sheep blowfly, Lucilia cuprina. FEMS Microbiol. Lett. 2005, 252, 127–136. [Google Scholar] [CrossRef]
  99. Zhang, W.; Yu, S.; Peng, S.; Gong, J.; Qian, J.; He, J.; Dai, W.; Wang, R. Characterization of a novel mosquitocidal toxin of Cry50Ba and its potential synergism with other mosquitocidal toxins. Toxicon 2017, 138, 165–168. [Google Scholar] [CrossRef]
  100. Tan, F.; Zhu, J.; Tang, J.; Tang, X.; Wang, S.; Zheng, A.; Li, P. Cloning and characterization of two novel crystal protein genes, cry54Aa1 and cry30Fa1, from Bacillus thuringiensis strain BtMC28. Curr. Microbiol. 2009, 58, 654–659. [Google Scholar] [CrossRef] [PubMed]
  101. Zhu, J.; Zheng, A.P.; Tan, F.R.; Wang, S.Q.; Deng, Q.M.; Li, S.C.; Wang, L.X.; Li, P. Characterisation and expression of a novel holotype crystal protein gene, cry56Aa1, from Bacillus thuringiensis strain Ywc2-8. Biotechnol. Lett. 2010, 32, 283–288. [Google Scholar] [CrossRef] [PubMed]
  102. Sun, Y.; Zhao, Q.; Xia, L.; Ding, X.; Hu, Q.; Federici, B.A.; Park, H.-W. Identification and characterization of three previously undescribed crystal proteins from Bacillus thuringiensis subsp. jegathesan. Appl. Environ. Microbiol. 2013, 79, 3364–3370. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  103. Zhou, Y.; Wu, Z.; Zhang, J.; Wan, Y.; Jin, W.; Li, Y.; Fang, X. Cry80Aa1, a novel Bacillus thuringiensis toxin with mosquitocidal activity to Culex pipiens pallens. J. Invertebr. Pathol. 2020, 173, 2019–2021. [Google Scholar] [CrossRef] [PubMed]
  104. Chilcott, C.N.; Wigley, P.J.; Broadwell, A.H.; Park, D.J.; Ellar, D.J. Activities of Bacillus thuringiensis insecticidal crystal proteins Cyt1Aa and Cyt2Aa against three species of sheep blowfly. Appl. Environ. Microbiol. 1998, 64, 4060–4061. [Google Scholar] [CrossRef] [Green Version]
  105. Thiery, I.; Delécluse, A.; Tamayo, M.C.; Orduz, S. Identification of a gene for Cyt1A-like hemolysin from Bacillus thuringiensis subsp. medellin and expression in a crystal-negative B. thuringiensis strain. Appl. Environ. Microbiol. 1997, 63, 468–473. [Google Scholar] [CrossRef] [Green Version]
  106. Cheong, H.; Gill, S.S. Cloning and characterization of a cytolytic and mosquitocidal δ- endotoxin from Bacillus thuringiensis subsp. jegathesan. Appl. Environ. Microbiol. 1997, 63, 3254–3260. [Google Scholar] [CrossRef] [Green Version]
  107. Wirth, M.C.; Georghiou, G.P.; Malik, J.I.; Abro, G.H. Laboratory selection for resistance to Bacillus sphaericus in Culex quinquefasciatus (Diptera: Culicidae) from California, USA. J. Med. Entomol. 2000, 37, 534–540. [Google Scholar] [CrossRef]
  108. Juárez-Pérez, V.; Guerchicoff, A.; Rubinstein, C.; Delecluse, A. Characterization of Cyt2Bc toxin from Bacillus thuringiensis subsp. medellin. Appl. Environ. Microbiol. 2002, 68, 1228–1231. [Google Scholar]
  109. Torres-Quintero, M.C.; Gómez, I.; Pacheco, S.; Sánchez, J.; Flores, H.; Osuna, J.; Mendoza, G.; Soberón, M.; Bravo, A. Engineering Bacillus thuringiensis Cyt1Aa toxin specificity from dipteran to lepidopteran toxicity. Sci. Rep. 2018, 8, 1–12. [Google Scholar] [CrossRef]
  110. Oestergaard, J.; Ehlers, R.U.; Martínez-Ramírez, A.C.; Real, M.D. Binding of Cyt1Aa and Cry11Aa toxins of Bacillus thuringiensis serovar israelensis to brush border membrane vesicles of Tipula paludosa (Diptera: Nematocera) and subsequent pore formation. Appl. Environ. Microbiol. 2007, 73, 3623–3629. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  111. Koni, P.A.; Ellar, D.J. Biochemical characterization of Bacillus thuringiensis cytolytic d-endotoxins. Microbiology 1994, 140, 1869–1880. [Google Scholar] [CrossRef] [Green Version]
  112. Chang, C.; Yu, Y.M.; Dai, S.M.; Law, S.K.; Gill, S.S. High-level cryIVD and cytA gene expression in Bacillus thuringiensis does not require the 20-kilodalton protein, and the coexpressed gene products are synergistic in their toxicity to mosquitoes. Appl. Environ. Microbiol. 1993, 59, 815–821. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  113. Wirth, M.C.; Delecluse, A.; Walton, W.E. Cyt1Ab1 and Cyt2Ba1 from Bacillus thuringiensis subsp. medellin and B. thuringiensis subsp. israelensis synergize Bacillus sphaericus against Aedes aegypti and resistant Culex quinquefasciatus (Diptera: Culicidae). Appl. Environ. Microbiol. 2001, 67, 3280–3284. [Google Scholar] [CrossRef] [Green Version]
  114. Payne, J.; Narva, K.E.; Uyeda, K.A.; Stalder, C.J.; Michaels, T.E. Bacillus thuringiensisisolate PS201T6 toxin. U.S. Patent 5,436,002, 25 July 1995. [Google Scholar]
  115. Promdonkoy, B.; Chewawiwat, N.; Tanapongpipat, S.; Luxananil, P.; Panyim, S. Cloning and characterization of a cytolytic and mosquito larvicidal δ-endotoxin from Bacillus thuringiensis subsp. darmstadiensis. Curr. Microbiol. 2003, 46, 94–98. [Google Scholar] [CrossRef] [PubMed]
  116. Yu, X.; Liu, T.; Sun, Z.; Guan, P.; Zhu, J.; Wang, S.; Li, S.; Deng, Q.; Wang, L.; Zheng, A.; et al. Co-expression and synergism analysis of Vip3Aa29 and Cyt2Aa3 insecticidal proteins from Bacillus thuringiensis. Curr. Microbiol. 2012, 64, 326–331. [Google Scholar] [CrossRef] [PubMed]
  117. Nisnevitch, M.; Cohen, S.; Ben-Dov, E.; Zaritsky, A.; Sofer, Y.; Cahan, R. Cyt2Ba of Bacillus thuringiensis israelensis: Activation by putative endogenous protease. Biochem. Biophys. Res. Commun. 2006, 344, 99–105. [Google Scholar] [CrossRef]
  118. Thanabalu, T.; Hindley, J.; Berry, C. Proteolytic processing of the mosquitocidal toxin from Bacillus sphaericus SSII-1. J. Bacteriol. 1992, 174, 5051–5056. [Google Scholar] [CrossRef] [Green Version]
  119. Partridge, M.R.; Berry, C. Insecticidal activity of the Bacillus sphaericus Mtx1 toxin against Chironomus riparus. J. Invertebr. Pathol. 2002, 79, 135–136. [Google Scholar] [CrossRef]
  120. Chan, S.W.; Thanabalu, T.; Wee, B.Y.; Porter, A.G. Unusual amino acid determinants of host range in the Mtx2 family of mosquitocidal toxins. Biochemistry 1996, 271, 14183–14187. [Google Scholar] [CrossRef] [Green Version]
  121. Liu, J.W.; Porter, A.G.; Wee, B.Y.; Thanabalu, T. New gene from nine Bacillus sphaericus strains encoding highly conserved 35.8-kilodalton mosquitocidal toxins. Appl. Environ. Microbiol. 1996, 62, 2174–2176. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  122. Opota, O.; Vallet-Gély, I.; Vincentelli, R.; Kellenberger, C.; Iacovache, I.; Gonzalez, M.R.; Roussel, A.; van der Goot, F.G.; Lemaitre, B. Monalysin, a novel β-pore-forming toxin from the Drosophila pathogen Pseudomonas entomophila, contributes to host intestinal damage and lethality. PLoS Pathog. 2011, 7, e1002259. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  123. Marche, M.G.; Mura, M.E.; Falchi, G.; Ruiu, L. Spore surface proteins of Brevibacillus laterosporus are involved in insect pathogenesis. Sci. Rep. 2017, 7, 1–10. [Google Scholar] [CrossRef] [PubMed]
  124. Contreras, E.; Masuyer, G.; Qureshi, N.; Chawla, S.; Dhillon, H.S.; Lee, H.L.; Chen, J.; Stenmark, P.; Gill, S.S. A neurotoxin that specifically targets Anopheles mosquitoes. Nat. Commun. 2019, 10, 1–10. [Google Scholar] [CrossRef] [PubMed]
  125. Jones, G.W.; Nielsen-Leroux, C.; Yang, Y.; Yuan, Z.; Dumas, V.F.; Monnerat, R.G.; Berry, C. A new Cry toxin with a unique two-component dependency from Bacillus sphaericus. FASEB J. 2007, 21, 4112–4120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  126. Berry, C.; Hindley, J.; Ehrhardt, A.F.; Grounds, T.; De Souza, I.; Davidson, E.W. Genetic determinants of host ranges of Bacillus sphaericus mosquito larvicidal toxins. J. Bacteriol. 1993, 175, 510–518. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  127. Davidson, E.W. Variation in binding of Bacillus sphaericus toxin and wheat germ agglutinin to larval midgut cells of six species of mosquitoes. J. Invertebr. Pathol. 1989, 53, 251–259. [Google Scholar] [CrossRef]
  128. Oei, C.; Hindley, J.; Berry, C. Binding of purified Bacillus sphaericus binary toxin and its deletion derivatives to Culex quinquefasciatus gut: Elucidation of functional binding domains. J. Gen. Microbiol. 1992, 138, 1515–1526. [Google Scholar] [CrossRef] [Green Version]
  129. Ahantarig, A.; Chantawat, N.; Waterfield, N.R.; Ffrench-Constant, R.; Kittayapong, P. PirAB toxin from Photorhabdus asymbiotica as a larvicide against dengue vectors. Appl. Environ. Microbiol. 2009, 75, 4627–4629. [Google Scholar] [CrossRef] [Green Version]
  130. González-Villarreal, S.E.; García-Montelongo, M.; Ibarra, J.E. Insecticidal activity of a Cry1Ca toxin of Bacillus thuringiensis Berliner (Firmicutes: Bacillaceae) and its synergism with the Cyt1Aa toxin against Aedes aegypti (Diptera: Culicidae). J. Med. Entomol. 2020, 57, 1852–1856. [Google Scholar] [CrossRef]
  131. Manasherob, R.; Itsko, M.; Sela-Baranes, N.; Ben-Dov, E.; Berry, C.; Cohen, S.; Zaritsky, A. Cyt1 Ca from Bacillus thuringiensis subsp. israelensis: Production in Escherichia coli and comparison of its biological activities with those of other Cyt-like proteins. Microbiology 2006, 152, 2651–2659. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  132. Goldberg, L.J.; Margalith, J. A bacterial spore demonstrating rapid larvicidal activity against Anopheles sergentii, Uranotaenia unguiculata, Culex univitattus, Aedes aegypti and Culex pipiens. Mosq. News 1977, 1, 355–362. [Google Scholar]
  133. Fillinger, U.; Knols, B.G.J.; Becker, N. Efficacy and efficiency of new Bacillus thuringiensis var. israelensis and Bacillus sphaericus formulations against afrotropical anophelines in western Kenya. Trop. Med. Int. Health 2003, 8, 37–47. [Google Scholar] [CrossRef] [PubMed]
  134. Margalith, Y.; Ben-Dov, E. Biological control by Bacillus thuringiensis subsp. israelensis. In Insect Pest Management: Techniques for Environmental Protection; Recheigl, J.E., Recheigl, N.A., Eds.; U.C.P.L.: Boca Raton, FL, USA, 2000. [Google Scholar]
  135. Ben-Dov, E. Bacillus thuringiensis subsp. israelensis and its dipteran-specific toxins. Toxins (Basel) 2014, 6, 1222–1243. [Google Scholar] [CrossRef]
  136. Berry, C.; Ben-dov, E.; Jones, A.F.; Murphy, L.; Quail, M.A.; Holden, M.T.G.; Harris, D.; Zaritsky, A.; Parkhill, J. Complete sequence and organization of pBtoxis, the toxin-coding plasmid of Bacillus thuringiensis subsp. israelensis. Appl. Environ. Microbiol. 2002, 68, 5082–5095. [Google Scholar] [CrossRef] [Green Version]
  137. Bolotin, A.; Gillis, A.; Sanchis, V.; Nielsen-LeRoux, C.; Mahillon, J.; Lereclus, D.; Sorokin, A. Comparative genomics of extrachromosomal elements in Bacillus thuringiensis subsp. israelensis. Res. Microbiol. 2017, 168, 331–344. [Google Scholar] [CrossRef] [Green Version]
  138. Gillis, A.; Fayad, N.; Makart, L.; Bolotin, A.; Sorokin, A.; Kallassy, M.; Mahillon, J. Role of plasmid plasticity and mobile genetic elements in the entomopathogen Bacillus thuringiensis serovar israelensis. FEMS Microbiol. Rev. 2018, 42, 829–856. [Google Scholar] [CrossRef]
  139. Caballero, J.; Jiménez-Moreno, N.; Orera, I.; Williams, T.; Fernández, A.B.; Villanueva, M.; Ferré, J.; Caballero, P.; Ancín-Azpilicueta, C. Unraveling the composition of insecticidal crystal proteins in Bacillus thuringiensis: A proteomics approach. Appl. Environ. Microbiol. 2020. [Google Scholar] [CrossRef]
  140. Bietlot, H.P.L.; Vishnubhatla, I.; Carey, P.R.; Pozsgay, M.; Kaplan, H. Characterization of the cysteine residues and disulphide linkages in the protein crystal of Bacillus thuringiensis. Biochem. J. 1990, 267, 309–315. [Google Scholar] [CrossRef] [Green Version]
  141. Couche, G.A.; Pfannenstiel, M.A.; Nickerson, K.W. Structural disulfide bonds in the Bacillus thuringiensis subsp. israelensis protein crystal. J. Bacteriol. 1987, 169, 3281–3288. [Google Scholar] [CrossRef] [Green Version]
  142. Bourgouin, C.; Delecluse, A.; Ribier, J.; Klier, A.; Rapoport, G. A Bacillus thuringiensis subsp. israelensis gene encoding a 125-kilodalton larvicidal polypeptide is associated with inverted repeat sequences. J. Bacteriol. 1988, 170, 3575–3583. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  143. Otieno-Ayayo, Z.N.; Zaritsky, A.; Wirth, M.C.; Manasherob, R.; Khasdan, V.; Cahan, R.; Ben-Dov, E. Variations in the mosquito larvicidal activities of toxins from Bacillus thuringiensis ssp. israelensis. Environ. Microbiol. 2008, 10, 2191–2199. [Google Scholar] [CrossRef] [PubMed]
  144. Thorne, L.; Garduno, F.; Thompson, T.; Decker, D.; Zounes, M.; Wild, M.; Waldfield, A.; Pollock, T.J. Structural similarity between the Lepidoptera- and Diptera-specific insecticidal endotoxin genes of Bacillus thuringiensis subsp. “kurstaki” and “israelensis”. J. Bacteriol. 1986, 166, 801–811. [Google Scholar] [CrossRef] [Green Version]
  145. Lee, S.G.; Eckblad, W.; Lee, A.B. Diversity of protein inclusion bodies and identification of mosquitocidal protein in Bacillus thuringiensis subsp. israelensis. Biochem. Biophys. Res. Commun. 1985, 126, 953–960. [Google Scholar] [CrossRef]
  146. Garduno, F.; Thorne, L.; Walfield, A.M.; Pollock, T.J. Structural relatedness between mosquitocidal endotoxins of Bacillus thuringiensis subsp. israelensis. Appl. Environ. Microbiol. 1988, 54, 277–279. [Google Scholar] [CrossRef] [Green Version]
  147. Gutierrez, P.; Alzate, O.; Orduz, S. A theoretical model of the tridimensional structure of Bacillus thuringiensis subsp. medellin Cry 11Bb toxin deduced by homology modelling. Mem. Inst. Oswaldo Cruz 2001, 96, 357–364. [Google Scholar] [CrossRef] [Green Version]
  148. Dervyn, E.; Poncet, S.; Klier, A.; Rapoport, G. Transcriptional regulation of the cryIVD gene operon from Bacillus thuringiensis subsp. israelensis. J. Bacteriol. 1995, 177, 2283–2291. [Google Scholar] [CrossRef] [Green Version]
  149. Wu, D.; Federici, B.A. Improved production of the insecticidal CryIVD protein in Bacillus thuringiensis using cryIA(c) promoters to express the gene for an associated 20 kDa protein. Appl. Microbiol. Biotechnol. 1995, 42, 697–702. [Google Scholar] [CrossRef]
  150. Yamagiwa, M.; Sakagawa, K.; Sakai, H. Functional analysis of two processed fragments of Bacillus thuringiensis Cry11A toxin. Biosci. Biotechnol. Biochem. 2004, 68, 523–528. [Google Scholar] [CrossRef] [Green Version]
  151. Dai, S.M.; Gill, S.S. In vitro and in vivo proteolysis of the Bacillus thuringiensis subsp. israelensis CryIVD protein by Culex quinquefasciatus larval midgut proteases. Insect Biochem. Mol. Biol. 1993, 23, 273–283. [Google Scholar] [CrossRef]
  152. Fernandez, L.E.; Aimanova, K.G.; Gill, S.S.; Bravo, A.; Soberón, M. A GPI-anchored alkaline phosphatase is a functional midgut receptor of Cry11Aa toxin in Aedes aegypti larvae. Biochem. J. 2006, 394, 77–84. [Google Scholar] [CrossRef] [Green Version]
  153. Chen, J.; Aimanova, K.G.; Pan, S.; Gill, S.S. Identification and characterization of Aedes aegypti aminopeptidase N as a putative receptor of Bacillus thuringiensis Cry11A toxin. Insect Biochem. Mol. Biol. 2009, 39, 688–696. [Google Scholar] [CrossRef] [Green Version]
  154. Chen, J.; Aimanova, K.G.; Fernandez, L.E.; Bravo, A.; Soberon, M.; Gill, S.S. Aedes aegypti cadherin serves as a putative receptor of the Cry11Aa toxin from Bacillus thuringiensis subsp. israelensis. Biochem. J. 2009, 424, 191–200. [Google Scholar] [CrossRef] [Green Version]
  155. Pérez, C.; Fernández, L.E.; Gill, S.S.; Segovia, L.; Bravo, A.; Rodríguez, M.H.; Soberón, M. Cry11Aa toxin from Bacillus thuringiensis binds its receptor in Aedes aegypti mosquito larvae through loop α-8 of domain II. FEBS Lett. 2005, 579, 3508–3514. [Google Scholar]
  156. Likitvivatanavong, S.; Gill, S.S.; Bravo, A.; Soberón, M. Cadherin, alkaline phosphatase, and aminopeptidase N as receptors of Cry11Ba toxin from Bacillus thuringiensis subsp. jegathesan in Aedes aegypti. Appl. Environ. Microbiol. 2011, 77, 24–31. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  157. Anderson, I.; Sorokin, A.; Kapatral, V.; Reznik, G.; Bhattacharya, A.; Mikhailova, N.; Burd, H.; Joukov, V.; Kaznadzey, D.; Walunas, T.; et al. Comparative genome analysis of Bacillus cereus group genomes with Bacillus subtilis. FEMS Microbiol. Lett. 2005, 250, 175–184. [Google Scholar] [CrossRef] [Green Version]
  158. Chilcott, C.N.; Wigley, P.J. Opportunities for finding new Bacillus thuringiensis strains. Agric. Ecosyst. Environ. 1994, 49, 51–57. [Google Scholar] [CrossRef]
  159. Saleem, F.; Shakoori, A.R. Characterization of cry2A-type gene(s) from pakistani isolates of Bacillus thuringiensis toxic to lepidopteran and dipteran insects. Pak. J. Zool. 2010, 42, 181–193. [Google Scholar]
  160. Nicholls, C.N.; Ahmad, W.; Ellar, D.J. Evidence for two different types of insecticidal P2 toxins with dual specificity in Bacillus thuringiensis subspecies. J. Bacteriol. 1989, 171, 5141–5147. [Google Scholar] [CrossRef] [Green Version]
  161. Goje, L.J.; Elmi, E.D.; Bracuti, A.; Courty, T.; Rao, T.; Alzahrani, F.A.; Crickmore, N. Identification of Aedes aegypti specificity motifs in the N-terminus of the Bacillus thuringiensis Cry2Aa pesticidal protein. J. Invertebr. Pathol. 2020, 174, 107423. [Google Scholar] [CrossRef]
  162. Shu, C.; Zhang, F.; Chen, G.; Joseph, L.; Barqawi, A.; Evans, J.; Song, F.; Li, G.; Zhang, J.; Crickmore, N. A natural hybrid of a Bacillus thuringiensis Cry2A toxin implicates Domain I in specificity determination. J. Invertebr. Pathol. 2017, 150, 35–40. [Google Scholar] [CrossRef] [PubMed]
  163. Chilcott, C.; Ellar, D. Comparative toxicity of Bacillus thuringiensis var. israelensis crystal proteins in vivo and in vitro. J. Gen. Microbiol. 1988, 134, 2551–2558. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  164. Adams, L.F.; Visick, J.E.; Whiteley, H.R. A 20-kilodalton protein is required for efficient production of the Bacillus thuringiensis subsp. israelensis 27-kilodalton crystal protein in Escherichia coli. J. Bacteriol. 1989, 171, 521–530. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  165. Al-yahyaee, S.A.S.; Ellar, D.J. Maximal toxicity of cloned CytA δ-endotoxin from Bacillus thuringiensis subsp. israelensis requires proteolytic processing from both the N- and C-termini. Microbiology 1995, 141, 3141–3148. [Google Scholar] [CrossRef] [Green Version]
  166. Gill, S.S.; Singh, G.J.P.; Hornung, J.M. Cell membrane interaction of Bacillus thuringiensis subsp. israelensis cytolytic toxins. Infect. Immun. 1987, 55, 1300–1308. [Google Scholar] [CrossRef] [Green Version]
  167. Haider, M.Z.; Ellar, D.J. Mechanism of action of Bacillus thuringiensis insecticidal δ-endotoxin: Interaction with phospholipid vesicles. BBA Biomembr. 1989, 978, 216–222. [Google Scholar] [CrossRef]
  168. Knowles, B.H.; Blatt, M.R.; Tester, M.; Horsnell, J.M.; Carroll, J.; Menestrina, G.; Ellar, D.J. A cytolytic δ-endotoxin from Bacillus thuringiensis var. israelensis forms cation-selective channels in planar lipid bilayers. FEBS Lett. 1989, 244, 259–262. [Google Scholar] [CrossRef] [Green Version]
  169. Butko, P.; Huang, F.; Pusztai-Carey, M.; Surewicz, W.K. Membrane permeabilization induced by cytolytic δ-endotoxin CytA from Bacillus thuringiensis var. israelensis. Biochemistry 1996, 35, 11355–11360. [Google Scholar] [CrossRef] [PubMed]
  170. Butko, P.; Huang, F.; Pusztai-Carey, M.; Surewicz, W.K. Interaction of the δ-endotoxin CytA from Bacillus thuringiensis var. israelensis with lipid membranes. Biochemistry 1997, 36, 12862–12868. [Google Scholar] [CrossRef] [PubMed]
  171. Anaya, P.; Onofre, J.; Torres-Quintero, M.C.; Sánchez, J.; Gill, S.S.; Bravo, A.; Soberón, M. Oligomerization is a key step for Bacillus thuringiensis Cyt1Aa insecticidal activity but not for toxicity against red blood cells. Insect Biochem. Mol. Biol. 2020, 119, 103317. [Google Scholar] [CrossRef] [PubMed]
  172. Orduz, S.; Diaz, T.; Restrepo, N.; Patiño, M.M.; Tamayo, M.C. Biochemical, immunological and toxicological characteristics of the crystal proteins of Bacillus thuringiensis subsp. medellin. Mem. Inst. Oswaldo Cruz 1996, 91, 231–237. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  173. Valtierra-de-Luis, D.; Villanueva, M.; Caballero, J.; Matas, I.M.; Williams, T.; Caballero, P. Quantification of dose-mortality responses in adult Diptera: Validation using Ceratitis capitata and Drosophila suzukii responses to spinosad. PLoS ONE 2019, 14, 1–11. [Google Scholar] [CrossRef] [PubMed]
  174. Guerchicoff, A.; Ugalde, R.A.; Rubinstein, C.P. Identification and characterization of a previously undescribed cyt gene in Bacillus thuringiensis subsp. israelensis. Appl. Environ. Microbiol. 1997, 63, 2716–2721. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  175. Li, J.; Koni, P.A.; Ellar, D.J. Structure of the mosquitocidal δ-endotoxin CytB from Bacillus thuringiensis sp. kyushuensis and implications for membrane pore formation. J. Mol. Biol. 1996, 257, 129–152. [Google Scholar] [CrossRef] [PubMed]
  176. Loth, K.; Costechareyre, D.; Effantin, G.; Rahbé, Y.; Condemine, G.; Landon, C.; Da Silva, P. New Cyt-like δ -endotoxins from Dickeya dadantii: Structure and aphicidal activity. Sci. Rep. 2015, 5, 1–10. [Google Scholar] [CrossRef]
  177. Thanabalu, T.; Hindley, J.; Jackson-Yap, J.; Berry, C. Cloning, sequencing, and expression of a gene encoding a 100-kilodalton mosquitocidal toxin from Bacillus sphaericus SSII-1. J. Bacteriol. 1991, 173, 2776–2785. [Google Scholar] [CrossRef] [Green Version]
  178. Thanabalu, T.; Berry, C.; Hindley, J. Cytotoxicity and ADP-ribosylating activity of the mosquitocidal toxin from Bacillus sphaericus SSII-1: Possible roles of the 27- and 70-kilodalton peptides. J. Bacteriol. 1993, 175, 2314–2320. [Google Scholar] [CrossRef] [Green Version]
  179. Thanabalu, T.; Porter, A.G. A Bacillus sphaericus gene encoding a novel type of mosquitocidal toxin of 31.8 kDa. Gene 1996, 170, 85–89. [Google Scholar] [CrossRef]
  180. Berry, C. The bacterium, Lysinibacillus sphaericus, as an insect pathogen. J. Invertebr. Pathol. 2012, 109, 1–10. [Google Scholar] [CrossRef]
  181. Jones, G.W.; Wirth, M.C.; Monnerat, R.G.; Berry, C. The Cry48Aa-Cry49Aa binary toxin from Bacillus sphaericus exhibits highly restricted target specificity. Environ. Microbiol. 2008, 10, 2418–2424. [Google Scholar] [CrossRef] [Green Version]
  182. Silva Filha, M.H.N.L.; Berry, C.; Regis, L. Lysinibacillus sphaericus: Toxins and mode of action, applications for mosquito control and resistance management. In Advances in Insect Physiology; Academic Press: Cambridge, MA, USA, 2014; Volume 47, pp. 89–176. ISBN 9780128001974. [Google Scholar]
  183. Pener, H.; Wilamowski, A. Susceptibility of larvae of the sandfly Phlebotomus papatasi (Diptera: Psychodidae) to Bacillus sphaericus. Bull. Entomol. Res. 1996, 86, 173–175. [Google Scholar] [CrossRef]
  184. Yiallouros, M.; Storch, V.; Thiery, I.; Becker, N. Efficacy of Clostridium bifermentans serovar Malaysia on target and nontarget organisms. J. Am. Mosq. Control Assoc. 1994, 10, 51–55. [Google Scholar]
  185. Nicolas, L.; Charles, J.-F.; de Barjac, H. Clostridium bifermentans serovar malaysia: Characterization of putative mosquito larvicidal proteins. FEMS Microbiol. Lett. 1993, 113, 23–28. [Google Scholar] [CrossRef]
  186. Barloy, F.; Delécluse, A.; Nicolas, L.; Lecadet, M.M. Cloning and expression of the first anaerobic toxin gene from Clostridium bifermentans subsp. malaysia, encoding a new mosquitocidal protein with homologies to Bacillus thuringiensis delta-endotoxins. J. Bacteriol. 1996, 178, 3099–3105. [Google Scholar] [CrossRef] [Green Version]
  187. Juárez-Pérez, V.; Delécluse, A. The cry toxins and the putative hemolysins of Clostridium bifermentans ser. malaysia are not involved in mosquitocidal activity. J. Invertebr. Pathol. 2001, 78, 57–58. [Google Scholar]
  188. Lee, C.T.; Chen, I.T.; Yang, Y.T.; Ko, T.P.; Huang, Y.T.; Huang, J.Y.; Huang, M.F.; Lin, S.J.; Chen, C.Y.; Lin, S.S.; et al. The opportunistic marine pathogen Vibrio parahaemolyticus becomes virulent by acquiring a plasmid that expresses a deadly toxin. Proc. Natl. Acad. Sci. USA 2015, 112, 10798–10803. [Google Scholar] [CrossRef] [Green Version]
  189. Soberón, M.; López-Díaz, J.A.; Bravo, A. Cyt toxins produced by Bacillus thuringiensis: A protein fold conserved in several pathogenic microorganisms. Peptides 2013, 41, 87–93. [Google Scholar] [CrossRef]
  190. Georghiou, G.P.; Wirth, M.C. Influence of exposure to single versus multiple toxins of Bacillus thuringiensis subsp. israelensis on development of resistance in the mosquito Culex quinquefasciatus (Diptera: Culicidae). Appl. Environ. Microbiol. 1997, 63, 1095–1101. [Google Scholar] [CrossRef] [Green Version]
  191. Wirth, M.C.; Georghiou, G.P. Cross-Resistance among CryIV toxins of Bacillus thuringiensis subsp israelensis in Culex quinquefasciatus (Diptera: Culicidae). J. Econ. Entomol. 1997, 90, 1471. [Google Scholar] [CrossRef]
  192. Wirth, M.C.; Park, H.W.; Walton, W.E.; Federici, B.A. Cyt1A of Bacillus thuringiensis delays evolution of resistance to Cry11A in the mosquito Culex quinquefasciatus. Appl. Environ. Microbiol. 2005, 71, 185–189. [Google Scholar] [CrossRef] [Green Version]
  193. Cantón, P.E.; Reyes, E.Z.; Ruiz De Escudero, I.; Bravo, A.; Soberon, M. Binding of Bacillus thuringiensis subsp. israelensis Cry4Ba to Cyt1Aa has an important role in synergism. Peptides 2011, 32, 595–600. [Google Scholar]
  194. Perez, C.; Fernandez, L.E.; Sun, J.; Folch, J.L.; Gill, S.S.; Soberon, M.; Bravo, A. Bacillus thuringiensis subsp. israelensis Cyt1Aa synergizes Cry11Aa toxin by functioning as a membrane-bound receptor. Proc. Natl. Acad. Sci. USA 2005, 102, 18303–18308. [Google Scholar] [CrossRef] [Green Version]
  195. Pérez, C.; Muñoz-Garay, C.; Portugal, L.C.; Sánchez, J.; Gill, S.S.; Soberón, M.; Bravo, A. Bacillus thuringiensis ssp. israelensis Cyt1Aa enhances activity of Cry11Aa toxin by facilitating the formation of a pre-pore oligomeric structure. Cell. Microbiol. 2007, 9, 2931–2937. [Google Scholar]
  196. Elleuch, J.; Tounsi, S.; Belguith Ben Hassen, N.; Lacoix, M.N.; Chandre, F.; Jaoua, S.; Zribi Zghal, R. Characterisation of novel Bacillus thuringiensis isolates against Aedes aegypti (Diptera: Culicidae) and Ceratitis capitata (Diptera: Tephridae). J. Invertebr. Pathol. 2015, 124, 90–97. [Google Scholar] [CrossRef]
  197. López-Diaz, J.A.; Cantón, P.E.; Gill, S.S.; Soberón, M.; Bravo, A. Oligomerization is a key step in Cyt1Aa membrane insertion and toxicity but not necessary to synergize Cry11Aa toxicity in Aedes aegypti larvae. Environ. Microbiol. 2013, 15, 3030–3039. [Google Scholar] [CrossRef] [Green Version]
  198. Lailak, C.; Khaokhiew, T.; Promptmas, C.; Promdonkoy, B.; Pootanakit, K.; Angsuthanasombat, C. Bacillus thuringiensis Cry4Ba toxin employs two receptor-binding loops for synergistic interactions with Cyt2Aa2. Biochem. Biophys. Res. Commun. 2013, 435, 216–221. [Google Scholar] [CrossRef]
  199. Thiéry, I.; Hamon, S.; Delécluse, A.; Orduz, S. The introduction into Bacillus sphaericus of the Bacillus thuringiensis subsp. medellin cyt1Ab1 gene results in higher susceptibility of resistant mosquito larvae populations to B. sphaericus. Appl. Environ. Microbiol. 1998, 64, 3910–3916. [Google Scholar] [CrossRef] [Green Version]
  200. Wirth, M.C. Mosquito resistance to bacterial larvicidal toxins. Open Toxinology J. 2010, 3, 101–115. [Google Scholar] [CrossRef] [Green Version]
  201. Becker, N. Ice granules containing endotoxins of microbial agents for the control of mosquito larvae—A new application technique. J. Am. Mosq. Control Assoc. 2003, 19, 63–66. [Google Scholar]
  202. Aly, C. Filtration rates of mosquito larvae in suspensions of latex microspheres and yeast cells. Entomol. Exp. Appl. 1988, 46, 55–61. [Google Scholar] [CrossRef]
  203. Lacey, L.A.; Smittle, B.J. The effects of gamma radiation on espore viability and mosquito larvicidal activity of Bacillus sphaericus and Bacillus thuringiensis var. israelensis. Bull. Soc. Vector Ecol. 1985, 10, 98–101. [Google Scholar]
  204. Burges, H.D. Formulation of Microbial Biopesticides: Beneficial Microorganisms, Nematodes and Seed Treatments; Springer: Dordrecht, The Netherlands, 1998. [Google Scholar]
  205. Lacey, L. Microbial control of black flies and mosquitoes. Annu. Rev. Entomol. 1986, 31, 265–296. [Google Scholar] [CrossRef]
  206. Mulligan, F.S.; Schaefer, C.H.; Wilder, W.H. Efficacy and persistence of Bacillus sphaericus and B. thuringiensis H. 14 against mosquitoes under laboratory and field conditions. J. Econ. Entomol. 1980, 73, 684–688. [Google Scholar] [CrossRef]
  207. Skovmand, O.; Bauduin, S. Efficacy of a granular formulation of Bacillus sphaericus against Culex quinquefasciatus and Anopheles gambiae in west african countries. J. Vector Ecol. 1998, 43–51. [Google Scholar]
  208. Bar, E.; Sandler, N.; Makayoto, M.; Keynan, A. Expression of chromosomally inserted Bacillus thuringiensis israelensis toxin genes in Bacillus sphaericus. J. Invertebr. Pathol. 1998, 72, 206–213. [Google Scholar] [CrossRef]
  209. Poncet, S.; Bernard, C.; Dervyn, E.; Cayley, J.; Klier, A.; Rapoport, G. Improvement of Bacillus sphaericus toxicity against dipteran larvae by integration, via homologous recombination, of the Cry11A toxin gene from Bacillus thuringiensis subsp. israelensis. Appl. Environ. Microbiol. 1997, 63, 4413–4420. [Google Scholar] [CrossRef] [Green Version]
  210. Lacey, L.A. Bacillus thuringiensis serovariety israelensis and Bacillus sphaericus for mosquito control. J. Am. Mosq. Control Assoc. 2007, 23, 133–163. [Google Scholar] [CrossRef]
  211. Priest, F.G. Biological control of mosquitoes and other biting flies by Bacillus sphaericus and Bacillus thuringiensis. J. Appl. Bacteriol. 1992, 72, 357–369. [Google Scholar] [CrossRef]
  212. Ingabire, C.M.; Hakizimana, E.; Rulisa, A.; Kateera, F.; Van Den Borne, B.; Muvunyi, C.M.; Mutesa, L.; Van Vugt, M.; Koenraadt, C.J.M.; Takken, W.; et al. Community-based biological control of malaria mosquitoes using Bacillus thuringiensis var. israelensis (Bti) in Rwanda: Community awareness, acceptance and participation. Malar. J. 2017, 16, 1–13. [Google Scholar] [CrossRef]
  213. Lacey, L.A.; Escaffre, H.; Philippon, B.; Sékétéli, A.; Guillet, P. Large river treatment with Bacillus thuringiensis (H-14) for the control of Simulium damnosum s.l. in the onchocerciasis control programme. Trop. Parasitol 1982, 33, 97–101. [Google Scholar]
  214. Becker, N. Microbial control of mosquitoes: Management of the upper rhine mosquito population as a model programme. Parasitol. Today 1997, 485–487. [Google Scholar] [CrossRef]
  215. Chalegre, K.D.D.M.; Romão, T.P.; Amorim, L.B.; Anastacio, D.B.; De Barros, R.A.; De Oliveira, C.M.F.; Regis, L.; De-Melo-Neto, O.P.; Silva-Filha, M.H.N.L. Detection of an allele conferring resistance to Bacillus sphaericus binary toxin in Culex quinquefasciatus populations by molecular screening. Appl. Environ. Microbiol. 2009, 75, 1044–1049. [Google Scholar] [CrossRef] [Green Version]
  216. Bonin, A.; Paris, M.; Frérot, H.; Bianco, E.; Tetreau, G.; Després, L. The genetic architecture of a complex trait: Resistance to multiple toxins produced by Bacillus thuringiensis israelensis in the dengue and yellow fever vector, the mosquito Aedes aegypti. Infect. Genet. Evol. 2015, 35, 204–213. [Google Scholar] [CrossRef] [PubMed]
  217. Gammon, K.; Jones, G.W.; Hope, S.J.; De Oliveira, C.M.F.; Regis, L.; Silva Filha, M.H.N.L.; Dancer, B.N.; Berry, C. Conjugal transfer of a toxin-coding megaplasmid from Bacillus thuringiensis subsp. israelensis to mosquitocidal strains of Bacillus sphaericus. Appl. Environ. Microbiol. 2006, 72, 1766–1770. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  218. Federici, B.A.; Park, H.; Bideshi, D.K. Overview of the basic biology of Bacillus thuringiensis with emphasis on genetic engineering of bacterial larvicides for mosquito control. Open Toxinology J. 2010, 3, 154–171. [Google Scholar] [CrossRef] [Green Version]
  219. Csiszàr, K.; Houmard, J.; Damerval, T.; de Marsac, N.T. Transcriptional analysis of the cyanobacterial gvpABC operon in differentiated cells: Occurrence of an antisense RNA complementary to three overlapping transcripts. Gene 1987, 60, 29–37. [Google Scholar] [CrossRef]
  220. Xu, X.; Kong, R.; Hu, Y. High larvicidal activity of intact recombinant cyanobacterium Anabaena sp. PCC 7120 expressing Gene 51 and Gene 42 of Bacillus sphaericus sp. 2297. FEMS Microbiol. Lett. 1993, 107, 247–250. [Google Scholar]
  221. Wai, H.Y.; Thanabalu, T.; Porter, A.G. Expression of mosquitocidal toxin genes in a gas-vacuolated strain of Ancylobacter aquaticus. Appl. Environ. Microbiol. 1994, 60, 4199–4202. [Google Scholar]
  222. Luxananil, P.; Tanapongpipat, S.; Promdonkoy, B.; Atomi, H.; Imanaka, T.; Panyim, S. Expression of binary toxin genes in the mosquito-colonizable bacteria, Bacillus cereus, leads to high toxicity against Culex quinquefasciatus larvae. Curr. Microbiol. 2003, 47, 372–375. [Google Scholar] [CrossRef]
  223. Zaritsky, A.; Zalkinder, V.; Ben-Dov, E.; Barak, Z. Bioencapsulation and delivery to mosquito larvae of Bacillus thuringiensis H14 toxicity by Tetrahymena pyriformis. J. Invertebr. Pathol. 1991, 58, 455–457. [Google Scholar] [CrossRef]
Toxins 12 00773 g001 550
Figure 1. Schematic representation of dipteran active toxins coming from bacteria. Toxins active against the Nematocera suborder are within the green circle. Toxins active against the Brachycera suborder are within the purple circle. Toxins that share activity between suborders are in the overlap between both circles.
Figure 1. Schematic representation of dipteran active toxins coming from bacteria. Toxins active against the Nematocera suborder are within the green circle. Toxins active against the Brachycera suborder are within the purple circle. Toxins that share activity between suborders are in the overlap between both circles.
Toxins 12 00773 g001
Toxins 12 00773 g002 550

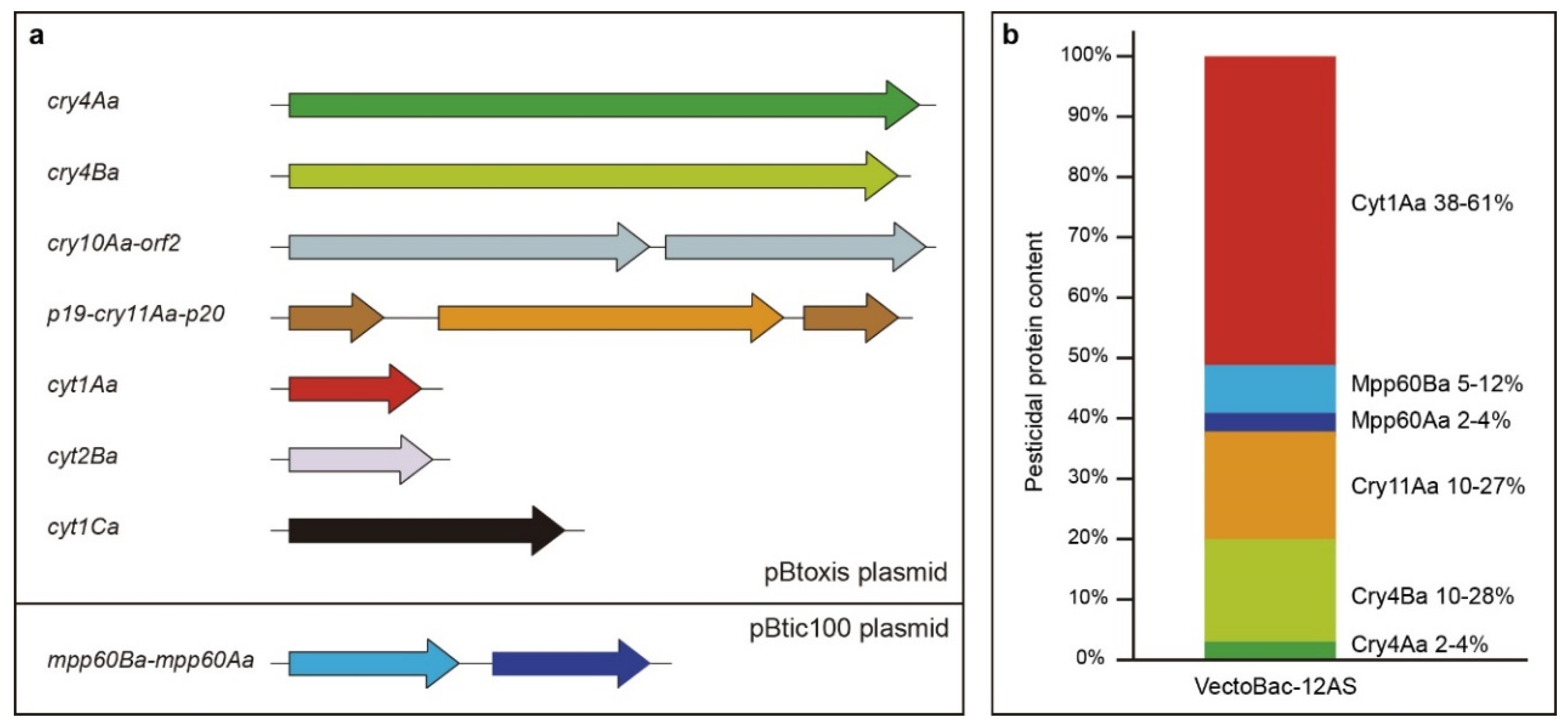

Figure 2. Pesticidal protein composition of Bti strains. (a), Scheme of all genes and operons that may be present in Bti strains, which encode crystal proteins. (b), Relative molar composition of proteins in the parasporal crystal of Bti-based Vectobac-12AS insecticide. The composition is expressed as a range from two independent tryptic digestions with two technical replicates each (adapted from [139]).
Figure 2. Pesticidal protein composition of Bti strains. (a), Scheme of all genes and operons that may be present in Bti strains, which encode crystal proteins. (b), Relative molar composition of proteins in the parasporal crystal of Bti-based Vectobac-12AS insecticide. The composition is expressed as a range from two independent tryptic digestions with two technical replicates each (adapted from [139]).
Toxins 12 00773 g002
Toxins 12 00773 g003 550
Figure 3. Diagram of the Cyt1Aa synergy mechanism after Bti ingestion by a mosquito larvae. After ingestion of Bti spores and crystals, the crystal is first solubilized (1) and then proteolized and activated by insect gut proteases (2). After traversing the peritrophic matrix, Cyt1Aa protein functions as a membrane-bound receptor for Cry4Ba and Cry11Aa (3 and 4). Finally, Cyt and Cry toxins are able to insert in the membrane to form pores (5 and 6) that lead to osmotic cell lysis. Sp: spore. C: crystal.
Figure 3. Diagram of the Cyt1Aa synergy mechanism after Bti ingestion by a mosquito larvae. After ingestion of Bti spores and crystals, the crystal is first solubilized (1) and then proteolized and activated by insect gut proteases (2). After traversing the peritrophic matrix, Cyt1Aa protein functions as a membrane-bound receptor for Cry4Ba and Cry11Aa (3 and 4). Finally, Cyt and Cry toxins are able to insert in the membrane to form pores (5 and 6) that lead to osmotic cell lysis. Sp: spore. C: crystal.
Toxins 12 00773 g003
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Valtierra-de-Luis, D.; Villanueva, M.; Berry, C.; Caballero, P. Potential for Bacillus thuringiensis and Other Bacterial Toxins as Biological Control Agents to Combat Dipteran Pests of Medical and Agronomic Importance. Toxins 2020, 12, 773. https://doi.org/10.3390/toxins12120773

AMA Style

Valtierra-de-Luis D, Villanueva M, Berry C, Caballero P. Potential for Bacillus thuringiensis and Other Bacterial Toxins as Biological Control Agents to Combat Dipteran Pests of Medical and Agronomic Importance. Toxins. 2020; 12(12):773. https://doi.org/10.3390/toxins12120773

Chicago/Turabian Style

Valtierra-de-Luis, Daniel, Maite Villanueva, Colin Berry, and Primitivo Caballero. 2020. "Potential for Bacillus thuringiensis and Other Bacterial Toxins as Biological Control Agents to Combat Dipteran Pests of Medical and Agronomic Importance" Toxins 12, no. 12: 773. https://doi.org/10.3390/toxins12120773

APA Style

Valtierra-de-Luis, D., Villanueva, M., Berry, C., & Caballero, P. (2020). Potential for Bacillus thuringiensis and Other Bacterial Toxins as Biological Control Agents to Combat Dipteran Pests of Medical and Agronomic Importance. Toxins, 12(12), 773. https://doi.org/10.3390/toxins12120773

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
