Toxins 2019, 11(1), 56; doi:10.3390/toxins11010056

Simultaneous Lateral Flow Immunoassay for Multi-Class Chemical Contaminants in Maize and Peanut with One-Stop Sample Preparation
1,* , 1,3,4,* , 1,2,3,* , 1,3
Oil Crops Research Institute of the Chinese Academy of Agricultural Sciences, Wuhan 430062, China
Quality Inspection and Test Center for Oilseeds Products, Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
Key Laboratory of Biology and Genetic Improvement of Oil Crops, Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
Key Laboratory of Detection for Mycotoxins, Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
Laboratory of Risk Assessment for Oilseeds Products (Wuhan), Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
Correspondence: [email protected] (Z.Z.); [email protected] (Q.Z.); [email protected] (W.Z.); [email protected] (P.L.); Tel.: +86-27-86812943 (P.L.); Fax: +86-27-86812862 (Z.Z. & Q.Z. & W.Z. & P.L.)
These authors contributed equally to this work.
Received: 26 December 2018 / Accepted: 17 January 2019 / Published: 20 January 2019


Multi-class chemical contaminants, such as pesticides and mycotoxins, are recognized as the major risk factors in agro products. It is thus necessary to develop rapid and simple sensing methods to fulfill the on-site monitoring of multi-class chemical contaminants with different physicochemical properties. Herein, a lateral flow immunoassay via time-resolved fluorescence was developed for the rapid, on-site, simultaneous, and quantitative sensing aflatoxin B1 (AFB1), zearalenone (ZEA), and chlorothalonil (CTN) in maize and peanut. The sample preparation was optimized to a single step, combining the grinding and extraction. Under optimal conditions, the sensing method lowered the limits of detection (LOD) to 0.16, 0.52, and 1.21 µg/kg in maize and 0.18, 0.57, and 1.47 µg/kg in peanut with an analytical range of 0.48–20, 1.56–200, and 3.63–300 µg/kg for AFB1, ZEA and CTN, respectively. The protocol could be completed within 15 min, including sample preparation and lateral flow immunoassay. The recovery range was 83.24–110.80%. An excellent correlation was observed between this approach and high-performance liquid chromatography-tandem mass spectrometry (HPLC-MS/MS) for mycotoxins and gas chromatography-tandem mass spectrometry (GC-MS/MS) for pesticide in maize and peanut. This work could be applied in on-site multi-class sensing for food safety.
simultaneous lateral flow immunoassay; multi-class chemical contaminants; aflatoxin B1; zearalenone; chlorothalonil; maize and peanut
Key Contribution: A novel lateral flow immunoassay is proposed by using time-resolved fluorescence for simultaneous quantitative detection of multi-class chemical contaminants within 15 min, in which aflatoxin B1, zearalenone, and chlorothalonil in maize and peanut are acted as an example.

1. Introduction

Agro products contain various hazardous compounds, in particularly mycotoxins and pesticides [1,2,3]. They can occur throughout the entire process of agro production, from the farm to table [4]. Fungicides are commonly used to control adverse effects from fungal diseases, such as A. flavus, A. parasiticus, F. graminearum, F. culmorum and F. crookwellense, in agricultural practices, affecting the nervous system, cancer, and causing acute death [5]. Chlorothalonil (CTN), which is a broad-spectrum and protective organic chlorine bactericide is, especially in developing countries, the most widely used fungicide for controlling mold, mildew, and bacteria [6,7,8]. On the other hand, mycotoxins are mainly produced by fungi, and are carcinogenic, teratogenic, nephrotoxic, and mutagenic [9]. Among the mycotoxins, aflatoxin B1 (AFB1) and zearalenone (ZEA) are frequently and widely found in agricultural products [10]. AFB1, a Group 1 carcinogen classified by the International Agency for Research on Cancer, can lead to liver cirrhosis, carcinomas, and lethality in humans and livestock [11]. ZEA is relatively low in acute and chronic toxicity, carcinogenicity, and genotoxicity, and can induce DNA-adduct formation [12]. Although fungicides are supposed to protect the agro products from fungi as well as mycotoxins, fungicides and mycotoxins have usually been found to co-occur. The accumulating evidence demonstrates the co-existence of AFB1, ZEA and CTN in agro products [13].
Owing to their extreme toxicity and universal co-existence, CTN and mycotoxins are an ever-increasing concern in food safety. Many countries and international organizations have set the maximum residue limits (MRLs) for AFB1, ZEA, and CTN, respectively. The European Commission has set the MRLs as 4 and 2 μg/kg for the sum of aflatoxins (AFB1, AFB2, AFG1, and AFG2) and AFB1 in cereals, respectively. The MRL for ZEA is 60 μg/kg in unprocessed maize; AFB1 is 20 μg/kg, while those for CTN are 50 and 100 μg/kg in peanut and maize, respectively. Given the potential role of multiple contaminants as prognostic markers, it is essential to establish a rapid, simultaneous, and quantitative sensing method for monitoring the co-occurrence of the AFB1, ZEA and CTN.
Various methods have been introduced for the detection of AFB1, ZEA and CTN, including gas chromatography (GC), high-performance liquid chromatography (HPLC), HPLC-tandem mass spectrometry (HPLC–MS/MS) [14], and enzyme-linked immunosorbent assay (ELISA) [15]. It is a recent trend in analytical chemistry to develop rapid and simple detection methods for processing analytes of multiple classes of chemical contaminants with different physicochemical properties. There have been several multi-class methods for detection of chemical contaminants, usually based on HPLC-MS/MS [16,17,18,19]. These analytical methods have many advantages, such as excellent quantitation, precision, and accuracy. However, they have the disadvantages of requiring excessing time and labor, and expensive equipment, well-trained personnel, and prolonged operating time. These methods are thus restricted to use in the laboratory and are not adaptable to on-site application for food safety.
Fortunately, the lateral flow immunoassay has been developed in response to the need for on-site rapid sensing. It has been successfully applied in biological, medicine, food, and environmental analysis [20,21,22,23]. The sensing has the advantages of rapidness, ease of use, cost-efficiency, portability, sensitivity, and specificity. The lateral flow immunoassay systems use a variety of labels, including gold, silver, fluorescent and electrochemical/magnetic particles. Gold is the most popular immunochromatographic label. However, the gold label is susceptible to interference in complex backgrounds caused by matrices in food. Therefore, the elimination of background interference is essential for highly sensitive sensing [24,25,26,27]. The fluorescent lateral flow immunoassay, based on lanthanide Eu3+ chelate labeling with unique fluorescence properties, boasts a prolonged fluorescent life (the order of ms), large Stokes shift, narrow-band emission lines, and high quantum yields. These unique advantages can decrease noise from background signals and scattered light [28,29,30,31], thereby resulting in enhanced sensitivity by recording the fluorescent signal from ns to μs-long lifetimes. This method was developed to detect AFB1 more sensitively than radioimmunoassay or ELISA methods [30,32].
When facing multiple targets of interest (mycotoxins and pesticides), the fabrication of multiple lateral flow immunoassays and sample preparations remains the major challenge. Herein, we propose an on-site, rapid, simultaneous, and quantitative lateral flow immunoassay for AFB1, ZEA, and CTN with three monoclonal antibodies. After optimization, this protocol was validated and evaluated. Subsequently, the comparison between this proposal and HPLC-MS/MS or GC-MS/MS was conducted. Finally, this lateral flow immunoassay was used to sense AFB1, ZEA, and CTN in real maize and peanut samples. The present study allows an alternative for synchronously sensing the multiple kinds of targets, especially for the on-site purpose of ensuring food safety.

2. Results and Discussion

2.1. Preparation [email protected] Particle Conjugates

Carboxylated Eu-nanosphere particles served as the carrier for mAb conjugation. When the pH was slightly higher than the isoelectric point of mAb, the conjugation of mAb on Eu-nanosphere particles was easy. The optimal pH value for [email protected] particle conjugation was 8.2, 8.0, and 8.2 for anti-AFB1, anti-ZEA, anti-CTN, respectively. The dosage of antibodies was optimized to achieve maximal sensitivity and stability. The optimal dose was prepared with different mass ratios of the mAb and Eu-nanosphere particles (0, 5, 10, 20, 30, 40, 50, 60, 70, 80, and 100 µg/kg). To prevent [email protected] particles from aggregating, the lowest stabilizing mAb concentration was optimized, by determining the protein absorbance of the supernatant after conjugation. The optimal mAb concentrations of the three [email protected] particle conjugates were 10, 30, and 80 µg/mL for AFB1, ZEA, and CTN, respectively.

2.2. Optimization of Lateral Flow Strip

The lateral flow immunoassay provided a single-run detection method based on the competitive immunoassay format. The sensing quantification was dependent on the fluorescence intensities of T and C lines, while the sensitivity relied on the sensitivity of the mAb and the concentrations of antigens on the T lines.
To obtain superior sensitivity, experiments were used to determine the optimal immunoreagent concentrations and dilution factors of the [email protected] particle conjugates by using both blank solution and standard solution (0.25, 2.5, 10.0 µg/kg for AFB1, ZEA, CTN).
The serial diluted ratio of [email protected] particle solutions were used to obtain a minimum dosage of mAb on the clear T lines use protective reagent. The optimal concentration, dosage, and dilution ratio for the labeled anti-AFB1, anti-ZEA, and anti-CTN mAbs were evaluated based on ten repetitions, respectively. The T lines displayed a clear color, when the mAb concentrations were 10, 30, and 80 µg/mL with the [email protected] particle dilution of 400×, 300×, and 300× for AFB1, ZEA, and CTN, respectively. These results were in agreement with the recognition that the mAbs with a high affinity had a reduced consumption [33].
Furthermore, various factors can influence the performance of lateral flow immunoassay, such as the amount of immunoreagent on the T lines, the type of nitrocellulose membrane, and the blocking buffer for the sample pad. In addition, 0.6 µL/cm AFB2a-BSA (0.25 mg/mL), 0.7 µL/cm ZEA-BSA (0.5 mg/mL), 0.7 µL/cm CTN-BSA (4 mg/mL), and 0.6 µL/cm rabbit anti-mouse IgG (0.25 mg/mL) were optimized to dispense on the T and C lines, respectively.

2.3. Evaluation of the Lateral Flow Strip Method

2.3.1. Calibration Curve

To establish a standard curve, the spiked sample and the standard solution were employed, respectively. For negative controls, the [email protected] particles present in the solution flowed laterally along the strip towards the T lines where the [email protected] particle complexes are captured by the immobilized antigens on the T lines [T(CTN), T(AFB1), T(ZEA)]. The excess [email protected] particles flowed towards the C line, and AFB1/ZEA/[email protected] particle conjugates were captured by the rabbit anti-mouse IgG on the C line. In the case of positive samples, AFB1/ZEA/CTN-conjugated [email protected] particles did not interact with the immobilized complex on the T lines, but reached the C line, which was indicated by a faint red color (i.e., a positive sample with a low concentration of the analyte) or no color (i.e., a positive sample with a high concentration of the analyte) on the T lines (Figure 1B,C). Then, the T and C lines were inspected by the multi-target reader. This showed that the fluorescent intensity ratio was correlated with the concentration and the three T lines did not interfere with each other. The fluorescence intensity ratios on the T and C lines were inversely proportional to the analyzed concentrations. Therefore, the levels of the analytes were determined in the samples.
The plot of the ratio of the T line value to that of the C line vs. the natural logarithm of the concentration (ln c), established a correlation, which was dependent on the different matrices: Y = a·log [c] + b. The series of concentrations for the analysis of AFB1 (0, 1, 2, 10, 20 µg/kg), ZEA (0, 10, 20, 100, 200 µg/kg), and CTN (0, 10, 50, 100, 300 µg/kg) are shown in Figure 2, and the equations and correlation coefficient (R2) are shown in Table 1. The analytical range of the sensing method was 0.48–20, 1.56–200, and 3.63–300 µg/kg for AFB1, ZEA, and CTN, respectively.

2.3.2. Sensitivity

Both blank solutions and sample extracts containing different concentrations of analytes were prepared and analyzed by lateral flow immunoassay. The standard deviations were calculated to evaluate the LOD of analytical method independently. After the standard deviations (SDs) were obtained from twenty-one measurements of blank matrices of different samples, each LOD was calculated as 3-fold of the SD divided by the absolute slope of the standard curve. The LOQ was calculated as 3-fold of the LOD, representing the lower limit of the linear range. The upper limit of the linear range depended on the color-fading of the T lines. The lower LOD was obtained from ten repetitions. The above two limit values were used as the critical linear range of the calibration curves. According to the above equation, the LODs for ZEA, AFB1, and CTN were calculated (Table 1). The sensing method lowered the limits of detection (LOD) to 0.16, 0.52, and 1.21 µg/kg in maize and 0.18, 0.57, and 1.47 µg/kg in peanut for AFB1, ZEA, and CTN along with the linear ranges from the calibration curves. This established method had an evidently lower LOD when compared with the LOD via the nanogold-based strip method (0.25 μg/kg, 1μg/kg for AFB1, ZEA, 5μg/kg for CTN) [10,34,35].

2.3.3. Repeatability and Reproducibility

Maize and peanut were chosen as the experimental matrixes. When standard addition recovery experiments were conducted, three different concentration levels of each analyte were selected within the linear range of the calibration curves after processing the conversion. Then, these concentrations were spiked into negative maize AFB1 (1, 5, 10 µg/kg), ZEA (5, 20, 60 µg/kg), CTN (10, 20, 50 µg/kg) were investigated, followed by preparation and detection with lateral flow immunoassay. The accuracy of lateral flow immunoassay was mainly evaluated by the average recovery from five parallelly repeated measurements. The precision was calculated by the relative standard deviation (RSD) of the above measurements spiked with different concentration levels. Additionally, the stability of five intra-day measurements was compared with that of inter-day (n = 5) for reproducibility. The average recovery for reproducibility was 91.57% (83.24–110.80%), coefficient of variation (CV) of 5.0% (1.7–9.1%). For intraday reproducibility, the test strips of five different days were used for replicate testing of the samples, and the average recoveries were 91.48% (83.52–108.25%), with a mean CV of 4.8% (0.9–6.3%) (Table 2).

2.4. Sample Preparation

Apart from the optimization of the sensing method, one major challenge lies in the sample preparation, especially for multi-class targets of interest. It would be easier for a single target or single class, because the targets pose similar physical properties during the extraction. To realize the successful sensing of multi-class targets, a one-stop sample preparation should be developed [16,36]. Then, the extraction requests complex clean-up, thus prolonging the sensing time span. Among the glass fiber, polyester, nitrocellulose and cellulose, the GE Fusion 5 was optimized using the sample pad. This pad can efficiently reduce the matrix, thus enhancing the sensitivity. The one-stop sample preparation, including sample grinding and extraction, was simple and required only a short time, compared with the existing sample extraction for multiple classes using HPLC (GC)-MS/MS methods [18,19,20].

2.5. Determination and Evaluation of Real Samples

The eight random naturally contaminated maize and peanut samples were analyzed by the developed lateral flow immunoassay in order to detect AFB1, ZEA, and CTN, followed by other large, precise instruments for confirmation. In this comparison test, HPLC-MS/MS was selected as the confirmed detection method for the simultaneous analysis of AFB1 and ZEA, while GC-MS/MS was the optimum choice for CTN. Each sample was prepared and detected three times, and all of the test results were investigated after data processing. Notably, the reaction solution beyond the scope of the linear range in the application of lateral flow immunoassay requires dilution to a suitable concentration level, followed by detection with a lateral flow immunoassay. The lateral flow immunoassay result had a better correlation with the precision measurement method; R2 > 0.88. As shown in Table 3, AFB1 were found in 62.5% of the 16 samples (4 of 8 maize, 6 of 8 peanut), ZEA were found in 31.25% of the 16 samples (5 of 8 maize), and CTN were found in 37.5% of the 16 samples (3 of 8 maize, 3 of 8 peanut). The consistency among these methods indicated that the lateral flow immunoassay was able to satisfy the requirements of rapid screening on site and even entire quantitation of the multiple components simultaneously.

3. Conclusions

A novel immunochromatographic assay based on time-resolved fluorescent immunochromatography was developed that successfully allowed the rapid and simultaneous detection of AFB1, ZEA, and CTN in maize and peanut. This approach can simultaneously and quantitatively detect mycotoxins and pesticides. After optimization, the prepared strip was lowered the LOD of 0.16, 0.52, and 1.21 µg/kg in maize and 0.18, 0.57, and 1.47 µg/kg in peanut with an analytical range of 0.48–20, 1.56–200, and 3.63–300 µg/kg for AFB1, ZEA, and CTN, respectively. The time required to perform the analysis was 15 min, including sample preparation. The recovery ranged from 83.24% to 110.80%. The intra- and inter-day evaluations were also investigated, thereby suggesting that the method was stable and reliable. An optimal correlation between this approach and HPLC-MS/MS for mycotoxins and GC-MS/MS for pesticides was observed in peanut and corn samples, respectively.

4. Materials and Methods

4.1. Reagents and Apparatus

Standard solutions of AFB1, ZEA, CTN, and AFB2a-BSA (bovine serum albumin) were purchased from Sigma-Aldrich (Urbana, IL, USA). ZEA-BSA was purchased from Aokin AG (Berlin, Germany). The Anti-AFB1 monoclonal antibody and Anti-ZEA monoclonal antibody were prepared in mouse ascites fluid according to previously reported methods in our laboratory. CTN-BSA and CTN antibody were obtained from Wuxi Determine Biotech Co., Ltd. (Wuxi, China). The anti-mouse IgG was purchased from Boster Bioengineering Co., Ltd. (Wuhan, China). Mannitol, 1-Ethyl-3-(3-dimethylaminopropyl) carbodiimide (EDC), sucrose, polyvinylpyrrolidone (PVP), and Tween-20 were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Eu-nanosphere particles Eu-nanosphere particles were obtained from Shanghai Uni-bio Biological Co. (190 ± 10 nm particle size, solid content 0.94%). The nitrocellulose membranes and absorbent pads were procured from Millipore (Bedford, OH, USA). The XYZ 3050 Biostrip Dispenser and CM 4000 Cutter (Bio-Dot, Irvine, CA, USA) were used to prepare lateral flow immunoassay.

4.2. The Portable Multi-Target Reader

The portable multi-target reader was modified for sensing the multiple targets, quantitatively, from the home-made reader [30,37]. The excitation light was 365 nm via the light emitting diode (LED), while the signal acquisition was obtained at 613 ± 10 nm using a photodiode array. The signal data were processed by smoothening and derivation. The operation software included the multi-region analysis and computation module. The fluorescence intensities on both test line (T lines) and control line (C line) were recorded and calculated using data processing software for quantitative analysis.

4.3. Synthesis [email protected] Particle Conjugates

The [email protected] particles were prepared as described previously [28,30]. Briefly, after 200 μL Eu-nanosphere particles were suspended in 800 μL boric acid buffer solution, 40 μL EDC (15 mg/mL) was added in one batch. The mixture was stirred for 15 min, and the suspension separated by centrifugation at 17,000× g for 10 min. The precipitate was re-suspended in 1 mL boric acid buffer by ultrasonication for 1 min. After three mAbs (AFB1, ZEA, and CTN) were added separately at 10 serial concentrations, the reaction was agitated for 12 h before centrifugation at 17,000× g for 10 min. The residue was re-suspended in 1 mL boric acid buffer (containing 0.5% BSA), and the reaction continued for an additional 2 h under shaking at 20 °C. Subsequently, after centrifugation at 17,000× g for 10 min, the precipitate was resuspended in 1 mL boric acid buffer. The [email protected] particles was diluted at a suitable ratio in the protective reagent before lyophilization in the microwell, followed by preservation at 4 °C for further experiments.

4.4. Fabrication of Lateral Flow Immunoassay

The lateral flow immunoassay is shown in Figure 1A. The sample pad, nitrocellulose membrane, and absorbent pad were assembled sequentially onto a plastic backing sheet. Briefly, three antigens (AFB2a-BSA, ZEA-BSA, and CTN-BSA) and goat anti-mouse IgG antibody were coated on the NC membrane (HF07502S25, Millipore, Bedford, OH, USA, 25 mm × 300 mm) as TCTN line, TAFB1 line, and TZEA line) and C line using the XYZ 3050 biostrip dispenser. After overnight drying at 37 °C, the NC membrane was sealed in a plastic bag and stored under dry conditions at room temperature. The C line was located 5 mm distal to the T lines on the NC membrane. The nitrocellulose membrane, sample pad, and absorbent pad were assembled sequentially with 1–2 mm overlap of each component. The whole assembled scale board was divided into 4.5 mm × 70 mm strips with a guillotine cutter and stored at 4 °C. The strips and microwell conjugate mixtures were housed in a plastic cassette with silica desiccant gel and stored under dry conditions.

4.5. Principle of Lateral Flow Immunoassay

The simultaneous lateral flow immunoassay quantification was based on the competitive inhibitory interaction. The [email protected] particle conjugates were diluted by 50×, 100×, 200×, 300×, and 500× with protective reagents (2.5% sucrose, 1% BSA, and 1% mannitol in 0.01 M PBS buffer at pH 7.4). The 0.25 µg/kg of AFB1, 2.5 µg/kg of ZEA, and 10.0 µg/kg of CTN standard solutions and blank solutions were utilized to determine the optimum condition. After lyophilization, the 150 µL solution was injected into microwell mixed for 5 s. Then, the strip was inserted into the microwell and incubated at 37 °C for 8 min. Subsequently, the portable multi-target reader was introduced to record the fluorescent signal on the C line and three T lines.

4.6. Validation of Lateral Flow Immunoassay

The calibration curve, sensitivity, recovery, specificity, accuracy, and stability were investigated using the blank peanut and maize samples spiked with a series of concentrations of mycotoxins and pesticide. Recovery was obtained by spiking the sample with three concentrations of AFB1, ZEA, and CTN, respectively. The specificity was evaluated by the experiment using the spiked sample with over-loading concentration interference. The accuracy and stability were obtained by the intra-assay and inter-assay, respectively.

4.7. Comparison between Lateral Flow Immunoassay and HPLC-MS/MS (GC-MS/MS)

The samples were purchased from the local farm/market to estimate the reliability of lateral flow immunoassay. To validate the lateral flow immunoassay, the results were compared with HPLC-MS/MS (GC-MS/MS). The HPLC-MS/MS system was coupled to a TSQ Quantum Ultra EMR (Thermo Fisher Scientific, San Jose, CA, USA). The HPLC separation was conducted using a Thermo Scientific C18 column (Hypersil Gold, 100 mm × 2.1 mm, 3.0 μm) at 20 °C. The mass spectra were obtained by a triple quadrupole coupled with the electrospray interface (ESI). The MS/MS was operated using ESI sources in a positive or negative mode. The conditions were set as follows: spray voltage at 4.0 kV for ESI+ and −3.0 kV for ESI, capillary temperature at 300 °C. The precursor ion and two product ions (quantification ion/qualification ion) for AFB1 (313.0 and 285.0), and ZEA (317.0 and 130.8) were recorded [38].
The GC-MS/MS system was coupled to a triple quadrupole (Shimadzu, Japan) in the selected multiple reactions monitoring (MRM) mode. The other parameters were column: DB-5ms capillary columns (30 m × 0.25 mm × 0.25 µm), carrier gas: high-purity He gas, column flow: 1 mL/min, PTV injector temperature: 65 °C, column procedure: 40 °C maintained for 4 min, 25 °C/min up to 125 °C, then 10 °C/min up to 300 °C maintained for 4 min. Ion source (EI) temperature: 250 °C; ionization voltage: 70 eV; the precursor ion and two product ions (quantification ion) for CTN (265.90 and 170.10) were also recorded.

4.8. Sample Preparation

Mycotoxin/pesticide-free and positive samples (maize, peanut) were prepared by spiking mixture standard solutions of AFB1/ZEA/CTN. The spiked samples were standing overnight at room temperature. A 10 g sample was homogenized for 2 min in 30 mL 70% methanol (v/v), followed by centrifugation at 8000× g for 2 min. After collecting the supernatants, 1 mL of supernatants was diluted with 3 mL 0.4% Tween-20 solution.

Author Contributions

Conceptualization, Z.Z.; Methodology, D.W. and J.Z.; Validation, W.Z. and X.C.; Formal Analysis, L.Y. and J.J.; Resources, Q.Z. and X.W.; Data Curation, X.X.; Writing-Original Draft Preparation, D.W.; Writing-Review & Editing, Z.Z.; Supervision, P.L.; Project Administration, Z.Z. and P.L.; Funding Acquisition, Z.Z. and P.L.


This work was supported by the National Key R&D Program of China (2018YFC1602505, 2016YFF0201901), National Program for support of Top-notch Young Professionals.

Conflicts of Interest

The authors declare no conflict of interest.


  1. He, Q.; Huang, J.; Yang, X.; Yan, X.; He, J.; Li, S.; Jiang, J. Effect of pesticide residues in grapes on alcoholic fermentation and elimination of chlorothalonil inhibition by chlorothalonil hydrolytic dehalogenase. Food Control 2016, 64, 70–76. [Google Scholar] [CrossRef]
  2. Lacina, O.; Zachariasova, M.; Urbanova, J.; Vaclavikova, M.; Cajka, T.; Hajslova, J. Critical assessment of extraction methods for the simultaneous determination of pesticide residues and mycotoxins in fruits, cereals, spices and oil seeds employing ultra-high performance liquid chromatography-tandem mass spectrometry. J. Chromatogr. A 2012, 1262, 8–18. [Google Scholar] [CrossRef] [PubMed]
  3. Martínez-Domínguez, G.; Romero-González, R.; Garrido Frenich, A. Determination of toxic substances, pesticides and mycotoxins, in ginkgo biloba nutraceutical products by liquid chromatography Orbitrap-mass spectrometry. Microchem. J. 2015, 118, 124–130. [Google Scholar] [CrossRef]
  4. Lin, Y.; Zhou, Q.; Lin, Y.; Tang, D.; Chen, G.; Tang, D. Simple and sensitive detection of aflatoxin B1 within five minute using a non-conventional competitive immunosensing mode. Biosens. Bioelectron. 2015, 74, 680–686. [Google Scholar] [CrossRef] [PubMed]
  5. Azri, F.A.; Sukor, R.; Selamat, J.; Abu Bakar, F.; Yusof, N.A.; Hajian, R. Electrochemical Immunosensor for Detection of Aflatoxin B(1) Based on Indirect Competitive ELISA. Toxins 2018, 10, 196. [Google Scholar] [CrossRef] [PubMed]
  6. Chaves, A.; Shea, D.; Cope, W.G. Environmental fate of chlorothalonil in a Costa Rican banana plantation. Chemosphere 2007, 69, 1166–1174. [Google Scholar] [CrossRef] [PubMed]
  7. Kazos, E.A.; Nanos, C.G.; Stalikas, C.D.; Konidari, C.N. Simultaneous determination of chlorothalonil and its metabolite 4-hydroxychlorothalonil in greenhouse air: Dissipation process of chlorothalonil. Chemosphere 2008, 72, 1413–1419. [Google Scholar] [CrossRef] [PubMed]
  8. Lang, M.; Cai, Z. Effects of chlorothalonil and carbendazim on nitrification and denitrification in soils. J. Environ. Sci. 2009, 21, 458–467. [Google Scholar] [CrossRef]
  9. Li, Y.; Sun, M.; Mao, X.; You, Y.; Gao, Y.; Yang, J.; Wu, Y. Mycotoxins Contaminant in Kelp: A Neglected Dietary Exposure Pathway. Toxins 2018, 10, 481. [Google Scholar] [CrossRef]
  10. Song, S.; Liu, N.; Zhao, Z.; Njumbe Ediage, E.; Wu, S.; Sun, C.; De Saeger, S.; Wu, A. Multiplex lateral flow immunoassay for mycotoxin determination. Anal. Chem. 2014, 86, 4995–5001. [Google Scholar] [CrossRef]
  11. Babu, D.; Muriana, P.M. Sensitive quantification of aflatoxin B1 in animal feeds, corn feed grain, and yellow corn meal using immunomagnetic bead-based recovery and real-time immunoquantitative-PCR. Toxins 2014, 6, 3223–3237. [Google Scholar] [CrossRef]
  12. Chin, W.-C.; Tang, X.; Li, X.; Li, P.; Zhang, Q.; Li, R.; Zhang, W.; Ding, X.; Lei, J.; Zhang, Z. Development and Application of an Immunoaffinity Column Enzyme Immunoassay for Mycotoxin Zearalenone in Complicated Samples. PLoS ONE 2014, 9, e85606. [Google Scholar] [CrossRef]
  13. Schatzmayr, G.; Streit, E. Global occurrence of mycotoxins in the food and feed chain: Facts and figures. World Mycotoxin J. 2013, 6, 213–222. [Google Scholar] [CrossRef]
  14. Changwa, R.; Abia, W.; Msagati, T.; Nyoni, H.; Ndleve, K.; Njobeh, P. Multi-Mycotoxin Occurrence in Dairy Cattle Feeds from the Gauteng Province of South Africa: A Pilot Study Using UHPLC-QTOF-MS/MS. Toxins 2018, 10, 294. [Google Scholar] [CrossRef] [PubMed]
  15. Li, P.; Zhang, Z.; Hu, X.; Zhang, Q. Advanced hyphenated chromatographic-mass spectrometry in mycotoxin determination: Current status and prospects. Mass Spectrom. Rev. 2013, 32, 420–452. [Google Scholar] [CrossRef]
  16. Danezis, G.P.; Anagnostopoulos, C.J.; Liapis, K.; Koupparis, M.A. Multi-residue analysis of pesticides, plant hormones, veterinary drugs and mycotoxins using HILIC chromatography—MS/MS in various food matrices. Anal. Chim. Acta 2016, 942, 121–138. [Google Scholar] [CrossRef] [PubMed]
  17. Luque-Munoz, A.; Vilchez, J.L.; Zafra-Gomez, A. Multiclass method for the determination of pharmaceuticals and personal care products in compost from sewage sludge using ultrasound and salt-assisted liquid-liquid extraction followed by ultrahigh performance liquid chromatography-tandem mass spectrometry analysis. J. Chromatogr. A 2017, 1507, 72–83. [Google Scholar] [CrossRef]
  18. Martínez-Domínguez, G.; Romero-González, R.; Arrebola, F.J.; Garrido Frenich, A. Multi-class determination of pesticides and mycotoxins in isoflavones supplements obtained from soy by liquid chromatography coupled to Orbitrap high resolution mass spectrometry. Food Control 2016, 59, 218–224. [Google Scholar] [CrossRef]
  19. Liu, B.; Huang, R.; Yu, Y.; Su, R.; Qi, W.; He, Z. Gold Nanoparticle-Aptamer-Based LSPR Sensing of Ochratoxin A at a Widened Detection Range by Double Calibration Curve Method. Front. Chem. 2018, 6, 94. [Google Scholar] [CrossRef]
  20. Dzantiev, B.B.; Byzova, N.A.; Urusov, A.E.; Zherdev, A.V. Immunochromatographic methods in food analysis. TrAC Trends Anal. Chem. 2014, 55, 81–93. [Google Scholar] [CrossRef]
  21. Zhao, Y.; Liu, X.; Wang, X.; Sun, C.; Wang, X.; Zhang, P.; Qiu, J.; Yang, R.; Zhou, L. Development and evaluation of an up-converting phosphor technology-based lateral flow assay for rapid and quantitative detection of aflatoxin B1 in crops. Talanta 2016, 161, 297–303. [Google Scholar] [CrossRef] [PubMed]
  22. Di Nardo, F.; Anfossi, L.; Giovannoli, C.; Passini, C.; Goftman, V.V.; Goryacheva, I.Y.; Baggiani, C. A fluorescent immunochromatographic strip test using Quantum Dots for fumonisins detection. Talanta 2016, 150, 463–468. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Raeisossadati, M.J.; Danesh, N.M.; Borna, F.; Gholamzad, M.; Ramezani, M.; Abnous, K.; Taghdisi, S.M. Lateral flow based immunobiosensors for detection of food contaminants. Biosens. Bioelectron. 2016, 86, 235–246. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, A.; Yang, S. Replacing antibodies with aptamers in lateral flow immunoassay. Biosens. Bioelectron. 2015, 71, 230–242. [Google Scholar] [CrossRef]
  25. Chen, L.; Wen, F.; Li, M.; Guo, X.; Li, S.; Zheng, N.; Wang, J. A simple aptamer-based fluorescent assay for the detection of Aflatoxin B1 in infant rice cereal. Food Chem. 2017, 215, 377–382. [Google Scholar] [CrossRef] [PubMed]
  26. Chaivisuthangkura, P.; Pengsuk, C.; Longyant, S.; Sithigorngul, P. Evaluation of monoclonal antibody based immunochromatographic strip test for direct detection of Vibrio cholerae O1 contamination in seafood samples. J. Microbiol. Methods 2013, 95, 304–311. [Google Scholar] [CrossRef] [PubMed]
  27. Gopinath, S.C.; Lakshmipriya, T.; Chen, Y.; Phang, W.M.; Hashim, U. Aptamer-based ‘point-of-care testing’. Biotechnol. Adv. 2016, 34, 198–208. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, Z.; Wang, D.; Li, J.; Zhang, Q.; Li, P. Monoclonal antibody–europium conjugate-based lateral flow time-resolved fluoroimmunoassay for quantitative determination of T-2 toxin in cereals and feed. Anal. Methods 2015, 7, 2822–2829. [Google Scholar] [CrossRef]
  29. Huang, B.; Xiao, H.; Zhang, X.; Zhu, L.; Liu, H.; Jin, J. Ultrasensitive detection of pepsinogen I and pepsinogen II by a time-resolved fluoroimmunoassay and its preliminary clinical applications. Anal. Chim. Acta 2006, 571, 74–78. [Google Scholar] [CrossRef]
  30. Wang, D.; Zhang, Z.; Li, P.; Zhang, Q.; Ding, X.; Zhang, W. Europium Nanospheres-Based Time-Resolved Fluorescence for Rapid and Ultrasensitive Determination of Total Aflatoxin in Feed. J. Agric. Food Chem. 2015, 63, 10313–10318. [Google Scholar] [CrossRef]
  31. Shen, J.; Zhang, Z.; Yao, Y.; Shi, W.; Liu, Y.; Zhang, S. A monoclonal antibody-based time-resolved fluoroimmunoassay for chloramphenicol in shrimp and chicken muscle. Anal. Chim. Acta 2006, 575, 262–266. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, Z.; Tang, X.; Wang, D.; Zhang, Q.; Li, P.; Ding, X. Rapid on-site sensing aflatoxin B1 in food and feed via a chromatographic time-resolved fluoroimmunoassay. PLoS ONE 2015, 10, e0123266. [Google Scholar] [CrossRef] [PubMed]
  33. Wark, K.L.; Hudson, P.J. Latest technologies for the enhancement of antibody affinity. Adv. Drug Deliv. Rev. 2006, 58, 657–670. [Google Scholar] [CrossRef]
  34. Li, X.; Li, P.; Zhang, Q.; Li, R.; Zhang, W.; Zhang, Z.; Ding, X.; Tang, X. Multi-component immunochromatographic assay for simultaneous detection of aflatoxin B1, ochratoxin A and zearalenone in agro-food. Biosens. Bioelectron. 2013, 49, 426–432. [Google Scholar] [CrossRef] [PubMed]
  35. Xing, C.; Liu, L.; Song, S.; Feng, M.; Kuang, H.; Xu, C. Ultrasensitive immunochromatographic assay for the simultaneous detection of five chemicals in drinking water. Biosens. Bioelectron. 2015, 66, 445–453. [Google Scholar] [CrossRef]
  36. Xie, J.; Peng, T.; Zhu, A.; He, J.; Chang, Q.; Hu, X.; Chen, H.; Fan, C.; Jiang, W.; Chen, M.; et al. Multi-residue analysis of veterinary drugs, pesticides and mycotoxins in dairy products by liquid chromatography-tandem mass spectrometry using low-temperature cleanup and solid phase extraction. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2015, 1002, 19–29. [Google Scholar] [CrossRef]
  37. Tang, X.; Zhang, Z.; Li, P.; Zhang, Q.; Jiang, J.; Wang, D.; Lei, J. Sample-pretreatment-free based high sensitive determination of aflatoxin M1in raw milk using a time-resolved fluorescent competitive immunochromatographic assay. RSC Adv. 2015, 5, 558–564. [Google Scholar] [CrossRef]
  38. Zhang, Z.; Hu, X.; Zhang, Q.; Li, P. Determination for multiple mycotoxins in agricultural products using HPLC-MS/MS via a multiple antibody immunoaffinity column. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2016, 1021, 145–152. [Google Scholar] [CrossRef]
Figure 1. (A) Schematic of lateral flow immunoassay by time-resolved fluorescent immunochromatographic strip. (B) Immunoassay procedure for negative and positive samples, respectively. (C) Schematic illustration of the results 1) ZEA (−), AFB1 (−), CTN (−); 2) ZEA (+), AFB1 (−), CTN (−); 3) ZEA (−), AFB1 (+), CTN (−); 4) ZEA (−), AFB1 (−), CTN (+); 5) ZEA (+), AFB1 (+), CTN (+); 6) and 7) invalid. +, positive; −, negative.
Figure 1. (A) Schematic of lateral flow immunoassay by time-resolved fluorescent immunochromatographic strip. (B) Immunoassay procedure for negative and positive samples, respectively. (C) Schematic illustration of the results 1) ZEA (−), AFB1 (−), CTN (−); 2) ZEA (+), AFB1 (−), CTN (−); 3) ZEA (−), AFB1 (+), CTN (−); 4) ZEA (−), AFB1 (−), CTN (+); 5) ZEA (+), AFB1 (+), CTN (+); 6) and 7) invalid. +, positive; −, negative.
Toxins 11 00056 g001

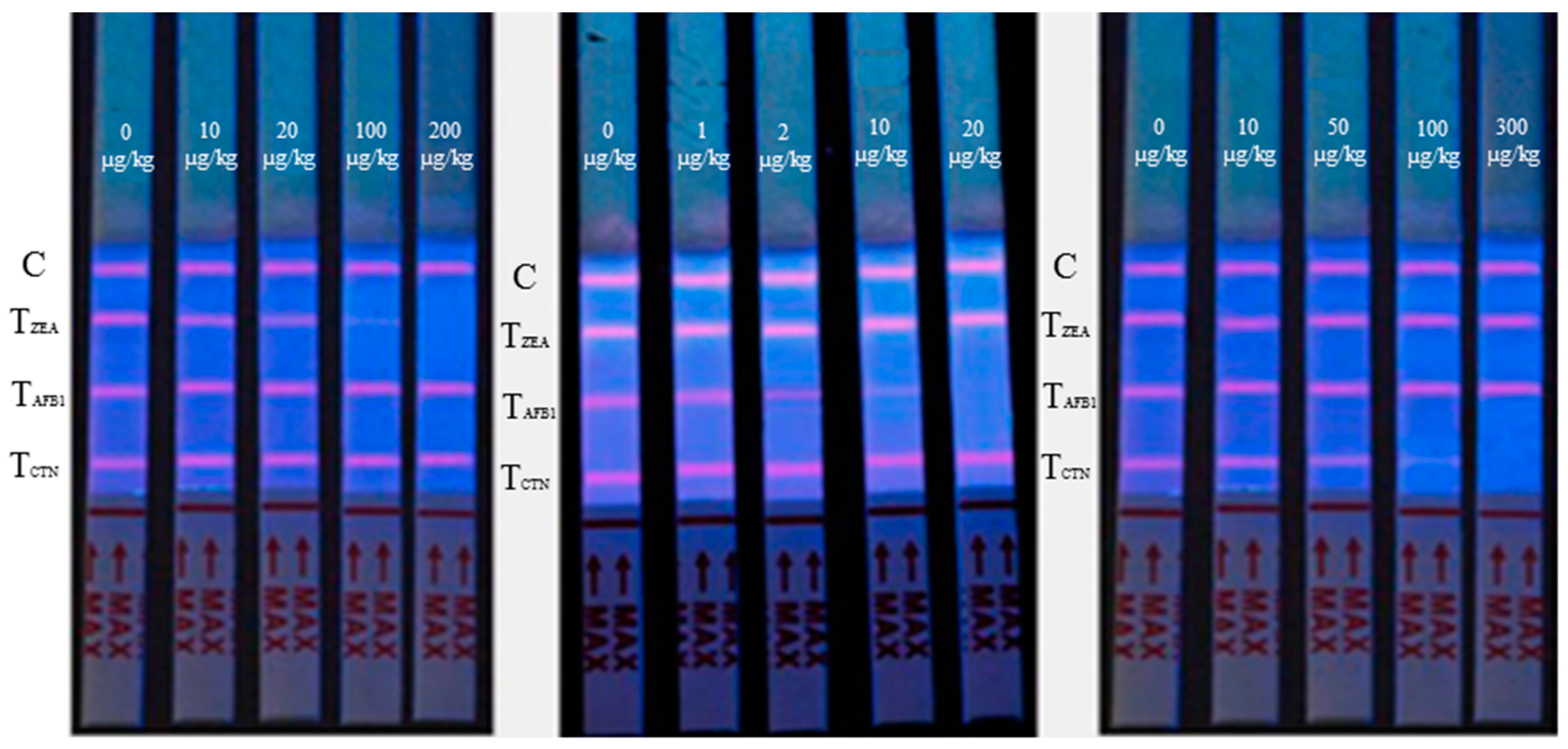

Figure 2. Specificity result spiked by series concentrations of AFB1, ZEA, and CTN, respectively. C: control line; TZEA: test line (ZEA); TAFB1: test line (AFB1); TCTN: test line (CTN).
