Toxins 2019, 11(1), 42; doi:10.3390/toxins11010042

Article
Bioactivity and Structural Properties of Novel Synthetic Analogues of the Protozoan Toxin Climacostol
1
Laboratory of Protistology and Biology Education, Department of Education, Cultural Heritage, and Tourism (ECHT), Università degli Studi di Macerata, 62100 Macerata, Italy
2
Department for Innovation in Biological, Agro-food and Forest systems (DIBAF), Università degli Studi della Tuscia, 01100 Viterbo, Italy
3
School of Sciences and Technologies, Section of Chemistry, Università degli Studi di Camerino, 62032 Camerino, Italy
4
School of Biosciences and Veterinary Medicine, Università degli Studi di Camerino, 62032 Camerino, Italy
*
Correspondence: [email protected]; Tel.: +39-073-3258-5820
These authors contributed equally to this work.
Received: 12 December 2018 / Accepted: 8 January 2019 / Published: 15 January 2019

Abstract

:
Climacostol (5-[(2Z)-non-2-en-1-yl]benzene-1,3-diol) is a resorcinol produced by the protozoan Climacostomum virens for defence against predators. It exerts a potent antimicrobial activity against bacterial and fungal pathogens, inhibits the growth of several human and rodent tumour cells, and is now available by chemical synthesis. In this study, we chemically synthesized two novel analogues of climacostol, namely, 2-methyl-5 [(2Z)-non-2-en-1-yl]benzene-1,3-diol (AN1) and 5-[(2Z)-non-2-en-1-yl]benzene-1,2,3-triol (AN2), with the aim to increase the activity of the native toxin, evaluating their effects on prokaryotic and free-living protists and on mammalian tumour cells. The results demonstrated that the analogue bearing a methyl group (AN1) in the aromatic ring exhibited appreciably higher toxicity against pathogen microbes and protists than climacostol. On the other hand, the analogue bearing an additional hydroxyl group (AN2) in the aromatic ring revealed its ability to induce programmed cell death in protistan cells. Overall, the data collected demonstrate that the introduction of a methyl or a hydroxyl moiety to the aromatic ring of climacostol can effectively modulate its potency and its mechanism of action.
Keywords:
Climacostomum virens; secondary metabolites; resorcinolic lipids; protists; ciliates; apoptosis
Key Contribution: The synthetic analogue 1 of climacostol, bearing a methyl group in the aromatic ring, is more toxic on pathogenic microbes than the native toxin. The substitution of the methyl group with a hydroxyl group confers to analogue 2 the capability to induce programmed cell death on ciliated protists.

1. Introduction

Natural products possess enormous structural and chemical diversity that is unsurpassed by any synthetic libraries and have provided the basis for several effective new drugs [1]. The quality of lead compounds arising from natural sources is high, due to their coevolution with the targets in biological systems. Currently, a great deal of effort is still aimed at discovering novel small molecules or trying to understand the structure–activity relationships of lead compounds. This may help to find new derivatives exhibiting the optimum in potency/selectivity, and to exploit new therapeutic indications.
Climacostol (5-[(2Z)-non-2-en-1-yl]benzene-1,3-diol) is a resorcinolic lipid physiologically produced by the freshwater ciliated protozoan Climacostomum virens for chemical defence against unicellular and multicellular predators [2]. It was structurally characterized and synthetized by Masaki et al. [3], and has more recently been obtained as a pure compound in the natural and most bioactive Z-configuration by a novel and straightforward synthesis [4].
In the last ten years, the studies performed to evaluate the effects of climacostol on bacteria, fungi, protozoa, human and rodent cell lines, and isolated mitochondria have indicated that the toxin exerts antimicrobial, cytotoxic, pro-apoptotic, and genotoxic activities, and that it also induces dysfunctional autophagy. These results have indicated some peculiar structural and functional traits of the molecule, among which the capability to inhibit the respiratory chain complex I in rat liver mitochondria, and the activation of the transcription factor p53 system as the molecular crossroad regulating both the anti-autophagic action of climacostol and its role in the apoptosis induction in tumours [4,5,6,7,8,9,10,11].
Like all resorcinolic lipids, climacostol has a dual, hydrophilic and hydrophobic character, due to the presence in its molecule of a hydroxylated aromatic ring and a straight hydrocarbon chain. Apart from simple 5-alkylresorcinols isolated from plants and bacteria, the occurrence of various derivatives (ring- or chain-modified) has also been demonstrated [12]. For example, the side chain of these compounds can be saturated or it can carry one to four double bonds in a cis configuration, with the localization of double bonds usually related to the chain length [13].
With regard to the hydrocarbon chain of climacostol, Buonanno and Ortenzi [6] demonstrated that the compound’s cytotoxic potency on a panel of various species of free-living freshwater ciliated protozoa can be modulated by the substitution of the double bond with a single or a triple one. This was easily achieved thanks to the availability of synthetic preparations of alkyl and alkynyl derivatives of climacostol [14]. The data collected demonstrated that the cytotoxic potential of climacostol and its two derivatives was directly related to the saturation rate of the hydrocarbon chain, with the native compound showing intermediate activity. Unlike what has been reported for protozoa and microbes, the aromatic ring of climacostol was supposed to play a key role in the inhibition of the growth of mammalian tumour cells [9]. In particular, an apoptotic process is triggered after DNA damage that follows the generation of reactive oxygen species (ROS) in the presence of Cu(II). Of interest, climacostol triggers the death process of tumour cells as a result of early DNA binding and damage [10]. In this respect, in vitro and in vivo results indicated that climacostol exerts an effective and potent cytotoxic, pro-apoptotic, and anti-autophagic action on multiple tumour cells, including the inhibition of mouse melanoma progression thus increasing animal survival [1,10,11]. This evidence indicates climacostol as a highly effective compound to be considered for the design of new anti-cancer drugs.
Anti-cancer properties were also recognized for some polyphenols that can mobilize endogenous copper in human peripheral lymphocytes leading to oxidative DNA breakage [15]. Among these, resveratrol, a natural phenol extracted from grapes, nuts, and other plants, and sharing with climacostol the same hydroxylated aromatic ring, was also reported to induce DNA damage in human lymphocytes in the presence of cupric ions [16]. Interestingly, it was demonstrated that the addition of a hydroxyl group to the ortho position of the aromatic ring contributes to significantly increasing the cytotoxic activity of resveratrol against HL-60 cancer cells [17]. On the other hand, the presence of a methyl group in the hydroxylated aromatic ring of phenolic lipids can significantly enhance their antimicrobial activity. This is the case with 5-methylresorcinols isolated from corn pericarp wax that protects the kernel against Aspergillus flavus infection and aflatoxin production [11,18]; in addition, 5-methylresorcinols isolated from Pseudomonas sp. Ki19 can inhibit the growth of fungi and Gram-positive bacteria such as Aspergillus fumigatus, Fusarium culmorum, and Staphylococcus aureus [19].
These observations led us to study two new synthetic analogues of climacostol, namely, 2-methyl-5 [(2Z)-non-2-en-1-yl]benzene-1,3-diol (AN1) and 5-[(2Z)-non-2-en-1-yl]benzene-1,2,3-triol (AN2), carrying an additional methyl group and a hydroxyl group, respectively, in the aromatic ring (Figure 1). In fact, in the course of researching the structure–activity relationship of climacostol and the mechanism of its pro-oxidant effect, an initial hydroxylation of the aromatic ring was observed [5]. Among the analogues of climacostol, we therefore selected AN1 and AN2 because (i) they do not violate Lipinski’s rule of five, (ii) in DNA cleavage mediated by climacostol the oxygenation required in the aromatic ring does not involve the 2-position, and (iii) a trihydroxylated species acts as an intermediary in the initial hydroxylation of the aromatic ring of alkenyl resorcinol such as climacostol. Compounds were tested for their biological effects on mammalian cells, and on pathogenic microbes and free-living ciliated protists previously studied for their sensitivity to alkyl and alkynyl derivatives of climacostol [6,8], in order to better understand the structure–activity relationships.
The main aim of this study was to identify the structural traits of the native climacostol that could be modified to increase its anti-tumour and/or antimicrobial activities.

2. Results

2.1. Synthesis of Climacostol and Its Analogues

Climacostol (5-[(2Z)-non-2-en-1-yl]benzene-1,3-diol) was synthesized as described in Reference [4].
For the methyl-substituted climacostol analogue AN1 (2-methyl-5 [(2Z)-non-2-en-1-yl]benzene-1,3-diol), no starting material with all the phenyl ring substituents was available, and we therefore started from the same starting material as the climacostol synthesis. We performed (Figure 2) the directed ortho-methylation (DOM) to introduce the methyl group, and this reaction is favoured from the MOM-protecting groups in intermediate 4 which have a strong directing effect on the ortho position [20]. The DOM reaction was carried out using n-BuLi with MeI quench, and for this we had to avoid alkyllithium-reactive ester by reducing the ester moiety to the corresponding alcohol and its protection with the tert-butyldimethylsilyl group (TBDMS) [21]. After ring functionalization, deprotection with TBAF in dry THF and Dess–Martin oxidation gave the desired aldehyde 6 with an excellent yield.
Similarly to what is done in the diastereoselective synthesis of climacostol, the Wittig reaction in the presence of a Lewis acid such as CeCl3 provides the desired (Z)-alkenyl derivative 7 without the presence of (E)-diastereomer. The final MOM-deprotection led to the desired AN1 analogue with free hydroxy groups without olefin isomerization and in excellent yield.
With regard to the preparation of the AN2 analogue (5-[(2Z)-non-2-en-1-yl]benzene-1,2,3-triol) (Figure 3), the synthetic strategy started with the successful deprotection of the methyl ethers of commercially available arylacetic acid derivative 8. Our procedure allowed us to obtain intermediate 9 with a yield of 90%, unlike the 31% yield reported in literature [22]. The esterification with Amberlyst 15 allowed us to obtain the corresponding methyl ester 10, which was used for the next reaction step without further purification [23]. The subsequent treatment of intermediate 10 with an excess of chloromethyl methyl ether afforded the MOM-protected 3,4,5-trihydroxyphenylacetate 11, which was reduced to corresponding aldehyde 12 with DIBAL-H as reported in our climacostol synthesis. Wittig reaction in the presence of anhydrous CeCl3 led exclusively to the Z-isomer, and the final deprotection provided the desired compound AN2 in excellent yield, and above all, spectroscopically pure, avoiding the difficult purification on silica gel column owing to the polar nature of these compounds.

2.2. Spectroscopic Analysis of Climacostol and the AN1 and AN2 Analogues

All NMR spectra were acquired using a Varian 400 spectrometer (Varian – acquired Agilent Technologies, Palo Alto, CA, USA) using standard NMR tubes at 298 K, and operating at 400 MHz for 1H and at 100 MHz for 13C. Residual protic solvent CHCl3H = 7.26) was used as the internal reference, and 13C NMR spectra were recorded using the central resonance of CDCl3C = 77.0) as the internal reference. Unfortunately, it was not possible for us to confirm the stereochemistry at C-2′ and C-3′ double bond in climacostol, AN1, and AN2 (Figure 4 and Figure 5). In particular, 1H NMR spectrum showed that the proton signals H-2′ and H-3′ were not well separated. This meant the impossibility of using conventional 2D NMR methods such as COSY and NOESY because it is known that they fail when key protons signals are poorly resolved [24].
We obtained more information from IR spectrum (Figure 6). IR spectra were recorded on a PerkinElmer FTIR Paragon 500 spectrometer (PerkinElmer, Waltham, MA, USA) using thin films on NaCl plates. The absence of the strong 970 cm−1 band for the E-geometry suggested the Z-geometry for the disubstituted double bond [25].
Through mass spectrometry it was possible to confirm the structure of climacostol, AN1, and AN2 in an unambiguous way. Mass spectra were recorded on an Agilent 5988 gas-chromatograph (Agilent Technologies, Santa Clara, CA, USA) with a mass-selective detector MSD 5790MS (Agilent Technologies, Santa Clara, CA, USA), utilizing electron ionization (EI) at an ionizing energy of 70 eV. A fused silica column (30 m × 0.25 mm HP-5; cross-linked 5% PhMe siloxane, 0.10 μm film thickness) was used with helium carrier flow of 30 mL/min. The temperature of the column was varied, after a delay of 3 min from the injection, from 65 to 300 °C with a slope of 15 °C/min. A characteristic electron ionization mass spectrum was observed for climacostol, AN1, and AN2 (Figure 7). The presence of notable molecular ions at m/z 234, m/z 248, and m/z 250, with base fragments at m/z 124, m/z 138, and m/z 150, respectively, due to McLafferty rearrangement of the phenolic rings, are in agreement with the proposed structures. In this stereochemical study, the presence of odd-electron ions m/z 124, m/z 138, and m/z 150 in conjunction with m/z 137, m/z 151, and m/z 163, respectively, was even more diagnostic. These data confirmed the presence of a double bond between carbons C-2′ and C-3′ [26], and in our procedures the isomerization of the carbon–carbon double bond (Δ2′,3′1′,2′) was not observed.

2.3. Detrimental Effects of Climacostol Analogues on Mammalian Cells

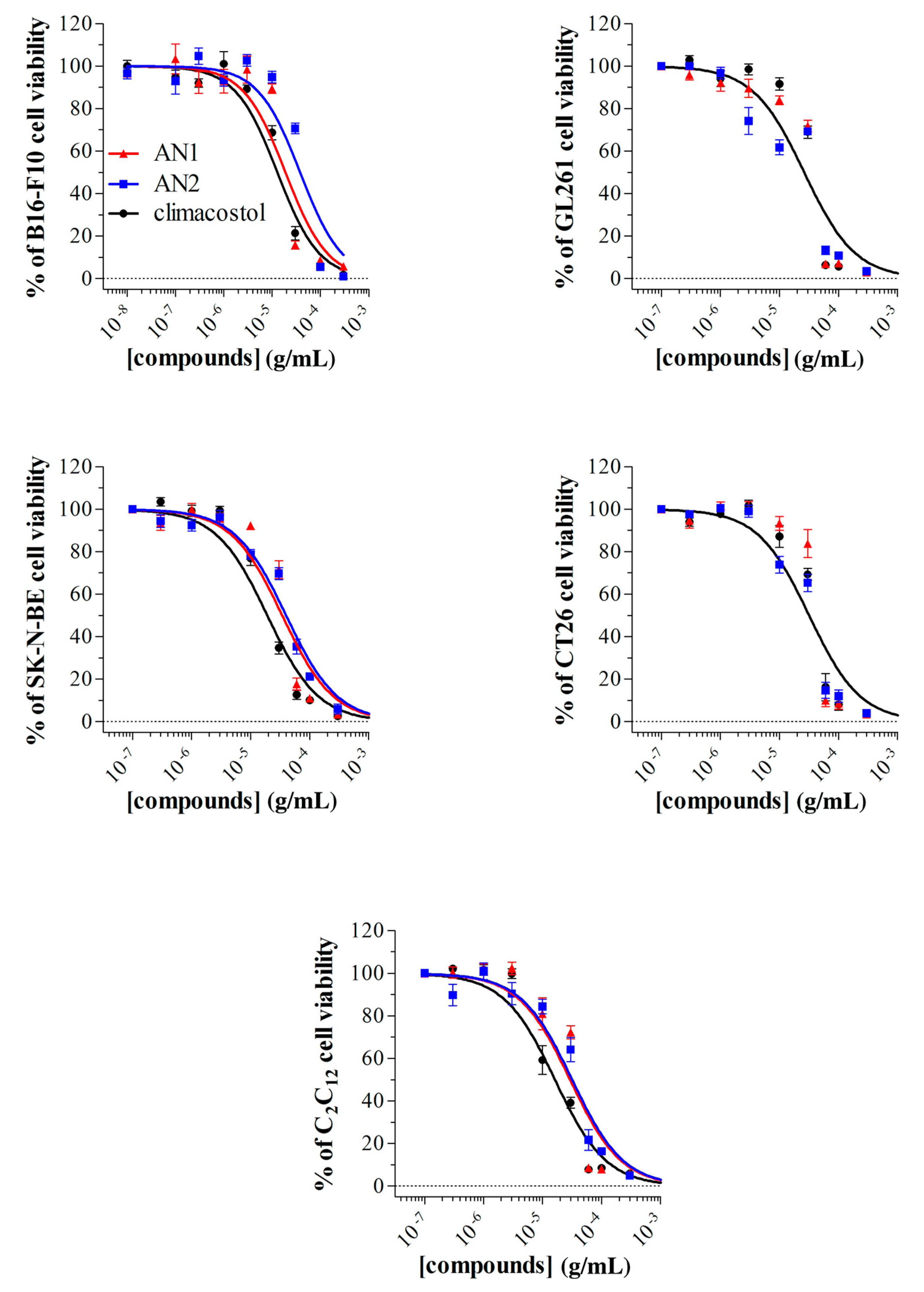

We have recently described the cytotoxic and pro-apoptotic activity of the native molecule climacostol in mammalian cells [1,10,11]. For the sake of comparison, we now tested the in vitro cytotoxic properties of AN1 and AN2 on different immortalised cells of both tumour (B16-F10, GL261, SK-N-BE, and CT26 cells) and non-tumour (C2C12 cells) origin, by MTT assay. Cell treatment with AN1, AN2, and climacostol (24 h) caused a concentration-dependent reduction of MTT absorbance with an Emax concentration value of approximately 30 μg/mL (Figure 8). At the Emax concentration, compounds decreased cell viability by between 90% and 100%. Data also indicated that the viability of cells was negatively affected by AN1 and AN2 with a comparable potency, that is, EC50 ranging from approximately 18 to 40 μg/mL (Table 1). Noteworthy is that both AN1 and AN2 displayed similar or even lower potencies when compared to climacostol.
The signalling events responsible for the climacostol-induced pro-apoptotic effects in tumours, including melanomas, may couple the activation of the executioner caspase 3 [10,11]. Accordingly, immunostaining with a fluorescently labelled antibody that binds specifically to cleaved (active) caspase 3, a hallmark of apoptosis, revealed that B16-F10 melanoma cells expressed active caspase 3 at 9 h after 30 μg/mL AN1, AN2, and climacostol treatment, whereas no specific stain was observed in vehicle-treated (control) cells (Figure 9). These results demonstrate the pro-apoptotic effects of AN1 and AN2, in agreement with previous results [5,10].

2.4. Antimicrobial Activity of Climacostol Analogues

Ethanolic fractions of climacostol, AN1, and AN2 were used in dose–response experiments performed to compare their cytotoxic effects against a panel of bacterial and fungal pathogens, and six species of freshwater ciliates.
The data presented in Table 2 and Table 3 indicate that the two analogues exert an appreciable antimicrobial effect on all the organisms considered in this study, with the exception of Escherichia coli and Pseudomonas aeruginosa that appear substantially not affected by the activity of the toxins.
Among pathogens, AN1 proved to be the most toxic compound against S. aureus, E. faecalis (MIC and MBC values of 8 µg/mL) and C. albicans (MIC and MBC values of 4 µg/mL).
Similarly, AN1 showed the highest toxicity (0.64 µg/mL < LC50 < 2.15 µg/mL) against four ciliates (B. japonicum, P. multimicronucleatum, S. ambiguum, and S. teres), both after 1 h and 24 h of treatment, whereas comparable activities were measured for AN1 and climacostol against E. aediculatus and P. tetraurelia (Table 4).
In contrast to AN1, cytotoxicity values of AN2 appear comparable or worse than those of climacostol, with LC50 ranging from 1.17 µg/mL to 4.63 µg/mL.

2.5. Induction of Necrosis and Apoptosis in Ciliates

As previously reported for the effects of climacostol on free-living ciliates [2,5], the cytotoxicity of both AN1 and AN2 on B. japonicum, P. multimicronucleatum, P. tetraurelia, S. ambiguum, and S. teres appeared to be mediated by necrosis (Table 5), a form of rapid cell injury which does not follow the apoptotic signal transduction pathway. Indeed, ciliates incubated with AN1 or AN2 (see Table 4) were characterized by loss of plasma membrane integrity and uncontrolled release of cellular components into the extracellular space (Figure 10).
On the contrary, whereas AN1 also induced necrosis on E. aediculatus, only programmed cell death was triggered on this ciliate by AN2.
In fact, after 1 h of incubation, no apparent change in cell morphology and no sign of necrosis, such as cell swelling and rupture, were visible under light microscopy, even if different cells showed a slowed locomotion and a tendency to remain at the bottom of the depression slide. Within a period of 2 to 6 h of incubation with AN2, the ciliates showed the typical picture of nuclear events associated with apoptosis. In particular, the early steps of nuclear damage were detectable in Euplotes by labelling of DNA strand breaks (TUNEL), within 2 h of incubation (Figure 11), whereas no TUNEL stain was detected in the presence of AN1 (data not shown).
After 4 h of AN2 incubation, DAPI staining showed that the micronucleus disappeared and the macronucleus was starting to fragment (Figure 12). Increased fragmentation of nuclear apparatus was observed after 6 h, confirming the progress of the apoptotic process.

3. Discussion

3.1. Climacostol and Its Analogues

The alkenylresorcinols are small organic compounds of biogenetic origin via aromatic pathway of interest from pharmacological, biomedical, and biotechnological points of view [13]. A considerable importance in this family of natural products of resorcinolic lipids is given by 1,3-dihydroxybenzene derivatives with 5-alkenyl side chain for their biological qualities [27]. One of the recurrent drawbacks associated with natural products is a limited access to the material. For this reason, chemical synthesis is the best way to solve supply problems, and, in the last years, we have also been involved in studying new synthetic methodologies for small molecules containing a resorcinolic moiety in great quantities in order to carry out the biological tests. Although alkenylresorcinols have a relatively simple structure compared to other derivatives of natural origin, and the preparation schemes require a limited number of synthetic steps, the methodologies studied had to face different problems. The syntheses reported so far in the literature had rather modest yields because of the formation of considerable amounts of by-products structurally similar to the active ingredient, which were therefore difficult to eliminate.
It is known that the role of (Z)-configuration with regard to the hydrocarbon side chain in alkenylresorcinols is crucial in facilitating their biological activity. As a result of our program efforts to develop new synthetic methodologies for agents isolated from natural sources, we studied an innovative diastereoselective synthesis of (Z)-diastereomer alkenyresorcinols with more effectiveness in their biological activity than natural products.
For these reasons, in our studies on alkenylresorcinols that follow the drug likeness Lipinski’s rule [28] such as climacostol and its analogues AN1 and AN2 (Figure 1), we utilized our (Z)-selective methodology reported in Section 2.1.

3.2. Mammalian Cells

In this study, we designed and synthesized climacostol analogues AN1 and AN2 carrying an additional methyl group and hydroxyl group, respectively, in the aromatic ring, in an attempt to enhance the anti-cancer and/or antimicrobial activities of the native compound. Both in vitro and in vivo evidence demonstrated that climacostol is a highly effective cytotoxic compound against a wide range of cancer cells, including those affecting humans, activating apoptosis/disrupting autophagy as a general event. This prompted us to propose the protozoan toxin as a potential lead compound for the design of new anti-cancer drugs [1,10,11], also considering that different molecules produced by other protozoan ciliates show some particular pharmacological properties [9]. For example, the sesquiterpenoid euplotin C or the protein pheromone Er-1 from the Euplotes species, have been previously shown to act respectively as an anti-cancer compound or as an immune-modulatory factor [1,29,30,31,32]; an antibiotic activity against methicillin-resistant Staphylococcus aureus has been recognized in the quinone pigment blepharismin isolated from Blepharisma japonicum [33].
Our data indicate that the insertion of a methyl or a hydroxyl group in the aromatic ring was not able to augment climacostol activity in mammalian cells since the cytotoxic effects of AN1 and AN2 on a panel of mouse and human cell lines resulted in similar or weaker effects to that of climacostol. Although climacostol was reported to be more toxic against tumours than certain immortalised non-tumour cells [10], here it appeared to be as toxic to C2C12 as to the tumour cells tested, suggesting that climacostol effects are not necessarily correlated to the cancerous origin of cells. However, the possibility that climacostol preferentially affects cancerous vs. normal (non-transformed non-immortalised) cells remains to be elucidated. From a mechanistic point of view, the compounds carrying the additional groups acted on the death pathway in the same way as the native molecule. Indeed, the ability to induce apoptosis was confirmed for both AN1 and AN2, thus suggesting the same molecular target of climacostol.

3.3. Bacteria and Fungi

In contrast to what was observed for mammalian cells, the comparison of the antibiotic activity of climacostol and its analogues against microbial pathogens showed some appreciable differences both in MIC and MBC values obtained for the Gram-positive S. aureus ATCC25923 and E. faecalis ATCC29212 and for the fungus C. albicans ATCC24433. In particular, AN1 resulted in the most active compound against the three microorganisms, whereas AN2 showed markedly weaker activity than that of climacostol against the same pathogens.
According to a previous study performed on the same organisms with climacostol and its synthetic alkynyl and alkyl analogues, AN1 and AN2 appeared to be inactive against the Gram-negative E. coli and P. aeruginosa [9,14]. As stated by Petrelli et al. [8], it is possible that the lack of effects observed for the climacostol analogues against E. coli ATCC25922 and P. aeruginosa ATCC27853 can be related to the peculiar structure of the Gram-negative bacterial cell wall, where the outer membrane acts as a selective barrier to prevent the penetration of several compounds, due to the hydrophilic nature of the surface exposed to the environment and to the selectivity of specific outer membrane proteins (i.e., the porins).
The data reported here together with those obtained in previous studies show that the antimicrobial activity of climacostol against bacteria and fungi can be effectively modulated by the derivatization of the aromatic ring with a methyl (i.e., increased effects) or a hydroxyl group (i.e., decreased effects), whereas differences in the saturation rate of the lateral chain, obtained with the synthesis of alkynyl and alkyl analogues, appear unrelated to the activity of the molecule [8].

3.4. Ciliates

Some years ago, Buonanno et al. reported that the cytotoxic potential of synthetic alkynyl and alkyl analogues of climacostol on a panel of free-living ciliated protozoa appeared to be inversely correlated to the unsaturation level of their aliphatic chains [6]. More recently, Quassinti et al. [9] observed that the double bond present in the alkenyl chain of the protozoan toxin might facilitate its interaction with both histone-protected and naked DNA, damaging them extensively by inducing appreciable ROS generation, and strongly suggesting that mtDNA could represent a second important target for the toxin.
Here we demonstrate that the derivatization of the aromatic ring of climacostol can also lead to a synthetic compound showing cytotoxic activity against ciliates that is appreciably different from that of the native toxin.
In fact, treatment of B. japonicum, P. multimicronucleatum, S. ambiguum, and S. teres with climacostol or AN1 resulted in the lowest LC50 values for the analogue, indicating the effectiveness of the addition of a methyl group to the aromatic ring. On the other hand, ciliates treated with climacostol or AN2 did not show relevant differences in the level of cytotoxicity.
Taken together, the data collected in previous and present studies indicate that it is the general structure of the two molecular moieties of climacostol, that is, the hydroxylated aromatic ring and the straight alkenyl chain, which can contribute to the overall cytotoxic behaviour on eukaryotic organisms.

3.5. Cell Death in Ciliates

The physiological function of climacostol in natural environment appears to be linked with both the defence against predators and the capability to paralyze prey before ingestion [2,34,35,36]. Similarly, to other offensive/defensive protozoan secondary metabolites characterized to date, the effects of climacostol on prey and predators appear to be essentially mediated by a necrotic process [2,5]. This process refers to a rapid (unprogrammed) cell death, often caused by external factors such as toxins, and it was likely evolutively selected in ciliates to maximize the efficiency of their poisonous compounds on prey and predators (see [36] for a review).
In contrast to climacostol, the analogues AN1 and AN2 used in this study were not selected by evolution as weapons to hunt prey or repel predators, but designed and chemically synthesized in order to explore their structure–activity relationships in different biological models. Therefore, some modifications and/or modulations of the physiological properties of the native compound were expected.
Our data indicate that the cytotoxicity potency of AN1 on ciliates is higher than that induced by climacostol, and that the two compounds appear to share a common mechanism of necrosis to induce cell death.
On the contrary, even if the cytotoxicity level in ciliates treated with AN2 or climacostol are substantially comparable after 24 h, the mechanism of action of the analogue on E. aediculatus does not match with a necrotic process, but rather resembles programmed cell death.
In fact, events essentially overlapped with those observed for canonical apoptosis of eukaryotic cells were revealed by fluorescence and light microscopy on Euplotes cells incubated with AN2, such as the progressive fragmentation of the macronucleus, the apparent absence of changes in cell morphology, and the lack of severe necrotic damage, such as cell swelling and rupture.
On the one hand, the capability of AN2 to induce apoptosis instead of necrosis in protozoan ciliates is particularly interesting in this context because it confirms the effective possibility to modulate, at least in unicellular eukaryotes, both the toxicity level and the mechanism of action of the lead molecule, by the addition of an OH-radical to the ortho position of the aromatic ring of climacostol. Furthermore, the observation for the first time of apoptosis in E. aediculatus extends the number of free-living and parasitic protozoan species where apoptosis-like processes have been reported, confirming that programmed cell death mechanisms have been evolutively conserved in eukaryotes of different complexity, from unicellular to multicellular ones [37,38]. In this regard, even if apoptosis in multicellular eukaryotes is proposed as an adaptive process that contributes to the normal development and functionality of the organism, no definitive or unique explanation is to date available for apoptosis-like processes described for single-celled organisms, thus opening the way to more in-depth investigations on the significance of this “altruistic suicide” in the ancestors of animals. In the future, AN2 may be a good candidate to explore the extension, features, and significance of apoptosis-like processes eventually present in the main groups of free-living ciliates, for one of which a secondary metabolite purified from Euplotes crassus, euplotin C, led to a detailed description in Euplotes vannus [30].

4. Conclusions

The experimental data reported in our study indicate that the structural modification of the aromatic ring of the protozoan toxin climacostol by the addition of a methyl group (to yield AN1) or a hydroxyl group (to yield AN2), resulted in an appreciable variation of both the toxicity and the action mechanism of the native compound. In fact, whereas similar effects were substantially observed for climacostol and its analogues on mammalian cells, AN1 resulted in the most active compound against bacterial and fungal pathogens, and protists.
Finally, the additional hydroxyl group carried by AN2 appears to be the pivotal structural trait that transforms the analogue into an apoptosis-inducing compound in single-celled eukaryotes.
These results bring new clues to the attempt to design and synthetize additional novel analogues of climacostol that can increase or optimize its pharmacological properties.

5. Materials and Methods

5.1. Cell Cultures

5.1.1. Mammalian Cells

B16-F10 mouse melanoma, GL261 mouse glioma, SK-N-BE human neuroblastoma, CT26 mouse colon cancer, and C2C12 mouse myoblast cells [39,40,41,42,43] were cultured in Iscove’s, Dulbecco’s Modified Eagle Medium (DMEM) high glucose, or DMEM-F12. Medium was supplemented with 10 and 20% heat-inactivated foetal bovine serum, glutamine (2 mM), penicillin/streptavidin (100 U/mL), and 1% Hepes 1 M (pH 7.4). Cells were grown at 37 °C in a humidified atmosphere containing 5% CO2 and routinely passaged every three days at sub-confluent densities.

5.1.2. Bacteria and Fungi

Antimicrobial activity of climacostol and analogues was determined against a panel of microorganisms including Staphylococcus aureus ATCC25923, Escherichia coli ATCC25922, Pseudomonas aeruginosa ATCC27853, Enterococcus faecalis ATCC 29212, and Candida albicans ATCC 24433.

5.1.3. Ciliated Protists

Blepharisma japonicum strain R1072 [35,44], Euplotes aediculatus clone EA-III [45,46], Paramecium multimicronucleatum clone TL-2 [46], Paramecium tetraurelia stock 51 [47], Spirostomum ambiguum stock Pol-5 [48], Spirostomum teres stock Pol-1 [49], and Stentor roeseli clone TL-4 [45] were cultured in synthetic medium for Blepharisma (SMB) (1.5 mM NaCl, 0.05 mM KCl, 0.4 mM CaCl2, 0.05 mM MgCl2, 0.05 mM MgSO4, 2 mM Na-phosphate buffer pH 6.8, 2 × 10−3 mM EDTA) and fed with the flagellate Chlorogonium elongatum, cultivated as described in [50], or in Jaworski’s Medium (JM) solution.

5.2. Climacostol and Its Analogues

Chemically-synthesized climacostol and its two analogues AN1 and AN2 were dissolved in ethanol (1 mg/mL) and stored in the dark at −20 °C. The solutions were diluted with the appropriate medium at the time of the experiment.

5.3. 3-(4,5-Dimethylthiazol-2-yl)-2,5-Diphenyltetrazolium Bromide (MTT) Assay

Cell viability was determined by MTT assay using published protocols [29,31,51,52]. Briefly, the assay was performed treating cells for 24 h in the absence (vehicle) or in the presence of increasing concentrations of compounds. MTT absorbance was quantified spectrophotometrically using a Glomax Multi Detection System microplate reader (Promega, Milan, Italy).
EC50 (the concentration producing half the maximum effect) and Emax concentration (producing the maximum effect) were determined by nonlinear regression curve analysis of the concentration–effect responses. Differences in potency values among concentration–response curves were calculated with the F-test. The GraphPad Prism software package (GraphPad Software, San Diego, CA, USA) was used.

5.4. Immunofluorescence Detection of Caspase 3 Activity

As previously detailed [10], B16-F10 cells cultured in 120 mm coverslips were fixed in 4% paraformaldehyde in 0.1 M PB, pH 7.4, for 10 min and overnight stained with anti-cleaved-caspase 3 antibody (Cell Signaling Technology, Danvers, MA, USA), in PB containing 0.5% Triton X-100. Cells were then stained with the appropriate Alexa Fluor secondary antibodies (Life Technologies, Monza, Italy), for 1 h and cover-slipped in a ProLong Gold Antifade Mountant (Life Technologies), stained with fluorescein phalloidin (cytoskeleton detection) (Life Technologies) and DAPI (nuclei detection) (Sigma-Aldrich, St. Louis, MO, USA). Slides were analysed using a Zeiss microscope (Axioskop 2 plus, Carl Zeiss, Oberkochen, Germany) equipped with the Axiocam MRC photocamera and the Axiovision software. Images were then optimized for contrast and brightness using Adobe Photoshop (Adobe Systems, Mountain View, CA, USA).

5.5. Cytotoxicity Assay on Microorganisms

Climacostol and its analogues were tested against a panel of pathogen microbes including Staphylococcus aureus ATCC 25923, Escherichia coli ATCC 25922, Pseudomonas aeruginosa ATCC 27853, Enterococcus faecalis ATCC 29212, and Candida albicans ATCC 24433 [53].
Two-fold serial dilutions of each compound (resuspended in ethanol to a final concentration of 10 mg/mL) were prepared in 96-well plates, starting from 512 µg/mL in cation-adjusted Mueller Hinton Broth, to test bacterial strains and RPMI 1640 medium for Candida albicans. An equal volume of bacterial (106 colony-forming units (CFU)/mL) or fungal (2.5 × 105 CFU/mL) inoculum was added to each well of the microtiter plate containing 0.1 mL of the serially diluted test molecule. All tests were done in triplicate. After incubation for 18–24 h at 35 °C (24–48 h in the case of Candida), in normal atmosphere, the minimum inhibitory concentration (MIC) was determined by the broth microdilution method and the minimum bactericidal concentration (MBC) was subsequently determined as recommended by the European Committee on Antimicrobial Susceptibility Testing guidelines.
To evaluate the toxicity of climacostol and its analogues on ciliates, triplicate samples of 10 ciliate cells were placed in depression slides containing 250 μL SMB and increasing concentrations of each toxin (from 0.5 to 50 μg/mL). The number of surviving organisms (normal morphology and locomotion) was counted, after 1 h and 24 h. The median lethal concentrations (LC50) were estimated on the basis of a concentration–survival curve (GraphPad Prism software, version 4.0, GraphPad, San Diego, CA, 2003), and the difference in sample means were expressed using the 95% level of confidence, essentially according to the procedure described in [54].

5.6. Necrosis/Apoptosis Detection on Ciliates

The induction of necrosis on ciliates was assessed by light microscopy after 20 min of incubation with climacostol, AN1, or AN2.
For the detection of apoptosis, published protocols were used [29]. Briefly, E. aediculatus cells were fixed in paraformaldehyde 4% in PBS, then they were washed in PBS, mounted onto polysin slides, and finally coverslipped with Fluoroshield mounting medium containing DAPI (Abcam, Cambridge, UK). Alternatively, they were processed by TUNEL method (DeadEnd Fluorometric TUNEL System, Promega) according to the manufacturer’s instructions. DAPI staining, fluorescent TUNEL signal, and the corresponding bright field images were acquired using a Zeiss microscope (Axioskop 2 plus, Carl Zeiss, Oberkochen, Germany) equipped with the Axiocam MRC photocamera and the Axiovision software. Images were then optimized for contrast and brightness using Adobe Photoshop (Adobe Systems, Mountain View, CA, USA).

Author Contributions

Conceptualization, F.B., E.C., D.C., S.G., E.M. and C.O.; Methodology, F.B., E.C., F.P.S., S.P., S.G., G.L., F.V.R. and D.P.; Software, F.B., E.C. and D.C.; Validation, F.B. and E.C.; Formal Analysis, F.B., E.C. and D.C.; Investigation, F.B., E.C., D.C., F.P.S., S.P., S.G., D.P. and C.O.; Resources, C.O., D.C., E.M. and A.M.F.; Data Curation, S.G., G.L., F.V.R., E.M., S.P. and D.P.; Writing–Original Draft Preparation, F.B., E.C., C.O., D.C. and E.M.; Writing–Review and Editing, C.O., D.C. and E.M.; Visualization, F.B., E.C. and A.M.F.; Supervision, C.O.; Project Administration, C.O.; Funding Acquisition, C.O., F.B., D.C., A.M.F. and E.M.

Funding

This research was funded by University of Camerino, University of Macerata, and University of Viterbo. The article processing charge (APC) was funded by University of Macerata.

Acknowledgments

The authors wish to thank Gill Philip (University of Macerata, Italy) for the linguistic revision of the text.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Catalani, E.; Proietti Serafini, F.; Zecchini, S.; Picchietti, S.; Fausto, A.M.; Marcantoni, E.; Buonanno, F.; Ortenzi, C.; Perrotta, C.; Cervia, D. Natural products from aquatic eukaryotic microorganisms for cancer therapy: Perspectives on anti-tumour properties of ciliate bioactive molecules. Pharmacol. Res. 2016, 113, 409–420. [Google Scholar] [CrossRef] [PubMed]
  2. Miyake, A.; Buonanno, F.; Saltalamacchia, P.; Masaki, M.E.; Iio, H. Chemical defence by means of extrusive cortical granules in the heterotrich ciliate Climacostomum virens. Eur. J. Protistol. 2003, 39, 25–36. [Google Scholar] [CrossRef]
  3. Masaki, M.E.; Harumoto, T.; Terazima, M.N.; Miyake, A.; Usuki, Y.; Iio, H. Climacostol, a defense toxin of the heterotrich ciliate Climacostomum virens against predators. Tetrahedron Lett. 1999, 40, 8227–8229. [Google Scholar] [CrossRef]
  4. Fiorini, D.; Giuli, S.; Marcantoni, E.; Quassinti, L.; Bramucci, M.; Amantini, C.; Santoni, G.; Buonanno, F.; Ortenzi, C. A straightforward diastereoselective synthesis and evaluation of climacostol, a natural product with anticancer activities. Synthesis 2010, 9, 1550–1556. [Google Scholar] [CrossRef]
  5. Buonanno, F.; Quassinti, L.; Bramucci, M.; Amantini, C.; Lucciarini, R.; Santoni, G.; Iio, H.; Ortenzi, C. The protozoan toxin climacostol inhibits growth and induces apoptosis of human tumor cell lines. Chem. Biol. Interact. 2008, 176, 151–164. [Google Scholar] [CrossRef] [PubMed]
  6. Buonanno, F.; Ortenzi, C. The protozoan toxin climacostol and its derivatives: Cytotoxicity studies on 10 species of free-living ciliates. Biologia 2010, 65, 675–680. [Google Scholar] [CrossRef][Green Version]
  7. Muto, Y.; Tanabe, Y.; Kawai, K.; Okano, Y.; Iio, H. Climacostol inhibits Tetrahymena motility and mitochondrial respiration. Cent. Eur. J. Biol. 2011, 6, 99–104. [Google Scholar] [CrossRef]
  8. Petrelli, D.; Buonanno, F.; Vitali, L.A.; Ortenzi, C. Antimicrobial activity of the protozoan toxin climacostol and its derivatives. Biologia 2012, 67, 525–529. [Google Scholar] [CrossRef][Green Version]
  9. Quassinti, L.; Ortenzi, F.; Marcantoni, E.; Ricciutelli, M.; Lupidi, G.; Ortenzi, C.; Buonanno, F.; Bramucci, M. DNA binding and oxidative DNA damage induced by climacostol–copper(II) complexes: Implications for anticancer properties. Chem. Biol. Interact. 2013, 206, 109–116. [Google Scholar] [CrossRef][Green Version]
  10. Perrotta, C.; Buonanno, F.; Zecchini, S.; Giavazzi, A.; Proietti Serafini, F.; Catalani, E.; Guerra, L.; Belardinelli, M.C.; Picchietti, S.; Fausto, A.M.; et al. Climacostol reduces tumour progression in a mouse model of melanoma via the p53-dependent intrinsic apoptotic programme. Sci. Rep. 2016, 6, 27281. [Google Scholar] [CrossRef][Green Version]
  11. Zecchini, S.; Proietti Serafini, F.; Catalani, E.; Giovarelli, M.; Coazzoli, M.; Di Renzo, I.; De Palma, C.; Perrotta, C.; Clementi, E.; Buonanno, F.; et al. Dysfunctional autophagy induced by the pro-apoptotic matural compound climacostol in tumour cells. Cell Death Dis. 2019, 10. [Google Scholar] [CrossRef] [PubMed]
  12. Stasiuk, M.; Kozubek, A. Biological activity of phenolic lipids. Cell. Mol. Life Sci. 2010, 67, 841–860. [Google Scholar] [CrossRef] [PubMed]
  13. Kozubek, A.; Tyman, J.H.P. Resorcinolic lipids, the natural non-isoprenoid phenolic amphiphiles and their biological activity. Chem. Rev. 1999, 99, 1–25. [Google Scholar] [CrossRef] [PubMed]
  14. Masaki, M.E.; Hiro, S.; Usuki, Y.; Harumoto, T.; Terazima, M.N.; Buonanno, F.; Miyake, A.; Iio, H. Climacostol, a defense toxin of Climacostomum virens (protozoa, ciliata), and its congeners. Tetrahedron 2004, 60, 7041–7048. [Google Scholar] [CrossRef]
  15. Azmi, A.S.; Bhat, S.H.; Hanif, S.; Hadi, S.M. Plant polyphenols mobilize endogenous copper in human peripheral lymphocytes leading to oxidative DNA breakage: A putative mechanism for anticancer properties. FEBS Lett. 2006, 580, 533–538. [Google Scholar] [CrossRef] [PubMed]
  16. Azmi, A.S.; Bhat, S.H.; Hadi, S.M. Resveratrol–Cu(II) induced DNA breakage in human peripheral lymphocytes: Implications for anticancer properties. FEBS Lett. 2005, 579, 3131–3135. [Google Scholar] [CrossRef]
  17. Zheng, L.-F.; Wei, Q.-Y.; Cai, Y.-J.; Fang, J.-G.; Zhou, B.; Yang, L.; Liu, Z.-L. DNA damage induced by resveratrol and its synthetic analogues in the presence of Cu(II) ions: Mechanism and structure-activity relationship. Free Radic. Biol. Med. 2006, 41, 1807–1816. [Google Scholar] [CrossRef]
  18. Gembeh, S.V.; Brown, R.L.; Grimm, C.; Cleveland, T.E. Identification of chemical components of corn kernel pericarp wax associated with resistance to Aspergillus flavus infection and aflatoxin production. J. Agric. Food Chem. 2001, 49, 4635–4641. [Google Scholar] [CrossRef]
  19. Mukherjee, P.K. Evidence-Based Validation of Herbal Medicine, 1st ed.; Elsevier: Amsterdam, The Netherlands, 2015; ISBN 9780128008744. [Google Scholar]
  20. Donnelly, A.C.; Mays, J.R.; Burlison, J.A.; Nelson, J.T.; Vielhauer, G.; Holzbeierlein, J.; Blagg, B.S.J. The design, synthesis, and evaluation of Coumarin ring derivatives of the Novobiocin scaffold that exhibit antiproliferative activity. J. Org. Chem. 2008, 73, 8901–8920. [Google Scholar] [CrossRef]
  21. Cleary, L.; Pitzen, J.; Brailsford, J.A.; Shea, K. Progress toward the total synthesis of N-methylwelwitindolinone β isothiocyanate. Org. Lett. 2014, 16, 4480–4483. [Google Scholar] [CrossRef]
  22. Gomes, C.A.; Girao da Cruz, T.; Andrade, L.J.; Milhazes, N.; Borgers, F.; Marques, M.P.M. Anticancer activity of phenolic acids of natural or synthetic origin: A structure-activity study. J. Med. Chem. 2003, 46, 5395–5401. [Google Scholar] [CrossRef] [PubMed]
  23. Petrini, M.; Ballini, R.; Marcantoni, E.; Rosini, G. Amberlyst 15: A practical, mild and selective catalyst for methyl esterification of carboxylix acids. Synth. Commun. 1988, 18, 847–853. [Google Scholar] [CrossRef]
  24. Crouch, R.C.; McFayden, R.B.; Daluge, S.M.; Martin, G.E. Disentangling coupling and NOE pathways involving poorly resolved proton signals: HMQC-TOCSY and HMQC-NOESY. Magn. Reson. Chem. 1990, 28, 792–796. [Google Scholar] [CrossRef]
  25. Van Aller, R.M.; Clark, L.R.; Pessoney, G.F.; van Rogers, A.A.A. Prostaglandin-like fatty acid from a species in the cyperaceae. Lipids 1983, 18, 617–622. [Google Scholar] [CrossRef]
  26. Knodler, M.; Berardini, N.; Kanmerer, D.R.; Carle, R.; Schieber, A. Characterization of major and minor alk(en)ylresorcinols from mango (Mangifera indica L.) peels by high-performance liquid chromatography/atmospheric pressure chemical ionization mass spectrometry. Rapid Commun. Mass Spectrom. 2007, 21, 945–951. [Google Scholar] [CrossRef]
  27. Tanaka, A.; Arai, Y.; Kim, S.-N.; Ham, J.; Usuki, T. Synthesis and biological avaluation of bilobol and adipostatin A. J. Asian Nat. Prod. Res. 2011, 13, 290–296. [Google Scholar] [CrossRef]
  28. Lipinski, C.A. Lead- and drug-like compounds: The rule-of-five revolution. Drug Discov. Today Technol. 2004, 1, 337–341. [Google Scholar] [CrossRef] [PubMed]
  29. Cervia, D.; Garcia-Gil, M.; Simonetti, E.; Di Giuseppe, G.; Guella, G.; Bagnoli, P.; Dini, F. Molecular mechanisms of euplotin C-induced apoptosis: Involvement of mitochondrial dysfunction, oxidative stress and proteases. Apoptosis 2007, 12, 1349–1363. [Google Scholar] [CrossRef]
  30. Cervia, D.; Di Giuseppe, G.; Ristori, C.; Martini, D.; Gambellini, G.; Bagnoli, P.; Dini, F. The secondary metabolite euplotin C induces apoptosis-like death in the marine ciliated protist Euplotes vannus. J. Euk. Microbiol. 2009, 56, 263–269. [Google Scholar] [CrossRef]
  31. Cervia, D.; Catalani, E.; Belardinelli, M.C.; Perrotta, C.; Picchietti, S.; Alimenti, C.; Casini, G.; Fausto, A.M.; Vallesi, A. The protein pheromone Er-1 of the ciliate Euplotes raikovi stimulates human T-cell activity: Involvement of interleukin-2 system. Exp. Cell. Res. 2013, 319, 56–67. [Google Scholar] [CrossRef]
  32. Luporini, P.; Alimenti, C.; Vallesi, A. Ciliate pheromone structures and activity: A review. Ital. J. Zool. 2015, 82, 3–14. [Google Scholar] [CrossRef]
  33. Pant, B.; Kato, Y.; Kumagai, T.; Matsuoka, T.; Sugiyama, M. Blepharismin produced by a protozoan Blepharisma functions as antibiotic effective against methicillin-resistant Staphylococcus aureus. FEMS Microbiol. Lett. 1997, 155, 67–71. [Google Scholar] [CrossRef] [PubMed]
  34. Sugibayashi, R.; Harumoto, T. Defensive function of trichocysts in Paramecium tetraurelia against heterotrich ciliate Climacostomum virens. Eur. J. Protistol. 2000, 36, 415–422. [Google Scholar] [CrossRef]
  35. Terazima, M.N.; Harumoto, T. Defense function of pigment granules in the ciliate Blepharisma japonicum against two predatory protists, Amoeba proteus (Rhizopodea) and Climacostomum virens (Ciliata). Zool. Sci. 2004, 21, 823–828. [Google Scholar] [CrossRef] [PubMed]
  36. Buonanno, F.; Ortenzi, C. Predator-prey interactions in ciliated protists. In Extremophilic Microbes and Metabolites—Diversity, Bioprespecting and Biotechnological Applications, 1st ed.; InTechOpen: London, UK, in press. [CrossRef]
  37. Nedelcu, A.M.; Driscoll, W.W.; Durand, P.M.; Herron, M.D.; Rashidi, A. On the paradigm of altruistic suicide in the unicellular world. Evolution 2011, 65, 3–20. [Google Scholar] [CrossRef] [PubMed]
  38. Kaczanowski, S.; Sajid, M.; Reece, S.E. Evolution of apoptosis-like programmed cell death in unicellular protozoan parasites. Parasites Vectors 2011, 4, 4–44. [Google Scholar] [CrossRef] [PubMed]
  39. Bizzozero, L.; Cazzato, D.; Cervia, D.; Assi, E.; Simbari, F.; Pagni, F.; De Palma, C.; Monno, A.; Verdelli, C.; Querini, P.R.; et al. Acid sphingomyelinase determines melanoma progression and metastatic behaviour via the microphtalmia-associated transcription factor signalling pathway. Cell Death Differ. 2014, 21, 507–520. [Google Scholar] [CrossRef] [PubMed]
  40. Cazzato, D.; Assi, E.; Moscheni, C.; Brunelli, S.; De Palma, C.; Cervia, D.; Perrotta, C.; Clementi, E. Nitric oxide drives embryonic myogenesis in chicken through the upregulation of myogenic differentiation factors. Exp. Cell Res. 2014, 320, 269–280. [Google Scholar] [CrossRef]
  41. Assi, E.; Cervia, D.; Bizzozero, L.; Capobianco, A.; Pambianco, S.; Morisi, F.; De Palma, C.; Moscheni, C.; Pellegrino, P.; Clementi, E.; et al. Modulation of Acid Sphingomyelinase in Melanoma Reprogrammes the Tumour Immune Microenvironment. Mediat. Inflamm. 2015. [Google Scholar] [CrossRef]
  42. Cervia, D.; Assi, E.; De Palma, C.; Giovarelli, M.; Bizzozero, L.; Pambianco, S.; Di Renzo, I.; Zecchini, S.; Moscheni, C.; Vantaggiato, C.; et al. Essential role for acid sphingomyelinase-inhibited autophagy in melanoma response to cisplatin. Oncotarget 2016, 7, 24995–25009. [Google Scholar] [CrossRef][Green Version]
  43. Perrotta, C.; Cervia, D.; Di Renzo, I.; Moscheni, C.; Bassi, M.T.; Campana, L.; Martelli, C.; Catalani, E.; Giovarelli, M.; Zecchini, S.; et al. Nitric Oxide Generated by Tumor-Associated Macrophages Is Responsible for Cancer Resistance to Cisplatin and Correlated With Syntaxin 4 and Acid Sphingomyelinase Inhibition. Front. Immunol. 2018, 9, 1186. [Google Scholar] [CrossRef] [PubMed]
  44. Harumoto, T.; Miyake, A.; Ishikawa, N.; Sugibayashi, R.; Zenfuku, K.; Iio, H. Chemical defense by means of pigmented extrusomes in the ciliate Blepharisma japonicum. Eur. J. Protistol. 1998, 34, 458–470. [Google Scholar] [CrossRef]
  45. Buonanno, F.; Anesi, A.; Guella, G.; Ortenzi, C. Blepharismins used for chemical defense in two ciliate species of the genus Blepharisma, B. stoltei and B. undulans (Ciliophora: Heterotrichida). Eur. Zool. J. 2017, 402–409. [Google Scholar] [CrossRef]
  46. Buonanno, F.; Anesi, A.; Di Giuseppe, G.; Guella, G.; Ortenzi, C. Chemical defense by erythrolactones in the euryhaline ciliated protist, Pseudokeronopsis erythrina. Zool. Sci. 2017, 34, 42–51. [Google Scholar] [CrossRef] [PubMed]
  47. Buonanno, F.; Harumoto, T.; Ortenzi, C. The defensive function of trichocysts in Paramecium tetraurelia against metazoan predators compared with the chemical defense of two species of toxin-containing ciliates. Zool Sci. 2013, 30, 255–261. [Google Scholar] [CrossRef] [PubMed]
  48. Buonanno, F.; Guella, G.; Strim, C.; Ortenzi, C. Chemical defence by mono-prenyl hydroquinone in a freshwater ciliate, Spirostomum ambiguum. Hydrobiologia 2012, 684, 97–107. [Google Scholar] [CrossRef]
  49. Buonanno, F. The changes in the predatory behavior of the microturbellarian Stenostomum sphagnetorum on two species of toxin-secreting ciliates of the genus Spirostomum. Biologia 2011, 66, 648–653. [Google Scholar] [CrossRef]
  50. Buonanno, F.; Saltalamacchia, P.; Miyake, A. Defense function of pigmentocysts in the karyorelictid ciliate Loxodes striatus. Eur. J. Protistol. 2005, 41, 151–158. [Google Scholar] [CrossRef]
  51. Di Giuseppe, G.; Cervia, D.; Vallesi, A. Divergences in the Response to Ultraviolet Radiation Between Polar and Non-Polar Ciliated Protozoa: UV Radiation Effects in Euplotes. Microb. Ecol. 2011, 63, 334–338. [Google Scholar] [CrossRef]
  52. Cervia, D.; Fehlmann, D.; Hoyer, D. Native somatostatin sst2 and sst5 receptors functionally coupled to Gi/o-protein, but not to the serum response element in AtT-20 mouse tumour corticotrophs. N.-S. Arch. Pharmacol. 2003, 367, 578–587. [Google Scholar] [CrossRef][Green Version]
  53. Petrelli, D.; Repetto, A.; D’Ercole, S.; Rombini, S.; Ripa, S.; Prenna, M.; Vitali, L.A. Analysis of methicillin- susceptible and methicillin-resistant biofilm forming Staphylococcus aureus from catheter infections isolated in a large Italian hospital. J. Med. Microbiol. 2008, 57, 364–372. [Google Scholar] [CrossRef] [PubMed]
  54. Buonanno, F. Antipredator behavior of freshwater microturbellarian Stenostomum sphagnetorum against the predatory ciliate Dileptus margaritifer. Zool. Sci. 2009, 26, 443–447. [Google Scholar] [CrossRef] [PubMed]

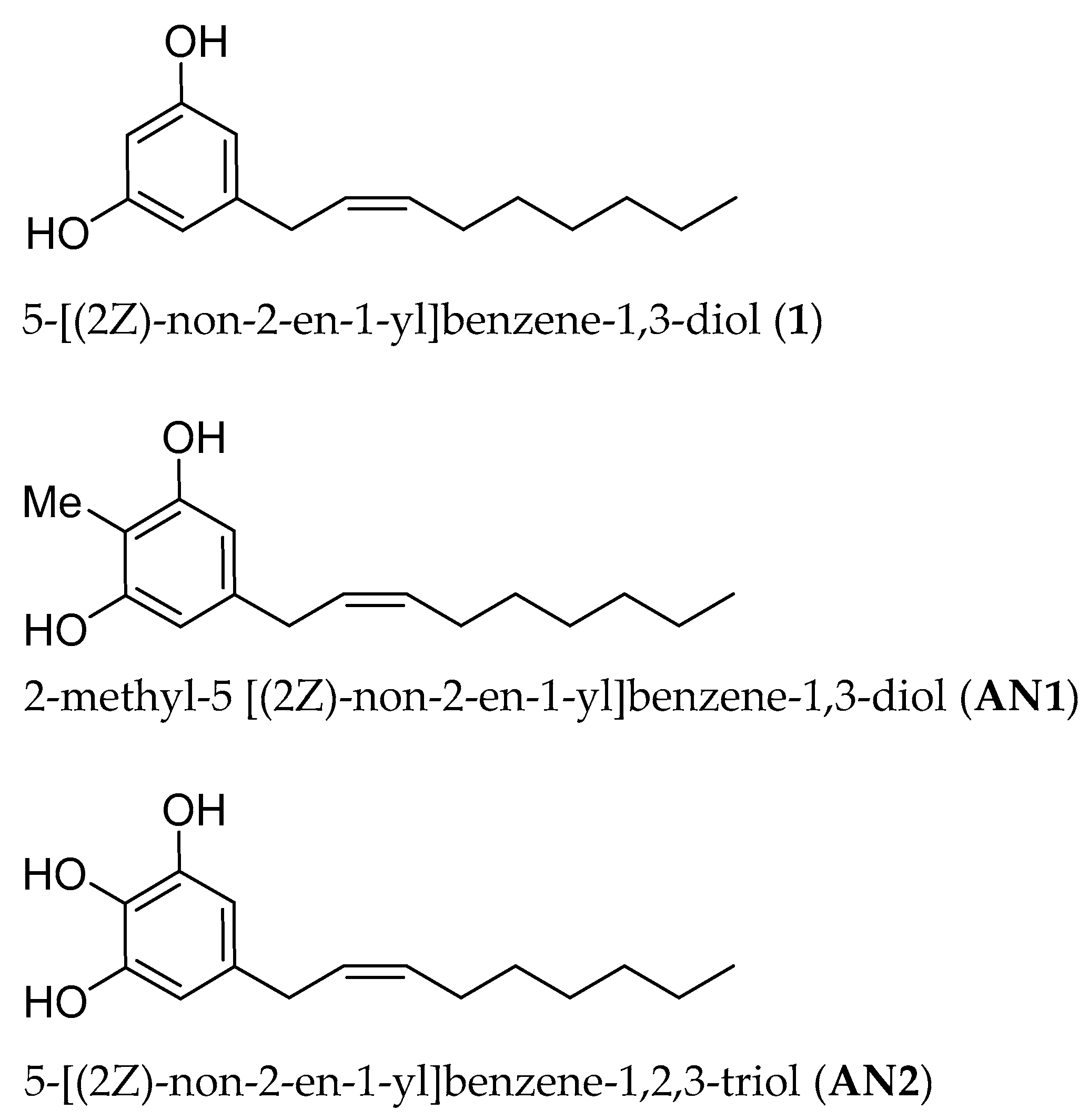

Figure 1. Molecular structures of climacostol (1), AN1, and AN2.
Figure 1. Molecular structures of climacostol (1), AN1, and AN2.
Toxins 11 00042 g001

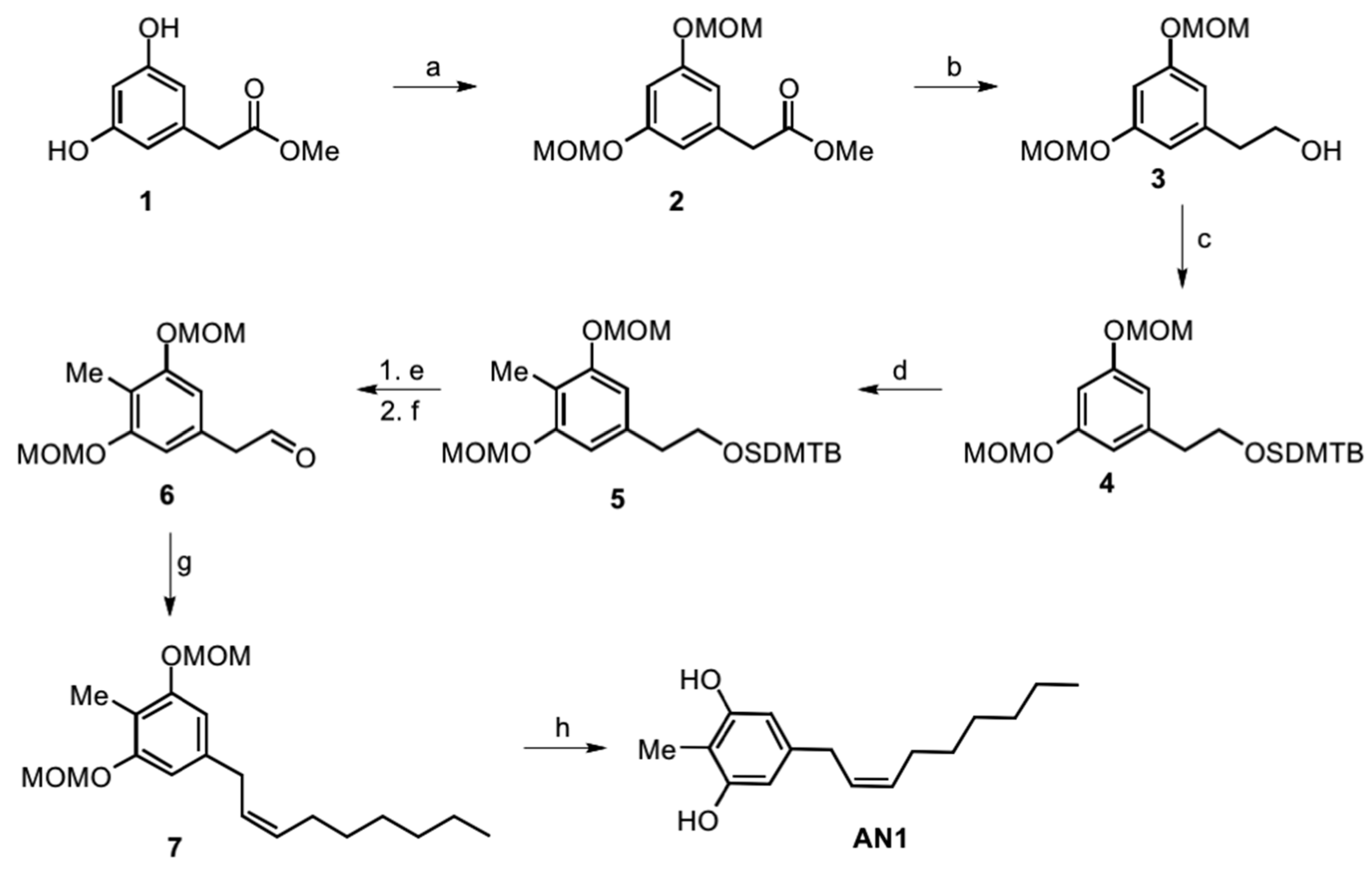

Figure 2. Total synthesis of the AN1 analogue: a) MOM-Cl, DIPEA, DCM, 0 °C to r.t., o.n., 74%; b) LiAlH4, THF, 0 °C, 94%; c) DIPEA, TBDMSCl, DMF, o.n., 96%; d) BuLi, THF, −78 °C, 1 h, then MeI, −78 °C to r.t., o.n., 75%; e) TBAF, THF, r.t., o.n., 96%; f) DMP, DCM, 0 °C to r.t., o.n., 80%; g) anhydrous CeCl3, THF dry, 2 h, then added dropwise solution of n-heptyltriphenylphosphonium bromide and NaHMDS in THF dry, o.n., 0 °C, 83%; h) p-TosOH·H2O, MeOH:DCM 1:1, r.t., o.n., 98%.
Figure 2. Total synthesis of the AN1 analogue: a) MOM-Cl, DIPEA, DCM, 0 °C to r.t., o.n., 74%; b) LiAlH4, THF, 0 °C, 94%; c) DIPEA, TBDMSCl, DMF, o.n., 96%; d) BuLi, THF, −78 °C, 1 h, then MeI, −78 °C to r.t., o.n., 75%; e) TBAF, THF, r.t., o.n., 96%; f) DMP, DCM, 0 °C to r.t., o.n., 80%; g) anhydrous CeCl3, THF dry, 2 h, then added dropwise solution of n-heptyltriphenylphosphonium bromide and NaHMDS in THF dry, o.n., 0 °C, 83%; h) p-TosOH·H2O, MeOH:DCM 1:1, r.t., o.n., 98%.
Toxins 11 00042 g002

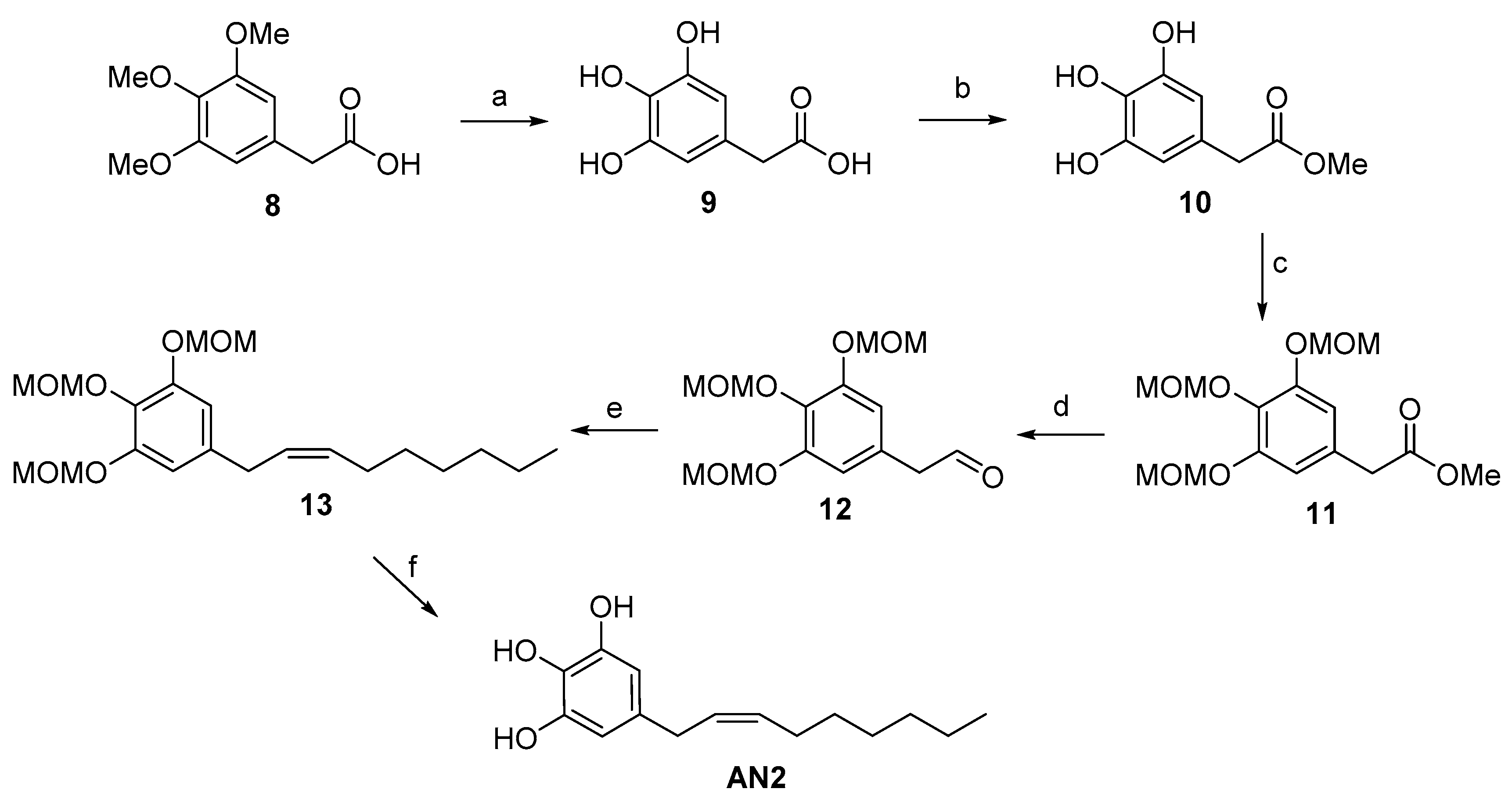

Figure 3. Total synthesis of the AN2 analogue: a) HBr conc., CH3COOH glacial, reflux, 15 h, 90%; b) Amberlyst 15, MeOH, reflux, 99%; c) MOM-Cl, DIPEA, DCM, 0 °C to r.t., o.n., 66%; d) DIBAL-H, Toluene, −78 °C, 78%; e) anhydrous CeCl3, THF dry, then added dropwise to a solution of n-heptyltriphenylphosphonium bromide, NaHMDS in THF, o.n., 0 °C, 80%; f) p-TosOH·H2O, DCM:MeOH 1:1, r.t., o.n., 98%.
Figure 3. Total synthesis of the AN2 analogue: a) HBr conc., CH3COOH glacial, reflux, 15 h, 90%; b) Amberlyst 15, MeOH, reflux, 99%; c) MOM-Cl, DIPEA, DCM, 0 °C to r.t., o.n., 66%; d) DIBAL-H, Toluene, −78 °C, 78%; e) anhydrous CeCl3, THF dry, then added dropwise to a solution of n-heptyltriphenylphosphonium bromide, NaHMDS in THF, o.n., 0 °C, 80%; f) p-TosOH·H2O, DCM:MeOH 1:1, r.t., o.n., 98%.
Toxins 11 00042 g003
Figure 4. 1H-NMR spectra of (top) climacostol, (middle) AN1, and (bottom) AN2.
Figure 4. 1H-NMR spectra of (top) climacostol, (middle) AN1, and (bottom) AN2.
Toxins 11 00042 g004

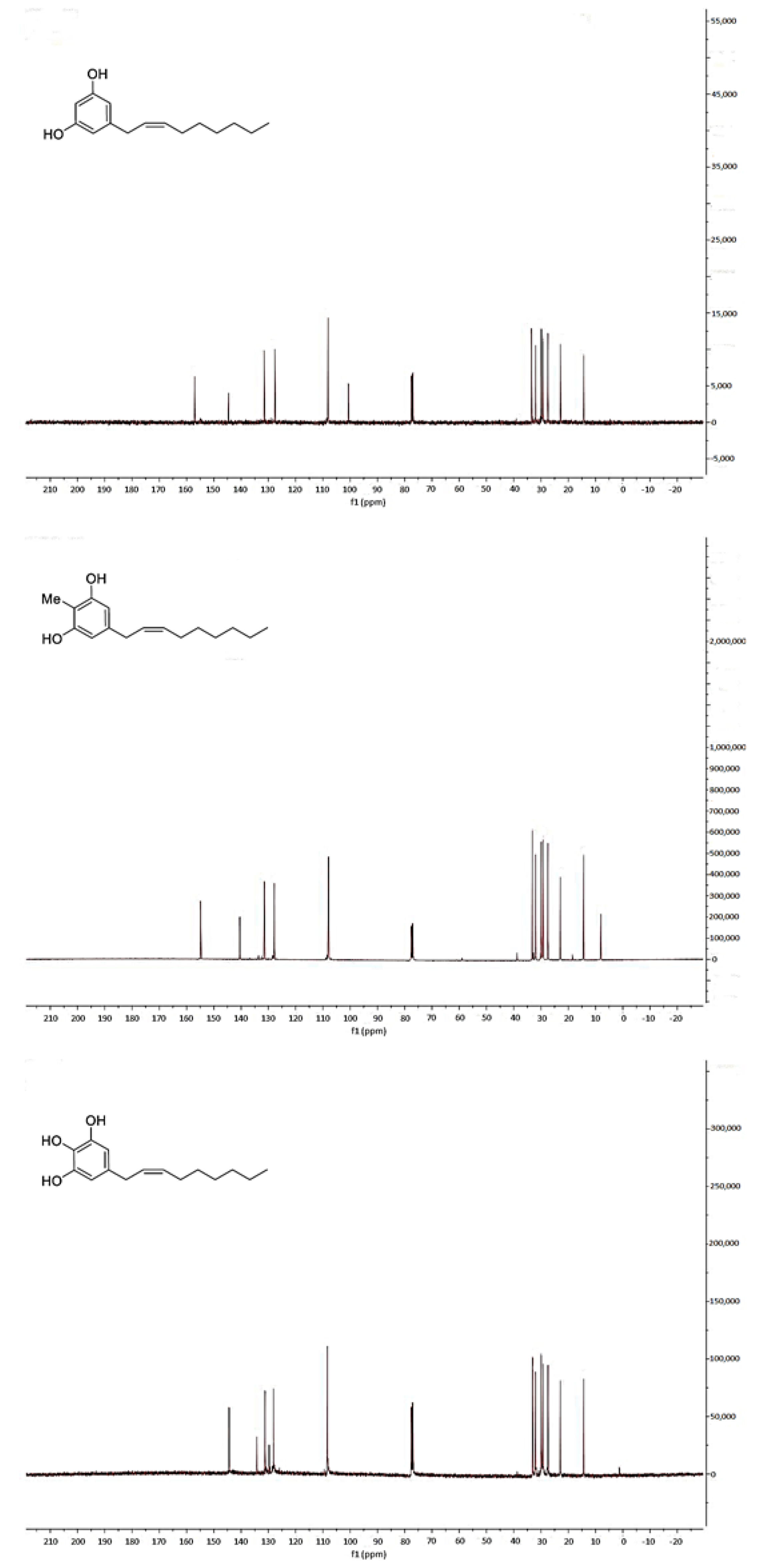

Figure 5. 13C-NMR spectra of (top) climacostol, (middle) AN1, and (bottom) AN2.
Figure 5. 13C-NMR spectra of (top) climacostol, (middle) AN1, and (bottom) AN2.
Toxins 11 00042 g005
Figure 6. FTIR spectra of (top) climacostol, (middle) AN1, and (bottom) AN2.
Figure 6. FTIR spectra of (top) climacostol, (middle) AN1, and (bottom) AN2.
Toxins 11 00042 g006

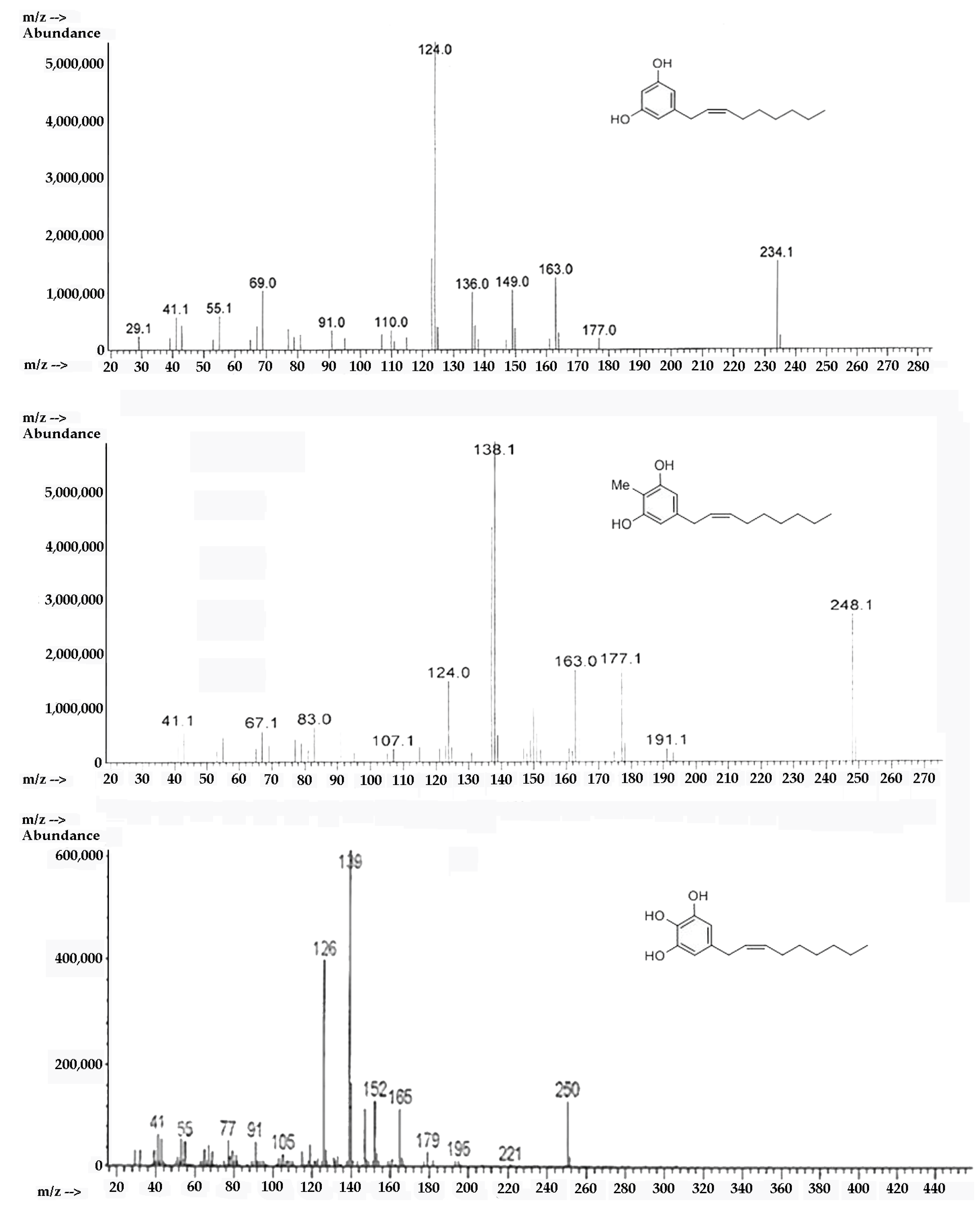

Figure 7. EI-MS spectra of (top) climacostol, (middle) AN1, and (bottom) AN2.
Figure 7. EI-MS spectra of (top) climacostol, (middle) AN1, and (bottom) AN2.
Toxins 11 00042 g007
Figure 8. Cytotoxic properties on mammalian cells. The viability of B16-F10, GL261, SK-N-BE, CT26, and C2C12 cells treated with increasing concentrations of AN1, AN2, and climacostol for 24 h was assessed by MTT assay. Data are expressed by setting the absorbance of the reduced MTT in the absence of compounds as 100%. The data points represent the mean ± SEM of results obtained from 4–6 independent experiments.
Figure 8. Cytotoxic properties on mammalian cells. The viability of B16-F10, GL261, SK-N-BE, CT26, and C2C12 cells treated with increasing concentrations of AN1, AN2, and climacostol for 24 h was assessed by MTT assay. Data are expressed by setting the absorbance of the reduced MTT in the absence of compounds as 100%. The data points represent the mean ± SEM of results obtained from 4–6 independent experiments.
Toxins 11 00042 g008
Figure 9. Apoptosis in melanoma cells. Immunofluorescence imaging of cleaved-caspase 3 (punctate green pattern) in B16-F10 cells cultured in the presence of 30 μg/mL AN1, AN2, and climacostol or vehicle (CTRL) for 9 h. DAPI (blue) and phalloidin (red) were used for nuclei and cytoskeleton detection, respectively. The images are representative of six independent experiments. Inserts represent enlarged image details. Scale bar = 20 µm.
Figure 9. Apoptosis in melanoma cells. Immunofluorescence imaging of cleaved-caspase 3 (punctate green pattern) in B16-F10 cells cultured in the presence of 30 μg/mL AN1, AN2, and climacostol or vehicle (CTRL) for 9 h. DAPI (blue) and phalloidin (red) were used for nuclei and cytoskeleton detection, respectively. The images are representative of six independent experiments. Inserts represent enlarged image details. Scale bar = 20 µm.
Toxins 11 00042 g009
Figure 10. Necrotic effects of AN1 and AN2 toxins on ciliated protists. (a) Effects of AN1 on Euplotes aediculatus and (b) Paramecium multimicronucleatum. (c) Effects of AN2 on a contracted cell of Spirostomum ambiguum and (d) Spirostomum teres. Cells were exposed to 5 µg/mL solutions of AN1 or AN2 and observed after 20 min. Arrows indicate plasma membrane fractures and products of cell death released into the extracellular space. The images are representative of 10 independent experiments performed for each species. Scale bars = 100 µm.
Figure 10. Necrotic effects of AN1 and AN2 toxins on ciliated protists. (a) Effects of AN1 on Euplotes aediculatus and (b) Paramecium multimicronucleatum. (c) Effects of AN2 on a contracted cell of Spirostomum ambiguum and (d) Spirostomum teres. Cells were exposed to 5 µg/mL solutions of AN1 or AN2 and observed after 20 min. Arrows indicate plasma membrane fractures and products of cell death released into the extracellular space. The images are representative of 10 independent experiments performed for each species. Scale bars = 100 µm.
Toxins 11 00042 g010
Figure 11. Apoptosis in ciliates. TUNEL assay in E. aediculatus treated with 2 μg/mL AN2 or vehicle (CTRL) for 2 h. DAPI (blue) was used for nuclei detection. The images are representative of 10 independent experiments. Scale bar = 30 µm.
Figure 11. Apoptosis in ciliates. TUNEL assay in E. aediculatus treated with 2 μg/mL AN2 or vehicle (CTRL) for 2 h. DAPI (blue) was used for nuclei detection. The images are representative of 10 independent experiments. Scale bar = 30 µm.
Toxins 11 00042 g011
Figure 12. Apoptosis in ciliates. E. aediculatus were treated with 2 μg/mL AN2 for increasing times or vehicle (CTRL). DAPI (blue) was used for nuclei detection. The images are representative of 10 independent experiments. Scale bar = 30 µm.
Figure 12. Apoptosis in ciliates. E. aediculatus were treated with 2 μg/mL AN2 for increasing times or vehicle (CTRL). DAPI (blue) was used for nuclei detection. The images are representative of 10 independent experiments. Scale bar = 30 µm.
Toxins 11 00042 g012
Table 1. Parameters of toxin-induced inhibition of cell viability. EC50 (µg/mL) = the concentration producing half the maximum effect.
Table 1. Parameters of toxin-induced inhibition of cell viability. EC50 (µg/mL) = the concentration producing half the maximum effect.
Cell LineOriginEC50
ClimacostolAN1AN2
B16-F10mouse melanoma12.8118.8837.94 *
GL261mouse glioma28.8727.3221.79
SK-NE-BEhuman neuroblastoma19.1334.31 *39.84 *
CT26mouse colon cancer31.5836.1127.42
C2C12myoblasts of mouse16.1929.28 *31.72 *
*: p < 0.0001 from climacostol value (F-test); n = 3.
Table 2. Antimicrobial activity (minimum inhibitory concentration (MIC)) of climacostol and its analogues against a panel of reference microorganisms.
Table 2. Antimicrobial activity (minimum inhibitory concentration (MIC)) of climacostol and its analogues against a panel of reference microorganisms.
CompoundsMIC (µg/mL)
S. aureus
ATCC25923
E. faecalis
ATCC29212
E. coli
ATCC29212
P. aeruginosa
ATCC27853
C. albicans
ATCC24433
climacostol1616>128>1288
AN188>128>1284
AN264128>128>12816
Table 3. Minimum bactericidal concentration (MBC) of climacostol and its analogues against a panel of reference microorganisms.
Table 3. Minimum bactericidal concentration (MBC) of climacostol and its analogues against a panel of reference microorganisms.
CompoundsMBC (µg/mL)
S. aureus
ATCC25923
E. faecalis
ATCC29212
E. coli
ATCC29212
P. aeruginosa
ATCC27853
C. albicans
ATCC24433
climacostol1616n.d.n.d.8
AN188n.d.n.d.4
AN2128128n.d.n.d.16
Table 4. Comparison of the toxic effects of climacostol and its analogues (AN1 and AN2) on various ciliate protists. Viability was assessed after 1 h or 24 h of incubation and the LC50 mean values (bold) were obtained by nonlinear regression analysis of three independent experiments with 95% confidence limits calculated using GraphPad Prism 4 software.
Table 4. Comparison of the toxic effects of climacostol and its analogues (AN1 and AN2) on various ciliate protists. Viability was assessed after 1 h or 24 h of incubation and the LC50 mean values (bold) were obtained by nonlinear regression analysis of three independent experiments with 95% confidence limits calculated using GraphPad Prism 4 software.
Ciliated ProtistsCytotoxicity (LC50 µg/mL; 95% C.I.)
ClimacostolAN1AN2
1 h24 h1 h24 h1 h24 h
B. japonicum3.172.042.151.554.631.94
(2.79–3.94)(1.67–2.48)(1.82–2.54)(1.37–1.77)(3.92–5.47)(1.81–2.06)
E. aediculatus1.700.831.710.902.191.32
(1.62–1.79)(0.47–1.46)(1.36–2.16)(0.25–3.16)(1.90–2.53)(0.93–1.87)
P. multimicronucleatum1.640.880.880.801.921.25
(0.17–16.22)(0.18–4.45)(0.26–3.05)(0.90–2.59)(1.69–2.19)(0.64–2.43)
P. tetraurelia1.430.901.280.952.001.17
(0.40–5.06)(0.37–2.19)(0.45–3.65)(0.60–1.50)(1.79–2.23)(0.54–2.52)
S. ambiguum2.031.661.460.643.432.04
(1.81–2.27)(1.43–1.92)(1.16–1.85)(0.03–15.05)(2.80–4.19)(1.65–2.51)
S. teres2.041.681.280.743.501.57
(1.10–3.78)(1.55–1.83)(0.67–2.44)(0.03–18.21)(3.27–3.74)(1.39–1.86)
Table 5. Cytotoxic effects of climacostol, AN1, or AN2 on five species of ciliated protists. N = necrosis; A = programmed cell death.
Table 5. Cytotoxic effects of climacostol, AN1, or AN2 on five species of ciliated protists. N = necrosis; A = programmed cell death.
Ciliated ProtistsEffects
ClimacostolAN1AN2
B. japonicumNNN
E. aediculatusNNA
P. multimicronucleatumNNN
P. tetraureliaNNN
S. ambiguumNNN
S. teresNNN

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Toxins EISSN 2072-6651 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
