Protein Disulfide Isomerase Family A Member 3 Knockout Abrogate Effects of Vitamin D on Cellular Respiration and Glycolysis in Squamous Cell Carcinoma

by
Joanna I. Nowak
1,
Anna M. Olszewska
1,
Oliwia Król
2 and
Michał A. Żmijewski
1,*
1
Department of Histology, Medical University of Gdansk, 1a Dębinki, 80-211 Gdansk, Poland
2
Department of Biochemistry, Medical University of Gdansk, 80-211 Gdansk, Poland
*
Author to whom correspondence should be addressed.
Nutrients 2023, 15(21), 4529; https://doi.org/10.3390/nu15214529
Submission received: 4 October 2023 / Revised: 20 October 2023 / Accepted: 23 October 2023 / Published: 25 October 2023
(This article belongs to the Special Issue Pleiotropic Actions of Vitamin D: Proceedings from the 6th International Conference “Vitamin D—Minimum, Maximum, Optimum”)
Browse Figures
Versions Notes

Abstract

:
PDIA3 is an endoplasmic reticulum disulfide isomerase, which is involved in the folding and trafficking of newly synthesized proteins. PDIA3 was also described as an alternative receptor for the active form of vitamin D (1,25(OH)2D3). Here, we investigated an impact of PDIA3 in mitochondrial morphology and bioenergetics in squamous cell carcinoma line A431 treated with 1,25(OH)2D3. It was observed that PDIA3 deletion resulted in changes in the morphology of mitochondria including a decrease in the percentage of mitochondrial section area, maximal diameter, and perimeter. The 1,25(OH)2D3 treatment of A431∆PDIA3 cells partially reversed the effect of PDIA3 deletion increasing aforementioned parameters; meanwhile, in A431WT cells, only an increase in mitochondrial section area was observed. Moreover, PDIA3 knockout affected mitochondrial bioenergetics and modulated STAT3 signaling. Oxygen consumption rate (OCR) was significantly increased, with no visible effect of 1,25(OH)2D3 treatment in A431∆PDIA3 cells. In the case of Extracellular Acidification Rate (ECAR), an increase was observed for glycolysis and glycolytic capacity parameters in the case of non-treated A431WT cells versus A431∆PDIA3 cells. The 1,25(OH)2D3 treatment had no significant effect on glycolytic parameters. Taken together, the presented results suggest that PDIA3 is strongly involved in the regulation of mitochondrial bioenergetics in cancerous cells and modulation of its response to 1,25(OH)2D3, possibly through STAT3.

1. Introduction

Protein disulfide isomerases are key oxidoreductase enzymes that play a role in the proper folding and assembling of proteins and their complexes [1]. An oxidoreductase family member, PDIA3 protein, has a broad range of functions from promoting protein folding in ER [2,3], participating in signal transduction through STAT3 in the nucleus [4,5], to pro-apoptotic activities in mitochondria [6]. Moreover, it was shown that PDIA3 can be localized in the mitochondria-associated membranes (MAMs) region of the endoplasmic reticulum closely associated with mitochondria [7,8]. Several studies have shown that PDIA3 functions as a chaperone to STAT3 protein and can modulate its transcriptional activity by regulating phosphorylation at the Y705 site [4,5,9,10]. On the other hand, phosphorylation of STAT3 at S727 residue alone targets the import of this transcription factor into mitochondria [11]. Moreover, it was suggested, that PDIA3 can suppress mitochondrial bioenergetic functions by inhibiting phosphorylation of the S727 site [12]. PDIA3 has been also linked to various diseases from neurodegenerative to cancer [13]. It was postulated that PDIA3 can be treated as a chemoprevention target and prognostic marker in cancer patients [14,15].
An active form of vitamin D, 1,25(OH)2D3, is a steroid hormone that regulates calcium–phosphorus homeostasis along with various cellular processes [16,17]. Canonically, vitamin D acts through the complex of its receptors: VDR and RXR, regulating the expression of hundreds of genes in the human genome [18,19]. However, not all effects of 1,25(OH)2D3 can be related to the genomic action of VDR–RXR heterodimer [20,21]. Consequently, PDIA3 was identified as a membrane-bound receptor for the active form of vitamin D (1,25D3-MARRS), responsible for non-genomic responses to the hormone [22,23,24]. It was shown that PDIA3 can form a complex with caveolin-1 and subsequently activated phospholipase A2-activating protein (PLAA) [25,26]. Thus, leading to the rapid action of 1,25(OH)2D3 via PKC [27]. Our recent studies have shown that genomic activity of 1,25(OH)2D3 strictly depends on VDR and only partially on RXRα [28], while deletion of PDIA3 significantly modules the response [29]. Moreover, it was postulated that VDR can regulate the transcription of mitochondrial genes and directly interact with mitochondrial DNA [30]. However, several studies have shown the direct effects of 1,25(OH)2D3 on ion transport [31,32], including activity of mitochondrial membrane potassium channels [33]. Finally, pre-incubation with 1,25(OH)2D3 significantly deepened the effect of anti-cancer drugs on the mitochondrial respiration of patient-derived melanoma cells [34].
In our previous study, we established that PDIA3 is involved in 1,25(OH)2D3 action in the manner of gene expression profile and range of phenotypic effects, such as proliferation or migration [29]. Here, the impact of PDIA3 deletion on mitochondrial morphology and bioenergetics in squamous cell carcinoma (A431) and its potential role in the action of vitamin D on mitochondria were investigated for the first time.

2. Materials and Methods

2.1. The 1,25(OH)2D3

The 1,25(OH)2D3 was purchased from Sigma-Aldrich (St. Louis, MO, USA). Stock solutions of 1,25(OH)2D3 were dissolved in ethanol and stored at −20 °C. At 100 nM concentration, 1,25(OH)2D3 was used in all experiments (the concentration of solvent (ethanol) was <0.05%).

2.2. Cell Cultures

Immortalized human basal cell carcinoma cell line (A431) was obtained from Synthego Corporation (Menlo Park, CA, USA). PDIA3 knockout cell line was obtained with CRISPR/Cas9 technology as previously described [29]. The early passages 6 to 15 (after clonal selection) were used and deletion of PDIA3 was routinely confirmed via Western blot. Cells were cultured in DMEM high glucose medium (4.5 g/L) with the addition of 10% FBS, penicillin (10,000 units/mL), and streptomycin (10 mg/mL) (Sigma-Aldrich; Merck KGaA). Cell cultures were performed in the incubator with 5% CO2 at 37 °C. Before treatment with 1,25(OH)2D3, medium was changed to DMEM with 2% charcoal-stripped FBS.

2.3. Transmission Electron Microscopy (TEM)

The A431∆PDIA3 cells were seeded onto a Petri dish (10 cm; VWR, Gdansk, Poland) at a density of 1 × 106 cells/plate standard medium and after 24 h treated with 100 nM 1,25(OH)2D3. Consequently, the cells were fixed in 2.5% glutaraldehyde in 0.1 mM sodium-cacodylate buffer, scratched, and centrifuged. The cell pellets were then postfixed in 2% osmium tetroxide, dehydrated in ethanol, and infiltrated with a mixture of propylene. The pelleted cells were subsequently embedded to polymerize. Ultrathin sections (70 nm) were cut and, after dehydration, stained with uranyl acetate (Plano GmbH, Wetzlar, Germany) and lead citrate (Electron Microscopy Sciences, Hatfield, PA, USA). Samples were analyzed with an electron microscope (JEOL JEM-1200 EXII, University Park, PA, USA) at an acceleration voltage of 80 kV. Mitochondria from EM photos were counted in cellSens Olympus Software v 4.1.

2.4. Seahorse Analysis

The effects of 1,25(OH)2D3 on the mitochondrial function of A431 ∆PDIA3 were measured using the Seahorse Mito Stress Test following the manufacturer’s protocol. Briefly, 2 × 104 cells/well were seeded on a Seahorse plate and after 24 h treated with 100 nM 1,25(OH)2D3 for 24 h. All essential compounds were diluted to final concentrations of 1 μM for Oligomycin, 1 μM for Carbonyl cyanide 4-(trifluoromethoxy) phenylhydrazone (FCCP), and 1 μM for Antimycin A/Rotenone, and cells were prepared according to Seahorse protocols. The experiment was run with Seahorse XF24 (Agilent Technologies, Santa Clara, CA, USA). After the Seahorse analysis, the cells were lysed with modified RIPA buffer supplemented with Roche (Basel, Switzerland) protease and phosphatase inhibitors cocktail (Roche, Basel, Switzerland), and protein concentration was measured with bicinchoninic acid assay (Thermo Fisher Scientific, Waltham, MA, USA) for data normalization. Each experiment was repeated at least three times, independently. The data were analyzed with Wave software version 1.1.1.3 (Agilent Technologies, Santa Clara, CA, USA), and the Student’s t-test was used to compare the mean fluorescence values between different experimental conditions. Basal respiration was calculated after subtraction of non-mitochondrial respiration (remaining OCR after Antimycin A addition). ATP-linked OCR was derived as the difference between basal and Antimycin A-inhibited OCR. Proton leak was calculated as the difference between OCR following Oligomycin A inhibition and OCR following Antimycin A inhibition. Maximal respiration was measured following the addition of FCCP. Spare capacity was calculated based on the difference between basal respiration and maximal respiration.

2.5. Fluorescent Probes

For fluorometric measurements, cells were seeded in 8-well chambers (MoBiTec Molecular Biology, Goettingen, Germany) at a density of 200.000 cells/well and incubated overnight (37 °C, 5% CO2). The next day, the medium was removed and cells were incubated with diluted to a final concentration of 2 µM JC-1 (Thermo Fisher Scientific, Waltham, MA, USA) or 100 nM MitoGreen (Thermo Fisher Scientific, Waltham, MA, USA) probes for 20 min. Then, solution containing fluorescent probe was replaced with 100 nM 1,25(OH)2D3 medium solution, and cells were grown for 24 h with live imaging under a microscope Olympus cell Vivo IX83 (Tokyo, Japan). For JC-1 (Thermo Fisher Scientific, Waltham, MA, USA) the ratio of red/green fluorescence intensity was analyzed with cellSens Olympus software version 4.1. For MitoGreen calculation, fluorescence intensity measurements were normalized against cell numbers before being expressed as percentages of control values.

2.6. Western Blotting

A431-derived cell lines were treated with 100 nM 1,25(OH)2D3 for 4, 8, and 24 h. The medium was removed from the plate, and cells were washed twice with PBS and were scratched from the plate. The solution was moved to an Eppendorf tube and centrifuged at 16,000× g for 10 min. The received cell sediment was dissolved in 100 µL of RIPA buffer (Thermo Fisher, Waltham, MA, USA). Concentration was determined by a modified Bradford Assay. For SDS-PAGE electrophoresis, 10% bottom gel and 5% upper gel were used. An equal amount of protein (20 µg) was loaded into each well. Electrophoresis was run at 90–110 V in the Bio-Rad apparatus. Proteins were transferred to PVDF membranes with the use of the Trans-Blot Turbo system (Bio-Rad, Hercules, CA, USA). After, the transfer membranes were blocked in 5% milk dissolved in TBS-T. The membranes were incubated with primary antibodies anti-STAT3 (Abclonal, Woburn, MA, USA), anti-pSTAT3 (Y705) (Abclonal, Woburn, MA, USA), or anti-pSTAT3 (S727) (Abclonal, Woburn, MA, USA), overnight at 4 °C. For loading control, membranes were stripped and re-probed with anti-β-actin antibodies (Abclonal, Woburn, MA, USA). Then, they were incubated with proper secondary fluorescent antibodies (AlexaFluor® 790 or AlexaFluor® 680 from Jackson ImmunoResearch, West Grove, PA, USA). Bands were visualized with Odyssey Clx system, and densitometry of bands was performed with Image Studio Software Version 5.2.

2.7. Immunofluorescence Staining

A431 cell lines were seeded in 8-well imaging chambers (MoBiTec Molecular Biology, Germany) at a density of 200.000 cells/well, incubated overnight (37 °C, 5% CO2). The next day, cells were treated with 1,25(OH)2D3 in DMEM medium supplemented with 2% charcoal-stripped FBS and 100 U/mL penicillin/streptomycin. After incubation time (4, 8, 24 h), cells were rinsed three times with PBS and fixed with 4% (v/v) formaldehyde solution, then washed three times with PBS, and permeabilized with 0.1% Triton X-100, blocked with 10% BSA in PBS for 1 h at RT and incubated with primary antibodies at 4 °C overnight (anti-STAT3, Abclonal, Woburn, MA 01801, United States). Following, the cells were rinsed three times with PBS, incubated with secondary antibodies for 1 h at RT (Alexa Fluor 488 anti-rabbit, Invitrogen, Waltham, MA, USA), then rinsed again with PBS, incubated with DAPI solution, and mounted with DAKO fluorescence mounting medium (S3025, Agilent Technologies, Santa Clara, CA, USA). The cells were visualized using fluorescence microscopy (Olympus Cell-Vivo IX 83, Japan) with camera ORCA-FLASH 4.0 and 60X objective (Hamamatsu, Shizuoka, Japan).

2.8. Bioinformatic Analysis

Transcriptomic data from a previous study were used to define mitochondrial genes expressed in A431∆PDIA3 cells after 1,25(OH)2D3 treatment [29]. Venn analysis was performed with the online available tool [35].

2.9. Statistical Analysis

Statistical analysis was performed using GraphPad Prism version 7.05 (GraphPad Software, Inc., La Jolla, CA, USA). Data are presented as mean ± SD and were analyzed with a Student’s t-test (for two groups) or one-way ANOVA with appropriate post hoc tests (for more than two groups). Statistically significant differences are illustrated with asterisks: * p < 0.05, ** p < 0.01, *** p < 0.001, or **** p < 0.0001.

3. Results

3.1. Deletion of PDIA3 and 1,25(OH)2D3 Treatment Affect Morphology of Mitochondria

The knockout of PDIA3 in the A431 squamous cell carcinoma cell line was generated with the use of CRISPR/Cas9 technology as previously described [29]. The effects of PDIA3 deletion and 1,25(OH)2D3 treatment on the morphology of mitochondria were investigated using transmission electron microscopy (TEM) (Figure 1A). A knockout of the PDIA3 gene resulted in a twofold decrease in volume of mitochondria in comparison to wild type A431 (A431WT) cells, as shown by the percentage of the mitochondria section in whole cells observed using TEM. The treatment of A431WT or A431∆PDIA3 with 1,25(OH)2D3 for 24 h resulted in a significant increase in the percentage of the mitochondria section (Figure 1B), but also in a reduction in the mitochondria diameter (Figure 1C) and perimeter (Figure 1D). The 1,25(OH)2D3 treatment of A431∆PDIA3 cells partially reversed the effect of PDIA3 deletion by increasing the aforementioned parameters, but there was no visible effect on A431WT cells. Interestingly, the elongation factor was not impaired by PDIA3 deletion, but was decreased by 1,25(OH)2D3 treatment in the absence of PDIA3 (Figure 1E). Further investigation with use of fluorescence probes revealed that 1,25(OH)2D3 treatment noticeably affected mitochondrial surface area and mitochondrial membrane potential in A431∆PDIA3 cells; however, the effect was not statistically significant (Figure 2A,B).

3.2. PDIA3 Inhibits Mitochondrial Functions and Affects the Response to 1,25(OH)2D3 Treatment

The effect of 1,25(OH)2D3 treatment on mitochondrial bioenergetics in A431WT and A431∆PDIA3 was determined using the Seahorse XF24. An oxygen consumption rate (OCR) was monitored in real-time with the following addition of Oligomycin, FCCP, Rotenone, and Antimycin. It was observed that in A431∆PDIA3, the OCR, expressed in pmoles/min/mg of protein, is significantly higher than in A431WT cells, and 1,25(OH)2D3 treatment did not affect those results (Figure 3A). Overall, it was shown that deletion of PDIA3 enhances all parameters of oxidative phosphorylation; however, despite the clear trends, some results did not reach statistical significance. To increase the strength of comparison, data for treated and non-treated cells were combined, and the effect of PDIA3 on cellular bioenergetics was reanalyzed (Figure 3). In a case of basal respiration (Figure 3B) and ATP-linked respiration (Figure 3D), a statistically significant increase was observed after deletion of PDIA3, and for 1,25(OH)2D3 treated cells decrease in A431WT and increase in A431∆PDIA3 was observed (Figure 3B). Further PDIA3 deletion increased maximal respiration, but this parameter was not affected by 1,25(OH)2D3 treatment (Figure 3C). Interestingly, for non-mitochondrial oxygen consumption, a threefold increase in A431∆PDIA3 cells was observed, with no further effect of 1,25(OH)2D3 (Figure 3E). Similarly, an increase in proton leakage was observed, but with adverse trends in A431WT and A431∆PDIA3 cells after 1,25(OH)2D3 addition (decrease in A431WT and increase in A431∆PDIA3; Figure 3F). A mitochondrial spare capacity was increased twofold in A431∆PDIA3 cells in comparison to wild-type cells. No effect of 1,25(OH)2D3 treatment on this parameter was observed (Figure 3G). Next, the impact of PDIA3 knockout and/or 1,25(OH)2D3 treatment on glycolysis was investigated using glycolytic stress tests. The Extracellular Acidification Rate (ECAR) was measured in real-time by adding glucose to the medium on Seahorse XF24. Significant changes in the ECAR were observed between the 30th and 70th minute of the assay in the case of non-treated A431WT cells versus A431∆PDIA3 cells (Figure 4A). Deletion of PDIA3 gene enhanced levels of glycolysis and other parameters (Figure 4B,E), except for glycolytic capacity and reserve (Figure 4C,D). In general, treatment of A431WT cells with 1,25(OH)2D3 resulted in a decrease in glycolysis (Figure 4B), glycolytic capacity (Figure 4C), glycolytic reserve (Figure 4D), and non-glycolytic acidification (Figure 4E), but the results were marginally statistically significant. The tendency was not so pronounced in A431∆PDIA3 cells.

3.3. PDIA3 Knockout Affects the Expression of Mitochondrial Genes

In previous work, the effects of 24 h incubation with 1,25(OH)2D3 at 100 nM concentration on the transcriptome of A431∆PDIA3 were studied [29]. To assess the impact of PDIA3 on the expression of the genes related to mitochondria, a previously obtained dataset of differentially expressed genes (DEGs; false discovery rate (FDR) = 0.05) from A431∆PDIA3 non-treated and 1,25(OH)2D3-treated cells was used. The dataset was compared with mitochondria-associated genes (mtDEGs) from MitoCarta 3.0 database [36] via Venn analysis [35] (Supplementary Table S1), followed by gene ontology (GO) analysis [37]. The data are deposited in Sequence Read Archive (SRA) under accession number PRJNA926032. Venn analysis revealed 5831 DEGs expressed after PDIA3 deletion in A431 cells and 4372 DEGs after treatment of A431∆PDIA3 cells with 1,25(OH)2D3. Among those, 302 mtDEGs identified in A431∆PDIA3 were affected solely by PDIA3 deletion, while 149 mtDEGs were changed by 1,25(OH)2D3 treatment (Figure 5A). Interestingly, 111 mtDEGs were commonly regulated after PDIA3 deletion and 1,25(OH)2D3 treatment. GO analysis of molecular processes revealed that deletion of PDIA3 in A431 cells alone mainly affected cellular respiration (GO:0045333), aerobic electron transport chain (GO:0019646), and mitochondrial ATP synthesis (GO:0042775) (Figure 5B). Curiously, the 1,25(OH)2D3 treatment of knockout cells changed entirely different molecular processes linked to mitochondrial transcription/translation, such as mitochondrial translation (GO:0032543), mitochondrial gene expression (GO:0140053), and mitochondrial transport (GO:0006839) (Figure 5C). mtDEGs affected by both deletion of PDIA3 and 1,25(OH)2D3 treatment were connected with mitochondrion organization (GO:0007005), glutamate (GO:0006536), and dicarboxylic acid (GO:0043648) metabolic processes (Figure 5D).

3.4. PDIA3 or VDR Deletion Disrupts STAT3 Signaling Changing Response to 1,25(OH)2D3

As STAT3–PDIA3 interaction is widely described in the context of cell signaling, including regulation of cellular respiratory [4,12,38], it was checked whether 1,25(OH)2D3 can affect this signaling and, if so, how PDIA3 is involved in the process. To elucidate an impact of 1,25(OH)2D3 on STAT3 translocation into the nucleus, immunofluorescent staining was performed (Figure 6A). In the case of A431WT cells, we observed translocation of STAT3 into the nucleus after 1,25(OH)2D3 treatment, with the highest intensity ratio after 8 h of incubation. Deletion of the VDR (vitamin D receptor) decreased the basal signal, both nuclear and cytoplasm, resulting in a higher nucleus/cytoplasm ratio for STAT3, but the effect of 1,25(OH)2D3 treatment was not observed. Interestingly, deletion of PDIA3 did not change basal intensity for STAT3, but similarly to A431∆VDR cells, there was no visible effect of 1,25(OH)2D3 treatment (Figure 6B). Secondly, levels of STAT3 protein and its two phosphorylation sites (Ser727, Tyr705) were examined using Western blot analysis (Figure 6C). The amount of total STAT3 increased in time, with the highest level observed after 8 h of incubation of A431WT cells with 1,25(OH)2D3. The deletion of VDR increased the initial level of STAT3 and abrogated an increase induced by 1,25(OH)2D3 treatment. Similarly, PDIA3 deletion slightly increased the basal amount of STAT3 with no effect from 1,25(OH)2D3 treatment. Finally, phosphorylation of STAT3 at the Y705 site occurred after 4 h of treatment solely in A431WT cells treated with 1,25(OH)2D3. Interestingly, the STAT3 phosphorylation at the S727 site, which is lined to mitochondria, was strongly increased by both knockouts in A431 cells (A431∆VDR and A431∆PDIA3) and further amplified by treatment with 1,25(OH)2D3 for 4 h.

4. Discussion

PDIA3 is a pleiotropic member of the oxidoreductase enzyme family, which is involved in a broad range of cellular processes, including protein folding and assembly, through the formation and remodeling of disulfide bridges [39]. PDIA3 has been strongly associated with various types of cancer as a prognostic biomarker (primary ductal breast cancer, prostate cancer, glioblastoma) and its overexpression is associated with poor outcomes of patients [15,40,41,42]. Thus, this study focused on a squamous cell carcinoma cell line with deletion of PDIA3 (A431∆PDIA3) as a model. In our previous study, we showed that deletion of PDIA3 not only affects cellular physiology, but also plays an indispensable role in biological activities of 1,25(OH)2D3 including genomic response [29]. Previously, we observed that PDIA3 deletion alone modulates expression of nearly 2000 genes, among which, 269 were 1,25(OH)2D3-regulated. Furthermore, PDIA3 knockout changed the expression of 1,25(OH)2D3-dependent genes, suggesting its role as a modulator of genomic response. The present study aimed to assess the impact of PDIA3 on morphology and bioenergetics of mitochondria and its role in 1,25(OH)2D3 action on mitochondria in squamous cell carcinoma A431 cell line. To our knowledge, this is the first study investigating the role of PDIA3 in the mitochondrial activity of 1,25(OH)2D3. Hence, we are presenting data indicating that the deletion of PDIA3 affects the morphology of the A431 cells, especially mitochondria. Knockout of PDIA3 led to the decrease in total mitochondria surface and size within the cell, and 1,25(OH)2D3 treatment reversed the effect of deletion to some extent. Interestingly, after PDIA3 deletion we did not observe any statistically significant change in mitochondrial potential, even though vitamin D analogues have previously been shown to abolish the effects of hydrogen peroxide on mitochondrial membrane potential in immortalized HaCaT keratinocytes, thus protecting mitochondria against oxidative damage, but the effect was time-dependent [43]. Furthermore, it seems that the effect on mitochondrial membrane potential might be cell-type dependent.
As the deletion of PDIA3 was shown to affect cellular responses to 1,25(OH)2D3 treatment [29] and here we observed changes in the morphology of mitochondria, we decided to assess the impact of that deletion on mitochondria bioenergetics in A431 cells. All of the respiratory parameters of A431 cells were considerably elevated after PDIA3 deletion. The presented data are in line with results published by Keasey et al., who showed that PDIA3 inhibits respiratory function in endothelial cells and C. elegans [12]. Previously, PDIA3 was localized within mitochondria, where it associates with mitochondrial μ-calpain, possibly playing a significant role in apoptotic signaling [44]. Moreover, PDIA3 was colocalized with STAT3 [45], suggesting its role in the modulation of STAT3 signaling within cells [46]. As those results suggested the possible involvement of PDIA3 in the modulation of 1,25(OH)2D3-induced STAT3 signaling, we analyzed levels of STAT3 protein together with its two phosphorylation sites at Tyr705 and Ser727. Our results suggest that VDR together with PDIA3 are necessary for the regulation of both phosphorylation sites via 1,25(OH)2D3. In our recent work [29], we identified the cyclooxygenase-2 coding gene (PTGS2) as a PDIA3-dependent gene. Interestingly, the expression of PTGS2 is known to be regulated by STAT3 [47]. Consequently, we observed that PDIA3 deletion abrogated the induction of the expression of PTGS2 via 1,25(OH)2D3 [29]. Here, we are presenting results indicating impaired STAT3 phosphorylation at site Y705 in PDIA3 or VDR knockouts, suggesting that both proteins are necessary for the regulation of nuclear STAT3 phosphorylation. The enhanced oxygen consumption rate after PDIA3 deletion is further supported by increased phosphorylation of STAT3 at S727 residue in A431∆PDIA3 cells. This observation is consistent with previous studies showing that PDIA3 can inhibit STAT3 phosphorylation and thereby influence mitochondrial bioenergetics [12]. Recently, Peron and coworkers showed that phosphorylation is needed for mito-STAT3 to exert its mitochondrial functions [48]. Here, for the first time, it was shown that phosphorylation of STAT3 at Tyr705 and Ser727 can be induced by 1,25(OH)2D3 and depend on the presence of both VDR and PDIA3.
Interestingly, we observed that the lack of PDIA3 abrogated the effects of 1,25(OH)2D3 on energy production parameters, suggesting its involvement in cellular bioenergetics. Furthermore, an increase in glycolytic parameters was acknowledged after PDIA3 deletion while 1,25(OH)2D3 treatment decreased glycolysis in wild-type A431 cells, but no effect was observed in A431∆PDIA3. This is in agreement with other studies showing reduced glycolysis after vitamin D treatment in breast cancer cells [49] and colorectal cancer [50].
Recently, we showed that PDIA3 deletion alters the expression of more than 2000 genes and modulates genomic response to 1,25(OH)2D3 [29]. Here, we focused on genes related to mitochondria. However, we did not identify any PDIA3-dependent mtDEGs, which were also regulated by 1,25(OH)2D3, even though deletion of PDIA3 alone changed the basal expression of mtDEGs, regulating different processes connected with cellular respiration. In a recent work [28], it was shown that 1,25(OH)2D3 affects differently morphology and bioenergetics of cancerous and non-cancerous cells through genomic pathways regulated by VDR and partially by RXRA [44]. However, it is clear that PDIA3 somehow modulates the response of cancerous cells to 1,25(OH)2D3 treatment in terms of mitochondrial morphology and bioenergetic; therefore, it supports our previous founding that PDIA3 possibly functions as a modulator of genomic response to 1,25(OH)2D3. Interestingly, Gezen-Ak and coworkers suggested that VDR affects directly mitochondrial DNA expression after 1,25(OH)2D3 treatment [30], opening new possibilities for the direct impact of 1,25(OH)2D3 and VDR on mitochondria; however, the presence of VDR in mitochondria is still under debate [20]. It was also postulated that VDR and PDIA3 are located at the cell membrane and are responsible for the trafficking of vitamin D and activation of fast membrane responses to this powerful secosteroid (see [20] for further discussion). However, the nature of VDR and PDIA3 interaction still remains to be solved.
Taken together, we have shown that PDIA3 deletion affects mitochondria morphology and bioenergetics most likely through STAT3 regulation, as well as mitochondrial response to 1,25(OH)2D3. As we did not identify any PDIA3-dependent mtDEGs, we suggest that the main effects of 1,25(OH)2D3 are genomic actions mediated by VDR and partially by RXRA [28]. As PDIA3 was found also in mitochondria, the direct impact on mitochondrial structure and function cannot be excluded [12,44,51]. Data presented here broaden our knowledge about the role of PDIA3 in 1,25(OH)2D3 activities on mitochondria and open new perspectives to further explore topics of PDIA3-STAT3 regulation in 1,25(OH)2D3 action. A potential limitation of this study was the use of the A431 squamous cell carcinoma cell line, rather than primary keratinocytes; however, primary cell lines are not suitable for producing stable knockouts. Moreover, our previous studies showed that the effects of 1,25(OH)2D3 on cancer cell physiology, including mitochondrial function, were more pronounced in A431 cells compared to HaCaT keratinocytes. Most importantly, 1,25(OH)2D3 treatment at least partially reversed the expression of cancer-related genes [28,29] and modulated mitochondrial activity as shown here.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nu15214529/s1, Table S1. Venn analysis of MitoCarta 3.0, A431∆PDIA3 NT and A431∆PDIA3 + 1,25(OH)2D3.

Author Contributions

M.A.Ż. designed and coordinated the project. M.A.Ż., J.I.N. and A.M.O. planned and designed experiments. J.I.N., A.M.O. and O.K. performed experiments. J.I.N., A.M.O. and M.A.Ż. analyzed data. J.I.N. wrote the manuscript together with M.A.Ż. All authors have read and agreed to the published version of the manuscript.

Funding

The study was supported by a National Science Center OPUS Program under contracts 2017/25/B/NZ3/00431.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

PDIA3Protein Disulfide Isomerase Family A Member 3
OCROxygen consumption rate
ECARExtracellular Acidification Rate
STAT3Signal Transducer And Activator Of Transcription 3
VDRVitamin D receptor
RXRARetinoid X Receptor Alpha
PLAAPhospholipase A2 Activating Protein
PKCProtein Kinase C
TEMTransmission electron microscopy
mtDEGsmitochondria-associated differently expressed genes
GOGene ontology

References

  1. Ferrari, D.M.; Söling, H.D. The protein disulphide-isomerase family: Unravelling a string of folds. Biochem. J. 1999, 339, 1–10. [Google Scholar] [CrossRef]
  2. Hughes, E.A.; Cresswell, P. The thiol oxidoreductase ERp57 is a component of the MHC class I peptide-loading complex. Curr. Biol. 1998, 8, 709–712. [Google Scholar] [CrossRef] [PubMed]
  3. Morrice, N.A.; Powis, S.J. A role for the thiol-dependent reductase ERp57 in the assembly of MHC class I molecules. Curr. Biol. 1998, 8, 713–716. [Google Scholar] [CrossRef] [PubMed]
  4. Eufemi, M.; Coppari, S.; Altieri, F.; Grillo, C.; Ferraro, A.; Turano, C. ERp57 is present in STAT3-DNA complexes. Biochem. Biophys. Res. Commun. 2004, 323, 1306–1312. [Google Scholar] [CrossRef]
  5. Chichiarelli, S.; Gaucci, E.; Ferraro, A.; Grillo, C.; Altieri, F.; Cocchiola, R.; Arcangeli, V.; Turano, C.; Eufemi, M. Role of ERp57 in the signaling and transcriptional activity of STAT3 in a melanoma cell line. Arch. Biochem. Biophys. 2010, 494, 178–183. [Google Scholar] [CrossRef]
  6. Zhao, G.; Lu, H.; Li, C. Proapoptotic activities of protein disulfide isomerase (PDI) and PDIA3 protein, a role of the Bcl-2 protein Bak. J. Biol. Chem. 2015, 290, 8949–8963. [Google Scholar] [CrossRef]
  7. Hayashi, T.; Rizzuto, R.; Hajnoczky, G.; Su, T.P. MAM: More than just a housekeeper. Trends Cell Biol. 2009, 19, 81–88. [Google Scholar] [CrossRef] [PubMed]
  8. Paillusson, S.; Stoica, R.; Gomez-Suaga, P.; Lau, D.H.W.; Mueller, S.; Miller, T.; Miller, C.C.J. There’s Something Wrong with my MAM; the ER-Mitochondria Axis and Neurodegenerative Diseases. Trends Neurosci. 2016, 39, 146–157. [Google Scholar] [CrossRef] [PubMed]
  9. Aureli, C.; Gaucci, E.; Arcangeli, V.; Grillo, C.; Eufemi, M.; Chichiarelli, S. ERp57/PDIA3 binds specific DNA fragments in a melanoma cell line. Gene 2013, 524, 390–395. [Google Scholar] [CrossRef] [PubMed]
  10. Choe, M.H.; Min, J.W.; Jeon, H.B.; Cho, D.H.; Oh, J.S.; Lee, H.G.; Hwang, S.G.; An, S.; Han, Y.H.; Kim, J.S. ERp57 modulates STAT3 activity in radioresistant laryngeal cancer cells and serves as a prognostic marker for laryngeal cancer. Oncotarget 2015, 6, 2654–2666. [Google Scholar] [CrossRef]
  11. Tammineni, P.; Anugula, C.; Mohammed, F.; Anjaneyulu, M.; Larner, A.C.; Sepuri, N.B. The import of the transcription factor STAT3 into mitochondria depends on GRIM-19, a component of the electron transport chain. J. Biol. Chem. 2013, 288, 4723–4732. [Google Scholar] [CrossRef]
  12. Keasey, M.P.; Razskazovskiy, V.; Jia, C.; Peterknecht, E.D.; Bradshaw, P.C.; Hagg, T. PDIA3 inhibits mitochondrial respiratory function in brain endothelial cells and C. elegans through STAT3 signaling and decreases survival after OGD. Cell Commun. Signal 2021, 19, 119. [Google Scholar] [CrossRef] [PubMed]
  13. Hettinghouse, A.; Liu, R.; Liu, C.J. Multifunctional molecule ERp57: From cancer to neurodegenerative diseases. Pharmacol. Ther. 2018, 181, 34–48. [Google Scholar] [CrossRef]
  14. Ménoret, A.; Drew, D.A.; Miyamoto, S.; Nakanishi, M.; Vella, A.T.; Rosenberg, D.W. Differential proteomics identifies PDIA3 as a novel chemoprevention target in human colon cancer cells. Mol. Carcinog. 2014, 53 (Suppl. 1), E11–E22. [Google Scholar] [CrossRef] [PubMed]
  15. Tu, Z.; Ouyang, Q.; Long, X.; Wu, L.; Li, J.; Zhu, X.; Huang, K. Protein Disulfide-Isomerase A3 Is a Robust Prognostic Biomarker for Cancers and Predicts the Immunotherapy Response Effectively. Front. Immunol. 2022, 13, 837512. [Google Scholar] [CrossRef]
  16. Wierzbicka, J.; Piotrowska, A.; Żmijewski, M.A. The renaissance of vitamin D. Acta Biochim. Pol. 2014, 61, 679–686. [Google Scholar] [CrossRef] [PubMed]
  17. Piotrowska, A.; Wierzbicka, J.; Żmijewski, M.A. Vitamin D in the skin physiology and pathology. Acta Biochim. Pol. 2016, 63, 17–29. [Google Scholar] [CrossRef] [PubMed]
  18. Slominski, A.T.; Kim, T.K.; Janjetovic, Z.; Brożyna, A.A.; Żmijewski, M.A.; Xu, H.; Sutter, T.R.; Tuckey, R.C.; Jetten, A.M.; Crossman, D.K. Differential and Overlapping Effects of 20,23(OH)2D3 and 1,25(OH)2D3 on Gene Expression in Human Epidermal Keratinocytes: Identification of AhR as an Alternative Receptor for 20,23(OH)2D3. Int. J. Mol. Sci. 2018, 19, 3072. [Google Scholar] [CrossRef]
  19. Haussler, M.R.; Jurutka, P.W.; Mizwicki, M.; Norman, A.W. Vitamin D receptor (VDR)-mediated actions of 1α,25(OH)2 vitamin D3: Genomic and non-genomic mechanisms. Best Pract. Res. Clin. Endocrinol. Metab. 2011, 25, 543–559. [Google Scholar] [CrossRef]
  20. Żmijewski, M.A. Nongenomic Activities of Vitamin D. Nutrients 2022, 14, 5104. [Google Scholar] [CrossRef]
  21. Zmijewski, M.A.; Carlberg, C. Vitamin D receptor(s): In the nucleus but also at membranes? Exp. Dermatol. 2020, 29, 876–884. [Google Scholar] [CrossRef]
  22. Nemere, I.; Schwartz, Z.; Pedrozo, H.; Sylvia, V.L.; Dean, D.D.; Boyan, B.D. Identification of a membrane receptor for 1,25-dihydroxyvitamin D3 which mediates rapid activation of protein kinase C. J. Bone Miner. Res. 1998, 13, 1353–1359. [Google Scholar] [CrossRef] [PubMed]
  23. Boyan, B.D.; Sylvia, V.L.; McKinney, N.; Schwartz, Z. Membrane actions of vitamin D metabolites 1α,25(OH)2D3 and 24R,25(OH)2D3 are retained in growth plate cartilage cells from vitamin D receptor knockout mice. J. Cell Biochem. 2003, 90, 1207–1223. [Google Scholar] [CrossRef] [PubMed]
  24. Richard, C.L.; Farach-Carson, M.C.; Rohe, B.; Nemere, I.; Meckling, K.A. Involvement of 1,25D3-MARRS (membrane associated, rapid response steroid-binding), a novel vitamin D receptor, in growth inhibition of breast cancer cells. Exp. Cell Res. 2010, 316, 695–703. [Google Scholar] [CrossRef]
  25. Chen, J.; Doroudi, M.; Cheung, J.; Grozier, A.L.; Schwartz, Z.; Boyan, B.D. Plasma membrane Pdia3 and VDR interact to elicit rapid responses to 1α,25(OH)2D3. Cell Signal. 2013, 25, 2362–2373. [Google Scholar] [CrossRef] [PubMed]
  26. Doroudi, M.; Schwartz, Z.; Boyan, B.D. Membrane-mediated actions of 1,25-dihydroxy vitamin D3: A review of the roles of phospholipase A2 activating protein and Ca2+/calmodulin-dependent protein kinase II. J. Steroid Biochem. Mol. Biol. 2015, 147, 81–84. [Google Scholar] [CrossRef]
  27. Schwartz, N.; Verma, A.; Bivens, C.B.; Schwartz, Z.; Boyan, B.D. Rapid steroid hormone actions via membrane receptors. Biochim. Biophys. Acta 2016, 1863, 2289–2298. [Google Scholar] [CrossRef]
  28. Olszewska, A.M.; Nowak, J.I.; Myszczynski, K.; Slominski, A.; Zmijewski, M.A. Dissection of an Impact of Vdr and Rxra on Genomic Activity of 1,25(OH)2D3 in A431 Squamous Cell Carcinoma. J. Steroid Biochem. Mol. Biol. 2023; submitted. Available online: https://papers.ssrn.com/sol3/papers.cfm?abstract_id=4474791(accessed on 4 October 2023).
  29. Nowak, J.I.; Olszewska, A.M.; Piotrowska, A.; Myszczyński, K.; Domżalski, P.; Żmijewski, M.A. PDIA3 modulates genomic response to 1,25-dihydroxyvitamin D3 in squamous cell carcinoma of the skin. Steroids 2023, 199, 109288. [Google Scholar] [CrossRef]
  30. Gezen-Ak, D.; Alaylıoğlu, M.; Yurttaş, Z.; Çamoğlu, T.; Şengül, B.; İşler, C.; Yaşar Kına, Ü.; Keskin, E.; Atasoy, İ.L.; Kafardar, A.M.; et al. Vitamin D receptor regulates transcription of mitochondrial DNA and directly interacts with mitochondrial DNA and TFAM. J. Nutr. Biochem. 2023, 116, 109322. [Google Scholar] [CrossRef]
  31. Sterling, T.M.; Nemere, I. 1,25-dihydroxyvitamin D3 stimulates vesicular transport within 5 s in polarized intestinal epithelial cells. J. Endocrinol. 2005, 185, 81–91. [Google Scholar] [CrossRef]
  32. Tunsophon, S.; Nemere, I. Protein kinase C isotypes in signal transduction for the 1,25D3-MARRS receptor (ERp57/PDIA3) in steroid hormone-stimulated phosphate uptake. Steroids 2010, 75, 307–313. [Google Scholar] [CrossRef] [PubMed]
  33. Olszewska, A.M.; Sieradzan, A.K.; Bednarczyk, P.; Szewczyk, A.; Żmijewski, M.A. Mitochondrial potassium channels: A novel calcitriol target. Cell Mol Biol Lett 2022, 27, 3. [Google Scholar] [CrossRef]
  34. Piotrowska, A.; Zaucha, R.; Król, O.; Żmijewski, M.A. Vitamin D Modulates the Response of Patient-Derived Metastatic Melanoma Cells to Anticancer Drugs. Int. J. Mol. Sci. 2023, 24, 8037. [Google Scholar] [CrossRef]
  35. Bardou, P.; Mariette, J.; Escudié, F.; Djemiel, C.; Klopp, C. jvenn: An interactive Venn diagram viewer. BMC Bioinform. 2014, 15, 293. [Google Scholar] [CrossRef]
  36. Rath, S.; Sharma, R.; Gupta, R.; Ast, T.; Chan, C.; Durham, T.J.; Goodman, R.P.; Grabarek, Z.; Haas, M.E.; Hung, W.H.W.; et al. MitoCarta3.0: An updated mitochondrial proteome now with sub-organelle localization and pathway annotations. Nucleic Acids Res. 2021, 49, D1541–D1547. [Google Scholar] [CrossRef] [PubMed]
  37. Xie, Z.; Bailey, A.; Kuleshov, M.V.; Clarke, D.J.B.; Evangelista, J.E.; Jenkins, S.L.; Lachmann, A.; Wojciechowicz, M.L.; Kropiwnicki, E.; Jagodnik, K.M.; et al. Gene Set Knowledge Discovery with Enrichr. Curr. Protoc. 2021, 1, e90. [Google Scholar] [CrossRef] [PubMed]
  38. Wegrzyn, J.; Potla, R.; Chwae, Y.J.; Sepuri, N.B.; Zhang, Q.; Koeck, T.; Derecka, M.; Szczepanek, K.; Szelag, M.; Gornicka, A.; et al. Function of mitochondrial Stat3 in cellular respiration. Science 2009, 323, 793–797. [Google Scholar] [CrossRef] [PubMed]
  39. Turano, C.; Gaucci, E.; Grillo, C.; Chichiarelli, S. ERp57/GRP58: A protein with multiple functions. Cell Mol. Biol. Lett. 2011, 16, 539–563. [Google Scholar] [CrossRef]
  40. Diaz Cruz, M.A.; Karlsson, S.; Szekeres, F.; Faresjö, M.; Lund, D.; Larsson, D. Differential expression of protein disulfide-isomerase A3 isoforms, PDIA3 and PDIA3N, in human prostate cancer cell lines representing different stages of prostate cancer. Mol. Biol. Rep. 2021, 48, 2429–2436. [Google Scholar] [CrossRef]
  41. Ramos, F.S.; Serino, L.T.; Carvalho, C.M.; Lima, R.S.; Urban, C.A.; Cavalli, I.J.; Ribeiro, E.M. PDIA3 and PDIA6 gene expression as an aggressiveness marker in primary ductal breast cancer. Genet. Mol. Res. 2015, 14, 6960–6967. [Google Scholar] [CrossRef]
  42. Chiavari, M.; Ciotti, G.M.P.; Canonico, F.; Altieri, F.; Lacal, P.M.; Graziani, G.; Navarra, P.; Lisi, L. PDIA3 Expression in Glioblastoma Modulates Macrophage/Microglia Pro-Tumor Activation. Int. J. Mol. Sci. 2020, 21, 8214. [Google Scholar] [CrossRef] [PubMed]
  43. Piotrowska, A.; Wierzbicka, J.; Ślebioda, T.; Woźniak, M.; Tuckey, R.C.; Slominski, A.T.; Żmijewski, M.A. Vitamin D derivatives enhance cytotoxic effects of H2O2 or cisplatin on human keratinocytes. Steroids 2016, 110, 49–61. [Google Scholar] [CrossRef]
  44. Ozaki, T.; Yamashita, T.; Ishiguro, S. ERp57-associated mitochondrial μ-calpain truncates apoptosis-inducing factor. Biochim. Biophys. Acta 2008, 1783, 1955–1963. [Google Scholar] [CrossRef]
  45. Kondo, R.; Ishino, K.; Wada, R.; Takata, H.; Peng, W.X.; Kudo, M.; Kure, S.; Kaneya, Y.; Taniai, N.; Yoshida, H.; et al. Downregulation of protein disulfide-isomerase A3 expression inhibits cell proliferation and induces apoptosis through STAT3 signaling in hepatocellular carcinoma. Int. J. Oncol. 2019, 54, 1409–1421. [Google Scholar] [CrossRef] [PubMed]
  46. Coe, H.; Jung, J.; Groenendyk, J.; Prins, D.; Michalak, M. ERp57 modulates STAT3 signaling from the lumen of the endoplasmic reticulum. J. Biol. Chem. 2010, 285, 6725–6738. [Google Scholar] [CrossRef] [PubMed]
  47. Carpenter, R.L.; Lo, H.W. STAT3 Target Genes Relevant to Human Cancers. Cancers 2014, 6, 897–925. [Google Scholar] [CrossRef]
  48. Peron, M.; Dinarello, A.; Meneghetti, G.; Martorano, L.; Betto, R.M.; Facchinello, N.; Tesoriere, A.; Tiso, N.; Martello, G.; Argenton, F. Y705 and S727 are required for the mitochondrial import and transcriptional activities of STAT3, and for regulation of stem cell proliferation. Development 2021, 148, dev199477. [Google Scholar] [CrossRef]
  49. Santos, J.M.; Khan, Z.S.; Munir, M.T.; Tarafdar, K.; Rahman, S.M.; Hussain, F. Vitamin D3 decreases glycolysis and invasiveness, and increases cellular stiffness in breast cancer cells. J. Nutr. Biochem. 2018, 53, 111–120. [Google Scholar] [CrossRef]
  50. Zuo, S.; Wu, L.; Wang, Y.; Yuan, X. Long Non-coding RNA MEG3 Activated by Vitamin D Suppresses Glycolysis in Colorectal Cancer via Promoting c-Myc Degradation. Front. Oncol. 2020, 10, 274. [Google Scholar] [CrossRef]
  51. He, J.; Shi, W.; Guo, Y.; Chai, Z. ERp57 modulates mitochondrial calcium uptake through the MCU. FEBS Lett. 2014, 588, 2087–2094. [Google Scholar] [CrossRef]
Nutrients 15 04529 g001

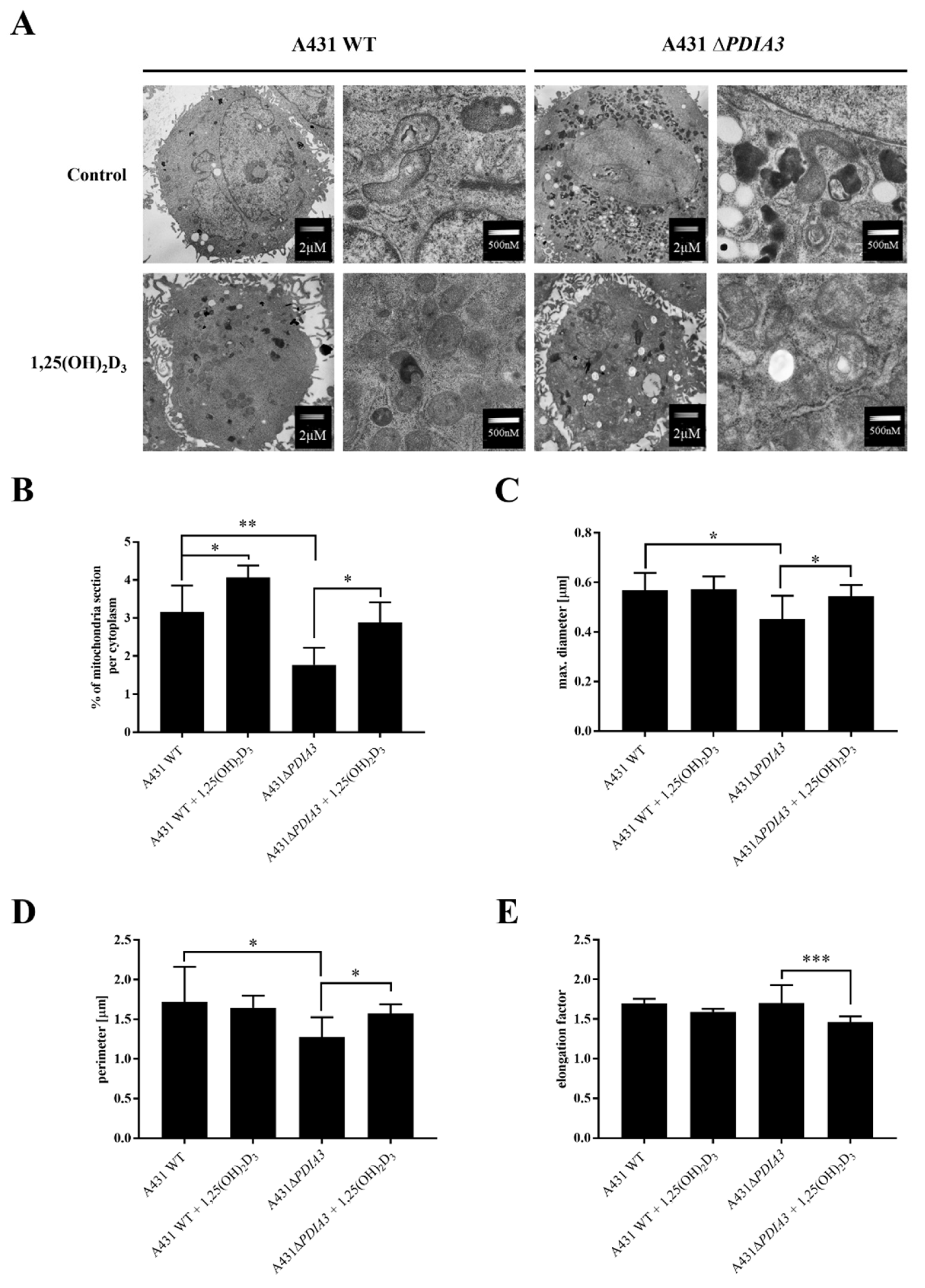

Figure 1. The 1,25(OH)2D3 treatment and PDIA3 deletion affect the morphology of mitochondria. (A) EM micrographs representing morphology of mitochondria of A431WT and A431∆PDIA3 cells non-treated/treated with 1,25(OH)2D3 at two different magnifications. (B) Percentage of mitochondria section through the cytoplasm of A431WT and ∆PDIA3 cells after 1,25(OH)2D3 treatment. Assessment of another mitochondrial parameter of A431 strains like (C) maximal diameter and (D) perimeter. (E) elongation factor. Data are expressed as mean ± SEM. * p < 0.05, ** p < 0.005, *** p < 0.001.
Figure 1. The 1,25(OH)2D3 treatment and PDIA3 deletion affect the morphology of mitochondria. (A) EM micrographs representing morphology of mitochondria of A431WT and A431∆PDIA3 cells non-treated/treated with 1,25(OH)2D3 at two different magnifications. (B) Percentage of mitochondria section through the cytoplasm of A431WT and ∆PDIA3 cells after 1,25(OH)2D3 treatment. Assessment of another mitochondrial parameter of A431 strains like (C) maximal diameter and (D) perimeter. (E) elongation factor. Data are expressed as mean ± SEM. * p < 0.05, ** p < 0.005, *** p < 0.001.
Nutrients 15 04529 g001
Nutrients 15 04529 g002

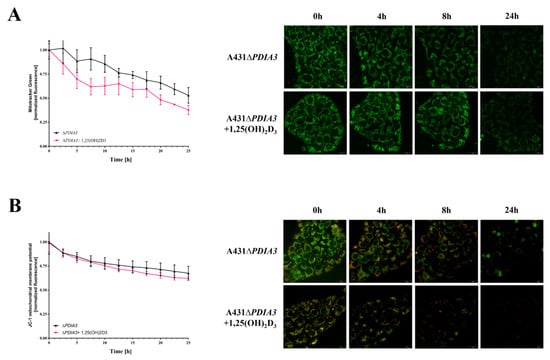

Figure 2. Mitochondrial surface area and membrane potential in PDIA3 knockout A431 cell line after 1,25(OH)2D3 treatment. (A) The mitochondrial surface area in A431∆PDIA3 cells stained with MitoTracker Green dye imaged with live microscopy Olympus cell Vivo IX83. (B) Mitochondrial membrane potential in A431 ∆PDIA3 cells stained with JC-1 fluorescence probe with the use of live microscopy Olympus cell Vivo IX83.
Figure 2. Mitochondrial surface area and membrane potential in PDIA3 knockout A431 cell line after 1,25(OH)2D3 treatment. (A) The mitochondrial surface area in A431∆PDIA3 cells stained with MitoTracker Green dye imaged with live microscopy Olympus cell Vivo IX83. (B) Mitochondrial membrane potential in A431 ∆PDIA3 cells stained with JC-1 fluorescence probe with the use of live microscopy Olympus cell Vivo IX83.
Nutrients 15 04529 g002
Nutrients 15 04529 g003

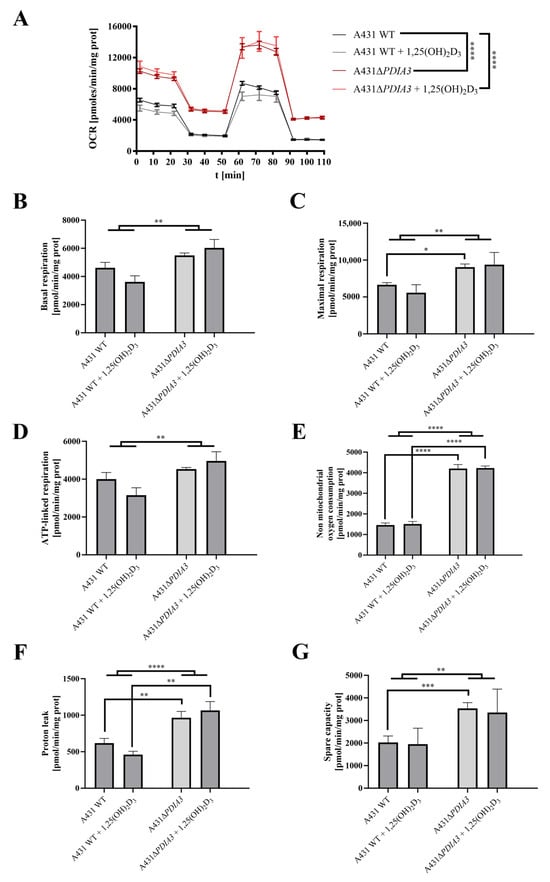

Figure 3. PDIA3 deletion increases mitochondrial bioenergetics and abolishes the effect of 1,25(OH)2D3 treatment in A431 cells. (A) Representative traces of mitochondrial oxygen consumption rate of A431WT and A431∆PDIA3 cells after 24 h of 1,25(OH)2D3 treatment. Mitochondrial respiration parameters: (B) basal respiration, (C) maximal respiration, (D) ATP-linked respiration, (E) non-mitochondrial oxygen consumption, (F) proton leak, and (G) spare capacity. Data are expressed as mean ± SEM. * p < 0.05, ** p < 0.005, *** p < 0.001, and **** p < 0.0001.
Figure 3. PDIA3 deletion increases mitochondrial bioenergetics and abolishes the effect of 1,25(OH)2D3 treatment in A431 cells. (A) Representative traces of mitochondrial oxygen consumption rate of A431WT and A431∆PDIA3 cells after 24 h of 1,25(OH)2D3 treatment. Mitochondrial respiration parameters: (B) basal respiration, (C) maximal respiration, (D) ATP-linked respiration, (E) non-mitochondrial oxygen consumption, (F) proton leak, and (G) spare capacity. Data are expressed as mean ± SEM. * p < 0.05, ** p < 0.005, *** p < 0.001, and **** p < 0.0001.
Nutrients 15 04529 g003
Nutrients 15 04529 g004

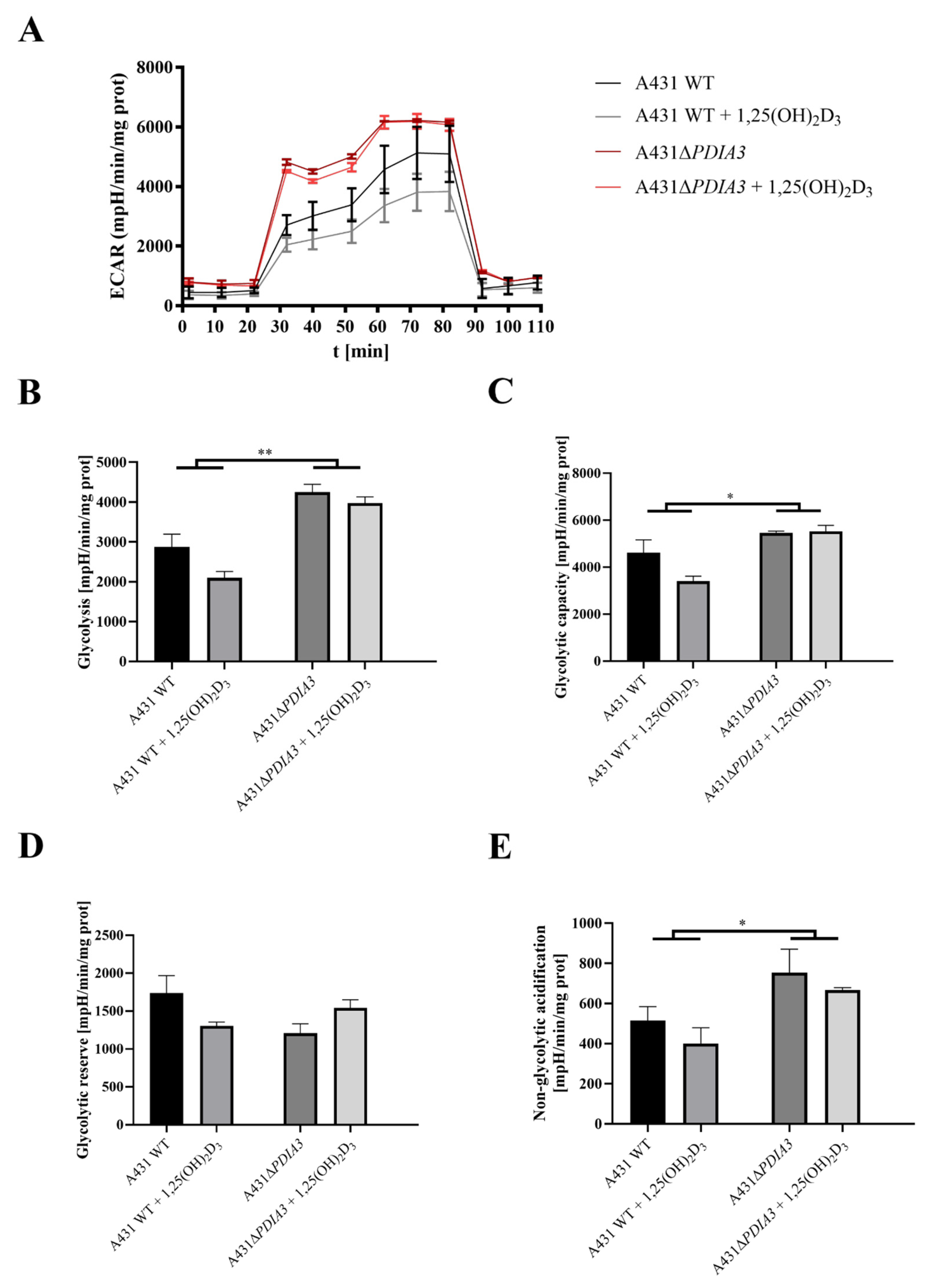

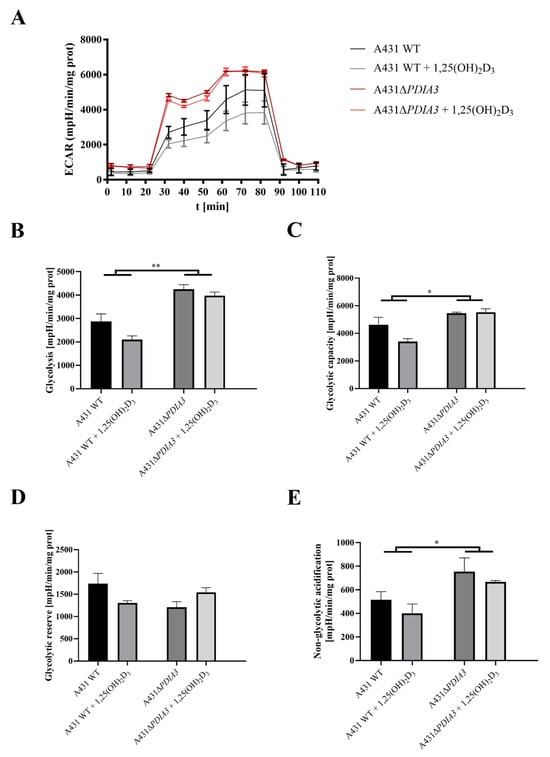

Figure 4. PDIA3 deletion disrupts glycolytic functions and response to 1,25(OH)2D3 treatment of A431 strains. (A) Representative traces of mitochondrial Extracellular Acidification Rate of A431WT and A431∆PDIA3 cells after 24 h of 1,25(OH)2D3 treatment. Mitochondrial glycolytic parameters: (B) glycolysis, (C) glycolytic capacity, (D) glycolytic reserve, and (E) non-glycolytic acidification. Data are expressed as mean ± SEM. * p < 0.05, ** p < 0.005.
Figure 4. PDIA3 deletion disrupts glycolytic functions and response to 1,25(OH)2D3 treatment of A431 strains. (A) Representative traces of mitochondrial Extracellular Acidification Rate of A431WT and A431∆PDIA3 cells after 24 h of 1,25(OH)2D3 treatment. Mitochondrial glycolytic parameters: (B) glycolysis, (C) glycolytic capacity, (D) glycolytic reserve, and (E) non-glycolytic acidification. Data are expressed as mean ± SEM. * p < 0.05, ** p < 0.005.
Nutrients 15 04529 g004
Nutrients 15 04529 g005

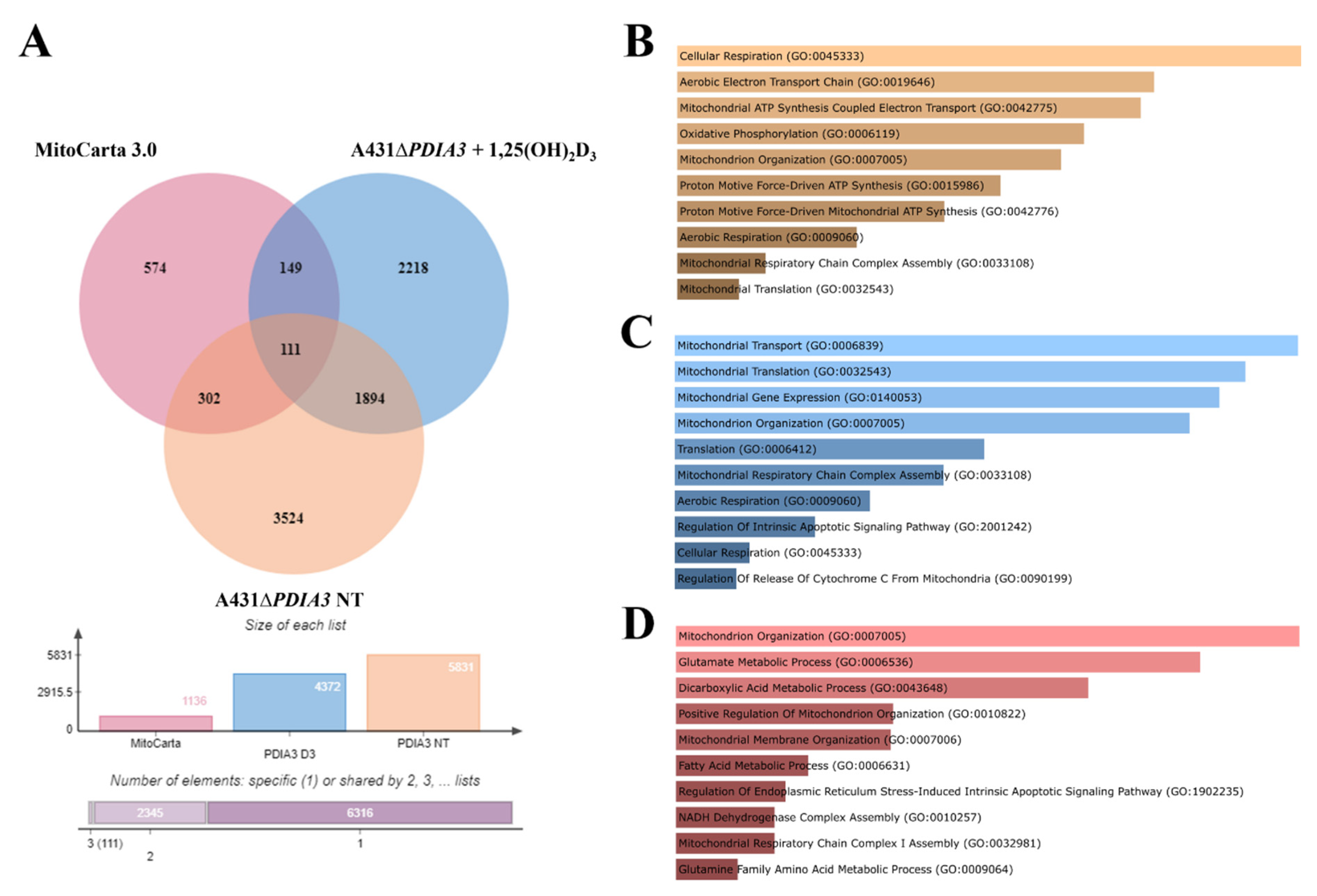

Figure 5. PDIA3 deletion alters the expression of mitochondrial genes after 1,25(OH)2D3 treatment in A431 cells. (A) Comparison of mitochondrial genes from MitoCarta 3.0, A431WT, and A431∆PDIA3 cells treated with 1,25(OH)2D3. Gene ontology of mtDEGs from A431∆PDIA3 in terms of (B) biological process, (C) molecular functions and (D) cellular components.
Figure 5. PDIA3 deletion alters the expression of mitochondrial genes after 1,25(OH)2D3 treatment in A431 cells. (A) Comparison of mitochondrial genes from MitoCarta 3.0, A431WT, and A431∆PDIA3 cells treated with 1,25(OH)2D3. Gene ontology of mtDEGs from A431∆PDIA3 in terms of (B) biological process, (C) molecular functions and (D) cellular components.
Nutrients 15 04529 g005
Nutrients 15 04529 g006

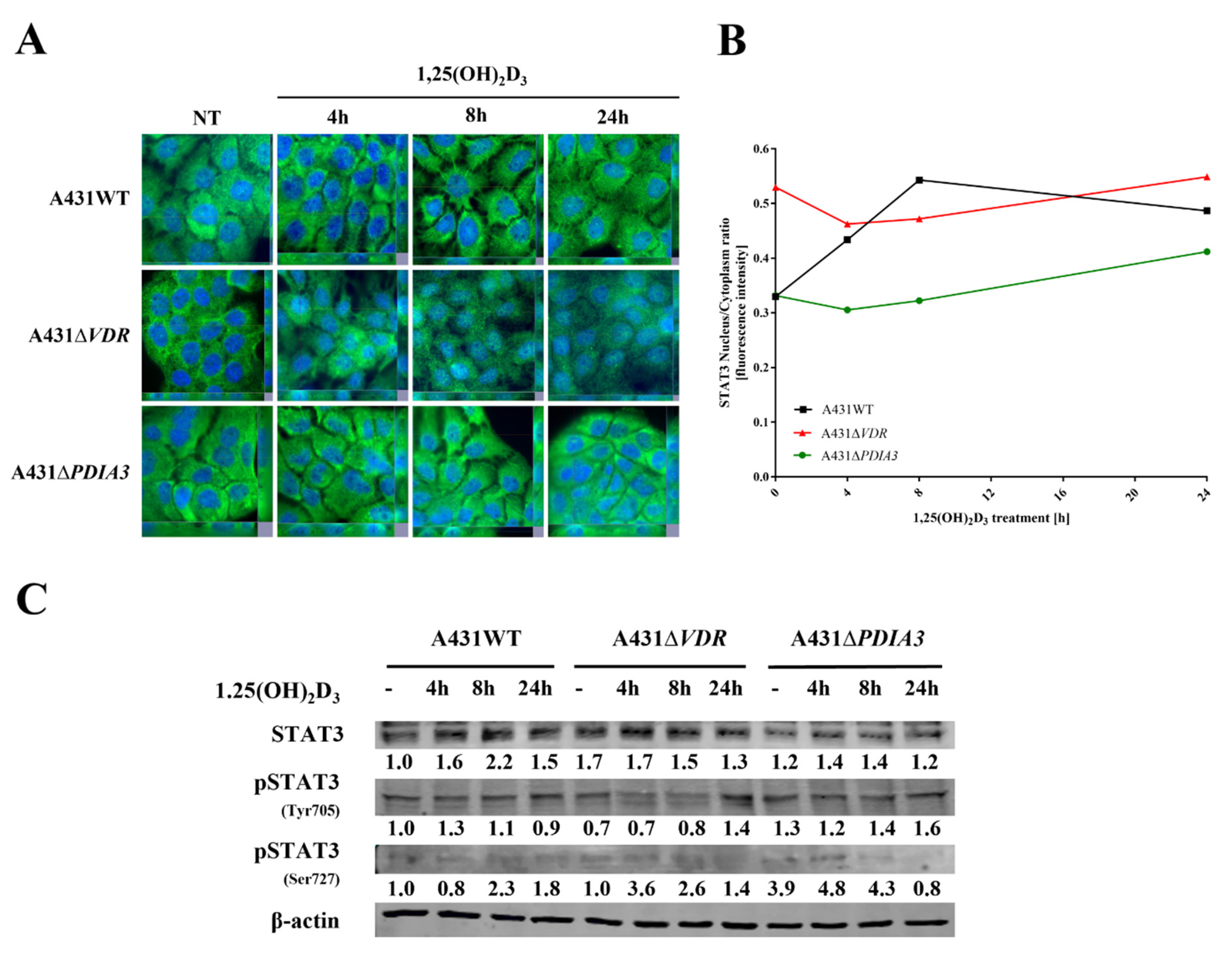

Figure 6. PDIA3 deletion affects STAT3 signaling in A431 squamous cell carcinoma. (A) Fluorescence images of A431 cell lines treated with 1,25(OH)2D3 for 4, 8, or 24 h and stained with anti-STAT3 antibody and DAPI. (B) STAT3 nucleus/cytoplasm ratio in A431 sublines. (C) Analysis of protein levels of STAT3, pSTAT3 (Y705), and pSTAT3 (S727) in A431WT and VDR or PDIA3-deficient knockout cell lines.
Figure 6. PDIA3 deletion affects STAT3 signaling in A431 squamous cell carcinoma. (A) Fluorescence images of A431 cell lines treated with 1,25(OH)2D3 for 4, 8, or 24 h and stained with anti-STAT3 antibody and DAPI. (B) STAT3 nucleus/cytoplasm ratio in A431 sublines. (C) Analysis of protein levels of STAT3, pSTAT3 (Y705), and pSTAT3 (S727) in A431WT and VDR or PDIA3-deficient knockout cell lines.
Nutrients 15 04529 g006
