Mendelian Randomization Study on Amino Acid Metabolism Suggests Tyrosine as Causal Trait for Type 2 Diabetes

Department of Molecular Epidemiology, German Institute of Human Nutrition Potsdam-Rehbruecke, 14558 Nuthetal, Germany
German Center for Diabetes Research (DZD), 85764 Neuherberg, Germany
Department of Nutrition, Harvard T.H. Chan School of Public Health, Boston, MA 02115, USA
Leibniz Institute for Prevention Research and Epidemiology-BIPS, 28359 Bremen, Germany
Human Genomics Research Group, Department of Biomedicine, University of Basel, 4031 Basel, Switzerland
Institute of Human Genetics, Division of Genomics, Life & Brain Research Centre, University Hospital of Bonn, 53105 Bonn, Germany
Research Unit Molecular Endocrinology and Metabolism, Helmholtz Zentrum München, German Research Center for Environmental Health, 85764 Neuherberg, Germany
Chair of Experimental Genetics, Center of Life and Food Sciences Weihenstephan, Technische Universität München, 85354 Freising-Weihenstephan, Germany
Department of Biochemistry, Yong Loo Lin School of Medicine, National University of Singapore, 8 Medical Drive, Singapore 117597, Singapore
Molecular Epidemiology Research Group, Max Delbrueck Center for Molecular Medicine in the Helmholtz Association (MDC), 13125 Berlin, Germany
Charité–Universitätsmedizin Berlin, Corporate Member of Freie Universität Berlin, Humboldt-Universität zu Berlin and Berlin Institute of Health (BIH), 10117 Berlin, Germany
MDC/BIH Biobank, Max Delbrueck Center for Molecular Medicine in the Helmholtz Association (MDC) and Berlin Institute of Health (BIH), 13125 Berlin, Germany
Institute of Nutritional Science, University of Potsdam, 14558 Nuthetal, Germany
Author to whom correspondence should be addressed.
Nutrients 2020, 12(12), 3890;
Received: 24 November 2020 / Revised: 14 December 2020 / Accepted: 16 December 2020 / Published: 19 December 2020
(This article belongs to the Special Issue Amino Acid Nutrition and Metabolism Related to Health and Well Being)


Circulating levels of branched-chain amino acids, glycine, or aromatic amino acids have been associated with risk of type 2 diabetes. However, whether those associations reflect causal relationships or are rather driven by early processes of disease development is unclear. We selected diabetes-related amino acid ratios based on metabolic network structures and investigated causal effects of these ratios and single amino acids on the risk of type 2 diabetes in two-sample Mendelian randomization studies. Selection of genetic instruments for amino acid traits relied on genome-wide association studies in a representative sub-cohort (up to 2265 participants) of the European Prospective Investigation into Cancer and Nutrition (EPIC)-Potsdam Study and public data from genome-wide association studies on single amino acids. For the selected instruments, outcome associations were drawn from the DIAGRAM (DIAbetes Genetics Replication And Meta-analysis, 74,124 cases and 824,006 controls) consortium. Mendelian randomization results indicate an inverse association for a per standard deviation increase in ln-transformed tyrosine/methionine ratio with type 2 diabetes (OR = 0.87 (0.81–0.93)). Multivariable Mendelian randomization revealed inverse association for higher log10-transformed tyrosine levels with type 2 diabetes (OR = 0.19 (0.04–0.88)), independent of other amino acids. Tyrosine might be a causal trait for type 2 diabetes independent of other diabetes-associated amino acids.

1. Introduction

Blood levels of amino acids have been associated with risk of type 2 diabetes or insulin resistance in several observational studies [1]. However, it is still not fully clear whether these metabolites are causal markers for disease etiology or rather reflect early pathophysiological processes of the disease development.
To investigate causal relationships between risk factors and disease outcomes, genetic variants can be used as instrumental variables in Mendelian randomization (MR). The principle is based on Mendels’s second law of inheritance, stating that the assignment of alleles is random during meiosis. Therefore, genetic variants are generally not associated with possible confounders (e.g., environmental exposures or lifestyle factors) in exposure-disease associations [2]. Furthermore, the genetic constitution of an individual is determined prior to the disease onset overcoming the chance of reverse causation [2]. Various previous MR studies investigated single amino acids in relation to type 2 diabetes risk but found controversial results. For glycine, one study found a causal inverse association with type 2 diabetes [3]; however, two others did not [4,5] and one suggested glycine levels rather being causally influenced by insulin resistance [5]. Phenylalanine showed a positive causal effect on risk of type 2 diabetes [3]. While branched-chain amino acids (BCAA) (isoleucine, leucine, and valine) have been associated with risk of type 2 diabetes using MR [6], others found no indication for a causal effect on insulin resistance, but rather the opposite direction of insulin resistance having a causal impact on BCAA levels [7].
Previous MR studies used large data sources; however, they focused on single amino acids only and did not account for their interrelations within human metabolism. Amino acid ratios which account for intercorrelations between single amino acids and utilizing underlying network structures might depict pathway reactions connected to functional SNPs [8]. Another novel approach to consider pleiotropic effects within complex metabolic pathways is multivariable MR, utilizing multiple genetic instruments to disentangle direct causal effects of risk factors [9].
Within this project, we aimed to use human genetics to estimate causal effects of single diabetes-related amino acids and amino acid ratios, as identified in the European Prospective Investigation into Cancer and Nutrition (EPIC)-Potsdam study (Figure S1) [10], on the risk of type 2 diabetes and to study which of the diabetes-related amino acid traits predominantly account for the causal relationship with risk of type 2 diabetes.

2. Materials and Methods

2.1. Workflow

Figure 1 illustrates the workflow of our analysis. First, we selected diabetes-related amino acid traits based on metabolic network structures within EPIC-Potsdam (Figure S1). Second, we identified suitable genetic instruments in genome-wide association studies (GWAS) on diabetes-related amino acid traits within EPIC-Potsdam data (n = 2265). Third, we evaluated the pathway enrichment of the genetic instruments to facilitate biological interpretation facilitating biological interpretation. Fourth, for the selected SNPs, disease associations were extracted from large public GWAS on type 2 diabetes and we performed univariable two-sample MR studies to estimate the causal effects of amino acid traits on type 2 diabetes risk (DIAGRAM data). To complement our results achieved within EPIC-Potsdam data and to gain higher power to generate genetic instruments for single amino acids, we used previously published GWAS data on single amino acid measures [11]. Fifth, these public data were furthermore used in a multivariable MR to estimate direct causal effects of diabetes-related amino acid traits. Finally, we evaluated the role of pre-existing insulin resistance (defined by fasting insulin in MAGIC data) by applying a reverse MR approach in EPIC-Potsdam and utilizing public GWAS data. Detailed description of data sources follows under the study populations section.

2.2. Study Populations

2.2.1. Individual-Level Data from the EPIC-Potsdam Study

The European Prospective Investigation into Cancer and Nutrition (EPIC)-Potsdam study consists of 27,548 participants recruited between 1994 and 1998 from the general population in Potsdam and surroundings. The baseline examination involved a personal interview including questions on prevalent diseases, self-administered questionnaires, interviewer-conducted anthropometric measurements, and a blood sample collection [12]. We used a random sample within the EPIC-Potsdam study, described in detail previously [13]. Briefly, a sub-cohort of 2500 individuals was randomly selected from 26,444 participants who provided blood samples at baseline. Of these, participants with prevalent diabetes or diabetes medication at baseline were excluded. Further exclusion criteria were missing genetic data (described in detail within the genotyping and quality control section) and missing or implausible data on amino acid measurements, leaving up to 2265 individuals for analyses in the sub-cohort (Figure S2).
All participants provided written informed consent. The EPIC-Potsdam study was approved by the ethics committee of the State of Brandenburg, Germany (approval code: AS 29/93). All procedures were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki declaration and its later amendments or comparable ethical standards.

2.2.2. Summary-Level Data for Single Amino Acids

Estimates for the associations between genetic instruments and single amino acids (glycine, phenylalanine, tryptophan, tyrosine, methionine, valine, leucine, serine) were extracted from public GWAS data by Shin et al. investigating up to 7824 adult individuals with European ancestry from the KORA (Kooperative Gesundheitsforschung in der Region Augsburg) and the TwinsUK studies [11]. Amino acid traits are log10-transformed and beta estimates are adjusted for age and sex. We selected this data source, as all investigated amino acid traits from EPIC-Potsdam are available.

2.2.3. Summary-Level Data for Type 2 Diabetes

Estimates for the association of amino acid-associated SNPs with type 2 diabetes were obtained from the DIAbetes Genetics Replication And Meta-analysis (DIAGRAM) consortium, including 32 studies with a total of 898,130 individuals (74,124 with type 2 diabetes and 824,006 without) of European ancestry [14]. We used the type 2 diabetes-risk estimates without BMI adjustment. Type 2 diabetes was defined by study-specific diagnostic criteria, ranging from self-reports, diabetes medication to verified diagnoses (see Table S1) [14].

2.2.4. Summary-Level Data for Fasting Insulin

Estimates for the associations between genetic instruments and fasting insulin were obtained from MAGIC (the Meta-Analyses of Glucose and Insulin-related traits Consortium) investigators [15]. The estimates are adjusted for age and sex and were generated from up to 108,557 individuals with European ancestry from 56 studies.

2.3. DNA-Extraction, Genotyping and Quality Control within EPIC-Potsdam

The DNA was extracted from buffy coats using the chemagic DNA Buffy Coat Kit on a Chemagic Magnetic Separation Module I (PerkinElmer chemagen Technologies, Baesweiler, Germany) according to the manufacturer’s manual. Samples from the EPIC-Potsdam participants were genotyped with three different genotyping arrays: Human660W-Quad_v1_A (n = 363), HumanCoreExome-12v1-0_B (n = 632, two datasets) and Illumina InfiniumOmniExpressExome-8v1-3_A DNA Analysis BeadChip (n = 1369). Genotyping and quality control of the Human660W-Quad_v1_A and HumanCoreExome-12v1-0_B chips was described elsewhere [16]. Genotyping using the Illumina InfiniumOmniExpressExome-8v1-3_A DNA Analysis BeadChip was performed in the Life and Brain Center in Bonn, Germany. Detailed description of genotyping and quality control and imputation was previously published [17]. Briefly, pre-/phasing and imputation were conducted using Eagle2 [18] and the Michigan Imputation Service [19] with The Haplotype Reference Consortium (release 1.1) as reference panel [20]. Imputation was conducted in four separate datasets (one for each chip or two for the HumanCoreExome-12v1-0_B chip) using minimac3 [19]. Imputed files were merged, keeping the minimal R 2 score from the four files. SNPs were filtered by R2 keeping those with values bigger than 0.6. Overall, we had genotype data for n = 2303 samples from the sub-cohort available (Figure S1).

2.4. Metabolite Measurements in EPIC-Potsdam

Metabolite quantification was performed in the Genome Analysis Center at the Helmholtz Zentrum München. All samples have been measured using the AbsoluteIDQTM p150 Kit (Biocrates Life Sciences AG, Innsbruck, Austria) in combination with flow injection analysis-tandem mass spectrometry (FIA-MS/MS). Serum samples of 10 µL serum were used to quantify 163 simultaneously, including 41 acylcarnitines (Cx:y), 14 amino acids, hexose (sum of six-carbon monosaccharides without distinction of isomers), 92 glycerophospholipids (lyso-, diacyl-, and acyl-alkylphosphatidylcholines), and 15 sphingomyelins. The method for sample preparation and measurement as well as the metabolite denomination was previously described [21]. All samples of EPIC-Potsdam have been processed in one batch [22]. We selected eight amino acid ratios out of the six diabetes-associated amino acids [10] which were connected via one edge [8] based on a network of amino acids (Figure S1) and two single amino acids, resulting in ten outcomes referred to as diabetes-related amino acid traits (glycine, phenylalanine, glycine/serine, serine/phenylalanine, phenylalanine/arginine, valine/xleucine, xleucine/Methionine, tyrosine/methionine, tyrosine/tryptophan, tryptophan/glutamine).

2.5. Statistical Analysis

Statistical Analysis System (SAS) Enterprise Guide 7.1 with SAS version 9.4 (SAS Institute Inc., Cary, NC, USA) was used for data management and preparation. QCtool v1.4 was used for genetic data filtering. SNPtest v2.5.2 [23] was used for GWAS. For Mendelian Randomization analyses we used R (version 3.6.3 (2020-02-29)) and the following R packages: TwoSampleMR (v0.5.4) [24], Mendelian Randomization (v0.4.2) [25], Radial MR (0.4) [26] and MVMR (v0.2) [27].

2.5.1. Genome-Wide Association Study in EPIC-Potsdam

SNPs were filtered by SNP missing-rate (removed ≥ 0.05), minimum allele frequency (MAF) (removed out of interval (0.05–0.5)) and Hardy-Weinberg equilibrium (removed −log10(p-value) ≥ 3). We performed exploratory single variant association analysis using n ~ 5,338,500 markers as exposures, separately for each of the ten amino acid traits. The effective number of independent metabolite traits of 9 out of 10 was determined using equation 5 of Li and Ji [28]. We considered a p-value as genome-wide significant at p < 1.11 × 10−8 = [10−7/9]. Suggestive significance threshold was defined as p < 1.11 × 10−6 = [10−5/9]. Amino acid traits were natural log-transformed to normalize the right-skewed distributions. After ln-transformation, metabolite outliers of >4 standard deviations (SD) from the mean were excluded and amino acid traits were standardized (mean = 0; SD = 1). We assumed an additive genetic model, adjusted for age at recruitment and sex. Variants were mapped to Ensembl annotation version 87 (GRCh37) [29] and annotated by the Ensembl Variant Effect Predictor [30].

2.5.2. Gene Set Enrichment Analysis Using EPIC-Potsdam GWAS Data

We used GSA-SNP2 software for gene set enrichment analysis based on GWAS p-Values [31]. This tool employs the Z-statistic of the random set model. The SNP to gene annotation was done using a 20 kilobases window upstream and downstream of the gene and highly correlated adjacent genes on European population were removed. We present pathways up to q-value <0.25 using the MSigDB C2.CP (curated canonical pathways) version 5.2 database [32,33,34] for pathway annotation that were grouped according to gold standard pathways for type 2 diabetes [31].

2.5.3. Two-Sample Mendelian Randomization Analyses Using EPIC-Potsdam GWAS Data on Amino Acids and Ratios

We conducted a univariable two-sample MR study using amino acid traits as exposures on type 2 diabetes. Effect estimates of the association between genetic instruments and amino acid traits were obtained from EPIC-Potsdam data and effect estimates of the SNP-type 2 diabetes association were used from public summary GWAS data [14]. We selected suggestive significant (p < 1.11 × 10−6) or genome-wide significant (p < 1.11 × 10−8) instrumental variables and performed clumping according to linkage disequilibrium (LD). Therefore, SNPs within a window of 10,000 kb and being in LD as defined by R2 ≥ 0.3 were removed. The SNP with the lowest p-value was retained. Within the MR analysis, we accounted for their correlation among each other, estimated in 502 European samples from 1000 Genomes phase 3 as implemented within the Mendelian Randomization R package [25] (Figure S3A). In sensitivity analysis, we performed strict clumping using the default threshold of R2 ≥ 0.001 from the TwoSampleMR R package to retain independent instruments. Data were harmonized for the direction of effects between exposure and outcome associations and palindromic SNPs were excluded. We then used an inverse variance weighted (IVW) meta-analysis of each SNP specific Wald ratio (SNP-outcome estimate divided by SNP-exposure estimate) using random effects or fixed effects (≤ 3 instruments), to obtain an estimate for the causal effect of the respective amino acid trait on type 2 diabetes. To investigate violations of the MR assumptions due to horizontal pleiotropy, we evaluated the MR-Egger intercept [35]. Heterogeneity was assessed by the Cochran’s Q statistic and if applicable we performed RadialMR using second order weights and an α level of 0.05 [26] to identify outliers with the largest contribution to Q statistic. Furthermore, we obtained the mean F statistic for the set of genetic variants as indicator of instrument strength [26].

2.5.4. Two-Sample Mendelian Randomization Analyses Using Public GWAS Data on Single Amino Acids

To complement our results obtained from EPIC-Potsdam data and to gain higher power for generating genetic instruments for single amino acids, we used previously published GWAS data [11] and performed univariable two-sample MRs for single amino acids and type 2 diabetes. Genetic instruments were selected based on strict genome-wide significance threshold of 5 × 10−8 and default clumping threshold of R2 ≥ 0.001 [11].
Furthermore, we conducted multivariable MR using tyrosine, methionine, and tryptophan as exposures [11] on risk of type 2 diabetes [14] to receive direct causal effects for tyrosine adjusted for the direct neighbors within the amino acid network. Genetic instruments for each exposure were selected based on strict genome-wide significance threshold of 5 × 10−8 and default clumping threshold of R2 ≥ 0.001 [11] (Figure S3B). Then we obtained all SNP effects on the respective other amino acids. Extraction of the outcome GWAS results and data harmonization was conducted as described before.
This analysis was extended by adjusting tyrosine by all other diabetes-related amino acids. We calculated F-statistics to evaluate the presence of weak instruments within the multivariable MR analysis and adjusted for those by minimizing the Q-statistic allowing for heterogeneity using “qhet_mvmr” function from the MVMR package [27]. Phenotypic correlation was obtained from EPIC-Potsdam data, considering levels of xLeu as being the sum of isoleucine and leucine, which were not directly measured in our study.
To account for horizontal pleiotropic effects by other pathways besides amino acids and to avoid false positive finding, we used Causal Analysis Using Summary Effect estimates (CAUSE) method [36] for tyrosine using three different data sources: Shin et al. [11], Kettunen et al. [37] and Locke et al. [38]. The latter two were also used for univariable MR with type 2 diabetes.
Furthermore, we tested for associations of tyrosine with type 2 diabetes-related outcomes like fasting blood glucose, fasting insulin, BMI, and waist circumference in univariable MR approach.

2.5.5. Reverse Two-Sample Mendelian Randomization Analyses of Insulin Resistance and Amino Acids

We performed reverse MR analysis to test causality of insulin resistance on amino acid traits [5,7] using nine out of ten genetic instruments from a genetic risk score for fasting insulin as a marker of insulin resistance [39], providing a mean F statistic of 27.9. Results of amino acid ratios showing causal influence by insulin resistance in EPIC-Potsdam were complemented by using EPIC-Potsdam and public GWAS results for single amino acids [11].

3. Results

3.1. Selection of Genetic Instruments by GWAS on Amino Acid Traits in EPIC-Potsdam

GWAS were conducted within the EPIC-Potsdam study with up to 2265 participants. Baseline characteristics are illustrated in Table 1.
We identified genome-wide significant hits for glycine, glycine/serine, and tyrosine/methionine ratios. While hits such as CPS1 for glycine and glycine/serine ratio or PHGDH for glycine/serine or serine/phenylalanine ratios were known from previous GWAS, we also identified novel suggestive associations such as MEG9 for glycine and GOT2 for tyrosine/methionine ratio. All GWAS hits are summarized in Table 2 and Figure S4. For tyrosine/tryptophan ratio, we did not identify suggestive associations (Figure S4).

3.2. Enrichment of Amino Acid-Associated SNPs in Type 2 Diabetes-Related Pathways

We analyzed which pathways were enriched with genetic signals on diabetes-related amino acids. Therefore, we used curated sets of type 2 diabetes-related pathways (Figure 2).
Genetic signals on tyrosine/methionine showed the most enriched pathways which were mainly related to NOTCH signaling. While phenylalanine/arginine was enriched in pathways mapping to fatty acid metabolism; glycine/serine, phenylalanine, and tryptophan/glutamine were mainly related to pathways of glucose metabolism and type 2 diabetes. GWAS results for glycine, serine/phenylalanine, tyrosine/tryptophan, xLeucine/methionine, and valine/xLeucine were not enriched in type 2 diabetes-related pathways.

3.3. Causal Estimates for Amino Acid Traits on Risk of Type 2 Diabetes

There was an inverse association with type 2 diabetes risk per SD increase in ln-transformed tyrosine/methionine ratio (beta = −0.141; OR = 0.87 (0.81–0.93)) when including one genome-wide significant instrument located in SLC16A10 (Table 3, Tables S2 and S3).
Although heterogeneity was identified for suggestive hits of glycine/serine, tyrosine/methionine and xLeucine/methionine, outliers could only be detected for glycine/serine (rs2010825). Exclusion of this variant did not change the overall not significant association (Table 3). If applicable, we could not find indication for directional horizontal pleiotropy as assessed with MR-Egger regression (Table 3). Using public GWAS data on single log10-transformed amino acid measurements, we found that the association of tyrosine/methionine ratio seems to be driven by tyrosine showing itself a strong inverse association (beta = −1.530; OR = 0.22 (0.07–0.67)) (Figure 3, Tables S4 and S5). Higher levels of methionine, however, showed no significant association with type 2 diabetes, although the estimate was also quite strong (beta = −1.170; OR = 0.31 (0.04–2.2)) (Figure 3, Tables S4 and S5).
We investigated other diabetes-related amino acid traits using public data and found positive associations for increased levels of valine and leucine in univariable MR (Tables S4 and S5). When we adjusted tyrosine for its direct neighbors in the network (tryptophan and methionine) in multivariable MR, we found an inverse association for higher levels of tyrosine (OR = 0.27 (0.07–1.12), Figure 3), which became stronger and significant after adjustment for all other diabetes-associated amino acids (tryptophan, leucine, isoleucine, valine, glycine, and phenylalanine) (beta = −1.66; OR = 0.19 (0.04–0.88), Figure 2 and Tables S6 and S7) while neither higher levels of BCAA nor glycine, phenylalanine or tryptophan showed significant associations. F-statistics were below 10 for all exposures suggesting potentially weak instruments used in this analysis (Table S6). However, we repeated the multivariable MR by accounting for weak instruments and received comparable effect estimate for tyrosine (beta = −1.76; OR = 0.17 (0.03–0.98), Table S6).
Using CAUSE method for tyrosine, the model fit for both, the sharing and causal models, was not significantly different from the null model (Table 4) using data from Shin et al. or Kettunen et al. Using data from Shin et al., the causal model seemed to have a better fit than the sharing model; still, none of the models was statistically better than the other one. However, we could use only 83,936 genetic variants to estimate the nuisance parameters which might have resulted in bad model comparisons as it is advised to use at least 100,000 variants. When we used most recent data from Locke et al. [38], we found that the causal model was significantly better than the null or the sharing model (Table 4). However, in univariable MR using this data source, we found indication for significant positive association with type 2 diabetes, contrasting the effect directions observed from Shin et al. and Kettunen et al. (Tables S8 and S9).
Tyrosine showed no significant associations with BMI, waist circumference and fasting insulin, but results tended towards an inverse association with fasting blood glucose adjusted for BMI (p = 0.008) and blood glucose (p = 0.004). (Table S10).

3.4. Causal Estimates for Insulin Resistance on Amino Acid Traits

We found significant associations of insulin resistance on serine/phenylalanine (beta = −1.895; OR = 0.15 (0.03–0.81)) and tyrosine/methionine (beta = 1.486; OR = 4.42 (1.03–19.0)) ratios in reverse MR analysis (Table S11–S13) using EPIC-Potsdam data. The former was driven by the significant association of insulin resistance on serine; which was however only identified when using, EPIC-Potsdam data (beta = −1.75; OR = 0.17 (0.04–0.76), Tables S14 and S15). Insulin resistance was not causally linked to individual amino acid measures of phenylalanine, tyrosine, and methionine, neither using data from EPIC-Potsdam nor from Shin et al. [11] (Tables S12–S15).

4. Discussion

Within this study, we applied a two-sample MR approach to investigate causal effects of diabetes-associated amino acid traits on the risk of type 2 diabetes. As a main finding, our MR analysis supports a causal effect of tyrosine on type 2 diabetes which seems to be independent of other diabetes-associated amino acids. For BCAA, glycine, tryptophan and phenylalanine, no direct causal effects could be established in this multivariable MR analysis. Reverse MR approach indicated causal effect of insulin resistance on tyrosine/methionine and serine/phenylalanine ratios in EPIC-Potsdam, but this could not be attributed to single amino acids within the ratios.

4.1. Amino Acids and Type 2 Diabetes

We found a genetically inverse association of tyrosine/methionine ratio with type 2 diabetes which seems to be driven by tyrosine. This inverse association was robust throughout all our analyses, independent of whether we used the tyrosine/methionine ratio in EPIC-Potsdam or tyrosine as single trait obtained from Shin et al. [11]. Furthermore, this inverse association was robust to adjustment by other diabetes-related amino acids in multivariable MR. Genome-wide significant instruments for tyrosine selected in public data were located on the same chromosomes as suggestive instruments identified in EPIC-Potsdam GWAS for tyrosine/methionine ratio; however, there was no indication for LD between the respective SNPs. Although, our results are in accordance with a recent MR study on tyrosine [41]; it is noteworthy that our findings (except the univariable MR using data from Locke et al. [38]) are in contrast to observational studies conducted in Caucasian populations (including EPIC-Potsdam) which found positive associations between serum tyrosine levels and type 2 diabetes risk [10,42].
With regard to the other investigated diabetes-related amino acid traits, utilizing ratios did not result in novel findings compared to previous MR studies on single amino acids. However, our multivariable approach combining all diabetes-associated amino acids into one model yielded no direct effect for BCAA, glycine, phenylalanine, or tryptophan. This is in contrast to our univariable MR on valine and leucine and previous univariable MRs on BCAA [6] and phenylalanine [3] showing risk increasing effects on type 2 diabetes. Previous MR studies might have come to divergent conclusions, as they have missed the intercorrelation between different amino acids in human metabolism by focussing on single traits only.
The association of tyrosine on type 2 diabetes could not be attributed to pre-existing insulin resistance. Although we found a significant effect of insulin resistance on tyrosine/methionine ratio in reverse MR approach in EPIC-Potsdam, we could not verify this result for single amino acids included within the ratio, neither in EPIC-Potsdam nor in larger GWAS [11]. Therefore, our results suggest that the direct association for tyrosine is not confounded by reverse causation due to insulin resistance. Still, this finding should be confirmed in future studies.

4.2. Biological Mechanisms Linking Tyrosine to Type 2 Diabetes

Our main genetic instrument for tyrosine was located within the SLC16A10 locus. The locus was previously discovered to be associated with isoleucine/tyrosine ratio [43] (rs7760535, LD with our EPIC-Potsdam variant (rs17606481): r2 = 0.25 and D’ = 0.93). SLC16A10 encodes a monocarboxylate transporter 10 also known as T-type amino acid transporter 1 (TAT1) which is a sodium-independent transporter that mediates the uptake of aromatic acids like tyrosine, tryptophan phenylalanine and the non-proteogenic amino acid L-DOPA [44]. Tyrosine might act on type 2 diabetes risk via its crucial role in synthesis of the neurotransmitter dopamine and L-DOPA. Although, research regarding the effects of dopamine on glucose homeostasis and beta cell function is still at the beginning, in vitro and in vivo studies suggest that dopaminergic agents exert actions on the central nervous system (e.g., appetite control) as well as on the endocrine system (pituitary and pancreas) which modulate glucose and energy homeostasis [45]. In addition to being endogenously synthesized from phenylalanine, tyrosine is found in high-protein foods such as meat, fish, and cheese, but also in non-animal products like nuts, legumes, and whole-grains. Especially the latter are considered as beneficial for health and diets rich in those foods have been associated with reduced risk for type 2 diabetes [46]. Whether dietary supplementation of tyrosine is able to modulate glucose tolerance is studied within an ongoing clinical trial [47]. A recent study in rodents showed that beta cell function is affected by oral tyrosine administration and postulated dopamine and L-DOPA derived from nutritional tyrosine as anti-incretin candidates [48]. On the one hand, high blood levels of tyrosine may result in high L-DOPA and dopamine levels and therefore strengthen the anti-incretin effect. On the other hand, high tyrosine levels may reflect a reduced tyrosine hydroxylase (TH) activity resulting in low L-DOPA and dopamine levels and thereby weaken the anti-incretin effect. While the former would be supported by the observational finding of higher tyrosine levels being associated with higher diabetes risk, the latter would, however, be more in line with the causal inverse effect of tyrosine on blood glucose levels and type 2 diabetes risk, identified in our multivariable MR. A SNP (rs10770141) in the human TH gene resulting in reduced expression of TH was associated with lower type 2 diabetes risk [49], supporting our results. The TH expression and activity can furthermore be regulated by insulin to maintain an appropriate dopaminergic tone, suggesting that conditions with impaired insulin signaling are accompanied with a reduced TH expression [50], and hence high tyrosine levels. This might be one explanation why observational studies find higher tyrosine levels to be associated with higher risk. Another mechanism how tyrosine might relate to reduced type 2 diabetes risk is via its fermentation by gut microbiota to 4-Cresol, improving glucose homeostasis and β-cell function [51]. Still, the direction of effect obtained in our univariable MR depended on the respective study population and the resulting instruments used for the SNP-exposure association. Therefore, we cannot finally clarify whether the tyrosine-type 2 diabetes association is inverse or positive.
Gene-set enrichment analysis highlighted pathways connected to NOTCH signaling to be enriched in our data. NOTCH signaling is important for cell-cell signaling and plays a role in pancreas development. NOTCH2 was previously described as a type 2 diabetes susceptibility locus [52]. Furthermore, NOTCH signaling is connected to beta cell insulin secretion [53].

4.3. Strengths and Limitations

One limitation of our analysis is the exclusion of prevalent diabetes cases in the EPIC-Potsdam sample which was used for instrument selection and might have weakened the exposure betas. However, compared to the overall study sample this number was small and we aimed to exclude bias from reverse causation due to the fact that prevalent cases might have different blood levels of amino acids [54]. When we used public GWAS data, we could observe a similar direction of association for tyrosine, and therefore this result seems to be robust. Furthermore, our findings are restricted to Europeans only, and can therefore not be generalized to other ethnicities.
A major concern is related to the presence of pleiotropic pathways as the single amino acids are connected within the metabolite network and therefore not independent of each other. Although we used ratios to address limitations by previous MR studies that did not account for correlations between specific amino acids, our MR analysis using estimates from EPIC-Potsdam might be underpowered (e.g., 59.3% power [55] to find the same causal effect for insulin resistance on glycine levels compared to the previous study [5] using the same genetic instruments). We addressed this disadvantage by complementing our results from EPIC-Potsdam with data from three times larger GWAS on single amino acids [11] (yielding a power of one for insulin resistance on glycine levels [55]). Still, we cannot rule out that we had insufficient power to detect causal effects for other amino acid traits beyond tyrosine. We adjusted for horizontal pleiotropy due to other amino acids, by applying novel multivariable MR framework; however, direct estimates might be biased if weak genetic instruments are used (indicated by F-statistic <10) [27], which was the case for all our exposures. Nevertheless, when we accounted for those in the analysis, we obtained comparable beta estimates and retained a significant direct effect for tyrosine. We tried to correct for correlated and uncorrelated horizontal pleiotropy using CAUSE MR method which did support a causal model for tyrosine and type 2 diabetes using most recent data for tyrosine measurements.

5. Conclusions

In conclusion, our results suggest that tyrosine might play a causal role for type 2 diabetes development, which seems to be independent of other diabetes-associated amino acids or pre-existing insulin resistance. However, interpretation should consider limitations like potentially weak and pleiotropic genetic instruments and the unclear effect direction which need to be addressed in future studies.

Supplementary Materials

The following are available online at, Table S1: Characteristics of studies included within the DIAGRAM consortium, Table S2: Associations of single genetic instruments used for MR of amino acids traits from EPIC-Potsdam and type 2 diabetes, Table S3: Total causal effects of amino acid traits from EPIC-Potsdam and of type 2 diabetes using independent instruments (R² < 0.001), Table S4: Total causal effects of amino acid traits from Shin et al. and type 2 diabetes and sensitivity analyses, Table S5: Associations of single genetic instruments used for MR of amino acids traits from Shin et al. and type 2 diabetes, Table S6: Direct causal effects of diabetes associated amino acid traits from Shin et al. and type 2 diabetes, Table S7: Associations of single genetic instruments used for MVMR of amino acids traits from Shin et al. and type 2 diabetes, Table S8: Total causal effects of tyrosine risk of type 2 diabetes using other public data sources, Table S9: Associations of single genetic instruments used for MR of tyrosine from Kettunen et al. and Locke et al. and type 2 diabetes, Table S10: Total causal effects of tyrosine from Shin et al. and other risk factors for type 2 diabetes, Table S11: Instruments from genetic risk score for insulin resistance, Table S12: Total causal effects of insulin resistance on amino acid traits from EPIC-Potsdam, Table S13: Associations of single genetic instruments used for MR of insulin resistance and amino acids traits from EPIC-Potsdam, Table S14: Total causal effects of insulin resistance and single amino acids, Table S15: Associations of single genetic instruments used for MR of insulin resistance and single amino acids, Figure S1: Network structure of amino acids within EPIC-Potsdam, Figure S2: Flow-chart of final study population in EPIC-Potsdam, Figure S3: Example flow charts of inclusion and exclusion of SNPs into the analysis, Figure S4: Manhattan plots visualizing GWAS results for amino acid traits in EPIC-Potsdam.

Author Contributions

S.J. and M.B.S. conceptualized the project and designed the analysis plan. S.J. analyzed the data. P.H., C.P., J.A., and T.P. acquired data. S.J. and R.C. performed quality control of genetic data. S.J., R.C., C.W., A.F., and M.B.S. interpreted the data. S.J. wrote the first draft of the manuscript. R.C., C.W., A.F., P.H., C.P., J.A., T.P., and M.B.S. reviewed the manuscript. Both S.J. and M.B.S had access to all data for this study and take responsibility for the manuscript contents. All authors have read and agreed to the published version of the manuscript.


The recruitment phase of the EPIC-Potsdam Study was supported by the Federal Ministry of Science, Germany (01 EA 9401) and the European Union (SOC 95201408 05F02). The follow-up of the EPIC-Potsdam Study was supported by German Cancer Aid (70-2488-Ha I) and the European Community (SOC 98200769 05F02). This work was furthermore supported by a grant from the German Ministry of Education and Research (BMBF) and the State of Brandenburg (DZD grant 82DZD00302).


We thank the Human Study Centre (HSC) of the German Institute of Human Nutrition Potsdam-Rehbrücke, namely, the trustee and the data hub for the processing, and the participants for the provision of the data, the biobank for the processing of the biological samples, and the head of the HSC, Manuela Bergmann, for the contribution to the study design and leading the underlying processes of data generation. Furthermore, we thank Julia Scarpa, Arsin Sabunchi and Werner Römisch-Margl for metabolomics measurements performed at the Helmholtz Zentrum München, Genome Analysis Center, Metabolomics Platform.

Conflicts of Interest

The authors declare no conflict of interest.

Ethics Approval and Consent to Participate

All participants provided written informed consent. The EPIC-Potsdam study was approved by the ethics committee of the State of Brandenburg, Germany. All procedures were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki declaration and its later amendments or comparable ethical standards.

Availability of Data and Materials

The EPIC-Potsdam datasets analyzed during the current study are not publicly available due to data protection regulations. In accordance with German Federal and State data protection regulations, epidemiological data analyses of EPIC-Potsdam may be initiated upon an informal inquiry addressed to the secretariate of the Human Study Center ([email protected]). Each request will then have to pass a formal process of application and review by the respective PI and a scientific board. Summary-level data for genetic associations with type 2 diabetes and fasting insulin have been contributed by the DIAGRAM consortium (; accessed 08.08.2019) and the MAGIC consortium (; accessed 01.04.2020). GWAS-Summary data from Shin et al., 2014, and data on BMI, waist circumference, fasting insulin and (fasting) glucose were accessed via the MR-Base platform and TwoSampleMR R package [24]. The authors thank all investigators for sharing these data.

Code Availability

All statistical codes are available upon request to the corresponding author.


  1. Bi, X.; Henry, C.J. Plasma-free amino acid profiles are predictors of cancer and diabetes development. Nutr. Diabetes 2017, 7, e249. [Google Scholar] [CrossRef] [PubMed]
  2. Smith, G.D.; Ebrahim, S. Mendelian randomization: Can genetic epidemiology contribute to understanding environmental determinants of disease? Int. J. Epidemiology 2003, 32, 1–22. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Merino, J.; Leong, A.; Liu, C.-T.; Porneala, B.; Walford, G.A.; Von Grotthuss, M.; Wang, T.J.; Flannick, J.; Dupuis, J.; Levy, D.; et al. Metabolomics insights into early type 2 diabetes pathogenesis and detection in individuals with normal fasting glucose. Diabetologia 2018, 61, 1315–1324. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Xie, W.; Wood, A.R.; Lyssenko, V.; Weedon, M.N.; Knowles, J.W.; Alkayyali, S.; Assimes, T.L.; Quertermous, T.; Abbasi, F.; Paananen, J.; et al. Genetic Variants Associated with Glycine Metabolism and Their Role in Insulin Sensitivity and Type 2 Diabetes. Diabetes 2013, 62, 2141–2150. [Google Scholar] [CrossRef][Green Version]
  5. Wittemans, L.B.L.; Lotta, L.A.; Oliver-Williams, C.; Stewart, I.D.; Surendran, P.; Karthikeyan, S.; Day, F.R.; Koulman, A.; Imamura, F.; Zeng, L.; et al. Assessing the causal association of glycine with risk of cardio-metabolic diseases. Nat. Commun. 2019, 10, 1060. [Google Scholar] [CrossRef]
  6. Lotta, L.A.; Scott, R.A.; Sharp, S.J.; Burgess, S.; Luan, J.; Tillin, T.; Schmidt, A.F.; Imamura, F.; Stewart, I.D.; Perry, J.R.B.; et al. Genetic Predisposition to an Impaired Metabolism of the Branched-Chain Amino Acids and Risk of Type 2 Diabetes: A Mendelian Randomisation Analysis. PLoS Med. 2016, 13, e1002179. [Google Scholar] [CrossRef]
  7. Mahendran, Y.; Jonsson, A.; Have, C.T.; Allin, K.H.; Witte, D.R.; Jørgensen, M.E.; Grarup, N.; Pedersen, O.; Kilpeläinen, T.O.; Hansen, T. Genetic evidence of a causal effect of insulin resistance on branched-chain amino acid levels. Diabetologia 2017, 60, 873–878. [Google Scholar] [CrossRef][Green Version]
  8. Krumsiek, J.; Stückler, F.; Suhre, K.; Gieger, C.; Spector, T.D.; Soranzo, N.; Kastenmüller, G.; Theis, F.J. Network-Based Metabolite Ratios for an Improved Functional Characterization of Genome-Wide Association Study Results. bioRxiv 2016. Available online: (accessed on 10 November 2020). [CrossRef][Green Version]
  9. Burgess, S.; Thompson, S.G. Multivariable Mendelian Randomization: The Use of Pleiotropic Genetic Variants to Estimate Causal Effects. Am. J. Epidemiology 2015, 181, 251–260. [Google Scholar] [CrossRef][Green Version]
  10. Floegel, A.; Stefan, N.; Yu, Z.; Mühlenbruch, K.; Drogan, D.; Joost, H.-G.; Fritsche, A.; Häring, H.-U.; De Angelis, M.H.; Peters, A.; et al. Identification of Serum Metabolites Associated With Risk of Type 2 Diabetes Using a Targeted Metabolomic Approach. Diabetes 2012, 62, 639–648. [Google Scholar] [CrossRef][Green Version]
  11. Shin, S.-Y.; The Multiple Tissue Human Expression Resource (MuTHER) Consortium; Fauman, E.B.; Petersen, A.-K.; Krumsiek, J.; Santos, R.; Huang, J.; Arnold, M.; Erte, I.; Forgetta, V. An atlas of genetic influences on human blood metabolites. Nat. Genet. 2014, 46, 543–550. [Google Scholar] [CrossRef] [PubMed][Green Version]
  12. Boeing, H.; Wahrendorf, J.; Becker, N. EPIC-Germany--A source for studies into diet and risk of chronic diseases. European Investigation into Cancer and Nutrition. Ann. Nutr. Metab. 1999, 43, 195–204. [Google Scholar] [CrossRef] [PubMed]
  13. Stefan, N.; Fritsche, A.; Weikert, C.; Boeing, H.; Joost, H.-G.; Häring, H.-U.; Schulze, M.B. Plasma Fetuin-A Levels and the Risk of Type 2 Diabetes. Diabetes 2008, 57, 2762–2767. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Mahajan, A.; Taliun, D.; Thurner, M.; Robertson, N.R.; Torres, J.M.; Rayner, N.W.; Payne, A.J.; Steinthorsdottir, V.; Scott, R.A.; Grarup, N.; et al. Fine-mapping type 2 diabetes loci to single-variant resolution using high-density imputation and islet-specific epigenome maps. Nat. Genet. 2018, 50, 1505–1513. [Google Scholar] [CrossRef][Green Version]
  15. Scott, R.A.; Diabetes Genetics DIAbetes Genetics Replication and Meta-analysis (DIAGRAM) Consortium; Lagou, V.; Welch, R.P.; Wheeler, E.; Montasser, M.E.; Luan, J.; Mägi, R.; Strawbridge, R.J.; Rehnberg, E. Large-scale association analyses identify new loci influencing glycemic traits and provide insight into the underlying biological pathways. Nat. Genet. 2012, 44, 991–1005. [Google Scholar] [CrossRef][Green Version]
  16. Langenberg, C.; Sharp, S.J.; Franks, P.W.; Scott, R.A.; Deloukas, P.; Forouhi, N.G.; Froguel, P.; Groop, L.C.; Hansen, T.; Palla, L.; et al. Gene-Lifestyle Interaction and Type 2 Diabetes: The EPIC InterAct Case-Cohort Study. PLoS Med. 2014, 11, e1001647. [Google Scholar] [CrossRef] [PubMed][Green Version]
  17. Jäger, S.; Cuadrat, R.R.C.; Hoffmann, P.; Wittenbecher, C.; Schulze, M.B. Desaturase Activity and the Risk of Type 2 Diabetes and Coronary Artery Disease: A Mendelian Randomization Study. Nutrients 2020, 12, 2261. [Google Scholar] [CrossRef]
  18. Loh, P.-R.; Palamara, P.F.; Price, A.L. Fast and accurate long-range phasing in a UK Biobank cohort. Nat. Genet. 2016, 48, 811–816. [Google Scholar] [CrossRef][Green Version]
  19. Das, S.; Forer, L.; Schönherr, S.; Sidore, C.; E Locke, A.; Kwong, A.; I Vrieze, S.; Chew, E.Y.; Levy, S.; McGue, M.; et al. Next-generation genotype imputation service and methods. Nat. Genet. 2016, 48, 1284–1287. [Google Scholar] [CrossRef][Green Version]
  20. The Haplotype Reference Consortium A reference panel of 64,976 haplotypes for genotype imputation. Nat. Genet. 2016, 48, 1279–1283. [CrossRef][Green Version]
  21. Römisch-Margl, W.; Prehn, C.; Bogumil, R.; Röhring, C.; Suhre, K.; Adamski, J. Procedure for tissue sample preparation and metabolite extraction for high-throughput targeted metabolomics. Metabolomics 2011, 8, 133–142. [Google Scholar] [CrossRef]
  22. Floegel, A.; Drogan, D.; Wang-Sattler, R.; Prehn, C.; Illig, T.; Adamski, J.; Joost, H.-G.; Boeing, H.; Pischon, T. Reliability of Serum Metabolite Concentrations over a 4-Month Period Using a Targeted Metabolomic Approach. PLoS ONE 2011, 6, e21103. [Google Scholar] [CrossRef] [PubMed]
  23. Marchini, J.; Howie, B.; Myers, S.; McVean, G.; Donnelly, P. A new multipoint method for genome-wide association studies by imputation of genotypes. Nat. Genet. 2007, 39, 906–913. [Google Scholar] [CrossRef] [PubMed]
  24. Hemani, G.; Zheng, J.; Elsworth, B.; Wade, K.H.; Haberland, V.; Baird, D.; Laurin, C.; Burgess, S.; Bowden, J.; Langdon, R.J.; et al. The MR-Base platform supports systematic causal inference across the human phenome. eLife 2018, 7. [Google Scholar] [CrossRef] [PubMed]
  25. Yavorska, O.O.; Burgess, S. MendelianRandomization: An R package for performing Mendelian randomization analyses using summarized data. Int. J. Epidemiology 2017, 46, 1734–1739. [Google Scholar] [CrossRef]
  26. Bowden, J.; Spiller, W.; Del Greco, M.F.; Sheehan, N.; Thompson, J.; Minelli, C.; Smith, G.D. Improving the visualization, interpretation and analysis of two-sample summary data Mendelian randomization via the Radial plot and Radial regression. Int. J. Epidemiology 2018, 47, 1264–1278. [Google Scholar] [CrossRef][Green Version]
  27. Sanderson, E.; Spiller, W.; Bowden, J. Testing and Correcting for Weak and Pleiotropic Instruments inTwo-Sample Multivariable Mendelian Randomisation. bioRxiv 2020. [Google Scholar] [CrossRef][Green Version]
  28. Nyholt, D.R. A Simple Correction for Multiple Testing for Single-Nucleotide Polymorphisms in Linkage Disequilibrium with Each Other. Am. J. Hum. Genet. 2004, 74, 765–769. [Google Scholar] [CrossRef][Green Version]
  29. Cunningham, F.; Amode, M.R.; Barrell, D.; Beal, K.; Billis, K.; Brent, S.; Carvalho-Silva, D.; Clapham, P.; Coates, G.; Fitzgerald, S.; et al. Ensembl 2015. Nucleic Acids Res. 2015, 43, D662–D669. [Google Scholar] [CrossRef]
  30. McLaren, W.; Gil, L.; Hunt, S.E.; Riat, H.S.; Ritchie, G.R.S.; Thormann, A.; Flicek, P.; Cunningham, F. The Ensembl Variant Effect Predictor. Genome Biol. 2016, 17, 1–14. [Google Scholar] [CrossRef][Green Version]
  31. Yoon, S.; Nguyen, H.C.T.; Yoo, Y.J.; Kim, J.; Baik, B.; Kim, S.; Kim, J.; Kim, S.; Nam, D. Efficient pathway enrichment and network analysis of GWAS summary data using GSA-SNP2. Nucleic Acids Res. 2018, 46, e60. [Google Scholar] [CrossRef] [PubMed][Green Version]
  32. Liberzon, A.; Birger, C.; Thorvaldsdóttir, H.; Ghandi, M.; Mesirov, J.P.; Tamayo, P. The Molecular Signatures Database Hallmark Gene Set Collection. Cell Syst. 2015, 1, 417–425. [Google Scholar] [CrossRef] [PubMed][Green Version]
  33. Liberzon, A.; Subramanian, A.; Pinchback, R.; Thorvaldsdóttir, H.; Tamayo, P.; Mesirov, J.P. Molecular signatures database (MSigDB) 3.0. Bioinformatics 2011, 27, 1739–1740. [Google Scholar] [CrossRef] [PubMed]
  34. Subramanian, A.; Tamayo, P.; Mootha, V.K.; Mukherjee, S.; Ebert, B.L.; Gillette, M.A.; Paulovich, A.; Pomeroy, S.L.; Golub, T.R.; Lander, E.S.; et al. Gene set enrichment analysis: A knowledge-based approach for interpreting genome-wide expression profiles. Proc. Natl. Acad. Sci. USA 2005, 102, 15545–15550. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Bowden, J.; Smith, G.D.; Burgess, S. Mendelian randomization with invalid instruments: Effect estimation and bias detection through Egger regression. Int. J. Epidemiology 2015, 44, 512–525. [Google Scholar] [CrossRef][Green Version]
  36. Morrison, J.; Knoblauch, N.; Marcus, J.H.; Stephens, M.; He, X. Mendelian randomization accounting for correlated and uncorrelated pleiotropic effects using genome-wide summary statistics. Nat. Genet. 2020, 52, 740–747. [Google Scholar] [CrossRef]
  37. Kettunen, J.; Demirkan, A.; Würtz, P.; Draisma, H.H.M.; Haller, T.; Rawal, R.; Vaarhorst, A.; Kangas, A.J.; Lyytikaeinen, L.-P.; Pirinen, M.; et al. Genome-wide study for circulating metabolites identifies 62 loci and reveals novel systemic effects of LPA. Nat. Commun. 2016, 7, 11122. [Google Scholar] [CrossRef]
  38. Locke, A.E.; Project, F.; Steinberg, K.M.; Chiang, C.W.K.; Service, S.K.; Havulinna, A.S.; Stell, L.; Pirinen, M.; Abel, H.J.; Chiang, C.C.; et al. Exome sequencing of Finnish isolates enhances rare-variant association power. Nat. Cell Biol. 2019, 572, 323–328. [Google Scholar] [CrossRef]
  39. Scott, R.A.; Fall, T.; Pasko, D.; Barker, A.; Sharp, S.J.; Arriola, L.; Balkau, B.; Barricarte, A.; Barroso, I.; Boeing, H.; et al. Common Genetic Variants Highlight the Role of Insulin Resistance and Body Fat Distribution in Type 2 Diabetes, Independent of Obesity. Diabetes 2014, 63, 4378–4387. [Google Scholar] [CrossRef][Green Version]
  40. Mulder, N. Faculty Opinions recommendation of A general framework for estimating the relative pathogenicity of human genetic variants. Fac. Opin. Post Publ. Peer Rev. Biomed. Lit. 2017, 46, 310–315. [Google Scholar] [CrossRef][Green Version]
  41. Yuan, S.; Larsson, S.C. An atlas on risk factors for type 2 diabetes: A wide-angled Mendelian randomisation study. Diabetologia 2020, 63, 2359–2371. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, T.J.; Larson, M.G.; Vasan, R.S.; Cheng, S.; Rhee, E.P.; McCabe, E.; Lewis, G.D.; Fox, C.S.; Jacques, P.F.; Fernandez, C.; et al. Metabolite profiles and the risk of developing diabetes. Nat. Med. 2011, 17, 448–453. [Google Scholar] [CrossRef]
  43. Suhre, K.; Shin, S.-Y.; Petersen, A.-K.; Mohney, R.P.; Meredith, D.; Wägele, B.; Altmaier, E.; CARDIoGRAM; Deloukas, P.; Erdmann,, J.; et al. Human metabolic individuality in biomedical and pharmaceutical research. Nat. Cell Biol. 2011, 477, 54–60. [Google Scholar] [CrossRef]
  44. Kim, D.K.; Kanai, Y.; Matsuo, H.; Kim, J.Y.; Chairoungdua, A.; Kobayashi, Y.; Enomoto, A.; Cha, S.H.; Goya, T.; Endou, H. The Human T-Type Amino Acid Transporter-1: Characterization, Gene Organization, and Chromosomal Location. Genomics 2002, 79, 95–103. [Google Scholar] [CrossRef] [PubMed]
  45. Vicchi, F.L.; Luque, G.M.; Brie, B.; Nogueira, J.P.; Tornadu, I.G.; Becu-Villalobos, D. Dopaminergic drugs in type 2 diabetes and glucose homeostasis. Pharmacol. Res. 2016, 109, 74–80. [Google Scholar] [CrossRef]
  46. Schulze, M.B.; A Martínez-González, M.; Fung, T.T.; Lichtenstein, A.H.; Forouhi, N.G. Food based dietary patterns and chronic disease prevention. BMJ 2018, 361, k2396. [Google Scholar] [CrossRef][Green Version]
  47. Modulating Glucose Tolerance with Dietary Tyrosine. Available online: (accessed on 12 June 2020).
  48. Korner, J.; Cline, G.W.; Slifstein, M.; Barba, P.; Rayat, G.R.; Febres, G.; Leibel, R.L.; Maffei, A.; Harris, P. A role for foregut tyrosine metabolism in glucose tolerance. Mol. Metab. 2019, 23, 37–50. [Google Scholar] [CrossRef]
  49. Saxena, R.; Elbers, C.C.; Guo, Y.; Peter, I.; Gaunt, T.R.; Mega, J.L.; Lanktree, M.B.; Tare, A.; Castillo, B.A.; Li, Y.R.; et al. Large-Scale Gene-Centric Meta-Analysis across 39 Studies Identifies Type 2 Diabetes Loci. Am. J. Hum. Genet. 2012, 90, 410–425. [Google Scholar] [CrossRef][Green Version]
  50. Fiory, F.; Perruolo, G.; Cimmino, I.; Cabaro, S.; Pignalosa, F.C.; Miele, C.; Beguinot, F.; Formisano, P.; Oriente, F. The Relevance of Insulin Action in the Dopaminergic System. Front. Neurosci. 2019, 13, 868. [Google Scholar] [CrossRef]
  51. Brial, F.; Alzaid, F.; Sonomura, K.; Kamatani, Y.; Meneyrol, K.; Le Lay, A.; Péan, N.; Hedjazi, L.; Sato, T.-A.; Venteclef, N.; et al. The Natural Metabolite 4-Cresol Improves Glucose Homeostasis and Enhances β-Cell Function. Cell Rep. 2020, 30, 2306–2320.e5. [Google Scholar] [CrossRef][Green Version]
  52. Zeggini, E.; Wellcome Trust Case Control Consortium; Scott, L.J.; Saxena, R.; Voight, B.F.; Marchini, J.L.; Hu, T.; Bakker, P.I.W.D.; Abecasis, G.R.; Almgren, P. Meta-analysis of genome-wide association data and large-scale replication identifies additional susceptibility loci for type 2 diabetes. Nat. Genet. 2008, 40, 638–645. [Google Scholar] [CrossRef] [PubMed]
  53. Rubey, M.; Chhabra, N.F.; Gradinger, D.; Sanz-Moreno, A.; Lickert, H.; Przemeck, G.K.; De Angelis, M.H. DLL1- and DLL4-Mediated Notch Signaling Is Essential for Adult Pancreatic Islet Homeostasis. Diabetes 2020, 69, 915–926. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Smith, G.D.; Hemani, G. Mendelian randomization: Genetic anchors for causal inference in epidemiological studies. Hum. Mol. Genet. 2014, 23, R89–R98. [Google Scholar] [CrossRef] [PubMed][Green Version]
  55. Deng, L.; Zhang, H.; Yu, K. Power calculation for the general two-sample Mendelian randomization analysis. Genet. Epidemiol. 2020, 44, 290–299. [Google Scholar] [CrossRef]

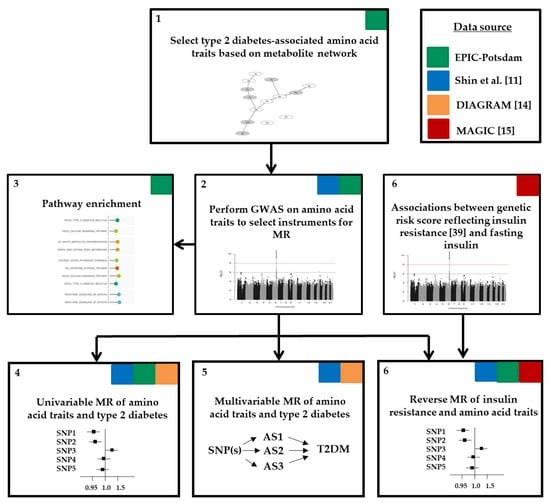

Figure 1. Workflow of analysis. AS, amino acid; DIAGRAM, DIAbetes Genetics Replication And Meta-analysis; GWAS, genome-wide association study; MAGIC, the Meta-Analyses of Glucose and Insulin-related traits Consortium; MR, Mendelian randomization; SNP, single nucleotide polymorphism; T2DM, type 2 diabetes mellitus.
Figure 1. Workflow of analysis. AS, amino acid; DIAGRAM, DIAbetes Genetics Replication And Meta-analysis; GWAS, genome-wide association study; MAGIC, the Meta-Analyses of Glucose and Insulin-related traits Consortium; MR, Mendelian randomization; SNP, single nucleotide polymorphism; T2DM, type 2 diabetes mellitus.
Nutrients 12 03890 g001

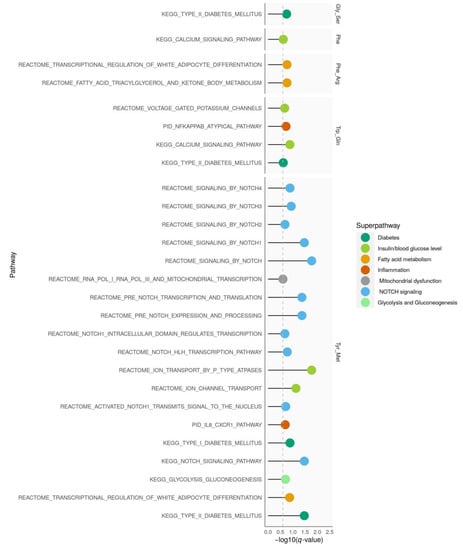

Figure 2. Pathway enrichment analysis. For each amino acid trait, pathways with significant enrichment of SNPs (q-value < 0.25) that mapped to gold standard pathways for type 2 diabetes are shown. Arg, arginine; Gln, glutamine; Gly, glycine; Met, methionine; Ser, serine; Phe, phenylalanine; Trp, tryptophan, Tyr, tyrosine.
Figure 2. Pathway enrichment analysis. For each amino acid trait, pathways with significant enrichment of SNPs (q-value < 0.25) that mapped to gold standard pathways for type 2 diabetes are shown. Arg, arginine; Gln, glutamine; Gly, glycine; Met, methionine; Ser, serine; Phe, phenylalanine; Trp, tryptophan, Tyr, tyrosine.
Nutrients 12 03890 g002

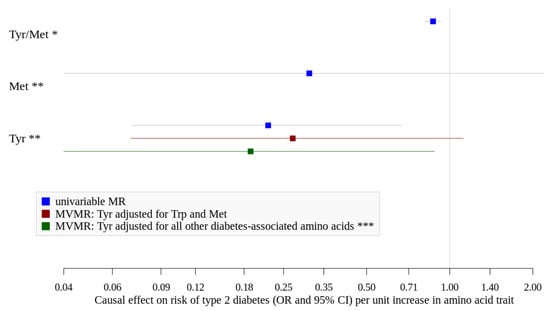

Figure 3. Causal effects (OR and 95%CI) of amino acid traits and type 2 diabetes. Met, methionine; Tyr, tyrosine. * assessed using EPIC-Potsdam GWAS data and Mahajan et al. [14], tyrosine/methionine ratio is ln-transformed and standardized. ** assessed using public GWAS data by Shin et al. [11] and Mahajan et al. [14], Met and Tyr are log10-transformed. *** adjusted for Tryptophan, Leucine, Isoleucine, Valine, Glycine, Phenylalanine.
Figure 3. Causal effects (OR and 95%CI) of amino acid traits and type 2 diabetes. Met, methionine; Tyr, tyrosine. * assessed using EPIC-Potsdam GWAS data and Mahajan et al. [14], tyrosine/methionine ratio is ln-transformed and standardized. ** assessed using public GWAS data by Shin et al. [11] and Mahajan et al. [14], Met and Tyr are log10-transformed. *** adjusted for Tryptophan, Leucine, Isoleucine, Valine, Glycine, Phenylalanine.
Nutrients 12 03890 g003
Table 1. Baseline characteristics, European Prospective Investigation into Cancer and Nutrition (EPIC)-Potsdam random sample.
Table 1. Baseline characteristics, European Prospective Investigation into Cancer and Nutrition (EPIC)-Potsdam random sample.
Sex (% men)37.8
Age in years; median (interquartile range)49.5 (15.6)
Waist circumference in cm; mean (SD)85.3 (12.6)
Glycine in μmol/L; median (interquartile range)241.0 (86.0)
Isoleucine + Leucine in μmol/L; median (interquartile range)200.0 (70.0)
Phenylalanine in μmol/L; median (interquartile range)55.0 (13.4)
Tryptophan in μmol/L; median (interquartile range)80.0 (15.1)
Tyrosine in μmol/L; median (interquartile range)78.7 (27.1)
Valine in μmol/L; median (interquartile range)286.0 (83.0)
SD, standard deviation; Depicted are diabetes-associated amino acids.
Table 2. Independent GWAS hits at suggestive significance p < 1.11 × 10−6 per amino acid trait in EPIC-Potsdam.
Table 2. Independent GWAS hits at suggestive significance p < 1.11 × 10−6 per amino acid trait in EPIC-Potsdam.
Amino Acid TraitSNPSNP CoordinatesGeneEA/OAEAFNBeta (SE)p-ValueConsequence (GRCH37)CADD-Score [40]
Glycine/Seriners10478912:211540507CPS1A/C0.3122650.50 (0.03)7.58 × 10−54Thr1406Asn22.1
rs20108257:44188220GCKC/T0.5122650.15 (0.03)5.78 × 10−7Downstream gene variant5.97
rs5619311:120254506PHGDHG/A0.612265−0.18 (0.03)2.28 × 10−9Upstream gene variant7.61
rs98515773:125908310ALDH1L1; ALDH1L1-AS2T/C0.4622650.15 (0.03)7.36 × 10−7Intron variant2.44
Glyciners10478912:211540507CPS1A/C0.3122640.59 (0.03)2.79 × 10−76Thr1406Asn22.1
rs6199267314:101542105AL132709.1; MEG9A/C0.202264−0.22 (0.04)1.62 × 10−8Intron variant5.34
Phenylalanine/rs145172211:3856553RHOGT/C0.582265−0.15 (0.03)3.51 × 10−7Intron variant12.7
Argininers171830912:103242396PAHG/A0.602265−0.17 (0.03)3.44 × 10−8Intron variant3.32
Phenylalaniners5594035719:2610628GNG7; CTC-265F19.2C/T0.8822650.24 (0.05)1.03 × 10−6Intron variant1.72
Serine/rs10478912:211540507CPS1A/C0.3122650.18 (0.03)5.95 × 10−8Thr1406Asn22.1
Phenylalaniners1102431011:17520786USH1CG/C0.082265−0.31 (0.06)9.83 × 10−7Intron variant1.25
rs29929751:194106746-A/G0.4122650.17 (0.03)5.65 × 10−7Intergenic variant0.63
rs4780931:120255126PHGDHG/A0.6922650.18 (0.03)1.27 × 10−8Intron variant8.15
Tryptophan/rs490306714:73286300DPF3C/T0.342260−0.15 (0.03)6.28 × 10−7Intron variant0.88
Glutaminers797393612:64333645SRGAP1A/G0.3122600.18 (0.03)3.07 × 10−8Intron variant1.58
Tyrosine/rs127569041:104337030-C/T0.202261−0.18 (0.04)1.08 × 10−6Intergenic variant2.96
Methioniners176064816:111542388SLC16A10G/A0.1522610.28 (0.04)1.70 × 10−11Intron variant2.49
rs7279241916:58741949GOT2C/T0.082261−0.30 (0.06)6.59 × 10−7Downstream gene variant4.23
Valine/xLeuciners245658619:51434353CTB-147C22.3C/T0.3922580.15 (0.03)6.11 × 10−7Upstream gene variant0.64
xLeucine/rs126422994:90942633-G/C0.6722630.17 (0.03)6.16 × 10−8Intergenic variant0.99
Methioniners195802914:21491151NDRG2; AL161668.5; TPPP2G/A0.112263−0.25 (0.05)1.84 × 10−7Upstream gene variant3.12
CADD, combined annotation dependent depletion; EA, effect allele; EAF, effect allele frequency; OA, other allele; SE, standard error. SNP, single nucleotide polymorphism.
Table 3. Total causal effects of amino acid traits and of type 2 diabetes using instruments with R2 < 0.3.
Table 3. Total causal effects of amino acid traits and of type 2 diabetes using instruments with R2 < 0.3.
Amino Acid TraitInstrumentsN (SNPs) aBeta (SE) from IVWp-ValueHeterogeneity between SNPs; Q-Statistic, p-ValueDirectional Horizontal Pleiotropy b;
Egger-Intercept (SE), p-Value
Outlier Detected
Glycinesuggestive13/16−0.003 (0.011)0.804no; 12.43,0.41no; −0.001 (0.003), 0.85no
genome-wide9/11−0.005 (0.011)0.686no; 8.62, 0.38no; 0.004 (0.004), 0.37no
Glycine/Serinesuggestive17/180.018 (0.019)0.348yes; 48.24, <0.001yes; 0.009 (0.004), 0.02Yes (rs2010825)
(excluding outlier)
16/17−0.001 (0.011)0.895no; 15.04, 0.45no; 0.005 (0.003), 0.15-
genome-wide12/12−0.003 (0.012)0.800no; 10.47, 0.49no; 0.006 (0.004), 0.14no
Phenylalaninesuggestive1/10.053 (0.045)0.237n.a.n.a.n.a.
Phenylalanine/Argininesuggestive2/20.043 (0.028)0.120no; 0.36,
Serine/Phenylalaninesuggestive3/40.000 (0.023)0.990no; 0.59, 0.74no; 0.08 (0.26), 0.77n.a.
Tryptophan/Glutaminesuggestive2/20.002 (0.028)0.931no; 0.16, 0.69n.a.n.a.
Tyrosine/Methioninesuggestive4/4−0.012 (0.069)0.857yes; 29.59, <0.001no; 0.04 (0.02), 0.08n.a.
genome-wide1/1−0.141 (0.033)<0.001n.a.n.a.n.a.
xLeucine/Methioninesuggestive2/30.05 (0.031)0.108yes; 7.54, 0.01n.a.n.a.
Valine/xLeucinesuggestive1/1−0.012 (0.044)0.777n.a.n.a.n.a.
IVW, inverse variance weighted method; n.a., not applicable; SE, standard error. xLeucine = Isoleucine + Leucine. a used instruments/suitable instruments available in the GWAS of type 2 diabetes in Mahajan et al. [14] b assessed by MR-Egger (>2 variants needed).
Table 4. Results from CAUSE MR for tyrosine with type 2 diabetes.
Table 4. Results from CAUSE MR for tyrosine with type 2 diabetes.
Data SourceN Variants Used to Calculate Nuisance ParametersN Variants to Estimate CAUSE PosteriorsModel 1 *Model 2 *∆ ELPD **SE ∆ ELPDz-Scorep-Value
Tyrosine from Shin et al. 2014 [11]83,936124NullSharing−1.10.74−1.50.069
Tyrosine from Kettunen et al. 2016 [37]75,15537NullSharing0.00330.000615.41
Tyrosine from Locke et al. 2019 [38]260,603150NullSharing−0.40.49−0.820.210
CAUSE, causal analysis using summary effect; ELPD, expected log pointwise posterior density; SE, standard error. * Model 1 and Model 2 refer to the models being compared (null, sharing, or causal). ** Model fit is measured by Δ Expected Log Pointwise Posterior Density (ELPD); Negative values indicate that model 2 is a better fit.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jäger, S.; Cuadrat, R.; Wittenbecher, C.; Floegel, A.; Hoffmann, P.; Prehn, C.; Adamski, J.; Pischon, T.; Schulze, M.B. Mendelian Randomization Study on Amino Acid Metabolism Suggests Tyrosine as Causal Trait for Type 2 Diabetes. Nutrients 2020, 12, 3890.

AMA Style

Jäger S, Cuadrat R, Wittenbecher C, Floegel A, Hoffmann P, Prehn C, Adamski J, Pischon T, Schulze MB. Mendelian Randomization Study on Amino Acid Metabolism Suggests Tyrosine as Causal Trait for Type 2 Diabetes. Nutrients. 2020; 12(12):3890.

Chicago/Turabian Style

Jäger, Susanne, Rafael Cuadrat, Clemens Wittenbecher, Anna Floegel, Per Hoffmann, Cornelia Prehn, Jerzy Adamski, Tobias Pischon, and Matthias B. Schulze. 2020. "Mendelian Randomization Study on Amino Acid Metabolism Suggests Tyrosine as Causal Trait for Type 2 Diabetes" Nutrients 12, no. 12: 3890.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
