# Reflectance Intensity Assisted Automatic and Accurate Extrinsic Calibration of 3D LiDAR and Panoramic Camera Using a Printed Chessboard

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Works

#### 2.1. Multiple Views on a Planar Checkerboard

#### 2.2. Multiple Geometry Elements

#### 2.3. Correlation of Mutual Information

#### 2.4. Our Approach

## 3. Overview and Notations

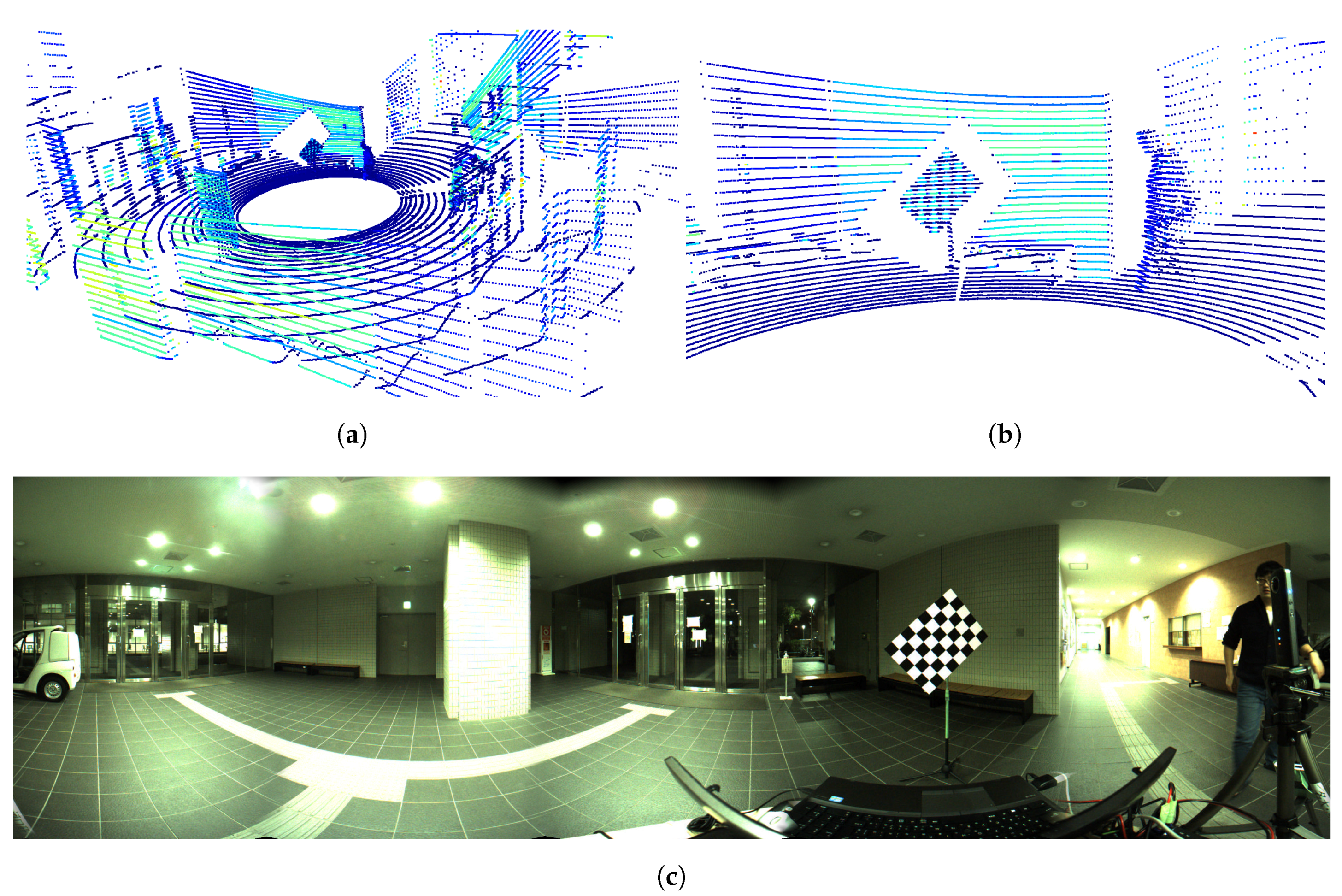

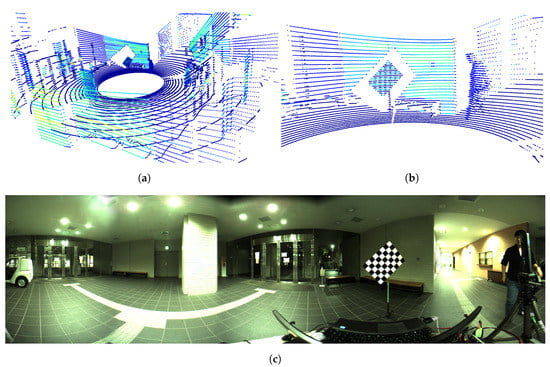

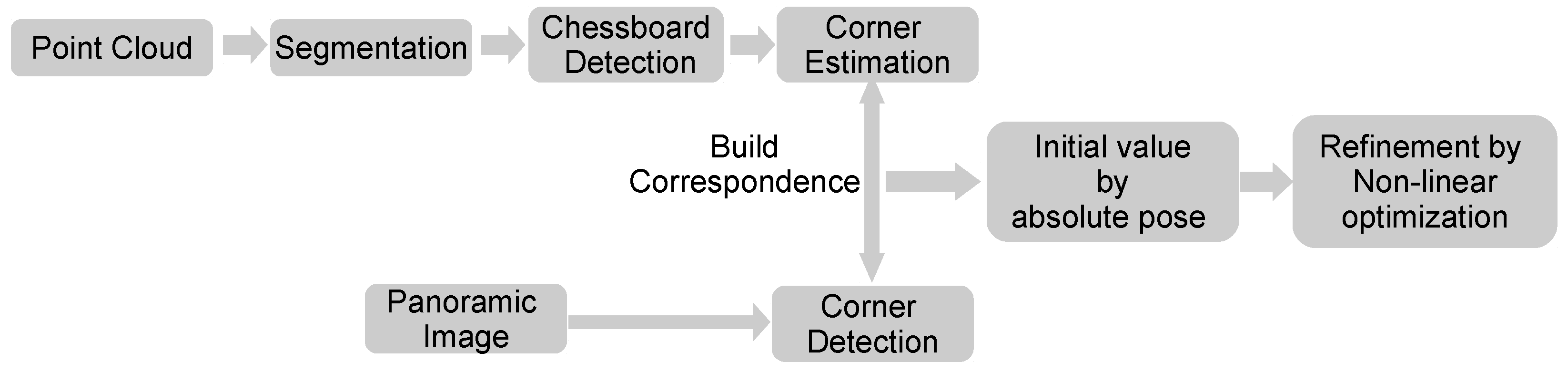

#### 3.1. Overview

#### 3.2. Notations

- ${\mathit{p}}_{i}={({x}_{i},{y}_{i},{z}_{i})}^{T}$: coordinates of a 3D point.
- $\mathit{P}=\{{\mathit{p}}_{1},{\mathit{p}}_{2},\dots ,{\mathit{p}}_{n}\}$: set of n 3D points.
- $\mathbf{\theta}={({\theta}_{x},{\theta}_{y},{\theta}_{z})}^{T}$: rotation angle vector whose element corresponds to the rotation angle along x-, y-, z-axis respectively.
- $\mathit{t}={({t}_{x},{t}_{y},{t}_{z})}^{T}$: the translation vector.
- $\mathbf{R}\left(\mathbf{\theta}\right)={\mathbf{R}}_{z}\left({\theta}_{z}\right){\mathbf{R}}_{y}\left({\theta}_{y}\right){\mathbf{R}}_{x}\left({\theta}_{x}\right)$: rotation matrix.
- ${T}_{r}(\mathbf{\theta},\mathit{t},{\mathit{p}}_{\mathit{i}})=\mathbf{R}\left(\mathbf{\theta}\right){\mathit{p}}_{\mathit{i}}+\mathit{t}$: function that transforms the 3D point ${\mathit{p}}_{i}$ with the angle vector $\mathbf{\theta}$ and translation vector $\mathit{t}$.
- ${\widehat{\mathit{p}}}_{i}={T}_{r}(\mathbf{\theta},\mathit{t},{\mathit{p}}_{i})$: transformed point of ${\mathit{p}}_{i}$.
- ${\mathit{P}}^{c}=\{{\mathit{p}}_{1}^{c},{\mathit{p}}_{2}^{c},\dots ,{\mathit{p}}_{N}^{c}\}$: set of estimated 3D corner points of the chessboard from the point cloud. N is the number of the corners in the chessboard.
- ${\mathtt{x}}_{i}={({u}_{i},{v}_{i})}^{T}$: coordinates of 2D pixel.
- ${\mathtt{X}}^{c}=\{{\mathtt{x}}_{1}^{c},{\mathtt{x}}_{2}^{c},\dots ,{\mathtt{x}}_{N}^{c}\}$: set of detected 2D corner pixels of the chessboard from the image.

## 4. Corner Estimation from the Point Cloud

#### 4.1. Automatic Detection of the Chessboard

#### 4.1.1. Segmentation of the Point Cloud

#### 4.1.2. Finding the Chessboard from the Segments

#### 4.2. Corner Estimation

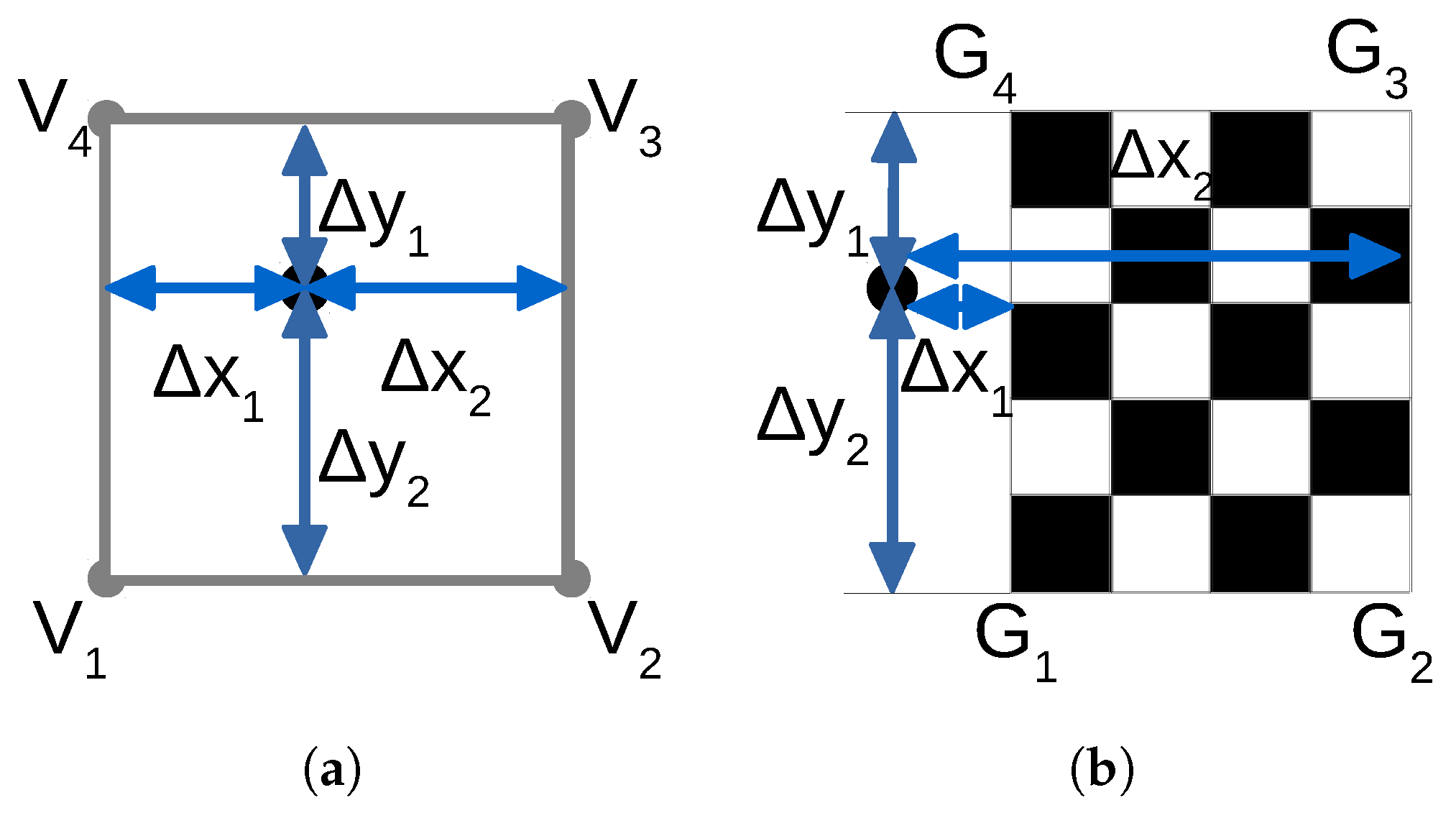

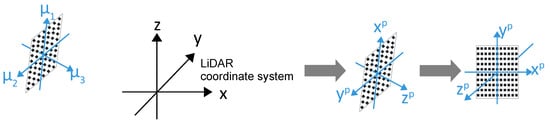

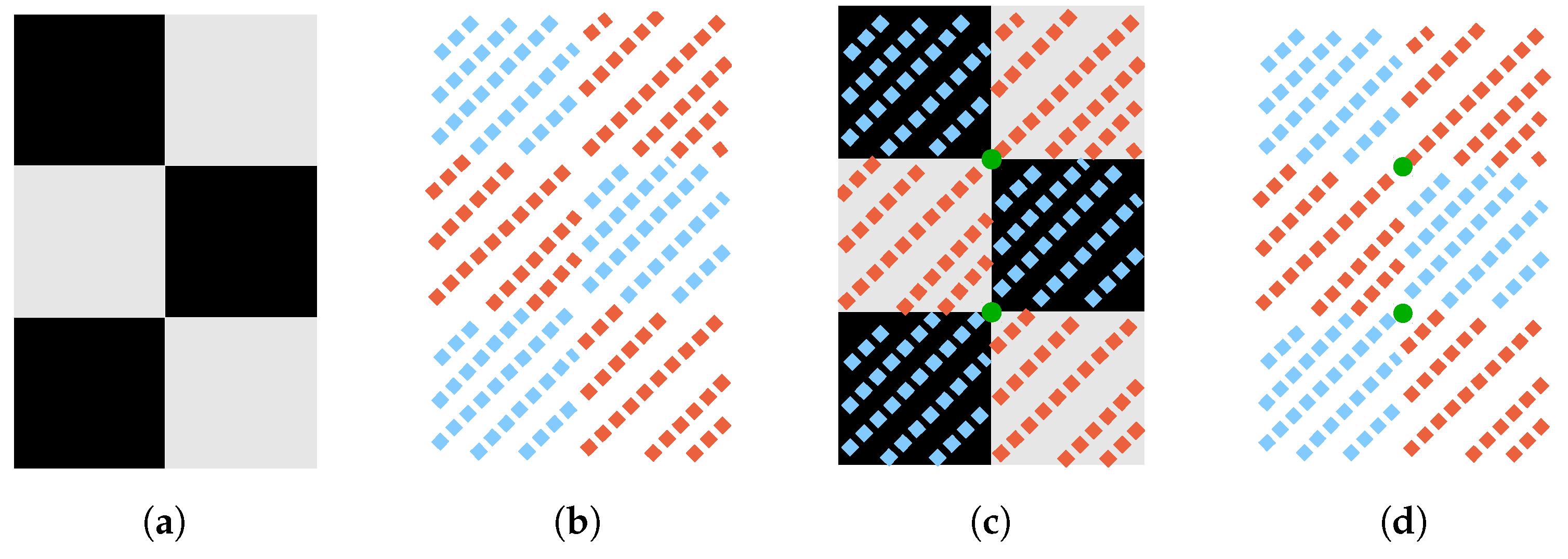

#### 4.2.1. Model Formulation

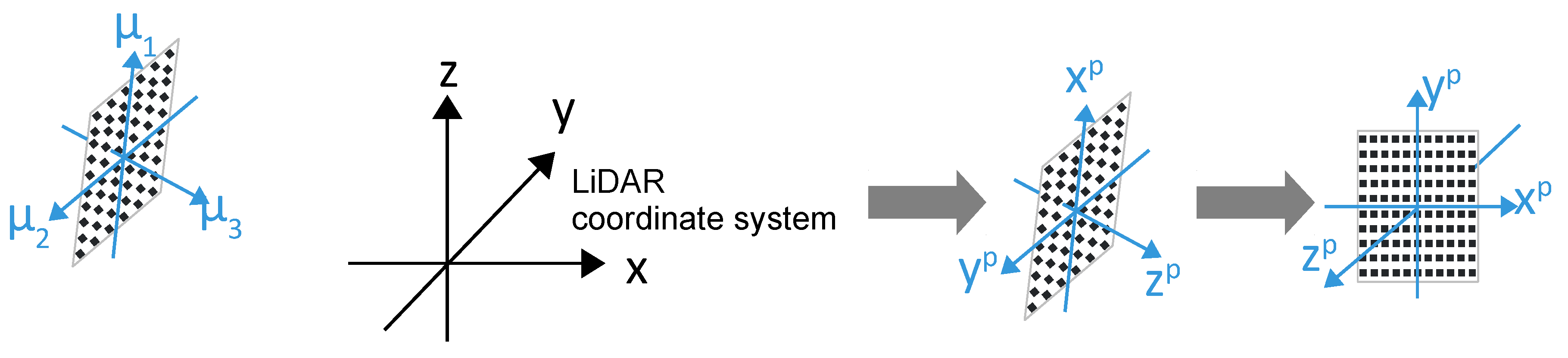

- directions of ${\mathbf{\mu}}_{1},{\mathbf{\mu}}_{2},{\mathbf{\mu}}_{3}$ are defined to obey to the right hand rule.
- direction of ${\mathbf{\mu}}_{3}$ (the normal of the chessboard) is defined to point to the side of origin of the LiDAR coordinate system.
- angle between ${\mathbf{\mu}}_{1}$ and x axis of the LiDAR coordinate system is not more than ${90}^{\circ}$

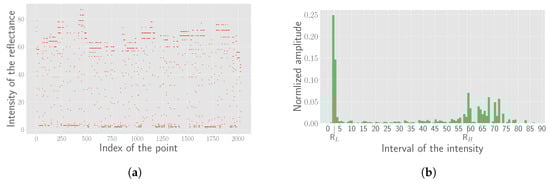

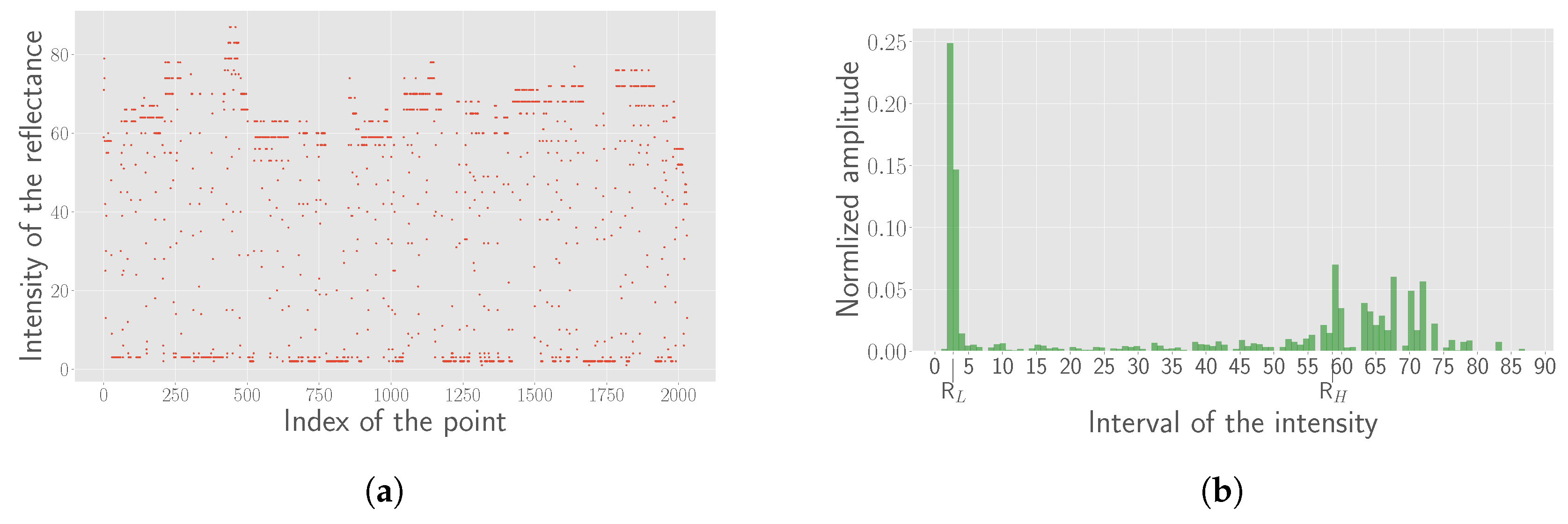

#### 4.2.2. Correspondence of Intensity and Color

#### 4.2.3. Cost Function and Optimization

## 5. Extrinsic Calibration Estimation

#### 5.1. Corner Estimation from the Image

#### 5.2. Correspondence of the 3D-2D Corners

#### 5.3. Initial Value by PnP

#### 5.4. Refinement with Nonlinear Optimization

## 6. Experimental Results and Error Evaluation

#### 6.1. Setup

#### 6.2. Simulation for Corner Detection Error in the Point Cloud

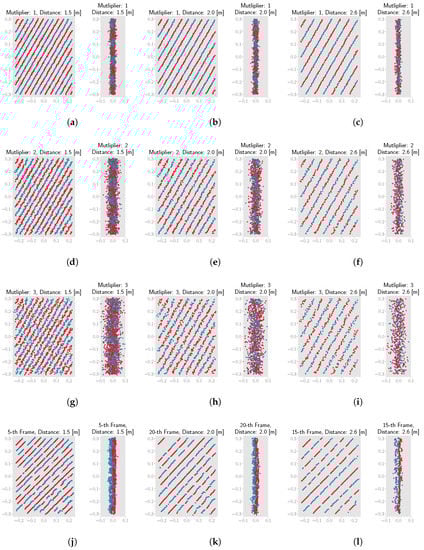

#### 6.2.1. Simulation of the Point Cloud

#### 6.2.2. Error Results from the Simulation

#### 6.3. Detected Corners

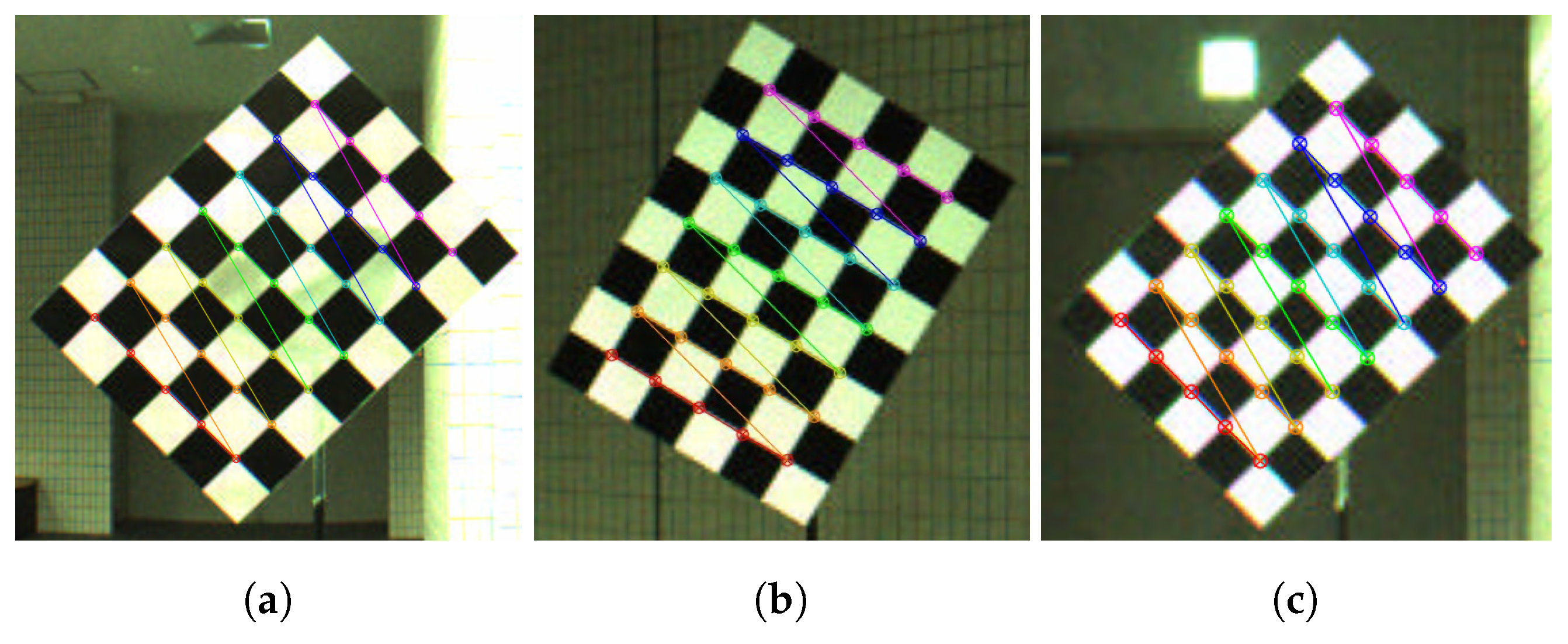

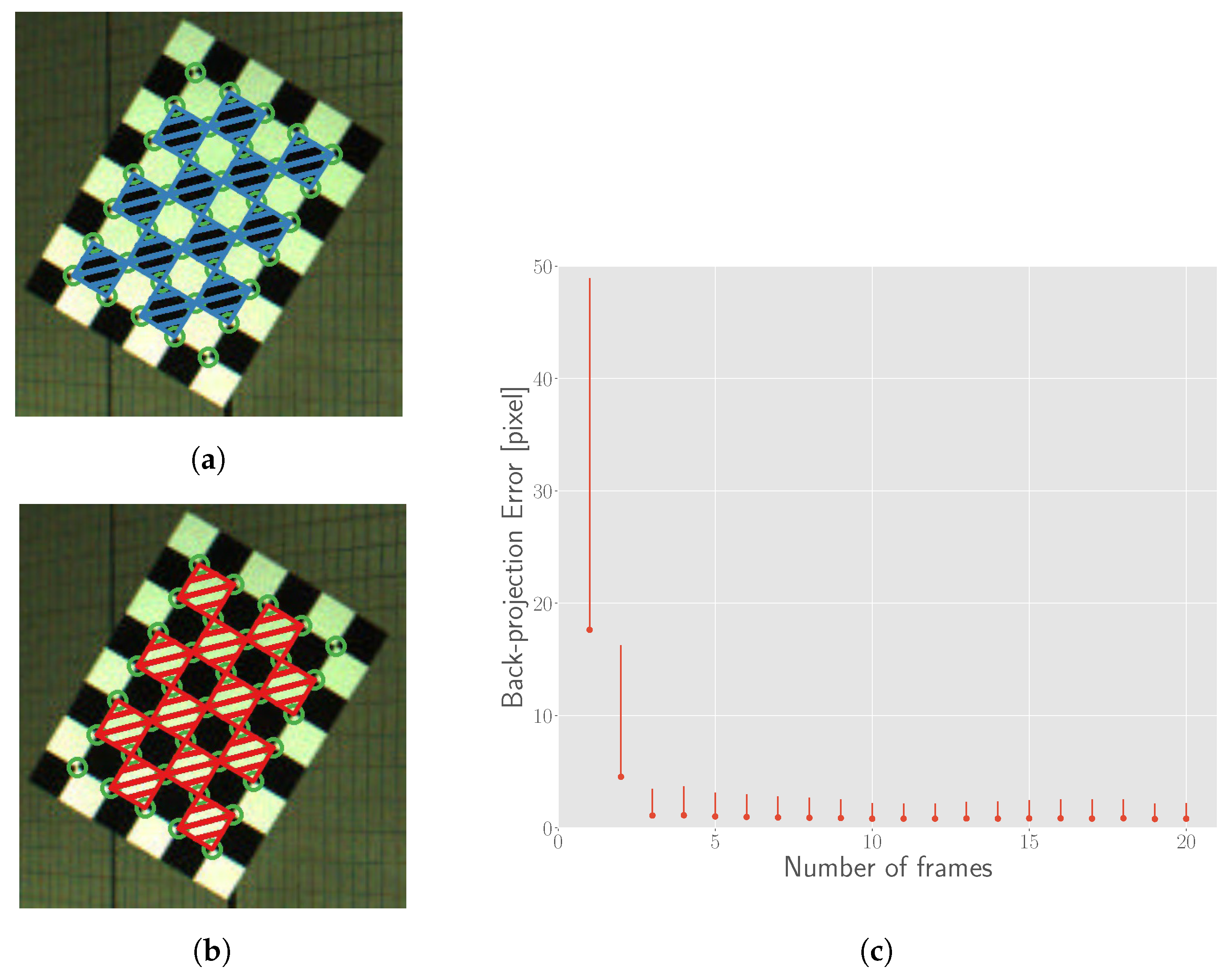

#### 6.3.1. From the Image

#### 6.3.2. From the Point Cloud

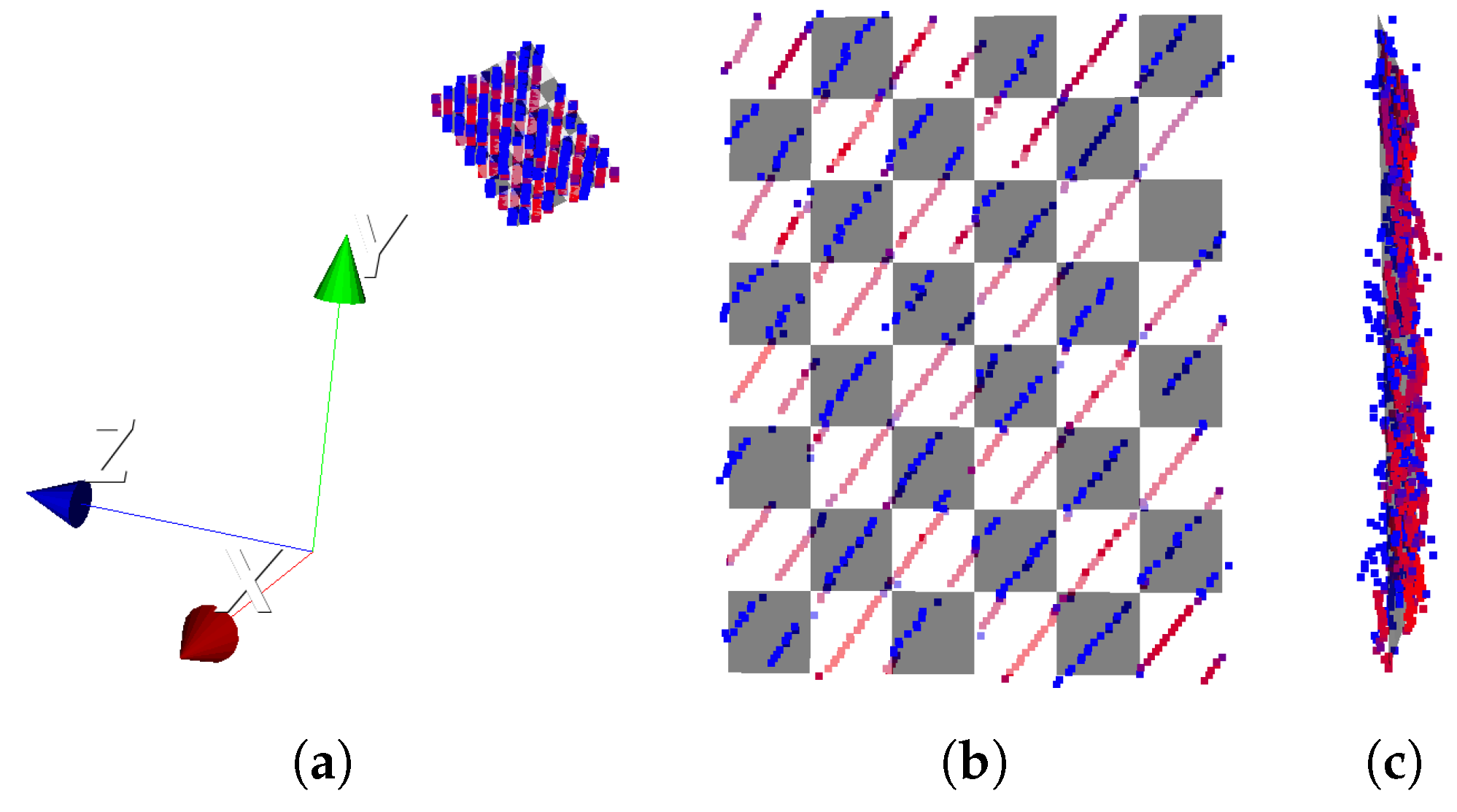

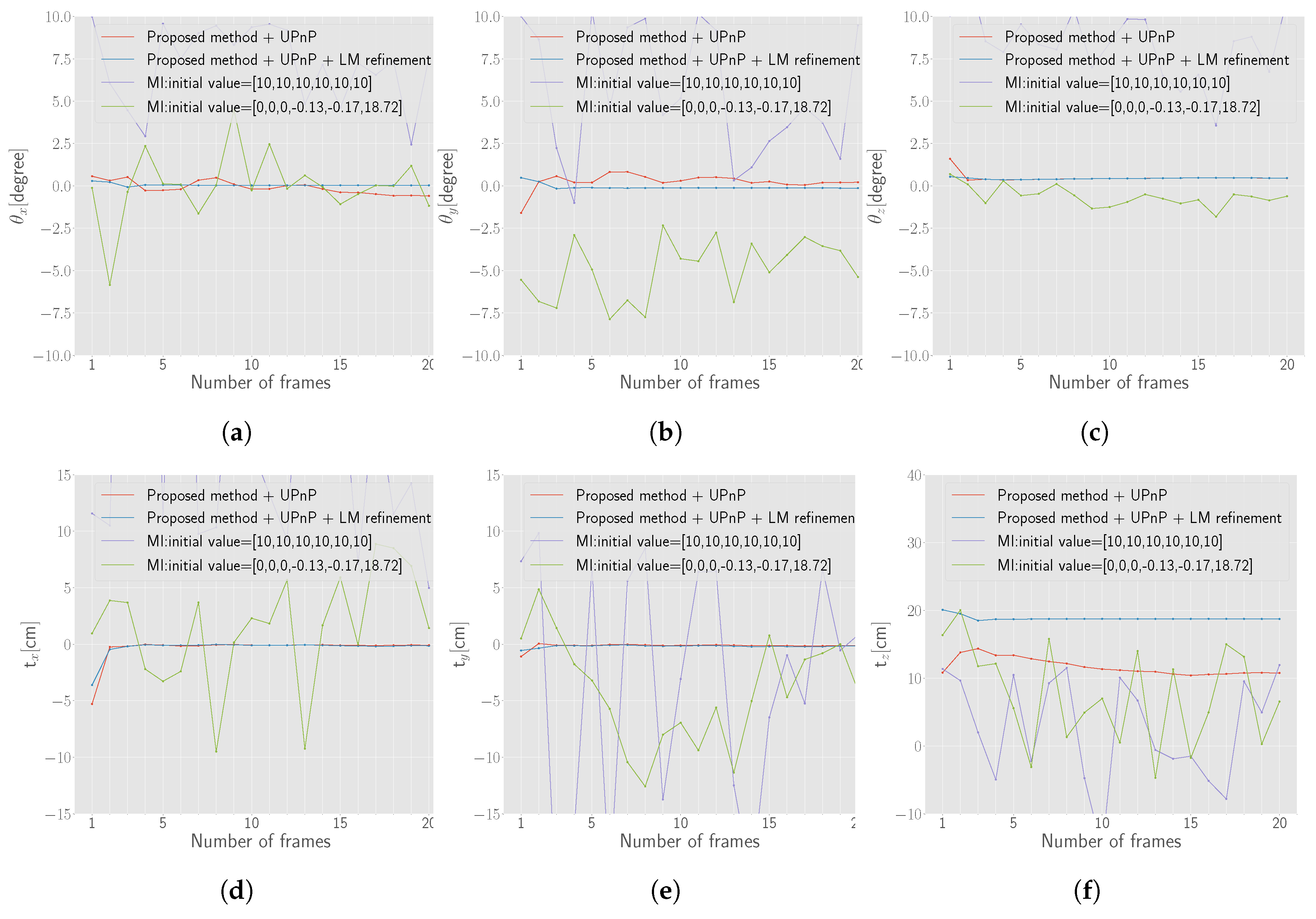

#### 6.4. Estimated Extrinsic Parameters

#### 6.5. Re-Projection Error

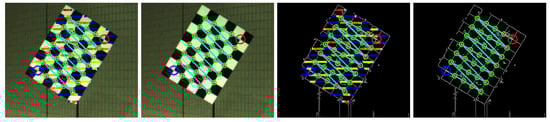

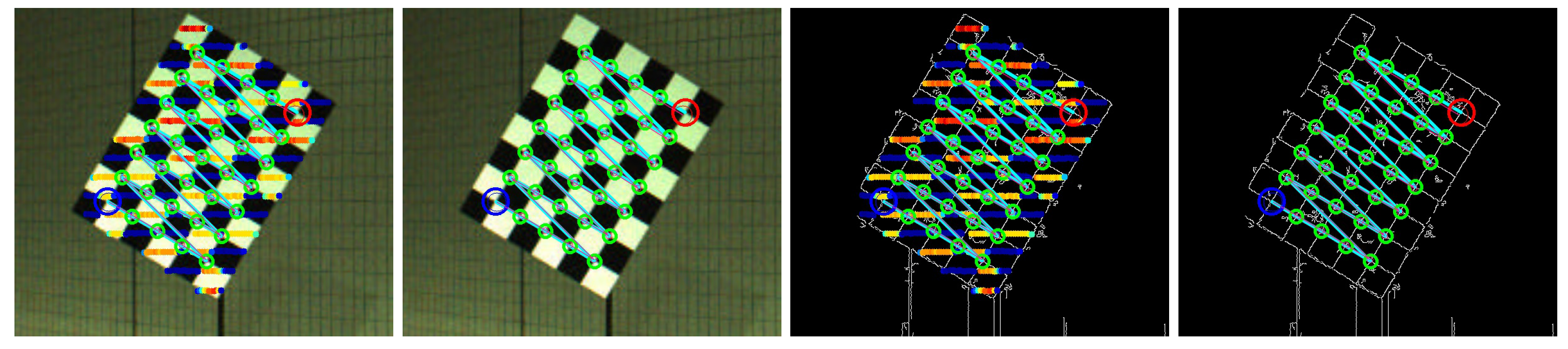

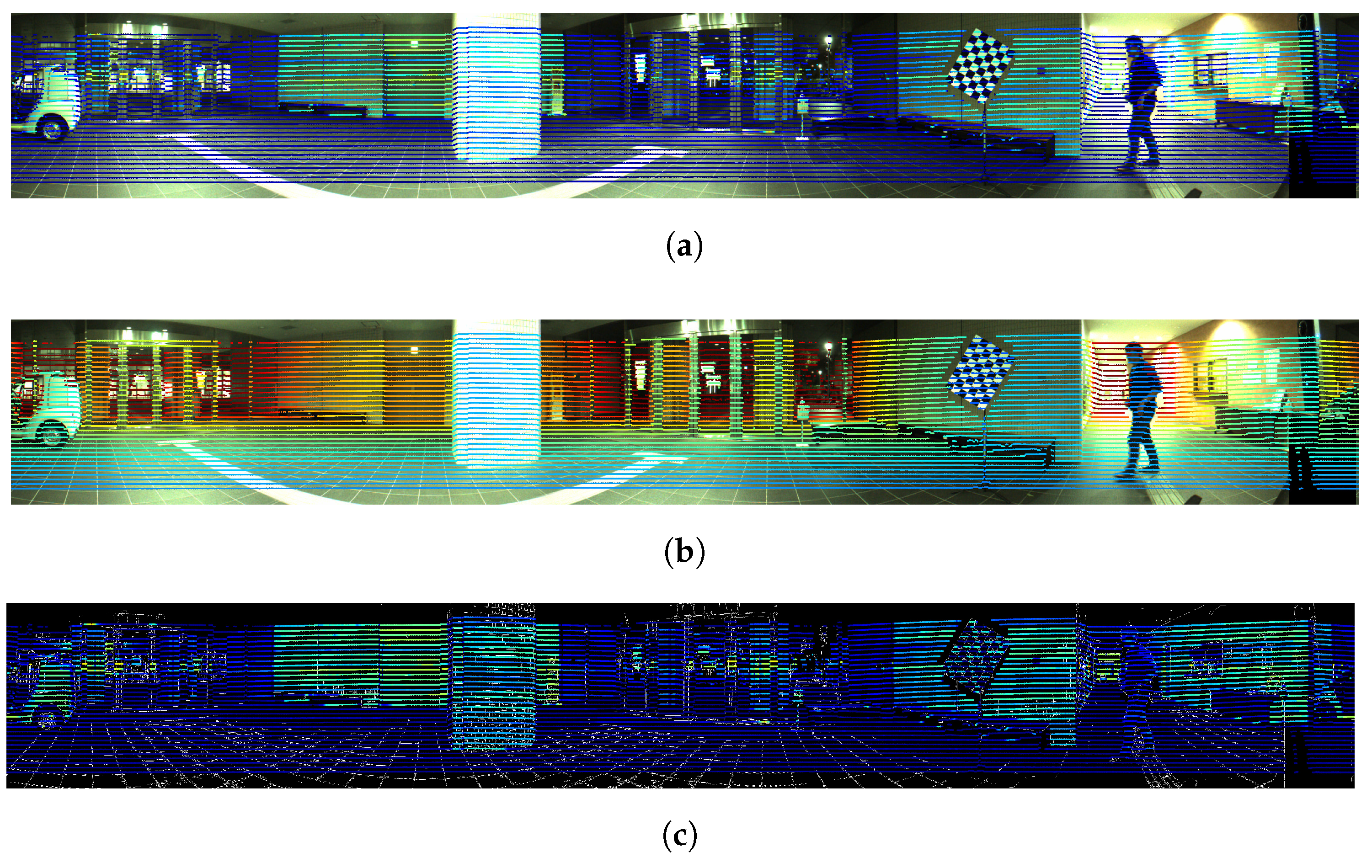

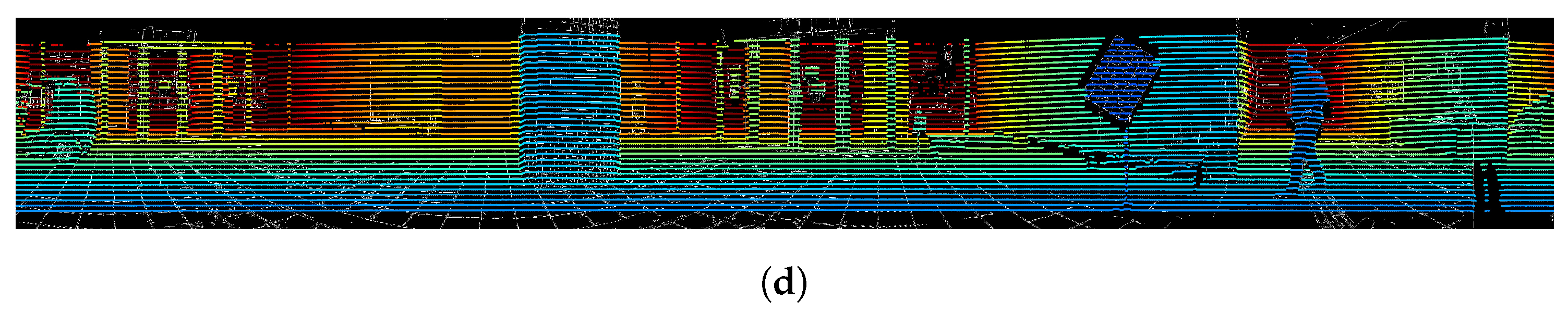

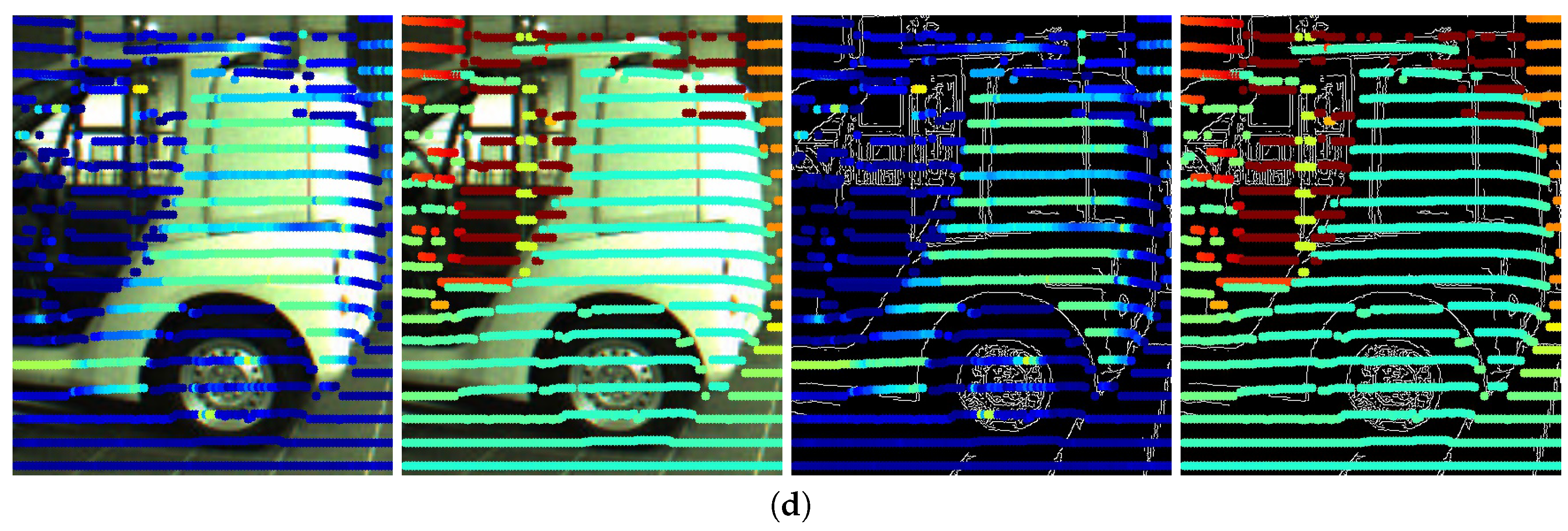

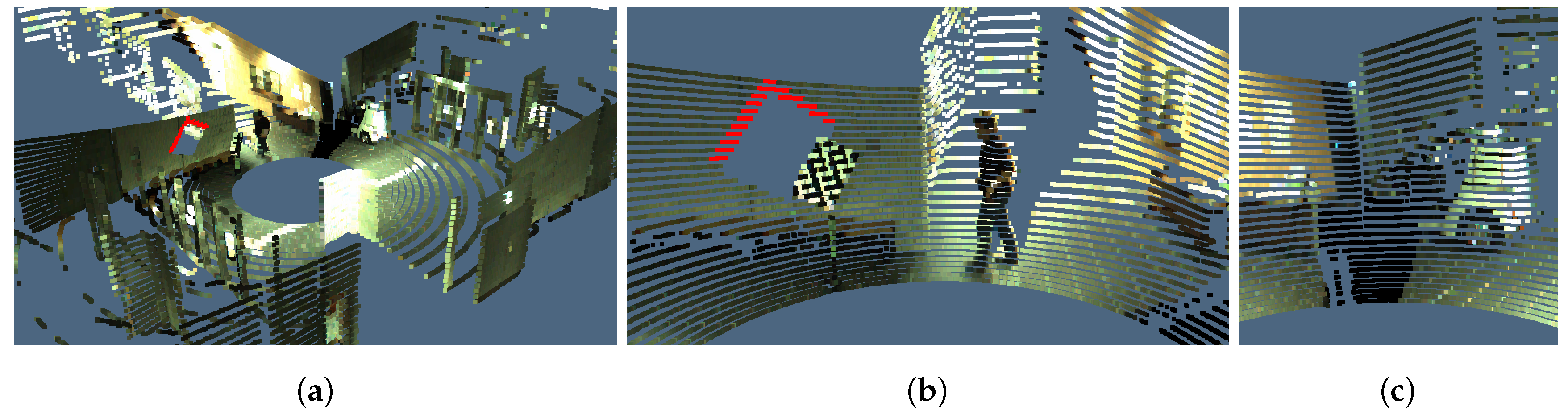

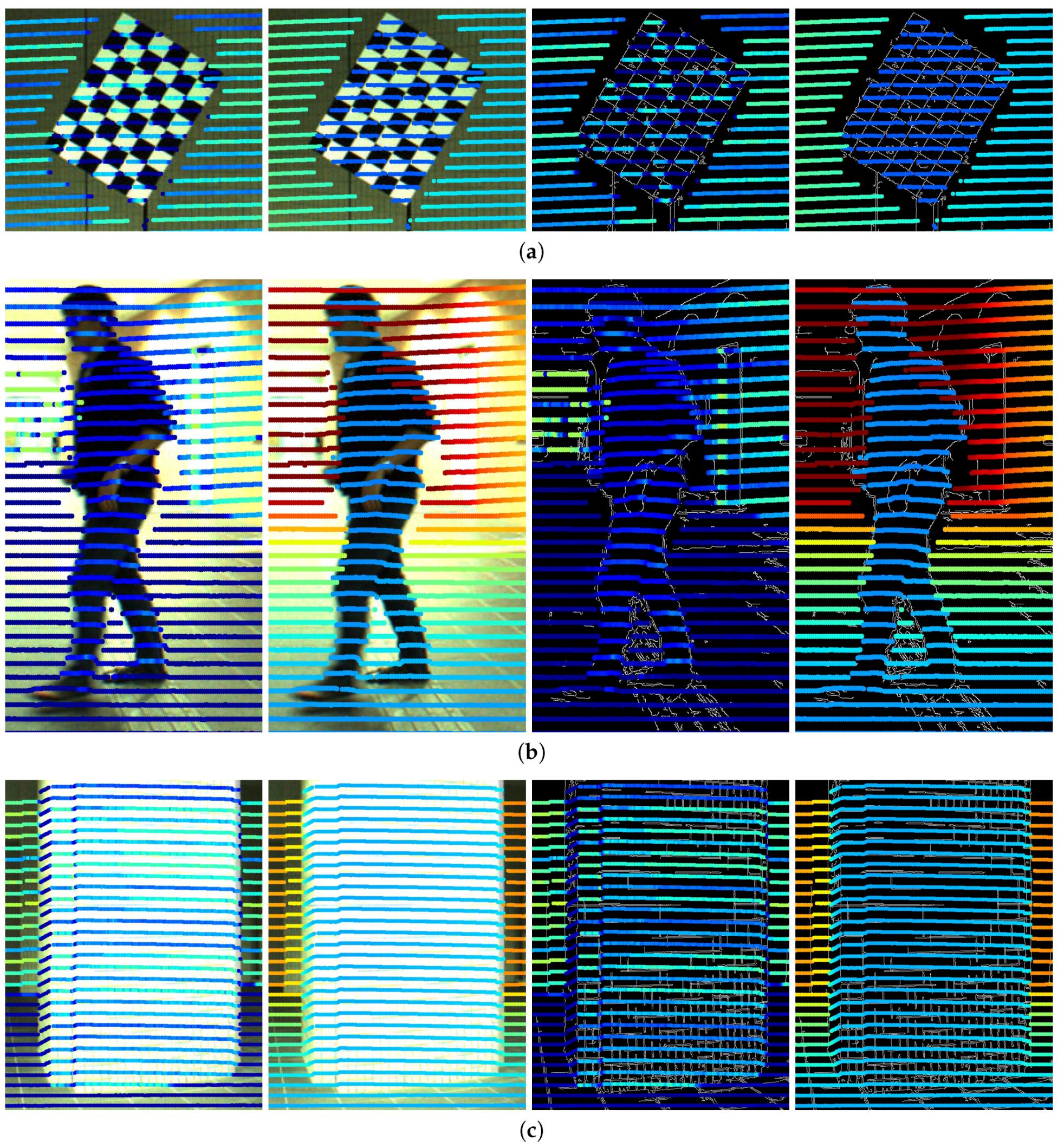

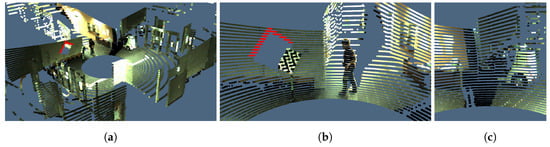

#### 6.6. Re-Projection Results

## 7. Discussions

- Automatic segmentation. As the first step of the proposed method, automatic segmentation is performed. The current segmentation method is only based on the distance information, which needs the chessboard to be spatially separated from the surrounding objects. Nevertheless, slight under-segmentation caused by the stand of the chessboard or over-segmentation caused by the measurement noise may still occur. The degree of mis-segmentation generated by the segmentation method used in this work is experimentally shown to be negligible for the corners estimation with the overall optimization of the proposed method.

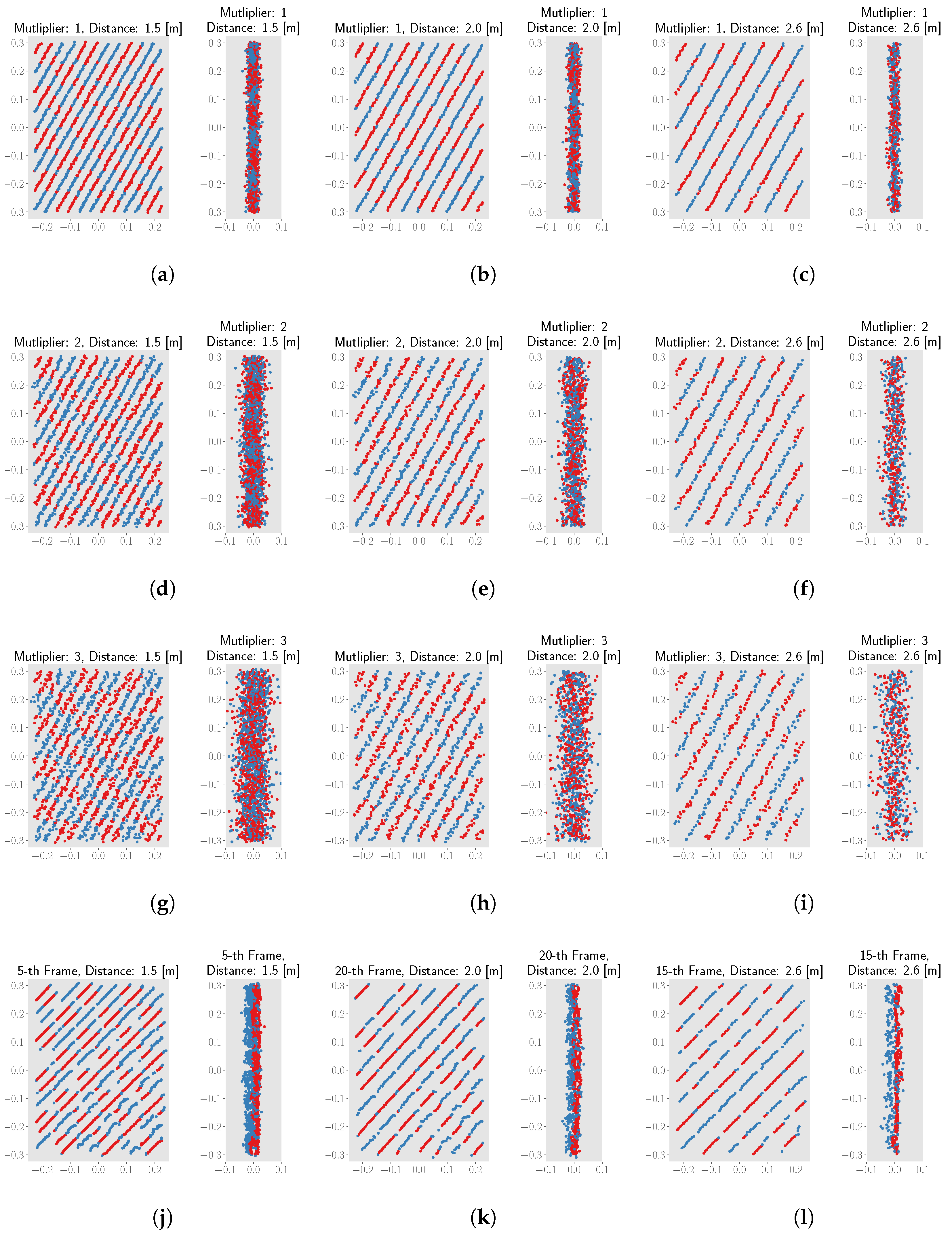

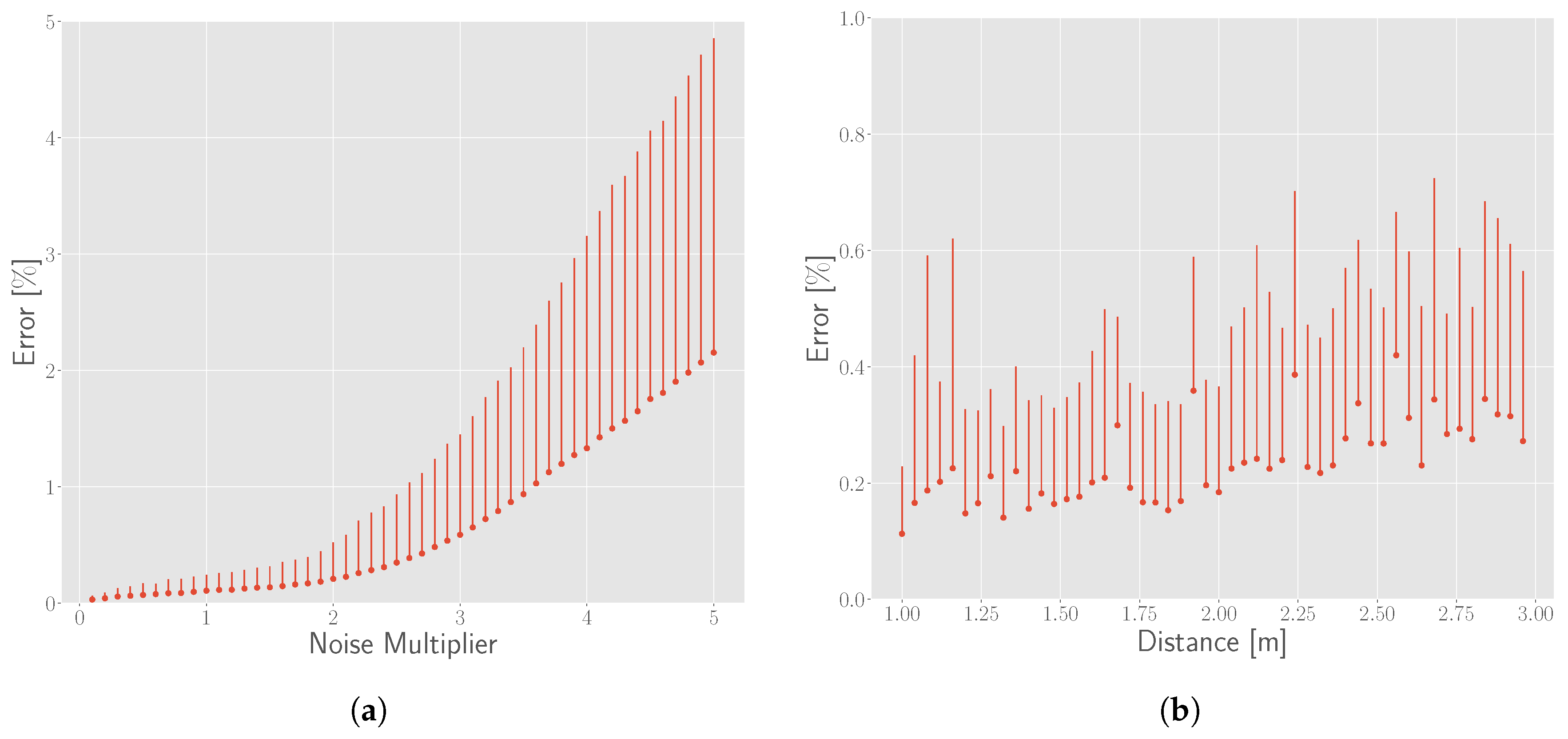

- Simulation. To evaluate the performance for the corner estimation with the proposed method, we approximately simulated the points by considering the probability model of the distance as Gaussian distribution. However, the probability model for the noise of reflectance intensity, which is an aspect for corners estimation, is not considered. Under the influence of reflectance intensity, the real error of corner estimation is supposed to be higher than the simulated results in this work. This is one of the reasons why the relative error for corners estimation is about 0.2%, as shown in Figure 13b, and the final re-projection error increased to 0.8% in Section 6.5. For a more precise simulation, the probability model of the reflectance value related to the incidence angle, the distance and the divergence of laser beam needs to be formulated.

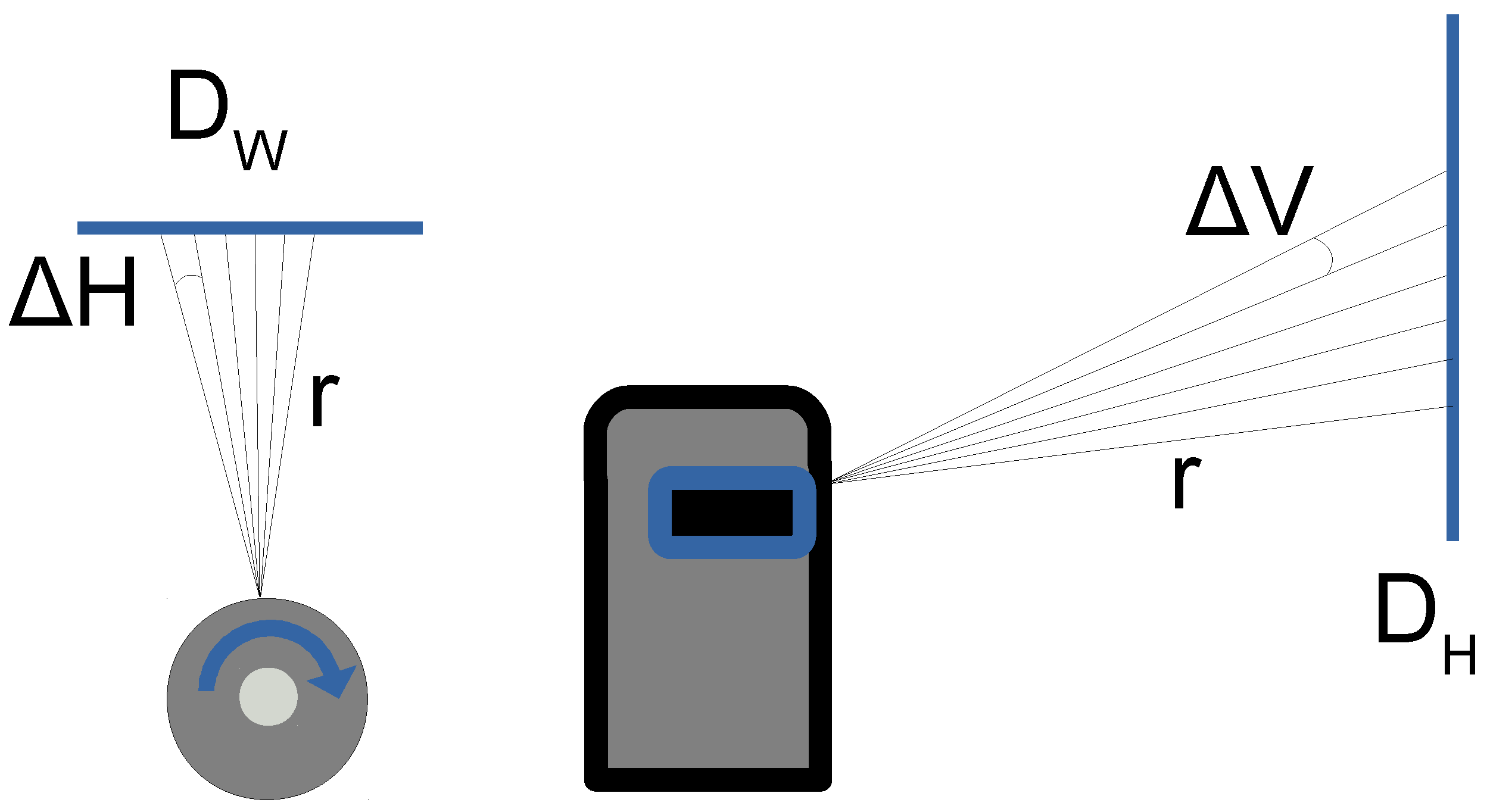

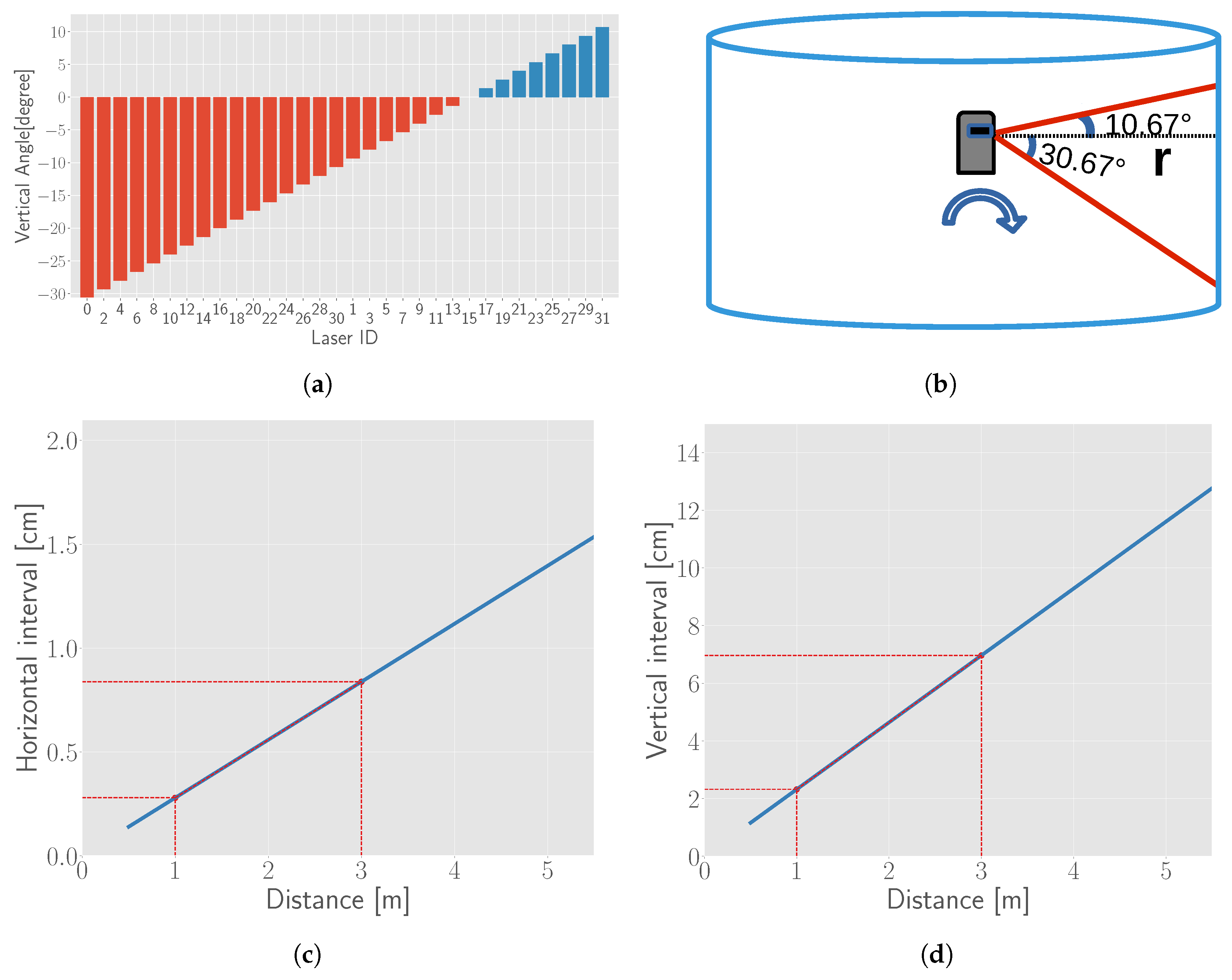

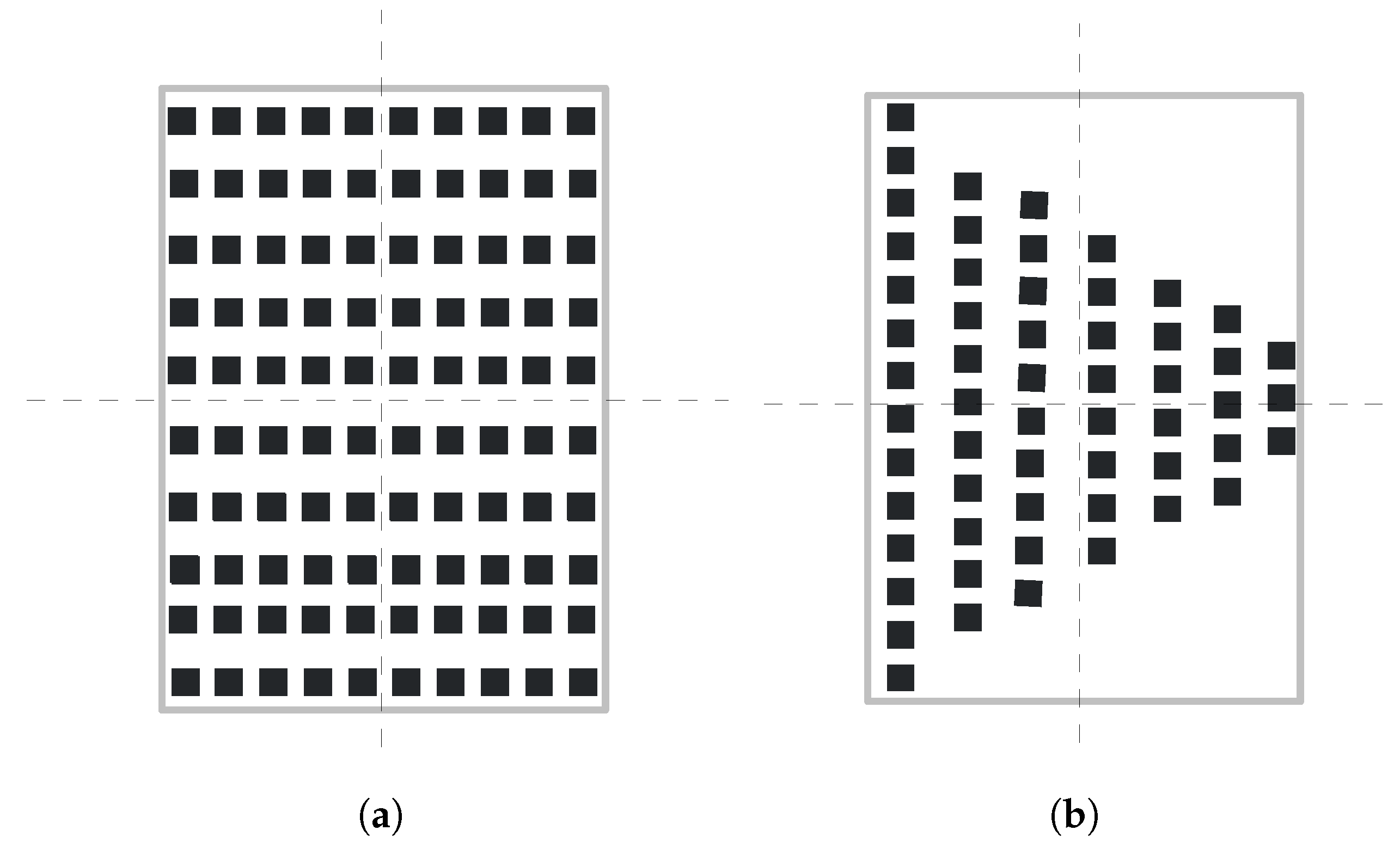

- Chessboard. As shown in Figure 11, both the horizontal and vertical intervals increase as the distance increases. To gather enough information for corner estimation, the side length of one grid in the chessboard is suggested to be greater than 1.5 times of the theoretical vertical interval at the farthest place. In addition, the intersection angle between the diagonal line of the chessboard and the z-axis of the LiDAR is suggested to be less than ${15}^{\circ}$ to enable the scanning of as many patterns as possible.We use the panoramic image for calibration, therefore, to remain unaffected by the stitching error, it is better to place the chessboard in the center of the field of view for each camera.

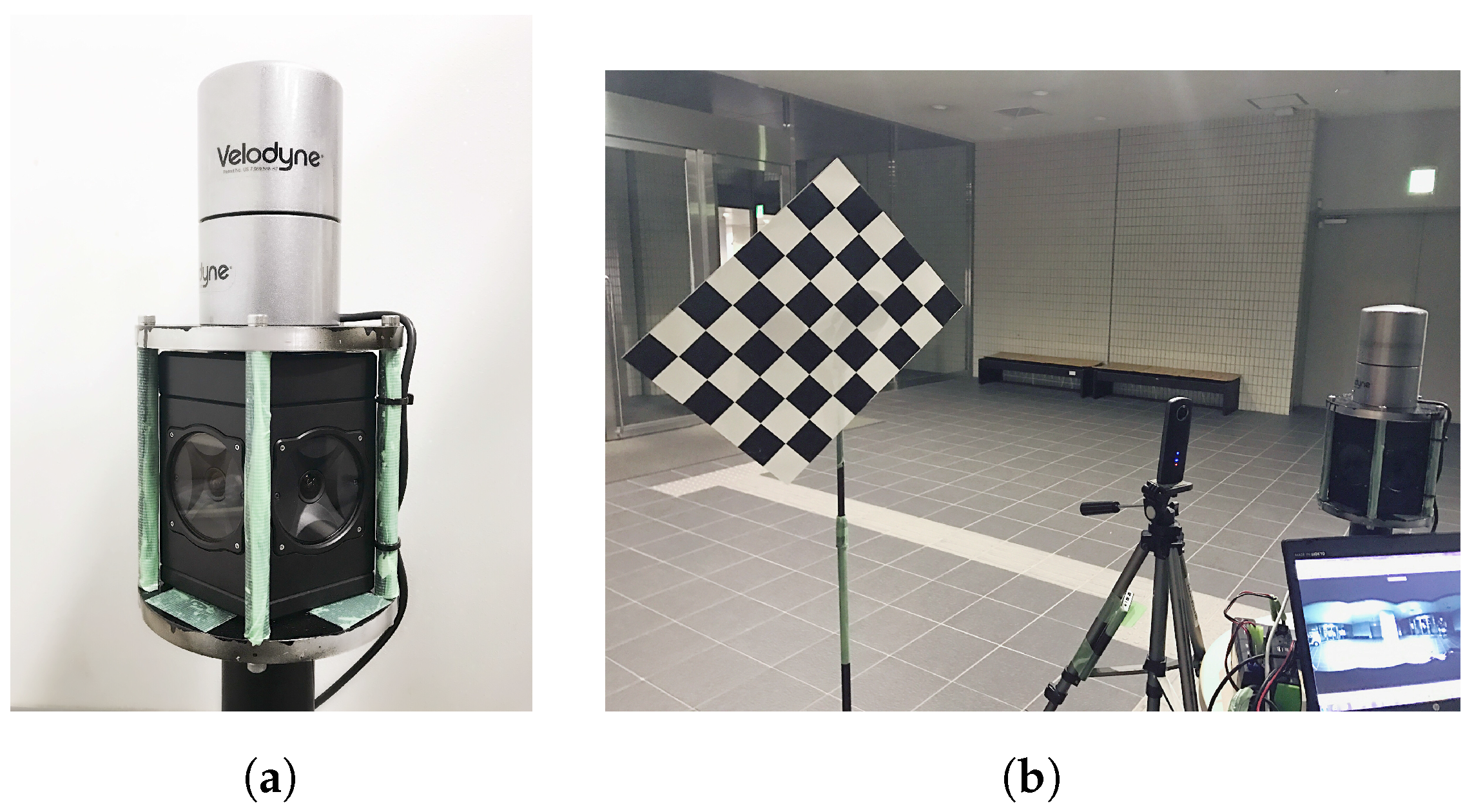

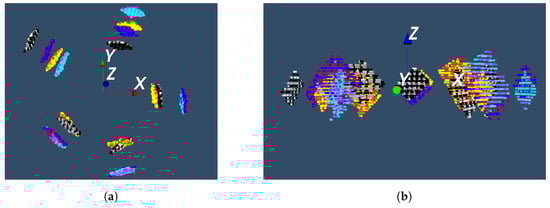

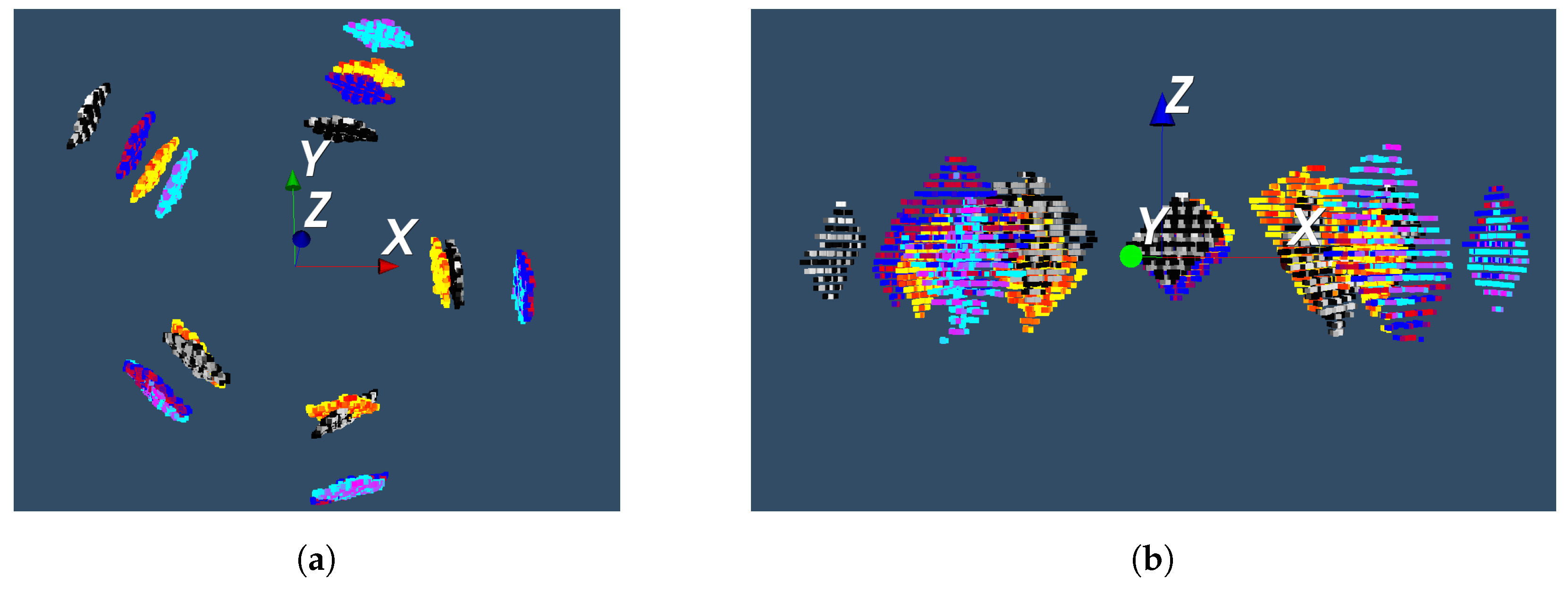

- Correspondence of 3D and 2D corners. In this work, a chessboard with 6∼8 patterns is used and the counting order is defined as starting from the of the chessboard for automatic correspondence. To make the “lower left” identified correctly, the chessboard should be captured to make the “lower left” of the real chessboard be same with that of chessboard in the image during the data acquisition. Also, the direction of z-axis of the two sensors should be almost consistent shown as in Figure 9b. However, these restrictions can be released with the introduction of asymmetrical patterns in practical use.
