Remote Sens. 2017, 9(7), 761;

Application of Sentinel 2 MSI Images to Retrieve Suspended Particulate Matter Concentrations in Poyang Lake

Department of Geography, Hong Kong Baptist University, Hong Kong, China
Key Laboratory for Geo-Environmental Monitoring of Coastal Zone of the National Administration of Surveying, Mapping and GeoInformation & Shenzhen Key Laboratory of Spatial Smart Sensing and Services, Shenzhen University, Shenzhen 518060, China
College of Life Sciences and Oceanography, Shenzhen University, Shenzhen 518060, China
Authors to whom correspondence should be addressed.
Received: 27 May 2017 / Revised: 14 July 2017 / Accepted: 19 July 2017 / Published: 23 July 2017
(This article belongs to the Special Issue Remote Sensing of Floodpath Lakes and Wetlands)
Full-Text   |   PDF [5510 KB, uploaded 23 July 2017]   |

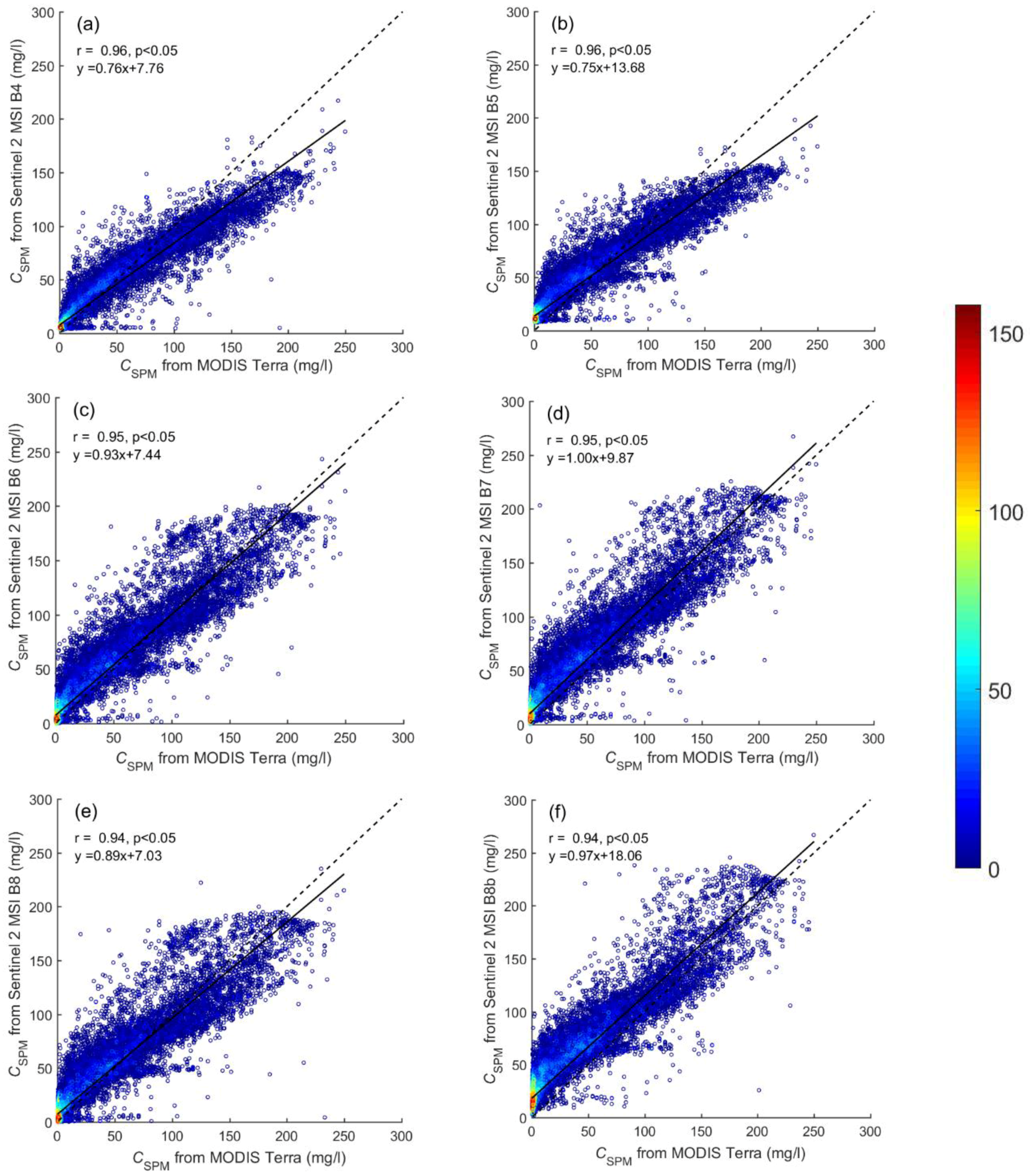

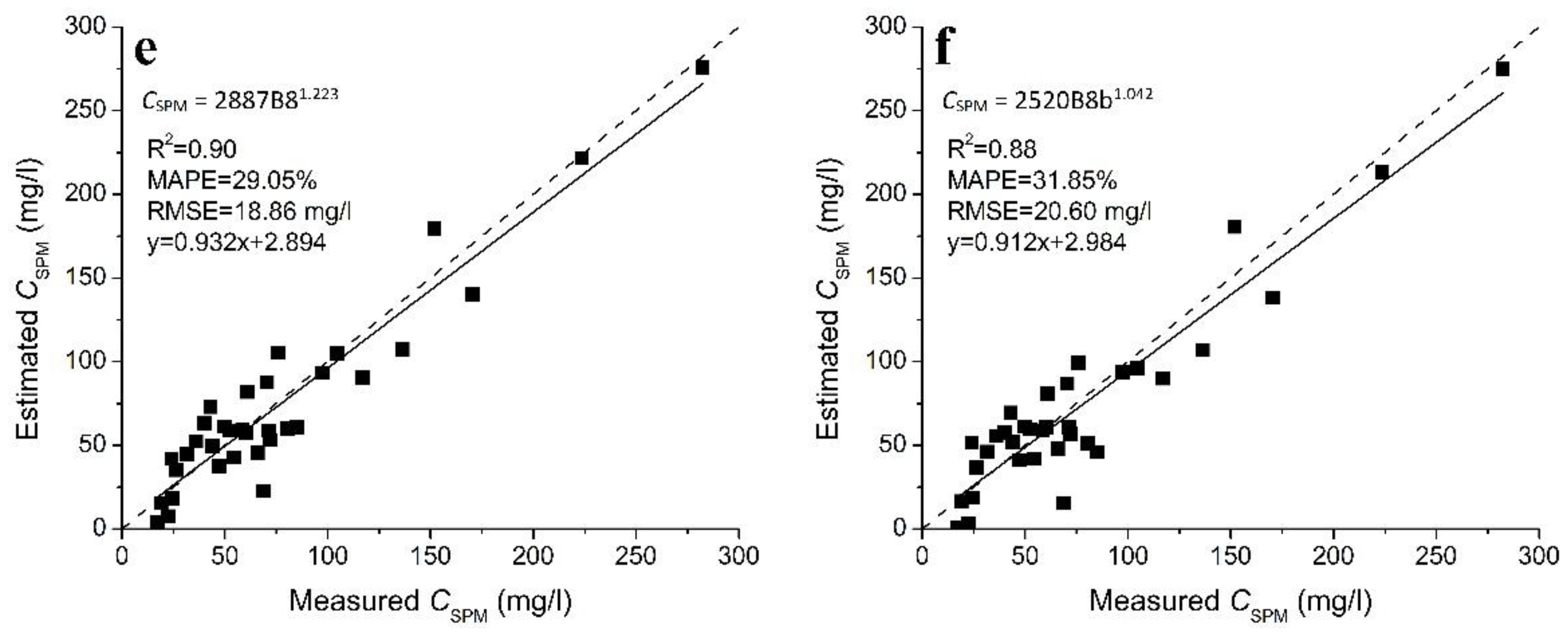

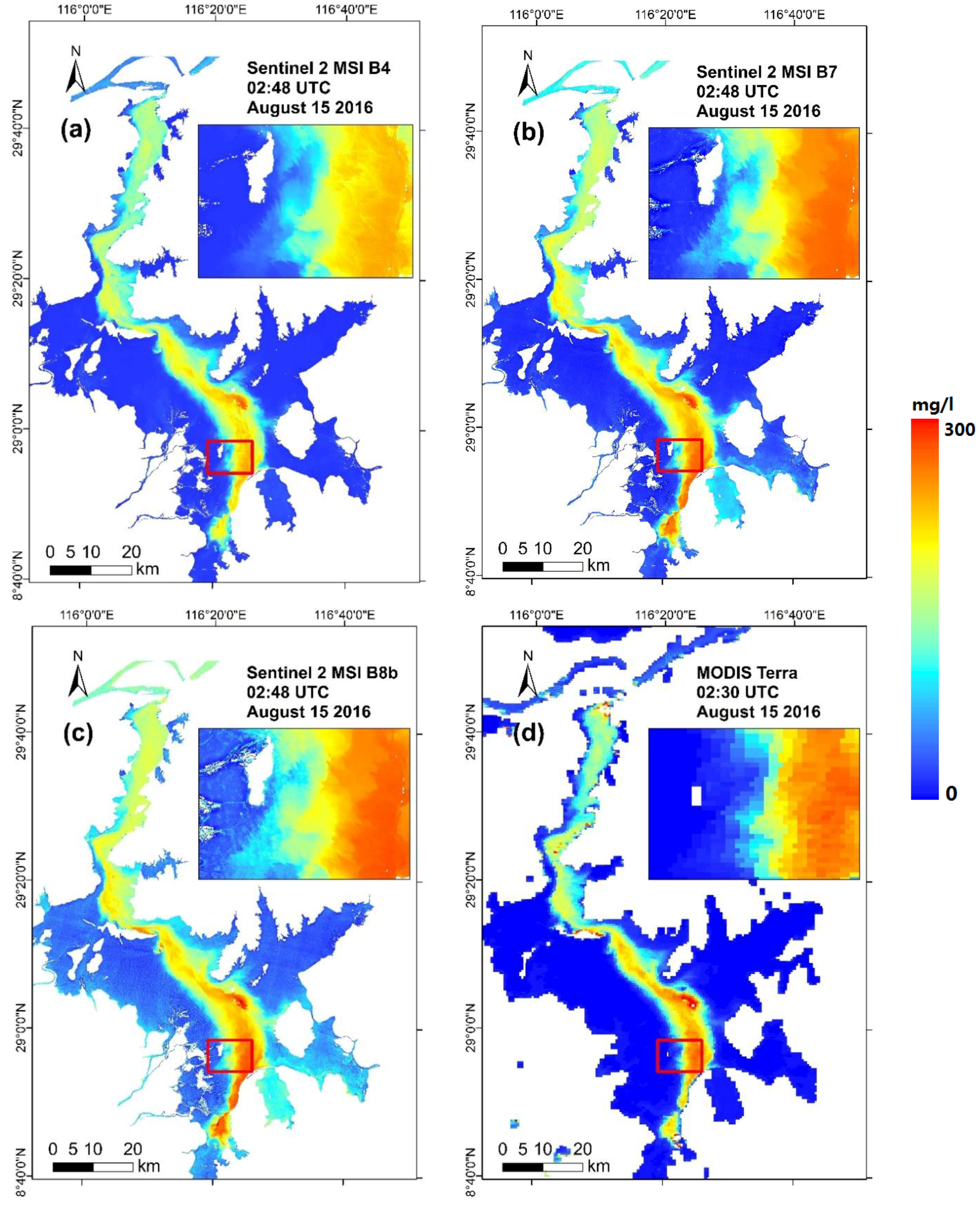

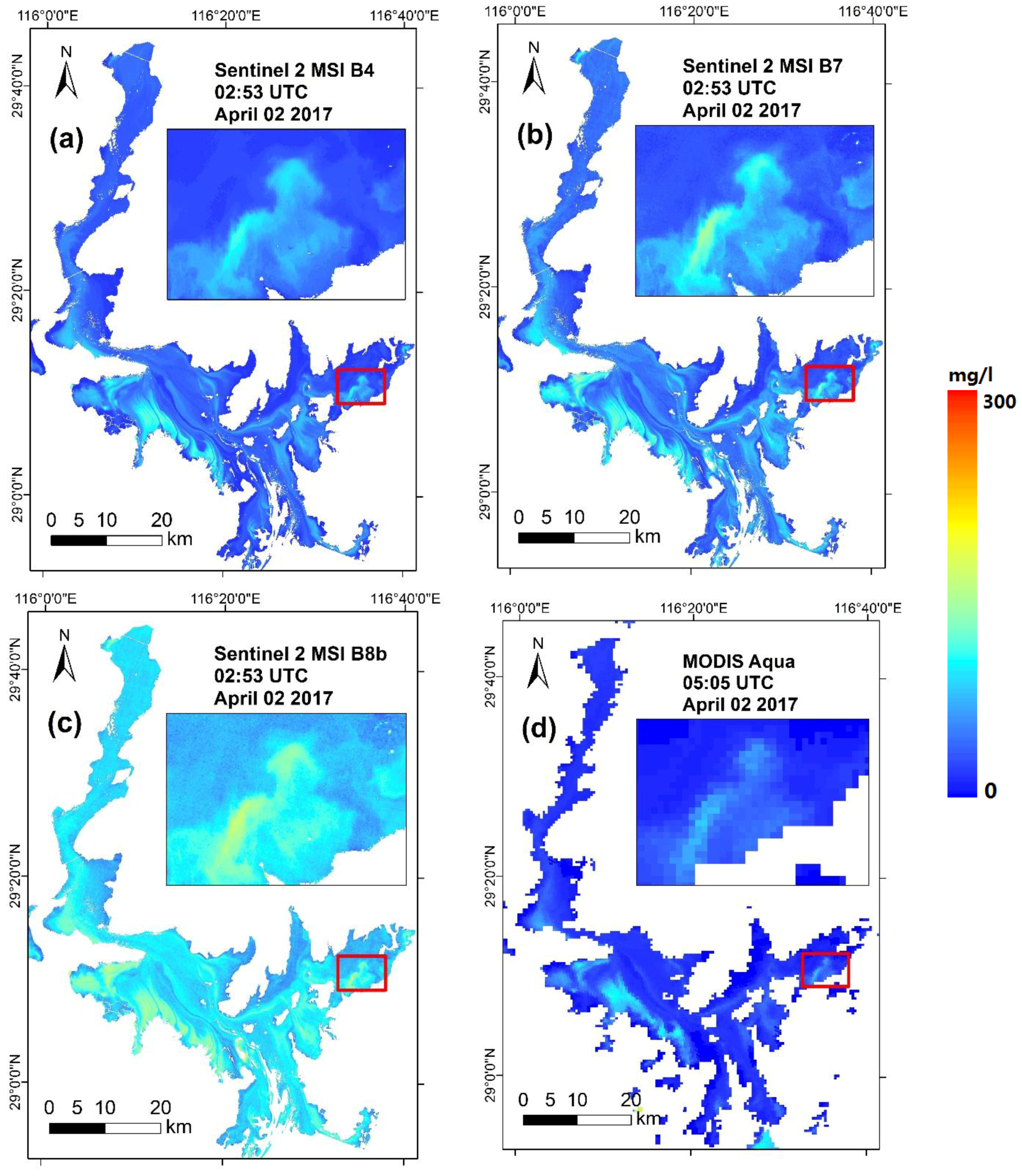

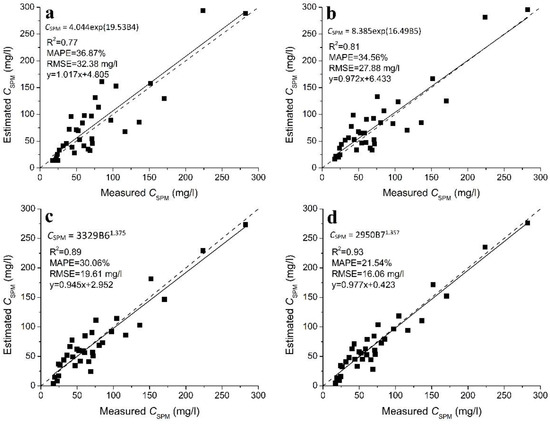

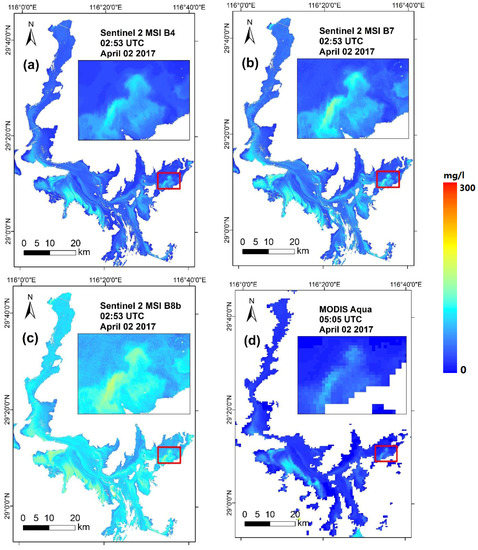

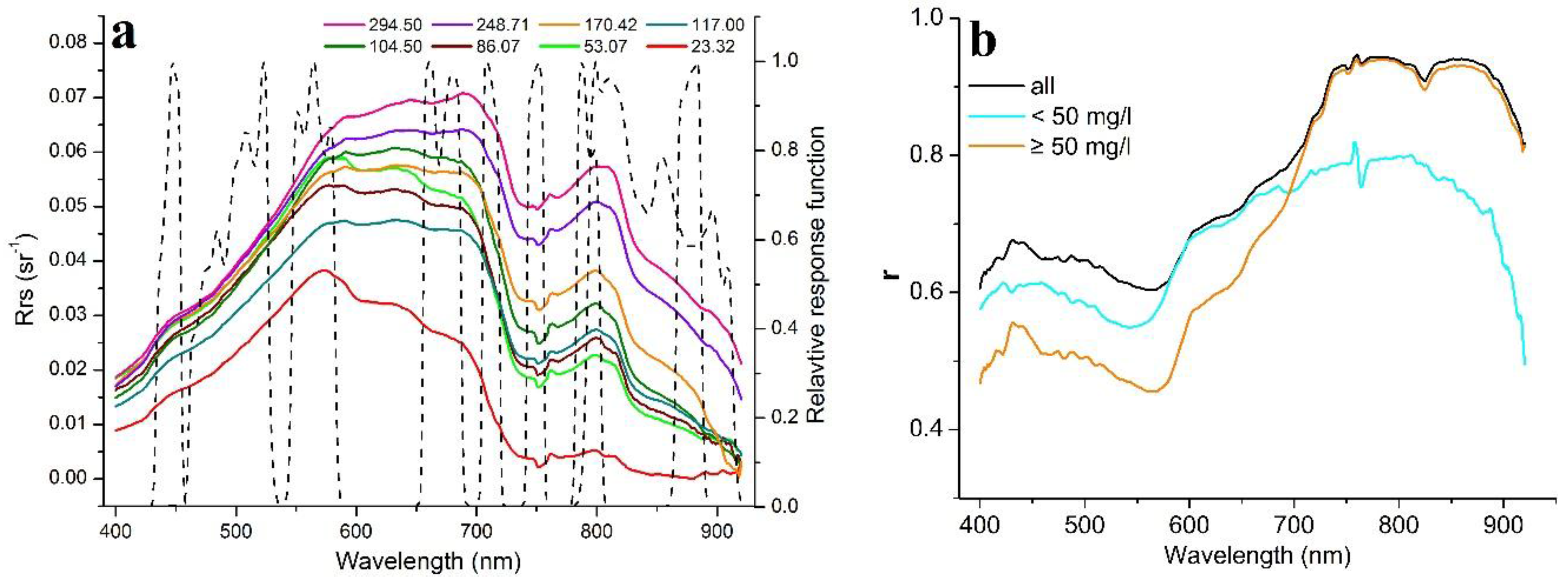

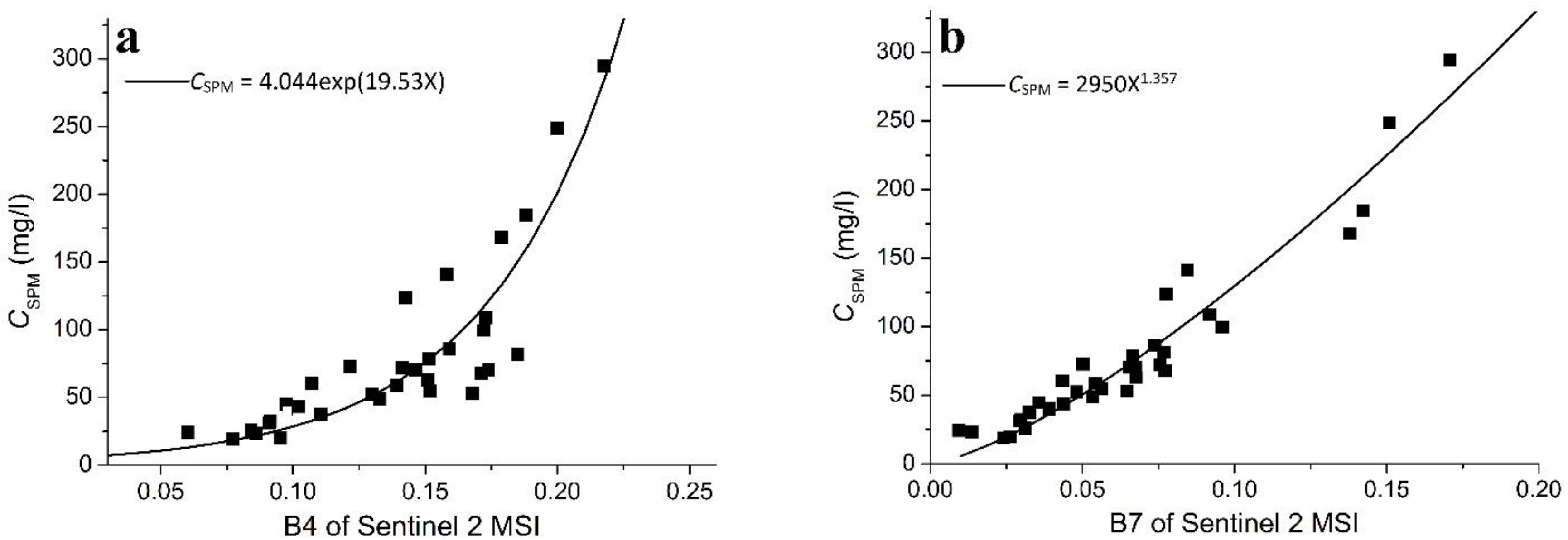

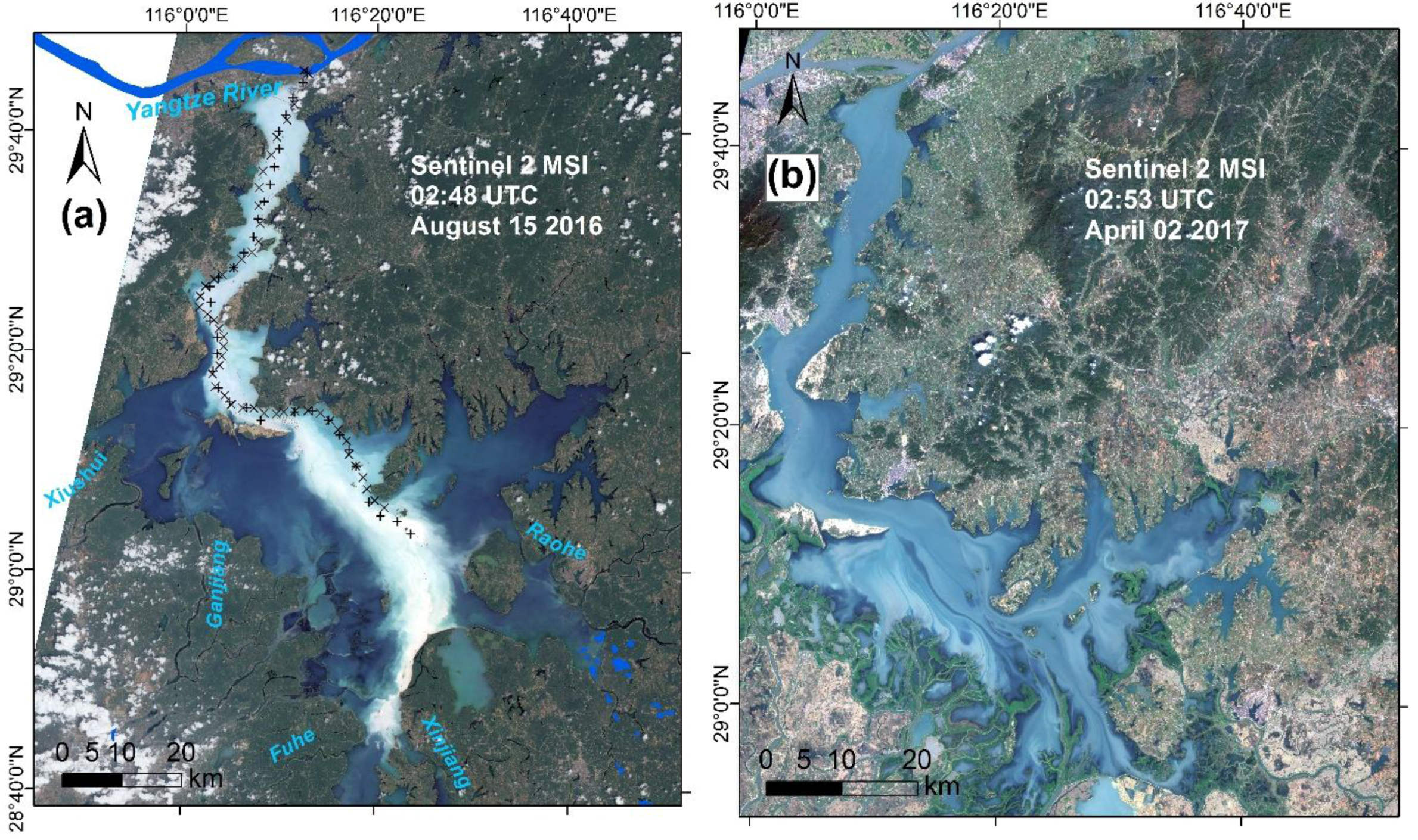

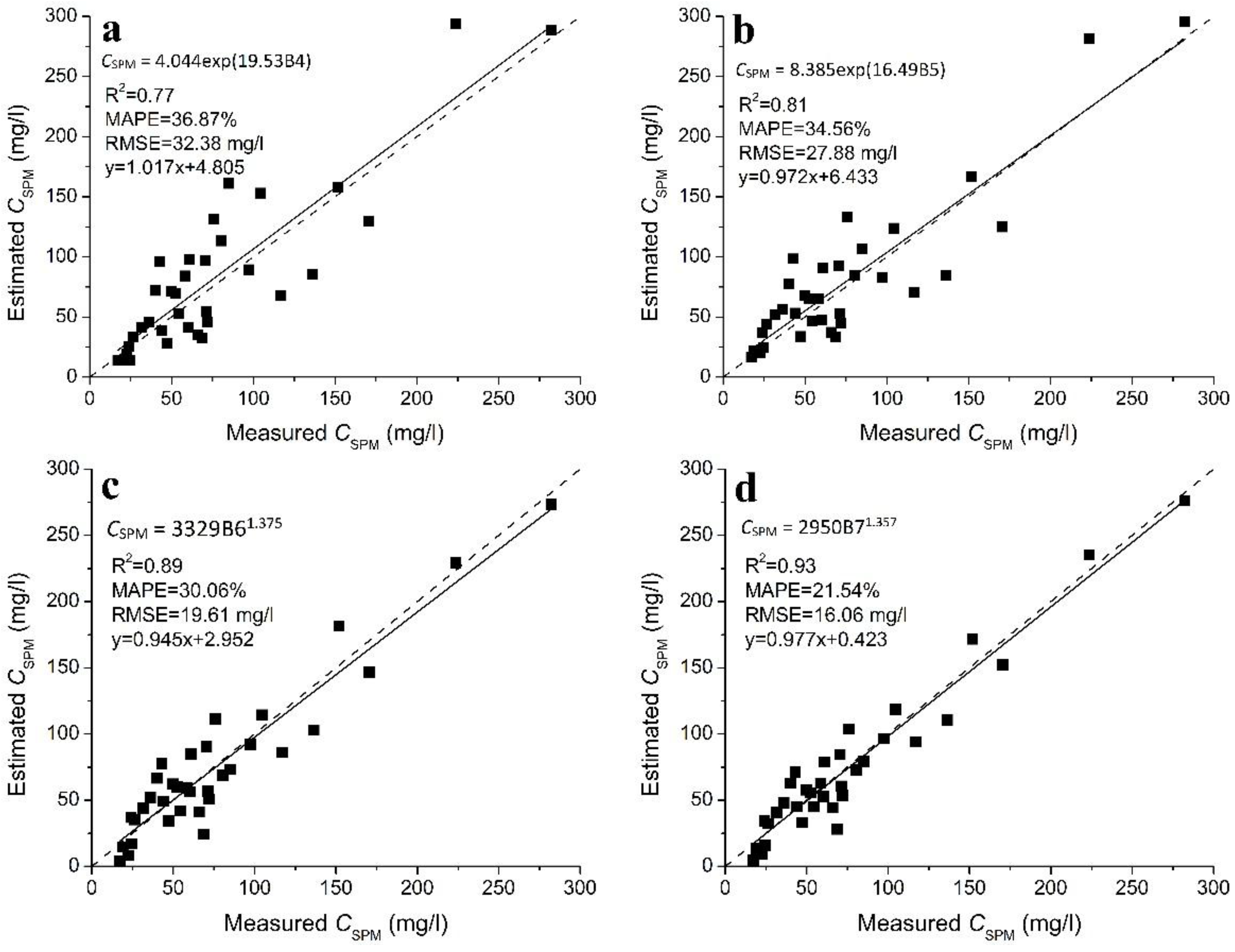

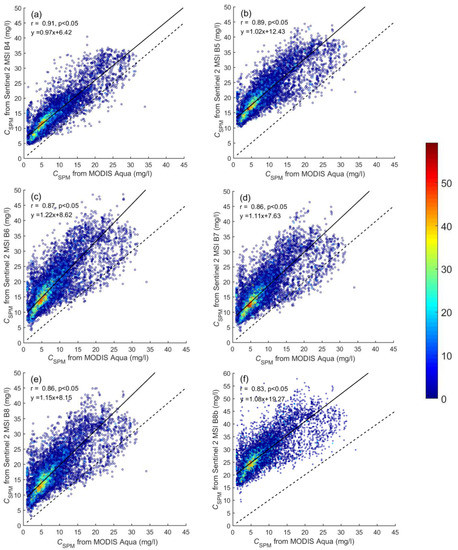

Suspended particulate matter (SPM) is one of the dominant water constituents in inland and coastal waters, and SPM concnetration (CSPM) is a key parameter describing water quality. This study, using in-situ spectral and CSPM measurements as well as Sentinel 2 Multispectral Imager (MSI) images, aimed to develop CSPM retrieval models and further to estimate the CSPM values of Poyang Lake, China. Sixty-eight in-situ hyperspectral measurements and relative spectral response function were applied to simulate Sentinel 2 MIS spectra. Thirty-four samples were used to calibrate and the left samples were used to validate CSPM retrieval models, respectively. The developed models were then applied to two Sentinel 2 MSI images captured in wet and dry seasons, and the derived CSPM values were compared with those derived from MODIS B1 (λ = 645 nm). Results showed that the Sentinel 2 MSI B4–B8b models achieved acceptable to high fitting accuracies, which explained 81–93% of the variation of CSPM. The validation results also showed the reliability of these six models, and the estimated CSPM explained 77–93% of the variation of measured CSPM with the mean absolute percentage error (MAPE) ranging from 36.87% to 21.54%. Among those, a model based on B7 (λ = 783 nm) appeared to be the most accurate one. The Sentinel 2 MSI-derived CSPM values were generally consistent in spatial distribution and magnitude with those derived from MODIS. The CSPM derived from Sentinel 2 MSI B7 showed the highest consistency with MODIS on 15 August 2016, while the Sentinel 2 MSI B4 (λ = 665 nm) produced the highest consistency with MODIS on 2 April 2017. Overall, this study demonstrated the applicability of Sentinel 2 MSI for CSPM retrieval in Poyang Lake, and the Sentinel 2 MSI B4 and B7 are recommended for low and high loadings of SPM, respectively. View Full-Text
Keywords: suspended particulate matter (SPM); water quality; sentinel 2 MSI; Poyang Lake; remote sensing suspended particulate matter (SPM); water quality; sentinel 2 MSI; Poyang Lake; remote sensing
