Remote Sens. 2017, 9(7), 685;

Detection of Tropical Overshooting Cloud Tops Using Himawari-8 Imagery

School of Urban and Environmental Engineering, Ulsan National Institute of Science and Technology, Ulsan 44919, Korea
Department of Atmospheric Science, Ewha Woman’s University, Seoul 03760, Korea
Author to whom correspondence should be addressed.
Academic Editor: Richard Müller
Received: 1 June 2017 / Revised: 30 June 2017 / Accepted: 1 July 2017 / Published: 4 July 2017
(This article belongs to the Section Atmosphere Remote Sensing)
Full-Text   |   PDF [5703 KB, uploaded 6 July 2017]   |

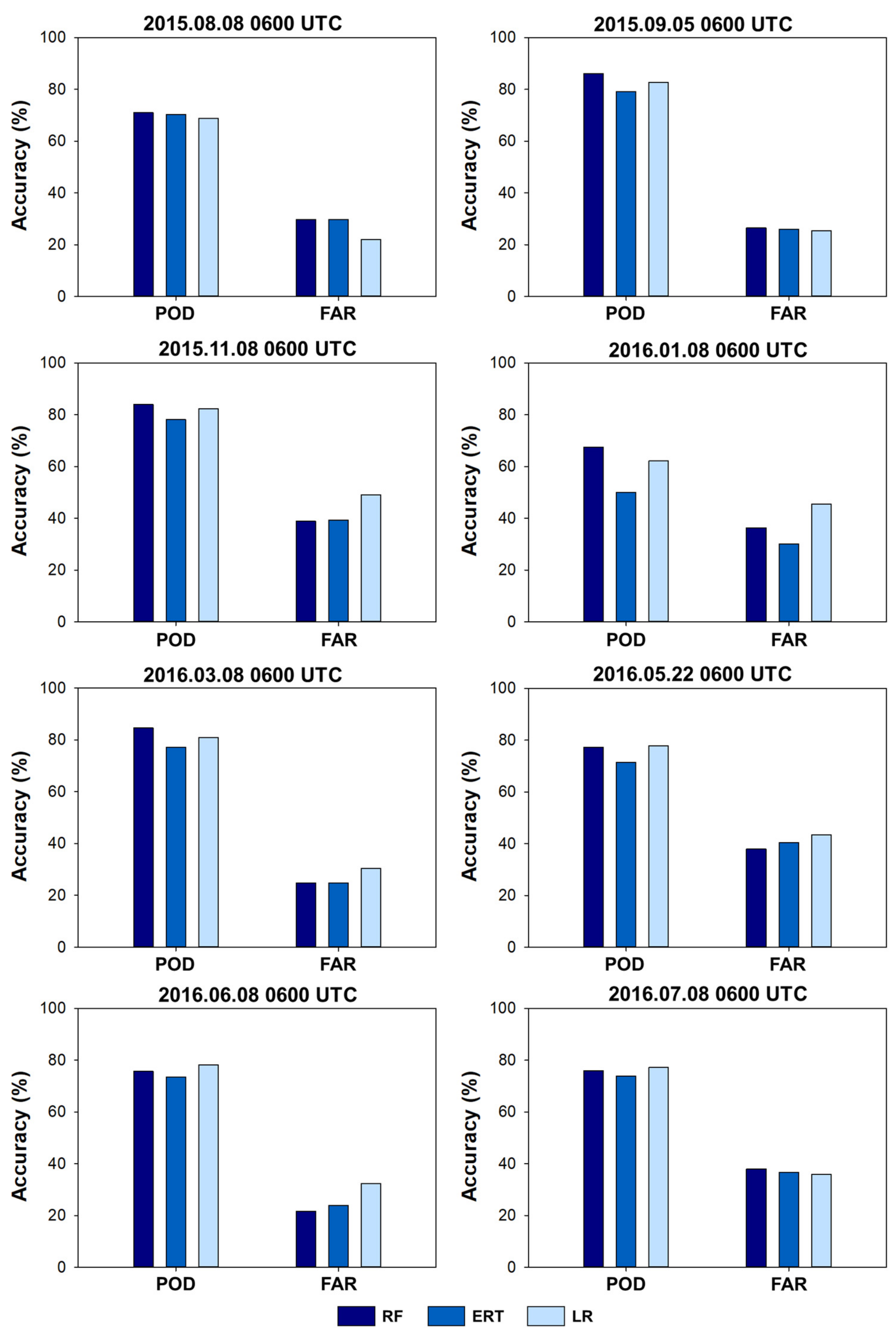

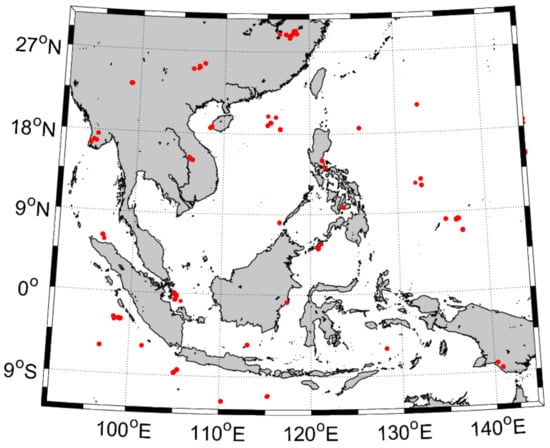

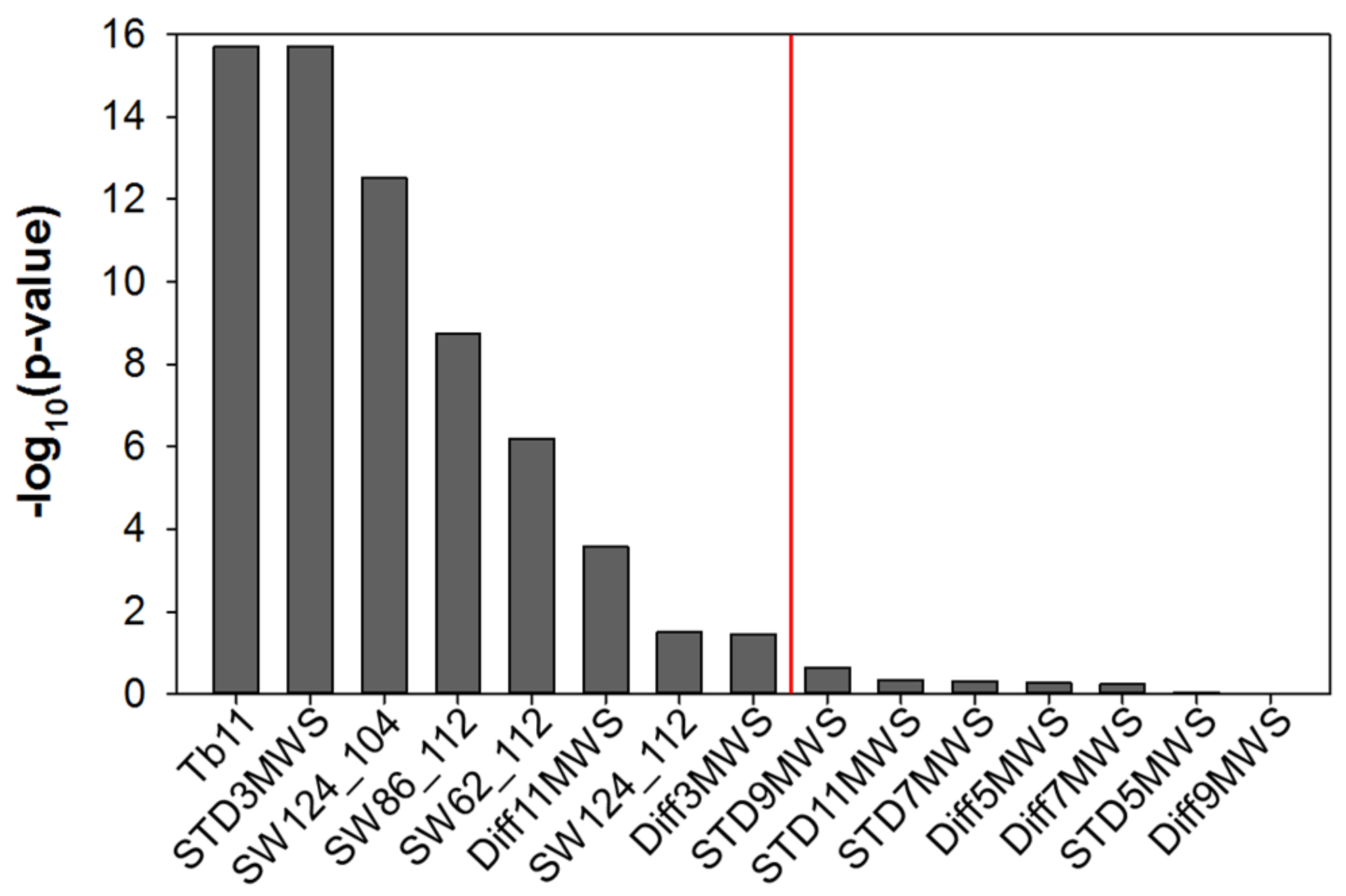

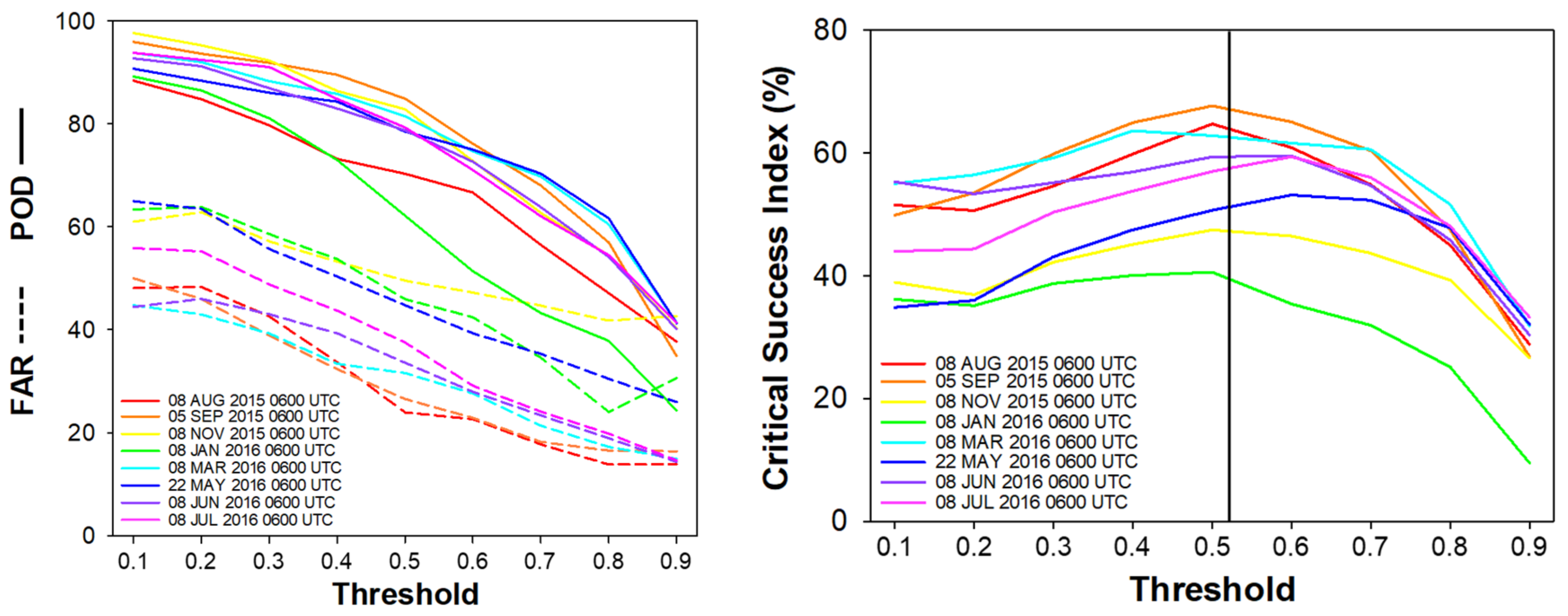

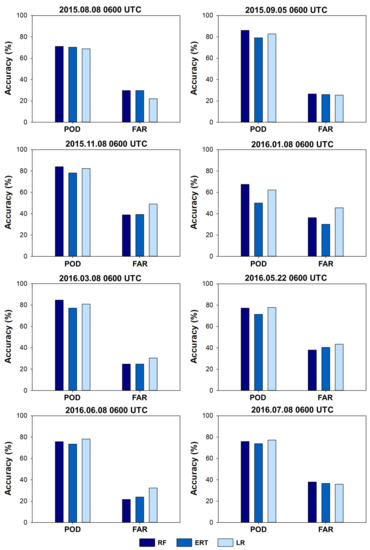

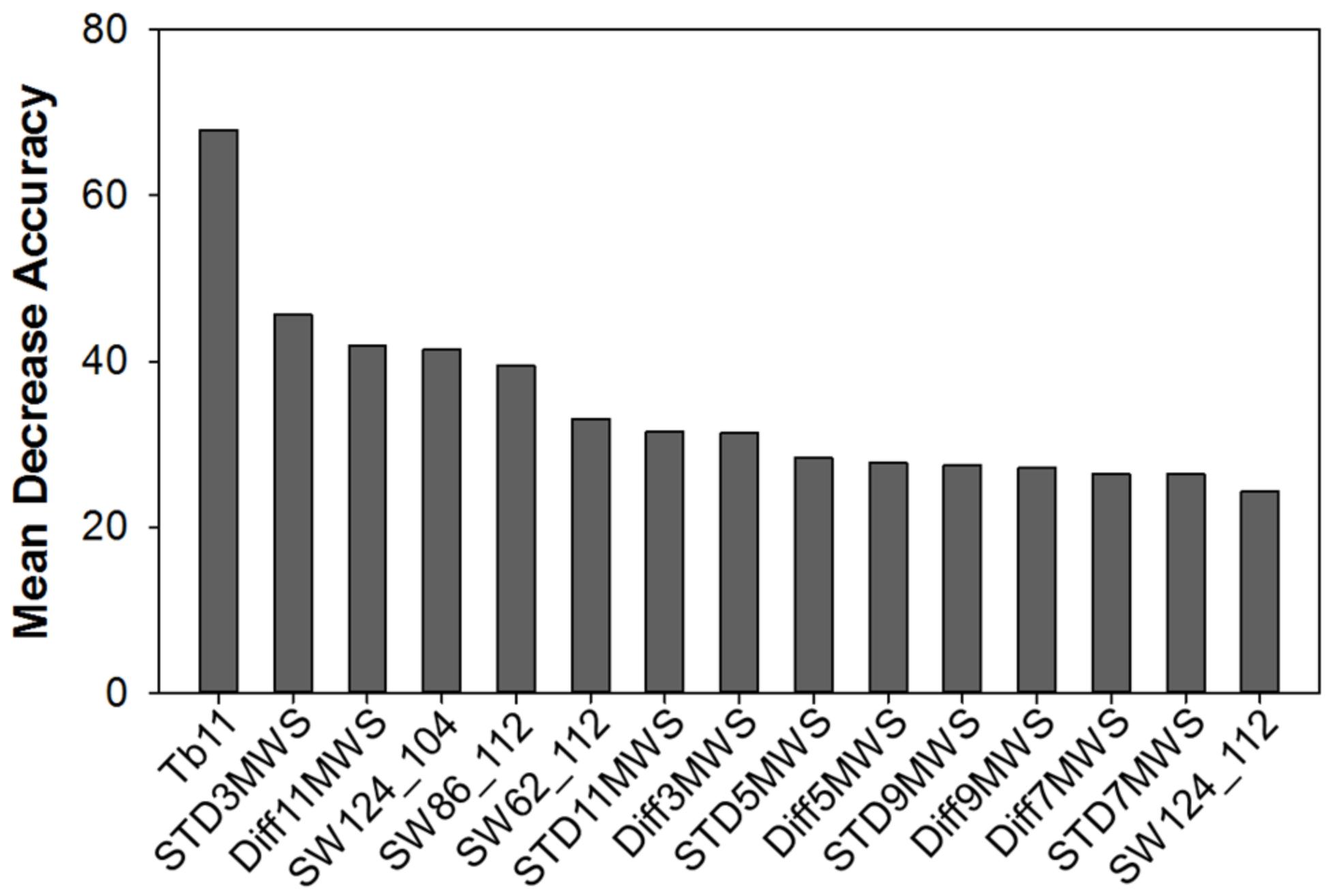

Abstract: Overshooting convective cloud Top (OT)-accompanied clouds can cause severe weather conditions, such as lightning, strong winds, and heavy rainfall. The distribution and behavior of OTs can affect regional and global climate systems. In this paper, we propose a new approach for OT detection by using machine learning methods with multiple infrared images and their derived features. Himawari-8 satellite images were used as the main input data, and binary detection (OT or nonOT) with class probability was the output of the machine learning models. Three machine learning techniques—random forest (RF), extremely randomized trees (ERT), and logistic regression (LR)—were used to develop OT classification models to distinguish OT from non-OT. The hindcast validation over the Southeast Asia and West Pacific regions showed that RF performed best, resulting in a mean probabilities of detection (POD) of 77.06% and a mean false alarm ratio (FAR) of 36.13%. Brightness temperature at 11.2 μm (Tb11) and its standard deviation (STD) in a 3 × 3 window size were identified as the most contributing variables for discriminating OT and nonOT classes. The proposed machine learning-based OT detection algorithms produced promising results comparable to or even better than the existing approaches, which are the infrared window (IRW)-texture and water vapor (WV) minus IRW brightness temperature difference (BTD) methods. View Full-Text
Keywords: overshooting tops; Himawari-8; random forest; extremely randomized trees; logistic regression overshooting tops; Himawari-8; random forest; extremely randomized trees; logistic regression

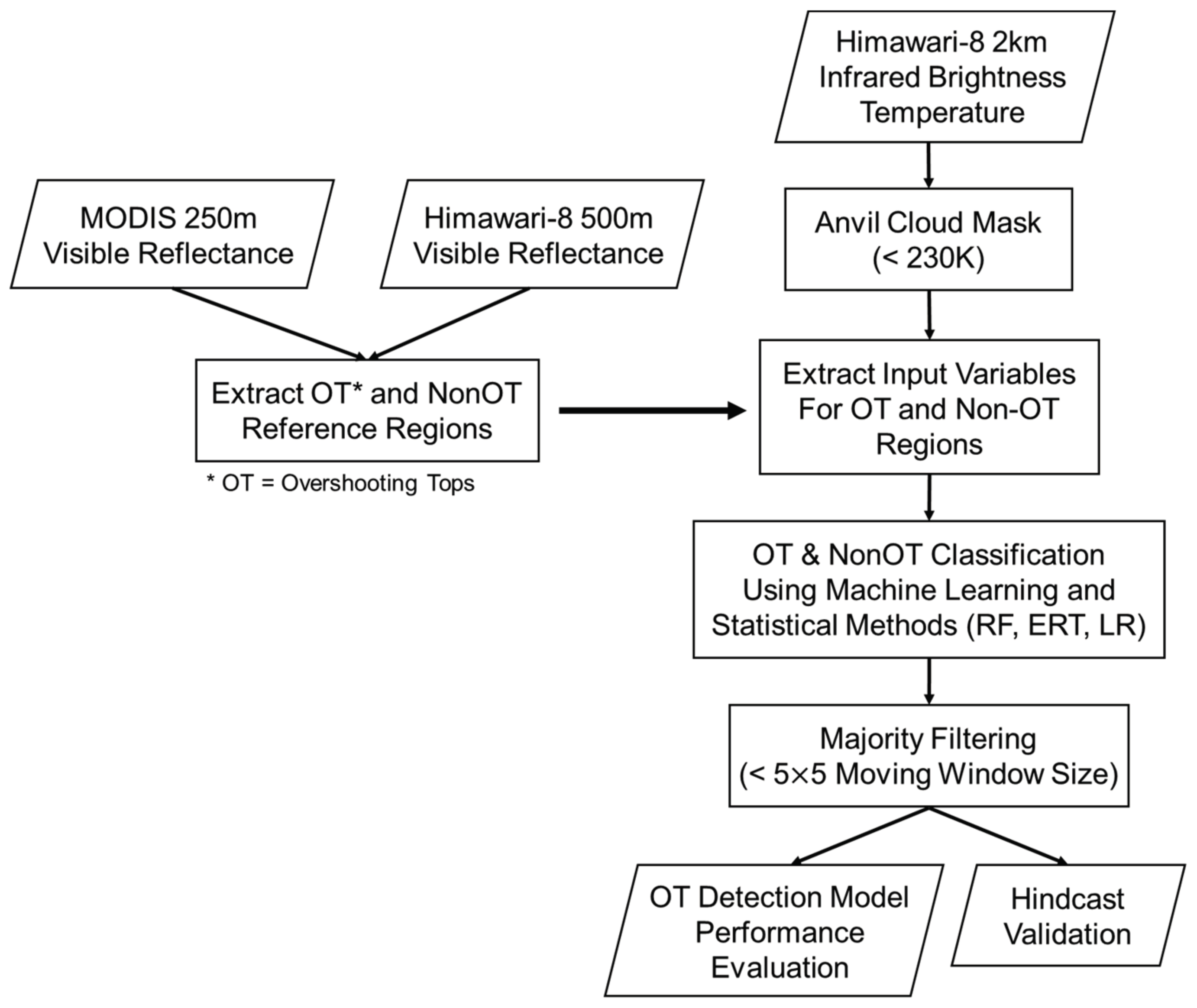

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
