Article

Validation of PROBA-V GEOV1 and MODIS C5 & C6 fAPAR Products in a Deciduous Beech Forest Site in Italy

1
Institute of Agro-Environmental & Forest Biology, National Research Council of Italy (CNR), Via Marconi 2, 05010 Porano (TR), Italy
2
Department for Innovation in Biological, Agro-Food and Forest Systems (DIBAF), University of Tuscia, Via S. Camillo de Lellis snc, 01100 Viterbo, Italy
3
EOLAB, Parc Científic Universitat de València, Catedrático Augustín Escardino 9, 46980 Paterna (Valencia), Spain
4
Institute of Agro-Environmental & Forest Biology, National Research Council of Italy (CNR), Via Salaria km 29,300, 00016 Monterotondo Scalo (RM), Italy
5
Institute for Agricultural and Forestry Systems in the Mediterranean, National Research Council of Italy (CNR), Via Patacca 85, I-80056 Ercolano (NA), Italy
6
Global Change Research Institute, The Czech Academy of Sciences, Bělidla 4a, 603 00 Brno, Czech Republic
*
Authors to whom correspondence should be addressed.
Remote Sens. 2017, 9(2), 126; https://doi.org/10.3390/rs9020126
Received: 15 November 2016 / Revised: 17 January 2017 / Accepted: 24 January 2017 / Published: 4 February 2017

Abstract

:
The availability of new fAPAR satellite products requires simultaneous efforts in validation to provide users with a better comprehension of product performance and evaluation of uncertainties. This study aimed to validate three fAPAR satellite products, GEOV1, MODIS C5, and MODIS C6, against ground references to determine to what extent the GCOS requirements on accuracy (maximum 10% or 5%) can be met in a deciduous beech forest site in a gently and variably sloped mountain site. Three ground reference fAPAR, differing for temporal (continuous or campaign mode) and spatial sampling (single points or Elementary Sampling Units—ESUs), were collected using different devices: (1) Apogee (defined as benchmark in this study); (2) PASTIS; and (3) Digital cameras for collecting hemispherical photographs (DHP). A bottom-up approach for the upscaling process was used in the present study. Radiometric values of decametric images (Landsat-8) were extracted over the ESUs and used to develop empirical transfer functions for upscaling the ground measurements. The resulting high-resolution ground-based maps were aggregated to the spatial resolution of the satellite product to be validated considering the equivalent point spread function of the satellite sensors, and a correlation analysis was performed to accomplish the accuracy assessment. PASTIS sensors showed good performance as fAPARPASTIS appropriately followed the seasonal trends depicted by fAPARAPOGEE (benchmark) (R2 = 0.84; RMSE = 0.01). Despite small dissimilarities, mainly attributed to different sampling schemes and errors in DHP classification process, the agreement between fAPARPASTIS and fAPARDHP was noticeable considering all the differences between both approaches. The temporal courses of the three satellite products were found to be consistent with both Apogee and PASTIS, except at the end of the summer season when ground data were more affected by senescent leaves, with both MODIS C5 and C6 displaying larger short-term variability due to their shorter temporal composite period. MODIS C5 and C6 retrievals were obtained with the backup algorithm in most cases. The three green fAPAR satellite products under study showed good agreement with ground-based maps of canopy fAPAR at 10 h, with RMSE values lower than 0.06, very low systematic differences, and more than 85% of the pixels within GCOS requirements. Among them, GEOV1 fAPAR showed up to 98% of the points lying within the GCOS requirements, and slightly lower values (mean bias = −0.02) as compared with the ground canopy fAPAR, which is expected to be only slightly higher than green fAPAR in the peak season.

Graphical Abstract

1. Introduction

Ecosystems are continuously changing due to both natural and anthropic factors. Monitoring biophysical variables is fundamental to describe vegetation dynamics, disturbances, and responses to changing environmental conditions [1]. The Fraction of Absorbed Photosynthetically Active Radiation (fAPAR) is recognized as an Essential Climate Variable (ECV) by the Global Climate Observing System (GCOS) as it has a primary role in estimation of carbon balance [2]. fAPAR is generally defined as the fraction of Photosynthetically Active Radiation (PAR) absorbed by vegetation, where PAR is the solar radiation reaching the vegetation in the wavelength region 400–700 nm [3]. Consequently, fAPAR is the available light energy for plant productivity and thus is strictly related to photosynthesis. It is influenced by illumination condition and varies with sun position, atmospheric conditions, and the relative contributions of the direct and diffuse illumination [4]. The actual or ‘blue-sky’ fAPAR is the sum of two terms, weighted by the diffuse fraction in the PAR domain: the ‘black-sky’ fAPAR related to the direct component of the incident radiation and the ‘white-sky’ fAPAR related to the diffuse component of the incident radiation [5].
The importance of this variable in the vegetation monitoring is related to (1) the fact that is linked both to ecosystem function and structure [6] and (2) the possibility that it can be monitored from space. The growing availability of fAPAR satellite products at a global level make this variable suitable for monitoring vegetation status [7], phenology [8], drought events [9], and land degradation [10]. The productivity of a vegetated surface is related to fAPAR and remotely sensed fAPAR data are widely used as input in carbon productivity models [11,12,13]. One of the most widely used models in the estimation of carbon productivity is the Light Use Efficiency (LUE) model that describes carbon sequestration as a product of a structural term determining light absorption (fAPAR × PAR) and a physiological efficiency term (ε) defining the conversion of solar radiation into biomass or carbon. In this approach, the accuracy fAPAR data used is relevant, as it has a considerable impact on the fluxes estimated by the model [14], even more in those cases when ε is assumed to be constant.
The methods used to monitor fAPAR could be divided into ground and satellite methods. Weiss et al. [4] report that there are primarily four different ground methods, depending on the approximation: (a) assessing fAPAR directly using quantum sensors that measure all the terms of the radiation balance [15]; (b) assessing transmitted PAR using ceptometers that compute the instantaneous fIPAR (fraction of Intercepted PAR) [16]; (c) assessing directional transmittance measurements using digital hemispherical photography (DHP) [5] or LAI-2000 [17]; and (d) simulating fAPAR through a 3D model that accurately takes into account the canopy structure [18]. On the other hand, the major approaches used to estimate fAPAR from remote sensing over a large spatial scale are basically two: (a) empirical models based on relationships between field measurements and satellite-derived vegetation indices as Normalized Difference Vegetation Index (NDVI) [19,20] or EVI [21,22] and (b) physically-based methods by inversion of radiative transfer models (RTM) [23,24]. In the last decades, several satellite-based fAPAR products have been developed from different sensors on a global scale by spatial agencies and earth observation services. This has made various fAPAR products at different temporal and spatial resolutions of the Earth available to the scientific community [25,26,27,28,29,30,31]. In particular, the Copernicus Global Land Service (http://land.copernicus.eu/global/) delivers global LAI, fAPAR, and fCOVER products from SPOT VEGETATION (1999–2014) and PROBA-V observations (2014-present) with a spatial sampling close to 1 km and temporal frequency of 10 days. These products, namely GEOV1 products, were developed to capitalize on existing products and its validation results [31], and were globally validated and compared with existing satellite data and ground reference maps, showing better performance than other satellite products [32]. Since 2000, NASA has delivered MODIS/TERRA fAPAR Collection 5 (C5) products that are produced at 1 km spatial resolution [23,33]. Accuracy improvements from 0.2 to 0.1 of Collection 5 over previous Collection 4 were observed in several studies [34,35,36]. Lastly, the newest version of fAPAR MODIS product is Collection 6 (C6) which is 500 m spatial resolution and contains the entire time series from February 2000 to the present [37]. Recent studies [37,38] aimed to assess product accuracy, uncertainty, and consistency with the previous version. Yan et al. [38] informed about the absence of valid ground truth for fAPAR measurements over deciduous broadleaf forest and recommended more efforts in field measurements to further refine remote sensing data performance in the future. Camacho et al. [32] also pointed out how validation of satellite products is limited by the ground dataset available and that, presently, a small amount of data exists concerning broadleaf evergreen and deciduous forests. Recently, studies aimed to evaluate consistency between fAPAR datasets in forest biomes proved that important differences exist among them and thus further efforts to improve accuracy in carbon models are needed [34,39,40,41]. Subsequently, the availability of new satellite products requires simultaneous efforts in their validation to provide users with a better comprehension of product performances and uncertainties [42]. To reach this goal, ground reference fAPAR datasets are essential. However few sites are equipped to generate measurements of fAPAR useful for the validation of space-borne products [3]. Nevertheless, validation is not simply equivalent to field measurements. An upscaling strategy to extend the in situ measurements and match satellite data resolution is needed in order to properly address the spatial variability of the site at the size of satellite footprints [43]. In situ fAPAR is usually measured using four sensors that simultaneously measure the downwelling and upwelling PAR both below and above the forest canopy, representing a value of the fraction of absorbed PAR by the canopy. Differently from short canopies (e.g., grasslands), access to a tower is required to measure reflected and incident PAR at the top of a tall canopy [40]. Also, collecting ground datasets is resource intensive and mostly limited in spatial and temporal sampling extensions [39]. In this respect, if the in validation of satellite data with accurate field data is generally necessary, that carried out in forest ecosystems is even more valuable and indispensable.
This paper presents a validation exercise that was carried out at the Collelongo site, a deciduous broadleaf forest in Italy, which is part of Fluxnet since 1996 (site code IT-Col) and is currently involved in several European projects such as LIFE+ Smart4Action, eLTER H2020 and networks (LTER, ICP-Forests, ICP-IM). In 2014, the Collelongo site was selected as part of FP7 ImagineS project (http://fp7-imagines.eu/) to support the provision of a ground dataset for the validation of Copernicus Global Land products. The aim of this study is to validate three currently available green fAPAR satellite products: GEOV1, MODIS C5 (MOD15A2) and the recent MODIS C6 (MOD15A2H) version against ground references collected using three different devices (i.e., Apogee sensors, PASTIS sensors and digital camera with fish-eye lens) and to determine to what extent the GCOS requirements on accuracy (maximum 10% or 5%) [44] are met. Both ground sampling and satellite product validation were conducted following best practices developed within the Land Product Validation sub-group (LPV) of the Committee on Earth Observing Satellite (CEOS) on Calibration and Validation Working Group (WGCV) [43].

2. Remote Sensing Product

In this section, the principal characteristics of the three different satellite products examined in this work are presented. Table 1 summarizes the main features of each fAPAR product.

2.1. GEOV1

The GEOV1 LAI, fAPAR, and fCOVER products are delivered with a 10-day temporal sampling and 1/112° (about 1 km at the equator) ground sampling distance, in a Plate Carrée projection from December, 1998 to present. GEOV1 products were based on SPOT VEGETATION (SPOT VGT) observations until the end of the mission in May 2014, and covered more than 15 years of data. To provide continuity to the service at 1 km, the GEOV1 processing chain was adapted to the Project for On-Board Autonomy-Vegetation (PROBA-V) mission [45], launched in May 2013 by ESA. One of the main objectives of PROBA-V was to ensure the succession of the VEGETATION instruments acting as “gap filler” between SPOT and Sentinel-3. Thus, since May 2014, the GEOV1 products are based on PROBA-V observations, with spectral characteristics nearly identical to VEGETATION. The GEOV1 retrieval methodology relies on neural networks trained to generate the “best estimates” of LAI, fAPAR, and fCOVER obtained by fusing and scaling MODIS C5 [25] and CYCLOPES 3.1 [29,46] satellite products to take advantage of their specific performances while limiting the situations where they show deficiencies [31]. The input data is top of canopy directional normalized reflectance using a kernel-driven BRDF model that are derived using almost the same CYCLOPES processing chain [46]. The algorithm provides instantaneous black-sky fAPAR value at around 10:15 a.m. solar time under clear sky conditions, which is a close approximation of the daily integrated black-sky fAPAR value. Note that conversely to MODIS and similarly to CYCLOPES, no biome classification is required to run the GEOV1 algorithm, although GEOV1 products are impacted by the eight-types biome dependence of MODIS C5 algorithm. GEOV1 products from both SPOT VGT and PROBA-V sensors are freely distributed through the Global Land Service of the European Commission’s Copernicus program (http://land.copernicus.eu/global).
GEOV1 products based on SPOT VGT data were validated and compared with similar products following guidelines proposed by the CEOS LPV sub-group, showing improved performance as compared to previous products [32]. The accuracy (RMSE) of GEOV1 fAPAR products against up-scaled ground references available at OLIVE (On Line Validation Exercise) tool [42] hosted at the CEOS cal/val portal (http://calvalportal.ceos.org/olive) was of 0.08 units [32]. The consistency between GEOV1 products based on PROBA-V observations and SPOT VGT was evaluated during the six months overlap period [47]. The overall consistency achieved between SPOT VGT and PROBA-V GEOV1 fAPAR evaluated over the BELMANIP2.1 network of sites [42] in terms of RMSE was 0.03, better than the GCOS requirements on accuracy, with no mean bias (−0.007) and overall correlations higher than 0.98. The preliminary accuracy assessment showed an RMSE of 0.11 with a slight positive bias of 0.05 mainly over cropland sites [47].

2.2. MODIS C5

Terra MODIS LAI and fAPAR (MOD15A2) Collection 5, available since 2000 from https://lpdaac.usgs.gov/products/, is produced based on TERRA observations at 1 km spatial resolution and eight-day step over a sinusoidal grid. The main algorithm is based on Look Up Tables (LUTs) simulated from a three-dimensional RTM [25]. The MODIS red and NIR atmospherically corrected reflectances [48] and the corresponding illumination-view geometry are used as input for the LUTs. The output is the mean LAI and fAPAR computed over the set of acceptable LUT elements for which simulated and measured MODIS surface reflectances are within specified uncertainties. When the main algorithm fails, a backup solution based on LAI and fAPAR-NDVI relationships is used. In Collection 5, parameters of both main and backup algorithms are defined for 8 vegetation types, and a new stochastic RTM was used to better represent canopy structure and the spatial heterogeneity intrinsic to woody biomes.
Many validation and comparison studies with MODIS fAPAR products can be found in the literature [5,36,49,50,51,52]. Several studies highlight the large differences shown between different satellite based fAPAR products [34,35,39]. The main drawbacks observed in MODIS fAPAR C5 are its low temporal stability and the systematic overestimation of fAPAR retrievals over sparsely vegetated areas [32]. Camacho et al. [32] reported an overall accuracy (RMSE) of 0.11 using the same ground reference data set than for evaluating SPOT VGT GEOV1 products.

2.3. MODIS C6

The MODIS LAI and fAPAR (MOD15A2H) Collection 6 (doi:10.5067/MODIS/MOD15A2H.006), is provided at a frequency of eight days and 500 m spatial resolution in which the algorithm chooses the best pixel available from all the acquisitions of the Terra sensor within the eight-day period. MODIS LAI and fAPAR C6 uses the same retrieval algorithm and LUTs as C5 [37], but C6 benefited from improved surface reflectances and biome type inputs at their 500 m version. The consistency between C5 and C6 was evaluated [37] without finding spatial scale effects due to resolution changes, with the RMSE between both versions of 0.091 fAPAR units with the same biome input. The accuracy assessment performed over 45 fAPAR ground measurements showed an overestimation of both C5 and C6 fAPAR products over sparsely-vegetated areas [38]. Comparisons with GEOV1 showed similar spatial distributions at a global scale [38], and temporal comparisons for the 2001–2004 period indicated that the products properly captured the seasonality of different biomes, except in evergreen broadleaf forests.

2.4. Product Quality Flag

The three products under study provide Quality Flags (QF) information, and users are advised to consult these layers when using them. In our study, three levels of quality have been defined (Table 2) according to the QF information. Note that quality control for GEOV1 and MODIS (C5 and C6) products was not identical because of different QF indicators. In line with previous studies [32,38,53], land pixels contaminated by ‘snow’, ‘clouds’, ‘shadow’, ‘cirrus’, in the case of MODIS, and contaminated by ‘snow’ or ‘saturated’ in the case of GEOV1 were considered as poor quality. In the case of MODIS, high quality retrievals correspond to the main algorithm, whereas the back-up algorithm is considered as useful when no snow/ice or cirrus are detected, and the cloud state is clear or not defined. For GEOV1 ‘high quality’ pixels correspond to pixels free of snow and non-saturated. For the ‘useful’ level of quality, the same approach of ‘high quality’ was considered in terms of snow and saturation by ‘Suspect’ values.

3. Materials and Methods

3.1. Study Site

The experiment was carried out at the Collelongo-Selva Piana pure beech forest (Abruzzo region, Central Italy, 41°50′58″N, 13°35′17″E, 1560 m elevation). The site is part of a wider forest area, included in the external belt of the Abruzzo-Lazio-Molise National Park and its structure and conditions are representative of Central Apennine beech forests [54]. The site is equipped with a 28 m scaffold tower geared towards measuring ecosystem H2O and CO2 fluxes using the eddy covariance technique, as previously described by other studies [55,56]. According to EUNIS (European Nature Information System) habitat classification, the site is included into the Southern Italian beech forests type. The vegetation is homogeneous and dominated by European beech (Fagus sylvatica L.) within the area of approximately 1 km × 1 km around the flux tower. The understory is sparse, patchy, and mostly formed by herbs (coverage less than 2%, height less than 50 cm). Patches of mountain prairie are observed, which introduces spatial heterogeneity typically beyond 1 × 1 km. The topography in that area is gently and variably sloped (with plain areas, hollows, and mountain sides), with elevation ranging from 1500 to 1650 m. The climate is Mediterranean montane, with cool to moderately warm summer and cold winters. The mean annual temperature and precipitation measured at the site for the period 1996–2015 are 6.9 °C and 1116 mm; soil has a variable depth ranging from 40 to 100 cm and is classified as humic soil [57]. In the area of the experimental site, plant density is 740 trees·ha−1 (starting from trees with 1 cm diameter at 1.30 m), the basal area is 42.2 m2·ha−1 with a mean diameter at breast height of 25.5 cm and a mean height of 20.7 m (data from the 2012 periodic five-year stand survey). At the peak of the growing season, the Leaf Area Index (LAI) in 2014–2015 was 5.5–5.9 m2·m−2 [58]. Previous works [56,59,60] provide a detailed description of the site and of the stand structure. The Collelongo-Selva Piana experimental site is currently part of the following projects: LIFE+ Smart4Action, eLTER H2020, PRIN 2012 Nitrogen in Mediterranean Forest, and CNR IBAF Ecology and Dynamics of Forest Systems. It is also part of international networks such as LTER-Europe, Fluxnet, ICP-Forests, ICP-Integrated Monitoring, and the CONECOFOR program.

3.2. Temporal and Spatial Sampling

The study area used for satellite validation covered 5 km × 5 km and is centered at the flux tower (41°50′58″N, 13°35′17″E). Different temporal and spatial sampling was performed depending on the three different devices used in the experiment, two PAR sensors (Apogee and PASTIS; details in the following section) and digital cameras for collecting hemispherical photographs (DHP). The ground sampling was concentrated over a homogeneous area of approximately 1 km2 around the flux tower, where 15 spatial units called Elementary Sampling Units (ESUs) were taken as references (Figure 1). Each ESU is approximately 20 m × 20 m and was selected to cover the variability of the site around the flux tower area. The center of each ESU was geo-located using a Global Positioning System (GPS). ESU 1 (centered at the flux tower) was selected for an intensive PAR measurement sampling for its proximity to the reference above canopy sensors and thus equipped with Apogee-PAR sensors from July to December 2014 and from May to December 2015 (Table 3). ESUs 1–9 were equipped with PASTIS-PAR sensors from May to December 2015. All 15 ESUs were involved in two field campaigns on 8 July and 25 September 2015 for the spatial characterization of vegetation variables with DHPs (Figure 1). Manufacturer details are provided in Section 3.3.

3.3. Ground Measurements and Instruments

3.3.1. PAR Measurements from Apogee

Continuous PAR measurements of incident, transmitted, and reflected PAR were collected according to the protocol for PAR measurements developed within the FP7 ÉCLAIRE Project (http://www.eclaire-fp7.eu/). In total, 22 PAR sensors (SQ-110, Apogee Instruments, Logan, UT, USA) were installed around the flux tower (800 m2) [61]. Specifically, 15 sensors pointing upward were mounted below the canopy to monitor transmitted PAR through the canopy ( P A R b ) and five sensors pointing downward were mounted below the canopy to monitor reflected PAR by the soil ( P A R b ). At the top of the tower, two sensors were installed on a horizontal 2-m arm to measure incident PAR above the canopy ( P A R a ) and reflected PAR from the canopy ( P A R a ), respectively. To maximize the radiometric footprint, below-canopy PAR sensors pointing downward were installed on a 2 m high pole while below-canopy PAR sensors pointing upward were installed on a 1 m high pole. PAR measurements were acquired every 10 s and stored as 30-min averages as μmol m−2·s−1.

3.3.2. PAR Measurements from PASTIS

At ESUs 1–9, PASTIS device (PASTIS-PAR, INRA-Hyphen, Avignon, France) were installed to continuously measure transmitted PAR through the canopy ( P A R b ). In addition, one PASTIS device was also installed above the flux tower at ESU 1 to measure incident PAR radiation above the canopy ( P A R a ).
Each PASTIS system consists in a data logger associated to six wired hemispherical quantum sensors measuring instantaneous PAR signal in millivolts (http://www.hiphen-plant.com/products/pastis_18.html) [62]. Below the canopy, the data logger was fixed at a labeled tree while the sensors were installed at soil level. Each of the six sensors was mounted on a 30 cm long support bar to prevent falling leaves and other litter from covering the quantum sensors while acquiring data.
PAR measurements were acquired every minute. PASTIS sensors measured downward radiation both above and below the canopy and an intercalibration against Apogee sensors was performed in order to combine Apogee and PASTIS measurements for fAPAR computation at the ESUs. Both PASTIS and Apogee PAR continuous ground measurements were used to qualitatively assess the temporal courses of the satellite products.

3.3.3. Gap Fraction Estimation from DHP

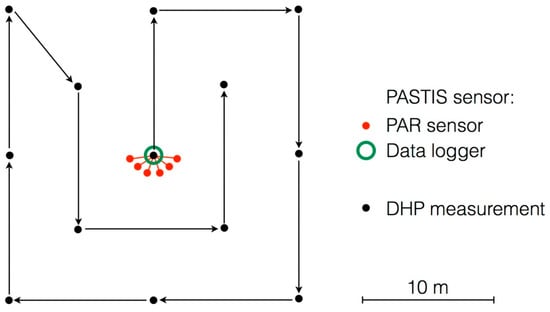

Two hemispherical digital photography (DHP) cameras were used for estimating fAPAR at the study area: CANON EOS 6D with a SIGMA 8mm F3.5–EX DG and NIKON Coolpix 995-FCE8. In order to accurately process the images, the optical center and the projection function of the optical system were calculated for each camera [63]. At each ESU, 13 DHPs were taken pointing the camera upward-looking. A measurement was acquired every 10 m along the path (black circles, Figure 2) to cover the ESU area (20 m × 20 m), in agreement with the VALERI spatial sampling protocol (http://w3.avignon.inra.fr/valeri).
DHP acquisition was processed using CAN-EYE software version 6.4 developed at EMMAH Avignon (http://www6.paca.inra.fr/can-eye) for deriving biophysical variables (LAI, fAPAR, fCOVER) from hemispherical photos. Since CAN-EYE is based on a RGB color classification of the image to discriminate vegetation elements from the background (i.e., gaps), photos were acquired with similar illumination conditions to limit the variation of color dynamics between images. DHPs processing consisted of three steps: (1) image pre-processing aimed to remove undesired objects (e.g., operator, sun glint) and ensure better visual discrimination between vegetation and background adjusting image contrast; (2) assignment of the colors to each class (vegetation elements versus background) after reducing the number of distinctive colors in order to easily manipulate the image; and (3) realization of a binary image (background versus vegetation elements), using the classification results [64].

3.4. Calculation of Ground Canopy fAPAR

3.4.1. Estimation of fAPAR from Apogee (fAPARAPOGEE)

In this work, the Apogee sensors, given the set-up, the spatial coverage, and the measurements of all fAPAR components (see Section 3.3.1), provided the reference fAPAR value at the tower site (ESU 1) against which PASTIS and DHP measurements were compared. Having the four PAR contributions, fAPAR from Apogee measurements (fAPARAPOGEE) was calculated as reported by Liang et al. [65]:
f A P A R = P A R a P A R b P A R a + P A R b P A R a ,
where P A R a is the incident PAR above the canopy, P A R a is the reflected PAR above the canopy, P A R b is the transmitted PAR through the canopy, and P A R b is the reflected PAR by the soil [65]; all components are hemispherical quantities. As temporal mismatching between in situ data and satellite observation could be critical [66], we calculated fAPAR as averages from 10:00 a.m. to 11 a.m. to guarantee temporal matching between ground data and the satellites overpass. For the purpose of validating fAPAR products, only photosynthesizing materials (leaves, needles, or other green elements) should be accounted for in the calculation (green fAPAR) [41]. Nevertheless, in homogeneous deciduous forests where LAI reaches maximum values that remain stable during the vegetative season, the influence of non-photosynthetically active vegetation (NPV) elements (such as trunks and branches) in the fraction of absorbed PAR by the canopy is expected to be quite small as compared to the green elements. For instance, Zhang et al. [67] showed that in the Harvard deciduous forest the contribution of NPV to the fAPAR is lower than 0.1 in spring and summer time, whereas the fAPAR from green elements reaches 0.85 in summer time. In line with this work, we assume that the largest impact of NPV elements in our ground dataset occurred during the senescent period.

3.4.2. Estimation of fAPAR from PASTIS (fAPARPASTIS)

fAPARPASTIS was computed using two sets of measurements in Equation (1): incident and reflected PAR obtained from Apogee and transmitted PAR obtained from PASTIS (previously intercalibrated, as reported in Section 3.3.2). The adapted equation was computed as follows:
f A P A R P A S T I S = P A R a   A P O G E E P A R b   P A S T I S P A R a   A P O G E E + P A R b   A P O G E E P A R a   A P O G E E ,
We used the same method to calculate f A P A R P A S T I S at each of the nine ESUs equipped with PASTIS sensors. It is worth noting that incident P A R a P A S T I S was not used in Equation (2) since a long data gap occurred due to battery loss. f A P A R P A S T I S E S U   n stands for fAPAR computed at ESUn, while f A P A R P A S T I S A V G stands for fAPAR computed averaging transmitted PAR ( P A R b ) of ESUs 1–9.

3.4.3. Estimation of fAPAR from DHPs

Among other measurements related to canopy architecture (e.g., LAI), hemispherical photos allow the computation of fAPAR by measuring the directional gap fraction [64,68]. In fact, as the photosynthetically active radiation domain (PAR, 400–700 nm) is characterized by strong absorbing features of the photosynthetic pigments [69], fAPAR is often assumed to be equal to fIPAR (Fraction of Intercepted Photosynthetically Active Radiation) [26], and therefore is directly related to the gap fraction. According to this assumption, CAN-EYE software proposes three outputs for fAPAR: the instantaneous black-sky (or direct) fAPAR; the daily integrated black-sky fAPAR and the white-sky (or diffuse) fAPAR. In our study, we selected the instantaneous black-sky fAPAR at 10:00 a.m. ( f A P A R 10 h B S ) for consistency with satellite products and we refer to it as fAPARDHP. According to CAN-EYE output variable description [70], fAPARDHP was computed using the following Equation (3):
f A P A R D H P = f A P A R 10 h B S = 1 P 0 ( θ S ) | S = 10 h ,
where P 0 represents the measured gap fraction on each viewing zenith angle θ and θ S is the sun zenith angle at 10:00 local solar time [70].

3.5. Validation Approach

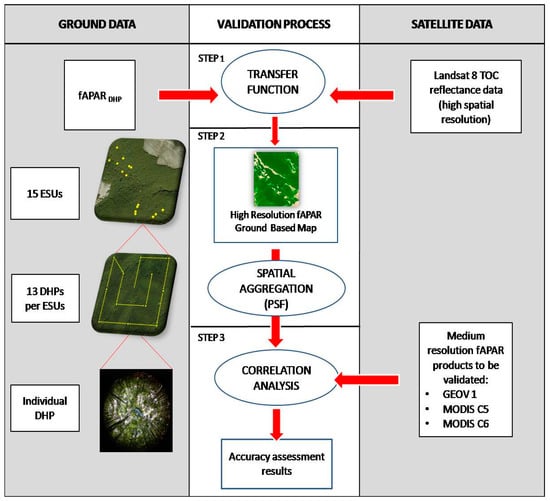

To perform a direct validation of medium-resolution satellite products, we need to account for the differences in scale between the footprints of the ground measurements and the satellite sensor. For this reason we followed the bottom-up approach proposed by the CEOS LPV sub-group summarized in Figure 3. This approach consists of using high-resolution imagery and robust regression methods to upscale the ground measurements from ESU values to the site level. The resulting ground-based map can then be aggregated to the spatial resolution of the satellite product to be validated. The first step was deriving an empirical transfer function (TF) that establishes a relationship between the canopy fAPARDHP values (the only measurement available at all 15 ESUs), plus additional control values obtained in prairie and over bare areas, and the multispectral radiometric values from the high-resolution Landsat-8 imagery [71] (Section 3.5.1). The ground-based high-resolution maps, derived from the selected transfer function, were then remapped to the spatial support of GEOV1 and MODIS products (i.e., 1 km and 500 m), taking into account the equivalent Point Spread Function (PSF) of the satellite sensors [43] (Section 3.5.2). Then, the aggregated maps of canopy fAPAR were compared to the moderate-resolution green fAPAR satellite products under the assumption that canopy fAPAR is very close (differences lower than 10%) to green fAPAR during the peak season. Finally, validation statistics were computed for the accuracy assessment (Section 3.5.3).

3.5.1. Empirical Transfer Function

For the up-scaling of the ground measurements at the site level, we need to establish an empirical relationship (transfer function) between the canopy fAPAR ground values and concomitant radiometric values of a high-resolution imagery. For this purpose, Landsat-8 top-of the canopy reflectance images of 30 m spatial resolution were selected. Landsat-8 images are freely available at the USGS earth explorer portal (http://earthexplorer.usgs.gov/). The acquisition date was 10 July and 27 August 2015, for the first and second campaign, respectively. For the second campaign, the date of acquisition is around one month earlier than the ground sampling, due to cloud contamination of concomitant Landsat-8 acquisitions for the September campaign. However, as ground measurements showed high stability from July to the end of September, we also assumed stability in the radiometric signal of the image during this period.
A multivariate ordinary least square (OLS) regression was used for modeling the relationship between fAPARDHP (our response variable) at the ESU level and the radiometric information of the Landsat-8 image (predictor variable) [71]. The multivariate OLS function proposed in this work uses an iteratively re-weighted least squares (IRLS) algorithm in order to minimize the influence of outliers as proposed by Martinez et al. [71]. This method allows for combining the information provided by different bands and evaluating the band combination that exhibits the lowest error. This modeling approach has been recently used for upscaling biophysical variables such as LAI, fAPAR and fCOVER over a network of cropland sites in the ImagineS project (fp7-imagines.eu/). The basis is that outliers in the sampling distribution will result in biased estimates of model parameters. The IRLS algorithm includes an additional scale factor (i.e., weight) in order to adjust the amount of influence each response value has on the model estimates [71]. The following bands were considered: B3 (green: 0.53–0.59 µm), B4 (red: 0.64–0.67 µm), B5 (NIR: 0.85–0.88 µm), B6 (SWIR1: 1.58–1.65 µm). Due to the well-known linear or approximately linear relationship between fAPAR and NDVI [19,72,73,74,75,76], we also used B4 and B5 to compute NDVI [77] and additionally use it as a predictor variable (Equation (4)). In addition to the ESU measurements over the forest, additional values over bare areas and prairie were used to better constrain the model for low fAPAR values. Control points included four bare areas that were visually selected with GoogleEarth® around the study area, with NDVI ranging between 0.06 and 0.17, and where fAPAR was set to 0. Furthermore, an additional ESU located over a prairie area with DHP measurement was used to calibrate the empirical transfer function in order to have intermediate values of fAPAR. The obtained value with CAN-EYE for the black-sky fAPAR at 10 h over the prairie ESU was 0.73.
In order to assess the model performance and evaluate the optimal predictor three different errors were computed: the root mean square error (RMSE), the weighted RMSE (RW, using the weights attributed to each ESU) and the cross-validation RMSE (RC, leave-one-out method). RMSE and RW provides an estimate of the mean prediction error of the model considering all the observations, whereas RC provides a more reliable model performance since it gives an indication of how well the function will predict data not included in the data set used to derive the predictor [78]. The NDVI was chosen as input for the transfer function because it shows lower RC errors than other band combinations for the first, the second and the combined campaigns [79]. Table 4 shows the errors (RMSE, RW, RC) obtained for the selected transfer function using the NDVI for the first and the second campaign, as well as when the data of the two campaigns were pooled together. It can be noticed that all the different cases show very low RMSE errors, below GCOS requirement on accuracy [44], and very high correlation coefficients (>0.99) with almost no mean bias (Table 4). The higher errors obtained for the second campaign could be partly attributed to the period between the collection of ground measurements (end of September) and the imagery acquisition (end of August). Finally, we selected the transfer function based on the two ground campaigns in order to reduce errors of the second campaign, with a final cross-validation RMSE of 0.049.

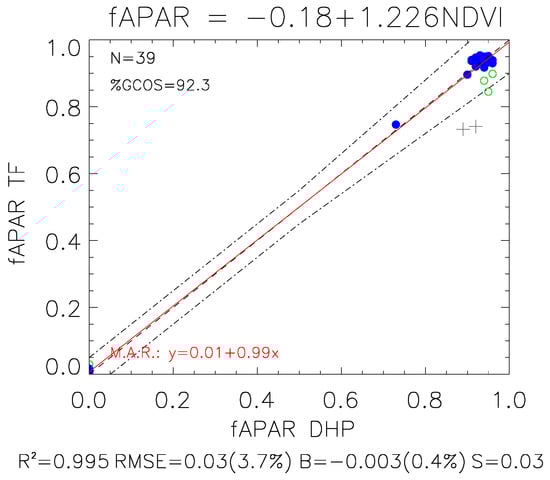

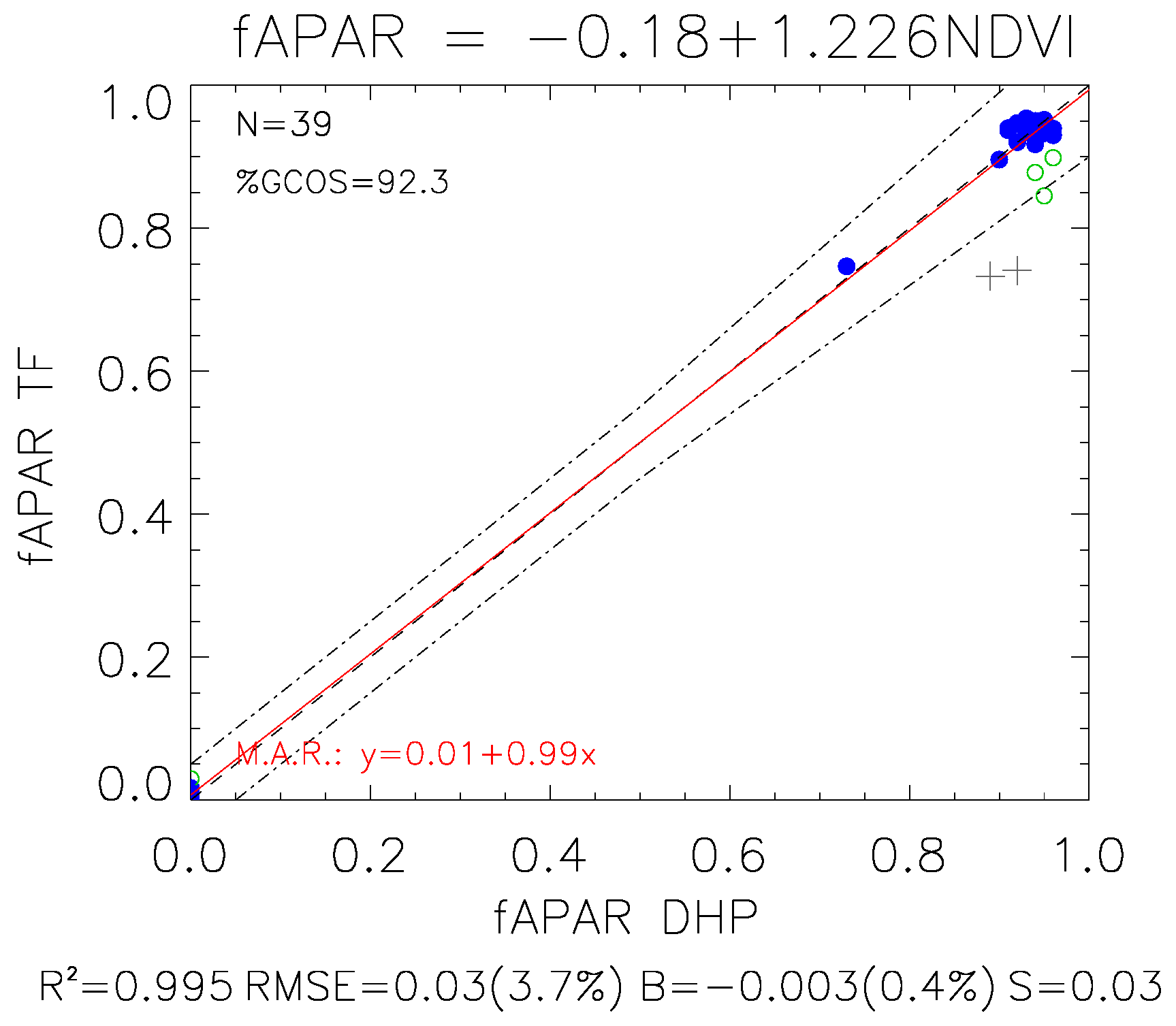

The empirical relationship selected for our site is the following linear relationship based on NDVI computed from Landsat red (B4) and NIR (B5) bands:
f A P A R = 0.1799 + 1.2258 ×   ( ρ N I R ρ r e d ρ N I R + ρ r e d ) ,
where ρ N I R and ρ r e d is the reflectance in the near infrared and red, respectively.
The high-resolution ground-based maps over the site are shown in Section 4.2.
Finally, the convex hull technique described by Martinez et al. [71] was applied to characterize the representativeness of ESUs and the reliability of the empirical transfer function. This technique will allow us to derive a quality assessment image to highlight areas on the fAPAR maps with higher or lower confidence of the estimates due to the model errors and sampling strategy. Briefly, this method defines a convex region delimited by the data set containing the spectral information of the in-situ measurements and can be applied using multiple spectral bands combinations in agreement with our multivariate OLS approach for selecting the optimal band combination for the transfer function. This region delimits the domain where the transfer function behaves as interpolator (namely ‘strict convex hull’). Conversely, outside this domain, the transfer function behaves as extrapolator. However, the convex hull could be slightly expanded by ±5% of reflectance (namely ‘large convex hull’) to allow pixels very close to the strict convex hull to be used since they are expected to provide reasonable results. Hence, this test was carried out using the red (B4) and NIR (B5) bands of the Landsat-8 images used for the NDVI computation. In this case the hull is an area on the red-NIR plane, the spatial distribution for each of the three regions defined is provided in the quality flag images presented in Section 4.2.

3.5.2. Spatial Aggregation

The comparison between the ground-based maps with moderate-resolution products requires a consistent statistical support area. This apparently simple problem should be considered carefully if all uncertainties associated to satellite products are to be recognized [43]. Firstly, the satellite products and the high-resolution maps were projected to the same coordinate system. The Plate Carrée projection of GEOV1 product was used for the comparison at both 1 km and 500 m. A spatial window of 5 km × 5 km centered over the tower was selected for the comparison. Secondly, the high-resolution map was aggregated to the spatial resolution of the satellite product according to the effective point spread function (PSF) of the satellite product, which improves the performance of the evaluation as compared to ordinary average [80]. The equivalent PSF results from a number of steps that need to be considered. The instrument PSF depends on several components: the electronic PSF, the detector PSF, the image motion PSF, and the optical PSF [81]. According to Duveiller et al. [82], electronic and image motion PSFs can be neglected. The PSF for the MODIS and PROBA-V instruments can be approximated by the convolution of a Gaussian function characterizing the optical PSF. The ground-based map equivalent PSF was computed by maximizing the correlation coefficient between the low-resolution (LR) product (i.e., GEOV1, MODIS C5 and C6) and the corresponding higher resolution (HR) image. During the optimization process of the PSF, we used an iterative approach in which we combined the extension of the pixel size and the PSF characterized by the Full Width at Maximum (FWHM) of the two Gaussian functions in both the x and y directions. The extension of the pixel was combined in steps of 30 m (HR) up to the pixel size of the corresponding LR product.

3.5.3. Correlation Analysis

The accuracy assessment between the ground-based maps and the satellite products to be validated was performed at the resolution of the satellite product to evaluate on a pixel by pixel basis. The comparison was performed using the closest product date to the field campaign. The accuracy was quantified by several validation metrics reporting the goodness of fit between the products. Total measurement uncertainty (i.e., root mean square error, RMSE) includes systematic measurement error (i.e., bias) and random measurement error (i.e., standard deviation of bias). RMSE corresponds to the accuracy as there is only one product estimate for each mapping unit [83]. RMSE is recommended as the overall performance statistic. Linear model fits were also used to quantify the goodness of fit. For this purpose, Major Axis Regression (MAR) was computed instead of OLS because it is specifically formulated to handle error in both the x and y variables [84]. Finally, the number of pixels within the GCOS requirements was quantified. Table 5 summarizes the uncertainty metrics associated with the scatter-plots.

4. Results

4.1. Consistency of Ground fAPAR Estimates

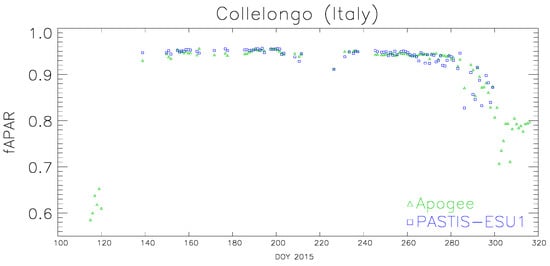

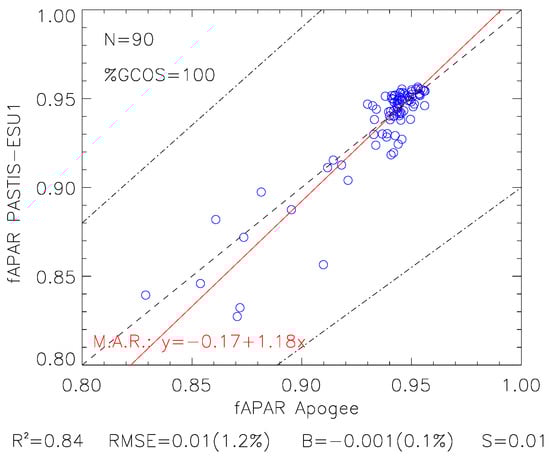

We investigated the temporal course of PASTIS sensors by comparing fAPARPASTIS-ESU1 with fAPARAPOGEE at ESU1 during 2015. Figure 4 shows synchronism between fAPARAPOGEE, which represented our benchmark, and fAPARPASTIS-ESU1. At the end of April (DOY 110–120), fAPARAPOGEE values ranged between 0.55 and 0.65. Starting from the last ten days of May (DOY 139), until the first ten days of October (DOY 283), fAPARAPOGEE presented fairly constant values of 0.93–0.96 during the whole period. During this phase, both the average of fAPARAPOGEE and fAPARPASTIS was 0.94, with a standard deviation (σ) of 0.007 for fAPARAPOGEE and 0.010 for fAPARPASTIS. The longest gap in our dataset occurred from DOY 210 to 230, when values were presumably stable, as included in the peak season. fAPARAPOGEE values started to decline in mid-October, decreasing steadily until the end of the year, except for the first two weeks of November, when values appeared constant around 0.78–0.79. While the evolution between fAPARAPOGEE and fAPARPASTIS was in agreement during the peak season, both fAPAR values fluctuated more evidently during the senescence phase (DOY 266–280). Peak value detected by both techniques was 0.96 associated to DOY 198 for Apogee sensors and to DOY 194 for PASTIS sensors. fAPAR values measured with PASTIS sensors strongly correlated with those measured with Apogee sensor (R2 = 0.84; RMSE = 0.01), although a bigger fluctuation was observed in the senescence phase (fAPAR < 0.9, Figure 5), as formerly evidenced by the seasonal patterns (Figure 4).

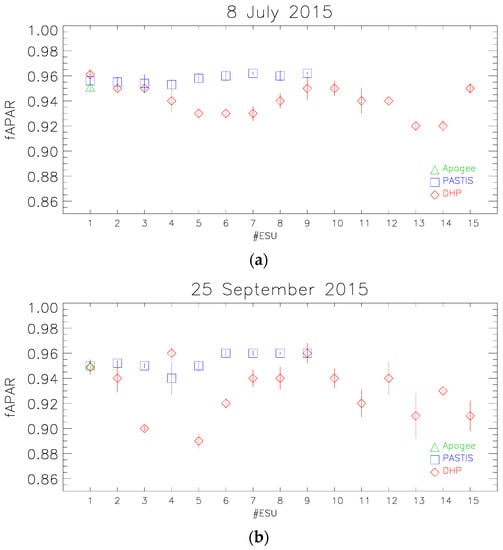

Data from PASTIS and DHP sensors at the different ESUs were compared for the two DHP sampling campaigns. fAPARDHP ranged from 0.92 to 0.96 for the campaign in July, while fAPARPASTIS presented values between 0.95 and 0.96 (Figure 6a). Generally, fAPARPASTIS was higher than fAPARDHP and in agreement with it, except for ESU 5–8. During September campaign, fAPARDHP resulted generally lower than fAPARPASTIS (Figure 6b). While fAPARPASTIS varied between 0.94 and 0.96, fAPARDHP spanned from 0.89 to 0.96. Analyzing the standard deviation (error bars) of the measurements, it appeared that fAPARPASTIS had less variability among the single replicates compared to fAPARDHP during both campaigns (Figure 6). Nevertheless, fAPAR estimated from DHP based on gap fraction was consistent with fAPARPASTIS within the range of accuracy required for satellite products (max[5%, 10%]).

4.2. High-Resolution Ground-Based Maps

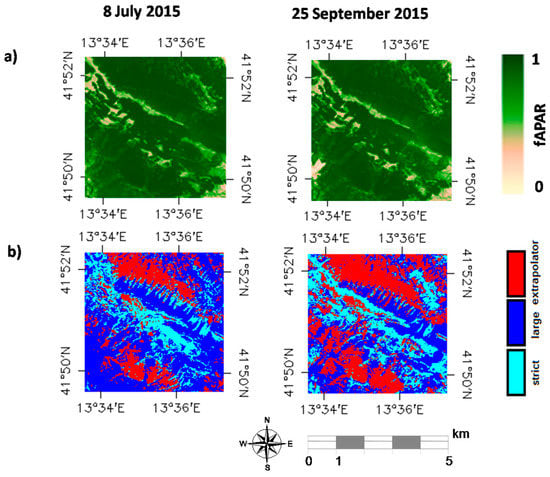

High-resolution ground-based fAPAR maps were computed with a single transfer function for both dates (Equation (4)). Figure 7a shows the spatial distribution of the retrievals over the study area, which displayed homogeneous areas of dense vegetation with high fAPAR values and some patches of low photosynthetic activity that correspond to montane prairie and/or bare rock/soil areas. Mean fAPAR value over 3-km × 3-km centered at the tower was 0.85 (σ = 0.13) for the July campaign and 0.85 (σ = 0.14) for the September campaign. The scatter-plot between ground observations (DHP) and the corresponding transfer function estimate showed the good agreement achieved (RMSE = 0.03) with a slight over-estimation for bare areas’ control points of less than 0.05 units, and some scattering for ESUs in the second campaign (Figure 8). The only ESU over prairie shows good agreement very close to the 1:1 line. The stability of fAPAR values between July and September was supported by net ecosystem exchange (NEE) values, which also presented a limited difference between the two dates (NEE between 10 a.m. and 11 a.m. equal to −16.9 and −14.1 for 8 July and 25 September 2015, respectively).
The quality assessment images (Figure 7b) derived from the convex hull technique are informative of the reliability of the estimates, showing higher reliability for those pixels inside of the ‘strict’ (in clear blue) and ‘large’ (in dark blue) convex hull. Blue pixels are mainly located around the tower site where the sampling was performed. The ‘strict’ and ‘large’ convex-hulls reached 79% and 65% of the pixels for the first and second field campaign, respectively. There is a quite consistent red area at the top and the bottom of the image that corresponds to the pixels where the transfer function behaves as extrapolator. This red area corresponds to areas with different topography or to montane prairie areas which were not included in our spatial sampling scheme. Note that the convex-hull test provides information on the representativeness of the sampling, but does not necessarily imply poor extrapolation capabilities of the transfer function, mainly on the same land cover type.

4.3. Validation of Satellite fAPAR Products

4.3.1. Product Quality Flag Analysis

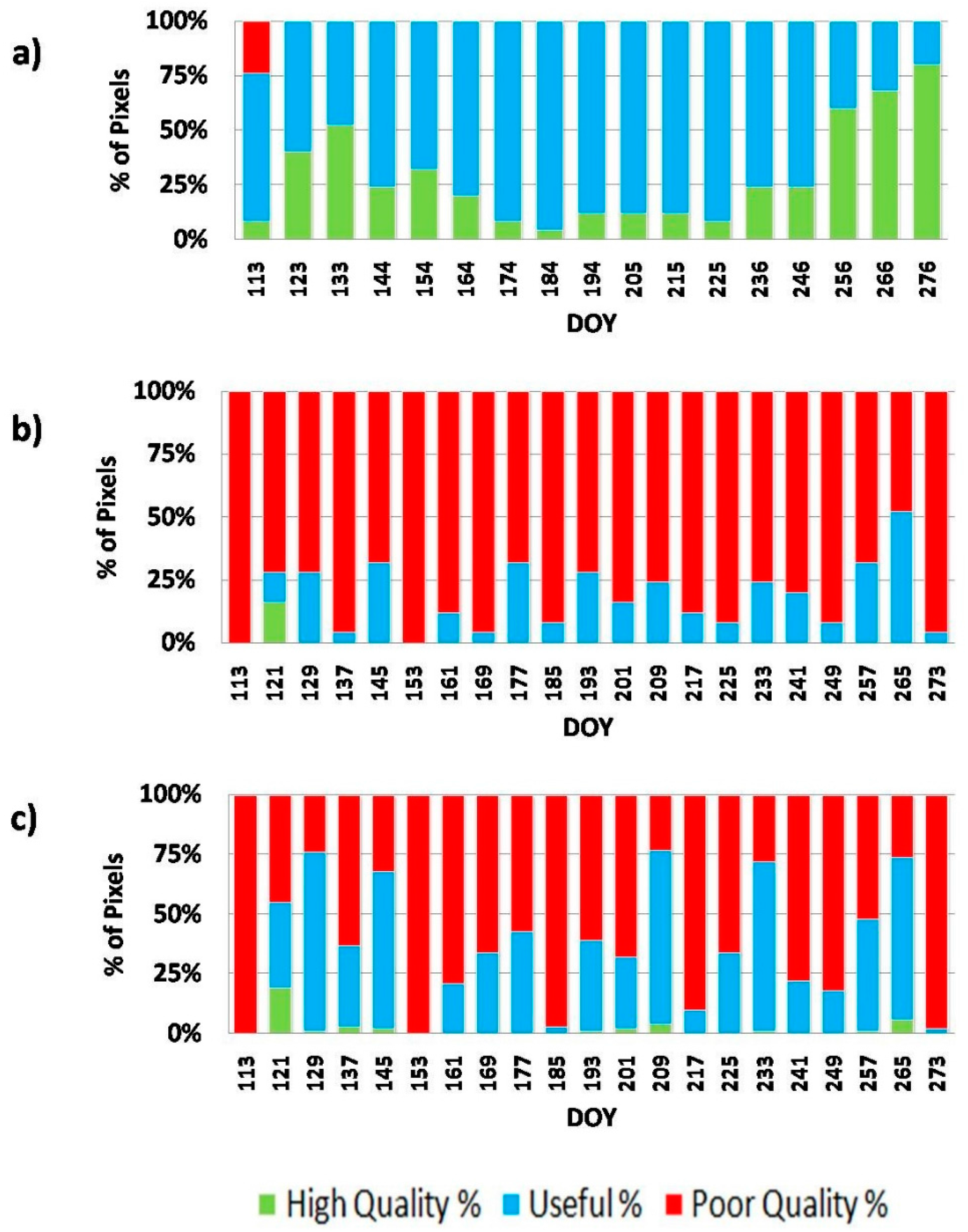

We investigated the temporal courses of the QF information of GEOV1, MODIS C5, and MODIS C6 (Table 2) averaged over the 5 km × 5 km study area during the peak season (DOYs 113–276) in 2015.
During the peak season for fAPAR GEOV1 product (Figure 9a), the number of ‘high quality’ pixels was highly variable, with values falling between 8% (DOY = 184) and 80% (DOY = 276). Considering also the ‘useful’ level of quality, the percentage achieved 100% for the whole peak season except for the first date (DOY = 113) with 24% of pixels classified as ‘Poor quality’. Note that in this case where GEOV1 classifies ‘Poor Quality’ pixels, no valid or filled data was provided for the products.
On the other hand, for MODIS (C5 and C6) products, the ‘high’-quality pixels correspond to ‘Main algorithm’ and pixels free of snow, clouds, shadow and cirrus. The ‘useful’ level of quality considers the ‘Backup algorithm’ with non-contaminated input data whereas the ‘poor quality’ considers ‘Backup algorithm’ with contaminated input data. In only a few cases MODIS C5 (Figure 9b) and C6 (Figure 9c) provided the highest level of quality corresponding to main algorithm retrievals. The reason for triggering the backup algorithm is not specified in the quality flag. A larger fraction of pixels was classified as ‘Useful’ in MODIS C6 as compared to C5. This can be explained by the most precise resolution of the former, which is more accurate in detecting small clouds or shadows. Note that both MODIS versions did not present gaps over this area of 5 km × 5 km during the peak season, providing retrievals within the valid fAPAR range.

4.3.2. Temporal Consistency

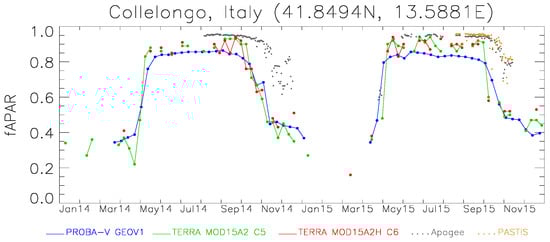

The temporal variations of the three satellite products under study was evaluated over ESU 1, located at the Collelongo flux tower, where continuous fAPAR measurements were acquired (Figure 10) during the 2014–2015 period. Figure 10 displayed ground and satellite acquisitions at daily temporal frequency during the stable season (from the end of May till the end of September) and during the vegetation decrease season (from early October onwards). The initial phase of the growing season was not captured by ground measurements in either of the two years.
During the stable vegetative season, PROBA-V GEOV1 fAPAR product provided very stable temporal trajectories, in line with ground acquisitions. Regarding the magnitude of the satellite retrievals negative bias (PROBA-V GEOV1 green fAPAR < ground canopy fAPAR) was observed, that could be partly explained due to the different definition between satellite (green) and ground (total) fAPAR. The observed differences (about 0.1 units) are similar to the contribution of NPV elements to the canopy fAPAR reported by Zhang et al. [67] at the Harvard forest in summer. However, other uncertainties are present and these discrepancies may be partly attributed to the different footprints of satellite pixel (1 km) as compared to ground data (observations at the station level). Regarding both MODIS fAPAR products, similar magnitude to ground total fAPAR during the peak season were found. In line with previous studies [32,39], noisy temporal retrievals were found for MODIS products over forest areas, with variations of ±0.1 fAPAR units.

4.3.3. Accuracy Assessment

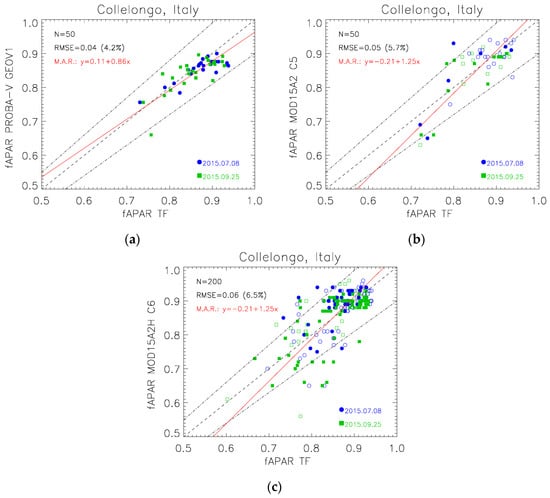

Figure 11 shows the scatter-plots between different satellite products and ground-based high-resolution maps. The validation metrics are provided in Table 6 considering all data points or only high-quality and useful pixels.
PROBA-V GEOV1 green fAPAR product showed the lowest RMSE of 0.04 with low negative bias (−2.6%) mostly observed for the highest values regarding canopy fAPAR data. Almost all the points (98%) lay within the GCOS requirements on accuracy (dashed lines in Figure 11). On the other hand, similar accuracy was obtained for MODIS C5 and C6 products, with RMSE of 0.05 and 0.06 respectively, considering all pixels, almost no mean bias, and a percentage of pixels within the GCOS requirements of 90% and 88%, respectively. The slightly lower accuracy was expected due to the lower precision (i.e., higher fluctuations) previously observed in MODIS products. The finer spatial resolution of MODIS C6 (500 m) as compared to MODIS C5 (1 km) had only a minor impact on accuracy. In terms of the major axis regression (MAR) lineal model, GEOV1 product has slight better performance as compared to MODIS C5 and C6, with low offset and slope closer to 1. MODIS C6 and C5 provides good match for highest values but shows a tendency to provide lower fAPAR retrievals for the lower values. Note that 100% of GEOV1 were classified as ‘high quality’ or ‘useful’ around the 5 km × 5 km study area whereas in case of MODIS, only 40% of pixels were classified as ‘useful’ for C5 and 56.5% for C6, but in none of the cases the main radiative transfer algorithm was used. The validation metrics were very similar when considering all pixels or only high quality and useful pixels, which indicates that in this case the MODIS back-up algorithm based on NDVI performs quite well even if the quality flag informed on cirrus, cloud, or cloud shadow detected.

5. Discussion

5.1. Consistency of Ground fAPAR Estimates

Seasonal dynamics of different ground fAPAR were compared to check their consistency. First, we compared fAPARAPOGEE and fAPARPASTIS at ESU 1 (R2 = 0.84; RMSE = 0.01), which are the continuous datasets available at the Collelongo site. In general, despite considerable gaps that hindered the green-up observation, it was possible to evaluate the temporal evolution from May to November. This is also confirmed by the good agreement between the seasonal maximum values of fAPAR which are only shifted by four days (DOY 198 for Apogee and DOY 194 for PASTIS). Recently, PASTIS sensors were also used to collect continuous ground measurements mainly in croplands and grasslands [85]. Although a few studies [85,86] consider PASTIS performance for tracking seasonality over crop sites, we are not aware of any study checking PASTIS performance in a deciduous forest site. Our study reveals that fAPARPASTIS appropriately followed the seasonal trends depicted by fAPARAPOGEE. Fluctuations in fAPAR values within DOY 266 and 280 were due to falling leaves, senescence, and gaps that can lead to more variable averages compared to the fully leafy season (Figure 4). In our formulation of fAPARPASTIS, we used PASTIS sensors just to calculate PAR transmitted through the canopy at the different ESUs, while other PAR components (incident, reflected by the canopy and reflected by the soil) were computed from Apogee sensors at ESU 1. Congruent with the results at ESU 1 (Figure 4), we believe that one PASTIS system made up of six quantum sensors spatially distributed under a dense canopy cover, such as in our forest, can be used to monitor transmittance as, especially in the peak season, it gives results in agreement with the 15 Apogee sensors measuring below canopy transmittance.
Next, fAPARPASTIS and fAPARDHP at the different ESUs were compared for the two DHP sampling campaigns. DHP is recognized as one of the most robust techniques for studying canopy transmittance [87] and has been widely used both in forests [88,89] and rangelands/croplands [90,91]. The measurements presented in this study indicate a homogeneous canopy structure for Collelongo forest site within 1 km × 1 km of ground sampling area, with stable values for fAPARPASTIS over the ESUs and more varying values for fAPARDHP (Figure 6). This slight dissimilarity could be primarily attributed to three reasons: (1) different retrieval approach and definition; (2) different sampling strategy (Figure 2) and spectral range; and (3) the classification errors during image processing (required to compute gap fraction), which could be the main source of variability in DHP processing as it is partly subjective (depending on the operator) [68,89]. In general, as highlighted by Majasalmi et al. [40], few studies have accurate ground truth measurements in forest ecosystems. Regarding the scarcity of ground reference data, we found that, for example, in the context of the On Line Interactive Validation Exercise (OLIVE) platform, no ground fAPAR reference data are available in Italy and only one site outside Europe is available for deciduous broadleaf forest within the 113 DIRECT sites dedicated to the validation of global biophysical products [42]. As Fagus sylvatica is one of the major forest trees in Europe [92], our ground reference data results are relevant in the context of validation of satellite products in this kind of ecosystem. In our work, radiometric values of decametric images (Landsat-8) were extracted over the ESUs and used to develop empirical transfer functions for upscaling the ground measurements. As noted by Cohen et al. [93], the selection of the optimal transfer function is site specific. Our empirical transfer function has a linear relationship with the NDVI, in agreement with other works [19,20,76], and has been calibrated using the maximum fAPAR values collected in the forest and minimum values of identified bare soils. This linear relationship also shows good results for the one control point of the mountain prairie, which seems to confirm the validity of the empirical function over prairie areas. However, one control point is not enough to verify the validity of the transfer function over mountain prairie and some uncertainties remain over these small areas.

5.2. Accuracy Assessment

Previous to the accuracy assessment of the satellite products, the information of the quality flag was analyzed. GEOV1 provided in most of the cases high-quality or useful retrievals, according to Table 2. However, MODIS C5 and C6 presented a very low number of best-quality retrievals in this mountain area. The main algorithm failed in almost all of the pixels and dates examined. In 90% of the cases where the backup algorithm is applied, the quality flag indicates that the main algorithm failed due to problems other than geometry. No cirrus, snow, or clouds were reported over useful retrievals (with backup algorithm). Thus, the main reason for the MODIS algorithm to use the backup algorithm remains unknown. We investigated the MODIS land cover classification, which reported a large fraction of pixels (55%) misclassified as broadleaf crops in the study area, and only 37% of the samples classified as deciduous or mixed forest. However, this misclassification does not seem not to be related to the use of the backup algorithm. In summary, the analysis of the quality flag information reveals the difficulty MODIS C5 and C6 have in triggering the main algorithm over a mountain site with gentle slopes. Hence, our validation results apply mostly to the MODIS backup algorithm, which is based on NDVI–fAPAR relationships for each main biome [94].
Seasonal variations of the satellite products have been compared to the Apogee and PASTIS ground measurements. The three satellite products displayed a rapid increase at the start of the season as observed in other deciduous forest sites [32]. In addition, slightly smoother variations were observed in GEOV1 due to its larger compositing period. The decline of the vegetation season started earlier for satellite products as compared to ground acquisitions, which was mainly observed in 2014. This can be partly explained by the different temporal composition of satellite products, but also due to the fact that satellite products are defined as sensitive to photosynthetically active elements whereas ground devices are measuring total canopy fAPAR, and the contribution of NPV elements is significant during the fall [67]. Small changes in the concentration of chlorophyll pigments at the end of the season could have a stronger impact on the satellite products designed to be sensitive to this absorption band than on the ground fAPAR, where the absorption of PAR in green-to-yellow leaves varies in a smooth way, as observed in Figure 10. This result shows that satellite fAPAR products are related to green elements rather than to the total fAPAR canopy.
Accuracy assessment results shows a good agreement with ground-based canopy fAPAR values for the three satellite products (GEOV1, MODIS C5, MODIS C6) with more than 85% of the samples within GCOS requirement on accuracy, and up to 98% of the samples in the case of GEOV1. The good match for highest values confirms the ability of the satellite products under study to retrieve very high fAPAR values. The largest values obtained for GEOV1 (around 0.9) are slightly lower than those of the ground-based measurements (around 0.95), whereas MODIS C5 and C6 reached similarly larger values than ground-based maps with the backup algorithm. The ground measurement is, however, a measure of the total canopy fAPAR. A limitation of this validation exercise is that we did not decouple green fAPAR (the quantity corresponding to satellite products) from total canopy fAPAR in ground measurements. Nevertheless, the relative contribution of NPV elements to the canopy fAPAR is expected to be less than 0.1 during the peak season [67]. Thus, the uncertainty related to the NPV elements is around 10%. Green fAPAR ground measurements may be 10% lower than total canopy. This difference is observed between GEOV1 values and canopy values at the ESU1 (Figure 10). Also, in the scatter-plots, we can observe for the highest values than GEOV1 shows lower maximum values, as expected. MODIS, however, is noisier and provides retrievals of similar magnitude to canopy fAPAR for maximum values. Even with this uncertainty about NPV contribution to the canopy fAPAR, and other uncertainties regarding ground measurement, the upscaling process, and match-ups, our validation results for this complex, montane, beech forest, and prairie site are encouraging for the three satellite products. Our results demonstrate that in a large number of GEOV1 and MODIS C5 and C6 fAPAR retrievals, GCOS requirements are met.

6. Conclusions

In this study PROBA-V GEOV1 (1 km), MODIS C5 (1 km) and MODIS C6 (500 m) green fAPAR satellite products were validated against ground references at a broadleaf deciduous forest site in Italy. The ground measurements were collected using Apogee PAR sensors, PASTIS-PAR sensors, and digital hemispherical photographs (DHPs). The accuracy assessment exercise was successfully carried out using high-resolution imagery and robust regression methods to upscale the ground canopy fAPAR measurements from ESU values to the site level.
A good consistency among the three ground devices was found. PASTIS-PAR sensors were found reliable for monitoring the canopy transmittance, showing very good agreement with Apogee (RMSE = 0.01). fAPARDHP estimates were also found to be reliable and consistent with PASTIS, with absolute differences typically lower than 0.03, making this device particularly suitable for experimental campaigns over forest sites with no permanent instrumentation. To our knowledge, this is the first time that the performance of PASTIS-PAR sensors has been compared against other datasets, and this study represents our attempt at its field validation.
The three satellite products under study showed good results over the peak season, with RMSE values of 0.04, 0.05 and 0.06 for GEOV1, MODIS C5 and MODIS C6, respectively, with slight negative values for GEOV1 (−3%) and no mean bias for MODIS. The three fAPAR satellite products meet GCOS requirements on accuracy in more than 85% of cases for MODIS products, and up to 98% of samples for GEOV1, in this mosaic of deciduous beech forest and mountain prairie landscape. However, the ground measurements are an estimate of total canopy fAPAR rather than green fAPAR, which may introduce slight differences at the peak season. MODIS, on the other hand, has great difficulty in handling this mountain ecosystem, and almost all retrievals during the studied period were obtained with the backup algorithm. Very good consistency was found between MODIS C5 and C6, with slightly larger dispersion found for C6 due to the enhanced spatial resolution, which does not introduce systematic differences. The temporal courses were also found to be reliable for the three satellite products, showing smoother GEOV1 profiles due to the longer compositing period. Larger discrepancies were observed at the end of the season as the contribution of non-photosynthetically active vegetation to the ground canopy fAPAR values increases, showing that satellite products are related to green fAPAR rather than canopy fAPAR despite a good agreement with fAPAR canopy being observed at the peak season. A limitation of our work can be found in the assessment of satellite products accuracy over the period of fully developed canopy but not over the green-up or senescence phases. However, it should be signaled that those phenological phases usually require specific validation efforts, due to their inter-annual and inter-ecosystem variability.
The ground measurements and upscaled ground maps are part of the ImagineS ground database, freely available. The averaged values over 3 km × 3 km is expected to contribute to the update of the CEOS LPV Direct database for validation of coarse satellite products. As a concluding remark, increasing efforts in ground truth collection at more long-term research forest sites is desirable to increase the accuracy of satellite-derived fAPAR estimation, useful for modeling ecosystem productivity.

Acknowledgments

Ground data collection used for our work was partially carried out within Imagines projects for validation of satellite products and the dataset acquired is available online (http://www.fp7-imagines.eu/). The collaboration between the Italian National Research Council (CNR) and EOLAB was possible thanks to the MIUR-CNR Next data project and to the Erasmus+ Higher Education Mobility Program. The ground data collection was partially funded by the FP7 ImagineS project (FP7-SPACE-2012-311766) and the dataset acquired is available online (http://www.fp7-imagines.eu/). We thank the project H2020 Ecopotential (grant agreement No. 641762) for financial support on the site activities. We want to thank Piero Paris for providing the NIKON Coolpix 995-FCE8 digital camera for DHPs campaigns, Frédéric Baret and Marie Weiss for assistance with the PASTIS system, Luca Tosi for assistance during the September sampling campaign with the hemispheric camera, Gregorio Sgrigna for field assistance, Giovanni De Simoni and Giuseppe Santarelli for designing and assemble sensors support structure, Marco Ciolfi for helping in figure formatting with GIS, María del Carmen Piñó Alcaide for preliminary data processing, Chris Mollica for English editing, and the anonymous reviewers for their valuable comments.

Author Contributions

Enrica Nestola was the primary author and all authors contributed to write the final paper. Fernando Camacho conceived and designed the experiments; Consuelo Latorre, Enrica Nestola, Francesco Mazzenga, Giorgio Matteucci, and Fernando Camacho performed the experiments; Jorge Sánchez performed the processing of satellite products; Consuelo Latorre, Jorge Sánchez, Enrica Nestola, Fernando Camacho, and Carlo Calfapietra analyzed the data.

Conflicts of Interest

The authors declare no conflict of interest.
