Remote Sensing 2017, 9(12), 1277; doi:10.3390/rs9121277

Article
Temporal Changes in Coupled Vegetation Phenology and Productivity are Biome-Specific in the Northern Hemisphere
Department of Geosciences and Natural Resource Management, University of Copenhagen, Øster Voldgade 10, DK-1350 Copenhagen, Denmark
*
Author to whom correspondence should be addressed.
Received: 1 November 2017 / Accepted: 7 December 2017 / Published: 8 December 2017

Abstract

:
Global warming has greatly stimulated vegetation growth through both extending the growing season and promoting photosynthesis in the Northern Hemisphere (NH). Analyzing the combined dynamics of such trends can potentially improve our current understanding on changes in vegetation functioning and the complex relationship between anthropogenic and climatic drivers. This study aims to analyze the relationships (long-term trends and correlations) of length of vegetation growing season (LOS) and vegetation productivity assessed by the growing season NDVI integral (GSI) in the NH (>30°N) to study any dependency of major biomes that are characterized by different imprint from anthropogenic influence. Spatial patterns of converging/diverging trends in LOS and GSI and temporal changes in the coupling between LOS and GSI are analyzed for major biomes at hemispheric and continental scales from the third generation Global Inventory Monitoring and Modeling Studies (GIMMS) Normalized Difference Vegetation Index (NDVI) dataset for a 32-year period (1982–2013). A quarter area of the NH is covered by converging trends (consistent significant trends in LOS and GSI), whereas diverging trends (opposing significant trends in LOS and GSI) cover about 6% of the region. Diverging trends are observed mainly in high latitudes and arid/semi-arid areas of non-forest biomes (shrublands, savannas, and grasslands), whereas forest biomes and croplands are primarily characterized by converging trends. The study shows spatially-distinct and biome-specific patterns between the continental land masses of Eurasia (EA) and North America (NA). Finally, areas of high positive correlation between LOS and GSI showed to increase during the period of analysis, with areas of significant positive trends in correlation being more widespread in NA as compared to EA. The temporal changes in the coupled vegetation phenology and productivity suggest complex relationships and interactions that are induced by both ongoing climate change and increasingly intensive human disturbances.
Keywords:
phenology; AVHRR GIMMS3g NDVI; vegetation greenness/productivity; length of growing season; growing season integral; Northern Hemisphere biomes
PACS:
J0101

1. Introduction

Vegetation is of great importance in the interaction of the biosphere and the atmosphere in the Earth system through biophysical (e.g., albedo and water cycle) and biogeochemical (e.g., carbon cycle) feedbacks to modulate regional and global climate [1,2,3,4]. Vegetation metrics like phenology (i.e., the timing of start/end of vegetation growing season and its duration) and photosynthetic activity (commonly measured by the seasonally integrated “greenness” of vegetation) are critical biological characteristics of vegetation, and are sensitive to climate change [5,6,7,8,9,10]. Moreover, even small changes in vegetation photosynthesis could have large effects on the role of terrestrial ecosystems as a carbon sink [11,12,13,14]. Thus, in the context of ongoing global warming, monitoring long-term vegetation activity changes at regional and global scales can help to quantify and understand the effects of climate change on various terrestrial ecosystems and their feedbacks [3,15].
Long-term time-series satellite data have been widely used to study vegetation activity at various spatial and temporal scales [6,16,17,18,19], such as the NDVI (Normalized Difference Vegetation Index) dataset that is produced by the Global Inventory Monitoring and Modeling Studies (GIMMS) group from the Advanced Very High Resolution Radiometer (AVHRR) of National Oceanic and Atmospheric Administration (NOAA). The GIMMS3g NDVI (starting in July 1981) has been widely used as a proxy for vegetation productivity by the global change research community. GIMMS NDVI-based studies have shown that the length of vegetation growing season (LOS) has increased in most areas of the Northern Hemisphere (NH) from 1982 to the late 1990s through an advancing start of growing season (SOS) and/or delaying end of growing season (EOS) due to climate change [6,16,17,18,20,21]. However, since the end of the 1990s, this advancing trend of SOS has been shown to be weakened, and even reversed, in some regions [6,7,14,22,23,24,25,26], although there is no consensus about when the reversal happened. On the other hand, long-term time-series NDVI dataset from AVHRR have also revealed significant greening trends of vegetation (based on seasonal NDVI integrals) in the NH from the early 1980s to the late 1990s [7,17,18,20], which have been interpreted as an increase in photosynthesis and vegetation productivity through terrestrial ecosystem models [20,27,28,29]. Thus, the observed ‘northern greening’ has been central for an increasing carbon sink in the northern ecosystems over the past 30 years [16,30,31,32,33,34].
A linkage between changes of LOS and changes in vegetation productivity would be expected, as changing LOS implies changing the duration available for vegetation photosynthesis. In the context of global warming, this changing ecosystem functioning is observed and is expected to impact biomass accumulation of terrestrial ecosystem, and thereby regional and global carbon balances [35,36,37,38,39,40,41,42]. It has been suggested that longer LOS may extend the period of net carbon sequestration and eventually enhance vegetation productivity in northern ecosystems [38]. Moreover, Richardson et al. [41] found that forest phenology derived from carbon flux measurements was closely correlated to both gross and net ecosystem productivity. However, remotely sensed based studies of changes in vegetation phenology and biomass have primarily been conducted independently; thereby disregarding that synthesizing the two research themes might reveal novel information on changes in plant functional traits, ultimately to be associated with imprints from anthropogenic land management. Whether a given area is characterized by either converging or diverging trends in LOS and productivity may be induced by the interplay between human disturbances (land use and land cover changes) and climatic drivers. Analyzing the combined spatio-temporal dynamics of such trends can therefore improve our current understanding of the expected complex relationship between anthropogenic and climatic drivers on changes in vegetation functioning during recent decades. We focused on northern hemisphere ecosystems (>30°N) (Figure 1), which are characterized by vegetation with clear seasonality. The response of vegetation to global warming is highly sensitive in this region, and northern ecosystems are expected to continue growing at a faster rate and thus accumulating more carbon in a warmer future [16,20]. This study investigates the relationships (long-term trends and correlations) between LOS and vegetation productivity in the NH (>30°N) using third generation GIMMS NDVI dataset for a 32-year period (1982–2013) by analyzing converging/diverging patterns in trends in LOS and the growing season NDVI integral as a function of major land biomes at hemispheric and continental scales.

2. Materials

2.1. Study Area and Biomes

Eight major land biomes were aggregated from the Land Cover Type 2 (University of Maryland (UMD) scheme) of the MODIS MCD12C1 Land Cover Type Climate Modeling Grid product in 2001 at a spatial resolution of 0.05°. This product is derived from observations spanning a year’s input of MODIS Terra and Aqua data using the same algorithm that produces the MCD12Q1 Global 500 m Land Cover Type product. To examine the difference of changes between natural and human managed vegetation systems, this study included croplands, although its seasonal variability is greatly influenced by human disturbances. This study analyzed only pixels with a mean annual NDVI of greater than 0.1 for the GIMMS3g NDVI dataset, since lower NDVI values usually indicate sparse vegetation, which are more likely to be contaminated by the signal from bare soil or atmospheric/sensor related noise [6,18].

2.2. NDVI Data

The GIMMS3g NDVI dataset [43] is analyzed for the period of January 1982 to December 2013. Data is provided in 1/12 degree resolution and is composited into 15-day periods using the Maximum Value Compositing (MVC) technique [44]. The data were obtained from the AVHRR instrument onboard the NOAA satellite series 7, 9, 11, 14, 16, 17, 18, and 19. These data have been calibrated for sensor shifts, and corrected to remove the effects of sensor degradation, satellite orbit drift, solar zenith angles, and other factors, such as the effects of stratospheric aerosol loadings from the El Chichon and Mount Pinatubo eruptions in April 1984 and June 1991 [18,45]. This dataset has been widely used for detecting vegetation phenological and photosynthetic changes, and the current version has improved data quality especially in high latitudes with shorter growing season when compared to previous versions of the GIMMS NDVI datasets [46].

3. Methods

3.1. Estimation of Vegetation Phenology and Productivity Metrics

The phenology metrics of LOS, SOS, and EOS of GIMMS3g are calculated per pixel from time series parameterization by a Savitsky-Golay filter in the TIMESAT software [47,48]. The growing season NDVI integral (GSI) is used here as a proxy for vegetation productivity (greenness) [49], and is also computed from TIMESAT. The advantage of this approach is to minimize any influence from year-to-year variations in the length of seasonal snow cover on the calculated NDVI trends [49]. The Savitsky-Golay filter is a moving filter to fit values from least square to polynomial [48] and the degree of adaptation to the upper envelope can be tuned to the desired level [50]. The start and end of the growing season (SOS and EOS) are determined, respectively, for individual years from the per-pixel polynomial fit based on a parameterization of the fitted seasonal NDVI curve. The parameterization is calculated from a percentage NDVI threshold of total seasonal NDVI amplitude. The LOS is determined by the duration between the start and end of the growing season in each year. The GSI representing growing season vegetation productivity is calculated by the area between the fitted function and the base level from the start to end of the growing season. The parameters that are applied for the TIMESAT analysis are as follows: seasonal parameter = 0.5, number of envelope iterations = 2, adaptation strength = 1, Savitzky-Golay window size = 2, amplitude season start and end = 20%. For the case of croplands with multiple seasonal peaks, we have chosen to make the fitting procedure always output a primary season with maximum annual amplitude.

3.2. Analysis

3.2.1. Linear Trend Estimation

Pearson Product-moment linear correlation test on trends is employed to estimate the direction and strength of linear development in the long-term vegetation metrics (i.e., LOS, SOS, EOS, and GSI). We used a simple least square linear regression model with time as the independent variable and vegetation metrics derived from NDVI as the dependent variables. Linear correlation maps out the Pearson Product-moment linear correlation coefficients (r-values ranging from −1 to 1) between the values of each pixel over time and a perfectly linear series [51].

3.2.2. Trend Comparison

Significance maps (r-values) of LOS and GSI time series trends were reclassified into seven classes: positive/negative trends at confidence levels of 90% (p < 0.1), 95% (p < 0.05), and 99% (p < 0.01), and not significant (p > 0.1) (Figure 2C,D). These maps were combined into a single trend difference map by aggregating all significant positive and negative trends, respectively, to a single class covering pixels that are significant at the 90% level (p < 0.1) (one for positive and one for negative trends) before being combined, yielding nine possible combinations (Figure 3 and Table 1. Specifically, combinations of consistent significant positive/negative trends in LOS and GSI are defined as converging trends, whereas combinations of opposing significant trends in LOS and GSI are termed diverging trends (Table 1). Additionally, a distinction is made between converging trends type 1 (both trends significantly positive) and converging trends type 2 (both trends significantly negative). The same distinction also applies for diverging trends. A significance level of 90% was chosen to maintain the clearest possible spatial patterns of regional-scale clusters of pixels characterized by different trend combinations. The total numbers of pixels of areas with significant trends are summarized for major land biomes at hemispheric and continental scales.

3.2.3. Estimation of Correlations between LOS and GSI and Their Trends

All of the vegetation metrics were detrended to avoid possible spurious regressions of variables with a co-varying trend to allow for focused analysis of correlations in interannual variability. The linear trend derived from the least squares method was removed for both LOS and GSI time series within the entire research period (1982–2013) and each 16-year window (sub-period analysis described below) [9]. Correlations between LOS and GSI were assessed by means of parametric correlations using the Pearson coefficient for (1) the entire period and (2) for 17 sub-periods calculated from a 16-year window to be able to detect changes on correlation over time. A 16-year period was selected as a compromise between sufficient numbers of years to calculate the correlation on the one hand, and to have enough observations (17) to study changes over time on the other hand. Finally, the trends in the correlations between LOS and GSI were calculated from the 17 time-series correlation maps (for each 16-year window) by linear temporal trend analysis.

4. Results

4.1. Trends in Vegetation Phenology and Growing Season Integral

More pixels of the NH with significant linear trends in LOS (Figure 2C) (42.45%) were observed as compared to SOS (Figure 2A) (34.83%), and EOS (Figure 2B) (41.37%) (Table 2). Moreover, most areas show opposite spatial patterns in trends in SOS and LOS (Figure 2A,C), but consistent pattern in EOS and LOS trends (Figure 2B,C). The quantitative assessment and spatial patterns indicate that extending LOS in the NH is caused by both advancing SOS and delaying EOS in most regions, whereas shortening LOS is due to both delaying SOS and advancing EOS.
Areas of pixels of the NH with significant positive trends in GSI (Figure 2D) (51.22%) are considerably larger than those in LOS (23.24%) (Table 2), whereas the areas of pixels with negative trends in GSI (9.95%) are much smaller than those in LOS (19.21%) (Table 2). This suggests that areas of significant greening trends are dominating the NH, with LOS appearing comparably mixed in lengthening and shortening trends over the past three decades, indicating that some areas are experiencing increasing vegetation productivity without significant changes in LOS.
At the continental scale, North America (NA) is dominated by significant decreasing trends in LOS, but Eurasia (EA) is dominated by increasing trends (Figure 2C and Table 2). This pattern can be explained by the predominance of significant increasing trends in SOS in NA (28.05%) combined with relatively large areas of decreasing trends in EOS (21.56%) (comparable to increasing trends (23.8%) in EOS) (Table 2). In contrast, EA is dominated by significant decreasing trends in SOS (25.68%), and has slightly larger areas with positive trends in EOS (20.43%) when compared to negative trends (19.11%). For GSI (Figure 2D), the areas of pixels with significant positive trends are a little smaller in NA than those of EA, whereas pixels of NA with negative trends are slightly larger than those in EA (Table 2). The difference between pixels of GSI with significant positive and negative trends in EA (53.52%/8.30%) is considerably larger than that in NA (46.22%/13.51%), suggesting that the spatial pattern of trends in vegetation productivity is more divergent in NA than in EA.

4.2. Comparison of LOS and GSI Trends

4.2.1. Converging/Diverging Trends in LOS and GSI

A direct comparison of trends in LOS and GSI of GIMMS3g (1982–2013) (Figure 3) is made for the pixels of significant trends in Figure 2C,D. Pixels with converging trends in LOS and GSI (consistent significant positive/negative trends in LOS and GSI) (24.53%, (a + d) Table 1) cover considerably larger areas than pixels with diverging trends (opposite significant trends in LOS and GSI) (5.78%, (b + c) Table 1), indicating that the NH is dominated by converging trends in LOS and GSI. However, areas of pixels of NA with converging trends (18.70%) are considerably smaller than those of EA (27.22%), whereas areas of pixels of NA with diverging trends (11.08%) are considerably larger than those of EA (3.33%) (Table 1). This suggests that the vegetation metrics in NA are characterized by more diverging trends than EA. More specifically, areas of pixels of the NH with consistent significant positive trends in LOS and GSI (converging trends type 1) (19.46%, (d) Table 1) are considerably larger, when compared to pixels with consistent significant negative trends (converging trends type 2) (5.07%, (a) Table 1), indicating that the NH is dominated by converging trends type 1. However, areas of pixels of NA with converging trends type 1 (12.23%) are considerably smaller than those of EA (22.80%), whereas areas of pixels in NA with converging trends type 2 are somewhat larger than those of EA (Table 1), suggesting that the dominance of converging trends type 1 is more pervasive in EA. In contrast, only 0.41% pixels of the NH are characterized by significant positive trends in LOS/significant negative trends in GSI (diverging trends type 1) ((c) Table 1), whereas the opposite pattern (diverging trends type 2) ((b) Table 1) covers considerably larger areas (5.37%), suggesting that diverging trends in the NH are dominated by diverging trends type 2. At the continental scale, areas of pixels of NA with diverging trends type 1 are somewhat larger than those of EA (Table 1), while pixels of NA with diverging trends type 2 (10.28%) are considerably larger than those of EA (3.11%), thus indicating that the dominance of diverging trends type 2 is more pervasive in NA.
Spatially, large areas with converging trends type 1 are mainly found in central and eastern NA, northern and eastern Europe, north and south Russia, north Mongolia, and north and northeast China ((+1, +1) in Figure 3). On the contrary, areas with converging trends type 2 are primarily observed in northeast Canada, central America, east and central Russia and northeast Tibetan Plateau ((−1, −1) in Figure 3). In contrast, areas with diverging trends in LOS and GSI can be seen in high latitudes of NA and EA, central NA, northern Europe, Kazakhstan, and eastern Russia ((−1, +1) and (+1, −1) in Figure 3), suggesting that diverging trends are mainly in high latitudes and arid/semi-arid areas.

4.2.2. Converging/Diverging Trends for Major Biomes

High percentages of pixels with converging trends (C in Figure 4A) are mainly observed for all forest biomes (highest for mixed forest) and croplands, whereas low percentages of pixels with converging trends are primarily seen for non-forest biomes (shrublands, savannas, and grasslands). In contrast, high percentages of pixels with diverging trends (D in Figure 4A) are mostly observed in non-forest biomes, whereas low percentages of pixels with diverging trends are mainly observed for evergreen needleleaf forest, deciduous broadleaf forest, mixed forest and croplands (Figure 4A), suggesting that diverging trends are predominant in non-forest biomes and are less frequently observed for biomes of forest and croplands. However, at the continental scale, converging trends are more frequent for biomes of deciduous broadleaf forest, mixed forest, and croplands, and less for biomes of non-forest and needleleaf forest (both evergreen and deciduous) in NA, whereas EA has the same pattern as for the NH (Figure 4A). Diverging trends are more frequent for biomes of shrublands and grasslands in NA and less common for forest biomes, while in EA more diverging trends are observed for biomes of non-forest and needleleaf forest as compared to biomes of deciduous broadleaf forest, mixed forest, and croplands (Figure 4A). Moreover, the high ratio (Ratio C/D, Figure 4B) indicates that areas with converging trends are considerably larger than areas with diverging trends for all biomes. Non-forest biomes show the lowest ratios in the NH and both continents, whereas the highest ratios are observed for evergreen needleleaf forest, deciduous broadleaf forest, mixed forest, and croplands in the NH, EA, and all forest biomes in NA (Figure 4B). This further suggests that non-forest biomes are characterized by more diverging trends, when compared to biomes of forest and croplands primarily showing converging trends.
Converging trends type 1 (C1 in Figure 4C) is primarily observed in mixed forest, croplands, and shrublands for the NH and EA (mixed forest, croplands for NA), while converging trends type 2 (C2 in Figure 4C) is mainly found in non-forest biomes for the NH, NA, and EA. In contrast, the two types of diverging trends are both dominating in non-forest biomes for the NH (Figure 4E). At the continental scale, areas with diverging trends type 2 are primarily observed in shrublands and grasslands for NA and in non-forest biomes for EA, whereas areas with diverging trends type 1 are mainly found in non-forest biomes for NA and in shrublands and grasslands for EA.
High percentages of pixels with converging trends type 1 per biome (C1 in Figure 4D) are mainly observed for evergreen needleleaf forest, deciduous broadleaf forest, mixed forest, and croplands in the NH, NA, and EA, whereas high percentages of pixels with converging trends type 2 (C2 in Figure 4D) are primarily found for deciduous needleleaf forest and non-forest biomes in the NH and both continents. This suggests that biomes of forest and croplands are dominated by converging trends type 1, whereas converging trends type 2 are pervasive in deciduous needleleaf forest and non-forest biomes. In the case of diverging trends, high percentages of pixels with diverging trends type 2 (D2 in Figure 4F) are mainly seen for deciduous needleleaf forest and non-forest biomes in the NH, while high percentages of pixels with diverging trends type 1 (D1 in Figure 4F) are primarily found for non-forest biomes in the NH and NA.

4.3. Correlations between LOS and GSI and Their Trends

4.3.1. Correlations between LOS and GSI (1982–2013)

The interannual variation of GSI is extensively positively correlated with LOS in the NH (Figure 5) (Table 3, 83.09%). Nevertheless, areas with low (non-significant) and significant negative correlation can be observed, primarily in high latitudes/arctic region of NA and EA, central NA, central Asia, Mongolia, and north China, indicating that LOS and GSI are less or negatively correlated in high latitudes/arctic and arid/semi-arid regions. However, differences in the spatial coverage of these correlations between LOS and GSI are distinct between NA and EA (Table 3). EA shows larger areas with significant positive correlation (85.31%) than those of NA (78.29%), whereas pixels with negative correlation in NA (1.73%) are larger than those in EA (0.44%).
Pixels with significant positive correlation between LOS and GSI (Figure 6A) are mostly distributed in biomes of shrublands, grasslands, and croplands, but are rarely observed in any of the forest biomes, except for mixed forest. In contrast, pixels with significant negative correlation are primarily distributed in non-forest biomes for the NH and NA (shrublands and grasslands for EA), but are rarely observed in forest biomes and croplands.
Biomes having the lowest percentages of pixels with significant positive correlation between LOS and GSI (Figure 6B) are mainly observed for non-forest biomes for the NH and NA (shrublands and grasslands for EA), whereas forest biomes and croplands show the highest percentages for the NH, NA, and EA. On the contrary, biomes having the highest percentages of pixels with significant negative correlation between LOS and GSI are primarily found in non-forest biomes for the NH and NA, whereas forest biomes and croplands show the lowest percentages.

4.3.2. Trends in Correlations between LOS and GSI

Linear trends in correlations between LOS and GSI calculated from correlations between LOS and GSI for each 16-year window from 1982–1997 to 1998–2013 (Figure 7) show larger areas (39.76%) of significant increasing strength of the correlations between LOS and GSI than areas with decreasing correlations (31.14%) for the NH. It is evident that most areas in high latitudes of NA show positive trends and areas of pixels with significant positive trends in NA (46.92%) are considerably larger than those with negative trends (25.92%). Contrastingly, areas of pixels with a significant positive trend in EA (36.45%) are only a little larger than those with negative trends (33.55%) (Table 4). This suggests that EA shows more divergent pattern of trends in correlations between LOS and GSI, as compared to NA with dominating increasing trends.
Pixels with significant positive trends in correlations between LOS and GSI (Figure 8A) are mainly distributed in croplands and non-forest biomes for the NH, but are rarely found in forest biomes, except for mixed forest. Interestingly, a similar distribution pattern is observed for pixels with negative trends. Biomes having high percentages of pixels with significant positive trends in correlations between LOS and GSI (Figure 8B) are mainly observed for savannas, shrublands, evergreen needleaf forest, and mixed forest for the NH, whereas low percentages of these trends are primarily found for deciduous broadleaf and needleleaf forest, croplands, and grasslands. Complementarily, biomes having high percentages of pixels with significant negative trends in correlations between LOS and GSI (Figure 8B) are mostly observed for deciduous broadleaf and needleleaf forest, croplands, and grasslands, while low percentages of these trends are mainly found for savannas, shrublands, evergreen needleleaf forest, and mixed forest.

5. Discussion

5.1. Trends in Vegetation Phenology and Growing Season Integral

The calculated trends in LOS, including SOS and EOS (Figure 2A–C), are consistent with the spatial patterns of phenological trends in Zhao et al. [52], who extracted vegetation phenological changes above 40°N of the NH during 1982–2013 from GIMMS3g NDVI data. They also employed the TIMESAT approach, but with different parameter settings as compared to this study, indicating the robustness of the method for phenology retrieval and consequently the results obtained in this study. Moreover, the calculated trends in GSI (Figure 2D) are in agreement with the result from Fensholt et al. [53], although their study period (1982–2011) was two years shorter than this study.
This study suggests that EA is dominated by significant increasing trends in LOS, whereas decreasing trends are more common in NA (Figure 2C and Table 2). These results are supported by Barichivich et al. [54] who showed that the overall increasing trend in LOS was stronger and more significant in EA than that in NA. Garonna et al. [55] found that areas with greatest growing season lengthening are concentrated in pockets of continental Europe, western Russia, and southern Fennoscandia, whereas regions with growing season shortening are mainly found in the Po valley, western France, and around the Caspian Sea for Europe from 1982 to 2011, which is also consistent with the result of this study (Figure 2C). However, the findings that an increasing LOS is due to both advancing SOS and delaying EOS for most areas, but decreasing LOS is caused by both delaying SOS and advancing EOS in most regions are contradictory to Wu et al. [56] who showed that EOS was positively correlated with SOS in China’s temperate regions during 1999–2013 (using SPOT-VGT data). This difference may be explained by the different periods of analysis and data sources between the two studies. Moreover, the observed dominance of greening trends in EA (Figure 2D) is also supported by Piao et al. [26], who reported a significant positive trend in average growing season NDVI for temperate and boreal EA during 1982–2006.
It has been shown that changes in ecosystem properties can be better characterized by separating the whole study period into individual time-periods representing specific vegetation conditions through time [57,58]. From such approach, both increasing LOS and vegetation greenness have been shown to be slowing down or have experienced abrupt changes around 2000 in the NH using break point analysis techniques [6,7,26,52,58,59,60]. Nevertheless, a recent study by Wang et al. [61] suggested that the advancing SOS is unlikely to have slowed down or have abruptly changed at the hemispheric scale of the NH over the last three decades, although it could have happened at a local/regional scale because of changes in fire regimes or winter chilling.

5.2. Converging/Diverging Trends and Correlations between LOS and GSI

This study shows that a quarter area of the NH is covered by dominant converging trends in LOS and GSI, although EA shows more areas of convergence than NA (Figure 3). Meanwhile, GSI is predominantly positively correlated with LOS in the NH, with significant positive correlations being more widespread in EA than in NA (Figure 5). Regions with converging trends in LOS and GSI are generally corresponding to areas with high positive correlations between LOS and GSI, which could be expected. However, the fact that trends in LOS and GSI are of similar direction does not a priori cause a high correlation as it depends on the magnitude and statistical strengths of the individual trends. This pattern is in accordance with the general assumption that increasing LOS that is caused by pervasive warming in middle and high latitudes of the NH has led to increasing vegetation productivity, simply because more days are available for carbon assimilation and biomass accumulation [38,40,41,42,62,63,64]. For example, Dragoni et al. [65] showed that LOS in a temperate deciduous forest in Midwestern US extended at the rate of about three days/year during 1998–2008 (because of delayed autumn senescence) was accompanied by an increasing trend of annual net C uptake. A comparable result for a temperate deciduous forest in Denmark was reported by Pilegaard et al. [66], who showed that an increasing trend in C uptake during the period of 1996–2009 was partially attributed to a concurrent increasing trend in the duration of photosynthetic activity. Moreover, highly consistent with the converging trends that were shown in this study (Figure 3), Keenan et al. [67] found that carbon uptake through photosynthesis has increased in temperate forests of eastern US owing to warming-induced increasing LOS.
Diverging trends in LOS and GSI only cover about 6% areas of the NH, mainly in high latitudes and arid/semi-arid regions (Figure 3), and larger areas of divergence are observed in NA than EA. Additionally, GSI is characterized by low or negative correlations, with LOS primarily in high latitudes and arid/semi-arid areas and regions of significant negative correlations are more frequent in NA than in EA (Figure 5). This indicates that areas with diverging trends are corresponding to regions with low or negative correlations between LOS and GSI in the NH. This pattern may be due to distinct responses of vegetation phenology and productivity to the ongoing warming in high northern latitudes [54,68,69,70]. In agreement with the result from this study, Park et al. [70] found that vegetation productivity has continuously increased during 2000–2014 compared to decreasing LOS in the boreal and arctic regions of NH. Moreover, Ivits et al. [71] showed that vegetation productivity and phenology reacted differently to drought events depending on ecosystem and land cover at the continental scale of Europe. This was further confirmed by Xia et al. [69], who showed that vegetation phenology and productivity responded differently to heatwave and had contrasting recovery trajectories after a wildfire disturbance. In addition to the direct impacts from a changing climate or climate extremes on vegetation phenology and productivity, an increasingly abundant deciduous shrub cover in tundra landscapes has been reported in high latitudes and arctic regions [72]. Such changes in vegetation cover may also be a driver of divergent trends and changing correlations between LOS and GSI in some high latitude regions that were found in this study.
It has been observed that forest biomes and croplands are more frequently characterized by converging trends than non-forest biomes in the NH (Figure 4A,B), whereas non-forest biomes are more diverging than croplands and forest biomes (Figure 4F), suggesting biome-specific temporal changes in the coupled vegetation phenology and productivity. This was also confirmed by several studies at the regional scale [56,69,73]. Wu et al. [56] found that both SOS and EOS had location-dependent impacts on annual GPP. This is further supported by Xia [69] et al. who revealed that the inter-biome variations in annual GPP can be better explained by the variations in seasonal maximal photosynthetic capacity than LOS. In addition to the impact from ongoing global warming and natural climate variability, the relationship between vegetation phenology and productivity could also be affected by changes in both/either vegetation metrics induced by anthropogenic land use/cover changes (e.g., deforestation/afforestation, land clearing, irrigation and fertilization, and changes in land management practices) [53,60,74,75,76]. Whereas, it could be assumed that changes in land management may also cause divergence between LOS and GSI (e.g., a change from one crop-type to another with different LOS/GSI characteristics), it is noteworthy that both converging trends and pixels with significant positive correlations between LOS and GSI are more pronounced for mixed forest than for the three natural forest biomes, which is also the case for croplands as compared to the three natural non-forest biomes (Figure 4A and Figure 6B). These differences may reflect anthropogenic management in the form of fertilization and irrigation that could alleviate climatic constraints on vegetation growth influencing concurrently on both phenology and productivity [74,76]. Moreover, it should be noted that areas of diverging trends type 2 in croplands are much smaller than it is the case for the three natural non-forest biomes (Figure 4F). This further indicates that anthropogenic land management is likely to be able to alleviate adverse climatic effects on vegetation phenology and productivity for both farming, and forestry and thereby weaken the observed diverging trends in LOS and GSI. Contrastingly, it could be expected that changes in land use (e.g., changes in crop types or land abandonment) could induce a differential response on LOS and GSI, as observed in Horion et al. [60], who revealed widespread changes in ecosystem functioning in the northern EA agricultural regions after the collapse of the Soviet Union in 1991 due to widespread agricultural land abandonment. Such extreme case of large scale land abandonment is likely to influence the results of divergent (converging/diverging) trends and changing correlations between LOS and GSI for major land biomes of the NH found here (Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8). Overall, this suggests the existence of complex relations and interactions between vegetation phenological changes and interannual variability of vegetation productivity induced by the interplay between both natural climate change and land management.

5.3. Changing Correlations between LOS and GSI

This study shows widespread changes in the strength of correlations between LOS and GSI (70.90% of the study area) during the past three decades in the NH (Figure 7). Regions that are covered by significant positive correlation between LOS and GSI are becoming more dominant over time, as compared to areas of decreasing correlations. However, by comparing Figure 5 and Figure 7, it can be observed that grasslands in the mid-latitude arid/semi-arid areas with low/negative correlations (e.g., central NA, central Asia, Mongolia, and north China) show significant decreasing strength in the correlation between LOS and GSI, whereas high-latitude tundra regions with low/negative correlations (e.g., arctic area of NA and EA) exhibit a significant increasing correlation. Since both regions are less affected by direct human influence, this difference may reflect latitude- and/or biome-dependent changes in ecosystem functioning in response to long-term climate change or climate extremes/natural disturbance. In contrast to significant changes in these non-forest biomes, both positive/negative trends in correlations between LOS and GSI are rarely found in forest biomes (Figure 8A). This is also confirmed by Chen et al. [77] who revealed non-significant correlation between LOS and plant productivity in most of southern Canadian Arctic tundra and further suggests biome-specific changes in long-term correlations between LOS and GSI.

6. Conclusions

Global warming has stimulated vegetation growth through both extending growing season and promoting photosynthesis in the Northern Hemisphere (NH), but the impact is not necessarily uniform across different biomes that are characterized by differences in ecosystem functional types and different degrees of influence from human management. The complementary information about changes in vegetation growing season length and productivity might thereby provide new insights to be used for an improved understanding of the coupled impact from climate change and land management (land use and land cover changes) on changes in vegetation functioning and traits. Here, we analyzed spatio-temporal patterns of observed converging/diverging trends in vegetation phenology and biomass over recent decades (1982–2013) as a function of major biomes covering the NH by using GIMMS3g NDVI data and MODIS land cover information.
A quarter area of the NH was found to be covered by converging trends in length of vegetation growing season (LOS) and growing season NDVI integral (GSI), while diverging trends covered about 6% regions. The results showed spatially-distinct and biome-specific patterns between the continental land masses of Eurasia and North America. Areas of diverging trends were mainly observed in high latitudes and arid/semi-arid areas, whereas forest biomes and croplands showed more widespread signs of converging trends than non-forest biomes. Whereas, the areas of diverging trends in LOS and GSI in high latitude biomes is likely to be a sign of warming induced changes in vegetation species the converging trends for cropland areas may reflect anthropogenic management in the form of fertilization and irrigation that could alleviate climatic constraints on vegetation growth influencing concurrently on both phenology and productivity. The temporal changes in the coupled vegetation phenology and productivity suggest complex relationships and interactions between vegetation phenological changes and the interannual variability of vegetation productivity and future studies should emphasize detailed analyses of hot-spot areas of diverging trends to improve our understanding of the forcing mechanisms of the observed changes in terrestrial ecosystem functioning.

Acknowledgments

The authors thank NASA GIMMS Group for producing and sharing the GIMMS3g NDVI dataset. NASA/MODIS Land Discipline Group is appreciated for sharing the MODIS MOD13C1 NDVI dataset and the MODIS MCD12C1 Land Cover data. The authors also wish to thank L. Eklundh, Department of Physical Geography and Ecosystem Science, Lund University and P. Jonsson, Center for Technology Studies, Malmo University for developing and sharing the TIMESAT software. Finally, we would like to thank the anonymous reviewers for their constructive comments and suggestions.

Author Contributions

Lanhui Wang conceived and designed the experiments; Lanhui Wang performed the experiments; Lanhui Wang and Rasmus Fensholt analyzed the data; Lanhui Wang and Rasmus Fensholt wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cao, M.K.; Woodward, F.I. Dynamic responses of terrestrial ecosystem carbon cycling to global climate change. Nature 1998, 393, 249–252. [Google Scholar] [CrossRef]
  2. Jackson, R.B.; Randerson, J.T.; Canadell, J.G.; Anderson, R.G.; Avissar, R.; Baldocchi, D.D.; Bonan, G.B.; Caldeira, K.; Diffenbaugh, N.S.; Field, C.B.; et al. Protecting climate with forests. Environ. Res. Lett. 2008, 3. [Google Scholar] [CrossRef]
  3. Penuelas, J.; Rutishauser, T.; Filella, I. Phenology feedbacks on climate change. Science 2009, 324, 887–888. [Google Scholar] [CrossRef] [PubMed]
  4. Anderson, R.G.; Canadell, J.G.; Randerson, J.T.; Jackson, R.B.; Hungate, B.A.; Baldocchi, D.D.; Ban-Weiss, G.A.; Bonan, G.B.; Caldeira, K.; Cao, L.; et al. Biophysical considerations in forestry for climate protection. Front. Ecol. Environ. 2011, 9, 174–182. [Google Scholar] [CrossRef]
  5. Penuelas, J.; Filella, I. Responses to a warming world. Science 2001, 294, 793–795. [Google Scholar] [CrossRef] [PubMed]
  6. Jeong, S.J.; Ho, C.H.; Gim, H.J.; Brown, M.E. Phenology shifts at start vs. End of growing season in temperate vegetation over the Northern Hemisphere for the period 1982–2008. Glob. Chang. Biol. 2011, 17, 2385–2399. [Google Scholar] [CrossRef]
  7. Wang, X.; Piao, S.; Ciais, P.; Li, J.; Friedlingstein, P.; Koven, C.; Chen, A. Spring temperature change and its implication in the change of vegetation growth in North America from 1982 to 2006. Proc. Natl. Acad. Sci. USA 2011, 108, 1240–1245. [Google Scholar] [CrossRef] [PubMed]
  8. Peng, S.; Piao, S.; Ciais, P.; Myneni, R.B.; Chen, A.; Chevallier, F.; Dolman, A.J.; Janssens, I.A.; Penuelas, J.; Zhang, G.; et al. Asymmetric effects of daytime and night-time warming on Northern Hemisphere vegetation. Nature 2013, 501, 88–92. [Google Scholar] [CrossRef] [PubMed]
  9. Piao, S.; Nan, H.; Huntingford, C.; Ciais, P.; Friedlingstein, P.; Sitch, S.; Peng, S.; Ahlstrom, A.; Canadell, J.G.; Cong, N.; et al. Evidence for a weakening relationship between interannual temperature variability and northern vegetation activity. Nat. Commun. 2014, 5, 5018. [Google Scholar] [CrossRef] [PubMed]
  10. Piao, S.; Tan, J.; Chen, A.; Fu, Y.H.; Ciais, P.; Liu, Q.; Janssens, I.A.; Vicca, S.; Zeng, Z.; Jeong, S.J.; et al. Leaf onset in the northern hemisphere triggered by daytime temperature. Nat. Commun. 2015, 6, 6911. [Google Scholar] [CrossRef] [PubMed]
  11. Ciais, P.; Reichstein, M.; Viovy, N.; Granier, A.; Ogee, J.; Allard, V.; Aubinet, M.; Buchmann, N.; Bernhofer, C.; Carrara, A.; et al. Europe-wide reduction in primary productivity caused by the heat and drought in 2003. Nature 2005, 437, 529–533. [Google Scholar] [CrossRef] [PubMed]
  12. Luyssaert, S.; Inglima, I.; Jung, M.; Richardson, A.D.; Reichstein, M.; Papale, D.; Piao, S.L.; Schulzes, E.D.; Wingate, L.; Matteucci, G.; et al. CO2 balance of boreal, temperate, and tropical forests derived from a global database. Glob. Chang. Biol. 2007, 13, 2509–2537. [Google Scholar] [CrossRef]
  13. Schwalm, C.R.; Williams, C.A.; Schaefer, K.; Arneth, A.; Bonal, D.; Buchmann, N.; Chen, J.Q.; Law, B.E.; Lindroth, A.; Luyssaert, S.; et al. Assimilation exceeds respiration sensitivity to drought: A fluxnet synthesis. Glob. Chang. Biol. 2010, 16, 657–670. [Google Scholar] [CrossRef]
  14. Zhao, M.; Running, S.W. Drought-induced reduction in global terrestrial net primary production from 2000 through 2009. Science 2010, 329, 940–943. [Google Scholar] [CrossRef] [PubMed]
  15. Richardson, A.D.; Keenan, T.F.; Migliavacca, M.; Ryu, Y.; Sonnentag, O.; Toomey, M. Climate change, phenology, and phenological control of vegetation feedbacks to the climate system. Agric. For. Meteorol. 2013, 169, 156–173. [Google Scholar] [CrossRef]
  16. Myneni, R.B.; Keeling, C.D.; Tucker, C.J.; Asrar, G.; Nemani, R.R. Increased plant growth in the northern high latitudes from 1981 to 1991. Nature 1997, 386, 698–702. [Google Scholar] [CrossRef]
  17. Tucker, C.J.; Slayback, D.A.; Pinzon, J.E.; Los, S.O.; Myneni, R.B.; Taylor, M.G. Higher northern latitude normalized difference vegetation index and growing season trends from 1982 to 1999. Int. J. Biometeorol. 2001, 45, 184–190. [Google Scholar] [CrossRef] [PubMed]
  18. Zhou, L.M.; Tucker, C.J.; Kaufmann, R.K.; Slayback, D.; Shabanov, N.V.; Myneni, R.B. Variations in northern vegetation activity inferred from satellite data of vegetation index during 1981 to 1999. J. Geophys. Res. Atmos. 2001, 106, 20069–20083. [Google Scholar] [CrossRef]
  19. Zeng, H.Q.; Jia, G.S.; Epstein, H. Recent changes in phenology over the northern high latitudes detected from multi-satellite data. Environ. Res. Lett. 2011, 6. [Google Scholar] [CrossRef]
  20. Nemani, R.R.; Keeling, C.D.; Hashimoto, H.; Jolly, W.M.; Piper, S.C.; Tucker, C.J.; Myneni, R.B.; Running, S.W. Climate-driven increases in global terrestrial net primary production from 1982 to 1999. Science 2003, 300, 1560–1563. [Google Scholar] [CrossRef] [PubMed]
  21. Piao, S.; Fang, J.; Zhou, L.; Ciais, P.; Zhu, B. Variations in satellite-derived phenology in China’s temperate vegetation. Glob. Chang. Biol. 2006, 12, 672–685. [Google Scholar] [CrossRef]
  22. Lotsch, A.; Friedl, M.A.; Anderson, B.T.; Tucker, C.J. Response of terrestrial ecosystems to recent Northern Hemispheric drought. Geophys. Res. Lett. 2005, 32. [Google Scholar] [CrossRef]
  23. Park, H.S.; Sohn, B.J. Recent trends in changes of vegetation over East Asia coupled with temperature and rainfall variations. J. Geophys. Res. Atmos. 2010, 115. [Google Scholar] [CrossRef]
  24. Yu, H.; Luedeling, E.; Xu, J. Winter and spring warming result in delayed spring phenology on the Tibetan Plateau. Proc. Natl. Acad. Sci. USA 2010, 107, 22151–22156. [Google Scholar] [CrossRef] [PubMed]
  25. Piao, S.; Cui, M.; Chen, A.; Wang, X.; Ciais, P.; Liu, J.; Tang, Y. Altitude and temperature dependence of change in the spring vegetation green-up date from 1982 to 2006 in the Qinghai-Xizang Plateau. Agric. For. Meteorol. 2011, 151, 1599–1608. [Google Scholar] [CrossRef]
  26. Piao, S.; Wang, X.; Ciais, P.; Zhu, B.; Wang, T.A.O.; Liu, J.I.E. Changes in satellite-derived vegetation growth trend in temperate and boreal Eurasia from 1982 to 2006. Glob. Chang. Biol. 2011, 17, 3228–3239. [Google Scholar] [CrossRef]
  27. Lucht, W.; Prentice, I.C.; Myneni, R.B.; Sitch, S.; Friedlingstein, P.; Cramer, W.; Bousquet, P.; Buermann, W.; Smith, B. Climatic control of the high-latitude vegetation greening trend and Pinatubo effect. Science 2002, 296, 1687–1689. [Google Scholar] [CrossRef] [PubMed]
  28. Piao, S.L.; Fang, J.Y.; Zhou, L.M.; Zhu, B.; Tan, K.; Tao, S. Changes in vegetation net primary productivity from 1982 to 1999 in China. Glob. Biogeochem. Cycles 2005, 19. [Google Scholar] [CrossRef]
  29. Piao, S.L.; Friedlingstein, P.; Ciais, P.; Zhou, L.M.; Chen, A.P. Effect of climate and CO2 changes on the greening of the Northern Hemisphere over the past two decades. Geophys. Res. Lett. 2006, 33. [Google Scholar] [CrossRef]
  30. Myneni, R.B.; Dong, J.; Tucker, C.J.; Kaufmann, R.K.; Kauppi, P.E.; Liski, J.; Zhou, L.; Alexeyev, V.; Hughes, M.K. A large carbon sink in the woody biomass of northern forests. Proc. Natl. Acad. Sci. USA 2001, 98, 14784–14789. [Google Scholar] [CrossRef] [PubMed]
  31. Janssens, I.A.; Freibauer, A.; Ciais, P.; Smith, P.; Nabuurs, G.J.; Folberth, G.; Schlamadinger, B.; Hutjes, R.W.A.; Ceulemans, R.; Schulze, E.D.; et al. Europe’s terrestrial biosphere absorbs 7 to 12% of European anthropogenic CO2 emissions. Science 2003, 300, 1538–1542. [Google Scholar] [CrossRef] [PubMed]
  32. Ciais, P.; Schelhaas, M.J.; Zaehle, S.; Piao, S.L.; Cescatti, A.; Liski, J.; Luyssaert, S.; Le-Maire, G.; Schulze, E.D.; Bouriaud, O.; et al. Carbon accumulation in European forests. Nat. Geosci. 2008, 1, 425–429. [Google Scholar] [CrossRef]
  33. Piao, S.L.; Ciais, P.; Friedlingstein, P.; de Noblet-Ducoudre, N.; Cadule, P.; Viovy, N.; Wang, T. Spatiotemporal patterns of terrestrial carbon cycle during the 20th century. Glob. Biogeochem. Cycles 2009, 23. [Google Scholar] [CrossRef]
  34. Ciais, P.; Canadell, J.G.; Luyssaert, S.; Chevallier, F.; Shvidenko, A.; Poussi, Z.; Jonas, M.; Peylin, P.; King, A.W.; Schulze, E.D.; et al. Can we reconcile atmospheric estimates of the Northern terrestrial carbon sink with land-based accounting? Curr. Opin. Environ. Sustain. 2010, 2, 225–230. [Google Scholar] [CrossRef]
  35. Randerson, J.T.; Field, C.B.; Fung, I.Y.; Tans, P.P. Increases in early season ecosystem uptake explain recent changes in the seasonal cycle of atmospheric CO2 at high northern latitudes. Geophys. Res. Lett. 1999, 26, 2765–2768. [Google Scholar] [CrossRef]
  36. Kimball, J.S.; McDonald, K.C.; Running, S.W.; Frolking, S.E. Satellite radar remote sensing of seasonal growing seasons for boreal and subalpine evergreen forests. Remote Sens. Environ. 2004, 90, 243–258. [Google Scholar] [CrossRef]
  37. Niemand, C.; Kostner, B.; Prasse, H.; Grunwald, T.; Bernhofer, C. Relating tree phenology with annual carbon fluxes at tharandt forest. Meteorol. Z. 2005, 14, 197–202. [Google Scholar] [CrossRef]
  38. Piao, S.; Friedlingstein, P.; Ciais, P.; Viovy, N.; Demarty, J. Growing season extension and its impact on terrestrial carbon cycle in the Northern Hemisphere over the past 2 decades. Glob. Biogeochem. Cycles 2007, 21. [Google Scholar] [CrossRef]
  39. Piao, S.; Ciais, P.; Friedlingstein, P.; Peylin, P.; Reichstein, M.; Luyssaert, S.; Margolis, H.; Fang, J.; Barr, A.; Chen, A.; et al. Net carbon dioxide losses of northern ecosystems in response to autumn warming. Nature 2008, 451, 49–52. [Google Scholar] [CrossRef] [PubMed]
  40. Richardson, A.D.; Hollinger, D.Y.; Dail, D.B.; Lee, J.T.; Munger, J.W.; O’Keefe, J. Influence of spring phenology on seasonal and annual carbon balance in two contrasting new england forests. Tree Physiol. 2009, 29, 321–331. [Google Scholar] [CrossRef] [PubMed]
  41. Richardson, A.D.; Black, T.A.; Ciais, P.; Delbart, N.; Friedl, M.A.; Gobron, N.; Hollinger, D.Y.; Kutsch, W.L.; Longdoz, B.; Luyssaert, S.; et al. Influence of spring and autumn phenological transitions on forest ecosystem productivity. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2010, 365, 3227–3246. [Google Scholar] [CrossRef] [PubMed]
  42. Richardson, A.D.; Anderson, R.S.; Arain, M.A.; Barr, A.G.; Bohrer, G.; Chen, G.S.; Chen, J.M.; Ciais, P.; Davis, K.J.; Desai, A.R.; et al. Terrestrial biosphere models need better representation of vegetation phenology: Results from the North American carbon program site synthesis. Glob. Chang. Biol. 2012, 18, 566–584. [Google Scholar] [CrossRef]
  43. Pinzon, J.E.; Tucker, C.J. A non-stationary 1981–2012 AVHRR NDVI3g time series. Remote Sens. 2014, 6, 6929–6960. [Google Scholar] [CrossRef]
  44. Holben, B.N. Characteristics of maximum-value composite images from temporal AVHRR data. Int. J. Remote Sens. 1986, 7, 1417–1434. [Google Scholar] [CrossRef]
  45. Slayback, D.A.; Pinzon, J.E.; Los, S.O.; Tucker, C.J. Northern Hemisphere photosynthetic trends 1982–99. Glob. Chang. Biol. 2003, 9, 1–15. [Google Scholar] [CrossRef]
  46. Tan, J.; Piao, S.; Chen, A.; Zeng, Z.; Ciais, P.; Janssens, I.A.; Mao, J.; Myneni, R.B.; Peng, S.; Penuelas, J.; et al. Seasonally different response of photosynthetic activity to daytime and night-time warming in the Northern Hemisphere. Glob. Chang. Biol. 2015, 21, 377–387. [Google Scholar] [CrossRef] [PubMed]
  47. Jonsson, P.; Eklundh, L. Seasonality extraction by function fitting to time-series of satellite sensor data. IEEE Trans. Geosci. Remote Sens. 2002, 40, 1824–1832. [Google Scholar] [CrossRef]
  48. Jönsson, P.; Eklundh, L. Timesat—A program for analyzing time-series of satellite sensor data. Comput. Geosci. 2004, 30, 833–845. [Google Scholar] [CrossRef]
  49. Fensholt, R.; Proud, S.R. Evaluation of earth observation based global long term vegetation trends—Comparing GIMMS and MODIS global NDVI time series. Remote Sens. Environ. 2012, 119, 131–147. [Google Scholar] [CrossRef]
  50. Stisen, S.; Sandholt, I.; Norgaard, A.; Fensholt, R.; Eklundh, L. Estimation of diurnal air temperature using MSG SEVIRI data in West Africa. Remote Sens. Environ. 2007, 110, 262–274. [Google Scholar] [CrossRef]
  51. Eastman, J.R.; Sangermano, F.; Ghimire, B.; Zhu, H.L.; Chen, H.; Neeti, N.; Cai, Y.M.; Machado, E.A.; Crema, S.C. Seasonal trend analysis of image time series. Int. J. Remote Sens. 2009, 30, 2721–2726. [Google Scholar] [CrossRef]
  52. Zhao, J.; Zhang, H.; Zhang, Z.; Guo, X.; Li, X.; Chen, C. Spatial and temporal changes in vegetation phenology at middle and high latitudes of the Northern Hemisphere over the past three decades. Remote Sens. 2015, 7, 10973–10995. [Google Scholar] [CrossRef]
  53. Fensholt, R.; Horion, S.; Tagesson, T.; Ehammer, A.; Ivits, E.; Rasmussen, K. Global-scale mapping of changes in ecosystem functioning from earth observation-based trends in total and recurrent vegetation. Glob. Ecol. Biogeogr. 2015, 24, 1003–1017. [Google Scholar] [CrossRef]
  54. Barichivich, J.; Briffa, K.R.; Myneni, R.B.; Osborn, T.J.; Melvin, T.M.; Ciais, P.; Piao, S.; Tucker, C. Large-scale variations in the vegetation growing season and annual cycle of atmospheric CO2 at high northern latitudes from 1950 to 2011. Glob. Chang. Biol. 2013, 19, 3167–3183. [Google Scholar] [CrossRef] [PubMed]
  55. Garonna, I.; de Jong, R.; de Wit, A.J.; Mucher, C.A.; Schmid, B.; Schaepman, M.E. Strong contribution of autumn phenology to changes in satellite-derived growing season length estimates across Europe (1982–2011). Glob. Chang. Biol. 2014, 20, 3457–3470. [Google Scholar] [CrossRef] [PubMed]
  56. Wu, C.Y.; Hou, X.H.; Peng, D.L.; Gonsamo, A.; Xu, S.G. Land surface phenology of China’s temperate ecosystems over 1999–2013: Spatial-temporal patterns, interaction effects, covariation with climate and implications for productivity. Agric. For. Meteorol. 2016, 216, 177–187. [Google Scholar] [CrossRef]
  57. Verbesselt, J.; Hyndman, R.; Newnham, G.; Culvenor, D. Detecting trend and seasonal changes in satellite image time series. Remote Sens. Environ. 2010, 114, 106–115. [Google Scholar] [CrossRef]
  58. Jong, R.; Verbesselt, J.; Schaepman, M.E.; Bruin, S. Trend changes in global greening and browning: Contribution of short-term trends to longer-term change. Glob. Chang. Biol. 2012, 18, 642–655. [Google Scholar] [CrossRef]
  59. Yang, Y.; Guan, H.; Shen, M.; Liang, W.; Jiang, L. Changes in autumn vegetation dormancy onset date and the climate controls across temperate ecosystems in China from 1982 to 2010. Glob. Chang. Biol. 2015, 21, 652–665. [Google Scholar] [CrossRef] [PubMed]
  60. Horion, S.; Prishchepov, A.V.; Verbesselt, J.; de Beurs, K.; Tagesson, T.; Fensholt, R. Revealing turning points in ecosystem functioning over the Northern Eurasian agricultural frontier. Glob. Chang. Biol. 2016, 22, 2801–2817. [Google Scholar] [CrossRef] [PubMed]
  61. Wang, X.; Piao, S.; Xu, X.; Ciais, P.; MacBean, N.; Myneni, R.B.; Li, L. Has the advancing onset of spring vegetation green-up slowed down or changed abruptly over the last three decades? Glob. Ecol. Biogeogr. 2015, 24, 621–631. [Google Scholar] [CrossRef]
  62. Kim, Y.; Kimball, J.S.; Zhang, K.; McDonald, K.C. Satellite detection of increasing Northern Hemisphere non-frozen seasons from 1979 to 2008: Implications for regional vegetation growth. Remote Sens. Environ. 2012, 121, 472–487. [Google Scholar] [CrossRef]
  63. Wu, C.Y.; Chen, J.M.; Gonsamo, A.; Price, D.T.; Black, T.A.; Kurz, W.A. Interannual variability of net carbon exchange is related to the lag between the end-dates of net carbon uptake and photosynthesis: Evidence from long records at two contrasting forest stands. Agric. For. Meteorol. 2012, 164, 29–38. [Google Scholar] [CrossRef]
  64. Wu, C.Y.; Gonsamo, A.; Chen, J.M.; Kurz, W.A.; Price, D.T.; Lafleur, P.M.; Jassal, R.S.; Dragoni, D.; Bohrer, G.; Gough, C.M.; et al. Interannual and spatial impacts of phenological transitions, growing season length, and spring and autumn temperatures on carbon sequestration: A North America flux data synthesis. Glob. Planet. Chang. 2012, 92–93, 179–190. [Google Scholar] [CrossRef]
  65. Dragoni, D.; Schmid, H.P.; Wayson, C.A.; Potter, H.; Grimmond, C.S.B.; Randolph, J.C. Evidence of increased net ecosystem productivity associated with a longer vegetated season in a deciduous forest in south-central Indiana, USA. Glob. Chang. Biol. 2011, 17, 886–897. [Google Scholar] [CrossRef]
  66. Pilegaard, K.; Ibrom, A.; Courtney, M.S.; Hummelshoj, P.; Jensen, N.O. Increasing net CO2 uptake by a danish beech forest during the period from 1996 to 2009. Agric. For. Meteorol. 2011, 151, 934–946. [Google Scholar] [CrossRef]
  67. Keenan, T.F.; Gray, J.; Friedl, M.A.; Toomey, M.; Bohrer, G.; Hollinger, D.Y.; Munger, J.W.; O’Keefe, J.; Schmid, H.P.; Wing, I.S.; et al. Net carbon uptake has increased through warming-induced changes in temperate forest phenology. Nat. Clim. Chang. 2014, 4, 598–604. [Google Scholar] [CrossRef]
  68. Zhou, S.; Zhang, Y.; Ciais, P.; Xiao, X.; Luo, Y.; Caylor, K.K.; Huang, Y.; Wang, G. Dominant role of plant physiology in trend and variability of gross primary productivity in North America. Sci. Rep. 2017, 7, 41366. [Google Scholar] [CrossRef] [PubMed]
  69. Xia, J.; Niu, S.; Ciais, P.; Janssens, I.A.; Chen, J.; Ammann, C.; Arain, A.; Blanken, P.D.; Cescatti, A.; Bonal, D.; et al. Joint control of terrestrial gross primary productivity by plant phenology and physiology. Proc. Natl. Acad. Sci. USA 2015, 112, 2788–2793. [Google Scholar] [CrossRef] [PubMed]
  70. Park, T.; Ganguly, S.; Tømmervik, H.; Euskirchen, E.S.; Høgda, K.-A.; Karlsen, S.R.; Brovkin, V.; Nemani, R.R.; Myneni, R.B. Changes in growing season duration and productivity of northern vegetation inferred from long-term remote sensing data. Environ. Res. Lett. 2016, 11. [Google Scholar] [CrossRef]
  71. Ivits, E.; Horion, S.; Fensholt, R.; Cherlet, M. Drought footprint on European ecosystems between 1999 and 2010 assessed by remotely sensed vegetation phenology and productivity. Glob. Chang. Biol. 2014, 20, 581–593. [Google Scholar] [CrossRef] [PubMed]
  72. Sweet, S.K.; Griffin, K.L.; Steltzer, H.; Gough, L.; Boelman, N.T. Greater deciduous shrub abundance extends tundra peak season and increases modeled net CO2 uptake. Glob. Chang. Biol. 2015, 21, 2394–2409. [Google Scholar] [CrossRef] [PubMed]
  73. Churkina, G.; Schimel, D.; Braswell, B.H.; Xiao, X. Spatial analysis of growing season length control over net ecosystem exchange. Glob. Chang. Biol. 2005, 11, 1777–1787. [Google Scholar] [CrossRef]
  74. Lioubimtseva, E.; Henebry, G.M. Climate and environmental change in arid Central Asia: Impacts, vulnerability, and adaptations. J. Arid Environ. 2009, 73, 963–977. [Google Scholar] [CrossRef]
  75. Fensholt, R.; Langanke, T.; Rasmussen, K.; Reenberg, A.; Prince, S.D.; Tucker, C.; Scholes, R.J.; Le, Q.B.; Bondeau, A.; Eastman, R.; et al. Greenness in semi-arid areas across the globe 1981–2007—An earth observing satellite based analysis of trends and drivers. Remote Sens. Environ. 2012, 121, 144–158. [Google Scholar] [CrossRef]
  76. De Beurs, K.M.; Henebry, G.M.; Owsley, B.C.; Sokolik, I. Using multiple remote sensing perspectives to identify and attribute land surface dynamics in Central Asia 2001–2013. Remote Sens. Environ. 2015, 170, 48–61. [Google Scholar] [CrossRef]
  77. Chen, W.; Zorn, P.; White, L.; Olthof, I.; Zhang, Y.; Fraser, R.; Leblanc, S. Decoupling between plant productivity and growing season length under a warming climate in Canada’s arctic. Am. J. Clim. Chang. 2016, 05, 334–359. [Google Scholar] [CrossRef]

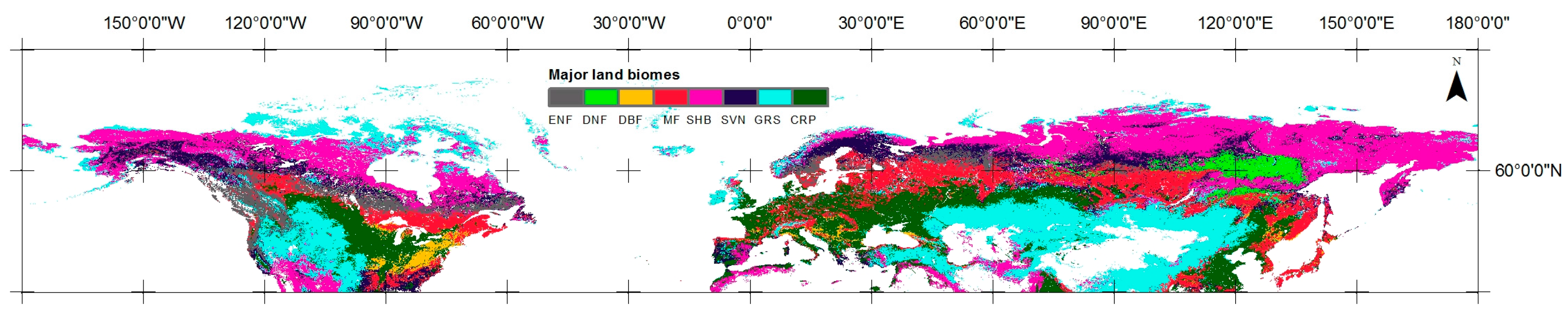

Figure 1. Major land biomes of mid- and high-latitudes of the NH aggregated from MODIS MCD12C1 global land cover product in 2001. ENF: evergreen needleleaf forest, DNF: deciduous needleleaf forest, DBF: deciduous broadleaf forest, MF: mixed forest, SHB: shrublands, SVN: savannas, GRS: grasslands, CRP: croplands. Note: SHB: including closed shrublands and open shrublands; SVN: including woody savannas and savannas.
Figure 1. Major land biomes of mid- and high-latitudes of the NH aggregated from MODIS MCD12C1 global land cover product in 2001. ENF: evergreen needleleaf forest, DNF: deciduous needleleaf forest, DBF: deciduous broadleaf forest, MF: mixed forest, SHB: shrublands, SVN: savannas, GRS: grasslands, CRP: croplands. Note: SHB: including closed shrublands and open shrublands; SVN: including woody savannas and savannas.
Remotesensing 09 01277 g001

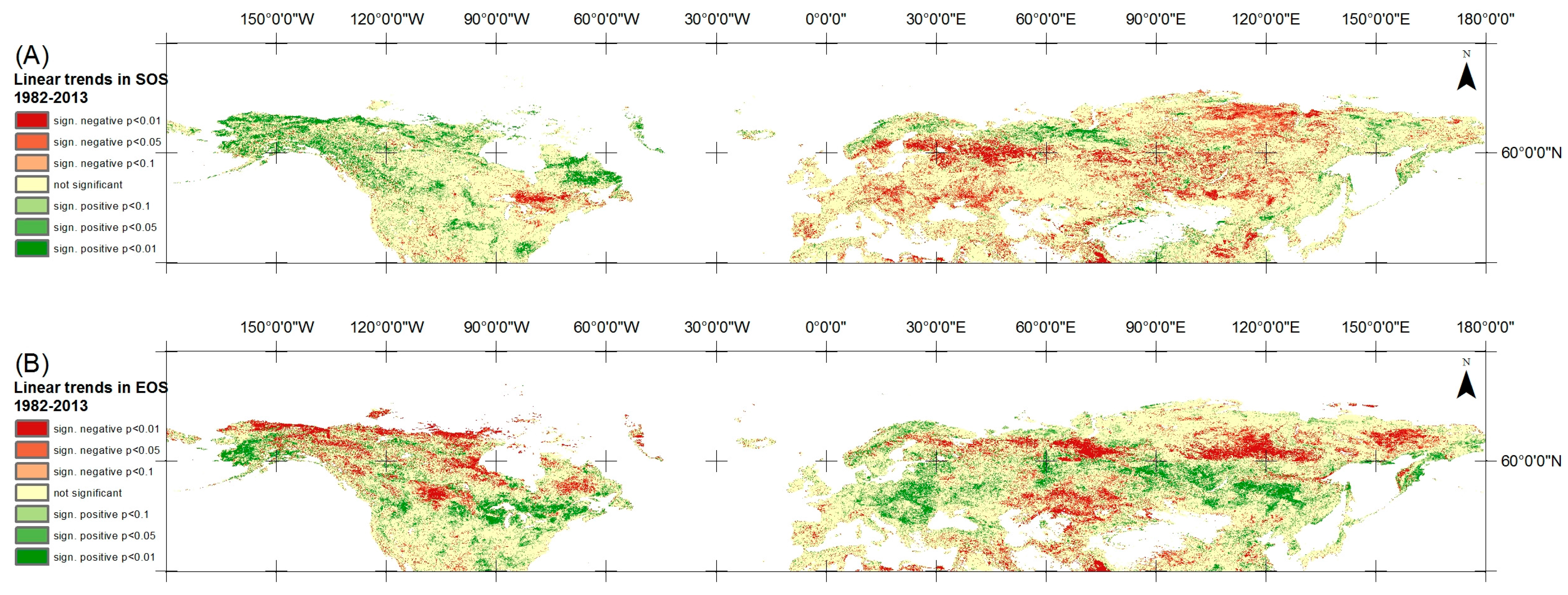

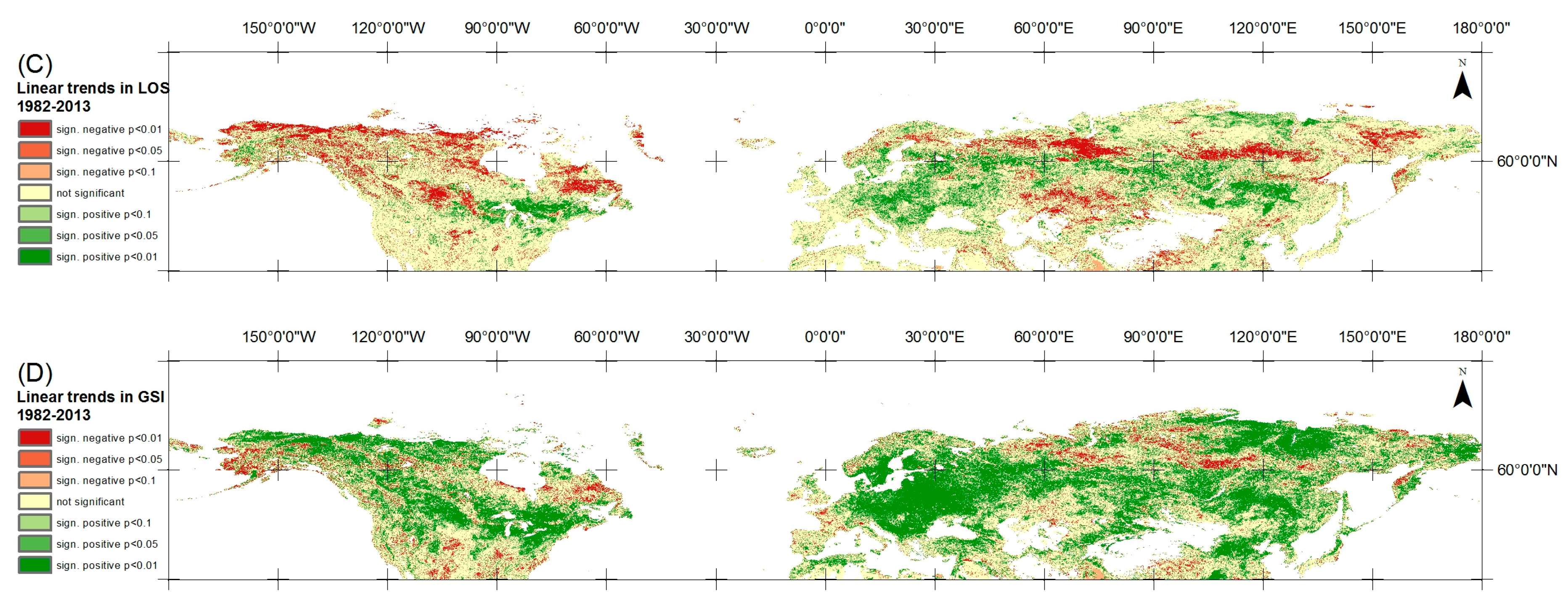

Figure 2. Linear trends in vegetation phenology and growing season integral 1982–2013. (A) Linear trends in SOS. (B) Linear trends in EOS. (C) Linear trends in LOS. (D) Linear trends in GSI. Note: positive trends indicate delaying SOS/EOS dates whereas negative trends denote advancing SOS/EOS dates.
Figure 2. Linear trends in vegetation phenology and growing season integral 1982–2013. (A) Linear trends in SOS. (B) Linear trends in EOS. (C) Linear trends in LOS. (D) Linear trends in GSI. Note: positive trends indicate delaying SOS/EOS dates whereas negative trends denote advancing SOS/EOS dates.
Remotesensing 09 01277 g002aRemotesensing 09 01277 g002b
Figure 3. Comparison of trends in LOS and GSI 1982–2013. −1: denotes significant negative trends, +1: significant positive trends, 0: non-significant trends (p = 0.1).
Figure 3. Comparison of trends in LOS and GSI 1982–2013. −1: denotes significant negative trends, +1: significant positive trends, 0: non-significant trends (p = 0.1).
Remotesensing 09 01277 g003

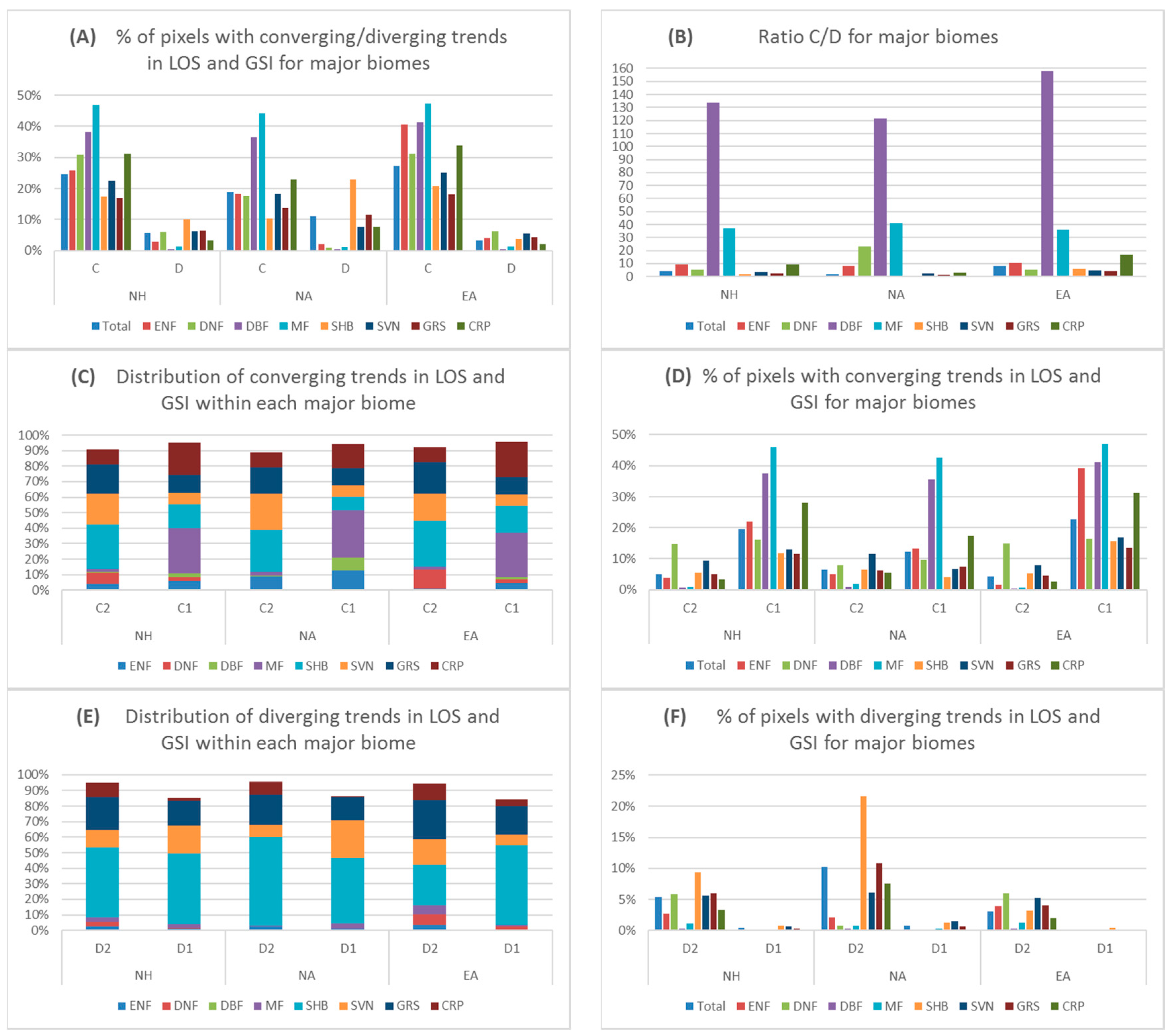

Figure 4. (A) Percentages of pixels with converging/diverging trends in LOS and GSI for major biomes. C denotes converging trends, D: diverging trends. (B) Ratios of pixels with converging trends and pixels with diverging trends for major biomes. (C) Distribution of converging trends in LOS and GSI within each major biome (only distributions within eight major biomes are shown). C1 denotes converging trends type 1 (consistent significant positive trends in LOS and GSI) and C2 denotes converging trends type 2 (consistent significant negative trends in LOS and GSI). (D) Percentages of pixels with converging trends in LOS and GSI for major biomes. (E) Distribution of diverging trends in LOS and GSI within each major biome (only distributions within eight major biomes are shown). D1 denotes diverging trends type 1 (significant positive trends in LOS and significant negative trends in GSI) and D2 denotes diverging trends type 2 (significant negative trends in LOS and significant positive trends in GSI). (F) Percentages of pixels with diverging trends in LOS and GSI for major biomes.
Figure 4. (A) Percentages of pixels with converging/diverging trends in LOS and GSI for major biomes. C denotes converging trends, D: diverging trends. (B) Ratios of pixels with converging trends and pixels with diverging trends for major biomes. (C) Distribution of converging trends in LOS and GSI within each major biome (only distributions within eight major biomes are shown). C1 denotes converging trends type 1 (consistent significant positive trends in LOS and GSI) and C2 denotes converging trends type 2 (consistent significant negative trends in LOS and GSI). (D) Percentages of pixels with converging trends in LOS and GSI for major biomes. (E) Distribution of diverging trends in LOS and GSI within each major biome (only distributions within eight major biomes are shown). D1 denotes diverging trends type 1 (significant positive trends in LOS and significant negative trends in GSI) and D2 denotes diverging trends type 2 (significant negative trends in LOS and significant positive trends in GSI). (F) Percentages of pixels with diverging trends in LOS and GSI for major biomes.
Remotesensing 09 01277 g004

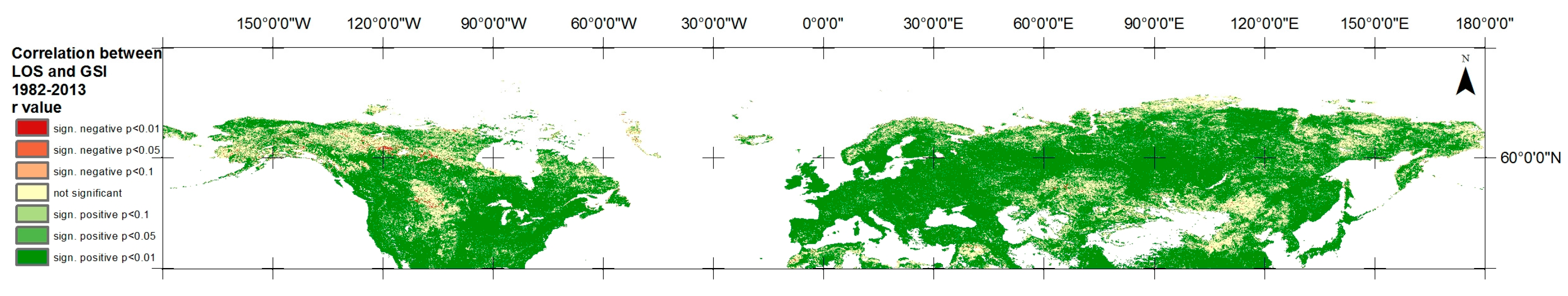

Figure 5. Map of r-values for correlations between length of vegetation growing season (LOS) and growing season NDVI integral (GSI) 1982–2013.
Figure 5. Map of r-values for correlations between length of vegetation growing season (LOS) and growing season NDVI integral (GSI) 1982–2013.
Remotesensing 09 01277 g005

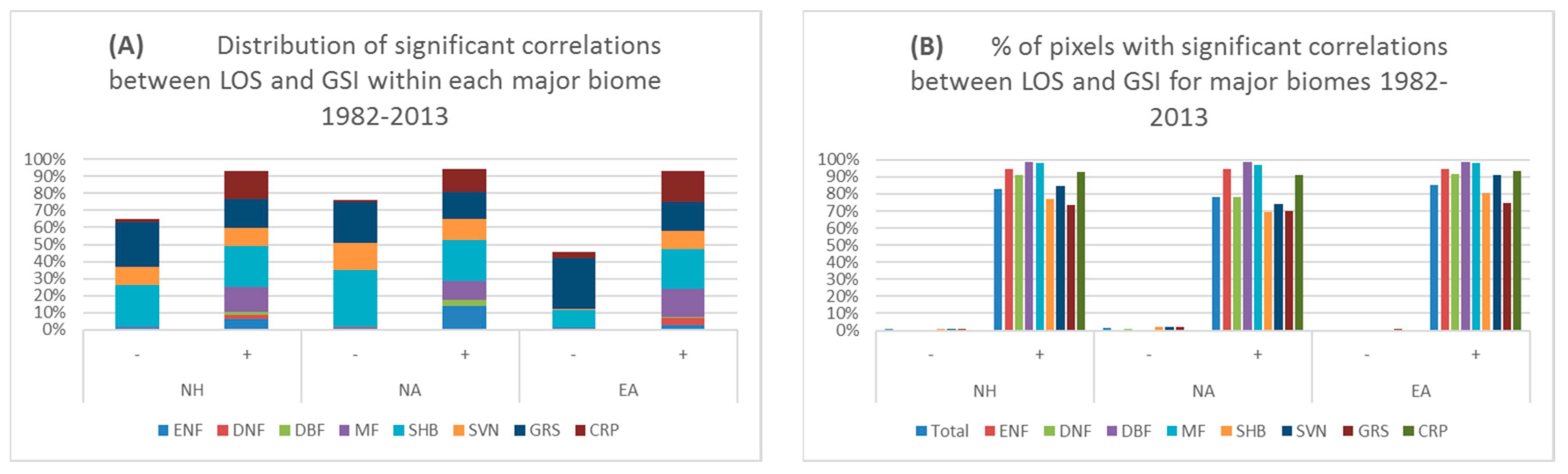

Figure 6. (A) Distribution of pixels with significant correlations between LOS and GSI within each major biome during 1982–2013 (only distributions within eight major biomes are shown). (B) Percentages of pixels with significant correlations between LOS and GSI for major biomes during 1982–2013.
Figure 6. (A) Distribution of pixels with significant correlations between LOS and GSI within each major biome during 1982–2013 (only distributions within eight major biomes are shown). (B) Percentages of pixels with significant correlations between LOS and GSI for major biomes during 1982–2013.
Remotesensing 09 01277 g006
Figure 7. Trends in correlations between LOS and GSI from 1982–1997 to 1998–2013 (17 moving windows).
Figure 7. Trends in correlations between LOS and GSI from 1982–1997 to 1998–2013 (17 moving windows).
Remotesensing 09 01277 g007
Figure 8. (A) Distribution of pixels with significant trends in correlations between LOS and GSI from 1982–1997 to 1998–2013 (17 moving windows) within each major biome (only distributions within eight major biomes are shown). (B) Percentages of pixels with significant trends in correlations between LOS and GSI for major biomes.
Figure 8. (A) Distribution of pixels with significant trends in correlations between LOS and GSI from 1982–1997 to 1998–2013 (17 moving windows) within each major biome (only distributions within eight major biomes are shown). (B) Percentages of pixels with significant trends in correlations between LOS and GSI for major biomes.
Remotesensing 09 01277 g008
Table 1. Comparison of LOS and GSI time series trends during 1982–2013 (Figure 3) at hemispheric and continental scales. The first mentioned trend represents LOS and the second trend denotes GSI (p = 0.1). (a): converging trends type 2, (b): diverging trends type 2, (c): diverging trends type 1, (d): converging trends type 1 (a + d: consistent significant positive trends in LOS and GSI, b + c: opposite significant trends in LOS and GSI).
Table 1. Comparison of LOS and GSI time series trends during 1982–2013 (Figure 3) at hemispheric and continental scales. The first mentioned trend represents LOS and the second trend denotes GSI (p = 0.1). (a): converging trends type 2, (b): diverging trends type 2, (c): diverging trends type 1, (d): converging trends type 1 (a + d: consistent significant positive trends in LOS and GSI, b + c: opposite significant trends in LOS and GSI).
NH NA EA
n%n%n%
Total1,104,980 348,672 756,308
(a) −1, −155,9995.07%22,5586.47%33,4414.42%
−1, 096,8568.77%36,45510.46%60,4017.99%
(b) −1, +159,3585.37%35,83710.28%23,5213.11%
0, −149,4354.47%21,7486.24%27,6873.66%
0, 0293,98926.61%93,71226.88%200,27726.48%
0, +1292,00026.43%82,83623.76%209,16427.66%
(c) +1, −144940.41%28000.80%16940.22%
+1, 037,8073.42%10,0912.89%27,7163.66%
(d) +1, +1215,04219.46%42,63512.23%172,40722.80%
a + d271,04124.53%65,19318.70%205,84827.22%
b + c63,8525.78%38,63711.08%25,2153.33%
Table 2. Statistics (number of pixels and percentages) of significant trends in vegetation metrics (phenology (Figure 2A–C) and growing season integral (Figure 2D)) during 1982–2013 at hemispheric and continental scales. (−1: significant negative trends, +1: significant positive trends, 0: non-significant trends (p = 0.1)).
Table 2. Statistics (number of pixels and percentages) of significant trends in vegetation metrics (phenology (Figure 2A–C) and growing season integral (Figure 2D)) during 1982–2013 at hemispheric and continental scales. (−1: significant negative trends, +1: significant positive trends, 0: non-significant trends (p = 0.1)).
NH NA EA
n%n%n%
−1222,28420.12%28,0478.04%194,23725.68%
SOS0720,20165.18%222,84263.91%497,35965.76%
1162,53414.71%97,80528.05%64,7298.56%
Total1,105,019 348,694 756,325
−1219,73519.88%75,17621.56%144,55919.11%
EOS0647,95958.63%190,66154.67%457,29860.46%
1237,46921.49%82,92223.78%154,54720.43%
Total1,105,163 348,759 756,404
−1212,28719.21%94,88727.22%117,40015.52%
LOS0635,82157.54%198,41256.91%437,40957.84%
1256,83723.24%55,35315.88%201,48426.64%
Total1,104,945 348,652 756,293
−1109,9289.95%47,10613.51%62,8228.30%
GSI0429,26538.83%140,44240.27%288,82338.17%
1566,16651.22%161,20446.22%404,96253.52%
Total1,105,359 348,752 756,607
Table 3. Statistics (number of pixels and percentages) of significant correlations between LOS and GSI (1982–2013) (p = 0.1).
Table 3. Statistics (number of pixels and percentages) of significant correlations between LOS and GSI (1982–2013) (p = 0.1).
NH NA EA
n%n%n%
1982–2013−194160.85%60491.73%33670.44%
0177,55616.06%69,71819.98%107,83814.25%
1918,92583.09%273,17178.29%645,75485.31%
Total1,105,897 348,938 756,959
Table 4. Statistics (number of pixels and percentages) of significant trends in correlations between LOS and GSI (Figure 7) at hemispheric and continental scales (p = 0.1).
Table 4. Statistics (number of pixels and percentages) of significant trends in correlations between LOS and GSI (Figure 7) at hemispheric and continental scales (p = 0.1).
NH NA EA
n%n%n%
Trends−1343,73831.14%90,38425.92%253,35433.55%
0321,24929.10%94,71827.16%226,53130.00%
1438,93339.76%163,63946.92%275,29436.45%
Total110,3920 348,741 755,179

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Remote Sens. EISSN 2072-4292 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
