Open AccessArticle
Remote Sens. 2017, 9(12), 1260; https://doi.org/10.3390/rs9121260

Multipath Interferences in Ground-Based Radar Data: A Case Study

1
Institute of Environmental Engineering (IfU), ETH Zürich, 8093 Zürich, Switzerland
2
Institute for Snow and Avalanche Research (SLF), 7260 Davos Dorf, Switzerland
3
Department of Engineering and Innovation, Open University, MK7 6AA Milton Keynes, UK
4
Microwaves and Radar Institute, German Aerospace Center (DLR), 82234 Weßling, Germany
*
Authors to whom correspondence should be addressed.
Received: 24 October 2017 / Revised: 30 November 2017 / Accepted: 2 December 2017 / Published: 5 December 2017
Full-Text   |   PDF [13979 KB, uploaded 5 December 2017]   |

Abstract

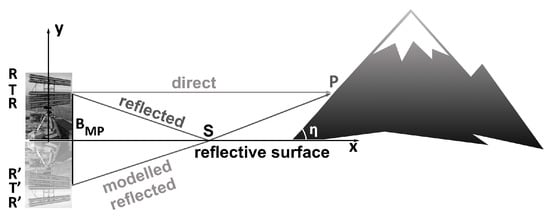

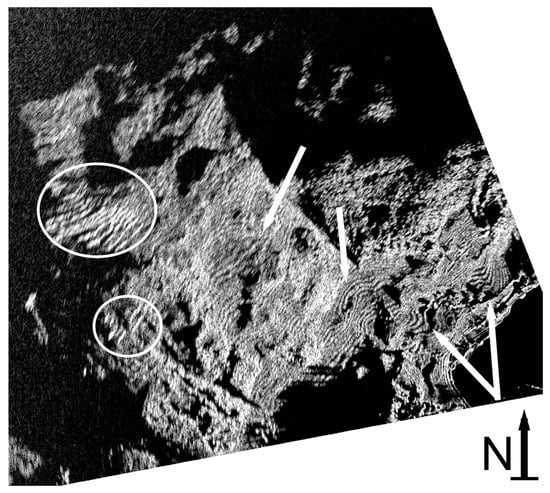

Multipath interference can occur in ground-based radar data acquired with systems with a large antenna beam width in elevation in an upward looking geometry, where the observation area and the radar are separated by a reflective surface. Radiation reflected at this surface forms a coherent overlay with the direct image of the observation area and appears as a fringe-like pattern in the data. This deteriorates the phase and intensity data and therefore can pose a considerable disadvantage to many ground-based radar measurement campaigns. This poses a problem for physical parameter retrieval from backscatter intensity and polarimetric data, absolute and relative calibration on corner reflectors, the generation of digital elevation models from interferograms and in the case of a variable reflective surface, differential interferometry. The main parameters controlling the interference pattern are the vertical distance between the radar antennas and the reflective surface, and the reflectivity of this surface. We used datasets acquired in two different locations under changing conditions as well as a model to constrain and fully understand the phenomenon. To avoid data deterioration in test sites prone to multipath interference, we tested a shielding of the antennas preventing the radar waves from illuminating the reflective surface. In our experiment, this strongly reduced but did not completely prevent the interference. We therefore recommend avoiding measurement geometries prone to multipath interferences. View Full-Text
Keywords: radar; interference; interferometry; reflection; multipath interference radar; interference; interferometry; reflection; multipath interference
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
