Sea and Freshwater Ice Concentration from VIIRS on Suomi NPP and the Future JPSS Satellites

Cooperative Institute for Meteorological Satellite Studies, University of Wisconsin-Madison, 1225 West Dayton St., Madison, WI 53706, USA
NOAA/NESDIS, 1225 West Dayton St., Madison, WI 53706, USA
Northrop Grumman Aerospace Systems, Redondo Beach, CA 90278, USA
Author to whom correspondence should be addressed.
Academic Editors: Walt Meier, Mark Tschudi, Xiaofeng Li and Prasad S. Thenkabail
Received: 9 March 2016 / Revised: 1 June 2016 / Accepted: 13 June 2016 / Published: 22 June 2016
(This article belongs to the Special Issue Sea Ice Remote Sensing and Analysis)
Full-Text   |   PDF [5978 KB, uploaded 22 June 2016]   |

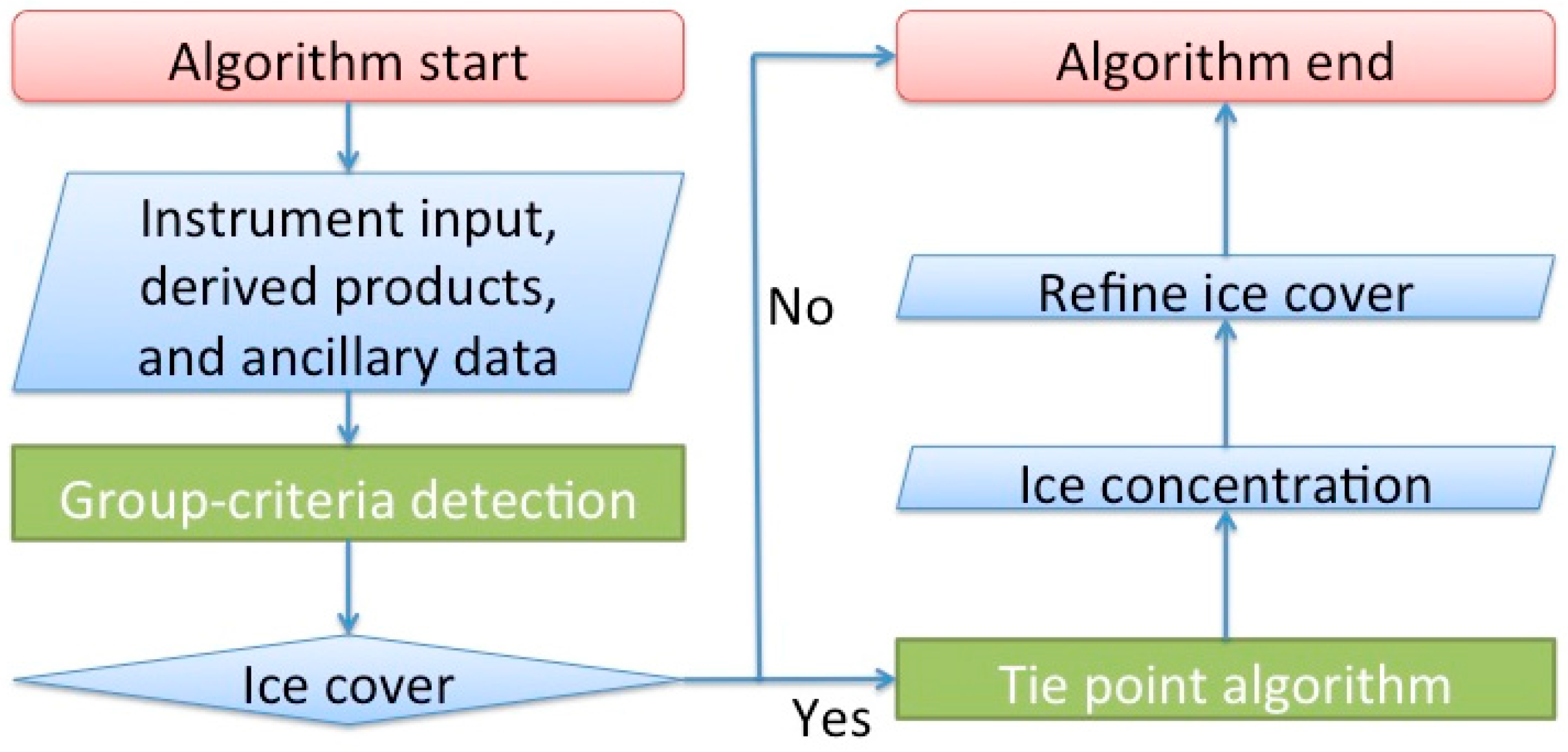

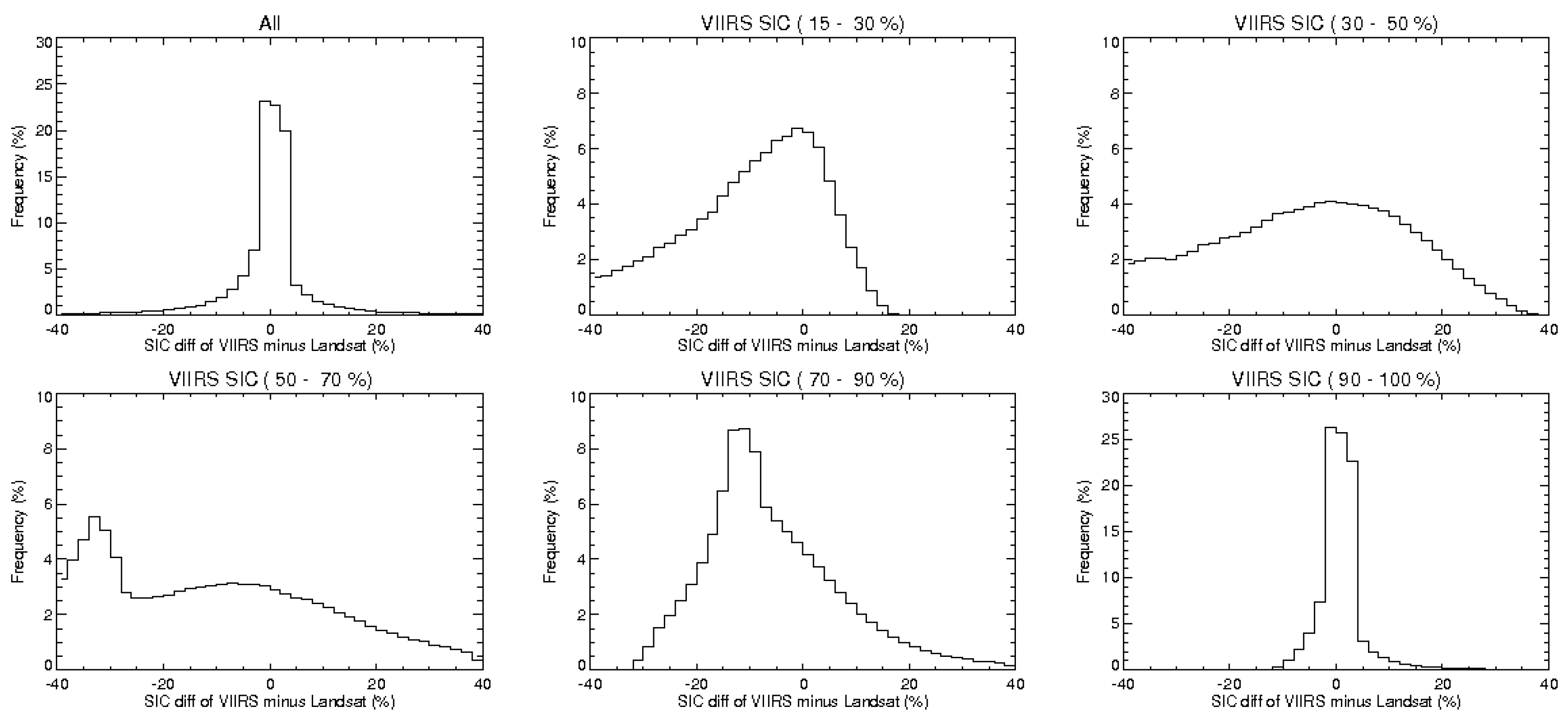

Information on ice is important for shipping, weather forecasting, and climate monitoring. Historically, ice cover has been detected and ice concentration has been measured using relatively low-resolution space-based passive microwave data. This study presents an algorithm to detect ice and estimate ice concentration in clear-sky areas over the ocean and inland lakes and rivers using high-resolution data from the Visible Infrared Imaging Radiometer Suite (VIIRS) onboard the Suomi National Polar Orbiting Partnership (S-NPP) and on future Joint Polar Satellite System (JPSS) satellites, providing spatial detail that cannot be obtained with passive microwave data. A threshold method is employed with visible and infrared observations to identify ice, then a tie-point algorithm is used to determine the representative reflectance/temperature of pure ice, estimate the ice concentration, and refine the ice cover mask. The VIIRS ice concentration is validated using observations from Landsat 8. Results show that VIIRS has an overall bias of −0.3% compared to Landsat 8 ice concentration, with a precision (uncertainty) of 9.5%. Biases and precision values for different ice concentration subranges from 0% to 100% can be larger. View Full-Text
Keywords: ice; ice concentration; Suomi NPP; JPSS; remote sensing ice; ice concentration; Suomi NPP; JPSS; remote sensing

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Liu, Y.; Key, J.; Mahoney, R. Sea and Freshwater Ice Concentration from VIIRS on Suomi NPP and the Future JPSS Satellites. Remote Sens. 2016, 8, 523.
