Drivers of Productivity Trends in Cork Oak Woodlands over the Last 15 Years

by
Maria João Santos
1,*,
Matthias Baumann
2 and
Catarina Esgalhado
1
1
Department of Innovation, Environmental and Energy Sciences, Utrecht University, Heidelberglaan 2, 3572TC Utrecht, The Netherlands
2
Geography Department, Humboldt-University Berlin, Unter den Linden 6, 10099 Berlin, Germany
*
Author to whom correspondence should be addressed.
Remote Sens. 2016, 8(6), 486; https://doi.org/10.3390/rs8060486
Submission received: 14 February 2016 / Revised: 27 May 2016 / Accepted: 31 May 2016 / Published: 8 June 2016
(This article belongs to the Special Issue Remote Sensing of Biodiversity)
Browse Figures
Versions Notes

Abstract

:
Higher biodiversity leads to more productive ecosystems which, in turn, supports more biodiversity. Ongoing global changes affect ecosystem productivity and, therefore, are expected to affect productivity-biodiversity relationships. However, the magnitude of these relationships may be affected by baseline biodiversity and its lifeforms. Cork oak (Quercus suber) woodlands are a highly biodiverse Mediterranean ecosystem managed for cork extraction; as a result of this management cork oak woodlands may have both tree and shrub canopies, just tree and just shrub canopies, and just grasslands. Trees, shrubs, and grasses may respond differently to climatic variables and their combination may, therefore, affect measurements of productivity and the resulting productivity-biodiversity relationships. Here, we asked whether the relationship between productivity and climate is affected by the responses of trees, shrubs, and grasses in cork oak woodlands in Southern Portugal. To answer this question, we linked a 15-year time series of Enhanced Vegetation Index (EVI) derived from Landsat satellites to micrometeorological data to assess the relationship between trends in EVI and climate. Between 2000 and 2013 we observed an overall decrease in EVI. However, EVI increased over cork oaks and decreased over shrublands. EVI trends were strongly positively related to changes in relative humidity and negatively related to temperature. The intra-annual EVI cycle of grasslands and sparse cork oak woodland without understorey (savannah-like ecosystem) had higher variation than the other land-cover types. These results suggest that oaks and shrubs have different responses to changes in water availability, which can be either related to oak physiology, to oaks being either more resilient or having lagged responses to changes in climate, or to the fact that shrublands start senesce earlier than oaks. Our results also suggest that in the future EVI could improve because the rate of increase in minimum EVI is greater than the rate of decrease in maximum EVI, and that this is contingent on management of the shrub understorey as it affects the rate of decrease in maximum EVI. This will be the challenge for the persistence of cork oak woodlands, their associated biodiversity and social-ecological system.

Graphical Abstract

1. Introduction

One of the key ecological paradigms is the relationship between biodiversity and productivity [1,2]. Higher biodiversity leads to more productive ecosystems [3,4], and more productive environments support more biodiversity [5,6]. Two mechanisms relate biodiversity to productivity. On one hand, resource acquisition can be done by obtaining the necessary resources along a productivity gradient, commonly referred to as niche complementarity [7]. On the other hand, species may improve their resource utilization efficiency, which is called niche efficiency [8]. Both mechanisms link plant and animal biodiversity to ecosystem productivity [8,9], though provide only two of the many explanations and shapes of productivity-biodiversity relationships, highlighting the general need for more research linking patterns of primary productivity and functional types of organisms (or life-forms) that use resources in different ways [10]. Ongoing global changes are affecting ecosystem productivity [11,12,13] and, thus, likely alter the relationship between productivity and biodiversity. However, it remains unclear to what extent such climate-induced changes in productivity-biodiversity relationships are mediated by baseline biodiversity and its life-forms.
Climate changes are predicted to increase stress on the productivity-biodiversity relationship particularly in Mediterranean systems [14], with general increases in temperatures and seasonal changes in precipitation including overall less annual precipitation [15]. While the general expectation is that such changes in climate result in a decrease in productivity, it remains unclear whether the baseline biodiversity and its lifeforms in Mediterranean systems will all respond in the same way. In other words, changes in temperature and water may change productivity in different directions [16], but it is unclear how such changes affect the overall net result and shape of the productivity-biodiversity relationships.
Mediterranean ecosystems hold high biodiversity despite the long history of management [17,18,19] and, because, of this are classified as a biodiversity hotspot [20]. In the Mediterranean basin, these ecosystems may hold up to 25,000 species of native plants and 920 species of vertebrates [21]. Cork oak woodlands are home to a large fraction of these species, which have been maintained through management [22,23]. Variation in management regimes have resulted in a patchwork landscape in which oak woodlands are a mix of trees and shrubs, only trees or shrubs, and grasslands [22,23], which may all respond differently to changes in climate. Thus, the mix of different regimes in the same landscape may allow testing whether different life-forms (i.e., trees, shrubs and grasses) respond differently to climatic variables, thus, affecting measurements of productivity and the resulting productivity-biodiversity relationships [24].
Remote sensing is a useful tool to assess changes in ecosystem productivity [11,25] and may, thus, contribute to our understanding of temporal changes in biodiversity [26], habitat [27], and its associated ecosystem services [28,29]. Estimates of primary productivity using remote sensing data and methods are often derived from several vegetation indices, including the Normalized Difference Vegetation Index (NDVI, [30]), or the Enhanced Vegetation Index (EVI, [31]). While both indices can be calculated from a variety of satellite remote-sensing data, linking vegetation indices to functional vegetation types at the local to regional scale requires a sufficient spatial and temporal resolution. Landsat imagery, with their moderate to high spatial (30 m) and temporal resolutions (8–16 days on the archive of Landsat Thematic Mapper (TM) and Enhanced Thematic Mapper Plus (ETM+), and 16 days with current Landsat 8 (OLI) data), match these criteria and are thus well suited for monitoring changes in ecosystems [29,32,33,34]. The rich Landsat archive provides imagery since the mid-1980s [35,36] and the free availability triggered a wide range of applications including assessing changes in green leaf phenology [37], changes in evapotranspiration [38], or changes in gross primary production [39], among others [40]. Further, remotely-sensed estimates of ecosystem functioning provided valuable input in assessing habitat heterogeneity [27], quality [41,42], and species responses to it [43,44,45]. As such, Landsat data may be of high value for analyzing the spatio-temporal dynamics of ecosystem productivity and productivity–biodiversity relationships.
Here our goal was to assess whether the relationship between productivity and climate is affected by the responses of trees, shrubs, and grasses in cork oak (Quercus suber) woodlands in Southern Portugal, and we used Landsat time series of the enhanced vegetation index (EVI) and local weather data to do so. Specifically, we hypothesized that:
Cork oaks and shrubs (mainly Cistus spp.) will show different responses to changes in temperature and humidity because cork oak leaves are better adapted to water shortage than the leaves of the understory shrub species. Therefore, we expect no changes in EVI in patches with dense and sparse cork oak forests without understorey (Figure 1c,e).
(a)
We expect a decrease in EVI in dense and sparse cork oak with understorey (Figure 1b,d) because the negative EVI of the shrub layer effect will dominate over the stable effect of the cork oak. This is because the life-cycle of shrubs operates in a seasonal time span while oaks operate in a yearly time span.
(b)
Sparse cork oak woodlands with shrub understorey (Figure 1d) are more resistant to changes in temperature and humidity than sparse cork oak woodlands without shrub understorey (Figure 1e) because in the absence of oaks, shrub leaves are relatively more resilient to changes in humidity and temperature than annual or perennial grasses.
(c)
Grasslands show substantially stronger intra- that inter-annual variability in EVI compared to sparse and dense cork oak woodlands. This is because the life-cycle of grasses operates in a shorter time span than that of shrubs and oaks.

2. Methodology

2.1. Study Area

This study was conducted in a 20 km2 area in Serra de Grândola, Portugal (Figure 1). The region is dominated by cork oak (Quercus suber) and holm oak (Q. ilex) woodlands, interspersed with pastures, Tasmanian blue gum stands (Eucalyptus globulus), riparian vegetation (dominated by alder Alnus glutinosa, elm Ulmus spp., blackberries Rubus ulmifolius), orchards (mainly composed by pears Pyrus bourgeana, figs Ficus carica, loquats Eryobrotia japonica), and human settlements (mainly the village of Santa Margarida da Serra; [46]).
Topography is moderate, with gentle slopes and low altitude (159 to 238 m). Climate is Mediterranean with an Atlantic influence, mean annual precipitation of 500 mm, and maximum average daily temperatures ranging from 5 °C to 35 °C [46].The area holds a high richness of species with varying conservation status (Table 1; [47,48]).

2.2. Data Acquisition

2.2.1. Remote Sensing Data

We used a time series of EVI to describe the phenological evolution in our study area. EVI is particularly well suited for cork oak woodlands, because it is generally less affected by the saturation of dense canopy covers [49], which are characteristic of cork oak woodlands. Further, EVI has been particularly useful for ecosystem modeling [50], monitoring vegetation phenology [51], and assessing vegetation responses to droughts [52]. We generated our time series from all available Landsat imagery between the years 2000 and 2013 for the two footprints that cover our study area (Path/Row 204/33, 204/34), resulting in a time series of 296 images. We pre-processed all images by converting digital numbers into surface reflectance values using the Landsat Ecosystem Disturbance Adaptive Processing System (LEDAPS; [53]), and (b) masking all clouds and cloud shadows using Fmask [54]. We chose this approach because for calculating EVI we need surface reflectance and we chose to use a standard method across all the samples. We then calculated the EVI for each image (Equation (1)):
E V I = G × [ ρ N I R − ρ R ρ N I R + C 1 × ρ R − C 2 × ρ B + L ]
where ρx is the surface reflectance for band × (NIR = shortwave infrared band, R = red band, B = blue band), L is the canopy background adjustment, C1 and C2 are the coefficients of the aerosol resistance term, and G is a gain or scaling factor [31].

2.2.2. Land-Cover

We selected only land-cover types of interest to assess EVI trends over stable land-cover types. To do so, we used an existing land-cover map and selected only areas which did not show any land-cover change. The map was based on visual interpretation of a 1 m spatial resolution aerial photograph of the year 1995 [46], and distinguished nine land-cover types within our study area: dense cork oak woodlands with understory (DCoW), dense cork oak woodlands without understory (DCoWt), sparse cork oak woodlands with understory (SCoW), sparse cork oak woodlands without understory (SCoWt), olive yards and orchards (O), riparian vegetation (RV), grasslands (G), eucalyptus plantations (E), and human settlements (S; Figure 2). We chose to focus on five of these land-cover types to test our hypotheses: (i) dense and sparse cork oak without understorey (DCoWt, SCoWt) because these areas represent the response of cork oaks; (ii) dense cork oak with understorey (DCoW) because it represents the combined response of oaks and shrubs; (iii) sparse oak with understorey (SCoW) because it represents the response of shrubs (mostly Cistus spp.); and (iv) grasslands (G) that represent the response of the herbaceous layer.

2.2.3. Meteorological Data

Data on local meteorological parameters was collected using a Wireless Vantage Pro2™ with Standard Radiation Shield (Davis Inc., Hayward, CA, USA) micro-meteorological station installed at the site in 2003. The micrometeorological station was installed in the Herdade da Ribeira Abaixo, a field station of the University of Lisbon in April 2003 in the context of the Long Term Ecological Research site of montado (FCT/LTER/BIA-BEC/0048/2009). The station records date and time, temperature (°C), relative humidity (0%–100%), dew point (°C), wind speed (km/h), and wind chill (°C) in a 30 min interval. In addition, the station provides a heat index (°C), calculated as a ratio of the instant outside temperature and instant outside relative humidity.
We used data from this station aggregated to daily averages. We chose to analyze only the effect of temperature (T), relative humidity (RH), and heat index (HI) on the EVI trend because these weather parameters are more tightly linked to productivity than the parameters directly measuring wind or metrics that depend on wind. Due to malfunctioning, there were data gaps between the end of March 2006 and May 2007, December 2008 and October 2009, March and July 2011, and April 2012 to February 2014. Unfortunately, it was not possible to complement these data gaps with other meteorological data from the surroundings because the closest station was in pine plantations.

2.3. Data Analysis

We based our analysis on a sub-region of ~1.8 km2 in the immediate vicinity of the weather station so that we could test effects of local weather on local productivity measurements. Further, this close match between the scales of the measurements ensured that the potential relationships are interpretable at the local level, before scaling up to more general patterns for larger areas. This choice reduced the number of available data points, however, still within what is considered a sufficient sample size if significant differences are to be detected and we do not think that it hinders the relevance of the findings. These locations were randomly chosen across all land-cover types, and the random selection provided proportional representation of each land-cover. We then extracted the aggregated weather data for each day in our time series for and merged this information to the EVI values of our Landsat time series. This resulted in a time series containing, overall, 107 observations (i.e., time points) between 2000 and 2015, which served as the input for our analysis (Table 2).
To measure intra-annual variability in productivity, we calculated the coefficient of variation (CoV) for the EVI time series and for the EVI for each land-cover type individually. CoV measures the dispersion in the values across a period of time, therefore, allowing for the comparison of the relative variability of EVI for each land-cover type [55]. High CoV values indicate a strong intra-annual variability in EVI, while low CoV values indicate a more homogeneous EVI and, therefore, a lower intra-annual variability.
To test whether there is inter-annual variability within the EVI time series, we used Kendall’s tau (τ; [56]), a commonly used test to detect trends in time series (for examples see [57,58]). We assessed whether there were significant trends in overall EVI, and by land-cover type. In addition we tested whether EVI trends were varying in the same direction or in different directions by correlating minimum and maximum EVI using Spearman’s correlation coefficient.
Finally, to test whether temperature (T), relative humidity (RH), and heat index (HI) were related to EVI trends, we correlated the two trends for the dates for which we had both weather and EVI data. We repeated the analysis for the average EVI combined for all land-cover types, and for average EVI per land-cover type. To do so we correlated maximum and minimum EVI with the three weather parameters using Spearman’s correlation coefficient.

3. Results

3.1. Intra-Annual Variability

EVI in the study area followed a yearly phenological cycle for all land-cover types. EVI was highest in spring (February to May; EVIFeb = 0.355 ± 0.05, EVIMar = 0.397 ± 0.05, EVIApr = 0.415 ± 0.04, EVIMay = 0.375 ± 0.06) and lowest during summer (July, August, and September; EVIJul = 0.259 ± 0.03, EVIAug = 0.238 ± 0.04, EVISep = 0.229 ± 0.04). Overall, the onset of productivity occurs from October to November, at the time of the first rains, and the downfall from April to May, as temperatures increase. Cork oak woodlands with understorey have the smoothest EVI yearly cycle, i.e., have the lowest CoV, whereas grasslands have the least smooth cycle with the highest CoV (Figure 3). Sparse cork oak woodlands without understorey follow closely the CoV of grasslands, likely because of their savannah-like morphology.

3.2. Inter-Annual Variability

During our study period (2000–2013) we found a small but significant downward trend in maximum EVI and a significant upward trend for minimum EVI. The increase in minimum EVI was slightly higher than the decrease in maximum EVI, with little correlation between maximum and minimum EVI (R2 = 0.203; Spearman’s rho = 0.211; Table 3).
Contrary to the expectation, cork oak woodlands without understorey showed a significant increase in minimum EVI and a trend towards a decreasing maximum EVI (Table 3). The average minimum EVI over the entire time series and for all land-cover types was 0.171, whereas, for DCoWt, it was 0.22. Further, and in line with the expectations, sparse cork oak woodland with understorey shrubs show a decreasing trend in maximum EVI. The average maximum EVI over the entire time series and for all land-cover types was 0.464, whereas, for SCoWt, it was 0.394. Despite the high intra-annual variability in grasslands EVI we found no significant trend in EVI over the entire time series, except for a potential increase in minimum EVI (average min EVI = 0.20, average max EVI = 0.434; Table 3).

3.3. EVI and Weather Conditions

Over the last fifteen years, the study area has experienced an average temperature of 15.5 °C (maximum temperature = 45.2 °C; minimum temperature = −8.4 °C), an average relative humidity of 78.6% (maximum RH = 100%, minimum RH = 12%) and an average heat index of 15.67 °C (maximum HI = 45.33 °C). We found a strongly decreasing trend in relative humidity, while temperature trends were still decreasing, but by a small amount.
EVI trend was strongly correlated with the trend in relative humidity. We found a strong positive correlation between EVI and RH (r = 0.30; Figure 4) and strong negative correlations with the other two weather parameters (T: r = −0.48; HI: r = −0.49; Figure 4). When decomposing EVI trends by land-cover type, we found similar correlations as for the average EVI, but with higher fluctuations in EVI and stronger correlations for grasslands and lowest for dense cork oak woodlands with understorey (Table 4).
Since the relation between weather and EVI could be the opposite in growing and non-growing seasons we repeated the analysis just for the growing season (December to May). During the growing season, we found a strong negative correlation between EVI and temperature and heat index, and a less strong correlation with relative humidity (Table 5). We found the strongest correlation for sparse cork oak woodlands without understorey and grasslands, and the weakest correlation for sparse cork oak woodlands with understorey.

4. Discussion

Our study aimed at assessing whether trees, shrubs, and grasses in cork oak (Quercus suber) woodlands in Southern Portugal showed differences in the relationship between productivity and climate. We found that the selected metric of productivity—EVI—in areas with dense and sparse cork oak forest without understorey responded differently than in areas with understorey and of grasslands.
Cork oak woodlands without understorey maintained higher EVI and even a significant increase in minimum EVI. Further, this land-cover type showed a much stronger relationship with relative humidity then when there is a layer of understorey. During the growing season, however, EVI over this land cover type was mostly negatively correlated with temperature. Therefore, temperature and relative humidity seem to control EVI in the growing season and outside the growing season, respectively. Since the growing season in our study area occurs during the colder months and after the first rains, this explains the strong negative correlation with temperature. In this period there is no water limitation; thus, EVI increases, which mostly occurs during the hot and dry periods when relative humidity becomes the stronger control over EVI. A possible explanation is that the modification of the leaves in evergreen oaks allows them to maintain their photosynthetic rates despite water stress [59]. Evergreen cork oaks have modified leaves called sclerophyllous leaves, which have a waxy layer on the upper side of the leaf and stomata in the lower side of the leaf. The stomata in these leaves are surrounded by hairs (trichoms), which capture and maintain moisture in the lower side of the leaf, therefore, allowing the stomata to stay open for longer periods of time, enhancing photosynthesis, resulting in the relatively constant EVI throughout the time series and a strong correlation with relative humidity.
We also found a significant downward trend in maximum EVI is sparse oak woodlands with understorey and a lower correlation with relative humidity. In these areas the dominant species in the shrub layer are Cistus spp. Contrary to cork oaks, Cistus spp. do not have sclerophyllous leaves and its growth is strongly related to precipitation and in dry periods these species tend to start senescence earlier than expected [60]. This could justify why we find a significant decrease in EVI when patches are dominated by shrubs. This trend can be further exacerbated by the fact that these shrubs have a life expectancy of 10 years and that they may be replaced every 5–8 years, being two time periods within our time series.
We also found that EVI did not change in dense cork oak woodlands with shrub understorey and that the presence of understorey reduced the strength of the relationship between EVI and relative humidity and between EVI and temperature during the growing season. This could be because of the opposing direction of the trends in the oak and the shrub layers, thus, suggesting that the tree canopy and the shrub canopy layers have different physiological responses to RH, T, and HI. Despite Cistus species having an ability to restore soil and aid in oak regeneration [60,61], our results suggest that this is limited by the ability of the shrubs to persist. This could be because the dominant C. salvifolius produces allelopathic substances therefore maintaining a mono-specific shrub layer that is vulnerable to changes in precipitation/relative humidity.
These results suggest that the overall upward trend in minimum EVI is driven by the canopy of cork oaks, the downward trend in maximum EVI by the understorey canopy of shrubs, and that grasslands do not influence EVI trends over the time period we performed our analysis. Our results also suggest that in the future EVI could improve because the rate of increase in minimum EVI is greater than the rate of decrease in maximum EVI, and that this contingent on management of the shrub understory, as it affects the rate of decrease in maximum EVI. Grasslands showed a much stronger intra-annual variation in EVI and a stronger correlation between those and relative humidity, possibly because grasslands respond to changes in precipitation in a shorter cycle than shrubs and oaks. These results are corroborated by the trends in the sparse oak woodlands without understorey, which are very close to those of grasslands. Since maximum and minimum EVI trends are not correlated, i.e., the two trends are occurring independently of each other, it suggests that different processes may be operating simultaneously. We suggest that oaks are better adapted to Mediterranean climates and, therefore, are more resilient to changes, or that oaks take longer to respond to the ongoing changes than the understorey and their response will be delayed.
A few uncertainties are worth mentioning. First, our study area is comparatively local and, as such, we are unable to draw conclusions on the relationship across a larger scale. However, since our analysis relied on standardized methods (i.e., Landsat EVI data and climate station data) there is only little reason to believe that the relationship will not hold outside of our study area. Second, calculating EVI requires reflectance values, which we only achieved through a standardized method for atmospheric correction (i.e., LEDAPS). While some uncertainties may result from using LEDAPS, our EVI time series analyses suggest that using Landsat EVI time series data elsewhere in the world will be reliable. Last, a few uncertainties may remain from the input land-cover map, but we consider these uncertainties marginal since the land cover types used were hand-drawn and based on detailed regional knowledge.
Nevertheless, being able to link the remote sensing measurements to these processes is fundamental for ecosystem modeling and management. Our analysis shows one way in which we can take advantage of the existing archive of remote sensing data and analytical tools to understand ecosystem processes and further expand our understanding of the relation between productivity-biodiversity. While our results are focused on a local area, they are indicative that we can better link remote sensing metrics with local environmental conditions to understand the fundamental processes that may drive larger scale patterns.

5. Conclusions

We found different temporal trends in productivity for the tree canopy and the shrub canopy, and these trends in productivity were positively associated with relative humidity and negatively with temperature. Independently of whether oaks are better adapted to Mediterranean climates and, therefore, more resilient to changes, or oaks are taking longer to respond to the ongoing changes than the understorey, these results have implications for the persistence of cork oak woodlands and their associated biodiversity. While relative humidity seems to be stressing productivity, its effect is stronger in deciduous land-cover types than in cork oak dominated land-cover types. Cork oak dominated land-cover pixels were stable, in fact even improving productivity over this time period. However, when cork oak was replaced by shrubs or herbs or its density decreased, productivity also decreased. Therefore, if future land use preserves cork oaks, they may be sufficiently resilient to withstand changes in climate, or at least have yet to show major effects. However, if changes in land use favor replacement of cork oaks by other land-cover types or if cork oaks show lagged responses, then the effect of climatic changes may be stronger than expected, challenging the persistence of its associated biodiversity and social-ecological system.

Acknowledgments

This study was supported by the Copernicus Institute for Sustainable Development and the Department of Innovation, Environmental and Energy Sciences at Utrecht University (The Netherlands; MJS and CE). Matthias Baumann gratefully acknowledges funding through the European Commission (the European Commission (HERCULES, No. 603447) and the Volkswagen Foundation (BALTRAK, No. A112025). This paper benefited from data stored in the LTSER Montado platform developed in the frame of the project (FCT/LTER/BIA-BEC/0048/2009).

Author Contributions

Maria J. Santos and Matthias Baumann conceived and designed the research. Matthias Baumann produced the EVI series, Catarina Esgalhado analyzed the inter and intra annual variation and Maria J. Santos analyzed the relationship between EVI and weather trends. Maria J. Santos and Matthias Baumann wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yachi, S.; Loreau, M. Biodiversity and ecosystem productivity in a fluctuating environment: The insurance hypothesis. Proc. Natl. Acad. Sci. USA 1999, 96, 1463–1468. [Google Scholar] [CrossRef] [PubMed]
  2. Loreau, M.; Mouquet, N.; Gonzalez, A. Biodiversity as spatial insurance in heterogeneous landscapes. Proc. Natl. Acad. Sci. USA 2003, 100, 12765–12770. [Google Scholar] [CrossRef] [PubMed]
  3. Cardinale, B.L.; Wright, J.P.; Cadotte, M.W.; Carroll, I.T.; Hector, A.; Srivastava, D.S.; Loreau, M.; Wels, J.J. Impacts of plant diversity on biomass production increase through time because of species complementarity. Proc. Natl. Acad. Sci. USA 2007, 104, 18123–18128. [Google Scholar] [CrossRef] [PubMed]
  4. Cardinale, B.J.; Gross, K.; Fritschie, K.; Flombaum, P.; Fox, J.W.; Rixen, C.; van Ruijven, J.; Reich, P.B.; Scherer-Lorenzen, M.; Wilsey, B.J. Biodiversity simultaneously enhances the production and stability of community biomass, but the effects are independent. Ecology 2013, 94, 1697–1707. [Google Scholar] [CrossRef] [PubMed]
  5. Chase, J.M. Stochastic community assembly causes higher biodiversity in more productive environments. Science 2010, 328, 1388–1391. [Google Scholar] [CrossRef] [PubMed]
  6. Isbell, F.I.; Polley, H.W.; Wilsey, B.J. Biodiversity, productivity and the temporal stability of productivity: Patterns and processes. Ecol. Let. 2009, 12, 443–451. [Google Scholar] [CrossRef] [PubMed]
  7. Hector, A. Ecology: Diversity favours productivity. Nature 2011, 472, 45–46. [Google Scholar] [CrossRef] [PubMed]
  8. Liang, J.; Zhou, M.; Tobin, P.C.; McGuire, A.D.; Reich, P.B. Biodiversity influences plant productivity through niche-efficiency. Proc. Natl. Acad. Sci. USA 2015, 112, 5738–5743. [Google Scholar] [CrossRef] [PubMed]
  9. Cusens, J.; Wright, S.D.; McBride, P.D.; Gillman, L.N. What is the form of the productivity-animal-species-richness relationship? A critical review and meta-analysis. Ecology 2012, 93, 2241–2252. [Google Scholar] [CrossRef] [PubMed]
  10. Turner, W.; Spector, S.; Gardiner, N.; Fladeland, M.; Sterling, E.; Steininger, M. Remote sensing for biodiversity science and conservation. Trends Ecol. Evol. 2003, 18, 306–314. [Google Scholar] [CrossRef]
  11. Boisvenue, C.; Running, S.W. Impacts of climate change on natural forest productivity—Evidence since the middle of the 20th century. Glob. Chang. Biol. 2006, 12, 862–882. [Google Scholar] [CrossRef]
  12. Haberl, H.; Erb, K.H.; Krausmann, F.; Gaube, V.; Bondeau, A.; Plutzar, C.; Gingrich, S.; Lucht, W.; Fischer-Kowalski, M. Quantifying and mapping the human appropriation of net primary production in earth’s terrestrial ecosystems. Proc. Natl. Acad. Sci. USA 2007, 104, 12942–12947. [Google Scholar] [CrossRef] [PubMed]
  13. Hooper, D.U.; Adair, E.C.; Cardinale, B.J.; Byrnes, J.E.K.; Hungate, B.A.; Matulich, K.L.; Gonzalez, A.; Duffy, J.E.; Gamefeldt, L.; O’Connor, M.I. A global synthesis reveals biodiversity loss as a major driver of ecosystem change. Nature 2012, 486, 105–108. [Google Scholar] [CrossRef] [PubMed]
  14. Jongen, M.; Unger, S.; Fangueiro, D.; Cerasoli, S.; Silva, J.M.; Pereira, J.S. Resilience of montadounderstorey to experimental precipitation variability fails under severe natural drought. Agric. Ecosyst. Environ. 2013, 178, 18–30. [Google Scholar] [CrossRef]
  15. Moreno, J.M.; Oechel, W.C. Global Change and Mediterranean-Type Ecosystems; Springer-Verlag: New York, NY, USA, 1995. [Google Scholar]
  16. Jucker, T.; Bourlaud, O.; Avacaritel, D.; Dănilă, I.; Duduman, G.; Valladares, F.; Coomes, D.A. Competition for light and water play contrasting roles in driving diversity-productivity relationships in Iberian forests. J. Ecol. 2014, 102, 1202–1213. [Google Scholar] [CrossRef]
  17. Kark, S.; Levin, N.; Gratham, H.S.; Possingham, H.P. Between-country collaboration and consideration of costs increase conservation planning efficiency in the Mediterranean Basin. Proc. Natl. Acad. Sci. USA 2008, 106, 15368–15373. [Google Scholar] [CrossRef] [PubMed]
  18. Underwood, E.C.; Klausmeyer, K.R.; Cox, R.L.; Busby, S.M.; Morrison, S.A.; Shaw, M.R. Expanding the global network of protected areas to save the imperiled Mediterranean Biome. Conserv. Biol. 2009, 23, 43–52. [Google Scholar] [CrossRef] [PubMed]
  19. Underwood, E.C.; Viers, J.H.; Klausmeyer, K.R.; Cox, R.L.; Shaw, M.R. Threats and biodiversity in the Mediterranean biome. Divers. Distrib. 2009, 15, 188–197. [Google Scholar] [CrossRef]
  20. Meyers, N.; Mittermeier, R.A.; Mittermeier, C.G.; da Fonseca, G.A.B.; Kent, J. Biodiversity hotspots for conservation priorities. Nature 2000, 403, 853–858. [Google Scholar] [CrossRef] [PubMed]
  21. Cox, R.L.; Underwood, E.C. The importance of conserving biodiversity outside of protected areas in Mediterranean ecosystems. PLoS ONE 2011, 6, e14508. [Google Scholar] [CrossRef] [PubMed]
  22. Bugalho, M.N.; Caldeira, M.C.; Pereira, J.S.; Aronson, J.; Pausas, J.G. Mediterranean cork oak savannas require human use to sustain biodiversity and ecosystem services. Front. Ecol. Environ. 2011, 9, 278–286. [Google Scholar] [CrossRef] [Green Version]
  23. Santos, M.J.; Thorne, J.H. Comparing culture and ecology: Conservation planning of oak woodlands in Mediterranean landscapes of Portugal and California. Environ. Conserv. 2010, 37, 155–168. [Google Scholar] [CrossRef]
  24. Doblas-Miranda, E.; Martinez-Vilalta, J.; Lloret, F.; Alvarez, A.; Avila, A.; Bonet, F.J.; Brotons, L.; Castro, J.; CurielYuste, J.; Diaz, M.; et al. Reassessing global research priorities in Mediterranean terrestrial ecosystems: How far have we come and where do we go from here? Glob. Ecol. Biogeogr. 2015, 24, 25–43. [Google Scholar] [CrossRef]
  25. Field, C.B.; Randerson, J.T.; Malmstrom, C.M. Global net primary production: Combining ecology and remote sensing. Remote Sens. Environ. 1995, 51, 74–88. [Google Scholar] [CrossRef]
  26. Rocchini, D.; Hernandez-Stefanoni, J.L.; He, K.S. Advancing species diversity estimate by remotely sensed proxies: A conceptual review. Ecol. Inf. 2015, 25, 22–28. [Google Scholar] [CrossRef]
  27. Tuanmu, M.-N.; Jetz, W. A global remote sensing-based characterization of terrestrial habitat heterogeneity for biodiversity and ecosystem modelling. Glob. Ecol. Biogeogr 2015, 24, 1329–1339. [Google Scholar] [CrossRef]
  28. Andrew, M.E.; Wulder, M.A.; Nelson, T.A. Potential contributions of remote sensing to ecosystem service assessments. Prog. Phys. Geogr. 2014, 38, 328–353. [Google Scholar] [CrossRef]
  29. Andrew, M.E.; Wulder, M.A.; Nelson, T.A.; Coops, N.C. Spatial data, analysis approaches, and information needs for spatial ecosystem service assessments: A review. GIS Sci. Remote Sens. 2015, 52, 344–373. [Google Scholar] [CrossRef]
  30. Tucker, C.J. Red and photographic infrared linear combinations for monitoring vegetation. Remote Sens. Environ. 1979, 8, 127–150. [Google Scholar] [CrossRef]
  31. Huete, A.; Didan, K.; Miura, T.; Rodriguez, E.P.; Gao, X.; Ferreira, L.G. Overview of the radiometric and biophysical performance of the MODIS vegetation indexes. Remote Sens. Environ. 2002, 83, 195–213. [Google Scholar] [CrossRef]
  32. McDowell, N.G.; Coops, N.C.; Beck, P.S.A.; Chambers, J.Q.; Gangodagamage, C.; Hicke, J.A.; Huang, C.; Kennedy, R.; Krofcheck, D.J.; Litvak, M.; et al. Global satellite monitoring of climate-induced vegetation disturbances. Trends Plant Sci. 2015, 20, 114–123. [Google Scholar] [CrossRef] [PubMed]
  33. Verbesselt, J.; Zeileis, A.; Herold, M. Near real-time disturbance detection using satellite image time series. Remote Sens. Environ. 2012, 123, 98–108. [Google Scholar] [CrossRef]
  34. Kennedy, R.E.; Andréfouët, S.; Cohen, W.B.; Gómez, C.; Griffiths, P.; Hais, M.; Healey, S.P.; Helmer, E.H.; Hostert, P.; Lyons, M.B.; et al. Bringing an ecological view of change to Landsat-based remote sensing. Front. Ecol. Environ. 2014, 12, 339–346. [Google Scholar] [CrossRef] [Green Version]
  35. Woodcock, C.E.; Macomber, S.A.; Pax-Lenneya, M.; Cohen, W.B. Monitoring large areas for forest change using Landsat: Generalization across space, time and Landsat sensors. Remote Sens. Environ. 2001, 78, 194–203. [Google Scholar] [CrossRef]
  36. Woodcock, C.E.; Allen, R.; Anderson, M.; Belward, A.; Bindschadler, R.; Cohen, W.B.; Gao, F.; Goward, S.N.; Helder, D.; Helmer, E.; et al. Free access to Landsat imagery. Science 2008, 320, 1011. [Google Scholar] [CrossRef] [PubMed]
  37. Melaas, E.K.; Friedl, M.A.; Zhu, Z. Detecting interannual variation in deciduous broadleaf forest phenology using Landsat TM/ETM+ data. Remote Sens. Environ. 2013, 132, 176–185. [Google Scholar] [CrossRef]
  38. Anderson, M.C.; Allen, R.G.; Morse, A.; Kustas, W.P. Use of Landsat thermal imagery in monitoring evapotranspiration and managing water resources. Remote Sens. Environ. 2012, 122, 50–65. [Google Scholar] [CrossRef]
  39. Gitelson, A.A.; Peng, Y.; Masek, J.G.; Rundquist, D.C.; Verma, S.; Suyker, A.; Baker, J.M.; Hatfield, J.L.; Meyers, T. Remote estimation of crop gross primary production with Landsat data. Remote Sens. Environ. 2012, 121, 404–414. [Google Scholar] [CrossRef]
  40. Wulder, M.A.; Masek, J.G.; Cohen, W.B.; Loveland, T.R.; Woodcock, C.E. Opening the archive: How free data has enabled the science and monitoring promise of Landsat. Remote Sens. Environ. 2012, 122, 2–10. [Google Scholar] [CrossRef]
  41. Gottschalk, T.K.; Huettmann, F.; Ehlers, M. Thirty years of analyzing and modelling avian habitat relationships using satellite imagery data: A review. Int. J. Remote Sens. 2005, 26, 2631–2656. [Google Scholar] [CrossRef]
  42. Nielsen, E.B.; Herfindal, I.; Linnell, J.D.C. Can intra-specific variation in carnivore home-range size be explained using remote-sensing estimates of environmental productivity? EcoScience 2005, 12, 68–75. [Google Scholar] [CrossRef]
  43. Saba, V.S.; Spotila, J.R.; Chavez, F.P.; Misick, J.A. Bottom-up and climatic forcing on the worldwide population of leatherback turtles. Ecology 2008, 89, 1414–1427. [Google Scholar] [CrossRef] [PubMed]
  44. Santos, M.J.; Greenberg, J.A.; Ustin, S.L. Using hyperspectral remote sensing to detect and quantify southeastern pine senescence effects in Red-cockaded woodpecker (Picoides borealis) habitat. Remote Sens. Environ. 2010, 114, 1242–1250. [Google Scholar] [CrossRef]
  45. Santos, M.J.; Rosalino, L.M.; Santos-Reis, M.; Ustin, S.L. Testing remotely-sensed predictors of meso-carnivore habitat use in Mediterranean ecosystems. Landsc. Ecol. 2016. [Google Scholar] [CrossRef]
  46. Santos, M.J.; Santos-Reis, M. Stone marten (Martes foina) habitat selection in a Mediterranean ecosystem: Effects of scale, sex, and interspecific interactions. Eur. J. Wildl Res. 2009, 56, 275–286. [Google Scholar] [CrossRef]
  47. Cabral, M.J.; Almeida, J.; Almeida, P.R.; Dellinger, T.; Ferrand de Almeida, N.; Oliveira, M.E.; Palmeirim, J.M.; Queiroz, A.I.; Rogado, L.; Santos-Reis, M. Livro Vermelho dos Vertebrados de Portugal; Instituto da Conservação da Natureza: Lisboa, Portugal, 2005. [Google Scholar]
  48. Herdade da Ribeira Abaixo. Available online: http://cba.fc.ul.pt/services/HRA-NOVO/HRA_NOVO.html (accessed on 15 March 2016).
  49. Huete, A.R.; Liu, H.; van Leeuwen, W.J.D. The use of vegetation indices in forested regions: Issues of linearity and saturation. GeoSci. Remote Sens. 1997, 4, 1966–1968. [Google Scholar]
  50. Gurund, R.B.; Breidt, F.J.; Dutin, A.; Ogle, S.M. Predicting enhanced vegetation index (EVI) curves for ecosystem modeling applications. Remote Sens. Environ. 2009, 113, 2186–2193. [Google Scholar] [CrossRef]
  51. Zhang, X.; Friedl, M.A.; Schaaf, C.B.; Strahler, A.H.; Hodges, J.C.F.; Gao, F.; Reed, B.C.; Huete, A. Monitoring vegetation phenology using MODIS. Remote Sens. Environ. 2003, 84, 471–475. [Google Scholar] [CrossRef]
  52. Samanta, A.; Ganguly, S.; Myneni, R.B. MODIS Enhanced Vegetation Index data do not show greening of Amazon forests during the 2005 drought. New Phytol. 2010, 189, 11–15. [Google Scholar] [CrossRef] [PubMed]
  53. Masek, J.G.; Vermote, E.F.; Saleous, N.; Wolfe, R.; Hall, F.G.; Huemmrich, F.; Gao, F.; Kutler, J.; Lim, T.K. A Landsat surface reflectance data set for North America, 1990–2000. Geosci. Remote Sens. Lett. 2006, 3, 68–72. [Google Scholar] [CrossRef]
  54. Zhu, Z.; Woodcock, C.E. Object-based cloud and cloud shadow detection in Landsat imagery. Remote Sens. Environ. 2012, 118, 83–94. [Google Scholar] [CrossRef]
  55. Lawrence, R.L.; Ripple, W.J. Comparisons among vegetation indices and band wise regression in a highly disturbed, heterogeneous landscape: Mount St. Helens, Washington. Remote Sens. Environ. 1998, 64, 91–102. [Google Scholar] [CrossRef]
  56. Kendall, M.G. A new measure of rank correlation. Biometrika 1938, 30, 81–93. [Google Scholar] [CrossRef]
  57. Van Belle, G.; Hughes, J.P. Nonparametric tests for trend in water quality. Water Res. Res. 1984, 20, 127–136. [Google Scholar] [CrossRef]
  58. New, M.; Hewitson, B.; Stephenson, D.B.; Tsiga, A.; Kruger, A.; Manhique, A.; Gomez, B.; Coelho, C.A.S.; Masisi, D.N.; Kululanga, E.; et al. Evidence of trends in daily climate extremes over southern and west Africa. J. Geophys. Res. 2006, 111, 1–11. [Google Scholar] [CrossRef]
  59. Rundel, P.W.; Montenegro, G.; Jaksic, F.M. Landscape Disturbance and Biodiversity in Mediterranean-Type Ecosystems; Springer: Berlin, Germany, 1998. [Google Scholar]
  60. Simões, M.P.; Madeira, M.; Gazarini, L. Ability of Cistus L. shrubs to promote soil rehabilitation in extensive oak woodlands of Mediterranean areas. Plant Soil 2009, 323, 249–365. [Google Scholar] [CrossRef]
  61. Simões, M.P. Dinâmica de Biomassa (Carbono) e Nutrientes em Cistus salviifolius L. e Cistus ladanifer L. Influencia NAS Características do Solo. Ph.D. Dissertation, Universidade de Évora, Évora, Portugal, 2007. [Google Scholar]
Remotesensing 08 00486 g001 1024
Figure 1. (a) Study area location and distribution of oak woodlands in Portugal; (b) Dense cork oak woodland with shrub understory; (c) Dense cork oak woodland without shrub understory; (d) Sparse cork oak woodland with shrub understory; (e) Sparse cork oak woodland without shrub understorey.
Figure 1. (a) Study area location and distribution of oak woodlands in Portugal; (b) Dense cork oak woodland with shrub understory; (c) Dense cork oak woodland without shrub understory; (d) Sparse cork oak woodland with shrub understory; (e) Sparse cork oak woodland without shrub understorey.
Remotesensing 08 00486 g001
Remotesensing 08 00486 g002 1024
Figure 2. Photo-interpreted land-cover types and respective extent in the study area.
Figure 2. Photo-interpreted land-cover types and respective extent in the study area.
Remotesensing 08 00486 g002
Remotesensing 08 00486 g003 1024
Figure 3. Intra-annual variability in EVI per land-cover types. Land-cover types: dense cork oak woodlands with understory (DCoW), dense cork oak woodlands without understory (DCoWt), sparse cork oak woodlands with understory (SCoW), sparse cork oak woodlands without understory (SCoWt), and grasslands (G). Box plots represent the mean (bold line within the box), variance (size of the box), and the range of values (whiskers). Open circles and asterisks represent outliers, out and far out respectively.
Figure 3. Intra-annual variability in EVI per land-cover types. Land-cover types: dense cork oak woodlands with understory (DCoW), dense cork oak woodlands without understory (DCoWt), sparse cork oak woodlands with understory (SCoW), sparse cork oak woodlands without understory (SCoWt), and grasslands (G). Box plots represent the mean (bold line within the box), variance (size of the box), and the range of values (whiskers). Open circles and asterisks represent outliers, out and far out respectively.
Remotesensing 08 00486 g003
Remotesensing 08 00486 g004 1024

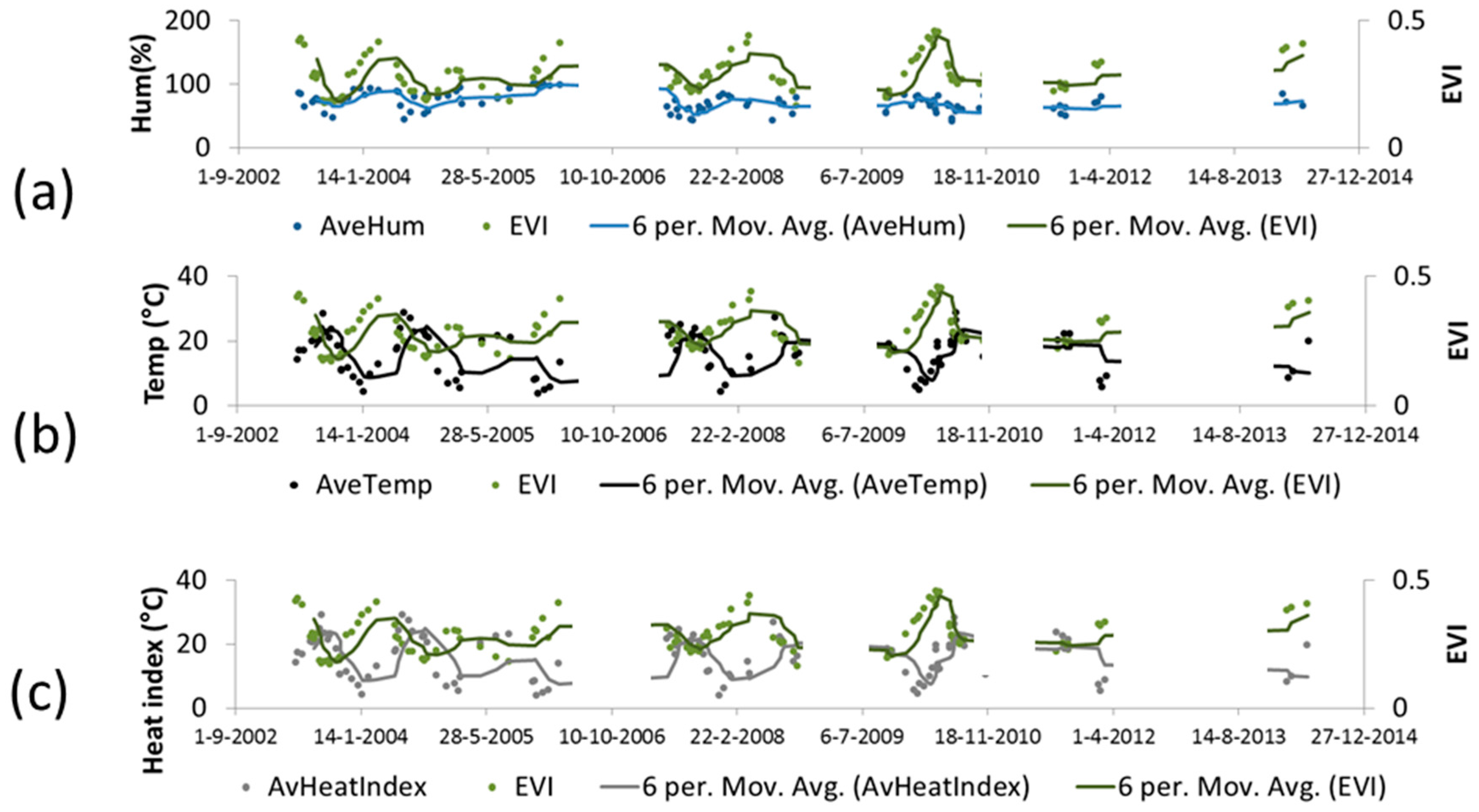

Figure 4. Inter-annual variability in EVI between 2002 and 2014 and (a) RH (%); (b) T (°C); and (c) HI (°C).
Figure 4. Inter-annual variability in EVI between 2002 and 2014 and (a) RH (%); (b) T (°C); and (c) HI (°C).
Remotesensing 08 00486 g004
Table
Table 1. Species richness and their International Union for Conservation of Nature (IUCN) conservation status in the study area (CR—Critically Endangered, EN—Endangered, VU—Vulnerable, NT—Near Threatened).
Table 1. Species richness and their International Union for Conservation of Nature (IUCN) conservation status in the study area (CR—Critically Endangered, EN—Endangered, VU—Vulnerable, NT—Near Threatened).
Taxonomic GroupN SpeciesEndemic to Iberian PeninsulaEndemic to PortugalRelict SpeciesIUCN Conservation Status
Fungi264--2--
Briophytes701----
Vascular Plants30412----
Insects15511---
Fish641-CR = 1; EN = 2; VU = 1
Amphibians129--NT = 1
Reptiles127--VU = 1; NT = 1
Birds74---VU = 2; NT = 6
Mammals321--CR = 1; EN = 1; VU = 5
Table
Table 2. Number of Landsat pixels over each land-cover type in the study area.
Table 2. Number of Landsat pixels over each land-cover type in the study area.
Land-Cover TypeArea (ha)% of Analyzed Area
Dense Cork oak Woodlands With Understory (DCoW)653.435.6
Dense Cork oak Woodlands Without Understory (DCoWt)536.528.7
Sparse Cork oak Woodlands With Understory (SCoW)112.35.8
Sparse Cork oak Woodlands Without Understory (SCoWt)288.618.3
Grasslands (G)282.111.6
Table
Table 3. Trends in, and correlations between, average, maximum, and minimum EVI per land-cover type and total from 2000 to 2013. Bold values show significant trends. Land-cover types: dense cork oak woodlands with understory (DCoW), dense cork oak woodlands without understory (DCoWt), sparse cork oak woodlands with understory (SCoW), sparse cork oak woodlands without understory (SCoWt), and grasslands (G).
Table 3. Trends in, and correlations between, average, maximum, and minimum EVI per land-cover type and total from 2000 to 2013. Bold values show significant trends. Land-cover types: dense cork oak woodlands with understory (DCoW), dense cork oak woodlands without understory (DCoWt), sparse cork oak woodlands with understory (SCoW), sparse cork oak woodlands without understory (SCoWt), and grasslands (G).
Kendall’s TauSpearman’s Rho
Average/DateMax/DateMin/DateAverage/MaxAverage/MinMAX/MIN
Taup-ValueTaup-ValueTaup-ValueRhoRhoRho
DCoW−0.160.686−0.0380.3240.0620.1080.7810.6510.406
DCoWt−0.0370.338−0.0720.0620.1120.0030.7690.7130.452
SCoW−0.0260.51−0.110.0050.0670.0880.8110.7630.497
SCoWt−0.010.799−0.0080.8280.030.4320.8260.7280.495
G−0.0030.942−0.020.5960.0750.0520.8880.6980.504
All−0.0110.394−0.0490.00010.0590.00010.760.6690.211
Table
Table 4. Correlation between EVI for each land-cover type and weather parameters. Land-cover types: dense cork oak woodlands with understorey (DCoW), dense cork oak woodlands without understorey (DCoWt), sparse cork oak woodlands with understorey (SCoW), sparse cork oak woodlands without understorey (SCoWt), and grasslands (G).
Table 4. Correlation between EVI for each land-cover type and weather parameters. Land-cover types: dense cork oak woodlands with understorey (DCoW), dense cork oak woodlands without understorey (DCoWt), sparse cork oak woodlands with understorey (SCoW), sparse cork oak woodlands without understorey (SCoWt), and grasslands (G).
Weather ParameterDCoWDCoWtSCoWSCoWtG
average RH (%)0.1890.2570.2060.3590.354
average T (°C)−0.371−0.437−0.361−0.534−0.514
average HI (°C)−0.369−0.433−0.355−0.527−0.506
Table
Table 5. Correlation between growing season-only EVI for each land-cover type and weather parameters. Land-cover types: dense cork oak woodlands with understorey (DCoW), dense cork oak woodlands without understorey (DCoWt), sparse cork oak woodlands with understorey (SCoW), sparse cork oak woodlands without understorey (SCoWt), and grasslands (G).
Table 5. Correlation between growing season-only EVI for each land-cover type and weather parameters. Land-cover types: dense cork oak woodlands with understorey (DCoW), dense cork oak woodlands without understorey (DCoWt), sparse cork oak woodlands with understorey (SCoW), sparse cork oak woodlands without understorey (SCoWt), and grasslands (G).
Weather ParameterDCoWDCoWtSCoWSCoWtG
average RH (%)0.040.080.030.120.12
average T (°C)−0.25−0.28−0.22−0.39−0.34
average HI (°C)−0.26−0.27−0.23−0.39−0.35

Share and Cite

MDPI and ACS Style

Santos, M.J.; Baumann, M.; Esgalhado, C. Drivers of Productivity Trends in Cork Oak Woodlands over the Last 15 Years. Remote Sens. 2016, 8, 486. https://doi.org/10.3390/rs8060486

AMA Style

Santos MJ, Baumann M, Esgalhado C. Drivers of Productivity Trends in Cork Oak Woodlands over the Last 15 Years. Remote Sensing. 2016; 8(6):486. https://doi.org/10.3390/rs8060486

Chicago/Turabian Style

Santos, Maria João, Matthias Baumann, and Catarina Esgalhado. 2016. "Drivers of Productivity Trends in Cork Oak Woodlands over the Last 15 Years" Remote Sensing 8, no. 6: 486. https://doi.org/10.3390/rs8060486

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
