# Incremental and Enhanced Scanline-Based Segmentation Method for Surface Reconstruction of Sparse LiDAR Data

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

## 3. Notations and System Overview

#### 3.1. Notations

- A complete ${360}^{\circ}$ sweep by the LiDAR is denoted as one frame $\mathcal{F}$.
- The point cloud acquired in the i-th frame ${\mathcal{F}}_{i}$ is denoted as ${\mathcal{P}}_{i}$.
- The scanline in ${\mathcal{P}}_{i}$ is denoted as ${\mathcal{L}}_{(i,j)}$. In the case of Velodyne HDL-32, scanlines are {${\mathcal{L}}_{(i,1)}$, ${\mathcal{L}}_{(i,2)}$, …, ${\mathcal{L}}_{(i,32)}$}.
- All the scanlines of ${\mathcal{P}}_{i}$ are divided into several clusters line by line, denoted by {${\mathcal{C}}_{(i,1)}$, ${\mathcal{C}}_{(i,2)}$, …, ${\mathcal{C}}_{(i,k)}$}.
- Clustered scanlines are then agglomerated into final segments {${\mathcal{S}}_{(i,1)}$, ${\mathcal{S}}_{(i,2)}$, …, ${\mathcal{S}}_{(i,l)}$} of ${\mathcal{P}}_{i}$.

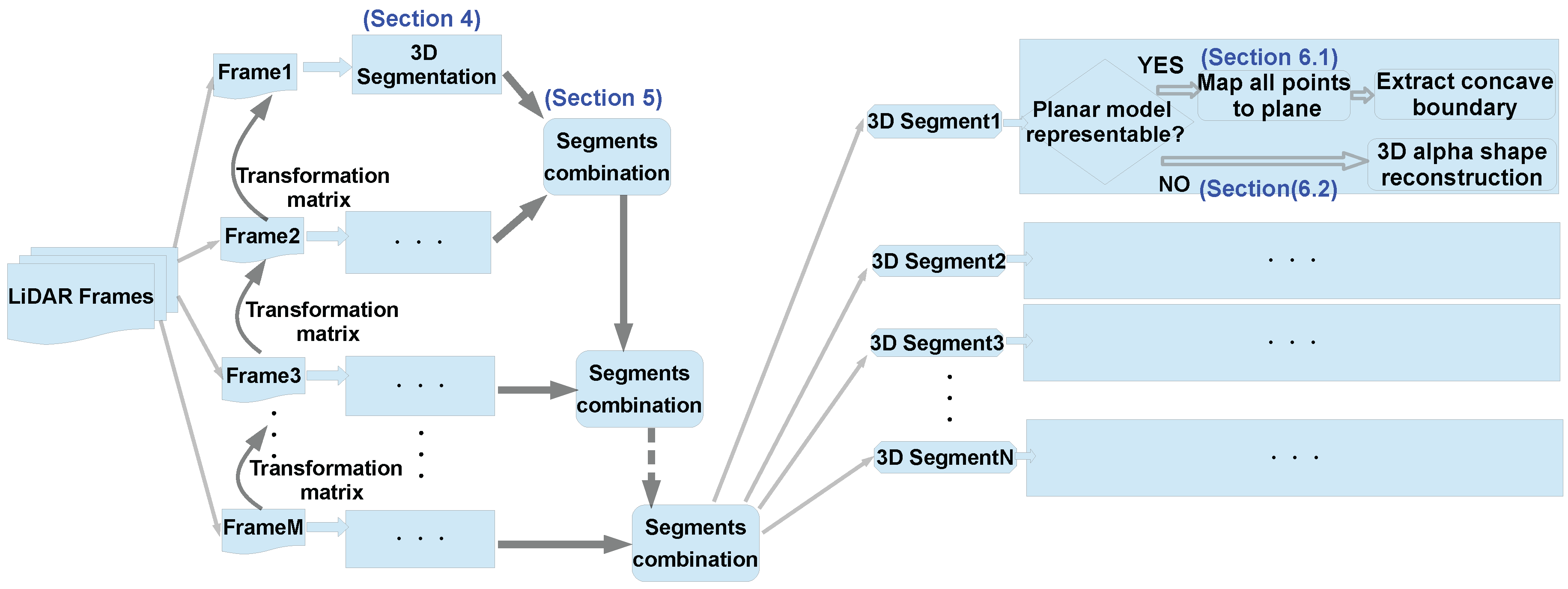

#### 3.2. System Overview

## 4. Scanline Continuity Constraint (SLCC) Segmentation

#### 4.1. Clustering of Scanlines

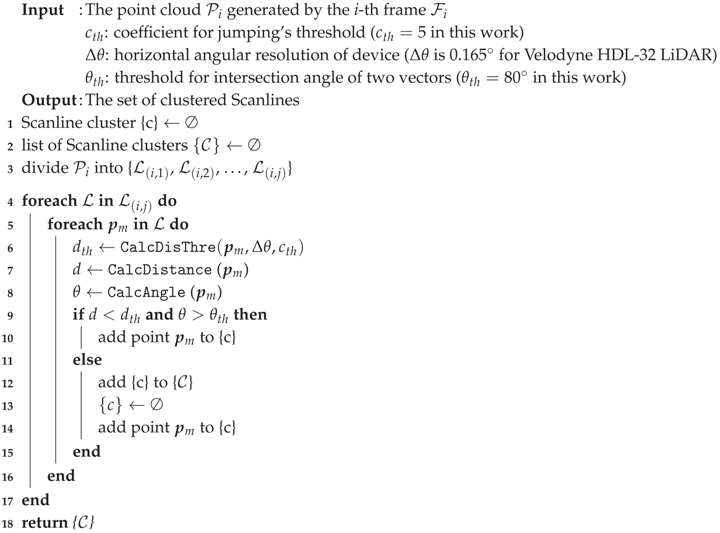

Algorithm 1: Scanline clustering |

#### 4.2. Agglomeration of Scanline Clusters

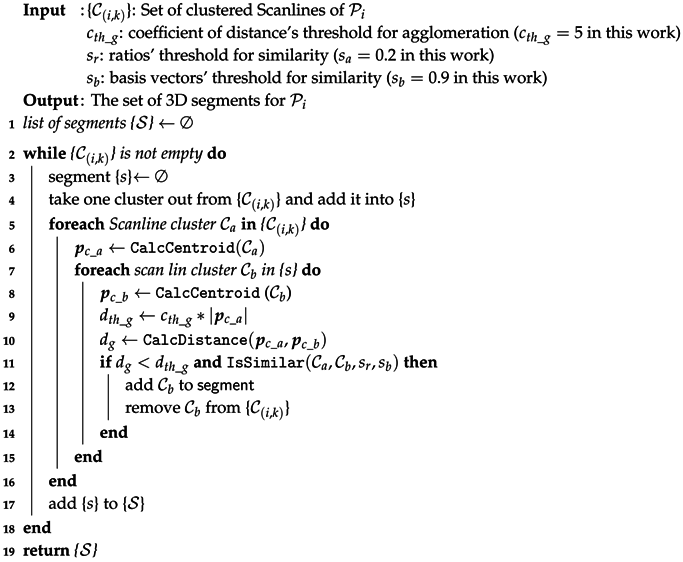

Algorithm 2: Agglomeration of Scanline clusters |

## 5. Incremental Recursive Segmentation (IRIS)

#### 5.1. Combination of Segments from Different Point Clouds

#### 5.2. Recursive Process for a More General Situation

#### 5.3. Similarity of 3D Segments

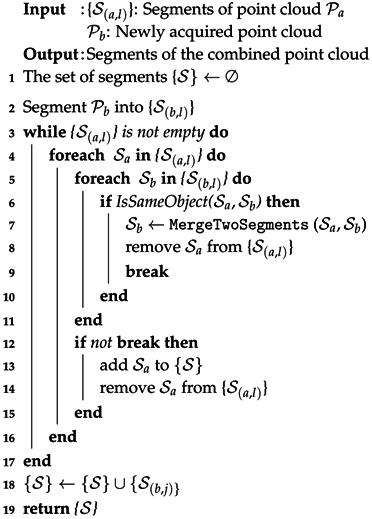

Algorithm 3: Combine segments of two point clouds for IRIS |

Algorithm 4: IRIS |

## 6. Surface Reconstruction

#### 6.1. Planar Fitting and Polygon Boundary Extraction

#### 6.2. Surface Reconstruction for Non-Planar Shapes with Alpha Shape

## 7. Results and Discussion

#### 7.1. Datasets

#### 7.2. Time Performance of IRIS

#### 7.3. Segmentation Performance

#### 7.3.1. Scanlines Clustering

#### 7.3.2. Segmentation

#### 7.4. Surface Reconstruction

#### 7.5. Limitations

## 8. Conclusions and Future Work

## Author Contributions

## Conflicts of Interest

## References

- Nakagawa, M.; Kataoka, K.; Yamamoto, T.; Shiozaki, M.; Ohhashi, T. Panoramic rendering-based polygon extraction from indoor mobile LiDAR data. ISPRS Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2014**, 40, 181–186. [Google Scholar] [CrossRef] - Previtali, M.; Barazzetti, L.; Brumana, R.; Scaioni, M. Towards automatic indoor reconstruction of cluttered building rooms from point clouds. ISPRS Ann. Photogramm. Remote Sens. Spat. Inf. Sci.
**2014**, 2, 281–288. [Google Scholar] [CrossRef] - Rabbani, T.; van den Heuvel, F.A.; Vosselman, G. Segmentation of point clouds using smoothness constraint. ISPRS Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2006**, 36, 248–253. [Google Scholar] - Fischler, M.A.; Bolles, R.C. Random Sample Consensus: A paradigm for model fitting with applications to image analysis and automated cartography. Commun. ACM
**1981**, 24, 381–395. [Google Scholar] [CrossRef] - Rusu, R.B.; Cousins, S. 3D is here: Point Cloud Library (PCL). In Proceedings of the IEEE International Conference on Robotics and Automation, Shanghai, China, 9–13 May 2011.
- Grant, W.S.; Voorhies, R.C.; Itti, L. Finding planes in LiDAR point clouds for real-time registration. In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Tokyo, Japan, 3–7 November 2013.
- Schnabel, R.; Wahl, R.; Klein, R. Efficient RANSAC for point-cloud shape detection. Comput. Graph. Forum
**2007**, 26, 214–226. [Google Scholar] [CrossRef] - Oehler, B.; Stueckler, J.; Welle, J.; Schulz, D.; Behnke, S. Efficient multi-resolution plane segmentation of 3D point clouds. In Intelligent Robotics and Applications; Springer: Berlin/Heidelberg, Germany, 2011; pp. 145–156. [Google Scholar]
- Wang, M.; Tseng, Y.H. Incremental segmentation of lidar point clouds with an octree-structured voxel space. Photogramm. Rec.
**2011**, 26, 32–57. [Google Scholar] [CrossRef] - Papon, J.; Abramov, A.; Schoeler, M.; Worgotter, F. Voxel cloud connectivity segmentation—supervoxels for point clouds. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Portland, OR, USA, 23–28 June 2013.
- Moosmann, F.; Pink, O.; Stiller, C. Segmentation of 3D lidar data in non-flat urban environments using a local convexity criterion. In Proceedings of the IEEE Intelligent Vehicles Symposium, Xi’an, China, 3–5 June 2009.
- Zhang, J.; Singh, S. LOAM: Lidar odometry and mapping in real-time. In Proceedings of the Robotics: Science and Systems X, Berkeley, CA, USA, 12–17 July 2014.
- Douillard, B.; Underwood, J.; Kuntz, N.; Vlaskine, V.; Quadros, A.; Morton, P.; Frenkel, A. On the segmentation of 3D LIDAR point clouds. In Proceedings of the IEEE International Conference on Robotics and Automation (ICRA), Shanghai, China, 9–13 May 2011.
- Spinello, L.; Arras, K.O.; Triebel, R.; Siegwart, R. A layered approach to people detection in 3D range data. In Proceedings of the Twenty-Fourth AAAI Conference on Artificial Intelligence, Atlanta, GA, USA, 11–15 July 2010.
- Armeni, I.; Sener, O.; Zamir, A.R.; Jiang, H.; Brilakis, I.; Fischer, M.; Savarese, S. 3D semantic parsing of large-scale indoor spaces. In Proceedings of the IEEE International Conference on Computer Vision and Pattern Recognition, Cancún, Mexico, 4–8 December 2016.
- Bosse, M.; Zlot, R.; Flick, P. Zebedee: Design of a spring-mounted 3-D range sensor with application to mobile mapping. IEEE Trans. Robot.
**2012**, 28, 1104–1119. [Google Scholar] [CrossRef] - Corso, N.; Zakhor, A. Indoor localization algorithms for an ambulatory human operated 3D mobile mapping system. Remote Sens.
**2013**, 5, 6611–6646. [Google Scholar] [CrossRef] - Oesau, S.; Lafarge, F.; Alliez, P. Planar shape detection and regularization in Tandem. Comput. Graph. Forum
**2015**, 35, 203–215. [Google Scholar] [CrossRef] - Monszpart, A.; Mellado, N.; Brostow, G.J.; Mitra, N.J. RAPter: Rebuilding Man-made Scenes with Regular Arrangements of Planes. ACM Trans. Graph.
**2015**, 34, 103:1–103:12. [Google Scholar] [CrossRef] - Whelan, T.; Ma, L.; Bondarev, E.; de With, P.; McDonald, J. Incremental and batch planar simplification of dense point cloud maps. Robot. Auton. Syst.
**2015**, 69, 3–14. [Google Scholar] [CrossRef] - Biswas, J.; Veloso, M. Planar polygon extraction and merging from depth images. In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems, Vilamoura-Algarve, Portugal, 7–12 October 2012.
- Wang, J.; Shan, J. Segmentation of LiDAR point clouds for building extraction. In Proceedings of the American Society for Photogramm. Remote Sens. Annual Conference, Baltimore, MD, USA, 8–13 March 2009; pp. 9–13.
- Gopi, M.; Krishnan, S. A fast and efficient projection-based approach for surface reconstruction. In Proceedings of the 15th Brazilian Symposium on Computer Graphics and Image Processing (SIBGRAPI), Fortaleza-CE, Brazil, 7–10 October 2002.
- Lee, D.T.; Schachter, B.J. Two algorithms for constructing a Delaunay triangulation. Int. J. Comput. Inf. Sci.
**1980**, 9, 219–242. [Google Scholar] [CrossRef] - Chew, L.P. Constrained delaunay triangulations. Algorithmica
**1989**, 4, 97–108. [Google Scholar] [CrossRef] - Turner, E.; Zakhor, A. Watertight planar surface meshing of indoor point-clouds with voxel carving. In Proceedings of the International Conference on 3D Vision, Seattle, WA, USA, 29 June–1 July 2013.
- Ma, L.; Favier, R.; Do, L.; Bondarev, E.; de With, P.H.N. Plane segmentation and decimation of point clouds for 3D environment reconstruction. In Proceedings of the IEEE 10th Consumer Communications and Networking Conference (CCNC), Las Vegas, NV, USA, 11–14 January 2013.
- Mura, C.; Mattausch, O.; Villanueva, A.J.; Gobbetti, E.; Pajarola, R. Automatic room detection and reconstruction in cluttered indoor environments with complex room layouts. Comput. Graph.
**2014**, 44, 20–32. [Google Scholar] [CrossRef] - Zhang, Z. Iterative point matching for registration of free-form curves and surfaces. Int. J. Comput. Vis.
**1994**, 13, 119–152. [Google Scholar] [CrossRef] - Segal, A.; Haehnel, D.; Thrun, S. Generalized-ICP. In Proceedings of the Robotics: Science and Systems V, Seattle, WA, USA, 28 June–1 July 2009.
- Yu, F.; Xiao, J.; Funkhouser, T. Semantic alignment of LiDAR data at city scale. In Poceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Boston, MA, USA, 7–12 June 2015.
- Weinmann, M.; Jutzi, B.; Hinz, S.; Mallet, C. Semantic point cloud interpretation based on optimal neighborhoods, relevant features and efficient classifiers. ISPRS J. Photogramm. Remote Sens.
**2015**, 105, 286–304. [Google Scholar] [CrossRef] - Edelsbrunner, H.; Kirkpatrick, D.; Seidel, R. On the shape of a set of points in the plane. IEEE Trans. Inf. Theory
**1983**, 29, 551–559. [Google Scholar] [CrossRef] - Edelsbrunner, H.; Mücke, E.P. Three-dimensional alpha shapes. In Proceedings of the 1992 Workshop on Volume Visualization (VVS), Boston, MA, USA, 19–20 October 1992; Association for Computing Machinery (ACM): New York, NY, USA, 1992. [Google Scholar]
- The Visualization ToolKit (VTK). Available online: http://www.vtk.org (accessed on 16 November 2016).
- Geiger, A.; Lenz, P.; Stiller, C.; Urtasun, R. Vision meets robotics: The KITTI dataset. Int. J. Robot. Res.
**2013**, 32, 1231–1237. [Google Scholar] [CrossRef]

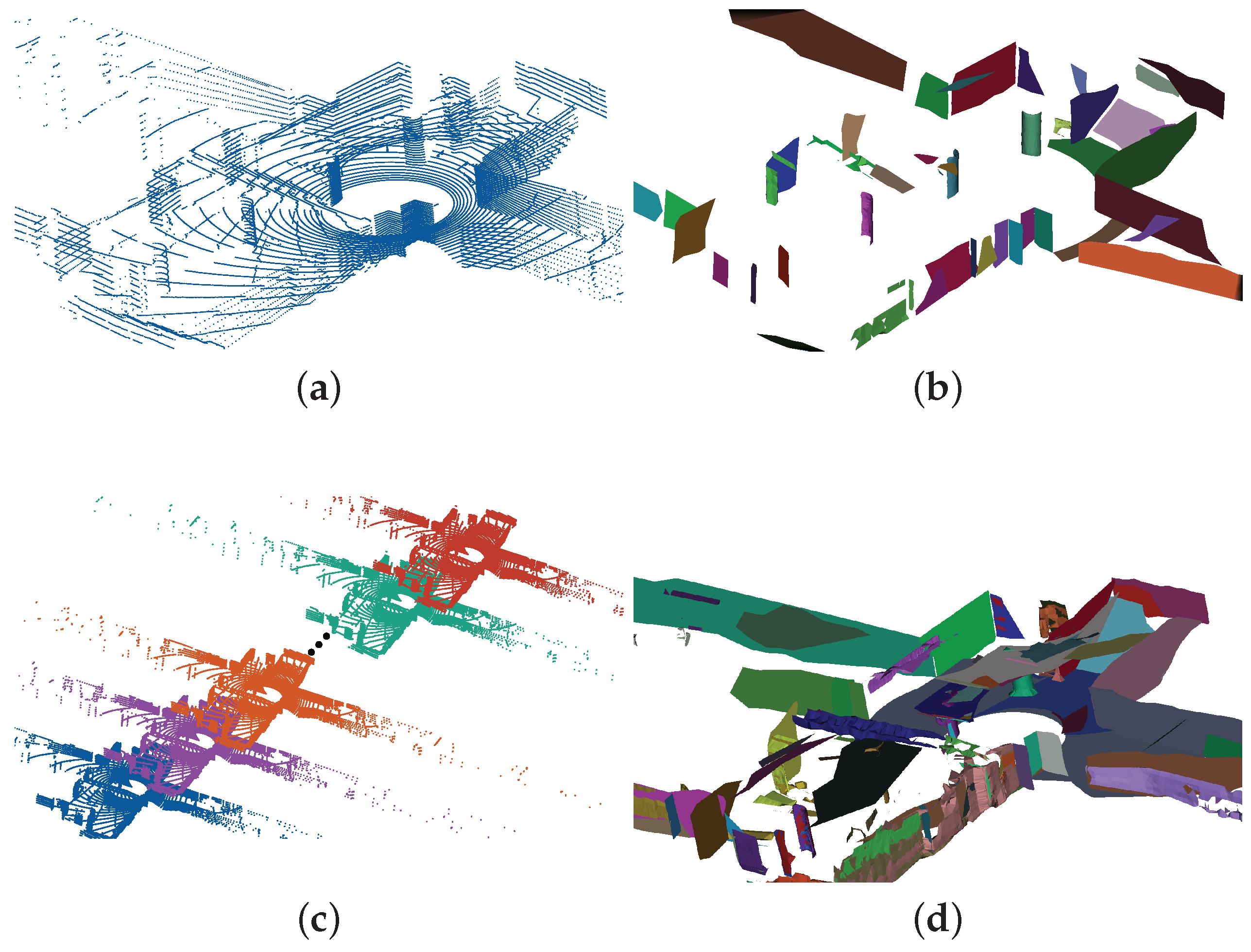

**Figure 1.**Automatic segmentation and modeling for a single frame of a point cloud or multiple frames. Left (

**a**,

**c**) show the single frame of spare point cloud input and multiple frames of sparse point cloud input respectively; Right (

**b**,

**d**) are output results; the surface is reconstructed using segmented information. Different segments are visualized using different colors.

**Figure 4.**Two constraints of Scanline continuity. 1. d : distance of two consecutive points (green lines show the distance of two consecutive points from the same object, black lines show the same from different objects); 2. θ: the angle between two vectors of two groups of consecutive points. Two points are considered to be from two objects if either d or θ exceeds the user-defined thresholds.

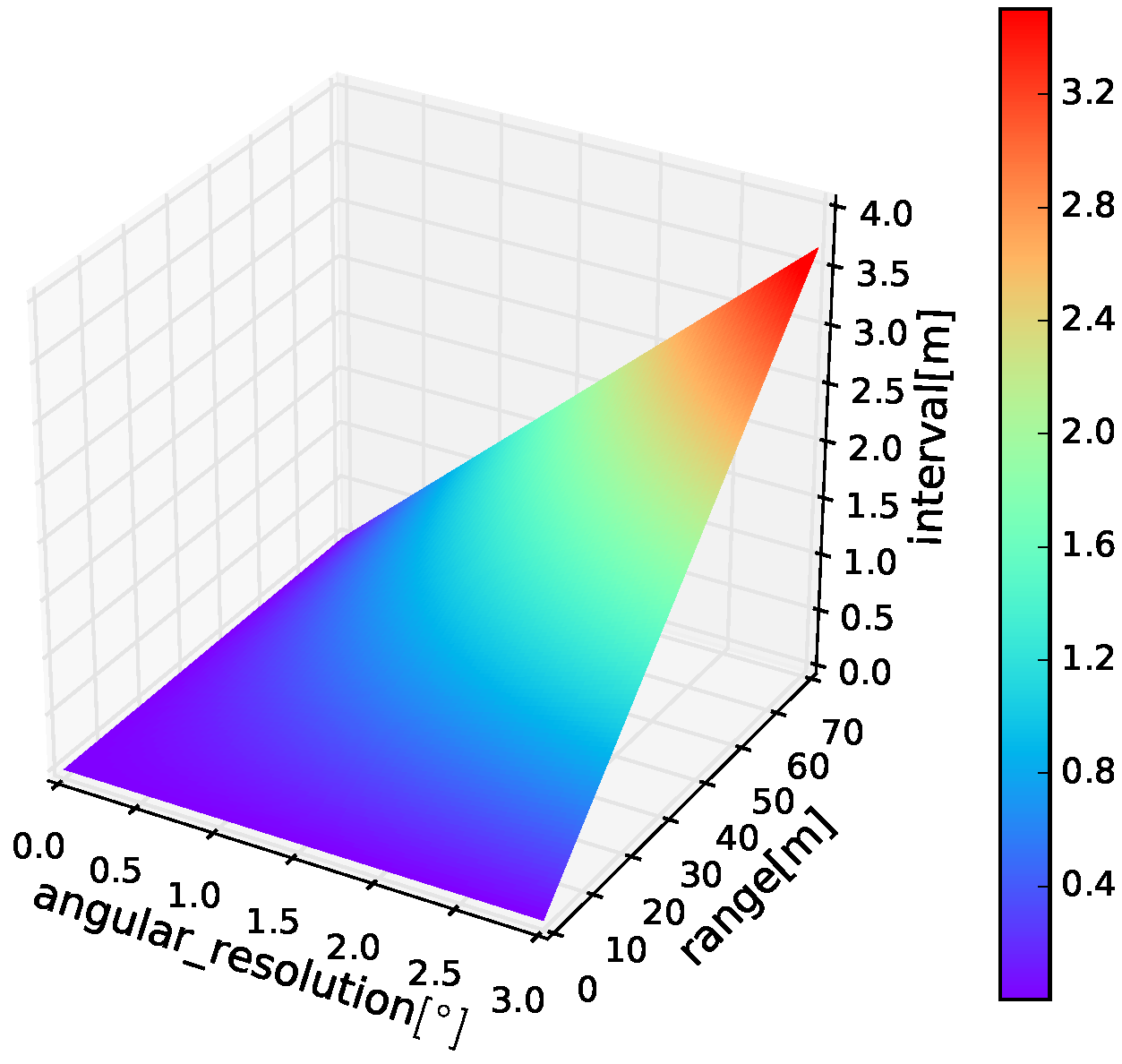

**Figure 5.**Theoretical interval of two consecutive points for different angular resolution and ranges. We can see that the distance of consecutive points increases greatly as range increases. This is the reason why we introduce an adaptive threshold for clustering scanlines.

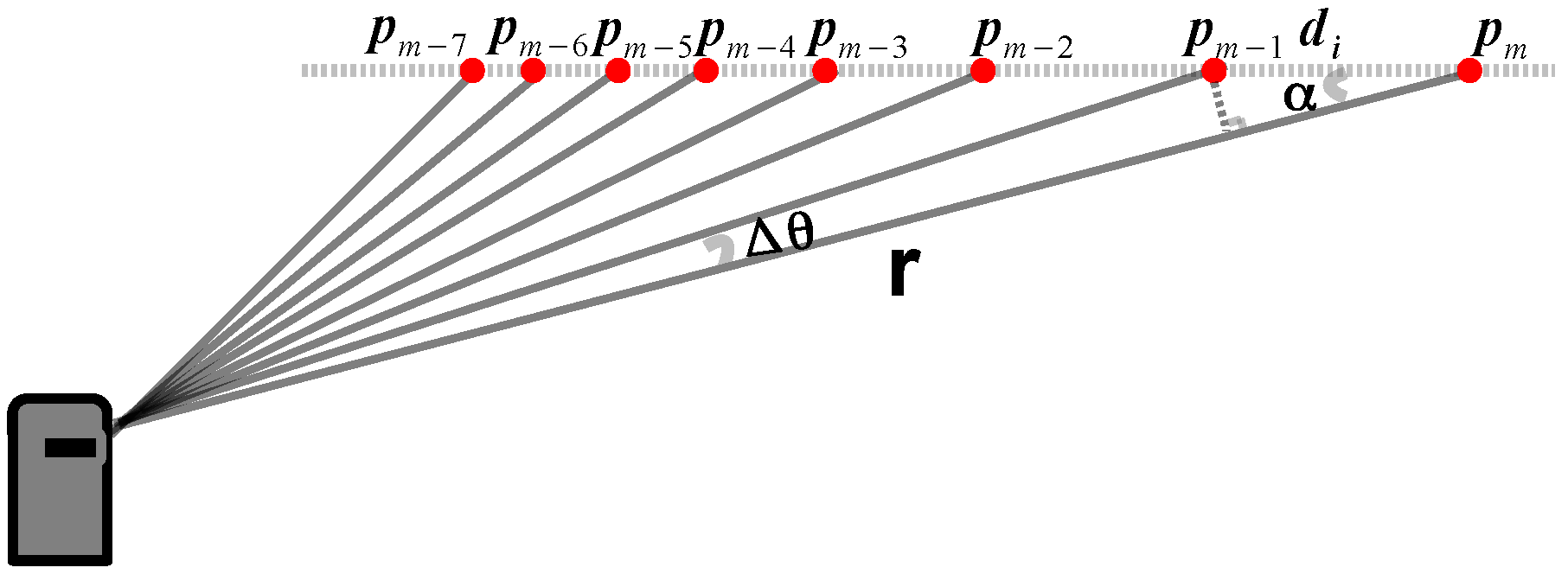

**Figure 6.**The effect of the incident angle to the theoretical interval of point ${\mathit{p}}_{m}$. $\mathrm{\Delta}\theta $ is the resolution angle in a horizontal direction. r is the range from point ${\mathit{p}}_{m}$ to the LiDAR. α is the incident angle. ${\mathit{d}}_{\mathit{i}}$ represents the theoretical interval.

**Figure 7.**Example for combining segments. The middle red, green, blue point clouds are three scanned frames of the left object from different positions and angles, the right one shows the combined segment.

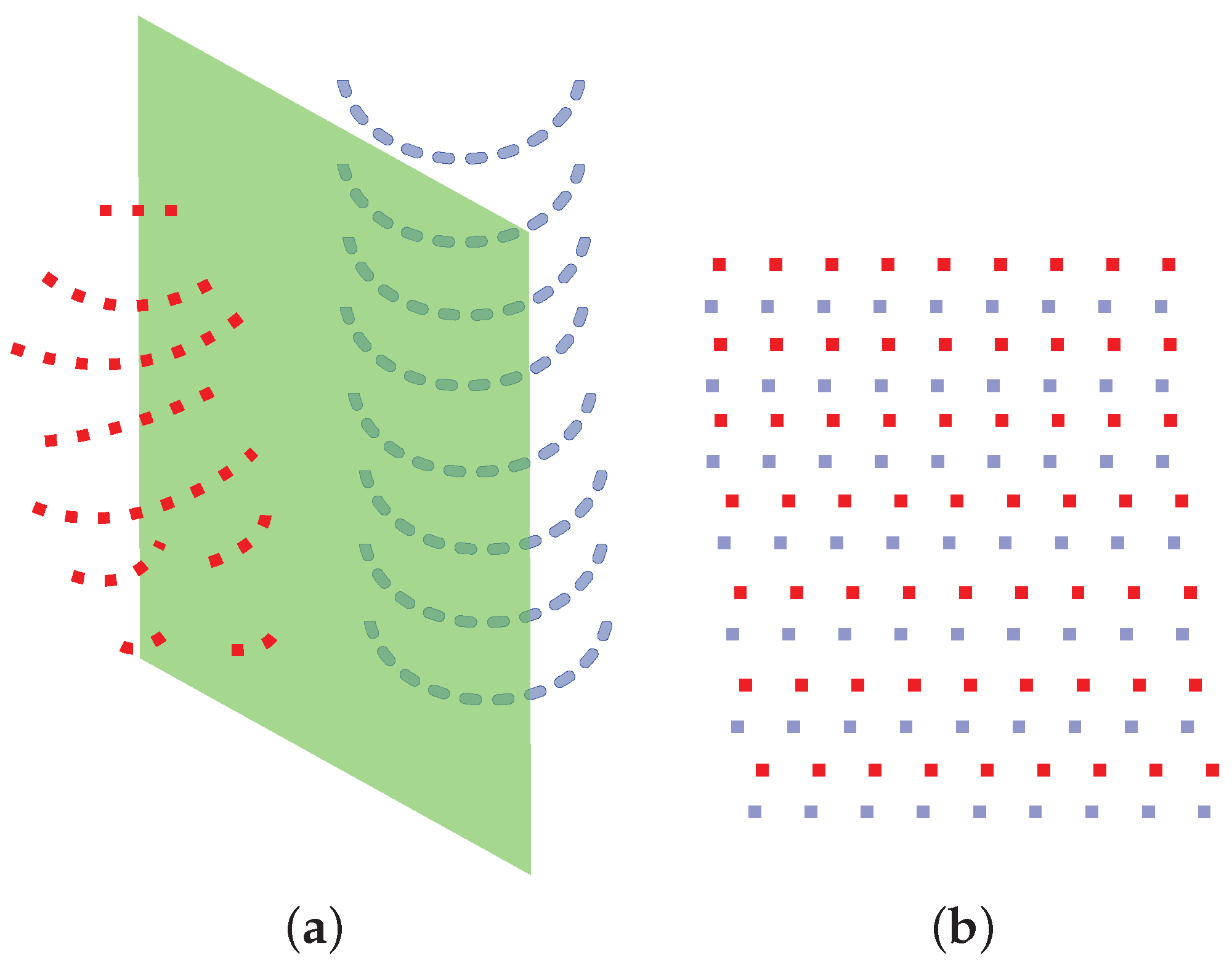

**Figure 8.**Linear classifier to judge whether two segments should be combined. (

**a**) A separating plane exists between the red and blue point cloud, so we consider them as derived from different objects; (

**b**) No plane could completely separate them, so we consider them as being from the same object.

**Figure 9.**A challenge caused by registration error. The red and blue point clouds show scanned data of a plane such as a wall or roof, and they should be intersecting as in Figure 8b. However, a separating plane exists in the gap caused by registration errors, which indicates that they are from different objects. For this situation, we map the red and blue points into the same plane and then judge with a linear classifier.

**Figure 10.**Processing for planar segments. (

**a**) An input point cloud segment that is detected as a planar shape; (

**b**) All points are mapped in the detected plane, and boundary points are extracted; (

**c**) Planar surface is reconstructed.

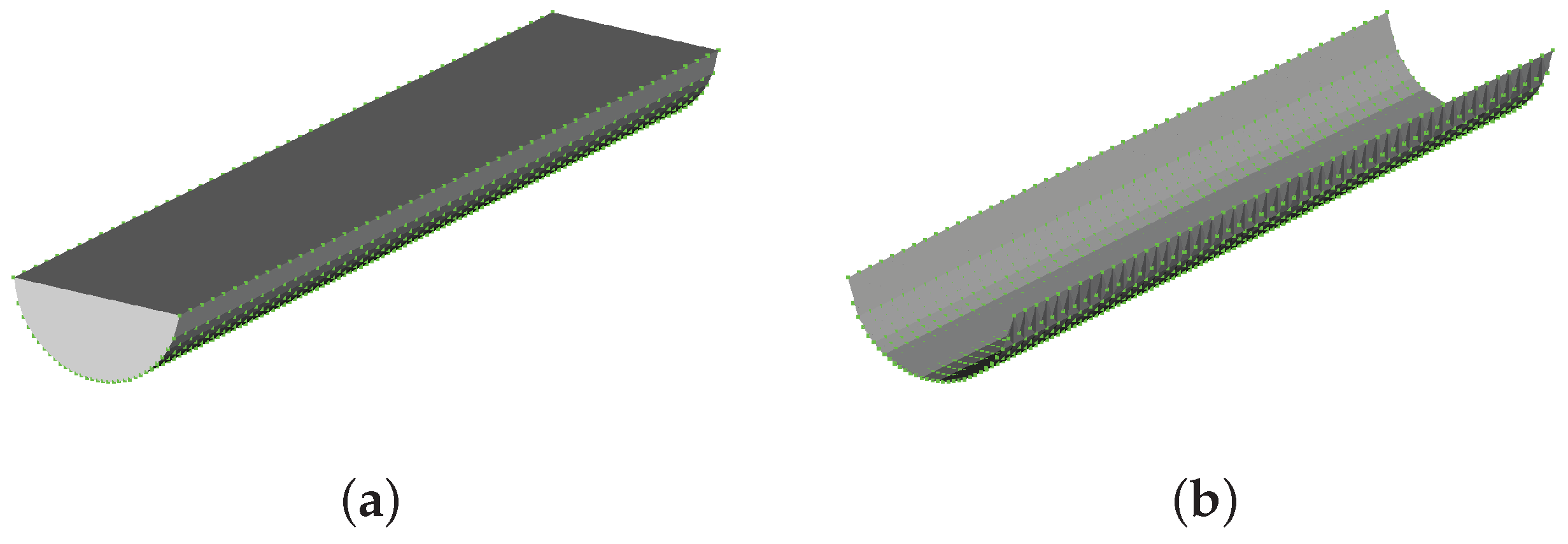

**Figure 11.**Surface reconstruction comparison. Green points represents vertexes of the point cloud. (

**a**) Shows the reconstructed surface by 3D Delaunay triangulation, where a 3D convex hull is constructed; (

**b**) shows the result based on alpha shape. We can see that surfaces are better reconstructed based on alpha shape rather than Delaunay triangulation.

**Figure 12.**Three datasets are used in this work. (

**a**–

**c**) Point clouds of the Corridor, Lobby and Underground shopping mall dataset respectively; (

**d**–

**f**) Panoramic images of the three datasets.

**Figure 13.**Time performance of IRIS . Both Region Growing and IRIS Region Growing are applied to the three datasets from one frame to sixteen frames of point clouds. (

**a**–

**c**) Results of the Corridor, Lobby and Underground shopping mall are shown respectively. The time consumption of IRIS Region Growing is calculated without considering the computation time of previous frames.

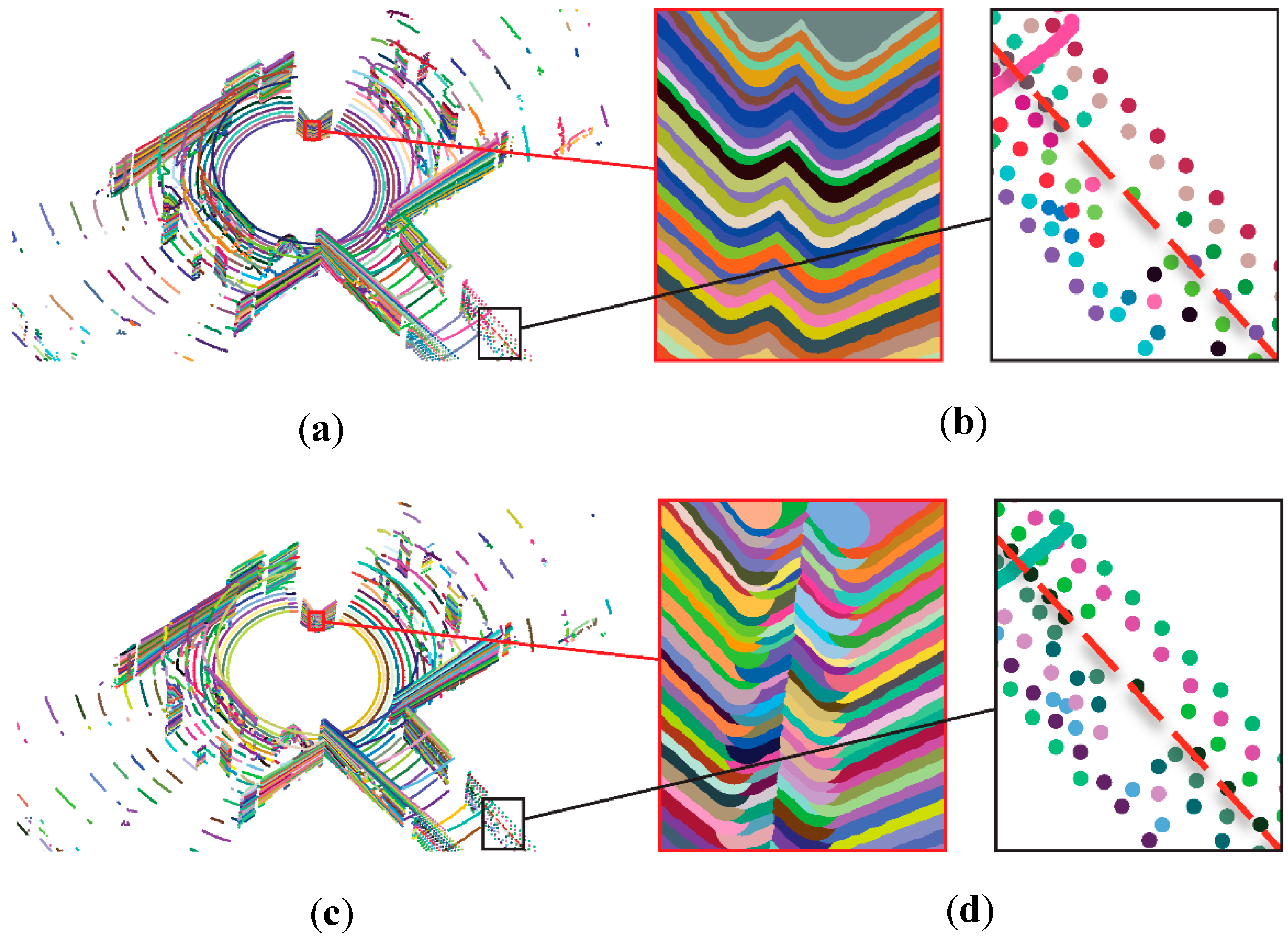

**Figure 14.**Scanline clustering comparison. (

**a**,

**b**) show the result of the method in [14], and (

**c**,

**d**) show the result of our proposed method for Scanline clustering. Magnified images are shown in (

**b**,

**d**). Compared with the left part in (

**d**), the left part in (

**b**) will cause under-segmentation after the agglomeration of Scanline clusters. Compared with the right part in (

**d**), the right part in (

**b**) will cause over-segmentation after the agglomeration of scanline clusters (see the red dash line ).

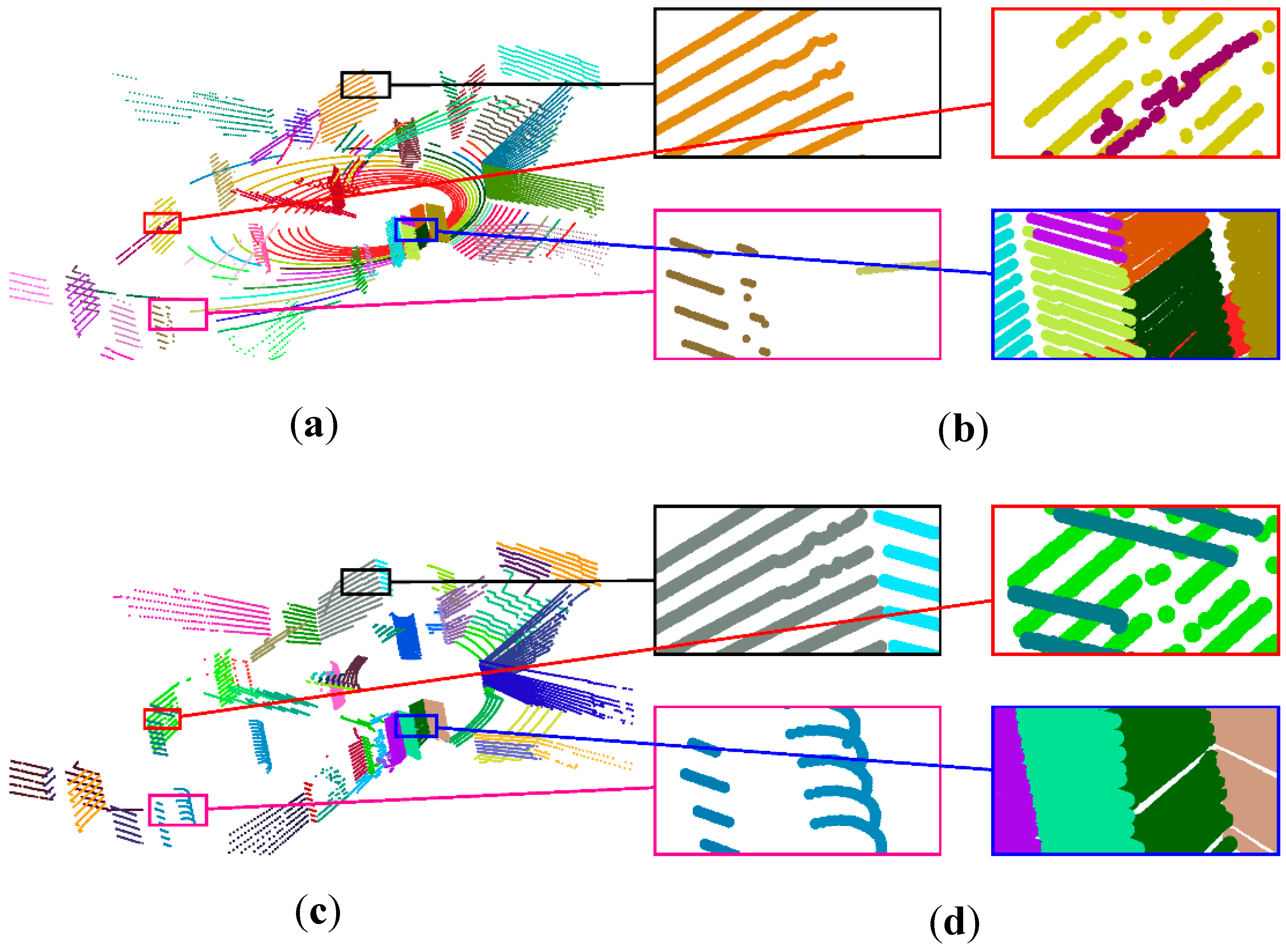

**Figure 15.**Segmentation results for one frame of point cloud. (

**a**,

**b**) show results with Region Growing, and (

**c**,

**d**) show results with our proposed SLCC. From the magnified images in the right column, our proposed SLCC performs better in avoiding miss-segmentation (marked by boxes with black, red and magenta lines) and over-segmentation (marked by the box with blue lines).

**Figure 16.**Examples of irregularly shaped objects segmented by SLCC. (

**a**–

**d**) Pedestrian, pedestrian, two pedestrians side by side, pedestrian segmented from the Underground shopping mall dataset; (

**e**–

**h**) cyclist, cyclist, pedestrian, car segmented from the KITTI dataset [36].

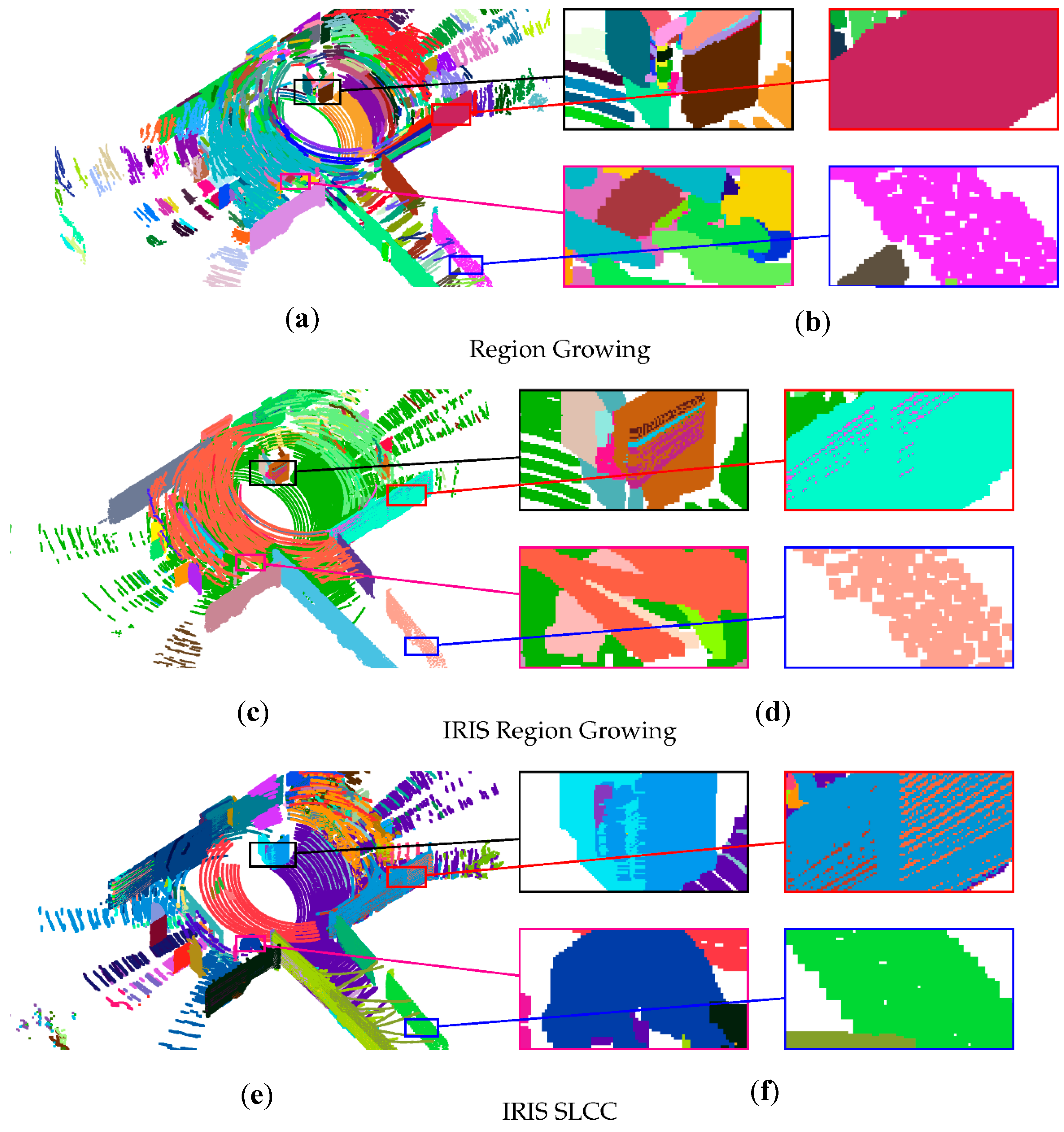

**Figure 17.**Comparison of segmentation results on multiple frames. Results of Region Growing, IRIS Region Growing and SLCC are shown from upper to lower rows respectively. Magnified images are shown in the right column. (

**a**,

**b**) Region Growing is prone to over-segmentation due to the sparsity and non-uniformity; (

**c**,

**d**) Over-segmentation of Region Growing is also suppressed by IRIS; (

**e**,

**f**) A small car is well segmented by IRIS SLCC (marked by the box with magenta lines).

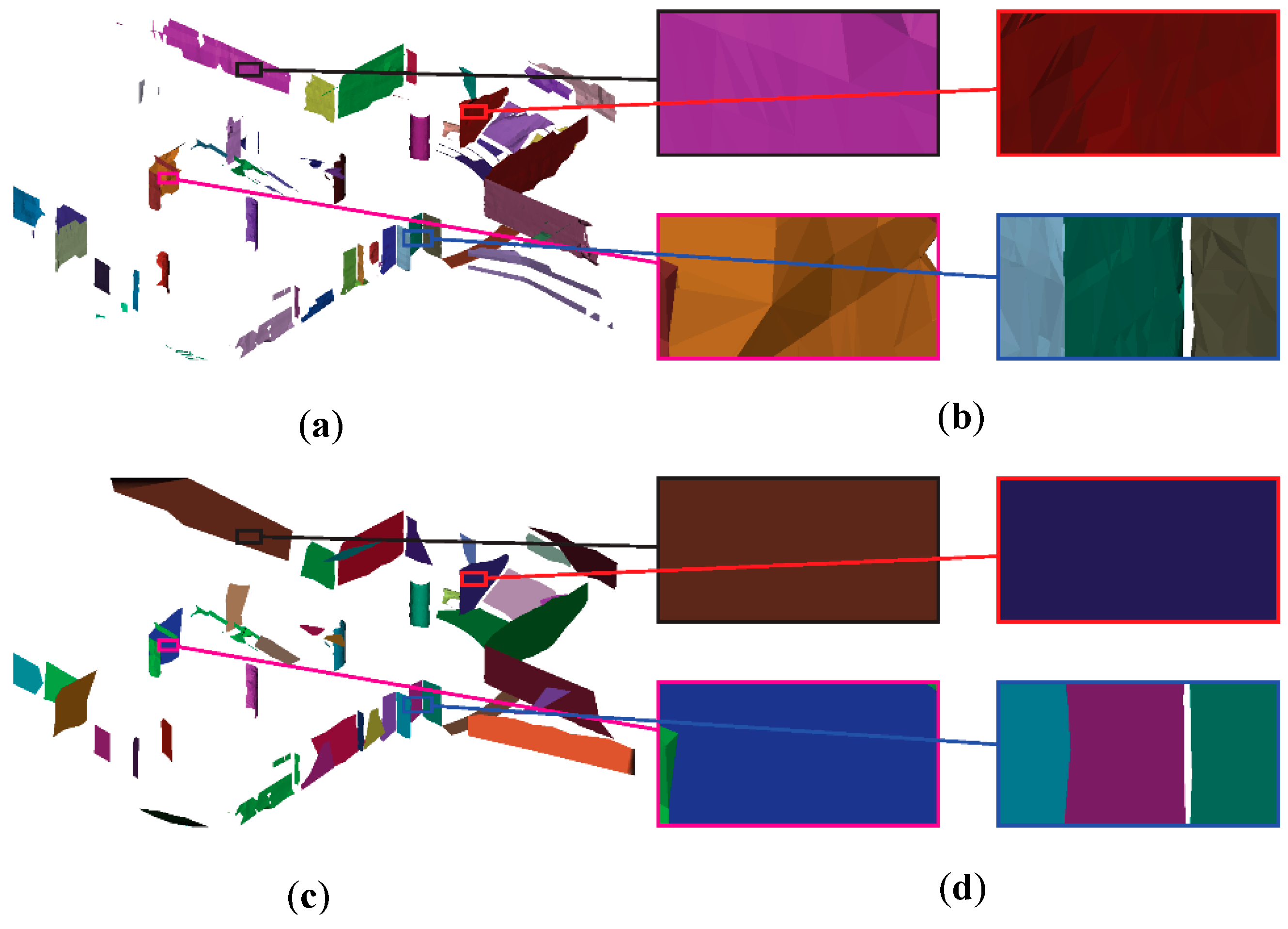

**Figure 18.**Surface reconstruction of a single frame point cloud without regularization. (

**a**,

**b**) show surface reconstruction based on alpha shape without plane regularization for comparison. (

**c**,

**d**) show the result after plane regularization. We can see that creases are flatter.

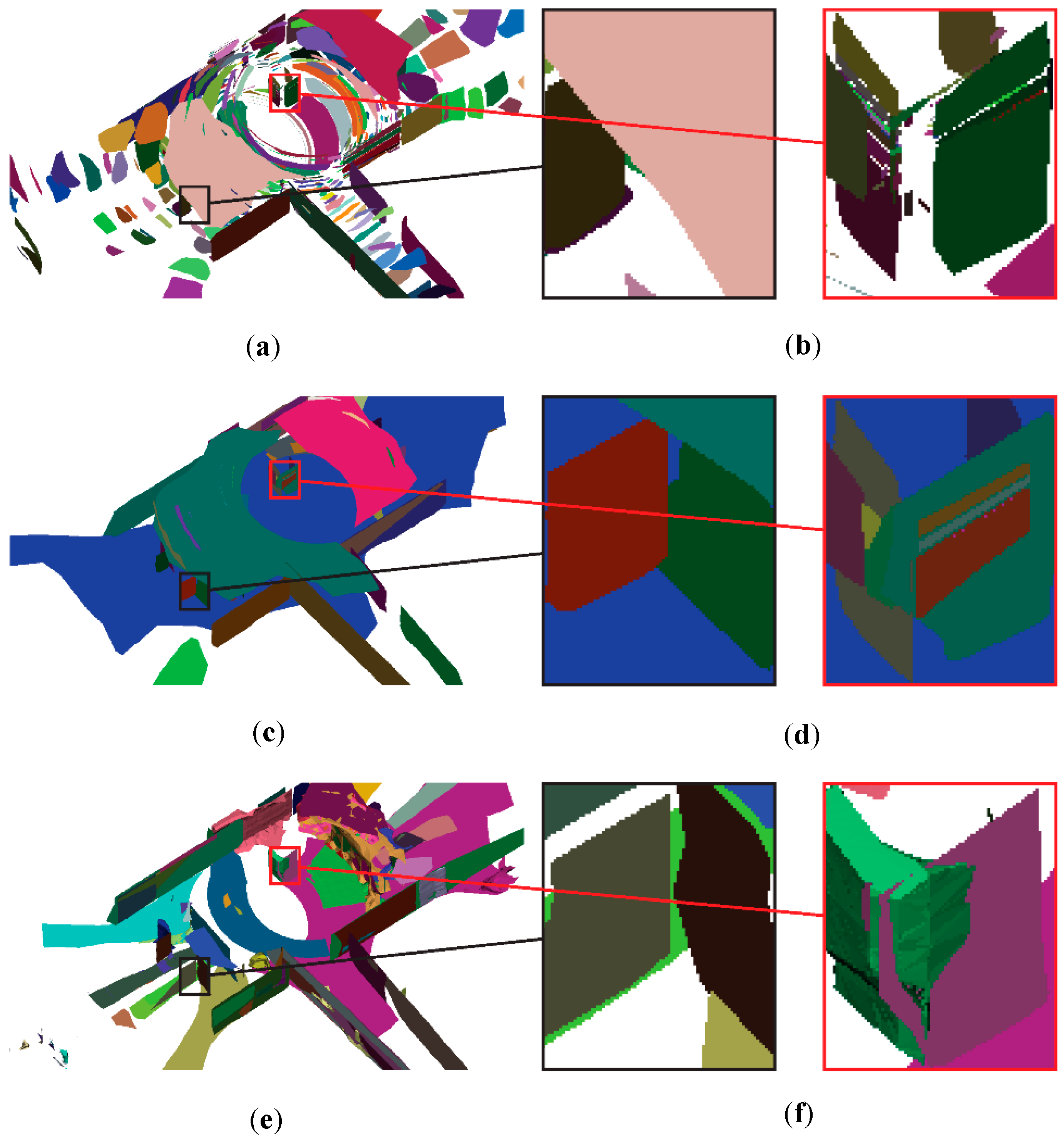

**Figure 19.**Surface reconstruction results for a multiple point cloud of LiDAR. Different colors of the plane indicate over-segmentation. (

**a**,

**b**) Region Growing; (

**c**,

**d**) IRIS Region Growing; (

**e**,

**f**) IRIS SLCC.

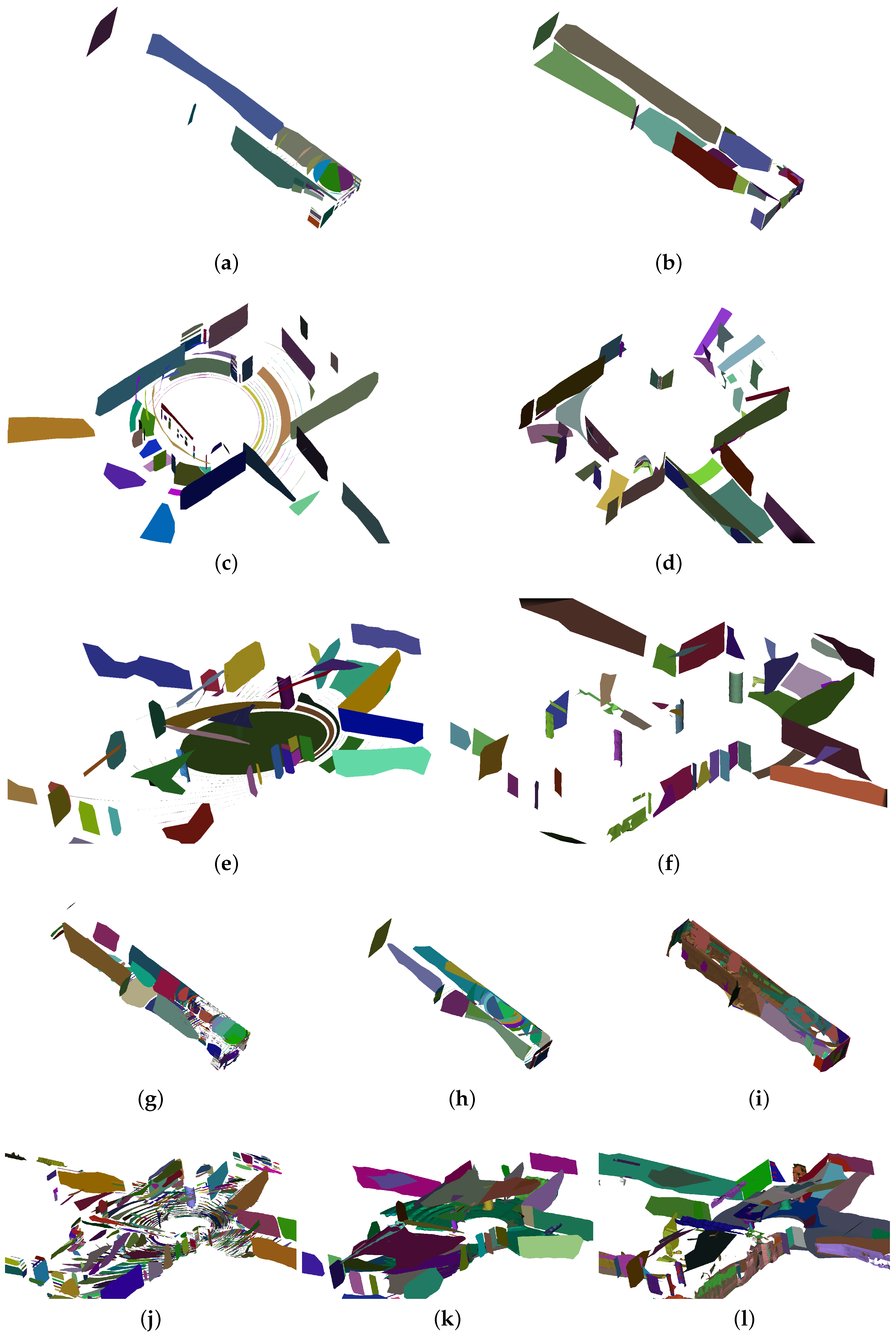

**Figure 20.**(

**a**–

**l**) More surface reconstruction results on three datasets. (

**a**,

**c**,

**e**) Results using Region Growing for one frame on three datasets; (

**b**,

**d**,

**f**) results using SLCC for one frame on three datasets; (

**g**–

**l**) results using Region Growing, IRIS Region Growing and IRIS SLCC for the Corridor and Entrance datasets.

Dataset | Corriodr | Lobby | Underground Shopping Mall |
---|---|---|---|

Area (m${}^{3}$) | 13.7 × 16.4 × 3.2 | 73.8 × 60.5 × 6.0 | 137.8 × 37.4 × 16.1 |

mean (m) | 1.9 | 6.5 | 7.8 |

std. (m) | 1.8 | 4.5 | 4.8 |

Points per frame | 70,000 | ||

Number of frames | 24 | 12 | 16 |
