CCN Retrievals from Spaceborne Lidar Observations During ACEMED: Sensitivity to Smoke Parameterization

Highlights

What are the main findings?

• Satellite-based CCN retrievals from CALIPSO using the SCOPE algorithm are presented and evaluated against ACEMED aircraft measurements.
• For the case examined here, optimal smoke parameterizations differ between land and sea environments.

What are the implications of the main findings?

• This case study highlights a strong sensitivity of satellite-based CCN retrievals to the choice of smoke conversion factors.
• Regionally tailored conversion factors can improve the reliability of spaceborne CCN products.

Abstract

We present an improved algorithm based on the POlarization LIdar PHOtometer Networking (POLIPHON) method to retrieve cloud condensation nuclei (CCN) concentration profiles from spaceborne lidar observations. Our previous paper, which was the first study to demonstrate the feasibility of using measurements from Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observations (CALIPSO) to retrieve CCN is revisited. Our results focus on the Evaluation of CALIPSO’s Aerosol Classification scheme over Eastern Mediterranean (ACEMED) research campaign that took place over Thessaloniki, Greece, in September 2011. We compare our results with our earlier retrievals, discussing the critical changes that have been made and the importance of using the proper conversions factors. We also demonstrate the use of conversion factors acquired based on CALIPSO aerosol typing for CCN retrievals. The analysis highlights the strong influence of smoke on CCN concentrations and shows that the assumed aging state of the smoke can significantly alter the retrieval outcome.

1. Introduction

Today, aerosol–cloud interactions (ACIs) are considered the largest source of uncertainty in climate change research. Aerosols can act as cloud condensation nuclei (CCN) for cloud droplets and as ice-nucleating particles (INPs) for ice crystals [1,2,3,4,5], thereby modifying the radiative and microphysical properties of clouds. Global efforts to tackle these uncertainties are underway through international scientific collaborations focused on aerosol–cloud interactions (e.g., AeroCom, ACTRIS, BACCHUS, CERTAINTY) and through broader climate-model intercomparison frameworks such as CMIP6 [6]. For this scope, a combination of in situ measurements, satellite observations, and numerical model simulations is employed to better constrain the processes governing ACI.

Over the years, progress in ACI research has shifted from relying on bulk satellite proxies such as aerosol optical depth (AOD) and aerosol index (AI), now known to be unreliable indicators of CCN [7,8], to adopting more physically based observations. Ground-based polarization lidars and satellite polarimeters have since emerged as more effective tools for constraining CCN/INP concentrations and aerosol–cloud effects [9,10,11,12,13]. Building on this evolution, our previous work provided the first CALIPSO-based CCN estimates and validated them against coincident airborne in situ measurements. This demonstrated the potential of using satellite lidar observations for CCN retrievals based on the POLIPHON methodology [14]. Since then, the concept has been adopted, improved, and extended, leading to the development of two separate algorithms, the Optical Modelling of the CALIPSO Aerosol Microphysics (OMCAM) and POLIPHON [15,16,17], while machine learning approaches have also been proposed [18]. Recently, Choudhury and Tesche [19] developed the first global, satellite-based monthly CCN dataset for the period 2006–2021 based on OMCAM. Such data is highly valuable, as they offer new insight into ACI processes that are still poorly understood or often overlooked. The use of this global OMCAM dataset [20] showed that dust-influenced and pristine maritime environments particularly limit our current understanding of CCN–cloud droplet relationships.

In this work, we present the progress achieved within the Space-derived aerosol-dependent ClOud PropertiEs (SCOPE) project by applying the POLIPHON algorithm and recent methodological developments. We compare our latest results with our previous retrievals and with in situ aircraft measurements from the Aerosol Classification scheme over Eastern Mediterranean (ACEMED) research campaign. In addition, we apply newly derived SCOPE conversion factors based on CALIPSO aerosol typing and discuss the strong sensitivity of CCN retrievals to the chosen conversion factors, particularly under smoke-rich conditions.

2. Materials and Methods

2.1. Data

CALIPSO, part of the A-Train constellation, was launched into a 705 km sun-synchronous orbit in 2006 and operated until its decommissioning in August 2023, crossing the equator near 13:30 LT on a 16-day repeat cycle. Its main instrument, the Cloud-Aerosol Lidar with Orthogonal Polarization (CALIOP), measured backscattered intensity and polarization to retrieve cloud and aerosol profiles in the upper ~30 km of the atmosphere [21,22]. The CALIPSO processing algorithms detected atmospheric layers and assigned cloud and aerosol subtypes [23,24,25,26]. Each aerosol subtype was associated with a lidar ratio used to derive extinction. This study uses CALIPSO Version 4.51 (v4.51) Level 2 data, including 532 nm aerosol and cloud backscatter profiles, the vertical feature mask (VFM), the aerosol subtype mask (i.e., marine, dust, polluted continental/smoke, clean continental, polluted dust, elevated smoke, dusty marine for tropospheric aerosols), and auxiliary quality and meteorological parameters (e.g., CAD score, relative humidity). These data serve as inputs for the CCN calculations.

Within the ACEMED framework, a flight coincident with a CALIPSO overpass over the land–sea area around Thessaloniki, Greece (40.6°N, 22.9°E), was conducted using the FAAM BAe-146 research aircraft on 9 September 2011. Measurements collected between 00:00 and 02:00 UTC were used to derive dry particle number concentrations (cm⁻³) at different altitude levels [27]. The airborne dataset includes in situ observations of aerosol particle size distributions, aerosol optical properties (scattering and absorption), and aerosol chemical composition, complemented by lidar backscatter profiles. These measurements were combined within an integrated retrieval framework to derive consistent aerosol microphysical properties, following the methodology described in Tsekeri et al. [27]. Standard calibration and quality control procedures were applied to the airborne data. The resulting aircraft-based particle number concentrations are used here for validation of the satellite-based CCN retrievals.

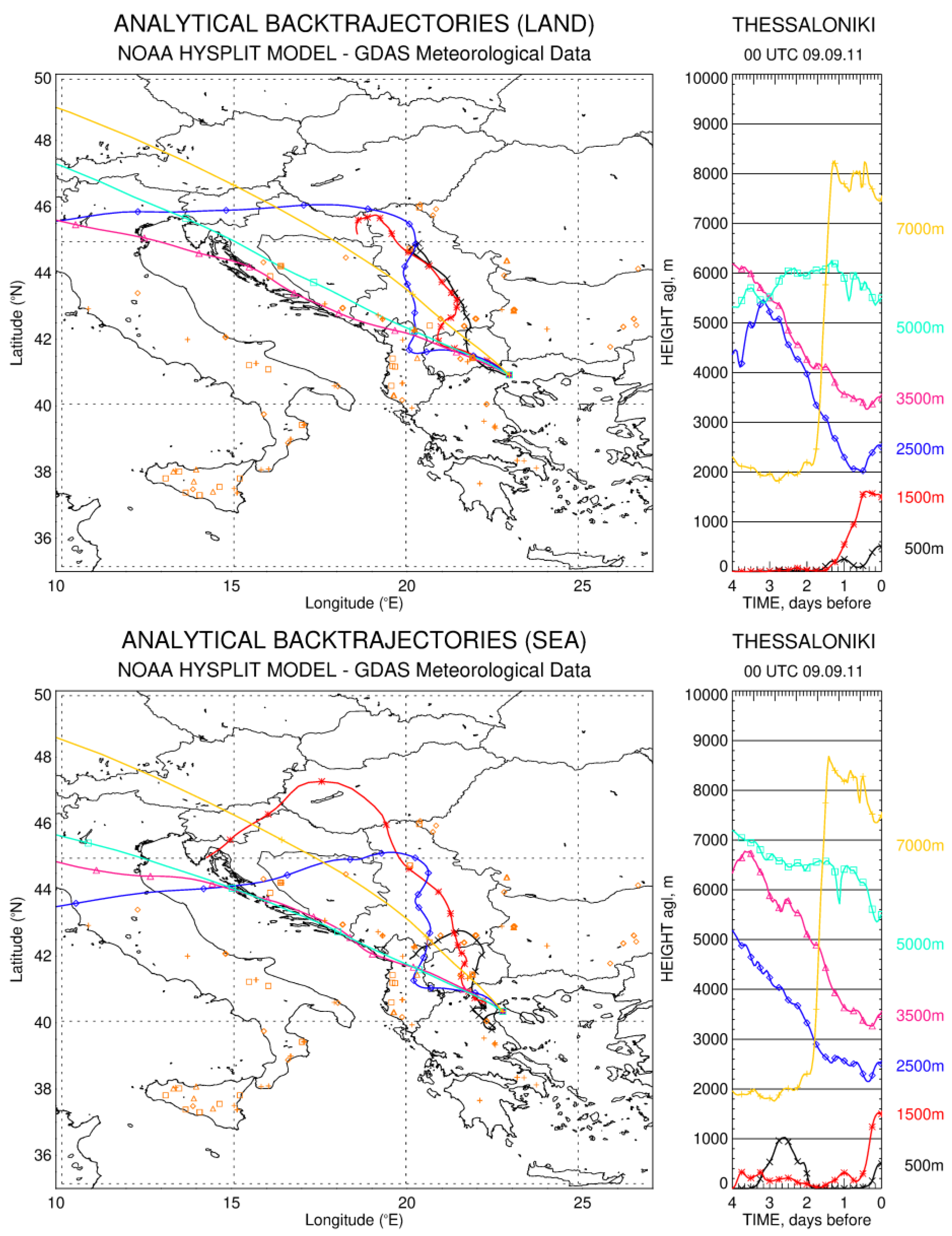

Finally, to examine the origin of air masses during the measurement period, MODIS/Terra and Aqua day/night C6.1 active fire data from NASA’s Fire Information for Resource Management System (FIRMS) [28] are combined with 96 h backward trajectories ending over the land and sea area of Thessaloniki, where ACEMED took place. The back-trajectories are computed using the Hybrid Single-Particle Lagrangian Integrated Trajectory (HYSPLIT) model [29].

2.2. CCN Algorithm and Updates

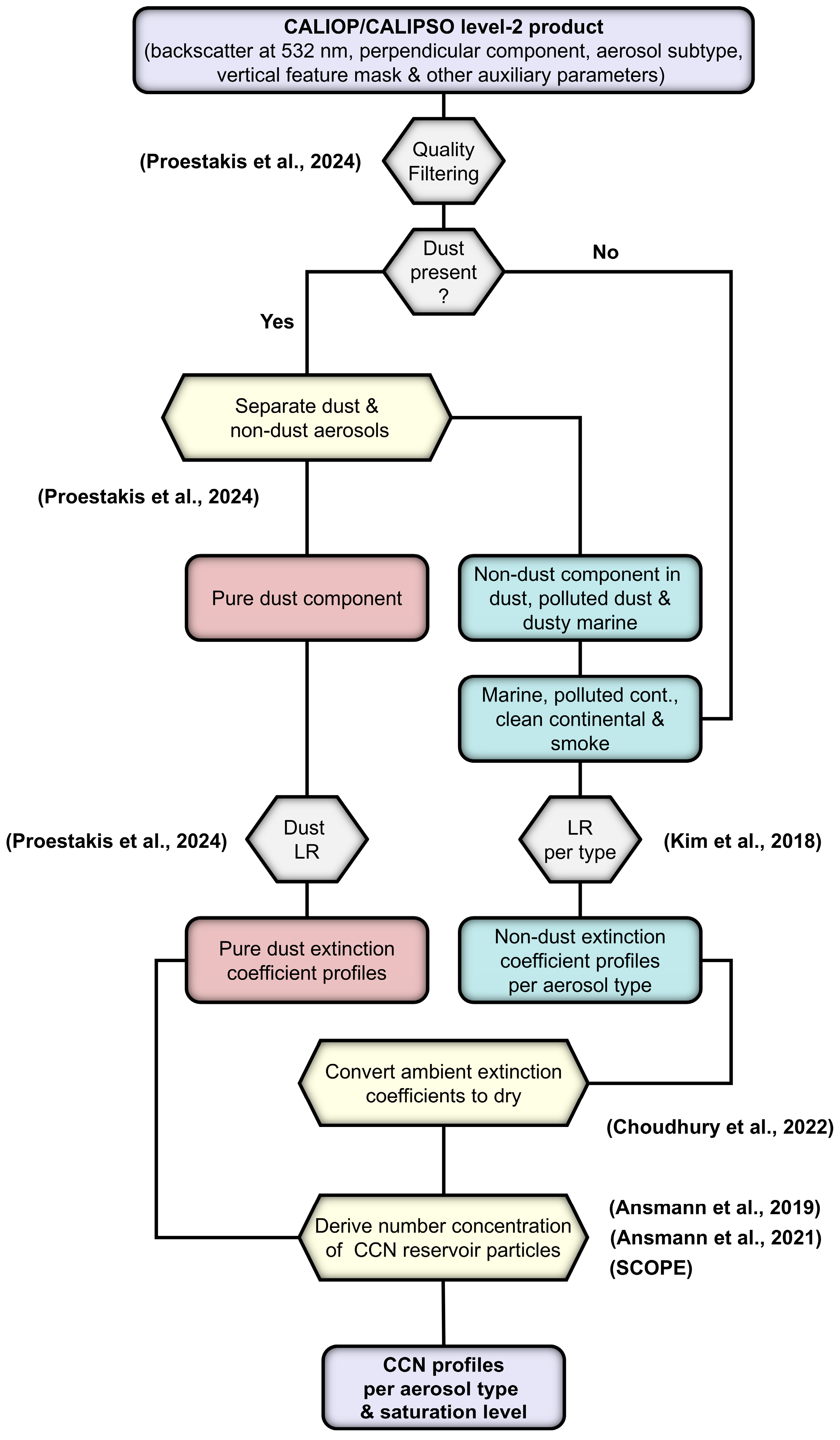

For the scope of this study, the algorithm was applied to a CALIPSO overpass from 9 September 2011, starting at 00:31 UTC. The first distinction relative to our earlier work is the use of Version 4.51 Level 2 data instead of Version 4.1. A conservative quality-filtering approach was adopted prior to applying the algorithm. Specifically, we followed the methodology described in Proestakis et al. [30] (see their Table 1 and corresponding discussion). Profiles containing cloud features at any height level were excluded. It should be noted that the use of the newer data version and the stricter filtering criteria limits the availability of valid retrievals to the Eastern Mediterranean and part of the Sahara, in contrast to our earlier analysis, which covered the whole Sahara and Sahel areas (see Figure A1).

After quality filtering, we separate dust (d) from non-dust (nd) backscatter coefficients when the CALIPSO aerosol typing identifies dust, polluted dust, or dusty marine aerosols using the one-step POLIPHON method described in Proestakis et al. [30]. This approach relies on the calculated particle linear depolarization ratio δ_p(z), the theoretical depolarization ratios of pure dust (δ_d(z)) and non-dust components (δ_nd(z)), and the total backscatter β_t(z) at 532 nm. We adopt δ_d = 0.31 ± 0.04 and δ_nd = 0.05 ± 0.02.

Pure dust backscatter coefficients are converted to pure dust extinction coefficients by multiplying with geographically dependent LRs (see Table 3 and Figure 3 in Proestakis et al. [30]), unlike Georgoulias et al. [14], where we adopted a single LR value of 55 ± 11 sr following Marinou et al. [31].

The remaining non-dust fraction is attributed to marine aerosols when the CALIPSO algorithm classifies the layer as dusty marine and to polluted continental aerosols when dust or polluted dust is identified by CALIPSO. For marine, polluted continental/smoke (hereafter referred to as polluted continental), clean continental, and elevated smoke (hereafter referred to as smoke), we adopt the standard CALIPSO aerosol typing. Aerosol-type-specific LRs from Kim et al. [23] are then applied to convert backscatter to extinction coefficients.

In this work, CCN concentrations are calculated following the well-established methodology of Mamouri and Ansmann [13], in which dry particle concentrations are obtained (Equation (1)) using appropriate conversion factors (cfs):

$$n_{i,j,dry}=c_j\hspace{0.33em}\times \hspace{0.33em}{{\sigma }_j}^{x_j}\left(z\right),$$

(1)

where n_i,j,dry is the concentration of dry particles with radius > i nm for aerosol type j representing the reservoir of favorable CCN active particles. The parameters c_j and x_j are the respective cfs, and σ is the dry extinction coefficient at height level z. For dust (d), we use i = 100 nm, while for marine (m), continental (c), and smoke (s) aerosols, we use i = 50 nm. The cfs are derived from Aerosol Robotic Network (AERONET) aerosol optical thickness measurements and column-integrated particle size distributions, and since they are obtained under specific aerosol conditions, they differ by aerosol type. In contrast to Georgoulias et al. [14], we do not group polluted continental, clean continental, and smoke aerosols under a single “continental” category. Instead, following more recent studies, we apply separate cfs for each aerosol subtype. Specifically, dust cfs (c_100,d, and x_d) are taken from Ansmann et al. [9], marine (c_100,m and x_m) and continental (c_60,c and x_c) cfs from Mamouri and Ansmann [13], and smoke cfs (c_50,s and x_s) from Ansmann et al. [32]. For smoke, we test both aged smoke and fresh smoke cfs factors depending on the assumed state of the plume. In addition to the “standard” calculations with the cfs described above, for dust, polluted continental aerosols and smoke, we also use very recently retrieved cfs within the framework of SCOPE from Karageorgopoulou et al. [33] based on CALIPSO aerosol typing rather than using the Ångström Exponent like in previous studies [9,13]. The full list of cfs used in this work is given in Table 1.

Table 1. Conversion factors for the different aerosol types j used in the CCN calculations along with their associated uncertainties (±1σ). The source study and the region from which each factor was derived are also provided.

Aerosol Type	Study	Area Retrieved	cj (Mm cm−3) *	xj
Dust	Ansmann et al. [9]	Global mean	8.9 ± 2.8	0.75 ± 0.06
	Karageorgopoulou et al. [33]	Thessaloniki, Greece & Leipzig, Germany	13.6 ± 9.2	0.86 ± 0.13
Marine	Mamouri and Ansmann [13]	Barbados	7.2 ± 3.7	0.85 ± 0.03
Polluted continental	Mamouri and Ansmann [13]	Leipzig, Germany	25.3 ± 3.3	0.94 ± 0.03
	Karageorgopoulou et al. [33]	Thessaloniki, Greece & Leipzig, Germany	43.4 ± 28.6	0.78 ± 0.13
Clean continental	Mamouri and Ansmann [13]	Leipzig, Germany	25.3 ± 3.3	0.94 ± 0.03
Smoke (aged)	Ansmann et al. [32]	Recommended from global measurements	17.0 ± 5.0	0.79 ± 0.08
Smoke (fresh + aged)	Ansmann et al. [32]	Recommended from global measurements	100.0 ± 50.0	0.75 ± 0.08
Smoke	Karageorgopoulou et al. [33]	Thessaloniki, Greece & Leipzig, Germany	28.2 ± 28.7	0.90 ± 0.19

* c_j corresponds to c_100d for dust, c_100m for marine aerosols, c_60c for continental aerosols, and c_50s for smoke.

Table 1. Conversion factors for the different aerosol types j used in the CCN calculations along with their associated uncertainties (±1σ). The source study and the region from which each factor was derived are also provided.

Aerosol Type	Study	Area Retrieved	cj (Mm cm−3) *	xj
Dust	Ansmann et al. [9]	Global mean	8.9 ± 2.8	0.75 ± 0.06
	Karageorgopoulou et al. [33]	Thessaloniki, Greece & Leipzig, Germany	13.6 ± 9.2	0.86 ± 0.13
Marine	Mamouri and Ansmann [13]	Barbados	7.2 ± 3.7	0.85 ± 0.03
Polluted continental	Mamouri and Ansmann [13]	Leipzig, Germany	25.3 ± 3.3	0.94 ± 0.03
	Karageorgopoulou et al. [33]	Thessaloniki, Greece & Leipzig, Germany	43.4 ± 28.6	0.78 ± 0.13
Clean continental	Mamouri and Ansmann [13]	Leipzig, Germany	25.3 ± 3.3	0.94 ± 0.03
Smoke (aged)	Ansmann et al. [32]	Recommended from global measurements	17.0 ± 5.0	0.79 ± 0.08
Smoke (fresh + aged)	Ansmann et al. [32]	Recommended from global measurements	100.0 ± 50.0	0.75 ± 0.08
Smoke	Karageorgopoulou et al. [33]	Thessaloniki, Greece & Leipzig, Germany	28.2 ± 28.7	0.90 ± 0.19

* c_j corresponds to c_100d for dust, c_100m for marine aerosols, c_60c for continental aerosols, and c_50s for smoke.

As mentioned above, the POLIPHON parameterizations refer to dry aerosol concentrations; therefore, the ambient extinction coefficients cannot be used directly. In Georgoulias et al. [14], dry-to-ambient extinction ratios for different relative humidities (RHs) were derived from aerosol microphysical properties retrieved during ACEMED [27]. Here, we adopt a more general approach by using the aerosol-type-specific hygroscopic growth factors from Choudhury et al. [15] (see their Figure 1). These factors allow us to dry the particles to the RH levels assumed during the derivation of the POLIPHON conversion factors [13]. We assume a typical RH of 80% for marine aerosols and 60% for continental aerosols and smoke. The correction is applied only when the ambient RH exceeds these thresholds. Dust is treated as hydrophobic, and thus no RH correction is applied.

Finally, we derive the CCN number concentrations (n_CCNj) for the different aerosol types j from the calculated dry particle concentrations (n_i,j,dry) under various supersaturation levels (ss) following Equation (2).

$$n_{CCNj}=f_{ss}\times n_{i,j,dry},$$

(2)

where f_ss equals 1.0, 1.35, and 1.7 for supersaturations of 0.15%, 0.25%, and 0.40%, respectively [13]. In this study, we report CCN values for a supersaturation level of 0.15%. A schematic overview of the algorithmic workflow is presented in Figure 1.

Uncertainties in the retrieved CCN concentrations are estimated by sequential propagation of independent uncertainties associated with the CALIPSO optical products (including backscatter coefficients), the LIVAS pure dust separation, the application of aerosol-type-dependent lidar ratios, and the extinction-to-CCN conversion factors using standard first-order error propagation rules. For sums or differences, the propagated uncertainty is calculated following Equation (3), for products following Equation (4), and for the power law conversion step in Equation (1) (f = A × B^C) following Equation (5).

$${\sigma }_{A\pm B}=sqrt\left({\sigma }_A^2+{\sigma }_B^2\right),$$

(3)

$${\sigma }_{AB}=\left|AB\right|\times sqrt\left({\left({\displaystyle \frac{{\sigma }_A}{A}}\right)}^2+{\left({\displaystyle \frac{{\sigma }_B}{B}}\right)}^2\right),$$

(4)

$${\displaystyle \frac{{\sigma }_f}{f}}=sqrt\left({\left({\displaystyle \frac{{\sigma }_A}{A}}\right)}^2+{\left(C\times {\displaystyle \frac{{\sigma }_B}{B}}\right)}^2+{\left(\ln \left(B\right)\times {\sigma }_C\right)}^2\right),$$

(5)

3. Results

3.1. CALIPSO Vertical Feature Mask and Aerosol Typing During ACEMED

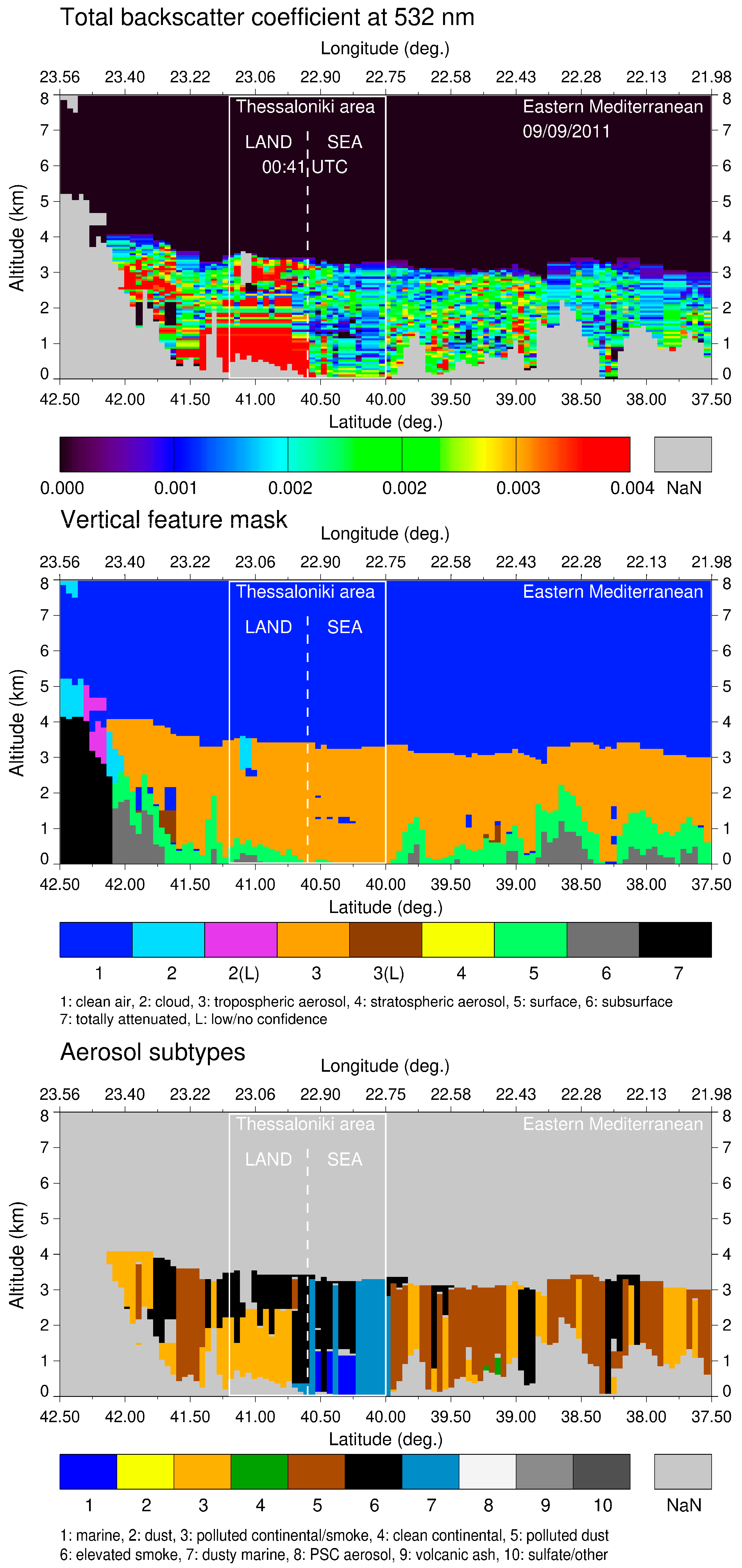

Figure 2 presents the backscatter coefficients at 532 nm, the corresponding vertical feature mask, and the aerosol subtypes in the greater area around Thessaloniki (42.5°N–37.5°N). Moving from north to south, CALIPSO crossed the land (41.2°N–40.6°N) and sea (40.6°N–40.0°N) area of Thessaloniki, where the ACEMED flights took place, at around 00:41 UTC. VFM confirms the existence of tropospheric aerosol layers over the area. The CALIPSO typing algorithm identifies polluted continental/smoke, polluted dust and elevated smoke over the land area and marine, dusty marine and elevated smoke over the sea area. VFM and aerosol types fields are almost identical with the ones identified with an older version of the CALIPSO data (v4.1) shown in Georgoulias et al. [14].

3.2. CALIPSO CCN Retrievals Using the SCOPE Algorithm During ACEMED

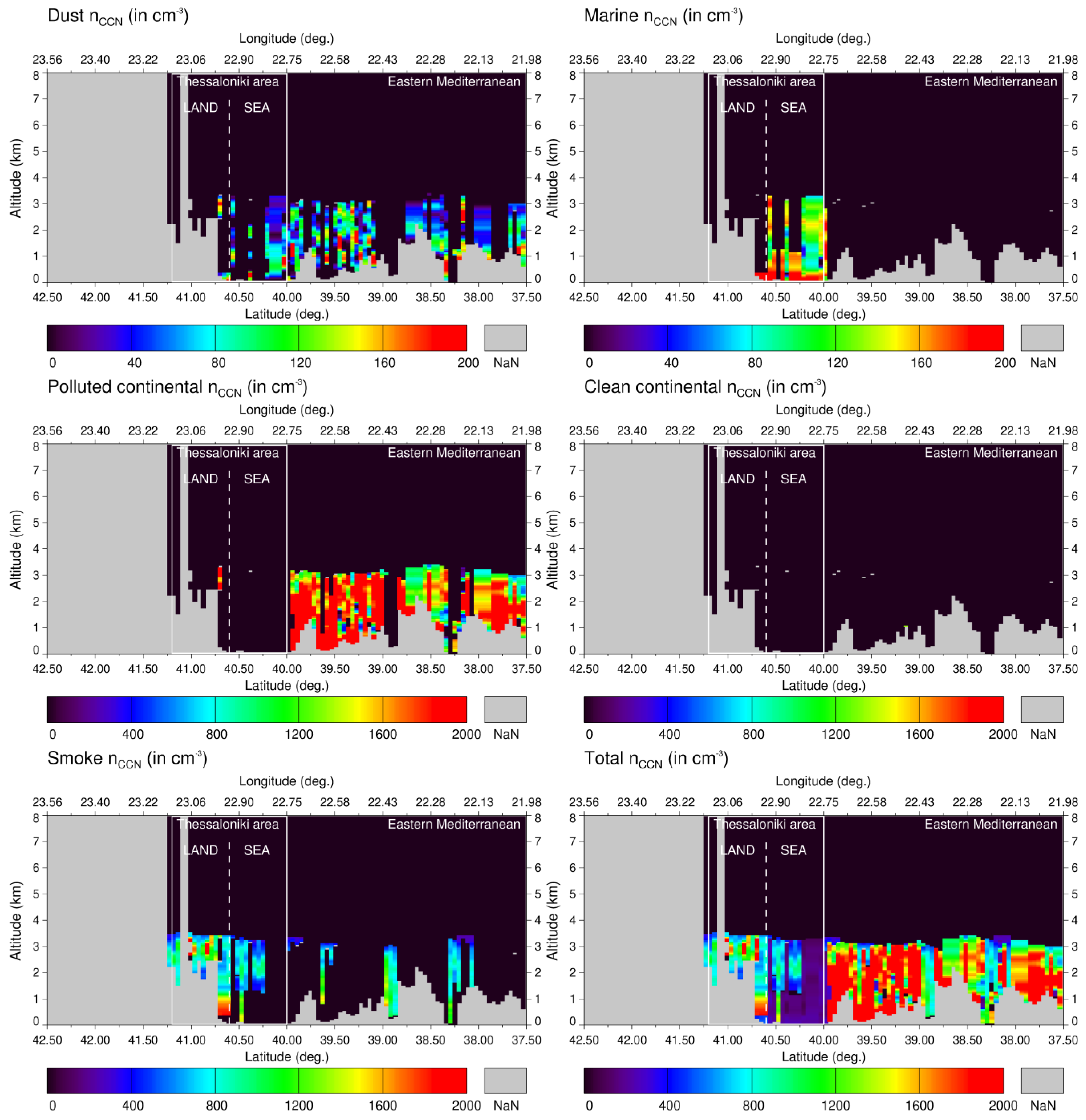

Following Proestakis et al. [30], we separate pure dust from aerosol mixtures and obtain dust, polluted continental, and smoke aerosols over land, and dust, marine, and smoke aerosols over the sea. In Figure 3 we present the CCN concentration (n_CCN) cross sections for each individual aerosol type as well as for all aerosol types combined (total) in cm⁻³. These values are retrieved under a supersaturation of 0.15%, in which case all particles are considered potential CCN; therefore, n_CCN is equivalent to the particle number concentration. It is obvious that smoke particles dominate the area. It must be noted that the calculations shown in this figure are based on the “default” SCOPE algorithm conversion factors, i.e., dust cfs from Ansmann et al. [9], marine and polluted/clean continental cfs from Mamouri and Ansmann [13], and smoke cfs from Ansmann et al. [32] assuming aged smoke. The same combination of cfs (denoted as Combination 1 hereafter) was also adopted by Choudhury et al. [15].

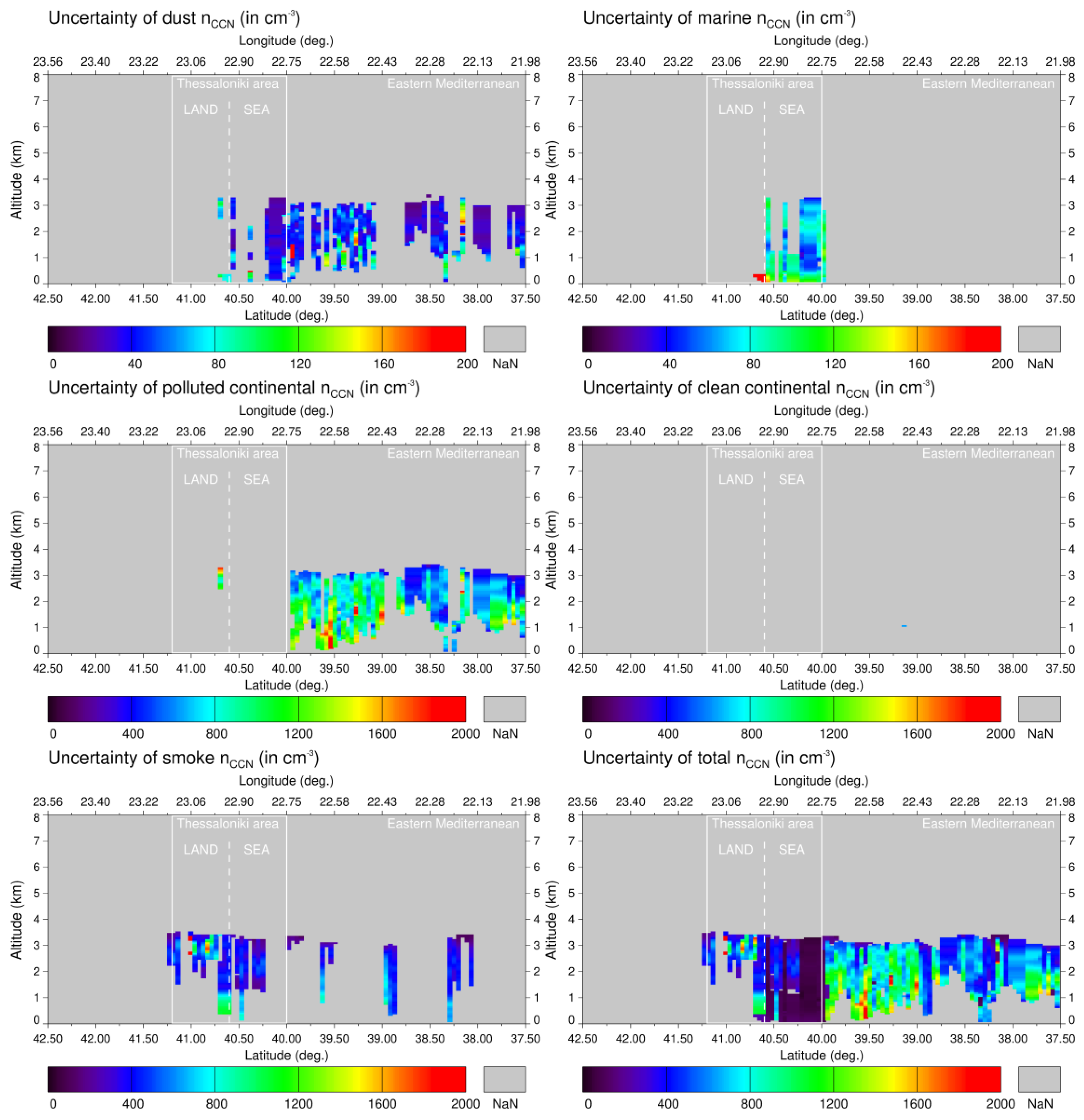

The corresponding uncertainties calculated by propagating the error inserted from the use of the CALIPSO optical products, the pure dust separation method, the application of LRs and cfs appear in Figure 4. Specifically for Thessaloniki, the average uncertainty across the different atmospheric layers is ~±55% over land and ~±50% over the sea with the overall uncertainty being of the order of a factor of 2 [14,15,17].

3.3. Retrievals with Different Conversion Factors and Comparison with Aircraft Measurements

In addition to Combination 1 (default cfs), we repeat the calculations using our algorithm with four alternative sets of conversion factors. Combination 2 is identical to Combination 1 except that smoke is treated as a mixture of fresh and aged smoke rather than solely aged. Combination 3 uses the same marine and clean continental cfs as Combination 1 but applies the dust, polluted continental, and smoke cfs from Karageorgopoulou et al. [33]. These cfs are based on a new approach in which AERONET-derived microphysical properties are combined with CALIPSO aerosol classification using carefully selected pure aerosol cases. It should be noted, however, that the smoke cfs proposed by Karageorgopoulou et al. [33] were derived from a limited number of smoke cases (13 in total), and therefore may not yet be statistically robust, with uncertainties primarily reflecting case-to-case variability and regression scatter. Because the smoke cfs proposed in the literature differ substantially and the results are highly sensitive to smoke aging, Combinations 4 and 5 retain the dust, marine, and continental cfs from Combination 3 but use aged smoke and fresh + aged smoke cfs from Ansmann et al. [32], respectively. The sources of the cfs for all combinations are listed in

Table 2. Combinations 1–5 correspond to different assumptions regarding aerosol typing and smoke parameterization, as described in Section 3.3. For each combination, the corresponding reference from which the conversion factors were adopted is provided.

Aerosol Type	Combination 1	Combination 2	Combination 3	Combination 4	Combination 5
Dust	Ansmann et al. [9]	Ansmann et al. [9]	Karageorgoupoulou et al. [33]	Karageorgoupoulou et al. [33]	Karageorgoupoulou et al. [33]
Marine	Mamouri and Ansmann [13]	Mamouri and Ansmann [13]	Mamouri and Ansmann [13]	Mamouri and Ansmann [13]	Mamouri and Ansmann [13]
Poll. continental	Mamouri and Ansmann [13]	Mamouri and Ansmann [13]	Karageorgoupoulou et al. [33]	Karageorgoupoulou et al. [33]	Karageorgoupoulou et al. [33]
Clean continental	Mamouri and Ansmann [13]	Mamouri and Ansmann [13]	Mamouri and Ansmann [13]	Mamouri and Ansmann [13]	Mamouri and Ansmann [13]
Smoke	Ansmann et al. [32] (aged)	Ansmann et al. [32] (fresh + aged)	Karageorgoupoulou et al. [33]	Ansmann et al. [32] (aged)	Ansmann et al. [32] (fresh + aged)

.

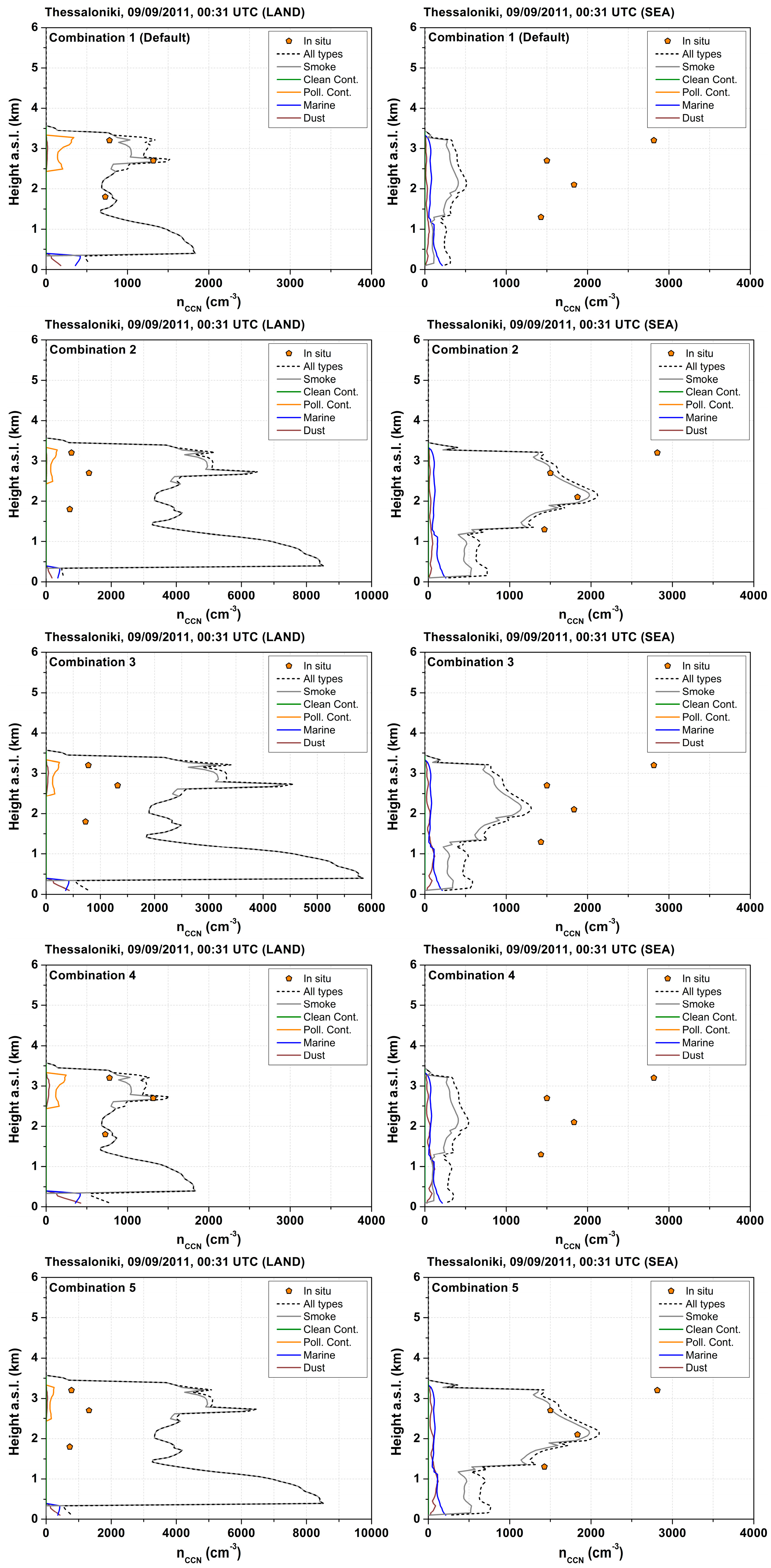

The resulting CCN profiles for the different aerosol types at a supersaturation of 0.15% as well as the total CCN profiles for the land and sea areas around Thessaloniki for all combinations are shown in Figure 5. These profiles are compared with aircraft in situ measurements from ACEMED [27]. The in situ data are available at three altitude levels over land and four over the sea. A detailed comparison is provided in

Table 3. CCN number concentrations (cm⁻³) at a supersaturation of 0.15% retrieved from CALIPSO using different conversion factor combinations (see Table 2 for details) at the ACEMED flight levels. Our results are compared against aircraft in situ measurements and earlier results from Georgoulias et al. [14] (G2020) with the POLIPHON algorithm and Choudhury and Tesche [17] with the OMCAM algorithm. Values in bold indicate the best agreement with in situ aircraft CCN measurements.

Area	Alt.	CALIPSO G2020	CALIPSO OMCAM	CALIPSO Comb. 1	CALIPSO Comb. 2	CALIPSO Comb. 3	CALIPSO Comb. 4	CALIPSO Comb. 5	In Situ
Land	1.8 km	1504	1590	813	3931	2320	813	3931	727
Land	2.7 km	2851	3171	1492	6337	4427	1481	6326	1318
Land	3.2 km	2086	2160	1322	5061	3307	1248	4986	779
Sea	1.3 km	508	826	202	670	452	238	706	1427
Sea	2.1 km	1405	1476	510	2069	1305	537	2096	1834
Sea	2.7 km	912	1065	398	1606	971	418	1626	1501
Sea	3.2 km	459	841	332	1411	802	341	1419	2814

, where the CALIPSO-derived CCN values are evaluated against the in situ measurements and compared with earlier CALIPSO-based CCN retrievals using the POLIPHON [14] and OMCAM [17] algorithms. The CALIPSO values at the ACEMED flight altitudes were obtained through linear interpolation of the original vertical profiles.

Over land, our retrievals using the default set of conversion factors (Combination 1) overestimate CCN concentrations by an average of 28%, yielding much closer agreement with the aircraft measurements compared to Georgoulias et al. [14] and Choudhury and Tesche [17], who overestimated CCN by 128% and 145%, respectively. The use of dust and polluted continental cfs from Karageorgopoulou et al. [33] together with aged smoke cfs from Ansmann et al. [32] (Combination 4) further improves the agreement with an overestimation of 43%. In the combinations where smoke is assumed to consist of fresh + aged particles (Combinations 2 and 5), CCN concentrations are on average six times higher than the in situ measurements. Combination 3, which uses smoke cfs from Karageorgopoulou et al. [33], yields CCN values approximately four times higher than the in situ data. Therefore, for land retrievals, Combination 4 provides the best performance. It is also important to note that the 25% overestimation is within the ±65% uncertainty obtained from error propagation and falls within the factor-of-two uncertainty generally expected for these retrievals.

Over the sea area, the default conversion factors (Combination 1) and Combination 4 result in underestimations of −81% and −80%, respectively, which are larger discrepancies than the −56% and −44% reported by Georgoulias et al. [14] and Choudhury and Tesche [17]. By contrast, Combinations 2 and 5 yield CCN concentrations that are much closer to the in situ measurements, underestimating by only −24% and −23%, respectively. This behavior is clearly linked to the fresh + aged smoke assumption adopted in these combinations, where the conversion factor c_s is 100 ± 50, compared to 17 ± 5 for aged smoke. Overall, over the sea, Combination 5, which combines conversion factors from Karageorgopoulou et al. [33] with the fresh + aged smoke cfs from Ansmann et al. [32], shows excellent agreement with the in situ measurements, with discrepancies well below the ±74% uncertainty estimated from error propagation and well within the commonly assumed factor-of-two uncertainty for such retrievals.

Further, to assess the influence of hygroscopic growth on the retrieved CCN concentrations, we performed a sensitivity test for the default configuration (Combination 1) in which the RH correction was disabled by setting the growth factor to unity. Application of RH correction leads to column-averaged reductions in CCN of −8% over land and −3% over the marine sector, while individual continental aerosol layers exhibit substantially larger decreases, reaching up to ~40%.

4. Discussion

As shown above, our new CCN retrieval algorithm indicates that over land, the aged smoke assumption yields results that closely match the observations, whereas over the sea, the optimal assumption is fresh + aged smoke. It is also shown that, under specific conversion factor combinations, our retrievals agree much more closely with the in situ measurements than previous POLIPHON- and OMCAM-based estimates. In particular, the choice between aged smoke and fresh + aged smoke assumptions is critical and can lead to differences of up to a factor of four, substantially affecting the accuracy of the retrievals.

A natural question that arises is why the aged smoke assumption performs well over land, while the fresh + aged smoke assumption is more appropriate over the nearby sea area of Thessaloniki given that the two regions are separated by only a few tens of kilometers. Could smoke behave differently over sea surfaces? A previous analysis by Georgoulias et al. [14] based on 96 h HYSPLIT backward trajectories and FIRMS fire observations indicated that smoke from fires burning northwest of Greece during the four days preceding the CALIPSO overpass was transported into the region. Here we repeat that analysis, computing separate back-trajectories ending over the center of the land (40.9°N, 23.0°E) and sea (40.3°N, 22.81°E) areas (Figure 6). Although the two locations are very close, the simulations reveal some differences. In particular, for air masses arriving at 500 m altitude, there appears to be transport (possibly carrying fresh smoke from a fire southwest of Thessaloniki) over the sea area only during the day prior to the CALIPSO overpass. At higher altitudes (>1500 m), where the validation against aircraft data takes place, differences are also present, although the general origin of the air masses is similar. Thus, while we cannot exclude the possibility that fresher smoke reached the sea area, even under identical source conditions, smoke may evolve differently over land and sea.

Following the definition of fresh and aged smoke from Ansmann et al. [32], smoke transported for 1–3 days may be considered fresh. However, over land, the smoke mixes with a polluted continental boundary layer enriched in pre-existing aerosol and condensable vapors. This promotes chemical aging, condensation of secondary material, and coagulation, producing a size distribution with larger effective particle diameters and therefore lower dry n₅₀ per unit extinction, consistent with the aged smoke extinction-to-number conversion factors of Ansmann et al. [32].

Over the sea, by contrast, the same plume is transported into a much cleaner, less chemically active environment with low background aerosol concentrations. As a result, smoke particles may undergo weaker microphysical processing, retain smaller modal diameters, and maintain a higher dry particle number per unit extinction. In this regime, the fresh smoke conversion factors reproduce the aircraft-derived dry n₅₀ (and therefore CCN at 0.15% supersaturation) far more accurately.

In addition, the marine boundary layer over the sea is typically very shallow (around 100 m according to ERA5 during the ACEMED flight), producing a stable inversion that inhibits vertical mixing. Smoke transported offshore therefore remains largely confined to an elevated layer, with limited interaction with the clean and chemically less active surface layer. This vertical decoupling further suppresses microphysical aging and helps explain why fresh + aged smoke conversion factors perform better over the sea. This behavior is also evident in the profiles of Figure 5, where the smoke layer over land is deeper and extends down toward the surface, whereas over the sea it appears mostly between ~1 and 3.5 km a.s.l.

It has to be noted that the present analysis, in contrast to previous CALIPSO-based CCN or aerosol number retrieval studies that typically merge multiple cases across regions, seasons, or years to derive averaged relationships or global products, deliberately focuses on one well-constrained event with detailed airborne validation. This case study approach allows for a targeted assessment of the sensitivity of CCN retrievals to smoke parameterization choices but limits the generalization of the results beyond the specific meteorological and transport conditions examined here.

The interpretation of different optimal smoke parameterizations over land and sea should therefore be treated with caution. While faster smoke aging over land compared to marine environments is physically plausible, the present analysis does not provide independent microphysical or meteorological evidence to directly verify differences in smoke aging state. The similarity of air mass back-trajectories at the validation altitude further limits attribution based solely on transport history. Consequently, the land–sea differences identified here should be interpreted primarily as an empirical sensitivity of the CCN retrieval to assumed smoke properties in this specific case rather than as definitive evidence of contrasting aging states. Independent evaluation using auxiliary datasets would be required to support a physical attribution and is beyond the scope of this single-case study.

Future work should further focus on refining smoke-type-specific conversion factors through dedicated observational campaigns and regional analyses. In addition, targeted satellite-based CCN retrievals in regions with persistent smoke outflow and existing aircraft measurements, such as the African biomass-burning corridor sampled during the ORACLES campaign, could help constrain how conversion factors vary with plume age, transport pathway, and boundary layer structure. Continued development of conversion factors based on CALIPSO aerosol typing, such as the approach introduced by Karageorgopoulou et al. [33], would also be valuable for ensuring consistency across aerosol regimes and improving global applicability. Such efforts would enable a more robust selection of appropriate conversion factors based on where the smoke is observed and its microphysical history.

5. Conclusions

In this study, we revisited CCN retrievals from CALIPSO during the ACEMED campaign using an improved POLIPHON-based algorithm and updated CALIPSO v4.51 optical products. By testing multiple sets of aerosol-type-specific conversion factors, including newly developed SCOPE factors derived from CALIPSO aerosol typing, we demonstrated that the choice of smoke parameterization is the dominant source of variability in CCN retrievals for the ACEMED case examined here. Over land, assuming aged smoke yields excellent agreement with aircraft in situ data, with CCN overestimations reduced from 128–145% in earlier studies to 25–28% in this work. Over the sea, however, a fresh + aged smoke assumption provides the best performance, reducing biases from −56% to as low as −23% and remaining well within the expected factor-of-two uncertainty. This strong land–sea contrast is consistent with differences in boundary layer structure and microphysical aging processes, as shown using HYSPLIT trajectories, active fire data, and CALIPSO aerosol typing. Our results highlight the critical role of smoke aging state in spaceborne CCN retrievals and underscore the need for regionally constrained conversion factors. Future advances will depend on targeted field campaigns and coordinated satellite–aircraft studies to better characterize smoke evolution and to refine CCN parameterizations for global applications. Continued development of conversion factors based on CALIPSO aerosol typing could provide substantial improvements in the regional and global applicability of CCN retrievals.
