Structured Bayesian Super-Resolution Forward-Looking Imaging for Maneuvering Platforms Based on Enhanced Sparsity Model

Abstract

Sparse reconstruction-based imaging techniques can be utilized to solve forward-looking imaging problems with limited azimuth resolution. However, these methods perform well only under the traditional model for the platform with low speed, and the performance deteriorates for the maneuvering trajectory. In this paper, a structured Bayesian super-resolution forward-looking imaging algorithm for maneuvering platforms under an enhanced sparsity model is proposed. An enhanced sparsity model for maneuvering platforms is established to address the reconstruction problem, and a hierarchical Student-t (ST) prior is designed to model the distribution characteristics of the sparse imaging scene. To further leverage prior information about structural characteristics of the scatterings, coupled patterns among neighboring pixels are incorporated to construct a structured sparse prior. Finally, forward-looking imaging parameters are estimated using the expectation/maximization-based variational Bayesian inference. Numerical simulations validate the effectiveness of the proposed algorithm and the superiority over conventional methods based on pixel sparse assumptions in forward-looking scenes for maneuvering platforms.

1. Introduction

Forward-looking imaging radar (FIR) offers unique capabilities in both civil and military applications, operating effectively in all weather conditions, regardless of day or night. In traditional monostatic real aperture radar systems, wide bandwidth signals are transmitted to achieve range resolution, while the azimuth resolution is constrained by the physical aperture size. To overcome this limitation, synthetic aperture radar (SAR) employs a virtual aperture, which enhances the azimuth resolution [1,2]. However, the same Doppler history and small Doppler gradient make it challenging to accumulate the virtual aperture in FIR. Furthermore, the Doppler beam sharpening (DBS) method is not applicable in this case [3,4]. As a result, improving cross-range resolution becomes difficult when the scene is directly in front of the platform.

Notable research has been conducted on FIR. Monopulse forward-looking imaging based on angle measurement enables target angle estimation, which performs well for single-target scenarios [5,6]. However, this method cannot resolve multiple targets within the same beam. Bistatic SAR, with a specially separated configuration, increases additional Doppler information to overcome the FIR blind area and achieve high forward-looking resolution. Unfortunately, compared with monostatic SAR, bistatic SAR introduces greater system complexity, including challenges related to time, space, phase synchronization, and communication between the separated platforms [7,8,9,10,11].

To further enhance imaging performance, super-resolution imaging technology is employed to improve the azimuth resolution of FIR under platform constraints [12,13,14,15]. Considering the sparsity of certain typical radar scenes, sparse signal processing is utilized to achieve radar imaging. As is well known, radar echoes can be expressed as the convolution of the two-way antenna pattern and the scattering coefficients in the imaging scene [16]. By performing deconvolution, the scattering coefficients can be reconstructed. This can be formulated as a linear regression model $s=\phi \cdot \sigma +n$, where the observed signal $s$, the measurement matrix $\phi$, and the sparse scatterings $\sigma$ are incorporated, along with white noise $n$ [15,17,18,19,20]. As shown in Figure 1, sparse recovery is a classic method for linear regression, often referred to as ${\mathcal{l}}_0$- minimization. The black arrow denotes the explanation of the relevant vectors and the red arrow with the crosses indicates that sparse reconstruction is applicable to sparse scenarios rather than non-sparse ones.

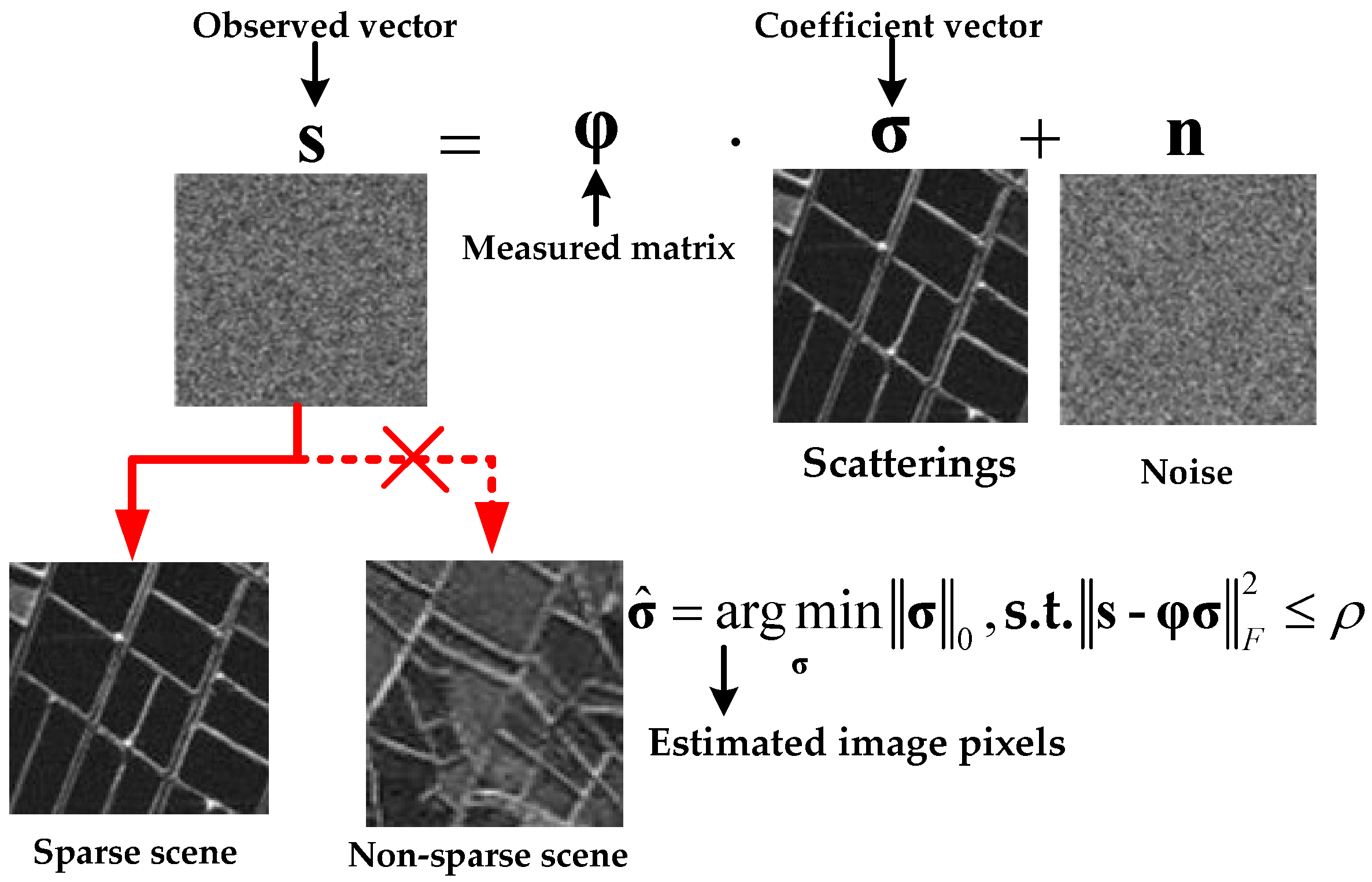

When the measurement matrix satisfies the restricted isometry property (RIP), the NP-hard ${\mathcal{l}}_0$-minimization problem can be simplified to ${\mathcal{l}}_1$-minimization, which can be solved using convex optimization algorithms. Typical convex optimization methods, such as basis pursuit (BP) [21] and the iterative soft thresholding algorithm (ISTA) [22], can address the deconvolution problem. However, the forward-looking imaging problem may not always satisfy the conditions for a convex function. Additionally, in imaging problems, these methods necessitate the selection and estimation of multiple hyperparameters, most of which rely on empirical values, thus posing challenges for their practical application. Recently, a spectrum estimation technique, known as the iterative adaptive approach (IAA), has been successfully applied to solve the optimization problem. Despite its success, IAA requires the computation of the covariance matrix inversion in each iteration. Moreover, some efficient IAA-based methods can reduce computational complexity, but this often comes at the cost of decreased reconstruction accuracy [16,23,24,25,26,27]. Greedy pursuit [28,29] is a widely accepted approach for sparse recovery due to its simple iterative structure. The sparse adaptive matching pursuit (SAMP) method is also frequently used to solve inverse problems, thanks to its adaptive sparsity parameters. However, these methods are prone to becoming stuck in local minima, which causes them to lose the global optimal solution, especially in complex forward-looking imaging scenarios [30].

In recent years, the Bayesian framework has been introduced to model the forward-looking sparse scene recovery problem. Compared with other sparse reconstruction methods, the Bayesian approach has the advantage of automatically learning model parameters, eliminating the need for manual adjustment based on different scenarios. The algorithm proposed in Reference [30], which relies on an atom matching process, is prone to falling into local extrema, reducing the algorithm’s robustness. In contrast, methods based on parameter estimation within the Bayesian framework are less likely to become caught in local optima, as they tend to seek a global optimal solution, thereby enhancing the stability of the reconstruction results. This highlights the fundamental differences in the concepts and structures between the two methods. Using an appropriate prior to model the scene can incorporate statistical information that enhances image quality. Sparse Bayesian learning (SBL), a classic Bayesian approach, models typical sparse signals with a Gaussian prior [31,32,33]. The maximum a posteriori (MAP) estimation, as a classic method for sparse signal recovery, avoids directly computing the analytical solution of the posterior for the variables. However, it faces the challenge of local minima and suffers from structural errors due to the neglect of posterior statistical information [34,35]. Additionally, existing Bayesian methods typically assume pixel sparsity for reconstruction, which overlooks the correlation between adjacent pixels. This omission of the image’s prior structural features leads to mismatch in complex forward-looking imaging scenarios.

Existing methods for achieving super-resolution imaging are not applicable to maneuvering trajectories, as the convolution model of the received echo only includes the antenna pattern and does not account for the Doppler phase. Reference [16] proposes a dictionary that incorporates Doppler information to accommodate the airplane platform, where both the Doppler phase and the antenna pattern are considered. The method can represent the geometry of moving platforms and improves the azimuth resolution of the image. However, it is not suitable for maneuvering platforms with curved trajectories. Due to the impact of three-dimensional (3D) acceleration introduced by the maneuverability of the platform, the over-complete dictionary matrix becomes inadequate for scene representation, leading to the failure of sparse reconstruction.

In this article, a super-resolution forward-looking imaging algorithm within the Bayesian framework, called the structured hierarchical Student-t (ST) prior with expectation/maximization (EM)-based variational Bayesian inference (SSTEM-VB) is proposed. This method utilizes an enhanced sparsity model for maneuvering platforms. First, the forward-looking imaging geometrical model and signal model for maneuvering platforms are derived. Based on these models, a virtual multi-domain phase compensation factor (MPCF) is introduced to compensate for 3D acceleration and range migration, thereby unifying and simplifying the high-order Doppler frequency. Next, the signal processing beam space is expanded to further enhance the sparsity of the signal. This leads to an optimized over-complete dictionary that matches the forward-looking imaging process with the enhanced sparsity model. Finally, a pattern-coupled hierarchical prior framework, which accounts for the dependencies between adjacent pixels and their corresponding coefficients, is designed to optimize the performance of forward-looking imaging.

The main superiority of the proposed algorithm can be summarized as follows:

• We establish an accurate mono-channel beam scanning geometry for FIR with maneuvering trajectories and form a high-dimensional beam space to enhance sparsity, thereby enabling Doppler deconvolution.
• We construct the MPCF to achieve error correction of joint envelope and phase introduced by the high-order motion of the maneuvering platform. Thus, an optimized convolution formulation with the accurate over-completed dictionary is derived.
• We propose a structured hierarchical framework, where the sparsity of each coefficient depends on its neighbors, to model the sparse signal. This prior helps avoid the “isolated coefficients” and encourages clustered features. An EM-based VB method is exploited to estimate the block sparse signal.

The remaining parts of this paper are organized as follows. The forward-looking geometrical model with maneuvering trajectory and signal processing model are established in Section 2. Section 3 describes the proposed SSTEM-VB algorithm with enhanced sparsity model in detail. In Section 4, the processing results of simulated experiments are designed to evaluate the proposed method. Finally, conclusions are drawn in Section 5.

2. Forward-Looking Imaging Convolution Model

2.1. Forward-Looking Imaging Geometric Model

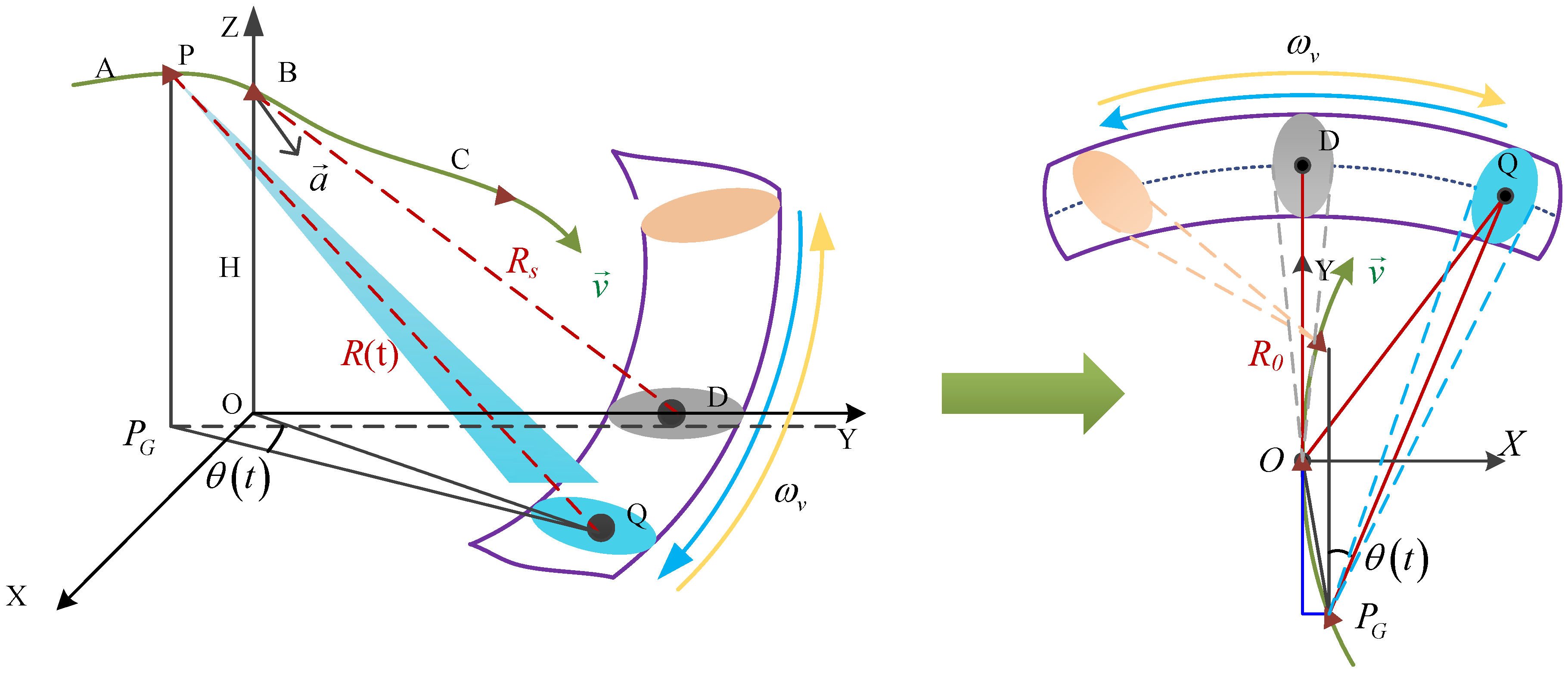

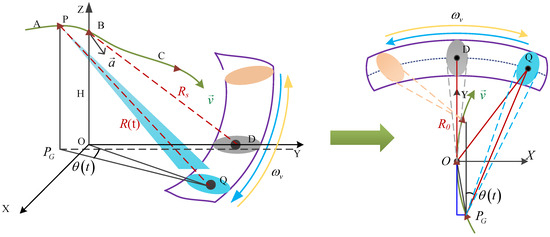

The forward-looking scanning structure with a maneuvering trajectory is constructed to illustrate the imaging geometric relationship, as shown in Figure 2. A Cartesian coordinate system Oxyz is defined, where point B represents the location of the platform at the midpoint of the acquisition period, and origin O is the projection of point B onto the ground. $H$ and $R_s$ are the altitude and slant range of point B. The maneuvering platform follows a curved trajectory $\stackrel{⏜}{ABC}$ with a 3D velocity $\left(v_x,v_y,v_z\right)$ and acceleration $\left(a_x,a_y,a_z\right)$. The purple arc area in Figure 2 indicates the FIR scanning area, and the raw echo is obtained through steering operations with a scanning velocity ${\omega }_v$. The y-axis represents the direction of horizontal velocity. The ellipsoidal regions in different colors represent the coverage area of the beam during the scanning. The yellow and blue arrows represent the direction of the beam scanning.

Inspecting Figure 2, for any point P at an arbitrary location of the platform during its flight and any point Q in the forward-looking imaging area, the 3D coordinates of the vector $\overrightarrow{PQ}$ in the imaging coordinate system can be represented as

$$\overrightarrow{PQ}=\left(v_{x}t+a_x{t}^2/2-\sqrt{R_S^2-H^2}\sin \varsigma ,v_{y}t+a_y{t}^2/2-\sqrt{R_S^2-H^2}\sin \varsigma ,H+v_{z}t+a_y{t}^2/2\right)$$

(1)

where $t$ denotes the slow time, which describes the time variation between multiple transmitted pulses. $\varsigma =\angle OQ{P}_G+\theta \left(t\right)$ and $\theta \left(t\right)={\omega }_{v}t$ represent instantaneous azimuth angles. According to the sine theorem

$$\angle OQ{P}_G=\arcsin \left({\displaystyle \frac{\sin \left(\theta \left(t\right)+\arctan \left(\frac{P_x}{P_y}\right)\right)}{\sqrt{R_S^2-H^2}/\sqrt{P_x^2+P_y^2}}}\right)$$

(2)

where $P_G$ denotes the projection of point P on the ground, $\left(P_x,P_y\right)$ denotes the two-dimensional (2D) coordinates of point $P_G$. The instantaneous slant range from the scattering coefficients in the target coordinate system to the maneuvering platform is then expressed as

$$R\left(t\right)=\left|\overrightarrow{PQ}\right|={\displaystyle \sum _{n=0}^4{k}_n{t}^n}$$

(3)

where $\left|\cdot \right|$ denotes the value of the vector, $k_n,n=0,1,2,3,4$ denotes the Maclaurin coefficients, which can be expressed as

$$k_n={\displaystyle \frac{1}{n!}}{\left.\left({\displaystyle \frac{d^{n}R\left(t\right)}{d{t}^n}}\right)\right|}_{t=0}$$

(4)

where $n!$ denotes the factorial operation of $n$.

To express Maclaurin coefficients conveniently, three space angles are set up as

$$\left\{\begin{array}{l}{\alpha }_a=〈\overrightarrow{v},\overrightarrow{BQ}〉=\arccos \left({\displaystyle \frac{\overrightarrow{v}\cdot \overrightarrow{BQ}}{\left|\overrightarrow{v}\right|\cdot \left|\overrightarrow{BQ}\right|}}\right)\\ {\beta }_a=〈\overrightarrow{a},\overrightarrow{BQ}〉=\arccos \left({\displaystyle \frac{\overrightarrow{a}\cdot \overrightarrow{BQ}}{\left|\overrightarrow{a}\right|\cdot \left|\overrightarrow{BQ}\right|}}\right)\\ {\gamma }_a=〈\overrightarrow{a},\overrightarrow{v}〉=\arccos \left({\displaystyle \frac{\overrightarrow{a}\cdot \overrightarrow{v}}{\left|\overrightarrow{a}\right|\cdot \left|\overrightarrow{v}\right|}}\right)\end{array}\right.$$

(5)

According to the space angles and Maclaurin expansion, the expression of $k_n$ can be then expressed as

$$\left\{\begin{array}{l}{k}_0=R_S\hfill \\ k_1=v\cos {\alpha }_a\hfill \\ k_2={\displaystyle \frac{v^2{\sin }^2{\alpha }_a}{2R_S}}-{\displaystyle \frac{a\cos {\beta }_a}{2}}\hfill \\ k_3={\displaystyle \frac{av\cos {\gamma }_a}{2R_S}}+{\displaystyle \frac{v^3\cos {\alpha }_a{\sin }^2{\alpha }_a}{2R_S^2}}-{\displaystyle \frac{va\cos {\alpha }_a\cos {\beta }_a}{2R_S}}\hfill \\ k_4={\displaystyle \frac{a^2{\sin }^2{\beta }_a}{8R_S}}+{\displaystyle \frac{5v^4{\cos }^2{\alpha }_a{\sin }^2{\alpha }_a}{8R_S^3}}-{\displaystyle \frac{v^4{\sin }^2{\alpha }_a}{8R_S^3}}+{\displaystyle \frac{a{v}^2\cos {\alpha }_a\cos {\gamma }_a}{2R_S^2}}+{\displaystyle \frac{v^{2}a\cos {\beta }_a{\sin }^2{\alpha }_a}{4R_S^2}}-{\displaystyle \frac{v^{2}a{\cos }^2{\alpha }_a\cos {\beta }_a}{2R_S^2}}\hfill \end{array}\right.$$

(6)

2.2. Signal Model to Be Processed

Supposing the radar transmits linear frequency modulated (LFM) pulses, after demodulation, the baseband echo signal can be expressed as

$$s\left(\tau ,t\right)=rect\left[{\displaystyle \frac{\left(\tau -{\tau }_t\right)}{T_p}}\right]l\left[t-{\displaystyle \frac{\theta \left(t\right)}{{\omega }_v}}\right]\exp \left[j\pi {\kappa }_a{\left(\tau -{\tau }_t\right)}^2\right]\exp \left(-j2\pi {\tau }_t{f}_c\right)$$

(7)

where $\tau$ is the radar fast time, which refers to the sampling time within a single pulse when the radar receives echoes. $rect\left(\cdot \right)$ and $l\left(\cdot \right)$ represent rectangular window function and antenna pattern, respectively. $c$ is speed of light, ${\tau }_t={\displaystyle \frac{2R\left(t\right)}{c}}$ denotes the time delay, $T_p$ is the pulse width, $f_c$ denotes the carried frequency of radar, and ${\kappa }_a$ is the LFM rate.

After pulse compression, the echo signal can be expressed as

$$s\left(t,\tau \right)=\sin \mathrm{c}\left[B\left(\tau -{\tau }_t\right)\right]l\left[t-{\displaystyle \frac{\theta \left(t\right)}{{\omega }_v}}\right]\exp \left(-j2\pi {\tau }_t{f}_c\right)\cdot \sigma$$

(8)

where $B$ represents the transmitted bandwidth.

From (8), a convolution of the antenna pattern and scattering coefficients can be formed according to the echo in one range gate, which is expressed as

$$s\left(\theta \right)=\sigma \left(\theta \right)\otimes l\left(\theta \right)\cdot \exp \left(-j2\pi {\tau }_t{f}_c\right)$$

(9)

where $\otimes$ denotes the convolution operator.

Considering the effect of noise $\xi$, the echo in (8) can be rewritten as the matrix form

$$s=D\odot L\sigma +\xi$$

(10)

where $\odot$ represents the Hadamard product. $s\in {ℂ}^{M\times 1}$ denotes the received signal vector, M is the length of signal. $\sigma \in {ℂ}^{K\times 1}$ denotes the unknown backscattering coefficients vector to be reconstructed. $K=F_{prf}\cdot \iota /{\omega }_v$ is the length of the target vector. $F_{prf}$ denotes the pulse repetition frequency (PRF) and $\iota$ is the scanning extent. $D$ denotes the Doppler phase in (8). The discrete antenna pattern matrix $L\in {ℂ}^{M\times K}$ is designed based on the radar beam steering, as shown below

$$L=\left[\begin{array}{cccc}{l}_1& 0& \cdots & 0\\ ⋮& l_1& \ddots & ⋮\\ l_{H_L-1}& ⋮& \ddots & 0\\ l_{H_L}& l_{H_L-1}& \ddots & l_1\\ 0& l_{H_L}& \ddots & ⋮\\ ⋮& \ddots & \ddots & l_{H_L-1}\\ 0& \cdots & 0& l_{H_L}\end{array}\right]$$

(11)

where $l_{h_L}$ denotes the sampling value of the antenna pattern vector, and $H_L$ represents the effective sampling length of the antenna pattern vector.

The conventional Doppler phase matrix is based on the assumption that the range cell migration is much less than the center slant range, which can be expressed as

$$D=\exp \left(-j{\displaystyle \frac{4\pi R_S}{\lambda }}\right)\cdot \left[\begin{array}{ccc}\exp \left\{j2\pi f_d\left({\theta }_1\right)t_1\right\}& \cdots & \exp \left\{j2\pi f_d\left({\theta }_K\right)t_1\right\}\\ \exp \left\{j2\pi f_d\left({\theta }_1\right)t_2\right\}& \cdots & \exp \left\{j2\pi f_d\left({\theta }_K\right)t_2\right\}\\ ⋮& \cdots & ⋮\\ \exp \left\{j2\pi f_d\left({\theta }_1\right)t_M\right\}& \cdots & \exp \left\{j2\pi f_d\left({\theta }_K\right)t_M\right\}\end{array}\right]$$

(12)

where $f_d\left({\theta }_k\right)={\displaystyle \frac{2v\cos \vartheta \cos {\theta }_k}{\lambda }}$ is the instantaneous Doppler centroid, and $\vartheta$ denotes the pitch angle.

From (10), it is noted that the conventional Doppler convolution model takes both the antenna pattern and the Doppler information into consideration, which contributes to the reconstruction and results with better performance than the traditional convolution model that neglects the Doppler phase. However, this model does not account for the high maneuverability of the platform, which leads to a mismatch between the over-complete dictionary and the sparse reconstruction operator in forward-looking scenes. Therefore, to achieve precise reconstruction of forward-looking scenes, a structured Bayesian super-resolution forward-looking imaging algorithm under the modified Doppler model with enhanced sparsity will be discussed in the next section.

3. Bayesian Forward-Looking Super-Resolution Imaging with Enhanced Sparsity

In this section, we first design the MPCF to perform the pre-processing operation. Then, an optimized Doppler convolution model with enhanced sparsity is constructed. Finally, a Bayesian forward-looking imaging algorithm, incorporating a structured hierarchical ST distribution prior, is described in detail.

3.1. Optimization of Doppler Convolution Model with Enhanced Sparsity

The range walk and the higher-order phase brought by the high-order motion in the maneuvering trajectory make sparse recovery of forward-looking area inefficient. Observing the expansion in (6), the relative term for 3D acceleration appears in the high-order phase. Additionally, elements of over-complete dictionary matrix are zero in every column where the beam is not illuminated, as indicated by the model (10). To decouple the range and azimuth and compensate precise high-degree maneuverability, a virtual MPCF is designed in different domains, which can achieve satisfactory forward-looking imaging performance.

We can separate the Maclaurin expansion from (6) that contains the 3D acceleration, and it can be represented as

$$\left\{\begin{array}{l}{k}_{2a}=-{\displaystyle \frac{a\cos {\beta }_a}{2}}\hfill \\ k_{3a}={\displaystyle \frac{av\cos {\gamma }_a}{2R_S}}-{\displaystyle \frac{va\cos {\alpha }_a\cos {\beta }_a}{2R_S}}\hfill \\ k_{4a}={\displaystyle \frac{a^2{\sin }^2{\beta }_a}{8R_S}}+{\displaystyle \frac{a{v}^2\cos {\alpha }_a\cos {\gamma }_a}{2R_S^2}}+{\displaystyle \frac{v^{2}a\cos {\beta }_a{\sin }^2{\alpha }_a}{4R_S^2}}-{\displaystyle \frac{v^{2}a{\cos }^2{\alpha }_a\cos {\beta }_a}{2R_S^2}}\hfill \end{array}\right.$$

(13)

Considering the particularity of the measurement matrix, a compensation factor is constructed to eliminate 3D acceleration components, which is expressed as

$$f_{ac}=\exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}\left(k_{2a}{t}^2+k_{3a}{t}^3+k_{4a}{t}^4\right)\right\}$$

(14)

After compensating for the high-order phase introduced by 3D acceleration, the remaining phase in range frequency and slow time domain is expressed as

$$P_a\left(f_r,t\right)=\exp \left\{j{\displaystyle \frac{4\pi \left(f_c+f_r\right)}{c}}\left(R_s+k_{1}t+k_{2\_rest}{t}^2+k_{3\_rest}{t}^3+k_{4\_rest}{t}^4\right)\right\}$$

(15)

where $k_{2\_rest}$, $k_{3\_rest}$, and $k_{4\_rest}$ denote the high-order expansions in (6) that do not contain 3D acceleration terms.

Subsequently, a range migration correction factor is designed to achieve the compensation, which is expressed as:

$$P_{urm}\left(f_r,t\right)=\exp \left\{j{k}_{1}t{\displaystyle \frac{4\pi f_r}{c}}\right\}$$

(16)

After compensation with the MPCF in different domains, the pre-processed signal in 2D time domain is expressed as

$$s_{pre}\left(\tau ,t\right)=\sigma \cdot \sin \mathrm{c}\left[B\left(\tau -{\displaystyle \frac{2R_{rw}\left(t\right)}{c}}\right)\right]l\left(t-{\displaystyle \frac{\theta \left(t\right)}{{\omega }_v}}\right)\cdot \exp \left\{-j{\displaystyle \frac{4\pi R_{pa}\left(t\right)}{\lambda }}\right\}+{\xi }_{\tau ,t}$$

(17)

where the compensated slant range in the envelope and phase can be formulated as

$$R_{rw}\left(t\right)=R_S+k_{2\_rest}{t}^2+k_{3\_rest}{t}^3+k_{4\_rest}{t}^4$$

(18)

$$R_{pa}\left(t\right)=R_S+k_{1}t+k_{2\_rest}{t}^2+k_{3\_rest}{t}^3+k_{4\_rest}{t}^4$$

(19)

Noting that the first-order term, which is compensated in the envelope, is retained in the phase. Since the Doppler frequency on the left and right sides is symmetrical, and the influence of maneuverability is reflected in both envelope and phase, the compensation for Doppler, i.e., the first-order term, occurs only in the envelope. On the other hand, compensation for the high-dimensional motion of the maneuvering platform needs to be reflected in both the envelope and the phase. The difference between them is evident in their respective slant range. Moreover, the compensation for the 3D acceleration reflected in the high-order phase is achieved in the 2D time domain and range walk correction is accomplished in the range frequency and slow time domain. The MPCF thus virtually exists across different domains, enabling the joint compensation of both envelope and phase.

As we know, optimizing the over-complete dictionary matrix is essential for describing accurately forward-looking imaging. After compensating with the MPCF, the variation, containing both spatial beam scanning and phase correction, should be reflected in the measurement matrix, and it can be modified as

$$\sout{\widehat{D}}=\left[\begin{array}{cccc}\exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}{R}_{pre}\left({\theta }_1,t_1\right)\right\}& \exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}{R}_{pre}\left({\theta }_2,t_1\right)\right\}& \cdots & \exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}{R}_{pre}\left({\theta }_K,t_1\right)\right\}\\ \exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}{R}_{pre}\left({\theta }_1,t_2\right)\right\}& \exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}{R}_{pre}\left({\theta }_2,t_2\right)\right\}& \cdots & \exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}{R}_{pre}\left({\theta }_K,t_2\right)\right\}\\ ⋮& ⋮& \ddots & ⋮\\ \exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}{R}_{pre}\left({\theta }_1,t_M\right)\right\}& \exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}{R}_{pre}\left({\theta }_2,t_M\right)\right\}& \cdots & \exp \left\{j{\displaystyle \frac{4\pi }{\lambda }}{R}_{pre}\left({\theta }_K,t_M\right)\right\}\end{array}\right]$$

(20)

where $R_{pre}\left({\theta }_k,t_m\right)$ represents the extension of $R_{pa}\left(t\right)$ to all azimuth angles ${\theta }_k$. And $t_m$ denotes the change of the slow time.

Sparse imaging can be utilized to boost the performance of forward-looking imaging. However, in complex forward-looking scenarios, the scatter distribution may not adhere to the sparsity assumption, especially when scatters are concentrated within one beam space, the super-resolution performance is seriously reduced. Therefore, applying directly the sparse imaging to the forward-looking scenes presents some obstacles and limitations.

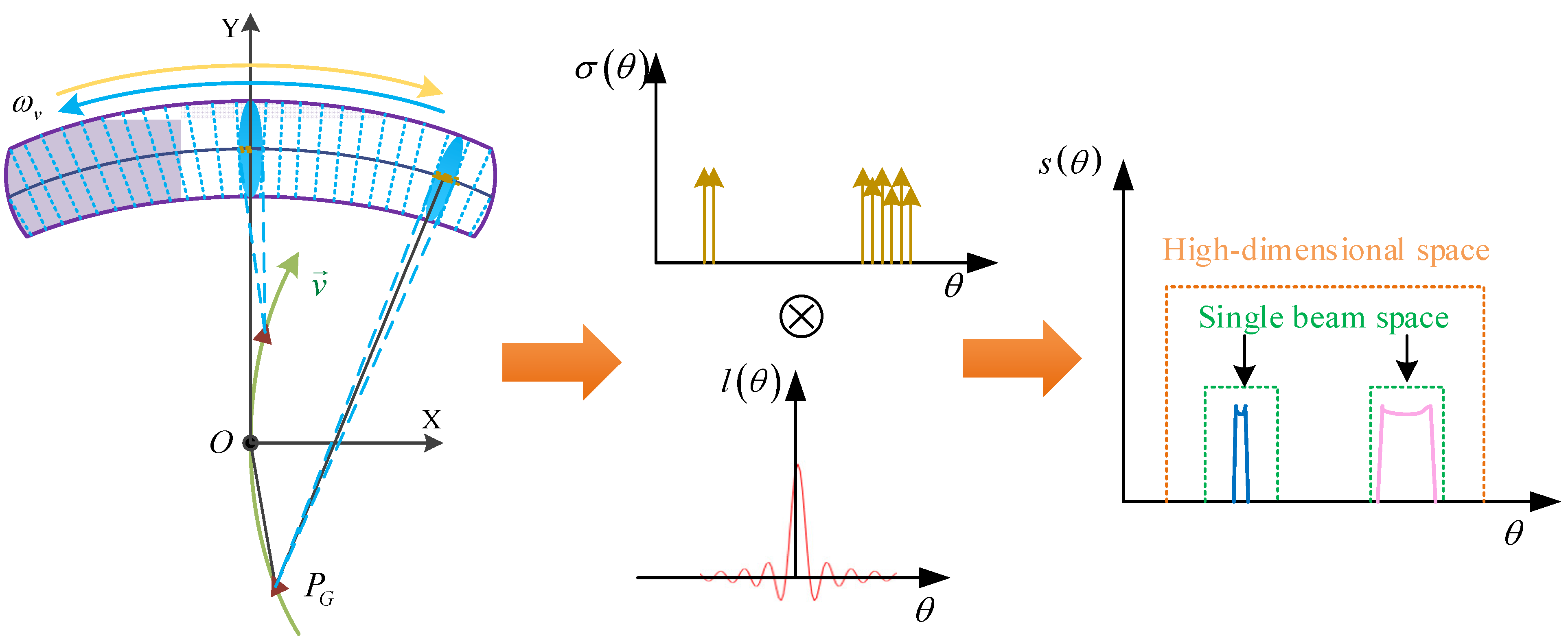

The forward-looking scene can be divided into multiple beam spaces, as the maneuvering platform scans the forward region, as shown in Figure 3. The blue ellipsoidal regions represents the coverage area of the beam during the scanning. The number of beam spaces is equivalent to the number of wave digits. Therefore, the targets in the scene can be viewed as the spatial samples captured by the FIR in the beam space during the beam steering process.

If the scattered points only occupy a portion of the space within a single beam, it can be considered that the local scene is sparse in that space. However, as shown by the pink curve in the green space of Figure 3, in most cases, multiple scatters in the scene occupy the majority of the green rectangular space. To enhance sparsity, a higher-dimensional space is formed by expanding the single beam space. This merging operation reduces the relative number of spatial scatters within the single beam, thereby achieving enhanced sparsity in forward-looking scenarios. Assuming that the scatters taking up most of the original low-dimensional space are limited and only occupy a small portion of the expanded space, as shown by the orange rectangle in Figure 3, we can consider the scattering points to be recovered in the fused beam space as sparse. The enhanced sparsity ultimately leads to better reconstruction results.

Based on the merging and expansion of the beams, the expanded single beam space becomes equivalent to the original multi-beam space, broadening the new single beam space. The high-dimensional beam space is obtained to enhance sparsity of the forward-looking scene. Subsequently, the linear regression model for one range gate under the enhanced sparsity model can be expressed as

$$\left[\begin{array}{l}{s}_{11}\\ s_{12}\\ ⋮\\ s_{1M}\\ s_{21}\\ ⋮\\ s_{2M}\\ ⋮\\ s_{u1}\\ ⋮\\ s_{uM}\end{array}\right]=\left[\begin{array}{cccc}{L}_1& & & \\ & L_2& & \\ & & \ddots & \\ & & & L_u\end{array}\right]\odot \left[\begin{array}{cccc}{\sout{\widehat{D}}}_1& & & \\ & {\sout{\widehat{D}}}_2& & \\ & & \ddots & \\ & & & {\sout{\widehat{D}}}_u\end{array}\right]\left[\begin{array}{l}{\sigma }_{11}\\ {\sigma }_{12}\\ ⋮\\ {\sigma }_{1K}\\ {\sigma }_{21}\\ ⋮\\ {\sigma }_{2K}\\ ⋮\\ {\sigma }_{u1}\\ ⋮\\ {\sigma }_{uK}\end{array}\right]+\left[\begin{array}{l}{\xi }_{11}\\ {\xi }_{12}\\ ⋮\\ {\xi }_{1M}\\ {\xi }_{21}\\ ⋮\\ {\xi }_{2M}\\ ⋮\\ {\xi }_{u1}\\ ⋮\\ {\xi }_{uM}\end{array}\right]$$

(21)

Then, the azimuth signal in the modified model with enhanced sparsity, referred to as the enhanced sparsity model, for one range gate can be expressed as

$$y=\mathbf{\Phi }\omega +\xi$$

(22)

where $u$ denotes the number of beams after the expansion operation, $\omega$ and $y$ represent the expanded echoes and scattering points in the high-dimensional space, respectively. $\mathbf{\Phi }$ denotes the expand measurement dictionary matrix, which is given as

$$\mathbf{\Phi }=\left[\begin{array}{cccc}{L}_1& & & \\ & L_2& & \\ & & \ddots & \\ & & & L_{\mathrm{u}}\end{array}\right]\odot \left[\begin{array}{cccc}{\sout{\widehat{D}}}_1& & & \\ & {\sout{\widehat{D}}}_2& & \\ & & \ddots & \\ & & & {\sout{\widehat{D}}}_u\end{array}\right]$$

(23)

3.2. Hierarchical Prior Model for Forward-Looking Imaging

For the forward-looking imaging method presented in this paper, azimuth super-resolution depends on sparse reconstruction operators. Sparse recovery theory is employed to solve the ill-conditioned linear inverse problem. It is effective to mine the prior information for enhancing the forward-looking imaging performance.

In this subsection, a sparse prior, serving as additional information, of the forward-looking scene is generally utilized to achieve the desired super-resolution image. From a Bayesian perspective, the sparse reconstruction problem can be solved through prior modeling and estimation of the relevant parameters. As we know, the hierarchical prior is better suited for complex forward-looking scenes; the hierarchical ST prior is thus designed to model the scene.

To conveniently facilitate the derivation of the formula, real numbers are selected, which does not affect the overall algorithm framework or conclusions, as performed by other research teams [36]. According to the Bayesian criterion, the sparse characteristic of the scanning scene can be accurately modeled by using different sparse priors for both the observations and scenes. The prominent scatters tend to distribute sparsely across the entire scene. Accurate probabilistic modeling of the backscattering coefficients in reconstructed scenes can enhance the imaging performance within the sparse Bayesian framework.

In the preliminary cognition, Gaussian distribution is generally exploited to model the image. However, in typical forward-looking scenes, targets of interest exhibit high pixel values, while a large number of scatters are represented as background noise with low pixel values. In this case, the Gaussian distribution is not well suited to fit these outliers, which will seriously degrade imaging performance. To address this problem, the ST distribution, which is more robust to outliers, is introduced to model the forward-looking scene [37]. The probability density function (PDF) of the ST distribution has higher tails and a narrower peak compared with the Gaussian distribution.

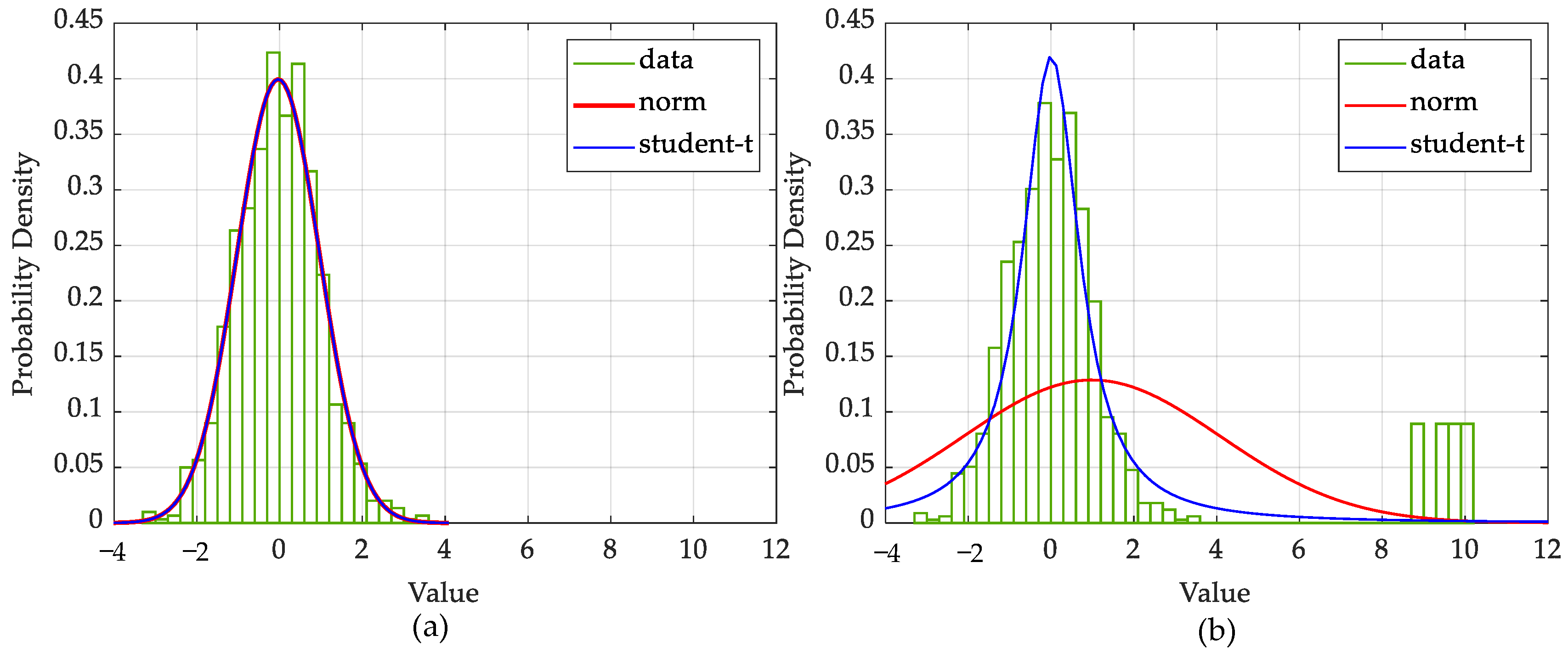

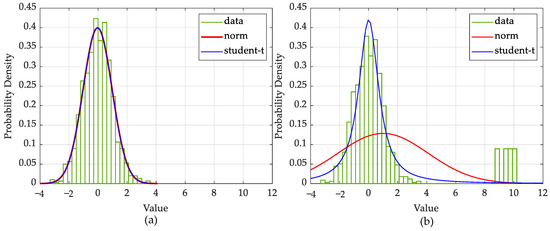

To verify the feasibility of using the ST distribution as a sparse prior, Figure 4 compares the fitting solutions for the Gaussian and ST distributions. In Figure 4a, the fitting solutions for data without outliers using both distributions are equally satisfactory. From Figure 4b, however, we see that the ST distribution is more adaptable to the outliers than the Gaussian, which is significantly disturbed by outliers, leading to a less accurate fitting solution. The ST prior can be thus expected to offer better performance in sparse representation and regression than the Gaussian.

Therefore, the ST prior is exploited to model the signal, and the precision parameter is carefully designed to follow the Gamma distribution. The precision parameter represents the inversion of the covariance matrix in a multidimensional Gaussian PDF and is more convenient than the variance variable. Moreover, a hierarchical prior with two layers may perform better than using the ST distribution alone.

The noise $\xi$ is generally supposed to be ST distribution, which is modeled as:

$$p\left(\xi \right)=S\mathrm{t}\left(\xi \left|0,\alpha ,\eta \right.\right)={\displaystyle \sum _{\Lambda }\mathbb{N}\left(\xi \left|0,{\left(\alpha \Lambda \right)}^{-1}\right.\right)\mathrm{Gam}\left(\Lambda \left|\eta /2,\eta /2\right.\right)}$$

(24)

where $\alpha$ is the noise precision, the scaling parameters $a_1,a_2$ are generally set to be small to make the prior of $\alpha$ non-informative, and $\eta$ is the degree of freedom. Then, let the Gamma density be denoted by $\mathrm{Gam}\left(\cdot \right)$, defined as $\mathrm{Gam}\left(\zeta \left|a,b\right.\right)={\displaystyle \frac{1}{\mathsf{\Gamma }\left(a\right)}}{b}^a{\zeta }^{a-1}\exp \left\{-b\zeta \right\}$, $\mathsf{\Gamma }\left(a\right)={\displaystyle {\int }_0^{+\infty }{x}^{a-1}\exp \left(-x\right)dx}$ is the Gamma function, $\mathbb{N}$ denotes the Gaussian distribution.

Combining the regression model with the excitation noise distribution, the likelihood of the observed signal can be expressed as

$$p\left(y\left|\omega ,\alpha ,\eta \right.\right)=S\mathrm{t}\left(y\left|\mathbf{\Phi }\omega ,\alpha ,\eta \right.\right)={\displaystyle \sum _{\Lambda }\mathbb{N}\left(y\left|\mathbf{\Phi }\omega ,{\left(\alpha \Lambda \right)}^{-1}\right.\right)\mathrm{Gam}\left(\Lambda \left|\eta /2,\eta /2\right.\right)}$$

(25)

At this point, this distribution can be rewritten as

$$p\left(y\left|\omega ,\alpha ,\Lambda \right.\right)=\mathbb{N}\left(y\left|\mathbf{\Phi }\omega ,{\left(\alpha \Lambda \right)}^{-1}\right.\right)$$

(26)

$$p\left(\Lambda \left|\eta \right.\right)={\displaystyle \prod _{m=1}^M\mathrm{Gam}\left({\lambda }_m\left|\eta /2,\eta \right./2\right)}$$

(27)

where $\Lambda =\mathrm{diag}\left({\lambda }_1,\dots ,{\lambda }_m,\dots {\lambda }_M\right)$, ${\lambda }_m$ represents latent variables that modify the precision for each observation and $\mathrm{diag}\left(\cdot \right)$ is the diagonal matrix whose elements are defined by the vector. Then, the precision $\alpha$ is commonly assumed to be a Gamma distribution

$$p\left(\alpha \right)=\mathrm{Gam}\left(\alpha \left|a_1,a_2\right.\right)$$

(28)

Finally, the model is completed by assigning a Gamma prior with distinctive scaling parameters to the degrees of freedom $\eta$:

$$p\left(\eta \right)=\mathrm{Gam}\left(\eta \left|c_1,c_2\right.\right)$$

(29)

Based on the assumption of the sparse forward-looking scene, the target scattering coefficient, assumed to follow an ST distribution, is modeled as

$$p\left(\omega \left|\beta \right.\right)=\mathrm{St}\left(\omega \left|0,b_1,b_2\right.\right)={\displaystyle \sum _{\beta }\mathbb{N}\left(\omega \left|0,{\beta }^{-1}\right.\right)\mathrm{Gam}\left(\beta \left|b_1,b_2\right.\right)}$$

(30)

Noting that, the latent variable $\beta$ can be modeled as Gamma distribution

$$p\left(\beta \right)={\displaystyle \prod _{k=1}^K\mathrm{Gam}\left({\beta }_k\left|b_1,b_2\right.\right)}$$

(31)

Similarly, as with setting the parameters $a_1,a_2$, the scaling parameters $b_1,b_2$ are generally initialized to the small value for the non-informative prior. It is worth nothing that the real forward-looking scene can be regarded as being composed of numerous targets. The graphical model and the interdependency between the model parameters are shown in Figure 5.

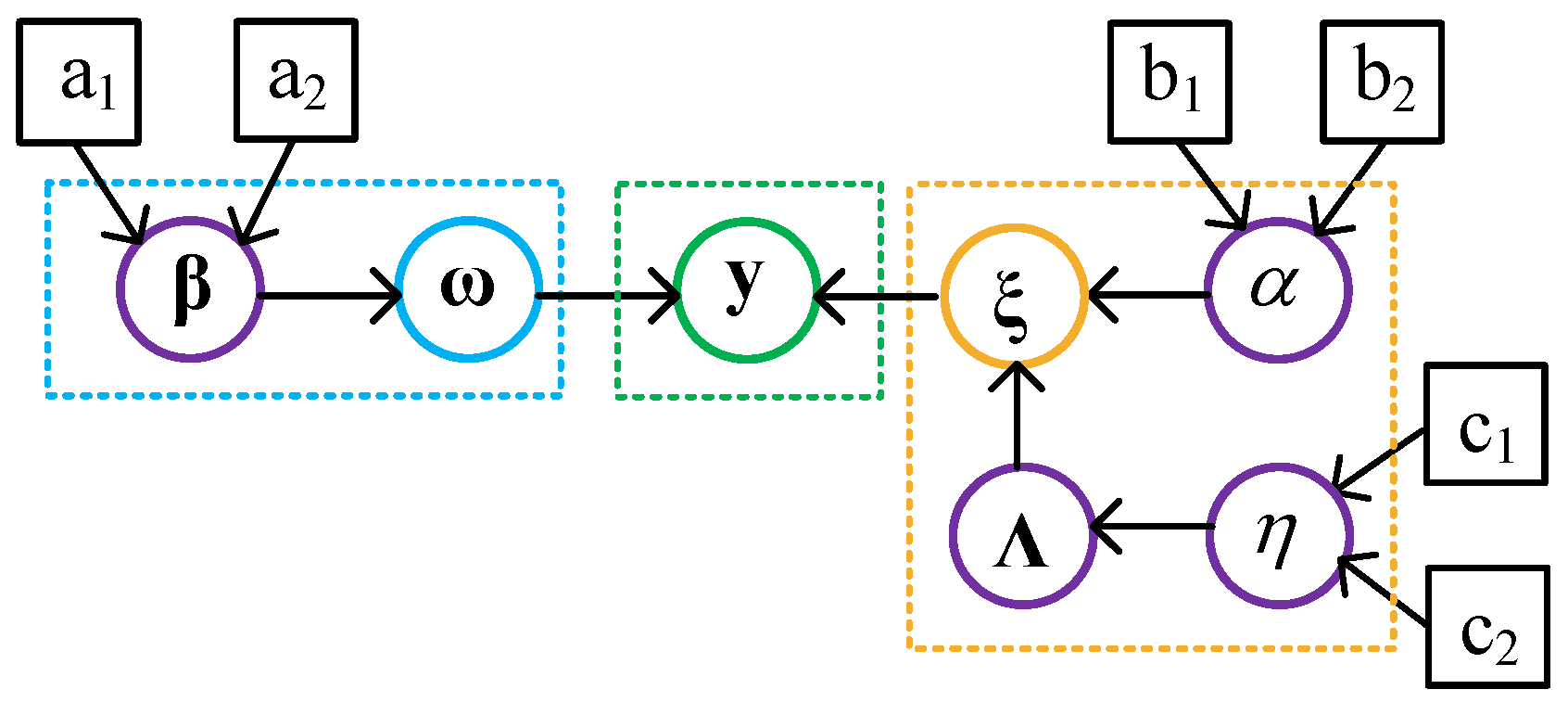

In this graphical model, the squared black nodes correspond to hyperparameters, the green-circled node represents the observed random variable, the nodes with purple circles denote the latent random variables, and the blue-circled and orange-circled nodes represent the scattering and noise random variables, respectively, and the black arrows denote the relationship of representation between variables and parameters.

3.3. Variational Bayesian Inference for Estimatin Variables

After prior probability modeling, some techniques are utilized to estimate the posterior distribution of the forward-looking imaging parameters, including the scattering coefficients and other Bayesian modeling variables $\left\{\alpha ,\beta ,\Lambda ,\eta \right\}$. In this subsection, the VB inference is applied to the observations, backscattering coefficients, and other latent variables to derive sparse signal recovery under the hierarchical ST framework. Unlike MAP estimation, this technique analytically calculates the posterior of all variables. It searches for the minimum Kullback–Leibler (KL) divergence between the real posterior distributions and the approximated one to estimate the parameters $\Delta =\left\{\omega ,\alpha ,\beta ,\Lambda ,\eta \right\}$.

$$KL\left(q\left|\right|p\right)=-{\displaystyle \sum _{\Delta }\ln \left(\frac{p\left(\Delta |y\right)}{q\left(\Delta \right)}\right)}$$

(32)

The VB interference approximates the posterior by factorizing over groups of parameters $\Delta$, which are assumed to be independent of each other. Since KL divergence is non-negative and can only be zero if $q\left(\Delta \right)$ equals $p\left(\Delta |y\right)$, the approximated posterior can be calculated as

$$\begin{array}{l}p\left(\omega ,\alpha ,\beta ,\Lambda ,\eta |y\right)\approx q\left(\Delta \right)\\ =q\left(\omega ,\alpha ,\beta ,\Lambda ,\eta \right)=q\left(\alpha \right)q\left(\Lambda \right)q\left(\eta \right)q\left(\omega \right)q\left(\beta \right)\\ =q\left(\alpha \right)\left[{\displaystyle \prod _{m=1}^{M}q\left({\lambda }_m\right)}\right]q\left(\eta \right)q\left(\omega \right)\left[{\displaystyle \prod _{k=1}^{K}q\left({\beta }_k\right)}\right]\end{array}$$

(33)

The solution to the approximate posterior using VB inference is given by

$$\ln q\left(\zeta \right)={\mathrm{{\rm E}}}_{\backslash \zeta }\left[\ln \left(y,\Delta \right)\right]+const$$

(34)

where ${\mathrm{{\rm E}}}_{\backslash \zeta }\left[f\left(\Delta \right)\right]$ denotes the expectation of the function $f\left(\Delta \right)$ with respect to the approximate posteriors of all random variables in $\Delta$ except $\zeta$. $\zeta$ is one of the elements in parameter $\Delta$, $const$ is a constant independent of $\zeta$.

Let $\zeta =\alpha$

$$\begin{array}{l}\ln q\left(\alpha \right)={\mathrm{{\rm E}}}_{\backslash \alpha }\left[\ln p\left(y,\Delta \right)\right]+const\\ ={\mathrm{{\rm E}}}_{\backslash \alpha }\left[\ln p\left(y|\omega ,\alpha ,\Lambda \right)p\left(\alpha \right)\right]+const\\ ={\mathrm{{\rm E}}}_{\backslash \alpha }\left[{\displaystyle \frac{M}{2}}\ln \alpha -{\displaystyle \frac{{\left(y-\mathbf{\Phi }\omega \right)}^{\mathrm{T}}\alpha \Lambda \left(y-\mathbf{\Phi }\omega \right)}{2}}+\left(a_1-1\right)\ln \alpha -a_2\alpha \right]+const\\ =\left({\displaystyle \frac{M}{2}}+a_1-1\right)\ln \alpha -\left({\displaystyle \frac{〈{\left(y-\mathbf{\Phi }\omega \right)}^{\mathrm{T}}\Lambda \left(y-\mathbf{\Phi }\omega \right)〉}{2}}+a_2\right)\alpha \end{array}$$

(35)

where $〈f\left(\zeta \right)〉$ denotes the expectation ${\mathrm{{\rm E}}}_{\backslash \zeta }\left(f\left(\zeta \right)\right)$. It can be observed that the derived posterior follows a new Gamma distribution

$$q\left(\alpha \right)=\mathrm{Gam}\left(\alpha |a_3,a_4\right)$$

(36)

where

$$a_3=\left({\displaystyle \frac{M}{2}}+a_1\right),a_4={\displaystyle \frac{〈{\left(y-\mathbf{\Phi }\omega \right)}^{\mathrm{T}}\Lambda \left(y-\mathbf{\Phi }\omega \right)〉}{2}}+a_2$$

(37)

Let $\zeta ={\lambda }_m$

$$\begin{array}{l}\ln q\left({\lambda }_m\right)={\mathrm{{\rm E}}}_{\backslash {\lambda }_m}\left[\ln p\left(y_m|\omega ,\alpha ,{\lambda }_m\right)p\left({\lambda }_m\right)\right]+const\\ =\left({\displaystyle \frac{1+〈\eta 〉}{2}}-1\right)\ln {\lambda }_m-\left({\displaystyle \frac{〈\alpha 〉}{2}}〈{\left(y_m-{\mathbf{\Phi }}_m\omega \right)}^{\mathrm{T}}\left(y_m-{\mathbf{\Phi }}_m\omega \right)〉+{\displaystyle \frac{〈\eta 〉}{2}}\right){\lambda }_m\end{array}$$

(38)

It is not analytically tractable to determine a joint distribution for $\Lambda$, so ${\lambda }_m$ is applied to the same procedure individually to obtain the posterior

$$q\left({\lambda }_m\right)=\mathrm{Gam}\left({\lambda }_m|d_3,d_4\right)$$

(39)

where

$$d_3={\displaystyle \frac{1+〈\eta 〉}{2}},d_4={\displaystyle \frac{〈\alpha 〉}{2}}〈{\left(y_m-{\mathbf{\Phi }}_m\omega \right)}^{\mathrm{T}}\left(y_m-{\mathbf{\Phi }}_m\omega \right)〉+{\displaystyle \frac{〈\eta 〉}{2}}$$

(40)

Let $\zeta =\eta$

$$\begin{array}{l}\ln q\left(\eta \right)={\mathrm{{\rm E}}}_{\backslash \eta }\left[\ln {\displaystyle \prod _{m=1}^{M}p\left({\lambda }_m|\eta \right)p\left(\eta \right)}\right]+const\\ =-M\ln \left(\mathsf{\Gamma }\left({\displaystyle \frac{\eta }{2}}\right)\right)-{\displaystyle \frac{\eta }{2}}\left(M\ln \eta +{\displaystyle \sum _{m=1}^M〈{\lambda }_m〉-{\displaystyle \sum _{m=1}^M〈\ln {\lambda }_m〉}}\right)+\left(c_1-1\right)\ln \eta -c_2\eta +const\end{array}$$

(41)

It can be seen that the posterior does not correspond to any standard distribution because of $\ln \left(\mathsf{\Gamma }\left(\eta /2\right)\right)$. Therefore, we bring up Stirling’s approximation to approximate the inference as

$$\begin{array}{cc}\ln q\left(\eta \right)& =M\left(\left(\eta -1\right)\ln \left(\eta /2\right)/2-\eta /2\right)+\left(c_1-1\right)\ln \eta \\ & -{\displaystyle \frac{M\eta }{2}}\ln {\displaystyle \frac{\eta }{2}}+{\displaystyle \frac{\eta }{2}}{\displaystyle \sum _{m=1}^M〈\ln {\lambda }_m〉}-{\displaystyle \frac{\eta }{2}}{\displaystyle \sum _{m=1}^M〈{\lambda }_m〉}-c_2\eta +const\\ & =\left({\displaystyle \frac{M}{2}}+{\displaystyle \frac{1}{2}}{\displaystyle \sum _{m=1}^M\left(〈\ln {\lambda }_m〉-〈{\lambda }_m〉\right)-c_2}\right)\eta +\left(c_1+{\displaystyle \frac{M}{2}}-1\right)\ln \eta +const\end{array}$$

(42)

which can also be recognized as a Gamma distribution

$$q\left(\eta \right)=\mathrm{Gam}\left(\eta |c_3,c_4\right)$$

(43)

where

$$c_3=c_1+{\displaystyle \frac{M}{2}}{,\mathrm{c}}_4{=\mathrm{c}}_2-{\displaystyle \frac{M}{2}}-{\displaystyle \frac{1}{2}}{\displaystyle \sum _{m=1}^M\left(〈\ln {\lambda }_m〉-〈{\lambda }_m〉\right)}$$

(44)

Let $\zeta =\omega$

$$\begin{array}{l}\ln q\left(\omega \right)={\mathrm{E}}_{\backslash \omega }\left[\ln p\left(y|\omega ,\alpha ,\Lambda \right)p\left(\omega |\beta \right)\right]+const\\ =-{\displaystyle \frac{1}{2}}〈\alpha 〉{\left(y-\mathbf{\Phi }\omega \right)}^{\mathrm{T}}〈\Lambda 〉\left(y-\mathbf{\Phi }\omega \right)-{\displaystyle \frac{1}{2}}{\omega }^{\mathrm{T}}〈\beta 〉\omega +const\end{array}$$

(45)

The above posterior is quadratic to $\omega$, so it can be regarded as a Gaussian

$$q\left(\omega \right)=\mathbb{N}\left(\omega \left|{\mu }_{\omega },{\Sigma }_{\omega }\right.\right)$$

(46)

where

$${\Sigma }_{\omega }^{-1}=〈\alpha 〉{\mathbf{\Phi }}^{\mathrm{T}}〈\Lambda 〉\mathbf{\Phi }+〈\beta 〉,{\mu }_{\omega }={\Sigma }_{\omega }〈\alpha 〉{\mathbf{\Phi }}^{\mathrm{T}}〈\Lambda 〉y$$

(47)

Finally, let $\zeta ={\beta }_k$, applying the procedure for ${\beta }_k$, it can be obtained as

$$\begin{array}{l}\ln q\left({\beta }_k\right)={\mathrm{{\rm E}}}_{\backslash {\beta }_k}\left[\ln p\left({\omega }_k|{\beta }_k\right)p\left({\beta }_k\right)\right]+const\\ =\left(b_1+1-1\right)\ln {\beta }_k-\left(b_2+{\displaystyle \frac{1}{2}}〈{\omega }_k^2〉\right){\beta }_k+const\end{array}$$

(48)

The posterior of precision ${\beta }_k$ follows a Gamma distribution

$$q\left({\beta }_k\right)=\mathrm{Gam}\left({\beta }_k|b_3,b_4\right)$$

(49)

where

$$b_3=b_1+{\displaystyle \frac{1}{2}},b_4=b_2+{\displaystyle \frac{1}{2}}〈{\omega }_k^2〉$$

(50)

Obviously, the closed-form algebraic solutions for these coefficients cannot be derived, as each approximation of the posterior above depends on the expectations of the others. However, solutions can be obtained by initializing the expectations or the priors, and then updating iteratively the estimation of hyperparameters, until convergence. The expectations related to $\Delta$ are given as

$$〈\alpha 〉={\displaystyle \frac{a_3}{a_4}}={\displaystyle \frac{\frac{M}{2}+a_1}{\frac{1}{2}\left({\left(y-\mathbf{\Phi }〈\omega 〉\right)}^{\mathrm{T}}〈\Lambda 〉\left(y-\mathbf{\Phi }〈\omega 〉\right)\right)+trace\left({\mathbf{\Phi }}^{\mathrm{T}}〈\Lambda 〉\mathbf{\Phi }{\Sigma }_{\omega }\right)+a_2}}$$

(51)

$$〈\eta 〉={\displaystyle \frac{c_3}{c_4}}={\displaystyle \frac{c_1+M/2}{c_2-\frac{M}{2}-\frac{1}{2}{\displaystyle \sum _{m=1}^M\left(〈\ln {\lambda }_m〉-〈{\lambda }_m〉\right)}}}$$

(52)

$$〈\omega 〉={\mu }_{\omega }={\Sigma }_{\omega }〈\alpha 〉{\mathbf{\Phi }}^{\mathrm{T}}〈\Lambda 〉y$$

(53)

$$〈{\beta }_k〉={\displaystyle \frac{b_3}{b_4}}={\displaystyle \frac{b_1+\frac{1}{2}}{b_2+\frac{1}{2}〈{\omega }_k^2〉}}$$

(54)

$$〈{\lambda }_m〉={\displaystyle \frac{d_3}{d_4}}={\displaystyle \frac{1+〈\eta 〉}{〈\alpha 〉〈{\left(y_m-{\mathbf{\Phi }}_m\omega \right)}^{\mathrm{T}}\left(y_m-{\mathbf{\Phi }}_m\omega \right)〉+〈\eta 〉}}$$

(55)

$$〈\ln {\lambda }_m〉=\psi \left(d_3\right)-\ln \left(d_4\right)$$

(56)

respectively, where $\psi \left(\cdot \right)$ is the digamma function, $trace\left(\cdot \right)$ denotes the trace operator, together with the expansion

$$〈{\left(y_m-{\mathbf{\Phi }}_m\omega \right)}^{\mathrm{T}}\left(y_m-{\mathbf{\Phi }}_m\omega \right)〉=\left({\left(y_m-{\mathbf{\Phi }}_m〈\omega 〉\right)}^{\mathrm{T}}\left(y_m-{\mathbf{\Phi }}_m〈\omega 〉\right)\right)+trace\left({\mathbf{\Phi }}_m{\Sigma }_{\omega }{\mathbf{\Phi }}_m^{\mathrm{T}}\right)$$

(57)

3.4. Statistical Structured Sparsity Hierarchical Model

In the previous subsection, the hierarchical model was constructed to represent the forward-looking imaging scene, assuming the image to be pixel sparse. However, motivated by the observation that areas with nonzero pixels are usually contiguous, it is noted that a pixel with zero value is typically surrounded by other zero-valued pixels. This suggests that the prior scenarios should be modeled as structured sparsity. In this case, the precision of each pixel in the scene depends not only on its own hyperparameter, but on those pixels around it. The sparsity patterns of the coefficients in the neighboring region are statistically dependent.

Therefore, a structured Bayesian model is proposed to represent precisely sparse signals, making it more adaptable to forward-looking scene targets with block structures. Subsequently, an EM-based VB method is introduced to achieve the estimation of the scattering coefficients.

To represent the degree of dependence and pattern relevance between adjacent pixels, a structural coefficient ${\varpi }_k\in \left(0,1\right)$ is defined. It is apparent that the pattern-coupled prior reduces to the pixel sparse one (30) as ${\varpi }_k=0$. In this case, based on the structured hierarchical model, a prior over $\omega$ is expressed precisely as

$$\begin{array}{l}p\left(\omega |\beta \right)={\displaystyle \prod _{k=1}^K\mathbb{N}\left({\omega }_k|0,{\mathsf{\Xi }}_k^{-1}\right)}\\ {\mathsf{\Xi }}_k={\beta }_k+{\varpi }_k{\displaystyle \sum _{j=-1,1}{\beta }_{k+j}}\end{array}$$

(58)

In this time, the sparse patterns of adjacent coefficients are coupled through their shared structural coefficient. Meanwhile, the hyperparameters, during the iteration process, are dependent on each other through their commonly connected coefficients. Such a pattern-coupled hierarchical model has the potential to yield structured sparse solutions for forward-looking scenes, without imposing any pre-defined structures on the recovered scenarios. It allows the model to automatically adapt to the block sparse structure.

Under the assumption of joint sparsity, the mean and covariance of the posterior $q\left(\omega \right)$ are updated as

$${\Sigma }_{\omega }^{-1}=〈\alpha 〉{\mathbf{\Phi }}^{\mathrm{T}}〈\Lambda 〉\mathbf{\Phi }+〈\Xi 〉,{\tilde{\mu }}_{\omega }={\tilde{\Sigma }}_{\omega }〈\alpha 〉{\mathbf{\Phi }}^{\mathrm{T}}〈\Lambda 〉y$$

(59)

Regretfully, the modified priors placed over ${\beta }_k$ make it challenging to derive a full VB inference. Therefore, the EM algorithm is utilized to estimate the set of hyperparameters $\left\{{\beta }_k\right\}$, employing two iterative steps: the E-step and the M-step.

E-step: It requires computing the expectation of the complete posterior with respect to the hidden variable $\beta$. And the Q function in this step is given as

$$\begin{array}{l}Q\left(\beta |{\beta }^{\left(i\right)}\right)={〈\ln p\left(\omega ,\alpha ,\beta ,\Lambda ,\eta |y\right)〉}_{p\left(\omega ,\alpha ,\Lambda ,\eta |y,{\beta }^{(i)}\right)}\\ \approx {〈\ln p\left(\omega ,\Lambda ,\alpha ,\eta ,\beta |y\right)〉}_{q\left(\alpha \right)q\left(\omega \right)\left[{\displaystyle {\prod }_{m=1}^{M}q\left({\lambda }_m\right)}\right]q\left(\eta \right)}\\ ={〈\ln \left[p\left(\omega |\beta \right)\cdot p\left(\beta \right)\right]〉}_{q\left(\omega \right)}+const\end{array}$$

(60)

Ignoring the term that is independent to $\beta$, the function in (60) can be re-expressed as

$$Q\left(\beta |{\beta }^{\left(i\right)}\right)={\displaystyle \sum _{k=1}^K\left(b_1-1\right)\ln {\beta }_k-b_2{\beta }_k+\frac{1}{2}\ln {\mathsf{\Xi }}_k-\frac{1}{2}{\mathsf{\Xi }}_k〈{\omega }_k^2〉}$$

(61)

M-step: The new estimate of $\beta$ is updated by maximizing the Q function achieved in the E-step,

$${\beta }^{\left(i+1\right)}=\underset{\beta }{\arg \max }Q\left(\beta |{\beta }^{\left(i\right)}\right)$$

(62)

A conventional strategy for maximizing the Q function is to optimize the parameters independently. In this case, however, the hyperparameters in the Q function are entangled due to the term $\ln {\mathsf{\Xi }}_k$. As a result, it is challenging to analytically obtain the optimization. An analytical sub-optional solution can be computed using Gradient descent methods in virtue of specific techniques.

The first derivative of $Q\left(\beta |{\beta }^{\left(i\right)}\right)$ with respect to ${\beta }_k$ is obtained as

$${\displaystyle \frac{\partial Q\left(\beta |{\beta }^{\left(i\right)}\right)}{\partial {\beta }_k}}={\displaystyle \frac{b_1-1}{{\beta }_k}}-b_2+{\displaystyle \frac{1}{2}}\left({\displaystyle \frac{1}{{\mathsf{\Xi }}_k}}+{\varpi }_k{\displaystyle \sum _{j=-1,1}\frac{1}{{\mathsf{\Xi }}_{k+j}}}\right)-{\displaystyle \frac{1}{2}}\left(〈{\omega }_k^2〉+{\varpi }_k{\displaystyle \sum _{j=-1,1}〈{\omega }_{k+j}^2〉}\right)$$

(63)

To overcome the coupling problem and search for a suboptimal solution to this optimization, a commonly used technique is to assume that the same precision is modeled for the adjacent pixels ${\omega }_{k+j}\left(j\in \left\{-1,1\right\}\right)$. This hypothesis has been widely applied to sparse reconstruction within the Bayesian framework. For surface targets with block sparsity, the correlation between scatters in the neighborhood can be represented by adjacent pixels sharing the same precision [38]. Based on this assumption, the gradient can be simplified as

$${\displaystyle \frac{\partial Q\left(\beta \right)}{\partial {\beta }_k}}={\displaystyle \frac{b_1-1/2}{{\beta }_k}}-b_2-{\displaystyle \frac{1}{2}}\left(〈{\omega }_k^2〉+{\varpi }_k{\displaystyle \sum _{j=-1,1}〈{\omega }_{k+j}^2〉}\right)$$

(64)

Forcing the derivatives (64) to zero, the suboptimal solution for $\beta$ is updated as

$${\beta }_k={\displaystyle \frac{b_1-1/2}{b_2+\frac{1}{2}\left(〈{\omega }_k^2〉+{\varpi }_k{\displaystyle {\sum }_{j=-1,1}〈{\omega }_{k+j}^2〉}\right)}}$$

(65)

It is noted that the negative feedback mechanism, where large coefficients tend to suppress the value of $〈{\omega }_k^2〉+{\varpi }_k{\displaystyle {\sum }_{j=-1,1}〈{\omega }_{k+j}^2〉}$, keeps decreasing most of the zero entries in $\omega$ until they become negligible. As a result, only a few prominent entries survive to explain the sparse scene. This process eventually leads to a structured sparse solution through iterations. Algorithm 1 summarizes the detailed flow of the procedure.

Algorithm 1: SSTEM-VB

Input: the observation $y$, dictionary matrix $\mathbf{\Phi }$ Output: sparse approximation $\omega$ of the target signal

Initialization: the targets’ scattering coefficient $\omega$, $\mathrm{expectation} \mathrm{of} \mathrm{latent} \mathrm{random} \mathrm{variables} 〈\alpha 〉,〈\beta 〉,〈\eta 〉$$\mathrm{and} \mathrm{parameters} \mathrm{of} \mathrm{the} \mathrm{model} a_1,a_2,b_1,b_2,c_1,c_2$; During the iteration Repeat $\mathrm{Update} {\tilde{\mu }}_{\omega },{\tilde{\Sigma }}_{\omega }$, $\omega$, using (59); Update $\beta$, using (65); $\mathrm{Update} {\lambda }_m,\ln {\lambda }_m$, using (55), (56); Update $\eta$, using (52); Update $\alpha$, using (51); until halting criterion true return $\omega$

Assume that the echo matrix has a dimension of $M\times N_{rg}$ (azimuth × range) and the over-completed dictionary matrix has a dimension of $M\times K$, with the algorithm iterating $r$ times. The computational complexity of operations such as element-wise updates of $\beta$, independent matrix conjugate transposition, and other parameter updates do not involve cubic complexity. Therefore, these low-complexity operations are negligible. The primary computational complexity of the algorithm lies in the solution of the scattering coefficient variable $\omega$, which costs $O\left(N_{rg}r{K}^3+N_{rg}rM{K}^2\right)$. Based on this analysis, it is evident that the proposed method improves sparse reconstruction performance but comes at the cost of increased computational complexity.

4. Simulation Results and Discussion

In this section, several experimental simulations are conducted to verify the efficiency of the proposed SSTEM-VB method with the enhanced sparsity model. Performance comparisons between ISTA, SAMP, SBL, and the proposed SSTEM-VB methods are designed based on experimental simulations under different signal-to-noise ratio (SNR) conditions and processing models. Moreover, the scanning grid is uniform in azimuth for all approaches considered in the target simulations.

SNR is defined as follows

$$SNR=10\log \left({\displaystyle \frac{P_{\omega }}{P_{\xi }}}\right)$$

(66)

where $P_{\xi }$ and $P_{\omega }$ denote the mean power of the noise and the signal, respectively.

4.1. Point Target Simulation

In this subsection, we design the simulations with point-scattering targets to evaluate the superiority of the proposed method in this paper.

Five point targets with the same normalized amplitude, located at −3.5°, −1.2°, 0°, 0.8°, and 7°, are considered in this simulation. It is designed to verify the necessity of the constructed MPCF. White Gaussian noise with an SNR of 20 dB is added to the signal. The red circles represent the initial normalized amplitude and the blue dotted lines show the recovery results. Furthermore, the simulated results are based on 15 Monte Carlo trials.

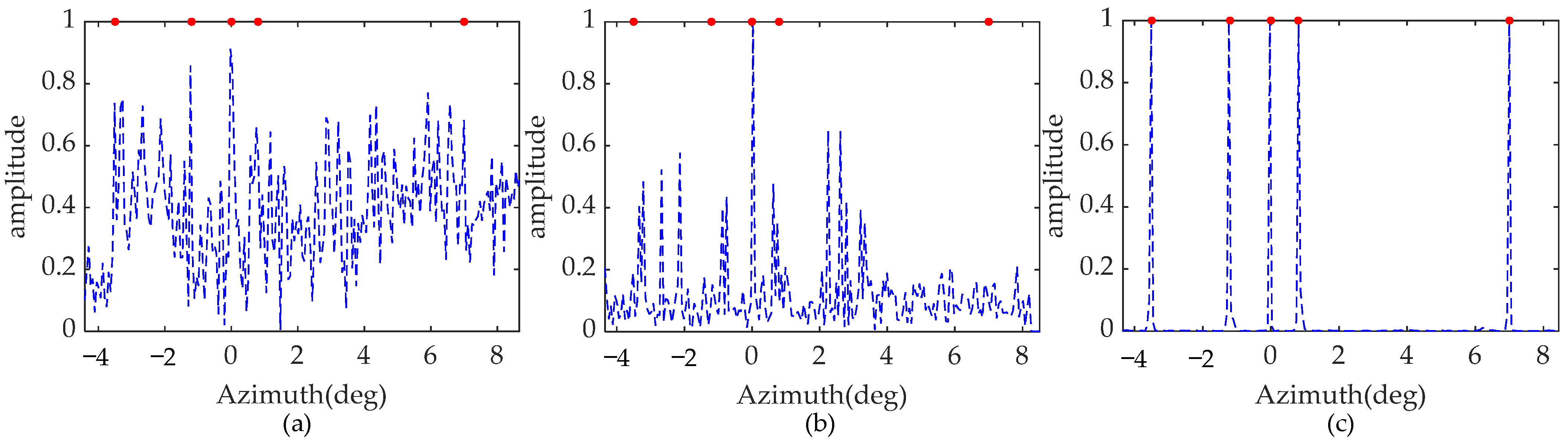

As shown in Figure 6, the red dots denote the true location and amplitude of the point targets. In Figure 6a, point targets cannot be recovered due to the mismatch in the dictionary caused by the high-order maneuverability of the platform, which disrupts the sparse recovery. Inspecting Figure 6b, few scattering points can be reconstructed, and the false targets appear. It is evident that conventional Doppler phase compensation fails to produce a satisfactory forward-looking image. In contrast, using the proposed whole pre-processing operation, the five targets are well focused with accurate locations and amplitudes, as shown in Figure 6c. Moreover, the sidelobes of the reconstructed points decay rapidly. This simulation demonstrates that the constructed MCPF achieves accurate phase correction, and with the pre-processing operation, the high azimuth resolution can be increased by the proposed algorithm for maneuvering platforms.

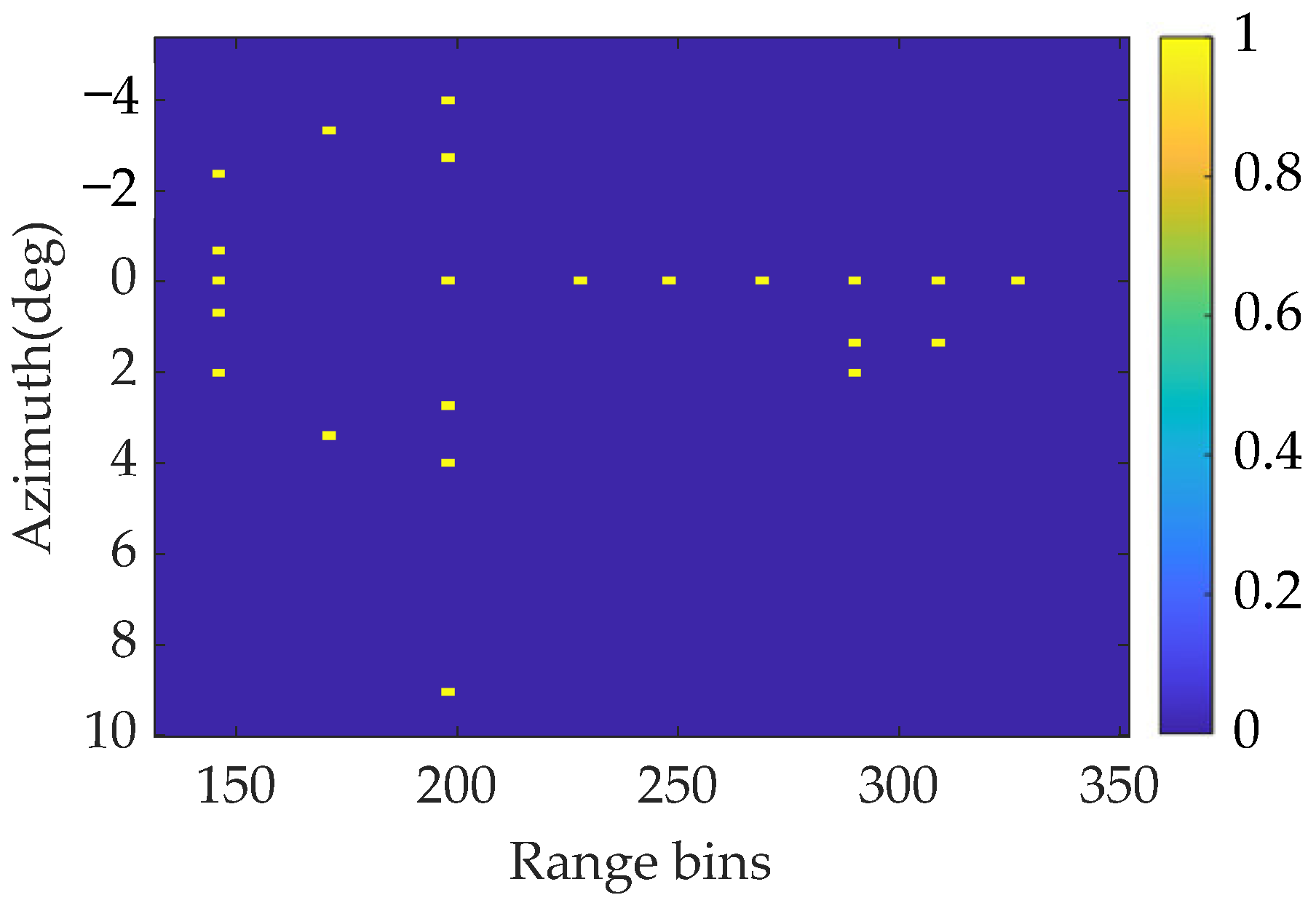

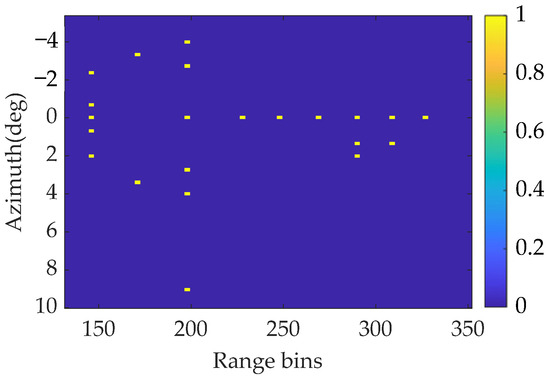

Then, a simulated scene consisting of some independent point targets with normalization amplitude is considered. The original scene is shown in Figure 7. To verify the super-resolution effect of the proposed method, the minimum angular interval between two points is set to 1.3°, which is smaller than the beamwidth. In addition, the signal contains white Gaussian noise with an SNR of 18 dB. Performed simulation parameters for the point targets are shown in

Table 1. Simulation parameters of point targets.

Parameters	Values	Parameters	Values
Scanning angle	−10°~10°	Scanning velocity	60°/s
Beam width	4°	Platform height	1 km
Acceleration	[3, 3, −3] m/s2	Platform velocity	200 m/s

.

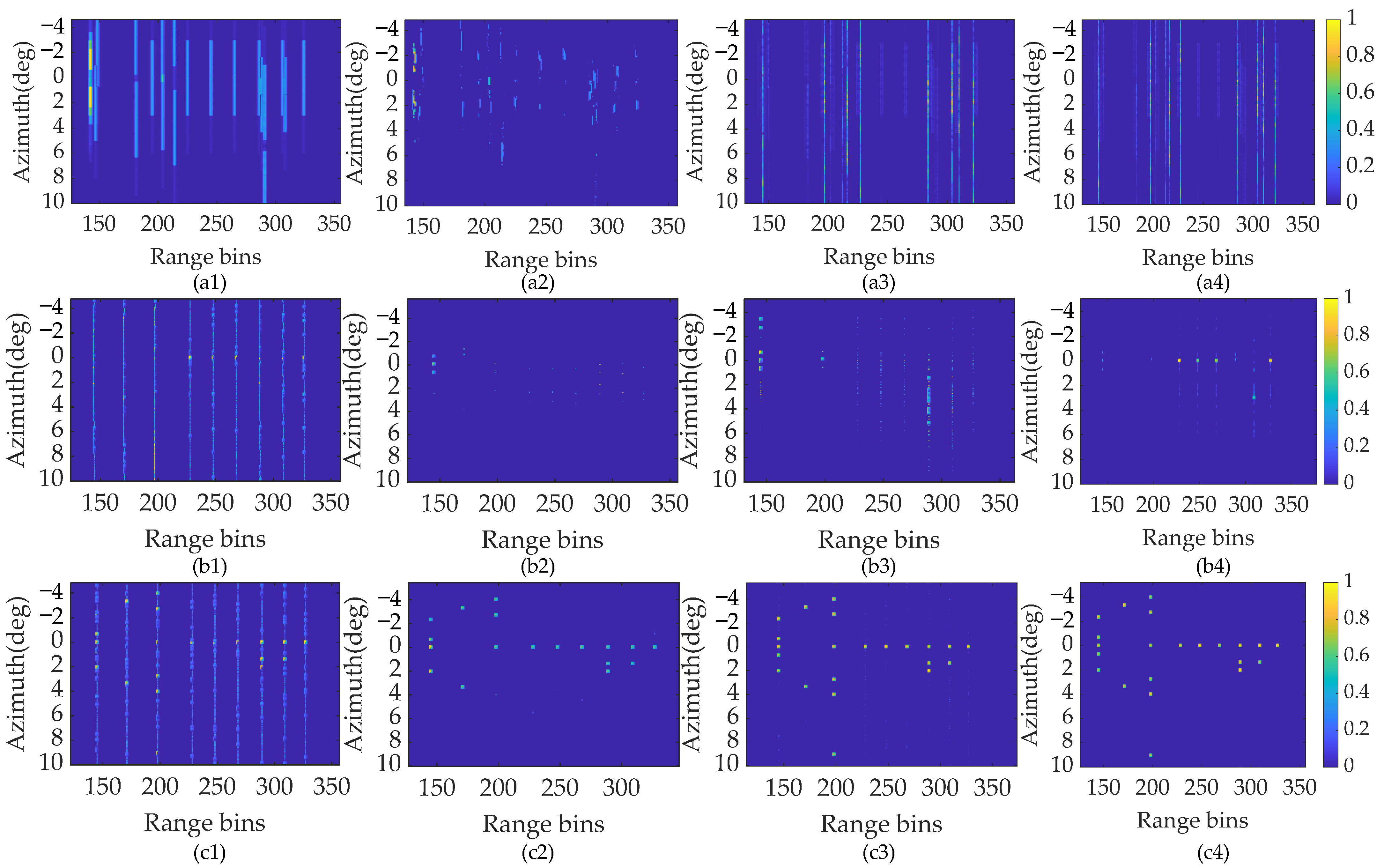

The super-resolution results using different alternative reconstruction methods, including the ISTA, SAMP, SBL, and the proposed SSTEM-VB methods using three processing models are shown in Figure 8.

Inspecting Figure 8(a1–a4), under the traditional convolution model, the point targets cannot be recovered with the proposed method or the other three comparison methods. It highlights that the Doppler information brought by the relative motion is indispensable for the maneuvering platform. Figure 8(b1–b4) show the reconstruction results of the compared methods using the conventional Doppler convolution model. Under this model, the regression performance of the above four methods is improved, but still remains unsatisfactory. The comparison images of these methods with the enhanced sparsity model are shown in Figure 8(c1–c4). Apparently, the reconstruction of these methods has been enhanced for all methods. In the result recovered by the ISTA method, some targets can be distinguished, but severe blurring and false targets appear. The imaging performance is increased by the SAMP method, but it also leads to a loss in the amplitude of targets, and, in certain cases, the targets themselves are lost due to the dilemma of local minima. The SBL method can recover all targets other than the two closed targets, but it introduces several transverse ripples and sidelobes. On the contrary, the proposed SSTEM-VB method reconstructs all targets accurately with satisfactory amplitudes and few transverse ripples. These results show that the proposed method based on the enhanced sparsity model can handle complex forward-looking imaging problems.

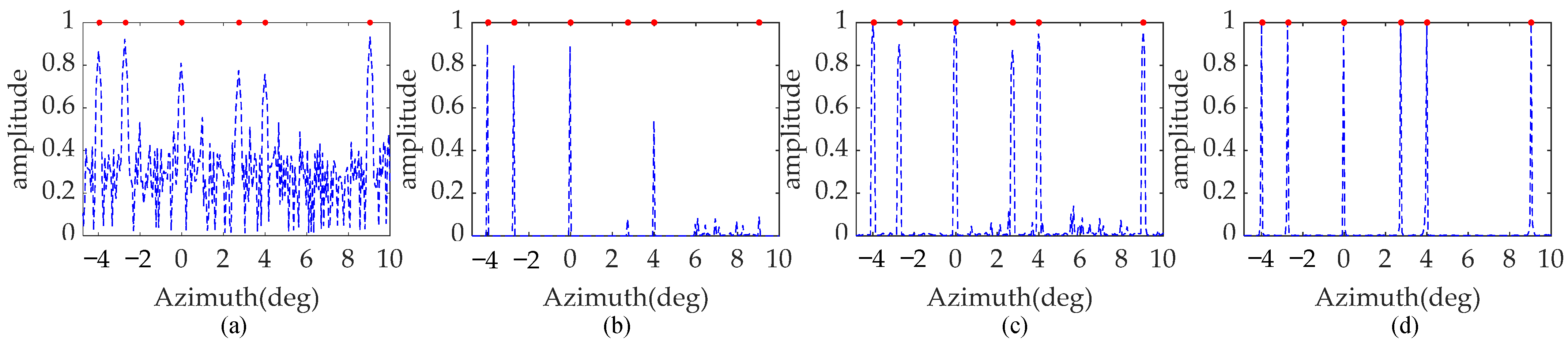

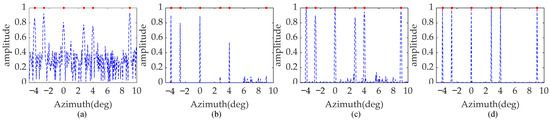

To compare clearly the reconstructed performance of the above methods with the enhanced sparsity model in detail, the profiles in the same range unit 198 from all four methods are shown in Figure 9. From Figure 9a, the ISTA profile shows coarse performance, as it fails to completely distinguish the point targets due to severe transverse ripples and sidelobes. In Figure 9b, the SAMP profile achieves better performance, but it still suffers from some false targets and missing targets. Almost all targets can be recovered in the SBL profile, as shown in Figure 9c. Regretfully, the amplitude of some targets is deficient, and several sidelobes are not satisfactory. In contrast, inspecting Figure 9d, SSTEM-VB can accurately reconstruct adjacent or edge point targets. It is apparent that the SSTEM-VB method outperforms the ISTA, SAMP, and SBL methods in forward-looking imaging.

To further quantitatively analyze the superiority of the proposed SSTEM-VB method compared with the other three methods, two important indexes, mean square error (MSE) [35] and image entropy, are introduced to quantify the imaging performance. MSE is defined as follows:

$$MSE={\displaystyle \sum _{m_c=1}^{M_c}\frac{{‖\widehat{\omega }-\omega ‖}_2^2}{M_c}}$$

(67)

where $\widehat{\omega }$ and $\omega$ denote the reconstructed image and the real image, $M_c$ is the total number of Monte Carlo trials. In the simulations, the value of $M_c$ is 200.

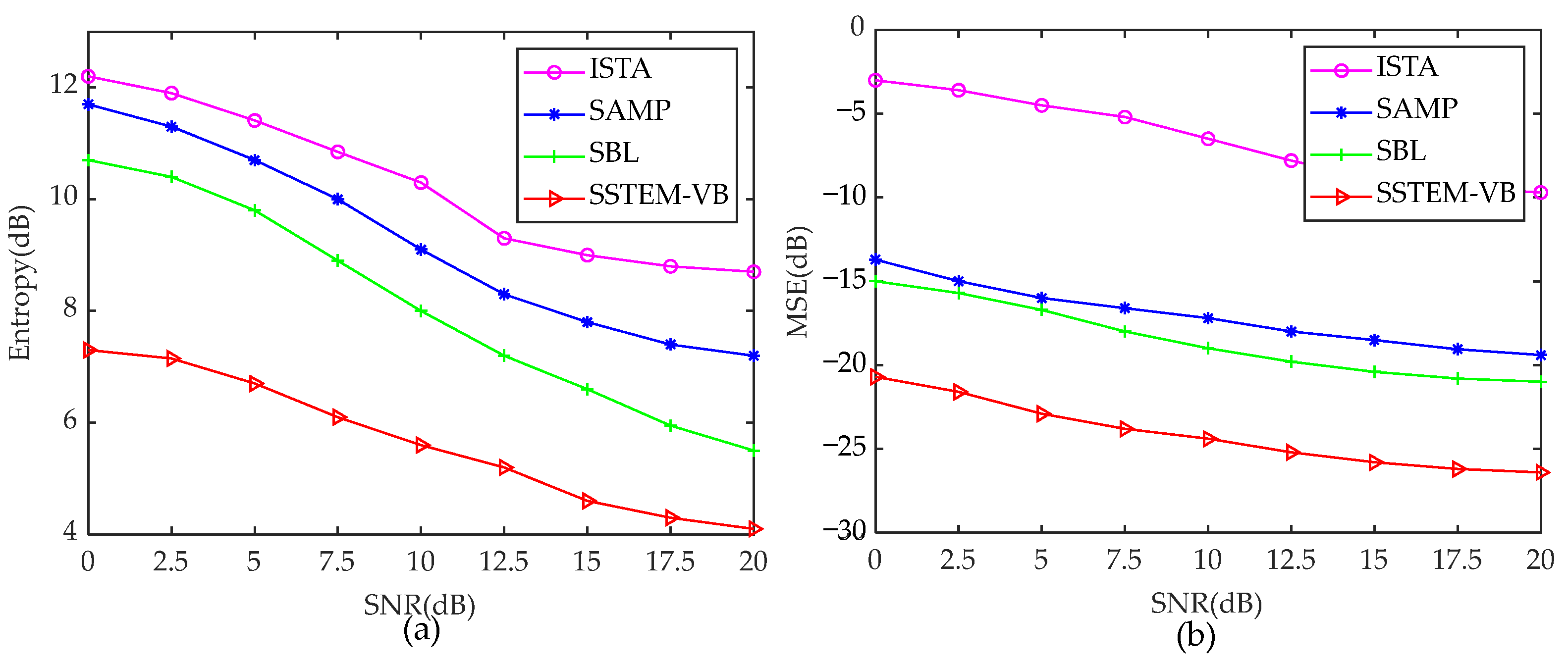

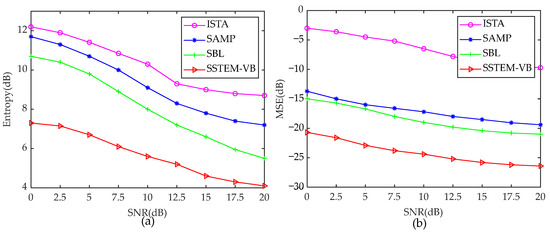

It is wise to calculate only the MSE and image entropy for the four algorithms with the enhanced sparsity model, given the coarse and blurred imaging performance under the traditional convolution model and conventional Doppler convolution model, which use unsuitable Doppler information. Figure 10 shows the MSE and image entropy curves under different SNRs for the various methods.

Inspecting Figure 10a,b, it is evident that the entropies and MSEs of all the above methods exhibit a decreasing trend, which slows down as SNR increases. From Figure 10a, the proposed SSTEM-VB method shows the lowest entropy at the same SNR compared with the other three methods, indicating that the highest image quality is achieved by the SSTEM-VB method. Inspecting Figure 10b, the MSE of ISTA is the highest, while the MSEs of SAMP and SBL are similar, both of which are relatively small. It means that SAMP and SBL perform better than ISTA. However, the proposed Bayesian algorithm demonstrates the best performance with the lowest MSE than the others under the same SNR conditions.

In summary, based on the enhanced sparsity model, the proposed Bayesian method demonstrates a favorable capability to resolve ill-conditioned problems.

4.2. Surface Target Simulation Results

Points in structured targets are typically dependent on the surrounding points. The imaging effect of some pixel sparse reconstruction algorithms may deteriorate. To suit further practical forward-looking imaging applications and demonstrate the effectiveness of the proposed SSTEM-VB method with the enhanced sparsity model, distributed and block sparse area targets are considered in this subsection. Furthermore, different SNRs and convolution models are taken into account in the surface target simulations. Simulation parameters are provided in

Table 2. Simulation parameters of surface targets.

Parameters	Values	Parameters	Values
Scanning angle	−10°~10°	Scanning velocity	60°/s
Beam width	4°	Height	1 km
Acceleration	[3, 3, −3] m/s2	Platform velocity	200 m/s

.

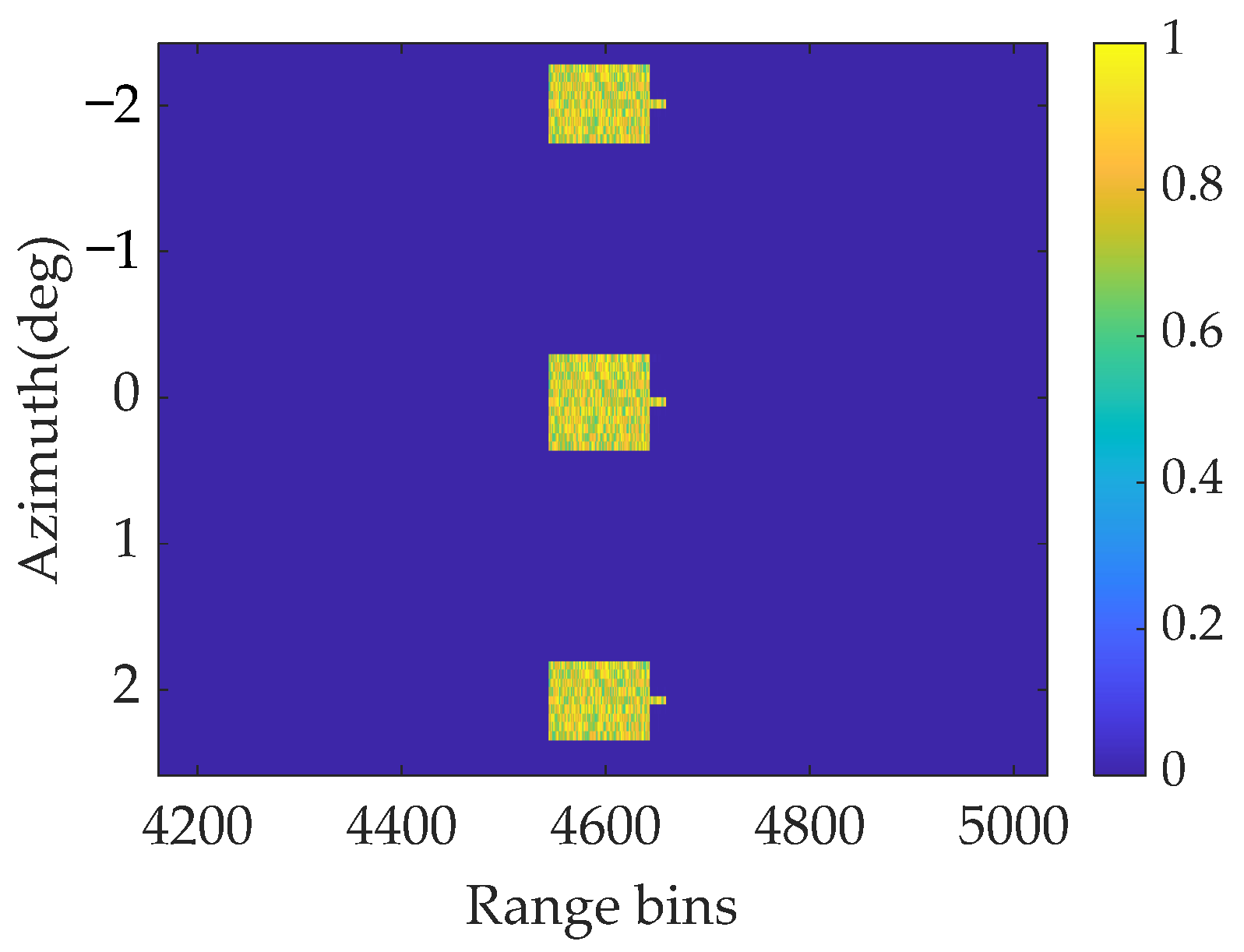

A typical tank target with a block sparse structure is utilized as the original scenario for forward-looking imaging to synthesize the signal, with an SNR of 18 dB, as shown in Figure 11.

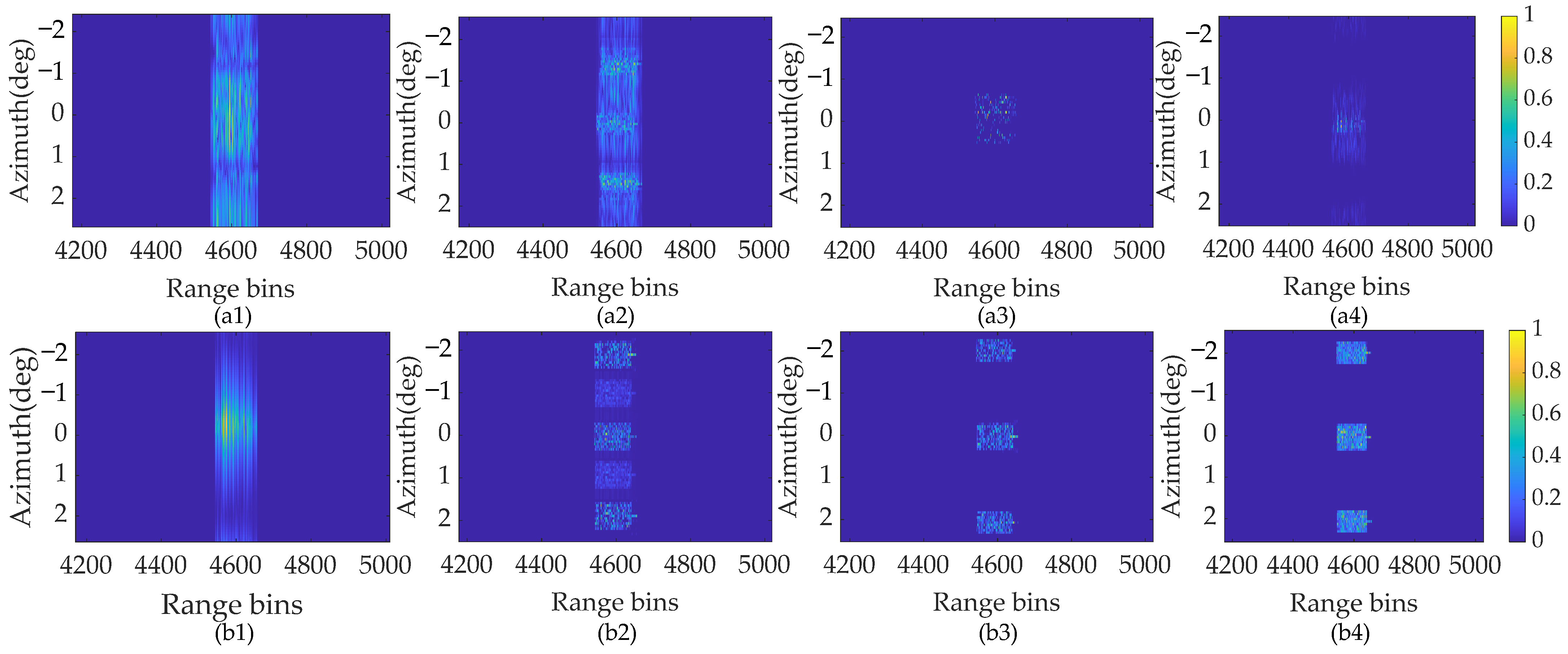

The reconstructed results using ISTA, SAMP, SBL, and the proposed SSTEM-VB methods are displayed in Figure 12. Figure 12(a1–a4) show the unsatisfactory results of the four super-resolution methods based on the conventional convolution model. This is because the high-order maneuverability causes the traditional dictionary to mismatch with the sparse scene reconstruction.

In contrast, the sparse reconstruction results are optimized, as shown in Figure 12(b1–b4). In Figure 12(b1), the tank contour reconstructed with the ISTA method is blurred, resulting in coarse cross-range resolution. Higher performance is achieved with the SAMP and SBL methods compared with ISTA, as shown in Figure 12(b2,b3). However, several transverse ripples and non-negligible false targets appear in the reconstructed images using the SAMP method. Compared with the point target scene, it is evident from the surface target reconstructed results that, although the SBL method based on the traditional pixel sparse assumption can reconstruct the approximate outline, the internal structure of the target is discrete and missed. It significantly deteriorates the visual effect of the reconstruction. In comparison, the SSTEM-VB method restores the structural features, including clear contour and details, of the surface targets, and achieves a clustering effect, as shown in Figure 12(b4). Apparently, the SSTEM-VB method can produce well-focused forward-looking images, which is quite helpful to target recognition.

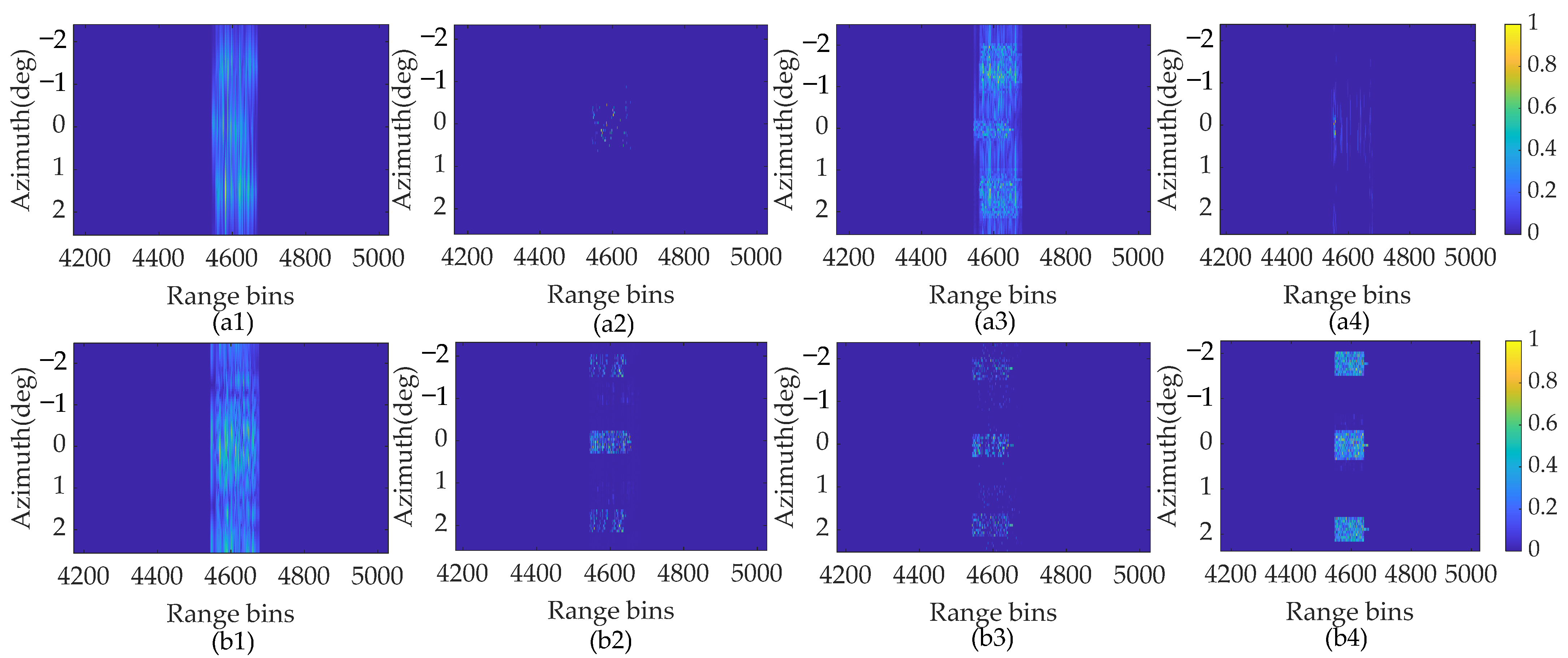

The performance using super-resulution imaging methods is greatly influenced by the deterioration of SNRs. The robustness of the algorithm in resolving ill-conditioned problems can be evaluated by the fluctuation in SNR. To demonstrate the robustness of the proposed algorithm with respect to SNR, simulated data with an SNR of 5 dB are processed. The super-resolution results under different processing models are shown in Figure 13.

Comparing Figure 12 and Figure 13, a similar conclusion can be obtained that the enhanced sparsity model performs better than the conventional model in super-resolution forward-looking imaging, regardless of the SNR levels. Inspecting Figure 13(b2,b3), the imaging results based on both SAMP and SBL methods further deteriorate when the SNR decreases to 5 dB. This phenomenon indicates that the pixel sparse assumption is not suitable for surface targets with block sparse features, causing loss of some detailed contour information and resulting in a more discrete image. On the contrary, the proposed SSTEM-VB method can maintain satisfactory recovery performance. Moreover, little deterioration is observed in the result from the proposed method under low SNR conditions. The contour of the block sparse targets is noticeably clearer in the result produced by the proposed method than the other algorithms.

In summary, observing the above processing results of simulated data, the SSTEM-VB method proposed in this paper, utilizing the enhanced sparsity model, is capable of achieving satisfactory super-resolution sparse recovery even under severe SNR conditions. It also significantly enhances the imaging quality of block sparse targets for maneuvering platforms.

5. Conclusions

In this article, we propose a super-resolution forward-looking imaging algorithm, SSTEM-VB, which utilizes the enhanced sparsity model for maneuvering trajectories. First, the imaging geometric model for maneuvering platform is established. Subsequently, the virtual MPCF is designed to correct the range walk and compensate for the high-order Doppler phase introduced by the maneuverability. Then, to enforce sparsity in the scene, the high-dimensional beam space is merged, and an optimized convolution model with enhanced sparsity is derived. Moreover, a structured hierarchical ST prior is exploited to model the sparse signal under the enhanced sparsity framework. It is more suitable for representing the sparseness of pattern-coupled scenes than traditional priors based on pixel sparse assumption. Eventually, an EM-based VB inference is applied to estimate the parameters of the sparse signal. The significant improvement in image performance achieved by the proposed method has been validated through numerical simulation results.
