A Novel Framework Integrating Spectrum Analysis and AI for Near-Ground-Surface PM_2.5 Concentration Estimation

Highlights

What are the main findings?

• Direct estimation is performed of near-ground-surface PM_2.5 concentrations by integrating spectral analysis and machine learning approaches.
• PM_2.5 measurement is achieved using a single MAX-DOAS instrument without reliance on meteorological data.

What is the implication of the main finding?

• Horizontal spatial distribution characteristics of PM_2.5 within urban areas are identified.
• Synchronous observations from two MAX-DOAS instruments reveal intra-urban PM_2.5 pollution transport processes.

Abstract

Monitoring the horizontal distribution of PM_2.5 within urban areas is of great significance, not only for environmental management but also for providing essential data to understand the distribution, formation, transport, and transformation of PM_2.5 within cities. This study proposes a novel approach—the Spectral Analysis-based PM_2.5 Estimation Machine Learning (SAPML) model. This method uses a machine learning model trained with features derived from multi-azimuth and multi-elevation MAX-DOAS observations, specifically the oxygen dimer (O₄) differential slant column densities (O₄ dSCDs), and labels provided by near-surface ground measurements corresponding to each azimuthal direction, to estimate near-surface PM_2.5 concentrations. This approach does not rely on meteorological data and enables multi-directional near-surface PM_2.5 monitoring using only a single independent instrument. SAPML bypasses the intermediate retrieval of aerosol extinction coefficients and directly estimates PM_2.5 concentrations from spectral analysis results, thereby avoiding the accumulation of errors. Using O₄ dSCD data from multiple MAX-DOAS stations for model training eliminates inter-station conversion differences, allowing a single model to be applied across multiple sites. Station-based k-fold cross-validation yielded an average Pearson correlation coefficient (R) of 0.782, demonstrating the robustness and transferability of the method across major regions in China. Among the machine learning algorithms evaluated, Extreme Gradient Boosting (XGBoost) exhibited the best performance. Feature optimization based on importance ranking reduced data collection time by approximately 30%, while the correlation coefficient (R) of the estimation results decreased by only about 1.3%. The trained SAPML model was further applied to two MAX-DOAS stations in Hefei, HF-HD, and HFC, successfully resolving the near-surface PM_2.5 spatial distribution at both sites. The results revealed clear intra-urban heterogeneity, with higher PM_2.5 concentrations observed in the western industrial park area. During the same observation period, an east-to-west PM_2.5 pollution transport event was captured: PM_2.5 increases were first detected in the upwind direction at HF-HD, followed by the downwind direction at the same station, and finally at the downwind station HFC. These results indicate that the SAPML model is an effective approach for monitoring intra-urban PM_2.5 distributions.

1. Introduction

PM_2.5, defined as fine particulate matter with an aerodynamic diameter smaller than 2.5 µm, exerts profound impacts on air quality, human health, and climate change. Numerous studies have demonstrated its association with increased morbidity and mortality, as well as its role in atmospheric radiative forcing [1,2,3]. Long-term exposure to PM_2.5 is associated with diseases and premature mortality caused by conditions such as heart disease, lung cancer, chronic obstructive pulmonary disease (COPD), stroke, type 2 diabetes, lower respiratory infections (LRIs) such as pneumonia, and adverse birth outcomes including preterm birth and low birth weight [4,5,6]. In 2021, approximately 630,000 deaths in Southeast Asia were attributable to air pollution. South Asia is home to some of the world’s most populous countries and is among the regions bearing the highest disease burden from air pollution, with nearly 2.7 million deaths in 2021. In China, air pollution was also responsible for an estimated 1.86 million deaths in the same year [7]. In India, approximately 35% of all deaths are linked to air pollution [8]. Within urban areas, complex terrain, diverse emission sources, and uneven population density lead to significant spatial variability in near-surface PM_2.5 concentrations. When assessments rely on single-direction and low-temporal-resolution monitoring, such variability may introduce exposure bias. This underscores the importance of obtaining multi-directional and high-temporal-resolution observations of intra-urban PM_2.5 distributions. Such monitoring not only reduces exposure bias but also provides critical scientific insights into the horizontal distribution characteristics of PM_2.5, which are essential for developing effective and targeted air pollution control strategies.

Currently, in situ measurements remain the primary approach for monitoring PM_2.5 concentrations, owing to their high accuracy and reliability, and they are often regarded as the reference standard for validating other measurement methods [9,10]. Common automated instruments include Beta Attenuation Monitors (BAMs), Tapered Element Oscillating Microbalances (TEOMs), and optical scattering sensors [11,12,13,14]. The China National Environmental Monitoring Center (CNEMC) has established a nationwide air quality monitoring network utilizing BAM and TEOM devices, providing hourly PM_2.5 observations [15,16]. Despite their high precision, the limited number of monitoring stations restricts spatial coverage, particularly in suburban and mountainous areas. In addition to conventional mass concentration measurements, some in situ instruments also target the optical properties and size distributions of aerosols. For instance, particle size spectrometers (such as GRIMM) can provide size-resolved concentrations of PM_1.0, PM_2.5, and PM₁₀ [17], while aethalometers measure aerosol absorption coefficients to estimate black carbon mass concentrations [18,19]. These optical parameters are particularly valuable for climate research and source apportionment studies.

To overcome limitations in spatial coverage, monitoring instruments have also been deployed on mobile platforms [20]. For example, Yu et al. operated more than 300 mobile monitoring vehicles equipped with laser scattering sensors and GPS modules in Jinan during December 2019 and July 2020. This campaign achieved 30 m spatial resolution and minute-level temporal resolution, revealing localized pollution hotspots in traffic-dense areas [21]. Moreover, the advent of portable monitoring devices has enabled public participation in crowdsourced air quality monitoring [22]. However, as a type of low-cost sensor (LCS), laser scattering sensors are sensitive to humidity and prone to drift, resulting in relatively lower accuracy compared with conventional in situ measurements [23].

Conventional ground-based monitoring networks provide reliable measurements of PM_2.5 concentrations but offer limited spatial representativeness. Remote sensing techniques, while unable to directly measure particulate matter, provide aerosol optical properties and thus possess distinct advantages in expanding spatial coverage [24]. Among satellite remote sensing instruments, MODIS (Moderate Resolution Imaging Spectroradiometer) provides global aerosol optical depth (AOD) products with typical spatial resolutions of 1–10 km and a revisit period of about 1–2 days [25,26]. CALIPSO (Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observation) uses lidar to detect aerosol vertical profiles with a horizontal spatial resolution of up to 333 m but has a longer revisit period of approximately 16 days [27]. Himawari-8, a geostationary meteorological satellite, enables rapid observations over East Asia every 10 min, delivering high-temporal-resolution cloud and aerosol information [28]. However, satellite remote sensing only retrieves column-integrated optical information and cannot directly reflect near-ground-surface PM_2.5 concentrations. Ground-based remote sensing systems include Multi-Axis Differential Optical Absorption Spectroscopy (MAX-DOAS), sun photometers (e.g., Aerosol Robotic Network (AERONET) and the Campaign on Atmospheric Aerosol Research Network of China (CARSNET)), and lidar. Networks such as AERONET and CARSNET, based on direct solar irradiance measurements, provide key aerosol parameters such as AOD and single-scattering albedo (SSA) [29]. Lidar systems can observe the vertical structure of near-ground-surface aerosols [30]. MAX-DOAS collects ultraviolet/visible spectra at multiple elevation angles and, combined with gas absorption cross-sections, retrieves boundary-layer aerosol column concentrations, extinction coefficients, and boundary-layer height [31]. Wagner et al. first proposed the use of MAX-DOAS observations of the oxygen dimer (O₄) to retrieve atmospheric aerosol profiles. They found that MAX-DOAS O₄ observations are highly sensitive, capable of detecting aerosol extinction coefficients below 0.001 [32]. Irie et al. conducted ground-based MAX-DOAS observations in Tsukuba, Japan, and retrieved vertical profiles of aerosol optical depth and extinction coefficients at 476 nm in the lower troposphere using differential optical absorption spectroscopy and optimal estimation methods [33]. Nevertheless, MAX-DOAS aerosol retrievals are strongly nonlinear and provide only extinction coefficients rather than direct PM_2.5 concentrations. Moreover, the conversion from extinction coefficients to PM_2.5 is weakly linear and highly region-dependent, with significant variations in slope and intercept across different locations [34,35]. These remote sensing techniques have greatly expanded the spatial monitoring capability for PM_2.5, but they can only measure the optical parameters of aerosols, which must be converted into PM_2.5 concentrations through other approaches.

Traditional approaches typically convert aerosol optical parameters such as aerosol optical depth (AOD) into PM_2.5 concentrations using simple linear regression models. In these models, statistical relationships are established between ground-based PM_2.5 concentrations and collocated AOD observations. Based on data from the CARSNET, Xin et al. conducted generalized linear regression analyses of PM_2.5 and AOD over regions with high aerosol loadings. Their results demonstrated significant spatial consistency and correlation between PM_2.5 and AOD. However, the linear regression functions exhibited considerable variations across regions and seasons, thereby limiting the generalizability of this approach [36]. Beyond linear regression, another class of methods incorporates global chemical transport models (e.g., GEOS-Chem). Van Donkelaar et al. proposed a multi-source fusion inversion method integrating satellite AOD, meteorological variables, and global chemical model simulations to generate global annual mean PM_2.5 concentration datasets for 1998–2016. This dataset has been widely adopted internationally [37]. Nevertheless, such methods remain constrained by model parameter settings and the completeness of input data, making it difficult to capture the rapidly evolving spatiotemporal patterns of air pollution [38].

In recent years, artificial intelligence (AI) technologies have been widely applied in the field of environmental remote sensing, particularly in studies integrating AI with MAX-DOAS ground-based observations. For instance, Wang et al. employed MAX-DOAS combined with machine learning techniques to retrieve ozone concentration profiles, achieving temporal resolutions on the order of minutes and vertical resolutions on the order of hundreds of meters [39]. Tian et al., on the other hand, utilized MAX-DOAS in conjunction with convolutional neural networks (CNNs) to predict tropospheric NO₂ concentration profiles [40]. However, particulate matter differs significantly from gases in terms of physical properties: the interaction between light and gases is primarily absorption, whereas light–particle interactions involve both absorption and scattering. This introduces strong nonlinear effects when attempting to retrieve PM_2.5 concentrations from MAX-DOAS spectral observations.

With the rapid development of AI, especially machine learning and deep neural networks, these techniques have demonstrated excellent capabilities for modeling the nonlinear relationships in PM_2.5 concentration estimation [41,42,43]. Li et al. proposed a geographically and temporally weighted neural network constrained by global training (GC-GTWNN) for satellite-based surface PM_2.5 estimation. This model was tested in a case study over China, integrating satellite aerosol optical depth, surface PM_2.5 observations, and auxiliary variables. Cross-validation yielded an R² of 0.80 [44]. Karimian et al. employed multiple additive regression trees (MARTs), deep feedforward neural networks (DFNNs), and a novel hybrid model based on long short-term memory (LSTM). Their model explained 80% of PM_2.5 variability (R² = 0.8) and predicted 75% of pollution events [45]. AI-based methods typically rely on multi-source data inputs, including AOD, meteorological fields, geographic features, and ground observations. When data completeness is sufficient, these methods can provide high-accuracy PM_2.5 concentration estimates with continuous spatiotemporal coverage. Temporal resolution can reach hourly levels, and spatial resolution can be as fine as 1 km [46]. However, the reliance on meteorological and other auxiliary data limits the ability of traditional artificial intelligence (AI) methods to provide estimates of PM_2.5 concentrations. Moreover, to date, none of the AI-based approaches has directly converted O₄ observations from MAX-DOAS measurements into PM_2.5 concentrations; instead, most methods first derive aerosol extinction coefficients and subsequently convert them into PM_2.5 concentrations.

This study proposes a Spectral Analysis-based PM_2.5 Estimation Machine Learning (SAPML) model, which integrates MAX-DOAS observations, spectral analysis, and machine learning techniques. The method enables direct retrieval of near-surface PM_2.5 concentrations from O₄ dSCD data, bypassing the intermediate step of aerosol extinction coefficient inversion and thus avoiding cumulative errors. The SAPML model possesses certain spatial extrapolation capabilities and is applicable to multiple regions in China. This study optimizes the number of viewed angles and shortens the observation cycle specifically for near-ground-surface PM_2.5 monitoring. To enable independent monitoring with a single instrument, commonly used meteorological data were excluded from the machine learning model, allowing rapid PM_2.5 monitoring based solely on observations from a single MAX-DOAS instrument. The SAPML model integrates MAX-DOAS observations from different viewing directions to obtain the horizontal spatial distribution of PM_2.5 around the monitoring sites. When applied to multiple sites in Hefei, SAPML provided the horizontal PM_2.5 distribution across the city and successfully captured a pollution transport event.

2. Materials and Methods

2.1. O₄ dSCD Data

The concentration of oxygen dimer (O₄) can be easily identified because it is proportional to the square of the oxygen concentration. The vertical column density and profile of atmospheric oxygen are mainly influenced by temperature and pressure. The O₄ dSCD is the path integral of O₄ concentration along the light path. Besides observation time and viewing direction, aerosol properties are the main factors affecting O₄ dSCD values at different elevation angles. Aerosol-induced light scattering alters photon paths, impacting the O₄ dSCD. Therefore, measurements of O₄ contain embedded aerosol information. O₄ has four main absorption bands in the ultraviolet–visible spectrum, approximately at 360.8, 477.1, 577.1, and 630.8 nm [47]. To address the sensitivity issue associated with fine particles, this study conducted spectral analysis using the wavelength band centered at 360.8 nm.

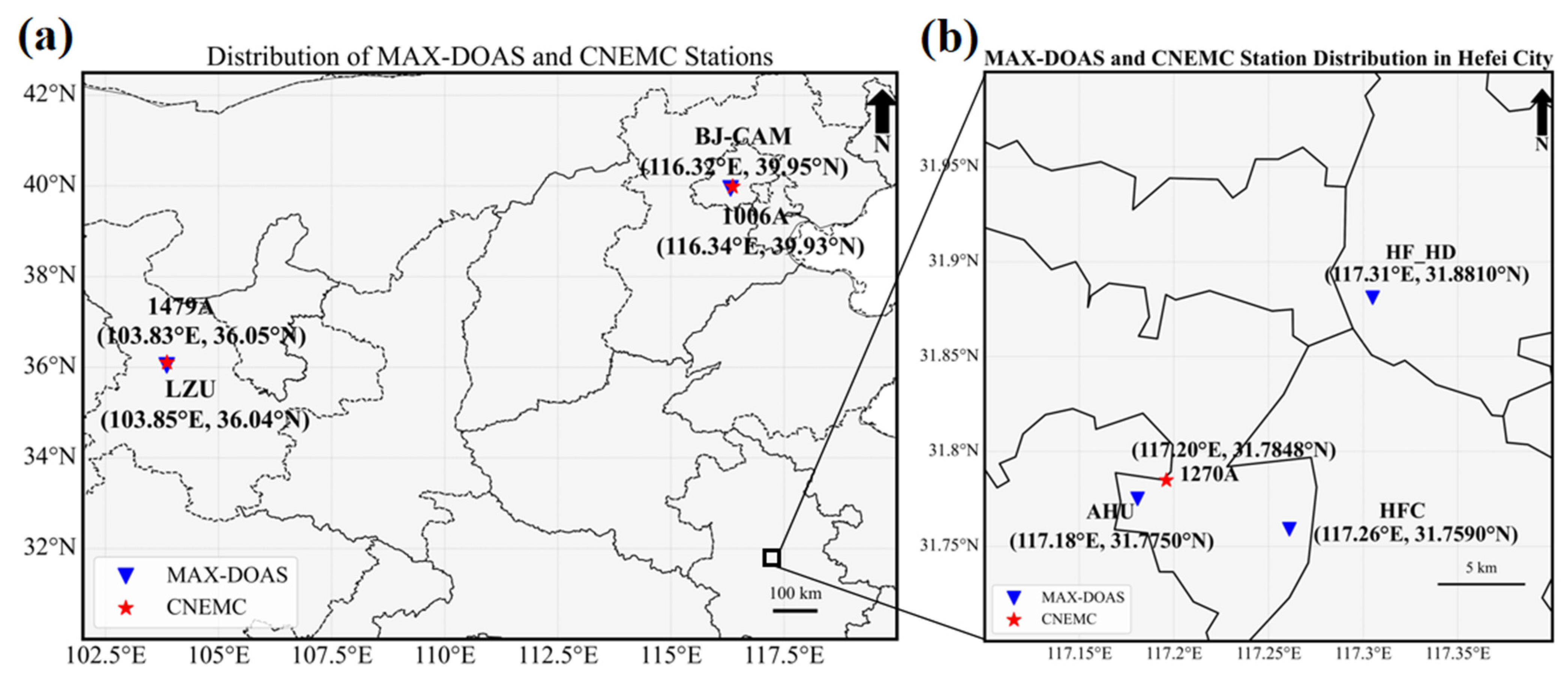

This study utilized five MAX-DOAS instruments located at Beijing Academy of Atmospheric Sciences (BJ-CAM), Lanzhou University (LZU), Anhui University (AHU), Hefei University (HFC), and Hefei Hengda Central Plaza (HF-HD). Among these, data from the BJ-CAM, LZU, and AHU sites were used for model training. To prevent the model from becoming overly dependent on the observation azimuth angle during the estimation process, the viewing directions of these three instruments were aligned as closely as possible toward their corresponding national monitoring stations. Due to installation constraints of the MAX-DOAS instruments, the AHU site exhibited an azimuth deviation of approximately 64° from its corresponding station, though its viewing direction generally faced east. Detailed information on the geographic coordinates, observation periods, sequences of elevation angles, and observation azimuth directions (spectral acquisition directions) of these five MAX-DOAS sites is provided in

Table 1. Information on the MAX-DOAS sites.

MAX-DOAS Site Name	Latitude and Longitude	Observation Time	Elevation Angle Sequence	Observation Azimuth Direction
BJ-CAM	116.32E, 39.95N	15 April 2018–26 May 2023	1°, 2°, 3°, 4°, 5°, 6°, 8°, 10°, 15°, 30°, 90°	130°
LZU	103.85E, 36.04N	20 October 2018–10 October 2022		287°
AHU	117.18E, 31.77N	22 October 2020–17 April 2023		107°
HFC	117.26E, 31.76N	19 January 2021–25 July 2022		180°, 270°
HF-HD	117.31E, 31.88N	28 January 2021–14 May 2022		0°, 90°, 180°, 270°

. In the observation azimuth directions, 0° corresponds to due north, with angles increasing clockwise such that 90° corresponds to due east. Figure 1a,b show the geographic locations of the five MAX-DOAS instruments.

The MAX-DOAS instruments used in this study consist of three main components: a spectrometer, a telescope unit, and a control computer. The spectrometer is an AvaSpec-ULS2048L-USB (Avantes, The Netherlands), covering a wavelength range of 296–408 nm in the ultraviolet spectrum. At a fixed temperature of 20 °C, the spectral resolution is 0.45 nm. The telescope collects solar radiation scattered by various particles and gases in the atmosphere, which is then directed to the spectrometer through a prism mirror and quartz fiber. The elevation angle (α) accuracy is better than 0.1°, with a telescope field of view of 0.3°. Additionally, the system is equipped with a charge-coupled device (CCD) detector camera (Sony ILX511) containing 2048 individual pixels. In this study, a complete measurement sequence consists of 11 elevation angles, 1°, 2°, 3°, 4°, 5°, 6°, 8°, 10°, 15°, 30°, and 90°, with each sequence taking approximately 15 min to complete. The measured MAX-DOAS spectra were analyzed using the QDOAS software (version 3.6.5) developed by the Belgian Institute for Space Aeronomy (BIRA-IASB) (http://uv-vis.aeronomie.be/software/QDOAS/, last accessed on 5 September 2025), which retrieves O₄ differential slant column densities (dSCDs) at different elevation angles [48]. The detailed parameter configuration of the QDOAS software (version 3.6.5) used in this study is provided in Appendix A.

2.2. PM_2.5 in Situ Measurement

The China National Environmental Monitoring Center (CNEMC) is part of a national-level automatic air quality monitoring network that is uniformly planned, constructed, and operated by the Ministry of Ecology and Environment of China. It is primarily used for real-time monitoring of urban air quality, data release, policy formulation, and environmental protection decision-making. CNEMC stations conduct real-time monitoring and reporting of the six criteria air pollutants: PM_2.5, PM₁₀, SO₂, NO₂, CO, and O₃. Among these, PM_2.5 is mainly measured using BAM and TEOM.

Figure 1 shows the in situ PM_2.5 observation data used in this study, consisting of hourly ground-level PM_2.5 concentrations from three stations of the China National Environmental Monitoring Center (CNEMC) during 2018–2023: Beijing Guanyuan station (Index: 1006A) (116.339°E, 39.9295°N), Lanzhou Railway Design Institute station (Index: 1479A) (103.831°E, 36.0464°N), and Hefei Mingzhu Square station (Index: 1270A) (117.196°E, 31.7848°N). The Beijing Guanyuan station (1006A) is located approximately 2.56 km from the BJ-CAM instrument, the Lanzhou Railway Design Institute station (1479A) is about 1.78 km from the LZU instrument, and the Hefei Mingzhu Square station (1270A) is about 2.12 km from the AHU instrument.

2.3. Auxiliary Data

MAX-DOAS observations are highly sensitive to cloud interference, and thus it is necessary to screen the data to exclude measurements affected by clouds. In this study, two types of auxiliary data were used for cloud screening. AERONET is a global ground-based aerosol remote sensing network jointly operated by NASA and multiple international partners. It provides long-term, stable, and well-calibrated observations of atmospheric aerosols, including aerosol optical depth (AOD), size distribution, single-scattering albedo (SSA), aerosol types, and absorption properties. AERONET observations are conducted every 15 min and are only valid under cloud-free conditions. Level 1.5 AOD data are unavailable under cloudy conditions. Therefore, MAX-DOAS O₄ dSCD data were temporally matched with AERONET Level 1.5 AOD data at a 15 min precision. Data that failed to match were considered affected by cloud shading and excluded. While Beijing had an operational AERONET site from 2018 to 2023, Lanzhou and Hefei lacked such sites during this period, necessitating alternative data sources for cloud screening in these regions. ERA5, developed by the European Centre for Medium-Range Weather Forecasts (ECMWF), is a global high-resolution reanalysis meteorological dataset widely used in meteorology, climate, environmental, and atmospheric sciences. ERA5 total cloud cover (TCC) represents the fraction of the sky covered by clouds, ranging from 0 (clear sky) to 1 (fully overcast), and is a key parameter influencing surface radiation flux, temperature, and precipitation [49]. ERA5 provides high spatial resolution (0.25° × 0.25°) and long-term temporal coverage (from 1979 to present), offering stable TCC data for cities such as Beijing, Lanzhou, and Hefei, making it a feasible option for cloud screening. However, compared with direct observations, ERA5 TCC is probabilistic and less precise. Therefore, screening results from ERA5 were compared with those from AERONET to calibrate ERA5 performance and approximate the accuracy of AERONET-based cloud screening.

We used AERONET Level 1.5 AOD data from the Beijing site from 15 April 2018 to 26 May 2023 and ERA5 TCC data for Beijing, Lanzhou, and Hefei over the 2018–2023 period.

2.4. Data Processing

In this study, retrievals with RMS greater than 2.0 × 10⁻³ were excluded during spectral fitting to improve the quality of the O₄ dSCD data [50]. However, this criterion alone was insufficient, and additional cloud screening of the O₄ dSCD data was required.

As solar radiation received by MAX-DOAS instruments is easily blocked by clouds, the quality of the measured spectra can degrade. Therefore, cloud screening of O₄ dSCD data is necessary. ERA5 total cloud cover (TCC) data are used to perform cloud screening on O₄ dSCD measurements. For each O₄ dSCD observation, the corresponding TCC value is compared against a preset screening threshold. Data with TCC values below the threshold are excluded. TCC represents the cloud fraction, defined as the proportion of the sky covered by clouds. This fraction reflects the probability that the sun is obscured by clouds at the observation site. A higher cloud fraction means a higher probability of solar obscuration. When the cloud fraction equals 1, the sun is completely blocked. When it is 0, the sun is unobstructed by clouds. Theoretically, removing all O₄ dSCD measurements with nonzero cloud fraction would be the most accurate approach. However, at low cloud coverage, the sun may still be unobstructed despite a nonzero cloud fraction, leading to excessive removal of valid data. Therefore, an appropriate cloud fraction threshold must be selected to effectively exclude most cloud-obscured cases while minimizing the loss of valid observations. From the perspective of data accuracy, this method cannot completely eliminate observations affected by cloud cover, which may lead to a certain degree of accuracy degradation. However, there is currently no approach that can entirely remove cloud-contaminated data, and we can only strive to improve and optimize the process as much as possible.

The TCC screening threshold is adjusted using AERONET observations of solar obscuration by clouds. O₄ dSCD data from Beijing are screened separately by ERA5 TCC and AERONET data. The screening rates based on TCC (${SE}_{Tcc}$) and AERONET (${SE}_{AER}$) are calculated using Equations (1)–(3):

$${dSCD}_{AT}^{O4}={dSCD}_{Tcc}^{O4}\cap {dSCD}_{AER}^{O4},$$

(1)

$${SE}_{Tcc}={\displaystyle \frac{\left|{dSCD}_{AT}^{O4}\right|}{\left|{dSCD}_{Tcc}^{O4}\right|}},$$

(2)

$${SE}_{AER}={\displaystyle \frac{\left|{dSCD}_{AT}^{O4}\right|}{\left|{dSCD}_{AER}^{O4}\right|}},$$

(3)

where ${dSCD}_{Tcc}^{O4}$ and ${dSCD}_{AER}^{O4}$ denote the O₄ dSCD dataset filtered based on TCC and AERONET data, respectively. ${dSCD}_{AT}^{O4}$ represents the intersection of datasets. |${dSCD}_{AT}^{O4}$|, |${dSCD}_{AER}^{O4}$|, and |${dSCD}_{Tcc}^{O4}$| are the number of data points in the ${dSCD}_{AT}^{O4}$, ${dSCD}_{AER}^{O4}$, and ${dSCD}_{Tcc}^{O4}$ datasets, respectively.

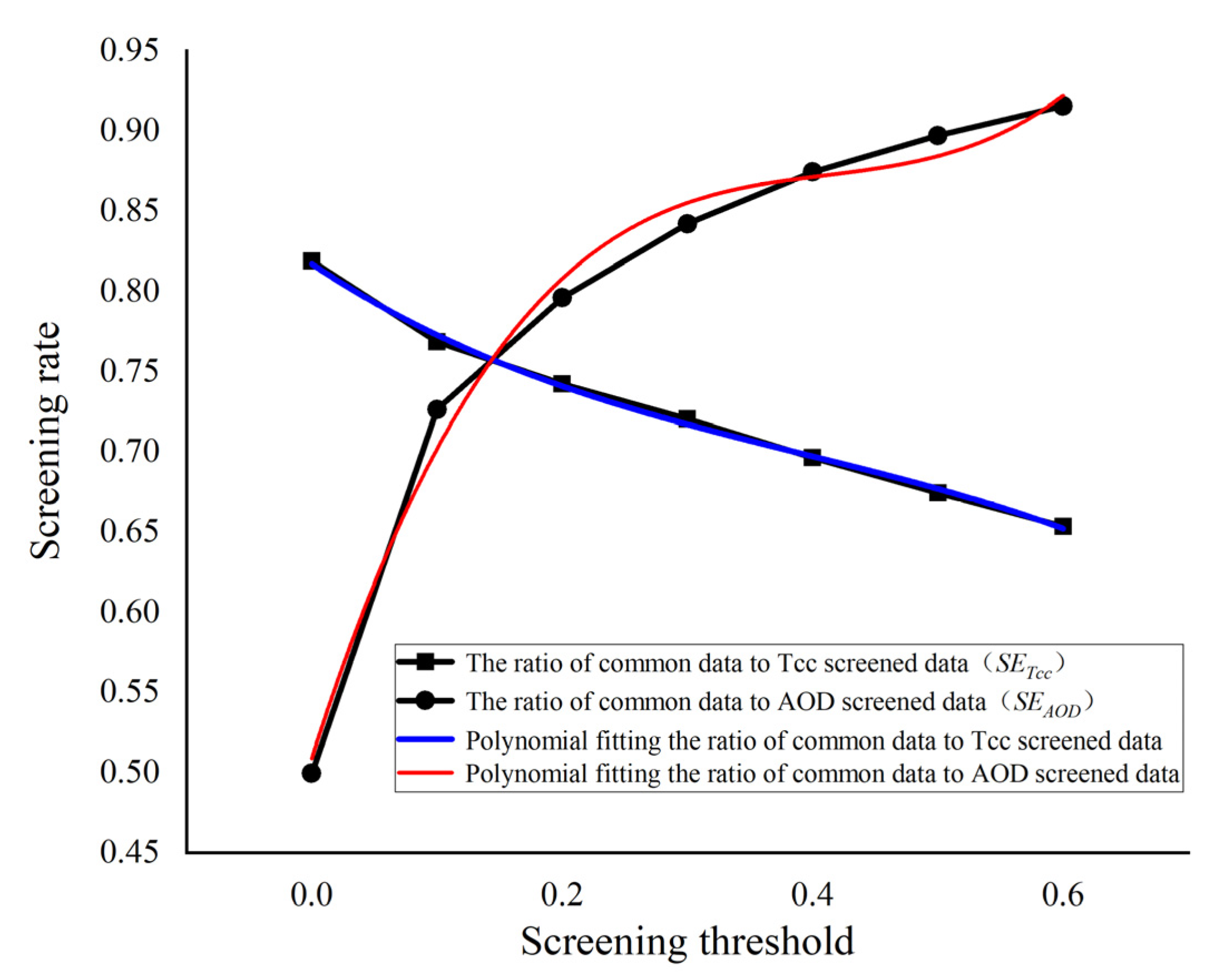

Next, the most suitable TCC screening threshold needed to be determined. The sums of the screening rates at different TCC thresholds were calculated and fitted with curves. As shown in Figure 2, the intersection of these two curves corresponds to a TCC threshold of 0.145. At this threshold, the amount of data retained after TCC screening is comparable to that retained after AERONET screening, and the probability of cloud presence is relatively low. Under this threshold, the cloud-filtered O4 dSCD dataset obtained via TCC screening exhibits a high degree of agreement with the dataset filtered by AERONET.

2.5. Model Development

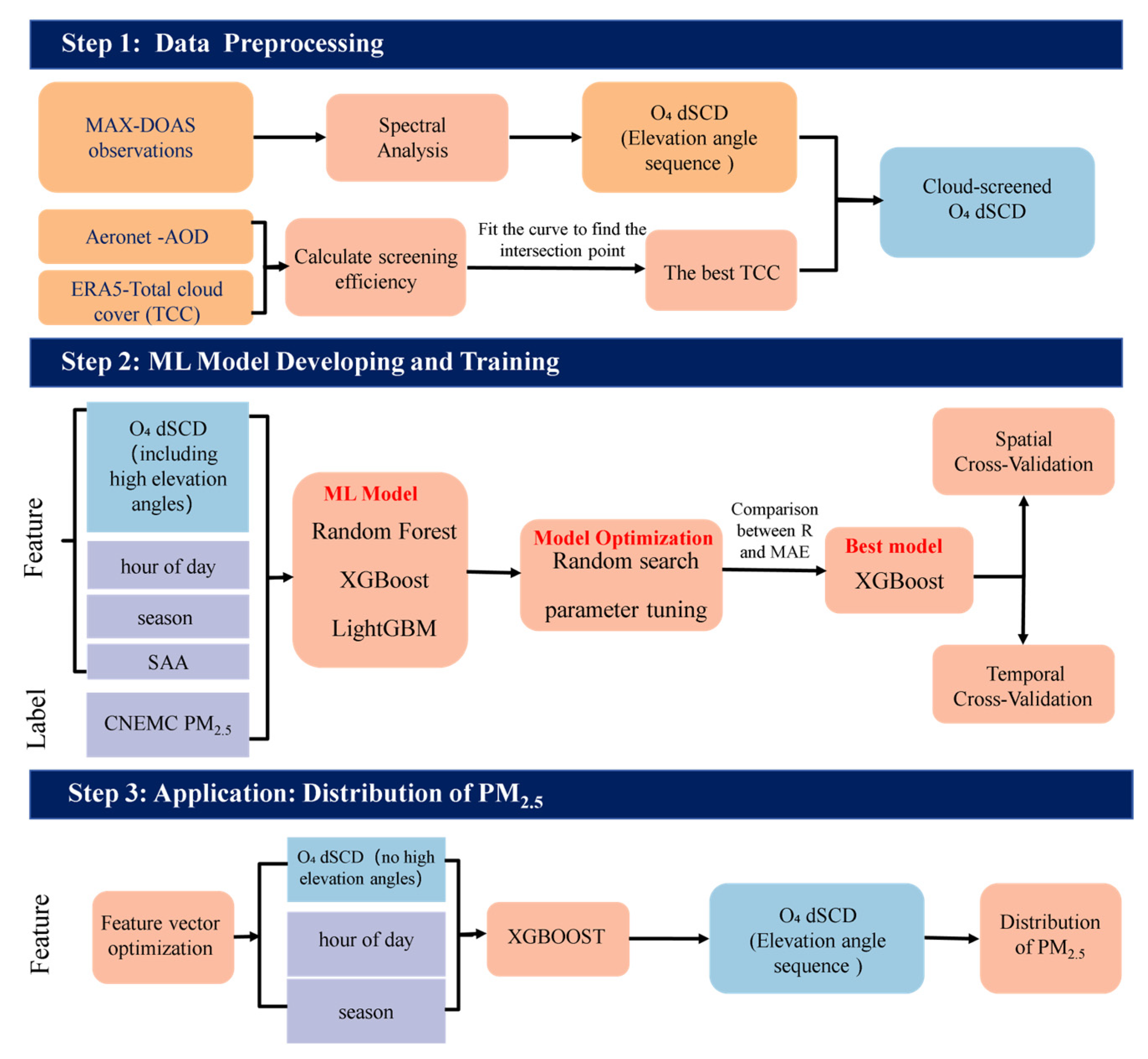

As Figure 3 shows, the QDOAS software (version 3.6.5) analyzes the spectra collected by the MAX-DOAS instrument to retrieve O₄ dSCD values at the instrument’s sequence of elevation angles. Some O₄ dSCD data are affected by cloud obscuration, while AERONET AOD data are only available under cloud-free conditions. By matching AERONET AOD data with O₄ dSCD data based on time, cloud screening of O₄ dSCD can be performed. Since not all MAX-DOAS sites have nearby operational AERONET stations, this study uses ERA5 TCC data for cloud screening of O₄ dSCD instead. An appropriate TCC screening threshold is selected by calculating screening rates and fitting curves to find their intersection point. After applying this TCC threshold, the amount of O₄ dSCD data retained closely matches that filtered by AERONET AOD, showing a high degree of overlap. The cloud-screened O₄ dSCD values at all elevation angles except 90° are used as input features. The feature vector for training includes the cloud-filtered O₄ dSCD sequences at different elevation angles, seasonal variables, and hourly variables representing the time of day. The feature vector is shown in Equation (4). Ground-level hourly PM_2.5 concentration data from the China National Environmental Monitoring Center (CNEMC) are used as labels, with measurement times converted to UTC+0. The selected CNEMC sites are the closest to the respective MAX-DOAS sites.

All machine learning models used in this study employed the Randomized Search CV optimization method to obtain the optimal hyperparameters. The hyperparameter configurations vary among different models, and the detailed settings are provided in

Table 2. Parameter settings of each model.

Model	Parameters	Data Sources
Random Forest	n_estimators	100
	max_depth	15
	min_samples_split	2
	min_samples_leaf	1
	max_features	sqrt
	n_jobs	1
XGBoost	n_estimators	200
	max_depth	6
	learning_rate	0.05
	subsample	0.8
	colsample_bytree	0.8
	gamma	0.1
LightGBM	n_estimators	200
	max_depth	10
	learning_rate	0.05
	subsample	0.8
	num_leaves	31
	colsample_bytree	0.8
	min_child_samples	20
BP	hidden_layer_sizes	(64, 32, 16)
	activation	relu
	solver	adam
	alpha	1 × 10−4
	learning_rate_init	0.001
	max_iter	1000

.

In this study, multiple machine learning models are compared, and the best-performing model is selected. To validate the reliability of the SAPML method, spatial three-fold cross-validation and temporal extrapolation tests are conducted. After achieving satisfactory results in both spatial and temporal validation, the trained model is applied to MAX-DOAS instruments to obtain temporal variation characteristics and horizontal distribution features of PM_2.5 mass concentrations. This approach also allows differences in PM_2.5 mass concentrations to be partially analyzed from different viewing directions at the observation sites.

$${\mathbf{x}}_t=[\hspace{0.17em}{O}_4^{\left({\alpha }_1\right)}(t),O_4^{\left({\alpha }_2\right)}(t),\dots ,O_4^{\left({\alpha }_n\right)}(t),\mathbf{s}(t),h(t)\hspace{0.17em}]$$

(4)

where ${\mathbf{x}}_t$ denotes the feature vector at time $t$, $O_4^{\left({\alpha }_i\right)}(t)$ represents the cloud-screened O₄ dSCD measured at elevation angle ${\alpha }_i$ (excluding 90°), $\mathbf{s}\left(t\right)$ is a one-hot-encoded seasonal variable (spring = [1, 0, 0, 0], summer = [1, 0, 0, 0], autumn = [0, 0, 1, 0], and winter = [0, 0, 0, 1]), and $h\left(t\right)$ is the hour-of-day information (0–23).

2.6. Model Evaluation Metrics

This study uses the Pearson correlation coefficient (R) and mean absolute error (MAE) as evaluation metrics for the models. R measures the strength of the linear relationship between two variables and ranges from −1 to 1. An R value of 1 indicates a perfect positive correlation, 0 indicates no correlation, and −1 indicates a perfect negative correlation [51]. MAE represents the average absolute deviation between predicted and true values. A smaller MAE indicates higher prediction accuracy [52]. The formulas for calculating R and MAE are given by

$$R={\displaystyle \frac{\sum _{i=1}^n(y_i-\overline{y}\left)\right({\widehat{y}}_i-\overline{\widehat{y}})}{\sqrt{\sum _{i=1}^n(y_i-\overline{y}{)}^2}\times \sqrt{\sum _{i=1}^n({\widehat{y}}_i-\overline{\widehat{y}}{)}^2}}},$$

(5)

$$\mathrm{MAE}={\displaystyle \frac{1}{n}}\sum _{i=1}^n\left|y_i-{\widehat{y}}_i\right|,$$

(6)

where $y_i$ denotes the true values, which in this study correspond to the CNEMC PM_2.5 concentrations, and ${\widehat{y}}_i$ represents the model-estimated values of PM_2.5. $\overline{y}$ is the mean of the true values, and $\overline{\widehat{y}}$ is the mean of the model-estimated values. $n$ is the total number of samples.

3. Results

3.1. Model Comparison and Temporal Extrapolation of Models

To select the optimal machine learning model for the SAPML method, this study first merged the O₄ dSCD data obtained from spectral analysis of MAX-DOAS measurements at BJ-CAM, LZU, and AHU in chronological order. Cloud screening was then applied based on TCC data.

In this study, four different models—Random Forest, XGBoost, Backpropagation (BP) Neural Network, and LightGBM—were selected for comparative analysis [53]. The processed dataset was divided sequentially in chronological order, with the first 80% used for training and the remaining 20% for testing. The hyperparameters of the four models were optimized using a randomized cross-validation search (Randomized Search CV) [54]. Since the temporal order of the data was preserved, the model comparison also serves as a validation of temporal extrapolation capability. The hyperparameter configurations of each model are summarized in Table 2.

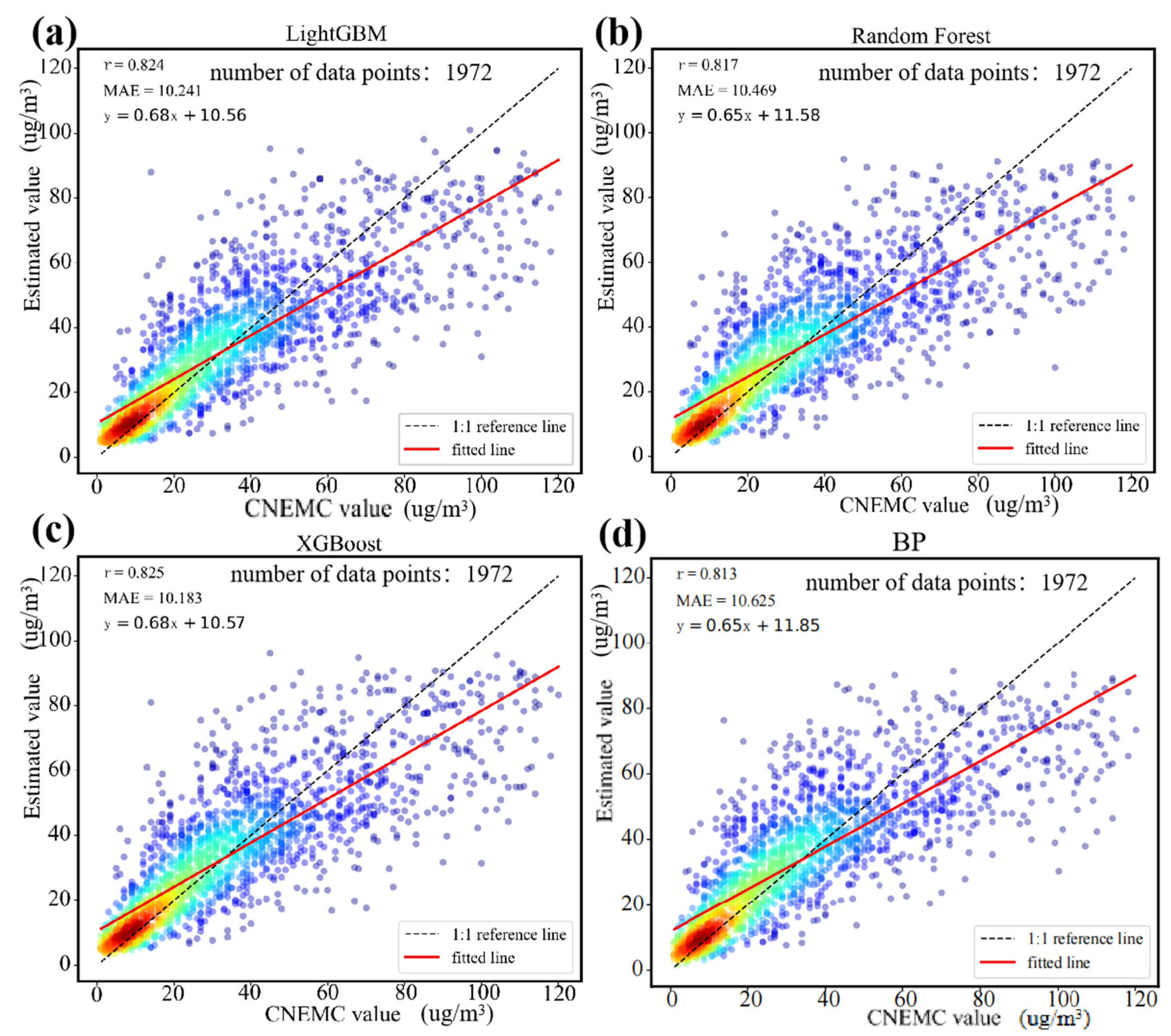

The test results are shown in Figure 4. The Random Forest model achieved a correlation coefficient (R) of 0.817, a mean absolute error (MAE) of 10.469, a regression slope of 0.65, and an intercept of 11.58. The XGBoost model achieved an R of 0.825, MAE of 10.183, slope of 0.68, and intercept of 10.57. The LightGBM model achieved an R of 0.824, MAE of 10.241, slope of 0.68, and intercept of 10.56. The BP neural network achieved an R of 0.813, MAE of 10.625, slope of 0.65, and intercept of 11.85.

Machine learning models often tend to smooth extreme values, typically resulting in overestimation of low values and underestimation of high values [55]. Consequently, their fitted regression lines generally have slopes less than 1 and intercepts greater than 0. Ideally, the closer the slope is to 1 and the intercept to 0, the better the model’s estimation performance. The results show that XGBoost and LightGBM exhibit very similar R, MAE, slope, and intercept values, while Random Forest performs slightly worse, with a lower slope and higher intercept. All four models demonstrate reasonable temporal extrapolation capability, with the lowest R being 0.813 and the highest MAE 10.625. Considering its smaller size and faster training speed, XGBoost was selected as the model for the SAPML method.

3.2. Impact of Cloud Removal

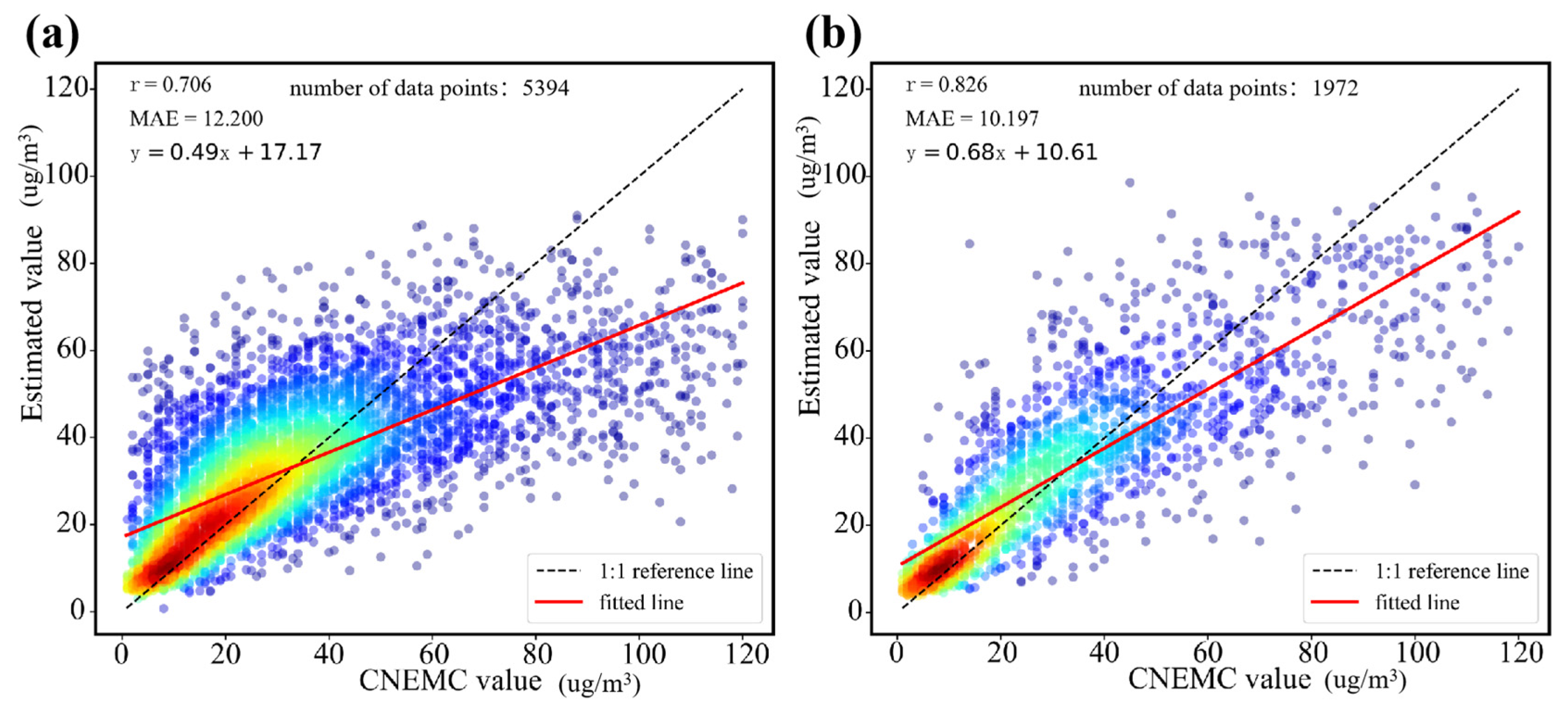

To evaluate the effectiveness of cloud contamination removal using ERA5 TCC data, O₄ dSCD data collected and analyzed by MAX-DOAS instruments at BJ-CAM, LZU, and AHU were merged sequentially by time. Two datasets were created for comparison: one containing the original unfiltered data, and the other filtered using a TCC threshold of 0.145 for cloud screening.

Both datasets were randomly split into 80% training and 20% testing sets, with XGBoost selected as the modeling algorithm. Correlation analysis was performed between the PM_2.5 concentrations predicted on the test sets and the PM_2.5 concentrations observed by CNEMC. The results are shown in Figure 5. For the unfiltered data test set, the correlation analysis yielded an R of 0.706, MAE of 12.200, slope of 0.49, and intercept of 17.17. For the cloud-filtered data test set, the results improved to an R of 0.826, MAE of 10.197, slope of 0.68, and intercept of 10.61. Clouds and rain sometimes occur simultaneously. During rainy periods, PM_2.5 concentrations are typically low, leading the model to overestimate them. Consequently, the slope for unfiltered data is lowered, as both the overestimation of low values and the underestimation of high values reduce the slope. The higher R and lower MAE of the cloud-filtered data indicate that TCC-based cloud screening, with an appropriately selected threshold, can enhance the quality of the training dataset.

3.3. Spatial Extrapolation Validation

This study conducted a three-site cross-validation (CV) using MAX-DOAS instruments at BJ-CAM, LZU, and AHU. In each validation, data from two instruments were used as the training set, and those from the remaining instrument served as the validation set, resulting in three combinations. To eliminate the influence of temporal differences, only the common period (22–10 October 2020) across the three instruments was used for validation. Based on previous model comparison results, machine learning models tend to perform worse at extremely high or low PM_2.5 concentrations, mainly showing overestimation at low values and underestimation at high values. All O₄ dSCD data were cloud-screened using a TCC threshold of 0.145.

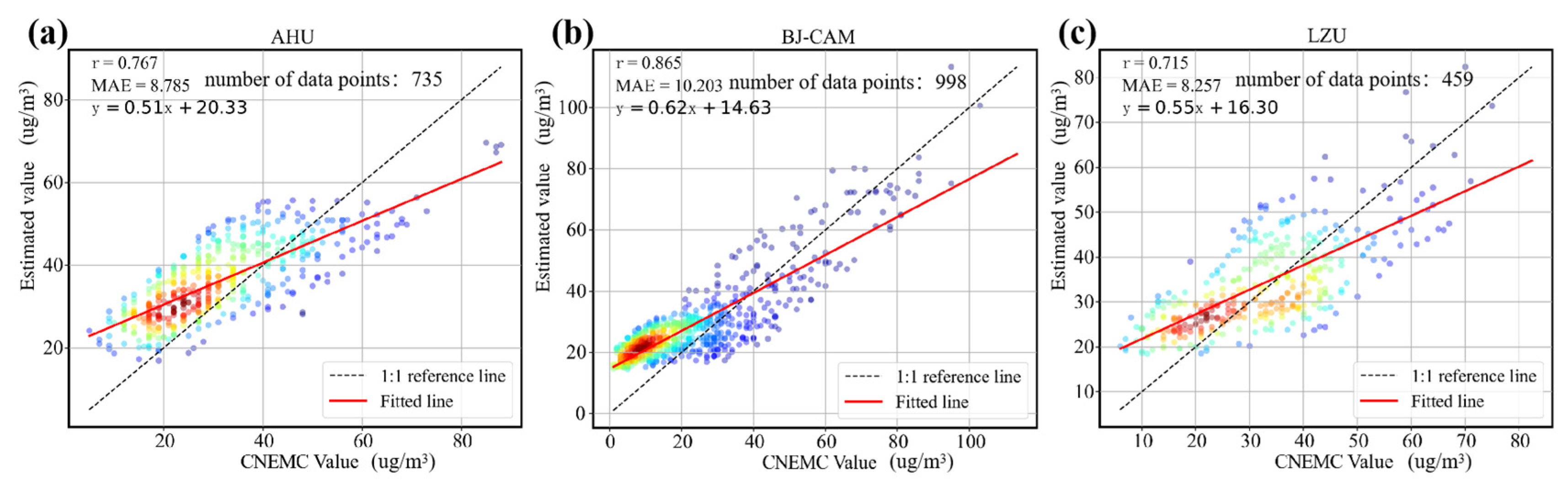

The validation results for BJ-CAM, LZU, and AHU are shown in Figure 6. Using LZU and AHU as training sets and BJ-CAM as validation, the results were R = 0.865, MAE = 10.203, slope = 0.62, and intercept = 14.63. Using BJ-CAM and AHU as the training sets and LZU for validation, the results were R = 0.715, MAE = 8.257, slope = 0.55, and intercept = 16.30. Using BJ-CAM and LZU as the training sets and AHU for validation, the results were R = 0.767, MAE = 8.785, slope = 0.51, and intercept = 20.33. The relatively lower R value and higher MAE for BJ-CAM may be attributed to two factors: Firstly, the difference in data volume, as BJ-CAM has the largest dataset among the three sites; Secondly, BJ-CAM contains more high PM_2.5 values, and MAE reflects relative errors. Spatial extrapolation leads to a decline in the model’s predictive performance, with predictions biased toward the mean. This results in underestimation of high values and overestimation of low values, causing the slope to decrease. All three validation sets achieved R values above 0.7 and MAEs below 10.5 µg/m³, demonstrating that SAPML has reasonable spatial extrapolation capability.

3.4. Feature Optimization

Feature importance analysis was conducted on the XGBoost model, and the results are shown in Figure 7. The O₄ dSCD values at high elevation angles (8°, 10°, 15°, 30°) and the solar azimuth angle (SAA) exhibited relatively low importance in the model. This is because scattered light at high angles travels shorter distances near the surface, so the corresponding O₄ dSCD data contain less information about near-ground-surface PM_2.5 concentrations. The 1° elevation angle corresponds to scattered light penetrating the longest near-ground-surface path, but its signal intensity is very weak. Consequently, the feature importance of the 1° O₄ dSCD is lower than those of the 2°, 3°, 4°, 5°, and 6° angles, but higher than those at 8°, 10°, 15°, and 30°. Considering this, feature optimization can be performed by removing SAA and the high-angle (8°, 10°, 15°, 30°) O₄ dSCD data. In conventional MAX-DOAS measurements, data from multiple elevation angles are typically used to retrieve the vertical profiles of atmospheric pollutants. However, in this study, the primary objective is to estimate near-surface PM_2.5 concentrations. Therefore, high-angle spectral observations can be omitted during actual measurements. This approach reduces the number of observation angles, thereby shortening measurement time and improving temporal resolution, while having only a minor impact on model accuracy. Using O₄ dSCD data collected and analyzed from the BJ-CAM, LZU, and AHU MAX-DOAS instruments, merged chronologically and cloud-screened with a TCC threshold of 0.145, the dataset was split into 80% training and 20% testing sets. XGBoost models were trained with and without the optimized feature set. The fitting results for the test set are shown in Figure 6. Before feature removal, the test set results were R = 0.825 and MAE = 10.183, while after removing only the SAA feature, they were R = 0.824 and MAE = 10.254. When only the high-angle features were removed, the results were R = 0.816 and MAE = 10.414. After removing both the high-angle and SAA features simultaneously, the test set results were R = 0.814 and MAE = 10.464. Following the removal of high-angle and SAA features, the model’s correlation coefficient (R) decreased by only 1.3%, and the MAE increased by merely 2.5%, while the data acquisition time was reduced by approximately 30%. Therefore, the SAPML method can adopt the optimized feature set by excluding SAA and high-angle O₄ dSCD variables.

3.5. Temporal Variation in Horizontal Distribution of PM_2.5 in Hefei

To obtain the horizontal distribution of PM_2.5 in Hefei, this study deployed MAX-DOAS instruments at the two sites shown in Figure 1b, namely HFC and HF-HD. The O₄ dSCD data at various elevation angles were obtained through spectral analysis of the observed sunlight. To analyze the differences in PM_2.5 concentration across different directions, the MAX-DOAS instruments at HFC and HF-HD were set to observe multiple azimuth directions.

The trained model was applied to data from both HFC and HF-HD sites, producing PM_2.5 concentration distributions near HFC from 19 January 2021 to 25 June 2022 and near HF-HD from 28 January 2021 to 14 May 2022. The observation directions at the HFC site were due east and due south. At the HF-HD site, the observation directions were due north and due south before July 2021, and switched to four directions—east, west, south, and north—after September 2021.

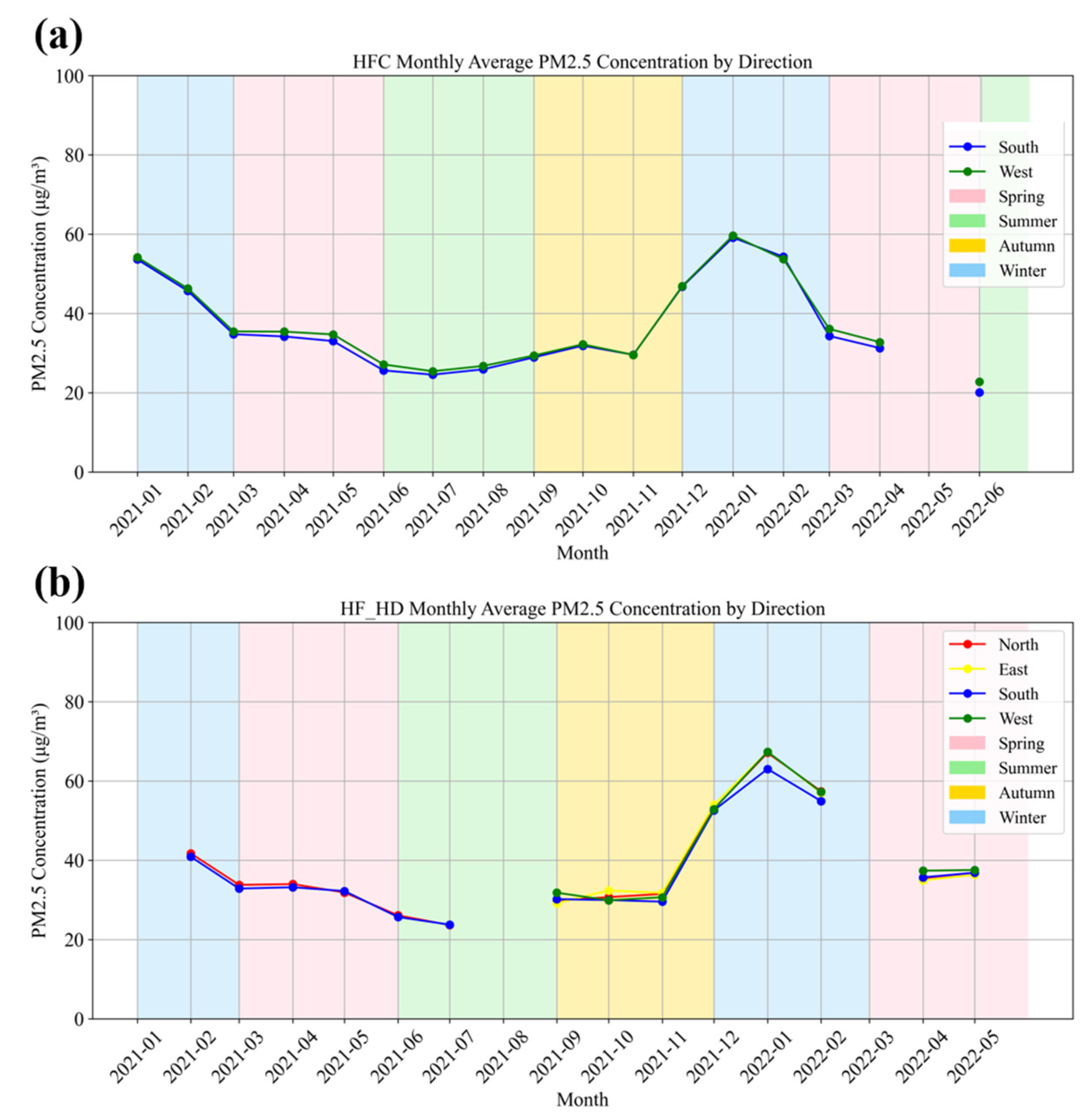

Figure 8 shows monthly average line charts for different directions at both sites. Some observation data are missing due to instrument maintenance and other factors. Monthly averages were calculated only when data for more than 10 days in a month were available. At HF-HD, the highest monthly average concentrations for all four directions occurred in January 2022: the north direction peaked at 67.08 µg/m³, east at 67.36 µg/m³, south at 63.01 µg/m³, and west at 67.34 µg/m³. The lowest monthly averages at HF-HD were recorded in July 2021 for the north and south directions, with values of 23.63 µg/m³ and 23.74 µg/m³, respectively. At HFC, the highest monthly averages were observed in January 2022 for the south (59.13 µg/m³) and west (59.62 µg/m³) directions. The lowest monthly averages at HFC were recorded in July 2021 for the south (24.54 µg/m³) and west (25.40 µg/m³) directions.

3.6. Spatial Distribution of PM_2.5 in Hefei

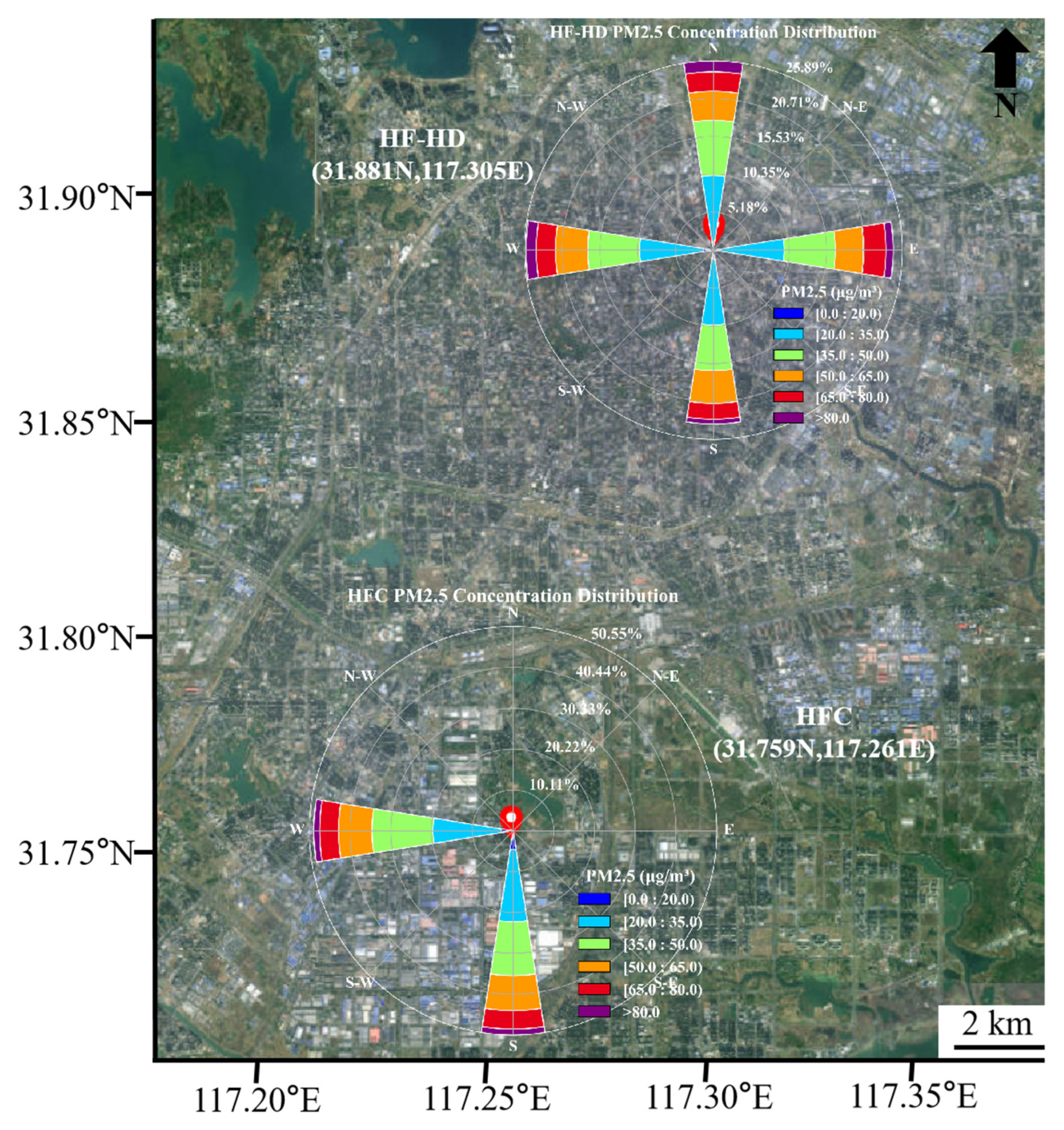

As shown in Figure 9, the proportions of different PM_2.5 concentration levels were statistically analyzed for each direction at the HF-HD and HFC sites. The statistics for HFC cover the entire observation period, while those for HF-HD start from the time when four observation directions were available. The results are presented in a rose chart format combined with a map. The chart includes the four cardinal directions—east, south, west, and north—with the proportion of PM_2.5 concentration in each direction shown. Different concentration ranges are represented by distinct colors, and the width of each segment corresponds to the percentage of data points within that concentration range relative to the total data volume.

At HF-HD, the proportion of PM_2.5 concentrations exceeding 80.00 µg/m³ was 5.80% for the north direction, 4.02% for the east, 2.74% for the south, and 5.51% for the west. At HFC, the proportions exceeding 80.00 µg/m³ were 2.89% for the south direction and 2.92% for the west.

The north direction at HF-HD points toward the suburban area of Hefei, which has a dense industrial park, explaining why the proportion of PM_2.5 concentrations above 80.00 µg/m³ is higher in this direction than in the other three. The notably lower proportion of high PM_2.5 concentrations (>80.00 µg/m³) in the south direction of HF-HD may be related to geographical factors. There is a large ecological park with dense vegetation to the south of HF-HD, and the river flows along this direction, facilitating the deposition of PM_2.5 into the water [56]. At HFC, the geographic environments of the west and south directions are similar, which explains why the proportions of high PM_2.5 concentrations in these two directions are close.

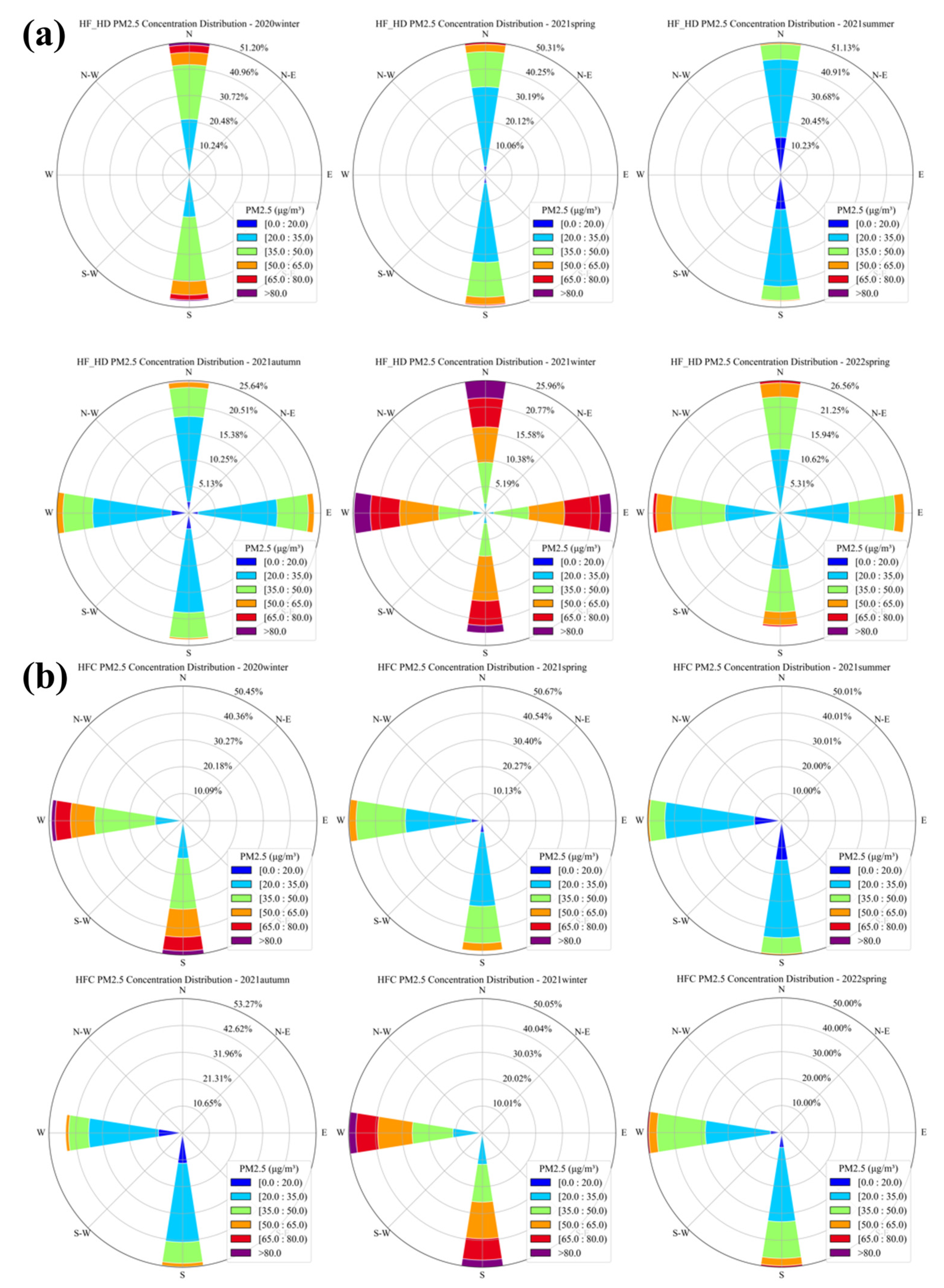

As shown in Figure 10, the PM_2.5 concentrations retrieved at the HF-HD and HFC sites were categorized by season, and the proportions of different PM_2.5 concentration levels for each direction were statistically analyzed. The visualization follows the rose chart style used in Figure 9.

During winter 2021, PM_2.5 concentrations reached their highest levels at HF-HD, with the proportions of concentrations above 80.00 µg/m³ being 13.09% in the north, 9.07% in the east, 6.27% in the south, and 12.44% in the west. At HFC, winter 2021 also saw the highest PM_2.5 concentrations, with 5.34% and 5.26% exceeding 80.00 µg/m³ in the south and west directions, respectively. In contrast, summer 2021 showed the lowest PM_2.5 concentrations at HF-HD, with no concentrations exceeding 80.00 µg/m³ in the north or south directions. The proportion of concentrations below 20.00 µg/m³ was 28.29% in the north and 27.28% in the south. Similarly, at HFC in summer 2021, no PM_2.5 concentrations exceeded 80.00 µg/m³ in the north or south directions, with proportions of low concentrations (<20.00 µg/m³) of 29.21% in the north and 20.52% in the south. Based on the analysis of Figure 9, the proportion of high PM_2.5 concentrations in the south direction at HF-HD during the observation period was lower than in other directions, which may have been caused by the winter conditions of 2021.

The higher proportions of elevated PM_2.5 concentrations at HF-HD during winter 2021 compared to HFC may be attributed to its location in a commercial center with higher pedestrian and vehicular traffic, whereas HFC is located on a college campus with reduced traffic during winter break. These findings highlight the spatial heterogeneity of PM_2.5 concentrations within Hefei city, showing not only differences between regions during the same season but also directional variability within the same site. Such fine-scale non-uniform distribution cannot be captured by CNEMC’s PM_2.5 monitoring data alone but can be effectively resolved using the SAPML method.

3.7. Transport of PM_2.5 During a Pollution Episode in Hefei

On 23 December 2021, Hefei experienced a pollution episode under clear weather conditions with a level 3 easterly wind. Using the trained model along with the O₄ dSCD data observed and analyzed at HF-HD and HFC on that day, the spatial distribution of PM_2.5 concentrations around these sites was obtained.

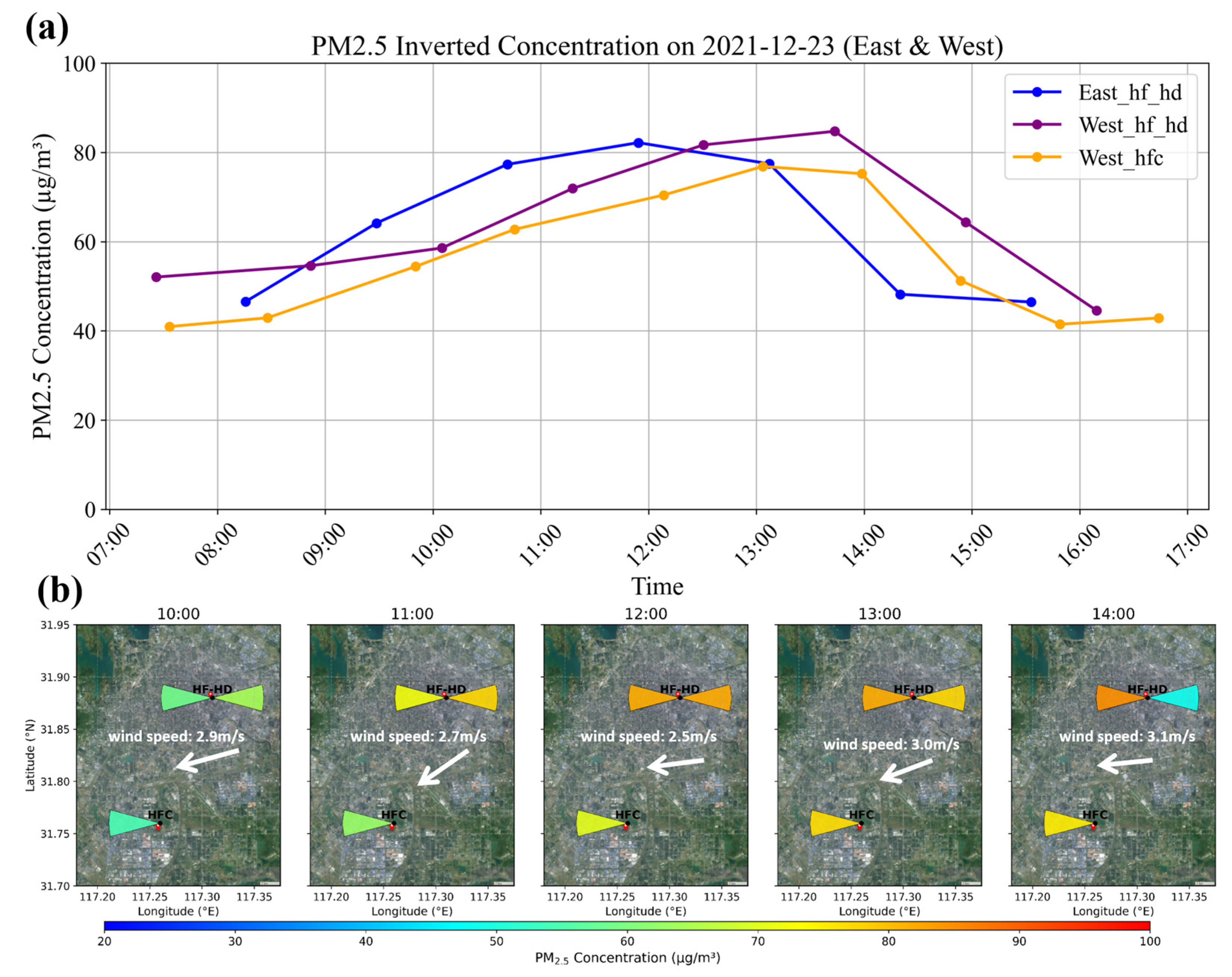

Figure 11a illustrates the temporal variations in PM_2.5 concentrations along the east and west directions at HF–HD and the west direction at HFC on 23 December. Between 09:00 and 10:00, an increase in PM_2.5 concentration was first observed east of HF–HD. Subsequently, PM_2.5 levels west of HF–HD and HFC also began to rise. Before noon, the PM_2.5 concentration east of HF–HD exceeded 80 µg/m³ and was also observed after noon west of HF–HD. Around 13:00, the PM_2.5 concentration west of HFC approached 80 µg/m³. Figure 11b presents the spatial distribution of PM_2.5 concentrations from 10:00 to 13:00 on the same day. Between 10:00 and 11:00, high PM_2.5 concentrations were first detected on the eastern side of HF–HD, followed by a gradual increase on the western side of HF–HD and west of HFC. By 12:00, the PM_2.5 concentrations on both the east and west sides of HF–HD reached approximately 82 µg/m³, while those west of HFC rose to about 70 µg/m³. By 13:00, the PM_2.5 concentration west of HFC had further increased to 77 µg/m³. At 14:00, the concentration along the east of HF–HD began to decrease, whereas the areas west of HF–HD and HFC still exhibited high concentrations.

4. Discussion

In this section, the performance of four machine learning models in temporal extrapolation validation is analyzed and XGBoost model is compared with that of a traditional linear fitting that converts extinction coefficients into PM_2.5 concentrations. The temporal evolution of the horizontal distribution of PM_2.5 in Hefei, including the heterogeneous distribution of urban pollution and its causes, is presented. Finally, a pollution episode in Hefei on 23 December 2021 is analyzed, capturing the PM_2.5 pollution transport process within the urban area.

In Section 3.1, as shown in Figure 4, among the four machine learning models in temporal extrapolation validation, XGBoost performs the best, achieving a correlation coefficient R of 0.825. Meanwhile, LightGBM, Random Forest, and the BP neural network perform less well; the BP neural network, in particular, exhibits the lowest R on the test set, with a lower slope and a higher intercept, which may be attributed to overfitting caused by the limited size of the training dataset. Wang et al. conducted MAX-DOAS observations in the urban environment of Madrid, Spain. Because the concentration of O₄ in the atmosphere is approximately constant, changes in the optical path caused by atmospheric scattering result in corresponding variations in O₄ dSCD. Based on this principle, aerosol extinction coefficients can be retrieved using multi-elevation O₄ dSCD measurements. Wang et al. employed O₄ dSCD in the ultraviolet (UV) spectral region and retrieved aerosol extinction coefficient profiles via an optimization-based inversion algorithm. Subsequently, a linear fit between the aerosol extinction coefficients and PM_2.5 mass concentrations yielded an hourly mean correlation coefficient R of 0.64 [57]. Similar work was conducted by Lee H. et al. in Fresno, USA, during 12 haze events. From MAX-DOAS observations, aerosol extinction coefficient vertical profiles and aerosol optical depths at two UV wavelengths, 353 nm and 380 nm, were retrieved. The correlation coefficients between aerosol extinction coefficients and near-surface PM_2.5 concentrations were R = 0.73 and R = 0.74 at 380 nm and 353 nm, respectively [58]. In the present study, sequences of O₄ dSCD retrieved from spectroscopic observations were directly used as input features. Multi-elevation O₄ dSCD measurements from the AHU, BJ-CAM, and LZU sites served as predictors, while PM_2.5 mass concentrations at the corresponding CNMEC sites along the observation azimuths were used as labels. An XGBoost model was trained to learn the nonlinear relationships between O₄ dSCD sequences at different elevation angles and PM_2.5 concentrations. The trained model is capable of directly estimating PM_2.5 concentrations from O₄ dSCD sequences. This approach avoids the cumulative errors associated with first retrieving aerosol extinction coefficients from O₄ dSCD and then estimating PM_2.5 concentrations through their moderate linear correlation [59]. As a result, the XGBoost model achieved a correlation coefficient of 0.825.

In Section 3.5, as shown in Figure 8, the monthly average concentration trends at both sites showed similar seasonal patterns. During the observation period, all observed directions exhibited higher PM_2.5 concentrations in winter and lower concentrations in summer. The highest monthly averages appeared in January 2022 and the lowest in July 2021. At the HFC site, no significant differences between the two observation directions were observed across months. However, at the HF-HD site, in the month with the highest average concentration (January 2022), the southward concentration was noticeably lower than in other directions. This phenomenon may be related to both the geographic environments surrounding the HF-HD site and the prevailing wind conditions during that month. The geographic environment around HF-HD is shown in Figure A1a of Appendix B, and the wind rose for HF-HD in January 2022 is presented in Figure A1b of Appendix B; wind direction and speed data were obtained from ERA5. An industrial park is located in the northern part of Hefei, and northerly winds predominated in January. Consequently, pollutants emitted from the northern industrial area were transported south-ward toward the HF-HD site. The northern, eastern, and southern surroundings of HF-HD are primarily commercial and residential areas, while a large urban park with substantial green coverage lies to its south. In addition, the southern side of HF-HD follows the flow direction of the Fei River, where PM_2.5 particles transported from the north tend to deposit. As a result, the monthly average PM_2.5 concentration in the southern direction of HF-HD is typically lower than in other directions. During the observation period, all observed directions exhibited higher PM_2.5 concentrations in winter and lower concentrations in summer. The highest monthly averages appeared in January 2022, and the lowest in July 2021. Through multi-directional observations, the SAPML method can detect the heterogeneous distribution of PM_2.5 concentrations within urban areas. The advantage of this approach lies in its ability to resolve PM_2.5 concentration differences across different directions at the same site. However, a potential limitation is that increasing the number of observation directions may reduce the temporal resolution for each direction.

In Section 3.7, as shown in Figure 11, the PM_2.5 pollution transport event that occurred in Hefei on 23 December 2021 is analyzed based on observations from the HF-HD and HFC sites, combined with ERA5 wind speed and wind direction data. Pollution transport first appeared at 10:00, when elevated PM_2.5 concentrations were detected on the east side of HF-HD, accompanied by a wind speed of 2.9 m/s. At 11:00, increased PM_2.5 concentrations were detected on the west side of HF-HD and the west side of HFC, while concentrations on the east side of HF-HD had already risen above 70 µg/m³; the wind speed at this time was 2.7 m/s. By 12:00, PM_2.5 concentrations on both the east and west sides of HF-HD exceeded 80 µg/m³, and the west side of HFC exceeded 70 µg/m³, with a wind speed of 2.5 m/s. At 13:00, the PM_2.5 concentration on the east side of HF-HD decreased to below 80 µg/m³ but remained above 70 µg/m³, whereas no decreasing trend was observed on the west side of HF-HD or the west side of HFC; the wind speed at this time was 3.0 m/s. At 14:00, the PM_2.5 concentration on the east side of HF-HD dropped below 60 µg/m³, while the west sides of both HF-HD and HFC began to show a decreasing trend; the wind speed was 3.1 m/s. By analyzing the sequence in which peak concentrations occurred at the three directions, it can be inferred that the pollution was transported from east to west, consistent with the easterly winds observed on that day. During the transport period, wind speeds ranged from approximately 2.5 to 3.1 m/s, corresponding to a one-hour transport distance of about 9–11 km. The pollution plume reached the east side of HF-HD at 10:00 and arrived at the west side of HF-HD and the west side of HFC approximately one hour later. Between 12:00 and 14:00, all three directions remained in a high PM_2.5 pollution state, followed by a decline after 14:00. The above analysis demonstrates that the two MAX-DOAS instruments jointly captured a PM_2.5 pollution plume, which was transported across Hefei from the east side of HF-HD to the west side of HFC between 10:00 and 14:00 on 23 December 2021. This finding indicates that the proposed method has the potential to monitor PM_2.5 emission dispersion and its transport processes within urban environments. During this event, the daily peak concentrations across all three monitored directions occurred around midday, which differs from typical local PM_2.5 pollution patterns. By combining multi-azimuth observations from two independent MAX-DOAS instruments, the SAPML method is able to capture the intra-urban PM_2.5 transport process. This approach provides valuable insights for studying pollution transport within urban environments.

The SAPML method, when combined with multi-azimuth MAX-DOAS observations, enables rapid estimation of PM_2.5 concentrations using only the instrument itself, without requiring high-performance computing resources. Each estimation takes less than one minute. By bypassing the aerosol extinction retrieval step obtained through computationally intensive optimization algorithms, SAPML avoids the accumulation of errors in conventional PM_2.5 estimation approaches, resulting in a stronger correlation with in situ measurements. In addition, coordinated multi-directional observations from multiple instruments allow for long-term assessment of intra-urban pollutant heterogeneity and the detection of short-term pollution transport processes.

5. Conclusions

This study proposes a new framework for estimating PM_2.5 concentrations that integrates spectral analysis with artificial intelligence, termed SAPML. Unlike the conventional MAX-DOAS aerosol inversion approach, SAPML directly estimates PM_2.5 concentrations from multi-elevation O₄ dSCD measurements, thereby bypassing the aerosol extinction retrieval step and avoiding the cumulative errors associated with aerosol extinction inversion and subsequent PM_2.5 estimation. In practical applications, SAPML does not rely on meteorological data and enables direct PM_2.5 monitoring using observations from a single instrument. When multi-azimuth MAX-DOAS observations are available, SAPML can also resolve the spatial distribution of PM_2.5 within different areas of a city. Furthermore, by combining observations from two MAX-DOAS instruments, the method can be used to analyze pollution transport processes during pollution events.

Cloud screening of O₄ dSCD data was performed for data quality. In addition, model selection, validation, and optimization were conducted. The trained model was then applied to two MAX-DOAS sites in Hefei to reveal the spatio-temporal characteristics of PM_2.5 distribution. Raw O₄ dSCD data are often contaminated by clouds. Cloud screening was conducted using ERA5 TCC data. The cloud screening threshold was determined by calculating the screening rate and identifying the intersection point of the fitted curves, which is given by 0.145. On this condition, the screening performance closely matched that of AOD-based screening.

To select the most suitable machine learning algorithm for SAPML, O₄ dSCD observations from the BJ-CAM, LZU, and AHU stations were merged in chronological order and split into training and test sets. The LightGBM, RF, and XGBoost models were compared. XGBoost achieved the highest test set correlation (R = 0.825) and was chosen as the SAPML algorithm. Spatial extrapolation capability was evaluated via leave-one-site-out cross-validation using data from the three stations. The mean correlation coefficient reached 0.782, indicating that the model possesses a certain degree of spatial generalization capability. Feature vector optimization was performed by removing high-elevation O₄ dSCD and SAA. The performance decrease after optimization was minimal (R decreased by approximately 1.3%), while the data acquisition time was reduced by about 30%.

The trained model was applied to the HF-HD and HFC sites. The results indicated higher PM_2.5 concentrations in winter and lower concentrations in summer across all directions. The highest monthly mean concentrations in each direction occurred in January 2022, while the lowest occurred in July 2021. The south and west directions at HFC showed negligible differences, whereas the south direction at HF-HD generally exhibited lower PM_2.5 concentrations than the other directions, likely because the south side of HF-HD is an ecological park, while the remaining directions are surrounded by industrial and residential areas. A pollution transport event from east to west on 23 December 2021 showed that the increase in PM_2.5 concentrations was first detected east of HF-HD, followed by west of HF-HD, and finally west of HFC. This demonstrates that the SAPML method can reveal intra-urban pollution transport processes.

This study proposes a novel framework named SAPML for estimating PM_2.5 mass concentrations. Based on spectral analysis and artificial intelligence, SAPML can bypass extinction coefficients and directly retrieve PM_2.5 mass concentrations. The method is applicable to multiple cities in China. The SAPML method is suitable for analyzing the heterogeneous distribution of PM_2.5 within urban areas, as it can resolve spatial differences among different sites in the same city, as well as directional variations at individual sites. The method is potentially valuable for investigating the transport, transformation, deposition, and formation of PM_2.5 within urban areas. In the future, we plan to combine the real-time PM_2.5 mass concentrations detected using SAPML with artificial intelligence techniques to reasonably predict future PM_2.5 levels.
