DMA-Net: Dynamic Morphology-Aware Segmentation Network for Remote Sensing Images

Abstract

Semantic segmentation of remote sensing imagery is a pivotal task for intelligent interpretation, with critical applications in urban monitoring, resource management, and disaster assessment. Recent advancements in deep learning have significantly improved RS image segmentation, particularly through the use of convolutional neural networks, which demonstrate remarkable proficiency in local feature extraction. However, due to the inherent locality of convolutional operations, prevailing methodologies frequently encounter challenges in capturing long-range dependencies, thereby constraining their comprehensive semantic comprehension. Moreover, the preprocessing of high-resolution remote sensing images by dividing them into sub-images disrupts spatial continuity, further complicating the balance between local feature extraction and global context modeling. To address these limitations, we propose DMA-Net, a Dynamic Morphology-Aware Segmentation Network built on an encoder–decoder architecture. The proposed framework incorporates three primary parts: a Multi-Axis Vision Transformer (MaxViT) encoder achieves a balance between local feature extraction and global context modeling through multi-axis self-attention mechanisms; a Hierarchy Attention Decoder (HA-Decoder) enhanced with Hierarchy Convolutional Groups (HCG) for precise recovery of fine-grained spatial details; and a Channel and Spatial Attention Bridge (CSA-Bridge) to mitigate the encoder–decoder semantic gap while amplifying discriminative feature representations. Extensive experimentation has been conducted to demonstrate the state-of-the-art performance of DMA-Net, which has been shown to achieve 87.31% mIoU on Potsdam, 83.23% on Vaihingen, and 54.23% on LoveDA, thereby surpassing existing methods.

1. Introduction

Semantic segmentation of remote sensing (RS) imagery is a foundational task in intelligent interpretation [1,2], enabling pixel-level precise classification of diverse ground objects [3,4,5,6,7]. The rapid evolution of RS sensors, characterized by progressively higher spatial resolutions and imaging frequencies, has significantly expanded the applications of high-resolution imagery [8,9,10]. This expansion encompasses domains such as urban monitoring, land use mapping, ecological assessment, and disaster management [11,12,13,14,15]. Compared to conventional resolution data, modern high-precision RS imagery exhibits substantially richer textural details and structural complexity, which theoretically supports both enhanced recognition accuracy and finer segmentation boundaries. Nevertheless, this also puts higher requirements on the semantic segmentation model in terms of feature extraction, context understanding, and computational efficiency.

Convolutional neural networks (CNNs) [16] have been widely used in various image analysis tasks since their emergence and have gradually become the dominant technical framework for semantic segmentation of remote sensing images. By leveraging the concepts of local receptive fields and parameter sharing, CNNs can efficiently extract edge, texture, and structural information from images, making them particularly well-suited for remote sensing applications characterized by strong spatial locality. U-Net, a notable architecture, employs a symmetrical encoder–decoder configuration, leveraging skip connections to seamlessly integrate multi-scale features. This architecture has demonstrated remarkable efficacy in medical image segmentation and remote sensing image segmentation tasks. The efficacy of these architectures is evident in the substantial advancements achieved in semantic segmentation, particularly in terms of accuracy and generalization capability.

Despite their pervasive utilization, CNNs are inherently limited by their local receptive fields, which are constrained by both kernel size and network depth. This fundamental characteristic impedes their ability to capture long-range dependencies and complex spatial–semantic relationships in remote sensing imagery, particularly when processing high-resolution images [17]. These architectural constraints compromise global context integration, ultimately degrading segmentation accuracy [18,19,20]. To address these limitations, researchers have proposed several enhancement strategies: Spatial Transformer Networks (STNs) [21] incorporate learnable geometric transformation modules to adaptively adjust spatial representations, thereby improving structural awareness. Dilated Convolutions [22] expand receptive fields through dilation rates, enabling large-scale context capture without substantial increases in parameters or computational complexity. Squeeze-and-Excitation Networks (SE-Net) [23] establish explicit inter-channel dependencies via attention mechanisms for feature recalibration. The Convolutional Block Attention Module (CBAM) [24] dynamically enhances features through coordinated channel and spatial attention mechanisms. Adaptive Spatial Feature Fusion (ASFF) [25] mitigates multi-scale feature conflicts through spatial filtering, improving semantic consistency. While these approaches partially improve global context perception, they remain fundamentally rooted in local convolution operations, failing to fully address long-range dependency modeling. Moreover, most enhancements introduce additional computational overhead and parameter complexity, creating deployment challenges in resource-constrained environments [26,27,28,29]. This trade-off between accuracy and efficiency becomes particularly acute in high-resolution remote sensing image segmentation tasks.

To address the limitations of CNNs in modeling long-range dependencies, the Transformer [30] architecture has been introduced to semantic segmentation tasks [31,32]. The core multi-head self-attention mechanism of Transformers offers robust global modeling capabilities, which significantly enhances the recognition of complex land structures in remote sensing images [33,34]. However, a Vision Transformer (ViT) faces two significant challenges in image tasks. First, the computation of global self-attention is highly expensive, making it difficult to scale to high-resolution images. Second, a ViT lacks an inherent ability to model local details, resulting in insufficient extraction of fine-grained features [35,36,37]. These limitations hinder their effectiveness in remote sensing image applications. To overcome the limitations of ViTs, researchers have proposed various efficient variants to improve its adaptability in image tasks. A Swin Transformer [38], for instance, achieves a balance between local modeling and global interaction through a sliding window mechanism. A Cross-Shape Window Transformer (CSWin) [39] enhances spatial structure modeling with cross-window attention. Architectures such as Mobile-Former [40] and EdgeViT [41] have been developed to strike a balance between lightweight design and modeling capability. As Transformer technology expands into the domain of remote sensing, models such as ST-UNet [42], MAResU-Net [43], UNetFormer [44], and AerialFormer [44] have been developed. These models incorporate mechanisms such as window attention, linear attention, skip connection reconstruction, and multi-scale convolution, thereby enhancing the accuracy and expressive power of remote sensing semantic segmentation.

Transformer-based methods have exhibited remarkable efficacy in remote sensing semantic segmentation tasks. However, several challenges persist. On one hand, the increasing number of modules has led to more complex network architectures, significantly extending model inference time and making it difficult to meet the real-time and lightweight requirements of practical applications [45]. On the other hand, current research focuses primarily on the optimization of encoder structures, often overlooking the critical role of decoders in feature reconstruction and boundary detail restoration [46]. This oversight often leads to suboptimal recognition of fine-grained object structures in the resulting segmentation maps [43]. Furthermore, remote sensing imagery is distinguished by substantial spatial heterogeneity and a wide spectrum of object morphologies, which impose elevated demands on the generalization capability of models [47]. However, existing studies have paid limited attention to data augmentation strategies and task-adaptive modeling, further limiting performance in real-world scenarios [44].

To address the aforementioned challenges, this study proposes a lightweight and efficient Dynamic Morphology-Aware Segmentation Network (DMA-Net), which is designed to achieve fine-grained segmentation of land cover objects in high-resolution remote sensing imagery while maintaining a compact architecture and high inference efficiency. The proposed model employs an encoder–decoder framework. The encoder integrates the Multi-Axis Vision Transformer (MaxViT) as the backbone, leveraging multi-axis self-attention to jointly model local details and global semantics efficiently. The decoder employs a Hierarchical Attention Decoder (HA-Decoder), which incorporates a Hierarchical Convolutional Group (HCG) to enhance the restoration of edge structures and small-scale features. Furthermore, a Channel-Spatial Attention Bridge (CSA-Bridge) is introduced to effectively mitigate the semantic gap between the encoder and decoder, thereby improving feature consistency and discriminability. The primary contributions of this study are as follows:

1.

We propose DMA-Net, a lightweight segmentation network that integrates MaxViT to efficiently capture both local and global features in high-resolution remote sensing imagery.

2.

We design a novel HA-Decoder with HCG to enhance multi-scale context fusion and fine-grained detail restoration.

3.

We introduce a CSA-Bridge to improve semantic consistency between encoder and decoder by enhancing inter-patch feature representation.

The remainder of this study is organized as follows: Section 2 reviews the related work on semantic segmentation networks, with particular emphasis on MaxViT and U-Net-like architectures. Section 3 presents the overall architecture of the proposed DMA-Net, including the design of its key components: the MaxViT encoder, the HA-Decoder, and the CSA-Bridge. Section 4 introduces the experimental settings and datasets, presents ablation results, and compares the model’s performance on the Potsdam, Vaihingen, and LoveDA datasets. Section 5 concludes the study and discusses potential directions for future research. The source code will be available at https://github.com/HIGISX/DMA-Net (accessed on 4 June 2025).

2. Related Work

2.1. MaxViT

In remote sensing images, objects manifest substantial variations in scale. For instance, buildings and low vegetation typically occupy large areas, while smaller objects such as vehicles take up much less space. This phenomenon underscores the inherently multi-scale nature of remote sensing scenes, where effective analysis necessitates consideration across multiple scales [48,49,50].

Multi-scale information analysis plays a pivotal role in remote sensing tasks. For instance, Zhao et al. developed a double-branch Siamese network to capture multi-scale spatial details in change detection imagery [51], Yu et al. introduced a Multi-Scale Feature Interaction module to enhance object detection performance by leveraging hierarchical features [52], while Alhichri et al. proposed a multibranch fusion attention mechanism to extract discriminative multi-scale representations for scene classification [53]. These approaches collectively underscore the significance of cross-scale feature learning in advancing remote sensing applications.

However, a single attention window is not sufficient to effectively capture such diverse spatial scales. Additionally, the quadratic computational complexity of self-attention renders it impractical to directly model dependencies across the entire spatial domain. Numerous studies have addressed this issue. Su et al.’s Multiscale Feature Fusion Module effectively extracts multi-scale features from remote sensing roadscape images by combining convolutional kernels of varying sizes [54]. Guo’s Saliency Dual Attention Residual Network employs a dual-attention mechanism to analyze remote sensing images from multiple perspectives, thoroughly exploring latent information along the channel dimension [55]. HE’s HFSA-Unet preserves global features throughout the decoding phase via a hybrid first and second order attention mechanism [56]. While these approaches significantly improve the efficiency of remote sensing models, they all fail to properly balance global feature extraction with local detail preservation.

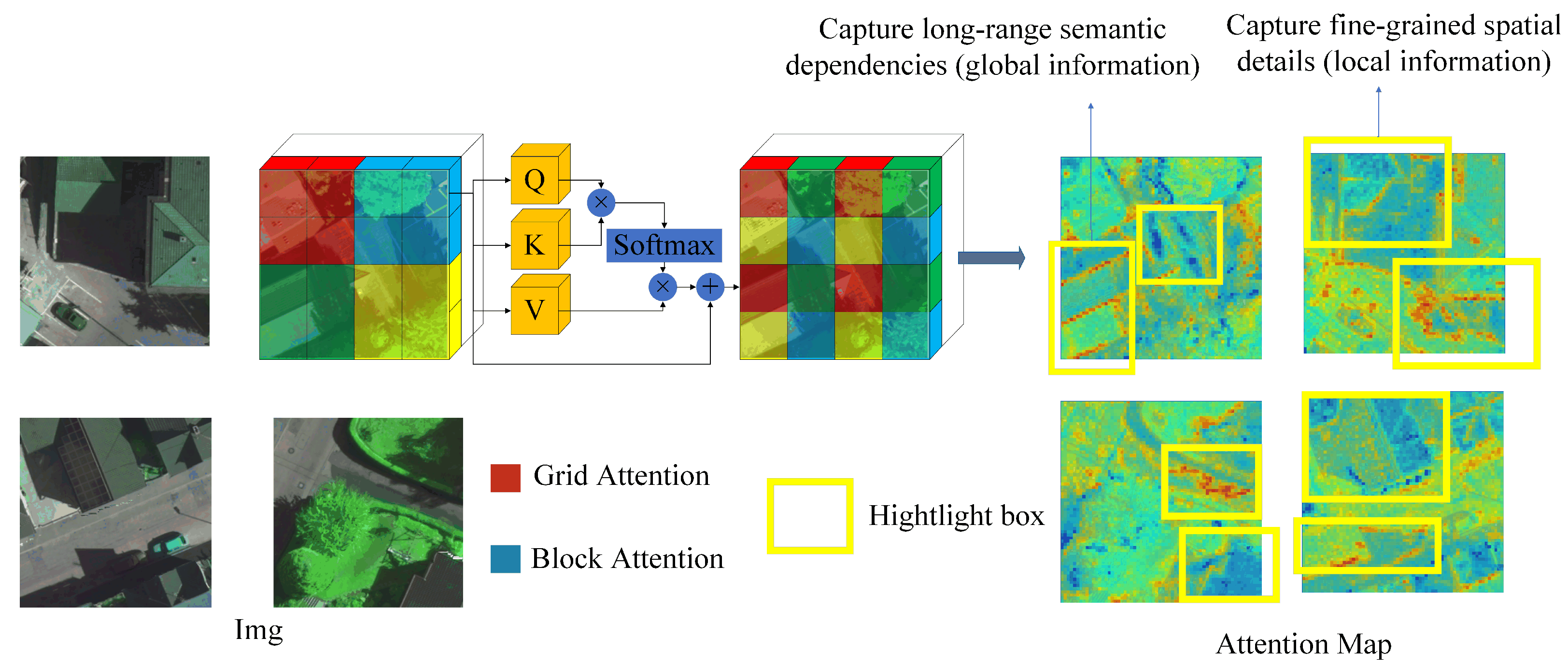

To address this issue, MaxViT [57] introduces a multi-axis attention mechanism that factorizes the spatial dimensions, thereby decomposing full-resolution attention into two sparse forms: local and global. This design reduces the quadratic complexity of the Transformer attention mechanism to linear complexity, enhancing computational efficiency. The multi-axis attention mechanism is composed of two distinct components: Block Attention and Grid Attention. Block Attention is responsible for capturing local dependencies, while Grid Attention is responsible for capturing global dependencies.

Given a feature map $X\in {\mathbb{R}}^{(H\times W\times C)}$, Block Attention segments it into tensors of size $({\displaystyle \frac{H}{P}}\times {\displaystyle \frac{W}{P}},P\times P,C)$, where $P\times P$ represents non-overlapping windows. Self-attention is then performed over these fixed, non-overlapping windows of size $P\times P$. To capture fine-grained features, Grid Attention divides the feature map X into tensors of size $(G\times G,{\displaystyle \frac{H}{G}}\times {\displaystyle \frac{W}{G}},C)$, applying self-attention calculations over adaptive windows of size ${\displaystyle \frac{H}{G}}\times {\displaystyle \frac{W}{G}}$. By alternating between fixed windows and adaptive windows, MaxViT effectively balances the computational costs of local and global self-attention operations.

2.2. U-Net-Like Architecture for Semantic Segmentation Networks

U-Net is a classic, fully convolutional network architecture widely used for semantic segmentation tasks, consisting of three main components: the encoder, decoder, and skip connections. The architecture is symmetric, with the left-side encoding path extracting image features through layer-by-layer downsampling, progressively capturing high-level semantic information while reducing spatial dimensions. Conversely, the right-side decoder path restores the spatial resolution of the feature maps through upsampling, generating pixel-level predictions. To preserve spatial details and mitigate the loss of semantic information during downsampling, U-Net introduces skip connections that directly transfer high-resolution features from the encoder’s shallow layers to the corresponding decoder layers. This design improves performance, particularly in boundary regions and small object segmentation. In Unet++, the encoder progressively extracts semantic features at multiple levels using convolution and downsampling operations, producing feature maps of varying scales. Additionally, dense skip connections [58] are introduced to facilitate more effective fusions of features from different semantic levels, while deep supervision is applied during the decoding phase.

With the continuous improvement in the resolution and diversity of remote sensing images, U-Net [59] and its variants have been widely adopted for remote sensing semantic segmentation tasks, achieving ongoing advancements in multi-scale feature extraction, boundary modeling, and context fusion. For example, Zhang et al. introduced the High-Resolution Network (HRNet) [60] architecture, incorporating multi-branch parallel convolutions to construct multi-scale feature representations and designing an adaptive spatial pooling module to effectively enhance the modeling of local contextual information. Majoli et al. integrated an edge detection [61] module into the segmentation network to explicitly capture boundary features, thereby improving the recognition of land cover contours. Qi et al. proposed a spatial information reasoning structure that combines recurrent neural networks with 3D convolutions [62] to enhance the network’s spatial understanding in occluded areas, significantly improving performance in road detection tasks. To address the discontinuity issue in bounding box regression, RSDet [63] introduced a modulation loss function, while AOPG [64] and R3Det [65] employed progressive regression methods to gradually refine object localization from coarse to fine scales, thereby improving detection accuracy and stability.

ST-Unet, based on a Swin Transformer, integrates a Spatial Interaction Module (SIM), Feature Compression Module (FCM), and Relation Aggregation Module (RAM) into the traditional U-Net architecture. This design improves the recognition of small objects and effectively mitigated semantic ambiguity caused by occlusions. ABCNet [66] constructs a dual-path structure combining CNNs and Transformers, where one spatial path preserves local detail information and another context path captures global semantics. Through a Feature Aggregation Module (FAM), it achieves multi-scale information fusion, leading to improved segmentation performance. LSKNet [67] utilizes the Large Selective Kernel Network, dynamically adjusting the receptive field of the backbone network to better adapt to objects at different scales. It also utilizes depthwise separable convolution to enhance multi-scale context modeling with a reduced computational cost. SCRDet [68] incorporates attention mechanisms to reduce background noise and enhance the detection of dense, small-scale targets. Some studies have explored combining object detection frameworks with the Transformer-based architectures. For instance, AO2-DETR [69] adapts the DETR [70] architecture to remote sensing applications by introducing a dual encoder design and a rotation-aware detection strategy, offering new approaches for detecting and segmenting complex objects in remote sensing images.

Despite the numerous advancements achieved by the aforementioned methods in remote sensing image semantic segmentation, there are still challenges such as complex network structures, high computational costs, insufficient boundary detail recovery capability in decoders, and limited adaptability to the unique spatial heterogeneity of remote sensing images. The current state of research in remote sensing semantic segmentation is characterized by the ongoing pursuit of solutions to three critical issues. Firstly, the challenge lies in balancing segmentation accuracy with reduced model complexity. Secondly, enhancing detail restoration capabilities is paramount. Thirdly, improving adaptability to the complex spatial features of remote sensing images is essential.

3. Method

To achieve efficient and accurate segmentation of complex land cover structures in remote sensing images [71,72], this study proposes DMA-Net, a novel semantic segmentation network built upon an encoder–decoder architecture. The network incorporates a multi-axis attention mechanism to enhance local and global feature modeling, and integrates a fine-grained Hierarchical Attention Decoder (HA-Decoder) and a Channel-Spatial Attention Bridge (CSA-Bridge) to recover small object details and boundary structures. These components are jointly optimized to ensure high segmentation accuracy while maintaining low computational complexity and strong deployability. This section offers a thorough overview of the DMA-Net architecture, introducing its fundamental modules: the encoder, decoder, and skip connection.

3.1. Network Structure

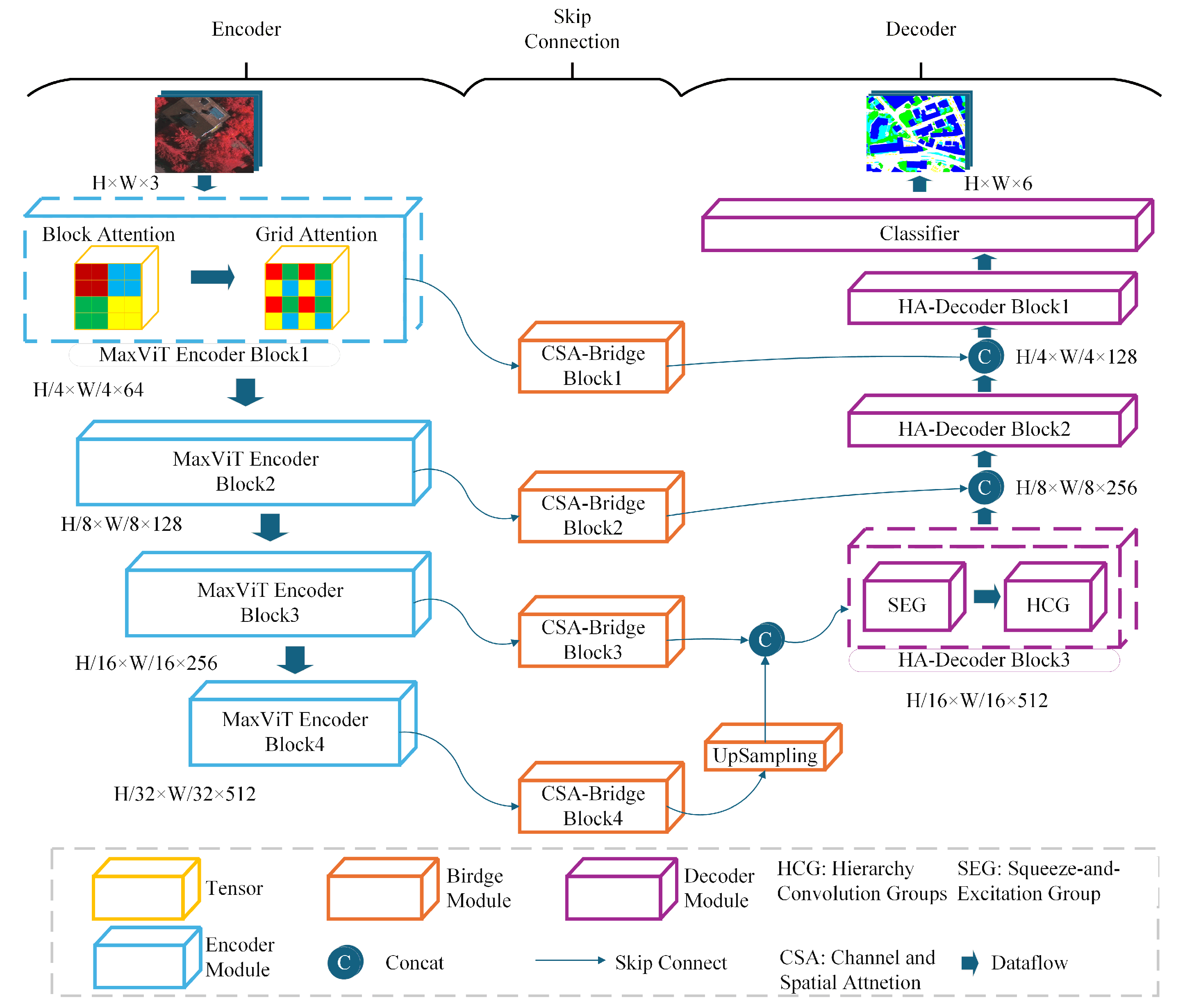

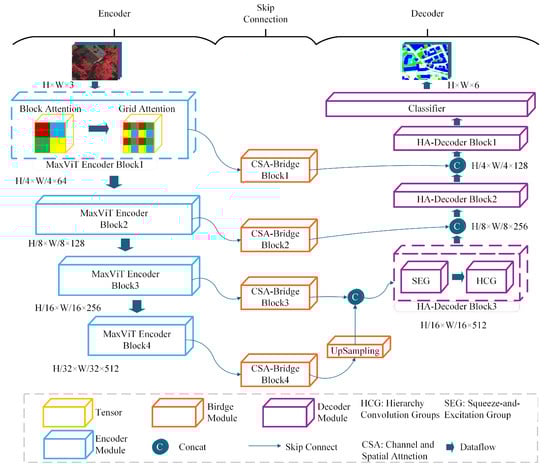

As illustrated in Figure 1, DMA-Net consists of three main components: the encoder based on MaxViT, the HA-Decoder, and the CSA-Bridge for skip connections.

Given an input image $X\in {\mathbb{R}}^{H\times W\times 3}$, the encoder extracts multi-scale feature maps from different stages:

$$F=Encoder\left(X\right)$$

(1)

Here, $F=[F_1,F_2,F_3,F_4]$ represents the feature maps at each encoding stage, with progressively reduced spatial resolution and increased channel depth. These multi-scale features are refined through the CSA-Bridge:

$$\hat{F}=CSA-Bridge\left(F\right)$$

(2)

Finally, the decoder aggregates and upsamples these refined features to generate the segmentation output:

$$S=Decoder\left(\hat{F}\right),S\in {\mathbb{R}}^{(H\times W\times C)}$$

(3)

where C is the number of semantic classes.

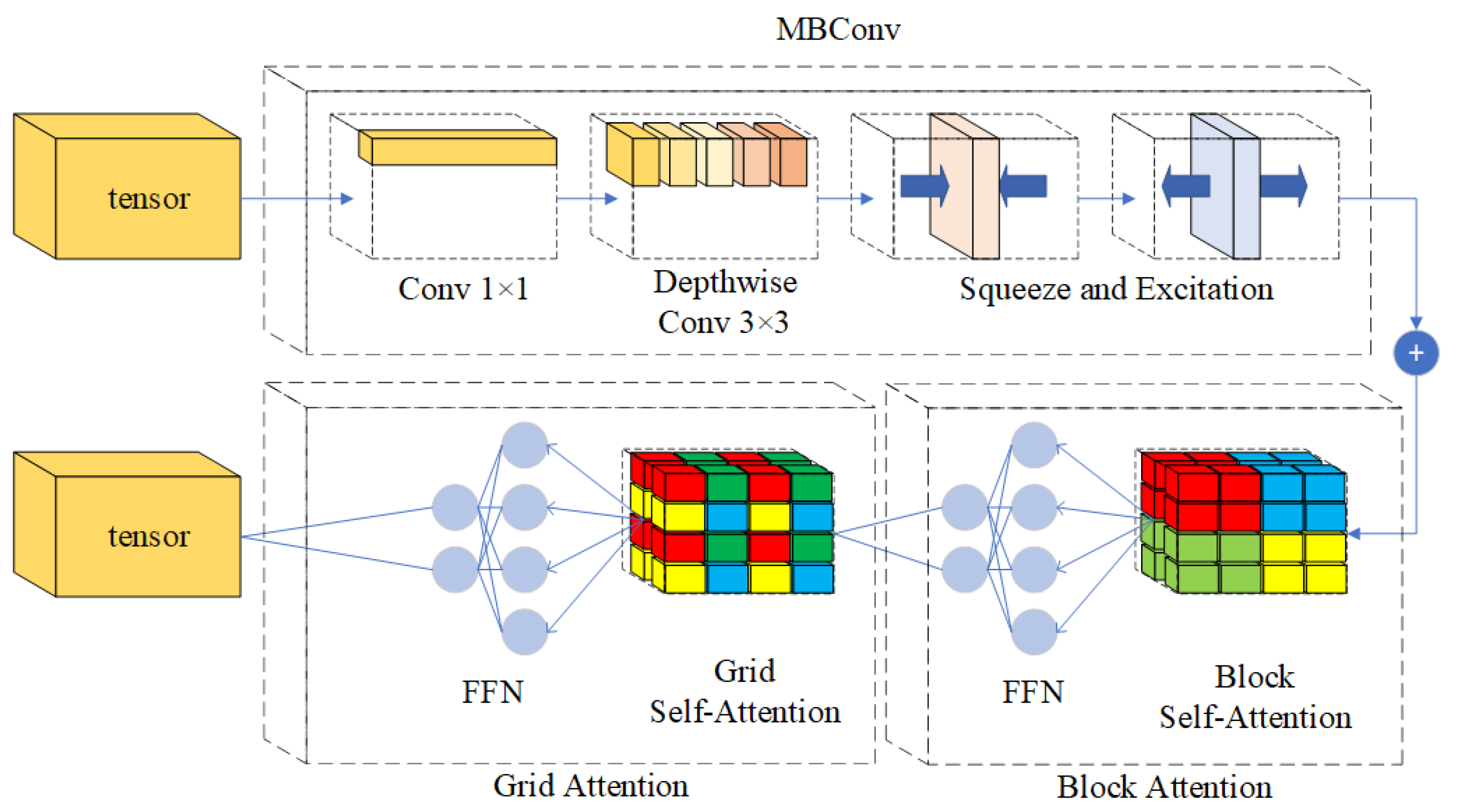

3.2. MaxViT Encoder Block

To effectively extract hierarchical and multi-scale representations from high-resolution remote sensing imagery, DMA-Net adopts MaxViT as the backbone of its encoder. In Figure 2, MaxViT introduces a hybrid structure that combines convolutional modules with a multi-axis attention mechanism. Different colors represent the patches covered by the self-attention operation in MaxViT. The alternating use of Grid Attention and Block Attention enables the network to model both fine-grained spatial details and long-range semantic dependencies efficiently. As shown in Figure 3, each encoder stage contains a Mobile Inverted Bottleneck Convolution (MBConv) module followed by a MaxViT encoder block composed of Block Attention and Grid Attention.

The internal transformation at each encoder stage is formulated as follows:

$$\begin{array}{c}{X}_{i+1}^{\left(1\right)}=W_i^{\left(1\right)}·X_i^{\left(0\right)}+b_i^{\left(1\right)}\\ X_i^{\left(2\right)}=H_i·\left(\sigma \left(W_i^{\left(2\right)}·X_i^{\left(1\right)}\right)+b_i^{\left(2\right)}\right)\\ F_i=f_i\odot X_i^{\left(2\right)}+X_{i+1}^{\left(1\right)}\end{array}$$

(4)

Here, $X_i^{\left(0\right)}$ denotes the input feature maps for stage i; $W_i^{\left(1\right)},W_i^{\left(2\right)},$$b_i^{\left(1\right)},$ and $b_i^{\left(2\right)}$ are learnable projection parameters; $\sigma$ is the activation function; $H_i$ reflects spatial transformation within attention; $f_i$ is the intermediate transformation or decoding function; and ⊙ denotes element-wise multiplication.

To better adapt MaxViT to remote sensing image segmentation, DMA-Net modifies the default MaxViT encoder design to preserve high spatial resolution in early layers. We have combined the deep supervision training framework with MaxViT, which involves the feature maps output by MaxViT at different stages in the loss calculation. This allows the loss to supervise the learning of both high-level abstract semantic information and low-level detailed texture information in MaxViT, thereby improving its ability to retain edge contours and shape details of small-scale targets. Moreover, features from all four encoding stages are retained and forwarded to the following components, enabling rich multi-level semantic representation and ensuring that both shallow textures and deep semantics are fully leveraged during decoding.

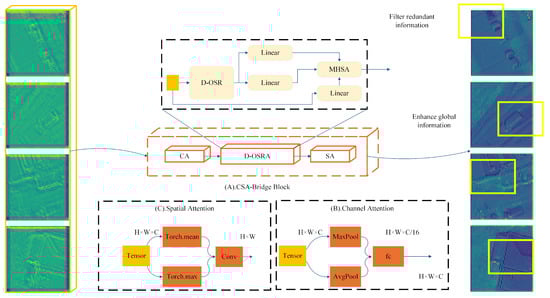

3.3. CSA-Bridge

While the encoder effectively captures hierarchical features at multiple scales, directly transmitting these raw feature maps to the decoder may introduce redundant or noisy information that compromises segmentation precision. To bridge the encoder and decoder more effectively, DMA-Net incorporates a Channel-Spatial Attention Bridge (CSA-Bridge) module, which selectively enhances and refines the skip connection features before fusion. The structure and mechanism of CSA-Bridge are detailed as follows.

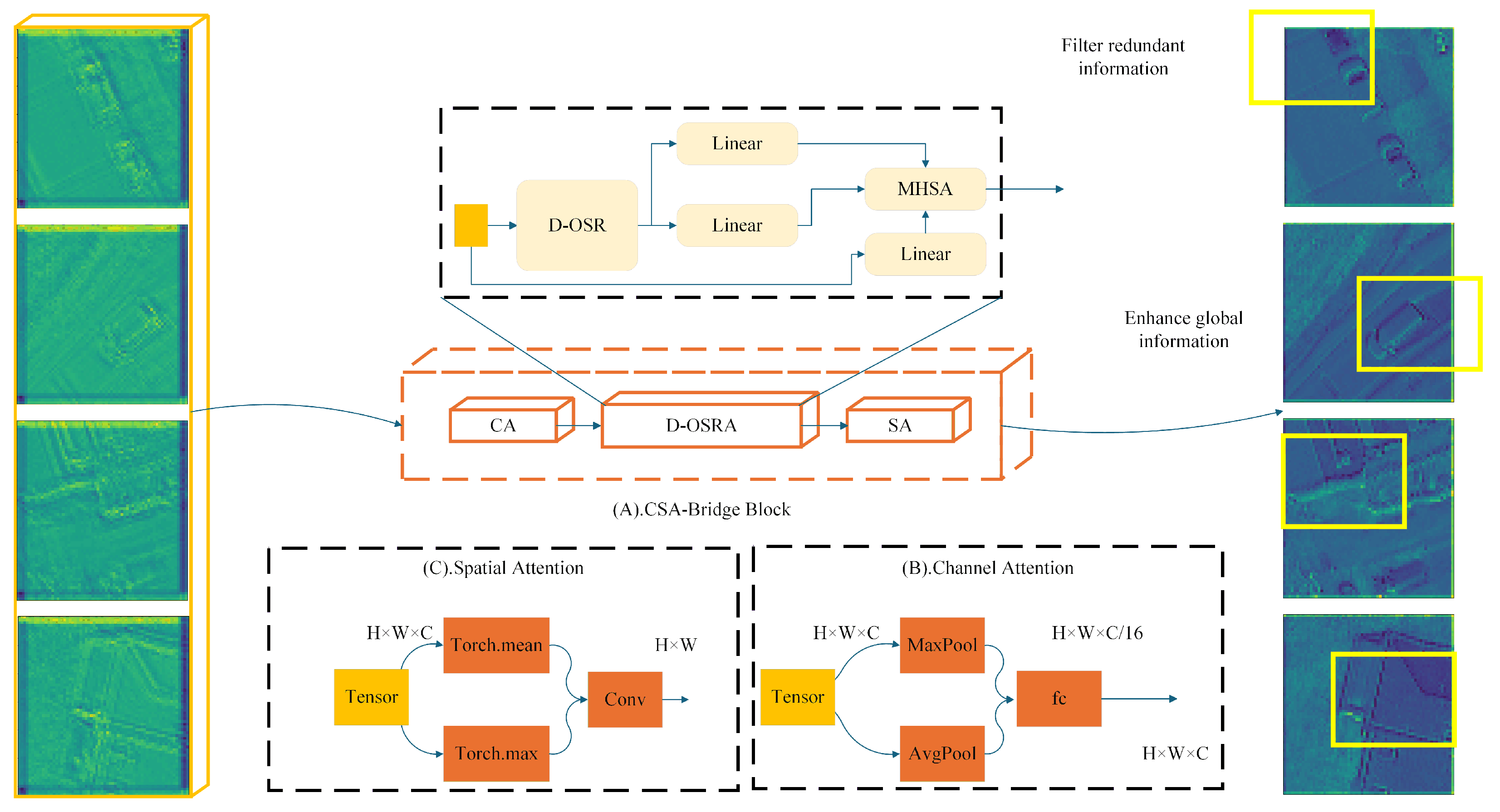

CSA-Bridge operates on each stage of encoder output and refines feature quality through a sequential attention mechanism. It first applies channel attention to model inter-channel dependencies and emphasize semantically informative feature channels. Then, a Dynamic Overlapping Spatial Reduction Attention (D-OSRA) module compresses spatial redundancy using dynamically adaptive convolutional kernels, effectively retaining structural information. Finally, a spatial attention module enhances salient regions, particularly edges and small objects, ensuring spatial focus in feature refinement. The overall architecture of CSA-Bridge is illustrated in Figure 4.

Given an encoder output feature map $F_i\in {\mathbb{R}}^{H\times W\times C}$ from stage i, the refined feature produced by CSA-Bridge is computed as follows:

$${\hat{F}}_i=F_{D-OSRA}\odot F_i+H_{SA}·\left(H_{CA}·F_i\right),i\in \left[1,4\right]$$

(5)

where $F_{D-OSRA}$ is the output of the D-OSRA module, $H_{CA}$ and $H_{SA}$ represent the transformation matrices of the CA and SA modules, respectively, and ⊙ denotes element-wise multiplication. The kernel size used in D-OSRA is dynamically determined as $k_i={\displaystyle \frac{L}{32}}$ where L is the side length of the input feature map, enabling adaptive receptive field adjustment based on the spatial scale of the input. By jointly leveraging attention mechanisms in both channel and spatial dimensions, combined with a dynamic receptive field spatial reduction strategy, the CSA-Bridge effectively suppresses redundant information while enhancing discriminative features. This provides the decoder with more representative multi-scale contextual support, thereby improving overall segmentation performance.

3.4. HA-Decoder

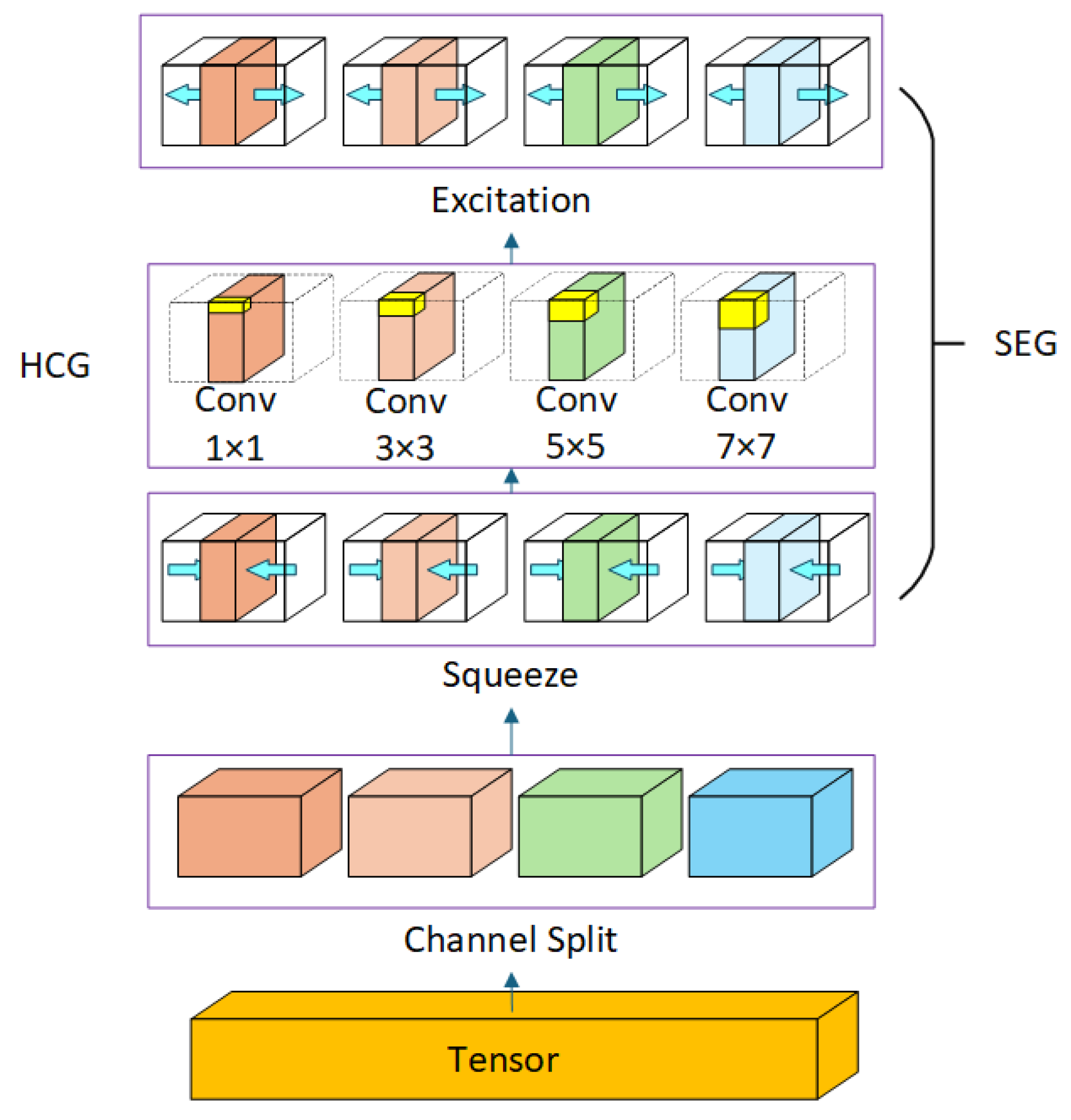

To restore spatial resolution and accurately reconstruct fine structures such as object boundaries and small targets, DMA-Net employs a lightweight, yet expressive decoding module named the Hierarchical Attention Decoder (HA-Decoder). Unlike conventional decoders that stack basic upsampling layers, the HA-Decoder introduces a structured decoding unit that integrates multi-scale convolution and nested attention operations in a hierarchical fashion. The internal structure of the decoder is illustrated in Figure 5.

Each decoding stage in the HA-Decoder is aligned with its corresponding encoder stage and receives refined skip features ${\hat{F}}_i$ from the CSA-Bridge. The core component of the HA-Decoder is the Hierarchical Convolutional Group (HCG) module, which performs multi-scale feature enhancement in two steps: channel grouping and nested attention-based modulation. Given an input feature map ${\hat{F}}_i\in H\times W\times C$, we first partition it into G channel groups ${\left\{{\hat{F}}_i^{\left(g\right)}\right\}}_{g=1}^G$, where in each sub-feature map, ${\hat{F}}_i^{\left(g\right)}\in H\times W\times {\displaystyle \frac{C}{G}}$. These sub-groups are processed in parallel using convolutional kernels of different receptive fields:

$${\hat{F}}_i^{\left(g,conv\right)}=Con{v}_{k_g}\left({\hat{F}}_i^{\left(g\right)}\right),k_g\in \{7,5,3,1\}$$

(6)

The multi-scale convolved features are then concatenated and passed through a nested Squeeze-and-Excitation Group (SEG) attention block to recalibrate channel-wise responses. This block includes a squeeze transformation $H_S$, an excitation transformation $H_E$, and a residual enhancement layer:

$$y_i=H_E\left(W_o·\left(H_S·{\left[{\hat{F}}_i^{\left(g,conv\right)}\right]}_{g=1}^G\right)+b\right)$$

(7)

where $W_o$ and b are learnable projection parameters. The output $y_i$ serves as the decoded feature map at stage i, which is upsampled and propagated to the next decoding level. This hierarchical decoding structure enables the HA-Decoder to progressively recover spatial resolution while preserving small-object details and boundary integrity, significantly enhancing final segmentation accuracy.

3.5. Data Augmentation Strategies

Remote sensing imagery is often subject to various forms of environmental interference, including shadow occlusions, acquisition distortions, and intra-class appearance variability [73,74]. These factors can have a substantial impact on the efficacy of semantic segmentation models. As demonstrated in Figure 6, such interference may result in the obscuring of object boundaries, the alteration of geometric consistency, or the augmentation of intra-class ambiguity. Consequently, this may impede the model’s capacity to accurately discern spatial and semantic features. While architectural design plays a central role in enhancing model robustness, it is equally important to address these challenges from the perspective of data distribution. To this end, this study adopts a comprehensive data augmentation strategy aimed at improving the diversity and realism of training samples, thereby mitigating the impact of interference during training.

The augmentation operations are implemented through the utilization of the Albumentations library, which furnishes a malleable and efficient framework for image transformation. As illustrated in Figure 7, the proposed strategy is categorized into three distinct functions: planar information augmentation, spatial distortion augmentation, and environmental information augmentation. Planar information augmentation includes basic geometric operations such as random cropping, horizontal and vertical flipping, and random angle rotation, which increase positional and directional variation across samples. Spatial distortion augmentation simulates image deformations caused by terrain variation or sensor instability using elastic transform, grid distortion, and optical distortion techniques, thereby enriching the spatial diversity of training data. Environmental information augmentation is designed to enhance model adaptability to illumination inconsistencies and visual interference, such as shadowing or haze. Techniques such as Contrast Limited Adaptive Histogram Equalization (CLAHE), Random Brightness/Contrast adjustment, and Random Gamma correction are employed to improve the model’s ability to capture consistent semantic cues under varying environmental conditions.

By jointly applying augmentations from geometric, spatial, and environmental dimensions, the resulting training samples better reflect the variability present in real-world remote sensing scenarios. This strategy complements the structural robustness of DMA-Net and plays a crucial role in improving segmentation accuracy under complex imaging conditions.

4. Experiments

4.1. Datasets

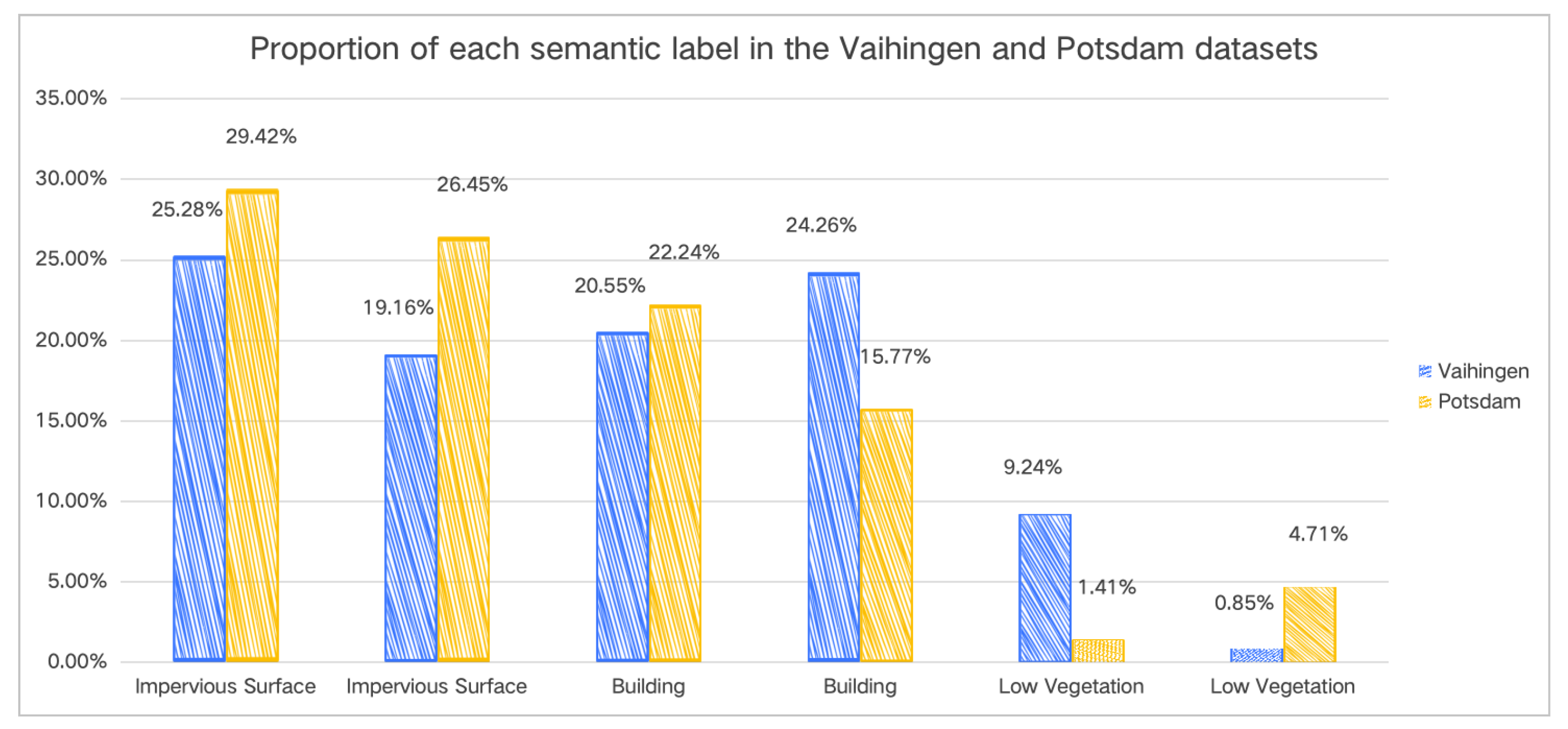

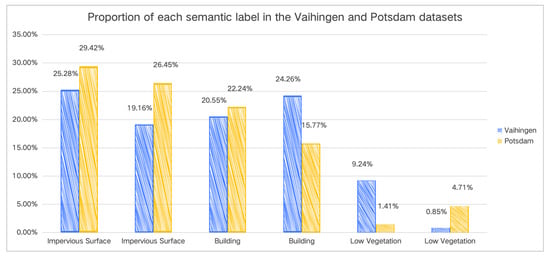

This study conducts experiments on three widely used benchmark datasets for remote sensing semantic segmentation: Vaihingen, Potsdam, and LoveDA. These datasets have been extensively adopted in both academic and industrial contexts, and they cover diverse scenes with high-quality annotations. Their widespread use and standardized formats make them suitable for fair and rigorous comparison of segmentation performance across different models. By aligning our evaluation with these datasets, we ensure that the proposed DMA-Net can be objectively assessed under challenging and representative real-world conditions.

4.1.1. Potsdam

The Potsdam dataset, released by the ISPRS, comprises 38 ultra-high-resolution aerial images, each with a spatial resolution of 6000 × 6000 pixels and a ground sampling distance (GSD) of 5 cm. These images are extracted from the TOP mosaic of the city of Potsdam, Germany, covering a total area of approximately 3.42 square kilometers characterized by complex urban layouts, dense residential regions, and diverse land cover types. For semantic segmentation tasks, each image is annotated into six land cover classes: Impervious Surface, Building, Low Vegetation, Tree, Car, and Clutter. The dataset provides imagery in three channel formats: IR-R-G (infrared-red-green), R-G-B (true color), and R-G-B-IR (four-band composite), offering flexibility for multi-modal analysis.

Following widely adopted experimental settings in prior work [61,75,76,77,78], this study selects 24 images as the training set and 14 images as the test set. All images are uniformly cropped into non-overlapping patches of 256 × 256 pixels to accommodate GPU memory limitations and facilitate batch-based training. Model performance is evaluated using the mean Intersection over Union (mIoU) metric, computed over five primary semantic categories: Impervious Surface, Building, Low Vegetation, Tree, and Car, excluding Clutter as a background or auxiliary class.

4.1.2. Vaihingen

The Vaihingen dataset is another widely used benchmark from the ISPRS semantic labeling challenge, comprising 33 true orthophoto (TOP) images collected over a smaller urban area of 1.38 km² in Vaihingen, Germany. Compared to Potsdam, Vaihingen images are smaller in coverage and have a slightly lower ground sampling distance of 9 cm. All images contain three channels—infrared, red, and green—and are annotated with six semantic classes, consistent with Potsdam. In our experiments, we adopted a subset of 28 images for training and 5 for testing, following established evaluation protocols. To ensure training consistency, all data are cropped into 256 × 256 patches. As with Potsdam, segmentation performance is measured using the mIoU, computed on five core classes: Impervious Surface, Building, Low Vegetation, Tree, and Car.

4.1.3. Loveda

The LoveDA dataset provides a large-scale benchmark for semantic segmentation tasks involving both urban and rural scenes. It contains 5987 high-resolution satellite images sourced from Google Earth, each with a spatial resolution of 0.3 m and image dimensions of 1024 × 1024 pixels. Unlike the Potsdam and Vaihingen datasets, which focus on dense urban areas, LoveDA offers a broader geographical spectrum, making it suitable for evaluating model adaptability across domain shifts. The dataset is manually annotated into seven semantic categories: Background, Building, Road, Water, Barren Land, Forest, and Agriculture, covering a wide range of land cover types. For experimental consistency, all images are uniformly divided into non-overlapping patches of 256 × 256 pixels.

4.2. Implementation Details

4.2.1. Training Environment and Hyperparameters

The proposed DMA-Net model is implemented using the PyTorch framework version 2.6.0, with all training and evaluation conducted on an NVIDIA GeForce RTX 3090 GPU (24GB GDDR6X, NVIDIA Corporation, Beijing, People’s Republic of China) platform. To accelerate convergence and improve feature generalization, we initialized the MaxViT encoder with pre-trained weights obtained from ImageNet-1k. All input images were uniformly resized and cropped to 256 × 256 pixels for both training and testing.

The model was trained with a batch size of 14, and the initial learning rate was set to 0.0001. We adopted the AdamW optimizer with a weight decay of 0.0001 to stabilize gradient updates and prevent overfitting. This combination of optimization strategies ensures an effective balance between fast convergence and stable learning.

4.2.2. Loss Function

To fully exploit hierarchical feature representations from different network depths, we designed a multi-stage feature aggregation loss function inspired by the CASCADE mechanism. The overall prediction was defined as a weighted combination of intermediate feature maps from four stages of DMA-Net:

$$y=\alpha p_1+{\beta p}_2+{\gamma p}_3+{\delta p}_4$$

(8)

where $p_1,p_2,p_3,p_4$ are the feature maps from four decoding stages ($y_{i,i\in [1,4]}$ in Equation (7)), and $\alpha ,\beta ,\gamma ,\delta$ are learnable or preset coefficients to balance contributions from different depths. The total loss is defined as the combination of cross-entropy loss and Dice loss:

$${\mathcal{L}}_{total}={\mathcal{L}}_{ce}\left(y\right)+{\mathcal{L}}_{dice}\left(y\right)$$

(9)

The cross-entropy loss is defined as follows:

$${\mathcal{L}}_{ce}=-{\displaystyle \frac{1}{N}}\sum _{n=1}^N\sum _{k=1}^K{y}_k^{\left(n\right)}\times log{\hat{y}}_k^{\left(n\right)}$$

(10)

The Dice loss is defined as follows:

$${\mathcal{L}}_{dice}=1-{\displaystyle \frac{2}{N}}\sum _{n=1}^N\sum _{k=1}^K{\displaystyle \frac{{\hat{y}}_k^{\left(n\right)}\times y_k^{\left(n\right)}}{{\hat{y}}_k^{\left(n\right)}+y_k^{\left(n\right)}}}$$

(11)

where N is the number of pixels in an image and k is the number of semantic categories. $y_k^{\left(n\right)}$ and ${\hat{y}}_k^{\left(n\right)}$ represent the ground truth and predicted probabilities for class k at pixel n, respectively. The combination of these two losses allows the network to capture both class-wise prediction accuracy and global shape consistency, especially for small and thin objects.

4.2.3. Evaluation Metrics

To evaluate the segmentation performance of DMA-Net, we adopt two widely used evaluation metrics—mIoU and Average F1-Score (Avg.F1). These metrics are widely used in semantic segmentation tasks and are calculated based on the confusion matrix. mIoU reflects the average region-level overlap between predictions and ground truth. It is defined as follows:

$$IoU={\displaystyle \frac{TP}{TP+FP+FN}}$$

(12)

Avg.F1 balances precision and recall across all classes, providing a measure of classification consistency. The F1-Score is calculated as follows:

$$F1=2\times {\displaystyle \frac{Precision\times Recall}{Precision+Recall}}$$

(13)

where:

$$Precision={\displaystyle \frac{TP}{TP+FP}},Recall={\displaystyle \frac{TP}{TP+FN}}$$

(14)

4.3. Compare with State-of-the-Art Models

We conducted comparative experiments between DMA-Net and existing advanced models, including CNN-based models (such as DeepLab V3+ and UNet) and Transformer-based models (such as MISSFormer, ST-UNet, and TransUNet).

4.3.1. Result of Potsdam

Table 1. Potsdam experimental results, with the best results marked in red and the second-best results marked in blue.

Model	Backbone	IoU (%)					Evaluation Index
		Impervious Surface	Building	Low Vegetation	Tree	Car	MIoU (%)	Average F1 (%)
ResUNet (2020) [79]	CNN	52.13	64.97	50.04	47.03	53.68	53.57	69.56
SETR (2021) [80]	Transformer	56.80	67.58	52.04	46.96	53.73	55.42	71.07
BANet (2022) [81]	Transformer	63.70	76.92	59.63	57.98	67.69	65.18	78.73
Swin-Unet (2022) [82]	Transformer	71.45	75.02	59.03	50.96	71.15	65.52	78.79
LSKNet-s (2024) [67]	Transformer	65.59	80.90	59.80	57.31	71.61	67.04	79.97
DC-Swin (2022) [83]	Transformer	68.60	83.10	63.60	66.02	73.85	71.03	81.63
MAResUNet (2021) [84]	Transformer	68.79	83.32	65.36	65.42	75.40	71.66	83.31
LiteSeger (2024) [85]	Transformer	71.20	84.59	67.18	67.02	72.92	72.58	82.52
UperNet (2023) [86]	Transformer	76.95	83.93	65.65	60.40	76.57	72.70	83.91
FCN (2018) [46]	CNN	77.41	83.52	66.10	63.19	74.34	72.91	84.12
DANet (2019) [87]	Transformer	77.35	83.45	66.46	63.47	75.28	73.20	84.32
Unet (2020) [17]	CNN	77.10	82.83	64.59	65.44	76.16	73.22	84.35
Deeplab V3+ (2022) [22]	CNN	79.01	84.76	67.53	63.05	78.05	74.48	85.13
TransUNet (2021) [18]	Transformer	78.61	85.60	67.16	64.10	79.33	74.96	85.44
MISSFormer (2021) [88]	Transformer	76.62	61.51	57.70	77.01	21.68	58.90	71.75
PSPNet (2024) [46]	Transformer	78.02	84.16	67.01	63.25	79.03	74.30	83.22
ST-UNet (2023) [45]	Transformer	79.19	86.63	90.89	83.37	86.77	85.37	86.13
UNetFormer (2022) [47]	Transformer	85.95	85.36	91.65	86.78	81.40	86.23	81.67
ABCNet (2021) [66]	Transformer	85.93	85.16	91.27	86.90	81.73	86.20	80.67
AerialFormer (2023) [44]	Transformer	89.33	89.25	92.38	85.19	76.51	86.53	93.70
LSKNet (2024) [67]	Transformer	86.02	87.56	91.25	87.38	80.02	86.45	92.90
DMA-Net	Transformer	88.21	90.32	91.55	85.07	81.42	87.31	92.55

presents the experimental results of DMA-Net on the Potsdam dataset, demonstrating its superior performance. DMA-Net achieves an MIoU of 87.31 and an Average F1 score of 92.55, outperforming other models listed in the table in terms of MIoU. Compared to state-of-the-art models such as ST-UNet and LSKNet, DMA-Net improves the MIoU by 0.14% and 1.15%, respectively, and enhances the Average F1 score by 1.94% and 0.86%. Additionally, DMA-Net achieves the best performance in the Building category and secures the second-highest scores in segmenting Impervious Surfaces, Low Vegetation, and Cars. Notably, while DMA-Net achieves the highest mIoU score on the Potsdam dataset, its F1-score slightly trails behind state-of-the-art models like LSKNet and AerialFormer. This performance gap stems from two factors: (1) severe class imbalance in the Potsdam dataset (as illustrated in Figure 8), and (2) DMA-Net’s currently inadequate capability in capturing small-sample objects.

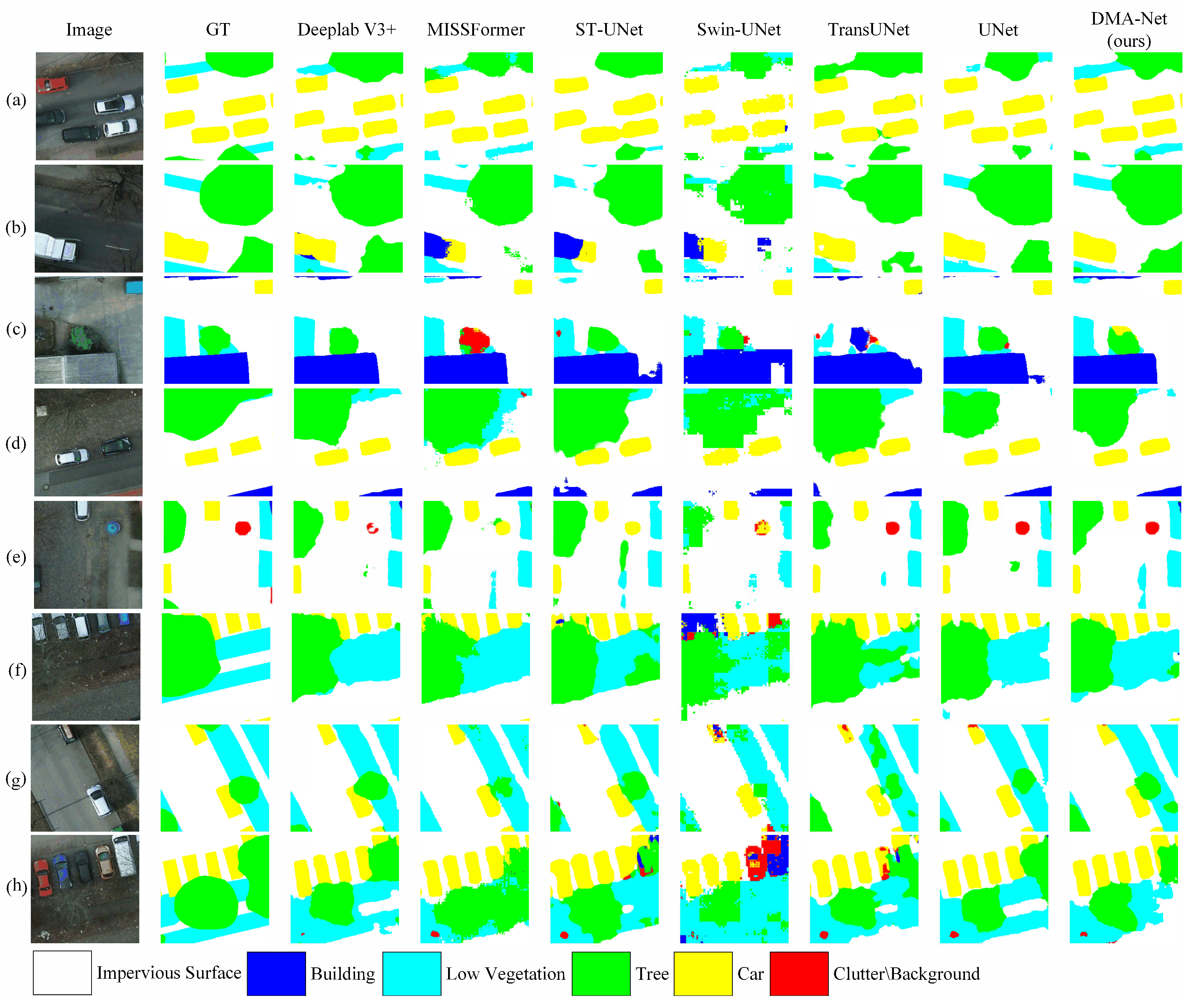

Figure 9 shows the semantic segmentation results of various models on the Potsdam dataset. Observing row (a), it can be seen that in cases with numerous labels, DMA-Net accurately segments Impervious Surface, Building, Clutter, and Tree, thanks to the HCG successfully capturing multi-scale information within the feature maps during the decoder’s upsampling process. In contrast, Deeplab V3+ misses the Tree label, UNet misses Clutter, and MISSFormer, ST-UNet, Swin-UNet, and TransUNet incorrectly label Clutter, leading to contaminated feature maps. Observing rows (d) and (e), thanks to the refinement of the encoder outputs by CSA-Bridge, DMA-Net generates cleaner output maps compared to other models. Conversely, Deeplab V3+ incorrectly labels parts of the Building area, MISSFormer mislabels Tree as Clutter, and Swin-UNet and UNet are polluted by irrelevant information, resulting in large areas of mixed feature maps.

4.3.2. Result of Vaihingen

Table 2. Vaihingen experimental results, with the best results marked in red and the second-best results marked in blue.

Model	Backbone	IoU (%)					Evaluation Index
		Impervious Surface	Building	Low Vegetation	Tree	Car	MIoU (%)	Average F1 (%)
Swin-Unet (2022) [82]	Transformer	69.31	73.37	49.48	67.12	30.78	58.01	72.02
SETR (2021) [80]	Transformer	65.19	76.52	55.27	66.18	35.37	59.71	73.75
FCN (2018) [46]	CNN	73.22	78.97	54.80	70.38	39.92	63.46	76.65
DANet (2019) [87]	Transformer	73.54	81.40	56.88	71.21	42.68	65.14	78.00
UperNet (2023) [86]	Transformer	73.45	81.50	55.65	71.31	47.26	65.84	78.69
BANet (2022) [81]	Transformer	69.93	80.33	58.95	68.04	54.38	66.33	79.40
Unet (2020) [17]	CNN	72.91	81.68	57.23	71.63	48.29	66.35	79.13
TransUNet (2021) [18]	Transformer	73.27	81.01	55.07	71.08	55.13	67.11	79.86
Deeplab V3+ (2022) [22]	CNN	74.85	83.01	56.09	71.54	50.30	67.16	79.71
LSKNet (2024) [67]	Transformer	69.82	81.01	57.46	68.66	59.49	67.29	80.15
ResUNet (2020) [84]	CNN	70.29	81.74	58.90	69.48	59.72	68.03	80.68
ABCNet (2020) [66]	Transformer	70.17	82.46	58.68	69.33	59.57	68.04	80.67
DC-Swin (2022) [83]	Transformer	71.50	83.64	59.14	69.70	62.92	69.38	81.63
UNetFormer (2022) [47]	Transformer	89.11	94.75	73.10	75.33	79.29	82.32	81.85
ST-UNet (2023) [45]	Transformer	90.05	91.37	72.55	76.90	77.89	81.75	82.15
MISSFormer (2021) [88]	Transformer	68.75	56.50	54.07	72.47	21.62	54.68	68.69
MAResUNet (2021) [84]	Transformer	72.47	83.10	60.73	70.64	67.28	70.84	82.72
PSPNet (2024) [77]	Transformer	74.98	83.27	67.65	62.57	73.35	72.36	81.98
UPerNet (2024) [86]	Transformer	72.51	83.15	62.83	72.98	65.42	71.38	83.10
DMA-Net	Transformer	88.28	93.59	75.90	77.96	80.43	83.23	86.08

presents the experimental results of DMA-Net on the Vaihingen dataset. It can be seen that DMA-Net achieved the best segmentation results across all metrics. Compared to the current advanced models, ST-Unet and UNetformer, DMA-Net improved the MIoU by 5.8% and 6.4%, respectively; the Average F1 score by 3.93% and 4.23%; the Impervious Surface metric by 4.92% and 9.90%; the Building metric by 6.61% for both; the Low Vegetation metric by 5.11% and 2.76%; the Tree metric by 1.43% and 4.09%; and the Car metric by 10.95% and 8.67%.

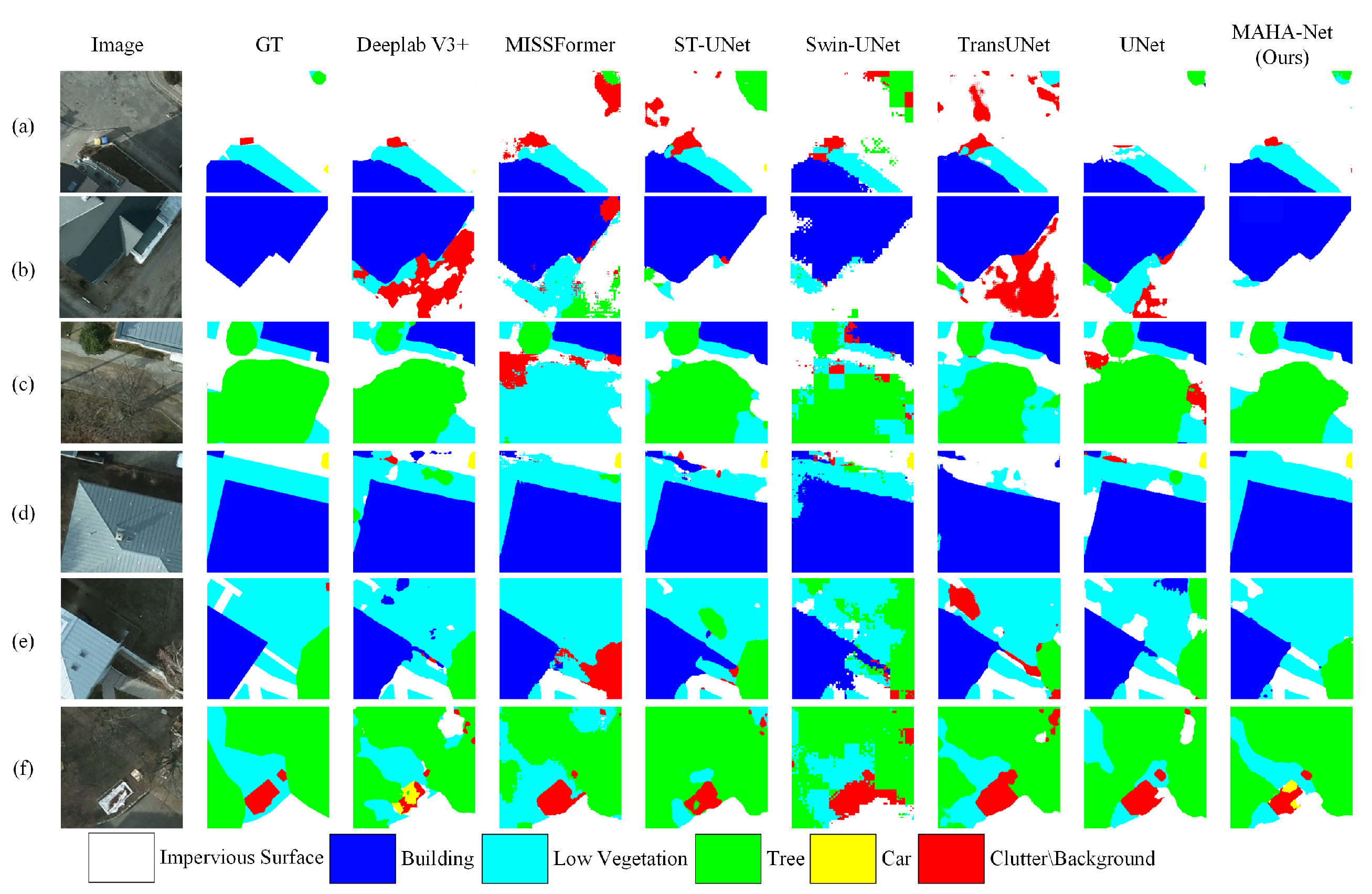

Figure 10 illustrates the segmentation performance of various models on the Vaihingen dataset. Compared to the Potsdam dataset, the Vaihingen dataset exhibits a significantly higher frequency of vehicle instances, a characteristic consistent with the label statistics presented in Figure 8. Row (a) demonstrates the effectiveness of DMA-Net’s encoder architecture, which incorporates MaxViT’s Grid Attention mechanism. By capturing globally sparse features in the feature maps, this design enables DMA-Net to effectively segment numerous car instances. In row (b), the input image contains a dominant Tree label occupying a large portion of the feature map, alongside minor labels such as Car and Low Vegetation. Through the Block Attention mechanism of MaxViT, the model successfully balances feature extraction: it preserves the Tree’s global structure while retaining fine-grained details of the smaller objects (e.g., cars and vegetation), yielding accurate segmentation results. Rows (f), (g), and (h) highlight three challenging scenarios involving occlusion and ambiguity. In row (f), multiple cars are parked beneath a withered tree, yet the ground truth (GT) inaccurately masks the car regions, labeling the entire area as Tree. This suggests that the withered tree’s texture has functionally transitioned into an occluder rather than a distinct object. Similarly, in rows (g) and (h), tree canopies partially obscure cars. Despite this, DMA-Net’s output aligns more closely with human intuition, correctly identifying the visible cars while maintaining Tree labels. These results underscore DMA-Net’s robust contextual reasoning capabilities. By leveraging dataset augmentation strategies, the model not only accurately segments dominant features (e.g., trees) but also reconstructs occluded objects (e.g., cars under trees) with high fidelity. This dual ability to prioritize semantically meaningful details and resolve complex occlusions demonstrates the efficacy of our proposed architecture in real-world remote sensing scenarios.

4.3.3. Result of LoveDA

Table 3. In the experimental results on the LoveDA dataset, the best-performing results are highlighted in red, while the second-best results are marked in blue.

Model	Backbone	IoU(%)							Evaluation Index
		Background	Building	Road	Water	Barren	Forest	Agriculture	MIoU (%)
FCN (2015) [46]	CNN	42.61	49.51	48.16	73.18	11.82	43.59	58.32	46.74
UNet (2015) [17]	CNN	43.12	52.77	52.84	73.17	10.38	43.17	59.93	47.91
UNet++ (2018) [89]	CNN	42.98	52.64	52.82	74.59	11.44	44.42	58.81	48.24
DeeplabV3+ (2018) [22]	CNN	43.65	50.99	52.23	74.54	10.45	44.28	58.57	47.82
FarSeg (2020) [90]	Transformer	43.42	51.82	53.39	76.10	10.82	43.26	58.65	48.21
TransUNet (2021) [18]	Transformer	43.97	56.17	53.76	78.76	9.34	44.95	56.94	49.13
Segmenter (2021) [91]	Transformer	38.22	50.73	48.73	77.44	13.35	43.52	58.28	47.18
Segformer (2021) [92]	Transformer	42.27	56.48	50.71	78.55	17.21	45.23	53.86	49.19
DC-Swin (2022) [83]	Transformer	41.38	54.54	56.23	78.18	14.57	47.27	62.43	50.66
FactSeg (2022) [93]	Transformer	42.66	53.62	52.86	76.91	16.23	42.94	57.52	48.96
UNetFormer (2022) [47]	Transformer	44.75	58.81	54.93	79.63	20.12	46.10	62.54	52.41
RSSFormer (2023) [94]	Transformer	52.49	60.79	55.26	76.36	18.73	45.43	58.32	52.48
AerialFormer (2023) [44]	Transformer	45.23	57.88	56.54	79.62	19.24	46.14	59.54	52.03
MAE+MTP (2024) [95]	Transformer	49.22	57.85	56.53	79.68	19.27	47.16	64.41	53.45
MISSFormer (2021) [88]	Transformer	42.98	50.52	48.36	73.57	10.52	43.09	58.30	46.76
ST-UNet (2023) [45]	Transformer	43.90	55.39	54.96	79.78	21.29	44.34	55.74	50.77
Swin-UNet (2022) [82]	Transformer	44.97	57.38	55.14	80.25	20.22	46.13	62.94	52.43
DMA-Net	Transformer	49.30	60.12	58.65	82.33	17.29	47.13	64.79	54.23

presents the experimental results of DMA-Net on the LoveDA dataset, demonstrating its superior performance. DMA-Net achieves an MIoU of 54.23, outperforming all other models listed in the table. Compared to state-of-the-art models such as ST-UNet and Swin-UNet, DMA-Net improves MIoU by 3.46% and 1.8%, respectively. Additionally, DMA-Net achieves the best performance in the Road and Water categories, while securing the second-highest scores in segmenting Background, Building, and Agriculture.

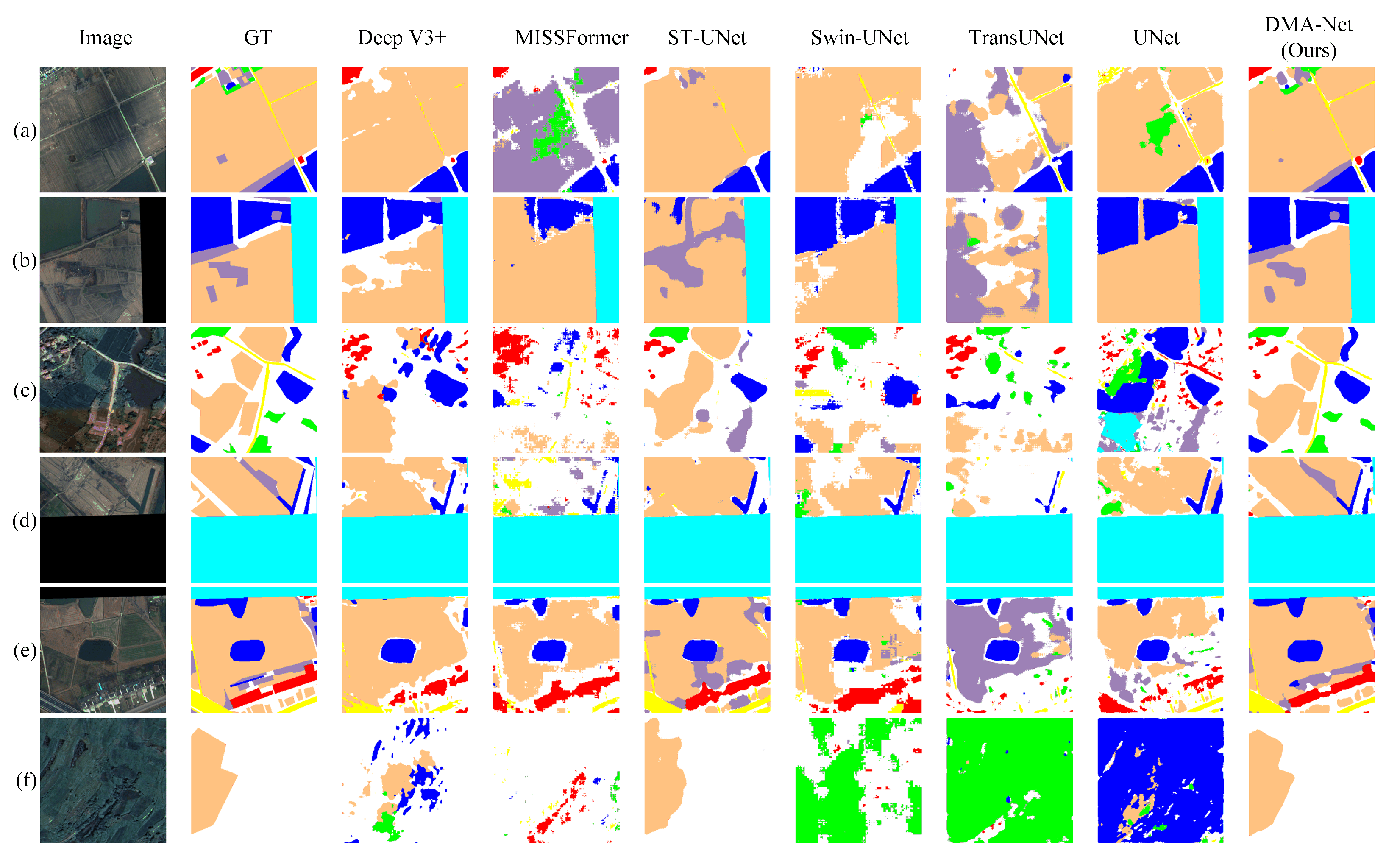

Figure 11 presents the segmentation results of DMA-Net in the LoveDA dataset. In row (a), DMA-Net achieves optimal results in reconstructing small objects. In row (f), DMA-Net produces the cleanest background segmentation, with its crop segmentation significantly closer to the ground truth compared to ST-UNet. In row (c), the results demonstrate that DMA-Net avoids confusion when training on small objects, highlighting its robustness in handling fine-grained details.

4.4. Ablation Study

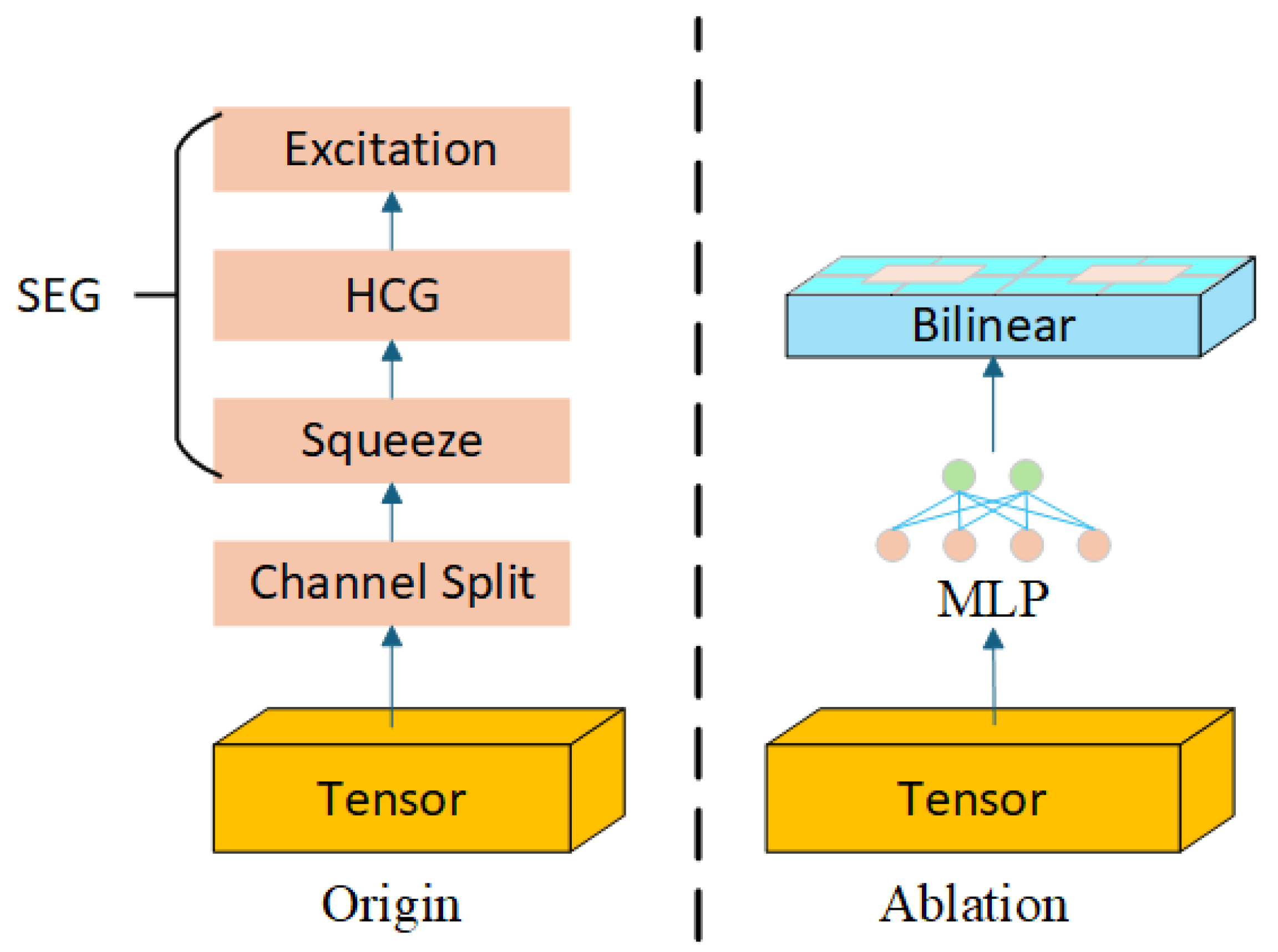

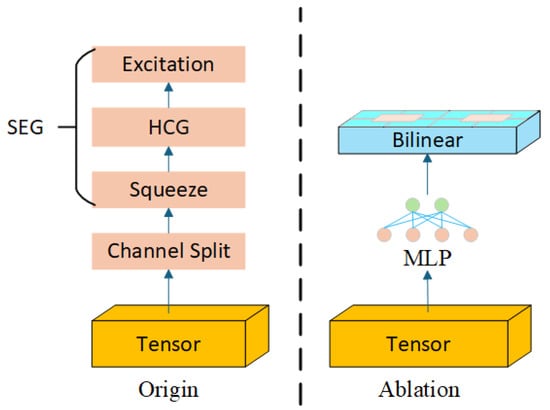

To rigorously assess the performance enhancements achieved by integrating the CSA-Bridge, HA-Decoder, and MaxViT into DMA-Net, we performed ablation studies using the Vaihingen dataset within the MERIT network architecture framework. In DMA-Net, the encoder is built upon MaxViT, with both Block Attention and Grid Attention window sizes set to 2. The encoder consists of four stages with layer counts [2, 2, 5, 2], respectively, and the dimension of the encoding vectors is set to 96.

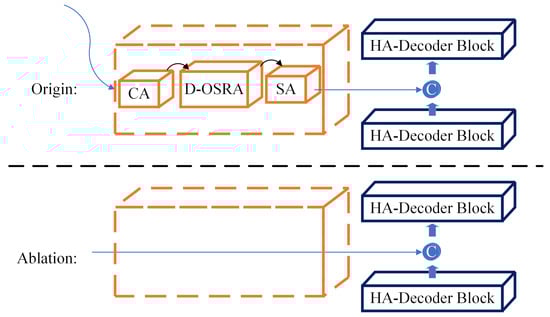

4.4.1. Effect of CSA-Bridge

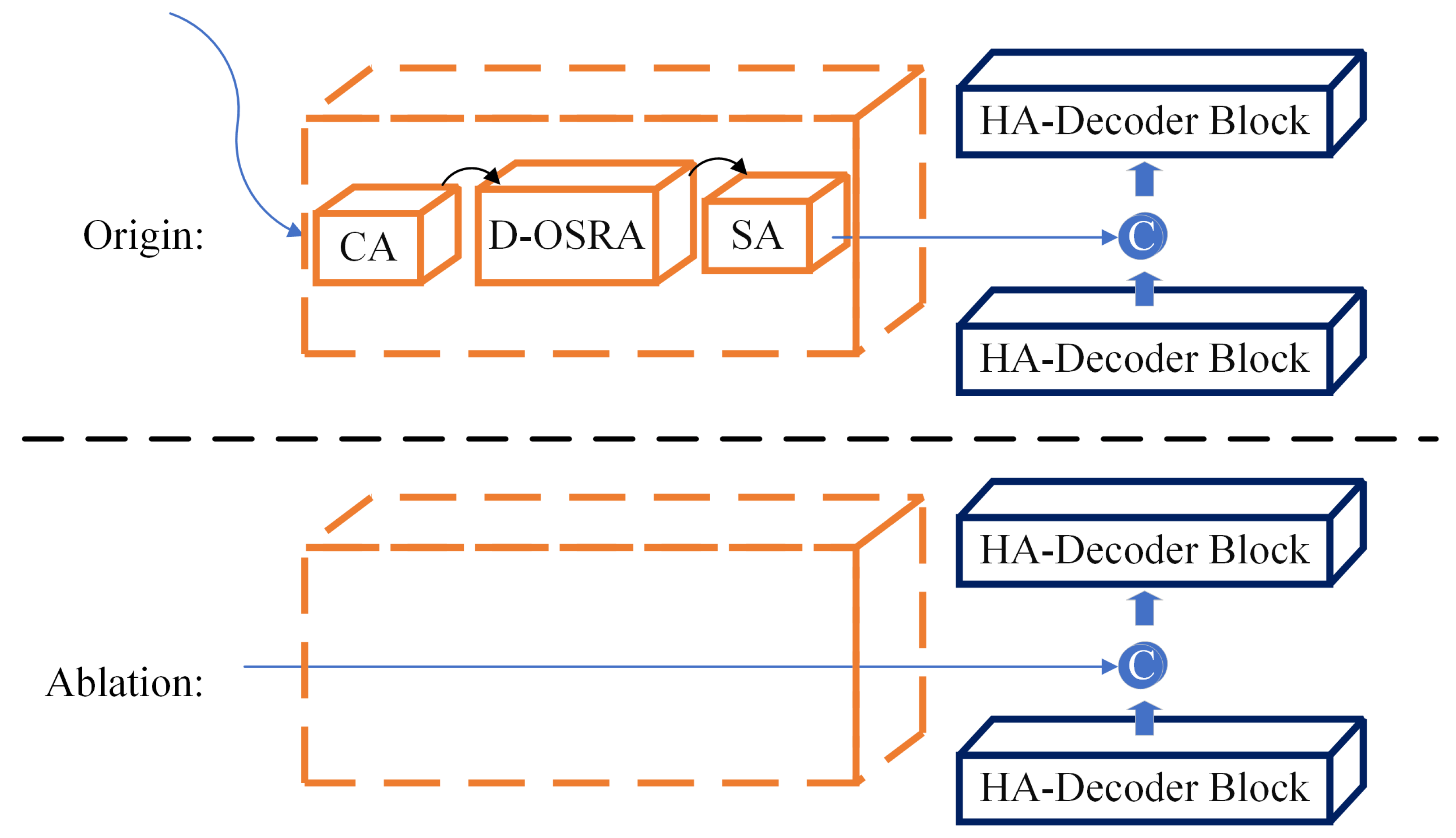

The role of CSA-Bridge is to supply in the missing connection information between patches for the encoder and refine the encoder’s output. As demonstrated in Figure 12, in the ablation experiment for CSA-Bridge, the original modules were eliminated from CSA-Bridge, and the encoder’s output was directly connected to the decoder’s output via residual connections. As demonstrated in

Table 4. Ablation experiment of the proposed modules on the vaihingen dataset, the best-performing results are highlighted in red.

Modules		IoU (%)					Evaluation Index
HA-Decoder	CSA-Bridge	Impervious Surface	Building	Low Vegetation	Tree	Car	MIoU (%)	Average F1 (%)
×	×	81.45	86.28	68.83	70.86	70.96	68.56	81.11
×	✓	82.24	87.01	73.99	76.07	77.53	72.25	83.74
✓	×	81.68	92.26	71.32	74.17	78.09	72.39	83.69
✓	✓	88.28	93.59	75.90	77.96	80.43	83.23	86.08

, it is evident that due to the lack of filtration of the encoder’s output by CSA-Bridge, the IoU metrics of DMA-Net decreased across various sub-items: a 6.60 decrease in the Impervious Surface item, a 1.33 decrease in the Building item, a 4.58 decrease in the Low Vegetation item, a 3.79 decrease in the Tree item, and a 2.34 decrease in the Car item. It is evident that CSA-Bridge has a significant impact on the Low Vegetation and Tree items. Figure 13 further validates this point. Observing Figure 13a–c, in the absence of the CSA-Bridge module, it can be seen that labels originally belonging to Low Vegetation and Tree were incorrectly marked as other objects. Meanwhile, we conducted ablation experiments on the D-OSRA module, CA module, and SA module in CSA-Bridge, and the results are shown in

Table 5. Effect of D-OSRA, CA, and SA in CSA-Bridge, the best-performing results are highlighted in red.

CSA-Bridge		IoU (%)					Evaluation Index
D-OSRA	CA and SA	Impervious Surface	Building	Low Vegetation	Tree	Car	MIoU (%)
✓	✓	82.24	87.01	73.99	76.07	77.53	83.23
×	✓	79.39	85.33	69.41	75.22	76.19	77.11
✓	×	81.98	86.89	71.44	75.02	76.08	78.28
×	×	81.45	86.28	68.83	70.86	70.96	68.56

.

4.4.2. Effect of HA-Decoder

The task of the HA-Decoder is to capture multi-scale features within the feature maps as much as possible during upsampling to restore the missing details in the feature maps. As shown in Figure 14, in the ablation experiment for HA-Decoder, we removed the original SEG and ConvG modules from the HA-Decoder and instead used MLP to reduce the dimensionality of the channels and bilinear interpolation for upsampling the spatial dimensions. Observing Figure 15, it can be seen that due to the lack of multi-scale information capture, the decoder cannot accurately restore the segmentation maps of some small objects during the upsampling process. From Table 4, it can be seen that the performance of DMA-Net decreased by 6.04 in the Impervious Surface item, 6.58 in the Building item, 1.91 in the Low Vegetation item, 1.89 in the Tree item, and 3.86 in the Car item. This indicates that the HA-Decoder has a significant impact on the Building and Impervious Surface items.

Meanwhile, we conducted ablation experiments on the ConvG module and SEG module in HA-Decoder, and the results are shown in

Table 6. Effect of ConvG and SEG in HA-Decoder, the best-performing results are highlighted in red.

HA-Decoder		IoU (%)					Evaluation Index
ConvG	SEG	Impervious Surface	Building	Low Vegetation	Tree	Car	MIoU (%)
✓	✓	81.68	92.26	71.32	74.17	78.09	83.23
✓	×	81.51	90.90	70.96	73.27	76.33	78.59
×	✓	81.63	91.22	69.25	74.05	77.11	78.65
×	×	81.45	86.28	68.83	70.86	70.96	68.56

.

4.4.3. Effect of MaxViT

To explore the ability of MaxViT as an encoder to capture local and global information, we conducted ablation experiments on the Vaihingen dataset by replacing the encoder with other types of Transformers while keeping the other modules of DMA-Net fixed. As shown in

Table 7. Ablation experiment of encoder, the best-performing results are highlighted in red.

Encoder	IoU (%)					Evaluation Index
	Impervious Surface	Building	Low Vegetation	Tree	Car	MIoU (%)	Average F1 (%)
Swin Transformer [38]	85.85	90.87	73.23	77.26	75.99	80.64	84.37
CSwin Transformer [27]	84.67	89.28	73.22	76.62	71.24	79.01	83.26
ResNet101 [96]	81.87	87.63	46.41	64.24	69.52	69.94	75.63
MobileNet [97]	78.61	72.05	65.30	66.23	61.82	68.80	75.96
MaxViT [57]	88.28	93.59	75.90	77.96	80.43	83.23	86.08

, DMA-Net achieved the best performance when using MaxViT as the encoder. Additionally, MobileNet demonstrated weaker performance in handling Building, Car, and Low Vegetation, while ResNet showed weaker performance in handling Tree.

4.5. Effect of Loss Function

We conducted ablation experiments on the loss function using the Vaihingen dataset. As demonstrated in Figure 16, the Tree category is less affected by the loss function. The combination of Loss_Dice and Loss_CE significantly improves the segmentation results of DMA-Net on the dataset.

4.5.1. Effect of Hyperparameters in Loss Function

We conducted ablation experiments on the four hyperparameters of the loss function, as shown in

Table 8. Ablation study on loss function hyperparameters, the best-performing results are highlighted in red.

$\mathit{\alpha }$	$\mathit{\beta }$	$\mathit{\gamma }$	$\mathit{\delta }$	Impervious Surface	Building	Low Vegetation	Tree	Car	MIoU (%)
1	1	1	1	88.28	93.59	75.90	77.96	80.43	83.23
0	1	1	1	85.36	92.14	72.17	74.00	75.10	79.75
1	0	1	1	88.03	93.26	73.68	76.07	79.86	82.18
1	1	0	1	87.50	91.94	74.23	77.41	80.10	82.24
1	1	1	0	87.04	92.02	75.51	77.69	79.76	82.41

. The results indicate that high-level semantic information has a greater impact on categories with large area proportions, such as Impervious Surfaces, while low-level semantic information plays a more significant role in smaller categories, such as Cars.

4.5.2. Effect of Data Augment

We conducted ablation experiments on the data augmentation scheme, as shown in

Table 9. Ablation experiment of data augmentation, the best-performing results are highlighted in red.

Data Augmentation			Impervious Surface	Building	Low Vegetation	Tree	Car	MIoU (%)
Planar	Spatial	Environmental
×	×	×	85.72	90.38	72.06	76.54	74.56	79.85
✓	×	×	87.09	92.72	74.06	76.78	76.35	81.4
×	✓	×	81.23	88.10	74.48	75.35	73.16	78.46
×	×	✓	85.93	88.97	74.35	76.31	79.24	80.96
✓	✓	✓	88.28	93.59	75.90	77.96	80.43	83.23

. Environmental information data augmentation had the greatest impact on the Car category, improving its segmentation accuracy by 4.68. Spatial information data augmentation also had a significant impact on the Low Vegetation category, improving its segmentation accuracy by 2.42. Planar information data augmentation affected the Impervious Surface and Building categories, improving their segmentation accuracy by 1.37 and 2.34, respectively.

4.5.3. Statistical Significance Test for Data Augment

We conducted a significance test on the data augmentation strategy. As shown in

Table 10. Statistical significance test, the best-performing results are highlighted in red.

Model	Backbone	IoU (%)					Evaluation Index MIoU (%)	Data Augment
		Impervious Surface	Building	Low Vegetation	Tree	Car
Swin-Unet (2022) [82]	Transformer	73.03	76.09	52.02	68.93	35.61	61.14	✓
		69.31	73.37	49.48	67.12	30.78	58.01	×
ST-UNet (2023) [42]	Transformer	90.05	91.37	72.55	76.90	77.89	81.75	✓
		90.01	90.29	71.42	75.89	73.22	80.17	×
Unet (2020) [44]	CNN	72.33	82.57	58.04	71.29	49.10	66.67	✓
		72.91	81.68	57.23	71.63	48.29	66.35	×
ResUNet (2020) [79]	CNN	71.33	79.45	57.61	67.58	58.44	66.88	✓
		70.29	81.74	58.9	69.48	59.72	68.03	×
DMA-Net	Transformer	88.28	93.59	75.90	77.96	80.43	83.23	✓
		85.72	90.38	72.06	76.54	74.56	79.85	×

, applying the data augmentation strategy to segmentation models with a Transformer backbone results in a noticeable performance improvement. However, when the same strategy is applied to models with a CNN backbone, the improvement is less significant due to the weaker generalization capability of CNN.

4.5.4. Effect of D-OSR

We performed an ablation study on the D-OSR module within D-OSRA to investigate the impact of different dynamic kernel sizes on experimental performance. As shown in

Table 11. Ablation study on D-OSR, the best-performing results are highlighted in red.

Backbone	IoU (%)					Evaluation Index MIoU (%)
	Impervious Surface	Building	Low Vegetation	Tree	Car
L/32	88.28	93.59	75.9	77.96	80.43	83.23
L	87.21	91.99	74.32	76.31	79.98	81.96
L/16	84.25	92.16	74.31	76.89	80.51	81.62
1	83.22	92.13	73.34	76.22	79.98	80.98

, DMA-Net achieves optimal performance when the D-OSR module selects a dynamic kernel size of ${\displaystyle \frac{L}{32}}$.

4.6. Efficiency Analysis

To comprehensively evaluate the advantages and disadvantages of the models,

Table 12. Number of parameters and inference speed of different methods, the best-performing results are highlighted in red.

Model	Parameters	Vaihingen		Potsdam
		Speed (FPS)	MIoU (%)	Speed (FPS)	MIoU (%)
FCN [46]	22.70 MB	380	63.46	381	72.91
UNet [17]	25.13 MB	219	66.35	229	73.22
Deeplab V3+ [22]	38.48 MB	70	67.16	71	74.48
UperNet [86]	102.13 MB	59	65.84	59	72.70
DANet [87]	45.36 MB	108	65.14	108	73.20
TransUNet [18]	100.44 MB	35	67.11	37	74.96
Swin-Unet [82]	25.89 MB	57	58.01	59	65.52
ST-Unet [42]	160.97 MB	7	70.23	9	75.97
ABCNet [66]	13.7 MB	36	68.04	41	68.04
BANet [81]	12.7 MB	37	66.33	35	65.18
UNetFormer [47]	11.7 MB	47	69.63	4	69.32
LSKNet [67]	4.5 MB	24	67.29	29	67.04
LiteSeger [85]	4.7MB	49	71.38	47	72.58
MISSFormer [88]	42.46 MB	37	57.35	43	58.90
DMA-Net	30.25 MB	35	83.23	32	87.31

presents the parameter and processing speed of multiple models on the Vaihingen and Potsdam datasets under the same hardware conditions [98,99,100,101]. The speed is indicated by the number of images processed per second, measured in FPS. Since Transformer models typically generate more parameters than CNN, models using Transformers as encoders are often larger and have lower FPS compared to models using CNN as encoders. However, DMA-Net, with MaxViT as the encoder, is capable of fully leveraging the advantages of MaxViT in remote sensing image datasets. Consequently, DMA-Net attains optimal segmentation results while maintaining basic smoothness (the minimum threshold for smoothness perceived by the human eye is 30 FPS [96,102,103]). Additionally, due to its lightweight design, DMA-Net can also run on small mobile devices.

5. Conclusions

In this study, we propose a novel and efficient semantic segmentation network, DMA-Net, and validate its effectiveness in the field of remote sensing image segmentation. DMA-Net employs MaxViT as the backbone encoder, which leverages its dual-axis attention mechanisms—Grid Attention and Block Attention mechanisms—to efficiently capture both local and global information. To enhance the skip connection design, we introduce a CSA-Bridge module, which combines D-OSRA with CA and SA to supplement missing details between encoder stages and enhance fine-grained feature representations. In the decoding stage, we propose a HA-Decoder which integrates ConvG and SE-Net to comprehensively recover the missing details and improve the semantic integrity of the segmentation output.

While DMA-Net achieves promising results, it still exhibits several limitations. Notably, some output maps show jagged boundaries that fail to align precisely with the ground truth images. In scenarios involving multiple adjacent objects, the model occasionally struggles to delineate clear boundaries. Furthermore, DMA-Net only meets the minimum threshold for visual smoothness, and noticeable stuttering often occurs during practical operation. We also observe that DMA-Net has limited capability in handling class-imbalanced datasets, leading to inefficient capture of small-sample object information. Future work will focus on further improving the model’s processing speed and edge refinement capabilities, while continuing to explore lightweight and high-performance designs suitable for complex remote sensing environments. Additionally, methods such as imbalanced learning and ensemble learning will be adopted to enhance DMA-Net’s ability to capture small-sample object information.
