Spectroscopy of Magnesium Sulfate Double Salts and Their Implications for Mars Exploration

Abstract

Magnesium sulfate has been widely detected on the surface of Mars. The occurrence of magnesium sulfate and mixed cationic sulfates preserves clues regarding the sedimentary environment, hydrological processes, and climate history of ancient Mars. In this study, seven magnesium sulfate double salts were synthesized in the laboratory using a high-temperature solid phase reaction or slow evaporation of aqueous solutions. The samples were analyzed using X-ray diffraction to confirm their phase and homogeneity. Subsequently, the Raman, mid-infrared spectra, and visible near-infrared spectra of these samples were collected and analyzed. Our results showed that the spectra of the analyzed magnesium sulfate double salts exhibited distinctive spectral features. These laboratory results may provide new insights for the identification of various magnesium sulfate double salts on Mars during the interpretation of in situ data collected by Scanning Habitable Environments with Raman and Luminescence for Organics and Chemicals (SHERLOC), SuperCam, and the ExoMars Raman Laser Spectrometer (RLS). In addition, the MIR and VNIR spectra features obtained in this study provide an improved reference and spectra library for decipherment of data sourced from the Thermal Emission Spectrometer (TES), Thermal Emission Imaging System (THEMIS), and Mars Mineralogical Spectrometer (MMS).

1. Introduction

Sulfate minerals (Mg-, Fe-, and Ca-sulfates) have been widely identified across various regions on the Martian surface. The first detection of magnesium sulfate on Mars can be traced back to the Viking spacecraft in 1976. During this mission, the identification of kieserite was proposed based on the correlation between magnesium and sulfur observed in X-ray fluorescence data [1,2]. Subsequently, magnesium sulfate on Mars was identified by OMEGA (Observatoire pour la Minéralogie, l’Eau, les Glaces et l’Activité) and CRISM (Compact Reconnaissance Imaging Spectrometer of Mars Reconnaissance Orbiter) at Arabia Terra, Meridiani Planum, Valles Marineris, Candor Chasma, East Candor, Melas Chasma, Ophir Chasma, and Gale Crater [3,4,5,6,7,8,9,10,11]. Furthermore, in situ detections have also confirmed the presence of magnesium sulfate at various locations on Mars, including Meridiani Planum, Gusev Crater, and Gale Crater, by the Opportunity, Spirit, and Curiosity rovers, respectively [12,13,14]. In particular, the presence of MgSO₄·4H₂O was confirmed at the Gale Crater [15]. Among the identified phases, kieserite stands out as the most common phase of magnesium sulfate identified on Mars, occasionally associated with calcium sulfates (CaSO₄·nH₂O) [16]. The magnesium sulfates found in various regions on Mars are acknowledged to play a crucial role in the climate evolution and hydrological cycle of Mars, especially because they hold information about different environmental parameters (e.g., pH, Eh, and salinity) [14,17].

Sulfate has also been observed to occur as light-toned veins in the Gale Crater, Jezero Crater, and Endeavor Crater [18,19,20,21]. The predominant phases in these light veins have primarily been identified as calcium sulfates exhibiting varying degrees of hydration, including anhydrite, bassanite, and gypsum [18,19,20,21]. This reveals the fluid process and the environmental evolution of typical regions on Mars. However, based on APXS (Alpha Particle X-ray Spectrometer) and LIBS (Laser-Induced Breakdown Spectroscopy) measurements, the composition of these light veins is complex. CaO and SO₃ cannot be balanced in these veins; in addition to Ca²⁺, they also contain other cations, such as Mg²⁺, K⁺, Na⁺, and Fe³⁺ [19,20,21]. This phenomenon is not limited to calcium sulfate veins; magnesium sulfate bedrock enrichments have also been observed in a relatively thin (<10 m) stratigraphic interval within the heterolithic Sutton Island member in the Gale Crater. Interestingly, discrepancies in the balance between SO₃ and MgO have been noted in this context [14]. Furthermore, in the Gale Crater, the concentrations of the Ca²⁺, Na⁺, Mg²⁺, and K⁺ cations in amorphous materials are also not sufficient to entirely balance the abundance of ${\mathrm{SO}}_4^{2-}$ [22]. The APXS data obtained from the Mars Exploration Rover (MER) Opportunity highlighted an association of Ca-sulfate with Mg-sulfate in the sedimentary outcrops of the Meridiani Planum [23], along with the UV-vis data from the OMEGA spectrometer on Mars Express [16]. These observations suggest the presence of mixed cations (e.g., double salts and solid solutions) on Mars.

Regarding the origin of magnesium sulfate double salts or solid solutions, previous works have suggested that the sulfur may be sourced from various fluid activities on Mars. These include high-temperature volcanic gases, hydrothermal fluids [24,25,26], or low-temperature groundwater interacting with S-bearing rocks. In addition, modeling studies have been used to understand the nature and sequence of salts precipitated from multicomponent magnesium-sulfur-rich solutions [27]. These models aim to serve as potential analogs for the overall composition of the early Martian hydrosphere [27,28,29]. For example, King et al. (2004) predicted phases in the Mg-Na-SO₄-Cl system based on groundwater compositions of igneous rocks [27]. These groundwaters were found to be enriched in Mg, Ca, Na, K, SO₄, HCO₃/CO₃, and Cl. The evolution of these groundwaters, which should be acidic and sulfate-rich [30], has been predicted to form different double salts or solid solutions [27]. Specifically, blödite (Na₂Mg(SO₄)₂·4H₂O) is an important phase in the Mg-Na-SO₄-Cl system, and picromerite (K₂Mg(SO₄)₂·6H₂O) is another important phase in the low calcium alkali water and salt system [27].

To date, the presence of magnesium sulfate double salts on Mars is still being debated. To accurately reveal the mineralogy of light-toned veins and magnesium sulfate sedimentary rocks, seven magnesium sulfate double salts were synthesized in the laboratory. The synthesized samples were divided into Na-Mg, K-Mg, and K-Ca-Mg systems. XRD (X-ray diffraction), Raman, MIR (mid-infrared), and VNIR (visible and near-Infrared) spectrometers were used to analyze these samples. The distinctive spectral features identified in this analysis aim to fill the existing gap in the spectral understanding of magnesium sulfate double salts. Our results are expected to be instrumental in processing remote sensing and in situ data, and in detecting magnesium sulfate double salts on Mars and Earth. Eventually, this work can also provide laboratorial parameters for constraining the formation and alteration processes of magnesium sulfate double salts on Mars.

2. Materials and Methods

2.1. Materials

Seven magnesium sulfate double salts were synthesized in the laboratory using high-temperature solid phase reaction or slow evaporation of aqueous solution methods. The reagents used in this study included sodium sulfate (Na₂SO₄, ≥99%, AR (Analytical Reagent)), anhydrous sodium sulfate (MgSO₄, ≥99%, AR), potassium sulfate (K₂SO₄, ≥99%, AR), magnesium sulfate heptahydrate (MgSO₄·7H₂O, ≥99%, AR), and calcium sulfate dihydrate (CaSO₄·2H₂O, ≥99%, AR). The CaSO₄·2H₂O, Na₂SO₄, MgSO₄, K₂SO₄, and MgSO₄·7H₂O were all analytical reagent phases, purchased from the Sinopharm Chemical Reagent Beijing Co., Ltd. (Beijing, China).

2.2. Synthesis of Magnesium Sulfate Double Salts

Blödite (Na₂Mg(SO₄)₂·4H₂O) was synthesized by evaporating salt solutions that contained 18.18 wt% of sodium sulfate (Na₂SO₄) and 16 wt% of anhydrous magnesium sulfate (MgSO₄) at 323 K in an oven for 5 days [31].

Konyaite (Na₂Mg(SO₄)₂·5H₂O) was prepared by evaporating solutions containing sodium sulfate (Na₂SO₄) and magnesium sulfate heptahydrate (MgSO₄·7H₂O) in a molar ratio of 1:1 in a Petri dish at 308 K for 5 days in an oven [32].

Löweite (Na₁₂Mg₇(SO₄)₁₃·15H₂O) was synthesized from a solution of magnesium sulfate heptahydrate (MgSO₄·7H₂O) and anhydrous sodium sulfate (Na₂SO₄) in a molar ratio of 7:6 at 353 K for 5 days in an oven [33].

Langbeinite (K₂Mg₂(SO₄)₃) was synthesized using magnesium sulfate heptahydrate (MgSO₄·7H₂O) and anhydrous potassium sulfate (K₂SO₄) which was mixed according to a molar ratio of 2:1 [34], and ground for 1 h. The ground materials were put into a muffle furnace, heated at 973 K for 3 h, and then removed immediately and placed at room temperature to quench. The quenched product was ground for 20 min, then heated again at 673 K for about 24 h. The product was immediately placed at room temperature, left to cool, and then bottled.

Leonite (K₂Mg(SO₄)₂·4H₂O) was synthesized by mixing 0.015 mol anhydrous potassium sulfate (K₂SO₄) and 0.015 mol magnesium sulfate heptahydrate (MgSO₄·7H₂O) in 70 mL H₂O, followed by blending the solution in a magnetic mixer for 30 min. Then, water from the solution was evaporated in a drying oven at 363 K [35]. Three days later, the crystal was obtained under the experimental conditions and bottled.

Picromerite (K₂Mg(SO₄)₂·6H₂O) was synthesized using an equal molar amount of anhydrous potassium sulfate (K₂SO₄) and magnesium sulfate heptahydrate (MgSO₄·7H₂O) in a triple distilled water medium. The resulting mixture underwent evaporation to remove water in a drying oven at 308 K [36]. After four days, the water had evaporated completely, and the crystal was harvested.

K₂CaMg(SO₄)₃ was synthesized by mixing anhydrous potassium sulfate (K₂SO₄), magnesium sulfate heptahydrate (MgSO₄·7H₂O), and calcium sulfate dihydrate (CaSO₄·2H₂O) in equal molar amounts. The mixture was ground for 45 min. Then, the ground material was put into a muffle furnace, heated at 1073 K for 20 h, and then cooled to room temperature. The cooled product was ground for half an hour, heated at 673 K for 17 h, and then slowly cooled to room temperature. This synthesis method comes from PDF#20-0866 [37].

2.3. Instruments

XRD analysis was carried out at Shandong University, Weihai, utilizing a Rigaku UltimaIV diffractometer equipped with CuKα radiation (λ = 1.54052 Å). The measurements were conducted at an acceleration voltage of 40 kV, a current of 40 mA, and a scanning step of 0.02°, within the range of 5° to 70°. The software JADE 6.5, along with the PDF-2004 database from Materials Data Inc. (Greensburg, PA, USA), was employed to determine the position and width of the diffraction peaks, as well as the crystal face index.

The homogenous and phase identification of the seven synthesized samples was carried out using Raman spectroscopy. The Raman spectra of the magnesium sulfate double salts were obtained using the InVia Raman imaging system of Renishaw’s micro laser Raman spectrometer. A 532 nm laser excitation from a DPSS laser and a 50× telephoto objective was used to collect signals. The Raman spectra of the samples were collected in the range of 100–4000 cm⁻¹, including basic molecular and lattice vibration modes. The spectral resolution of the InVia system was better than 1 cm⁻¹, and the spectral repeatability was ±0.2 cm⁻¹. The emission line of the Ne lamp was used to calibrate the wavelength of the spectrometer, and also to calibrate the Raman peak position of the Si chip at ~520.7 cm⁻¹ every day. Through these two calibrations, an accuracy of ±0.2 cm⁻¹ was ensured for the Raman peak position.

The Bruker vertex 70 Fourier Transform infrared spectrometer at Shandong University in Weihai was used to obtain the MIR spectra of samples in the range of 400–4000 cm⁻¹ with 32 scans. The Spectral resolution was better than 0.16 cm⁻¹, with a signal-to-noise ratio of 45000:1. To measure the MIR transmission spectrum, we chose the HF-12 tablet mold. The KBr and sample were mixed at a mass ratio of 100:1, then the mixture was ground. Finally, the ground mixture was put into the HF-12 tablet mold and pressed by the tablet press at 12–13 MPa for 2 min.

The FiledSpec4 Hi-Res VNIR spectroradiometer (Analytical Spectral Devices (ASD), Inc. (Boulder, CO, USA)) at Shandong University in Weihai was used to obtain the VNIR spectra of the samples in the range of 350–2500 nm. The spectrum had a resolution of 3 nm in the range of 350–1000 nm and 8 nm in the range of 1000–2500 nm. Before measurement, the spectrometer was calibrated using a Lambert surface (SRS-99-010) from Labsphere^® (Peabody, MA, USA).

3. Results

3.1. XRD Pattern

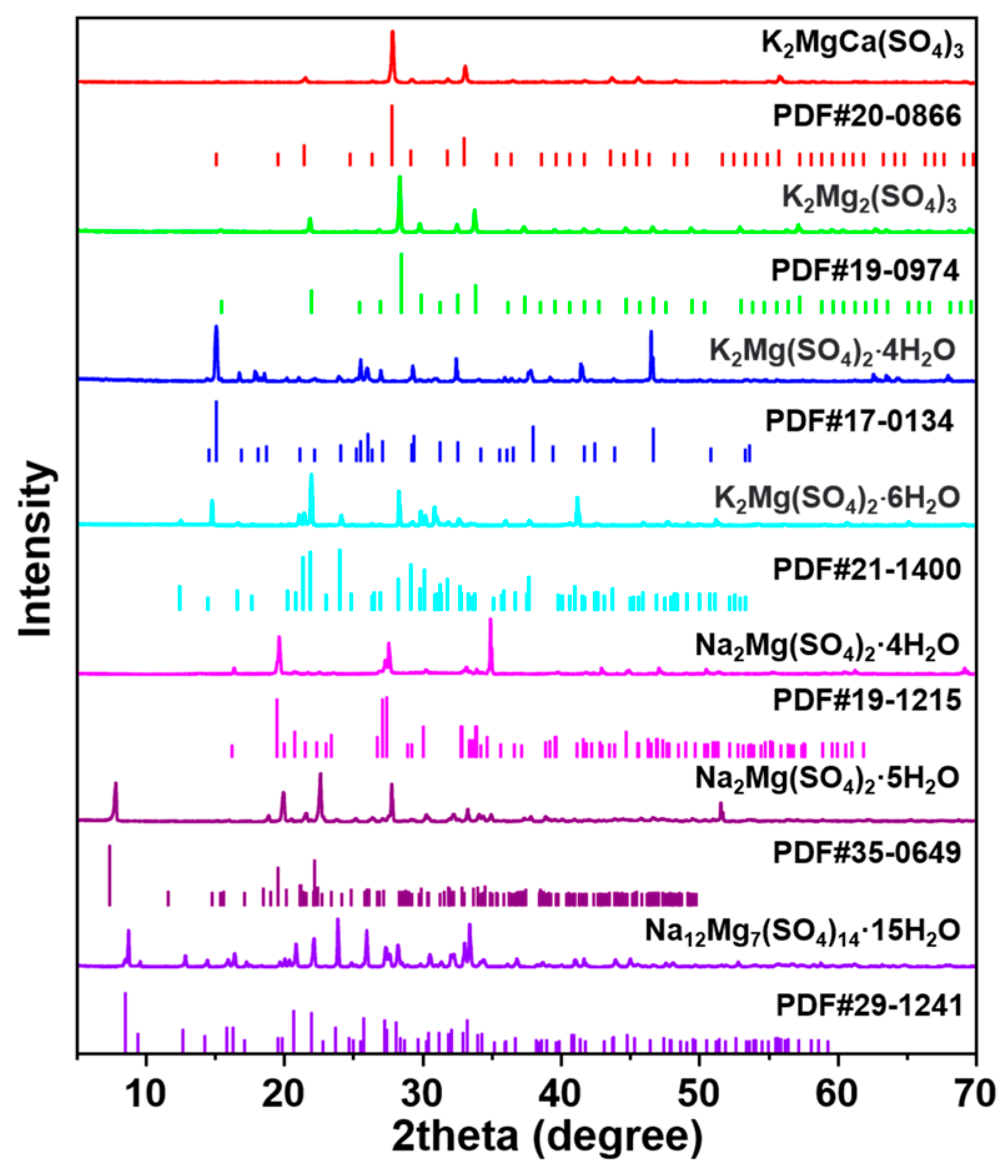

The XRD patterns collected from the synthesized seven magnesium sulfate double salts are shown in Figure 1. All samples were not ground, and were measured at room temperature with a 2theta angle of 5°–70°. The seven samples were then directly put into the molds and the surfaces were flattened. The phase identifications of the seven samples were firstly conducted by XRD, according to the standard in the PDF-2004 mineral database. The diffraction patterns of these samples were well matched with those of the PDF-2004 mineral database according to evaluation of the positions of all of the apparent peaks. The results indicated that the synthesized samples were pure and homogeneous. Consequently, we were able to proceed with additional spectroscopic analyses of the pure synthesized samples.

3.2. Raman

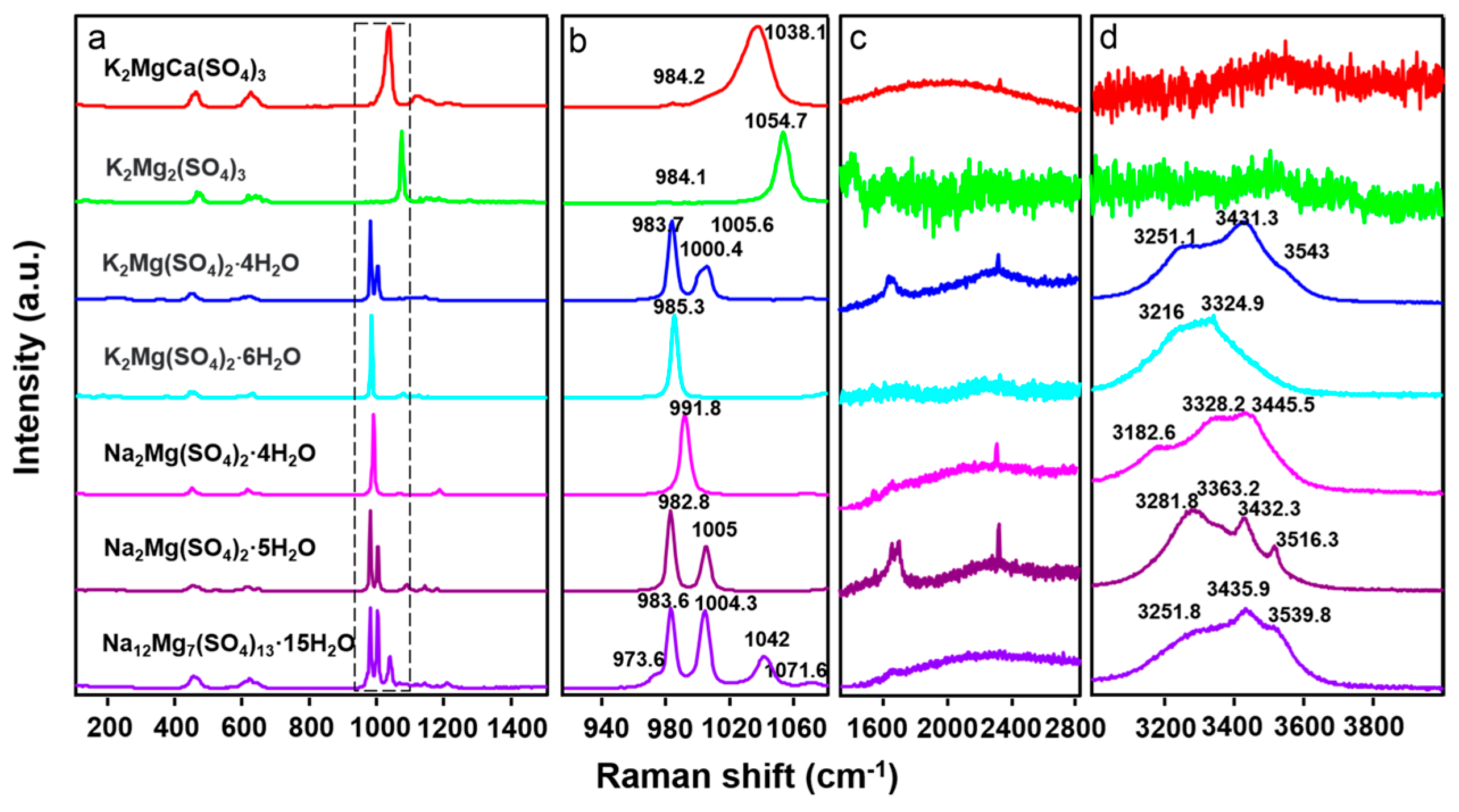

All of the samples were placed on a slide without grinding and then pressed flat, and testing was carried out at room temperature, with the laser shining vertically at the sample. The characteristic Raman spectra of the seven magnesium sulfate double salts were collected from 100 to 4000 cm⁻¹ (Figure 2;

Table 1. Raman peak position (cm⁻¹) of seven magnesium sulfate double salts.

Sample	H2O Mode			SO4 Vib. Mode				Others
	Stretching	Bending	Bending + Rocking	ν1	ν2	ν3	ν4	Lattice Vibration
K2MgCa(SO4)3				984.2	452.9	1122.8	609.0
				1025.9	466.0	1154.7	625.4
				1038.1		1212.4	643.5
						1235.8
K2Mg2(SO4)3				984.1	441.8	1109.1	606.8	128.2
				1054.7	457.4	1124.2	618.2	139.5
					467.7	1136.8	628.0	183.0
					473.8	1151.3	640.0	202.3
						1162.8	658.5
						1178.1
						1197.0
						1251.1
K2Mg(SO4)2·4H2O	3251.1	1658.8	2329.9	983.7	447.1	1068.7	582.2	105.8
	3431.3			1000.4	456.5	1063.6	604.7	115.8
	3543.0			1005.6	465.5	1116.1	627.0	123.4
						1130.5		131.9
						1145.5		138.0
						1179.7		144.0
								160.5
								205.7
								220.8
								244.7
								343.6
K2Mg(SO4)2·6H2O	3216.0			985.3	448.0	1080.3	612.0	116.8
	3324.9				460.4	1110.7	632.7	139.2
						1125.8		187.2
						1155.2		227.9
								270.4
								303.9
								377.4
Na2Mg(SO4)2·4H2O	3182.6		2329.0	991.8	454.9	1069.1	617.4	107.1
	3328.2				470.4	1114.6	629.2	126.5
	3445.5					1173.1		152.2
						1188.1		181.2
								197.3
								220.9
								260.8
								299.1
								351.6
Na2Mg(SO4)2·5H2O	3281.8		2328.9	982.8	448.8	1090.3	613.9	106.0
	3363.2			1005.0	458.7	1130.6	622.8	122.4
	3432.3				472.4	1145.1	650.1	145.6
	3516.3					1180.1		170.2
								194.9
								217.8
								242.0
								254.4
Na12Mg7(SO4)13·15H2O	3251.8	1653.3	2152.3	973.6	456.5	1071.6	608.9	119.5
	3435.9			983.6	463.6	1120.5	626.2	141.0
	3539.8			1004.3	473.3	1145.2	642.7	167.2
				1042.0		1184.9		178.6
						1212.3		205.3
								219.3
								240.6

). The Raman spectra revealed the fundamental vibrational modes of the molecules. The vibrational characteristics of the synthesized samples in the region of 100–1400 cm⁻¹ indicated the effects of ${\mathrm{SO}}_4^{2-}$ tetrahedra, including symmetric stretching (ν₁), antisymmetric stretching (ν₃), symmetric bending (ν₂), and antisymmetric bending (ν₄) modes around 983, 1105, 450, and 611 cm⁻¹, respectively [38,39]. The region between 1500 and 4000 cm⁻¹ showed the O–H stretching mode of the structure of H₂O. H₂O characteristics relating to the symmetric stretching (ν₁), antisymmetric stretching (ν₃), and bending (ν₂) modes were typically observed at around 3450, 3615, and 1640 cm⁻¹, respectively [38,39]. The Raman features, and their assignment to the seven synthesized samples, are summarized in Table 1.

Compared with previous studies, the Raman features of Na₂Mg(SO₄)₂·4H₂O revealed here showed two more peaks at 617.4 cm⁻¹ (ν₄) and 1173 cm⁻¹ (ν₃), and the other peaks exhibited differences of about 3 cm⁻¹ [33]. We assigned these peaks using the H₂O mode assignment of other magnesium sulfate salts [33,38,40], since the Raman measured by Vargas Jentzsch et al. (2011) did not identify peaks in the 1500–4000 cm⁻¹ range [33]. The peaks at 3186.3, 3328.2, and 3445.5 cm⁻¹ were attributed to the H₂O stretching mode, and the weak band at 2329.0 cm⁻¹ was attributed to the H₂O bending mode combined with the rocking mode [38]. The bending modes at about 1640 cm⁻¹ were too weak to be observed.

Several peaks were also observed in the corresponding positions of the ν₁ mode, v₂ mode, ν₃ mode, and ν₄ mode in other samples. The strong peaks of the ν₁ mode were consistent with previous work, but the positions and numbers of some peaks were not particularly compatible with past research. For Na₂Mg(SO₄)₂·5H₂O, the ν₄ mode had three peaks at 613.9, 622.8, and 650.1 cm⁻¹, which was different from the four peaks observed at 602, 610, 619, and 648 cm⁻¹ in a previous study [33]. The ν₃ mode had four peaks at 1090.3, 1130.6, 1145.1, and 1180.1 cm⁻¹, but previous work reported only three peaks at 1091, 1144, and 1179 cm⁻¹ [33]. The observed variations in the Raman feature numbers of Na₂Mg(SO₄)₂·5H₂O between the study by Vargas Jentzsch et al. in 2011 and our results may be attributed to the diverse synthesis methods employed in their production. Different synthetic techniques can yield distinct levels of crystallinity in samples, contributing to the observed differences in their Raman spectra [33]. For Na₁₂Mg₇(SO₄)₁₃·15H₂O, the ν₃ mode had one more peak, located at 1184.9 cm⁻¹, than was detected in previous work. For K₂Mg₂(SO₄)₃, we compared the observed Raman features with the corresponding R070285 from the RRUFF database (rruff.info), and the peak locations matched well with the results in the database. For K₂Mg(SO₄)₂·4H₂O and K₂CaMg(SO₄)₃, we did not find a detailed Raman spectral study. However, the results of XRD showed that the phase of our sample corresponded well with the corresponding PDF reference pattern; thus, the results for these two samples were recognized as accurate. The Raman features of K₂Mg(SO₄)₂·6H₂O were also well matched with the results of Marzougui et al.(2015) [41].

3.3. MIR

For MIR spectra measurement, small samples was taken directly from all samples without grinding. Section 2 of this paper describes the sample preparation process. The test was carried out at room temperature, and the sample surface was at a 90-degree angle with the infrared laser (that is, the test angle was 90 degrees). The MIR spectra were taken to support the Raman spectra, and the MIR vibration modes of the seven magnesium sulfate double salts were identified. The peak centers and assignments of the seven synthesized samples are shown in

Table 2. MIR peak position (cm⁻¹) and assignment of seven magnesium sulfate double salts.

Sample	H2O Mode				SO4 Vib. Mode
	Stretching	Bending	Vibrational	ν1	ν2	ν3	ν4
K2MgCa(SO4)3					417.9	1024.5	612.0
					423.3	1123.5	632.2
					442.1		654.4
K2Mg2(SO4)3				1046.5	415.6	1116.8	605.5
					426.4	1128.5	610.5
					437.1	1139.0	636.4
					448.1	1149.8	660.2
						1172.2	668.0
K2Mg(SO4)2·4H2O	3180.9	1604.0	773.2	981.9	428.9	1090.2	568.4
	3365.9	1676.5	823.1	1003.0	437.5	1114.6	623.5
	3447.6				452.3	1129.4	644.7
	3524.5				477.0	1149.3	668.0
	3558.5				515.6	1169.3	714.7
						1185.3
K2Mg(SO4)2·6H2O	3187.5	1673.7	761.5	983.1	443.4	1077.0	584.6
	3497.9		875.8		444.7	1160.0	609.1
					456.9	1209.2	632.8
					513.6		705.6
Na2Mg(SO4)2·4H2O	3185.4	1596.5	834.9	993.3	423.5	1079.0	584.0
	3460.6	1631.8	881.8		441.1	1116.9	620.4
		1675.8			459.5	1160.5	662.3
					466.1	1185.9	725.8
					474.5
Na2Mg(SO4)2·5H2O	3219.8	1673.8	761.6	981.8	429.3	1080.8	573.5
	3443.7		825.6	1003.5	444.6	1130.2	603.9
	3516.5				456.1	1148.8	623.5
	3525.3				475.4	1186.7	644.6
	3562.0				480.4		668.0
					516.2		709.0
Na12Mg7(SO4)13·15H2O	3205.4	1660.1	773.9	983.8	406.4	1085.5	589.3
	3425.9			997.7	418.4	1119.7	615.7
	3574.6				451.2	1148.1	640.0
						1184.6	663.9

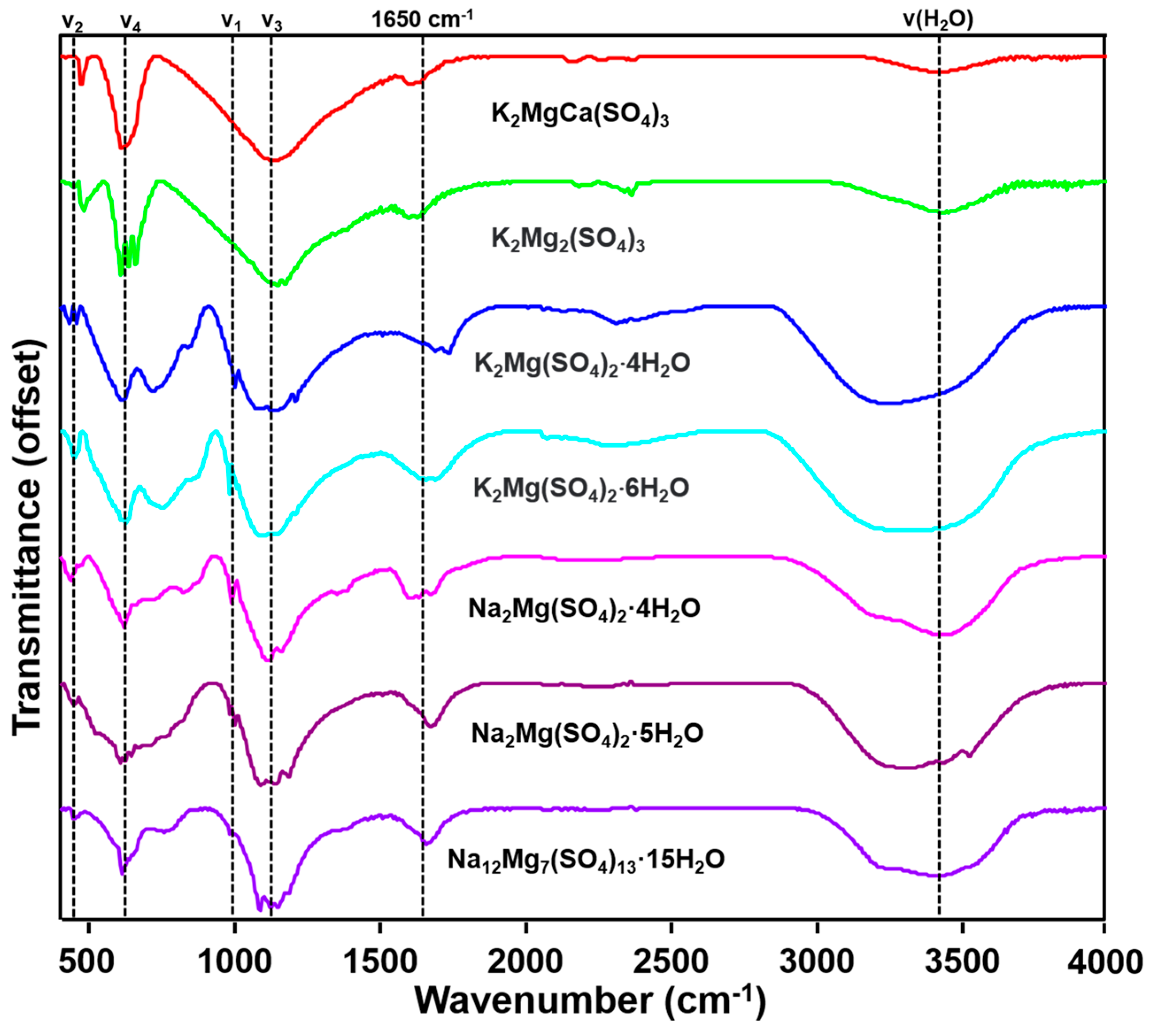

, and their MIR spectra are shown in Figure 3. Generally speaking, the MIR peak positions were close to the Raman peaks, but the MIR peaks were wider than the Raman ones [38,42]. The MIR spectra characteristics were mainly observed at 350–1300 cm⁻¹, 1500–2000 cm⁻¹, and 3000–4000 cm⁻¹. Among them, 350–1300 cm⁻¹ represented the vibration features of the tetrahedron of ${\mathrm{SO}}_4^{2-}$, while the 1500–2000 cm⁻¹ and 3000–4000 cm⁻¹ both indicated the spectra features of the H₂O modes [38,39,43]. The ν₁ mode of ${\mathrm{SO}}_4^{2-}$ was the strongest peak in the Raman spectra; however, the ν₁ feature in the mid-infrared spectra data we obtained was not obvious, and there may even have been one or two less than the ν₁ peak in the Raman data. In the MIR spectra for our samples, the ν₃ mode of ${\mathrm{SO}}_4^{2-}$ contributed the strongest MIR peak. For K₂CaMg(SO₄)₃ and K₂Mg₂(SO₄)₃, the features that appeared in the regions at 1500–2000 cm⁻¹ and 3000–4000 cm⁻¹ were from adsorbed water [39,44].

3.4. VNIR

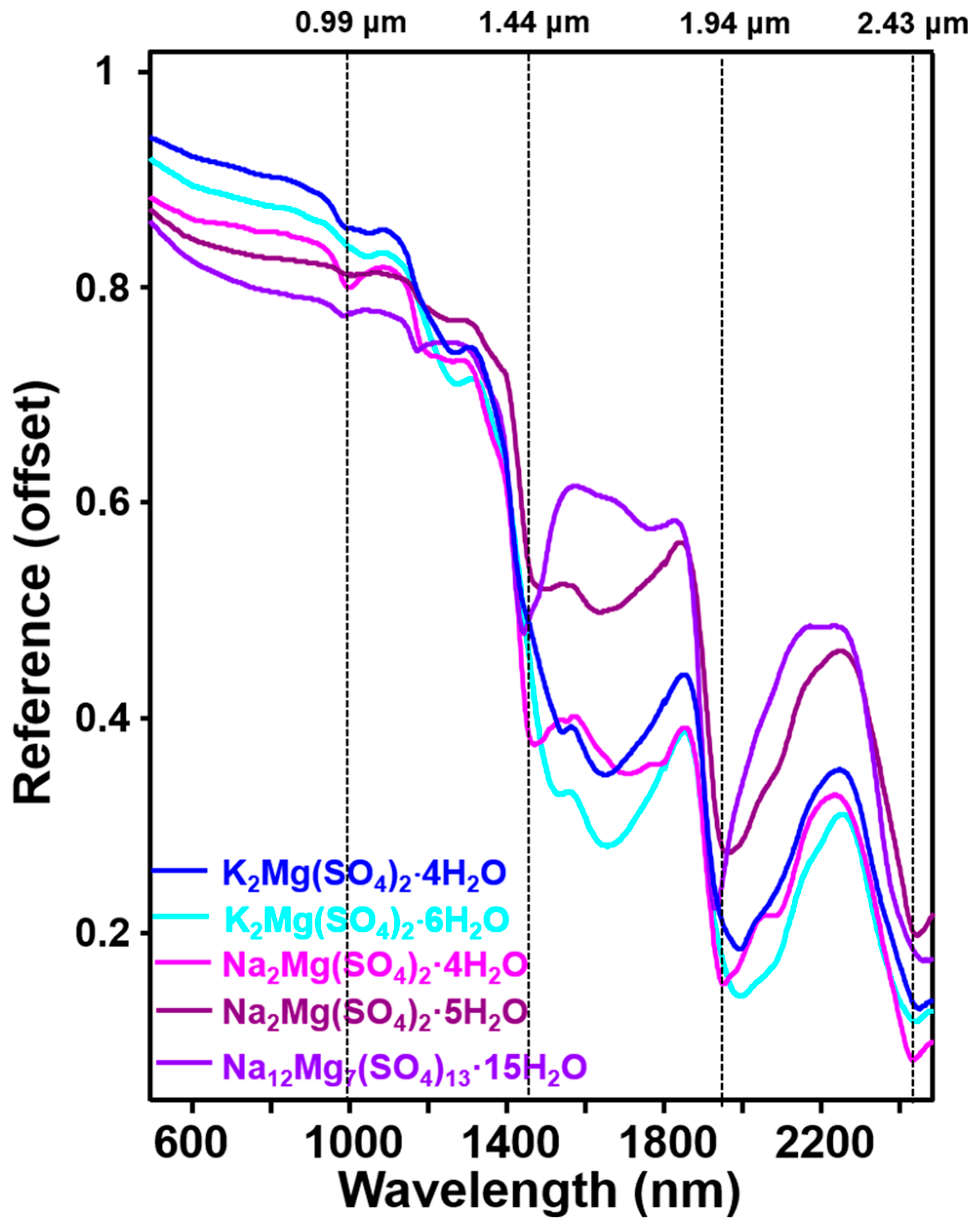

For VNIR testing, the samples were also not ground, but were poured directly into the sample pool on the cup light source at room temperature. The light source was at a 30-degree angle to the sample surface. As there were almost no absorption peaks in the VNIR spectra of K₂CaMg(SO₄)₃ and K₂Mg₂(SO₄)₃, the VNIR spectra from 350 to 2500 nm of the other five hydration samples were taken to investigate the overtone and combinational vibrational modes from the H₂O, OH⁻, and ${\mathrm{SO}}_4^{2-}$ ionic groups. The 500 to 2500 nm region is displayed in Figure 4. The VNIR spectra of the five assessed magnesium sulfate double salts in this study were similar to the VNIR spectra of magnesium sulfates. For K₂Mg(SO₄)₂·nH₂O (n = 4, 6), the peak pattern in the VNIR was very similar, except for a deeper variation in absorption depth with higher hydration, and some peak positions in the high hydrous region showed a small shift to lower wavelengths. The bands between 1700 and 1850 nm were attributed to the combinations of H₂O and OH⁻ bending, translation, and rotation, and the 2100–2500 nm bands were ascribed to the combinations of H₂O and OH⁻ and the fundamental overtones of S–O bending [43]. The peaks between 1900 and 2100 nm were attributed to H₂O interacting with the sulfate ion [5]. Other observable features between 900 and 1900 nm were the overtones and combinations of O–H stretching and H–O–H bending vibrations in H₂O molecules [45]. At around 1900 nm, all five samples showed strong absorption peaks, likely due to a combination of OH stretching and water bending modes. The peak around 2400 nm was due to the combination of the stretching mode of the ${\mathrm{SO}}_4^{2-}$ tetrahedron and the bending mode of water [38,42]. The detailed assignments of absorption peaks are listed in

Table 3. VNIR peak position (cm⁻¹) and assignment of five hydrous magnesium sulfate double salts.

K2Mg(SO4)2·4H2O	K2Mg(SO4)2·6H2O	Na2Mg(SO4)2·4H2O	Na2Mg(SO4)2·5H2O	Na12Mg7(SO4)13·15H2O	Assignment
990				984	2${\nu }_1^W$ + ${\nu }_2^W$
1051	1040	1000	1000		3${\nu }_1^W$ or ${\nu }_3^W$
				1172	2${\nu }_1^W$ + ${\nu }_2^W$
1268	1273	1263	1265		${\nu }_1^W$ + ${\nu }_2^W$ + ${\nu }_1^{SO4}$
1541	1534	1469	1491	1442	2${\nu }_1^W$ or 2${\nu }_3^W$
1650	1656	1550	1638		2${\nu }_1^W$ or 2${\nu }_3^W$
		1709		1765	${\nu }_2^W$ + ${\nu }_3^W$(or ${\nu }_1^W$) +${\nu }_{LT}$
		1951	1963	1930	${\nu }_1^W$ + ${\nu }_2^W$(or ${\nu }_3^W$)
1993	1994	2080			${\nu }_1^W$ + ${\nu }_2^W$(or ${\nu }_3^W$)
				2201	${\nu }_1^W$(or ${\nu }_3^W$) + ${\nu }_3^{SO4}$
2450	2441	2435	2445	2465	${\nu }_2^W$ + ${\nu }_1^{SO4}$ + ${\nu }_3^{SO4}$

.

4. Discussion and Implications for Mars

On Mars, different types of sulfate minerals have been identified by multiple payloads. For example, Ca-sulfates and Mg-sulfates were detected in different elements of the Gale Crater using CheMin (XRD) measurements, and in Jezero Crater in different formations using SHELORC (Raman) measurements. Different species of sulfates were also detected through the IR payloads from the orbiter and in situ rovers, such as PanCam (UV-VNIR) on the Opportunity and Spirit rovers, CRISM on MRO, and OMEGA on Mars Express. However, most sulfates are only inferred to exist on the Martian surface because the spectra shape are similar and there is a lack of reference data. Some minerals synthesized in this study have been detected in Mars-analog environments, such as Na₂Mg(SO₄)₂·4H₂O and K₂Mg(SO₄)₂·4H₂Om, which have been identified in the Atacama desert, one of the most famous Mars-analog sites [46]. This means that Na₂Mg(SO₄)₂·4H₂O, K₂Mg(SO₄)₂·4H₂O, and other minerals synthesized in this study most probably occur on Mars. Therefore, the spectra features obtained in this study can serve as a database for detecting seven different magnesium sulfate double salts.

X-ray diffraction (XRD) serves as a versatile non-destructive analytical technique employed for analyzing various physical properties, including phase composition, crystal structure, and orientation, across powder, solid, and liquid samples. X-ray powder diffraction is now routinely exploited for the identification of minerals in geological materials.

Specifically, CheMin stands out as a miniaturized X-ray diffraction/X-ray fluorescence (XRD/XRF) instrument that is among the ten instruments situated either on or inside the rover, each crafted to furnish comprehensive insights into the rocks, soils, and atmosphere within the designated region. The obtained XRD patterns of the seven synthesized magnesium sulfate double salts will benefit CheMin-based detection in the Gale Crater.

Raman spectroscopy has proven highly valuable in situ for identifying and characterizing mineral phases during planetary surface exploration, encompassing hydrous magnesium sulfates and magnesium sulfate double salts. Our findings indicate that magnesium sulfate double salts exhibit distinct and precise Raman signatures, facilitating direct identification of their phases from raw spectra. This feature promises utility in NASA’s Mars2020 mission using SuperCam and SHERLOC instruments, and in future Mars missions like the ExoMars RSL. Additionally, these data aid in distinguishing magnesium sulfate double salts from other minerals like sulfates and chlorides, which are less easily discerned using alternative spectroscopic techniques. FTIR spectroscopy serves as the current standard for acquiring MIR spectra in laboratory settings, exhibiting high sensitivity to both organic and inorganic phases, including hydrous and anhydrous compounds. Leveraging the principles of MIR, a Thermal Emission Imaging System (THEMIS) was developed and deployed on the Mars Global Surveyor and Mars Odyssey orbiters for remote sensing from orbit. Chojnacki et al. utilized THEMIS data to identify the spectral features of magnesium sulfate-bearing materials in Valles Marineris on Mars [47]. The MIR spectra obtained in our study contribute to the characterization of magnesium sulfate double salt-bearing minerals on Mars using thermal emission spectroscopic techniques, specifically data from THEMIS.

VNIR spectroscopy stands out as the most widely employed technique in orbital remote sensing, offering insights even into biological activities. Nevertheless, the spectral bands around 1.4, 1.9, and 2.4 μm in the VNIR spectra of hydrated magnesium sulfate double salts may overlap with the typical features of certain other hydrated minerals, posing challenges in distinguishing these phases accurately. The standard VNIR spectra we generated for hydrated magnesium sulfate double salts in this study will prove instrumental for VNIR/NIR payload utilization in orbital remote sensing and standoff sensing during forthcoming exploration missions to Mars.

It is true that pure mineral phases are not common in the complex natural systems of Mars. Instead, complex phases are more prevalent, due to the solubilization of salts in soil and rocks triggered by natural processes like groundwater upwelling. This process involves various inorganic compounds, making the composition of the soil and rocks on Mars quite complex. The subsequent vaporization of water leads to the formation of intricate solid mixtures. According to previous studies, evaporite salts (e.g., Na₂SO₄ (thenardite), Na₂SO₄·10H₂O (mirabilite), MgSO₄·6H₂O (hexahydrite), MgSO₄·7H₂O (epsomite), Na₂Mg(SO₄)₂·4H₂O (blödite), and Na₂Mg(SO₄)₂·5H₂O (konyaite)) can be found in saline soil in Mars-analog environments [27,33,48]. Environmental factors can transport these mixtures and minerals to different environment subtypes, such as into the atmosphere, where they are expected to form particles or dissolve and recrystallize into double salts. By analyzing the types and distribution of these produced materials, the sedimentary environments and the environmental factors that produced them can be inferred. Accurate identification of these minerals requires corresponding spectral data; therefore, knowledge of the different spectra properties (e.g., XRD, Raman, MIR, and VNIR) of these mixtures and minerals is essential for analytical purposes.

Evaporite-rich sedimentary deposits on Mars were formed under chemical conditions significantly different from those on Earth. The distinct chemistries of these deposits serve as a record of the chemical and aqueous conditions during their formation and potentially subsequent alterations. During in situ explorations by Mars rovers (e.g., the Opportunity, Spirit, and Curiosity rovers), magnesium sulfate (MgSO₄) salts have been prominently identified, often associated with calcium and iron sulfates, or existing as mixture salts or double salts within the regolith [49,50,51]. These findings have contributed significantly to understanding the geochemistry of Mars [51,52], indicating the potential presence of high sulfate concentrations in past and/or present Martian brines. Furthermore, magnesium sulfates, as revealed by previous studies [2,51,53], may contribute to the water content in the regolith, underscoring the importance of investigating the interaction among Mg-, Fe-, and Ca-sulfates and water, particularly during dynamic processes such as evaporation.

Although direct detection of magnesium sulfate double salts on Mars has not been achieved, numerical evidence supports the possibility of their occurrence on the planet [14,19,20,21,27,28,54]. For example, the in situ detection of magnesium sulfate sedimentary rock associated with calcium sulfates and light-toned veins showed that these structures contain many cations and sulfate ions in different typical regions of Mars, and much modeling has been conducted to understand the evaporation of minerals under Martian conditions [14,19,20,21,27,28]. All results show support for the existence of magnesium sulfate double salts on Mars. The results of this study not only contribute to the potential detection of magnesium sulfate double salts on Mars, but also offer insights into plausible sulfate formation scenarios. Furthermore, this work enhances our understanding of sulfate formation processes, volcanic activities, and the hydrogeologic settings of typical regions on Mars. For example, the fact that K₂CaMg(SO₄)₃ and langbeinite were synthesized at higher temperatures may indicate their presence them around volcanoes, near lava flow areas, and near the impact areas that provide heat sources on Mars. The other five magnesium sulfate double salts can most probably be identified in areas with a geological history of aqueous activities, such as those formed with different fluids, fractures, hydrothermal systems, and other evaporite environments. Moreover, these aqueous solutions may have originated from groundwater upwellings, springs, and hydrothermal fluids formed by the impact process. In summary, both the synthetic methods of magnesium sulfate double salts and their obtained spectroscopic data are of great significance for understanding the geological environment of Mars and its geochemical processes.

5. Conclusions

In this study, seven magnesium sulfate double salts were synthesized in the laboratory, and spectroscopic studies were conducted using XRD, Raman spectroscopy, MIR, and VNIR techniques. The homogeneity and phase of seven samples were determined by XRD patterning. The Raman spectra unveiled the molecular fundamental vibrational modes, with the ν₁ mode of ${\mathrm{SO}}_4^{2-}$ being particularly prominent. To complement the Raman data and reveal additional fundamental vibrational modes, MIR spectra were collected. Additionally, VNIR spectra were acquired to expose the combination modes of water and the ${\mathrm{SO}}_4^{2-}$ tetrahedron. Different samples showed unique spectra features that can be used to precisely identify phases in evaporite environments on Earth and Mars. Raman spectroscopy, in particular, can easily distinguish samples with the same cations but different hydrated states, and samples with different cations. These data will be helpful for data processing in instruments used in Mars exploration with the same spectrum (e.g., RLS at Oxia Planum and SHERLOC at the Jezero Crater), and the features of Raman, MIR, and VNIR can assist in the identification of Martian sulfates and aid in understanding environmental changes on Mars and Earth. In general, both the synthesis methods of magnesium sulfate double salts and the spectral data obtained from them are of significant importance for understanding the geological environment and geochemical processes of Mars.
