See the Unseen: Grid-Wise Drivable Area Detection Dataset and Network Using LiDAR

Abstract

Drivable Area (DA) detection is crucial for autonomous driving. Camera-based methods rely heavily on illumination conditions and often fail to capture accurate 3D information, while LiDAR-based methods offer accurate 3D data and are less susceptible to illumination conditions. However, existing LiDAR-based methods focus on point-wise detection, so are prone to occlusion and limited by point cloud sparsity, which leads to decreased performance in motion planning and localization. We propose Argoverse-grid, a grid-wise DA detection dataset derived from Argoverse 1, comprising over 20K frames with fine-grained BEV DA labels across various scenarios. We also introduce Grid-DATrNet, a first grid-wise DA detection model utilizing global attention through transformers. Our experiments demonstrate the superiority of Grid-DATrNet over various methods, including both LiDAR and camera-based approaches, in detecting grid-wise DA on the proposed Argoverse-grid dataset. Grid-DATrNet achieves state-of-the-art results with an accuracy of 93.28% and an F1-score of 0.8328. We show that Grid-DATrNet can detect grids even in occluded and unmeasured areas by leveraging contextual and semantic information through global attention, unlike CNN-based DA detection methods. The preprocessing code for Argoverse-grid, experiment code, Grid-DATrNet implementation, and result visualization code are available at AVE Laboratory official git hub.

1. Introduction

The detection of Drivable Areas (DAs) is a fundamental and indispensable component in the development of autonomous vehicle technology. Autonomous vehicles, which detect objects around them (referred to as the ego-vehicle), rely on their ability to perceive and understand their surroundings in order to safely navigate through complex environments. The primary function of DA detection is to identify safe zones on the road that are free of obstacles, ensuring reliable navigation, path planning, and decision-making. This capability becomes particularly crucial in dynamic driving scenarios involving varying weather conditions, unpredictable traffic situations, and diverse road geometries. Accurate DA detection is essential for avoiding collisions, maintaining lane discipline, and executing safe maneuvers in both urban and highway settings.

Traditional methods for DA detection have predominantly relied on camera-based systems that use image data to identify drivable regions [1,2,3]. While cameras provide rich color and texture information, they suffer from several limitations that impede their effectiveness in real-world scenarios. One significant challenge is their performance degradation under adverse illumination conditions, such as low light, shadows, glare, and nighttime driving [4]. Additionally, camera-based approaches often project images onto a Bird’s Eye View (BEV) map for a better understanding of the spatial layout [2]. However, this projection process can introduce distortions, especially near the image’s vanishing point, leading to inaccuracies in DA localization. Such distortions become more pronounced in environments with irregular illumination, wet road surfaces, or complex shadows, compromising the reliability of camera-based DA detection [4,5].

To overcome the limitations of camera-based methods, Light Detection and Ranging (LiDAR) has been increasingly utilized for DA detection. LiDAR systems generate precise 3D point clouds that represent the vehicle’s surroundings, offering significant advantages such as robustness against varying illumination condition and the elimination of projection distortions associated with BEV maps [6]. LiDAR’s ability to provide accurate depth information makes it well-suited for detecting obstacles and defining road boundaries in challenging scenarios. Despite these advantages, current LiDAR-based DA detection techniques are predominantly based on point-wise segmentation methods. These methods, however, struggle to perform effectively in highly complex environments, where road boundaries may be obscured or occluded by objects such as vehicles, pedestrians, or vegetation. The point-wise segmentation often lacks the global context needed for coherent DA detection in such cases, limiting its practical utility.

Given the limitations of both camera-based and LiDAR-based approaches, there is a need for more advanced DA detection methods that can provide comprehensive and accurate coverage of the entire driving environment. To address these challenges, we propose a novel grid-wise DA detection approach that extends beyond the point-wise segmentation paradigm. Our method involves dividing the BEV map into a grid and detecting DA at the grid level, thereby covering all regions and enhancing the robustness of DA detection, as illustrated in Figure 1. This grid-wise approach provides a more holistic view of the drivable space, and is better suited for handling occlusions and complex road geometries. However, the advancement of grid-wise DA detection has been hindered by the lack of large-scale open-source datasets with appropriate grid-wise labels, which are essential for training and benchmarking deep learning models.

To address the lack of grid-wise DA detection dataset and enable rigorous benchmarking of grid-wise DA detection methods, we generate training labels directly from the Argoverse dataset [7], leveraging its multimodal data and Rasterized Road Map. By utilizing these rich data sources, we create a diverse training dataset specifically tailored for grid-wise DA detection, which we call Argoverse-grid. This new dataset includes high-resolution BEV maps with detailed annotations and accurate calibration parameters, providing a comprehensive foundation for developing and evaluating DA detection algorithms.

Our objective is to develop a technology that significantly improves the precision and recall of road detection compared to existing methods. The grid-wise approach, facilitated by Argoverse-grid, holds substantial promise for enhancing the accuracy and reliability of DA detection. This improvement is pivotal for ensuring the safety and efficiency of autonomous driving systems in real-world scenarios.

In this paper, we introduce Argoverse-grid, the first large-scale dataset specifically designed for grid-wise DA detection, derived from the original Argoverse dataset. Argoverse-grid is characterized by detailed DA maps and precise calibration data, which are crucial for accurate DA detection. In addition, we propose Grid-DATrNet, a novel deep learning model designed as a baseline for grid-wise DA detection. Grid-DATrNet leverages transformer architecture with global attention mechanisms, enabling it to effectively capture both contextual and semantic information necessary for accurate DA detection, especially in far-field regions. We demonstrate that Grid-DATrNet achieves superior performance compared to existing camera-based or LiDAR-based DA detection methods, thereby establishing a new benchmark for the field.

In summary, the key contributions of this paper are as follows:

• A novel DA detection scheme termed grid-wise DA detection, which enhances the robustness and accuracy of DA detection across varied driving environments.
• Argoverse-grid, a newly proposed large-scale dataset specifically curated for training and benchmarking grid-wise DA detection models.
• A Grid-wise DA detection network, termed Grid-DATrNet, that utilizes global attention mechanisms to detect DA effectively, especially in distant regions where conventional methods often falter.

This paper is organized as follows. Section 2 provides a comprehensive overview of related work and situates our study within the broader context of DA detection research. Section 3 details the Argoverse-grid dataset, and introduces our proposed baseline model, Grid-DATrNet. In Section 4, we present the experimental setup and the results obtained. Finally, we conclude our findings and discuss future directions in Section 5.

2. Related Works

2.1. Camera-Based DA Detection

Early methods for DA detection in autonomous vehicles relied on heuristic techniques applied to camera images. These methods, including edge detection, lane detection, and vanishing point analysis, often struggled in challenging scenarios due to their reliance on handcrafted rules. With the rise of deep learning, there has been a shift towards using Convolutional Neural Networks (CNNs) for DA detection, treating it as a semantic segmentation task [1,8,9,10]. Notable models include ENet [11], HDCNet [12], PPNet [13], and ESPNet [14], which have improved performance by effectively capturing contextual information from images using various architectures and techniques such as dilated convolutions and spatial pyramid pooling. While HDMapNet [5] using multi-view cameras to detect DA edge for generating online map using CNN, attention mechanisms have also been incorporated to enhance feature encoding, resulting in models like Dual Attention Modules [15], YOLO Panoptic [16], and TwinLiteNet [17], which excel in capturing semantic information for DA detection. Lately, some attention-based architectures, such as VectorMapNet [3] and MapTrNet [4], have been used for predicting DA edge detection using multiple cameras to detect the map around autonomous vehicles. Some approaches also use temporal multi-camera systems to achieve more accurate DA edge detection, such as StreamMapNet [18], but these require significant computation as they need to process features from multiple camera frames. Some research efforts have also explored predicting DA edge detection using multi-camera systems with Bezier Curve representation [19,20] or Douglas–Peucker point representation [21,22]. However, predicting DA edges as vectors does not provide information on whether there are objects on the road, and it also requires considerable computation. Other methods attempt to predict DA using multi-view cameras and a prior known city map [23]. Despite significant advancements in multi-camera DA detection research, current methods still struggle to predict DA accurately in poor illumination condition and in distant areas [24].

2.2. Point-Wise DA Detection

While advancements in camera-based DA detection [17] have made significant progress, these methods still rely on Bird’s-Eye View (BEV) projection, which can introduce distortion in the resulting DA. This distortion limits the range for motion planning, as shorter distances are required to ensure reliable navigation [25]. Moreover, camera sensors are sensitive to conditions like low light or strong glare [26]. As a result, LiDAR has become a promising alternative for accurately detecting DA in 3D space. One common method for LiDAR-based DA detection is point-wise detection, where the system determines whether each LiDAR point corresponds to a DA or not.

Initially, researchers attempted to use heuristic methods for DA detection using LiDAR. For instance, Ali et al. [27] introduced an angular method to detect whether the DA and obstacles are on the road. Zhang [28] proposed DA detection by employing linear regression to minimize the standard deviation of road height and obstacle height. However, heuristic-based DA detection performs robustly under normal and sparse road conditions, but poorly in complex situations such as occlusions, traffic jams, and construction. Therefore, DL-based DA detection emerged as it did for camera-based methods.

Paigwar et al. [6] is a pioneering point-wise DA detection method that utilizes PointPillars [29] on LiDAR data and processes pillar features with CNNs to capture global features of LiDAR points and predict whether a LiDAR point corresponds to the DA or not. Some researchers have also proposed methods to combine camera images and LiDAR points for DA detection. Nagy et al. utilized LiDAR as an additional sensor with a camera for DA detection by using LiDAR points as guidance for DA segmentation in the camera with low confidence scores [30]. Similarly, Raguraman et al. proposed DA detection using LiDAR when DA detection using camera images fails to identify any ego lane [31]. Meanwhile, Lele Wang et al. introduced a novel DA detection method using both LiDAR and camera by combining predictions from camera-based DA detection and LiDAR-based DA detection using the Conditional Random Field method [32].

2.3. Grid-Wise DA Detection

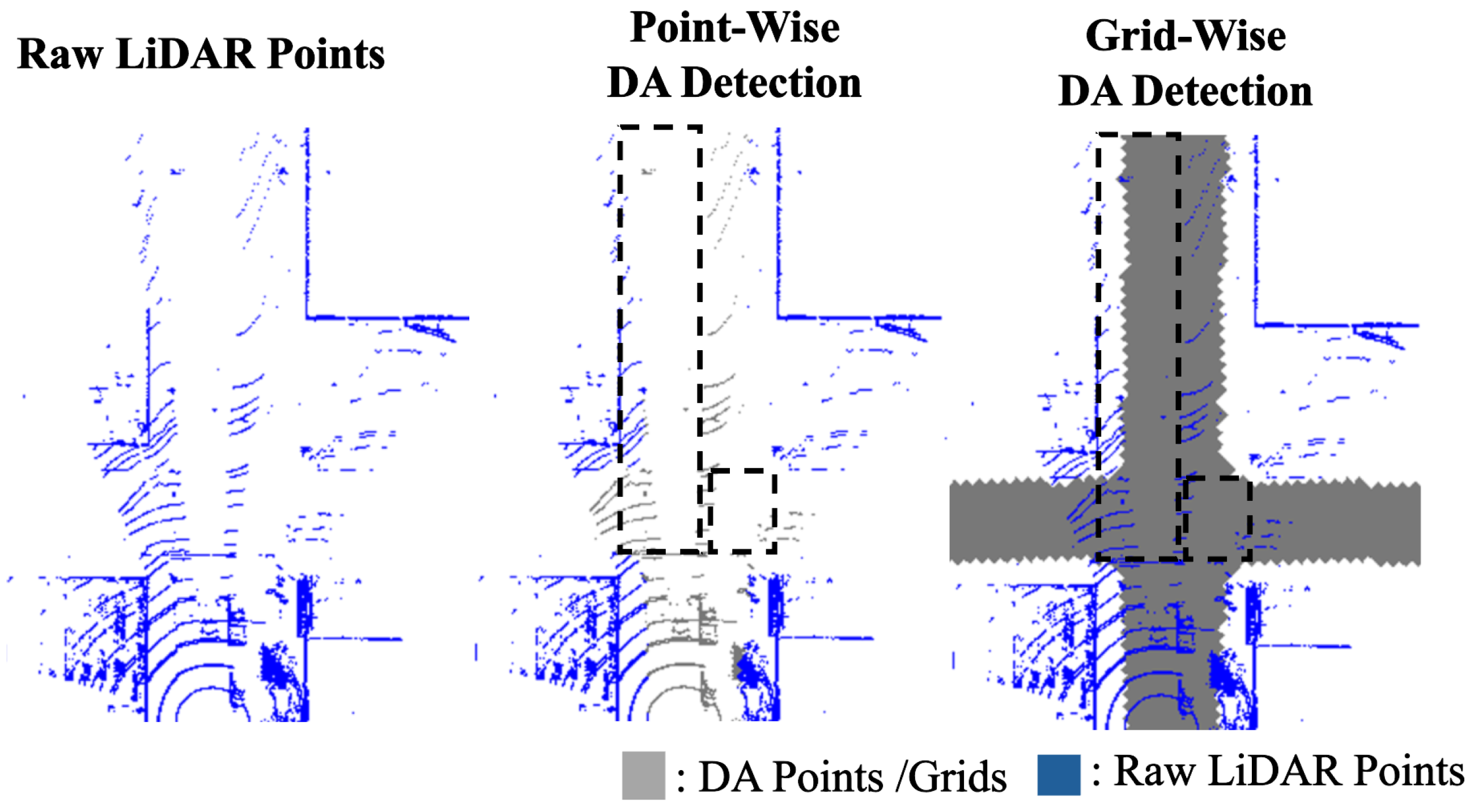

In contrast with point-wise DA detection, grid-wise DA detection divides the area surrounding the autonomous vehicle into grid cells and performs detection on each cell in a Bird’s Eye View (BEV) perspective. BEV is a top-down view of the environment around the vehicle, providing a more intuitive representation for navigation and planning tasks. Hanzhang Xue et al. proposed a method for detecting grid-wise DA around autonomous vehicles using predefined ground height and employing a Bayesian Gaussian Kernel method to predict whether a grid cell is a DA or not [33]. The LoDNN model stands as one of the pioneers of LiDAR-based grid-wise DA detection, utilizing the BEV map of LiDAR points and a simple CNN architecture [34].

Nagy et al. introduced a method to convert 3D LiDAR data into 2D panoramic data and employed a U-Net backbone [35] or SegNet backbone [36] to capture local and global semantic information [30]. However, the performance of this method diminishes significantly when the road is distant from the autonomous vehicle. Zhong et al. proposed LRTI by converting LiDAR points into a BEV image containing texture, height, intensity, and a fusion of texture and height to detect DA using the Mask R-CNN architecture [25]. They improved the accuracy of DA detection by combining the predictions from multiple LiDAR frames, taking advantage of the temporal consistency of the DA.

Some methods utilize more than one LiDAR frame to detect DA, as the DA around the autonomous vehicle remains largely unchanged over short periods. BEVNet, for example, proposes detecting DA using multiple LiDAR point frames by extracting features of LiDAR frames using sparse 3D convolution [37] and extracting temporal information from LiDAR point features [33].

Despite the plethora of proposed methods for DA detection using LiDAR, each validated on different datasets, researchers face challenges in comparing the performance of their methods due to the lack of a unified and open-source benchmark grid-wise DA dataset. This highlights the need for standardized datasets to facilitate fair comparisons and drive further advancements in the field.

3. Methods

3.1. Argoverse-Grid

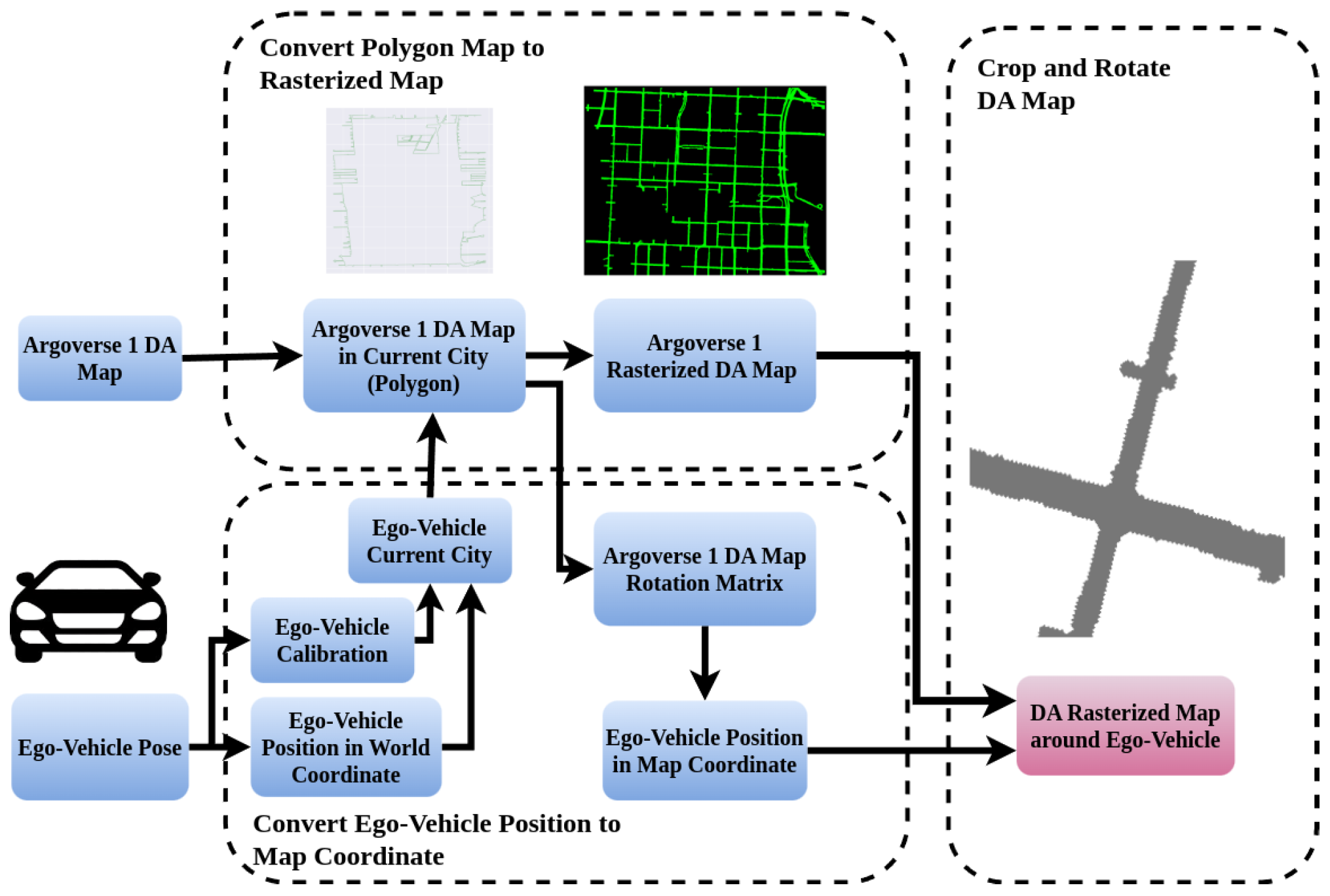

As discussed earlier, the Argoverse 1 dataset is one of the biggest autonomous vehicle dataset initially specialized for 3D object detection, object tracking, and motion forecasting [7]. Argoverse 1 dataset is taken in two cities, Miami and Pittsburgh, and contains DA map for both cities. The Argoverse 1 dataset DA map is provided in polygon files where the line is the edge of DA. The Argoverse 1 dataset also contains a calibration file for each of the LiDAR frames and camera images in the dataset, which ensure accurate location and time of both LiDAR frames and camera images. Hence, we proposed to make first big-scale open-source BEV grid-wise DA detection using the Argoverse 1 dataset and its HD Maps by leveraging ego-vehicle position in the Argoverse 1 dataset. The complete process of converting the Argoverse 1 dataset into a grid-wise DA detection dataset Argoverse-grid is illustrated in Figure 2. This process involves the following three steps:

• Convert the polygon map to a rasterized map: Since the Argoverse 1 dataset provides DA maps as polygon files, we need to convert the Drivable Area (DA) map from polygon files into a rasterized map. The process involves labeling all grids between the polygon lines, which represent the edge of the DA, as the DA grid, and labeling the area outside the polygon lines as the non-DA grid. The results of converting polygons into rasterized DA map can be seen in Figure 3.
• Convert ego-vehicle position to ego-vehicle position in DA map coordinate: Next, we need to convert the ego-vehicle position from world coordinates into map coordinates and measure the yaw orientation of the ego-vehicle in DA map coordinates. This transformation process is achieved by using the translation and rotation matrix information in the Argoverse 1 dataset calibration files. The process of transforming the ego-vehicle position to the ego-vehicle coordinate in the DA map can be described as follows:

  $$Po{s}_{map}=Po{s}_{world}·R_{rot}+R_{trans}$$
  Here, $Po{s}_{map}\in {\mathbb{R}}^{3\times 1}={[x_{map},y_{map},1]}^T$ represents the ego-vehicle position in the DA map coordinate, $Po{s}_{world}\in {\mathbb{R}}^{3\times 1}$ represents the ego-vehicle position in world coordinates, $R_{rot}\in {\mathbb{R}}^{3\times 3}$ represents the rotation matrix from ego-vehicle position to DA map position, T is basic transpose operation of matrix, and $R_{trans}\in {\mathbb{R}}^{3\times 1}$ represents the translation matrix from ego-vehicle position to DA map position. The yaw orientation of the ego-vehicle in DA map coordinates can be extracted using a basic rotation matrix to yaw orientation transformation as follows:

  $${\theta }_{yaw}={tan}^{-1}\left({\displaystyle \frac{R_{rot}[0,0]}{R_{rot}[0,1]}}\right)$$
  Here, $R_{rot}[0,0]$ represents the ego-vehicle position in world coordinates to DA map coordinate column 0 row 0, and $R_{rot}[0,1]$ represents the ego-vehicle position in world coordinates column 0 row 1.
• Crop and rotate DA map around ego-vehicle: Finally, we need to crop the DA map around the ego-vehicle based on the ego-vehicle coordinate in the DA map. The process of rotating and cropping the DA map around the ego-vehicle can be described as follows:

  $$Label=Rotate(Crop(DAMap,Po{s}_{map}),{\theta }_{yaw}+{\theta }_{offset})$$
  Here, $DAMap$ represents the whole DA rasterized map in the ego-vehicle city, process $Rotate(DAMap,\theta )$ is a function that rotates the DA map by an angle $\theta$ in the counterclockwise direction, and $Crop(DAMap,Pos)$ is a function that crops the DA map at $Pos\in {\mathbb{N}}^{2\times 1}$. Since the Argoverse dataset does not provide the angle rotation offset from ego-vehicle world coordinates to DA map coordinates, we adjusted the value of ${\theta }_{offset}$ to find the angle offset that makes the DA label around the ego-vehicle have an upward orientation. The value of ${\theta }_{offset}$ we found is approximately 89.8°.

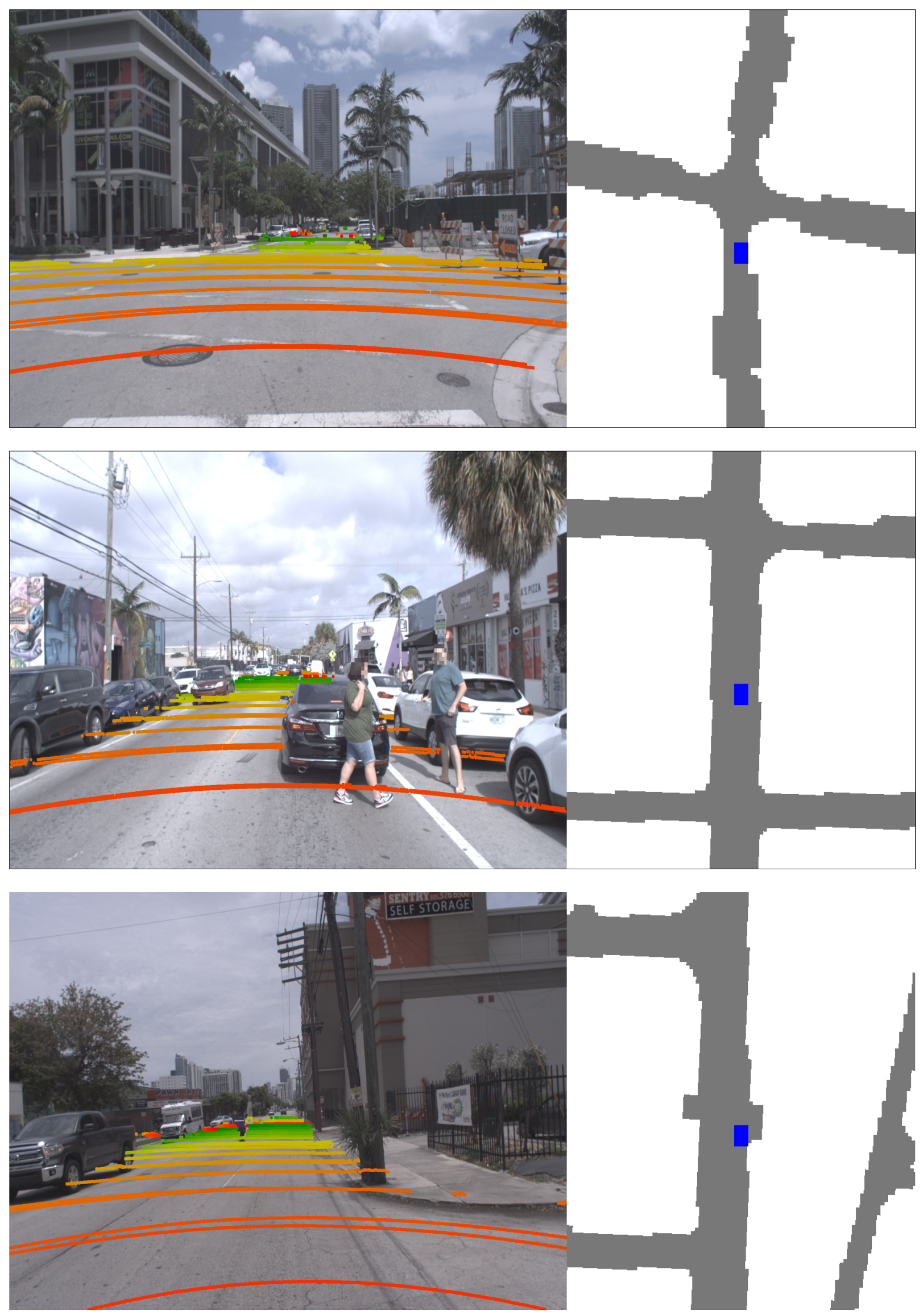

The processed DA map label results in a fine-grained DA map label with a grid size of 1 m × 1 m. We conducted quality checks on the processed DA map label across the entire Argoverse 1 train and test dataset. Proposed Argoverse-grid dataset have diverse DA scenes and challenging scenarios, such as in complex four-way intersections, heavily congested areas, and and narrow urban areas. An example of the result of the DA map label can be seen in Figure 3.

3.2. Metrics Evaluation

To evaluate DA detection in the Argoverse 1 dataset, we propose using the a F1 score as the main evaluation metric. This choice is motivated by the fact that the cost of predicting a DA as non-drivable (false negative) is far more severe than predicting a non-DA as drivable, as the former can significantly affect the planning system of the autonomous vehicle and decrease its performance.

If the output of the DA detection is a probability array $\widehat{y}\in {\mathbb{R}}^{heigh{t}_{BEV}\times widt{h}_{BEV}}$, representing the likelihood of each grid in the BEV map being a DA (ranging from 1 to 0), we can convert the DA detection prediction into binary prediction (${\widehat{y}}_{binary}$) using a probability threshold ${\sigma }_{threshold}$, where $0<{\sigma }_{threshold}\le 1$, as follows:

$${\widehat{y}}_{binary,m,n}=\left\{\begin{array}{cc}1,\hfill & {\widehat{y}}_{m,n}\ge {\sigma }_{threshold}\hfill \\ 0,\hfill & {\widehat{y}}_{m,n}<{\sigma }_{threshold}\hfill \end{array}\right.$$

We can then calculate the F1 score of the DA detection as follows:

$$\mathrm{F}1={\displaystyle \frac{1}{1+\frac{FP}{2·TP}+\frac{FN}{2·TP}}}$$

where $TP$ represents true positives (the number of DA grids predicted as DA), $FP$ represents false positives (the number of non-DA grids predicted as DA), and $FN$ represents false negatives (the number of DA grids predicted as non-DA grids).

3.3. Proposed Network: Grid-DATrNet

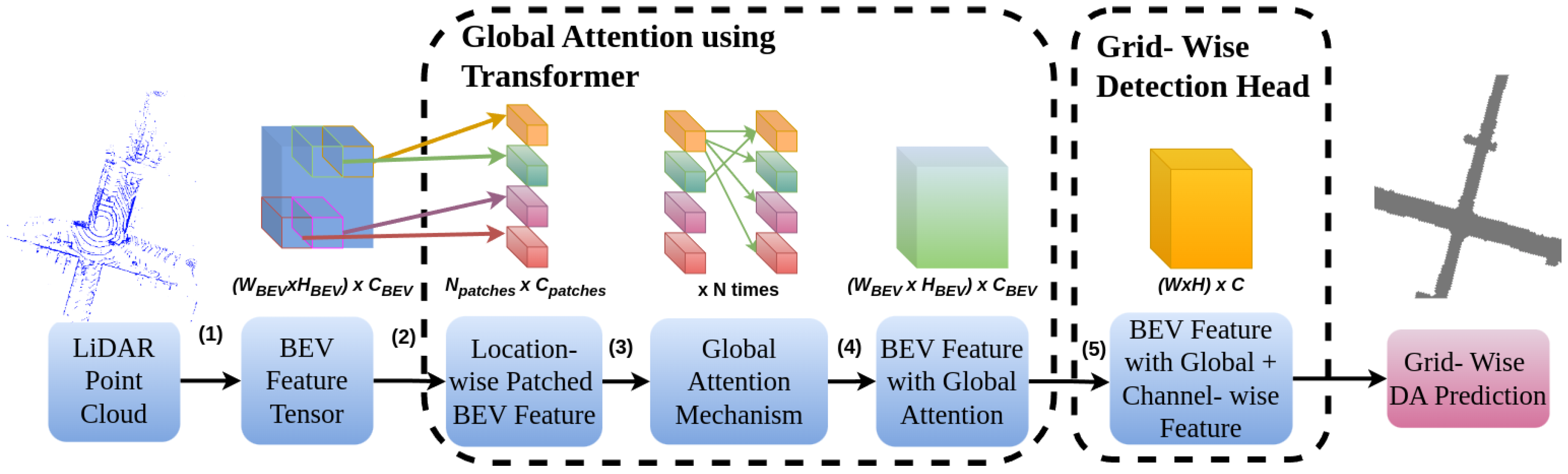

To address DA detection using LiDAR point clouds, we introduce Grid-wise DA Transformer Network (Grid-DATrNet), designed to predict DA around autonomous vehicles. Motivated by the growing use of attention mechanisms in Transformer networks [38] for analyzing feature correlations in computer vision, we leverage attention-based Transformers to establish correlations between areas in a BEV map and predict DA detection around autonomous vehicles. The end-to-end architecture of Grid-DATrNet is illustrated in Figure 4.

BEV Encoding: Initially, LiDAR point cloud data are encoded into a 2D BEV tensor, representing geometric information, using a deep learning-based or statistical-based model. We primarily employ the fast encoder PointPillars [29] due to its efficient detection of geometric and semantic information from point clouds. We also experiment with the point projector encoder [39,40], which projects point clouds onto a BEV map grid and utilizes CNNs to extract features. However, due to its longer processing time and higher computational demand, we favor PointPillars for real-time DA detection. Our experiments demonstrate that using the point projector does not significantly enhance performance compared to PointPillars. The output is a BEV map sized $600\times 500$ representing the region of interest (ROI) of the processed LiDAR point cloud.

Apart from deep learning-based approaches, we explore statistic-based models for BEV encoding. These models utilize statistical point cloud data (e.g., average point coordinates, minimum point height) to generate a BEV tensor swiftly with minimal computation. However, our experiments indicate that statistic-based approaches perform notably worse than deep learning-based BEV encoders.

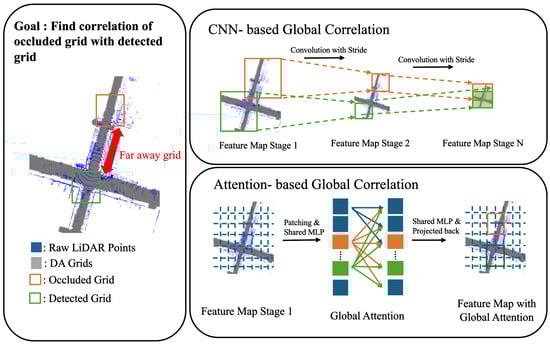

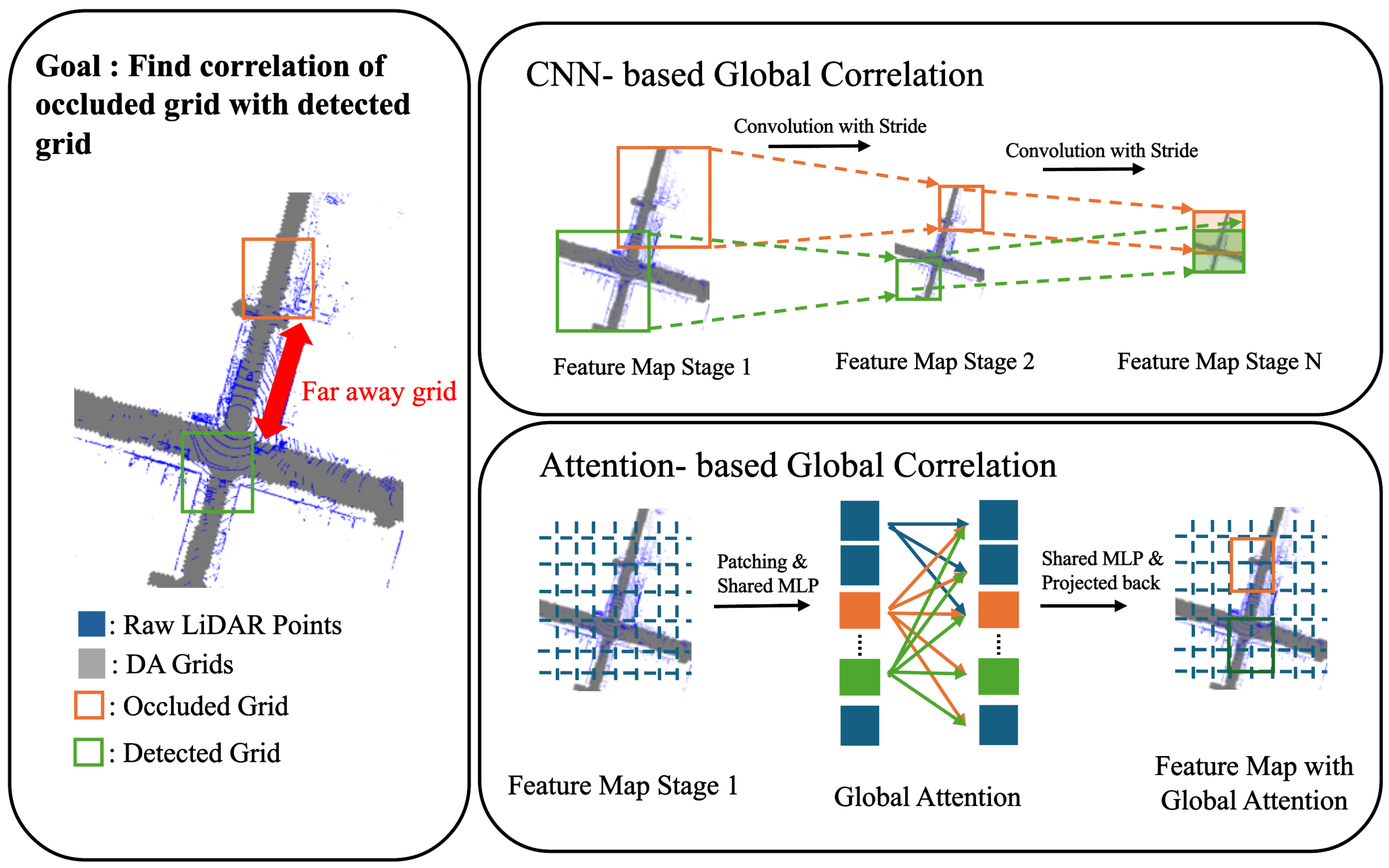

Global attention using Transformer: Given the challenges of grid-wise DA detection due to LiDAR occlusions and surrounding obstacles, we employ a global attention mechanism based on Transformers. Inspired by recent work on attention mechanisms in computer vision [38] and Global Feature Correlators (GFC) in LiDAR-based lane detection [26], our global attention Transformer identifies correlations between patches in the BEV map, aiding in DA prediction even in occluded regions without point cloud data. The BEV tensor is divided into $N_{\mathrm{patches}}=H_{\mathrm{patches}}\times W_{\mathrm{patches}}$ patches, each flattened into a tensor $x_i$ of dimensions $1\times C_{\mathrm{patches}}$. We then compute patch correlations using a Transformer-based mechanism [41]. An explanation of using global attention and CNN to find spatial features and semantic features of DA around ego-vehicle can be seen in Figure 5.

We iterate the attention mechanism multiple times to capture global correlations in the BEV map, preparing the data for the grid-wise detection head. We also encode the position of location-wise BEV feature map patch by using usual learnable position encoding inspired by Visual Transformer [41].

Grid-wise detection head and loss function: The detection head of Grid-DATrNet consists of convolutional layers (CNNs) with downsampling and upsampling operations, accompanied by batch normalization, ReLU activation functions and fully connected layers, treating DA prediction as a segmentation problem. For each grid in the BEV map, we predict whether it represents a DA (1) or not (0). This grid-wise detection head follows an encoder-decoder architecture leveraging CNN layers and non-linear activations to learn significant BEV features, benefiting from the global attention mechanism to capture feature correlations across neighboring grids. The output of the grid-wise detection head is a BEV grid matching the ROI of the DA.

Given the critical importance of correctly identifying DA (i.e., minimizing false negatives), we use focal loss [42] to train Grid-DATrNet. This approach addresses class imbalance in BEV labels (typically containing more non-DA grids than DA grids), encouraging the model to prioritize DA predictions and mitigate the imbalance issue. To enhance the detection of DA edges and ensure DA presence in neighboring areas, we propose training Grid-DATrNet using Spatial L2 Loss. Inspired by [6], Spatial L2 Loss enables Grid-DATrNet to predict DA around the ego-vehicle within a specific spatial area and accurately identify DA edges. The formula for Spatial L2 Loss is as follows:

$${\mathrm{Grad}}_x[i,j]=y[i-1,j]-y[i,j]$$

$${\mathrm{Grad}}_y[i,j]=y[i,j-1]-y[i,j]$$

$$dx[i,j]={\mathrm{Grad}}_x\left(\widehat{y}\right)-{\mathrm{Grad}}_x\left(y\right)$$

$$dy[i,j]={\mathrm{Grad}}_y\left(\widehat{y}\right)-{\mathrm{Grad}}_y\left(y\right)$$

$$\mathrm{SpatialL}2\mathrm{Loss}=\sqrt{{\displaystyle \frac{{\sum }_{i,j}(dx{[i,j]}^2+dy{[i,j]}^2)}{N}}}$$

Here, $y[i,j]$ represents the ground truth Drivable Area (DA) BEV at row i and column j, and $\widehat{y}[i,j]$ is the DA prediction of Grid-DATrNet for the corresponding grid. The term N denotes the total number of grids in the DA BEV map. Therefore, the final loss is a weighted combination of focal loss and Spatial L2 Loss, where the weights for each loss component are chosen based on the specific requirements of the DA detection task. For instance, to prioritize accurate DA predictions over non-DA areas, the weight for focal loss would be higher, whereas a higher weight for Spatial L2 Loss would emphasize accurate DA edge detection.

4. Experiment and Discussion

In this section, we present a detailed description of the experimental setup and results obtained from grid-wise DA detection using LiDAR trained on the Argoverse-grid dataset. We compare the proposed DA detection model, Grid-DATrNet, with other widely-used methods for DA detection employing different modalities.

4.1. Experiment Setup

For the baseline comparison, we evaluated Grid-DATrNet against state-of-the-art DA detection methods from various modalities, including camera-based DA detection, heuristic-based grid-wise DA detection, and point-wise DA detection.

• Camera-based DA detection: We utilized the TwinLiteNet model [17], originally designed for DA and lane detection using images and MapTrNet model [4], which was originally used to detect DA edge detection using multi-cameras. The DA detected in all seven images from the Argoverse-grid dataset from TwinLiteNet model were projected onto the BEV map using calibration information while MapTrNet predicted from the seven camera inputs.
• Heuristic-based grid-wise DA detection: grid-wise DA detection using Gaussian Bayesian Kernel [31] was used to assess the performance of Grid-DATrNet compared to rule-based detection.
• Point-wise DA detection: a comparison was also made with point-wise DA detection as proposed in GndNet [6], a state-of-the-art LiDAR-based method for DA detection.

Additionally, we experimented with various configurations of BEV encoders (e.g., PointPillar, point projection) and backbones (e.g., global attention, MLP Mixer) for feature extraction to benchmark the performance of Grid-DATrNet against other state-of-the-art methods. We evaluated the proposed method within a default Region of Interest (ROI) of $[x_{\min },x_{\max },y_{\min },y_{\max }]$ = [−50 m, 70 m, −50 m, 50 m], emphasizing predictions of DA ahead of the ego-vehicle for planning and object detection purposes. We trained all the models on the Argoverse-grid dataset, which was processed from the Argoverse 1 Dataset, using over 13,000 LiDAR frames from the training set and tested them on more than 6000 LiDAR frames from the Argoverse 1 Dataset testing set. Additionally, we analyzed the impact of different ROI settings on the method’s performance. To expedite the training and experimentation process, we used $20\%$ of the Argoverse-grid dataset for model training.

4.2. Implementation Details

Our network training on the Argoverse-grid dataset was conducted over 35 epochs using RTX3070 GPUs, employing the Adam optimizer with a batch size of 4 and a learning rate of 0.0002. The training and evaluation processes were implemented using PyTorch version 2.0.0 on a machine running Ubuntu 18.04. We used loss weight of 1 for focal loss weight and Spatial L2 Loss weight.

4.3. Comparison with Heuristic DA Detection Using LiDAR

In this experiment, we compared the performance of Grid-DATrNet using different BEV encoders (PointPillar, point projection) and backbones (global attention, MLP Mixer). The quantitative results are presented in

Table 1. Experimental results of DA Detection on Argoverse-grid dataset. C means detector using modalities cameras while L means detector using sensor LiDAR.

Detector	Sensor	Accuracy (%) ↑	F1-Score ↑	Speed (ms) ↓
TwinLiteNet (7 cameras) [17]	C	72.88	0.5273	125
MapTr (7 cameras) [4]	C	74.88	0.5324	182
Gaussian Bayes Kernel [31]	L	82.33	0.6255	2400
GndNet [6]	L	88.65	0.7225	200
Grid-DATrNet (Ours)	L
- Transformer + PointPillar		93.28	0.8328	231
- Transformer + Point Projection		93.40	0.8321	280
- MLP Mixer + PointPillar		91.40	0.8145	205
- MLP Mixer + Point Projection		91.63	0.8233	213

Bold value is the best performance in each parameter. ↓ means lower metric is better and ↑ means higher metric is better.

. Grid-DATrNet achieved significantly higher accuracy (93.28%) and F1-score (0.8328) with the PointPillar encoder and global attention feature extractor compared to the heuristic-based DA detection method [31] (accuracy 82.33%, F1-score 0.6255). The heuristic method relies solely on the height of LiDAR points around grid BEV, whereas Grid-DATrNet leverages contextual and semantic information from the point cloud. Additionally, Grid-DATrNet demonstrated faster inference times, benefiting from deep learning techniques accelerated by GPU.

4.4. Comparison of Grid-DATrNet Using Various BEV Encoders and Feature Extractors

Next, we compared the performance of the proposed method Grid-DATrNet using various BEV encoders and feature extractors. We observed a slight improvement in DA detection performance when using the point projection BEV encoder compared to the PointPillar encoder, with both global feature extractors. This can be explained by the point projection BEV encoder employing a more complex CNN and processing the LiDAR point cloud as a 2D feature. As a result, point projection can capture more complex geometric information but with longer prediction times. Additionally, we found that Grid-DATrNet using the Transformer global feature extractor outperformed the MLP mixer. The Transformer’s global attention mechanism enables it to capture detailed correlations between BEV grids in both near and far areas, whereas the MLP mixer fails to capture correlations between distant BEV grids [26]. The visualization of the proposed method’s global attention using the Transformer can be seen in Figure 6. Thus, Grid-DATrNet with the MLP mixer can be used when a faster model is needed for DA detection around autonomous vehicles.

4.5. Comparison with Point-Wise DA Detection Using LiDAR

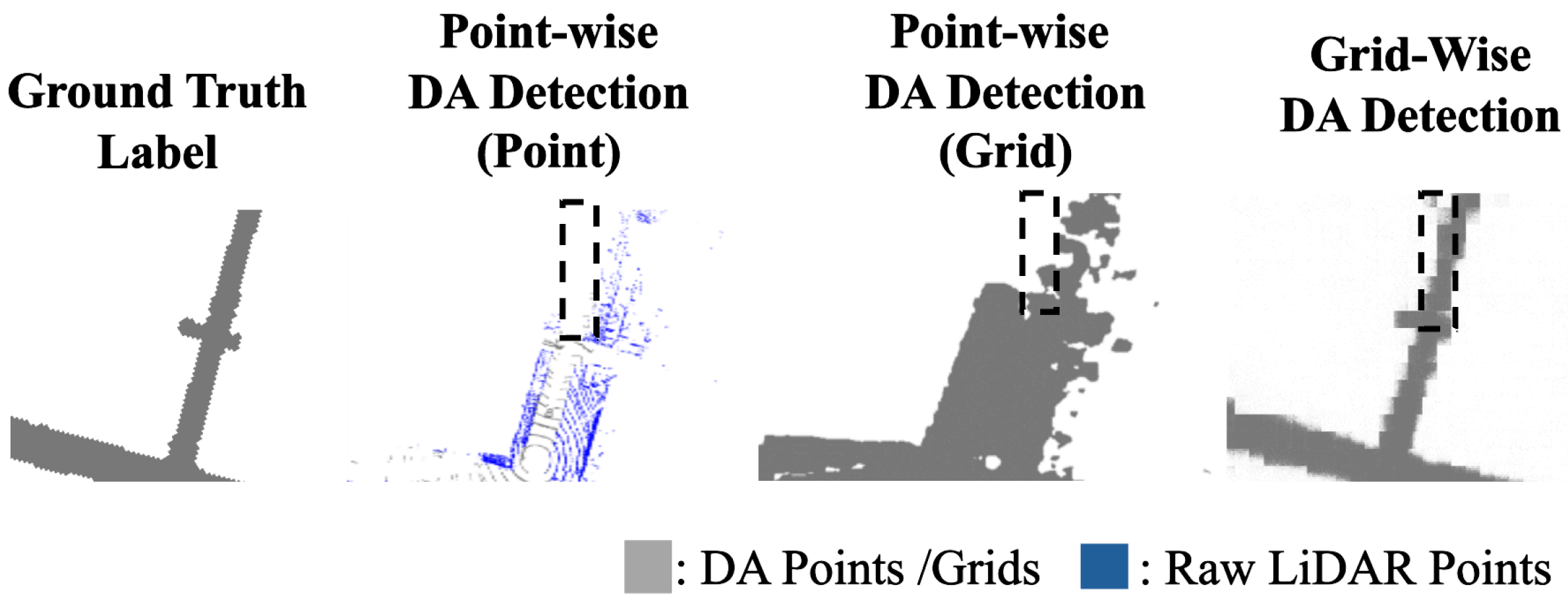

We also compared Grid-DATrNet with point-wise DA detection methods. The results demonstrated that Grid-DATrNet achieves superior performance in grid-wise DA detection tasks. Point-wise DA detection relies on LiDAR point measurements, limiting its ability to detect DA in areas where no point cloud data are available. As shown in Figure 7, Grid-DATrNet can detect DA even in areas without point cloud measurements. See also Figure 8, specifically boxes b-1, b-2, c-1, c-2, c-3, d-1, d-2, e-1, and e-2. In the visualization comparing point-wise and grid-wise DA detection trained on the proposed Argoverse-grid dataset (box c-1), we can observe that point-wise DA detection fails to detect DA in box c-1 because the building blocks the DA measurement behind it. In contrast, the proposed Grid-DATrNet successfully detects the DA area behind the building using the global attention mechanism (box c-3 and c-4). Additionally, when evaluating LiDAR scene 4, point-wise DA detection is unable to detect DA in front of the car due to a lack of LiDAR measurements. However, Grid-DATrNet can predict DA in front of the car by leveraging the attention mechanism to infer information from neighboring DA grids. This is because grid-wise DA detection predicts DA in all BEV grids surrounding the autonomous vehicle, allowing it to provide accurate DA predictions, even in areas without direct LiDAR point measurements. This capability enhances the motion planning and localization performance of autonomous vehicles. The video of Grid-DATrNet detection on Argoverse-Grid dataset could be seen in Video S1.

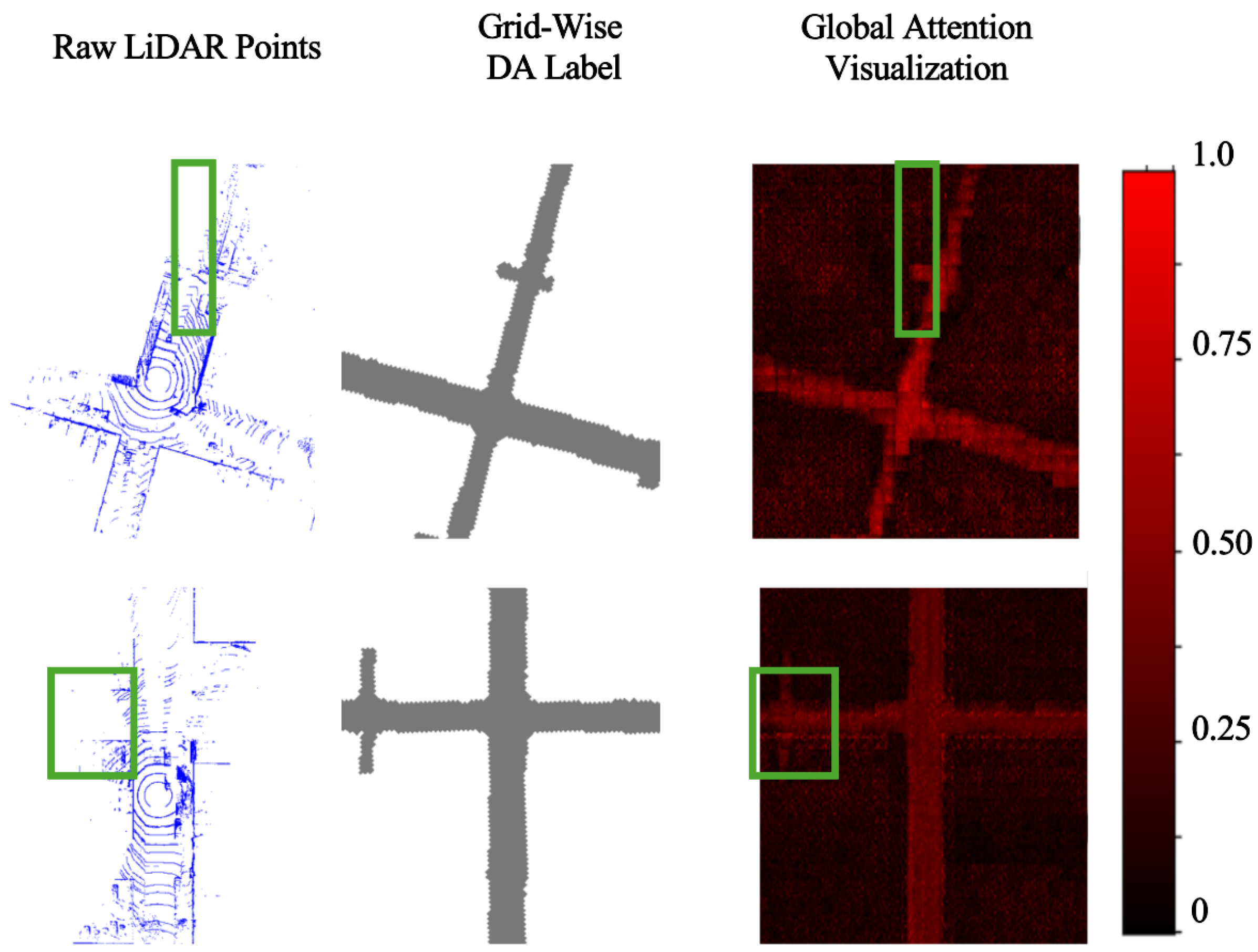

Furthermore, Grid-DATrNet can detect DA areas very well, even without measurements. This is because Grid-DATrNet uses a global attention mechanism through the Transformer, allowing it to find global contextual and semantic information better than CNN-based global feature learning. The experiment also showed that the prediction speed of Grid-DATrNet is not very different from that of point-wise DA detection using GndNet, which employs CNN and achieves better DA detection performance. Therefore, this experiment demonstrates the superior performance of Transformer-based DA detection over CNN-based DA detection. The global attention for DA detection can be seen in Figure 6.

We can also observe from the experiment results on memory computation in DA detection (

Table 2. Experimental results of computation for various DA detection methods using LiDAR. The computation of various DA detection methods is measured by Floating Point Operation per Second, (FLOPS).

Detector	Computation (FLOPS) ↓
Gaussian Bayes Kernel	20 × ${10}^9$
GndNet	100 × ${10}^9$
Grid-DATrNet (Ours)
- Transformer + PointPillar	142 × ${10}^9$
- Transformer + Point Projection	180 × ${10}^9$
- MLP Mixer + PointPillar	110 × ${10}^9$
- MLP Mixer + Point Projection	130 × ${10}^9$

↓ means lower computation is better.

) that the proposed Grid-DATrNet, using a Transformer for global attention and PointPillar as the feature encoder, requires only slightly more computation compared to CNN-based DA detection methods [6]. However, it significantly outperforms CNN-based methods, particularly in occluded areas, achieving an F1-score of 0.83298, compared to 0.7225 for the CNN-based DA detection. This performance improvement can be attributed to the Transformer’s ability to capture global attention with fewer layers, whereas CNN-based models require many layers to extract both semantic and global features from the LiDAR point cloud.

Additionally, we observe that the proposed Grid-DATrNet, which employs an MLP Mixer [43] as the global feature extractor along with a PointPillar feature encoder, predicts DA areas more accurately than CNN-based methods, while maintaining similar computational demands ($110\times {10}^9$ FLOPS compared to $100\times {10}^9$ FLOPS). This demonstrates that Grid-DATrNet, using the MLP Mixer as the global feature extractor and PointPillar as the feature encoder, can provide accurate DA detection with low memory usage and fast inference time.

Future improvements could involve developing attention-based DA detection models with more complex architectures or more efficient attention mechanisms, such as sliding window attention in SwinTransformer [44] or estimated attention as in Deformable Transformer [45], for even more accurate and faster DA detection using global attention.

4.6. Comparison with Camera-Based Methods

We compared the performance of grid-wise DA detection in the Argoverse-grid dataset with state-of-the-art camera-based DA detection methods. The quantitative results highlighted the superior performance of Grid-DATrNet utilizing LiDAR-based approaches (e.g., PointPillar and point projection with Transformer and MLP Mixer) over camera-based methods. Camera-based methods can capture semantic information better than LiDAR-based DA detection, but they lack 3D and depth information. Camera-based DA detection excels in image-based DA segmentation, but struggles with grid-wise DA prediction due to the lack of 3D information, particularly in occluded areas. Performance of camera-based will be significantly worse when there is occlusion and few light exposure like in night time, as demonstrated by [26]. We can also see DA detection using camera can only predict DA accurately in short distance around autonomous vehicle in Figure 8, while proposed DA detection using LiDAR network Grid-DATrNet can detect DA even in far area around autonomous vehicle.

4.7. Comparison of Grid-DATrNet in Various ROI

Finally, we analyzed the performance of Grid-DATrNet trained on the Argoverse-grid dataset using various ROI settings, providing insights into the method’s effectiveness under different spatial configurations. The accuracy and F1 scores of the proposed Grid-DATrNet in various ROIs are presented in

Table 3. Experimental results of Grid-DATrNet in the Argoverse-grid dataset using various ROI sizes.

ROI Size	Accuracy (%)	F1 Score	Inference Time (ms)	Computation (FLOPS)
120 m × 100 m	93.28	0.8328	231	142 × ${10}^9$
200 m × 200 m	88.35	0.7732	324	182 × ${10}^9$
400 m × 400 m	75.42	0.6588	502	268 × ${10}^9$

Results reflect the performance of Grid-DATrNet across different region of interest (ROI) sizes. Larger ROI sizes typically lead to more computation and inference time.

. We observed a slight decrease in the performance of Grid-DATrNet on an ROI size of 200 m × 200 m, as the LiDAR points in this ROI are sparser compared to those in the 120 m × 100 m ROI. Consequently, Grid-DATrNet finds it more challenging to detect DA in the 200 m × 200 m ROI. Additionally, we noticed a significant performance decrease when trained on an ROI size of 400 m × 400 m, due to the even sparser LiDAR points in this size compared to the 120 m × 100 m range. We also observed a significant increase in prediction time for ROI sizes of 200 m × 200 m and 400 m × 400 m, as the attention mechanism’s computation grows quadratically with the number of BEV image sizes [41]. The performance of DA detection using the proposed Grid-DATrNet was less effective at very long distances because the LiDAR points become increasingly sparse over larger ranges. However, the performance of Grid-DATrNet on the standard range of the proposed Argoverse-grid dataset (120 m × 100 m) was excellent, significantly outperforming other DA detection methods, such as those in [4,6], which only predict DA within an ROI of 60 m × 30 m. Therefore, improving networks for DA detection in larger ROIs remains an open research area, as detecting DA in larger regions is crucial for autonomous vehicle motion planning and localization.

5. Conclusions

In this paper, we have introduced Argoverse-grid, an open-source, large-scale dataset for grid-wise Drivable Area (DA) detection using LiDAR. Argoverse-grid includes over 20,000 LiDAR frames with detailed grid-wise DA labels across a range of challenging scenarios and time frames. We have also presented Grid-DATrNet, a grid-wise DA detection model that leverages LiDAR and employs global attention through transformers to detect DA around the ego-vehicle. Our results demonstrate that Grid-DATrNet outperforms other DA detection models in terms of accuracy and F1 score, achieving $93.28\%$ accuracy and an F1 score of $0.8328$. We have demonstrated that grid-wise DA detection can identify DA even in occluded areas, significantly enhancing the performance of autonomous vehicle motion planning and localization. Additionally, Grid-DATrNet effectively detects DA over a long range of 120 m × 100 m, compared to previous models that detect areas within 60 m × 30 m. In addition, we have discussed how incorporating more complex architectures or novel attention mechanisms could further improve the performance and speed of DA detection, enabling real-time detection over long ranges. We believe this work will advance research in DA detection and contribute to the development of autonomous driving technologies, especially encourage researcher to develop big-scale open-source grid-wise DA detection dataset with more diverse location and more challenging scenario.
