Multispectral UAV Image Classification of Jimson Weed (Datura stramonium L.) in Common Bean (Phaseolus vulgaris L.)

Abstract

Jimson weed (Datura stramonium L.) is a toxic weed that is occasionally found in fields with common bean (Phaseolus vulgaris L.) for the processing industry. Common bean growers are required to manually remove toxic weeds. If toxic weed plants remain, the standing crop will be rejected. Hence, the implementation of an automatic weed detection system aiding the farmers is badly needed. The overall goal of this study was to investigate if D. stramonium can be located in common bean fields using an unmanned aerial vehicle (UAV)-based ten-band multispectral camera. Therefore four objectives were defined: (I) assessing the spectral discriminative capacity between common bean and D. stramonium by the development and application of logistic regression models; (II) examining the influence of ground sampling distance (GSD) on model performance; and improving model generalization by (III) incorporating the use of vegetation indices and cumulative distribution function (CDF) matching and by (IV) combining spectral data from multiple common bean fields with the use of leave-one-group-out cross-validation (LOGO CV). Logistic regression models were created using data from fields at four different locations in Belgium. Based on the results, it was concluded that common bean and D. stramonium are separable based on multispectral information. A model trained and tested on the data of one location obtained a validation true positive rate and true negative rate of 99% and 95%, respectively. In this study, where D. stramonium had a mean plant size of 0.038 m² ($\sigma$ = 0.020), a GSD of 2.1 cm was found to be appropriate. However, the results proved to be location dependent as the model was not able to reliably distinguish D. stramonium in two other datasets. Finally, the use of a LOGO CV obtained the best results. Although small D. stramonium plants were still systematically overlooked and classified as common bean, the model was capable of detecting large D. stramonium plants on three of the four fields. This study emphasizes the variability in reflectance data among different common bean fields and the importance of an independent dataset to test model generalization.

1. Introduction

Flanders (Belgium) is the largest exporter of frozen vegetables in the world with a production value of EUR 682 million [1]. Common bean (Phaseolus vulgaris L.) is an important crop for this industry where the pods of beans are harvested mechanically. However, common bean growers are facing increasing risks of toxic weeds, such as Datura stramonium L. (jimson weed), Solanum nigrum subsp. nigrum L. (black nightshade), and Solanum tuberosum L. (volunteer potato). In common bean, the weed D. stramonium poses the biggest problem. It is an annual containing, among other toxins, the alkaloids atropine, scopolamine, and hyoscyamine. The weed poses a significant problem due to its high toxicity of all plant parts. Occurrences of D. stramonium poisoning resulting in death (unrelated to the consumption of common bean) have been reported [2]. Moreover, the weed is rapidly spreading in Belgium [3] and the rest of the world [4], and it has been found in processed common bean [5].

There are very few active substances available to target this weed (clomazone, dimethenamid-P, bentazon, and ethofumesate), which raises concerns among growers and the industry regarding inadequate control in the future. Moreover, if D. stramonium is discovered in the field, the growers face the risk of income loss. The frozen/canned vegetables processing industry commonly adopts a visual inspection approach to identify poisonous weeds in bean fields. This inspection is carried out during the week preceding harvest, where the field’s edges and diagonals are inspected for any problematic weeds [6]. Farmers are required to manually remove the toxic weeds, failing which, the standing crop will be rejected. However, this method has a significant limitation in terms of its low detection probability, especially when the inspected field is large and the weeds are relatively small. Moreover, visual field inspections are time-consuming; labor-intensive; and subject to the inspector’s expertise, leading to subjectivity issues.

Datura stramonium and common bean have been shown to be distinguishable from each other using spectrometer measurements performed during the growing season on greenhouse-grown plants [7]. Simulations based on these measurements suggested that the two species could be distinguished with the use of ten commercial of-the-shelf filters. Research has shown that reflectance measurements in the visible and near infrared (NIR) wavelengths can be used for discriminating between weeds and crops [8,9,10,11]. However, these studies do not use data gathered at different locations to test their models’ generalizability. As a result, reported accuracies are often remarkably yet unreliably high, and results do not demonstrate the usefulness in practice. By using an independent test set, researchers can assess the model’s performance on unseen data, ensuring that it generalizes well to new observations under different conditions beyond the training data. This is a major step often overlooked in most research aimed at developing a practical weed detection system.

It is well established that machine learning models perform well on interpolation (or near-interpolation) tasks but struggle with extrapolation, and although their generalizability is usually tested on samples with attributes similar to the training data, real-world data rarely align perfectly with the training data [12]. So, to develop a model that generalizes well, it is important to obtain consistent reflectance measurements. However, variations in reflectance measurements may be attributed to, e.g., biotic and abiotic stressors [13], soil reflectance [14], and variations in illumination and atmospheric conditions [15]. One way to address these challenges is the use of vegetation indices (VI). Another potential correction method between different datasets involves the application of the cumulative distribution function (CDF). This non-linear approach aims to eliminate systematic discrepancies between datasets [16,17] by transforming the data to ensure that their CDFs are equal. Implementing such correction methods is crucial to ensuring the dependability of reflectance data over multiple growing seasons amidst varying environmental conditions and stressors.

In this study, we opted for an unmanned aerial vehicle (UAV) as a platform, as they are easy-to-use, flexible, do not disturb the plants, and are able to yield high spatial resolution imagery [18]. However, a trade-off has to be made between ground sampling distance (GSD) and flight duration. MicaSense [19] recommends a minimum flight height of 40 m above the canopy for the RedEdge Dual camera, the sensor used in this study, to reduce the discrepancies in the images captured by the different lenses. However, successful studies have been conducted at lower flight heights [20,21,22]. If weeds are small, the resolution must be adequately high to discriminate them, consequently restricting the drone’s mapping capability to a smaller area.

The goal of this study was to locate D. stramonium in common bean fields. For this reason, four objectives were specified. The first objective of this study was to test the spectral distinctness of D. stramonium and common bean by creating and applying models using a dataset derived from one location (I). The second objective was to assess the optimal GSD considering the time-resolution trade-off and the quality of the orthomosaic (II). The third and fourth objectives of this study tested the generalization of a model with a dataset separated in space and time from the training dataset. Therefore, a model was applied to fields with unseen data. To address differences between datasets, VI were incorporated in the model and/or CDF-corrected data were used (III), and data from diverse fields were incorporated by applying a leave-one-group-out cross-validation (LOGO CV) to CDF-corrected data (IV). The novelty of this paper lies in two key contributions: first, the detection of D. stramonium in common bean fields, and second, the development of a model that can accurately predict outcomes in untrained scenarios.

2. Materials and Methods

2.1. Study Areas

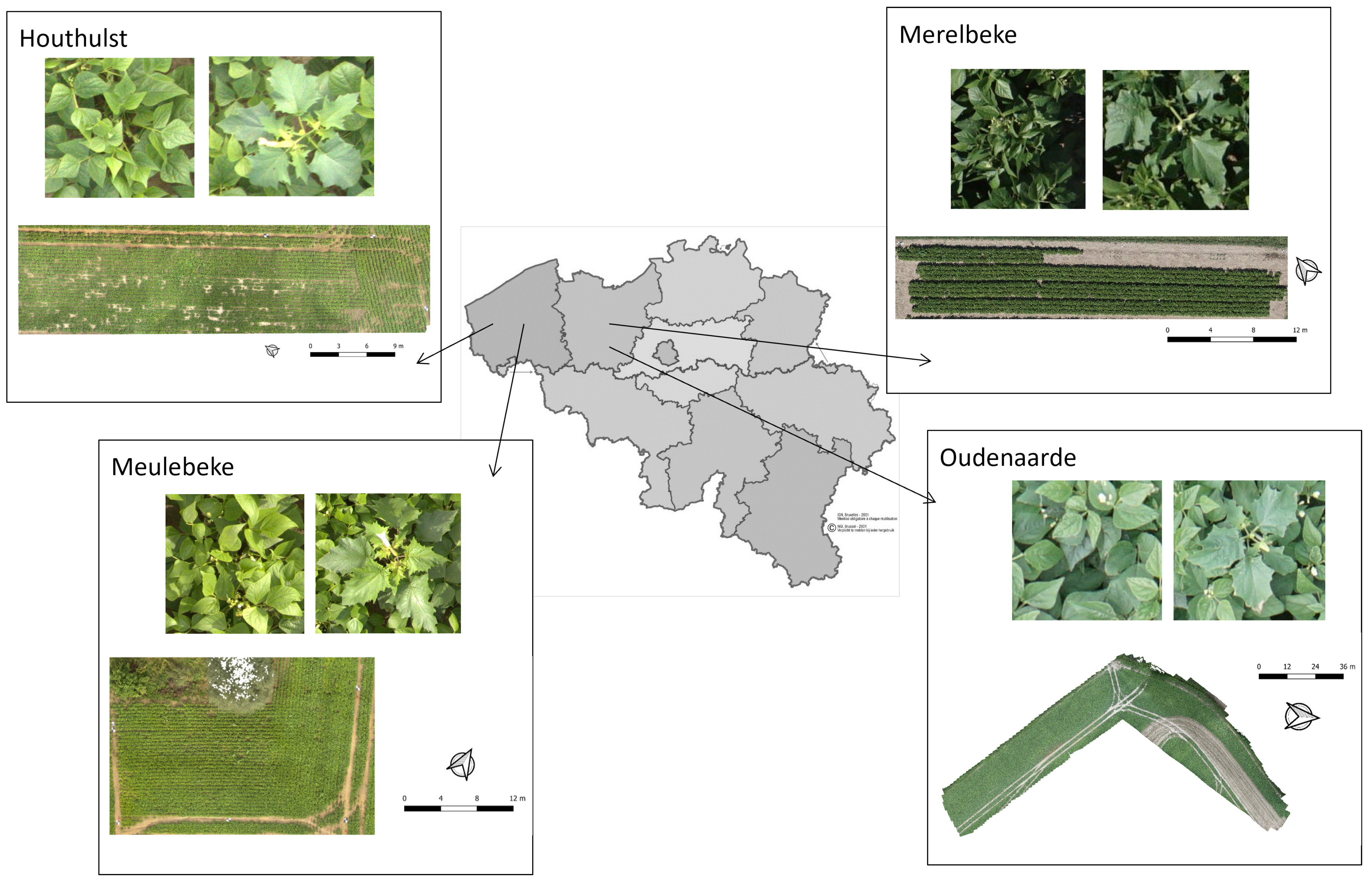

Data were collected from fields of four different locations in Belgium: Merelbeke (50°58′47.5″N, 3°44′38.9″E), Oudenaarde (50°51′3.9″N, 3°37′2.5″E), Houthulst (50°57′47.1″N, 2°53′57.6″E), and Meulebeke (50°57′8.0″N, 3°18′11.6″E).

Table 1. Information on crop, weed, image collection, resolution of orthomosaics, and flight height for different locations (CS: clear sky (0/8–1/8), PC: predominantly cloudy (6/8–7/8), PCS: predominantly clear sky (1/8–2/8)).

	Oudenaarde	Merelbeke	Meulebeke	Houthulst
Phaseolus vulgaris (commercial) variety	Koala and Nagano	Fresano	Sintra	Sintra
Datura stramonium (botanical) variety	var. stramonium	var. stramonium	var. tatula	var. stramonium
Soil type	sandy loam	sandy loam	sandy loam	sandy loam
Number of D. stramonium plants in screened area	>400	35	34	90
Screened area (m2)	2445	380	735	730
Planting date	26 June 2020	14 May 2020	15 July 2022	5 July 2022
Date of image collection	2 September 2020 (68 *, BBCH 7)	12 July 2020 (59 *, BBCH 7)	15 September 2022 (67 *, BBCH 7)	11 September 2022 (68 *, BBCH 7)
Date of harvest		29 July 2020 (76 *)	20 September 2022 (72 *)	19 September 2022 (76 *)
Inter-row spacing [cm]	30		37.5	37.5
Intra-row spacing [cm]	10.5	15	8.5	8.6
RGB camera type	Sony ILCE-6000	Sony ILCE-6000	Mavic 2 Pro	Mavic 2 Pro
Flight height (RGB) [m]	16	20	10	10
RGB ground sampling distance [cm]	0.16	0.23	0.24	0.24
Time of multispectral image collection	13 h 12–13 h 27	13 h 20–13 h 27	12 h 25–12 h 35	10 h 49–10 h 54
Cloudiness	PC	CS	PCS	PCS
Flight height (multispectral) [m]	30	30	12	30
Multispectral ground sampling distance [cm]	2.08	2.08	0.83	2.08
Number of training pixels for common bean	60,584	15,152	9049	1721
Number of training pixels for D. stramonium	17,334	1779	3753	195

BBCH 7: development of crop fruit. * in days after planting.

provides information on the species, study area, inter- and intra-row spacing, and time of image acquisition. The fields in Oudenaarde, Meulebeke, and Houthulst were managed by farmers under the supervision of commercial companies, and the one in Merelbeke was an experimental field managed by ILVO (Flanders Research Institute for Agriculture, Fisheries and Food, Merelbeke, Belgium). Figure 1 provides an overview of all locations.

The datasets of Oudenaarde and Merelbeke were collected in 2020, and those of Meulebeke and Houthulst in 2022. All fields had a sandy-loam soil structure [23]. For the interpretation of the data, it is important to acknowledge that the growing conditions in 2020 and 2022 were different, with 2020 being a relatively normal year, although May was very dry, whereas the summer of 2022 was extremely dry in July and August [24,25,26].

In Merelbeke, common bean was sown on 14 May 2020. Every third row was spaced further apart (±0.8 m) to facilitate access. In total, nine rows with a length of 35 m and three rows with a length of 13 m were sown. Datura stramonium was sown in plugs in a greenhouse, in a pot substrate provided with NPK fertilizer (14:16:18), to prevent contamination of the field with toxic weed seeds. Seedlings were transferred to the field between 29 June and 7 July when at least one true leaf had developed. The seedlings were monitored and watered when necessary. Datura stramonium was not naturally present in this field, but a total of 35 D. stramonium plants were planted manually on predetermined locations. Different scenarios were simulated by selecting specific locations: plants positioned in the center of two rows, encompassed by crops; plants situated within the crop row; and D. stramonium plants clustering together. The field was manually harvested.

Datura stramonium was naturally present in all other fields. Positions of the D. stramonium plants in Meulebeke and Houthulst were measured with an RTK GNSS device (S10, Stonex, Paderno Dugnano, Lombardia, Italy). In total, 34 and 90 D. stramonium plants were present, respectively. In Oudenaarde, D. stramonium was more abundant, and the location of every single plant could not be measured. Other weed species were virtually not present in Meulebeke; in Houthulst, S. nigrum (black nightshade) was present in large numbers. The GNSS device was used to measure the locations of approximately ninety S. nigrum plants in order to not include these pixels when calculating performance metrics. In Oudenaarde, the weeds Chenopodium album L. (lamb’s quarters), Solanum tuberosum L. (potato), Cirsium arvense L. (creeping thistle), and Mercurialis annua L. (annual mercury) were sporadically present.

2.2. Data Collection

Multispectral and RGB data were collected on all study sites. Multispectral images were collected with the MicaSense RedEdge-MX Dual camera system (AgEagle Aerial Systems Inc., Wichita, KS, USA). The MicaSense Dual camera system is a commercial multispectral camera with ten bands (Table 2). The RGB camera, used in 2020, was a Sony ILCE-6000 with a 35 mm lens (Sony Group Corporation, Tokyo, Japan). Cameras were separately attached to a UAV (M600, Shenzhen DJI Sciences and Technologies Ltd., Shenzhen, Guangdong, China). The RGB camera was attached to a gimbal on the drone. In 2022, RGB images were taken with a built-in camera (Mavic 2 Pro, Shenzhen DJI Sciences and Technologies Ltd., Shenzhen, Guangdong, China). The camera has a 1” CMOS sensor with 20 MP and 28 mm lens (35 mm equivalent). The areas were mapped with the DJI Ground Station Pro app. For all cameras, the frontal and sideward overlay was 80%. Flight heights for all different flights are displayed in Table 1. In 2022, after the Houthulst flight, it was decided to further decrease the flight height in order to optimize resolution. However, preliminary results showed poor classification results for the Meulebeke field, and it was decided to simulate a larger GSD that matched the other fields. Ground control points (GCPs) were distributed over each study area and measured with a RTK GNSS receiver. At the northern border of the study area in Oudenaarde, the UAV was flown manually to minimize the risk of collision with trees, and the RGB camera was triggered manually as well. The degree of cloudiness during multispectral data collection is provided in Table 1. To correct the multispectral data for changing ambient light conditions, MicaSense provides a downwelling light sensor (DLS) and a calibrated reflectance panel. The DLS was attached on top of the drone. The ISO value, aperture, and shutter speed of the Sony camera were set manually at 320, f/2.8, and 1/1250 s, respectively. Both the Sony camera and the camera on the Mavic 2 Pro were triggered by the mission planner app; approximately every second and every two seconds an image was made, respectively. Sony images were saved in RAW and JPEG format, and Mavic images in JPEG and DNG format.

2.3. (Pre-)Processing

Irrelevant images were removed (e.g., images taken during take-off and landing). JPEG images were processed with Agisoft Metashape version 1.8.4 (Agisoft LLC, St. Petersburg, Russia) using default settings. GCPs were used to georeference RGB and multispectral (only in 2022) orthomosaics. For the field in Oudenaarde, a better multispectral orthomosaic was obtained using only camera GNSS measurements (no RTK GNSS). The image was later georeferenced in QGIS (version 3.24.2) with the help of the RGB orthomosaic. The same method was used for the orthomosaics of the field in Merelbeke. In 2022, both multispectral and RGB orthomosaics were georeferenced in Agisoft with the help of the GCPs. Reflectance of the multispectral images was calculated using the workflow provided by Agisoft [27]. Orthomosaics containing reflectance values and RGB orthomosaics were exported to QGIS in TIFF format; the RGB orthomosaic of the field in Oudenaarde was divided in separate blocks of 1000 × 1000 pixels to reduce file size. RGB orthomosaics were only used as a visual aid, and no reflectance values were obtained. GSDs of all multispectral images are displayed in Table 1. All reflectance orthomosaics were exported from QGIS with identical resolution for further analysis, i.e., 2.08 cm, with the default resampling method, which is the nearest neighbor [28].

Plant polygons were drawn manually on the reflectance orthomosaics of all fields in QGIS to select D. stramonium and common bean pixels with the help of the RGB orthomosaic and saved as a shape file. The numbers of training pixels are provided in Table 1. Another shape file was created containing a polygon delineating the border of the study area and was used to clip the orthomosaic (Figure 2c). All files were subsequently exported to Python (version 3.9.12) for further processing. The packages OpenCV [29] (for raster calculations) and scikit-learn [30] (for machine learning analyses) were used.

Table 2. Characteristics of the RedEdge-MX Dual camera system [31].

Band Number	Band Name [-]	Center Wavelength [nm]	Band Width [nm]
1	Coastal blue	444	28
2	Blue	475	32
3	Green	531	14
4	Green	560	27
5	Red	650	16
6	Red	668	14
7	Red edge	705	10
8	Red edge	717	12
9	Red edge	740	18
10	Near IR	842	57

Table 2. Characteristics of the RedEdge-MX Dual camera system [31].

Band Number	Band Name [-]	Center Wavelength [nm]	Band Width [nm]
1	Coastal blue	444	28
2	Blue	475	32
3	Green	531	14
4	Green	560	27
5	Red	650	16
6	Red	668	14
7	Red edge	705	10
8	Red edge	717	12
9	Red edge	740	18
10	Near IR	842	57

The excess-green index [32], calculated as ExG = 2 Green₄-Red₆-Blue₂ (subscripts indicate band numbers of the multispectral camera, Table 2), was used to isolate vegetation from background (Figure 2b). Otsu’s method [33] was used to create a binary mask from the excess-green index map (Figure 2d). This mask was combined with the plant polygons to classify pixels as D. stramonium or common bean. The reflectance data were then extracted from the classified pixels and were used as input in machine learning models for binary classification.

In a preliminary phase, logistic regression, random forest, and support vector machine were tested. Hyperparameters of the random forest and support vector machine models were tuned using a randomized search of the parameter space. Logistic regression was performed without regularization and default settings, and either outperformed or performed equally well as other tested models, but with faster execution times. Therefore, only the results from logistic regression are further included. Logistic regression is a simple algorithm that is easy to implement and makes fast predictions. It performs well with smaller datasets, whereas complex models often need a large amount of data to tune their hyperparameters effectively. Therefore, logistic regression is a suitable choice for this study.

2.4. Post-Processing

The classification maps generated according to the procedure described in Section 2.3 are pixel based (Figure 2e). Given the large number of pixels in the orthomosaic, even a model with a very high precision (very low number of false positives (FP)) would still result in a large number of false positive pixels—in this case, of bean pixels wrongfully classified as D. stramonium. These pixels are however often isolated or in very small groups, in contrast with pixels of real D. stramonium plants, which are identified as larger clusters of pixels. Hence, a further processing step was needed to take a decision on which group of pixels actually represents D. stramonium.

To remove isolated ‘false positive’ pixels, a median filter, replacing the central pixel of a kernel (of size 3) with the median value, was used to smooth the original classification map. Then, in order to create a performance measure, pixels classified as D. stramonium were counted. As there was a misalignment between the reflectance and RGB orthomosaic, only pixels inside a small circular area were counted. Classification maps were imported in QGIS, and circular polygons were drawn around D. stramonium and common bean plants (Figure 2f). For the circles, a diameter of 0.4 m was chosen as it covers most of the D. stramonium plants and accommodates for the minor misalignments. For the Oudenaarde field, a random subset of D. stramonium and common bean plants was selected. Circles were randomly placed over the study area using a randomized QGIS algorithm. Circles assigned to D. stramonium were moved manually to the closest D. stramonium plant based on the RGB orthomosaic. Circles for common bean were visually checked to not include any D. stramonium pixels. Subsequently, pixels classified as D. stramonium were counted in each circle with the use of the zonal statistics tool. Different threshold values of the total number of D. stramonium pixels per circular polygon were defined to categorize a circle as D. stramonium, and performance metrics were calculated. Metrics used in this study were recall, which is the fraction of correctly classified D. stramonium plants; true negative rate (TNR), which is the fraction of correctly classified common bean plants; precision, the fraction of appointed D. stramonium plants that are truly D. stramonium plants; and F1-score, the harmonic mean of precision and recall. For the purpose of enabling comparisons between various outcomes, alternative metrics were computed using varying pixel threshold values. This way, applying different threshold values can result in diverse outcomes for a single classification map. Increasing the threshold value consistently leads to reduced recall and increased TNR. To compare recall values, the threshold value was adapted until TNRs were equal.

Additionally, the size of the D. stramonium plants in the field were estimated by drawing their circumference on the RGB orthomosaic. Only pixels from visible plant parts were included. In Merelbeke and Meulebeke, all D. stramonium plants were measured, whereas for the fields in Houthulst and Oudenaarde, a subset of 50 D. stramonium plants was randomly selected.

2.5. Image Analysis

Four analyses were performed in this research to fulfill the objectives:

• The development and application of logistic regression models utilizing reflectance data acquired from the same common bean field for assessing the spectral discriminative capacity between common bean and D. stramonium.
• The discriminative capacity was again investigated for varying simulated ground sampling distances to examine the influence on classification performance.
• Examination of the generalization of a model created in analysis I by evaluating its performance on unseen data from multiple distinct common bean fields. To address differences between datasets, VI were incorporated in the dataset and/or CDF-corrected data was used.
• Examination of the generalization of leave-one-group-out cross-validation (LOGO CV) models using multispectral data and VI, as well as the application to CDF-corrected data to test whether classification performance increases when spectral data from multiple common bean fields are combined.

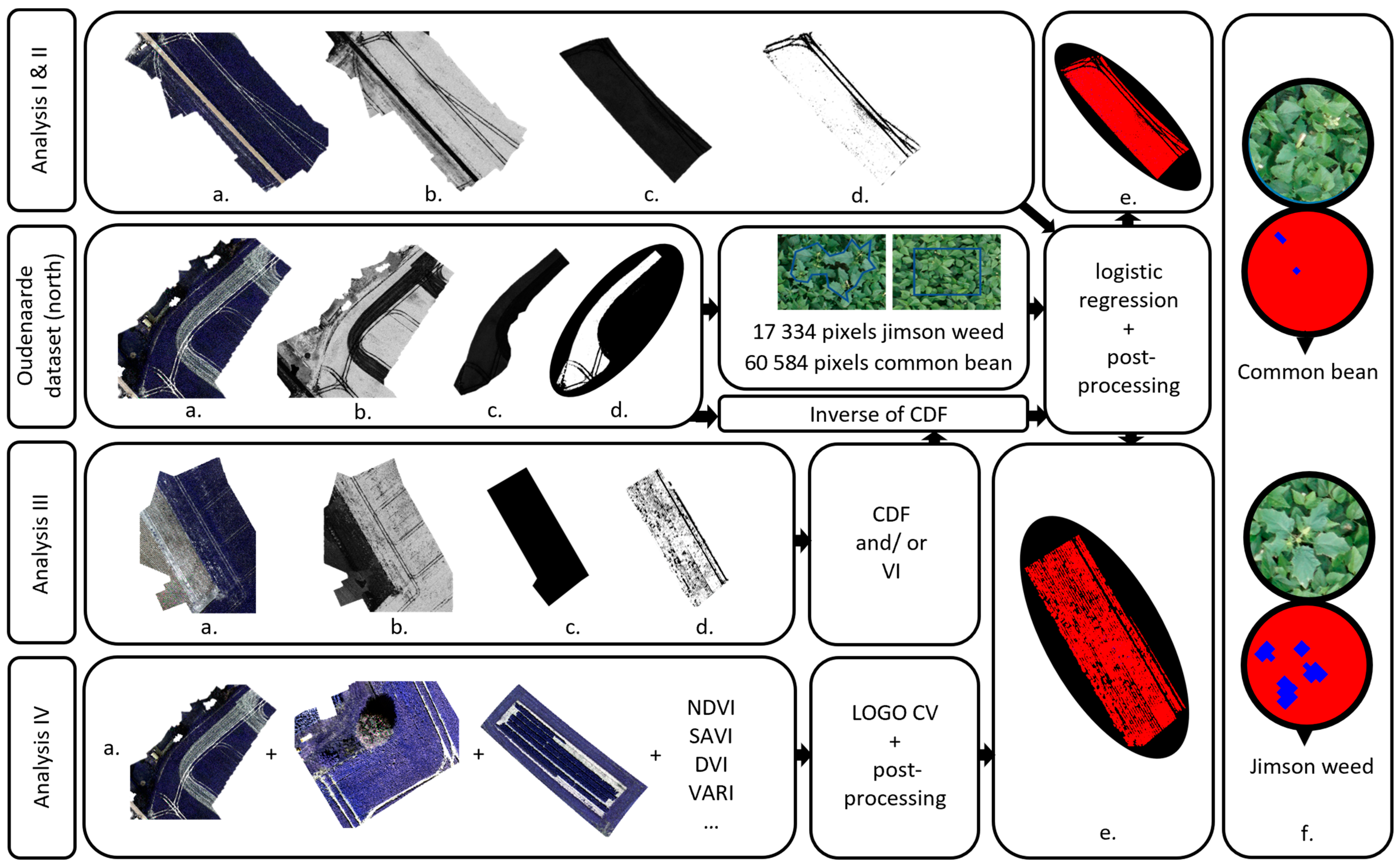

Figure 2 provides a schematic overview of these analyses.

2.5.1. Spectral Distinctness of D. stramonium and Common Bean

The key question here is whether both species can be spectrally discriminated. This was done by training a separate model per site. For the field of Oudenaarde, enough D. stramonium plants were present to split the area in a training and a validation part. The study area was divided by a spray track in a northern section, which was used for training, and a southern section, used for validation. Datura stramonium plants grew very densely in the northern part, with plants attaining a large-statured growth, making it well-suited for obtaining pure weed pixels. Training data of D. stramonium were primarily obtained from regions where the plants grouped together. The dataset was not balanced, with bean reference data outnumbering D. stramonium data. The imbalance in the dataset was approached pragmatically: logistic regression models were run with and without a correction for the mild imbalance. Visual inspection of the classified maps (of the northern section) showed, however, that the balanced datasets led to an increase in FP, i.e., common bean pixels classified as D. stramonium. Hence, the imbalance was not corrected in any of the models. For both D. stramonium and common bean, one hundred circular polygons were drawn on the northern and on the southern area of the Oudenaarde field (400 polygons in total).

For the fields of Meulebeke, Merelbeke, and Houthulst, training data were obtained from D. stramonium plants that were visually distinguishable on the reflectance orthomosaic and marking areas of pure pixels. This methodology was used as there was no perfect overlay between the RGB and reflectance orthomosaic. This resulted in training data from thirty-two, fourteen, and eleven D. stramonium plants, respectively. For the Houthulst field, weeds and crops were hard to distinguish. Hence, the amount of training data was low. For common bean, one hundred polygons were drawn. For D. stramonium, the polygons were drawn around the GNSS measurements. The best pixel threshold value with the highest recall value in the training data of Oudenaarde was applied to the other fields. Recall was selected as the decision-making metric because misclassifying D. stramonium could result in crop contamination, posing a public health risk. The F1-score was provided for completeness; however, the score was not used to make decisions.

Ref. [34] explains that, in some data types, values of nearby observations can have the tendency to be more similar than values of distant observations, and when data are drawn from this dependence structure (e.g., data that is close in space and/or time), the independence of evaluation data can be compromised [35], producing overly optimistic estimates of prediction error. Data from geographically distinct locations can be used to evaluate a model [34]. As mentioned, models for Meulebeke, Merelbeke, and Houthulst were generated using the training data specific to each field and subsequently applied to the corresponding orthomosaic. Consequently, the outcomes represent training scores rather than validation scores. Throughout the remainder of this study, the term ‘training’ will denote the model’s application to observed data, ‘validation’ will refer to the application of the model to unseen data within the same field, and ‘test’ will pertain to unseen data from a different field. The training scores attained by the individual models can be regarded as the optimal outcome with this particular dataset and logistic regression as the model type and can be used as a reference. Test scores, on the other hand, represent an unbiased estimate of the model behavior in unknown situations.

2.5.2. The Impact of Ground Sampling Distance on Classification Performance

The multispectral image from the field in Oudenaarde was exported from QGIS with three different ground sampling distances: 2.68 cm, 3.35 cm, and 4.10 cm, simulating flight heights of 40 m, 50 m, and 60 m, respectively. For a 200 m × 200 m square field, raising the flight height to the aforementioned heights resulted in 22%, 34%, and 44% reductions in UAV flight duration according to the mission planner app, respectively. The analyses of Section 2.5.1 for Oudenaarde were repeated using these adapted multispectral images. For each GSD, a different pixel density threshold value was obtained from the training data.

2.5.3. Generalization of the Oudenaarde Model

The model of the field in Oudenaarde, created with the largest dataset, was selected for application to unseen data of the other fields. Firstly, the Oudenaarde model (from Section 2.5.1) was applied to the uncorrected orthomosaic (R-U) of the test fields. However, different growth conditions can impact reflectance values. The extremely dry period in August 2022 in particular could have induced stress in plants during flowering, leading to alterations in their spectral characteristics. It has been reported that stress during flowering has a large impact on the growth of bush beans [36]. Subsequently, two distinct approaches were employed to reduce/remove variation between datasets caused by extraneous effects: the utilization of VI and CDF-correction.

The data of the three test fields were corrected so their CDFs matched the data from Oudenaarde. CDFs were created for each band of the multispectral test images using data classified as vegetation by a binary image (see Section 2.3). A one-dimensional interpolating spline was created using defaults settings with the Python package SciPy [37]. The inverse of the CDF of the Oudenaarde data was created similarly. All bands of the test images were subjected to their respective CDFs and the output was used in the inverse CDF to return reflectance values, as follows:

$${\rho }_{corrected}={CDF}_{Oudenaarde,i}^{-1}\left({CDF}_{testfield,i}\left(\rho \right)\right)$$

with $\rho$ being the reflectance of the multispectral test image and $i$ being the band number (Table 2). The CDF-corrected orthomosaics (R-CDF) were classified using the Oudenaarde model, and the result was multiplied with the binary vegetation mask.

Additionally, VIs were selected that amplify the vegetation signal while minimizing the impact of solar irradiance, soil background effects, varying illumination, and atmospheric conditions (Table 3). These indices were added as additional channels to the orthomosaic. Training pixels of the Oudenaarde field, including VIs and the original reflectance values, were included in a new logistic regression model with nineteen features and applied to each test orthomosaic (VI-U).

Finally, both correction methods were combined: the new logistic regression model (with VI) was applied to CDF-corrected test orthomosaics (VI-CDF). Subsequently, the results were subjected to the post-processing procedure described in Section 2.4.

Table 3. Vegetation indices used in leave-one-group-out cross-validation. Subscripts in the formula indicate band numbers described in Table 2.

Abbreviation	Name	Formula	Reference
NDVI	Normalized difference vegetation index	${\displaystyle \frac{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}}_5}{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+{\mathrm{R}\mathrm{E}\mathrm{D}}_5}}$	[38]
SAVI	Soil adjusted vegetation index	${\displaystyle \frac{\left({\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}}_6\right)\mathrm{*}(1+\mathrm{L})}{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+{\mathrm{R}\mathrm{E}\mathrm{D}}_6+\mathrm{L}}}$	[39]
MSAVI	Modified soil adjusted vegetation index	${\displaystyle \frac{2\mathrm{*}{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+1-\sqrt{{\left(2\mathrm{*}{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+1\right)}^2-8\mathrm{*}({\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}}_6)}}{2}}$	[40]
SR	Simple ratio	${\displaystyle \frac{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}}{{\mathrm{R}\mathrm{E}\mathrm{D}}_6}}$	[41]
DVI	Difference vegetation index	${\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}}_6$	[38]
RDVI	Renormalized difference vegetation index	$\sqrt{\mathrm{N}\mathrm{D}\mathrm{V}\mathrm{I}\mathrm{*}\mathrm{D}\mathrm{V}\mathrm{I}}$	[42]
VARI	Vegetation atmospherically resistant index	${\displaystyle \frac{{\mathrm{G}\mathrm{R}\mathrm{E}\mathrm{E}\mathrm{N}}_4-{\mathrm{R}\mathrm{E}\mathrm{D}}_6}{{\mathrm{G}\mathrm{R}\mathrm{E}\mathrm{E}\mathrm{N}}_4+{\mathrm{R}\mathrm{E}\mathrm{D}}_6-{\mathrm{B}\mathrm{L}\mathrm{U}\mathrm{E}}_2}}$	[43]
NDRE	Normalized difference red edge index	${\displaystyle \frac{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}\mathrm{E}\mathrm{D}\mathrm{G}\mathrm{E}}_7}{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+{\mathrm{R}\mathrm{E}\mathrm{D}\mathrm{E}\mathrm{D}\mathrm{G}\mathrm{E}}_7}}$	[44]
GNDVI	Green normalized difference vegetation index	${\displaystyle \frac{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{G}\mathrm{R}\mathrm{E}\mathrm{E}\mathrm{N}}_3}{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+{\mathrm{G}\mathrm{R}\mathrm{E}\mathrm{E}\mathrm{N}}_3}}$	[45]

Table 3. Vegetation indices used in leave-one-group-out cross-validation. Subscripts in the formula indicate band numbers described in Table 2.

Abbreviation	Name	Formula	Reference
NDVI	Normalized difference vegetation index	${\displaystyle \frac{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}}_5}{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+{\mathrm{R}\mathrm{E}\mathrm{D}}_5}}$	[38]
SAVI	Soil adjusted vegetation index	${\displaystyle \frac{\left({\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}}_6\right)\mathrm{*}(1+\mathrm{L})}{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+{\mathrm{R}\mathrm{E}\mathrm{D}}_6+\mathrm{L}}}$	[39]
MSAVI	Modified soil adjusted vegetation index	${\displaystyle \frac{2\mathrm{*}{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+1-\sqrt{{\left(2\mathrm{*}{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+1\right)}^2-8\mathrm{*}({\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}}_6)}}{2}}$	[40]
SR	Simple ratio	${\displaystyle \frac{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}}{{\mathrm{R}\mathrm{E}\mathrm{D}}_6}}$	[41]
DVI	Difference vegetation index	${\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}}_6$	[38]
RDVI	Renormalized difference vegetation index	$\sqrt{\mathrm{N}\mathrm{D}\mathrm{V}\mathrm{I}\mathrm{*}\mathrm{D}\mathrm{V}\mathrm{I}}$	[42]
VARI	Vegetation atmospherically resistant index	${\displaystyle \frac{{\mathrm{G}\mathrm{R}\mathrm{E}\mathrm{E}\mathrm{N}}_4-{\mathrm{R}\mathrm{E}\mathrm{D}}_6}{{\mathrm{G}\mathrm{R}\mathrm{E}\mathrm{E}\mathrm{N}}_4+{\mathrm{R}\mathrm{E}\mathrm{D}}_6-{\mathrm{B}\mathrm{L}\mathrm{U}\mathrm{E}}_2}}$	[43]
NDRE	Normalized difference red edge index	${\displaystyle \frac{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{R}\mathrm{E}\mathrm{D}\mathrm{E}\mathrm{D}\mathrm{G}\mathrm{E}}_7}{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+{\mathrm{R}\mathrm{E}\mathrm{D}\mathrm{E}\mathrm{D}\mathrm{G}\mathrm{E}}_7}}$	[44]
GNDVI	Green normalized difference vegetation index	${\displaystyle \frac{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}-{\mathrm{G}\mathrm{R}\mathrm{E}\mathrm{E}\mathrm{N}}_3}{{\mathrm{N}\mathrm{I}\mathrm{R}}_{10}+{\mathrm{G}\mathrm{R}\mathrm{E}\mathrm{E}\mathrm{N}}_3}}$	[45]

2.5.4. Generalization by Leave-One-Group-Out Cross-Validation

A logistic regression model was created with nineteen features using reflectance data and VI from three locations as input. LOGO CV was performed for every field. The created model was applied to the CDF-corrected multispectral orthomosaic of the omitted test field. Subsequently, the results were subjected to the post-processing procedure described in Section 2.4. For the Oudenaarde field, only data from the southern part was included.

3. Results

3.1. Vegetation Analysis

The mean plant size of the D. stramonium plants in the field of Meulebeke (var. tatula) was 0.068 m² (σ = 0.039). They had the largest mean plant size of all fields. All D. stramonium plants had leaves extending above the crop canopy. The field almost achieved full canopy closure. The D. stramonium plants from the field in Oudenaarde had the second largest mean plant size (μ = 0.038 m², σ = 0.020). The canopy consisted of healthy vegetation and was fully closed except for some spots at the edges of the canopy. In Merelbeke, the plant size was more variable (μ = 0.035 m², σ = 0.051) due to the different planting dates. Seedlings planted later in the season were often at least partly overgrown by common bean. Seven D. stramonium plants were not visible on nadir looking RGB imagery and were omitted in further analyses. Due to the wider inter-row spacing, the vegetation did not achieve full closure, leaving a significant amount of bare soil exposed. The weeds in the Houthulst field were substantially smaller (μ = 0.018 m², σ = 0.012). The common bean plants were stunted, leaving bare soil exposed between and in the rows.

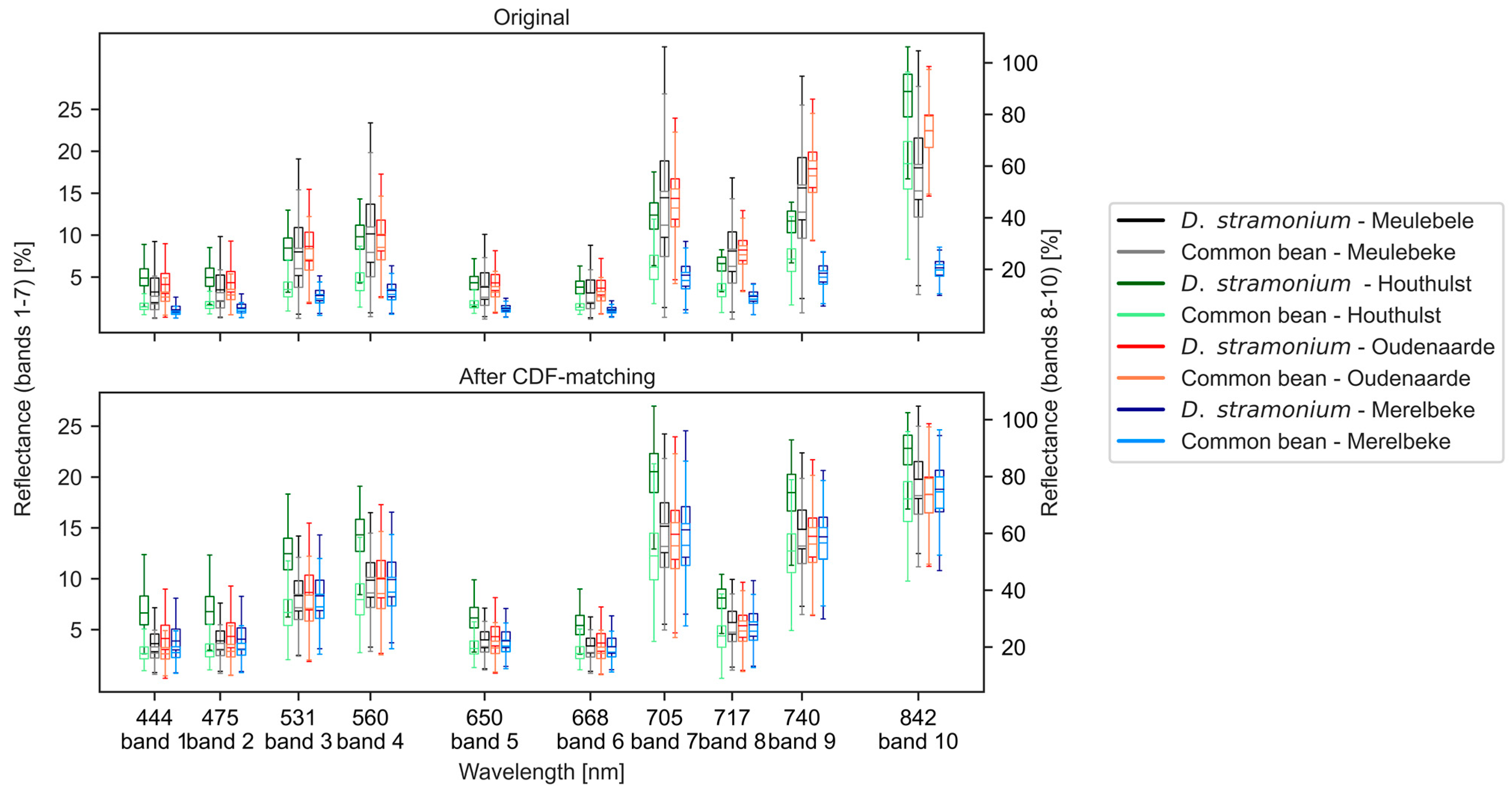

Within all combinations of bands and locations, D. stramonium had a higher median reflectance than common bean (Figure 3). Reflectance values of both species were very low for the field of Merelbeke. After CDF matching, median reflectance values exhibited a narrower range. Especially for common bean, CDF matching was able to align median reflectance values for the different locations. Median reflectance values of D. stramonium for the field in Houthulst were substantially higher than at other locations, which was not the case for common bean. For the Meulebeke field, median reflectance of D. stramonium, i.e., from var. tatula, was slightly higher for bands 9 and 10 after CDF matching.

3.2. Spectral Distinctness of D. stramonium and Common Bean

The results from analysis I are provided in

Table 4. Results from analysis I (assessing the spectral discriminative capacity between common bean and D. stramonium by the development and application of logistic regression models). Recall, TNR: true negative rate, precision, and F1-score are indicated for different locations and pixel density threshold values. Threshold is the number of pixels classified as D. stramonium needed to classify a polygon as a D. stramonium plant.

Location	Dataset	Threshold [Pixels]	Recall	TNR	Precision	F1
Oudenaarde	Training	1	0.96	0.49	0.65	0.78
		2	0.96	0.56	0.69	0.80
		3	0.96	0.62	0.72	0.82
		4	0.96	0.67	0.74	0.84
		5	0.95	0.74	0.79	0.86
		6	0.94	0.75	0.79	0.86
	Validation	4	0.99	0.95	0.95	0.97
Meulebeke	Training	4	0.91	0.72	0.53	0.67
		11	0.88	0.93	0.81	0.85
		16	0.88	0.96	0.88	0.88
Houthulst	Training	4	0.53	0.97	0.94	0.68
Merelbeke	Training	4	0.36	0.92	0.56	0.43
		5	0.36	0.94	0.63	0.45

. In the Oudenaarde dataset, training recall exhibited a relatively high value at the single pixel threshold level (0.96) and showed a gradual decline when the threshold value increased. When a threshold of 1 was used (i.e., a polygon is classified as D. stramonium if at least one single pixel inside the polygon is classified as D. stramonium), 51% of the common bean plants were incorrectly categorized as D. stramonium plants. Increasing the threshold value resulted in a slight reduction in recall, but significantly increased the TNR as well as the precision and F1-score. The optimal threshold was four pixels, since the recall of the training data start to decline at a threshold value of five pixels. At this threshold value, the precision was 74%.

A threshold of four pixels resulted in a precision of 95% for the validation dataset. FP were visually inspected on the RGB orthomosaic of the northern part of the Oudenaarde field to see if other weed species might have been the reason for misclassification. However, this was not the case.

For the field in Meulebeke, TNR was rather low (0.72). It is noteworthy that the three smallest D. stramonium plants in the field were not correctly classified. Overall, the incorrectly classified D. stramonium plants were smaller in size. The Houthulst field obtained a very high TNR (0.97), but recall was very low (0.53). A total of 36 of the 42 incorrectly classified weeds exhibited a smaller than average plant size. For the Merelbeke field, only 10 out of 28 D. stramonium plants were classified correctly. The seven largest D. stramonium plants were classified correctly.

A threshold value of eleven pixels removed a great deal of FP from the Meulebeke classification map. This large threshold value indicates that there were numerous small patches that were incorrectly classified as D. stramonium plants. However, the large majority of D. stramonium pixels were classified correctly, resulting in a recall of 88%.

3.3. The Impact of Ground Sampling Distance on Classification Performance

Results from analysis II are provided in

Table 5. Results from analysis II (examining the influence of ground sampling distance on model performance). Recall, TNR: true negative rate, precision, and F1-score are indicated for different ground sampling distances and pixel density threshold values.

(Simulated) Flight Height [m]	Ground Sampling Distance [cm]	Dataset	Threshold [Pixels]	Recall	TNR	Precision	F1
30		Training	1	0.96	0.49	0.65	0.78
			2	0.96	0.56	0.69	0.80
			3	0.96	0.62	0.72	0.82
	2.01		4	0.96	0.67	0.74	0.84
			5	0.95	0.74	0.79	0.86
			6	0.94	0.75	0.79	0.86
		Validation	4	0.99	0.95	0.95	0.97
40		Training	1	0.91	0.61	0.70	0.79
			2	0.91	0.67	0.73	0.81
	2.68		3	0.90	0.78	0.80	0.85
			4	0.89	0.83	0.84	0.86
		Validation	2	0.97	0.95	0.95	0.96
		Training	1	0.85	0.83	0.83	0.84
			2	0.83	0.86	0.86	0.84
50	3.35		3	0.78	0.87	0.86	0.82
			4	0.75	0.90	0.88	0.81
		Validation	1	0.94	0.96	0.96	0.95
60		Training	1	0.78	0.83	0.82	0.80
			2	0.73	0.87	0.85	0.78
	4.10		3	0.66	0.88	0.85	0.74
			4	0.62	0.93	0.90	0.73
		Validation	1	0.85	0.95	0.94	0.89

. For a GSD of 2.68 cm, a two-pixel threshold value worked best, whereas for GSDs of 3.35 cm and 4.10 cm, one pixel was chosen as the threshold that maximizes recall. The validation recall values were 97%, 94%, and 85%, respectively, and the validation TNRs were 95%, 96%, and 95%, respectively. Despite the decrease in recall, TNR remained stable with increasing flight height.

3.4. Generalization of the Oudenaarde Model

Results from analysis III are provided in

Table 6. Test results from analysis III (improving model generalization by incorporating the use of vegetation indices and applying cumulative distribution function matching). Recall, TNR: true negative rate, precision, and F1-score are indicated for different locations, methods, and pixel density threshold values.

Location	Method	Threshold [Pixels]	Recall	TNR	Precision	F1
Meulebeke	R-U	4	1.00	0.00	0.25	0.40
	VI-U	4	1.00	0.23	0.31	0.47
	R-CDF	4	0.41	0.87	0.52	0.46
		10	0.09	0.93	0.30	0.14
	VI-CDF	4	0.26	0.93	0.56	0.36
Houthulst	R-U	4	0.06	0.95	0.50	0.10
	VI-U	4	0.01	1.00	1.00	0.02
	R-CDF	4	0.80	0.76	0.75	0.77
		22	0.38	0.97	0.92	0.54
	VI-CDF	4	0.80	0.81	0.79	0.80
		14	0.52	0.97	0.94	0.67
Merelbeke	R-U	4	1.00	0.00	0.22	0.36
	VI-U	4	0.00	1.00	-	0.00
	R-CDF	4	0.54	0.66	0.31	0.39
		27	0.11	0.92	0.27	0.15
	VI-CDF	4	0.54	0.69	0.33	0.41
		12	0.21	0.92	0.43	0.29

R-U: Application of the Oudenaarde model with reflectance data applied to the uncorrected orthomosaic. VI-U: Application of the Oudenaarde model with reflectance data and vegetation indices applied to the uncorrected orthomosaic. R-CDF: Application of the Oudenaarde model with reflectance data applied to the CDF-corrected orthomosaic. VI-CDF: Application of the Oudenaarde model with reflectance data and vegetation indices applied to the CDF-corrected orthomosaic.

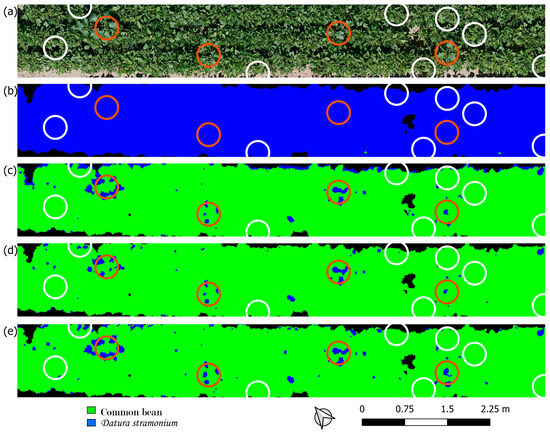

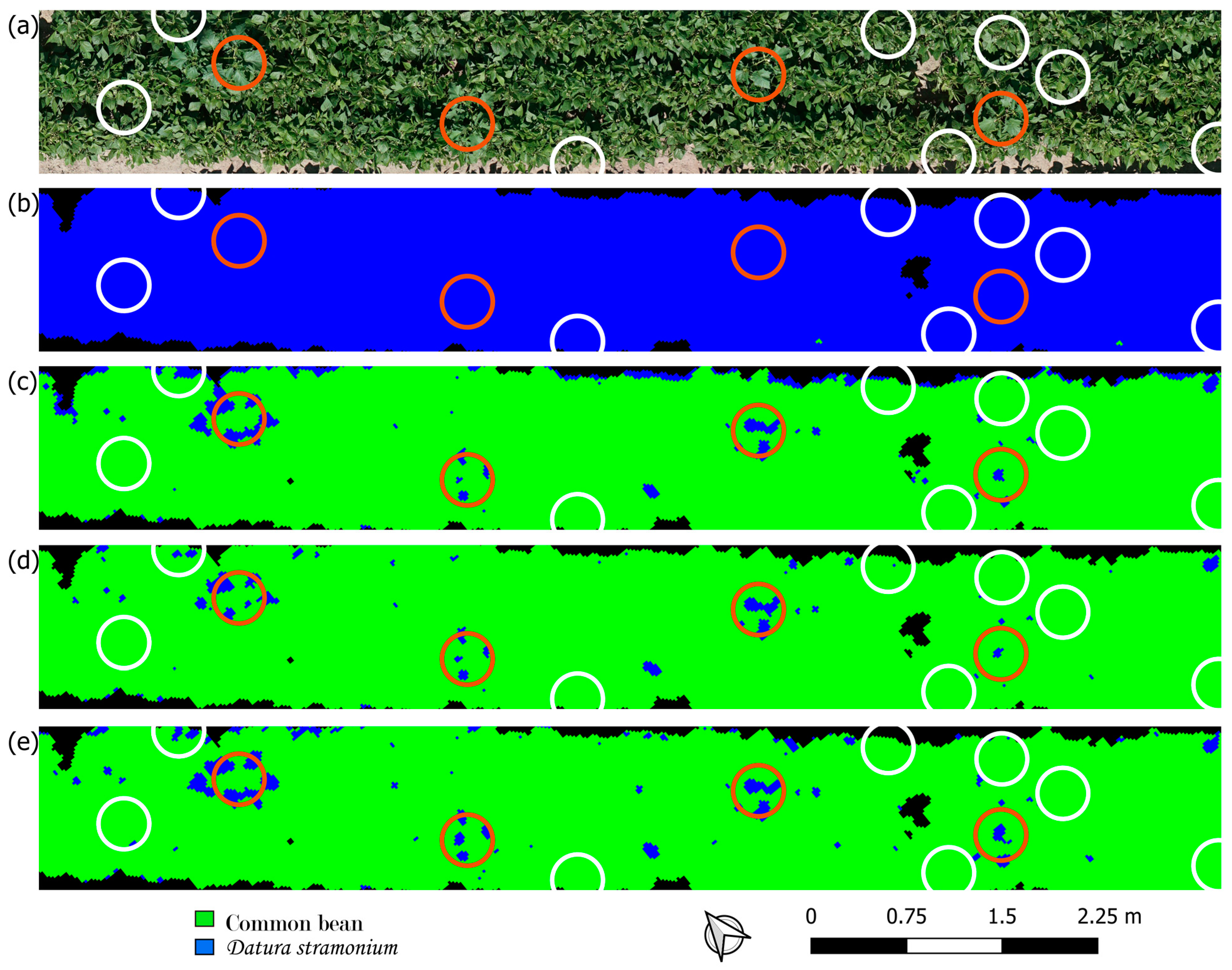

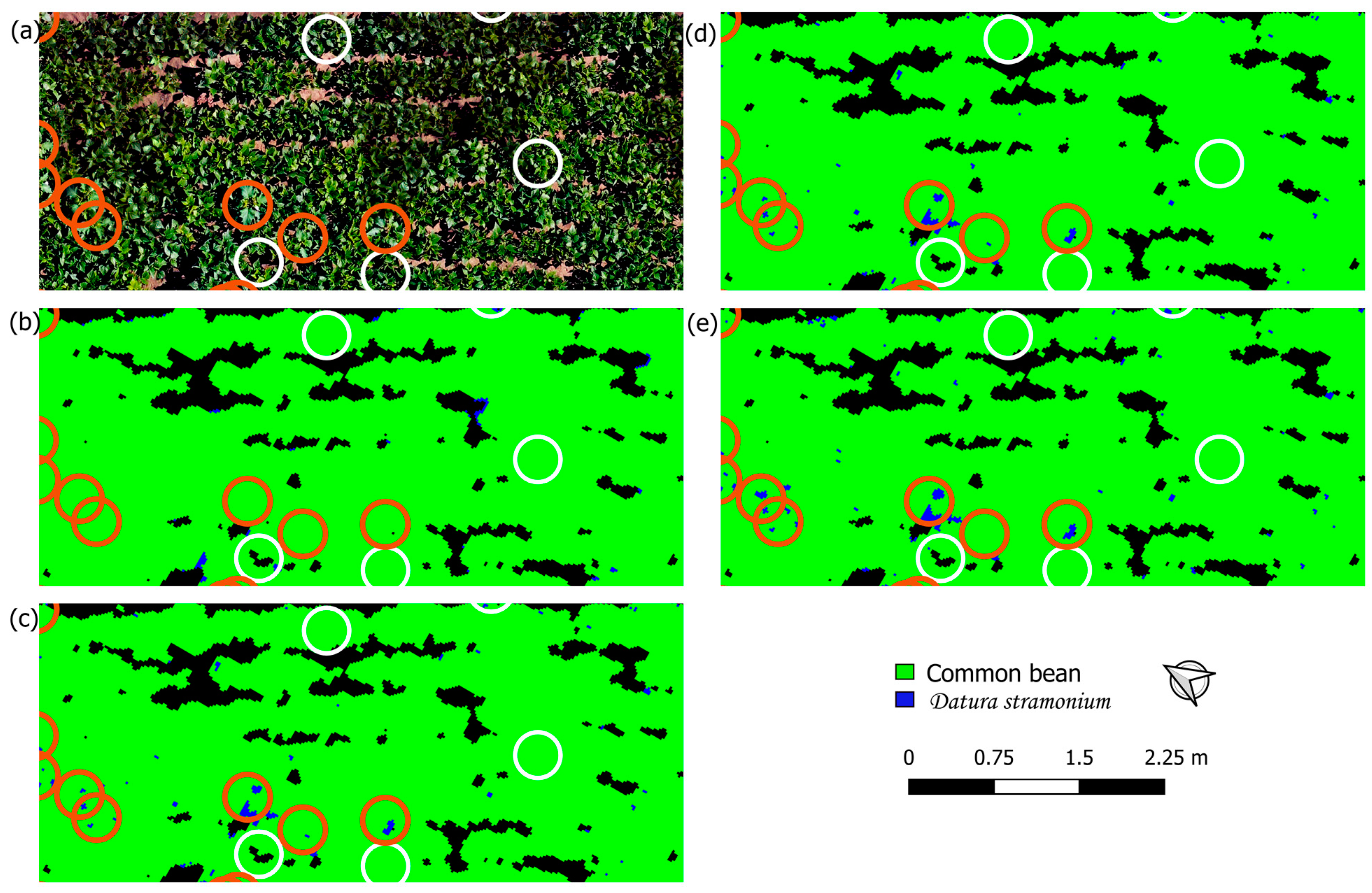

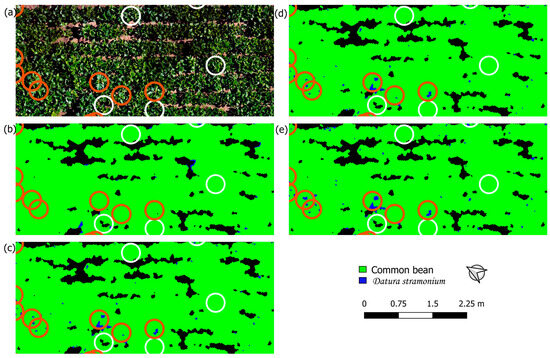

and Figure 4 and Figure 5b–d. Here, four different approaches were taken: (i) the approach when the model was constructed with the reflectance data as input, without any corrections (R-U); (ii) a model constructed applying reflectance and VI, without corrections (VI-U); (iii) the model, applied to CDF-corrected orthomosaics (R-CDF); and (iv) the model with reflectance data and VI applied to CDF-corrected orthomosaics (VI-CDF). For all results, a four-pixel threshold was used as this was found to be a good threshold value in the training and validation datasets of Oudenaarde (Section 3.2). In some cases, an alternative result with another threshold value is also shown for comparison.

The R-U approach resulted in poor classification. In Merelbeke, the whole field was classified as D. stramonium (Figure 4b). Similarly for the field in Meulebeke (classification maps not shown), more than half of the field was classified as D. stramonium, with shaded crop pixels all being classified as D. stramonium. This resulted in a TNR of zero. For the field in Houthulst, recall was very poor (0.06) (Figure 5b). The inclusion of VI in the model (VI-U) did not yield a substantial improvement in classification performance. CDF matching, on the other hand, improved precision for the fields of Meulebeke and Merelbeke, and it improved recall for Houthulst. By applying CDF matching, the classification map of Merelbeke clearly shows the circumference of various leaves of D. stramonium plants (Figure 4c). However, there are a lot of false positive pixels at the north-eastern border of the canopy. The combination of VI and CDF matching (VI-CDF) slightly improved TNR and precision for all the test fields relative to the former method (Figure 4d and Figure 5d). Recall decreased for the Meulebeke field and was unaffected for the fields of Houthulst and Merelbeke.

Across all fields, the best results for analysis III were achieved by VI-CDF. In Meulebeke, this resulted in a recall of 26% (TNR adapted to match results of analysis I). Five of the (nine) correctly classified D. stramonium plants had a higher-than-average plant size. In Houthulst, recall was 52%, with the majority of the correctly classified D. stramonium plants having a larger than average plant size. In Merelbeke, recall was 21%, and the three largest weeds were correctly classified. However, four D. stramonium plants with a larger than average plant size were not correctly classified.

3.5. Generalization by Leave-One-Group-Out Cross-Validation

Table 7. Test results from analysis IV (improving model generalization by combining spectral data and vegetation indices from multiple agricultural fields with the use of leave-one-group-out cross-validation). Recall, TNR: true negative rate, precision, and F1-score are indicated for different locations.

Location	Threshold [Pixels]	Recall	TNR	Precision	F1
Oudenaarde	4	0.99	0.92	0.93	0.96
	5	0.99	0.95	0.95	0.97
Meulebeke	4	0.44	0.96	0.79	0.57
Houthulst	4	0.76	0.82	0.79	0.77
	11	0.49	0.97	0.94	0.64
Merelbeke	4	0.61	0.70	0.36	0.45
	16	0.21	0.94	0.50	0.30

shows the results for the LOGO CV, using VI and reflectance data as input data. Test results for the field in Oudenaarde, employing a five-pixel threshold, were identical to the validation results. In the case of Meulebeke, all performance metrics improved in comparison to the best method of analysis III. With a TNR of 96% and a recall of 44%, ten out of thirteen D. stramonium plants with a larger than average plant size were correctly classified. In the case of Houthulst, recall decreased slightly in comparison to VI-CDF (0.49 vs. 0.52, with TNR = 0.97). Of the 21 D. stramonium plants with a larger than average plant size, 19 were correctly classified. For the Merelbeke field, no threshold value could be obtained to match the TNR from analysis III. However, at a four-pixel threshold value, TNR was almost identical (0.69 vs. 0.70). With this threshold value, recall increased. Again, of the eight D. stramonium plants with a larger than average plant size, six were correctly classified. Overall, LOGO CV with inclusion of VI and application to a CDF-corrected orthomosaic proved to be the best method.

For the field of Merelbeke, to compare results from LOGO CV and the training scores, a TNR of 94% was also calculated. For the fields of Oudenaarde, Meulebeke, Houthulst, and Merelbeke, relative weed detection rates of 100% (99/99), 50% (15/30), 92% (44/48), and 60% (6/10) were obtained, respectively (calculated as the ratio of the number of D. stramonium plants detected with LOGO CV and during validation (for Oudenaarde) or training (for the test fields), each with a threshold value so TNR is equal for both methods).

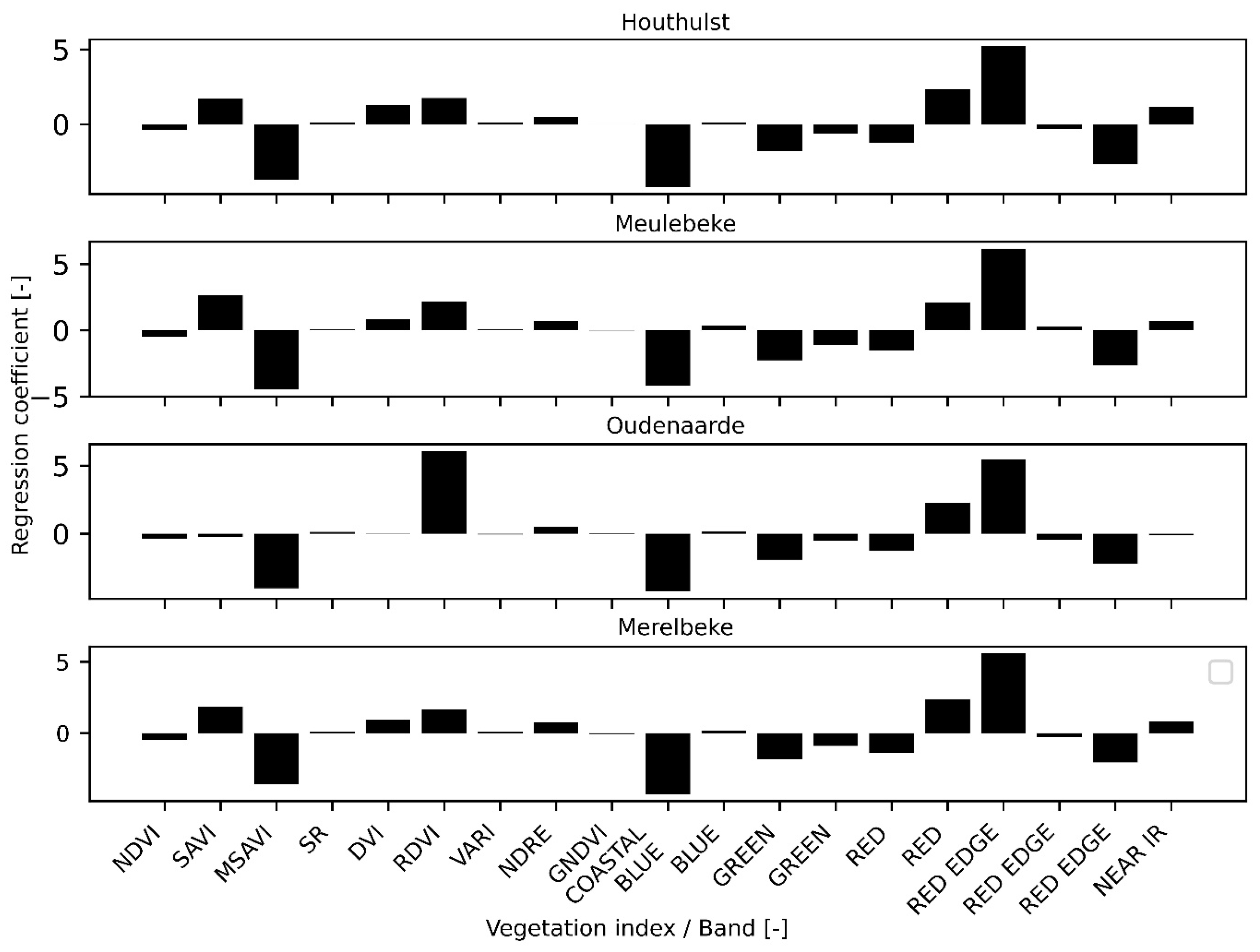

Regression coefficients from LOGO CV are provided in Figure 6. Although the most important features were the same for each field, their absolute values differed. The most important VI in the models were RDVI and MSAVI. The coefficients of bands 1 (Coastal blue) and 7 (Red edge) were the most important.

4. Discussion

The first objective of this study was to assess the spectral discriminative capacity between common bean and D. stramonium by the development and application of a logistic regression model for each individual common bean field. The scores from analysis I (Table 4) confirm that D. stramonium and common bean are multispectrally separable, y-awith D. stramonium having a higher spectral reflectance across all bands (Figure 3). To distinguish false positive pixels from D. stramonium, a size-dependent threshold was used, assuming larger groups of classified D. stramonium pixels are more likely truly D. stramonium plants. As the industry applies a zero-tolerance policy and the study pertains to public health, the recall was given priority over the TNR, and a four-pixel threshold was found optimal for the field in Oudenaarde. Specifically, if it results in fewer missed D. stramonium plants, it is favorable to categorize more common bean plants as D. stramonium. However, TNR and precision are still important. If there are two million crop plants in a field, a TNR of 67% would require 660,000 unnecessary checks, rendering the obtained result no more effective than scanning the entire field. Likewise, a precision of 74% means a fourth of the labor time will be dedicated to unproductive fieldwork. However, pixels of correctly classified solitary D. stramonium plants in the Oudenaarde field often displayed a distinct grouping pattern, attributed to the architectural features of D. stramonium. This was also the case in the test field of Merelbeke, which can be observed in Figure 4c–e. However, this pattern can only be observed when D. stramonium plants are large enough and leaves extend above the crop canopy, which was not the case in Houthulst (Figure 5). In addition, visual inspection of the classified image of Oudenaarde shows that incorrectly classified crop pixels tend to cluster around the field’s edges where plant coverage is not 100%. Consequently, human interpretation of the classification map is still necessary. However, since the removal of the D. stramonium plants is still performed manually, this should not pose a problem in fields with uniform plant distribution.

A possible explanation for the higher validation scores (than training scores) in Oudenaarde (Table 4) is the manual flight of the UAV over the northern section of the field, which resulted in a greater number of images and an increased image overlay. During this flight, the weather was mostly cloudy, which could have caused significant variations in incoming radiation. In [46], surface reflectance under overcast conditions was more accurately calculated without DLS corrections as the sensor is sensitive to the orientation of the sun. Inadequate calculation of the surface reflectance could have led to differences in reflection between the selected training pixels and the rest of the northern part of the field. As the training pixels only represent a small portion of the entire northern region, this discrepancy could have contributed to the lower scores observed in the training set. It should be noted that performance metrics in Oudenaarde might be overestimated as the positions of the D. stramonium plants in Oudenaarde were not measured with a GNSS device and, hence, small, overgrown weeds might have been overlooked.

The lower scores in Merelbeke and Houthulst were due to the fact that D. stramonium plants were small and partially overgrown by beans. However, detecting these plants as well is important, since the industry still fears small weeds, as the coil springs of the harvester, responsible for pulling off the green pods and leaves, work at a height of 3–5 cm above the ground and time between flowering and fruiting of these small D. stramonium plants can be less than a week [47]. Smaller plants first of all resulted in fewer pure pixels: while selecting D. stramonium pixels, only a limited number of pixels could unmistakably be selected. This also explains the high reflectance values of the Houthulst field (Figure 3). The analyses also confirmed that larger plants, with several pure pixels clustered together, were consistently better detected. Second, in the visual region, it is not possible to see through the canopy, so it is unrealistic to expect that overgrown plants can be detected. Reference [48] conducted research on subcanopy species detection and discovered that the detection rate decreased quickly as the canopy openness decreased, and no species were detected when the canopy was nearly fully closed (<10%). Their study reports increased detection rates when using oblique imagery. This could potentially be useful for identifying smaller, partially hidden weed plants. An alternative approach is to schedule flights earlier in the season compared to the current industry standard of conducting visual scouting a few days before harvest. Common bean plants would be smaller and D. stramonium plants less overgrown. Nonetheless, accurately monitoring these small weeds would mean flying at lower heights, thereby substantially increasing the time required for field scanning. Consequently, a trade-off has to be made by the industry.

So, although D. stramonium and common bean proved to be multispectrally distinguishable using UAV images, small, partly overgrown weeds were overlooked, and the authors suggest to either use oblique imagery or fly early in the growing season. The last approach, however, increases flight duration.

The second objective of this study was examining the influence of ground sampling distance (GSD) on model performance. An increase in flight height to 40 m (2.68 cm GSD) could be considered for this application. Depending on the available time, the threshold can be reduced to one pixel, which may result in an increase in FP. However, according to [49], resampling should be conducted using a weighted average based on the point spread function of the sensor. The point spread function of an optical system is the irradiance distribution that results from a single point source (Goodman, 2005). However, the point spread function of the MicaSense sensor is not available, and the calculation is not within the scope of this study. Simulated imagery might be unrealistically sharp and the obtained results optimistic. Hence, obtaining imagery with a GSD of 2.08 cm or smaller for D. stramonium plants of similar size than measured in Oudenaarde (μ = 0.038 m², σ = 0.020) might be suggested. On the other hand, UAVs and sensors are continuously being improved with larger spatial resolutions. In the coming years, these cameras could potentially reduce flight duration while simultaneously increasing its resolution. The current strategy’s drawback is the use of a single threshold value for an entire field as this threshold value should depend on the size of the D. stramonium plants. A plant-size-dependent flight height might be appropriate; only decreasing flight height for fields infested with small weeds. Flight height can also be decreased in areas with irregular germination of common bean or at field borders. A larger GSD increases the number of D. stramonium pixels of each plant on the multispectral orthomosaic, and this could increase the number of correctly classified D. stramonium pixels. As correctly classified D. stramonium pixels often manifest as different contiguous patches and misclassified common bean pixels as smaller solitary patches, an object-based detection method, to account for the plant’s architecture, could be applied after classification. The fusion of object-based and pixel-based methods indeed yielded promising results in the detection of bindweeds (Convolvulus), C. album, and Digitaria sanguinalis (crabgrass) in maize [50].

The third and fourth objectives of this study aimed at detecting D. stramonium plants in a location without using training data from that specific location. Variations in reflectance between different fields can be caused by soil reflectance, which are enhanced for discontinuous canopies [51]. Furthermore, differences in reflectance observed between datasets captured on different days and at varying flight heights may be attributed to variations in both illumination and atmospheric conditions. Adding to this complexity, variations in reflectance measurements may be attributed to both biotic and abiotic stressors. For instance, ref. [52] observed increases in reflectance and a reduction in absorption within the 695–725 nm wavelength range due to stress-induced factors. The most important VI for discriminating between D. stramonium and common bean in the LOGO CV models were RDVI and MSAVI. Considering the varying soil moisture levels and canopy densities in different fields, it is reasonable to expect that a vegetation index less sensitive to these factors would emerge as the predominant choice.

Bands 1 (Coastal blue) and 7 (Red edge) contributed the most to the LOGO CV model (Figure 6). The red edge region of the electromagnetic spectrum has been found to be of great importance for species discrimination in various vegetation studies [53]. Refs. [54,55] found that the red-edge spectral band (691–785 nm) is among the most important bands for distinguishing tree species. In addition, ref. [56] has highlighted the importance of the red edge position (715 nm) in discriminating between an invasive weed and four co-occurring plant species. Ref. [57] used a random forest classifier to discriminate between Cyperus esculentus L. (yellow nutsedge) and two co-occurring weed species; feature importance of bands around the red edge was significantly higher than for other wavelengths. On the other hand, blue wavelengths have also been labeled important for species discrimination. Ref. [58] found that wavelengths in the blue region of the spectrum (405, 410, and 430 nm) are frequently selected for discrimination models. Ref. [59] discriminated between sugar beet and weeds, and maize and weeds, finding that the selected wavelength ratios were often in the visible wavelength range and around 800 nm.

Incorporating data from diverse fields improved classification results for Meulebeke and Merelbeke with comparison to VI-CDF. Only for the Houthulst field was VI-CDF slightly better. In comparison with the training scores, LOGO CV performed really well for the Oudenaarde (1.00) and Houthulst (0.92) fields regarding the relative weed detection rate. However, for the field in Meulebeke, this was substantially poorer, with a relative weed detection rate of only 50%. One of the possible reasons is that the D. stramonium plants in this field belonged to a different variety (Table 1). Ref. [7] showed that hyperspectral reflectance of the two D. stramonium varieties (Datura stramonium var. tatula & var. stramonium) and common bean differed sufficiently to be classified accordingly. In addition, preliminary results showed both D. stramonium varieties also differ sufficiently from each other to be classified accordingly [60]. Datura stramonium var. tatula was indeed not included in the training set. Other data with this botanical variety should be included in the model to improve results. In addition, the relative weed detection rate of the Merelbeke field was rather poor (0.60). However, the total number of D. stramonium plants was rather low, and a slight difference in the detected D. stramonium plants generates a large difference in relative weed detection rate.

While the fields of Oudenaarde and Houthulst were accurately classified using data from other fields, this was not the case for Meulebeke and Merelbeke. These diverse outcomes highlight the importance of conducting tests in diverse fields and under varying conditions. In literature, most UAV-based weed detection studies randomly select subsets of the dataset to train, validate, and test a model [61,62,63,64,65,66,67,68,69,70,71,72]. Some authors divided the field in different sections [73,74,75,76] or used two neighboring fields [77]. No study could be found that applies a model to an independent test set, where this dataset is clearly separated in space and/or time from the training dataset.

The third and fourth objectives of this study show that it is possible to detect D. stramonium in common bean fields with a model that was not trained with data from that field. However, adequate measures need to be taken to adjust the training data to remove or reduce variation between datasets caused by extraneous effects. Small D. stramonium plants were still overlooked. As mentioned, machine learning models perform well in situations of interpolation. When extrapolation occurs, this is when the distribution of reflectance values, measured in another location and/or at another time, differ from the distribution of the training data, and major model performance reductions can occur [78]. Here, this problem was addressed by the use of VI and CDF matching. However, this methodology failed in the Meulebeke field, where var. tatula was present. It is important to consider the similarity of the measurements to the training data when classifying a new location, and results should be interpreted with caution when extrapolating. To determine the similarity to the existing training data, out-of-distribution detection can be performed [12].

While this study aimed to achieve the above-mentioned objectives, some aspects of the design may have influenced the results and should be considered. The lack of knowledge about the presence of small D. stramonium plants in the field of Oudenaarde might have exaggerated the results of that field. As the results from other fields showed small D. stramonium plants to be problematic, chances are small and (partially) hidden weeds were ignored, overestimating recall. However, obtaining GNSS measurements of all D. stramonium plants in such a dense and large field is very time consuming. In addition, because of the misalignment between reflectance and RGB orthomosaic, it was difficult to obtain training data of D. stramonium, especially for small plants. On the one hand, small plants consist of fewer pixels than large plants, making them more difficult to classify correctly. On the other hand, the limited amount of training data of these small D. stramonium weeds may cause the model to be less sensitive for these weeds, as it has not been adequately trained to recognize them. A great deal of multispectral data of smaller D. stramonium plants should be collected to test this hypothesis.

As explained, single false positive pixels might be unavoidable in higher-resolution datasets, due to soil reflection, edge effects, or BRDF issues, so a threshold value of a number of positive pixels within an area must be used, maximizing recall and precision simultaneously. In this study, we were not able to obtain a generally applicable threshold value. The classification maps of the fields of Houthulst and Merelbeke (Figure 4e and Figure 5e) show some FP consisting of a few pixels. To reduce the FP created by this noise, a higher threshold value can be used. However, this results in misclassifying small D. stramonium plants as common bean. Human interpretation of the classification map could be adequate, since the maps do show clear clusters of pixels—even leaf shapes—that could be attributable to D. stramonium. In this respect, deep learning could also be interesting. Deep convolutional networks have been shown to acquire high accuracy rates in weed–crop classification studies [79,80,81,82] and outperform traditional machine learning techniques [83,84].

As mentioned in the introduction, it is worth noting that agricultural fields may host various toxic weed species. The primary focus of this study has been the precise detection of D. stramonium. Nonetheless, the ultimate aim is to create a model capable of discriminating between all prevailing toxic weeds species on the one hand and crop plants on the other hand. However, the feasibility of developing such a model relies on the availability of extensive training data of these toxic weeds. When such training data become available, a model capable of classifying all relevant toxic weed species in (Belgian) vegetable crops should be pursued.

5. Conclusions

Common bean and Datura stramonium are multispectrally separable using the ten-band multispectral camera from MicaSense and logistic regression. For the largest dataset, in Oudenaarde, the model obtained a validation recall of 99% and TNR of 95%. To apply this model to other fields and address differences between datasets, vegetation indices were incorporated in the dataset and/or data corrected by matching the cumulative distribution functions (CDF) were used. Classification maps of CDF-corrected multispectral orthomosaics improved in comparison with the uncorrected orthomosaics. Best results were obtained with a model that was trained using data of all but one location with a leave-one-group-out cross-validation and applied to the CDF-corrected orthomosaic of the omitted field. However, small D. stramonium plants were systematically overlooked and classified as common bean. Further research is needed to determine whether a model created from lower-altitude UAV data (<30 m) or oblique imagery is able to detect these small plants. The model, which was trained using Datura stramonium var. stramonium, was not able to detect D. stramonium plants belonging to var. tatula. A drawback of the methodology is the use of one threshold value. A flight height depending on the plant size and degree of canopy closure could solve this problem. Alternatively, human interpretation of the classification map can, in some cases, suffice. Other methods (e.g., deep convolutional networks) can also be explored. The current detection strategy adopted by the industry is capable of detecting large D. stramonium plants located at the field’s edges and narrow zones adjacent to the field’s diagonals. The best classification strategy used in this paper was able to detect large D. stramonium plants, regardless of their location in the field. Although small weed plants remain a problem, the use of this method means an improvement in the detection accuracy over the present approach of visual scouting. The industry has to trade off the time required to scan the field and the resolution, which determines the accuracy. The study also illustrates the importance of an independent test set. The field in Oudenaarde yielded encouraging outcomes for employing a logistic regression model with UAV data from a ten-band multispectral camera. However, application to other fields revealed challenges.
