Synthetic-Aperture Radar Radio-Frequency Interference Suppression Based on Regularized Optimization Feature Decomposition Network

Abstract

Synthetic-aperture radar (SAR) can work in all weather conditions and at all times, and satellite-borne radar has the characteristics of short revisiting period and large imaging width. Therefore, satellite-borne synthetic-aperture radar has been widely deployed, and the SAR images have been widely used in geographic mapping, radar interpretation, ship detection, and other fields. Satellite-borne synthetic-aperture radar is also susceptible to various types of intentional or unintentional interference during the imaging process, and because the interference is a direct wave, its power is much stronger than the wave reflected by targets. As a common interference pattern, radio-frequency interference widely exists in various satellite-borne synthetic-aperture radars, which seriously deteriorates SAR image quality. In order to solve the above problems, this paper proposes a feature decomposition network to suppress interference based on regularization optimization. The contributions of this work are as follows: 1. By analyzing the performance limitations of the existing methods, this work proposes a novel regularization method for radio-frequency interference suppression tasks. From the perspective of data distribution histograms and residual components, the proposed method eliminates the variable components introduced by common regularization, greatly reduces the difficulty of data mapping, and significantly improves its robustness and performance. 2. This work proposes a feature decomposition network, where the feature decomposition module contains two parts; one part only represents the interference signal, and the other part only represents the radar signal. The neurons representing the interference signal are discarded, and the neurons representing the radar signal are used as input for the subsequent network. A cosine similarity constraint is used to separate the interference from the network as much as possible. Finally, this method is validated on the MiniSAR dataset and Sentinel-1A dataset.

1. Introduction

Synthetic-aperture radar (SAR) is a type of high-resolution imaging radar, and it also possesses imaging capability under all weather and all time conditions; thus, it has been widely deployed [1,2]. Common SAR satellites include the Sentinel satellites from Europe, RADARSAT satellites from Canada, and Haisi satellites from China. With the massive deployment of satellite-borne and airborne SAR systems, the imaging data have also been widely used in geodetic surveying [3], target recognition [4], ship detection [5,6], and super-resolution [7,8]. However, during the detection process of SAR satellites, various types of intentional or unintentional interference can cause SAR satellites to be blinded [9,10]. Among them, radio-frequency interference (RFI) is one of the most common interference patterns. RFI can be divided into narrowband interference and broadband interference. Usually, RFI is the direct wave, and its power is much stronger than the reflected wave of targets. Therefore, the coverage area of radio-frequency interference is wide and the interference intensity is high, resulting in the complete concealment of targets in the RFI-polluted areas. A common RFI-polluted image in Sentinel-1A is shown in Figure 1. As a countermeasure method, interference suppression aims to restore the clean image from the RFI-polluted image, laying the foundation for subsequent radar interpretation and other tasks, so it holds significant scientific research value and practical value.

The difficulty in interference suppression lies in how to filter out interference signals while preserving radar signals as much as possible. Interference suppression algorithms can be roughly divided into four categories: non-parametric methods, parametric methods, semi-parametric methods, and deep learning methods [11]. Non-parametric methods include notch filters [12,13], adaptive filters [14], and subspace projection filters [15,16,17]. For non-parametric methods, although they are simple, they also have significant limitations. They require a large difference between the interference signals and the radar signals, and when the difference characteristics are not obvious, their performance is insufficient [11]. In addition, non-parametric methods also filter out some radar signals when filtering out interference, which may cause target loss. For parametric methods, they need to model the echo signals [18,19], and their performance is limited by the model’s complexity. Especially for some complex interference scenarios, their performance is unclear. With the rise of compressed sensing and deep learning [20,21], sparse reconstruction methods and deep learning methods have gradually become the mainstream. Unlike parametric methods, semi-parametric methods do not directly model radio-frequency interference. Instead, they rely primarily on iterative loss functions to achieve matrix decomposition, effectively separating interference from aliased signals. These approaches not only filter out interference but also preserve radar signals, resulting in superior performance. Numerous iterative models have been proposed, including sparse models [22,23], low-rank models [24,25,26], and joint sparse low-rank models [27,28,29,30,31,32]. A previous work [25] proposes a robust principal component analysis method that uses sparse constraints to iteratively solve for principal components in the time–frequency domain to separate the interference. A previous work [33] proposes a weighted vector decomposition method that separates the interference from the aliased signals through low-rank constraints and sparse constraints. The work in [34] proposes a suppressing interference method by using blind source separation for singular value and eigenvalue decomposition based on information entropy. Although the above methods have achieved excellent performance, their computational complexity is high, and their performance is also unclear for complex combined interference scenarios. A previous work [35] presented an advanced approach for suppressing range ambiguity using blind source separation, and a previous work [36] presented a novel interference suppression method using secondary compensation.

Due to its good generalization ability, deep learning has been widely applied in SAR target interpretation [36,37,38,39,40], interference detection [41,42], etc. A previous work [43] proposed a new feature decomposition and reconstruction learning method to improve the facial expression recognition accuracy. A previous work [44] proposed to use an encoder–decoder network as the feature decomposition network to decompose the feature maps into same or different features based on their similarities or differences of visible and infrared images. In SAR target detection, a previous work [45] proposed to use the feature decomposition network to select the ideal features and discard the noise features, and finally the ideal features were used to carry out target detection. Overall, the feature decomposition networks have shown excellent performance in a variety of tasks.

What is more, deep learning has also gradually gained attention in the field of interference suppression. A previous work [46] proposed an interference suppression method based on combining interference detection and notch filtering. Firstly, it used the single-shot multi-box detector to detect interference and then used a traditional notch filter to separate the interference. A previous work [47] proposed a domain invariant feature interference suppression network, which optimizes the loss function to make the network focus only on the interference region, thus achieving the purpose of interference localization in cross-sensor experiments. Then, it also used a traditional notch filter to separate the interference. A previous work [48] introduced inpainting networks into SAR interference suppression for the first time and achieved a good result. A previous work [49] embed the sparsity constraints of interference and low-rankness constraints of radar signals into the loss function, and its performance exceeds semi-parametric methods such as RPCA. In the time–frequency spectrogram, due to the negative contribution of variable interference components to image inpainting, a previous work [50] proposed a joint image segmentation and image inpainting network, which greatly improves the image quality by separating variable interference components before inpainting.

Although the above deep learning methods have achieved good performance, there are still some shortcomings: First, in the time–frequency spectrogram, the interference intensity is uncertain, and the variable interference power can reduce the network performance. Although some methods attempt to solve the above problems, they do not reveal the underlying mechanism. Secondly, excessive variable interference components can also cause the network to require more neurons to deal with, which increases the difficulty of inpainting. To solve the above problems, firstly, this paper proposes a novel data regularization method and its superiority is proved by data distribution histograms and experiments. Secondly, this paper proposes a feature decomposition network, and it can separate interference from the network and improve performance. The innovations of this paper are as follows:

• By analyzing the performance limitations of existing methods, this paper proposes a new data regularization method for radio-frequency interference suppression tasks. From the perspective of data distribution histograms and residual components, the proposed method eliminates the variable components introduced by the common regularization method, and the mapping relationship between input and output data has been transformed from a Gaussian relationship to an approximately linear relationship. Data mapping is much simpler, so it can improve the network’s robustness and performance. In addition, this regularization method can be extended to other radar-interference suppression tasks.
• This paper proposes a feature decomposition network, in which the feature decomposition block consists of two parts; one part only represents the interference signal, and the other part only represents the radar signal. The neurons representing the interference signal are discarded, and the neurons representing the radar signal are used as the input of the subsequent network. A cosine similarity constraint is added to the loss function to separate the interference from the network as much as possible, thereby improving its performance. Moreover, this module can also be extended to other abnormal datasets containing noise, interference, etc.

This paper is organized as follows. Section 2 introduces the principle of interference suppression in the signal domain. Section 3 introduces the proposed network, loss function, and regularization method. The experimental results are presented in Section 4, and Section 5 summarizes the total paper.

2. Interference Suppression Principle

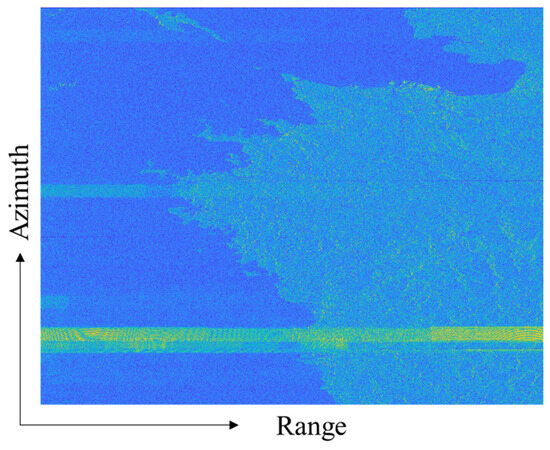

The coverage of radio-frequency interference is wide and the interference intensity is high. The RFI-polluted targets are completely mixed in the interference, so it is difficult to suppress interference. This work starts from the theory of signal transformation and conducts research on interference suppression algorithms in the time–frequency domain. This section is divided into two parts. The first part focuses on interference suppression research, and the second part delves into SAR imaging algorithm research. The purpose of the first part is to recover clean echo signals from the interfered echo signals, and the second part is to image the clean echo signals in the first part.

2.1. Interference Suppression in Signal Domain

For an SAR system, the single echo signal received by the radar can be expressed as follows:

$$r\left(\tau \right)=s_r\left(\tau \right)+s_i\left(\tau \right)+n\left(\tau \right),$$

(1)

$\tau$ is the time delay in the range, $s_r\left(\tau \right)$ is the radar signal, $s_i\left(\tau \right)$ is the interference signal, and $n\left(\tau \right)$ is the noise signal. The radar signal can be expressed as follows:

$$s_r=rect\left(\frac{\tau }{t_r}\right)\exp \left(j2\pi f_{c}t+j\pi k_r{\tau }^2\right),$$

(2)

$rect\left(\cdot \right)$ is a rectangle function, $t_r$ is the radar pulse duration, $f_c$ is the carrier frequency, and $k_r$ is the chirp rate. The radio-frequency interference can be expressed as follows:

$$s_i=rect\left(\frac{\tau }{t_{rfi}}\right)\exp \left(j2\pi f_{c}t+j\pi k_{rfi}{\tau }^2\right),$$

(3)

$t_{rfi}$ is RFI pulse duration, $k_{rfi}$ is RFI chirp rate, and $B_{rfi}=k_{rfi}\cdot t_{rfi}$ is RFI bandwidth. Usually, when $B_{rfi}\le 30\mathrm{MHz}$, radio-frequency interference is narrowband interference, and when $B_{rfi}>30\mathrm{MHz}$, radio-frequency interference is wideband interference. By comparing Formula (2) and Formula (3), it can be seen that, because of $k_{rfi}\ne k_r$, the radar signal and the interference signal have a higher degree of distinguishability in the time–frequency domain, so most methods also focus on this domain. The time–frequency transform can be expressed as follows:

$$Y\left(t,f_{\tau }\right)={\displaystyle {\int }_{-\infty }^{\infty }r\left(\tau \right)w\left(\tau -t\right)\exp \left(-j2\pi f_{\tau }\tau \right)d\tau },$$

(4)

$w\left(\cdot \right)$ is a rectangle-pulse signal. At this point, the transformed signal can be expressed as follows:

$$Y\left(t,f_{\tau }\right)=X\left(t,f_{\tau }\right)+I\left(t,f_{\tau }\right)+N\left(t,f_{\tau }\right),$$

(5)

$Y\left(t,f_{\tau }\right)$ is RFI-polluted time–frequency spectrogram, $X\left(t,f_{\tau }\right)$ is the clean time–frequency spectrogram, $I\left(t,f_{\tau }\right)$ is RFI time–frequency spectrogram, and $N\left(t,f_{\tau }\right)$ is noise time–frequency spectrogram. For interference suppression, it aims to recover a clean time–frequency spectrogram from the corrupted one, which can be regarded as an image inpainting task. Deep learning has demonstrated significant performance advantages in inpainting, making it a natural candidate for SAR interference suppression. An image inpainting model based on maximum posterior probability can be expressed as follows:

$$\underset{X}{\max }\log P\left(X/Y\right)\propto \log P\left(Y/X\right)+\log P\left(X\right),$$

(6)

Like Formula (5), Y represents the RFI-polluted image, and X represents the clean image. The optimization function can be expressed as follows:

$$\underset{X}{\min } l\left(Y,X\right)+\lambda R\left(X\right),$$

(7)

$l\left(Y,X\right)$ is the loss function, the common loss functions include l1, l2, etc., $R\left(X\right)$ is a prior information item, and $\lambda$ is a hyperparameter. From Equation (7), it can be seen that there are two optimization schemes for deep learning methods. The first is to adopt a better model, and the second is to extract richer prior information [51,52]. The matrix function of the network can be represented as H, and the deep learning image inpainting can be expressed as follows:

$$X=H\cdot Y,$$

(8)

Equation (8) is a nonlinear problem, which can be iteratively solved by gradient descent. The iterative formula can be expressed as follows:

$$H_{n+1}=H_n-\eta \frac{\partial X}{\partial Y},$$

(9)

$H_n$ is an iterative variable, and $\eta$ is an iterative step size. By the above iterative formula, we can solve for the matrix function H, and a clean time–frequency spectrogram can be obtained by the network. Finally, an inverse short-time Fourier transform is applied to transform the signal back to an echo signal. The clean echo signal can then be expressed as follows:

$$s_r\left(\tau \right)={\displaystyle {\int }_{-\infty }^{\infty }X\left(t,f_{\tau }\right)w\left(f_{\tau }-t\right)\exp \left(j2\pi f_{\tau }\tau \right)d{f}_{\tau }},$$

(10)

2.2. SAR Imaging

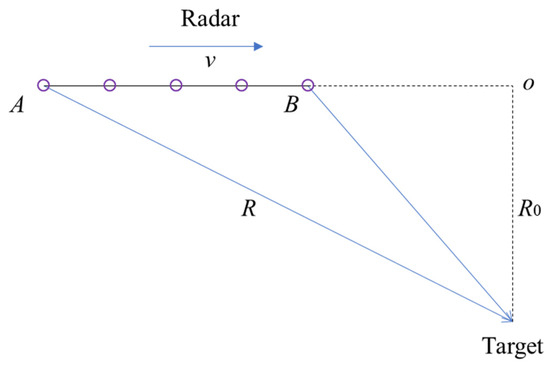

In Section 2.1, the interference has been filtered out. In this subsection, we image the clean echo to obtain a clean SAR image. The equivalent model for SAR imaging is shown in Figure 2. The radar moves from point A to point B with a velocity of v, and during this motion, the radar performs equidistant sampling to the target. The synthetic-aperture length is L_AB, and the equivalent minimum distance between the radar and the target is R0. Assuming that the starting time at point A is $-{\eta }_c$, the distance equation can be expressed as follows:

$$R\left(\eta \right)=\sqrt{R_0^2+{\left(v\left(\eta +{\eta }_c\right)\right)}^2},$$

(11)

During the radar’s motion, the echo signal can be expressed as follows:

$$s\left(\tau ,\eta \right)=A_0{w}_r\left(\tau -\frac{2R\left(\eta \right)}{c}\right)w_a\left(\eta -{\eta }_c\right)\exp \left(-j4\pi f_{c}R\left(\eta \right)/c\right)\exp \left(j\pi k_r{\left(\tau -\frac{2R\left(\eta \right)}{c}\right)}^2\right),$$

(12)

$\tau$ is the time delay in the range, $\eta$ is the time delay in the azimuth, $w_r$ and $w_a$ are the rectangle-pulse signal, $R\left(\eta \right)$ is the radar’s distance equation, $c$ is light speed, $f_c$ is the carrier frequency, $k_r$ is the range chirp rate, ${\eta }_c$ is the Doppler center time, $v$ is the radar’s speed, and $R_0$ is the vertical distance between the target and the radar. By pulse compression in the range, the signal can be expressed as follows:

$$\begin{array}{cc}{s}_{\mathrm{rc}}\left(\tau ,\eta \right)& ={\displaystyle {\int }_{-\infty }^{\infty }{S}_0\left(f_{\tau },\eta \right)H\left(f_{\tau }\right)}\exp \left(j2\pi f_{\tau }\tau \right)d{f}_{\tau }\\ & =A_0{p}_r\left(\tau -\frac{2R\left(\eta \right)}{c}\right)w_a\left(\eta -{\eta }_c\right)\exp \left(-j4\pi f_{c}R\left(\eta \right)/c\right)\end{array},$$

(13)

$H\left(f_{\tau }\right)$ is the range matched filter, $f_{\tau }$ is range frequency, and $p_r$ is a sinc-pulse signal. By azimuth Fourier transform, the signal can be represented as follows:

$$S_1\left(\tau ,f_{\eta }\right)=A_0{p}_r\left(\tau -\frac{2R\left(\eta \right)}{c}\right)W_a\left(f_{\eta }-f_{{\eta }_c}\right)\exp \left(-j4\pi f_c{R}_0/c\right)\exp \left(j\pi \frac{f_{\eta }^2}{k_a}\right),$$

(14)

$f_{\eta }$ is the azimuth frequency, $f_{{\eta }_c}$ is the Doppler center frequency, and $k_a$ is the azimuth chirp rate. By RCMC, the signal can be expressed as follows:

$$S_2\left(\tau ,f_{\eta }\right)=A_0{p}_r\left(\tau -\frac{2R_0}{c}\right)W_a\left(f_{\eta }-f_{{\eta }_c}\right)\exp \left(-j4\pi f_c{R}_0/c\right)\exp \left(j\pi \frac{f_{\eta }^2}{k_a}\right),$$

(15)

By azimuth matching filtering, the signal can be represented as follows:

$$S_3\left(\tau ,f_{\eta }\right)=S_2\left(\tau ,f_{\eta }\right)H_{az}\left(f_{\eta }\right)=A_0{p}_r\left(\tau -\frac{2R_0}{c}\right)W_a\left(f_{\eta }-f_{{\eta }_c}\right)\exp \left(-j4\pi f_c{R}_0/c\right),$$

(16)

$$H_{az}\left(f_{\eta }\right)=\exp \left(-j\pi \frac{f_{\eta }^2}{k_a}\right),$$

(17)

$H_{az}\left(f_{\eta }\right)$ is the azimuth-matched filter. Finally, the imaging can be acquired by azimuth inverse Fourier transform. At this time, the signal is represented as follows:

$$\begin{array}{cc}{s}_{ac}\left(\tau ,\eta \right)& ={\displaystyle {\int }_{-\infty }^{\infty }{S}_3\left(\tau ,f_{\eta }\right)}\exp \left(j2\pi f_{\eta }\eta \right)d{f}_{\eta }\\ & =A_0{p}_r\left(\tau -\frac{2R_0}{c}\right)p_a\left(\eta \right)\exp \left(-j4\pi f_c{R}_0/c\right)\exp \left(j\pi f_{{\eta }_c}\eta \right)\end{array},$$

(18)

In summary, the above radio-frequency interference suppression process is shown in

Table 1. SAR Interference Suppression.

Interference Suppression	Step
Signal transform	Short-time Fourier transform
Interference suppression	Image inpainting
Signal inverse transform	Inverse short-time Fourier transform
SAR imaging	Imaging by RD algorithm

.

3. Methods

This section is primarily divided into three parts. The first part introduces the feature decomposition network, which covers CNN-based and transformer-based feature decomposition networks. The second part discusses the loss function, and the third part presents data regularization.

3.1. Feature Decomposition Network

In interference suppression, our goal is to restore the clean image from the corrupted one. Because the interference intensity is high, for traditional inpainting networks, it requires more neurons to represent and suppress the interference, and it degrades the algorithm’s performance. To address this issue, we propose a feature decomposition network whose core idea is to allow some neurons to only represent the interference signal or the radar signal. The neurons representing the radar signal serve as input of subsequent network, while the neurons representing interference are discarded; thus, it can separate the interference from the network. To validate the advantages of the proposed network, we select both a CNN and transformer as base models and embed the feature decomposition block into the above networks. Therefore, this work has developed two types of feature decomposition networks, one is the CNN-based feature decomposition network, as shown in Section 3.1.1, and the other is the transformer-based feature decomposition network, as shown in Section 3.1.2. In theory, the CNN-based feature decomposition network has higher computational efficiency, while the transformer-based feature decomposition network has better performance, and the above conclusion is verified in Section 4.1. In Section 4.2 and Section 4.3, we have chosen the transformer-based feature decomposition network as the proposed method. The proposed network is depicted in Figure 3, where Figure 3a shows the overall structure, and Figure 3b shows the feature decomposition block. In Figure 3, H is the image height, W is the image width, and C is the channel numbers. We conduct comparative experiments in the two networks: the CNN-based model is shown in

Table 2. Composition units in the CNN-based network.

	Parameters	Name	Kernel	Stride
Layer
1		CNN	3	1
2		LeakyReLU	/	/
3		CNN	3	1
4		LeakyReLU	/	/
5		CNN	1	1

, and the transformer-based model is illustrated in Figure 4. In Figure 3, in order to better balance performance and computational cost, we set the parameters as follows: $H\times W=512\times 512$, $C=16$.

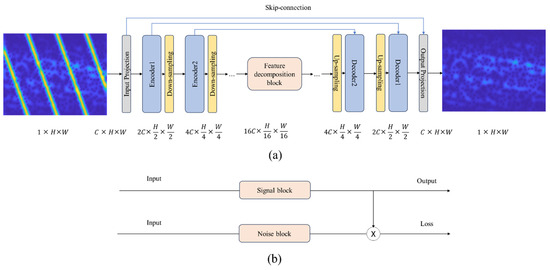

The proposed network is a U-shaped network consisting of an encoding block, a decoding block, and a feature decomposition block. In the encoding block, firstly, an input mapping layer, composed of CNNs with C channels, a kernel size of 3, and a stride of 1, is used to extract image features. Then, four encoding layers and four down-sampling layers are employed to further extract information. The down-sampling layers, composed of CNNs with a kernel size of four and a stride of two, double the number of channels and reduce the image size by half. In the feature decomposition block, the input signal is divided into two paths: one for signal block and the other for noise block. The signal path serves as input for the subsequent network, while the noise path is discarded. Meanwhile, a cosine similarity metric is used to separate the noise as much as possible. In the decoding block, four up-sampling layers and four decoding layers are utilized to gradually restore the clean image. The up-sampling layers, composed of deconvolutions with a kernel size of two and a stride of two, halve the channel numbers and double the image size. Subsequently, an output projection layer, composed of CNNs with one channel and a stride of one, is employed to map the extracted features into a clean image. Finally, skip-connections are added between the encoder and decoder to facilitate information flow. For better understanding, we further elaborate the network in Figure 3 with formulas. The formula for the input projection layer can be expressed as follows:

$$X_0=InputProjection\left(Y\right),$$

(19)

The formula for the i-th encoder layer can be expressed as follows:

$$E_i=Encoder\left(DownSampling\left(E_{i-1}\right)\right),$$

(20)

The formula for the feature decomposition block can be expressed as follows:

$$X_d=FeatureDecomposition\left(E_4\right),$$

(21)

The formula for the i-th decoder layer can be expressed as follows:

$$D_i=Decoder\left(UpSampling\left(D_{i+1}\right)+E_i\right),$$

(22)

The formula for the output projection layer can be expressed as follows:

$$\stackrel{⌢}{X}=OutputProjection\left(D_1\right)+Y,$$

(23)

The above is the proposed feature decomposition network. The input to of network is the RFI-polluted image, and the output of the network is a clean image.

3.1.1. CNN-Based Feature Decomposition Network

In a CNN-based network, to better extract image features, we need to stack more convolutional layers. Because the encoder block, decoder block, signal block, and noise block in Figure 3 possess similar functionalities, to facilitate reuse, we adopt a unified structure for these blocks, with specific parameters detailed in Table 2.

3.1.2. Transformer-Based Feature Decomposition Network

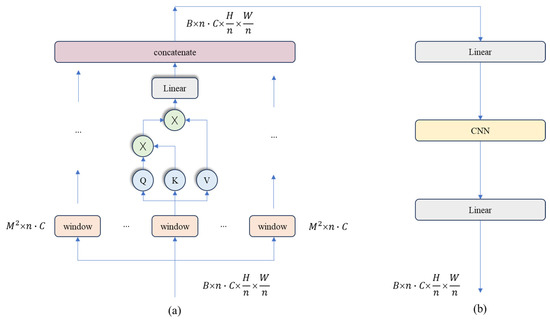

In the transformer-based network, the encoder block, decoder block, signal block, and noise block in Figure 3 have similar functionalities. To facilitate reuse, we adopt a unified structure for these blocks, and the structure is illustrated in Figure 4. To better extract global and local features, we divide the network into two parts: a global attention module that primarily focuses on capturing global information, as shown in Figure 4a, and a convolutional module that specializes in extracting local information, as depicted in Figure 4b. In Figure 4a, the input data and output data have the same dimension of $B\times n\cdot C\times \frac{H}{n}\times \frac{W}{n}$ (B is the batch-size, and n is the ordinal number in encoder block or decoder block). To reduce computational cost, the network restricts the attention computation within a window, and then the results from all windows are concatenated. The window size is $M\times M$, and the number of windows is $\frac{B\cdot H\cdot W}{n^2{M}^2}$. Each window primarily consists of a global feature extraction layer and a linear projection layer. In Figure 4b, the local information extraction module primarily comprises two linear mapping layers and a CNN layer with a kernel size of three and a stride of one. In Figure 4, in order to better balance performance and computational cost, we set the parameters as follows: $H\times W=512\times 512$, $M\times M=8\times 8$, $C=16$, $n=64$.

3.2. Loss Function

The loss function consists of three parts: the first part is the reconstruction loss, the second part is regularization term, and the third part is the feature decomposition loss, so the loss function can be expressed as follows:

$$Loss=l\left(\stackrel{⌢}{X},X\right)+{\lambda }_1\cdot {\left|\left|\stackrel{⌢}{X}\right|\right|}_F+{\lambda }_2\cdot D_{loss},$$

(24)

${\lambda }_1$, ${\lambda }_2$ are the adjustable hyperparameters. The ultimate optimization goal of the network is to restore clean images from the RFI-polluted images, with the expectation that the smaller the difference between $\stackrel{⌢}{X}$ and $X$, the better. The first part is shown as follows:

$$l\left(\stackrel{⌢}{X},X\right)=\sqrt{\left(\stackrel{⌢}{X}-X\right)+{\epsilon }^2},$$

(25)

$\stackrel{⌢}{X}$ is the network output, $X$ is the label, $\epsilon$ is a hypermeter. The feature decomposition loss function is equal to the absolute value of cosine similarity, defined as follows:

$$D_{loss}=\frac{1}{B}\left|{\displaystyle {\sum }_{n=1}^B\left(\frac{s_i\cdot n_o}{\left|s_i\right|\left|n_o\right|}\right)}\right|,$$

(26)

B is the batch-size, $s_i$ is the output of the signal block, and $n_o$ is the output of the noise block.

3.3. Data Normalization

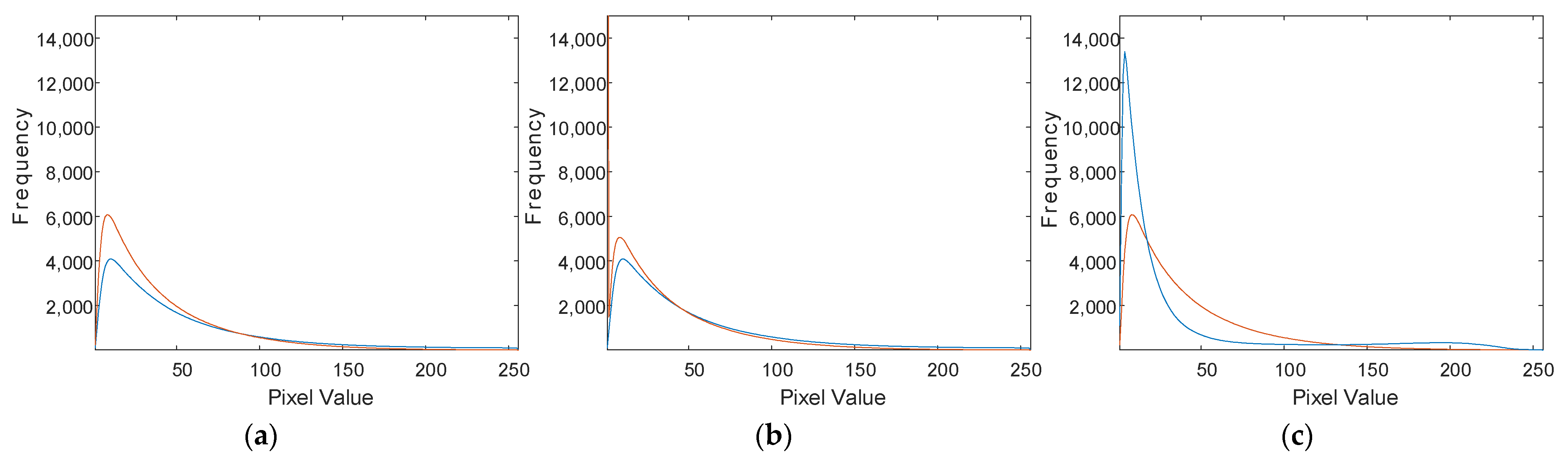

In the interference suppression task, the interference power is unknown and variable. To enhance the robustness to interference power, the training data must include various types of interference power. In the constructed training dataset, the interference power distribution curve is shown in Figure 5. The blue curve represents the measured power values, while the red curve is the fitted value. As it can be seen from Figure 5, the distribution curve of interference power approximately follows a normal distribution, and the interference power is sufficient to cover most scenarios. There are significant differences between SAR images and traditional optical images. In SAR images, there are a large number of strong scattering points, while the reflectivity of most uniform media is low, resulting in an extremely high dynamic range. This paper summarizes the common regularization methods in interference suppression tasks and proposes an improved method. The common regularization methods can be classified into three types: the first regularization adopted by PISNet [49], the second regularization method adopted by FuSINet [50], and the third adopted is the proposed method.

3.3.1. First Regularization

In PISNet, it separately normalizes the input data and the output data, and it is also the most common regularization approach for optical images. The normalization can be expressed as follows:

$$\left\{\begin{array}{c}{Y}_{norm}=\frac{Y}{\max \left(Y\right)}=Y/Y_{\max }\\ X_{norm}=\frac{X}{\max \left(X\right)}=X/X_{\max }\end{array}\right.,$$

(27)

The residual components that the network needs to learn can be expressed as follows:

$$Res=Y_{norm}-X_{norm},$$

(28)

By combining Formulas (5) and (28), we can see that:

$$Res=Y_{norm}-X_{norm}=\left(\frac{1}{Y_{\max }}-\frac{1}{X_{\max }}\right)X+\frac{I+N}{Y_{\max }},$$

(29)

From Formula (29), we can see that the residual component consists of two parts. The first part is a variable component, which causes significant difficulties in image restoration due to its random fluctuations following the pattern depicted in Figure 4. The second part is the interference component, which should be eliminated. Therefore, the first regularization has significant drawbacks in SAR interference suppression.

3.3.2. Second Regularization

In FuSINet, firstly it separates the interference component from the original data and then performs normalization on the input data and the output data separately. In this case, data normalization can be expressed as follows:

$$\left\{\begin{array}{c}{Y}_{norm}=\frac{Y-\left(I+X_I\right)}{\max \left(Y-\left(I+X_I\right)\right)}=\left(Y-\left(I+X_I\right)\right)/{\left(Y-\left(I+X_I\right)\right)}_{\max }\approx \left(X-X_I+N\right)/X_{\max }\\ X_{norm}=\frac{X}{\max \left(X\right)}=X/X_{\max }\end{array}\right.,$$

(30)

$\left(I+X_I\right)$ is the RFI-polluted component, $I$ is the interference, $X_I$ is the RFI-polluted target. Since the RFI-polluted component is separated, the residual component that the network needs to learn can be expressed as follows:

$$Res=Y_{norm}-X_{norm}=\frac{N-X_I}{X_{\max }},$$

(31)

3.3.3. Third Regularization

The proposed normalization normalizes the input data and output data by the maximum value of the interfered data. In this case, data normalization can be expressed as follows:

$$\left\{\begin{array}{c}{Y}_{norm}=\frac{Y}{\max \left(Y\right)}=Y/Y_{\max }\\ X_{norm}=\frac{X}{\max \left(Y\right)}=X/Y_{\max }\end{array}\right.,$$

(32)

In this case, the residual component that the network needs to learn can be expressed as follows:

$$Res=Y_{norm}-X_{norm}=\frac{I+N}{Y_{\max }},$$

(33)

Firstly, in Formulas (29), (31) and (33), the residual component represents the part of the network that needs to be repaired. The smaller the residual component, the fewer parts the network needs to learn, and therefore, the network will achieve better performance. Secondly, in adversarial experiments, the power of the interference source is unknown and variable, and the network must possess generalization capabilities towards interference power. Therefore, the training data must include a large number of signals with different interference powers. Thirdly, it can be seen from Formula (29), in the traditional regularization method, the residual component includes $Y_{\max }$ and $X_{\max }$, where $X_{\max }$ represents the peak power of strongly scattered targets and varies with changes in different scenarios, while $Y_{\max }$ represents the peak power of interference and varies with changes in different interference parameters. Both $Y_{\max }$ and $X_{\max }$ exhibit significant randomness, which means that the network requires more parameters to fit such random errors, leading to a degradation in its performance. What is more, the proposed method does not require segmenting the interference, so it is simpler. The proposed regularization method maybe can provide some insights for other radar tasks. The histogram comparison results of the three regularization methods are shown in Figure 6, where the horizontal axis represents pixel values, the vertical axis represents the frequency, the blue curve represents the RFI-polluted histogram, and the red curve represents the clean histogram. Figure 6a is the histogram of the first regularization, Figure 6b is the histogram of the second regularization, and Figure 6c is the histogram of the third regularization. As can be seen from Figure 6, for our method and the second method, the input and output data distributions are basically consistent, and most of the curves overlap completely, corresponding to less residual components; thus, our method can significantly decrease the difficulty of data fitting.

4. Experiments

This work conducted three experiments. The first part is an ablation study, which mainly includes comparative experiments on different regularization methods, different feature decomposition networks, and different prior information terms. The second part is the MiniSAR experiment, and the third part is the Sentinel-1A experiment. In our experiments, the image size of the training data is 512 × 512. In Section 4.1 and Section 4.2, the training data come from MiniSAR, with a data volume of 3072 images, and in Section 4.3, the training data come from Sentinel-1, with a data volume of 2048 images. All training data are the semi-physical simulation data. The optimizer for the network is AdamW, the maximum epoch is 100, the initial learning rate is 0.002, and the weight decay is 0.02. Each group of testing data consists of 512 images, and all testing and training data come from different imaging scenarios.

A previous work [50] adopts PSNR, SSIM, and ME as the evaluation metrics, and we also select the above indicators to evaluate the image quality. The selection of evaluation indicators varies in different experiments for the following reasons: Firstly, MiniSAR data are semi-physical simulation data, while Sentinel satellite data are measured RFI-polluted data. Secondly, PSNR and SSIM are the relative evaluation metrics, and they are used to measure the similarity between the filtered images and the labels, while ME is a self-evaluation metric. Thirdly, as MiniSAR is semi-physical simulation data, they relatively easily obtain both RFI-polluted data and RFI-free data. However, Sentinel satellite data are measured RFI-polluted data. In a single measurement, we either obtain RFI-polluted data or RFI-free data. It is difficult to obtain both RFI-polluted data and RFI-free data simultaneously. Therefore, in the MiniSAR data, we simultaneously selected the above three evaluation indicators, while in the Sentinel satellite data, we only selected the third evaluation indicator.

PSNR is usually used to evaluate the quality of images, and it is calculated as follows:

$$\left\{\begin{array}{c}\mathrm{PSNR}\left(X,\widehat{X}\right)=20 {\log }_{10}\frac{{\mathrm{Max}}_X}{\sqrt{\mathrm{MSE}}}\\ \mathrm{MSE}\left(X,\widehat{X}\right)=\frac{1}{HW}{{\displaystyle {\sum }_{i=0}^{W-1}‖X\left(i,j\right)-\widehat{X}\left(i,j\right)‖}}^2\end{array}\right.,$$

(34)

$\widehat{X}$ is the filtered image, $X$ is the label, $\mathrm{MSE}$ is root mean square, and H and W represent image size. PSNR is the evaluation index of the noise level. The larger the PSNR, the better the performance. The structural similarity (SSIM) can be expressed as follows:

$$\mathrm{SSIM}\left(X,\widehat{X}\right)=\frac{\left(2{\mu }_X{\mu }_{\widehat{X}}+c_1\right)\left(2{\sigma }_{X\widehat{X}}+c_2\right)}{\left({\mu }_X^2+{\mu }_{\widehat{X}}^2+c_1\right)\left({\sigma }_X^2+{\sigma }_{\widehat{X}}^2+c_2\right)},$$

(35)

$\mu$ is the mean value, $\sigma$ is the variance or covariance. A higher structural similarity indicates better performance. However, for the Sentinel-1 satellite, labels are lacking, so the aforementioned evaluation metrics are no longer applicable. To address this issue, this paper also adopts ME as an evaluation metric. ME is defined as follows:

$$\mathrm{ME}=\mathrm{Ent}\left(\widehat{X}\right)\cdot \mathrm{Mean}\left(\widehat{X}\right),$$

(36)

$\mathrm{Ent}\left(\widehat{X}\right)$ is the entropy, $\mathrm{Mean}\left(\widehat{X}\right)$ is the mean value. A smaller entropy indicates that pixel values are concentrated in a smaller range. A smaller mean value indicates less interference. Therefore, a smaller ME indicates better performance.

4.1. Ablation Study

To separately validate the various components of the proposed method, this section conducts three experiments. The first experiment mainly verifies the impact of different regularization methods, the second verifies the feature decomposition network, and the third verifies the impact of prior information terms. To increase generalization, the test data contain three types of interference: narrowband interference, sinusoidal modulated wideband interference, and chirp wideband interference. The bandwidth of narrowband interference is less than 30 MHz, the bandwidth of chirp wideband interference is ranging from 30 MHz to 150 MHz, and the bandwidth of sinusoidal modulated wideband interference is ranging from 30 MHz to 100 MHz.

4.1.1. Different Regularization Methods

This work conducts comparative experiments on three different regularization methods. To enhance the persuasiveness, we conduct relevant experiments on both UNet [53] and Uformer [54]. UNet is a U-shaped network composed of CNNs, while Uformer is a U-shaped network composed of transformers. The experimental results are shown in Figure 7, Figure 8 and Figure 9. Figure 7 is the result under narrowband interference, Figure 8 is the result under chirp wideband interference, and Figure 9 is the result under sinusoidal modulated wideband interference. The test metrics are shown in

Table 3. Experimental results in different regularizations.

	Metrics	Network	PSNR/dB	SSIM
Normalization
First		UNet-1st	26.95	93.18%
		Uformer-1st	29.21	94.56%
Second		FuSINet-2nd	32.88	96.43%
Third (Our)		UNet-3rd	31.70	96.24%
		Uformer-3rd	32.93	96.94%

. Comparing the first regularization method with our method, in UNet, the improvement in PSNR is 4.75 dB, and the improvement of SSIM is 3.06 percentage points; in Uformer, the improvement in PSNR is 3.72 dB, and the improvement of SSIM is 2.38 percentage points. Comparing the second regularization method with our method, our method still achieves optimal performance. The above experimental results show that our method achieves significant performance improvements in both networks, and it is consistent with the conclusions in Section 3.3. Additionally, compared to the second regularization method, our method does not require segmenting the interfered regions before image restoration, so it is much simpler.

4.1.2. Ablation Study on FDNet

This work integrates the feature decomposition block into CNN-based and transformer-based networks, and the experimental results are shown in Figure 10 and

Table 4. Comparative experimental results in feature decomposition networks.

	Metrics	Network	PSNR/dB	SSIM
Base Model
CNN-Based		UNet	31.70	96.24%
		FD-UNet	31.91	96.66%
Transformer-Based		Uformer	32.93	96.94%
		FD-Uformer	33.18	96.98%

. Comparing CNN networks with transformer networks, transformers exhibit superior performance, with an improvement of 1.23 dB in PSNR and 0.7 percentage points in SSIM. In CNN-based networks, compared to UNet, the proposed FD-UNet achieves an improvement of 0.21 dB in PSNR and 0.22 percentage points in SSIM. Compared to Uformer, FD-Uformer achieves an improvement of 0.25 dB in PSNR and 0.04 percentage points in SSIM. Therefore, we ultimately choose Uformer as the baseline network and embed the feature decomposition block into it, and it is namely FDNet. The network is illustrated in Figure 2, and its internal structure is depicted in Figure 4.

4.1.3. Ablation Study in Different Prior Information

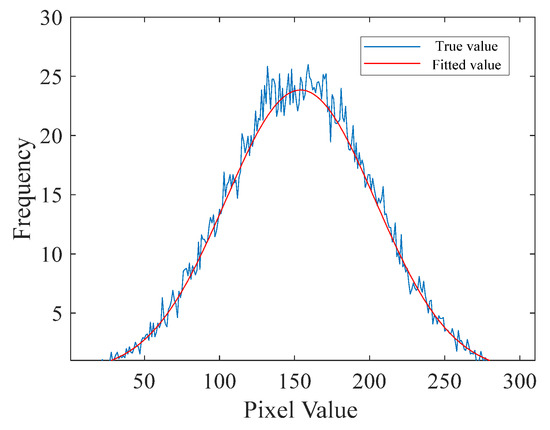

In Equation (26), we can see that the loss function also incorporates a prior information term. In this work, we validated four prior information items, namely L1, L2, TV-L1, and TV-L2 [47]. The L1 constraint tends to make the output sparser, while the L2 constraint tends to make the output smoother. The total variation (TV) term is designed to remove noise. This work tests the combinations of TV with L1 and L2 separately. The experimental results are shown in

Table 5. Comparative experimental results in prior terms.

	Metrics	PSNR/dB
Prior
L1		32.86
L2		32.97
TV-L1		32.88
TV-L2		32.95

. Because the time–frequency spectrogram does not exhibit significant sparse characteristics, these four prior information terms contribute little to the final network performance. Therefore, subsequent FDNet will not adopt these constraints.

4.2. MiniSAR Experiments

The FDNet is shown in Figure 2, and its internal structure is shown in Figure 4. This work selects DIFNet, PISNet, and FuSINet as comparative networks and conducts experiments on narrowband interference and wideband interference. DIFNet is a variant of the notch filter, which first segments the interference and then filters it out. In addition, the network is often less sensitive to noise power and other factors, so this method performs better than CFAR or other notch filters. PISNet and FuSINet are image inpainting networks. PISNet adds low-rank constraints to the network, while FuSINet first segments the interference area and then repairs the segmented area.

The parameters of MiniSAR are shown in

Table 6. The Parameters of MiniSAR.

	Value	Value
Parameters
Source		Sandia National Laboratories
Band		X-band
Bandwidth		1.5 GHz
Polarization		HH
Range × Azimuth resolution		0.1 m × 0.1 m

, and the data were made public by the Sandia National Laboratories. The radar operates in the X-band, its bandwidth is 1.5 GHz, and its polarization mode is HH. The resolution of the MiniSAR images is 0.1 m. The measured MiniSAR data do not contain radio-frequency interference. In order to conduct experiments on MiniSAR data, we conducted a semi-physical simulation on the above data, and the simulated interference parameters are shown in

Table 7. Interference parameters.

	Type	Narrowband	Chirp Broadband	Sinusoidal Broadband
Parameters
Interference bandwidth		<30 MHz	30~150 MHz	30~100 MHz
SIR		−15 dB~0 dB	−15~0 dB	−15~0 dB
Interference source		2	3~5	1

. In the semi-physical simulation, we load the interference data into the true SAR echoes, and then perform imaging processing on the RFI-polluted echoes to obtain the RFI-polluted SAR images. In the semi-physical simulation, the radio-frequency interference can be divided into narrowband interference, chirp modulation wideband interference, and sinusoidal modulation wideband interference. The bandwidth of narrowband interference is less than 30 MHz, the bandwidth of the chirp modulation wideband interference is 30 M~150 MHz, the bandwidth of the chirp modulation wideband interference is 30 M~100 MHz, and the signal-to-interference ratio of all situations is −15 dB~0 dB.

4.2.1. Narrowband Interference

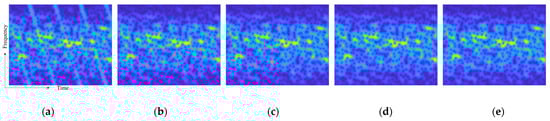

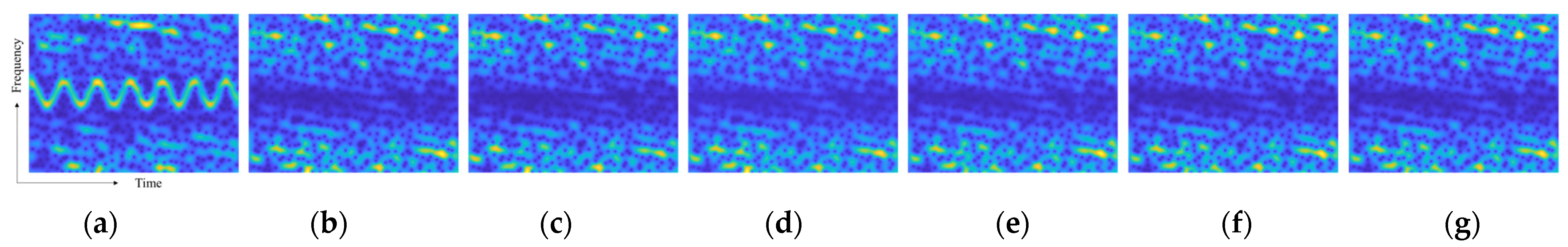

The parameters of the narrowband interference are shown in Table 6. The bandwidth of the interference signal is less than 30 MHz, and the signal-to-interference ratio (SIR) ranges from −15 dB to 0 dB. The time–frequency spectrogram of narrowband interference is presented in Figure 11, and the SAR image is shown in Figure 12. From Figure 11 and Figure 12, it can be observed that FuSINet and FDNet achieve higher image restoration quality and preserve more details. The performance indicators are shown in

Table 8. Image Restoration metrics under narrowband interference.

	Metrics	Time–Frequency Spectrogram		SAR Image
Methods		PSNR/dB	SSIM	PSNR/dB	SSIM	ME
DIFNet		/	/	24.55	80.24%	2.99
PISNet		31.28	96.59%	28.72	92.55%	2.96
FuSINet		35.76	97.76%	30.96	93.69%	2.89
FDNet		37.21	98.36%	31.88	94.77%	2.89

. On the time–frequency spectrogram, compared to PISNet, FDNet achieves an improvement of 5.93 dB in PSNR and 1.77 percentage points in SSIM. Compared to FuSINet, FDNet improves PSNR by 1.45 dB and SSIM by 0.6 percentage points. On the SAR image, compared to PISNet, FDNet improves PSNR by 3.16 dB and SSIM by 2.22 percentage points and reduces ME by 0.07. Compared to FuSINet, FDNet improves PSNR by 0.92 dB and SSIM by 1.08 percentage points, and ME remains unchanged.

4.2.2. Wideband Interference

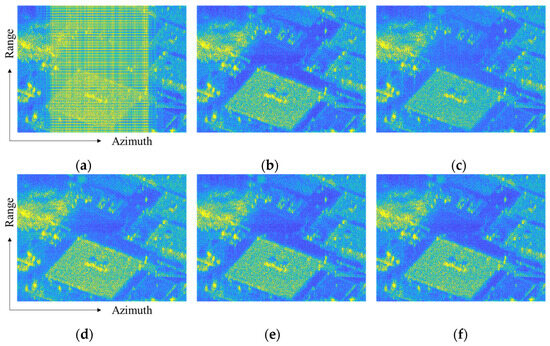

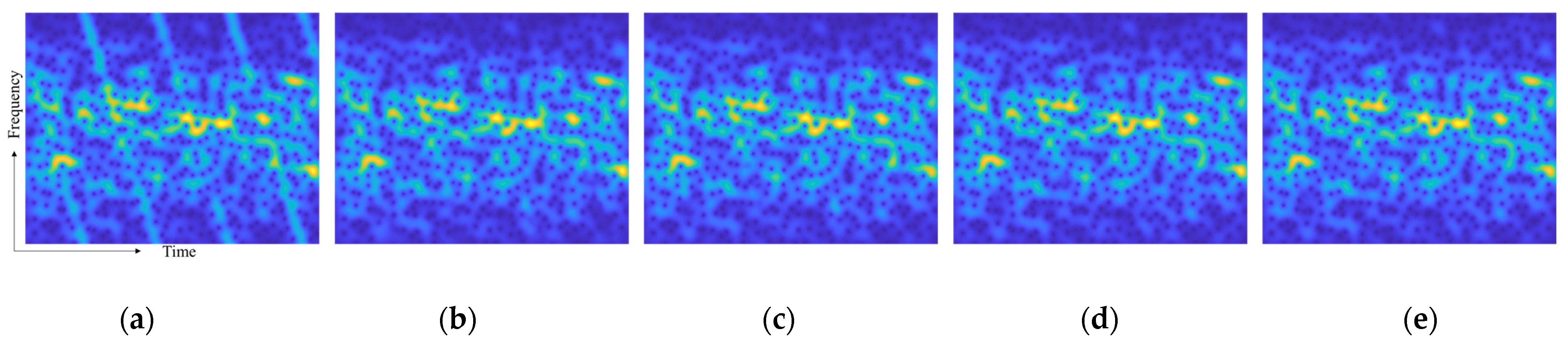

The image restoration results for broadband interference are shown in Figure 13 and Figure 14. From these figures, it can be observed that FuSINet and FDNet achieve higher quality and preserve more details. The performance indicators are presented in

Table 9. Image restoration metrics under wideband interference.

	Metrics	Time–Frequency Spectrogram		SAR Image
Methods		PSNR/dB	SSIM	PSNR/dB	SSIM	ME
DIFNet		/	/	23.69	78.76%	2.98
PISNet		29.68	95.93%	26.94	92.88%	2.97
FuSINet		34.63	96.15%	30.97	93.42%	2.89
FDNet		35.86	97.25%	31.31	94.00%	2.88

. On the time–frequency spectrogram, compared to PISNet, FDNet achieves an improvement of 6.18 dB in PSNR and 1.32% in SSIM. Compared to FuSINet, FDNet improves PSNR by 1.23 dB and SSIM by 1.1 percentage points. On the SAR image, compared to PISNet, FDNet improves PSNR by 4.37 dB and SSIM by 1.12 percentage points and reduces ME by 0.09. Compared to FuSINet, FDNet improves PSNR by 0.34 dB and SSIM by 0.58 percentage points and reduces ME by 0.01. From the experimental results under these two interference patterns, we can conclude that all four methods can eliminate interference, and the proposed method acquires the optimal results.

4.3. Sentinel-1A Experiments

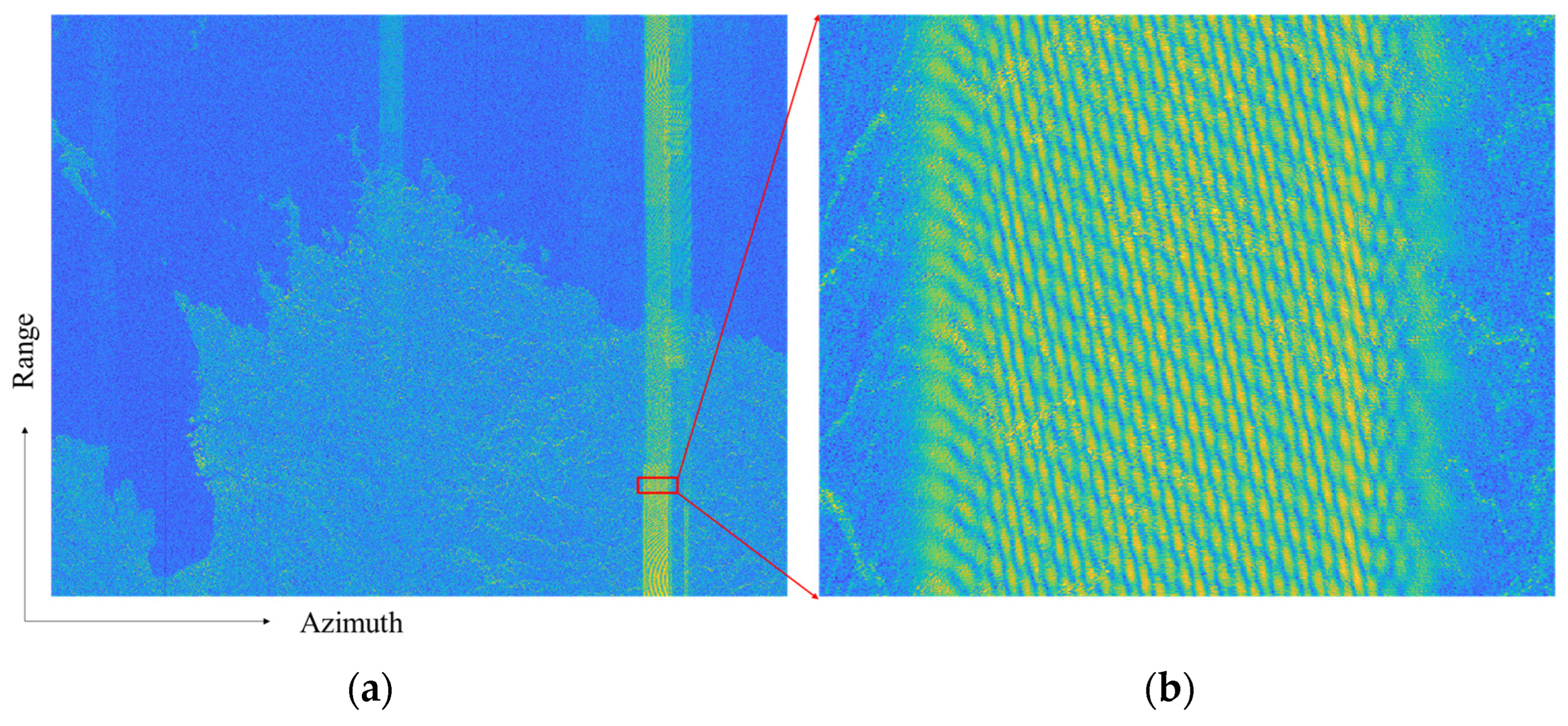

The Sentinel-1 satellite is a part of the Earth observation satellites within the Copernicus program of the European Space Agency, and its parameters are shown in

Table 10. The Parameters of Sentinel-1A.

	Value	Value
Parameters
Source		Sentinel-1A satellite
Band		C-band
Bandwidth		150 MHz
Polarization		VV/VH
Range × Azimuth resolution		3 m × 14 m

. It works in C-band, its resolution is 3 m in range and 14 m in azimuth, and it provides two polarization modes, namely VV and VH. During radar imaging, the satellites may encounter intentional and unintentional interference, and the common examples are shown in Figure 15, which were captured in Japan on 25 March 2021. Figure 15a is the RFI-polluted image, and Figure 15b is a selected candidate region for validation experiments. Because the interference patterns and power are unknown, the test data are highly representative. In this work, PISNet, FuSINet, and FDNet are selected as comparison methods, and ME is chosen as the evaluation metric. For satellite data, it lacks labels, so PSNR is no longer applicable.

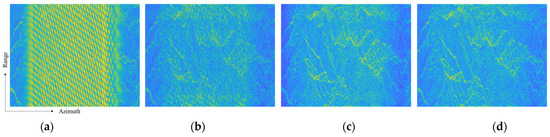

The restored time–frequency spectrogram is shown in Figure 16. Figure 16a is the interfered time–frequency spectrogram, Figure 16b is the time–frequency spectrogram by PISNet, Figure 16c is the spectrogram by FuSINet, and Figure 16d is the spectrogram by FDNet. From Figure 16a, we can see that the current interference is a kind of narrowband interference. It is evident that Figure 16b,c still contain some residual interference, while Figure 16d merely contains residual interference. The filtered SAR images are presented in Figure 17. Figure 17a is the RFI-polluted image, Figure 17b is the SAR image by PISNet, Figure 17c is the SAR image by FuSINet, and Figure 17d is the SAR image by FDNet. From Figure 17, it can be seen that the current interference power is higher, and the RFI-polluted targets are completely obscured by the interference. However, all three methods can eliminate most of the interference. Figure 17b,c still contain some residual components, Figure 17b shows blurry textures, and Figure 17d exhibits fewer residual components and clearer textures. The experimental metrics are shown in

Table 11. Image restoration indicators in Sentinel-1A.

	Methods	PISNet	FuSINet	FDNet
Metrics
ME		2.79	2.74	2.71

, and it can be seen that compared to PISNet, the ME decreases by 0.08, and compared to FuSINet, the ME decreases by 0.03; thus, it shows that our method achieves the best result.

5. Conclusions

Synthetic-aperture radar, as a type of all-weather, all-time, high-resolution imaging radar, has been widely deployed. However, during imaging, SAR is susceptible to various intentional or unintentional interferences. Among them, radio-frequency interference is a common form, and the interference signal is the direct wave. Compared to the transmitted wave of the target, the interference power is higher. Ultimately, radio-frequency interference will cover a large area, which greatly reduces SAR image quality. To suppress interference, this paper proposes a feature decomposition network based on regularization optimization. In the proposed feature decomposition network, a part of the neurons is dedicated to representing interference, while the other part focuses on representing clean signals. The neurons representing clean signals are as input for subsequent networks, while those representing interference are discarded. Secondly, a novel data regularization is introduced, which significantly improves the performance and is validated by data distribution histograms and experiments. On both the MiniSAR and Sentinel-1A datasets, the proposed method achieves excellent performance on the narrowband of wideband interference. What is more, the regularization method can be extended to other SAR tasks, and the proposed network can also be transferred to other tasks involving disturbance components. Lastly, we find that the current algorithm does not perform well in cross-sensor experiments, so we believe that transfer learning and self-supervised learning deserve further investigation. In addition, the RFI models also include some other types, such as AM, FM, QPSK, etc. The interference suppression methods for the above signals also deserve further research.
