# Deep Machine Learning Based Possible Atmospheric and Ionospheric Precursors of the 2021 Mw 7.1 Japan Earthquake

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

_{w}7.1). We analyzed possible precursors from surface to ionosphere, including Sea Surface Temperature (SST), Air Temperature (AT), Relative Humidity (RH), Outgoing Longwave Radiation (OLR), and Total Electron Content (TEC). Furthermore, the aim is to find a possible pre-and post-seismic anomaly by implementing standard deviation (STDEV), wavelet transformation, the Nonlinear Autoregressive Network with Exogenous Inputs (NARX) model, and the Long Short-Term Memory Inputs (LSTM) network. Interestingly, every method shows anomalous variations in both atmospheric and ionospheric precursors before and after the earthquake. Moreover, the geomagnetic irregularities are also observed seven days after the main shock during active storm days (Kp > 3.7; Dst < −30 nT). This study demonstrates the significance of ML techniques for detecting earthquake anomalies to support the Lithosphere-Atmosphere-Ionosphere Coupling (LAIC) mechanism for future studies.

## 1. Introduction

_{w}≥ 6 during the time period of 2000–2014 [15]. Still, there are many well-published studies about the atmospheric and ionospheric anomalies associated with earthquakes. For example, both positive and negative TEC anomalies are detected by utilizing statistical analysis on ground receiver data for the M

_{w}7.8 Nepal earthquake [16]. Furthermore, significant TEC variations were also observed before and after the 2014 M

_{w}6.9 Samothrace earthquake [17]. An anomalous variation of more than 30 W/m

^{2}was observed in OLR for the Japan earthquakes and other events [5,18,19,20,21]. The reflection, emission, and absorption of OLR are due to a complicated system of aerosols, clouds, ocean surface temperature, and land surface temperature variations during the main shock preparation period [22]. Both the negative and positive anomalies are observed in the SST variable, which is considered to be the most important atmospheric precursor [23]. The emission of radon resulted in anomalous variations of AT and RH over the epicenter, as explained in the LAIC model [9]. Similarly, stress and tectonic blocks’ movement activate the thermodynamics phenomena and ionization process that result in the anomalous variations of AT and RH. Recent earthquakes showed clear enhancement in the atmospheric and ionospheric variations associated with main shocks [24,25,26,27,28,29,30,31,32]. GNSS and RS have played a vital role in understanding and finding the variations in atmospheric and ionospheric parameters from various space observations and ground stations [33,34,35,36,37]. The use of different algorithm on time series data is also very common these days [38,39,40,41,42]. Nevertheless, there is a gigantic gap of applications and knowledge related to the science of earthquake precursors.

_{w}7.1 Namie, Japan earthquake by implementing statistical as well as machine learning procedures (NARX and LSTM) on TEC and other remote sensing indices, including RH, OLR, and SST. The main aim is to find a synchronized window of the atmospheric and ionospheric anomalies within the same occurrence days. Moreover, another aim is to find the presence of pre-and/or post-seismic anomalies. The structure of this paper is as follows: Study area and brief description of earthquake data are described in Section 2 and Section 3, respectively. Methodology is explained in Section 4. Results are described in Section 5. Discussion is explained in Section 6. Section 7 is dedicated to the conclusion.

## 2. Study Area

_{w}7.1 struck the east coast of Honshu, Japan on 13 February 2021, at 14:07:49 UTC (LT = UTC + 09:00 = 23:07:49). The epicenter was located at 73 km of Namie, Japan (37.7°N, 141.7°E). The United States Geological Survey (USGS) announced the maximum felt intensity of IX (heavy) and shaking intensity of VIII (severe) on a modified Mercalli scale. One person died in Fukushima and around 187 people were injured. There was a massive destruction to property with an approximate value of the damages being 9137 houses and 311 schools. The earthquake occurred as a result of thrust faulting near the subduction zone interface plate boundary between the North American and Pacific plates (Figure 1). Subduction was beneath the Japan Trench. The Pacific plate moves westward relative to the North America plate, at a velocity of 70 mm/yr. The several micro plates in this region describe the relative motions among Pacific, North American, and Eurasian plates. The February 13, 2021 earthquake struck in the vicinity of the rapture area of the March 11, 2011 great Tohoku earthquake, which was widely felt along many islands of Japan and killed almost 16,000 people. The epicenter of the February 13 earthquake was located approximately 74 km from the epicenter of the Tohoku earthquake. After the March 2011 M

_{w}9.1 Tohoku earthquake, six earthquakes of M

_{w}> 7 have occurred within 250 km of the February 13 earthquake. The USGS website contains more tectonic and technical information about this earthquake (https://earthquake.usgs.gov/earthquakes/eventpage/us6000dher/executive; accessed on 11 November 2022).

## 3. Materials and Datasets

#### 3.1. Outgoing Longwave Radiation

^{2}) data for both the day and night are acquired at spatial resolution of 1° of AIRS/Aqua from Goddard Earth Sciences Data and Information Services Center (GES DISC). The area averaged data of OLR time series covering the earthquake epicenter within a seismogenic area (139.4°E–143.9°E, 35.6°N–39.5°N) was retrieved from GIOVANNI with a web-based application developed by (GES DISC).

#### 3.2. Relative Humidity

#### 3.3. Air Temperature

#### 3.4. Sea Surface Temperature

#### 3.5. Total Electron Content

^{16}el/m

^{2}). The STEC values were used to calculate the VTEC values, as shown below [47].

## 4. Methodology

#### 4.1. Anomaly Detection Using Statistical Method

#### 4.2. Anomaly Detection Using Wavelet Transformation

#### 4.3. Anomaly Detection Using Artificial Neural Network (ANN)

#### 4.4. Nonlinear Autoregressive Network with Exogenous Inputs (NARX)

#### 4.5. Long Short-Term Memory (LSTM)

## 5. Results

#### 5.1. Outgoing Longwave Radiation

^{2}on six days before the earthquake (Figure 2a).

^{2}was also observed on the fifth day before the main shock. The time series analysis of OLR nighttime also showed a positive anomaly of 16 W/m

^{2}on the sixth day before the earthquake (Figure 2b). On the other hand, the wavelet transformation method implemented on OLR values for daytime and nighttime has demonstrated more evidence about the earthquake-induced anomalies. A clear OLR daytime anomaly of high magnitude occurred on the sixth and fifth days before the main shock (Figure 2e) and a significant nighttime OLR on the fifth day before the main shock (Figure 2f). Moreover, the deviations of NARX-predicted OLR daytime values showed clear anomalies within the five-day window before the seismic event (Figure 3c). Figure 3g showed a clear variation in LSTM-predicted OLR daytime values within the five-day window before the main event. NARX- and LSTM-predicted OLR nighttime values also endorse the anomalies within the 10-day window of the pre-seismic event (Figure 3d–h).

#### 5.2. Relative Humidity

#### 5.3. Air Temperature

#### 5.4. Sea Surface Temperature

#### 5.5. Total Electron Content

_{w}7.1, Japan earthquake showed clear seismo-ionospheric anomalies. IGS station (HYDE) variation was also observed outside the seismic preparation zone to illustrate the earthquake- and storm-induced TEC anomalies. Figure 10 illustrates the associated VTEC variations recorded at two IGS stations, which operate within the seismic preparation zone. Prominent positive deviations were observed −6 and −5 days before the main shock in both USUD and MTKA stations during quiet storm days. These anomalies are synchronized with the atmospheric anomalies and occurred in the same window as atmospheric anomalies. Similarly, NARX- and LSTM-predicted values also showed clear deviations in VTEC values on the 7th and 8th February for the two IGS stations i.e., USUD and MTKA (Figure 11 and Figure 12). USUD VTEC showed positive anomalies of 7.5 and 1.8 TECU on seven and nine days after the major event (Figure 10c). Figure 10d showed positive variations of 6.6, 1.6, and 6.7 TECU for MTKA VTEC on seven, eight, and nine days after the earthquake day, respectively. Positive TEC deviations were also observed seven and eight days after the seismic event for HYDE station (Figure 10e). During active storm days, VTEC variations for three IGS stations (USUD, MTKA, and HYDE) showed positive anomalies from 7–10 days after the earthquake day. NARX- and LSTM-predicted VTEC also showed clear deviations from 20th to 23rd February for three IGS stations during active storm days (Figure 11d and Figure 12d). All the atmospheric and ionospheric anomalies are listed in Table 1, Table 2 and Table 3.

## 6. Discussion

_{w}7.1, Japan earthquake. However, there is still a need for observations and analysis for detailed calculations of different earthquake precursors.

Parameters | Anomalous Day | Deviations from NARX Predicted Values | |
---|---|---|---|

Pre-EQ | Post-EQ | ||

OLR (Daytime) | −6, −5 | 58, 19.8 W/m^{2} | Nil |

OLR (Nighttime) | −6, −5 | 48, 6 W/m^{2} | Nil |

RH (Daytime) | −6 | −15% | Nil |

RH (Nighttime) | −6, −5 | −6, −27% | Nil |

AT | −5 | 8 °K | Nil |

SST | −7, −6 | −2.9, −9.7 °C | Nil |

VTEC (USUD) | −6, −5, 7, 9 | 3.2, 2.9 TECU | 7.6, 1.7 TECU |

VTEC (MTKA) | −6, −5, 7, 8, 9 | 3.3, 1.48 TECU | 7.3, 1.8, 6.3 TECU |

VTEC (HYDE) | 7, 8 | Nil | 9.7, 6.47 TECU |

Parameters | Anomalous Day | Deviations from LSTM Predicted Values | |
---|---|---|---|

Pre-EQ | Post-EQ | ||

OLR (Daytime) | −6, −5 | 53.8, 26 W/m^{2} | Nil |

OLR (Nighttime) | −6, −5 | 54, 9 W/m^{2} | Nil |

RH (Daytime) | −6 | −15.7% | Nil |

RH (Nighttime) | −6, −5 | −13.3, −34.5% | Nil |

AT | −5 | 7 °K | Nil |

SST | −7, −6 | −2, −8 °C | Nil |

VTEC (USUD) | −6, −5, 7, 9 | 3.18, 2 TECU | 7.4, 2.1 TECU |

VTEC (MTKA) | −6, −5, 7, 8, 9 | 3.23, 1.39 TECU | 6.5, 1.6, 5.8 TECU |

VTEC (HYDE) | 7, 8 | Nil | 9.63, 6.32 TECU |

## 7. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Acknowledgments

## Conflicts of Interest

## References

- Blackett, M.; Wooster, M.J.; Malamud, B.D. Exploring land surface temperature earthquake precursors: A focus on the Gujarat (India) earthquake of 2001. Geophys. Res. Lett.
**2011**, 38, L15303. [Google Scholar] [CrossRef] - Heki, K. Ionospheric electron enhancement preceding the 2011 Tohoku-Oki earthquake. Geophys. Res. Lett.
**2011**, 38, L17312. [Google Scholar] [CrossRef] [Green Version] - Carter, B.A.; Kellerman, A.C.; Kane, T.A.; Dyson, P.L.; Norman, R.; Zhang, K. Ionospheric precursors to large earthquakes: A case study of the 2011 Japanese Tohoku Earthquake. J. Atmos. Solar-Terrestrial Phys.
**2013**, 102, 290–297. [Google Scholar] [CrossRef] - Shah, M.; Jin, S. Statistical characteristics of seismo-ionospheric GPS TEC disturbances prior to global Mw ≥ 5.0 earthquakes (1998–2014). J. Geodyn.
**2015**, 92, 42–49. [Google Scholar] [CrossRef] - Shah, M.; Aibar, A.C.; Tariq, M.A.; Ahmed, J.; Ahmed, A. Possible ionosphere and atmosphere precursory analysis related to Mw > 6.0 earthquakes in Japan. Remote Sens. Environ.
**2020**, 239, 111620. [Google Scholar] [CrossRef] - Shah, M.; Ehsan, M.; Abbas, A.; Ahmed, A.; Jamjareegulgarn, P. Possible thermal anomalies associated with global terrestrial earthquakes during 2000–2019 based on MODIS-LST. IEEE Geosci. Remote Sens. Lett.
**2021**, 19, 1002705. [Google Scholar] [CrossRef] - Shah, M.; Abbas, A.; Adil, M.A.; Ashraf, U.; de Oliveira-Júnior, J.F.; Tariq, M.A.; Ahmed, J.; Ehsan, M.; Ali, A. Possible seismo-ionospheric anomalies associated with Mw > 5.0 earthquakes during 2000–2020 from GNSS TEC. Adv. Space Res.
**2022**, 70, 179–187. [Google Scholar] [CrossRef] - Venkatanathan, N.; Natyaganov, V. Outgoing longwave radiations as pre-earthquake signals: Preliminary results of 24 September 2013 (M 7.7) earthquake. Curr. Sci.
**2014**, 106, 1291–1297. [Google Scholar] - Pulinets, S.; Ouzounov, D. Lithosphere–Atmosphere–Ionosphere Coupling (LAIC) model—An unified concept for earthquake precursors validation. J. Asian Earth Sci.
**2011**, 41, 371–382. [Google Scholar] [CrossRef] - Liu, J.Y.; Chuo, Y.J.; Shan, S.J.; Tsai, Y.B.; Chen, Y.I.; Pulinets, S.A.; Yu, S.B. Pre-earthquake ionospheric anomalies registered by continuous GPS TEC measurements. Ann. Geophys.
**2004**, 22, 1585–1593. [Google Scholar] [CrossRef] [Green Version] - Sorokin, V.M.; Pokhotelov, O.A. Model for the VLF/LF radio signal anomalies formation associated with earthquakes. Adv. Space Res.
**2014**, 54, 2532–2539. [Google Scholar] [CrossRef] - Zhang, Z.-X.; Wang, C.-Y.; Shen, X.-H.; Li, X.-Q.; Wu, S.-G. Study of typical space wave—Particle coupling events possibly related with seismic activity. Chin. Phys. B
**2014**, 23, 109401. [Google Scholar] [CrossRef] [Green Version] - Aleksandrin, S.Y.; Galper, A.M.; Grishantzeva, L.A.; Koldashov, S.; Maslennikov, L.; Murashov, A.M.; Picozza, P.; Sgrigna, V.; Voronov, S.A. High-energy charged particle bursts in the near-Earth space as earthquake precursors. Ann. Geophys.
**2003**, 21, 597–602. [Google Scholar] [CrossRef] [Green Version] - Freund, F. Charge generation and propagation in igneous rocks. J. Geodyn.
**2002**, 33, 543–570. [Google Scholar] [CrossRef] [Green Version] - Thomas, J.N.; Huard, J.; Masci, F. A statistical study of global ionospheric map total electron content changes prior to occurrences of M ≥ 6.0 earthquakes during 2000–2014. J. Geophys. Res. Space Phys.
**2017**, 122, 2151–2161. [Google Scholar] [CrossRef] - Shi, K.; Guo, J.; Liu, X.; Liu, L.; You, X.; Wang, F. Seismo-ionospheric anomalies associated with Mw 7.8 Nepal earthquake on 2015 April 25 from CMONOC GPS data. Geosci. J.
**2020**, 24, 391–406. [Google Scholar] [CrossRef] - Pikridas, C.; Bitharis, S.; Katsougiannopoulos, S.; Spanakaki, K.; Karolos, I.-A. Study of TEC variations using permanent stations GNSS data in relation with seismic events. Application on Samothrace earthquake of 24 May 2014. Geod. Cartogr.
**2019**, 45, 137–146. [Google Scholar] [CrossRef] [Green Version] - Liu, X.; Zhang, Q.; Shah, M.; Hong, Z. Atmospheric-ionospheric disturbances following the April 2015 Calbuco volcano from GPS and OMI observations. Adv. Space Res.
**2017**, 60, 2836–2846. [Google Scholar] [CrossRef] - Shah, M.; Khan, M.; Ullah, H.; Ali, S. Thermal anomalies prior to The 2015 Gorkha (Nepal) earthquake from modis land surface temperature and outgoing longwave radiations. Geodyn. Tectonophys.
**2018**, 9, 123–138. [Google Scholar] [CrossRef] [Green Version] - Shah, M.; Tariq, M.A.; Ahmad, J.; Naqvi, N.A.; Jin, S. Seismo ionospheric anomalies before the 2007 M7. 7 Chile earthquake from GPS TEC and DEMETER. J. Geodyn.
**2019**, 127, 42–51. [Google Scholar] [CrossRef] - Hussain, A.; Shah, M. Comparison of GPS TEC with iri models of 2007, 2012, and 1 2016 over sukkur, Pakistan. Nat. Appl. Sci. Int. J.
**2020**, 1, 1–10. [Google Scholar] [CrossRef] [PubMed] - Xiong, P.; Shen, X.H.; Bi, Y.X.; Kang, C.L.; Chen, L.Z.; Jing, F.; Chen, Y. Study of outgoing longwave radiation anomalies associated with Haiti earthquake. Nat. Hazards Earth Syst. Sci.
**2010**, 10, 2169–2178. [Google Scholar] [CrossRef] [Green Version] - Mohamed, E.K.; Elrayess, M.; Omar, K. Evaluation of thermal anomaly preceding northern red sea earthquake, the 16th June 2020. Arab. J. Sci. Eng.
**2022**, 47, 7387–7406. [Google Scholar] [CrossRef] - Ahmed, J.; Shah, M.; Zafar, W.A.; Amin, M.A.; Iqbal, T. Seismoionospheric anomalies associated with earthquakes from the analysis of the ionosonde data. J. Atmos. Solar-Terrestrial Phys.
**2018**, 179, 450–458. [Google Scholar] [CrossRef] - Shah, M.; Jin, S. Pre-seismic ionospheric anomalies of the 2013 Mw = 7.7 Pakistan earthquake from GPS and COSMIC observations. Geod. Geodyn.
**2018**, 9, 378–387. [Google Scholar] [CrossRef] - Tariq, M.A.; Shah, M.; Hernández-Pajares, M.; Iqbal, T. Pre-earthquake ionospheric anomalies before three major earthquakes by GPS-TEC and GIM-TEC data during 2015–2017. Adv. Space Res.
**2019**, 63, 2088–2099. [Google Scholar] [CrossRef] - Kiyani, A.; Shah, M.; Ahmed, A.; Shah, H.H.; Hameed, S.; Adil, M.A.; Naqvi, N.A. Seismo ionospheric anomalies possibly associated with the 2018 Mw 8.2 Fiji earthquake detected with GNSS TEC. J. Geodyn.
**2020**, 140, 101782. [Google Scholar] [CrossRef] - Timoçin, E.; Temuçin, H.; Inyurt, S.; Shah, M.; Jamjareegulgarn, P. Assessment of improvement of the IRI model for foF2 variability over three latitudes in different hemispheres during low and high solar activities. Acta Astronaut.
**2021**, 180, 305–316. [Google Scholar] [CrossRef] - Abbasi, A.R.; Shah, M.; Ahmed, A.; Naqvi, N.A. Possible ionospheric anomalies associated with the 2009 M w 6.4 Taiwan earthquake from DEMETER and GNSS TEC. Acta Geod. Geophys.
**2021**, 56, 77–91. [Google Scholar] [CrossRef] - de Oliveira-Júnior, J.F.; Shah, M.; Abbas, A.; Iqbal, M.S.; Shahzad, R.; de Gois, G.; da Silva, M.V.; da Rosa Ferraz Jardim, A.M.; de Souza, A. Spatiotemporal Analysis of Drought and Rainfall in Pakistan via Standardized Precipitation Index: Homogeneous Regions, Trend, Wavelet and Influence of El Niño-Southern Oscillation. Theor. Appl. Climatol.
**2022**, 149, 843–862. [Google Scholar] [CrossRef] - Khan, M.M.; Ghaffar, B.; Shahzad, R.; Khan, M.R.; Shah, M.; Amin, A.H.; Eldin, S.M.; Naqvi, N.A.; Ali, R. Atmospheric anomalies associated with the 2021 M w 7.2 Haiti earthquake using machine learning from multiple satellites. Sustainability
**2022**, 14, 14782. [Google Scholar] [CrossRef] - Tariq, M.A.; Yuyan, Y.; Shah, M.; Shah, M.A.; Iqbal, T.; Liu, L. Ionospheric-Thermospheric responses to the May and September 2017 geomagnetic storms over Asian regions. Adv. Space Res.
**2022**, 70, 3731–3744. [Google Scholar] [CrossRef] - Li, S.; Wang, F.; Wang, Q.; Ouyang, L.; Chen, X.; Li, J. Numerical Modeling of Branching-Streamer Propagation in Ester-Based Insulating Oil under Positive Lightning Impulse Voltage: Effects from Needle Curvature Radius. IEEE Trans. Dielectr. Electr. Insul.
**2022**, 30, 139–147. [Google Scholar] [CrossRef] - Roger, J.; Pelletier, B.; Aucan, J. Update of the tsunami catalogue of New Caledonia using a decision table based on seismic data and marigraphic records. Nat. Hazards Earth Syst. Sci.
**2019**, 19, 1471–1483. [Google Scholar] [CrossRef] [Green Version] - Wang, G.; Zhao, B.; Wu, B.; Wang, M.; Liu, W.; Zhou, H.; Han, Y. Research on the Macro-Mesoscopic Response Mechanism of Multisphere Approximated Heteromorphic Tailing Particles. Lithosphere
**2022**, 2022, 1977890. [Google Scholar] [CrossRef] - Yue, Z.; Zhou, W.; Li, T. Impact of the Indian Ocean Dipole on Evolution of the Subsequent ENSO: Relative Roles of Dynamic and Thermodynamic Processes. J. Clim.
**2021**, 34, 3591–3607. [Google Scholar] [CrossRef] - Zhong, T.; Wang, W.; Lu, S.; Dong, X.; Yang, B. RMCHN: A Residual Modular Cascaded Heterogeneous Network for Noise Suppression in DAS-VSP Records. IEEE Geosci. Remote Sens. Lett.
**2022**, 20, 7500205. [Google Scholar] [CrossRef] - Chen, Y.; Zhu, L.; Hu, Z.; Chen, S.; Zheng, X. Risk Propagation in Multilayer Heterogeneous Network of Coupled System of Large Engineering Project. J. Manag. Eng.
**2022**, 38, 4022003. [Google Scholar] [CrossRef] - Zhou, G.; Deng, R.; Zhou, X.; Long, S.; Li, W.; Lin, G.; Li, X. Gaussian Inflection Point Selection for LiDAR Hidden Echo Signal Decomposition. IEEE Geosci. Remote Sens. Lett.
**2021**, 19, 6502705. [Google Scholar] [CrossRef] - Zhou, G.; Bao, X.; Ye, S.; Wang, H.; Yan, H. Selection of Optimal Building Facade Texture Images From UAV-Based Multiple Oblique Image Flows. IEEE Trans. Geosci. Remote Sens.
**2020**, 59, 1534–1552. [Google Scholar] [CrossRef] - Huang, S.; Huang, M.; Lyu, Y. Seismic performance analysis of a wind turbine with a monopile foundation affected by sea ice based on a simple numerical method. Eng. Appl. Comput. Fluid Mech.
**2021**, 15, 1113–1133. [Google Scholar] [CrossRef] - Li, R.; Yu, N.; Wang, X.; Liu, Y.; Cai, Z.; Wang, E. Model-Based Synthetic Geoelectric Sampling for Magnetotelluric Inversion with Deep Neural Networks. IEEE Trans. Geosci. Remote Sens.
**2020**, 60, 4500514. [Google Scholar] [CrossRef] - Zhang, Y.; Luo, J.; Li, J.; Mao, D.; Zhang, Y.; Huang, Y.; Yang, J. Fast Inverse-Scattering Reconstruction for Airborne High-Squint Radar Imagery Based on Doppler Centroid Compensation. IEEE Trans. Geosci. Remote Sens.
**2021**, 60, 5205517. [Google Scholar] [CrossRef] - Xie, X.; Xie, B.; Cheng, J.; Chu, Q.; Dooling, T. A simple Monte Carlo method for estimating the chance of a cyclone impact. Nat. Hazards
**2021**, 107, 2573–2582. [Google Scholar] [CrossRef] - Xie, X.; Tian, Y.; Wei, G. Deduction of sudden rainstorm scenarios: Integrating decision makers’ emotions, dynamic Bayesian network and DS evidence theory. Nat. Hazards
**2022**, 45, 5303435. [Google Scholar] [CrossRef] - Zhu, X.; Xu, Z.; Liu, Z.; Liu, M.; Yin, Z.; Yin, L.; Zheng, W. Impact of dam construction on precipitation: A regional perspective. Mar. Freshw. Res.
**2022**, 63, 23–32. [Google Scholar] [CrossRef] - Schaer, S. Mapping and Predicting the Earth’s Ionosphere Using the Global Positioning System; Schweizerische Geodätische Kommission: Zürich, Switzerland, 1999; Volume 59. [Google Scholar]
- Dobrovolsky, I.P.; Zubkov, S.I.; Miachkin, V.I. Estimation of the size of earthquake preparation zones. Pure Appl. Geophys.
**1979**, 117, 1025–1044. [Google Scholar] [CrossRef] - Akyol, A.A.; Arikan, O.; Arikan, F. A machine learning-based detection of earthquake precursors using ionospheric data. Radio Sci.
**2020**, 55, 1–21. [Google Scholar] [CrossRef] - Al Ibrahim, M.; Park, J.; Athens, N. Earthquake Warning System: Detecting Earthquake Precursor Signals Using Deep Neural Networks; Stanford University Press: Redwood City, CA, USA, 2018; p. 230. [Google Scholar]
- Ouzounov, D.; Liu, D.; Chunli, K.; Cervone, G.; Kafatos, M.; Taylor, P. Outgoing long wave radiation variability from IR satellite data prior to major earthquakes. Tectonophysics
**2007**, 431, 211–220. [Google Scholar] [CrossRef] - Jing, F.; Shen, X.H.; Kang, C.L.; Xiong, P. Variations of multi-parameter observations in atmosphere related to earthquake. Nat. Hazards Earth Syst. Sci.
**2013**, 13, 27–33. [Google Scholar] [CrossRef] [Green Version] - Walker, R.; Jackson, J. Offset and evolution of the Gowk fault, SE Iran: A major intra-continental strike-slip system. J. Struct. Geol.
**2002**, 24, 1677–1698. [Google Scholar] [CrossRef] - Hereher, M.; Bantan, R.; Gheith, A.; El-Kenawy, A. Spatio-temporal variability of sea surface temperatures in the Red Sea and their implications on Saudi Arabia coral reefs. Geocarto Int.
**2022**, 37, 5636–5652. [Google Scholar] [CrossRef] - Shah, M.; Qureshi, R.U.; Khan, N.G.; Ehsan, M.; Yan, J. Artificial Neural Network based thermal anomalies associated with earthquakes in Pakistan from MODIS LST. J. Atmos. Solar-Terrestrial Phys.
**2021**, 215, 105568. [Google Scholar] [CrossRef] - Freund, F.T.; Takeuchi, A.; Lau, B.W.S.; Al-Manaseer, A.; Fu, C.C.; Bryant, N.A.; Ouzounov, D. Stimulated infrared emission from rocks: Assessing a stress indicator. eEarth
**2007**, 2, 7–16. [Google Scholar] [CrossRef] [Green Version] - Shah, M.; Abbas, A.; Ehsan, M.; Aiber, A.C.; Adhikari, B.; Tariq, M.A.; Ahmed, J.; de Oliveira-Júnior, J.F.; Yan, J.; Melgarejo-Morales, A.; et al. Ionospheric--thermospheric responses in south America to the august 2018 geomagnetic storm based on multiple observations. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2021**, 15, 261–269. [Google Scholar] [CrossRef] - Ondoh, T. Anomalous sporadic-E layers observed before M7.2 Hyogo-ken Nanbu earthquake; Terrestrial gas emanation model. Adv. Polar Upper Atmos. Res.
**2003**, 17, 96–108. [Google Scholar] - Tariq, M.A.; Shah, M.; Inyurt, S.; Shah, M.A.; Liu, L. Comparison of TEC from IRI-2016 and GPS during the low solar activity over Turkey. Astrophys. Space Sci.
**2020**, 365, 179. [Google Scholar] [CrossRef] - Yin, L.; Wang, L.; Tian, J.; Yin, Z.; Liu, M.; Zheng, W. Atmospheric Density Inversion Based on Swarm-C Satellite Accelerometer. Appl. Sci.
**2023**, 13, 3610. [Google Scholar] [CrossRef] - Liu, Z.; Xu, J.; Liu, M.; Yin, Z.; Liu, X.; Yin, L.; Zheng, W. Remote sensing and geostatistics in urban water-resource monitoring: A review. Mar. Freshw. Res.
**2023**, 82, 34–45. [Google Scholar] [CrossRef] - Zhang, S.; Bai, X.; Zhao, C.; Tan, Q.; Luo, G.; Wang, J.; Li, Q.; Wu, L.; Chen, F.; Li, C.; et al. Global CO
_{2}Consumption by Silicate Rock Chemical Weathering: It’s past and Future. Earth’s Future**2021**, 9, e1938E–e2020E. [Google Scholar] [CrossRef] - Cheng, Y.; Fu, L.-Y. Nonlinear seismic inversion by physics-informed Caianiello convolutional neural networks for overpressure prediction of source rocks in the offshore Xihu depression, East China. J. Pet. Sci. Eng.
**2022**, 215, 110654. [Google Scholar] [CrossRef] - Shahzad, F.; Shah, M.; Riaz, S.; Ghaffar, B.; Ullah, I.; Eldin, S.M. Integrated Analysis of LithosphereAtmosphere-Ionospheric Coupling Associated with the 2021 Mw 7.2 Haiti Earthquake. Atmosphere
**2023**, 14, 347. [Google Scholar] [CrossRef] - Shah, M.; Shahzad, R.; Ehsan, M.; Ghaffar, B.; Ullah, I.; Jamjareegulgarn, P.; Hassan, A.M. Seismo Ionospheric Anomalies around and over the Epicenters of Pakistan Earthquakes. Atmosphere
**2023**, 14, 601. [Google Scholar] [CrossRef]

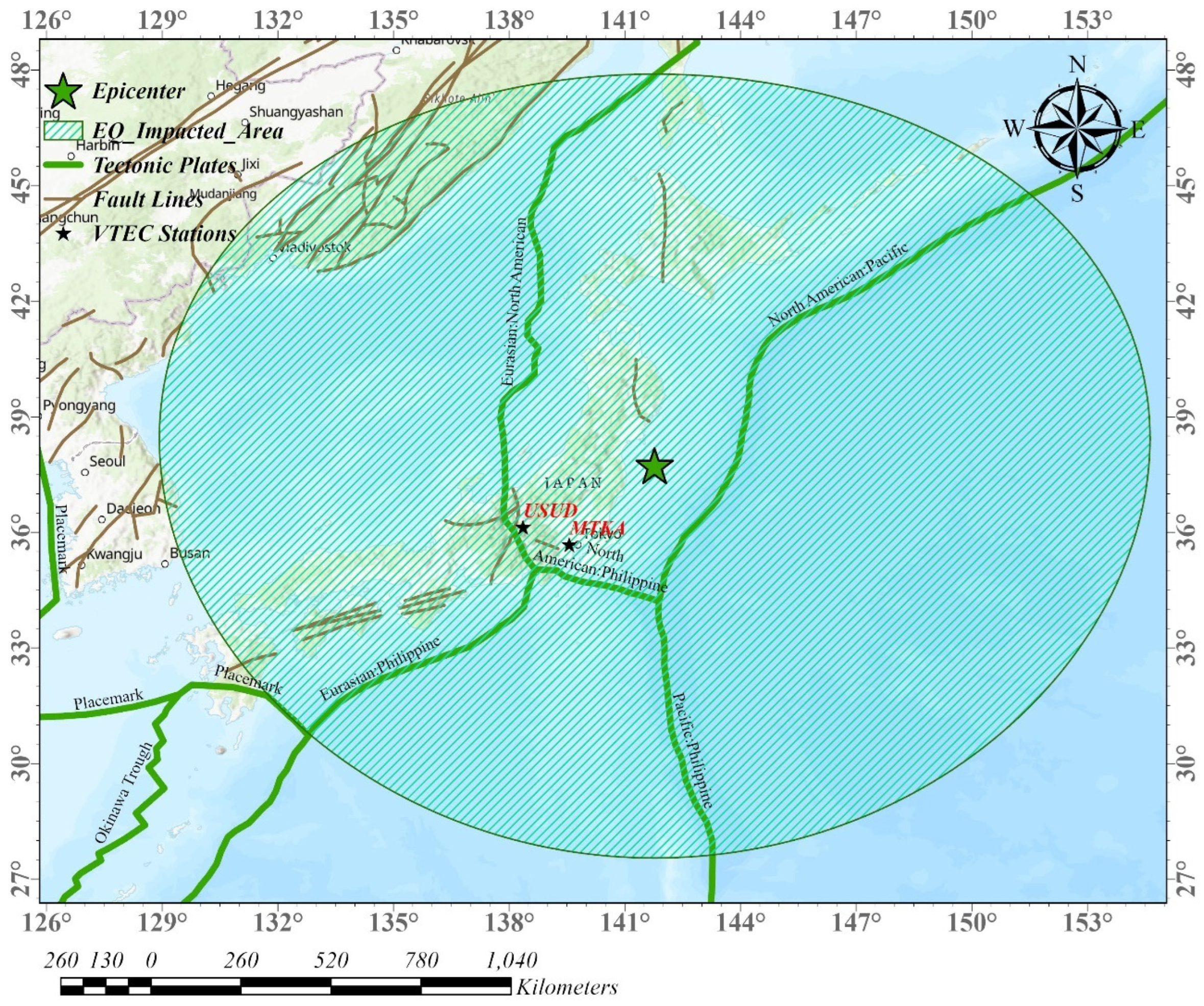

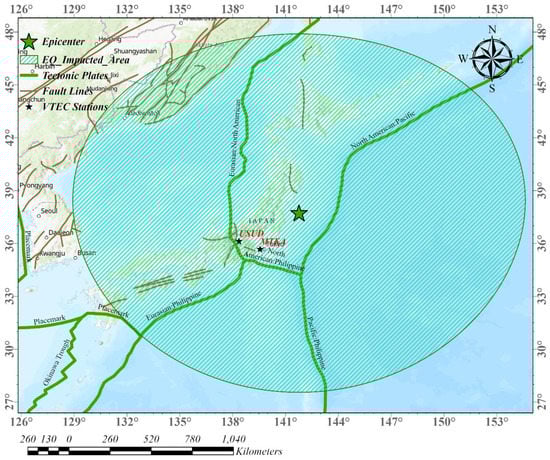

**Figure 1.**Geographical location of the 2021 M

_{w}7.1, Japan earthquake (Lat = 37.7°N, Long = 141.7°E) with tectonic plates and fault lines. The epicenter is indicated by the green star and the GNSS stations are indicated by black stars and the shaded circle area is the earthquake-impacted area estimated by the Dobrovolsky formula.

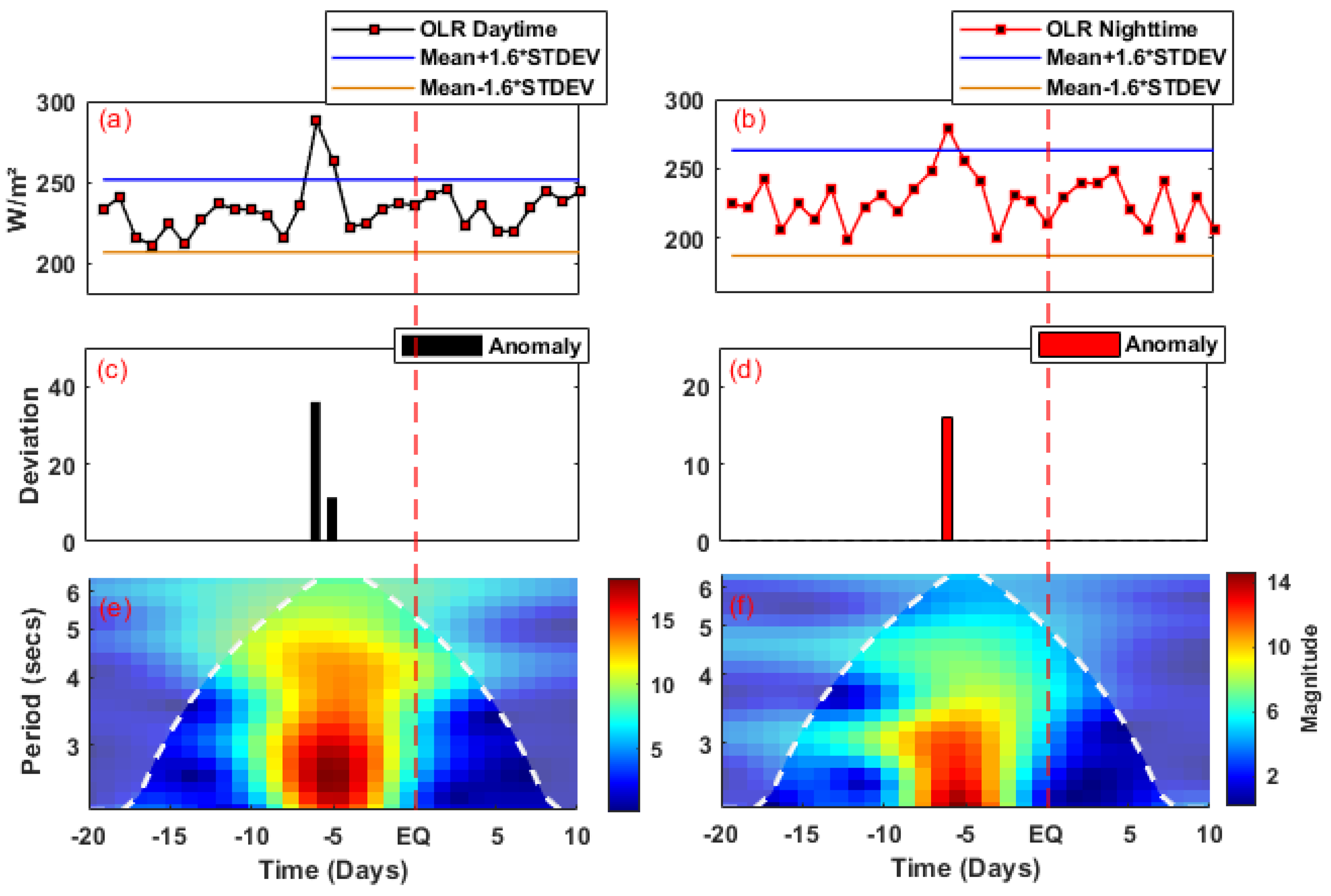

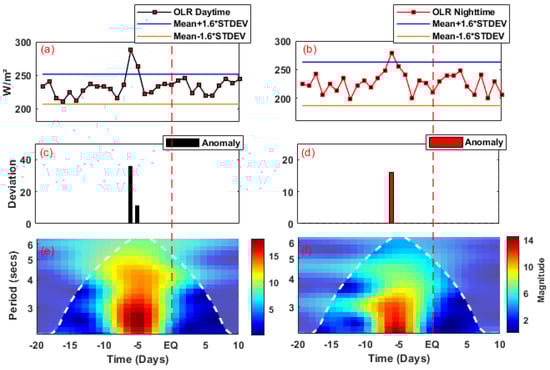

**Figure 2.**(

**a**) Daytime OLR averaged time series data with confidence bounds, (

**b**) Time series data of OLR nighttime with confidence bounds, (

**c**) The deviation of daytime OLR values from confidence bounds, (

**d**) Nighttime OLR deviation from the confidence bounds, (

**e**) Wavelet transformation of the daytime OLR time series data, (

**f**) Wavelet transformation analysis of nighttime OLR time series data. The white dashed line marks cone of influence and red dashed line shows the earthquake day. The * is for multiplication.

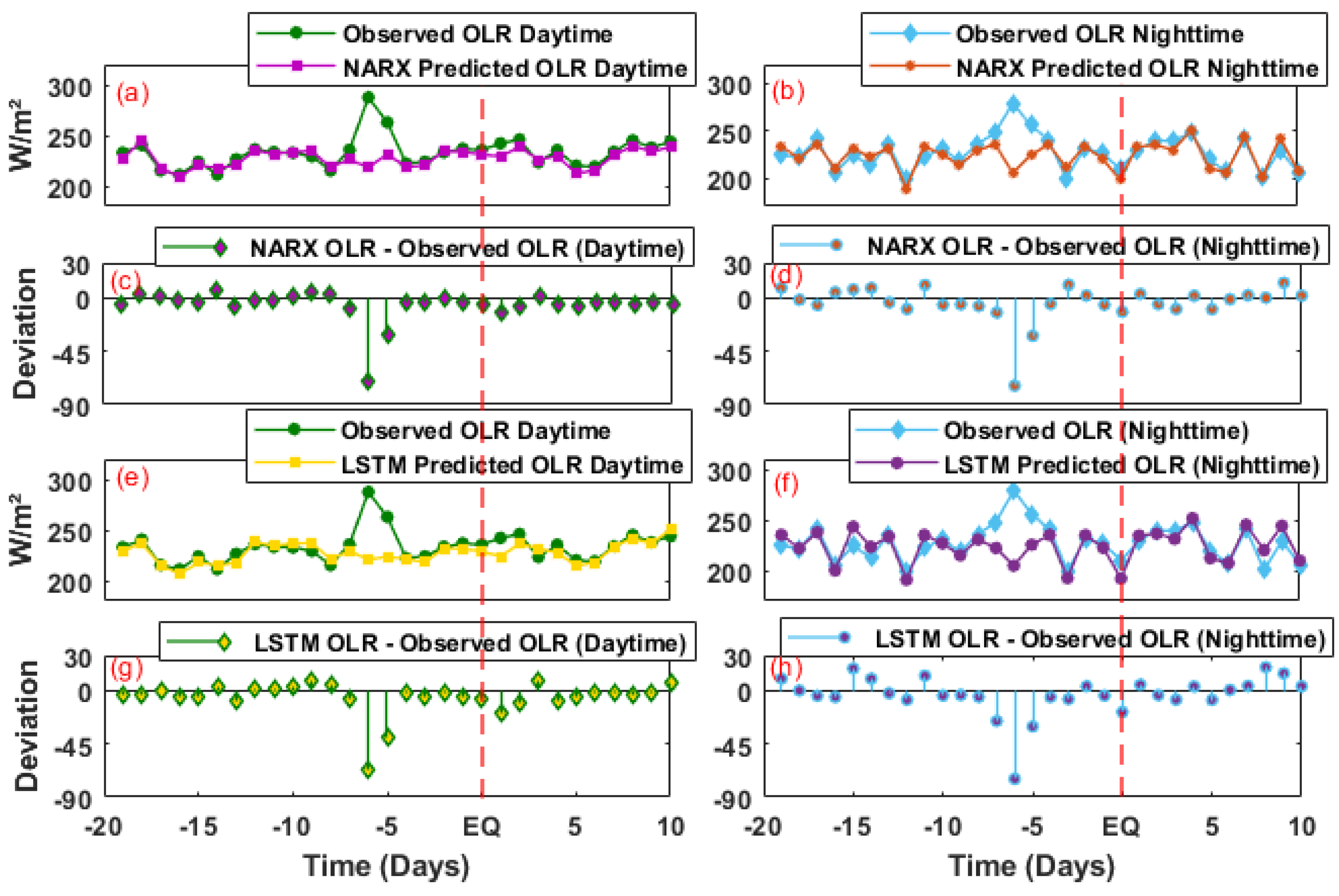

**Figure 3.**(

**a**) Time series data variations between the observed OLR daytime values and NARX-predicted OLR daytime values, (

**b**) Nighttime variations between the observed OLR values and NARX-predicted OLR, (

**c**) Deviation of NARX-predicted OLR daytime values from the observed daytime OLR values, (

**d**) Deviation of NARX-predicted OLR nighttime values from the observed nighttime OLR values, (

**e**) Time series data variations between the observed OLR daytime values and LSTM train OLR daytime values, (

**f**) Nighttime variations between observed OLR values and LSTM train OLR, (

**g**) Deviation of LSTM-predicted OLR daytime values from Observed daytime OLR values, (

**h**) Deviation of LSTM-predicted OLR nighttime values from Observed daytime OLR values. The red dashed line shows earthquake day.

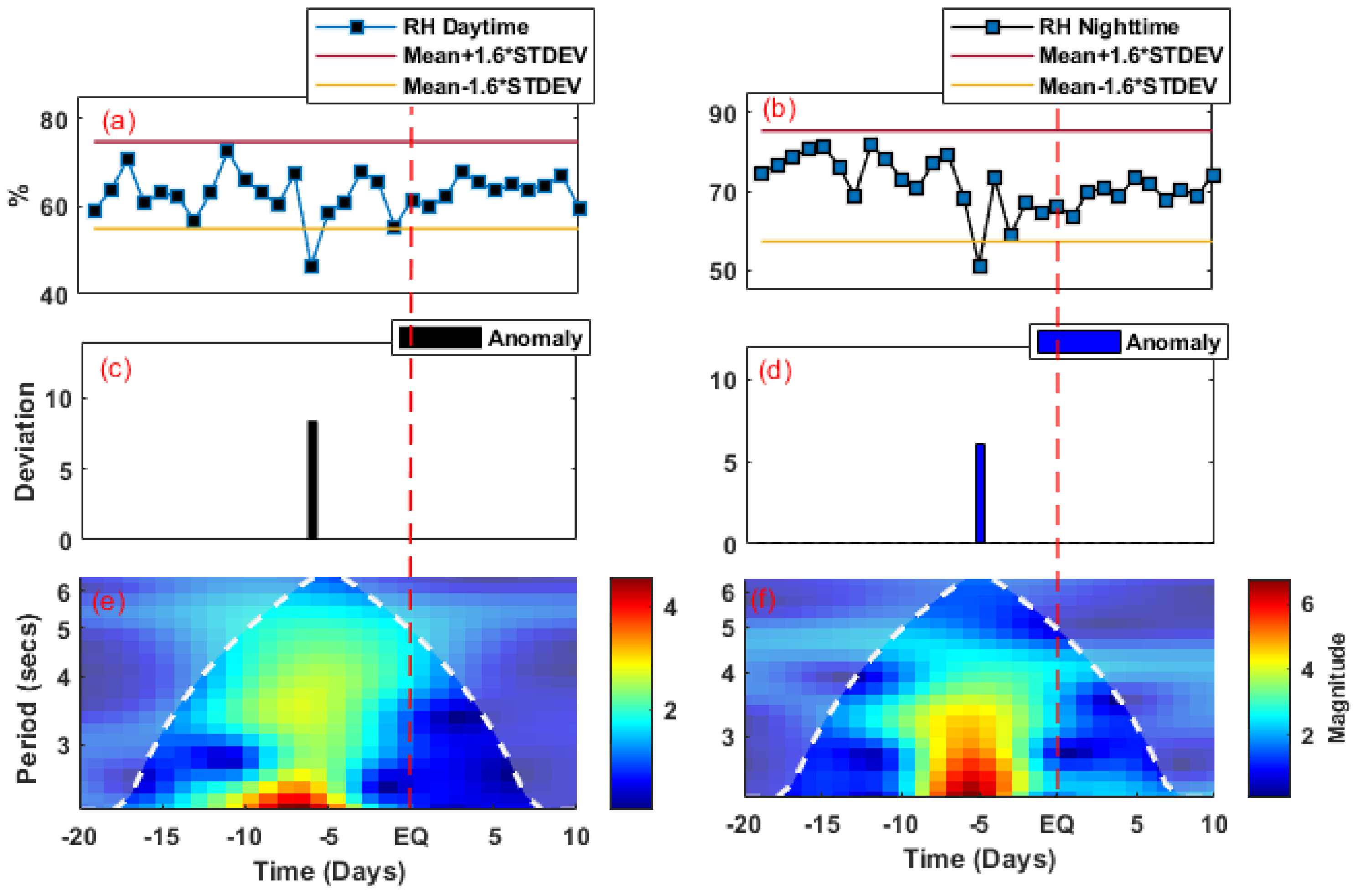

**Figure 4.**(

**a**) Daytime RH averaged time series data with confidence bounds, (

**b**) Time series data of RH nighttime with confidence bounds, (

**c**) The deviation of daytime RH values from confidence bounds, (

**d**) Nighttime RH deviation from pre-defined bounds, (

**e**) Wavelet transformation of daytime RH data, (

**f**) Wavelet transformation analysis of nighttime RH time series data. The white dashed line in Figure 5e,f marks cone of influence and red dashed line shows the earthquake day. The * is for multiplication.

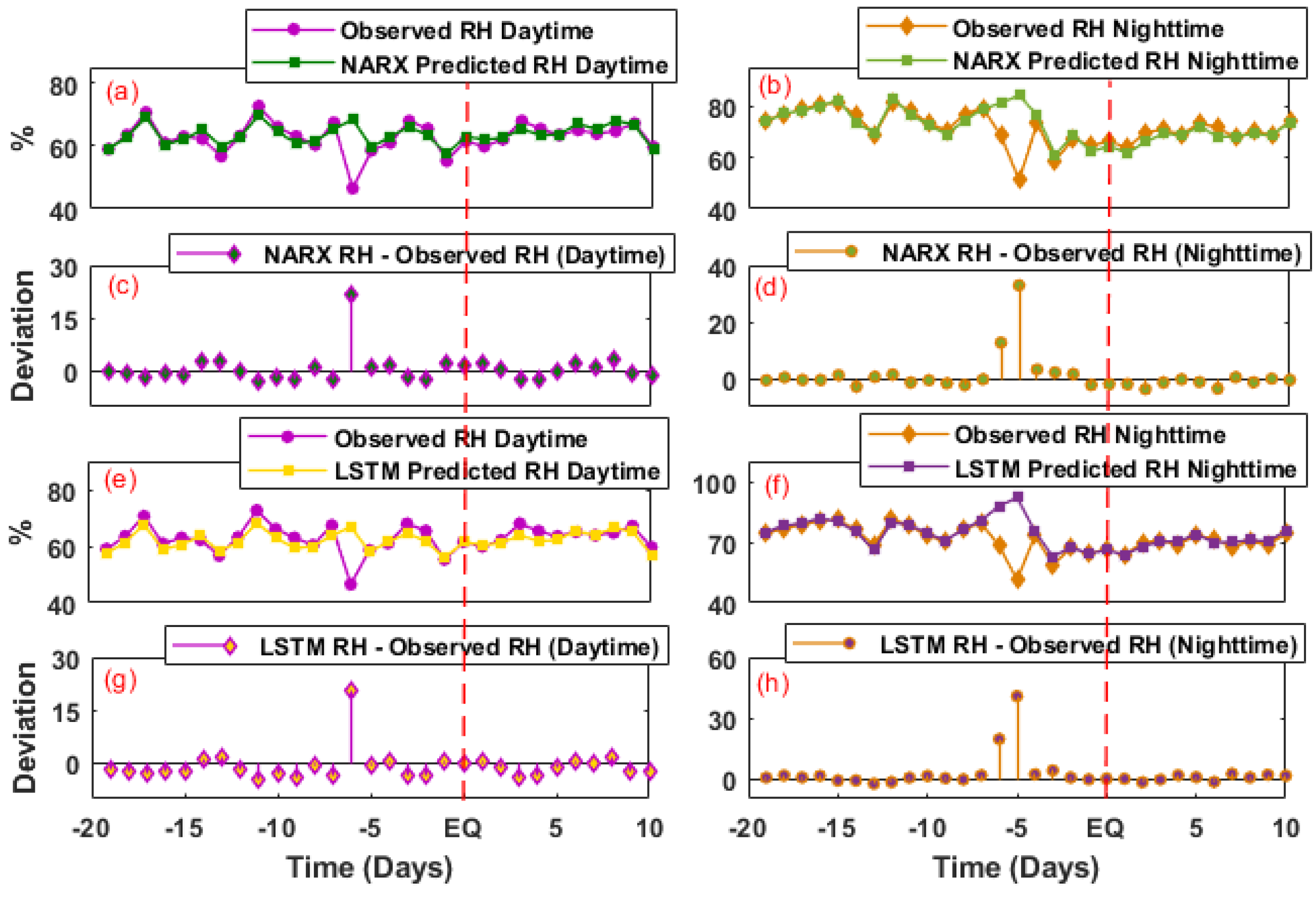

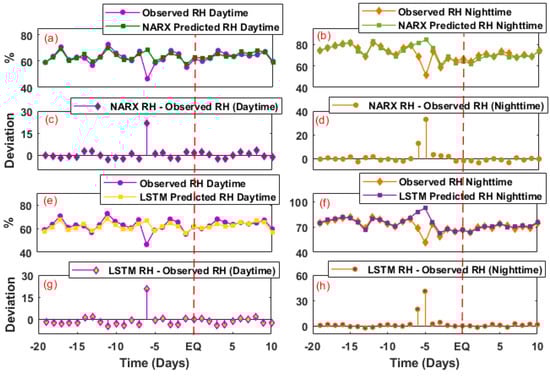

**Figure 5.**(

**a**) Data variations between the observed RH daytime values and NARX-predicted RH daytime values, (

**b**) Nighttime variations between the observed RH values and NARX-predicted RH, (

**c**) Deviation of NARX-predicted RH daytime values from Observed daytime RH values, (

**d**) Deviation of NARX-predicted RH nighttime values from Observed nighttime RH values, (

**e**) Time series data variations between observed RH daytime values and LSTM train RH daytime values, (

**f**) Nighttime variations between observed RH values and LSTM train RH, (

**g**) Deviation of LSTM-predicted RH daytime values from Observed daytime RH values, (

**h**) Deviation of LSTM-predicted RH nighttime values from Observed daytime RH values. The red dashed line shows the earthquake day.

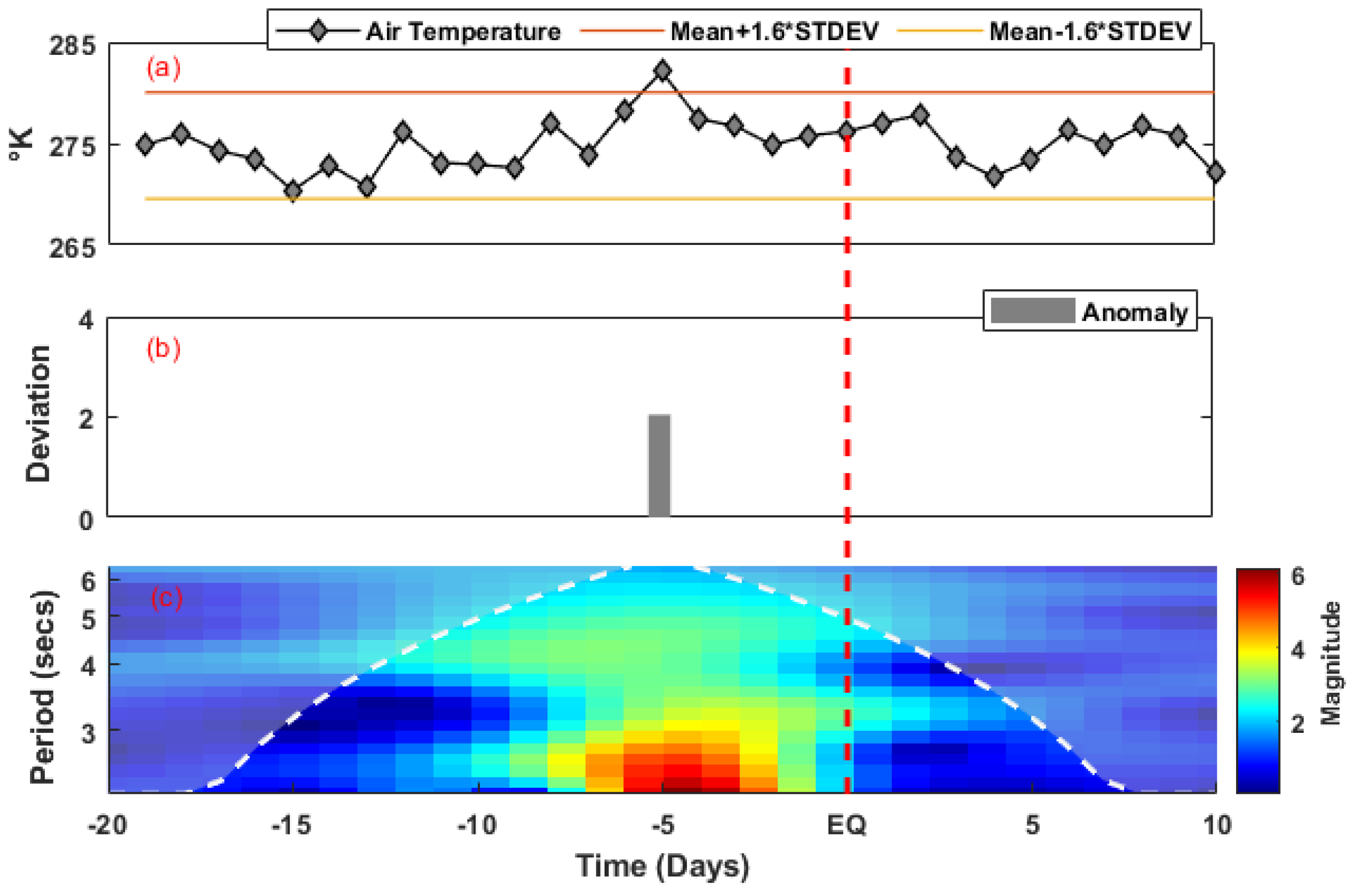

**Figure 6.**(

**a**) Averaged time series data of AT with confidence bounds, (

**b**) The deviation of AT values from confidence bounds, (

**c**) Wavelet transformation of AT time series data. The white dashed line marks cone of influence and red dashed line shows the earthquake day. The * is for multiplication.

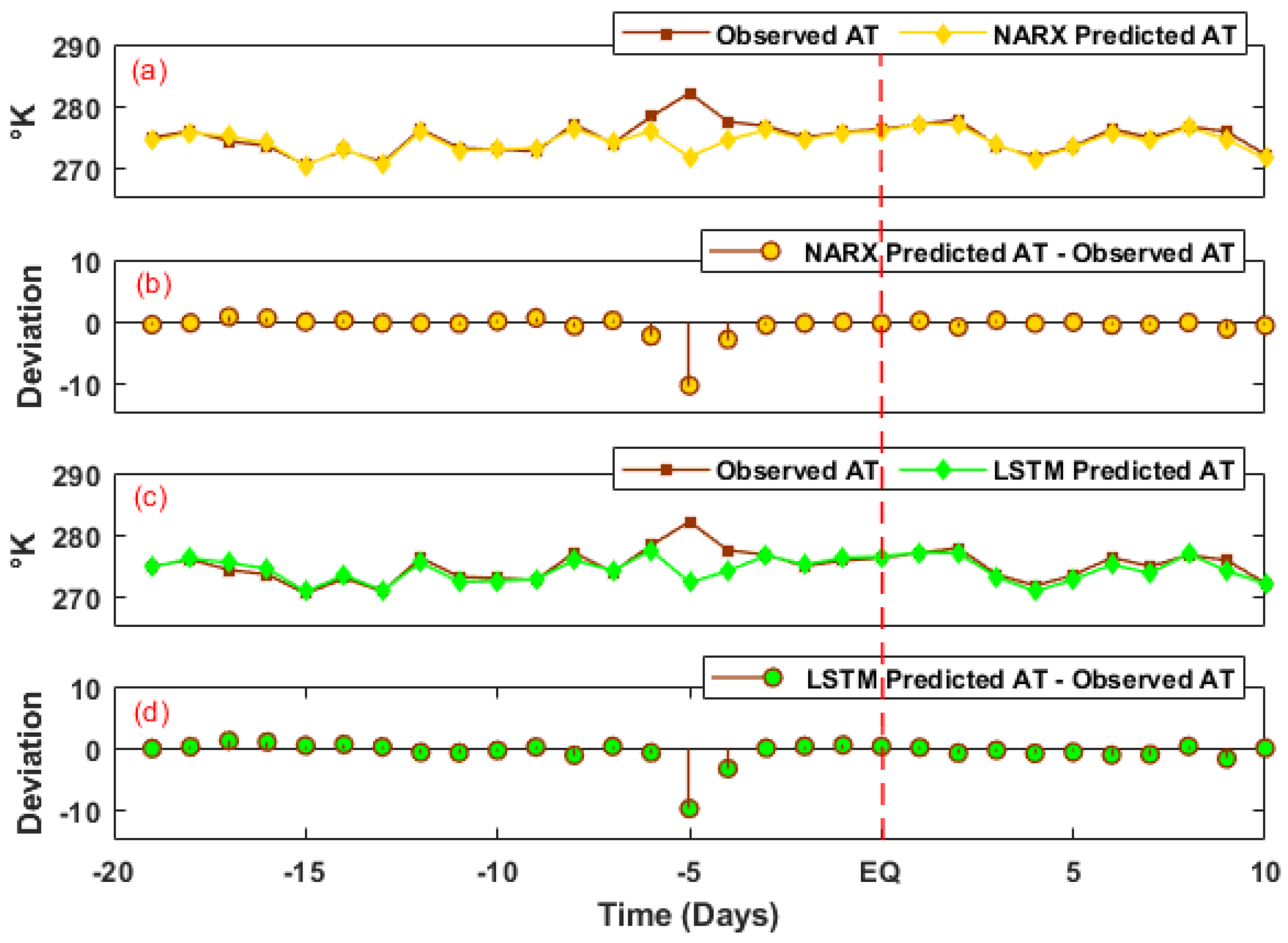

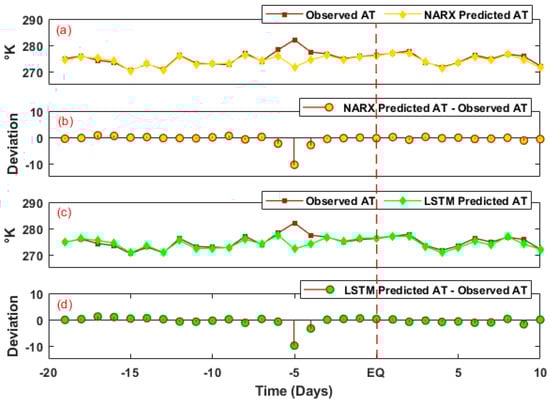

**Figure 7.**(

**a**) Variations between the observed AT data and NARX-predicted AT values, (

**b**) Deviation of NARX-predicted AT values from Observed AT values, (

**c**) Variations between observed AT values and LSTM train AT values, (

**d**) Deviation of LSTM-predicted AT values from Observed AT data. The red dashed line shows the earthquake day.

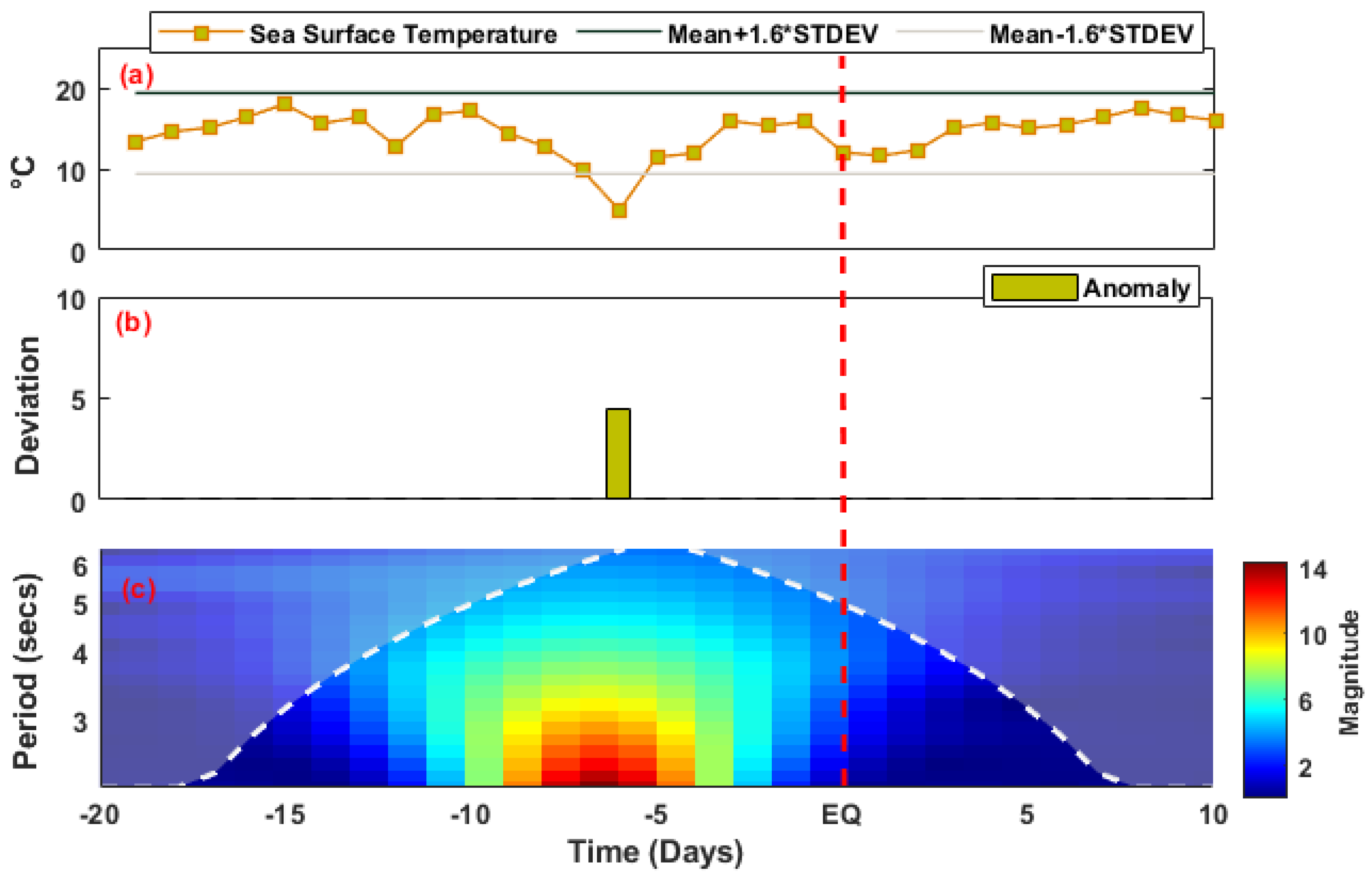

**Figure 8.**(

**a**) The observation of SST data within the bounds, (

**b**) SST data deviation from the bounds, (

**c**) Continuous wavelet analysis of MODIS-SST time series data. The white dashed line marks cone of influence and red dashed line shows the earthquake day. The * is for multiplication.

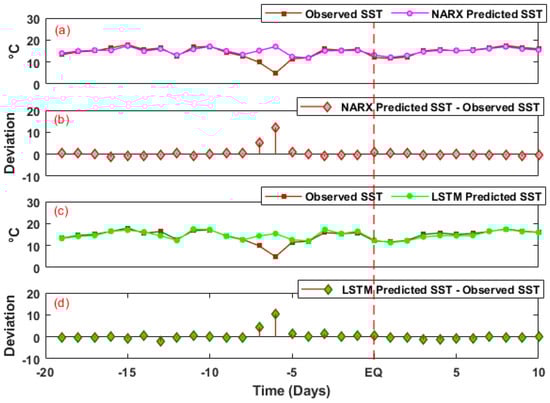

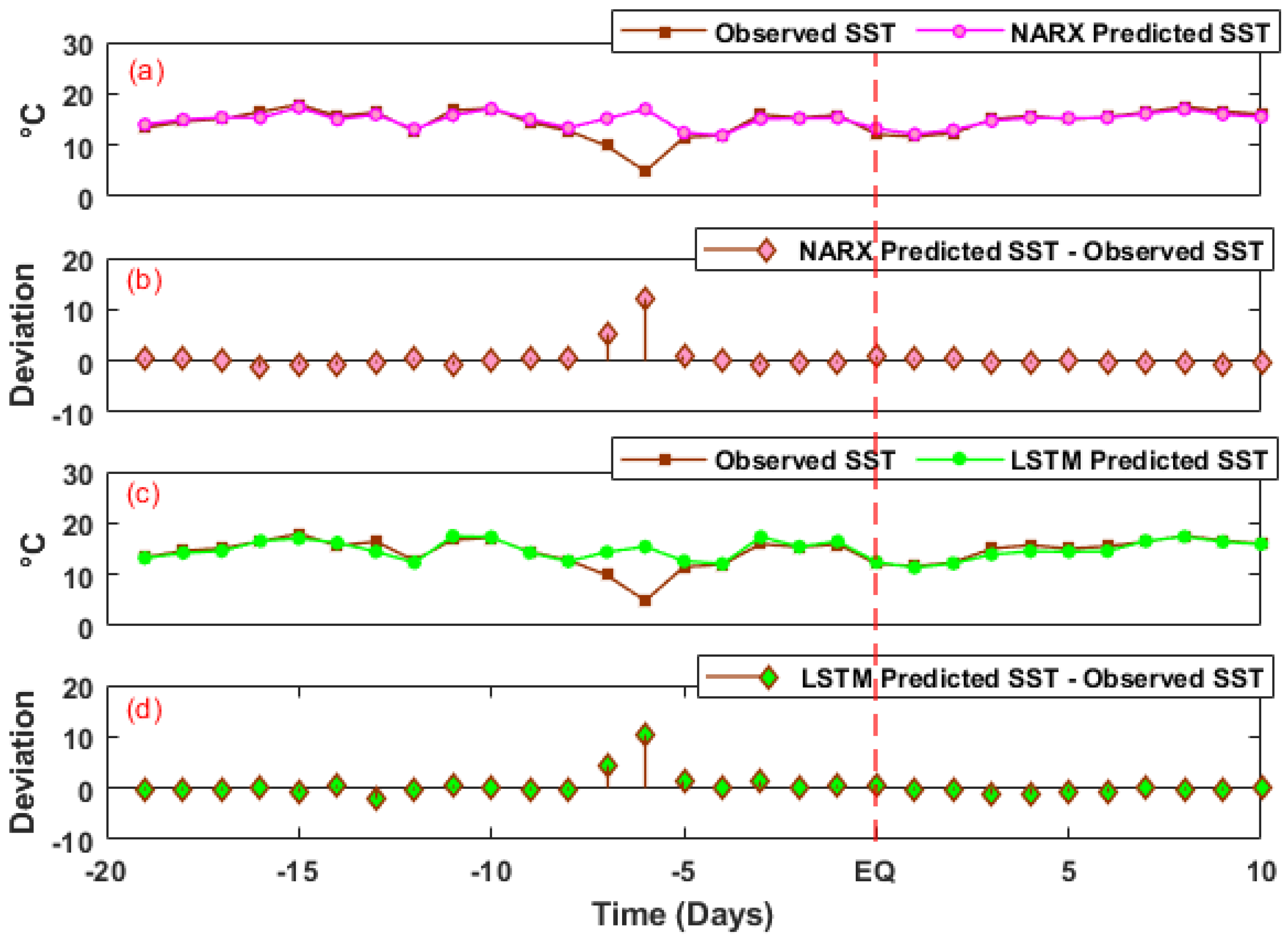

**Figure 9.**(

**a**) Data variations between observed time series MODIS-SST and NARX-predicted SST values, (

**b**) Deviation of NARX-predicted SST values from Observed SST values, (

**c**) Variations between observed MODIS-SST values and LSTM train SST values, (

**d**) Deviation of LSTM-predicted SST values from Observed SST data. The red dashed line shows earthquake day.

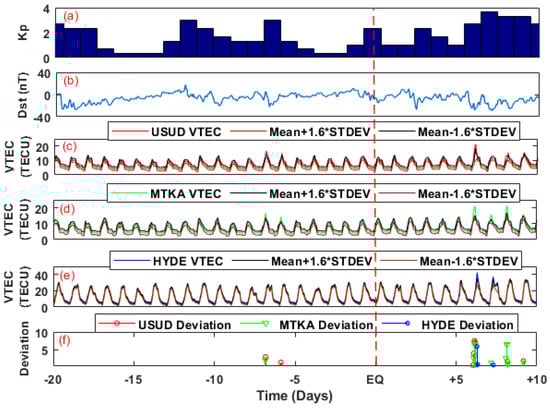

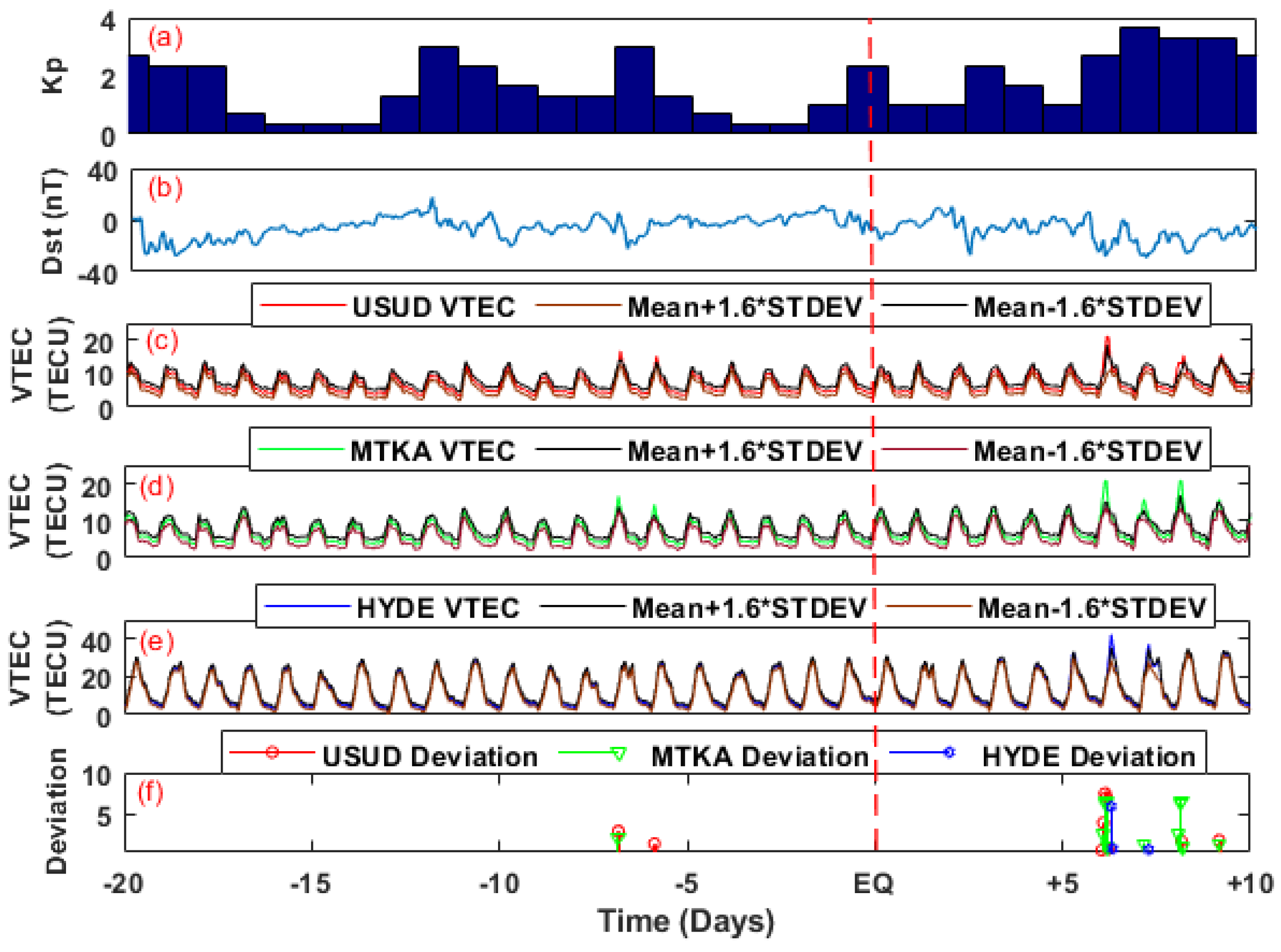

**Figure 10.**The solar and geomagnetic storm indices (

**a**) Kp and (

**b**) Dst of Japan earthquake, (

**c**) Statistical analysis of USUD (IGS station Japan) VTEC with IQR bounds, (

**d**) Analysis of MTKA (IGS station Japan) VTEC with pre-defined IQR bounds, (

**e**) Time series analysis of HYDE (IGS station India) VTEC with IQR bounds, (

**f**) Deviation of time series statistical analysis of VTEC for all available stations (USUD, MTKA, and HYDE). The red dashed line shows the earthquake day. The * is for multiplication.

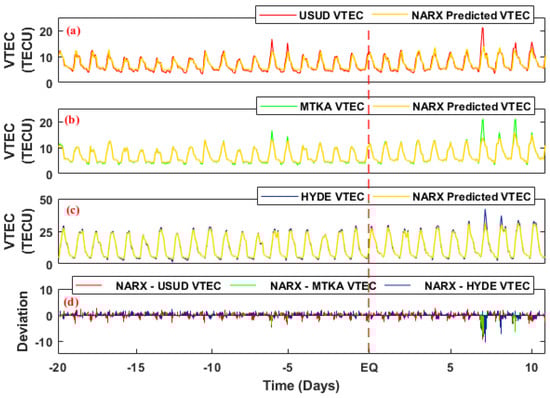

**Figure 11.**(

**a**) Variation of USUD VTEC with NARX-predicted VTEC, (

**b**) Time series variation of MTKA VTEC with NARX-predicted VTEC, (

**c**) Variation of HYDE VTEC with NARX-predicted VTEC, (

**d**) Deviation of NARX-predicted VTEC from USUD, MTKA, and HYDE VTEC. The red dashed line shows the earthquake day.

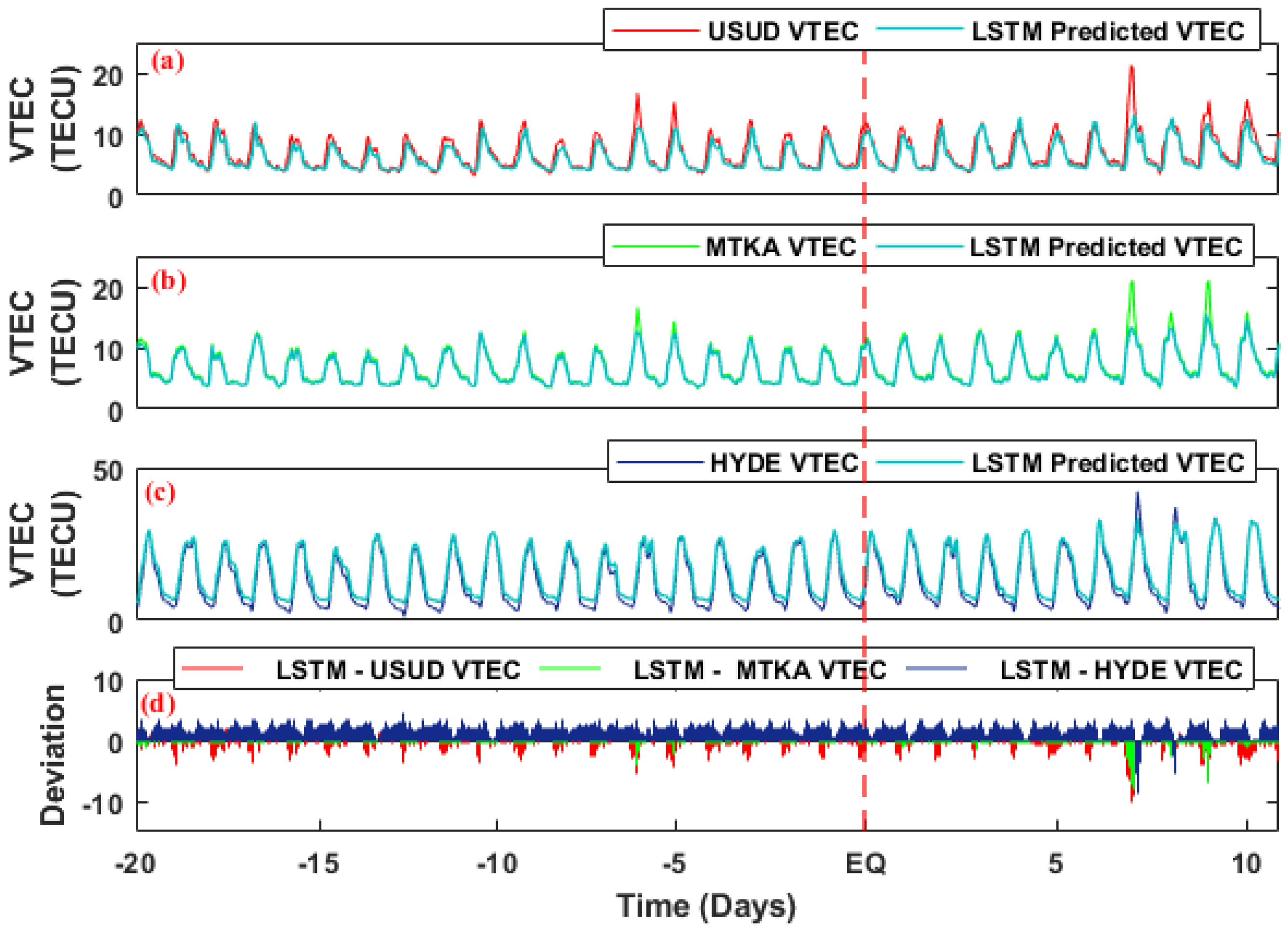

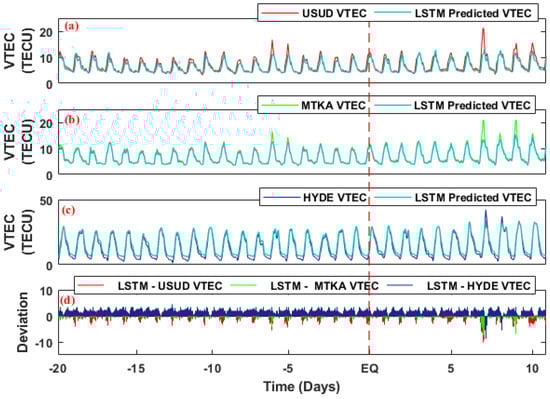

**Figure 12.**(

**a**) Variation of USUD VTEC with LSTM train VTEC, (

**b**) Time series variation of MTKA VTEC with LSTM-predicted VTEC, (

**c**) Variation of HYDE VTEC with LSTM-predicted VTEC, (

**d**) Deviation of LSTM train VTEC from USUD, MTKA, and HYDE VTEC. The red dashed line shows earthquake day.

Parameters | Anomalous Day | Deviations from UB and LB | |
---|---|---|---|

Pre-EQ | Post-EQ | ||

OLR (Daytime) | −6, −5 | 36, 11.4 W/m^{2} | Nil |

OLR (Nighttime) | −6 | 18 W/m^{2} | Nil |

RH (Daytime) | −6 | −8% | Nil |

RH (Nighttime) | −5 | −6% | Nil |

AT | −5 | 2 °K | Nil |

SST | −6 | −4.5 °C | Nil |

VTEC (USUD) | −6, −5, 7, 9 | 3, 1.5 TECU | 7.5, 1.8 TECU |

VTEC (MTKA) | −6, −5, 7, 8, 9 | 2.32, 0.5 TECU | 6.6, 1.5, 6.7 TECU |

VTEC (HYDE) | 7, 8 | Nil | 5.95, 0.8 TECU |
