# Rapid Estimation of Undifferenced Multi-GNSS Real-Time Satellite Clock Offset Using Partial Observations

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

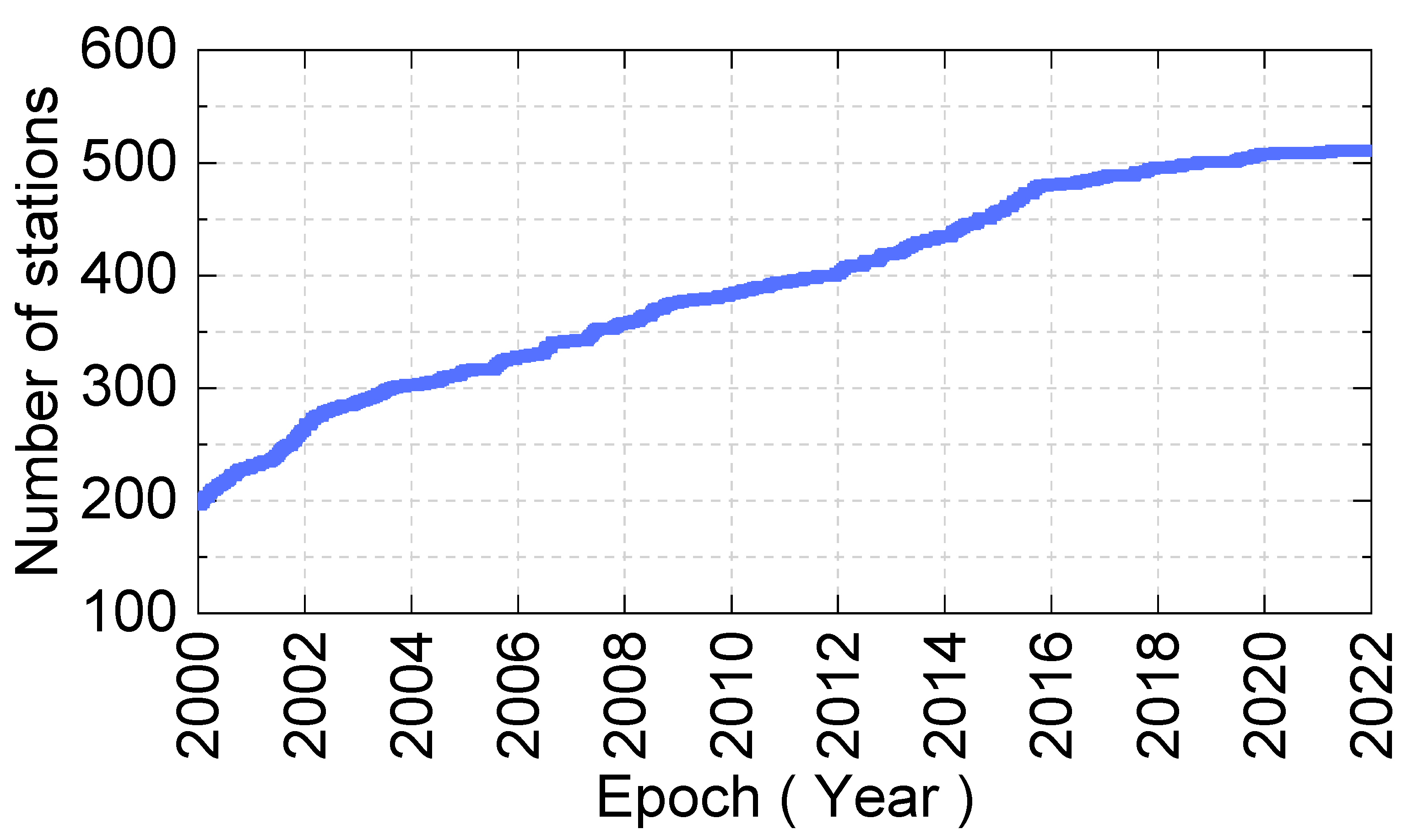

## 1. Introduction

## 2. Methods

#### 2.1. Multi-GNSS Satellite Clock Offset Estimation Model

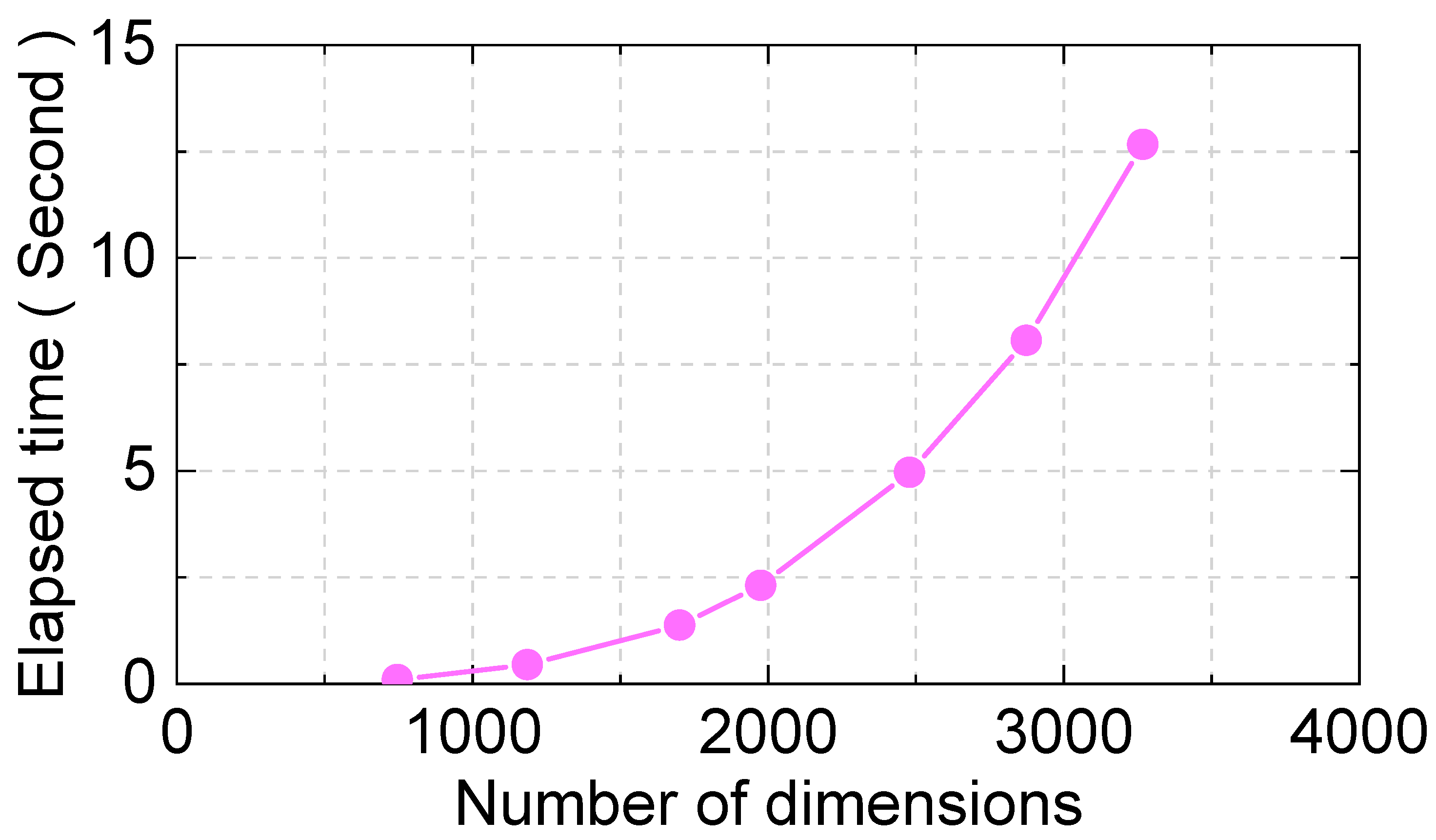

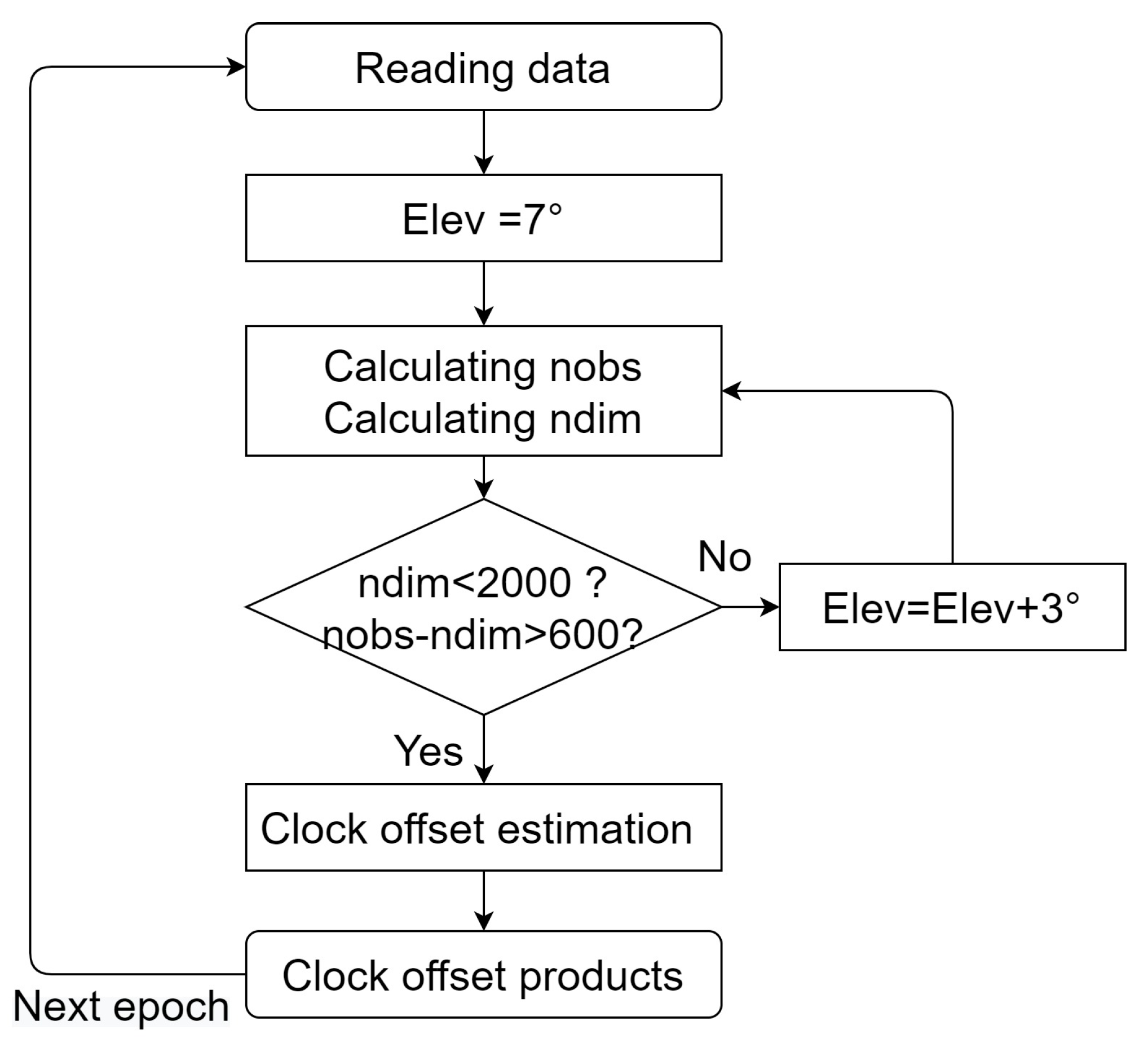

#### 2.2. Satellite Clock Offset Estimation Using Partial Observations

## 3. Results

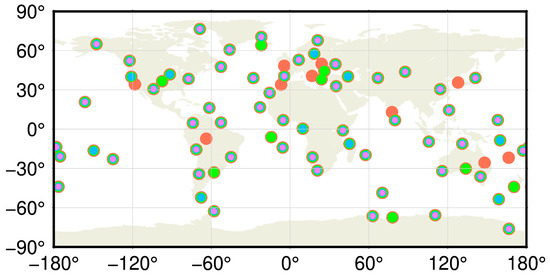

#### 3.1. Experiment Setup

#### 3.2. Computation Efficiency

#### 3.3. Clock Offset Accuracy

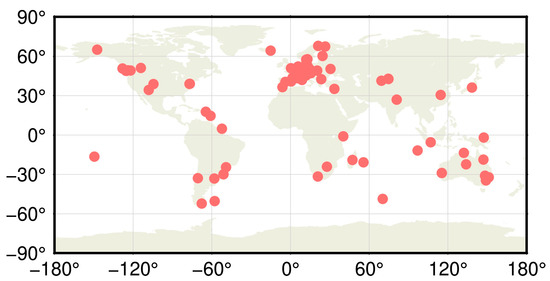

#### 3.4. PPP Validation

## 4. Discussions

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Zumberge, J.F.; Heflin, M.B.; Jefferson, D.C.; Watkins, M.M.; Webb, F.H. Precise point positioning for the efficient and robust analysis of GPS data from large networks. J. Geophys. Res.
**1997**, 102, 5005–5017. [Google Scholar] [CrossRef] [Green Version] - Guo, J.; Li, X.; Li, Z.; Hu, L.; Yang, G.; Zhao, C.; Fairbairn, D.; Watson, D.; Ge, M. Multi-GNSS precise point positioning for precision agriculture. Precis. Agric.
**2018**, 19, 895–911. [Google Scholar] [CrossRef] [Green Version] - Ge, Y.; Dai, P.; Qin, W.; Yang, X.; Zhou, F.; Wang, S.; Zhao, X. Performance of multi-GNSS precise point positioning time and frequency transfer with clock modeling. Remote Sens.
**2019**, 11, 347. [Google Scholar] [CrossRef] [Green Version] - Lu, C.; Li, X.; Nilsson, T.; Ning, T.; Heinkelmann, R.; Ge, M.; Glaser, S.; Schuh, H. Real-time retrieval of precipitable water vapor from GPS and BeiDou observations. J. Geod.
**2015**, 89, 843–856. [Google Scholar] [CrossRef] - Duan, B.; Hugentobler, U.; Chen, J.; Selmke, I.; Wang, J. Prediction versus real-time orbit determination for GNSS satellites. GPS Solut.
**2019**, 23, 39. [Google Scholar] [CrossRef] - Huang, G.; Cui, B.; Zhang, Q.; Fu, W.; Li, P. An improved predicted model for BDS ultra-rapid satellite clock offsets. Remote Sens.
**2018**, 10, 60. [Google Scholar] [CrossRef] [Green Version] - Caissy, M.; Agrotis, L. Real-time working group and real-time pilot project. In International GNSS Service; Technical Report 2011; Astronomical Institute, University of Bern: Bern, Switzerland, 2011; pp. 183–190. [Google Scholar]
- Hadas, T.; Bosy, J. IGS RTS precise orbits and clocks verification and quality degradation over time. GPS Solut.
**2015**, 19, 93–105. [Google Scholar] [CrossRef] [Green Version] - Li, B.; Ge, H.; Bu, Y.; Zheng, Y.; Yuan, L. Comprehensive assessment of real-time precise products from IGS analysis centers. Satell. Navig.
**2022**, 3, 12. [Google Scholar] [CrossRef] - Fu, W.; Yang, Y.; Zhang, Q.; Huang, G. Real-time estimation of BDS/GPS high-rate satellite clock offsets using sequential least squares. Adv. Space Res.
**2018**, 62, 477–487. [Google Scholar] [CrossRef] - Jiao, G.; Song, S. High-rate one-hourly updated ultra-rapid multi-GNSS satellite clock offsets estimation and its application in real-time precise point positioning. Remote Sens.
**2022**, 14, 1257. [Google Scholar] [CrossRef] - Tao, J. Research on GNSS Real-time Precise Satellite Clock Fast Estimation. Master Thesis, Wuhan University, Wuhan, China, 2019. [Google Scholar]
- Cao, X.; Kuang, K.; Ge, Y.; Shen, F.; Zhang, S.; Li, J. An efficient method for undifferenced BDS-2/BDS-3 high-rate clock estimation. GPS Solut.
**2022**, 26, 66. [Google Scholar] [CrossRef] - Zuo, X.; Jiang, X.; Li, P.; Wang, J.; Ge, M.; Schuh, H. A square root information filter for multi-GNSS real-time precise clock estimation. Satell. Navig.
**2021**, 2, 28. [Google Scholar] [CrossRef] - Gong, X.; Gu, S.; Lou, Y.; Zheng, F.; Ge, M.; Liu, J. An efficient solution of real-time data processing for multi-GNSS network. J. Geod.
**2018**, 92, 797–809. [Google Scholar] [CrossRef] - Liu, T.; Zhang, B.; Yuan, Y.; Zha, J.; Zhao, C. An efficient undifferenced method for estimating multi-GNSS high-rate clock corrections with data streams in real time. J. Geod.
**2019**, 93, 1435–1456. [Google Scholar] [CrossRef] - Dai, Z.; Dai, X.; Zhao, Q.; Bao, Z.; Li, C. Multi-GNSS real-time clock estimation using the dual-thread parallel method. Adv. Space Res.
**2018**, 62, 2518–2528. [Google Scholar] [CrossRef] - Chen, H.; Jiang, W.; Ge, M.; Wickert, J.; Schuh, H. Efficient high-rate satellite clock estimation for PPP ambiguity resolution using carrier-ranges. Sensors
**2014**, 14, 22300–22312. [Google Scholar] [CrossRef] [Green Version] - Li, X.; Xiong, Y.; Yuan, Y.; Wu, J.; Li, X.; Zhang, K.; Huang, J. Real-time estimation of multi-GNSS integer recovery clock with undifferenced ambiguity resolution. J. Geod.
**2019**, 93, 2515–2528. [Google Scholar] [CrossRef] - Fu, W.; Huang, G.; Zhang, Q.; Gu, S.; Ge, M.; Schuh, H. Multi-GNSS real-time clock estimation using sequential least square adjustment with online quality control. J. Geod.
**2019**, 93, 963–976. [Google Scholar] [CrossRef] - Xie, W.; Huang, G.; Fu, W.; Shu, B.; Cui, B.; Li, M.; Yue, F. A quality control method based on improved IQR for estimating multi-GNSS real-time satellite clock offset. Measurement
**2022**, 201, 111695. [Google Scholar] [CrossRef] - Kouba, J.; Héroux, P. Precise point positioning using IGS orbit and clock products. GPS Solut.
**2001**, 5, 12–28. [Google Scholar] [CrossRef] - Wang, J.; Zhang, Q.; Huang, G. Estimation of fractional cycle bias for GPS/BDS-2/galileo based on international GNSS monitoring and assessment system observations using the uncombined PPP model. Sate. Navig.
**2021**, 9, 2. [Google Scholar] [CrossRef] - Cui, B.; Li, P.; Wang, J.; Ge, M.; Schuh, H. Calibrating receiver-type-dependent wide-lane uncalibrated phase delay biases for PPP integer ambiguity resolution. J. Geod.
**2021**, 95, 82. [Google Scholar] [CrossRef] - Wang, J.; Huang, G.; Zhang, Q.; Gao, Y.; Gao, Y.; Luo, Y. GPS/BDS-2/galileo precise point positioning ambiguity resolution based on the uncombined model. Remote Sens.
**2020**, 12, 1853. [Google Scholar] [CrossRef] - Xie, W.; Huang, G.; Fu, W.; Li, P.; Cui, B. An efficient clock offset datum switching compensation method for BDS real-time satellite clock offset estimation. Adv. Space Res.
**2021**, 68, 1802–1813. [Google Scholar] [CrossRef] - Dach, R.; Lutz, S.; Walser, P.; Fridez, P. Bernese GNSS Software Version 5.2; Astronomical Institute, University of Bern: Berne, Switzerland, 2015. [Google Scholar]
- Chen, L.; Li, M.; Zhao, Y.; Zheng, F.; Shi, C. Multi-GNSS real-time precise clock estimation considering the correction of inter-satellite code biases. GPS Solut.
**2021**, 25, 32. [Google Scholar] [CrossRef] - Montenbruck, O.; Steigenberger, P.; Prange, L.; Deng, Z.; Zhao, Q.; Perosanz, F.; Romero, I.; Noll, C.; Stürze, A.; Weber, G.; et al. The multi-GNSS experiment (MGEX) of the international GNSS Service (IGS)—Achievements, prospects and challenges. Adv. Space Res.
**2017**, 59, 1671–1697. [Google Scholar] [CrossRef] - Prange, L.; Orliac, E.; Dach, R.; Arnold, D.; Beutler, G.; Schaer, S.; Jäggi, A. CODE’s five-system orbit and clock solution-the challenges of multi-GNSS data analysis. J. Geod.
**2017**, 91, 345–360. [Google Scholar] [CrossRef] [Green Version] - Kouba, J. Relativity effects of galileo passive hydrogen maser satellite clocks. GPS Solut.
**2019**, 23, 117. [Google Scholar] [CrossRef] - Wu, J.T.; Wu, S.C.; Hajj, G.A.; Bertiger, W.I.; Lichten, S.M. Effects of antenna orientation on GPS carrier phase. In Proceedings of the Astrodynamics 1991, San Diego, CA, USA, 19–22 August 1991; pp. 1647–1660. [Google Scholar]
- Wang, N.; Yuan, Y.; Li, Z.; Montenbruck, O.; Tan, B. Determination of differential code biases with multi-GNSS observations. J. Geod.
**2016**, 90, 209–228. [Google Scholar] [CrossRef] - Petit, G.; Luzum, B. IERS Conventions (2010); IERS Technical Note 36; Verlagdes Bundesamts für Kartographie und Geodsie: Frankfurt, Germany, 2010. [Google Scholar]
- Saastamoinen, J. Contributions to the theory of atmospheric refraction—Part II. Refraction corrections in satellite geodesy. Bull Géod.
**1973**, 47, 13–34. [Google Scholar] [CrossRef] - Boehm, J.; Niell, A.; Tregoning, P.; Schuh, H. Global mapping function (GMF): A new empirical mapping function based on numerical weather model data. Geophys. Res. Lett.
**2006**, 33, L07304. [Google Scholar] [CrossRef] [Green Version] - Xie, W.; Huang, G.; Wang, L.; Li, P.; Cui, B.; Wang, H.; Cao, Y. Long-term performance detection and evaluation of GLONASS onboard satellite clocks. Measurement
**2021**, 175, 109091. [Google Scholar] [CrossRef]

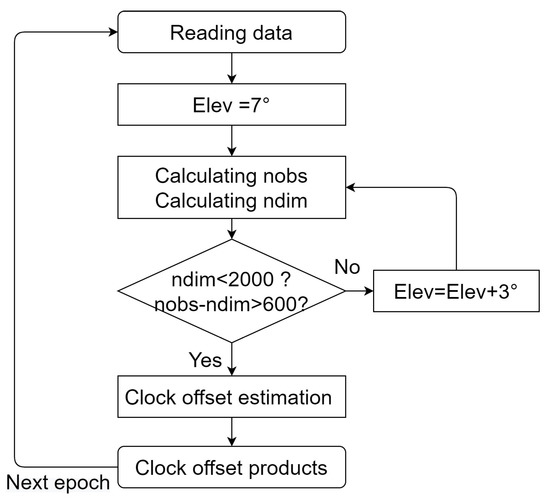

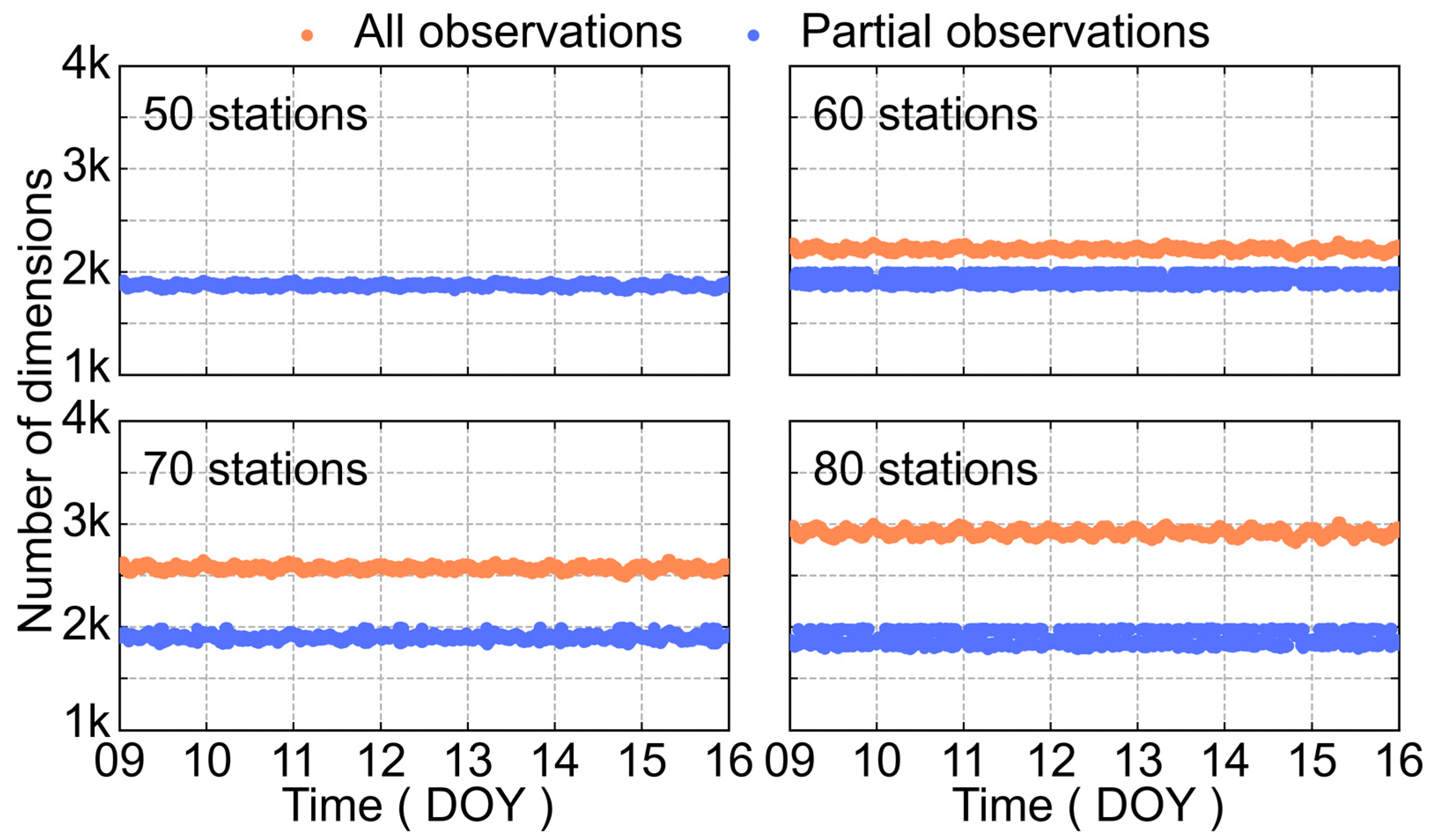

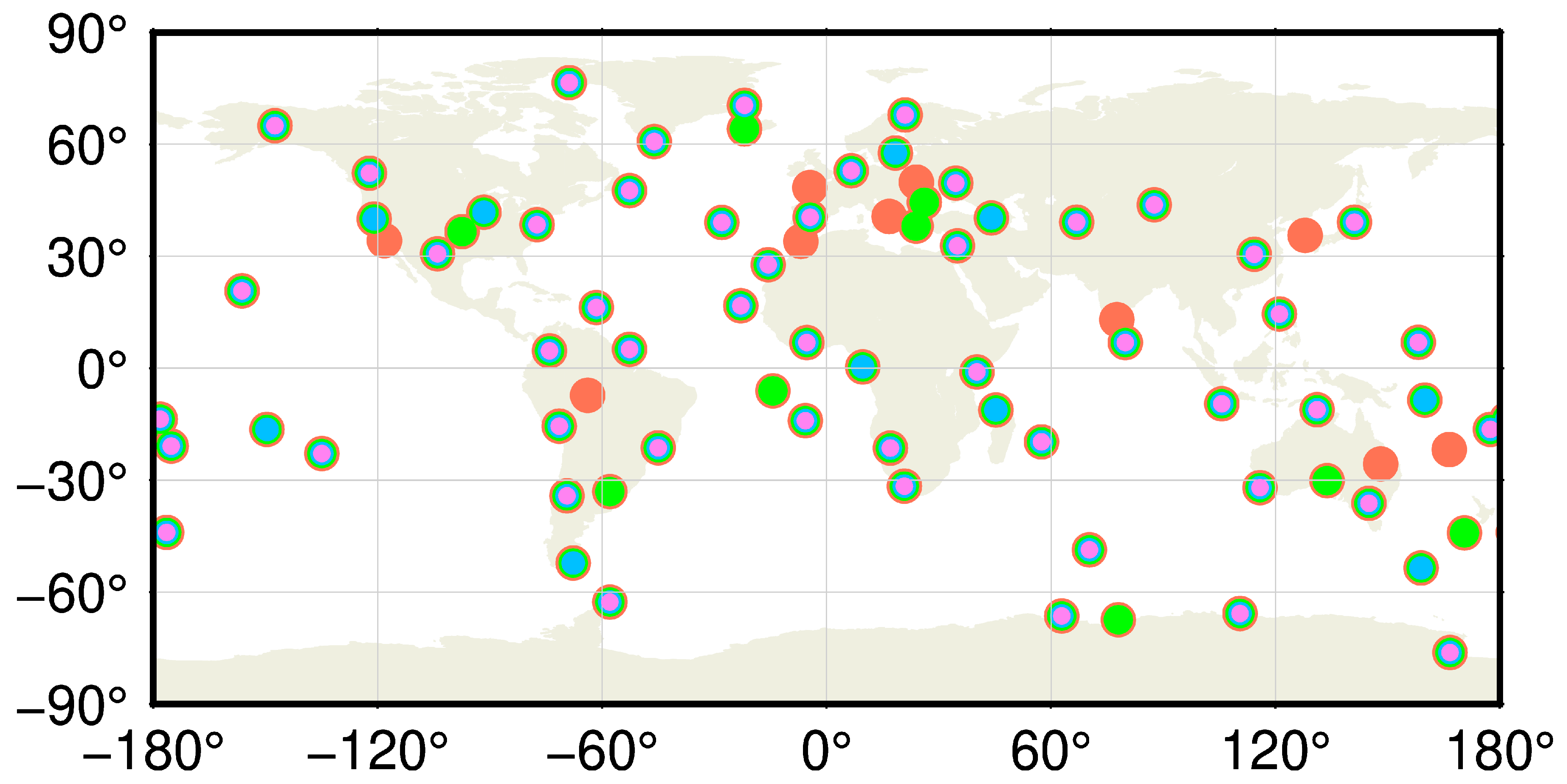

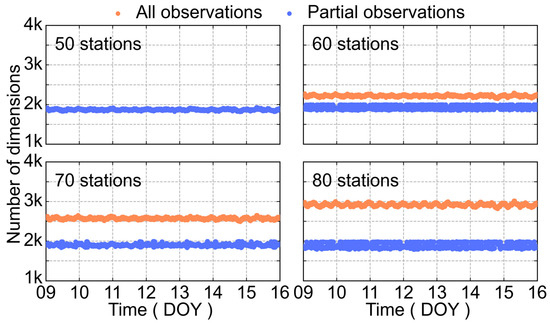

**Figure 5.**Number of dimensions of satellite clock offset estimation using all and partial observations with 50, 60, 70 and 80 stations.

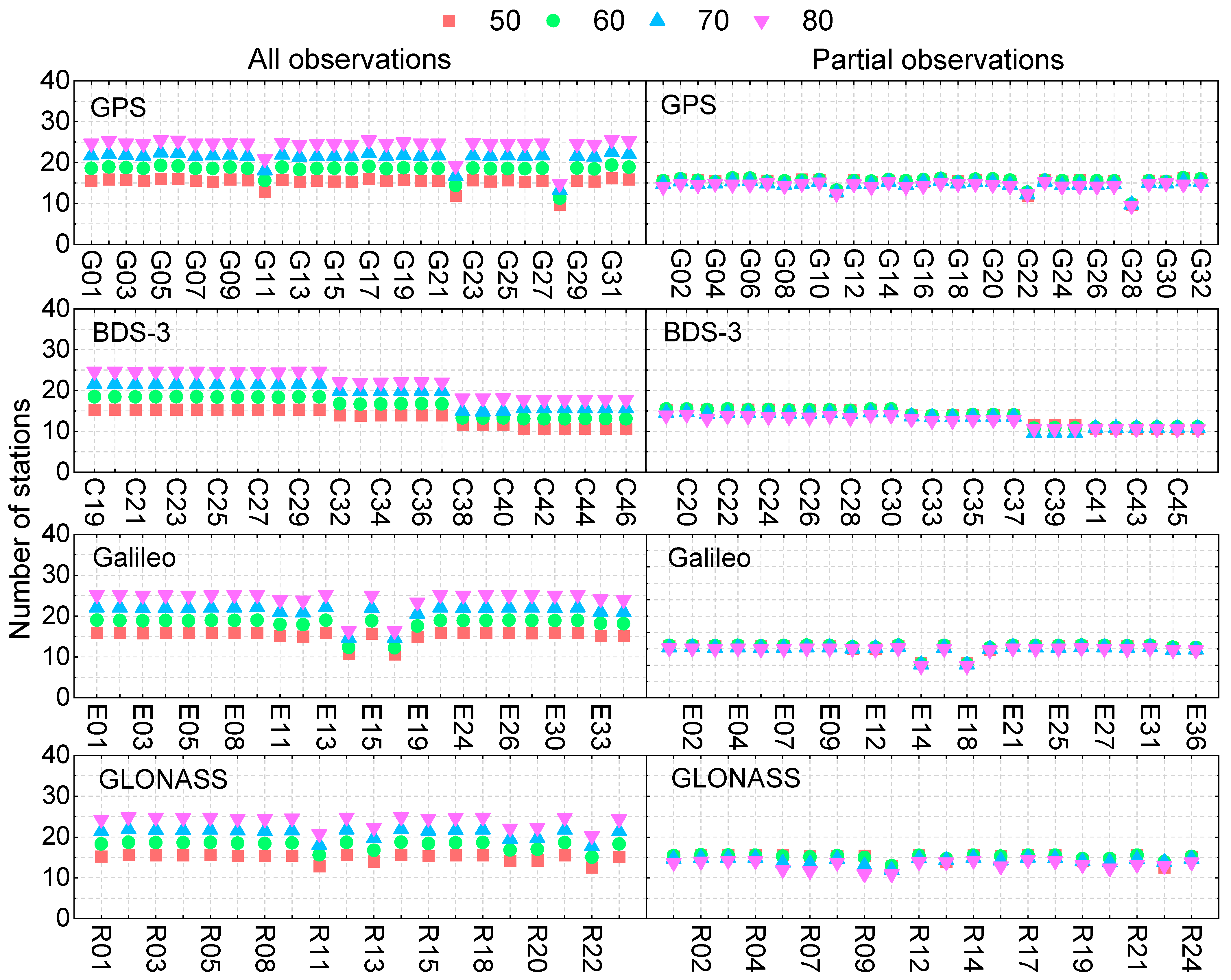

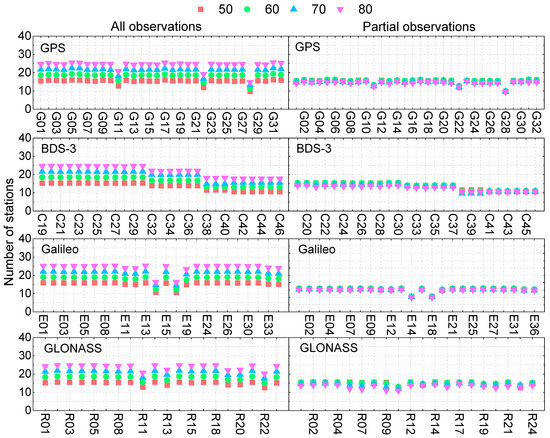

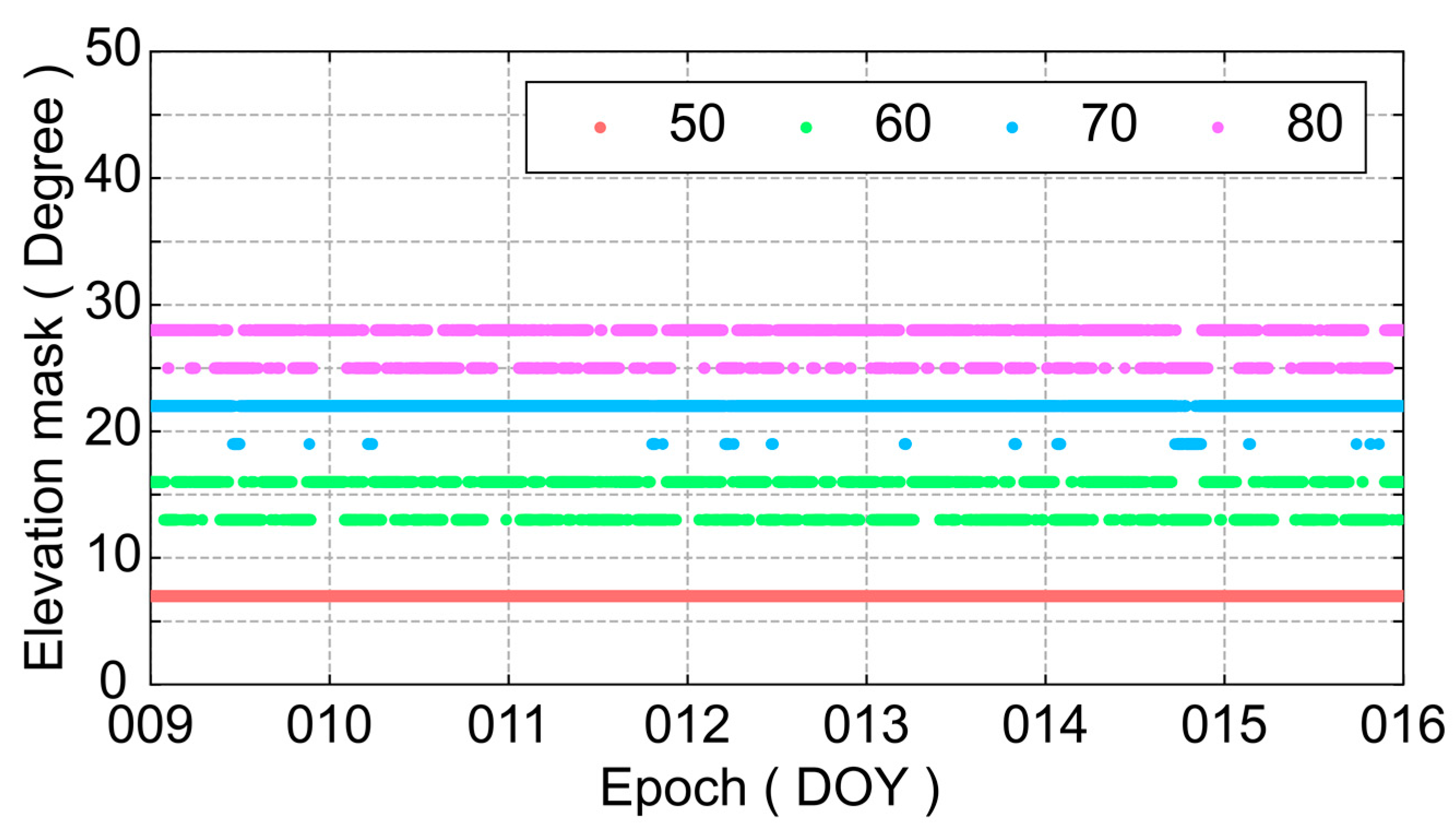

**Figure 7.**Elevation mask for clock offset estimation using partial observations with 50, 60, 70 and 80 stations.

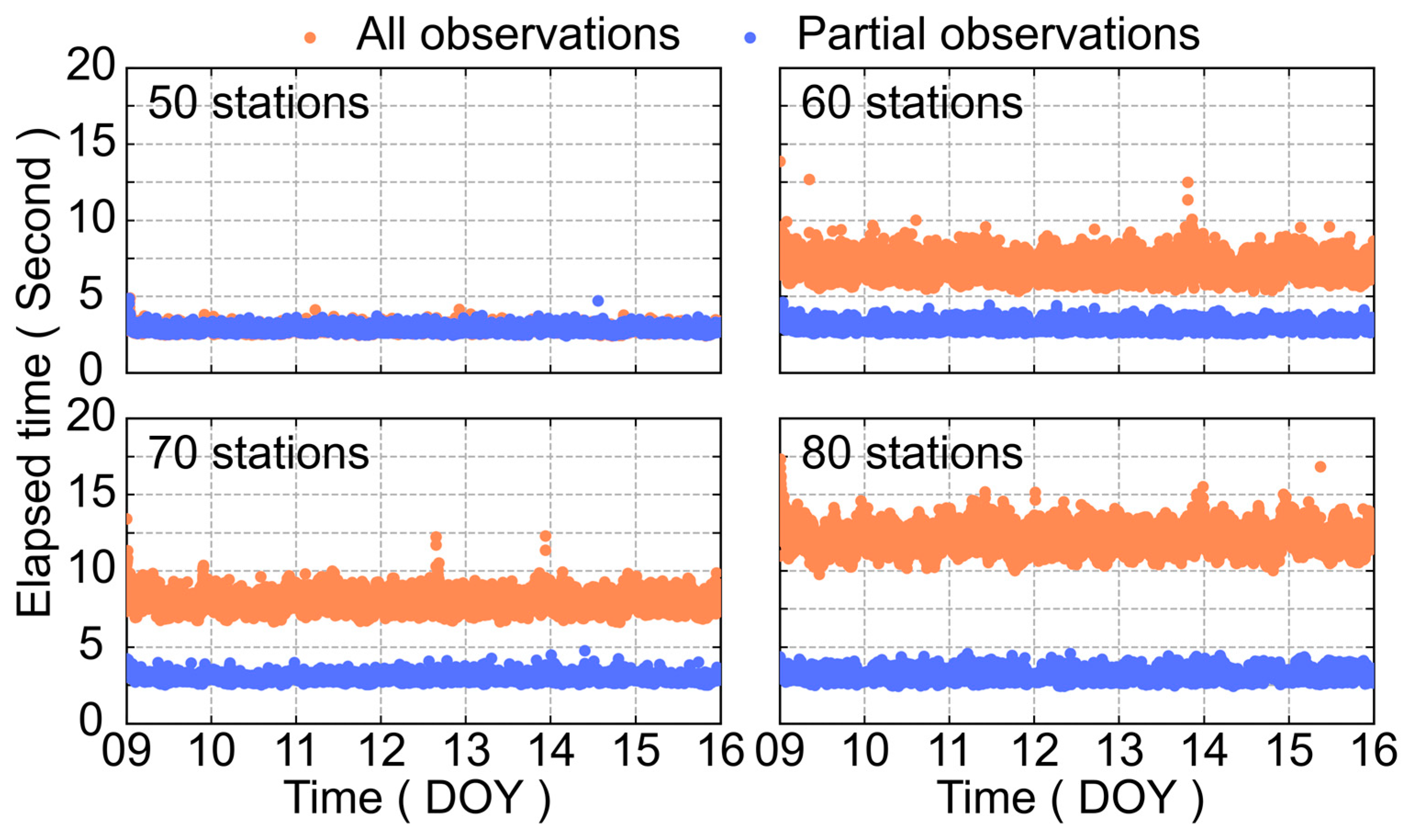

**Figure 8.**Elapsed time of clock offset estimation for each epoch using all and partial observations with different stations.

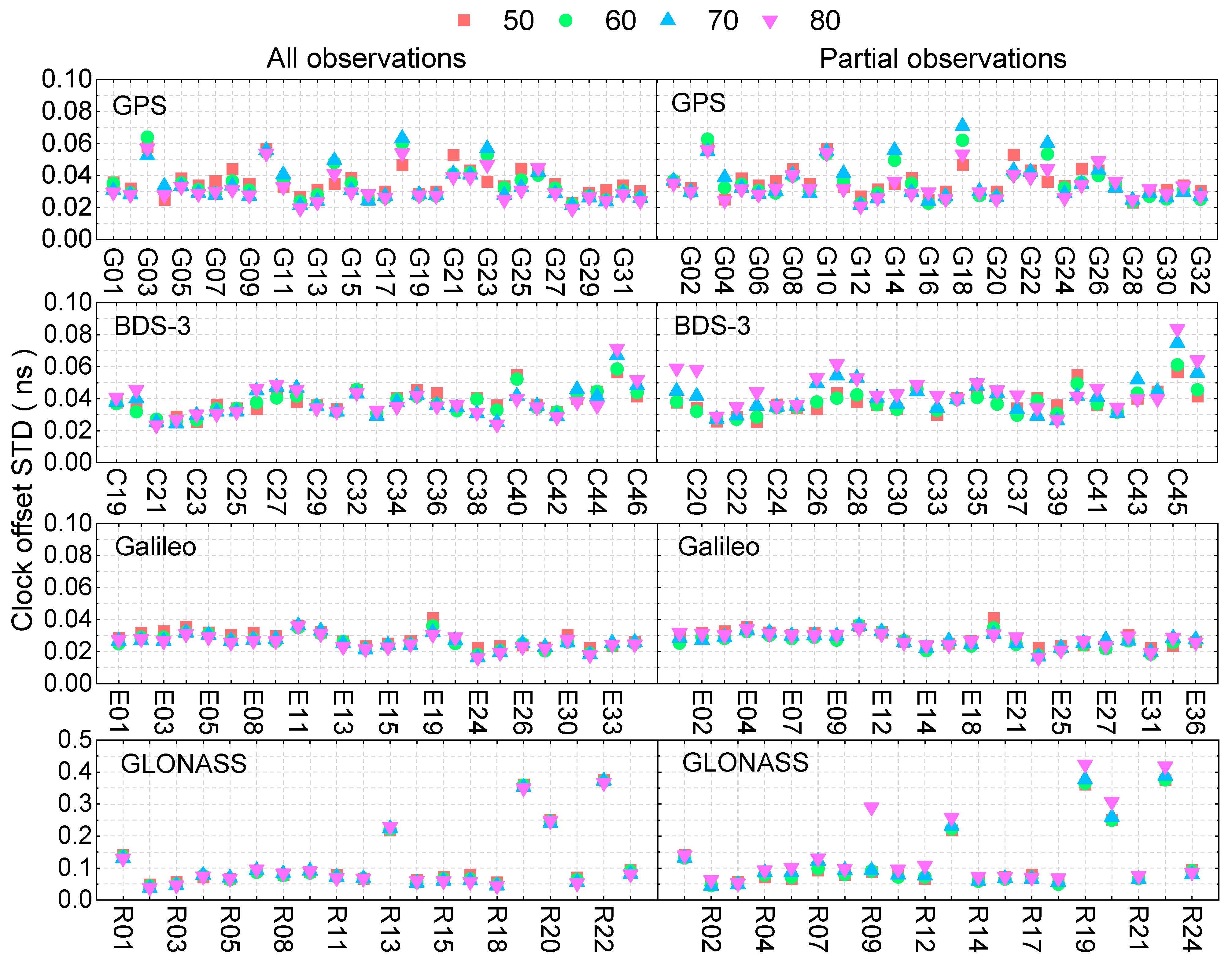

**Figure 9.**Clock offset accuracy of each satellite using all and partial observations with different stations.

Items | Strategies |
---|---|

Observations | GPS: L1/L2; Galileo: E1/E5a; BDS-3: B1I/B3I; GLONASS: G1/G2 |

Weight | E ≤ 30°, P = 2sinE; E > 30°, P = 1; |

Satellite orbit/ERP | Center for Orbit Determination in European (CODE) [30] |

Relativistic effect | Corrected [31] |

Wind-up | Corrected [32] |

Satellite DCB | CAS [33] |

Satellite PCO/PCV | igs14.atx |

Station coordinates | Fixed to IGS weekly solutions |

Station displacement | Solid tide, ocean tide, pole tide: IERS Convention 2010 [34] |

Receiver PCO/PCV | igs14.atx |

Estimator | Sequential least square adjustment [20] |

Satellite and receiver clock offset | White noise |

ISB | White noise |

Troposphere | Saastamoinen model [35] + GMF [36], estimated as a piece-wise constant every hour |

Ambiguity | Float solution, estimated as a constant for a station-satellite pair if no cycle slip |

**Table 2.**The mean number of dimensions of satellite clock offset estimation using all and partial observations with 50, 60, 70 and 80 stations.

Number of Stations | All Observations | Partial Observations | Reduction Rate |
---|---|---|---|

50 | 1871 | 1871 | 0% |

60 | 2221 | 1932 | 13.0% |

70 | 2575 | 1901 | 26.2% |

80 | 2919 | 1890 | 35.3% |

**Table 3.**Mean elapsed time of clock offset estimation for each epoch using all and partial observations with different stations (unit: second).

Number of Stations | All Observations | Partial Observations | Reduction Rate |
---|---|---|---|

50 | 2.86 | 2.86 | 0% |

60 | 6.80 | 3.10 | 54.4% |

70 | 7.93 | 2.97 | 62.6% |

80 | 12.04 | 3.14 | 73.9% |

Number of Stations | GPS | BDS-3 | Galileo | GLONASS | ||||
---|---|---|---|---|---|---|---|---|

All | Partial | All | Partial | All | Partial | All | Partial | |

50 | 0.0360 | 0.0360 | 0.0381 | 0.0381 | 0.0285 | 0.0285 | 0.1215 | 0.1215 |

60 | 0.0350 | 0.0351 | 0.0375 | 0.0378 | 0.0262 | 0.0265 | 0.1173 | 0.1202 |

70 | 0.0338 | 0.0358 | 0.0376 | 0.0416 | 0.0261 | 0.0275 | 0.1157 | 0.1255 |

80 | 0.0322 | 0.0338 | 0.0376 | 0.0455 | 0.0256 | 0.0278 | 0.1155 | 0.1512 |

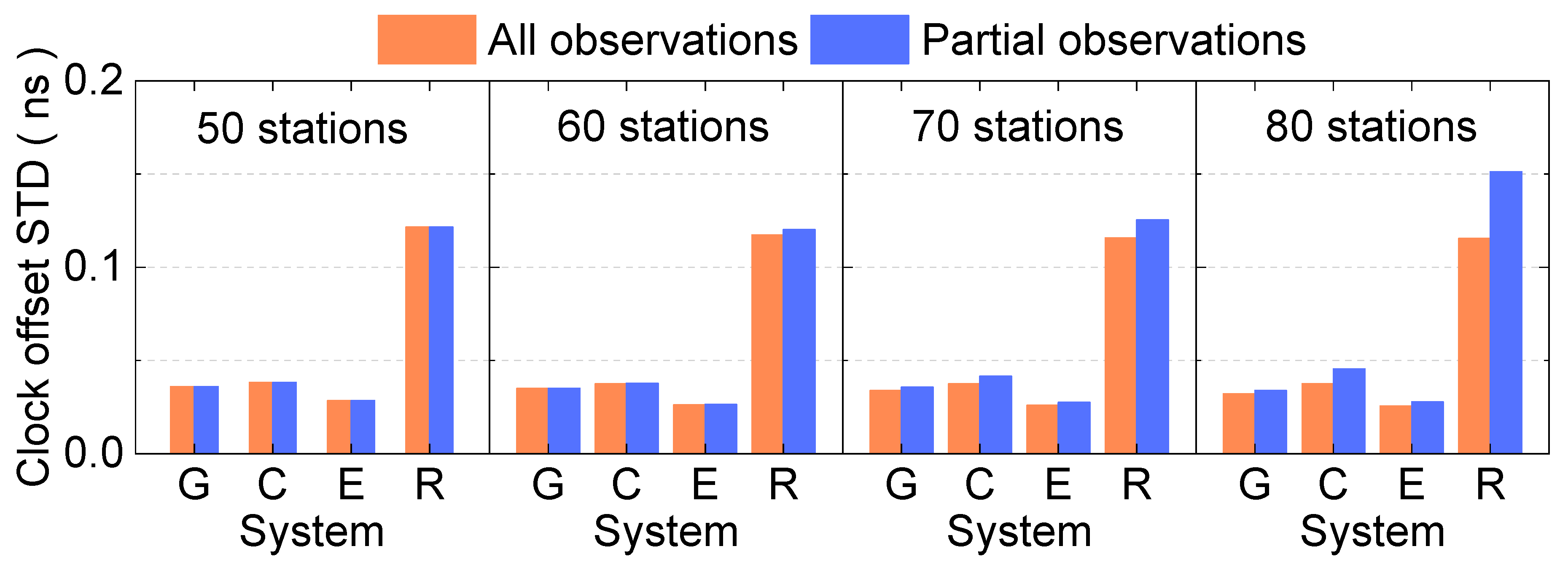

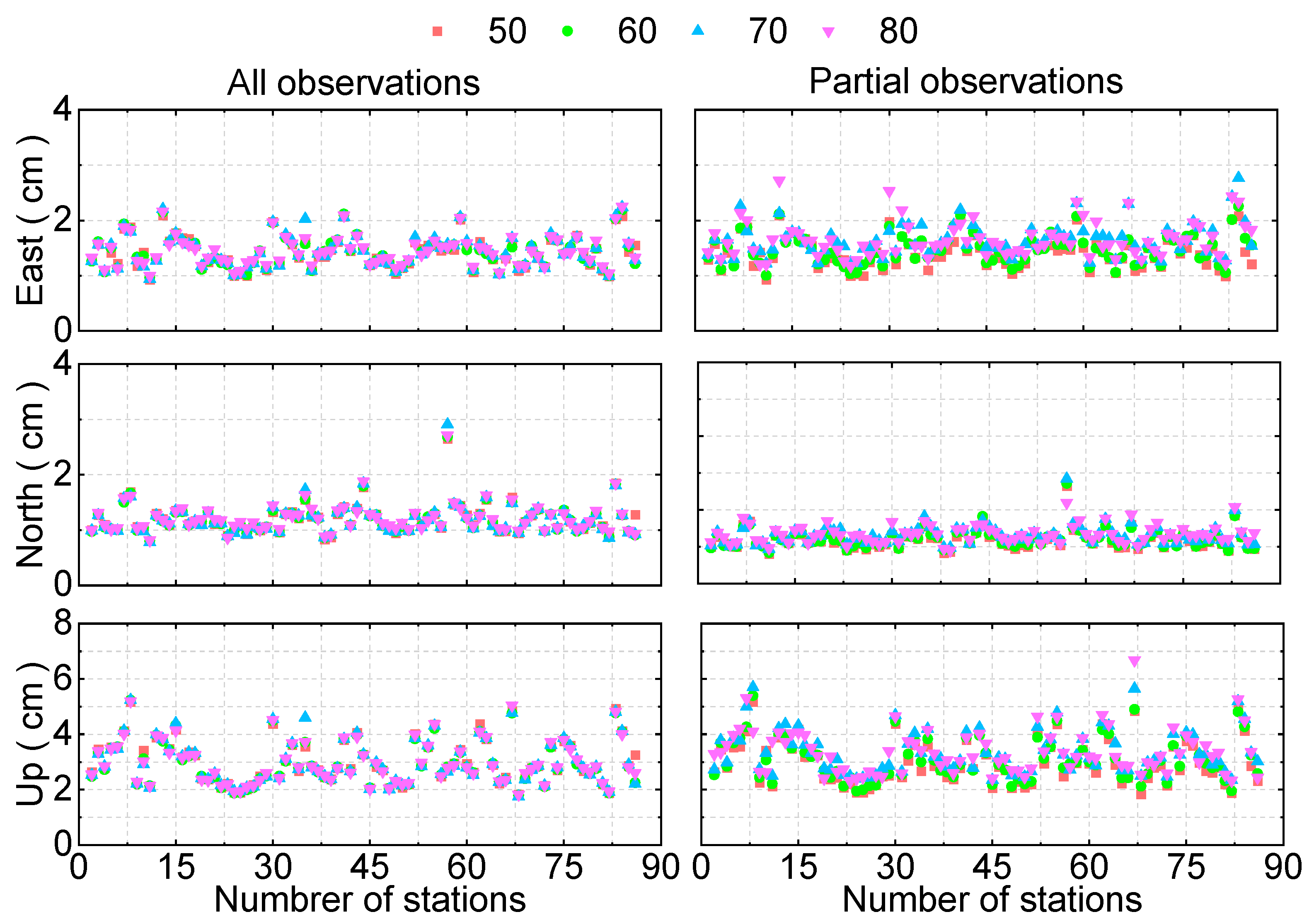

**Table 5.**Positioning accuracy using the clock offset from different schemes at the 95% confidence level (unit: cm).

Number of Stations | All Observations | Partial Observations | ||||
---|---|---|---|---|---|---|

E | N | U | E | N | U | |

50 | 2.30 | 1.90 | 5.35 | 2.30 | 1.90 | 5.35 |

60 | 2.32 | 1.87 | 5.35 | 2.28 | 1.88 | 5.44 |

70 | 2.40 | 1.87 | 5.24 | 2.60 | 1.99 | 5.52 |

80 | 2.29 | 1.91 | 5.24 | 2.68 | 2.15 | 5.58 |
