Characterizing the Development of Photovoltaic Power Stations and Their Impacts on Vegetation Conditions from Landsat Time Series during 1990–2022

Abstract

To achieve carbon peaking and carbon neutrality in China, photovoltaic (PV) power generation has become increasingly important for promoting a low-carbon transition. The central and western desert areas of China have been identified as major areas for the construction of large PV bases. Remote sensing technology has been used to map the spatial distribution and development status of PV power stations quickly and accurately in ecologically fragile areas, as well as assess the ecological and environmental impact of their construction. However, current remote sensing monitoring of PV power stations focuses mainly on mapping and time series analysis to measure their development process and assess the environmental conditions on a large scale over a long period of time. Therefore, we constructed a random forest model based on image spectral and texture features and mapped 2022 PV power stations in the junction area of Hobq Desert, Ulan Buh Desert, Tengger Desert, and Mu Us Sands in China. Following that, we identified the construction time of the PV power stations by identifying the turning points of the normalized construction land index (NDBI) time series from 1990–2022 using the LandTrendr method. To assess the ecological impact of PV power stations, we used the NDVI to measure the change in vegetation condition before and after the construction of PV power stations and constructed NDVI changes for PV power stations constructed in different years. The results showed that this mapping method achieved an overall classification accuracy of 96.65% and a Kappa coefficient of 0.92. The root mean square error (RMSE) for construction year identification was less than 0.5, and the number of new PV power stations increased significantly after 2010, reaching a total area of 14.52 km² by 2016, which is consistent with the trend driven by national and regional development plans. Furthermore, the study found that the vegetation cover level could be restored to the average level before construction within 5–6 years and continued to increase after that. These findings may help government policymakers and practitioners make decisions on PV power station planning and ecological environment protection, thus contributing promptly to the achievement of China’s dual carbon goals.

1. Introduction

With the ongoing energy crisis and the increasing threat of global warming, many countries are shifting towards clean energy sources to combat the issue [1,2]. Recently, China officially proposed that CO₂ emissions strive to peak in 2030 and achieve carbon neutrality by 2060. Since solar energy has naturally high availability and relatively low negative impacts on the environment [3,4], PV power generation has become an important way for China to promote energy transformation, protect the ecological environment, mitigate climate change, and achieve the goals of carbon peaking and carbon neutrality [5,6]. China’s PV power station construction has ranked first in the world for many years. The new and cumulatively installed PV capacity of China will account for more than one-third of the total installed global wind power PV capacity by 2022 [7]. Desert areas rich in solar energy resources, especially Hobq Desert, Ulan Buh Desert, Tengger Desert, and Mu Us Sands [8], are preferred to locate PV construction bases, accounting for more than 60% of the total installed capacity of China. However, these areas also happen to be ecologically fragile. For such areas, understanding the ecological impact of the rapid and massive construction of PV power stations is very important for optimizing the layout of PV power stations and protecting the regional ecology.

Remote sensing technology has the advantages of timely and efficient large-scale synchronous monitoring [9], and efforts have been made to map PV power stations predominantly through visual interpretation, machine learning, and deep learning over the last few years [10,11,12,13,14]. Visual interpretation is an accurate and easy-to-implement approach for identifying densely located PV power stations. However, it is time-consuming and laborious for large-scale mapping. Deep learning methods are suitable for large-scale and automatic mapping. Their data acquisition and computation are expensive. Random forest (RF) can be used to process high-dimensional data quickly and accurately for large regions. It has been used in PV power station identification based on Landsat series data in recent years [15,16,17]. However, these studies scarcely focus on the combination of development processes and environmental effects. Therefore, this study aimed to provide a method to quickly identify and monitor the time series changes of PV power stations and to clarify the positive effect of PV power station construction on vegetation restoration and the corresponding time by normalizing vegetation index changes under different construction years.

The Landsat series of satellites has been serving global feature monitoring for about 50 years and thus has great potential for monitoring the temporal changes of PV power stations in large-scale areas. Furthermore, remote sensing cloud computing platforms such as Google Earth Engine (GEE) [18] greatly facilitate the analysis of massive amounts of data on large spatial scales over long periods of time. The most widely used methods of remote sensing image time series analysis include Breaks for Additive Seasonal and Trend (BFAST) [19,20], Detecting Breakpoints and Estimating Segments in Trend (DBEST) [21,22], Discrete wavelet transform-based trends and turning points detection (DWT-TTD) [23], and Landsat-based detection of Trends in Disturbance and Recovery (LandTrendr) [24,25]. The LandTrendr algorithm has been integrated into GEE, which is a model mainly for Landsat interannual time series to carry out time series evolution trajectory modeling and achieve turning points and feature parameter mining. It has advantages in extensive land time series monitoring.

In this study, based on the GEE platform, we used Landsat time-series images from 1990–2022 to grasp the spatial distribution and development trajectory of PV power stations in the desert region and their impact on the ecological environment. We aim to (1) construct a random forest model based on Landsat images in 2022 that combines the spectral and texture features of the images to rapidly and accurately identify the PV power stations. (2) Based on the normalized construction land index (NDBI), an interannual time series analysis of PV power station target areas was carried out using the LandTrendr algorithm to quantify the construction years and spatial and temporal trajectories of PV power station development in the study area from 1990 to 2022. (3) The normalized vegetation index (NDVI) was used as an ecological indicator variable to assess the impact of different construction years on the ecological environment.

2. Study Area

Our study focuses on the junction area of Inner Mongolia Autonomous Region and Ningxia Hui Autonomous Region along the banks of the Yellow River. The area is a typical ecologically fragile zone of desert oasis junction and an important area of high-quality development in the Yellow River Basin (Figure 1). It consists of Hobq Desert, Ulan Buh Desert, Tengger Desert, and Mu Us Sands. The annual sunshine hours are more than 3300 h, and the intensity of solar radiation reached a total annual radiation of about 6400 MJ/m², which is an internationally recognized first-level area for solar radiation distribution.

3. Materials and Methods

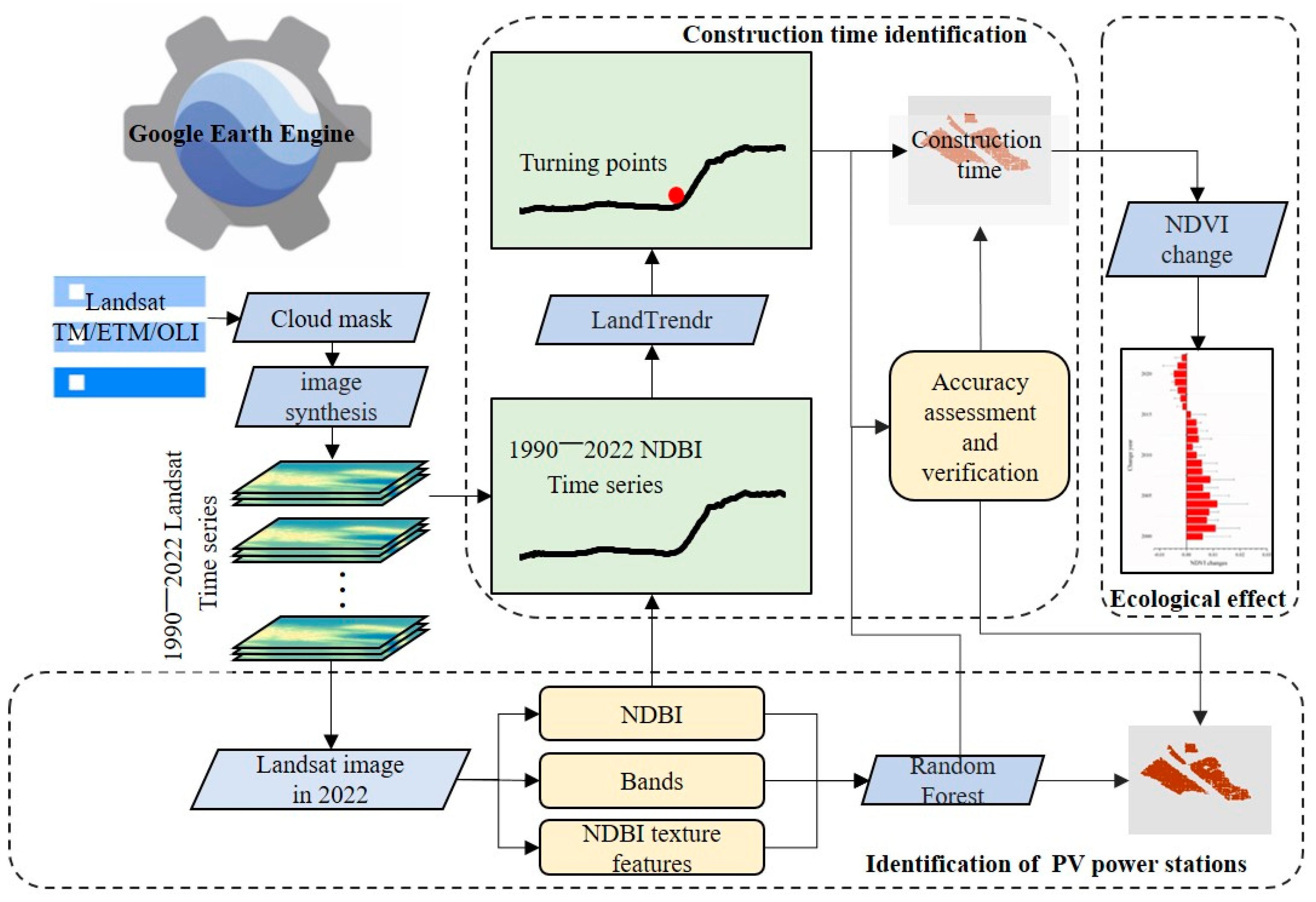

The long-time-series remote sensing image data derived and processed using the GEE platform is the basic data of our study. Our research included three main parts, as shown in Figure 2. Firstly, we used the random forest method to extract PV power stations based on the spectral band, NDBI, and texture features of NDBI, which were calculated within sliding windows pixel by pixel. Secondly, we applied the LandTrendr algorithm to identify the turning point of the NDBI time series of PV power stations as their construction years. Thirdly, we measured the NDVI temporal change before and after the construction of PV power stations to analyze their impact on vegetation conditions.

3.1. Landsat Imagery and Preprocessing

We utilized NASA’s Surface Reflectance (SR) products from the Landsat satellite mission and processed the data using the GEE platform. To provide a long-term analysis of more than 30 years, we derived all available Landsat-5 TM, Landsat-7 ETM+, and Landsat-8 OLI images in the study area. A total of 10,030 images were obtained from the GEE platform, as shown in

Table 1. Description of parameters for different satellite sensors.

Satellite Sensor	Spatial Resolution (m)	Revisit Period (Day)	Available Date Range (Year)	Number of Images
Landsat-5	30	16	1990–2011	6271
Landsat-7	30	16	2012–2013	568
Landsat-8	30	16	2014–2022	3191

. We conducted data preprocessing to remove clouds using the Fmask band of Landsat SR data and to remove striping on Landsat 7 images(Figure 3). Additionally, a Multi-Dimensional Median method was employed for image synthesis to create a time-series image dataset.

3.2. PV Power Station Extraction

Solar panels have special spectral properties that can be exploited to extract PV power stations from optical satellite images. Solar panels are designed to absorb visible and near-infrared light to generate electricity while reflecting most of the short-wave infrared light to prevent the panels from overheating. Therefore, solar panels have low reflectivity in the visible and near-infrared bands and high reflectivity in the short-wave infrared band. At the same time, solar panels in PV plants are regularly distributed and thus have special textures. Therefore, we extracted PV power stations by integrating spectral features and texture features using a random forest model.

3.2.1. Spectral Feature Selection

Seven visible bands of Landsat 8 OLI were selected as part of the spectral features. Considering the spectral characteristics of PV power stations in the short-wave infrared and near-infrared bands, we used the normalized difference built-up index (NDBI) [26] to extract PV power stations. Its expression is as follows:

NDBI = (SWIR1 − NIR)/(SWIR1 + NIR),

(1)

where SWIR1 and NIR represent the shortwave infrared band and the near-infrared band of Landsat TM/ETM+/OLI imagery, respectively.

3.2.2. Texture Feature Analysis

A gray-level co-occurrence matrix (GLCM) was used to describe PV texture features [27,28]. It represents the orientation, adjacent interval, and change magnitude of the target object on the image. It has been widely used in texture analysis, feature classification, and image quality evaluation [28,29,30]. Considering the complex shape and spectral features of PV power stations, to improve computing efficiency and reduce redundant information, we computed the texture variables from GLCM based on the NDBI. Five GLCM statistical parameters were used in the classification, which included Angular Second Moment (ASM), Correlation (CORR), Entropy (ENT), Sum Average (SAVG), and Cluster Shade (SHADE). ASM reflects the uniformity of the image gray level distribution; CORR reflects the linear dependence of the gray level of adjacent pixels; ENT indicates the degree of disorder between pixels in the image; SAVG indicates the average of the gray level and distribution of the image; and SHADE measures the skewness of the matrix and measures the concept of uniformity.

3.2.3. Random Forest Model

We applied a pixel-based random forest method on the GEE platform to identify the PV power stations. As a robust machine learning algorithm, the random forest method does not need to make assumptions about the distribution of the data, and it can be used to avoid overfitting [31,32]. It has fast operation speeds and high accuracy in classification results [31,32,33]. It achieves better results in remote sensing image information extraction and change detection.

Based on field surveys and high-resolution Google Earth images, we selected a total of 390,833 uniformly distributed and representative samples. It included 16,667 PV power station samples and 374,167 non-PV samples (other land use types including deserts, farmland, and water bodies). We used 70% of the samples as training samples and the remaining 30% as validation samples.

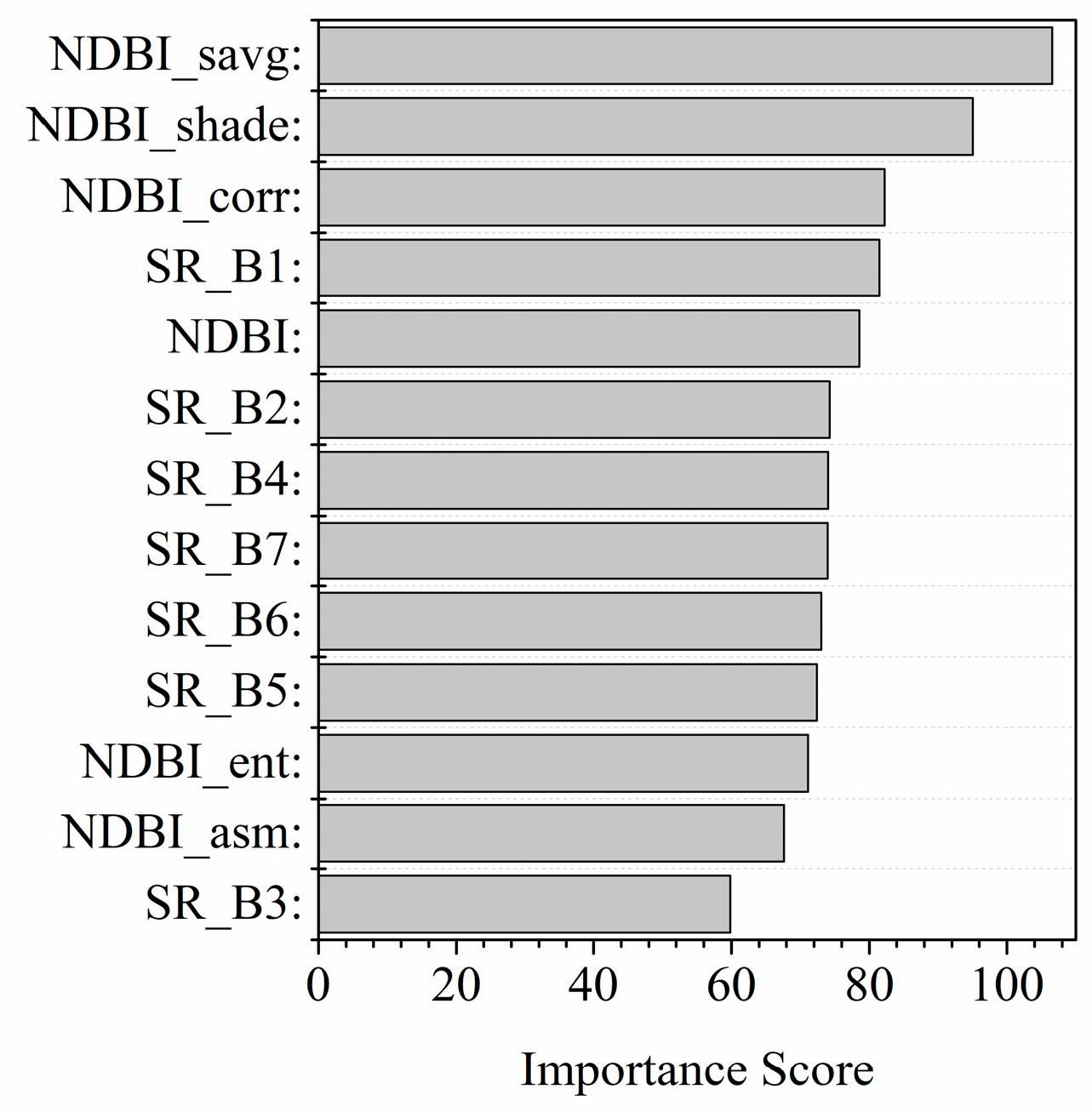

To train the RF classifier, a total of 13 features were selected (Figure 4), including normalization indicators (NDBI), five texture feature bands, and seven original bands. To examine the classification accuracy, we selected test samples independently using Google Earth. We derived a total of 2000 points for PV power stations and 3500 points for non-PV, and finally calculated the accuracy evaluations using the confusion matrix.

3.3. Time Series Turning Point Detection Based on Landtrendr

LandTrendr is a set of spectral temporal segmentation algorithms that can be used for change detection for time series of medium-resolution satellite images (mainly Landsat) as well as for generating trajectory-based spectral time series data free of interannual signal noise [24,34]. To determine the construction years of PV power stations, we identified the turning points of the NDBI time series of PV land area from 1990–2022 using LandTrendr. In the LandTrendr calculation, the model input parameters were set as in

Table 2. Values for control parameters used in test runs of the LandTrendr algorithms.

LandTrendr Parameter	Type	Set Values
Max Segments	Integer	6
Spike Threshold	Float	0.9
Vertex Count Overshoot	Integer	3
Prevent One Year Recovery	Boolean	true
Recovery Threshold	Float	0.25
Pval Threshold	Float	0.05
Best Model Proportion	Float	0.75
Min. Observations Needed	Integer	6

.

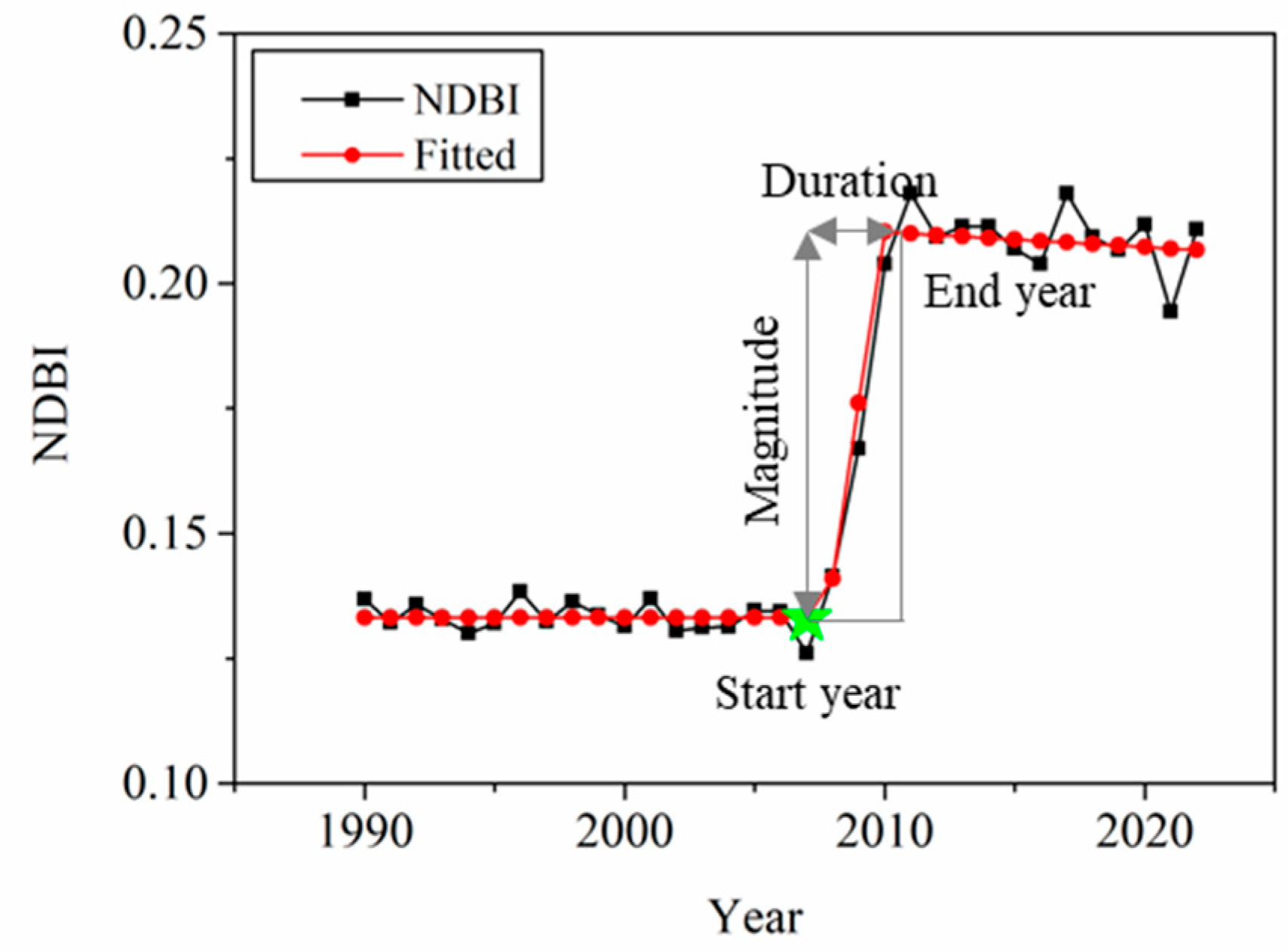

Based on the time series turning points, we determined the dominant turning points according to the characteristics of the time evolution of NDBI. To ensure the validity of the turning point, we set two criteria based on multiple experiments: the change magnitude should be larger than 0.05, while the duration (period from start to end) should be shorter than 4 years (Figure 5).

To verify the accuracy of PV power station construction year identification, 100 points were randomly selected in the PV area. We then determined the emergence time of PV power stations at the points according to Google Earth historical images and used them as the measured construction year. Based on the paired reference and estimated change year within the points, we adopt four accuracy metrics, including mean error (ME), mean absolute error (MAE), root mean square error (RMSE), and R², to assess the accuracy.

$$ME=\frac{{{\displaystyle \sum }}_{i=1}^n\left(p_i-r_i\right)}{n}$$

(2)

$$MAE=\frac{{{\displaystyle \sum }}_{i=1}^n\left|p_i-r_i\right|}{n}$$

(3)

$$RMSE=\sqrt{\frac{{{\displaystyle \sum }}_{i=1}^n{\left(p_i-r_i\right)}^2}{n}}$$

(4)

$$R^2=1-\frac{{{\displaystyle \sum }}_{i=1}^n{\left(p_i-r_i\right)}^2}{{{\displaystyle \sum }}_{i=1}^n{\left(p_i-\overline{r}\right)}^2}$$

(5)

where $p_i$ and $r_i$ are estimated and reference change years at i points, n is the sample size, and $\overline{r}$ is the mean of the reference change years of all points.

3.4. Assessment of the Ecological Impact of PV Power Station Construction

We hypothesize that there has been continuous variability in the ecological status since the PV power stations were constructed. Therefore, we compared the normalized difference vegetation index (NDVI) changes of PV power stations constructed in different years [8]. First, we calculated the mean NDVI from 1990 to the construction year as the average vegetation condition before the construction. Secondly, we calculated the NDVI value in 2022 as the current vegetation condition. Finally, we calculated the difference between the precedent mean NDVI and the current NDVI to assess the ecological impact of PV power stations.

$$NDV{I}_{change}=NDV{I}_{2022}-NDV{I}_{pre}$$

(6)

where $NDV{I}_{change}$ is the NDVI change, $NDV{I}_{2022}$ is the mean NDVI in 2022, $NDV{I}_{pre}$ is the mean NDVI from 1990 to the construction year, which is the pre-construction average NDVI.

4. Results

4.1. Mapping of PV Power Stations

4.1.1. Accuracy Assessment and Verification

We identified the PV power stations by combining spectral and texture information using a random forest model. The results of 30% of validation samples showed an overall accuracy higher than 99%. The results of the validation sample accuracy evaluation show that (

Table 3. Validation of the accuracy of the classification result.

	Ground Truth (Pixels)		Producer Accuracy	User Accuracy
	PV Power Stations	Others
PV power stations	1833	17	0.9165	0.9908
Others	167	3483	0.9951	0.9542
Overall accuracy	0.9665
Kappa	0.9264

), the overall accuracy of the classification is 96.65% and the Kappa coefficient is 0.92. Among all 2000 validation sample points of PV power stations, 167 sample points were misclassified as other sites; among all 3500 validation sample points of non-PV power stations, 17 other sites were misclassified as PV sites. As shown in Figure 6, the boundaries of the extracted target area are generally good. Overall, the accuracy assessments demonstrated that the classification results could meet the criteria for spatial analysis, and the impact of classification errors on the analysis results in this study is relatively small.

4.1.2. Distribution of PV Power Stations

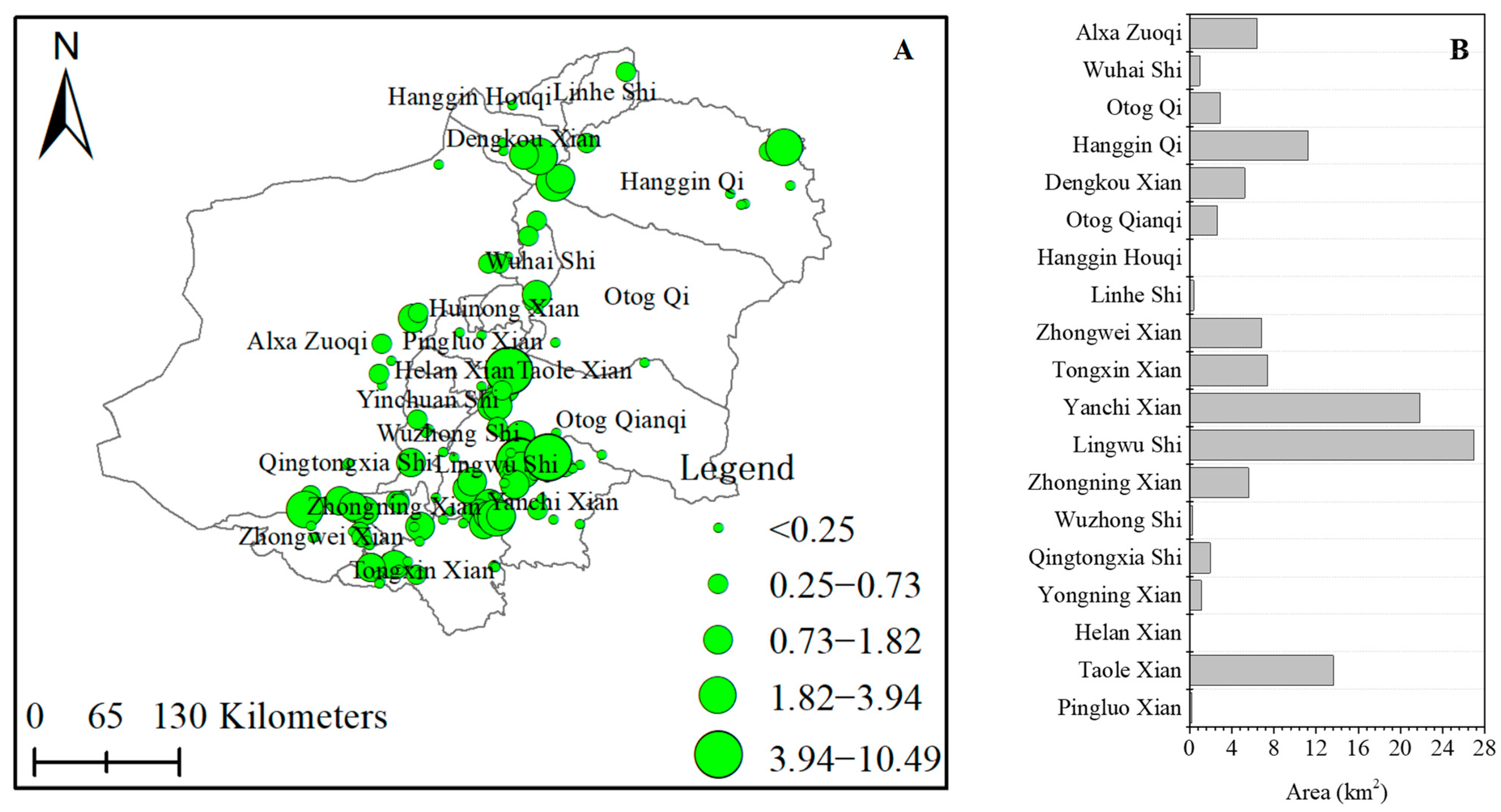

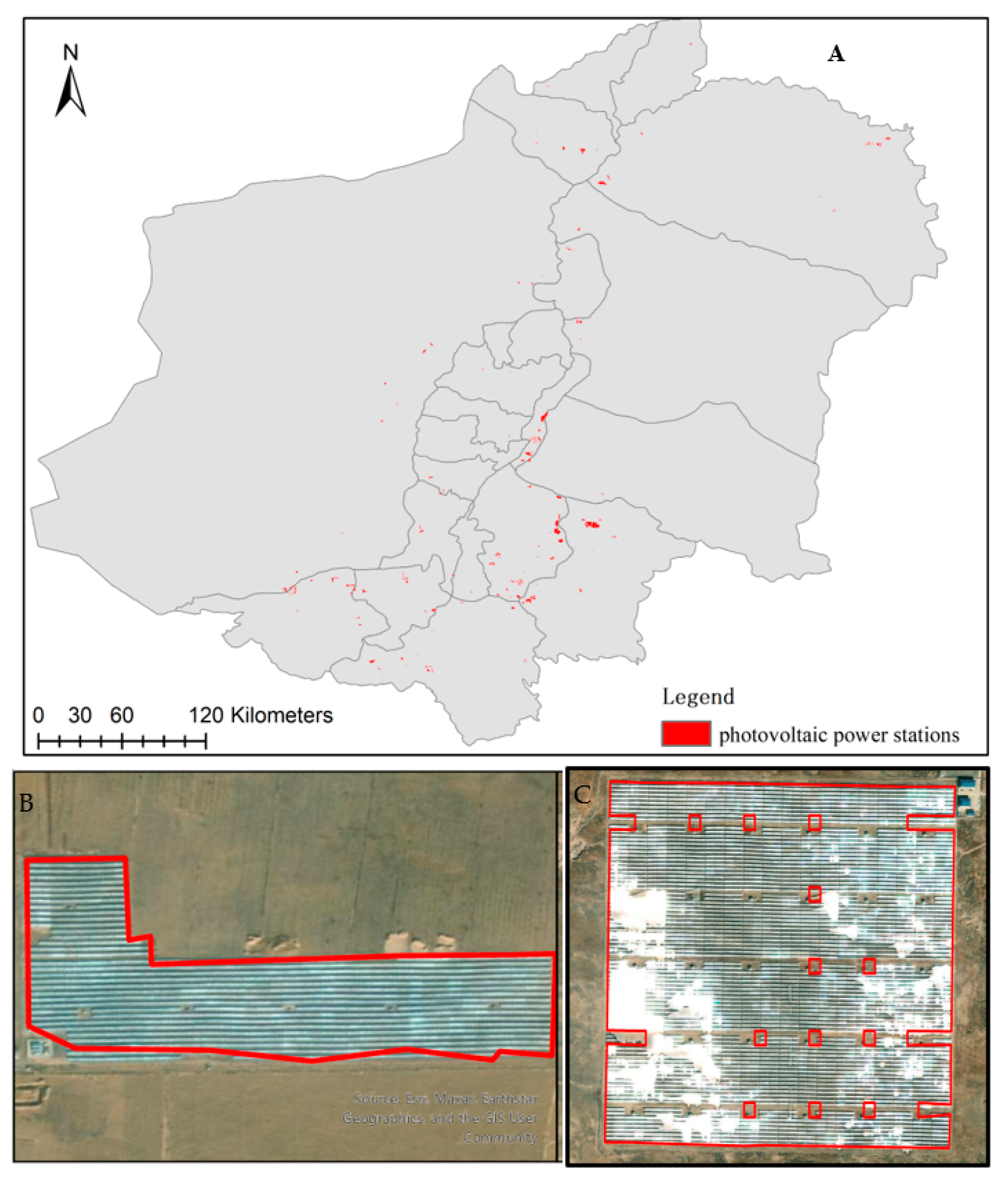

Regarding the construction area, the total area of PV power stations reached 115.61 km² (Figure 7A,B). Ningxia has the largest area of PV power stations. They are mostly located in the Mu Us Sands and Tengger Desert, involving the administrative districts of Lingwu City, Yanchi County, and Zhongwei City. In terms of the type of land where PV power stations were constructed, the land types are mainly sand and bare land. The extraction application demonstration of PV power stations in this region provides data support for the spatial monitoring and management of PV power stations and provides a reference for future planning and design and rational utilization of resources.

4.2. Construction and Identification of PV Power Stations

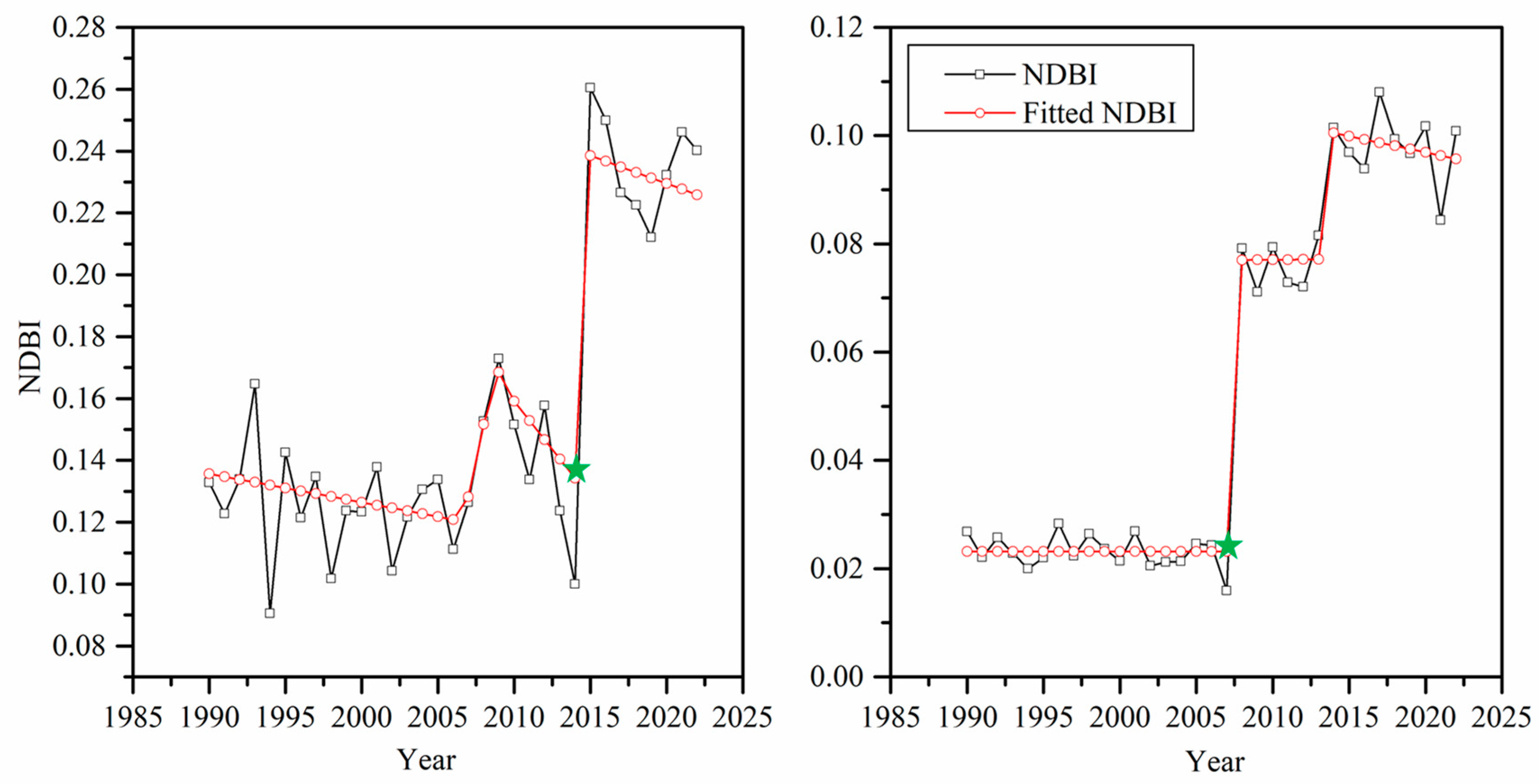

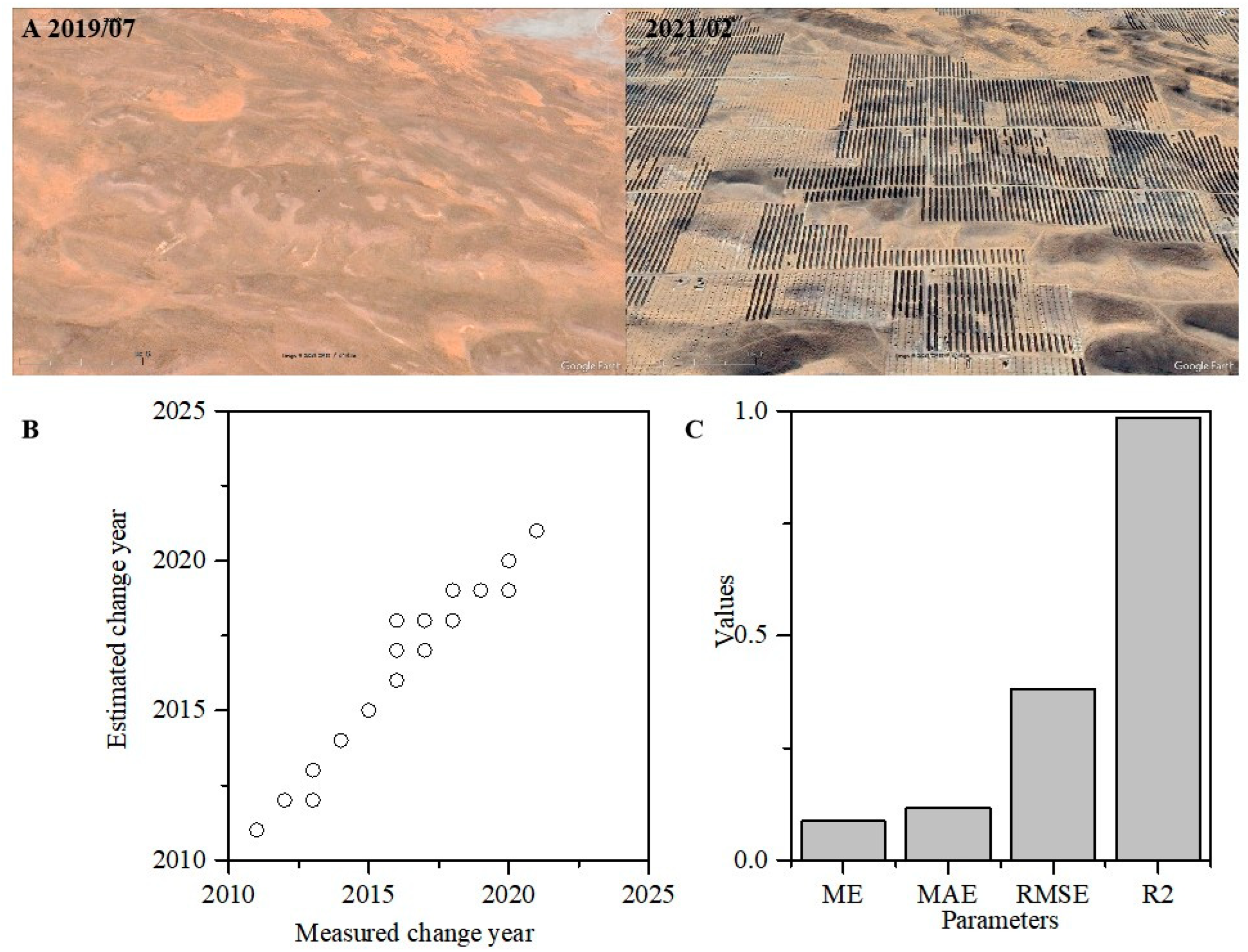

We successfully employed the LandTrendr algorithm to detect the turning point of the NDBI time series for identifying the construction year of the PV power station (Figure 8). By selecting 100 sample points and conducting turning point time verification on Google Earth, the study collected 69 sets of valid data for accuracy verification (Figure 9A,B). The results revealed that the method achieved high accuracy, with MAE and ME of PV power station age both less than 0.1 and RMSE less than 0.5 (Figure 9C). While there were some age prediction errors of individual image pixels that were greater than 4 years, the overall age prediction difference was within 3 years, indicating that the method can extract the age of PV power stations relatively accurately.

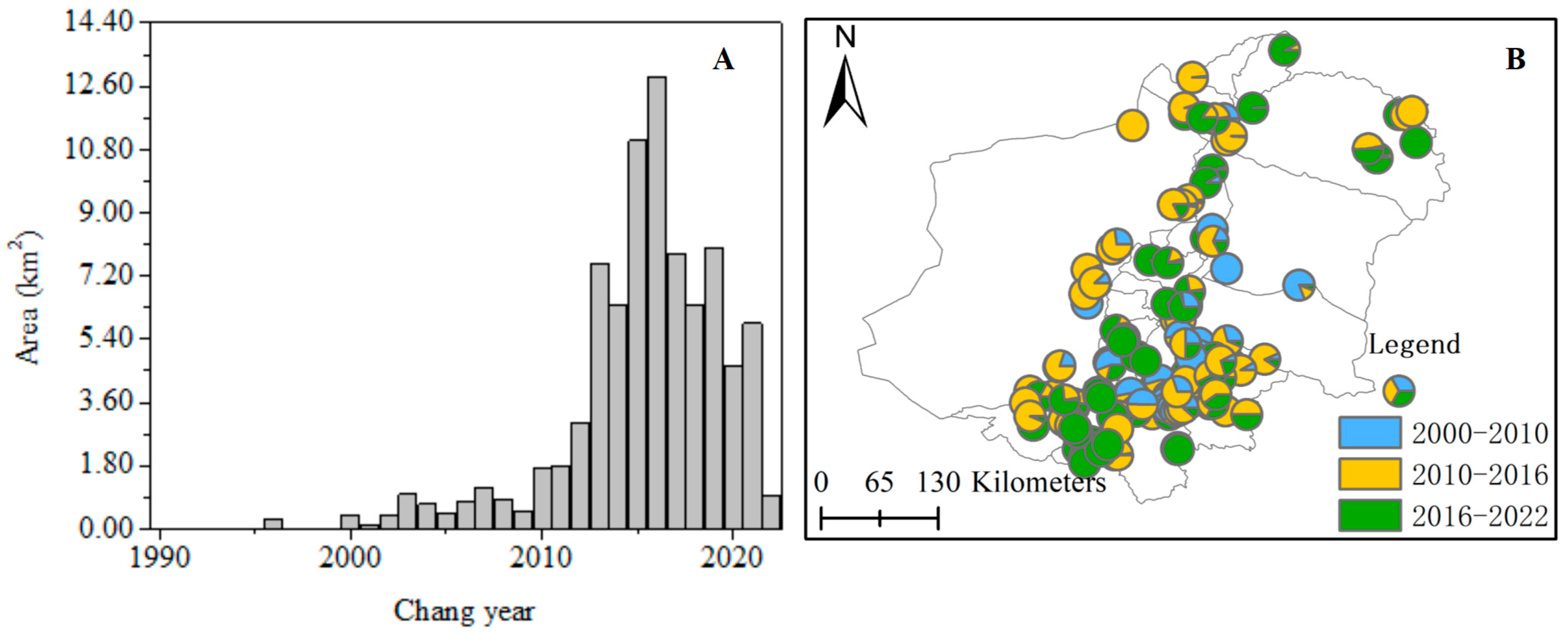

Based on the LandTrendr algorithm, the 30-year PV power station dynamics from 1990–2022 were monitored, and the PV power station construction years from 1990–2022 were identified (Figure 10B). The trend of PV power station construction is growing, with an average annual change of 3.65 km² in the total area of PV power station construction from 1990 to 2022. The annual construction area of PV power stations was very low before 2010 (<2 km²), and the stations were mainly built in the central part of the study area (Figure 10A,B). However, an obvious spike in newly built PV power stations appeared after 2010. The annual construction area reached a peak of 14.52 km² in 2016, accounting for 47.19% of the total construction area from 2010 to 2016. The PV power stations constructed during this period were distributed from the central region to all regions. After 2016, the number of PV power stations constructed per year fluctuated and decreased but remained at a high level. The PV power stations constructed after 2016 were mainly located in the southern and northern regions of the study area (Figure 10A,B).

4.3. Vegetation Condition Change in PV Power Stations Constructed in Different Years

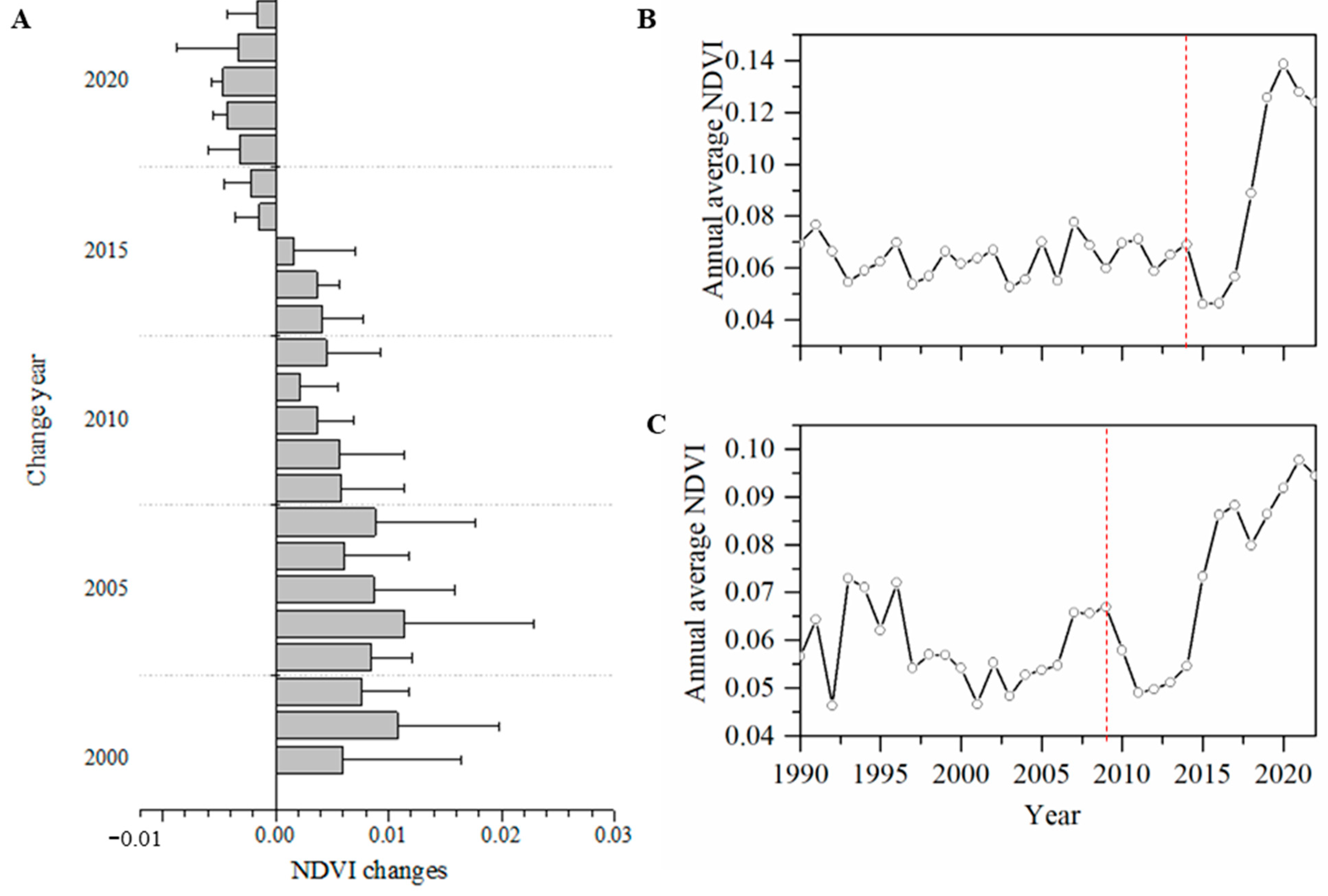

We used NDVI as an ecological indicator to assess the vegetation condition of PV power stations before and after they were constructed and compared the NDVI changes of PV power stations constructed in different years. The results (Figure 11A) showed a negative NDVI change for PV power stations constructed after 2016. It implied that during the initial period of construction, current vegetation was often damaged. Meanwhile, the NDVI change for PV power stations constructed in 2020 reached a low point. The NDVI change in the former period (2016–2022) is related to the gradual recovery of vegetation after the completion of PV power stations, implying that vegetation can reach the average level before construction in a 5-year cycle, and the NDVI change in the latter period (2020–2022) is related to the construction cycle of PV power stations, which can also be consistent with the perception that vegetation is occupied during the project advancement. On the contrary, the NDVI changes for PV power stations constructed before 2016 were all positive. It implies that when the PV power stations were built for more than 6 years, the NDVI exceeded the pre-construction average, and the increase in NDVI has also been expanding with the construction time.

We further chose two PV power stations to analyze their NDVI changes from 1990 to 2020 (Figure 11B,C). For both stations, the NDVI showed fluctuations before their construction, a short-term decline about 2 years after construction, followed by a rapid rise reaching the pre-construction level, and a continuous rise.

5. Discussion

5.1. Comparison between the RF Model and the Deep Learning Model

We compare the accuracy of the RF model with the deep learning model in identifying PV power stations. We used ArcGIS Pro 2.8 to conduct sample labeling through manual visualization and generated samples with a size of 128*128 pixels. We then enlarged the sample using two data augmentation methods, including mirrored transform approaches (i.e., left and right; up and down) and rotated transform approaches (i.e., 0°, 90°, 180°, and 270°) [32]. We finally obtained 1592 valid samples. With 20% of these samples as validation samples, we used the U-net model to train the model and conducted the prediction in ArcGIS Pro 2.8. Epoch, learning rates, and mini-batch parameters were respectively set to 20, 0.01, and 2.

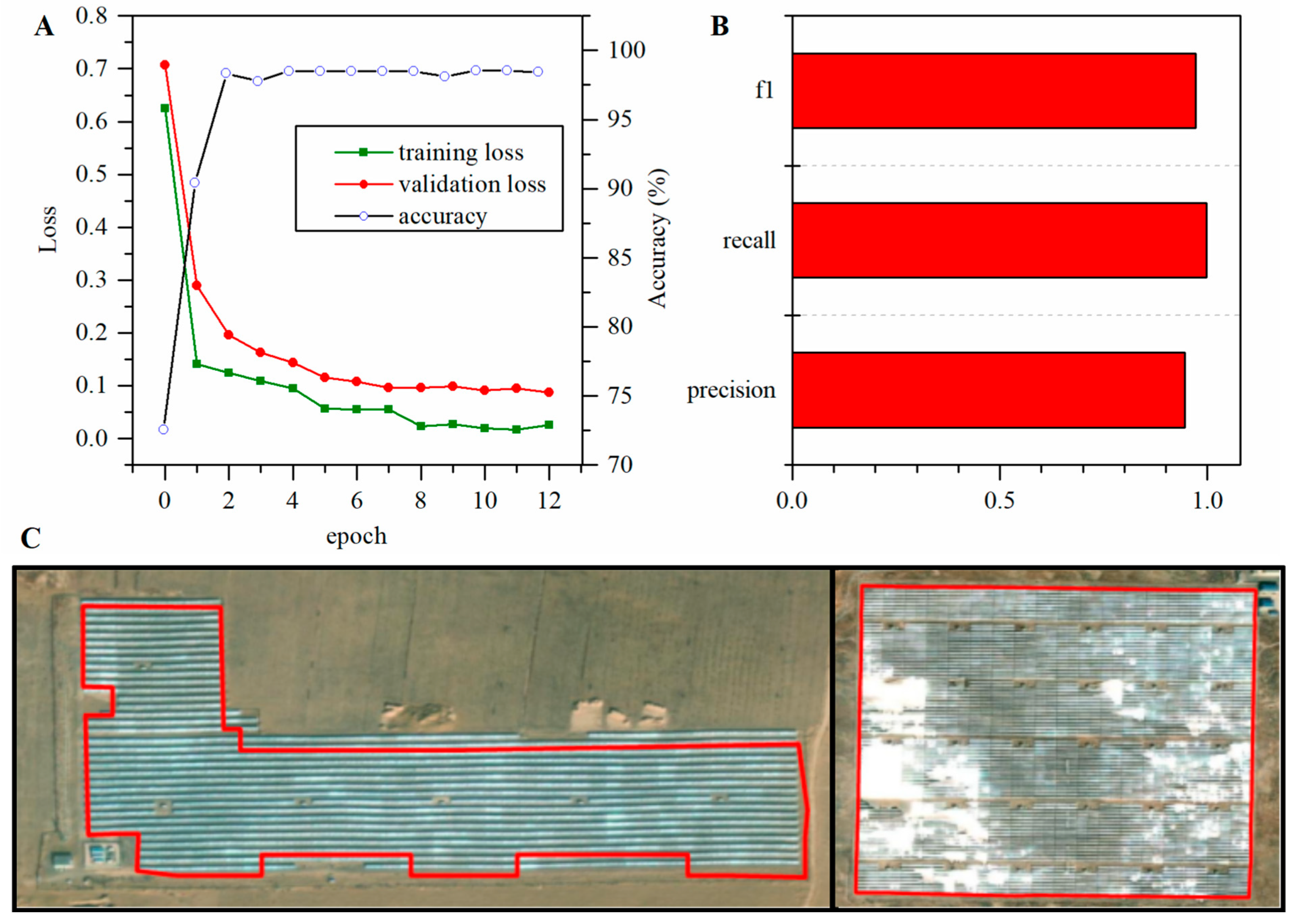

The loss curve of the deep learning model showed a decreasing trend. Especially when the epoch is greater than 8, the loss curves of training samples and validation samples were around 0.2 and 0.9, and the accuracy reached 98% (Figure 12A). Regarding the accuracy of identification, precision, recall, and the F1 index, they nearly reach 1 (Figure 12B,C). It indicates that the deep learning model achieved higher accuracy than the RF model. However, we used the RF model to integrate spectral bands, spectral indices, and texture features. It balanced the classification accuracy and time efficiency compared with the time-consuming and labor-intensive sample labeling in the deep learning model. Therefore, the RF model is suitable for classification based on massive medium-spatial-resolution images.

5.2. Characterizing the Development of PV Power Stations

Based on the long-time series of medium-resolution satellite images, we used the Random Forest model and LandTrendr algorithm to identify PV power stations and their construction years. This method helps to quickly map PV power stations and their development trajectory because of its high accuracy and stable algorithm. This method is expected to be extended to other regions in western China where PV power stations are built on a large scale. However, due to the high heterogeneity of the regional landscape and the extremely vulnerable surface conditions in arid areas, there are certain errors in the identification of PV sites. In the future, integrating high-spatial-resolution images and advanced methods such as deep learning models may help improve the accuracy of PV power station classification. Furthermore, there are also some errors in turning points detected by the Landtrendr model, especially the detection of some turning points earlier than 2008, which is not consistent with reality. Therefore, the model needs to be improved or restricted through practical knowledge to improve the accuracy of time series turning point detection.

Energy policies are the main factor driving the rapid development of PV power stations in China [35]. Since 2004, PV production in China has experienced tremendous growth due to the dramatic increase in demand for PV in European countries. To promote the domestic deployment of PV, China launched a national solar subsidy program in 2009 [36,37]. In addition, China has developed a series of policy incentives, including the Photovoltaic Poverty Alleviation Program [38,39], which has led to a rapid increase in PV construction in China. The fact that the construction of PV power stations grew rapidly after 2010 is consistent with the trend of national policies.

5.3. Ecological Effects of PV Power Station Construction

Our research found that the vegetation cover level was restored to the pre-construction average level after 5–6 years of PV power station construction and continues to improve over time. Such a positive impact on vegetation conditions may result from the efforts of PV power station builders, operators, and the government in implementing the “photovoltaic control” model. The model balances PV power generation and desert treatment to realize both economic and ecological benefits. According to the model, PV power generation is used as the power source. At the same time, drip irrigation facilities are installed. Plants, including small shrubs and forage, are planted under the photovoltaic panels. Around the periphery of the power station, grass-square sand barriers and sand fixation forestry form a protective forest system. It solves not only the power supply problem of desertification control but also the bottleneck constraint of difficult new energy transmission. According to the estimation, constructing a 1 million KW photovoltaic sand control project in a desert area would save about 440,000 tons of standard coal per year. The area of wind and sand control reaches 40 million m², which is equivalent to planting 640,000 trees [40]. In addition, studies have proved that PV power station construction may reduce the evaporation of the ground and therefore have a positive effect on vegetation recovery.

Therefore, on the one hand, constructing desert PV power stations helps to realize the win-win of clean energy and promotes the transformation of the energy structure. On the other hand, it plays a positive role in restoring vegetation, preventing wind, fixing sand, and protecting the ecological environment. Western China is a vast area with sufficient light intensity. Considering the advantages of PV construction in terms of ecological restoration and economic outcome, the construction of more PV stations in the northwest can be carried out with systematic consideration. Specifically, solar radiation, terrain conditions, meteorological conditions, land resources, and transportation should be taken into account to make reasonable spatial layout and management decisions for PV power stations. Under the background of “carbon peaking and carbon neutrality”, it is of great significance for the scientific development of new energy in China and plays an important role in the early realization of the dual carbon goals.

Admittedly, this study selected only NDVI as the indicator characterizing the ecological condition to assess the ecological effect of PV power stations. In future research, it is necessary to carry out field observation at large-scale PV power stations in desert areas to assess their effect on local microclimate and biodiversity. Furthermore, we believe that future studies can incorporate vegetation recovery trends of PV power stations under global climate change and anthropogenic activities, with a view to providing a basis for us to carry out ecological and environmental early warning and management.

6. Conclusions

This study introduces a new comprehensive method for mapping PV power stations in desert oasis regions of China. The method integrates texture features and spectral features using a random forest algorithm in GEE. It can be applied to the analysis of large-scale PV power stations. The method has a low computational cost and introduces time series analysis based on medium-resolution images that are freely available. It contributes to studies on the spatial and temporal dynamics of PV power development. The results showed a total area of 109.53 km² of PV power station construction from 1990–2022. The fastest growth was found from 2010 to 2016, mainly distributed in the Mu Us Desert and Tengger Desert in Ningxia. The rapid expansion of PV power stations in the past few years was driven mainly by national renewable energy policies. The time series of NDVI in PV power stations showed a short-term decline after their construction and a subsequent continuous rise that even exceeded the pre-construction average level. It may imply a positive long-term impact of PV power stations on vegetation conditions. This finding is of great importance for renewable energy planning, management, and sustainable development.
