Three-Dimensional Modelling of Past and Present Shahjahanabad through Multi-Temporal Remotely Sensed Data

Abstract

Cultural heritage is under tremendous pressure in the rapidly growing and transforming cities of the global south. Historic cities and towns are often faced with the dilemma of having to preserve old monuments while responding to the pressure of adapting itself to a modern lifestyle, which often results in the loss of cultural heritage. Indian cities such as Delhi possess a rich legacy of tangible heritage, traditions, and arts, which are reflected in their present urban form. The creation of temporal 3D models of such cities not only provides a platform with which one can experience the past, but also helps to understand, examine, and improve its present deteriorating state. However, gaining access to historical data to support the development of city-scale 3D models is a challenge. While data gaps can be bridged by combining multiple data sources, this process also presents considerable technical challenges. This paper provides a framework to generate LoD-2 (level-of-detail) 3D models of the present (the 2020s) and the past (the 1970s) of a heritage mosque surrounded by a dense and complex urban settlement in Shahjahanabad (Old Delhi) by combining multiple VHR (very high resolution) satellite images. The images used are those of Pleiades and Worldview-1 and -3 (for the present) and HEXAGON KH-9 declassified spy images (for the past). The chronological steps are used to extract the DSMs and DTMs that provide a base for the 3D models. The models are rendered, and the past and present are visualized using graphics and videos. The results reveal an average increase of 80% in the heights of the built structures around the main monument (mosque), leading to a loss in the visibility of this central mosque.

1. Introduction

1.1. Importance of 3D Modelling in Heritage Conservation

Heritage plays an essential role in understanding the historical importance of a place. It holds social and historical values that people often perceive as part of their identity and pride [1]. The digital documentation of heritage not only helps in understanding the evolution of a place through time but also provides a base for the implementation of conservation tools [2,3]. In 2015, the United Nations included heritage conservation (SDG 11.4) as an essential contributor toward sustainable development (SDG 11) [4]. This recognition identifies the protection of cultural heritage as one of the underlining approaches to achieving inclusive, safe, and sustainable cities [4]. Therefore, it becomes essential to develop tools that facilitate the tasks of conservationists, environmentalists, and experts in similar domains to achieve the SDGs set by the United Nations.

The geographic information system (GIS) has long been used to support the planning and preservation of cities [1,5]. The digitization of historical maps, archived satellite imageries, old photographs, and ancient paintings provides valuable resources for heritage conservation, but these are often limited to 2D visualization [6]. Adding a third dimension can not only help in the better visualization of structures and landscapes, it can also help us understand a site’s history and its evolution [3]. In addition, such 3D reconstructions can also provide a base for the implementation of the tools for heritage conservation [3,7,8]. In addition to visualization purposes, 3D models open the scope of the use of exploratory tools that are otherwise limited in 2D documentation. Some of the applications of 3D models include flood simulation analysis, wind analysis, solar potential analysis, shadow analysis, or visibility analysis [9].

1.2. Visibility: An Important Factor for Heritage Conservation and Cultural Identity

The visibility of space in an urban environment becomes crucial in defining its interaction with the user. The spatial experience of any space is defined by how a user forms their visual impression. Kevin Lynch, in his book The Image of the City, describes the importance of visual perception in creating a mental representation of a city [10]. Historical monuments were also built to maintain their visibility from far-off distances. The grandness of the structure often glorified the personas of the kings and emperors [11]. Studies also show that large monumental buildings evoke a sense of awe that triggers the perception of a freeze in the brain [12]. The main monument, which forms the center of our study area, was built on a plinth 30 feet above ground level [13]. The street avenues were built such that the three magnificent domes of the mosque were visible while heading toward its entrance [13]. With the increase in urbanization and the further addition of taller buildings in its surroundings, the visibility of the mosque has become hindered to a large extent. Globally, many cities place a high value on the importance of the visibility of historic monuments. For example, London has made policies that protect the views; these policies restrict construction and the addition of new taller buildings that obstruct the view of old heritage monuments [14]. These law recognizes the protection of views as part of heritage preservation, and this contributes to the achievement of a sustainable development goal (SDG 11.4) [1]. Moreover, the view of the landmarks of prominent historic structures creates in people a sense of identity and belonging. It also helps to create mental maps in people’s minds that produce long-lasting impressions of that place. The visibility of such landmarks not only increases the aesthetics of the places but also promotes and boosts tourism.

1.3. Past Attempts of Generating Models from Declassified Satellite Images

Conventional stereo-matching (SGM) techniques to produce digital surface models (DSMs) from very high resolution (VHR) satellite images are commonly used to generate 3D city models [15]. Modern satellite stereo images often come with RPCs (rational polynomial coefficients), which provide the embedded information required for DSM generation. These files can then be used to automatically process images to produce high-quality elevation models. However, when working with old satellite systems, these parameters are often unknown; therefore, the process of DSM generation in such cases is not that straightforward.

In the recent past, many attempts have been made to create digital elevation models (DEMs) from the archives of declassified US spy satellite imagery to study surface topological changes [3,4]. The presence of stereo panoramic cameras in missions such as HEXAGON KH-4B or KH-9 produced high-resolution stereo images which were suitable for producing 3D topographical data [5]. However, due to the old camera frames, which were prone to relatively large distortions and missing metadata, it was difficult to extract height information and efficiently utilize their full potential [5]. There have been attempts to create elevation models from archival satellite stereo pairs, but none of these explicitly explained its methodology. Moreover, the resultant generated DEMs were of coarser resolutions as none of them used images of sub-metric resolution. Jesse and Jackson derived 10 m DEMs from CORONA KH-4B images with a ground sample distance (GSD) of 1.83 [5]. In another research work, the structure from motion (SfM) technique was used to produce 5 m DSMs from CORONA KH-4A (2.7 m GSD) images [6].

Therefore, this paper aims to produce very high resolution DSMs of the present (the 2020s) and the past (the 1970s) by combining datasets from multiple sources and time. The paper provides a framework to use the generated DSMs to further refine and obtain DTMs (digital terrain models) using a deep learning method called ResDepth [16]. Finally, the DSMs and DTMs are used to generate two comparative LoD-2 (level of detail) 3D city models of the same. CityGML (City Geographic Markup Language), a standard data structure format for 3D models, defines level of detail as the details used to visualize urban objects. Different scales of LoD define the amount of information added to the model [9]. Figure 1 shows the differences between the types of LoD described under CityGML.

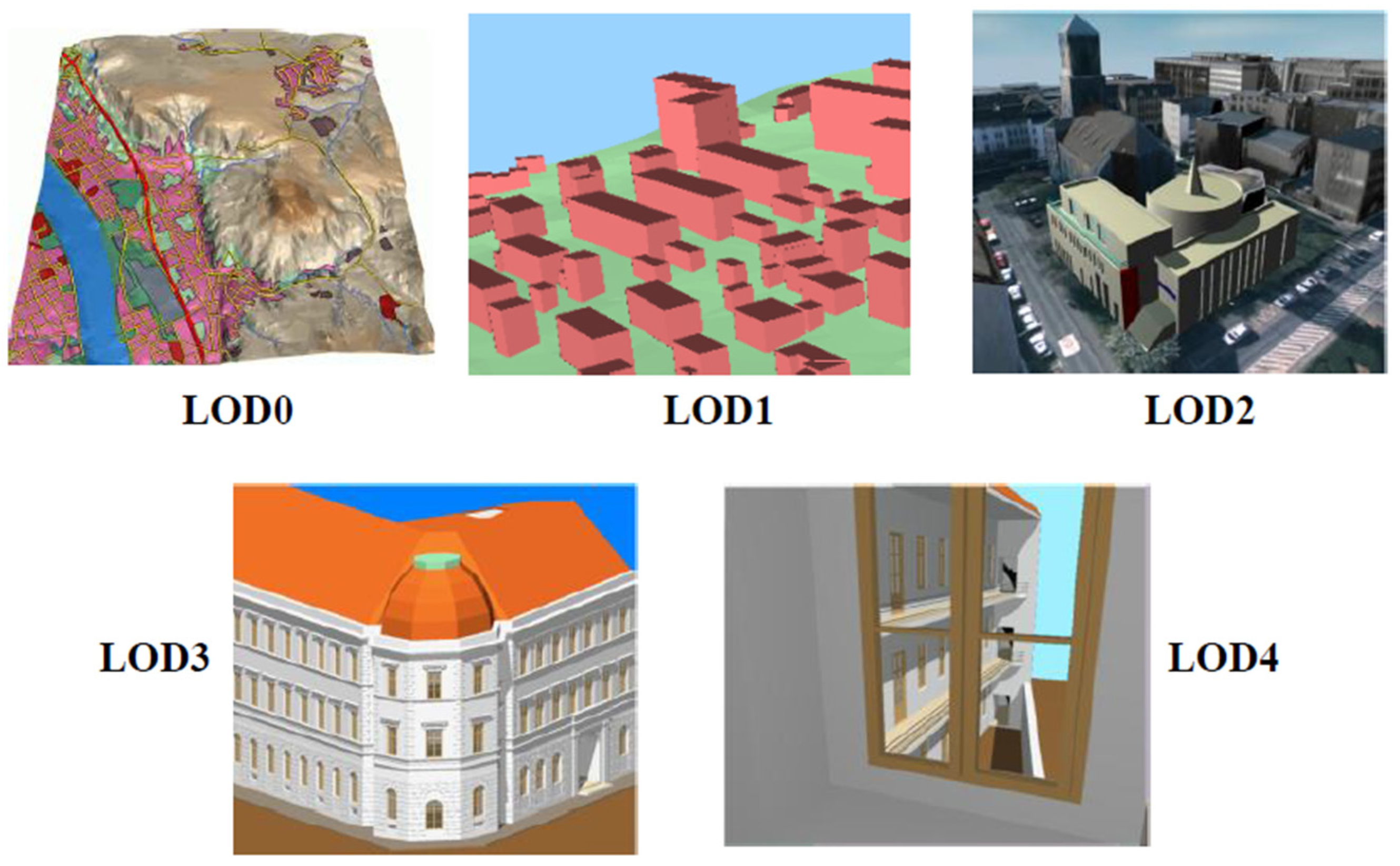

LoD-0 refers to an elevation model (DTM/DSM) with a draped image. LoD-1 is simply extruded blocks representing buildings without texture. LoD-2 adds up more information by providing shaped roof structures with texture. In LoD-3, details are added to the facades to depict the balconies and windows. Lastly, LoD-4 encapsulates BIM (building information modelling), where the modelling goes beyond the outer facades to model the interior structures of the buildings. In this paper, a framework is provided to create LoD-2 models with DSMs, DTMs, building footprints, VHR satellite images and Google Earth, using deep learning to produce models with defined roof shapes and textures.

2. Materials and Methods

2.1. Study Area

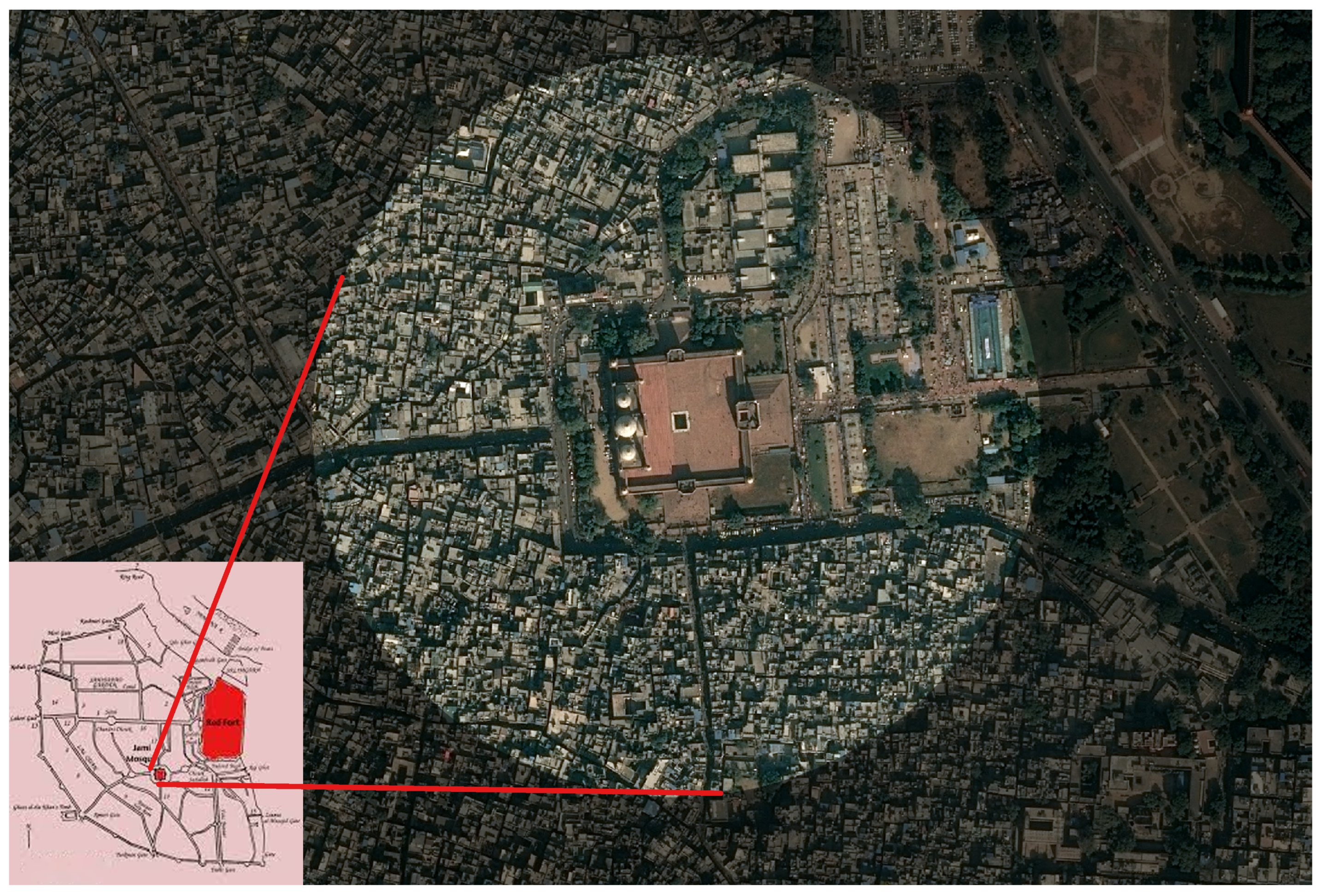

The study area lies in the heart of Delhi, India’s capital city. Covering roughly eight square kilometers, Shahjahanabad, which once lay adjacent to the river Yamuna, is now about 1.5 km away from it, due to the eastward shift of the river. With a population of over 250,000 (in 2020), the densely packed structures and narrow streets and lanes and the almost non-existent vegetation cover give Shahjahanabad a slum-like appearance [18]. The entire city comprises numerous irregularly shaped buildings with moderately flat roofs. Due to the challenging nature and complex geometries of the urban morphology, the methodology was tested in a select part of the city. The selection was based on a suitable (very complex) historic residential area in order to perform the visibility analysis on one of the main heritage monuments within the city. The criterion was to select a monument that had remained static through time but had witnessed changes around itself. Therefore, an area of a 300 m radius was delineated around the Principal Mosque—the ‘Jama Masjid’—to test our methodology (Figure 2).

Jama Masjid, a Culturally Rich Heritage

Completed in 1656 CE, Jama Masjid, which is still the biggest mosque in Delhi, was the religious and cultural heart of Shahjahanabad. The structure was built on a 30-foot-high (9.1 m) plinth measuring 80 × 27.5 m [13]. As the religious center of the city, the mosque was built on a hillock (Bhojala Pahadi) that gave it a significance which most pre-modern religious places commanded [13]. The three main marble domes on the mosque symbolized this landmark of Shahjahanabad that was visible from miles away. The mosque was named ‘Masjid-e-Jahanumma’—which literally meant a mosque commanding the world’s view [13]. The monument, which survived under different authoritative powers (namely the Mughals, the British, and those of post-independence India), is important to the city’s heritage. Figure 3 shows the evolution of space around Jama Masjid from the 1880s to the present. Furthermore, Jama Masjid is a visible landmark facilitating internal orientation in a complex and densely built-up area. The streets, which had clear views of its domes and minarets in the time gone by, now offer somewhat hindered views because of the increased heights of the buildings. Thus, the availability of the data, the importance of the monument as a landmark, and the rich heritage of the place make it an appropriate choice for reconstruction.

2.2. Methodology

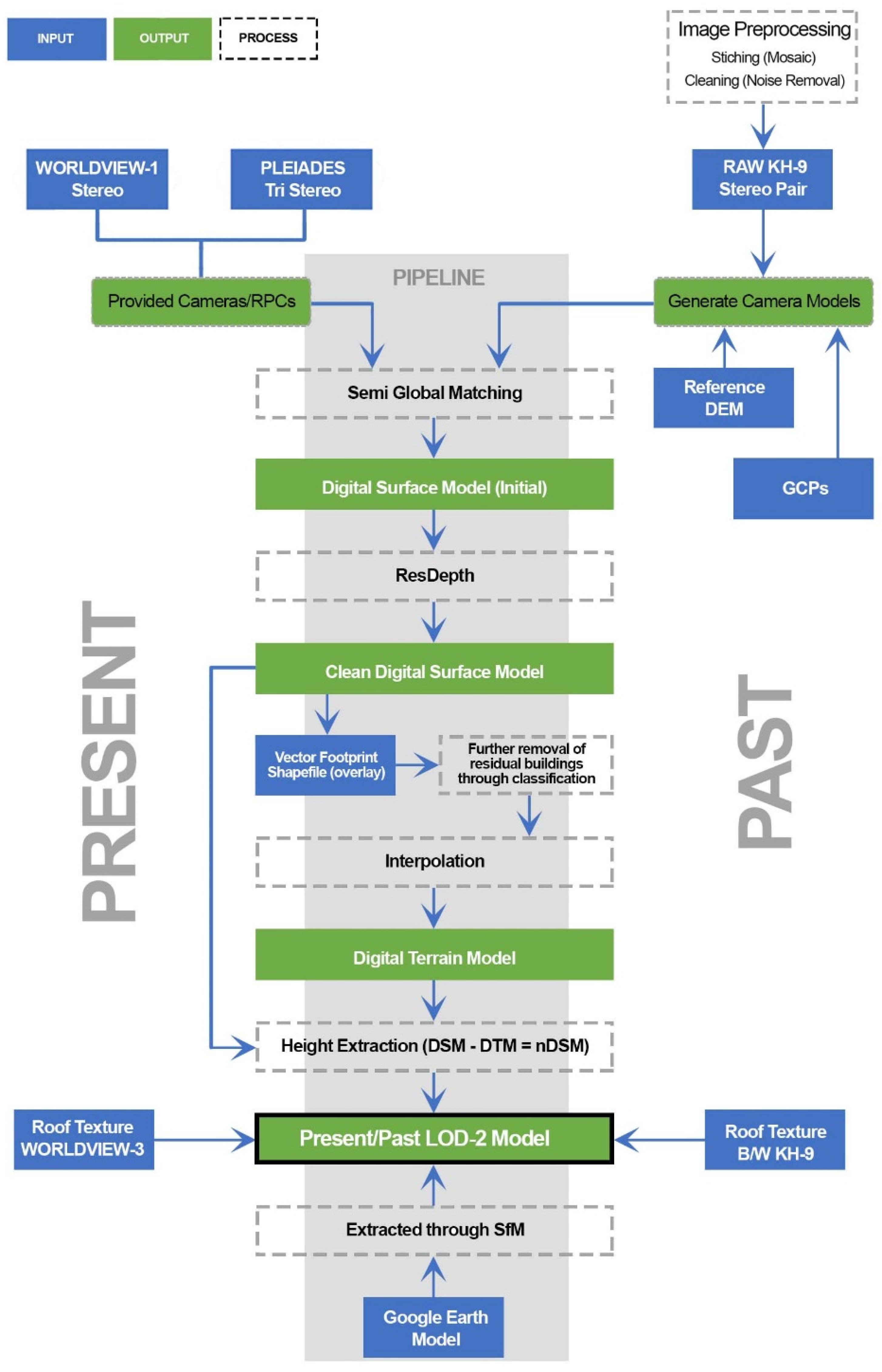

The generation of the two city models required different approaches and strategies as both differed with respect to the selection of data sources, year, method of processing, and texturing. The first step was to explore the available data sources for building the present and past 3D models. The selection of data was based on the following points:

• Data sources that could potentially produce the same level-of-detail models for both the present and the past.
• Data sources that could follow the same (more or less) methodological framework.
• The use of remote sensing data sources and methodologies, including the use of deep learning.

Based on the above aims, satellite images were used as the base of the two models as these were common sources in the acquisition of both sets of data. This section gives a brief description of the methodologies with schematics describing the generation of the two models.

City Model Generation: 2020s and 1970s

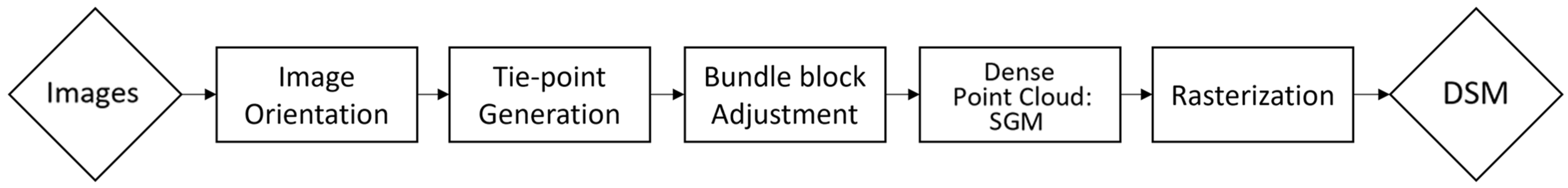

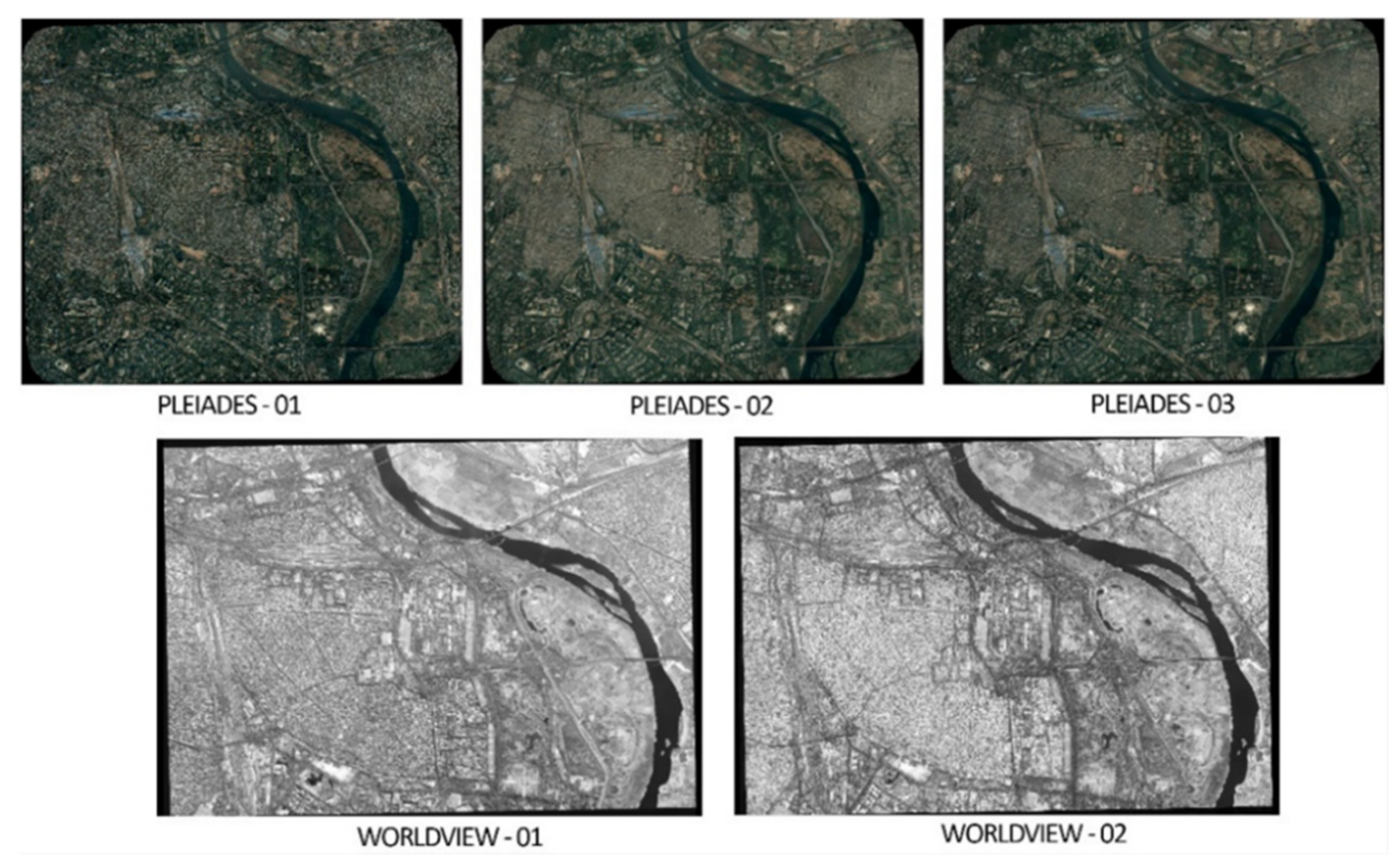

Five satellite images from Pleiades and Worldview were integrated to produce the DSM using the conventional semi-global matching (SGM) approach. After creating the DSM, a digital terrain model (DTM) was extracted by interpolation after applying a deep learning method. Then, a normalized DSM (nDSM) was created from the DSM and DTM containing the absolute heights of the buildings. These values were used as attributes for the building footprints of 2018. The vector file was later converted into a multipatch file (compatible with ArcGIS Pro) to obtain a plain 3D model without texture. Lastly, a 30 cm VHR Worldview image was used to texture the model obtaining an LoD-2 3D model of the present. As the height values extracted were from the DSM produced by the images from 2020 and 2021, the present city model was referred to as the model of the 2020s.

Unlike the data sources for the present city, the data sources for the past were limited, especially those which matched the present quality standards. This was mainly because image sensing technologies were not advanced in the past. Unlike today, where there is an abundance of pictures available for any area, terrestrial photography in those times was not common. The same approach has been used for creating DSMs from satellite images such as those of the present city. The furthest point in history that could be reached using satellite images was 1977. As the base (DSM) was created from the stereo pair of 1977, the model was referred to as the city of the 1970s. The combined methodology for both models is illustrated in Figure 4. The detailed methodology is explained in the subsequent sections.

2.3. Datasets

The datasets used for the DSM generation were acquired from a number of organizations, namely the European Space Agency (ESA), United States Geological Survey (USGS), and the School of Planning and Architecture, Delhi (SPA). The ground reference of the building heights (Figure 5.) needed for an accuracy assessment was collected through a ground survey.

Table 1. Metadata of the satellite images used for DSM creation.

No.	Data	Date	GSD	Provider	Remarks	Used in
1	Pleiades Tri-Stereo VHR	18 December 2020	0.5 m	ESA	PANSHARP	Present
2	Worldview-1 Stereo VHR	19 March 2021	0.58 m	ESA	PAN	Present
3	Worldview-3 VHR	7 February 2022	0.3 m	ESA	MUL 8-Bands	Present
4	Building footprints	2018	-	SPA	.shp file	Present
5	Hexagon KH-9 Stereo pair	4 December 1977	0.7 m	USGS	Scanned B/W	Past
6	Building footprints	1977	-	Self-digitized	.shp file	Past

provides the metadata for the images and building footprints used for producing the DSMs.

2.4. Present City Modelling of the 2020s

For generating the model for the present city (the 2020s), three different combinations of images were chosen for the DSM creation in order to select the best for the modelling. For the first combination, only a 0.58 m Worldview-1 VHR stereo pair was used. For the second, the 0.5 m Pleiades tri-stereo pair were experimented with. However, the best point cloud (root mean square error: 2.15) was produced by combining images from both data sources. The accuracy obtained from the different combinations is discussed in the results section. The final DSM was generated by rasterizing the point clouds obtained through the semi-global matching technique from a combination of five images. Figure 6 depicts the five images used for the DSM generation. The stepwise workflow for generating the DSM is shown in Figure 7. The software used for generating the DSM was Agisoft Metashape, version 1.8.0 (64-bit).

2.4.1. Extraction of DTMs through ResDepth

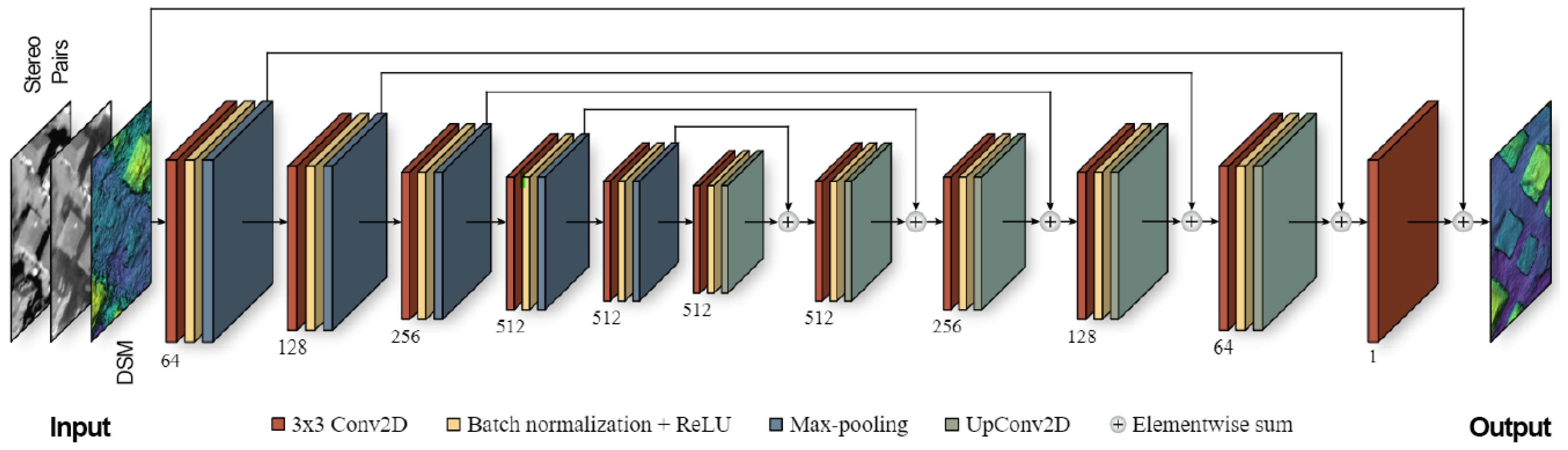

In this research, ResDepth, a deep learning method for refining the digital surface model for 3D modelling was used [16]. The network removes noises that may have occurred in the DSM due to poor resolution, random noise, and the occurrence of shadow or brightness in the images. The deep convolutional neural network with a UNET architecture refines the noisy DSMs made through conventional stereo DSMs. ResDepth cleans the noisy DSM by minimizing the residual errors at every pixel [16]. It uses the initial DSM made through stereo matching (SGM) as an input, along with the orthorectified image pairs, to give more accurate, refined DSMs as an output [16]. Figure 8 below shows the network architecture.

Although it makes the building shapes more refined, this method was used instead for the process of extracting a digital terrain model. No ground truth (such as LiDAR) for Shahjahanabad was available to train the model. Therefore, the only alternative was to test the generated DSM on ResDepth’s pretrained model (trained over the cities of Berlin and Zurich). The pretrained models were not expected to give great results because of the differences between the urban morphological styles of Berlin and Zurich and that of Shahjahanabad.

Why was a DSM refinement DL method used in the methodological framework of DTM generation?

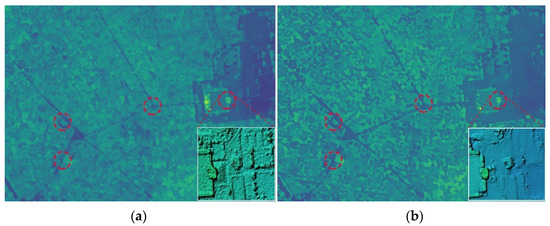

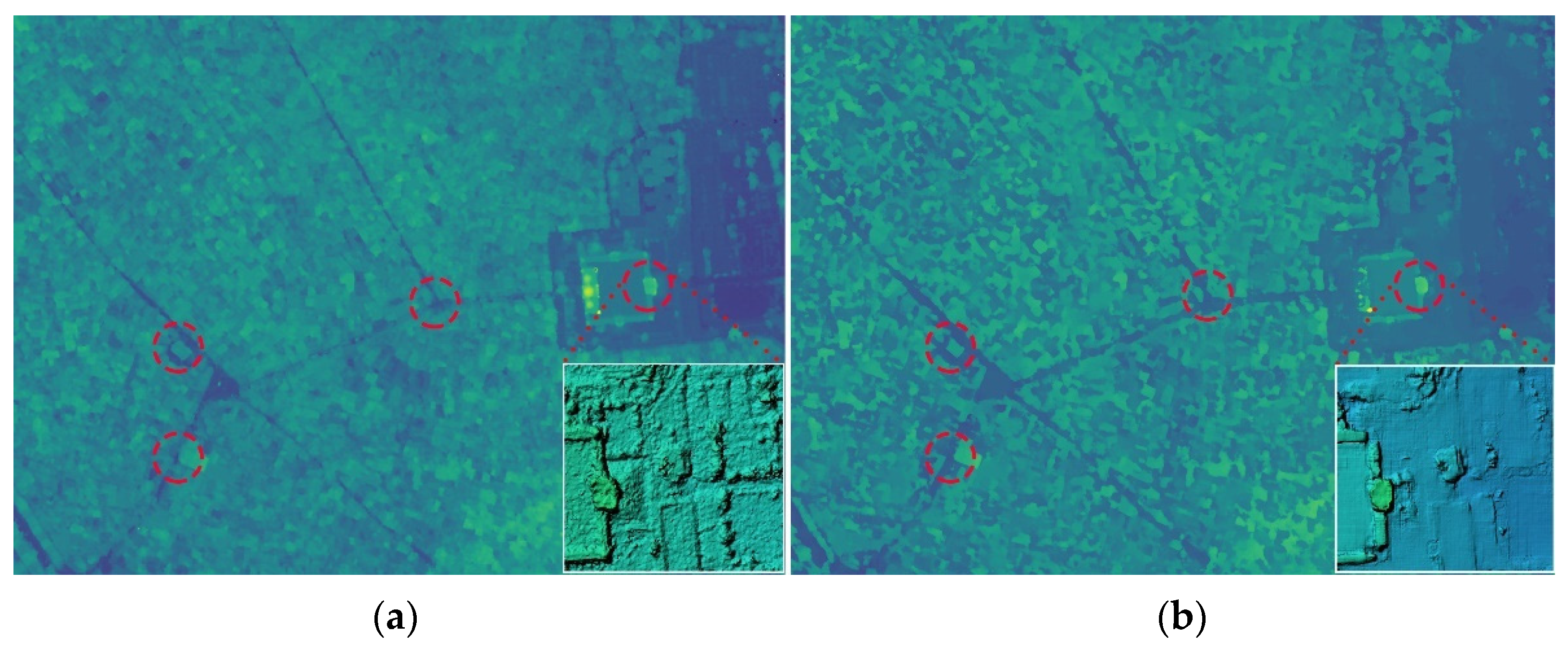

The output DSM from ResDepth had several problems, i.e., many of the buildings with complex structures were confused with vegetation and noise; hence, they were removed. Similar problems have been encountered with the building footprint extraction in complex urban areas by state-of-the-art algorithms (e.g., Microsoft and Google) [19]. However, it was observed that the model cleaned the noise from the streets. The ground surfaces in both DSMs (the 2020s and 1970s) became much smoother and more identifiable (Figure 9). Detecting ground surfaces in the densely packed areas was necessary for the interpolation and creation of the digital terrain model.

After obtaining the output DSM from ResDepth with detectable ground surfaces, the next step in the process of DTM extraction was to remove all the buildings. For the DSM of the building footprints of the 2020s, a shapefile from 2018 was used to overlay and remove the buildings. The DSM with all the buildings removed was interpolated to create the DTM.

2.4.2. Extraction of nDSMs

The normalized digital surface model (nDSM) contains the absolute height values of all the structures built on the terrain. These include buildings and other man-made structures. It was obtained by subtracting the interpolated DTM from the initial DSM. The normalized DSM was necessary for extracting the true heights of the buildings to model the city after the accuracy assessment.

2.4.3. Integration and Visualization

After generating the normalized DSM, it was added as a height attribute to the building footprint shapefile (used earlier in DTM extraction) using ArcGIS Pro. Each polygon could only take a single height value as the height values were extracted from a raster and added to the shapefile. Therefore, the average height was calculated from all the pixels within each polygon.

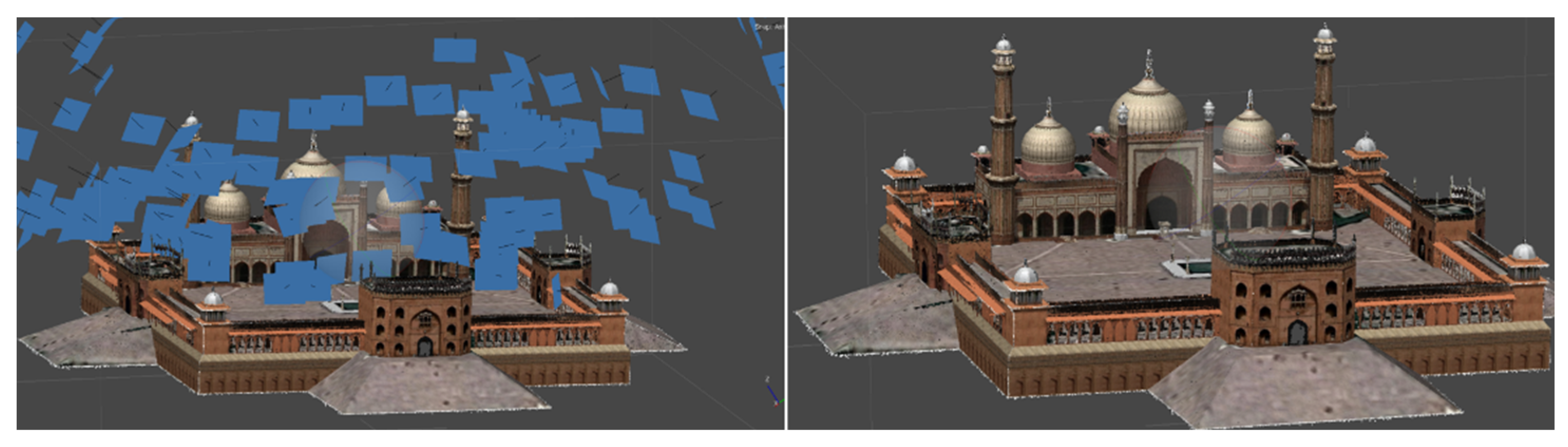

The motive of the research was to have models of the present and past to perform a visibility analysis. Our study area had the main mosque, on which visibility analysis had to be performed, at the center. Therefore, it was necessary to have a detailed model of the mosque. The mosque model was available in Google Earth Pro. Due to the restrictions in downloading the model from its database, hundreds of high-resolution images from various angles were downloaded to generate a model of our own through the structure-from-motion technique in Agisoft Metashape. Figure 10 shows the dense point cloud produced from the images.

2.5. Past City Modelling of the 1970s

2.5.1. KH-9 Declassified Images

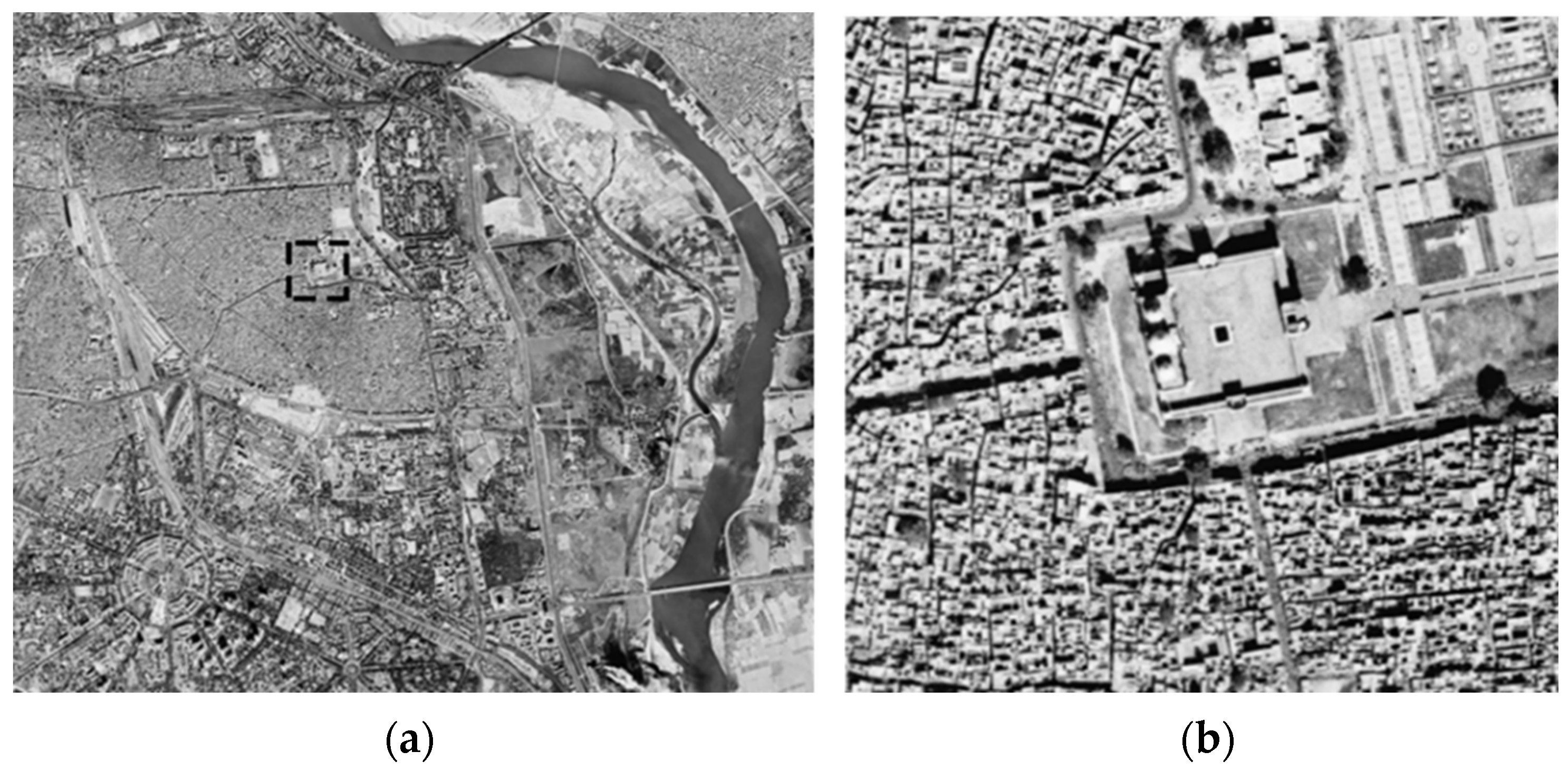

HEXAGON KH-9 (Key-Hole) was among the last of the running satellites under the reconnaissance program of the US military after CORONA, ARGON, and GAMBIT. It was deployed in the lower earth orbit for surveillance of China and the Soviet Union [3]. The satellite produced high-resolution images on films that were transferred to recovery capsules. These capsules were de-orbited after being detached from the satellite and returned to the Earth via parachutes [20].

With two high-resolution panoramic cameras and a mapping camera (12 out of 20 missions), the satellite covered about 877 million square miles, capturing photographs of high-security areas, which was then not possible with aerial photography [21]. The mapping camera (MC) produced images with a resolution of up to 20 ft (6 m), which were used for cartographic mapping, while the stereo cameras (AFT and FOR) with resolutions up to 2 ft (0.61 m) were used to identify the features of potential threats to the nation [21]. In 2011, the National Reconnaissance Office declassified almost all the images of the program for the National Archives and Records Administration (NARA) and US Geological Survey (USGS); these images were made available to the public for research purposes. These images can be downloaded through https://earthexplorer.usgs.gov/ (accessed on 18 February 2022 and on 1 March 2022) at a nominal price of USD 30 per image [20]. The image obtained from USGS for the study area is shown in Figure 11.

2.5.2. Distortions and Missing Metadata

The KH-9 imaging system used camera models, which are no longer used to capture images today. Moreover, the images obtained contained huge distortions at the edges. The KH-9 cameras used an optical bar model, which differs from the current RPC models. Unfortunately, because of poor documentation, much of the information about the internal parameters of the images is missing; this information is necessary for bundle adjustment and DSM extraction. In 2020, KH-9 MC (6 m GSD) images were used to extract DEMs through NASA’s Ames stereo pipeline (ASP) to study elevational change analysis. Their workflow used reseau marks (dark crosses), present only in the films produced by the MC, which helped to eliminate distortions and scanning errors in the images [22]. However, for the panoramic stereo cameras (0.61 m GSD,) there are no reseau marks present that can aid in removing the distortions. Moreover, the generated DEMs from those images produced DEMs at a 24 m posting. In this paper, the panoramic high-resolution stereo camera images of 0.61 m GSD were chosen to generate the DSM of a sub-metric resolution with the help of NASA’s Ames Stereo Pipeline (ASP) software version 3.1.0 (ASP can estimate the missing parameters for each of the individual images and create the camera models to perform bundle adjustments for the images. The software can be downloaded from the GitHub repository: https://github.com/NeoGeographyToolkit/StereoPipeline, accessed on 28 May 2022) [23].

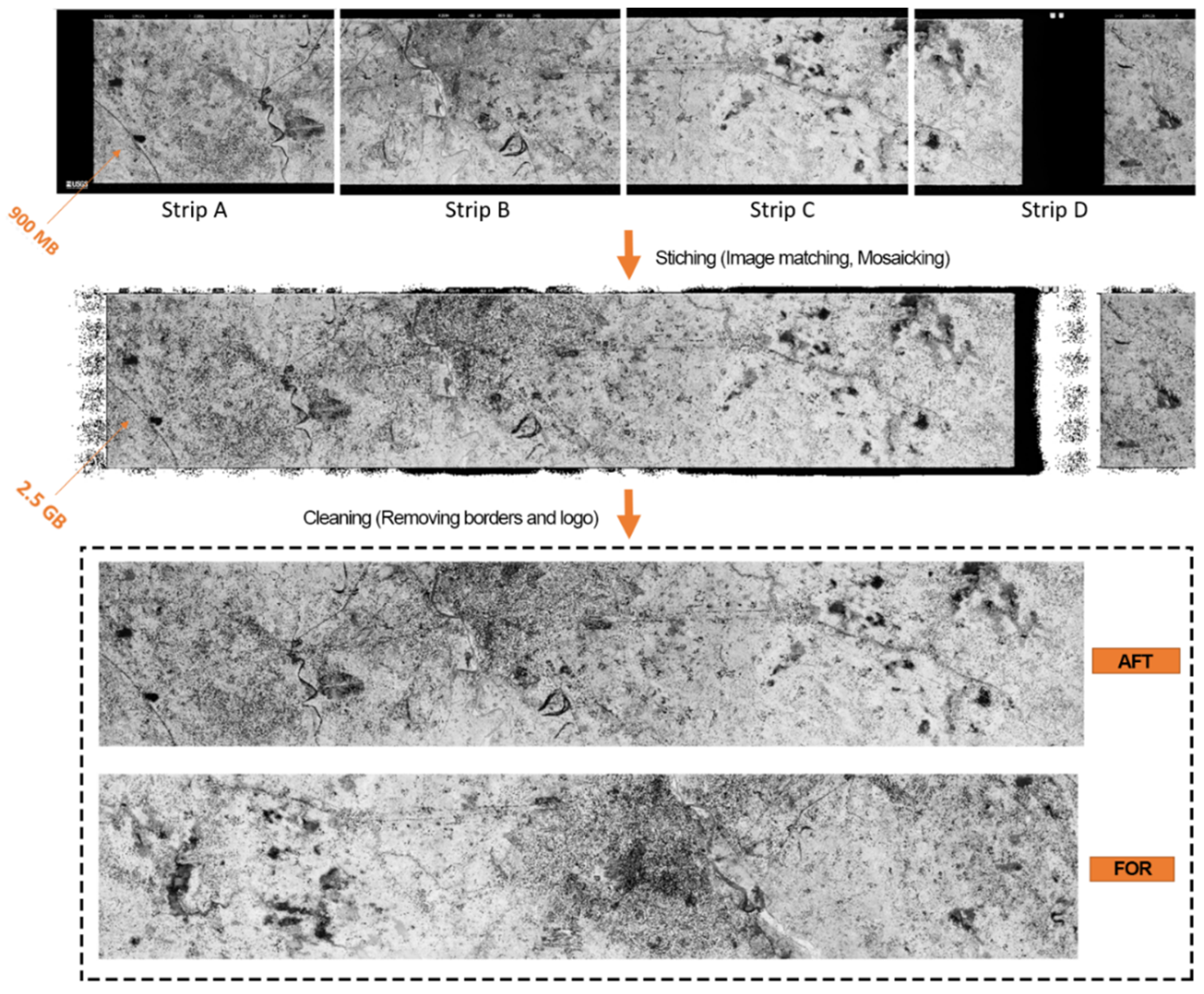

From the stereo pair, the first is the forward-looking strip called the ‘FOR’, and the second is the ‘AFT’ strip for ‘afterwards’, based on the direction of motion of the satellite. Usually, the file size of the full film is large. Therefore, USGS delivers the images in strips that first need to be stitched to obtain full images, as shown in Figure 12. After stitching, the noise is removed to obtain a clean image without any borders and logos. Then, the images are ready for the main processing stage of finding the intrinsic values.

2.5.3. Extraction of Image Parameters

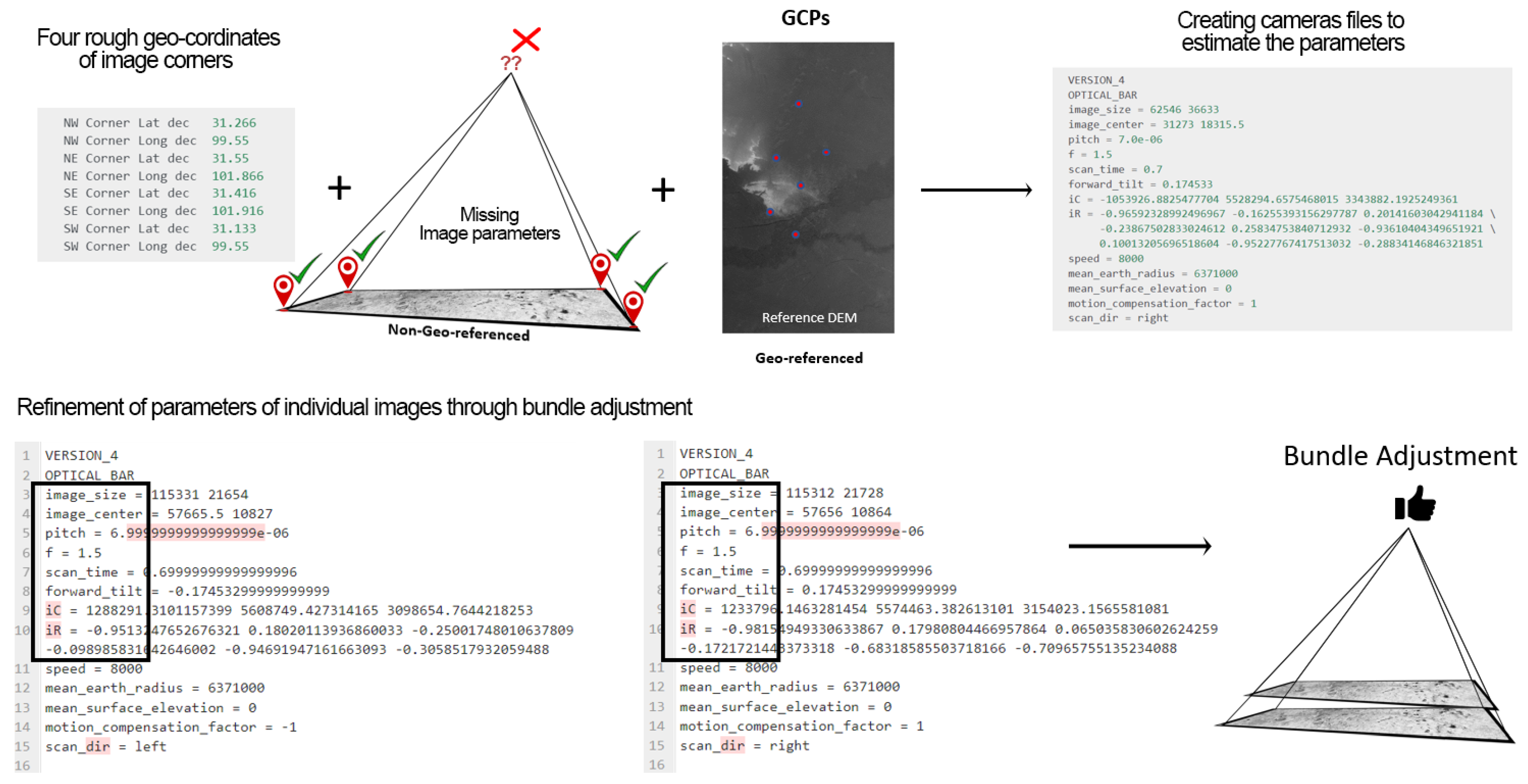

At this stage, the images were still not georeferenced. The only information available regarding the location was the extent of the images in the form of geographic coordinates provided by USGS in the metadata. ASP uses a DEM, which acts as a reference to initiate the generation of a camera model for the images and later for the bundle adjustment and validation of the terrain model. The reference DEM, with the help of the geographic coordinates of the image, creates an initial camera model. The freely available ASTER DEMs were selected for this purpose.

A sample camera file was created describing the image’s internal parameters, such as the image size, focal length, forward tilt, iC (internal camera centers), and iR (rotation matrix). The parameters become recalculated according to the images when the command for creating the camera model is invoked. A file with manually picked ground control points (GCPs) from the reference DEM can also be passed to help align the cameras. After the individual camera models have been created, relative orientation is performed as a bundle adjustment. This step re-adjusts the parameters in the cameras for each image with respect to the others to minimize the reprojection error. Bundle adjustment thus provides more accurate camera parameters that can finally be used for dense matching and DEM creation. Figure 13 illustrates the processes from camera initiation to bundle adjustment.

2.5.4. Extraction of Digital Surface Model

After extracting the camera’s internal parameters, the final step for making the DSM is dense matching. It is to be noted that the intrinsic parameters extracted correspond to the whole image, covering an area of 1400 × 10,500 km². Hence, these parameters also remain constant and hold true for any location/region within the image. Dense matching is a computationally expensive process; therefore, it is not practical to have it performed for the entire image. Therefore, a tiny portion corresponding to our region of interest was cropped to perform dense matching with the same parameters as that of the whole image. ASP, in its default configuration, uses a combination of SGM (semi-global matching) and MGM (more global matching) algorithms [24].

After extracting the digital surface model of the 1970s, the same procedure was followed for generating the present city model. The DTM was extracted through ResDepth. The shapefile used in removing the buildings was manually digitized from the KH-9 images. The nDSM was obtained and integrated with the Jama Masjid model obtained from Google Earth. Again, the KH-9 image was used to texture the model.

2.6. Ground-Level Visibility Analysis

After building the two city models, a comparison was carried out by performing a ground-level visibility analysis. Several observation points were selected on the streets leading toward the mosque. These points were selected at the intersection of streets, ensuring the optimal distance of the observer from the monument. The visibility of the selected target points on the mosque was examined. The line-of-sight method in ArcGIS Pro was used; this method uses a ray-casting technique to draw imaginary visual lines from the observer’s eye to the target points. The analysis was performed on both models, and the results were illustrated.

3. Results

3.1. Digital Surface Model Accuracies

3.1.1. DSM of 2020s

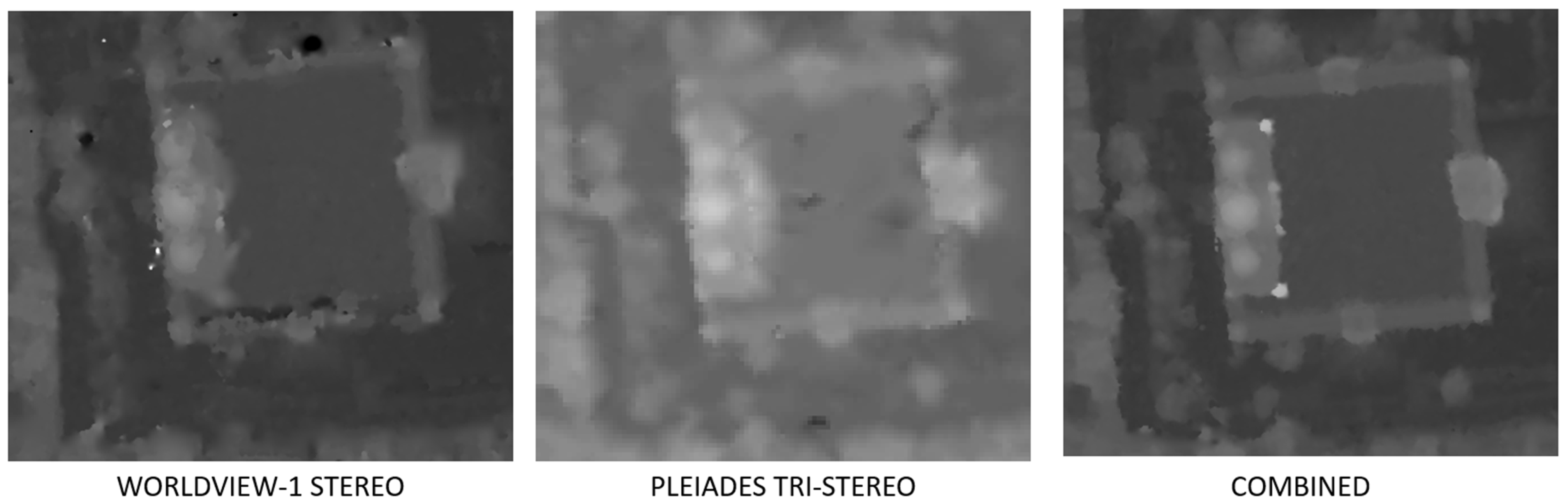

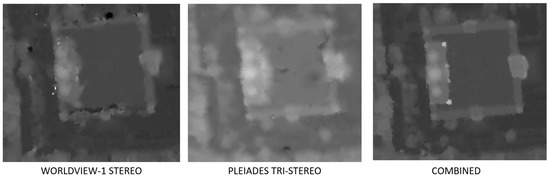

From the three combinations, the Worldview-1 DSM could not produce smooth surfaces and failed to construct complex structures, as seen in Figure 14. It also contained substantial noise in the form of outliers among the three. The Pleiades DSM gave better output in terms of defining building shape. However, the best output was seen when all five images were combined to produce a multi-image DSM. The combined DSM gave the best results in creating a smooth surface with delineated and defined building shapes.

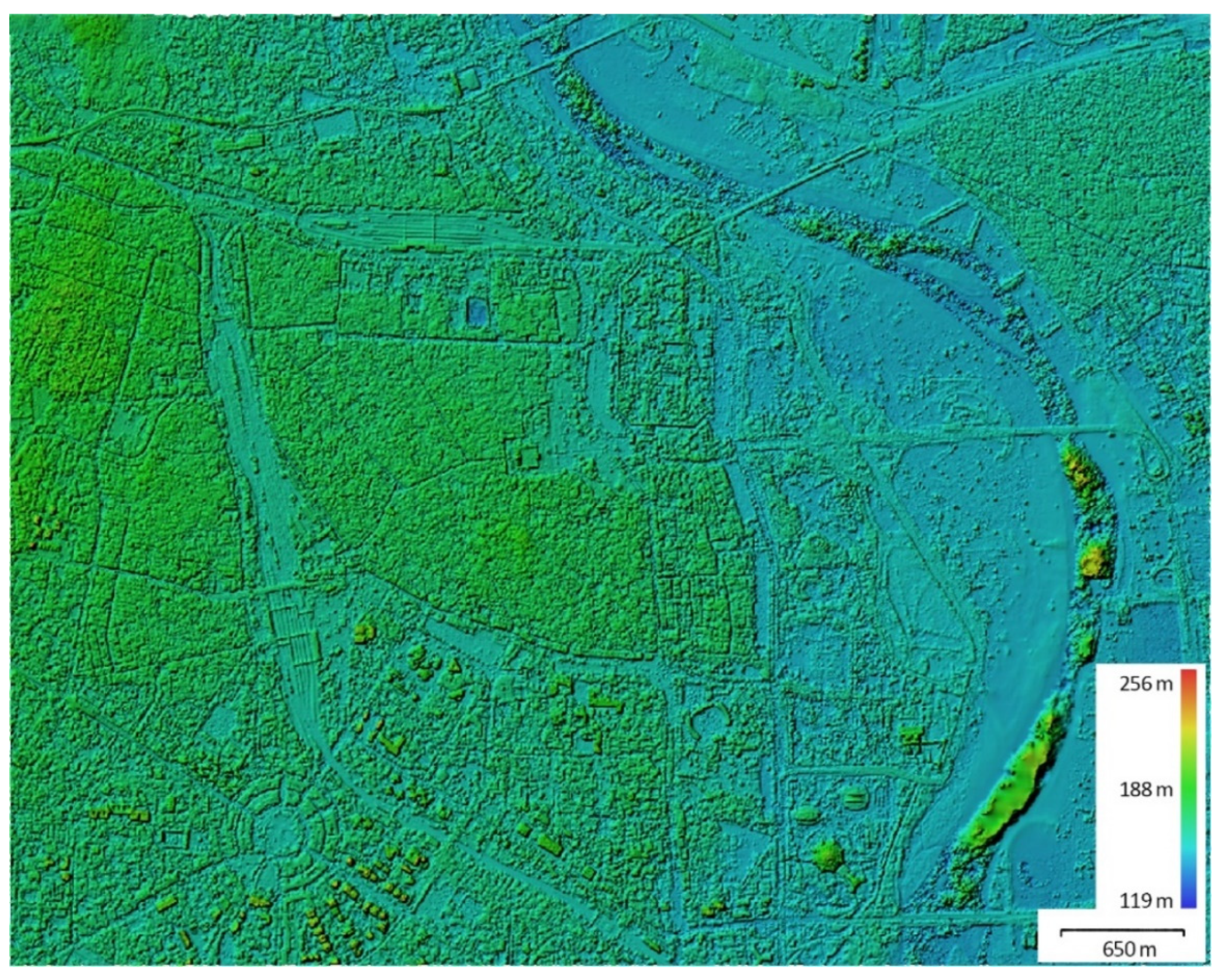

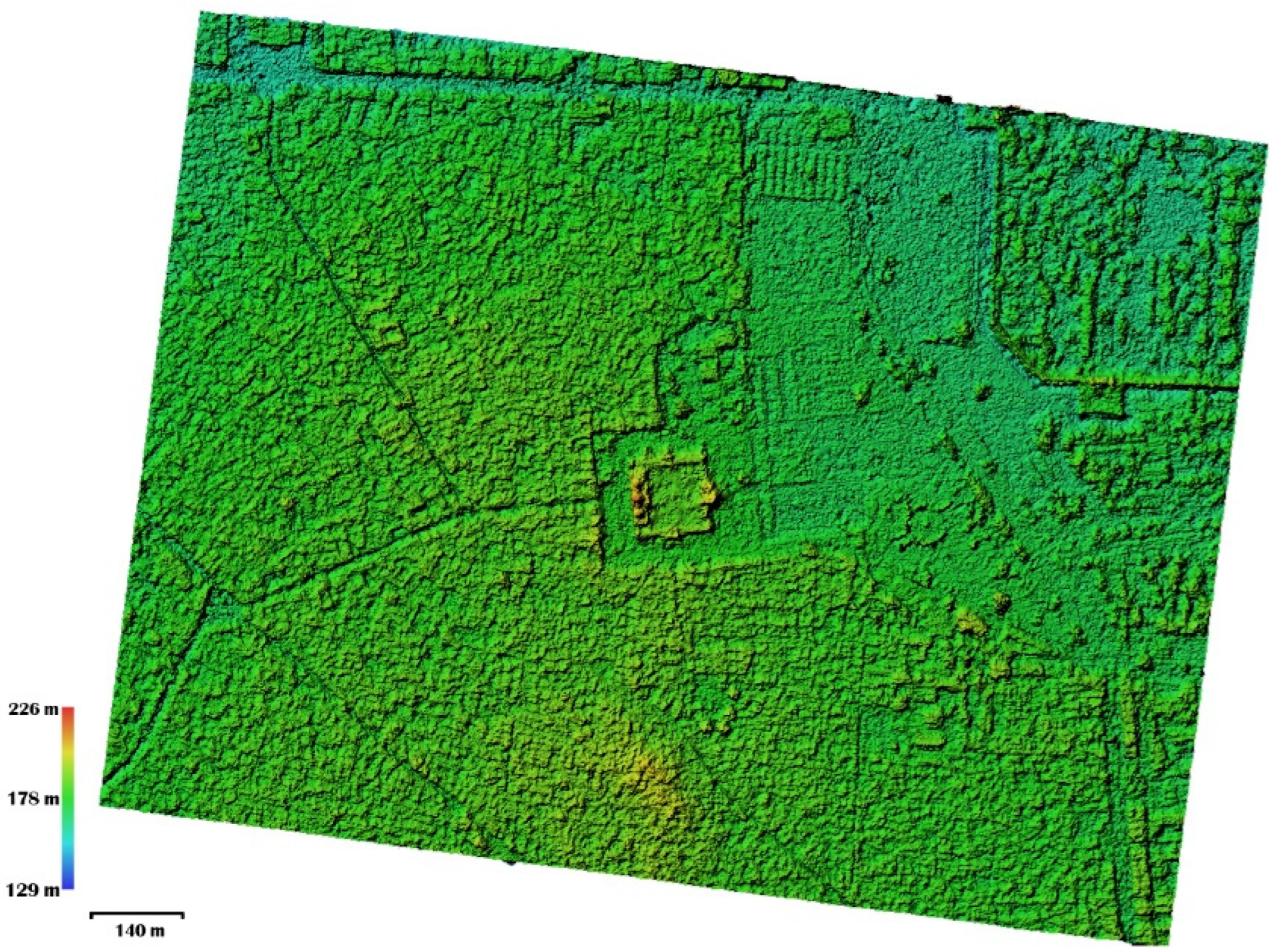

The resolution of the output rasterized DSM was 49 cm. Figure 15 illustrates the output of the combined DSM. The high values in the raster can be seen inside the river area. The dense matching algorithm was not robust enough to the match tie points in the water bodies; so, huge noise could be witnessed in the river. For accuracy assessment, the heights of 21 ground-surveyed buildings were recorded, and their respective average height was extracted from the DSMs. The RMSE (root mean square error) values for the Worldview, Pleiades, and combined DSM were 6.62, 2.55, and 2.15 m, respectively (see

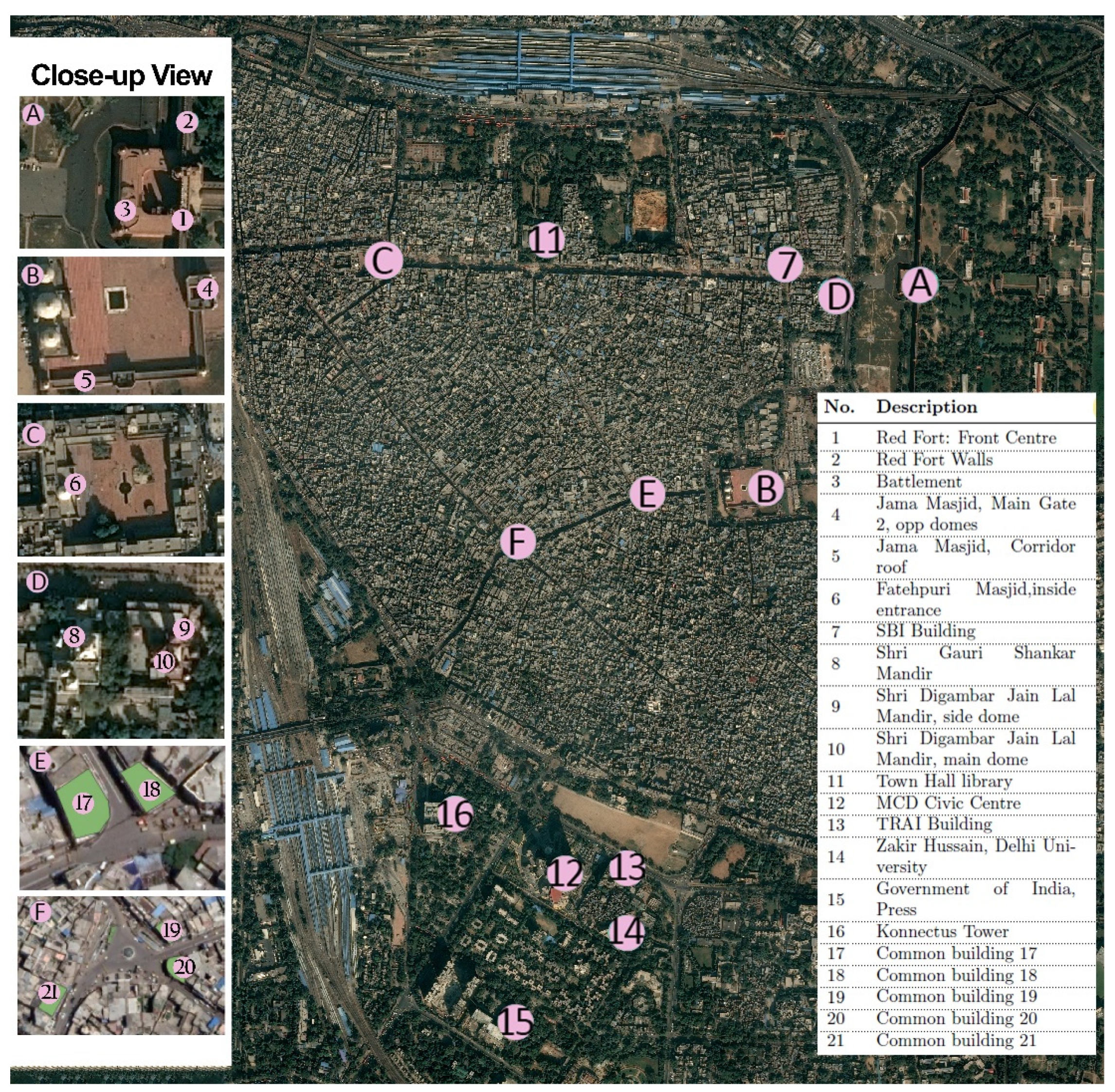

Table 2. Accuracy assessment of the three digital surface models.

No.	Description	Ground Ref (m)	WV-1 DSM (m)	PL DSM (m)	Combined (m)
1	Red Fort: Front Centre	34.0	39.97	35.7	32.0
2	Red Fort Walls	20.6	24.04	22.36	19.52
3	Battlement	12.6	16.45	14.67	12.54
4	Jama Masjid, Main Gate 2, opp. domes	14.0	18.48	12.68	13.74
5	Jama Masjid, Corridor Roof	5.8	7.32	7.83	5.59
6	Fatehpuri Masjid, inside the entrance	13.0	17.79	15.52	11.48
7	SBI Building	20.1	23.46	23.87	21.34
8	Shri Gauri Shankar Mandir	25.0	32.84	27.91	25.52
9	Shri Digambar Jain Lal Mandir, side dome	19.4	16.0	22.8	21.13
10	Shri Digambar Jain Lal Mandir, main dome	21.2	43.24	23.26	26.07
11	Town Hall Library	13.6	14.7	13.03	12.72
12	MCD Civic Centre	100.8	108.52	104.2	97.68
13	TRAI Building	32.1	39.81	30.2	32.96
14	Zakir Hussain, Delhi University	28.3	30.53	31.42	27.74
15	Government of India, Press	32.6	34.68	30.07	31.83
16	Konnectus Tower	36.2	41.74	42.21	39.55
17	Common building 17	11.9	18.54	13.4	16.03
18	Common building 18	10.6	14.09	9.18	14.89
19	Common building 19	10.81	9.17	12.3	11.97
20	Common building 20	11.8	8.23	10.97	11.88
21	Common building 21	15.65	18.92	16.47	16.62
		RMSE	6.62	2.55	2.15 m

).

3.1.2. DSM of 1970s

There were no combinations of images to experiment with for the past city because only one stereo pair was available. The resolution of the output rasterized DSM was 77.5 cm. Figure 16 illustrates the output of the combined DSM. To check the accuracy, instead of using the building heights for accuracy assessment, the ground elevation values from the present city DTM were used to verify the corresponding elevation values of the past city DTM. An assumption had to be made that the only change that took place was in the heights of the built structures and that no elevation change on the ground occurred from 1977 to 2020. As the DTM was derived from the DSM, it can be said that DSM had the same accuracy as the DTM.

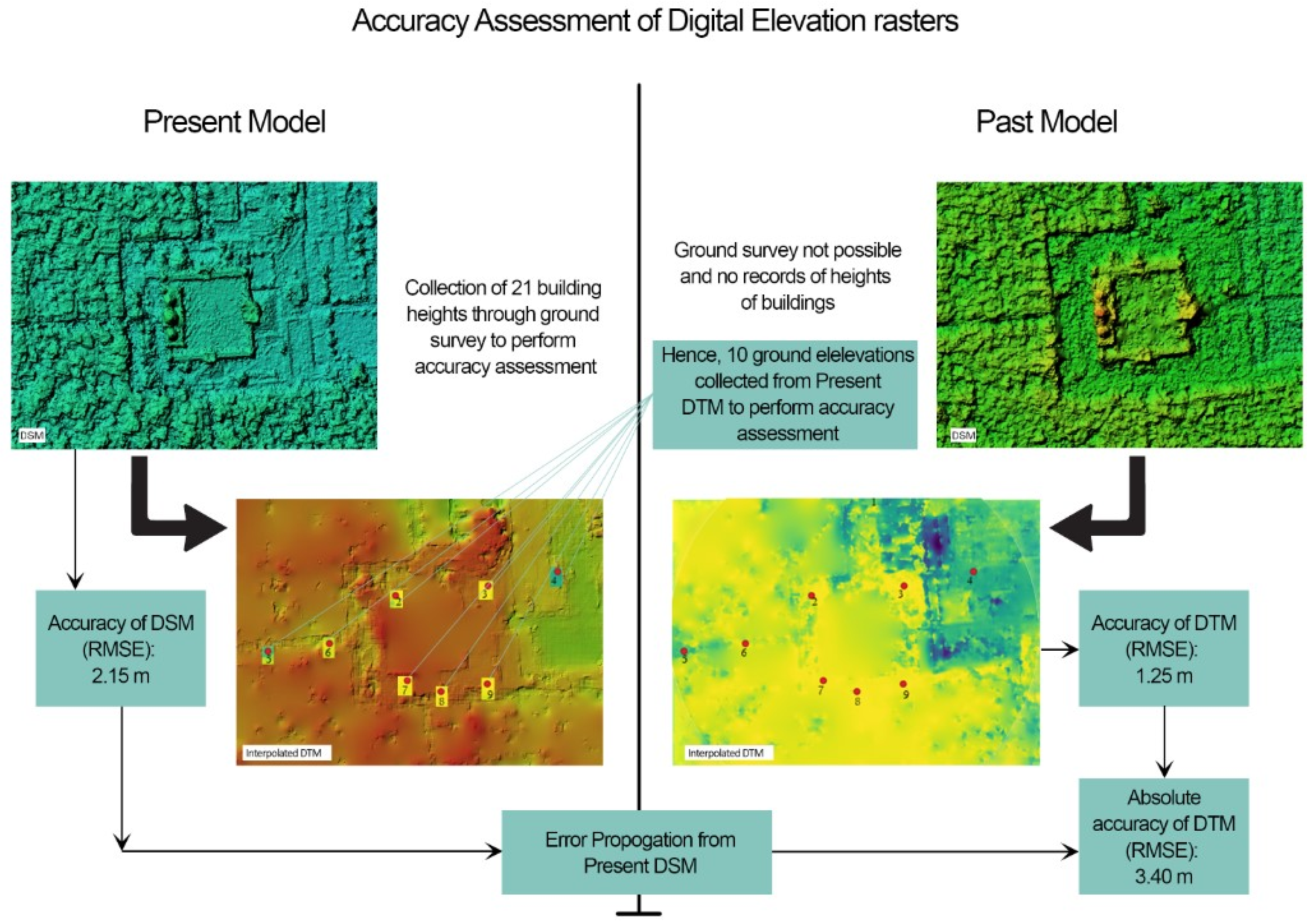

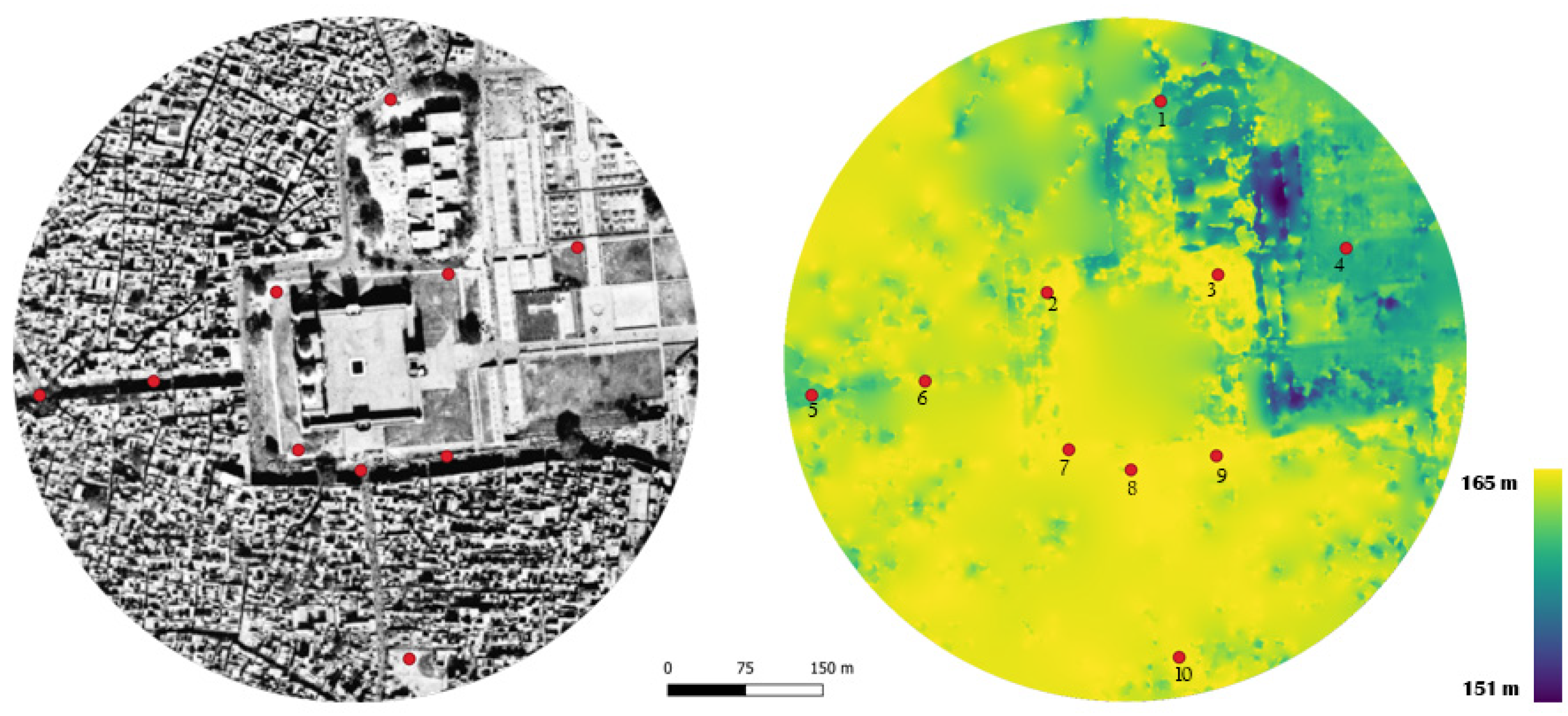

Ten ground elevations from the interpolated DTM of the 1970s (Figure 17) were compared with the DTM of the 2020s for accuracy assessment. The relative RMSE (w.r.t. the present DTM) was calculated to be 1.25 m, but as the DTM was assessed with a reference present city DTM with an RMSE of 2.15 m, the final absolute accuracy of the past DTM was 3.40 m.

Table 3. Accuracy assessment of the digital terrain model of the 1970s.

GCP	Present DTM (m)	1970s DTM (m)	Error (m)
1	160.70	160.29	−0.40
2	161.11	163.77	−2.34
3	166.34	165.32	−0.96
4	159.62	160.0	0.42
5	162.80	161.43	−1.22
6	163.0	164.13	1.07
7	165.5	165.24	−0.31
8	164.0	165.40	1.37
9	163.55	165.32	1.87
10	166.19	165.16	−1.03
		RMSE	1.25 + 2.15 (present DTM) = 3.40 m

shows the ground elevation values of the two DTMs with their respective error values. These values provided evidence to prove that the generated DSM for the past city was not deviating largely from the accurate values. Figure 18 illustrates the overall steps involved in the accuracy assessment for both the present and the past.

3.2. Visualizing the Cities

3.2.1. Present City Model of the 2020s

For the present city, a 0.3 m Worldview-3 satellite image was used to texture the base and the roof tops of the buildings. However, the model only contained the buildings. Other materials, such as trees, streetlights, and cars, were added from Sketchup warehouse, a plugin used in Sketchup for importing models from its database. Architectural rendering software like Enscape (version3.4.1+85781) and Lumion (version 12.0.2) was used to give it a more realistic appearance. Figure 19 shows the rendered model from the 2020s. The link to the videos of the model can be found in Appendix A.

3.2.2. Past City Model of the 1970s

The normalized DSM (nDSM) from the 1970s was used to integrate with the shapefile of the manually digitized building footprints. The Jama Masjid model from Google Earth Pro was combined and textured with a 70 cm PAN KH-9 image on Sketchup. The buildings in this model surrounding the Jama Masjid appeared to be visually smaller in height. Figure 20 shows the rendered model from the 1970s. The link to the videos of the model can be found in Appendix A.

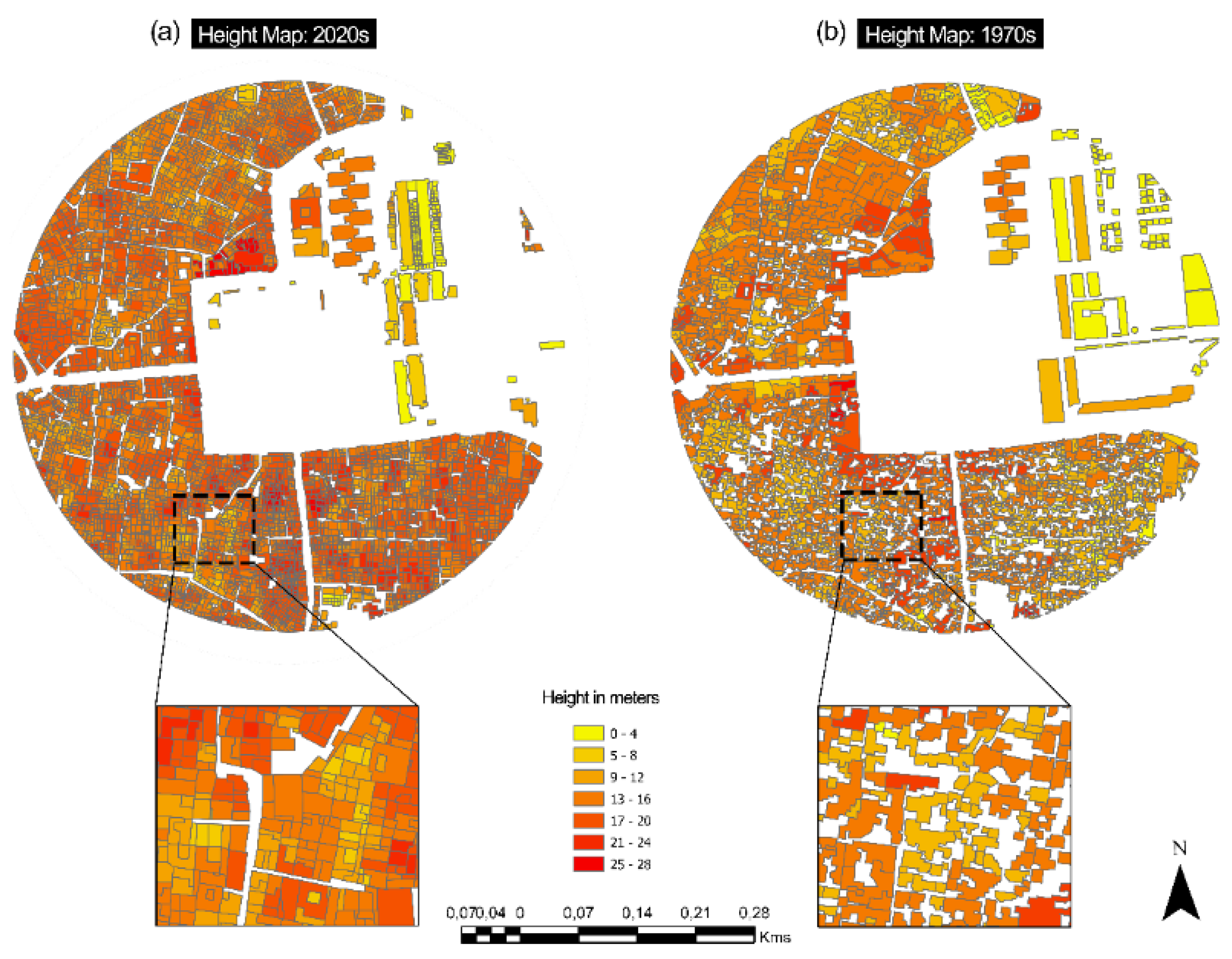

3.3. Inference from the Two Models

Before preparing the models for visibility analysis, it was important to draw inference from the models produced, to see the quantitative significance of the research. A classified bar graph (Figure 21) was produced, showing the changes in building heights between the 1970s and the 2020s.

The buildings with heights ranging between 4 and 8 m were reduced to only a small number in the 2020s. A significant increase was seen in the buildings ranging between 12 and 20 m, while a few buildings appeared ranging between 20 and 28. Figure 22 indicates that there has been a significant amount of increase in the urban fabric of the study area. The buildings rose and expanded vertically over 40 years.

Table 4. Table showing percentagewise increase and decrease in the building counts from the 1970s to 2020s.

Range in Meters	Building Count—1970s	Building Count—2020s	% Increase	% Decrease
1 to 4	116	133	12.7%
4 to 8	872	86		90.1%
8 to 12	853	772		9.4%
12 to 16	146	2293	93.6%
16 to 20	12	1694	99.2%
20 to 24	0	514	100%
24 to 28	0	39	100%
			Avg Increase 81.1%	Avg Decrease 49.8%

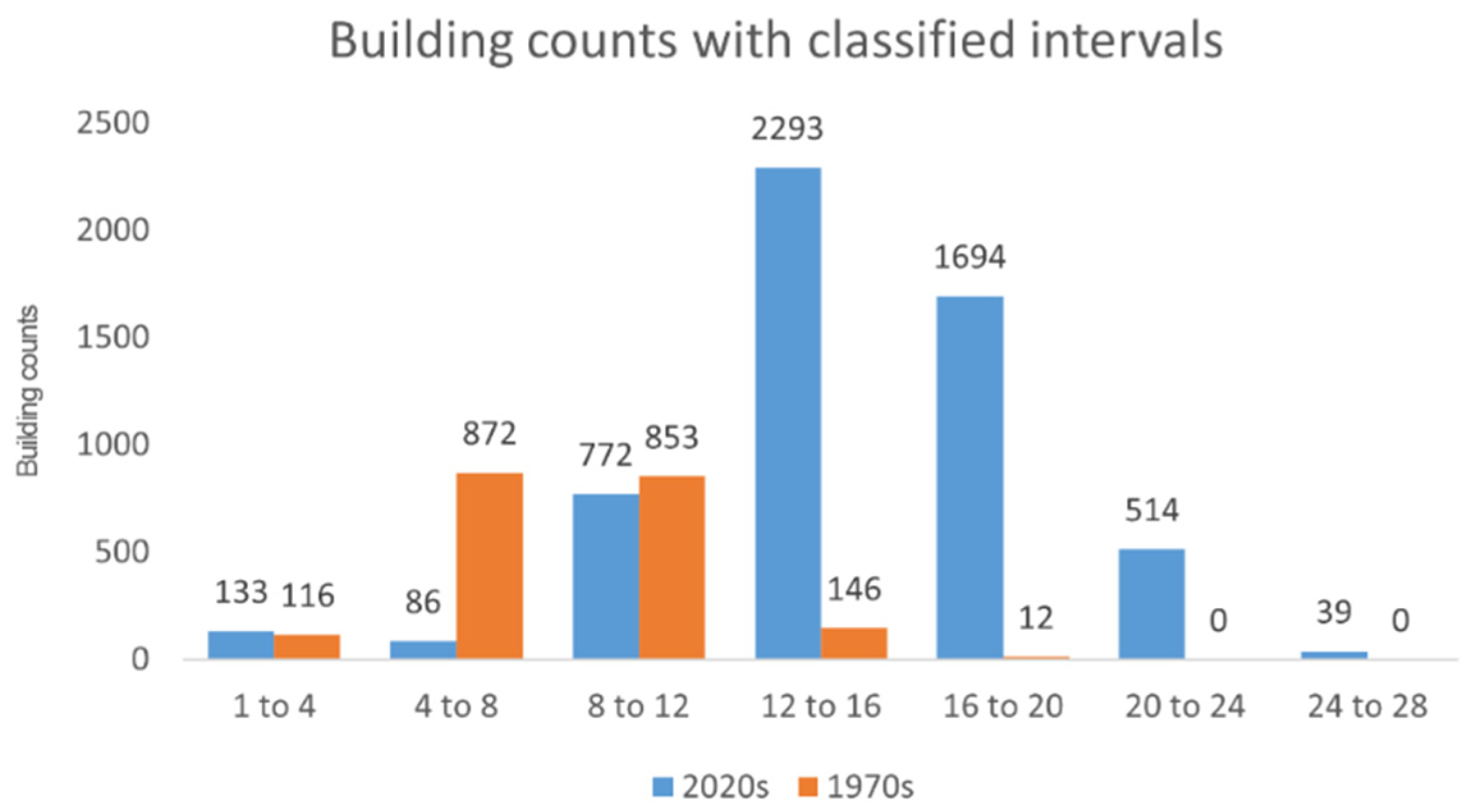

shows the overall increase and decrease in the building counts. It was observed that there was an average increase of 81% in building counts, mainly in the buildings ranging between 12 and 28 m, while there was a decrease of 50% in the heights ranging between 4 and 12 m. These data give substantial quantitative evidence to prove an increase in the height of the buildings. With this proof, the investigation could proceed further to check whether there was a loss of visibility in the area.

3.4. Ground-Level Visibility Analysis

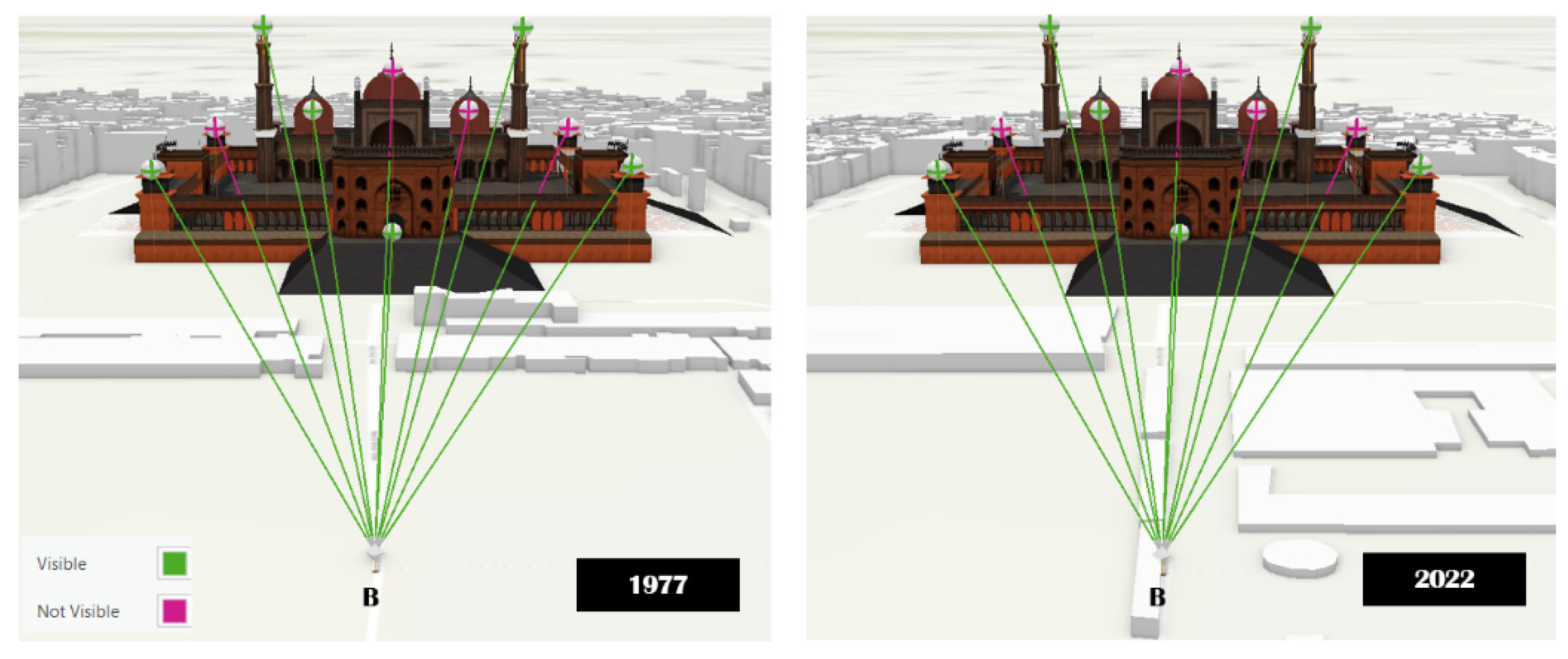

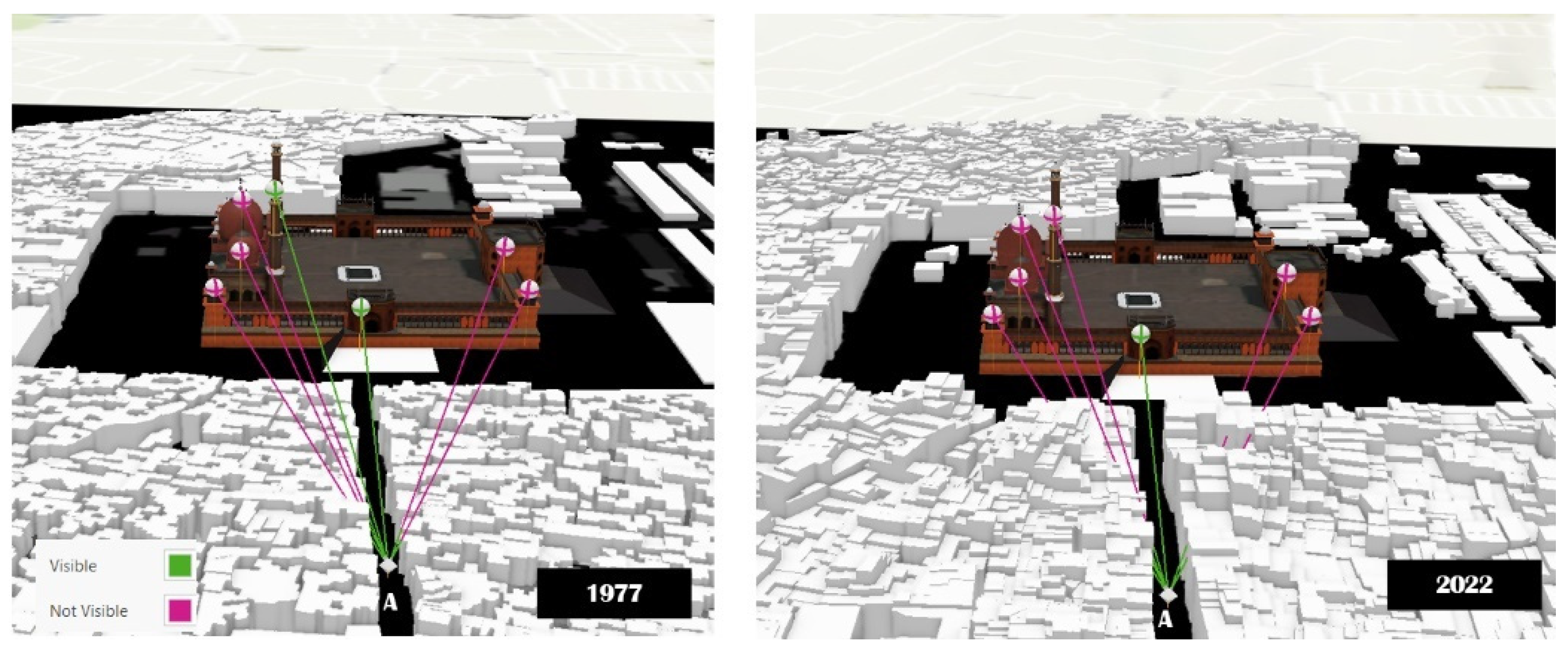

For visibility analysis, each observer (A, B, C, and D) was placed 1.6 m above ground level (human eye level). The line of sight was cast to the target points. If any structure/building was obstructed, the line of sight turned pink. Otherwise, it remained green and hit the target. This way, a conclusion could be made about whether or not the target point was visible from the point of observation. The results of the visibility analysis are illustrated from Figure 23, Figure 24, Figure 25 and Figure 26.

Based on the observation and the target points, the reduction in visibility percentage was calculated for each of the observer points.

Table 5. Table showing the percentagewise reduction in visibility of the targets from the chosen observation points.

Observation Point	No. of Targets	Visible in 1977	Visible in 2022	Visibility Reduction
A	7	2 (28.5%)	1 (14.2%)	14.3%
B	10	6 (60%)	6 (60%)	0%
C	6	4 (66.6%)	1 (16.6%)	50%
D	8	3 (37.5%)	1 (12.5%)	25%

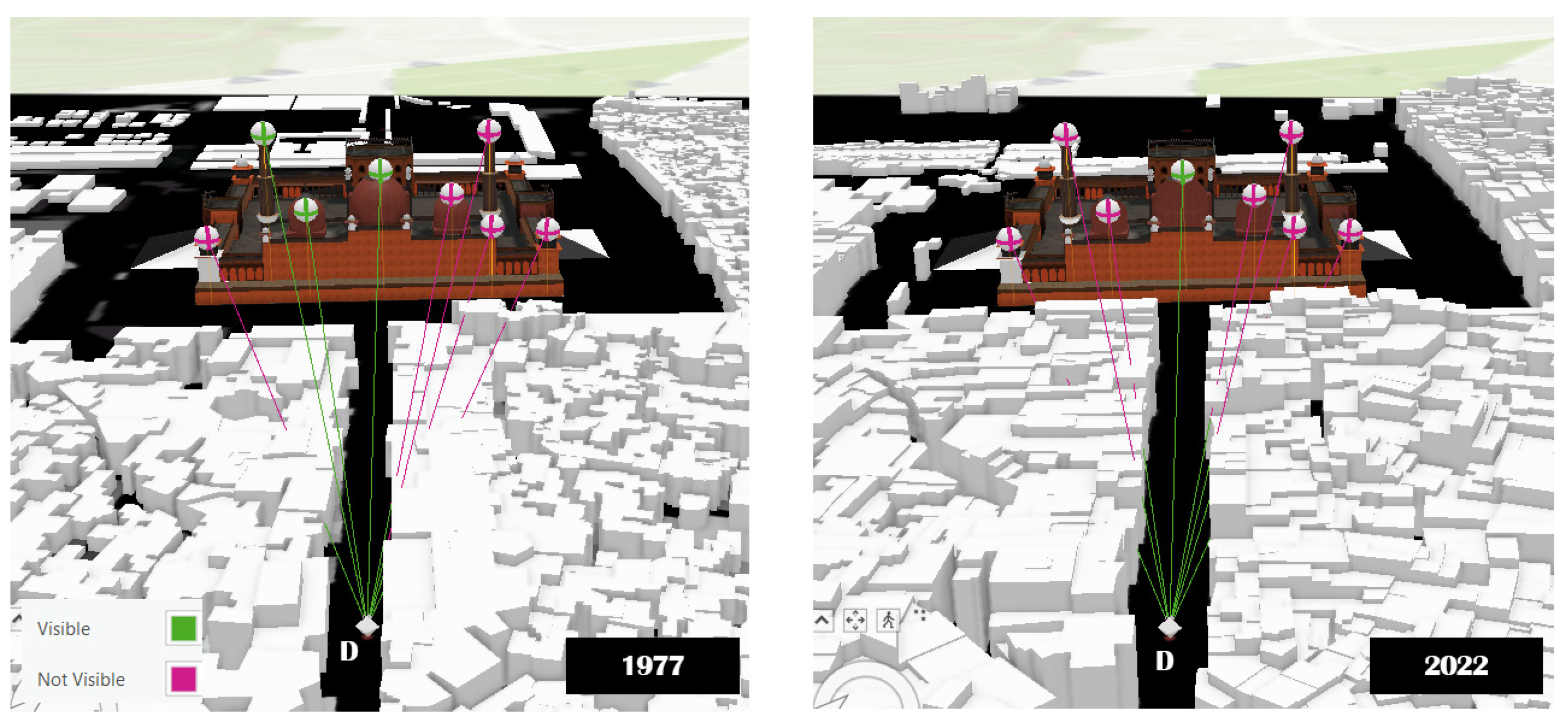

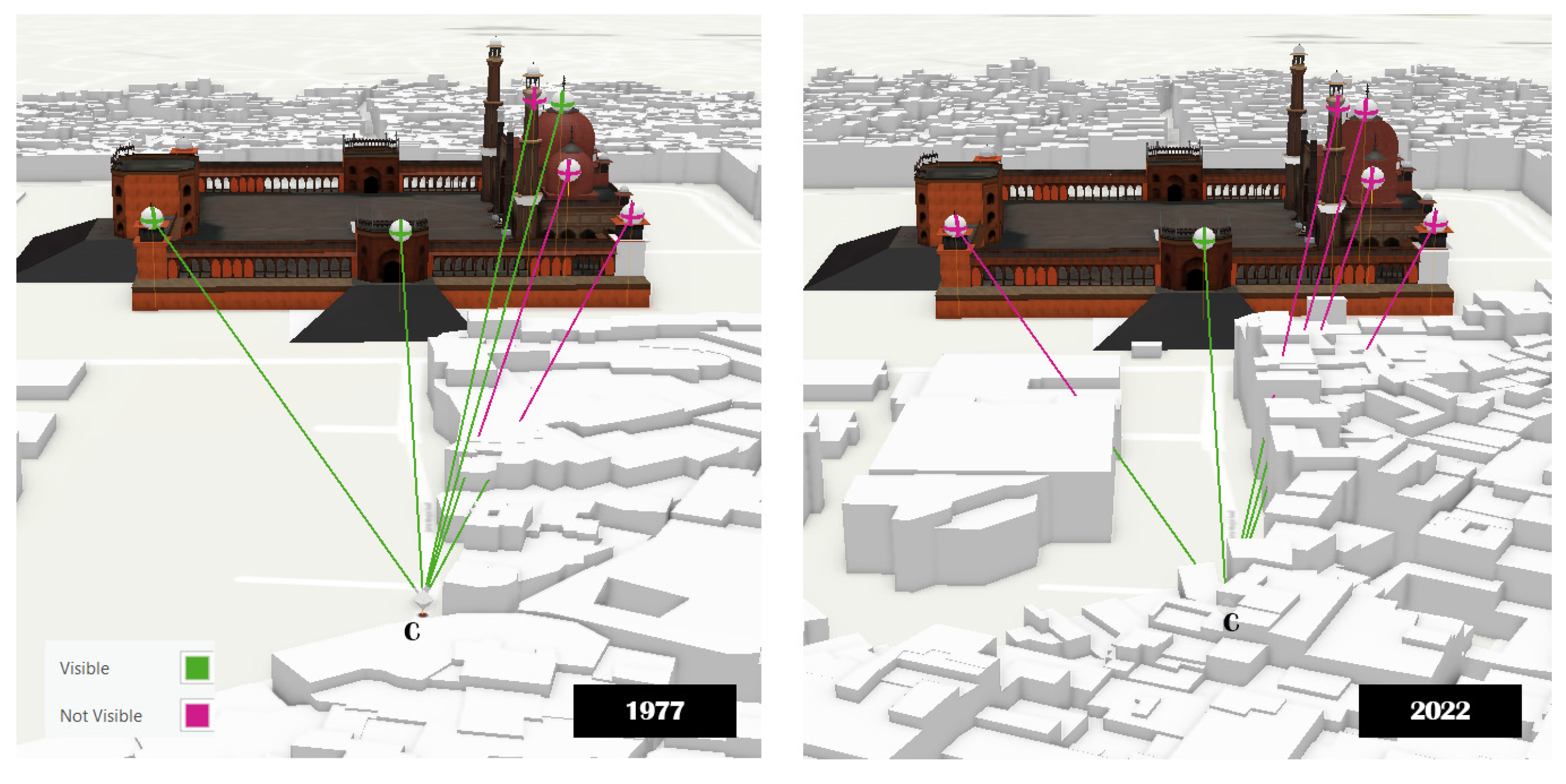

below shows the percentage reduction for points A, B, C, and D.

4. Discussion

This section discusses the obtained results of the research. The methodological innovations which lead to our results are highlighted and the scope for improvements is suggested. Moreover, alternate methods and future recommendations are provided. Then, the main findings of the research are discussed.

4.1. Model Accuracies

It was found that the DSM generated by combining five different VHR images gave much better results (RMSE 2.15) than using a stereo or tri-stereo pair alone. An accuracy increase of 102% was observed when compared to the accuracy of the Worldview stereo pair (RMSE 6.62), while there was a 17% increase when compared with accuracy of DSM made using the Pleiades tri-stereo pair alone (RMSE 2.55). However, the models’ accuracy would only have been justified if a ground reference of a similar data type, such as a DSM raster made out of LiDAR point cloud, was used. This way, every pixel in the raster could have been assessed. There were only 21 ground-collected heights of buildings (due to COVID-19 field work restrictions), which represented only a few pixels in our raster DSMs and were not fully representative of the entire raster.

The reference ground elevation values for the past model were obtained from the 2020s DTM, with an RMSE of 2.15 m. Therefore, the vertical accuracy had limitations. The RMSE of the 1970s DTM was calculated at 1.25 m. However, by the rule of error propagation, the error from the reference DTM was transferred to the past DTM. Hence, the absolute error of the past DTM became 3.40 m (refer to Figure 18). The errors are significant, although they can be expected given the origin of the old 1970s data and the approximation techniques used. Moreover, the accuracy was assessed based on the assumption that the ground elevation values did not change over 40 years. However, it is quite bold to assume that there was no increase in the ground elevation when considering such dense morphology. On the other hand, the framework produced a historic 3D model with a vertical error of ~3 m, and the present model had an error of ~2 m. The past model, therefore, had an error factor of one floor (the floor-to-floor average height was 3 m) and the present model error was even less. This was a significant achievement; thus, the same methodology can be used to test areas of different urban morphologies.

4.2. Use of Alternate Data Sources and Techniques

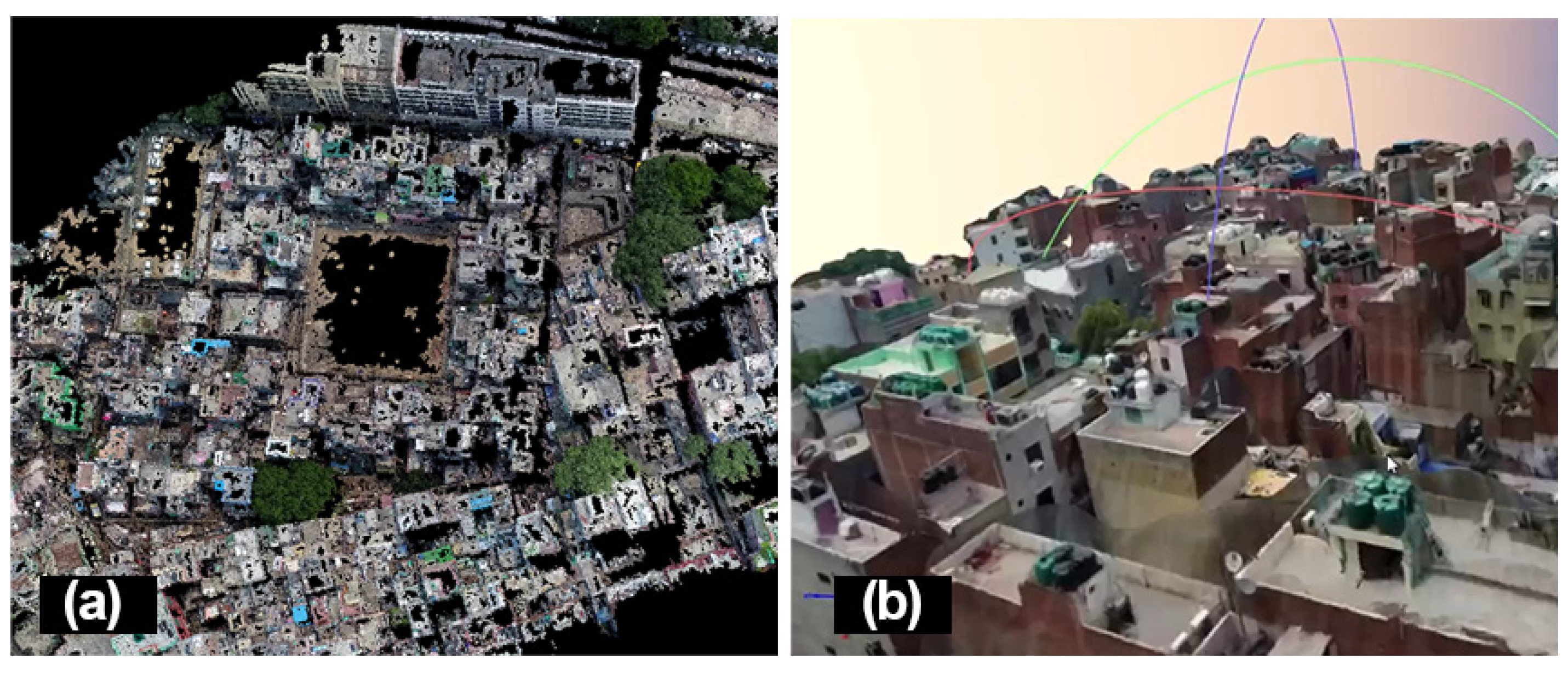

For the present city modelling, all the collected datasets were explored and experimented with for model building. The structure-from-motion (SfM) method was experimented with to generate 3D point clouds from drone-shot YouTube videos. Figure 27 shows the 3D point cloud and the rich textured model produced in Shahjahanabad. However, the reason behind not choosing this data source was the non-georeferenced videos. The drone-shot videos were downloaded from YouTube and lacked geolocation. Georeferencing the model from manually obtained GCPs could have been an alternative option, but also a time-consuming one. Using approximate GCPs from Google Earth (as used to obtain the Jama Masjid model) was another option, but any manual (handpicked GCPs) referencing would have created uncertainties in the x-y direction. The idea was to choose the dataset with the best possible accuracy in the x-y plane such that, then, the only remaining task was to obtain the best accuracy in the vertical (z) direction. Therefore, it was decided that the already georeferenced VHR satellite images should be used. Moreover, the drone shots did not cover entire scenes from our chosen area of interest. Moreover, to have model consistency and to be able to compare it with the past model, it had to be made certain that the data sources had come from similar data types. For this reason, satellite stereo images were utilized.

Other alternative techniques could have also been applied to the past city modelling at several stages of its methodology. Before generating the DSM, methods for increasing the resolution of the historical satellite image up to the level of the present satellite images (from 70 cm to 30 cm) could have been looked into. Several works in DL can be seen in downsampling images ranging from coarser to finer resolutions. Super-resolution GANs have been actively been used in remote sensing to increase resolution [25,26]. This technique would have brought more semantic and texture information to the past model. Another way to make the model look more appealing was to colorize the historical KH9 images in the way that some of the old black and white ground photographs of the area taken by Felice Beato, a European photographer from the 1800s, were successfully colorized.

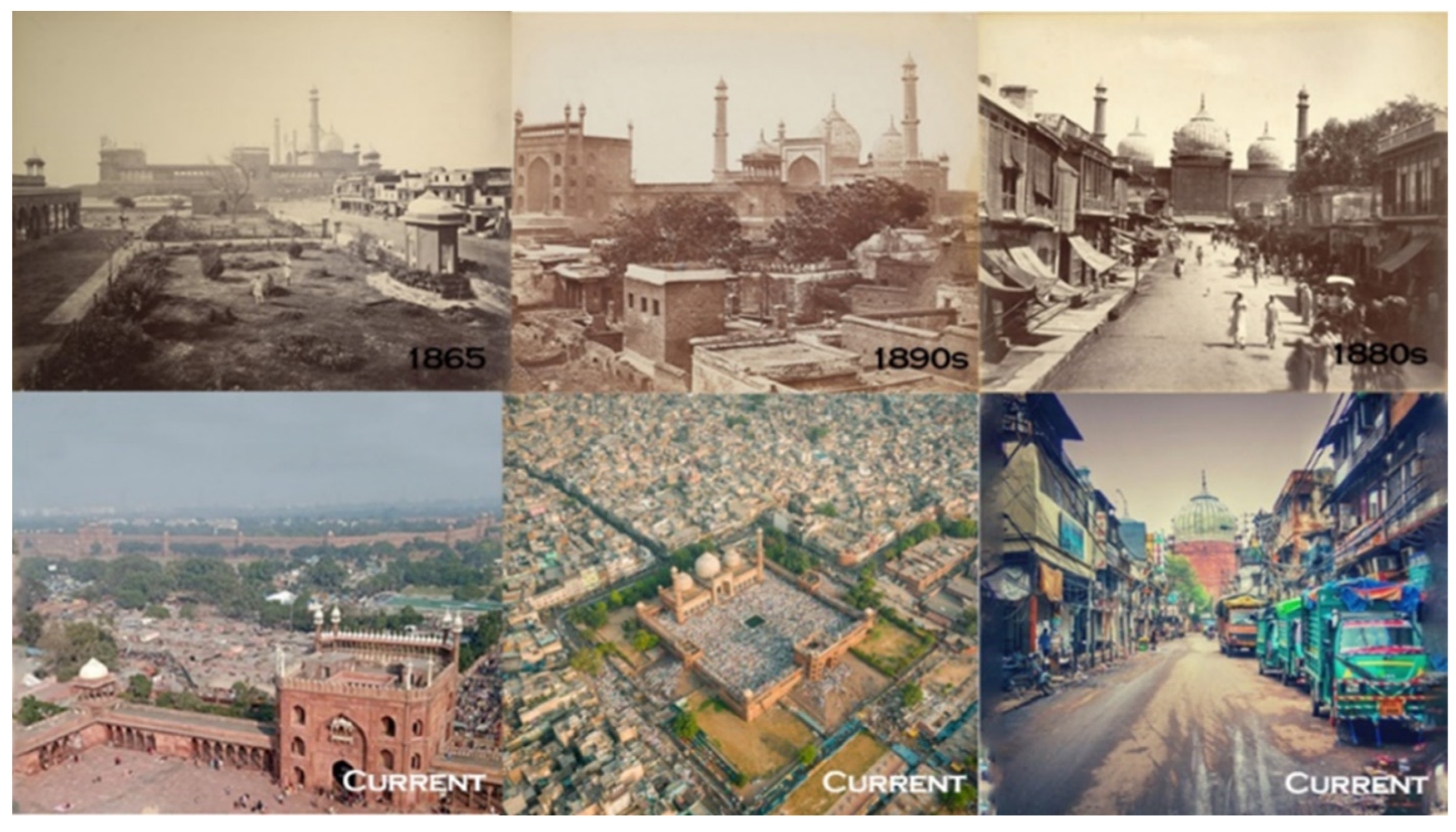

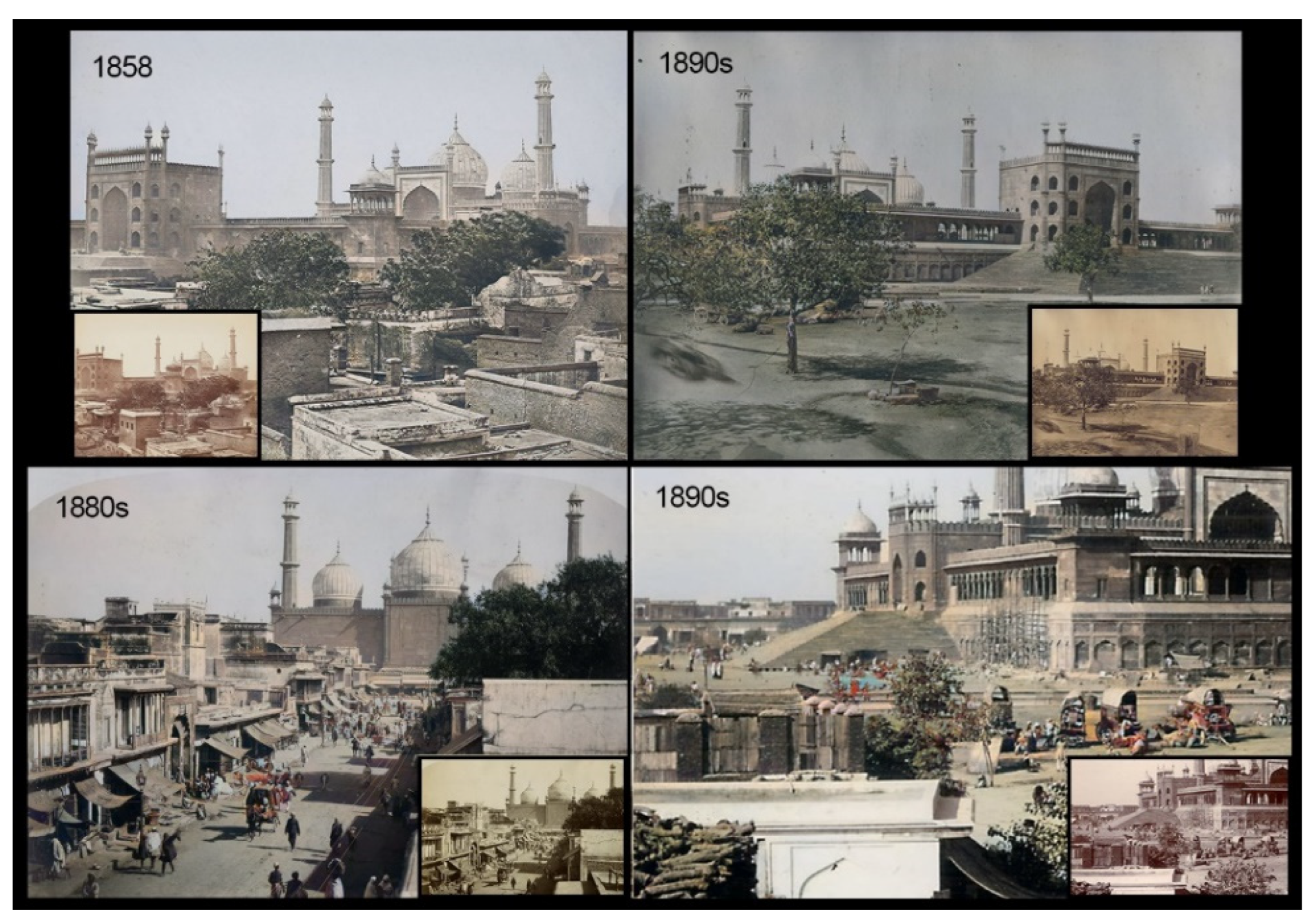

Around 50 ground photographs taken around our study area, which date back to the late 19th century, were colorized (Figure 28). Covering almost every side of the mosque, the images were a good potential data source for the model building and could have taken us further back in time than the 1970s. Nostalgin, a deep learning method different from that of conventional city reconstruction, allows 3D city modelling from historical ground images which lack image parameters [27]. The method could have been explored to orient these street photographs in 3D space to visualize the past. All the above-mentioned methods have the potential to be included in future studies. Along with the time constraints and the scope of the research, the aim of using the same type of methodological framework to produce comparable models did not allow us to proceed with such methods. However, as future work recommendations, these methods can be used to design a methodology for 3D city modelling.

5. Conclusions

This research combined historic with recent VHR satellite images to build a 3D model of a complex urban area. The output of the model was to unravel a massive loss in the unique character of Shahjahanabad through a visibility change analysis. Information that may have never been recorded in history can be revealed by the model of the past. By building the past model, the heights of individual buildings were extracted, unraveling information buried in the past. The increase in vertical expansion was quantified using temporal models, which motivated further investigation into its effect on ground-level visibility analysis, an important aspect of heritage conservation. The produced temporal models opened gateways for other applications, such as volumetric analysis, view-shed analysis, etc. The research used a methodological framework that can be applied by anyone to produce the models. However, the expensive costs of VHR images still restrict the feasibility of such research. Generating 3D models of the past with limited data sources is quite challenging. Yet, a methodology was provided that produced a 3D model LoD-2 with a limited scope of errors. More future works in the field of 3D city modelling are anticipated with these historical datasets, which have the potential to produce highly detailed models and unfold the past.
