Technical Note

Regional Variability and Driving Forces behind Forest Fires in Sweden

1
School of Forest Sciences, University of Eastern Finland, 80101 Joensuu, Finland
2
Agriculture Forestry and Ecosystem Services (AFE) Group, Biodiversity and Natural Resources (BNR) Program, International Institute for Applied Systems Analysis (IIASA), Schlossplatz 1, A-2361 Laxenburg, Austria
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(22), 5826; https://doi.org/10.3390/rs14225826
Received: 8 September 2022 / Revised: 24 October 2022 / Accepted: 8 November 2022 / Published: 17 November 2022
(This article belongs to the Special Issue Latest Advances in Remote Sensing-Based Environmental Dynamic Models)

Abstract

:
Extreme forest fires have been a historic concern in the forests of Canada, the Russian Federation, and the USA, and are now an increasing threat in boreal Europe, where recent fire events in 2014 and 2018 drew attention to Sweden. Our study objective was to understand the vulnerability of Swedish forests to fire by spatially analyzing historical burned areas, and to link fire events with weather, landscape, and fire-related socioeconomic factors. We developed an extensive database of 1 × 1 km2 homogenous grids, where monthly burned areas were derived from the MODIS FireCCI51 dataset. The database consists of various socio-economic, topographic-, forest-, and weather-related remote sensing products. To include new factors in the IIASA’s FLAM model, we developed a random forest model to assess the spatial probabilities of burned areas. Due to Sweden’s geographical diversity, fire dynamics vary between six biogeographical zones. Therefore, the model was applied to each zone separately. As an outcome, we obtained probabilities of burned areas in the forests across Sweden and observed burned areas were well captured by the model. The result accuracy differs with respect to zone; the area under the curve (AUC) was 0.875 and 0.94 for zones with few fires, but above 0.95 for zones with a higher number of fire events. Feature importance analysis and their variability across Sweden provide valuable information to understand the reasons behind forest fires. The Fine Fuel Moisture Code, population and road densities, slope and aspect, and forest stand volume were found to be among the key fire-related factors in Sweden. Our modeling approach can be extended to hotspot mapping in other boreal regions and thus is highly policy-relevant. Visualization of our results is available in the Google Earth Engine Application.

1. Introduction

Forest fires, often triggered by human activities and greatly exacerbated by climate change, cause widespread destruction and are therefore an important global issue [1,2,3]. They contribute to greenhouse gas emissions, air pollution and associated health problems, as well as social and economic disruption for people in fire-prone regions-problems targeted by the Sustainable Development Goals [4]. While vegetation burning plays an important ecological role in some ecosystems [5], climate change leads to longer fire seasons in many parts of the world with an associated trend towards increasing extent, frequency, and severity of fires, as well as the global occurrence of extreme (mega) fire events [6,7,8]. However, burned areas are decreasing in some regions of the world due to land use change, which could result in a net-negative global trend of historical burned areas over the period 1998–2015 [9].
Forest fires are a familiar issue in Europe [10,11], where most of the burned areas have historically been found in the Mediterranean region [11,12,13]. Forest fire models project an increase in expected burned area and associated emissions under future climate change scenarios in Europe [12,13]. Fire is an increasing threat in the European Boreal forests affected by climate change due to lengthened fire seasons [14]. Recent fire events in 2014 and 2018 have drawn attention to a need for more fire-related research in Sweden [15,16].
There is a variety of global models trying to simulate forest fire dynamics, including CLM, JSBACH–SPITFIRE, LPJ–GUESS–SPITFIRE, and ORCHIDEE–SPITFIRE. However, they are largely unable to capture inter-annual variations in historical burned areas [17]. Having strong biophysical components, these models can represent feedback between forest fires and vegetation dynamics driven by climate change, but they lack representation of interconnections between the vegetation and human activities due to the complexity of these processes. This creates a research gap, because to explain current fire-regime changes and assess probabilities of fire, climate change needs to be considered in combination with other drivers [18].
The wildfire climate impacts and adaptation model (FLAM) is able to capture inter-annual dynamics of burned areas by calibrating the spatially explicit suppression efficiency [19,20]. However, the parameter representing suppression efficiency is rather technical and needs interpretation in terms of fire-related factors. Hot-spot mapping is a way to understand factors behind fire ignitions and suppression efficiency. However, identifying hot spots in Europe is still a challenging task when modeling at relatively high spatial resolution [21]. In this paper, we concentrate on hot-spot mapping for one European country and perform analysis at 1 × 1 km2 resolution.
Our study objective was to understand the vulnerability of Swedish forests to fire by spatially analyzing historical burned areas and linking them with weather, landscape, topography and fire-related socioeconomic factors. In this way, our research contributes to the development of a wildfire model for Sweden [22]. Our study expands its analysis to include an extreme fire event in 2018, has a larger number of predictors and uses machine learning techniques [23] to find key variables and their interconnections. Our study considers climatic controls [24] in combination with socio-economic and geographic factors, leading to an integrated hot-spot mapping [25,26,27]. We developed an extensive database of 1 × 1 km2 homogenous grids, where monthly areas burned in forests were derived from the MODIS FireCCI51 dataset [28]. Spatial factors, including campsites, lakes, and roads, topographic features including aspect, slope, and mean elevation, population density, forest management intensity, and forest stand volume, were collected from various sources and preprocessed. Monthly values of the Fine Fuel Moisture Code (FFMC) of the Canadian Forest Fire Weather Index (FWI) [25,26] over the period 2011–2018 were calculated from daily weather data with the FLAM model [20]. To include new factors into FLAM, we developed a random forest model [27] to assess the spatial probabilities of burned areas [29,30,31,32]. The model contained fifteen features representing various aspects of wildfire behavior and was based on available remote sensing products. Model performance was assessed using the Area Under the Curve (AUC) method, which is a commonly used approach for classification model evaluation [33,34]. Feature importance analysis and their variability across Sweden provide valuable information to understand the factors behind forest fires. FFMC, population and road densities, slope and aspect, and forest stand volume were found to be among the key fire-related factors in Sweden. Visualization of our results is available in the Google Earth Engine Application (available at: https://reiniscimdins.users.earthengine.app/view/swedenmaps (accessed on 10 October 2022)).

2. Materials and Methods

2.1. Study Area

Wildfire modeling was performed on forests in Sweden; the country has an elongated shape with a latitudinal difference of 14 degrees (~1500 km). The presence of Scandinavian mountains results in climatic zone, biome, economic activity and population pattern diversity in Sweden. This variability impacts wildfire regimes and potential fire occurrences across the regions of Sweden. Therefore, in our study Sweden was divided into six vegetation zones, within which modeling was performed separately (Figure 1). During the study period, Sweden suffered from two severe fire years—2014 and 2018. In 2014, a fire occurred in southern Sweden (Västmanland), 150 km NW from Stockholm, burning ~14,000 ha, causing 1000 evacuations and one fatality [35]. A second heatwave-induced fire took place in 2018. When fires were distributed throughout the country, the total burned area was ~ 24,300 ha, with the largest burned areas in Gävleborg and Jämtland counties, with ~8500 ha in each of the regions [36]. These fires spread mostly in low populated areas and therefore only a few villages were evacuated. Due to the extraordinary extent of the fire, fire suppression was assisted and supported by numerous European countries [35].

2.2. Data Preparation

Our approach follows methodology previously applied to other countries, such as Italy [29], Portugal [30] and Serbia [34], aiming to search for the spatial factors behind forest fires, their importance and impact on probabilities of fire ignition and burned areas. To understand the linkage between historical fire activity and weather, landscape, topography and fire-related socioeconomic factors, we established a 1 × 1 km2 gridded geospatial database which was generated using the ETRS89 LAEA Europe metric coordinate system (EPSG:3035) and contained fifteen fire-related parameters. Variables and data flows are illustrated in Figure 2.
Daily computations of the Fine Fuel Moisture Code (FFMC) were performed using the weather module of the FLAM model [20] based on daily HARMONIE (CRUHAR v.3.2) weather data [31]. Outputs provided at the 0.125 × 0.125° grid in the WGS84 coordination system were resampled to the 1 × 1 km2 grid and aggregated to a monthly time step. Another weather-related feature we included in the database was lightning, which can be considered as a natural source of fire ignition that also plays a significant role in northern Scandinavia [37]. We obtained data on lightning strikes across Sweden from the Swedish Meteorological and Hydrological Institute (SMHI). Lightning strikes were processed for each pixel for every month from 2011 to 2018.
To construct a database, we used the following remote sensing products. Wildfire data was obtained from the global remote-sensing-based fire product MODIS FireCCI_5_1 [32]. This dataset has a spatial resolution of 250 m and monthly temporal resolution. MODIS data consist of three components: day of fire detection, the confidence level of detection and land cover of burned area, based on the land cover product developed by [38]. This study focused on forest fires; therefore, we used the MODIS land cover codes and selected only those fires which occurred in the forests of Sweden. MODIS data was aggregated to the 1 × 1 km2 resolution, where each pixel contained a binary value representing the presence or absence of fire.
Probabilities of forest fire ignition and spread are conditional on the fuel availability and its characteristics. It is assumed that older conifer forests in boreal conditions are more vulnerable to fire as compared to younger stands with a larger deciduous tree ratio in the forest composition [37]. To quantify and represent the fuel available for burning in the model, we collected information about total forest stand volume (m3), deciduous tree volume (m3) and stand age (years). These variables were aggregated to the database grid from the Swedish national forest inventory data, representing the state of forests in 2010 [39] at 25 × 25 m2 resolution. Another forest descriptive parameter that was included in the analysis represented forest management intensity. This information was aggregated and extracted from a 100 × 100 m2 global forest management map [40], where intensity is approximated to values from 0 to 1. Moreover, the spatial database contains information about topographic features such as digital elevation model (DEM) maximum, average values, mean slope and mean aspect values, which were calculated from the 25 × 25 m2 resolution Japan Aerospace Exploration Agency (JAXA) space product [41] and averaged to 1 × 1 km2 pixels. These topographic features have an important effect on vegetation type and moisture content [42]. For example, fire can spread faster on upward slopes, where vegetation gets more preheated during wildfire [43]. The population and road densities are important factors related to forest fire occurrence and suppression [44,45]. We made use of municipality level population density from the 1 × 1 km2 resolution NASA dataset, representing the year 2015 [46]. Road density was obtained from the Open-street map database [47]. The road vector layer was rasterized to 20 × 20 m2, and sums of road pixels for each 1 × 1 km2 grid cell were used as indicator of road density. The forest fire ignition, suppression and isolation are also dependent on waterbody presence in the landscape. We used the CORINE land cover dataset to calculate waterbody ratio (between 0 and 1), representing water coverage in each 1 × 1 km2 grid cell [48]. During 2006–2010, 80% of forest fires with a known source in northern Europe were started by humans [49]. For this reason, we generated the shelter and bonfire place density layer, which was based on voluntary mapped locations [50], as a proxy to possible ignitions related to irresponsible handling of fire during recreational activities in nature. As Sweden has a significant latitudinal gradient (Figure 1), we used each pixel center latitude coordinate as one of the explanatory variables, thereby summarizing weather and socioeconomic patterns, varying along the north–south latitude. A summary of all variables is provided in Table 1.

2.3. Model Setup

In this study we developed a random forest fire occurrence model based on multiple weather, landscape and anthropogenic factors. Random forest is a widely used method for wildfire modeling that has been applied to various regions of the world, e.g., Europe [52], China [53], Canada [54] and the US [55]. The random forest algorithm is a multipurpose regression and classification method which was introduced in 2001 by Breiman [56].
The algorithm builds the decision trees using data subsets and assesses their outputs [27]. The modeling database was divided into six parts according to the vegetation zones (Figure 1) and the model was applied individually in each zone to better understand the factor importance differences across Sweden, as well as reduce the model computation time.
The random forest model was built using the R package caret [57] and it was set up ignoring any collinearity relationships between the variables, meaning that all fifteen fire predictors were considered. Each zone had calibration and validation datasets with 70% and 30% of randomly selected rows, respectively. Every model was tuned using four options to define the most appropriate number of variables (mtry 2, 4, 8, 15) at each of the random forest splits. In all zones, we used mtry value 8 because it produced the highest accuracy. Another parameter which influences the model accuracy is number of trees (ntree); for our models, ntree was 70 and it was the same in all the zones and mtry trials. The model was validated using three cross-validation rounds.

3. Results

Our analysis shows a seasonal pattern of forest fires in Sweden, with the majority of events taking place from May to September (Figure 3), when most of the recorded burned pixels correspond to historical Fine Fuel Moisture Code (FFMC) values between 80 and 85. The Fine Fuel Moisture Code is a quantification of moisture content of dead fuel components and other litter. This value indicates the relative ignition and potential flammability of fine fuels [58]. At the same time, in spring and early autumn FFMC values are below 80, which is explained by high precipitation during these months (Figure 3a). Zones 3 and 4 contained the largest burned areas over the study period, which could result from favorable fuel and fire propagation conditions and lower suppression efficiency. While zones 1 and 2 are densely populated with intensive agriculture management, the northern zones (5 and 6) have sparse population with limited fuel potential, especially in the mountainous areas (Figure 1 and Figure 3b).
Due to Sweden’s geographical diversity, the fire dynamics in Sweden vary between six biogeographical zones. Therefore, the model was applied to each zone separately. Observed burned areas were well captured by the model, providing useful information about the distribution of fire risk across Sweden (Figure 3). Its performance was determined using the Area Under the Curve (AUC) method and approach, a commonly used approach for classification model evaluation [33,34]. The model prediction accuracy was tested using validation datasets and all the data (validation and calibration). Model accuracy differed across the zones, but in all six vegetation areas validation datasets produced a prediction accuracy above 85%. Moreover, when all information was taken into consideration, AUC was at least 95% (Table 2).
The fire prediction results were visualized in Google Earth Engine Application (Figure 4). This application gives an opportunity to explore the study site and use the intuitive Google Maps interface and layer comparison tools to visually assess the model performance with the reference burned area (MODIS). Maps with forest fire predictions show model capabilities to distinguish the main fire areas in the northern part of Sweden (Figure 4). Predictions match with the MODIS data, having some scattered overestimated probability around the reference fire pixels.
Modeling outcomes were evaluated using confusion matrix-based threshold analysis. We produced an equal-size interval thresholds from 0.1 to 0.5 with a step of 0.1 to better understand the sensitivity and specificity tradeoff concept of probability classification (Figure 5). Despite the relevant differences in terms of the vegetation zone sizes and fire frequencies, the results reveal a consistent and general trend where increased classification threshold values have a positive relation with false negative results, but true positive and false positive values decrease with increasing threshold values. Threshold levels should be determined considering the rationale of the decision-makers by providing risks that come with the commission and omission error occurrence. These trendlines provide useful information to consider the tradeoffs that come with the classification tasks.

Analysis of Importance of Random Forest Factors

Feature importance analysis and their variability across Sweden provide valuable information to better understand and evaluate factors behind forest fires. Each factor has a different impact on forest fires in each vegetation zone; therefore, we prepared a summary with the variable explanatory value and its corresponding importance rank (Table 3). Latitude and FFMC values were the dominant explanatory variables in all six vegetation zones, except zone 1 where FFMC ranked 9th in terms of importance. We averaged the variable importance metric in all six zones. This measure reports the Mean Square Error percentage increase (%IncMSE) if a certain variable is excluded from a set of predictors—the greater the %IncMSE value, the higher the contribution of the variable to the model’s prediction. FFMC and Latitude were the most powerful drivers for the prediction model, having average importance values of 78.2 and 86.0, respectively. Lightning strikes, another weather-related variable, only ranked at the 11th position overall, with an average %IncMSE of 12%. Socio-economic components such as population and road densities could be considered as the second most important category related to forest fire occurrence in the Swedish landscape. Population density had an average ranking of 5.2 and 46.4%IncMSE. One of the predictors—the number of campsites in each of the spatial database grid cells—was expected to contribute to more advanced quantification of possible threats associated with recreation, with an assumption that recreational activities contribute to irresponsible fire use. Nonetheless, this explanatory variable had the least meaningful effect in this study (see Table 3), not supporting our hypothesis. Topographic features, such as mean elevation value, slope and aspect, provided meaningful impacts on the model performance across the study area. Aspect, with a mean importance position of 9.8 and %IncMSE of 20.6%, was the least important topographic feature. In direct contrast is the most important topographical feature, average pixel elevation value (DEM avg), with a mean position of 5.7 and %IncMSE of 35.2%. Forest stand properties were expected to be an important variable to describe the potentially flammable environment; however, forest-linked characteristics such as stand volume, deciduous stand, stand age and management intensity in general had the least influence on predictions. Two of the most important forest characteristics in this model were forest stand volume and forest management information. Forest stand data exclusion from the model resulted in an average prediction MSE drop of 30.6%, whereas forest management exclusion produced a 24.2% drop (Table 3).

4. Discussion

The strong influence of FFMC on fire probability values means that climate change will most likely affect the fire season by prolonging it in the spring and autumn directions. Venäläinen and Aalto [59] published extensive research about the effects of climate change and forest management on forest fire occurrence in Fennoscandia. They stressed the uncertainty that comes with long-term projections and concluded that high fire seasons in Sweden will remain occasional. Climate change might influence forest conditions, which would likely impact fire occurrence. New climatic conditions could realistically increase the drought-, tree uprooting-, bark beetle- and deadwood-related fire risks.
Numerous scientists have concluded that fire occurrence is dependent on population [60] and road densities [11], but density increment can result in mixed effects [22]. More inhabitants and increased accessibility might result in increasing recreational activities, sometimes leading to irresponsible attitudes with fire. Knorr et al. [61] reported that fire occurrence has a positive correlation with population density only when it ranges from 0 to 0.1 people/km2. Increased population density usually comes with improved infrastructure which increases the forest management intensity and quality, raises people’s awareness about the processes in the forest and considerably improves fire suppression activities in case of raging fire. One of the predictors in our random forest model was the presence of campsites, but this variable had the smallest explanatory power with the lowest average rank and %IncMSE value. This could be explained by non-existing relationship or randomness, but on the other hand, forests next to the campsites could be more intensively managed, thereby reducing fuel availability and ignition potential.
Scientists in Finland [59] and Austria [62] proposed that 10% and 15%, respectively, of all fires are started by lightning strikes. Similarly, our study indicates the importance of lightning, although it is hard to compare our results with previous studies, because our study indicates general lightning importance in each of the random forest models. Here, we note that monthly dynamics of lightning strikes across Sweden (see Figure A1) shows a positive correlation with extreme burned areas in 2014 and 2018, peaking in July. Research focused on lightning ignitions would require analysis at a daily time step.
Forest operation, i.e., harvesting and site preparation, leads to an additional risk for fire ignition and propagation in the Swedish forests. The Västmanland fire in 2014 was caused by rocky soil preparation using heavy mechanical machinery. These soil precautions sometimes take place soon after the clear cut when felling leftovers and tree debris might lose their moisture content and become a potentially highly flammable material [59]. The study explanatory variable list could be extended with the latest forest activity type and data, which in combination with forest soil or geology information might be an interesting asset, because the combination of site condition and management activities might explain fire occurrence patterns in Sweden. A limiting factor for historical fire data analysis is the consistency of the data collection methodology. Harmonized data is a key aspect to avoid misrepresented conclusions and biased decisions.
High variability in explanatory variables and a large dataset size have led to extensive computation times and required the usage of high-performance hardware. Therefore, optimization of algorithms, perhaps using cloud computing, would be important for future research. Future research could provide worthy additions if we could evaluate how accurate a model would perform if only one country-wise model were calibrated to predict fire occurrence. Fire model performance might get worse if we tested how the model would predict the fire occurrence using years outside the calibration time range (2011–2018). Another investigation could be to test the performance of the model when using separate fire event datasets for the validation and calibration pixels. The performed analysis contributes to the implementation of additional fire-related factors in process-based models, e.g., FLAM [20], to optimize conditional probabilities of ignition, suppression, and fire spread. This helps to capture the spatial and intertemporal variability of areas burned [19].
There are several policy implications of our results. First, the hot-spot mapping could be an important tool for identification of areas which are potentially vulnerable to forest fires. This could help policy makers in their management decisions, e.g., increasing suppression efficiency by optimizing infrastructure and logistics of fire fighters, or preventing fires by putting warning signs in the forest areas. Second, the threshold analysis presented in Figure 5 allows policy makers to consider the trade-offs between false alarms and missed forest fires due to no alarm. Policy makers could consider costs associated with these alternatives and adjust threshold values accordingly. Finally, our results show that climate is one of the main drivers of forest fires in Sweden. Therefore, policy makers at a global scale are recommended to integrate climate change mitigation with guided development.

5. Conclusions

This study was developed to understand the weather, topographic, forest stand, socioeconomic and weather factor interlinkages, and the ability to predict historically burned areas using a random forest model. Our study demonstrates fire hotspot mapping at a high resolution. Furthermore, it provides an advanced methodology for using fifteen openly available data sources to achieve high model accuracy in each of the six vegetation zones in Sweden. The Area Under the Curve (AUC) values changed from zone to zone, not undercutting a value of 0.875. The modeled fire probabilities were evaluated using thresholds, thereby producing more information on tradeoffs between the classification’s specificity and sensitivity concepts. This provides policy makers the opportunity to improve decision making over missed fire detection and false alerts. The Fine Fuel Moisture Code (FFMC) and latitudinal pixel value have been identified as the main driving forces for forest fires in all vegetation zones. This research provides additional contributions to the existing forest fire knowledge about the situation in boreal forests of Northern Europe. Finally, our results support international analyses that, irrespective of changes in management, it is evident that climate change is very likely to increase the frequency and impact of wildland fires in the coming decades, also in Scandinavia.

Author Contributions

Conceptualization, R.C. and A.K.; methodology, R.C. and A.K.; software, R.C.; validation, R.C., A.K. and F.K.; formal analysis, R.C.; investigation, R.C.; resources, R.C. and A.K.; data curation, R.C. and A.K.; writing—original draft preparation, R.C., A.K. and F.K.; writing—review and editing, R.C., A.K. and F.K.; visualization, R.C.; supervision, A.K. and F.K.; project administration, R.C., A.K. and F.K.; funding acquisition, A.K. and F.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Short-Term Scientific Mission (STSM) of the COST Action (grant no. CA18135) “Fire in the Earth System: Science & Society” (FireLinks), supported by COST (European Cooperation in Science and Technology). This research was funded by the project "Integrated Future Wildfire Hot Spot Mapping for Austria (Austria Fire Futures)" number C265157, funded by the Climate and Energy Fund and carried out within the framework of the Austrian Climate Research Program (ACRP).

Data Availability Statement

Visualization of modeling results is available at: https://reiniscimdins.users.earthengine.app/view/swedenmaps (accessed on 10 October 2022).

Acknowledgments

The study was developed during Erasmus Mundus Joint Master’s Degree Program (EMJMD)-European Forestry (MSc EF) summer internship 2021 which was hosted by the International Institute for Applied Systems Analysis (IIASA). A preliminary draft of this study has greatly benefited from expert feedback at the Third International Conference on Fire Behavior and Risk [63]. We are grateful to colleague Shelby Corning for proofreading (written) assistance. Furthermore, we would like to acknowledge the International Boreal Forest Research Association (IBFRA, www.ibfra.org (accessed on 10 October 2022)).

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

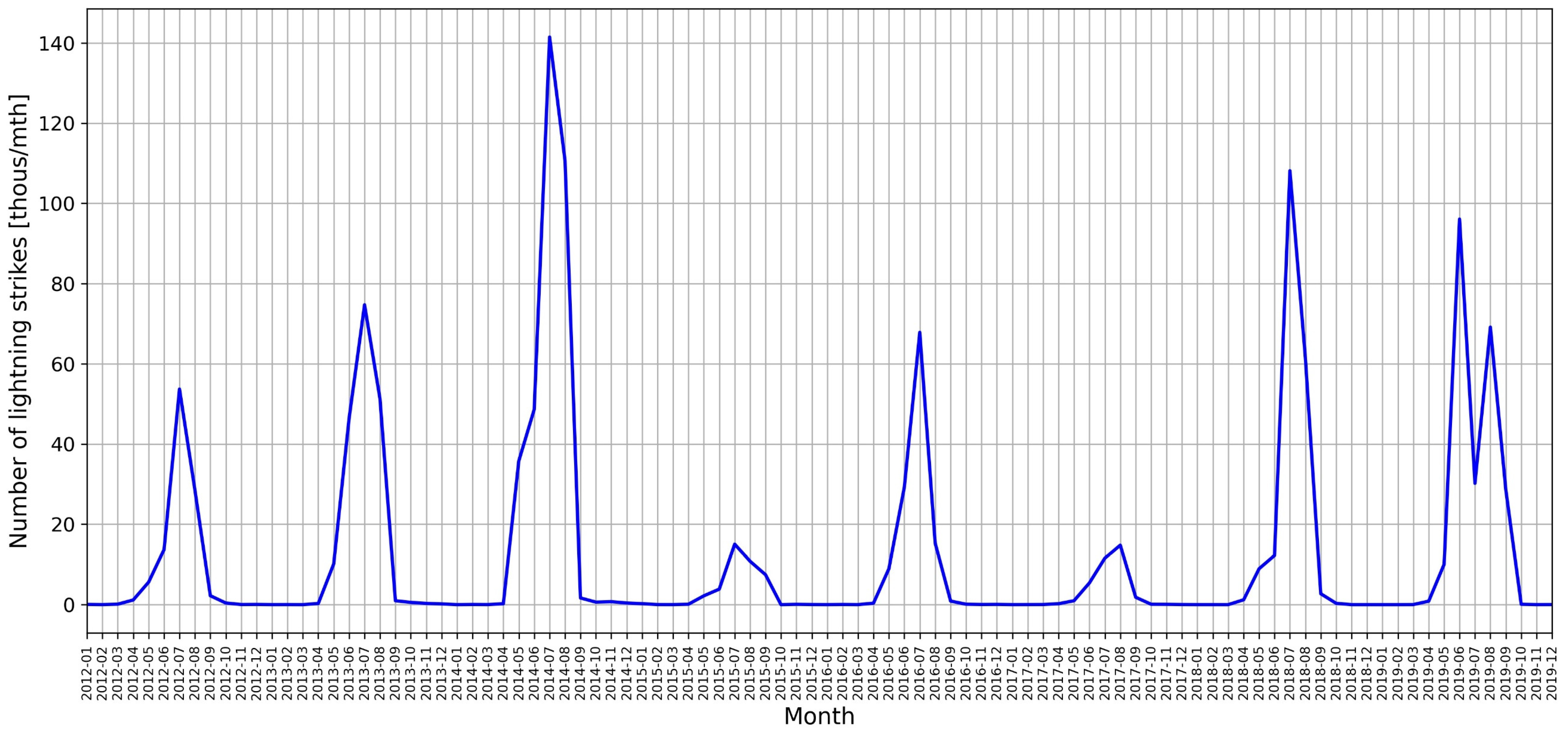

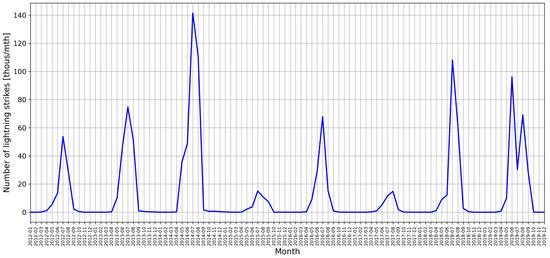

Figure A1. Monthly lightning strikes over Sweden between 2012 and 2019.
Figure A1. Monthly lightning strikes over Sweden between 2012 and 2019.
Remotesensing 14 05826 g0a1

References

  1. Bowman, D.M.; Balch, J.K.; Artaxo, P.; Bond, W.J.; Carlson, J.M.; Cochrane, M.A.; D’Antonio, C.M.; DeFries, R.S.; Doyle, J.C.; Harrison, S.P.; et al. Fire in the Earth system. Science 2009, 324, 481–484. [Google Scholar] [CrossRef] [PubMed]
  2. Doerr, S.H.; Santín, C. Global trends in wildfire and its impacts: Perceptions versus realities in a changing world. Philos. Trans. R. Soc. B Biol. Sci. 2016, 371, 1696. [Google Scholar] [CrossRef] [PubMed]
  3. Robinne, F.N.; Burns, J.; Kant, P.; Flannigan, M.; Kleine, M.; de Groot, B.; Wotton, D.M. Global Fire Challenges in a Warming World Summary Note of a Global Expert Workshop on Fire and Climate Change; Occasional Paper No. 32; IUFRO: Vienna, Austria, 2018. [Google Scholar]
  4. Sullivan, A.; Baker, E.; Kurvits, T. Spreading Like Wildfire: The Rising Threat of Extraordinary Landscape Fires; A UNEP Rapid Response Assessment: Nairobi, Kenya, 2022. [Google Scholar]
  5. Pausas, J.G.; Keeley, J.E. Wildfires as an ecosystem service. Front. Ecol. Environ. 2019, 17, 289–295. [Google Scholar] [CrossRef]
  6. Flannigan, M.; Cantin, A.S.; de Groot, W.J.; Wotton, M.; Newbery, A.; Gowman, L.M. Global wildland fire season severity in the 21st century. For. Ecol. Manag. 2013, 294, 54–61. [Google Scholar] [CrossRef]
  7. Jolly, W.M.; Cochrane, M.A.; Freeborn, P.H.; Holden, Z.A.; Brown, T.J.; Williamson, G.J.; Bowman, D.M.J.S. Climate-induced variations in global wildfire danger from 1979 to 2013. Nat. Commun. 2015, 6, 7537. [Google Scholar] [CrossRef] [PubMed]
  8. Holden, Z.A.; Swanson, A.; Luce, C.H.; Jolly, W.M.; Maneta, M.; Oyler, J.W.; Warren, D.A.; Parsons, R.; Affleck, D. Decreasing fire season precipitation increased recent western US forest wildfire activity. Proc. Natl. Acad. Sci. USA 2018, 115, E8349–E8357. [Google Scholar] [CrossRef] [PubMed]
  9. Andela, N.; Morton, D.C.; Giglio, L.; Chen, Y.; van der Werf, G.R.; Kasibhatla, P.S.; DeFries, R.S.; Collatz, G.J.; Hantson, S.; Kloster, S.; et al. A human-driven decline in global burned area. Science 2017, 356, 1356–1362. [Google Scholar] [CrossRef]
  10. San-Miguel-Ayanz, J.; Moreno, J.M.; Camia, A. Analysis of large fires in European Mediterranean landscapes: Lessons learned and perspectives. For. Ecol. Manag. 2013, 294, 11–22. [Google Scholar] [CrossRef]
  11. Fernandez-Anez, N.; Krasovskiy, A.; Müller, M.; Vacik, H.; Baetens, J.; Hukić, E.; Solomun, M.K.; Atanassova, I.; Glushkova, M.; Bogunović, I.; et al. Current Wildland Fire Patterns and Challenges in Europe: A Synthesis of National Perspectives. Air Soil Water Res. 2021, 14, 11786221211028185. [Google Scholar] [CrossRef]
  12. Migliavacca, M.; Dosio, A.; Camia, A.; Hobourg, R.; Houston-Durrant, T.; Kaiser, J.W.; Khabarov, N.; Krasovskii, A.A.; Marcolla, B.; Miguel-Ayanz, J.S.; et al. Modeling biomass burning and related carbon emissions during the 21st century in Europe. J. Geophys. Res. Biogeosci. 2013, 118, 1732–1747. [Google Scholar] [CrossRef]
  13. Khabarov, N.; Krasovskii, A.; Obersteiner, M.; Swart, R.; Dosio, A.; San-Miguel-Ayanz, J.; Durrant, T.; Camia, A.; Migliavacca, M. Forest fires and adaptation options in Europe. Reg. Environ. Chang. 2014, 16, 21–30. [Google Scholar] [CrossRef]
  14. Romeiro, J.M.N.; Eid, T.; Antón-Fernández, C.; Kangas, A.; Trømborg, E. Natural disturbances risks in European Boreal and Temperate forests and their links to climate change—A review of modelling approaches. For. Ecol. Manag. 2022, 509, 120071. [Google Scholar] [CrossRef]
  15. Lidskog, R.; Johansson, J.; Sjödin, D. Wildfires, responsibility and trust: Public understanding of Sweden’s largest wildfire. Scand. J. For. Res. 2019, 34, 319–328. [Google Scholar] [CrossRef]
  16. Tornevi, A.; Andersson, C.; Carvalho, A.; Langner, J.; Stenfors, N.; Forsberg, B. Respiratory Health Effects of Wildfire Smoke during Summer of 2018 in the Jämtland Härjedalen Region, Sweden. Int. J. Environ. Res. Public Health 2021, 18, 6987. [Google Scholar] [CrossRef]
  17. Hantson, S.; Kelley, D.I.; Arneth, A.; Harrison, S.P.; Archibald, S.; Bachelet, D.; Forrest, M.; Hickler, T.; Lasslop, G.; Li, F.; et al. Quantitative assessment of fire and vegetation properties in simulations with fire-enabled vegetation models from the Fire Model Intercomparison Project. Geosci. Model Dev. 2020, 13, 3299–3318. [Google Scholar] [CrossRef]
  18. Hantson, S.; Arneth, A.; Harrison, S.P.; Kelley, D.I.; Prentice, I.C.; Rabin, S.S.; Archibald, S.; Mouillot, F.; Arnold, S.R.; Artaxo, P.; et al. The status and challenge of global fire modelling. Biogeosciences 2016, 13, 3359–3375. [Google Scholar] [CrossRef]
  19. Krasovskii, A.; Khabarov, N.; Migliavacca, M.; Kraxner, F.; Obersteiner, M. Regional aspects of modelling burned areas in Europe. Int. J. Wildland Fire 2016, 25, 811. [Google Scholar] [CrossRef]
  20. Krasovskii, A.; Khabarov, N.; Pirker, J.; Kraxner, F.; Yowargana, P.; Schepaschenko, D.; Obersteiner, M. Modeling Burned Areas in Indonesia: The FLAM Approach. Forests 2018, 9, 437. [Google Scholar] [CrossRef]
  21. Galizia, L.F.; Curt, T.; Barbero, R.; Rodrigues, M. Understanding fire regimes in Europe. Int. J. Wildland Fire 2022, 31, 56. [Google Scholar] [CrossRef]
  22. Pinto, G.; Rousseu, F.; Niklasson, M.; Drobyshev, I. Effects of human-related and biotic landscape features on the occurrence and size of modern forest fires in Sweden. Agric. For. Meteorol. 2020, 291, 108084. [Google Scholar] [CrossRef]
  23. Jain, P.; Coogan, S.C.P.; Subramanian, S.G.; Crowley, M.; Taylor, S.W.; Flannigan, M.D. A review of machine learning applications in wildfire science and management. Environ. Rev. 2020, 28, 478–505. [Google Scholar] [CrossRef]
  24. Drobyshev, I.; Niklasson, M.; Linderholm, H.W. Forest fire activity in Sweden: Climatic controls and geographical patterns in 20th century. Agric. For. Meteorol. 2012, 154–155, 174–186. [Google Scholar] [CrossRef]
  25. Van Wagner, C.E.; Pickett, T.L. Equation and FORTRAN Program for the Canadian Forest Fire Weather Index System; The Canadian Forestry Service: Ottawa, ON, Canada, 1985. [Google Scholar]
  26. Lawson, B.D.; Armitage, O.B. Weather Guide for the Canadian Forest Fire Danger Rating System; Canadian Forest Service: Edmonton, AB, Canada, 2008. [Google Scholar]
  27. Biau, G.; Scornet, E. A random forest guided tour. TEST 2016, 25, 197–227. [Google Scholar] [CrossRef]
  28. Pettinari, M.L.; Lizundia-Loiola, J.; Chuvieco, E. ESA CCI ECV Fire Disturbance: D4. 2 Product User Guide-MODIS, version 1.0; European Space Agency: Didcot, UK, 2020.
  29. Elia, M.; D’Este, M.; Ascoli, D.; Giannico, V.; Spano, G.; Ganga, A.; Colangelo, G.; Lafortezza, R.; Sanesi, G. Estimating the probability of wildfire occurrence in Mediterranean landscapes using Artificial Neural Networks. Environ. Impact Assess. Rev. 2020, 85, 106474. [Google Scholar] [CrossRef]
  30. Nunes, A.N. Regional variability and driving forces behind forest fires in Portugal an overview of the last three decades (1980–2009). Appl. Geogr. 2012, 34, 576–586. [Google Scholar] [CrossRef]
  31. Mcgrath, M.; Ganzenmüller, R.; Balkovic, J.; Walther, S.; Kuhnert, M.; Vizzarri, M.; Schelhaas, M.J.; Schepaschenko, D.; Krasovskii, A.; Nabuurs, G.J.; et al. VERIFY Observation-Based System for Monitoring and Verification of Greenhouse Gases GA Number 776810, RIA Deliverable Number (Relative in WP) D3.5 Deliverable Name: Second Bottom-up Model Simulations. 2021. Available online: https://verifydb.lsce.ipsl.fr/thredds/catalog/verify/WP3/catalog.html (accessed on 10 July 2021).
  32. Chuvieco, E.; Pettinari, M.L.; Lizundia-Loiola, J.; Storm, T.; Padilla Parellada, M. ESA Fire Climate Change Initiative (Fire_cci): MODIS Fire_cci Burned Area Pixel Product. version 5.1. Centre for Environmental Data Analysis: Didcot, UK, 2018. [Google Scholar] [CrossRef]
  33. Pourtaghi, Z.S.; Pourghasemi, H.R.; Aretano, R.; Semeraro, T. Investigation of general indicators influencing on forest fire and its susceptibility modeling using different data mining techniques. Ecol. Indic. 2016, 64, 72–84. [Google Scholar] [CrossRef]
  34. Milanović, S.; Marković, N.; Pamučar, D.; Gigović, L.; Kostić, P.; Milanović, S. Forest Fire Probability Mapping in Eastern Serbia: Logistic Regression versus Random Forest Method. Forests 2020, 12, 5. [Google Scholar] [CrossRef]
  35. European Commission; Gazzard, R.; Müller, M.; Sciunnach, R.; Pecl, J.; Konstantinov, V.; Sbirnea, R.; Cruz, M.; Chassagne, F.; Nugent, C.; et al. Forest Fires in Europe, Middle East and North Africa 2018; Joint Research Centre: Ispra, Italy, 2019. [Google Scholar]
  36. MSB. Fires in Forest or Land. 2022. Available online: https://ida.msb.se/ida2#page=3b3f50b4-48d8-44da-aba5-b91136ceb57b (accessed on 10 July 2021).
  37. Thompson, M.P.; MacGregor, D.G.; Dunn, C.J.; Calkin, D.E.; Phipps, J. Rethinking the Wildland Fire Management System. J. For. 2018, 116, 382–390. [Google Scholar] [CrossRef]
  38. Defourny, P.; Lamarche, C.; Bontemps, S.; De Maet, T.; Van Bogaert, E.; Moreau, I.; Brockmann, C.; Boettcher, M.; Kirches, G.; Wevers, J.; et al. Land Cover CCI Product User Guide Version 2.0. Louvain-la-Neuve, Belgium. Tech. Rep. 2017. [Google Scholar]
  39. Dept. of Forest Resource Management. SLU Forest Map; Swedish University of Agricultural Sciences: Uppsala, Sweden, 2010. [Google Scholar]
  40. Lesiv, M.; Schepaschenko, D.; Buchhorn, M.; See, L.; Dürauer, M.; Georgieva, I.; Jung, M.; Hofhansl, F.; Schulze, K.; Bilous, A.; et al. Global forest management data for 2015 at a 100 m resolution. Sci. Data 2022, 9, 1–14. [Google Scholar] [CrossRef]
  41. Tadono, T.; Ishida, H.; Oda, F.; Naito, S.; Minakawa, K.; Iwamoto, H. Precise Global DEM Generation by ALOS PRISM. ISPRS Ann. Photogramm. Remote Sens. Spat. Inf. Sci. 2014, II-4, 71–76. [Google Scholar] [CrossRef]
  42. Estes, B.L.; Knapp, E.E.; Skinner, C.N.; Miller, J.D.; Preisler, H.K. Factors influencing fire severity under moderate burning conditions in the Klamath Mountains, northern California, USA. Ecosphere 2017, 8, e01794. [Google Scholar] [CrossRef]
  43. Mangiameli, M.; Mussumeci, G.; Cappello, A. Forest Fire Spreading Using Free and Open-Source GIS Technologies. Geomatics 2021, 1, 50–64. [Google Scholar] [CrossRef]
  44. Arora, V.K.; Melton, J.R. Reduction in global area burned and wildfire emissions since 1930s enhances carbon uptake by land. Nat. Commun. 2018, 9, 1326. [Google Scholar] [CrossRef] [PubMed]
  45. Mohammadi, Z.; Lohmander, P.; Kašpar, J.; Marušák, R. The Effect of Road Networks on the Forest Wildfires’ Size. Available online: https://presentations.copernicus.org/EGU21/EGU21-12000_presentation.pdf (accessed on 3 November 2022).
  46. Center for International Earth Science Information Network—CIESIN—Columbia University. Gridded Population of the World (GPW), v4; NASA Socioeconomic Data and Applications Center (SEDAC): New York, NY, USA, 2018.
  47. OpenStreetMap Contributors. Planet Dump. 2015. Available online: https://planet.openstreetmap.org (accessed on 8 June 2020).
  48. European Environment Agency (EEA). Corine Land Cover (CLC) 2018, Version 2020_20u1; EEA: Copenhagen, Denmark, 2020.
  49. Ganteaume, A.; Camia, A.; Jappiot, M.; San-Miguel-Ayanz, J.; Long-Fournel, M.; Lampin, C. A Review of the Main Driving Factors of Forest Fire Ignition Over Europe. Environ. Manag. 2012, 51, 651–662. [Google Scholar] [CrossRef]
  50. Vindskyddskartan. The App Vindskyddskartan (Shelter Map); Sweden. 2020. Available online: https://vindskyddskartan.se/en/app (accessed on 20 October 2022).
  51. Swedish Meteorological and Hydrological Institute. Lightning Charges Per Day (SMHI). 2021. Available online: https://www.smhi.se/data/meteorologi/aska/blixt-dygn/ (accessed on 20 October 2022).
  52. Oliveira, S.; Oehler, F.; San-Miguel-Ayanz, J.; Camia, A.; Pereira, J.M. Modeling spatial patterns of fire occurrence in Mediterranean Europe using Multiple Regression and Random Forest. For. Ecol. Manag. 2012, 275, 117–129. [Google Scholar] [CrossRef]
  53. Ma, W.; Feng, Z.; Cheng, Z.; Chen, S.; Wang, F. Identifying Forest Fire Driving Factors and Related Impacts in China Using Random Forest Algorithm. Forests 2020, 11, 507. [Google Scholar] [CrossRef]
  54. Boulanger, Y.; Parisien, M.-A.; Wang, X. Model-specification uncertainty in future area burned by wildfires in Canada. Int. J. Wildland Fire 2018, 27, 164. [Google Scholar] [CrossRef]
  55. Malik, A.; Rao, M.R.; Puppala, N.; Koouri, P.; Thota, V.A.K.; Liu, Q.; Chiao, S.; Gao, J. Data-Driven Wildfire Risk Prediction in Northern California. Atmosphere 2021, 12, 109. [Google Scholar] [CrossRef]
  56. Breiman, L. Random forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef]
  57. Kuhn, M.; Wing, J.; Weston, S.; Williams, A.; Keefer, C.; Engelhardt, A.; Cooper, T.; Mayer, Z.; Kenkel, B.; R Core Team. Package ‘caret’. R J. 2020, 223, 7. [Google Scholar]
  58. Amiro, B.D.; Logan, K.A.; Wotton, B.M.; Flannigan, M.; Todd, J.B.; Stocks, B.J.; Martell, D.L. Fire weather index system components for large fires in the Canadian boreal forest. Int. J. Wildland Fire 2004, 13, 391–400. [Google Scholar] [CrossRef]
  59. Venäläinen, A.; Aalto, J. Climate Change and Forest Management Affect Forest Fire Risk in Fennoscandia; Ilmatieteen laitos—Finnish Meteorological Institute: Helsinki, Finland, 2021. [Google Scholar]
  60. Bistinas, I.; Oom, D.; Sá, A.; Harrison, S.; Prentice, I.C.; Pereira, J.M.C. Relationships between Human Population Density and Burned Area at Continental and Global Scales. PLoS ONE 2013, 8, e81188. [Google Scholar] [CrossRef] [PubMed]
  61. Knorr, W.; Kaminski, T.; Arneth, A.; Weber, U. Impact of human population density on fire frequency at the global scale. Biogeosciences 2014, 11, 1085–1102. [Google Scholar] [CrossRef]
  62. Müller, M.M.; Vacik, H.; Diendorfer, G.; Arpaci, A.; Formayer, H.; Gossow, H. Analysis of lightning-induced forest fires in Austria. Arch. Meteorol. Geophys. Bioclimatol. Ser. B 2012, 111, 183–193. [Google Scholar] [CrossRef]
  63. Cimdins, R.; Krasovskiy, A.; Kraxner, F. Regional Variability and Driving Forces behind Forest Fires in Sweden. Environ. Sci. Proc. 2022, 17, 23. [Google Scholar] [CrossRef]

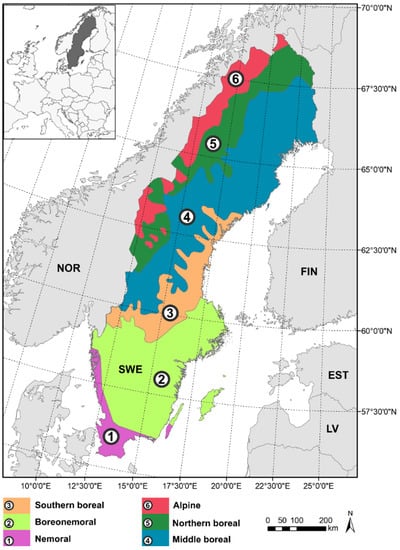

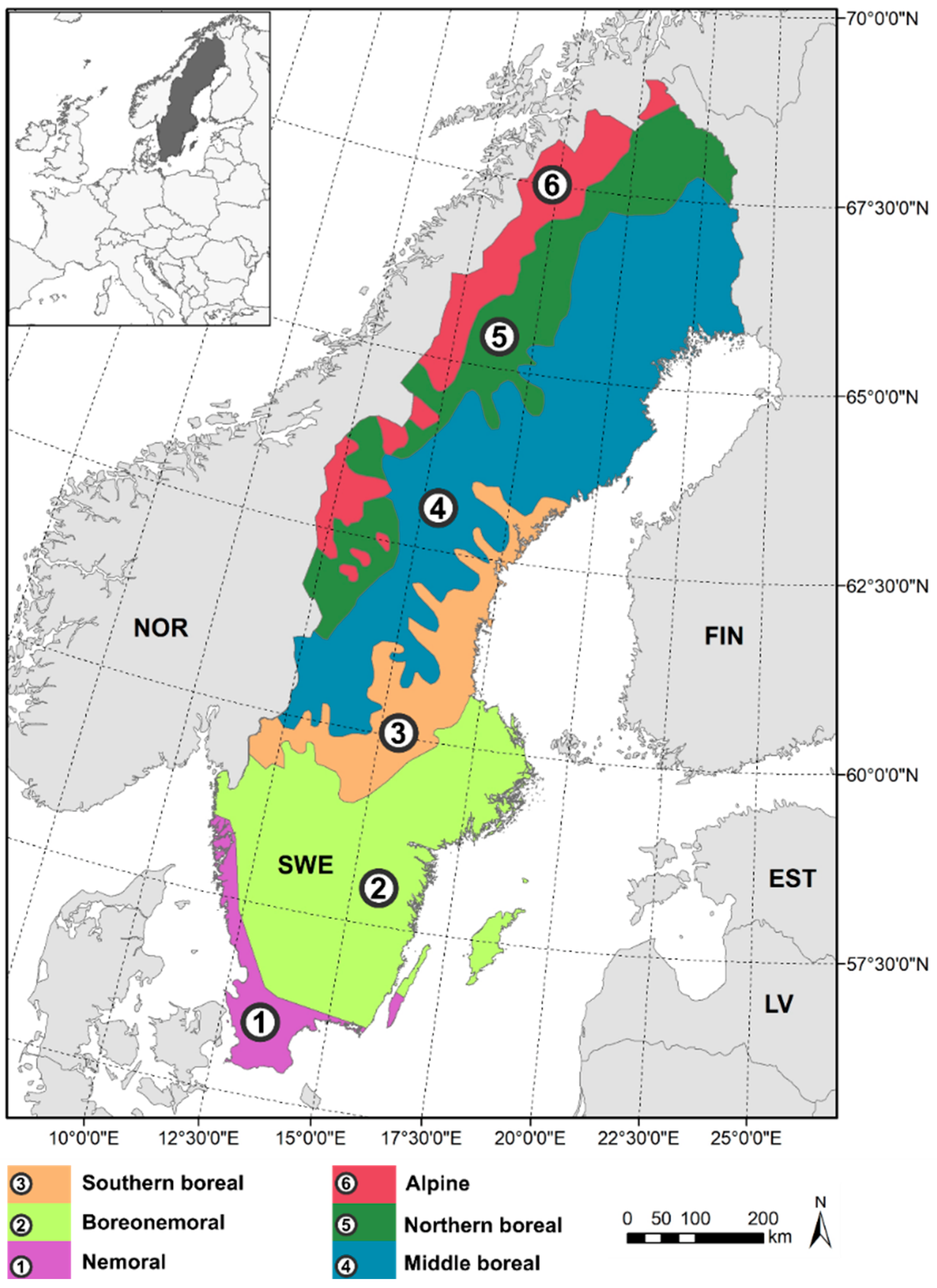

Figure 1. Study area (Sweden) and vegetation zones used for modeling.
Figure 1. Study area (Sweden) and vegetation zones used for modeling.
Remotesensing 14 05826 g001

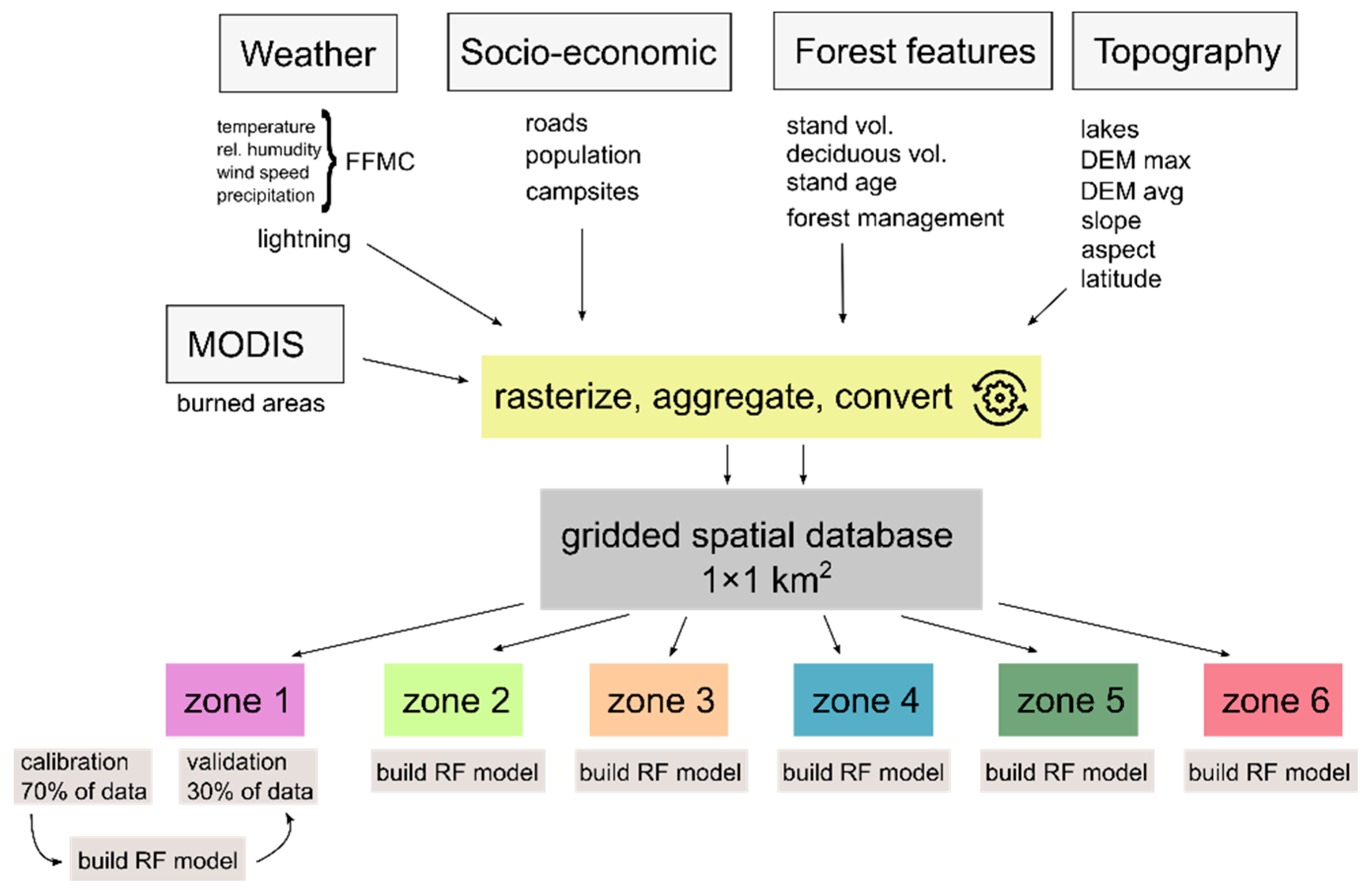

Figure 2. Data processing workflow.
Figure 2. Data processing workflow.
Remotesensing 14 05826 g002

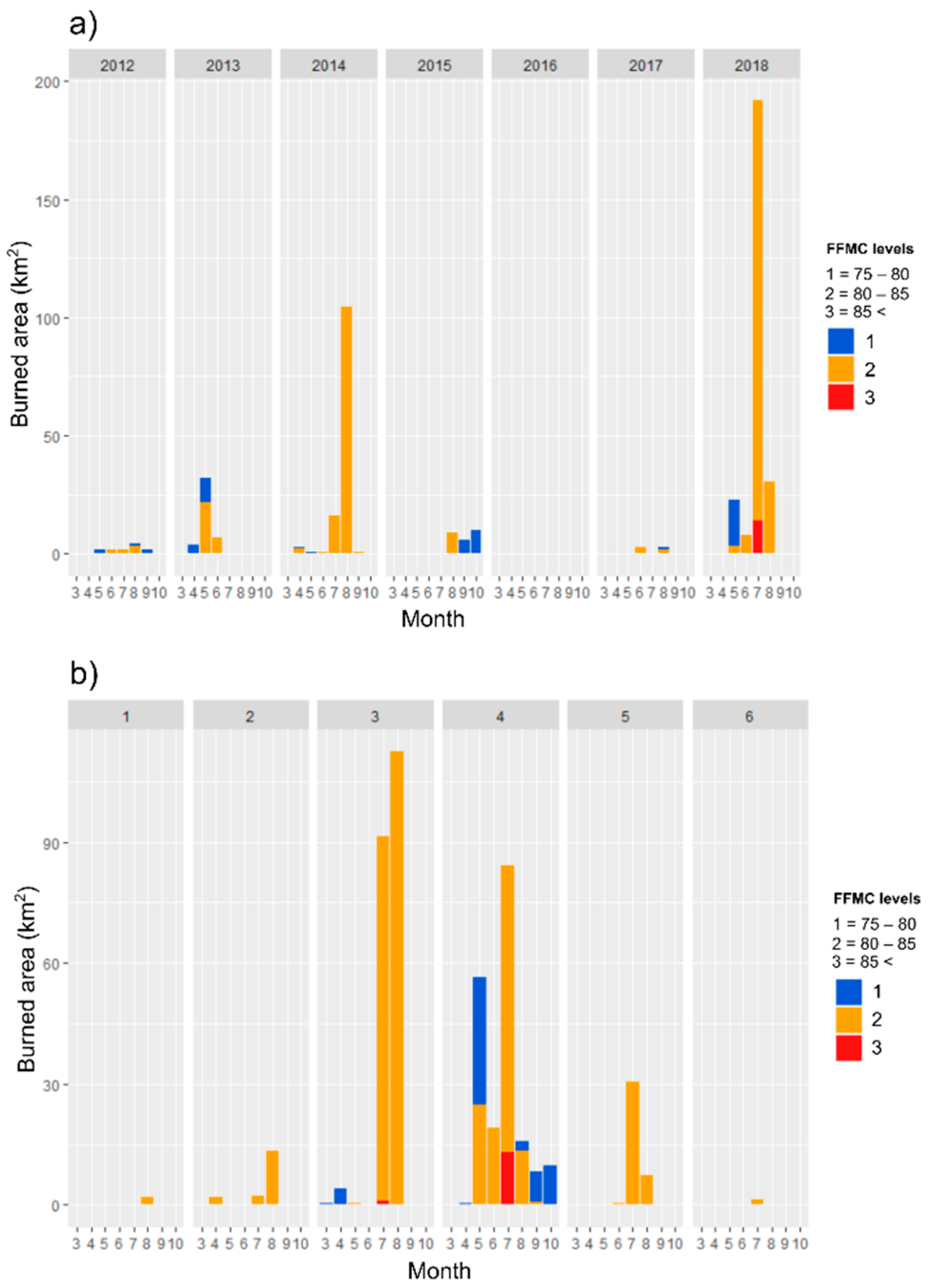

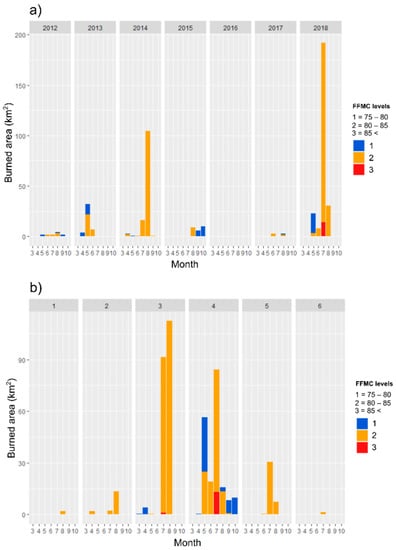

Figure 3. Burned area in Sweden divided by year (a) and vegetation zone (b).
Figure 3. Burned area in Sweden divided by year (a) and vegetation zone (b).
Remotesensing 14 05826 g003

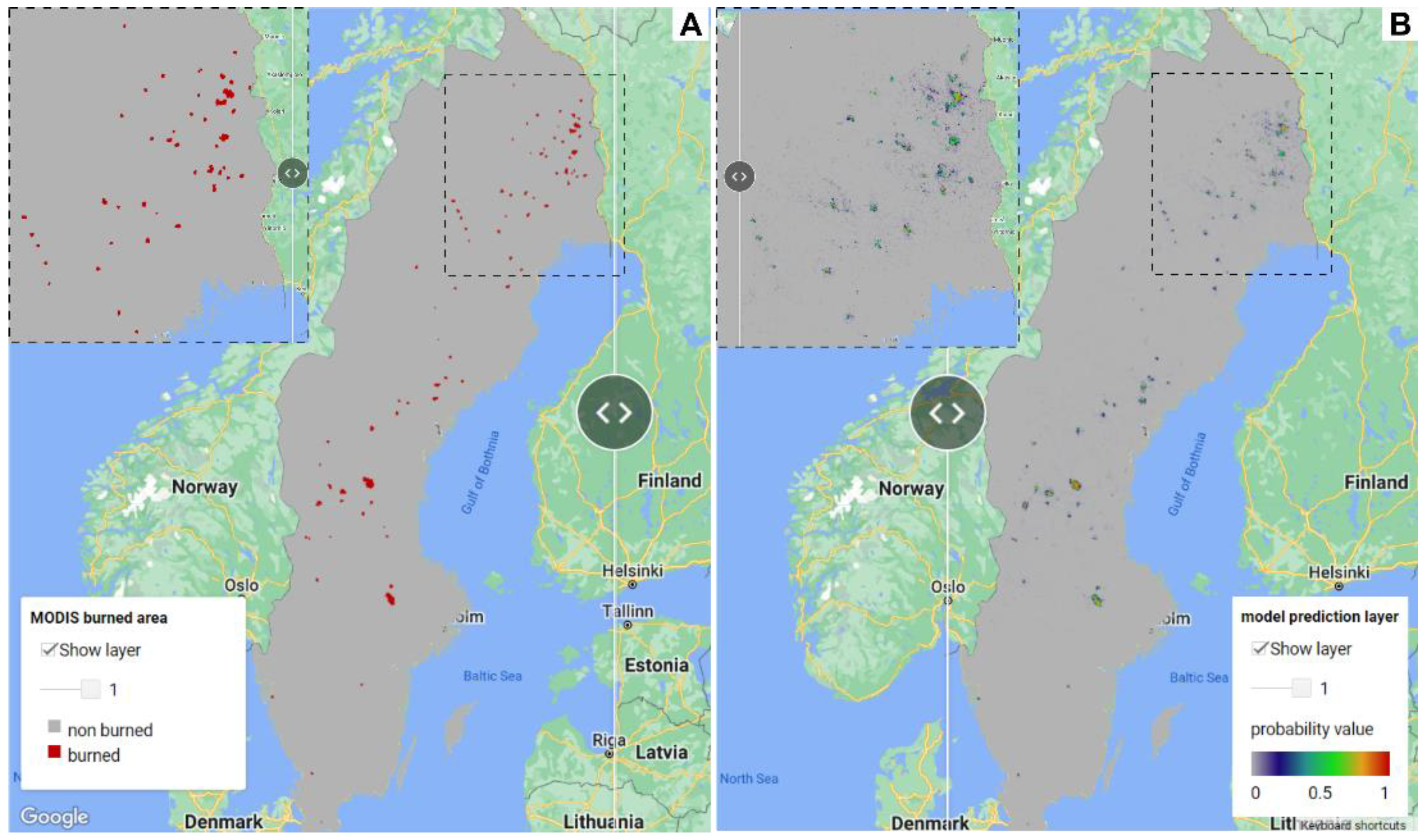

Figure 4. MODIS burned area (A) and random forest probability values (B) from our Google Earth Engine app.
Figure 4. MODIS burned area (A) and random forest probability values (B) from our Google Earth Engine app.
Remotesensing 14 05826 g004

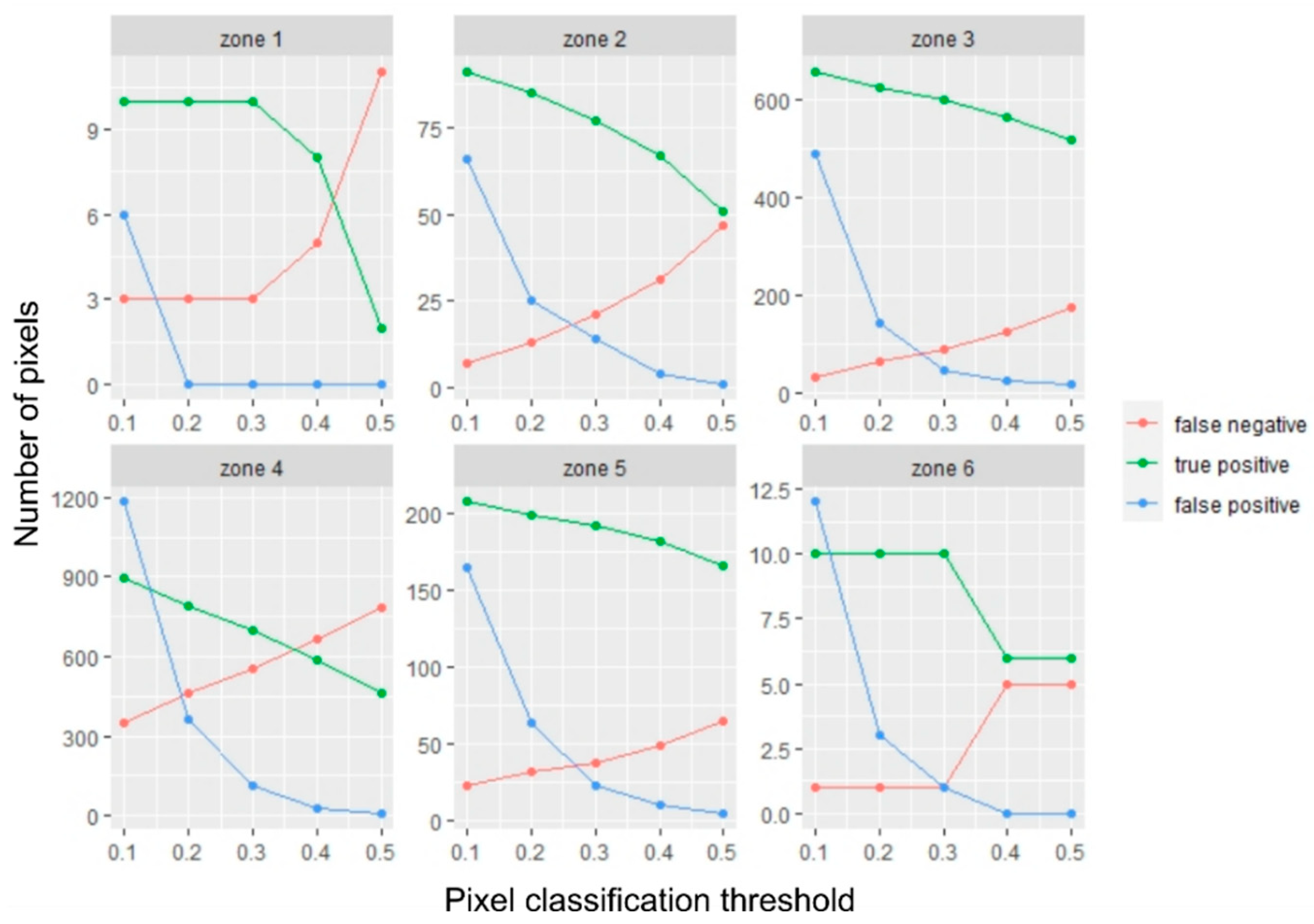

Figure 5. Impacts of the random forest prediction threshold on the sensitivity and specificity results.
Figure 5. Impacts of the random forest prediction threshold on the sensitivity and specificity results.
Remotesensing 14 05826 g005
Table 1. Modeling variable summary.
Table 1. Modeling variable summary.
Nr.VariableTemporal ResolutionOriginal Spatial Resolution, mSource
1Fine Fuel Moisture CodeMonthly1000[31]
2lightningMonthly1000[51]
3MODIS FireCCI_5_1Monthly250[32]
4stand volumeStatic25[39]
5deciduous tree volumeStatic
6stand ageStatic
7forest managementStatic100[40]
8elevation maximumStatic25[41]
9elevation averageStatic
10mean slopeStatic
11mean aspectStatic
12population densityStatic1000[46]
13road densityStaticVector (lines)[47]
14lake densityStatic250[48]
15campsitesStaticVector (points)[50]
Table 2. AUC performance for each zone, considering the validation dataset and all the data.
Table 2. AUC performance for each zone, considering the validation dataset and all the data.
AUC
ValidationAll
Zone 10.8750.961
Zone 20.9990.999
Zone 30.9900.997
Zone 40.9030.951
Zone 50.9500.983
Zone 61.0001.000
Table 3. Random forest variable importance in each vegetation zone.
Table 3. Random forest variable importance in each vegetation zone.
Zone 1Zone 2Zone 3Zone 4Zone 5Zone 6Average
VariableRankValueRankValueRankValueRankValueRankValueRankValueRankValue
FFMC931.3284.61100.01100.01100.01100.02.586.0
lightning735.6720.7150.0147.8150.0910.911.212.5
latitude1100.01100.0244.7281.0272.4270.81.778.2
lakes552.9126.9918.91025.81112.2910.99.321.3
roads373.9916.51018.1734.01014.6453.27.235.1
stand vol.455.5134.2525.2634.2336.1828.36.530.6
DEM max645.3529.0723.0929.7531.3740.86.533.2
DEM avg832.9626.3624.0534.8628.7364.25.735.2
population291.3432.6339.8360.31311.1643.25.246.4
deciduous vol.150.0144.11314.51316.81211.2910.912.79.6
stand age1028.9820.71215.41220.2917.7150.011.017.2
slope1412.9344.1819.11124.1818.6546.58.227.6
aspect1321.81112.91117.9441.5720.0139.59.820.6
campsites1126.9150.0143.9150.0142.8910.913.07.4
forest management1126.91014.3432.5830.1434.2147.08.524.2
