The Time Lag Effect Improves Prediction of the Effects of Climate Change on Vegetation Growth in Southwest China

Abstract

Climate change is known to significantly affect vegetation development in the terrestrial system. Because Southwest China (SW) is affected by westerly winds and the South and East Asian monsoon, its climates are complex and changeable, and the time lag effect of the vegetation’s response to the climate has been rarely considered, making it difficult to establish a link between the SW region’s climate variables and changes in vegetation growth rate. This study revealed the characteristics of the time lag reaction and the phased changes in the response of vegetation to climate change across the entire SW and the typical climate type core area (CA) using the moving average method and multiple linear model based on the climatic information of CRU TS v. 4.02 from 1982 to 2017 together with the annual maximum (P₁₀₀), upper quarter quantile (P₇₅), median (P₅₀), lower quarter quantile (P₂₅), minimum (P₅), and mean (Mean) from GIMMS NDVI. Generally, under the single and combined effects of temperature and precipitation, taking the time lag effect (annual and interannual delay effect) into account significantly improved the average prediction rates of temperature and precipitation, which increased by 18.48% and 25.32%, respectively. The optimal time delay was 0–4 months when the annual delay was taken into consideration, but it differed when considering the interannual delay, and the delaying effect of precipitation was more significant than that of temperature. Additionally, the response intensity of vegetation to temperature, precipitation, and their interaction was significantly more robust when the annual delay was taken into account than when it was not (p < 0.05), with corresponding multiple correlation coefficients of 0.87 and 0.91, respectively. However, the degree of response to the combined effect of individual effects and climate factors tended to decrease regardless of whether time delay effects were taken into account. A more comprehensive analysis of the effects of climate change on vegetation development dynamics suggested that the best period for synthesizing NDVI annual values might be the P₂₅ period. Our study could provide a new theoretical framework for analyzing, predicting, and evaluating the dynamic response of vegetation growth to climate change.

1. Introduction

Climate change can significantly affect vegetation development and plays a decisive part in its growth. The response of vegetation to climate conditions has become a hot topic at regional and even global scales, and the connection between vegetation and climate against the background trend of global warming has significant theoretical research value [1,2,3,4,5]. Vegetation development is mainly influenced by temperature and precipitation and is closely related to hydrothermal conditions, making it an ideal choice for considering the relationship between climate and vegetation change [6,7,8,9,10]. In addition, because of the different demands for hydrothermal conditions at each life cycle stage of vegetation growth, the impact of climate factors on vegetation is variable and changes with the interaction of different spatial patterns and time delay effects [11,12,13,14,15,16]. When the amplitude of climate change exceeds the tolerance limit of vegetation growth in a particular month, vegetation will respond differently to climate change [17]. For example, in European beech saplings, the effect of temperature on leaf senescence in autumn was greater than that on deciduous leaves in spring [18]. Furthermore, climate change could directly or indirectly induce and disturb the ecosystem by changing the chemical and physical properties of soil—for example, by increasing temperature, reducing the availability of soil water, and promoting the availability of nitrogen, phosphorus, potassium, and other nutrient elements [19,20]. This has an indirect impact on vegetation development and means that the reaction of vegetation change to meteorological factors has a specific delayed interaction [11]; that is, there is a time lag effect [13,14,16,21,22,23].

Many studies have shown that utilizing the time lag effect could effectively improve the prediction rate for climate impacts on vegetation development at the global scale within the annual cycle, including the developing period, the aging stage, and the complete development season [11,12,14,15,16]. For example, Wu et al. [11] revealed that the clarification rate of climate variables for worldwide changes in vegetation development increased by about 11% and the explanation rate reached 64% when the time lag effect was taken into consideration. Zhao et al. [12] pointed out that when the time lag effect was considered within the Amazon Basin, the explanation rate increased by about 12% to about 40%. Ding et al. [14] indicated that on a global scale, the explanation rate increased by about 15%, 19%, and 17% in the developing period, the aging stage, and the complete development season, respectively. Zhao et al. [16] pointed out that the climatic factors (precipitation and temperature) increased by more than 95% relative to the typical watershed on the Loess Plateau when the time lag was taken into consideration. In the Xijiang River Basin in southern China, the areas where vegetation has been significantly affected by rainfall and temperature exceed 30% of the total basin after accounting for the delay effect [15]. In addition, the length of the delaying effect of climate factors on vegetation varies greatly globally. In low-latitude regions, the delaying effect of temperature on vegetation was more than one month; in the middle- and high-latitude regions, it was generally less than one month [11]; and in the Northern Hemisphere (>30°N), the autumn leaf senescence and drought displayed a lag period of 2–6 months [24]. The lag time of the response of vegetation to climate variables in Northern Eurasia [25] was about 3 months, and in the Qinghai–Xizang Plateau region [26], it was generally 1–4 months. However, the reaction of vegetation to climate variables is not synchronous; for example, in the Red River Basin in southern China [27] and in Ethiopia [22], the reaction of NDVI to temperature was faster than it was to precipitation, and the extreme alpine region of southern Xizang [28] was more sensitive to precipitation than temperature. Similarly, some researchers found that vegetation developed in the southwestern United States [29], inland Australia [21], the Yun–Gui Plateau [30], and Inner Mongolia [31] were unequivocally positively connected with precipitation one month before.

Current research has widely proved the connection between climate and vegetation at both regional and global scales. However, most of these studies considered only the annual cycle and utilized only a maximum or average value of NDVI to establish the annual growth. In reality, in the many growth stages in the life cycle of vegetation, the heat and moisture required are variable, and because of global climate change, there are obvious regional differences, change trends, and volatility, which make research findings inconsistent, complex, and difficult to interpret quantitively; as a result, the explanation rate of climatic factors to vegetation growth is low. Consequently, we posed the following scientific questions: (1) How should we characterize the time delay effect of individual and multiple climatic factors on vegetation and select the optimal time delay? (2) How can we determine the strength variation trend of the delay effect in relation to the response of vegetation to climate factors?

2. Materials and Methods

Therefore, based on the core areas screened out by Wang and An [32], the annual values of maximum (P₁₀₀), upper quarter quantile (P₇₅), median (P₅₀), lower quarter quantile (P₂₅), minimum (P₅), and mean (Mean) of GIMMS NDVI were selected to represent the development status of vegetation at different growth stages. These were used alone and in combination to analyze the time lag’s impact of temperature and precipitation factors and identify the optimal time lag when individual and joint action had a significant impact on NDVI. The response characteristics and periodic change trends in the reaction of vegetation to climate factors (temperature and precipitation, separately and jointly) were analyzed to help us to predict and evaluate the dynamic response of vegetation to worldwide climate change and to provide a theoretical basis for the wider study of global climate change.

2.1. Overview of the Research Area

In accordance with the concept of natural regionalization [33], the “Southwest Region of China” in this study has a broader geographical meaning and takes into account vegetation and landscape settings between the coordinates 21.14°–36.48°N and 83.87°–110.19°E, which cover the Himalayan mountains, the eastern Qinghai–Xizang Plateau, the Hengduan Mountains, the Yun–Gui Plateau, the Sichuan Basin, and other terrain units (Figure 1a) [34]. The entire study area spanned Sichuan, Chongqing, Guizhou, Yunnan, Eastern Xizang, and southern Qinghai. Combined with the unique climatic characteristics of the Qinghai–Xizang Plateau, this area has a critical effect on East Asian and worldwide climate [16,35] and has become an area of significant interest to domestic and foreign scholars [32,34,35].

2.2. Acquisition and Analysis of Research Data

2.2.1. Data Sources and Processing

(1) A digital elevation model (DEM) with a resolution of 1 km obtained from the Resource and Environmental Science and Data Center (as shown in

Table 1. The source of primary data and related descriptions.

Name	Sources	Resolution	Web Site	Access Date	Format
GIMMS NDVI3g	GIMMS	8 × 8 km	https://ecocast.arc.nasa.gov/data/pub/GIMMS/	18 November 2018	.nc4
CRU_TS4.02	Climate Research Unit	0.5° × 0.5°	https://crudata.uea.ac.uk/cru/data/hrg/	28 June 2019	.nc
Global Artificial Impervious Area	Tsinghua University data	30 × 30 m	http://data.ess.tsinghua.edu.cn	31 December 2019	.tif
Digital elevation model	Resource and Environment Science and Data Center	1 × 1 km	https://www.resdc.cn/data.aspx?DATAID=123	28 September 2019	GRID
1:1 million vegetation map of China	Resource and Environment Science and Data Center	—	https://www.resdc.cn/data.aspx?DATAID=122	1 December 2017	.shp
China’s vegetation zoning data	Resource and Environment Science and Data Center	—	http://www.resdc.cn/data.aspx?DATAID=133	1 December 2017	.shp

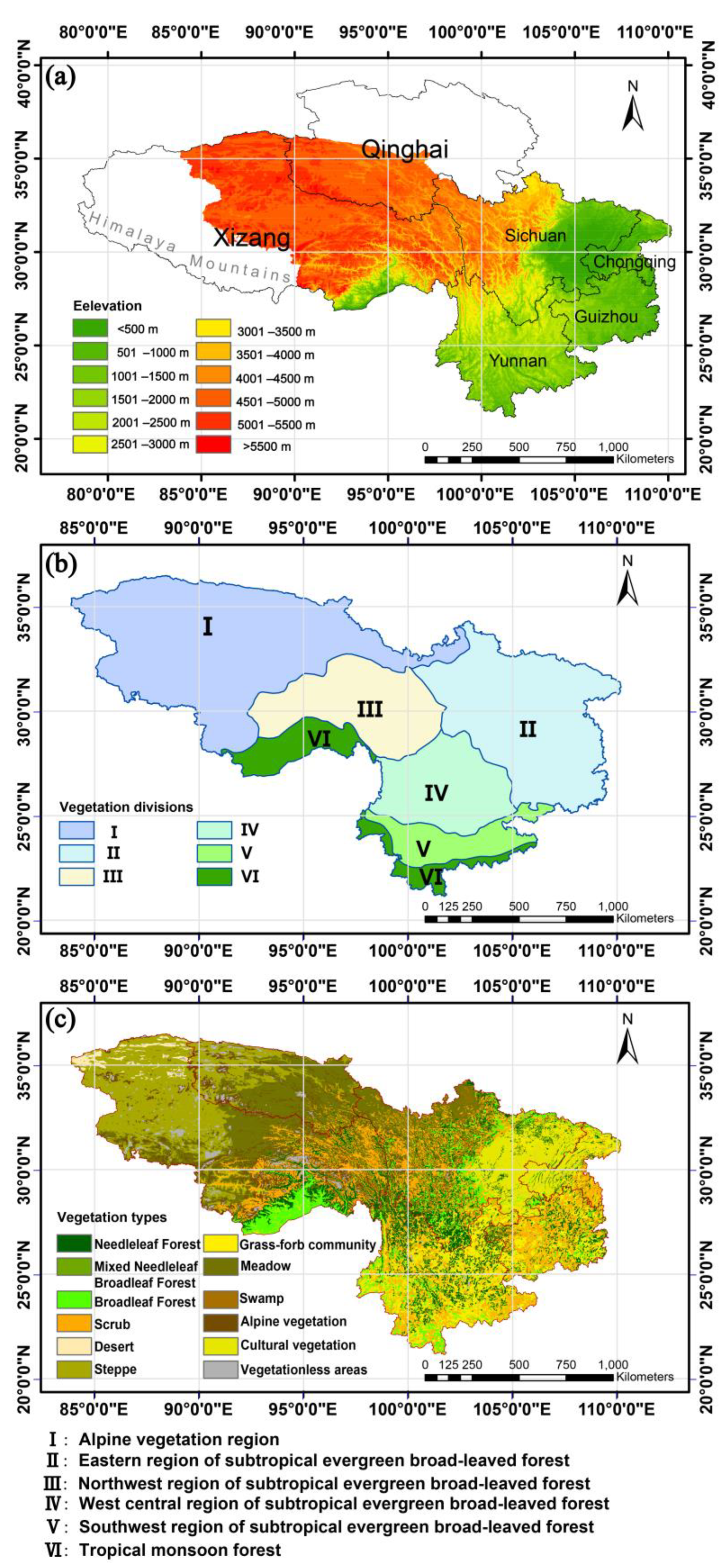

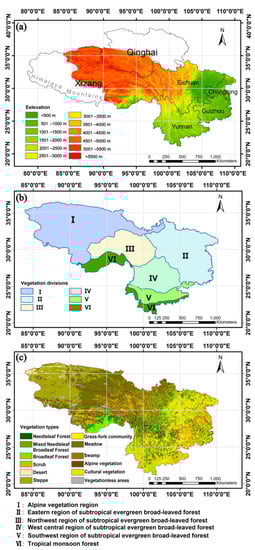

) was used to characterize the topography of the SW (Figure 1a). Then, the bilinear interpolation extrapolation method was used in ArcGIS10.6 to resample the raster data with a resolution of 0.25° × 0.25°.

(2) Using the resource environment cloud platform (as shown in Table 1) to obtain China’s vegetation zoning data, the SW was divided into six main subregions (Figure 1b).

(3) A high-resolution gridded climatic variables dataset (CRU_TS4. 02) with a determination of 0.5° × 0.5° [36] was obtained from the Climate Research Unit, University of East Anglia, UK (as shown in Table 1). This has been regularly utilized as reliable climate information for the study of global or regional climate changes and the impacts on biological systems (e.g., Buermann et al. [37]; Wang et al. [34]; Wang and An [32]). According to Wang’s research [34], the region’s average temperature and annual precipitation from 1901 to 2017 showed significant inflection points in 1954 and 1928, respectively, and other relevant reports pointed out that the temperature in the Northern Hemisphere began to rise in the mid-1970s, and in particular after 1980 [38,39]. Combined with the longest NDVI time sequence (GIMMS NDVI3g) [40], we selected the period from 1982 to 2017 for our preliminary inquiry.

Because the SW extends across three topographic zones from west to east, with areas of fragmented transition between adjacent zones and a wide range of altitudes, there are significant climate characteristics at different altitudes (such as elevation-dependent warming [41], elevation-dependent wetting [42], etc.). As a result, the 0.5° × 0.5° spatial resolution meteorological data could obscure the subtle relationship between climate change and the environment. Therefore, this study used the cubic spline method [43] to interpolate climate data with a spatial resolution of 0.5° × 0.5° and downscale the resolution to 0.25° × 0.25°.

(4) The NDVI information was selected from the Global Inventory Monitoring and Modeling Studies (GIMMS) dataset from January 1982 to December 2015 (as shown in Table 1) with a time step of 15 d and a spatial grid of 8 km. Although this dataset has been widely used to study vegetation dynamics at global and regional levels after geometric correction, radiometric correction, and atmospheric correction [40], because of the high frequency of clouds and precipitation in the SW, we combined it with Savitzky–Golay filtering [44] to reconstruct the sequence and eliminate cloud interference and used the maximum-value composite method (MVC) [32,34,39] to eliminate interference from cloud, atmosphere, rain, and the altitude of the sun.

In addition, because cultivated vegetation is frequently affected by human activity, such areas needed to be excluded from the analysis in order to focus on the relationship between climate change and natural vegetation growth. In addition, the rapid urbanization of the study area due to the implementation of the Strategy for Large-Scale Development of Western China in around 2000 led to a rapid increase in the number of impervious areas, which also needed to be excluded from the analysis. Therefore, the area of cultivated vegetation obtained from the Resource and Environmental Science and Data Center and the artificial impervious area obtained from the Global Artificial Impervious Area (as shown in Table 1) [45] from the Tsinghua University data open platform were excluded from this study.

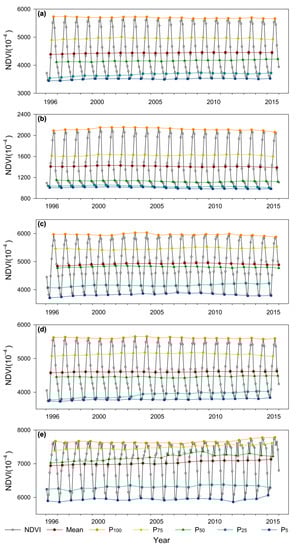

To comprehensively display the changing vegetation trends, in accordance with the method described by Wang and An [32], the annual maximum (P₁₀₀), upper quarter quantile (P₇₅), median (P₅₀), lower quarter quantile (P₂₅), minimum (P₅), and mean (Mean) of GIMMSNDVI were chosen to represent the annual diverse development stages of vegetation.

(5) The topographic, climatic, vegetation, and ecoregion distribution data for the study area were obtained from publicly available sources. To ensure scale consistency, they were resampled or reduced to 0.25° × 0.25° raster data to meet the requirements of this study.

2.2.2. Research Methods

(1) Trend analysis and detection: The least square method was utilized for examining the trend of a specific factor, and the trend of the fair condition was used to indicate the change intensity of the factor [34,42]. The formula was:

$$slope=\frac{n{\displaystyle \sum _{i=1}^{n}i{x}_i}-{\displaystyle \sum _{i=1}^{n}i}{\displaystyle \sum _{i=1}^n{x}_i}}{n{\displaystyle \sum _{i=1}^n{i}^2}-{\left({\displaystyle \sum _{i=1}^{n}i}\right)}^2}$$

(1)

where n is the research phase and $x_i$ is the factor number of the $i$th year. When $slope$ > 0, it indicates an expanding drift within the investigated phase; otherwise, it indicates a diminishing drift. The T-test was utilized to test the importance of the changing trend of this factor.

(2) Moving average method: The moving average method was utilized to remove the effect of information interference and reduce the effect of irregular impacts and thus achieve a generally smoother time arrangement that would more intuitively represent the changing trend [46]. The moving average formula was:

$$\overline{p_j}={\displaystyle \sum _{i=j}^{i+L-1}\frac{x_i}{L}}$$

(2)

where L = 15 years is the sliding step according to the research results of Fu et al. [47], i is the sequence number, and $j=\left(L-1\right)/2$.

(3) Time delay effect of vegetation on individual climatic variables: In order to determine the time delay impact of climate variables on the six annual characteristic values, the month with the highest frequency of characteristic values (except the Mean) in all windows was selected as the month with occurrence of the annual characteristic values, and the month closest to the Mean was defined as the month of Mean occurrence (see Appendix A for details).

The monthly temperature and precipitation data were utilized as independent variables, and six annual synthetic data from GIMMS NDVI (P₁₀₀, P₇₅, P₅₀, P₂₅, P₅, and Mean) were successively taken as response variables to calculate the delay effect of synthetic data with different annual values. Previous studies found that the time lag impact of climate factors on vegetation was, for the most part, less than four months [11,19], and a 2-year time lag impact was also found [48]. Considering that P₂₅ or P₅ may occur in January or December of the current year, we selected the current and previous year’s monthly temperature and precipitation data as independent variables. The formula model of NDVI and temperature and precipitation was as follows:

$$NDVI={\beta }_0+{\beta }_{i}TMP+\epsilon$$

(3)

$$NDVI={\beta }_0+{\beta }_{i}PRE+\epsilon$$

(4)

where NDVI is the response variable and is the synthetic data of the annual values of NDVI (P₁₀₀, P₇₅, P₅₀, P₂₅, P₅, and Mean, respectively); ${\beta }_i$ represents the regression coefficient of climate factors within the $i$th month, with $i$ ranging from 1 to 24, where 1–12 represent months 1–12 of the previous year and 13–24 represent months 1–12 of the current year, respectively; TMP and PRE correspond to time arrangement information of temperature and precipitation in the $i$-th month; ${\beta }_0$ is the constant term of the regression model; and $\epsilon$ is the random error term. NDVI, TMP, and PRE were averaged over a sliding 15-year period before being entered into Equations (3) and (4).

The optimal time delay selection rule: Firstly, in this study, the occurrence month of synthetic data of NDVI annual value is defined as the month with the highest occurrence frequency and is represented by n (1≤ n ≤24) in the new series formed after 15 years of sliding [47], in which the occurrence frequency of Mean is defined as the occurrence frequency of the month with the smallest error with Mean. In the reaction of vegetation to a single climate factor, the $i$th month with the most significant assurance coefficient R² is selected, which is the ideal time delay. Additionally, $i$ cannot exceed the month n in which the synthetic data of six NDVI annual values appear. If this restriction condition $i\le n$ is not considered, the eigenvalues may have the largest coefficient of determination with respect to the climatic factor after the month of occurrence, which is clearly against the objective law. The calculation formula of the maximum determination coefficient R² is:

$$max{R}^2=max\left\{R_1^2,R_2^2,R_3^2,\dots ,R_{i-1}^2,R_i^2\right\}\left(1\le i\le n\right)$$

(5)

where $max{R}^2$ is the maximum lag determination coefficient; $i$ is the $i$th month; $R_1^2,R_2^2,R_3^2,\dots ,R_{i-1}^2,R_i^2$ are determinant coefficients of January of the previous year, February of the previous year, and so on, respectively, and n in the same month; and the maximum value is selected from those determinant coefficients as the optimal lag-determining coefficient. If $max{R}^2=R_1^2$, the optimal lag $\Delta i$ of NDVI to this climate factor is n − 1 months, and so on; if $max{R}^2=R_n^2$, the optimal lag $\Delta i$ is 0 months—that is, there is a maximum determination coefficient in the same month.

(4) Vegetation responses to a combined model of multiple climate factors with multiple time delays: The multiple linear regression model is simple in form and makes it easy to estimate and test parameters which can effectively explore the collective impact of temperature and precipitation on NDVI multiple delays. The multiple time delay combination models are as follows:

$$NDVI={\beta }_0+{\beta }_{i}TMP+{\beta }_{j}PRE+\epsilon$$

(6)

where NDVI is the response variable and the synthetic data of the six annual values (P₁₀₀, P₇₅, P₅₀, P₂₅, P₅, and Mean, respectively); ${\beta }_i$ and ${\beta }_j$ are the regression coefficients of independent variables TMP and PRE in the $i$th and $j$th months, respectively, with $i$ and $j$ ranging from 1 to 24, where 1–12 represent months 1–12 of the previous year, respectively, and 13–24 represent months 1–12 of the current year, respectively; TMP and PRE correspond to time sequence information on temperature and precipitation in the $i$th and $j$th months, respectively; ${\beta }_0$ is the constant term of the regression model; and $\epsilon$ is the random error term. NDVI, TMP, and PRE were averaged over a sliding 15-year period before being entered into Equation (6).

The optimal time delay selection rule is as follows: In this case, the rule is similar to the optimal time delay selection rule for the delay effect on vegetation of a single climate factor. Specifically, in the response of vegetation to the combined model (the maximum number of 24 × 24 = 576) with multiple delays of temperature and precipitation, the $i$th and $j$th months with the maximum determination coefficient R²—that is, the optimal time delay—are selected. In addition, $i$ and $j$ should not exceed the month n in which the synthetic data of six NDVI annual values appear. If the restriction condition $i\le n$ was not considered, the eigenvalues may have the largest coefficient of determination with respect to the climatic factor after the month of occurrence, which is clearly against the objective law. The calculation formula of the maximum determination coefficient R² is:

$$max{R}^2=max\left\{\begin{array}{cccc}{R}_{11}^2& R_{12}^2& \cdots & R_{1j}^2\\ R_{21}^2& R_{22}^2& \cdots & R_{2j}^2\\ ⋮& ⋮& \ddots & ⋮\\ R_{i1}^2& R_{i2}^2& \cdots & R_{ij}^2\end{array}\right\}\left(1\le i\le n,1\le j\le n\right)$$

(7)

where $max{R}^2$ is the maximum lag determination coefficient; $i$ and $j$ are the $i$th and $j$th months, respectively; $R_{11}^2,R_{12}^2,\dots ,R_{ij}^2$ are determinant coefficients of January of the previous year, the temperature in January and the precipitation in February of the previous year, and n in the same month, respectively; and the maximum value is selected from those determinant coefficients as the optimal lag-determining coefficient. If $max{R}^2=R_{11}^2$, the optimal lag $\Delta i$ for both temperature and precipitation factors in NDVI is n − 1 months, and so on; if $max{R}^2=R_{nn}^2$, the optimal lag $\Delta i$ is 0 months—that is, there is a maximum determination coefficient in the same month.

(5) The strength of the delay effect in the vegetation response to climate factors: Partial and complex correlation coefficients were utilized to characterize the individual and combined intensity of the vegetation response to temperature and precipitation in completely different months. According to Formula (9), monthly temperature (precipitation) data were fixed, and a partial correlation between precipitation (temperature) and six annual data of GIMMS NDVI (P₁₀₀, P₇₅, P₅₀, P₂₅, P₅, and Mean) was calculated. The multiple relationships between NDVI, temperature, and precipitation were calculated according to Formula (10).

$$R_{xy}=\frac{{\displaystyle \sum _1^n\left(x_i-\overline{x}\right)\left(y_i-\overline{y}\right)}}{\sqrt{{\displaystyle \sum _1^n{\left(x_i-\overline{x}\right)}^2}}\sqrt{{\displaystyle \sum _1^n{\left(y_i-\overline{y}\right)}^2}}}$$

(8)

$$R_{xy,z}=\frac{R_{xy}-R_{xz}{R}_{yz}}{\sqrt{\left(1-R_{xz}^2\right)}\sqrt{\left(1-R_{yz}^2\right)}}$$

(9)

$$R_{x,yz}=\sqrt{1-\left(1-R_{xy}^2\right)\left(1-R_{xz,y}^2\right)}$$

(10)

Here, $R_{xy}$ represents the correlation coefficient of the x and y factors; $x_i$,$y_i$ and $\overline{x}$, $\overline{y}$ represent climate variable and NDVI in the $i$th year and the multi-year average, respectively; n is the research phase; $R_{xy,z}$ represents the partial correlation coefficient between x and y when z is fixed, and the T-test was utilized to test the importance; and $R_{x,yz}$ represents the multiple correlation coefficient between x and y and z, and the F-test was utilized to test the importance. x, y, and z were averaged over a sliding 15-year period before being entered into Equations (8), (9), and (10).

Formulas (11) and (12) are used to calculate the optimal intensity of the time delay response of vegetation to climate factors singly and in combination:

$$max\left|R\right|=max\left\{\left|R_1\right|,\left|R_2\right|,\left|R_3\right|,\dots ,\left|R_{i-1}\right|,\left|R_i\right|\right\}\left(1\le i\le n\right)$$

(11)

$$max\left|FR\right|=max\left\{\left|F{R}_1\right|,\left|F{R}_2\right|,\left|F{R}_3\right|,\dots ,\left|F{R}_{i-1}\right|,\left|F{R}_i\right|\right\}\left(1\le i\le n\right)$$

(12)

where $max\left|R\right|$ and $max\left|FR\right|$ represent the maximum absolute value of partial correlation coefficient ($R$) and complex correlation coefficient ($FR$), respectively, with time delay; $i$ is the $i$th month; $\left|R_1\right|,\left|R_2\right|,\dots ,\left|R_{i-1}\right|,\left|R_i\right|$ and $\left|F{R}_1\right|,\left|F{R}_2\right|,\dots ,\left|F{R}_{i-1}\right|,\left|F{R}_i\right|$ are the $\left|R\right|$ and $\left|FR\right|$ of January of the previous year, February of the previous year (and so on), and n in the same month, respectively; and the maximum value is selected from these partial or complex correlation coefficients as the optimal lag correlation coefficient. It is important to note here that if $max\left|R\right|=\left|R_i\right|$ and $R_i<0$, then the intensities of x and y are negative and the time lag effect of the final response intensity is of size $-\left|R_i\right|$.

(6) The strength of the variation in the delay effect trend of vegetation response to climate factors: We took every 15 years as a period and calculated the $max\left|R\right|$ and $max\left|FR\right|$ in this period by combining Equations (8)–(12). In addition, combined with the particular interpretation of step (5), we revealed the response intensity for each period. Then, the response intensities for 1982–1996, 1983–1997, and 2001–2015 were calculated separately, the sequence reconstructed, and the variation tendency calculated in accordance with Equation (1), which referred to the variation tendency of response intensity of vegetation to climatic variables and the importance test using the T-test method.

3. Results

3.1. Time Delay Effect of Climatic Factors on Vegetation

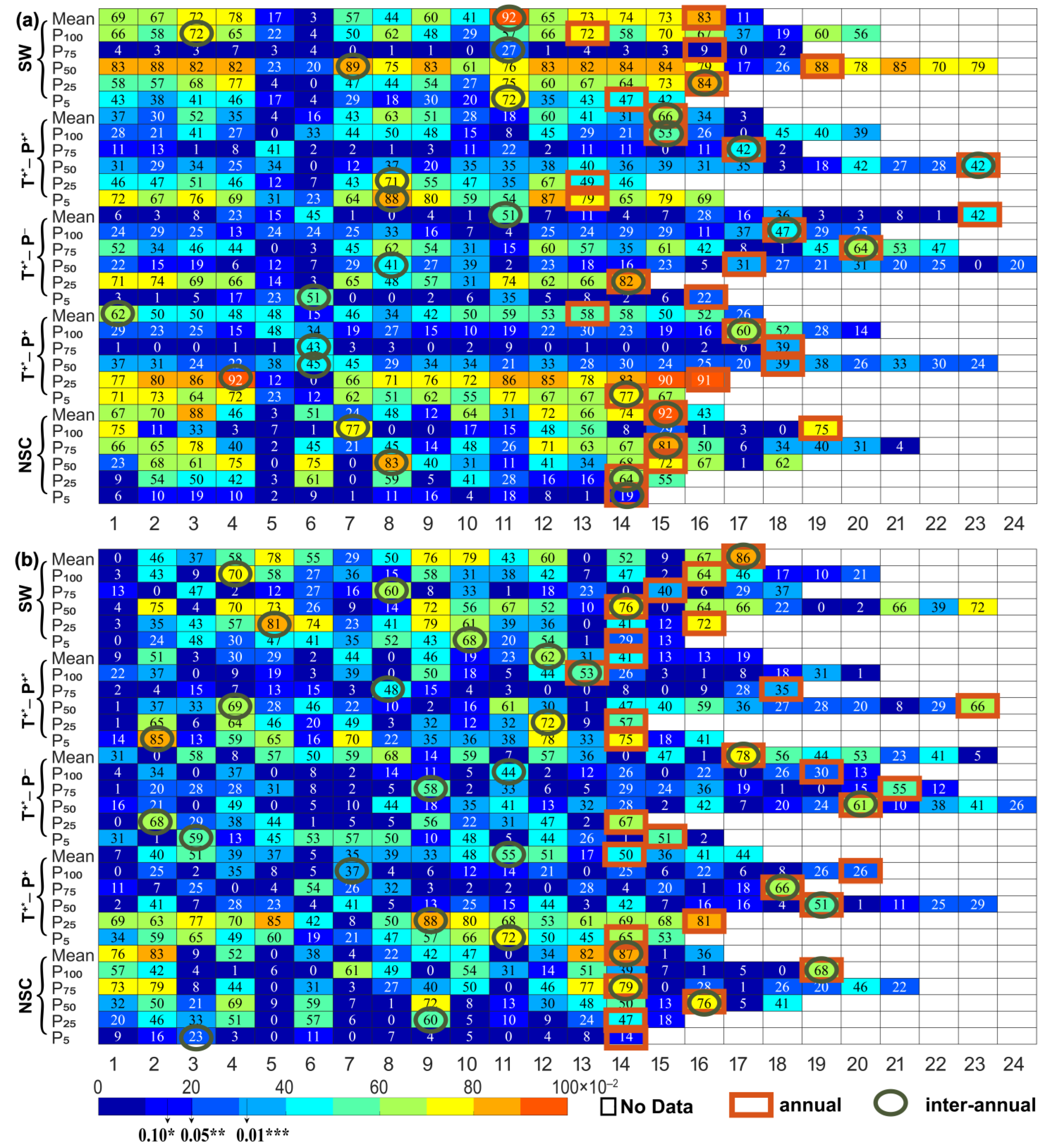

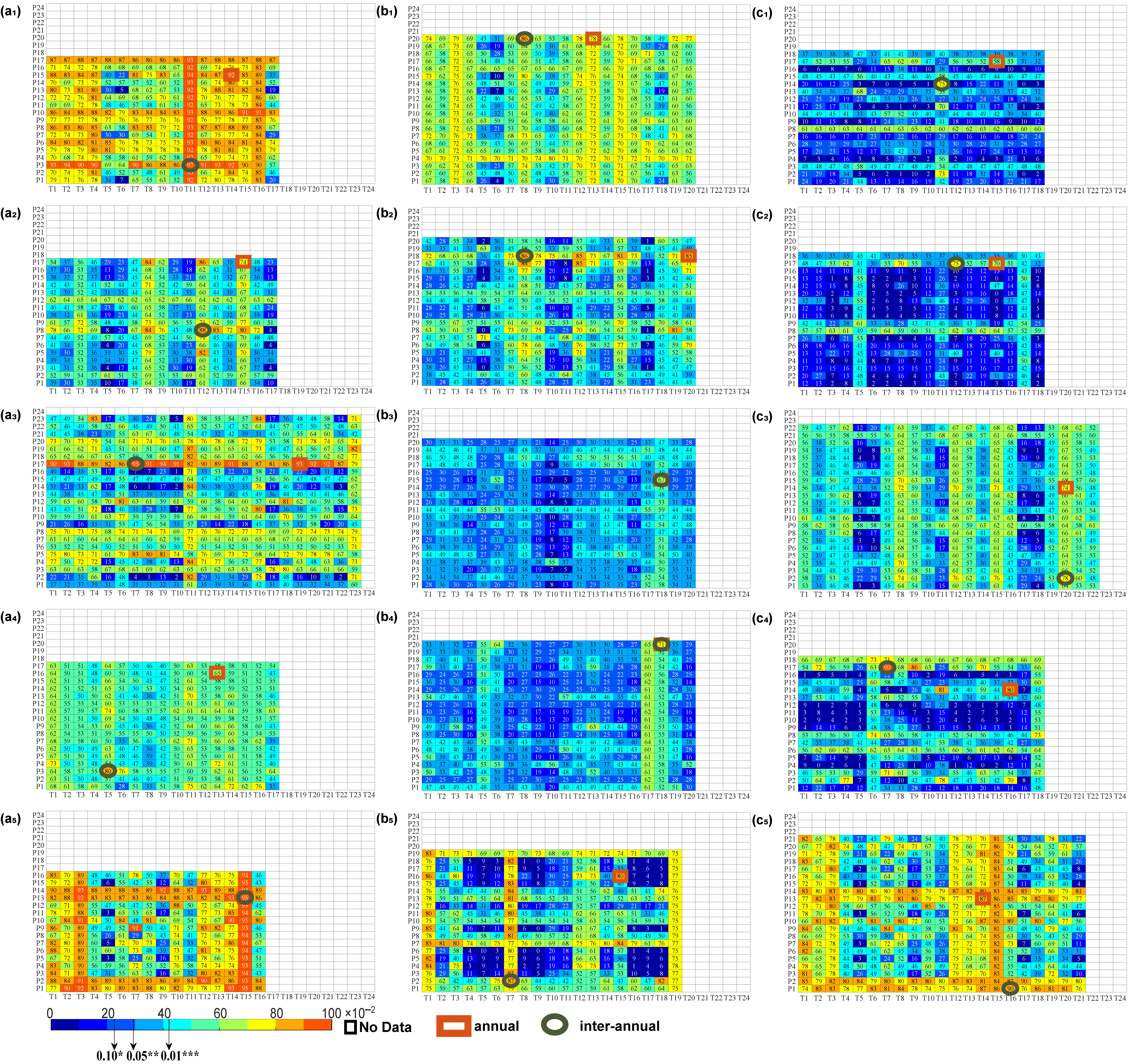

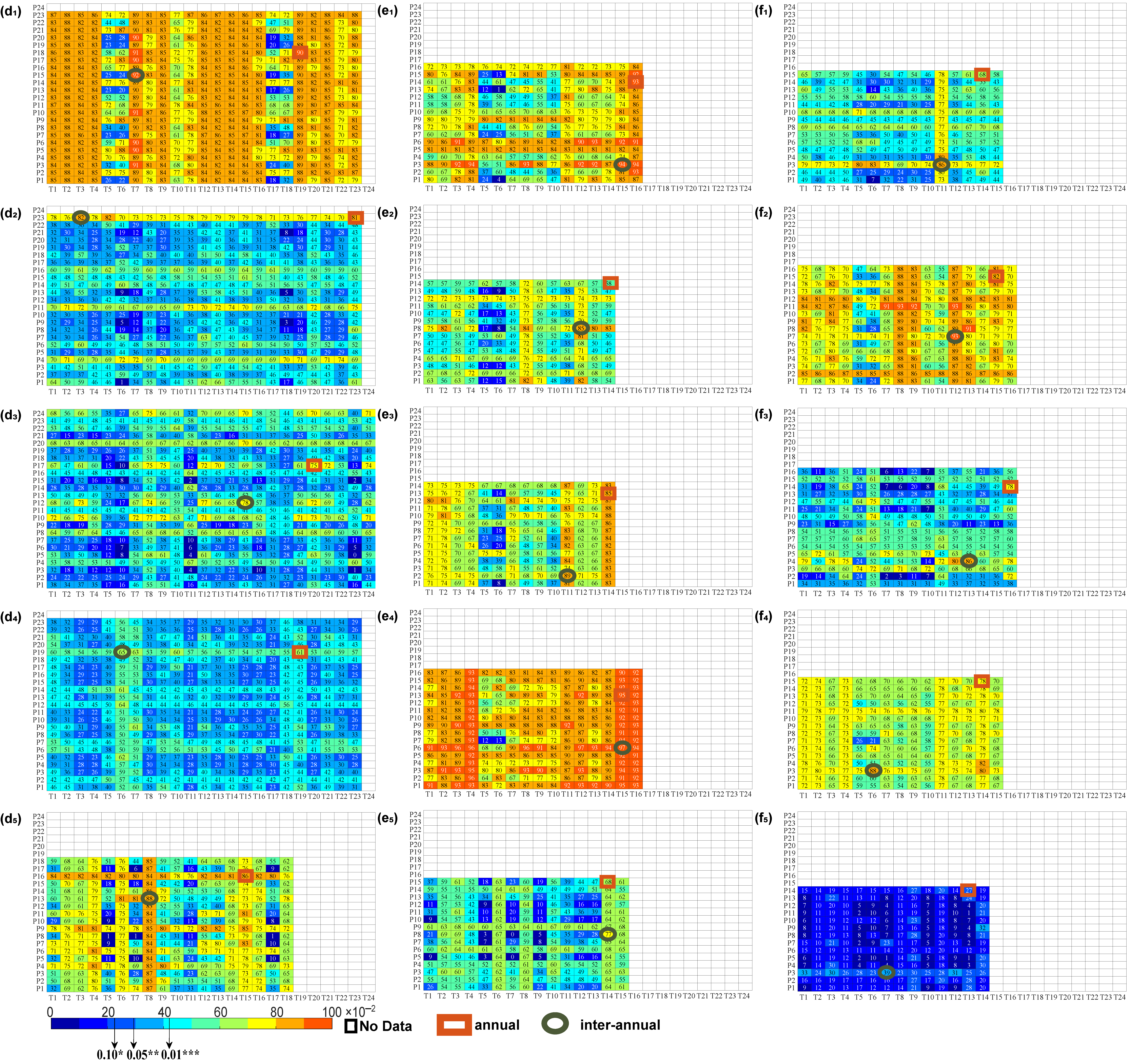

When time delay effects (annual and interannual time delays) were considered, the temperature and precipitation factors and their combined effects significantly improved the prediction rate for vegetation growth compared to the same period (p < 0.05) (Figure 2 and Figure 3). With regard to the annual time delay, the corresponding optimal R² with the annual time delay increased by 0.02 (3.44%)–0.43 (173.06%), 0.06 (9.75%)–0.31 (80.61%) and 0.07 (9.99%)–0.48 (190.04%), respectively (the percentage in brackets indicates the relative increase in percentage, and this is repeated below). The corresponding optimal R² of the interannual time delay was further improved by 0.07 (9.99%)–0.48 (190.04%), 0.15 (25.02%)–0.37 (147.34%), and 0.15 (25.02%)–0.37 (147.34%), respectively. Based on the comprehensive results, it was further found that the maximum or submaximum prediction rate exists in the P₂₅ period at the same time, and taking the time delay effect into consideration, the difference between the submaximum and the maximum was less than 0.04, which was higher than the prediction rate in the P₁₀₀ period. Taking the annual time delay into consideration, the optimal time delay relating to temperature, precipitation and the interaction between them was generally less than or equal to four months, consisting of about 0.40 ± 0.55–3.80 ± 2.59 months for temperature alone and 0.20 ± 0.45–3.80 ± 3.35 months for precipitation alone. The occurrence months of the maximum prediction rate of NDVI by both temperature and precipitation climatic factors were concentrated in the 13–17 months (90%), 18–20 months (60%), 13–17 months (90%), 15–19 months (80%), 13–16 months (100%), and 13–16 months (100%) ranges (the percentages in brackets indicate the frequency of occurrence of the month in which the maximum explanatory rates for temperature and precipitation occur). When at Mean, P₁₀₀, and P₅, the annual optimal time delay months for temperature (∆t_annual-T) were more significant than those for precipitation (∆t_annual-P), and at P₇₅–P₅, ∆t_annual-T < ∆t_annual-P, the optimal time lag was within the range of one month. Furthermore, it was also found that the optimal time delay for temperature of P₁₀₀ in SW, P₁₀₀ in T⁺*-P⁺*, P₅₀ in T⁺*-P⁻, P₅₀ in T⁺*-P⁺, and P₇₅ in NSC was more than four months, and the optimal time delay for precipitation of P₅₀ in SW, P₁₀₀ in T⁺*-P⁺*, Mean in T⁺*-P⁻, and P₇₅ in NSC was over four months. With regard to interannual delay, the maximum R² had a significant difference in the number of optimal delay months, and when temperature and precipitation act together at P₁₀₀–P₅₀, the interannual time optimal delay months for temperature (∆t_{inter-annual-T}) were more significant than those for precipitation (∆t_{inter-annual-P}). At Mean, P₂₅, and P₅, ∆t_{inter-annual-T} < ∆t_{inter-annual-P} and the average optimal delay differed by 1.2, 8.0 and 5.8 months, respectively.

3.2. The Intensity of the Delay Effect of Climate Factors on Vegetation

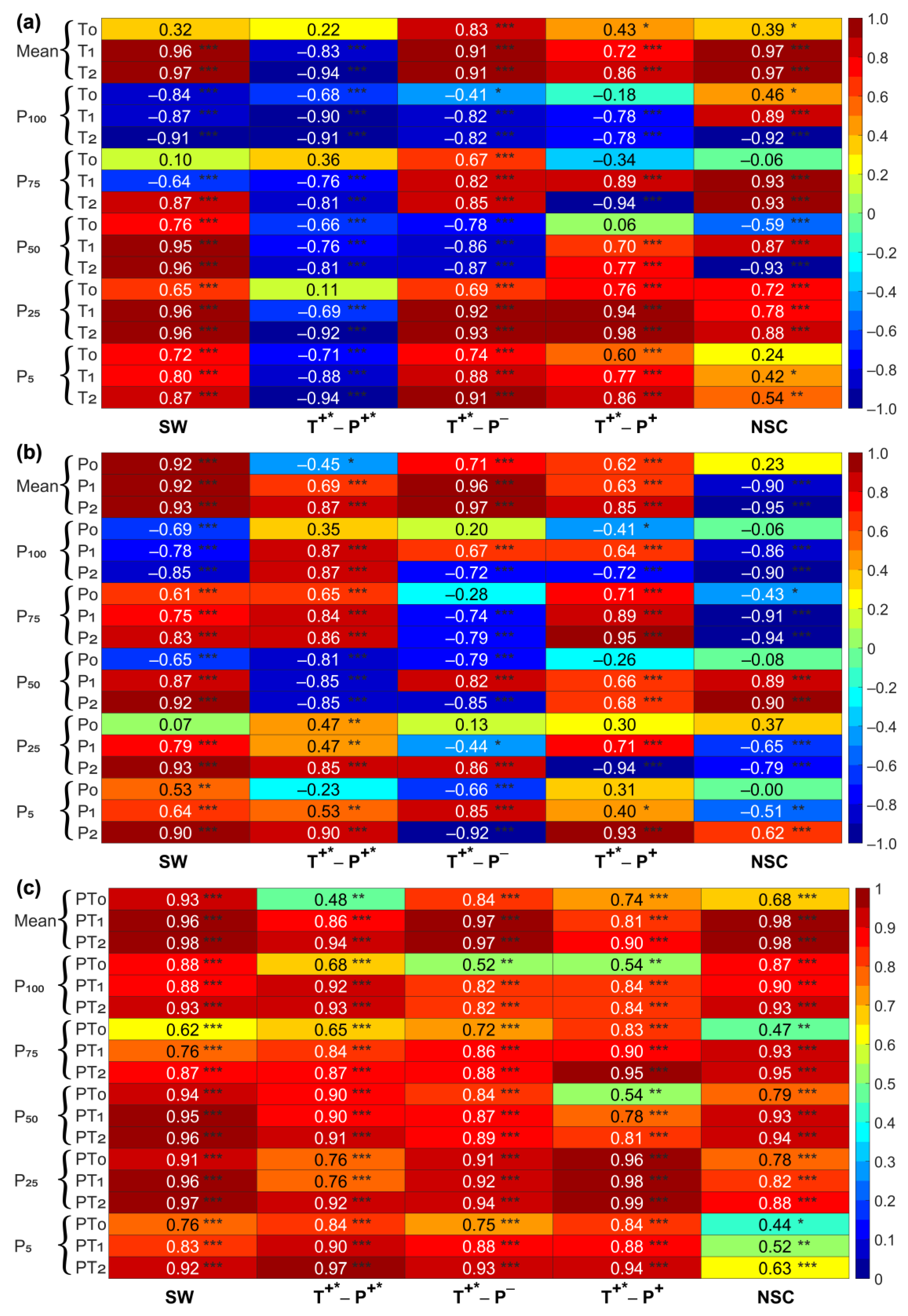

Under the condition of controlling the influence of precipitation (Figure 4a), the significantly negative delay responses of temperature on vegetation were mainly concentrated in T⁺*-P⁺*, P₁₀₀, P₇₅ in SW and T⁺*-P⁺, P₅₀ in T⁺*-P⁻, and NSC, whereas elsewhere there were more significant positive delay responses. It can also be seen from Figure 4b that under the condition of controlling temperature, the significantly negative time delay response of vegetation to precipitation was mainly concentrated in T⁺*-P⁻ and NSC (except Mean) as were the P₁₀₀ period in the SW and the P₅₀ period in the T⁺*-P⁺*. In other cases, the time delay response of vegetation was mainly significantly positive. When the time delay effect was taken into account, the mean value of the precipitation diphasic coefficient |R| at P₁₀₀, P₅₀–P₅ was less than that of the temperature diphasic coefficient |R|. Taking the time delay effect into consideration, the correlation coefficient of the annual time delay of temperature and precipitation on vegetation increased by 0.15 (24.48%)–0.51 (165.77%) and 0.23 (39.93%)–0.42 (128.48%), respectively, and the interannual delay increased by 0.22 (36.53%)–0.57 (188.68%) and 0.32 (56.16%)–0.61 (227.23%), respectively, compared to the same period. The complex correlation coefficients (Figure 4c) achieved the significance level of p < 0.05 when the annual and interannual time delays were considered, and this was successively increased by 0.02–0.20 (2.73%–30.28%) and 0.08–0.24 (8.73%~37.19%), respectively, compared to the same period. The mean values were 0.87 and 0.91, respectively. The variance analysis showed that the |R| and |FR| of temperature and precipitation alone and in combination significantly improved (p < 0.05) when the time delay effect was considered. This suggested that when considering the time delay, the correlation between vegetation development and climate factors was greater and that there was a certain delay, which—when the lag correlation coefficient was taken into account—increased further; the average of the complex correlation coefficients |FR| was greater than 0.85 and reached as high as 0.87 and 0.91, suggesting that the reaction of vegetation to climate changes reflected the complexity of multidimensional space.

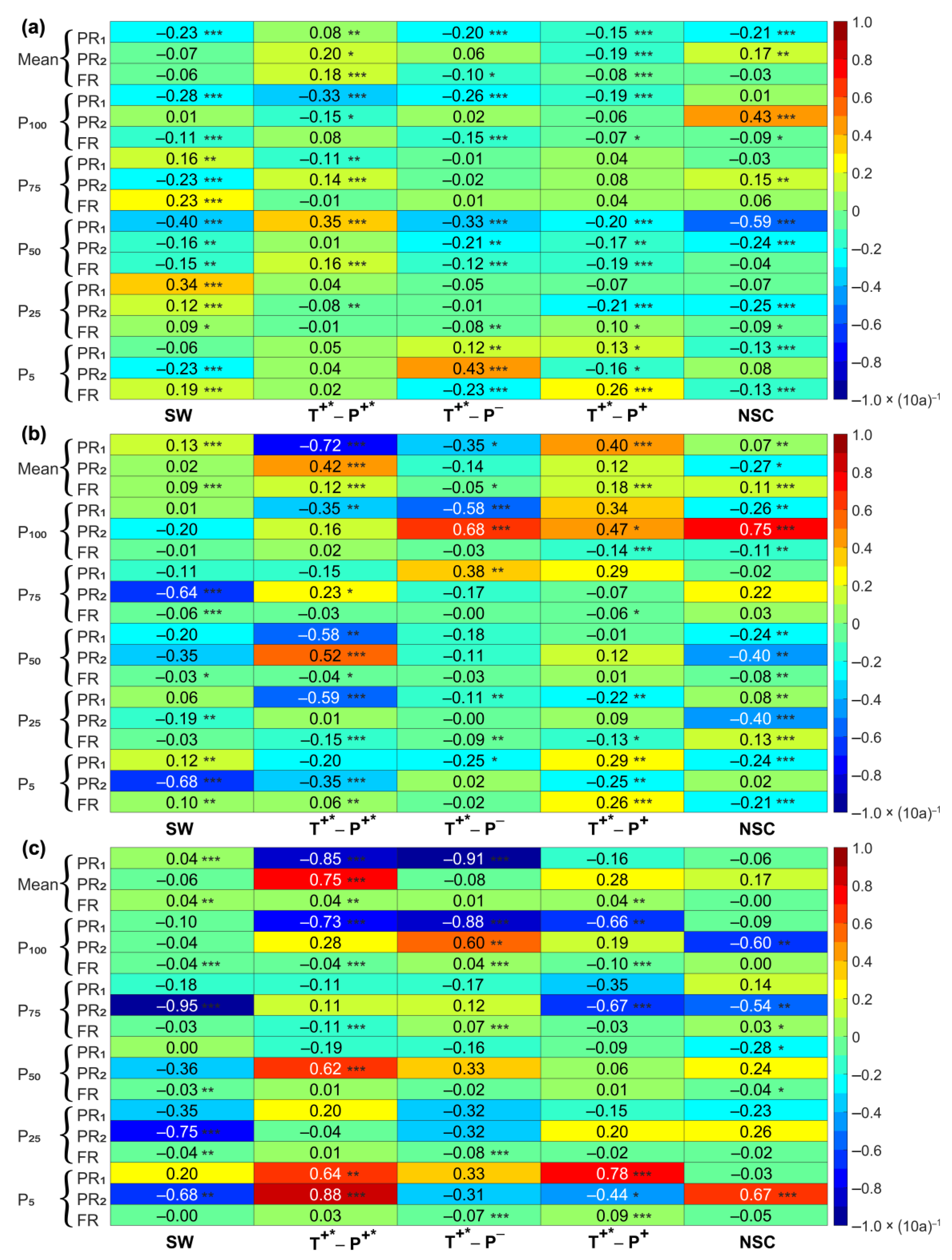

3.3. The Intensity Variation Trend of the Delayed Effect of Climate Factors on Vegetation

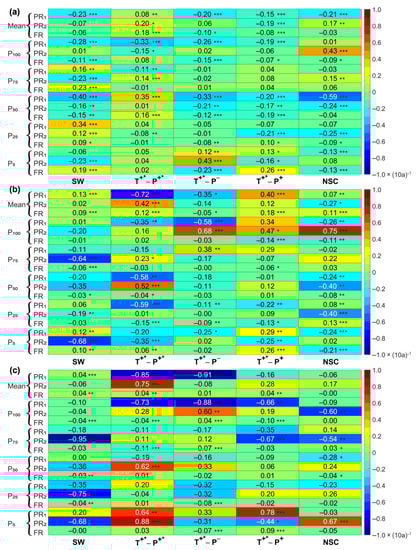

The temporal changes of vegetation reaction to climate changes at particular times (the same period, the particular year considered, and the interannual year considered) in the SW and the CA showed different directionality (Figure 5). With the time delay effect of NDVI (that is, when the time delay effect was not taken into account), the vegetation growth in different periods (six annual characteristic values) was affected by temperature, and the vegetation growth in SW, T⁺*-P⁻, T⁺*-P⁺, and NSC showed a decreasing trend. In contrast, the vegetation development in T⁺*-P⁺* appeared to show a significantly decreasing trend at P₁₀₀ and P₇₅. Furthermore, under the influence of precipitation, there was a decreasing trend in SW and T⁺*-P⁺ and at P₁₀₀ and P₂₅ in T⁺*-P⁺*, P₇₅ to P₂₅ in T⁺*-P⁻, and P₅₀ to P₂₅ in NSC. The impact of two climate factors showed a decreasing trend in T⁺*-P⁻ and NSC, and at the Mean, P₁₀₀, and P₅₀ in SW, and T⁺*-P⁺ and the P₇₅ and P₂₅ in T⁺*-P⁺*. When the annual time delay effect was considered, the vegetation was affected by temperature, and the influence of temperature generally decreased in T⁺*-P⁺*, T⁺*-P⁻, and NSC and in the P₇₅ to P₅₀ in SW and P₅₀ to P₂₅ in T⁺*-P⁺. Under the influence of precipitation, in SW, T⁺*-P⁻ and at Mean and P₅₀~P₂₅ in NSC, P₇₅ and P₅ periods in T⁺*-P⁺ showed a decreasing trend, whereas T⁺*-P⁺* showed a generally increasing trend. Under combined action, there was a predominantly decreasing trend.

When the interannual time delay effect was considered, vegetation was mainly affected by temperature, which showed a decreasing trend. Furthermore, precipitation affected vegetation, which showed a decreasing trend in SW and at Mean, P₂₅, and P₅ periods in T⁺*-P⁻, P₇₅, and P₅ periods in T⁺*-P⁺ and at P₁₀₀ and P₇₅ in NSC, whereas in the T⁺*-P⁺*, it exhibited an expanding drift. Under the impact of temperature and precipitation, the vegetation was affected by climate factors in SW, NSC, and at P₁₀₀-P₇₅ in T⁺*-P⁺*; P₅₀-P₅ in T⁺*-P⁻ and P₁₀₀-P₇₅; and at P₂₅ in T⁺*-P⁺, it exhibited a decreasing trend.

4. Discussion

4.1. Considering the Time Delay Effect Could Significantly Improve the Prediction Rate of the Effect of Climate on Vegetation Change

The correlation between climate factors and NDVI has been widely confirmed at landscape, regional, and global levels [11,13,14,16,21,22,23]. This study also confirmed that compared to the interpretation rate for the same period, considering the time delay effect (annual and interannual delay), the interpretation rates for temperature and precipitation factors and their combined effects on NDVI were significantly increased by 17.97% (43.78%) and 23.31% (56.79%), 20.15% (52.92%) and 27.21% (71.47%), and 18.48% (31.85%) and 25.32% (43.63%), respectively, and this was consistent with research results concerning the influence of most temperature and precipitation factors on vegetation delay [11,14,15,16]. Jia et al. [15] found that the impact of temperature and precipitation on vegetation in the Xijiang River Basin in southern China reached significant levels of 31.47% and 32.99%, respectively, when accounting for the time delay effect. Zhao et al. [16] found that the explanation rate of climate factors (temperature and precipitation) in the same period (without the time delay effect) was less than 10%, but when time delay was taken into account, the relative increase was over 95%. Wu et al. [11] showed that accounting for time delay effects could increase the rate of global vegetation growth explained by climate factors by 11%. In our study, when the time delay effect was considered, the improvement was more significant, particularly in the T⁺*-P⁺* in the P₇₅ period, in which the temperature to NDVI increased by 39.80% (2080.92%). In the T⁺*-P⁺* in the P₁₀₀ period, the explanation rate of NDVI by precipitation increased by 52.09% (5482.63%).

When considering the annual time delay effect, at Mean and P₁₀₀–P₅ periods, the averages of the optimal time delays were 1.60, 3.40, 2.20, 3.80, 0.40, and 1.00, respectively, and were in the main 0–4 months, results which were essentially consistent with the findings of Wu et al. [11] and Ding et al. [14] at the global level, Gessner et al. [49] for central Asia, Piao et al. [1] for northern Eurasia, Workie and Debella [22] for Ethiopia, and Daham et al. [13] for Sulaimaniyah and Wasit. This study also identified several optimal time lags longer than four months. For example, in the SW in the P₁₀₀ period, the time lag of temperature on vegetation growth was seven months, and in the P₅₀ period, the time lag of precipitation on vegetation growth was nine months. Similarly, Tei et al. [23] pointed out that the forest ecosystem in the Arctic Circle between 50°N–67°N was driven by the temperature and precipitation factors of the previous year (from summer to winter); Zhao et al. [12] suggested that vegetation in the Amazon region had a time lag of 0–6 months to temperature; and Braswell et al. [50] found that NDVI had a 2-year lag reaction to temperature. Our further analysis showed that although the optimal time delay considering the annual delay effect was concentrated in 0–4 months, the optimal time delay relating to temperature and precipitation was not entirely synchronized, and the time delay for temperature (3.40 and 0.40 months) was more extensive than that for precipitation (2.40 and 0.20 months) in the P₁₀₀ and P₂₅ period. These findings were similar to those of Ye et al. [28] in the high mountainous locale of southern Xizang, where vegetation was more sensitive to precipitation than temperature. Conversely, the time delay for precipitation (1.60 months) was more extensive than that for temperature (2.8 months) at Mean, which was similar to the findings of Workie and Debella [22] in Ethiopia and Gu et al. [27] in the Red River Basin in southern China. These researchers found that the reaction of NDVI to temperature was faster than it was to precipitation. However, at periods P₇₅, P₅₀, and P₅, the two delays were equal.

When all the results were integrated, it was further found that the P₂₅ period was the period with the maximum or submaximum explanation rate, whether within the same period or when time delay effects were taken into account, rather than the annual maximum or average combined results commonly used by most scholars (Figure 3). Combined with the results in Figure A1, it can be seen that the P₁₀₀ and P₇₅ in the vigorous plant growth period mainly occurred from June to August (summer) in the entire SW and CA, that vegetation development entered a relatively stable state and was less dependent on temperature and precipitation, and that there was sufficient hydrothermal energy to meet vegetation development needs [16]. Summer is the season in which precipitation is intensively dispersed within the considered zone; during summer, there is a large amount of water vapor in the air and the area is prone to rainfall and cloudy weather. Furthermore, the GIMMS NDVI data had been obtained using optical sensors, which are limited by the optical sensor characteristics [51] and were greatly affected by the suspension and scattering of external weather (cloud, fog, etc.) and aerosol in the atmospheric components [52]. Even though the data set had been pretreated using geometric, radiometric, and atmospheric correction, cloud interference could be further eliminated through filtering [44]. Since there are fewer valid images from June to August, the reliability of the images decreases.

4.2. Considering the Time Delay Effect Could Significantly Improve the Response Intensity of Vegetation to Climate

When the time delay effect was considered, the response intensity of vegetation to temperature, precipitation, and their interaction was significantly improved, which was consistent with the findings of most researchers [11,13,14,16,21,22,23]. However, the direction of the response strength was not uniform. In the P₁₀₀ period, NDVI was mainly adversely connected to temperature, demonstrating that within the most vigorous vegetation growth period (P₁₀₀), this occurred from July to August of a year (i.e., summer) (Figure A1), and the optimal time delay was 3.40 months when the annual delay effect was taken into account. This proved that the temperature 3.40 months before the most vigorous period of vegetation growth (from about 3.6 months to 4.6 months, i.e., from mid–late March to mid–late April) had already met the heat required for vegetation growth (Figure 2a). When the temperature increased and exceeded the optimum temperature, photosynthetic enzyme activity [53] and potential photosynthetic utilization capacity [20] would be enhanced, evaporation would be accelerated, and water utilization reduced, thus inhibiting plant development [10,11,54,55]. When the temperature of the month in which the optimal interannual delay occurs increased (the optimal time delay was 7.80 months, which was roughly during the 11.2–12.2 months of the previous year, i.e., early November to early December), this reduces the cold shock effect of the temperature on vegetation. When the temperature cold shock effect decreased, the accumulated temperature required for vegetation leaf-spreading increased [47], further aggravating evaporation, reducing soil moisture, and affecting vegetation growth the following year. Tei et al. [23] also obtained the same results, describing how the previous year’s temperature damaged the ecosystem in the woodlands around the Arctic Circle between 50°N and 67°N.The primarily negative relationship between NDVI and temperature appeared in T⁺*-P⁺*—the higher the temperature, the lower the NDVI. This might be because of the T⁺*-P⁺* in the northwest, which is part of the plateau that shapes the semi-arid zone (as shown in Table 1), where there was less rainfall and the soil moisture content was low, so that when temperature increased, soil temperature also increased, resulting in accelerated evaporation and reduced water availability [28,54], further aggravating soil water shortage and aridity [10] and also threatening plant growth and photosynthesis [10,11]. The intensity of the reaction of vegetation to precipitation was mostly negatively correlated at P₁₀₀–P₅ periods in T⁺*-P⁻ and NSC, indicating that the more precipitation, the lower the NDVI, which may be because T⁺*-P^– and NSC belong to the moist subtropical area, the humid subtropical humid temperate semi-humid zone, and the plateau area (as shown in Table 1). Here, high precipitation increased the soil moisture content and directly influenced the development of vegetation, and the more significant the precipitation, the more waterlogged the soil became, which lowered the temperature of the surrounding environment, reduced solar radiation [25,31], and offset the positive effect of precipitation on vegetation. In addition, soil became more susceptible to erosion because of higher precipitation, and according to the RULSE loss equation, increased soil loss would inhibit vegetation growth [56]. Under other conditions, the correlation was primarily positive in that increased precipitation replenished soil water, and plants absorbed the water through their roots and transported water to the leaves for photosynthesis, thus increasing chlorophyll and promoting vegetation growth [14,25,57]. Similarly, some researchers have detected a strong positive relationship between vegetation change and precipitation in the southwestern United States [29], the Australian outback [21], the Yun–Gui Plateau [30], and Sulaimaniyah [13]. When considering the annual and interannual delay effect, the complex correlation coefficients increased significantly (p < 0.05), reaching 0.87 and 0.91, respectively, which indicated that vegetation development was closely related to changes in precipitation and temperature. Climate change has significantly affected and played a critical part in the development of terrestrial vegetation [1,3,4,5,11,13,14,16,21,22,23].

4.3. The Phased Responses of Vegetation to Climate Change

Based on the results shown in Figure 2, Figure 3, and Figure 4 and the findings of previous studies, it has been demonstrated that climate change significantly affects the growth of terrestrial vegetation. We analyzed the correlation between NDVI and climatic factors (temperature and precipitation) over 15-year time periods, and the decreasing trend was dominant both for the same period and also when (annual and interannual) time delay effects were taken into account. This indicated that with continued global warming, the impact of climate factors on vegetation development tended to decrease, which may result from changes in other surrounding environmental factors connected with global warming, altering the relationship between climate and vegetation over time [58,59,60,61,62,63]. When the temperature increases and exceeds the optimum temperature for vegetation photosynthesis and evaporation accelerates, the probability of vegetation being subjected to drought stress is increased, and this changes the way in which plant development reacts to temperature change. The influence of drought also weakens the response of NDVI to temperature change [55,59], and higher temperatures lead to increased plant respiration, which in turn affects net primary production through consumption of organic matter [64]. As more water is needed for vegetation growth, an increase in precipitation can supplement soil water, the primary source of water in the soil, and plants can absorb water through their roots and promote vegetation growth [16]. However, when the precipitation surpassed a certain threshold, the correlation between NDVI and precipitation showed a diminishing trend [60,63]. D’Arrigo et al. [65] pointed out that the increase in temperature was the potential reason why tree development became less sensitive to temperature in the second half of the 20th century. Piao et al. [58] confirmed that the correlation between NDVI and temperature during the developing season would be weakened because of the continuous warming of the Northern Hemisphere. Fu et al. [47] also proved that global warming had reduced the cold shock temperature for vegetation and that the lower the cold shock temperature, the higher the required accumulated temperature for vegetation leaf expansion, which further reduced soil moisture, affected leaf expansion the following spring, and reduced the growth of vegetation.

5. Conclusions

This research attempted to establish the impact of climate factors on vegetation growth, which was difficult to quantify and had a lower explanation rate, and explored the reaction characteristics of vegetation to climate change. The changing trend of reaction intensity generated the following research questions: (1) How can the optimal time lag for the impact of climate factors on vegetation growth be determined? (2) How can the trend of the intensity of the time delay reaction of vegetation to climate change be characterized and quantified? To answer these questions, we used CRU and GIMMS NDVI data to explore the changing trend of the optimal delay response and the response intensity of vegetation to single and multiple factors in different periods (P₁₀₀–P₅ and Mean) in SW and CAs. Generally, we found that in the different growth periods of vegetation (P₁₀₀–P₅ and Mean) across the entire SW and CA, the prediction rate of climate change on vegetation development was significantly improved when the (annual and interannual) time lag impact was taken into account, and we also proved that the reaction of vegetation change to meteorological factors had a specific time lag. The response was more significant when the interannual time lag effect was taken into consideration. Vegetation growth has gradually reduced under the influence of climate change, which may be the result of other surrounding environmental factors which are also affected by global warming, causing the relationship between climate and vegetation to alter over time. The optimal synthesis of the NDVI annual value may be in the P₂₅ period rather than the annual maximum value or annual mean value commonly used by most scholars. To an extent, our study provides a relevant theoretical basis for analyzing, predicting, and evaluating the dynamic response of vegetation and its reaction to climatic alterations against the background of global climate change.
