Fast Segmentation and Dynamic Monitoring of Time-Lapse 3D GPR Data Based on U-Net

Abstract

As the amount of ground-penetrating radar (GPR) data increases significantly with the high demands of nondestructive detection methods under urban roads, a method suitable for time-lapse data dynamic monitoring should be developed to quickly identify targets on GPR profiles and compare time-lapse datasets. This study conducted a field experiment aiming to monitor one backfill pit using three-dimensional GPR (3D GPR), and the time-lapse data collected over four months were used to train U-Net, a fast neural network based on convolutional neural networks (CNNs). Consequently, a trained network model that could effectively segment the backfill pit from inline profiles was obtained, whose Intersection over Union (IoU) was 0.83 on the test dataset. Moreover, segmentation masks were compared, demonstrating that a change in the southwest side of the backfill pit may exist. The results demonstrate the potential of machine learning algorithms in time-lapse 3D GPR data segmentation and dynamic monitoring.

1. Introduction

Ground-penetrating radar (GPR) is a nondestructive detection technique that transmits high-frequency electromagnetic waves and receives the backscattering from the medium, which is suitable for defect inspection and dynamic monitoring of urban roads. To avoid road collapses, GPR is used to detect underground targets, including pipelines, voids, backfill pits, and high-water-cut areas. As it is known, it is not difficult to distinguish strong reflections from other signals, such as the reflections of metal pipes and clear boundaries of voids [1,2,3]. However, in many cases, the reason defects under roads are not discovered in time is that the radar data do not provide a strong reflection feature before the defect is generated, but cluttered weak scattering caused by loosening or deformation of the medium may be evident. Therefore, cases containing weak reflections with extended ranges should be approached seriously. Furthermore, to satisfy the goal of road safety maintenance, defects should be identified and monitored timely and properly to know if any changes occur or if actions are required to avoid road collapses. Identifying and locating regional features on GPR data are crucial and remain challenging tasks, because of the amplitude of the reflections as well as the regional characteristics that must be considered, which cannot be measured by mathematical formulas or specific values. In addition, the large amount of time-lapse data generated by GPR monitoring introduces difficulties in data processing and target identification. Therefore, the development of a method for the quick identification and monitoring of targets with regional features from time-lapse GPR data is necessary.

In recent years, convolutional neural networks (CNNs) and their neural network models have been widely applied in object recognition, image segmentation, and face and speech recognition owing to their powerful image processing abilities. Their advantage is that it is not necessary to know the quantitative characteristic parameters of the target; the network can learn the discriminant basis of the target from data from multiple trainings. In the user layer, this is represented as end-to-end mapping from the data to the target, hiding the complex judgment basis and quantitative criteria in the middle [4,5,6,7,8]. In recent years, CNNs have been used to identify hyperbolic features [9,10], manhole covers, reflective interfaces, soil [11,12], and landmines [13,14] in GPR data images. However, for defects in urban roads, research on object recognition and dynamic-change monitoring using machine learning is not comprehensive. Studies based on simulated data are insufficient, but the plausibility of real data must be discussed. In addition, both strongly and weakly reflected local signals should be considered, because any change in the data might indicate a change in the dielectric constant of the underground material. Therefore, with the necessity to identify specific obvious features and weak signals with regional characteristics, an appropriate neural network is required, which can achieve satisfactory recognition and segmentation results from limited GPR datasets.

U-Net is a deep learning network based on CNNs. Through powerful data augmentation, a reasonable weighted loss function, and full utilization of subunit neighborhood information, it can accurately identify image features with available annotated samples and realize end-to-end mappings between input data and segmentation units. Compared with other networks, it has the advantages of a simple structure, faster operation speed, and higher accuracy [15,16].

The main purpose of this study is to discuss a fast method for interpreting and comparing time-lapse GPR data in monitoring weak signal targets with regional characteristics. Firstly, the 3D GPR data acquisition and preprocessing methods are presented. Afterwards, the used neural network, U-Net, is presented along with how we used our data to train it. Finally, the detection results from the time-lapse dataset are compared and the results are discussed.

2. Experiment and Methods

2.1. Field Experiment and Data

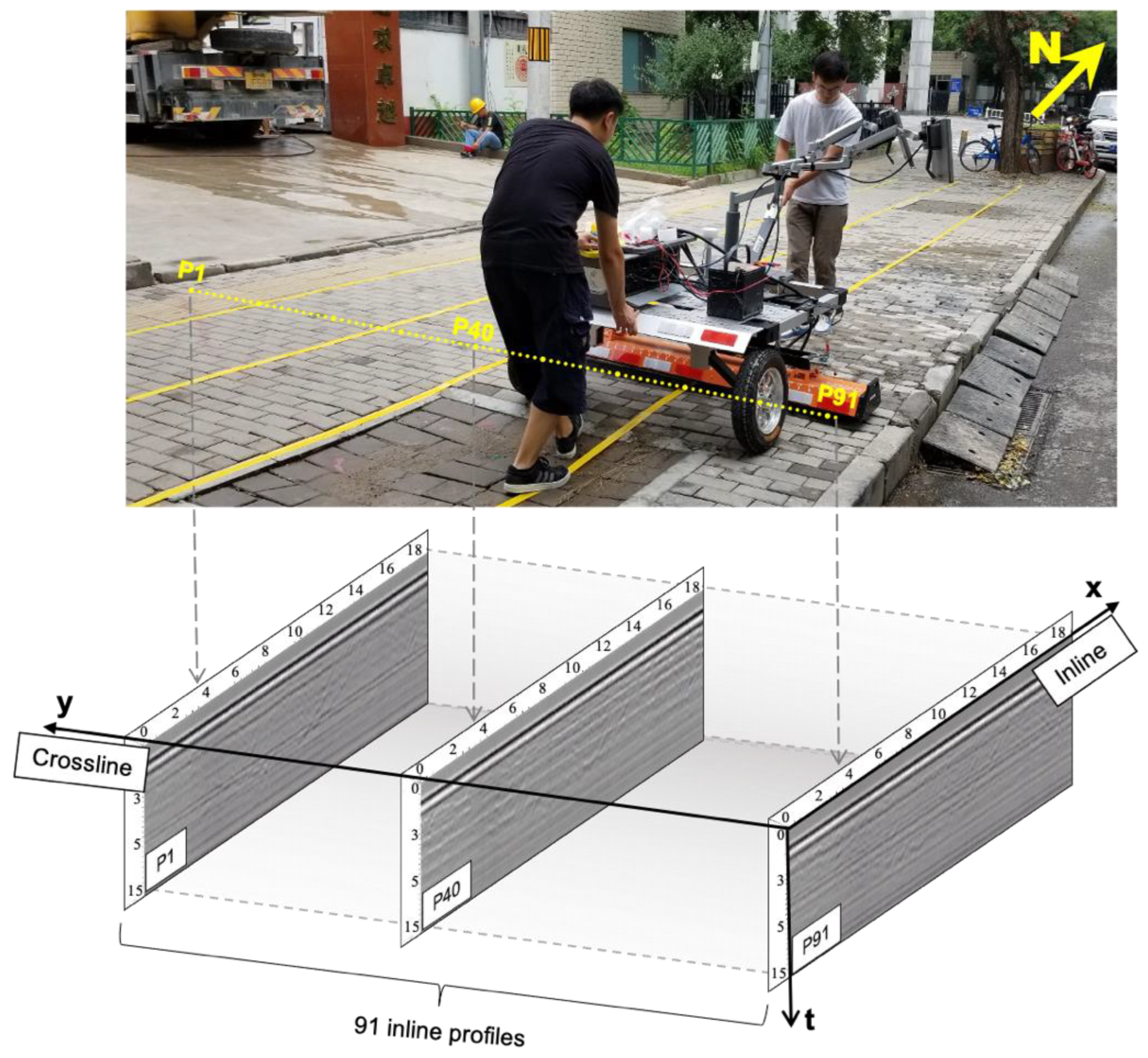

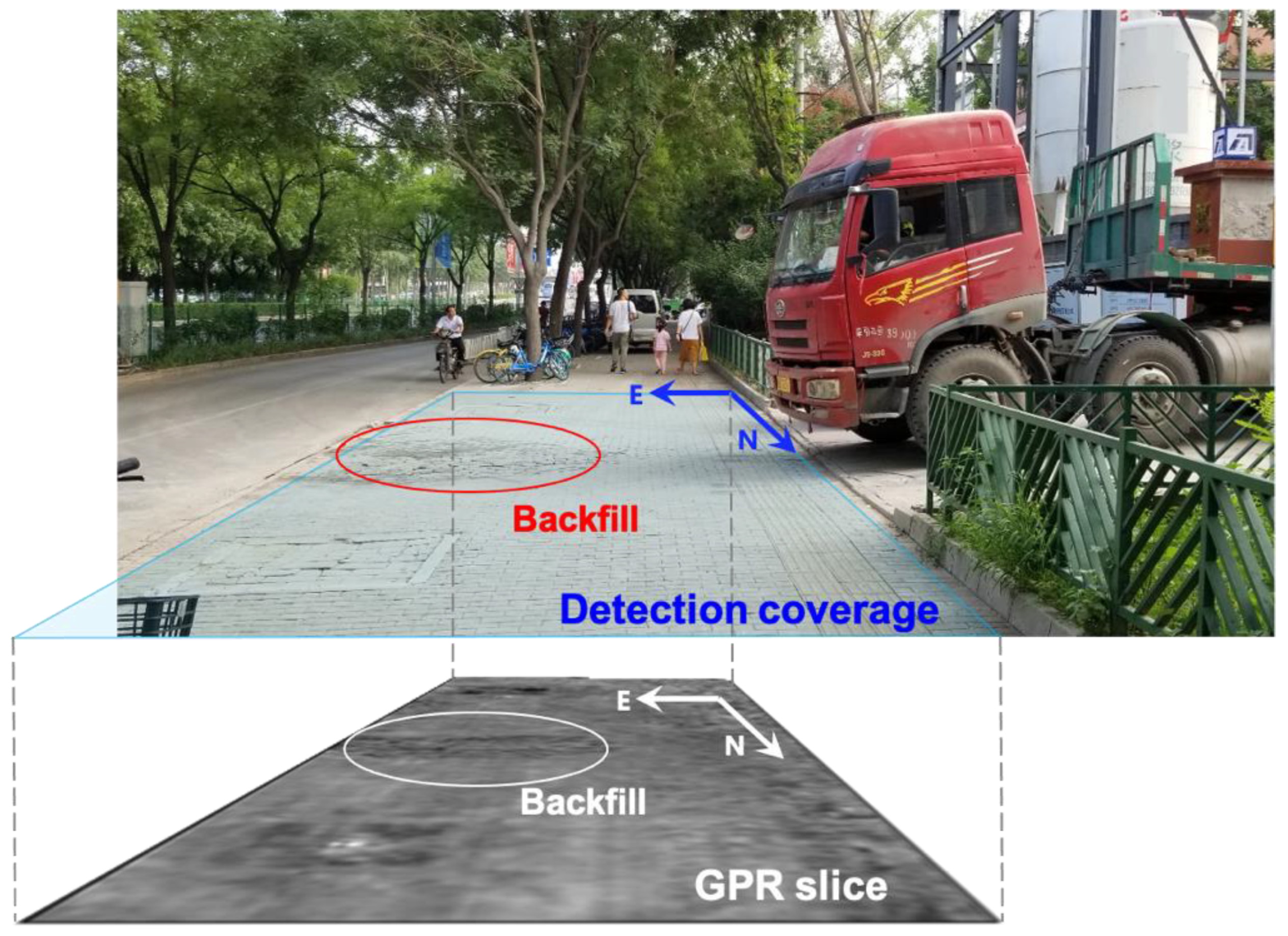

As shown in Figure 1, the experiment was conducted at the gate of a construction site with a fresh backfill pit. Considering the material in the backfill pit may be deformed after being crushed, a time-lapse full-coverage (TLFC) 3D GPR acquisition containing four group lines was arranged on the sidewalk, covering the backfill pit from inline profiles P40 to P91, as shown in Figure 2. The MobyScan-V 3D GPR system with the 30-channel antenna arrays (Figure 3) produced by DECOD Science & Technology Pte. Ltd. (Singapore). was used in this experiment, and

Table 1. The technical specifications of the MobyScan-V and data acquisition parameters.

Indicators	Parameters
Antenna type	Ground-coupled antenna arrays
Number of channels	30
Center Frequency	2 GHz
Channels spacing (crossline)	0.05 m
Scans spacing (inline)	0.02 m
Sampling points	512
Time window	15 ns

lists the acquisition parameters. Fifteen time-lapse detection sessions were conducted from 20 May to 25 October 2019 (

Table A1. Dataset and acquisition date (year: 2019; date: MM. DD).

Datasets	Date	Datasets	Date	Datasets	Date
(a)	05.20	(f)	08.02	(k)	08.30
(b)	06.04	(g)	08.05	(l)	09.05
(c)	06.18	(h)	08.08	(m)	09.12
(d)	07.22	(i)	08.14	(n)	09.26
(e)	07.30	(j)	08.22	(o)	10.25

).

The 3D data preprocessing methods listed in

Table 2. Preprocessing steps and parameters.

Step	Processing Method	Parameter/Object
Time zero correction	Antenna lifting test	2 ns
Background removal (BGR)	Sliding window	150 scans
Frequency filtering	Butterworth filter	500–1500 MHz
3D time zero normalization	Correlation	Direct-coupling
3D data combination	Correlation	Overlapping data

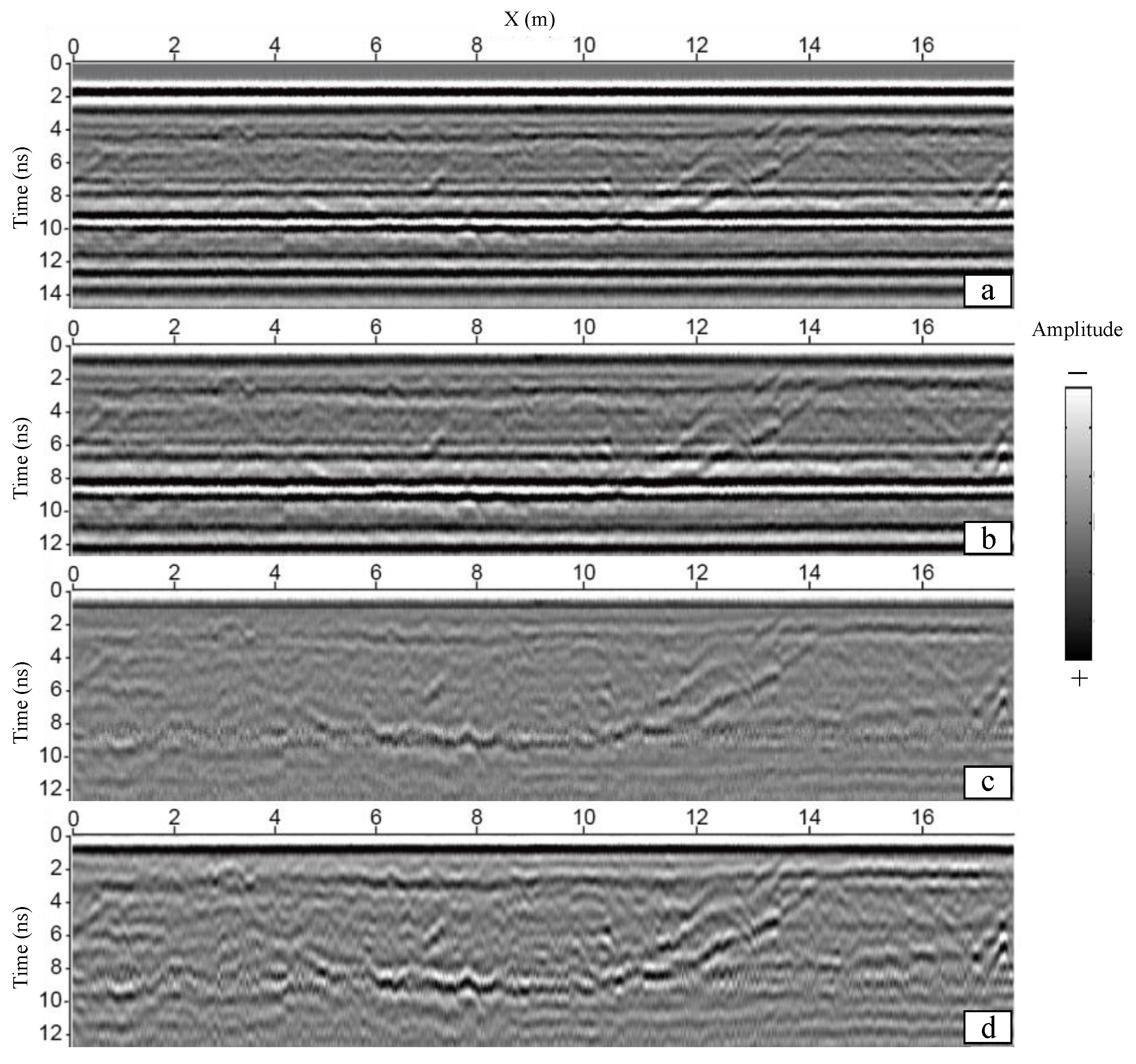

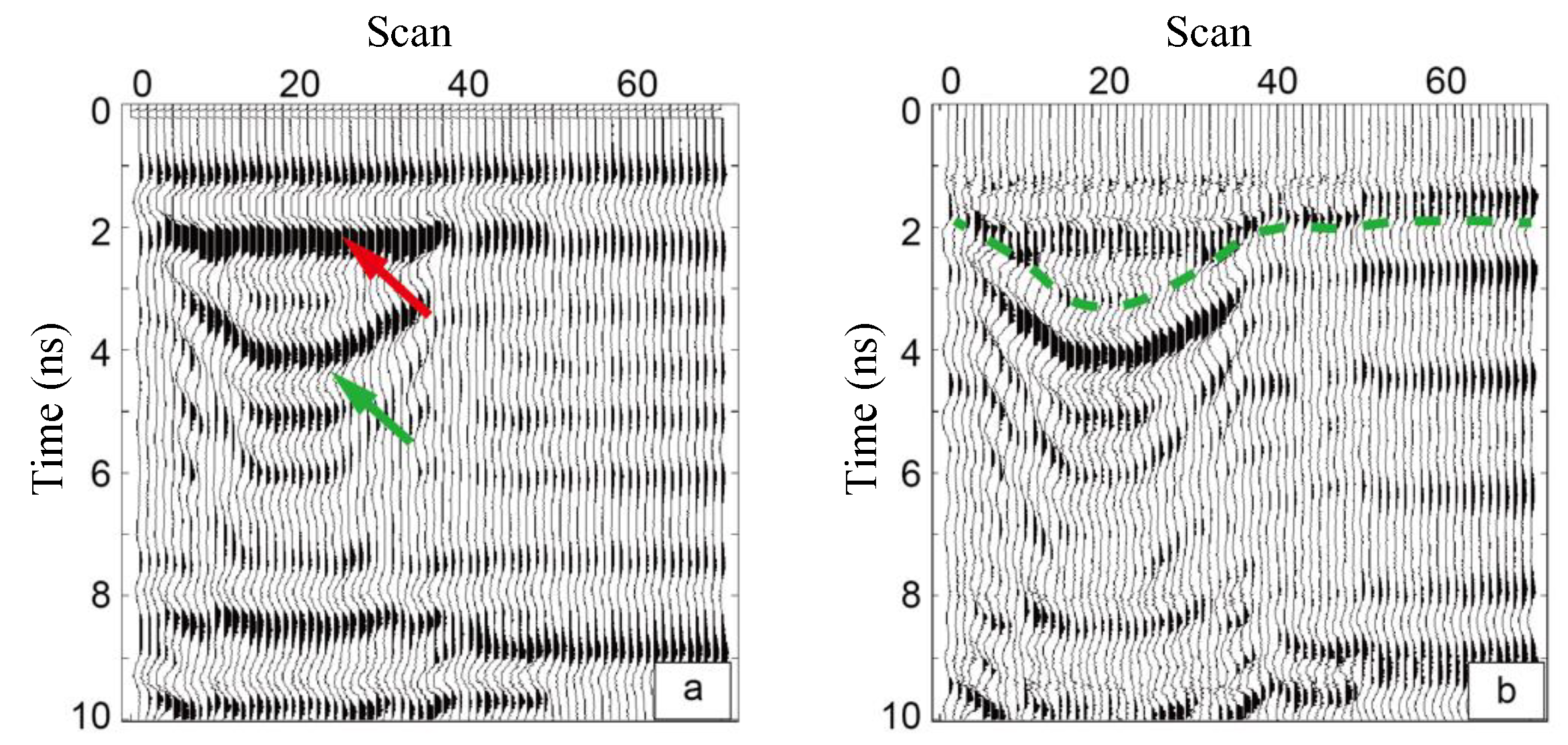

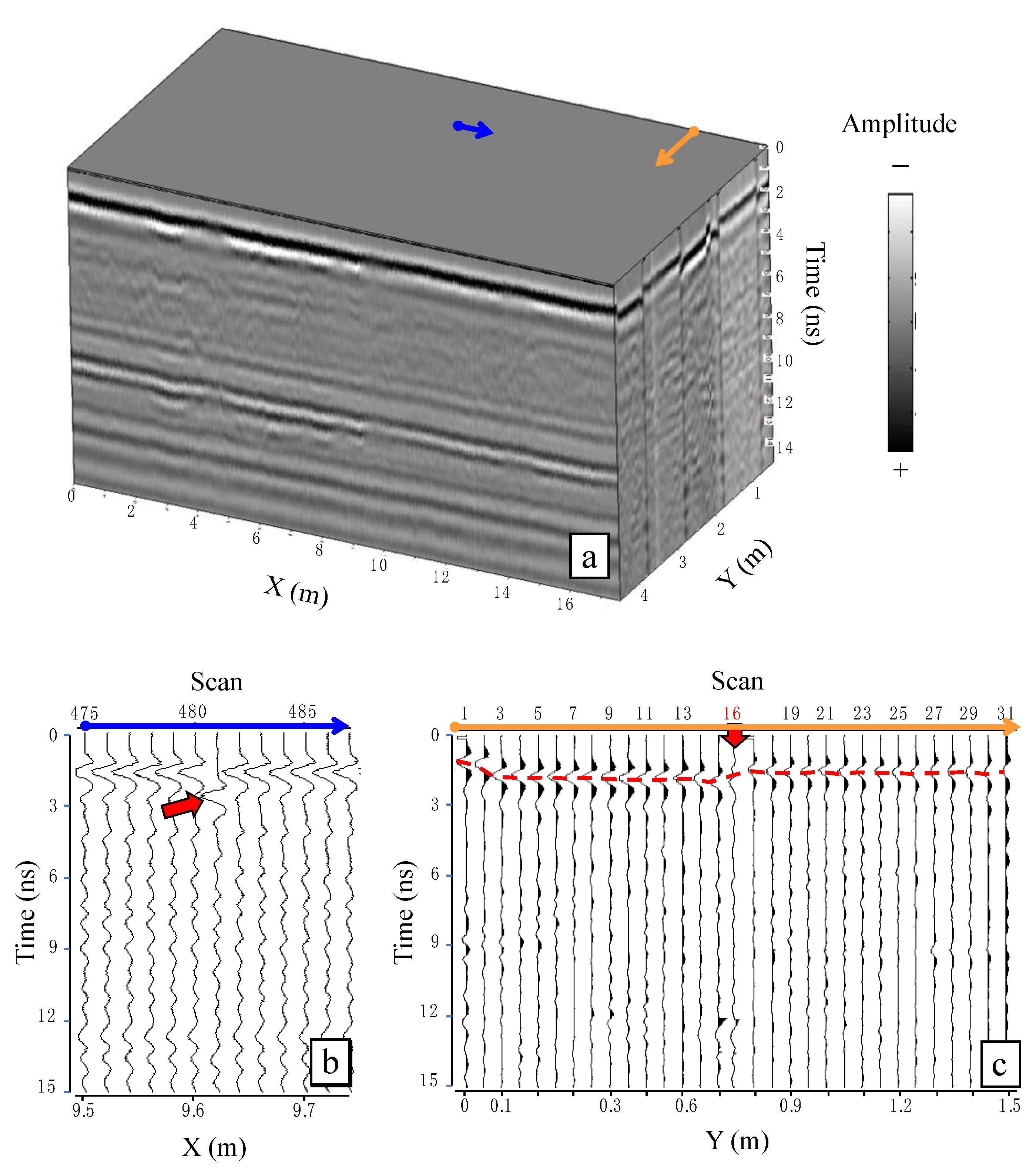

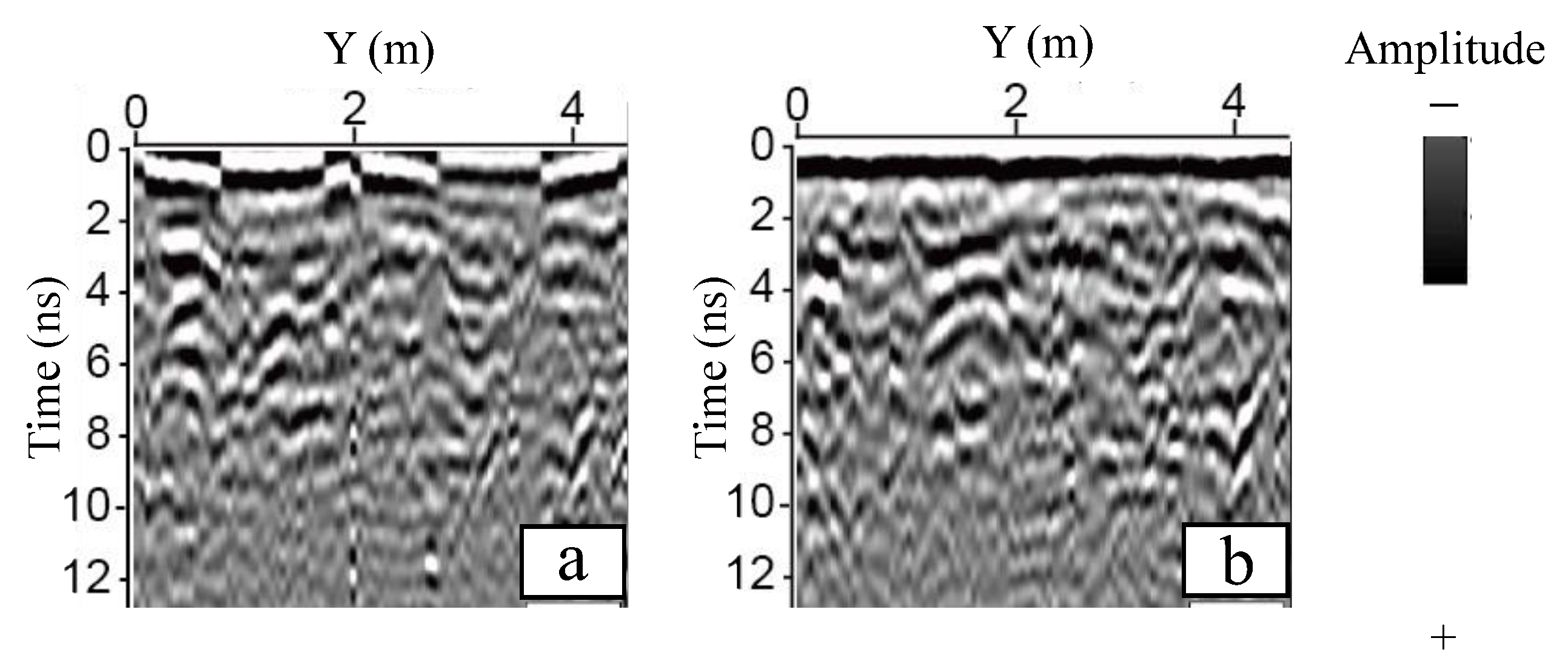

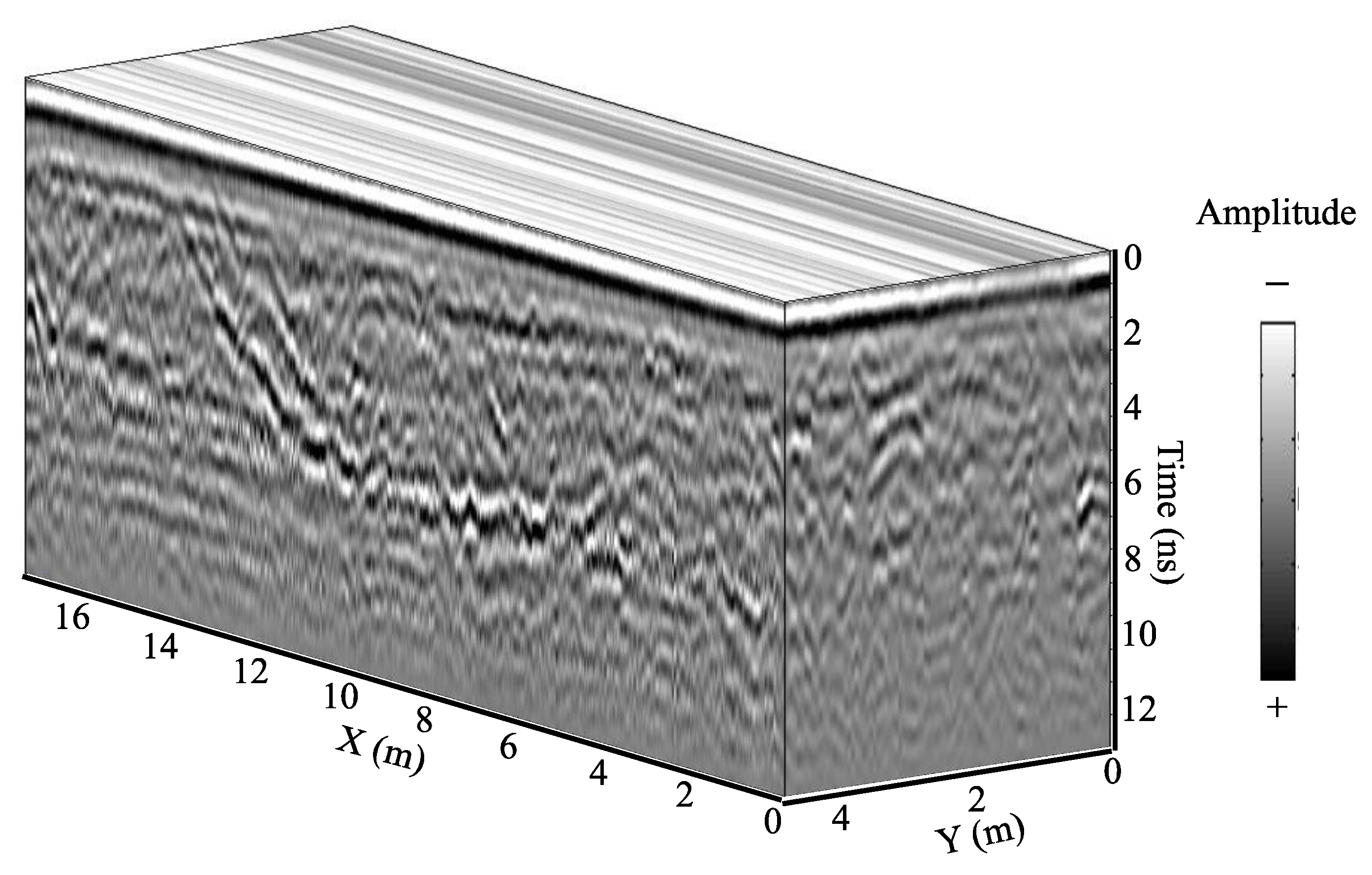

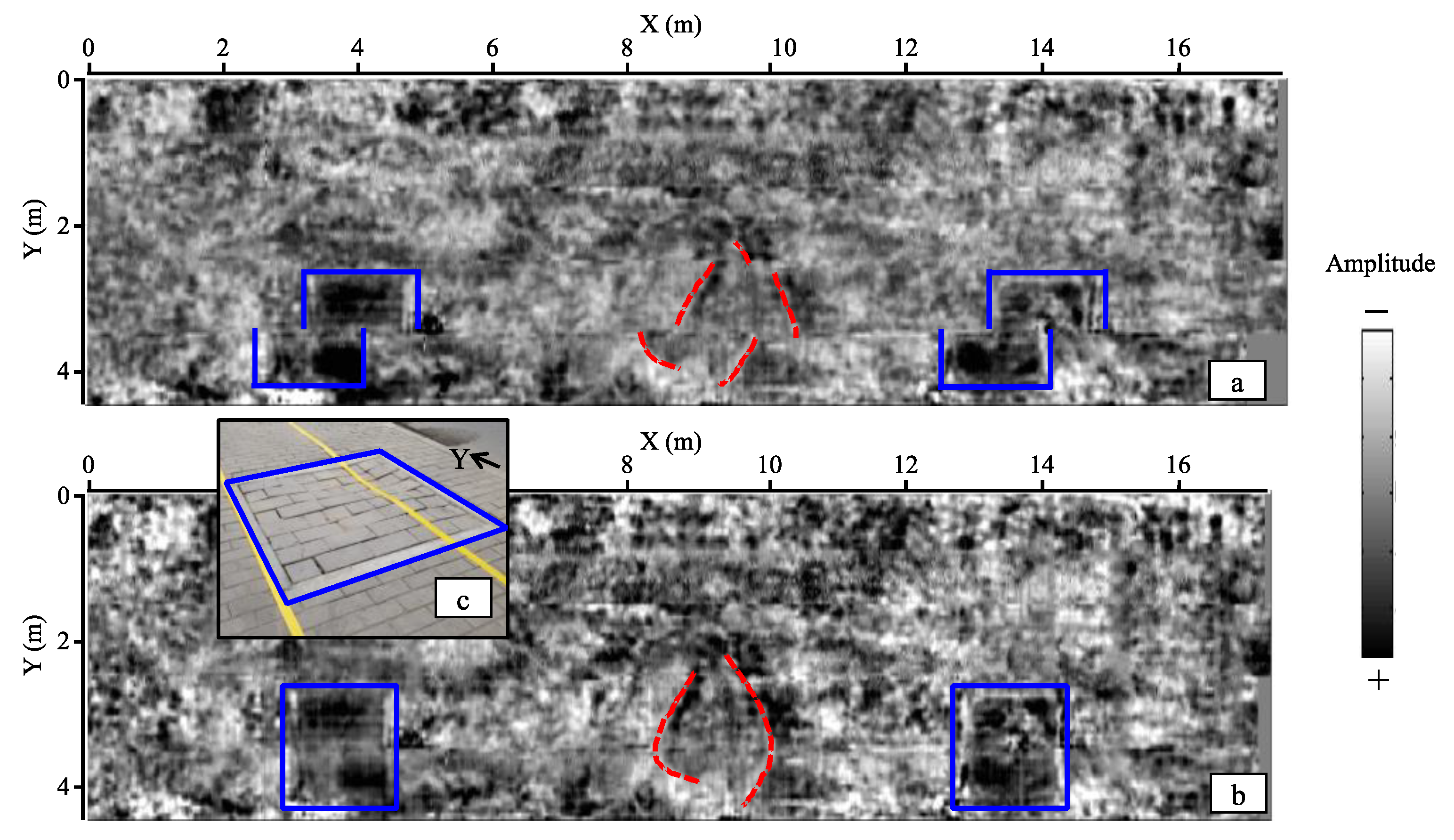

were applied to the raw 3D GPR data, in which the first arrive disagreed with the true time zero, and useful reflection signals were buried by strong noise (Figure A1). Firstly, an antenna lifting test was carried out to find the position of the ground as the true zero, as shown in Figure A2. Then, time zero correction, background removal (BGR), and frequency filtering were applied in turn (Figure A3). Finally, correlation was used to carry out the 3D time zero normalization and 3D data combination, which can be found in Figure A4 and Figure A5 and [17]. The 3D GPR data cube after preprocessing is shown in Figure A6.

2.2. U-Net Structure and Model Training

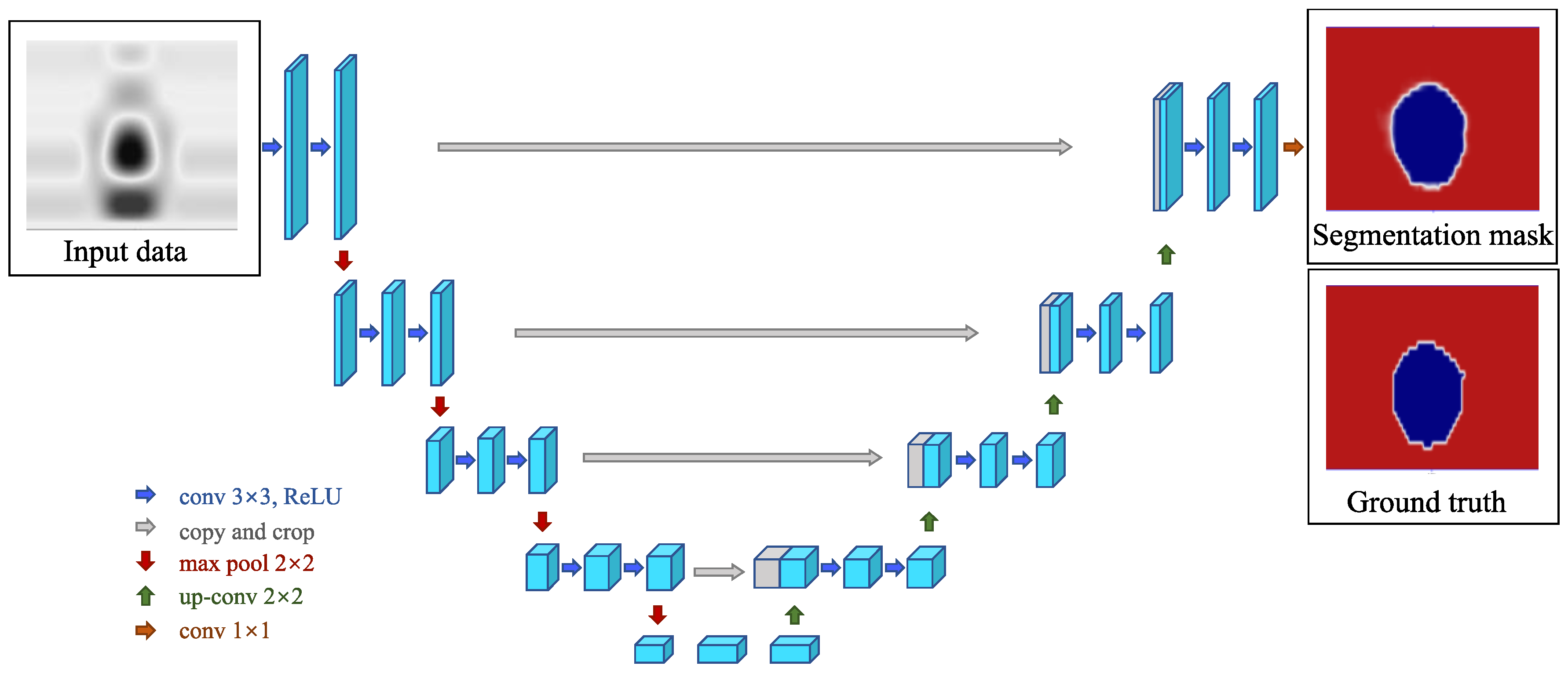

Figure 4 illustrates the U-Net architecture. The entire network presents a symmetrical “U” shape. It consists of contracting and expansive paths, which correspond to the left and right sides of the figure, respectively.

• Contracting path: This path is used to obtain the context information. It has four layers, and each layer consists of two identical 3 × 3 convolutions and rectified linear unit (ReLU) activation functions. Downsampling is performed through a 2 × 2 max pooling operation. The number of feature channels is doubled after each downsampling. On this path, four max pooling operations are performed to extract the feature information from the sample.
• Expansive path: This is the upsampling part used to locate the target. A 2 × 2 convolution is applied to half of the feature channels, and then two 3 × 3 convolutions are used, each followed by a ReLU function. In the last layer, a 1 × 1 convolution is used to map the feature vectors to the corresponding prediction classification to complete the data segmentation and make the size of the output data consistent with that of the input data.

2.3. Data Segmentation

For 3D GPR, data can be interpreted and annotated from different profiles, such as inline, crossline, and horizontal slices. In this study, the spatial resolution of inline profiles along the acquisition direction was higher. Therefore, the target areas in the inline profiles of the 3D GPR data were segmented pixel-wise to generate ground truths and show the clear borders of the target. These inline profiles with ground truths were used as the training and testing datasets.

2.4. Accuracy Evaluation

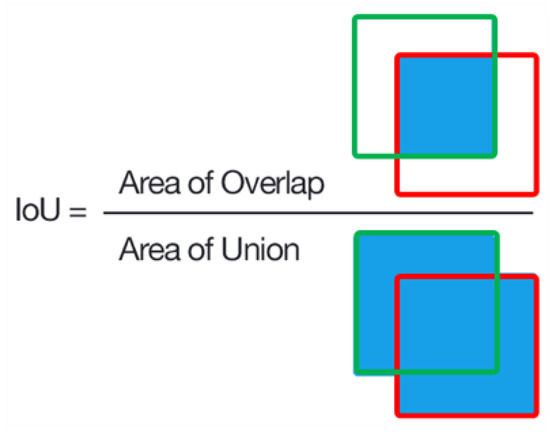

The IoU between the segmentation and manual ground truth was applied to evaluate the network availability, as shown in Figure 5. The prediction results can be divided into the following two grades:

• $\mathrm{IoU}>0.6$, good result;
• $\mathrm{IoU}<0.6$, unsatisfactory result, and the segmentation is invalid.

2.5. Mask Comparison

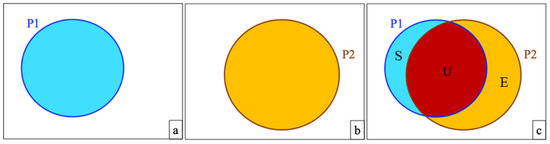

The changes in the targets can be determined by overlapping the masks of the time-lapse GPR data. P1 and P2 are assumed to be masks of the same target “X” at different times (t1 and t2, as shown in Figure 6a,b, respectively). By taking P1 as a reference overlaid with P2, the changes are determined as two types: changed (blue and yellow masks in Figure 6c) and unchanged areas (red masks in Figure 6c).

3. Results

The aim of data segmentation is to track the backfill pit in the inline profiles. The masks were compared to determine the changes in the backfill pit from 20 May to 26 September 2019.

3.1. Training and Segmentation

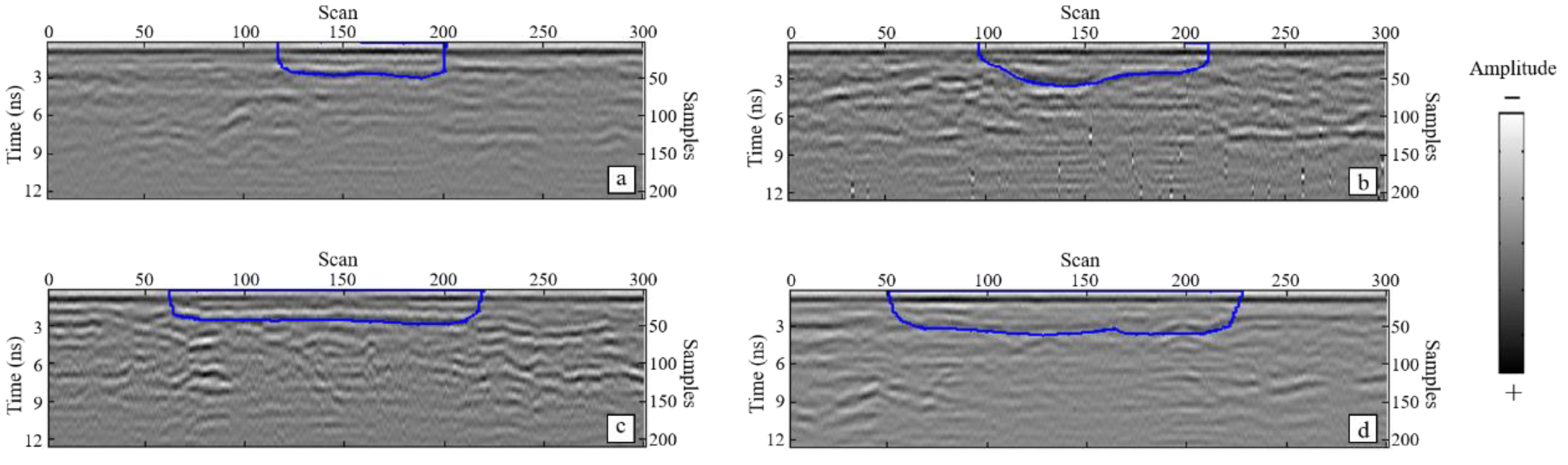

Data annotation was performed on the inline GPR profiles after 3D preprocessing, as shown in Figure 7. The blue borders indicate the boundaries of the backfill pit. The mask value within the border was set to 1, and the background was set to 0. In this study, 249 annotated profiles from Datasets (a) to (n) in Table A1 were randomly selected to train the network, as shown in Figure 3. After training for 54.2 h on a PC with a CPU Intel(R) Core(TM) I5-4460 @ 3.20 GHz and 8 GB of RAM (Santa Clara, CA, USA), the average IoU of 0.96 was obtained on the 432nd training model, indicating a satisfactory segmentation of the training dataset.

All data collected and obtained on 25 October 2019 (Dataset (o) in Table A1) and their manual annotations were used to test the 432nd network, as shown in

Table 3. Information of the training and testing datasets.

	Training Dataset	Testing Dataset
Number	249	52
Sampling points of GPR data	16,434,000	3,432,000
Proportion of total data	19.5%	7.1%
Data acquisition date	20 May 2019–26 September 2019	25 October 2019

.

Furthermore, the predicted results of the testing dataset were compared with the ground truth, and the IoU of the model on the testing dataset was calculated and divided into two classes according to Section 2.4:

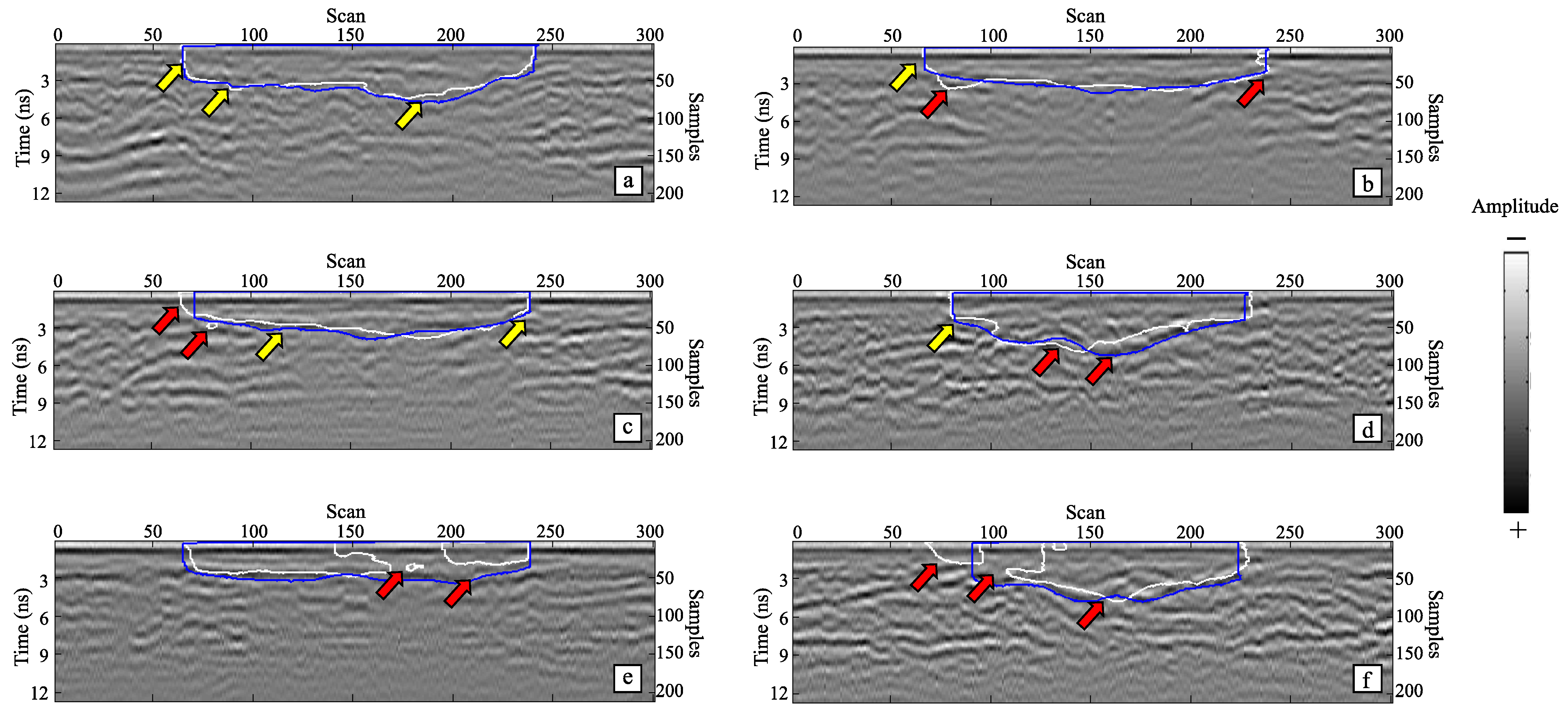

• When $\mathrm{IoU}>0.6$, a good prediction is obtained. The target region was successfully segmented, and the borders fit well (the yellow arrows in Figure 8a–d). In a few cases, as indicated by the red arrow on the right in Figure 8b, the output of U-Net was better than the manual ground truth. The borders of the segmentation masks were slightly different from the manual ground truth (the red arrows in Figure 8c,d) at times, but the error was acceptable, with less than one wavelength.
• When $\mathrm{IoU}<0.6$, the segmentation results are weak. Some of the segmentation maps were incomplete, and the boundaries were incorrect, as the red arrows indicate in Figure 8e,f.

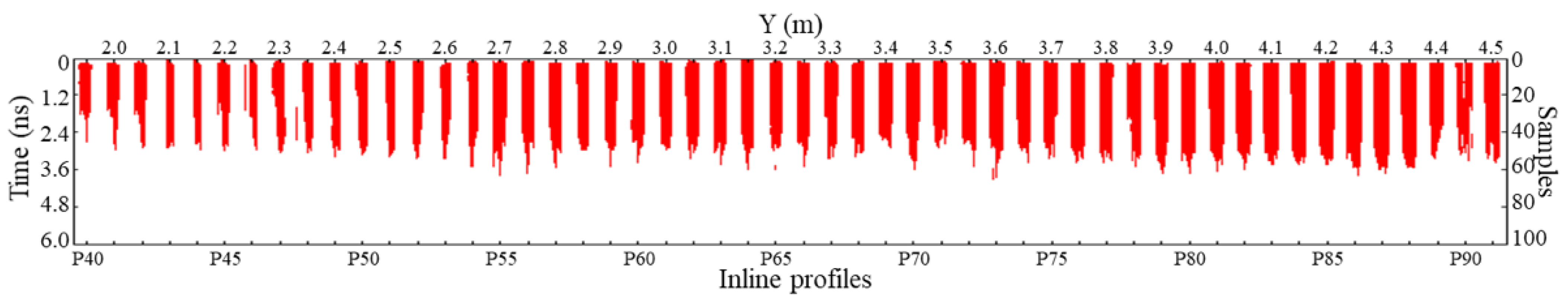

The average IoU of the testing dataset was 0.83, indicating that the model could segment the target. The segmentation results of the data collected on 20 May were arranged according to the sequence of profile numbers from small to large, as shown in Figure 9, corresponding to west to east. In addition, the direction of each mask is from south to north.

3.2. Monitoring

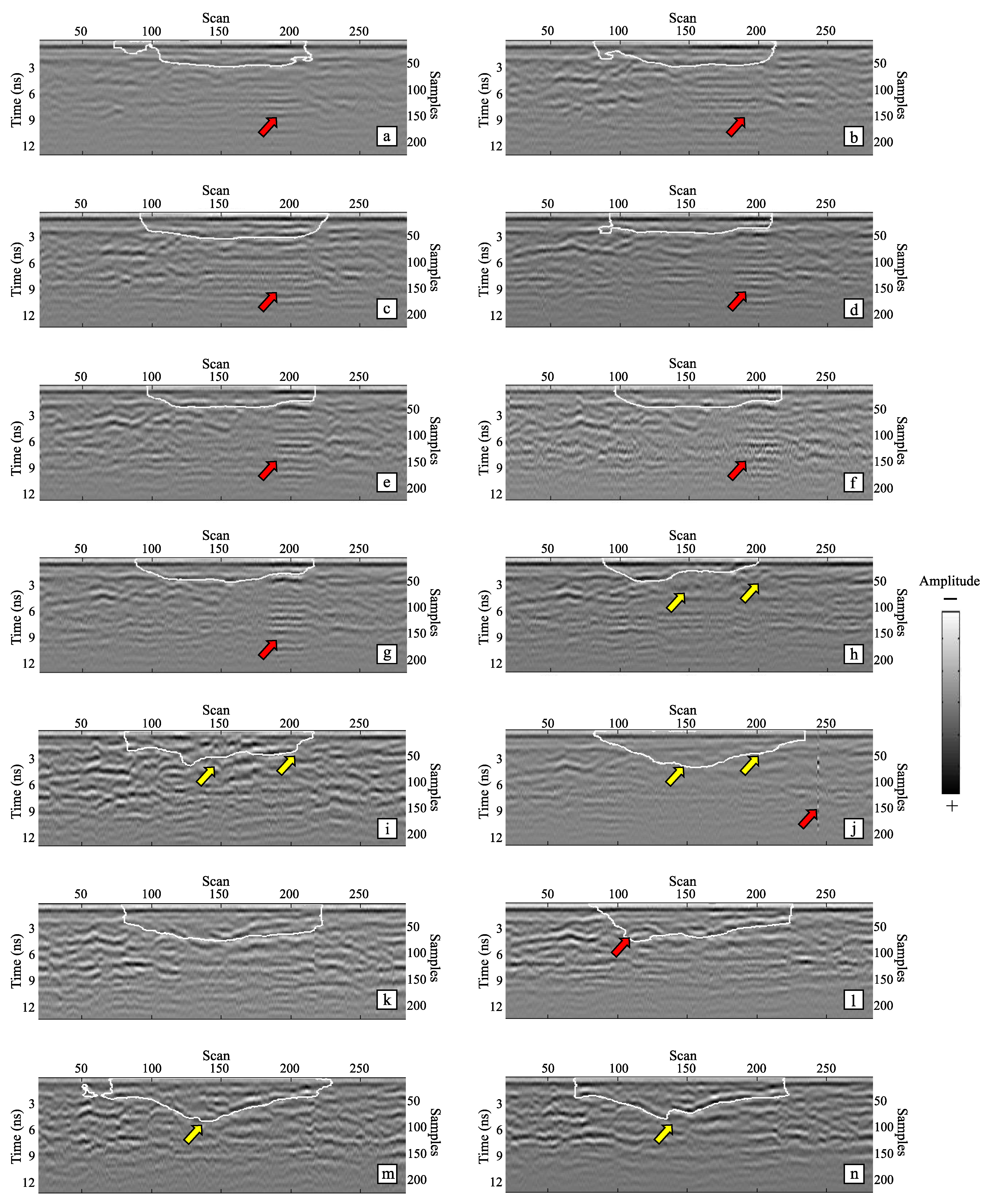

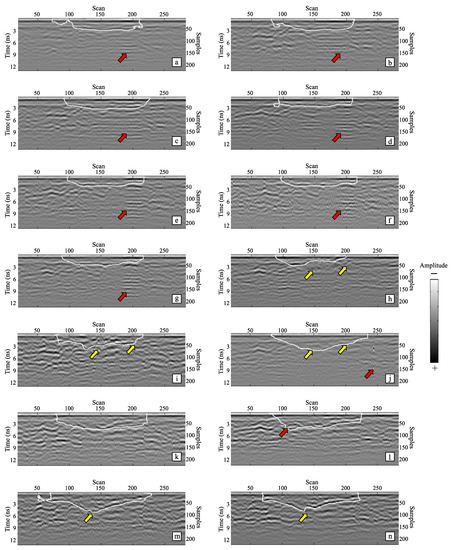

P50 profiles were used as an example to show the changes in the data. As shown in Figure 10a–g, the borders were approximately “U”-shaped. However, a gradual change to a “V” shape of the borders (yellow arrows) was observed, as shown in Figure 10h–j.

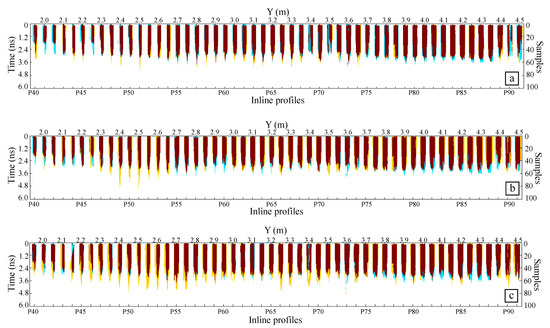

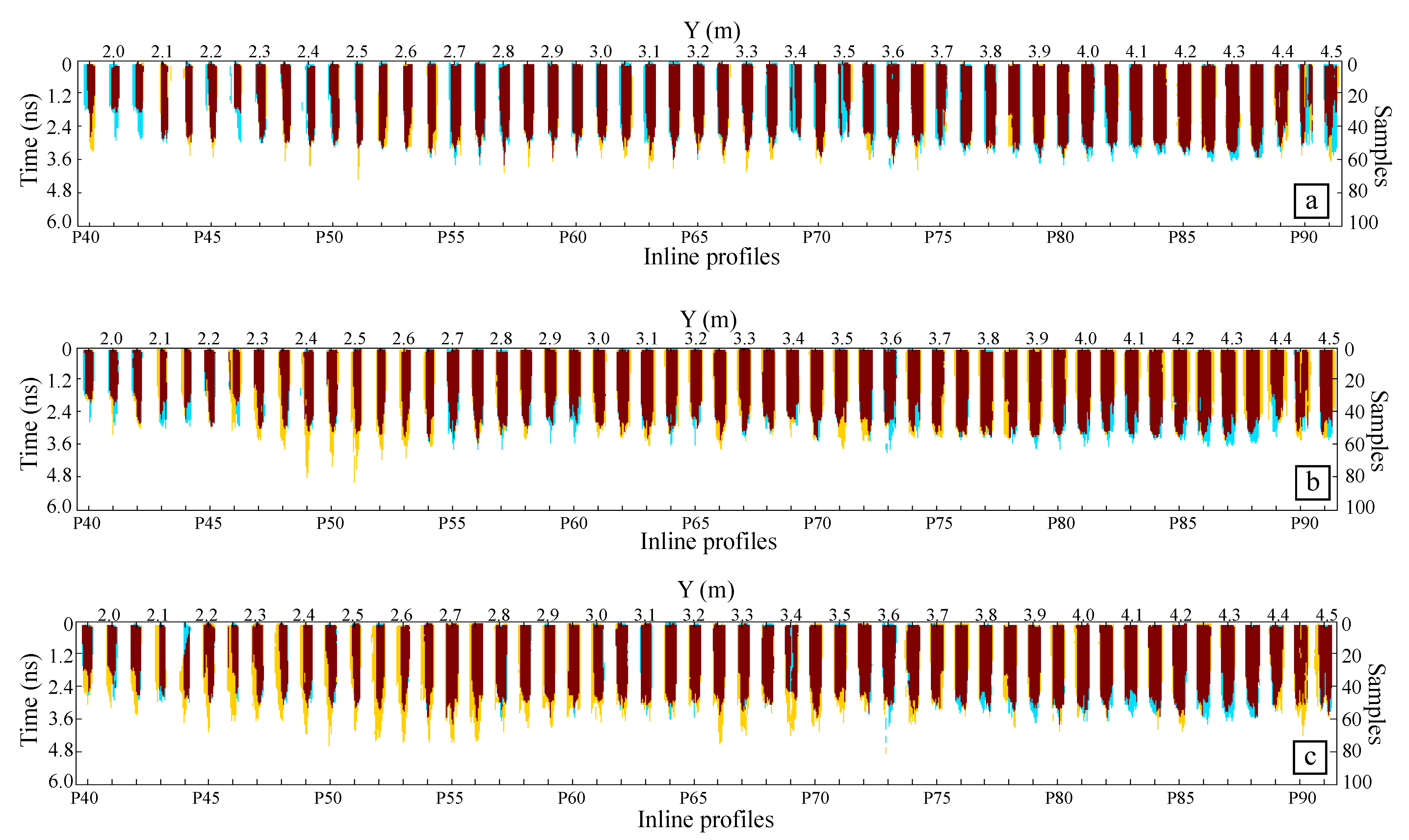

To further determine the changes in the 3D data, the overlapped masks on 4 June, 22 August, and 26 September are listed in a crossline direction, as shown in Figure 11, in which changes are shown in blue and yellow, and unchanged areas in red.

• June 4: As shown in Figure 11a, changes in the left and right borders are noted on the blue masks from Y = 1.95 m to Y = 2.25 m, and changes in the bottom borders can be seen on the yellow masks from Y = 2.35 m to Y = 3.35 m.
• August 8: As shown in Figure 11b, a significant change in the lateral boundaries can be seen from Y = 2.10 m to Y = 2.65 m and from Y = 3.00 m to Y = 4.50 m (yellow masks in Figure 11b). The bottom borders also change from Y = 2.10 m to Y = 2.65 m (yellow masks) and from Y = 3.90 m to Y = 4.40 m (blue masks).
• September 26: Significant changes are noted on the bottom borders from Y = 1.95 m to Y = 3.70 m (yellow masks in Figure 11c). Apparently, the change in the left borders from Y = 2.10 m to Y = 3.00 m is clearer compared to that in Figure 11a,b.

4. Discussion

4.1. Did the Backfill Pit Really Change?

The time-lapse changes in this study refer to the segmentation masks in the preprocessed radar data, as mentioned in Section 2.5. They provide a sense of lateral variation in the shallow targets, but the changes cannot be accurately calculated because the two-way travel time is not linked to depth, which is crucial information for interpreting GPR data, as the propagation velocity is unknown. For a two-layer model with a horizontal interface, the propagation velocity of the first layer can be calculated using the common middle point (CMP). However, the bottom of this backfill pit was neither irregular nor clear; thus, the speed cannot be calculated using this nondestructive detection method. Moreover, experimental conditions prevented the sampling and laboratory analysis of the material in the backfill pit. Given that the goal of this study was to discuss the fast segmentation of GPR data using U-Net and provide an idea of data comparisons, the study of velocity is not the focus of this study.

For all time-lapse detections, we attempted to avoid rainfall and select similar dry weather for data collection to avoid the influence of water content on speed as much as possible. However, for the rainy season, such as August, the water content and dielectric constant of the subgrade could be higher than during other times; thus, the main frequency and speed of the radar signal may be reduced. On the radar profile, the position of the upper border may be seen further downward, creating a “deepening” illusion, such as the significant expansion of bottom borders from Y = 1.95 m to Y = 3.70 m in Figure 11c. However, if the propagation velocity has not changed dramatically, this phenomenon must be caused by the deepening of the backfill pit. In this case, the backfill pit may have been refilled in August, because it expanded significantly more in September than in May, unlike in August or earlier. Settlement may have occurred in the backfill pit after being rolled, leading to the deformation of the road, and the subgrade may have been filled to facilitate the passage of engineering vehicles. Nonetheless, lateral changes are still valuable since the positions of survey lines were kept unchanged among the time-lapse detections.

4.2. Outlook

Previous studies have used neural networks to recognize targets [5] instead of segmented images [15,16]. The goal of GPR is to identify the range of a target; thus, the network should be capable of both recognition and segmentation. However, most studies remain focused on recognizing strong reflected signals, such as diffraction waves and antenna ringing [9,11]. This is because the result of semi-supervised segmentation is highly dependent on ground truths, which are manually annotated. The complex signals and variable features of GPR data introduce difficulties in annotation and segmentation; thus, methods are expected to be applied to identify the features. For instance, the texture feature coding method was used to extract texture-based features from GPR B-scans [9], and the detection results from the neural network may be more satisfactory with these strong features.

In further research, a dynamic 3D underground database should be realized using TLFC 3D GPR. In this study, TLFC 3D GPR was successfully used to monitor a small field, but the samples and data used to train U-Net were only from the backfill pit in this study. That is, the neural network trained in this study may be inapplicable to targets with other characteristics. If the time-lapse detection can be conducted in a large area to collect more target samples, a more universal neural network model can be established to achieve the segmentation and monitoring of multiple targets.

5. Conclusions

In this study, U-Net was used to segment the inline GPR profiles and divide the boundary of the target backfill pit. After 432 training sessions, an effective and available network model was obtained with IoUs of 0.96 and 0.83 on the training and testing datasets, respectively. This network was used to segment all radar data collected from 20 May to 26 September, and the comparison of segmentation masks with the same location but different acquisition dates provides a method to determine the change in the target.
