Integrate the Canopy SIF and Its Derived Structural and Physiological Components for Wheat Stripe Rust Stress Monitoring

Abstract

Solar-induced chlorophyll fluorescence (SIF) has great advantages in the remote sensing detection of crop stress. However, under stripe rust stress, the effects of canopy structure and leaf physiology on the variations in canopy SIF are unclear, and these influencing factors are entangled during the development of disease, resulting in an unclear coupling relationship between SIF_canopy and the severity level (SL) of disease, which affects the remote sensing detection accuracy of wheat stripe rust. In this study, the observed canopy SIF was decomposed into NIR_VP, which can characterize the canopy structure, and SIF_tot, which can sensitively reflect the physiological status of crops. Additionally, the main factors driving the variations in canopy SIF under different disease severities were analyzed, and the response characteristics of SIF_canopy, NIR_VP, and SIF_tot to SL under stripe rust stress were studied. The results showed that when the severity level (SL) of disease was lower than 20%, NIR_VP was more sensitive to variation in SIF_canopy than SIF_tot, and the correlation between SIF_tot and SL was 6.6% higher than that of SIF_canopy. Using the decomposed SIF_tot component allows one to detect the stress state of plants before variations in vegetation canopy structure and leaf area index and can realize the early diagnosis of crop diseases. When the severity level (SL) of disease was in the state of moderate incidence (20% < SL ≤ 45%), the variation in SIF_canopy was affected by both NIR_VP and SIF_tot, and the detection accuracy of SIF_canopy for wheat stripe rust was better than that of the NIR_VP and SIF_tot components. When the severity level (SL) of disease reached a severe level (SL > 45%), SIF_tot was more sensitive to the variation in SIF_canopy, and NIR_VP reached a highly significant level with SL, which could better realize the remote sensing detection of wheat stripe rust disease severity. The research results showed that analyzing variations in SIF_canopy by using the decomposed canopy structure and physiological response signals can effectively capture additional information about plant physiology, detect crop pathological variations caused by disease stress earlier and more accurately, and promote crop disease monitoring and research progress.

1. Introduction

Solar-induced chlorophyll fluorescence (SIF) is a light signal generated by the re-emission of photons from excited chlorophyll molecules back to ground state after absorption of photons in the 650–800 nm wavelength range [1], which can reflect the effects of vegetation photosynthesis [2]. It is considered to be a “probe” for detecting vegetation photosynthesis [3,4,5], and has good application potential in the remote sensing detection of early stress of crop diseases [6,7,8,9]. At present, studies have proved that using SIF data to evaluate the impact of environmental stresses (such as drought and heat stress) on crop growth has higher accuracy and sensitivity. For example, Song et al. [10] used satellite SIF to study the response of Indian wheat to heat stress, which revealed the physiological basis of heat stress affecting wheat yield, and SIF, as an effective substitute for photosynthetic activity, would improve the understanding of the effect of heat stress on wheat yield. Xian et al. [11] examined the potential of SIF to capture the influence of heat wave impacts on wheat in the NCP by comparing satellite remote sensing data of SIF and NDVI and validated ground-based yield data. The results showed that SIF can better capture the variations in wheat yield and the decline in yield due to heat waves. Furthermore, Sun et al. [12] found that satellite SIF is sensitive to both structural and physiological/biochemical variations of vegetation, and has excellent potential for dynamic drought monitoring. Shan et al. [13] found increased sensitivity of SIF to drought in a potato crop, relative to greenness-based Vegetation Indices, suggesting that diurnal variation in SIF is driven by photosynthetic and structural dynamics.

However, the canopy directional SIF detected by the sensor is the fluorescence signal of the “escape” canopy part in the observation direction, which is the result of the combined effect of three processes: the absorption of incident PAR by chlorophylls [14], emission of fluorescence by photosystems [15], and scattering and re-absorption of emitted fluorescence [16]. In the process of radiative transmission of fluorescent photons “escaping” from leaves and the canopy, some photons are reabsorbed and scattered due to the influence of plant biochemical components and canopy geometry [17] so that the total fluorescence intensity emitted by the leaves is inconsistent with the directional fluorescence intensity of the canopy received by the sensor [18], which hinders the direct linkage between apparent canopy SIF and emitted SIF from leaves [19].

This variable proportion between SIF at the leaf and canopy scales can be quantified by the directional or hemispherical photon escape ratio (f_esc) of a canopy at a certain sun–sensor geometry [20]. At the canopy scale, the biophysical processes of SIF_canopy can be represented using a simple equation:

$$\mathrm{SIFcanopy}={\mathrm{APAR}}_{\mathrm{green}}\times {\Phi }_{\mathrm{F}}\times {\mathrm{f}}_{\mathrm{esc}}$$

(1)

where APAR_green is the photosynthetically active radiation (PAR) absorbed by green leaves, which is decomposed into the product of the fraction of absorbed incident radiation (fAPAR_green) and incident PAR (APAR_green = fAPAR_green × PAR); Φ_F is the physiological SIF emission yield of the whole canopy [21]; f_esc is the probability that an emitted photon will escape the canopy in the direction of the sensor, i.e., the escape probability [20]; APAR_green × Φ_F is the total SIF emitted by leaves (SIF_tot), which represents the contribution of crop physiological information to the SIF signal; APAR_green × f_esc represents the effect of canopy structure (NIR_VP) on canopy SIF variations [22].

It can be seen from Equation (1) that the SIF_canopy information is affected by the combination of physiological variations and canopy structure effects, and it is difficult to distinguish physiological variations in the raw SIF signal from variations in SIF_canopy caused by radiative transfer processes [20]. That is, the variations in SIF_canopy detected by the sensor cannot be directly interpreted as variations in plant physiological state or canopy structure. If physiological information and the effects of canopy structure on sensor-detected canopy SIF are not studied separately, co-variation of f_esc with the spatial, temporal, and observed geometry of the entire biome may bias the understanding of variations in SIF_canopy information [23]. To better understand the effects of stress on crop growth and yield, it is necessary to distinguish the effects of structural factors and physiological information on SIF_canopy, and to analyze the response characteristics of the two under stress conditions.

Wheat stripe rust is a wheat disease that spreads by air, with the characteristics of a fast transmission rate and strong damage which seriously affect the yield and quality of wheat [24]. The intensity of physiological variations and the degree of manifestation of symptoms are different in different infection stages of the disease [6], and the effects of physiological information and canopy structure on variations in canopy SIF signals are also different. In the early stage of crops under disease stress, it mainly occurs through the adjustment of physiological mechanisms to quickly adapt to changes in external stress [7,25]. When crops are subjected to continuous disease stress. Not only do their cell activity and biochemical components vary, but so do their leaf morphology, leaf inclination distribution, and canopy structure [26]. However, studies usually directly use sensor-detected SIF_canopy to monitor crop disease stress information, and do not consider the effects of canopy structure and leaf physiological signals on sensor-detected canopy SIF under different disease severities, nor quantify the relative contributions of leaf physiological and canopy structure effects to SL and how the physiological and structural components of SIF_canopy relate to the severity of wheat stripe rust at different disease stages. This leads to a lack of clarity of the effects of leaf physiology and canopy structure effects on the variations in SIF_canopy under stripe rust stress, and of the relationship between the physiological information and structural components of SIF_canopy and disease severity, which greatly affect the remote sensing detection accuracy of wheat stripe rust and the understanding of the SIF_canopy detection mechanism of wheat stripe rust.

Therefore, in this paper, the canopy SIF received by the sensor was decomposed into NIR_VP (APAR_green × f_esc), which can characterize the canopy structure, and SIF_tot (APAR_green × Φ_F), which can sensitively reflect the physiological status of crops. We aimed to (1) investigate the relative importance of NIR_VP and SIF_tot in SIF_canopy variation at different developmental stages of wheat stripe rust and to elucidate the main factors driving SIF_canopy variation under different disease severities, and (2) explore the relationship between SIF_canopy and SL of wheat stripe rust and the response characteristics of leaf physiology (SIF_tot) and canopy structure (NIR_VP) to SL under different disease severities. We hope the research results are of great significance for clarifying the effects of NIR_VP and SIF_tot on the variations in SIF_canopy information under stripe rust stress, for clarifying the SIF_canopy detection mechanism of wheat stripe rust, and for improving the detection accuracy of wheat stripe rust.

2. Materials and Methods

2.1. Field Experimental Areas

The natural disease under study was located in Qishan County, Baoji City, Shaanxi Province (34°26′52″N, 107°37′42″E), with high terrain in the north and south and low in the middle. Forests are distributed in the north and south mountainous areas, and the central part is cultivated land. The climate is a warm, temperate, continental monsoon, semi-humid climate. The wheat variety was “Xinong 822”, for which the wheat sowing time and management practices of the different farmers differ. In the natural infection investigation area, there were 104 slightly diseased samples, 99 moderately diseased samples, and 29 severely diseased samples, which were selected as test samples. Canopy spectral observations of all samples were obtained in a 40 cm × 40 cm wheat quadrat. On 16, 17, 28, 29, and 30 April and 12 and 13 May 2021, the severity of wheat stripe rust was investigated, and the canopy reflectance spectrum was simultaneously measured. Overview of the study area is shown in Figure 1.

2.2. Data Acquisition

2.2.1. Canopy Spectral Measurements

In this experiment, the crowns of wheat stripe rust under different disease indices were measured by an Ocean Optics QE-pro spectrometer. The Ocean Optics QE-pro spectrometer has a spectral resolution of 0.3 nm with a sampling interval of 0.15 nm in 640–800 nm. During the measurement, the height of the probe was 0.9 m away from the wheat canopy, and canopy spectrum data were measured between 11:00 and 15:00 Beijing time. Each sample was continuously observed 10 times, and the average was taken as the spectral data. The standard BaSO4 reference board was used to correct the radiance data before and after each sampling.

2.2.2. Severity Level Survey

The survey of canopy disease severity adopts a five-point sampling method, that is, five symmetrical points are selected in each quadrat (40 × 40 cm); each point is approximately 1 m², four wheat plants are randomly selected from each point, and a total of 20 plants are selected for each quadrat. All of the sample leaves were inspected by the National Standard for the Investigation and Forecasting of Crop Disease (GB/T 15795) [27]. The severity level (SL) of disease (i.e., percentage of diseased spot area on the diseased leaf to the total leaf area) on wheat leaf was divided into 8 levels (1%, 5%, 10%, 20%, 40%, 60%, 80%, and 100%). The SL can be calculated by Equation (2) [28]:

$$\mathrm{SL}=\frac{\sum (\mathrm{i}\times {\mathrm{l}}_{\mathrm{i}})}{\mathrm{L}}$$

(2)

where i is the gradient value, l_i is the number of diseased leaves corresponding to each gradient value, and L is the number of leaves investigated.

2.2.3. SIF_canopy Retrieval Method

The 3FLD fluorescence prediction algorithm considers that the chlorophyll fluorescence and reflectance spectra vary linearly around the absorption line band and use the weighted average of one band to the left and right of the absorption line instead of a single band value in the standard FLD algorithm. This reduces, to some extent, the errors associated with the assumption of constant fluorescence and reflectance in the standard FLD method and improves the prediction accuracy of SIF_canopy [29]. Moreover, studies have shown that the 3FLD algorithm is the most robust algorithm for estimating SIF [30,31]; therefore, we estimated SIF at the canopy level with the 3FLD algorithm.

$$\mathrm{SIFcanopy}=\frac{({\mathrm{I}}_{\mathrm{left}}{\omega }_{\mathrm{left}}+{\mathrm{I}}_{\mathrm{right}}{\omega }_{\mathrm{right}}){\mathrm{L}}_{\mathrm{in}}-{\mathrm{I}}_{\mathrm{in}}({\mathrm{L}}_{\mathrm{left}}{\omega }_{\mathrm{left}}+{\mathrm{L}}_{\mathrm{right}}{\omega }_{\mathrm{right}})}{({\mathrm{I}}_{\mathrm{left}}{\omega }_{\mathrm{left}}+{\mathrm{I}}_{\mathrm{right}}{\omega }_{\mathrm{right}})-{\mathrm{I}}_{\mathrm{in}}}$$

(3)

$${\omega }_{\mathrm{left}}=\frac{{\lambda }_{\mathrm{right}}-{\lambda }_{\mathrm{in}}}{{\lambda }_{\mathrm{right}}-{\lambda }_{\mathrm{left}}}$$

(4)

$${\omega }_{\mathrm{right}}=\frac{{\lambda }_{\mathrm{in}}-{ \lambda }_{\mathrm{left}}}{{\lambda }_{\mathrm{right}}-{ \lambda }_{\mathrm{left}}}$$

(5)

where ${\lambda }_{\mathrm{left}}$, ${\lambda }_{\mathrm{right}},$ and ${\lambda }_{\mathrm{in}}$ are the wavelengths of bands to the left, right, and inside of the absorption band, respectively; ${\omega }_{\mathrm{left}}$ and ${\omega }_{\mathrm{right}}$ are the weights of the left and right reference bands of the absorption line, respectively; ${\mathrm{I}}_{\mathrm{left}}$ and ${\mathrm{I}}_{\mathrm{right}}$ are the solar irradiance spectral intensities on the left and right side of the absorption line, respectively; ${\mathrm{L}}_{\mathrm{left}}$ and ${\mathrm{L}}_{\mathrm{right}}$ refer to the vegetation canopy reflected radiance spectral intensity on the left and right side of the absorption line, respectively.

2.2.4. Estimation of NIR_VP and SIF_tot

We calculated the NDVI and NIR reflectance of vegetation (NIRv) from the spectral irradiance and radiance data as follows:

$$\mathrm{NDVI}=\frac{{(\mathrm{R}}_{800}-{ \mathrm{R}}_{670})}{{(\mathrm{R}}_{800}{+\mathrm{R}}_{670})}$$

(6)

$${\mathrm{NIR}}_{\mathrm{V}}{=\mathrm{NDVI} \times \mathrm{R}}_{\mathrm{NIR}}$$

(7)

where ${\mathrm{R}}_{670}$ and ${\mathrm{R}}_{800}$ are canopy reflectance at 670 nm and 800 nm, respectively. Then, with the calculations, we used a mean reflectance of spectral ranges, 770–780 nm for NIR bands.

Accurate measurement of the fraction of absorbed photosynthetically active radiation by green leaves (fAPAR_green) is a critical step in the estimation of f_esc, a wide dynamic range vegetation index (WDRVI) that has been proven to be linearly correlated with fAPAR_green [32,33]. The WDRVI is defined as:

$${\mathrm{fAPAR}}_{\mathrm{green}}=0.85 \times \mathrm{WDRVI}+0.16$$

(8)

$$\mathrm{WDRVI}=\frac{{(\alpha \mathrm{R}}_{\mathrm{NIR}}-{ \mathrm{R}}_{\mathrm{Red}})}{{(\alpha \mathrm{R}}_{\mathrm{NIR}}{+\mathrm{R}}_{\mathrm{Red}})}$$

(9)

where R_NIR and R_Red are the reflectance of near infrared and red band, respectively, and α is a weighting coefficient whose value is less than 1. Here, the value is 0.5 [34].

The escaping probability (f_esc) is a parameter related to the optical properties of the canopy, which accounts for the fraction of SIF photons escaping from the leaf level to the canopy level. It is determined by the canopy structure and chlorophyll content, and can be calculated as:

$${\mathrm{f}}_{\mathrm{esc}} \approx \frac{{\mathrm{NIR}}_{\mathrm{V}}}{{\mathrm{fAPAR}}_{\mathrm{green}}}$$

(10)

We then followed a framework to obtain the total emitted SIF (SIF_tot) and canopy structure (NIR_VP) using SIF_canopy, f_esc, PAR, and NIRv data, which disaggregated SIF_canopy into non-physiological and physiological signals.

SIF_tot is the product of APAR_green and Φ_F, which represents the total emitted SIF and includes the signals emitted from the leaf adaxial and abaxial parts, and is therefore a mixture of the canopy radiation absorption and the physiological emission efficiency [22]. Φ_F, as a portion of information embedded in SIF, is insensitive to canopy structural characteristics but purely related to plant physiological mechanisms; therefore, it could possibly indicate plant physiological responses in our experiment [35].

NIR_VP is the product of APAR_green and f_esc, which represents a combined canopy structure and radiation factor and includes both absorption and scattering aspects of the canopy structure. “Canopy structure” refers to the combined effects of canopy light absorptance and scattering captured by the product fAPAR_green × f_esc, and “radiation” refers to PAR [22]. NIRv was used to eliminate the impact from the fraction of green leaf APAR (fAPAR_green) and the escaping probability (f_esc) from SIF [35]. Finally, we calculated SIF_tot as shown in Equation (11), and then NIR_VP as in Equation (12):

$${\mathrm{SIF}}_{\mathrm{tot}}{={\mathrm{SIF}}_{\mathrm{canopy}}/ \mathrm{f}}_{\mathrm{esc}}$$

(11)

$${\mathrm{NIR}}_{\mathrm{V}}{\mathrm{P}=\mathrm{NIR}}_{\mathrm{V}} \times \mathrm{PAR}$$

(12)

3. Results and Analysis

3.1. Effects of NIR_VP and SIF_tot on the Variations in SIF_canopy under Different Disease Severities

The SIF_canopy received by the sensor is simultaneously affected by the vegetation canopy structure and the physiological state of the crop. The variations in the SIF_canopy cannot be directly explained as the variation in the physiological state of the plant or the variation in the canopy structure [36]. Based on this, according to the disease index, this paper first divided the severity of wheat stripe rust into mild disease (0% < SL ≤ 20%), moderate disease (20% < SL ≤ 45%), and severe disease (SL > 45%) [37]. Afterward, we decomposed the SIF_canopy detected by the sensor into NIR_VP (which can characterize the canopy structure) and SIF_tot (which can sensitively reflect the physiological status of crops) to analyze the contribution of NIR_VP and SIF_tot to the variations in SIF_canopy under different disease severities of wheat stripe rust (Figure 2, Figure 3 and Figure 4).

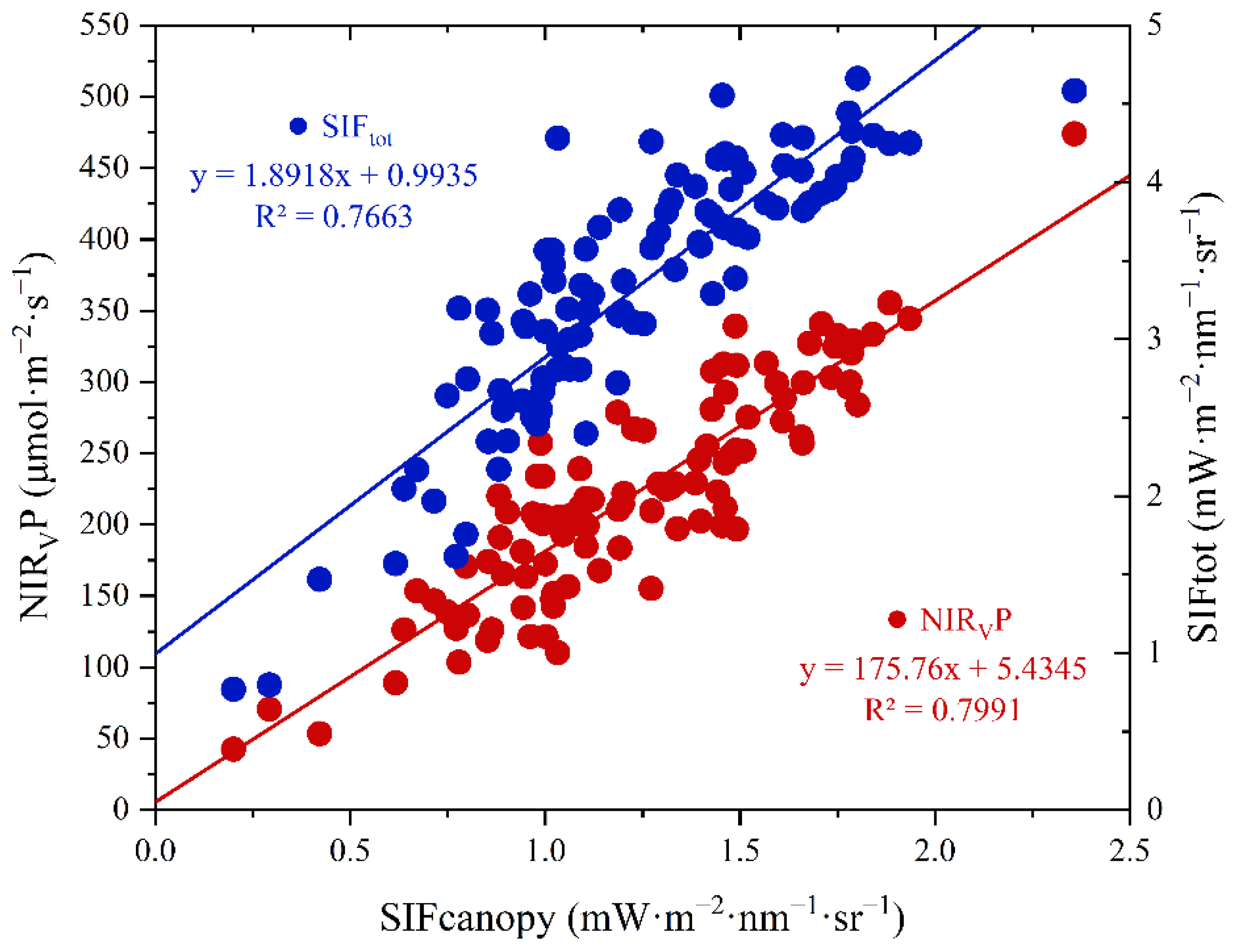

One hundred and four points were used as samples to assess the relationship between the two components of SIF_tot and NIR_VP with SIF_canopy in the mild state of wheat stripe rust, as illustrated in Figure 2. In the mild disease state, the variations in SIF_canopy were simultaneously affected by wheat physiological status and canopy structure factors. The correlation between the NIR_VP component representing canopy structure and SIF_canopy was better than that of the SIF_tot component, reflecting crop physiological status. At this time, leaf physiology had not significantly varied, the effect of physiology on SIF_canopy was weak, and the responses of qL and NPQ in different layers at the top of the canopy canceled each other out [38]. This is consistent with previous studies that, in the absence of strong external factors (such as disease stress and environmental conditions), SIF_canopy variations are mainly driven by NIR_VP rather than SIF_tot. Therefore, if we do not isolate the effects of the NIR_VP component (which characterizes the canopy structure) and the SIF_tot component (which reflects crop physiology) on variations in SIF_canopy, and the variations in SIF_canopy are directly attributed to the influence of stripe rust stress, the remote sensing detection accuracy of wheat stripe rust may be greatly affected.

It can be seen that 99 points were used as samples to assess the relationship between the two components of SIF_tot and NIR_VP with the SIF_canopy under a moderate incidence of wheat stripe rust (Figure 3) that, despite the moderate disease state, the SIF_canopy detected by the sensor was still influenced by a combination of both canopy structure and leaf physiology. Moreover, the contributions of the two components SIF_tot and NIR_VP to the variations in SIF_canopy were more variable than those in the mild disease state. The contribution of the SIF_tot component, which characterizes leaf physiology, to the variations in SIF_canopy was significantly better than that of the NIR_VP component, which reflects the canopy geometry. The coefficient of determination between the SIF_tot component and the SIF_canopy was 0.821, 148% higher than that of the NIR_VP component. The physiological information of crops under a severe disease state explains the main part of the variation in SIF_canopy.

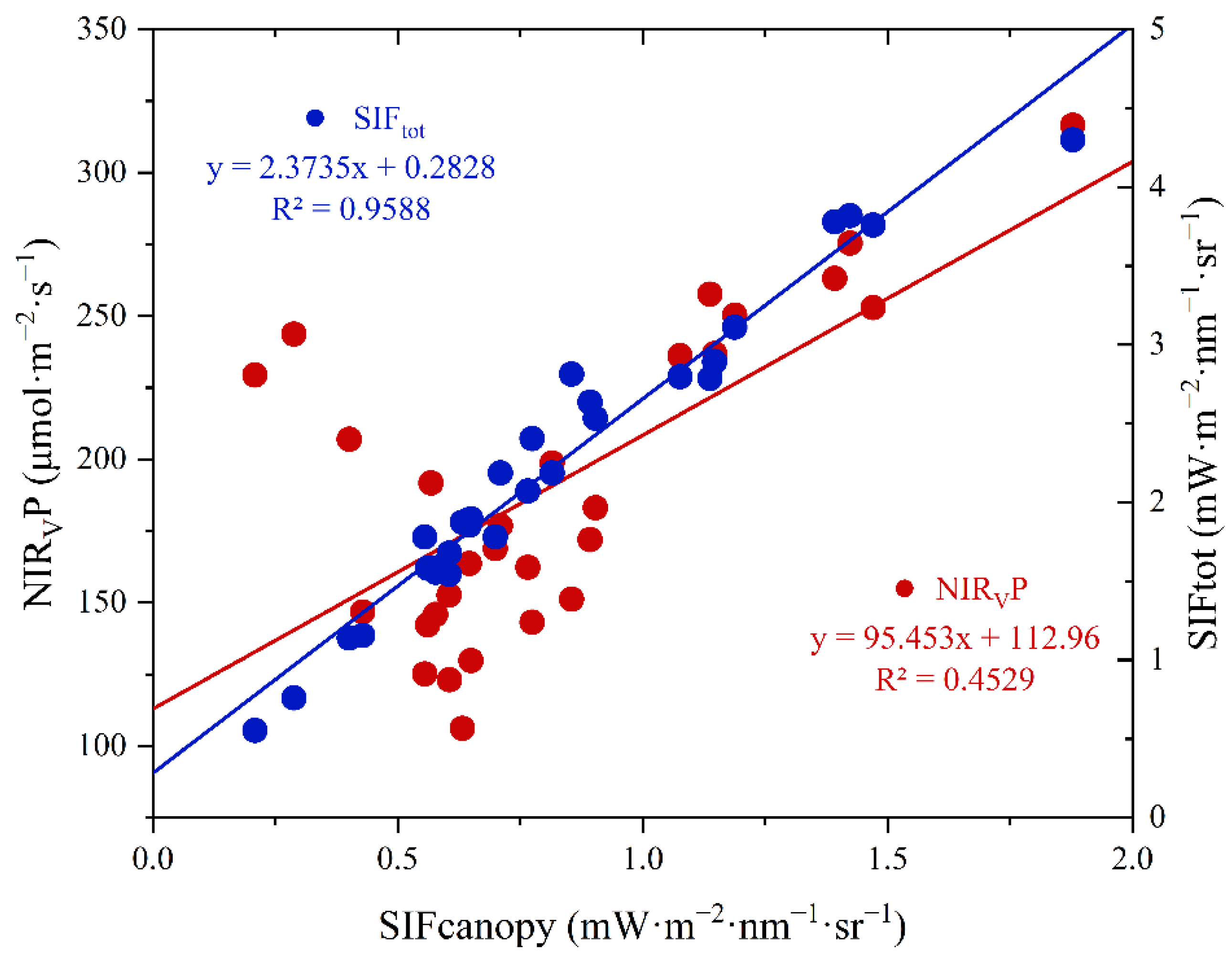

Twenty-nine points were used as samples to assess the relationship between the two components of SIF_tot and NIR_VP with SIF_canopy under severe incidence of wheat stripe rust, as shown in Figure 4. Under severe disease, the canopy structure and leaf physiology jointly affected the variations in SIF_canopy. The correlation between the canopy structure component NIR_VP and SIF_canopy was 37% higher than that in the moderate disease state. Comparing the effects of NIR_VP and SIF_tot on SIF_canopy variability during the severe disease onset phase shows that the SIF_tot component, which reflects leaf physiological information, better explains SIF_canopy variability, with an R² between the two reaching 0.9588, consistent with mid-onset, and the physiological signal of SIF_canopy explaining a major part of the SIF_canopy variability.

The contribution of the NIR_VP and SIF_tot components to the variations in SIF_canopy varied by severity of disease. The NIR_VP component had a more significant effect on the variations in SIF_canopy than the SIF_tot component in the mild disease state, while the SIF_tot component had a greater impact on the SIF_canopy variations in the moderate-to-severe disease states. Different forms of cumulative symptoms can be separated by the grading of different disease severities, and the impact of the SIF_tot and NIR_VP components on SIF_canopy can be quantified. Variations in the correlations between SIF_canopy, NIR_VP, and SIF_tot may be unavoidable due to the cumulative effects of persistent disease, indicating that canopy structural variation and canopy physiological variation occur simultaneously with the accumulation of physiological stress.

3.2. The Relationships between SIF_canopy, NIR_VP, SIF_tot, and SL of Different Disease Severities

After crops are infected by pathogens, the leaf pigment and water content, photosynthetic physiological state, and canopy geometry all change [39], and the intensity of change and degree of symptom manifestation are different in different infection stages of the disease [26]. To reveal whether the driver of SIF_canopy by canopy structure and leaf physiological signals affects the accuracy of monitoring disease severity at different developmental stages of wheat stripe rust, as well as to assess whether the SIF_canopy-derived canopy structure component (NIR_VP) and leaf physiological component (SIF_tot) improve the quantification of crop response to disease stress, we assessed the impact of variation in NIR_VP and SIF_tot on the SIF_canopy–SL relationship and compared the correlation between the SIF_canopy received by the sensor and its derived canopy structure and leaf physiological signals and the disease index in different states of wheat stripe rust incidence.

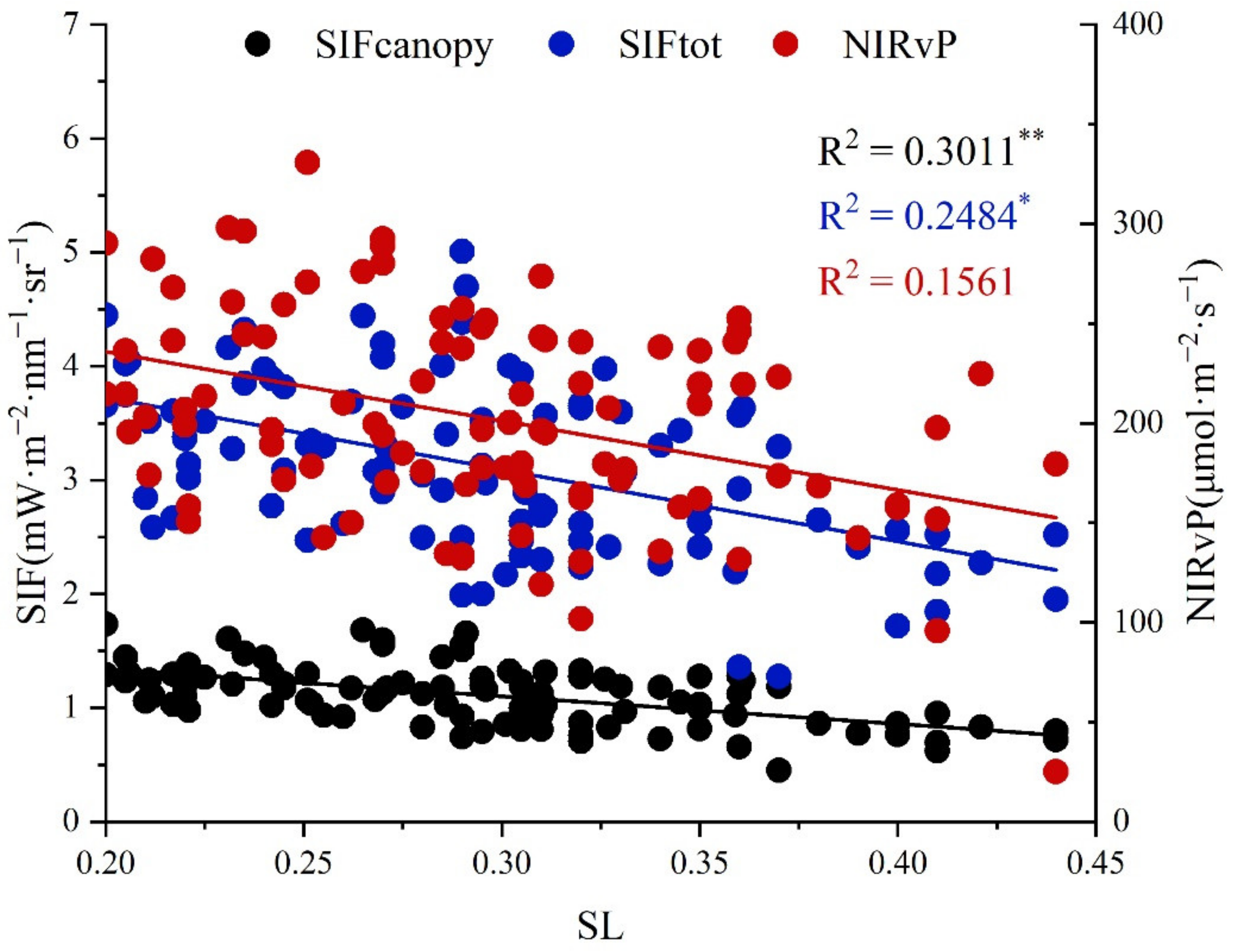

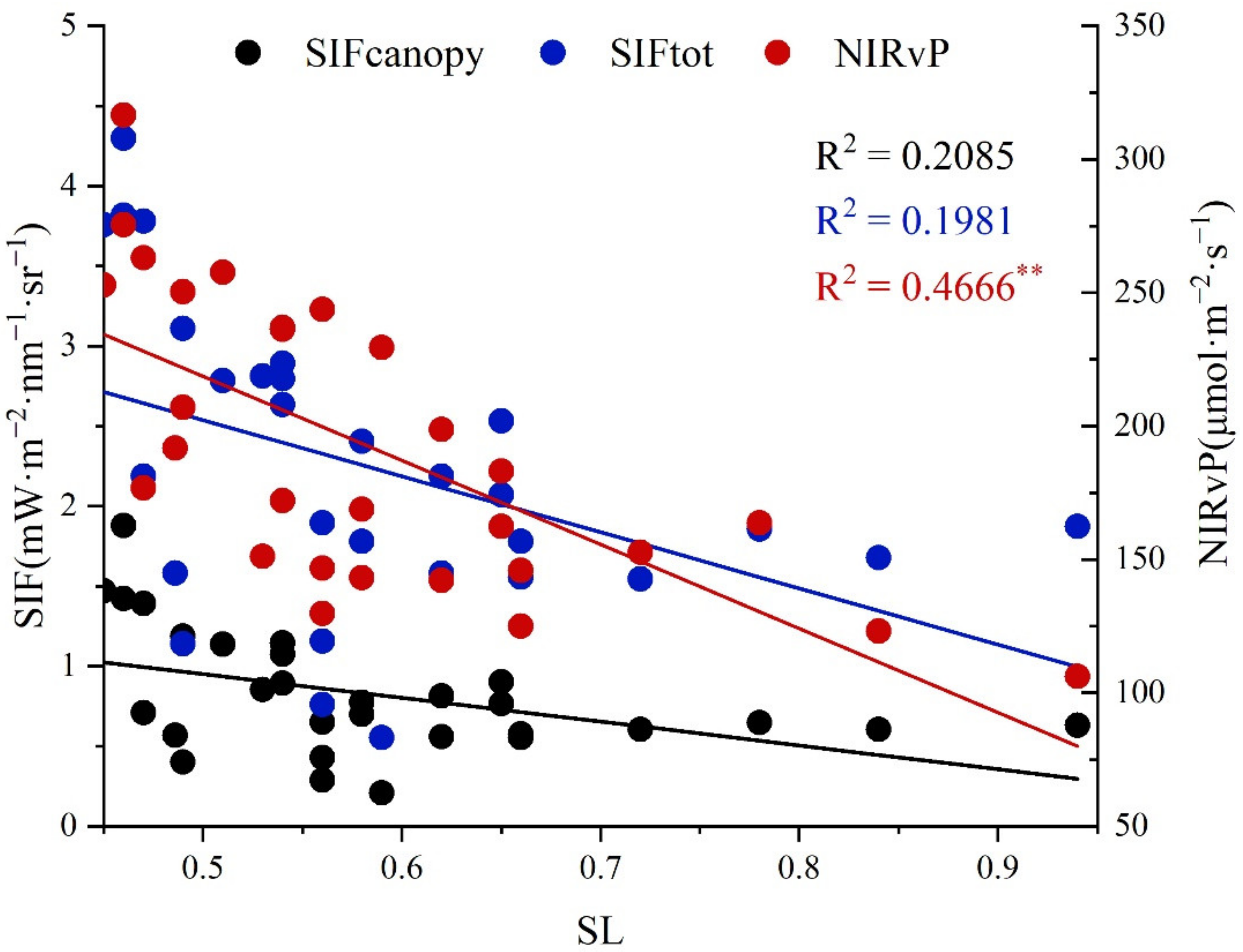

Figure 5 shows the relationship between the SIF_canopy, NIR_VP, and SIF_tot components and wheat stripe rust SL in 104 sample sites under mild disease state. There was a highly significant negative correlation between SIF_canopy, SIF_tot, and wheat stripe rust severity (p < 0.001), while the negative correlation between the NIR_VP component representing canopy structure and the severity of wheat stripe rust only reached a significant correlation (p < 0.05). The correlation between the SIF_tot component, which can sensitively reflect physiological stress, and the severity of wheat stripe rust was 6.6%, 128.5% higher than that of the SIF_canopy and NIR_VP components, respectively. This is because the effect of the disease on the spectrum depends on the intensity of physiological variations, the stage of disease development, and the degree of symptom manifestation [39]. No significant variations in canopy geometry during the early stages of disease were observed [40]. Plants respond to disease stress mainly by adjusting their photosynthetic rate and initiating their photoprotection mechanism to consume excess light energy by emitting chlorophyll fluorescence and non-photochemical quenching [41]. When the SIF was downscaled from the canopy level to the leaf level, the SIF_tot component mainly reflected the physiological response of crops to disease stress, independent of canopy structural variations, so the sensitivity to the disease index was higher than SIF_canopy detected by the sensor. This clearly shows that in the mild incidence stage of wheat stripe rust, the SIF_tot component, which characterizes leaf physiological signals, can more sensitively reflect the stress information of stripe rust disease.

It can be seen that 99 points were used as samples to assess the relationships between SIF_canopy, NIR_VP, SIF_tot, and SL in the moderate incidence stage of wheat stripe rust (Figure 6). When the severity of wheat stripe rust disease was in the state of moderate incidence (20% < SL ≤ 45%), the correlation between SIF_canopy and wheat stripe rust severity was 21.2% higher than SIF_tot and 92.8% higher than NIR_VP. At this time, the variation in SIF_canopy was more complicated, affected by both canopy structure and leaf physiological signals. On the one hand, SIF_canopy varies with the physiological regulation of energy dissipation pathways and, on the other hand, it is also affected by biochemical and physical parameters such as phytopigment composition, leaf area, and leaf inclination angle [26]. This is because, in the moderate disease state, after the wheat is infected by stripe rust, the cell tissue structure of its leaves is damaged, and long strips of bright yellow rust spots are formed on the surface of the wheat leaves, resulting in the rupture of the leaf epidermis and even tilting of the leaves [42], meaning the canopy structure has undergone certain variation. At the same time, due to the penetration and diffusion of pathogen hyphae in host cells, the chlorophyll content of rust-infected wheat is reduced, resulting in the destruction of the crop photosynthetic system and causing internal physiological changes in the leaves [43]. Both the leaf physiology and canopy structure parameters varied with the severity of stripe rust, and the two had a superimposed effect on the variations in SIF_canopy. By decoupling the contributions of leaf physiology and canopy structure to SIF_canopy, it was shown that the correlation between SIF_canopy and the severity of wheat stripe rust in a moderate disease state was better than that of its derivatives—NIR_VP and SIF_tot.

It can be seen that 29 points were used as samples to assess the relationships between SIF_canopy, NIR_VP, SIF_tot, and SL in the severe incidence stage of wheat stripe rust (Figure 7). The correlation between the NIR_VP component, which characterizes the canopy structure, and wheat stripe rust SL was 135.5% and 123.7% higher than that of the SIF_tot component and SIF_canopy, which reflect physiological stress, respectively. This is because in the severe disease state, with the strengthening of the infection of a plant by the pathogen, some organs of the plant begin to show obvious symptoms and round-to-oval black–brown spore piles appear on the leaf sheath, emitting bright yellow powder [44]. The continuous proliferation of wheat stripe rust mycelium accelerated the rupture of leaf epidermis and cuticle, and symptoms of wilting and necrosis even appeared [45], leading to major variations in the canopy structure. The NIR_VP component captures quantified non-physiological signals at this time and shows its superiority in disease stress detection with higher sensitivity than SIF_canopy.

3.3. Model Accuracy Test

In order to determine the suitable models for remote sensing monitoring of wheat stripe rust under different disease states, especially the early remote sensing detection model of wheat stripe rust, we divided wheat stripe rust into three disease levels according to the severity of the disease, namely mild, moderate, and severe. On this basis, we compared and analyzed the accuracy of SIF and its derived characteristic factors that can characterize canopy structure and leaf physiological signals to monitor the severity of wheat stripe rust.

Take SIF_canopy, SIF_tot, and NIR_VP as independent variables, and SL as the dependent variable. Overall, 72, 69, and 20 points were used as training samples to construct remote sensing estimation models of wheat stripe rust with different severity (

Table 1. Model accuracy test under different disease severity.

Variable Name	Mild Condition (n = 72)		Moderate Condition (n = 69)		Severe Condition (n = 20)
	R2	RMSE	R2	RMSE	R2	RMSE
SIFcanopy	0.50	0.037	0.46 *	0.046	0.34	0.101
SIFtot	0.53 *	0.036	0.31	0.051	0.28	0.109
NIRVP	0.28	0.044	0.23	0.055	0.59 *	0.068

Note: * indicate significance levels of p < 0.001 level.

). The determination coefficient (R²) and Root Mean Square Error (RMSE) between the predicted value and the measured value are selected as the model accuracy evaluation indicators.

It can be seen from Table 1 that, in the training sample data under mild disease, the R² between predicted SL and measured SL built by the model with SIF_tot as the independent variable is increased by 6% and 89.3%, respectively, while RMSE is decreased by 2.7% and 18.2%, respectively, compared with SIF_canopy and NIRvP. In the training sample data under moderate disease, the R² between predicted SL and measured SL of the model constructed with SIF_canopy as the independent variable is increased by 48.4% and 100%, respectively, and the RMSE is decreased by 9.8% and 16.4%, respectively, compared with SIF_tot and NIRvP. Compared with SIF_canopy and SIF_tot, the R² between the predicted SL and measured SL values of the model with NIRvP as the independent variable is increased by 73.5% and 73.5%, respectively, while RMSE is decreased by 32.7% and 37.6%, respectively, in the training sample data with severe morbidity.

In order to ensure the stability and reliability of the evaluation results and reduce the impact of a random grouping of sample data on the accuracy of the model, this paper used the remaining 32, 30, and 11 points of modeling as validation samples to test the accuracy of the prediction model for the severity of wheat stripe rust with extremely significant correlation (Figure 8).

According to the remote sensing monitoring model of wheat stripe rust under mild conditions Figure 8a, the model constructed with SIF_tot, which is closely related to physiological information, as the independent variable which has the highest accuracy and is more suitable for the early detection of the severity of wheat stripe rust. It can be seen from the remote sensing monitoring model of wheat stripe rust under moderate conditions in Figure 8b that the prediction accuracy of the model constructed by SIF_canopy is better than that of NIR_VP and SIF_tot derived from SIF_canopy. According to Figure 8c, the remote sensing monitoring model of wheat stripe rust under severe conditions, it can be seen that the estimation accuracy of the wheat stripe rust detection model constructed with NIR_VP, which is closely related to the canopy structure, has the highest estimation accuracy, and is more suitable for the monitoring of wheat stripe rust under severe conditions.

According to Table 1 and Figure 8, the optimal variables of wheat stripe rust detection model under mild, moderate, and severe disease severity are SIF_tot, SIF_canopy, and NIRvP, respectively, and the predicted and the measured disease severity is extremely significant. It is consistent with the results of analysis in Section 3.2.

4. Discussion

4.1. Response Characteristics between SIF_canopy and APAR_green under Stripe Rust Stress

In the early stage of crops under disease stress, it is mainly through the adjustment of physiological mechanisms that plants quickly adapt to variations in external stress [7]. SIF_canopy can sensitively reflect the changes in crop photosynthetic physiology and realize the early detection of crop diseases [39]. However, in the case of mixed canopy structure and leaf physiological information, SIF_canopy and NIRv may have similar or opposite trends in the stress response to Φ_F [19]. Therefore, this study used the SIF_tot and NIR_VP components associated with APAR_green to represent the leaf physiological and canopy structure effects, respectively, to investigate their contributions to SIF_canopy and to further detect wheat stripe rust accuracy.

The canopy structure effect (NIR_VP) was estimated as:

$${\mathrm{NIR}}_{\mathrm{V}}\mathrm{P}={\mathrm{APAR}}_{\mathrm{green}}\times {\mathrm{f}}_{\mathrm{esc}}$$

(13)

Additionally, the total emitted SIF (SIF_tot) was estimated as:

$${\mathrm{SIF}}_{\mathrm{tot}}={\mathrm{APAR}}_{\mathrm{green}}\times {\Phi }_{\mathrm{F}}$$

(14)

SIF emission is closely related to APAR (more specifically, PAR absorbed by green leaves (APAR_green)), which can be calculated by the product of the incident photosynthetically active radiation (PAR) reaching the vegetation canopy and the fraction of APAR_green (fAPAR_green). Herein, the incident photosynthetically active radiation (PAR) was calculated using the radiance reflected from a white reference panel measured by a spectrometer [18]. Consequently, the APAR_green can be calculated as:

$${\mathrm{APAR}}_{\mathrm{green}}{=\mathrm{fAPAR}}_{\mathrm{green}}\times \mathrm{PAR}$$

(15)

The SIF_canopy was highly correlated with the APAR_green [46,47,48]; the canopy structure not only directly affects the diurnal dynamics of SIF via APAR_green, but also has a strong diurnal effect on photochemical and non-photochemical intra-canopy responses, in addition to SIF_canopy [38]. In order to better analyze the main factors driving SIF_canopy variations under stripe rust stress and the correlation between SIF_canopy and its derived variables and SL, this paper further investigated the response characteristics between SIF_canopy and APAR_green under stripe rust stress (Figure 9).

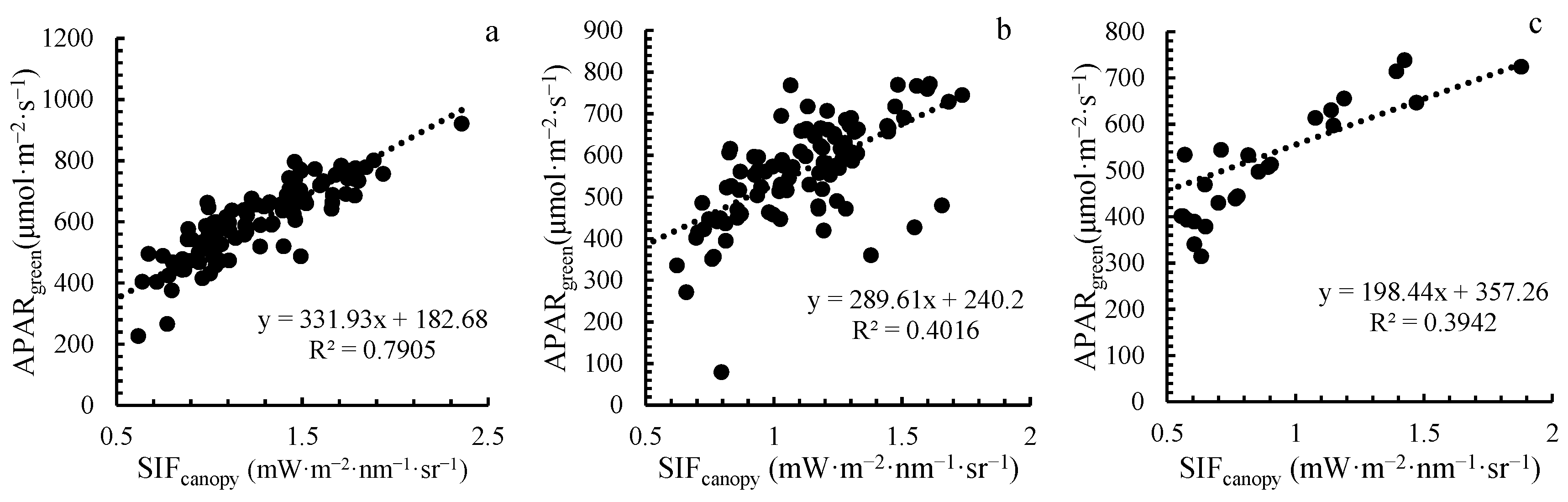

Figure 9 shows the positive linear relationship between SIF_canopy and APAR_green under the mild, moderate, and severe incidence states of stripe rust, and the correlation between SIF_canopy and APAR_green diminished as the severity of the disease increased. In the severe and moderate disease states, the correlation between SIF_canopy and APAR_green was 49.1% and 50.1% lower than that in the mild disease state, respectively. This is because the actual area of the leaves for photosynthesis was reduced by the lesions, and the epidermis was ruptured by the spore pile after the infection, which unbalanced the water metabolism of the remaining healthy parts and increased the movement resistance of CO₂, thus affecting the photosynthesis of the remaining healthy parts [49]. When crops are subjected to continuous disease stress, their physiological and biochemical parameters and surface morphology vary, the photosynthetic pigments existing in the photosystem are damaged by stress factors, the light absorption efficiency of photosystem PSI and photosystem PSII decreases, and the photosynthetic capacity reduces [50]. Pathogen infection reduces the green leaf area or damages mesophyll cells, resulting in a significant reduction in the photosynthetic rate and in a reduced correlation of APAR_green with SIF_canopy.

4.2. Analysis of the Influence of Uncertainty Factors on SIF_canopy and fAPAR_green

SIF_canopy signaling is not only controlled by photosynthesis status but is also related to plant physiological processes [51,52,53]. It is also influenced by environmental factors such as canopy geometry, light intensity, and the geometry of the sun–ground–sensor relationship [54]. Variations in light intensity, direct and diffuse radiation of the canopy, and bidirectional reflectance distribution function (BRDF) properties all affect the inversion of SIF_canopy. The different absorption depths of the oxygen absorption band that absorb direct and diffuse radiation may lead to overestimating or underestimating the SIF_canopy value under certain observation geometries [55]. Canopy structure may introduce uncertainty in estimated irradiance due to differences in diffuse and direct irradiance components, leading to errors in the inversion [56]. Therefore, the influence of light intensity and the geometric relationship between the sun–surface–sensor on the canopy SIF should be considered in follow-up research.

In this study, the indirect estimation data of fAPAR_green was used to estimate the canopy escape rate f_esc of SIF_canopy. Overestimation or underestimation of fAPAR_green would affect the f_esc value, thus introducing uncertainty into the subsequent estimation of SIF_tot. The WDRVI vegetation index was calculated based on the reflectance of the near-infrared and red bands of the Multispectral Instrument (MSI) on the Sentinel-2 satellite system based on the Moderate Resolution Imaging Spectrometer (MERIS), which confirmed that the relationship between fAPAR_green and WDRVI is not species-specific, with R² = 0.92 (p < 0.001) and RMSE = 0.069 [34]. Therefore, the accuracy of the fAPAR_green measurements can be considered reliable.

4.3. Responses of SIF_canopy and SL to Canopy Structure and Plant Physiological Indicators under Disease Stress

Variations in SIF_canopy under disease stress are jointly driven by a combination of canopy structure and physiological factors; there is overlap between structural and physiological responses, and physiological differences risk being misinterpreted as structural differences. Furthermore, as different disease severities have different effects on variations in canopy structure and leaf physiology which, in turn, can affect changes in the relationships between NIR_VP, SIF_tot, and SIF_canopy; SL and SIF_canopy; and NIR_VP, SIF_tot, and SL, the effects of canopy structure and leaf physiology on SIF_canopy variations and SL during disease progression need to be discussed in stages.

The analysis in this study showed that both the NIR_VP and SIF_tot components contribute to variations in SIF_canopy under mild disease (Figure 2), and NIR_VP can better detect said variations in SIF_canopy, due to the fact that in the early stage of wheat stripe rust disease, most early infection hyphae do not form haustorial mother cells and tend to grow between the mesophyll and the adaxial epidermis rather than ramify through the mesophyll tissue [57]. However, NIR_VP’s response to SL is not advantageous. It can be seen from Figure 5 that in the early stage of disease stress, after eliminating the influence of canopy structure, the detection of SL by physiological signals was more sensitive than that of SIF_canopy, and the relationship between NIR_VP and SL was only significantly correlated (p < 0.05), while the SIF_tot–SL relationship was extremely significant (p < 0.001). The correlation between SIF_tot and SL was better than that of SIF_canopy and NIR_VP, which is more conducive to detecting stripe rust stress information. This is due to the damage to the leaf and the reduction in chlorophyll content caused by the development of mycelium inside the leaf [45]; disruption of chloroplasts or other organelles alters the rate of photosynthesis, causing variations in SIF_tot that characterize the component of physiological information. In the early stage of disease stress, although the damage caused by bacteria was not obvious, there was no significant disease on the leaves [58]. However, the parasitic relationship established between the pathogen and the host caused certain variations in the metabolism of the parasitic site and had a significant impact on the internal cells and pigment content, moisture, and the intercellular spaces of the host [59]. Thus, the SIF_tot component can detect variations in crop photosynthesis in time and sensitively reflect disease stress information.

The contribution of SIF_tot to SIF_canopy variation became progressively greater with increasing disease severity, and although the main factor driving SIF_canopy variation in the mild disease state was the canopy structure of the crop, the correlation between SIF_tot and SIF_canopy also reached a highly significant correlation at this point (p < 0.001), confirming the contribution of physiological signals to SIF_canopy. In the moderate disease state, due to the accumulation of physiological variations over time, many branching hyphae were produced during the infection of stripe rust; as the mycelium developed, a pustule bed became established from which a uredinium developed [45], and the growth of spores broke through the epidermis and destroyed a large amount of chlorophyll, causing symptoms such as chlorosis and yellowing of wheat leaves [60]. At the same time, the crop canopy structure varied to a certain extent, and the concentration information of plant biochemical components and the photosynthetic physiological state underwent obvious variations. The crop physiological state coupled with the canopy structure to a large extent [61], Causing NIR_VP contribution to SIF_canopy variation to be attenuated relative to mild period. The variation in SIF_canopy at this stage was mainly due to the variation in leaf physiology, but for the disease, the detection accuracy of SIF_canopy for wheat stripe rust was better than that of the NIR_VP and SIF_tot components. This is because physiological information and canopy structure affect the variations in SIF_canopy at the same time in a moderate disease state, and the variations in canopy structure and leaf physiological signals are coupled with SIF_canopy and SL under disease stress. Therefore, the correlation of SIF_canopy–SL was better than that between NIR_VP and SL and between SIF_tot and SL.

In the severe disease state, the continuous proliferation of the hyphae of wheat stripe rust accelerated the rupture of the leaf epidermis and cuticle, and the outbreak of stripe rust changed the characteristics of the wheat. At this time, the internal tissue of the wheat leaves was damaged, and the severely infected plants showed wilting symptoms in the later stage [45,62]. Finally, the biochemical components and external color of the leaves varied; the leaves infected by wheat stripe rust basically turned yellow, and the internal structure of the leaves was seriously damaged. Therefore, in the severe disease state, the variation in SIF_canopy mainly comes from the variation in leaf physiology. In addition, the contribution of NIR_VP to the variation in SIF_canopy was stronger than that in the moderate period, because when the crops were subjected to continuous disease stress, not only did their cell activities and biochemical components vary, but so did the leaf morphology, leaf inclination angle distribution, and canopy structure. However, in the severe incidence stage of wheat stripe rust, SIF_tot is not as accurate as SIF_canopy and NIR_VP in detecting the disease. This is because stripe rust uses the water and nutrients of the host plant to weaken the plant. Depending on the resistance level and temperature of the plant, there will be varying degrees of yellowing or necrosis [61]. By this time, necrotic streaks had formed on the leaves and the SIF_tot response to SL was no longer dominant. At the same time, as the disease broke out, the growth of the canopy varied dramatically, and so did the NIR_VP–SL correlation. The disease stress caused constant variations in canopy structure and chlorophyll content, which affected the multiple scattering and reabsorption of SIF_canopy received by the sensor within the canopy, increasing the NIR_VP–SIF_canopy correlation.

In this study, we quantified SIF_canopy-derived SIF_tot and NIR_VP, demonstrating their capability in crop disease monitoring studies. Our results addressed the unique contribution of SIF_canopy to the remote sensing of crops and showed the potential of SIF_tot for early stress quantification in wheat stripe rust.

In the early stage of wheat infection by stripe rust fungi, although it is difficult to be directly detected by the naked eye [63], pathogenic bacteria have a significant impact on the host internal cells and pigment content, water, and intercellular space [40]. When encountering a suitable temperature and humidity, the disease rapidly multiplies and spreads, resulting in serious loss of wheat yield. If the disease information can be detected in the early stage of wheat infection by stripe rust and timely drug control can be initiated, a widespread epidemic of the disease can be effectively avoided, and the yield and quality of wheat can be improved.

By comparing the responses of SIF_canopy and SL to canopy structure and plant physiological indicators under mild-to-moderate wheat stripe rust infection, we found that the SIF_tot component, which characterizes the physiological effects of leaves, is more sensitive to early information of wheat stripe rust and has a great advantage in detecting early disease.

5. Conclusions

In this study, the SIF_canopy detected by the sensor was decomposed into NIR_VP, which can characterize the canopy structure, and SIF_tot, which can sensitively reflect the physiological status of crops, and the main factors of the variation in SIF_canopy under different disease severities was analyzed. Additionally, the response characteristics of SIF_canopy, NIR_VP, and SIF_tot to SL under stripe rust stress were clarified, and how canopy structural factors and leaf physiological signals affect the response of SIF_canopy to disease stress in wheat crops was investigated.

The results showed that the SIF_canopy was mainly affected by variations in the canopy structure when the incidence of wheat stripe rust was mild (0% < SL ≤ 20%). After the influence of canopy structure was eliminated, the SIF_tot signal, a component of leaf physiological signals, was more sensitive to early stress of stripe rust. This is because wheat stripe rust will cause leaf damage and reduce chlorophyll content in the early stage of its onset. The destruction of chloroplasts or other organelles changes the photosynthetic rate, which can be detected by SIF_tot in time.

When the disease severity of wheat stripe rust was in a moderate state (20% < SL ≤ 45%), the variations of canopy SIF were mainly driven by the physiological signals of leaves. The leaves infected by wheat stripe rust are basically withered and yellow, and the internal structure of leaves has been seriously damaged. SIF_tot and NIR_VP simultaneously affect the variations of SIF_canopy, coupling the relationship between SIF_canopy-SL and making the SIF_canopy more advantageous in detecting wheat stripe rust under moderate disease conditions.

In the severe disease state (SL ≥ 45%), disease stress leads to the continuous change of canopy structure and chlorophyll content, which affects the multiple scattering and reabsorption of SIF received by the sensor in the canopy and improves the correlation between NIR_VP and SL. Therefore, NIR_VP, the component characterizing the canopy structure can better monitor the change trend of wheat under severe disease stress.

The results of this study demonstrated that variations in SIF_canopy under different disease severities are driven by different factors, and the sensitivity of canopy structure and leaf physiological components to the disease is also different. By decomposing the canopy structure and physiological response signals to analyze the variations in SIF_canopy, additional information about plant physiology can be effectively obtained. This approach will allow for earlier and more accurate detection of crop pathological changes caused by disease stress and facilitate research advances in crop disease monitoring.
