Mapping the Thermal State of Permafrost in Northeast China Based on the Surface Frost Number Model

Abstract

Under the influence of climate change and human activities, the southern boundary of the permafrost region in Northeast China, which is located at the southern edge of the permafrost area of Eurasia, has moved north, the surface temperature has increased, and the thickness of the frozen layer has decreased. At present, there is a lack of classification standards or a map of the thermal state of permafrost that can reflect the dynamic change characteristics of permafrost in Northeast China. A vegetation impact factor consisting of normalized difference vegetation index and forest canopy closure was introduced into MODIS LST products, in order to improve the applicability of products in Northeast China. Based on the improved MODIS LST data, this study analyzed the distribution and change of the mean annual surface temperature and the surface frost number (SFnc) from 2003 to 2019. SFnc was used as the standard to classify the thermal state of permafrost, and a map of the thermal state distribution and changes of permafrost in Northeast China, with a spatial resolution of 1 km, was produced. Compared with the observation data of meteorological stations and field monitoring data, the reliability of classification results was nearly 95%. The map showed that there was no area of extremely stable permafrost (SFnc ≥ 0.667), the area of stable permafrost (0.55 ≤ SFnc < 0.667) changed from 14.9 × 10⁴ km² to 6.5 × 10⁴ km², the SFnc reduced from 0.564 to 0.557, the area of semi-stable permafrost (0.51 < SFnc < 0.55) changed from 17.68 × 10⁴ km² to 17.77 × 10⁴ km², the SFNc reduced from 0.529 to 0.528, and the area of transitional or unstable permafrost (0.49 ≤ SFnc ≤ 0.51) changed from 8.67 × 10⁴ km² to 9.56 × 10⁴ km². The thermal state of permafrost decreased and the distribution of stable permafrost shrank, due to continuous rising air temperature. The overall change characteristics of the thermal state distribution of permafrost were that the southern boundary of the permafrost region moved northward, the regional permafrost thermal state decreased, and there was an increased region of semi-stable, transitional or unstable permafrost from the frozen soil thawed at the edge of the permafrost region with higher stability. The permafrost region in Northeast China has lush vegetation, and the continuous degradation of permafrost will change the vegetation growth environment and affect the global carbon cycle process. This work will provide important data support for climate change feedback, natural disaster process research, and an early warning and prevention of terrestrial ecosystem response in the permafrost region of Eurasia.

1. Introduction

Permafrost is a soil layer with a temperature below 0 °C for more than two years at a certain depth under the surface [1]. It is a geological body developed through the exchange of material and energy between the earth and atmosphere under the background of geological history and climate change, and the comprehensive influence of regional geographical environment, geological structure, lithology, hydrology and ground cover characteristics [1]. Global permafrost is mainly distributed in high latitude regions such as northern Eurasia, northern North America, high mountains and plateaus at middle and low latitudes, and the land on the outer edge of the Antarctic ice sheet and the seabed of the polar continental shelf [2,3]. Permafrost is extremely sensitive to climate change, and surface temperature is the key factor affecting the occurrence of permafrost [4]. In recent years, permafrost has been degraded by global warming, which has mainly manifested in the ground temperature rising, the distribution area shrinking, the thickness thinning, the active layer thickening, and thermokarst lakes and ponds increasing [5]. These changes are related to the ecology, hydrology [6,7,8], and even climate, in the region, and have attracted attention [9]. During the freezing and thawing process of the soil layer, changes in the thermal state lead to phase state changes in the water, accompanied by a large amount of latent heat exchange [9,10,11]. On an interannual scale, when the absorbed heat is greater than the released heat, there is a surplus of heat which will increase the temperature of the soil layer, causing the thickness of the active layer to increase, or the thawing of the frozen soil [9,12,13,14]. The surface is an important interface between the land and the atmosphere, whose thermal state comprehensively reflects the energy exchange status of the atmosphere, vegetation and soil. The change of the surface thermal state is also an important manifestation of the heat storage and release of the soil layer, which can reflect the evolution, development, degradation and disappearance of permafrost. It is also the upper boundary condition of the permafrost distribution model and some land surface process models. In previous studies, the mean annual surface temperature (MAST) and surface frost number (SFn) have often been used as the upper boundary conditions for the development of permafrost [15,16], which directly or indirectly reflect the response of the terrestrial system to the climate.

The Sixth Assessment Report of the IPCC in 2021 pointed out that the global average surface temperature increased by about 1 °C since 1850–1900 [17]. The warming effect is further amplified in high-latitude and high-altitude areas, resulting in the permafrost thawing in these areas [18,19,20,21]. The Blue Book on China’s Climate Change in 2020 [22], points out that China’s surface temperature rising rate was 0.24 °C/10a from 1951 to 2019, higher than the global average in the same period. The temperature increase rate in the northern region was significantly higher than in the southern region. A large amount of CH₄ and CO₂ isothermal greenhouse gas is released during permafrost thawing, which affects the global carbon cycle and exacerbates global warming [19,20,21,22], and changes the ecological, hydrological and geomorphic landscape pattern in the region, which has a significant impact on regional environment, food and water resources security [20,23,24,25,26,27,28]. In addition, permafrost thawing also leads to local land subsidence, slope instability and other environmental geological problems and secondary disasters, which seriously threaten the stability and durability of infrastructure such as roads and railways. The Northeast China permafrost region is located at the southern edge of the Eurasian permafrost region, and is the second largest permafrost distribution area and the only high-latitude permafrost region in China. The frozen soil has a high temperature, thin thickness, unstable thermal state, and is vulnerable to interference from external environment, climate and human factors [29,30,31,32,33]. Since 1980, the fluctuation of air temperature in Northeast China has increased, and the growth rate has been higher than the global average [34,35,36]. The more extreme warming occurred in the northern region [37], especially in the northern Greater Khingan Mountains (GKM) and Lesser Khingan Mountains (LKM) [38]. Under the comprehensive influence of regional environmental geological conditions, climate warming and human activities, the most developed permafrost on the northwest slope of GKM has degraded, and the thawing area has significantly expanded [39,40]. The ground temperature at 13 m depth in Yitulihe increased by 0.2 and 0.4 °C, respectively, from 1984 to 1997, and from 1997 to 2010 [41,42]; and at 10 m depth, in Mohe, it increased from −3.7 °C to −1.5 °C from 1975 to 1978 [43,44,45]. In the past 50 years, the air temperature in Northeast China has generally increased by 0.9~2.2 °C, which has caused the south boundary of permafrost to move significantly northward, and the area of permafrost has decreased by 35~37% compared with the 1970s. If the air temperature increases by 1~1.5 °C in the next 40~50 years, the southern boundary of permafrost will move further northward, and the area of permafrost may reduce by 35% [46].

Permafrost mapping methods can be divided into three categories, including statistical learning, empirical models and physical models. With the technological progress and product accumulation of remote sensing, high-quality input data has improved the methods and models of permafrost mapping, which has promoted its rapid development. Although the empirical model is based on mathematical statistics as per statistical learning and physical models, it is more important to build on the basis of long-term observation and practice, and, therefore, the empirical model is a summary of experience in understanding the spatial distribution of permafrost. In the application process, the empirical model has a fixed structure and high computational efficiency. Combined with ground observations, it can play a very important role in the verification of simulation results. The typical empirical models are widely used in permafrost mapping in China, mainly the: elevation model, equivalent elevation model, frozen number model, Stefan formula, TTOP model and GIPL-1.0 model. From the first Northern Hemisphere permafrost extent map compiled by Brown et al. [47], to the first high-resolution (30 arc-second) map of the global permafrost zonation simulated by Gruber [48], permafrost mapping has achieved important research results in observational data and permafrost models. Similar to the development process of international permafrost mapping, there has also been a continuous development of permafrost mapping processes in China. In recent years, the development and application of geographic information systems, remote sensing technology, permafrost physical and empirical models, and the continuous establishment of ground observation networks, have overcome the shortcomings of spatial representative error of single point observation of ground meteorological stations [49,50,51,52], providing more data support for research. Integrating comprehensive modeling with multi-source observation can also provide more spatial details for the analysis of permafrost distribution and surface thermal state patterning [48,53,54]. The SFn model [55,56,57], using the surface thermal state as the upper boundary condition, is widely used to reflect the distribution of permafrost. This model is an empirical model, and was proposed by Nelson and Outcalt [58] on the basis of correcting the air frost number (Fn) model [59]. The plane distribution areas of the continuous and discontinuous permafrost and seasonal frozen soil are divided according to the Fn. Li [6] and Wang [60] used the frost number model to simulate the permafrost distribution on the Qinghai–Tibet Plateau (QTP), but local factors such as altitude and terrain were not considered in the model. Nan et al. [61] added influence factors on the basis of the surface frost number model, and simulated permafrost distribution on the QTP. Ran et al. [62,63] used MODIS Aqua/Terra LST products to estimate the MAST and SFn from 2003 to 2010, and the 0 °C isotherm of MAST and 0.5 contour of SFn agreed well with the identified southern/lower limits of permafrost in China. Combined with ground and remote sensing observation data, and defined with remote sensing MAST and SFn standards for classifying permafrost stability and mapped permafrost stability, the latest important research on permafrost mapping on the QTP has resulted. LV [64] first applied the SFn model to Northeast China. The model considered climatic factors and snow depth data. By comparing with permafrost zoning maps of different periods, the applicability of the model to the northeast permafrost zoning was discussed. Zhang et al. [65,66,67] analyzed the main factors affecting the distribution and change of permafrost in Northeast China. Using Fn and SFn models based on meteorological stations data and the China meteorological forcing dataset to divide the permafrost zone, the studies showed that the permafrost area decreased from 4.8 × 10⁵ km² to 3.1 × 10⁵ km², the southern boundary of permafrost moved northward by 0.1–1.1°, and the average elevation increased by 160.5 m, from the 1950s to the 2010s.

Influenced by the permafrost classification systems of the former Soviet Union and North America [68], the continuous classification system is still used to divide permafrost in permafrost research in Northeast China. This classification standard cannot provide more details on permafrost at the spatial scale. Converse to the permafrost distribution characteristics of the QTP, the permafrost region in Northeast China has dense surface vegetation and covering vegetation (moss, grass or forest) [69,70], which have significant effects on the hydrothermal process, spatial distribution and permafrost temperature [71,72,73]. The applicability of high-altitude permafrost classification standards [74,75] in Northeast China remains to be verified. Large-scale ground observation historical data are few and discontinuous, and the remote sensing surface temperature as a high-quality data source is rarely applicable in the process of permafrost mapping in Northeast China. With the development of environmental protection and infrastructure construction, classification standards for the thermal state of permafrost are more closely related to engineering applications, and can also provide a basis for production, construction and long-term planning layout. At the same time, it also provides direction for the future development of permafrost mapping.

This research collated and analyzed air temperature data of the National Meteorological Observatory from 1960 to 2019. The normalized difference vegetation index and forest canopy closure were used as the influencing factors of surface vegetation, to calculate and analyze the distribution and change law of the mean annual surface temperature and surface frost number under the influence of surface vegetation from 2003 to 2019. It was proposed that the surface frost number be used as the standard to divide the thermal-stable types of permafrost. A map of the thermal state distribution and variation of permafrost in Northeast China was produced. The applicability of MODIS surface land temperature (LST) products under the influence of surface vegetation factors and the reliability of the classification results of the surface freezing number model were verified by using the ground monitoring data of MEORS-PGSNEC (Ministry of Education Observation and Research Station of Permafrost Geo-Environment System in Northeast China). Finally, the characteristics and influencing factors of thermal stability of permafrost were analyzed.

2. Data and Methods

2.1. Study Region

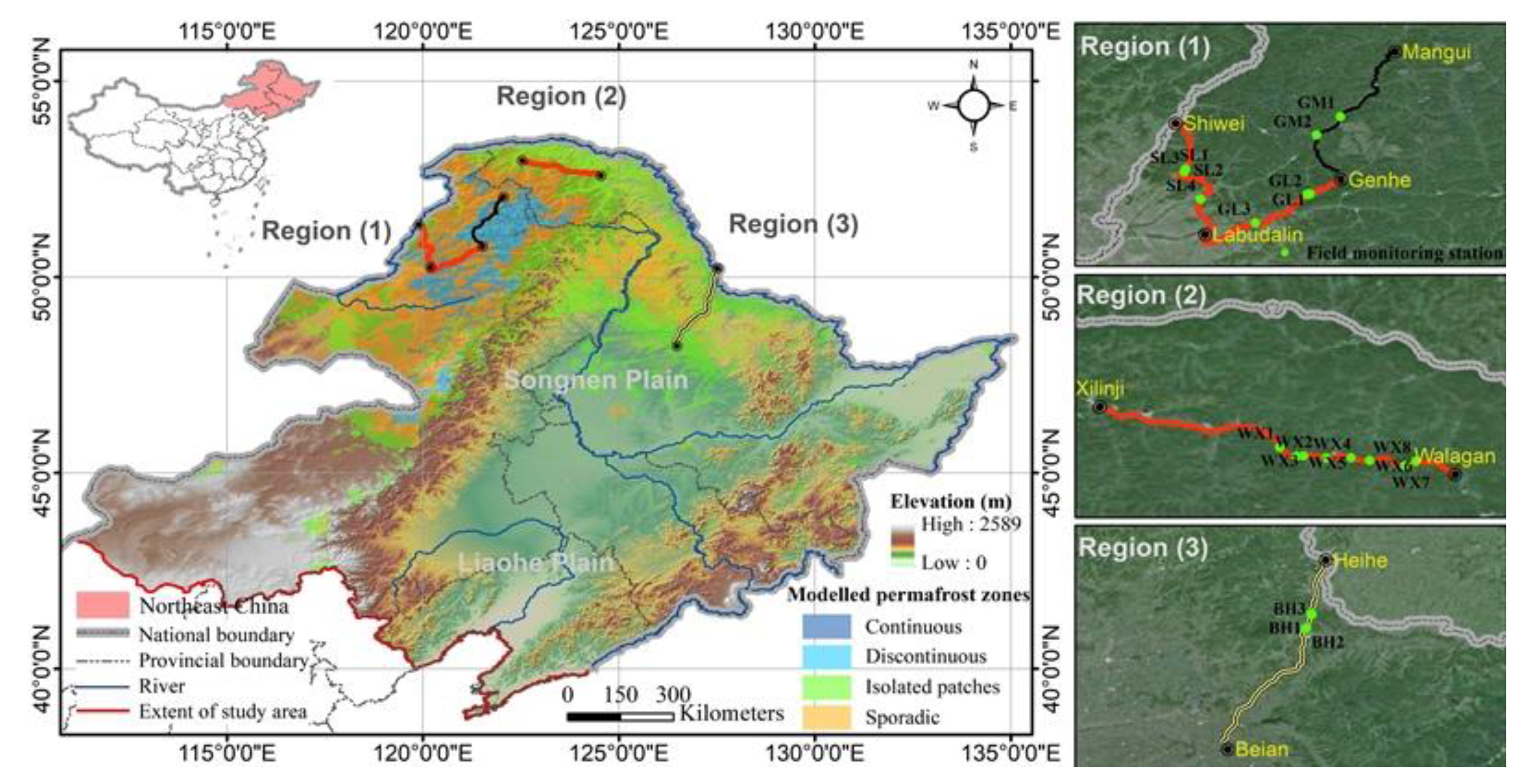

The administrative scope of Northeast China includes Heilongjiang Province, Jilin Province, Liaoning Province, and Hulunbuir City, Hinggan League, Tongliao City, Chifeng City, and Xilingol League of the Inner Mongolia Autonomous Region, with a total area of 147 × 10⁴ km². The geographical location of the study region is roughly 38°40′N~53°30′N and 110°45′E~135°02′E, with a north–south span of nearly 15° and an east–west span of nearly 20°. Based on the Köppen–Geiger climate classification, the climate types of the study region are roughly Dwc–Dwb–Dwa from north to south [73,76,77]. The study region is located at the northernmost end of the East Asian monsoon, which is affected by alternating high and low pressures and monsoons in the inland and ocean. The mean annual air temperature (MAAT) is low, and the annual range is large. From about 47°N to the north, the MAAT decreases from 1.0~1.0 °C to 5.0~3.0 °C, and the annual range increases from 40 °C to about 50 °C. The winter is cold, dry and long, and the summer is hot and rainy. It belongs to a temperate continental monsoon climate [78,79]. The continental climate gradually strengthens from east to west, from southeast to northwest. The annual precipitation drops from 1000 mm to below 300 mm and is concentrated in May–September, transitioning from humid and semi-humid area, to semi-arid area.

The terrain is dominated by plains, hills and mountains, with Changbai Mountains in the southeast, LKM in the northeast and GKM Mountains in the northwest; the Northeast Plain and Inner Mongolia Plateau are located between the mountains. The overall distribution of the terrain is in a semi-ring shape, being high in the northeast, southeast and northwest, and low in the south [80,81] (as shown in Figure 1). The spatial distribution of vegetation types is closely related to the terrain; the vegetation of GKM in the north is mostly coniferous forest, and the vegetation of LKM and Changbai Mountains in the southeast is mostly coniferous and broad-leaved mixed forest. Among them, broad-leaved forest is distributed in the southern part of LKM and some areas of the southern part of GKM; the west slope and southwest slope of GKM, typically, are concentrated areas of grassland and grassland meadow, and shrubland in the interlocking area of GKM.

In Region (1) there are 9 borehole monitoring sites along the Genhe–Labudalin Highway (G332), Mangui–Genhe Provincial Road (S204), and Shiwei–Labudalin Highway (G331) (two sites are about 200 m away from others, so are shown as the same sites in the Figure 1). In Region (2) there are 8 borehole monitoring sites along the Walagan–Xilinji Highway (G111). In Region (3) there are 3 borehole monitoring sites along the Bei’an–Heihe section of the Jilin–Heihe Expressway (G1211) (two sites are about 20 m apart in a straight-line distance, so are shown as the same sites in Figure 1).

2.2. Data Sources

Remote sensing data included the digital elevation model (DEM), MODIS surface temperature, and normalized difference vegetation index (NDVI). The DEM data were derived from the shuttle radar topography mission (SRTM) data of the U.S. Space Shuttle Endeavour (http://www.resdc.cn/data.aspx, accessed on 1 January 2020). The data were projected by a WGS84 ellipsoid with a resolution of 30 m. MODIS data were derived from NASA’s land process distributed data archive center (https://lpdaac.usgs.gov/, accessed on 1 July 2021), the time range was 2001–2020, and the time resolution, respectively, was 8 days and monthly. The data of meteorological station were drawn from the China Meteorological data network (http://cdc.cma.gov.cn/home.do, accessed on 1 April 2020). The time range was 1960–2019, including the observation data of MAAT of basic and benchmark meteorological stations in Northeast China, as well as the geographic information of longitude, latitude and elevation of meteorological stations. The field frozen soil temperature monitoring data were drawn from the MEORS-PGSNEC (Figure 1 and

Table 1. Characteristics and monitoring information of ground temperature boreholes of MEORS-PGSNEC.

Study Area	Borehole No.	Lat., Long. (°E, °N)	Elevation (m at Sea Level)	Monitoring Depth (m)	Start Monitoring Time (Month, Year)	Monitoring Frequency
Gehe–Mangui Road	GM1	121.866, 51.634	774.1	15	September, 2018	Daily
	GM2	121.296, 51.183	869	15
Walagan–Xilinji Highway	WX1	123.556, 52.740	569	5	October, 2017
	WX2	123.652, 52.690	496	22	November, 2017
	WX3	123.691, 52.691	481	5.5	October, 2017
	WX4	123.819, 52.680	539	21.5	December, 2017
	WX5	123.960, 52.680	455	5	October, 2017
	WX6	124.065, 52.665	503	19	April, 2018
	WX7	124.263, 52.635	647	4.5	December, 2017
	WX8	124.327, 52.661	565	19	April, 2018
Gehe–Labudalin Highway	GL1	121.178, 50.632	802.5	15	September, 2018
	GL2	121.190, 50.635	675	15.5	August, 2019
	GL3	120.685, 50.357	619	15	November, 2018
Shiwei–Labudalin Highway	SL1	120.001, 50.878	690	15	November, 2018
	SL2	119.927, 50.831	676	15	August, 2019
	SL3	119.931, 50.831	690	12	November, 2018
	SL4	119.927, 50.831	673	15	August, 2019
Beian–Heihe Expressway	BH1	127.306, 49.514	278	12	September, 2009
	BH1	127.306, 49.514	277	12
	BH3	127.351, 49.658	229	2

); the monitoring time and depth, respectively, were 2017–2020, and 4.5~21.5 m. Due to the great disturbance to the ground temperature in the initial stage of construction, data commenced from the second year.

2.3. Methods

Satellite sensors estimate surface temperature by detecting the thermal radiation intensity of the surface. Different types of surface coverage will lead to different thermal radiation, and the objects represented by the retrieved surface temperature are also different. In densely vegetated areas, the surface detected by the sensor mainly refers to the vegetation canopy surface, and the surface temperature basically refers to the vegetation canopy temperature. With the different degrees of canopy covering the ground, the surface temperature also represents the mixed average temperature of different degrees of vegetation canopy temperature and ground temperature under the vegetation. The relationship between MODIS LST and meteorological station ground temperature is quite different due to the influence of vegetation coverage [82,83]. Therefore, by taking the normalized difference vegetation index and forest canopy closure as the vegetation factor, which, respectively, reflects vegetation coverage and the degree of canopy covering the ground, the applicability of the MODIS surface temperature product in Northeast China was adjusted.

The vegetation in the study region has obvious lush and withered periods with seasonal changes, and is often covered by snow in winter. In order to avoid abnormal NDVI values caused by snow cover in permafrost regions in winter, the average NDVI value in the annual growing season was selected to represent the overall condition of interannual vegetation coverage [71,84]. NDVI in the six representative areas increased significantly from the beginning of May, and reached its maximum value from June to August (Figure 2a). The maximum value of NDVI in Tahe was in June (NDVI = 0.905); the maximum value of NDVI in other regions was in July–August (NDVI > 0.6), and it dropped rapidly from September to October. By November, the NDVI value had dropped to the level before the obvious increase in May. The vegetation growth season is from May to September, and the mean annual value of NDVI in growing season (MANDVI_G) was selected to characterize the overall condition of interannual vegetation coverage. The NDVI value is between ±1, and a negative value indicates that the ground cover is cloud, water, snow, etc. When NDVI = 0, it means that the ground surface is rock or bare soil, etc., and the surface temperature is basically the same as the ground temperature or bare rock surface temperature. Positive values indicate vegetation cover, which increases as the coverage increases; surface temperature refers to the mixed average value of vegetation canopy temperature and ground temperature under vegetation. Therefore, 1 was added to MANDVI_G in the calculation in order to eliminate the negative value interval. MANDVI_G has a strong correlation with surface temperature on temporal and spatial scales [85]. The surface emissivity estimated from the difference in the vegetation coverage can be used as the basic parameter when inverting the MODIS land surface temperature [86]. MODIS LST products were used, and MANDVI_G and forest canopy closure were used as the vegetation factor E_t (Equation (1)) to adjust the applicability of MODIS LST products to the study region.

The daily products of MODIS LST may be missing due to cloud cover, but the possibility of having clouds in the same area for 8 consecutive days is very small. The time correlation between remote sensing land surface temperature and meteorological station ground temperature over a long period is obviously better than over a short period [87,88]. Therefore, the 8-day synthetic products MOD11A2 and MYD11A2 (strip numbers: h25v03, h26v03, h25v04, h26v04, and h27v04) of MODIS Terra/Aqua covering the study area from 2003 to 2019 were selected. The MODIS Reprojection Tool (MRT) was used to perform band selection, format conversion, splicing and projection of the original data. The Cell Statistics tool of ArcGIS software was used to calculate the arithmetic mean values of MOD11A2 and MYD11A2 ($\overline{LST}$).

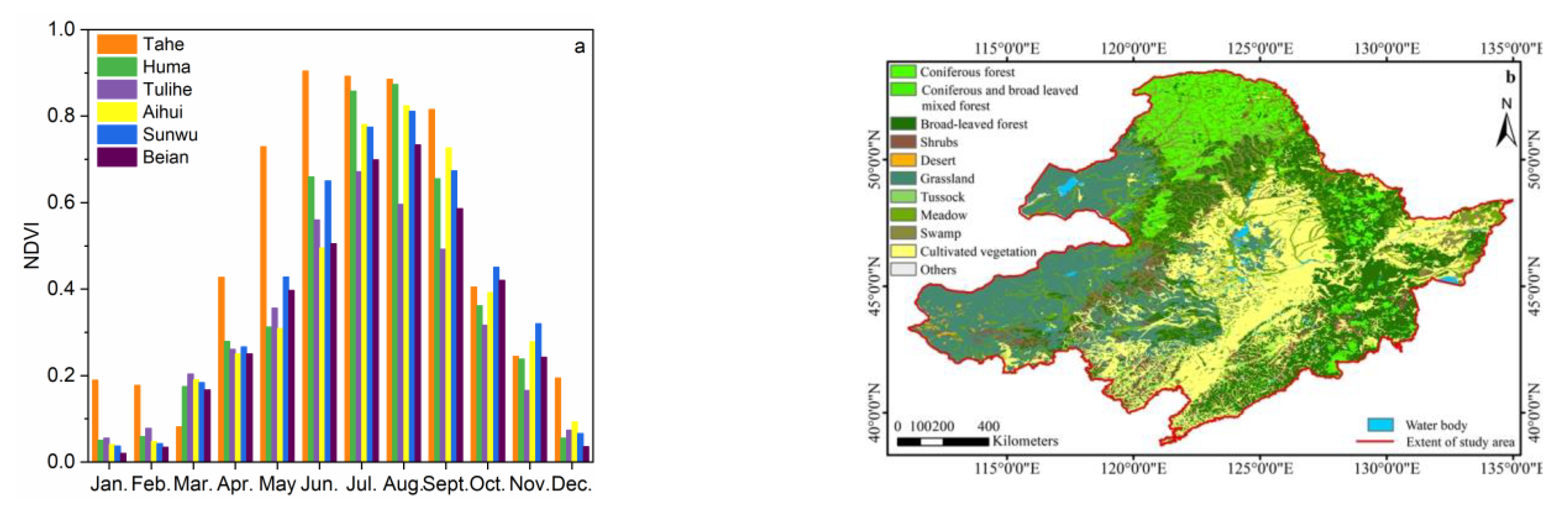

Figure 2. (a) Monthly NDVI in Northeast China from 2003 to 2019. (b) Distribution of vegetation types in Northeast China (source of vegetation types [89]).

Figure 2. (a) Monthly NDVI in Northeast China from 2003 to 2019. (b) Distribution of vegetation types in Northeast China (source of vegetation types [89]).

The land surface temperature under the influence of vegetation factor (LST_C) is shown in Equation (2):

$$E_t={\epsilon }_{fcc}\times \left[{\left(MANDV{I}_G\right)}_t+1\right]$$

(1)

$$LS{T}_C=E_t\times \overline{{\displaystyle \sum {\overline{LST}}_t}}$$

(2)

where E_t is the vegetation factor, t is the time period (t = 2003, 2004,……, 2020), $\overline{{\displaystyle \sum {\overline{LST}}_t}}$ is the mean values of all products $\overline{LST}$ in the one year, and ε_fcc is the forest canopy closure. According to the stand spatial structure [90,91] of the study area and the regulations of FAO, the average ε_fcc in the study area ranged from 0.2 to 0.69, which is moderate canopy closure. For the convenience of calculation, ε_fcc was taken as the constant value, which was 0.56.

SFn, defined as the ratio of freezing depth and thawing depth, allows an assessment of the distribution of permafrost on a regional scale [58]. It was calculated using Equation (3), where DDT is the surface thawing index, which was calculated from the daily cumulative value of surface temperature greater than 0 °C from 1 January to 31 December of the current year, as shown in Equation (4); DDF is the surface freezing index, which was calculated from the cumulative value of daily absolute value of surface temperature less than 0 °C from 1 July of each year to 30 June of the next year, as shown in Equation (5).

$$SFn=\frac{\sqrt{DDF}}{\sqrt{DDF}+\sqrt{DDT}}$$

(3)

$$DDF={\displaystyle \sum _{m=1}^{12}\left(\overline{LS{T}_m}\times N\right)}\left({\overline{LST}}_m>0°\mathrm{C}\right)$$

(4)

$$DDT={\displaystyle \sum _{m=7}^{12}\left|{\left({\overline{LST}}_m\right)}_t\times N\right|}+{\displaystyle \sum _{m=1}^6\left|{\left({\overline{LST}}_m\right)}_{t+1}\times N\right|}\left({\overline{LST}}_m<0°\mathrm{C}\right)$$

(5)

We define the SFn under the influence of E_t-SFnc, as shown in Equation (6).

$$SFnc=E_t\times SFn$$

(6)

where ${\overline{LST}}_m$ is the monthly average value of 8-day data products, m is the month, N is the days of the corresponding month, and t is the year.

The linear trend method was used to reflect the interannual spatial change trend of MANDVI_G, and the mean annual LSTc (MALSTc) and SFnc in the study area from 2003 to 2019. The change trend, ${\theta }_{slope}$, calculation equation is:

$${\theta }_{slope}=\frac{n\times {\displaystyle \sum _{i=1}^{n}i\times x_i-{\displaystyle \sum _{i=1}^{n}i{\displaystyle \sum _{i=1}^n{x}_i}}}}{n\times {\displaystyle \sum _{i=1}^n{i}^2}-{\left({\displaystyle \sum _{i=1}^{n}i}\right)}^2}$$

(7)

where $n$ is the cumulative number of years during the monitoring period, and $x_i$ is the factors value of year i. Generally speaking, ${\theta }_{slope}>0$ indicates that the change of factors in years is an increasing trend, otherwise it represents a decreasing trend.

3. Results

3.1. Air Temperature Change

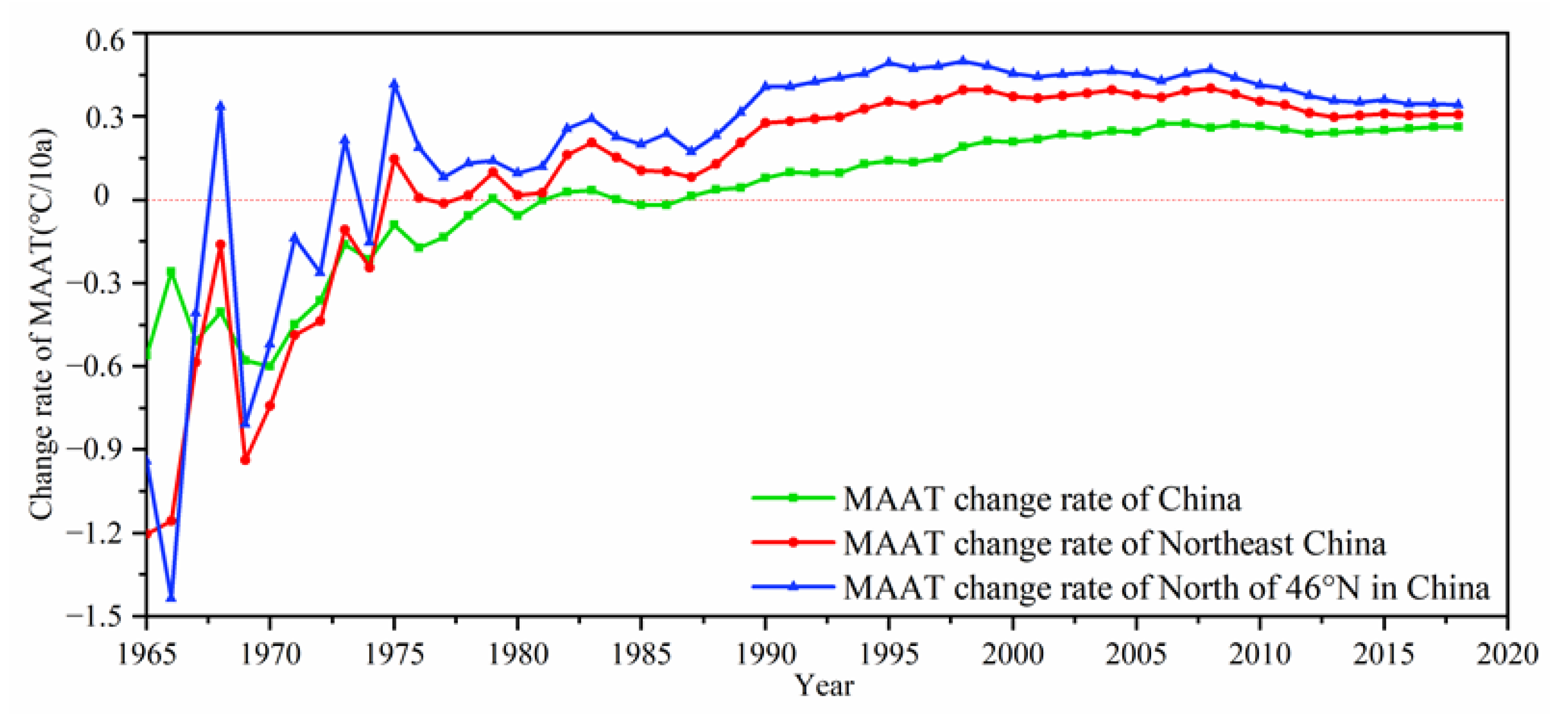

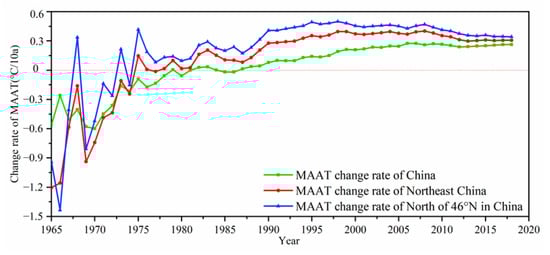

Figure 3 shows the change rate of MAAT of national meteorological stations in different regions of China from 1960 to 2019. The change of MAAT in each year means the MAAT change in the time series from 1960 to the specific year. The representativeness of the change rate in a shorter time is slightly lower, therefore, the change rate of MAAT from 1961 to 1964 is not shown. The change rate of MAAT showed an overall increasing trend with time, and the warming rate decreased after 2006. In China, it was higher than 0 since 1987, and the warming effect in the middle and high latitudes showed earlier. Since 1975, the change rate of MAAT in the study area was higher than the national average; specifically, in the middle and high latitudes of the study area, it was higher during the same period.

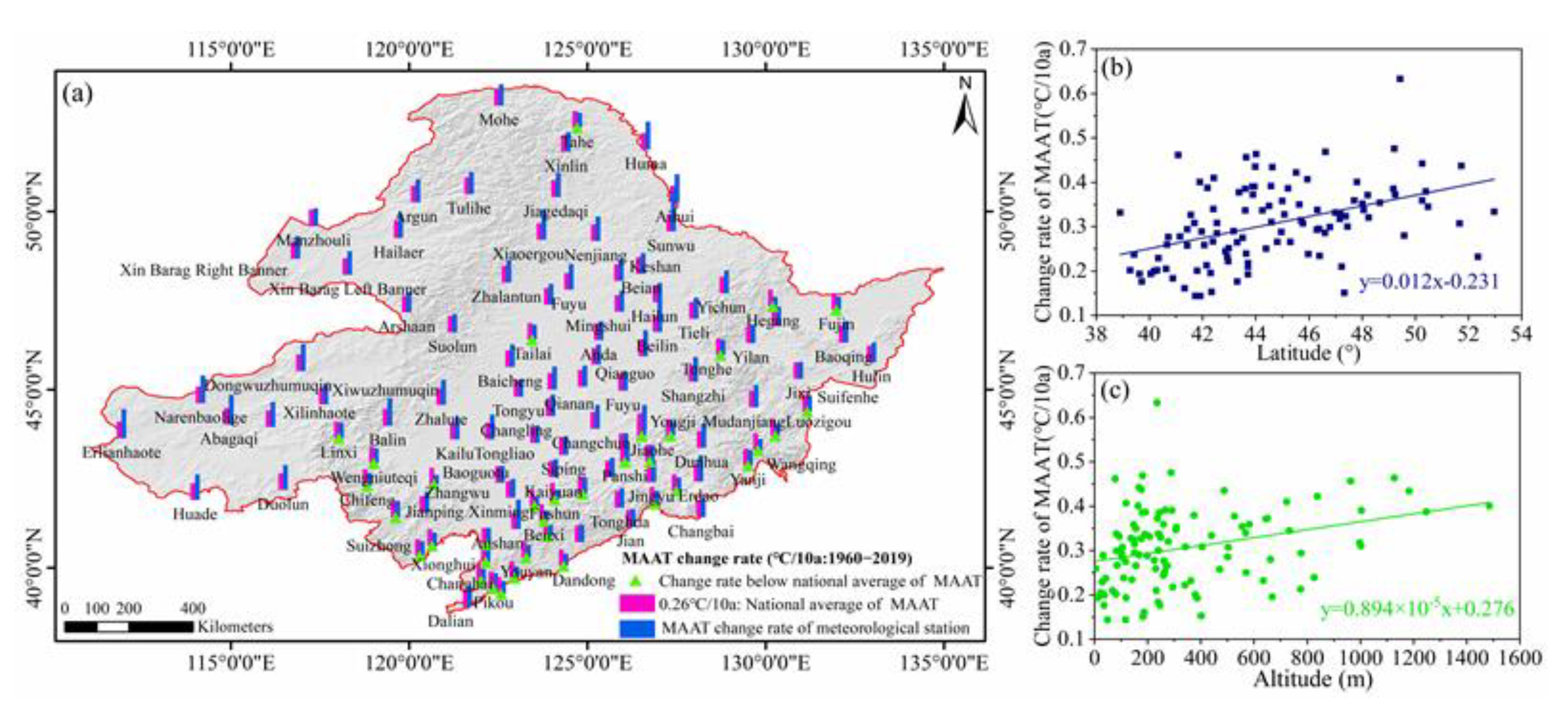

The change rate of MAAT for 109 national meteorological stations in the study area from 1960 to 2019 was greater than 0 (in Figure 4a), therefore, it was a warming trend. Compared with the average change rate of MAAT for China during the same period, the stations with a higher change rate of MAAT were mainly concentrated in the north of 46°N of the study area, except for Tahe, Hegang and Fujin. The effect of air temperature rising was amplified in middle and high latitudes. With the increase in altitude and latitude, the change rate had an increasing trend (Figure 4b,c). However, the meteorological stations in the middle and high latitudes were relatively few and unevenly distributed (Figure 4a), therefore, the results may be somewhat one-sided.

3.2. Distribution and Changes of the MANDVI_G

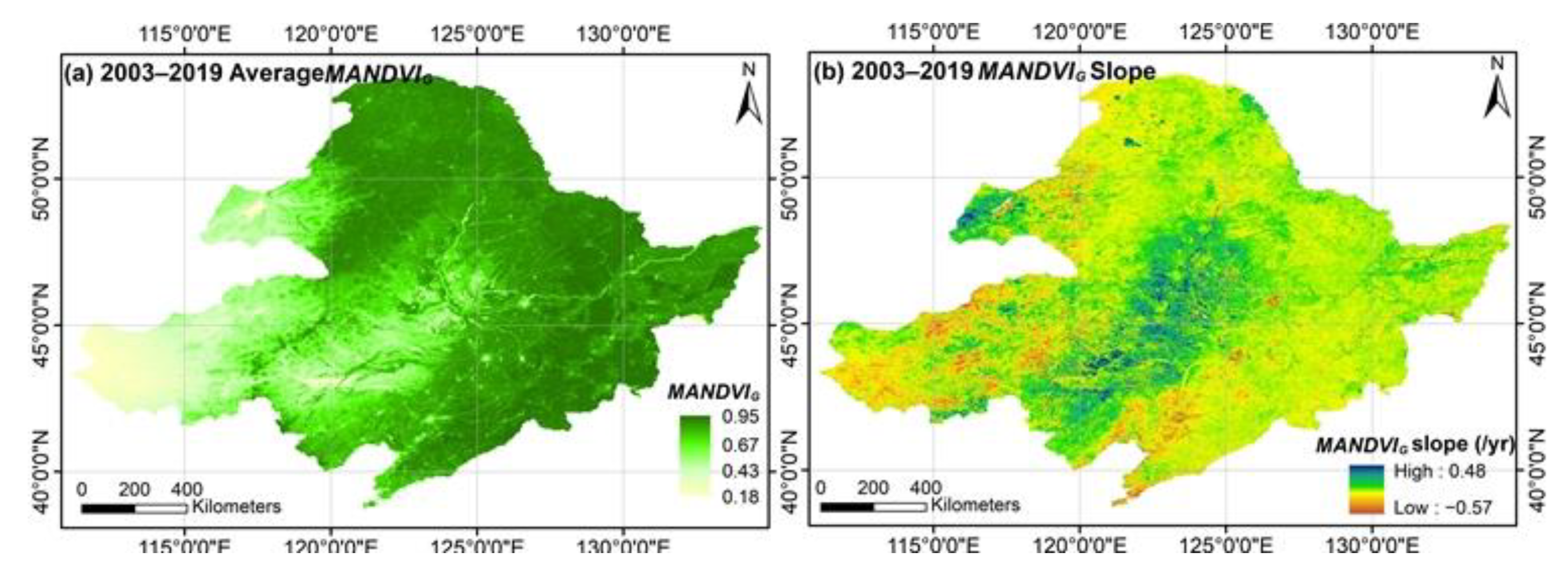

The vegetation coverage of GKM, LKM and Changbai Mountains was high, with most cases of MANDVI_G between 0.8 and 1, and its slope was relatively small at about ±0.1/year (Figure 5). Some areas in the south of LKM and GKM were covered with broad-leaved forest, in which MANDVI_G reached more than 0.9. MANDVI_G of the west and southwest was relatively small, between 0 and 0.4, but the interannual variation range and regional differences were large, and the MANDVI_G between them and the GKM interlaced area was between 0.6 and 0.7. The northeast plains were dominated by agriculture and animal husbandry production, and here the slope of MANDVI_G was above 0.1/year. The vegetation coverage in these areas was mainly affected by the interference of human activities, which has produced extremely significant feedback.

3.3. Distribution and Variation of MALSTc

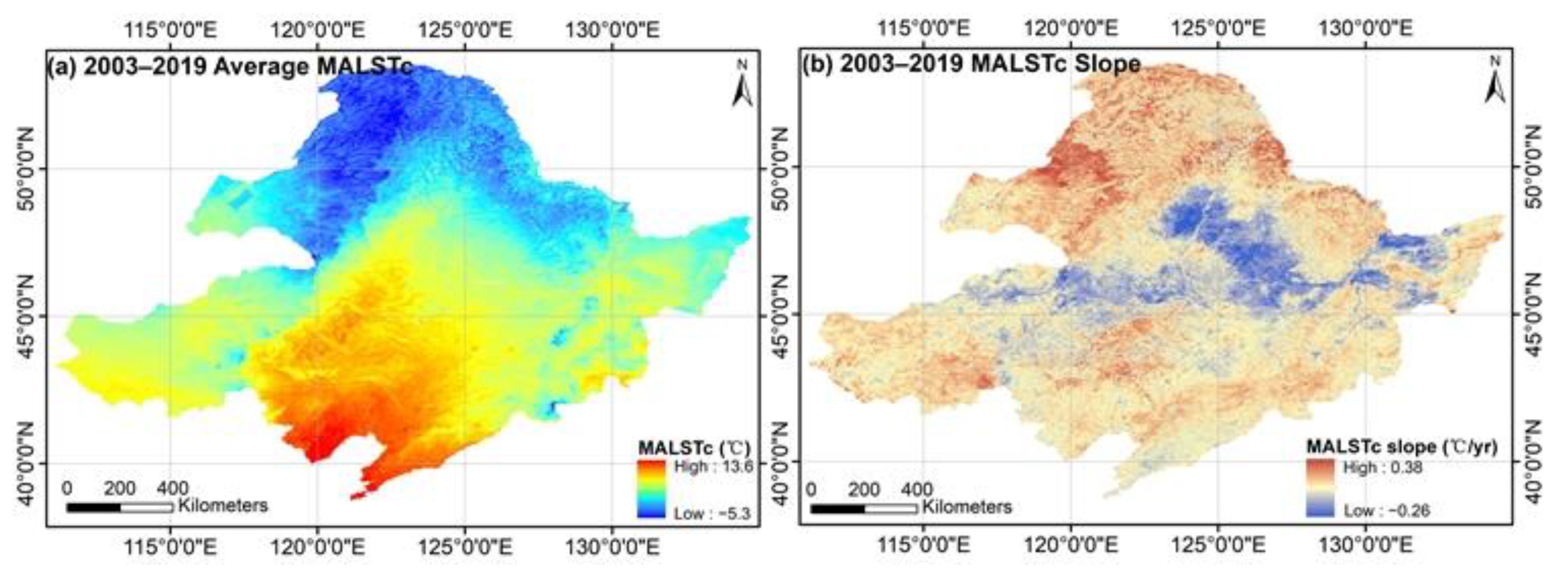

Surface temperature in a permafrost region is a sensitive indicator of heat exchange; it has a more direct impact on the thermal state of permafrost than air temperature, and its changes directly affect the distribution and changes of permafrost [31]. The areas with mean MALSTc from 2003 to 2019 lower than 0 °C were mainly distributed in GKM and LKM, and a small area of Changbai Mountains (Figure 6). In the study area, the GKM was the area with the lowest MALSTc, which, at lower than −5 °C, was mainly distributed in the northwest foot of GKM, with a very small area and sporadic distribution. The GKM, LKM and Changbai Mountains were the main permafrost distribution areas in the study area, and the MALSTc increased in varying degrees. The MALSTc in GKM increased by 1.1 °C on average, and with a large range of temperature rises and a large proportion of rising areas. The MALSTc in some parts of the northern and southern LKM decreased, but the area of Sunwu County to Aihui City located in the middle of LKM increased significantly, with rises to over 2 °C. The MALSTc in Hulunbuir Plateau increased by 2.28 °C, on average. From 2003 to 2019, the MALSTc in 76.2% of the study area increased, with a cumulative increase of 0.75 °C; in 86.8% of the north of 46°N of the study area, it increased by 1.13 °C. The area where the MALSTc was lower than 0 °C reduced from 21.98 × 10⁴ km² to 14.80 × 10⁴ km², with an area reduction of 32.67%. Both MALSTc and MANDVI_G showed an overall upward trend with a growth rate of 0.0017/a and 0.0147 °C/a, respectively.

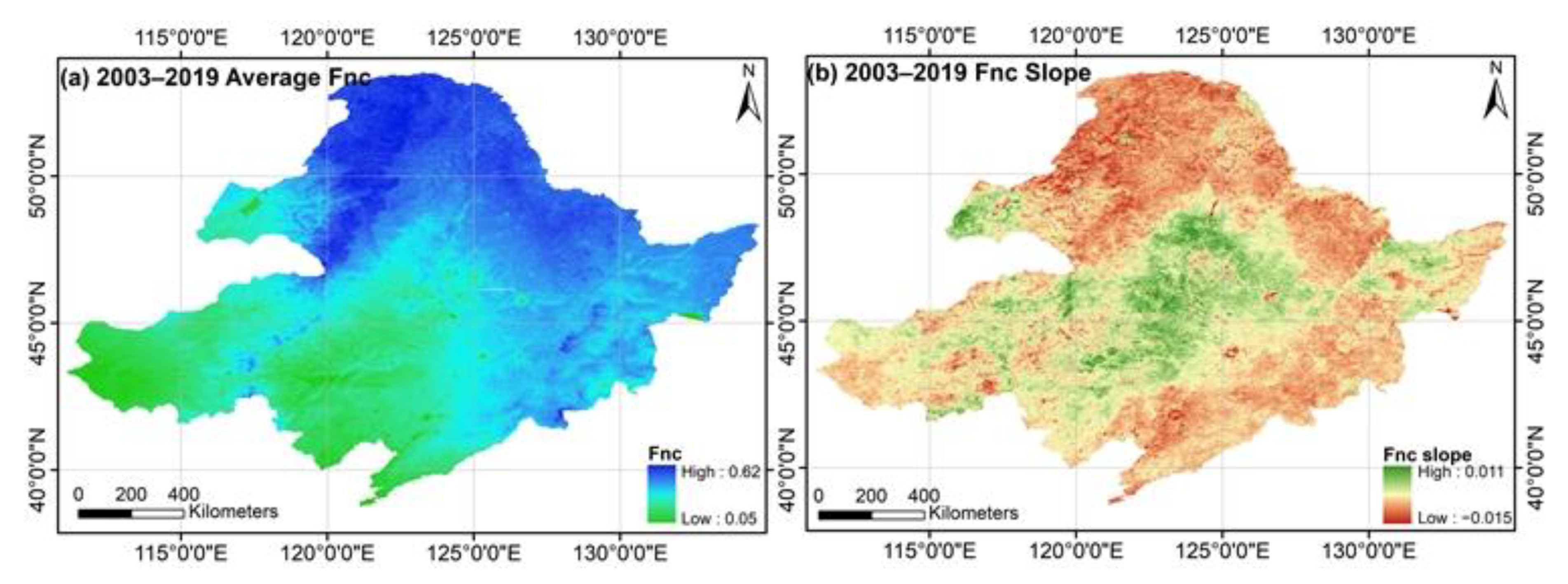

3.4. Distribution and Change of SFnc

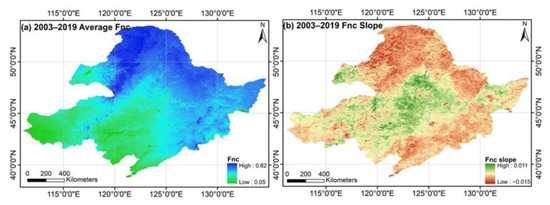

SFn can reflect the surface thermal state; when the surface freezing index is greater than the thawing index (i.e., SFn > 0.5), the possibility of permafrost is high [31]. With an increase in latitude, permafrost distribution changes from sporadic to island to continuous distribution, and the southern boundary of permafrost was distributed in a “W” shape extending to Arshan in the south, and to Yichun in the east. It was also distributed in Huanggangliang at the southern end of GKM and Changbai Mountains. The regions with larger SFnc also had a relatively high altitude and high latitude, and regions with SFnc greater than 0.55 were mainly distributed in the northwest of GKM, where the continuous permafrost distribution area was not continuously distributed in large areas, but in island distribution (in Figure 5). The regions with SFnc greater than 0.5 were distributed in both GKM and LKM, which were the main permafrost distribution areas within the study area. It can be seen from Figure 7b that SFnc in GKM, LKM and Changbai Mountains showed a downward trend. The average SFnc in the north of 46°N of the study area decreased by 0.014, and in Great Kinggan Mountains it decreased by 0.02, from 2003 to 2019. The change range of SFnc in GKM was greater than that in LKM. However, the SFnc in LKM was relatively small, and the permafrost was mainly distributed in sporadic and island areas, which are vulnerable to the disturbance of external environmental changes; even small environmental geological changes will lead to the degradation of permafrost.

3.5. Distribution and Change of Permafrost Thermal State

Nan et al. [61] caused SFn to have a clear physical meaning by re-deriving the model. When SFn ≈ 0.667 or 2/3, it is the threshold of continuous and non-continuous permafrost [58], which means that the surface freezing index is twice the thawing index. When SFn ≈ 0.5, it is the boundary index between seasonal frozen soil and permafrost, and the permafrost is in a transitional and unstable state. Based on the above two thresholds, we set a buffer zone of 0.1 as the division threshold in the case of SFn ≈ 0.5, because the surface freezing index and thawing index are approximately equal, or the annual average surface temperature is 0 °C. SFn is an empirical model, and SFn = 0.55 was set according to a large number of field investigations, survey data and monitoring results, when it is applied in this study. We proposed the classification standard of permafrost in different thermally-stable states, in Northeast China to be as follows:

• Extremely stable permafrost, SFnc ≥ 0.667;
• Stable permafrost, 0.55 ≤ SFnc < 0.667;
• Semi-stable permafrost, 0.51 < SFnc < 0.55;
• Transitional or unstable permafrost, 0.49 ≤ SFnc ≤ 0.51.

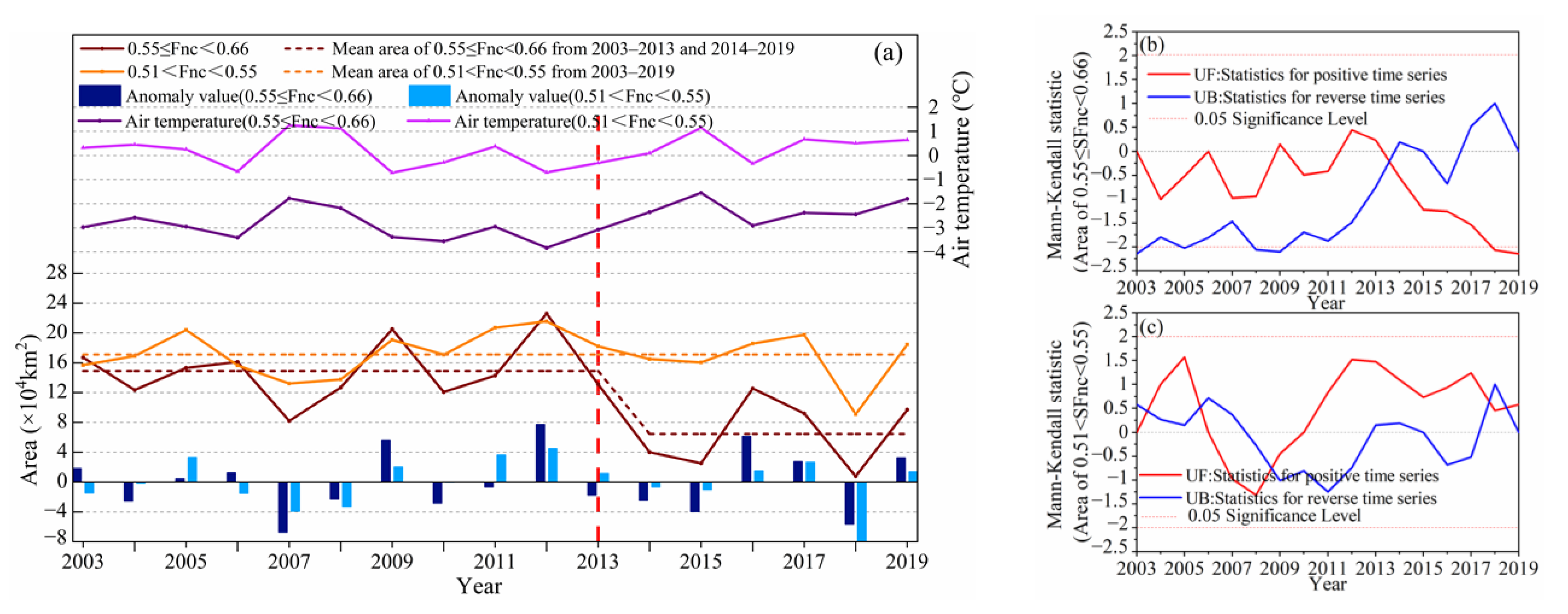

According to the classification standard, we calculated the area of different thermal state types of permafrost from 2003 to 2019. We calculated the average MAAT in stable permafrost regions including Mohe, Tulihe, Erguna and Aershan national meteorological stations, and in semi-stable permafrost regions including Tahe, Sunwu, Aihui, Bei’an, Nenjiang, Xiaoergou, Xinlin and Huma national meteorological stations. The time mutation point of the area of stable permafrost was 2013, and there was no obvious change in the area of semi-stable permafrost (Figure 8b,c). Therefore, the change of thermal state of permafrost in Northeast China was divided into two periods: 2003–2013 and 2014–2019. From 2003 to 2013, the area of stable permafrost changed greatly in 2007, 2009 and 2012, and the distribution area in other years fluctuated slightly, ranging from 12.08 to 16.7 × 10⁴ km². The average MAAT range in the region was −4~−3 °C, and the correlation coefficient between average MAAT and area was −.81. The increase in MAAT had a significant impact on the change of stable permafrost distribution. The area of stable permafrost from 2014 to 2019 changed greatly, with anomalies in 2016 and 2018, and the area in other years was always lower than the previous period. The average MAAT ranged from −3 to −2 °C, and the correlation coefficient with the area was −0.25. Over seventeen years, the average MAAT increased by nearly 1 °C. In general, the area anomalies of semi-stable permafrost were larger in 2007, 2012 and 2018, and the range of area in other years ranged from 13.8 to 20.8 × 10⁴ km². The correlation coefficient between area and average MAAT was −0.59.

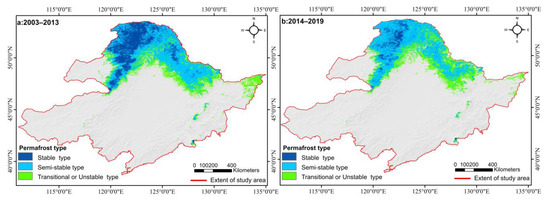

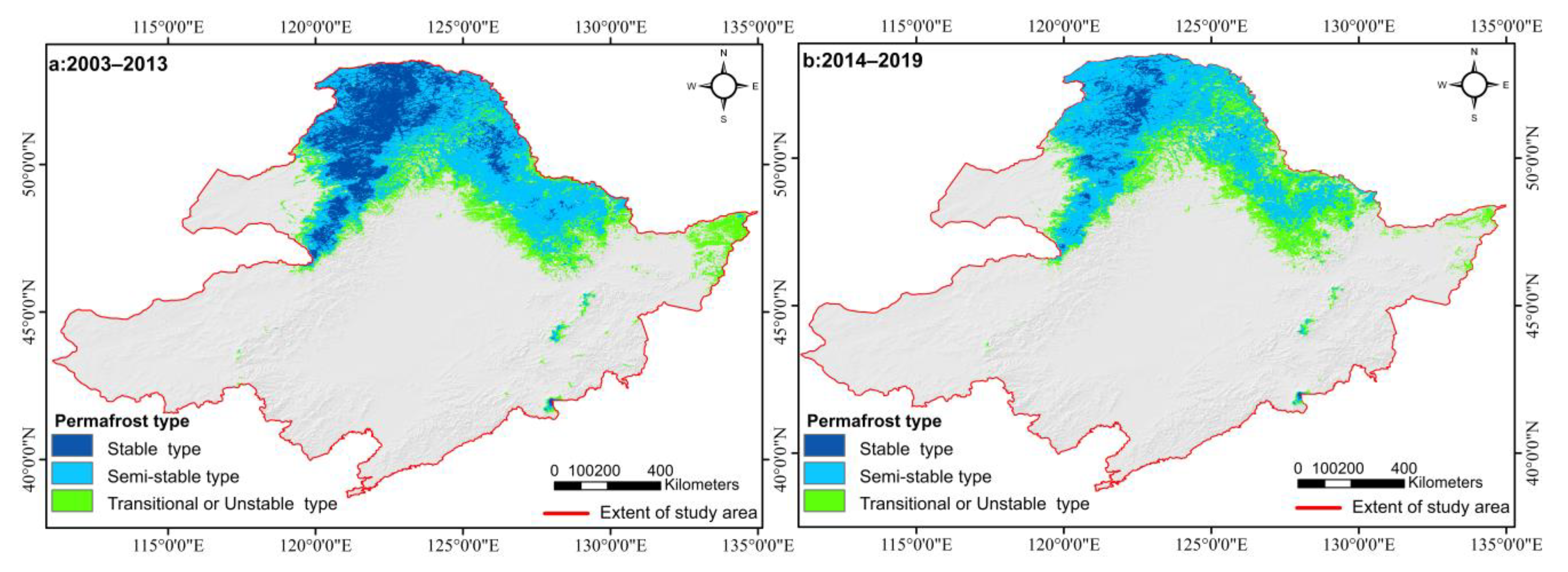

According to the classification standard and time variation characteristics of the thermal state of permafrost, the distribution and change of the thermal state of permafrost is shown in Figure 9. Stable permafrost was mainly distributed in the continuous permafrost region, namely, the GKM, and a small amount in Changbai Mountains and the northern foot of the LKM, with an area of 14.9 × 10⁴ km² reduced to 6.5 × 10⁴ km² over the study period; the SFnc was reduced from 0.564 to 0.557. Semi-stable permafrost was mainly distributed at the edge of continuous permafrost area; the island permafrost region, that is, the edge of stable permafrost region in GKM, and most of the region of LKM, with an area of 17.68 × 10⁴ km², changed to 17.77 × 10⁴ km², and the SFnc decreased from 0.529 to 0.528. The area and SFnc changed little, but the permafrost distribution region changed significantly. The transitional or unstable permafrost was in the degradation stage and very sensitive to changes of the external environment, and mainly distributed at the edge of the island permafrost region and near the melting region. It also had a relatively high annual average ground temperature, and the annual heat absorption and heat dissipation of soil layer were approximately equal; the permafrost area changed from 8.67 × 10⁴ km² to 9.56 × 10⁴ km², and the increased area was due to the thawing of edge regions of permafrost with a higher thermal state, and increasing and expanding of island thawing regions. In addition, it can be seen from Figure 9 that there was no extremely stable permafrost in Northeast China. In terms of spatial distribution, the permafrost showed a regional degradation trend from south to north; the degradation of stable permafrost was characterized by gradual thawing from the edge to the center of the permafrost distribution area and the increase of island thawing area; the degradation of semi-stable permafrost was characterized by the thawing or disappearance of the edge of the permafrost distribution area and the expansion of island thawing area.

3.6. Indirect Verification

Relative Accuracy of MODIS LST_C

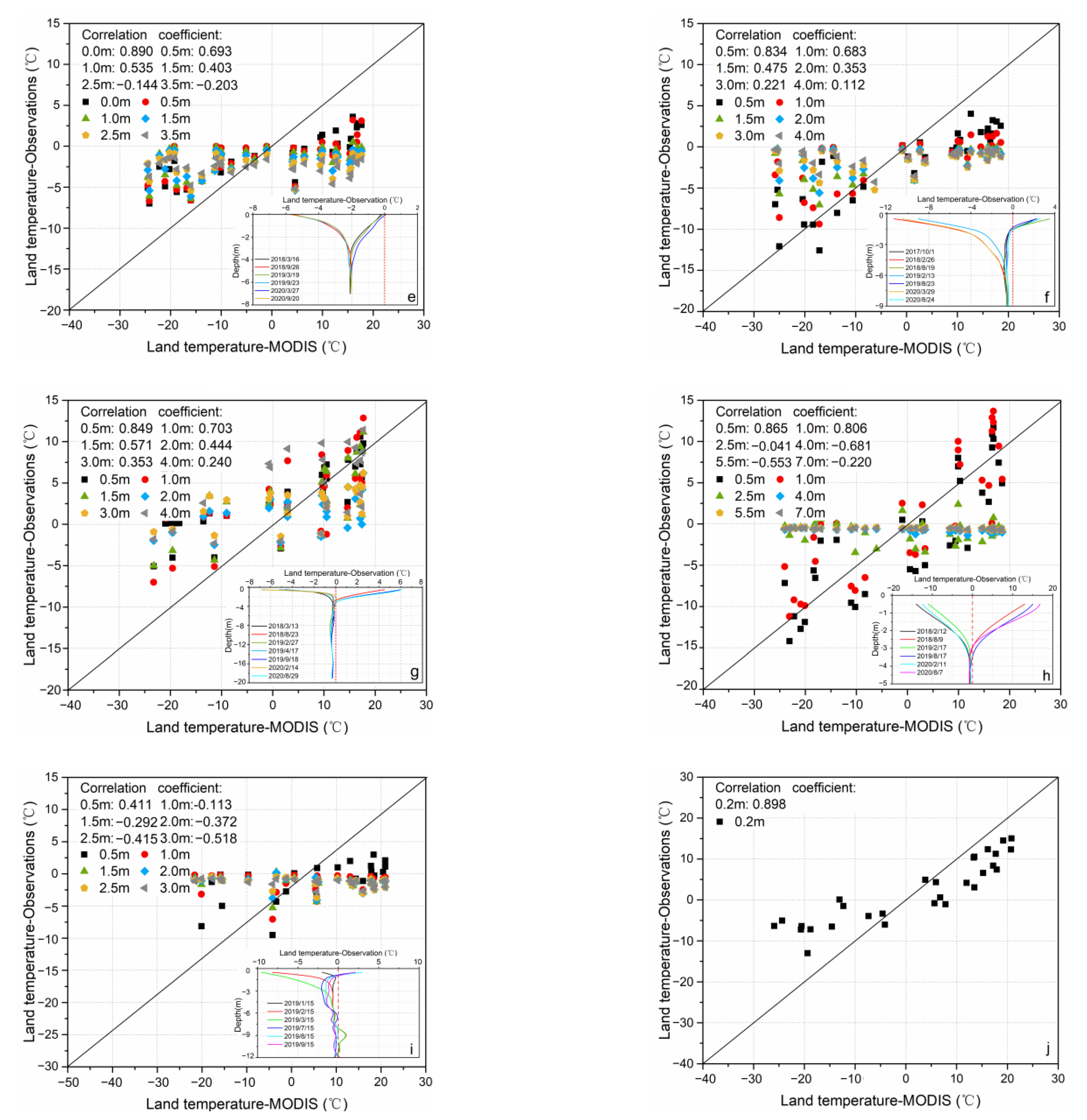

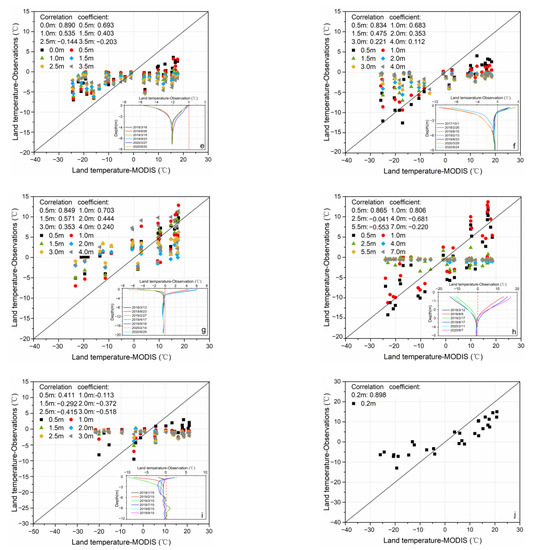

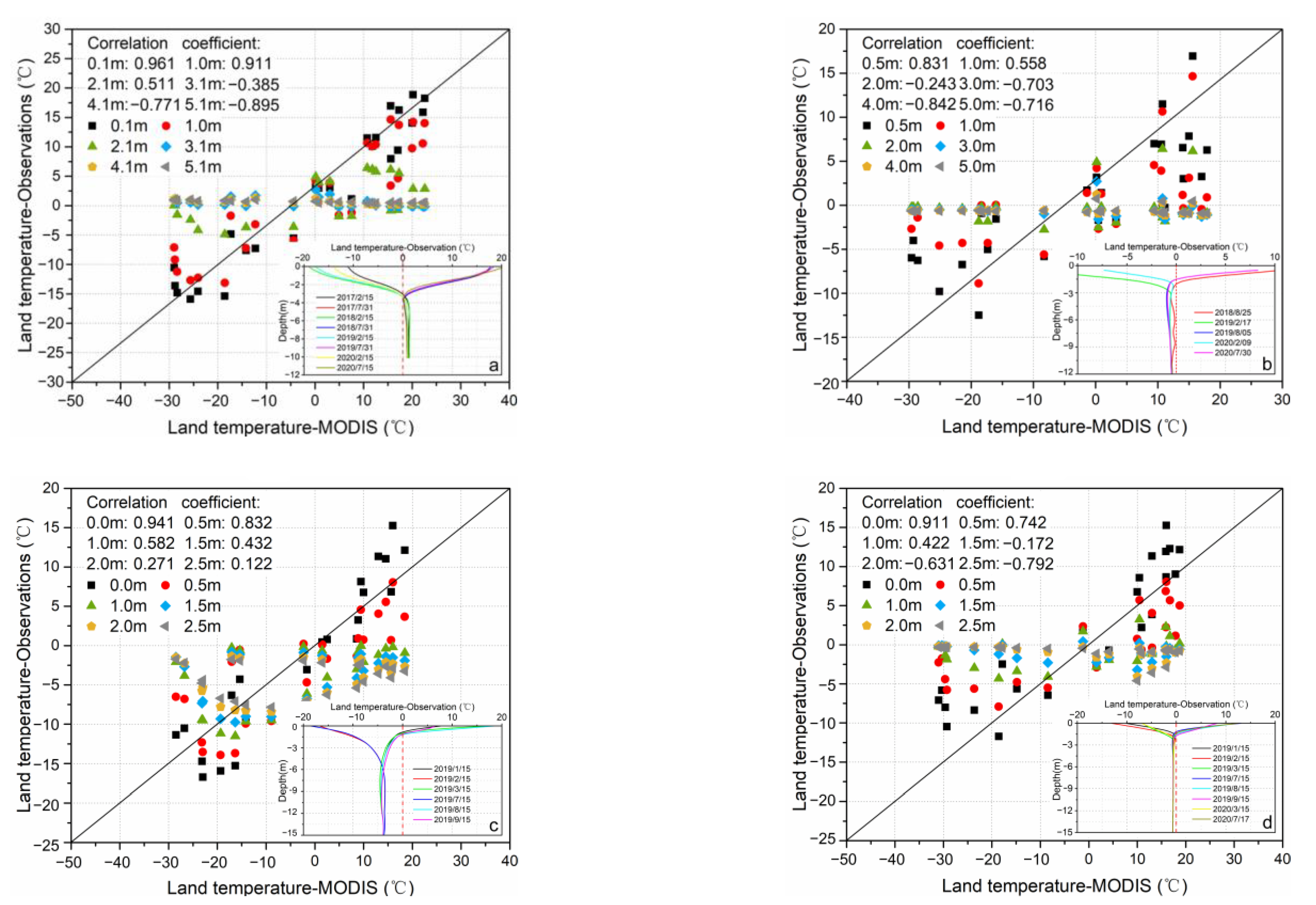

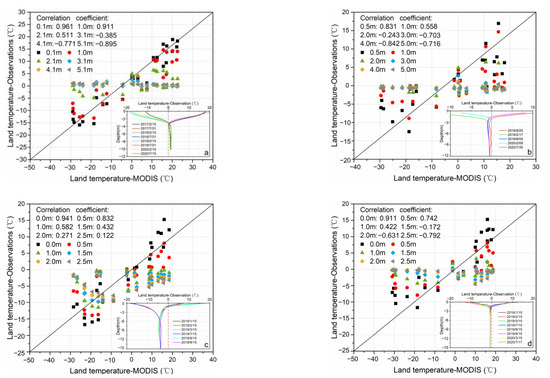

By comparing the correlation between borehole soil temperature monitoring data and MODIS LST_C data on a monthly scale, the applicability of MODIS LST data under the influence of surface vegetation factors in the study area was analyzed. At the same time, we also verified the classification results of thermal state types of permafrost (Figure 10 and Figure 11).

The following results can be drawn from the correlation diagram, and the ground temperature envelope line between the monthly average data of the borehole ground temperature and the monthly value of the LSTc data. The SL4 monitoring site along the Shiwei–Labudalin Highway was a section of seasonal frozen soil (Figure 10a). The monitoring sites GL1 (Figure 10b), GM1 and GM2 (Figure 10c,d) were permafrost sections, respectively, along the Genhe–Labudalin Highway and Genhe–Mangui Provincial Road; the annual heat dissipation of the soil layer in monitoring sites GL1 and GM1 was greater than the heat absorption, the permafrost state was stable; the annual heat dissipation of the soil layer in monitoring site GM2 was equal to the heat absorption, and the permafrost was sensitive to external changes and easily disturbable. The monitoring sites WX5, WX3, WX1 and WX2 (Figure 10e–h) were permafrost sections, located along the Walagan–Zhangling Highway; the annual heat dissipation of the soil layer in monitoring sites WX5 and WX2 was equal to the heat absorption, and the annual heat dissipation of the soil layer in monitoring sites WX3 and WX1 was approximately equal to the heat absorption; all permafrost areas were in the degradation stage, sensitive to external changes and easily disturbable. The monitoring sites BH1 and BH3 (Figure 10i,j) were island permafrost sections in the Bei’an–Heihe section of Jilin–Heihe expressway, and the permafrost was in the degradation stage. The monitoring site BH2 was located in low-lying swamp wetland with perennial ponding, covered with hydrophilous vegetation such as hassock and moss, humus soil and peat soil in the soil layer, which hindered the heat exchange between the soil and air; moreover, the phase change latent heat of water also affected the change of ground temperature [21]. Compared with monitoring site BH3, site BH1 was very close to the edge of the highway and was obviously affected by human activities, therefore, the correlation between the ground temperature data of site BH1 and MODIS LST_C data was slightly low. Taking 0 °C as the basis for judging soil freezing or thawing, we found that the temperature data in the depth range of the active layer have strong correlation, and the correlation coefficient decreased gradually with the increase in depth. In addition, due to the influence of the highway, the data correlation between MODIS LST_C and the monitoring sites close to the highway was relatively low.

3.7. Relative Accuracy of Classification Standard

The ground temperature envelope was drawn through the ground temperature monitoring data at different depths of the borehole (Figure 10 and Figure 11). Assuming that 0 °C is used as the basis for judging soil freezing or thawing, the state of permafrost can be judged from the perspective of ground temperature, according to the different shapes of the ground temperature envelope. Region (1) showed that seven monitoring sites were stable permafrost, two monitoring sites were semi-stable permafrost, and one monitoring site was seasonal permafrost; only monitoring site SL4 was different from the classification results. Region (2) showed that six monitoring sites were semi-stable permafrost, and two monitoring sites (WX6 and WX7) were seasonal permafrost, which were different from the classification results; however, it can be seen from the ground temperature monitoring curves that the permafrost areas at these two sites were originally in a semi-thermal state, and the permafrost had been completely thawed by 2019 due to being significantly affected by special geological conditions and engineering disturbance. This local difference caused by external factors cannot be widely and accurately measured, and is not within the range of influencing factors considered in the article; therefore, after ignoring the immeasurable factors, sites WX6 and WX7 were consistent with the classification results. In Region (3), the three monitoring sites were transitional or unstable permafrost, which were consistent with the classification results.

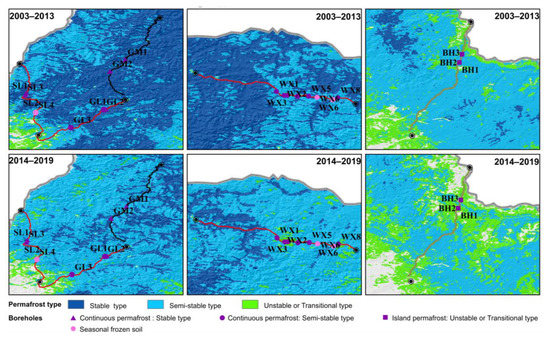

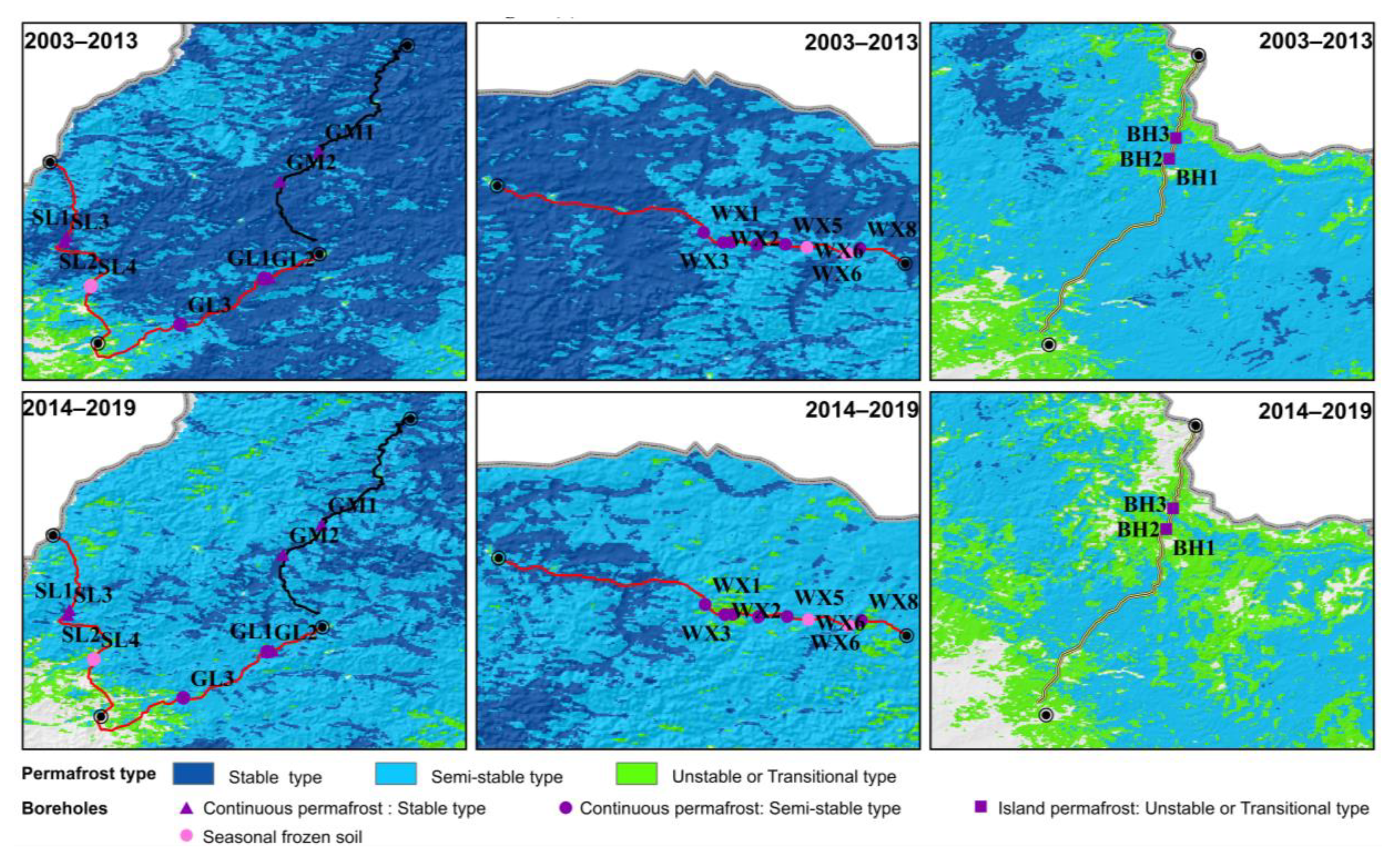

By comparing and analyzing the borehole monitoring data and the thermal state of permafrost distribution map in the three representative regions in Northeast China, it can be seen that: Region (1) was the main distribution area of stable permafrost, the thickness of the active layer was generally 1.5 m, and the annual average ground temperature was −5~−2 °C; under the background of climate warming, the stable permafrost had also undergone obvious degradation in recent years. Region (2) was the semi-stable permafrost formed after the degradation of stable permafrost; the thickness of the active layer was deeper, by up to more than 3 m, and the annual average ground temperature was −2~−0.5 °C; due to the proximity to the surrounding transitional or unstable permafrost, the annual average ground temperature of sites WX1,WX2 and WX3 were relatively, at −0.6 °C, −0.2 °C and −0.8 °C, respectively, higher than site WX5 (−2 °C). The semi-stable permafrost degraded to form transitional or unstable permafrost in Region (3), which was mostly island or sporadic permafrost with a thawing layer under the frozen layer.

Under the influence of surface vegetation factors, remote sensing surface temperature data can maintain high correlation with borehole monitoring data. Except for the two boreholes WX6 and WX7 which were greatly disturbed by the project, 19 of the 20 monitoring sites were consistent with the classification results, with an accuracy of nearly 95%. Therefore, the thermal state of permafrost distribution based on MODIS LST_C data has high reliability.

4. Discussion

4.1. Topographic Distribution Characteristics of the Thermal State of Permafrost

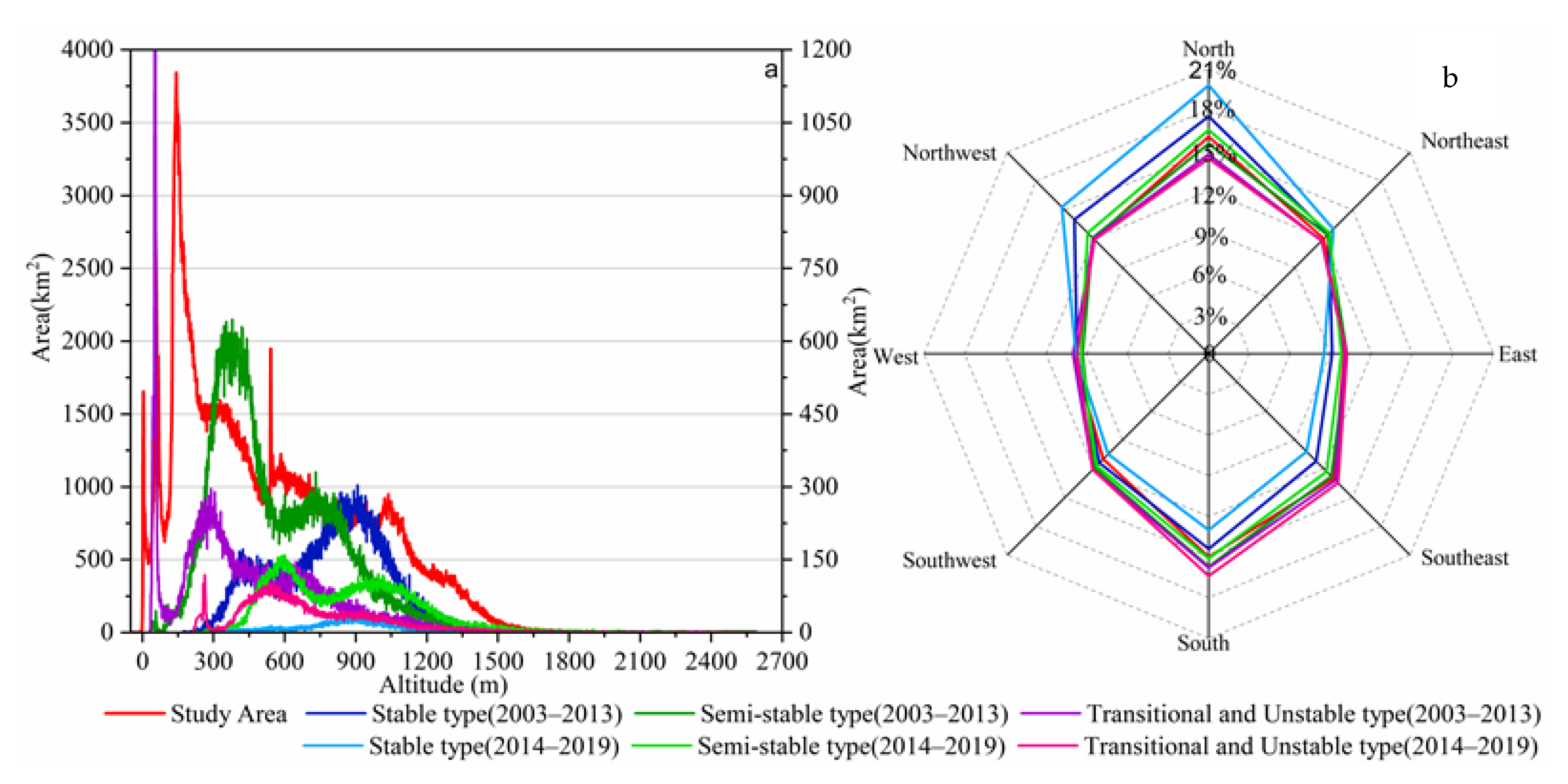

The topographic distribution characteristics of the thermal state of permafrost are shown in Figure 12. Permafrost was mainly distributed between 47°N to 53°N; the stable permafrost was distributed in areas with relatively high altitude, which was the main factor controlling the permafrost distribution. Within the same latitude, permafrost in high altitude areas has higher stability, therefore, the permafrost in GKM was more developed and stable than that in LKM; island permafrost was mainly developed in LKM, which was mainly in the transition stage of semi-thermal state and degradation. The proportions of different thermal states of permafrost on shady slopes were 50.9~52.3%; compared with the advantage of slope aspect on local influence on permafrost distribution [93], the influence of slope aspect on permafrost distribution gradually weakened with the increase in spatial scale [94]. The altitude curve had two peak values because the semi-stable permafrost was distributed in both the GKM and LKM. The stable and semi-stable permafrost degradation mainly occurred in the areas with relatively low elevation and sunny slope.

4.2. Temporal and Spatial Variation Characteristics of Thermal State of Permafrost

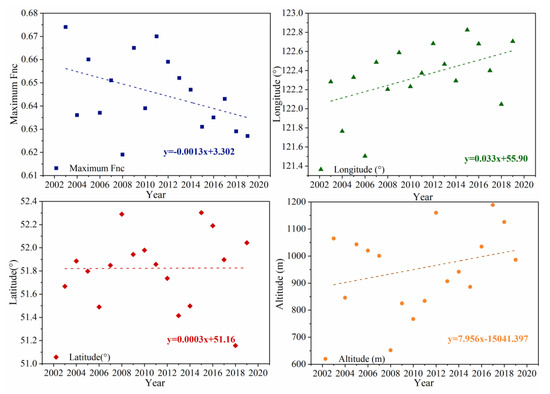

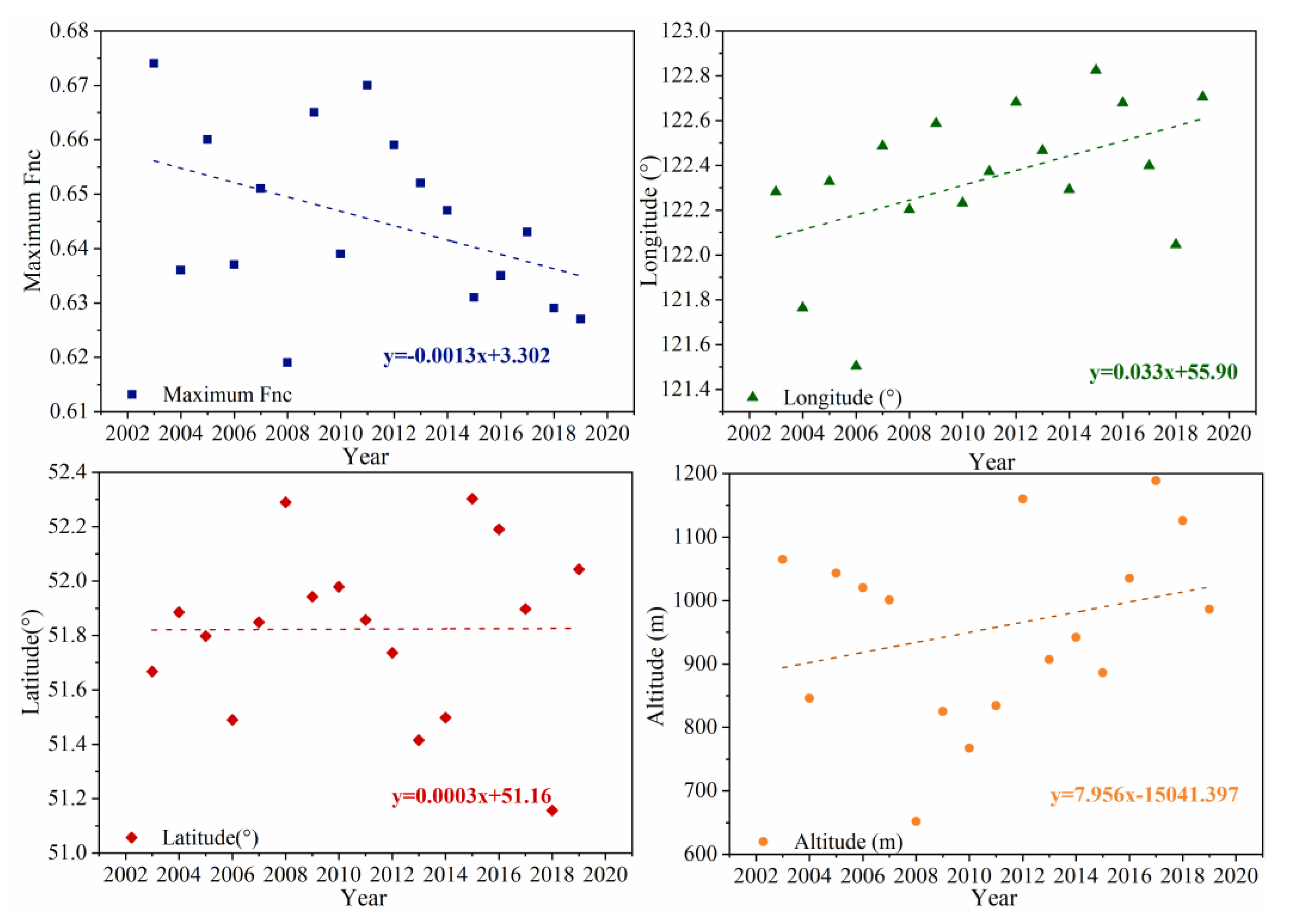

Changes in the thermal state of permafrost are the result of long-term accumulation, which is affected by many factors. Based on SFnc from 2003 to 2019, the variation characteristics of thermal state of permafrost were analyzed, based on the spatial change of the geometric center of the distribution region of SFnc with different percentile intervals (95th–100th percentile). As shown in Figure 13, SFnc showed a decreasing trend, from 0.674 to 0.628; in terms of latitude, the geometric mid-point latitude fluctuated within a range of 0.5° above and below approximately 51.8°N, which was stable permafrost in the study area. The core area of the soil was near 51.8°N, which was not the highest latitude area. From the perspective of longitude and elevation changes, the Fnc extreme point has moved eastward by at least 1°, and the elevation has risen by at least 100 m. Based on the above information, we infer that in the past 20 years, the ratio of heat released to the surface of the study area to absorbed heat has decreased, which may be related to the decrease in the degree of coldness in the cold season.

4.3. Influencing Factors of Changes in Thermal State of Permafrost

On a large regional scale, the formation, development, and distribution of permafrost are mainly controlled by latitude, altitude, climatic conditions, and topographic factors. There are also spatial differences in local areas due to factors such as soil properties, soil moisture, vegetation structure, precipitation, snow cover and terrain. Figure 14 shows MAAT and MANDVI_G changes in the distribution area of stable and semi-stable permafrost from 2003 to 2019. From 2003 to 2019, the correlations between the area of stable and semi-stable permafrost and the MAAT and MANDVI_G were −0.76, −0.12, −0.44 and −0.14, respectively; from 2003 to 2013, the correlation coefficients were, respectively, −0.81, −0.68, −0.59 and −0.16. It can be seen that air temperature was the main factor affecting the change of thermal state of permafrost, especially in 2012–2015, when the correlation between the area of stable permafrost and the temperature change in the region reached −0.96. Degradation of permafrost can provide soil moisture and nutrients for vegetation growth in the short term, and promote vegetation growth, but in the long run, after permafrost continues to degrade, it will cause surface water infiltration, migration and reduction in soil water content through surface evapotranspiration, thereby hindering vegetation growth [95]. From 1956 to 2017, the precipitation in Northeast China showed a fluctuating decreasing trend. The annual precipitation was lowest in 2001 (377.66 mm), and highest in 2013 (649.02 mm) [96]. The increase in precipitation may promote the thawing of permafrost [97], and the thermal stability of permafrost in the study area changed significantly under the superposition of air temperature.

4.4. Uncertainty Analysis

The 8-day synthetic products of MODIS still exist due to the presence of clouds that cause local values to be missing. The missing values could be filled by interpolation [62,63]. This process should consider topography (slope and elevation) and seasonal changes in vegetation. The reliability and accuracy of the interpolation results also would need certain data to verify them. Therefore, the missing values that may be caused by cloud cover were ignored in this article.

The application of forest canopy closure ε_fcc in this article was based on moderate canopy closure; the proportion of the total NDVI of different representative regions in the growing season and the total annual NDVI of 56.2~88.8% was used as the reference standard for the value of ε_fcc. The vegetation types in the permafrost region in Northeast China are mainly coniferous, broad-leaved forests, and mixed coniferous and broad-leaved forests. The vegetation is dense and the average NDVI in the growing season can reach 0.8 or more. Therefore, vegetation type was not used as a reference factor for the value of ε_fcc. ε_fcc was determined based on the thermal state distribution map of permafrost and field site monitoring data, and the result reached a relatively ideal accuracy. Of course, to obtain a more accurate and detailed map of permafrost stability, more comprehensive influencing factors should be considered, which may require data support from further, different fields.

Considering the frost number model of the ground cover vegetation, areas of frozen soil distribution could be obtained with more consistent field observation data. However, limited by the small number of ground monitoring stations and the short continuous time of data, it failed to provide a more long-term (2003–2013) and sufficient verification of the changes in the distribution of permafrost. In addition, according to the survey of roads under construction and already built, the depth range of soil replacement treatment in the permafrost section of the road did not exceed 4–5 m, and the deep permafrost was not significant to the ground structure, and was not easy to monitor. On one hand, due to the limitations of remote sensing data on surface observations, and the impact of climate change on ground temperature gradually weakening with increasing depth, the discussion of permafrost and its southern boundary in this article should be within the depth of 19 m (the maximum depth of field monitoring in general) of permafrost near the surface.

5. Conclusions

Based on meteorological station and MODIS LST data, the distribution and changes of air temperature, surface temperature, MANDVI_G and Fnc in Northeast China were analyzed from 2003 to 2019, and the following conclusions were drawn:

(1)

From 2003 to 2019, MALSTc in 76.2% of Northeast China, and in 86.8% of the north of the south boundary of permafrost in Northeast China, showed an upward trend. From 1960 to 2019, the air temperature rise rate in permafrost areas of Northeast China was 0.47 °C/10a, which was higher than the national average level, especially in Aihui County (0.44 °C/10a), Sunwu County (0.63 °C/10a), and Huma County (0.44 °C/10a); the permafrost regional degradation in these areas was significant. Climate warming was the main factor leading to permafrost degradation. Permafrost degradation mainly occurred in relatively low altitude and sunny slope areas;

(2)

Taking into account Fnc under the influence of NDVI and forest canopy density as the standard, we classified the types of thermally stable permafrost in Northeast China as divided into: extremely stable permafrost, SFnc ≥ 0.66; stable permafrost, 0.55 ≤ SFnc < 0.66; semi-stable permafrost, 0.51 < SFnc < 0.55; transitional or unstable permafrost, 0.49 ≤ SFnc ≤ 0.51; and deep seasonal frozen soil (maximum frozen depth > 1.8 m), 0.40 ≤ SFnc < 0.49. The consistency between the thermal stability of permafrost and the field monitoring data reached 95%;

(3)

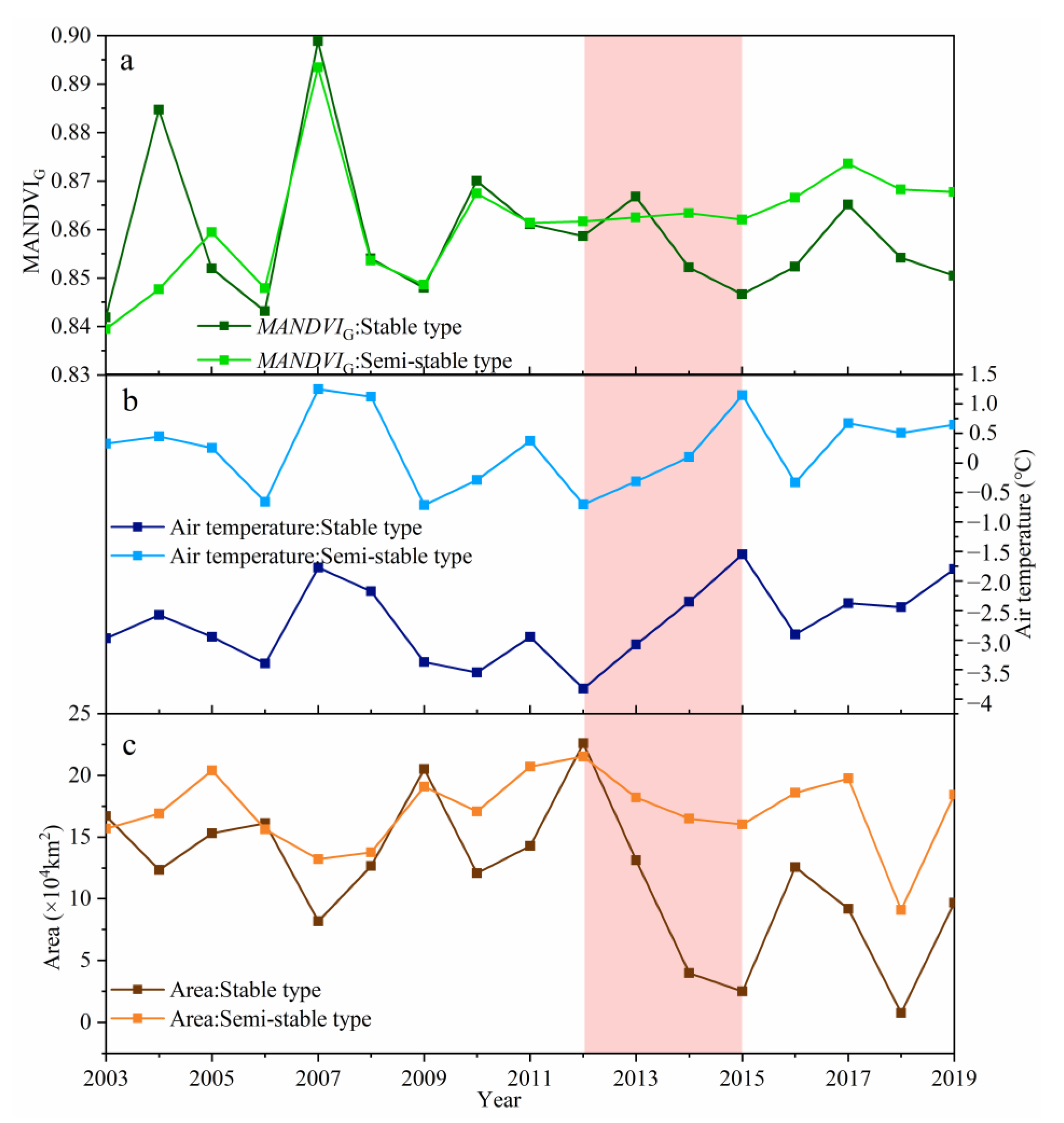

The year 2013 was a turning point in the process of permafrost thawing in Northeast China. Around this time point, the air temperature in the stable permafrost area increased by nearly 1 °C, SFnc decreased from 0.564 to 0.557, and MANDVI_G decreased. The average air temperature in the semi-stable permafrost area increased by 0.36 °C, SFnc decreased from 0.529 to 0.528, and MANDVI_G increased. There was no extremely stable permafrost in Northeast China. The area of stable permafrost changed from 14.9 × 10⁴ km² to 6.5 × 10⁴ km², the area of semi-stable permafrost changed from 17.68 × 10⁴ km² to 17.77 × 10⁴ km²; changes were mainly reflected in the obvious northward movement of the southern boundary of the distribution range, and the increase in the number and area of island thawing areas in the region. The area of transitional or unstable permafrost changed from 8.67 × 10⁴ km² to 9.56 × 10⁴ km², the slight increase in the area was mainly reflected in the continuous thawing of the edge of the higher stable permafrost;

(4)

The continued increase in air temperature was the main reason for the degradation of stable permafrost.
