Encoder-Decoder Structure with Multiscale Receptive Field Block for Unsupervised Depth Estimation from Monocular Video

Abstract

Monocular depth estimation is a fundamental yet challenging task in computer vision as depth information will be lost when 3D scenes are mapped to 2D images. Although deep learning-based methods have led to considerable improvements for this task in a single image, most existing approaches still fail to overcome this limitation. Supervised learning methods model depth estimation as a regression problem and, as a result, require large amounts of ground truth depth data for training in actual scenarios. Unsupervised learning methods treat depth estimation as the synthesis of a new disparity map, which means that rectified stereo image pairs need to be used as the training dataset. Aiming to solve such problem, we present an encoder-decoder based framework, which infers depth maps from monocular video snippets in an unsupervised manner. First, we design an unsupervised learning scheme for the monocular depth estimation task based on the basic principles of structure from motion (SfM) and it only uses adjacent video clips rather than paired training data as supervision. Second, our method predicts two confidence masks to improve the robustness of the depth estimation model to avoid the occlusion problem. Finally, we leverage the largest scale and minimum depth loss instead of the multiscale and average loss to improve the accuracy of depth estimation. The experimental results on the benchmark KITTI dataset for depth estimation show that our method outperforms competing unsupervised methods.

1. Introduction

Depth information plays a critical role in the area of robot and computer vision tasks. Low-precision depth may affect the performance of many vision systems, such as 3D reconstruction [1,2], 3D object detection [3,4], autonomous driving [5] and semantic segmentation [6,7]. In this paper, we focus primarily on the depth estimation of monocular images that do not rely on different sensors. However, this is an ill-posed and inherently ambiguous problem because the same 3D scene can be projected to infinitely many 2D images. Obviously, this projection is irreversible.

To address this issue, depth sensors and related algorithms gradually become very popular. However, current methods for depth estimation have the following disadvantages. Depth sensors based on structured light, such as the Microsoft Kinect, are easily disturbed by various conditions of illumination. Additionally, their effect in outdoor environments significantly degrades, and the depth measurement distance is limited [8,9]. Light detection and ranging (LiDAR) can provide accurate 3D information, so it is a reliable scheme for depth perception in outdoor environments. However, sensors based on this technology are cost-prohibitive, and due to the inherent limitation of LiDAR signals, 64 or 128 sparse rotating laser beams can only provide sparse depth maps [4,9]. We plan to infer the depth information of indoor and outdoor scenes using inexpensive, lightweight and conventional cameras based on standard imaging technology. Traditional related algorithms usually start with feature extraction and matching, followed by geometric verification. These methods include box models [10,11,12,13], additional information [14,15,16], nonparametric approaches [17,18,19,20], stereo matching [21,22,23,24,25,26], and SfM methods [27,28,29]. However, these traditional algorithms rely heavily on accurate feature matching, and are hard to guarantee the performance in a real-time manner.

Recent research results utilized deep learning to solve these problems. The main advantage comes from big data, which can help the convolutional neural network (CNN) learn the prior knowledge between objects and their depths. Supervised learning-based methods have been successfully applied to monocular depth estimation [9,30,31,32]. However, to improve the generalization performance of the model, a large corpus of ground truth depth data is usually needed for supervised learning-based methods. In most circumstances, the cost of acquiring ground truth data in real-world scenarios is expensive, limiting the massive growth of datasets. Training on a synthetic dataset [33,34], collecting relative depth annotations [35] or obtaining pseudo ground truth depth maps [36,37] can alleviate the above limitations. Unsupervised learning is another method that has received much attention. These methods only use synchronous stereo pairs [38,39,40,41,42], monocular video [36,43,44,45,46,47,48,49,50], fusion structure from motion (SfM) [51] or optical flow or camera pose [48,52,53] to train the depth estimation model without any depth data. However, stereo vision requires offline calibration, monocular video is affected by illumination and occlusion, and the optical flow approach requires additional networks.

To this end, we recover the dense depth of monocular images under three challenging conditions. The first condition is that no 2D or 3D ground truth information is available. The second condition is that no input image from other perspectives enables triangulation. The third condition is that the photometric loss is highly influenced by illumination and occlusion. To address these challenges, we design a novel pose CNN to assist the training of a depth map inference network with encoding and introduce the largest scale loss to enhance the inference accuracy. Overall contribution of our research summarizes as below:

(1) According to the SfM theory, we propose a novel depth CNN model for depth map inference by a given video sequence, no other depth maps or rectified stereo pairs are needed and our pose CNN also outputs two confidence masks to reduce the effect of occlusion.

(2) We propose a new efficient upsample block with a channel-wise attention mechanism that supports our network to achieve better performance without multiscale supervision and employ a novel optimizer [54,55] to improve the convergence speed.

(3) Our method is evaluated on the KITTI dataset [56] and achieves the best depth estimation performance. Furthermore, our method is generalized to unknown environments to demonstrate its superiority.

The rest of the paper is arranged as follows. In Section 2, the proposed unsupervised learning method and detailed implementation process is given. Experimental comparison and analysis are given in Section 3, and finally, the discussion and conclusion of our work are given in Section 4.

2. Method

Our method combines training a single view depth and pose estimation network from unlabeled monocular video sequences and uses the largest scale loss to constrain them to predict depth. We assume that most of the scenes we are interested in are rigid. First, borrowing the camera coordinate transformation and traditional SfM method, we describe the key ideas behind our depth prediction framework. Second, we analyze the role of each component of our method. Finally, we present how the CNN parameters are learned in a self-supervised way.

2.1. Reprojection Error

The ideal projection imaging model reflects the projection relationship from the object to the image plane in 3D space. For any point P(x_w,y_w,z_w) in the real world, after passing through the pinhole camera, the pixel coordinates projected to the imaging plane are P(u,v); then, according to the pinhole imaging model [57], we have,

$$ZP\left(u,v\right)=Z\left(\begin{array}{c}u\\ v\\ 1\end{array}\right)=K\left[RP\left(x_w,y_w,z_w\right)+t\right]=K{T}_{\left(R,t\right)}P\left(x_w,y_w{z}_w\right)$$

(1)

where Z is the distance from P(x_w,y_w,z_w) to the camera, K is the camera internal parameters, R is a rotation matrix, t is a translation vector, and T_(R,t) is the conversion matrix composed of R and t, called camera extrinsic parameters. Equation (1) describes the projection relationship from the world coordinates to the pixel coordinates.

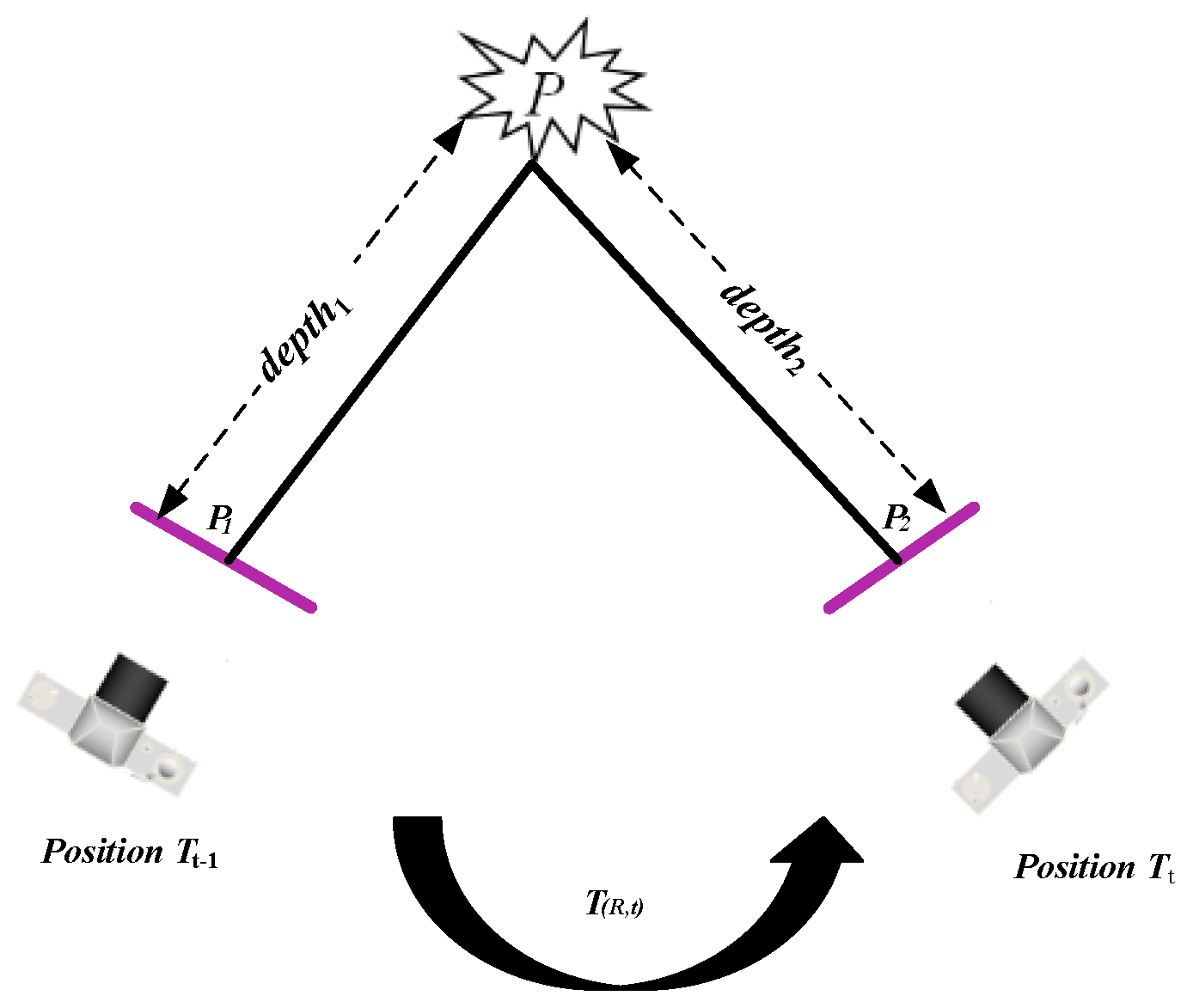

As illustrated in Figure 1, for a monocular camera, we assume that the projection points of P(x_w,y_w,z_w) on the imaging plane (purple line) are P₁ and P₂ at T_t−1 and T_t, respectively. From Equation (1), we can obtain,

$$\{\begin{array}{c}dept{\mathrm{h}}_1{P}_1\left(u,v\right)=K{T}_{1}P\left(x_w,y_w,z_w\right)\\ dept{\mathrm{h}}_2{P}_2\left(u,v\right)=K{T}_{2}P\left(x_w,y_w,z_w\right)\end{array}$$

(2)

If the conversion matrix of the camera moving from the position at time T_t−1 to the position at T_t is T_(R,t) and the world coordinate system coincides with the camera coordinate system at T_t−1, then we can obtain,

$$dept{\mathrm{h}}_2{P}_2\left(u,v\right)=K{T}_{\left(R,t\right)}dept{\mathrm{h}}_1{K}^{-1}{P}_1\left(u,v\right)$$

(3)

Since the homogeneous coordinates are multiplied by nonzero constants to express the same meaning, after normalizing the pixel coordinates, we obtain,

$${\tilde{P}}_2\left(u,v\right)=K{T}_{\left(R,t\right)}dept{\mathrm{h}}_1{K}^{-1}{P}_1\left(u,v\right)$$

(4)

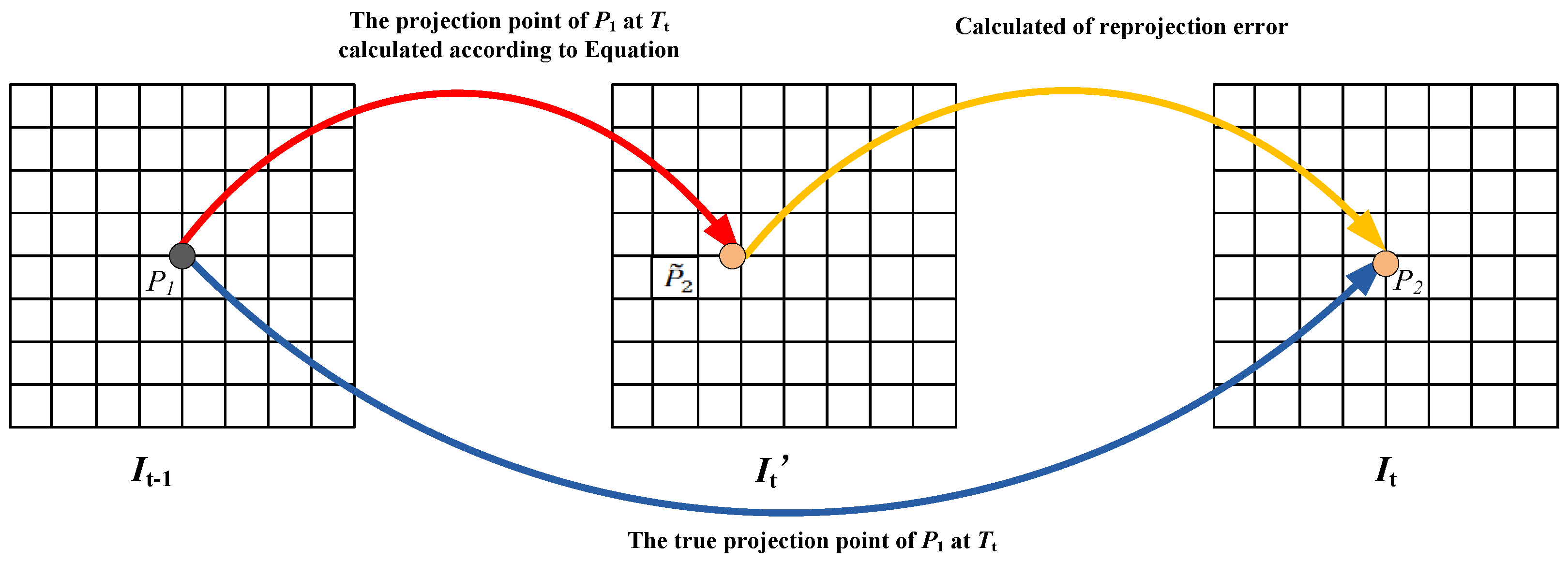

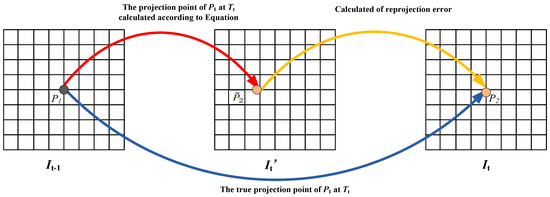

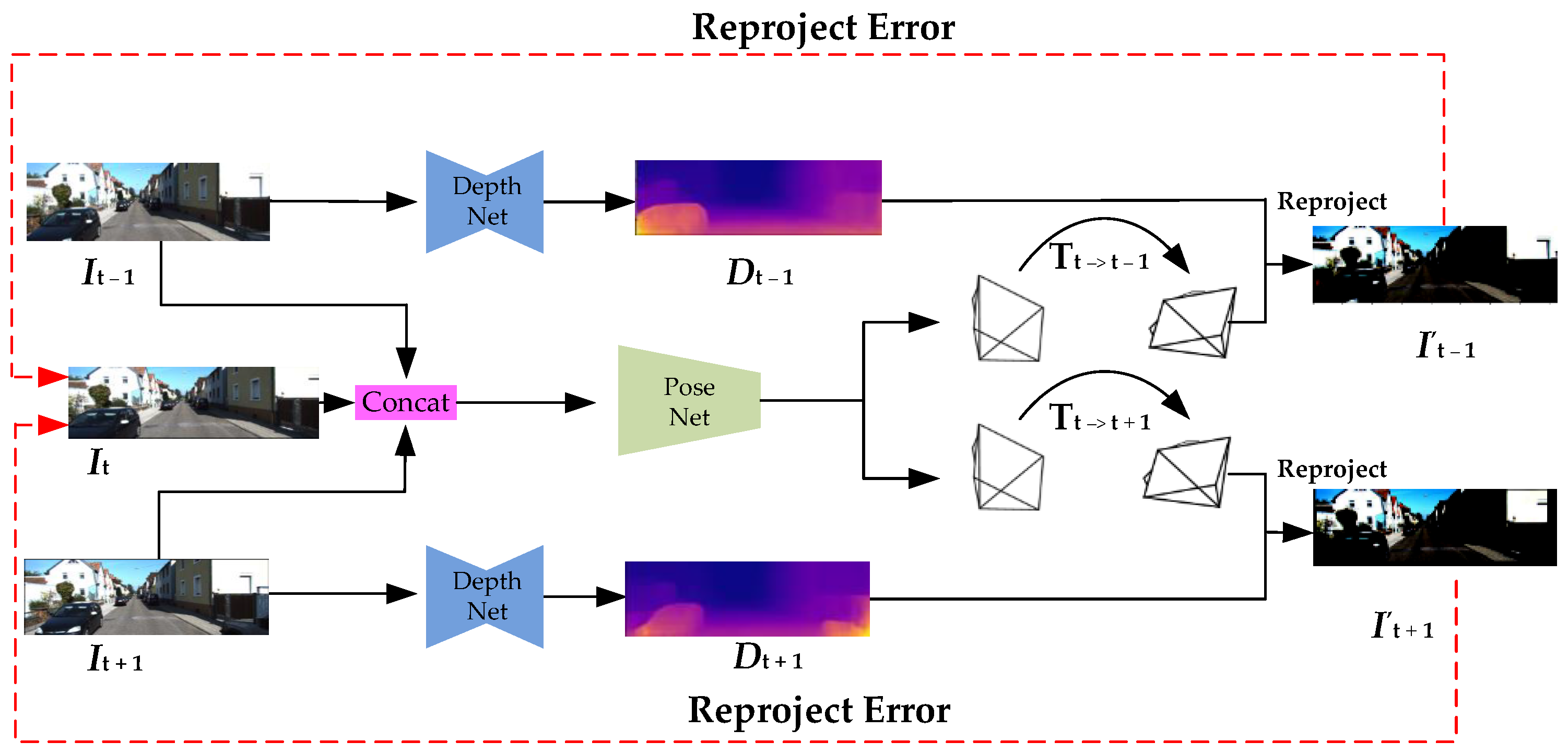

Equation (4) describes the mapping relationship between the pixel coordinates of adjacent frames. As illustrated in Figure 2, we can calculate the pixel coordinate ${\tilde{P}}_2$ of P₁ at T_t, which means that given two adjacent frames of images I_t−1 and I_t, we can obtain the image I_t from I_t−1 and further construct the reprojection error of the two adjacent frames,

$$reproj\_error=\left|\left|I_t-I_t^{\prime }\right|\right|$$

(5)

Therefore, we can design neural networks to output depth and camera pose information to optimize the reprojection error.

2.2. Occlusion Error

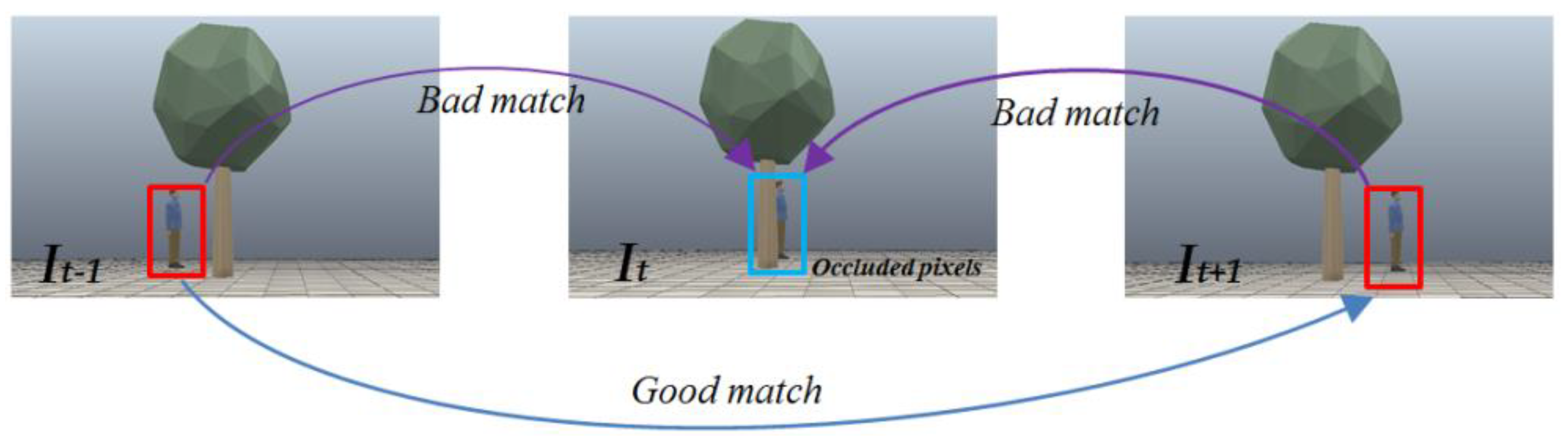

For monocular video sequences, occlusion between adjacent frames is common. A typical occlusion error is shown in Figure 3, where I_t−1, I_t and I_t+1 are three frames of an image at adjacent moments. In these images, a pedestrian is obscured by a tree at time t and not obscured by a tree at time t − 1 and t + 1. From Equations (4) and (5), we know that the pixel matching between the red and blue areas is poor, and the matching between the red areas is good. Therefore, we can design neural networks to output confidence masks to mask out occluded pixels when optimizing the reprojection error.

2.3. Neural Network Model

Our method is designed to train depth, ego-motion and mask networks using unsupervised learning from monocular video, where the supervision signal comes from the unlabeled video sequence itself and does not depend on any depth information. The full framework of this method is shown in Figure 4. Although the depth prediction and the pose estimation network need to be jointly trained, these models can be used independently during test inference. The input to our networks is three adjacent RGB images I_t−1, I_t and I_t+1. We first use the depth estimation mode to output the corresponding depth maps D_t−1 and D_t+1 and then predict the relative 6D camera poses T_t→t−1 and T_t→t+1 using the pose estimation mode. From Equations (4) and (5), we can jointly train the depth and pose estimation networks.

2.3.1. Depth Estimation Network

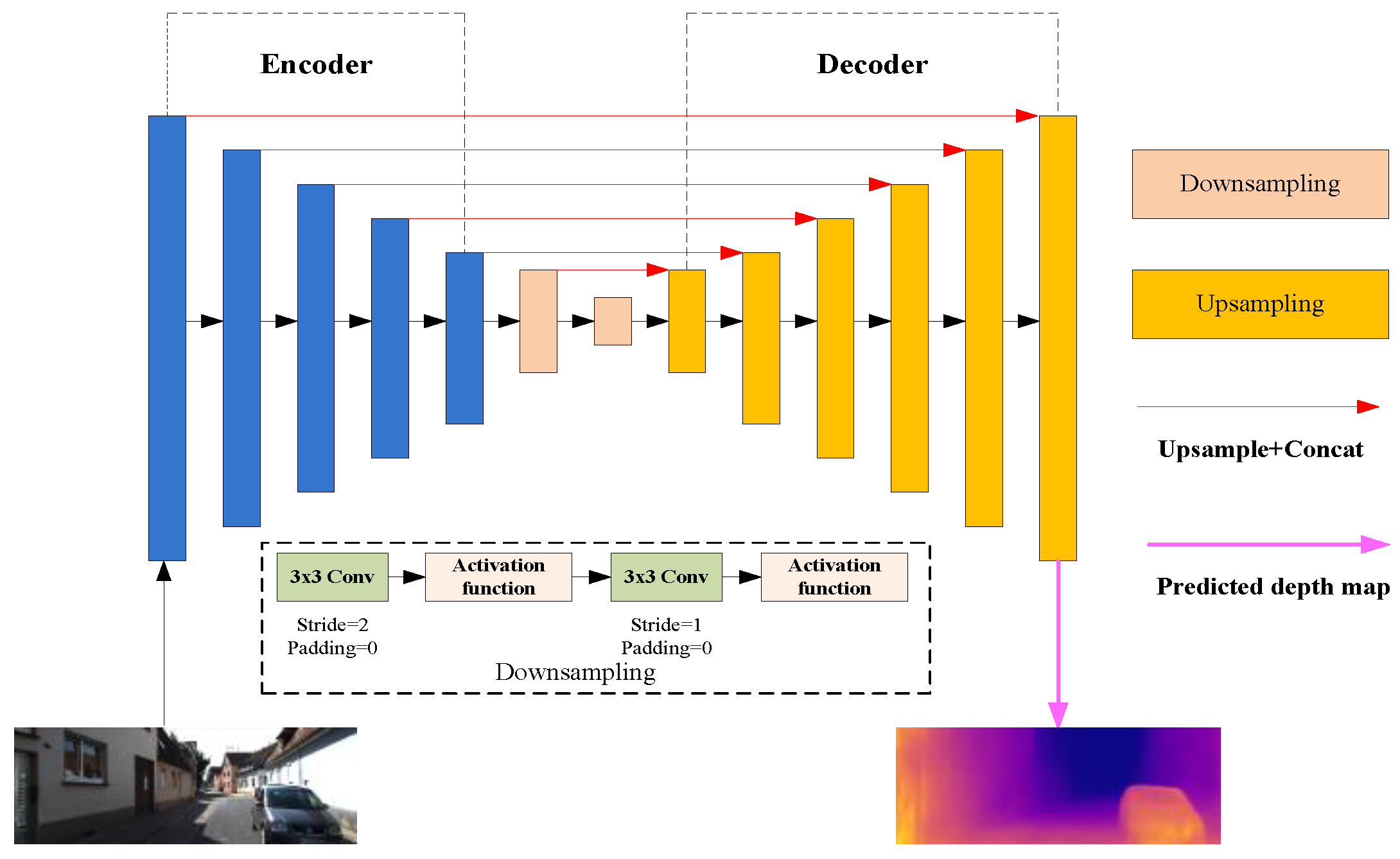

We propose to solve the depth prediction for monocular images as a disparity map regression learning problem. The difference from previous related work [39,43,44,45,47,52,57] is that the output of the network only contains a single-scale depth map, not a multiscale depth map. Our depth estimation network is visualized in Figure 5. For the encoder, the most representative features are automatically extracted through our backbone network model, which is based on deep networks with stochastic depth [58] because it can reduce the training time to improve performance. For the decoder, a series of upsampling with attention structures and asymmetric convolution kernels are used to gradually restore the resolution of the output feature map. Two downsampling layers build a bridge between the encoder and decoder modules, including two 3 × 3 convolution layers with activation function, which focus on reducing the size of the feature map and keeping the channel constant. Some short-cut connections (red arrows) are also added between corresponding layers in the encoder and decoder to enhance the information flow. Finally, the output of the network goes through a 3 × 3 convolutional layer and a sigmoid layer to predict the disparity map.

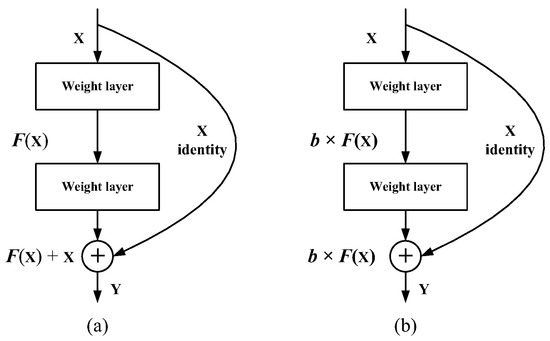

ResNet [59] is the first choice for previous unsupervised depth estimation tasks [34,39,40,42,43,45,49,52,53]. In the process of training ResNet, stochastic dropping of hidden nodes or connection layers (the most common is the dropout method [60]) does not affect the convergence of the algorithm, which shows that ResNet has good redundancy. For fairness of comparison, we improved ResNet while keeping the number of convolution layers unchanged, which can not only reduce the parameters, but also improve the accuracy of depth estimation. Inspired by [58] and [59], we design an 18-layer stochastic residual structure (StoResNet-18) as the backbone network. A typical residual module is shown in Figure 6a, which can be defined as,

Y = F(X) + X

(6)

when considering multiplying each hidden activation by an independent Bernoulli random variable b ∈ {0,1}, we can extend the typical residual module to a residual module with stochastic depth (see Figure 6b), which can be defined as,

Y = b × F(X) + X,

(7)

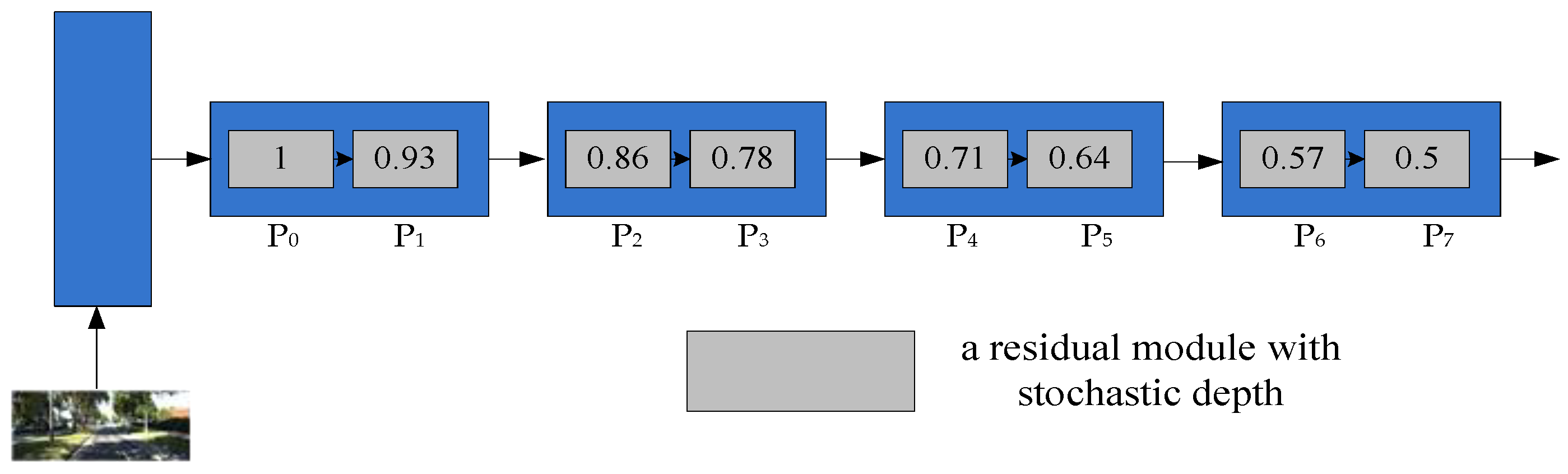

In our research, StoResNet-18 is similar to ResNet-18 except for the residual module and discards the fully connected layer. Therefore, we also divide StoResNet-18 into 5 layers according to the output size, and each layer contains two residual blocks with stochastic depth except for the first layer. The probability of stochastic dropping of hidden nodes at each layer is shown in Figure 7, where P_l is the probability value when b = 1 in the l-th residual module with stochastic depth (see gray square), which can be defined as,

$$P_{l+1}=P\left(b=1\right)=\{\begin{array}{c}{P}_l-\frac{P_0-P_7}{Max\left(l\right)} 0<l<7,\\ 0.5 l=7,\\ 1 l=0.\end{array}$$

(8)

It should be emphasized that b = 1 remains unchanged during testing to reduce the network depth during training while maintaining the full depth at testing time.

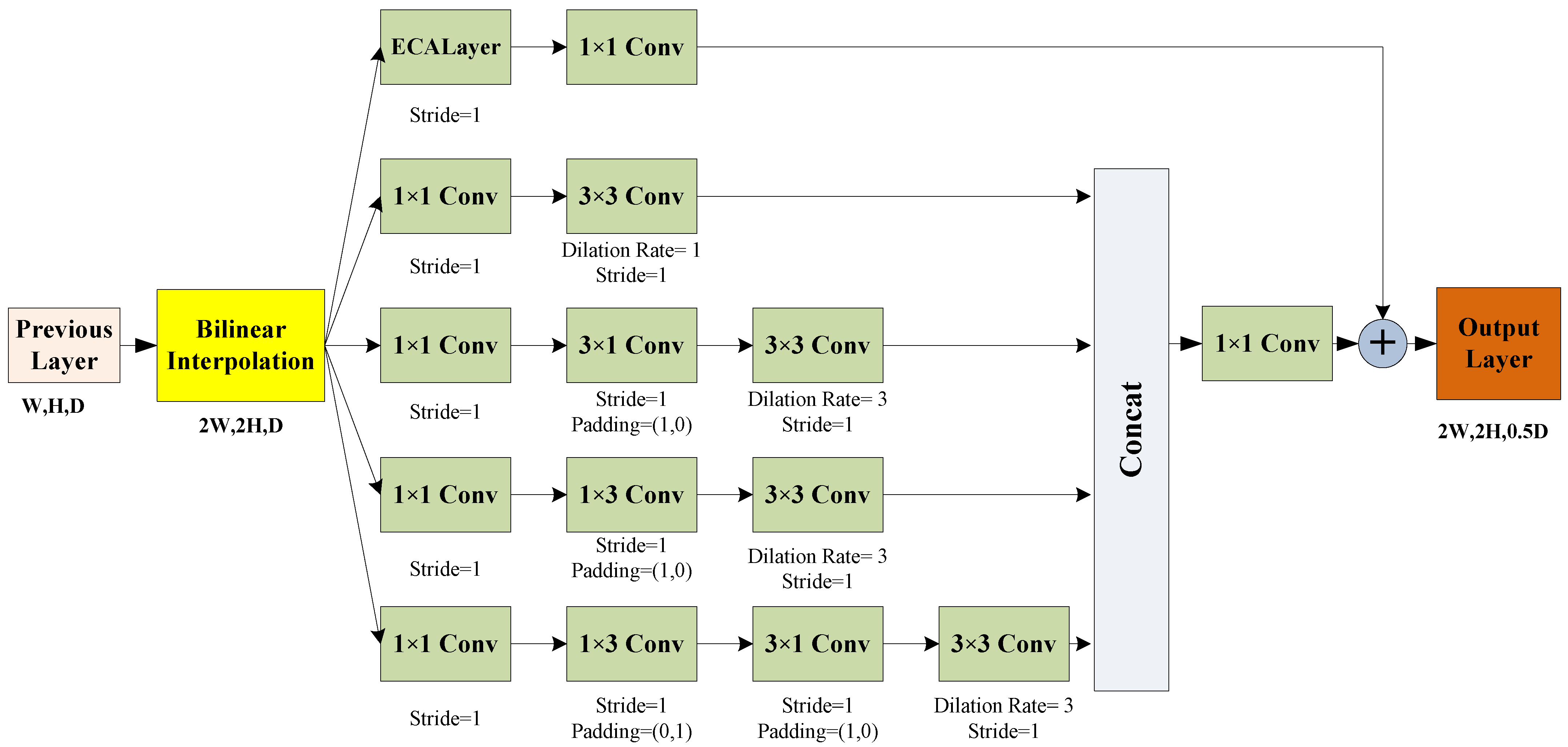

Our decoding module is almost symmetrical to the encoding and mainly composed of six new upsampling structures, mainly to linearly increase the resolution of the output. Inspired by the idea of the inception module with dimension reductions [61], asymmetric convolution kernel can be reducing the number of network parameters and improve the speed of network convergence compared with symmetric convolution kernel. According to this discovery, we design an upsampling structure with channel attention and asymmetric convolution kernels. By fusing both the feature from the previous phase and the corresponding phase in the encoder module as the output of each phase, and using the new upsampling structure to improve the resolution of the output. This can be observed in Figure 8. First, we use bilinear interpolation to double the size of the output feature map of the previous layer while maintaining the same channels. Next, we use a multiscale receptive field structure to help extract detailed feature information. To keep the size of the receptive field constant while reducing the inference time, we use a 3 × 3 dilated convolution kernel instead of a 5 × 5 convolution kernel and an asymmetric convolution kernel (such as 1 × 3 and 3 × 1). Finally, we introduce the channel attention mechanism-ECALayer [62] to overcome the paradox of performance and complexity trade-off. Detailed parameters and structure are shown in Figure 8.

2.3.2. Pose and Mask Estimation Network

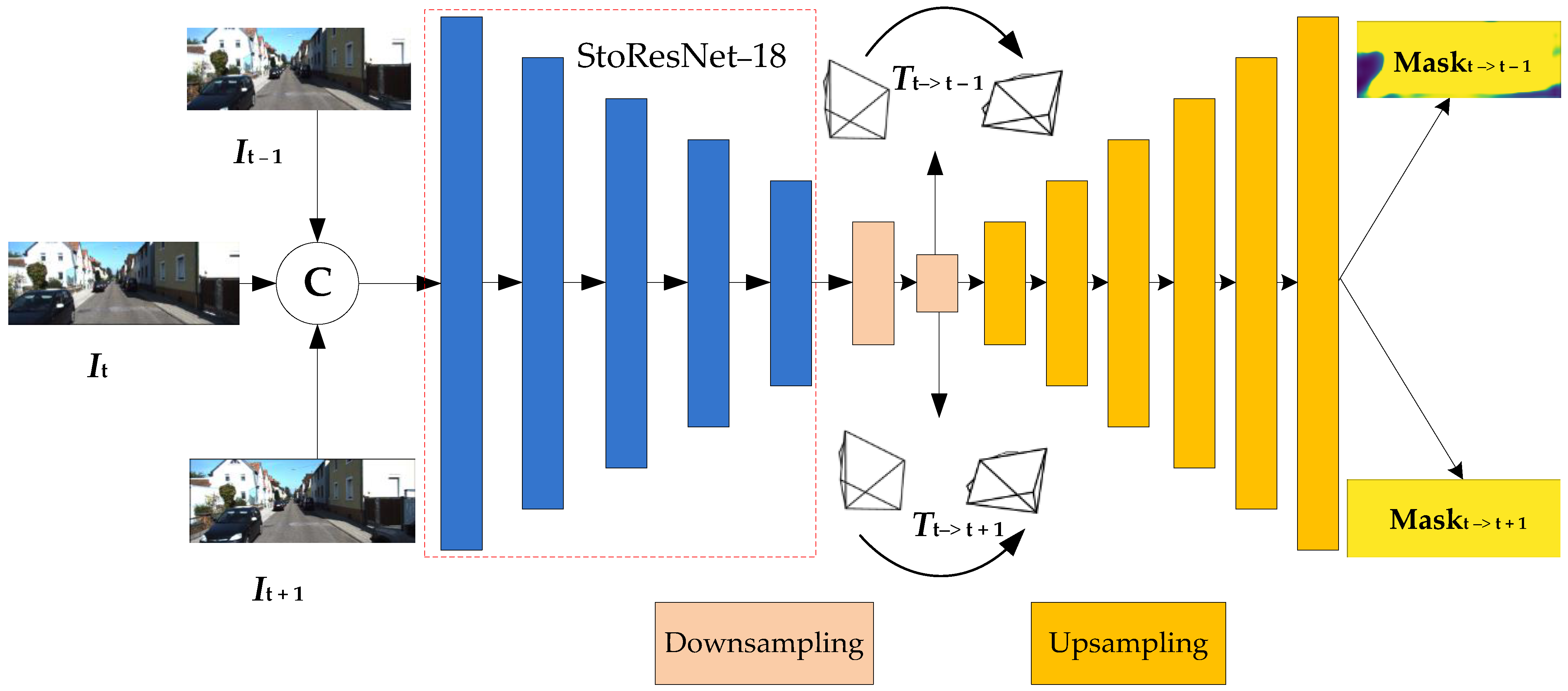

Figure 9 shows a schematic layout of the pose and mask estimation networks with concatenated three adjacent frames (I_t−1, I_t, I_t+1) as input and the predicted mask map and relative poses as output. Three input images first pass through the StoResNet-18 feature extractor, which computes feature maps at five output resolutions (scale of 1/2, 1/4, 1/8, 1/16 and 1/32) and then continues to reduce (scale of approximately 1/64 and 1/128) through two downsampling layers. In the first stage, we output two 6-DoF relative poses (T_t→t−1 and T_t→t+1). Similar to the depth estimation network, in the second stage, we first use six upsampling structures to restore the resolution of the output feature map from the first stage and then use a sigmoid layer to output our predicted mask.

2.4. Data Preprocessing and Augmentation

Since a moving object violates the assumption of a static scene in error reconstruction, we follow Zhou et al.’s [43] and Bian et al.’s [45] preprocessing method to remove all static frames from the test scenes. A large quantity of training data is a prerequisite for achieving an accurate model. To improve the generalizability and robustness of our unsupervised learning model, we transform the training data by random operations performed spontaneously. It is worth noting that the camera internal parameters also need to be changed when the sequence of images is transformed. The augmentation methods are described as follows:

Flip: Input sequences of video are horizontally flipped with a 0.5 probability.

Translation: Input sequences of images are scaled by a random number t ∈ [1, 1.15] and cropped to keep the same initial size.

2.5. Optimizer and Activation Function

Fast and stable optimization algorithms are the goal that researchers have been pursuing. Previous related work [39,40,42,43,44,47,49,52,53] mainly used the adaptive optimization algorithm (Adam) [63], which is the first choice for training depth estimation models. Adam is a stochastic objective function algorithm based on a first-order gradient, which works well with sparse gradients and in online and nonstationary settings. Although the Adam method shows a quick convergence rate, it easily falls into a local optimal solution. We introduce a novel variant of Adam called RAdam [54]. Compared with the Adam method, RAdam can improve the robustness of model training and adapt to different learning rates over a broader range. We further introduce a new optimization algorithm called Lookahead [55], which uses any standard optimizer in its internal loop to update the “fast weights” k times and then updates the “slow weights” once in the direction of the final fast weights. By using Lookahead with RAdam optimizers, we can achieve faster convergence of the model with less overhead.

For the nonlinear activation function in our network, we use exponential linear units (ELUs) [64] to replace the rectified linear units (ReLUs) [65] excluding StoResNet-18. Although ELU and ReLU have been widely used in other similar works [40,42,43,45,52], we found that only using ELU will prematurely make the network fall to a local minimum value, making subsequent improvement difficult. When ReLU is used instead of ELU in StoResNet-18, the depth prediction accuracy is further improved. Training lasts for approximately 20 epochs in total on the KITTI dataset [56] (see Section 3.1) to verify the convergence of the combination of different optimization and activation functions.

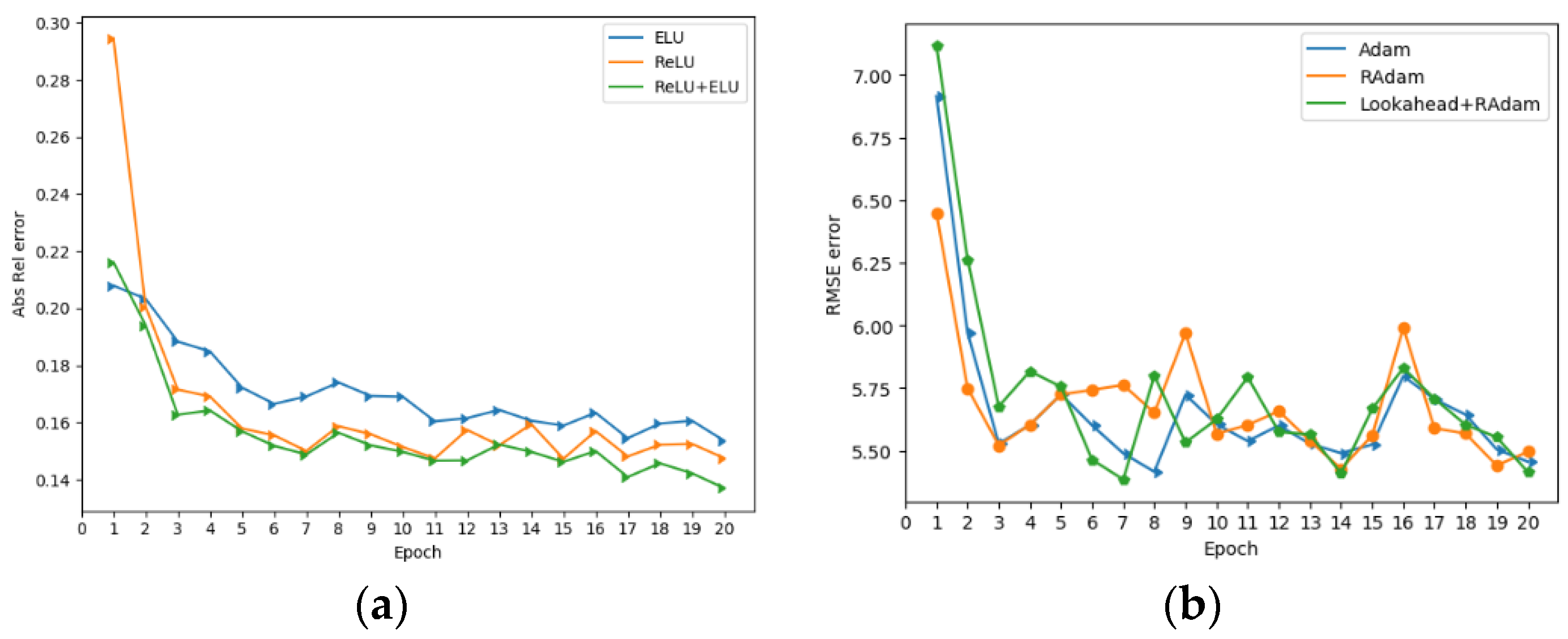

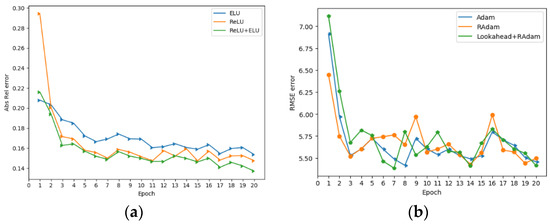

We use the activation function as a single variable for experimentation, and the results are shown in Figure 10a. We find that the combination of ReLU and ELU can reduce the absolute average relative (Abs Rel) error. Meanwhile, we also use optimization functions as a single variable to conduct experiments for experimentation, and the results are shown in Figure 10b. Obviously, the combination of Lookahead and RAdam achieve the best results in terms of the root mean squared error (RMSE).

2.6. Loss Function

Our goal is to combine ego-motion networks to train depth estimation networks using monocular video sequences. Similar to [38,39,40,43,45], we formulate the depth prediction problem as the minimization of synthesizing new viewpoint errors at the training time. In addition, we choose the largest scale supervision instead of the multiscale supervision [39,43,44,45,47,52,57], see Figure 11.

First, I_t−1, I_t and I_t are three adjacent RGB images used as the input of the pose estimation network, M_φ denotes the confidence masks to mask out the invalid pixels when I_t−1 is reprojected to I_t and I_t+1 is reprojected to I_t, A is a tensor with elements of 1, and the scale is the same as M_φ. In our task, the element value in M_φ can only be 0 or 1, so we can use binary cross entropy to construct the first loss function,

$$Los{s}_{Ma}=-\frac{1}{N}{\displaystyle \sum }_{\begin{array}{r}\phi \in \{t->t-1,\\ t->t+1\}\end{array}}\left[A\log (M_{\phi }\right)+\left(1-A\right)\log (1-M_{\phi })]$$

(9)

where φ ∈ {t−>t−1, t−>t+1} and N is the number of validity pixels. From Equation (5), we know that our goal is to minimize the reprojection error. The structural similarity index metric (SSIM) [66] and Manhattan distance are better choices to judge the similarity of images, which are used together to solve the gradient locality problem in pose estimation and to eliminate the discontinuity of learning depth in low texture regions. If re_error(t−>t−1) and re_error(t−>t+1) are the reprojection errors of I_t−1 and I_t+1 reprojected to I_t, respectively, in our research, we use the minimum error min(re_error(t−>t−1), re_error(t−>t+1)) instead of the average error mean(re_error(t−>t−1) + re_error(t−>t+1)). Therefore, we have,

$$Los{s}_{Pe}=\frac{1}{N}{\displaystyle \sum }_{\begin{array}{r}\phi \in \{t->t-1,\\ t->t+1\}\end{array}}\underset{}{min}(M_{\phi }\left[\alpha \frac{1-SSIM\left(I_t,{\tilde{I}}_{\phi }\right)}{2}+\left(1-\alpha \right)\left|I_t-{\tilde{I}}_{\phi }\right|\right])$$

(10)

The simplified formula of SSIM is,

$$SSIM\left(I_t,{\tilde{I}}_{\phi }\right)=\frac{\left[2\mu \left(I_t\right)\mu \left({\tilde{I}}_{\phi }\right)+C_1\right]\left[2\sigma \left(I_t,{\tilde{I}}_{\phi }\right)+C_2\right]}{[\mu {(I_t)}^2\mu \left({\tilde{I}}_{\phi }{)}^2+C_1\right][\sigma {(I_t)}^2\sigma \left({\tilde{I}}_{\phi }{)}^2+C_2\right]}$$

(11)

where ${\tilde{I}}_{\phi }$ represent I_t−1 and I_t+1 reprojected to I_t, respectively, φ ∈ {t−>t−1, t−>t+1}, μ(.) and $\sigma (.)$ calculate the average value and standard deviations of corresponding images, respectively, C₁ and C₂ are small constants to prevent the denominator from being zero in Equation (11), and α is a weighted value. We empirically set α = 0.85 in our task.

Due to the photometric loss, it is not possible to provide sufficient information in low-texture or homogeneous areas [45], and depth discontinuity usually occurs on the image gradient. Therefore, we use the image-aware smoothness formulation to weight the gradient of the image depth,

$$Los{s}_{Sm}=\frac{1}{N}{\displaystyle \sum }_{\begin{array}{r}\phi \in \{t->t-1,\\ t->t+1\}\end{array}}\left(\left|\nabla D_t\right|e^{-\frac{1}{N}\left|\nabla I_t\right|}+\left|\nabla D_{\phi }\right|e^{-\frac{1}{N}\left|\nabla I_{\phi }\right|}+\left|\nabla D_{\phi }\right|e^{-\frac{1}{N}\left|\nabla I_{\phi }\right|}\right)$$

(12)

where ∇ denotes the 2D differential operator along spatial directions and D_t and D_φ are depth maps.

Our final objective function can be expressed as,

$$Loss=\alpha Los{s}_{Ma}+\beta Los{s}_{Pe}+\gamma Los{s}_{Sm}$$

(13)

We set α = 0.2, β = 1.0 and γ = 0.1.

Table 1. Baseline comparisons between multiscale and largest scale supervision, where Cap represents the range of valid depths. The best results in each category are in bold. Refer to Section 3.3 for the meaning of evaluation metrics. α_i = δ < 1.25ⁱ.

Scale	Cap	Lower Is Better				Higher Is Better
		Abs Rel	Sq Rel	RMSE	RMSElog	α1	α2	α3
Multiscale	0–80 m	0.154	1.196	5.637	0.233	0.796	0.929	0.971
Largest scale (ours)	0–80 m	0.137	1.018	5.355	0.216	0.814	0.943	0.978

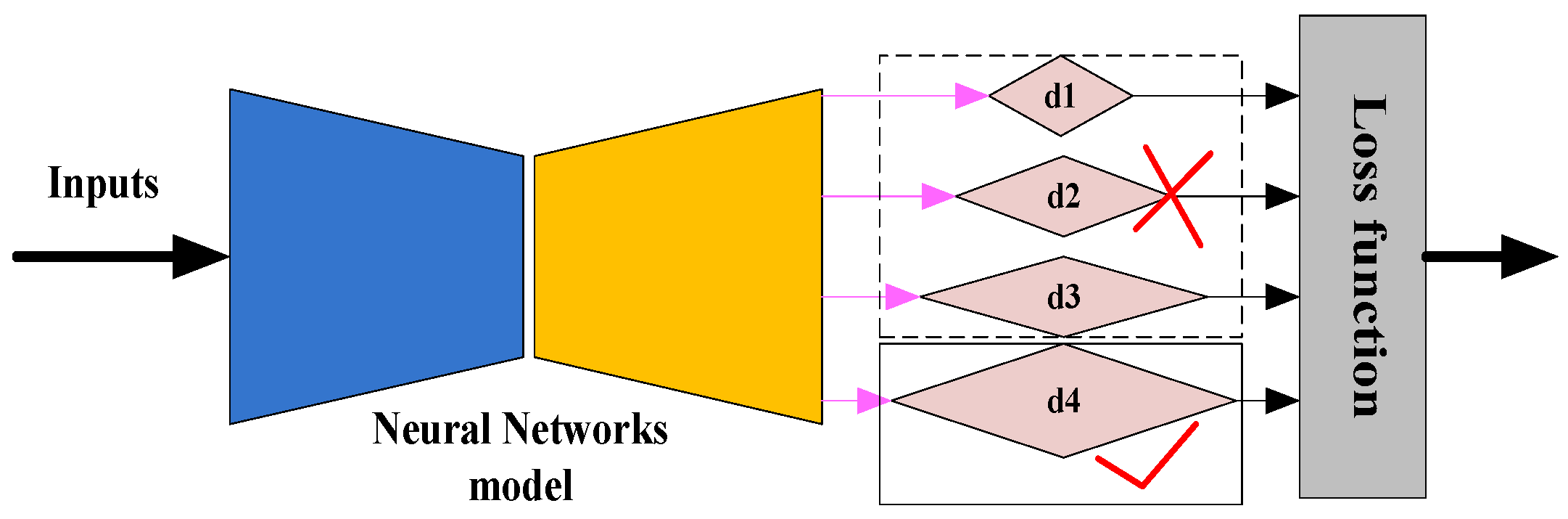

reports the results of the multiscale and largest scale supervision on the KITTI dataset. We find that the largest scale supervision method is better.

3. Experimental Result

In this section, we evaluate our method based on common metrics and protocols adopted by prior methods and compare them with existing depth estimation approaches. We use the public dataset KITTI [56] as a benchmark to verify the validity of our model. The method is implemented using the PyTorch framework [67], which is a machine learning toolkit released by Facebook that can run on graphics processing units (GPUs) to achieve acceleration. It is worth noting that our model trains short depth networks but uses full deep networks during testing.

3.1. Training Datasets and Details

KITTI: The KITTI dataset is mainly captured by cameras and laser sensors on a standard station wagon. A total of 42,382 stereo pairs with a size of 375 × 1242 from 61 scenes in the “residential”, “road” and “campus” categories constitute our original dataset. In our research, we follow the data preprocessing method of Zhou [43] and Bian et al. [45] and exclude all static sequence frames whose average optical flow size is less than 1 pixel in the original dataset and downsample the image to 128 × 416. As a result, we finally obtain 38,758 images for training and 5464 images for validation. To make a fair comparison with related work [38,39,40,43,45,52,57], we use an Eigen split [30] to evaluate the depth estimation performance of 697 images in two different depth ranges: 0−80 m and 0−50 m. Note that our model is trained on a network with stochastic depth, but we use full depth during testing.

According to [43], we use segments of three adjacent consecutive video frames as the input of networks, in which the middle image is set as the reference frame to calculate the loss together with the adjacent two images. During training, we perform data augmentation online and use ELU activation except for StoResNet-18 with a batch of size 4 and initialize the StoResNet-18 parameters via the pretrained classification model on ILSVRC 2012 [68]. In addition, we use the combination of RAdam with β1 = 0.9, β2 = 0.999, Lookahead with k = 5, α = 0.5 as the optimizer, and the learning rate r = 1 × 10⁻⁴, which remains unchanged because we find that the experimental results do not improve significantly when fine-tuning the parameter r. Our depth estimation model is trained on GeForce 2080Ti GPUs for approximately 20 epochs.

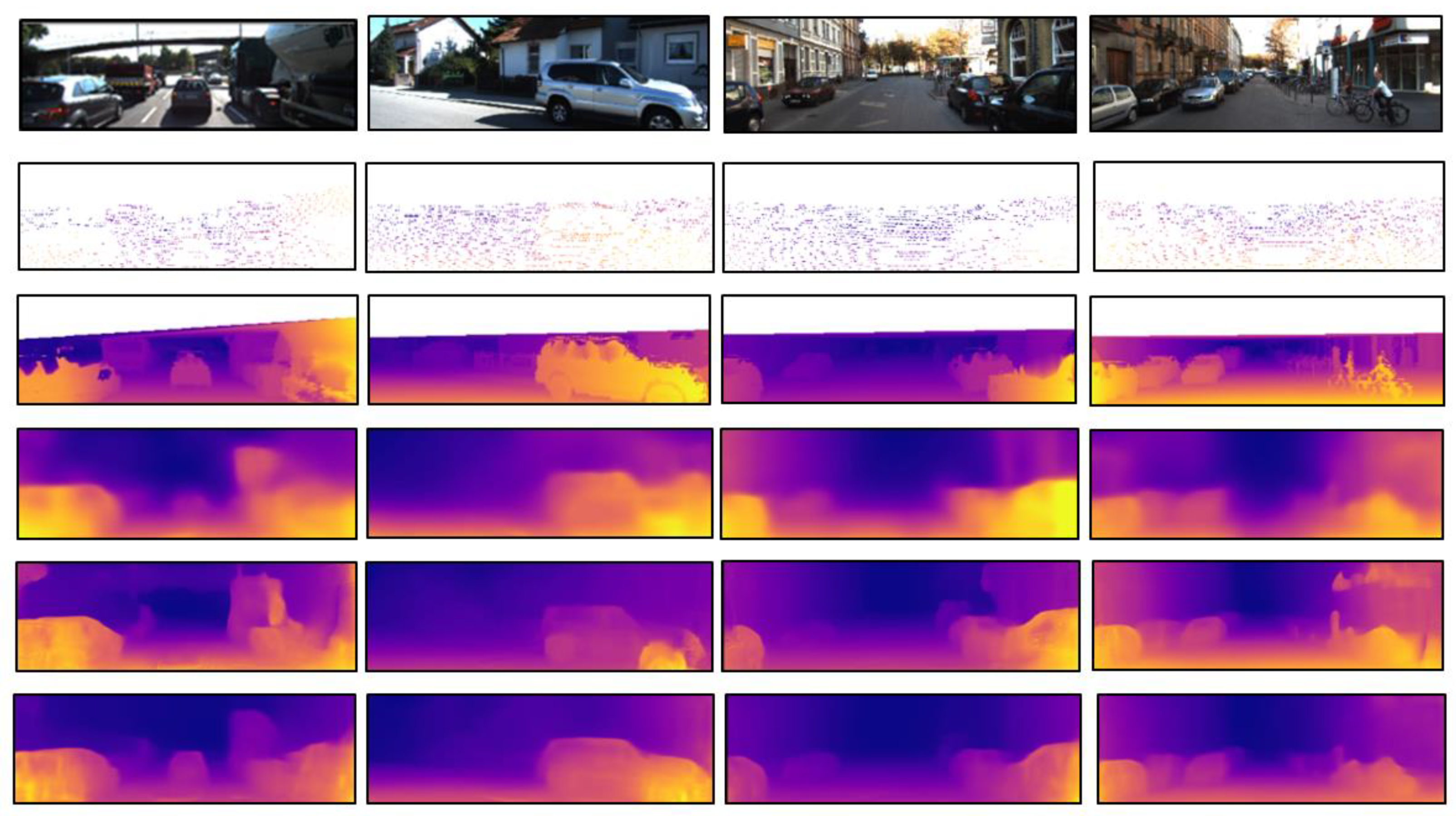

Figure 12 shows the detailed visual results of the KITTI datasets. Compared with other unsupervised methods [43,45], our method shows better results on small objects and boundaries.

3.2. Generalization on Make3D Dataset

Make3D: The Make3D dataset of campus scenes is collected and contains 400 training and 134 testing images. Since there is no video sequence image, our method cannot train on the dataset. However, to evaluate the generalization ability of our method in unknown environments, we apply the depth estimation model trained on the KITTI dataset to the Make3D dataset for testing. Figure 13 visualizes some generalized depth images. Our method performs quite well, such as restoring detailed information about tree trunks, utility poles and fire hydrants.

3.3. Evaluation Criteria

For the depth estimation task, we adopt the following standard evaluation metrics, which are similar to [30,38,39,40,43,44,45,52,57], to quantitatively assess the performance of our method. There are several categories:

• Mean absolute relative error (Abs Rel): $\frac{1}{\left|N\right|}{\displaystyle {\sum }_{p_i\in N}\frac{|D(p_i)-\widehat{D}(p_{{}_i})|}{D(p_i)}}$
• Mean square relative error (Sq Rel): $\frac{1}{\left|N\right|}{\displaystyle {\sum }_{p_i\in N}\frac{{(D(p_i)-\widehat{D}(p_{{}_i}))}^2}{D(p_i)}}$
• Root mean squared error (RMSE): $\sqrt{\frac{1}{\left|N\right|}{\displaystyle {\sum }_{p_i\in N}{(D(p_i)-\widehat{D}(p_i))}^2}}$
• Root mean squared error log scale (RMSElog):$\sqrt{\frac{1}{\left|N\right|}{\displaystyle {\sum }_{p_i\in N}{(\log D(p_i)-\log \widehat{D}(p_i))}^2}}$
• Threshold accuracy: $\frac{1}{\left|N\right|}{\displaystyle {\sum }_{p_i\in N}|\{\widehat{D}(p_i):\max (\frac{D(p_i)}{\widehat{D}(p_i)},\frac{\widehat{D}(p_i)}{D(p_i)})\}=\delta <threshold}|$

Here, D(p_i) and $\widehat{D}$(p_i) denote the ground truth and estimated depth values, respectively, corresponding to pixel pi, N is the set of validated pixels, and the threshold is a constant of 1.25, 1.25² or 1.25³.

We report the experimental results on the KITTI dataset in

Table 2. Comparison of the proposed method with other monocular methods on the KITTI dataset, where “K” denotes our network trained on the KITTI dataset, “D” denotes methods trained with depth supervision, “D*” denotes methods trained with auxiliary depth supervision, “S” denotes methods trained using stereo pairs, and M denotes methods trained on monocular video clips, and “Cap” represents the range of valid depths. The best results in each category are in bold, and the second-best results are underlined. α_i = δ < 1.25ⁱ.

Method	Cap	Dataset	Lower Is Better				Higher Is Better
			Abs Rel	Sq Rel	RMSE	RMSElog	α1	α2	α3
Eigen [30]	0–80 m	K(D)	0.203	1.548	6.307	0.282	0.702	0.890	0.958
Liu [9]	0–80 m	K(D)	0.202	1.614	6.523	0.275	0.678	0.895	0.965
AdaDepth [34]	0–80 m	K(D*)	0.167	1.257	5.578	0.237	0.771	0.922	0.971
Godard [39]	0–80 m	K(S)	0.148	1.344	5.927	0.257	0.803	0.922	0.964
Garg [38]	0–80 m	K(S)	0.152	1.226	5.849	0.246	0.784	0.921	0.967
Zhan [42]	0–80 m	K(S)	0.144	1.391	5.869	0.241	0.803	0.928	0.969
Zhou [43]	0–80 m	K(M)	0.208	1.768	6.856	0.283	0.678	0.885	0.957
Klodt [51]	0–80 m	K(M)	0.166	1.490	5.998	-	0.778	0.919	0.966
Yang [46]	0–80 m	K(M)	0.182	1.481	6.501	0.267	0.725	0.906	0.963
Mahjourian [47]	0–80 m	K(M)	0.163	1.240	6.220	0.250	0.762	0.916	0.968
Wang [44]	0–80 m	K(M)	0.151	1.257	5.583	0.228	0.810	0.936	0.974
GeoNet [52]	0–80 m	K(M)	0.155	1.296	5.857	0.233	0.793	0.931	0.973
Bian [45]	0–80 m	K(M)	0.149	1.137	5.771	0.230	0.799	0.932	0.973
Zou [48]	0–80 m	K(M)	0.150	1.124	5.507	0.223	0.806	0.933	0.973
Shen [49]	0–80 m	K(M)	0.156	1.309	5.73	0.236	0.797	0.929	0.969
Ours	0–80 m	K(M)	0.137	1.018	5.355	0.216	0.814	0.943	0.978
Garg [38]	0–50 m	K(S)	0.169	1.080	5.104	0.273	0.740	0.904	0.962
Godard [39]	0–50 m	K(S)	0.140	0.976	4.471	0.232	0.818	0.931	0.969
Zhan [42]	0–50 m	K(S)	0.135	0.905	4.366	0.225	0.818	0.937	0.973
Zhou [43]	0–50 m	K(M)	0.201	1.391	5.181	0.264	0.696	0.900	0.966
Mahjourian [47]	0–50 m	K(M)	0.155	0.927	4.549	0.231	0.781	0.931	0.975
GeoNet [52]	0–50 m	K(M)	0.147	0.936	4.348	0.218	0.810	0.941	0.977
Zou [48]	0–50 m	K(M)	0.149	1.010	4.360	0.222	0.812	0.937	0.973
Ours	0–50 m	K(M)	0.132	0.801	4.076	0.204	0.837	0.951	0.981

, where our method is superior to other state-of-the-art methods when compared with networks trained on monocular video sequences. Recently, some related works jointly learned multiple tasks (i.e., optical flow) [52,53] or calibrated stereo pair images (i.e., pose supervision) [38,39,40], while our method does not need to do so. This effectively reduces the training and reasoning overhead. Table 2 shows the results on the KITTI dataset.

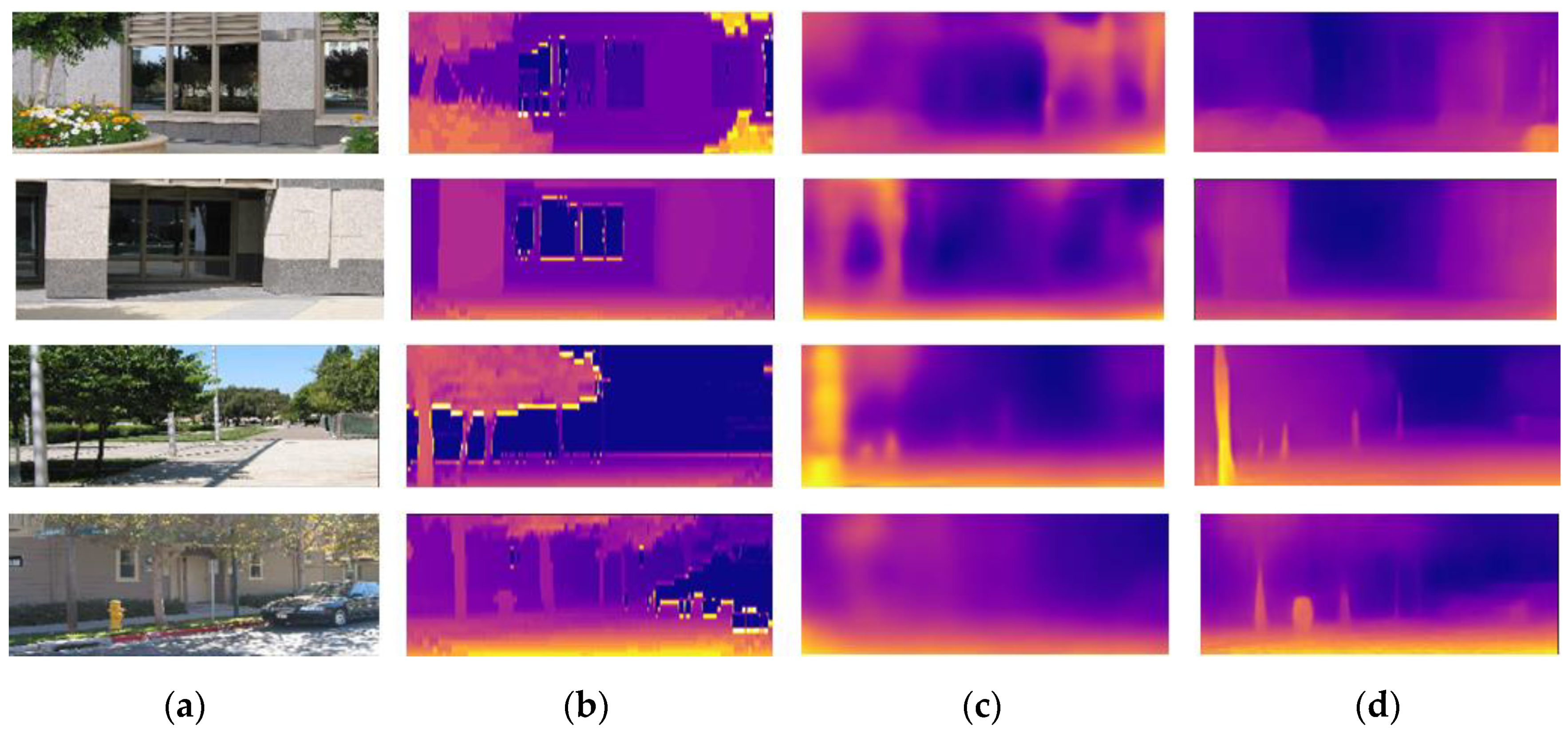

Furthermore, we quantitatively compare the generalization ability of the model on the Make3D dataset. Since the sizes of images are different from KITTI, we perform center cropping on these images and resize them to 128 × 416, following the evaluation strategy used by Godard [39].

Table 3. Results (Abs Rel) on the Make3D dataset, where “Ma” denotes the model trained on the Make3D dataset, “K*” denotes the model that needs to be pretrained on other datasets, and “D”, ”D*”, ”K” and “M” are the same as in Table 2.

Method	Dataset	Abs Rel
Karsch [17]	Ma(D)	0.428
Liu [20]	Ma(D)	0.475
AdaDepth [34]	K(D*)	0.452
AdaDepth [34]	K(M)	0.647
Godard [39]	K*(M)	0.544
Wang [44]	K(M)	0.387
Zhou [43]	K*(M)	0.383
Zou [48]	K*(M)	0.331
Ours	K(M)	0.323

summarizes the results on the Make3D dataset. Our method shows better generalization ability than previous methods.

3.4. Confidence Mask Visualization

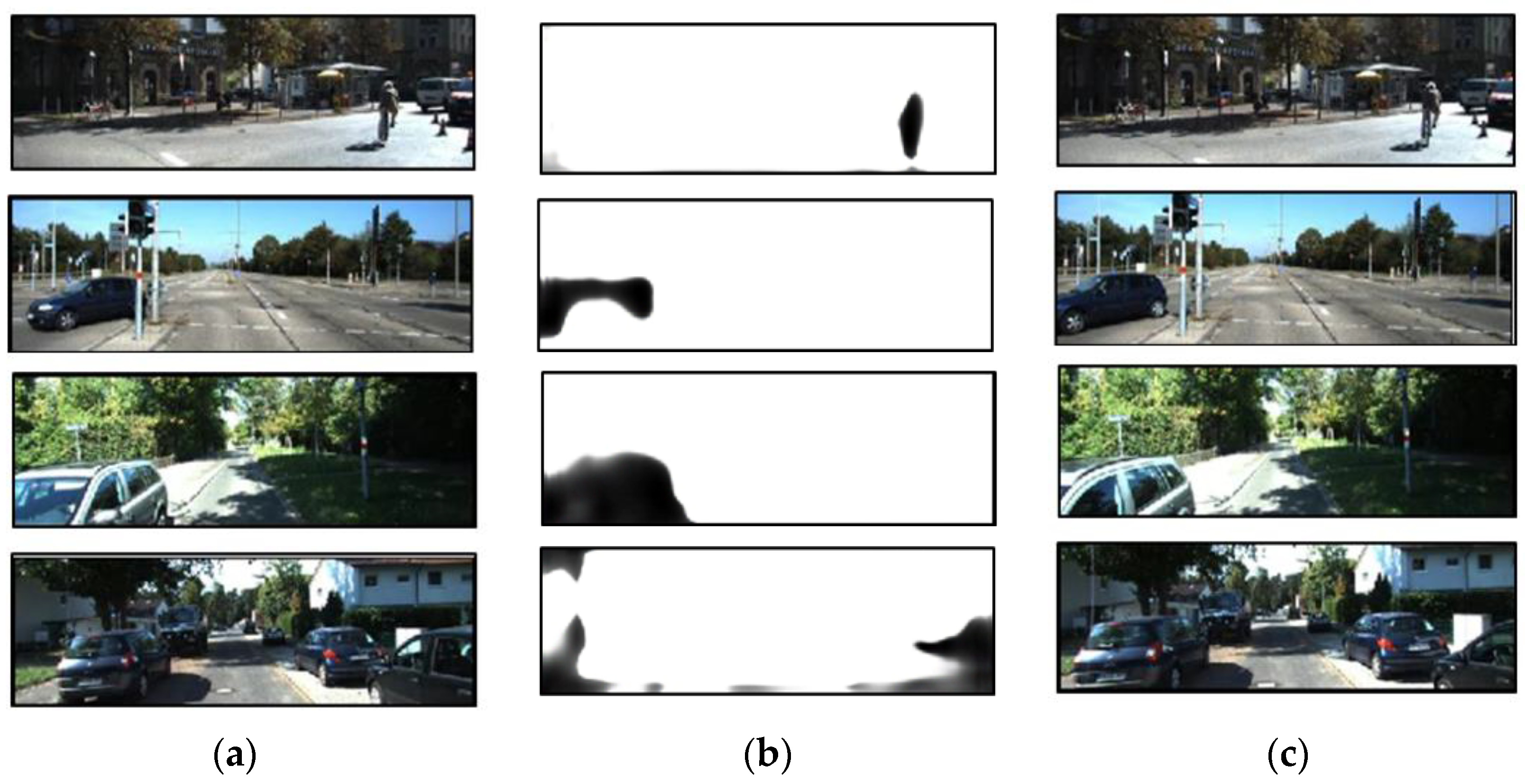

Figure 14 shows the visualization result of the confidence mask. I_t−1 and I_t are two frames of the image at adjacent moments. From Equation (4) and Section 2.2, we know that the calculated reprojection error will be invalid when there are occluded or moving objects in the scene. Therefore, we need to mask out the occluded or moving objects to optimize the reprojection error in the process of training the depth estimation network. In contrast with previous related work [37,50], our method does not require pre-segmentation of moving objects to obtain the confidence mask. Figure 14b denotes the confidence mask output by our method, where the black area is the region where two adjacent frames have occlusion or motion during reprojection. The result also shows that the visual results of the confidence mask output by our method are generally consistent with our expected results.

4. Conclusions

We recover the depth information of monocular images under three challenging conditions. The first is that there is no real depth information for reference; the second is that no input images from other angles can be triangulated; and the third is that the photometric reconstruction loss is greatly affected by illumination and occlusion. To solve these challenges, we design a new camera pose network to assist the training of the depth estimation network and introduce the largest scale loss to improve the prediction accuracy. First, according to SfM theory, we treat depth prediction as a disparity map regression problem and propose a new deep CNN structure to train our depth estimation model without other depth maps or rectified stereo image pairs. Furthermore, we output two confidence masks to reduce the impact of occlusion. Finally, we present a new upsampling structure with a multiscale receptive field to support the training of our network using the maximum scale loss function. Experimental results show that our method is more accurate than competing methods on KITTI datasets.

Our method produces accurate and detailed depth map from monocular video. However, even though our method predicts two confidence masks to address occlusion error, the accuracy of depth estimation will decrease in dynamic scenes, especially when there are a large number of moving objects. Our method also highly depends on the photometric consistency between adjacent frames, which also means that illumination has a great impact on our results. Our method must be performed under the condition that the camera intrinsic parameters are obtained in advance, but it is not easy to obtain the camera intrinsic of datasets in real scenes.

In future work, we will focus on unsupervised monocular depth learning method in dynamic scenes with unknown camera intrinsic and improve the robustness of our method. We will also apply the method to other useful applications, such as 3D SLAM, 3D reconstruction, 3D object recognition and semantic segmentation.
