Distribution and Attribution of Terrestrial Snow Cover Phenology Changes over the Northern Hemisphere during 2001–2020

Abstract

Snow cover phenology has exhibited dramatic changes in the past decades. However, the distribution and attribution of the hemispheric scale snow cover phenology anomalies remain unclear. Using satellite-retrieved snow cover products, ground observations, and reanalysis climate variables, this study explored the distribution and attribution of snow onset date, snow end date, and snow duration days over the Northern Hemisphere from 2001 to 2020. The latitudinal and altitudinal distributions of the 20-year averaged snow onset date, snow end date, and snow duration days are well represented by satellite-retrieved snow cover phenology matrixes. The validation results by using 850 ground snow stations demonstrated that satellite-retrieved snow cover phenology matrixes capture the spatial variability of the snow onset date, snow end date, and snow duration days at the 95% significance level during the overlapping period of 2001–2017. Moreover, a delayed snow onset date and an earlier snow end date (1.12 days decade⁻¹, p < 0.05) are detected over the Northern Hemisphere during 2001–2020 based on the satellite-retrieved snow cover phenology matrixes. In addition, the attribution analysis indicated that snow end date dominates snow cover phenology changes and that an increased melting season temperature is the key driving factor of snow end date anomalies over the NH during 2001–2020. These results are helpful in understanding recent snow cover change and can contribute to climate projection studies.

1. Introduction

Snow cover is an integral component of the cryosphere and represents one of the three Essential Climate Variables related to snow for the Global Observing System for Climate, which plays a crucial role in the Earth’s climate system through the surface energy budget [1,2,3], atmospheric circulation [4], and hydrological cycle [5,6,7], and influences freshwater resources across a large proportion of the Northern Hemisphere (NH) [6]. Snow cover phenology (SCP) variables including snow onset date (D_o), snow end date (D_e), and snow duration days (D_d) are key indicators of seasonal variation of terrestrial snow cover over the NH and becoming increasingly valuable indicators of climate change [6,8], especially in snow-dominated cold regions [6,9]. For example, SCP has considerable impact on climate variabilities, such as alpine vegetation growth dynamics on the Tibetan Plateau [10], green-up date across the NH [11], boreal springtime carbon uptake [12], permafrost degradation in sub-arctic Sweden [9], and SCP indicators are expected to provide feedback to temperature trends [13]. Moreover, abnormal snowmelt timing in spring are creating a serious threat to water resource sustainability, including agricultural production [14] and even cause hydrological extremes such as spring floods [15]. Therefore, accurate estimation and information on SCP are essential not only for evaluating the impacts of climate change but also for disaster prevention.

Changes in SCP are directly related to observed snow cover extent (SCE) anomalies over the NH. Published studies have reported a well-documented SCE reduction driven by surface warming in the past decades [16,17,18,19,20,21]. For example, based on multi-model ensemble results from the latest World Climate Research Programme Coupled Model Intercomparison Project Phase 6 (CMIP6), Mudryk et al. [20] found that trends in the snow cover extent (SCE) during 1981–2018 were negative in all months and exceeded −50 × 10³ km² a⁻¹ during November, December, March, and May. Through multiple satellite observations, Brown et al. [19] estimated that the June SCE decreased by 46% over the pan-Arctic regions during the 1967–2008 period. Moreover, the SCE has shrunk more than expected in the past few decades. For example, Derksen and Brown [17] proved that the June SCE decreased at twice the speed of the widely documented reduction in the September sea-ice extent between 1979 and 2011, especially in the later part of that period. In addition, a comparison of satellite observations and model simulations revealed that SCE reductions in the 2008–2012 period exceeded climate model projections by Derksen and Brown [17].

Driven by the rapid decline of SCE over the NH, SCP has exhibited remarkable changes, including a sharp decrease in D_d [22], an earlier snowmelt onset date [23], an advanced D_e, and notable changes in D_o [22] at local, regional, and hemispherical scales. For example, using a satellite-retrieved SCE dataset at 25-km spatial resolution, Choi et al. [22] concluded that the average D_d in the NH shortened at a rate of 0.8 weeks decade⁻¹ between the winters of 1972/73 and 2007/08. Moreover, based on Passive Microwave (PM) measurements at 25-km spatial resolution, Wang et al. [23] retrieved pan-Arctic snow melt onset dates from 1979 to 2011 and found a significantly earlier date for melt onset (2–3 days decade⁻¹) over the Eurasian land sector of the Arctic. Through an investigation of 636 ground-based snow depth observations over the NH, Peng et al. [13] revealed earlier snow cover termination, and concluded that changes in SCP were related to the annual snowmelt monthly temperature with a sensitivity of −0.077 °C day⁻¹. Based on multiple satellite and reanalysis data, Chen et al. [24] reported that D_e advanced by 5.11 (±2.20) days in northern high latitudes (52–75° N) and was delayed by 3.28 (±2.59) days in northern mid-latitudes (32–52° N) from 2001 to 2014, with a 90% confidence level. The above studies provide valuable insights into the distribution and attribution of SCP over the NH. However, most of the above studies employed in situ observations, models, or satellite observations with coarse spatial resolution. Therefore, the distribution of SCP at finer spatial resolution, its attributions, and its response to climate change at the hemisphere scale have yet to be determined using the latest observations.

In addition to SCP distribution analysis, attribution of SCP anomalies are also concerned in the past decades. Several studies have shown that changes in SCP are highly sensitive to land surface temperature and precipitation anomalies [13,18,19,22,24]. For example, earlier snow cover termination in the NH proved to be systematically correlated on a year-to-year basis with a positive temperature anomaly during the snowmelt month [13]. Moreover, approximately 50 % of the interannual variance in the extent of NH spring snow cover during 1922–2010 can be attributed to air temperature [18].

Recent studies have revealed significant changes in the land surface temperature induced by the vanishing cryosphere [25,26,27,28], as well as increased winter precipitation induced by changes in atmospheric circulation [29] and human activity [30,31]. According to a World Meteorological Organization statement on the state of the global climate [32], the past five years (2015–2019) were the five warmest years on record. Moreover, the near-surface at high latitudes in the NH is warming at double the rate of lower latitudes due to the rapid loss of both sea ice and snow cover in spring and summer [27]. Despite climate warming on average, a large number of high-impact cold extremes have occurred in the mid-latitudes of the NH over the past decade [33]. It is thus crucial to understand how these climate change events, which exhibit high spatial heterogeneity, influence SCP. Such information can contribute to snow water management, the sustainable development of ecosystems, and predictions of catastrophic climate-related events.

To explore the latest terrestrial snow cover phenology changes and its attribution factors under the rapid climate change background, this study integrates 8-day Level 3 snow cover fraction products derived from the Moderate Resolution Imaging Spectroradiometer Satellite (MOD10C2) from September 2000 to August 2020, at a spatial resolution of 0.05° (approximately 5 km), as well as the binary snow mask from the Interactive Multi-sensor Snow and Ice Mapping System (IMS) during 2005–2019, with a spatial resolution of 4 km. These data are used to produce a 20-year gap-free MOD10C2-based snow cover extent (GF-MOD10C2-SCE) with finer spatial resolution over the NH. Then, using the integrated GF-MOD10C2-SCE, this study retrieves SCP matrices over the NH, including D_o, D_e, and D_d. Moreover, through reanalysis of the land surface temperature and precipitation, this study explores the SCP anomalies over the NH in the past two decades.

2. Materials and Methods

2.1. Study Area

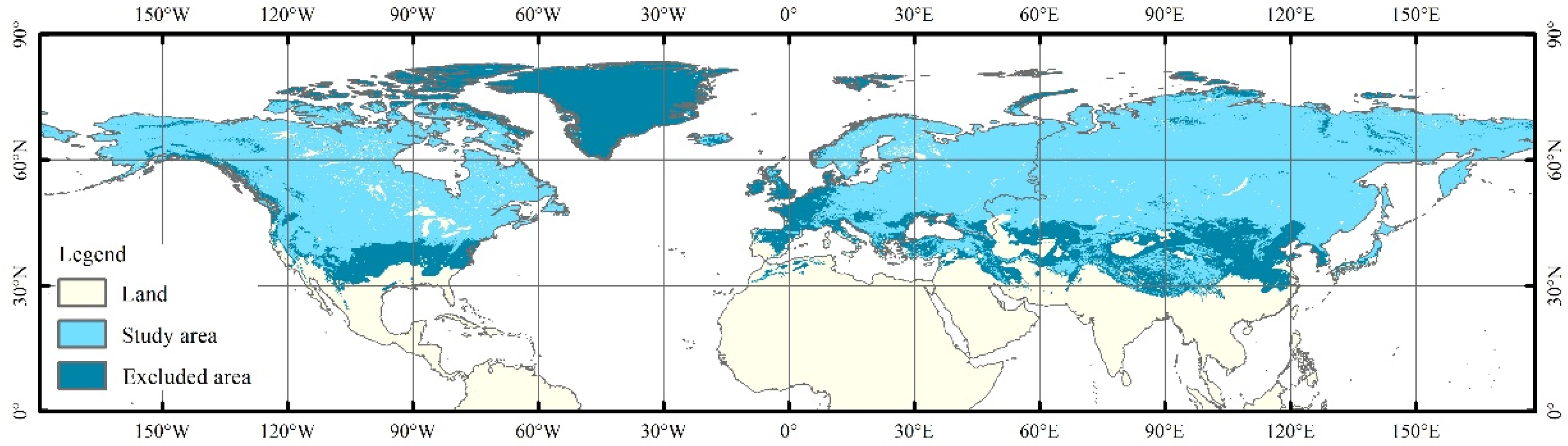

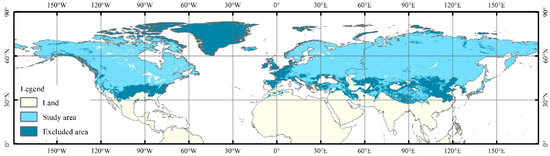

To focus on changes in SCP, the study area was confined to seasonal snow cover gridcells with snow cover greater than 7 frames using 8-day MOD10C2 for 75% of the years between 2001 and 2020, similar with Choi et al. [22]. Permanent snow-covered regions with little change in SCP are beyond the scope of this study. Moreover, areas of thin or patchy snow cover were excluded from the analysis because they may have been missed in the optical satellite images [34]. The distribution of study area and excluded area calculated from GF-MOD10C2-SCE from 2001 to 2020 is shown in Figure 1.

2.2. Datasets

Three satellite-observed snow cover products, 850 ground-based daily snow depth observations, and a reanalysis dataset were employed to explore the distribution and attribution of terrestrial SCP anomalies over the NH.

2.2.1. Satellite-Observed Snow Cover Datasets

Satellite-observed snow cover datasets are preliminary input data for SCP detection over the NH. Three snow cover datasets, including snow charts derived from the Northern Hemisphere Snow Cover Extent Climate Data Record (NH SCE CDR) v01r01 [35], MOD10C2 [36], and IMS [37] were employed in this study.

Snow Cover Charts

Monthly snow charts over the NH from 1966 through 2020, calculated from the NH SCE CDR v01r01 [35] were used to investigate the long-term SCE anomaly. These snow chart data are widely used in large-scale SCE anomalies over the NH due to their consistency and long time span [35].

MOD10C2 Snow Cover Fraction Dataset

The MOD10C2 provides the 8-day composite global snow cover fraction (SCF) at 0.05° from February 2000 to the present. MOD10C2 is an aggregation of MOD10A2 products with 500-m spatial resolution, which is an 8-day composite of MOD10A1 daily SCE maps [36]. The 8-day composite is considered useful because persistent cloudiness limits the number of days available for surface observations in many regions, particularly at high latitudes [38]. In this study, the MOD10C2 was used as the primary data in SCP retrieval because MOD10C2 is the only consistent, objective snow estimate derived from optical satellite observations over the last two decades with relatively finer spatial resolution.

IMS Datasets

The IMS snow cover product provides daily binary SCE maps for the NH from February 1997 to December 2019 at three different resolutions, i.e., 1 km (since 2015), 4 km (since 2004), and 24 km (since 1997), which are created manually by a snow analyst using data from a combination of geostationary and polar orbiting satellites in visible, infrared, and microwave spectrums [37]. The IMS dataset is widely used for data integration [39,40]. The daily rate of agreement between IMS snow maps and ground-based snow observations between 2006 and 2010 was predominantly between 80% and 90% throughout the winter seasons over the continental United States [41]. To fill the gaps in MOD10C2 at the highest achievable spatial resolution, this study used the IMS at a spatial resolution of 4 km from 2005 to 2019.

2.2.2. Ground-Based Snow Depth Observations

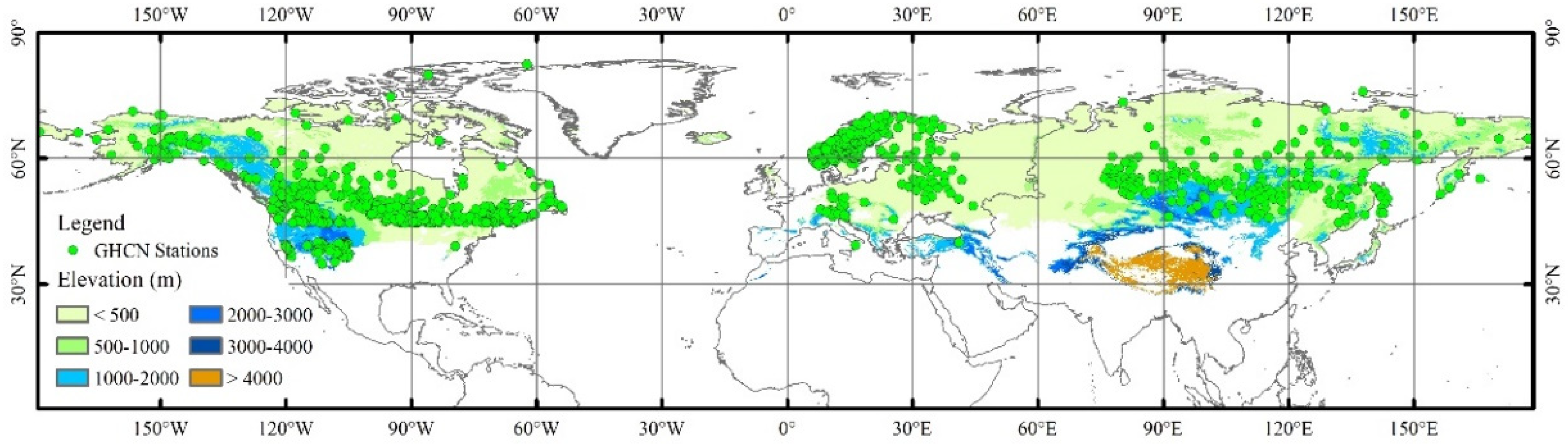

Daily ground-based snow depth measurements generated by the Global Historical Climatology Network (GHCN) [42] were used to detect the ground-observed SCP and were employed as ground truth to verify the performance of the satellite-retrieved SCP in this study. The daily GHCN contains records from over 75,000 stations in 180 countries and territories [42]. By assembling and checking observations made in multiple different nations, the GHCN provides daily snow depth records over the NH, especially at high latitudes. As they are subject to the speed of data updates, GHCN data for the last three years are incomplete. Therefore, only 850 stations covering September 2000 to August 2017 with D_d greater than 60 days were used for validation. The distribution of the selected GHCN snow depth observations are shown in Figure 2.

2.2.3. Reanalysis Temperature and Precipitation Dataset

Model resolution plays an important role in representing the orographic gradient effects on temperature and precipitation simulations [43]. ERA5-Land is a replay of the land component of the ERA5 climate reanalysis with a finer spatial resolution (0.10° grid spacing) than ERA5 monthly averaged data on single levels from 1979 to the present (0.25° spatial resolution) [44] and the Climatic Research Unit (CRU) Time-Series (TS) Version 4.04 (0.50° spatial resolution) [45]. To address the changes of SCP over the NH, the monthly averaged 2-m temperature and total precipitation derived from the European Centre for Medium Range Weather Forecasts (ECMWF) Reanalysis v5–Land (ERA5-Land) [44] are used as surface air temperature and precipitation in the attribution analysis. Moreover, the model used in the production of ERA5-Land is the tiled ECMWF scheme for surface exchanges over land, which incorporates land surface hydrology (H-TESSEL) and has been proven suitable for modeling the ground [46,47].

2.2.4. Data Preparation

Details of datasets used in this study are provided in

Table 1. Summary of datasets used in this study.

Parameters	Dataset	Time Span	Spatial Resolution	Temporal Resolution	Purpose	References
SCF	MOD10C2	2001–2020	0.05°	8-day	SCP maps	Hall et al. [36]
Binary snow mask	IMS	2005–2019	4 km	Daily	SCE gap filling	Helfrich et al. [37]
SCE charts	NH SCE CDR v01r01	1966–2020	–	–	Longterm SCE changes analysis	Estilow et al. [35]
Snow depth observations	GHCN-Daily	2001–2017	–	Daily	Validation	Menne et al. [42]
Reanalysis temperature and precipitation	ERA5-Land	2001–2020	0.10°	Monthly	Attribution analysis	Muñoz [44]

. Abbreviations used in this study are listed in

Table A1. Abbreviations used in this study.

Abbreviations	Definitions
SCP	snow cover phenology
NH	Northern Hemisphere
SCE	Snow cover extent
SCF	Snow cover fraction
SProb	Snow cover probability
Do	Snow onset date
De	Snow end date
Dd	Snow duration days
MOD10C2	8-day Level 3 snow cover fraction products derived from the Moderate Resolution Imaging Spectroradiometer Satellite
IMS	Interactive Multi-sensor Snow and Ice Mapping System
NH SCE CDR	Northern Hemisphere Snow Cover Extent Climate Data Record
GHCN	Global Historical Climatology Network
RMSE	Root Mean Square Error
MRE	Mean Relative Error
Ta	Surface air temperature in snow accumulation season
Tm	Surface air temperature in snow melting season
Pa	Precipitation in snow accumulation season
Pm	Precipitation in snow melting season

. To match the spatial resolution of the satellite-retrieved SCP matrixes, the monthly averaged 2-m temperature and total precipitation derived from ERA5-Land were regridded at a spatial resolution of 0.05° by using the resampling method of “cubic-spline” with the help of gdalwarp (http://www.gdal.org/gdalwarp.html).

2.3. Methods

2.3.1. Generation of Gap-Free MOD10C2-Based SCE Dataset

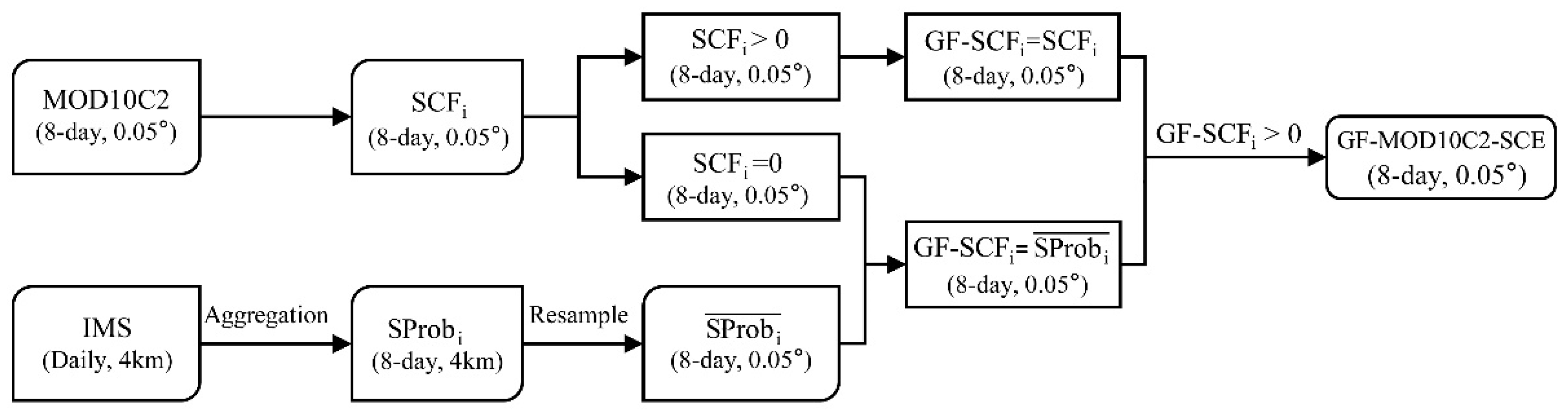

To overcome the shortage of optical MOD10C2 in snow discrimination caused by invalid observations and cloud contamination, we produced GF-MOD10C2-SCE dataset before SCP retrieving. First, using spatial complete IMS from 2005 to 2019, we produced an 8-day snow cover probability (SProb) map in each 8-day period of the year. For gridcell i in a given 8-day period of the year, the SProb_i was calculated by averaging non-zero values in this 8-day period from 2005 to 2019. Second, the SProb map was used to fill the gaps in MOD10C2. If SCF_i = 0 and SProb_i > 50%, the SProb_i will replace SCF_i in original MOD10C2. Finally, the gridcells with SCF > 0 were used as the GF-MOD10C2-SCE and employed to retrieve the SCP matrixes over the NH. Using homogeneous GF-MOD10C2-SCE in SCP retrieval will reduce the error caused by missing observations in the original MOD10C2. The flowchart of GF-MOD10C2-SCE generation is presented in Figure 3.

2.3.2. Snow Cover Phenology Retrieval

We used the hydrological year in this study to explore interannual anomalies in the SCP. Based on the seasonal cycles of snow cover for northern Eurasia and North America [48], this study defined the hydrological year (t) as the period from September in year (t-1) to August in year (t). To further attribute changes in SCP, we defined the accumulation season of snow cover from September to December and the melting season from March to June in the attribution analysis.

Definition of Satellite-Retrieved Snow Cover Phenology

Published study have used full snow seasons and core snow seasons in SCP identification [22], in which full snow seasons is the interval between the first appearance and the last disappearance of snow cover and core snow seasons is the longest interval of the season with an unbroken string of weeks for which a grid cell is snow covered. In this study, we mainly focus on SCP changes in core snow seasons.

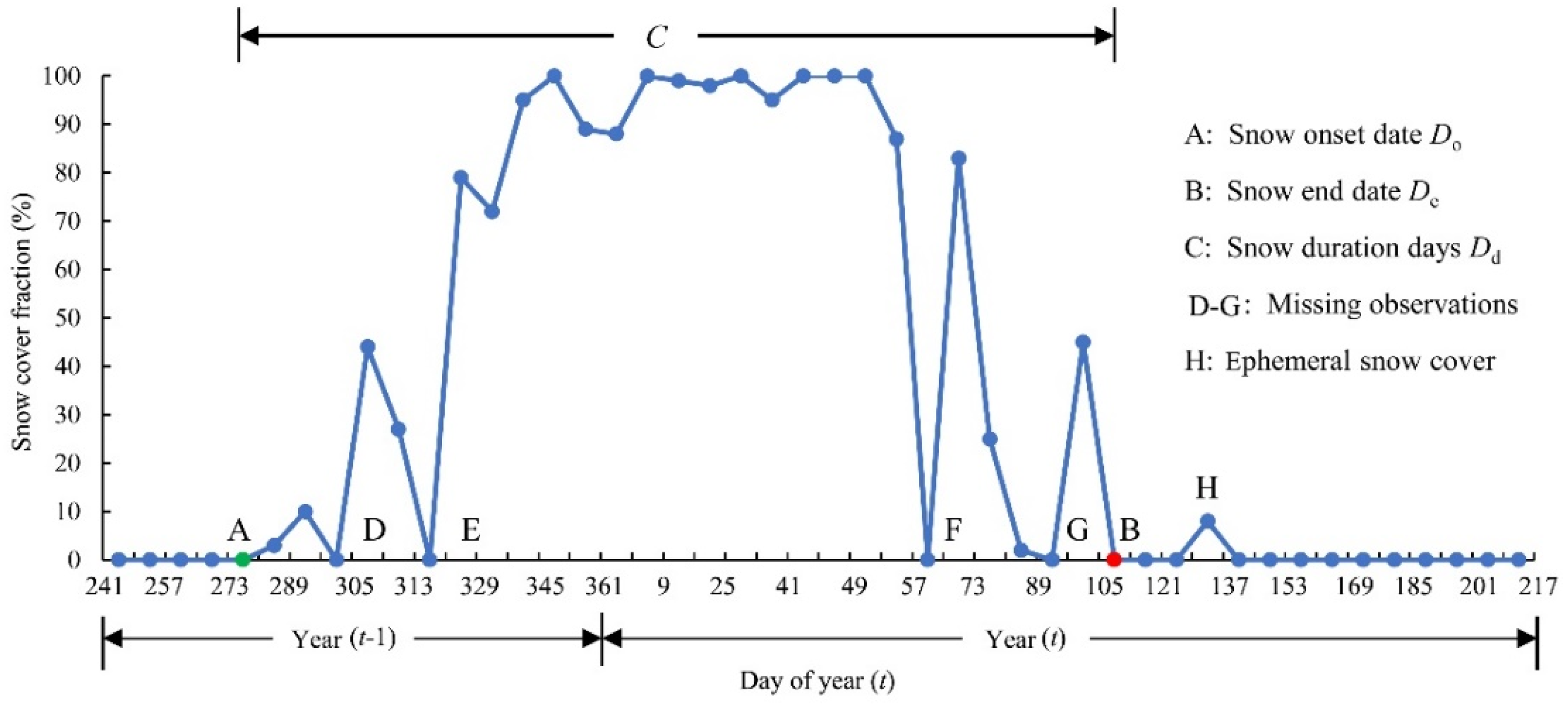

The definition of D_o, D_e, and D_d in a hydrological year using original 8-day MOD10C2 SCF dataset is shown in Figure 4. To avoid the impact of missing observations (D-G) on SCP retrieval, we used GF-MOD10C2-SCE in SCP retrieve. For the 8-day GF-MOD10C2-SCE dataset, we first identified the 8-day interval frames (day index i to i + 7) between the frames when the SCE was superior to zero and when it equaled zero in core snow seasons, then defined D_o and D_e at i+3.5 days of the first frame when the SCE was superior to zero and when it equaled zero in core snow seasons, respectively.

Definition of Ground-Based Snow Cover Phenology

To avoid the impact of ephemeral snow on SCP retrieval and match the temporal resolution of 8-day GF-MOD10C2-SCE, D_o was defined as the first four consecutive days in the accumulation season and D_e was defined as the last four consecutive days of persistent snow cover in the melting season. D_d was defined as the number of days between D_o and D_e.

2.3.3. Validation of Satellite-Retrieved Snow Cover Phenology Using Ground Observations

Although there are large differences in the spatial representation of satellite-retrieved SCP and ground-based SCP, the ground observations still provide the most convincing results when compared with satellite-retrieved SCP. In this study, the root-mean-square error (RMSE), mean relative error (MRE), and bias were used as criteria to evaluate the relative accuracy of the satellite-retrieved SCP (X_sat) relative to ground-based SCP (X_obs) during 2001–2017. The RMSE, MRE, and bias of X_sat relative to X_obs are expressed as follows:

$$RMSE=\sqrt{\frac{1}{n}{\displaystyle \sum _{i=1}^n{(X_{\mathrm{sat},\mathrm{i}}-X_{\mathrm{obs},\mathrm{i}})}^2}},$$

(1)

$$MRE=\frac{100\%}{n}{\displaystyle \sum _{i=1}^n\left|\frac{X_{\mathrm{sat},\mathrm{i}}-X_{\mathrm{obs},\mathrm{i}}}{X_{\mathrm{obs},\mathrm{i}}}\right|},$$

(2)

$$Bias=\frac{1}{n}{\displaystyle \sum _{i=1}^n(X_{\mathrm{sat},\mathrm{i}}-X_{\mathrm{obs},\mathrm{i}})},$$

(3)

where X_sat,i and X_obs,i are the satellite-retrieved SCP and ground-based SCP in a given gridcell i, respectively.

2.3.4. Attribution Analysis

As anomalies in D_d are directly correlated to variabilities in D_o and D_e, we mainly focus on the attribution analysis of D_o and D_e in this study. To compare the contributions of D_o and D_e from each climate variable consistently, all variables were converted to standardized anomalies (z-score) using the mean and standard deviation in the attribution analysis.

Published studies have shown that changes in SCP are largely determined by surface air temperature and precipitation variability [6,13]. Therefore, we assumed that the interannual variability of D_o was driven by the competing effects of surface air temperature (T_a) and precipitation (P_a) in the snow accumulation seasons. To attribute changes in D_o, we regressed D_o as the dependent variable with T_a and P_s as the independent variables, following Chen et al. [24].

$$D_{\mathrm{o}}={\beta }_1\times T_{\mathrm{a}}+{\beta }_2\times P_{\mathrm{a}}+{\epsilon }_1,$$

(4)

Here, β₁ and β₂ are regression coefficients for T_a and P_a, and ε₁ is the residual. The contributions of T_a and P_a to D_o anomalies are reflected by the terms β₁ × T_a and β₂ × P_a, respectively. The contributions of T_a and P_a to D_o were computed by regressing the annual time series of D_o z-scores against the time series of z-scores of T_a and P_a. The resulting regression coefficients β₁ and β₂ were multiplied by T_a and P_a z-scores to derive the contributions of T_a and P_a to the D_o z-scores.

Moreover, D_e mainly depends on the maximum spring snow depth to melt and the surface air temperature in the snow melting season (T_m), in which the maximum snow depth in spring is determined using T_a and P_a. Therefore, we assumed that the interannual variability of D_e was driven by T_a, P_a, and T_m. We regressed D_e as the dependent variable, with T_a, P_a, and T_m as the independent variables, as performed in Chen et al. [24].

$$D_{\mathrm{e}}={\beta }_3\times T_{\mathrm{a}}+{\beta }_4\times P_a+{\beta }_5\times T_{\mathrm{m}}+{\epsilon }_2,$$

(5)

Here, β₃, β₄, and β₅ are regression coefficients for T_a, P_a, and T_m, respectively, and ε₂ is the residual. The contributions of T_a, P_a, and T_m to the D_e anomalies are reflected by the terms β₃ × T_a, β₄ × P_a, and β₅ × T_m, respectively. Similarly, the contributions of T_a, P_a, and T_m to D_e were computed by regressing the annual and zonal time series of D_e z-scores against the time series of z-scores of T_a, P_a, and T_m. The resulting regression coefficients were multiplied by the time series of T_a, P_a, and T_m z-scores to derive the contributions of T_a, P_a, and T_m to the D_e z-scores. A similar formula was employed by Peng et al. [13] and Chen et al. [24] to identify the sensitivity of SCP to climate variabilities over the NH.

3. Results

To explore changes in SCP over the NH, we first analyzed the monthly SCE changes over the NH from 1966 to 2020. Then, we mapped the latest 20-year averaged SCP over the NH from 2001 to 2020 and explored its changes and attribution during the corresponding period.

3.1. Observed Long-Term Anomalies in Snow Cover Extent over the NH

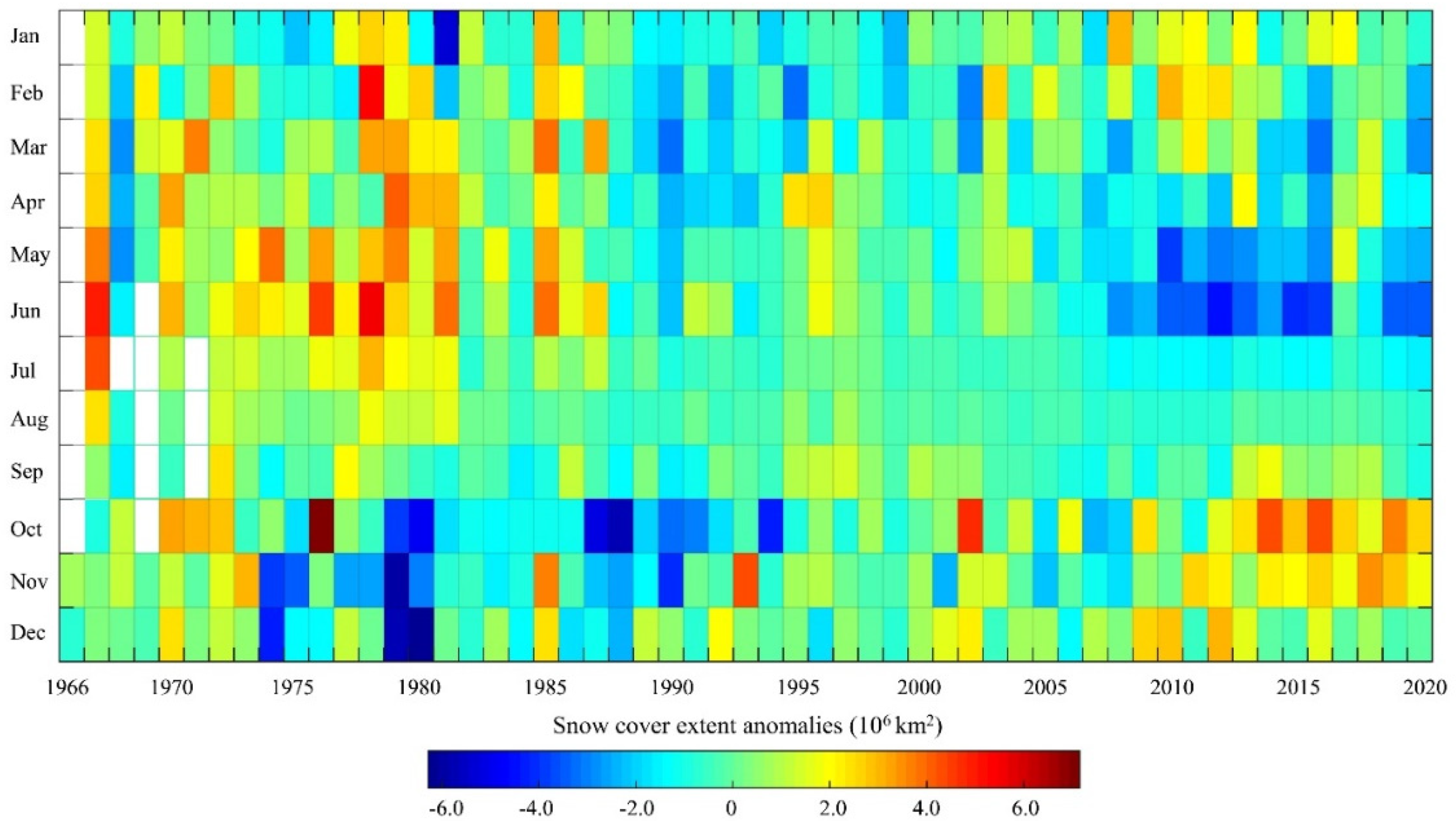

The monthly SCE anomalies from 1966 to 2020 are shown in Figure 5, and detailed changes in the monthly SCE over the NH are presented in

Table 2. Snow cover extent changes (10⁶ km²) in each month over the NH from 1966 to 2020. Changes are expressed as linear trends multiplied by the time interval.

Season	Month	Mean (106 km2)		Changes (106 km2)
		1966–2000	2001–2020	1966–2000	2001–2020
Spring	Mar	40.81 (±1.91)	39.83 (±1.59)	−0.0728 (**)	−0.0297
	Apr	30.93 (±1.74)	29.75 (±1.24)	−0.0497 (*)	0.0009
	May	20.00 (±1.71)	17.79 (±1.48)	−0.0626 (**)	−0.1012 (**)
Summer	Jun	10.71 (±1.98)	7.49 (±1.68)	−0.0899 (***)	−0.1848 (***)
	Jul	4.53 (±1.19)	2.98 (±1.47)	−0.0721 (***)	−0.0482 (***)
	Aug	3.23 (±0.79)	2.58 (±0.21)	−0.0329 (**)	−0.0072
Autumn	Sep	5.39 (±1.02)	5.44 (±0.83)	0.0104	0.0119
	Oct	17.67 (±2.62)	19.96 (±2.13)	−0.0886 (**)	0.1583 (**)
	Nov	33.74 (±2.17)	35.15 (±1.69)	0.0187	0.1784 (***)
Winter	Dec	43.27 (±1.95)	44.51 (±1.22)	0.0126	−0.0257
	Jan	46.82 (±1.59)	47.71 (±1.21)	−0.0373	0.0068
	Feb	45.84 (±1.87)	46.13 (±1.69)	−0.0691 (**)	−0.0245

Significance levels: * 90%; ** 95%; *** 99%; others are not significant at the 90% level.

. Compared with the monthly averaged SCE in the earlier period of 1966–2000, the later period of 2001–2020 exhibited large differences; the SCE decreased during the melting season from May to August (Table 2), with a maximum SCE reduction of up to 30% in June (−3.22 10⁶ km²). In contrast to the negative changes of SCE in the melting seasons, SCEs largely increased during the accumulation season from September to November; the maximum SCE increase occurred in October (2.29 10⁶ km²), with an amplitude of up to 12.96% greater than the monthly averaged October SCE in the period of 1966–2000. Increased SCE in the snow accumulation season coincides with increasing snow cover and widespread boreal winter cooling since 1990 [33]. Moreover, the contrasting seasonal anomalies in SCE directly corresponded to SCP anomalies during 2001–2020.

3.2. Climatology of Snow Cover Phenology over the NH from 2001 to 2020

To explore the distribution of SCP over the NH, we first generated 20-year averaged D_o, D_e, and D_e values over the NH from 2001 to 2020 from the implemented GF-MOD10C2-SCE dataset.

3.2.1. Climatology of Snow Cover Phenology from 2001 to 2020

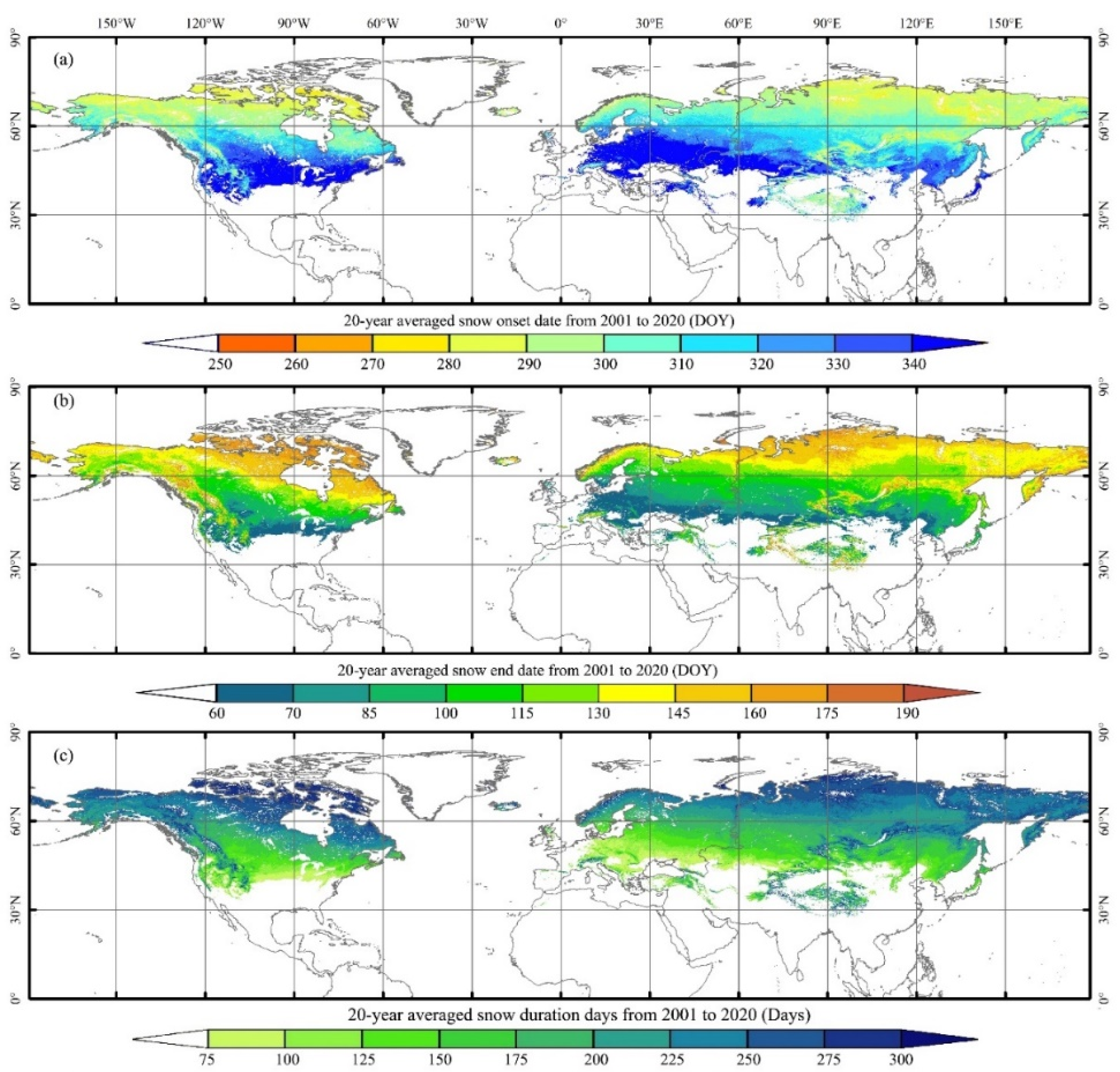

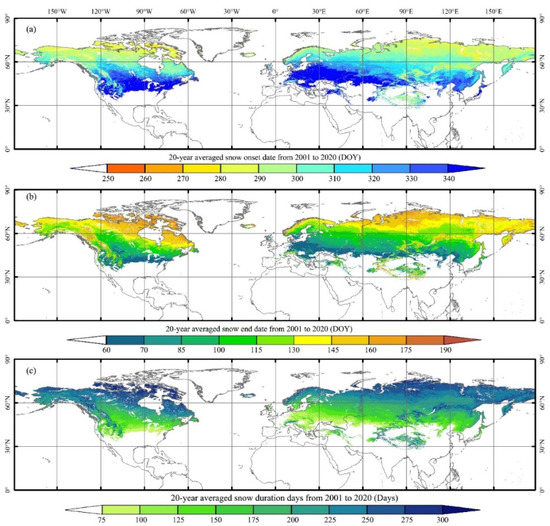

The spatial distributions of the 20-year averaged D_o, D_e, and D_d over the NH from 2001 to 2020 are shown in Figure 6. The 20-year averaged D_o, D_e, and D_d over the study area were day of year (DOY) 279.69 (±85.37), DOY 109.13 (±48.75), and 166.29 (±75.29) days, respectively, based on satellite-retrieved SCP matrixes.

As shown in Figure 6, satellite-derived SCP clearly describes the spatial patterns of D_o, D_e, and D_d (Figure 6c) from low latitudes to high latitudes over the NH. In addition, the impacts of elevation on SCP attributes were also well represented in the satellite-retrieved SCP maps. As a result of the temperature gradient over the NH, the snow cover appears earlier in high-latitude areas around the Arctic and high-altitude regions including the Rocky Mountains, Tibetan Plateau, Sayan Mountains, and Yablonovy Mountains. Comparably, snow cover appears later in the central United States and low latitudes of Eurasia (Figure 6a). As shown in Figure 6b, the spatial distribution of D_e is generally the opposite to that of D_o, i.e., an earlier D_o typically corresponds to a later D_e. The combined spatial distributions of D_o and D_e result in longer D_d in grid cells located in high latitudes and high-altitude regions (Figure 6c), but shorter D_d in areas including lower-latitude regions of the United States, Eurasia, and China.

3.2.2. Validating Snow Cover Phenology Using In Situ Observations

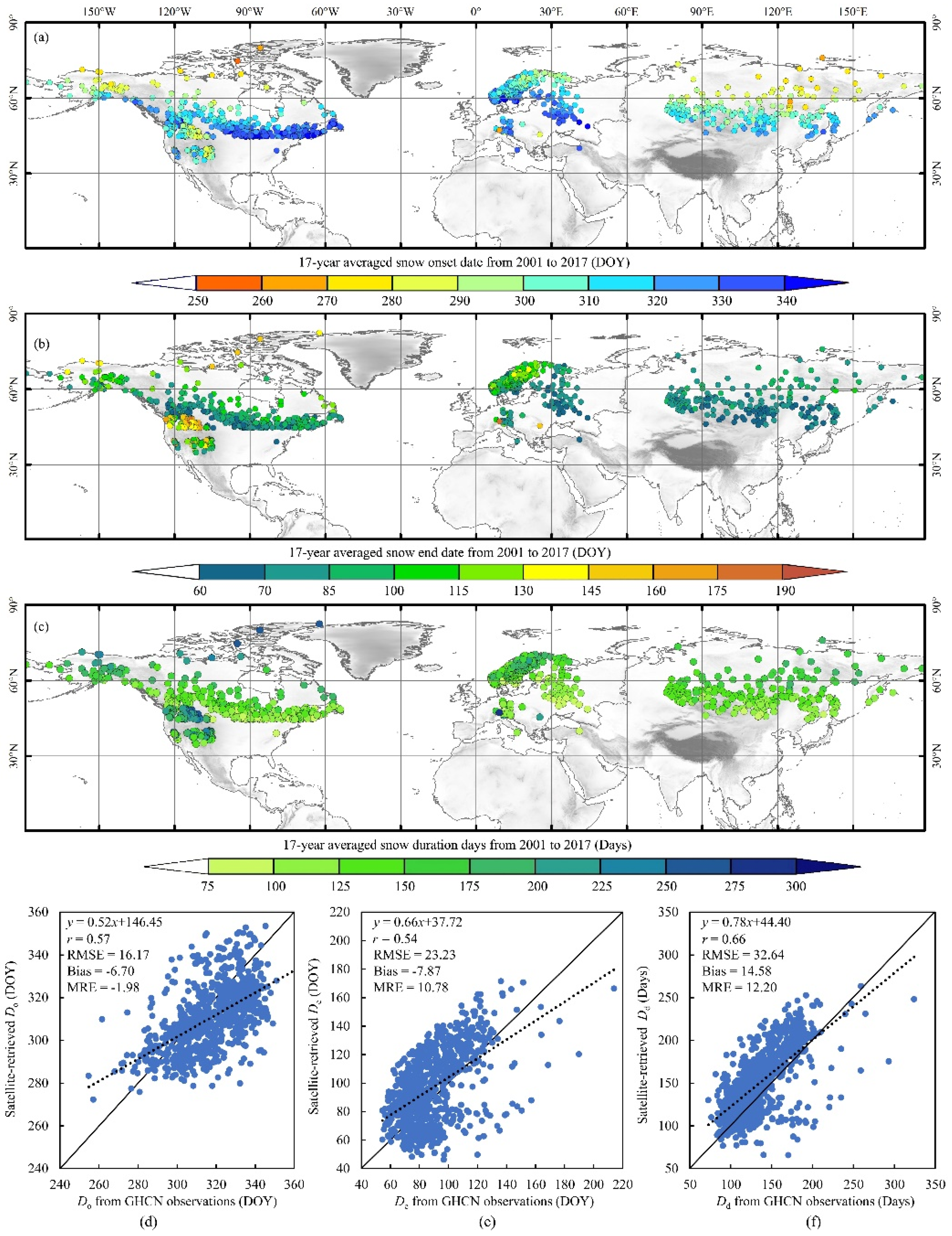

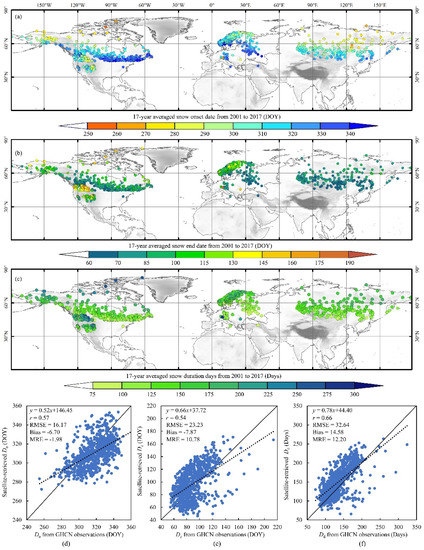

Subject to the data availability of GHCN daily snow depth observations, the accuracy of satellite-retrieved SCP using ground observations was estimated for the period of 2001–2017. The spatial distributions of 17-year averaged D_o, D_e, and D_d values calculated from GHCN observations, as well as a comparison with satellite-retrieved SCP matrixes, are shown in Figure 7.

Similar to the satellite-retrieved SCP, clear latitudinal and altitudinal gradient patterns were observed for D_o (Figure 7a), D_e (Figure 7b), and D_d (Figure 7c) from middle to high latitudes over the NH. At most sites, the observed D_o, D_e, and D_d were consistent with the satellite-retrieved D_o, D_e, and D_d results, with r values of 0.57, 0.54, and 0.66, respectively, at the 95% confidence level. However, compared with the bias in D_o (−6.70 d) and D_e (−7.87 d), the bias in D_d (14.58 d) was much larger. This is mainly because the bias in D_d superimposes the biases in D_o and D_e. Moreover, the value of satellite-retrieved SCP was higher than that of ground-based SCP in low D_o, D_e, and D_d value regions, with the opposite trends in high D_o, D_e, and D_d value regions, as demonstrated in Figure 7d–f. This phenomenon was mainly caused by the coarse spatial resolution of the satellite-retrieved SCP series from 2001 to 2017, in which the satellite-retrieved SCP provides average D_o, D_e, and D_d values at a pixel scale of 0.05°, which cannot completely capture and reflect the “real” value of D_o, D_e, and D_d at a specific location.

Previous research has proved that ground observations yield results that are highly dependent on the specific location (latitude and elevation). Therefore, results from ground observations mostly reflect the local conditions instead of meaningful information about the climate [49]. However, as shown in Figure 7, the satellite-retrieved D_o, D_e, and D_d values generally captured the spatial variability of D_o, D_e, and D_d over the NH, which proves the suitability of satellite-retrieved SCP for current climate change studies, also validated by the latitudinal distributions of D_o, D_e, and D_d in Figure 7d–f.

3.3. Changes in Snow Cover Phenology from 2001 to 2020

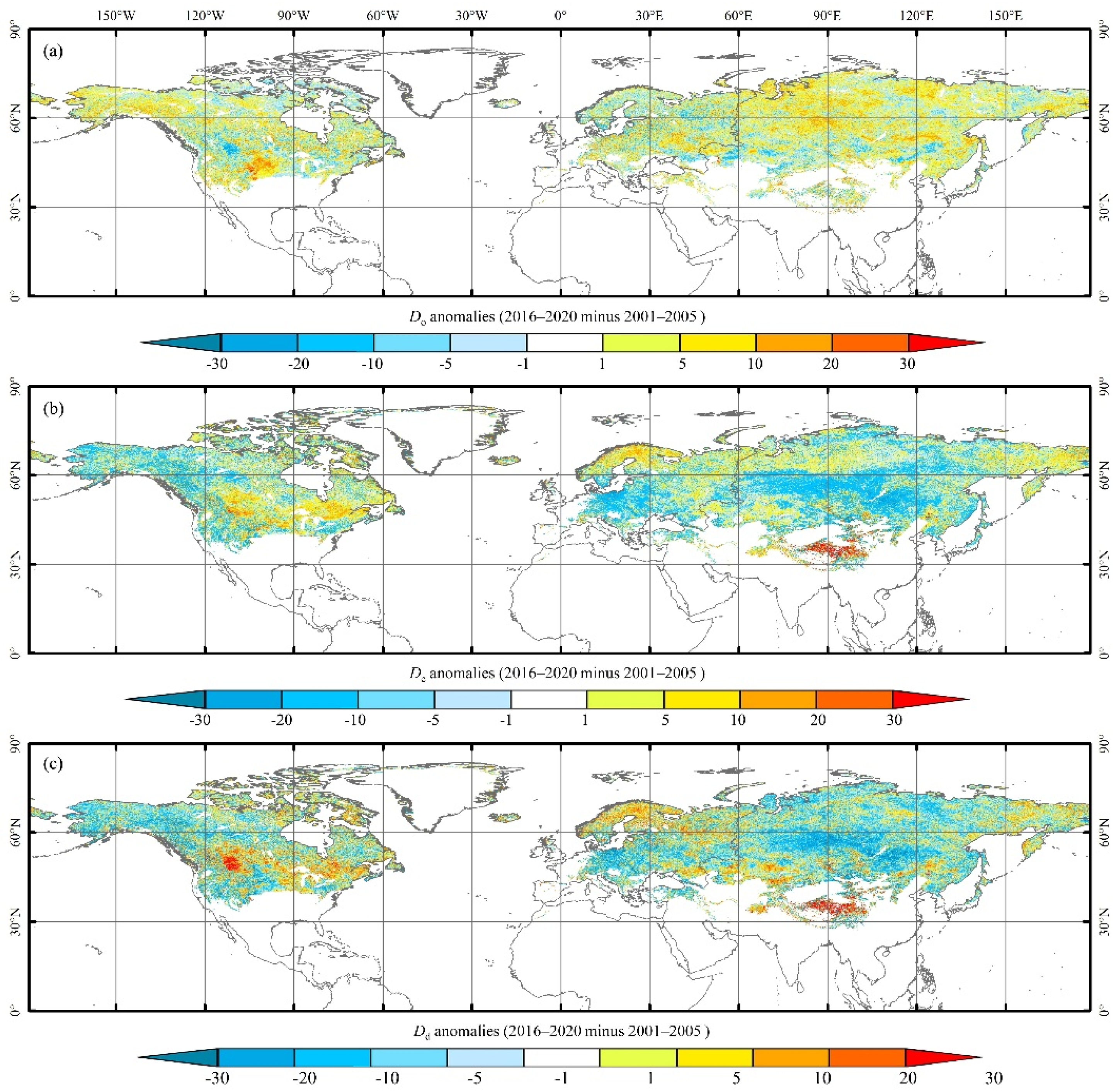

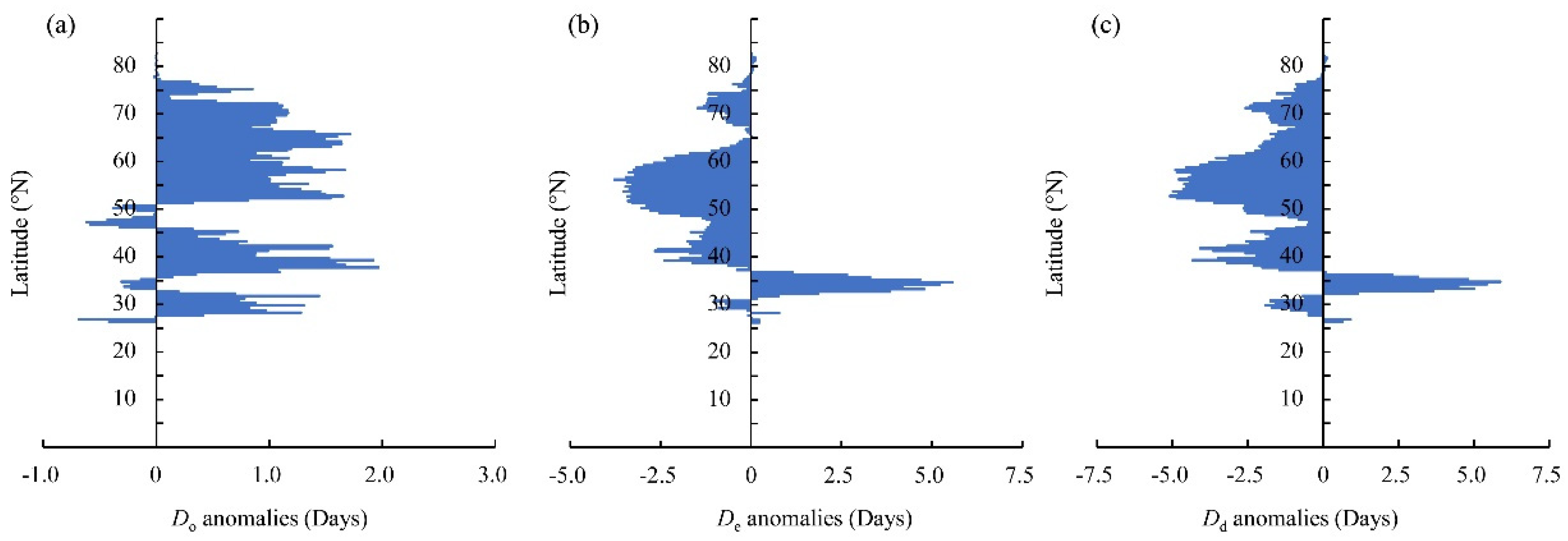

The 20-year changes in D_o, D_e, and D_d during the period of 2001–2020 and their latitudinal distribution are displayed in Figure 8 and Figure 9. Changes are estimated using the five-year averaged SCP during 2016–2020 minus the comparable values during 2001–2005.

Compared with the five-year averaged D_o in the period of 2001–2005, a general delay in D_o (1.69 ± 5.93 days) was observed over the NH for the period of 2016–2020 (Figure 8a), except in the middle Rocky Mountain region around 50° N and Central Asia near 35° N (Figure 9a). Meanwhile, D_e exhibited a notable advance over the NH for the period of 2001–2020 (−0.94 ±5.90 days), in which D_e moved forward significantly at a latitude of approximately 55° N, but was delayed in the Eastern United States and northeast Tibetan Plateau (Figure 8b), which led to contrasting D_e anomalies over the NH from low to high latitudes (Figure 9b). The contrasting D_e anomalies for the period of 2001–2020 agrees with the findings of Chen et al. [24], who observed an advance in D_e at northern high latitudes (52–75° N) but a delay in D_e at northern mid-latitudes (32–52° N) at the 90% confidence level. The combination of anomalies in D_o and D_e led to a shortened duration of snow cover (−2.63 ± 7.26 days) over the NH from 2001 to 2020 (Figure 8c and Figure 9c). In addition to the central United States, Tibetan Plateau, and Scandinavian Mountains, most grid cells within the study presented negative changes in D_d over the last two decades. Moreover, the observed D_d increase in Central North America is consistent with the increased snow cover days reported by Wang et al. [50] from 2001 to 2015 and Allchin and Déry [51] from 1971 to 2014.

3.4. Attribution of Snow Cover Phenology Changes over the NH

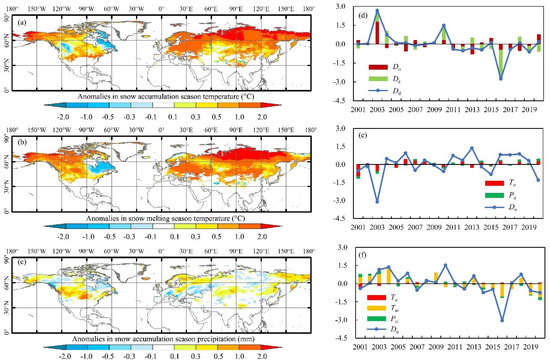

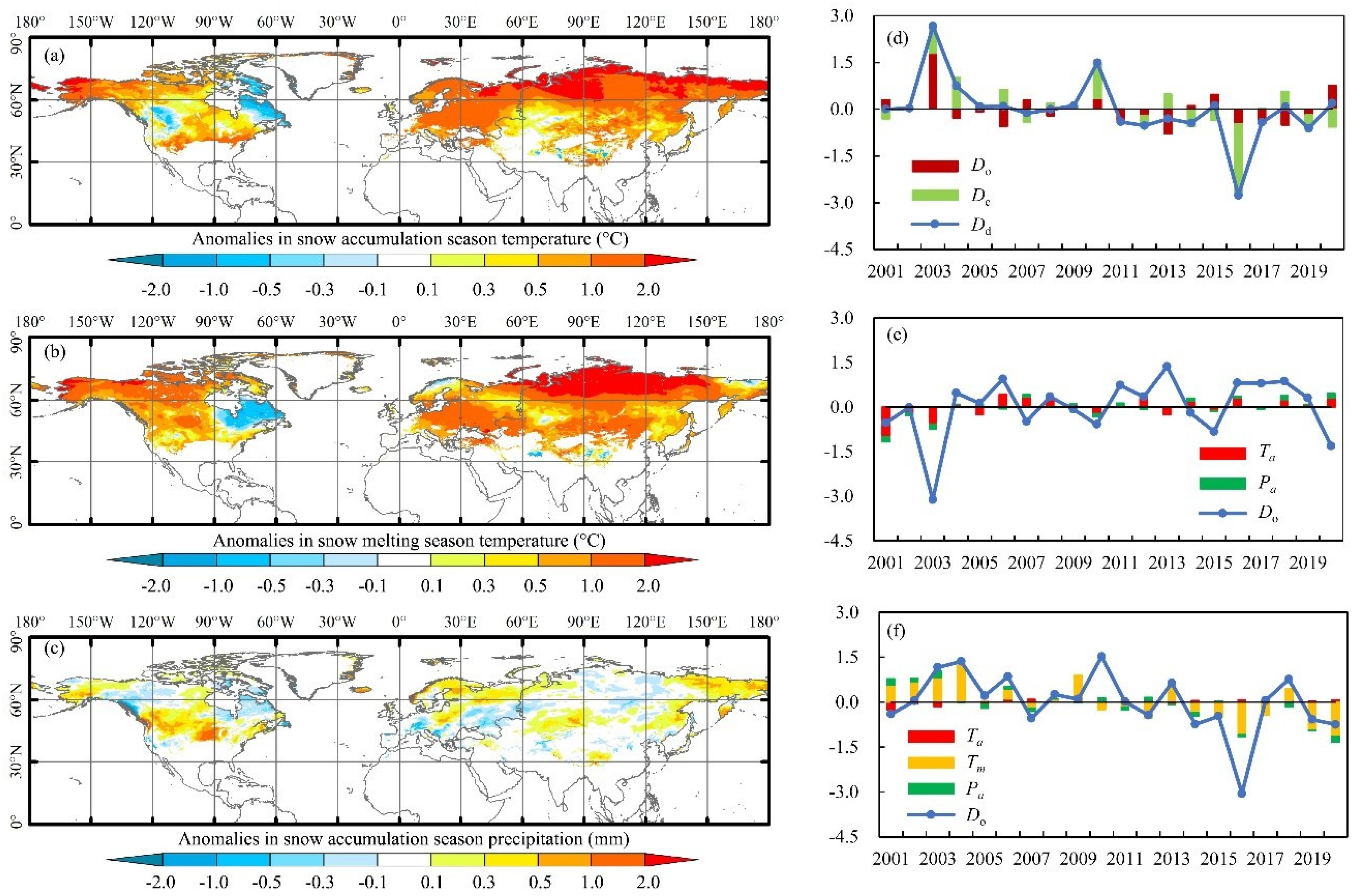

The snow accumulation season temperature, T_a, precipitation, P_a, and snow melting season temperature, T_m, were employed to attribute the anomalies in the SCP over the NH during 2001–2020. The spatial distributions of changes in T_a, P_a, and T_m are shown in Figure 10a–c. The attribution analysis of the SCP is presented in Figure 10d–f. The T_a (Figure 10a) and T_m (Figure 10b) values displayed a general warming trend over the NH from 2001 to 2020. This is reasonable according to the latest WMO Statement on the State of the Global Climate [32], as the past five years (2015–2019) are the five warmest on record. Moreover, both T_a and T_m exhibited significant latitude differences under the influence of decreasing snow cover and sea-ice extent [25,26,27,28], in which the temperature increased at a higher rate in high latitudes and at a much lower rate in middle latitudes. The anomalies in T_a and T_m over the NH during 2001–2020 agree with the land surface temperature anomalies mapped from the Goddard Institute for Space Studies (GISS) (https://data.giss.nasa.gov/gistemp/maps/) based on the latest GHCN Monthly version 4 [52]. In addition, changes in atmospheric circulation [29] and human activity [30,31] resulted in a notable increase in precipitation during the snow accumulation season, P_a (Figure 10c), in the Central United States, Tibetan Plateau, Northern Europe, and Northeastern Russia, but led to a significant decline in P_a in Central Russia, Northeast Canada, and Southern Europe.

The interannual variability analysis revealed a shortening trend in D_d over the NH from 2001 through 2020 at a rate of −1.64 days decade⁻¹ (p < 0.05). Owing to an exceptionally strong El Niño, 2016 was the warmest year on record in all major global surface temperature datasets [53], which resulted in the shortest D_d in the past two decades. The attribution analysis of D_d anomalies over the NH during 2001–2020 is displayed in Figure 10d, in which anomalies in D_d are highly correlated with variabilities in D_o and D_e. Moreover, Pearson correlation analysis of D_o, D_e, and D_d revealed significant relationships between D_e and D_d (r = 0.82, p < 0.01) over the 2001–2020 period. Correlations between D_o and D_d (r = 0.66, p < 0.01) were also significant. Considering that there were no statistically significant changes in D_o, D_d changes over the NH from 2001 to 2020 are mostly attributed to changes in D_e.

The attribution analysis of D_o and D_e is demonstrated in Figure 10e,f. The contributions of each variable to D_o and D_e variability were computed annually to display the changing influence of climate variables on underlying SCP variability. An analysis of linear correlations of D_o with T_a and P_a over the snow accumulation season revealed that D_o was largely determined by T_a anomalies (Figure 10e). Meanwhile, a similar analysis revealed that changes in D_e were highly correlated with T_a, T_m, and P_a at the 95% confidence level. However, compared with contributions from T_a and P_a, T_m dominated D_e anomalies over the NH from 2001 to 2020 (Figure 10f).

4. Discussion

Accurate estimates of SCP are highly relevant for improving atmospheric reanalysis [54], climate predictions [55], and climate projections. To overcome the shortage of individual datasets in the SCP retrieve, in situ measurements are highly dependent on the location (latitude and elevation) and limited in spatial coverage, visible and near-infrared satellite data are largely influenced by cloud coverage, and it is difficult to distinguish wet and shallow snow in PM snow maps, this study employed the combination of MOD10C2 and IMS prior to the retrieval of SCP matrices. The combination of MOD10C2 and IMS data largely reduced the error in retrieved SCP caused by missing observations in optical SCE products.

Validating satellite-retrieved SCP matrixes using field measurements involves uncertainties because there is a large spatial bias between satellite-retrieved SCP at a spatial resolution of 0.05° and ground measurements at specific locations. Moreover, the different temporal resolution between satellite-retrieved SCP and ground measurements may result in systematic bias in the cross validation process. However, the validation of satellite-retrieved SCP matrixes using GHCN ground-based snow depth observations indicated that satellite-retrieved SCP matrixes can generally capture the “real” distributions of D_o (r = 0.57), D_e (r = 0.54), and D_d (r = 0.66) at the 95% significance level, which indicate the fitness of using satellite-retrieved SCP in climate change studies over the NH.

Based on satellite-retrieved SCP matrixes, this study reported a delayed D_o, associated with an advanced D_e over the NH from 2001 to 2020. The above findings are consistent with the published results of Choi et al. [22] and Chen et al. [24], who reported that changes in SCP are largely determined by D_e anomalies for the periods of 1967–2008 and 2001–2014. However, the results are in contrast with the findings reported by Allchin and Déry [56], who observed shifting spatial and temporal patterns in the onset of seasonally snow-dominated conditions in the NH from 1972 to 2017. Because the attribution analysis is significantly influenced by temporal coverage, the different time interval may be the possible reason for the inconsistency of the analysis results.

According to the latest climate projections, the reduction of NH SCE will continue in the future [20,57], along with hemispheric land surface warming and a positive feedback on the Earth’s climate system through snow-albedo mechanisms [1,18,19,58]. Therefore, the response of SCP to SCE reduction should be investigated in future studies. Moreover, reductions in terrestrial snow cover accounted for one-third of the Arctic albedo decline from 1982 to 2014 [59]. Thus, a coupled study between terrestrial snow cover and Arctic sea ice should be conducted in the future.

5. Conclusions

With the help of satellite-retrieved snow cover observations, ground-based snow depth records, and reanalysis climate variables, this study explored the SCP distribution and its causes over the NH in the past two decades from 2001 to 2020, which are important data for current cryosphere change studies and future climate projections.

The observed longterm anomalies in SCE over the NH demonstrated that, compared with the monthly averaged SCE in the earlier period of 1966–2000, the later period of 2001–2020 exhibited an increased SCE in the snow accumulation season from September to November, but a decreased SCE in the snow melting season from May to August in the later period of 2001–2020. The enhanced seasonal SCE differences between snow accumulation season and melting season led to corresponding SCP anomalies. The climatology of 20-year averaged D_o, D_e, and D_d over the NH from 2001 to 2020 are well represented in spatial and temporal by satellite-retrieved SCP matrixes. Moreover, the validation results by using 850 GHCN snow depth observations revealed that satellite-retrieved SCP matrixes generally capture the spatial variability of D_o, D_e, and D_d at the 95% significance level during the overlapping period of 2001–2017, which makes it reasonable to employ satellite-retrieved SCP in climate change studies.

Based on satellite-retrieved SCP matrixes, this study reported a delay in D_o (1.69 ± 5.93 days) and an advanced D_e (−0.94 ± 5.90 days) over the NH for the period of 2016–2020, compared with the period of 2001–2005. The combination of anomalies in D_o and D_e result in a shortened D_d (−2.63 ± 7.26 days) over the NH at the corresponding period. Moreover, Pearson correlation analysis revealed that changes in D_d are highly correlated with variabilities in both D_o and D_e. However, linear analysis displayed unnoticed changes in D_o. Therefore, D_d changes over the NH from 2001 to 2020 are mostly attributed to anomalies in D_e. Furthermore, attribution analysis revealed that the increased melting season temperature is a key driving factor of D_e anomalies over the NH from 2001 to 2020. Compared with total precipitation, surface air temperature should be of high concern in SCP analysis.

Although the distribution and attribution of NH SCP has been discussed in previous research, this study provides better results with finer spatial resolution and present the latest SCP changes, which is necessary in the rapid climate change background. Hence, we believe that our study benefits understanding of terrestrial SCP changes and related climate projection studies in response to surface warming in the past decades.
