Quantify the Contribution of Dust and Anthropogenic Sources to Aerosols in North China by Lidar and Validated with CALIPSO

Abstract

Persistent heavy haze episodes have repeatedly shrouded North China in recent years. Besides anthropogenic emissions, natural dust also contributes to the aerosols in this region. Through continuous observation by a dual-wavelength Raman lidar, the primary aerosol types and their contributions to air pollution in North China were determined. The following three aerosol types can be classified: natural dust, anthropogenic aerosols, and the mixture of anthropogenic aerosols and dust (polluted dust). The classification results are basically consistent with the classification results from the cloud–aerosol lidar and infrared pathfinder satellite observations (CALIPSO) satellite measurements. The relative bias of the lidar ratio between the Raman lidar and CALIPSO is less than 25% over 90% of the cases, indicating that the CALIPSO lidar ratio selection algorithm is reasonable. The classification results show that approximately 45% of aerosols below 1.8 km are contributed by polluted dust during our one year observations. The contribution of dust increased with height, from 6% at 500 m to 28% at 1,800 m, while the contribution of anthropogenic aerosols decreased from 49% to 25%. In addition, polluted dust is the major aerosol subtype below 1.0 km in spring (over 60%) and autumn (over 70%). Anthropogenic aerosols contribute more than 75% of air pollution in summer. In winter, anthropogenic aerosols prevailed (over 80%) in the lower layer, while polluted dust (around 60%) dominated the upper layer. Our results identified the primarily aerosol types to assess the contributions of anthropogenic and natural sources to air pollution in North China, and highlight that natural dust plays a crucial role in lower-layer air pollution in spring and autumn, while controlling anthropogenic aerosols will significantly improve air quality in winter.

1. Introduction

The microphysical and chemical properties, as well as the vertical distribution of aerosols have a strong influence on radiation effects and climate change, and the effects vary significantly for different aerosol types [1]. The aerosol types can be roughly divided into anthropogenic (urban/industrial pollution and biomass burning) and natural (dust, sea salt, volcano, etc.) aerosols. The types of aerosols are primarily determined by geographical and climatic characteristics and the source of observation stations. The aerosol layers observed in the Beijing–Tianjin–Hebei (BTH) region are often a mixture of various types (natural and anthropogenic). BTH is one of the regions with the most serious air pollution in China [2,3,4]. Its northern and western sides are surrounded by the Yanshan and Taihang Mountains, respectively, and the capacity of atmospheric diffusion is extremely poor. Previous studies have reported that there are three main transport paths affecting the air quality of the BTH region, they are as follows: the northwest, the southwest, and the southeast [5,6,7]. The occurrence of the extremely heavy haze event in the BTH region is closely related to the transport of anthropogenic aerosols in the southern region, while the high-speed northwest air mass is conducive to the removal of air pollutants [8,9]. In addition, dust aerosols also frequently contribute to air pollution in the BTH regions, especially in spring [10], which is mainly affected by the northwest transport. Thus, air pollution in the BTH region includes both natural and anthropogenic sources. The accurate identification of the aerosol types will help us better understand the sources of aerosols and determine the contribution of natural and anthropogenic sources to air pollution in the BTH region.

Polarization-sensitive Raman lidar systems [11] or high-spectral resolution lidar (HSRL) systems [12,13] can independently estimate the vertical distribution of aerosols, and accurately distinguish between natural and anthropogenic aerosol types [14,15,16,17,18,19,20,21]. Although we have a clear understanding of the frequent outbreaks of persistent heavy haze events in the BTH region in recent years [22], there are few studies on aerosol classification and the vertical distribution of different aerosol types based on Raman lidar in the BTH region. An 11 day field campaign in January of 2005 by Tesche et al. [23], in which they only analyzed a case with a possible influence of Asian dust, reported the lidar ratio at 532 nm (LR₅₃₂, also called extinction-to-backscatter ratio) and the particle linear depolarization ratio at 532 nm (PDR₅₃₂) are 40 ± 5 sr and 0.20–0.25, respectively. Xie et al. [24] reported the LR₅₃₂ and volume linear depolarization ratio at 532 nm (VDR₅₃₂) of typical Asian dust and anthropogenic aerosols in Beijing in 2008. The LR₅₃₂ of Asian dust is 36.2 ± 4.7 sr, and the VDR₅₃₂ is 0.20 ± 0.05. The LR₅₃₂ and VDR₅₃₂ of anthropogenic aerosols are 38.5 ± 5 sr and 0.07 ± 0.01 for heavy pollution, and 73.9 ± 6 sr and 0.06 ± 0.05 for light pollution. Hänel et al. [25] performed Raman lidar observations in Beijing from April 2009 to March 2010 and found that the LR₅₃₂ of anthropogenic fine-mode aerosols showed a narrow distribution of 60 sr, while the LR₅₃₂ of a complex mixture of natural dust, burning biomass smoke and urban/industrial pollution showed a wide distribution of 40 to 90 sr. Previous studies presented typical nighttime aerosol characteristics in the BTH areas, but did not show daytime aerosol characteristics and detailed classification results.

To classify the aerosol types and identify the contribution of different aerosol types to air pollution in the BTH region, dual-wavelength Mie–Raman lidar (MRL) was deployed at the Central Weather Bureau Farm (CWBF) from January 2018 to January 2019. The CWBF (39.15°N, 115.73°E) is located approximately 120 km southwest of Beijing, and is a flat rural environment of North China (Figure 1). We analyzed in detail the MRL observation data of 2147 h of a year, and the data coverage during the whole observation period is shown in Figure 2. The monthly observation data in Figure 2 excludes the data of rain, snow, cloudy, and clean periods. For the convenience of the subsequent discussion, we divide the observed data of a year into four seasons, spring (March, April, and May), summer (June, July, and August), autumn (September, October, and November), and winter (December, January, and February). In June 2018, the observation was stopped due to instrument failure. Therefore, the seasonal average profile of summer in Section 3.5 only represents July and August, and not for the entire summer.

Based on these observations, we analyze the key property of typical aerosol types in Section 3.1, and classify the anthropogenic and natural aerosols in the BTH region in Section 3.2. The comparison of the classification results with the cloud–aerosol lidar and infrared pathfinder satellite observations (CALIPSO) satellite level 2 products [26,27] is presented in Section 3.3. After that, the mean profiles of different aerosol type optical parameters in the BTH region are discussed in Section 3.4. Finally, we present the contribution of different aerosol types to air pollution in different seasons in Section 3.5.

2. Methods

2.1. Ground-Based Mie–Raman Lidar

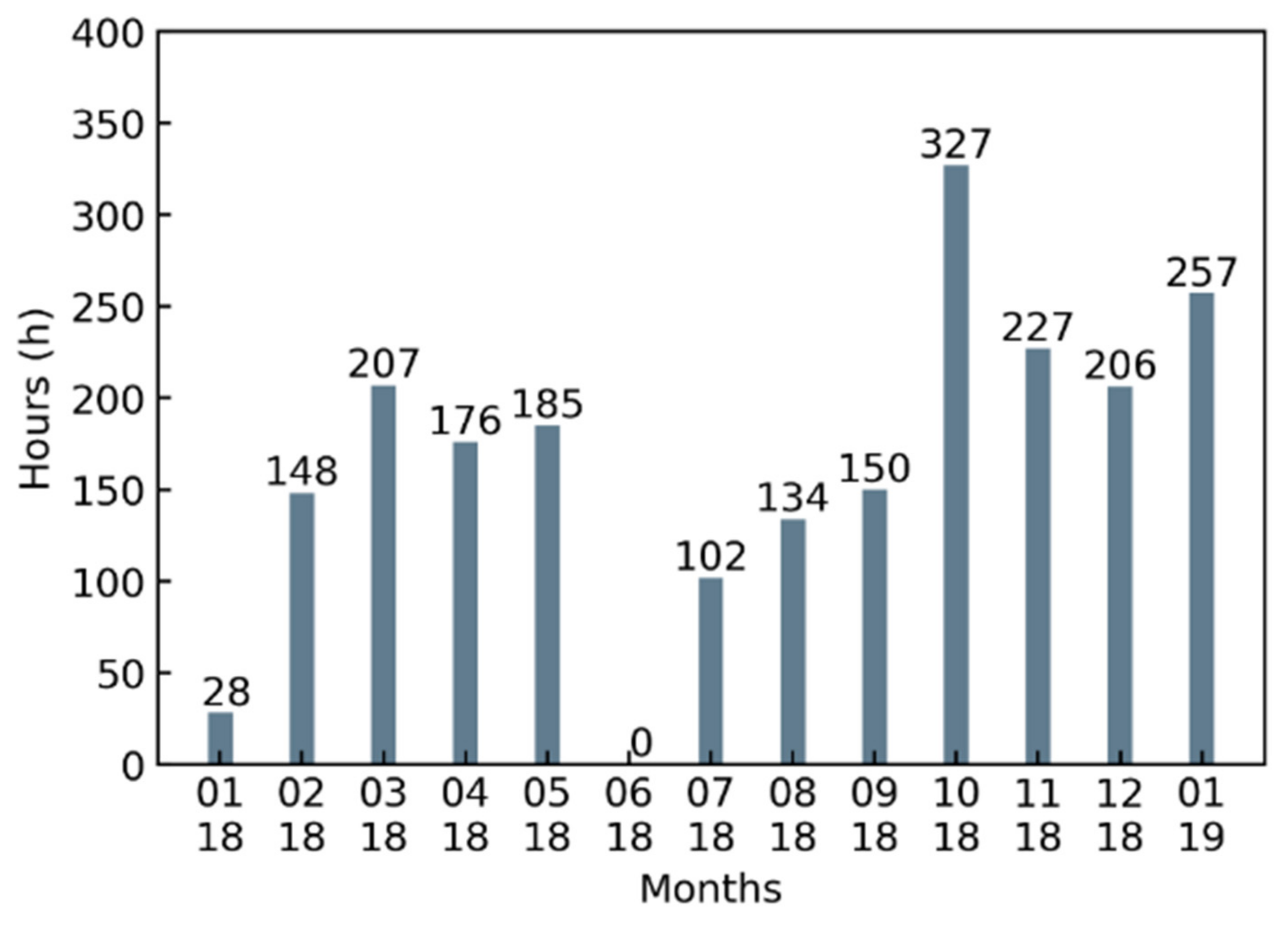

Ground-based MRL was carried out in the CWBF to observe the air pollution from 26 January 2018 to 16 January 2019. The MRL system receives a 532 nm perpendicular polarization channel, 532 nm parallel polarization channel, 355 nm Mie scattering channel, 387 nm nitrogen Raman scattering channel, and 408 nm water vapor Raman scattering channel. Signals can be detected with a spatial resolution of 7.5 m in analog and photon counting modes. Each sampled signal profile collection time is about 7 min, and data is collected every 15 min. More detailed information on the MRL system can be found in our previous studies [29,30].

MRL can independently determine the extinction and backscattering coefficients [11,31,32] by measuring the elastic backscattering signal at 355 nm and the nitrogen inelastic backscattering signal at 387 nm to determine the lidar ratio at 355 nm (LR₃₅₅). Since the signal-to-noise ratio of the Raman channel is quite low, the signal must be averaged over a period of time. Here, we used the three-hour average MRL signal profile to calculate the LR₃₅₅ at night (18:00–06:00 local time), and the twelve-hour average MRL signal profile to calculate the daytime LR₃₅₅. In addition, a four-point spatial accumulation and then a ten-point spatial smoothing was used on the average MRL signal profile. The spatial resolution of the average MRL signal profile is reduced from 7.5 m to 30 m. Also, the overlap function [33] was used to determine the LR₃₅₅ in the lower lidar layer (0.5–0.8 km).

The elastic backscatter signal was also used to retrieve the aerosol extinction coefficient at 355 nm (EXT₃₅₅) and the aerosol extinction coefficient at 532 nm (EXT₅₃₂) [34,35]. Fernald method requires a crucial assumption, the range-dependent LR. Here, the LR₃₅₅ was set equal to the LR₅₃₂ [36] to retrieve the EXT₅₃₂. The closest observed LR₃₅₅ was used to constrain the retrieved EXT₅₃₂ and EXT₃₅₅. VDR₅₃₂ is retrieved from the ratio of the calibrated perpendicular polarized backscatter signal to the parallel polarized backscatter signal [37,38], and then PDR₅₃₂ is derived from VDR₅₃₂ and backscatter coefficient according to Freudenthaler et al. [37]. Also, a four-point spatial accumulation and then a ten-point spatial smoothing was used on the sampled signal profile to reduce the relative error in computing the EXT₃₅₅, EXT₅₃₂, and PDR₅₃₂. More details of data retrieval and data validation can be found in our previous studies [30]. In addition, we only used the signal of the analog channel to retrieve the aerosol optical parameters of the lower atmosphere, including EXT₃₅₅, EXT₅₃₂, PDR₅₃₂, and LR₃₅₅. The relative errors of the retrieved aerosol optical parameters were calculated according to the law of error propagation, and mainly depends on the signal-to-noise (SNR) ratio [39] of the average MRL signal profile. Data whose SNR of the input MRL signal is lower than 1 will be discarded.

Overall, MRL can provide five aerosol optical parameters, including the EXT₃₅₅, EXT₅₃₂, PDR₅₃₂, LR₃₅₅, and extinction color ratio (ECR_355/532) to distinguish anthropogenic and natural aerosols. The EXT₃₅₅ and EXT₅₃₂ indicate the aerosol concentrations. The LR₃₅₅ depends on the aerosol types and is mainly related to absorption (>70 sr) and scattering (<40 sr) of particles [40]. The PDR₅₃₂ is a key parameter indicating the aerosol types, which helps to distinguish spherical and non-spherical particles [37,38]. The ECR_355/532 is defined as the ratio of the EXT₃₅₅ and EXT₅₃₂, it is inversely related to aerosol size, and identifies the fine-mode aerosols associated with biomass burning smoke and urban/industrial pollution [18].

2.2. CALIPSO Level 2 Aerosol Products

CALIPSO was launched on 28 April 2006, and it is the first active remote sensing satellite to observe clouds and aerosols. It carries a dual-wavelength polarized lidar system [41], which can provide measurements of backscattered signals at two wavelengths (1064 nm and 532 nm) and PDR₅₃₂. Combined with altitude, location, and surface type, CALIPSO can retrieve the vertical distribution of global aerosols and identify aerosol types. Liu et al. [42], Omar et al. [27] and Young and Vaughan [43] describe in detail the CALIPSO aerosol cloud recognition and aerosol classification algorithm. CALIPSO does not calculate the aerosol LR by independently retrieving the aerosol extinction and backscatter coefficient as the Raman lidar and HSRL technology do. The calculation of the aerosol extinction and backscattering coefficient profiles of CALIPSO requires the assumption of a reasonable LR. The CALIPSO version 4.20 (V4) level 2 aerosol data products [26] divide the aerosol layer into seven aerosol types (clean marine, dust, polluted dust, clean continental, polluted continental/smoke, elevated smoke, and dusty marine), each of which assumes an LR with a value between 20 sr and 70 sr. The LR of the seven aerosol types were derived through field measurements and aerosol robotic network inversion [44].

The CALIPSO V4 level 2 aerosol profile products (“CAL_LID_L2_05kmAPro–Standard–V4–20.”) and aerosol classification results (“CAL_LID_L2_VFM–Standard–V4–20.”) from January 2018 to January 2019 were used in this study. Each parameter used includes uncertainty estimates and some data quality indicators, such as cloud aerosol discrimination score (CAD_Score) and extinction quality control flag (Ext_QC). We used data quality control procedures similar to Winker et al. [45] to filter the profiles of EXT₅₃₂ and PDR₅₃₂, as follows: (1) CAD_Score is between −100 and −20; (2) the aerosol layers with Ext_QC equal 0 or 1; (3) samples with an extinction uncertainty of 99.9 km⁻¹ are discarded; (4) fill values of an extinction coefficient assigned to 0.0 km⁻¹ are rejected; and (5) samples below 0.45 km are ignored. In addition, we only accept the aerosol classification results with a feature classification flag of 1.

2.3. Comparison between Mie–Raman Lidar and CALIPSO

The CALIPSO V4 level 2 aerosol products, specifically EXT₅₃₂, PDR₅₃₂, and aerosol type classification results are used for comparison. It is hard to expect aerosols in the planetary boundary layer to be homogeneously distributed over long distances and long periods [46]. Thus, only CALIPSO overpasses that occurred at a distance of less than 90 km and a temporary difference of less than one hour were selected for comparison. From 26 January 2018 to 16 January 2019, 22 overpasses were found, of which 3 overpasses are missing data within 90 km from the observation site. Thus, 19 qualified for comparison. Details of the 19 cases are listed in

Table 1. Cloud–aerosol lidar and infrared pathfinder satellite observations (CALIPSO) overpasses used for comparison during our observation period.

Case	Date	Time (LTC)	Separation (km)	Heights (km)	R2
1	27 Jan	0231	44	0.54–2.22	0.43
2	9 Mar	0225	86	0.96–2.70	0.91
3	1 Apr	0232	53	0.54–3.84	0.90
4	1 Apr	1336	15	0.54–2.04	0.99
5	17 Apr	0232	52	0.54–3.90	0.94
6	17 Apr	1336	14	0.54–3.18	0.65
7	26 Apr	0225	86	0.54–3.45	0.21
8	6 Jul	0231	50	0.54–5.22	0.66
9	6 Jul	1336	10	0.54–2.34	0.74
10	15 Jul	0225	87	0.54–1.86	0.52
11	23 Aug	0231	50	0.54–1.92	0.22
12	23 Aug	1336	10	0.54–1.38	0.26
13	8 Sep	1335	7	0.78–2.70	0.09
14	3 Nov	0232	58	0.54–2.88	0.87
15	3 Nov	1335	39	0.54–3.12	0.90
16	29 Nov	1338	32	0.54–1.80	0.80
17	4 Dec	0229	21	0.54–2.28	0.67
18	13 Dec	1340	65	0.54–1.44	0.89
19	12 Jan	0234	74	0.54–2.10	0.44

R² represents the Pearson correlation of extinction coefficient at 532 nm (EXT₅₃₂) between Mie–Raman lidar (MRL) and CALIPSO.

.

MRL and CALIPSO measurements were made with different forms (time–height for MRL and latitude–height for CALIPSO). The CALIPSO V4 level 2 aerosol profile products, including EXT₅₃₂ and PDR₅₃₂, are reported on a nominal 5 km horizontal grid and a nominal 60 m vertical resolution between the surface and 20.2 km. Considering the difference in measurement forms and spatial and temporal resolution between CALIPSO and MRL, the PDR₅₃₂, EXT₅₃₂, and LR₃₅₅ of MRL were reevaluated. We averaged all of the MRL signal profiles within one hour of CALIPSO overpasses, an eight-point spatial accumulation and then a five-point spatial smoothing was applied on the averaged MRL signal profile to recalculate PDR₅₃₂ and EXT₅₃₂. The spatial resolution of the sampled signal is reduced from 7.5 m to 60 m, which is the same as that of CALIPSO. The retrieval of LR₃₅₅ still uses the three-hour average MRL signal profile at night and the twelve-hour average MRL signal profile during daytime, but an eight-point spatial accumulation was performed. Similarly, after excluding abnormal data, we averaged all the CALIPSO V4 level 2 aerosol profile products (PDR₅₃₂, EXT₅₃₂ and LR₃₅₅) within 90 km of the MRL observation site to reproduce a signal profile. Since PDR₅₃₂ of CALIPSO is relatively noisy when compared with PDR₅₃₂ of MRL (Figure S1), we only calculated the Pearson correlation coefficient of EXT₅₃₂ between MRL and CALIPSO (Table 1). In addition, we also evaluated the relative bias of the LR between MRL and CALIPSO. The relative bias is defined by the following equation:

$$\mathrm{Bias}\left(\mathrm{z}\right)=100\%\ast \frac{{\mathsf{\delta }}_{\mathrm{CALIPSO}}{\left(\mathrm{z}\right)-\mathsf{\delta }}_{\mathrm{MRL}}\left(\mathrm{z}\right)}{{\mathsf{\delta }}_{\mathrm{CALIPSO}}\left(\mathrm{z}\right)},$$

(1)

where z is the height, and δ_MRL and δ_CALIPSO are the LR measured by MRL and assumed by CALIPSO, respectively.

3. Results

3.1. Key Property of Typical Aerosol Types in BTH Region

3.1.1. Dust Aerosol

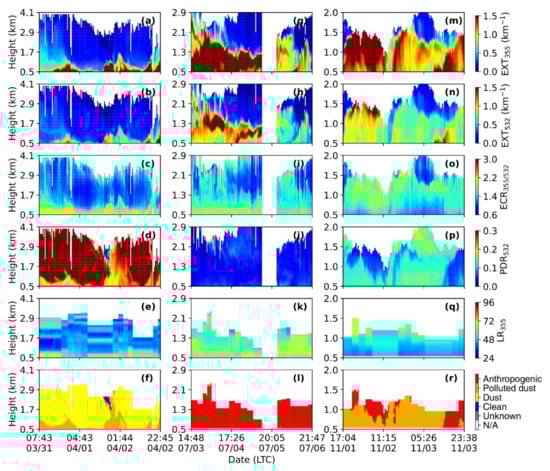

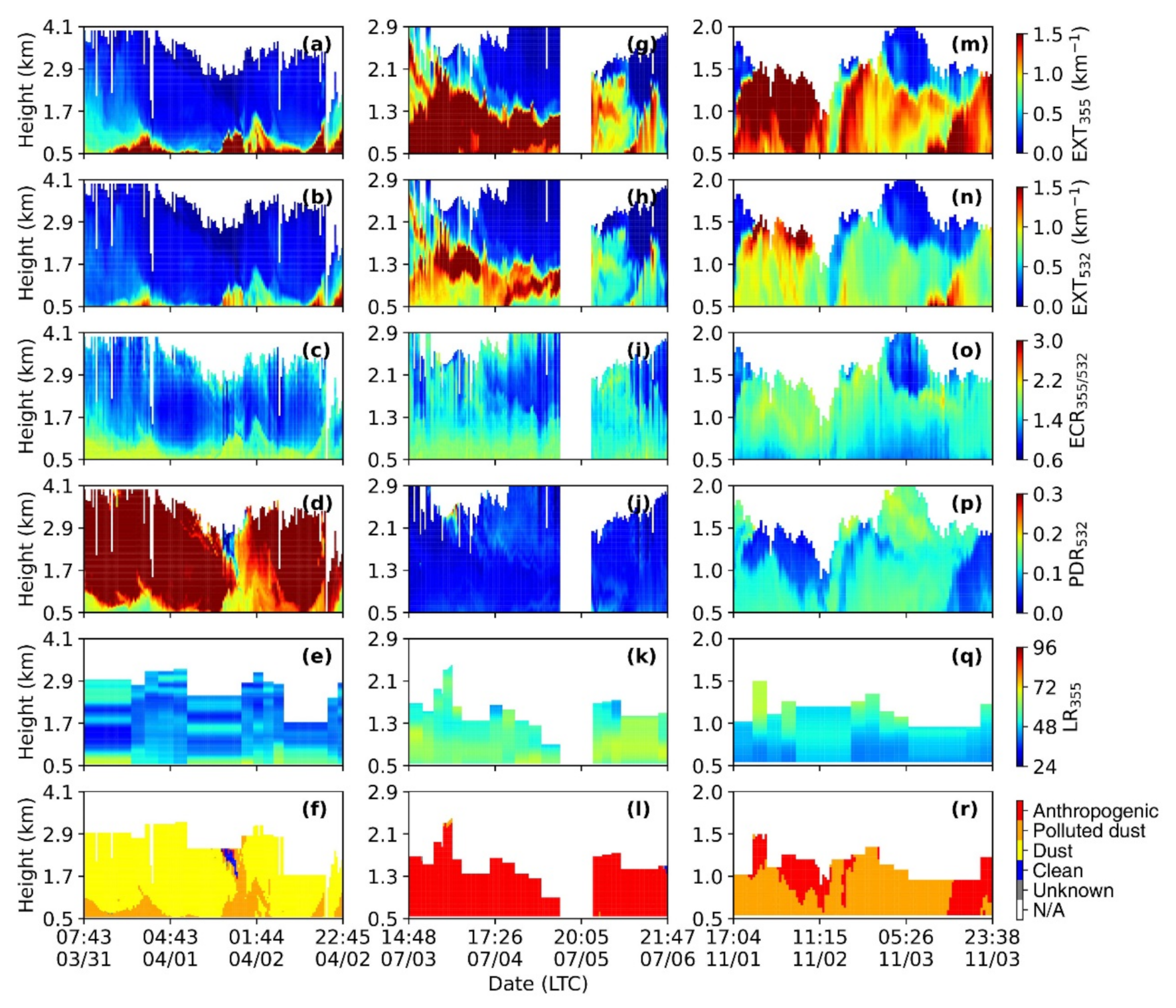

A typical dust event measured by MRL is shown via time–height indicators of EXT₃₅₅, EXT₅₃₂, ECR_355/532, PDR₅₃₂, LR₃₅₅, and classification results from 7:43 on 31 March to 22:45 on 2 April in Figure 3a–f. The high PDR₅₃₂, greater than 0.3, indicates that the dust layer on 31 March roughly extends from around 0.8 km to 4 km, and the top height of the dust layer may be higher than 4 km due to the missing data. The height of the dust layer gradually decreased during the night on 31 March, and reached 1.5 km on 1 April. Another intense dust layer occurred at approximately 0:00 on 2 April, and the depth of this dust layer rapidly decreased from the upper air to several hundred meters within a few hours. According to the air mass backward trajectories (Figure 1a, Figure S2), the air masses at 1.5 km are long-range transported from Northwest China (66%), which is one of the sources of natural dust [10]. However, the air masses at 0.5 km came from southerly polluted industrial areas and Northwest China, causing dust aerosol mixed with anthropogenic aerosols. Thus, the EXT₃₅₅, EXT₅₃₂, LR₃₅₅, and ECR_355/532 in the lower lidar layer are considerably higher than those in the upper lidar layer (1.0–1.8 km), and the PDR₅₃₂ below 0.8 km was lower than that in the upper lidar layer.

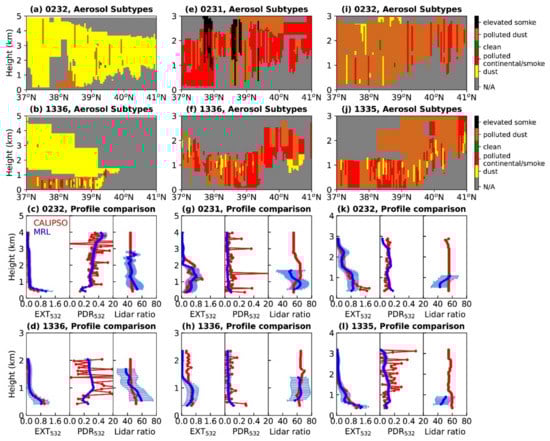

Figure 4a–d present the CALIPSO observations during nighttime (02:32) and daytime (13:36) on 1 April. The CALIPSO overpasses were 53 km and 15 km away from the MRL measuring site during the nighttime and daytime, respectively. Figure 4a,b show that almost all of the V4 aerosol subtype masks above 1 km are classified as dust (yellow). Moreover, the V4 aerosol subtype mask correctly separates the upper dust layer and lower mixture of dust and anthropogenic aerosols. The part of the aerosol below 1 km is classified as polluted dust (brown) or polluted continental (red), which is similar to the MRL observations. Figure 4c,d show the profile comparison with a distance of less than 90 km and a temporal difference of less than 1 h between CALIPSO and MRL. The comparison of the EXT₅₃₂ profile shows superior consistency (R² = 0.90 around 02:32 LT, R² = 0.99 around 13:36 LT). The PDR₅₃₂ of CALIPSO is relatively noisy when compared with the PDR₅₃₂ of MRL, and sometimes shows an unrealistic value [47]. Nevertheless, the high PDR (>0.25) is evident in the CALIPSO PDR₅₃₂ profile. The LR of the dust aerosol has no obvious wavelength dependence [48]. Thus, the LR₃₅₅ retrieved by MRL is consistent with the LR₅₃₂ assumed by CALIPSO, the relative bias is less than 15% during the day and night.

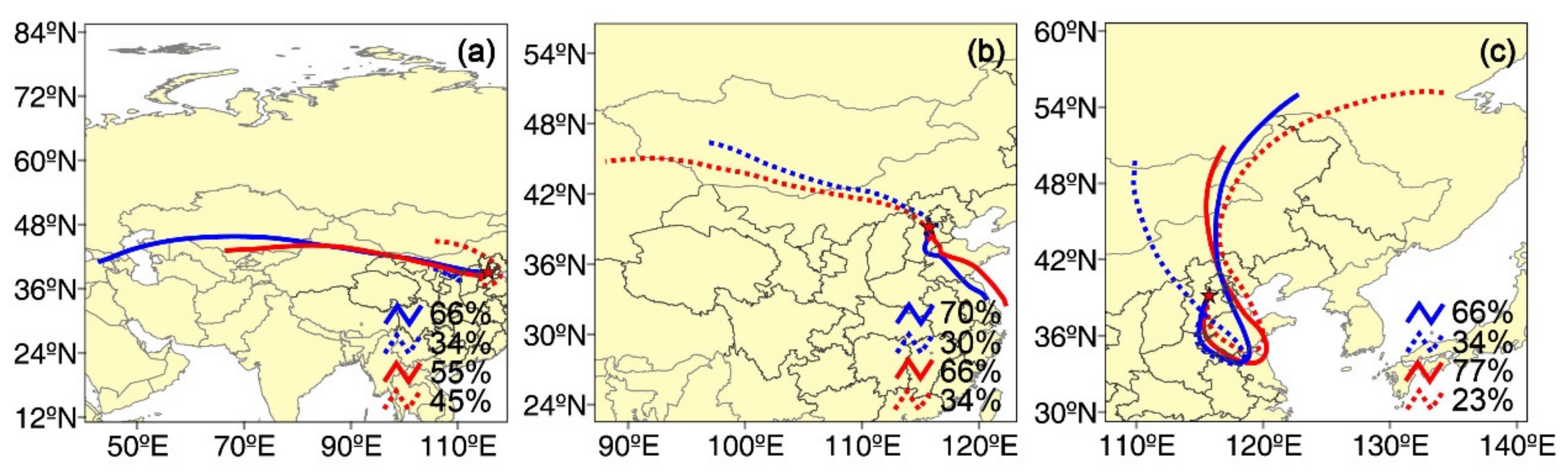

Another two dust events were also observed in spring, as shown in Figure S3. In addition, dust events were also found in autumn and winter (Figure S4). All of the dust events observed in 2018 are related to long-distance transport in Northwest China. The dust event in the BTH region exhibits a period of 2–5 days, and the height of the dust layer was roughly distributed from 0.5 km to 4 km. Based on our one-year observation, the PDR₅₃₂ of the Asian dust ranged from 0.22 to 0.49, and the PDR₅₃₂ is the biggest difference in the aerosol optical parameters between dust and other aerosols. The ECR_355/532 of Asian dust is between 0.7 and 2.2, and the LR₃₅₅ of Asian dust is 30–60 sr, indicating coarse and less-absorbing particles.

3.1.2. Anthropogenic Aerosols

It is hard to distinguish between biomass burning smoke and urban pollution due to the practically identical LR₃₅₅, PDR₅₃₂ and ECR_355/532 measured by MRL [27]. Müller et al. [40] have reported that the wavelength dependence of the LR (355 and 532 nm) can be used to distinguish urban aerosols from smoke aerosols. Foy et al. [17] found that the depolarization color ratio can be used to characterize the biomass burning smoke and urban pollution, which is defined as the ratio of depolarization at 532 nm and 1,064 nm. Thus, we define those non-depolarizing aerosols (biomass burning smoke or urban pollution) as anthropogenic aerosols. The anthropogenic pollution case in summer from 14:48 on 3 July to 21:47 on 6 July is presented in Figure 3g–l. The polluted air originated from the highly populated North China plain during our observation period (Figure 1b). A routine maintenance of the MRL was performed in the afternoon of 5 July, and the data collection was stopped, as shown in the white area in Figure 3g–l. Figure 3h shows that the high EXT₅₃₂ value extends from 0.5 km to about 1.7 km. The main part of the aerosol layer is concentrated in the upper lidar layer, which may be related to the airborne transport of southern anthropogenic aerosols (Figure 1b). The low PDR₅₃₂ (less than 0.1) and high LR₃₅₅ (>50 sr) are considerably different from the dust aerosol, indicating spherical fine-mode particles. A small part of the particles with higher PDR₅₃₂ (>0.15) may be affected by the dust aerosol originating from Mongolia.

Two CALIPSO overpasses around 02:31 LT and 13:36 LT on 6 July at a distance of 50 km and 10 km are presented in Figure 4e–h. Figure 4e,f show about half of the aerosol subtype mask is classified as polluted continental/smoke (red), while part of the aerosol subtype mask is assigned to polluted dust (brown), dust (yellow), and elevated smoke (black). The CALIPSO aerosol-type retrieval algorithm in V4 defines the non-depolarizing aerosols as polluted continental/smoke or elevated smoke (black). The elevated smoke inland has similar optical properties to the polluted continental/smoke, and it is recognized primarily according to altitude. ‘Elevated’ is defined as the top height of the aerosol layer higher than 2.5 km above ground level [26]. Figure 4g,h give a quantitative view of the CALIPSO observations and compare them with the MRL results. The differences found in the EXT₅₃₂ profile comparison (R² = 0.66 around 02:31 LT, R² = 0.74 around 13:36 LT) were probably due to the inhomogeneous aerosol conditions during the comparison period. The PDR₅₃₂ measured by CALIPSO and MRL is usually less than 0.10. There are several noisy values in the CALIPSO PDR₅₃₂ profile due to an attenuation-related depolarization bias, which may lead to the overuse of the polluted dust subtype [15]. The relative bias of LR between CALIPSO and MRL was up to 23% around 02:31 LT and within 9% around 13:36 LT.

Anthropogenic aerosols can be observed throughout the year, with the most frequent in winter (Figures S5–S9). The occurrence of heavy anthropogenic pollution is closely related to the transport of air pollution in the southeast or southwest. The intense haze layer is primarily concentrated in the lower lidar layer in winter, indicating the contribution of local emissions. While the anthropogenic pollution in the upper lidar layer in summer is more serious, suggesting that the regional transmission plays an important role [49]. The low PDR₅₃₂ is the strongest signal for anthropogenic aerosols with values between 0.02 and 0.14 compared with 0.22 to 0.49 for the dust aerosols. The high ECR_355/532 (0.9–2.7) stands out clearly for the fine particles of anthropogenic aerosols. The typical value of the LR₃₅₅ of anthropogenic aerosols is 55 ± 10 sr, and it is widely distributed, ranging from 31 sr to 97 sr. The largest LR₃₅₅ up to 97 sr was found in winter, which may be related to absorbing aerosols, such as black carbon.

3.1.3. Polluted Dust

Atmospheric aerosols are not usually of a single pure type, but appear as a mixture of various types, which will change the optical and radiative properties of the aerosols. Polluted dust is created to account for the episodes of dust mixed with anthropogenic aerosols, which are frequently encountered in the BTH region. A typical polluted dust layer below 2 km is shown in Figure 3m–r. The PDR₅₃₂ is around 0.15, in contrast with values greater than 0.22 for dust aerosol and less than 0.1 for anthropogenic aerosols, the PDR₅₃₂ is the biggest difference between polluted dust and other aerosol types. The backward trajectory shows that the air masses are transported from the Mongolia region, which contains the pure dust aerosols, and then these air masses pass through the southern urban/industrial areas, mixing the pure dust with anthropogenic aerosols (Figure 1c). Dust mixed with non-depolarizing aerosol during transportation makes the mixed aerosols nearly spherical.

CALIPSO observations during the nighttime (02:32 LT) and daytime (13:35 LT) on 3 November clearly show that the polluted dust layer extends from the ground to more than 2 km (Figure 4i,j). Two CALIPSO overpasses were 58 km and 39 km away from the MRL measuring site during the nighttime and daytime, respectively. The comparison of EXT₅₃₂ between MRL and CALIPSO is in good agreement (R² = 0.87 around 02:32 LT, R² = 0.90 around 13:35 LT). The PDR₅₃₂ below 2 km measured by CALIPSO was from 0.07 to 0.26, similar to the 0.09–0.18 observed by MRL. The LR₃₅₅ retrieved from MRL is 42–57 sr at night and 44–51 sr during the day. The LR₅₃₂ assumed by CALIPSO was 55 sr at night and 60 sr during the day. The relative bias of the LR between CALIPSO and MRL is within 25%.

Polluted dust was most common in spring and autumn, which is deeply affected by the Asian dust activities (Figures S10–S13). The long-distance transportation of northwestern dust air masses mixed with southerly urban/industrial pollution dominates air pollution in spring and autumn in the BTH region. The PDR₅₃₂ of polluted dust is distributed in the range from 0.06 to 0.27. The ECR_355/532 is from 0.8 to 2.6, and the LR₃₅₅ span the 31–85 sr range. The widely distributed PDR₅₃₂, LR₃₅₅, and ECR_355/532 are closely related to the mixing ratio of dust and urban/industrial pollution. Compared with pure dust and urban/industrial pollution, significant shifts in PDR₅₃₂, LR₃₅₅, and ECR_355/532 indicate the variation in aerosol optical and radiative properties.

3.2. Aerosol Classification Scheme

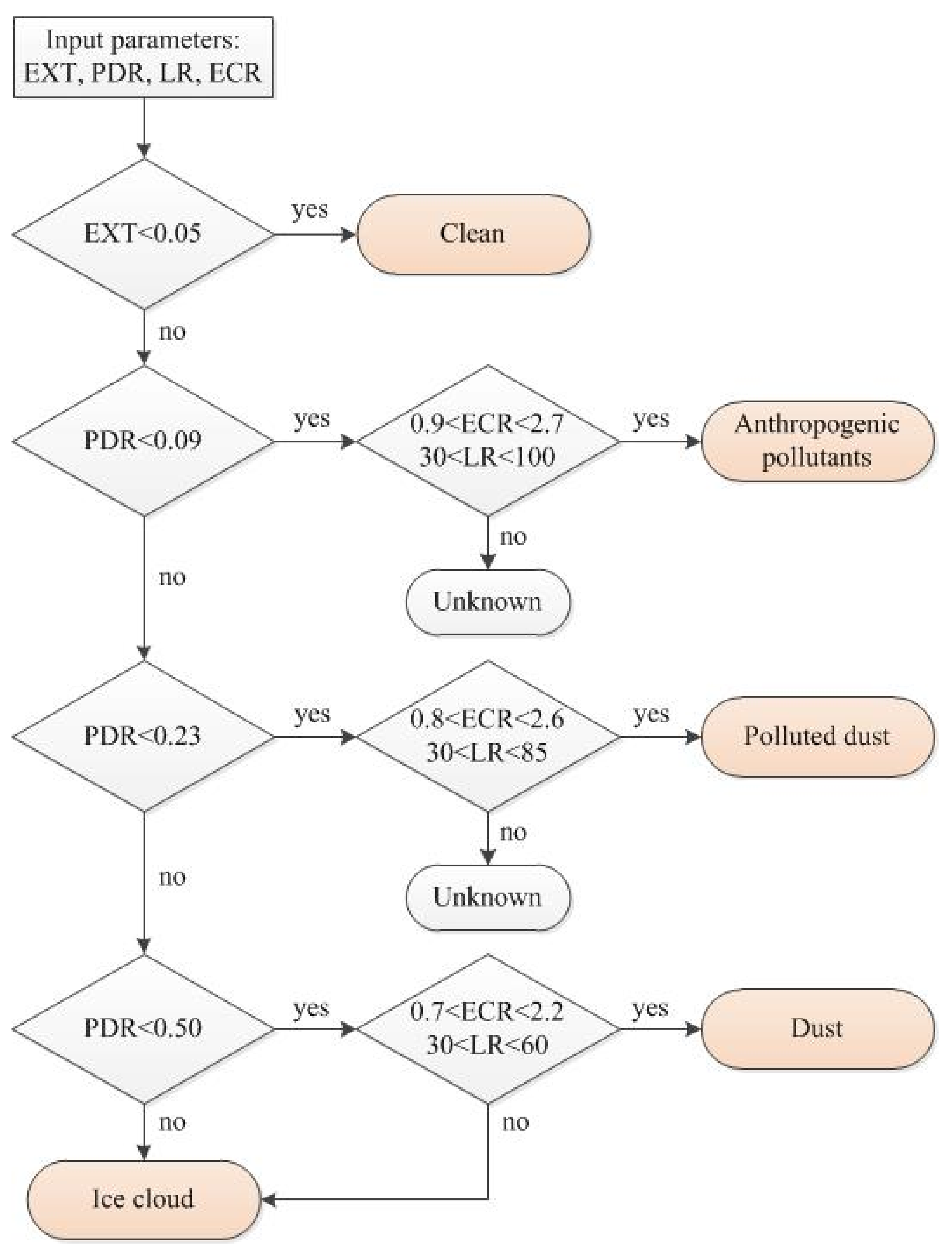

As stated above, anthropogenic aerosols (urban/industrial pollution or biomass burning smoke), dust, and polluted dust (mixture of dust and anthropogenic aerosols) are the key aerosol types frequently encountered in the BTH region. Here, we use the PDR₅₃₂, LR₃₅₅, and ECR_355/532 in aerosol classification according to the difference in optical properties between the three key aerosol types. The EXT₃₅₅ and EXT₅₃₂ as well as the aerosol optical depth are not applied, as these parameters vary primarly with aerosol concentration rather than aerosol type.

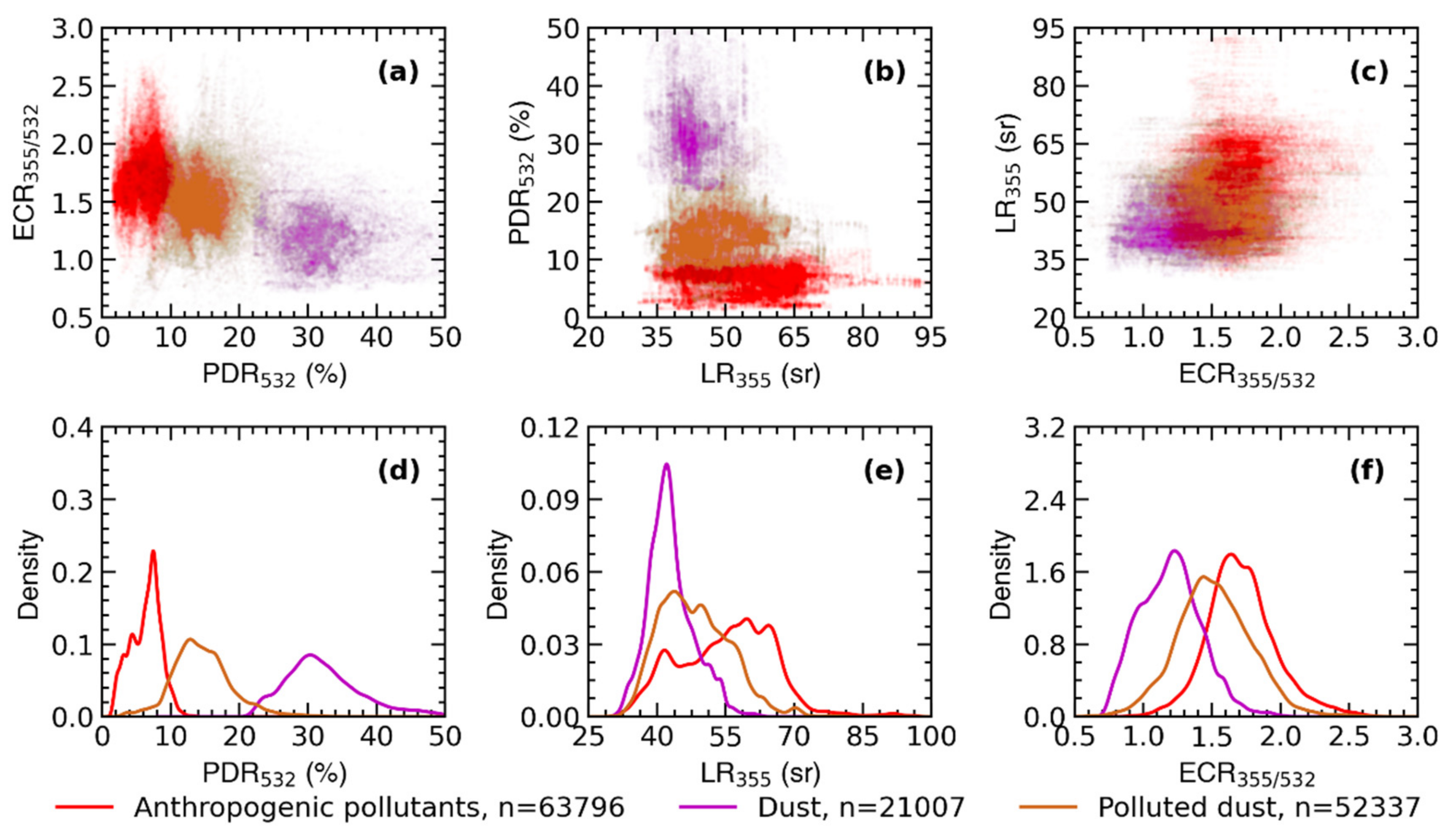

Figure 5a–c show the characteristics of key aerosol types in the BTH region based on a one year continuous observation of MRL. Two dimensional projections of PDR₅₃₂ versus ECR_355/532, LR₃₅₅ versus PDR₅₃₂, and ECR_355/532 versus LR₃₅₅ are color-coded by inferred aerosol types, and the saturation of each hue represents the relative population density of each aerosol type. Obviously, PDR₅₃₂ presents the greatest variation between the different aerosol types, and it is the most relevant attribute for aerosol classification. In contrast, although LR₃₅₅ and ECR_355/532 are different in the three aerosol types, there is a clear overlap in the numerical distribution, which can be used as an auxiliary parameter in aerosol classification. Clusters of data pairs between the three aerosol types usually show a wide distribution, and the frequency distribution of PDR₅₃₂, LR₃₅₅, and ECR_355/532 along with the the number of points of each aerosol type are shown in Figure 5d–f.

The main peak of the PDR₅₃₂ frequency distribution for anthropogenic aerosols is at 0.076. While there is still a faint small peak at 0.041, which may be caused by a mixture of different kinds of non-depolarizing air pollutants, such as biomass burning smoke, fossil fuel combustion, and industrial pollution. An extremely wide distribution of PDR₅₃₂ of polluted dust was found, and the central value is from 0.09 to 0.20. The PDR₅₃₂ frequency distribution of Asian dust shows a main peak at approximately 0.31. The wide distribution of the PDR₅₃₂ of Asian dust may be related to the considerably intricate shape of the dust particles, and the dust from both the Gobi Desert and Taklimakan Desert will affect the air quality in the BTH region [10]. Generally, coarse-mode particles have a lower LR, and fine-mode particle pollution will increase the LR [25]. Asian dust is dominated by coarse particles, the LR₃₅₅ frequency distribution showed a significant narrow peak at 43 sr. The LR₃₅₅ frequency distribution of polluted dust overlaps with that of the Asian dust, but the value of the LR₃₅₅ of polluted dust is higher due to the mixing of fine-mode particles. The wide LR₃₅₅ distribution of anthropogenic aerosols mainly ranges from 35 sr (scattering aerosol) to 70 sr (absorbing aerosol), indicating that the anthropogenic aerosols are a mixture of multiple non-depolarizing air pollutants, and it is consistent with the PDR₅₃₂ observation. The frequency distribution of the ECR_355/532 of the three aerosol types show a single peak, the peak value of Asian dust, polluted dust, and anthropogenic aerosols are 1.25, 1.43, and 1.66, respectively. Overall, the characteristics in aerosol optical parameters between the three key aerosol types can be identified as follows: (1) high PDR₅₃₂, low LR₃₅₅, and low ECR_355/532 corresponding to coarse non-spherical scattering particles for Asian dust; (2) low PDR₅₃₂, high LR₃₅₅, and high ECR_355/532 corresponding to fine spherical medium-absorbing particles for anthropogenic aerosols; and (3) medium PDR₅₃₂, medium LR₃₅₅, and medium ECR_355/532 for polluted dust. The mean values of PDR₅₃₂, LR₃₅₅, and ECR_355/532 for the three aerosol types are listed in

Table 2. Aerosol optical parameters for key aerosol types and different seasons.

	PDR532	LR355	ECR355/532
Anthropogenic	0.063 ± 0.022	55.2 ± 10.4	1.72 ± 0.25
Polluted dust	0.146 ± 0.042	48.2 ± 7.6	1.52 ± 0.27
Dust	0.322 ± 0.055	43.0 ± 5.2	1.20 ± 0.22
Spring	0.184 ± 0.091	48.2 ± 7.1	1.55 ± 0.33
Summer	0.054 ± 0.023	57.2 ± 6.6	1.57 ± 0.22
Autumn	0.151 ± 0.074	46.3 ± 6.7	1.42 ± 0.32
Winter	0.090 ± 0.061	51.2 ± 9.5	1.67 ± 0.25

± for one standard deviation.

.

In addition, we also list the PDR₅₃₂ and LR of ice clouds (

Table 3. Lidar ratio and depolarization ratio for ice clouds, anthropogenic aerosols, and dust.

LR (sr)	PDR532	Location	Reference
Ice clouds
	0.3–0.6	Palaiseau, France	Noel et al. 2002 [52]
29 ± 12(LR 532)	0.2–0.6	Taiwan	Chen et al. 2002 [53]
17 ± 14(LR 532)	0.22 ± 0.07	Tsukuba, Japan	Sakai et al. 2003 [51]
10 ± 30(LR 355)	0.13–0.35	Arctic	Reichardt et al. 2002 [54]
~20(LR 355)		Germany	Ansmann et al. 1992b [11]
25 ± 1(LR 355)		Beijing, China	Zongming Tao et al. 2012 [50]
~20(LR 532)		North America	Burton et al. 2012 [14]
27 ± 12(LR 355)		Gwal Pahari	Voudouri et al. 2020 [55]
Anthropogenic aerosols
56 ± 6(LR 532)	0.06 ± 0.01	Central Europe	Groß et al., 2013 [18]
50–70(LR 532)	<0.1	North America	Burton et al., 2012 [14]
53–57(LR 355)	0.05	Warsaw	Janicka et al., 2019 [56]
52 ± 7(LR 355)	0.09 ± 0.04	South Africa	Giannakaki et al., 2016 [57]
Dust
47 ± 18(LR 532)	0.20 ± 0.07	Tsukuba, Japan	Sakai et al., 2003 [51]
46 ± 5(LR 532)	0.20–0.33	Tsukuba, Japan	Sakai et al., 2002 [58]
46.5 ± 10.5(LR 532)	~0.30	Tokyo, Japan	Murayama et al., 2003 [59]
58 ± 7(LR 355)	0.30 ± 0.01	Praia	Groß et al., 2017 [20]
53±5(LR 355)	0.27 ± 0.01	Barbados	Groß et al., 2015 [19]

± for one standard deviation.

), which are not found in our observations but can be seen in the BTH region [50]. Similar to dust aerosols, the PDR₅₃₂ of ice clouds is widely distributed, and the maximum value reaches 0.6, which is significantly higher than that of dust aerosols. It is difficult to distinguish between dust and ice clouds through a high PDR₅₃₂. Particularly, the LR of ice clouds is very low, usually less than 30 sr. Thus, an LR threshold of 30 sr can be used to distinguish dust and ice clouds [51]. According to our one-year continuous measurements and former findings (Table 3), a flowchart of aerosol type classification is presented in Figure 6. Applying the classification scheme shown in Figure 6 to the cases in Section 3.1, the results are shown in Figure 3f,l,r. The aerosol subtype mask clearly shows that the classification scheme can effectively identify the main aerosol types and the stratification of aerosols in the BTH region.

3.3. Classification Results Comparison between MRL and CALIPSO

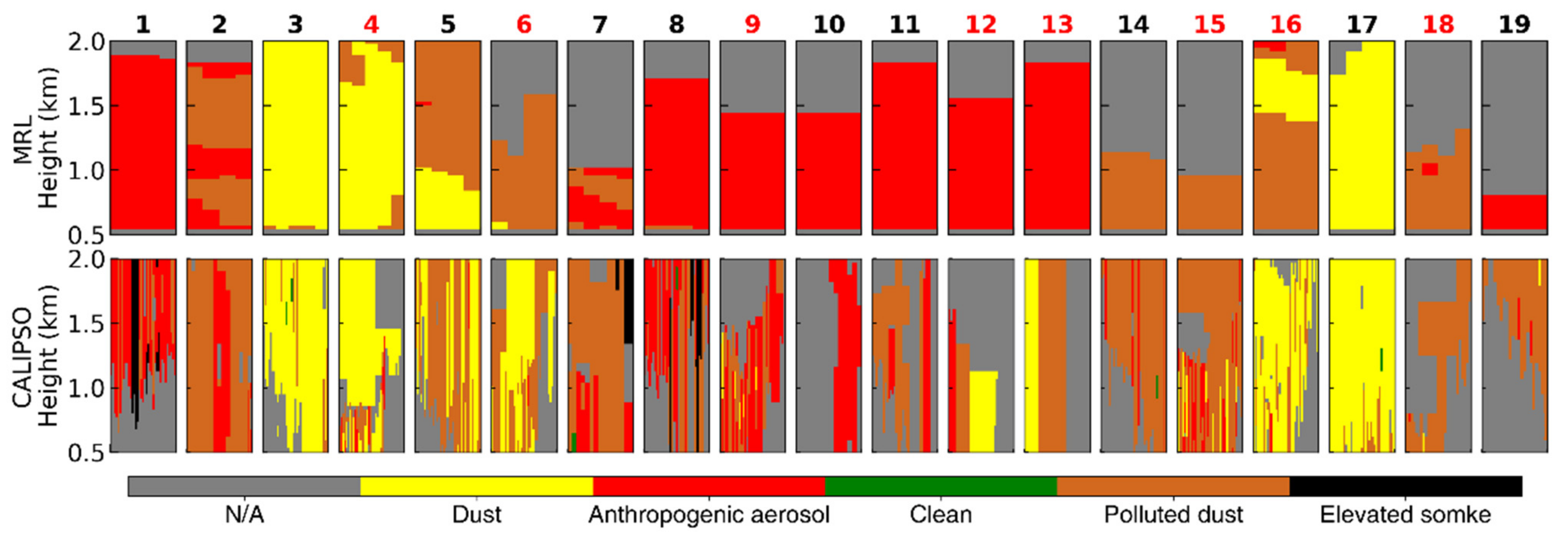

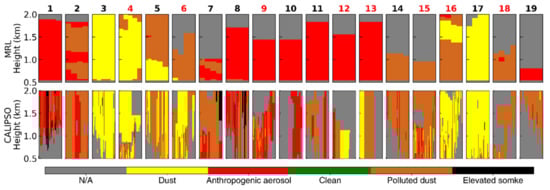

To verify the classification scheme, we compared MRL classification results with the CALIPSO measurements, 19 cases of CALIPSO overpasses are presented in Figure 7. Due to the different measurement forms being made between MRL and CALIPSO, the MRL aerosol subtype mask only shows the results within one hour of the CALIPSO overpasses, as shown in the first line of Figure 7. The CALIPSO classification results that occurred at a distance of less than 90 km in each case were presented in the second line of Figure 7. The case number is displayed at the top of each subgraph, the black and red numbers represent the nighttime and daytime results, respectively. Detailed information for each case can be found in Table 1. In general, Figure 7 confirms that the aerosol classification results derived from MRL are similar to the CALIPSO aerosol classification results.

The comparison of dust aerosols between MRL and CALIPSO shows the best consistency (i.e., case 3, case 4, and case 17). While some differences can still be found in the comparison of other aerosol types, especially anthropogenic aerosols. The classification results of MRL in case 1, and cases 8–13 show anthropogenic aerosols, while the classification results of CALIPSO show anthropogenic aerosols, elevated smoke, polluted dust, and even dust aerosols. As stated in Section 3.1.2, our classification results classify both the elevated smoke and polluted continental/smoke as anthropogenic aerosols. The appearance of polluted dust and dust may be related to the PDR₅₃₂ bias of CALIPSO, especially during the daytime, i.e., case 12 and case 13 (Figure S1). Another reason is the difference in the PDR₅₃₂ threshold. CALIPSO classifies aerosols with a PDR₅₃₂ of less than 0.075 as anthropogenic aerosols, which is lower than the threshold of 0.09 used in our classification scheme. The quite noisy PDR₅₃₂ may easily exceed the PDR₅₃₂ threshold of polluted dust (0.075) and dust (0.20), which may cause the misclassification of aerosols [15,27]. In addition, the MRL classification results sometimes show the stratification of aerosols in single-column measurements, while the different aerosol types determined by CALIPSO often appear between columns (i.e., case 2 and case 5). Burton et al. [15] also reported the similar problem that the CALIPSO aerosol subtype mask sometimes fails to recognize the internal boundaries between the different aerosol types in the single column. The layer boundary of the adjacent aerosol type is defined by the change in the aerosol backscattering intensity, regardless of the change of the aerosol optical parameters, such as PDR₅₃₂ [60]. Although different aerosol types may indeed have different backscattering intensities, it is obviously not as reliable as the measurement of aerosol optical parameters for the aerosol layer boundary distinction.

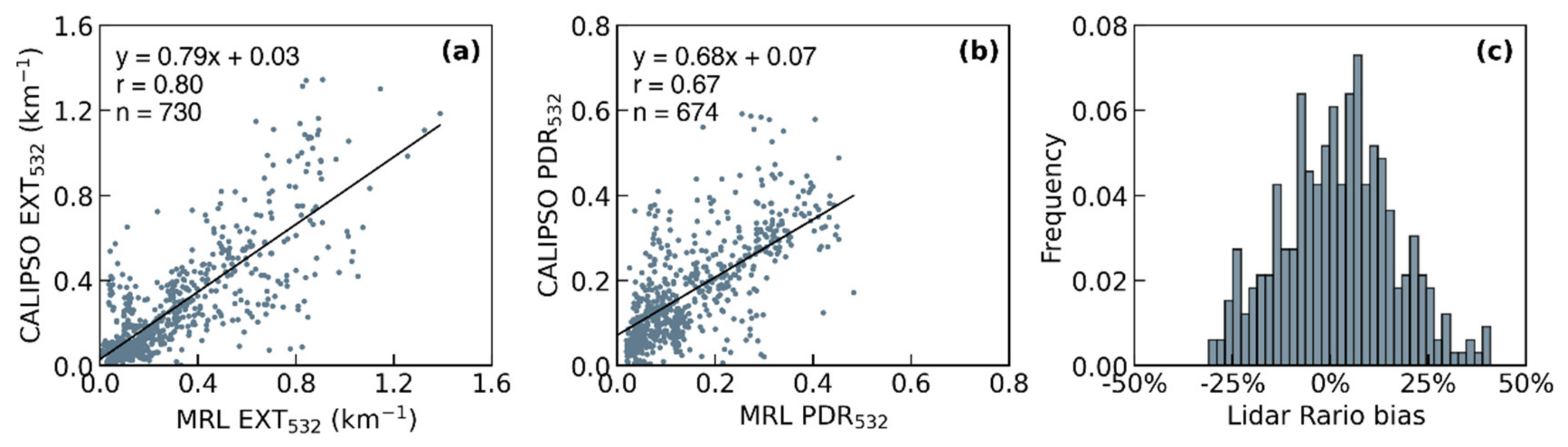

In addition, 19 cases of CALIPSO-measured EXT₅₃₂, PDR₅₃₂, and LR₃₅₅ were compared with MRL observations (Figure 8). Occasionally, the unrealistic PDR₅₃₂ values appear in CALIPSO measurements, which may cause great errors in our comparison results. Thus, we discard PDR₅₃₂ values greater than 0.6. In fact, the range of PDR₅₃₂ measured by MRL is between 0.02 and 0.49. A scatter plot of the MRL and CALIPSO measurements is shown in Figure 8a,b. The MRL EXT₅₃₂ agrees well with the CALIPSO results, with a Pearson correlation coefficient (r) of 0.80. The regression analysis indicated that the EXT₅₃₂ measured by CALIPSO is slightly smaller than that measured by MRL. The correlation coefficient of PDR₅₃₂ between MRL and CALIPSO is 0.67. The PDR₅₃₂ bias of CALIPSO may explain some comparison differences (Figure S1). In the comparison of a single EXT₅₃₂ profile, sometimes there is no significant correlation (Table 1). Under the lower aerosol concentrations, a small disturbance will cause the low correlation, but the actual EXT₅₃₂ deviation measured by MRL and CALIPSO is very small. For example, case 11, 12, and 13 in Figure S1, there is little difference in EXT₅₃₂ between MRL and CALIPSO, but the correlation is 0.22, 0.26, and 0.09, respectively. The second reason may be the inhomogeneous aerosol conditions within the boundary layer [46], while the CALIPSO overpass is far away (>50 km) from the observation site, a large deviation may be found in the EXT₅₃₂ comparison between MRL and CALIPSO. Figure 8c provides an overview of the relative bias between LR₅₃₂ assumed by CALIPSO and LR₃₅₅ measured by MRL. The relative bias of LR is within 25% in more than 90% of the cases, and the relative bias of LR may be smaller due to the difference in the wavelength.

3.4. Mean Vertical Profiles for Three Aerosol Types

After the aforementioned analysis, the observed aerosol cases can be divided into the following three categories: anthropogenic aerosols (Figures S5–S9), polluted dust (Figures S10–S13) and dust (Figures S3 and S4). To further explore the aerosol optical parameters, we investigated the vertical profile variation in the three kinds of aerosol types. The mean profiles of EXT₃₅₅, PDR₅₃₂, ECR_355/532, and LR₃₅₅ for each aerosol type were presented in Figure 9. The average profiles are given up to 1.8 km due to the low signal-to-noise ratio of the lidar signal under heavily polluted conditions. However, we need to mention that Asian dust can usually be extended to higher altitudes.

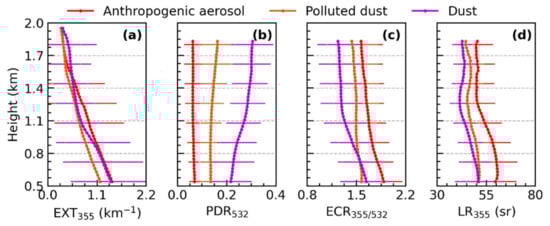

The average EXT₃₅₅ gradually decreases with the increase in height, and the differences in the mean EXT₃₅₅ profiles above 1.6 km between anthropogenic aerosols and polluted dust gradually become insignificant, lower than the EXT₃₅₅ of dust (Figure 9). The average EXT₃₅₅ of dust and anthropogenic aerosols in the lower lidar layer is quite close, which is higher than that of polluted dust. From 0.9 to 1.1 km, the average EXT₃₅₅ of Asian dust decreased significantly. The evolution of the mean profiles of the aerosol optical parameters are different from the evolution of the average EXT₃₅₅ profile. The variation in the mean PDR₅₃₂ profile of anthropogenic aerosols remains almost consistent between 0.51 km and 1.8 km, the value is around 0.07. The mean ECR_355/532 of anthropogenic aerosols reaches its maximum (1.9) at 0.51 km, and then decreases gradually with the height. The average LR₃₅₅ of anthropogenic aerosols in the lower lidar layer is around 61 sr, and this gradually decreases to about 52 sr. Therefore, air pollution related to human activities is the heaviest in the lower lidar layer, mainly composed of medium-absorbing spherical fine particles, and the average particle size increases and absorption decreases with the increasing in the altitude.

By contrast, the average PDR₅₃₂ and ECR_355/532 profiles of polluted dust barely changed from 0.51 to 1.8 km, the values are around 0.14 and 1.55, respectively (Figure 9). The average LR₃₅₅ of polluted dust in the lower lidar layer (52 sr) is slightly higher than that in the upper lidar layer (46 sr). The smallest average PDR₅₃₂ of the dust appeared at 0.51 km, about 0.22. While the averaged ECR_355/532 and LR₃₅₅ of the dust are the highest at 0.51 km, which are 1.65 and 51 sr, respectively. It is related to the mixing of anthropogenic aerosols in the lower lidar layer (Figure 3a–f, Figure S3g–l). The mean PDR₅₃₂ of the dust gradually increased below 1.8 km, and the mean ECR_355/532 profile and LR₃₅₅ profile gradually decreased, suggesting that the influence of dust on the aerosol optical properties was strengthened. The average values of the PDR₅₃₂, ECR_355/532, and LR₃₅₅ of the dust above 1.5 km are around 0.28, 1.28, and 43 sr, respectively. Thus, the dust aerosols in the lower lidar layer are usually affected by anthropogenic aerosols, exhibiting a lower PDR₅₃₂, and higher ECR_355/532 and LR₃₅₅, while dust aerosols dominate the aerosols optical properties in the upper lidar layer.

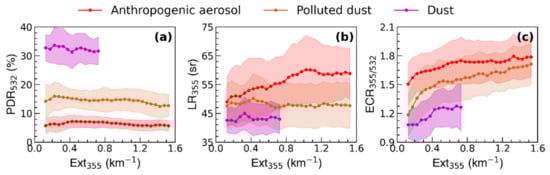

We also investigated the trend of the average optical parameters of dust, polluted dust, and anthropogenic aerosols under different pollution levels (Figure 10). The PDR₅₃₂ of anthropogenic aerosols, polluted dust, and dust fluctuated with the increase in EXT₃₅₅, and the values are around 0.06, 0.15 and 0.32, respectively. The LR₃₅₅ of anthropogenic aerosols present an enhancement when EXT₃₅₅ is less than 1.0 km⁻¹, which is increased from about 49 sr during light pollution (<0.5 km⁻¹) to about 59 sr during heavy pollution (>1.0 km⁻¹), implying that the particles absorption is enhanced under heavy pollution. There are no significant shifts in the LR₃₅₅ of dust and polluted dust with the increase in EXT₃₅₅. The ECR_355/532 of dust, polluted dust, and anthropogenic aerosols gradually increased with the enhancement in the air pollution, especially under light pollution, suggesting an increase in fine-particle pollution. This is consistent with the results of ground particle size measurements, the increased air pollution in the BTH region is closely related to the generation of new particles [61]. When the EXT₃₅₅ is less than 0.5, the ECR_355/532 of polluted dust increased rapidly, which is significantly higher than that of anthropogenic aerosols, indicating that dust promotes the generation of new particles [62].

3.5. Contribution of Three Aerosol Types to Air Pollution in Different Seasons

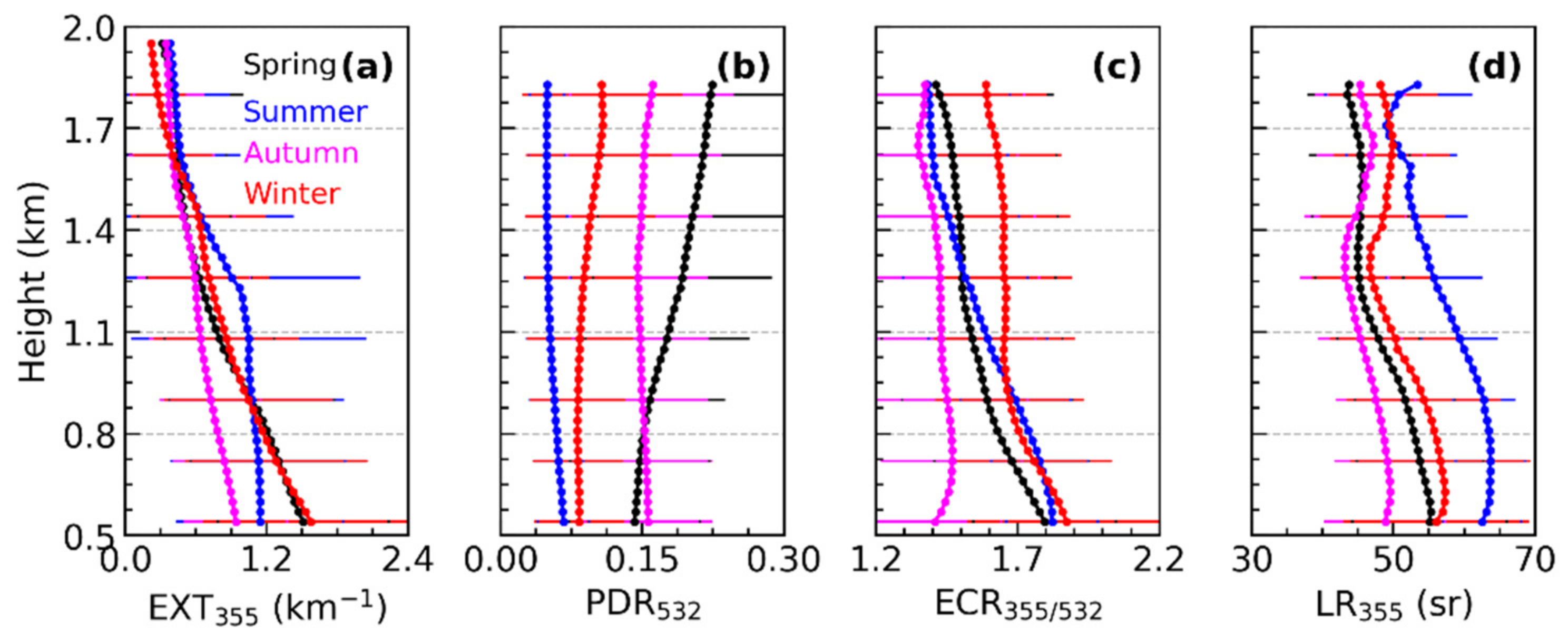

The variation in the aerosol optical parameters in different seasons is primarily determined by the source of the particles. The EXT₃₅₅ in spring, autumn and winter shows a smooth decrease with height, with a value of about 1.6 km⁻¹ at 0.51 km in spring and winter, and about 1.0 km⁻¹ at 0.51 km in autumn (Figure 11). Due to the reinforced vertical mixing ability of the atmosphere and the airborne transport of aerosols in summer, the high EXT₃₅₅ (about 1.1 km⁻¹) extends to 1.2 km, and then gradually decreases. In spring, the PDR₅₃₂ is increased with the altitude due to the impact of upper dust transportation. The PDR₅₃₂ changes a little with the height in summer and autumn, and the value from 0.04 to 0.06 in summer, which is considerably lower than 0.12–0.15 in autumn. The PDR₅₃₂ in winter slightly increased with the height, from 0.08 at 0.51 km⁻¹ to 0.11 at 1.8 km⁻¹. The mean ECR_355/532 profile in spring, summer, and winter decreased with the height, indicating that fine particles were mainly concentrated in the lower lidar layer. The ECR_355/532 in winter decreased considerably from 1.87 to 1.65 between 0.51 km and 0.81 km, respectively, and then the ECR_355/532 remained around 1.65. The ECR_355/532 in spring declined rapidly between 0.51 km and 1.11 km (from 1.80 to 1.65, respectively). In summer, the ECR_355/532 decreased the most with the height, from 1.82 to 1.4 between 0.51 km and 1.62 km, respectively. The maximum ECR_355/532 in autumn was 1.47 at 0.7 km, then slowly down to 1.4 at 1.8 km. The maximum values of the LR₃₅₅ in the four seasons are in the low lidar layer, of which summer is the largest (about 62 sr), followed by winter (about 57 sr), spring (about 54 sr), and autumn (about 49 sr). The mean values of PDR₅₃₂, LR₃₅₅, and ECR_355/532 during the different seasons are listed in Table 2.

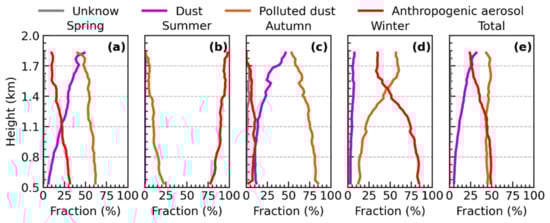

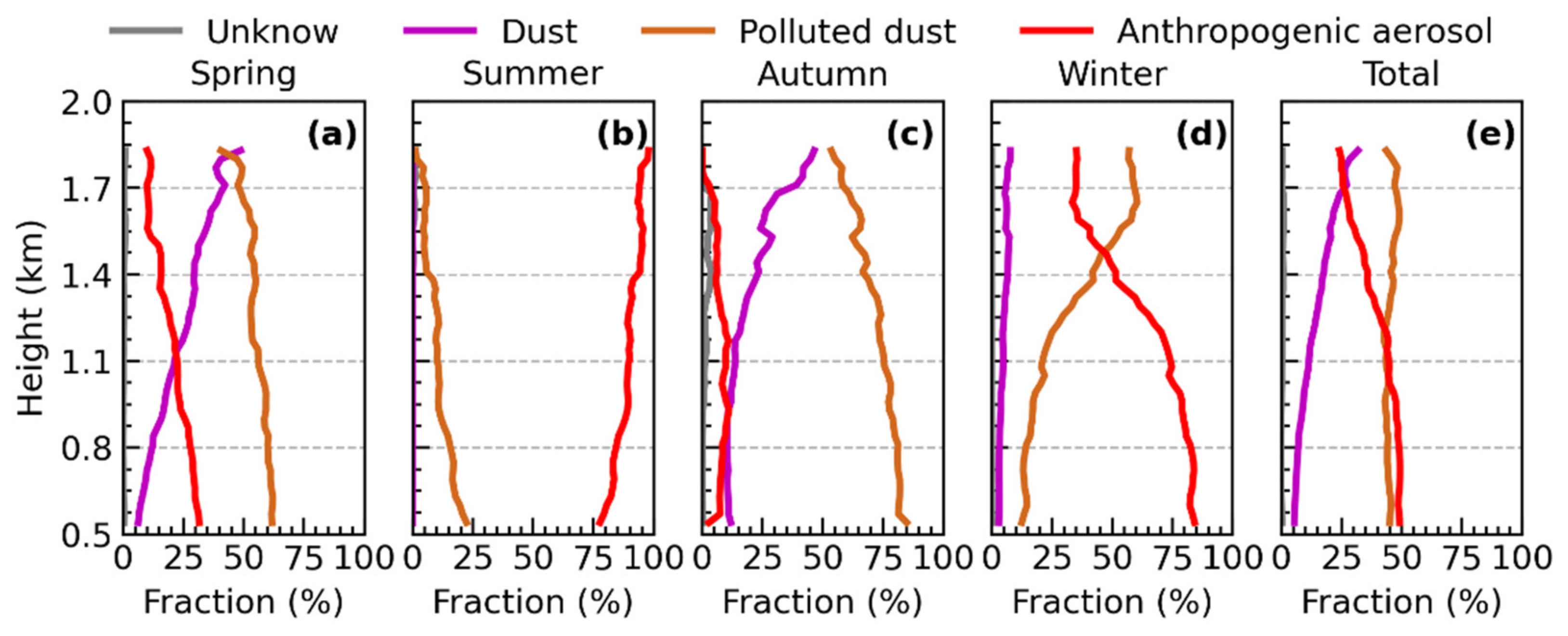

Figure 12 shows the relative contributions of key aerosol types in different seasons in the BTH region. The relative contribution of polluted dust in spring is greater than 50% below 1.7 km (Figure 12). The relative contribution of dust in spring is 5% at 0.51 km and there is a rapid growth to 50% at 1.8 km, while the contribution of anthropogenic aerosols decreases with height, from 31% to 10%. It implies that natural sources have a significant impact on spring air quality. The similar aerosol subtype contributions were also found in autumn, polluted dust is the main aerosol subtype with values greater than 80% in the lower lidar layer. The dust subtype contributions in autumn increased with the height, from 11% to 50%, and the relative contribution of anthropogenic aerosols was extremely low, usually less than 10%. Thus, natural sources play an important role in air pollution in spring and autumn in the BTH region, and controlling dust aerosols will help improve the air quality in spring and autumn.

The largest average LR₃₅₅ and lowest average PDR₅₃₂ occurred in summer, the values range from 55 sr to 65 sr and 0.04 to 0.06, respectively. It is the typical value for anthropogenic aerosols. Thus, more than 75% of the aerosol subtypes below 1.8 km in summer are anthropogenic aerosols. The contribution of polluted dust in summer is less than 25%, and this decreased with the height. There is no dust aerosol found in summer. Most of the haze pollution in the lower lidar layer in winter is related to human activities, over 80% are contributed by anthropogenic aerosols, and the contribution of polluted dust and dust in the lower lidar layer is 14% and 3%, respectively. Particularly, the contribution of polluted dust increased considerably in the range of 1.1–1.6 km, up to 60%. It is related to the meteorological conditions, the strong northwesterly winds usually prevailed in the upper lidar layer, and the southerly winds are dominated in the lower lidar layer, producing significant stratification of aerosols [30]. During our one-year observation, the proportion of anthropogenic aerosols, polluted dust and dust in the lower lidar layer are about 49%, 45%, and 6%, respectively. However, in the upper lidar layer, the proportion of anthropogenic aerosol decreased from 49% to 21%, the proportion of dust aerosol increased from 6% to 26%, and the proportion of polluted dust barely changed. Overall, the anthropogenic and natural sources jointly control the air pollution in the BTH region. Anthropogenic air pollution is dominant in summer, natural sources contribute significantly in spring and autumn. Anthropogenic aerosols and natural dust have deeply affected the wintertime low-level air quality and high-level air quality, respectively.

4. Discussions

In this work, the vertical distribution of aerosol optical parameters in the BTH region was obtained using ground-based MRL and compared with CALIPSO satellite measurements. The contribution of different aerosol types and mixtures to air pollution in the BTH area can be distinguished by combining PDR₅₃₂, LR₃₅₅, and ECR_355/532 derived from MRL. There are the following three key aerosol types in the BTH region: moderately absorbed spherical fine particles (anthropogenic aerosols) contributed by human activities, scattered non-spherical coarse particles (dust) dominated by natural sources, and a mixture of the two aerosols (polluted dust).

In the comparison between the MRL and CALIPSO aerosol classification results, it was found that the dust aerosols are the best agreed, while differences in anthropogenic aerosols and polluted dust were found in several cases. The first reason may be that the threshold settings of polluted dust and dust PDR₅₃₂ in our classification process are higher than those set in the CALISPO classification algorithm (0.09 vs 0.075, 0.23 vs 0.20, respectively). Secondly, the PDR₅₃₂ of CALIPSO tends to be noisy, especially during the daytime. The noisy PDR₅₃₂ of anthropogenic aerosols makes it easy to reach the PDR₅₃₂ threshold of polluted dust or even dust, which will lead to the overuse of polluted dust and dust aerosols. The noisy CALIPSO PDR₅₃₂ also causes a large deviation when compared with the MRL PDR₅₃₂ (R = 0.67), the Pearson correlation is significantly lower than the comparison of EXT₅₃₂ (R = 0.80) between CALIPSO and MRL, and the EXT₅₃₂ measured by MRL is slightly higher than the EXT₅₃₂ retrieved by CALIPSO. It was also found that CALIPSO results sometimes fail to determine aerosol stratification. In addition, the relative bias of LR between MRL and CALIPSO is within 25% in over 90% of the cases, indicating that the CALIPSO LR selection algorithm is reasonable.

According to our one year classification results, approximately 45% of the aerosols below 1.8 km are contributed by polluted dust. The contribution of dust increased with the height, from 6% to 28%, while the contribution of anthropogenic aerosols decreased from 49% to 25%. Also, the ECR_355/532 and LR₃₅₅ in the lower lidar layer are higher than those in the upper lidar layer, implying that the underlying aerosols are more absorbable fine particles. The seasonal variation in the aerosol classification results show that polluted dust is the major aerosol subtype in spring and autumn, and the relative contribution of polluted dust below 1.0 km in spring and autumn is over 60% and over 70%, respectively. The relative contribution of dust in spring and autumn increased with the height, which is deeply affected by the long-range transport of dust in the free troposphere. The smallest average PDR₅₃₂ and the largest average LR₃₅₅ were found in summer in the BTH region, anthropogenic aerosols contribute more than 75% of aerosol pollution, and the contribution of nature sources are insignificant. In winter, the anthropogenic aerosols prevailed (over 80%) in the lower lidar layer, while polluted dust (around 60%) dominated in the upper lidar layer. In addition, as the air pollution worsens, the ECR_355/532 keeps increasing, especially in the lightly polluted conditions, suggesting that fine particles played an important role in the early stage of the haze events. The LR₃₅₅ of anthropogenic aerosols increases with the aggravation of air pollution, the absorption of anthropogenic aerosols has been enhanced in heavily polluted conditions. The strengthened aerosol absorption will increase the atmospheric stability, and ultimately contribute to the aggravation of surface air pollution [63].

Our observation results, especially the vertical profile of different aerosol types, can also be integrated into the dust generation and convection and chemical migration models of the North China Plain. Lidar data assimilation has long been recognized for its potential to improve numerical modeling analyses [64]. Recent research presents the assimilation of CALIPSO extinction coefficient measurements in the chemistry transport model, they focus on the desert dust outbreak and found that the assimilation of CALIPSO lidar observations improves the statistics compared to the model-free run [65]. In addition, the vertical profile of the depolarization ratio and lidar ratio, as well as the aerosol classification results, can be used as the assimilation data of the model to optimize the simulation. With integrated information from various sources, i.e., numerical simulation, ground-based and satellite remote sensing, these results can more accurately describe the three-dimensional distribution pattern of aerosols.

Overall, our results present the aerosol vertical structure in the BTH region and identify the major aerosol types (over 99% of aerosols can be classified) and sources. Also, the results highlight that natural dust plays a crucial role in lower-layer air pollution in spring and autumn, while controlling anthropogenic aerosols will significantly improve the air quality in winter. Although the CALIPSO measurements can cover the whole world, the temporary resolution of a particular area is obviously insufficient, which can be remedied by ground remote sensing. Combining satellite and ground-based MRL observations, accurate aerosol type and high spatial and temporal resolution aerosol vertical distribution can be obtained, which is expected to assess the contribution of anthropogenic and natural sources to heavy haze pollution.
