Autonomous Lidar-Based Monitoring of Coastal Lagoon Entrances

Abstract

Intermittently closed and open lakes or Lagoons (ICOLLs) are characterised by entrance barriers that form or break down due to the action of wind, waves and currents until the ocean-lagoon exchange becomes discontinuous. Entrance closure raises a variety of management issues that are regulated by monitoring. In this paper, those issues are investigated, and an automated sensor solution is proposed. Based upon a static Lidar paired with an edge computing device. This solar-powered remote sensing device provides an efficient way to automatically survey the lagoon entrance and estimate the berm profile. Additionally, it estimates the dry notch location and its height, critical factors in the management of the lagoon entrances. Generated data provide valuable insights into landscape evolution and berm behaviour during natural and mechanical breach events.

1. Introduction

Within ecosystem coastal areas provide critical services, such as ecotourism, climate regulation, storm and wave protection, and recreational regions; yet they only comprise 5% of the earth’s land surface [1]. The impact of global temperature change, rising sea-levels, and rapid urbanization is increasingly affecting coasts. Thus, there is a demand for long-term coastal monitoring and effective management initiatives, including coastal lagoons. Coastal lagoons are common features (nearly 13%) of the coastal systems [1]. They are regions where water, atmosphere, and land interact in a complex environment, that is constantly been changed by humans and natural influence [1]. Along the coastline of Australia, approximately 61 out of 135 estuarine systems have intermittently open and closed lagoon entrances. Of these, 44 are artificially opened when the berm height exceeds a pre-defined threshold. The rest are kept open by breakwaters and training walls, primarily to provide boating access but also to improve water quality and maximize flushing [2].

Coastal lagoons which alternate between being closed and open to the ocean are commonly referred to as Intermittently Closed and Open Lakes or Lagoons (ICOLLs) [3]. For wave-dominated entrances, the intermittent open and closed behaviour of estuaries is caused by the infill process reducing the average channel cross-sectional area relative to river or tidal dominated systems. Unintended closure of estuaries might have dramatic consequences during flash flood events or water contamination by hazardous substances. Thus, understanding the dynamics of such process is crucial to managing lagoons and estuaries, especially in densely populated coastal areas.

Due to the intermittent nature of rainfall in south-eastern Australia, the open/closed cycles of ICOLLs are not seasonal. The frequency and timing of the entrance opening are dependent on the factors such as catchment size, water levels in creeks or rivers and height of the sand berm. Lagoon entrances are usually characterized by a sand berm, formed from sediments deposited by tides, winds, and waves from the ocean. This natural process increases the vertical growth of the berm and the peak height is determined by the wave runup [4]. The berm prevents water flow from the lagoon to the ocean and vice versa, which can cause the lagoon to overflow and inundate low-lying residential areas, due to the water build-up behind the berm [5]. Therefore, monitoring berm height is crucial as this is one of the important factors for authorities to consider when planning to breach the entrance.

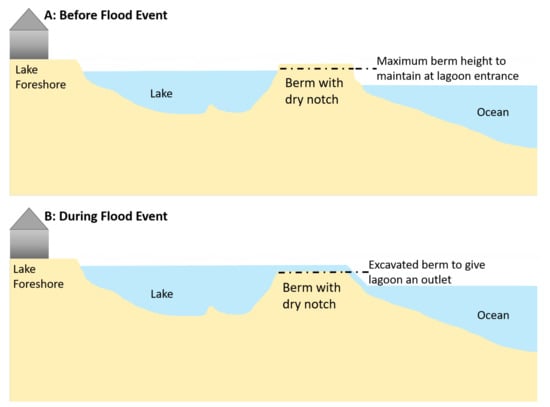

The decision to mechanically breach an entrance (lowering or removal of the berm) entails several considerations., such as the negative impacts on local flora and fauna. Henceforth, artificial breach is carefully considered by the local authorities, in order to strike a balance between the social, economic and ecological risks. As the timing of the intervention is a key to success, regular monitoring of lagoon entrances and sand berms is necessary.

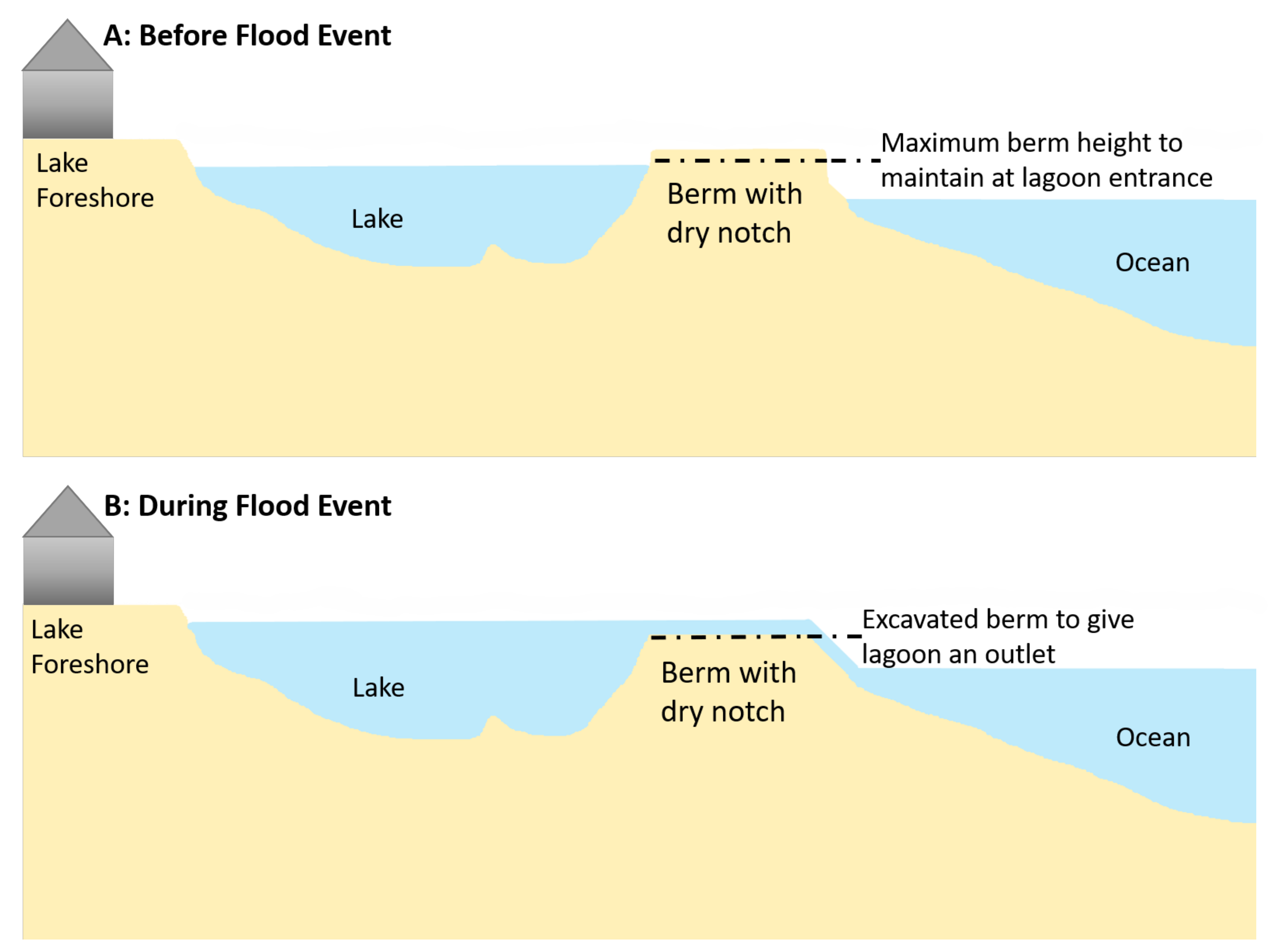

Usually, the effective management of lagoon entrances is based on a pre-determined tolerated threshold for the maximum berm height (This is known as “maintain a dry notch”). A dry notch is the minimum height of the berm that is not affected by normal hydraulic beach processes (wave run-up and tides). A well-designed dry notch allows water behind the berm to naturally open the lagoon during a flood event. However, in many instances, there is a need to excavate the dry notch in order to provide such an outlet and avoid upstream inundation (Figure 1). Therefore, it is important to regularly monitor the berm through observation height markers or/and regular in situ surveys to maintain the presence of a dry notch [6].

This study seeks to address the need for active and on-demand monitoring of lagoons via automating the task of in situ surveying. As the systematic review by Arshad et al. [7] highlighted that lagoon monitoring is still conducted manually and it requires further investigation. In this paper, various remote sensing technologies [8] have been explored to automate the management of the lagoon entrances. It is hypothesized that lagoon entrance management can be automated by using a remote sensing station consisting of a continuous scanning light detection and ranging (Lidar) sensor paired with an edge computing device to construct a topographic profile of the lagoon entrance. This study further contributes towards estimating the height and location of a dry notch, thus assisting local authorities to manage lagoon entrances effectively. This paper is organized as follows: Section 2 reviews recent advancements in coastal monitoring and management. Methodology including study site, monitoring setup and data processing are presented in Section 3. Section 4 presents discussion and lastly, Section 5 presents conclusion and future direction for the research.

2. Recent Advancements in Coastal Monitoring and Management

Remote sensing technologies such as computer vision and internet of things (IoT) sensors available to develop an early warning system have previously been covered in a systematic review [7,9]. This section will look at the recent advancements in coastal management from a monitoring perspective, including ground-based camera systems, satellite, unmanned aerial vehicles (UAVs) and Lidar-based technologies.

2.1. Camera-Based Remote Sensing

Frequent in situ surveying of estuaries is challenging and costly therefore an alternate approach is required which is free from manual work and thus serves the purpose of continuous monitoring with no human input. Since 1996 in Australia, ARGUS coastal imaging system has been commonly used to monitor the coastal environment [10]. A typical coastal imaging system consists of four or five elevated cameras to provide a 180-degree view of the shoreline. This automated coastal monitoring station takes images and patches them together to cover the whole coastal area. Image/video analysis is then performed to observe shoreline behaviour [11], sandbar behaviour [12], nearshore morphology [13], and contributes to other coastal-related research areas [10]. Such monitoring has an advantage over traditional surveys as it captures both spatial and temporal data that can be utilized to understand coastline response to storms. A study conducted at Narrabeen–Collaroy in Australia by Harley et al. [14] utilized approximately 5 years of both time-exposure and variance image data to develop an empirical relationship between change in beach width and wave energy of storms. This work was extended by Beuzen et al. [15] and utilized approximately 10 years of coastline data to develop a Bayesian Network to predict coastline response to storms.

Video-based remote sensing data provide flexibility and a long-term source of data, for which estuary behaviour can be explored under the influence of changing environmental conditions. Another example of video-based remote monitoring is surf cameras [16]. Surfcams are used around the world to provide surfers with information about conditions of the beach, so they can plan their trip accordingly. Mole et al. [16] in their work identified the use of existing surfcams networks for capturing both shoreline change and the real-time effect of waves. The authors utilized surfcams to capture the daily movement of coastline position and inshore waves at seven beaches in New South Wales, Australia. Additionally, Bracs et al. [17] utilized surfcams to capture quantitative shoreline positional data. The study used surfcams at 9 diverse sites along the south-eastern Australian shoreline. Their study compared an estimate of shoreline elevation between surfcams and real-time kinematic global navigation satellite system (RTK-GNSS) surveys. After calibrating the surfcams, standard deviations (SDs) error of 1 to 4 m (horizontal) was observed when compared to RTK-GNSS survey. When compared to Argus-derived shoreline dataset an error of 2 m (horizontal) was observed. Recently Umberto et al. [18] presented a methodological approach to exploit surfcams for coastal morphodynamic studies. This study offered a procedure to geo-rectify the online streamed images by utilizing ground control points and estimating the unknown camera parameters to generate accurate rectified planar images for quantitative analysis of coastal behaviour. Furthermore, Sanchez-Garcia et al. [19] presented a method of projecting terrestrial images into geo-referenced planes to minimise the error of existing low-elevation surfcams. As surf cameras continue to grow in number, such resources will become increasingly valuable in expanding coverage of coastal monitoring.

Following from surfcams, recent advancements in camera technology and availability of such technology in smartphones indicates that there are unexploited opportunities for coastline monitoring [20] using crowd-sourced photos. For instance, citizen science launched the CoastSnap program [21], where several known photo points have been installed, creating monitoring locations. These crowd-sourced images are provided by the general public visiting beaches via widely used digital media platforms or through instructions provided on photo points to share photos with researchers and the local community [22]. The first photo point station was commissioned at Narrabeen–Collaroy embayment and provided the opportunity to generate a shoreline dataset for coastal management and research. The photo point station consists of a basic camera cradle that controls and stabilizes the viewpoint of the smartphone camera. The general public can then place their phone in the bracket and take pictures of the view and upload them to their preferred database. This, however, brings some challenges such as the wide range of smartphone, low-resolution images, manual adjustment of smartphones, and uncertainty in image capture times. Similar to surfcams, ground points were measured at the time of installation for every CoastSnap, and such information is used to geo-reference and rectifies each image submitted by the community participants. However, coastal monitoring via both surfcams and ARGUS monitoring station relies on known camera parameters, whereas for CoastSnap intrinsic and extrinsic parameters (i.e., azimuth pitch, focal length, and roll) of the smartphone cameras are computed on the fly and computed numerically via surveyed ground control points in the photo [23]. This crowd-sourced method opens new opportunities for emerging countries, where coastal research is limited due to lack of resources, but social media and smartphone usage are high.

2.2. Satellite-Derived Remote Sensing Approach

High-resolution satellite imagery, i.e., Landsat 1–5 multispectral scanner (MSS) (60 m), Landsat 4–5 thematic mapper (TM) (30 m), Landsat 7 enhanced thematic mapper (ETM+) (30 m), Landsat 8 operational land imager (OLI) (30 m) and Sentinel-2 (10 m/20 m/60 m) are becoming freely available, hence there are new opportunities to remotely monitor coastal areas more frequently. Such data offer mapping of estuaries immediately after or during events, such as floods due to change in sea level, or via human disturbances. Additionally, there is potential for monitoring the sea level and intertidal zones of coastal lagoons. For example, Salameh et al. [1] demonstrated the ability of altimetry to retrieve the landscape of the intertidal zone and the sea surface height. Furthermore, a study conducted by Liu et al. [24] explored the super-resolution technique that utilized 29 years of Landsat imagery data to derive monthly, seasonal and annual trends to demonstrate coastline variability. More recently, machine learning is playing an important role in mapping satellite imagery data. For example, Park et al. [25] utilized a support vector machine (SVM) learning classifier on high-resolution imagery data (acquired from PlanetScope satellite) to automatically map the coastal area. Moreover, Vos et al. [26] explored a machine learning approach to extend the approach used by Liu et al. to detect the coastline in the satellite imagery data. The authors then compared their enhanced coastline method to five coastline datasets. They reported a cross-shore root mean square error (RMSE) value of 8.2 m; at the Narabeen-Collaroy between in situ (Emery method [27] with RTK-GPS data) and satellite-derived data. The authors showed that by utilizing a machine learning approach they were able to capture storm-scale variations and shoreline behaviour. Satellite monitoring offers a long-term source of the coastal dataset and such monitoring is vital in defining monthly and seasonal variability. However, it is a delayed response and therefore, not suited for real-time monitoring of the site.

2.3. Unmanned Aerial Vehicle Remote Sensing Approach

Unmanned Aerial Vehicles (UAVs) have been increasingly used in different fields of geoscience such as beach dune evolution [28], rocky cliff erosion [29], gully erosion [30], tidal inlet evolution [31] and coastal monitoring [32]. UAV extends the use of aerial photogrammetry for coastal surveying by utilizing autonomous flight capabilities, advancements in Lidar technologies and state of the art computer vision technologies. Ian et al. [33] suggested that coastal monitoring can be carried out accurately by using photogrammetry techniques. Structure from Motion (SfM) [28] is a photogrammetric approach which produces a 3D-point cloud data by stitching together a series of 2-dimensional (2D) overlapping images. However, this generated point cloud data are dependent on ground control points. Ian et al. [33] compared the survey accuracy conducted by UAV (using SfM technique) and RTK-GPS ATV at Narrabeen—Collaroy in Australia. The authors mentioned that the difference between these two methods has a mean difference of 0.026 m and a standard deviation of 0.068 m. Furthermore, authors reported from 1:1 comparison that both survey data are highly correlated to each other (i.e., linear slope = 0.996 and R² = 0.998). In addition, authors mentioned that in complex environment the elevation variability of UAV approach is comparable to expected vertical accuracy of RTK-GPS. However, UAV does not provide a permanent monitoring solution and such monitoring is dependent on the presence of a trained UAV operator.

2.4. Lidar-Based Remote Sensing Approach

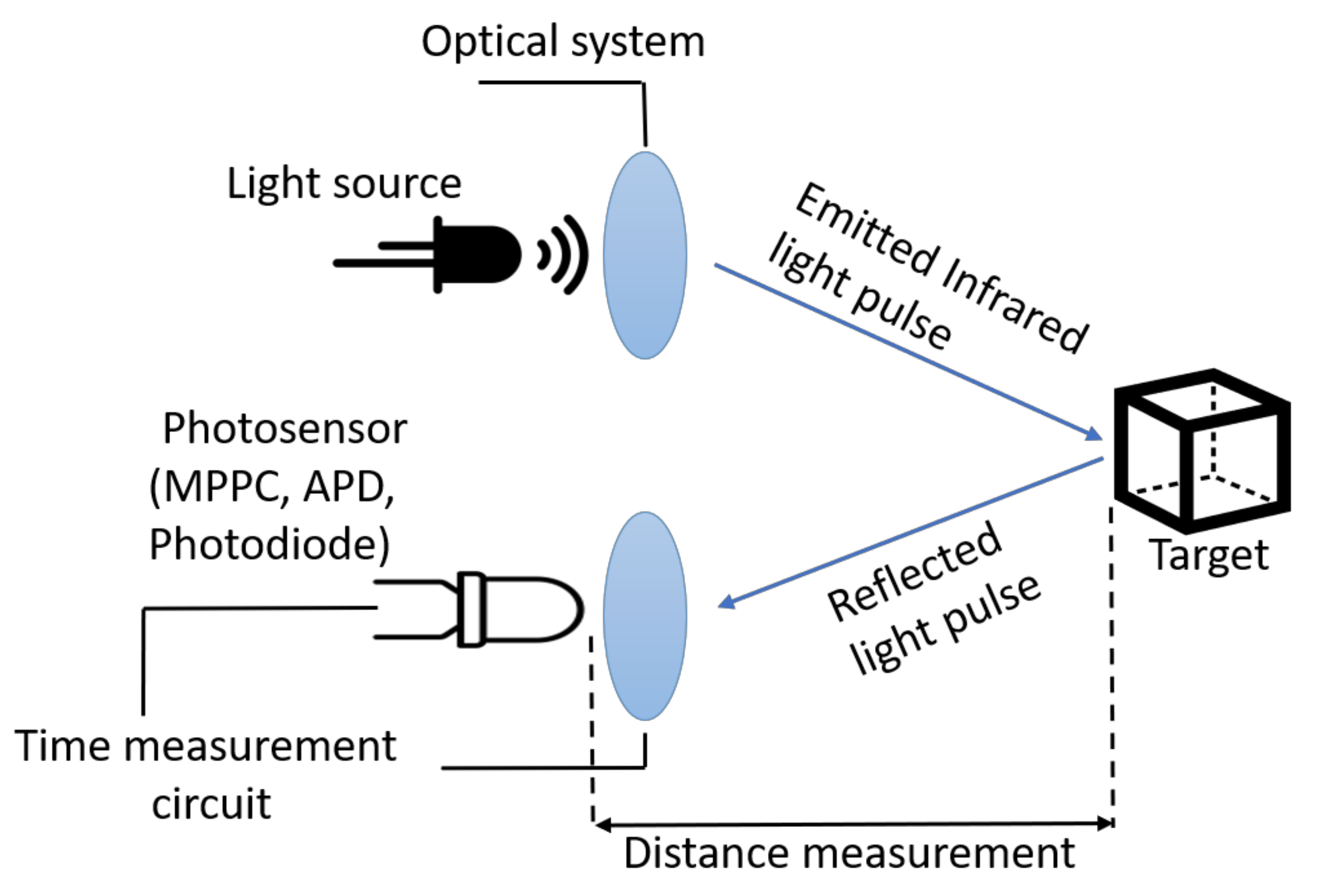

Lidar sensors operate on the principle of time of flight (TOF) by computing a distance between the target and sensor [34]. The basic functioning of Lidar sensor is shown in Figure 2, and the distance calculation between the target object and the lidar sensor is shown in Equation (1). Hydrodynamic, beach profile, and morphodynamic features can be obtained by using high-frequency laser pulses. In recent years, due to advancements in Lidar technology, Lidar data have been extensively used to obtain subaerial beach profiles, transformation in the surf zone, and near-shore breaking waves [35,36]. The accuracy of laser scanners is comparable to in situ RTK-GNSS surveying methods. For instance, Philip et al. [37] investigated post-storm effects on the beach face and studied different modes of berms via utilizing Lidar. The authors reported a root-mean-square error (RMSE) of 4 cm when compared with 11 monthly RTK-GPS ground control in situ surveys. The authors also provided useful insights into tide-by-tide building of the berm and beach face. Moreover, Brodie et al. [38] reported a RMSE in between 3 cm to 7 cm when compared with the Lidar data and pressure-based measurements for the range of hydrodynamic surf zone properties. The approach of using static Lidar for remote sensing applications provides an efficient way to acquire data with centimetre level accuracy.

$$Distance between the target object and Lidar sensor=\frac{Pulse travel time}{2} \times speed of light$$

(1)

Equation (1): Lidar distance measurement is based on the pulse travel time and speed of light.

3. Methodology

This section provides details for the procedure involved regarding study site, and the monitoring setup. This section also lists pre-processing steps undertaken to minimize the noise in the 3D-point cloud data acquired from the Lidar. Moreover, lagoon entrance extraction from the subaerial beach profile, and parametric information estimation of the berm and dry notch is also discussed in this section.

3.1. Study Site

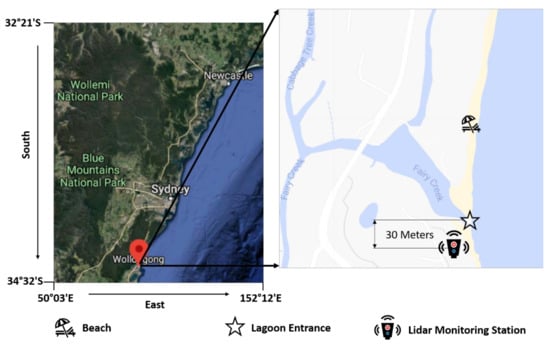

Fairy Lagoon is located at the southern end of Fairy Meadow beach, within the northern part of the Wollongong, New South Wales, Australia (refer to Figure 3). The behaviour of Fairy Lagoon immensely impacts on water quality, water levels and the ecology of the coastal area. Fairy Lagoon can be characterized as follows:

• A popular recreational and tourist area; open access to tourists and the general public due to urbanization around the lagoon entrance.
• Intermittently open and close to the ocean due to formation of a sand bar. After breaching the entrance, it stays open for a few weeks or months, and sand is deposited due to the longshore drift and wave action.
• Entrance is subject to periodic flooding; receives a large quantity of water due to runoff from an urbanized area, and a recent flood study has indicated that main component of the flood risk is associated with the elevated water level in the lagoon concerning the ocean.

The greater Fairy Creek catchment (also includes Cabbage Tree Creek) has an area of about 20.76 km², which further extends from Illawarra escarpment to the coast and includes Fairy Meadow, North Wollongong, Balgownie, and Mount Ousley residential areas. Rapid urbanization around catchment has caused a negative impact on the conditions of Fairy Lagoon. During an extended period of heavy rainfall and closed entrance, the lagoon would naturally breakout, and that can result in flooding of neighbouring urban development. To manage this risk effectively, real-time monitoring is required.

3.2. Monitoring Setup

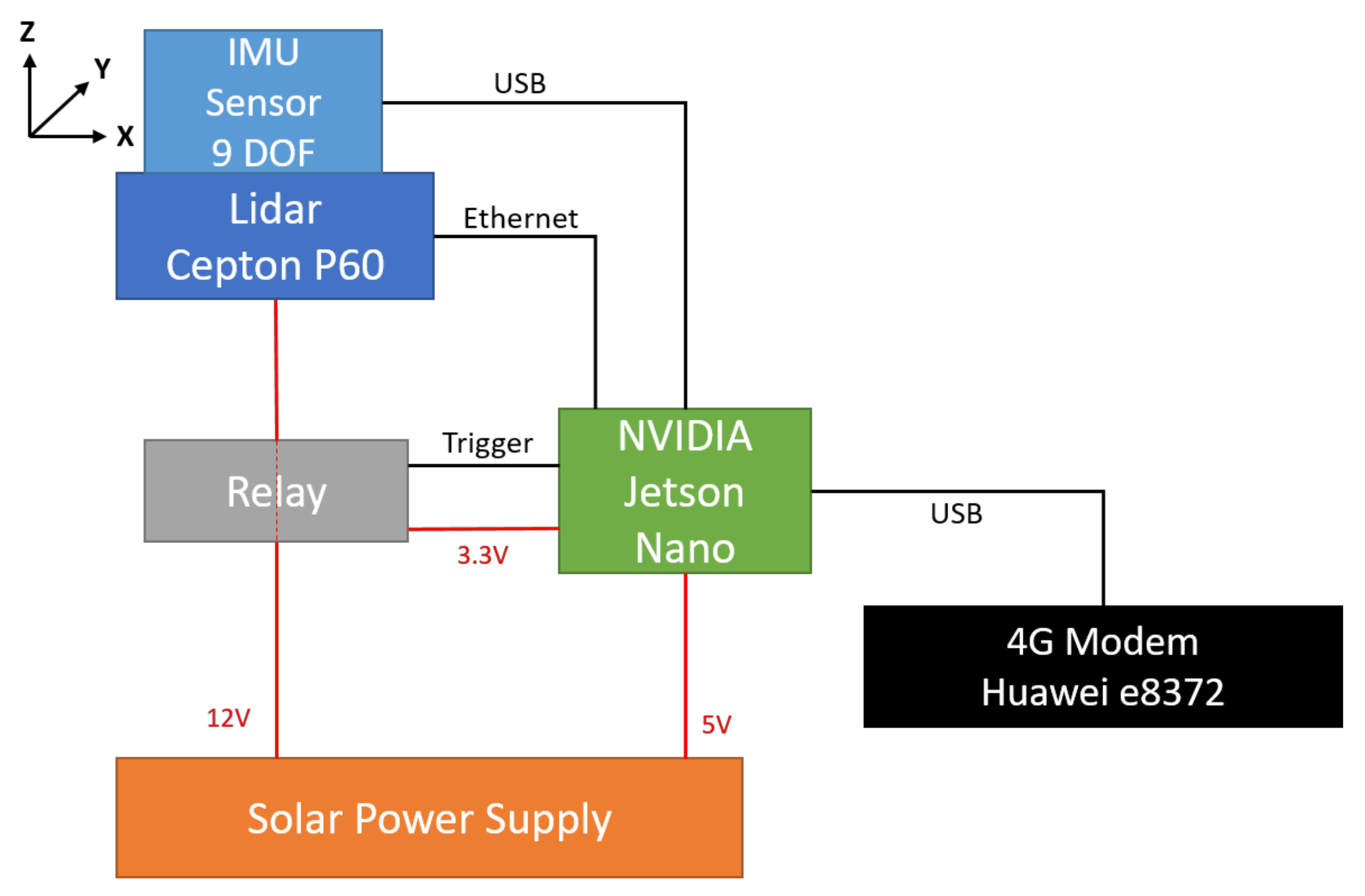

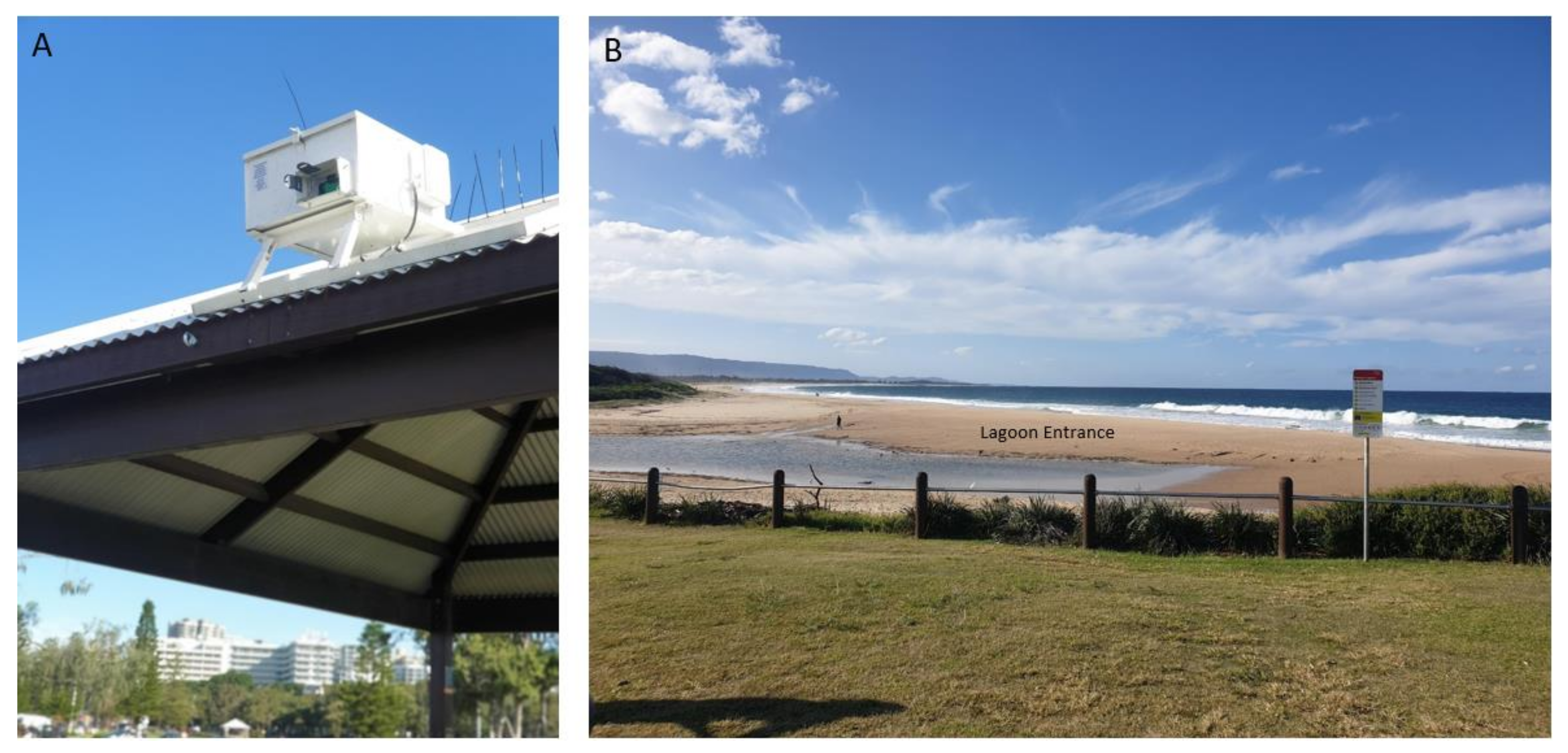

The static monitoring station developed for this study can be seen in Figure 4. The monitoring station is equipped with a Lidar (Cepton Vista—P60), along with an edge computer (Nvidia Jetson Nano), 4G universal serial bus (USB) modem (Huawei e83272) and an inertial measurement unit (IMU) sensor (Phidget Precision 3/3/3). This remote sensing station is solar-powered, making it fully autonomous.

The monitoring station is deployed at the Fairy Lagoon entrance and located approximately 7.8 m above the mean sea level (MSL). The Lidar is used to extract the 3D-point cloud data of the lagoon entrance. The Field of View from Lidar to the entrance is about $60°\times 22°$ (H × V) with an angular resolution of approximately 0.25° both horizontally and vertically. The Lidar provides information for each ground point: x, y, z coordinates and intensity of the reflected light pulse. The intensity corresponds to the strength of the reflected pulse and reflectance of a target object. For instance, in coastal environment reflectance of dry sand is about 35 to 45 percent whereas, for wet sand, it varies from 20 to 30 percent [39]. The Lidar used for this research can detect an object with the minimum reflectivity coefficient of 30 percent at 200 m. Additionally, as that object moves closer to the Lidar sensor, that object can be detected with even less reflectivity score. However, as that object moves further away from the Lidar sensor, that object needs to be more reflective to be able to get detected by the Lidar sensor. The reason for using a long-range Lidar sensor for this application is due to the lagoon entrance being far from the nearest infrastructure, where the monitoring station is mounted.

For monitoring the entrance, NVIDIA’s Jetson Nano platform acquires Lidar data via Ethernet. The Jetson unit is an edge computing [40] device meaning that it locally performs all computations to extract the topographic profile from raw data. The IMU sensor is connected to the edge computer via USB and outputs the orientation of the Lidar sensor in x, y and z directions. The 4G provides the IoT connectivity for the monitoring setup and automatic data transmission to an external database via MQ Telemetry Transport (MQTT) [41]. The block diagram of a Lidar-based monitoring setup is shown in Figure 5. As part of this monitoring setup, an IoT-based [42] water level sensor is also deployed in the field to obtain water level data of the lagoon. This water level sensor is located next to the static Lidar station. The sensor provides the water level data in the local units of Australian Height Datum (AHD) (m, equivalent to Mean Sea Level (MSL). Moreover, these data also provide the minimum elevation point, for which the subaerial beach profile needs to be calibrated.

3.3. Subaerial Lagoon Entrance Data Extraction and Preprocessing

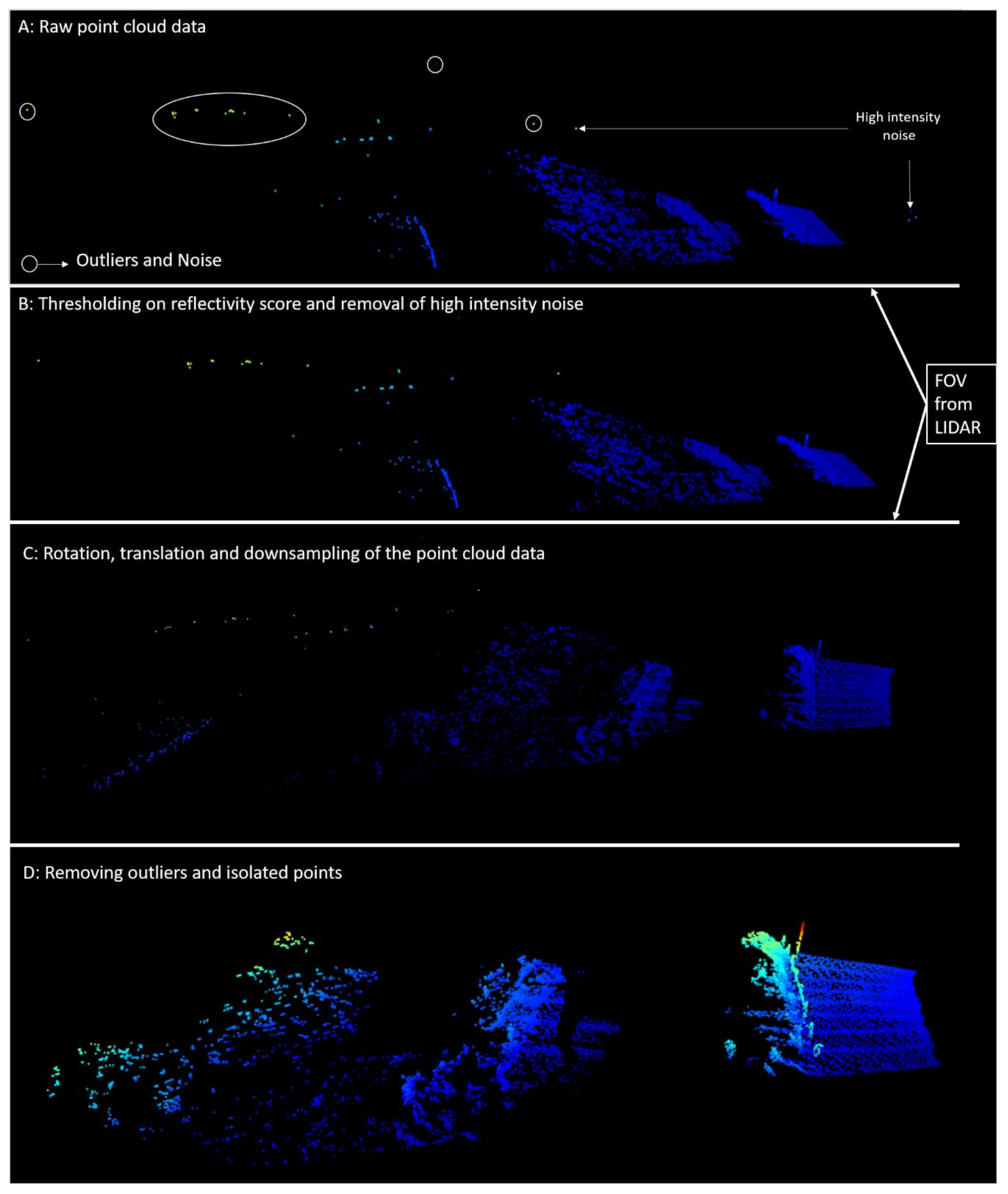

The beach profile is extracted and analysed with a frequency of about every 3 h. The data acquired from the Lidar contain noise such as people, birds, and high-intensity reflections from objects being too close to the Lidar sensor (as shown in Figure 6A). To alleviate such noise, several pre-processing steps are required to obtain the subaerial lagoon profile from the raw 3D-point cloud data. The pre-processing steps are listed as below.

3.3.1. Thresholding on Reflectivity Score

The main source of noise in the data is due to the high-intensity reflections from objects being too close to the Lidar sensor, which causes the saturation of the returned signal. Saturated and high-intensity points are then filtered out, based on their reflectivity score. The only points with a reflectivity coefficient value between 5 to 95 percent are stored for further analysis as shown in Figure 6B.

3.3.2. Rotation of the Point Cloud Data

Following the thresholding, the 3D-point cloud data are then rotated about the z-axis to represent the coastal elevations in metres. The IMU sensor automates the task of rotation and calibration of the Lidar data. It provides the rotation matrix information, including axis and the angle by which the 3D-point cloud data need to be rotated and this information is also used to counter the vibrations of the Lidar sensor during data acquisition.

3.3.3. Translation of Z-Axis

The z-axis (elevation) is then translated to find the correct elevations concerning for the sea level. The mean sea level (MSL) is used as a minimum elevation reference point to translate the elevation data along the z-axis.

3.3.4. Down-Sampling of Point Cloud Data

Following the rotation and translation, the next pre-processing step is down-sampling of the point cloud data. As the acquired point cloud data are highly dense; voxel down-sampling [43] is used to uniformly reduce the density of the point cloud data. The algorithm works by bucketing the points into voxels and then extract one point by averaging all the points in that voxel. The size of the voxel is determined by the user and usually depends on the number of points and application. In this case, after data analysis, a voxel size of 0.8 cm was selected. This voxel size was selected due to the high-density point cloud data. The reason for choosing a larger voxel size is to reduce the number of points for further processing. The down-sampled point cloud data are shown in Figure 6C.

3.3.5. Removing Outliers

The objects and people are then removed via thresholding on the elevation data. To remove birds and other small objects, a radius outlier removal technique [44] is employed to remove isolated points from the subaerial lagoon profile. This filter removes the points that have few neighbouring points around them in each sphere. The parameter which defines the minimum number of points in a given sphere is tuned based on the point cloud density and noise in the acquired data. In this application, the sphere radius is set to 3 m and the minimum number of points is 70. The final 3D-point cloud data are shown in Figure 6D.

It should be noted that, the radius outlier removal technique worked best when compared to other filters such as the statistical outlier removal [45] method due to the continuity of the natural landscape and interesting points being clustered together.

3.3.6. Interpolation and Visualization

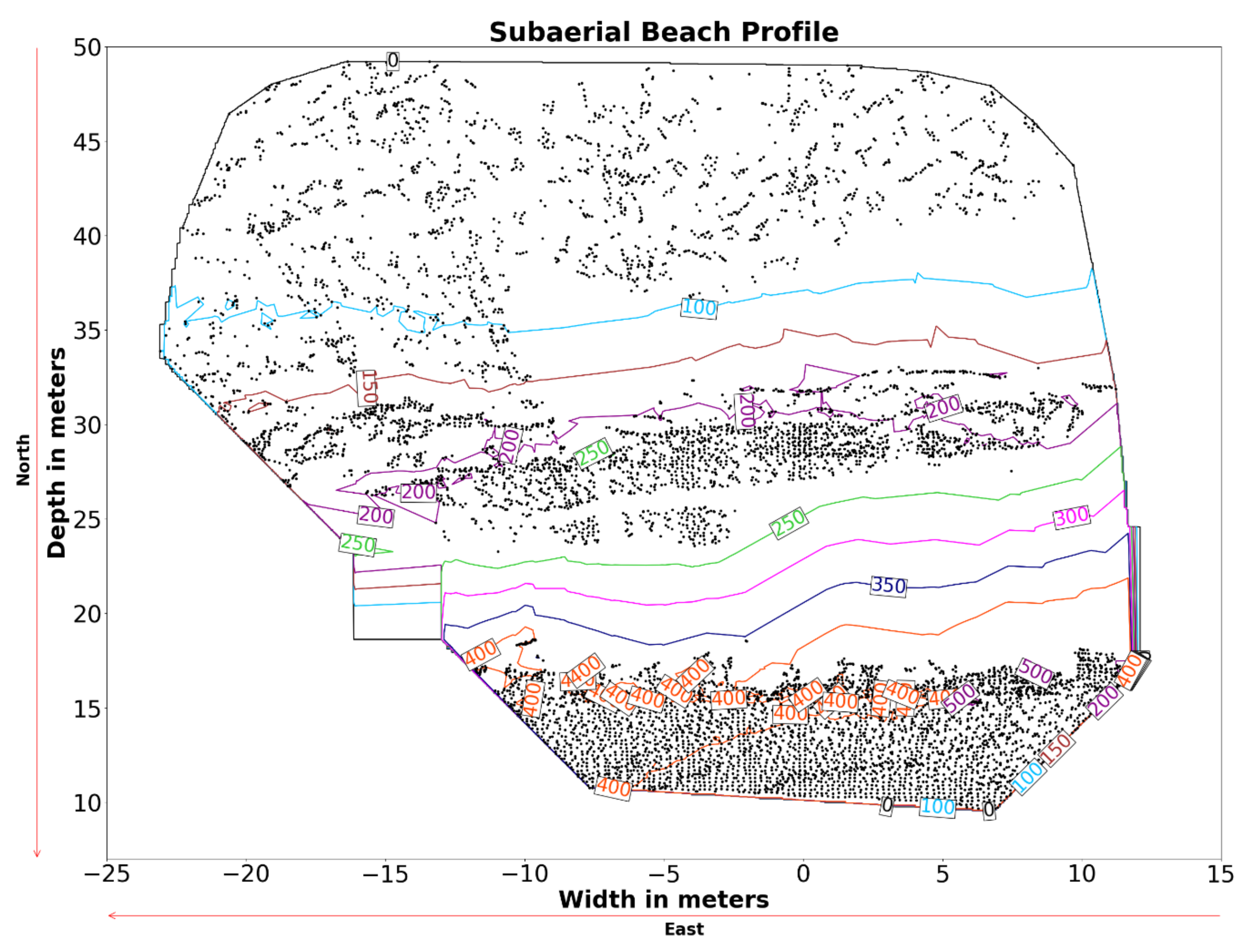

The interpolation [46] is then performed on spatially unstructured data to uniformly distribute it on the plane. The elevation data are then projected on a plane to form a contour plot [47]. This step is only performed for visualization purposes. The contour plot shown in Figure 7 represents the subaerial beach profile and provides an information about the elevation of the sand berm.

3.4. Extracting the Berm and Dry Notch Heights

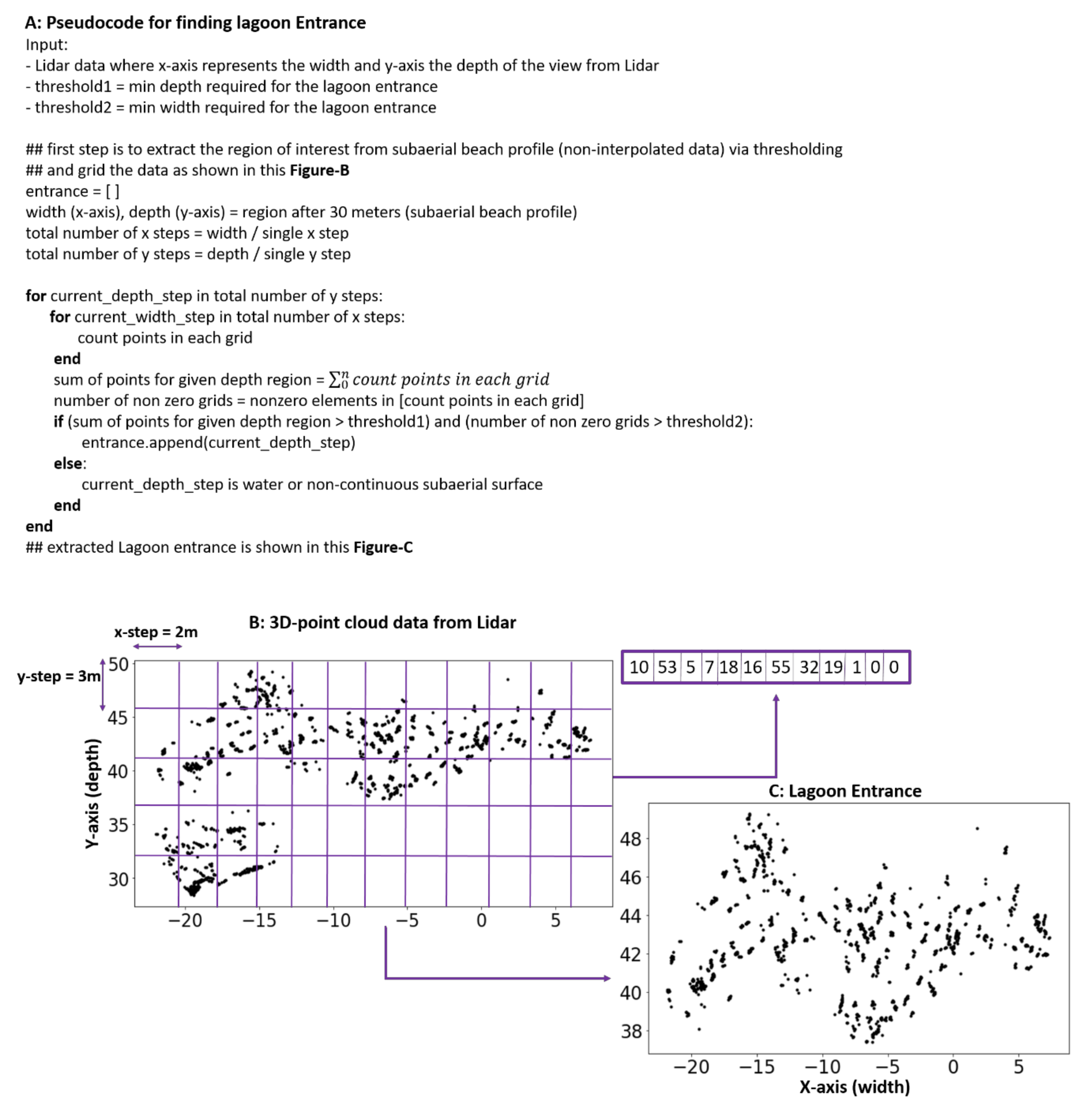

Following the subaerial beach profile generation is the estimation of the dry notch location and its elevation. The first step to find the location of the dry notch is the identification of the lagoon entrance in the data (obtained after removing outliers in Section 3.3.5).

As mentioned earlier, the 3D-point cloud data represent the width (x-axis), depth (y-axis) and elevation (z-axis) of the entrance, and the surrounding area. The Lagoon entrance can be extracted by finding the continuous stream of points along the x-axis of the Lidar data divided in a grid of squared windows of size $2\times 3$ m². For a closed entrance, there will be no empty windows (refer to Figure 8B). The pseudo-code for extracting the lagoon entrance is detailed in Figure 8A and extracted lagoon entrance is shown in Figure 8C.

3.5. Berm and Dry Notch

The dry notch height can be determined after the lagoon entrance has been identified. Estimating the dry notch height requires first determining the berm height. The berm height is typically classified as the highest point between the two highest elevations points, whereas the dry notch is normally defined as the lowest elevation point between the two highest crest points.

For this process, firstly, elevation data (z-axis) are extracted from the 3D-point cloud data which belongs to the entrance. The acquired elevation data are still dense and noisy. To alleviate such noise, data are then down-sampled to single decimal point resolution, i.e., decreasing resolution of points taken for analysis (as shown in Figure 9B). After down-sampling, maximum elevation points are filtered out in each window. Crests (peaks) and troughs (minimum dips) are then calculated based on the neighbouring elevation points. The dry notch is then located, and its elevation can be estimated (as shown in Figure 9B) and the pseudo-code of this process is shown in Figure 9.

4. Results

This section compares the proposed approach with the in situ survey conducted on the 29 September 2020. This section is subdivided into two sections, i.e., accuracy comparison with the in situ survey and berm/dry notch height comparison with the ground truth.

4.1. Accuracy Comparison with In Situ Survey

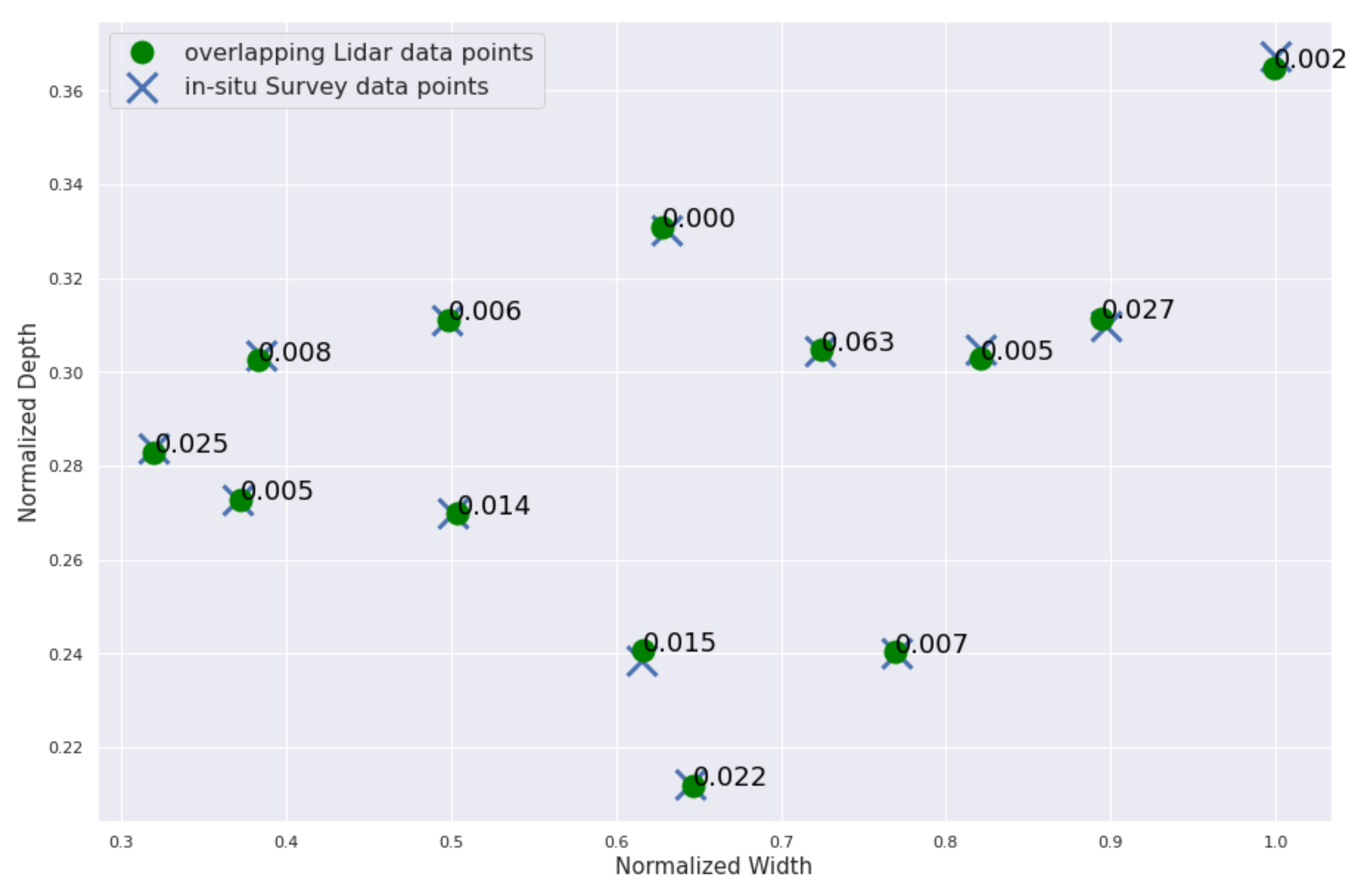

For comparison purposes, the processed Lidar 3D-point cloud data are compared with an in situ survey. Root mean square error (RMSE) is used to calculate the error between Lidar data and the ground truth. RMSE of 12.4 cm was reported during such comparison. The overlapping points were estimated by using a minimum distance threshold of 4 cm between both Lidar and survey data. This error can be minimized by using a lower overlapping distance threshold such as for 1 cm difference the RMSE was reported to be 6.2 cm. A visual comparison of the ground truth and the Lidar data can be seen in Figure 10. Moreover, the empirical cumulative distribution function shows that 92.3% of the squared error difference is less than 2.7 between the actual and processed Lidar point as shown in Figure 11.

4.2. Berm and Dry Notch Height Comparison between Lidar and In Situ Survey

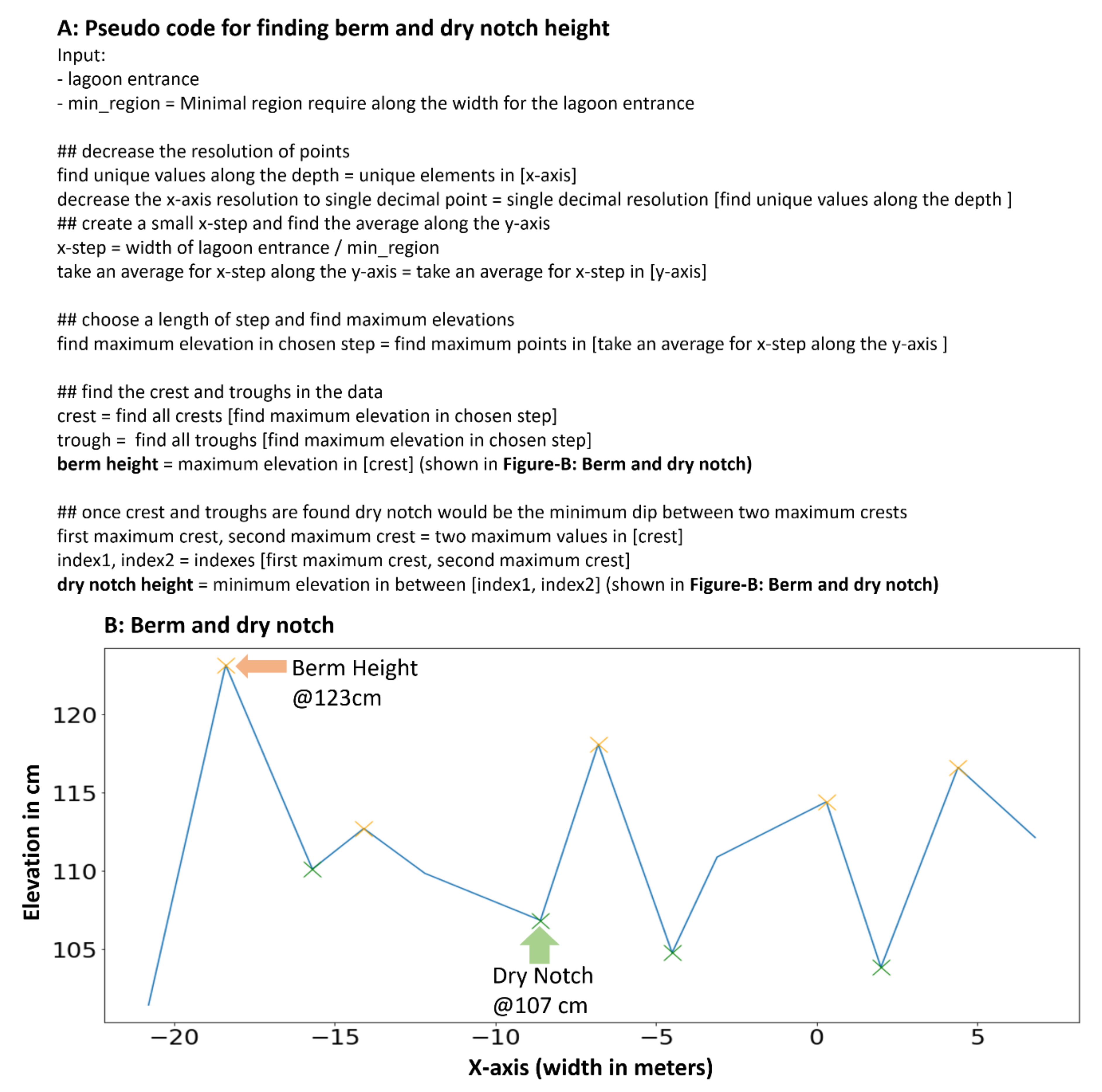

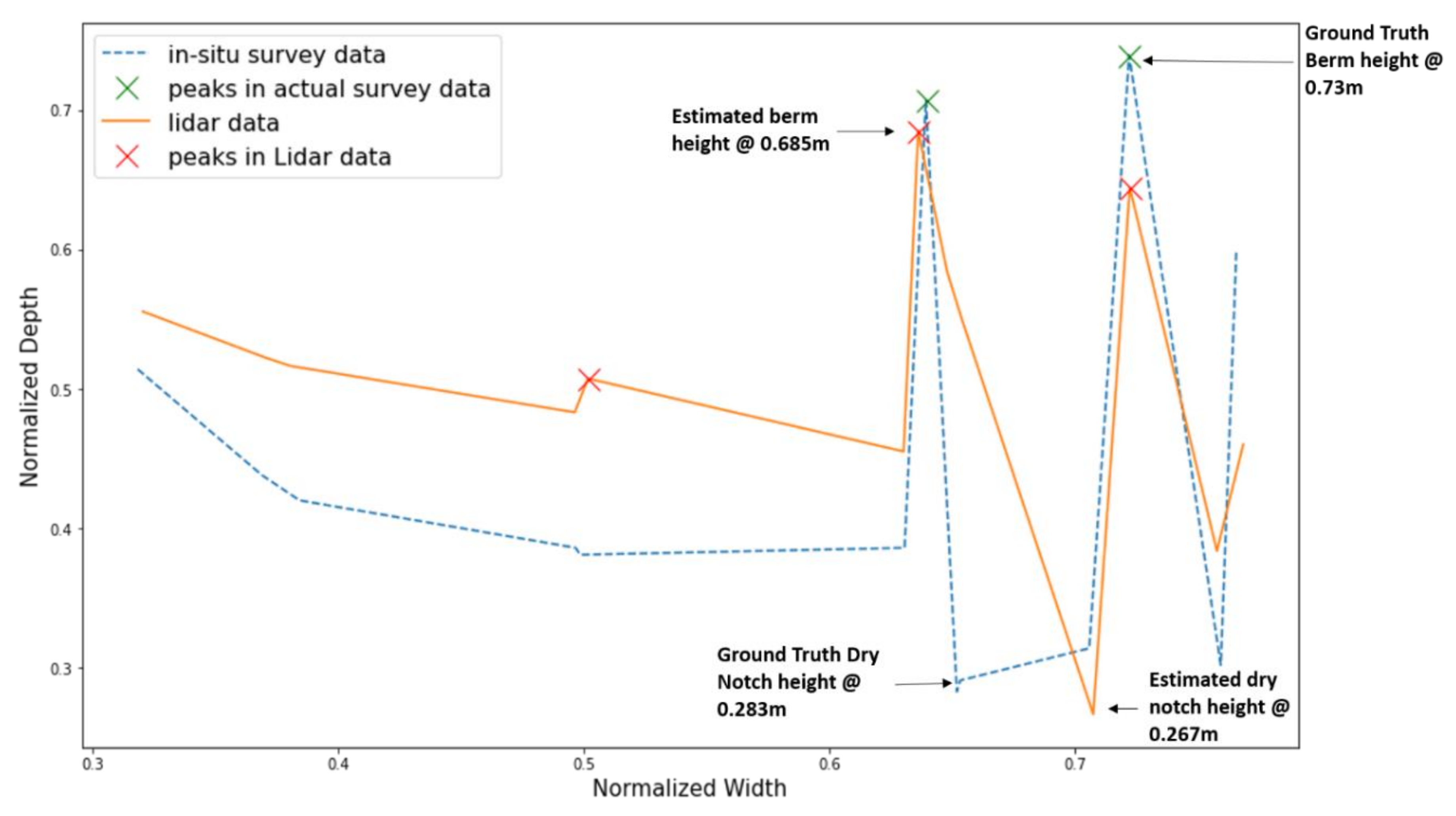

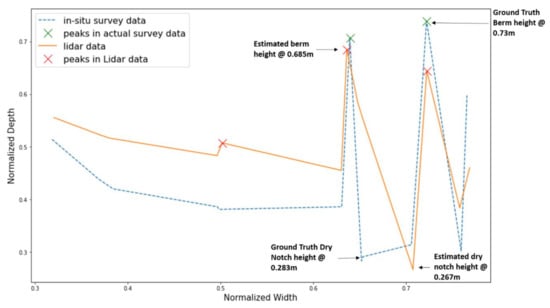

Berm and dry notch height are then estimated via the algorithm detailed in Figure 9. These parameters are then compared with the ground truth values acquired from the in situ survey data. The results are shown in

Table 1. Comparison of difference between Lidar 3D-point cloud data and ground truth.

	Berm Height (m)	Dry Notch Height (m)
Lidar 3D-point cloud data	0.685	0.267
Ground Truth from survey data	0.730	0.283
Difference between Lidar data and ground truth	0.045	0.016

and the visual comparison can be seen in Figure 12. The difference of 4.5 cm was then found between actual berm height and the estimated height from the point cloud data, whereas for dry notch the difference of 1.6 cm was obtained between ground truth and the Lidar data. These small deviations demonstrate the proposed approach’s potential for lagoon monitoring applications.

5. Discussion

In this paper, a remote sensing-based approach for regular monitoring of estuaries is presented to counter the flood threat that they pose to the local communities. In addition, the literature is examined to gain a better understanding of the emerging technologies for monitoring estuaries. In delivering an early warning and real-time monitoring system, the literature review has identified a great potential in camera-based remote sensing approaches such as the ARGUS coastal imaging system [10], surfcams [18], and citizen scientist project coastsnap [21]. However, for such approaches, requirement of ground control points for calibration and achieving centimetre level accuracy from computer vision algorithms are major shortcomings. In addition, both UAV and satellite-based coastal remote sensing approaches come with the limitations of continuous and real-time monitoring, respectively. Static Lidar has been used in literature for coastal applications such as understanding the behaviour of near-shore breaking waves [35], cross-shore 2d scanning of the dune and for general coastal behaviour applications [10]. However, to the best of authors’ knowledge, Lidar technology has not been used as early warning system for managing lagoon entrances.

An initial objective of the project was to estimate the berm height and it was hypothesized that Lidar can be used to extract the topographic information of the lagoon entrance. The Lidar-based remote-sensor architecture described in this paper is an alternative to an in situ survey and works on the functionality of extracting the elevation data along with the estimation of parameters related to berm and dry notch. The most important aspect of this work is that proposed system aims to alert the operator about the conditions of the entrance based on the calculated information. Another interesting finding was that the breaching of an entrance is also dependent on the water level in the lagoon and ocean level. To counter this, an IoT-based water level sensor is also deployed in the lagoon to monitor the water level. This information along with the topographic profile of the entrance is also transmitted to a remote database for facilitating local authorities in decision making process.

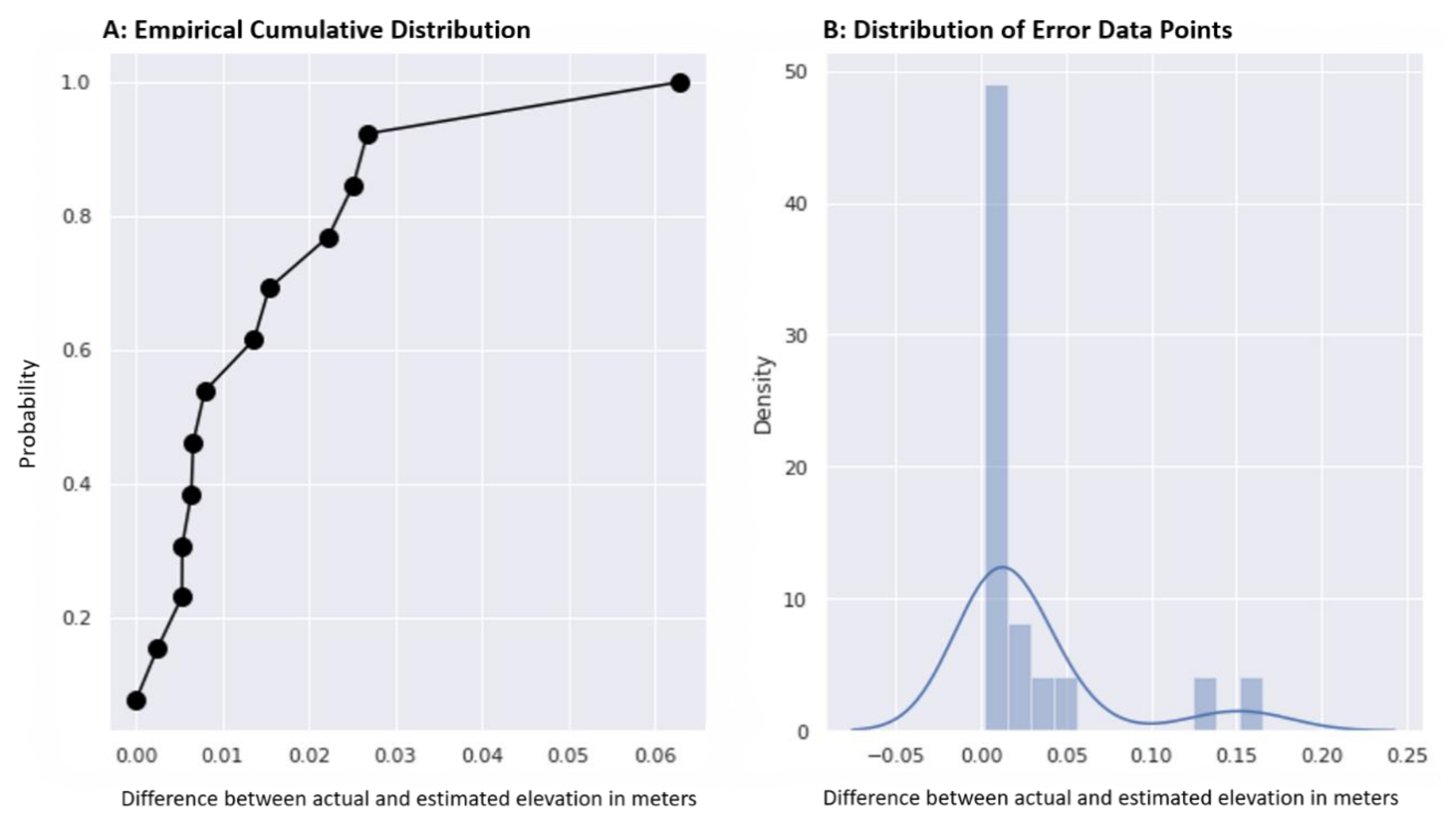

The elevation data acquired from static monitoring station are compared with the in situ survey data in Section 4.1. Comparison reported that 92.3% of the squared error difference is less than 2.7 cm² between point cloud data and actual ground truth. For the presented comparison, overlapping ground truth points and 3D point cloud data are acquired by using a window size of 1 cm, due to unavailability of exactly overlapping data points. This error can be reduced if the ground truth points exactly align with the Lidar 3D point cloud data. Moreover, Section 4.2 shows that the error difference for berm and dry notch height is 4.5 cm and 1.6 cm, respectively. From the presented investigations, and encouraging results, it is highlighted that Lidar based approach performance was admissible and has the potential for lagoon monitoring applications.

This research work is unique in-essence of providing a near-real-time monitoring application of the lagoon entrance. The presented results are notable in terms of the scalability of the proposed approach and autonomous efficient site monitoring. This paper further contributes towards the development of a generic framework and algorithm that can be implemented to other flood prone lagoon entrances. Furthermore, the proposed solution has the potential to be embedded in an early warning system for providing entrance parametric information (i.e., berm height, dry notch height) to the human operator and recommending an optimal time to breach the entrance. Knowing when to dredge the berm is crucial for effective flood management at lagoon entrances, therefore, the proposed solution will help protecting local communities residing next to flood-prone areas.

6. Conclusions and Future Work

The effective sand management of closed and open lakes or lagoons (ICOLLs) is critical to mitigate the impact of future flood events in their neighbourhood. In particular, if the height of the sand berm of a lagoon entrance is above a threshold determined by flood engineers, then the local authorities must mechanically break the entrance to allow the water to flow during extreme weather events. Currently, the height is determined via infrequent and time-consuming manual surveys. In addition, when there is a high risk of flood and due to unavailability of data, local authorities may rush towards opening the entrance while it is unnecessary. This sub-optimal policy increases the number opening and closing of the entrance which negatively impact on the local biodiversity. Hence, determining the optimal opening schedule to lower the number of human interventions to open the entrance will lower the environmental impact.

The monitoring station presented in this paper addresses the issue of autonomous and on-demand monitoring of the entrance while providing actionable information to local authorities. The autonomous monitoring station relies on a Lidar facing the coast to obtain an accurate topographic profile of the lagoon entrance. The Lidar is paired with an edge computer running a novel algorithm to provide an efficient and flexible way to continuously monitor the dynamics of berm formations and extract the heights of the berm and its dry notch from the 3D-point cloud data generated by the Lidar. Thanks to the inertial measurement unit the solution is self-calibrating. In addition, being solar-powered and using 4G connectivity for data transmission, the device is fully autonomous and can be easily deployed to other estuaries.

Moreover, the acquired data from the Lidar are stored in a database and therefore accessible for future research. These include the development of models to better understand coastal erosion, as well as the berm behaviour and evolution during the opening and closing phases of the entrance. Finally, the device will be paired with other sensors such as water levels, disdrometers, and automated rain-gauges as well as data sources about the weather forecast to design complete early flood warning system for the city of Wollongong (NSW, Australia).
