Extraction of Spectral Information from Airborne 3D Data for Assessment of Tree Species Proportions

by
Jonas Bohlin
,
Jörgen Wallerman
and
Johan E. S. Fransson
*
Department of Forest Resource Management, Swedish University of Agricultural Sciences, SE-901 83 Umeå, Sweden
*
Author to whom correspondence should be addressed.
Remote Sens. 2021, 13(4), 720; https://doi.org/10.3390/rs13040720
Submission received: 30 December 2020 / Revised: 4 February 2021 / Accepted: 10 February 2021 / Published: 16 February 2021
(This article belongs to the Special Issue Forest Biomass and Carbon Observation with Remote Sensing)
Browse Figures
Review Reports Versions Notes

Abstract

:
With the rapid development of photogrammetric software and accessible camera technology, land surveys and other mapping organizations now provide various point cloud and digital surface model products from aerial images, often including spectral information. In this study, methods for colouring the point cloud and the importance of different metrics were compared for tree species-specific estimates at a coniferous hemi-boreal test site in southern Sweden. A total of three different data sets of aerial image-based products and one multi-spectral lidar data set were used to estimate tree species-specific proportion and stem volume using an area-based approach. Metrics were calculated for 156 field plots (10 m radius) from point cloud data and used in a Random Forest analysis. Plot level accuracy was evaluated using leave-one-out cross-validation. The results showed small differences in estimation accuracy of species-specific variables between the colouring methods. Simple averages of the spectral metrics had the highest importance and using spectral data from two seasons improved species prediction, especially deciduous proportion. Best tree species-specific proportion was estimated using multi-spectral lidar with 0.22 root mean square error (RMSE) for pine, 0.22 for spruce and 0.16 for deciduous. Corresponding RMSE for aerial images was 0.24, 0.23 and 0.20 for pine, spruce and deciduous, respectively. For the species-specific stem volume at plot level using image data, the RMSE in percent of surveyed mean was 129% for pine, 60% for spruce and 118% for deciduous.

Graphical Abstract

1. Introduction

Forest companies commonly utilize lidar-based forest information, estimated primarily using area-based methods [1,2,3]. In boreal forest, these methods deliver stand level estimation accuracies in terms of relative root mean square errors (RMSEs) typically in the range of 2.5–13.6% for basal area-weighted mean tree height, 5.9–15.8% for basal area-weighted mean stem diameter and 8.4–16.6% for mean stem volume [3,4]. This generally outperforms traditional sources for forest management data, such as subjective field inventory.
In forest management planning, tree species information is vital. Therefore, extending the lidar methodology by adding spectral data, e.g., from aerial images, to achieve tree species-specific estimates using various frameworks [5] such as non-parametric methods like k-MSN [6] has been of interest. In [6], RMSEs of 33–52%, 56–63% and 84–103% for pine, spruce and deciduous stem volume, respectively, were reported at plot level. The corresponding figures for stand level accuracies were 28% for pine, 32% for spruce and 62% for deciduous stem volume [7]. However, combining lidar and aerial images generally requires separate acquisitions as optimal flight specifications differ between the two sensor types; the separate acquisitions, thus, increases the cost.
A new and interesting option for acquiring three-dimensional (3D) and spectral data is multi-spectral airborne lidar. A three-sensor lidar system, with two near-infrared and one green laser, was used in a Canadian study to classify broadleaf and needle leaf trees with a classification error of 4.6%; when separating eight species the error was found to be 24.3% [8]. In a Finnish study [9], multi-spectral lidar was compared to uni-spectral lidar combined with aerial images for assessment of species composition. The results for multi-spectral lidar were in terms of RMSE for pine 18.2%, spruce 19.5% and broadleaved 19.5%, compared to the results for the combination of uni-spectral lidar and aerial images with RMSE of 16.7%, 19.3% and 15.4%, respectively, at plot level.
Aerial images and stereo photogrammetry have been used in many studies to predict structural forest variables with good accuracy [10,11,12,13,14]. Therefore, the option of using both structural (3D) and spectral information from images is an interesting alternative. This was studied in [10], using images with 60% forward and 30% side (60%/30%) overlap and the method proposed in [6]. This method involves pre-classification of each point in the point cloud to a specific tree species followed by k-MSN modelling to predict species-specific stem volume. The results in [10] showed RMSEs of 90.6%, 26.4% and 72.6%, for pine, spruce and deciduous mean stem volume, respectively, at stand level. In another study from Norway [15], species-specific mean stem volume was estimated from both 60%/30% and 80%/30% overlapping image data, and simple averaging of spectral metrics was used at plot level. The results in [15] showed RMSE of 43.3%, 35.0% and 80.1% for pine, spruce and deciduous mean stem volumes, respectively, at stand level, for 60%/30% image overlap data set. By increasing the image forward overlap to 80%, the accuracy increased slightly. Comparing multi-spectral lidar to aerial images as a single sensor solution for assessing tree species-specific stem volume, it was concluded in [16] that aerial images performed marginally better than multi-spectral lidar and that the combination of uni-spectral leaf-on lidar and aerial images was clearly better.
Spectral-based predictions and classifications are dependent on the quality of the aerial images, specifically: type of sensor; atmospheric conditions; sun-sensor-target geometry and phenology of the trees [17,18]. In [19], for example, ortho-rectified imagery and template matching were used to identify the sunlit part of single tree crowns to classify tree species with an overall accuracy of 89%. However, a shift in the relation of the spectral properties for Scots pine and Norway spruce was seen between June and October image data sets. Research has been aimed at calibrating sensors and performing radiometric correction of aerial images to improve tree species classification [20,21]. Nevertheless, the proximity effects, i.e., the effect of neighbouring trees on each other, in mixed stands was found to influence the mean reflectance by 1–17% in the visible bands and up to 33% in the near-infrared band, adding substantial classification errors [21].
Due to the rapid development of photogrammetric software and accessible camera technology, land surveys and other mapping organizations now provide various point cloud and digital surface model (DSM) products from aerial images often including spectral information. The spectral content originates from the images, which are radiometrically calibrated using the mapping camera software package with the aim of creating homogenous looking image blocks and orthophotos [22]. Alternatively, more advanced methods like radiometric block adjustment [23,24] can be done on the individual images. However, when the spectral information is projected to the point cloud it can be done in different ways as each point is seen in more than one aerial image [25]. Given a coloured point cloud, there are different ways to extract information, i.e., metrics that could be used for modelling tree species-specific variables like mean stem volume or tree species proportions, considered a research gap in the review article [14].
The aim of this study is to compare how different methods for colouring image point cloud data affects the accuracy of tree species-specific proportions and stem volume estimations using standard image products. Different spectral metrics and their importance for tree species estimation are also compared. A total of three different colouring options are used on two seasonally different aerial image data sets (leaf-on and leaf-off). These are also combined with the aim to improve estimation accuracy. Finally, a coloured DSM product available from the Swedish National Land Survey (Lantmäteriet) is included in the comparison as well as a multi-spectral lidar data set.

2. Materials

2.1. Study Area

The study area is part of the Remningstorp forest estate, which is situated at 58°30′ N, 13°40′ E (Figure 1). The estate is privately owned by a foundation and managed for timber production with a productive forest area of about 1200 ha. The terrain is relatively flat with a topography varying between 120 m and 140 m above sea level. The forest is mainly dominated by Norway spruce (Picea abies (L.) H.Karst.), Scots pine (Pinus sylvestris L.) and birch species (Betula spp.).

2.2. Field Data

Circular field plots with 10 m radius were objectively surveyed in a regular quadratic grid with 200 m spacing between adjacent plots over the study area in 2010 [26]. The starting point of the grid was chosen randomly. Each training plot was surveyed using the methods and state-estimating models of the Heureka forestry decision support system [27]. For field plots with basal area-weighted mean tree height less than 4 m or basal area-weighted mean stem diameter at breast height (i.e., 1.3 m above ground) less than 5 cm, height and species of all saplings were recorded. For the remaining field plots, recording of tree species and callipering of all trees at breast height including only trees greater than 4 cm in stem diameter, and sub-sampling of trees to measure height and age, were performed. Heights of callipered trees on the field plots were estimated using models relating tree height to stem diameter [28]. Plot location was measured using differential code GPS with post-processing producing sub-meter accuracy. The plots were re-surveyed in 2014 and 2015 using the same inventory method. In total, 263 plots were surveyed. However, in the data pre-preparation process, plots that did not have data (field or remotely sensed) for both times, had a mean tree height under 5 m or were clear-cut, were omitted from this study, leaving 156 field plots unaffected. For these field plots, the basal area-weighted mean tree height range was 6.0–28.1 m (mean 18.1 m), basal area 1.9–68.9 m2 ha−1 (mean 24.8 m2 ha−1) and the mean stem volume 3.4–790.1 m3 ha−1 (mean 218 m3 ha−1) in year 2014. The corresponding tree species-specific mean stem volume range was 0–355.1 m3 ha−1 (mean 43.0 m3 ha−1), 0–790.1 m3 ha−1 (mean 142 m3 ha−1) and 0–383.9 m3 ha−1 (mean 32 m3 ha−1) for pine, spruce and deciduous, respectively. The distribution of species proportions of mean stem volume for the plots are shown in Figure 2.

2.3. Aerial Images

Aerial images were captured on the 11th and 26th of July 2014 and the 11th and 8th of May 2016 using UltraCam XP-wa and UltraCam Eagle Mark 1 digital camera, respectively (hereafter referred to as data sets UC2014 and UC2016). The UC2014 images were acquired with an image size of 17,310 × 11,310 pixels and a focal length of 70 mm (field of view 73°) at 2800 m and the UC2016 images were acquired with an image size of 20,010 × 13,080 pixels and a focal length of 80 mm (field of view 66°) at 3700 m altitude above ground level (a.g.l.), generating images with a ground sampling distance (GSD) of 0.25 m and with a forward overlap of 60% and a side overlap of 30%. The images were block triangulated using bundle adjustment and radiometrically corrected by Lantmäteriet, as part of their operational aerial image production. The radiometric correction was conducted using a model-based approach, which included correction of haze, atmospheric effects, hotspots and an adjustment of the final colour tone [29], resulting in pan-sharpened colour infrared (CIR) images (green, red, infrared) with an 8 bit radiometric resolution. As a comparison to the UC2014 and UC2016 image data sets a photogrammetrically derived standard DSM product from Lantmäteriet, generated from the same 2016 images, but filtered to 2 × GSD resolution, was also used (delivered as a regularly spaced point cloud in las-format; UC2016DSM_SURE). The 2016 DSM product was not available for the year 2014.

2.4. Multi-Spectral Lidar

Multi-spectral lidar data were captured on the 21st of July 2016 using the Optec Titan sensor mounted in a fixed wing aircraft flying at 400 m a.g.l. The Titan sensor has three separate lidars, two infrared (channel 1: 1550 nm and channel 2: 1064 nm) and one green (channel 3: 532 nm). With a pulse rate of 225 kHz and a scan angle of 30 degrees the point density is more than 30 points/m2. The intensity values of each lidar point was calibrated by weighting with the distance to the sensor.

3. Methods

3.1. Stereo Photogrammetry

Photogrammetric processing of the images to produce point cloud data was done using the SURE software [30], which generates a height value for each pixel using a modified semi-global matching algorithm [31]. The software setting AERIAL6030 (pre-defined settings optimized for aerial surveys with 60%/30% overlap) was used to define parameters for point cloud generation. Finally, the point cloud, DSM and lidar height values were transformed from height above mean sea level to height above ground level by subtracting the height of the ground provided by the national digital terrain model (DTM) from Lantmäteriet (with 2 m spatial resolution and 0.2 m vertical accuracy, [32]).

3.2. Colouring Options

The UC2014 and UC2016 point clouds generated by SURE have colour values assigned to each point. SURE colours the points by assigning the DN value from one of the images in the stereo pair that has generated the point, but which is unknown. Using the photogrammetric software Inpho [25], each data set was re-coloured into two new data sets where for each point; (i) the spectral values of the nearest image was used and (ii) the mean of the spectral values of all images where the point was visible was assigned. These together with the DSM product and the multi-spectral lidar data sets resulted in eight different data sets (Table 1).

3.3. Spatial Metrics

Spatial predictor variables, i.e., point cloud metrics from the 3D-coordinates of the points, were calculated from all data sets (for lidar, only channel 2 was used) using FUSION [33], which calculates various statistical summary measures of the point cloud data at each training plot. Density metrics of points above a specific height threshold were calculated using a height limit of 2 m, which is commonly used in lidar-based modelling [34]. All returns were utilized when metrics were calculated.
Lidar penetrates the canopy, giving echoes (points) within the canopy; therefore, metrics like vegetation ratio (i.e., percentage of points over a certain height threshold) describe forest density well and are often used in forest modelling [11,35]. However, for image-based point clouds, which only describe the surface of the canopy, density metrics like vegetation ratio tend to result in 0 or 1 and, thus, poorly describe the forest density. Therefore, for the image-based point clouds, in addition to the metrics from FUSION, a canopy height model (CHM) was generated, with 0.5 m GSD, assigning the maximum height to each raster cell. Metrics describing the surface of the canopy were calculated (i.e., mean of the following: canopy height, slope, aspect, surface ruggedness and surface roughness [36] for each training plot. These metrics were also calculated with all no-data pixels (i.e., occluded areas) set to zero instead of being ignored in the calculation. Additionally, using a filter approach, where a 3 by 3 pixel window identifies the centre cell as local maxima if the eight neighbours have a lower or equal height value, was applied and sum of squared heights of the local maxima were calculated from the image-based CHM for each training plot. The sum of squared heights was also calculated from a CHM, which had been smoothed using a 3 by 3 pixel mean filter. Using the planar position of the local maximum, two spatial descriptive statistics was generated for each plot; (i) spatial dispersion, calculated as the mean distance between nearest neighbours [37] and (ii) deviations from spatial homogeneity using Ripley’s K function [38]. These other than FUSION metrics were calculated aiming to improve the characterization of forest density information from the image-based point clouds, but not calculated from the lidar-based point clouds.

3.4. Spectral Metrics

Spectral predictor variables, i.e., point cloud metrics from the green, red and near-infrared values of the points (for lidar: channel 1, channel 2, channel 3), were calculated using FUSION for each plot. FUSION calculates various statistical metrics such as minimum; maximum; mean; standard deviation; mode; covariance; skewness; moments and percentiles, for each spectral band. For the image-based point clouds, the mean of the spectral values was calculated from the CHM cells above 2 m and with an aspect facing the sun (± 20 degrees of the sun’s position at the mean time of image acquisition), where the remaining cells not satisfying these conditions were excluded in the calculation of the metrics. The reason for setting up these criteria were to coarsely get the mean value of the sunlit part of the crowns. This was not done for the lidar data since the illumination angle and viewing angle is the same. The spectral predictor variables for the lidar data set were calculated using the intensity of first and only returns. Due to the large number of derived spectral metrics, the metrics were sorted in groups according to their origin and expected operational applicability. Tree species estimations were then made and evaluated for each group separately as well as in combination. The groups of metrics are outlined in Table 2.
Each colourized data set (Table 1) was then used together with each of the five spectral groups (Table 2) to estimate species-specific proportions and mean stem volume. The UC2014 and UC2016 data sets were combined based on colour method and spectral metric groups to predict species-specific variables for year 2014.

3.5. Modelling

3.5.1. Stem Volume

Linear regression analysis was used to model the relationship between spatial variables and mean stem volume. Selection of final models was based on produced RMSE, bias and adjusted R2 values, significance and correlation of metrics and studies of residual plots. In the first phase, the best metric was selected by testing all possible variables in a simple linear model. In the second phase, the best performing metric was combined with a second metric and the best model was selected. Thereafter, logarithmic and square root transformation of the response variable, i.e., mean stem volume, were examined. Finally, a third metric was added if it improved the model, and a maximum of three metrics were selected for each model to avoid overfitting. Mean stem volume was predicted for each data set, i.e., UC2014, UC2016, UC2016DSM_SURE and Lidar2016_MS, using the field data from the corresponding year. For the data set where spectral data from both 2014 and 2016 images were used, the mean stem volume was predicted using the spatial metrics of the UC2014 data set (the 2016 data set is leaf-off, generating poorer estimates of mean stem volumes, [39]).

3.5.2. Species Proportion

Estimations of species-specific (pine, spruce and deciduous) proportions of mean stem volume from the spectral metrics were made using a non-parametric method, rather than a model-based approach. This, since the targeted proportions show complex dependencies to the very large number of addressed metrics, and the technical difficulties in modelling finite range processes (i.e., ratios limited to values strictly between 0 and 1) and skewed multi-modal error distributions. Thus, estimations of the addressed species proportions from the various metrics were developed using the non-parametric method Random Forest [40,41] implemented in the R package randomForest [42,43]. In short, Random Forest combines the ideas of regression trees and bootstrap aggregating (“bagging”, [40]) to fit and evaluate a large number of regression trees (a “forest”). Each tree is fitted using a random sample of the training data, and each node of the tree is defined by the best splitting variable out of a small random selection of the independent variables, i.e., the metrics. Error and variable importance are assessed using the training data left out (out-of-bag data). Given the forest of regression trees, estimation is made using a majority of votes.
For each combination of data set, colouring method and metric group, the proportions for pine, spruce and deciduous were predicted. Each species proportion was predicted independently, but was normalised by division with the sum of all predicted species proportions. Additionally, species-specific mean stem volume was calculated by multiplying the predicted species proportion by predicted total mean stem volume. The predictions were made by leave-one-out cross-validation at plot level, and accuracies were reported in terms of RMSE and bias for mean stem volume, species proportions and species-specific mean stem volume.

4. Results

Mean stem volume was predicted using the spatial metrics from each data set. The metrics used in the regression models and the resulting RMSEs are shown in Table 3. The RMSE in percent of surveyed mean stem volume varies only marginally between the different data sets, ranging from 36.0% to 36.7%.
The lidar data set showed superior performance when predicting the species proportions with accuracies of 0.22, 0.22 and 0.16 for pine, spruce and deciduous, respectively, in terms of absolute RMSE. For the image-based data sets the accuracies ranged from 0.22 to 0.34, 0.21 to 0.34 and 0.16 to 0.30 for pine, spruce and deciduous proportions, respectively (Figure 3). However, when comparing different colouring methods for the same data set and metric group, the variation was small. Metric groups A and B performed well for all the data sets and colouring methods, group D resulted in the poorest performance for UC2014, whereas the poorest performing metric group for the 2016 data sets (UC2016 and UC2016DSM_SURE) was group C.
Comparing the years, the 2016 leaf-off data set generally had a lower RMSE for identifying pine proportions than the 2014 data set, while for spruce, the 2016 data set performed slightly better. The UC2016DSM_SURE data set, which is a filtered and thinned point cloud, showed very similar performance as other UC2016 combinations. Combining 2014 leaf-on and 2016 leaf-off spectral data was better than using either data set alone, resulting in the best performance for predicting species-specific proportions.
The best accuracy for the image data sets, measured as lowest mean of species-specific stem volume RMSEs in percent of field surveyed mean, was found for the combination of 2014 and 2016 spectral data, coloured by the mean value from the overlapping images and group B metrics. The RMSE for the species proportion was 0.24, 0.23 and 0.20 for pine, spruce and deciduous, respectively (Figure 3). For the species-specific stem volume at plot level, the RMSE in percent of surveyed mean was found to be 129%, 60% and 118% for pine, spruce and deciduous, respectively.
Compared to the field surveyed tree species proportions (Figure 2), the predicted proportions are underestimated at the ends of the range and overestimated in the middle, i.e., species-pure forests are underestimated and mixed forests are overestimated (Figure 4).

5. Discussion

The best performance for tree species-specific proportion was achieved using multi-spectral lidar. Compared to aerial images, lidar show no problems with sun-sensor-target geometry, since the system provides its own illumination source, and illumination and viewing angles are equal. This will, to a large extent, probably eliminate the problem of reflectance anisotropy and reflectance from adjacent trees described as a large source of error in species classification [21]. Compared to other studies where only aerial images were used, the results of the present study (i.e., RMSE of 129%, 60% and 118% for pine, spruce and deciduous, respectively, at plot level) have lower performance than, for example, Ref. [15] who reported RMSEs of 56.2%, 42.0% and 91.7% for pine, spruce and deciduous mean stem volume, respectively. Significant improvement in accuracy can be expected when results are aggregated to stands, for example, as in [15], which showed RMSEs of 43.3%, 35.0% and 80.1% for pine, spruce and deciduous stem volume, respectively, at stand level. In an earlier study, performed at the same study area as the present study (Remningstorp), RMSEs of 90.6%, 26.4% and 72.6% for pine, spruce and deciduous stem volume, respectively, were reported for stand level prediction [44].
In [15], an extensive transformation of predictor variables and an exhaustive variable selection method using best subset regression was used, aiming to find the best performing models. However, in the present study, the aim was to compare the effects of point cloud colorization; spectral metrics and seasonal data. Therefore, a simplified model approach was used, which may account for lower RMSEs.
The method of colouring the point cloud showed marginal impact on the results. This indicates that the method for colourization of the point cloud has little importance when predicting species proportions or mean stem volume. One reason for this result may be that the radiometric calibration done during the image post-production has already manipulated the spectral values towards an average of the overlapping images and a general tone for the image block. However, the aim with the relative radiometric calibration is to minimize the difference in colour tone between similar objects in different images, to improve image interpretation and analysis within the image block [20].
Group A metrics were as good or better than other metric groups, indicating that simple mean values of spectral information at the plot are sufficient. Creating more advanced metrics, group C did not improve the performance but rather had the opposite effect, indicating that information from only the directly sunlit part of the canopy does not improve performance. This is, to some extent, supported by the thorough study by [21], which reported that the difference in reflectance was higher in the sunlit part of the crown than in the self-shaded, for three tree species. This partly contradicts the results in [19], where the sunlit part of the crowns were used to classify tree species with high accuracy (88% and 89%), however, using a small evaluation data set and limited variation in view angle. Another explanation may be that the CHM is not accurate enough to properly model the sunlit part. The metric groups using many metrics (D and E), had lower performance than groups A and B, and this is probably due to the large number of descriptive variables used, making the parameter selection in Random Forest more difficult.
The difference in performance between seasons indicate that the prediction for specific tree species varies with the spectral variation as a result of seasonal change in tree phenology. This is because the spatial height distribution of the points and their spectral properties vary due to the phenological state of the trees, especially deciduous, over the seasons [45]. However, this variation in spectral information over the seasons can be utilized if multiple image data sets are used, indicated here by that the lowest RMSE result was obtained when combining spectral data from 2014 and 2016 data sets. The RMSE clearly improved for predicting deciduous proportion, which shows that the difference between foliated trees in the summer and barren branches and the ground in the spring images improves prediction. Changes in height distribution of the point cloud data between leaf-on and leaf-off images has been suggested for deciduous forest mapping [39]; however, in this study, none of the height metrics was ranked as top five in importance by Random Forest.

6. Conclusions

In this study, method of colorization marginally affected the prediction results for tree species-specific proportions when radiometric correction has been applied to the images. Simple mean values of the spectral metrics had the highest importance. Using spectral data from two seasons improves predictions of species proportions, especially proportion of deciduous trees. The predicted tree species proportions are underestimated for species-pure plots and overestimated for mixed plots. Further research should be directed towards the sub-plot level, for example, semi-ITC classification of tree species for stand level aggregation to species proportion.

Author Contributions

Conceptualization, J.B.; methodology, J.B.; validation, J.B.; formal analysis, J.B.; investigation, J.B.; resources, J.W., J.E.S.F.; data curation, J.B.; writing—original draft preparation, J.B.; writing—review and editing, J.B., J.W., J.E.S.F.; visualization, J.B.; supervision, J.W., J.E.S.F.; project administration, J.E.S.F.; funding acquisition, J.E.S.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Hildur and Sven Wingquist’s Foundation through data collection at the Remningstorp test site.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank Heather Reese for valuable comments on the paper and the language review. We would also like to thank the anonymous reviewers for their helpful and constructive comments.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Magnussen, S.; Boudewyn, P. Derivations of stand heights from airborne laser scanner data with canopy-based quantile estimators. Can. J. For. Res. 1998, 28, 1016–1031. [Google Scholar] [CrossRef]
  2. Næsset, E. Predicting forest stand characteristics with airborne scanning laser using a practical two-stage procedure and field data. Remote Sens. Environ. 2002, 80, 88–99. [Google Scholar] [CrossRef]
  3. Næsset, E.; Gobakken, T.; Holmgren, J.; Hyyppä, H.; Hyyppä, J.; Maltamo, M.; Nilsson, M.; Olsson, H.; Persson, Å.; Söderman, U. Laser scanning of forest resources: The Nordic experience. Scand. J. For. Res. 2004, 19, 482–499. [Google Scholar] [CrossRef]
  4. McRoberts, R.E.; Cohen, W.B.; Næsset, E.; Stehman, S.V.; Tomppo, E.O. Using remotely sensed data to construct and assess forest attribute maps and related spatial products. Scand. J. For. Res. 2010, 25, 340–367. [Google Scholar] [CrossRef]
  5. Hyyppä, J.; Hyyppä, H.; Leckie, D.; Gougeon, F.; Yu, X.; Maltamo, M. Review of methods of small-footprint airborne laser scanning for extracting forest inventory data in boreal forests. Int. J. Remote Sens. 2008, 29, 1339–1366. [Google Scholar] [CrossRef]
  6. Packalén, P.; Suvanto, A.; Maltamo, M. A two stage method to estimate species-specific growing stock. Photogramm. Eng. Remote Sens. 2009, 75, 1451–1460. [Google Scholar] [CrossRef]
  7. Packalén, P.; Maltamo, M. The k-MSN method for the prediction of species-specific stand attributes using airborne laser scanning and aerial photographs. Remote Sens. Environ. 2007, 109, 328–341. [Google Scholar] [CrossRef]
  8. St-Onge, B.; Budei, B.C. Individual tree species identification using the multispectral return intensities of the Optech Titan lidar system. In Proceedings of the SilviLaser 2015, 14th Conference on Lidar Applications for Assessing and Managing Forest Ecosystems, La Grande Motte, France, 28–30 September 2015. [Google Scholar]
  9. Kukkonen, M.; Maltamo, M.; Korhonen, L.; Packalen, P. Multispectral airborne LiDAR data in the prediction of boreal tree species composition. IEEE Trans. Geosci. Remote Sens. 2019, 57, 3462–3471. [Google Scholar] [CrossRef]
  10. Bohlin, J.; Wallerman, J.; Fransson, J.E.S. Forest variable estimation using photogrammetric matching of digital aerial images in combination with a high-resolution DEM. Scand. J. For. Res. 2012, 27, 692–699. [Google Scholar] [CrossRef]
  11. Gobakken, T.; Bollandsås, O.M.; Næsset, E. Comparing biophysical forest characteristics estimated from photogrammetric matching of aerial images and airborne laser scanning data. Scand. J. For. Res. 2015, 30, 73–86. [Google Scholar] [CrossRef]
  12. Jarnstedt, J.; Pekkarinen, A.; Tuominen, S.; Ginzler, C.; Holopainen, M.; Viitala, R. Forest variable estimation using a high-resolution digital surface model. ISPRS J. Photogramm. Remote Sens. 2012, 74, 78–84. [Google Scholar] [CrossRef]
  13. St-Onge, B.; Vega, C.; Fournier, R.A.; Hu, Y. Mapping canopy height using a combination of digital stereo-photogrammetry and lidar. Int. J. Remote Sens. 2008, 29, 3343–3364. [Google Scholar] [CrossRef]
  14. Goodbody, T.R.H.; Coops, N.C.; White, J.C. Digital aerial photogrammetry for updating area-based forest inventories: A review of opportunities, challenges, and future directions. Curr. For. Rep. 2019, 5, 55–75. [Google Scholar] [CrossRef] [Green Version]
  15. Puliti, S.; Gobakken, T.; Ørka, H.O.; Næsset, E. Assessing 3D point clouds from aerial photographs for species-specific forest inventories. Scand. J. For. Res. 2017, 32, 68–79. [Google Scholar] [CrossRef]
  16. Kukkonen, M.; Maltamo, M.; Korhonen, L.; Packalen, P. Comparison of multispectral airborne laser scanning and stereo matching of aerial images as a single sensor solution to forest inventories by tree species. Remote Sens. Environ. 2019, 231, 1–10. [Google Scholar] [CrossRef]
  17. Heikkinen, V.; Tokola, T.; Parkkinen, J.; Korpela, I.; Jaaskelainen, T. Simulated multispectral imagery for tree species classification using support vector machines. IEEE Trans. Geosci. Remote Sens. 2009, 48, 1355–1364. [Google Scholar] [CrossRef]
  18. Lillesand, T.; Kiefer, R.W.; Chipman, J. Remote Sensing and Image Interpretation, 6th ed.; John Wiley and Sons: Hoboken, NJ, USA, 2018. [Google Scholar]
  19. Bohlin, J.; Olsson, H.; Olofsson, K.; Wallerman, J. Tree species discrimination by aid of template matching applied to digital air photos. In Proceedings of the International Workshop on 3D Remote Sensing in Forestry, Vienna, Austria, 14–15 February 2006; Koukal, T., Schneider, W., Eds.; EARSeL SIG Forestry: Münster, Germany; pp. 210–214. Available online: https://boku.ac.at/fileadmin/data/H03000/H85000/H85700/workshops/3drsforestry/Proceedings_3D_Remote_Sensing_2006_rev_20070129.pdf (accessed on 15 February 2021).
  20. Honkavaara, E.; Arbiol, R.; Markelin, L.; Martinez, L.; Cramer, M.; Bovet, S.; Chandelier, L.; Ilves, R.; Klonus, S.; Marshal, P.; et al. Digital airborne photogrammetry—A new tool for quantitative remote sensing?—A state-of-the-art review on radiometric aspects of digital photogrammetric images. Remote Sens. 2009, 1, 577–605. [Google Scholar] [CrossRef] [Green Version]
  21. Korpela, I.; Heikkinen, V.; Honkavaara, E.; Rohrbach, F.; Tokola, T. Variation and directional anisotropy of reflectance at the crown scale—Implications for tree species classification in digital aerial images. Remote Sens. Environ. 2011, 115, 2062–2074. [Google Scholar] [CrossRef]
  22. Xu, Z.; Shen, X.; Cao, L.; Coops, N.C.; Goodbody, T.R.H.; Zhong, T.; Zhao, W.; Sun, Q.; Ba, S.; Zhang, Z.; et al. Tree species classification using UAS-based digital aerial photogrammetry point clouds and multispectral imageries in subtropical natural forests. Int. J. Appl. Earth Obs. Geoinf. 2020, 92, 1–14. [Google Scholar] [CrossRef]
  23. Honkavaara, E.; Khoramshahi, E. Radiometric correction of close-range spectral image blocks captured using an unmanned aerial vehicle with a radiometric block adjustment. Remote Sens. 2018, 10, 256. [Google Scholar] [CrossRef] [Green Version]
  24. Nezami, S.; Khoramshahi, E.; Nevalainen, O.; Pölönen, I.; Honkavaara, E. Tree species classification of drone hyperspectral and rgb imagery with deep learning convolutional neural networks. Remote Sens. 2020, 12, 1070. [Google Scholar] [CrossRef] [Green Version]
  25. Trimble. MATCH-T DSM 6.0 Reference Manual; Trimble INPHO GmbH: Stuttgart, Germany, 2014. [Google Scholar]
  26. Ulander, L.M.H.; Gustavsson, A.; Dubois-Fernandez, P.; Dupuis, X.; Fransson, J.E.S.; Holmgren, J.; Wallerman, J.; Eriksson, L.; Sandberg, G.; Soja, M. BIOSAR 2010—A SAR campaign in support to the BIOMASS mission. In Proceedings of the 2011 IEEE International Geoscience and Remote Sensing Symposium (IGARSS)—Beyond the Frontiers: Expanding our Knowledge of the World, Vancouver, BC, Canada, 24–29 July 2011; pp. 1528–1531. [Google Scholar] [CrossRef] [Green Version]
  27. Wikström, P.; Edenius, L.; Elfving, B.; Eriksson, L.O.; Lämås, T.; Sonesson, J.; Öhman, K.; Wallerman, J.; Waller, C.; Klintebäck, F. The Heureka forestry decision support system: An overview. Math. Comput. For. Nat. Res. Sci. 2011, 3, 87–94. [Google Scholar]
  28. Söderberg, U. Functions for forest management. Height, form height and bark thickness of individual trees. Rapp. Sver. lantbr. Inst. Skogstaxering. 1992, 52. ISSN 03480496. [Google Scholar]
  29. Wiechert, A.; Gruber, M. UltraCam and UltraMap—Towards all in one solution by photogrammetry. In Photogrammetric Week ’11; Fritsch, D., Ed.; Wichmann: Heidelberg, Germany, 2011. [Google Scholar]
  30. Rothermel, M.; Wenzel, K.; Fritsch, D.; Haala, N. SURE: Photogrammetric surface reconstruction from imagery. In Proceedings of the LC3D Workshop, Berlin, Germany, 4–5 December 2012. [Google Scholar]
  31. Hirschmuller, H. Stereo processing by semiglobal matching and mutual information. IEEE Trans. Pattern Anal. Mach. Intell. 2008, 30, 328–341. [Google Scholar] [CrossRef] [PubMed]
  32. Owemyr, P.; Lundgren, J. Noggrannhetskontroll av Laserdata för ny Nationell Höjdmodell; Högskolan i Gävle: Gävle, Sweden, 2010. (In Swedish) [Google Scholar]
  33. McGaughey, R.J. FUSION/LDV: Software for LIDAR Data Analysis and Visualization; U.S. Department of Agriculture, Forest Service, Pacific Northwest Research Station, University of Washington: Seattle, WA, USA, 2016. [Google Scholar]
  34. Korhonen, L.; Morsdorf, F. Estimation of canopy cover, gap fraction and leaf area index with airborne laser scanning. In Forestry Applications of Airborne Laser Scanning; Maltamo, M., Naesset, E., Vauhkonen, J., Eds.; Springer: Dordrecht, The Netherlands, 2014; Volume 27, pp. 397–437. [Google Scholar]
  35. Vastaranta, M.; Wulder, M.A.; White, J.C.; Pekkarinen, A.; Tuominen, S.; Ginzler, C.; Kankare, V.; Holopainen, M.; Hyyppä, J.; Hyyppä, H. Airborne laser scanning and digital stereo imagery measures of forest structure: Comparative results and implications to forest mapping and inventory update. Can. J. Remote Sens. 2013, 39, 382–395. [Google Scholar] [CrossRef]
  36. Hijmans, R.J.; van Etten, J.; Mattiuzzi, M.; Sumner, M.; Greenberg, J.A.; Lamigueiro, O.P.; Shortridge, A. Geographic Data Analysis and Modeling: Package “Raster” Version 2016. Available online: https://cran.r-project.org/web/packages/raster/index.html (accessed on 15 February 2021).
  37. Clark, P.J.; Evans, F.C. Distance to nearest neighbor as a measure of spatial relationships in populations. Ecology 1954, 35, 445–453. [Google Scholar] [CrossRef]
  38. Ripley, B.D. The second-order analysis of stationary point processes. J. Appl. Probab. 1976, 13, 255–266. [Google Scholar] [CrossRef] [Green Version]
  39. Bohlin, J.; Wallerman, J.; Fransson, J.E.S. Deciduous forest mapping using change detection of multi-temporal canopy height models from aerial images acquired at leaf-on and leaf-off conditions. Scand. J. For. Res. 2015, 31, 517–525. [Google Scholar] [CrossRef]
  40. Breiman, L. Bagging predictors. Mach. Learn. 1996, 24, 123–140. [Google Scholar] [CrossRef] [Green Version]
  41. Breiman, L. Random forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef] [Green Version]
  42. Liaw, A.; Wiener, M. Classification and regression by randomForest. R news 2002, 2, 18–22. [Google Scholar]
  43. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2015. [Google Scholar]
  44. Bohlin, J.; Wallerman, J.; Fransson, J.E.S.; Olsson, H. Species-specific forest variable estimation using non-parametric modeling of multi-spectral photogrammetric point cloud data. In Proceedings of the XXIInd ISPRS Congress, Imaging a Sustainable Future, Melbourne, Australia, 25 August–1 September 2012; Volume XXXIX-B8, pp. 387–391. [Google Scholar]
  45. Dandois, J.P.; Ellis, E.C. High spatial resolution three-dimensional mapping of vegetation spectral dynamics using computer vision. Remote Sens. Environ. 2013, 136, 259–276. [Google Scholar] [CrossRef] [Green Version]
Remotesensing 13 00720 g001 550

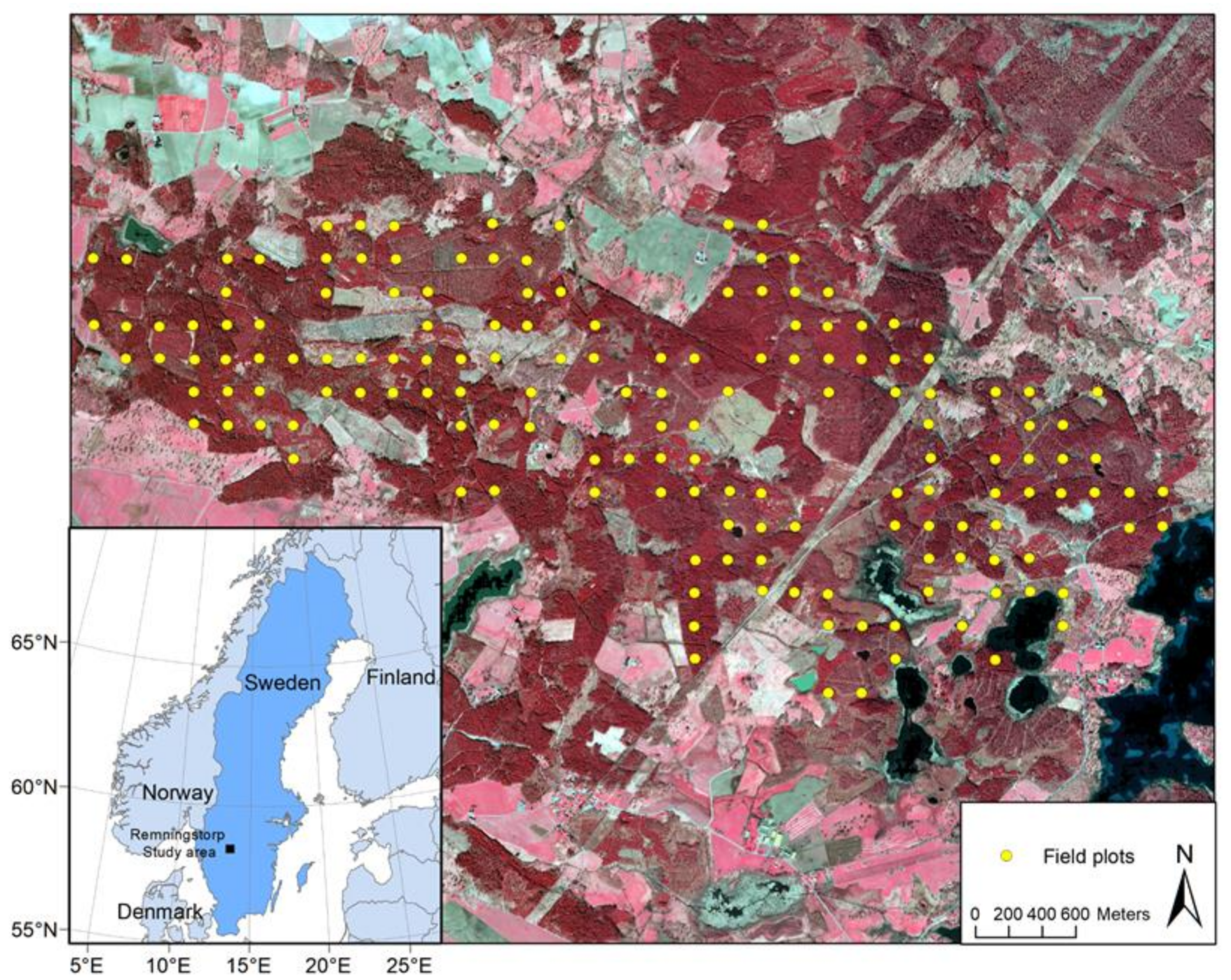

Figure 1. Orthomosaic (© Lantmäteriet) overlaid with the positions of the 156 field plots used for the modelling and an overview (inset) of the study area’s position showing the Nordic countries (© Esri).
Figure 1. Orthomosaic (© Lantmäteriet) overlaid with the positions of the 156 field plots used for the modelling and an overview (inset) of the study area’s position showing the Nordic countries (© Esri).
Remotesensing 13 00720 g001
Remotesensing 13 00720 g002 550

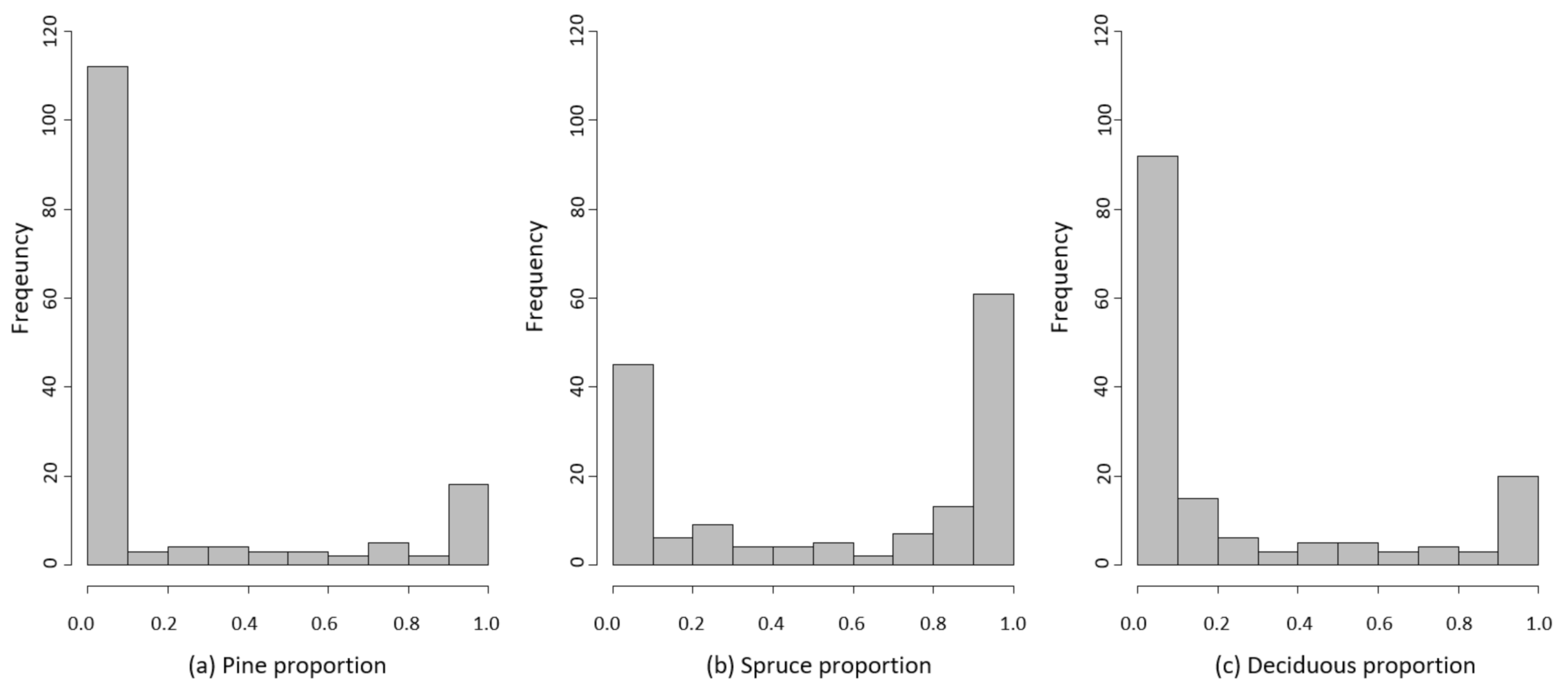

Figure 2. Histogram showing field surveyed species proportions of mean stem volume for (a) pine, (b) spruce and (c) deciduous trees at 156 plots, in 10% interval classes as is common in Swedish forest management plans.
Figure 2. Histogram showing field surveyed species proportions of mean stem volume for (a) pine, (b) spruce and (c) deciduous trees at 156 plots, in 10% interval classes as is common in Swedish forest management plans.
Remotesensing 13 00720 g002
Remotesensing 13 00720 g003 550

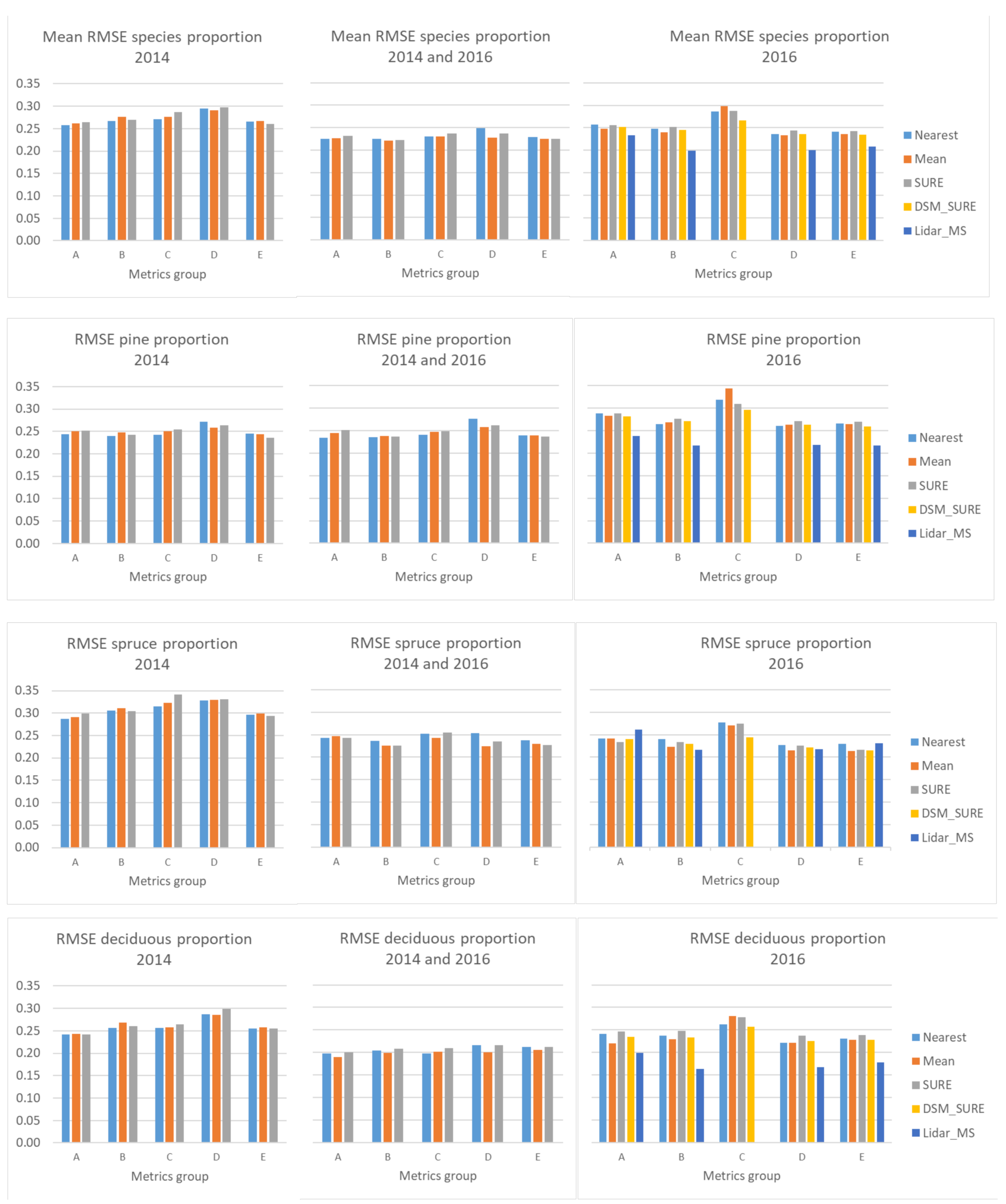

Figure 3. Bar plots of RMSE for the estimation of species-specific proportions for each metrics group and colour method for data set 2014; data set 2014 with spectral metrics from 2016; data set 2016 as columns. Mean and species-specific proportions are shown in the rows.
Figure 3. Bar plots of RMSE for the estimation of species-specific proportions for each metrics group and colour method for data set 2014; data set 2014 with spectral metrics from 2016; data set 2016 as columns. Mean and species-specific proportions are shown in the rows.
Remotesensing 13 00720 g003
Remotesensing 13 00720 g004 550

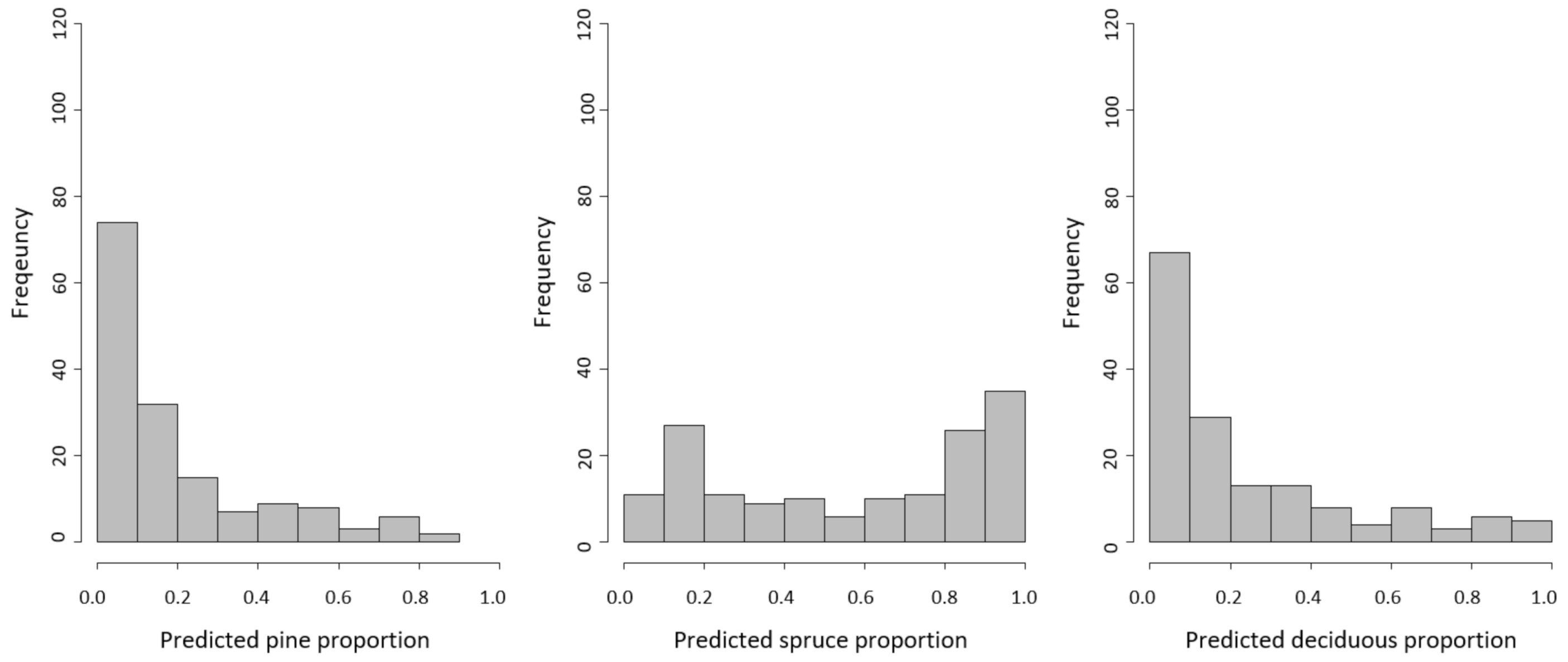

Figure 4. Histograms of predicted pine, spruce and deciduous proportion (left to right) shown in 10% interval classes of 156 plots for the best performing model-based predictions on image data.
Figure 4. Histograms of predicted pine, spruce and deciduous proportion (left to right) shown in 10% interval classes of 156 plots for the best performing model-based predictions on image data.
Remotesensing 13 00720 g004
Table
Table 1. Data sets and different colouring methods.
Table 1. Data sets and different colouring methods.
Data SetData SourcePhotogrammetric ProductColouring Method
UC2014_SURE2014 aerial imagesSURE point cloudSURE
UC2014_Nearest2014 aerial imagesSURE point cloudNearest images
UC2014_Mean2014 aerial imagesSURE point cloudMean of images
UC2016_SURE2016 aerial imagesSURE point cloudSURE
UC2016_Nearest2016 aerial imagesSURE point cloudNearest images
UC2016_Mean2016 aerial imagesSURE point cloudMean of images
UC2016DSM_SURE2016 aerial imagesDSMSURE
Lidar2016_MS2016 lidarMulti-spectral lidarMulti-spectral lidar
Table
Table 2. Metrics used in the study divided into five different groups with associated motivation for each group.
Table 2. Metrics used in the study divided into five different groups with associated motivation for each group.
GroupMetricsMotivation
Aminimum, maximum, mean, standard deviation and variance of each spectral band *fundamental distributional statistics
Bmode, covariance, skewness, L-moments (L1, L2, L3, L4), the 1st, 5th, 10th, 20th, 25th, 30th, 40th, 50th, 60th, 70th, 75th, 80th, 90th, 99th percentile and generalized means for the 2nd and 3rd power, of each spectral bandextensive distributional statistics
Cmean value of the sunlit part of the CHM for each band and normalised by dividing the value for each band by the sum of all bandsdata from the sunlit part only
Dgroups A, B and Call spectral metrics
Egroups A, B, C and all spatial metrics (see Section 3.3. above)all spectral and spatial metrics
* Mean, standard deviation and variance were normalised by dividing the value for each band by the sum of all bands.
Table
Table 3. Regression models of mean stem volume (see Section 3.5.1. above) used for each data set, with corresponding RMSEs (absolute and in percent of the surveyed mean). SumH2 is the sum of squared heights for the local maxima; Roughness is the surface roughness of the CHM; Elev.P25 is the 25th height percentile and Elev.mean is the mean height.
Table 3. Regression models of mean stem volume (see Section 3.5.1. above) used for each data set, with corresponding RMSEs (absolute and in percent of the surveyed mean). SumH2 is the sum of squared heights for the local maxima; Roughness is the surface roughness of the CHM; Elev.P25 is the 25th height percentile and Elev.mean is the mean height.
Data SetModelRMSE (m3 ha−1)RMSE (%)
UC2014 V o l = β 0 + β 1 S u m H 2 + β 2 R o u g h n e s s + ε i 78.536.0
UC2016 V o l = β 0 + β 1 S u m H 2 + β 2 R o u g h n e s s + ε i 82.836.7
UC2016DSM_SURE V o l = β 0 + β 1 S u m H 2 + β 2 R o u g h n e s s + ε i 81.836.2
Lidar2016_MS V o l = β 0 + β 1 E l e v . P 25 + β 2 E l e v . m e a n + ε i 82.536.6
