Article

Combined Use of Space Borne Optical and SAR Data to Improve Knowledge about Sea Ice for Shipping

1
Dr. Thomas König & Partner, Fernerkundung GbR, D-82234 Dießen, Germany
2
German Aerospace Center (DLR), Maritime Safety and Security Lab, Remote Sensing Technology Institute, D-28359 Bremen, Germany
*
Author to whom correspondence should be addressed.
Remote Sens. 2021, 13(23), 4842; https://doi.org/10.3390/rs13234842
Submission received: 8 October 2021 / Revised: 18 November 2021 / Accepted: 20 November 2021 / Published: 29 November 2021

Abstract

:
As a first step towards a new combined product for sea ice classification based on optical/thermal data collected by Sentinel-3 satellites and SAR data from Sentinel-1 satellites, which can be used as an appropriate support for navigation in Arctic and sub-Arctic waters, two existing classification algorithms are adapted to these data. The classification based on optical data has improved, so it is expected that the results will be ideally suited to be processed together with SAR data into significantly improved sea ice information products to support marine navigation. The usefulness of the combined processing is demonstrated by means of two simple algorithms and a more sophisticated approach is outlined, which will be realized in the future in order to form the basis for an integration into an operational service with the involvement of further partners and users.

1. Introduction

Most Arctic oceanic areas are covered by sea ice, either permanently or seasonally. Since the 1980s, its extent and thickness has decreased considerably as a consequence of climate change processes. It is therefore reasonable to assume that shipping in Arctic waters, especially along the north-east or north-west passages, will become increasingly possible and commercially rewarding in the near future in terms of exploitation of mineral resources, fishing, tourism, and trade. This presupposes that safety precautions are taken in order to avoid accidents and damages in these highly sensitive parts of the earth. In particular, relevant information about the type, thickness, and distribution of sea ice is indispensable.
For many years, satellite images have been used to monitor sea ice. For example, ref [1] and citations therein report on early use of thermal infrared data since around 1970. Starting 1979, in particular optical data from the Advanced Very High Resolution Radiometer (AVHRR), which was/is operated on the TIROS-N and NOAA-6 to -19 as well as METOP-A to -C series of weather satellites, and its variants and successors are used for this purpose; these include the Along Track Scanning Radiometer (ATSR) on ERS/ENVISAT satellites, the Moderate-resolution Imaging Spectroradiometer (MODIS) on Aqua and Terra satellites, and the Visible Infrared Imaging Radiometer Suite (VIIRS) on the S-NPP and NOAA-20 satellites. In addition, Synthetic Aperture Radar (SAR) data have been available since 1991. In this context, the C-band SAR data of the satellites ERS-1/2, Radarsat-1/2, and ENVISAT are to be mentioned in particular. In 2014, within the scope of the European Union’s Copernicus Programme, ESA started to launch the Sentinel series of satellites in order to provide long term environmental data that are inexpensive and easy to access in near real time. For this paper, relevant satellites are Sentinel-3A and Sentinel-3B, each carrying the Sea and Land Surface Temperature Radiometer (SLSTR) [2,3], as well as Sentinel-1A and Sentinel-1B, operating a C-Band SAR.
Optical satellite data from the above sensors deliver measurements in the visible and infrared parts of the electromagnetic spectrum including the thermal infrared and allow discrimination between the open ocean and different stages of sea ice development [4,5]. They provide high swath width and repetition rate at high latitudes, but are limited to cloud-free situations with sufficient sunlight. From SAR data, discrimination of sea ice is possible to some extent, mainly due to sensitivity to surface roughness and reflectance properties of ice as a function of polarization. The advantages of sea ice differentiation from the above SAR data are higher geometric resolution compared to optical data and independence from sunlight and clouds. However, the swath width is limited and the repetition rate is lower. Thus, both sensor types provide complementary information that would suggest a combined processing approach.
The work presented in this paper represents a significant step towards the development of an algorithm that simultaneously extracts sea ice information from both data sources and combines the advantages of both sensor types. This will provide the basis for an additional service to support Arctic shipping that will be available for many years to come. The paper is divided into two parts: First, two existing algorithms for sea ice discrimination using optical data and SAR data, respectively, are presented and modifications to these algorithms to work on SLSTR data and Sentinel-1 data, respectively, are introduced. Thereafter, concepts for a combined processing of types of data are developed to improve the imaging of sea ice parameters by a fusion of optical and SAR data.

2. Materials and Methods

2.1. Algorithm for Sea Ice Discrimination Using SLSTR Optical Data

The optical part is based on an algorithm for sea ice differentiation using data of the Advanced Very High Resolution Radiometer (AVHRR) that was operated on board the satellites TIROS-N and NOAA-6 up to NOAA-19 [6,7]. The first version of this algorithm [5] was applied to the region of the Baltic Sea. Since then, it has continuously been developed to improve its results, extend its region of application, and to update for new satellites in operation. The algorithm makes use of calibrated AVHRR channels 1 and 2 in the visible and near infrared spectral range, as well as the blackbody temperatures measured by thermal infrared channels 4 and 5 to produce colour images for the visualization of sea ice properties in the form of continuous tone colour images allowing the identification of different ice types and snow properties. Furthermore, it uses either AVHRR channel 3a at 1.6 µm or channel 3b at 3.7 µm wavelength for cloud detection and masking, depending on their respective availability.
In this initial work, the (red, green, blue) components were formed from ((K5/K4) (K4 + K5), K1 − K2, ((K1 − K2) + 0.1) K2) by partly interactive scaling to the usable brightness range. Here, K1 and K2 represent surface reflectivity computed from AVHRR channels 1 and 2, and K4 and K5 are radiance equivalent blackbody temperatures for AVHRR channels 4 and 5, respectively. These simple formulae only show the basic methodological principle.
The algorithm had to be considerably modified to work with SLSTR level 1 products which provide measurements in comparable spectral ranges to AVHRR (see Table 1) as well as additional spectral information. This includes adapting to more narrow-banded visible and near infrared spectral channels, avoiding manual interactions necessary to stabilise resulting colours, and extending the method to show more differentiated structures on the ice surface using full spectral information available from SLSTR.
It turned out that the information of the broadband NOAA-AVHRR channel 1 required for the algorithm was sufficiently represented by the narrower-banded SLSTR channel S2 and that the other spectral SLSTR channels corresponding to AVHRR had comparable contents of information. However, an adaptation of the algorithm was needed for SLSTR channels S2 and S3 to replace AVHRR channel 2. No such adjustment was required for the thermal channels, as both sensors provide radiation equivalent blackbody temperature values which proved to be equally accurate.
An important change in the transfer of the algorithm to the SLSTR data was the abolition of manually adjusted colour tables used for contrast spread of different intermediate and the final images. These tables were replaced by several permanent colour mapping rules. After exhaustive tests and recalculations, it was possible to extract values which are valid for both seasonal and regional changes in order to obtain consistent results. However, the introduction of these mapping rules has the disadvantage that the SLSTR results do not reflect different types of ice with as much contrast as was the case with the NOAA-AVHRR ice classification, but they nevertheless still remain comparable (see Figure 1, comparison of 13 April 2018).
Postprocessing was performed by using ocean masking information included in RBT products to set all non-ocean pixels to black colour. Additionally, a cloud mask was formed from spectral channels S3, S7, and S8 as well as a greyscale image showing cloud details which was used to replace the ice classification image at all pixels detected as cloudy.
More than 2500 Sentinel-3 scenes from the years 2017 to 2019 were classified, reprojected to Stereographic or Mercator map projection, and stored in GeoTIFF format. The scenes were selected to cover all suitable seasons and several regions (Baltic Sea Region, Svalbard/East-Greenland, Kara Sea/Franz Joseph Islands, North-West Passage, and Hudson Bay). Figure 2 shows an example of a result computed from SLSTR data collected on 4 May 2019.

2.2. Algorithm for Sea Ice Discrimination Using Sentinel-1 SAR Data

A software prototype described in [8] was modified [9] in order to optimally process Sentinel-1 Extended Interferometric Wide Swath (EW) mode data. A Support Vector Machine (SVM) was trained to discriminate three ice classes: “Open Water and Nilas”, “Young Ice”, and “First Year Ice”.
In detail, information from both polarization channels (HH and HV) and grey level co-occurrence matrix based texture parameters are fed into the SVM classifier along with the incidence angle. Readers are referred to Singha 2021 for further details about the algorithm and the training process.
As an example, Figure 3 shows the classification result from a Sentinel-1 acquisition taken on 11 September 2018 over North Greenland. Overall, the algorithm for Sentinel-1 based sea ice classification is able to distinguish the three ice classes “Open Water and Thin Ice”, “Young Ice”, and “First Year Ice” with high reliability, as they yield different radar response properties.
The incidence angle still impairs the classification result. In future work, this problem will be treated by a new method similar to [10].

2.3. Approaches to Combine Sentinel-3 SLSTR and Sentinel-1 SAR Ice Classifications

In the first proposal of a combination, the colour channels of the continuous ice classification based on SLSTR are multiplied at cloud free pixels by SAR based class numbers (0 for background, 1 for blue, 2 for yellow, and 3 for magenta) and the result modulo 256 is saved as a new colour image. In addition, a second method was tried to combine the two ice classification results. As described in detail in Section 3, 19 main colour classes were identified in the SLSTR ice classification results. Based on these main colour classes, the continuous SLSTR ice classification was converted into a form in which only a limited number of different colour classes are represented. Each pair of assignments to classes from SLSTR and SAR then serves as a class in the combination.
In order to assign one of the ice classes to each pixel, a principal component analysis (for details, refer to any book on principal component analysis, e.g. [11]) was carried out. For this purpose, the manually selected test datasets mentioned above were used to estimate the variance covariance matrix of colour components converted to L*a*b* colour space. For each pixel, we compute the difference of the classification colour in L*a*b* colour space to the centre colour of the class in question and transform the result to principal components according to that class. The resulting principal components are expressed in multiples of the standard deviation estimated for that class and component. Then the Euclidean norm of this tuple provides a measure of distance of the pixel to the class. Thus, from this kind of distance, calculated for all classes in question, it is decided, to which class the pixel should be assigned. The three additional classes mentioned above were added as they help avoiding errors.

3. Results

3.1. Verification of the Sentinel-3 SLSTR Ice Classification Results

The SLSTR ice classification results are not only intended to serve as input variables for an algorithm for combined SLSTR-SAR ice classification, but it is also expected that they can be promoted to the user community as a stand-alone product. For this purpose, it is considered necessary to provide a sufficiently detailed legend. Therefore, the authors have subjected the results to careful visual inspection by comparing them with ice maps and other satellite data (Modis, Landsat) and, in some cases, have had them evaluated by an independent expert. As a result, 19 different main colours representing the main distinguishable ice/snow types were thus identified, as summarized in Table 2.
For each of the identified classes, a set of test pixels were manually selected from various scenes and for each of these, a set of data was extracted including colour components, reflectivity, and/or blackbody temperature for all SLSTR spectral channels, geometric values such as the sun zenith angle, the satellite viewing zenith angle, and more. These were used to analyse some statistical properties of the classes. Figure 4 presents an overview of the mean reflectivity/blackbody temperature for all SLSTR spectral channels found for the colour classes. The colour sequence from left to right follows the different stages of ice development: on the left the colours during the freezing period, in the middle the colours that occur during increasing aging and on the right the colours that are preferentially seen during melting. Correspondingly, from left to right, the average reflectance values increase as the freezing process progresses and the average brightness temperatures decrease towards the colour class “light red”. The appearance of the blue colourations signals a significant increase in moisture. This is accompanied accordingly by decreasing reflectance values and increasing temperatures from the colour class “Light Blue” to “Dark Blue” and “Light Green”. The latter occurs when the ice is predominantly covered by melt water ponds. Further statistical investigations [12] confirmed these assumptions, as well as verifications using higher-resolution remote sensing data (Landsat-8 and Modis data) and ice maps of the official ice services (see example in Figure 5).
The new SLSTR-based algorithm automatically calculated consistent results in all cases. As an example, Figure 6 shows a sequence of four products located near the East Greenland coast between 23 and 30 September 2018.

3.2. First Approach to Automatically Combine Sentinel-3 SLSTR and Sentinel-1 SAR Ice Classifications

In the case of the SAR ice class ‘blue’ (open water/nilas/flooded ice), the method described in Section 3.2 results in exactly the same colour as the SLSTR ice classification, while for the other classes new colours are created which contrast well with the old colours. Occasionally, there are points that have closely spaced values in the SLSTR ice classification, but in combination show a transition from 255 to 0 or vice versa in at least one colour channel. Such isolated points were eliminated by applying a median filter. An example of this approach of a potential combination is shown in Figure 7 (12 May 2017, near Franz-Josef-Islands). Under the assumption that correct ice classes are differentiated in each separate ice classification, this type of combination results in five inconsistent combinations. It is, for example, inconsistent, if the SLSTR classification result is ‘open water’ or ‘nilas’ and SAR classification reports ‘ice up to 30 cm’ or ‘ice between 30 cm and 200 cm’. This has to be investigated in a further study. A more detailed analysis of the problem of the mixing pixel for SLSTR could be helpful in these cases. In most cases, however, combinations already clearly show an added value through the application of this method as compared to the individual classifications. Thus, six types of smooth ice (30–200 cm) with aged snow cover can be distinguished as well as four types of young ice up to 30 cm with aged snow cover. In one subarea it has already been possible to identify the surface properties of grey/grey-white ice as smooth first year ice (30–200cm).

3.3. Second Approach to Combine Sentinel-3 SLSTR and Sentinel-1 SAR Ice Classifications

Although the SLSTR ice classification is a very complex, continuous colour image, which has more variations in colour and colour transitions (ice classes) than the main colour classes mentioned above, e.g., due to mixed pixel contents, the authors decided to generalise the colour classes to a certain extent by assigning each pixel one of the 19 main classes specified in Table 2 and three additional classes, accepting a significant loss of information for visual inspection of the classification results. This generalization, however, leads to a kind of ice map, on which each colour can easily be changed according to customer requirements.
In principle, pixels for which an assignment to one of the three ice classes according to the SAR classification as well as to one of the 19 classes from the SLSTR classification are available, can form a new class in any combination. Thus up to 57 different classes may be formed, but not all of them are useful. Contradictory classes were displayed in white, and the remaining classes and their preliminary colour assignment are listed in Table 3. A special effort was made to ensure that colours representing similar types of ice should be similar and that, overall, the colouring scheme is similar to the colouring in the SLSTR classification. This allows us to include the SLSTR classification at points where no SAR classification is available. Figure 8 presents an example of such a combination. Even if only a few of the theoretically possible classes occur, an additional benefit can be identified and the areas in which SLSTR and SAR classifications contradict each other are clearly visible. When using this method, however, the colouring would have to be coordinated with the user community.

4. Discussion

4.1. Optical Ice Classification Algorithm Conversion

This work is focused on the SLSTR instrument onboard the Sentinel-3 satellites and the Sentinel-1 SAR instrument. The SLSTR instrument was selected for this first step because of its similarity to the AVHRR instrument, in particular because of its thermal infrared spectral channels and its wide field of view.
At a future stage of product development, it may be appropriate to also include Sentinel-2 data from the MultiSpectral Instrument (MSI) in the processing of the optical ice classification in order to achieve improvements due to the high geometric resolution and probably also due to additional spectral information.
So far, no comparisons have been made with in situ data or observations in the Arctic. Thus, further validation work is needed. However, such data can only be collected selectively, so plausibility studies and personal experience must be relied upon to improve confidence in the algorithm’s ice regime assignments area-wide. Studies of this type are described in the final report of the project [12].

4.2. Optical—SAR Ice Classification Algorithm Combination

An essential goal of the work was to derive and test first fusion concepts for combining the Sentinel-3 and Sentinel-1 based classifications. It is important to note that the time difference of data collection between Sentinel-1 and Sentinel-3 is not too long. It turned out that a time lag of about 3 to 5 h must be expected between SAR and SLSTR scenes. In areas with little ice movement, SLSTR classifications with matching SAR classifications at 200 m resolution could be used for the fusion of both data sets.
After having succeeded in making the NOAA-AVHRR algorithm for ice differentiation usable and automatically applicable to Sentinel-3 SLSTR data, several cases were identified as suitable for comparison to Sentinel-1 SAR data. As an example, scenes taken on 6 and 12 May 2017 over Franz Joseph Land are shown. These scenes have sufficient overlap and were cloudless in some larger areas. The data were transferred geometrically into the same stereographic map projection and resolution.
As a result of the SAR based method of sea ice classification applied to Sentinel-1 SAR data, three classes of sea ice could be detected representing different ice thickness and allowing conclusions on surface roughness:
  • open water, or nilas up to 10 cm thick, or flooded ice, displayed in blue;
  • young ice: grey ice, or grey-white ice up to 30 cm thick, displayed in yellow;
  • ice between 30 cm and 200 cm thick, displayed in magenta.
A manual plausibility check revealed that areas of young ice as well as areas of thick ice can be addressed more precisely by combining them with the Sentinel-3 classification. A good complement, for example, occur in areas of thick ice with snow cover (Sentinel-3) and smooth first year ice (Sentinel-1). Ice floes that are clearly visible in the SAR based ice classification supplemented the Sentinel-3 ice classification, which in some of these areas only indicated extensive ice with dry snow cover. However, areas indicated as open water in the SAR based ice classification suffer from inaccuracies, which will be addressed in future work.
Despite the inconsistencies in those two classifications, the potential of an improved response of the ice types by combining both methods of ice classifications became clear.
In the future, the time delay between SLSTR and SAR scenes will be corrected by using consecutive SLSTR scenes to estimate the conditions at the time of each SAR scene. In general, this is possible because three consecutive scenes are recorded daily at high latitudes under nominal operation—i.e., SLSTR data are provided by two satellites and at an interval on the order of one hour—north of 70° N, and as many as ten or more are recorded north of 77° N, approximately between 3 and 12 h after a morning SAR data collection.

4.3. Further Plans to Improve the Combination of Sentinel-3 SLSTR and Sentinel-1 SAR Ice Classifications

As a better way to generate an ice map from SLSTR and SAR data, the authors recommend supplementing the neural network used to calculate the SAR ice classification by identifying features from the continuous SLSTR classification as additional input. Thus, it can be assumed that in cloudless areas and after additional training, the network is able to significantly improve the recognition of open water areas at the desired spatial resolution. Furthermore, the network can be expected to be much more successful than at present in interpreting the significance of the SAR parameters as a function of surface moisture in terms of ice classes.

5. Conclusions

This paper presents the results of a first step towards a new combined product for sea ice classification generated from Sentinel-3 SLSTR and Sentinel-1 SAR data suitable for providing shipping support in Arctic and subarctic ocean waters. The work consists of:
  • adapting and improving a sea ice classification based on NOAA AVHRR to work with Sentinel-3 SLSTR data;
  • verifying the SLSTR based algorithm by expert’s visual inspection, comparison to ice maps available, as well as higher resolution satellite images adapting a sea ice classification algorithm based on RADARSAT2 or TerraSAR-X SAR data to work with Sentinel-1 SAR data;
  • demonstrating that additional information is gained even by applying simple approaches to combine the results of two algorithms mentioned above;
  • proposing a neural network for a more sophisticated combination to be investigated in future.
The investigations will be continued by implementing the outlined combination approach and optimizing it for operational use. The results will be used to establish a processing chain involving additional partners and test users, who will evaluate the advantage for ice detection, contribute to the design of the final products, and take over the later provision of the products on board ships.

Author Contributions

Conceptualization, C.K.; methodology, C.K., S.S., A.F. and S.J.; software, C.K., T.K. and S.S.; validation, C.K., S.S., A.F. and S.J.; formal analysis, C.K., T.K., S.S. and A.F.; investigation, C.K., T.K., S.S., A.F. and S.J.; resources, C.K., T.K., S.S., A.F. and S.J.; data curation, T.K. and S.S.; writing—original draft preparation, C.K., T.K., S.S., A.F. and S.J.; writing—review and editing, C.K., T.K., S.S., A.F. and S.J.; visualization, C.K., T.K., S.S., A.F. and S.J.; supervision, C.K.; project administration, C.K., T.K. and S.J.; funding acquisition, C.K., T.K., A.F. and S.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was prepared in the scope of the project EisKlass31, funded by the German Federal Ministry of Transport and Digital Infrastructure’s financial assistance programme called mFUND under grant 19F1038.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data from the project EisKlass31 as well as from the follow-up project EisKlass2 are available from mCloud data service (https://mcloud.de (accessed on 23 November 2021)). The software developed as part of this work is proprietary and not publicly available.

Acknowledgments

The work is based on Sentinel data provided for free by Copernicus data services. In particular, Figure 1, Figure 2, Figure 3, Figure 5, Figure 6, Figure 7 and Figure 8 contain modified Copernicus Sentinel data [2017/2018].

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study and the analyses and interpretation of data.

References

  1. Dey, B. Applications of Satellite Thermal Infrared Images for Monitoring North Water during the Periods of Polar Darkness. J. Glaciol. 1980, 25, 425–438. [Google Scholar] [CrossRef] [Green Version]
  2. Aguirre, M.; Berruti, B.; Bezy, J.; Drinkwater, M.; Heliere, F.; Klein, U.; Mavrocordatos, C.; Silvestrin, P.; Greco, B.; Benveniste, J. Sentinel-3—The Ocean and Medium-Resolution Land Mission for GMES Operational Services. ESA Bull. 2007, 131, 29. [Google Scholar]
  3. Donlon, C.; Berruti, B.; Buongiorno, A.; Ferreira, M.-H.; Féménias, P.; Frerick, J.; Goryl, P.; Klein, U.; Laur, H.; Mavrocordatos, C.; et al. The Global Monitoring for Environment and Security (GMES) Sentinel-3 mission. Remote Sens. Environ. 2012, 120, 37–57. [Google Scholar] [CrossRef]
  4. Riggs, A.G.; Hall, D.K.; Ackerman, A.S. Sea Ice Extent and Classification Mapping with the Moderate Resolution Imaging Spectroradiometer Airborne Simulator. Remote Sens. Environ. 1999, 68, 152–163. [Google Scholar] [CrossRef]
  5. König, C. Eisfernerkundung mit NOAA-AVHRR und SAR. Dtsch. Hydrogr. Z. 1995, 4. ISSN 0946-2015. Available online: https://openlibrary.org/books/OL76781M/Eisfernerkundung_mit_NOAA-advanced_very_high_resolution_radiometer_%28AVHRR%29_und_synthetic_aperture_ra (accessed on 23 November 2021).
  6. Kidwell, K. (Ed.) NOAA Polar Orbiter Data User’s Guide (TIROS-N, NOAA-6, NOAA-7, NOAA-8, NOAA-9, NOAA-10, NOAA-11, NOAA-12, NOAA-13 and NOAA-14). NOAA NESDIS, November 1998. Available online: https://web.archive.org/web/20161209021928/https://www.ncdc.noaa.gov/oa/pod-guide/ncdc/docs/podug/index.htm (accessed on 23 November 2021).
  7. Robel, J.; Graumann, A. (Eds.) NOAA KLM Users’s Guide with NOAA-N, N Prime, and MetOp Supplements. NOAA NESDIS, April 2014. p. 2530. Available online: https://www.star.nesdis.noaa.gov/mirs/documents/0.0_NOAA_KLM_Users_Guide.pdf (accessed on 23 November 2021).
  8. Ressel, R.; Frost, A.; Lehner, S. A Neural Network-Based Classification for Sea Ice Types on X-Band SAR Images. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 3672–3680. [Google Scholar] [CrossRef] [Green Version]
  9. Singha, S. Towards Pan-Arctic Sea Ice Type Retrieval Using Sentinel-1 TOPSAR Modes. In Proceedings of the EUSAR 2021—13th European Conference on Synthetic Aperture Radar, Online Event, 29 March–1 April 2021; Available online: https://www.vde-verlag.de/proceedings-de/455457180.html (accessed on 23 November 2021).
  10. Park, J.-W.; Korosov, A.A.; Babiker, M.; Sandven, S.; Won, J.-S. Efficient Thermal Noise Removal for Sentinel-1 TOPSAR Cross-Polarization Channel. IEEE Trans. Geosci. Remote Sens. 2017, 56, 1555–1565. [Google Scholar] [CrossRef]
  11. Jolliffe, I. Principal Component Analysis, 2nd ed.; Springer: New York, NY, USA, 2002; Available online: http://cda.psych.uiuc.edu/statistical_learning_course/Jolliffe%20I.%20Principal%20Component%20Analysis%20(2ed.,%20Springer,%202002)(518s)_MVsa_.pdf (accessed on 23 November 2021).
  12. König, C.; König, T.; Frost, A.; Jacobsen, S. Verbesserung der Meereis-Lageinformationen für die Schifffahrt in Polaren Gewässern Durch Kombinierte Meereis-Klassifikation mit optischen Daten der Sentinel-3 und SAR-Daten der Sentinel-1 Satellitenserie." Final Report of Project EisKlass31 (in German), Project Timeframe: August 2018—July 2019, Submitted to: Technische Informationsbibliothek Hannover. 2019. Available online: https://www.tib.eu/de/suchen/id/TIBKAT:1767649789/Verbesserung-der-Meereis-Lageinformationen-f%C3%BCr?cHash=2af0a7aa5ec710dffa6a7553d8a8a58f (accessed on 23 November 2021).

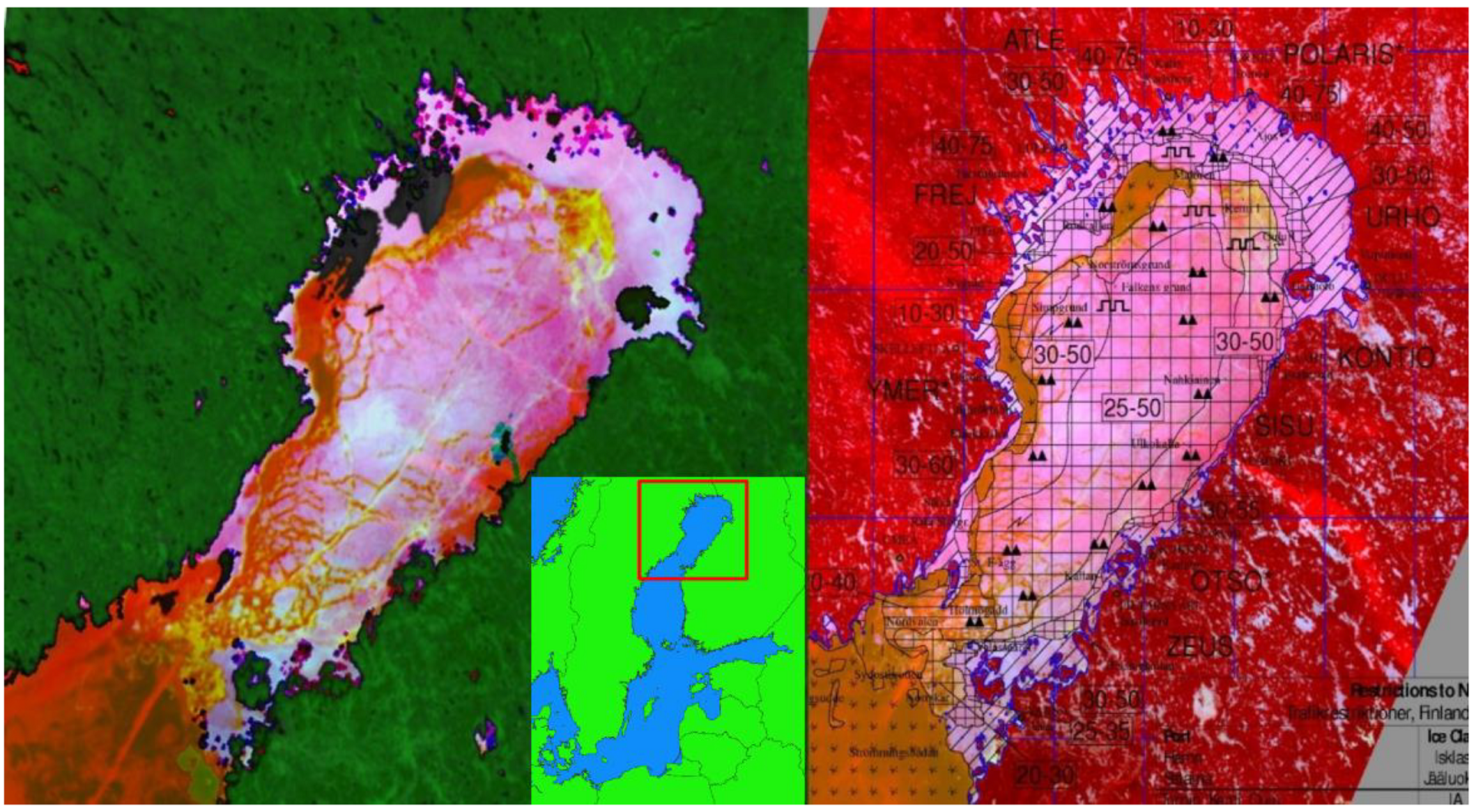

Figure 1. Comparison of sea ice classification results using AVHRR data (left, land masking applied) and SLSTR data (right, no land masking) of 13 April 2018 in northern Bothnian Sea and Bothnian Bay as indicated by the overview map (Refer to Table 2 for colour legend). In the section on the right, the corresponding ice chart by SMHI is overlaid.
Figure 1. Comparison of sea ice classification results using AVHRR data (left, land masking applied) and SLSTR data (right, no land masking) of 13 April 2018 in northern Bothnian Sea and Bothnian Bay as indicated by the overview map (Refer to Table 2 for colour legend). In the section on the right, the corresponding ice chart by SMHI is overlaid.
Remotesensing 13 04842 g001

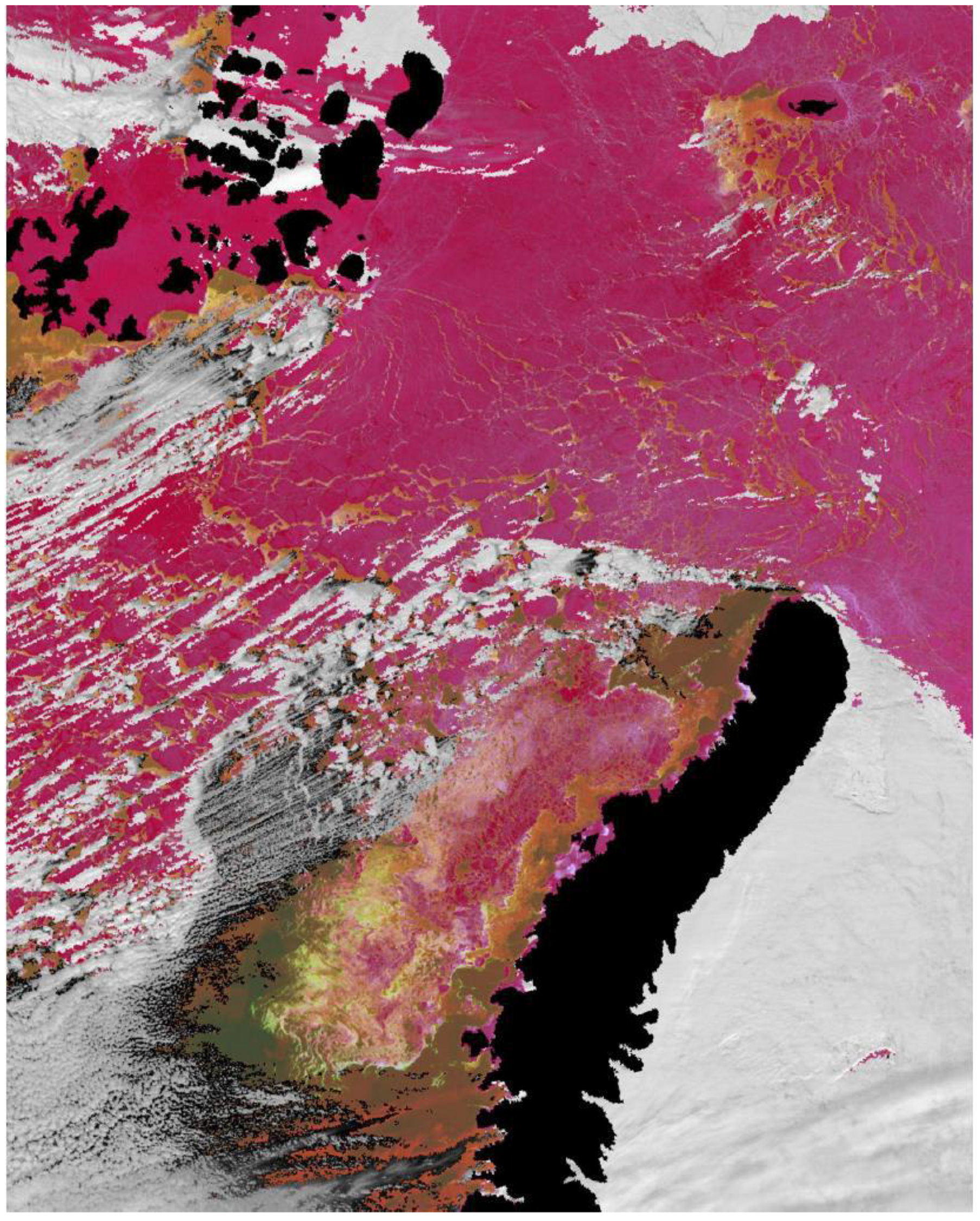

Figure 2. Sea ice classification result based on SLSTR data collected on 4 May 2019 over the area of Franz Joseph Islands to Novaja Semlja. Refer to Table 2 for colour legend.
Figure 2. Sea ice classification result based on SLSTR data collected on 4 May 2019 over the area of Franz Joseph Islands to Novaja Semlja. Refer to Table 2 for colour legend.
Remotesensing 13 04842 g002

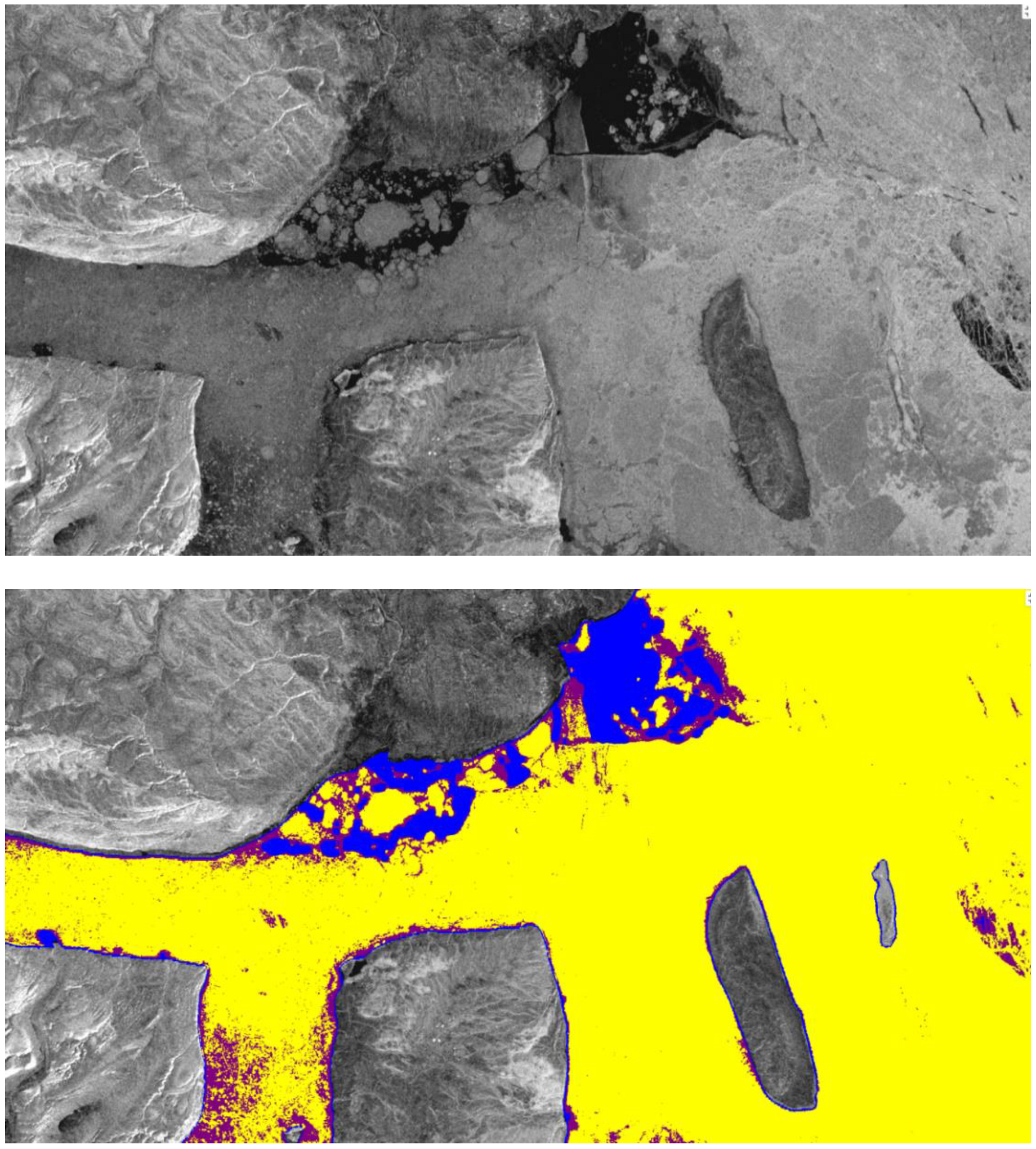

Figure 3. (TOP) Sentinel-1 acquisition (HH) taken on 11th September 2018 over North Greenland (BOTTOM) Corresponding, land masked sea ice classification with blue = Open water and thin ice, violet = young ice, yellow = First Year Ice.
Figure 3. (TOP) Sentinel-1 acquisition (HH) taken on 11th September 2018 over North Greenland (BOTTOM) Corresponding, land masked sea ice classification with blue = Open water and thin ice, violet = young ice, yellow = First Year Ice.
Remotesensing 13 04842 g003

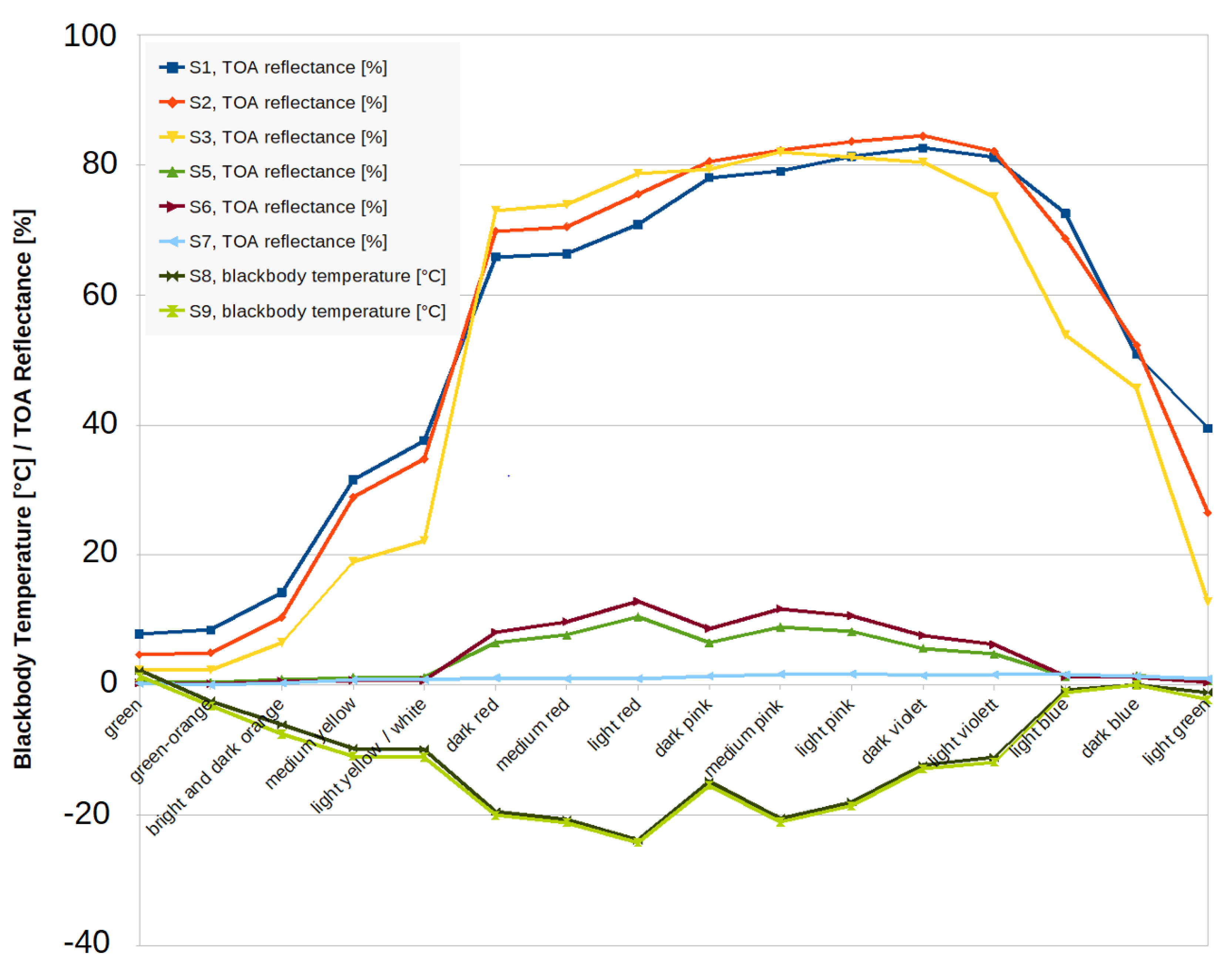

Figure 4. Mean values as measured for top of atmosphere (TOA) reflectance of SLSTR spectral channels S1–S7 and for blackbody temperature equivalent to radiances obtained in channels S8 and S9, for the 16 colours identified as major colours of the SLSTR sea ice classification algorithm. Classes are arranged from left to right in the typical chronology of sea ice formation and decline during an ice season. The determined mean values are connected by line segments to give an impression of intermediate values that occur, e.g., due to mixed pixel contents.
Figure 4. Mean values as measured for top of atmosphere (TOA) reflectance of SLSTR spectral channels S1–S7 and for blackbody temperature equivalent to radiances obtained in channels S8 and S9, for the 16 colours identified as major colours of the SLSTR sea ice classification algorithm. Classes are arranged from left to right in the typical chronology of sea ice formation and decline during an ice season. The determined mean values are connected by line segments to give an impression of intermediate values that occur, e.g., due to mixed pixel contents.
Remotesensing 13 04842 g004

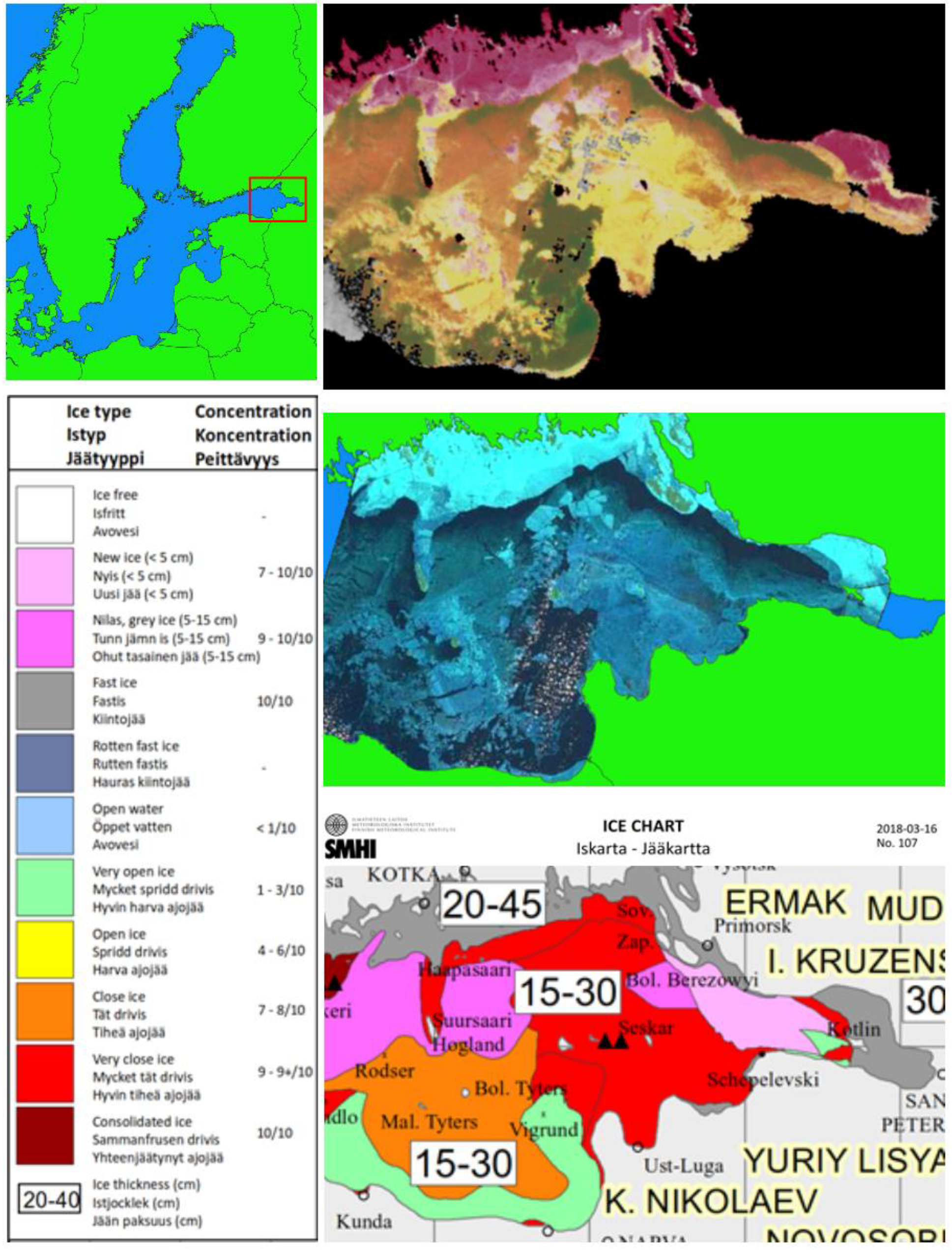

Figure 5. Top left: overview map. Top right: SLSTR sea ice classification in the Gulf of Finland on 16 March 2018. Middle right: Scene collected by Landsat-8 at the same day, partly covering the area of SLSTR classification. Bottom right: Corresponding section of the Swedish ice chart by SMHI and bottom left: ice chart legend.
Figure 5. Top left: overview map. Top right: SLSTR sea ice classification in the Gulf of Finland on 16 March 2018. Middle right: Scene collected by Landsat-8 at the same day, partly covering the area of SLSTR classification. Bottom right: Corresponding section of the Swedish ice chart by SMHI and bottom left: ice chart legend.
Remotesensing 13 04842 g005

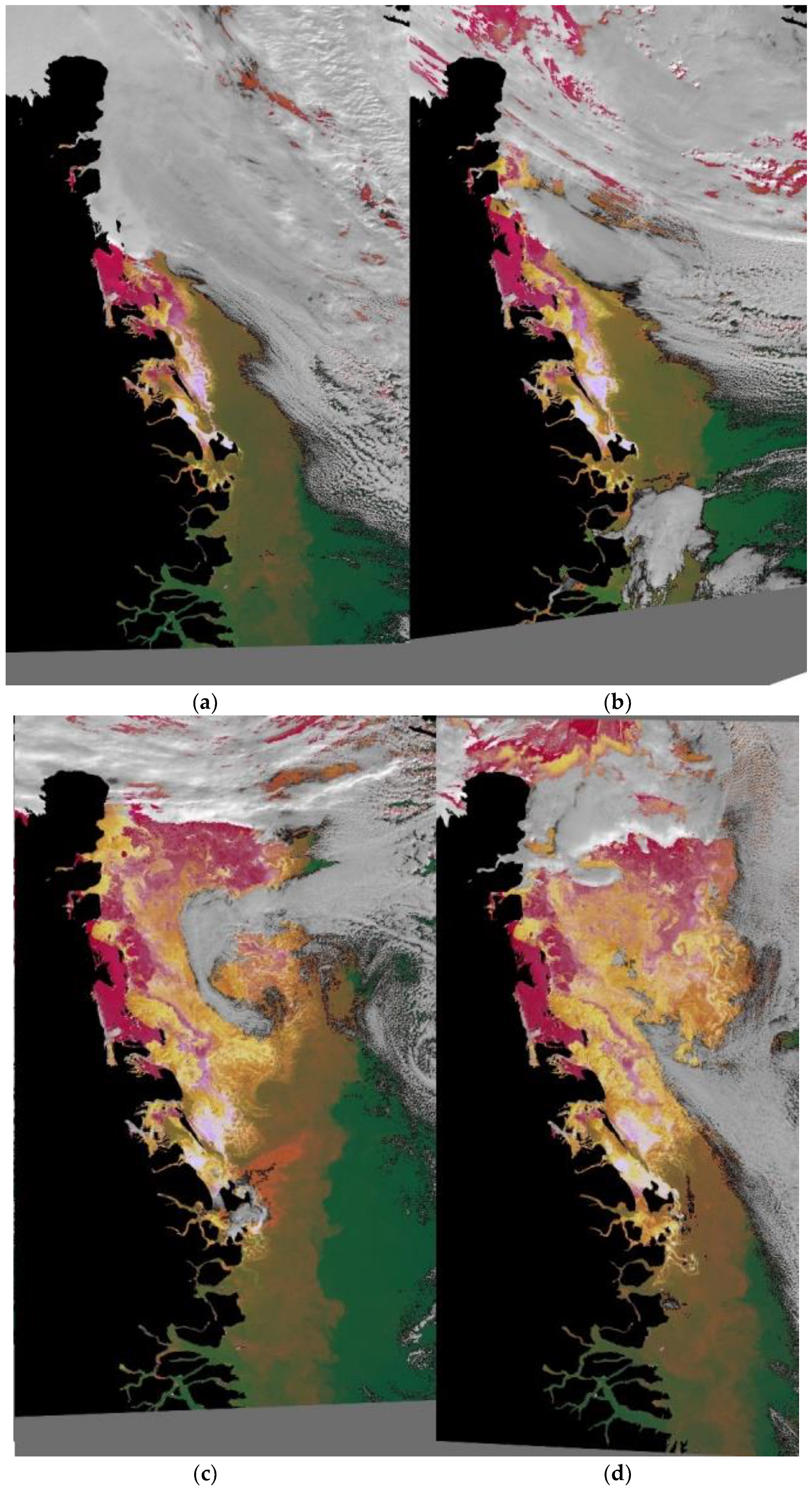

Figure 6. SLSTR ice classification sequence; results of scenes collected along the east coast of Greenland between 70° N and 82° N at 23 (a), 24 (b), 27 (c), and 30 (d) September 2018.
Figure 6. SLSTR ice classification sequence; results of scenes collected along the east coast of Greenland between 70° N and 82° N at 23 (a), 24 (b), 27 (c), and 30 (d) September 2018.
Remotesensing 13 04842 g006

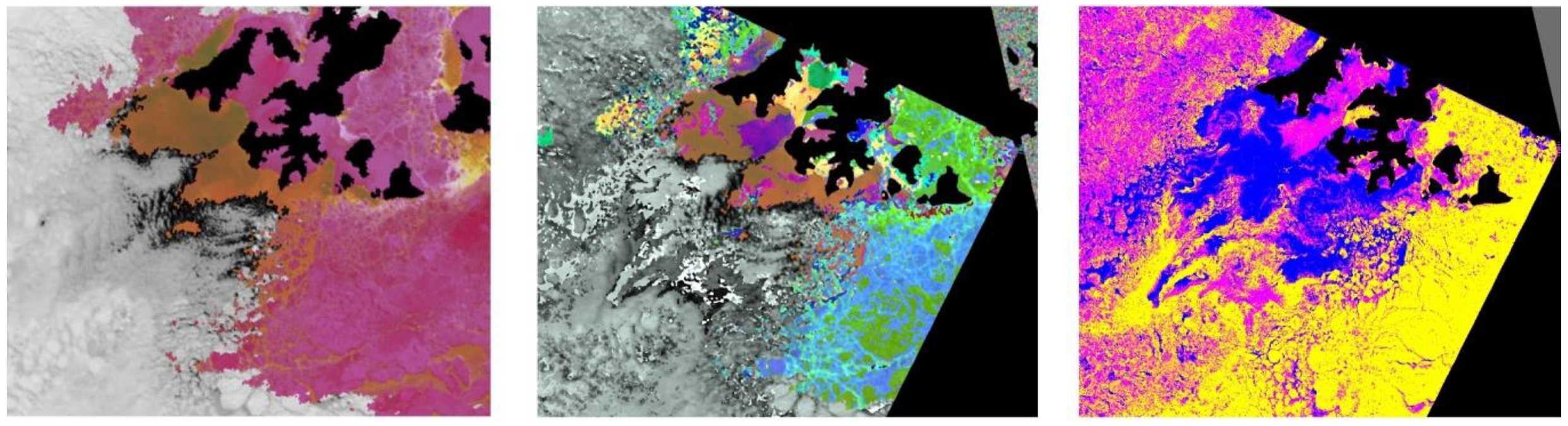

Figure 7. Example of a combination of SLSTR and SAR based ice classification according to first tested algorithm. Data used are collected in the vicinity of Franz Joseph Islands on 12 May 2017. Left: SLSTR ice classification; Right: SAR ice classification; Middle: Combination.
Figure 7. Example of a combination of SLSTR and SAR based ice classification according to first tested algorithm. Data used are collected in the vicinity of Franz Joseph Islands on 12 May 2017. Left: SLSTR ice classification; Right: SAR ice classification; Middle: Combination.
Remotesensing 13 04842 g007

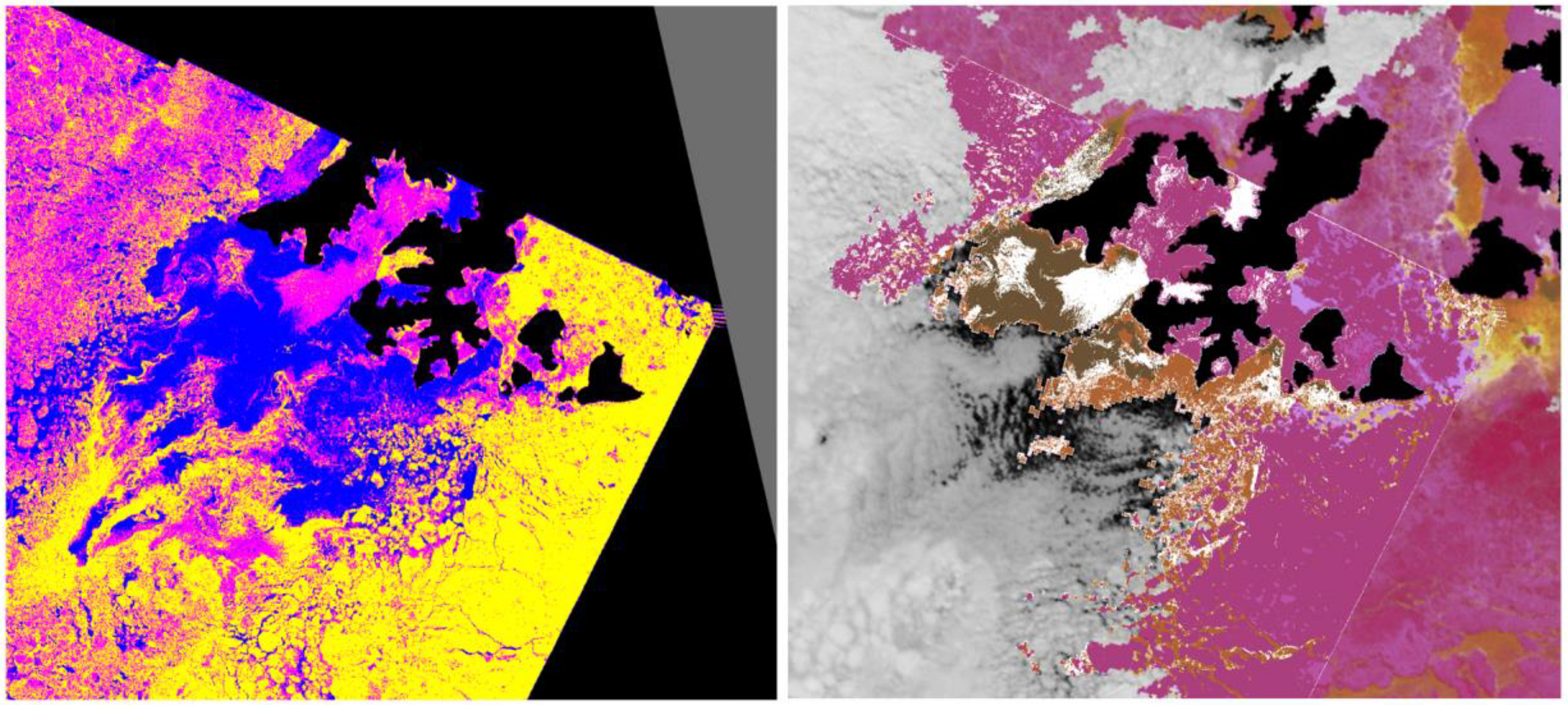

Figure 8. SAR ice classification (left) and combined SAR—optical ice classification computed according to the second described approach (right) for a test case on 12 May 2017 in the vicinity of Franz Joseph Islands.
Figure 8. SAR ice classification (left) and combined SAR—optical ice classification computed according to the second described approach (right) for a test case on 12 May 2017 in the vicinity of Franz Joseph Islands.
Remotesensing 13 04842 g008
Table 1. Comparison of spectral sensitivity ranges of related channels for AVHRR and the SLSTR instruments.
Table 1. Comparison of spectral sensitivity ranges of related channels for AVHRR and the SLSTR instruments.
AVHRRSLSTR
Channel 10.58–0.68 µmChannel S10.545–0.565 µm
Channel S20.649–0.669 µm
Channel 20.725–1.00 µmChannel S30.858–0.878 µm
Channel S41.364–1.384 µm
Channel 3A1.6 µmChannel S51.583–1.643 µm
Channel 3B3.5–3.9 µmChannel S73.4–4.0 µm
Channel 410.3–11.3 µmChannel S810.5–11.4 µm
Channel 511.5–12.5 µmChannel S911.0–13.0 µm
Table 2. Interpretation of main colours appearing in sea ice classification results computed from SLSTR measurements as identified by visual inspection. Mean values of top of atmosphere reflectance in channel S2 and blackbody temperature equivalent to radiation measurements in channel S9 are included for each class as derived from manually selected pixels in various scenes and seasons.
Table 2. Interpretation of main colours appearing in sea ice classification results computed from SLSTR measurements as identified by visual inspection. Mean values of top of atmosphere reflectance in channel S2 and blackbody temperature equivalent to radiation measurements in channel S9 are included for each class as derived from manually selected pixels in various scenes and seasons.
Colour Name and Image of Central Colour in ClassMean Reflectivity (%)
Channel S2
Mean Brightness Temperature (°C)
Channel S9
Interpretation
green
Remotesensing 13 04842 i001
4.71.3Open water
green-orange
Remotesensing 13 04842 i002
3.0−3.2nearly freezing water, or mixed ice/water pixel or very thin ice (e.g., frazil ice)
bright and dark orange
Remotesensing 13 04842 i003
10.4−7.5ice without snow cover; especially dark and light nilas (<10 cm)
medium yellow
Remotesensing 13 04842 i004
28.9−10.9young ice without snow cover; especially grey ice (10–15 cm)
light yellow-white
Remotesensing 13 04842 i005
34.8−11.6young ice without snow cover; especially grey-white ice (15–30 cm)
dark red
Remotesensing 13 04842 i006
69.7−20.3ice of uncertain thickness with dry snow cover
medium red
Remotesensing 13 04842 i007
69.8−21.6ice of uncertain thickness with aged dry snow cover
light red
Remotesensing 13 04842 i008
75.5−24.2ice of uncertain thickness with aged snow cover
dark pink
Remotesensing 13 04842 i009
80.4−15.5ice of uncertain thickness (most likely between 20 and 50 cm) covered by aged snow (increased grain size of snow)
medium pink
Remotesensing 13 04842 i010
82.2−21.0ice of uncertain thickness (most likely between 20 and 50 cm) covered by further aged snow compared to dark pink
light pink
Remotesensing 13 04842 i011
83.6−18.6ice of uncertain thickness (most likely between 20 and 50 cm) covered by snow
dark violet
Remotesensing 13 04842 i012
84.4−12.9ice of uncertain thickness covered by thick, slightly aged snow with very small amount of moisture
light violet
Remotesensing 13 04842 i013
82.1−11.9similar to dark violet, but advanced snow metamorphism and moisture
light blue
Remotesensing 13 04842 i014
68.7−1.2thick ice covered by slightly wet snow (thickness not well defined)
dark blue
Remotesensing 13 04842 i015
52.30.0Ice covered by increasingly wet snow; partial pixel coverage by meltponds possible
light green
Remotesensing 13 04842 i016
26.5−2.3Ice with low snow cover and mainly meltponds, probably refrozen on the surface
Table 3. Interpretation of main colours appearing in sea ice classification results computed according to the second described approach for SAR—optical ice classification combination.
Table 3. Interpretation of main colours appearing in sea ice classification results computed according to the second described approach for SAR—optical ice classification combination.
SAR Ice Class Colour
Remotesensing 13 04842 i017 Remotesensing 13 04842 i018 Remotesensing 13 04842 i019
SLSTR Ice Class Colour and
Ice Class
Colour Used for Combination of SAR Class 1 (Open Water or Nilas up to 10 cm) and SLSTR Class According to Table RowColour Used for Combination of SAR Class 2 (Young Ice, 10–30 cm) and SLSTR Class According to Table RowColour Used for Combination of SAR Class 3 (Smooth First Year Ice, 30–200 cm) and SLSTR class According to Table Row
Remotesensing 13 04842 i020
open water
Remotesensing 13 04842 i021
open water
Remotesensing 13 04842 i022
open water
Remotesensing 13 04842 i023
inconsistent
Remotesensing 13 04842 i024
freezing ready water
Remotesensing 13 04842 i025
freezing ready water
Remotesensing 13 04842 i026
inconsistent
Remotesensing 13 04842 i027
inconsistent
Remotesensing 13 04842 i028
nilas: 0–10 cm
Remotesensing 13 04842 i029
nilas
Remotesensing 13 04842 i030
nilas
Remotesensing 13 04842 i031
inconsistent
Remotesensing 13 04842 i032
grey ice: 10–15 cm
Remotesensing 13 04842 i033
inconsistent
Remotesensing 13 04842 i034
grey ice up to 15 cm
Remotesensing 13 04842 i035
inconsistent
Remotesensing 13 04842 i036
grey-white ice: 15–30 cm
Remotesensing 13 04842 i037
inconsistent
Remotesensing 13 04842 i038
grey-white ice
Remotesensing 13 04842 i039
smooth grey-white ice near 30 cm
Remotesensing 13 04842 i040
dark red:
Ice of unknown thickness covered by dry snow
Remotesensing 13 04842 i041
nilas covered by dry snow
Remotesensing 13 04842 i042
young ice 10–30 cm covered by dry snow
Remotesensing 13 04842 i043
smooth first year ice, 30–200 cm covered by dry snow
Remotesensing 13 04842 i044
medium red:
Ice of unknown thickness covered by aged snow
Remotesensing 13 04842 i045
inconsistent
Remotesensing 13 04842 i046
young ice, 10–30 cm covered by aged snow
Remotesensing 13 04842 i047
smooth first year ice, 30–200 cm covered by aged snow
Remotesensing 13 04842 i048
light red;
Ice of unknown thickness covered by less aged snow
Remotesensing 13 04842 i049
inconsistent
Remotesensing 13 04842 i050
young ice, 10–30 cm covered by less aged snow
Remotesensing 13 04842 i051
smooth first year ice, 30–200 cm covered by less aged snow
Remotesensing 13 04842 i052
dark pink:
Ice covered by aged snow at low temperature
Remotesensing 13 04842 i053
inconsistent
Remotesensing 13 04842 i054
young ice, 10–30 cm covered by aged cold snow
Remotesensing 13 04842 i055
smooth first year ice, 30–200 cm covered by aged cold snow
Remotesensing 13 04842 i056
medium pink:
Ice covered by aged snow at low temperature
Remotesensing 13 04842 i057
inconsistent
Remotesensing 13 04842 i058
young ice, 10–30 cm covered by aged cold snow
Remotesensing 13 04842 i059
smooth first year ice, 30–200 cm covered by aged cold snow
Remotesensing 13 04842 i060
light pink:
Ice covered by aged snow at low temperature
Remotesensing 13 04842 i061
inconsistent
Remotesensing 13 04842 i062
young ice, 10–30 cm covered by aged cold snow
Remotesensing 13 04842 i063
smooth first year ice, 30–200 cm covered by aged cold snow
Remotesensing 13 04842 i064
dark violet:
Ice of uncertain thickness covered by thick, slightly aged snow
Remotesensing 13 04842 i065
inconsistent
Remotesensing 13 04842 i066
young ice, 10–30 cm covered by slightly aged snow
Remotesensing 13 04842 i067
smooth first year ice, 30–200 cm covered by slightly aged snow
Remotesensing 13 04842 i068
light violet:
Similar to dark violet, but advanced snow metamorphism
Remotesensing 13 04842 i069
inconsistent
Remotesensing 13 04842 i070
young ice, 10–30 cm covered by aged snow
Remotesensing 13 04842 i071
smooth first year ice, 30–200 cm covered by aged snow
Remotesensing 13 04842 i072
light blue:
Thick ice covered by moist snow
Remotesensing 13 04842 i073
nilas covered by moist snow
Remotesensing 13 04842 i074
young ice, 10–30 cm covered by moist snow
Remotesensing 13 04842 i075
smooth first year ice, 30–200 cm covered by moist snow
Remotesensing 13 04842 i076
dark blue:
Ice covered by increasingly wet snow; partial cover by meltponds possible
Remotesensing 13 04842 i077
inconsistent
Remotesensing 13 04842 i078
young ice, 10–30 cm covered by increasingly wet snow
Remotesensing 13 04842 i079
smooth first year ice, 30–200 cm covered by increasingly wet snow
Remotesensing 13 04842 i080
light green: Ice with low snow cover and mainly meltponds, probably refrozen on the surface
Remotesensing 13 04842 i081
inconsistent
Remotesensing 13 04842 i082
young ice, 10–30 cm, probably refrozen on the surface
Remotesensing 13 04842 i083
smooth first year ice, 30–200 cm, probably refrozen on the surface
Remotesensing 13 04842 i084
diluting ice (brownish),
ice/water mixture
Remotesensing 13 04842 i085
ice/water mixture
Remotesensing 13 04842 i086
ice/water mixture, ice up to 30cm
Remotesensing 13 04842 i087
inconsistent
Remotesensing 13 04842 i088
diluting ice (greenish),
ice/water mixture
Remotesensing 13 04842 i089
ice/water mixture
Remotesensing 13 04842 i090
ice/water mixture, ice up to 30cm
Remotesensing 13 04842 i091
inconsistent
Remotesensing 13 04842 i092
light grey-white ice
Remotesensing 13 04842 i093
inconsistent
Remotesensing 13 04842 i094
grey-white ice up to 30 cm, very bright
Remotesensing 13 04842 i095
smooth grey-white ice, at least 30 cm thick
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

König, C.; König, T.; Singha, S.; Frost, A.; Jacobsen, S. Combined Use of Space Borne Optical and SAR Data to Improve Knowledge about Sea Ice for Shipping. Remote Sens. 2021, 13, 4842. https://doi.org/10.3390/rs13234842

AMA Style

König C, König T, Singha S, Frost A, Jacobsen S. Combined Use of Space Borne Optical and SAR Data to Improve Knowledge about Sea Ice for Shipping. Remote Sensing. 2021; 13(23):4842. https://doi.org/10.3390/rs13234842

Chicago/Turabian Style

König, Christine, Thomas König, Suman Singha, Anja Frost, and Sven Jacobsen. 2021. "Combined Use of Space Borne Optical and SAR Data to Improve Knowledge about Sea Ice for Shipping" Remote Sensing 13, no. 23: 4842. https://doi.org/10.3390/rs13234842

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
