The New Volcanic Ash Satellite Retrieval VACOS Using MSG/SEVIRI and Artificial Neural Networks: 1. Development

1
Deutsches Zentrum für Luft- und Raumfahrt (DLR), Institut für Physik der Atmosphäre, 82234 Weßling-Oberpfaffenhofen, Germany
2
NASA Langley Research Center, Hampton, VA 23681, USA
3
Institut für Physik der Atmosphäre, Johannes Gutenberg-Universität Mainz, 55099 Mainz, Germany
*
Author to whom correspondence should be addressed.
Current address: MTU Aero Engines AG, 80995 Munich, Germany.
Remote Sens. 2021, 13(16), 3112; https://doi.org/10.3390/rs13163112
Submission received: 2 July 2021 / Revised: 2 August 2021 / Accepted: 3 August 2021 / Published: 6 August 2021

Abstract

:
Volcanic ash clouds are a threat to air traffic security and, thus, can have significant societal and financial impact. Therefore, the detection and monitoring of volcanic ash clouds to enhance the safety of air traffic is of central importance. This work presents the development of the new retrieval algorithm VACOS (Volcanic Ash Cloud properties Obtained from SEVIRI) which is based on artificial neural networks, the thermal channels of the geostationary sensor MSG/SEVIRI and auxiliary data from a numerical weather prediction model. It derives a pixel classification as well as cloud top height, effective particle radius and, indirectly, the mass column concentration of volcanic ash clouds during day and night. A large set of realistic one-dimensional radiative transfer calculations for typical atmospheric conditions with and without generic volcanic ash clouds is performed to create the training dataset. The atmospheric states are derived from ECMWF data to cover the typical diurnal, annual and interannual variability. The dependence of the surface emissivity on surface type and viewing zenith angle is considered. An extensive dataset of volcanic ash optical properties is used, derived for a wide range of microphysical properties and refractive indices of various petrological compositions, including different silica contents and glass-to-crystal ratios; this constitutes a major innovation of this retrieval. The resulting ash-free radiative transfer calculations at a specific time compare well with corresponding SEVIRI measurements, considering the individual pixel deviations as well as the overall brightness temperature distributions. Atmospheric gas profiles and sea surface emissivities are reproduced with a high agreement, whereas cloudy cases can show large deviations on a single pixel basis (with 95th percentiles of the absolute deviations > 30 K), mostly due to different cloud properties in model and reality. Land surfaces lead to large deviations for both the single pixel comparison (with median absolute deviations > 3 K) and more importantly the brightness temperature distributions, most likely due to imprecise skin temperatures. The new method enables volcanic ash-related scientific investigations as well as aviation security-related applications.

Graphical Abstract

1. Introduction

Large, explosive volcanic eruptions might happen relatively infrequently [1], but their emissions can have massive impacts: volcanic ash can significantly interfere with critical, ground-based infrastructure [2] and can damage aircraft or even cause engine failure [3]. Aviation incidents have been reported more than 1000 k m from the volcanic ash source [4], as potentially hazardous ash concentrations might not be visually observable by flight crews [5]. In the case of the eruption of Eyjafjallajökull in 2010, major parts of the European airspace were closed for extended periods of time [6], leading to estimated economic losses of US$1.7 billion for the aviation industry [7].
To mitigate the impact of future eruptions, satellite remote-sensing methods have been developed to monitor volcanic ash clouds, using both polar orbiting and geostationary passive optical imagers (e.g., [8]). Their results can be used to directly assess whether an airspace is safe to be traversed by jet planes (according to thresholds stated by the International Civil Aviation Organization (ICAO) [9]), to investigate aerosol–cloud interactions [10] or to calibrate/validate volcanic ash transport and dispersion models as applied by the Volcanic Ash Advisory Centers [11,12,13]. The latter are the main providers of information on atmospheric contamination by volcanic ash in the case of an eruption [9].
Active remote sensing instruments such as lidars provide highly resolved vertical profiles of the aerosol load [14]. However, lidars have a limited spatial and temporal coverage, e.g., the instrument aboard the polar orbiting Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observations (CALIPSO) has a small footprint of 90 m × 335 m and a 16-day repeat cycle [15]. Ground instruments are fixed and airborne measurements are performed only in exceptions (e.g., [6,16,17,18,19,20,21]). Therefore, none of those instruments is able to provide global data as are necessary in the case of volcanic ash monitoring. In this respect, geostationary radiometers, especially of the second generation, come in handy: such instruments not only provide near-global coverage, but their infrared channels also allow operation during day and night. Examples are the Geostationary Operational Environmental Satellites (GOES) covering North and South America, the Meteosat Second Generation (MSG) satellites for Europe and Africa and Himawari for Eastern Asia and Australia.
The difference between the brightness temperature at 11 μm ( B T 11 ) and 12 μm ( B T 12 ), in short B T D 11 12 , can be negative for clouds consisting of small volcanic ash particles (smaller than ~ 5 μm [22,23]) and mixtures of volcanic ash and sulfuric acid ( H 2 S O 4 [24,25]), whereas for ice clouds B T D 11 12 tends to be positive [26]. Therefore, this quantity is often used for volcanic ash detection. However, volcanic ash can be hidden by water or ice either within the volcanic ash cloud or as separated clouds, as well as water vapor, especially if the ash cloud itself is at low altitude [11,27]. Furthermore, large ash particles or opaque plumes do not lead to a negative B T D 11 12 [11,22]. False alarms might be produced by mineral dust aerosol [28], which has similar spectral properties as volcanic ash [11,29,30], or by non-vegetated, quartz-rich surfaces due to their emissivity [11,28].
As a consequence, more sophisticated detection schemes have been proposed: to correct for the presence of water vapor, a B T D 11 12 threshold depending on B T 11 has been suggested where the exact function depends on the atmospheric conditions [27]; this resulted in retrievals of larger contaminated areas. Multiple threshold tests were proposed, incorporating, for instance, also B T 8.7 measurements (e.g., [31,32]) or simulated clear-sky brightness temperatures B T 11 and B T 12 from numerical weather predictions (e.g., [31]). Furthermore, it was shown that reflectances in the visible and the near-infrared as well as their ratio can further help to separate volcanic ash clouds from water and ice clouds, especially for optically thick plumes for which B T D 11 12 tends to vanish (e.g., [33,34,35]).
As radiance measurements are affected not only by the volcanic ash cloud but also by the atmospheric state, other meteorological clouds and the surface properties, it was suggested to derive quantities that are closer linked to the target cloud’s properties. An example is the ratio of effective absorption optical depths at different wavelengths, called β ratio, which can be approximately expressed by single scattering properties (e.g., [8,36,37]). For the calculation of β ratios, clear sky properties have to be determined by radiative transfer calculations. The combination of multiple β ratios of different infrared channels is a good discriminator of volcanic and meteorological clouds [37]. A high spectral resolution can allow for new detection schemes, either directly based on the functional behavior of the brightness temperature spectra, thereby also enabling the separation of volcanic ash from mineral dust (e.g., [29,30]), or by performing singular vector decompositions with some vectors representing clear sky conditions, whereas others describe the volcanic ash influence. A linear decomposition of a measurement with respect to these basis vectors then reveals whether volcanic ash is present or not [38]. An alternative approach is to detect sulfur dioxide ( S O 2 ) as a proxy for volcanic ash as both are often emitted simultaneously [39]. Although both detections can show reasonable spatial agreement, they might differ in some cases [40], sometimes with more than 80% of the volcanic ash remaining undetected [41]. This might be rooted in the presence of distinct volcanic ash and S O 2 layers that get separated due to vertical wind shear [42].
To retrieve microphysical (especially the effective particle radius r eff ) and macrophysical properties (optical depth τ and mass column concentration m col ), brightness temperatures (usually B T 11 and B T D 11 12 or similar) have been precalculated for generic atmospheric settings including only a volcanic ash layer and used as look-up tables (e.g., [22,33,43]). More complex atmospheres were assumed to correct for water vapor, based on either measurements of the surrounding of the volcanic ash clouds or radiative transfer calculations (e.g., [27,43]). The optimal estimation method aims to minimize a cost function (here principally an uncertainty weighted difference between an atmospheric state vector and an a priori assumption, as well as an observation vector and corresponding estimates), usually iteratively for non-linear problems, incorporating radiative transfer calculations [37,44]. For example, Francis et al. [31] applied this approach to retrieve pixelwise the ash layer pressure, mass loading m col and effective radius r eff based on observations at 10.8 μm, 12 μm and 13.4 μm, whereas Pavolonis et al. [37] used the same observations to determine different β ratios, emissivities and temperatures, later on converting these to microphysical properties. Retrievals can also be performed by making use of the surrounding ash-free area; e.g., Pugnaghi et al. [45] interpolated the radiances across a volcanic ash plume between the edges to obtain an ash-free image. Combining the radiances measured with and without ash, the transmittance of the ash plume could be calculated for different wavelengths. Finally, the effective radius r eff and the optical depth τ were determined from the transmittances using conversions from radiative transfer calculations. There are further methods to determine the volcanic ash cloud top height z top . The brightness temperature of opaque parts of a cloud can be assumed to approximately correspond to the ambient temperature. A nearby temperature profile (e.g., using a numerical weather prediction or a radiosonde measurement) can be applied to convert the brightness temperature into an altitude [33,43,46]. During daytime, the difference in the cloud position as seen by the satellite and the sun induced cloud shadow can be used to geometrically calculate z top [33,43]. Stereoscopic instruments allow inferring z top from the spatial shift between the projection of a cloud in images retrieved under different viewing angles [33,38,43,47]. The carbon dioxide ( C O 2 ) slicing method compares multiple channels around the C O 2 absorption feature which have weighting functions peaking at different heights [48,49].
A different approach is the application of artificial neural networks (ANNs), which can be considered as universal approximators for unknown functions [50]. Based on initial research in the 1940s, this method has gained much attention and has significantly advanced in recent decades [51]. It has been used for prediction, functional approximation and classification tasks for numerous problems of atmospheric sciences [52]. With respect to satellite remote sensing, some examples are the retrieval of properties of water clouds [53,54], ice clouds [55,56], ozone profiles [57], volcanic S O 2 [58,59,60] and surface reflectivity [61]. Often, the utilized training datasets either consist of collocated measurements of different instruments [54,55,56] or are created using radiative transfer calculations [53,57,59,60,61]. One of the major advantages of ANNs is that, once they are trained, they are fast in application compared to other methods using time-consuming radiative transfer calculations during the retrieval. Gray and Bennartz [62] trained two ANNs for the detection of volcanic ash and S O 2 -rich ash, respectively, using Moderate Resolution Imaging Spectroradiometer (MODIS, e.g., [63]) measurements. The training data were composed of MODIS images of different volcanic eruptions with the target classification performed based on Hybrid Single Particle Lagrangian Integrated Trajectory (HYSPLIT) simulations of the volcanic emissions. The input data consisted of brightness temperature (differences) of channels between 7.3 μm and 12 μm. Picchiani et al. [64] trained separated ANNs for volcanic ash detection and ash mass loading m col retrieval from MODIS measurements. The training data consisted of MODIS images from Etna eruptions with the target classification performed by applying the B T D 11 12 < 0 criterion, whereas the target mass loading was determined by a look-up table approach. The channels centered at 7.3 μm, 11 μm and 12 μm were used as input. A more detailed classification ANN was trained by Picchiani et al. [65], labeling ash above sea and above meteorological clouds, meteorological clouds themselves and sea, ice and land surfaces using MODIS data. The training data consisted of MODIS images from the Eyjafjallajökull 2010 and Grimsvötn 2011 eruptions with the target classes derived from the B T D 11 12 < 0 criterion, the MODIS land/sea mask, cloud products and B T 2.13 (band 7) for detection of ice surfaces. The input features include 14 MODIS channels in the visible and infrared and a land/sea mask. The method was further developed by Piscini et al. [66], training individual ANNs for the retrieval of the mass load m col , the effective radius r eff , the optical depth at 11 μm ( τ 11 ) and the S O 2 column concentration using MODIS observations. Training data were MODIS images from the Eyjafjallajökull 2010 eruption with the target values determined by other retrievals based on radiative transfer calculations, similar to [64]. Initially, all MODIS channels were used as input features, with a pruning procedure performed after the training to find the most important inputs. The ANN ansatz by Picchiani et al. [64] and Piscini et al. [66] was compared to the look-up table and the volcanic plume removal procedure, finding that the look-up table method can be more accurate, but the ANN approach can be less sensitive to perturbations in the satellite measurements [67]. Zhu et al. [68] developed a method to retrieve volcanic cloud top heights z top combining a stacked denoising autoencoder for feature extraction followed by a least squares support vector regression to derive z top . The training data consisted of collocated Spinning Enhanced Visible and Infrared Imager (SEVIRI, aboard MSG [69]) brightness temperatures and Cloud-Aerosol Lidar with Orthogonal Polarization (CALIOP, aboard CALIPSO [15]) derived z top for volcanic ash clouds from the Eyjafjallajökull 2010 and Puyehue-Cordón Caulle 2011 eruptions. Adding vertical temperature profiles from European Centre for Medium-Range Weather Forecasts (ECMWF) simulations further improved the retrieval performance.
The aforementioned volcanic ash algorithms used real satellite images as training data, with target values coming either from other retrievals, other sensors or trajectory models. In contrast, the algorithm Volcanic Ash Detection Utilizing Geostationary Satellites (VADUGS), applying a single ANN for the retrieval of m col and z top , was based on a fully simulated training dataset. The input data consisted of the thermal infrared channels of MSG/SEVIRI and auxiliary data such as a land/sea mask, the skin temperature and the viewing zenith angle [70,71]. The ANN architecture followed the development of the cirrus cloud retrieval Cirrus Optical Properties derived from CALIOP and SEVIRI Algorithm during Day and Night (COCS, [55]), which was trained with collocated CALIOP and SEVIRI measurements to retrieve cirrus optical depths and cloud top heights. Since 2015, VADUGS runs operationally at the German weather service [72]. Although it produces reasonable results upon visual inspection, a validation against simulated samples has shown that the retrievals are reliable in certain subsets of the test dataset, but not in general [71]. An intercomparison of satellite products exhibited overall low correlations between the retrieval of m col by VADUGS and other algorithms and found a strong underestimation of z top when compared with CALIOP results [73]. In addition, note that VADUGS was developed focusing on the Eyjafjallajökull 2010 eruption as only the refractive index of the corresponding volcanic ash was used for the training data [71]. However, the refractive index can vary significantly for different volcanic ashes [74,75] and retrievals are sensitive to it [22,76,77]. Technically, potential improvements can be derived from the development of Cirrus Properties from SEVIRI (CiPS [78,79]), which is the successor of COCS. It is based on a similar training dataset but uses a new ANN architecture and training procedure, additional input features and updated CALIOP data. CiPS exhibited a better performance compared to COCS and retrieved additional quantities, e.g., the ice water path.
Building upon VADUGS, a new algorithm called Volcanic Ash Cloud properties Obtained from SEVIRI (VACOS) is developed and described in two papers (Figure 1). In Part 1 (this paper), a training dataset consisting of simulated MSG/SEVIRI measurements is created using modeled atmospheric profiles and a climatology of the surface emissivity. A parameterization of the sea surface emissivity is applied that depends on the viewing zenith angle and wind speed. To cover the variability of volcanic ash clouds, the extensive set of volcanic ash refractive indices and optical properties from Piontek et al. [23] is used together with a wide range of possible ash cloud top heights, geometrical thicknesses and mass concentrations. This constitutes a major advantage compared to the previously mentioned ANN-based volcanic ash retrievals, which were trained on satellite images of only one [64,66], two [65,68] or seven [62] volcanic eruptions or used only a single volcanic ash type [71]. Methodologically, we train four separated ANNs for the classification and the retrieval of the optical depth at 10.8  μm ( τ 10.8 ), ash cloud top height ( z top ) and effective particle radius ( r eff ) of the volcanic ash clouds. The ANNs have individual input features and training datasets. Part 2 [80] contains a validation of the retrievals with respect to simulated test datasets, a sensitivity study of the algorithms with respect to the vertical mass profile of volcanic ash layers, case studies comparing the results of the new retrievals with independent lidar and in situ measurements as well as model results and an analysis of the working principles of the ANNs.
The rest of this paper is organized as follows. We introduce the observation instrument MSG/SEVIRI (Section 2) and the predecessor retrieval VADUGS, including a short, general description of ANNs (Section 3). Next, the training dataset is sketched including its analysis (Section 4), followed by the description of the new ANNs, their input features and their training (Section 5) as well as their application (Section 6). Finally, we give a conclusion and an outlook (Section 7).

2. MSG/SEVIRI

VACOS is tailored for the Spinning Enhanced Visible and Infrared Imager (SEVIRI) carried by the geostationary Meteosat Second Generation (MSG) satellites. SEVIRI is a passive 12-channel imager, measuring radiation in the visible and infrared part of the spectrum. The radiances in the different thermal channels are converted to brightness temperatures ( B T ). For the retrieval, we consider only the seven infrared channels such that it can be applied during day and night. Three of them are window channels (centered at 8.7 μm, 10.8 μm and 12 μm), two are strongly sensitive to water vapor ( H 2 O , 6.2 μm and 7.3 μm) and another two (9.7 μm and 13.4 μm) to ozone ( O 3 ) and carbon dioxide ( C O 2 ), respectively. The temporal resolution of SEVIRI is 15 min for the full disc and 5 min in rapid scan mode, which covers mainly Europe. The spatial resolution is 3 k m at nadir. The channels are rather broad (spectral bands up to 2 μm) and instrument specific [69]. Figure 2 shows a red-green-blue composite of the SEVIRI disc. There are multiple MSG satellites deployed at different coordinates. In the following, we focus on Meteosat-9/MSG2. From 11 April 2007 to 21 January 2013, it was located at 0 °E as the primary operational satellite and covered the prominent eruptions of Eyjafjallajökull 2010, Grimsvötn 2011 and the volcanic ash clouds of Puyehue-Cordón Caulle 2011. From 9 April 2013 to 20 March 2018, it provided the rapid scanning service at 9.5  °E. As of 29 June 2020, it is located at 3.5  °E as a back-up spacecraft [81,82]. Note that other current or future imagers aboard geostationary satellites have similar spectral channels, e.g., the Advanced Baseline Imager on GOES-R, the Advanced Himawari Imager on Himawari-8/9, the Advanced Meteorological Imager on GEO-KOMPSAT-2A, the Advanced Geosynchronous Radiation Imager on Fengyun-4A or the Flexible Combined Imager on the Meteosat Third Generation satellites [83,84,85,86]. Thus, the method described here can in principle be extended to those as well.

3. VADUGS

The algorithm VADUGS (Volcanic Ash Detection Utilizing Geostationary Satellites) allows pixelwise retrieval of volcanic ash cloud properties using SEVIRI measurements and ANNs [71]. ANNs have been developed based on biological insights on the behavior of the human brain. The feed-forward configuration is made up of multiple layers, with the first one (called input layer) consisting of the input features, and the last one the output layer. In between is an arbitrary number of so-called hidden layers. Hidden and output layers consist of so-called neurons. Those are (usually non-linear) functions receiving the weighted sum of the results of the previous layer’s neurons (or input features in the case of the first hidden layer) as an argument. The weights between all pairs of neurons of successive layers are different. They are chosen such that the n input features are (approximately) mapped to the corresponding m target values; thus, an ANN is a function mapping R n R m . Using the backpropagation algorithm, the weights are determined in an iterative procedure (called training) by changing their values such that the loss function (a metric quantifying the difference between the output of the ANN for a set of input data samples and the associated target outputs) is minimized. Thus, a training dataset is needed for which the target values are known for all samples. The loss function evaluated on a separate validation dataset is monitored during training to prevent overfitting, i.e., to avoid learning the noise of the training dataset [51,52,87].
VADUGS is a single ANN with one hidden layer with 600 neurons. The input data consist of the infrared brightness temperatures measured by SEVIRI, the skin temperature from ECMWF and a land/sea mask and the viewing zenith angle. The output layer gives m col and z top . Radiative transfer simulations were performed to calculate the brightness temperatures for generic atmospheric settings, leading to a dataset of properly tagged samples used for the training. For the simulations, realistic atmospheric conditions were chosen based on ECMWF reanalysis data; to cover seasonal variations, 12 UTC of the 15th day for the months February 2010 to January 2011 was considered. Meteorological cloud layers were incorporated based on the layer-resolved cloud fractions given by ECMWF and parameterized as either liquid or ice water cloud (see also Section 4.1.2). Single homogeneous volcanic ash layers were simulated using the complex refractive index of ash from the Eyjafjallajökull eruption 2010, spherical and spheroidal particle shapes and two different lognormal particle size distributions [71].

4. Training Dataset

This section covers the creation of the new training dataset, including a description of the input data of the radiative transfer calculations (Section 4.1) and the calculations themselves (Section 4.2), a validation of the ash-free case (Section 4.3) and the selection of training, validation and test subsets (Section 4.4).

4.1. Input Data

In the following, we describe different input data for the radiative transfer calculations, their variability and the settings. More specifically, we discuss the surface emissivity (Section 4.1.1), the vertical profiles of atmospheric clouds and gases (Section 4.1.2) and the volcanic ash clouds (Section 4.1.3).

4.1.1. Surface Emissivity

For the surface emissivity, we use data from Zhou et al. [88,89,90]. Those were calculated using measurements of the polar-orbiting IASI instrument over ten years (2007-06 to 2017-05), covering the full globe. The emissivities were averaged over the ten years and for each month. The final spatial resolution is 0.25   and the spectral resolution is 0.25 cm−1 for 645 to 2760 −1 (roughly the wavelength range 3.6 to 15.5 μm). For sea surfaces, the emissivity exhibits also a strong dependence on the viewing zenith angle θ vza and the wind speed w ws : an increase of θ vza reduces the emissivity, whereas an increase of w ws reduces the emissivity at small θ vza but increases it at large θ vza [91,92,93]. The impact can be on the order of 10%. Here, θ vza is determined from the geographic coordinates for MSG2, whereas the wind speed w ws = U 2 + V 2 is based on the horizontal wind speeds at 10 m above the surface, U and V, as given by ECMWF (Section 4.1.2). We use the calculations by Masuda [94] which incorporate the surface-emitted surface-reflected radiation into the sea surface emissivity for different wavelengths λ (3.7 μm, 11 μm and 12 μm), θ vza (0 to 85 ) and w ws (0 to 15 ms−1). We divide the calculated emissivities by the value for θ vza = w ws = 0 . Then, for each wavelength, a function of the form
f ( θ vza , w ws ; λ ) = g ( θ vza ; λ ) · h ( θ vza , w ws ; λ )
is fitted, with f describing the reduction of the emissivity relative to the case θ vza = w ws = 0 at λ and g and h being polynomials of sixth degree. g describes mainly the dependence on θ vza , h is the correction due to w ws and f is interpolated among the three wavelengths and constantly extrapolated beyond. For sea surfaces, the IASI-measured emissivities are multiplied by f as the data of Zhou et al. [88,89,90] do not include the dependence on θ vza and w ws explicitly. Note that Masuda [94] considered w ws at a height of 12.5   m . However, the difference to w ws derived from ECMWF ERA5 data is assumed to be negligible. During application, θ vza > 85 and w ws > 15 m   s 1 are set to these limiting values.
Similar to water, the emissivity of land surfaces decreases with increasing θ vza . However, the relations depend strongly on the soil type and the wavelength, and the results vary between different experiments. For instance, significant decreases of the emissivity have been observed for sand: Labed and Stoll [95] found changes of ~6% for wavelengths of 10.6  μm and 12 μm between θ vza = 0 and 80 ; Snyder et al. [96] reported differences up to ~4% for 8 to 10 μm and ~2% for 10 to 14 μm between θ vza = 10 and 53 ; Sobrino and Cuenca [97] measured decreases of ~3% between θ vza = 0 and 65 for a spectral band at 8 to 14 μm; Cuenca and Sobrino [98] found a reduction of ~5.8% between θ vza = 0 and 60 for a channel covering 8.2 to 9.2 μ m ; McAtee et al. [99] indicated a decrease by up to ~8% comparing θ vza = 0 to 70 for the spectral range of 8 to 12 μm; García-Santos et al. [100] got a difference larger than 10% between θ vza = 0 and 70 for a spectral band at 8.2 to 8.7 μm. On the other hand, Sobrino and Cuenca [97] did not find a dependency of emissivity on θ vza for grass and Snyder et al. [96] mostly less than 1% for a sample of compost with grass and leaves. In addition, for θ vza up to 30 , the changes in the emissivity are mostly negligible [97,98,100]. Therefore, we neglect the dependence of the emissivity on θ vza for land surface in the following.

4.1.2. Atmospheric Data

Every radiative transfer calculation needs an atmospheric state as input. We use ECMWF ERA5 reanalysis data [101], in particular the skin temperature, temperature profile, logarithm of surface pressure, 10 m U and V wind components, specific humidity, ozone mass mixing ratio, fraction of cloud cover, specific cloud liquid and ice water contents and land/sea mask. Additionally, the total column water, water vapor and ozone are included in the training dataset; those quantities are not needed for the radiative transfer calculations, but they are used as input features for the ANNs.
Data of three arbitrary, recent years are collected: 2010, 2013 and 2015. For each year, the 15th day of each month is considered. Compared to the data used for VADUGS, we have an increased vertical resolution (137 instead of 91 model levels) and temporal resolution (1 h instead of only 12 UTC [102]).

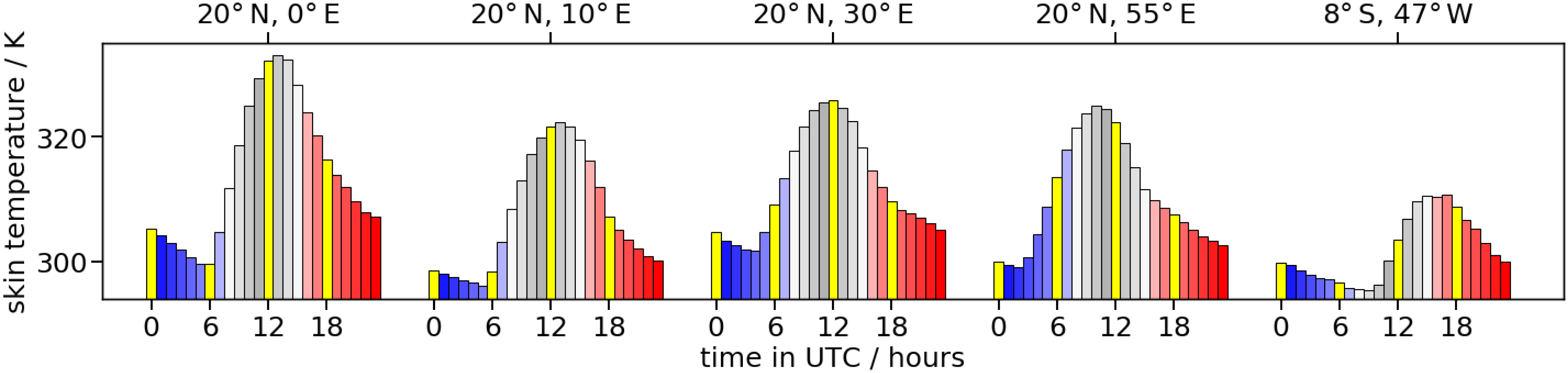

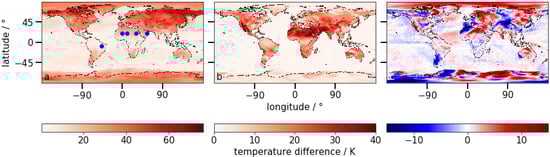

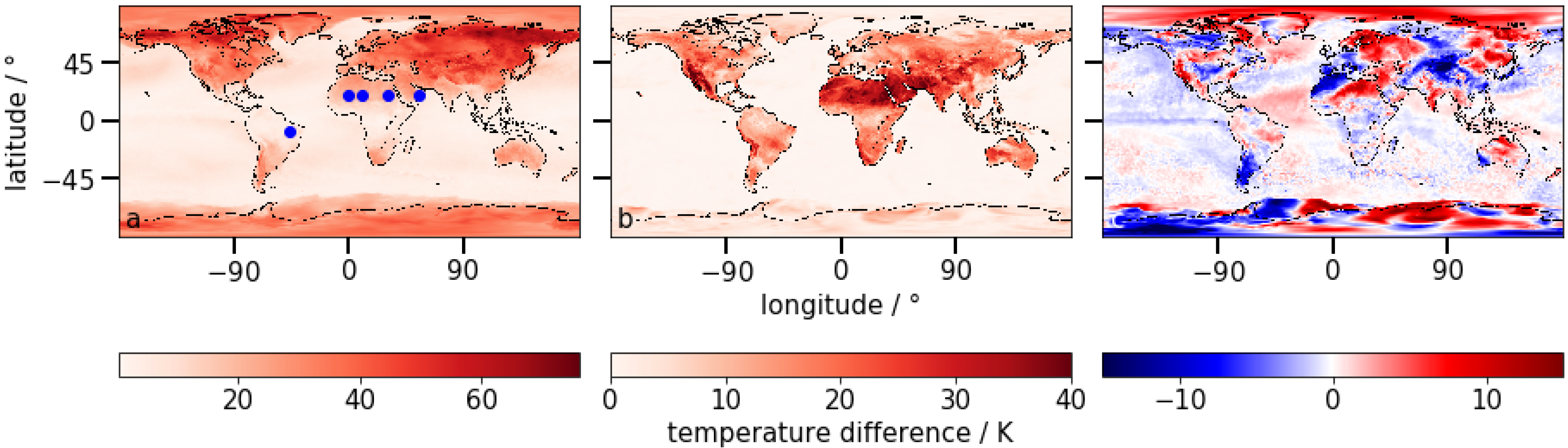

Figure 3 shows exemplarily the variability of the skin temperature. The daily mean skin temperature exhibits an annual variability of ~ 20 K in central Europe, whereas skin temperature within a single day might vary about 10 K in central Europe but ~ 40 K in Northern Africa. This stresses the necessity to cover the full yearly as well as daily variability of the atmospheric state in a sufficient temporal resolution. Figure 3c shows the differences in daily mean skin temperature between 2010 and 2015 for a single day. These can lead to temperature differences of roughly −10 to 10 K, which is why we base our calculations on data of three different years. Furthermore, the high temporal resolution allows to capture the full daily cycle of the atmospheric properties. Figure 4 shows that a coarser resolution of, e.g., 6 h might miss a part of the skin temperature variability. When considering a location close to a longitude of 0 °E, the 6 h resolution can reproduce the minima and maxima in the daily course of the skin temperature. However, when considering a larger longitude, this might change as the sun is in zenith at a different time with respect to UTC. For instance, at 20 °N, 30 °E, the local minimum is ~ 3 K lower than the temperature at 0 UTC, while, at 20 °N, 55 °E, the local maximum is ~ 3 K higher than the temperature at 12 UTC. Thus, the hourly resolution helps to create a training dataset that enables the resulting retrieval to work at all longitudes at all times of day, as required by a geostationary sensor.
Based on the ECMWF data, the atmospheric state is composed similarly to the method of Bugliaro et al. [71], i.e., vertical temperature profile, skin temperature, wind speed at 10 m altitude and densities of gaseous water ( H 2 O ) and ozone ( O 3 ). Oxygen ( O 2 ) and carbon dioxide ( C O 2 ) are derived from the air density using constant mixing ratios of 0.20948 [103] and 0.0004 [104], respectively, whereas, for nitrogen dioxide ( N O 2 ), the mixing ratios stem from a chemical transport model with 72 model levels and a latitudinal and longitudinal resolution of 2 and 2.5   , respectively, simulating November 2012 to October 2013; the daily average of the 15th of each month was used [105,106]. Those five gases are required to perform corresponding radiative transfer calculations [107]; especially H 2 O , C O 2 and O 3 have strong absorption features in the thermal infrared MSG/SEVIRI channels [108].
Meteorological clouds are extracted from ECMWF data as well; however, the maximum random overlap rule of ECMWF cannot be implemented in a one-dimensional (1D) radiative transfer model. Thus, using the cloud fractions for each layer, a random set of 1D clouds is created. No partial cloudiness is considered and vertically adjacent cloud layers are assumed to overlap as much as possible (for details, see [71]). For liquid water clouds, the parameterizations by Bugliaro et al. [109] and Hu and Stamnes [110] are used to create the r eff profiles and the optical properties, respectively. For ice water clouds, the parameterization by Wyser [111] and the rough-aggregate habit [107] with the parameterization by Heymsfield et al. [112], Yang et al. [113], Baum et al. [114] are applied for r eff and the optical properties, respectively. Note that the composed atmospheres are fully consistent, i.e., the vertical temperature and gas profiles match the cloud profiles (i.e., humidity saturation at the correct altitudes). The atmospheres, in turn, match the surface emissivities and the viewing zenith angles. This distinguishes our approach from radiative transfer calculations by Krebs et al. [115] or Vázquez-Navarro et al. [116], who also created comprehensive simulated datasets of MSG/SEVIRI observations, but combined atmospheric profiles with random cloud layers, constant surface emissivities and arbitrary viewing zenith angles. In the case of the VADUGS training data, atmospheric profiles and clouds were consistent, but not the viewing zenith angles [71].

4.1.3. Volcanic Ash Clouds

Volcanic ash clouds exhibit a significant amount of variability. The volcanic ash cloud top height z top depends on the intensity of the eruption: whereas weak eruptions emit ash only up to a few hundred meters [117], affecting mainly the direct surrounding of the vent, Eyjafjallajökull 2010 injected volcanic ash at heights of 3 to 10 km above sea level [118], Puyehue-Cordón Caulle 2011 injected ash up to 15 k m high [38,119]. Even heights > 25 k m are possible [120,121], although much rarer [1]. The cloud height also depends on the atmospheric conditions [122] and changes during the ash cloud’s lifecycle, e.g., the height decreases due to gravitational settling [10]. Thus, in the following, z top [ 0.3 , 18 ]   k m is considered.
The vertical mass profile can be quite complicated, especially for aged clouds, e.g., with a non-uniform distribution and multiple layers [6,18,123]. As SEVIRI offers only limited possibilities for sounding, we consider only the simplest profile of a single, homogeneous layer (as in [71,124]). In addition, the vertical extent z ext shows a large variability from some hundred meters up to some kilometers [6,18]. Marenco et al. [18] proposed z ext = 2 m col , meas / c max , meas with m col , meas being the measured mass load and c max , meas the measured peak mass concentration, arguing that this leads (together with the assumption of a homogeneous layer with the concentration c being c max , meas / 2 ) to a good representation of real ash clouds for radiative transfer. Another approach based on plume rise calculations for stable stratified atmospheres suggests z ext = 0.4 z top for the depth [125,126] and has been applied to volcanic ash cloud retrievals [33,43,127]. The latter relation is also assumed for VACOS. Thus, after choosing z top , the vertical extent is z ext [ 100   m , 0.4 z top ] .
For the mass volume concentration c, typical values depend again on the eruption strength and the ash cloud’s lifecycle, as sedimentation and dispersion may lead to a thinning of the cloud. Przedpelski and Casadevall [128] estimated 2 g m 3 from inspections of KLM 867’s engines after encountering an ash cloud of Redoubt Volcano in 1989. Weber et al. [19] reported in situ measured concentrations of the Eyjafjallajökull 2010 ash plume of 500 to 2000 μg m−3 at distances of 15 to 60 km from the vent. Marenco et al. [18] found from lidar data mean concentrations of 300 to 650 μg m−3 with maxima of 800 to 1900 μg m−3 above Great Britain on 14–17 May, about 1400 k m from the source. Schumann et al. [6] measured in situ averages of 105 to 283 μg m−3 with maxima (of 10 s mean values) of 282 to 830 μg m−3 above the North Sea on 17 May, roughly at a distance of 1760 km from the vent. With respect to aviation, three regimes of ash contamination are differentiated: low contaminations for concentrations 2   m g / m 3 , medium contaminations for concentrations of 2 to 4 mg m−3 and high contaminations for concentrations 4   m g   m 3 [9]. In the following, mass column concentrations of 0 (no ash) to 30 g m−3 are considered. Thus, after choosing z ext , the mass volume concentration is c [ 0   g   m 3 , 30   g   m 2 z ext ] ; for a typical cloud thickness of z ext = 1   k m , this would cover mass volume concentrations up to 30 m g m −3 , covering all three contamination regimes according to ICAO.
Volcanic ashes themselves can also differ significantly with respect to chemical composition, particle size and shape. Here, we consider the comprehensive set of optical properties covering the variability of all three properties described by Piontek et al. [23]. The refractive indices of volcanic ashes, as shown in Figure 5, were calculated by averaging the refractive indices of different components of volcanic ash (i.e., minerals and glasses) according to typical petrological compositions; the last depends on the silica content x s , which was varied from 45 to 75 wt . % , and the ratio between volcanic glass and minerals, f glass , which varied between x s / 100   wt . % and 1. Focusing on distal ash, the porosity of volcanic ash [21] is neglected.

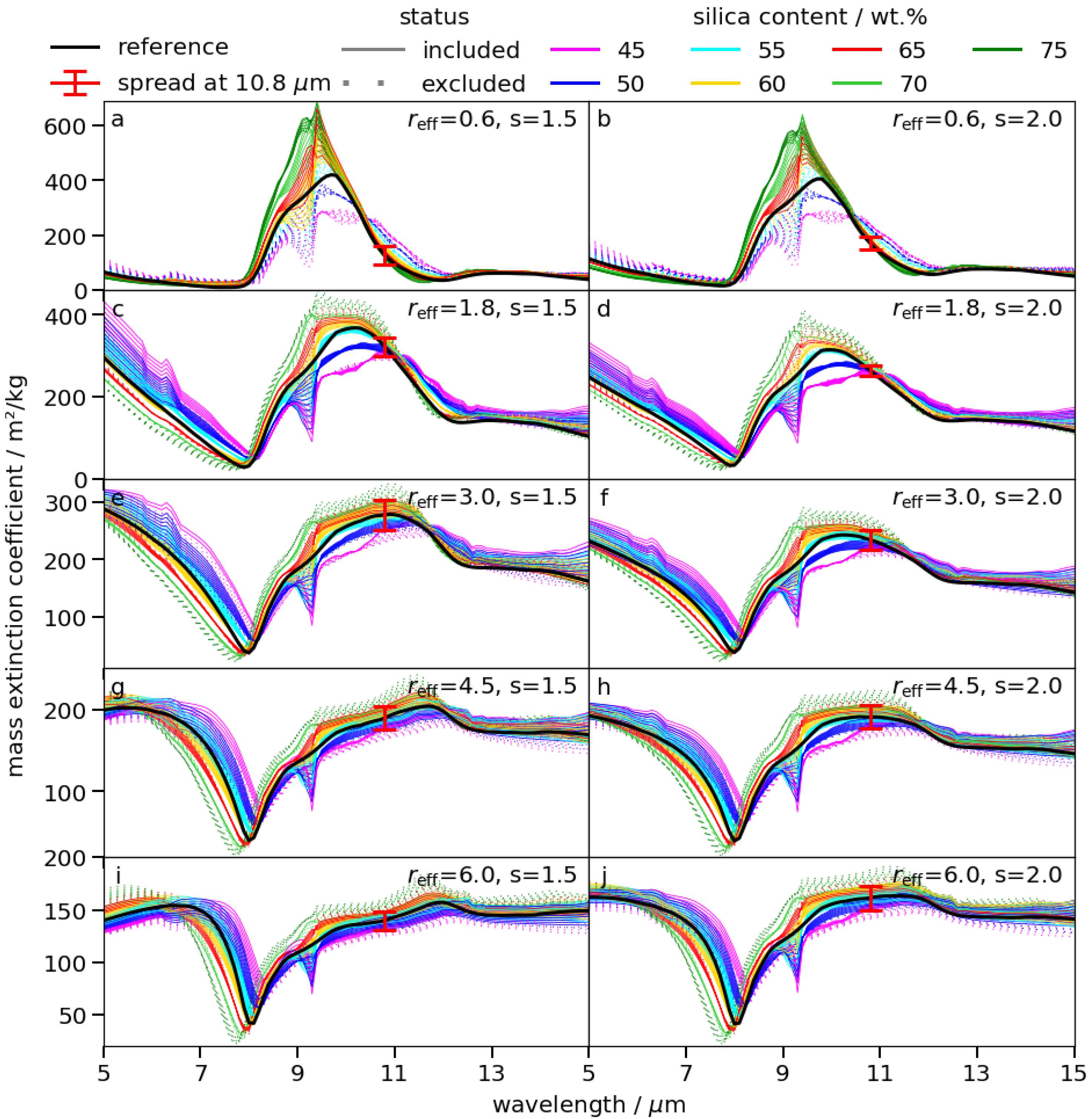

The microphysical properties were chosen based on a literature review: a log-normal particle size distribution (Equation (7) in [23]) was assumed with r eff { 0.6 , 1.8 , 3 , 4.5 , 6 } and geometric standard deviations s { 1.5 , 2.0 } . Pro- and oblate spheroids were assumed in equal parts, with the aspect ratio following a modified log-normal distribution (Equation (9) in [23]) with median aspect ratio ϵ 0 = 1.5 and a spread σ ar = 0.45 . Using Mie theory and the T-matrix method [129], the optical properties were derived for wavelengths of 5 to 15 μm, as shown in Figure 6.
To exclude outliers as potentially unphysical volcanic ashes, only a selection of ash types is used for the training below (see Figure 6). Therefore, the standard deviation σ ( r eff , s ) of the mass extinction coefficient at 10.8 μm, k 10.8 , of all volcanic ashes is calculated. Next, the mass extinction coefficient k Eyja ( r eff , s ) at 10.8 μm for Eyjafjallajökull ash from Deguine et al. [75] is determined for the same microphysical properties r eff , s and shape [23]. Finally, we keep only those volcanic ashes that are 1 σ close to the Eyjafjallakökull ash, i.e., that fulfill k 10.8 k Eyja ( r eff , s ) σ ( r eff , s ) . Overall, 57% of the ash types pass this test. Figure 6 shows that for r eff = 0.6   μ m mostly ashes of low x s are excluded, whereas for r eff = 1.8   μ m mainly high x s are dismissed. For the other r eff , the selection is relatively balanced with respect to x s .

4.2. Radiative Transfer Calculations

To create the input files of the radiative transfer calculation, the algorithm RTSIM [71] randomly picks uniformly distributed times among those covered by the ECMWF data (Section 4.1.2), coordinates with respect to the SEVIRI disc and compiles the corresponding surface properties and atmospheric, cloud and ash profiles; meteorological clouds can be created in ~51% of the cases. For each set of input parameters, four calculations are performed if possible: clear-sky conditions; only meteorological clouds; only volcanic ash clouds; meteorological and volcanic ash clouds. The ash cloud parameters (i.e., z top , c, τ 10.8 and r eff ) and the simulated brightness temperatures together enter the training data.
1D radiative transfer calculations of the thermal infrared brightness temperatures as measured by SEVIRI are performed using libRadtran version 2.0.3 [130,131] and the C-version of the Discrete Ordinate Radiative Transfer Solver (DISORT [132,133]) with 16 streams. The Cluster for Advanced Research in Aerospace (CARA) of the Deutsches Zentrum für Luft- und Raumfahrt (DLR) is used, allowing the calculation of 1000 samples with 7 simulated brightness temperatures each on a single node within approximately 100 s .
To account for gas absorption, a method by Buehler et al. [134] is used in the implementation by Gasteiger et al. [135], called REPTRAN. It performs radiative transfer simulations at representative wavelengths within a given spectral interval (on average 3 and typically <10) and calculates a weighted sum of them as an approximation of the integral of the top of atmosphere radiance over a satellite channel’s spectral response function/a narrow spectral band. The representative wavelengths and the weights were determined such that the approximation for the integrated top of atmosphere radiance has an error < 1%, using a training dataset of simulated top of atmosphere radiances with a high spectral resolution covering a large variety of atmospheric states. Four different parameterizations are available: channel (optimized for SEVIRI’s spectral channels), coarse (band width of 15 cm−1), medium ( 5 cm−1) and fine ( 1 cm−1). channel uses the least number of spectral sampling points and is fastest. However, Gasteiger et al. [135] pointed out that the applicability of the parameterization might cease if a significant spectral variability is introduced which has not been considered in their training dataset. For instance, surface emissivity was assumed wavelength-independent by Gasteiger et al. [135]. In our simulations, surface emissivity shows a strong spectral variability, especially for sand [88]. Furthermore, the refractive index of the volcanic ash, which has imaginary values between 0 and about 1.4 (Figure 5), was assumed wavelength-independent and between 0.001 and 0.1 by Gasteiger et al. [135].

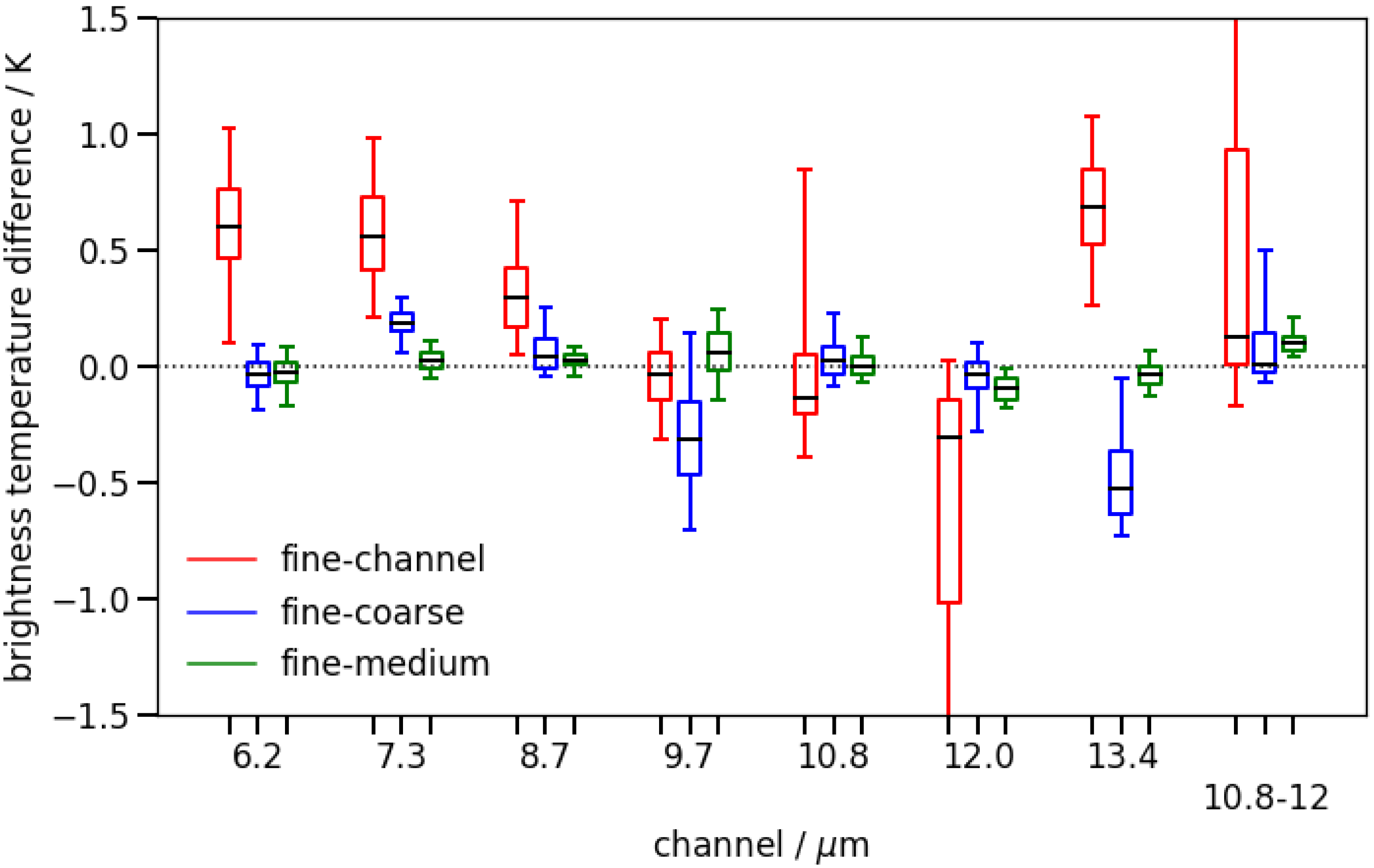

To select accurate parameterizations, we performed test calculations of the brightness temperatures for the REPTRAN modes channel, coarse, medium and fine. Cases with and without meteorological clouds/volcanic ash were considered with the ash cloud parameters as described in Section 4.1.3 and an example ash with the refractive index of Eyjafjallajökull ash from Deguine et al. [75], a log-normal size distribution with r eff = 0.6   μ m , s = 1.5 and the previously described shape distribution. In total, for each parameterization, 500 atmospheric states were simulated with each up to four cloud states as described above. The differences to the fine calculations are shown in Figure 7, assuming that those represent the most accurate approximation to a line-by-line calculation. This is supported by the fact that the spread decreases when considering a higher-resolution approximation (except for B T 9.7 ). Median differences for channel are the largest for all channels but B T 9.7 . This might reflect the fact that B T 9.7 is sensitive to ozone, which is mainly present in the stratosphere and, thus, might hide the impact of the additional spectral variability due to the surface emissivity and the volcanic ash refractive index. Outliers reach absolute differences > 2 K (not shown). In some cases (e.g., B T 6.2 and B T 10.8 ), the differences between coarse and medium are rather small, such that the lower resolution parameterization is applied. Overall, we conclude to use the channel parameterization for B T 9.7 ; coarse for B T 6.2 , B T 10.8 and B T 12.0 ; medium for B T 7.3 , B T 8.7 and B T 13.4 .

4.3. Test of the Ash-Free Training Data

The presented method is not expected to reproduce observations on a single pixel basis as, for example, spatial resolution is too coarse, averaged surface emissivities are used and the ECMWF model might not represent reality, especially clouds, accurately enough. However, the aim of the setup is to create a dataset that statistically approximates the reality. To validate this, 49,701 simulations without ash for 15 July 2015 at 12:00 UTC were performed, randomly scattered over the SEVIRI disc and compared with the corresponding SEVIRI measurements (see Figure 2). If RTSIM created no clouds in the atmosphere, the cloud-free simulation was used, otherwise the simulation containing clouds. The distributions of the simulated and the corresponding measured brightness temperatures should be similar, and thereby would indicate that RTSIM creates atmospheric profiles and libRadtran derives brightness temperatures that generally approximate reality, although individual samples might deviate from the measurements. Thus, simulations can then be viewed as a strong training dataset.

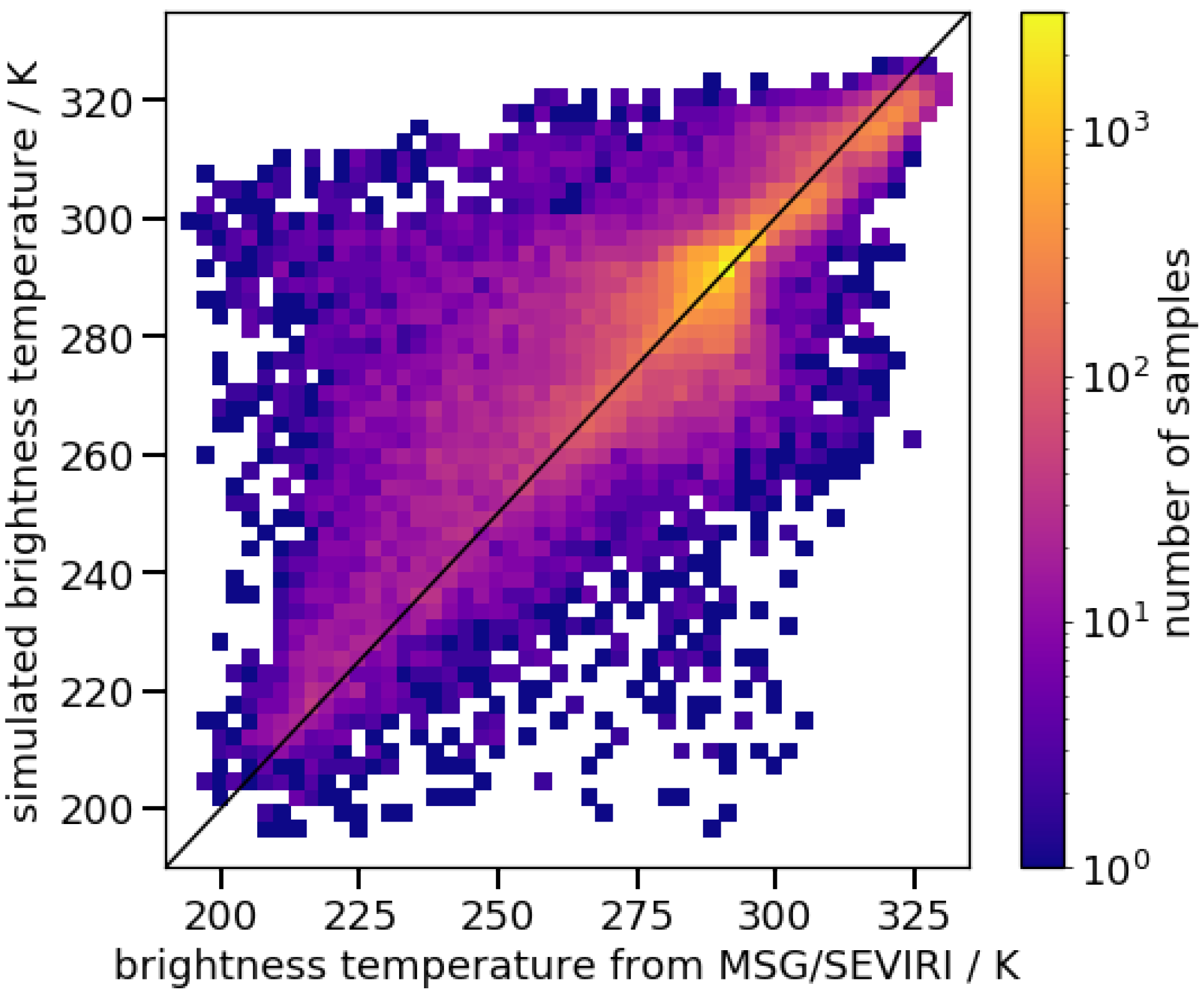

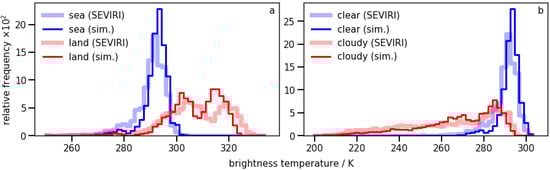

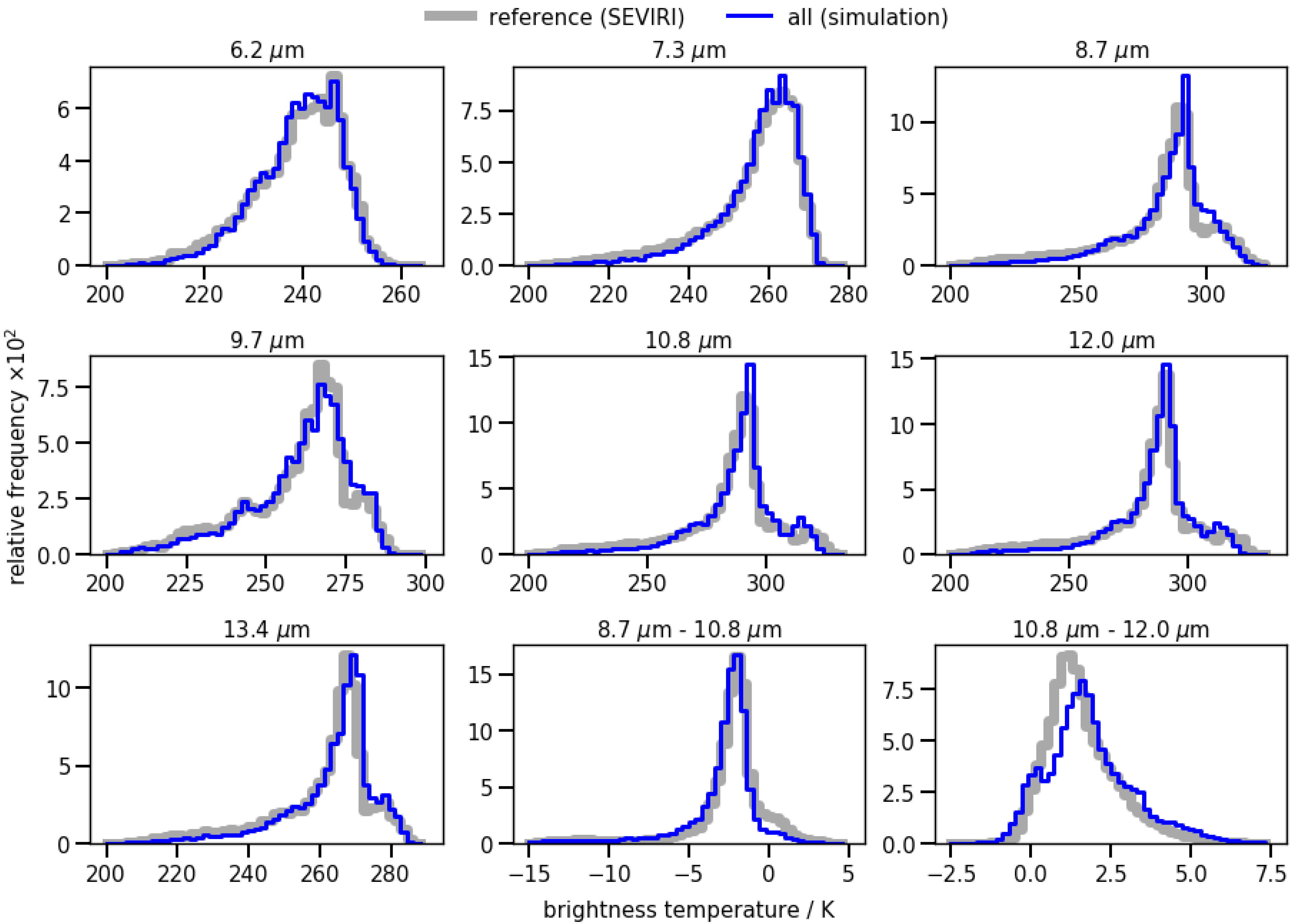

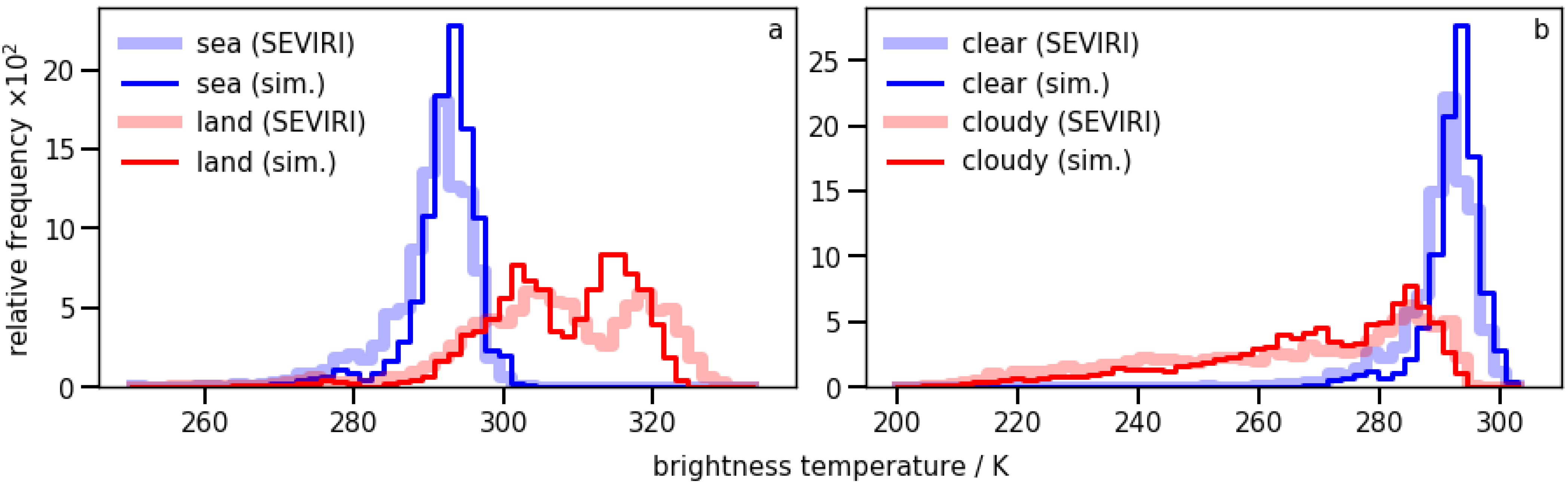

Figure 8 shows a two-dimensional histogram for the full dataset of measured against simulated B T 10.8 . Most samples are located close to the identity, with slightly more points above the identity than below, i.e., the simulation tends to overestimate the brightness temperature. Single points show large differences up to about 80   K between simulation and measurements, probably when the simulation is cloud-free and reality shows a high cold ice cloud. Figure 9 shows the median and the 95th percentile of the absolute difference between the simulated and the measured brightness temperatures. Different subsets are considered: (a) all samples as well as land and sea samples for clear conditions; (b) clear and cloudy samples for sea surfaces; (c) viewing zenith angle θ vza separated by 40° and 55° for clear conditions over sea; (d) viewing zenith angle θ vza separated by 40° and 55° for clear conditions over land. Clear conditions are determined by the fact that no cloud layers were created by RTSIM and that the total cloud cover by ECMWF is below 25%; of course, observations might still contain meteorological clouds. The statistical distributions of the measured and simulated brightness temperatures (and brightness temperature differences B T D 8.7 10.8 and B T D 10.8 12.0 ) are shown as histograms in Figure 10. Figure 11 shows as an example the distribution of B T 10.8 for the subsets of clear sky land/sea samples and clear/cloudy samples of sea surfaces.
Atmospheric gases, meteorological clouds and the surface properties are the main aspects that determine the quality of the simulations. Water vapor is mainly visible in B T 6.2 and B T 7.3 , with the latter being sensitive at least down to the mid-troposphere [69]. Their brightness temperature distributions in Figure 10 show a good agreement, and, even on a single pixel basis, the deviations are small, with median absolute deviations mostly below 1 K . The effect of H 2 O on the atmospheric window channels B T 8.7 , B T 10.8 and B T 12 is small [108,136]. However, the single pixel deviations of the window channels are larger than those of B T 6.2 and B T 7.3 when considering only clear sky samples, indicating that other effects dominate the former. O 3 and C O 2 mainly impact B T 9.7 and B T 13.4 , respectively. Their distributions in Figure 10 generally agree well up to a small peak on the right side that is not fully reproduced. However, as this minor peak is also present in the distributions of the window channels, it can be expected to stem from the surface properties, particularly from land surfaces that produce multiple peaks. The single pixel median absolute deviation for all samples is generally around 2 K .
Meteorological clouds impact the atmospheric window channels. Individual pixel deviations are remarkable: the median absolute deviation of cloudy samples is ~ 6 K , with the 95th percentile of the absolute deviation even beyond 30 K . This indicates that the largest deviations in Figure 8 could be caused by the occurrence of meteorological clouds, for instance, if they are present in reality but missing in the simulation, or if the there are significant differences in the cloud top heights. The size of the smaller deviations might be related to inaccuracies in the cloud properties, e.g., the cloud top height, the liquid and ice water content derived from the ECMWF model or r eff derived from parameterizations. In addition, clouds are described differently in the 1D radiative transfer calculations than in nature, which has an impact especially in the case of partial cloudiness, and a random element is applied for the creation of the cloud layers [71]. However, the resulting brightness temperature distributions in Figure 10 and Figure 11 agree with the SEVIRI measured distributions.
The surface properties (emissivity and skin temperature) influence the atmospheric window channels as well. As pointed out above, their brightness temperature distributions show a good agreement (Figure 10). The distributions of B T 10.8 for sea surfaces and clear sky pixels roughly agree, whereas for land surfaces two peaks of similar height are visible with the right flank of the simulated distribution shifted towards lower temperatures (Figure 11a). The single pixel comparison exhibits generally low median absolute deviations (< 2 K ) for clear sky sea surfaces, but the deviation is larger for land than for sea. Considering the θ vza -dependence for sea surfaces, the median absolute deviation is largest for 55 < θ vza , which might be related to the strong θ vza -dependence of the water surface emissivity for large viewing zenith angles. On the contrary, for land surfaces, the median absolute deviation is largest for θ vza < 40 . This seems reasonable as the θ vza -dependence is smaller for land surfaces than for water surfaces. Furthermore, a higher θ vza leads to a larger gas column along the optical path, thereby effectively hiding deviations due to inaccurate surface properties.
The surface emissivity is a climatology over 10 years, whereas the actual emissivity in the present scene might slightly deviate, e.g., due to wetter or dryer surfaces, more or less vegetation, etc. [89]. Could this cause the deviations observed for land surfaces? Neglecting all atmospheric effects, we can estimate the deviation of the surface emissivity corresponding to the deviation in the simulated brightness temperatures using Planck’s law. For the wavelength λ , let the measured brightness temperature B T λ , m be related to an emissivity ϵ λ , m and the simulated one B T λ , s to ϵ λ , s . Their ratio r is
r = ϵ λ , s ϵ λ , m = exp c / λ / B T λ , m 1 exp c / λ / B T λ , s 1
with c = 0.0145   m K [108]. For B T λ , m between 263 K and 303 K and B T λ , m B T λ , s = ± 4   K , the difference | 1 r | is ca. 0.1 , 0.08 and 0.07 for λ of 8.7 μm, 10.8 μm and 12 μm, respectively. For B T 8.7 , such deviations are possible, as the spread in emissivities of typical surfaces is large in the corresponding spectral regime (sand has emissivities down to 0.7 , whereas water and vegetated surfaces have values close to 1). Around 10.8 μm and 12 μm, the differences in typical surface emissivities are <0.05 [88,89]. Therefore, it seems unlikely that an error in the surface emissivity is the single cause for the differences in the brightness temperatures above land surfaces, as their median absolute deviation in the three window channels are similar.
Another possible reason might be inaccuracies in the skin temperature. For instance, it is known that ECMWF underestimates skin temperatures for land at daytime and overestimates during night: Trigo et al. [137] found errors of the order of 2 to 5 K, especially for semiarid regions (North Africa, Sahara and Namibia), and Johannsen et al. [138] found in parts underestimations in the order of 5 K for the Iberian peninsula when comparing ECMWF data with satellite retrievals. The ECMWF data and the surface emissivity have a spatial resolution of 0.25 , corresponding to roughly 28 k m at the SEVIRI sub-satellite point. However, SEVIRI itself has a resolution of 3 k m at nadir. Due to this difference, small-scale features and sudden changes in the surface type (e.g., at coastlines) can lead to inaccuracies.
To sum up, the comparison indicates that gas profiles are reproduced correctly on a single pixel basis, similar to sea surfaces in the absence of clouds. For cloudy samples, the measured and simulated brightness temperature distributions agree well, but considering individual pixels we find notable deviations. Land surfaces lead to deviations for both, single pixels (< 4 K ) and the brightness temperature distributions. Especially the good agreement of the distributions of B T D 8.7 10.8 and B T D 10.8 12.0 highlights that relative deviations within single spectra are small, with only a minor positive bias for B T D 10.8 12.0 . Thus, we conclude that the simulations can be used as a training dataset.

4.4. Training, Validation and Test Data

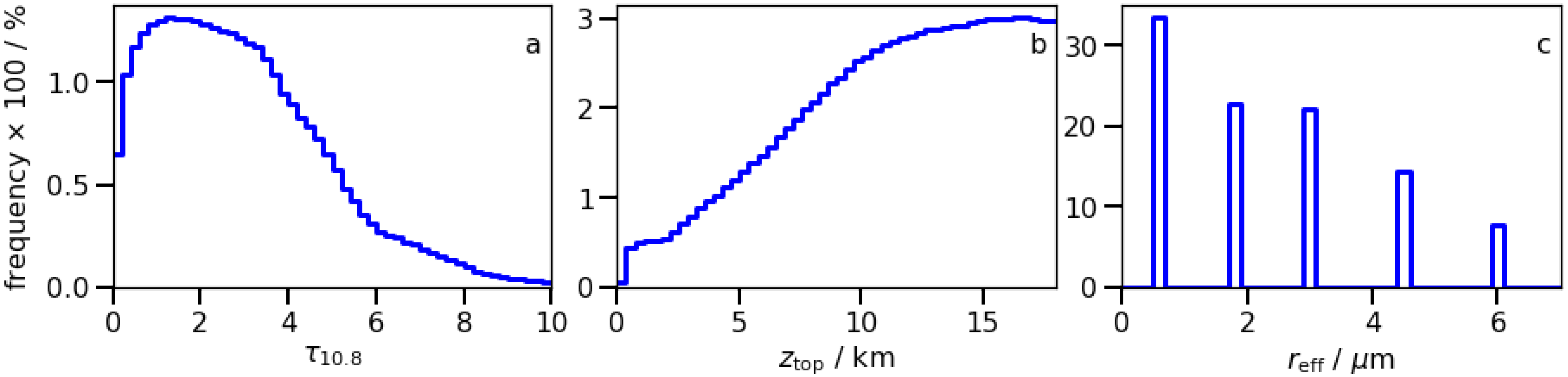

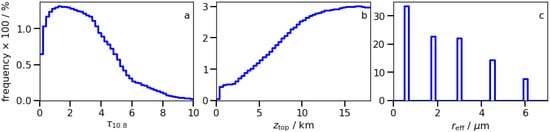

We performed simulations for ~30 million samples. Then, two selections are made: First, for ash-loaded samples, only those that have B T D 10.8 12 < 0 are kept. This threshold criterion is typical for volcanic ash detection and has been used for VADUGS as well [71]. It reduces the amount of samples with overlapping signals from meteorological and volcanic ash clouds, thereby effectively making the classification task slightly simpler for the ANNs. Second, the selection of ash types similar to Eyjafjallajökull ash is applied to reduce the complexity of the training datasets. From the remaining data, two sets are formed: the full dataset (Dataset A) and a subset containing only the ash-loaded samples (Dataset B). Dataset A is used for the ANNs for classification and the retrieval of τ 10.8 , i.e., the algorithms that are applied to all satellite measurements. Dataset B is used for the ANNs of z top and r eff , which are only applied to ash-loaded pixels. Dataset A and B are randomly grouped into a training (70%), a validation (20%) and a test (10%) dataset, as shown in Table 1. Training and validation datasets are used for the training of the ANNs; the test dataset is used to characterize the final algorithms in Piontek et al. [80]. Distributions of the target values in the training datasets are sketched in Figure 12. Note that they are not uniformly distributed due to the selections performed as well as the usage of different volcanic ash types.

5. Training of the ANNs

For the ANNs, TensorFlow version 1.14.0 [139,140] and Keras version 2.3.1 [141] are used. Individual ANNs are trained for the classification, the retrieval of volcanic ash-induced optical depths at 10.8 μm ( τ 10.8 ), cloud top heights ( z top , in meters) and effective particle radii ( r eff , in micrometers). The classification ANN differentiates four categories: clear sky; only meteorological clouds; only volcanic ash clouds; both meteorological and volcanic ash clouds.
VADUGS directly retrieved m col , whereas VACOS derives τ 10.8 as this quantity is more closely related to the observational data as SEVIRI measures radiances. It can be converted into m col using k 10.8 . The wavelength 10.8   μ m was chosen (as in [66]) as it corresponds to one of the SEVIRI channels, is in the atmospheric window, is less influenced by H 2 O and volcanic S O 2 emissions (compared to 8.7 μm, see [29]) and experiences relatively large extinctions (compared to 12 μm. The ANNs for the classification and τ 10.8 are trained with the full training dataset (Dataset A in Table 1), whereas the ANNs for z top and r eff are trained only with ash-containing samples (Dataset B). The input features (in Table 2) contain the seven infrared brightness temperatures from SEVIRI, including B T 10.8 and B T 12 that are often used for volcanic ash detection [24,25], as well as B T 8.7 [31]. Prata and Grant [33] showed that BTD8.7–12 can be even more negative than BTD10.8–12. As water vapor can hide the volcanic ash [27,43], B T 6.2 and B T 7.3 are included, which are sensitive to water vapor [69]. Similarly, B T 9.7 and B T 13.4 are included to treat O 3 and C O 2 [69]. From ECMWF, the skin temperature is included as a reference for the temperature profile, as well as estimates of the total column water, water vapor and ozone to account for the influence of gases and meteorological clouds on the satellite measurements and thereby to extract the impact of the volcanic ash. Latitude and longitude allow the ANNs to learn the geography to some extent and latitudinal dependencies of the atmospheric profile. The land/sea-mask partly encodes the very different emissivities [88,89] as well as differences of the atmosphere and cloud layers above land and sea. Day of year and hour of day are included to consider seasonal and diurnal variations in the atmospheric properties, respectively. Their sine and cosine are used to avoid discontinuities (e.g., between 31 December and 1 January or 24:00 and 0:00) and make the encoding unambiguous [78]. The satellite viewing zenith angle is included to correct slant observations, leading to longer optical paths through the atmosphere for higher θ vza . τ 10.8 is included as an input feature for the ANNs of z top and r eff to make use of the previously retrieved information. Finally, the “clear” brightness temperatures B T 8.7 , clr , B T 10.8 , clr and B T 12 , clr are given as input. Those correspond to the brightness temperatures that would be measured in absence of the volcanic ash clouds (but with meteorological clouds if present) to quantify the surroundings [27,31,45].
Input and output data are standardized. As τ 10.8 is the result of a previous retrieval and B T λ , clr is estimated from the surrounding satellite measurements for application to real data (Section 6), those values are prone to errors. Therefore, the ANNs for z top and r eff apply a Gaussian noise with standard deviation of 0.1 on the input layer during training. Each ANN consists of three hidden layers with 100 neurons each. This choice is motivated by Strandgren et al. [78], who investigated different ANN structures when developing CiPS, i.e., a retrieval similar to VACOS but for cirrus clouds. They found the best performance for their most complex ANN, having three hidden layers with 64 neurons each. The output layers of our ANNs have a single neuron for regressions or four neurons for the classification. Note that the ANNs now have roughly twice as many trainable parameters as VADUGS: For example, an ANN with 19 inputs, 3 × 100 hidden neurons and a single output has 22,301 parameters, whereas the VADUGS architecture with 17 inputs, 1 × 600 hidden neurons and 2 outputs has 12,002 free parameters. The hidden layers use the hyperbolic tangent as activation function, while the output layer uses a linear function for regressions and a softmax function for classification [142]. The last allows the classification ANN to produce a normalized four-dimensional output vector, where each component can be roughly interpreted as the probability of the corresponding category. All neurons use bias neurons and are initialized by a LeCun normal distribution [87]. The mean squared error is utilized as loss function for regressions and the categorical cross entropy for classifications [142]. For the training of classification, z top and r eff retrievals, all samples are weighted equally (with 1) when calculating the total loss of a batch of samples. For the ANN of τ 10.8 , the following sample weighting with respect to the true τ 10.8 is applied to increase the importance of the few samples with small τ 10.8 (e.g., less than 3% of the samples in the training subset of Dataset A have τ 10.8 < 0.6 ) in comparison to the many ash-free and very ash-loaded samples:
0 τ 10.8 0.001 : 0.3 0.001 < τ 10.8 0.2 : 5 0.2 < τ 10.8 0.5 : 3 0.5 < τ 10.8 1 : 0.01 1 < τ 10.8 : 0.001
The weight for τ 10.8 0.001 is introduced to reduce the focus on very low concentrations that might be hardly retrievable anyway. With the weights for 0.001 < τ 10.8 0.5 the focus on usual concentrations is increased. To avoid a general overestimation due to the many samples with large τ 10.8 (see Figure 12), lower weights for τ 10.8 > 0.5 are applied. The numerical values are determined by testing different settings. The Nadam (short for Nesterov-accelerated Adaptive Moment Estimation) algorithm is applied during the training with recommended parameters (learning rate = 0.001 , β 1 = 0.9 and β 2 = 0.999 [143,144]), with batch sizes of 1000. For regressions, the learning rate is reduced by a factor 100 every 500 epochs, with 2000 epochs in total, reaching a minimum of the loss function evaluated on the validation dataset, with the loss function remaining constant for several hundred epochs. For the classification ANN, the learning rate is reduced once after 500 epochs and training is stopped after 60,000 epochs, as accuracy (assuming a threshold of 0.5 for the four categories) calculated for the validation dataset decreases by <0.065% in the last 10,000 epochs.
Reality (i.e., atmospheric and volcanic ash properties) is very complex and variable and has only been approximated by the simulated data. A possible pitfall of this approach is that ANNs might overfit with respect to both the simulated training and the validation data. For example, some of the first ANNs we created here were trained successfully considering the simulated datasets, but revealed weaknesses when applied to real satellite data, such as misinterpretation of meteorological clouds as volcanic ash or wrong retrievals for thin ash clouds. To overcome these issues, we applied different selections with respect to the simulated datasets when training the final ANNs and introduced Gaussian noise layers and sample weightings as outlined above.

6. Notes on the Application

To perform the VACOS retrieval, the ANNs are applied in two steps: First, the classification ANN is used to detect volcanic ash. Alternatively, τ 10.8 is retrieved to find ash clouds; reasonable thresholds are found in [80]. Second, r eff and z top are retrieved for all ash-containing pixels. In order to apply the ANNs, the input features as given in Table 2 have to be composed. For the training, τ 10.8 and B T λ , clr at wavelength λ are simulated and, therefore, exact. However, for the application on satellite data, the input feature τ 10.8 is obtained from the retrieval result of the corresponding ANN, whereas B T λ , clr is estimated from the SEVIRI images. We assume that the ash clouds are spatially limited and the highest B T λ in the close surrounding of a specific pixel corresponds to the value that would be measured in absence of the volcanic ash cloud [115]. Therefore, for each pixel, the maximum B T λ within a radius of 12 pixels is determined, denoted B T λ 12 px ; similar pixel areas were considered by Krebs et al. [115]. Assuming a pixel size of 3 k m , a surrounding of at least 36 k m would be considered, which is sufficient for ash plumes close to the volcano [19]. At greater distance, ash clouds can become wider [6]; thus, an additional step is implemented. The SEVIRI disc is split in 10 × 10 boxes and the maximum of B T λ 12 px of all presumably ash-free pixels, i.e., pixels with
B T 10.8   μ m 12 px B T 12.0   μ m 12 px 0
is determined within each box, called B T λ ref . Now, for each pixel in the box, the brightness temperature difference is checked: if Equation (3) is not fulfilled, which indicates that volcanic ash still influences the measurement, the replacement
B T λ 12 px + B T λ ref / 2 B T λ 12 px
is conducted. This last step is repeated twice in case Equation (3) remains unfulfilled. The final B T λ 12 px is used as an approximation for B T λ , clr . A uniform filter of size 5 × 5 pixels is applied for both B T λ , clr and the retrieved τ 10.8 (see [80]). Similarly, the total column water vapor and total column water are taken from an external source, e.g., a model, and might be arbitrarily wrong. However, the training dataset includes for a specific atmospheric profile samples with and without meteorological clouds (if those are theoretically possible due to the ECMWF data), both with the same total column quantities. Thus, the ANNs learn a certain robustness with respect to inaccuracies of the total column water and total column water vapor. This is different for the total column ozone and skin temperature, which are also obtained externally. The preferred source is ECMWF ERA5 as this was also used to create the training data.
The results of the ANNs can be treated in different ways. The classification result can either be used directly or a binary ash flag (i.e., ash or no ash) can be calculated by adding the probabilities of the two ash-free and the two ash-containing categories, respectively. Using the retrieved z top and z ext = 0.4 z top [125,126], one can derive an estimate for the geometrical thickness [127]. The retrieved τ 10.8 can be converted into m col using k 10.8 ; typical values for different x s and r eff are given in Table 3 as derived from all data in Figure 6. Generally, k 10.8 increases with increasing x s when r eff = const . , except for ashes with a r eff = 0.6 μ m , where the opposite is the case. For x s = const . , k 10.8 is largest in the case r eff = 1.8 μ m and decreases with increasing r eff . In practice, to determine k 10.8 , one needs to know r eff and x s . The former can be approximated by satellite retrievals, the age of an ash cloud or the distance to its source. The latter can be estimated using previous knowledge about the volcanic source or laboratory analyses of volcanic ash samples when considering past eruptions. If none of this information is given, one can simply assume k 10.8 = 200   m 2   kg 1 which produces roughly the mean m col considering the extremal values 140 m2 kg−1 and 328 m2 kg−1 of the mean k 10.8 in Table 3.
For the visible spectrum, mass extinction coefficients of 690 m2 kg−1 at λ = 532   n m [145] and 637 m2 kg−1 for λ = 355   n m [146] were found for Eyjafjallajökull volcanic ash. As the refractive index exhibits only a small variability in the visible spectrum with respect to the chemical composition [75,147], these mass extinction coefficient estimates can also be assumed to be representative for other types of volcanic ash. Thus, the optical depth of a volcanic ash cloud is roughly 3.3 times larger in the visible spectrum when comparing to a typical k 10.8 of 200 m2 kg−1 at 10.8 μm. Finally, combining m col and z ext allows estimating the average mass volume concentration c.
VACOS can be applied quickly: processing a full MSG/SEVIRI image (3712 × 3712 pixels) on an ordinary desktop personal computer (using a single core of an Intel Core i5-6600 CPU at 3.30   G Hz ) with an off-the-shelf, uncustomized version of TensorFlow, each ANN needs ~ 70 s , excluding input/output processing. Performance could be increased by restricting the retrieval, e.g., only τ 10.8 could be retrieved for the full disc to detect volcanic ash, whereas z top and r eff could be determined for ash-contaminated pixels only. Thus, it is possible to use VACOS operationally.

7. Conclusions

The new retrieval algorithm VACOS (Volcanic Ash Cloud properties Obtained from SEVIRI) is introduced. It derives a pixel classification, cloud top height, effective particle radius and (indirectly) the mass column concentration, each of which is done individually by a shallow artificial neural network. The artificial neural networks receive seven brightness temperatures of the infrared channels of the geostationary instrument MSG/SEVIRI as well as auxiliary data from ECMWF. Using MSG/SEVIRI allows for a comparably high temporal and spatial resolution of the retrievals. Focusing on the infrared spectrum allows the application at day and night. After the time-consuming creation of a radiative transfer simulated training dataset and the training itself, artificial neural networks are fast [64,78], have good generalization skills [52] and a high robustness with respect to perturbations [67,68]. The training dataset is of main importance for the development of artificial neural networks. Here, we perform one-dimensional radiative transfer calculations for a large set of typical atmospheric conditions with and without generic volcanic ash clouds. The radiative transfer’s input data are described and the central aspects discussed, in particular pointing out the strong dependence of surface emissivities on the surface type and the viewing zenith angle, the significant variability of the atmospheric state between different years and the need for a high temporal resolution to also cover its diurnal variability. A special focus is put on the representation of the volcanic ash clouds. Macrophysical properties are reviewed, and microphysical and optical properties are received from Piontek et al. [23]. The usage of a large set of refractive indices representing different volcanic ash types with respect to their silica content and glass-to-crystal ratio is a major difference to most other artificial neural network-based volcanic ash retrievals using passive imagers: they either rely on a single or a handful of volcanic ash refractive indices or use training datasets consisting of only a few different volcanic ash clouds. We perform a validation of the ash-free radiative transfer calculations by comparing those with real MSG/SEVIRI measurements for a specific scene. An overall agreement of the statistical distributions of the brightness temperatures is found, showing that the composed atmospheric and surface data are representative for the real world. Comparing simulations and measurements on a single pixel basis, we find indications that atmospheric gas profiles and sea surface emissivities are reproduced with a high agreement. For cloudy samples, the measured and simulated brightness temperature distributions agree, but considering individual pixels significant deviations are found (with 95th percentiles of the absolute deviations > 30 K ), most likely introduced by a random element in the implementation of the maximum-random overlap configuration in a one-dimensional atmosphere and possible different locations of clouds in the model and reality. Land surfaces lead to large deviations, for single pixels (with median absolute deviations > 3 K ) as well as for the brightness temperature distributions, likely due to inaccurate skin temperatures. Finally, we describe the architecture of the different artificial neural networks and their technical setup, input features, training and application.
Our work can be extended in different directions: the validation of the ash-free simulations shows that the representation of land surfaces is not fully realistic and could be improved, e.g., by using other model results or satellite retrieved skin temperatures. Volcanic ash plumes close to the vent often carry S O 2 [39,42] or ice water [148,149,150], both of which are neglected for reasons of simplicity. Other aerosols are also noteworthy, especially mineral dust which has similar refractive indices as volcanic ash due to their silica contents [11]. Including both in the training data, it might be possible to train an algorithm to separate volcanic ash from dust. The artificial neural networks could be improved by using additional input data, e.g., model-based vertical temperature profiles [68] or extremal or average brightness temperatures of the surrounding of a pixel [78]. The latter would require the simulation of extended areas, i.e., images of volcanic ash clouds in different atmospheric and surface settings, which would also enable the use of convolutional neural networks for image recognition [151]. As other geostationary passive imagers have similar spectral channels as MSG/SEVIRI [69,83,85,86], the algorithm might be transferable to these instruments [152]. A thorough validation of VACOS is presented in a companion paper [80]. An operational application by the German weather service (DWD) is ongoing.
To conclude, the new volcanic ash retrieval allows detecting and monitoring volcanic ash clouds above Europe, Africa and the Atlantic with high spatial and temporal resolution, enabling volcanic ash-related scientific investigations as well as aviation security-related applications.

Author Contributions

Conceptualization, D.P. and L.B.; methodology, D.P. and M.S.; software, D.P. and M.S.; validation, D.P.; formal analysis, D.P.; investigation, D.P.; data sources, D.K.Z.; writing—original draft preparation, D.P.; writing—review and editing, L.B., C.V., M.S. and D.K.Z.; visualization, D.P.; supervision, L.B. and C.V.; project administration, L.B.; funding acquisition, C.V. and L.B. All authors have read and agreed to the published version of the manuscript.

Funding

D. Piontek and L. Bugliaro were supported by the European Unions’s Horizon 2020 research and innovation program under grant agreement No. 723986 (EUNADICS-AV). C. Voigt acknowledges funding by the Helmholtz Association under contract HGF W2/W3-60.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data presented in this study is available on request from the corresponding author.

Acknowledgments

The MSG/SEVIRI data were provided by EUMETSAT (European Organisation for the Exploitation of Meteorological Satellites) and the auxiliary data were obtained from ECMWF (European Center for Medium-Range Weather Forecasts). Radiative transfer calculations were performed on DLR’s CARA (Cluster for Advanced Research in Aerospace). Furthermore, we thank M. Vázquez-Navarro, J. Strandgren, B. Mayer and M. Rapp for constructive discussions and valuable feedback; W. Beer for technical support; G. Dekoutsidis and two reviewers for the helpful comments to improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Siebert, L.; Simkin, T.; Kimberly, P. Volcanoes of the World, 3rd ed.; University of California Press: Berkeley, CA, USA; Los Angeles, CA, USA; London, UK, 2011. [Google Scholar]
  2. Wilson, T.M.; Stewart, C.; Sword-Daniels, V.; Leonard, G.S.; Johnston, D.M.; Cole, J.W.; Wardman, J.; Wilson, G.; Barnard, S.T. Volcanic ash impacts on critical infrastructure. Phys. Chem. Earth 2012, 45–46, 5–23. [Google Scholar] [CrossRef]
  3. Casadevall, T.J. The 1989–1990 eruption of Redoubt Volcano, Alaska: Impacts on aircraft operations. J. Volcanol. Geotherm. Res. 1994, 62, 301–316. [Google Scholar] [CrossRef]
  4. Guffanti, M.; Casadevall, T.J.; Budding, K. Encounters of aircraft with volcanic ash clouds; A compilation of known incidents, 1953–2009. U.S. Geological Survey Data Series 545, Ver. 1.0, 12 p., Plus 4 Appendixes Including the Compilation Database. 2010. Available online: https://pubs.usgs.gov/ds/545/DS545.pdf (accessed on 5 August 2021).
  5. Weinzierl, B.; Sauer, D.; Minikin, A.; Reitebuch, O.; Dahlkötter, F.; Mayer, B.; Emde, C.; Tegen, I.; Gasteiger, J.; Petzold, A.; et al. On the visibility of airborne volcanic ash and mineral dust from the pilot’s perspective in flight. Phys. Chem. Earth Parts A B C 2012, 45–46, 87–102. [Google Scholar] [CrossRef] [Green Version]
  6. Schumann, U.; Weinzierl, B.; Reitebuch, O.; Schlager, H.; Minikin, A.; Forster, C.; Baumann, R.; Sailer, T.; Graf, K.; Mannstein, H.; et al. Airborne observations of the Eyjafjalla volcano ash cloud over Europe during air space closure in April and May 2010. Atmos. Chem. Phys 2011, 11, 2245–2279. [Google Scholar] [CrossRef] [Green Version]
  7. Budd, L.; Griggs, S.; Howarth, D.; Ison, S. A Fiasco of Volcanic Proportions? Eyjafjallajökull and the Closure of European Airspace. Mobilities 2011, 6, 31–40. [Google Scholar] [CrossRef]
  8. Pavolonis, M.J.; Sieglaff, J.; Cintineo, J. Spectrally Enhanced Cloud Objects—A generalized framework for automated detection of volcanic ash and dust clouds using passive satellite measurements: 1. Multispectral analysis. J. Geophys. Res. Atmos. 2015, 120, 7813–7841. [Google Scholar] [CrossRef]
  9. Volcanic Ash Contingency Plan: European and North Atlantic Regions, Edition 2.0.0. International Civil Aviation Organization, European and North Atlantic Office. 2016. Available online: https://www.skybrary.aero/bookshelf/books/357.pdf (accessed on 5 August 2021).
  10. Langmann, B. Volcanic Ash versus Mineral Dust: Atmospheric Processing and Environmental and Climate Impacts. ISRN Atmos. Sci. 2013, 2013, 245076. [Google Scholar] [CrossRef] [Green Version]
  11. Watkin, S.C. The application of AVHRR data for the detection of volcanic ash in a Volcanic Ash Advisory Centre. Meteorol. Appl. 2003, 10, 301–311. [Google Scholar] [CrossRef]
  12. Stohl, A.; Prata, A.J.; Eckhardt, S.; Clarisse, L.; Durant, A.; Henne, S.; Kristiansen, N.I.; Minikin, A.; Schumann, U.; Seibert, P.; et al. Determination of time- and height-resolved volcanic ash emissions and their use for quantitative ash dispersion modeling: The 2010 Eyjafjallajökull eruption. Atmos. Chem. Phys. 2011, 11, 4333–4351. [Google Scholar] [CrossRef] [Green Version]
  13. Dacre, H.F.; Harvey, N.J.; Webley, P.W.; Morton, D. How accurate are volcanic ash simulations of the 2010 Eyjafjallajökull eruption? J. Geophys. Res. Atmos. 2016, 121, 3534–3547. [Google Scholar] [CrossRef] [Green Version]
  14. Winker, D.M.; Liu, Z.; Omar, A.; Tackett, J.; Fairlie, D. CALIOP observations of the transport of ash from the Eyjafjallajökull volcano in April 2010. J. Geophys. Res. Atmos. 2012, 117. [Google Scholar] [CrossRef]
  15. Winker, D.M.; Vaughan, M.A.; Omar, A.; Hu, Y.; Powell, K.A.; Liu, Z.; Hunt, W.H.; Young, S.A. Overview of the CALIPSO Mission and CALIOP Data Processing Algorithms. J. Atmos. Ocean. Technol. 2009, 26, 2310–2323. [Google Scholar] [CrossRef]
  16. Jurkat, T.; Voigt, C.; Arnold, F.; Schlager, H.; Aufmhoff, H.; Schmale, J.; Schneider, J.; Lichtenstern, M.; Dörnbrack, A. Airborne stratospheric ITCIMS measurements of SO2, HCl, and HNO3 in the aged plume of volcano Kasatochi. J. Geophys. Res. Atmos. 2010, 115. [Google Scholar] [CrossRef] [Green Version]
  17. Schmale, J.; Schneider, J.; Jurkat, T.; Voigt, C.; Kalesse, H.; Rautenhaus, M.; Lichtenstern, M.; Schlager, H.; Ancellet, G.; Arnold, F.; et al. Aerosol layers from the 2008 eruptions of Mount Okmok and Mount Kasatochi: In situ upper troposphere and lower stratosphere measurements of sulfate and organics over Europe. J. Geophys. Res. Atmos. 2010, 115. [Google Scholar] [CrossRef] [Green Version]
  18. Marenco, F.; Johnson, B.; Turnbull, K.; Newman, S.; Haywood, J.; Webster, H.; Ricketts, H. Airborne lidar observations of the 2010 Eyjafjallajökull volcanic ash plume. J. Geophys. Res. Atmos. 2011, 116. [Google Scholar] [CrossRef]
  19. Weber, K.; Eliasson, J.; Vogel, A.; Fischer, C.; Pohl, T.; van Haren, G.; Meier, M.; Grobéty, B.; Dahmann, D. Airborne in-situ investigations of the Eyjafjallajökull volcanic ash plume on Iceland and over north-western Germany with light aircrafts and optical particle counters. Atmos. Environ. 2012, 48, 9–21. [Google Scholar] [CrossRef]
  20. Voigt, C.; Jessberger, P.; Jurkat, T.; Kaufmann, S.; Baumann, R.; Schlager, H.; Bobrowski, N.; Giuffrida, G.; Salerno, G. Evolution of CO2, SO2, HCl, and HNO3 in the volcanic plumes from Etna. Geophys. Res. Lett. 2014, 41, 2196–2203. [Google Scholar] [CrossRef] [Green Version]
  21. Shcherbakov, V.; Jourdan, O.; Voigt, C.; Gayet, J.F.; Chauvigne, A.; Schwarzenboeck, A.; Minikin, A.; Klingebiel, M.; Weigel, R.; Borrmann, S.; et al. Etna and Mt. Stromboli. Atmos. Chem. Phys. 2016, 16, 11883–11897. [Google Scholar] [CrossRef] [Green Version]
  22. Wen, S.; Rose, W.I. Retrieval of sizes and total masses of particles in volcanic clouds using AVHRR bands 4 and 5. J. Geophys. Res. Atmos. 1994, 99, 5421–5431. [Google Scholar] [CrossRef]
  23. Piontek, D.; Hornby, A.; Voigt, C.; Bugliaro, L.; Gasteiger, J. Determination of complex refractive indices and optical properties of volcanic ashes in the thermal infrared based on generic petrological compositions. J. Volcanol. Geotherm. Res. 2021, 411, 107174. [Google Scholar] [CrossRef]
  24. Prata, A.J. Infrared radiative transfer calculations for volcanic ash clouds. Geophys. Res. Lett. 1989, 16, 1293–1296. [Google Scholar] [CrossRef]
  25. Prata, A.J. Observations of volcanic ash clouds in the 10–12 μm window using AVHRR/2 data. Int. J. Remote Sens. 1989, 10, 751–761. [Google Scholar] [CrossRef]
  26. Inoue, T. On the Temperature and Effective Emissivity Determination of Semi-Transparent Cirrus Clouds by Bi-Spectral Measurements in the 10 μm Window Region. J. Meteorol. Soc. Jpn. 1985, 63, 88–99. [Google Scholar] [CrossRef] [Green Version]
  27. Yu, T.; Rose, W.I.; Prata, A.J. Atmospheric correction for satellite-based volcanic ash mapping and retrievals using “split window” IR data from GOES and AVHRR. J. Geophys. Res. Atmos. 2002, 107, AAC 10-1–AAC 10-19. [Google Scholar] [CrossRef]
  28. Ackerman, S.A. Remote sensing aerosols using satellite infrared observations. J. Geophys. Res. Atmos. 1997, 102, 17069–17079. [Google Scholar] [CrossRef]
  29. Clarisse, L.; Prata, F.; Lacour, J.L.; Hurtmans, D.; Clerbaux, C.; Coheur, P.F. A correlation method for volcanic ash detection using hyperspectral infrared measurements. Geophys. Res. Lett. 2010, 37. [Google Scholar] [CrossRef] [Green Version]
  30. Gangale, G.; Prata, A.; Clarisse, L. The infrared spectral signature of volcanic ash determined from high-spectral resolution satellite measurements. Remote Sens. Environ. 2010, 114, 414–425. [Google Scholar] [CrossRef]
  31. Francis, P.N.; Cooke, M.C.; Saunders, R.W. Retrieval of physical properties of volcanic ash using Meteosat: A case study from the 2010 Eyjafjallajökull eruption. J. Geophys. Res. Atmos. 2012, 117. [Google Scholar] [CrossRef]
  32. Guéhenneux, Y.; Gouhier, M.; Labazuy, P. Improved space borne detection of volcanic ash for real-time monitoring using 3-Band method. J. Volcanol. Geotherm. Res. 2015, 293, 25–45. [Google Scholar] [CrossRef]
  33. Prata, A.J.; Grant, I.F. Retrieval of microphysical and morphological properties of volcanic ash plumes from satellite data: Application to Mt Ruapehu, New Zealand. Q. J. R. Meteorol. Soc. 2001, 127, 2153–2179. [Google Scholar] [CrossRef]
  34. Pavolonis, M.J.; Feltz, W.F.; Heidinger, A.K.; Gallina, G.M. A Daytime Complement to the Reverse Absorption Technique for Improved Automated Detection of Volcanic Ash. J. Atmos. Ocean. Technol. 2006, 23, 1422–1444. [Google Scholar] [CrossRef]
  35. Zhu, L.; Liu, J.; Liu, C.; Wang, M. Satellite remote sensing of volcanic ash cloud in complicated meteorological conditions. Sci. China Earth Sci. 2011, 54, 1789–1795. [Google Scholar] [CrossRef]
  36. Pavolonis, M.J. Advances in Extracting Cloud Composition Information from Spaceborne Infrared Radiances—A Robust Alternative to Brightness Temperatures. Part I: Theory. J. Appl. Meteorol. Climatol. 2010, 49, 1992–2012. [Google Scholar] [CrossRef]
  37. Pavolonis, M.J.; Heidinger, A.K.; Sieglaff, J. Automated retrievals of volcanic ash and dust cloud properties from upwelling infrared measurements. J. Geophys. Res. Atmos. 2013, 118, 1436–1458. [Google Scholar] [CrossRef]
  38. Grainger, R.G.; Peters, D.M.; Thomas, G.E.; Smith, A.J.A.; Siddans, R.; Carboni, E.; Dudhia, A. Measuring volcanic plume and ash properties from space. Geol. Soc. Lond. Spec. Publ. 2013, 380, 293–320. [Google Scholar] [CrossRef] [Green Version]
  39. Carn, S.A.; Krueger, A.J.; Krotkov, N.A.; Yang, K.; Evans, K. Tracking volcanic sulfur dioxide clouds for aviation hazard mitigation. Nat. Hazards 2009, 51, 325–343. [Google Scholar] [CrossRef]
  40. Thomas, H.E.; Prata, A.J. Sulphur dioxide as a volcanic ash proxy during the April-May 2010 eruption of Eyjafjallajökull Volcano, Iceland. Atmos. Chem. Phys. 2011, 11, 6871–6880. [Google Scholar] [CrossRef] [Green Version]
  41. Sears, T.M.; Thomas, G.E.; Carboni, E.A.; Smith, A.J.; Grainger, R.G. SO2 as a possible proxy for volcanic ash in aviation hazard avoidance. J. Geophys. Res. Atmos. 2013, 118, 5698–5709. [Google Scholar] [CrossRef]
  42. Prata, A.J.; Kerkmann, J. Simultaneous retrieval of volcanic ash and SO2 using MSG-SEVIRI measurements. Geophys. Res. Lett. 2007, 34. [Google Scholar] [CrossRef] [Green Version]
  43. Prata, A.J.; Grant, I.F. Determination of mass loadings and plume heights of volcanic ash clouds from satellite data. CSIRO Atmos. Res. Tech. Pap. 2001, 48, 1–41. [Google Scholar]
  44. Rodgers, C.D. Inverse Methods for Atmospheric Sounding; World Scientific: Singapore; River Edge, NJ, USA; London, UK, 2000. [Google Scholar] [CrossRef]
  45. Pugnaghi, S.; Guerrieri, L.; Corradini, S.; Merucci, L.; Arvani, B. A new simplified approach for simultaneous retrieval of SO2 and ash content of tropospheric volcanic clouds: An application to the Mt Etna volcano. Atmos. Meas. Tech. 2013, 6, 1315–1327. [Google Scholar] [CrossRef] [Green Version]
  46. Schneider, D.J.; Van Eaton, A.R.; Wallace, K.L. Satellite observations of the 2016–2017 eruption of Bogoslof volcano: Aviation and ash fallout hazard implications from a water-rich eruption. Bull. Volcanol. 2020, 82, 29. [Google Scholar] [CrossRef]
  47. Prata, A.; Turner, P. Cloud-top height determination using ATSR data. Remote Sens. Environ. 1997, 59, 1–13. [Google Scholar] [CrossRef]
  48. Menzel, W.P.; Smith, W.L.; Stewart, T.R. Improved Cloud Motion Wind Vector and Altitude Assignment Using VAS. J. Clim. Appl. Meteorol. 1983, 22, 377–384. [Google Scholar] [CrossRef]
  49. Taylor, I.A.; Carboni, E.; Ventress, L.J.; Mather, T.A.; Grainger, R.G. An adaptation of the CO2 slicing technique for the Infrared Atmospheric Sounding Interferometer to obtain the height of tropospheric volcanic ash clouds. Atmos. Meas. Tech. 2019, 12, 3853–3883. [Google Scholar] [CrossRef] [Green Version]
  50. Hornik, K.; Stinchcombe, M.; White, H. Multilayer feedforward networks are universal approximators. Neural Netw. 1989, 2, 359–366. [Google Scholar] [CrossRef]
  51. Hsieh, W.W.; Tang, B. Applying Neural Network Models to Prediction and Data Analysis in Meteorology and Oceanography. Bull. Am. Meteorol. Soc. 1998, 79, 1855–1870. [Google Scholar] [CrossRef]
  52. Gardner, M.; Dorling, S. Artificial neural networks (the multilayer perceptron)—A review of applications in the atmospheric sciences. Atmos. Environ. 1998, 32, 2627–2636. [Google Scholar] [CrossRef]
  53. Cerdeña, A.; González, A.; Pérez, J.C. Remote Sensing of Water Cloud Parameters Using Neural Networks. J. Atmos. Ocean. Technol. 2007, 24, 52–63. [Google Scholar] [CrossRef]
  54. Minnis, P.; Hong, G.; Sun-Mack, S.; Smith, W.L., Jr.; Chen, Y.; Miller, S.D. Estimating nocturnal opaque ice cloud optical depth from MODIS multispectral infrared radiances using a neural network method. J. Geophys. Res. Atmos. 2016, 121, 4907–4932. [Google Scholar] [CrossRef] [Green Version]
  55. Kox, S.; Bugliaro, L.; Ostler, A. Retrieval of cirrus cloud optical thickness and top altitude from geostationary remote sensing. Atmos. Meas. Tech. 2014, 7, 3233–3246. [Google Scholar] [CrossRef] [Green Version]
  56. Holl, G.; Eliasson, S.; Mendrok, J.; Buehler, S.A. SPARE-ICE: Synergistic ice water path from passive operational sensors. J. Geophys. Res. Atmos. 2014, 119, 1504–1523. [Google Scholar] [CrossRef]
  57. Xu, J.; Schüssler, O.; Rodriguez, D.G.L.; Romahn, F.; Doicu, A. A Novel Ozone Profile Shape Retrieval Using Full-Physics Inverse Learning Machine (FP-ILM). IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2017, 10, 5442–5457. [Google Scholar] [CrossRef] [Green Version]
  58. Piscini, A.; Carboni, E.; Del Frate, F.; Grainger, R.G. Simultaneous retrieval of volcanic sulphur dioxide and plume height from hyperspectral data using artificial neural networks. Geophys. J. Int. 2014, 198, 697–709. [Google Scholar] [CrossRef] [Green Version]
  59. Efremenko, D.S.; Loyola, R.D.G.; Hedelt, P.; Spurr, R.J.D. Volcanic SO2 plume height retrieval from UV sensors using a full-physics inverse learning machine algorithm. Int. J. Remote Sens. 2017, 38, 1–27. [Google Scholar] [CrossRef] [Green Version]
  60. Hedelt, P.; Efremenko, D.S.; Loyola, D.G.; Spurr, R.; Clarisse, L. Sulfur dioxide layer height retrieval from Sentinel-5 Precursor/TROPOMI using FP_ILM. Atmos. Meas. Tech. 2019, 12, 5503–5517. [Google Scholar] [CrossRef] [Green Version]
  61. Loyola, D.G.; Xu, J.; Heue, K.P.; Zimmer, W. Applying FP_ILM to the retrieval of geometry-dependent effective Lambertian equivalent reflectivity (GE_LER) daily maps from UVN satellite measurements. Atmos. Meas. Tech. 2020, 13, 985–999. [Google Scholar] [CrossRef] [Green Version]
  62. Gray, T.M.; Bennartz, R. Automatic volcanic ash detection from MODIS observations using a back-propagation neural network. Atmos. Meas. Tech. 2015, 8, 5089–5097. [Google Scholar] [CrossRef] [Green Version]
  63. Watson, I.; Realmuto, V.; Rose, W.; Prata, A.; Bluth, G.; Gu, Y.; Bader, C.; Yu, T. Thermal infrared remote sensing of volcanic emissions using the moderate resolution imaging spectroradiometer. J. Volcanol. Geotherm. Res. 2004, 135, 75–89. [Google Scholar] [CrossRef]
  64. Picchiani, M.; Chini, M.; Corradini, S.; Merucci, L.; Sellitto, P.; Del Frate, F.; Stramondo, S. Volcanic ash detection and retrievals using MODIS data by means of neural networks. Atmos. Meas. Tech. 2011, 4, 2619–2631. [Google Scholar] [CrossRef] [Green Version]
  65. Picchiani, M.; Chini, M.; Corradini, S.; Merucci, L.; Piscini, A.; Frate, F.D. Neural network multispectral satellite images classification of volcanic ash plumes in a cloudy scenario. Ann. Geophys. 2014, 57. [Google Scholar] [CrossRef]
  66. Piscini, A.; Picchiani, M.; Chini, M.; Corradini, S.; Merucci, L.; Del Frate, F.; Stramondo, S. A neural network approach for the simultaneous retrieval of volcanic ash parameters and SO2 using MODIS data. Atmos. Meas. Tech. 2014, 7, 4023–4047. [Google Scholar] [CrossRef] [Green Version]
  67. Corradini, S.; Pugnaghi, S.; Piscini, A.; Guerrieri, L.; Merucci, L.; Picchiani, M.; Chini, M. Volcanic Ash and SO2 retrievals using synthetic MODIS TIR data: Comparison between inversion procedures and sensitivity analysis. Ann. Geophys. 2014, 57. [Google Scholar] [CrossRef] [Green Version]
  68. Zhu, W.; Zhu, L.; Li, J.; Sun, H. Retrieving volcanic ash top height through combined polar orbit active and geostationary passive remote sensing data. Remote Sens. 2020, 12, 953. [Google Scholar] [CrossRef] [Green Version]
  69. Schmetz, J.; Pili, P.; Tjemkes, S.; Just, D.; Kerkmann, J.; Rota, S.; Ratier, A. An Introduction to Meteosat Second Generation (MSG). Bull. Am. Meteorol. Soc. 2002, 83, 977–992. [Google Scholar] [CrossRef]
  70. Kox, S.; Schmidl, M.; Graf, K.; Mannstein, H.; Buras, R.; Gasteiger, J. A new approach on the detection of volcanic ash clouds. In Proceedings of the 2013 EUMETSAT Meteorological Satellite Conference, Vienna, Austria, 16–20 September 2013. [Google Scholar]
  71. Bugliaro, L.; Piontek, D.; Kox, S.; Schmidl, M.; Mayer, B.; Müller, R.; Vázquez-Navarro, M.; Gasteiger, J.; Kar, J. Combining radiative transfer calculations and a neural network for the remote sensing of volcanic ash using MSG/SEVIRI. 2021. in preparation. [Google Scholar]
  72. Jahresbericht 2015: Flugwetterdienst Deutscher Wetterdienst. 2015. Available online: https://www.dwd.de/DE/fachnutzer/luftfahrt/download/jahresberichte_flugwetterdienst/2015.pdf?__blob=publicationFile&v=3 (accessed on 5 August 2021).
  73. Meeting on the Intercomparison of Satellite-based Volcanic Ash Retrieval Algorithms, Madison WI, USA, 29 June—2 July 2015, Final Report. World Meteorological Organization. 2015. Available online: https://web.archive.org/web/20171113102551/http://www.wmo.int/pages/prog/sat/documents/SCOPE-NWC-PP2_VAIntercompWSReport2015.pdf (accessed on 5 August 2021).
  74. Reed, B.E.; Peters, D.M.; McPheat, R.; Grainger, R.G. The Complex Refractive Index of Volcanic Ash Aerosol Retrieved From Spectral Mass Extinction. J. Geophys. Res. Atmos. 2018, 123, 1339–1350. [Google Scholar] [CrossRef] [Green Version]
  75. Deguine, A.; Petitprez, D.; Clarisse, L.; Guđmundsson, S.; Outes, V.; Villarosa, G.; Herbin, H. Complex refractive index of volcanic ash aerosol in the infrared, visible, and ultraviolet. Appl. Opt. 2020, 59, 884–895. [Google Scholar] [CrossRef] [PubMed]
  76. Western, L.M.; Watson, M.I.; Francis, P.N. Uncertainty in two-channel infrared remote sensing retrievals of a well-characterised volcanic ash cloud. Bull. Volcanol. 2015, 77, 67. [Google Scholar] [CrossRef] [Green Version]
  77. Prata, G.S.; Ventress, L.J.; Carboni, E.; Mather, T.A.; Grainger, R.G.; Pyle, D.M. A New Parameterization of Volcanic Ash Complex Refractive Index Based on NBO/T and SiO2 Content. J. Geophys. Res. Atmos. 2019, 124, 1779–1797. [Google Scholar] [CrossRef] [Green Version]
  78. Strandgren, J.; Bugliaro, L.; Sehnke, F.; Schröder, L. Cirrus cloud retrieval with MSG/SEVIRI using artificial neural networks. Atmos. Meas. Tech. 2017, 10, 3547–3573. [Google Scholar] [CrossRef] [Green Version]
  79. Strandgren, J.; Fricker, J.; Bugliaro, L. Characterisation of the artificial neural network CiPS for cirrus cloud remote sensing with MSG/SEVIRI. Atmos. Meas. Tech. 2017, 10, 4317–4339. [Google Scholar] [CrossRef] [Green Version]
  80. Piontek, D.; Bugliaro, L.; Jayanta, K.; Schumann, U.; Marenco, F.; Plu, M.; Voigt, C. The New Volcanic Ash Retrieval VACOS Using MSG/SEVIRI and Artificial Neural Networks: 2. Validation. Remote Sens. 2021. submitted. [Google Scholar]
  81. ESA. Available online: https://directory.eoportal.org/web/eoportal/satellite-missions/m/meteosat-second-generation (accessed on 29 June 2020).
  82. WMO. Available online: https://www.wmo-sat.info/oscar/satellites/view/303 (accessed on 29 June 2020).
  83. Schmit, T.J.; Gunshor, M.M.; Menzel, W.P.; Gurka, J.J.; Li, J.; Bachmeier, A.S. Introducing the Next-Generation Advanced Baseline Imager on GOES-R. Bull. Am. Meteorol. Soc. 2005, 86, 1079–1096. [Google Scholar] [CrossRef]
  84. Durand, Y.; Hallibert, P.; Wilson, M.; Lekouara, M.; Grabarnik, S.; Aminou, D.; Blythe, P.; Napierala, B.; Canaud, J.L.; Pigouche, O.; et al. The flexible combined imager onboard MTG: From design to calibration. In Sensors, Systems, and Next-Generation Satellites XIX; Meynart, R., Neeck, S.P., Shimoda, H., Eds.; International Society for Optics and Photonics, SPIE: Bellingham, WA, USA, 2015; Volume 9639, pp. 1–14. [Google Scholar] [CrossRef]
  85. Bessho, K.; Date, K.; Hayashi, M.; Ikeda, A.; Imai, T.; Inoue, H.; Kumagai, Y.; Miyakawa, T.; Murata, H.; Ohno, T.; et al. An Introduction to Himawari-8/9-Japan’s New-Generation Geostationary Meteorological Satellites. J. Meteorol. Soc. Jpn. Ser. II 2016, 94, 151–183. [Google Scholar] [CrossRef] [Green Version]
  86. Yang, J.; Zhang, Z.; Wei, C.; Lu, F.; Guo, Q. Introducing the New Generation of Chinese Geostationary Weather Satellites, Fengyun-4. Bull. Am. Meteorol. Soc. 2017, 98, 1637–1658. [Google Scholar] [CrossRef]
  87. Montavon, G.; Orr, G.B.; Müller, K.R. (Eds.) Neural Networks: Tricks of the Trade, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 2012. [Google Scholar] [CrossRef]
  88. Zhou, D.K.; Larar, A.M.; Liu, X.; Smith, W.L.; Strow, L.L.; Yang, P.; Schlüssel, P.; Calbet, X. Global Land Surface Emissivity Retrieved From Satellite Ultraspectral IR Measurements. IEEE Trans. Geosci. Remote Sens. 2011, 49, 1277–1290. [Google Scholar] [CrossRef]
  89. Zhou, D.K.; Larar, A.M.; Liu, X. MetOp-A/IASI Observed Continental Thermal IR Emissivity Variations. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2013, 6, 1156–1162. [Google Scholar] [CrossRef]
  90. Zhou, D.K.; Larar, A.M.; Liu, X. On the relationship between land surface infrared emissivity and soil moisture. J. Appl. Remote Sens. 2018, 12, 1–14. [Google Scholar] [CrossRef] [Green Version]
  91. Masuda, K.; Takashima, T.; Takayama, Y. Emissivity of pure and sea waters for the model sea surface in the infrared window regions. Remote Sens. Environ. 1988, 24, 313–329. [Google Scholar] [CrossRef]
  92. Wu, X.; Smith, W.L. Emissivity of rough sea surface for 8–13 μm: Modeling and verification. Appl. Opt. 1997, 36, 2609–2619. [Google Scholar] [CrossRef]
  93. Niclòs, R.; Valor, E.; Caselles, V.; Coll, C.; Sánchez, J.M. In situ angular measurements of thermal infrared sea surface emissivity—Validation of models. Remote Sens. Environ. 2005, 94, 83–93. [Google Scholar] [CrossRef]
  94. Masuda, K. Infrared sea surface emissivity including multiple reflection effect for isotropic Gaussian slope distribution model. Remote Sens. Environ. 2006, 103, 488–496. [Google Scholar] [CrossRef]
  95. Labed, J.; Stoll, M.P. Angular variation of land surface spectral emissivity in the thermal infrared: Laboratory investigations on bare soils. Int. J. Remote Sens. 1991, 12, 2299–2310. [Google Scholar] [CrossRef]
  96. Snyder, W.C.; Wan, Z.; Zhang, Y.; Feng, Y.Z. Thermal Infrared (3–14 μm) bidirectional reflectance measurements of sands and soils. Remote Sens. Environ. 1997, 60, 101–109. [Google Scholar] [CrossRef]
  97. Sobrino, J.A.; Cuenca, J. Angular variation of thermal infrared emissivity for some natural surfaces from experimental measurements. Appl. Opt. 1999, 38, 3931–3936. [Google Scholar] [CrossRef] [PubMed]
  98. Cuenca, J.; Sobrino, J.A. Experimental measurements for studying angular and spectral variation of thermal infrared emissivity. Appl. Opt. 2004, 43, 4598–4602. [Google Scholar] [CrossRef]
  99. McAtee, B.K.; Prata, A.J.; Lynch, M.J. The Angular Behavior of Emitted Thermal Infrared Radiation (8–12 μm) at a Semiarid Site. J. Appl. Meteorol. 2003, 42, 1060–1071. [Google Scholar] [CrossRef]
  100. García-Santos, V.; Valor, E.; Caselles, V.; Ángeles Burgos, M.; Coll, C. On the angular variation of thermal infrared emissivity of inorganic soils. J. Geophys. Res. Atmos. 2012, 117. [Google Scholar] [CrossRef] [Green Version]
  101. Hersbach, H.; Bell, B.; Berrisford, P.; Hirahara, S.; Horányi, A.; Muñoz-Sabater, J.; Nicolas, J.; Peubey, C.; Radu, R.; Schepers, D.; et al. The ERA5 global reanalysis. Q. J. R. Meteorol. Soc. 2020, 146, 1999–2049. [Google Scholar] [CrossRef]
  102. ECMWF. Available online: https://confluence.ecmwf.int/display/CKB/ERA5%3A+data+documentation (accessed on 30 June 2020).
  103. Reineke, W.; Schlömann, M. Globale Umwelt. Klima und Mikroorganismen. In Umweltmikrobiologie; Springer: Berlin/Heidelberg, Germany, 2020; pp. 1–34. [Google Scholar] [CrossRef]
  104. Friedlingstein, P.; O’Sullivan, M.; Jones, M.W.; Andrew, R.M.; Hauck, J.; Olsen, A.; Peters, G.P.; Peters, W.; Pongratz, J.; Sitch, S.; et al. Global Carbon Budget 2020. Earth Syst. Sci. Data 2020, 12, 3269–3340. [Google Scholar] [CrossRef]
  105. Chan, K.; Chan, K. Aerosol optical depths and their contributing sources in Taiwan. Atmos. Environ. 2017, 148, 364–375. [Google Scholar] [CrossRef]
  106. Chan, K. Biomass burning sources and their contributions to the local air quality in Hong Kong. Sci. Total Environ. 2017, 596–597, 212–221. [Google Scholar] [CrossRef]
  107. Mayer, B.; Kylling, A.; Emde, C.; Buras, R.; Hamann, U.; Gasteiger, J.; Richter, B. libRadtrans Users’s Guide. 2019. Available online: https://web.archive.org/web/20200822040829/http://www.libradtran.org/doc/libRadtran.pdf (accessed on 5 August 2021).
  108. Wallace, J.; Hobbs, P. Atmospheric Science: An Introductory Survey, 2nd ed.; Academic Press: Burlington, MA, USA, 2006. [Google Scholar]
  109. Bugliaro, L.; Zinner, T.; Keil, C.; Mayer, B.; Hollmann, R.; Reuter, M.; Thomas, W. Validation of cloud property retrievals with simulated satellite radiances: A case study for SEVIRI. Atmos. Chem. Phys. 2011, 11, 5603–5624. [Google Scholar] [CrossRef] [Green Version]
  110. Hu, Y.X.; Stamnes, K. An Accurate Parameterization of the Radiative Properties of Water Clouds Suitable for Use in Climate Models. J. Clim. 1993, 6, 728–742. [Google Scholar] [CrossRef] [Green Version]
  111. Wyser, K. The Effective Radius in Ice Clouds. J. Clim. 1998, 11, 1793–1802. [Google Scholar] [CrossRef]
  112. Heymsfield, A.J.; Schmitt, C.; Bansemer, A. Ice Cloud Particle Size Distributions and Pressure-Dependent Terminal Velocities from In Situ Observations at Temperatures from 0 °C to −86 °C. J. Atmos. Sci. 2013, 70, 4123–4154. [Google Scholar] [CrossRef]
  113. Yang, P.; Bi, L.; Baum, B.A.; Liou, K.N.; Kattawar, G.W.; Mishchenko, M.I.; Cole, B. Spectrally Consistent Scattering, Absorption, and Polarization Properties of Atmospheric Ice Crystals at Wavelengths from 0.2 to 100 μm. J. Atmos. Sci. 2013, 70, 330–347. [Google Scholar] [CrossRef]
  114. Baum, B.A.; Yang, P.; Heymsfield, A.J.; Bansemer, A.; Cole, B.H.; Merrelli, A.; Schmitt, C.; Wang, C. Ice cloud single-scattering property models with the full phase matrix at wavelengths from 0.2 to 100 μm. J. Quant. Spectrosc. Radiat. Transf. 2014, 146, 123–139. [Google Scholar] [CrossRef]
  115. Krebs, W.; Mannstein, H.; Bugliaro, L.; Mayer, B. Technical note: A new day- and night-time Meteosat Second Generation Cirrus Detection Algorithm MeCiDA. Atmos. Chem. Phys. 2007, 7, 6145–6159. [Google Scholar] [CrossRef] [Green Version]
  116. Vázquez-Navarro, M.; Mayer, B.; Mannstein, H. A fast method for the retrieval of integrated longwave and shortwave top-of-atmosphere upwelling irradiances from MSG/SEVIRI (RRUMS). Atmos. Meas. Tech. 2013, 6, 2627–2640. [Google Scholar] [CrossRef] [Green Version]
  117. Polacci, M.; Andronico, D.; de’ Michieli Vitturi, M.; Taddeucci, J.; Cristaldi, A. Mechanisms of Ash Generation at Basaltic Volcanoes: The Case of Mount Etna, Italy. Front. Earth Sci. 2019, 7, 193. [Google Scholar] [CrossRef] [Green Version]
  118. Gudmundsson, M.T.; Thordarson, T.; Höskuldsson, R.; Larsen, G.; Björnsson, H.; Prata, F.J.; Oddsson, B.; Magnússon, E.; Högnadóttir, T.; Petersen, G.N.; et al. Ash generation and distribution from the April-May 2010 eruption of Eyjafjallajökull, Iceland. Sci. Rep. 2012, 2, 572. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  119. Klüser, L.; Erbertseder, T.; Meyer-Arnek, J. Observation of volcanic ash from Puyehue—Cordón Caulle with IASI. Atmos. Meas. Tech. 2013, 6, 35–46. [Google Scholar] [CrossRef] [Green Version]
  120. Sparks, R.S.J. The dimensions and dynamics of volcanic eruption columns. Bull. Volcanol. 1986, 48, 3–15. [Google Scholar] [CrossRef]
  121. Sparks, R.J.; Moore, J.G.; Rice, C.J. The initial giant umbrella cloud of the May 18th, 1980, explosive eruption of Mount St. Helens. J. Volcanol. Geotherm. Res. 1986, 28, 257–274. [Google Scholar] [CrossRef]
  122. Tupper, A.; Textor, C.; Herzog, M.; Graf, H.F.; Richards, M.S. Tall clouds from small eruptions: The sensitivity of eruption height and fine ash content to tropospheric instability. Nat. Hazards 2009, 51, 375–401. [Google Scholar] [CrossRef]
  123. Turnbull, K.; Johnson, B.; Marenco, F.; Haywood, J.; Minikin, A.; Weinzierl, B.; Schlager, H.; Schumann, U.; Leadbetter, S.; Woolley, A. A case study of observations of volcanic ash from the Eyjafjallajökull eruption: 1. In situ airborne observations. J. Geophys. Res. Atmos. 2012, 117. [Google Scholar] [CrossRef] [Green Version]
  124. Lee, K.H.; Wong, M.S.; Chung, S.R.; Sohn, E. Improved volcanic ash detection based on a hybrid reverse absorption technique. Atmos. Res. 2014, 143, 31–42. [Google Scholar] [CrossRef]
  125. Briggs, G.A. Plume Rise Predictions. In Lectures on Air Pollution and Environmental Impact Analyses; American Meteorological Society: Boston, MA, USA, 1982; Chapter 3; pp. 59–111. [Google Scholar]
  126. Manins, P. Cloud heights and stratospheric injections resulting from a thermonuclear war. Atmos. Environ. 1985, 19, 1245–1255. [Google Scholar] [CrossRef]
  127. Schmehl, K.J.; Haupt, S.E.; Pavolonis, M.J. A Genetic Algorithm Variational Approach to Data Assimilation and Application to Volcanic Emissions. Pure Appl. Geophys. 2012, 169, 519–537. [Google Scholar] [CrossRef]
  128. Przedpelski, Z.J.; Casadevall, T.J. Impact of Volcanic Ash from 15 December 1989 Redoubt Volcano Eruption on GE CF6-80C2 Turbofan Engines. In Volcanic Ash and Aviation Safety: Proceedings of the First International Symposium on Volcanic Ash and Aviation Safety, U.S. Geological Survey Bulletin 2047; U.S. Government Printing Office: Washington, DC, USA, 1994; pp. 129–135. [Google Scholar]
  129. Gasteiger, J.; Wiegner, M. MOPSMAP v1.0: A versatile tool for the modeling of aerosol optical properties. Geosci. Model Dev. 2018, 11, 2739–2762. [Google Scholar] [CrossRef] [Green Version]
  130. Mayer, B.; Kylling, A. Technical note: The libRadtran software package for radiative transfer calculations-description and examples of use. Atmos. Chem. Phys. 2005, 5, 1855–1877. [Google Scholar] [CrossRef] [Green Version]
  131. Emde, C.; Buras-Schnell, R.; Kylling, A.; Mayer, B.; Gasteiger, J.; Hamann, U.; Kylling, J.; Richter, B.; Pause, C.; Dowling, T.; et al. The libRadtran software package for radiative transfer calculations (version 2.0.1). Geosci. Model Dev. 2016, 9, 1647–1672. [Google Scholar] [CrossRef] [Green Version]
  132. Stamnes, K.; Tsay, S.C.; Wiscombe, W.; Jayaweera, K. Numerically stable algorithm for discrete-ordinate-method radiative transfer in multiple scattering and emitting layered media. Appl. Opt. 1988, 27, 2502–2509. [Google Scholar] [CrossRef] [PubMed]
  133. Buras, R.; Dowling, T.; Emde, C. New secondary-scattering correction in DISORT with increased efficiency for forward scattering. J. Quant. Spectrosc. Radiat. Transf. 2011, 112, 2028–2034. [Google Scholar] [CrossRef]
  134. Buehler, S.; John, V.; Kottayil, A.; Milz, M.; Eriksson, P. Efficient radiative transfer simulations for a broadband infrared radiometer—Combining a weighted mean of representative frequencies approach with frequency selection by simulated annealing. J. Quant. Spectrosc. Radiat. Transf. 2010, 111, 602–615. [Google Scholar] [CrossRef]
  135. Gasteiger, J.; Emde, C.; Mayer, B.; Buras, R.; Buehler, S.; Lemke, O. Representative wavelengths absorption parameterization applied to satellite channels and spectral bands. J. Quant. Spectrosc. Radiat. Transf. 2014, 148, 99–115. [Google Scholar] [CrossRef]
  136. Ackerman, S.A.; Smith, W.L.; Revercomb, H.E.; Spinhirne, J.D. The 27–28 October 1986 FIRE IFO Cirrus Case Study: Spectral Properties of Cirrus Clouds in the 8–12 μm Window. Mon. Weather Rev. 1990, 118, 2377–2388. [Google Scholar] [CrossRef] [Green Version]
  137. Trigo, I.F.; Boussetta, S.; Viterbo, P.; Balsamo, G.; Beljaars, A.; Sandu, I. Comparison of model land skin temperature with remotely sensed estimates and assessment of surface- atmosphere coupling. J. Geophys. Res. Atmos. 2015, 120, 12096–12111. [Google Scholar] [CrossRef] [Green Version]
  138. Johannsen, F.; Ermida, S.; Martins, J.; Trigo, I.; Nogueira, M.; Dutra, E. Cold Bias of ERA5 Summertime Daily Maximum Land Surface Temperature over Iberian Peninsula. Remote Sens. 2019, 11, 2570. [Google Scholar] [CrossRef] [Green Version]
  139. Abadi, M.; Agarwal, A.; Barham, P.; Brevdo, E.; Chen, Z.; Citro, C.; Corrado, G.; Davis, A.; Dean, J.; Devin, M.; et al. TensorFlow: Large-Scale Machine Learning on Heterogeneous Distributed Systems. arXiv 2015, arXiv:1603.04467. [Google Scholar]
  140. Abadi, M.; Barham, P.; Chen, J.; Chen, Z.; Davis, A.; Dean, J.; Devin, M.; Ghemawat, S.; Irving, G.; Isard, M.; et al. TensorFlow: A system for large-scale machine learning. In Proceedings of the 12th USENIX Symposium on Operating Systems Design and Implementation (OSDI’16), Savannah, GA, USA, 2–4 November 2016; USENIX Association: Berkeley, CA, USA, 2016; pp. 265–283. [Google Scholar]
  141. Keras. 2015. Available online: https://keras.io (accessed on 5 August 2021).
  142. Goodfellow, I.; Bengio, Y.; Courville, A. Deep Learning: Das umfassende Handbuch, 1st ed.; MITP: Frechen, Germany, 2018. [Google Scholar]
  143. Dozat, T. Incorporating Nesterov Momentum into Adam. 2016. Available online: https://openreview.net/pdf?id=OM0jvwB8jIp57ZJjtNEZ (accessed on 5 August 2021).
  144. Ruder, S. An Overview of Gradient Descent Optimization Algorithms. 2016. Available online: https://arxiv.org/pdf/1609.04747.pdf (accessed on 5 August 2021).
  145. Gasteiger, J.; Groß, S.; Freudenthaler, V.; Wiegner, M. Volcanic ash from Iceland over Munich: Mass concentration retrieved from ground-based remote sensing measurements. Atmos. Chem. Phys. 2011, 11, 2209–2223. [Google Scholar] [CrossRef] [Green Version]
  146. Hervo, M.; Quennehen, B.; Kristiansen, N.I.; Boulon, J.; Stohl, A.; Fréville, P.; Pichon, J.M.; Picard, D.; Labazuy, P.; Gouhier, M.; et al. Physical and optical properties of 2010 Eyjafjallajökull volcanic eruption aerosol: Ground-based, Lidar and airborne measurements in France. Atmos. Chem. Phys. 2012, 12, 1721–1736. [Google Scholar] [CrossRef] [Green Version]
  147. Ball, J.G.C.; Reed, B.E.; Grainger, R.G.; Peters, D.M.; Mather, T.A.; Pyle, D.M. Measurements of the complex refractive index of volcanic ash at 450, 546.7, and 650 nm. J. Geophys. Res. Atmos. 2015, 120, 7747–7757. [Google Scholar] [CrossRef]
  148. Rose, W.; Gu, Y.; Watson, I.; Yu, T.; Blut, G.; Prata, A.; Krueger, A.; Krotkov, N.; Carn, S.; Fromm, M.; et al. The February–March 2000 Eruption of Hekla, Iceland from a Satellite Perspective. In Volcanism and the Earth’s Atmosphere; American Geophysical Union: Washington, DC, USA, 2004; pp. 107–132. [Google Scholar] [CrossRef] [Green Version]
  149. Rose, W.I.; Bluth, G.J.S.; Watson, I.M. Ice in Volcanic Clouds: When and Where? In Proceedings of the 2nd International Conference on Volcanic Ash and Aviation Safety, Alexandria, VA, USA, 21–24 June 2004; Office of the Federal Coordinator for Meteorological Services and Supporting Research: Silver Spring, MD, USA, 2004; pp. 3.27–3.33. [Google Scholar]
  150. Durant, A.J.; Shaw, R.A.; Rose, W.I.; Mi, Y.; Ernst, G.G.J. Ice nucleation and overseeding of ice in volcanic clouds. J. Geophys. Res. Atmos. 2008, 113. [Google Scholar] [CrossRef] [Green Version]
  151. Drönner, J.; Korfhage, N.; Egli, S.; Mühling, M.; Thies, B.; Bendix, J.; Freisleben, B.; Seeger, B. Fast Cloud Segmentation Using Convolutional Neural Networks. Remote Sens. 2018, 10, 1782. [Google Scholar] [CrossRef] [Green Version]
  152. De Laat, A.; Vazquez-Navarro, M.; Theys, N.; Stammes, P. Analysis of properties of the 19 February 2018 volcanic eruption of Mount Sinabung in S5P/TROPOMI and Himawari-8 satellite data. Nat. Hazards Earth Syst. Sci. 2020, 20, 1203–1217. [Google Scholar] [CrossRef]

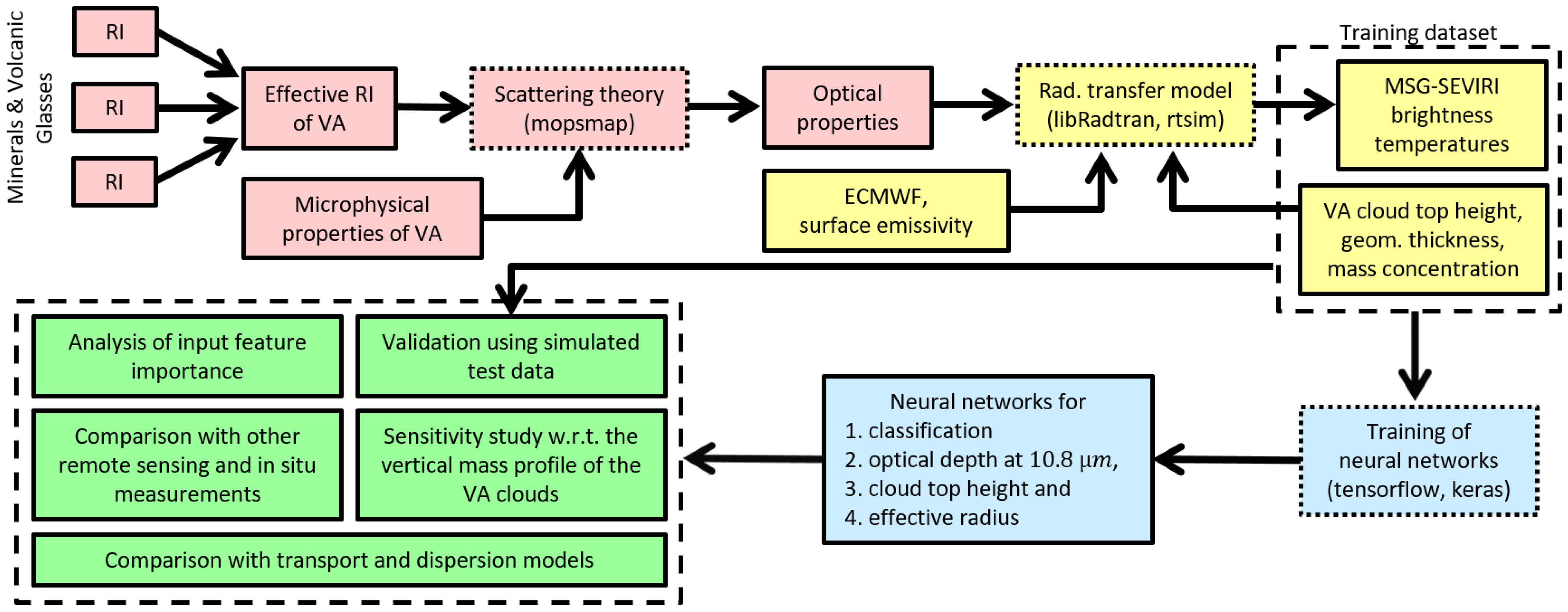

Figure 1. Scheme of the algorithm development and validation: (red) calculation of typical refractive indices (RIs) of volcanic ashes (VAs) and the corresponding optical properties [23], (yellow) radiative transfer calculations to compose a training dataset and (blue) training of different ANNs (both in this paper) and (green) validation against simulated test data and other independent measurements and model results [80].
Figure 1. Scheme of the algorithm development and validation: (red) calculation of typical refractive indices (RIs) of volcanic ashes (VAs) and the corresponding optical properties [23], (yellow) radiative transfer calculations to compose a training dataset and (blue) training of different ANNs (both in this paper) and (green) validation against simulated test data and other independent measurements and model results [80].
Remotesensing 13 03112 g001
Figure 2. Overview red-green-blue composite of MSG/SEVIRI measurements for 15 July 2015 at 12:00 UTC.
Figure 2. Overview red-green-blue composite of MSG/SEVIRI measurements for 15 July 2015 at 12:00 UTC.
Remotesensing 13 03112 g002
Figure 3. Differences in the skin temperature (from ECMWF ERA5): between the maxima and minima of the daily means of the 15th of each month in 2010, i.e., the annual variability (a); between the maxima and the minima of the 15 May 2010, i.e., the daily variability (b); between the daily means of 15 May 2010 and 2015 at 12:00 UTC, i.e., the inter-annual variability (c). The blue dots mark the locations shown in Figure 4.
Figure 3. Differences in the skin temperature (from ECMWF ERA5): between the maxima and minima of the daily means of the 15th of each month in 2010, i.e., the annual variability (a); between the maxima and the minima of the 15 May 2010, i.e., the daily variability (b); between the daily means of 15 May 2010 and 2015 at 12:00 UTC, i.e., the inter-annual variability (c). The blue dots mark the locations shown in Figure 4.
Remotesensing 13 03112 g003
Figure 4. Daily course of the skin temperature (from ECMWF ERA5) for five different locations (see marker in Figure 3); the yellow columns represent the temperatures at 0, 6, 12 and 18 UTC.
Figure 4. Daily course of the skin temperature (from ECMWF ERA5) for five different locations (see marker in Figure 3); the yellow columns represent the temperatures at 0, 6, 12 and 18 UTC.
Remotesensing 13 03112 g004

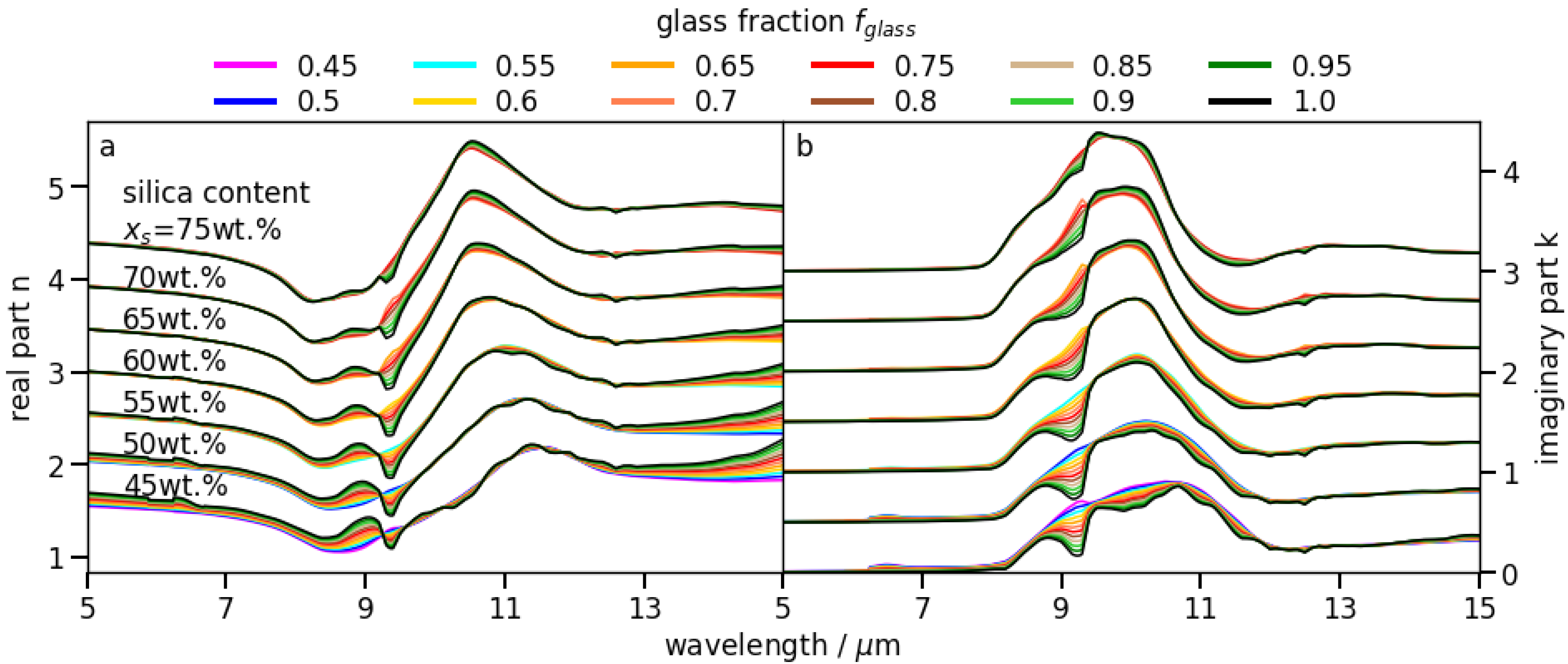

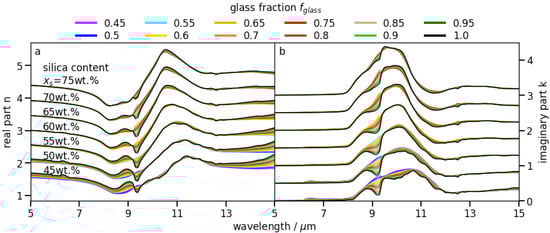

Figure 5. Real (a) and imaginary (b) parts of the complex refractive indices of the volcanic ash types derived by Piontek et al. [23]. Different glass fractions f glass are denoted by the color. For visibility reasons, different silica contents x s are shifted by 0.5 with respect to each other.
Figure 5. Real (a) and imaginary (b) parts of the complex refractive indices of the volcanic ash types derived by Piontek et al. [23]. Different glass fractions f glass are denoted by the color. For visibility reasons, different silica contents x s are shifted by 0.5 with respect to each other.
Remotesensing 13 03112 g005

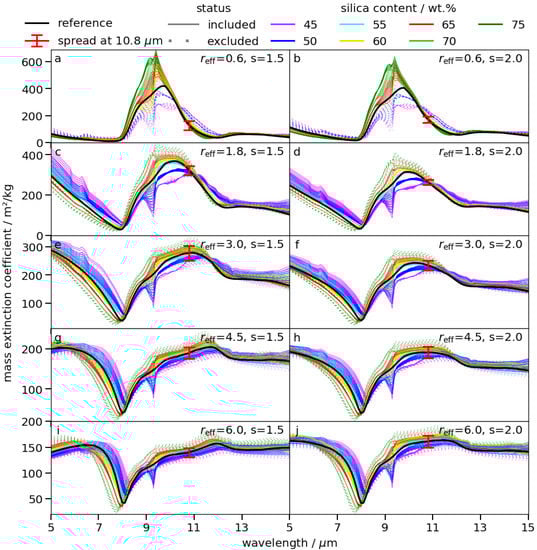

Figure 6. Mass extinction coefficient of the volcanic ash types derived by Piontek et al. [23] and (in black) for Eyjafjallajökull ash [75] as reference. The silica content x s is denoted by the color and the status (included or excluded with respect to the simulated dataset) by the linestyle. The mass extinction coefficient at 10.8 μm of Eyjafjallajökull ash and the standard deviation of all mass extinction coefficients at 10.8 μm are given by the red marker. The panels show subsets of different r eff and s.
Figure 6. Mass extinction coefficient of the volcanic ash types derived by Piontek et al. [23] and (in black) for Eyjafjallajökull ash [75] as reference. The silica content x s is denoted by the color and the status (included or excluded with respect to the simulated dataset) by the linestyle. The mass extinction coefficient at 10.8 μm of Eyjafjallajökull ash and the standard deviation of all mass extinction coefficients at 10.8 μm are given by the red marker. The panels show subsets of different r eff and s.
Remotesensing 13 03112 g006

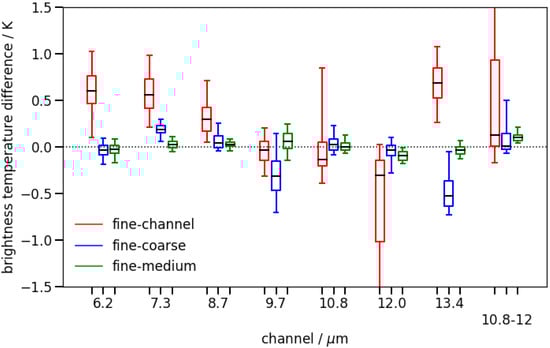

Figure 7. Brightness temperature differences for radiative transfer calculations of different REPTRAN parameterizations. The considered test dataset is described in the text. The boxplot shows the median, first and third quartile (box) and the 5th and 95th percentile (whiskers).
Figure 7. Brightness temperature differences for radiative transfer calculations of different REPTRAN parameterizations. The considered test dataset is described in the text. The boxplot shows the median, first and third quartile (box) and the 5th and 95th percentile (whiskers).
Remotesensing 13 03112 g007
Figure 8. B T 10.8 measured by MSG/SEVIRI against corresponding RTSIM and libRadtran results for the corresponding coordinates.
Figure 8. B T 10.8 measured by MSG/SEVIRI against corresponding RTSIM and libRadtran results for the corresponding coordinates.
Remotesensing 13 03112 g008

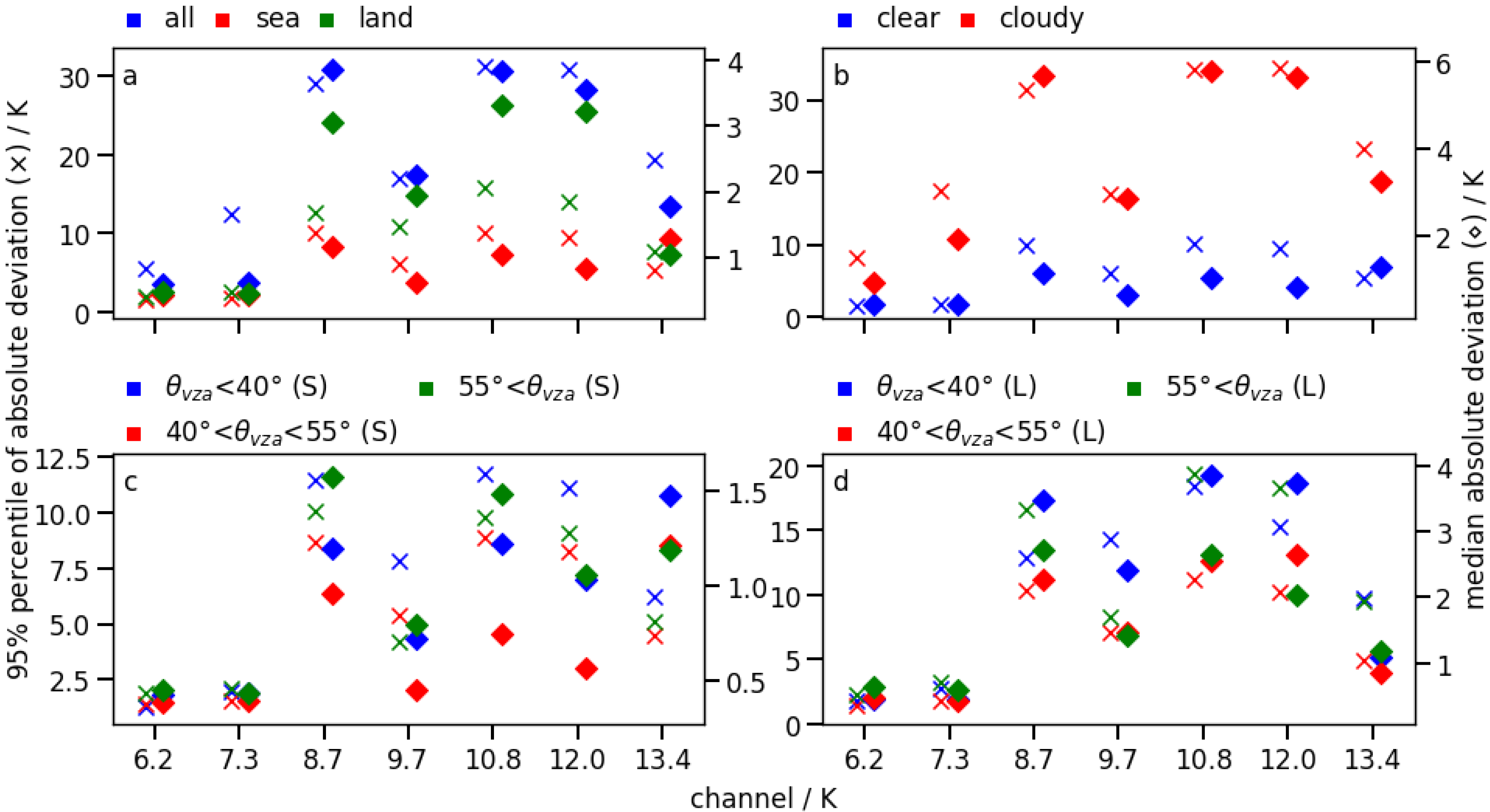

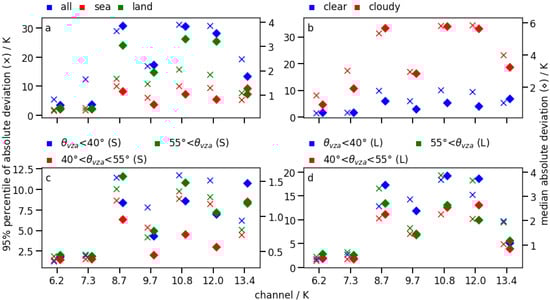

Figure 9. The 95th percentile (cross) and median (diamond) of the absolute deviation between the simulated brightness temperatures and the corresponding MSG/SEVIRI measurements; considered is the full dataset (all) (a) as well as subsets, i.e., (a) land and sea for cloud-free samples (i.e., no cloud layers simulated, total cloud cover 0.25 ), (b) clear and cloudy (i.e., at least one cloud layer simulated and total cloud cover 0.25 ) for sea surfaces and (c) different θ vza above sea and (d) land.
Figure 9. The 95th percentile (cross) and median (diamond) of the absolute deviation between the simulated brightness temperatures and the corresponding MSG/SEVIRI measurements; considered is the full dataset (all) (a) as well as subsets, i.e., (a) land and sea for cloud-free samples (i.e., no cloud layers simulated, total cloud cover 0.25 ), (b) clear and cloudy (i.e., at least one cloud layer simulated and total cloud cover 0.25 ) for sea surfaces and (c) different θ vza above sea and (d) land.
Remotesensing 13 03112 g009
Figure 10. Distributions of the brightness temperature in different MSG/SEVIRI channels as measured from space and as simulated using RTSIM and libRadtran, separated into 50 bins.
Figure 10. Distributions of the brightness temperature in different MSG/SEVIRI channels as measured from space and as simulated using RTSIM and libRadtran, separated into 50 bins.
Remotesensing 13 03112 g010
Figure 11. Distributions of B T 10.8 as measured by MSG/SEVIRI and as simulated using RTSIM and libRadtran: (a) sea and land surfaces for clear sky conditions; (b) sea surfaces for clear and cloudy conditions.
Figure 11. Distributions of B T 10.8 as measured by MSG/SEVIRI and as simulated using RTSIM and libRadtran: (a) sea and land surfaces for clear sky conditions; (b) sea surfaces for clear and cloudy conditions.
Remotesensing 13 03112 g011
Figure 12. Distributions of: (a) τ 10.8 in Training A; (b) z top in Training B; (c) r eff in Training B. In (a), only non-zero values are shown.
Figure 12. Distributions of: (a) τ 10.8 in Training A; (b) z top in Training B; (c) r eff in Training B. In (a), only non-zero values are shown.
Remotesensing 13 03112 g012
Table 1. Information on the different simulated datasets.
Table 1. Information on the different simulated datasets.
DatasetDescriptionSamplesAsh Fraction
Training Aclear + ash8,725,53132.1%
Validation Aclear + ash2,493,71932.1%
Test Aclear + ash1,252,47032.3%
Training Bonly ash2,798,004100.0%
Validation Bonly ash800,117100.0%
Test Bonly ash405,556100.0%
Table 2. Model settings and input features for the ANNs retrieving the classification, τ 10.8 , z top and r eff . σ denotes the standard deviation. The ANN architectures are given as lists of neurons per layer, with the first number giving the amount of input neurons, the second number the amount of neurons in the first hidden layer and the last number the amount of output neurons.
Table 2. Model settings and input features for the ANNs retrieving the classification, τ 10.8 , z top and r eff . σ denotes the standard deviation. The ANN architectures are given as lists of neurons per layer, with the first number giving the amount of input neurons, the second number the amount of neurons in the first hidden layer and the last number the amount of output neurons.
Classification τ 10.8 z top r eff
Model setting
Input/output standardization××××
LeCun normal distributed initialization××××
Add Gaussian noise to input ( σ = 0.1 ) ××
Architecture19-100-100-100-419-100-100-100-123-100-100-100-123-100-100-100-1
Activation function (hidden neurons)tanhtanhtanhtanh
Activation function (output neurons)softmaxlinearlinearlinear
Loss functioncross entropymean squared errormean squared errormean squared error
Sample weighting ×
Nadam training algorithm××××
Epochs trained60,000200020002000
Feature (unit/range)
B T 6.2 ( K )××××
B T 7.3 ( K )××××
B T 8.7 ( K )××××
B T 9.7 ( K )××××
B T 10.8 ( K )××××
B T 12 ( K )××××
B T 13.4 ( K )××××
Skin temperature ( K )××××
Binary land/sea mask××××
Total column water vapor ( k g   m −2 )××××
Total column water ( k g   m −2 )××××
Total column ozone ( k g   m −2 )××××
Latitude (−90 to 90°)××××
Longitude (−180 to 180°)××××
Sine of day of year××××
Cosine of day of year××××
Sine of hour of day××××
Cosine of hour of day××××
Cosine of satellite zenith angle××××
τ 10.8 (retrieved) ××
B T 8.7 , clr ( K ) ××
B T 10.8 , clr ( K ) ××
B T 12 , clr ( K ) ××
Table 3. Mean mass extinction coefficients at 10.8 μm ( k 10.8 ) and their standard deviations for different volcanic ashes (from [23]) given in m2 kg−1. Subsets of different effective radii r eff and silica contents x s are considered.
Table 3. Mean mass extinction coefficients at 10.8 μm ( k 10.8 ) and their standard deviations for different volcanic ashes (from [23]) given in m2 kg−1. Subsets of different effective radii r eff and silica contents x s are considered.
x s /wt.% r eff /μm
0.61.83.04.56.0
45 229 ± 9 279 ± 23 228 ± 15 173 ± 6 140 ± 10
50 210 ± 14 290 ± 25 241 ± 17 181 ± 5 146 ± 10
55 194 ± 18 305 ± 28 255 ± 19 190 ± 4 152 ± 11
60 178 ± 20 310 ± 31 263 ± 21 195 ± 5 155 ± 12
65 164 ± 22 314 ± 33 271 ± 24 201 ± 5 159 ± 12
70 152 ± 24 321 ± 34 282 ± 26 208 ± 5 164 ± 13
75 144 ± 26 328 ± 35 292 ± 28 215 ± 5 169 ± 13
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Piontek, D.; Bugliaro, L.; Schmidl, M.; Zhou, D.K.; Voigt, C. The New Volcanic Ash Satellite Retrieval VACOS Using MSG/SEVIRI and Artificial Neural Networks: 1. Development. Remote Sens. 2021, 13, 3112. https://doi.org/10.3390/rs13163112

AMA Style

Piontek D, Bugliaro L, Schmidl M, Zhou DK, Voigt C. The New Volcanic Ash Satellite Retrieval VACOS Using MSG/SEVIRI and Artificial Neural Networks: 1. Development. Remote Sensing. 2021; 13(16):3112. https://doi.org/10.3390/rs13163112

Chicago/Turabian Style

Piontek, Dennis, Luca Bugliaro, Marius Schmidl, Daniel K. Zhou, and Christiane Voigt. 2021. "The New Volcanic Ash Satellite Retrieval VACOS Using MSG/SEVIRI and Artificial Neural Networks: 1. Development" Remote Sensing 13, no. 16: 3112. https://doi.org/10.3390/rs13163112

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
