# HYDROPT: An Open-Source Framework for Fast Inverse Modelling of Multi- and Hyperspectral Observations from Oceans, Coastal and Inland Waters

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. HydroLight Simulations

#### 2.2. Polynomial Forward Model

#### 2.3. Optimization

#### 2.4. IOCCG Dataset

#### 2.5. Hyperspectral Phytoplankton Size Class Dataset

#### 2.6. Ocean-Color Instruments

## 3. Results

#### 3.1. Forward Model Validation

#### 3.2. Hyperspectral Inversion

#### 3.3. Retrieval of Phytoplankton Size Classes

#### 3.4. Comparison of Multi- and Hyperspectral Retrievals

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

RT | Radiative transfer |

HYDROPT | HydroLight Optimization |

IOP | Inherent optical properties |

CDOM | Colored dissolved organic matter |

VSF | Volume scattering function |

FF | Fournier–Forand phase function |

PACE | Plankton, Aerosol, Cloud, ocean Ecosystem |

MERIS | MEdium Resolution Imaging Spectrometer |

CZCS | Coastal Zone Color Scanner |

OLCI | Ocean Land Color Instrument |

SeaWiFS | Sea-viewing Wide Field-of-view Sensor |

${R}_{rs}$ | Observed remote sensing reflectance-either from HydroLight simulations or synthetic dataset |

$\widehat{{R}_{rs}}$ | Predicted remote sensing reflectance by the HYDROPT forward model |

${R}_{rs}^{\prime}$ | Natural log-transformed remote sensing reflectance |

a | Absorption coefficient |

${b}_{b}$ | Backscatter coefficient |

$\tilde{b}$ | Backscatter ratio |

${a}^{*}$, ${b}_{b}^{*}$ | chlorophyll-a- or mass specific absorption and backscatter coefficient |

${\rho}_{i}$ | Concentration of constituent i or absorption by CDOM at reference wavelength |

$\widehat{{\rho}_{i}}$ | Estimated concentration or absorption of optical constituent i |

RMSRE | Root mean squared relative error |

MAE | Mean absolute error |

## Appendix A

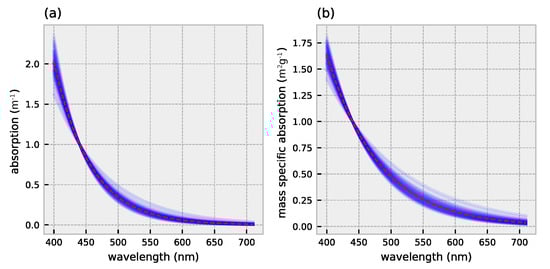

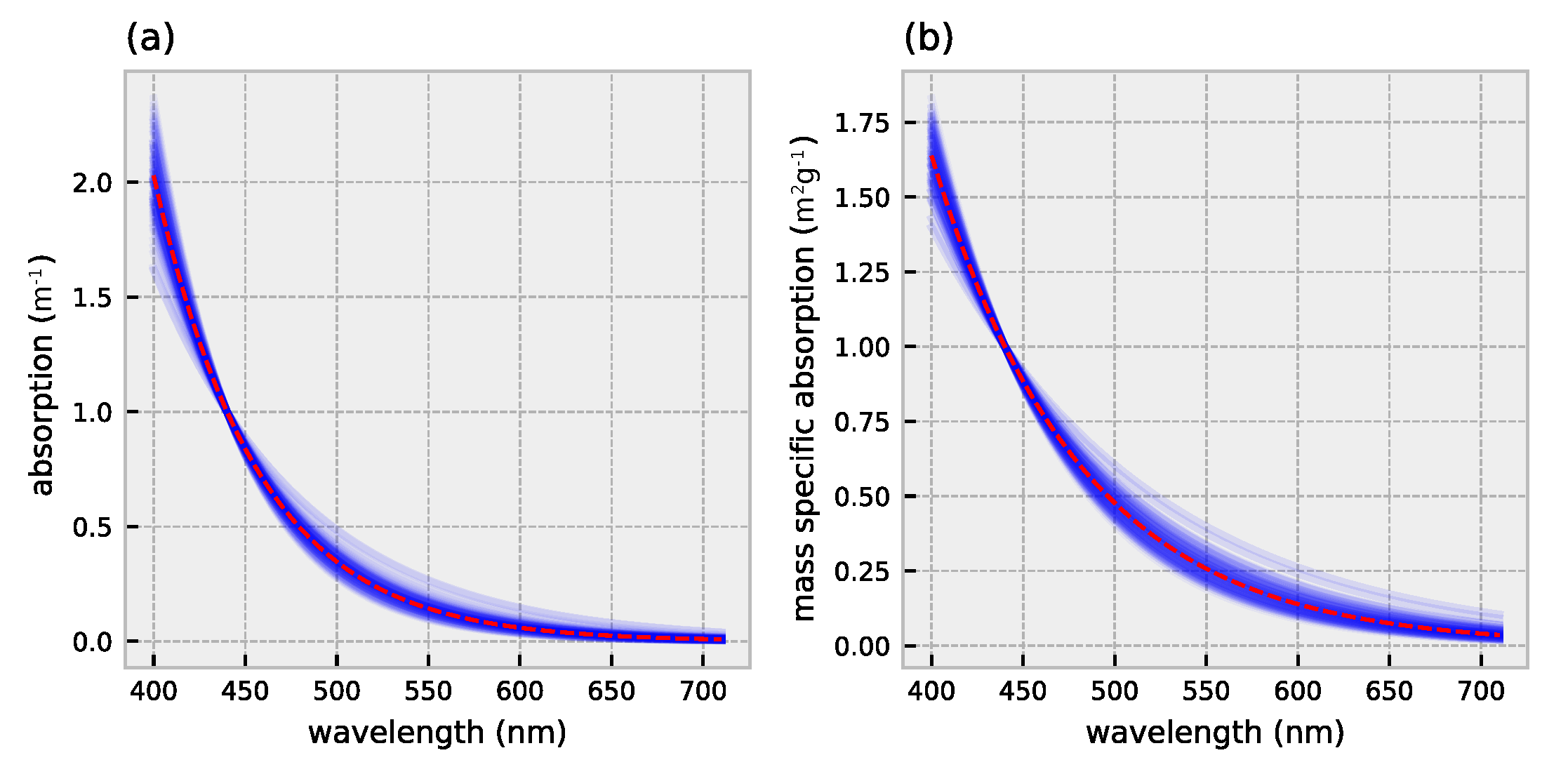

**Figure A1.**Spectral absorption for CDOM and detrital matter. (

**a**) CDOM absorption. (

**b**) mass specific detrital absorption. CDOM and detrital matter absorption are shown for a range of realistic spectral slopes (blue lines) [26]. Red dashed lines indicate averaged spectral absorption used for the inversion.

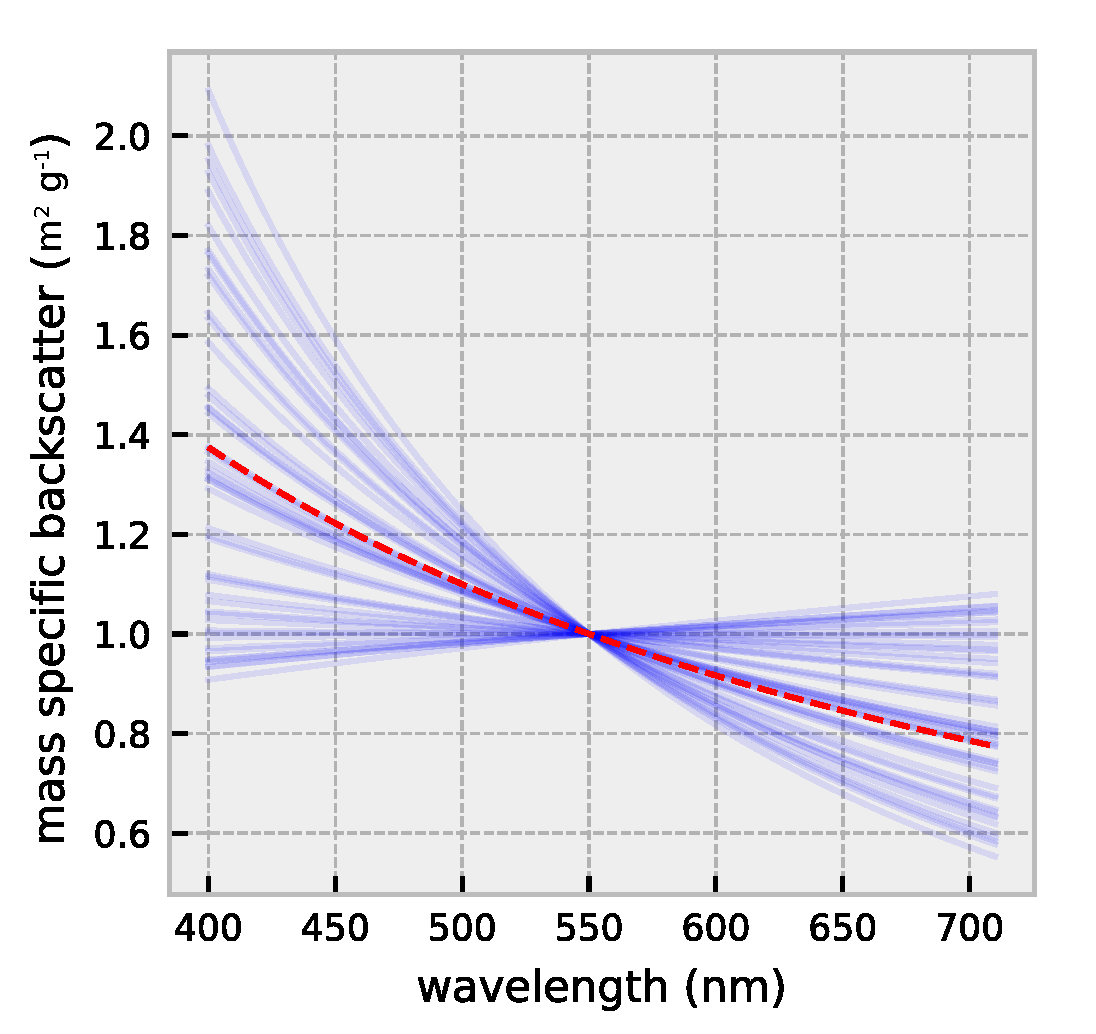

**Figure A2.**Mass specific detrital backscatter. Spectral slopes varies randomly between −0.2 and 2.2 [27]. Red dashed line indicates spectral backscatter with averaged spectral slope (${\gamma}_{2}=1$) used for the inversion.

Parameter | Value | Units | Notes | References |
---|---|---|---|---|

Case-II bio-optical model | ||||

Sea-water | ||||

Absorption | - | m${}^{-1}$ | See references | Pope and Fry [67] for >550 nm Mason et al. [20] <550 nm |

Phase function | - | sr${}^{-1}$ | See reference | Equation 3.30 in Mobley [68] |

Elastic scattering | - | m${}^{-1}$ | See reference | Equation. 3.31 in Mobley [68] |

Inelastic (Raman) scattering | - | m${}^{-1}$ | No inelastic scattering | |

Phytoplankton | ||||

Absorption | - | m${}^{-1}$ | See reference for spectral absorption | Prieur and Sathyendranath [69] |

Phase function | - | sr${}^{-1}$ | Fournier-Forand (1.4% backscatter ratio) | |

Scattering | - | m${}^{-1}$ | Spectral backscatter according to: $b{b}_{phyto}=0.00255\ast {\left[Chl\right]}^{0.471}$ | |

Fluorescence | - | - | No chlorophyll fluorescence | |

Concentration | 0.01–31.62 | mg m${}^{-3}$ | ||

Colored dissolved organic matter | ||||

${a}_{CDOM}\left(440\right)$ | 0.005–1 | m${}^{-1}$ | ||

Absorption | - | m${}^{-1}$ | See reference for spectral absorption | Babin et al. [26] |

Slope | 0.017 | nm${}^{-1}$ | Exponential decay function with reference at 440 nm | Babin et al. [26] |

Non-algal particles | ||||

concentration | 0.01–100 | g m${}^{-3}$ | ||

Absorption | - | m${}^{-1}$ | See reference for spectral absorption | Babin et al. [26] |

Slope (spectral absorption) | 0.0123 | nm${}^{-1}$ | Exponential decay function with reference at 443 nm | Babin et al. [26] |

Phase function | - | sr${}^{-1}$ | Fournier-Forand (1.4% backscatter ratio) | |

Backscatter | - | m${}^{-1}$ | See reference for spectral backscatter | Babin et al. [70] |

Slope (spectral backscatter) | −1 | nm${}^{-1}$ | power-law with reference wavelength at 550 nm | Babin et al. [70] |

Sea-surface boundary model | ||||

Wind speed | 5 | m s${}^{-1}$ | ||

Real index of refraction of water | 1.34 | - | Wavelength indepedent | |

Atmospheric model (RADTRAN-X) | ||||

Solar zenith angle | 0–80 | degrees | 10 degree intervals | |

Cloud cover | 0 | percent | Clear sky | |

Earth-sun distance | - | - | Yearly average | |

24-h averaged wind speed | 5 | m s${}^{-1}$ | ||

Horizontal visibility | 15 | km | ||

Relative humidity | 80 | percent | ||

Precipitable water content | 2.5 | cm | ||

Total ozone | 300 | Dobson units | Yearly average | |

Airmass type | 1 | - | Marine | |

Bottom reflection model | ||||

Depth | - | m | Infinitely deep (no bottom reflection) | |

Output | ||||

Wavebands | 400–710 | nm | 5-nm resolution | |

Radiance (upwelling) | - | W sr${}^{-1}$ m${}^{-2}$ nm${}^{-1}$ | Radiance distribution for all HydroLight quads | |

Irradiance (downwelling) | - | W m${}^{-2}$ nm${}^{-1}$ |

**Table A2.**Definition of retrieval statistics. x are the $lo{g}_{10}$-transformed forward modelled values, y are the estimated $lo{g}_{10}$-transformed values from the inversion. Total number of successful retrievals are indicated by n (with $\delta \le 2$; see Equation (13)) and total number of ${R}_{rs}$ spectra in the dataset by ${n}^{*}$ (=430).

Abbreviation | Definition | Formula |
---|---|---|

MAE | Mean absolute error | ${10}^{\widehat{}}\left(\frac{{\displaystyle \sum _{i=1}^{n}|{y}_{i}-{x}_{i}|}}{{\displaystyle n}}\right)$ |

MB | Mean bias | ${10}^{\widehat{}}\left(\frac{{\displaystyle \sum _{i=1}^{n}{y}_{i}-{x}_{i}}}{{\displaystyle n}}\right)$ |

${R}^{2}$ | Coefficient of determination | $1-\frac{{\displaystyle \sum _{i=1}^{n}{[{y}_{i}-{x}_{i}]}^{2}}}{{\displaystyle \sum _{i=1}^{n}{[{x}_{i}-\overline{x}]}^{2}}}$ |

slope | slope of linear regression model | $\frac{{\displaystyle \sum _{i=1}^{n}[{x}_{i}-\overline{x}][{y}_{i}-\overline{y}]}}{{\displaystyle \sum _{i=1}^{n}{[{x}_{i}-\overline{x}]}^{2}}}$ |

f | fraction of successful retrievals | $n/{n}^{*}$ |

## References

- IOCCG. Phytoplankton Functional Types from Space; Reports of the International Ocean Colour Coordinating Group; IOCCG: Dartmouth, NS, Canada, 2014; Volume 15. [Google Scholar] [CrossRef]
- Alvain, S.; Moulin, C.; Dandonneau, Y.; Bréon, F.M. Remote sensing of phytoplankton groups in case 1 waters from global SeaWiFS imagery. Deep. Sea Res. Part I Oceanogr. Res. Pap.
**2005**, 52, 1989–2004. [Google Scholar] [CrossRef] [Green Version] - Bracher, A.; Bouman, H.A.; Brewin, R.J.W.; Bricaud, A.; Brotas, V.; Ciotti, A.M.; Clementson, L.; Devred, E.; Di Cicco, A.; Dutkiewicz, S.; et al. Obtaining Phytoplankton Diversity from Ocean Color: A Scientific Roadmap for Future Development. Front. Mar. Sci.
**2017**, 4, 1–15. [Google Scholar] [CrossRef] [Green Version] - Stomp, M.; Huisman, J.; Stal, L.J.; Matthijs, H.C.P. Colorful niches of phototrophic microorganisms shaped by vibrations of the water molecule. ISME J.
**2007**, 1, 271–282. [Google Scholar] [CrossRef] - Brewin, R.J.W.; Sathyendranath, S.; Hirata, T.; Lavender, S.J.; Barciela, R.M.; Hardman-Mountford, N.J. A three-component model of phytoplankton size class for the Atlantic Ocean. Ecol. Model.
**2010**, 221, 1472–1483. [Google Scholar] [CrossRef] - Mouw, C.B.; Hardman-Mountford, N.J.; Alvain, S.; Bracher, A.; Brewin, R.J.W.; Bricaud, A.; Ciotti, A.M.; Devred, E.; Fujiwara, A.; Hirata, T.; et al. A Consumer’s Guide to Satellite Remote Sensing of Multiple Phytoplankton Groups in the Global Ocean. Front. Mar. Sci.
**2017**, 4. [Google Scholar] [CrossRef] [Green Version] - Holtrop, T.; Huisman, J.; Stomp, M.; Biersteker, L.; Aerts, J.; Grébert, T.; Partensky, F.; Garczarek, L.; Van Der Woerd, H.J. Vibrational modes of water predict spectral niches for photosynthesis in lakes and oceans. Nat. Ecol. Evol.
**2020**, 5, 55–66. [Google Scholar] [CrossRef] [PubMed] - Kramer, S.J.; Siegel, D.A. How Can Phytoplankton Pigments Be Best Used to Characterize Surface Ocean Phytoplankton Groups for Ocean Color Remote Sensing Algorithms? J. Geophys. Res. Ocean.
**2019**, 124, 7557–7574. [Google Scholar] [CrossRef] - Kostadinov, T.S.; Siegel, D.A.; Maritorena, S. Global variability of phytoplankton functional types from space: Assessment via the particle size distribution. Biogeosciences
**2010**, 7, 3239–3257. [Google Scholar] [CrossRef] [Green Version] - Bricaud, A.; Claustre, H.; Ras, J.; Oubelkheir, K. Natural variability of phytoplanktonic absorption in oceanic waters: Influence of the size structure of algal populations. J. Geophys. Res.
**2004**, 109, 1–12. [Google Scholar] [CrossRef] - Uitz, J.; Huot, Y.; Bruyant, F.; Babin, M.; Claustre, H. Relating phytoplankton photophysiological properties to community structure on large scales. Limnol. Oceanogr.
**2008**, 53, 614–630. [Google Scholar] [CrossRef] [Green Version] - Brewin, R.J.; Dall’Olmo, G.; Sathyendranath, S.; Hardman-Mountford, N.J. Particle backscattering as a function of chlorophyll and phytoplankton size structure in the open-ocean. Opt. Express
**2012**, 20, 17632. [Google Scholar] [CrossRef] - Ciotti, A.M.; Lewis, M.R.; Cullen, J.J. Assessment of the relationships between dominant cell size in natural phytoplankton communities and the spectral shape of the absorption coefficient. Limnol. Oceanogr.
**2002**, 47, 404–417. [Google Scholar] [CrossRef] [Green Version] - Brewin, R.J.W.; Hardman-Mountford, N.J.; Lavender, S.J.; Raitsos, D.E.; Hirata, T.; Uitz, J.; Devred, E.; Bricaud, A.; Ciotti, A.; Gentili, B. An intercomparison of bio-optical techniques for detecting dominant phytoplankton size class from satellite remote sensing. Remote Sens. Environ.
**2011**, 115, 325–339. [Google Scholar] [CrossRef] - Werdell, P.J.; Roesler, C.S.; Goes, J.I. Discrimination of phytoplankton functional groups using an ocean reflectance inversion model. Appl. Opt.
**2014**, 53, 4833. [Google Scholar] [CrossRef] - Xi, H.; Hieronymi, M.; Krasemann, H.; Röttgers, R. Phytoplankton Group Identification Using Simulated and In situ Hyperspectral Remote Sensing Reflectance. Front. Mar. Sci.
**2017**, 4, 1–13. [Google Scholar] [CrossRef] [Green Version] - Evers-King, H.; Bernard, S.; Robertson Lain, L.; Probyn, T.A. Sensitivity in reflectance attributed to phytoplankton cell size: Forward and inverse modelling approaches. Opt. Express
**2014**, 22, 11536. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mobley, C.; Sundman, L. HydroLight 5.3-EcoLight 5.3 Users’ Guide; Technical Report; Sequoia Scientific: Bellevue, WA, USA, 2016. [Google Scholar]
- Van Der Woerd, H.J.; Pasterkamp, R. HYDROPT: A fast and flexible method to retrieve chlorophyll-a from multispectral satellite observations of optically complex coastal waters. Remote Sens. Environ.
**2008**, 112, 1795–1807. [Google Scholar] [CrossRef] - Mason, J.D.; Cone, M.T.; Fry, E.S. Ultraviolet (250–550 nm) absorption spectrum of pure water. Appl. Opt.
**2016**, 55, 7163. [Google Scholar] [CrossRef] - Holtrop, T.; Van Der Woerd, H. HYDROPT: A Python Framework for Fast Inverse Modelling of Multi- and Hyperspectral Ocean Color Data. 2021. [Google Scholar] [CrossRef]
- Werdell, P.J.; Behrenfeld, M.J.; Bontempi, P.S.; Boss, E.; Cairns, B.; Davis, G.T.; Franz, B.A.; Gliese, U.B.; Gorman, E.T.; Hasekamp, O.; et al. The plankton, aerosol, cloud, ocean ecosystem mission status, science, advances. Bull. Am. Meteorol. Soc.
**2019**, 100, 1775–1794. [Google Scholar] [CrossRef] - Gordon, H.R.; Brown, O.B.; Evans, R.H.; Brown, J.W.; Smith, R.C.; Baker, K.S.; Clark, D.K. A Semianalytical Radiance Model of Ocean Color. J. Geophys. Res.
**1988**, 93, 10909–10924. [Google Scholar] - Morel, A.; Gentili, B. Diffuse reflectance of oceanic waters: Its dependence on sun angle as influenced by the molecular scattering contribution. Appl. Opt.
**1991**, 30, 4427–4438. [Google Scholar] [CrossRef] - Morel, A.; Antoine, D.; Gentili, B. Bidirectional reflectance of oceanic waters: Accounting for Raman emission and varying particle scattering phase function. Appl. Opt.
**2002**, 41, 6289. [Google Scholar] [CrossRef] [PubMed] - Babin, M.; Stramski, D.; Ferrari, G.M.; Claustre, H.; Bricaud, A.; Obolensky, G.; Hoepffner, N. Variations in the light absorption coefficients of phytoplankton, nonalgal particles, and dissolved organic matter in coastal waters around Europe. J. Geophys. Res.
**2003**, 108, 1–20. [Google Scholar] [CrossRef] - IOCCG. Remote Sensing of Inherent Optical Properties: Fundamentals, Tests of Algorithms, and Applications; Reports of the International Ocean Colour Coordinating Group; IOCCG: Dartmouth, NS, Canada, 2006; Volume 5. [Google Scholar] [CrossRef]
- Göçken, M.; Özçalici, M.; Boru, A.; Dosdogru, A.T. Integrating metaheuristics and Artificial Neural Networks for improved stock price prediction. Expert Syst. Appl.
**2016**, 44, 320–331. [Google Scholar] [CrossRef] - Despotovic, M.; Nedic, V.; Despotovic, D.; Cvetanovic, S. Evaluation of empirical models for predicting monthly mean horizontal diffuse solar radiation. Renew. Sustain. Energy Rev.
**2016**, 56, 246–260. [Google Scholar] [CrossRef] - James, G.; Witten, D.; Hastie, T.; Tibshirani, R. An Introduction to Statistical Learning: With Applications in R; Springer Publishing Company, Incorporated: New York, NY, USA, 2014. [Google Scholar] [CrossRef]
- Virtanen, P.; Gommers, R.; Oliphant, T.E.; Haberland, M.; Reddy, T.; Cournapeau, D.; Burovski, E.; Peterson, P.; Weckesser, W.; Bright, J.; et al. {SciPy} 1.0: Fundamental Algorithms for Scientific Computing in Python. Nat. Methods
**2020**, 17, 261–272. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Newville, M.; Otten, R.; Nelson, A.; Ingargiola, A.; Stensitzki, T.; Maier, D.A.; Fox, A.; Carter, F.; Pustakhod, D.; Weigand, S.; et al. Lmfit: Non-Linear Least-Square Minimization and Curve-Fitting for Python. 2021. [Google Scholar] [CrossRef]
- Tuchow, N.; Broughton, J.; Kudela, R. Sensitivity analysis of volume scattering phase functions. Opt. Express
**2016**, 24, 18559. [Google Scholar] [CrossRef] - Lain, L.R.; Bernard, S.; Matthews, M.W. Understanding the contribution of phytoplankton phase functions to uncertainties in the water colour signal. Opt. Express
**2017**, 25, A151–A165. [Google Scholar] [CrossRef] - Holtrop, T.; Van Der Woerd, H. A Synthetic Hyperspectral Dataset for Development and Validation of Phytoplankton Size Class Retrieval Models. 2021. [Google Scholar] [CrossRef]
- Sathyendranath, S.; Cota, G.; Stuart, V.; Maass, H.; Platt, T. Remote sensing of phytoplankton pigments: A comparison of empirical and theoretical approaches. Int. J. Remote Sens.
**2001**, 22, 249–273. [Google Scholar] [CrossRef] - Devred, E.; Sathyendranath, S.; Stuart, V.; Maass, H.; Ulloa, O.; Platt, T. A two-component model of phytoplankton absorption in the open ocean: Theory and applications. J. Geophys. Res. Ocean.
**2006**, 111, 1–11. [Google Scholar] [CrossRef] - Irigoien, X.; Huisman, J.; Harris, R.P. Global biodiversity patterns of marine phytoplankton and zooplankton. Nature
**2004**, 429, 863–867. [Google Scholar] [CrossRef] - Zhang, X.; Huot, Y.; Bricaud, A.; Sosik, H.M. Inversion of spectral absorption coefficients to infer phytoplankton size classes, chlorophyll concentration, and detrital matter. Appl. Opt.
**2015**, 54, 5805. [Google Scholar] [CrossRef] - Loisel, H.; Nicolas, J.M.; Sciandra, A.; Stramski, D.; Poteau, A. Spectral dependency of optical backscattering by marine particles from satellite remote sensing of the global ocean. J. Geophys. Res. Ocean.
**2006**, 111, 1–14. [Google Scholar] [CrossRef] - Seegers, B.N.; Stumpf, R.P.; Schaeffer, B.A.; Loftin, K.A.; Werdell, P.J. Performance metrics for the assessment of satellite data products: An ocean color case study. Opt. Express
**2018**, 26, 7404. [Google Scholar] [CrossRef] [Green Version] - Van Der Woerd, H.J.; Wernand, M.; Peters, M.; Bala, M. True color analysis of natural waters with SeaWiFS, MODIS, MERIS and OLCI by SNAP. In Proceedings of the Ocean Optics XXIII, Victoria, BC, Canada, 23–28 October 2016. [Google Scholar]
- Hirata, T.; Hardman-Mountford, N.J.; Brewin, R.J.W.; Aiken, J.; Barlow, R.; Suzuki, K.; Isada, T.; Howell, E.; Hashioka, T.; Noguchi-Aita, M.; et al. Synoptic relationships between surface Chlorophyll-a and diagnostic pigments specific to phytoplankton functional types. Biogeosciences
**2011**, 8, 311–327. [Google Scholar] [CrossRef] [Green Version] - Uitz, J.; Stramski, D.; Reynolds, R.A.; Dubranna, J. Assessing phytoplankton community composition from hyperspectral measurements of phytoplankton absorption coefficient and remote-sensing reflectance in open-ocean environments. Remote Sens. Environ.
**2015**, 171, 58–74. [Google Scholar] [CrossRef] - Bracher, A.; Taylor, M.H.; Taylor, B.; Dinter, T.; Röttgers, R.; Steinmetz, F. Using empirical orthogonal functions derived from remote-sensing reflectance for the prediction of phytoplankton pigment concentrations. Ocean. Sci.
**2015**, 11, 139–158. [Google Scholar] [CrossRef] [Green Version] - Gittings, J.A.; Brewin, R.J.; Raitsos, D.E.; Kheireddine, M.; Ouhssain, M.; Jones, B.H.; Hoteit, I. Remotely sensing phytoplankton size structure in the Red Sea. Remote Sens. Environ.
**2019**, 234, 111387. [Google Scholar] [CrossRef] - Devred, E.; Sathyendranath, S.; Stuart, V.; Platt, T. A three component classification of phytoplankton absorption spectra: Application to ocean-color data. Remote Sens. Environ.
**2011**, 115, 2255–2266. [Google Scholar] [CrossRef] - Kostadinov, T.S.; Milutinovi, S.; Marinov, I.; Cabré, A. Carbon-based phytoplankton size classes retrieved via ocean color estimates of the particle size distribution. Ocean. Sci.
**2016**, 12, 561–575. [Google Scholar] [CrossRef] [Green Version] - Werdell, P.J.; McKinna, L.I.; Boss, E.; Ackleson, S.G.; Craig, S.E.; Gregg, W.W.; Lee, Z.; Maritorena, S.; Roesler, C.S.; Rousseaux, C.S.; et al. An overview of approaches and challenges for retrieving marine inherent optical properties from ocean color remote sensing. Prog. Oceanogr.
**2018**, 160, 186–212. [Google Scholar] [CrossRef] [PubMed] - Brito, A.C.; Sá, C.; Brotas, V.; Brewin, R.J.; Silva, T.; Vitorino, J.; Platt, T.; Sathyendranath, S. Effect of phytoplankton size classes on bio-optical properties of phytoplankton in the Western Iberian coast: Application of models. Remote Sens. Environ.
**2015**, 156, 537–550. [Google Scholar] [CrossRef] [Green Version] - Brewin, R.J.; Sathyendranath, S.; Jackson, T.; Barlow, R.; Brotas, V.; Airs, R.; Lamont, T. Influence of light in the mixed-layer on the parameters of a three-component model of phytoplankton size class. Remote Sens. Environ.
**2015**, 168, 437–450. [Google Scholar] [CrossRef] - Sun, X.; Shen, F.; Liu, D.; Bellerby, R.G.J.; Liu, Y.; Tang, R. In Situ and Satellite Observations of Phytoplankton Size Classes in the Entire Continental Shelf Sea, China. J. Geophys. Res. Ocean.
**2018**, 123, 3523–3544. [Google Scholar] [CrossRef] [Green Version] - Morel, A.; Huot, Y.; Gentili, B.; Werdell, P.J.; Hooker, S.B.; Franz, B.A. Examining the consistency of products derived from various ocean color sensors in open ocean (Case 1) waters in the perspective of a multi-sensor approach. Remote Sens. Environ.
**2007**, 111, 69–88. [Google Scholar] [CrossRef] - Sathyendranath, S.; Brewin, R.J.W.; Brockmann, C.; Brotas, V.; Calton, B.; Chuprin, A.; Cipollini, P.; Couto, A.B.; Dingle, J.; Doerffer, R.; et al. An Ocean-Colour Time Series for Use in Climate Studies: The Experience of the Ocean-Colour Climate Change Initiative (OC-CCI). Sensors
**2019**, 19, 4285. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Morel, A.; Prieur, L. Analysis of variations in ocean color. Limnol. Oceanogr.
**1977**, 22, 709–722. [Google Scholar] [CrossRef] - Chami, M.; McKee, D.; Leymarie, E.; Khomenko, G. Influence of the angular shape of the volume-scattering function and multiple scattering on remote sensing reflectance. Appl. Opt.
**2006**, 45, 9210–9220. [Google Scholar] [CrossRef] [PubMed] - Zhai, P.W.; Hu, Y.; Trepte, C.R.; Winker, D.M.; Lucker, P.L.; Lee, Z.; Josset, D.B. Uncertainty in the bidirectional reflectance model for oceanic waters. Appl. Opt.
**2015**, 54, 4061. [Google Scholar] [CrossRef] - Park, Y.J.; Ruddick, K. Model of remote-sensing reflectance including bidirectional effects for case 1 and case 2 waters. Appl. Opt.
**2005**, 44, 1236–1249. [Google Scholar] [CrossRef] - He, S.; Fischer, J.; Schaale, M.; He, M.X. Optical closure of parameterized bio-optical relationships. Chin. J. Oceanol. Limnol.
**2014**, 32, 480–489. [Google Scholar] [CrossRef] - Salama, M.S.; Stein, A. Error decomposition and estimation of inherent optical properties. Appl. Opt.
**2009**, 48, 4947–4962. [Google Scholar] [CrossRef] - Maritorena, S.; Siegel, D.A.; Peterson, A.R. Optimization of a semianalytical ocean color model for global-scale applications. Appl. Opt.
**2002**, 41, 2705. [Google Scholar] [CrossRef] - Frouin, R.; Pelletier, B. Bayesian methodology for inverting satellite ocean-color data. Remote Sens. Environ.
**2015**, 159, 332–360. [Google Scholar] [CrossRef] - He, S.; Zhang, X.; Xiong, Y.; Gray, D. A Bidirectional Subsurface Remote Sensing Reflectance Model Explicitly Accounting for Particle Backscattering Shapes. J. Geophys. Res. Ocean.
**2017**, 122, 8614–8626. [Google Scholar] [CrossRef] - Twardowski, M.; Tonizzo, A. Ocean color analytical model explicitly dependent on the volume scattering function. Appl. Sci.
**2018**, 8, 2684. [Google Scholar] [CrossRef] [Green Version] - Werdell, P.J.; Bailey, S.W. An improved in-situ bio-optical data set for ocean color algorithm development and satellite data product validation. Remote Sens. Environ.
**2005**, 98, 122–140. [Google Scholar] [CrossRef] - Soja-Woźniak, M.; Laiolo, L.; Baird, M.E.; Matear, R.; Clementson, L.; Schroeder, T.; Doblin, M.A.; Suthers, I.M. Effect of phytoplankton community size structure on remote-sensing reflectance and chlorophyll a products. J. Mar. Syst.
**2020**, 211. [Google Scholar] [CrossRef] - Pope, R.M.; Fry, E.S. Absorption spectrum (380–700 nm) of pure water. II. Integrating cavity measurements. Appl. Opt.
**1997**, 36, 8710–8723. [Google Scholar] [CrossRef] [PubMed] - Mobley, C.D. Ligth and Water: Radiative Transfer in Natural Waters; Academic Press: San Diego, CA, USA, 1994; p. 592. [Google Scholar]
- Prieur, L.; Sathyendranath, S. An optical classification of coastal and oceanic waters based on the specific spectral absorption curves of phytoplankton pigments, dissolved organic matter, and other particulate materials 1. Limnol. Oceanogr.
**1981**, 26, 671–689. [Google Scholar] [CrossRef] - Babin, M.; Morel, A.; Fournier-Sicre, V.; Fell, F.; Stramski, D. Light scattering properties of marine particles in coastal and open ocean waters as related to the particle mass concentration. Limnol. Oceanogr.
**2003**, 48, 843–859. [Google Scholar] [CrossRef]

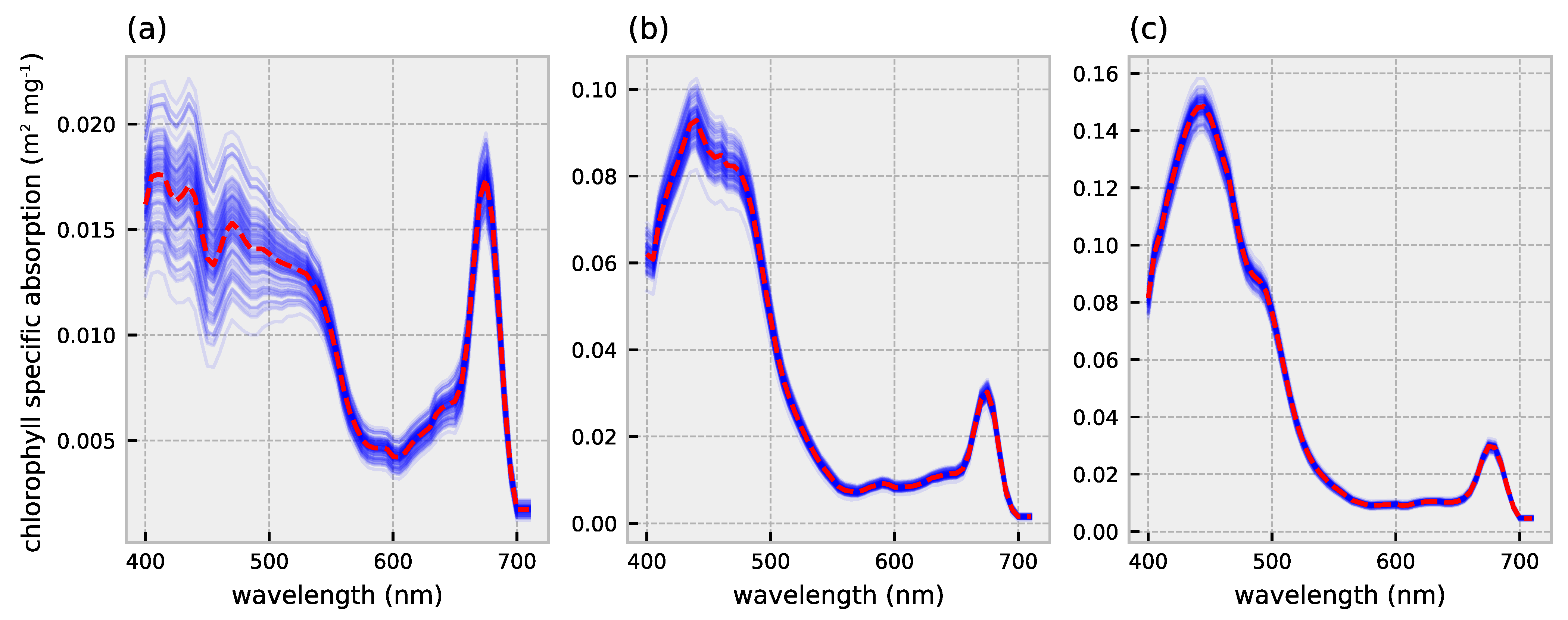

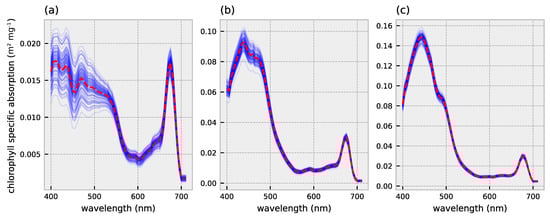

**Figure 1.**Chlorophyll-a specific absorption for (

**a**) micro- (

**b**) nano- and (

**c**) pico-phytoplankton. A hundred absorption spectra are randomly sampled to visualize variability within and across size classes (blue lines). Mean absorption spectra are used as for the inversion with HYDROPT (red dashed lines). Absorption coefficients and standard errors are obtained from Uitz et al. [11].

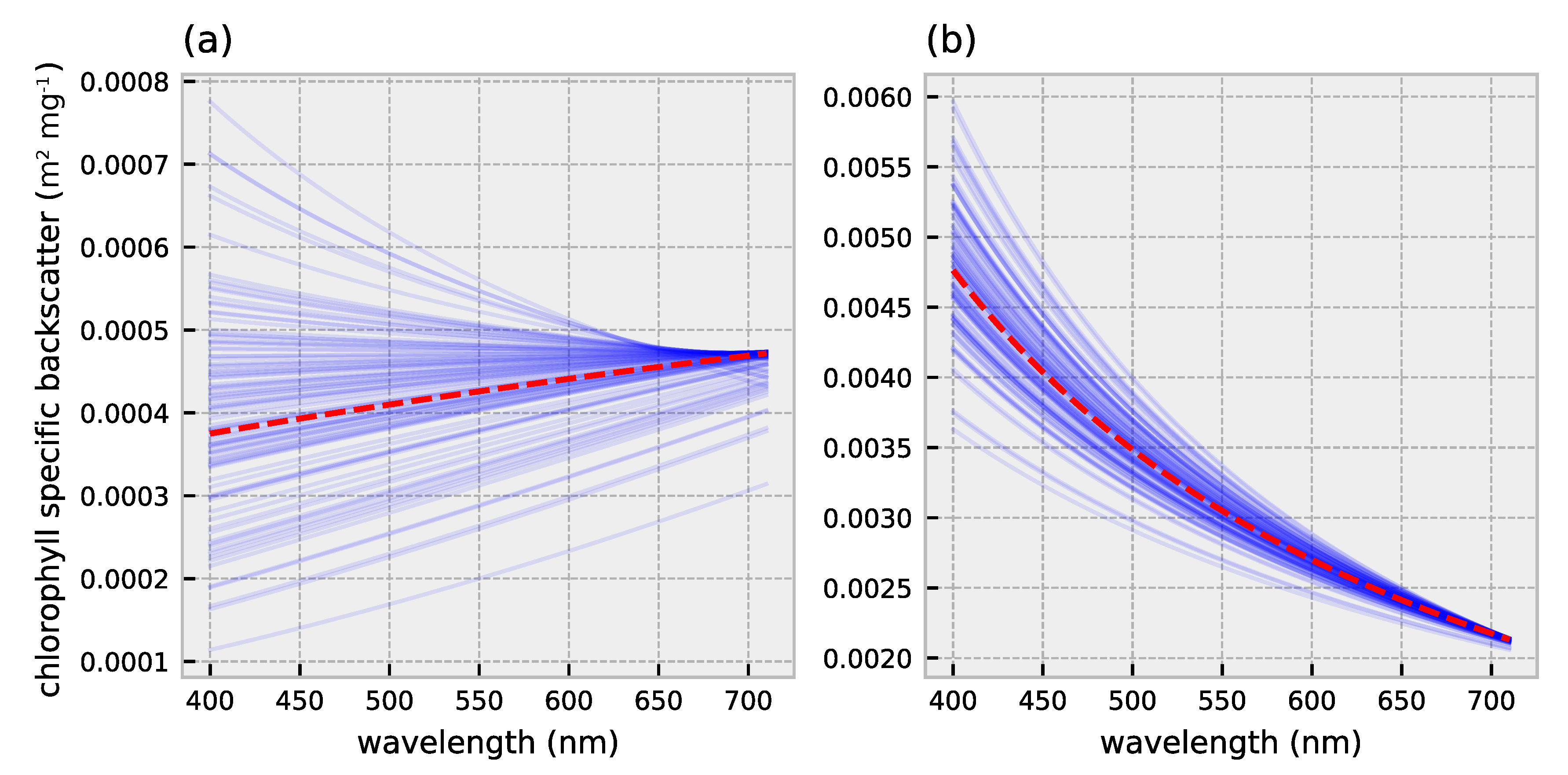

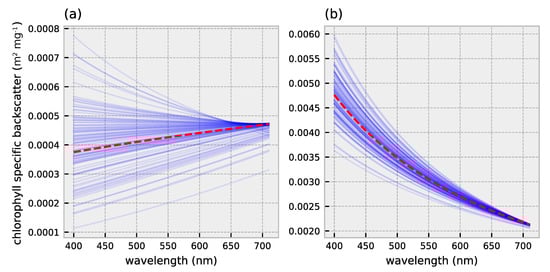

**Figure 2.**Chlorophyll-a specific backscatter for (

**a**) micro- (

**b**) nano- and pico-phytoplankton. A hundred backscatter spectra are randomly sampled to visualize variability within and across size classes (blue lines). Mean backscatter spectra are used for the inversion with HYDROPT (red dashed lines). Backscatter coefficients and standard errors are obtained from Table 3-database D in Brewin et al. [12].

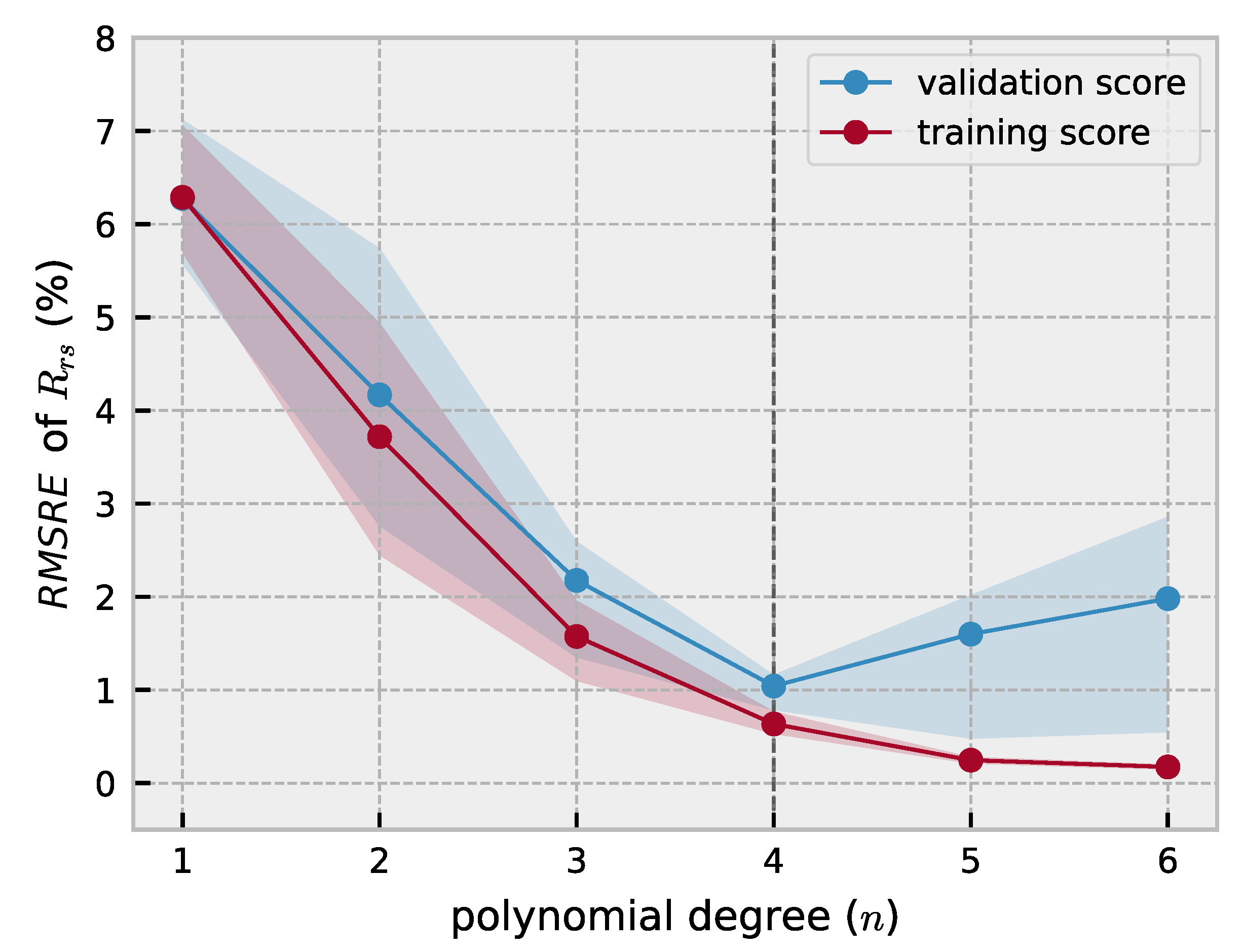

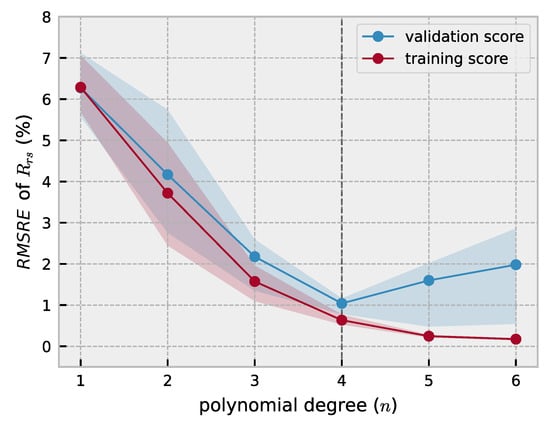

**Figure 3.**Cross-validation of the model in Equation (2) for different polynomial degrees (n). The model is fitted on ${R}_{rs}$ data at nadir with the sun at zenith angle of 30°. The accuracy metric used is the root mean squared relative error (RMSRE). The blue line and purple line show the validation and training score respectively. The 68% confidence envelope is shown. The dashed line indicates the most parsimonious model chosen in this study.

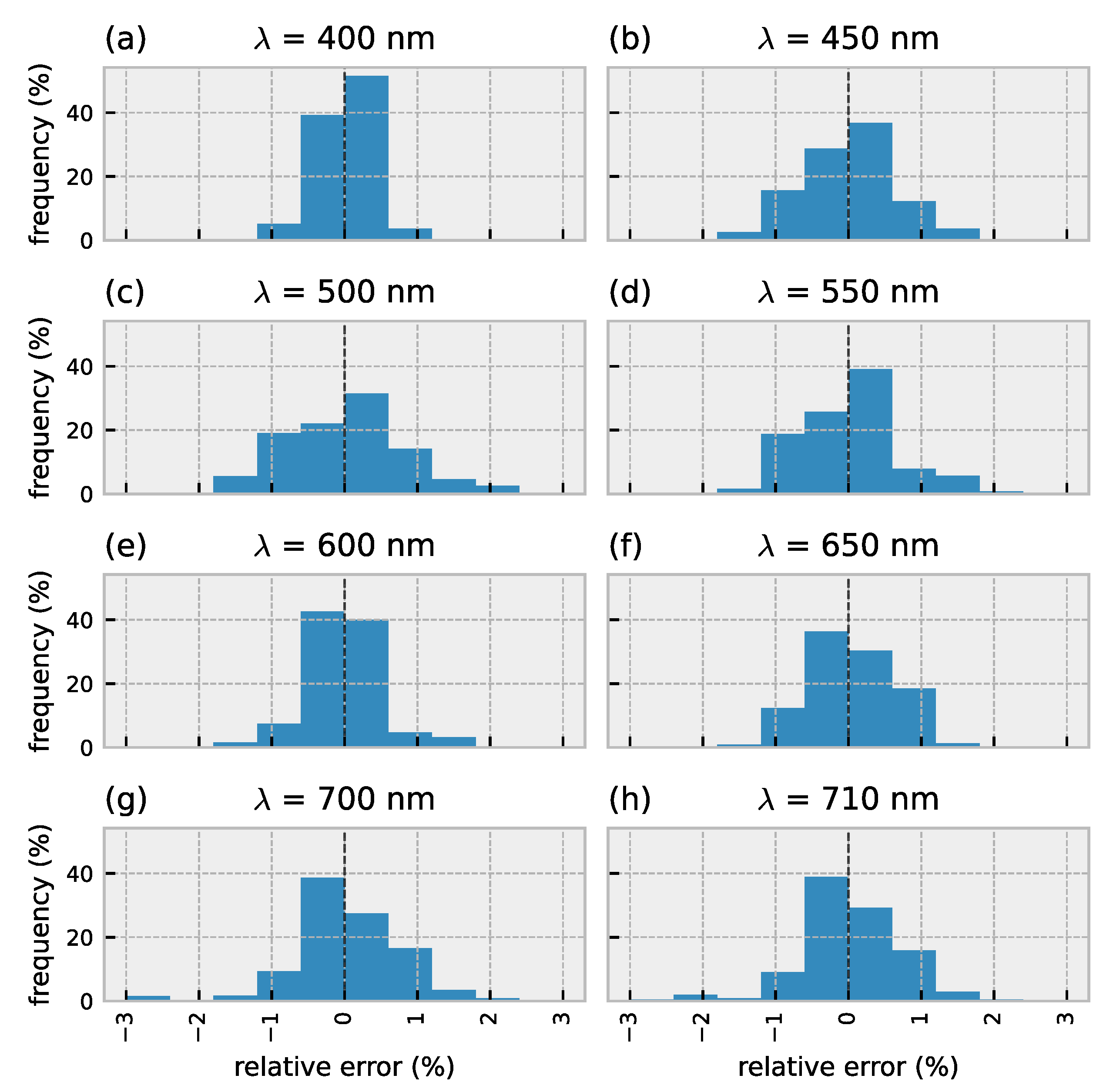

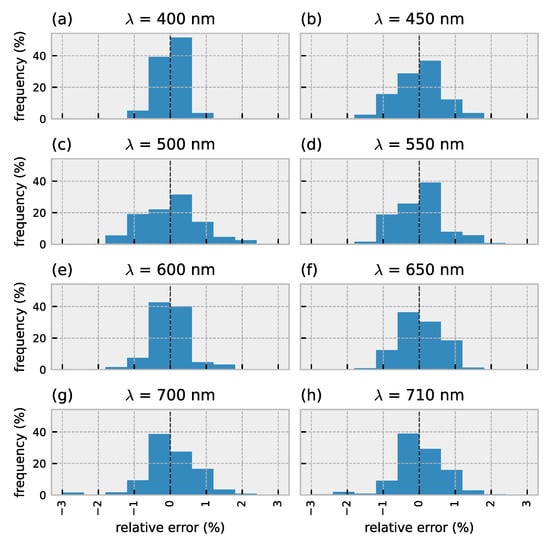

**Figure 4.**Distribution of the relative error for 8 (out of 63) wavebands in ${R}_{rs}$ between the HydroLight simulations and the predicted values by the 4th degree polynomial model. Validation results are for a nadir viewing angle and solar zenith angle of 30°.

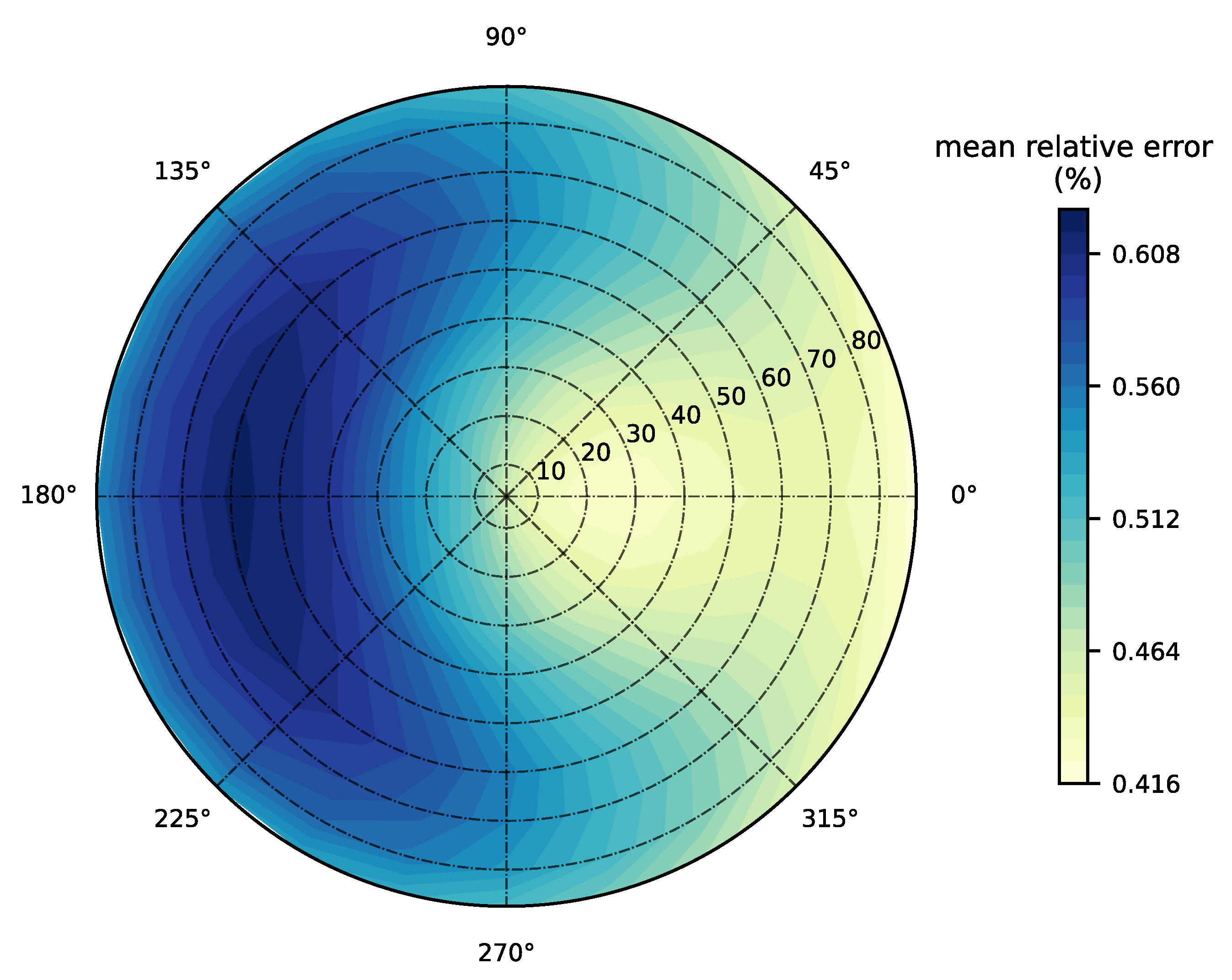

**Figure 5.**Mean relative prediction error in percent (%) in ${R}_{rs}$ at 440 nm for the 4th degree polynomial model for different viewing geometries. Nadir angle ($\theta $) and azimuthal angle ($\varphi $) follow the default HydroLight quad layout with 10° resolution in $\theta $ and 15° resolution in $\varphi $. The sun is positioned at an azimuthal angle of 0° and zenith angle (${\theta}_{s}$) of 30°.

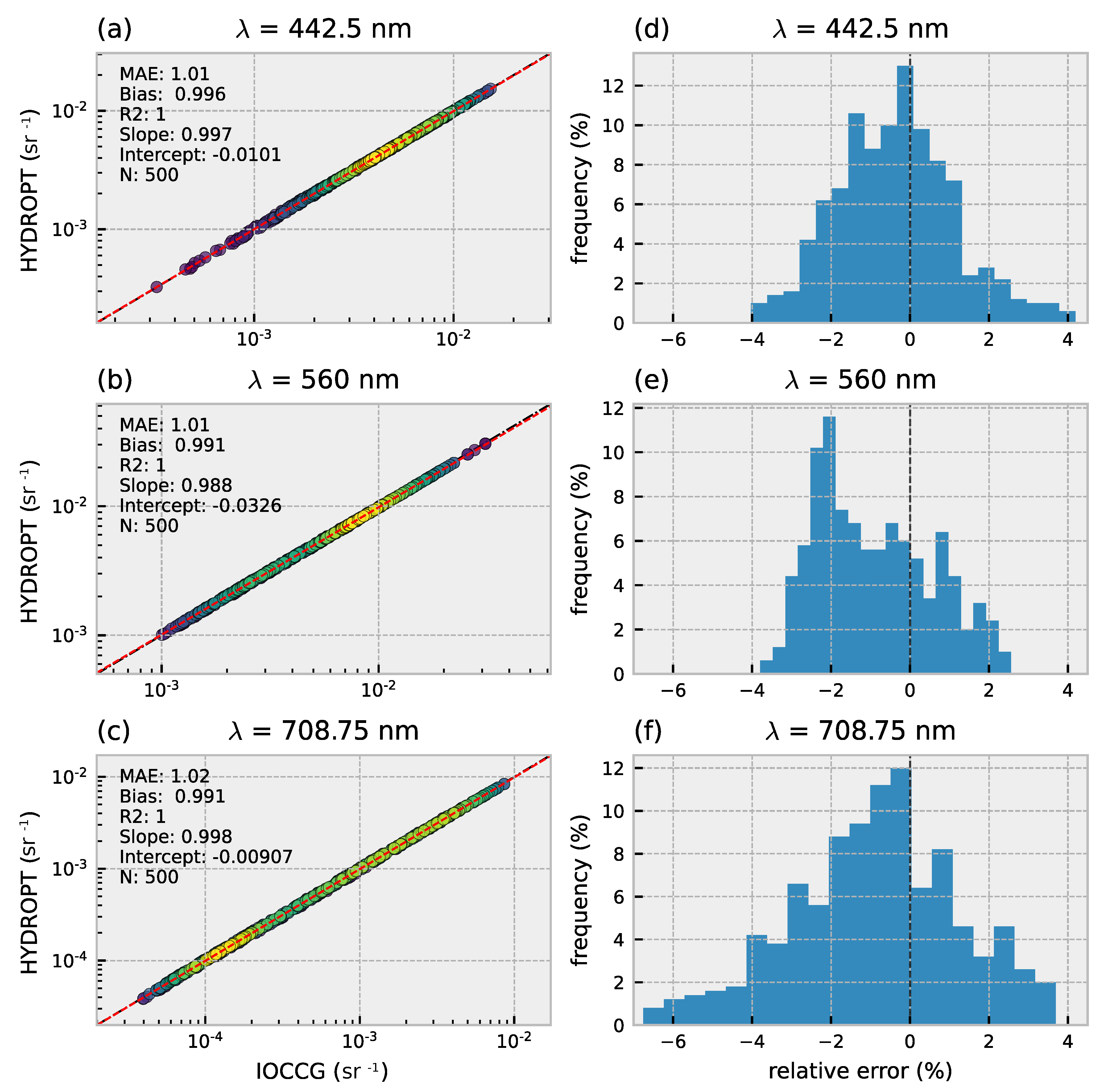

**Figure 6.**Validation of ${R}_{rs}$ predicted by the polynomial model vs. the IOCCG HydroLight simulations. (

**a**–

**c**) validation results, (

**d**–

**f**) distribution of the relative error (%). Results are for a nadir viewing angle with solar zenith angle (${\theta}_{s}$) of 60°. For statistics refer to Table A2. Number of samples indicated by N. Black dashed line is 1:1 line, red dashed line is the linear model. Data point density is indicated by color (yellow = high, blue = low).

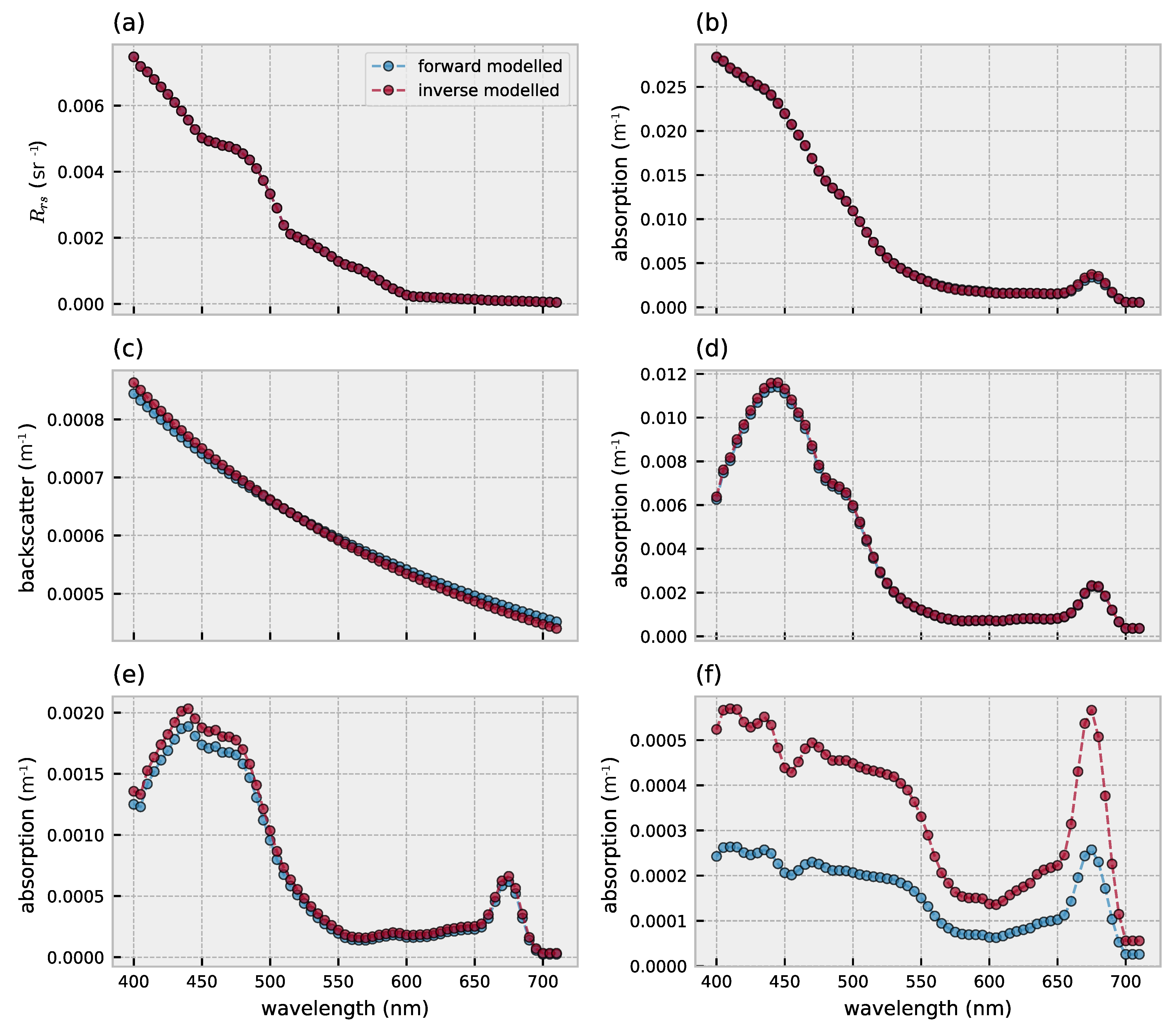

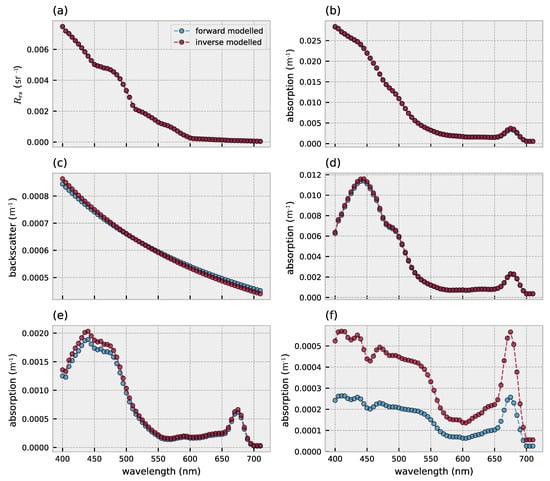

**Figure 7.**Comparison between forward- and inverse-modelled hyperspectral data for (

**a**) ${R}_{rs}$ (

**b**) total absorption excluding water (

**c**) total backscatter excluding water (

**d**) absorption by pico-phytoplankton (

**e**) absorption by nano-phytoplankton (

**f**) absorption by micro-phytoplankton. Red lines/dots indicate results of the inversion and blue lines/dots represent the forward modelled values.

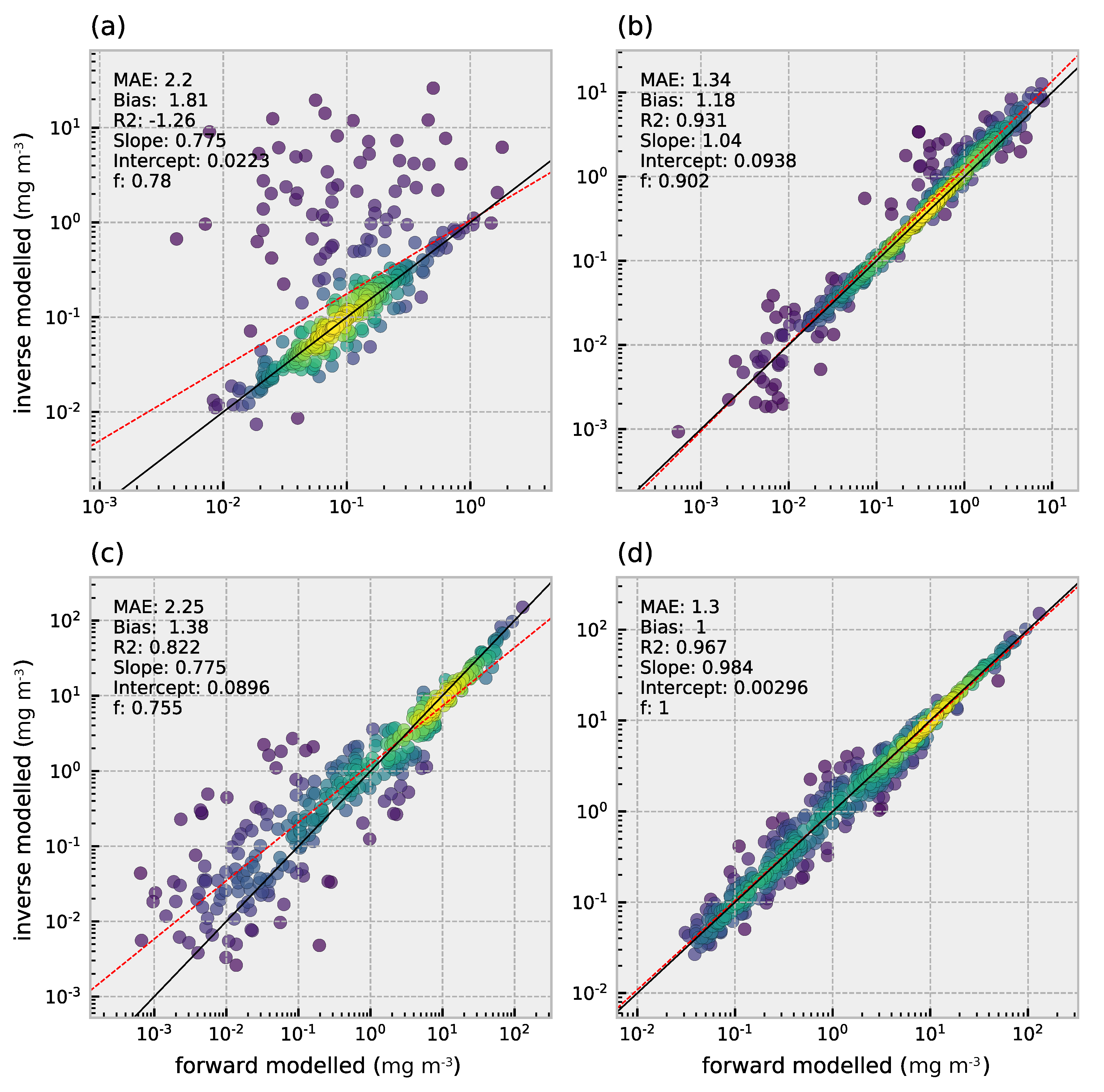

**Figure 8.**HYDROPT retrieval of chlorophyll-a concentrations for (

**a**) pico-, (

**b**) nano- and (

**c**) micro-phytoplankton and the sum of the three size classes (

**d**). For statistics refer to Table A2. The f-score indicates the fraction of reflectance spectra that could be successfully inverted. Data point density is indicated by color (yellow = high, blue = low).

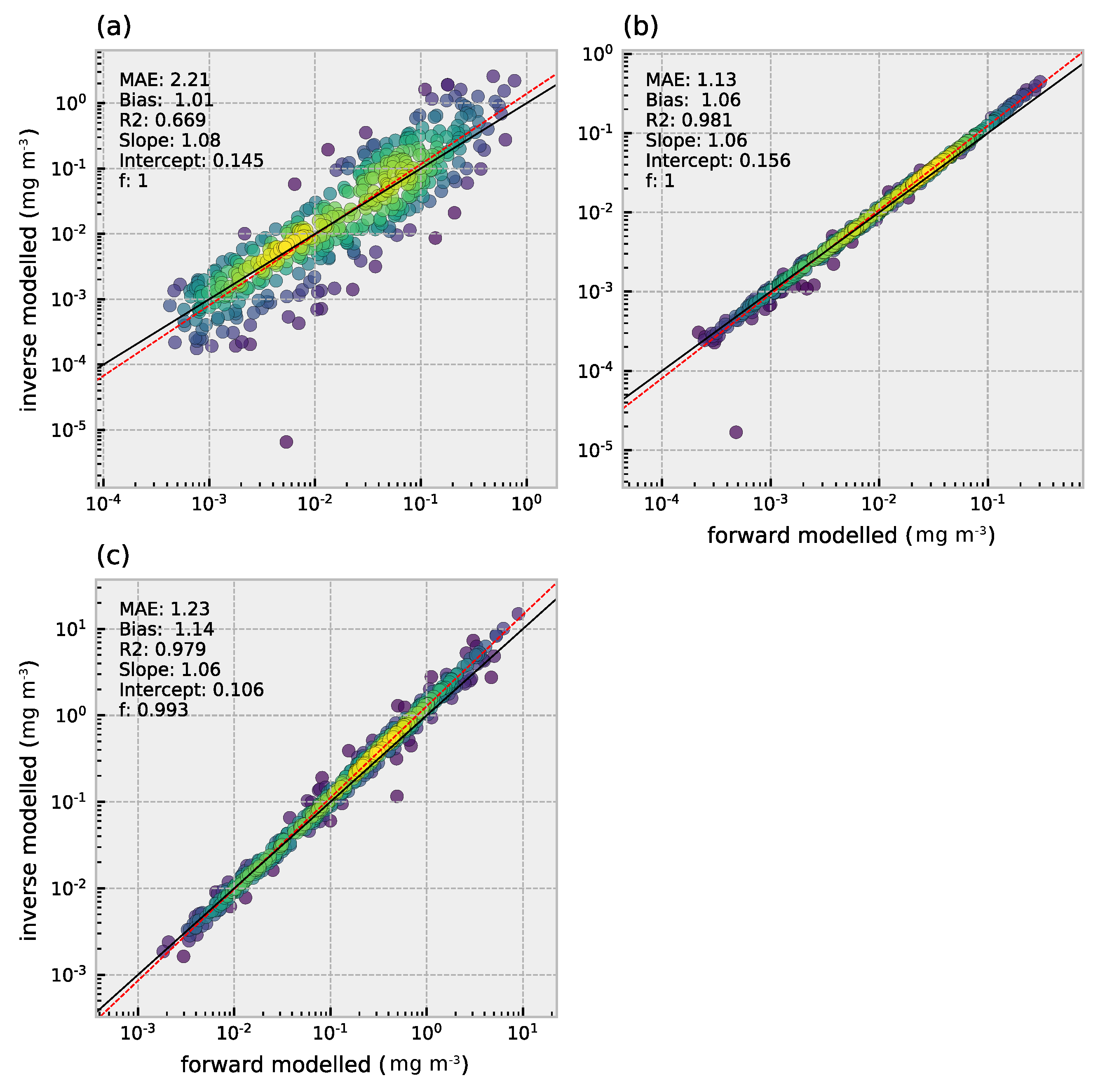

**Figure 9.**IOP retrievals for detrital matter and CDOM. (

**a**) Detrital matter absorption at 440 nm and (

**b**) backscatter at 550 nm. (

**c**) CDOM absorption at 440 nm. For statistics refer to Table A2. The f-score indicates the fraction of reflectance spectra that could be successfully inverted. Data point density is indicated by color (yellow = high, blue = low).

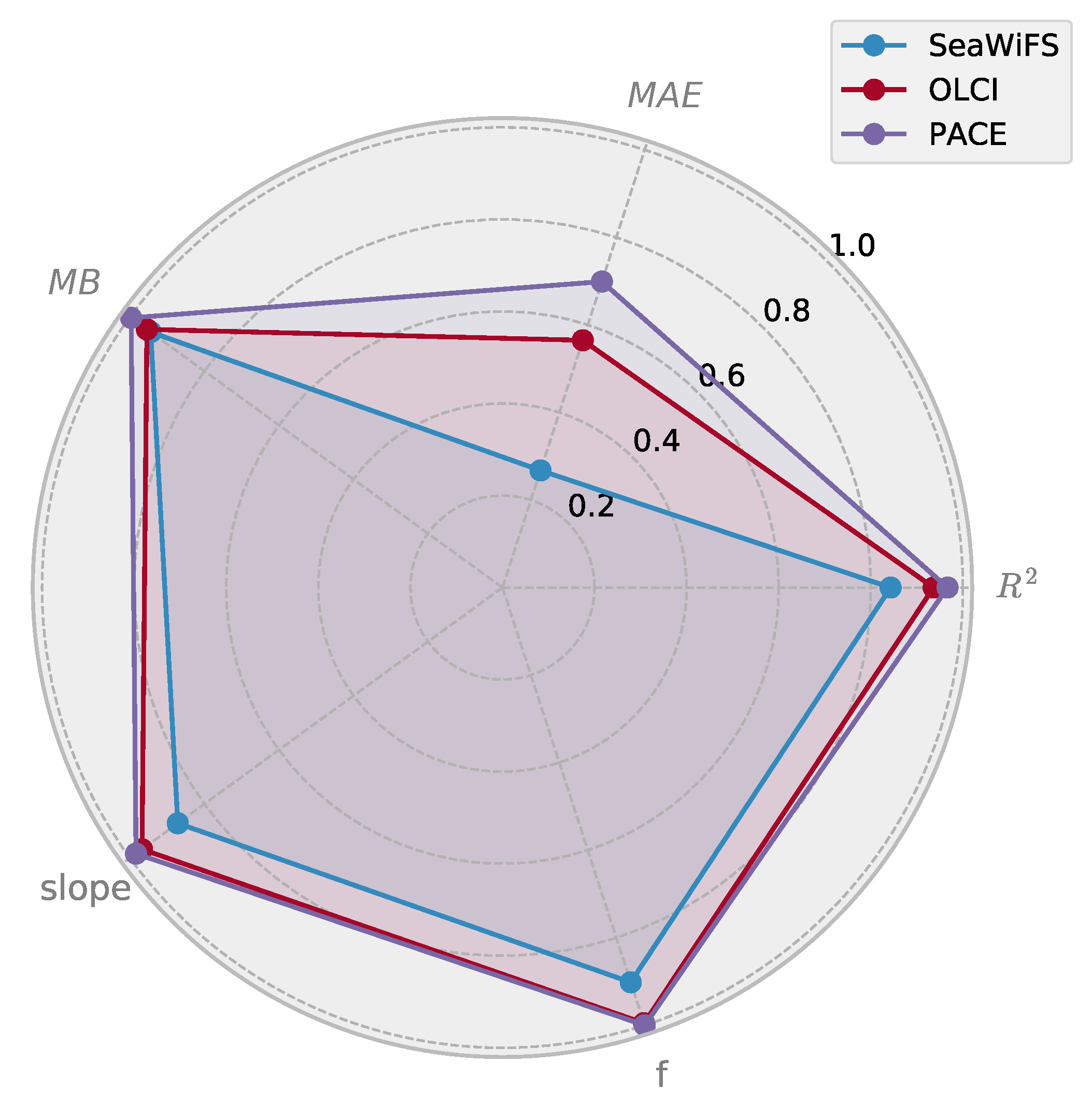

**Figure 10.**Inter-comparison of retrieval statistics for total chlorophyll-a (sum chlorophyll contained in pico-, nano- and micro-phytoplankton) between sensors. Mean bias (MB), mean absolute error (MAE) and slope are projected on a [0–1] interval according to Equation (17). A transformed statistic of 1 indicates a perfect score whereas a score of 0 indicates ≥100% deviation from a perfect score. For calculation of statistics see Table A2. Three sensors are compared: the hyperspectral PACE sensor and multispectral OLCI and SeaWiFs sensors.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Holtrop, T.; Van Der Woerd, H.J.
HYDROPT: An Open-Source Framework for Fast Inverse Modelling of Multi- and Hyperspectral Observations from Oceans, Coastal and Inland Waters. *Remote Sens.* **2021**, *13*, 3006.
https://doi.org/10.3390/rs13153006

**AMA Style**

Holtrop T, Van Der Woerd HJ.
HYDROPT: An Open-Source Framework for Fast Inverse Modelling of Multi- and Hyperspectral Observations from Oceans, Coastal and Inland Waters. *Remote Sensing*. 2021; 13(15):3006.
https://doi.org/10.3390/rs13153006

**Chicago/Turabian Style**

Holtrop, Tadzio, and Hendrik Jan Van Der Woerd.
2021. "HYDROPT: An Open-Source Framework for Fast Inverse Modelling of Multi- and Hyperspectral Observations from Oceans, Coastal and Inland Waters" *Remote Sensing* 13, no. 15: 3006.
https://doi.org/10.3390/rs13153006
