# Semi-Supervised Deep Learning for Lunar Crater Detection Using CE-2 DOM

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Data Preparation

#### 2.1. Data Set Selection

#### 2.2. Data Set Labeling

- The diameter of a sample crater is no more than 1000 m.
- The shadow direction of any given crater in the same area is consistent, as a dome has opposite shadow direction in the same area at the same time.

^{2}Then, the labeled data were used to generate training and validation images. First, considering that the data should cover all kinds of craters, we sub-sampled the data of the four areas ten times and obtained eight images in total. Secondly, each image of the area was divided into a number of 512 pixel × 512 pixel image blocks, in order to speed up the model training and detection. Finally, pseudo-color images were constructed, in order to obtain the number of craters per image and to distinguish overlapping craters. In Figure 4, each crater contributes to an index value, such that the maximum value of the index is the number of craters in the image block.

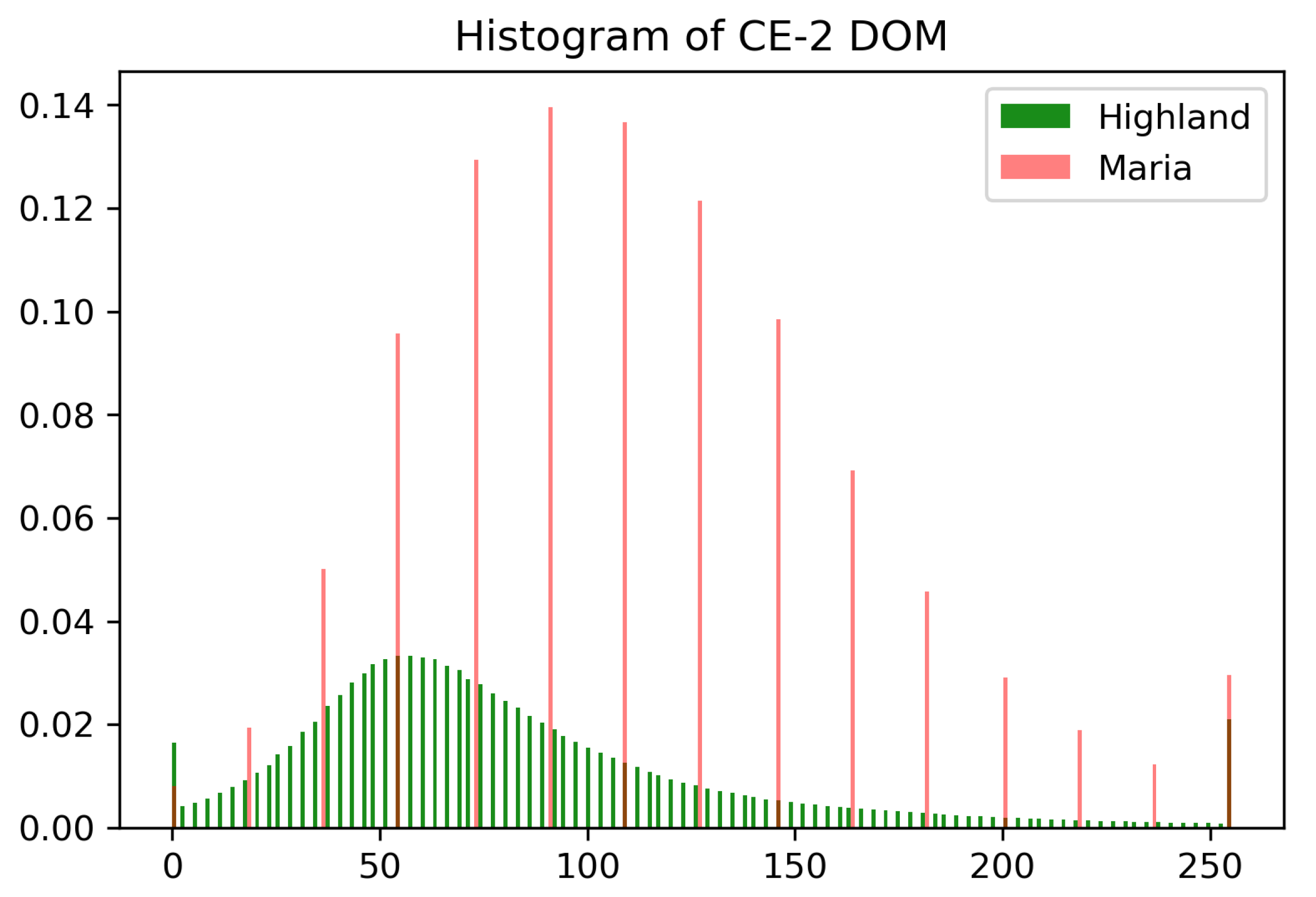

#### 2.3. CE-2 DOM Comparison in Highland and Maria

## 3. Methods

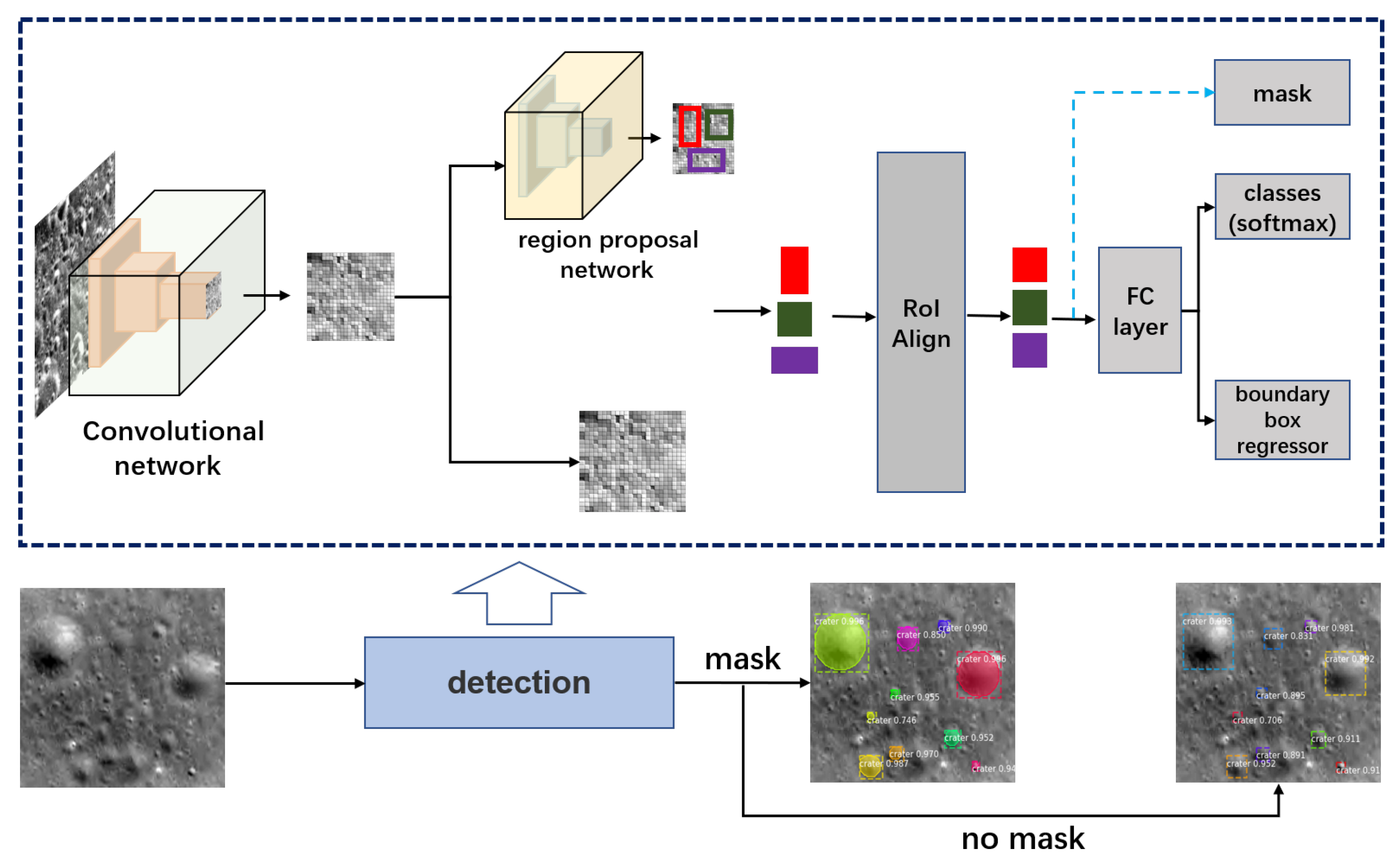

#### 3.1. Mask R-CNN and No-Mask R-CNN Used for Crater Detection

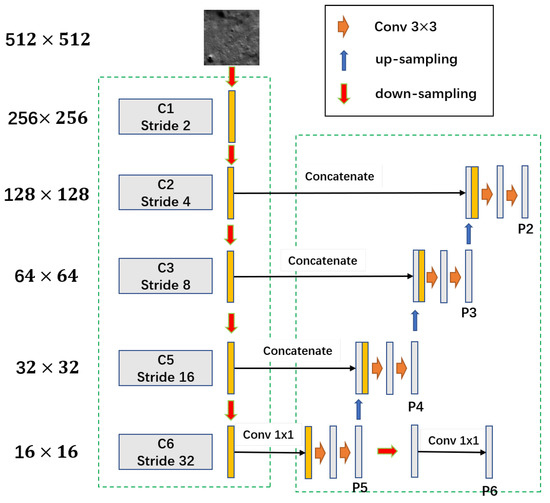

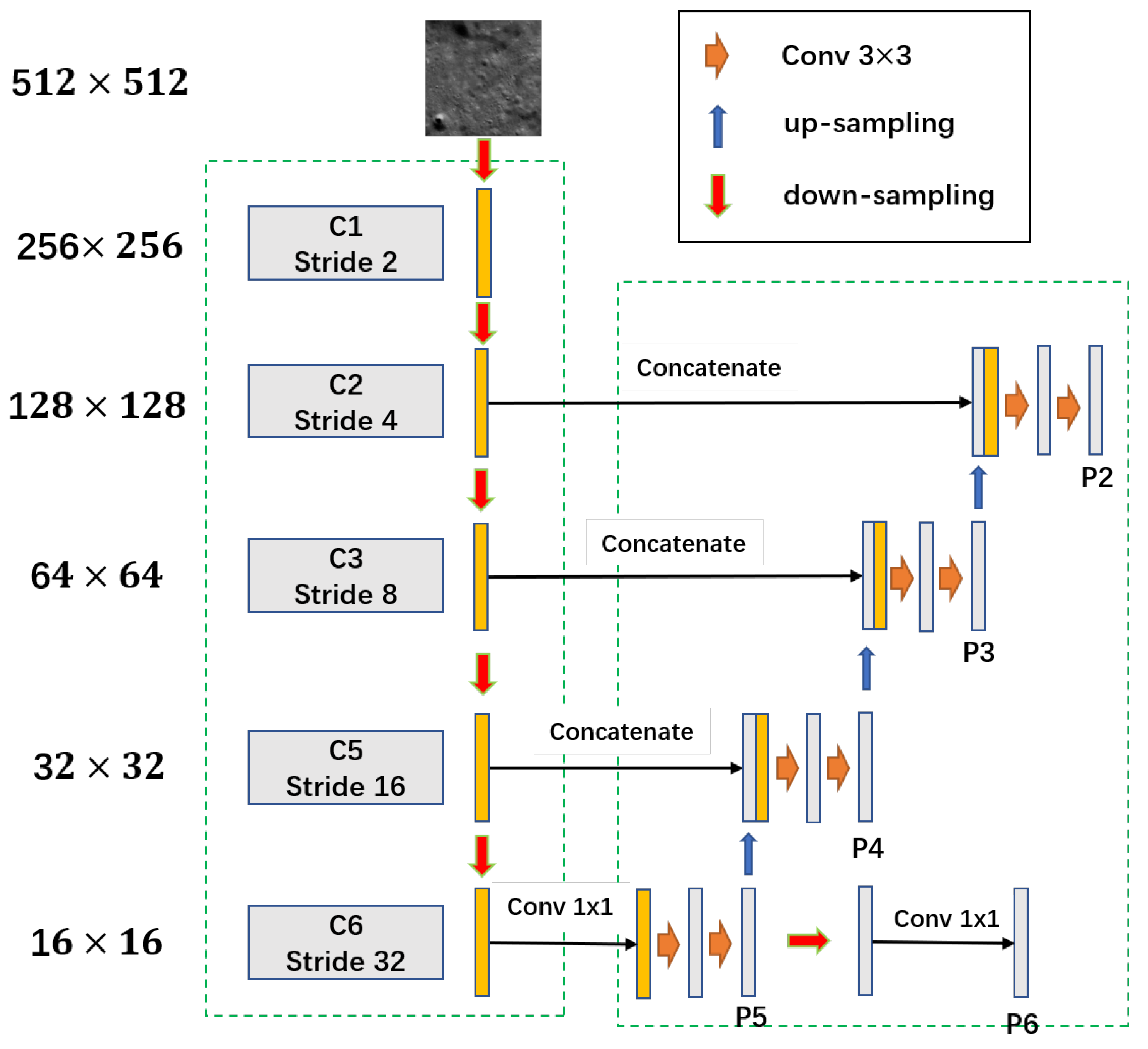

#### 3.2. Crater R-CNN

#### 3.3. Two-Teachers Self-Training with Noise (TTSN)

Algorithm 1: Two-Teachers Self-training with Noise. |

Data: Incomplete labeled images divided into $\{({x}_{1},{y}_{1}),({x}_{2},{y}_{2}),\cdots ,({x}_{\frac{n}{2}},{y}_{\frac{n}{2}})\}$and $\left\{\right({x}_{\frac{n}{2}+1},{y}_{\frac{n}{2}+1)},({x}_{\frac{n}{2}+1},{y}_{\frac{n}{2}+1)},\cdots ,({x}_{n},{y}_{n})\}$. Step 1: Train the teacher models ${\mathsf{\Theta}}_{1}^{t}$ and ${\mathsf{\Theta}}_{2}^{t}$, which minimize the cross-entropy loss and smooth L${}_{1}$ loss on incomplete labeled images: $\frac{2}{n}{\sum}_{i=1}^{\frac{n}{2}}{l}_{cross}({y}_{i},f({x}_{i},noise))+\frac{2}{n}{\sum}_{i=1}^{\frac{n}{2}}{l}_{{L}_{1}}({y}_{i},f({x}_{i},noise))$, $\frac{2}{n}{\sum}_{i=\frac{n}{2}+1}^{n}{l}_{cross}({y}_{i},f({x}_{i},noise))+\frac{2}{n}{\sum}_{i=\frac{n}{2}+1}^{n}{l}_{{L}_{1}}({y}_{i},f({x}_{i},noise))$. Step 2: Use two normal (i.e., non-noisy) teacher models to generate pseudo-labels. The new pseudo-labels with confidence level higher than $\delta $ are selected and fused with manual labels. Here, $\delta $ indicates a confidence of 0.75. $\tilde{y}={({f}_{model}\left({x}_{i}\right)>\delta )}_{new}+y$ Step 3: Train a better student model, ${\mathsf{\Theta}}_{s}$, which minimizes the cross-entropy loss and smooth L${}_{1}$ loss on labeled and pseudo-labeled images. $\frac{1}{n}{\sum}_{i=1}^{n}{l}_{cross}({\tilde{y}}_{i},f({x}_{i},noise))+\frac{1}{n}{\sum}_{i=1}^{n}{l}_{{L}_{1}}({\tilde{y}}_{i},f({x}_{i},noise))$ |

#### 3.4. Model Training

## 4. Results

#### 4.1. Crater Detection Post-Processing

#### 4.2. Accuracy Evaluation

## 5. Summary and Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Sample Availability

## Abbreviations

DEM | Digital Elevation Model |

DOM | Digital Orthophoto Map |

CE-2 | Chang’E-2 |

LRO | Lunar Reconnaissance Orbiter |

CDA | Crater Detection Algorithm |

## Appendix A

## References

- Luo, L.; Mu, L.; Wang, X.; Li, C.; Ji, W.; Zhao, J.; Cai, H. Global detection of large lunar craters based on the CE-1 digital elevation model. Front. Earth Sci.
**2013**, 7, 456–464. [Google Scholar] [CrossRef] - Wilhelms, D.E.; Mccauley, J.F.; Trask, N.J. The Geologic History of the Moon. USA Geol. Surv. Prof. Pap.
**1987**, 1384, 283–292. [Google Scholar] - Neukum, G.; Konig, B.; Arkani-Hamed, J. A study of lunar crater size-distributions. Moon
**1975**, 12, 201–229. [Google Scholar] [CrossRef] - Craddock, R.A.; Maxwell, T.A.; Howard, A.D. Crater morphometry and modification in the Sinus Sabaeus and Margaritifer Sinus regions of Mars. J. Geophys. Res. Planets
**1997**, 102, 13321–13340. [Google Scholar] [CrossRef] [Green Version] - Barlow, N.G.; Bradley, T.L. Martian craters: Correlations of ejecta and interior morphologies with diameter, latitude, and terrain. Icarus
**1990**, 87, 156–179. [Google Scholar] [CrossRef] - Downes, L.M. Lunar Orbiter State Estimation Using Neural Network-Based Crater Detection; Massachusetts Institute of Technology: Cambridge, MA, USA, 2020. [Google Scholar]
- Blagg, M.A.; Müller, K.; Wesley, W.H.; Saunder, S.A.; Franz, J. Named Lunar Formations; P. Lund, Humphries: London, UK, 1935. [Google Scholar]
- Arthur, D.W.G.; Agnieray, A.P.; Horvath, R.A.; Wood, C.A.; Chapman, C.R. The System of Lunar Craters, Quadrant I. Commun. Lunar Planet. Lab.
**1964**, 2, 71–78. [Google Scholar] - Arthur, D.W.G.; Agnieray, A.P.; Horvath, R.A.; Wood, C.A.; Chapman, C.R. The System of Lunar Craters, Quadrant II. Commun. Lunar Planet. Lab.
**1965**, 3, 1–2. [Google Scholar] - Arthur, D.W.G.; Agnieray, A.P.; Pellicori, R.A.; Wood, C.A.; Weller, T. The System of Lunar Craters, Quadrant III. Commun. Lunar Planet. Lab.
**1965**, 3, 61–62. [Google Scholar] - Arthur, D.W.G.; Pellicori, R.H.; Wood, C.A. The System of Lunar Craters, Quadrant IV. Commun. Lunar Planet. Lab.
**1966**, 5, 1–2. [Google Scholar] - Wood, C.A.; Anderson, L. New morphometric data for fresh lunar craters. In Proceedings of the Lunar and Planetary Science Conference 1978, Houston, TX, USA, 13–17 March 1978; pp. 3669–3689. [Google Scholar]
- Rodionova, Z.F.; Skobeleva, T.P.; Karlov, A.A. A Morphological Catalogue of Lunar Craters. Lunar Planet. Sci.
**1985**, 16, 706–707. [Google Scholar] - Head, J.W., 3rd; Fassett, C.I.; Kadish, S.J.; Smith, D.E.; Zuber, M.T.; Neumann, G.A.; Mazarico, E. Global distribution of large lunar craters: Implications for resurfacing and impactor populations. Science
**2010**, 329, 1504–1507. [Google Scholar] [CrossRef] - Salamuniccar, G.; Loncaric, S.; Grumpe, A.; Wohler, C. Hybrid method for crater detection based on topography reconstruction from optical images and the new LU78287GT catalogue of Lunar craters. Adv. Space Res.
**2014**, 53, 1783–1797. [Google Scholar] [CrossRef] - Öhman, T. LPI Crater Database; Lunar & Planetary Institute: Houston, TX, USA, 2015. [Google Scholar]
- Jiao, W.; Weiming, C.; Chenghu, Z. A Chang’E-1 global catalog of lunar craters. Planet. Space Sci.
**2015**, 112, 42–45. [Google Scholar] - Povilaitis, R.Z.; Robinson, M.S.; van der Bogert, C.H.; Hiesinger, H.; Meyer, H.M.; Ostrach, L.R. Crater density differences: Exploring regional resurfacing, secondary crater populations, and crater saturation equilibrium on the moon. Planet. Space Sci.
**2018**, 162, 41–51. [Google Scholar] [CrossRef] - Robbins, S.J. A New Global Database of Lunar Impact Craters >1–2 km: 1. Crater Locations and Sizes, Comparisons With Published Databases, and Global Analysis. J. Geophys. Res.
**2019**, 124, 871–892. [Google Scholar] [CrossRef] - Delatte, D.M.; Crites, S.T.; Guttenberg, N.; Yairi, T. Automated crater detection algorithms from a machine learning perspective in the convolutional neural network era. Adv. Space Res.
**2019**, 64, 1615–1628. [Google Scholar] [CrossRef] - Stepinski, T.F.; Mendenhall, M.P.; Bue, B.D. Machine cataloging of craters on Mars. Icarus
**2009**, 203, 77–87. [Google Scholar] [CrossRef] - Urbach, E.R.; Stepinski, T.F. Automatic detection of sub-km craters in high resolution planetary images. Planet. Space Sci.
**2009**, 57, 880–887. [Google Scholar] [CrossRef] - Yang, J.; Kang, Z. Bayesian network-based extraction of lunar craters from optical images and DEM data. Adv. Space Res.
**2019**, 63, 3721–3737. [Google Scholar] [CrossRef] - Machado, M.; Bandeira, L.; Pina, P. Automatic crater detection in large scale on lunar Maria. In Proceedings of the 46th Lunar and Planetary Science Conference (2015), The Woodlands, TX, USA, 16–20 March 2015. [Google Scholar]
- Di, K.; Li, W.; Yue, Z.; Sun, Y.; Liu, Y. A machine learning approach to crater detection from topographic data. Adv. Space Res.
**2014**, 54, 2419–2429. [Google Scholar] [CrossRef] - He, K.; Zhang, X.; Ren, S.; Sun, J. Deep Residual Learning for Image Recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Las Vegas, NV, USA, 27–30 June 2016; pp. 770–778. [Google Scholar]
- Ronneberger, O.; Fischer, P.; Brox, T. U-Net: Convolutional Networks for Biomedical Image Segmentation; Springer: Cham, Switzerland, 2015. [Google Scholar]
- Ari, S.; Mohamad, A.D.; Chenchong, Z.; Alan, J.; Diana, V.; Yevgeni, K.; Tamayo, D.; Menou, K. Lunar crater identification via deep learning. Icarus
**2018**, 317, 27–38. [Google Scholar] - Lee, C. Automated crater detection on mars using deep learning. Planet. Space Sci.
**2019**, 170, 16–28. [Google Scholar] [CrossRef] [Green Version] - Delatte, D.M.; Crites, S.T.; Guttenberg, N.; Tasker, E.J.; Yairi, T. Segmentation convolutional neural networks for automatic crater detection on mars. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2019**, 12, 2944–2957. [Google Scholar] [CrossRef] - Girshick, R.; Donahue, J.; Darrell, T.; Malik, J. Region-based convolutional networks for accurate object detection and segmentation. IEEE Trans. Pattern Anal. Mach. Intell.
**2015**, 38, 142–158. [Google Scholar] [CrossRef] [PubMed] - Ali-Dib, M.; Menou, K.; Jackson, A.P.; Zhu, C.; Hammond, N. Automated crater shape retrieval using weakly-supervised deep learning. Icarus
**2020**, 345, 113749. [Google Scholar] [CrossRef] [Green Version] - Li, C.; Liu, J.; Ren, X. The global image of the moon by the Chang’E-1: Data processing and lunar cartography. Sci. China Ser. Earth Sci.
**2010**, 40, 294–306. [Google Scholar] [CrossRef] - Li, C.; Liu, J.; Ren, X.; Yan, W.; Zuo, W.; Mu, L.; Zhang, H.; Su, Y.; Wen, W.; Tan, X.; et al. Lunar Global High-precision Terrain Reconstruction Based on Chang’e-2 Stereo Images. Geomat. Inf. Sci. Wuhan Univ.
**2018**, 43, 485–495. [Google Scholar] - Zeng, X.; Mu, L. Lunar Spatial Environmental Indicators Dynamically Modeling Based Exploration Area Selection. Geomat. Inf. Sci. Wuhan Univ.
**2017**, 42, 91–96. [Google Scholar] - Wieczorek, M.A.; Neumann, G.A.; Nimmo, F.; Kiefer, W.S.; Taylor, G.J.; Melosh, H.J.; Phillips, R.J.; Solomon, S.C.; Andrews-Hanna, J.C.; Asmar, S.W. The crust of the Moon as seen by GRAIL. Science
**2013**, 339, 671–675. [Google Scholar] [CrossRef] - Wood, J.A.; Dickey, J.S.; Marvin, U.B.; Powell, B.N. Lunar anorthosites and a geophysical model of the moon. In Proceedings of the Apollo 11 Lunar Science Conference, Houston, TX, USA, 5–8 January 1970; Volume 1. [Google Scholar]
- Gao, L.; Liu, J.; Ren, X.; Li, C. Image quality evaluation of panoramic camera steropair based on structural similarity. Laser Optoelectron. Prog.
**2014**, 51, 071004. [Google Scholar] - Redmon, J.; Divvala, S.; Girshick, R.; Farhadi, A. You Only Look Once: Unified, Real-Time Object Detection. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016. [Google Scholar]
- Redmon, J.; Farhadi, A. YOLO9000: Better, Faster, Stronger. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 6517–6525. [Google Scholar]
- Redmon, J.; Farhadi, A. YOLOv3: An Incremental Improvement. arXiv
**2018**, arXiv:1804.02767. [Google Scholar] - Liu, W.; Anguelov, D.; Erhan, D.; Szegedy, C.; Reed, S.; Fu, C.Y.; Berg, A.C. Ssd: Single shot multibox detector. In Proceedings of the European Conference on Computer Vision, Amsterdam, The Netherlands, 8–16 October 2016; pp. 21–37. [Google Scholar]
- Han, J.; Zhang, D.; Cheng, G.; Liu, N.; Xu, D. Advanced deep-learning techniques for salient and category-specific object detection: A survey. IEEE Signal Process. Mag.
**2018**, 35, 84–100. [Google Scholar] [CrossRef] - He, K.; Gkioxari, G.; Dollár, P.; Girshick, R. Mask R-CNN. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017. [Google Scholar]
- Ren, S.; He, K.; Girshick, R.; Sun, J. Faster R-CNN: Towards real-time object detection with region proposal networks. Adv. Neural Inf. Process. Syst.
**2015**, 28, 91–99. [Google Scholar] [CrossRef] [Green Version] - Girshick, R. Fast R-CNN. In Proceedings of the 2015 IEEE International Conference on Computer Vision (ICCV), Santiago, Chile, 7–13 December 2015; pp. 1440–1448. [Google Scholar]
- Orhan, A.E.; Pitkow, X. Skip Connections Eliminate Singularities. arXiv
**2017**, arXiv:1701.09175. [Google Scholar] - Drozdzal, M.; Vorontsov, E.; Chartrand, G.; Kadoury, S.; Pal, C. The Importance of Skip Connections in Biomedical Image Segmentation; Springer: Berlin/Heidelberg, Germany, 2016. [Google Scholar]
- Xie, Q.; Luong, M.T.; Hovy, E.; Le, Q.V. Self-Training with Noisy Student Improves Image Net Classification. In Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Seattle, WA, USA, 14–19 June 2020. [Google Scholar]

**Figure 2.**Labeled craters in four areas: (

**a**) Equatorial area (R1), with 8632 craters; (

**b**) high-latitude area (R2), with 8857 craters; (

**c**) Maria area (R3), with 14,501 craters; and (

**d**) Highland area (R4), with 6131 craters.

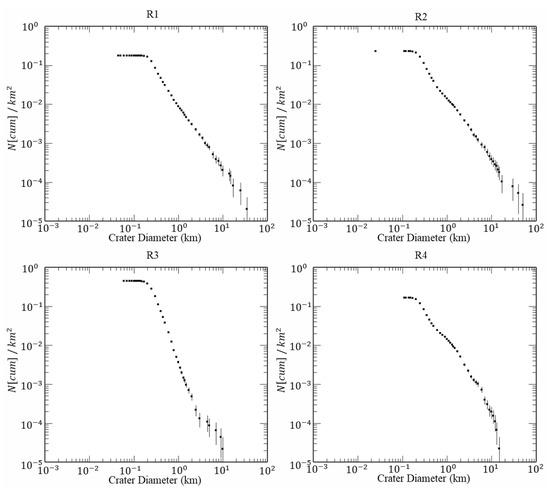

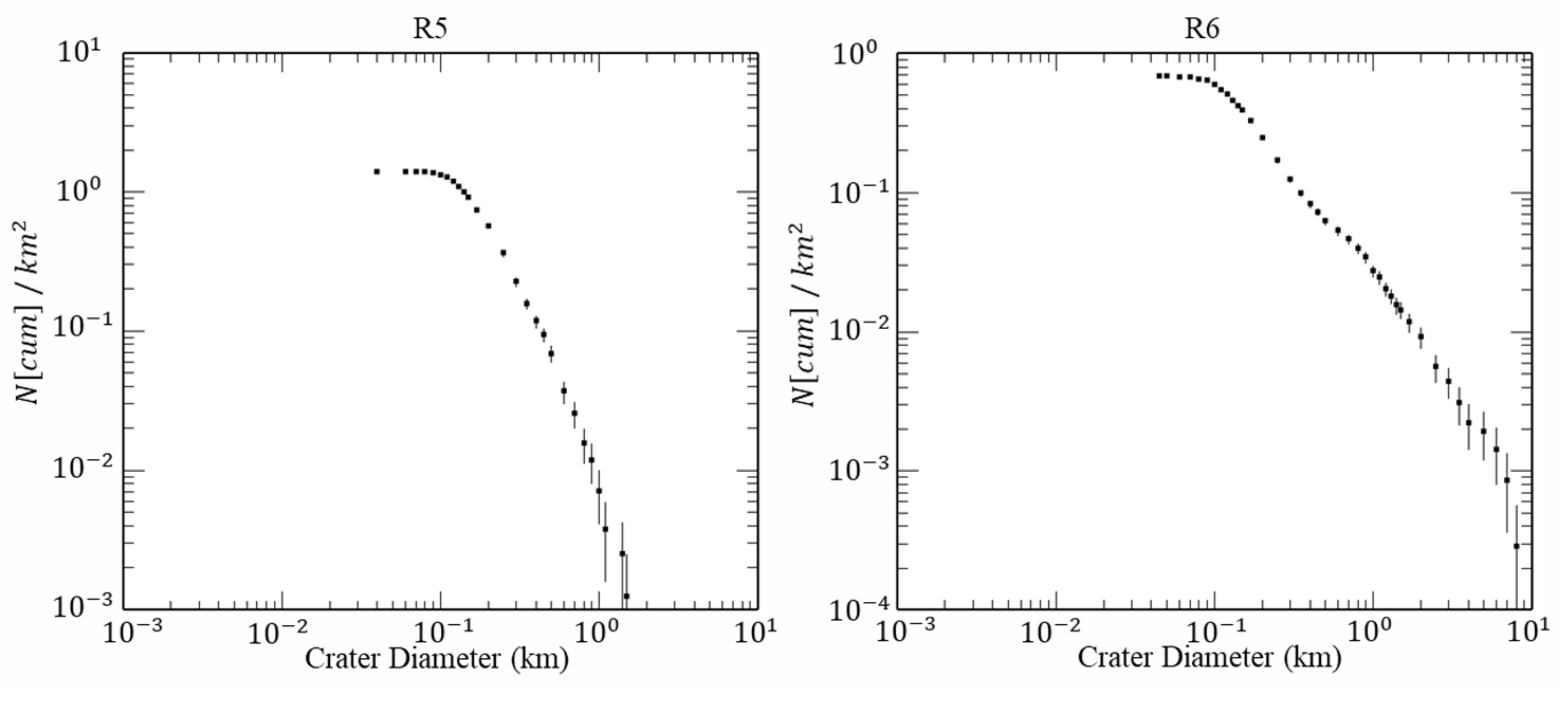

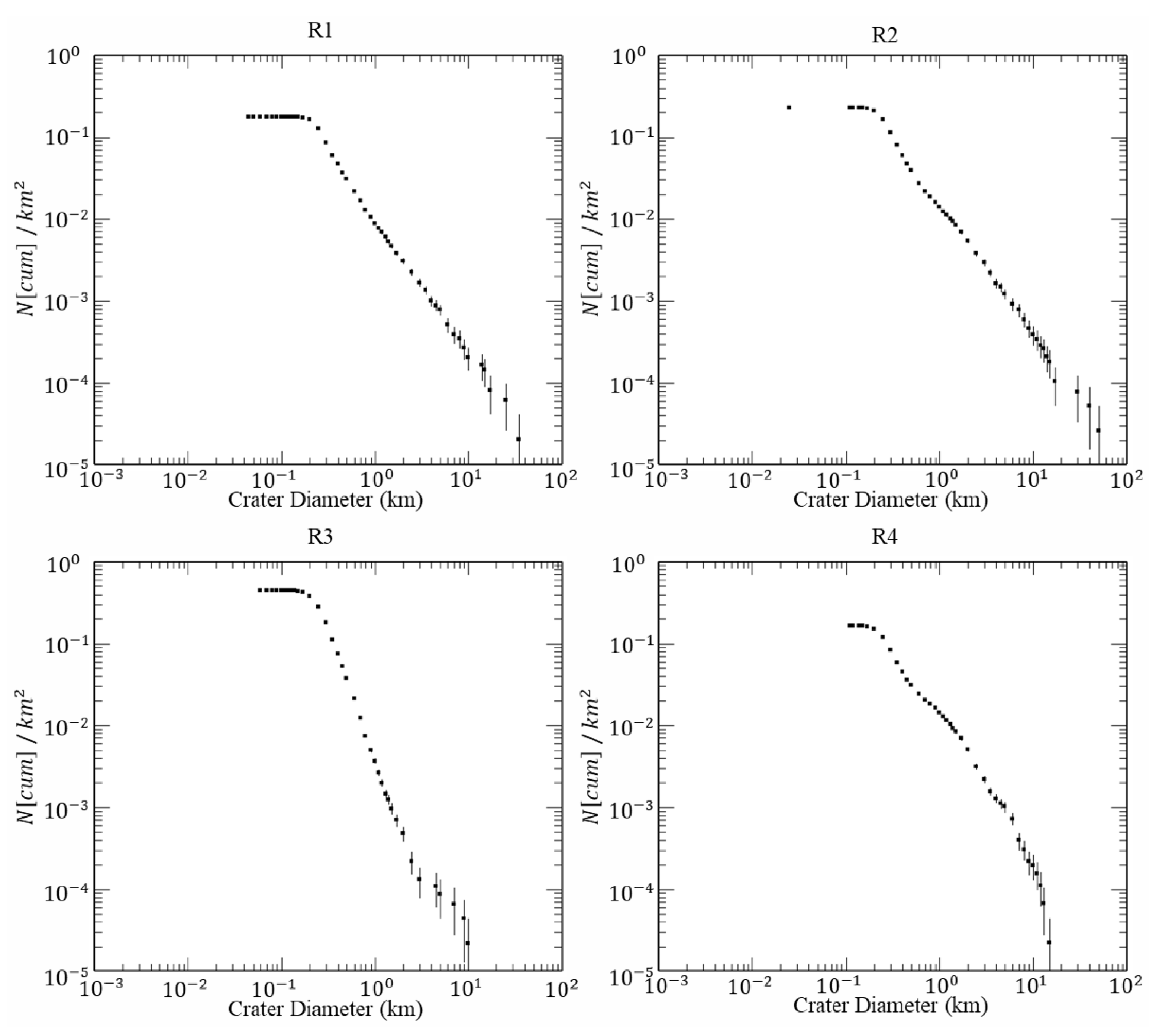

**Figure 3.**Labeled craters size-frequency distributions represented as CSFD plots, for our training areas.

**Figure 4.**Image and pseudo-color image: (

**a**) Original DOM image; and (

**b**) labeled crater samples with pseudo-color.

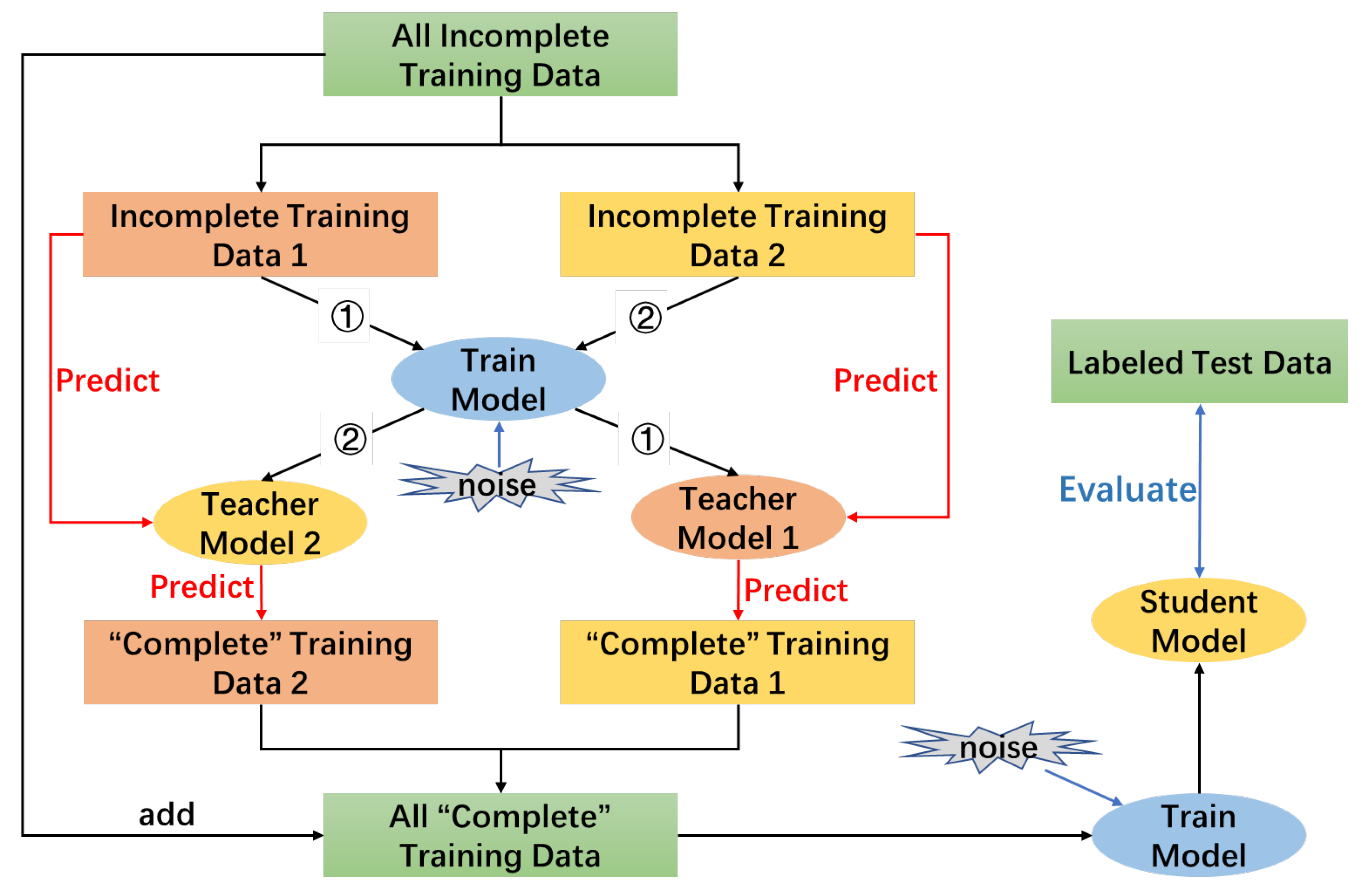

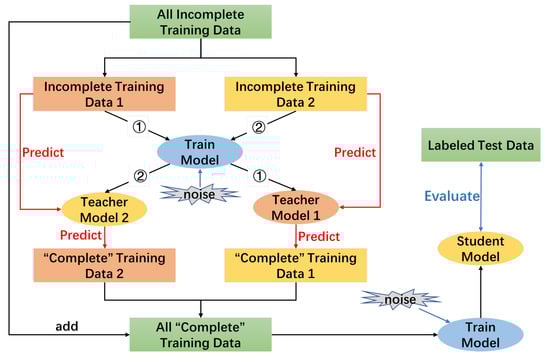

**Figure 9.**Illustration of the Two-Teachers Self-training with Noise model: Line 1 trains noisy data set 1 and obtains teacher model 1, which is then used to predict the noiseless data set 2. Line 2 trains noisy data set 2 and obtains teacher model 2, which is then used to predict noiseless data set 1. Finally, the output of the two is fused with the original labels and used to train the student model.

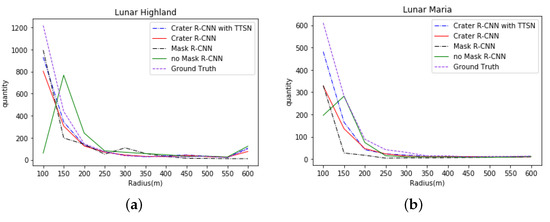

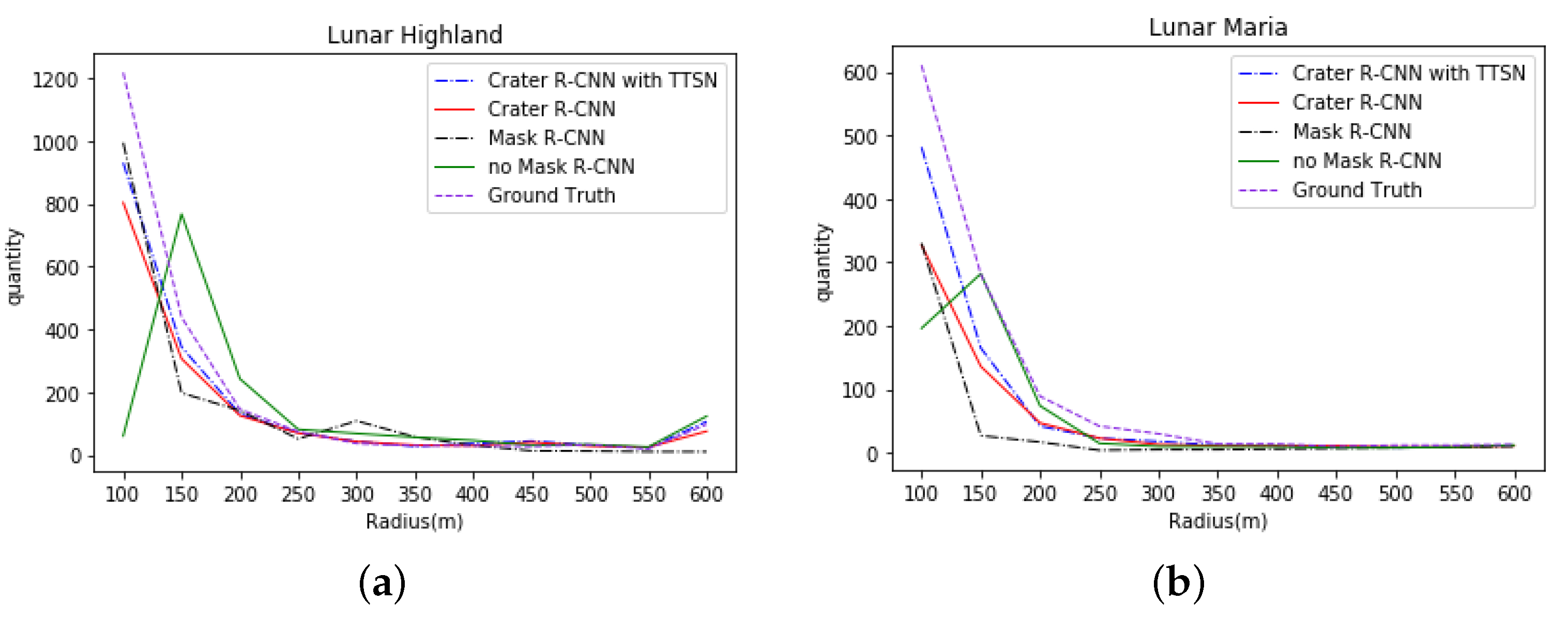

**Figure 10.**Distribution of the number of craters detected by Mask R-CNN, no-Mask R-CNN, Crater R-CNN, Crater R-CNN with TTSN, and manual labeling: (

**a**) Highland; and (

**b**) Maria.

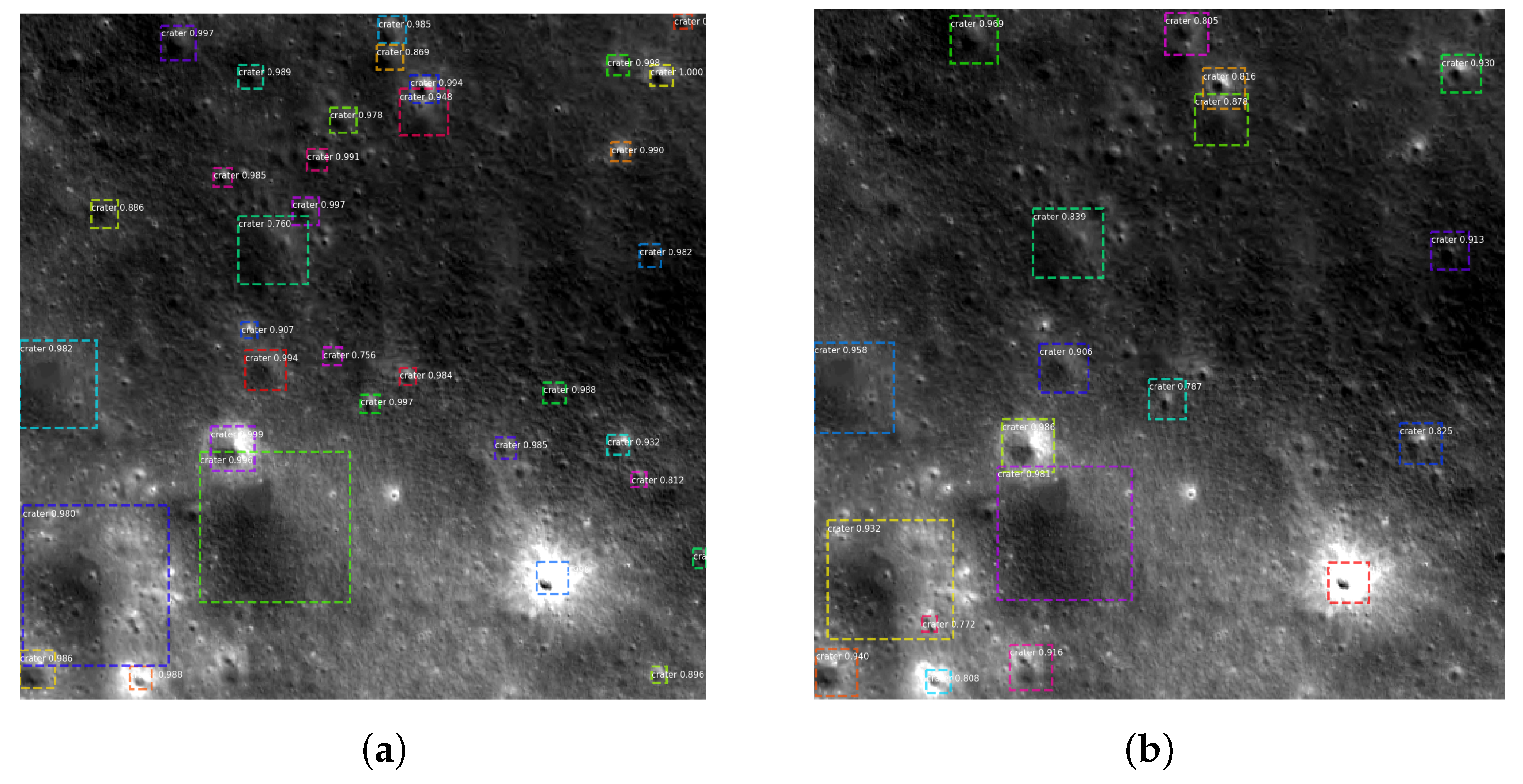

**Figure 11.**Difference between no-Mask R-CNN and Crater R-CNN with TTSN. The detection results of Crater R-CNN with TTSN (

**a**) and no-Mask R-CNN (

**b**) are shown. It can be seen that the crater size detected by no-Mask R-CNN was larger than the actual crater size, and the number of detections was also smaller than that of Crater R-CNN with TTSN.

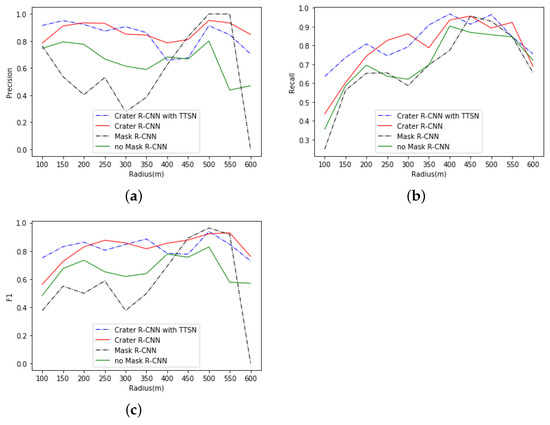

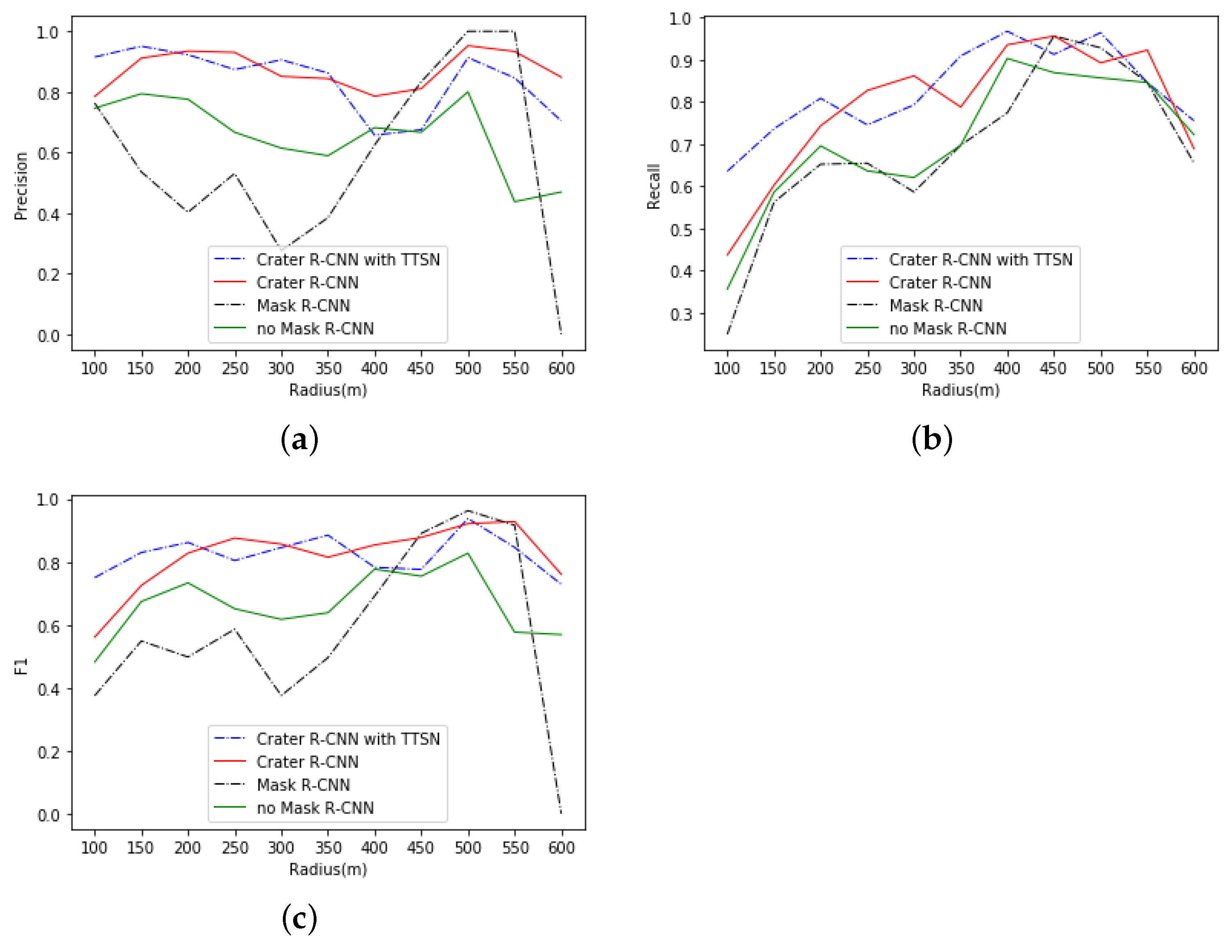

**Figure 12.**Detection accuracy under different radii: (

**a**–

**c**) show the precision, recall, and F${}_{1}$ of the four methods in whole test set, respectively.

**Figure 13.**Distribution of craters detected by Crater R-CNN with TTSN in Highland (

**a**) and Maria (

**b**) regions: Green, true positives; red, false positives; blue, true negatives.

**Figure 14.**Difference between Mask R-CNN and Crater R-CNN with TTSN: (

**a**,

**b**), Mask R-CNN in Highland and Maria; (

**c**,

**d**), Crater R-CNN with TTSN in Highland and Maria.

Year | Author | Count | Minimum Diameter (km) | Methods |
---|---|---|---|---|

1935 | Mary Blagg [7] | 677 | 50 | manual |

1965 | D. W. G. Arthur [8,9,10,11] | 17,000 | 3.5 | manual |

1978 | Wood [12] | 11,500 | 7 | manual |

1985 | Rodionova [13] | 14,923 | 10 | manual |

2010 | Head [14] | 5185 | 20 | manual |

2013 | Goran Salamunićcar [15] | 78,287 | 8 | CDA |

2015 | Öhman [16] | 8716 | 1 | manual |

2015 | Wang Jiao [17] | 106,030 | 0.5 | manual |

2018 | Povilaitis [18] | 22,746 | 5 | manual |

2018 | Robbins [19] | 1,296,879 | 1 | manual |

Region | Longitude Range (${}^{\circ}$) | Latitude Range (${}^{\circ}$) |
---|---|---|

R1 | −172.51∼−164.99 | −7.01∼0.01 |

R2 | −178.00∼−164.97 | 62.99∼70.01 |

R3 | −63.01∼−53.99 | 34.99∼39.40 |

R4 | 159.98∼170.02 | 43.44∼49.01 |

R5 | −59.44∼−58.60 | 39.41∼41.16 |

R6 | 165.34∼ 68.91 | 41.99∼43.43 |

Area | Mean | Variance | Comentropy | EOG |
---|---|---|---|---|

Maria | 113.84 | 2924.19 | 5.17 | 624.81 |

Highland | 80.96 | 2756.20 | 6.91 | 126.14 |

Type | Model | R | P | F${}_{1}$ | IoU | $\mathit{Pre}\_\mathit{R}/\mathit{R}$ |
---|---|---|---|---|---|---|

Whole | Mask R-CNN | 0.369 | 0.666 | 0.475 | 0.682 | 0.602 |

no Mask R-CNN | 0.435 | 0.743 | 0.549 | 0.76 | 1.19 | |

Crater R-CNN | 0.495 | 0.839 | 0.622 | 0.892 | 0.962 | |

Crater R-CNN with TTSN | 0.635 | 0.905 | 0.747 | 0.886 | 0.964 | |

Highland | Mask R-CNN | 0.405 | 0.617 | 0.489 | 0.695 | 0.624 |

no Mask R-CNN | 0.439 | 0.71 | 0.542 | 0.776 | 1.25 | |

Crater R-CNN | 0.525 | 0.827 | 0.642 | 0.896 | 1.01 | |

Crater R-CNN with TTSN | 0.661 | 0.914 | 0.767 | 0.895 | 1.01 | |

Maria | Mask R-CNN | 0.29 | 0.871 | 0.435 | 0.642 | 0.538 |

no Mask R-CNN | 0.428 | 0.827 | 0.564 | 0.726 | 0.105 | |

Crater R-CNN | 0.43 | 0.872 | 0.576 | 0.88 | 0.846 | |

Crater R-CNN with TTSN | 0.581 | 0.885 | 0.702 | 0.865 | 0.833 |

Type | Size | R | P | F${}_{1}$ |
---|---|---|---|---|

Whole | Radius < 100 m | 0.549 | 0.915 | 0.687 |

100 m ≤ Radius < 200 m | 0.754 | 0.944 | 0.838 | |

200 m ≤ Radius | 0.816 | 0.794 | 0.805 | |

Highland | Radius < 100 m | 0.581 | 0.938 | 0.718 |

100 m ≤ Radius < 200 m | 0.779 | 0.96 | 0.86 | |

200 m ≤ Radius | 0.832 | 0.774 | 0.802 | |

Maria | Radius < 100 m | 0.476 | 0.871 | 0.615 |

100 m ≤ Radius < 200 m | 0.714 | 0.907 | 0.799 | |

200 m ≤ Radius | 0.768 | 0.922 | 0.838 |
