# Automatic Road Marking Extraction and Vectorization from Vehicle-Borne Laser Scanning Data

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Pavement Extraction

#### 2.2. Road Marking Extraction

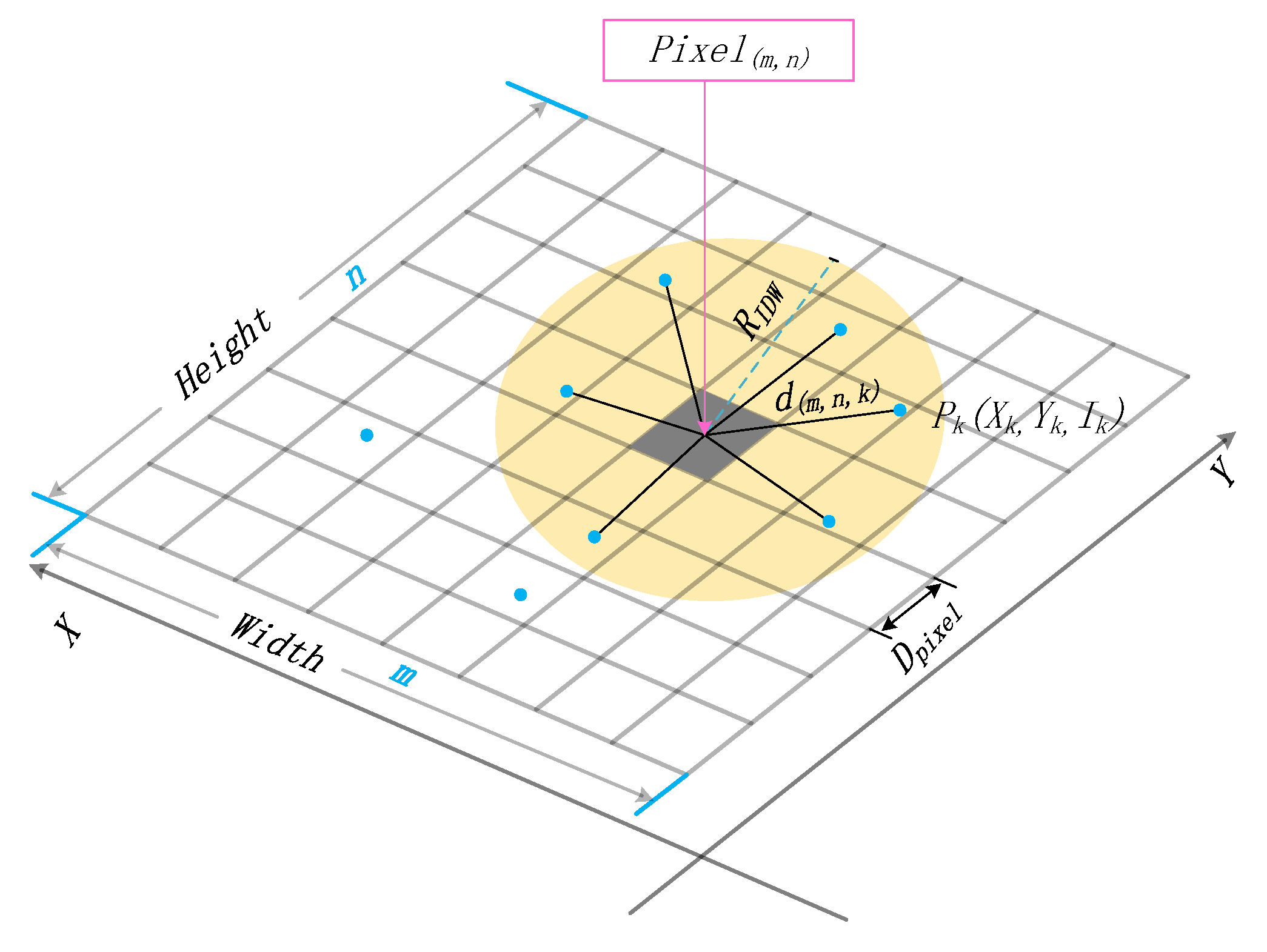

#### 2.2.1. Rasterization of Pavement Point Clouds

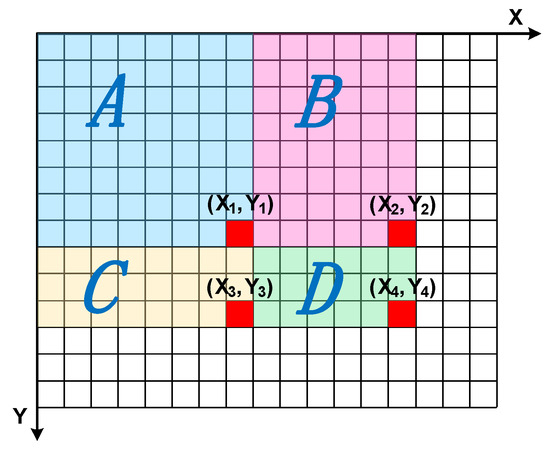

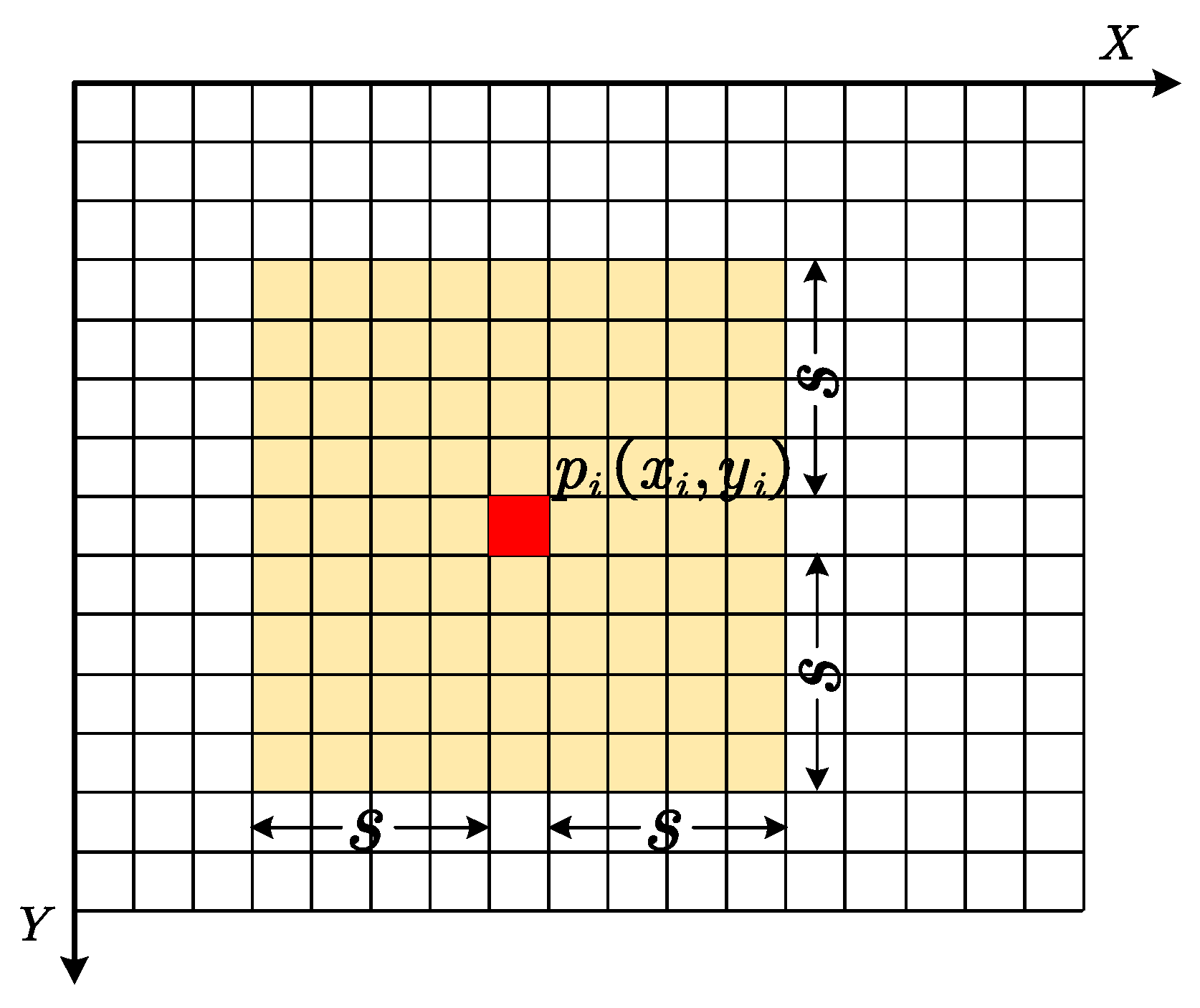

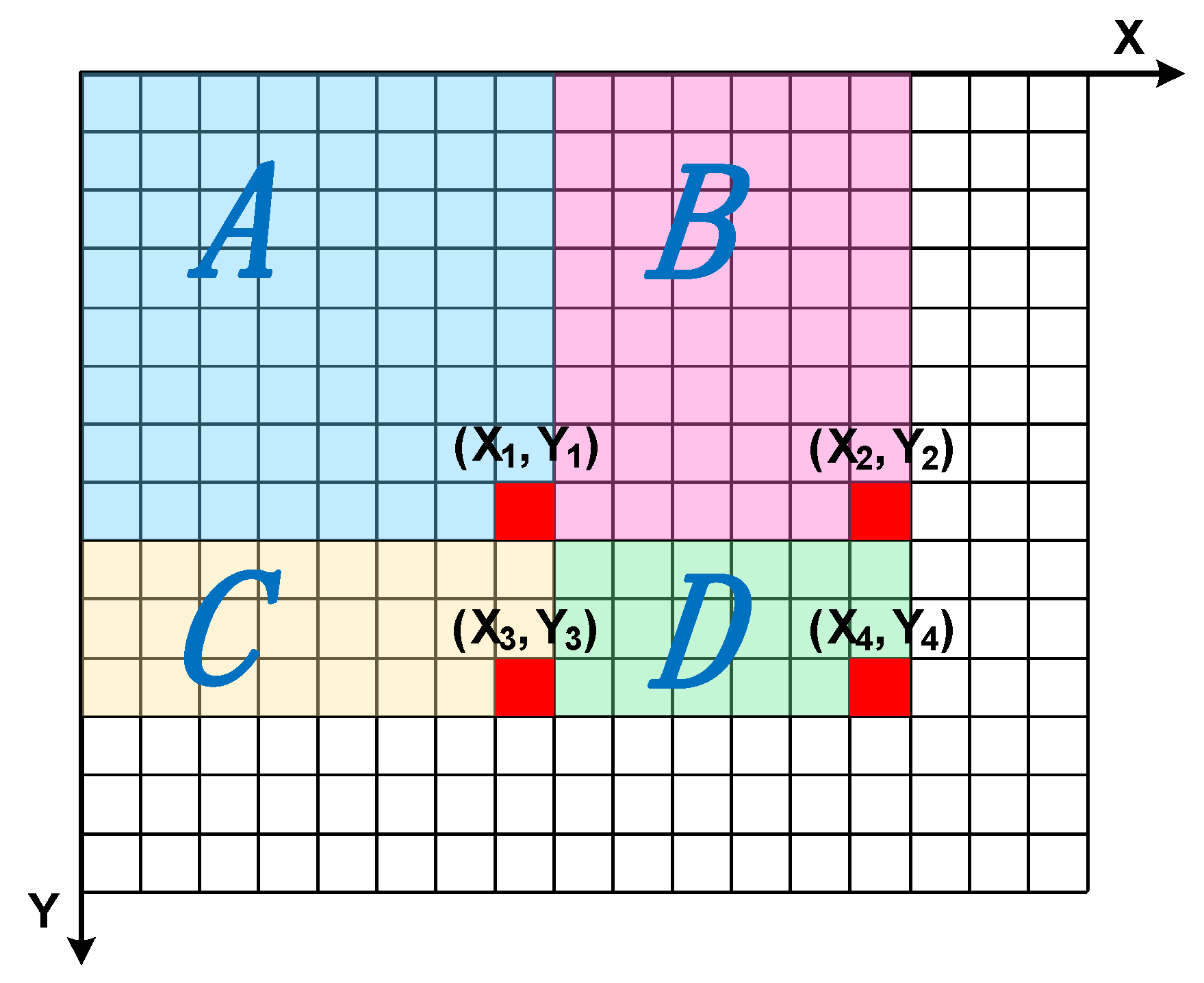

#### 2.2.2. Adaptive Threshold Segmentation

#### 2.2.3. Euclidean Clustering of Road Marking Point Clouds

- (1)
- Starting from any point ${P}_{i}$ in point set $P$, add ${P}_{i}$ to the point set $C$.
- (2)
- (3)
- Repeat step (2) with each newly added point in point set $C$ as the center, until no new points are added to point set $C$, as shown in Figure 7b,c.
- (4)
- Start a new clustering by repeating steps (1)–(3) from the remaining points in P until all points are handled, as shown in Figure 7d.

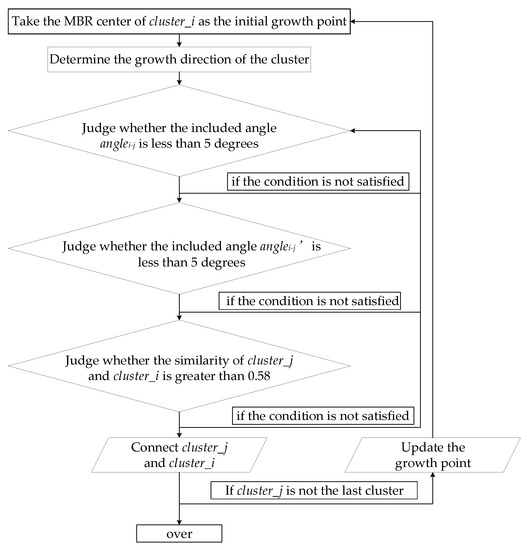

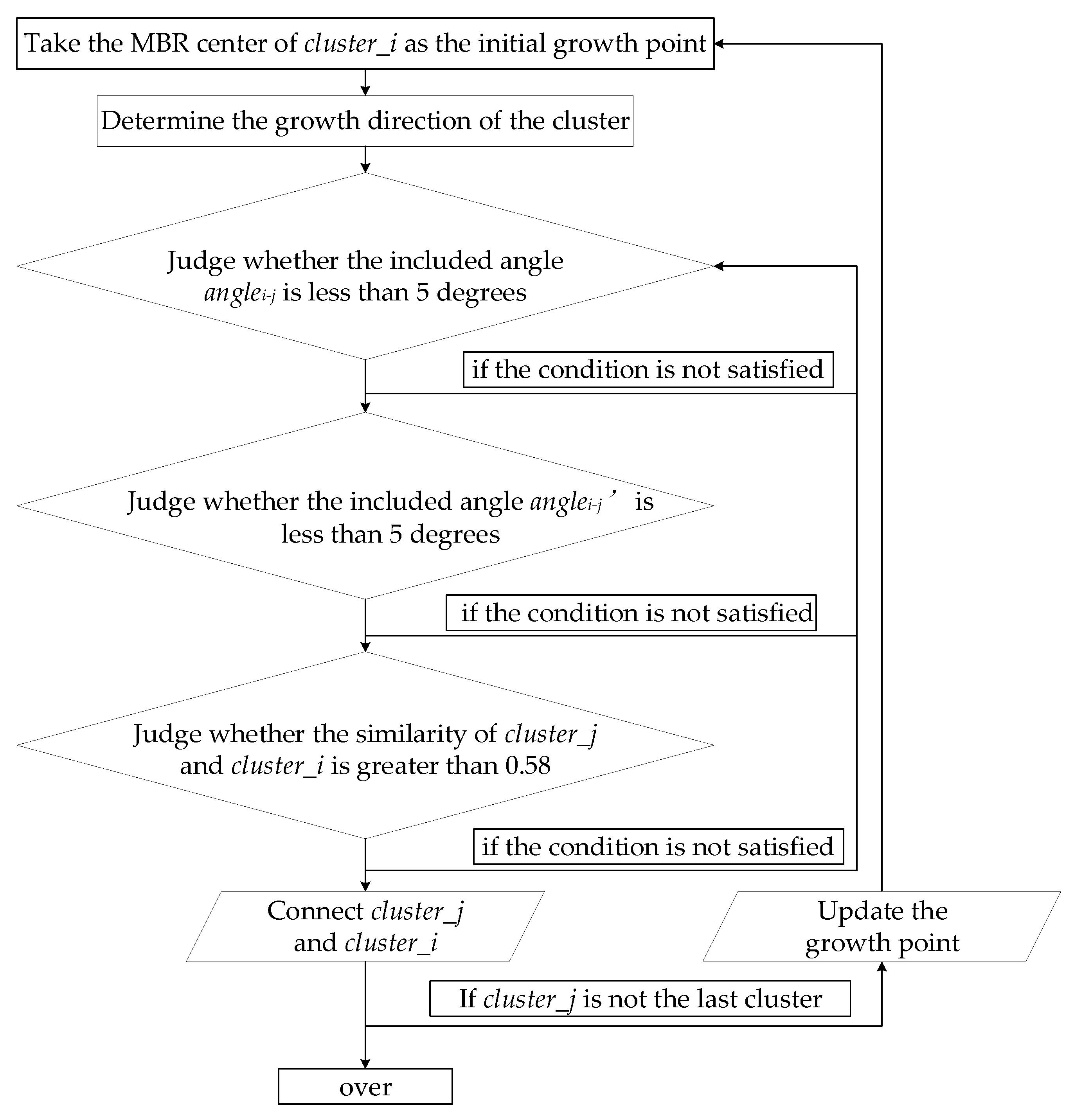

#### 2.3. Road Markings Vectorization

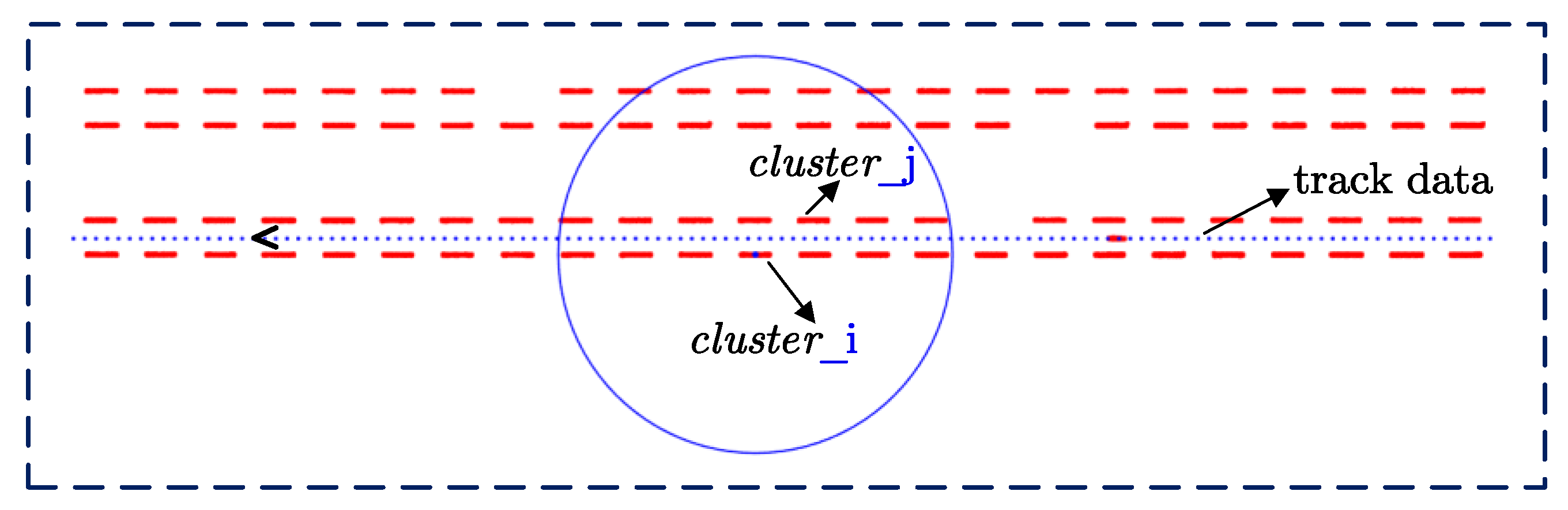

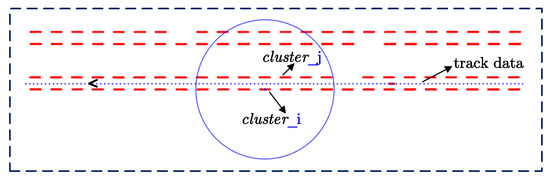

- Determination of the growth point. Suppose the total number of road marking clusters is n. Starting from the arbitrary cluster cluster_i(i∈[1,n]). If the distance between the MBR center of cluster_j(j∈[1,n], j≠i) and the MBR center of cluster_i is less than r (r = 20 m), cluster_j will be put into set clusterSet_r, as shown in Figure 8.

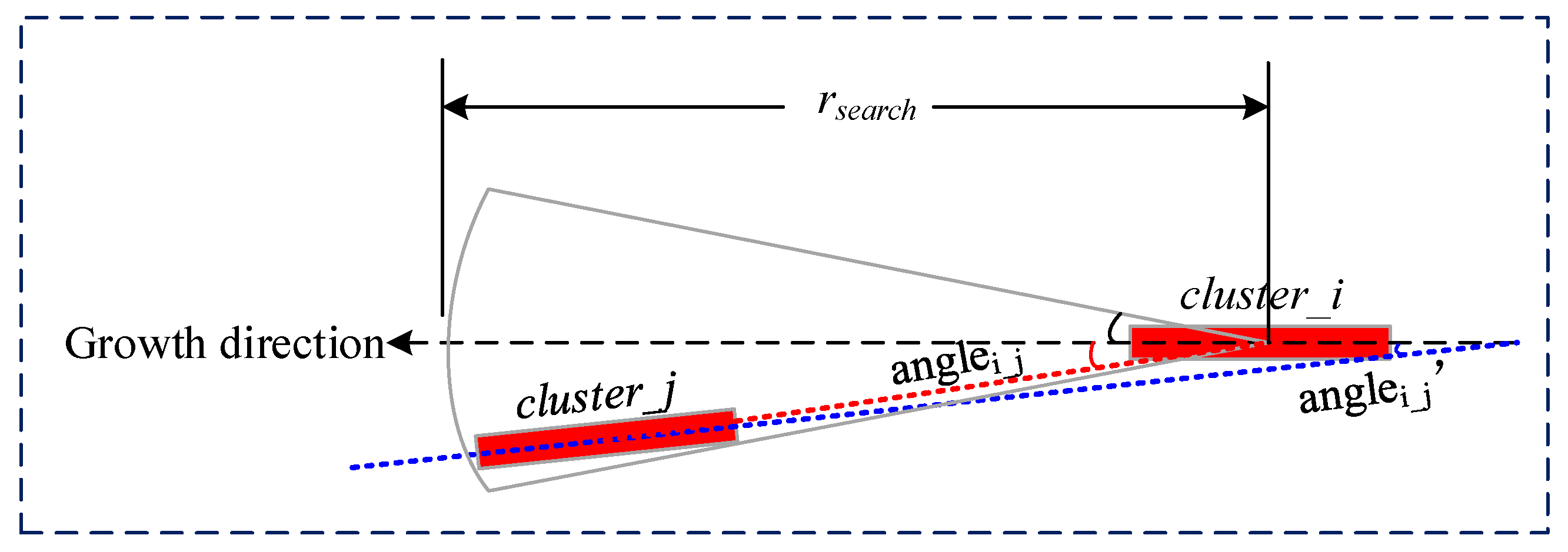

- Determination of the direction of growth. The direction of growth is determined by the direction of the vehicle trajectory, as shown in Figure 9.
- Firstly, calculate the coordinate azimuth ${A}_{i\_j}$ between the MBR center of cluster_i and the MBR center of the clusters concluded in the set clusterSet_r. Secondly, calculate the difference $angl{e}_{i\_j}$ (see Figure 9) between the azimuth ${A}_{i\_j}$ and the azimuth of cluster_i. The clusters that satisfy Equation (22) will be put into set clusterSet_A. The parameter ${A}_{search}$ in this paper is set as 5°.$$angl{e}_{i\_j}<{A}_{search}$$$$angl{e}_{i\_j}{}^{\prime}<A$$
- Calculate the similarity between cluster_i and the cluster concluded in the set clusterSet_A’ according to Equation (21). The clusters that satisfy Equation (24) are named as clusterSet_S
_{i}. The parameter S_{i}in this paper is set as 0.58.$$Similarity>{S}_{i}$$ - If the set clusterSet_S
_{i}does not exist, the line segment growth will be over. Set the cluster_i to be any unconnected cluster and start a new line segment growth. Repeat steps $i\u2013\mathrm{iii}$ until all of the road marking clusters are connected. - In set clusterSet_S
_{i}, find out the cluster nearest to cluster_i, and mark it as cluster_j. cluster_j is the next cluster to be connected. - Update the growth point to the MBR center of cluster_j and repeat the above steps until all of the clusters have been processed.

## 3. Experimental Data and Scheme

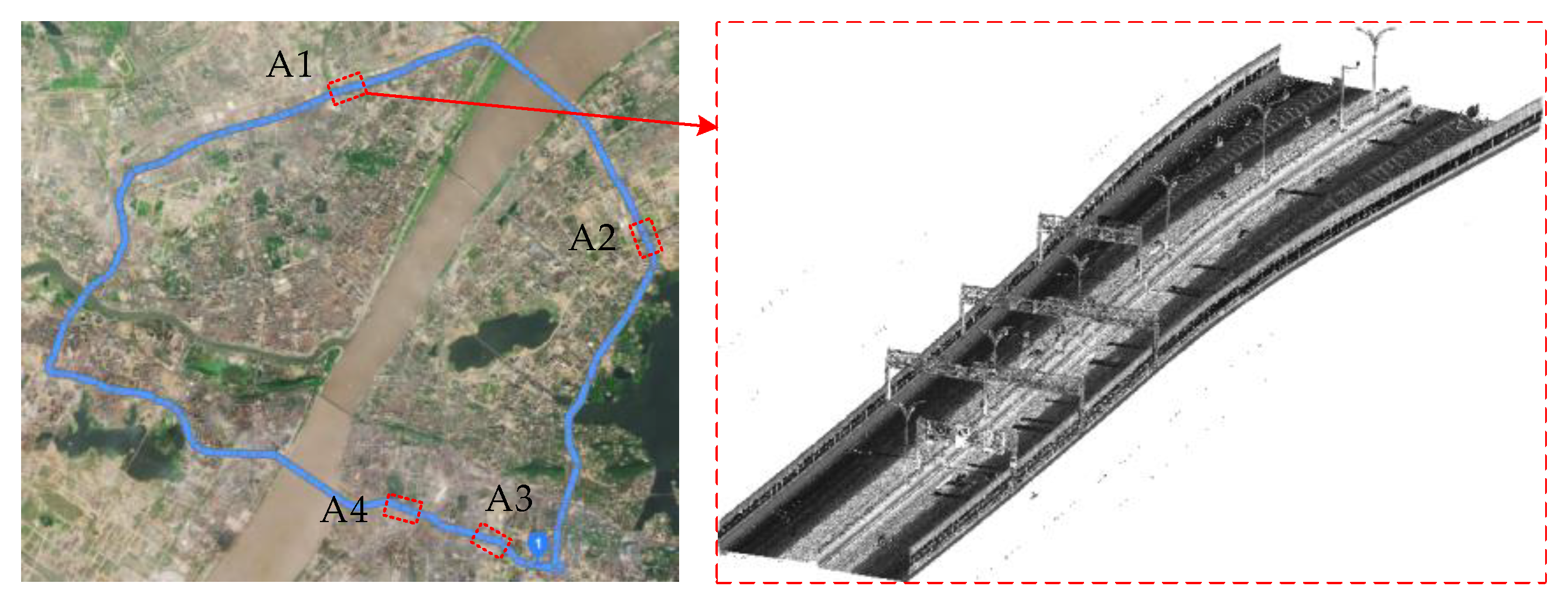

#### 3.1. Experimental Data

#### 3.2. Experimental Scheme

## 4. Experimental Results

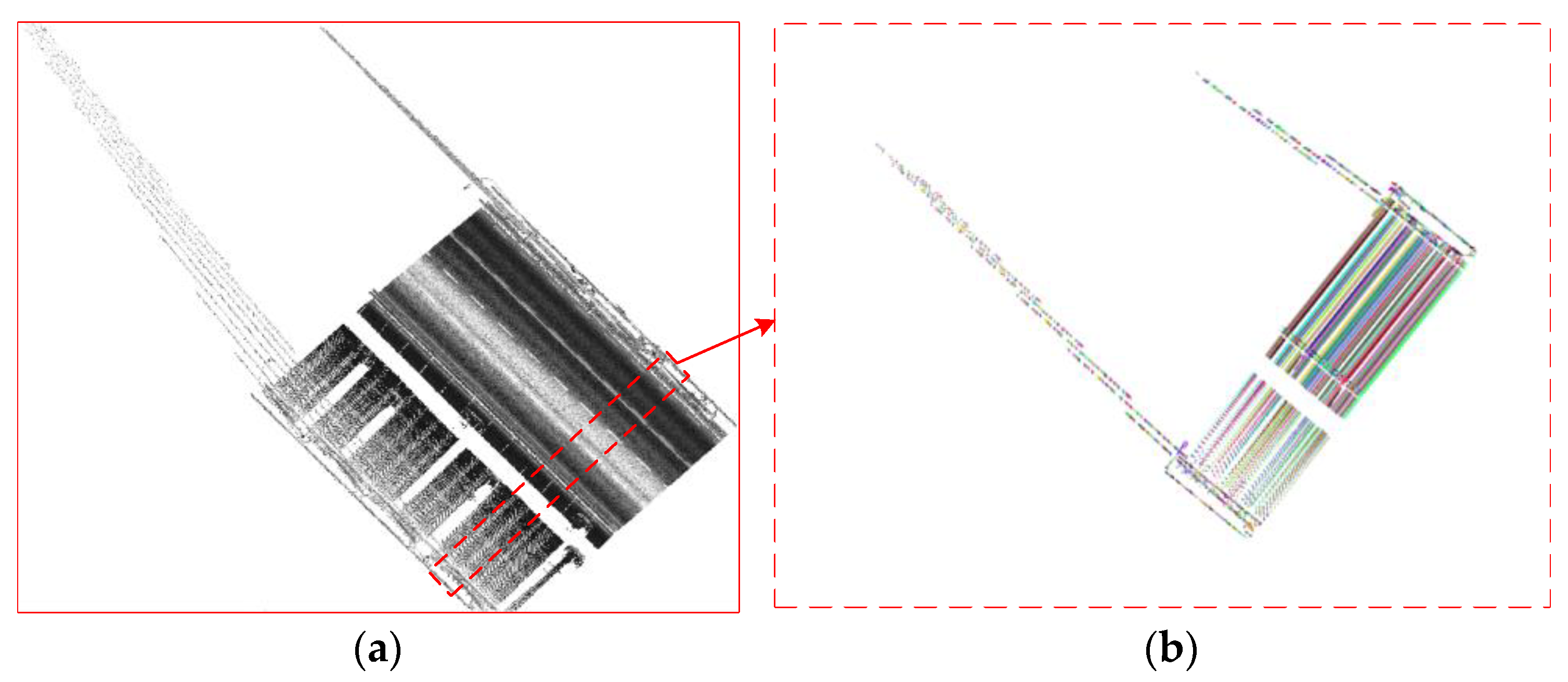

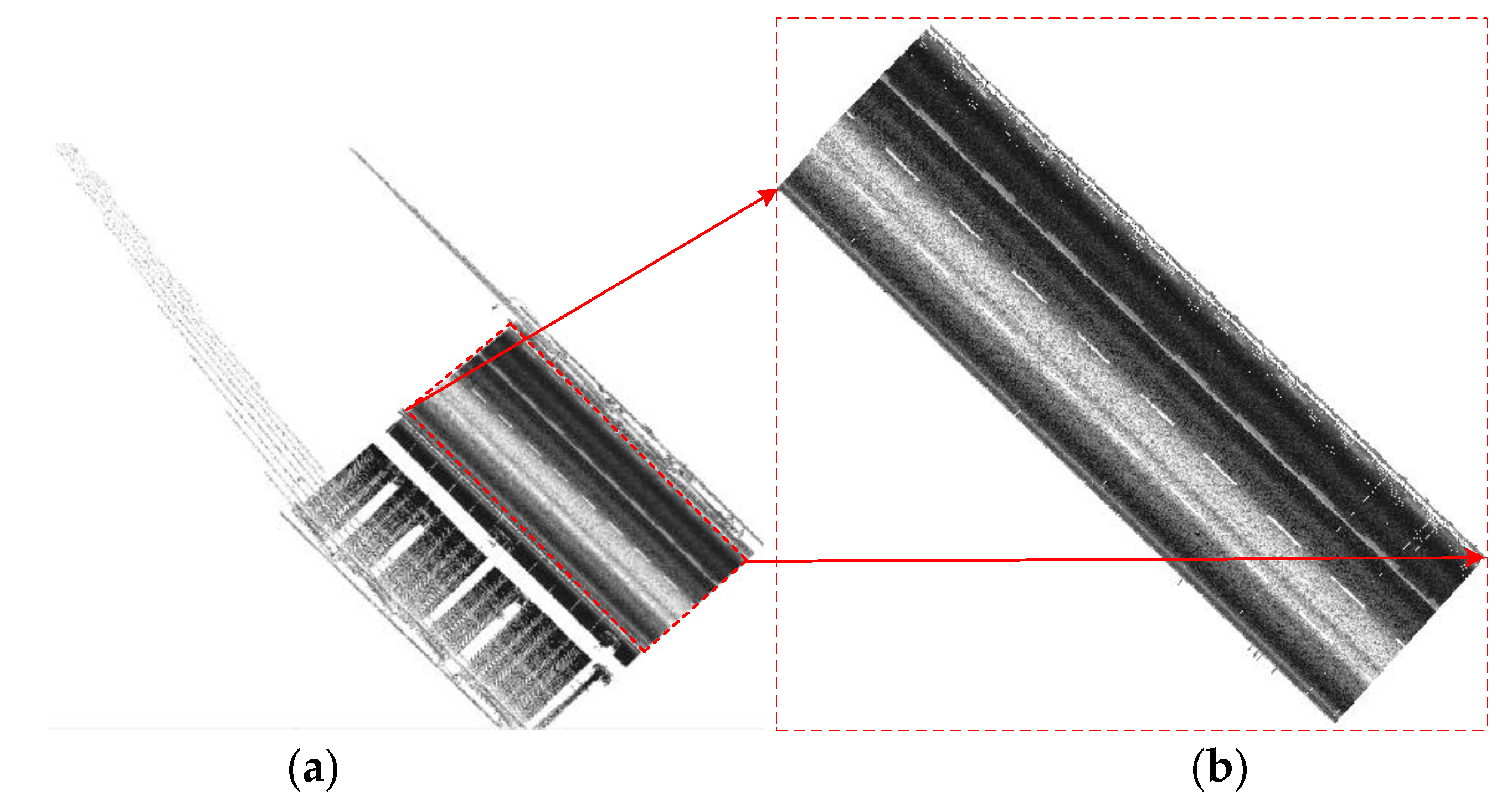

#### 4.1. Pavement Extraction

#### 4.2. Rasterization of Pavement Point Clouds

#### 4.3. Binarization of Pavement Image

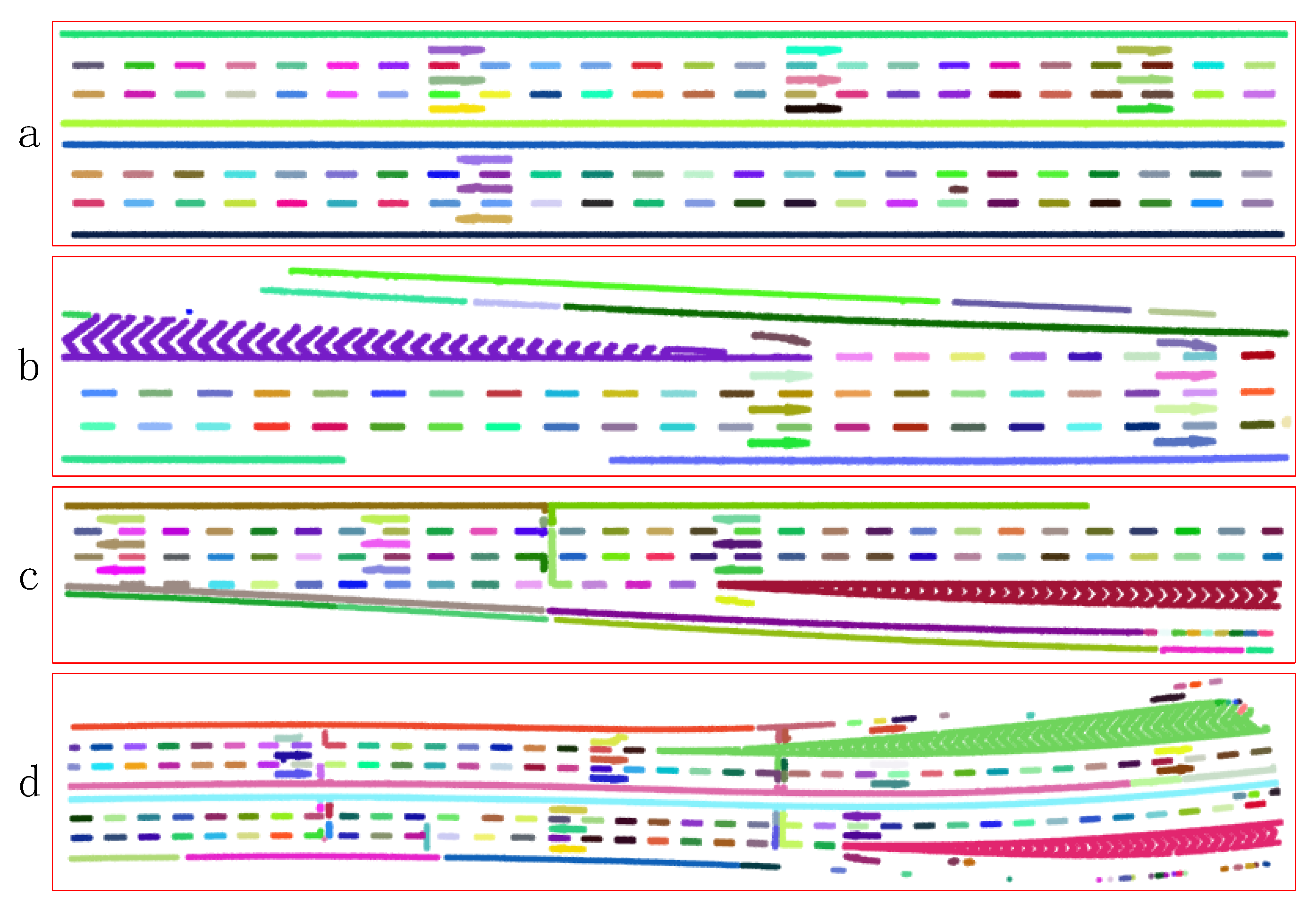

#### 4.4. Euclidean Clustering

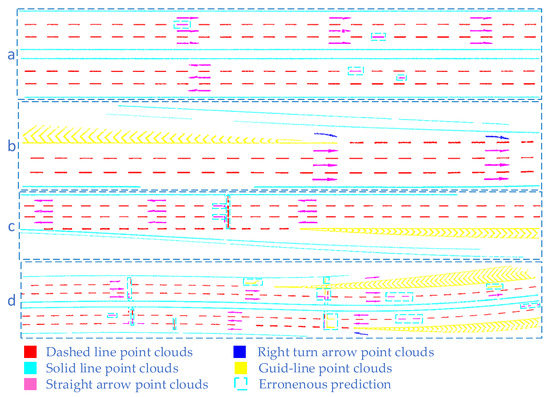

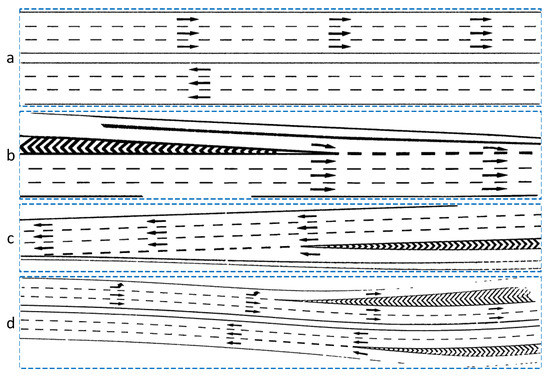

#### 4.5. Recognition of Road Markings

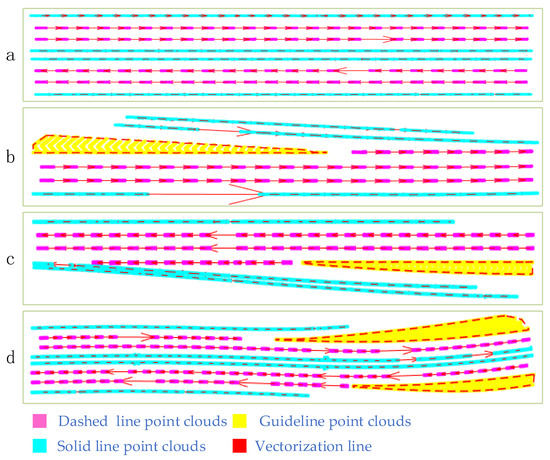

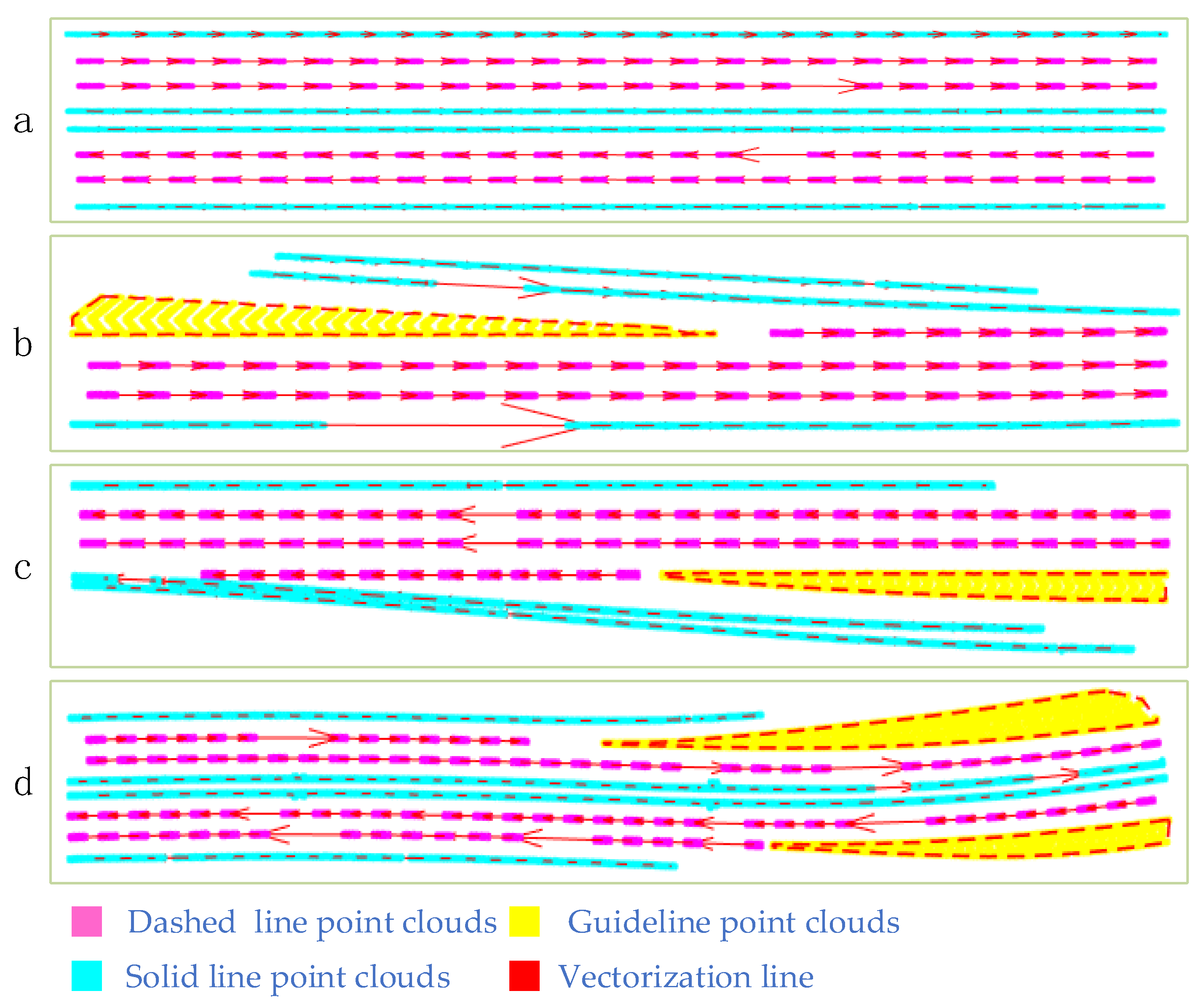

#### 4.6. Vectorization of Road Markings

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Cheng, Y.; Patel, A.; Wen, C.; Bullock, D.; Habib, A. Intensity Thresholding and Deep Learning Based Lane Marking Extraction and Lane Width Estimation from Mobile Light Detection and Ranging (LiDAR) Point Clouds. Remote Sens.
**2020**, 12, 1379. [Google Scholar] [CrossRef] - Li, Z.; Cai, Z.; Xie, J.; Ren, X. Road markings extraction based on threshold segmentation. In Proceedings of the IEEE 2012 9th International Conference on Fuzzy System and Knowledge Discovery (FSKD)—Chongqing, Sichuan, Chian, 29–31 May 2012; pp. 1924–1928. [Google Scholar]
- Chen, T.; Chen, Z.; Shi, Q.; Huang, X. Road marking detection and classification using machine learning algorithms. In Proceedings of the 2015 IEEE Intelligent Vehicles Symposium (IV), Seoul, Korea, 28 June–1 July 2015; pp. 617–621. [Google Scholar]
- Rebut, J.; Bensrhair, A.; Toulminet, G. Image segmentation and pattern recognition for road marking analysis. In Proceedings of the 2004 IEEE International Symposium on Industrial Electronics, Ajaccio, France, 4–7 May 2004; Volume 1, pp. 727–732. [Google Scholar]
- Jung, S.; Youn, J.; Sull, S. Efficient lane detection based on spatiotemporal images. IEEE Trans. Intell. Transp. Syst.
**2015**, 17, 289–295. [Google Scholar] [CrossRef] - Hernández, D.C.; Seo, D.; Jo, K.-H. Robust lane marking detection based on multi-feature fusion. In Proceedings of the 2016 9th International Conference on Human System Interactions (HSI), Portsmouth, UK, 6–8 July 2016; pp. 423–428. [Google Scholar]
- Azimi, S.M.; Fischer, P.; Körner, M.; Reinartz, P. Aerial LaneNet: Lane-marking semantic segmentation in aerial imagery using wavelet-enhanced cost-sensitive symmetric fully convolutional neural networks. IEEE Trans. Geosci. Remote Sens.
**2018**, 57, 2920–2938. [Google Scholar] [CrossRef] [Green Version] - Yan, L.; Liu, H.; Tan, J.; Li, Z.; Xie, H.; Chen, C. Scan line based road marking extraction from mobile LiDAR point clouds. Sensors
**2016**, 16, 903. [Google Scholar] [CrossRef] [PubMed] - Guan, H.; Li, J.; Yu, Y.; Ji, Z.; Wang, C. Using mobile LiDAR data for rapidly updating road markings. IEEE Trans. Intell. Transp. Syst.
**2015**, 16, 2457–2466. [Google Scholar] [CrossRef] - Yu, Y.; Li, J.; Guan, H.; Jia, F.; Cheng, W. Learning hierarchical features for automated extraction of road markings from 3-D mobile LiDAR point clouds. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2015**, 8, 709–726. [Google Scholar] [CrossRef] - Wang, H.; Luo, H.; Wen, C.; Cheng, J.; Li, P. Road Boundaries Detection Based on Local Normal Saliency from Mobile Laser Scanning Data. IEEE Geosci. Remote Sens. Lett.
**2015**, 12, 2085–2089. [Google Scholar] [CrossRef] - Guan, H.; Li, J.; Yu, Y.; Wang, C.; Chapman, M.; Yang, B. Using mobile laser scanning data for automated extraction of road markings. ISPRS J. Photogramm. Remote Sens.
**2014**, 87, 93–107. [Google Scholar] [CrossRef] - Yang, B.; Fang, L.; Li, Q.; Li, J. Automated extraction of road markings from mobile LiDAR point clouds. Photogramm. Eng. Remote Sens.
**2012**, 78, 331–338. [Google Scholar] [CrossRef] - Ma, L.; Li, Y.; Li, J.; Yu, Y.; Junior, J.M.; Gonçalves, W.N.; Chapman, M.A. Capsule-based networks for road marking extraction and classification from mobile LiDAR point clouds. IEEE Trans. Intell. Transp. Syst.
**2021**, 22, 1981–1995. [Google Scholar] [CrossRef] - Wellner, P.D. Adaptive Thresholding for the DigitalDesk. Xerox
**1993**. [Google Scholar] - Bradley, D.; Roth, G. Adaptive thresholding using the integral image. J. Graph. Tools
**2007**, 12, 13–21. [Google Scholar] [CrossRef] - Yao, J.; Cao, X.; Zhao, Q.; Meng, D.; Xu, Z. Robust subspace clustering via penalized mixture of Gaussians. Neurocomputing
**2018**, 278, 4–11. [Google Scholar] [CrossRef] - Yao, L.; Chen, Q.; Qin, C.; Wu, H.; Zhang, S. Automatic Extraction of Road Markings from Mobile Laser-Point Cloud Using Intensity Data. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2018**, XLII-3, 2113–2119. [Google Scholar] [CrossRef] [Green Version] - Qi, C.; Yi, L.; Su, H.; Guibas, L. PointNet++: Deep Hierarchical Feature Learning on Point Sets in a Metric Space. arXiv
**2017**, arXiv:1706.02413. [Google Scholar] - Li, Y.; Bu, R.; Sun, M.; Wu, W.; Di, X.; Chen, B. PointCNN—Convolution On X-Transformed Points. Adv. Neural Inf. Process. Syst.
**2018**, 31, 828–838. [Google Scholar] - Thomas, H.; Qi, C.; Deschaud, J.; Marcotegui, B.; Goulette, F.; Guibas, L. KPConv-Flexible and Deformable Convolution for Point Clouds. In Proceedings of the IEEE/CVF International Conference on Computer Vision, Seoul, Korea, 27 October–2 November 2019; pp. 6410–6419. [Google Scholar]
- Edelsbrunner, H.; Kirkpatrick, D.; Seidel, R. On the shape of a set of points in the plane. IEEE Trans. Inf. Theory
**1983**, 29, 551–559. [Google Scholar] [CrossRef] [Green Version] - Cheng, M.; Zhang, H.; Wang, C.; Li, J. Extraction and Classification of Road Markings Using Mobile Laser Scanning Point Clouds. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2017**, 10, 1182–1196. [Google Scholar] [CrossRef]

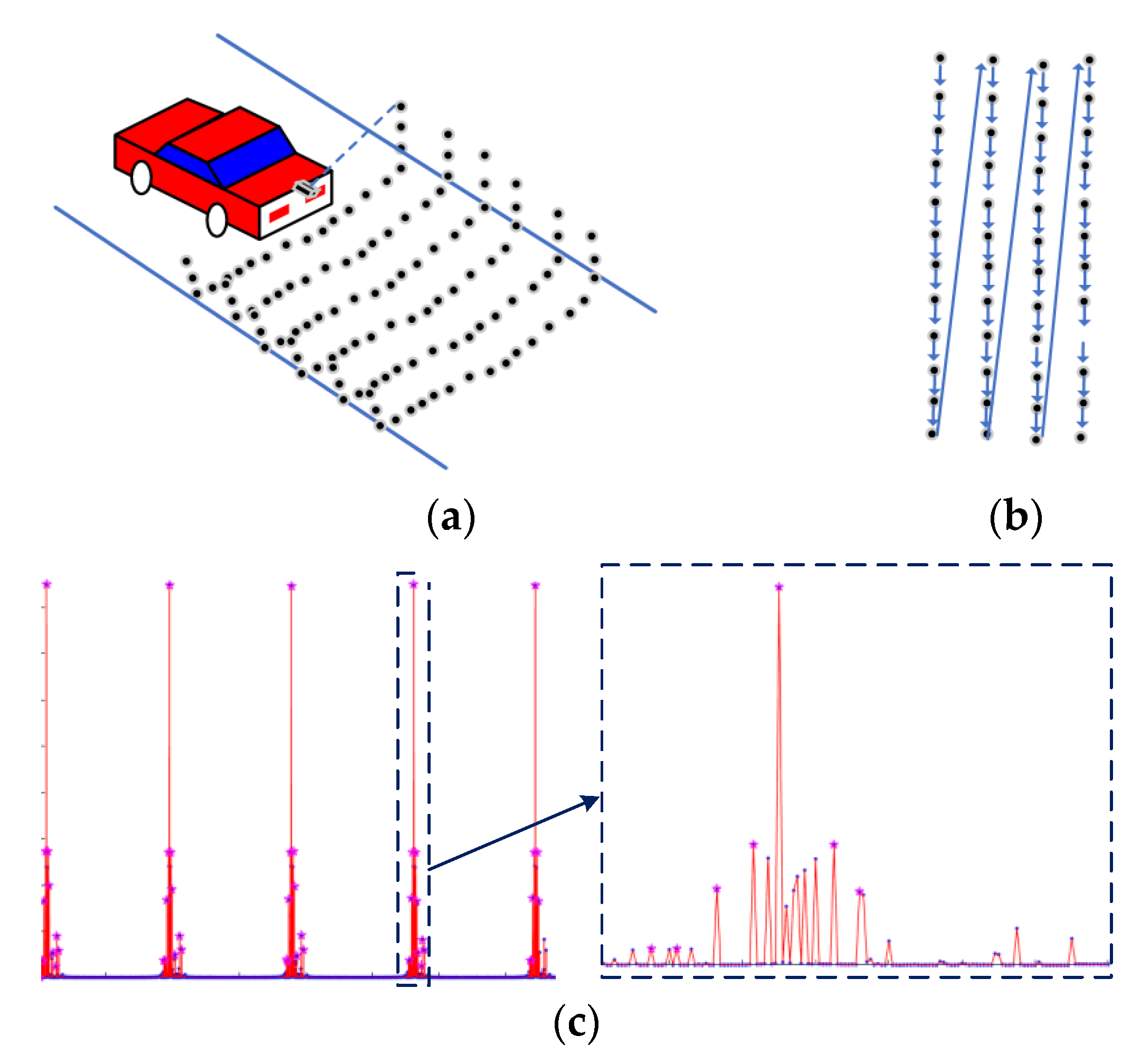

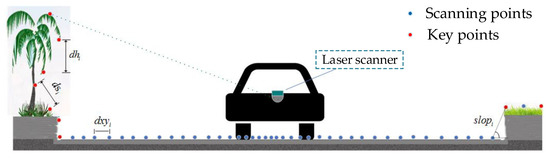

**Figure 2.**(

**a**) Scan line; (

**b**) Distance between scanning points; (

**c**) Variation of distance between scanning points.

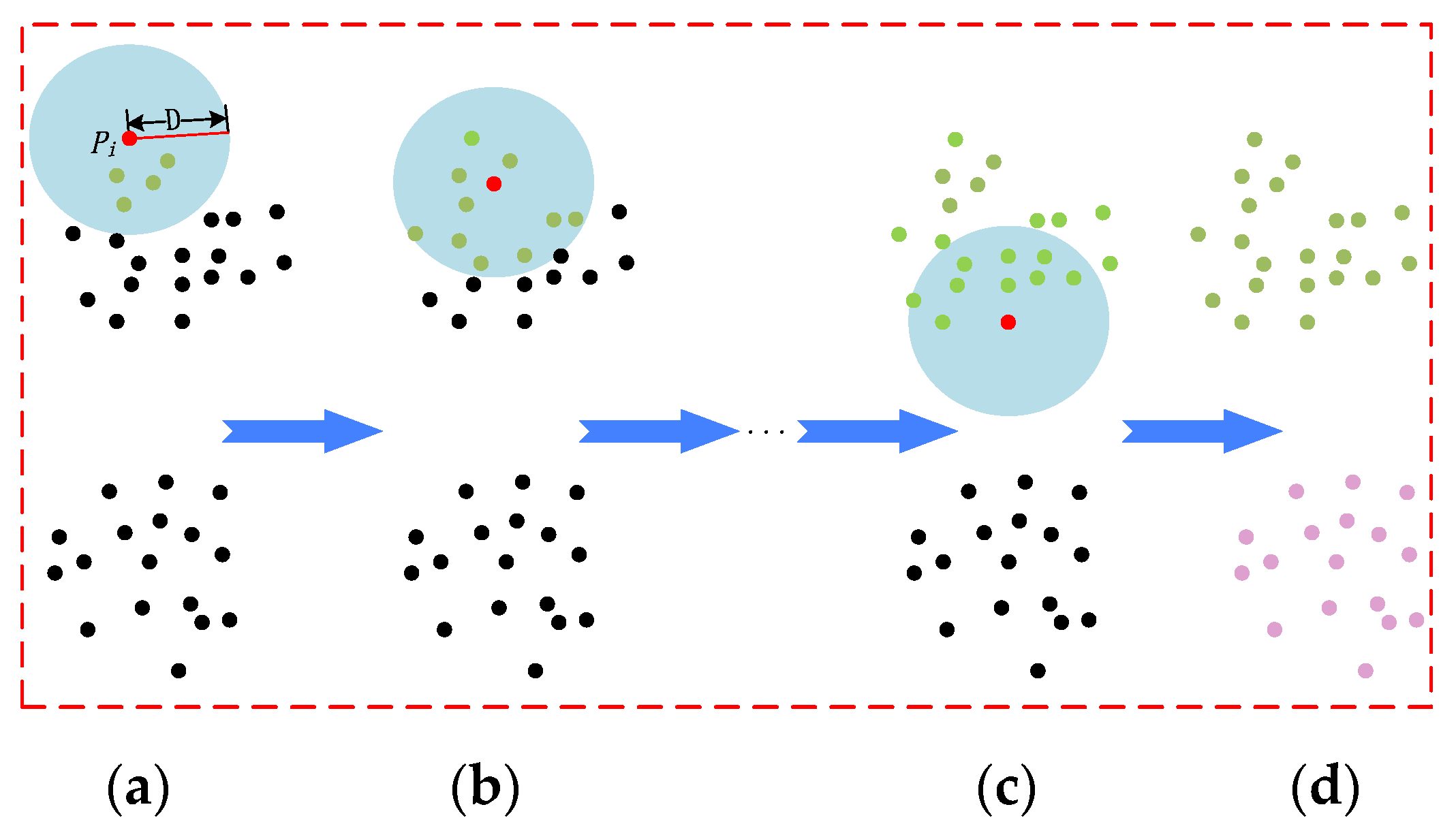

**Figure 7.**Diagrammatic sketch of Euclidean clustering. (

**a**–

**c**) The points before Euclidean clustering is complete; (

**d**) The points after Euclidean clustering is complete. 2.3. Road Markings Recognition.

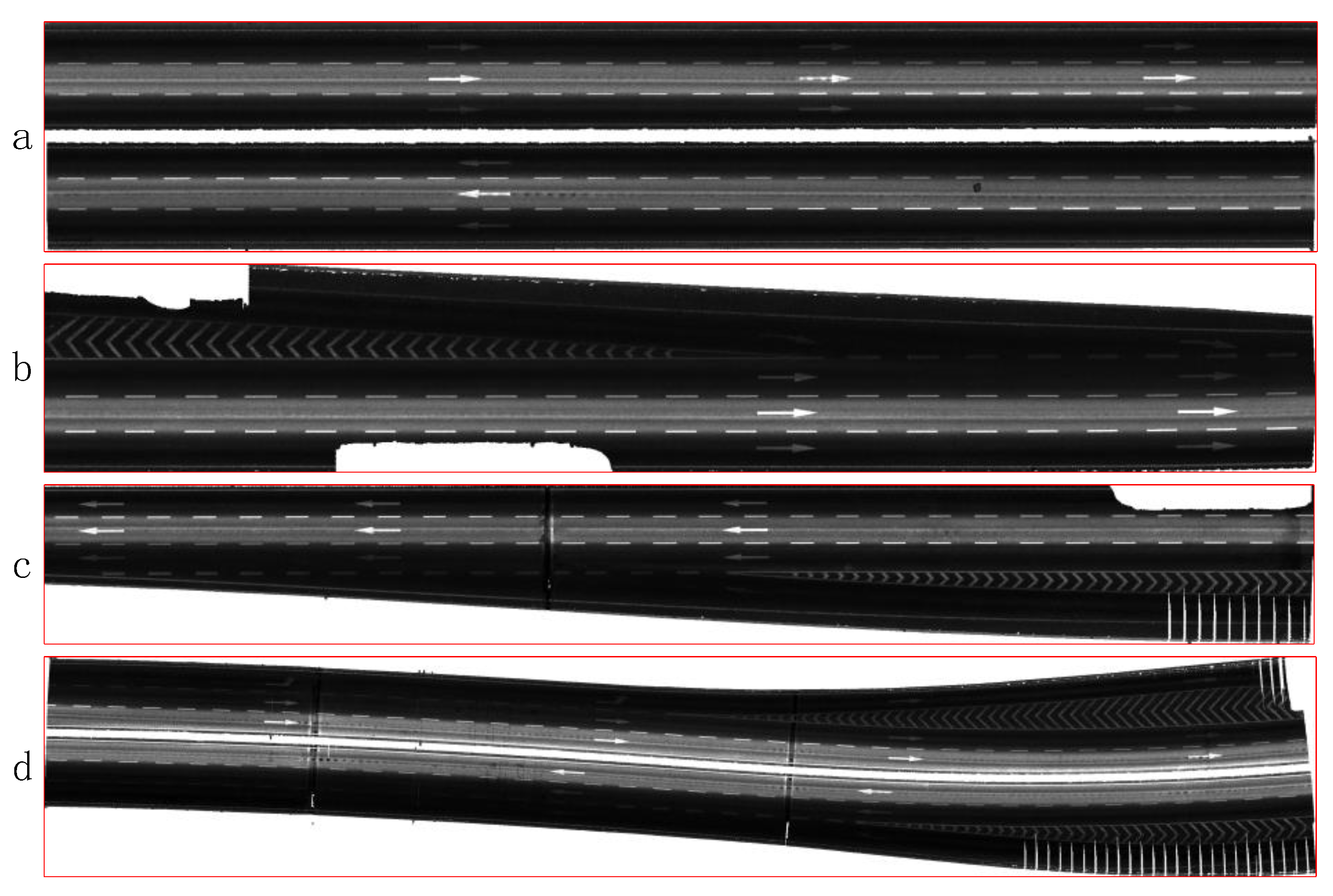

**Figure 14.**The raster image of the point cloud. (

**a**) Raster image converted from area A2; (

**b**) Raster image converted from area A3; (

**c**) Raster image converted from area A4; (

**d**) Raster image converted from area A1.

Parameter Type | Value |
---|---|

Scanner model | RIEGL VUX-1 |

Scanning mode | Single line cross section scanning |

Vehicle speed | 35~40 km/h |

Scanning frequency | 200 hz |

Scanning speed | 500,000 points/s |

Vertical field of view | 330° |

Parameter | Value | Parameter | Value |
---|---|---|---|

${L}_{d}$ | 5 m | $mS$ | 25° |

${M}_{l}$ | 7 m | $fH$ | 0.05 m |

${M}_{n}$ | 650 | $minN$ | 350 |

$\mathrm{c}H$ | 0.08 m |

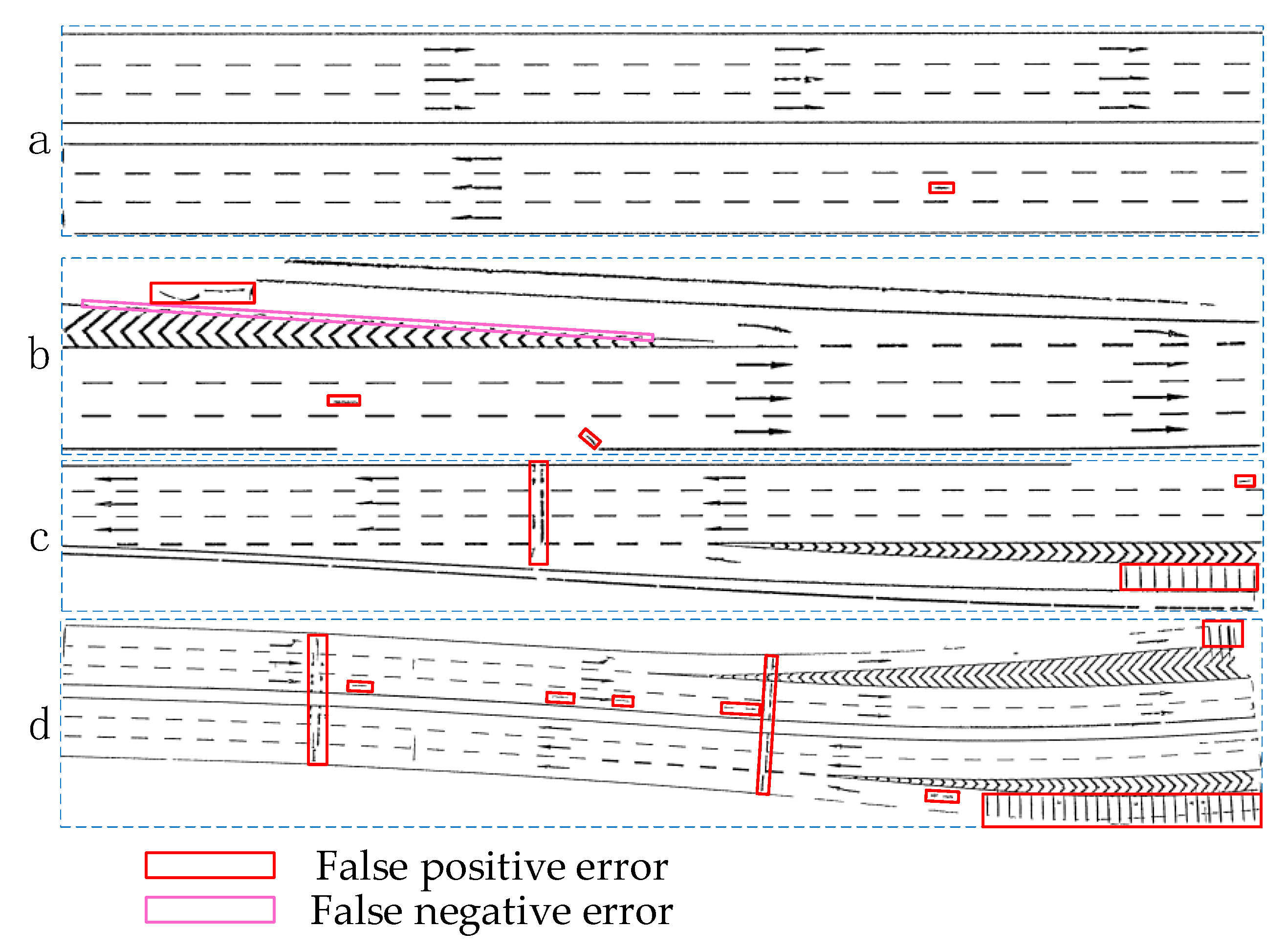

Category | Total | TP | FN | FP | Precision | Recall | F-Score |
---|---|---|---|---|---|---|---|

Broken line | 325 | 310 | 16 | 3 | 0.95 | 0.99 | 0.97 |

Guideline | 4 | 4 | 0 | 4 | 1.00 | 0.5 | 0.66 |

Straight arrow | 38 | 37 | 1 | 13 | 0.97 | 0.74 | 0.84 |

Left turn arrow | 1 | 0 | 1 | 0 | 0 | - | - |

Right turn arrow | 3 | 3 | 0 | 0 | 1 | 1 | 1 |

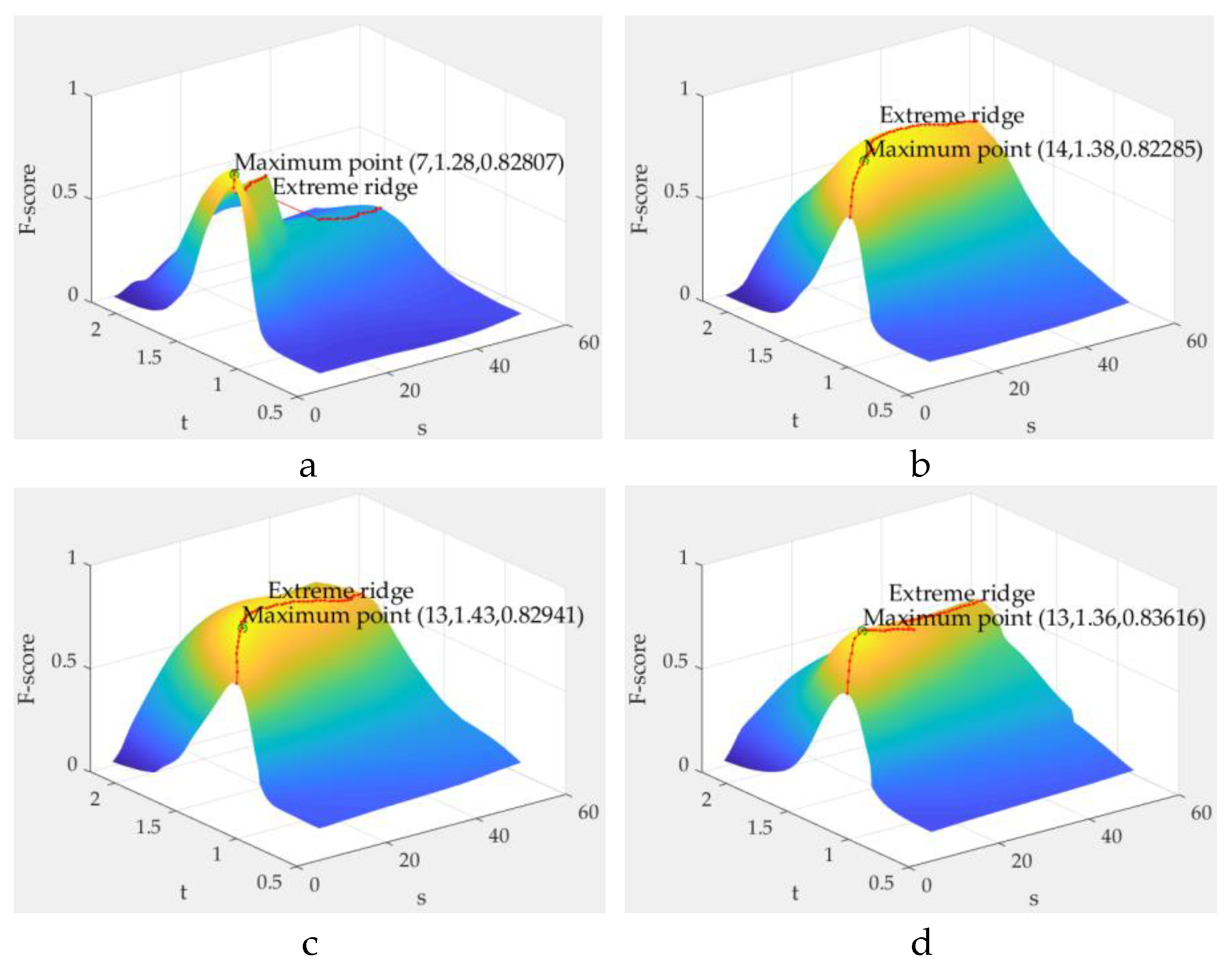

Test Data | $(\mathit{s}\mathit{,}\mathit{t})$ | Completeness | Correctness | F-Score |
---|---|---|---|---|

a | (7, 1.28) | 0.94 | 0.73 | 0.83 |

b | (14, 1.38) | 0.86 | 0.79 | 0.82 |

c | (13, 1.43) | 0.82 | 0.83 | 0.83 |

d | (13, 1.36) | 0.90 | 0.78 | 0.84 |
