The Effectiveness of Large-Scale, High-Resolution Ground-Penetrating Radar Surveys and Trial Trenching for Archaeological Site Evaluations—A Comparative Study from Two Sites in Norway

1
Department of Digital Archaeology, Norwegian Institute for Cultural Heritage Research, Storgata 2, 0105 Oslo, Norway
2
Department of Archaeology and Cultural History, The NTNU University Museum, Norwegian University of Science and Technology, 7491 Trondheim, Norway
3
Department of Archaeology, Museum of Cultural History, Norwegian Institute for Cultural Heritage Research, Storgata 2, 0105 Oslo, Norway
*
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(9), 1408; https://doi.org/10.3390/rs12091408
Submission received: 2 April 2020 / Revised: 17 April 2020 / Accepted: 27 April 2020 / Published: 29 April 2020

Abstract

:
The use of large-scale, high-resolution ground-penetrating radar surveys has increasingly become a part of Norwegian cultural heritage management as a complementary method to trial trenching surveys to detect and delineate archaeological sites. The aim of this article is to collect, interpret and compare large-scale, high-resolution ground-penetrating radar (GPR) survey data with results from trial trenching and subsequent large-scale excavations, and to extract descriptive and spatial statistics on detection rates and precision for both evaluation methods. This, in turn, is used to assess the advantages and disadvantages of both conventional, intrusive methods and large-scale GPR surveys. Neither method proved to be flawless, and while the trial trenching had a better overall detection rate, organic and charcoal rich features were nearly just as easily detected by both methods. Similarly, the spatial representability was similar, even though the total detection rates were lower with the GPR. This can be used as an argument in advance of integrating full-coverage GPR results into a site evaluation scheme, preferably in combination with other methods. Overall, these analyses have highlighted drawbacks and possibilities in both methods that are important contributions in understanding how to use them and integrate them in future site evaluations.

Graphical Abstract

1. Introduction

The Norwegian Cultural Heritage Act of 1978 states that all remains of human activity predating the Reformation in Norway (1537) are protected [1]. In connection with planning schemes or similar activities that may come into conflict with archaeological remains, exemptions from the heritage act can be made through an application to the appropriate authorities. This triggers a standardised process of evaluation and excavation, the responsibility of which lies with three administrative bodies; the local county council, the regional museum and the Norwegian Directorate for Cultural Heritage (NO: Riksantikvaren).
Each county council employs archaeologists responsible for the day-to-day administration of cultural heritage matters within the geographical limits of the county. In connection with planning applications, this includes assessments that may include historical background studies, place-name studies, map regression and GIS-analyses, as well as visual reconnaissance and evaluation trenching. On conclusion of the evaluation process, the county archaeologists will determine whether the application conflicts with any heritage assets. If it does not, the area will be exempted from the cultural heritage act, and the planning scheme can proceed. However, if it is found to conflict with cultural heritage assets, an application of exemption from the act must be made to the relevant county council, which decides whether to stop the scheme or let it proceed pending further investigations. The Directorate for Cultural Heritage has the overarching responsibility. When an exemption is made, the regional museums will estimate the total extent of the site, calculate the excavation costs and, finally, carry out further, potentially large-scale, excavations which will release the heritage assets from the heritage act [1,2,3].
Under this system, the archaeological evaluations follow well-established and standard routines that are applied nationwide. Fields in arable land are typically investigated archaeologically by trial trenching, where trenches up to four metres wide are excavated systematically across the planning area. To cover a representative area, whilst keeping the costs at a reasonable level, the trenches are typically established in parallel 5–20 m apart, ensuring coverage up to and exceeding 20% of the fields (Figure 1). If archaeological features are encountered, their spatial location is located in plan and described at the archaeological horizon, and preliminary C14 samples may be extracted. Otherwise, the features are left unexcavated. Subsequent large-scale excavations are carried out through topsoil stripping, where the soil is removed down to the archaeological horizon by mechanical excavation. Features of archaeological interest are then recorded in the plans, before being excavated, recorded and sampled in section. The extent of the excavations depends on the limits of the planning application, but this is not to say that the entire area will always be subject to full-scale excavation. Within the budgetary constraints of the project, it is up to the project manager to ensure that a representative portion of the archaeology is excavated and recorded, often resulting in parts of the archaeological site being left unexplored.
Evaluation by machine trenching followed by excavation by topsoil stripping is a relatively recent phenomenon in Norwegian archaeology. Although the 1970s and -80s saw sporadic experimentation, the approach did not become fully integrated as a method until the early 1990s [4]. Its introduction must be regarded as nothing short of a revolution in Norwegian archaeology. It has brought to light countless sites that would otherwise have gone unnoticed and in this respect, it has transformed our understanding of past settlement patterns, burial customs, industry and land use [5,6].
Despite its benefits, however, this approach is also fraught with problems. These are seldom addressed, and its shortcomings are simply accepted as inherent in the method. There is, for instance, no doubt that the removal of topsoil during trial trenching affects the preservation of the underlying archaeological features, particularly if the trenches are left open for some time before being backfilled. It has the effect of destabilising the local soil conditions by altering established water and drainage levels which, in turn, leads to aeration of the soils, oxidisation and the breakdown of organic components within the archaeological features [7]. This is of particular concern if the planning process is halted or changed, and the area reverted to cultivation whilst leaving the archaeological features unexcavated. Furthermore, trial trenching only provides a keyhole view to the subsurface archaeology, and an accurate assessment of the character and extent of a site is therefore difficult [8]. Based on approximation, this often leads to inaccuracies in budgets and time estimates, which invariably affect subsequent excavation strategies and the progress of planned developments (Figure 2).
In the past two decades, motorised geophysical survey arrays designed specifically for archaeological purposes have been developed. This has enabled a shift from small, site-specific surveys to surveys quickly covering large landscape swaths, and as such offer the potential to alleviate some, if not all, of the shortcomings of the conventional methods [9]. The development and application of motorized large-scale ground-penetrating radar and magnetometer surveys have within the last couple of decades shown the potential and ability of such non-intrusive methods to investigate, characterize and understand not only archaeological sites and features but also entire archaeological landscapes [10,11,12,13,14,15]. In Norway, large-scale prospection methods have been implemented by a minority of the county council archaeologists, mainly in connection with major infrastructure developments such as road and rail schemes. These schemes may cover several square kilometres of arable land and will therefore inevitably conflict with archaeological interests. Here, conventional methods such as systematic trial trenching have been deemed impractical and costly, and non-intrusive methods can, at least in theory, lessen the impact on budgets whilst simultaneously providing enough information for the planning process to proceed. Despite these advances, the implementation of geophysical methods to Norwegian archaeology has been slow, although a growing acceptance in the archaeological community has been noted. This is particularly evident in the heritage management sector, where time-constraints and cost-factors are often at play [16,17]. However, there is still uncertainty as to how suitable these methods are compared to conventional methods presently in use, such as trial-trenching. Critical voices both nationally and internationally dismiss the applicability of geophysical methods, claiming they are not fully developed, and that factors such as detection rates and the type of archaeology detected are unknown. Conversely, their proponents tend to focus on the methods’ potential while often downplaying their weaknesses. This rather unfruitful discussion is unfortunate, particularly as neither stand is supported by quantifiable data.
A growing concern in the wider archaeological community is that the geophysical methods are used indiscriminately, and questions have been raised as to whether they are suitable tools for the planning of further archaeological investigations. This is naturally problematic, as the bodies charged with upholding Norway’s cultural heritage act (i.e., the regional museums, the county councils and the Directorate for Cultural Heritage) are increasingly forced to consider whether the results from the geophysical surveys can be used as a basis for decision making.
Ground-based observation to compare the geophysical response of archaeological structures provides direct feedback and increases the confidence in future interpretations of similar data and gives additional information on how best to integrate such datasets in future archaeological work. A typical assessment of ground-based observations focuses on defining the source of individual anomalies and characterising their geophysical response [18]. Some work has been done elsewhere in Europe to compare large-scale geophysical datasets and legacy data to excavation results, but much of this work has focused on magnetometer-data and resistivity surveying by electromagnetic induction [11,19], or compared excavation results with close-interval shovel test pits [20]. Verhagen and Borsboom [21] published an evaluation of test trenching strategies but nothing similar has ever been done in Scandinavian archaeology. Although there is no question as to the effectiveness of motorised prospection, studies concerning success rate, in terms of detection capability, precision and cost-efficiency of large-scale high-resolution ground-penetrating radar (GPR) surveys are, then, all but non-existent. To the best of our knowledge, this is the first time a direct comparison of the results from large-scale GPR surveys have been compared with both large-scale soil stripping excavation and test-trenching.
To investigate issues relating to applicability and performance of large-scale GPR surveys and test trenching, and to provide a quantitative framework, the project “Delineating Archaeological Sites in Arable Land” was established in early 2017, supported through funding from the Norwegian Directorate for Cultural Heritage [22]. Headed by researchers from NTNU and NIKU, the project was undertaken in close cooperation with county archaeologists and the respective regional museums. The project aimed at gathering and analysing geophysical data to quantify and evaluate the applicability of one specific geophysical method in relation to archaeological sites in arable land and compare this to the applicability of standard trial trenching evaluation schemes. The aims of the project were manifold, but can be summed up thus:
  • To collect geophysical data from two separate archaeological sites, known from previous trial trenching but before full-scale excavations;
  • To compare the geophysical results with results from the trial trenching and the excavations, and to extract descriptive and spatial statistics on detection rates and precision for both evaluation methods.
While focusing on the results from two test sites comprised mainly of typical Norwegian iron-age settlement, the results are relevant to a wider, international audience. Norwegian archaeology is characterised by small or shallow features or features otherwise ill-defined in geophysical datasets due to their composition. This is an advantage as these features, under other circumstances, may be overlooked in the presence of solid and more easily recognisable archaeology such as that encountered elsewhere.
The analytical results from the project and its implication is the main focus of this paper, as well as highlighting the methods used in collecting, processing and interpreting the data. The aim of the paper is thus to present the main results of this project, and to discuss their relevance to current heritage management practices in Norway, with a view of assessing the advantages and disadvantages of both conventional, intrusive methods and large-scale geophysical methods.

2. Materials and Methods

To collect suitable data for analysis, GPR surveys were carried out on two sites with similar characteristics in terms of size and archaeology, but in different geographical and landscape settings. The sites chosen are located in the counties of Trøndelag and Østfold, in the central and south-eastern parts of Norway, respectively (Figure 3). At both sites, previous trial trenching had revealed settlement traces from the Nordic Iron Age (500 BC–1030 AD), and both geophysical surveys were undertaken immediately preceding full-scale excavations.
Data were collected using two different GPR systems capable of large-scale, high-resolution surveys (Table 1 and Figure 4). The choice of GPR over other geophysical methods was based on previous experience and experimentation with a variety of geophysical methods. Previous work has demonstrated that GPR, more than any other current method, has consistently produced the data needed to detect the small and often subtle features so typical of Norwegian archaeology. Because of this, it has become the most used method for large-scale geophysical surveys, whilst magnetic methods are considered useful as a complementary tool for enhancing the interpretation of features already mapped by way of GPR.

2.1. Case Study Area 1—Øya

Øya is located in the Gauldal valley in Melhus Municipality in Trøndelag County, some 23 km south of Trondheim city centre. It sits on a river terrace on the eastern banks of the river Gaula, in a valley base dominated by marine and river deposits [23]. These deposits vary considerably in texture, from silty sands and silts to light and medium clays, some deposited due to several land-slide events in the past. Within the site boundaries, the soils are classified as Albeluvisols to the east through Cambisols and Fluvisols in the central part, to Stagnosols in its western parts [24].
The archaeological site was discovered in 2014/2015 through trial trenching in connection with a major road improvement scheme through the valley. The trenches, which were placed according to the local terrain, revealed a settlement area consisting of cooking-pits, postholes and buried cultivation layers. Eighty-two features were found, primarily dated to the Nordic Iron Age [25]. Based on the results from these initial investigations, the county archaeologists estimated that the total extent of the settlement area amounted to 3.47 hectares (ha) (see Section 3.1 and Figure 5).
GPR surveys of the site were undertaken between the 23 and 24 May 2017, following a period of some precipitation. Data from six national weather stations located within 25 km of the site indicate that a total of 22 mm of rain fell in the area over the seven days preceding the survey. The northern part of the survey area was used for growing grass for animal fodder, which was low and relatively dry at the time of the survey. The southern part of the survey area had been ploughed, and the farmer harrowed it before our survey, but both parts had even ground and were easy to survey.
Subsequent excavations by topsoil stripping were undertaken in 2017 by the regional museum, immediately following the geophysical surveys. The total area excavated covered 2.15 ha, its extent guided in part by the location of features detected by way of trial trenching, but also by the results from the GPR survey. The subsequent excavations uncovered numerous additional cooking-pits to those found during trial trenching, as well as several pits and other, sundry features. Additional postholes were also found, belonging to at least one longhouse and four smaller buildings. Three circular ditches detected by way of GPR were excavated. These are thought to stem from either ploughed-out burial mounds or, most probably, structures for drying hay [26]. The ditches and the longhouse fell between the trenches excavated by the county archaeologists and were therefore not known before the GPR survey (Figure 5 and Figure 6). The excavations also revealed that the eastern part of the site consisted of clay-rich, heterogeneous layers from a mudslide before the settlement, while another landslide must have affected the Iron Age settlement in the northern part of the site.

2.2. Case Study Area 2—Dilling

Dilling is located in Rygge Municipality in Østfold County, approximately 55 km south of the capital Oslo, and 2.5 km east of the eastern shores of the Oslo Fjord. It lies in a fertile landscape rich in archaeological remains and is surrounded by scheduled monuments and archaeological sites from all periods. In geological terms, the area is dominated by marine and beach deposits. These are capped by the Østfold Ra Moraine which runs from the city of Moss to the Swedish border in the south-east [23]. Located immediately to the south of this moraine, the site at Dilling lies within a south-facing, gently sloping, and annually cultivated field. Detailed mapping reveals that the present soils vary from Haplic Gleysol in the western part, through Endogleyic Arenosol in the central part and Luvic Stagnosol (Ruptic) in the east [24].
The archaeological site was discovered through trial trenching in December 2015, in connection with a planning application for a planned InterCity line through the municipality [27]. Evaluation trenches closely following the boundary of the planning application was established systematically over the field and revealed nearly 280 archaeological features including postholes, cooking-pits, hearths, gullies and trenches as well as pits with no identified function (see Section 3.2 and Figure 7).
GPR surveys were then carried out in early May 2017, following an unseasonal dry spell. According to precipitation data collected from four national weather stations located within a 20 km radius of the site, a total of 2.5 mm of rain fell in the area in the seven days preceding the survey. At the time of the GPR survey, semi-sprouted wheat sown the previous autumn covered the field, creating an overall smooth surface. The combination of relatively dry weather, well-draining soils and the fact that the fields had lain undisturbed by agricultural activity over the previous six months created optimal survey conditions, both in practical and geophysical terms.
Full-scale excavations of the site took place immediately following our GPR surveys. These investigations revealed an extensive settlement site from the Nordic Bronze Age and Early Nordic Iron Age. Spread over four activity zones, the remnants of at least 46 post-built structures were identified, as were settlement traces such as those found during the evaluation stage. Furthermore, the investigations uncovered a small cemetery consisting of 18 cremation pits [28].

2.3. Analyses

Following data collection, the datasets were processed according to standard routines, in software specific to each GPR system. Because of the different systems, soil conditions and expected archaeology, the processing parameters differed somewhat, but essentially generated comparable datasets. For data collected with the MALÅ MIRA system at Dilling, the processing steps used included trace interpolation, time-zero corrections, band-pass frequency filtering, spike removal, de-wow filters, average-trace-removal, amplitude-gain corrections, amplitude balancing, 2D migration and Hilbert transformation. The raw data was processed through some 50 iterations with varying parameters to find the optimal settings for this specific site, before sets of georeferenced amplitude slices 5–50 cm thick were generated. The 3D-radar Examiner software for processing 3D radar data collected at Øya included time-zero correction, interference suppression, Inverse Selective Discrete Fourier Transform (ISDFT) filtering of step-frequency data, autoscale, high-pass background removal and migration. The Examiner software also allows for toggling easily between magnitude (equal to Hilbert transform) and real-value viewing, and between viewing migrated and un-migrated data, as well as having the possibility of selecting any point in plan for immediate profile visualisation. Both software solutions produce three-dimensional data volumes and raster images for further analysis, and interpretation of the datasets was undertaken within the framework of a geographical information system (GIS) based on both plan and profile data analysis. Here, anomalies deemed to have an archaeological origin were outlined using either polygons or polylines in a geodatabase and given a subjective interpretation. Metadata and information on their properties, such as depth range, geophysical response and interpretation were also added to the attribute tables. It should be noted that the interpretation process was carried out unaided by information from the trial trenching and the topsoil stripping. This served not only to assess the potential detection rates for GPR but also our interpretation capabilities had this information not been available, thereby simulating a likely scenario encountered using geophysical methods as part of the evaluation process.
Once the interpretation of the GPR datasets was concluded, GIS data from the trial trenching and full-scale excavations were provided by the county archaeologists and the regional museums respectively. To compare the various datasets and to extract statistical information on detection rates, a point was generated for each polygon in the GIS data from the full-scale excavations, thus forming a template for comparison with the other two methods. The first stage of this comparison was relatively straightforward. Each point representing an excavated feature was compared to the results from the trial trenching and the interpretations of the GPR data. Information on whether the feature had been detected during trenching and/or through interpretation in the GPR data was then entered into its attribute table, and so provided a direct and comparable result between the three methods. The second stage was more complex and time-consuming. Here, each point from the excavation data was analysed based on the depth slices themselves to assess the overall, potential detection rate of the method. In other words: was it possible to see anomalies in the GPR datasets where the excavations had uncovered archaeological features?
As a final exercise, kernel density raster maps were produced to evaluate the correlation between the distribution of features detected by all three methods. A single map was generated for the results from each method, and a 2 × 2 m grid was then established across the site extent to extract the spatial kernel density values from each raster. These values were subsequently imported to a spreadsheet where analyses were performed to find the Pearson correlation coefficient for each grid value [29].

3. Results

Note that the results from the following analyses are based on information provided by the regional museums before the conclusion of the excavation projects. Our data will, therefore, deviate somewhat from numbers reported in finalised excavation reports and other publications (e.g., in [22,26,27,28]). Shallow features and features under 10 cm in diameter, such as stakeholes, have been excluded from further statistical analysis when compared to the GPR data, as they are unlikely to be detected by way of GPR. These are few in numbers and do not significantly affect the statistical results. Also note that the category “undefined” here encompasses features that, for some reason or other, were not further investigated and recorded besides being mapped in plan during excavation. This was partly due to time constraints and prioritisation, and there is a chance that many of these “undefined” features are natural phenomena, modern features or should have been discarded altogether. The excavators at Øya estimates that about 1/3 of the “undefined features” could be written off and discarded from the database. Here it should be noted that the excavators always record these in plan before deciding if any further investigation is needed during excavation. If so, the archaeological features will be described in more detail if excavated further.

3.1. Case Study Area 1—Øya

At the farm Kvaal Nedre and Øien Øvre, postholes, cooking pits, and cultivation layers were identified through trial trenching, within a settlement and activity area stipulated to 3.47 ha. The GPR campaign collected data over 4 ha (114% of the initial site delineation), but the comparison presented here will focus on the 2.15 ha that was subsequently excavated by the NTNU University Museum in 2017.
The trial trenching at Øya involved a relatively systematic set of trenches, 21 in all. These were between 23 and 184 m long, 3–4 m wide and placed 10–19 m apart (c. 13 m on average). The total area covered by trenching amounts to c. 0.65 ha, or c. 19% of the total area of the site. The archaeological registration by trial trenching identified 82 features and a total of 170 archaeological features were excavated within the areas sampled by trial trenching (Table 2 and Figure 8). Within the area investigated by both topsoil stripping and GPR surveys, a total of 267 archaeological features were detected by way of GPR, whilst 1181 features were identified during the subsequent topsoil stripping (see Figure 9). The trial trenching detected 82 features, and two identified buried cultivation layers, which were removed from Table 2.

3.1.1. Excavation vs. Trial Trenching

A total of 71 features were identified during trial trenching within the part of the trenches that was within the fully excavated area (not including activity and cultivation layers). A total of 49 of those 71 features proved to be archaeological during the subsequent excavation, which equals to 69%. Some features were redefined, discarded as not archaeological or not found again. The excavation revealed a total of 170 archaeological features within the area that were covered by the trial trenching, not counting the features classified as “undefined” during excavation. Looking at the total result of the trial trenching, the identification of 49 out of 170 excavated features equals 29%. This must be considered rather low.
As can be observed in Figure 8, 20 (83.3%) out of 24 cooking pits excavated within the area covered by the test trenching were found. This is perhaps not so surprising, as cooking pits, being charcoal-rich and thus visually prominent against the subsoil, are easily identifiable during test trenching. The postholes, however, seemed to be more elusive. Only 9 (26%) out of a total of 35 postholes were correctly identified. Only one stone packing was found and correctly identified.
Test trenching is to be considered a sampling strategy, which has its inherited limitations as something important might fall in between the trenches, and therefore remain undetected. At Øya, some important excavated archaeological features were missed by the test trenches all together. For example none of the excavated ditches, of which four were a form of ring ditch from either burials or hay drying, were identified by the trial trenching. The round ditches and the excavated iron age longhouse were just in between two neighbouring trenches.

3.1.2. Excavation vs. GPR

The initial interpretation of the GPR data resulted in 169 identified anomalies within the excavation area. Of these, 123 (69%) were identified as archaeological features upon excavation. This means that, of the 1181 features identified during the excavations, 10.4% were correctly identified in the initial interpretations. Upon reassessing the geophysical data, an additional 144 archaeological features were classified as detectable in the geophysical data, bringing the total of archaeological features seen in the GPR data to 267 (22.6%) (Figure 10).
In the area initially trial trenched, there were 206 archaeological features. Again, of these, 25 were detected with GPR (12.1%), where 9 (4.4%) of those were initially interpreted from the dataset. Initially found during the trial trenching were 15 of the 25 features detected with GPR. That means that 10 features were only detected by the GPR (4.9%), but not trial trenching, within the trial trenched area. Also, the percentage detected with GPR within the trial trenched area was less than the overall result (23%), with 25 (12.1%) features out of a total of 206 excavated features within the area initially covered by trial trenching. Nine (4.4%) of those were initially interpreted from the dataset.
At Øya, non-excavated features were left in the “undefined” category as a rule, unless they were clearly cooking pits. The main body of “undefined” features represented potential postholes or other possible cuts/pits. These have a relatively low detection rate (8%). The most abundant of the confirmed archaeological features are the postholes, of which 26% were visible in the GPR data. Conversely, archaeological features associated with heat and often consisting of densely packed stones were more easily detected. For instance, the cooking-pits, which are amongst the most indicative feature of an Iron Age settlement in Norway, had a relatively high detection rate of 69%, whilst pits with an unknown function only had a detection rate of 24%. Furthermore, 50% of the ditches could be detected, poorly defined charcoal spreads could not be detected. These features, however, are numerically few and therefore not statistically valid.

3.2. Case Study Area 2—Dilling

The trial trenching campaign carried out in connection with the InterCity line through Østfold County covered an extensive landscape swath and comprised a considerable number of archaeological sites. At Dilling, the entire site, as delineated by trial trenching, measured c. 8 ha, but for this study, only its western 4 ha will be considered, as this corresponds with the area excavated in 2017.
During trial trenching, 3 m wide and up to 100 m long trenches were established systematically over the area, some 10 m apart. The total area covered by trial trenching, therefore, amounts to c. 0.9 ha or 23% of the entire archaeological site. Within the trenches, 276 archaeological features relevant to this study were identified (Table 3). The GPR surveys comprised two continuous areas either side of a stone fence crossing the site, encompassing the same area as the trial trenching but covering an area of 4.5 ha or 113% of the entire site. Within the surveyed area, a total of 585 archaeological features were detected by GPR. The subsequent topsoil stripping covered 2.8 ha or 70% of the site, divided between three main excavation areas. During these excavations, some 6000 features were initially uncovered and surveyed. A number of these were subsequently written off as natural phenomena upon further investigation, bringing the total number of archaeological features used in the analysis to 3334 (Table 3).

3.2.1. Excavation vs. Trial Trenching

During the large-scale excavations, a total of 702 features were identified within the areas previously sampled by way of trial trenching (Figure 11). Within these same areas, 276 (39%) features were identified during the initial trial trenching. Thus, an additional 426 features (61%) were identified upon large-scale excavation.
Postholes represent the largest group of features within the trenches (76% of the total). A total of 540 (61%) were identified within the trial trenches during the excavations, and 212 (39%) were identified during the preceding trial trenching. As at Øya, the larger and more easily identified cooking-pits, hearths and furnaces have a higher detection rate. Of the 48 cooking-pits identified during the full-scale excavations, 37 (77%) were identified during trial trenching. Similarly, nearly all the hearths (88%) identified during excavation were also identified through trial trenching, whilst two (67%) of the tree furnaces had been uncovered in the trial trenches. Of the 26 ditches and 17 pits identified during excavation, seven (27%) and four (24%), respectively, could be detected within the trial trenches. Both the cairn and the cremation grave were found by both trial trenching and excavation.

3.2.2. Excavation vs. GPR

Our initial interpretations of the GPR data resulted in 308 interpreted features, of which 25 were written off upon excavation, while a further 89 could not be observed on-site and were also excluded from the study. That means that only 194 features (c. 5.8%) out of a total of 3334, were interpreted correctly before access to the excavation results (see Figure 9).
When the excavation results became available, the number of detected features increased to 585, or c. 17.5% of the number of features excavated (Figure 12). The features with the lowest detection rate are the postholes. Of a total of 2531 postholes recorded during the excavations, only 241 (c. 9.5%) could be detected in the GPR data. Low detection rates can also be observed for the ditches, where only 18 (22%) of 82 could be detected. Pits have a moderate detection rate, where 40 (44%) of 91 could be detected, and features normally associated with heat or burning, i.e., the hearths, furnaces, cremation graves, charcoal spreads and cooking-pits, all have a high detection rate of c. 70%. All the cairns and the single well were also detected by GPR.
In the area initially trial trenched, there were 702 archaeological features. Again, of these, 129 were detected with GPR (18%), and 38 (5.4%) of those were initially interpreted from the GPR dataset. A total of 80 of the 129 features detected with GPR were also initially detected during the trial trenching (11%). Only 49 features were detected by the GPR (7%), but not trial trenching, within the trial trenched area. At Dilling, the percentage detected with GPR within the trial trenched is similar to the overall result (18%).

3.3. Spatial Analyses—Kernel Density Analyses

The kernel density analyses resulted in three datasets for each site, showing the spatial density of the archaeological observations made during trial trenching, GPR interpretation and excavation by topsoil stripping (Figure 13). By comparing these through the extraction of the relative density values, it is possible to estimate how representative the spatial distribution of archaeological features identified in the trial trenches and anomalies observed and interpreted from the GPR dataset is, compared to the results from the excavation. Also, this will give an estimation of the spatial accuracy of the chosen evaluation strategies regardless of their feature-by-feature detection rates.
The kernel density analyses carried out on the interpretation datasets show that, despite the relatively low detection rates feature-by-feature, the spatial correlation between the interpretations and the excavated archaeological features were medium at Øya and high at Dilling (Table 4). Considering the spatial correlation between the detected features and the excavated features, however, the spatial correlation is high for both sites. In comparison, the spatial correlation between the results from the trial trenching at Øya is low, while at Dilling the correlation is high [30].

4. Discussion

Based on the results from this study it is possible to draw some preliminary conclusions on the possibilities and limitations of intrusive and non-intrusive methods of archaeological evaluation in cultivable land.
The ubiquitous acceptance of trial trenching as a method for evaluation is probably linked to the fact that it is a relatively simple method, requiring little in terms of technological know-how and training, and that it is possible for the county archaeologists to perform themselves. Furthermore, it produces tangible and relatively easily interpreted evidence of the subsurface archaeology and has the advantage of easy access to samples for radiocarbon dating. The inclusion of more specialised services by archaeological-geophysical experts requires involving other institutions, additional costs, and a thorough understanding of the possibilities and limitations of any additional methods to be involved. However, as this study has demonstrated, trial trenching is far from a flawless method. It is based on sampling, and you do not get concrete information on the areas between the sampled trial trenches and must rely on the results being representable for the additional areas. At Øya an area of 19% of the total area of the site was trial trenched, and at Dilling this number was 23%. This is higher than the recommendation of trial trenching up to 10% of the area to be investigated [24]. Still, there was a relatively pronounced underestimation of the total amount of features to be expected within the site (see Figure 2). At these two sites, trial trenching identified 30%–40% of the archaeological features later identified upon excavation within the areas covered by trial trenching, and whilst this is somewhat higher than the GPR detection rates for the entire site at Dilling, it is comparable to the GPR detection rates at Øya. The fact that excavations reveal additional archaeological features during a complete excavation is most probably due to better control over the depth of the agricultural soil to be removed and that the archaeologists had more time to clean and investigate observations and relationships between exposed features. Therefore, a higher total number of features within areas previously trial trenched is to be expected when a full excavation is performed. Furthermore, the analyses of the spatial correlation between the different methods indicate that GPR is equally, or in the case of Øya, better at delineating the archaeological sites than trial trenching (see Table 4).
At both sites, the GPR detection rate, feature-by-feature, is low (Table 5). At Øya, 22.6% of the archaeological features were detected by GPR, whereas 17.5% of all the features were detected at Dilling. In comparison, trial trenching had a detection rate of 28.2% at Øya and 39.3% at Dilling. The low detection rates observed are closely connected with the characteristics of the sites, their geological and geomorphological settings, as well as the types and condition of the archaeological features encountered (see Figure 9). The spatial accuracy of the trial trenching was low at Øya and high at Dilling. A possible explanation for the low spatial correlation at Øya could be the difficult weather and soil conditions, as the trial trenching was performed late in the year with low light, heavy rain and with more complicated stratigraphic conditions involving cultivation layers and landslides overlaying the archaeological features.
In regard to the possible influence on detectability on GPR-results when an area has previously been trial trenched, the results from these two case studies give some new information. At Øya the percentage of detectable features by GPR was 12% within the area previously trial trenched, while the overall detectability was 23%. At Dilling this percentage was 18% within the trial trenched areas, which is similar to the overall detectability. The results from Dilling indicate that previous trenching did not influence the detectability with GPR, while it a negative influence on the detectability at Øya. Mechanical wear, weathering, variation in subsoil and potential changes in conductivity caused by the removal of the topsoil can be possible explanations for the lower detectability rate with GPR over previously trial trenched areas.
The subsoil at Øya comprised fluvial and marine deposits in the form of silty clays and sands which in parts were overlain by a clayey, mixed deposit from a landslide. The variations in the subsoil are echoed in the resulting GPR amplitude maps, where the reflection properties of the subsoil vary considerably across the site. The local variation could potentially obscure the archaeological features but gives additional knowledge on the palaeolandscape by revealing past paleochannels and variations in the subsoil. Thus, it provides context and information on the relationship between the location of the archaeological features and their natural surroundings. Conversely, at Dilling, the marine sourced subsoils were more homogenous throughout the site, consisting largely of silty sand, but also containing large quantities of erratic boulders. This resulted in fewer fluctuations in reflection properties across the datasets, although the presence of the large boulders increased the potential for erroneously identifying natural phenomena as archaeology. These unfavourable soil conditions might also have affected the detection of lesser features during trial trenching of the sites and would have been compounded by adverse light conditions and the limited extent of the trenches. At this stage of the evaluations, the archaeologists were afforded limited time to identify features such as postholes, which require careful cleaning and proper contextualisation through topsoil stripping of larger areas to be successful.
The low detection rates observed in this study can also be attributed to the physical nature of the archaeological features themselves. Features encountered in the Norwegian archaeological record in cultivated land often take the form of insubstantial or heavily decimated features with backfills that may be visually different from the surrounding soil matrix, but whose texture and composition will not generate the required geophysical contrast to enable their detection by geophysical techniques. This is particularly evident for postholes. Postholes encountered on excavations in Norway normally comprise small features with homogenous backfills, often without further internal elements such as stone packings. As such, they are generally considered difficult to detect by any means of geophysical prospection. At Dilling, the majority (76%) of the features identified during excavation consisted of postholes, a fact that has affected the overall detection rates for both GPR and trial trenching. Here, only 10% of all the postholes could be detected in the GPR data, whilst 39% could be detected through trenching, closely reflecting the detection rate for all features through both methods (see Figure 12). This highlights the obvious advantage of trial trenching, in that the visual appearance of archaeological features is almost always more pronounced than their geophysical characteristics. However, this is not to say that it is impossible to detect postholes by way of geophysical methods. Indeed, at Øya, the detection rate for postholes was 26% for both trial trenching and GPR (see Figure 10). Also, at Øya, a post-built longhouse was detected within a limited area where the subsoil was geophysically uniform, creating advantageous conditions for its detection. Different practices between the two excavations in how the features category “undefined” was used, does in practice mean that a direct statistical comparison of the detection rate of postholes between the two sites should be done with caution. Other examples from Norway under different conditions also show how post-built structures can be successfully detected, characterised and studied using GPR [31,32,33].
In contrast to the postholes, features such as cooking-pits, hearths and furnaces have a far higher detection rate, at both sites and for both evaluation methods. Such features comprise backfills that are charcoal-rich and often densely packed with fire-cracked rocks. This combination of components generates high-reflection responses in the GPR datasets, and the features tend to be easily identifiable, regardless of the subsoil [34]. This is reflected in our analyses which indicate a detection rate around 70% of the total number of features identified during excavation, close to and sometimes exceeding the detection rates of these features through trial trenching.
The fact that features with a high concentration of charcoal are readily detected in the GPR data is interesting and extends to other features not usually associated with heat. At Dilling, for instance, we noted that ditches and gullies surrounding the post-built houses could only be partially detected and, in some cases, only parts of the ditches were detectable in the GPR data. Upon visual ground testing, it became apparent that this phenomenon was related to the presence and absence of burnt matter such as charcoal and burnt daub. Although the exact mechanics behind the increased detectability of features with charcoal-rich backfills is not understood, we may hypothesise that charcoal increases the moisture content of the backfills relative to the background material, thus creating high amplitude reflections that contrast sharply against the surrounding soil matrix.
The quality of the interpretations of the excavated features will naturally vary with the excavators’ proficiency and experience, and with the overall sampling strategy employed. A strict sampling strategy, for instance, will result in increased interpretative accuracy, although fewer features will be identified as archaeological. Conversely, a more liberal strategy will result in a greater number of features being identified but also lead to a greater number of features with an insecure interpretation. In this context, Dilling can serve as a good example of a project where a liberal approach has been taken. Here, near 6000 features were initially identified as archaeological upon topsoil stripping. Upon further investigation, near 2400 were written off, and of the remaining features, 2531 were identified as postholes. However, only a smaller number of postholes can be associated with house structures, leaving the remainders with no apparent connection to overarching structures. At Øya, a different liberal strategy was used, by surveying in features as possible archaeology, but not defining them as possible pits, postholes or another category (see Figure 9). The question, then, is whether these “residual” postholes or “undefined” features represent archaeological features. This is not to deny the fact that postholes represent a feature type that does not readily lend itself to detection by GPR. Nor is it to deny the fact that we, in the case of Dilling, are unable to identify the postholes that do belong to houses. However, the presence in the interpretation database of singular features with an unclear archaeological interpretation will naturally affect our statistical analyses, skewing the GPR detection rates negatively. This is not to say that a liberal approach is inappropriate. Indeed, it can be argued that it is the better of the two approaches, as it allows for a greater range of interpretations in the post-excavation stage.
The inclusion of additional field methods during archaeological evaluations would lead to higher total costs in an early stage of the site evaluation, and as most evaluation schemes performed in Norway have a relatively limited size and budgets, it could be argued that it is unreasonable to include geophysical methods as a standard strategy. At the same time, this way of thinking could be argued to ignore the cultural-historical value of an archaeological site at the expense of budget size [16]. A French study compared the use of magnetometer surveys and earth resistance surveys for large scale archaeological evaluations and compared the results to the results from trial trenching. They concluded that the use of these was of limited interest for archaeological feature detection in preventive archaeology on the types of soils met in northern France, and especially luvisols. They do notice that there is a huge potential in EMI and GPR-surveys. Also, it is argued that their use, without any clearly defined aims other than to “see if there is something there” without asking any specific archaeological questions, is of limited value. Still, they consider geophysical methods as something that can play an important role as a complementary tool if used by a well-reasoned approach [11]. For Norwegian conditions, it has been argued that integrating geophysical methods as part of site evaluations of areas larger than one hectare can be financially viable to reduce the number of trial trenches and gain a better evaluation of the area by utilizing a more targeted strategy [35].
Whilst the analyses show that there is a relatively low correlation between what has been detected in the GPR datasets and what has been observed upon topsoil stripping, the relative spatial correlation analysis revealed that the trial trenching results had somewhat better spatial correlation at Dilling than the GPR results, although nearly comparable. At Øya, the results were opposite, where the GPR results had a far better spatial correlation to the excavation results than the trial trenching. This demonstrates that whilst it is unrealistic to expect a full match between the GPR data and the excavation results, the geophysical surveys have the potential to serve as a better alternative to trial trenching. This would be particularly evident in larger evaluation schemes, where geophysical surveys are used to cover large landscape swaths. Here, the relative density of detected and interpreted anomalies could serve as a proxy for the presence of archaeological features and sites, and the geophysical surveys could act as a tool for an initial characterisation of areas of lower or higher archaeological potential. As GPR has a high detection rate for features including burnt material, i.e., cooking pits, the method is particularly suited for sites and periods where these are well represented. GPR, therefore, can be an asset to the non-destructive preservation of archaeological sites and monuments and serve as a useful supplement to traditional site evaluation methods.

5. Conclusions

The introduction of geophysical methods and technology to Norwegian archaeology has been slow, and their use has only been considered a viable supplement to conventional evaluation trenching in the last decade. This has been achieved chiefly through the development of multi-channel, high-resolution sensor arrays, as well as national and international collaborative efforts paired with targeted investments in technology and expertise.
The viability of the methods has been demonstrated through several research projects, which in turn has led to a considerable increase in the numbers of research and heritage management projects involving geophysical methods [17]. Despite good results and renewed interest, critical voices argue that the methods cannot be trusted as they do not find everything, and cannot be seen as a replacement to traditional methods used for site evaluation [16]. As the results presented here, a counterargument can be made that neither does trial trenching. It is, however, important to bear in mind that geophysical prospection has never been intended as a direct replacement for conventional methods, but rather as a supplement. Also, the results presented in this project show that although GPR, in the case studies of Dilling and Øya, identified a smaller percentage of archaeological features than test trenching, still had a comparable spatial correlation. This, can in turn, be used as an argument in advance of integrating full-coverage GPR-results into a site evaluation scheme, preferably in combination with other methods. Trial trenching before GPR-surveying influenced detectability in a negative manner at Øya, while at Dilling the detectability rates were the same.
Generally, archaeological features containing burnt materials, fire-cracked rocks or stones, in general, were detected with a high percentage for both trial trenching and by GPR at both the case study sites. The detection rate of hearths, furnaces, cooking pits and stone packings were comparable at both sites, and for both trial trenching and GPR. When it comes to the most abundant archaeological feature, postholes, trial trenching were more successful than GPR at Dilling, and the percentage was the same at Øya. There was also a difference in the amount of interpreted versus detected features by GPR, indicating that there is a room for improvement in the archaeological interpretation of GPR data. Although there was a relatively low detection rate on a feature-to-feature basis in total, the calculation of the spatial correlation of the density of features gave some interesting observations. While the trial trenching at Dilling had the highest correlation of the two methods, it was also high both for the interpreted and the detected features in the GPR data. For Øya, it was low for the trial trenching results, medium for the interpreted anomalies and high for the detected features. These differences can be attributed to differences in subsoil conditions, post-depositional processes such as landslides and landscape changes, as well as differences in documentation strategies. Also, it is important to treat these results as what they are, the results of two case studies. Care must be taken to avoid over-generalization of the methods’ capabilities without considering the archaeological and palaeoenvironmental contexts.
An archaeological site evaluation aims to answer whether there is a conflict between the planned development and any archaeological features. Also, it should be detailed enough to allow for planning and budgeting excavations based on its results. The question then arises if the results derived from these two methods, trial trenching and GPR, are sufficient. It is hard to provide a definite answer but the project has demonstrated drawbacks and possibilities with both methods that are important contributions in understanding how to use them and integrate them in future site evaluations.

Author Contributions

The project “Delineating Archaeological Sites in Arable Land” is a shared project between the NTNU University Museum and NIKU. The following have made significant contributions to the project in terms of data collection, analysis and text: L.G., NIKU and A.A.S. (corresponding author), NTNU—main authors (equal share), GPR data collection, processing and analysis, statistical analyses, visualization. S.E.F.—excavation data collection, text. L.E.G., KHM—excavation data collection, text. E.N., NIKU—GPR data collection, processing and analysis, text. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Directorate for Cultural Heritage in Norway, as well as own research funds from NIKU and the NTNU University Museum.

Acknowledgments

The authors wish to extend their gratitude to Ole Kjos from Viken County Council for providing data from the trial trenching at Dilling, and to Jan Kristian Hellan and Linnea S. Johansen of the Museum of Cultural History, Oslo, for providing GIS data from the Dilling excavation project. Similar gratitude goes to Monica Svendsen of the NTNU University Museum for providing GIS data from the Øya project and Merete Moe Henriksen who was the project manager for this particular project and granted us access to the site. We would also like to thank the Norwegian Directorate for Cultural Heritage for generously funding the project, and Knut Paasche, NIKU for assisting in setting up the research design for the grant application.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. M.O.C.A. (Ed.) Cultural Heritage Act—Act of 9 June 1978 NO.50 Concerning the Cultural Heritage; Ministry of Climate and Environment: Oslo, Norway, 1978. [Google Scholar]
  2. Guribye, R.; Holme, J. Kapittel II—Automatisk fredete kulturminner. In Kulturminnervern—Lov, Forvaltning, Håndhevelse Bind II. Kulturminneloven Med Kommentarer; Holme, J., Ed.; Økokrim: Oslo, Norway, 2001; Volume 2, pp. 32–101. [Google Scholar]
  3. Kahn, M. Lærebok i Kulturminnerett; Tapir Akademisk Forlag: Trondheim, Norway, 2007. [Google Scholar]
  4. Løken, T.; Pilø, L.; Hemdorff, O. Maskinell Flateavdekking og Utgraving av Forhistoriske Jordbruksboplasser: En Metodisk Innføring; Arkeologisk Museum and Stavanger: Stavanger, Norway, 1996; Volume 26. [Google Scholar]
  5. Høgestøl, M.; Selsing, L.; Løken, T.; Nærøy, A.J.; Prøsc-Danielsen, L. Konstruksjon og Byggeskikk. Maskinell Flateavdekking—Metodikk, Tolkning og Forvaltning; Arkeologisk Museum and Stavanger: Stavanger, Norway, 2005; Volume 43. [Google Scholar]
  6. Iversen, F. The land of milk and honey? Rescue archaeology in Norway. Post Class. Archaeol. 2012, 2, 299–318. [Google Scholar]
  7. Kibblewhite, M.; Tóth, G.; Hermann, T. Predicting the preservation of cultural artefacts and buried materials in soil. Sci. Total Environ. 2015, 529, 249–263. [Google Scholar] [CrossRef] [PubMed]
  8. Bjerck, H.B.; Gundersen, J.; Jørgensen, G.; Meling, T.; Normann, S.; Åstveit, L.I. Prosjekterfaringer. In NTNU Vitenskapsmuseets Arkeologiske Undersøkelser Ormen Lange Nyhamna; Bjerk, H.B., Ed.; Tapir Akademisk Forlag: Trondheim, Norway, 2008; pp. 17–70. [Google Scholar]
  9. Gjerpe, L.E. Administrative erfaringer. In Kulturhistoriske, Metodiske og Administrative Erfaringer. E18-Prosjektet i Vestfold Bind 4; Gjerpe, L.E., Ed.; Museum of Cultural History: Oslo, Norway, 2008; Volume 74, pp. 135–147. [Google Scholar]
  10. Trinks, I.; Hinterleitner, A.; Neubauer, W.; Nau, E.; Löcker, K.; Wallner, M.; Gabler, M.; Filzwieser, R.; Wilding, J.; Schiel, H.; et al. Large-area high-resolution ground-penetrating radar measurements for archaeological prospection. Archaeol. Prospect. 2018, 25, 171–195. [Google Scholar] [CrossRef]
  11. Hulin, G.; Bayard, D.; Depaepe, P.; Koehler, A.; Prilaux, G.; Talon, M. Geophysics and preventive archaeology: Comparison with trial trenching on the CSNE project (France). Archaeol. Prospect. 2018, 25, 155–166. [Google Scholar] [CrossRef]
  12. Trinks, I.; Neubauer, W.; Doneus, M. Prospecting Archaeological Landscapes; Springer: Berlin/Heidelberg, Germany, 2012; pp. 21–29. [Google Scholar]
  13. Trinks, I.; Neubauer, W.; Hinterleitner, A. First high-resolution GPR and magnetic archaeological prospection at the Viking age settlement of birka in Sweden. Archaeol. Prospect. 2014, 21, 185–199. [Google Scholar] [CrossRef]
  14. Gaffney, C.; Gaffney, V.; Neubauer, W.; Baldwin, E.; Chapman, H.; Garwood, P.; Moulden, H.; Sparrow, T.; Bates, R.; Löcker, K.; et al. The stonehenge hidden landscapes project. Archaeol. Prospect. 2012, 19, 147–155. [Google Scholar] [CrossRef]
  15. Filzwieser, R.; Olesen, L.; Neubauer, W.; Trinks, I.; Mauritsen, E.; Schneidhofer, P.; Nau, E.; Gabler, M. Large-scale geophysical archaeological prospection pilot study at Viking Age and medieval sites in west Jutland, Denmark. Archaeol. Prospect. 2017, 24, 373–393. [Google Scholar] [CrossRef]
  16. Stamnes, A.A. The Application of geophysical methods in Norwegian archaeology: A study of the status, role and potential of geophysical methods in Norwegian archaeological research and cultural heritage management. Ph.D. Thesis, Norwegian University of Science and Technology (NTNU), Trondheim, Norway, 2016. [Google Scholar]
  17. Stamnes, A.A.; Gustavsen, L. Archaeological use of geophysical methods in Norwegian cultural heritage management—A review. In A Sense of the Past. Studies in Current Archaeological Applications of Remote Sensing and Non-Invasive Prospection Methods. BAR International Series; Posluschny, A., Gojda, M., Kamermans, H., Eds.; Archaeopress: Oxford, UK, 2014; Volume 2588, pp. 17–32. [Google Scholar]
  18. Hargrave, M.L. Ground truthing the results of geophysical surveys. In Remote Sensing in Archaeology: An Explicitly NorthAmerican Perspective; Johnson, J.K., Ed.; University of Alabama Press: Tuscaloosa, AL, USA, 2006; pp. 269–304. [Google Scholar]
  19. Bonsall, J.; Gaffney, C.; Armit, I. A Decade of ground truthing: Reappraising magnetometer prospecting surveys on linear corridors in light of excavation evidence 2001–2010. In A Sense of the Past. Studies in Current Archaeological Applications of Remote Sensing and Non-Invasive Prospection Methods; Kamermans, H., Gojda, M., Posluschny, A.G., Eds.; Archaopress: Oxford, UK, 2014; pp. 3–16. [Google Scholar]
  20. Thompson, V.D.; DePratter, C.B.; Lulewicz, J.; Lulewicz, I.H.; Roberts Thompson, A.D.; Cramb, J.; Ritchison, B.T.; Colvin, M.H. The archaeology and remote sensing of santa Elena’s four millennia of occupation. Remote Sens. 2018, 10, 248. [Google Scholar] [CrossRef] [Green Version]
  21. Verhagen, P.; Borsboom, A. The design of effective and efficient trial trenching strategies for discovering archaeological sites. J. Archaeol. Sci. 2009, 36, 1807–1815. [Google Scholar] [CrossRef]
  22. Stamnes, A.A.; Gustavsen, L. Avgrensning av Kulturminner i Dyrkamark. Metodevalg og Forvaltningsimplikasjoner; NTNU Vitenskapsmuseet, Institutt for arkeologi og kulturhistorie: Trondheim, Norway, 2018. [Google Scholar]
  23. NGU. Database for Løsmassegeologi; NGU (Norges geologiske undersøkelse/Geological Survey of Norway): Trondheim Norway, 2017; Volume 2010. [Google Scholar]
  24. NIBIO. Kilden; NIBIO (Norsk institutt for bioøkonomi/Norwegian Institute of Bioeconomy Research): As, Norway, 2019. [Google Scholar]
  25. Hårstad, S. Arkeologiske Registreringer i Forbindelse Med E6 Melhus Reguleringsplan Røskaft-Skjerdingstad; Sør-Trøndelag County Council: Trondheim, Norway, 2016. [Google Scholar]
  26. Fretheim, S.; Henriksen, M.M. Arkeologisk Undersøkelse av Bosetningsspor på Øya, E6 Røskaft-Skjeringstad, Melhus Kommune, Trøndelag; NTNU Vitenskapsmuseet, Seksjon for Arkeologi og Kulturhistorie: Trondheim, Norway, 2019. [Google Scholar]
  27. Kjos, O.A.I. Arkeologisk Registrering. Dobbeltsporprosjektet, Sandbukta-Moss-Såstad. Sak: 13/10294; Kulturminneseksjonen, Østfold fylkeskommune: Sarpsborg, Norway, 2016. [Google Scholar]
  28. Ødegaard, M.; Winther, T.; Gjerpe, L.E.; Hellan, J.K. Gårder fra bronse- og jernalder—Foreløpige resultater fra dobbeltspor dilling. Primit. Tider 2017, 19, 31–42. [Google Scholar]
  29. Kirch, W. (Ed.) Pearson’s correlation coefficient. In Encyclopedia of Public Health; Springer: Dordrecht, The Netherlands, 2008. [Google Scholar]
  30. Richard Taylor; Interpretation of the Correlation Coefficient: A Basic Review. J. Diagn. Med. Sonogr. 1990, 6, 35–39. [CrossRef]
  31. Tonning, C.; Schneidhofer, P.; Nau, E.; Gansum, T.; Lia, V.; Gustavsen, L.; Filzwieser, R.; Wallner, M.; Kristiansen, M.; Neubauer, W.; et al. Halls at borre: The discovery of three large buildings at a late iron and viking Age royal burial site in Norway. Antiquity 2020, 94, 145–163. [Google Scholar] [CrossRef]
  32. Fredriksen, C.; Stamnes, A.A. Geofysiske Undersøkelser og Sosialt Metallsøk på Løykja, Sunndal Kommune; Møre og Romsdal NTNU Vitenskapsmuseet, Institutt for arkeologi og kulturhistorie: Trondheim, Norway, 2019. [Google Scholar]
  33. Gustavsen, L.; Kristiansen, M.; Nau, E.; Tafjord, B.E. Sem: A Viking age metalworking site in the southeast of Norway? Archaeol. Prospect. 2019, 26, 13–20. [Google Scholar] [CrossRef] [Green Version]
  34. Gustavsen, L.; Cannel, R.J.S.; Nau, E.; Tonning, C.; Trinks, I.; Kristiansen, M.; Gabler, M.; Paasche, K.; Gansum, T.; Hinterleitner, A.; et al. Archaeological prospection of a specialized cooking-pit site at Lunde in Vestfold, Norway. Archaeol. Prospect. 2018, 25, 17–31. [Google Scholar] [CrossRef]
  35. Løkka, N. Kulturarv i Vestfold. Effektivisert Kulturminneforvaltning for Regionen; Telemarksforskning: Telemark, Norway, 2016. [Google Scholar]

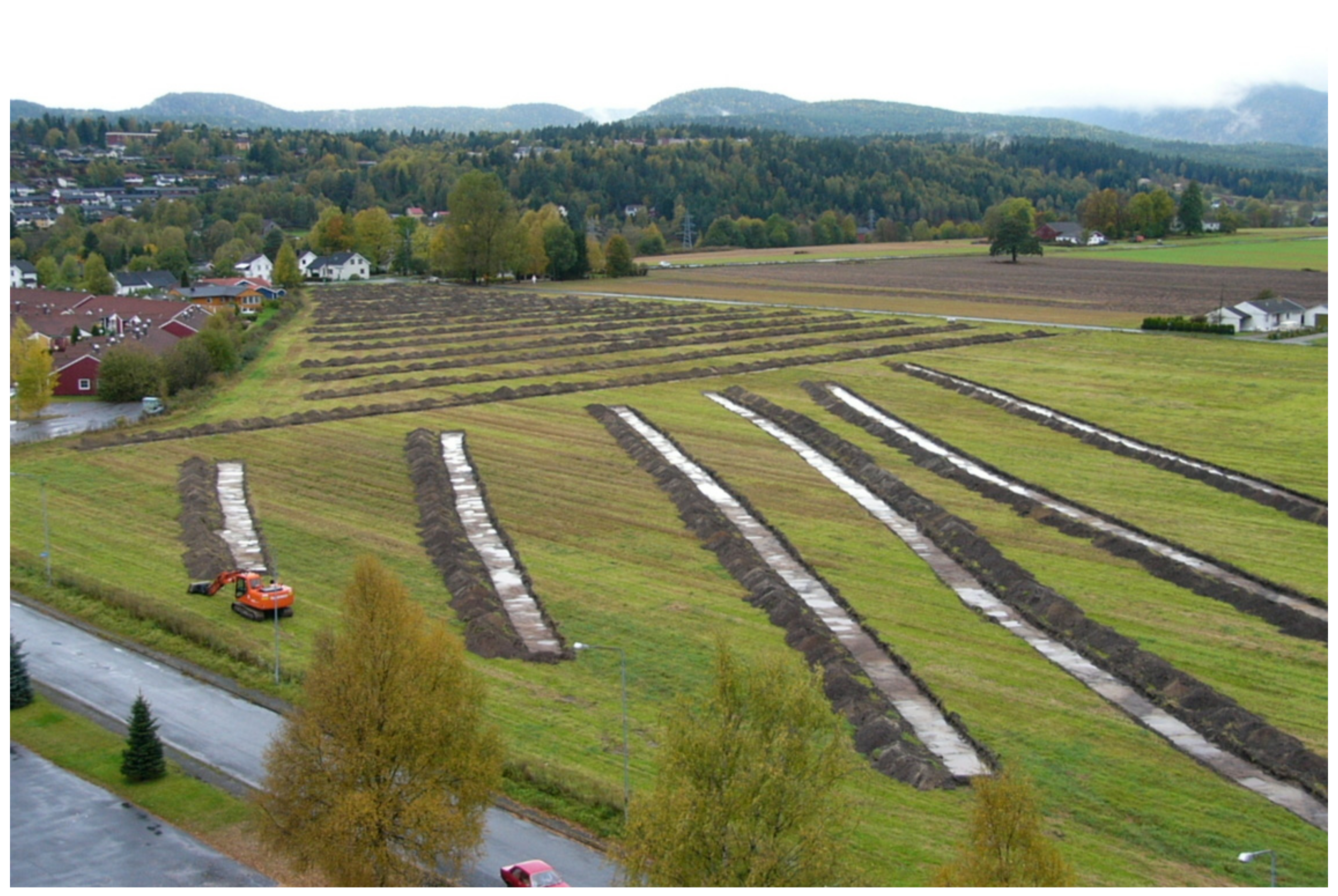

Figure 1. An example of trial trenching in arable land. Trenches 3–4 m wide have been excavated 10–15 m apart in a field. Photo by generous courtesy of Viken County Council.
Figure 1. An example of trial trenching in arable land. Trenches 3–4 m wide have been excavated 10–15 m apart in a field. Photo by generous courtesy of Viken County Council.
Remotesensing 12 01408 g001

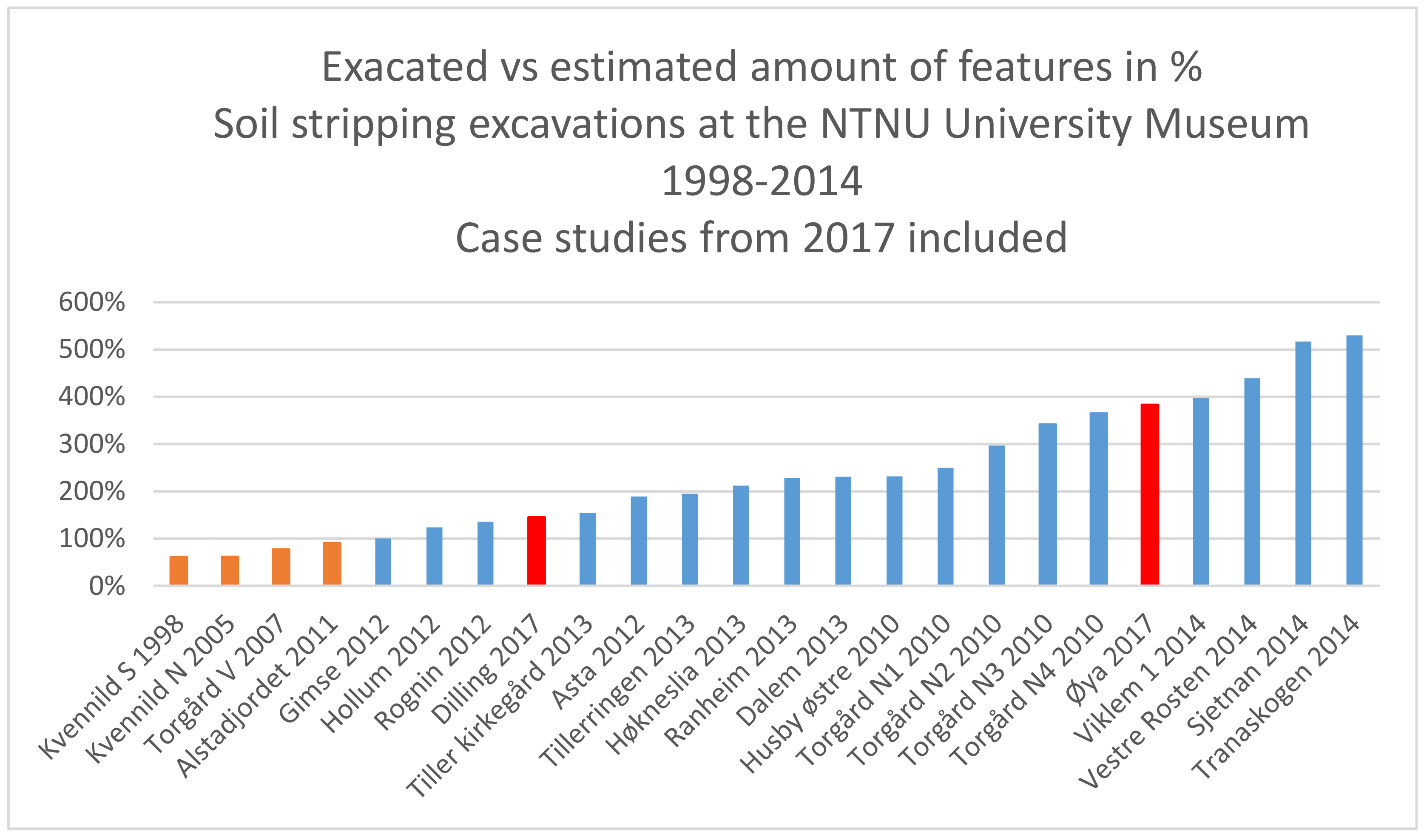

Figure 2. Graph showing the number of estimated archaeological features based on trial trenching versus features unearthed during full-scale excavations. Sites above 100% have more features than estimated. Orange bars indicate sites with fewer features than estimated. The graph is based on a selected number of excavations carried out by NTNU between 1998 and 2014, as well as the two case studies in this article in red. Data courtesy of Geir Grønnesby, Raymond Sauvage at NTNU in Trondheim, as well as Lars Erik Gjerpe at the Museum of Cultural History, Oslo.
Figure 2. Graph showing the number of estimated archaeological features based on trial trenching versus features unearthed during full-scale excavations. Sites above 100% have more features than estimated. Orange bars indicate sites with fewer features than estimated. The graph is based on a selected number of excavations carried out by NTNU between 1998 and 2014, as well as the two case studies in this article in red. Data courtesy of Geir Grønnesby, Raymond Sauvage at NTNU in Trondheim, as well as Lars Erik Gjerpe at the Museum of Cultural History, Oslo.
Remotesensing 12 01408 g002

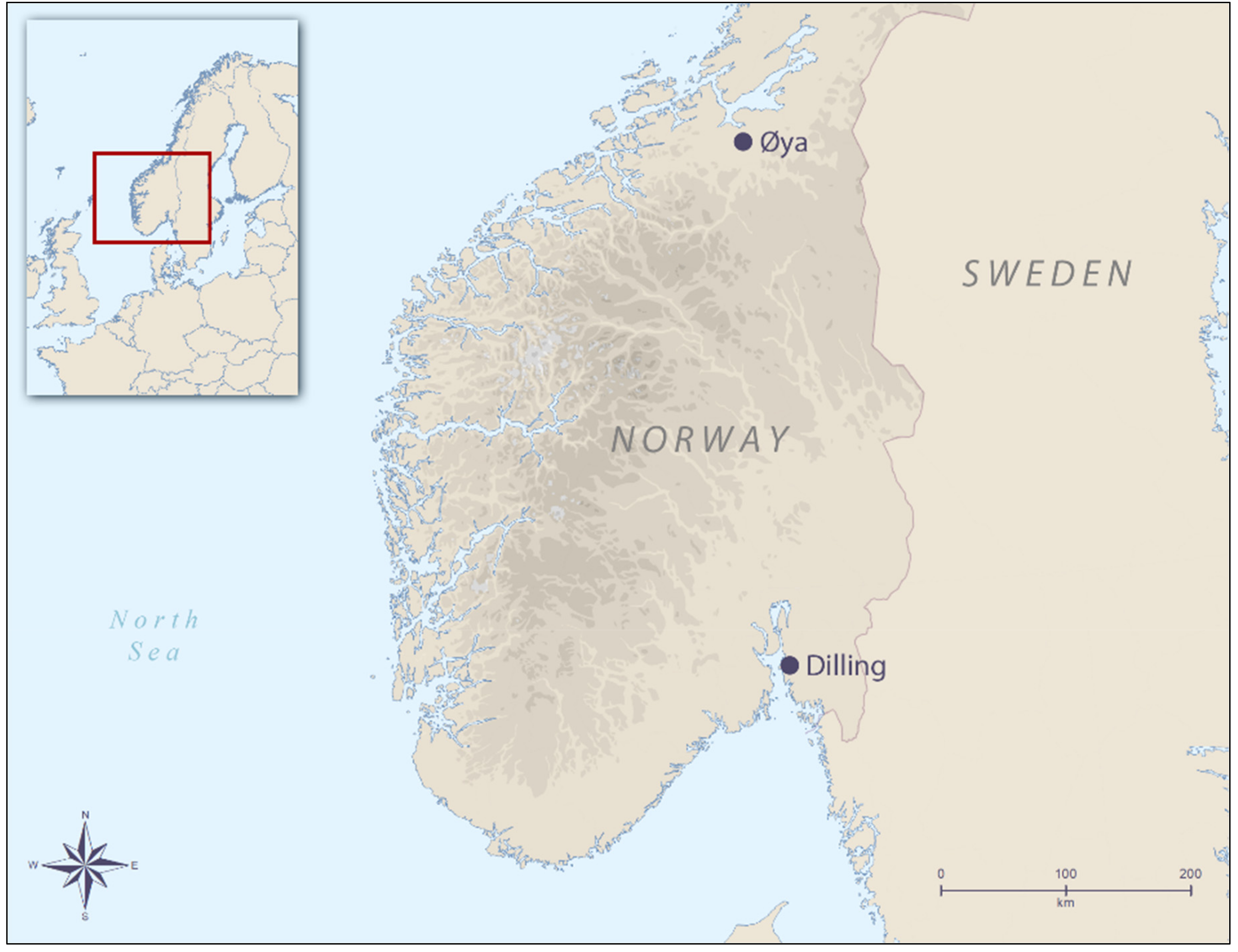

Figure 3. General map of central and southern Norway, showing the location of the two case study areas. Map source: The Norwegian Mapping Authority, Geovekst and Municipalities, 2020.
Figure 3. General map of central and southern Norway, showing the location of the two case study areas. Map source: The Norwegian Mapping Authority, Geovekst and Municipalities, 2020.
Remotesensing 12 01408 g003

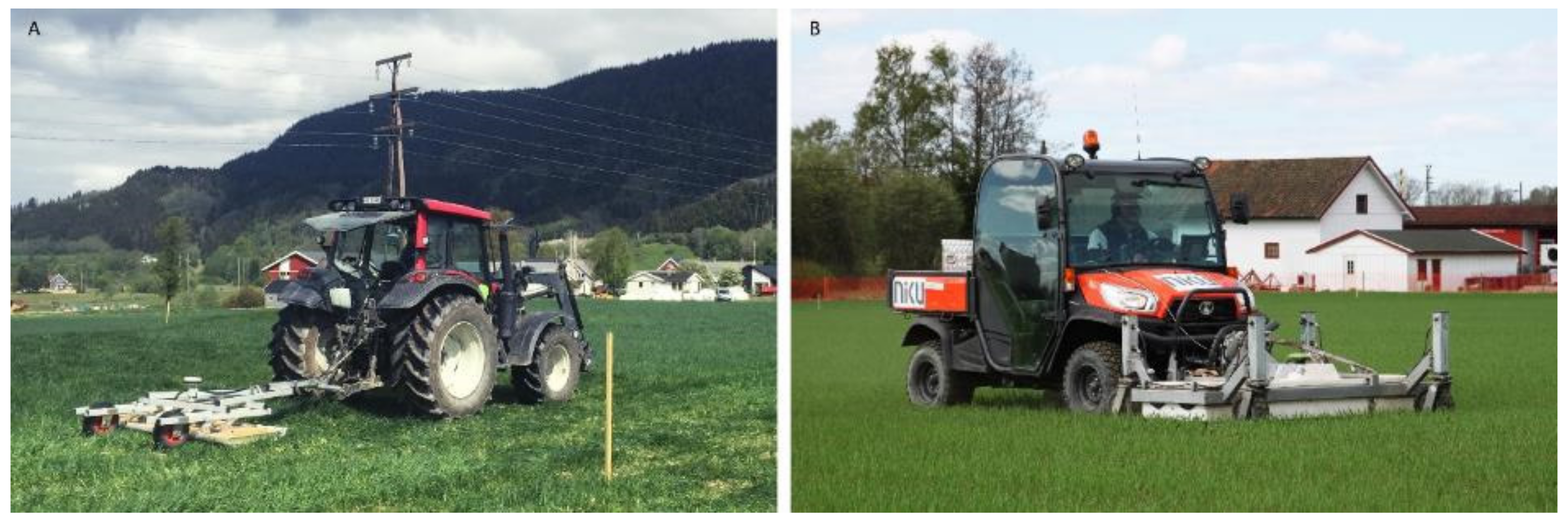

Figure 4. (A) 3D Radar Mk IV Geoscope collecting data at Øya. (B) MALÅ MIRA III in use at Dilling.
Figure 4. (A) 3D Radar Mk IV Geoscope collecting data at Øya. (B) MALÅ MIRA III in use at Dilling.
Remotesensing 12 01408 g004

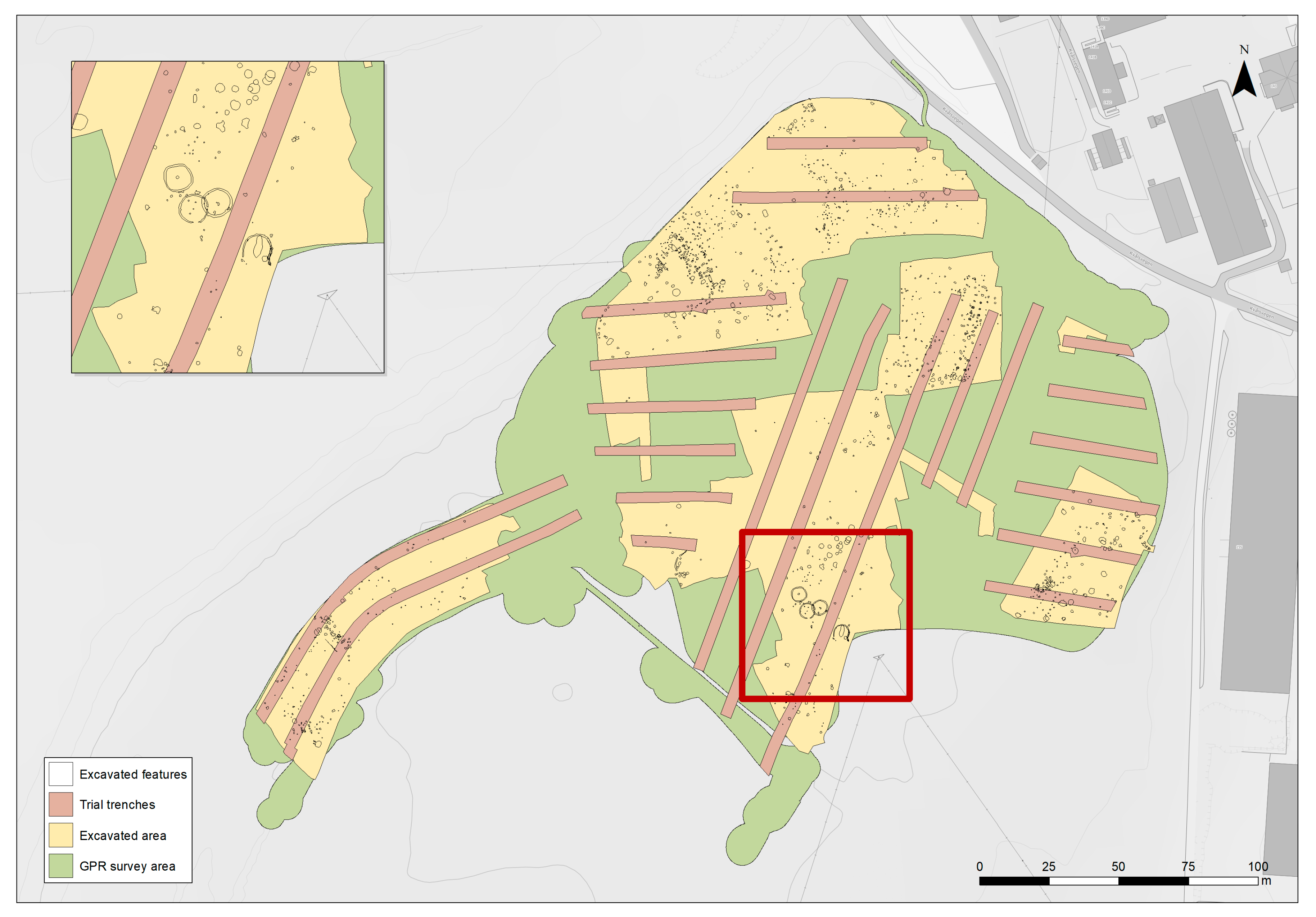

Figure 5. Map showing the extent of trial trenches, GPR survey areas, and topsoil stripping at Øya. Map source: The NTNU University Museum, Trøndelag county council, The Norwegian Mapping Authority, Geovekst and Municipalities, 2020.
Figure 5. Map showing the extent of trial trenches, GPR survey areas, and topsoil stripping at Øya. Map source: The NTNU University Museum, Trøndelag county council, The Norwegian Mapping Authority, Geovekst and Municipalities, 2020.
Remotesensing 12 01408 g005

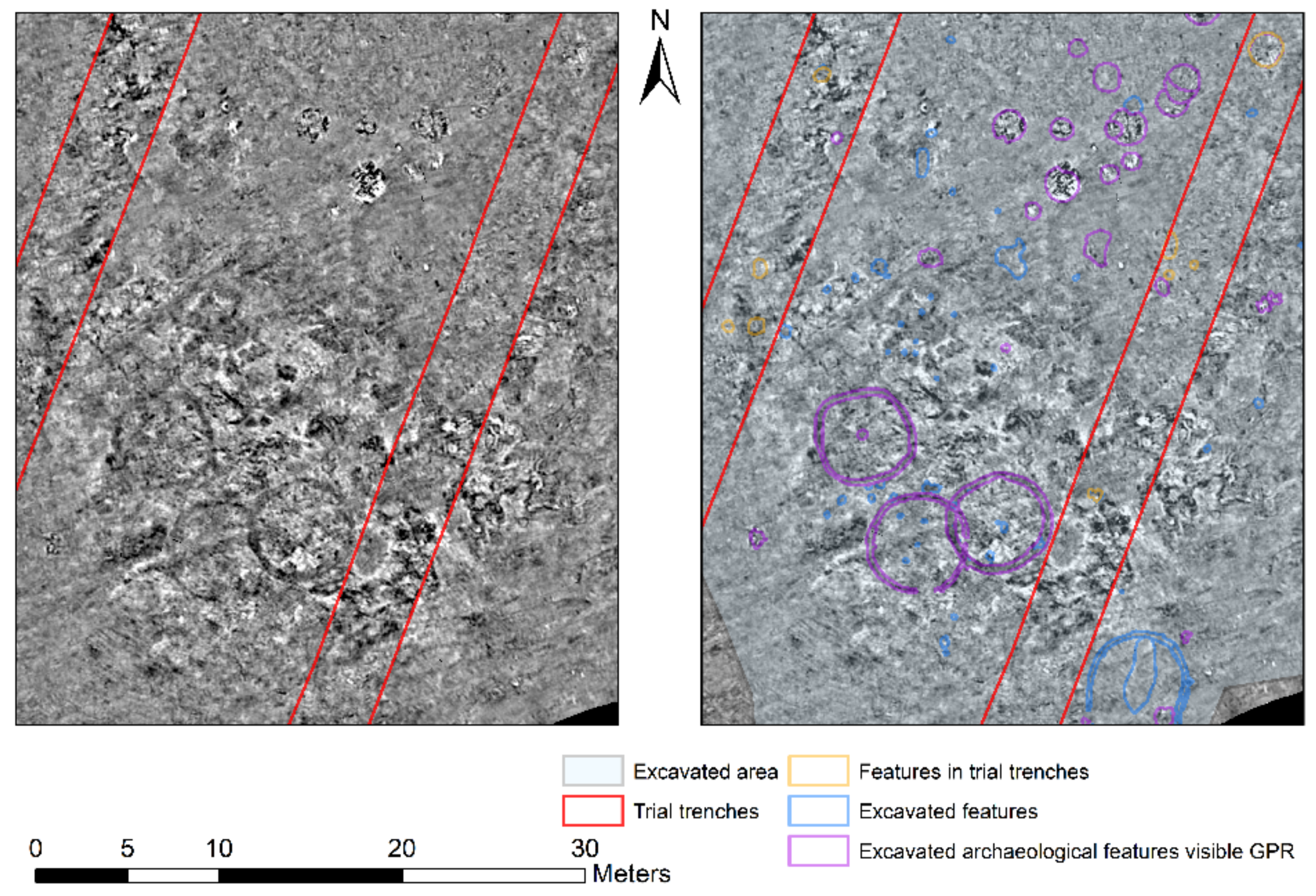

Figure 6. An example of a GPR depth slice from Øya compared with the location of trial trenches, features identified by trial trenching excavated features, and the excavated features visible in the GPR-data.
Figure 6. An example of a GPR depth slice from Øya compared with the location of trial trenches, features identified by trial trenching excavated features, and the excavated features visible in the GPR-data.
Remotesensing 12 01408 g006

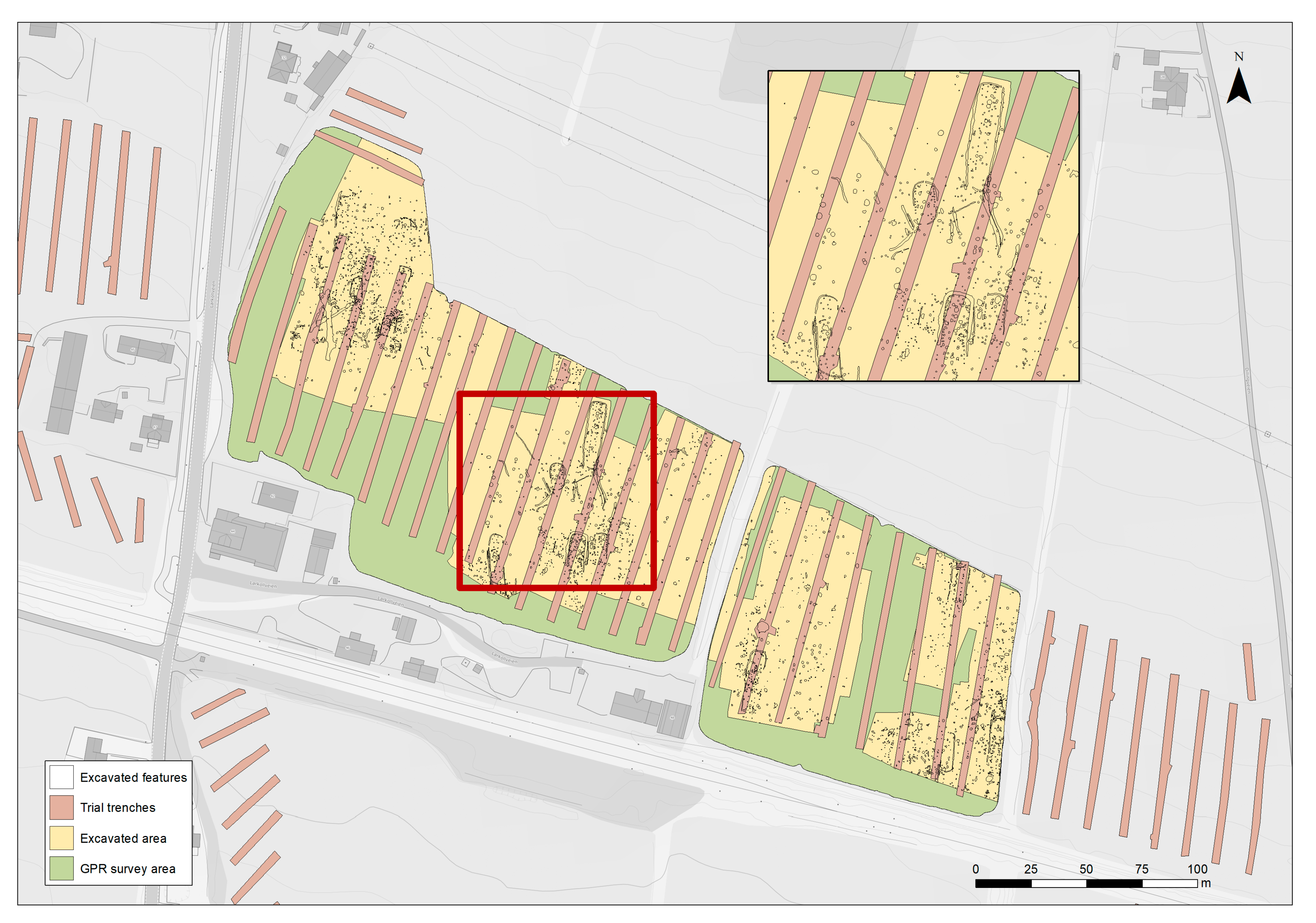

Figure 7. Map showing the extent of trial trenches, GPR survey areas, and topsoil stripping at Dilling. Map source: The Museum of Cultural History, Østfold county council, The Norwegian Mapping Authority, Geovekst and Municipalities, 2020.
Figure 7. Map showing the extent of trial trenches, GPR survey areas, and topsoil stripping at Dilling. Map source: The Museum of Cultural History, Østfold county council, The Norwegian Mapping Authority, Geovekst and Municipalities, 2020.
Remotesensing 12 01408 g007

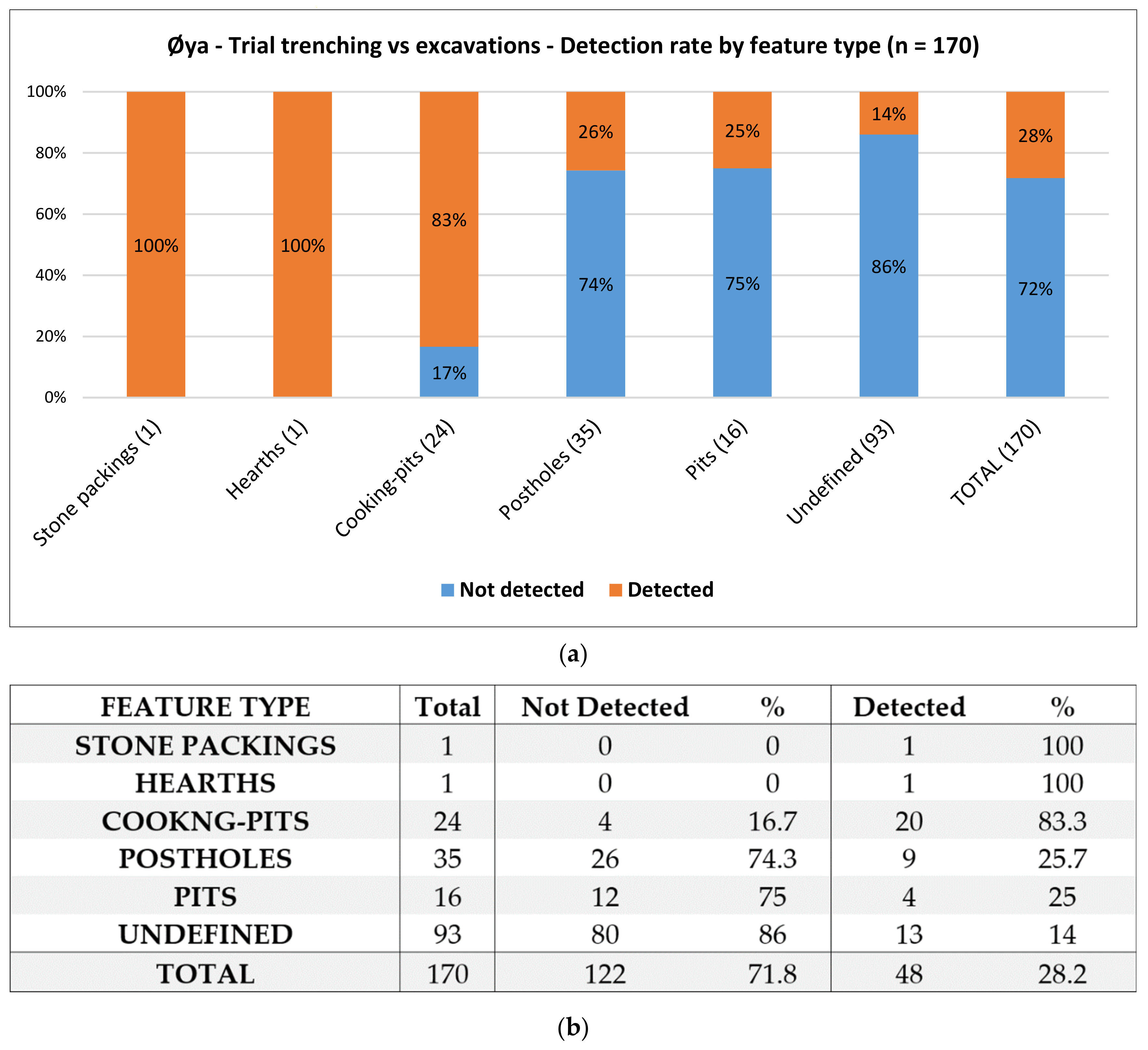

Figure 8. (a,b) Charts showing the relationship between detected and non-detected features within the boundaries of the trial trenches at Øya.
Figure 8. (a,b) Charts showing the relationship between detected and non-detected features within the boundaries of the trial trenches at Øya.
Remotesensing 12 01408 g008

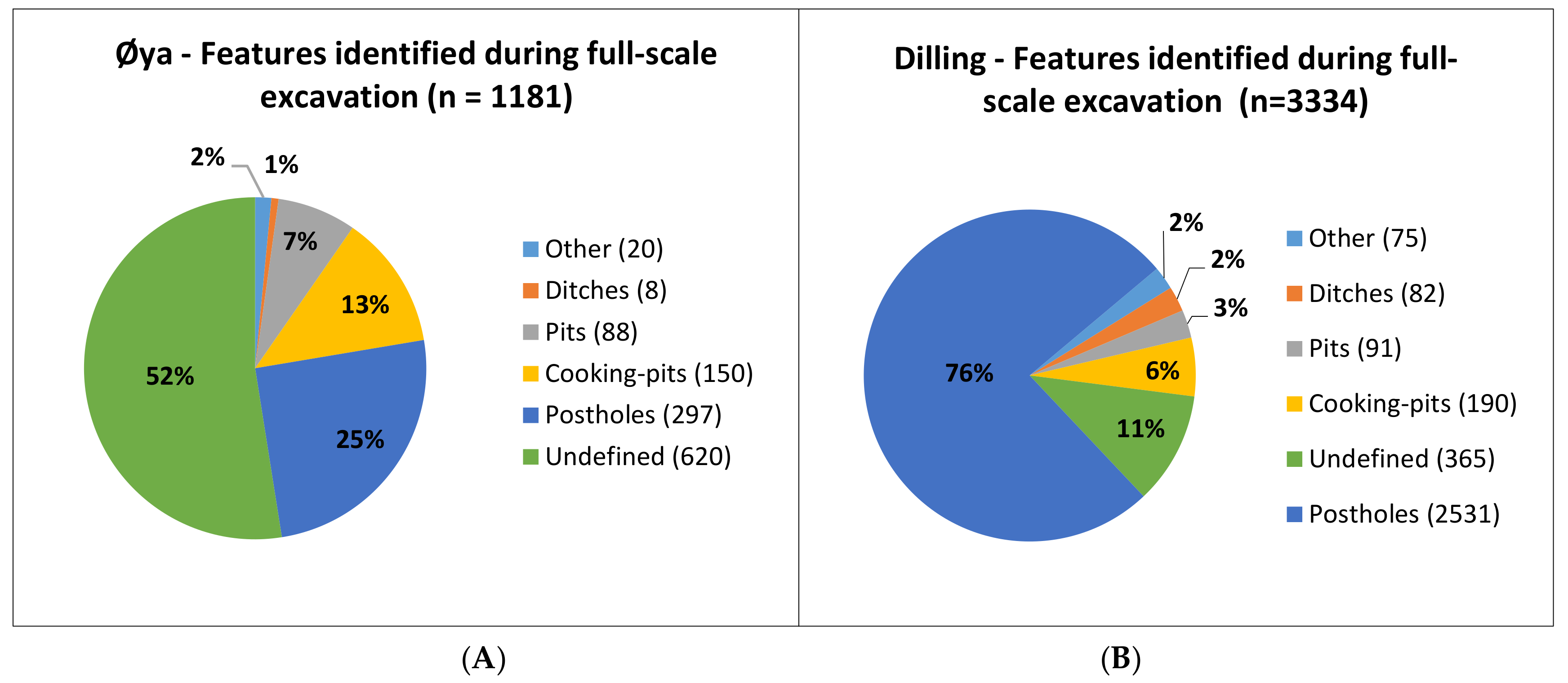

Figure 9. (A) Diagram showing the types of features identified through topsoil stripping at Øya. Of the identified and interpreted features, postholes and cooking-pits comprise 38% of the total number of features. At Øya the “undefined” category is the largest. (B) Diagram showing the types of features identified through topsoil stripping at Dilling. Of the identified and interpreted features, postholes and cooking-pits comprise over 80% of the total number of features.
Figure 9. (A) Diagram showing the types of features identified through topsoil stripping at Øya. Of the identified and interpreted features, postholes and cooking-pits comprise 38% of the total number of features. At Øya the “undefined” category is the largest. (B) Diagram showing the types of features identified through topsoil stripping at Dilling. Of the identified and interpreted features, postholes and cooking-pits comprise over 80% of the total number of features.
Remotesensing 12 01408 g009

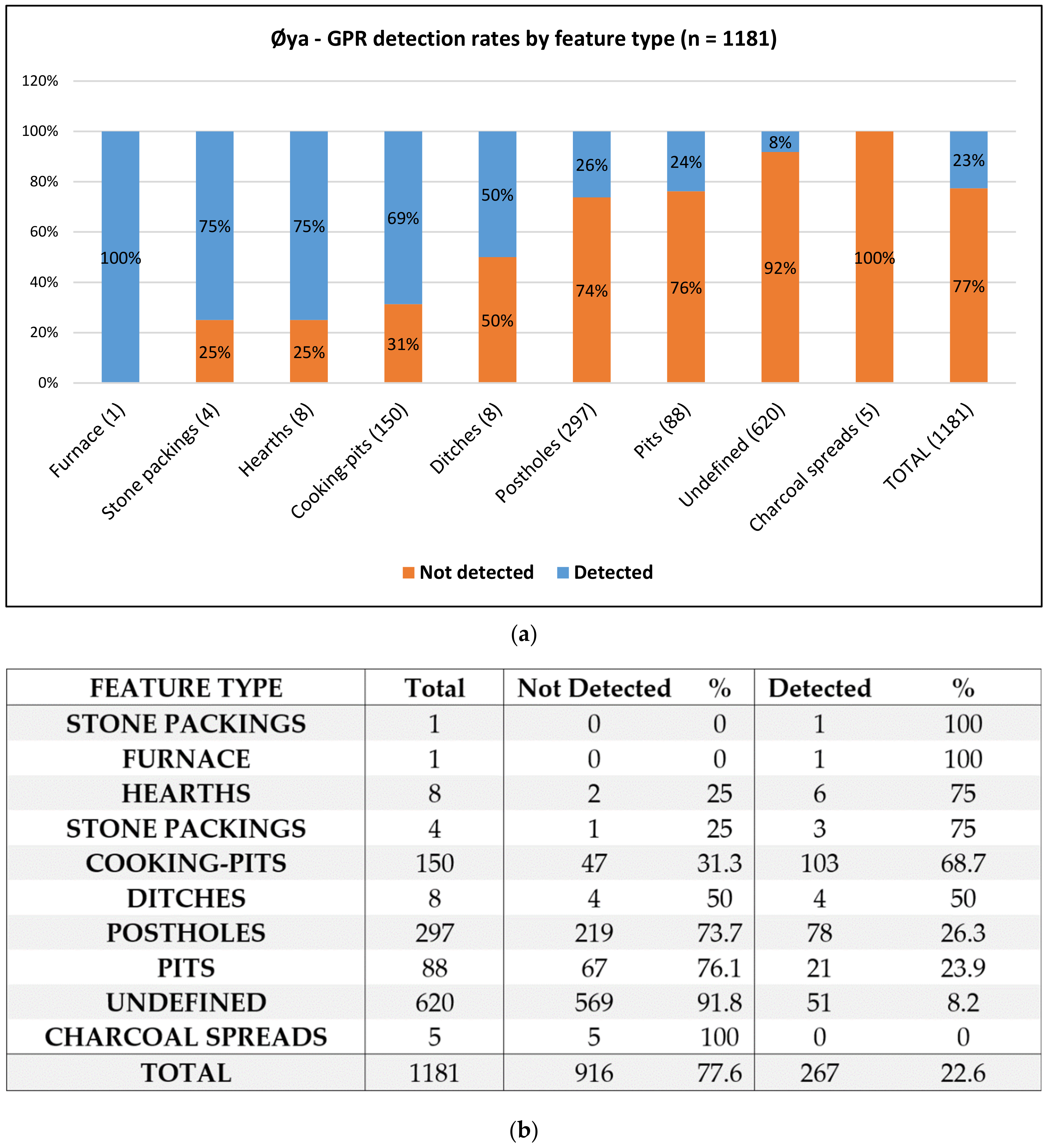

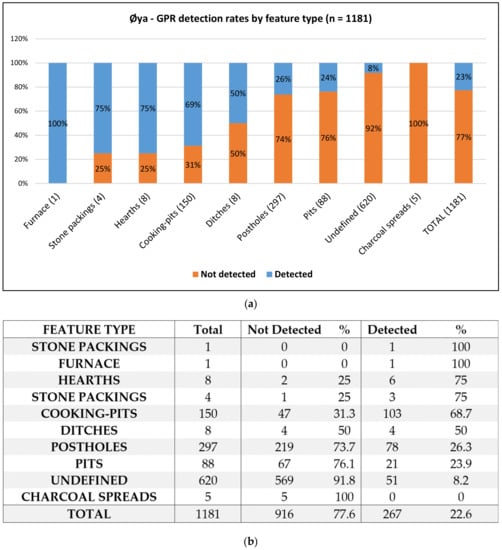

Figure 10. (a,b) Charts showing the GPR detection rate by feature type at Øya.
Figure 10. (a,b) Charts showing the GPR detection rate by feature type at Øya.
Remotesensing 12 01408 g010

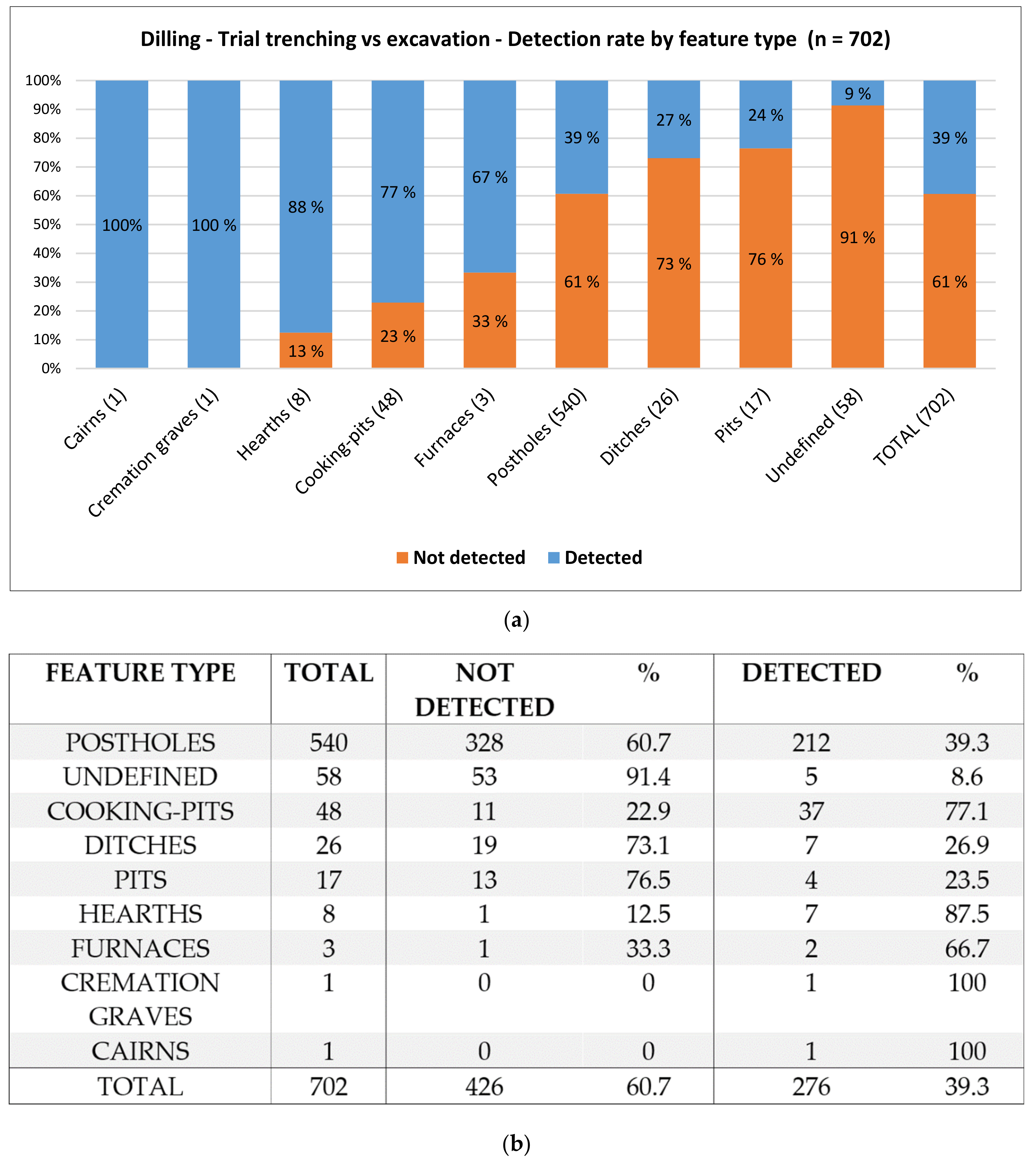

Figure 11. (a,b) Charts showing the relationship between detected and non-detected features within the boundaries of the trial trenches at Dilling.
Figure 11. (a,b) Charts showing the relationship between detected and non-detected features within the boundaries of the trial trenches at Dilling.
Remotesensing 12 01408 g011

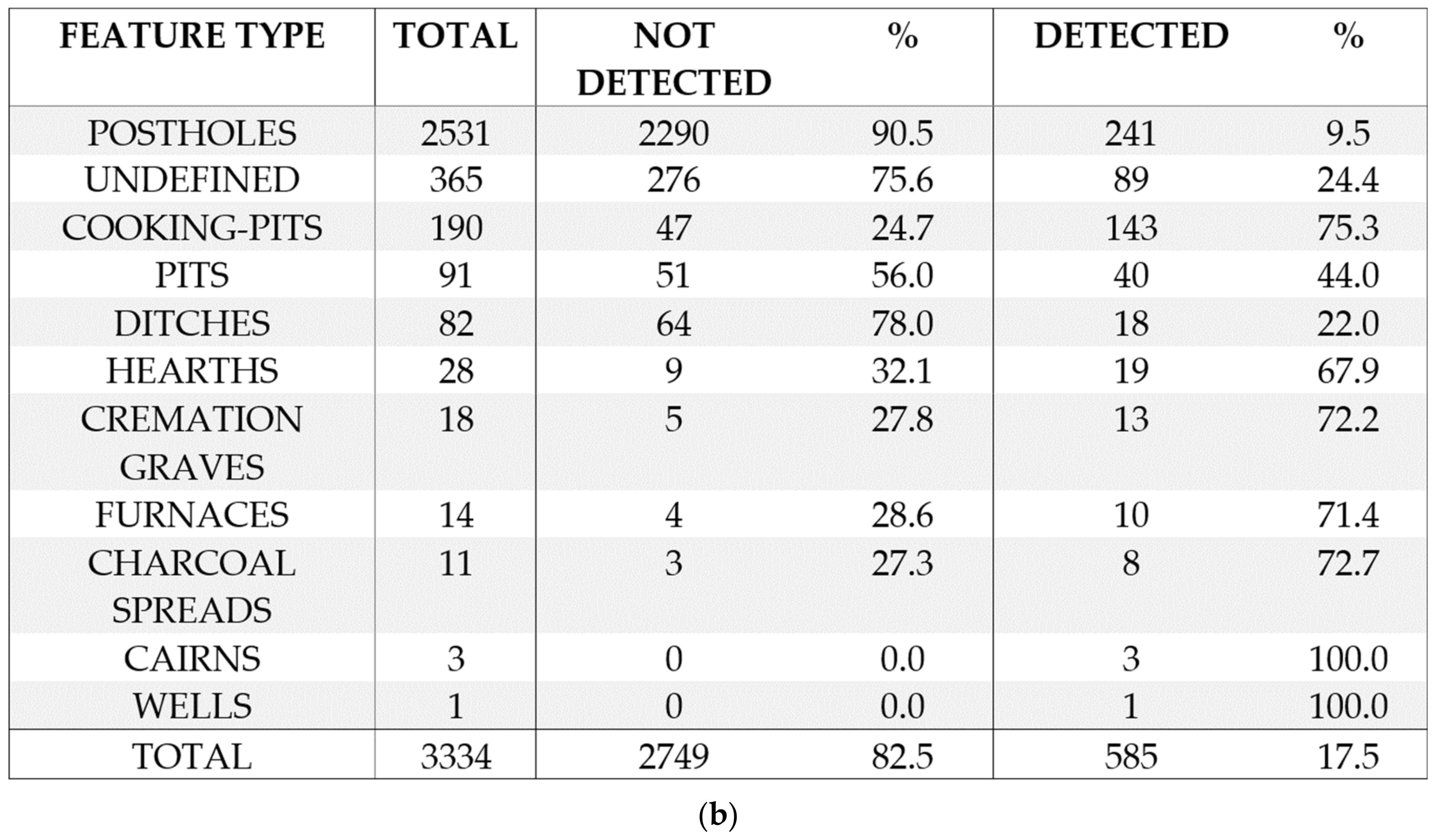

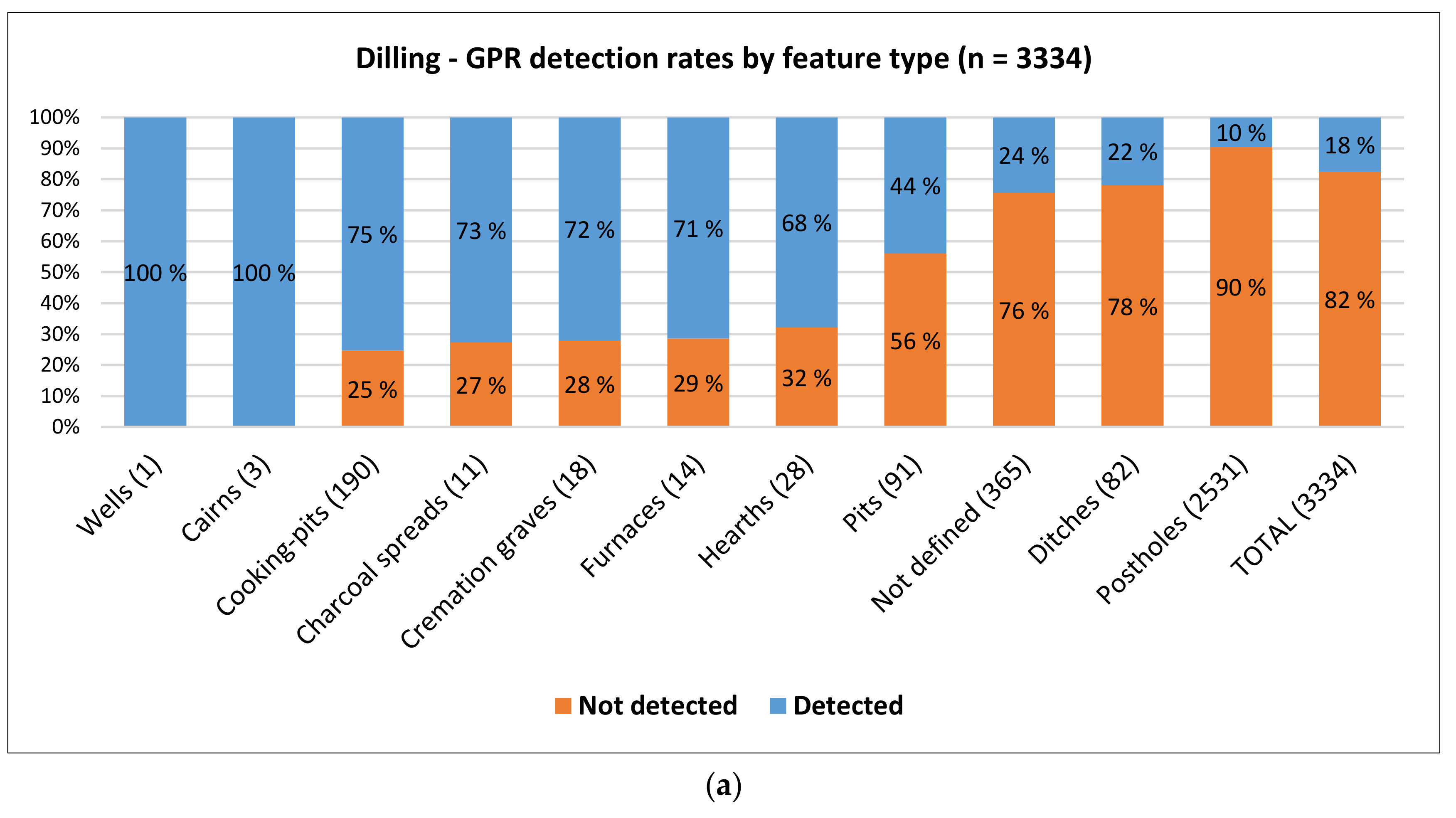

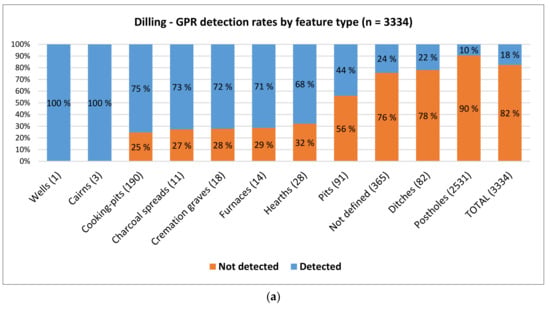

Figure 12. (a,b) Charts showing the GPR detection rate by feature type at Dilling.
Figure 12. (a,b) Charts showing the GPR detection rate by feature type at Dilling.
Remotesensing 12 01408 g012aRemotesensing 12 01408 g012b

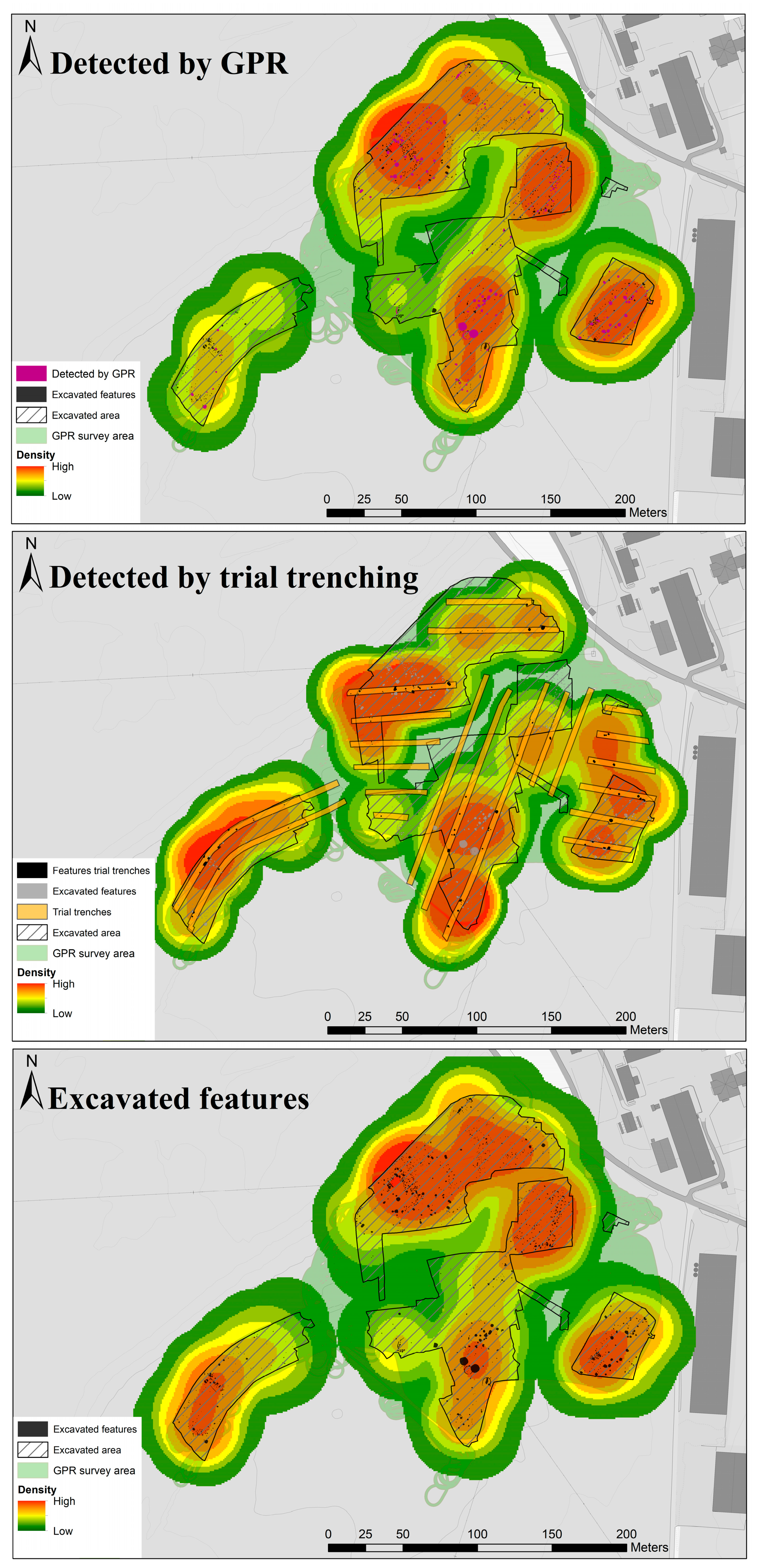

Figure 13. Kernel density maps from Øya. Top: GPR, Middle: trial trenching, Bottom: excavation. Map source: The Norwegian Mapping Authority, Geovekst and Municipalities, 2020.
Figure 13. Kernel density maps from Øya. Top: GPR, Middle: trial trenching, Bottom: excavation. Map source: The Norwegian Mapping Authority, Geovekst and Municipalities, 2020.
Remotesensing 12 01408 g013
Table 1. GPR systems, software and survey parameters for the two case study areas.
Table 1. GPR systems, software and survey parameters for the two case study areas.
Case Study 1—ØyaCase Study 2—Dilling
Date Surveyed23–24 May 20178 May 2017
GPR System3d-Radar Mk IVMALÅ MIRA IV
Antenna Frequency (MHz)100–3000 (step-frequency)400
No. of Channels2016
Inline Resolution (cm)65
Crossline Resolution (cm)7.510
GPS SystemLeica Viva GS15 RTKJavad Sigma RTK
Acquisition SoftwareGeoscope ControlMIRA Soft
Area Covered (ha)44.5
Processing Software3d radar ExaminerZAMG/LBI ArchPro ApRadar
Data Resampling (cm)6 × 65 × 5
Interpretation SoftwareESRI ArcMap 10 and 3d-Radar ExaminerESRI ArcMap 10
Table 2. Features identified during trial trenching, GPR surveys and excavation at Øya. Buried cultivation layers were identified during test trenching but have been removed from this table as they are not classifiable as dug features. Note that these are the features identified in the GPR data that lie within the area covered by the full-scale excavation.
Table 2. Features identified during trial trenching, GPR surveys and excavation at Øya. Buried cultivation layers were identified during test trenching but have been removed from this table as they are not classifiable as dug features. Note that these are the features identified in the GPR data that lie within the area covered by the full-scale excavation.
Feature TypeTenching%GPR%Excavation%
Undefined--5119.162052.4
Postholes3238.67829.229725.1
Cooking-Pits2125.310338.615012.7
Pits2428.9217.9887.4
Hearths22.462.280.7
Ditches--41.580.7
Charcoal Spreads----50.4
Stone Packings11.231.140.3
Furnaces22.410.410.1
Total82 267 1181
Table 3. Features identified through trial trenching, detected by GPR and finally excavated at Dilling.
Table 3. Features identified through trial trenching, detected by GPR and finally excavated at Dilling.
Feature TypeTrenching%GPR%Excavation%
Postholes21276.824141.2253175.9
Undefined51.88915.236510.9
Cooking-Pits3713.41430.21905.7
Pits41.4406.8912.7
Ditches72.5183.1822.5
Hearths72.5193.2280.8
Cremation Graves10.4132.2180.5
Furnaces20.7101.7140.4
Charcoal Spreads--81.4110.3
Cairns10.430.530.1
Wells--10.210.03
Total276 585 3334
Table 4. The calculated spatial correlation between observations.
Table 4. The calculated spatial correlation between observations.
Spatial Correlation
REGISTRATION METHODTrial TrenchingGPR
InterpretedDetected
DILLING0.800.650.73
ØYA0.150.450.85
Table 5. Feature detection rate between the two evaluation methods.
Table 5. Feature detection rate between the two evaluation methods.
Feature Detection Rate
Registration MethodTrial TrenchingGPR
Dilling39.3%17.5%
Øya28.2%22.6%

Share and Cite

MDPI and ACS Style

Gustavsen, L.; Stamnes, A.A.; Fretheim, S.E.; Gjerpe, L.E.; Nau, E. The Effectiveness of Large-Scale, High-Resolution Ground-Penetrating Radar Surveys and Trial Trenching for Archaeological Site Evaluations—A Comparative Study from Two Sites in Norway. Remote Sens. 2020, 12, 1408. https://doi.org/10.3390/rs12091408

AMA Style

Gustavsen L, Stamnes AA, Fretheim SE, Gjerpe LE, Nau E. The Effectiveness of Large-Scale, High-Resolution Ground-Penetrating Radar Surveys and Trial Trenching for Archaeological Site Evaluations—A Comparative Study from Two Sites in Norway. Remote Sensing. 2020; 12(9):1408. https://doi.org/10.3390/rs12091408

Chicago/Turabian Style

Gustavsen, Lars, Arne Anderson Stamnes, Silje Elisabeth Fretheim, Lars Erik Gjerpe, and Erich Nau. 2020. "The Effectiveness of Large-Scale, High-Resolution Ground-Penetrating Radar Surveys and Trial Trenching for Archaeological Site Evaluations—A Comparative Study from Two Sites in Norway" Remote Sensing 12, no. 9: 1408. https://doi.org/10.3390/rs12091408

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
