Assessment of DUACS Sentinel-3A Altimetry Data in the Coastal Band of the European Seas: Comparison with Tide Gauge Measurements

Abstract

The quality of the Data Unification and Altimeter Combination System (DUACS) Sentinel-3A altimeter data in the coastal area of the European seas is investigated through a comparison with in situ tide gauge measurements. The comparison was also conducted using altimetry data from Jason-3 for inter-comparison purposes. We found that Sentinel-3A improved the root mean square differences (RMSD) by 13% with respect to the Jason-3 mission. In addition, the variance in the differences between the two datasets was reduced by 25%. To explain the improved capture of Sea Level Anomaly by Sentinel-3A in the coastal band, the impact of the measurement noise on the synthetic aperture radar altimeter, the distance to the coast, and Long Wave Error correction applied on altimetry data were checked. The results confirmed that the synthetic aperture radar altimeter instrument onboard the Sentinel-3A mission better solves the signal in the coastal band. Moreover, the Long Wave Error processing contributes to reduce the errors in altimetry, enhancing the consistency between the altimeter and in situ datasets.

1. Introduction

Since 1992, altimeter missions have been providing accurate measurements of sea surface height (SSH) [1]. However, there is still a degree of uncertainty in altimeter measurements and in the geophysical corrections applied in the SSH computation [2,3,4,5]. Traditional altimetry retrievals have often been unable to produce meaningful signals of sea level change in the coastal zone due to the typically shallower water, bathymetric gradients, and shoreline shapes, among other things [6].

In the recent past, a lively international community of scientists has been involved in the research and development of techniques for coastal altimetry, with substantial support from space agencies such as the European Space Agency (ESA), the Centre National d’Études Spatiales (CNES), and other research institutions [7]. Efforts have aimed at extending the capabilities of current altimeters closer to the coastal zone. This includes the application of improved geophysical corrections, data recovery strategies near the coast using new editing criteria, and high-frequency along-track sampling associated with updated quality control procedures [6,7,8,9]. Concerning the geophysical corrections, one of the major improvements is in the tide models where the tidal component is not part of the observed signal [10] and needs to be removed [7].

In parallel with these efforts, the Sentinel-3A satellite was launched in February 2016 as part of the European Union Copernicus Programme. It became fully operational in July 2016. The Sentinel-3 mission is jointly operated by the ESA and the European Organisation for the Exploitation of Meteorological Satellites (EUMETSAT) to deliver, among other things, operational ocean observation services [11]. The Sentinel-3A onboard altimeter, a synthetic aperture radar altimeter (SRAL), is based on a principle proposed by [12]: the synthetic aperture radar mode (SARM). The SRAL has two advantages over the conventional altimeter: (i) a finer spatial resolution in the along-track dimension [13] and (ii) the higher signal-to-noise ratio of the received signal and lower speckle noise from SAR waveforms [14,15], providing enhanced Sea Level Anomaly (SLA) measurements in the coastal zone [15].

The Sentinel-3A data are processed by EUMETSAT (https://www.eumetsat.int), which freely distributes level 1 and level 2 products. These products are in a second step reprocessed through the Data Unification and Altimeter Combination System (DUACS) altimeter multi-mission processing system (https://duacs.cls.fr). The DUACS system provides directly usable, high-quality near-real-time and delayed time (DT) global and regional altimeter products [1,5]. The main processing steps include product homogenisation, data editing, orbit error correction, reduction in Long Wavelength Errors (LWE), and the production of along-track and mapped sea level anomalies. The DUACS processing [3] is based on the altimeter standards given by L2P (Level-2 Plus) products (see e.g., [16]). They include the most recent standards recommended for altimeter global products by agencies and expert groups such as the Ocean Surface Topography Science Team (OSTST) and the ESA Quality Working groups.

More than 25 years of level-3 (L3) and level-4 (L4) altimetry products were reprocessed and recently delivered as the DUACS DT 2018 version [5]. L3 products for repetitive altimeter missions are based on the use of a mean profile [3,17] that allows collocating the SSH of the repetitive tracks and retrieving a precise mean reference to compute SLAs [5]. SLAs are often used instead of absolute dynamic topography, defined as the differences between SSH and the geoid height, because the geoid is not perfectly known at scales smaller than 150 km from space gravity missions [17]. To solve this, a mean sea surface model based on altimetry data that contains the sum of the geoid height and the mean dynamic topography is used [17].

The along-track SLA products are affected by the uncertainties in the geoid surface model and also by (i) instrumental errors, (ii) environmental and sea state errors, and (iii) the precision of geophysical corrections. These elements introduce errors in the measurements [18]. To minimise their impact, DUACS-DT2018 re-processing considers the most up-to-date altimetry corrections, such as (a) dry and wet troposphere corrections, (b) ionospheric correction, (c) sea state bias correction, (d) dynamic atmospheric correction (DAC), and (e) the ocean tide. Some of these instrumental and environmental errors remain in the along-track products delivered to final users, mainly due to the imprecision of the corrections applied.

Altimeter data are widely calibrated and validated by comparison with in situ timeseries [19]. Tide gauge measurements are commonly used. In situ and altimetric observations are complementary and are often assumed to observe the same signals (e.g., [20]). The comparisons with in situ observations allow us to obtain altimetry errors relative to the external measurements and provide an improved picture of SSH. The paper [5] assessed gridded products in coastal areas through a comparison with monthly tide gauge measurements from the Permanent Service for Mean Sea Level (PSMSL) Network [21]. The procedure described in [19,22] was used. The paper [5] reported a global reduction of 0.6% in variance when using the DUACS-DT2018 data with respect to the previous DUACS-DT2014 dataset [3], with a clear improvement along the Indian coast, Oceania, and Northern Europe.

The consistency between altimeter gridded products and tide gauge data in the coastal region was also investigated at global [23,24] and regional (Mediterranean basin) scales [25,26]. Mean square differences between tide gauge and gridded altimetry (see Section 3.1 in the text) ranging between 30% and 90% were obtained by [23] in the European coasts, whilst these differences were reduced to around 40% [24] thanks to improved geophysical corrections (i.e., a new DAC) applied to altimetry data with root mean square differences (RMSD) between gridded altimetry and tide gauges of 4.43 cm in the Atlantic Ocean. The paper [25] found a median value for the correlation altimetry—a tide gauge of 0.79 in the Mediterranean Sea.

These works used low-pass filtered (monthly averaged) tide gauge records from PSMSL and the Global Sea Level Observing System (GLOSS)/Climate Variability and Predictability (CLIVAR) [27] to remove high frequencies not resolved by the altimetry gridded products used for inter-comparisons. Thus, a comparison at higher frequencies between a specific regional product for the whole European coast and a high-density tide gauge dataset is, to our knowledge, still lacking.

Here, we present an assessment of the Copernicus Marine Environment Monitoring Service (CMEMS)/DUACS along-track (L3) altimeter regional operational products in the European seas using in situ tide gauges from the Copernicus Marine Environment Monitoring Service (CMEMS) catalogue. The aim is to validate the Sentinel-3A SAR mode SLAs against the equivalent in situ tide gauge measurements. Six-hour time series of tide gauge measurements will be compared with the 1 Hz along-track altimetry data from the Sentinel-3A satellite mission, this strongly enhancing both the spatial and temporal resolution of the results reported by [5]. We expect to obtain a more detailed assessment of DUACS-DT2018 products in the European seas at the both regional and sub-regional level. This inter-comparison has been also conducted by using SLA from the Jason-3 satellite mission to investigate the improvements of the Sentinel-3A mission over the latter in the coastal band.

2. Materials and Methods

2.1. Sea Level Anomalies from Altimetry

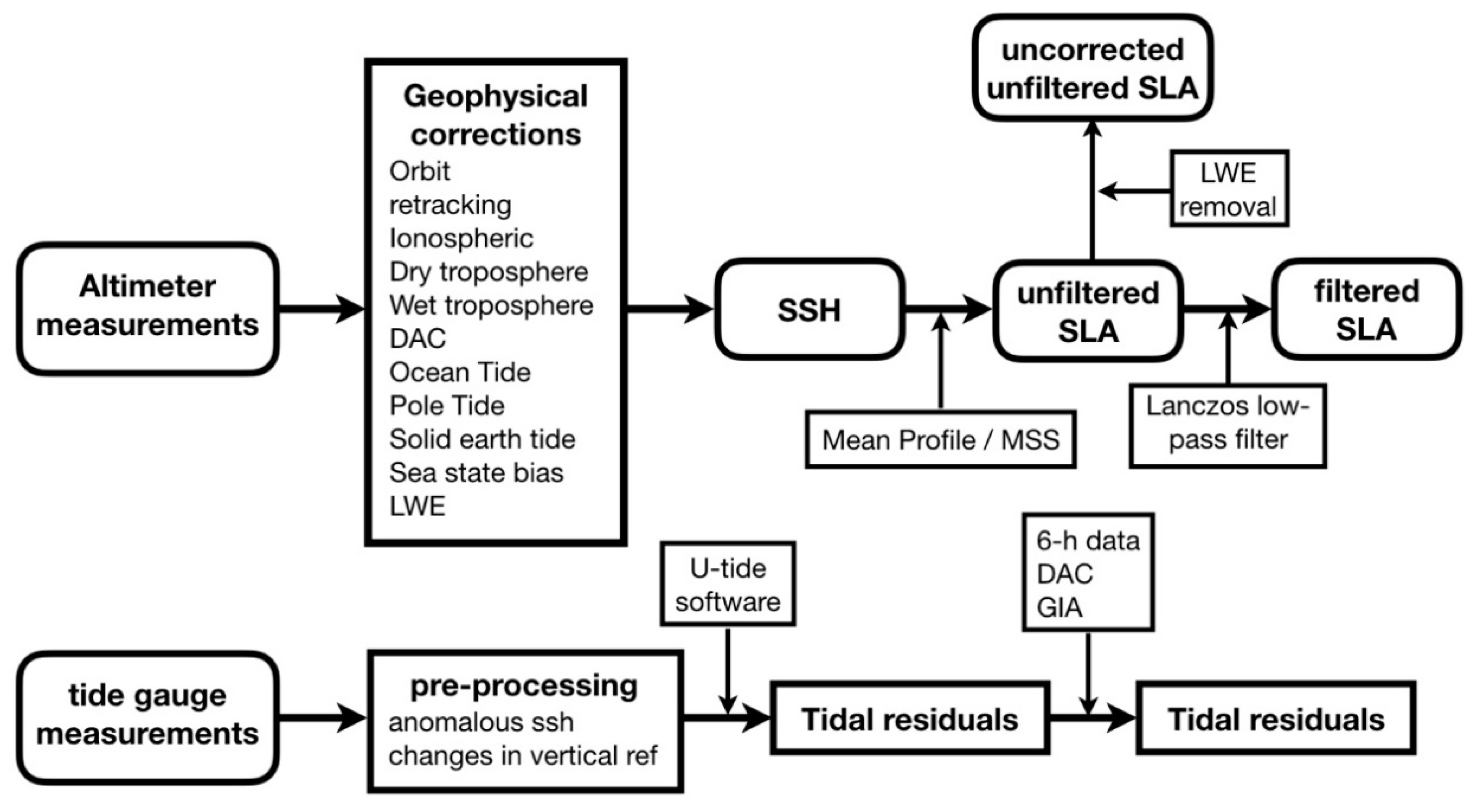

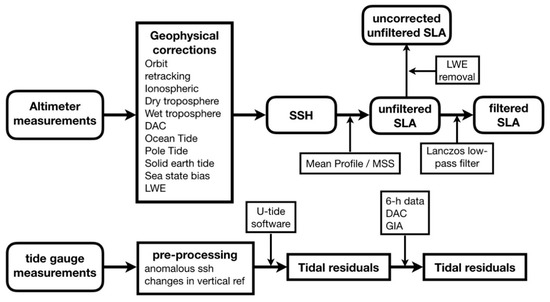

The DUACS-DT2018 along-track (L3) regional altimetry products for the European seas were released by CMEMS in 2018. We use delayed-time (quality controlled) reprocessed altimeter along-track SLA products computed with respect to a twenty-year (1993–2012) mean for the satellite missions Jason-3 and Sentinel-3A. These products have a spatial sampling of around 7 km, corresponding to the upstream 1 Hz products sampling. Filtered and unfiltered SLA measurements are provided. In this work, we have used both. Unfiltered SLA is the raw SLA (i.e., not filtered) measured by the instrument. Unless otherwise stated, SLA will refer to unfiltered SLA throughout the text, except for Section 3.3, where we specifically compare the results obtained from both SLAs.

Filtered SLA is computed for regional Europe products in the DUACS procedure by applying a Lanczos low-pass filter with a cut-off wavelength of around 40 km to SLA measurements (e.g., [13]). The aim is to remove the noise signal and the short wavelengths affected by the noise [18]. This procedure is discussed in [3]. This low-pass cut-off length is the minimal one that can be applied to along-track SLA to reduce noise effects and preserve as much as possible the physical signal. Filtered SLA is not sub-sampled to keep the 1 Hz full resolution. We decided to focus on the reference low-rate (1 Hz) SLAs instead of high-rate (i.e., 20 Hz) SLAs, because the former are produced by DUACS and delivered by CMEMS to the entire oceanographic community. The high-frequency 20 Hz products are not available for most users. Figure 1 shows a flowchart explaining the DUACS procedure applied to the altimetry data.

The time period analysed spans from May 2016 to September 2018. The areas investigated are the whole European coast, the Baltic Sea, the Arctic Sea, North-West Shelves (NWS) region, the Iberian-Biscay-Irish (IBI) region, and the central-western Mediterranean Sea (Figure 2).

2.2. Tide Gauge Observations

The sea-level records used to compare with satellite altimetry were obtained from the CMEMS In Situ Thematic Assembly Centre (TAC) data repository. The Copernicus catalogue provides data of 485 tide gauge stations along the World Ocean coasts, which are updated within a few weeks or a few months. This dataset covers the time period spanning from January 2010 to the present. Six-hourly tide gauge records were used according to the following procedure (Figure 1): the 445 tide gauge stations located in the European seas’ domain were initially considered for this study. The quality flags of the tide gauge records were checked and observations with anomalous SSH data (values larger than three times the standard deviation of the time series) or changes in the vertical reference of the tide gauge were rejected. Additionally, tide gauge time series exhibiting a large variance (more than 20 cm²) with respect to altimetry data were removed, as they are considered not representative of ocean sea level changes and are likely related to local features (e.g., river discharge). Only tide gauges with at least a 70% yearly data coverage were selected in order to allow the analysis of the seasonal signal.

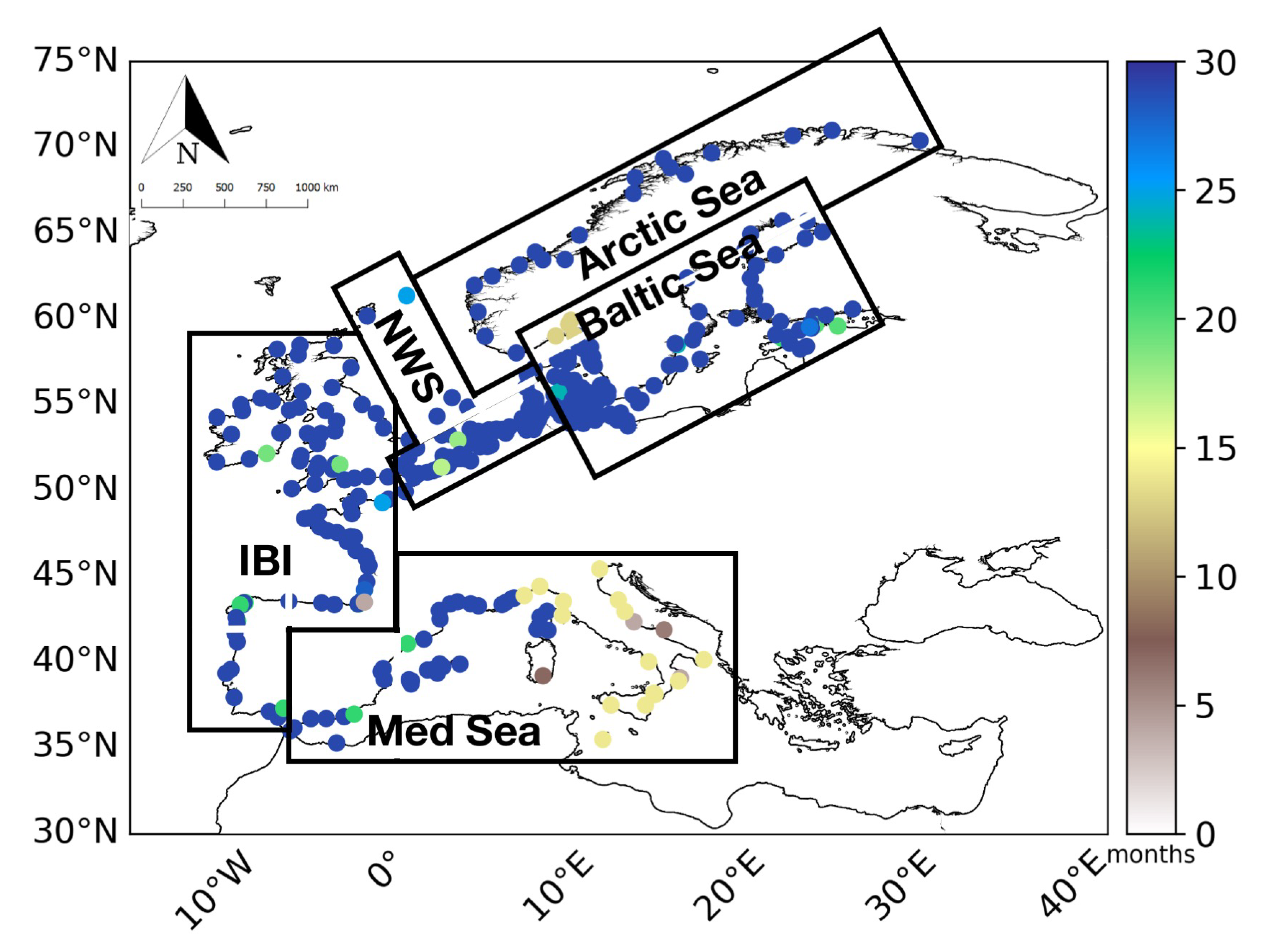

The final set consists of 370 stations (Figure 2). The stations and their information are listed in

Table A1. List of tide gauge records with their location and the time period analysed. Bold stations were used in the inter-comparisons with altimetry data, whilst non-bold ones were rejected because they presented spurious data and/or did not keep the selection criteria described in the text.

	Region	Station Name	Lon (°E)	Lat (°N)	Period Analysed		Region	Station Name	Lon (°E)	Lat (°N)	Period Analysed
1	Baltic Sea	Aarhus	10.22	56.15	05/2016–09/2018	32		Heiligenhafen	11.01	54.37	05/2016–09/2018
2		Althagen	12.42	54.38	05/2016–09/2018	33		Helsinki	24.96	60.15	05/2016–09/2018
3		Arko	16.96	58.48	05/2016–09/2018	34		Heltermaa	23.05	58.87	05/2016–09/2018
4		Assens	9.88	55.27	05/2016–09/2018	35		Hesnaes	12.13	54.82	05/2016–09/2018
5		Bagenkop	10.68	54.75	05/2016–09/2018	36		HirtshalsTG	9.97	57.6	05/2016–09/2018
6		Ballen	10.64	55.82	05/2016–09/2018	37		Hobro	9.8	56.63	05/2016–09/2018
7		Bandholm	11.48	54.83	05/2016–09/2018	38		Holbaek	11.72	55.72	05/2016–09/2018
8		Barhoeft	13.03	54.44	05/2016–09/2018	39		Hornbaek	12.47	56.1	05/2016–09/2018
9		Barseback	12.9	55.76	05/2016–09/2018	40		Hov	10.27	55.92	05/2016–09/2018
10		Bogense	10.08	55.57	05/2016–09/2018	41		Juelsminde	10.02	55.72	05/2016–09/2018
11		Degerby	20.38	60.03	05/2016–09/2018	42		Kalix	23.1	65.7	05/2016–09/2018
12		Dragor	12.68	55.6	05/2016–09/2018	43		Kalkgrund	9.89	54.82	05/2016–09/2018
13		Drogden	12.71	55.54	05/2016–09/2018	44		Kalvehave	12.17	55,00	05/2016–09/2018
14		Eckernfoerde	9.84	54.47	05/2016–09/2018	45		Kappeln	9.94	54.66	05/2016–09/2018
15		Eisma	26.31	59.57	05/2016–09/2018	46		Karrebaeksminde	11.65	55.18	05/2016–09/2018
16		Faaborg	10.25	55.1	05/2016–09/2018	47		Kaskinen	21.21	62.34	05/2016–09/2018
17		Forsmark	18.21	60.41	05/2016–09/2018	48		Kelnase	25.01	59.64	05/2016–09/2018
18		Fredericia	9.75	55.57	05/2016–09/2018	49		Kemi	24.52	65.67	05/2016–09/2018
19		Frederikshavn	10.57	57.43	05/2016–09/2018	50		KielHoltenau	10.16	54.37	05/2016–09/2018
20		Furuogrund	21.23	64.92	05/2016–09/2018	51		KielLT	10.27	54.5	05/2016–09/2018
21		Fynshav	9.98	55,00	05/2016–09/2018	52		Klagshamn	12.89	55.52	05/2016–09/2018
22		Gedser	11.93	54.57	05/2016–09/2018	53		Koege	12.2	55.45	05/2016–09/2018
23		GoteborgAgnesberg	12.01	57.79	05/2016–09/2018	54		Korsor	11.13	55.33	05/2016–09/2018
24		GoteborgEriksberg	11.91	57.7	05/2016–09/2018	55		Koserow	14,00	54.06	05/2016–09/2018
25		GoteborgLarjeholm	12.01	57.77	05/2016–09/2018	56		Kristineberg1	11.45	58.25	05/2016–09/2018
26		GoteborgTingstadstunneln	11.99	57.72	05/2016–09/2018	57		Kungsholmsfort	15.59	56.11	05/2016–09/2018
27		GoteborgTorshamnen	11.79	57.68	05/2016–09/2018	58		Kungsvik	11.13	59,00	05/2016–09/2018
28		Greifswald	13.45	54.09	05/2016–09/2018	59		LandsortNorra	17.86	58.77	05/2016–09/2018
29		Grena	10.93	56.41	05/2016–09/2018	60		Langballigau	9.65	54.82	05/2016–09/2018
30		Hamina	27.18	60.56	05/2016–09/2018	61		Lehtma	22.7	59.07	05/2016–09/2019
31		Hanko	22.98	59.82	05/2016–09/2018	62		Leppneeme	24.87	59.55	05/2016–09/2019
	Region	Station name	Lon (°E)	Lat (°N)	Period analysed		Region	Station name	Lon (°E)	Lat (°N)	Period analysed
63		Luebeck	10.7	53.89	05/2016–09/2018	98		Stenungsund	11.83	58.09	05/2016–09/2018
64		Marviken	16.84	58.55	05/2016–09/2018	99		Stockholm	18.08	59.32	05/2016–09/2018
65		Munalaid	24.12	58.23	05/2016–09/2018	100		Stralsund	13.1	54.32	05/2016–09/2018
66		Neustadt	10.81	54.1	05/2016–09/2018	101		Tallinn	24.76	59.44	05/2016–09/2018
67		NordreRose	12.69	55.64	05/2016–09/2018	102		Tallinnamadal	24.73	59.71	05/2016–09/2018
68		OlandsNorraUdde	17.1	57.37	05/2016–09/2018	103		Tejn	14.83	55.25	05/2016–09/2018
69		Onsala	11.92	57.39	05/2016–09/2018	104		TimmendorfPoel	11.38	53.99	05/2016–09/2018
70		OscarsborgTG	10.6	59.68	05/2016–09/2018	105		Travemuende	10.87	53.96	05/2016–09/2018
71		Oskarshamn	16.48	57.28	05/2016–09/2018	106		Turku	22.1	60.43	05/2016–09/2018
72		Oulu	25.42	65.04	05/2016–09/2018	107		Udbyhoej	10.3	56.6	05/2016–09/2018
73		Paldiski	24.08	59.33	05/2016–09/2018	108		Uddevalla	11.89	58.35	05/2016–09/2018
74		Parnu	24.49	58.39	05/2016–09/2018	109		Ueckermuende	14.07	53.75	05/2016–09/2018
75		Pietarsaari	22.69	63.71	05/2016–09/2018	110		Vaasa	21.57	63.08	05/2016–09/2018
76		Pori	21.46	61.59	05/2016–09/2018	111		Vahemadal	24.67	59.51	05/2016–09/2018
77		Porvoo	25.63	60.21	05/2016–09/2018	112		Vedbaek	12.57	55.85	05/2016–09/2018
78		Raahe	24.41	64.67	05/2016–09/2018	113		Viken	12.58	56.14	05/2016–09/2018
79		Ratan	20.9	63.99	05/2016–09/2018	114		VikerTG	10.95	59.04	05/2016–09/2018
80		Rauma	21.46	61.13	05/2016–09/2018	115		Virtsu	23.51	58.58	05/2016–09/2018
81		Ringhals	12.11	57.25	05/2016–09/2018	116		Visby	18.28	57.64	05/2016–09/2018
82		Rodby	11.35	54.65	05/2016–09/2018	117		Warnemuende	12.1	54.17	05/2016–09/2018
83		Rodvig	12.37	55.25	05/2016–09/2018	118		Wismar	11.46	53.9	05/2016–09/2018
84		Rohukula	23.42	58.9	05/2016–09/2018	119		Wolgast	13.77	54.04	05/2016–09/2018
85		Ronne	14.68	55.1	05/2016–09/2018	120	North-West Shelves	A121TG	3.81	55.4	05/2016–09/2018
86		Roskilde	12.08	55.65	05/2016–09/2018	121		AalesundTG	6.15	62.47	05/2016–09/2018
87		Rostock	12.15	54.08	05/2016–09/2018	122		AlteWeserTG	8.13	53.86	05/2016–09/2019
88		Sassnitz	13.64	54.51	05/2016–09/2018	123		AndenesTG	16.13	69.33	05/2016–09/2020
89		Schleimuende	10.04	54.67	05/2016–09/2018	124		AWGTG	5.94	53.49	05/2016–09/2021
90		Simrishamn	14.36	55.56	05/2016–09/2018	125		BallumTG	8.69	55.13	05/2016–09/2018
91		SjaellandsOdde	11.37	55.97	05/2016–09/2018	126		BergenTG	5.32	60.4	05/2016–09/2018
92		Skagen	10.59	57.72	05/2016–09/2018	127		BodoeTG	14.39	67.29	05/2016–09/2018
93		Skanor	12.83	55.42	05/2016–09/2018	128		BorkumTG	6.75	53.56	05/2016–09/2018
94		Slipshavn	10.83	55.28	05/2016–09/2018	129		BoulogneSurMerTG	1.58	50.73	05/2016–09/2018
95		Smogen	11.22	58.35	05/2016–09/2018	130		BremerhavenTG	8.57	53.54	05/2016–09/2018
96		Sonderborg	9.78	54.92	05/2016–09/2018	131		Brouwershavensegat8TG	3.62	51.77	05/2016–09/2018
97		Spikarna	17.53	62.36	05/2016–09/2018	132		BuesumTG	8.86	54.12	05/2016–09/2018
	Region	Station name	Lon (°E)	Lat (°N)	Period analysed		Region	Station name	Lon (°E)	Lat (°N)	Period analysed
133		CadzandTG	3.38	51.38	05/2016–09/2018	168		J61TG	5.94	53.49	05/2016–09/2018
134		CalaisTG	1.87	50.97	05/2016–09/2018	169		K13aTG	3.22	53.22	05/2016–09/2018
135		CuxhavenTG	8.72	53.87	05/2016–09/2018	170		K141TG	3.63	53.27	05/2016–09/2018
136		D151TG	2.93	54.32	05/2016–09/2018	171		KabelvaagTG	14.48	68.21	05/2016–09/2018
137		DagebuellTG	8.69	54.73	05/2016–09/2018	172		KeizersveerTG	4.89	51.72	05/2016–09/2018
138		DelfzijlTG	6.93	53.33	05/2016–09/2018	173		KornwerderzandTG	5.34	53.07	05/2016–09/2018
139		DenHelderTG	4.75	52.97	05/2016–09/2018	174		KrabbersgatsluizenNoordTG	5.28	52.69	05/2016–09/2018
140		DenOeverBinnenTG	5.05	52.93	05/2016–09/2018	175		KristiansundTG	7.73	63.11	05/2016–09/2018
141		DenOeverBuitenTG	5.05	52.93	05/2016–09/2018	176		L91TG	4.87	53.57	05/2016–09/2018
142		DenOeverTG	5.05	52.93	05/2016–09/2018	177		LauwersoogTG	6.2	53.41	05/2016–09/2018
143		DordrechtTG	4.67	51.82	05/2016–09/2018	178		LemmerTG	5.71	52.84	05/2016–09/2018
144		DunkerqueTG	2.37	51.05	05/2016–09/2018	179		Lerwick	−1.14	60.15	05/2016–09/2018
145		EemshavenTG	6.84	53.46	05/2016–09/2018	180		LichteilandGoeree1TG	3.67	51.93	05/2016–09/2018
146		EiderSPTG	8.84	54.27	05/2016–09/2018	181		ListTG	8.44	55.02	05/2016–09/2018
147		EsbjergTG	8.43	55.47	05/2016–09/2018	182		MaloyTG	5.11	61.93	05/2016–09/2018
148		EuroplatformTG	3.28	52,00	05/2016–09/2018	183		MausundTG	8.67	63.87	05/2016–09/2018
149		F3platformTG	4.72	54.85	05/2016–09/2018	184		NarvikTG	17.43	68.43	05/2016–09/2018
150		HammerfestTG	23.68	70.66	05/2016–09/2018	185		NesTG	5.76	53.43	05/2016–09/2018
151		HanstholmTG	8.6	57.12	05/2016–09/2018	186		NieuwpoortTG	2.73	51.15	05/2016–09/2018
152		Haringvliet10TG	3.86	51.86	05/2016–09/2018	187		NorderneyTG	7.16	53.7	05/2016–09/2018
153		HarlingenTG	5.41	53.18	05/2016–09/2018	188		NorthCormorantTG	1.16	61.34	05/2016–09/2018
154		HarstadTG	16.55	68.8	05/2016–09/2018	189		Ny-AlesundTG	11.94	78.93	05/2016–09/2018
155		HavnebyTG	8.57	55.09	05/2016–09/2018	190		OostendeTG	2.92	51.23	05/2016–09/2018
156		HeimsjoeTG	9.1	63.43	05/2016–09/2018	191		Oosterschelde11TG	3.48	51.64	05/2016–09/2018
157		HelgeroaTG	9.86	59,00	05/2016–09/2018	192		OsloTG	10.73	59.91	05/2016–09/2018
158		HelgolandTG	7.89	54.18	05/2016–09/2018	193		OudeSchildTG	4.85	53.04	05/2016–09/2018
159		HoekVanHollandTG	4.12	51.98	05/2016–09/2018	194		Q11TG	4.15	52.92	05/2016–09/2018
160		HoernumTG	8.3	54.76	05/2016–09/2018	195		RibeTG	8.68	55.33	05/2016–09/2018
161		HonningsvaagTG	25.97	70.98	05/2016–09/2018	196		RoggebotsluisNoordTG	5.86	52.55	05/2016–09/2018
162		HoutribsluizenNoordTG	5.43	52.53	05/2016–09/2018	197		RoompotBuitenTG	3.68	51.62	05/2016–09/2018
163		HuibertgatTG	6.4	53.57	05/2016–09/2018	198		RorvikTG	11.23	64.86	05/2016–09/2018
164		HusumTG	9.02	54.47	05/2016–09/2018	199		ScheveningenTG	4.26	52.1	05/2016–09/2018
165		HvideSandeKystTG	8.11	56,00	05/2016–09/2018	200		SchiermonnikoogWaddenTG	6.2	53.47	05/2016–09/2018
166		IJmondstroompaalTG	4.52	52.46	05/2016–09/2018	201		SpijkenisseTG	4.33	51.86	05/2016–09/2018
167		IjmuidenTG	4.56	52.46	05/2016–09/2018	202		StavangerTG	5.73	58.97	05/2016–09/2018
	Region	Station name	Lon (°E)	Lat (°N)	Period analysed		Region	Station name	Lon (°E)	Lat (°N)	Period analysed
203		TerschellingNoordzeeTG	5.33	53.44	05/2016–09/2018	238		BarcelonaTG	2.16	41.34	05/2016–09/2018
204		ThyboronKystTG	8.21	56.71	05/2016–09/2018	239		CarbonerasTG	−1.9	36.97	05/2016–09/2018
205		TorsmindeKystTG	8.21	56.71	05/2016–09/2018	240		FormenteraTG	1.42	38.73	05/2016–09/2018
206		TregdeTG	7.55	58.01	05/2016–09/2018	241		GandiaTG	−0.15	38.99	05/2016–09/2018
207		TromsoeTG	18.96	69.65	05/2016–09/2018	242		IbizaTG	1.45	38.91	05/2016–09/2018
208		TrondheimTG	10.39	63.44	05/2016–09/2018	243		MahonTG	4.27	39.89	05/2016–09/2018
209		VardoeTG	31.1	70.37	05/2016–09/2018	244		MalagaTG	−4.42	36.71	05/2016–09/2018
210		VidaaTG	8.67	54.97	05/2016–09/2018	245		MelillaTG	−2.92	35.29	05/2016–09/2018
211		VlakteVdRaanTG	3.24	51.5	05/2016–09/2018	246		MotrilTG	−3.52	36.72	05/2016–09/2018
212		VlielandHavenTG	5.09	53.3	05/2016–09/2018	247		PalmadeMallorcaTG	2.64	39.56	05/2016–09/2018
213		VlissingenTG	3.6	51.45	05/2016–09/2018	248		SaguntoTG	−0.21	39.63	05/2016–09/2018
214		WangeroogeTG	7.93	53.81	05/2016–09/2018	249		TarifaTG	−5.6	36.01	05/2016–09/2018
215		WestkapelleTG	3.44	51.52	05/2016–09/2018	250		TarragonaTG	1.21	41.08	05/2016–09/2018
216		WierumergrondenTG	5.96	53.52	05/2016–09/2018	251		ValenciaTG	−0.33	39.46	05/2016–09/2018
217		WilhelmshavenTG	8.15	53.51	05/2016–09/2018	252		ANDRATX	2.38	39.54	05/2016–09/2018
218		WittduenTG	8.38	54.63	05/2016–09/2018	253		COLONIA-SANT-PERE	3.27	39.74	05/2016–09/2018
219		ZeebruggeTG	3.2	51.35	05/2016–09/2018	254		POLLENSA	3.09	39.9	05/2016–09/2018
220		ZwartsluisTG	6.08	52.64	05/2016–09/2018	255		RMN-Ancona	13.51	43.62	05/2016–09/2018
221	Med. Sea	AjaccioTG	8.76	41.92	05/2016–09/2018	256		RMN-Cagliari	9.11	39.21	05/2016–09/2018
222		CenturiTG	9.35	42.97	05/2016–09/2018	257		RMN-Catania	15.09	37.5	05/2016–09/2018
223		FosSurMerTG	4.89	43.4	05/2016–09/2018	258		RMN-Crotone	17.14	39.08	05/2016–09/2018
224		IleRousseTG	8.94	42.64	05/2016–09/2018	259		RMN-Genova	8.93	44.41	05/2016–09/2018
225		LaFigueiretteTG	6.93	43.48	05/2016–09/2018	260		RMN-Imperia2	8.02	43.88	05/2016–09/2018
226		MarseilleTG	5.35	43.28	05/2016–09/2018	261		RMN-Lampedusa	12.6	35.5	05/2016–09/2018
227		MonacoTG	7.42	43.73	05/2016–09/2018	262		RMN-LeCastella	17.03	38.91	05/2016–09/2018
228		NiceTG	7.29	43.7	05/2016–09/2018	263		RMN-Livorno	10.3	43.55	05/2016–09/2018
229		PortCamargueTG	4.13	43.52	05/2016–09/2018	264		RMN-MarinaDiCampo	10.24	42.74	05/2016–09/2018
230		PortFerreolTG	6.72	43.36	05/2016–09/2018	265		RMN-Messina	15.56	38.2	05/2016–09/2018
231		PortLaNouvelleTG	3.06	43.01	05/2016–09/2018	266		RMN-Ortona	14.41	42.36	05/2016–09/2018
232		PortVendresTG	3.11	42.52	05/2016–09/2018	267		RMN-Otranto	18.5	40.15	05/2016–09/2018
233		SeteTG	3.7	43.4	05/2016–09/2018	268		RMN-Palinuro	15.28	40.03	05/2016–09/2018
234		SolenzaraTG	9.4	41.86	05/2016–09/2018	269		RMN-ReggioCalabria	15.65	38.12	05/2016–09/2018
235		AlcudiaTG	3.14	39.83	05/2016–09/2018	270		RMN-SBenedettoDelTronto	13.89	42.96	05/2016–09/2018
236		AlgecirasTG	−5.4	36.18	05/2016–09/2018	271		RMN-Sciacca	13.08	37.5	05/2016–09/2018
237		AlmeriaTG	−2.48	36.83	05/2016–09/2018	272		RMN-Venice	12.43	45.42	05/2016–09/2018
	Region	Station name	Lon (°E)	Lat (°N)	Period analysed		Region	Station name	Lon (°E)	Lat (°N)	Period analysed
273		RMN-Vieste	16.18	41.89	05/2016–09/2018	308		Hinkley	−3.13	51.22	05/2016–09/2018
274		SANT-ANTONI	1.3	38.98	05/2016–09/2018	309		Holyhead	−4.62	53.32	05/2016–09/2018
275		SA-RAPITA	2.95	39.36	05/2016–09/2018	310		Howth	−6.07	53.39	05/2016–09/2018
276	Iberian-Biscay-Irish Seas	Aberdeen	−2.08	57.15	05/2016–09/2018	311		HuelvaTG	−6.83	37.13	05/2016–09/2018
277		AngletConvergentTG	−1.51	43.53	05/2016–09/2018	312		IleDAixTG	−1.17	46.01	05/2016–09/2018
278		Aranmore	−8.5	54.99	05/2016–09/2018	313		Ilfracombe	−4.12	51.22	05/2016–09/2018
279		ArcachonEyracTG	−1.16	44.67	05/2016–09/2018	314		Immingham	−0.18	53.63	05/2016–09/2018
280		Ballycotton	−8,00	51.83	05/2016–09/2018	315		Killybegs	−8.39	54.64	05/2016–09/2018
281		Ballyglass	−9.89	54.25	05/2016–09/2018	316		Kinlochbervie	−5.05	58.46	05/2016–09/2018
282		Bangor	−5.67	54.67	05/2016–09/2018	317		LangosteiraTG	−8.53	43.35	05/2016–09/2018
283		Barmouth	−4.03	52.72	05/2016–09/2018	318		LaRochelleTG	−1.23	46.15	05/2016–09/2018
284		BayonneBoucauTG	−1.52	43.53	05/2016–09/2018	319		LeConquetTG	−4.78	48.36	05/2016–09/2018
285		BilbaoTG	−3.05	43.36	05/2016–09/2018	320		LeCrouestyTG	−2.9	47.54	05/2016–09/2018
286		BonanzaTG	−6.34	36.8	05/2016–09/2018	321		LeHavreTG	0.11	49.48	05/2016–09/2018
287		Bournemouth	−1.87	50.71	05/2016–09/2018	322		Leith	−3.18	55.99	05/2016–09/2018
288		BrestTG	−4.5	48.38	05/2016–09/2018	323		LeixoesTG	−8.7	41.19	05/2016–09/2018
289		Castletownbere	−9.9	51.65	05/2016–09/2018	324		LesSablesDOlonneTG	−1.79	46.5	05/2016–09/2018
290		CherbourgTG	−1.64	49.65	05/2016–09/2018	325		Liverpool	−3.02	53.45	05/2016–09/2018
291		CiboureTG	−1.66	43.39	05/2016–09/2018	326		Llandudno	−3.82	53.31	05/2016–09/2018
292		ConcarneauTG	−3.91	47.87	05/2016–09/2018	327		Lowestoft	1.75	52.47	05/2016–09/2018
293		CordemaisTG	−1.89	47.28	05/2016–09/2018	328		MalinHead	−7.33	55.37	05/2016–09/2018
294		CorunaTG	−8.39	43.36	05/2016–09/2018	329		MarinTG	−8.69	42.41	05/2016–09/2018
295		Cromer	1.3	52.93	05/2016–09/2018	330		Milford	−5.05	51.72	05/2016–09/2018
296		DieppeTG	1.09	49.93	05/2016–09/2018	331		Millport	−4.9	55.75	05/2016–09/2018
297		Dover	1.32	51.12	05/2016–09/2018	332		MimizanTG	−1.3	44.21	05/2016–09/2018
298		DublinPort	−6.22	53.35	05/2016–09/2018	333		MontoirDeBretagneTG	−2.11	47.31	05/2016–09/2018
299		Dunmore	−6.99	52.15	05/2016–09/2018	334		Mumbles	−3.97	51.57	05/2016–09/2018
300		Ferrol2TG	−8.25	43.48	05/2016–09/2018	335		NazareTG	−9.07	39.59	05/2016–09/2018
301		FerrolTG	−8.33	43.46	05/2016–09/2018	336		Newhaven	0.07	50.78	05/2016–09/2018
302		Fishguard	−4.98	52.02	05/2016–09/2018	337		Newlyn	−5.53	50.1	05/2016–09/2018
303		GalwayPort	−9.05	53.27	05/2016–09/2018	338		Newport	−2.99	51.55	05/2016–09/2018
304		GijonTG	−5.7	43.56	05/2016–09/2018	339		NorthShields	−1.43	55,00	05/2016–09/2018
305		Harwich	1.29	51.95	05/2016–09/2018	340		OuistrehamTG	−0.25	49.28	05/2016–09/2018
306		HerbaudiereTG	−2.3	47.02	05/2016–09/2018	341		PaimboeufTG	−2,00	47.29	05/2016–09/2018
307		Heysham	−2.92	54.03	05/2016–09/2018	342		PenicheTG	−9.37	39.35	05/2016–09/2018
	Region	Station name	Lon (°E)	Lat (°N)	Period analysed
343		Plymouth	−4.19	50.37	05/2016–09/2018
344		PortBlocTG	−1.06	45.57	05/2016–09/2018
345		Portbury	−2.73	51.5	05/2016–09/2018
346		Portpatrick	−5.12	54.84	05/2016–09/2018
347		Portrush	−6.67	55.2	05/2016–09/2018
348		Portsmouth	−1.11	50.8	05/2016–09/2018
349		PortTudyTG	−3.45	47.64	05/2016–09/2018
350		RoscoffTG	−3.97	48.72	05/2016–09/2018
351		RoyanTG	−1.03	45.62	05/2016–09/2018
352		SaintMaloTG	−2.03	48.64	05/2016–09/2018
353		SaintNazaireTG	−2.2	47.27	05/2016–09/2018
354		SantanderTG	−3.79	43.46	05/2016–09/2018
355		Sevilla2TG	−6.01	37.32	05/2016–09/2018
356		Sheerness	0.75	51.45	05/2016–09/2018
357		SinesTG	−8.89	37.95	05/2016–09/2018
358		SocoaTG	−1.67	43.4	05/2016–09/2018
359		StHelier	−2.12	49.18	05/2016–09/2018
360		Stornoway	−6.38	58.22	05/2016–09/2018
361		Tobermory	−6.06	56.62	05/2016–09/2018
362		Ullapool	−5.16	57.9	05/2016–09/2018
363		UrtTG	−1.3	43.5	05/2016–09/2018
364		VianaDoCasteloTG	−8.84	41.69	05/2016–09/2018
365		VigoTG	−8.73	42.24	05/2016–09/2018
366		VillagarciaTG	−8.77	42.6	05/2016–09/2018
367		Weymouth	−2.45	50.61	05/2016–09/2018
368		Whitby	−0.62	54.48	05/2016–09/2018
369		Wick	−3.08	58.43	05/2016–09/2018
370		Workington	−3.57	54.65	05/2016–09/2018

. Before they can be compared with altimeter data, tide gauge measurements have to be processed [7,19] to remove oceanographic signals whose temporal periods are not resolved by altimetry, thus avoiding important aliasing errors [6]. First, tidal components were removed from the sea level records using the u-tide software [28]. The annual and semiannual frequencies, mainly driven by steric effect, are kept in the tidal residuals since they are included in the altimetry data.

For consistency with the satellite altimetry data, the atmospherically induced sea level caused by the action of atmospheric pressure and wind was removed from the tidal residuals [7,25,29]. This high-frequency oceanic signal is badly sampled by altimeter measurements. To solve this problem, a combination of high frequencies of a barotropic model forced by pressure and wind (MOG2D) and low frequencies of a classical Inverted Barometer model was applied [30]. We used the DAC available at the Archiving, Validation, and Interpretation of Satellite Oceanographic Data (AVISO) website. The DAC data are provided as 6 h sea level fields on a 1/4° × 1/4° regular grid covering the global oceans. For each tide gauge site, the nearest grid point was selected and used to remove the atmospherically induced sea level from observations, previously converted into 6-hourly records [25]. Finally, the 6-hourly tidal residuals were corrected for vertical movements associated with glacial isostatic adjustment (GIA). Indeed, many studies have demonstrated the need for tide gauges to be corrected for vertical crustal land motion when compared to altimeter data, since tide gauges measure the relative sea level with respect to the land where they are grounded [19]. We considered GIA as the only source of vertical land motions and removed its effects from the tidal residuals using the Peltier mantle viscosity model (VM2) [31,32].

2.3. Method for Comparing Altimeter and In Situ Tide Gauge Records

The comparison method of altimetry with tide gauges consisted of co-locating both datasets in time and space. It was based on a particular track point selected for each tide gauge location as follows: we computed the correlations between each tide gauge record (tidal residuals) and SLA time series corresponding to track points within a radius of 1 degree around the tide gauge site and choose the most correlated track point. A minimum length of time series of 10 months (corresponding to approximately 10 cycles of Sentinel-3A) was set up to allow statistical significance [14]. Statistical analyses were performed between both datasets using all available data pairs (altimetry-tide gauge) for a given region.

The co-located altimeter and tide gauge measurements were analysed in terms of the RMSD and variance of the time series. The RMSD metric is commonly used to examine along-track altimeter data quality [14]. In addition, the robustness of the results was investigated according to [33] using a bootstrap method [34], which allows us to estimate quantities related to a dataset by averaging estimates from multiple data samples. To do that, the dataset is iteratively resampled with replacement. A total of 10³ iterations were used to ensure that meaningful statistics such as standard deviation could be calculated on the sample of estimated values, thus allowing us to assign measures of accuracy to sample estimates.

2.4. Ancillary Data

The Global, Self-consistent, Hierarchical, and High-resolution Geography database (GSHHG) was used to estimate the nearest distance to the coast of the altimetry track points used to compare with tide gauges. The aim was to investigate the degradation of the altimetric signal as we approach the coast. The shorelines in the GSHHG database are constructed entirely from hierarchically arranged closed polygons and are available in five geographical resolutions. The early processing and assembly of the shoreline data is described in [35]. We used the latest data files for version 2.3.7 presently available and released on 15 June 2017 with the original full data resolution.

3. Results

3.1. Comparison of Sentinel-3A and Tide Gauges along the European Coasts

This section presents the statistics of the comparisons performed between the Sentinel-3A altimetry data and the tide gauge observations from the CMEMS catalogue in the coastal region in terms of errors (RMSD) and the variance of the differences between both datasets. The analysis has been conducted for the entire European coast and the following sub-regions: the Mediterranean Sea, the IBI and NWS regions, and the Baltic Sea (Figure 2). SLA measurements without filtering (Figure 1) were used. The bootstrapping technique [34] was applied to gain an estimation of the standard errors of the differences between both datasets.

The mean value of the RMSD between the Sentinel-3A satellite altimetry and tide gauges is 6.97 cm. The mean distance between the location of the tide gauge and the location of the corresponding altimeter data with the highest correlation is 80 km with a standard deviation of 33 km. Data from 342 tide gauge stations were compared with the Sentinel-3A data. Thus, 28 stations were rejected from the computation according with the selection criteria described in the previous section. These stations are located in the NWS region, the Mediterranean Sea, and the Arctic Sea (Table A1).

The rejected tide gauge time series showing a variance much larger than that found in the corresponding altimetry time series (RMSD between both datasets larger than 20 cm) were further investigated. We checked the shape of their time series, together with the quality flag data related to SSH, tide gauge position, and recorded atmospheric pressure. The aim was to investigate the presence of outliers in the tide gauge time series due to poor quality control not captured by satellite altimetry responsible for such large discrepancies, which could be corrected by the data providers. A subset of twenty-four tide gauge stations (

Table A2. Tide gauge stations from the CMEMS catalogue in the European Seas showing abnormal variance values in the inter-comparison with altimetry data.

No.	Tide Gauge Station	Lon (°E)	Lat (°N)
1	AiguillonSurMer	−1.31	46.33
2	BayonnePontBlanc	−1.47	43.48
3	BayonneQuaiDeLesseps	−1.47	43.49
4	Bordeaux	−0.55	44.86
5	Bremen	8.71	53.12
6	Dielette	−1.86	49.55
7	Emden	7.18	53.33
8	Flensburg	9.43	54.79
9	Kampen	5.92	52.55
10	Kobenhavn	12.60	55.70
11	KrabbersgatsluizenZuid	5.28	52.69
12	KrimpenAdLek	4.62	51.89
13	LaCotiniere	−1.32	45.91
14	LePellerin	−1.76	47.20
15	Mangalia	28.59	43.80
16	NantesSalorges	−1.57	47.20
17	NantesUsineBrulee	−1.63	47.19
18	NieuweStatenzijl	7.20	53.23
19	PontDuBrault	−1.08	46.31
20	Rochefort	−0.95	45.94
21	Schleswig	9.56	54.51
22	StMarys	−6.31	49.91
23	StPauli	9.97	53.54
24	Villefranque	−1.46	43.43

) showed abnormal values in variance due to poor quality control that induced substantial RMSD when compared to the Sentinel-3A and Jason-3 altimetry data. This represents 5% of the tide gauge dataset in the European coasts.

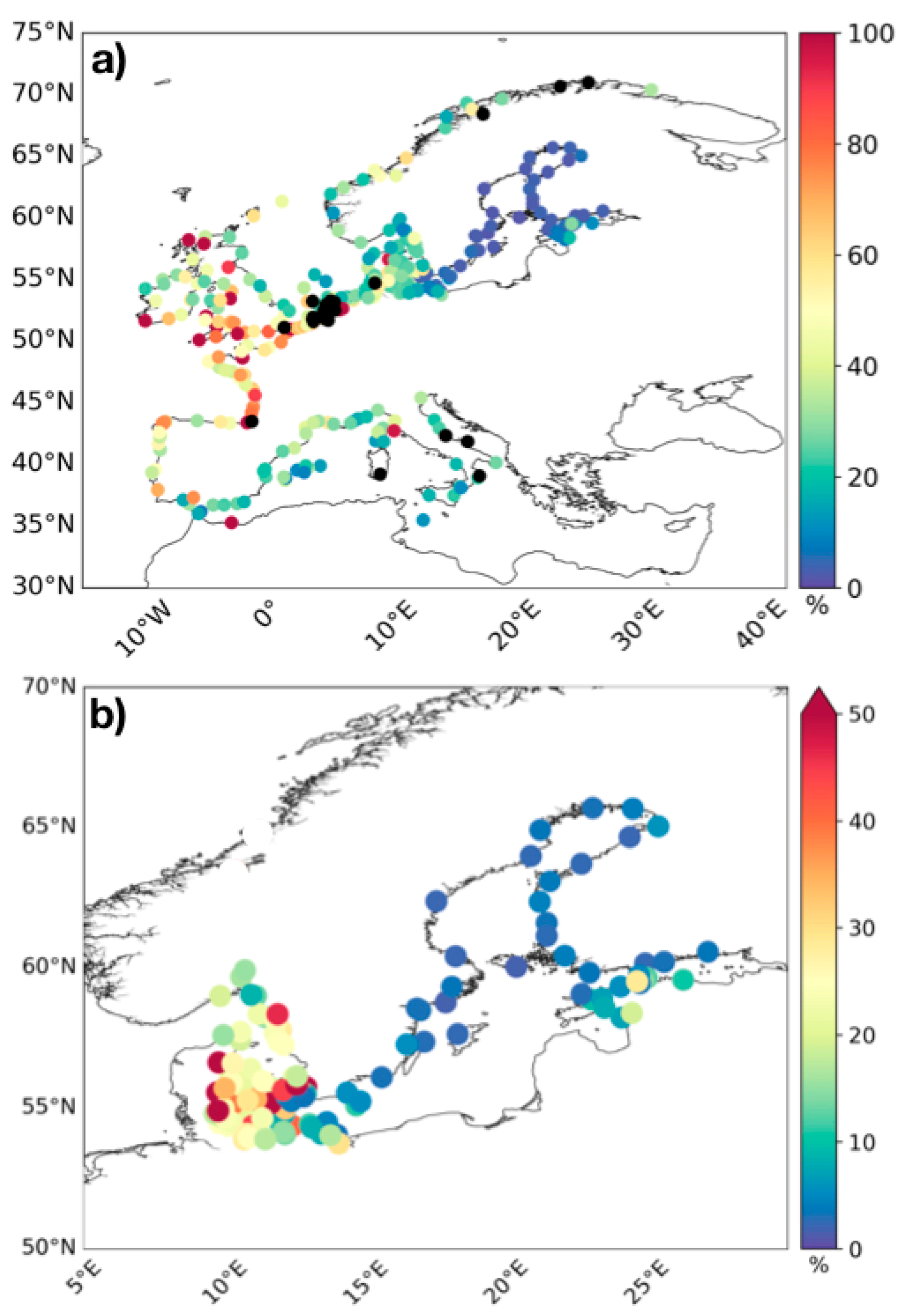

Figure 3 shows the consistency between the altimetry and tide gauge data computed as follows:

$$\frac{\mathrm{variance}\left(\mathrm{tide}\mathrm{gauge}-\mathrm{altimeter}\right)}{\mathrm{variance}\left(\mathrm{tide}\mathrm{gauge}\right)}\times 100,$$

(1)

where the variance of the tide gauge is associated with the variance of the signal. Consistency is expressed here as the mean square differences between both datasets, computed as the variance of the differences (altimetry—tide gauge) in terms of percentage of the tide gauge variance. This approach has already been applied by [23,24] to compare the satellite altimetry and tide gauge measurements at a global scale.

Overall, mean square differences lower than 10% are observed in most of the Baltic Sea (Figure 3b). Larger mean square differences of around 25% are observed in the Gulf of Finland, whereas they reach values between 15% and 50% and even larger values when in connection region with the North Atlantic Ocean. The mean square differences are between 20% and 50% for stations located in the Mediterranean Sea and the NWS region (Figure 3a).

If we analyse the results in terms of the RMSD (figure not shown), minimum mean errors of 3.41 cm were obtained in the Mediterranean Sea, whilst they increased until 10.72 cm for the NWS region. These results can be explained by the larger spatio-temporal variability observed in the NWS region (SLA mean variance of 206 cm²) with respect to that found in the Mediterranean basin (SLA mean variance of 47 cm²). Non-tidal variance, which is also larger in the former [36], contributes to the larger RMSD obtained in the NWS region.

The largest errors, which reach 100%, are mainly found in the Atlantic shore of the IBI region. This could be due to the imprecisions of the corrections applied (i.e., ocean tide) to the altimeter data.

3.2. Improvements of Sentinel-3A over Jason-3 Satellite Mission

In this section, we conduct an equivalent analysis on Jason-3 data. The Jason-3 satellite mission has an orbit repeat cycle of 9.91 days, whilst Sentinel-3A presents a repeat cycle of 27 days. To make the inter-comparisons between both satellite missions with in situ tide gauge observations comparable, SLA from Jason-3 was sub-sampled to retain every third point along the tracks to emulate the Sentinel-3A cycle. The tide gauge stations (270 stations) common to both satellite missions were used. The results obtained for the whole European coasts are summarised in

Table 1. Inter-comparison of the satellite altimetry and tide gauge data from the European coasts in terms of the RMSD (cm) and variance (cm²) of the differences between both datasets. The number of tide gauge stations used in the comparison, the mean distance between tide gauges and the most correlated along-track altimetry points, and the number of total data pairs (altimetry-tide gauge) used in the computation are displayed. The common tide gauge stations for the Sentinel-3A and Jason-3 satellite missions were used. Values in parenthesis show the uncertainties (error bars) computed for the RMSD and variance from the bootstrap method using 10³ iterations. Finally, the improvement (%) of the Sentinel-3A data in comparison with tide gauges in terms of lower RMSD, lower variance of the differences (altimetry-tide gauge), and lower mean distance between the most correlated altimetry point and tide gauges with respect to Jason-3 is also displayed. SLA measurements without filtering have been used.

European Coasts	Sentinel-3A	Jason-3	Improvement
RMSD (cm)	6.89 (0.17)	7.97 (0.21)	13%
var TG (cm2)	150 (6)	138 (5)
var ALT (cm2)	124 (5)	117 (5)
var TG-ALT (cm2)	47 (3)	64 (3)	25%
data pairs	6037	6172
stations	270	270
distance TG (km)	79 ± 33	87 ± 33	9%

.

Notice that the rejected tide gauge stations in the inter-comparison with Jason-3 are mainly located in the central part of the Mediterranean Sea, the Gulf of Finland, the easternmost part of the Baltic Sea, and along most of the Norwegian coast. As a consequence of this, the Arctic region will not be investigated here due to the lack of valid data (Figure A1).

The RMSD between the Jason-3 and tide gauge time series shows a mean value of 7.97 cm, whereas it is reduced to 6.89 cm for the inter-comparison using the Sentinel-3A dataset. Overall, the results from the Jason-3 satellite mission are consistent with those obtained for Sentinel-3A in terms of spatial distribution (Figure A1).

In the IBI and NWS regions, 81 and 55 common tide gauge stations to Sentinel-3A and Jason-3 missions were respectively identified from the whole tide gauge dataset (

Table 2. The same as Table 1 but for the different sub-regions investigated: Mediterranean Sea, Iberian-Biscay-Irish (IBI) region, North-West Shelves (NWS) region, and Baltic Sea.

Sub-Regions	Sentinel-3A	Jason-3	Improvement S-3A
Mediterranean Sea
RMSD (cm)	3.47 (0.22)	4.49 (0.28)	23%
var TG (cm2)	53 (5)	46 (4)
var ALT (cm2)	52 (5)	49 (4)
var TG-ALT (cm2)	12 (1)	20 (3)	40%
data pairs	743	836
stations	38	38
distance TG (km)	67 ± 30	74 ± 40	9%
IBI region
RMSD (cm)	6.62 (0.30)	7.31 (0.28)	9%
var TG (cm2)	72 (5)	63 (4)
var ALT (cm2)	56 (4)	51 (4)
var TG-ALT (cm2)	44 (4)	53 (4)	18%
data pairs	1927	1920
stations	81	81
distance TG (km)	80 ± 30	89 ± 33	10%
NWS region
RMSD (cm)	10.31 (0.53)	12.22 (0.60)	15%
var TG (cm2)	268 (22)	264 (20)
var ALT (cm2)	201 (18)	185 (16)
var TG-ALT (cm2)	106 (11)	149 (14)	29%
data pairs	1256	1416
stations	55	55
distance TG (km)	84 ± 35	101± 27	17%
Baltic Sea
RMSD (cm)	5.69 (0.28)	6.24 (0.28)	9%
var TG (cm2)	217 (13)	199 (12)
var ALT (cm2)	190 (11)	184 (12)
var TG-ALT (cm2)	32 (3)	39 (3)	17%
data pairs	1940	1856
stations	88	88
distance TG (km)	78 ± 33	78 ± 31	---

). The analysis conducted with these stations shows a mean RMSD of 6.62 cm and 10.31 cm, respectively, for the comparison with Sentinel-3A, whilst the mean values for the inter-comparison using the Jason-3 dataset are 7.31 cm for the IBI region and 12.22 cm for the NWS region. Thus, the Sentinel-3A satellite mission improves, respectively, the errors with tide gauges in both regions by 9% and 15%.

In the Baltic and Mediterranean seas (Table 2), where generally lower errors are observed, we identified, respectively, 88 and 38 tide gauge stations common to both missions, showing a mean RMSD of 5.69 cm and 3.47 cm for the comparison with Sentinel-3A, whilst the mean values for the inter-comparison using the Jason-3 data are 6.24 cm and 4.49 cm, respectively. Thus, the Sentinel-3A satellite mission improves the errors with tide gauges in both regions by 9% (23%) in the Baltic (Mediterranean) Sea.

Notice that the mean distance between tide gauge sites and the most correlated altimetry track points is shorter for the Sentinel-3A mission in all the sub-basins investigated except for the Baltic Sea, where the same mean distance is obtained for both satellite missions (Table 2). At first sight, this fact may contribute to the better results obtained for the Sentinel-3A mission. However, a shorter distance between tide gauge and the altimeter co-location point does not always result in a lower RMSD and variance of the differences (tide gauge—altimetry). This fact can be observed in the Baltic Sea, where an overall improvement of Sentinel-3A over Jason-3 is found despite the same mean distance tide gauge—altimetry for both missions. Therefore, this parameter has not a strong impact on the better results obtained with Sentinel-3A, and other reasons for the higher performance of the SAR technology in the coastal zone must be given.

To further investigate the impact of SAR technology on the quality of the Sentinel-3A data close to the coast, we analyse in the following sections how the measurement noise and the approach to the coast affect the retrieval of SLA in both the Sentinel-3A and Jason-3 missions. Moreover, the impact of the LWE processing, associated with geographically correlated errors between neighbouring tracks from different sensors, on the quality of altimetry along-track products will be assessed. The LWE is an empirical correction that aims at removing residual ocean tide and DAC signal, as well as residual orbit error (residual signals induced by the imperfection of the solution used for these corrections).

3.3. Impact of the Measurement Noise on the Retrieval of SLA in the Coastal Area

To check the impact of the measurement noise on the SRAL instrument onboard the Sentinel-3A mission, the inter-comparison between satellite altimetry and in situ tidal records in the European coasts is repeated but using the Lanczos low-pass filtered SLA available in CMEMS altimetric products (Section 2.1 and Figure 1). The outcomes are then compared with the inter-comparison conducted in the previous section. The same tide gauge sites and data points for the inter-comparisons using filtered SLA and SLA measurements without filtering from the Sentinel-3A mission were used to make the outcomes comparable. As a consequence, the statistics for the SLA measurements displayed in

Table 3. The same as Table 1 but for the inter-comparison using Lanczos low-pass filtered SLA and SLA measurements without filtering for the Sentinel-3A and Jason-3 satellite missions. Common tide gauge stations for each satellite mission have been used.

European Coasts	Sentinel-3A		Improv. Filtered S-3A	Jason-3		Improv. Filtered J-3
	Unfiltered	Filtered		Unfiltered	Filtered
RMSD (cm)	6.97 (0.19)	6.95 (0.19)	0.3%	8.72 (0.25)	8.52 (0.25)	2.3%
var TG (cm2)	149 (5)			146 (6)
var ALT (cm2)	121(7)	119 (7)	−2%	121 (5)	114 (5)	−6%
var TG-ALT (cm2)	49 (3)	48 (3)	1%	76 (4)	72 (4)	5%
data pairs	7119			6228
stations	340			277
distance TG (km)	80 ± 36			87 ± 34

slightly differ from those shown in Table 1 due to the different tide gauge sites and data pairs used.

The variance of the Sentinel-3A altimetry data diminished by 2% when using the filtered data (Table 3). This is an expected result due to higher frequencies being subtracted from the SLA time series in the filtering procedure. This fact decreased the RMSD by 0.3% when comparing the filtered SLA with tide gauge records with respect to that obtained when using the SLA without filtering. The variance of the differences (altimetry—tide gauge) was also reduced by 1% when using the Sentinel-3A filtered data. However, it is worth noting that the improvements in the inter-comparisons (RMSD reduction) when using filtered SLA are negligible.

This procedure was repeated using the Jason-3 dataset (Table 3). A reduction threefold larger (6%) in the variance of the filtered SLA with respect to the SLA without filtering is observed. This underscores the expected larger measurement noise in the unfiltered SLA from the Jason-3 Low Resolution Mode mission compared to the SAR mission [37,38]. As a result, a reduction of 2.3% in the RMSD was obtained when using filtered data. Additionally, the variance of the differences (altimetry—tide gauge) diminished by 5% when using the Jason-3 filtered data.

3.4. Effects of the Coastal Distance on Altimeter Data

The quality of retrieved altimeter signal decays with closer distance to the coast, because radar return from the land and bright target causes the typical shape of waveform to deviate [14,39]. To investigate the degradation of the altimeter signal and its performance as we approach the coast, an additional comparison between satellite altimetry from both Sentinel-3A and Jason-3 and in situ tidal records in the European coasts was conducted.

First, we estimated the distance to the coast of all track points within a radius of 1 degree around a given tide gauge by using the GSHHG dataset. Then, the closest altimetry track point to the coast (ctp hereafter) and the most correlated altimetry point (mcp hereafter) along the track of the ctp were identified. This provides two altimeter time series from track points along the same track from a given mission but with a different or equal distance to the coast (the latter if ctp and mcp match up) to compare against the same tide gauge. SLA measurements without filtering (Figure 1) were used. Finally, statistics (RMSD and variance) for the inter-comparisons of satellite ctp and mcp with tide gauges were obtained. Differences between statistics when using the altimetry mcp and ctp against the same tide gauge will provide an estimation of the degradation of the altimetry signal as we approach the coast.

To obtain comparable results between the Sentinel-3A and Jason-3 missions, tide gauge sites exhibiting altimetry ctp with a similar distance to coast for both missions were identified. A maximum difference for the distance to the coast of ctp from the Sentinel-3A and Jason-3 missions for a given tide gauge site of 1 km was allowed. Only tide gauge sites showing a distance to coast of the altimetry mcp lower than 40 km were kept. This ensures the analysis in the nearest coastal zone of the European Seas, where the data quality can be affected by the impact of land and islands near the coast. Twenty-seven common tide gauge stations keeping the aforementioned selection criteria were identified.

Overall, the inter-comparisons between SLA measurements and tidal residuals improved in terms of RMSD and variance when using the altimetry mcp time series for both missions. This is an expected result, although the altimetry ctp is located closer to tide gauges and also closer to coast than the altimetry mcp for both missions (

Table 4. The same as Table 1 but for the inter-comparison using the altimetry closest track point to coast (ctp) and the most correlated altimetry point (mcp) with tide gauge records computed along the satellite track of ctp (see text for details) for the twenty-seven common tide gauge stations showing a similar distance with the altimetry ctp for Sentinel-3A and Jason-3 (a maximum difference of 1 km is allowed). The distance (km) of mcp and ctp to both tide gauges (TG) and coast and the degradation (in percentage) of the altimetry signal, computed as the differences between mcp and ctp, are also shown.

European Coasts	Sentinel-3A		Jason-3		Degrad. S-3A	Degrad. J-3
	mcp	ctp	mcp	ctp
RMSD (cm)	6.78	7.95	7.91	8.74	15%	10%
var TG (cm2)	173		172
var ALT (cm2)	121	127	125	139	5%	10%
var TG-ALT (cm2)	62	80	81	101	22%	20%
distance TG (km)	60	46	87	75	23%	14%
distance coast (km)	13.5	5.1	12.2	5.4	62%	56%
data pairs	456		442
stations	27

).

The mean distance to tide gauges is lower for the Sentinel-3A dataset for both the mcp and ctp due to the reduction in the cross-track distance in the Sentinel-3A orbit with respect to Jason-3. The RMSD increased from 6.78 cm to 7.95 cm when we approach the coast (from the mcp location to the ctp location) for the Sentinel-3A dataset and from 7.91 cm to 8.74 cm for the Jason-3 dataset. These results suggest an impact of the distance to coast on the data quality for both missions.

The degradation of the altimeter signal, estimated here as the difference in the percentage of statistics between the altimetry mcp and ctp computations for a single mission, shows a mean value for the RMSD of 15% for the Sentinel-3A mission when we approach the coast from around 13 km to 5 km and of 10% for the Jason-3 mission. The degradation in the variance of the differences (altimetry—tide gauge) was 22% for Sentinel-3A and 20% for the Jason-3 dataset. Despite this lower degradation in the Jason-3 dataset, a superior performance of the Sentinel-3A dataset in terms of the lower along-track RMSD and a lower variance of the differences (altimetry—tide gauge) against the same tide gauges was obtained, also showing a mean distance of the ctp 300 m closer to coast than that of the Jason-3 dataset (Table 4). The number of points used for both altimeters is similar, at 456 for Sentinel-3A and 442 for Jason-3, this suggesting a reasonable comparison.

The altimetry variance exhibited an enhancement of 5% for the Sentinel-3A dataset when we approached the coast, whilst it reached 10% for the Jason-3 mission (Table 4). This twofold increase in the latter can be associated with a larger impact of the measurement noise on altimeters onboard the Jason-3 close to coast, as was shown in the previous section. This fact again confirms that the SRAL instrument better solves the signal in the coastal band.

3.5. Impact of the Long Wavelength Error Correction Applied on Satellite Altimetry

SLA in DUACS-DT2018 processing is provided to data users after removing several disturbances affecting the altimeter measurements such as high-frequency oceanic signals, ocean tides, and Long Wavelength Error correction (LWE). The LWE is an empirical correction that aims at removing residual ocean tide and DAC signal as well as residual orbit error. An LWE reduction algorithm based on Optimal Interpolation (see for instance [1,3]) is applied. This optimal-interpolation based empirical correction contributes to remove high-frequency variability in the altimetry SLA due to noise (errors in corrections) and high-frequency signals close to the coast that are not fully corrected by the application of the corrections to minimise the other two aforementioned errors [40].

In this section, we investigate the possible impact of the LWE correction applied to Sentinel-3A and Jason-3 datasets on both the retrieval of SLA in the coastal zone and the inter-comparisons with in situ measurements performed. To do that, LWE correction applied to SLA was subtracted from the altimetry time series to obtain uncorrected SLA as follows:

$${\mathrm{SLA}}_{\mathrm{uncorr}}=\mathrm{SLA}-\mathrm{LWE}$$

(2)

Then, the ${\mathrm{SLA}}_{\mathrm{uncorr}}$ time series were compared with tide gauge records according to the procedure described in previous sections. Finally, the outcomes from this new computation were compared with the inter-comparison conducted by using the corrected SLA. In this analysis, SLA measurements without filtering have been used.

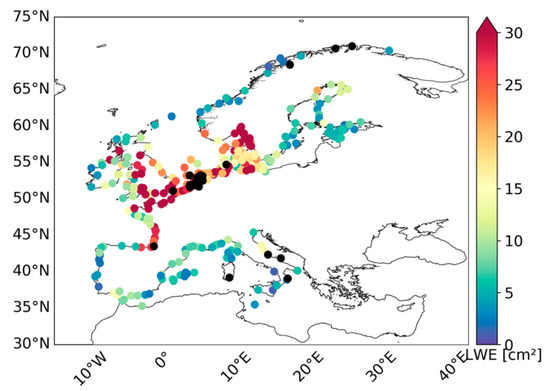

The variance associated with the LWE correction applied on SLA from Sentinel-3A mission (Figure 4) shows low values close to 0 cm² for most of the tide gauge sites located in the Baltic and Mediterranean Seas and in the southernmost part of the IBI region; whereas a larger variability exhibiting values larger than 25 cm² was found in the north-easternmost part of the latter and in the NWS region. Such variability is associated with the LWE absorbing part of the residual errors in ocean tide correction and DAC and also part of the remaining “long-wavelength” signal that can contribute to the SLA discrepancy between neighbouring tracks. Similar results were obtained for the LWE correction applied to SLA from the Jason-3 mission (figure not shown).

The RMSD between the corrected SLA from Sentinel-3A (Jason-3) and the tide gauge records (

Table 5. Inter-comparison of the LWE-corrected and -uncorrected SLA from the Sentinel-3A and Jason-3 satellite missions and tide gauge data in the European coasts in terms of the RMSD (cm) and variance (cm²) of the differences between the datasets. The number of tide gauge stations used in the comparison, the mean distance between tide gauges and the most correlated along-track altimetry points, and the number of total data pairs (altimetry-tide gauge) used in the computation are displayed. The common tide gauge stations for each satellite mission have been used. Values in parentheses show the uncertainties (error bars) computed for the RMSD and variance from the bootstrap method using 10³ iterations. Finally, the improvement (%) of the LWE-corrected SLA data from Sentinel-3A and Jason-3 in the comparison with tide gauges, in terms of the lower RMSD and lower variance of the differences (altimetry-tide gauge) with respect to the LWE-uncorrected SLA data, is also displayed. SLA measurements without filtering have been used.

European Coasts	Sentinel-3A		Improv. Corrected S3A	Jason-3		Improv. Corrected J3
	LWE Corrected	LWE Uncorrected		LWE Corrected	LWE Uncorrected
RMSD (cm)	6.94 (0.19)	7.67 (0.20)	10%	8.61 (0.24)	8.84 (0.25)	3%
var TG (cm2)	148 (5)	159 (6)		145 (6)	147 (6)
var ALT (cm2)	120 (5)	152 (6)	−21%	120 (5)	144 (6)	−16%
var TG-ALT (cm2)	48 (3)	59 (3)	18%	74 (4)	78 (4)	5%
data pairs	7170			6386
stations	337			278
distance TG (km)	80 ± 33			87 ± 33

) diminished by 10% (3%) with respect to that obtained when using uncorrected SLA. In addition, the variance of the differences between both datasets reduced by 18% (5%) when using corrected SLA. Thus, LWE correction leads to a better agreement between the altimeter datasets and the tide gauges. As we did for the comparisons conducted in the previous sections, here we have considered the same tide gauge sites and data points for the inter-comparisons using corrected and uncorrected SLA from the Sentinel-3A mission to make the outcomes comparable. Thus, the statistics for corrected SLA displayed in Table 5 slightly differ from those shown in Table 1 due to the different tide gauge sites and data points used. The same applies to the Jason-3 dataset.

4. Discussion

The quality of DUACS Sentinel-3A SAR altimetric 1 Hz in the coastal band of the European Seas, estimated here through comparison with independent tide gauge measurements, revealed a mean RMSD between both datasets lower than 7 cm for the whole region, with mean values ranging around less than 4 cm in the Mediterranean basin and around 10 cm for the NWS region.

Previous works have compared in situ measurements from tide gauges and altimetry data in the European coasts. The tide gauge records from the PSMSL—i.e., [5,20,25] or GLOSS/CLIVAR [23,24,26]—have been mainly considered. The PSMSL repository presents a dense tide gauge network in the European coasts similar to that found in the CMEMS repository, but it is based on monthly average sea level records. [41,42] conducted a regional calibration of the Sentinel-3A data at higher temporal scales by using tide gauge measurements included in the CMEMS repository, but it was focused on the German coasts of the German Bight and of the Baltic Sea. Thus, to our present knowledge, this is the first time that the dense CMEMS tide gauge dataset is used to compare with Sentinel-3A data in the whole European coasts.

The performance of the Sentinel-3A data in the coastal zone of the Gulf of Finland (Baltic Sea) was investigated by [43] through the comparison with tide gauge records from the Estonian Environment Agency. Such records are not included in the CMEMS repository. These authors found an overall RMSD between both datasets of 7 cm based on the inter-comparison with three tide gauge sites. This RMSD is larger than the one obtained here for the Baltic Sea (5.69 cm, Table 2). However, we used 88 tide gauge stations distributed along the whole basin, this allowing a more robust computation.

Ref. [42] compared, among others, the tide gauge sites of Kiel and Warnemünde with the 1 Hz Sentinel-3A data. The tide gauge processing included the tidal correction, whilst DAC and GIA correction were not applied. These authors found a standard deviation of altimeter and tide gauge difference of 3.3 (3.8) cm for the Kiel (Warnemünde) tide gauge station, which is slightly different to those obtained here, 4.0 (6.8) cm, for the same stations. This is probably due to the different tide gauge processing applied and stresses the impact of such processing on the consistency with altimetry data.

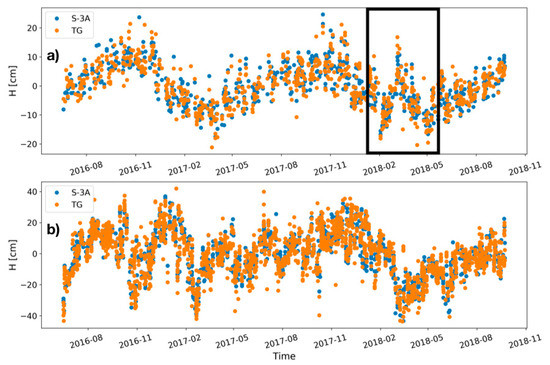

To investigate more in depth the quality of the Sentinel-3A data, a time series for the inter-comparisons conducted in the Mediterranean and Baltic seas is plotted in Figure 5. The tide gauge time series in the former (panel a) shows an annual cycle peaking in October, with an amplitude close to 30 cm. This is an expected result related to the steric effect in the basin that is properly captured by the Sentinel-3A altimetry data. However, this is out of the scope of this paper, because the length of the time series analysed is very short for properly investigating seasonal variability, so in the following we briefly summarise the features found.

A sudden increase in SLA is observed in spring 2018 (black square in Figure 5), promoting a second maximum around March 2018 which is not observed in the previous year, being probably related to some inter-annual variability. This rise in SSH is captured by the Sentinel-3A dataset and also by in situ tide gauge measurements. As a consequence, the annual minimum in SLA observed in previous years in March-April is located in 2018 in May. This signal has not been detected in the other sub-regions investigated by either altimetry or tide gauge measurements.

The tide gauge time series in the Baltic Sea (Figure 5b) show an annual cycle peaking close to December with an amplitude of around 60 cm; this is quite similar to that found for the NWS region (figure not shown). The tide gauge time series exhibit much more inter-annual variability than that of the Mediterranean Sea. The larger seasonal signal observed in the Baltic Sea is attributed to water mass variations within the basin linked to steric changes in the nearby North Atlantic Ocean and river discharges, as well as meteorological forcing, and amplified due to the presence of shallow waters [44].

The quality of the Sentinel-3A dataset was also assessed by comparing it with the Jason-3 performance (RMSD and variance) obtained for the inter-comparisons with tide gauges conducted for the entire European coast and the different sub-regions investigated. The results are reported in Table 1 for the whole domain and in Table 2 for the different sub-basins clearly show the superior performance of the Sentinel-3A dataset with respect to Jason-3 in the coastal band in terms of the lower along-track RMSD and lower variance in the differences (altimetry—tide gauge) against the same tide gauges, despite their different ground tracks.

The Sentinel-3A satellite mission improves both the RMSD by 13% and the variance (altimetry—tide gauge) by 25% with respect to the Jason-3 dataset in the European coasts. Figure 6 shows an example of the comparison between Jason-3 and tidal residuals at the tide gauge site of Aranmore (IBI region). A low correlation between both datasets was obtained, thus leading to poorer results than those for the Sentinel-3A mission (figure not shown). Additionally, the mean of the distance between the tide gauge sites and the most correlated altimetry track points used to conduct the inter-comparison reduced by 9% when using the Sentinel-3A altimetry data. This is due to the reduction in the cross-track distance in the Sentinel-3A orbit with respect to Jason-3, which promotes a higher probability of finding a Sentinel-3A track closer to a given tide gauge station. Similar results were found for the different sub-regions investigated.

Lanczos low-pass filtered SLA from Sentinel-3A and Jason-3 were compared with tidal records from the tide gauge sites common to both missions. Overall, the inter-comparisons between the filtered SLA and in situ measurements improved when using the altimetry data from Sentinel-3A in all the regions investigated (

Table 6. Summary of the improvements (%) of the Sentinel-3A mission in comparison with tide gauges in terms of the lower RMSD, lower variance of the differences (altimetry—tide gauge), and lower mean distance between the most correlated altimetry point and tide gauges with respect to Jason-3 in the European coasts and the different sub-regions investigated. The analysis is similar to that shown in Table 1 and Table 2 (last column), but using filtered SLA data.

	European Coasts	Med. Sea	IBI Region	NWS Region	Baltic Sea
% reduction in RMSD	12%	13%	9%	12%	9%
% reduction in variance (TG-ALT)	22%	24%	17%	22%	17%
% reduction in distance to TG	7%	---	8%	14%	---

). For the entire European coast, the RMSD was reduced 12% more for the Sentinel-3A satellite mission than for the Jason-3 one. The variance of the differences between both datasets reduced 22% more for the Sentinel-3A mission.

These results confirm that the SRAL instrument better solves the signal in the coastal band than altimeters onboard Jason-3 even when filtered SLA is used. The improvement of Sentinel-3A is higher for the NWS region with respect to the surrounding areas due to poorer performance (not shown) obtained for the Jason-3 mission in the region, which is probably related to the higher significant wave height signal and thus higher noise measurement (1 Hz bump; [17]) for this mission. Similar results were found for the inter-comparison conducted in the Baltic Sea and IBI region, indicating a poorer improvement of Sentinel-3A over Jason-3 in the area. The reduced noise measurement observed in Sentinel-3A contributes to improving the consistency with tide gauge measurements, but it does not explain by itself the improved performances of the Sentinel-3A mission compared to Jason-3.

To further investigate this, the LWE correction applied to the altimetry was checked. We found that the LWE correction diminished the variance of the SLA time series from Sentinel-3A used to compare with tide gauges by 21% in the European coasts (Table 5). This fact translates to better results in terms of the RMSD and variance of the differences (altimetry—tide gauge) when compared with tidal residuals. Similar results were obtained from the Jason-3 dataset. If we compare the outcomes reported in Table 5 for both satellite missions, a larger improvement in statistics was obtained for the Sentinel-3A dataset with respect to Jason-3. This leads to an overall larger impact of LWE correction on SLA from the Sentinel-3A mission.

If the LWE correction is not applied to both altimetry datasets, better results in terms of lower RMSD and variance (altimetry—tide gauge) were still obtained for the Sentinel-3A mission for all the regions investigated (

Table 7. Summary of the improvements (%) of the Sentinel-3A mission in the comparison with tide gauges in terms of the lower RMSD, lower variance of the differences (altimetry—tide gauge), and lower mean distance between the most correlated altimetry point and tide gauges with respect to Jason-3 in the European coasts, and the different sub-regions investigated. The analysis is similar to that shown in Table 1 and Table 2 (last column) but using LWE-uncorrected SLA data.

	European Coasts	Med. Sea	IBI Region	NWS Region	Baltic Sea
% reduction in RMSD	7%	14%	10%	3%	7%
% reduction in variance (TG-ALT)	13%	24%	19%	6%	14%
% reduction in distance to TG	8%	13%	15%	---	13%

). If these results are compared with those reported in Table 1 and Table 2, computed from the LWE-corrected SLA, we observe an overall lower improvement in Sentinel-3A over Jason-3 when LWE-uncorrected SLA is used for all the regions investigated except for the IBI region. This fact stresses the higher residual high-frequency LWE for the Sentinel-3A mission shown in Table 5.

The opposite behaviour found in the IBI region—that is, the lightly larger improvement in the Sentinel-3A mission with respect to Jason-3 when using the LWE-uncorrected SLA—could be due to the different location and number of altimetry points used to compare with tide gauges. However, the improvements obtained were only in the range of 1–2%.

These results demonstrate that LWE processing contributes to reducing errors in altimetry, enhancing the consistency between the altimeter and in situ datasets. However, it does not explain alone the better results obtained for the SAR technology in the retrieval of SLA close to the coast. Nonetheless, these outcomes again confirm the better capabilities of SRAL with respect to the altimeters onboard Jason-3 in the retrieval of SLA close to the coast in the European seas.

We have given the reasons why we decided to focus on the reference 1 Hz altimetry data instead of using high-rate (i.e., 20 Hz) SLAs. We realise that the use of high-frequency 20 Hz products could produce better results, and this analysis is in our future plans when these products will be available for the whole oceanographic community.

5. Conclusions

We have performed an assessment of the Sentinel-3A L3 along-track DUACS dataset in the coastal area of the European seas over a period of two and half years from May 2016 to September 2018. This validation was conducted by comparing the equivalent SLAs derived from 6-h sampled tide gauges over the same period in the whole domain and the following sub-regions: the Mediterranean and Baltic Seas and the IBI and NWS regions. Tide gauge records disseminated on CMEMS were used.

The mean value of the RMSD between 1 Hz SLA from Sentinel-3A and tide gauges for the whole European coasts was 6.97 cm. This showed some variability according to the different regions investigated: minimum mean values of 3.41 cm were observed in the Mediterranean Sea and maximum ones (10.72 cm) in the NWS region. These results can be explained by the larger spatio-temporal variability observed in the NWS region with respect to that found in the Mediterranean basin. Non-tidal variance, which is also larger in the former, contributes to the larger RMSD obtained in the NWS region. The assessment was also conducted using altimetry data from Jason-3 for inter-comparison purposes. The Sentinel-3A dataset showed a lower RMSD and variance of the differences (altimetry—tide gauge) in the European coasts.

The impact of the measurement noise on the SRAL instrument was checked by repeating the inter-comparisons but using filtered SLA. The results showed that the variance of altimetry data diminished by 2% when using filtered SLA from Sentinel-3A due to higher frequencies being subtracted from the SLA time series in the filtering procedure. As a consequence, an error 0.3% lower when comparing filtered SLA with tide gauge records with respect to that obtained when using the unfiltered data was obtained. Additionally, the variance of the differences between both datasets reduced by 1% when using the filtered data.

The outcomes from the Jason-3 dataset confirmed the better results obtained from filtered SLA, although much larger discrepancies were found between filtered and unfiltered SLA when comparing with tide gauge records with respect to those obtained for the Sentinel-3A mission. This fact emphasises that the Jason-3 dataset is affected by a higher measurement noise than Sentinel-3A, and also that SRAL instrument onboard the Sentinel-3A mission better solves the signal in the coastal band. This was doubly confirmed from the computations conducted using only filtered SLA from the Sentinel-3A and Jason-3 missions, and also from the analysis of the signal degradation when we approach the coast.

The impact of the LWE correction applied to satellite altimetry was also assessed. The RMSD between the LWE-corrected SLA from the Sentinel-3A and tide gauge records was 10% lower than that obtained when using uncorrected SLA, and the variance of the differences (altimetry—tide gauge) was also reduced by 18%. This is due to a depletion in the variance of SLA due to the LWE correction, which contributes to filtering out part of the residual high-frequency signals not removed after applying other geophysical corrections with respect to uncorrected data. The results for the whole domain and the four sub-regions investigated showed an overall improvement of the Sentinel-3A over Jason-3 when using the LWE-uncorrected SLA for all the regions. Thus, the Sentinel-3A mission still provided better results than the Jason-3 along the European coasts even if the LWE correction was not applied to both.
