An Enhanced Data Processing Framework for Mapping Tree Root Systems Using Ground Penetrating Radar
2. Materials and Methods

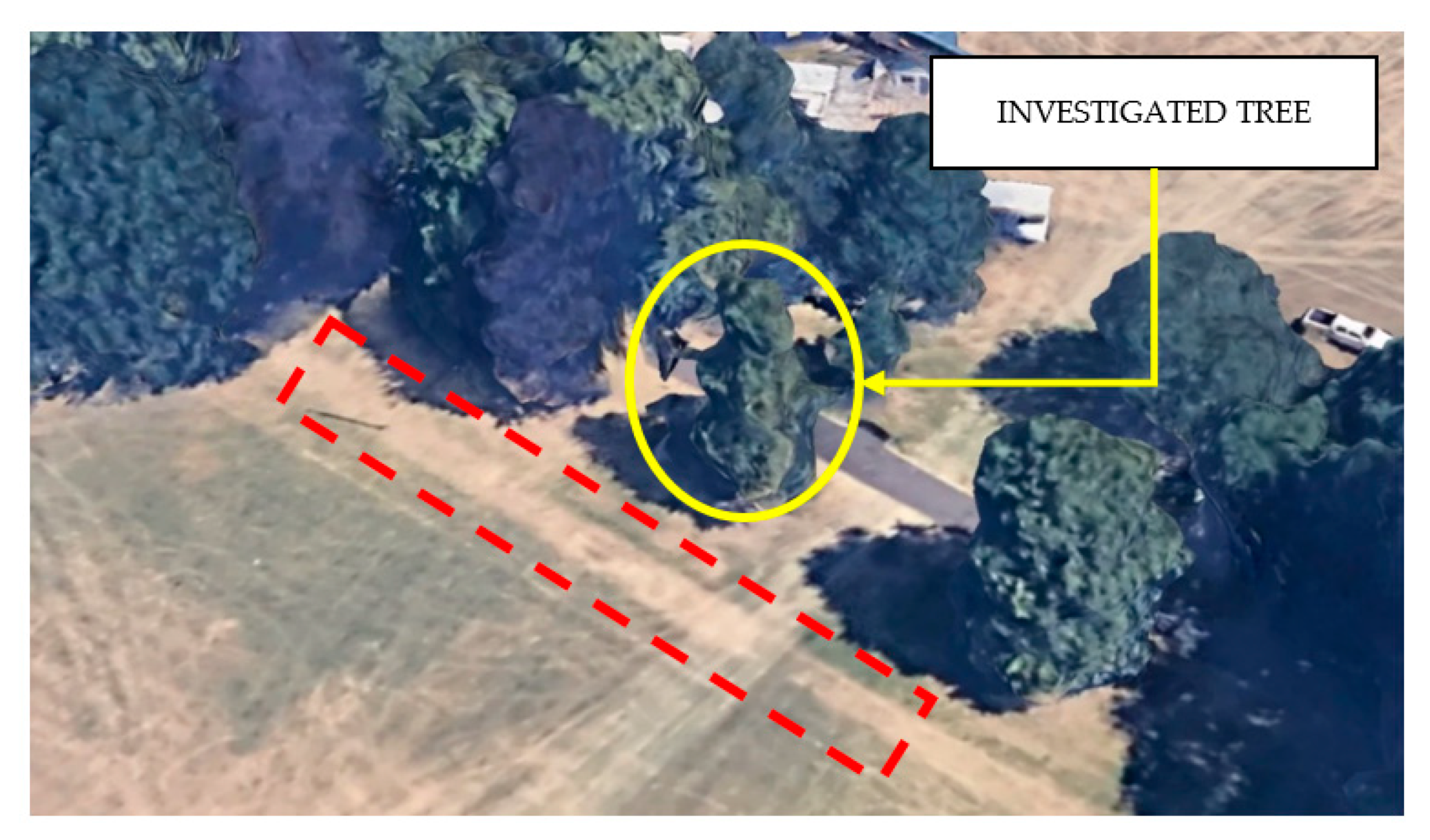

2.1. The Test Site

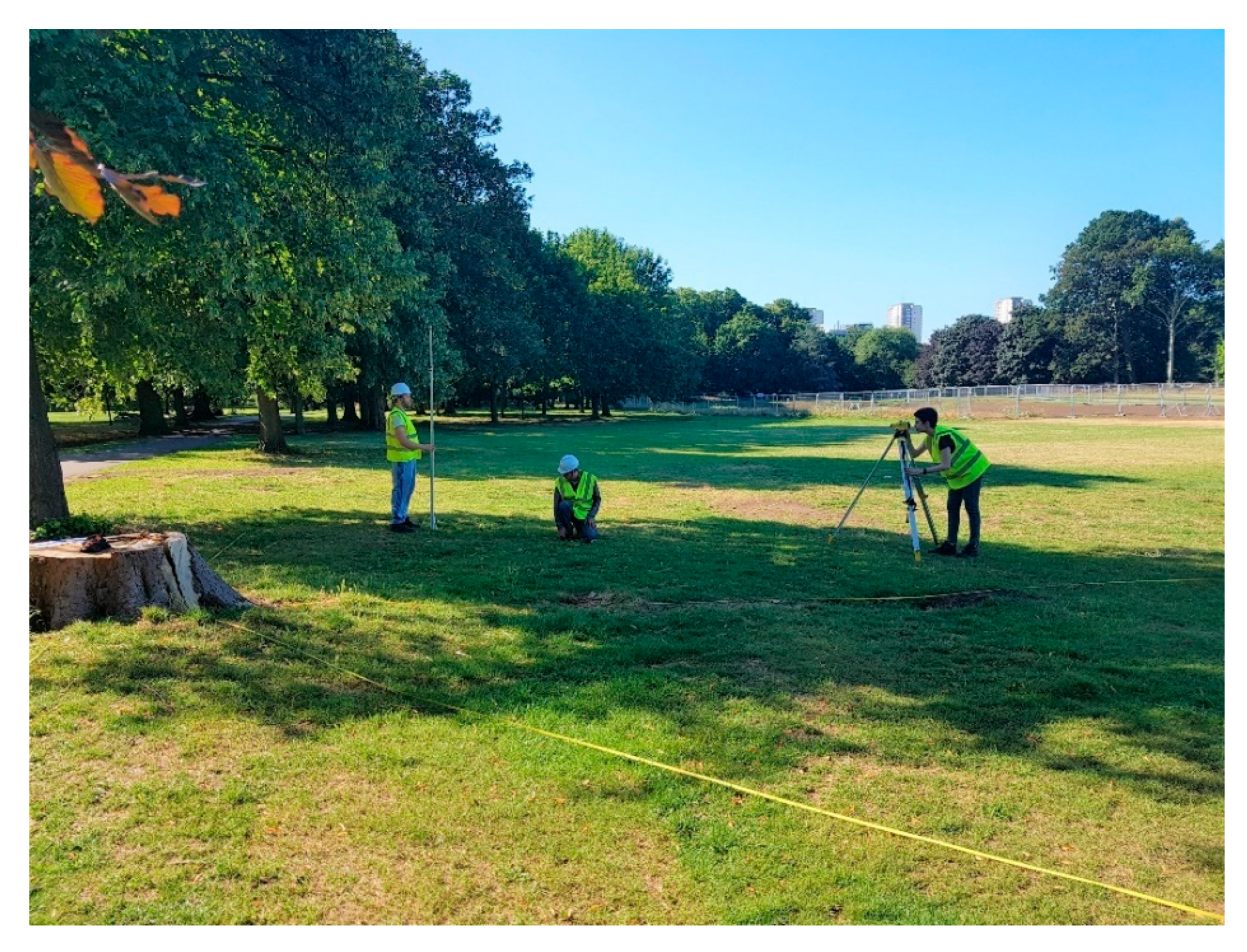

2.2. The GPR Survey Technique
2.3. The GPR Equipment

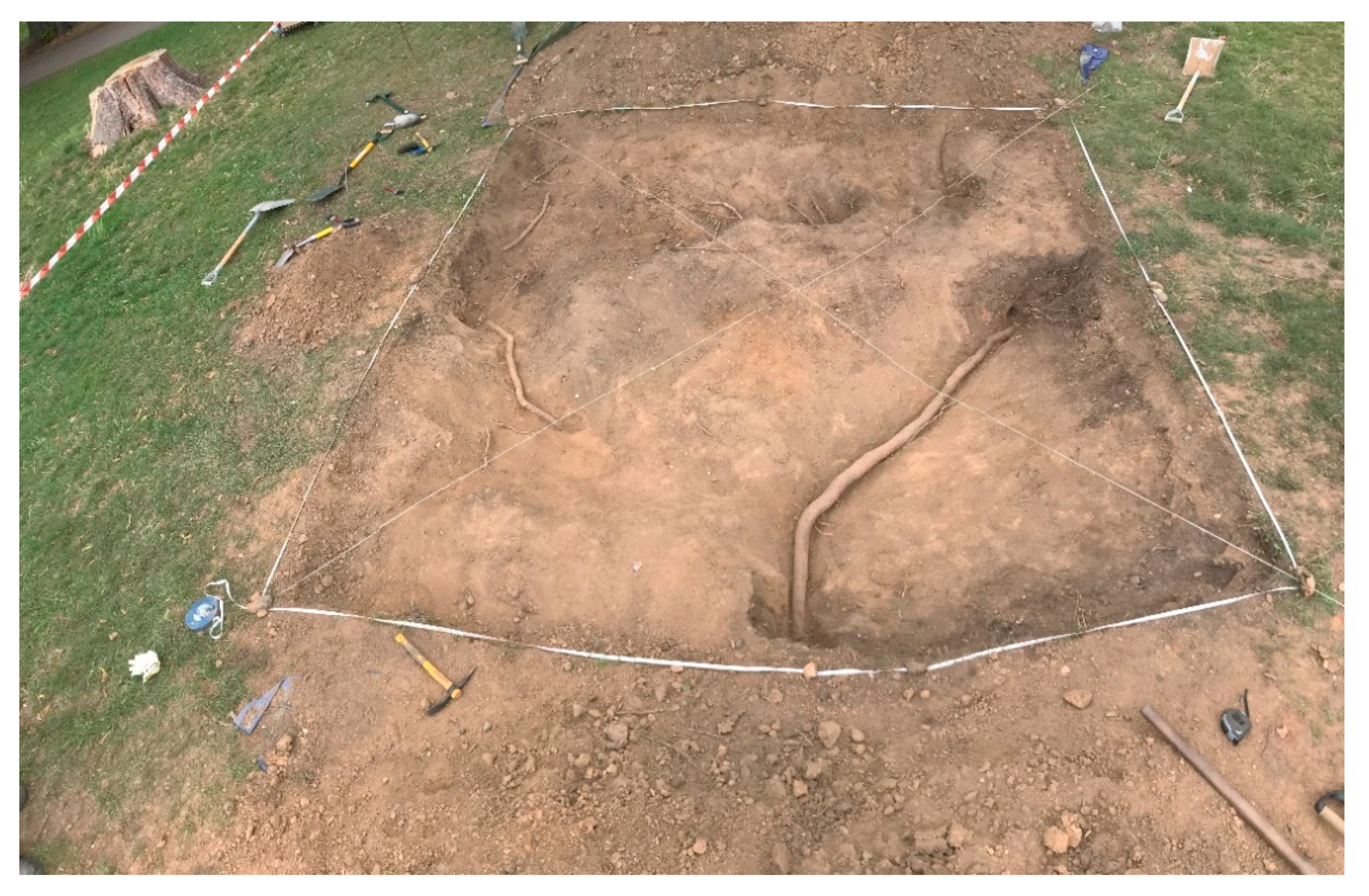

2.4. The Excavation for Validation Purposes
2.5. The Data Processing Framework
2.5.1. Preliminary Signal Processing Stage
- Zero-offset removal: GPR signal can be distorted by a low-frequency signal trend (known as “wow”) or initial direct current (DC) shifts, which can conceal the actual EM reflections. The result is a GPR trace with an average amplitude different from zero, which could affect the results of further signal processing steps. The application of a dewow filter is used to obtain GPR traces with a mean value equal to zero.
- Time-zero correction: In order to compare the reflection time and consequently the depth of the buried targets, it is necessary to set a unique time-zero point for the GPR data. However, due to factors such as the air gap between the transmitting antenna and the soil surface or the ground-level inhomogeneities, the position of the air-ground surface reflection could vary across the different A-scans. To this extent, the air layer between the signal source point and the ground was eliminated across the whole sequence of A-scans.
- Time-varying gain: The GPR signal rapidly attenuates when it propagates through the investigated media. This is due to the dispersive nature of the EM waves, which relates to the electrical properties of the medium. For this reason, the response from deep targets can be barely detected, especially in case of lossy materials. The application of a time-varying gain to each GPR trace compensates for the rapid fall of the signal, equalising the amplitudes and making the response from deeper targets clearer. In the present study, a spherical and exponential (SEC) function was employed to compensate the energy loss by applying a linearly increasing time gain combined with an exponential increase.
- Singular value decomposition (SVD) : The SVD filter aims to reduce the ringing noise, i.e., a repetitive type of clutter with a high correlation between traces, which can easily lead to data misinterpretation. On the other hand, reflections due to potential targets are more random and scattered, and therefore less correlated. The SVD filter operates by decomposing an image into a set of different sub-images, each of which contains features with a gradually increasing correlation. With this approach, ringing noise can be separated from the real response of the targets.
- Frequency-wavenumber (F-K) migration : In a GPR investigation, the response of a target is associated with a hyperbolic feature. This is caused by the difference in the travel time of the EM waves, while the antenna is moved along the scanning transect. Although this output is acceptable for target identification, the tracking of an object (e.g., tree roots) across several B-scans requires a more focused and accurate localisation. The F-K migration transforms an unfocused space-time GPR image into a focused image showing the object’s true location and size with the corresponding EM reflectivity. The velocity of the host medium in this paper is assumed as constant and it was estimated by means of a trial and error procedure between permittivity values over-migrating and under-migrating the data.
2.5.2. Analysis of Discontinuity Elements
2.5.3. Tree Root-tracking Algorithm

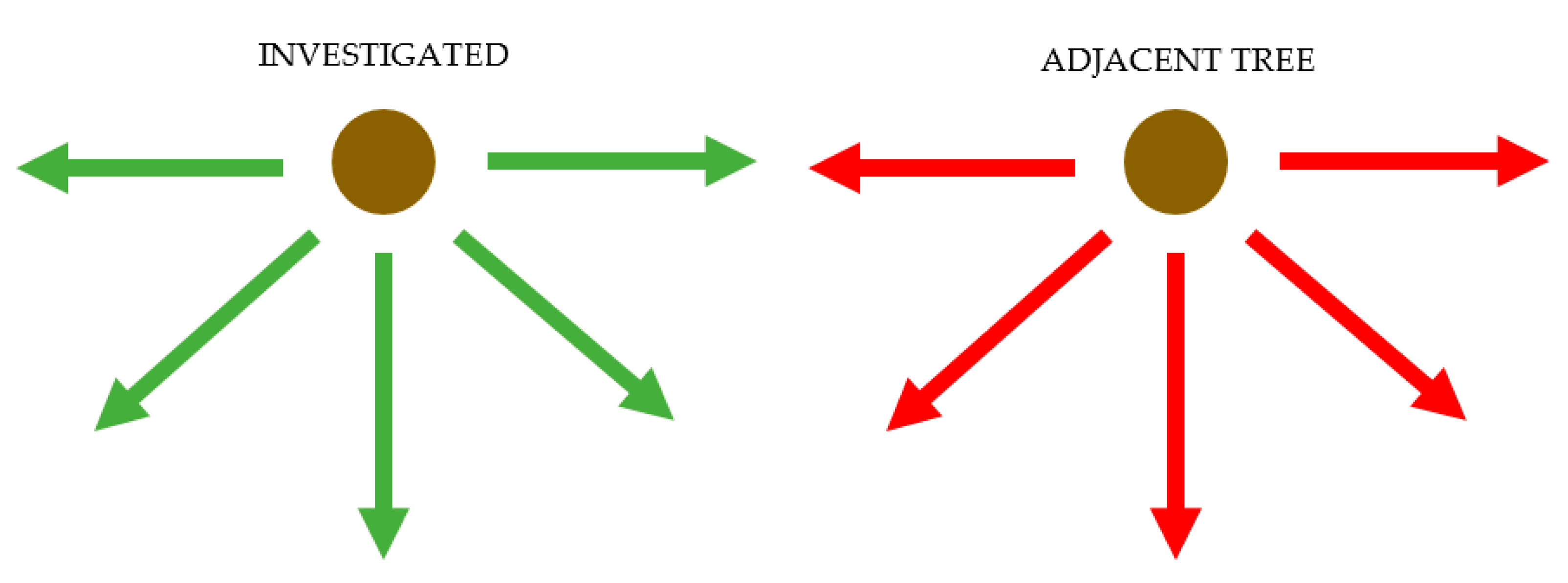

- Preliminary hypotheses: The proposed model is based on two main hypotheses regarding:
- The data acquisition method (longitudinal or circular transects), and
- The dielectric properties of the investigated medium.
- Data input: The algorithm expands upon GPR data from the pre-processing phase, in the form of a three-dimensional matrix of real numbers , composed by the signal amplitude values in a random point of coordinates (). The index indicates the number of GPR scans, limited to , the index corresponds to the scan direction, limited to , and is the vertical coordinate going into the ground, limited to . According to a reference polar coordinate system, the coordinates of a random point can be expressed as follows:

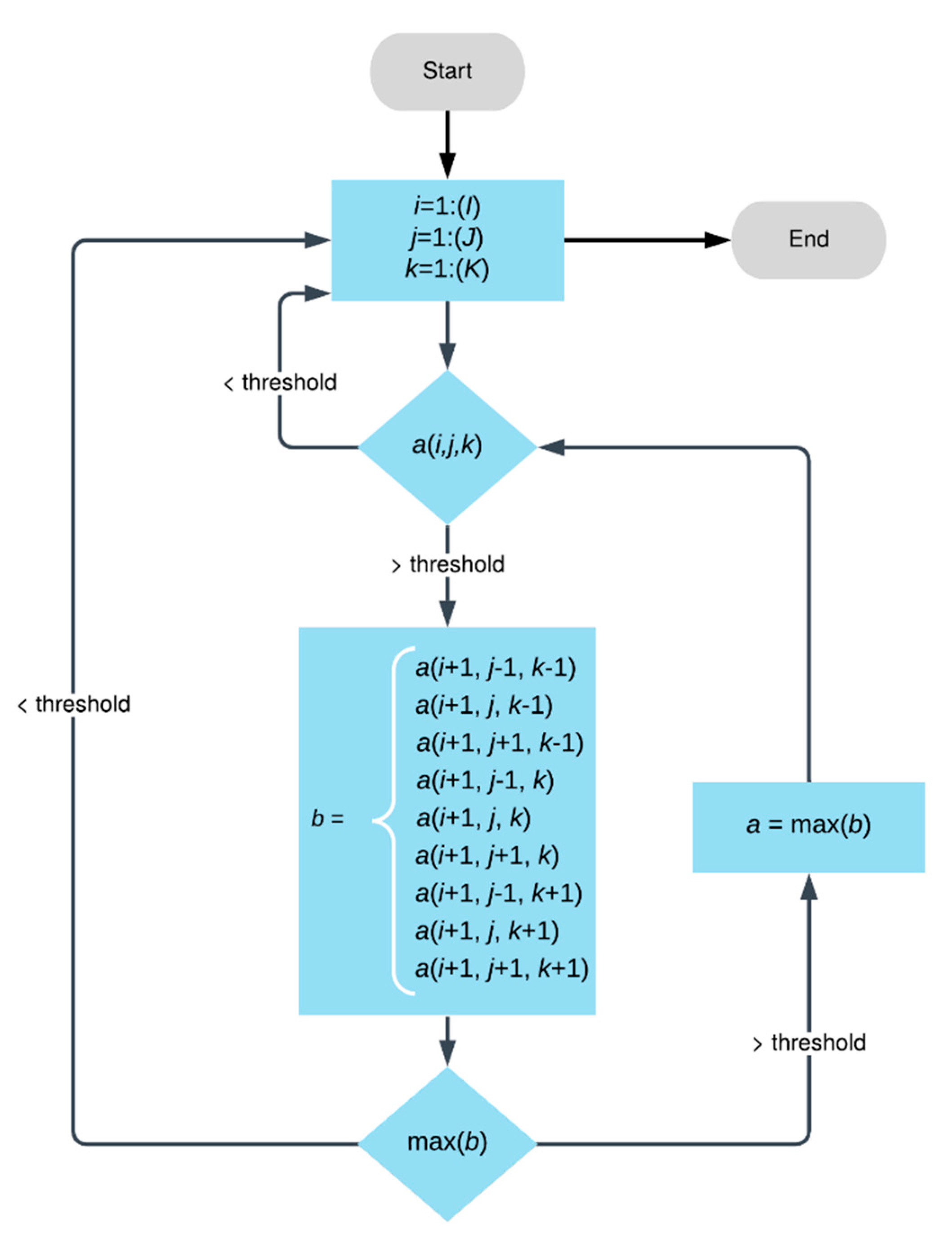

- Iterative procedure: The aforementioned assumptions and input information are essential to develop an iterative procedure for the tracking of a root system. Figure 5 shows a flowchart of the methodology followed in this stage.
- Target identification: The algorithm evaluates the amplitude values in a random position of the 3D domain. In order to filter out the amplitude values that did not likely relate to tree roots, a threshold was set. This threshold value is established a priori based on a preliminary analysis of the data collected, in an effort to isolate as many hyperbolas as possible. Hence, the algorithm is set to analyse the domain until a signal amplitude value greater than the threshold is found. This step is necessary to identify the apices of the reflection hyperbolae (i.e., the apices of the roots) and filter out amplitude values unrelated to candidate root targets.
- Correlation analysis: This step is focused on the investigation of further vertices in the closest vicinity of those identified at the target identification stage. This is performed to pinpoint other potential amplitude values greater than the threshold. This analysis has been improved in the present study compared to the original version presented in , as the area in which the correlation is sought has been extended to four further points within the 3D domain, i.e., a(i + 1, j − 1, k − 1), a(i + 1, j + 1, k − 1), a(i + 1, j − 1, k + 1), a(i + 1, j + 1, k + 1) (see Figure 5). This improvement is used to smooth the correlation analysis process, including all the points of the 3D domain that could ideally belong to the development of a root.
- Tracking of the root: The algorithm isolates correlated points, creating a vector for the mapping of individual roots.
- Reconstruction of the root system architecture in a 3D domain: Vectors identified in the previous step are positioned in a 3D environment in order to represent the geometry of the tree root system.
2.5.4. Root Mass Density Estimation

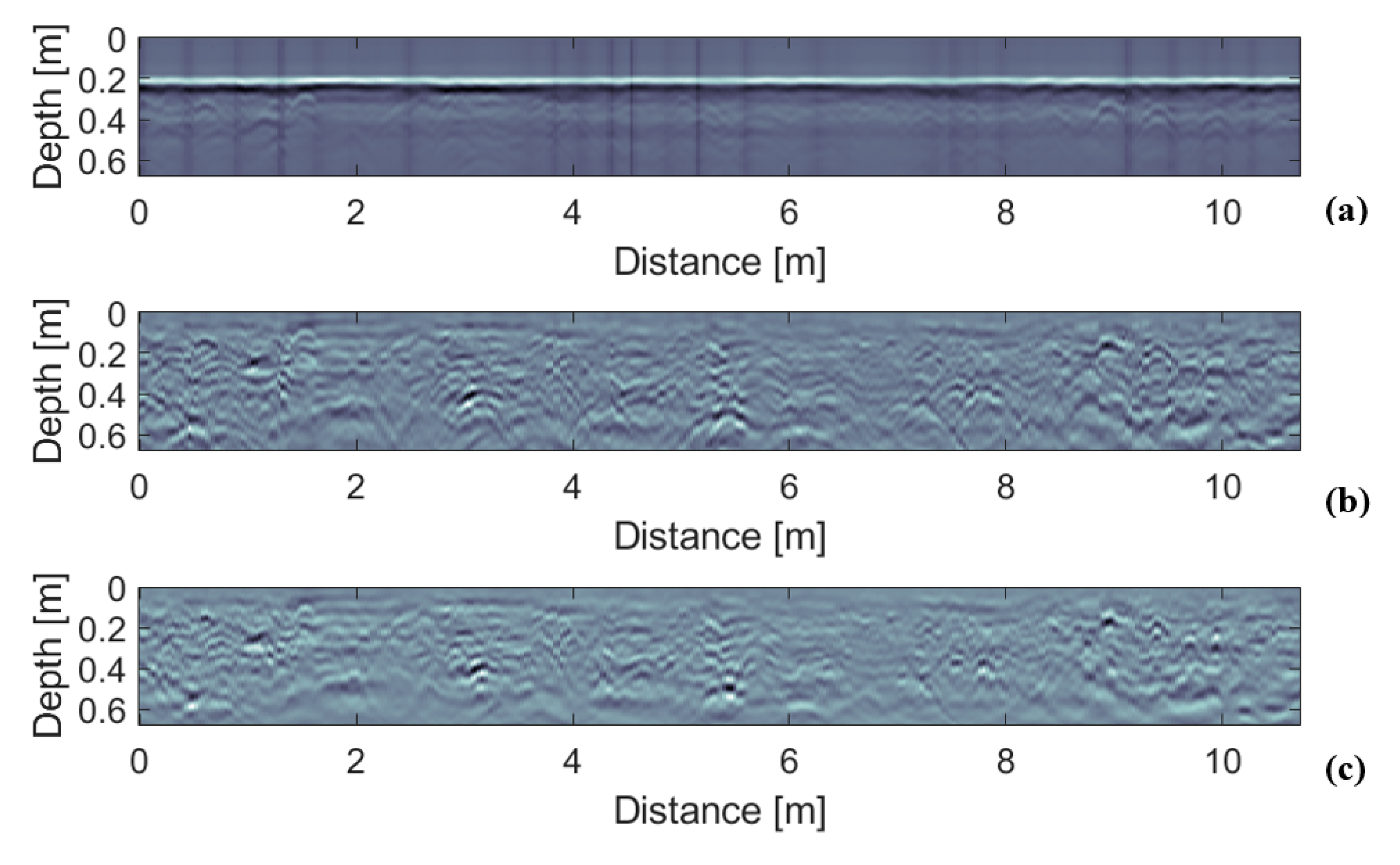

3.1. Preliminary Signal Processing Stage
3.2. Analysis of Discontinuity Elements: the Detection of a Buried Structure

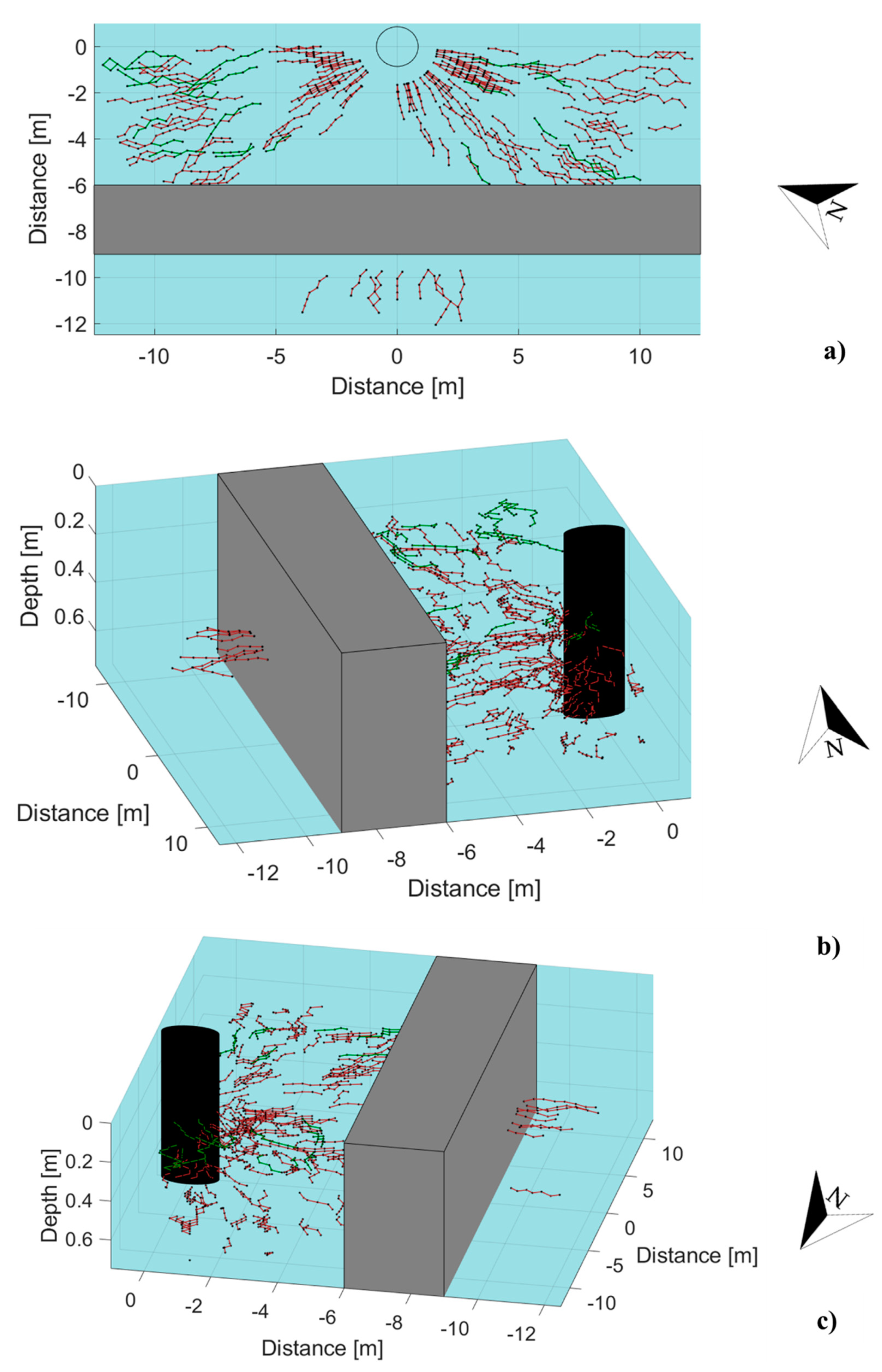

3.3. Tree Root-Tracking Algorithm

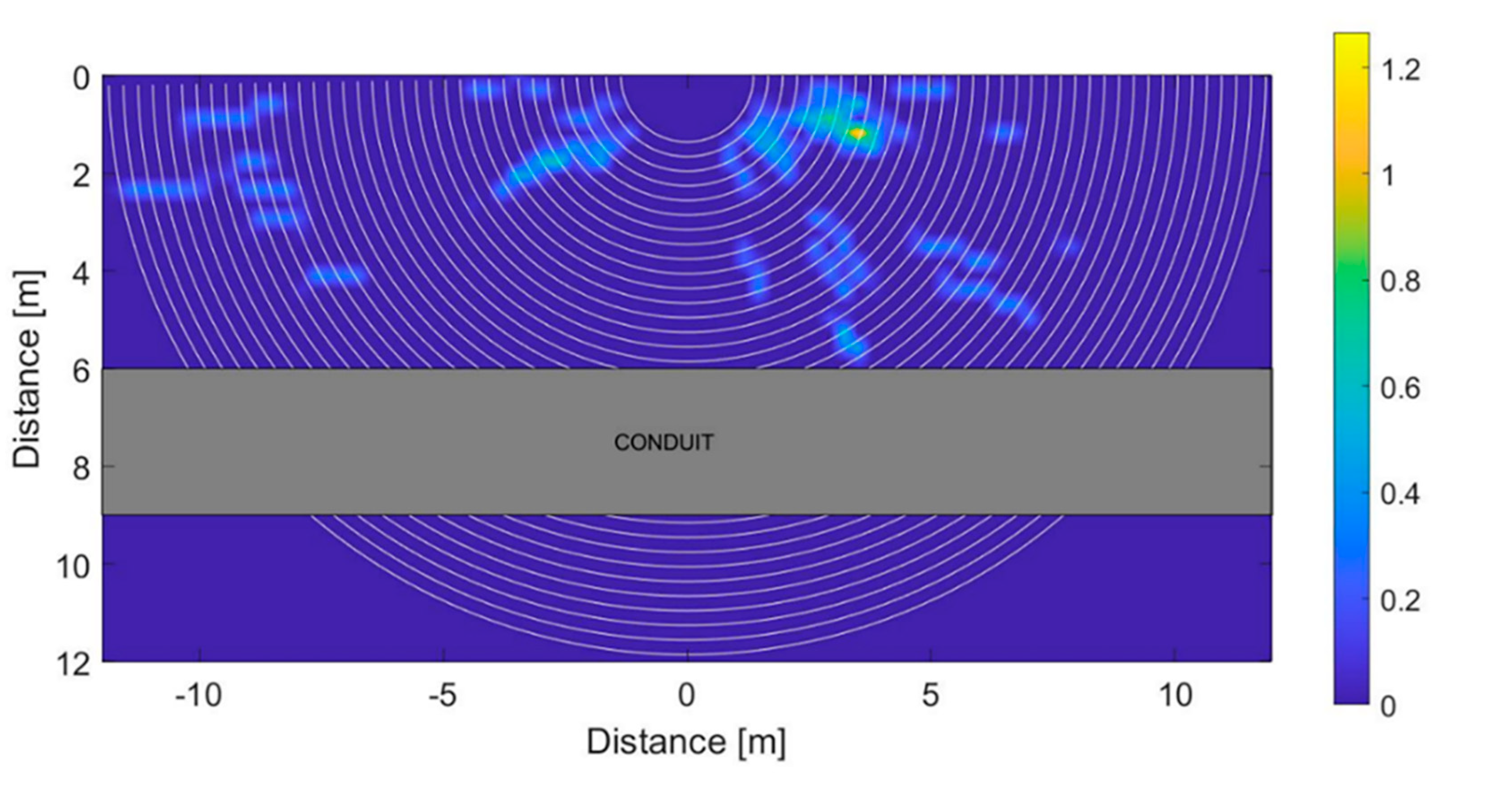

3.4. The Root Mass Density Maps

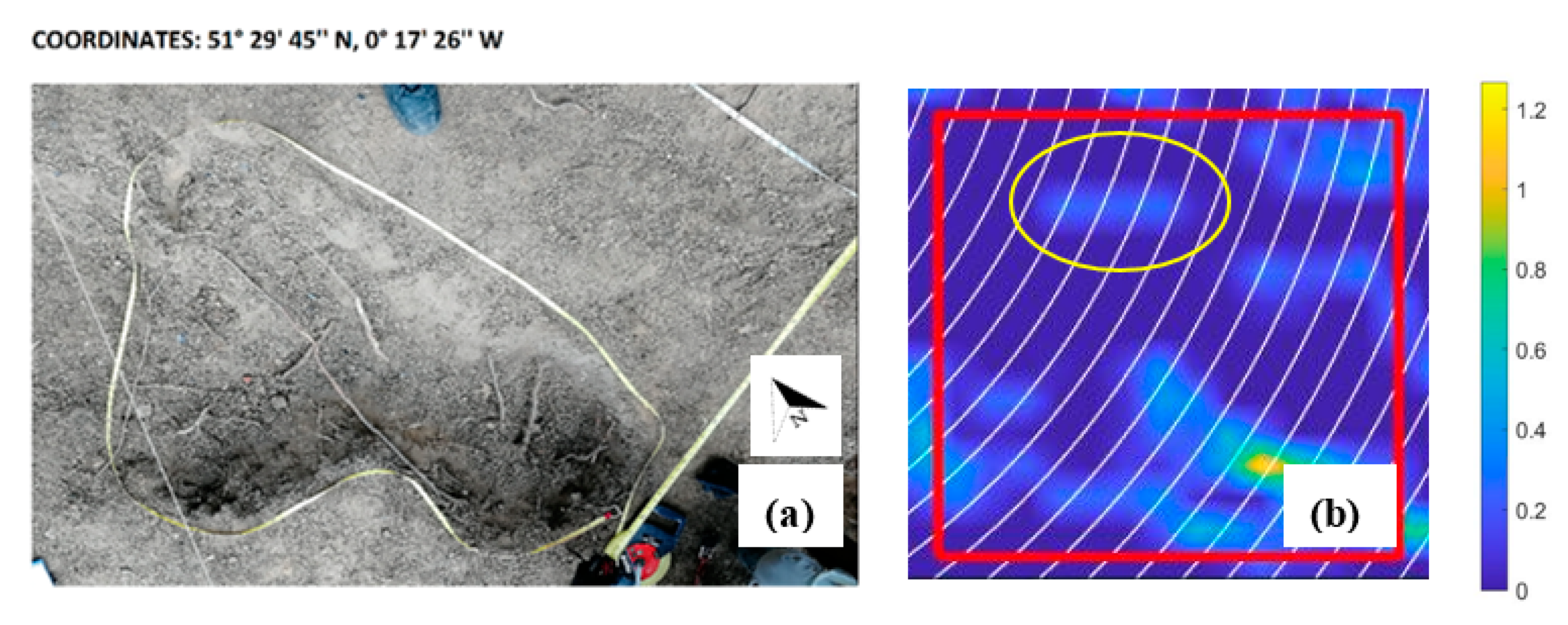

3.5. Results Validation through Excavation
Conflicts of Interest
- Pallardy, S.G. Physiology of Woody Plants, 3rd ed.; Academic Press: Cambridge, MA, USA, 2010. [Google Scholar]
- Donovan, G.H.; Butry, D.T.; Michael, Y.L.; Prestemon, J.P.; Liebhold, A.M.; Gatziolis, D.; Mao, M.Y. The relationship between trees and human health: Evidence from the spread of the emerald ash borer. Am. J. Prev. Med. 2013, 44, 139–145. [Google Scholar] [CrossRef] [PubMed]
- Tzoulas, K.; Korpela, K.; Venn, S.; Yli-Pelkonen, V.; Kaźmierczak, A.; Niemela, J.; James, P. Promoting ecosystem and human health in urban areas using green infrastructure: A literature review. Landsc. Urban Plan. 2007, 81, 167–178. [Google Scholar] [CrossRef][Green Version]
- Tallis, M.; Taylor, G.; Sinnett, D.; Freer-Smith, P. Estimating the removal of atmospheric particulate pollution by the urban tree canopy of London, under current and future environments. Landsc. Urban Plan. 2011, 103, 129–138. [Google Scholar] [CrossRef]
- Hwang, H.; Yook, S.; Ahn, K. Experimental investigation of submicron and ultrafine soot particle removal by tree leaves. Atmos. Environ. 2011, 45, 6987–6994. [Google Scholar] [CrossRef]
- Mullaney, J.; Lucke, T.; Trueman, S.J. A review of benefits and challenges in growing street trees in paved urban environments. Landsc. Urban Plan. 2015, 134, 157–166. [Google Scholar] [CrossRef]
- Hartig, T.; van den Berg, A.; Hagerhall, C.; Tomalak, M.; Bauer, N.; Hansmann, R.; Ojala, A.; Syngollitou, E.; Carrus, G.; van Herzele, A.; et al. Health benefits of nature experience: Psychological, social and cultural processes. In Forests, Trees and Human Health.; Nilsson, K., Sangster, M., Gallis, C., Hartig, T., de Vries, S., Seeland, K., Schipperijn, J., Eds.; Springer: Dordrecht, The Netherlands, 2011; pp. 127–168. [Google Scholar]
- McPherson, E.G.; Nowak, D.J.; Rowntree, R.A. Chicago’s Urban Forest Ecosystem: Results of the Chicago Urban Forest Climate Project. Forest Service General Technical Report. U.S.; Department of Agriculture, Forest Service, Northeastern Forest Experiment Station: Washington, DC, USA, 1994. [Google Scholar]
- Tyrväinen, L.; Pauleit, S.; Seeland, K.; de Vries, S. Benefits and uses of urban forests and trees. In Urban. Forests and Trees; Nilsson, K., Schipperijn, J., Randrup, T., Konijnendijk, C., Eds.; Springer: Berlin/Heidelberg, Germany, 2005; pp. 81–114. [Google Scholar]
- Van Dillen, S.M.; de Vries, S.; Groenewegen, P.P.; Spreeuwenberg, P. Greenspace in urban neighbourhoods and residents’ health: Adding quality to quantity. J. Epidemiol. Community Health 2012, 66. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Pandit, R.; Polyakov, M.; Sadler, R. The importance of tree cover and neighbourhood parks in determining urban property values. In Proceedings of the 56th Australian Agricultural and Resource Economics Society (AARES) Annual Conference, Fremantle, Australia, 7–10 February 2012. [Google Scholar] [CrossRef]
- Coutts, M.P. Root architecture and tree stability. Plant Soil 1983, 71, 171–188. [Google Scholar] [CrossRef]
- Alani, A.M.; Lantini, L. Recent advances in tree root mapping and assessment using non-destructive testing methods: A focus on ground penetrating radar. Surv. Geophys. 2020, 41, 605–646. [Google Scholar] [CrossRef]
- Barton, C.V.M.; Montagu, K.D. Detection of tree roots and determination of root diameters by ground penetrating radar under optimal conditions. Tree Physiol. 2004, 24, 1323–1331. [Google Scholar] [CrossRef][Green Version]
- Hansen, E.M.; Goheen, E.M. Phellinus Weirii and other native root pathogens as determinants of forest structure and process in western north America. Annu. Rev. Phytopathol. 2000, 38, 515–539. [Google Scholar] [CrossRef]
- Rishbeth, J. Resistance to fungal pathogens of tree roots. Proc. R. Soc. Lond. Ser. B. Biol. Sci. 1972, 181, 333–351. [Google Scholar] [CrossRef]
- Shaw, C.G.; Kile, G.A. Armillaria Root Disease; Forest Service, US Department of Agriculture: Washington, DC, USA, 1991.
- Reubens, B.; Poesen, J.; Danjon, F.; Geudens, G.; Muys, B. The role of fine and coarse roots in shallow slope stability and soil erosion control with a focus on root system architecture: A review. Trees 2007, 21, 385–402. [Google Scholar] [CrossRef]
- Guo, L.; Chen, J.; Cui, X.; Fan, B.; Lin, H. Application of ground penetrating radar for coarse root detection and quantification: A review. Plant Soil 2013, 362, 1–23. [Google Scholar] [CrossRef][Green Version]
- Čermák, J.; Nadezhdina, N.; Meiresonne, L.; Ceulemans, R. Scots pine root distribution derived from radial sap flow patterns in stems of large leaning trees. Plant Soil 2008, 305, 61–75. [Google Scholar] [CrossRef]
- Gregory, P.J.; Hutchison, D.J.; Read, D.B.; Jenneson, P.M.; Gilboy, W.B.; Morton, E.J. Non-invasive imaging of roots with high resolution X-ray micro-tomography. In Roots: The Dynamic Interface between Plants and the Earth; Abe, J., Ed.; Springer: Berlin/Heidelberg, Germany, 2003; pp. 351–359. [Google Scholar]
- Moran, C.J.; Pierret, A.; Stevenson, A.W. X-Ray absorption and phase contrast imaging to study the interplay between plant roots and soil structure. Plant Soil 2000, 223, 101–117. [Google Scholar] [CrossRef]
- Paglis, C.M. Application of electrical resistivity tomography for detecting root biomass in coffee trees. Int. J. Geophys. 2013, 2013, 6. [Google Scholar] [CrossRef]
- Amato, M.; Basso, B.; Celano, G.; Bitella, G.; Morelli, G.; Rossi, R. In situ detection of tree root distribution and biomass by multi-electrode resistivity imaging. Tree Physiol. 2008, 28, 1441–1448. [Google Scholar] [CrossRef]
- Benedetto, A.; Tosti, F.; Ortuani, B.; Giudici, M.; Mele, M. Soil moisture mapping using gpr for pavement applications. In Proceedings of the 2013 7th International Workshop on Advanced Ground Penetrating Radar, Nantes, France, 2–5 July 2013; pp. 1–5. [Google Scholar] [CrossRef]
- Themistocleous, K.; Neocleous, K.; Pilakoutas, K.; Hadjimitsis, D.G. Damage assessment using advanced non-intrusive inspection methods: Integration of space, UAV, GPR, and field spectroscopy. In Proceedings of the Second International Conference on Remote Sensing and Geoinformation of the Environment (RSCy2014), Paphos, Cyprus, 7–10 April 2014; pp. 92291O-1–92291O-5. [Google Scholar] [CrossRef]
- Hager, J.L.; Carnevale, M. GPR as a cost-effective bedrock mapping tool for large areas. In Proceedings of the Symposium on the Application of Geophysics to Engineering and Environmental Problems 2001, Denver, CO, USA, 4–7 March 2001; p. GP13. [Google Scholar] [CrossRef]
- Daniels, D.J. Surface-penetrating radar. Electron. Commun. Eng. J. 1996, 8, 165–182. [Google Scholar] [CrossRef]
- Goodman, D. Ground-penetrating radar simulation in engineering and archaeology. Geophysics 1994, 59, 224–232. [Google Scholar] [CrossRef]
- Alani, A.M.; Aboutalebi, M.; Kilic, G. Applications of ground penetrating radar (gpr) in bridge deck monitoring and assessment. J. Appl. Geophys. 2013, 97, 45–54. [Google Scholar] [CrossRef]
- Potin, D.; Duflos, E.; Vanheeghe, P. landmines ground-penetrating radar signal enhancement by digital filtering. IEEE Trans. Geosci. Remote Sens. 2006, 44, 2393–2406. [Google Scholar] [CrossRef][Green Version]
- Tosti, F.; Bianchini Ciampoli, L.; D’Amico, F.; Alani, A.M.; Benedetto, A. An experimental-based model for the assessment of the mechanical properties of road pavements using ground-penetrating radar. Constr. Build. Mater. 2018, 165, 966–974. [Google Scholar] [CrossRef]
- Brancadoro, M.G.; Ciampoli, L.B.; Ferrante, C.; Benedetto, A.; Tosti, F.; Alani, A.M. An investigation into the railway ballast grading using gpr and image analysis. In Proceedings of the 2017 9th International Workshop on Advanced Ground Penetrating Radar (IWAGPR), Edinburgh, UK, 28–30 June 2017; pp. 1–4. [Google Scholar] [CrossRef]
- Lambot, S.; Javaux, M.; Hupet, F.; Vanclooster, M. A global multilevel coordinate search procedure for estimating the unsaturated soil hydraulic properties. Water Resour. Res. 2002, 38, 6–15. [Google Scholar] [CrossRef]
- Huisman, J.A.; Hubbard, S.S.; Redman, J.D.; Annan, A.P. Measuring soil water content with ground penetrating radar: A review. Vadose Zone J. 2003, 2, 476–491. [Google Scholar] [CrossRef]
- Hruska, J.; Čermák, J.; Šustek, S. Mapping tree root systems with ground-penetrating radar. Tree Physiol. 1999, 19, 125–130. [Google Scholar] [CrossRef][Green Version]
- Butnor, J.R.; Doolittle, J.A.; Johnsen, K.H.; Samuelson, L.; Stokes, T.; Kress, L. Utility of ground-penetrating radar as a root biomass survey tool in forest systems. Soil Sci. Soc. Am. J. 2003, 67, 1607–1615. [Google Scholar] [CrossRef][Green Version]
- Alani, A.M.; Ciampoli, L.B.; Lantini, L.; Tosti, F.; Benedetto, A. Mapping the root system of matured trees using ground penetrating radar. In Proceedings of the 2018 17th International Conference on Ground Penetrating Radar (GPR), Rapperswil, Switzerland, 18–21 June 2018; pp. 1–6. [Google Scholar] [CrossRef]
- Lantini, L.; Holleworth, R.; Egyir, D.; Giannakis, I.; Tosti, F.; Alani, A.M. Use of ground penetrating radar for assessing interconnections between root systems of different matured tree species. In Proceedings of the 2018 Metrology for Archaeology and Cultural Heritage (MetroArchaeo), Cassino, Italy, 22–24 October 2018; pp. 22–26. [Google Scholar] [CrossRef]
- Gunnersbury Park Trees. Available online: https://gunnersburyfriends.org/gunnersbury-park-trees/ (accessed on 15 July 2020).
- Time and Date AS. Available online: https://www.timeanddate.com/weather/uk/london/historic?month=4&year=2019 (accessed on 3 July 2020).
- Fayle, D.C.F. Radial growth in tree roots: Distribution, Timing, Anatomy; University of Toronto, Faculty of Forestry: Toronto, ON, Canada, 1968. [Google Scholar]
- Chauvière, M.; Colin, F.; Nielsen, C.N.; Drexhage, M. Development of Structural Root Architecture and Allometry of Quercus Petraea. Can. J. For. Res. 1999, 29, 600–608. [Google Scholar] [CrossRef]
- Elkarmoty, M.; Tinti, F.; Kasmaeeyazdi, S.; Giannino, F.; Bonduà, S.; Bruno, R. Implementation of a fracture modeling strategy based on Georadar Survey in a large area of Limestone Quarry Bench. Geosciences 2018, 8, 481. [Google Scholar] [CrossRef][Green Version]
- Daniels, D.J. Ground Penetrating Radar, 2nd ed.; The Institution of Electrical Engineers: London, UK, 2004. [Google Scholar]
- Jol, H.M. Ground Penetrating Radar Theory and Applications, 1st ed.; Elsevier: Amsterdam, The Netherlands, 2009. [Google Scholar]
- Kim, J.; Cho, S.; Yi, M. Removal of ringing noise in GPR data by signal processing. Geosci. J. 2007, 11, 75–81. [Google Scholar] [CrossRef]
- Lantini, L.; Giannakis, I.; Tosti, F.; Mortimer, D.; Alani, A. A reflectivity-based gpr signal processing methodology for mapping tree root systems of street trees. In Proceedings of the 2020 43rd International Conference on Telecommunications and Signal Processing, Budapest, Hungary, 7–9 July 2020. [Google Scholar] [CrossRef]
- Cui, X.H.; Chen, J.; Shen, J.; Cao, X.; Chen, X.; Zhu, X. Modeling tree root diameter and biomass by ground-penetrating radar. Sci. China Earth Sci. 2011, 54, 711–719. [Google Scholar] [CrossRef]
- Kreyszig, E. Advanced Engineering Mathematics, 9th ed.; John Wiley & Sons: Hoboken, NJ, USA, 2006. [Google Scholar]
- Hansen, P.C.; Pereyra, V.; Scherer, G. Least Squares Data Fitting with Applications; Johns Hopkins University Press: Baltimore, MD, USA, 2013. [Google Scholar]
- Fausett, L.V. Applied Numerical Analysis using MATLAB, 2nd ed.; Pearson Prentice Hall: Upper Saddle River, NJ, USA, 2008. [Google Scholar]
- Köstler, J.; Brückner, E.; Bibelriether, H. Die Wurzeln Der Waldbäume; P. Parey: Hamburg, Germany, 1968. [Google Scholar]
- Crow, P. The influence of soils and species on tree root depth. For. Comm. 2005, 1–8. [Google Scholar]
- Kelley, C.T. Iterative Methods for Optimization; Society for Industrial and Applied Mathematics: Philadelphia, PA, USA, 1999. [Google Scholar]
- Hecht-Nielsen, R. Theory of the backpropagation neural network. Neural Netw. 1988, 1, 445. [Google Scholar] [CrossRef]
|Root Mass Density Zoning|
|Depth [m]||x||y||Minimum Value [m/m3]||Maximum Value [m/m3]||Average Value [m/m3]||Standard Deviation [m/m3]|
|From [m]||To [m]||From [m]||To [m]|
