Continuous Monitoring of Urban Land Cover Change Trajectories with Landsat Time Series and LandTrendr-Google Earth Engine Cloud Computing

Division of Geoinformatics, Department of Urban Planning and Environment, KTH Royal Institute of Technology, Teknikringen 10A, 100 44 Stockholm, Sweden
Centre for Geographic Information Systems and Remote Sensing, College of Science and Technology, University of Rwanda, KN 67 Street, Nyarugenge, Po Box 3900 Kigali, Rwanda
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(18), 2883;
Submission received: 17 July 2020 / Revised: 2 September 2020 / Accepted: 3 September 2020 / Published: 5 September 2020


Producing accurate land cover maps is time-consuming and estimating land cover changes between two generated maps is affected by error propagation. The increased availability of analysis-ready Earth Observation (EO) data and the access to big data analytics capabilities on Google Earth Engine (GEE) have opened the opportunities for continuous monitoring of environment changing patterns. This research proposed a framework for analyzing urban land cover change trajectories based on Landsat time series and LandTrendr, a well-known spectral-temporal segmentation algorithm for land-based disturbance and recovery detection. The framework involved the use of baseline land cover maps generated at the beginning and at the end of the considered time interval and proposed a new approach to merge the LandTrendr results using multiple indices for reconstructing dense annual land cover maps within the considered period. A supervised support vector machine (SVM) classification was first performed on the two Landsat scenes, respectively, acquired in 1987 and 2019 over Kigali, Rwanda. The resulting land cover maps were then imported in the GEE platform and used to label the interannual LandTrendr-derived changes. The changes in duration, year, and magnitude of land cover disturbance were derived from six different indices/bands using the LandTrendr algorithm. The interannual change LandTrendr results were then combined using a robust estimation procedure based on principal component analysis (PCA) for reconstructing the annual land cover change maps. The produced yearly land cover maps were assessed using validation data and the GEE-based Area Estimation and Accuracy Assessment (Area2) application. The results were used to study the Kigali’s urbanization in the last three decades since 1987. The results illustrated that from 1987 to 1998, the urbanization was characterized by slow development, with less than a 2% annual growth rate. The post-conflict period was characterized by accelerated urbanization, with a 4.5% annual growth rate, particularly from 2004 onwards due to migration flows and investment promotion in the construction industry. The five-year interval analysis from 1990 to 2019 revealed that impervious surfaces increased from 4233.5 to 12116 hectares, with a 3.7% average annual growth rate. The proposed scheme was found to be cost-effective and useful for continuously monitoring the complex urban land cover dynamics, especially in environments with EO data affordability issues, and in data-sparse regions.

Graphical Abstract

1. Introduction

Since 2007, our planet has reached a significant landmark, with urban inhabitants outnumbering those of rural settlements and projections illustrated that urban areas would be housing two-thirds (66%) of the world population by 2050 [1]. Despite tiny land fractions being occupied by urbanized areas (2% of the Earth’s surface), cities account for 60% to 80% of global energy consumption [2,3]. Previous studies illustrated that there is a strong correlation between excessive urbanization and an increase of greenhouse gas emissions [4,5,6,7], and the latter is contributing to global warming and climate change and variability [8,9,10,11]. Therefore, continuous urbanization monitoring is of critical importance for a better understanding of land cover change trajectories, their impact on the surrounding environment, and the dynamics of urban ecosystem services. Adequate and cost-effective methods are needed for high temporal and dense land cover information production, which is critical for responsive urban land development. Previous studies illustrated that mapping and modeling urban land cover and land-use change, based on Earth Observation (EO) data, was deemed a timely and cost-effective method for quantifying the impact of the urban environmental footprint [12,13,14]. With almost five decades (since 1972) of data records, and rigorous calibration, consistency, and free access since 2008, Landsat time series are essential resourceful EO data for environmental analysis [15,16], including continuous spatio-temporal urban growth monitoring. However, EO data, like any other big data, are both structured and unstructured, noisy, and their direct use is often difficult [17]. Considering that the size of EO data is scaling up to petabytes, it is beyond the ability of commonly used software tools to capture, manage, and process them within a tolerable elapsed time [18,19,20]. Subsequently, frequently employed methods for satellite-based land change detection are relying either on performing post-classification comparison based on single pass classification. or on a pixel-to-pixel approach with simultaneous multispectral pattern analysis in two or more time-series images [21,22,23]. By using such traditional methods, it is evident that producing reliable and accurate land cover maps is time-consuming. Moreover, the results of bi-temporal post-classification comparison are prone to error propagation from single pass land cover classification. Therefore, reliable semi-automated and cost-effective approaches are needed for continuously tracking urbanization phenomena. Recently, EO big data analytics and cloud computing systems have revolutionized the ability to handle geo big data [24,25]. The availability of analysis-ready EO data cubes and the access to big data analytics capabilities in a cloud-computing environment, such as Google Earth Engine (GEE), has opened the opportunities for continuous monitoring of our changing environment, such as tracking urbanization development and its associated environmental impact. With free and open access to Landsat archives, novel change detection algorithms based on Landsat time series were simulated, and large-scale land change mapping at a medium resolution was significantly improved [15,16,26].
Several time series algorithms were implemented in cloud computing platforms for land cover change, and each of them is subject to pros and cons [26,27]. Various land change analysis could be performed based on spatiotemporal dimensions using dedicated time series algorithms. Seasonal changes, such as seasonal snow cover [28], wetland inundations, or hydrological regime variation [29,30], are analyzed using time series algorithms suitable for short-term period trends. Long-term changes, such as trends in vegetation greenness [31], are analyzed using annual time series. EO time series algorithms are further utilized for abrupt change monitoring, such as wildfire [32,33] and deforestation [34,35], to name a few. Gradual changes, such as land degradation [36,37], forest recovery [38], and urban development [39], are also among the type of trends that can be analyzed using satellite time series algorithms. The widely used EO-based time series algorithms for land change processes include, but are not limited to:
Breaks For Additive Season and Trend (BFAST) [40] implemented for seasonal trends analysis;
Continuous Change Detection and Classification (CCDC) [41], which was found to be worthwhile for long-term and gradual change detection;
Time-Weighted Dynamic Time Warping (TWDTW) [42], which consists of comparing temporal similarities of known seasonality of a land cover event with unknown time series, and finding optimal alignment between them through dynamic space-time classification;
Vegetation Change Tracker (VCT) mainly designed for historical forest change processes based on the spectral–temporal properties [43];
TimeSat designed for seasonal trends monitoring of land surface processes taking into account the seasonal parameters [17]; and

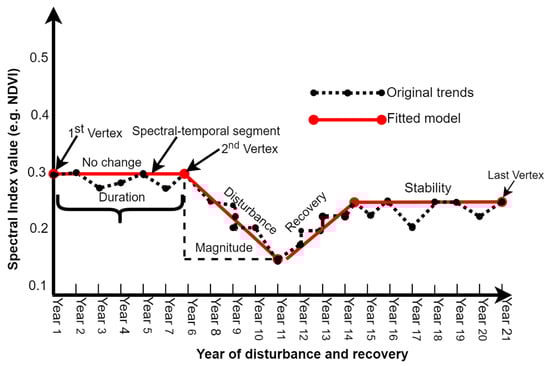

LandTrendr involving the spectral-temporal segmentation of Landsat time series and the complex statistical analysis allowing the extraction of spatial patterns of land cover change magnitude, change duration, and year of change [44].
All time-series change detection algorithms are not producing similar results, even if using the same inputs data [45]. Some algorithms are hard to implement and more demanding in terms of computation requirements. Therefore, users should be cautious about the choice, and the selection should be based on the application domain, supporting computational platform and study objective. The common characteristics for all times series for land change are still a large number of missing data [46] but each of them presents the pros and the cons. For instance, TimeSat was found robust across the large number of its applications, and its flexibility to allow seasonal trend analysis [17]. However, TimeSat-based analysis could be affected by bias emanating from inter-annual variations and fluctuation of seasonal parameters. Despite its robustness in depicting vegetation change processes, particularly forest, VCT is uniquely designed for limited applications.
The performance of EO time series algorithms heavily depends on their accommodating computational platform and parameters to be taken into account. Traditional standalone architecture and personal computers could not efficiently handle advanced EO big data processing tasks [20]. Hopefully, the technology advance enhanced the computation performance through server-client application platforms or through the move to cloud computing. The cloud-based processing platforms allow users the possibility to interact with EO data without investigation in backend computing and data management infrastructures [47] and it is the case for LandTrendr-GEE architecture. While considering the standpoint of ease of use and the development maturity, GEE was identified as one of the best options for big EO data management and analysis [48]. Recently, the implementation of the LandTrendtr algorithm in the GEE platform opened the opportunities for online collection of all available Landsat data and processing them in a cloud-based environment with a user-friendly application programming interface (API) [44].

2. LandTrendr-Google Earth Engine for Analysis of Land Cover Change Trajectories

GEE is a cloud-based geospatial processing platform, offering a large set of user-friendly API for analyzing freely available satellite images, producing statistics and maps, and graphical representation of investigated phenomena through parallel computing [49]. It is mainly composed of two components working in sync with each other, namely Google Earth Engine Playground (EEP) and Google Engine Explorer (EE) [49,50]. On the other hand, LandTrendr is a set of trajectories and spectral-temporal segmentation algorithm that are useful for annual land disturbance and recovery detection taking into account the intensity of the land cover disturbance known as the magnitude of change, the duration of the event expressed in the number of years, and the year when the land disturbance or recovery occurs [35]. The detection is carried out based on collection of Landsat time-series. The algorithm applies the normalization and medoid image stacks and selection process, which makes the spectral space relatively consistent across all Landsat sensors [35]. The medoid selection process consists of comparing and aligning pixels’ values in all visible and infrared red bands of all Landsat sensors to median spectral values in all annual collected images. Values resulting from any spectral transformation can be used for all images irrespective of Landsat sensors [35,44]. LandTrendr was first developed in Interactive Data Language (IDL) software in 2010 [35] and then implemented in the GEE platform in 2018 [44]. It fits the spectral-temporal trajectory to each image pixel in an annual time series and traces the historical evolution of the same pixel in image time series. By referring to one band/index, these trajectories can be used to identify a specific event of land cover change at a pixel level in space and time dimensions. The algorithm provides information on the year of detection, the duration, and the magnitude of each detected change event (see Figure 1).

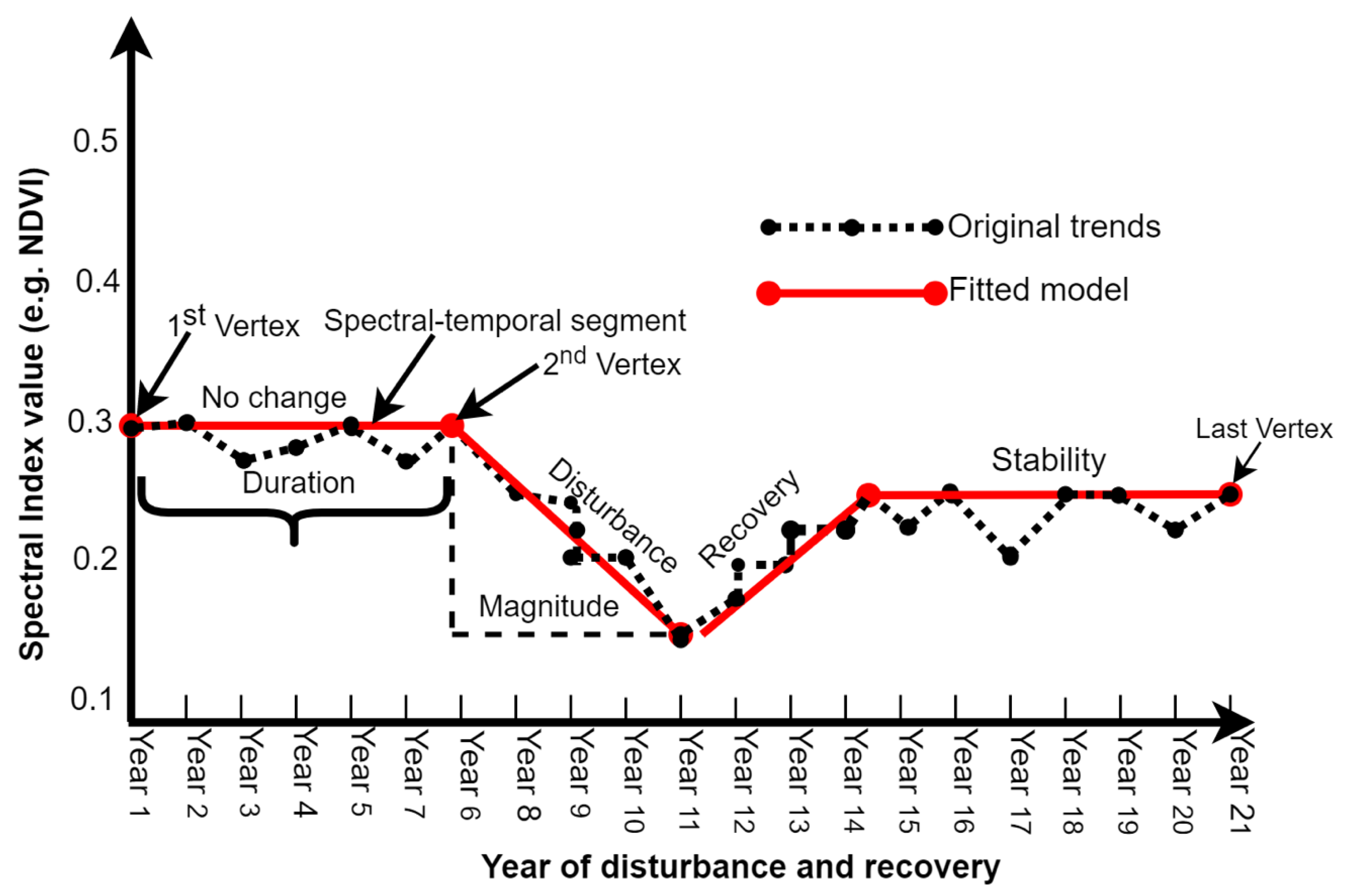

The LandTrendr algorithm was initially tested in forest disturbance and recovery detection in the Pacific Northwest of the United States of America (U.S.A), western Oregon, and Washington by Kennedy et al. [35]. The findings of their study confirmed that the model outperformed the bi-temporal change detection previously carried out by [51] in tracking forest disturbance and detecting other trends related to forest phenology and regrowth in the same study area. A growing number of studies have subsequently proven the effectiveness of LandTrendr algorithms in investigating the patterns of forest disturbance and recovery (e.g., [52,53]). Furthermore, trends in mining-induced land cover change based on LandTrendr-GEE were successfully tracked respectively in Richards Bay Minerals Site, South Africa [54], and in central east Queensland, Australia [55]. The combination of LandTrendr-based indices and Landsat time-series data allowed analysis of cropland conversion patterns in a 10-year time span around Dongting Lake, China [56], and the detection of impervious surfaces in two urban areas of Jiangsu Province, China, including Nanjing [57] and Xinbei District [58]. LandTrendr-GEE’s application in analyzing urban land cover dynamics and change trajectories is very scanty, thus this needs to be tested. Particularly, the LandTrendr-GEE framework would potentially open the opportunities for urban land cover change analysis in Sub-Saharan Africa (SSA), as the very high-resolution satellite images are expensive and less affordable by local urban planning institutions. Additionally, it is hard to acquire continuously and annually fit-for-purpose optical images for regular monitoring of land cover dynamics, given that atmospheric attenuations sometimes affect the quality of data acquired from optical sensors.
Various approaches are used for urbanization analysis, such as change analysis of spatial temporal variation of land surface biophysical properties using time series indices derived from multispectral satellite data (e.g., [59,60]). These indices include, but are not limited to, the normalized difference vegetation index (NDVI), normalized difference moisture index (NDMI), normalized difference built-up index (NDBI), index-based built-up index (IBI), urban index (UI), enhanced built-up, and bareness index (EBBI), etc. The synergistic use of Landsat time series and the LandTrendr-GEE framework is an added value to the previous urbanization research effort. This framework allows long-term and continuous annual monitoring of land cover change disturbance and recovery analysis. It is also equipped with a fitting model for noise-induced spikes reduction, while detecting interannual land change events [44]. LandTrendr-GEE-based indices/bands are easily portrayed and manipulated in a user-friendly interface with rich information on the magnitude, duration, and year of event change detection. Further statistics on land cover change disturbance and recovery can be extracted, and a fitting model narrating the global trend of landscape change trajectory is visualized. In this research, a framework for analyzing urban land cover change dynamics based on Landsat time series and LandTrendr-GEE is proposed. The study aimed at integrating the baseline land cover change with bands and indices extracted using the LandTrendr algorithm for reconstructing progressive dense annual land cover maps within the considered period. The baseline two land cover maps were generated at the beginning and at the end of the proposed time interval, which is 1987 and 2019, respectively. The proposed framework is believed to be cost-effective and useful for continuous monitoring of complex urban land cover dynamics, especially in environments with EO data affordability issues, and in data-sparse regions. Indeed, LandTrendr-derived data have worldwide coverage and are freely available. Furthermore, the integration of LandTrendr in GEE was judged as a high-performing platform based on open-access software and cloud computing [44,48].

3. Study Area and Data Description

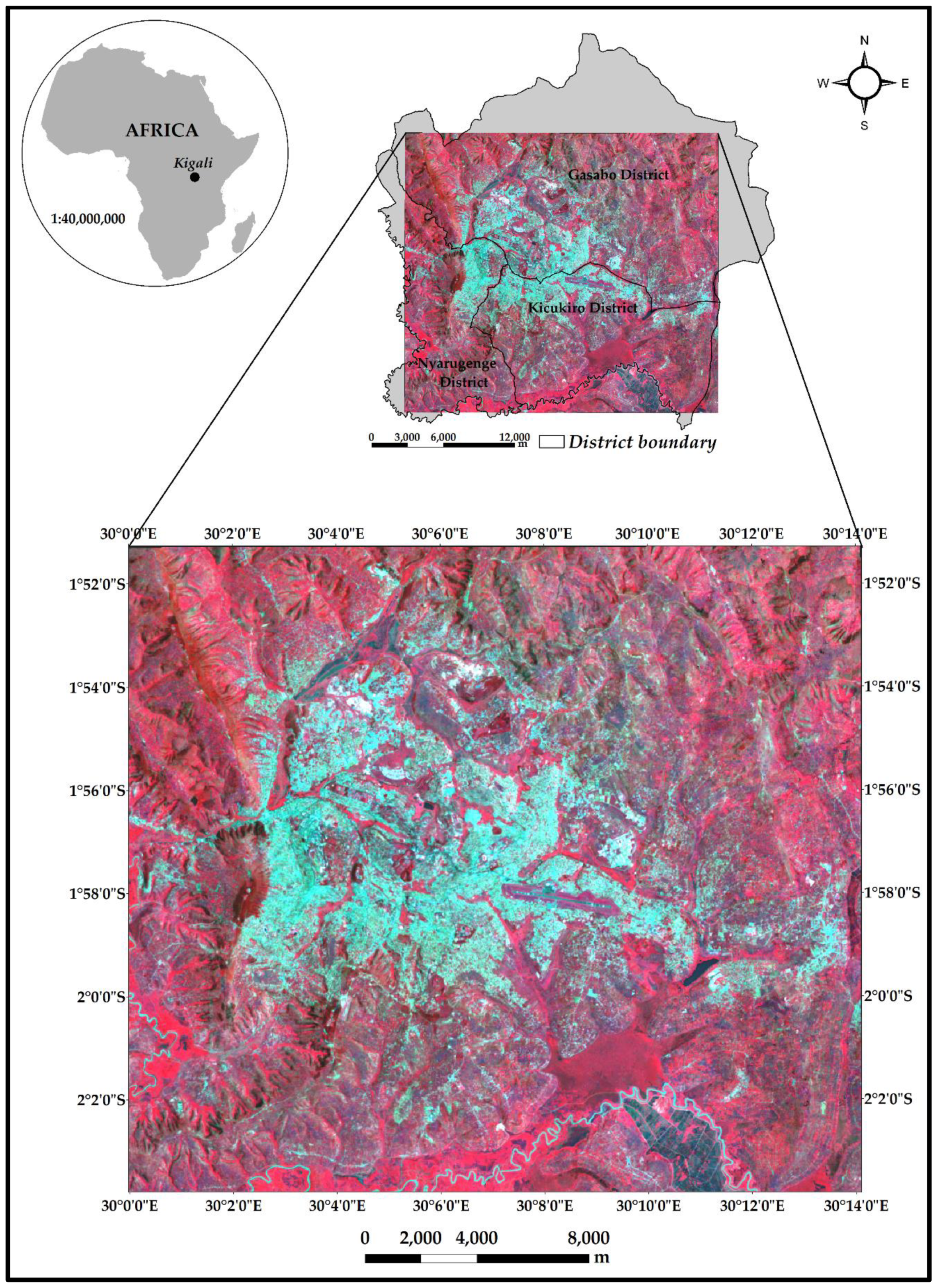

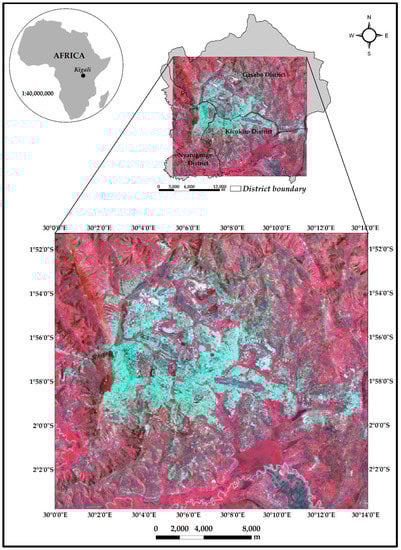

Kigali is the largest and the capital city of Rwanda, a country located in East Africa (see Figure 2). The city, designated initially as Germany’s colonial administrative outpost in 1907, expanded across a small neighborhood plateau around Nyarugenge hill with an estimated 357 inhabitants [61]. The last administrative restructuring took place in 2006 and led Kigali to be a metropolitan area covering 730km2, partitioned in three districts including Nyarugenge, Gasabo, and Kicukiro [62]. The 2012 Population and Housing Census illustrated that the Kigali metropolitan area accommodates 1.135 million inhabitants, with a 4.1% annual urban growth rate [63]. Kigali is remains the most important hub of Rwanda’s secondary and tertiary activities, and the main port of entry. According to the 2013 land use [64], around 60.5% of the total city administrative area is dominated by rural agrarian land and marshlands (19.4%). Urbanized area occupies approximately 17%, with informal settlements estimated at 79% of the total built-up areas [65]. Since the implementation of the 2013 Master Plan, which is a long planning process dated back in 2007, urban redevelopment is taking place in the core urban zone through built-up area renovation, the construction of high-rise buildings, road network densification, and parking area modernization. Land conversion, rapid urban expansion in urban fringe neighborhoods, and conurbation translated by satellite towns in the proximity of Kigali administrative boundaries mainly along the national road axes are the observed land change trends. Despite the urban policy and settlement regulations in place, accelerated urbanization observed in Kigali has led to the uncontrolled growth of informal settlements and environmental degradation [66]. Tangible statistics on land use change processes and trajectories are still lacking. Quantification of the change in vegetation proxy and land-use change trajectories in Kigali would contribute to informed decision making about sustainable urban dynamics and land use management. The testing area covered in the present study occupies an area of approximately 609.57km2. It mainly covers Kigali’s core built-up area and the surrounding urban fringe zones as portrayed in Figure 2.
The Landsat surface reflectance cloud masked composite collections were used for generating the two baseline land cover maps, respectively, the 1987 and 2019 classifications. The collections were accessed, pre-processed from GEE, and exported for further processing by constraining the area of interest in the study area-bounding box. The two composite collections were acquired by filtering the dates corresponding to the image with good quality. Landsat surface reflectance data are atmospherically corrected using the Landsat Ecosystem Disturbance Adaptive Processing System (LEDAPS), and they include a cloud, shadow, water, and snow mask produced using CFMASK, as well as a per-pixel saturation mask as specified in the Earth Engine data catalog ( The first Landsat 5 Thematic Mapper composite (LANDSAT/LT05/C01/T1_SR Path: 172; Row: 061) was constrained between 1 February and 31 December 1987. The 2019 image was acquired using the Landsat 8 Operation Landsat Imager (L8-OLI) sensor with LANDSAT/LC08/C01/T1_SR identification code. It is an annual cloud-masked composite collected by constraining the acquisition between 1 January and 31 December 2019. The Digital Terrain Model (DTM) and slope derived from the DTM were also data sources combined with multispectral bands for land cover classification. The DTM used in this study was produced by the Shuttle Radar Topographic Mission (SRTM) with a resolution of 1 arc-second global product (around a 30-m spatial resolution). More DTM specifications can be retrieved from Annual image collections from L5-TM, Landsat 7 Enhanced Thematic Mapper Plus (L7-ETM+), and L8-OLI from 1987 to 2019 were used for LandTrendr spectral-temporal segmentation and for generating GEE-LandTrendr-based indices. High-resolution Google Earth images were employed for collecting and labeling the validation samples.

4. Methods

In this section, an overview of the methods used in this study is presented and discussed, including the functional architecture of the LandTrendr-GEE framework and various processing tasks.

4.1. Image Pre-Processing

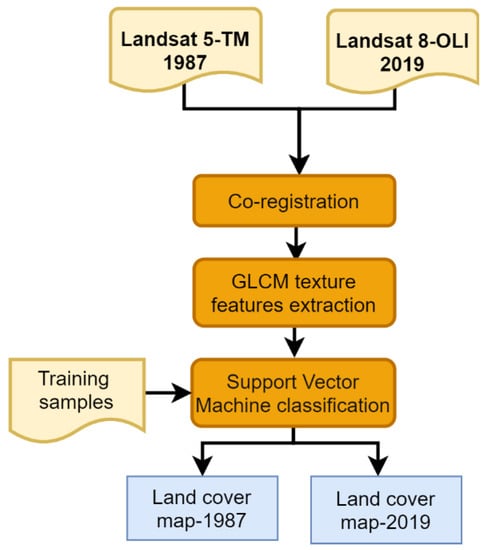

The two Landsat images that served as baseline classification were first co-registered using automatic registration performed in ENVI 5.3 software. L8-OLI was considered as a base image for co-registering the 1987 L5-TM. A cross-correlation matching method and 0.2 minimum matching score were proposed for automatic tie points generation. The image transformation was set as a geometric model, whereas the first-order polynomial transform (RST) was chosen as the transformation model. In total, 100 tie points were proposed, and the ones with more than XY pixels’ reprojection errors were eliminated until we retained 24 high accurate points with a root mean square error (RMSE) > = 0.8. Prior to land cover classification, the Gray Level co-Occurrence Matrix (GLCM) proposed by [67] was computed and stacked with Landsat bands. GLCM is a texture measurement based on second-order statistics for image texture analysis. It quantitatively describes the probability of relationships between the brightness values of neighboring pixels at a distance and orientation invariant within the image [67]. The output consists of a single two-dimension raster layer containing derived measurements for all pixels and may be input into further analysis [68]. In the present study, the use of GLCM as input in the feature space was motivated by the fact that previous studies (e.g., [69,70]) illustrated the utility of GLCM texture features in improving land cover class separability. Derived GLCM texture features concerned the mean, variance, contrast, and standard deviation computed from red, green, and near-infrared bands of both 1987 L5-TM and 2019 L8-OLI. The GLCM was calculated in the four main orientations (i.e., 0, 45, 90, and 135) with a one-pixel shift and 11 × 11 kernel size. The experimental results in the previous studies found that the best urban classification results would be achieved with a kernel size ranging from 5 × 5 to 13 × 13 [71,72] and 11 × 11 kernel was found to be optimal for the best urban land cover classification [73,74].

4.2. Baseline Land Cover Classification

Five land cover classes were proposed in the land classification scheme, as specified in Table 1. Before the GEE processing chain, a pixel-based support vector machine (SVM) classifier was applied to generate baseline and keyframe land cover maps for the predefined starting and ending time periods. SVM is a non-parametric supervised classifier based on statistical learning theory [75], which has outperforming properties, including effectiveness in segregating multimodal classes [76], good generalization ability, and efficiency in handling data in high-dimensional feature spaces [77]. Previous studies (e.g., [78,79,80]) illustrated the SVM as one of the top best-performing classifiers for satellite image land cover classification. Figure 3 illustrates the step-by-step processing chain followed for generating the 1987 and 2019 land cover keyframe classification.
The training samples were determined by referring to the random sampling design. Five land cover classes were proposed in the classification scheme, including the built-up area (BUA) corresponding to settlements and sealed/impervious surface, open land mainly composed of either agricultural areas or permissive uncovered land, forest, wetlands, and water. In total, 572 samples were proposed for the 1987 classification, while 647 were selected for the 2019 image classification. The computed GLCM layers, together with DTM and slope, were stacked with classic Landsat bands for the training of the SVM classifier. The SVM Radian Basic Function kernel (RBF) was chosen for generating the classified maps. Post-processing operations, such as class aggregation, were performed for smoothing the classification.

4.3. Processing Chain in GEE

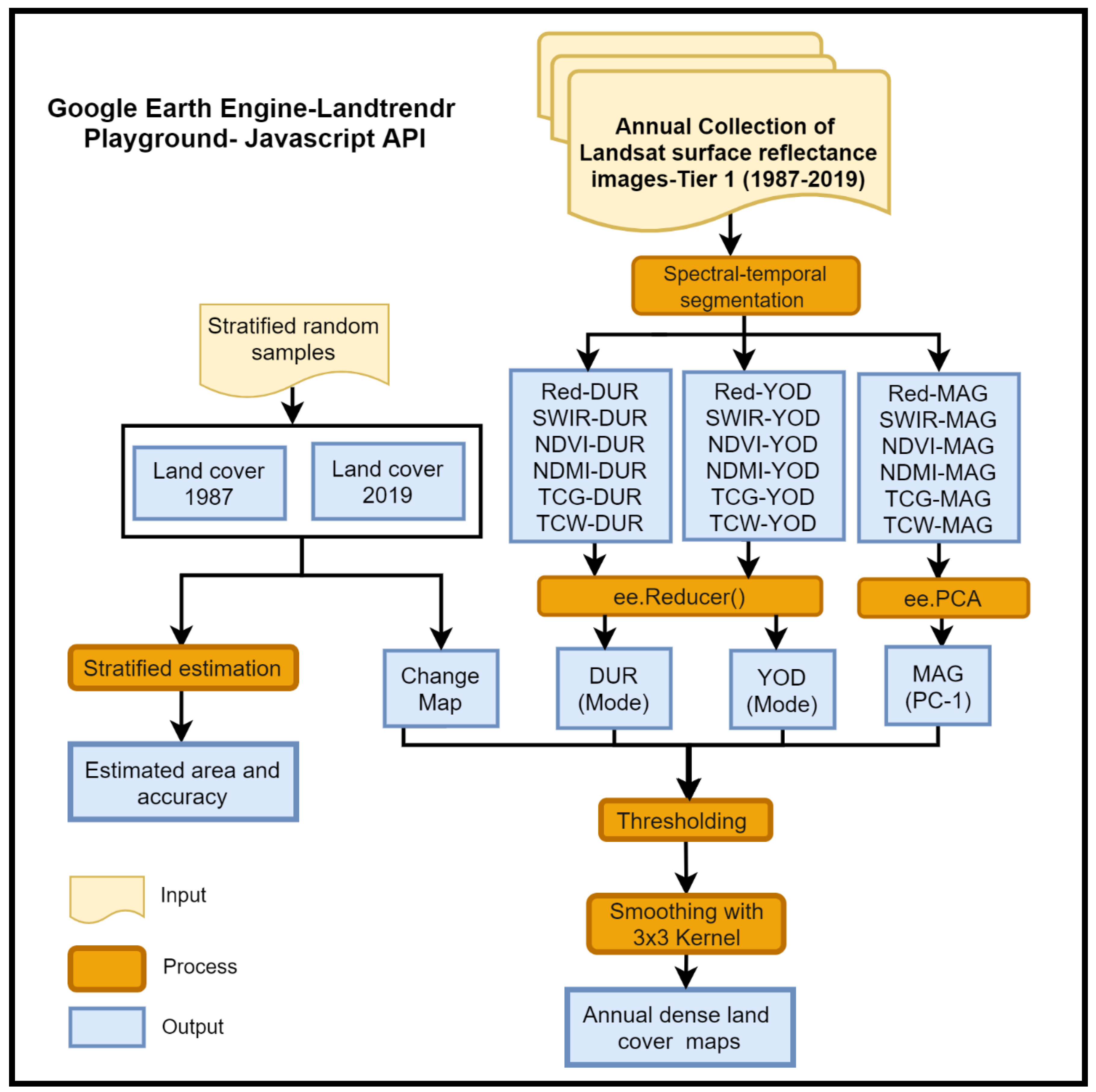

The processing steps performed in GEE include the spectral-temporal segmentation and LandTrendr-based analysis, predicting progressive land cover maps and associated statistics, and accuracy assessments using the GEE-based area estimation and accuracy Assessment (Area2) application.

4.4. Spectral-Temporal Segmentation and Analysis

GEE was used to analyze the stacks of Landsat images using the LandTrendr (LT) algorithm. Spectral-temporal metrics were constructed from 1987 to 2019 based on images acquired from L5-TM, L7-ETM+, and L8-OLI. Landsat annual collections were constrained to the date range from 1 September to 30 June of the following year. This time span corresponds to the two main rainy seasons, and the short-term dry season in the study area. The optimal land cover representation during the proposed time range could be effectively inventoried. To trace the land cover changes, we proposed the use of a combination of six indices/bands, including red (R) and shortwave infrared (SWIR) bands, NDVI, NDMI, Tasseled Cap Greenness (TCG), and Tasseled Cap Wetness (TCW). The selection of these bands and indices for spectral-temporal segmentation was first based on visual inspection of the LandTrendr results.

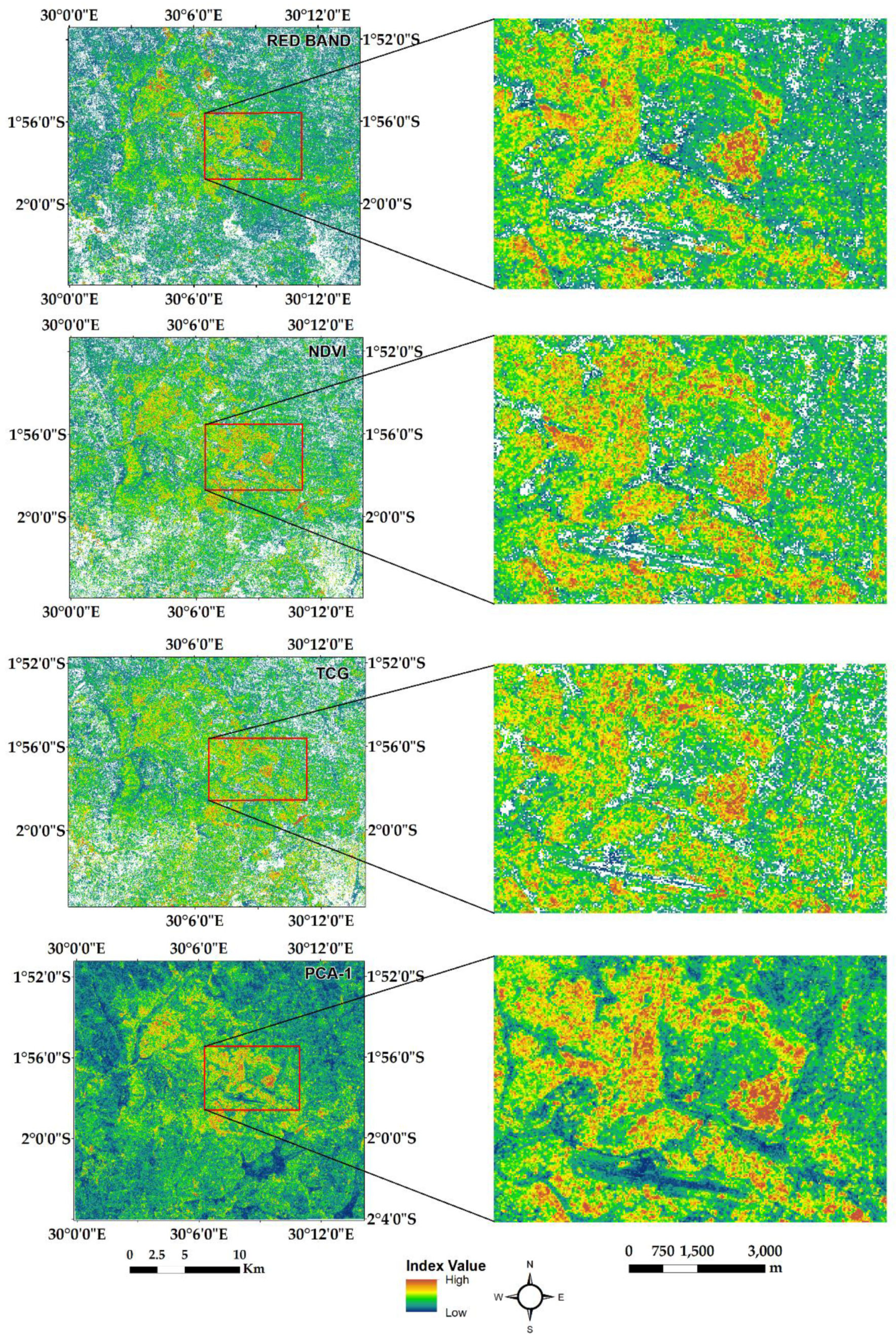

The best candidate indices/bands were those judged that were able to highlight more changing patterns and those that were believed to capture valuable information related to the land surface properties in the study area. The NDVI was expressed as a normalized transformed ratio between R and near-infrared (NIR) bands (NDVI = (NIR-RED)/(NIR+RED)) [81], which was selected because it is the most widely used index for land cover assessment [82,83]. NDVI was also previously proved worthwhile in greenness proxy monitoring in urban and peri-urban environments [84,85]. The NDMI index is a normalized ratio between NIR and SWIR (NDMI = (NIR-SWIR)/(NIR+SWIR), and it was found to be useful for tracking changes in plant biomass [86]. We assumed that cropland conversion to impervious surfaces is associated with a decrease in the NDMI value. The two features of tasseled cap transformation (i.e., TCG and TCW) were found to be valuable for providing mechanisms for spectral data dimensionality reduction with minimal information loss [87,88], and they were previously applied for enhancing urban land cover change analysis (e.g., [12,89,90]). We adopted the tasseled cap transformation coefficients defined for reflectance data, as proposed by [91]. These coefficients were successfully adopted in previous LandTrendr-related studies (e.g., [35,52]) involving the use of annual collection of stacked Landsat time series. Orthogonal cap transformation for the wetness and greenness indices (TCG and TCW) is respectively expressed by Equations (1) and (2):
TCG = 0.1602 * Blue 0.2819 * Green 0.4934 * Red + 0.7940 * NIR 0.00002 * SWIR _ 1 0.1446 * SWIR _ 2
TCW = 0.0315 * Blue + 0.2021 * Green + 0.3102 * Red + 0.1594 * NIR 0.6806 * SWIR _ 1 0.6109 * SWIR _ 2

4.5. Progressive Land Cover Reconstruction

The LT algorithm is designed to analyze a single index/band, while integrating many logical decision steps and statistical tests to detect land cover disturbance and recovery [52]. In the present study, we proposed a new methodology to integrate multiple indices and to use two available land cover maps as keyframes for labeling the LT-detected changes that occurred during the analyzed period. Figure 4 portrays the proposed workflow for LT-GEE for reconstructing land cover change trajectories and applying the Area2 methodology to estimate the area and accuracy assessment.
For reconstructing yearly land cover maps, we stacked all the LT results generated using a single index/band to obtain a complete and more reliable detection of the changes that occurred during the period. In particular, we adopted different strategies to combine the three outputs of LT: The year of change detection (YOD), the change detection duration (DUR), and the change detection magnitude (MAG).
For the MAG outputs, we stacked together the four indices and two bands, and we applied a principal component analysis (PCA). Considering that the LT MAG results have a great amount of no-data values (see Figure 5) and that these values are not in the same location for the different stacked layers, we adopted a median filling procedure to interpolate the values of the no-data pixels using the values of the surrounding pixels. The implementation of the PCA algorithm with a median filling strategy for missing values has been implemented in the GEE platform. We selected the first PCA band (PC-1) as the most informative band that is able to combine the common pattern detected in most of the indices and this procedure substantially improves the reliability and the completeness of the LT magnitude results.

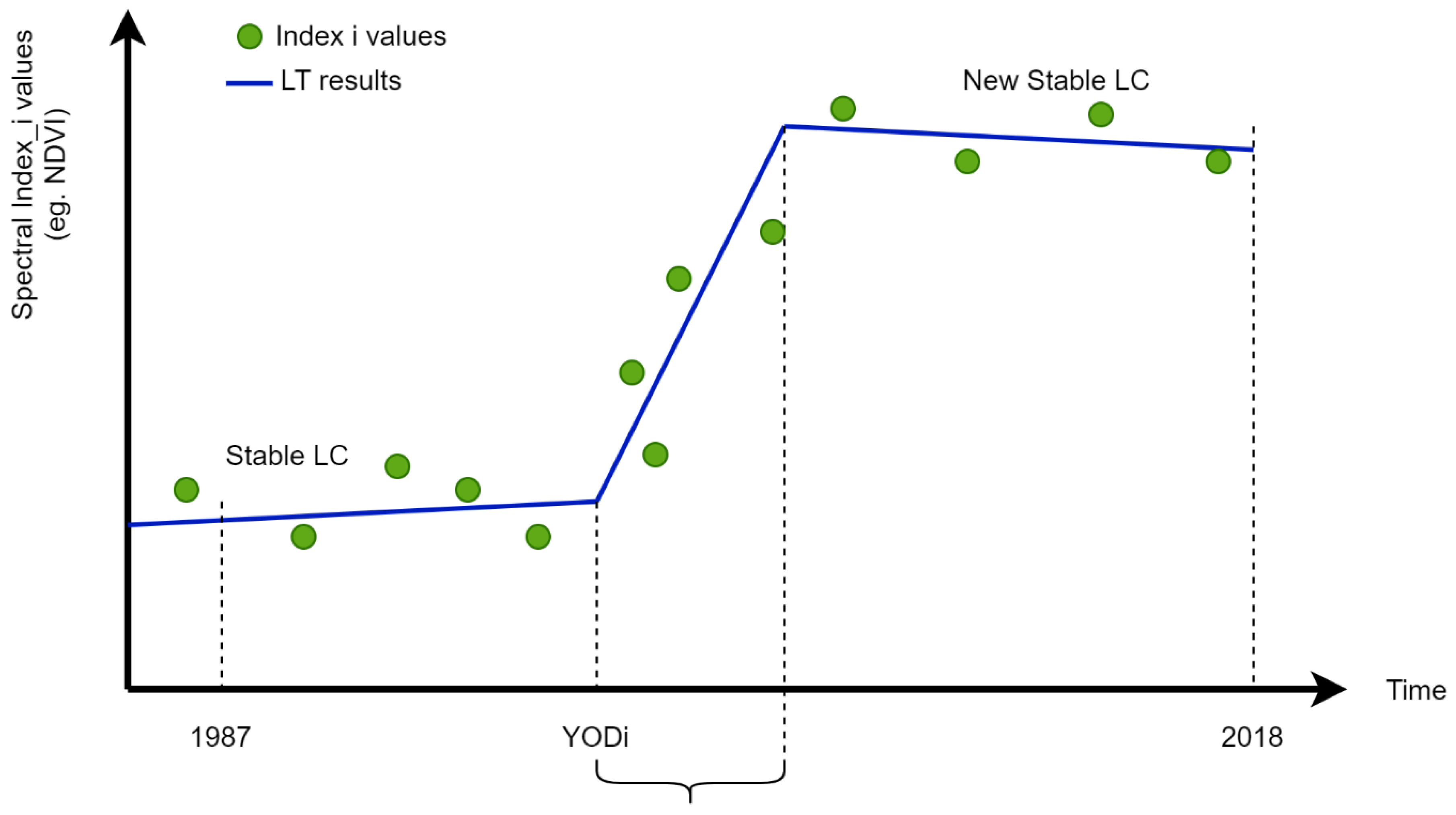

The LT YOD and the LT DUR results portray data range values illustrating the absolute year of change disturbance, and the number of year(s) the change or the stability of the disturbance event last. For deducting LT YOD and the LT DUR results based on stacked four indices and two bands, we adopted a strategy different from the one used for deducting the magnitude of change (MAG) to keep the original data range and measurement unit. We realized that applying PCA to the data range would result in transformed values. While it was important to keep the measurement unit expressed in years (for the case of YOD and DUR) to be able to retrieve the correct year of change, we adopted the GEE based "reduce by mode" function for separately deducting the LT YOD and the LT DUR based on LT based on stacked four indices and two bands (see Figure 4).
For each pixel in the LT stacked results, we observed and computed YOD and DUR values as illustrated in Figure 6. We further detected the land cover change that starts at the YOD and, we investigated the time when the change trend stabilized after a period of perturbation (DUR). Starting from these two values, we could estimate the YOC (year of change) and the time the corresponding pixel can be labeled as the new land cover class. This simplification of the LT results was required to label the pixel in a land cover class and to obtain yearly land cover maps. We further used a weighted mean procedure to estimate the corresponding YOC (see the formula for the weighted YOC formula in Equation (3)), in which we assumed that the YOC is the central value of the disturbance period. We also weighted the sharp detection (short DUR), which was considered useful for observing the change in a very short period:
Y O C = i = 1 n 1 2 ( ( Y O D i + D U R i ) ) 1 D U R i i = 1 n 1 D U R i
By combining the MAG-PC1 and YOC layers in each year, it was possible to reconstruct the land cover trajectories over the period 1987-2019 and produce the annual land cover maps. We used a threshold value to consider only the changes with a significant MAG and that were detected before the considered year (YOC < target land cover map year). The followed steps in GEE can be accessed via

4.6. Results Validation and Quality Assessment

Area estimation and accuracy assessment (Area2), which is a GEE application that provides support for sampling and estimation in a design-based inference framework [92], was used for quality assessment. The baseline classification maps for reconstructing progressive land cover maps were first imported in GEE Asset Manager and then displayed in GEE code editor. By referring to the Area2 application, stratified random sampling was adopted for the proportional area estimate and accuracy among strata. According to the Area2 approach, the sample size is determined using Equation (4):
n = ( h W h   S D h S E ( y ^ ) ) 2
  • n is the number of samples;
  • Wh are the stratum weight corresponding to the weight of each of the proposed land cover classed;
  • SDh are the stratum area standard deviations;
  • SE ( y ^ ) is the target standard error of the stratum area estimate
By adapting Equation (4), 1481 random samples were proposed for 1987 and 1500 samples in 2019 for area estimate and accuracy assessment. The areal weight for each stratum (i.e., each of our adopted land cover classes) was determined and used for allocating the number of samples. The more the stratum weight is significant, the more the number of samples were allocated [92]. High-resolution Google Earth imagery and background Landsat images were used for collecting and labeling validation samples. A stratified estimator was adopted for computing the strata proportion area estimate, standard error quantification, and accuracy assessment. The 95% confidence interval (CI) with a 0.005 margin error was adopted for accuracy assessment. The stratified estimator is expressed as the sum of the means of the simple random samples within strata weighted by stratum weights calculated as relative proportions of the population within strata [92,93]. The progressive maps were also assessed using the same area2 procedures. The 2019 baseline validation samples were used across all five-year-interval reconstructed maps using the proposed elimination and gap-filling approach. The latter consisted of first extracting the binary change mask (changed/unchanged) for each considered YOC based on 2019 and the considered YOC land cover. Validation points falling inside the changed zones in the mask were then eliminated and new samples were collected for compensating for the eliminated ones. This strategy was found to be useful for rationalizing and saving time for collecting validation samples, but an increase of additional samples is paramount. As proposed by [92], the producer’ and user’s accuracies, and overall accuracy are expressed as follows:
Û i = p ^ i i p ^ i .
P ^ j = p ^ j j p ^ . j
O ^ = j = 1 q p ^ j j .
  • i: Mapped category represented in row
  • j: Reference category represented in column
  • q: number of considered categories
  • Û i : User’s Accuracy in class i
  • P ^ j : Producer Accuracy in category j
  • O ^ : Overall Accuracy

5. Results

5.1. Baseline Urban Land Cover Classification

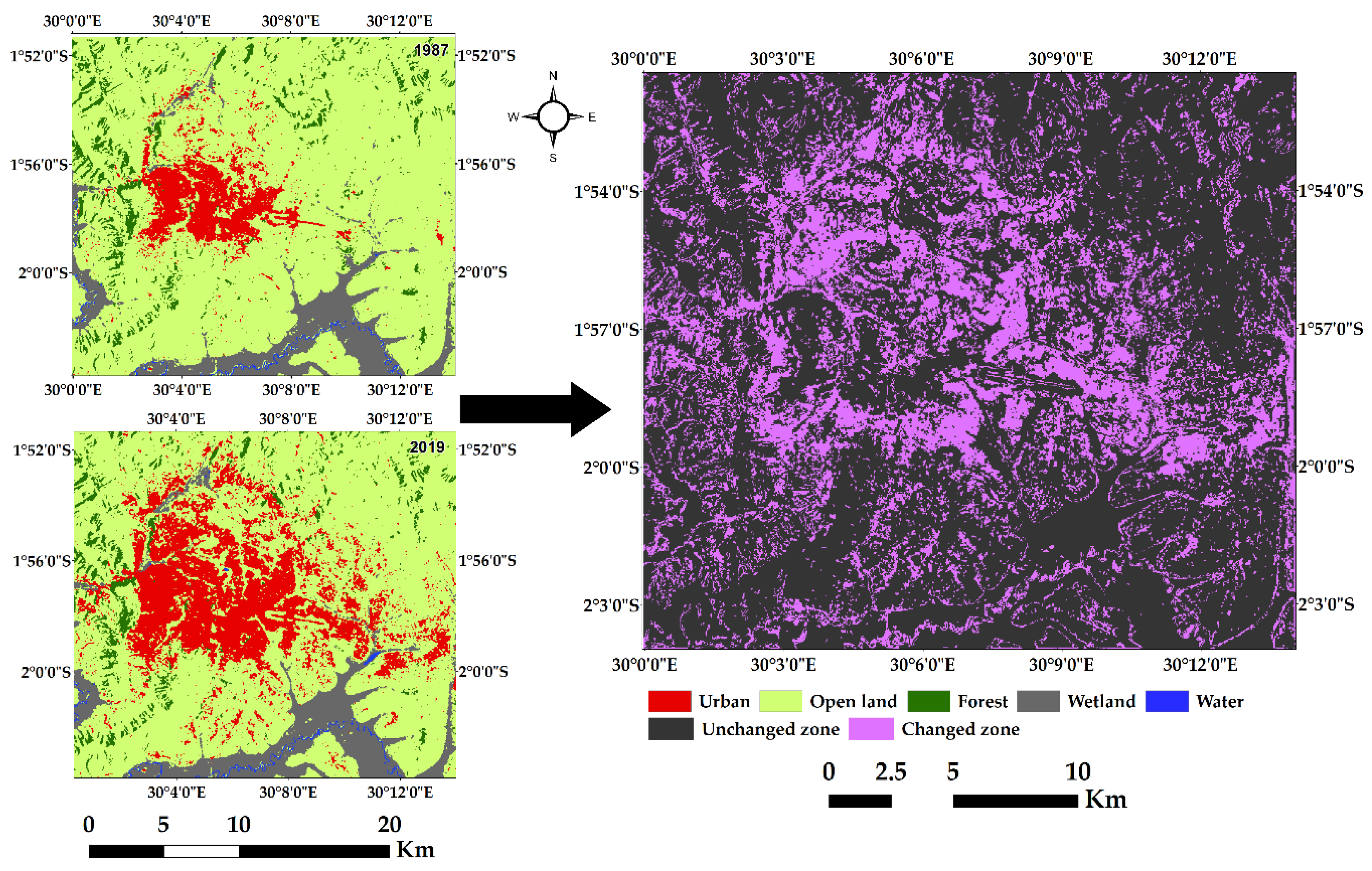

The baseline urban land cover maps were generated with an overall 92%±1.6% classification accuracy in 1987 and 94.2%±1.6% in 2019 with a 95% confidence interval. A significant change is remarkable in Kigali in the last 32 years, from 1987 to 2019. Table 2 illustrates the land cover classification statistics in two considered extreme dates, while Figure 7 portrays the binary change detection maps where both unchanged and changed zones are visualized.
Land cover dynamics between 1987 and 2019 illustrate that 27% of the study area corresponding to 16,750 ha was subjected to change. At the class level, the results illustrate that compared to the 1987 situation, urban area increased by 198.4%, whereas open land was reduced by 16.7%. Open land was mainly converted to urban class. Even if the water class was slightly changed, dense annual land cover maps revealed the emergence of small water patches in the central part and in the southeast of the study area. Compared to previously stated classes, the area occupied by wetland was found more or less stable and the forest class was less affected by the change. This does not mean forest and wetland were not altered in Kigali City administrative entities, because the main changes of the two last classes were found in areas beyond the bounding box of the present study area.

5.2. LT-GEE Parameter Configurations and Spectral Indices’ Characterization

LT requires several parameters from which spectral-temporal segmentation and land cover trends analysis could be feasible. According to Kenned et al. [44], eight control parameters and annual Landsat images collection are mandatory for deriving either an index or a single band telling the pixel’s story background evolution. In the light of achieving the best results, different combination values of algorithm parameters were tested, and the judged optimal values are illustrated in Table 3.
For the purpose of the present study, we used the standard configuration parameters as specified by the algorithm pioneers [35]. We simply adapted the number of maximum segments as the pioneer recommended that this could be adopted, provided that it is helpful in detecting the disturbance and recovery of land cover dynamics in the considered study area. We found that an 8-value set for maximum segments was helpful is detecting land cover disturbance in the study area. Other parameters were kept as they were originally defined. The value derived from specific indices, such as NDVI and TCG, illustrated that a short change duration (less than 5 years) is always associated with a high change magnitude since circa 2008. In general, it took the completely covered period corresponding to 32 years to see the change in a big part of the study area. This translates that the land change processes were gradual, especially in old urban areas and in crop-dominated land. However, newly urbanized and converted areas are characterized by a high change magnitude and abrupt change duration.

5.3. Progressive Land Cover Reconstruction Based on the LT-GEE Framework

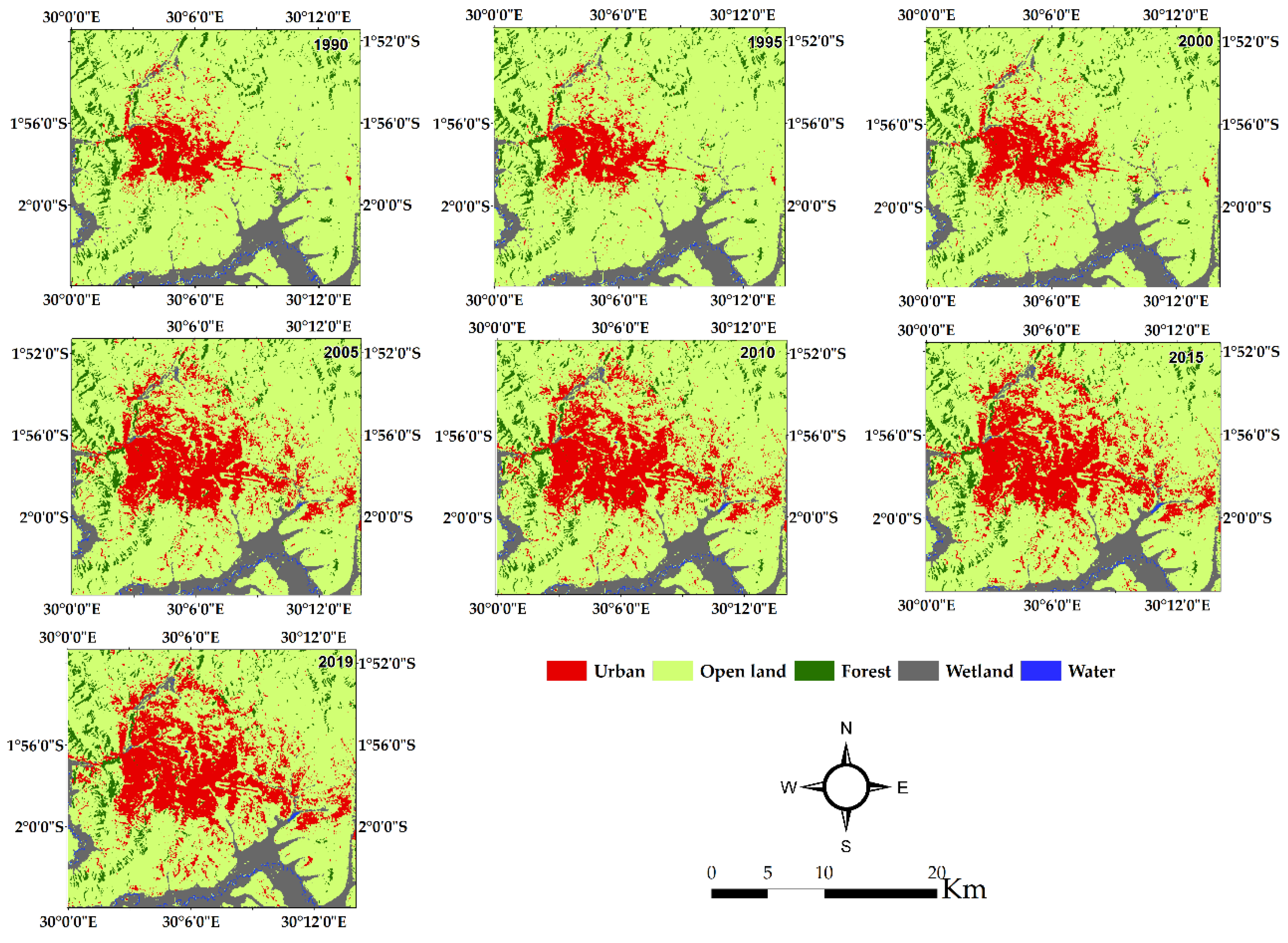

The synergy between the baseline change maps and LT-GEE-derived indices/bands allowed reconstruction of the annual land cover change maps from 1988 to 2019. Since 1988, tremendous land cover conversion, mainly from cropland to impervious areas, and urban expansion were witnessed across the Kigali city landscape. The study results illustrated extensive urban growth between 1987 and 2019, with a 226.4% growth rate. The five-year term analysis from 1990 to 2015 illustrated that impervious surfaces increased from 4233.5 to 11648.29 hectares (see Table 4), with 3.7% average annual urban growth rate.
Land cover change trajectories portray a conversion to urban class mainly following the eastern, southern, and northern directions. In contrast, the western areas were less converted as illustrated in the land cover maps represented in Figure 8.

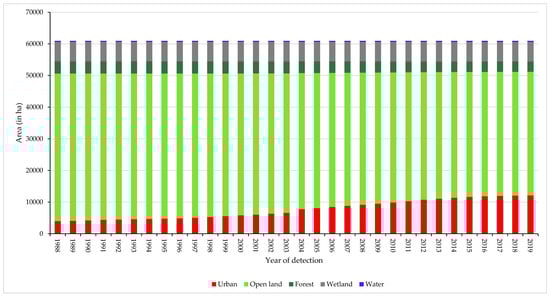

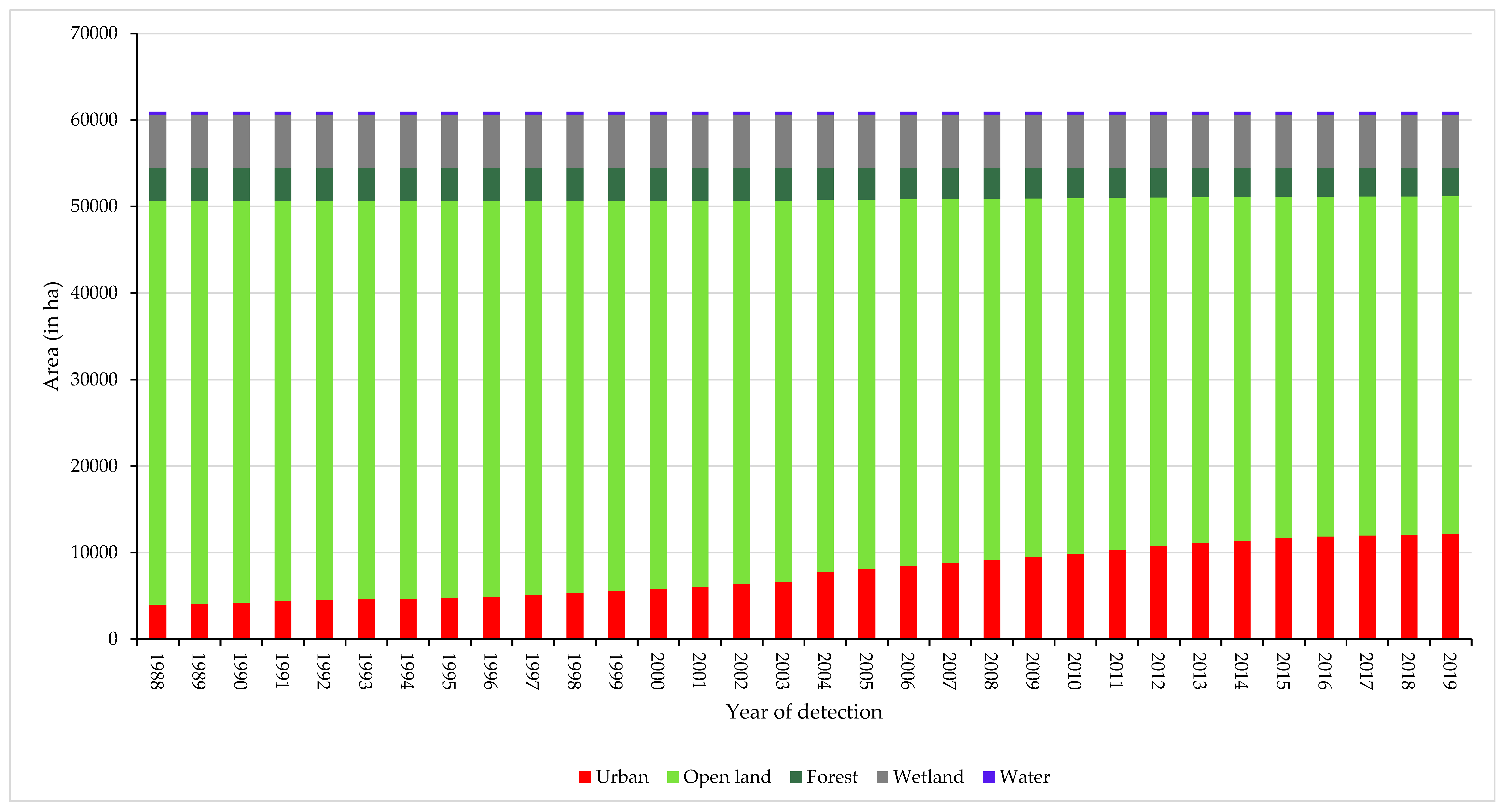

The interannual change analysis revealed that gradual change to urban structures was observed from 1988 to 1991, with an average annual urban growth rate of around 3.4%. During that time span, the built-up area extended from 3976 to 4405 hectares. The period from 1991 to 1995 was characterized by a decreasing urban growth, with an annual average rate ranging between 1.8% and 2%. The slow urban progress during this period could be explained by socio-economic and political instability and economic recession in Rwanda, which characterized the abovementioned period. Indeed, the 1991-1995 period coincided with the five-year war and armored conflict that culminated with the 1994 genocide against Tutsi in Rwanda. The post-genocide period was characterized by an urbanization take off. From 2004 onwards, continuous urban expansion was observed, with an increase in annual urban growth averaged to 4%. The post-genocide reconstruction period, especially from 2004, was characterized by servicing new construction sites and built-up area expansion, such as the construction of the Kigali Special Economic Zone, expansion of Kigali International Airport, densification of tarmac roads, and estate development in various zones of the city. This period also coincided with important migration flux to Kigali of the newly repatriated Rwandan refugees who were mainly living in neighboring countries. Since 2014, the continuous and gradual urban growth is observed with an incremental increase (see Figure 9). A probable cause would be linked to the urban policy enforcement translated by new urban planning regulation and construction standards imposed after endorsing the 2013 revised Kigali City Land Use Master Plan [65], and the integration of the city growth perspective in Rwanda Vision 2020 [94]. Endorsed planning standards and regulations are more or less limiting the spread of illegal and deprivation areas. Taking into account the five years of progress of the land cover change interval from 1990 to 2015, the accuracies, class area proportion, and standard error for each land cover class are reported in Table 5.
The overall accuracies in all considered timespans are exceed 92% with a margin error between 1% and 2%. The urban class progressively increased its weights vis-à-vis to others, while open land decreased in weights. In general, the standard error (SE) is less than 0.01, except in the open land class where SE increased to that threshold, respectively, in 2005, 2010, and 2015.

6. Discussion

The present study aimed to design a method for reconstructing annual and dense land cover change dynamics in complex urban environments based on LT and baseline land cover maps. We used Kigali, Rwanda as a case study in the global south nations characterized by a continuous urbanization increase. The case study portrays urban environments with a rapid spread of informal settlements and unregulated constructions in the last three decades since 1987. We adopted the combination of LT-derived indices and bands as a way of deducting reliable intermediate results, such as PCA, applied for filling the gaps observed in the magnitude of land cover change event, and the application of the reduce function for having filled layers representing the duration of land cover change events and the corresponding year of detection. These results were helpful for producing reliable land cover classification and reconstructing annual dense land cover in the study area. The combination of keyframe classifications in two proposed extreme periods, with derived LT indices, allowed continuous annual land cover reconstruction from 1987 to 2019.

6.1. Benefits from LT-GEE in Continuous Land Cover Reconstruction

A cloud computing environment, such as GEE, was found to be worthwhile in data discovery, and in handling multidimensional datasets. LT-GEE allows multifunctional data processing, and the GEE playground offers a user-friendly API and straightforward possibilities for statistics extraction, and interactive data visualization at the intermediate and final processing stages. Furthermore, the GEE platform allows the users to share scripts and assets [48,49], and this capability is paramount for collaborative knowledge generation and experience sharing. The GEE-based area2 application was found to be useful in both scrutinizing the quality of the results and predefining the acceptable error margin. It is well known that cloud cover, shadows, and other data gaps, such as the L7 ETM+ scan-line collector failure experienced after May 31, 2003 [95], constrain users to extracting continuous land cover on an annual basis as needed. The GEE-LandTrendr framework was found as an additional solution together with existing gap-filling methods. For characterizing the change in land cover properties, we used six indices. Previous studies (e.g., [53,54,55,56,57]) that involved the use of the LT algorithm in quantifying land cover disturbance had separately relied on evaluating a single index in change detection. Our study illustrated that the combination of several indices in characterizing the land surface properties was deemed useful. Our results concur with the findings by [45], where they emphasized that different indices in time series analysis are useful instead of relying on a single band/index. The GEE-LandTrendr framework was also found to be extendable and customizable. The indices were combined considering the first principle component (PC-1) that was used for computing the change magnitude with filled no-data values. The failure to use PCA and relying on the use of a single LT index would result in the maps having gaps and discontinuous patches that could negatively affect the interannual land cover change trajectories analysis in the study area.

6.2. Methodology Transferability and Limitations

The transferability of land cover classification-related rules is deemed to be more or less consistent when tested in different study areas [96,97]. The GEE-LandTrendr framework can be successfully tested in any site, given the availability of annual Landsat composite imagery. However, the indices used to characterize the landscape under investigation need to be site specific depending on their capability of reflecting the quasi-situation of land surface properties and their spatial coverage. The value of magnitude could be customized for meeting the local situation based on experimental trials. The main bottleneck in using the GEE-LandTrendr framework is still the lack of high-quality image acquisition in a specific area of interest, given the persistence of cloud cover and haze affecting the optimal imagery, such as Landsat. Some indices can reflect the over/underestimated value. The annual land cover reconstruction could be affected by outlier values in stacked indices, and this could affect the spatial-temporal interpolation. Thus, calibration and verification would enhance the production of high-quality land cover maps. In some circumstances, LandTrendr-derived indices are characterized by a large number of no-data values, and deducting their associated value would be incomplete in spatial coverage. This drawback is also found in many methods designed for time series analysis, as reported by [46]. From our experiment, the above challenge could be compensated by stacking many indices and applying the MapReduce function or principal components analysis. The proposed framework for handling gap-fill challenges could be an added value to the existing methods for compensating incompleteness sensitivity while performing EO time series analysis. The performance of one or another LandTrendr index was beyond the scope of the present study. We intend to explore the role and the ranking of each index in different study sites in the future research direction.

7. Conclusions

In this study, a new GEE-LandTrendr cloud-computing framework based on Landsat time series and LT stacked bands and indices for reconstructing annual land cover maps was developed. The resulting dense maps and statistics were found to be worthwhile for better understanding the spatial-temporal land cover change trajectories in Kigali, Rwanda over the past 32 years from 1987 to 2019. Two land cover maps at the start and at the end of the proposed timeframe were first extracted based on Landsat images using a pixel-based SVM classification. A scheme of five land cover classes, including urban, open land, forest, wetland, and water, was selected to understand the urbanization phenomena in the study area. Then, the LandTrenndr-Google Earth Engine platform was used to retrieve the annual collection of Landsat images for tracing the historical evolution of urban land cover change trajectories through the derived LT bands and indices. Control parameters for running the LandTrendr algorithm were set for extracting the duration, the year, and the magnitude for each of the proposed LandTrendr bands/indices, including red, shortwave infrared bands, and NDVI, NDMI, TCG, and TCW indices. Using the MapReduce function by the mode implemented in GEE, the two bands and four indices were stacked for separately extracting both the year and the duration of land cover change disturbance. The magnitude of disturbance was developed by considering the first principal component (PC-1) of the compressed six indices. By combining the duration and the magnitude change in the targeted year with a change detection mask derived from baseline classification, the dense annual land cover maps were extracted. The two extreme periods corresponding to the study timeline illustrated that urban space increased from 3708.5 to 12,107.2ha, equivalent to a 226.5% urban growth rate in Kigali, Rwanda. Open land was among the most converted land covers. The results illustrated that urbanization was gradually increasing between 1987 and 1991, with an annual growth rate ranging between 2% and 3%. The period from 1991 to 1995 was characterized by a slowdown in the urbanization process, mainly due to political instability and economic recession emanating from war and armed conflict that took place in Rwanda between 1990 and 1994. From 2004 onwards, urbanization was taking off with the post-conflict reconstruction period, which was characterized by the emergence of estate development companies and investment promotion in the construction industry. During the post-genocide period, the increase in the built-up area is estimated at a 4.5% annual growth rate. The present study demonstrates the importance of synergistic use of archived Landsat images and the LandTrendr algorithm for continuous land cover reconstruction using the GEE cloud computing environment. The use of combined LandTrendr resulting indices was found to be useful for compensating gap values commonly observed in single LandTrendr-derived indices. The reconstructed land cover based on Landsat time series and LT-GEE was considered cost-effective for continuous urban land cover change monitoring, especially for sub-Sahara Africa where data is sparse, and concerns are high regarding EO data affordability.
