Elucidating the Life Cycle of Warm-Season Mesoscale Convective Systems in Eastern China from the Himawari-8 Geostationary Satellite

Abstract

The life cycle of mesoscale convective systems (MCSs) in eastern China is yet to be fully understood, mainly due to the lack of observations of high spatio-temporal resolution and objective methods. Here, we quantitatively analyze the properties of warm-season (from April to September of 2016) MCSs during their lifetimes using the Himawari-8 geostationary satellite, combined with ground-based radars and gauge measurements. Generally, the occurrence of satellite derived MCSs has a noon peak over the land and an early morning peak over the ocean, which is several hours earlier than the precipitation peak. The developing and dissipative stages are significantly longer as total durations of MCSs increase. Aided by three-dimensional radar mosaics, we find the fraction of convective cores over northern China is much lower when compared with those in central United States, indicating that the precipitation produced by broad stratiform clouds may be more important for northern China. When there exists a large amount of stratiform precipitation, it releases a large amount of latent heat and promotes the large-scale circulations, which favors the maintenance of MCSs. These findings provide quantitative results about the life cycle of warm-season MCSs in eastern China based on multiple data sources and large numbers of samples.

1. Introduction

Mesoscale convective systems (MCSs) are one of the most impactful weather phenomena on Earth. MCSs are defined as convective systems with contiguous precipitation over 100 km in at least one direction [1,2]. More importantly, MCSs contribute significantly to warm-season precipitation, both in the tropics and mid-latitude regions [3,4].

The intensity and explicit structures of MCSs are affected by a variety of factors, including low-level jet streams [5,6,7], topography [8,9] and large-scale circulation [10,11]. For instance, the topography significantly affects the life cycle of MCSs over the land by facilitating their ascending motions in early stages [12]. Large-scale circulation plays a well-recognized role in the development of MCSs as well. The MCSs in the mid-latitude regions tend to occur most frequently in front of the troughs in the prevailing westerlies [13]. Low-level jet streams tend to enhance MCS formation and continuation at the downstream region, due to the increase in atmospheric instability and the advection of warm and moist air masses [14].

Previous studies have attempted to elucidate the life cycle of MCSs, most of which focus on MCSs in the tropical regions. The earliest studies of MCS life cycle date back to the 1970s and 1980s [15,16], when the Global Atmospheric Research Program (GARP) Atlantic Tropical Experiment (GATE) [17] was performed over the tropical Atlantic. The GATE field campaign mainly relied on a wide range of ship-borne and air-borne measurements to provide primary knowledge of structures and air motion during different stages of MCSs covering limited periods [18,19]. The advent of geostationary satellites made it possible to characterize the temporal evolution of MCSs over a much longer period and larger spatial domain [20,21,22]. In particular, Pope et al. [23] explored the relationships between the initial expansion, merging processes, and duration of MCSs from Geostationary Meteorological Satellite-5. Given that MCSs observed by geostationary satellites may not produce rainfall reaching the ground surface [2], radar and gauge observations have been widely applied to further verify satellite derived MCSs [24,25] and reveal their internal structures [26,27]. The precipitation radar onboard the Tropical Rainfall Measuring Mission (TRMM) and the Global Precipitation Measurement (GPM) mission are commonly used to investigate the vertical structures of tropical MCSs [28,29] and mid-latitude MCSs [30]. CALIPSO and Cloudsat can also help to study vertical structures of MCSs [31]. Combined with information from geostationary satellites, the variations of MCSs in clouds and precipitation were explicitly revealed during different stages of their lifetimes [30,31].

Previous efforts to understand MCSs in eastern China mainly focused on the distribution of MCSs and their interactions with synoptic patterns and topography [32,33,34]. Currently, knowledge on the spatiotemporal evolutions of MCSs in eastern China remains deficient and is worthy of further analyses. Therefore, based on our previous detections and tracking results of MCSs from the Advanced Himawari Imager (AHI) onboard the Himawari-8 (HW8) satellite [35], the principal goal of this work was to elucidate the life cycle of MCSs over the eastern China plain, providing cross comparisons of MCS characteristics to those in the U.S. Great Plains. The Chinese radar network used in this study was similar to the NEXRAD (Next Generation Weather Radar system) of the U.S. in design, resolution and distancing, making the radar data and retrieved results comparable. By means of the three-dimensional (3D) radar mosaics, we gained a better understanding of the convective cores (CCs), stratiform clouds (SCs), and non-precipitating anvils of MCSs over northern China and variations in their features over the MCS lifetimes.

2. Data and Methods

2.1. Data and Study Area

AHI is the most important payload onboard HW8, which was launched by the Japan Meteorological Agency and is located at 140.7°E longitude on the equator [36]. Observations with high spatiotemporal resolution (from 0.5 to 2 km and 2.5 to 10 min) [37] have been made publicly available since July 2015. In this study, data from April to September of 2016 as observed by AHI/HW8 were used. To determine the life cycle of MCSs, we directly applied the tracking results (i.e., trajectories, along with spatial area, minimum cloud top temperature etc.) at 2 km resolution at 10 min intervals derived from a recently developed tracking algorithm [35]. The newly developed tracking algorithm combined the Kalman Filter method with the conventional area overlapping method to capture the motions of MCSs. When MCSs have larger spatial area or move slowly, their spatial areas on the two consecutive images have some pixels in common, and then the area overlapping method is used to track the MCSs. However, for fast-moving MCSs and small MCSs, the area overlapping method does not work. Therefore, the motions of current MCSs were predicted by the Kalman Filter equations at first. Secondly, we found the one nearest to the predicted positions among all the MCSs at the next time, and then matched them with current MCSs. Here, MCS was defined from the geostationary satellite images, i.e., a convective system with maximum area ≥ 10,000 km² (region within the isotherms of brightness temperature of 235 K) and duration ≥ 3 h, which is different from the above-mentioned definition based on ground precipitation by Houze [19]. Given the large uncertainty associated with clouds as detected from AHI/HW8 over northwestern China, which is largely due to large sensor zenith angles of AHI [38], this study focused on the temporal evolutions of MCSs over eastern China (100–136°E, 18–54°N, bounded by blue lines in Figure 1a) from the perspective of AHI/HW8 and gauge measurements. For a certain area (regions hatched in red in Figure 1a), we also discuss the life cycle of internal structures of MCSs with the aid of radar mosaics.

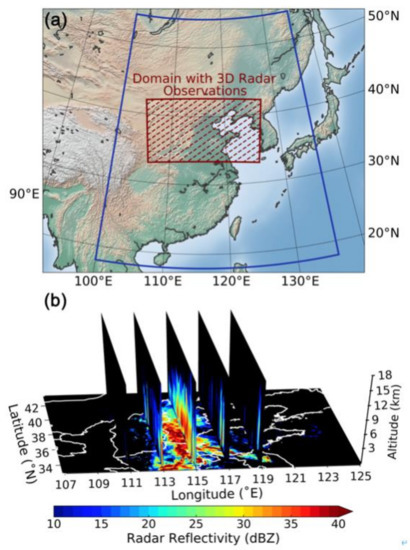

Also applied in this research are ground-based 3D radar mosaics and the China Hourly Merged Precipitation Analysis (CMPA). The 3D radar mosaics used here to identify internal structures of MCSs were acquired from 21 Doppler radar measurements in northern China. The original radar observations were observed at 11 angles of elevation every 6 min. To make the radar information much easier to analyze, the preprocessing module of the Advanced Regional Prediction System (ARPS) [39,40] was used here to interpolate the original observations onto uniform 3D grid points. This dataset offers observations of echo intensity at 36 levels every 30 min, with a resolution of 2 km horizontally (in Lambert projection) and 500 m vertically, almost identical to Feng et al. [26]. The 2 km horizontal resolution of the mosaic product is lower than the 1 km native resolution of the S-band radar, to avoid potential representative issues induced by the inhomogeneity of the radar observation. Note that the radial resolution is evenly 1 km, but the tangential resolution is 1°, making the actual grid spacing vary with the distance from the radar. The vertical resolution is a balance of accuracy and the need for investigation, since the radar only observes the limited levels of specific elevation angles. Interpolation errors are inevitable, especially in regions close to the mountainous area and in the vertical direction, but it should not deteriorate the results, which are the best we can get under current techniques.

The CMPA is widely used for robust observations of hourly precipitation in eastern China [41], which assimilates hourly observations from automatic weather stations (primarily over land) with CMORPH (Climate Prediction Center morphing technique) and can fully cover the region of interest at a spatial resolution of 0.1°.

To better perform the analysis, the AHI cloud detection results were combined with the radar mosaic and CMPA data, respectively, using a sampling method based on adjacent pixels. Specifically, for each grid point in the radar mosaic field, if two or more of the four adjacent pixels around the same location in the AHI grid were detected within the range of a certain MCS, then the radar echo at this grid point was considered to be caused by this MCS. The same idea was also applied to the CMPA field. Figure 1b shows an example of the 3D radar reflectivity mosaic of the study area corresponding to 1130 UTC on 19 July 2016, acquired using the ARPS.

2.2. Identification of MCS Extent and Internal Structures

The MCSs observed by AHI/HW8 were roughly determined first based on the isotherms of brightness temperature (BT) equals to a certain value defined as BT_init, which was then extended iteratively to BT_edge at 1 K step, to include the adjacent anvils of the same MCS and determine the final range of MCSs. Meanwhile, the iteration was terminated whenever the edge of an MCS at a certain BT shared common pixel(s) with a neighboring one. This was able to effectively prevent the overlapping between precipitation regions of the targeted MCS and those associated with others. As such, we were able to capture the actual range of MCSs and their precipitation with more accuracy. Here, the thresholds of BT_init and BT_edge were chosen as 235 and 250 K, respectively, fairly consistent with previous studies [42,43]. Further discussions on the associated uncertainties induced by the selection of threshold values will be given in Section 4.

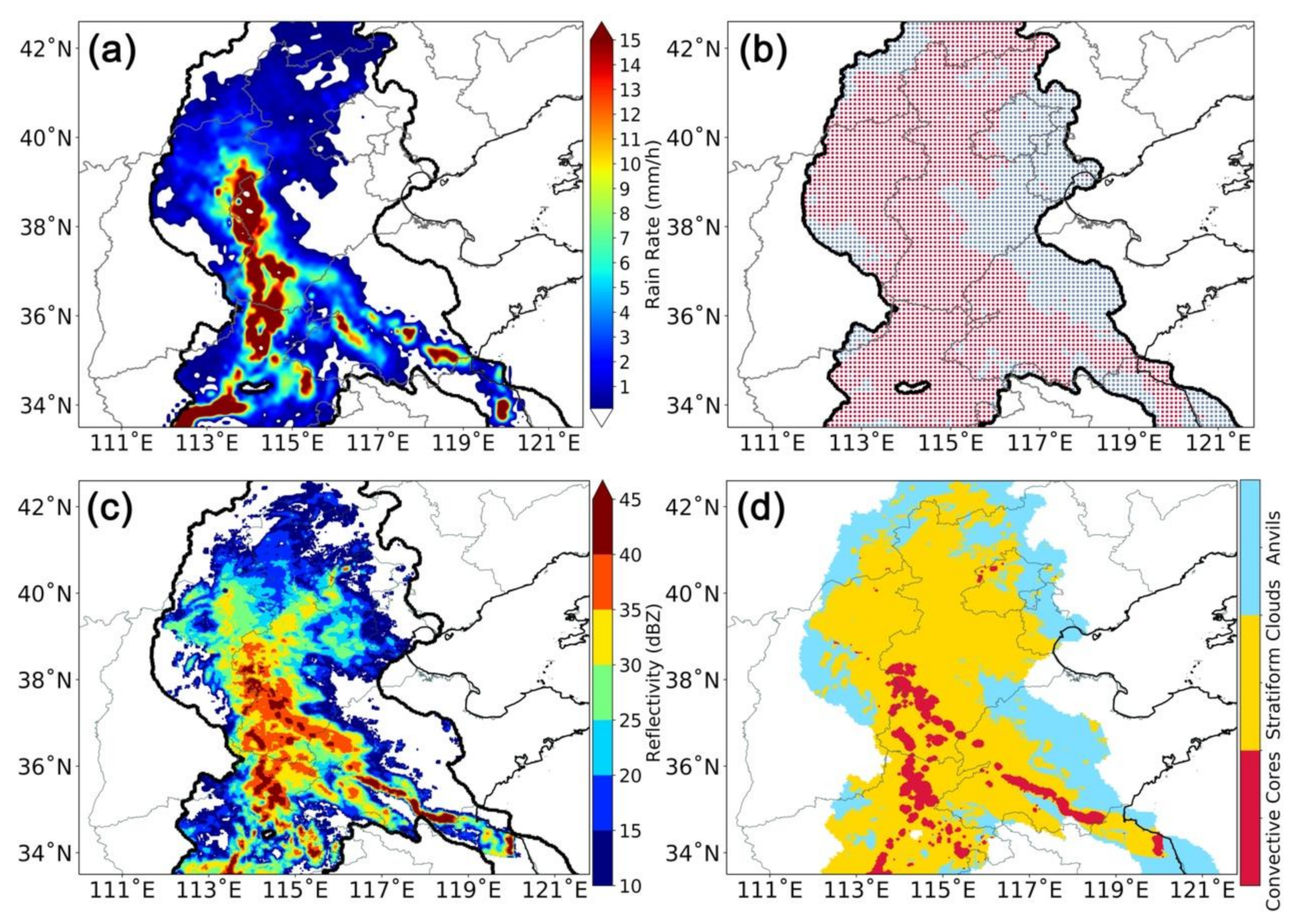

Based on the precipitation data from CMPA and AHI/HW8 observations mentioned above, we further derived the precipitation area collocated with each MCS, as shown in Figure 2a. For instance, inside the closed isotherms of BT_edge, the precipitation produced by a certain MCS is displayed in Figure 3a. All grid points with a rain rate ≥ 0.1 mm/h on the ground were treated as precipitation regions associated to the MCS (red dots in Figure 3b), since 0.1 mm/h is the minimum rain rate that can be detected. Suppose the coverage of the extended MCS (isotherm of BT_edge) is S (in unit of km²), the number of grid points inside the area is N_t, and the number of grid points with rain rate ≥ 0.1 mm/h is N_p. The equivalent radius (R_e in units of km) of the MCS is derived as the square root of S/π and the precipitation ratio is calculated as N_p divided by N_t.

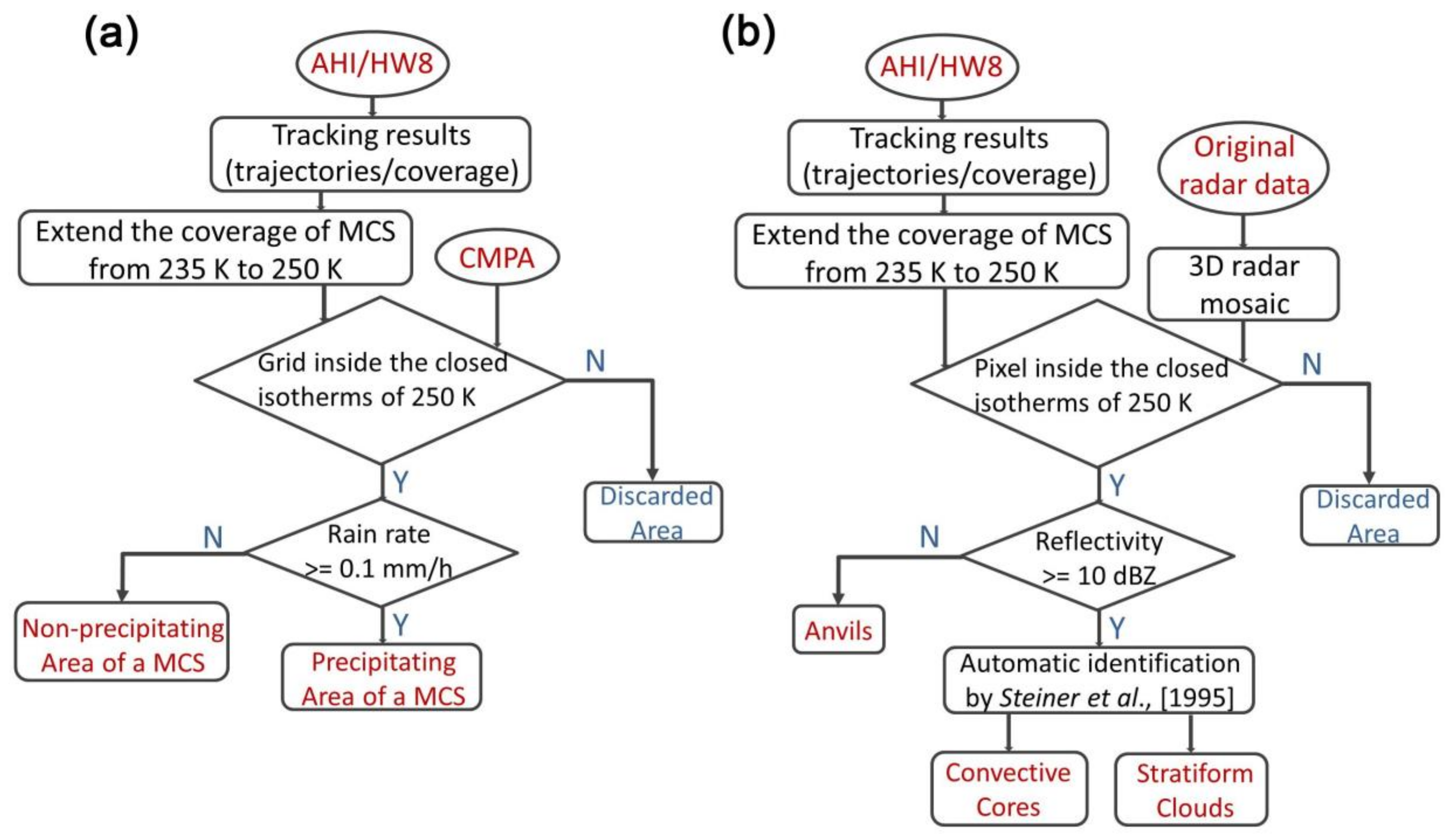

The flow chart of how to identify different internal structures of MCSs is shown in Figure 2b. The analysis method is similar to that used by Feng et al. [26] and Feng et al. [27] who jointly analyzed collocated geostationary satellite and ground-based radar network data. Based on the combination of radar reflectivity at a selected fixed level (Figure 3c) and cloud observations from AHI/HW8, we first determined the CCs, SCs, and non-precipitating anvils of each MCS (Figure 3d) to better examine the internal structures and their variations over the course of an MCS lifetime. To minimize the likelihood of bright-band contamination, the radar reflectivity at 2–3 km above sea level was generally chosen when judging the internal structures of MCSs, which was generally below the 0 °C level in the extratropics [44]. Given that radar observations exhibit significant terrain variations from west to east, some western parts of the domain have an elevation exceeding 2.5 km, and thus the fixed level of 3 km was used here for judging internal structure of an MCS. As such, both CCs and SCs could be determined according to an objectively identified method. The CCs were identified based on three criteria [45]. First, the grid points with radar reflectivity exceeding a given threshold were directly identified as CCs. In previous studies, a threshold between 40–45 dBZ was generally used. Here, we chose 40 dBZ based on analyzing the probability density function of radar reflectivity at 3 km above sea level (the 90th percentile, shown in Figure S1). Secondly, we calculated the background intensity of each grid by the averaged intensity within 6 km radius centered on it. Then, all the grid points with echo intensity significantly higher than the background intensity were treated as CCs as well. Thirdly, if the neighboring grid points around the CCs as judged in the first two steps were within the appropriate radius centered on CCs (the radius is a function of reflectivity), these grid points were also identified as CCs. The other grid points with reflectivity higher than or equal to 10 dBZ but not identified as CCs were determined as SCs. Afterwards, the remaining parts, which were inside the extent of MCSs but not identified as CCs or SCs, were treated as non-precipitating anvils [26,44].

2.3. Determination of MCS Life Stages

With respect to the splitting and merging processes of MCSs, life cycles of the secondary MCS generation/termination due to splitting/merging processes embedded in the major MCSs are not complete cycles of classic MCSs. Therefore, the cases mentioned above should be removed from our samples when used for statistics and compositions of life cycles of classic MCSs, so the following three types of MCSs were distinguished at first: Type a, secondary MCS generation due to splitting processes (Figure 4a); Type b, secondary MCS termination due to merging processes (Figure 4b); Type c, secondary MCS generation initially by splitting processes and then followed by termination due to merging into other systems (Figure 4c). However, Types a-c only account for secondary MCSs which do not exhibit entire life cycles, and hence are not considered as our research focus. For MCSs with entire life cycles, we further analyzed the relative occurrence time of minimum BT and maximum R_e as the peak value of the vertical development and horizontal size of the storm, respectively. Types d-f correspond to MCSs reaching their maximum vertical development before, after and simultaneously with their maximum size. According to the definitions proposed in previous studies [28], only Type-d MCS was considered typical and dominant (i.e., the peak vertical development should be reached in advance to the peak size) and used in further analyses. It should be noted that the number of samples in Type e and Type f are much smaller than those in Type d (Table S1), and hence distinguishing them may not affect the reliability of the results.

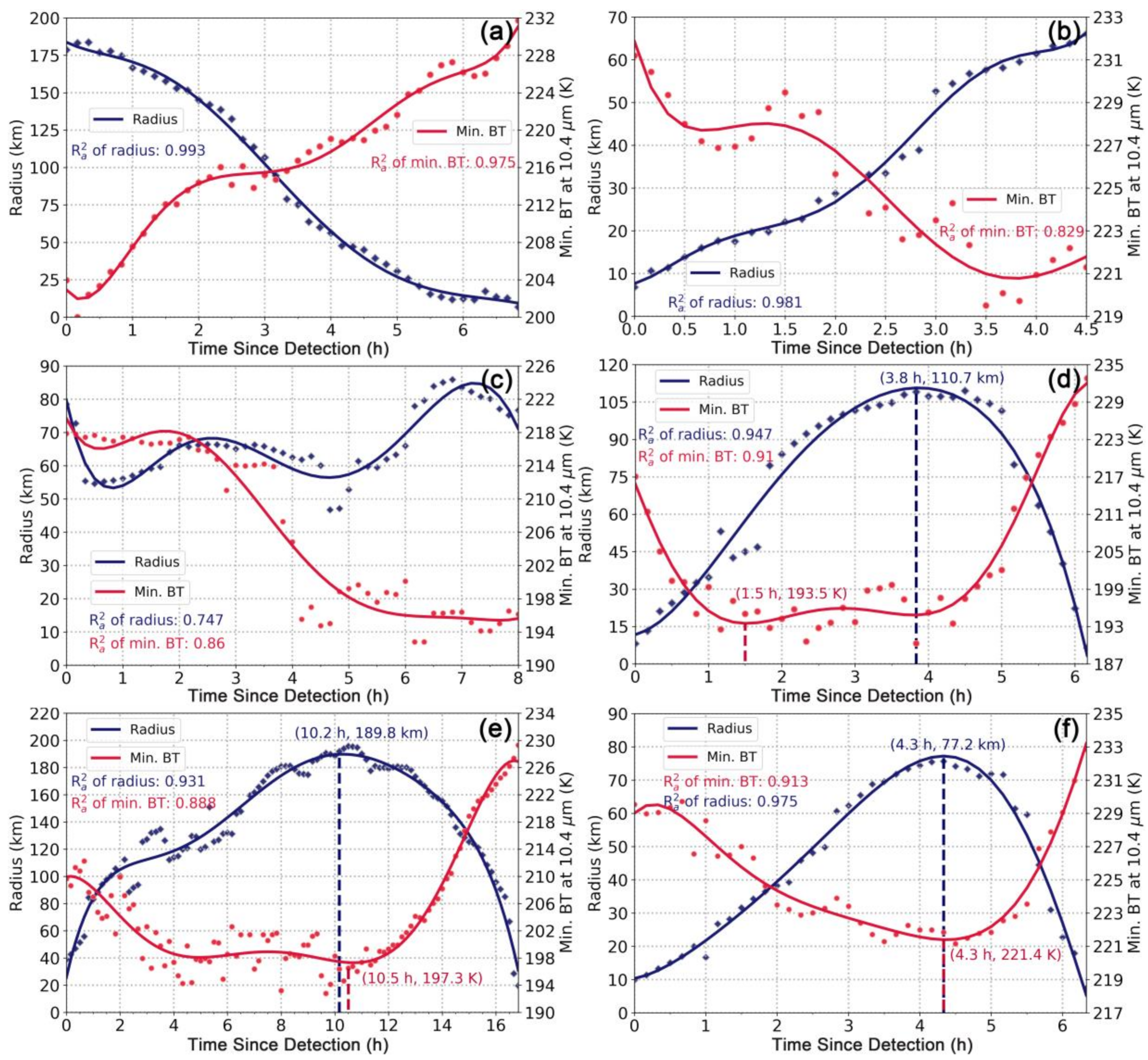

For each MCS of interest, we further derived the fitting curves of its vertical development and size as a function of time (Figure 4). Some of the MCSs have large sample dispersions in the time series of minimum BT and R_e observations (e.g., red scatters in Figure 4b), which may include noises but may also contain important features in the MCS lifetime. To extract the main features from noises, we chose sixth-order polynomial fits, following a previous study [28], for the variations in both minimum BT and R_e in MCSs over their lifetime. To measure the goodness of fit of the polynomial fitting, we calculated the coefficient of determination ${\mathit{R}}_{\mathit{a}}^{\mathbf{2}}$ as follows:

Suppose there are some observations as y₁, y₂, y₃, …, y_N, and the corresponding fitting values are f₁, f₂, f₃, …, f_N. The average of the observations is calculated as:

$$\overline{\mathit{y}}=\frac{\mathbf{1}}{\mathit{N}}{\displaystyle \sum }_{\mathit{i}=1}^{\mathit{N}}{\mathit{y}}_{\mathit{i}}$$

(1)

The total sum of squares (TSS) is:

$$TSS={\displaystyle \sum }_{\mathit{i}=\mathbf{1}}^{\mathit{N}}{\left({\mathit{y}}_{\mathit{i}}-\overline{\mathit{y}}\right)}^{\mathbf{2}}$$

(2)

The residual sum of squares (RES) is:

$$RES={\displaystyle \sum }_{\mathit{i}=\mathbf{1}}^{\mathit{N}}{\left({\mathit{y}}_{\mathit{i}}-{\mathit{f}}_{\mathit{i}}\right)}^{\mathbf{2}}$$

(3)

It follows that the coefficient of determination ${\mathit{R}}_{\mathit{a}}^{\mathbf{2}}$ is expressed as:

$${\mathit{R}}_{\mathit{a}}^{\mathbf{2}}=\mathbf{1}-\frac{RES}{TSS}$$

(4)

Here, only those cases with relatively small sample dispersions (${\mathit{R}}_{\mathit{a}}^{\mathbf{2}}$ ≥ 0.6) were used for statistics. Given that higher order polynomial fits may result in overfitting issues, while lower order polynomial fits may not match the observations very well, the fourth-order polynomials were also tested in this study, and the fitting results are not quite different from those using sixth-order polynomial. The associated uncertainties induced in the algorithm will be discussed in Section 4.

Consequently, the life stages can be divided with confidence. The developing stage is defined as the period from the time from when the MCS is first detected to the time when the MCS reaches the minimum BT. The dissipative stage is the period after the time when the maximum R_e occurs. The period between the developing and dissipative stages corresponds to the mature stage of the MCS.

3. Results

3.1. Precipitation Probability of MCSs from AHI/HW8

Certain cloud systems tracked by geostationary satellite data may not be associated with deep convective clouds that produce measurable precipitation reaching ground, because the Infrared-only tracking method may artificially pick up segments of persistent non-precipitating upper-level clouds [2]. One common example is the large non-precipitating upper-level clouds associated with mid-latitude synoptic disturbances (e.g., cyclones). Those clouds appear with cold cloud-top temperature and may last for several hours, but do not produce considerable precipitation reaching the ground. According to the common definition of MCSs, we use additional precipitation observations within the tracked systems, to identify true MCSs in this study. That is to say, the type of cold clouds mentioned above as observed by AHI only satisfies our criteria on BT, size, and duration, but does not satisfy the precipitation requirements. Therefore, those inactive cold clouds should not be treated as true MCSs [46]. However, the convective clouds embedded in the synoptic scale systems, which produce enough precipitation reaching the ground, are regarded as true MCSs and used for further analysis in this study.

The precipitation criteria added as additional constraints to identify MCSs are defined as follows: the MCS episode must have at least two consecutive hours with precipitation (i.e., the accumulated precipitation over all grid points within the tracked cloud system at each time > 0.1 mm), and the precipitation ratio (i.e., the number of grid points with rain rate ≥ 0.1 mm/h divided by the total number of grid points within the tracked cloud system) during each hour should be no less than 20%. In this way, the precipitation probability of various types of potential MCSs can be derived as a function of the maximum R_e during the course of its life cycle (Figure 5a). In general, most potential MCSs detected by AHI have a 50% to 90% chance of producing precipitation, irrespective of the MCS size or type. The larger the potential MCS, the greater the chance of precipitation. The precipitation probability of Type a MCS exhibits the lowest precipitation ratio, largely because MCSs of this type are generated due to splitting processes and continue dissipating until the end of their lifetimes. By contrast, two types of MCS (i.e., Type b and Type d) show roughly the same precipitation probabilities, most of which exceed 70%.

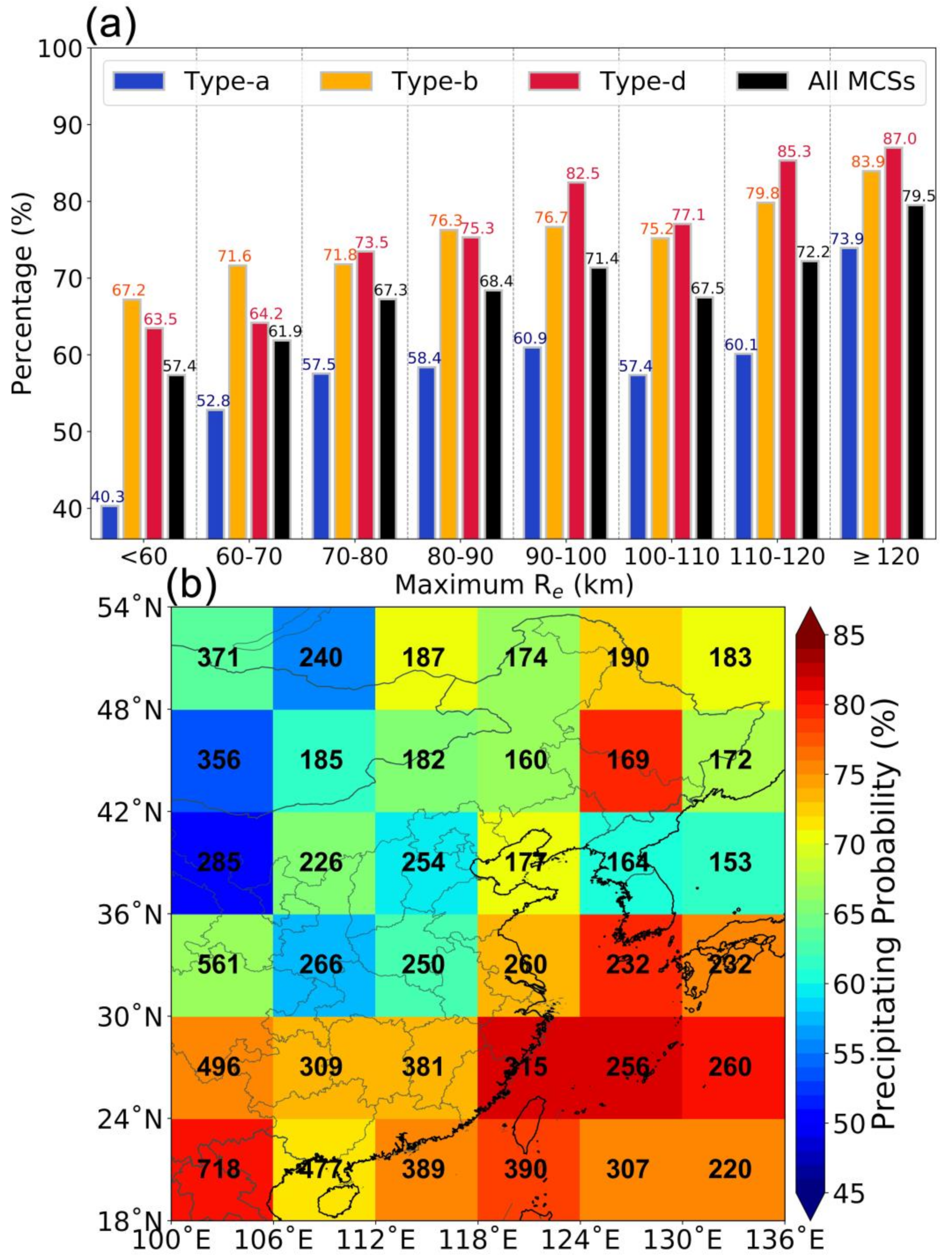

As shown in Figure 5b, the precipitation probability of MCSs differ greatly by region as well, with the highest probability (up to 80% and beyond) in southern China, where the Meiyu front [11] and typhoons [47] frequently occur during the warm season. By comparison, the precipitation probability of MCSs in northern China is much lower (less than 70%), with the exception of northeastern China, where several storms are frequently triggered by cold vortices during the summer. The much lower probability in northern China may be owing to the large fraction of non-precipitating SCs associated with mid-latitude disturbances such as cyclones and frontal systems [1]. For SCs, the cloud top temperature and rainfall intensity relationship, which is commonly used, does not work under many circumstances [48].

In the following sections, all the MCS cases used for statistical analysis are the MCSs that meet the aforementioned precipitation requirements. In addition, it should be noted that the cases used for statistical analysis in this research include MCSs embedded in the large-scale systems, such as frontal systems. Given that the frontal clouds also consist of multiple MCS clouds [49], we do not distinguish them strictly from our results. A similar situation also applies for extratropical and tropical cyclones. We treat these cases as MCSs under different large-scale circulations. Persistent frontal systems provide favorable conditions for the development and maintenance of MCSs [50].

Furthermore, the contribution of precipitation caused by MCSs within the rain belt produced by the frontal clouds is another intriguing topic. For instance, MCSs associated with Meiyu contribute 20–60% of the total precipitation produced by front systems [49]. More studies are warranted to reveal the contribution of the precipitation caused by MCSs embedded in the fontal systems to the total precipitation of fronts, which is beyond the scope of this current paper.

Mid-latitude cyclones are not eliminated here for the same reason. Therefore, what we exclude from the final results are only those cases with cold BT (≤235 K) and those that persist for at least 3 h, but produce no precipitation reaching the ground. These cases are usually cold upper-level clouds (presumably cirrus), which are not active convective systems.

3.2. Life Cycle of MCSs from AHI/HW8

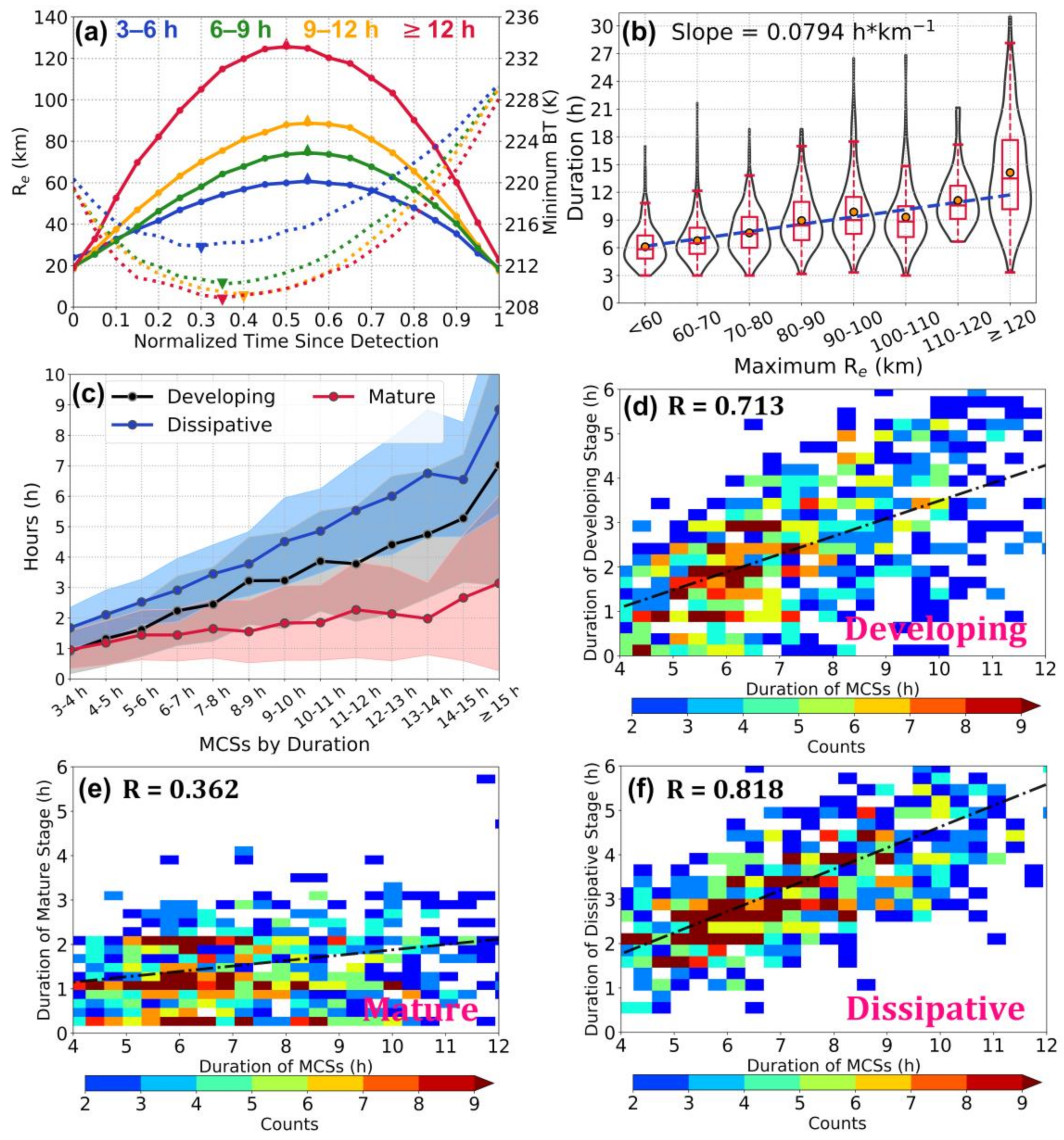

Figure 6 illustrates the major features of the AHI/HW8-derived MCSs in their lifespans. In particular, we first investigate the variations of MCS vertical development and size with respect to the composite BT and R_e of the Type d MCS (Figure 6a). These composite values are calculated by averaging all the samples for each normalized time interval during the whole lifetime of MCS, which are grouped by the duration of MCS. Notably, for MCSs with longer duration, the maximum R_e increases sharply, whereas the minimum BT drops considerably. This indicates a larger size, stronger vertical development, and potentially higher maximum cloud-top height for longer-lived MCSs. The peak times of the MCS vertical development and size (indicated by triangles in Figure 6a) vary significantly with MCS duration as well, which are used for the separation of developing, mature and dissipative stages following Futyan and Del Genio [28]. These results are generally consistent with previous studies on the Americas in the tropics and extratropics [51], in which the maximum radius of convective clusters during their lifetime ranges from 60 to 130 km, and the minimum BT concentrates between 208 and 214 K. Machado et al. [51] used the infrared (11 μm) and visible (0.6 μm) dataset from the International Satellite Cloud Climatology Project (ISCCP), which was sampled with a much coarser spatio-temporal resolution at 30 km and 3 h, respectively. As for the detection method, they used a lower threshold of 245 K (the value of BT_edge as 250 K in our study) and 218 K for active deep convections (the value of BT_init as 235 K in our study). Therefore, our research includes many smaller and shorter-lived MCSs when compared with their results, due to the different resolution of the datasets and relatively loose restrictions in BT for deep convections. However, as pointed out by the uncertainty analysis in Section 4 and Chen et al. [35], different thresholds of BT_edge and BT_init only affect the number of samples used for statistics but will not change the conclusions substantially. Therefore, the results obtained by Machado et al. [51] are fairly comparable to ours. Furthermore, in general agreement with Machado et al. [51], the maximum vertical development of the MCS with duration no less than 6 h does not change much, in contrast to the significant increase in size (Figure 6a).

The total durations of MCSs exhibit positive links to their maximum sizes as we examine the mean and median value of each group (Figure 6b). The larger the size, the longer the duration, with an inclination of 0.0794 h/km. This relationship has also been revealed previously over the tropics [23]. However, the distributions of the group with R_e higher than 100 km have some differences from the other groups. For the group with R_e between 100 and 110 km, the total durations of MCSs are slightly shorter than the overall growth trend. For the group with R_e higher than 120 km, the tails of the probability density function in the violin plots are relatively wider than the other groups. These intriguing results may be caused by the MCSs embedded in the large-scale systems such as fronts, extratropical and tropical cyclones. Under the favorable large-scale circulations, the MCSs with larger size may show different features from other MCSs.

In terms of the length of the developing, mature and dissipative stages, the dissipative stage is the longest, the developing stage comes second, and the mature stage is the shortest. With the growth of the total duration, all the lengths of three stage increase. However, the durations of the mature stage grow much slower than the other two stages when the total durations are longer (Figure 6c). The correlation coefficients (R in Figure 6d–f) between the durations of developing/mature/dissipative stage and the durations of MCSs are 0.713/0.362/0.818, respectively. All the R values are significant at 99% significance level. That is to say, all the durations of developing, mature, and dissipative stage increase as the total durations grow. For the developing and dissipative stage, the duration of the stage represents a positive and linear link with the total duration. However, this linear correlation is much weaker for the mature stage. Based on the distribution of samples in Figure 6e, the durations of mature stage do not show significant variations as the total durations of MCSs increase. This indicates that the increases in the developing and dissipative stage are the most significant changes compared to the mature stage. In other words, for the longer-lived MCSs, it takes substantially more time for the vertical development of MCSs to reach their coldest layer, and for their dissipations.

The variation of minimum BT and changing rate of MCS size over the course of normalized MCS lifetime are shown in detail in Figure 7. The variation in the minimum BT is determined following these steps: first, for each MCS sample, we calculate its time series of the change of minimum BT at every 10-min interval. Then, for all the MCS samples, we normalize the real time coordinate to obtain the minimum BT variation under normalized time coordinate. The size variation is calculated as the area expansion rate, which refers to the changes in size at every 10-min interval divided by the size at the time of interest. The minimum BT drops rapidly upon first detection of the MCS, suggesting strong vertical development. At the initial time, the averaged minimum BT in 10 min ranges from −2 to −1 K (Figure 7a), depending on the durations of MCSs. It is noteworthy that the longer-lived MCSs generally have smaller deviation from the mean state.

To clearly see the variation of minimum BT among different MCS episodes, we further restrict the samples to ensure that the selected samples are deepening during the majority of the time of those MCSs, requiring that the minimum BT drops for 70% of time during the developing stage. As a result, the variation of minimum BT among different samples varies a lot at the initial time, approximately ranging from −8 to 4 K in 10 min (Figure 7c). The 75th percentile is below 0, which is lower than the convection initiation criterion of −4 K in 15 min (i.e., 2.7 K in 10 min) proposed by Mecikalski et al. [52]. Two factors may account for this. One is the challenge induced by the complexities associated with initial MCS detection [35], and the other is the difference in the methods used for MCS tracking. Besides, their tracking method is based on cloud pixels, while ours is based on cloud clusters of MCSs.

For the area expansion rate, the coverage of an MCS rapidly expands in the horizontal direction when the MCS is first detected. The longer the duration of MCS, the larger its area expansion rate at the initial time (Figure 7b). Notably, the coverage of MCS expands drastically at the initial time, which gradually decreases during the developing stage, then become stable at the mature stage (Figure 7d). Likewise, the deviation of samples is large at the initial time, gradually decreases during the developing stage, and reaches its minimum at the mature stage. This indicates the large uncertainties in detecting MCS during the early stages, and the corresponding difficulties in the nowcasting of convection initiation.

3.3. Features of MCS Initiation

Given the importance of convection initiation [53,54], the geographic locations of MCS first detection were investigated. Most of the MCSs were first detected over the northern part of the Indochina Peninsula, the coastal regions of southeastern China, or subtropical islands, as shown in Figure 8a. These regions are subject to dynamically unstable atmospheric conditions caused by the orographic effect and/or sea-land breezes during the eastern Asian summer monsoon season [55,56]. In contrast, MCSs are less likely to initiate over northern China.

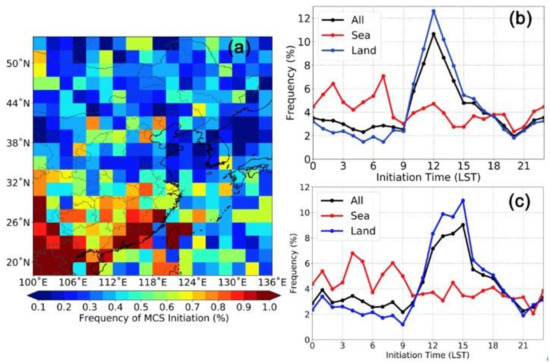

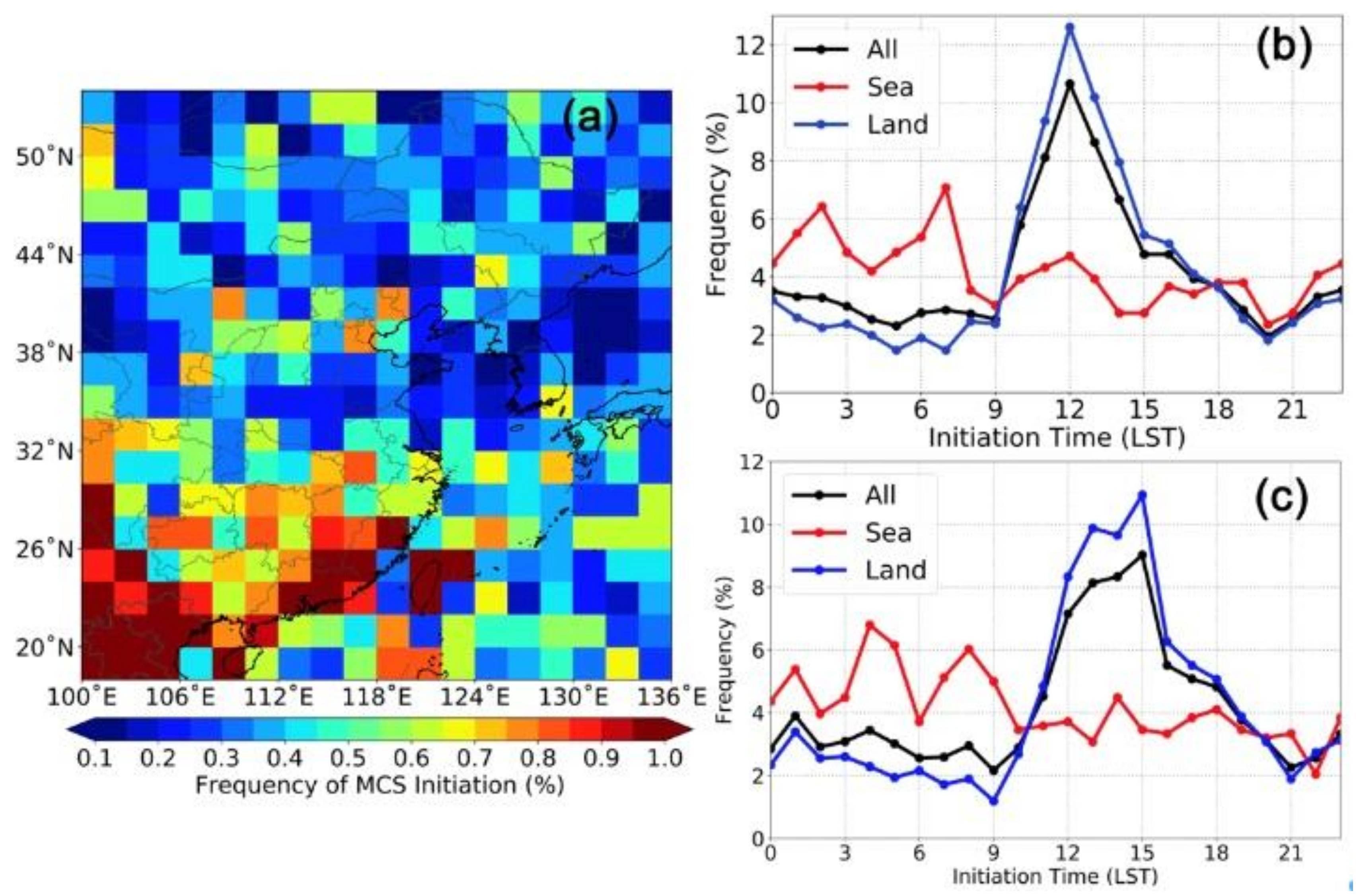

Figure 8b shows the diurnal variation of the MCSs first detected from AHI/HW8, which exhibits large discrepancy between land and sea. Over the ocean, the initiations of the MCS clouds reach the peak during the period 0200–0700 local solar time (LST = UTC + 8), which is in good agreements with previous studies [57]. As for the MCS initiation over the land, there exists a pronounced peak at around 1200 LST, coinciding with strong solar radiation during the warm season. Combined with Figure 8c, there is a significant time lag between the peak of cloud initiation and the peak of precipitation initiation both over the land and ocean. As shown in Figure 8c, most of the MCSs over land start precipitating at around 1500 LST, while the MCSs over ocean usually start precipitating between 0400 and 0800 LST. The times of precipitation peaks are fairly consistent with those in previous studies over the land [58,59] and ocean [60]. Therefore, the peak time of cloud initiation is several hours earlier than the precipitation initiation, which needs more work to explore this kind of association and the underlying mechanisms in the future.

Ai et al. [25] also investigated the characteristics of MCSs in eastern China from the perspective of a geostationary satellite. They compared the occurrence time of minimum BT and maximum size of MCSs in the study area and found that the minimum BT appeared in advance of the maximum size, which is fairly consistent with our results. They also explored the spatial distribution and diurnal cycles of the formation frequency of MCSs in eastern China. The relatively higher frequency of MCS formation in the west of Jiangsu province and the border between Anhui and Hubei are consistent with our results, too. However, there exist some discrepancies between the occurrence frequency of MCS in their studies and our findings, especially over Henan and Shandong provinces. This discrepancy could be explained by the MCS formation time. In their study, the formation time was defined as the time when four criteria concerning the convective center, maximum rain rate, area of convective clouds and precipitation are first met on three successive satellite images. However, we define the initiation time (rather than formation time) of the MCSs as their first detection by AHI, with no requirements regarding precipitation at this time, since the original occurrence of the initial cloud is our focus. Therefore, the diurnal cycles of MCS formation show discrepancies between their and our research. The peak of MCS initiation over the land appears at noon based on our research, in contrast to the late afternoon peak in Ai et al. [25], much closer to the peak of precipitation.

3.4. Internal Structures of the MCS during Lifetime

Here, we focus on the evolution of internal structures of MCSs over their life cycle in northern China, making use of the ground-based Doppler radar observations available in this region. As illustrated in the composite curves of Figure 9a, the sizes of SCs and anvils are roughly the same during the early stages of MCSs and much larger than those of CCs. Over time, the sizes of CCs increase during the early developing stage and plateau between the late developing and mature stages, before rapidly decreasing during the dissipative stage. On the other hand, the proportion of CCs with respect to the entire MCS cluster area gradually decreases. This is consistent with the conclusions derived from the GPM that the initial stage of convective systems is generally characterized by the largest convective ratio [30]. Meanwhile, the proportion of SCs does not change much during the developing and mature stages but drops sharply during the dissipative stage (Figure 9b). The results also reveal that non-precipitating anvils and SCs dominate in the mature stage, and only anvils take over in the dissipative stage of the MCS when the SCs significantly decline. Although the R_e of MCS varies significantly between different stages, the maximum echo top height exhibits smaller variation over the course of its lifetime, generally peaking during the developing stage and starting to decline during mature and dissipative stage (Figure 9c). Given the similarity in the design, resolution and distancing between the Chinese radar network in the research area and the U.S. NEXRAD, the above MCS life cycle and characteristics are compared with those in the U.S. Great Plains in previous studies. For the cross comparison of MCS characteristics, the resolution of the three-dimensional radar mosaics made by ARPS in our study is similar to the NMQ data (National Mosaic and Multi-sensor Quantitative Precipitation Estimate) used in Feng et al. [26]. The NMQ data also have a vertical resolution of 500 m, up to 18 km above sea level, but with a fixed 0.01° horizontal resolution, making the radar data and retrieved results comparable.

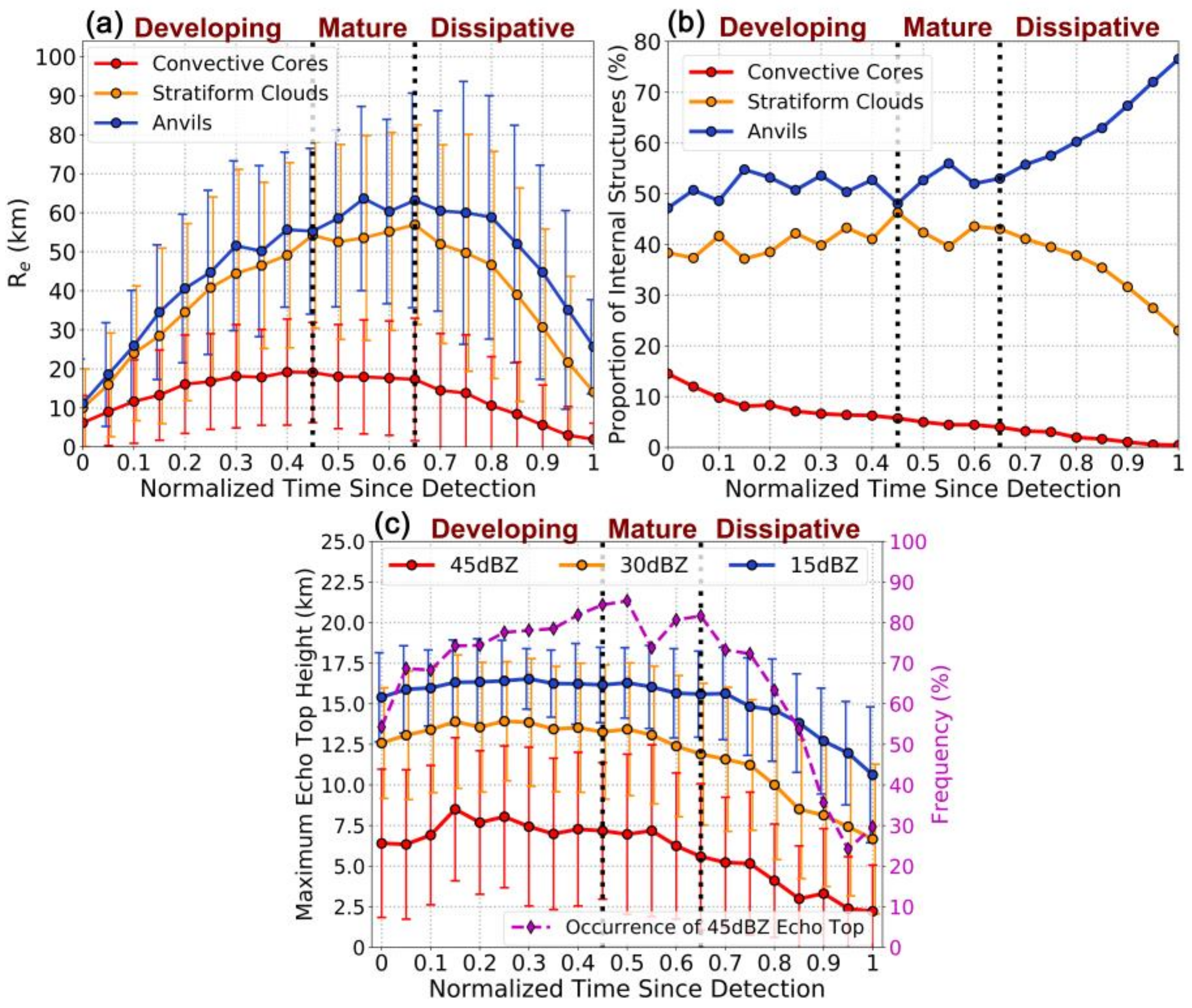

The composite evolution of MCS convective echo-top heights in northern China are comparable to those over the U.S. Great Plains during the summer season (see Figure 17 in Feng et al., 2019), suggesting that MCSs in these two regions share some common behaviors in convective lifecycle development. In addition, the probability that the maximum reflectivity of convective regions reaches 45 dBZ over northern China is approximately 50% at first detection of the MCS; the probability rises up to approximately 90% during the mature stage, and then drops dramatically during the dissipative stage.

The R_e of CCs over northern China is found much smaller than that over the central United States, which ranges from 20 to 40 km for MCSs with time duration less than 12 h [26]. The fraction of CCs over northern China is also lower than that in the United States. According to Machado et al. [51], the convective fraction ranges from 20% to 30% when the convective systems are first detected. However, the magnitude derived here is approximately 15% when the MCS initiates, which indicates that the convective activities of CCs over northern China are not as strong as those over central United States, and the precipitation produced by broad SCs may be more important here. Also noteworthy is that the first detections of MCSs here may be different from those revealed in Machado et al. [51], in which the conventional area overlapping method was used to track MCSs that is in sharp contrast to the newly developed tracking method used in our study. Through combining the conventional area overlapping and the Kalman filter, our method can effectively capture those clouds which are either small enough or fast moving [35]. Therefore, the first detections of MCSs we get here may be in advance of those in Machado et al. [51]. More explicit studies are warranted in the future to explore the impact that different first detection times may have on the initial fraction of CCs. Additionally, considering the vertical motions in the convective regions are much stronger than the stratiform region [61,62], the upward motions inside the MCSs during the developing and mature stages will be smaller over northern China due to the lower fraction of CCs. Therefore, the echo tops of MCSs over northern China do not yield large changes during the developing and mature stages.

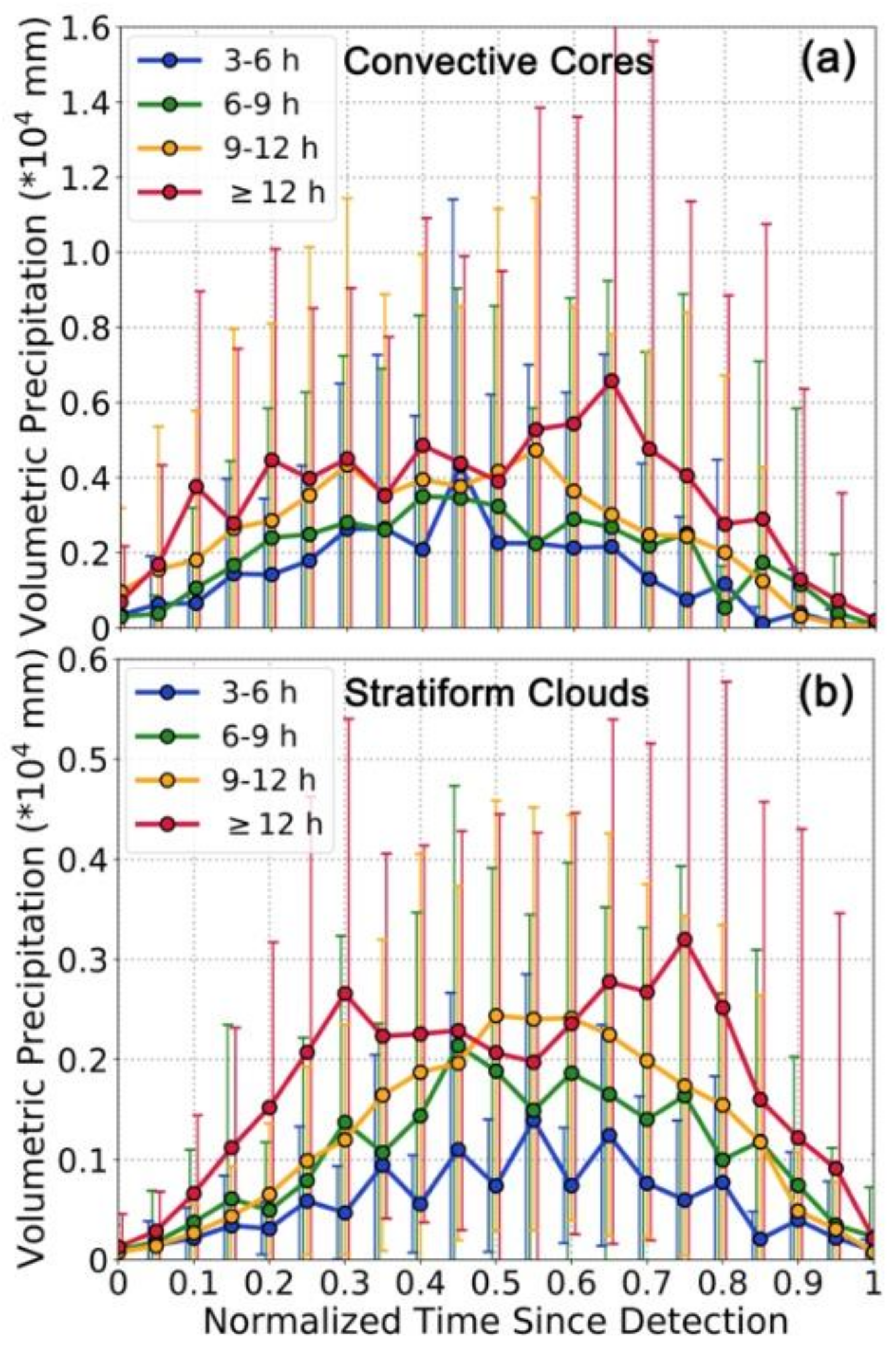

Considering the relationship between the total precipitation amount and latent heating profile, which is in favor of the maintenance of MCSs, the volumetric precipitation of CCs and SCs is shown in Figure 10. Note that the volumetric precipitation is defined as the total amount of precipitation as derived from radar reflectivity at 3 km (above sea level), which depends on the horizontal resolution of radar data. Therefore, this parameter may vary a lot in different studies. One of the most striking features in Figure 10 is the increase in volumetric precipitation as the durations of MCSs rise for both CCs and SCs. In addition, the total amount of precipitation by CCs is significantly higher than that by SCs, indicating that CCs contribute the greatest precipitation amount. In particular, the features in composite curves of volumetric precipitation vary greatly between MCSs that last for at least 12 h and those with duration <12 h. For the MCSs with duration <12 h, the composite curves of SCs exhibit single peak, occurring in the middle and late stages of the MCS lifetime. However, for the MCSs that last for at least 12 h, the volumetric precipitation of SCs remains stable and at a high amount for a long period. This is largely due to the close relationship between the large precipitation amount induced by SCs and MCS durations. When a large amount of precipitation is produced by broad SCs, plenty of latent heat fluxes are released, forming the classic top-heavy heating profiles of MCSs. The released latent heat makes the mesoscale convective vortexes tend to occur in the middle troposphere. This cyclonic structure favors the maintenance and strengthening of troughs in the upper level, thus the MCSs last longer than expected under favorable large-scale circulations [13,46].

4. Discussion

In this study, we select the thresholds of BT_edge of 250 K as mentioned above. To test whether the conclusions are robust, other values are also applied to check the uncertainties induced by the thresholds.

Thresholds of BT_edge at 240 and 260 K are tested here. As illustrated in Figure S2, the precipitation ratios of MCSs with different sizes and types change slightly when the values of BT_edge change, and thus have almost no impact on the conclusions derived above. The patterns of precipitation ratio over different locations are robust too (Figure S3). When different values of BT_edge are tested, there exist no remarkable differences in the final results of precipitation probability. Overall, the differences are within 3%. As expected, the precipitation probability as calculated with the threshold of 240 K seems slightly lower than that calculated with a threshold of 250 K, while the precipitation probability is consistently higher when the threshold of 260 K is chosen. In other words, when we choose a warmer BT_edge, more neighboring grid points with ground precipitation will be included, and thus the precipitation ratio calculated here is slightly higher. Nevertheless, the main conclusions will not be affected by the different values of BT_edge.

The impacts of adopting polynomials of different orders to fit the curves of minimum BT and R_e are also tested. Compared to the sixth-order polynomials used above, we test the fourth-order polynomials here to evaluate the fitting results and the corresponding impacts on the conclusions. When fourth-order polynomials are applied, the goodness of fit becomes lower (Figure S4), but it can still reflect the varying characteristics of parameters during the lifetime of the MCS. Nevertheless, some MCS episodes will be categorized as other types, which are different from the results using sixth-order polynomials. As shown in Figure S4e–f, both of these two cases are categorized as MCSs of Type d when fourth-order polynomials are applied, since the MCS reaches the minimum BT in advance of the maximum Re. However, these two MCS episodes belong to Type e and Type f, as discussed above (Figure 4e,f). Fortunately, the overall classification results of MCSs is found to change slightly when adopting the fitting based on different orders of polynomials (Table S1), and Types a, b, and d accounted for most of the MCSs occurring over eastern China. Additionally, the conclusions regarding varying characteristics of minimum BT and R_e with different durations do not changes dramatically either when the fourth-order polynomials are used (Figure S5).

5. Conclusions

We systematically examined the life cycle of MCSs over eastern China using the geostationary satellite data of AHI/HW8 in combination with ground-based 3D radar mosaics and CMPA precipitation data products.

The major features of MCSs over the course of their lifetimes were reported. The minimum BT decreases rapidly from when MCSs are first detected, suggesting the rapid vertical development of cloud tops, and then it stabilizes as the sizes of MCSs expand until the dissipative stage. The durations of different stages vary a lot as the total durations of MCSs increase. An increase in the MCS lifetime coincides with a significantly longer developing stage and dissipative stage. The positive links between the duration of the mature stage and the total duration of MCSs are not as significant as the other two stages.

The initiation times of MCSs vary greatly by region in eastern China. In terms of the diurnal cycle, the cloud clusters of MCSs frequently initiate from midnight to early morning over the ocean, as opposed to frequent initiation at noon over land. Additionally, the precipitation produced by MCSs usually initiates a few hours later than the peak time of cloud initiation both over the land and the ocean.

The internal structures of MCSs from space over northern China were further investigated, using ground-based radar observations. Overall, the convective cores, stratiform clouds, and non-precipitating anvils exhibit quite different variation over the courses of MCS lifetimes. The size of convective cores increases rapidly at first, stabilizes during the mature stage, and then rapidly dissipates. However, the proportion of convective cores to the whole system declines monotonically after MCSs are first detected. The area of stratiform clouds and anvils have almost the same values during the developing and mature stages of MCSs, but non-precipitating anvils become more dominant during the dissipative stage. Compared with those in the central United States, the fraction of convective cores over northern China are lower when the convective systems are first detected, which indicates that the developments of convective cores over northern China are not as strong as those over central United States, and the precipitation caused by broad stratiform clouds may be more important for northern China.

Considering the relationship between the total precipitation amount and latent heating profile of the MCS, the features in the volumetric precipitation during lifetime of the MCS are also discussed. For MCSs that last for at least 12 h, the volumetric precipitation of stratiform clouds maintains stable and high value for a long period. The close relationship between the large precipitation amount induced by stratiform clouds and the latent heating profiles may account for this. When a large amount of latent heat fluxes is released by stratiform precipitation, the mesoscale convective vortexes tend to form in the middle troposphere, which in turn favors the strengthening of troughs and thus makes MCSs last longer.

Overall, this work explicitly elucidates the general life cycle and internal structures of warm-season MCSs over eastern China, which provides insights into the dynamic evolution of MCSs using a combination of a geostationary satellite, ground-based Doppler radar, and precipitation data. However, the mechanisms governing the variations among MCSs have yet to be revealed. Therefore, additional theoretical and modeling work is warranted in the future.
