A Building Detection Method Based on Semi-Suppressed Fuzzy C-Means and Restricted Region Growing Using Airborne LiDAR

Abstract

Building detection using airborne Light Detection And Ranging (LiDAR) data is the essential prerequisite of many applications, including three-dimensional city modeling. In the paper, we propose a coarse-to-fine building detection method that is based on semi-suppressed fuzzy C-means and restricted region growing. Based on a filtering step, the remaining points can be separated into two groups by semi-suppressed fuzzy C-means. The group contains points that are located on building roofs that form a building candidate set. Subsequently, a restricted region growing algorithm is implemented to search for more building points. The proposed region growing method perfectly ensures the rapid growth of building regions and slow growth of non-building regions, which enlarges the area differences between building and non-building regions. A two-stage strategy is then adopted to remove tiny point clusters with small areas. Finally, a minimum bounding rectangle (MBR) is used to supplement the building points and refine the results of building detection. Experimental results on five datasets, including three datasets that were provided by the International Society for Photogrammetry and Remote Sensing (ISPRS) and two Chinese datasets, verify that most buildings and non-buildings can be well separated during our coarse building detection process. In addition, after refined processing, our proposed method can offer a high success rate for building detection, with over 89.5% completeness and a minimum 91% correctness. Hence, various applications can exploit our proposed method.

1. Introduction

Airborne Light Detection And Ranging (LiDAR) is an active Earth observing system that is composed of an Inertial Measurement Unit (IMU), Global Positioning System (GPS), and a laser scanner [1]. The primary purpose of LiDAR is to acquire high-accuracy three-dimensional (3D) geospatial data of the Earth’s surface. Despite the fast development and integration of hardware components over the past three decades, limitations still exist regarding data post-processing algorithms; the current software systems are far from automatic in processing, even if a single task, such as ground points extraction, is performed [2]. Object extraction from point cloud, in general, and particularly building detection, pose challenges to multiple research communities [3,4].

Buildings are considered to be one of the most important components in urban areas. As airborne LiDAR can now obtain high-density and high-accuracy roof data, building detection has become one of the key steps in LiDAR data processing. Building detection is a prerequisite of city planning, disaster assessment, digital mapping, transportation planning, and more [5,6,7]. In the LiDAR field, building detection means separating the points that belong to buildings from other points, which can also be termed as building extraction [8,9]. The International Society for Photogrammetry and Remote Sensing (ISPRS) has been committed to promoting the development of research that is related to automatic building detection and construction in complex scenes using airborne LiDAR and image data. During the last two decades, many researchers have uploaded their algorithms and experimental results that are based on test data provided by ISPRS, and the related comparative analysis on their precisions has been published [10]. However, the current research on building detection still faces two problems [11,12]:

(1) There are various roof types, and most existing algorithms only focus on plane roofs, which may be associated with a point cloud’s configuration. For example, the shape of curved roofs is similar to that of vegetation. In addition, roof material can affect data density and might lead to missing data, which presents difficulties in building detection.

(2) It is hard to achieve automatic building detection in complex scenes. Many existing algorithms are intricate and they have particular requirements for source data. In general, the automation of building detection is a long and arduous task.

Thus, it is of great importance to continue building detection research using airborne LiDAR data. The main contribution of this paper is to introduce a novel building detection method that is based on semi-suppressed fuzzy C-means clustering and restricted region growing. Unlike most previous building detection methods, our method can effectively extract the elliptical roofs and several attachment structures, like long-corridors and railings, which is beneficial to the subsequent three-dimensional building’s modeling. The remaining contents of this paper are organized, as follows: Section 2 briefly reviews the related work; Section 3 describes the principles and implementation steps of our proposed method in detail; Section 4 presents and analyzes the experimental results, as well as making comparisons with other algorithms; and, the main conclusions are provided in Section 5.

2. Related Work

As the main component in urban areas, buildings are some of the most important pieces of fundamental geographic information. The main data sources for acquiring 3D building information include image data and airborne LiDAR data [13]. Building detection has become a hot research issue in airborne LiDAR data processing. It should be noted that building detection research in the airborne LiDAR field mainly focuses on the extraction of points that are located on roofs and their attachments. Many airborne LiDAR-related building detection algorithms have been proposed, and they all can be categorized into two groups according to data source:

(1) Combining airborne LiDAR data and other data

In this group, image data is the most commonly used. The abundant spectral and texture information in image data can be considered as a helpful complement to precise height information in airborne LiDAR data [14]. However, in terms of improving classification, image data and the first echo information of LiDAR data are not significantly different when compared to separating buildings and vegetation only with the last echo information of LiDAR data [15]. Many researchers have adopted the normalized Digital Surface Model (nDSM) and normalized difference vegetation index (NDVI) to roughly remove vegetation areas, before refining the classification results by shape area thresholds [16], spectral values [17], or texture features [18,19]. Additionally, some researchers have attempted to combine Geographic Information System (GIS) data [20,21]. However, these methods unavoidably involve multi-source registration issues, which can lead to decreased precision.

(2) Only airborne LiDAR data

The common methods in this group include Random Sample Consensus (RANSAC) and three-dimensional Hough transform [11]. The RANSAC algorithm [22] is robust and widely adopted in building plane detection [23]. However, RANSAC is prone to finding pseudo planes and its computational efficiency significantly decreases with an increasing amount of point cloud data [24]. To solve this problem, [25] adopted weighted RANSAC to eliminate pseudo planes, and the weight function considered the relationship between points and planes. In their paper, they also defined an error suppression ratio coefficient to measure error distribution between the true plane and the pseudo plane. Their experimental results showed that the proposed method could improve the ability of RANSAC in plane identification efficiently. RANSAC has been combined with a least squares algorithm to extract both plane and curved roofs and enhance the robustness in building detection [26]. The classical Hough transform has been mainly used in two-dimensional images for describing lines, circles, or other shapes [27]. The Hough transform was introduced into point cloud data processing for detecting planes and spheres, which combined several constraint conditions, such as local planarity and normal vector consistency [28]. Hough transform was extended further to detect arbitrary shapes, independent of objects’ direction and scales [29]. However, their experimental results were easily affected by sampling intervals, when sampling in parameter space.

A region growing algorithm is also often used in building detection, and it is simple and easy to operate; however, it only works well when the initial seed points are of high quality, and it is prone to excessive growth [30]. A novel building detection method was proposed while using robust voxel-based region growing, and combining some geometric constrains, such as smoothness, continuity, and convexity [31]. Their experimental results showed it could work efficiently in a complex situation, with an overall quality measure better than 0.6. Clustering algorithms can also be adopted to measure the similarity between points and segmented LiDAR data [32,33]. A clustering algorithm was used for curved roofs to efficiently extract building area, by depicting the contour lines of the test area, clustering those contour lines with similar height values, and combining several geometric constraints, such as connectivity and smoothness [33]. In addition, the profile analysis method was introduced into point cloud data processing to identify plane features, but it was invalid for the roofs with complex shapes [34].

Supervised learning algorithms are also very popular in point cloud classification [9,35,36], which are generally composed of three steps, including sample training, feature extraction, and classification. However, the classification precision of these methods is greatly dependent on the quality of sample points, and the results are sometimes hard to explain [37].

3. Methodology

In general, building detection algorithms focus on the local features of a certain point to determine whether it belongs to buildings or not [9,25]. From a local perspective, the ground points show similar characteristics to building points, such as planarity and height continuity, which will affect the building detection results. Hence, in this paper, we provide a building detection workflow on the basis of ground point extraction (termed as filtering in the LiDAR field [3,38]). The whole process includes three main steps: filtering, coarse, and refined building detection. The details will be introduced in the following parts.

3.1. Filtering

Originally proposed by [39], an improved progressive TIN (Triangulated Irregular Network) densification (PTD) method for urban areas is proposed and adopted in the paper. In general, PTD is an iterative process, which includes three steps [39]: (1) searching for initial seed points in the preset grids, (2) constructing TIN by points in seed-point set, and (3) densification for the seed-point set. If no new point has been added into a seed-point set, iteration immediately terminates, otherwise, back to step (2). Here, one point P_i considered as a seed point should satisfy two essential requirements [39], as shown in Figure 1: (1) the distance d between P_i and its corresponding TIN (P₁P₂P₃) is shorter than a threshold, (2) the angles $\left(\alpha ,\beta ,\gamma \right)$ between the corresponding TIN and lines connecting P_i to each vertex of the TIN are smaller than a threshold.

It should be noted that low noise points that are caused by the multipath effect could mainly affect the accuracy of PTD. In other words, seed points in step (1) should exclude those low noise points. Hence, in our improved PTD algorithm, an essential strategy is added in step (1), to judge whether the selected “seed” point P_i belongs to low noise points or not. To work efficiently, the strategy should be implemented based on sorting of regional height values. The strategy includes two necessary requirements: (1) variance of distances from its k (20) nearest points to the plane estimated by these points is smaller than a threshold (1 meter), (2) the height difference between the certain point to the highest point in its cylinder-based neighborhood (as shown in Figure 2a [37]) is smaller than a threshold (2.5 meters). If both of the requirements are satisfied, P_i can be considered as a seed point; otherwise, the search for the new seed point again in the seed-point set without P_i. To avoid impacts on subsequent building detection, those abandoned points are also labelled as ground points when PTD is finished.

3.2. Building Detection

After filtering, the remaining unclassified LiDAR points mainly belong to two types of ground objects, which are referred to as building and vegetation. An automatic coarse-to-fine building detection method is proposed in the paper to improve the flexibility and automation of the existed methods for complex roofs. To protect classification precision from sample selection, a clustering algorithm, semi-suppressed fuzzy c-means, is herein considered to separate building points from other points. Before that, feature extraction is an important and unavoidable step. Based on analyzing point neighborhood information, a region growing algorithm is adopted to refine the building detection results.

3.2.1. Feature Extraction

As Figure 3 shows, planar information of point cloud data, like two-dimensional coordinates, does not work in building detection. However, height value and its derivative statistics, such as height variance and average, present an obvious difference between buildings and vegetation from the visual point of view, as shown in Figure 3c. Thus,

Table 1. The extracted features in building detection.

	Neighborhood	Cylinder-Based	Sphere-Based
Features
Height-related		Height variance
		Height range
Eigenvalue-related		Planarity	Sphericity
		Omnivariance	Change of curvature
Plane-related		Surface roughness
		Distance to plane
Density-related		Point density
		Point density ratio
Others		Point count ratio

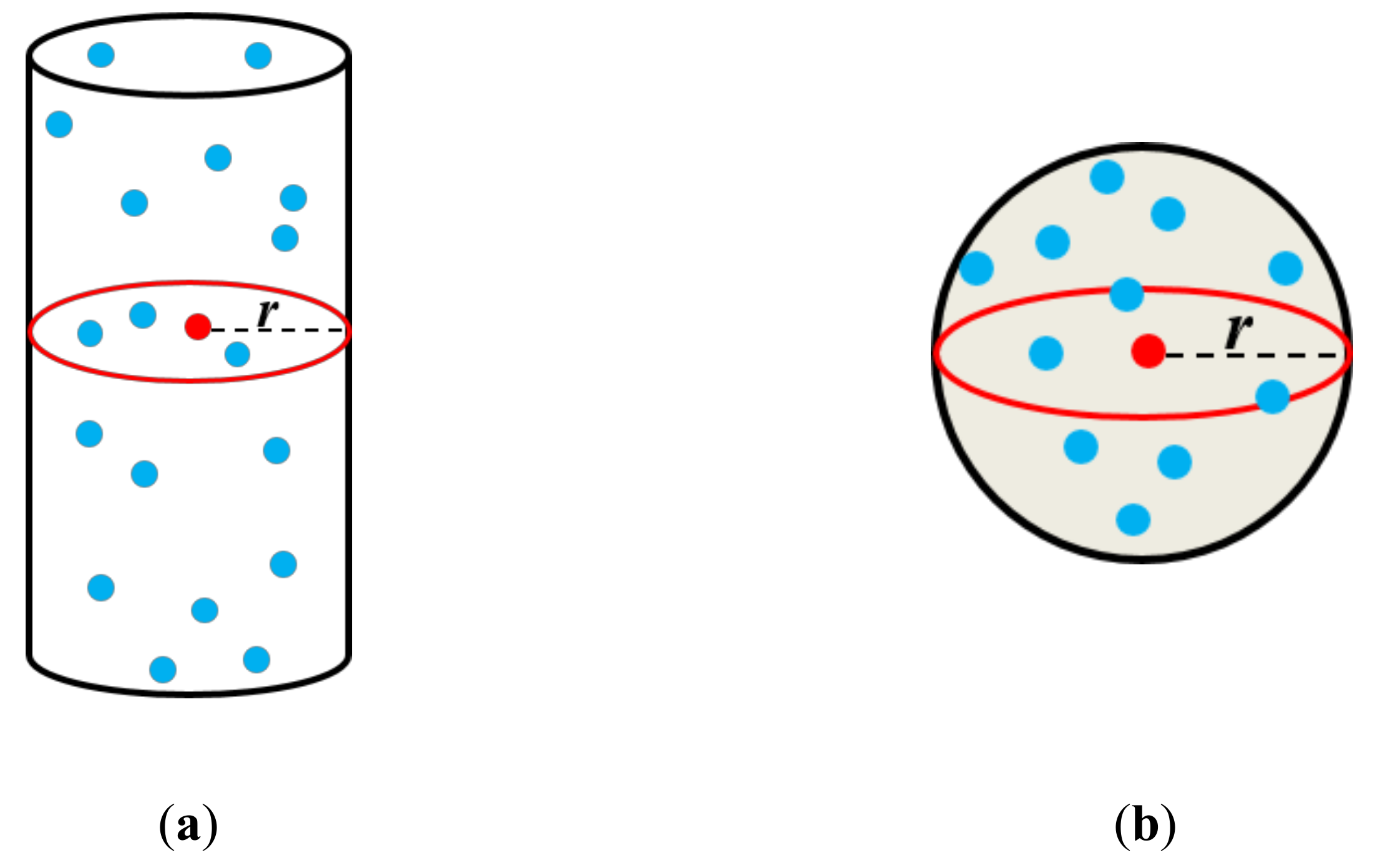

lists the extracted features that were adopted in the paper and Figure 2 shows the neighborhood definitions. Details of these features can be found in [37,40,41].

(1) Height variance

This feature is the variance of point height in the neighborhood.

(2) Height range

This feature is the maximum height difference between the highest height and the lowest height.

(3) Planarity

$${\lambda }_P=\frac{{\lambda }_2-{\lambda }_3}{{\lambda }_1}$$

(1)

where ${\lambda }_1>{\lambda }_2>{\lambda }_3$ represent the eigenvalues of the covariance matrix. This value is large if the points in the neighborhood are coplanar.

(4) Sphericity

$${\lambda }_S=\frac{{\lambda }_3}{{\lambda }_1}$$

(2)

This value is large if the points in the neighborhood are discrete.

(5) Omnivariance

$${\lambda }_O=\sqrt[3]{{\lambda }_1{\lambda }_2{\lambda }_3}$$

(3)

This feature is the structure tensor of the surface.

(6) Change of curvature

$${\lambda }_C=\frac{{\lambda }_3}{{\lambda }_1+{\lambda }_2+{\lambda }_3}$$

(4)

This feature describes the surface variation.

(7) Surface roughness

This feature is the standard variance of the distance between the points and the fitted plane.

(8) Distance to plane

This feature is the distance between the current point and the fitted plane.

(9) Point density

This feature is the density of points within a given neighborhood.

(10) Point density ratio

This feature is the ratio of point density in cylinder-based neighborhood to point density in sphere-based neighborhood.

(11) Point count ratio

Similar to point density ratio, this feature means the ratio of point counts.

3.2.2. Coarse Building Detection Based on Semi-Suppressed FUZZY C-Means

Clustering algorithms belong to one of the most important unsupervised classification methods, which divide the sample space into several groups by a certain similarity measurement [32]. Among these algorithms, the fuzzy C-means (FCM) method is widely used [42]. FCM belongs to iteration algorithms and it is evolved from hard C-means (HCM) [43]. For binary classification, HCM divides the samples into two groups, 0 or 1, according to distance. Although HCM is simple and fast, the classification precision is not always promising. FCM is proposed based on HCM, which changes the values of class membership function from $\left\{0,1\right\}$ to $\left[0,1\right]$ [43]. Each sample point has a membership degree for each class, and for one certain point, the sum of membership degree for different classes is 1.

Fuzzy clustering issues can be presented as the following equation [43]:

$$\min J_m\left(U,V\right)={\displaystyle \sum _{j=1}^n{\displaystyle \sum _{i=1}^c{u}_{ij}^m{d}_{ij}^2}}$$

(5)

where $X=\left\{x_1,x_2,\dots ,x_n\right\}\subset R^s$, s is the dimension of sample space, n is the number of samples, c is the number of clustering classes, m > 1 is fuzzy factor, $d_{ij}=‖x_j-v_i‖$ is the distance between sample point x_j and ith cluster center v_i, $V={\left[v_{ij}\right]}_{c\times s}$; similarly, $v_i\subset R^s$, fuzzy membership matrix $U={\left[u_{ij}\right]}_{c\times n}$ satisfies Equation (5), and u_ij is the membership degree of x_j belonging to the ith class, which satisfies:

$${\displaystyle \sum _{i=1}^c{u}_{ij}>1,1\le j\le n}$$

(5a)

$$u_{ij}\ge 0,1\le i\le c,1\le j\le n$$

(5b)

$${\displaystyle \sum _{j=1}^n{u}_{ij}>0,1\le i\le c}$$

(5c)

Thus, FCM can be considered as a constrained optimization issue. The steps of FCM include [43]:

(1) Initialize the cluster center V⁽⁰⁾, the iterative index k = 0, the maximum iteration number K, and the threshold $\epsilon >0$.

(2) Calculate the membership degree matrix U^(k) while using Equations (6) and (7). Given $\forall j,r,d_{ij}\left(k\right)>0$, then

$$u_{ij}=\frac{1}{{\displaystyle \sum _{r=1}^c\left[{\left(d_{ij}\left(k\right)/d_{rj}\left(k\right)\right)}^{\frac{2}{m-1}}\right]}}$$

(6)

where $i\ne r$, if there exists j and r values that make $d_{ij}\left(k\right)=0$, then

$$u_{rj}\left(k\right)=1,u_{ij}\left(k\right)=0\left(i\ne r\right)$$

(7)

(3) Compute the cluster center $V_i{}^{\left(k+1\right)}$ using the following equation:

$$V_i\left(k+1\right)=\frac{{\displaystyle \sum _{j=1}^n{u}_{ij}^m\left(k\right)x_j}}{{\displaystyle \sum _{j=1}^n{u}_{ij}^m\left(k\right)}}$$

(8)

(4) If $‖V_i{}^{\left(k+1\right)}-V_i{}^{\left(k\right)}‖<\epsilon$ or k > K, iteration terminates immediately; otherwise, k = k + 1 and back to step (2).

FCM enhances the optimizing capability of HCM, but it decreases the convergence rate [42]. As such, a suppressed FCM (S-FCM) algorithm [42] has been proposed by introducing a competitive mechanism. S-FCM adds a modification process for membership degree U^(k) in step (2) of FCM. The details can be described, as follows:

Given a certain sample x_j, if the membership degree of x_j belongs to the rth class, which is the maximum in all classes, the degree value is labeled as $u_{rj}$,$u_{rj}=\underset{i=1}{\overset{c}{\max }}{u}_{ij}$, and the membership degrees of other classes for x_j are labeled as $u_{ij}$, where $1\le i\le c$ and $i\ne r$. Modify $u_{rj}$ and $u_{ij}$ by Equation (9).

$$\begin{array}{c}{u}_{rj}{}^{’}=\alpha u_{rj}+\left(1-\alpha \right)\\ u_{ij}{}^{’}=\alpha u_{ij}\left(i\ne r\right)\end{array}$$

(9)

where $\alpha$($0\le \alpha \le 1$) is called the suppressed factor and $1-\alpha$ is called the suppressed rate. 0.5 is the recommended $\alpha$ [42].

It should be noted that the membership degree values for all points are modified in each iteration [44]. S-FCM aims at improving the convergence rate of cluster centers. However, S-FCM only considers the absolute values of the maximum membership degrees, which leads to the premature convergence of cluster centers and unpromising clustering results. In addition, if the maximum of membership degrees for a certain sample x_j is close to 0.5, x_j may be located in the boundary of several clusters. In this situation, once all membership degrees are changed in this iteration, x_j is likely to be categorized into the wrong cluster. Therefore, we added the suppressed threshold $T_{\alpha }$($0.5\le T_{\alpha }\le 1$), and Equation (9) can be rewritten as:

$$\begin{array}{c}{u}_{rj}{}^{’}=\left\{\begin{array}{l}\alpha u_{rj}+\left(1-\alpha \right),u_{rj}>T_{\alpha }\hfill \\ u_{rj},u_{rj}\le T_{\alpha }\hfill \end{array}\right.\\ u_{ij}{}^{’}=\left\{\begin{array}{l}\alpha u_{ij},u_{rj}>T_{\alpha }\hfill \\ u_{ij},u_{rj}\le T_{\alpha }\hfill \end{array}\right.\end{array}$$

(10)

For a certain sample x_j, only when its maximum of membership degrees is bigger than $T_{\alpha }$, the semi-suppressed FCM algorithm should suppress its non-maximal membership degree. In such a way, the convergence rate is improved, and samples with large membership degree values still determine the cluster centers. Subsequently, the unclassified points (except ground points) can be categorized into three groups: suspected building points, suspected vegetation points and unclassified points. To efficiently separate building points from vegetation points, we proposed a post-processing method that is based on height constraints. Firstly, a big grid index is constructed to contain building points, low vegetation points, and ground points as much as possible, and its radius can be set to five meters. If the height difference between one certain suspected building (or vegetation) point and its nearest ground point in the same grid is lower than two meters (the threshold is set with reference to [9,32]), this suspected point is not considered as a building (or vegetation) point. Secondly, a small grid index is constructed and its radius is set as twice the average point space. If the eight neighborhood grids of the current grid are all empty, and the point number in the current grid is fewer than three, all of the points in the current grid are considered as unclassified points. After post-processing, most low vegetation that is close to the ground can be removed, further reducing the impact of vegetation on subsequent building detection.

3.2.3. Refined Building Detection Based on Restricted Region Growing

After coarse building detection, the non-ground points are clustered into two groups: (1) mainly includes points located on roofs; and, (2) mainly includes points located in the building boundary and vegetation. It is noteworthy that building boundary points can be completed by region growing to ensure the completeness of building detection. Thus, the proposed refined algorithm is designed for the first group L_roof, and its steps include:

(1) For each x_i in L_roof, if x_j $\left(i\ne j\right)$ in its neighborhood satisfies the region growing requirements, and then add x_j into L_roof and label x_j as building points.

(2) If no new point has been added into L_roof, iteration immediately terminates; otherwise, back to step (1).

Here, the region growing parameters should follow two requirements to achieve restricted requirements: (1) improve the growth of plane regions and (2) slow down the growth of surfaces with large curvature. Three parameters have been used in the refined algorithm for each point to be classified, including (1) distance variance between points and the plane that is estimated by points in the neighborhood (0.4 meters), (2) curvature variance of neighborhood points (0.05 meters), and (3) the absolute height difference between the current point and the lowest (or highest) point (0.2 meters). Figure 4 shows the local area difference of building and non-building point clusters after restricted region growing, where green points belong to buildings and red points belong to non-building objects.

Area threshold (20 square meters) is also commonly used in building detection to remove small point clusters that may belong to vegetation or cars [5,7,30]. We adopt a two-stage strategy to remove too small non-building point clusters:

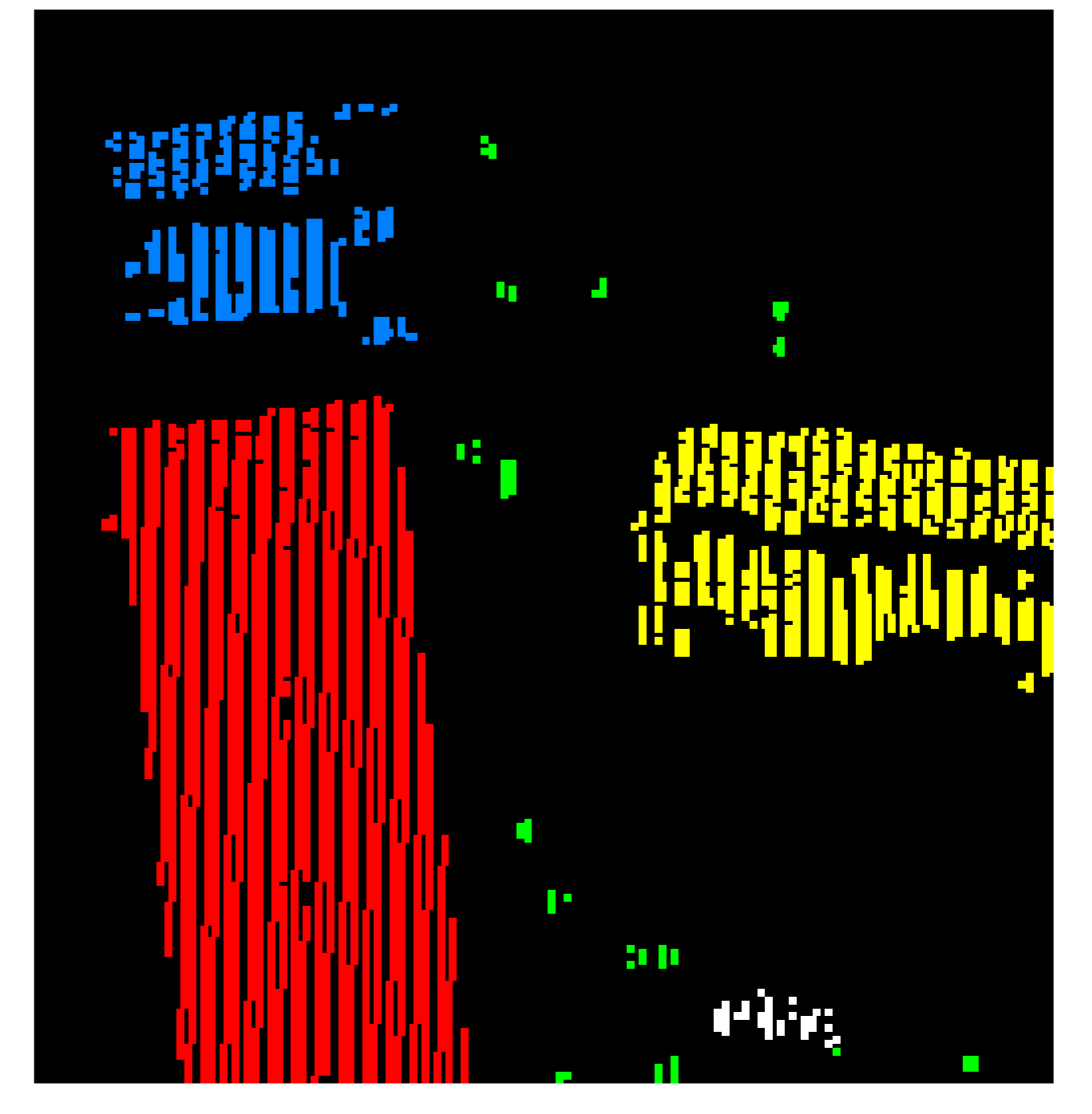

(1) Set the buffer distance and merge nearby point clusters. Here, buffer distance should be set as neither too small nor too large. If too small, several adjacent point clusters that belong to the same object cannot be merged, which may lead to decreased completeness of building detection. If too large, the non-building point clusters are likely impossible to remove. Thus, buffer distance is set as twice the average point spacing according to point density. When the buffer zones of two point clusters overlap, it should be considered that these two clusters are adjacent and can be merged together into one cluster. As shown in Figure 5, different point clusters have been presented in different colors, where blue, red, and yellow clusters are large point clusters, and green and white clusters are scattered non-building point clusters.

(2) Remove the non-building point clusters using an area threshold. After merging, the area of the building point clusters is large, in general, but the scattered non-building point clusters remain almost the same as before merging.

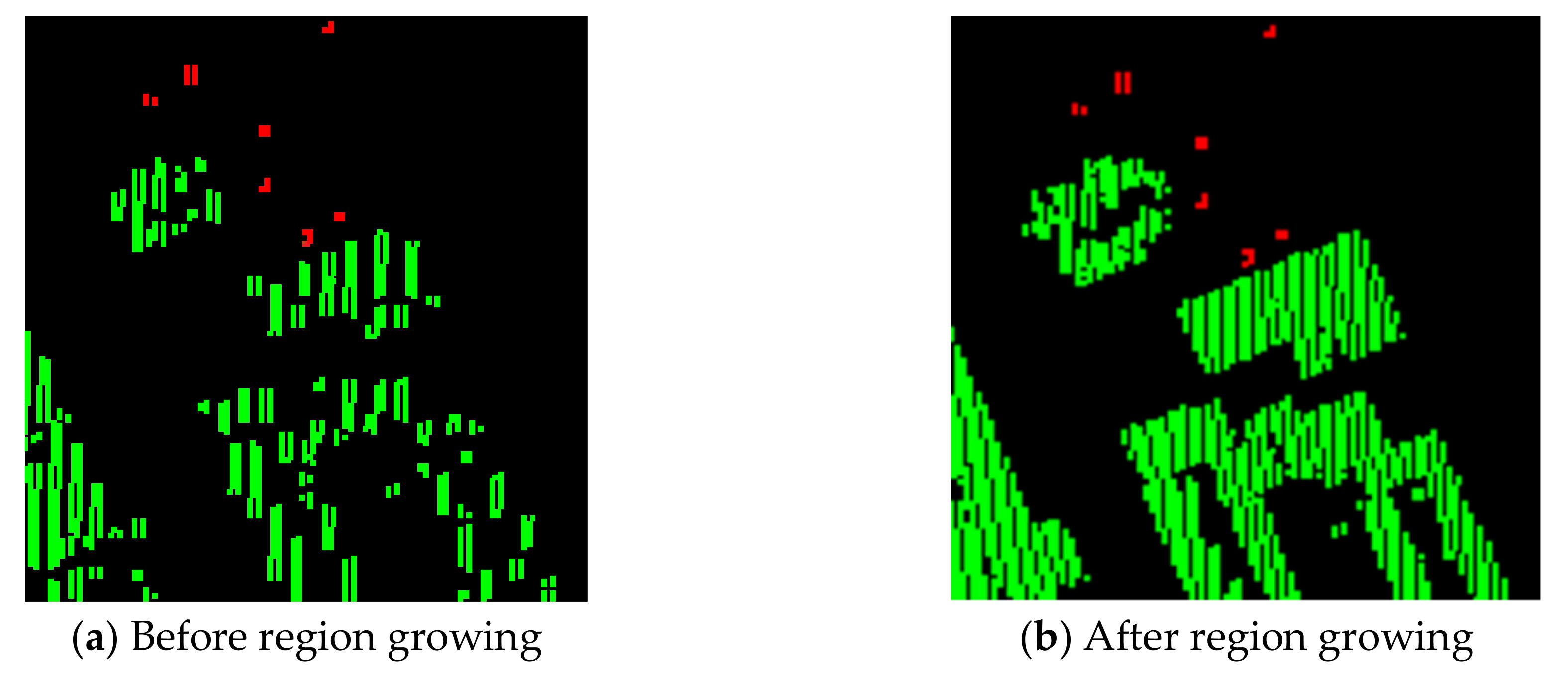

Due to the restricted region growing parameters that were adopted before, building points cannot be completely extracted. The missing building points are mainly located in two places: around roof feature lines and roof attachments. For the former situation, a minimum bounding rectangle is used to depict each point cluster, and these unclassified points that are located in the corresponding rectangle and close to the adjacent building are also considered as building points. However, unfortunately, if the points located in roof attachments are not detected during coarse building detection, and their heights are much higher or lower than the adjacent buildings, those points are unable to be extracted in region growing and remain missing, as shown in Figure 6, where the red points belong to buildings and white points belong to the unclassified group.

4. Results

4.1. Data and Environment Desciption

Two test datasets were used to verify the efficiency of our proposed method, including:

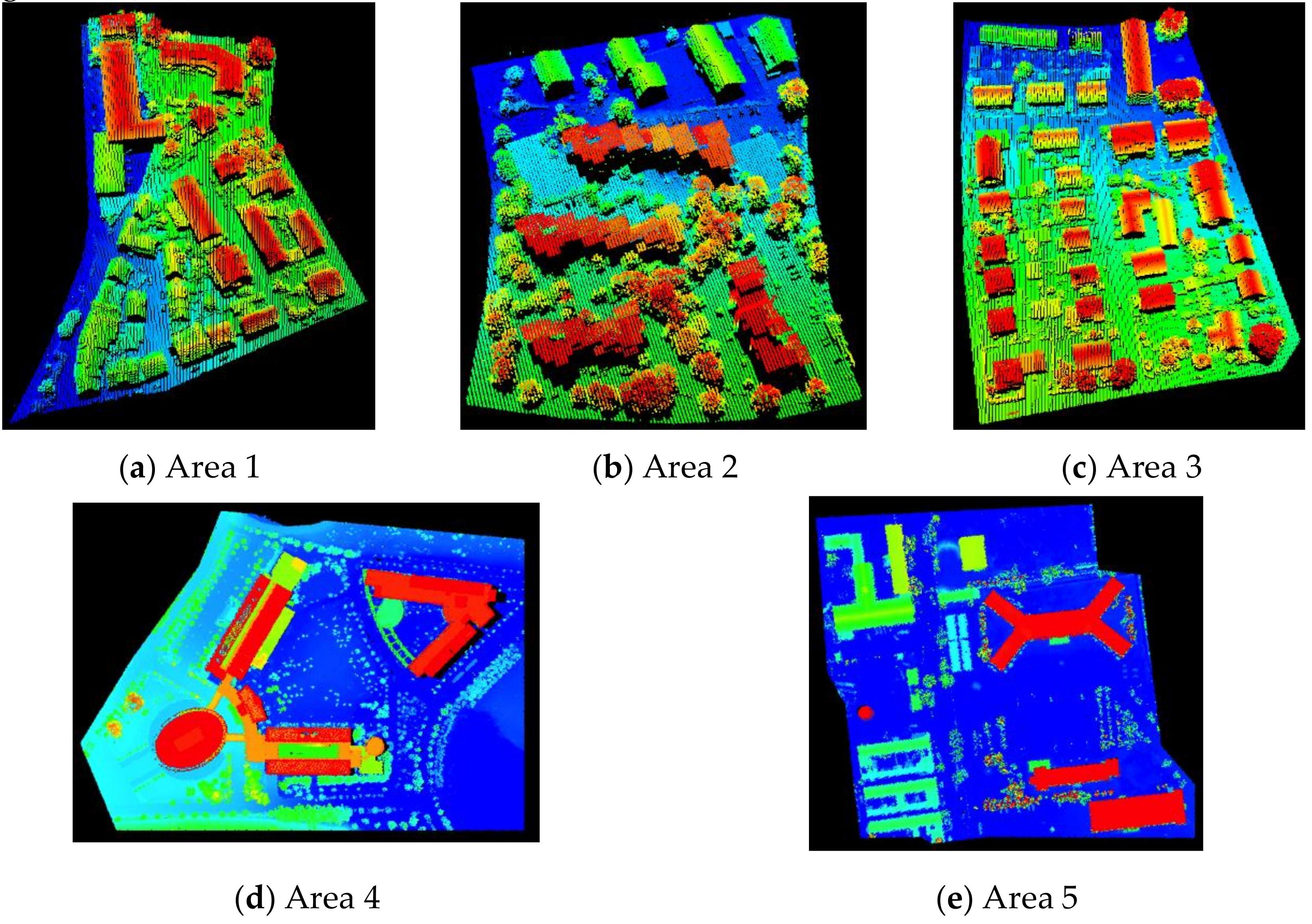

(1) Airborne LiDAR data provided by the ISPRS [45], composed of three reference data sets, as shown in Figure 7a–c, which are located in Vaihingen and obtained by Leica ALS50. The average point density is approximately 4–7 points/m².

(2) Two Chinese datasets. The average point density is approximately 5 points/m², as shown in Figure 7d,e.

Area 1: includes 37 buildings, mainly composed of dense and complex buildings and vegetation.

Area 2: includes 14 buildings, mainly composed of a few tall residence buildings that are surrounded by vegetation.

Area 3: includes 56 buildings, mainly composed of several connected buildings and vegetation.

Area 4: includes two complex buildings with elliptical roof structures and long-corridor attachments.

Area 5: includes 20 buildings, mainly composed of buildings and sparse vegetation.

All of the experiments were implemented in Matlab 2014b and the results were displayed in LiDAR_suite (software developed by the authors).

4.2. Accuracy Evaluation and Disscussion

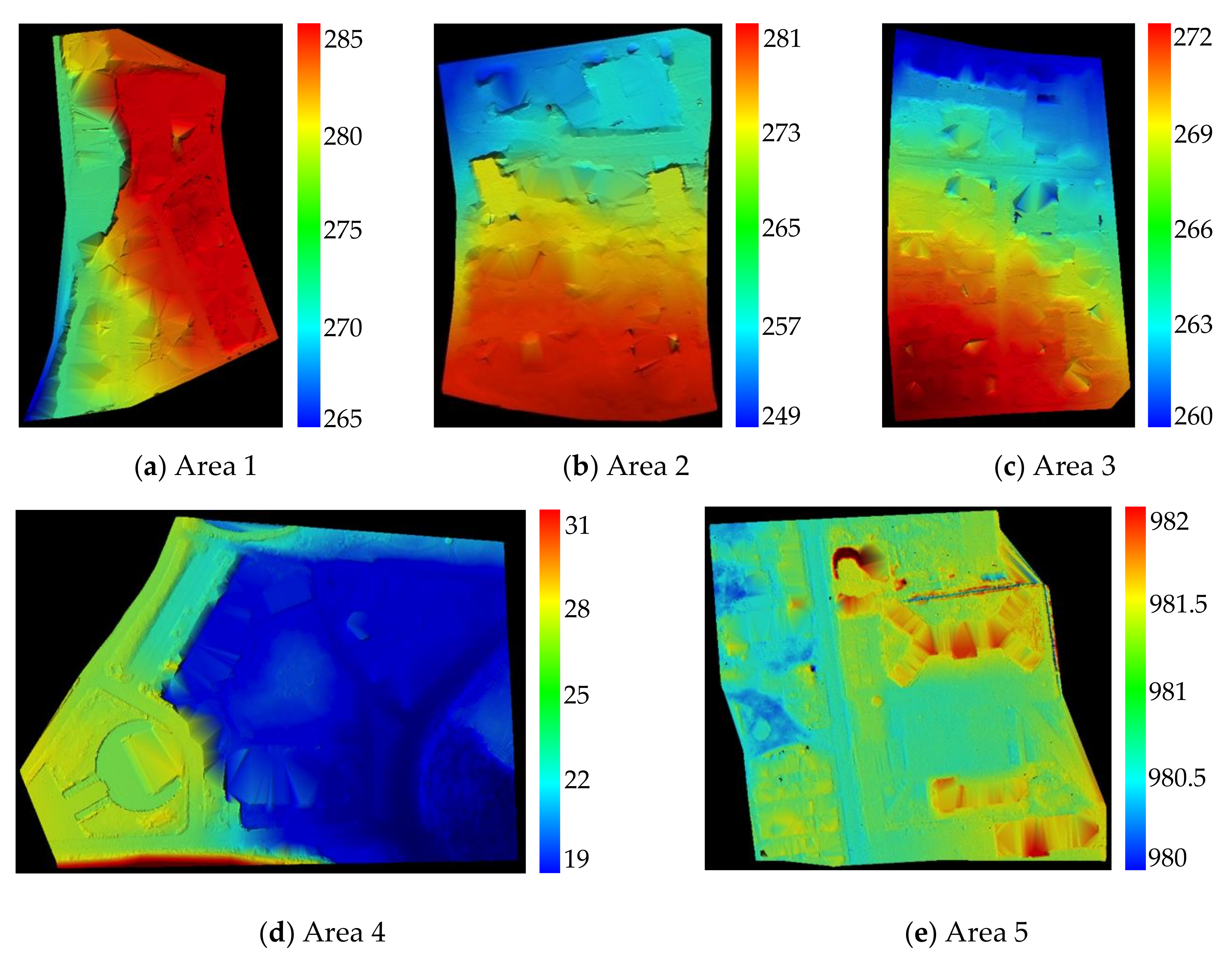

Figure 8 shows the filtering results of five test datasets using hill shading. According to the visual results, the ground points have been extracted as much as possible, including low noise points. In addition, the terrain relief has also been completely preserved.

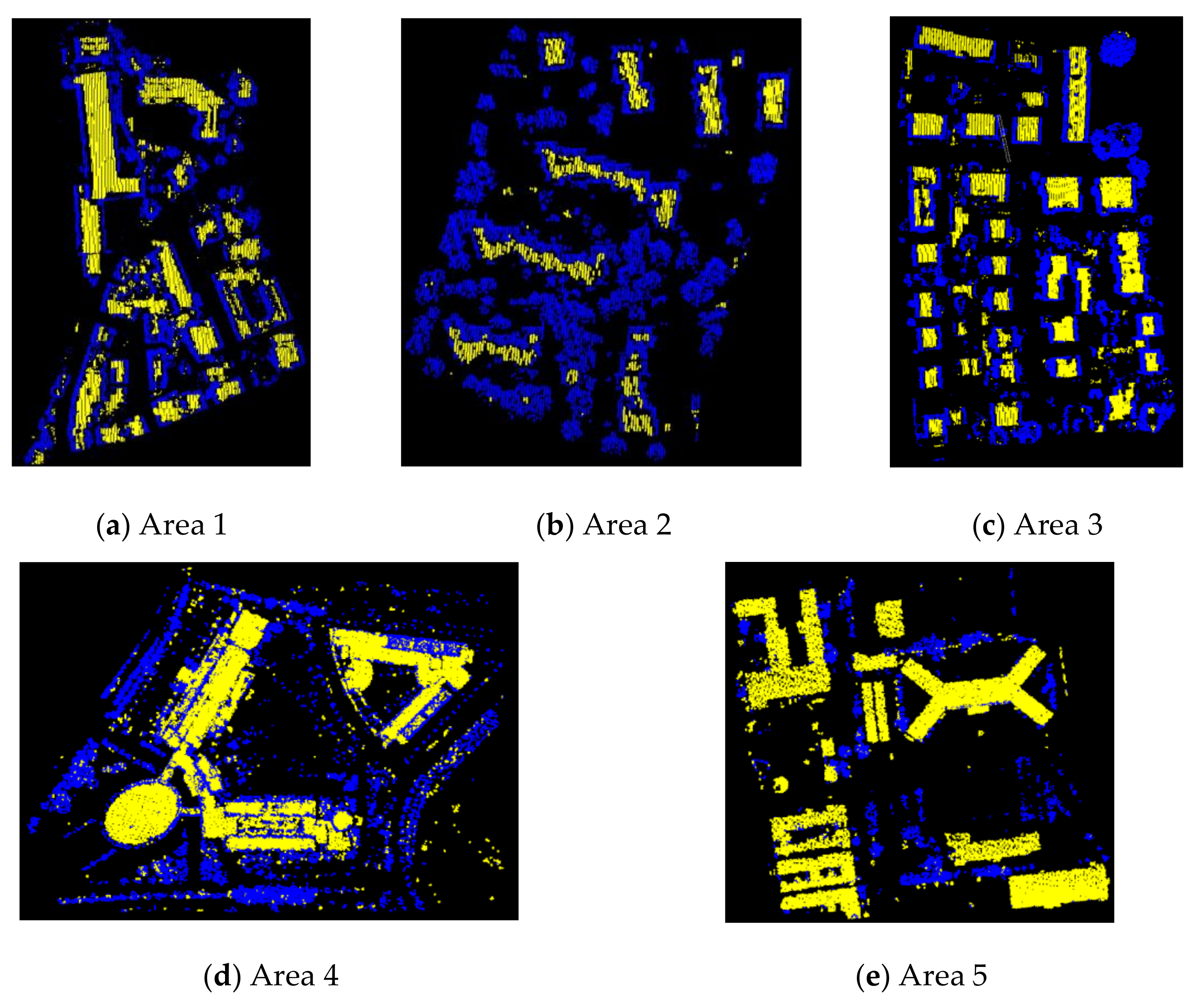

After filtering, the remaining points mainly include buildings, vegetation, and several tiny object points, such as cars and pedestrians. Firstly, coarse building detection was implemented for those remaining points. It should be noted that the membership degree threshold was set as 0.7, which is helpful for not only extraction of building seed points, but also for the merging of adjacent point clusters. In other words, when the maximum membership degree of one certain point is larger than the threshold, it will be labelled as building (or vegetation); otherwise, it remains unclassified. Figure 9 shows the results of coarse building detection for five test datasets, where the yellow points are mainly roof points, whilst the blue points are building boundary points and vegetation points. Note that the subsequent refined building detection algorithm was only implemented for yellow points.

Figure 10 illustrates the results of restricted region growing for five test datasets. To depict the comparison of building and non-building point clusters before and after the restricted region clearly grows, two colors are shown in the figure according to their true labels, where yellow means buildings and blue means non-buildings. As seen from the figure, the proposed restricted region growing strategy simultaneously ensures the rapid growth of building point clusters and slow growth of non-building point clusters. In addition, due to a few buildings and a big area difference between buildings and non-buildings, building points have been almost correctly detected in Area 2.

Besides, if the roof structure is relatively simple and consists of planes with low slope, the building points can be almost detected after the restricted region growing. However, if the roof structure is complex, for example, a dormer window on the roof, the points located in these attachments may be omitted.

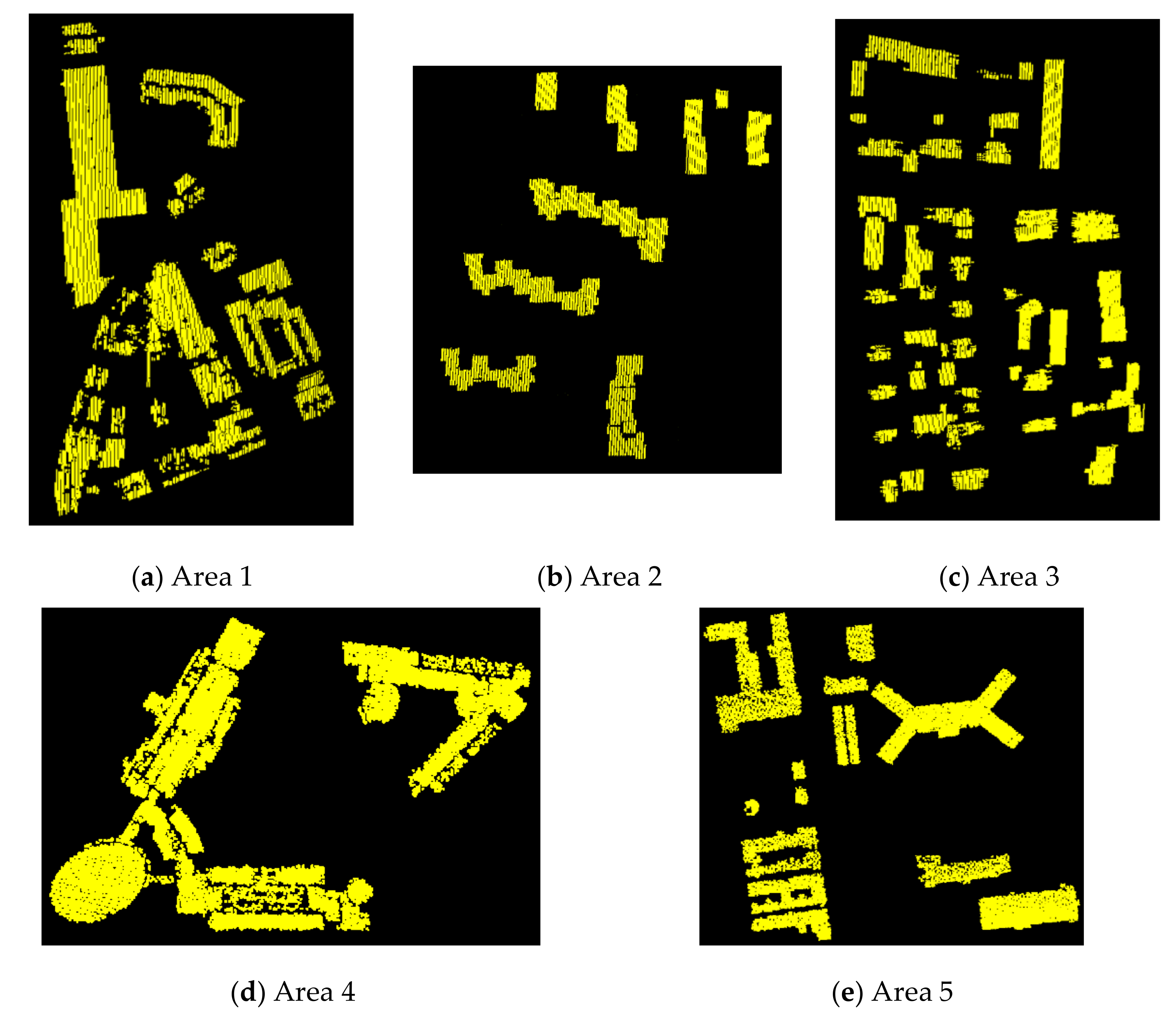

A two-stage strategy was subsequently adopted, as shown in Figure 11. The buffer distance was set as twice the average point spacing. If the two-dimensional Euclidean distance between two points is shorter than the threshold, the two points were considered as belonging to the same cluster. Meanwhile, small grids were constructed to calculate the area of each point cluster. The remaining points after the two-stage strategy were considered as the building seed points.

Non-building point clusters can be removed after the two-stage strategy. However, some tiny buildings, such as the white circle in Figure 10b, were wrongly removed. Unfortunately, these points were unable to be added during the subsequent process. Finally, MBR was used to refine the results of building detection. Figure 12 shows the final results of the proposed building detection for five test datasets, where red rectangles in (a) to (c) are reference building vectors that are provided by ISPRS.

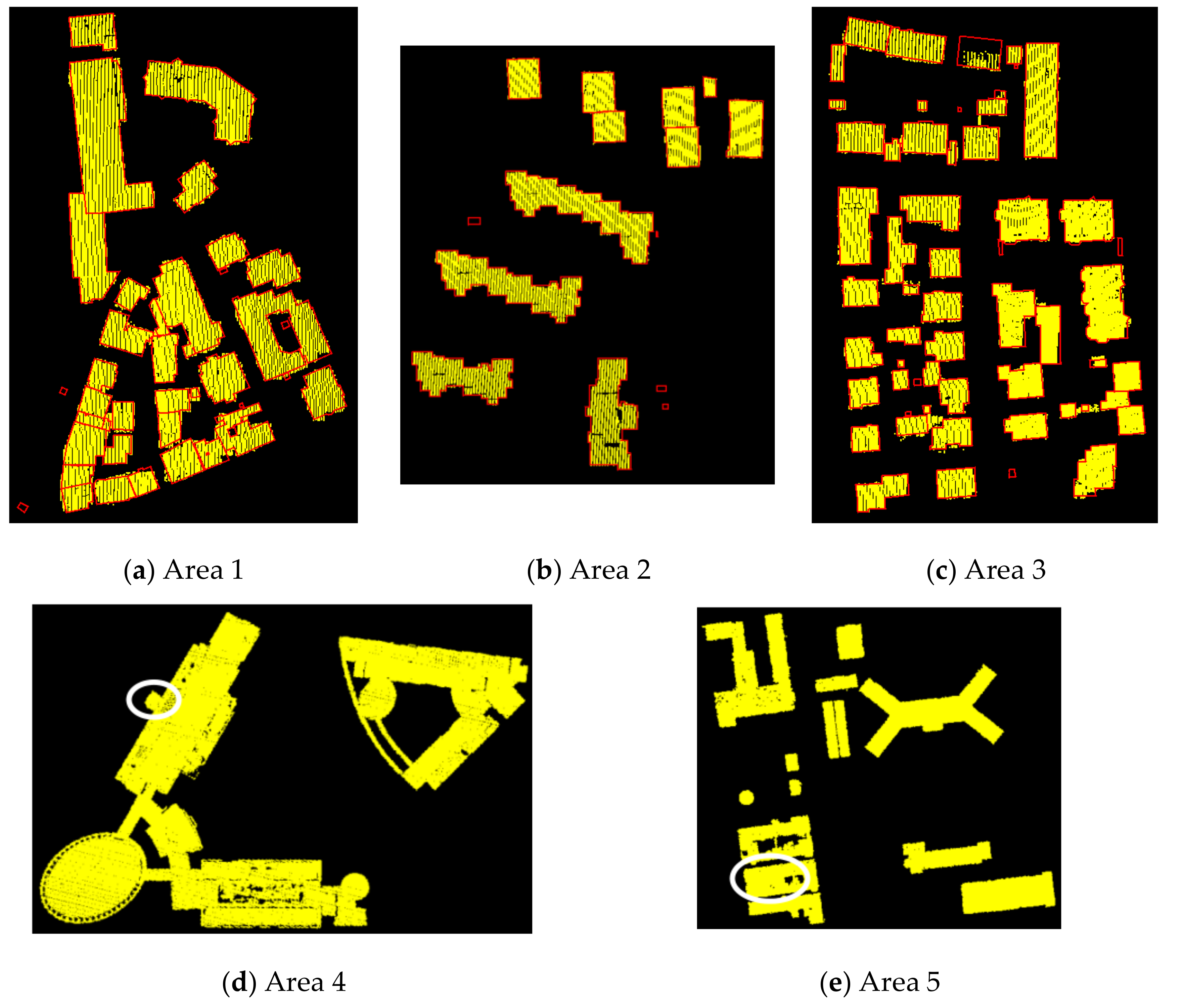

As seen from Figure 12, most buildings can be correctly detected by our proposed method. It should be noted that our method succeeded in the extraction of an elliptical roof and several attachment structures, like long-corridors and railings, as shown in (d) Area 4 and (e) Area 5. However, white circles in (d) and (e) present several wrongfully classified points. The reasons may include: (1) points within the white circle in (d) are located in a large square, which have not been efficiently eliminated during the proposed process; (2) points within the white circle in (e) are located on dense vegetation with a similar height as the adjacent buildings.

For quantitative evaluation, three indicators: completeness (Comp), correctness (Corr), and quality (Q), are adopted to evaluate the precision of the building detection results. The equations are described, as follows:

$$\begin{array}{c}Comp=\frac{‖TP‖}{‖TP‖+‖FN‖}\\ Corr=\frac{‖TP‖}{‖TP‖+‖FP‖}\\ Q=\frac{‖TP‖}{‖TP‖+‖FN‖+‖FP‖}\end{array}$$

(11)

where $‖TP‖$ is the number of correctly classified building points, $‖FN‖$ is the number of omitted building points, and $‖FP‖$ is the number of wrongly classified building points.

Table 2. The precision of our building detection method (%).

Data	Precision	RANSAC	Awrangjeb	Du	Huang	Ours
Area 1	Comp	870.0	83.8	93.6	91.8	95.6
	Corr	95.2	96.9	94.5	98.6	94.2
	Q	83.3	81.6	88.8	90.6	90.2
Area 2	Comp	91.0	85.7	94.6	87.3	89.5
	Corr	99.2	84.6	95.4	99.0	97.3
	Q	90.4	74.2	90.5	86.5	87.3
Area 3	Comp	94.7	78.6	93.9	90.2	95.1
	Corr	98.4	97.8	94.7	98.1	95.8
	Q	93.3	77.2	89.2	88.7	91.3
Average	Comp	90.9	82.7	94.0	89.8	93.4
	Corr	97.6	93.1	94.9	98.6	95.8
	Q	89.0	77.7	89.5	88.6	89.6
Area 4	Comp	/	/	/	/	93.2
	Corr	/	/	/	/	91.0
	Q	/	/	/	/	85.2
Area 5	Comp	/	/	/	/	96.9
	Corr	/	/	/	/	91.2
	Q	/	/	/	/	88.6

lists the precision of our building detection method. For the ISPRS datasets, we compare our method with RANSAC [22], reference [46], reference [6], and reference [7].

Table 2 shows that our method had similar average values to other algorithms, except [46], as well as a better quality. For Area 1, Area 3, and average values, our method achieved the best completeness and the second-best quality. It should be noted that our method performed worse in the completeness and quality of Area 2, due to the missing building in Figure 10b. However, based on the complete extraction of other building points, the correctness of Area 2 remained satisfactory. For the two Chinese datasets, our method was able to achieve both reliable and promising accuracy with correctness and completeness for both better than 91%. Additionally, the quality of Area 4 was relatively low, due to the many building attachments.

5. Conclusions

Building detection has been a hot topic in the airborne LiDAR field for at least two decades. Due to varied types of buildings in the real world, although there are a lot of building-related methods, fully automatic and high-accuracy building-related algorithms are still urgently required. It should be noted that, from the view of a point cloud’s configuration, the building points are distinguishable from vegetation and ground points. In this research, we proposed a coarse-to-fine building detection method that is based on semi-suppressed fuzzy C-means and region growing. As the whole workflow was implemented on the basis of filtering, we also improved the classical PTD algorithm to extract the ground points as much as possible, also including low noise points. Based on filtering, the proposed semi-suppressed FCM was adopted to coarsely detect building points. Eleven features were generated from raw airborne LiDAR data to distinguish the building and non-building points in coarse building detection. The proposed region growing method perfectly ensures the rapid growth of building regions and slow growth of non-building regions, which enlarges the area differences between building and non-building regions. Refined building detection was performed based on restricted region growing. Furthermore, no sample points are herein required, which avoids probable different classification precisions that are caused by sample selection. The experimental results verified that our method could efficiently separate buildings from non-buildings in various scenes. In addition, our method also succeeded in the extraction of an elliptical roof and several attachment structures, such as long-corridors and railings, which would be beneficial to the subsequent three-dimensional building’s modeling. In terms of precision, our method achieved promising results for the ISPRS datasets and the two Chinese datasets, with completeness better than 89.5%, correctness better than 91.0%, and quality better than 85.2%.

However, in the current research, we mainly focused on urban datasets for the filtering and building detection process. Hence, how to detect buildings in mountainous regions with steep slopes efficiently is our future work. In addition, there are several parameters that are adopted in our method, which limited the full automation of building detection. We will also attempt to construct a self-adaptive building detection algorithm in the next step.
